Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Console Management Controller

User Guide

Second Edition (July 2001)

Part Number 218258-002

Compaq Computer Corporation

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Notice

© 2001 Compaq Computer Corporation

Compaq, Compaq Insight Manager and the Compaq logo Registered in U.S. Patent and Trademark

Office.

Microsoft and Windows are trademarks of Microsoft Corporation in the United States and other

countries.

Intel is a trademark of Intel Corporation in the United States and other countries.

Compaq shall not be liable for technical or editorial errors or omissions contained herein. The

information in this document is provided “as is” without warranty of any kind and is subject to change

without notice. The warranties for Compaq products are set forth in the express limited warranty

statements accompanying such products. Nothing herein should be construed as constituting an

additional warranty.

Compaq service tool software, including associated documentation, is the property of and contains

confidential technology of Compaq Computer Corporation. Service customer is hereby licensed to use

the software only for activities directly relating to the delivery of, and only during the term of, the

applicable services delivered by Compaq or its authorized service provider. Customer may not modify

or reverse engineer, remove, or transfer the software or make the software or any resultant diagnosis or

system management data available to other parties without Compaq’s or its service provider’s consent.

Upon termination of the services, customer will, at Compaq’s or its service provider’s option, destroy

or return the software and associated documentation in its possession.

Compaq Console Management Controller User Guide

Second Edition (July 2001)

Part Number 218258-002

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Contents

About This Guide

Text Conventions.......................................................................................................vii

Symbols in Text....................................................................................................... viii

Symbols on Equipment............................................................................................ viii

Rack Stability .............................................................................................................ix

Getting Help ................................................................................................................x

Compaq Technical Support ..................................................................................x

Compaq Website...................................................................................................x

Compaq Authorized Reseller................................................................................x

Chapter 1

Overview

Compaq Console Management Controller............................................................... 1-2

General Description................................................................................................. 1-2

Standard CMC Features........................................................................................... 1-3

Communications Ports...................................................................................... 1-4

Compaq Intelligent Rack Manager Lite............................................................ 1-4

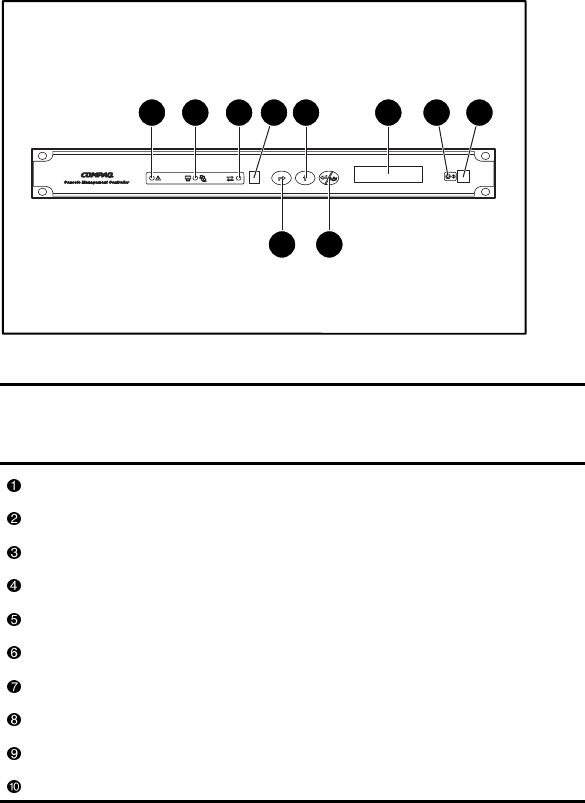

Front Panel............................................................................................................... 1-5

Front Panel Controls......................................................................................... 1-6

Front Panel LEDs ............................................................................................. 1-6

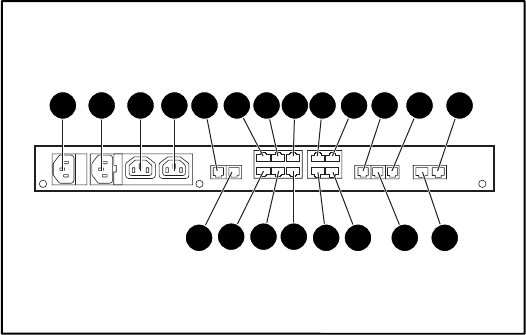

Rear Panel................................................................................................................ 1-7

Chapter 2

Installation

Installation Requirements ........................................................................................ 2-2

Items supplied with the basic CMC Kit............................................................ 2-2

Items not supplied with the CMC Kit............................................................... 2-6

iv Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Installation Procedures............................................................................................. 2-7

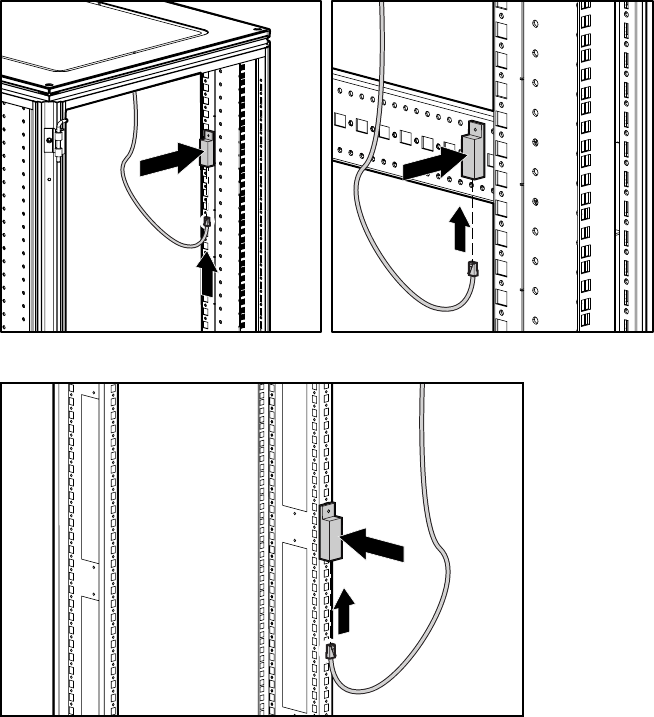

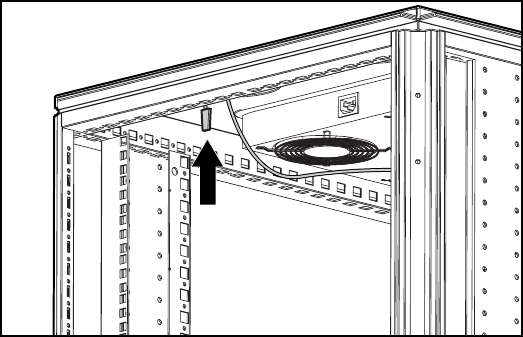

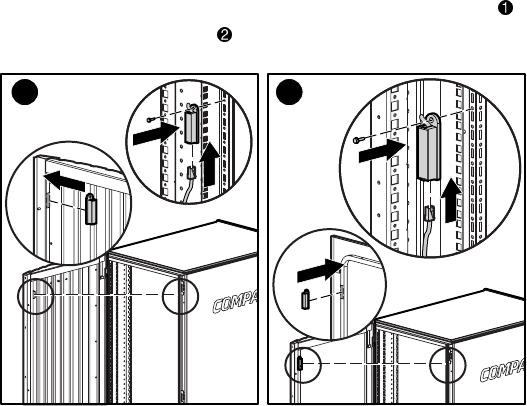

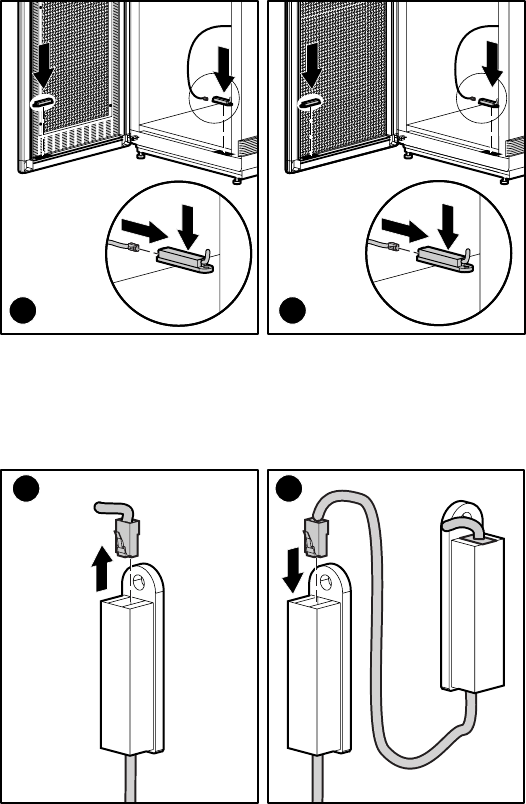

Installing the Standard Sensors......................................................................... 2-8

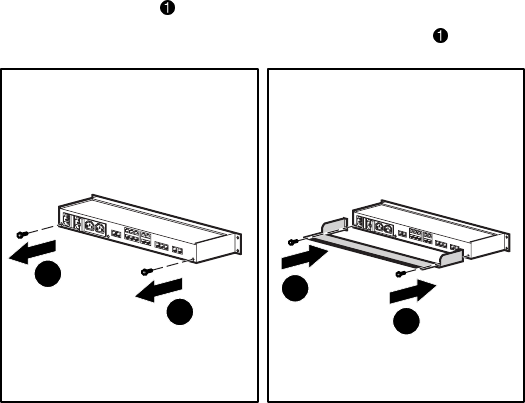

Connecting the Cord Retention Bracket ......................................................... 2-17

Connecting the Sensors to the CMC............................................................... 2-18

Connecting the Fan Assemblies...................................................................... 2-19

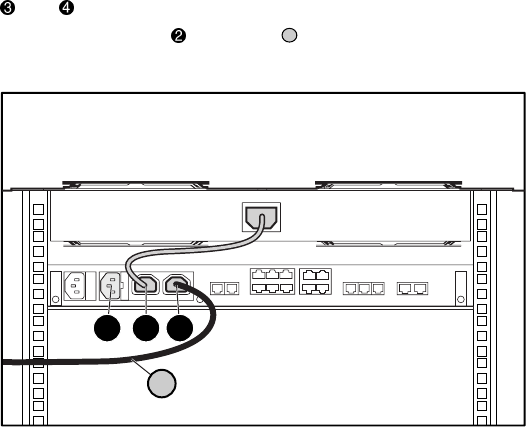

Connecting the Input Power Cord to the CMC............................................... 2-20

Connecting the CMC to Utility Power............................................................ 2-21

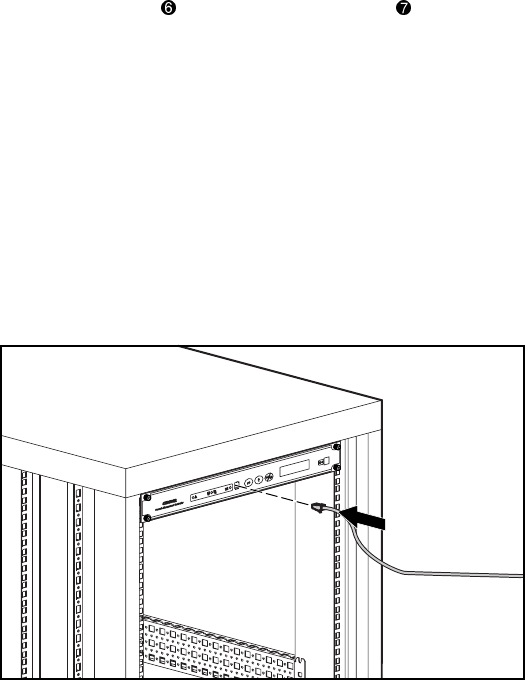

Connecting the Network Cable....................................................................... 2-22

Securing Cables to the CMC........................................................................... 2-22

Mounting the CMC in the Rack...................................................................... 2-23

Powering on the CMC .................................................................................... 2-23

Configuring the CMC ..................................................................................... 2-24

Using the Front Serial Port ............................................................................. 2-25

Installation Completion.......................................................................................... 2-25

Chapter 3

Operation

LCD Menu ............................................................................................................... 3-2

Status Menu ...................................................................................................... 3-3

System Information Menu ................................................................................ 3-4

Setup Menu....................................................................................................... 3-5

Alert Handling ......................................................................................................... 3-6

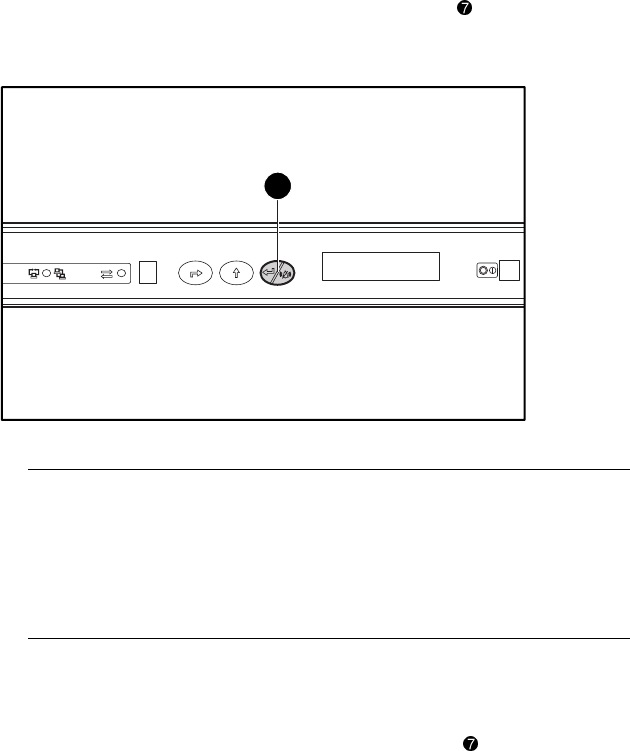

Silencing an Audible Alarm.............................................................................. 3-7

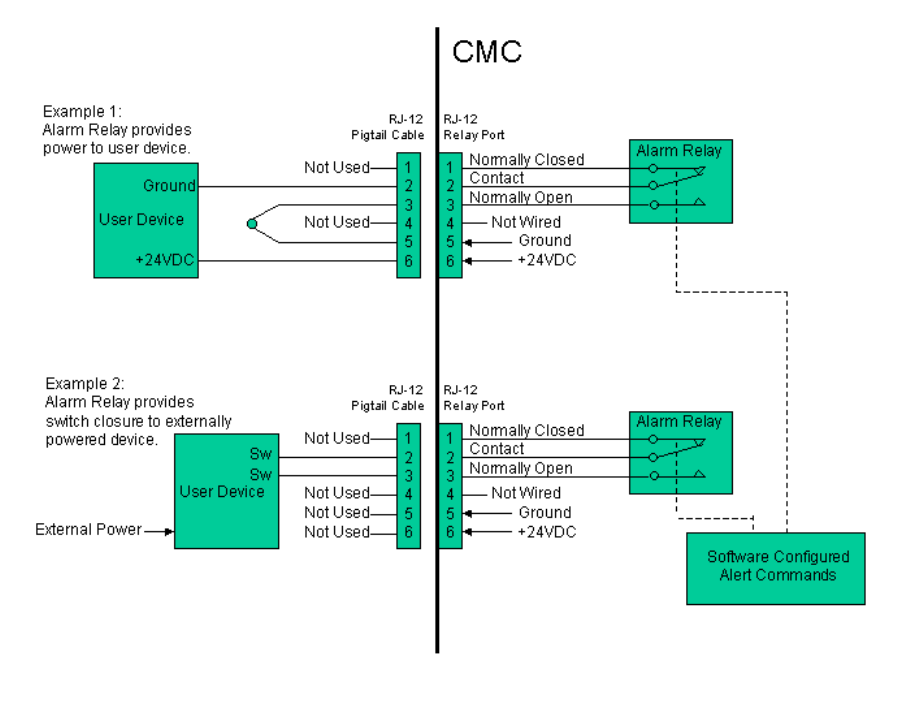

Deactivating an Alarm Relay............................................................................ 3-7

Chapter 4

Software

Compaq Intelligent Rack Manager Lite Software.................................................... 4-1

System Requirements............................................................................................... 4-2

Preinstallation Tasks ................................................................................................ 4-2

Software Installation ................................................................................................ 4-3

Uninstalling the Software ................................................................................. 4-4

Accessing the Software..................................................................................... 4-4

Logging In to the Software ............................................................................... 4-5

Screen Layout .......................................................................................................... 4-5

Software Settings ..................................................................................................... 4-6

Add/Remove Device Screen ............................................................................. 4-7

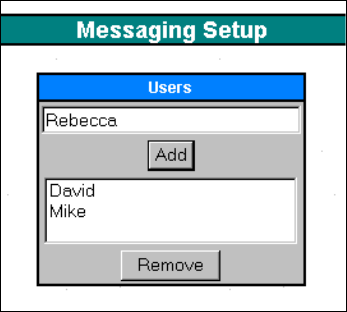

Messaging Setup Screen ................................................................................... 4-8

Email Setup Screen........................................................................................... 4-9

Pager Setup Screen ......................................................................................... 4-10

About This Guide v

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

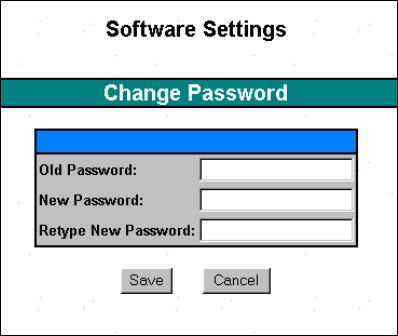

Change Password Screen................................................................................ 4-11

Device Configuration............................................................................................. 4-12

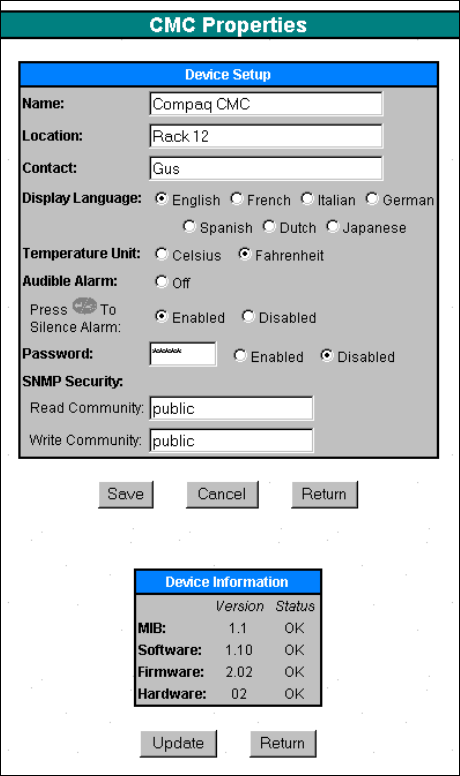

CMC Properties Screen .................................................................................. 4-13

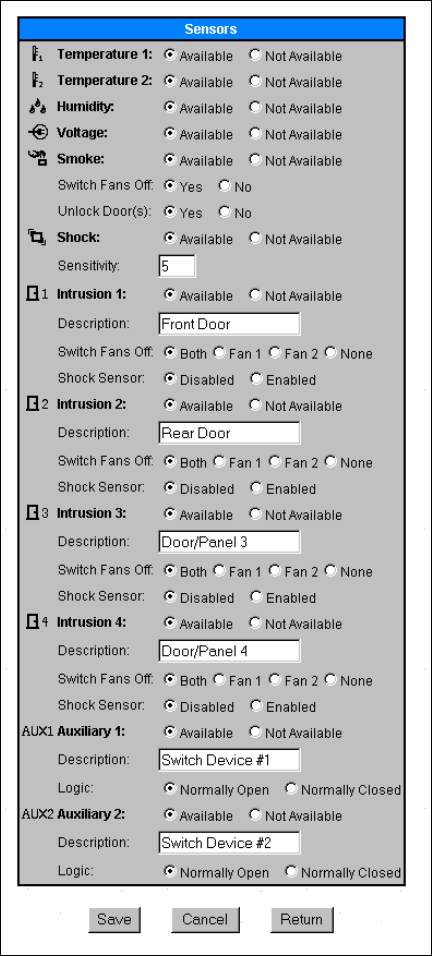

Sensor Setup Screen ....................................................................................... 4-15

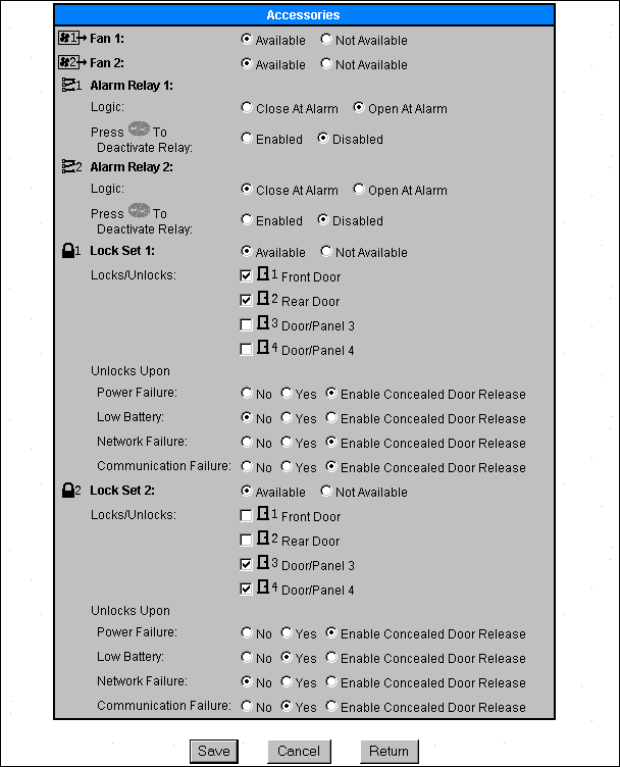

Accessory Setup Screen.................................................................................. 4-16

Threshold Configuration Screen..................................................................... 4-18

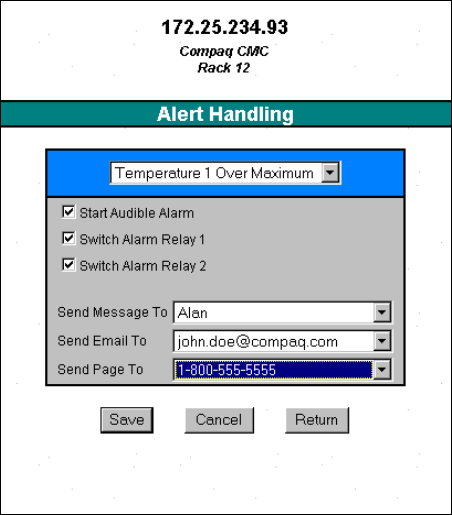

Alert Handling Screen .................................................................................... 4-19

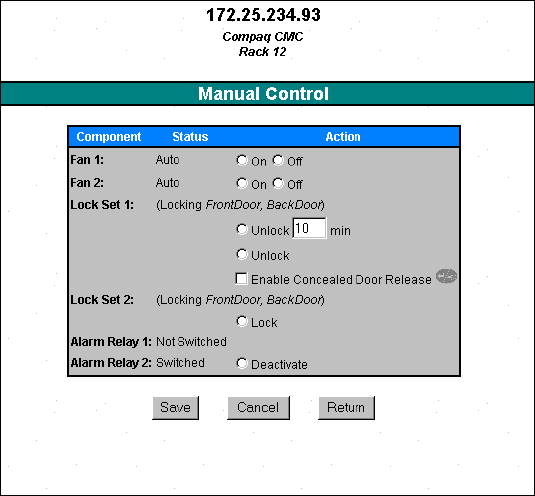

Manual Control Screen................................................................................... 4-20

Log Screen...................................................................................................... 4-22

Device Monitoring................................................................................................. 4-22

Active Alarms Screen..................................................................................... 4-23

Device Home Screen ...................................................................................... 4-24

Terminal Program Operation ................................................................................. 4-26

Starting HyperTerminal.................................................................................. 4-26

Navigating Menus........................................................................................... 4-27

Chapter 5

Troubleshooting

Troubleshooting During Startup .............................................................................. 5-2

Troubleshooting After Startup ................................................................................. 5-3

Repairing the CMC.................................................................................................. 5-3

Appendix A

Regulatory Compliance Notices

Regulatory Compliance Identification Numbers .....................................................A-1

Federal Communications Commission Notice ........................................................A-2

Class A Equipment ...........................................................................................A-2

Class B Equipment ...........................................................................................A-3

Modifications....................................................................................................A-4

Canadian Notice (Avis Canadien) ...........................................................................A-4

Class A Equipment ...........................................................................................A-4

Class B Equipment ...........................................................................................A-4

European Union Notice ...........................................................................................A-5

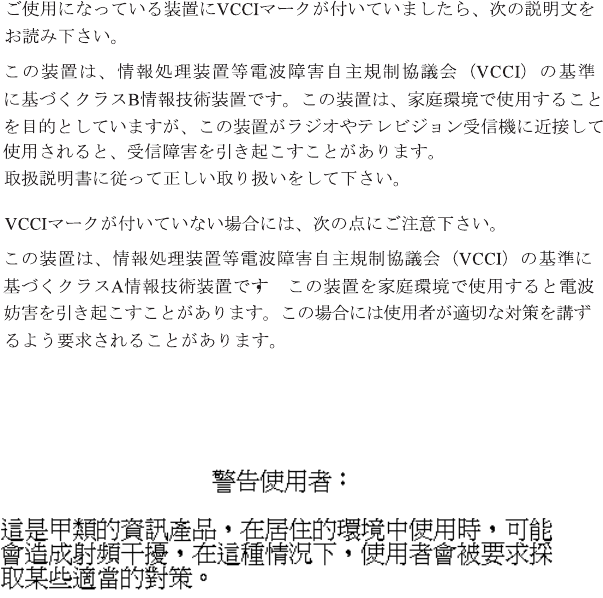

Japanese Notice .......................................................................................................A-5

China Taiwan Notice................................................................................................A-5

vi Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Appendix B

Electrostatic Discharge

Grounding Methods .................................................................................................B-2

Appendix C

Specifications

Specifications...........................................................................................................C-2

Appendix D

Pin Layout Configuration

Compaq CMC ......................................................................................................... D-1

Index

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

About This Guide

This guide is designed to be used as step-by-step instructions for installation

and as a reference for operation, troubleshooting, and future upgrades.

Text Conventions

This document uses the following conventions to distinguish elements of text:

Keys Keys appear in boldface. A plus sign (+) between

two keys indicates that they should be pressed

simultaneously.

USER INPUT User input appears in a different typeface and in

uppercase.

FILENAMES Filenames appear in uppercase italics.

Menu Options,

Command Names,

Dialog Box Names

These elements appear in initial capital letters.

COMMANDS,

DIRECTORY NAMES,

and DRIVE NAMES

These elements appear in uppercase.

Type When you are instructed to type information, type

the information without pressing the Enter key.

Enter When you are instructed to enter information, type

the information and then press the Enter key.

viii Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Symbols in Text

These symbols may be found in the text of this guide. They have the following

meanings.

WARNING: Text set off in this manner indicates that failure to follow directions

in the warning could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions

could result in damage to equipment or loss of information.

IMPORTANT: Text set off in this manner presents clarifying information or specific

instructions.

NOTE: Text set off in this manner presents commentary, sidelights, or interesting points

of information.

Symbols on Equipment

These icons may be located on equipment in areas where hazardous conditions

may exist.

This symbol in conjunction with any of the following symbols indicates the

presence of a potential hazard. The potential for injury exists if warnings

are not observed. Review the documentation for specific details.

This symbol indicates the presence of hazardous energy circuits or electric

shock hazards. Refer all servicing to qualified personnel.

WARNING: To reduce the risk of injury from electric shock hazards, do not

open this enclosure. Refer all maintenance, upgrades, and servicing to

qualified personnel.

This symbol indicates the presence of electric shock hazards. The area

contains no user or field serviceable parts. Do not open for any reason.

WARNING: To reduce the risk of injury from electric shock hazards, do

not open this enclosure.

About This Guide ix

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

This symbol on an RJ-45 receptacle indicates a Network Interface

Connection.

WARNING: To reduce the risk of electric shock, fire, or damage to the

equipment, do not plug telephone or telecommunications connectors into

this receptacle.

This symbol indicates the presence of a hot surface or hot component. If

this surface is contacted, the potential for injury exists.

WARNING: To reduce the risk of injury from a hot component, allow the

surface to cool before touching.

Important Safety Information

Before installing this product, read the Important Safety Information guide

provided in the Console Management Controller (CMC) Kit.

Rack Stability

WARNING: Make sure that the rack containing the CMC is stable. The following

conditions must be met:

■ The leveling feet are extended to the floor.

■ The full weight of the rack rests on the leveling feet.

■ The stabilizing feet are attached to the rack if it is a single-rack

installation.

■ The racks are coupled together in multiple-rack installations.

■ A rack may become unstable if more than one component is extended for

any reason. Extend only one component at a time.

x Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: a-frnt.doc Last Saved On: 6/20/01 3:04 AM

Getting Help

If you have a problem and have exhausted the information in this guide, you

can get further information and other help in the following locations.

Compaq Technical Support

In North America, call the Compaq Technical Phone Support Center at

1-800-652-6672 (1-800-OK-COMPAQ)1. This service is available 24 hours a

day, 7 days a week.

Outside North America, call the nearest Compaq Technical Support Phone

Center. Telephone numbers for world wide Technical Support Centers are

listed on the Compaq website. Access the Compaq website at

http://www.compaq.com.

Be sure to have the following information available before calling Compaq:

■ Technical support registration number (if applicable)

■ Product serial number(s)

■ Product model name(s) and number(s)

■ Applicable error messages

■ Add-on boards or hardware

■ Third-party hardware or software

■ Operating system type and revision level

■ Detailed, specific questions

Compaq Website

For more information on Compaq products, access the Compaq website at

www.compaq.com.

Compaq Authorized Reseller

For the name of the nearest Compaq authorized reseller:

■ In the United States, call 1-800-345-1518.

■ In Canada, call 1-800-263-5868.

■ Elsewhere, access the Compaq website at www.compaq.com.

1 For continuous quality improvement, calls may be recorded or monitored.

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Chapter 1

Overview

This chapter contains information on the following topics:

■ Compaq Console Management Controller

■ General description

■ Standard CMC features

■ Front panel

■ Rear panel

1-2 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Compaq Console Management Controller

The Console Management Controller (CMC) offers one model, part number

203039-B21. This unit is rack-mountable and is Worldwide voltage adaptable.

General Description

The CMC is a rack-mounted device intended to monitor and control the

environment within a single-rack or multiple-rack suites. The system consists

of a CMC, several sensors, and the Compaq Intelligent Rack Manager Lite

software. With the software, you can easily configure the CMC, remotely

receive system status and alerts, and initiate planned actions. Optional sensor

kits are available to expand the capabilities of the CMC and include additional

temperature, humidity, vibration and intrusion sensors, as well as smoke

detection and electronic door locks.

A number of sensors can be connected to the CMC to monitor temperature,

humidity, smoke, mechanical shock/vibration, and security. With the proper

setup, the system can:

■ Monitor voltage within the rack.

■ Monitor temperature within the rack

■ Monitor humidity levels in the rack.

■ Detect whether rack doors are open or closed.

■ Detect someone tampering with the rack.

■ Detect smoke within the rack.

■ Remotely lock and unlock the rack doors.

The system can be programmed with thresholds for the sensors to trigger

alarms, and programmed to take action on those alarms. For example, from the

Console, the CMC can be programmed to turn the rack fans on when the rack

temperature is too warm or turn the rack fan assemblies off if smoke is

detected. Should an unauthorized person attempt to enter the rack, the system

may sound an audible alarm, send an alert message to the Console, send an

e-mail, send a page, or activate an alarm relay switch connected to some

device set up by the user, such as a siren, or rotating light.

Overview 1-3

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Standard CMC Features

■ 1U design

■ Ethernet communications port for data exchange with a host computer

■ Four analog inputs:

G Two temperature inputs

G One humidity input

G One voltage monitor for AC mains

■ Two programmable fan output power controls

■ Eight discrete inputs

G Four intrusion inputs

G One smoke input

G One mechanical shock/vibration input

G Two Auxiliary (AUX) inputs

■ Two electronic door lock controls

■ Easy configuration via:

G Compaq Intelligent Rack Manager Lite

G Serial port on front panel

G SNMP - TCP/IP

G User inputs on front panel

■ Audible and visual alarm indicators

■ Monitoring of up to two racks

■ Two user-programmable alarm outputs, for rotating lights or other alarm

devices (not included)

NOTE: If the external temperature sensors are not connected, the internal temperature of

the unit will be displayed.

1-4 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Communications Ports

The communications port for data exchange with the host computer consists of

an Ethernet port (RJ-45) using SNMP communication.

The serial communication port (RJ-11) allows for the use of a VT-

100/Xmodem device.

Compaq Intelligent Rack Manager Lite

With each CMC, Compaq supplies a CD containing Intelligent Rack Manager

Lite software. This software permits the administrator to monitor and manage

the rack environment through the Internet using Internet Explorer.

Software capabilities include the following:

■ Configuring the CMC

■ Monitoring the following sensors:

G Input voltage

G Temperature (up to two)

G Humidity

G Smoke

G Mechanical shock/vibration

G Intrusion (up to four doors)

■ Controlling door locks for one or two racks

■ Activating relay controls

■ Activating and monitoring up to two rack fan arrays

■ Logging all events

■ Sending a Windows message

■ Sending an email message

■ Sending a pager notification

Overview 1-5

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Front Panel

The CMC is rack-mountable in a 1U configuration.

21 643

75

8 9 10

Figure 1-1. Front panel configuration

Table 1-1

CMC Front Panel

Alarm LED

Network LED

Serial communication LED

Serial communication port (RJ-11)

Escape button

Scroll up button

Enter/Alarm silence button

LCD display

Power LED

Power button

1-6 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Front Panel Controls

The CMC front panel includes the controls required to:

■ Power the unit On or Off.

■ Scroll through LCD menus.

■ Select LCD menu items.

■ Silence audible alarms and deactivate alarm relays (if these features are

enabled in the control software).

NOTE: For information about changing the configuration on the CMC, or to check the

current configuration, see Chapter 4, “Software.”

Front Panel LEDs

Each LED is described in the following table. See Table 1-1 for reference.

Table 1-2

Front Panel LEDs

LED Reference Color Meaning

Alarm LED Red General alarm indicator (blinking).

Orange Warning (intrusion alert/temperature warning).

Green No alarm.

Network LED Green Normally On. Blinking indicates activity.

Serial

Communication

LED

Green Normally Off. Blinking indicates communication.

Power LED Green Power On.

NOTE: Alarm status may be viewed in the LCD display ( ) or the system console.

Overview 1-7

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Rear Panel

The CMC features the following rear panel configuration:

1 2 3 4 5 7 159 11 13

6 181614

10 128 20

211917

Figure 1-2. Rear panel configuration

1-8 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: b-ch1 Overview.doc Last Saved On: 7/13/01 2:29 PM

Table 1-3

CMC Rear Panel

Description Type of connector

Main power input AC input (IEC 320-10A)

Input voltage monitor / Power

input for Fan #1 and #2

AC input (IEC 320-10A)

Fan #1 Power output for fan #1 (IEC 320–10A)

Fan #2 Power output for fan #2 (IEC 320–10A)

Relay #1 Alarm relay (RJ-12)

Relay #2 Alarm relay (RJ-12)

Intrusion sensor #1 Discrete input (RJ-12)

Intrusion sensor #2 Discrete input (RJ-12)

Intrusion sensor #3 Discrete input (RJ-12)

Intrusion sensor #4 Discrete input (RJ-12)

Smoke sensor Discrete input (RJ-12)

Shock/vibration sensor Discrete input (RJ-12)

Lock #1 Discrete output (RJ-12)

Lock #2 Discrete output (RJ-12)

Auxiliary 1 Discrete input (RJ-12)

Auxiliary 2 Discrete input (RJ-12)

Temperature sensor #1 Analog input (RJ-12)

Temperature sensor #2 Analog input (RJ-12)

Humidity sensor Analog input (RJ-12)

I2C port I2C communications (RJ-45)

Ethernet port 10BaseT (RJ-45)

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Chapter 2

Installation

This chapter provides information on the following topics:

■ Installation requirements

■ Installation procedures

■ Powering on the CMC

■ Completing the installation

2-2 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Installation Requirements

This section lists items required to install the CMC.

Items supplied with the basic CMC Kit

The CMC Kit (Compaq Part Number 203039-B21) contains the following

components:

Hardware

Figure 2-1. CMC kit contents (hardware)

Console Management

Controller

RJ-12 to pigtail cables for relay

ports

Network cable

(RJ-45 to RJ-45)

Jumper power cords for fan

arrays and for main input

power via UPS (IEC 320 to 320)

Installation 2-3

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Input power cord

(country-specific)

Voltage monitor cord/fan input

cord (country-specific)

Tie wraps Screws, washers and cage

nuts

Serial communication cable

(RJ-11 to DB-9)

Intrusion sensors (2 sets)

Sensor cable Double-sided tape

Sensor cable Cord management clips

Sensor cable Temperature sensor

Cord retention bracket

Software/Reference Material

■ Important Safety Information guide to be reviewed before installing this

product

■ Power Products Documentation CD

■ Compaq Intelligent Rack Manager Lite CD

■ Compaq Console Management Controller User Guide

■ Warranty information

2-4 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Optional Sensor Kit, with assorted cable lengths

Compaq Part Number 203039-B22 (sold separately)

Figure 2-2. Optional sensor kit content

Temperature sensor Humidity sensor bracket

Sensor cable Screws and cage nuts

Sensor cable Tie wraps

Sensor cable Shock/vibration sensor

Sensor cable Intrusion sensors (2 sets)

Humidity sensor Double sided tape

Cord management clips

Installation 2-5

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Optional Smoke Sensor Kit

Compaq Part Number 203039-B24 (sold separately)

Figure 2-3. Optional smoke sensor kit contents

Smoke sensor End cap

Sampling tube sections Screws

Tube couplings Sampling tube bracket

Optional Door Locking Kit

Compaq Part Number 203039-B23 (sold separately)

2-6 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Items not supplied with the CMC Kit

Tools

■ A medium flat-bladed screwdriver and a #2 Phillips screwdriver

■ Cage nut-fitting tool (supplied with the Compaq rack)

IMPORTANT: Only use the power cords supplied with the CMC. If the CMC does not

include a power cord that is suitable for your application, contact an authorized Compaq

service representative to obtain the appropriate power cord. Refer to the “Precautions for

Power Products” section of Important Safety Information (guide included with the CMC

Kit.)

Installation 2-7

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Installation Procedures

This section provides installation steps to install the CMC.

1. Attach the cord retention bracket to the CMC.

2. Install the sensors in the racks.

3. Connect the sensors to the CMC unit.

4. Connect the main input power cord to the CMC, or if an Uninterruptible

Power System (UPS) will be used for main power, connect the power

jumper cord to the CMC.

5. Connect the input power/voltage monitor cord to the CMC.

6. Connect jumper power cords to the fan assemblies.

7. Secure the cables to the cord retention bracket.

8. Mount the CMC in the rack.

9. Plug the input power cord to a UPS or AC power source.

10. Plug the fan input power cord to an AC source.

11. Secure the cables to the rack.

12. Power up the CMC.

13. Set the initial configuration using the front panel controls.

14. Insert the software CD.

2-8 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Installing the Standard Sensors

The sensor cables may be routed through the rack and then attached to the rack

by using the stick-on cable management clips or tie wraps.

Temperature Sensor

The temperature sensor can be installed on the ceiling of the rack, towards the

rear, or near the most temperature-sensitive component in the rack.

Figure 2-4. Installing the temperature sensor

Installation 2-9

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Intrusion Sensor

Intrusion Sensor

An intrusion sensor consists of two parts:

■ A magnet

■ An electrical switch

1. The magnet should be installed on the inside of the rack door and the

electrical switch on the rack as shown in the following instructions.

Make sure the magnet and switch align with each other and allow

sufficient clearance for the doors to close.

2. The intrusion sensors should be installed on the front door of the rack,

as well as the rear door .

1 2

Figure 2-5. Installing the intrusion sensor in the 9000 series rack

2-10 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

1 2

Figure 2-6. Installing the intrusion sensor in the 7000 series rack

To connect a series of intrusion sensors to the same CMC port, remove the

plug shipped in the sensor and connect the cable from an additional intrusion

sensor, as shown below.

21

Figure 2-7. Intrusion sensor

Installation 2-11

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Installing the Optional Sensors

Temperature sensor

■ The optional temperature sensor should be installed on the ceiling of the

second rack, towards the rear. (See Figure 2-4)

Intrusion sensor

■ The optional intrusion sensors should be mounted on the doors of the

second rack. (See Figures 2-5 and 2-6)

2-12 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Humidity sensor

■ The optional humidity sensor should be installed as follows:

a. Install the bracket for the humidity sensor to the rack using the

larger screws.

b. Fasten the sensor unit to the bracket using the smaller screws.

c. Snap the cover over the sensor unit.

d. Connect the sensor cable to the sensor unit.

1

24

3

Figure 2-8. Installing the humidity sensor in the 9000 series rack

1

4

2

3

Figure 2-9. Installing the humidity sensor in the 7000 series rack

Installation 2-13

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Mechanical shock/vibration sensor

■ Install the optional mechanical shock/vibration sensor on the rails of the

rack as follows:

Figure 2-10. Installing the vibration sensor in the 9000 rack

Figure 2-11. Installing the vibration sensor in the 7000 rack

2-14 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Smoke sensor kit

■ Install the optional smoke sensor as follows:

a. Place the smoke sensor on rear rack door. Then place the screws

with washers through the holes in the door and secure the sensor.

IMPORTANT: For the smoke sensor to be effective, the sampling tube must be placed in

the path of the exhaust air from the equipment within the rack.

b. Install a tube coupling on a section of the sampling tube. Insert the

coupling into the smoke sensor. Position the holes in the tube to face

the equipment in the rack. Hand-tighten the connection of the

coupling and smoke sensor.

c. Add couplings and tubes until the tube reaches the bottom of the

door.

d. Insert the plastic end cap on the bottom of the tube to secure the

bracket to the end of the tube .

e. Align the bottom tube vertically with the sensor .

f. Insert a screw (with washer) through the hole in the door and

fasten it to the tube bracket using a nut.

3

4

2

1

Figure 2-12. Installing the smoke sensor

Installation 2-15

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

g. Route the sensor cable through the rack.

h. Attach the cable to the rack with the stick-on cable retention clips or

tie wraps included in the CMC basic unit.

i. Connect the cable to the sensor .

1

Figure 2-13. Connecting the smoke sensor

Smoke Sensor Operation

NOTE: The smoke sensor is for use only with the CMC and is not suitable for connection

to building fire alarm systems.

Smoke passing by the sampling tube will be drawn into the optical smoke

sensor by the fan. The smoke sensor can take up to 20 seconds to trigger an

alarm to the CMC. The sampling tube must be placed in the path of the

exhaust air from the rack equipment.

If smoke is detected, the sensor fan will automatically shut off. After the

smoke has cleared, the sensor can be reset by pressing the RESET button for

three seconds.

The sensor will not detect smoke if the fan stops running or runs too slowly. A

fan fault like this will also trigger a smoke alarm. A smoke alarm should be

investigated to determine whether smoke is present or a fan fault occurred.

2-16 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Smoke Sensor Maintenance

Keep the sampling tube and holes clean and clear of dust and debris at all

times.

Check the smoke sensor at least once per year. Use smoke test gas to check

and verify proper unit functionality.

Compaq recommends replacing the smoke sensor after the sensor detects a

fire. Contact a Compaq authorized representative for ordering details.

Door locking kit

■ The optional door locking kit should be installed on the front and rear

doors of the rack. Install the optional door locking kit according to the

installation instructions included with the kit.

NOTE: The door locking kit is only for use with the Compaq CMC.

Installation 2-17

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the Cord Retention Bracket

Remove the screws from the rear of the CMC. Align cord retention bracket

with the holes in the rear of the unit and insert screws .

1

1

1

1

Figure 2-14. Connecting the cord retention bracket

2-18 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the Sensors to the CMC

The sensors connect to the rear of the CMC. See Table 1-4, for a description of

the rear connectors.

1 2 3 4 5 7 159 11 13

6 181614

10 128 20

211917

Figure 2-15. CMC rear panel

Installation 2-19

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the Fan Assemblies

The fan assemblies should be connected to the fan power output sockets

and . The input power/voltage monitoring cord should be connected to

the input power plug . The cable

A

is connecting the rack fan array in the

second rack.

A

2 3 4

Figure 2-16. Connecting fan assemblies

2-20 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the Input Power Cord to the CMC

Make sure the Power button is in the Off position before connecting the

input power cord to the rear of the unit.

10

Figure 2-17. Power Button

Connect the input power cord to the input power socket .

1

Figure 2-18. Input power connection

Installation 2-21

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the CMC to Utility Power

If a UPS is installed in the rack, connect the CMC to the UPS. If a UPS is not

installed in the rack, use a grounded utility power outlet.

The power for the fan outputs comes from the voltage monitor input. If the

rack configuration includes fans, the rack fans must be powered from the fan

power output sockets.

NOTE: Do not connect the voltage monitor input to a UPS.

WARNING: To reduce the risk of electric shock or damage to the equipment,

take these precautions:

■ Plug the input line cord into a grounded (earthed) electrical outlet that is

installed near the equipment and is easily accessible.

■ Do not disable the grounding plug on the input line cord. The grounding

plug is an important safety feature.

■ Do not use extension cords.

WARNING: Power grounds for the main AC input and the voltage monitor input

are tied common within the CMC.

2-22 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Connecting the Network Cable

Connect the network cable to the RJ-45 socket.

Figure 2-19. Connecting the network cable

Securing Cables to the CMC

Use the tie wraps (included with the CMC Kit) to secure the cables to the

cable retention bracket.

Figure 2-20. Securing cables to the CMC

Installation 2-23

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Mounting the CMC in the Rack

The CMC mounts directly to the rack in a 1U configuration. Refer to the

Compaq Console Management Controller Installation Instructions (supplied

with the CMC Kit) for directions.

Figure 2-21. Mounting the unit in the rack

Powering on the CMC

Power On the unit by pressing the Power button .

10

Figure 2-22. Turning the unit On

2-24 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Configuring the CMC

Use the front panel for basic configuration of the unit. The CMC is fully

localized to allow for complete functionality of the front panel in multiple

languages.

6

75

8

Figure 2-23. CMC front panel

Selecting the Language

Use the CMC front panel controls to select the appropriate language. To select

the language:

1. Press Scroll Up to select the appropriate language.

2. Press Enter/Alarm Silence to save the language selection.

Setting the IP Address

Use the CMC front panel controls to set the CMC IP address. To set the IP

address:

■ Press Scroll Up and Enter/Alarm Silence to set the IP address.

Installation 2-25

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: c-ch2 Installation.doc Last Saved On: 7/19/01 10:30 PM

Setting the Subnet Mask

■ Press Scroll Up and Enter/Alarm Silence to set the Subnet Mask

address. The default setting is 0.0.0.0.

■ The CMC will automatically reboot.

NOTE: For more detailed configuration instructions, see Chapter 4, “Software.”

Using the Front Serial Port

The serial port on the front panel may be used with a laptop computer to

configure the CMC.

NOTE: For more detailed configuration instructions, see Chapter 4, “Software.”

Figure 2-24. Connecting to the serial port

Installation Completion

Installation is now complete. For information on operating the CMC, see

Chapter 3, “Operation.” Use the Compaq website at www.compaq.com as an

additional information source.

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

Chapter 3

Operation

This chapter contains information on the following topics:

■ LCD menu

■ Alert handling

3-2 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

LCD Menu

6

75

8

Figure 3-1. LCD menu and control buttons

From the LCD menu , access information on Status, System Information,

and Setup.

Operation 3-3

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

Status Menu

1. Press Enter/Alarm Silence one time to select the Main menu.

2. Press Enter/Alarm Silence one time to select the Status menu.

3. Press Scroll Up to scroll through the menu selections:

G Temperature 1

G Temperature 2

G Fan 1

G Fan 2

G Voltage

G Humidity

G Door/Panel 1

G Door/Panel 2

G Door/Panel 3

G Door/Panel 4

G Lock Set 1

G Lock Set 2

G Locking dev. 1

G Locking dev. 2

G Smoke

G Mechanical shock/vibration

G Aux 1

G Aux 2

4. Press Escape to return to the Main menu.

NOTE: If the external temperature sensors are not connected, the internal temperature of

the unit displays.

3-4 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

System Information Menu

See Figure 3-1, for a description of the LCD menu.

1. Press Scroll Up one time to access the System Information menu.

2. Press Enter/Alarm Silence one time to select the System

Information menu.

3. Press Scroll Up to scroll through the menu selections:

G Hardware version

G Firmware version

G Software version

G Device number

G MIB version

G System name

G System location

G System contact

G Operating time

G System time

4. Press Escape to return to the Main menu.

Operation 3-5

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

Setup Menu

See Figure 3-1, for a description of the LCD menu.

1. Press Scroll Up one time to access the Setup menu.

2. Press Enter/Alarm Silence one time to select Setup menu.

3. Press Scroll Up to scroll through the menu selections:

G Threshold fan 1

G Threshold fan 2

G Language

G Temperature unit

G IP address

G IP mask

G IP router

G Password - Enable/Disable

4. Press Escape to return to the System Information menu.

NOTE: To change one of these values, press Enter/Alarm Silence to select the entry,

Scroll Up to change the value, and Enter/Alarm Silence to confirm the change, or

Escape to cancel.

3-6 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

Alert Handling

An alert triggers an action as configured in the software. Possible actions,

based on an alert, are identified below. Each alert can trigger any or all of

these actions.

■ Audible alarm

■ Activate relay #1

■ Activate relay #2

■ Send a Microsoft Windows message to monitoring computer

■ Send an alert via e-mail

■ Send an alert via pager

Examples:

■ Intrusion alert on Door #1 activates an audible alarm and pages the

system administrator.

■ Voltage out of specification pages the system administrator.

IMPORTANT: For more information regarding enabling and disabling alarms, see

Chapter 4, “Software.”

Operation 3-7

Compaq Confidential – Need to Know Required

Writer: A. J. Scheckelhoff Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: d-ch3 Operation.doc Last Saved On: 6/20/01 7:06 PM

Silencing an Audible Alarm

To silence an audible alarm, press Enter/Alarm Silence . You can enable or

disable the silencing feature in the software for all CMC alerts to ensure that

an unauthorized individual cannot turn off an audible alarm.

7

Figure 3-2. The Enter/Alarm Silence button

IMPORTANT

■ Pressing the Enter/Alarm Silence button quiets the alarm, but does not clear the

condition that originally initiated the alarm. The alert will remain active on the

management console until the condition returns to normal.

■ When the Enter/Alarm Silence button is pressed, silencing the alarm, any

subsequent alarm will again cause the alarm to sound.

Deactivating an Alarm Relay

To deactivate an alarm relay, press Enter/Alarm Silence . You can enable

or disable this deactivation feature in the software for all CMC alerts to ensure

that an unauthorized individual cannot turn off an active alarm relay output.

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Chapter 4

Software

This chapter describes the management of rack environments using Compaq

CMCs that are controlled using Compaq Intelligent Rack Manager Lite

software.

Compaq Intelligent Rack Manager Lite

Software

Compaq Intelligent Rack Manager Lite software is a Java-based application

that runs a web server. Intelligent Rack Manager Lite ensures maximum

reliability of Compaq computer systems through flexible and comprehensive

remote monitoring of rack environments using Compaq CMCs. The software

compiles information about all network-connected CMCs, allowing remote

monitoring, configuration, management, and control of these devices.

NOTE: Compaq Intelligent Rack Manager Lite software is not essential for the operation

of the CMC. The basic configuration of the CMC can be operated with the following:

■ The front panel control buttons—Configuring a CMC with the front panel control

buttons is discussed in the section titled “LCD Menu,” in Chapter 3 of this guide.

■ A terminal program—Managing a CMC with a terminal program is discussed at the

end of this chapter.

4-2 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

System Requirements

Intelligent Rack Manager Lite software requires the following minimum

hardware and software:

■ 100-MHz Pentium computer

G 50 MB free disk space

G 32 MB RAM

■ Windows NT 4.0 or Windows 2000

■ Internet Explorer 5.0 or later

■ A Mail Application Program Interface (MAPI)-compatible email system

for email notification of alerts

■ An installed modem for pager notification of alerts

Preinstallation Tasks

Use the CMC front panel controls to perform the following tasks before

beginning the software installation:

■ Selecting the language—See “Selecting the Language” in Chapter 2 of

this guide.

■ Setting the IP address—See “Setting the IP Address” in Chapter 2 of

this guide.

■ Setting the subnet mask—See “Setting the Subnet Mask” in Chapter 2

of this guide.

Software 4-3

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Software Installation

The Intelligent Rack Manager Lite software CD is provided in the CMC kit.

NOTE: To install the Intelligent Rack Manager Lite software, you must have Administrator

rights.

To install the software using this CD:

1. Insert the CD into the CD-ROM drive of any network-connected

computer. If the AutoPlay feature is enabled, the Install Wizard

automatically starts. If the AutoPlay feature is disabled, explore the CD

and double-click INSTALL.HTM in the root directory to begin software

installation.

A security warning displays.

2. Click Yes to accept the security warning. The Intelligent Rack Manager

Lite CD menu displays.

3. Click Start Installer for Windows NT, 2000. The Install Wizard runs.

4. Select the appropriate language for the installation and click OK. The

Introduction window displays.

5. Read the introduction and click Next. The License Agreement window

displays.

6. Read the license agreement, click Yes to accept the license agreement,

then click Next. The Choose Install Folder window displays.

7. Click Install to install the software in the default folder. To specify the

folder in which the software installs, click Choose..., navigate to the

appropriate folder, then click Install.

The software installation begins and a horizontal status bar indicates the

installation progress. The Install Complete window displays.

8. Click Done when the software is installed.

IMPORTANT: The Compaq Intelligent Rack Manager lite software application requires

Microsoft’s Virtual machine TM to be installed, in order to run properly. During the

software installation process you will be guided to the Microsoft Web page where

Microsoft Virtual Machine can be downloaded. Or, visit www.microsoft.com/java and

download the Virtual Machine prior to installing the Compaq Intelligent Rack Manager lite

software application.

NOTE: You will only be guided to the Microsoft web page if Virtual Machine is not already

installed.

4-4 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Uninstalling the Software

NOTE: To uninstall the Intelligent Rack Manager Lite software, you must have

Administrator rights.

To remove the Intelligent Rack Manager Lite software from the system:

1. Select Start, Programs.

2. Select the Compaq Intelligent Rack Manager Lite program group.

3. Select Uninstall. The software uninstalls.

Accessing the Software

Intelligent Rack Manager Lite can be accessed from the host computer or any

other network-connected computer.

To access the Intelligent Rack Manager Lite software from the host computer:

1. Select Start, Programs.

2. Select the Compaq Intelligent Rack Manager Lite program group.

3. Click Compaq Intelligent Rack Manager Lite. A browser window

opens and the Intelligent Rack Manager Lite software Login screen

displays.

To access the Intelligent Rack Manager Lite software from a

network-connected computer:

1. Double-click the Internet Explorer icon on the desktop or select Start,

Programs, Internet Explorer. The browser window displays.

2. In the Address field, type

http://location:8001/

where location is the IP address or the name of the computer on

which the software was installed. The computer name can only be used

if the computer has a DNS entry.

3. Click Go. The Intelligent Rack Manager Lite software Login screen

displays.

Software 4-5

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Logging In to the Software

Figure 4-1. Login screen

Before using the Intelligent Rack Manager Lite software, you must log in with

a username and password. The first time you log in, enter Administrator

as the username and Administrator as the password. Click Enter

Password to log in. After you are logged in, customize your password as

described in “Change Password Screen” later in this chapter.

NOTE: Passwords are case sensitive.

Screen Layout

Figure 4-2. Intelligent Rack Manager Lite software screen layout

4-6 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

The Intelligent Rack Manager Lite software interface is divided into three

frames:

■ Top frame—Contains the title, a Settings icon, a Devices icon, and a

Logout icon.

G Click the Settings icon to view a list of links to the software settings

screens.

G Click the Devices icon to view a list of links to the device

configuration screens.

G Click the Logout icon to log out of the software.

■ Left frame—Contains a list of links to other screens. The links in the

list change depending on which screen you are viewing.

■ Main frame—Contains the various screens of the software, which are

discussed in detail in the following sections. Click the Help icon on any

screen in the main frame to display the Compaq Intelligent Rack

Manager Lite software online help.

Software Settings

To configure the software, click the Settings icon in the top frame of the

interface. A list of links to software setup pages displays in the left frame:

■ Add/Remove Device

■ Messaging Setup

■ Email Setup

■ Pager Setup

■ Change Password

Each software settings screen is labeled Software Settings.

Software 4-7

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Add/Remove Device Screen

Figure 4-3. Add/Remove Device screen

Click the Add/Remove Device link to access the Add/Remove Device screen.

The Intelligent Rack Manager Lite software only recognizes CMC devices that

are listed on the Add/Remove Device screen.

To add a CMC to the software:

1. Type the IP address of the CMC in the IP Address field. See “Setting

the IP Address” in Chapter 2.

2. Click Add to add the CMC to the list of recognized devices.

NOTE: Type in a range of IP addresses to locate several CMC devices. The software only

recognizes ranges at the end of an IP address, for example 200.200.200.201-213.

To remove a CMC from the software:

1. Highlight the IP address of the CMC you want to remove.

2. Click Remove to remove the CMC from the list of recognized devices.

4-8 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Messaging Setup Screen

Figure 4-4. Messaging Setup screen

Click the Messaging Setup link to access the Messaging Setup screen. Use

this screen to set the computer names to which popup messages can be sent

when CMC alerts occur.

NOTE: The added computer names become available on the Alert Handling screen, where

each name must be configured to receive specific alerts. See the section “Alert Handling

Screen,” later in this chapter.

To add a computer name to the popup alert list:

1. Type a valid computer name in the Users field.

2. Click Add to add the name to the list.

To remove a computer name from the popup alert list:

1. Highlight the computer name you want to remove.

2. Click Remove to remove the name from the list.

Software 4-9

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Email Setup Screen

Figure 4-5. Email Setup screen

Click the Email Setup link to access the Email Setup screen. Use this screen

to set the email addresses to which email messages can be sent when CMC

alerts occur.

NOTE: The added email addresses become available on the Alert Handling screen, where

each address must be configured to receive specific alerts. See the section “Alert

Handling Screen,” later in this chapter.

Before email alerts can be sent, configure the software for the mail system:

NOTE: Ask the system administrator to assign a mail account to the Intelligent Rack

Manager Lite software.

1. Enter the hostname or IP address of a valid SMTP server, such as a

Microsoft Exchange server, in the SMTP Server field.

2. Enter a valid mailing address in the Username field. This address

displays in the From: field of all sent email messages.

3. Click Save to save the changes.

4-10 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

To add an address to the email alert list:

1. Type a user’s valid email address in the Email Addresses field.

2. Click Add to add the address to the list.

To remove an address from the email alert list:

1. Highlight the email address you want to remove.

2. Click Remove to remove the address from the list.

Pager Setup Screen

Figure 4-6. Pager Setup screen

Click the Pager Setup link to access the Pager Setup screen. Use this screen

to set the phone numbers to which pager messages can be sent when CMC

alerts occur.

NOTE: The added phone numbers become available on the Alert Handling screen, where

each number must be configured to receive specific alerts. See the section “Alert

Handling Screen,” later in this chapter.

Software 4-11

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Before pager alerts can be sent, configure the software to use the modem:

1. Enter the COM port to which the modem is connected in the

CommPort field.

2. Click Save to save the changes.

To add a phone number to the pager alert list:

1. Type a valid phone number for the pager and the Personal Identification

Number (PIN) in the Phone Numbers field. The format is

PHONE *PIN, where PHONE is the phone number for the pager and

PIN is the PIN number, for example, 18003451518 *1234.

2. Click Add to add the phone number to the list.

To remove a phone number from the pager alert list:

1. Highlight the phone number you want to remove.

2. Click Remove to remove the phone number from the list.

Change Password Screen

Figure 4-7. Change Password screen

Click the Change Password link to access the Change Password screen. Use

this screen to change the password used to log in to the software.

NOTE: The software allows only one user. The user is called Administrator.

4-12 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

To change the password:

1. Type the old password in the Old Password field. If changing the

password for the first time, the old password is Administrator.

2. Type the new password in the New Password field. Passwords must

contain at least eight characters.

NOTE: Passwords can contain 8 to 20 characters. Passwords are case sensitive.

3. Retype the new password in the Retype New Password field.

4. Click Save to save the changes or click Cancel to cancel the changes.

Device Configuration

To configure the individual CMC devices, click the Devices icon in the top

frame of the user interface. The IP addresses of all recognized CMCs display

in the left frame. Click the arrow next to each IP address for an expandable list

of available links for that CMC. The links to the device configuration pages

are as follows:

■ CMC Properties

■ Sensor Setup

■ Accessory Setup

■ Threshold Config

■ Alert Handling

■ Manual Control

■ Log

After a CMC is configured, each device configuration screen available for that

CMC is labeled with the CMC IP address, name, and physical location.

Software 4-13

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

CMC Properties Screen

Figure 4-8. CMC Properties screen

Click the CMC Properties link to access the CMC Properties screen. Use

this screen to configure the CMC properties for each CMC recognized by the

Intelligent Rack Manager Lite software. The CMC hardware, software,

firmware, and MIB version levels are indicated in the Device Information

box. The availability of updated versions is indicated in the Status column.

4-14 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

To configure a CMC:

1. Enter the name, physical location, and contact person for the CMC in

the Device Setup box.

2. Select the appropriate display language and temperature unit of measure.

3. Select the audible alarm Off radio button to permanently turn off the

audible alarm.

4. Enable the Press to Silence Alarm option to be able to silence

audible alarms from the front panel of the CMC.

5. Enter a password specific to this CMC and enable or disable the

password functionality. The CMC password can be up to six characters

in length. Characters can only be capital letters or numbers.

NOTE: If the password is enabled, the password is required to change the CMC

IP address and settings using the front panel controls or a terminal program.

6. Edit the SNMP Read/Write Community strings if necessary.

CAUTION: The SNMP Read/Write Community strings displayed on the CMC

Properties screen must match those on the CMC device. If you edit the strings

on this screen, be sure to make the same changes for the CMC device using a

terminal program as described in “Terminal Program Operation” in this chapter.

7. After entering the CMC properties, click Save to save the changes or

click Cancel to cancel the changes.

8. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

To update the MIB, software, and firmware for the CMC, click Update.

Software 4-15

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Sensor Setup Screen

Figure 4-9. Sensor Setup screen

4-16 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Click the Sensor Setup link to access the Sensor Setup screen. Use this

screen to configure the sensors.

To configure the sensors:

1. Select the Not Available radio button for each sensor that is listed as

available but not installed.

NOTE: For the initial system installation and boot, the CMC automatically recognizes

installed sensors and fans.

2. Set the appropriate fan and lock behavior when smoke is detected.

3. Set the sensitivity of the shock sensor, with 1 being low sensitivity and

10 being high sensitivity. The recommended setting is 5.

4. For Intrusion 1 through 4, enter the sensor description and set the fan

behavior and shock control when doors are opened.

IMPORTANT: For the door-locking feature to work properly, you must assign at least one

intrusion sensor to each lock set. For more information about the door-locking feature,

see “Accessory Setup Screen” in this chapter.

5. Enter the description and logic of sensors installed in Auxiliary 1 and 2.

6. After entering the sensor information, click Save to save the changes or

click Cancel to cancel the changes.

7. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

Software 4-17

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Accessory Setup Screen

Figure 4-10. Accessory Setup screen

Click the Accessory Setup link to access the Accessory Setup screen. Use

this screen to configure the CMC options.

4-18 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

To configure the options:

1. Select whether each fan is installed (available) or not installed

(unavailable).

2. Select the appropriate logic for the alarm relays.

3. Enable the Press to Deactivate Relay option to be able to

deactivate relay output from the front of the CMC.

4. Select the appropriate options for each lock set.

a. Select whether each lock set is installed (available) or not installed

(unavailable).

b. Select the doors and panels that must be closed before the lock set

can activate the lock.

IMPORTANT: For the door-locking feature to work properly, you must assign at least one

intrusion sensor to each lock set. For more information about configuring intrusion

sensors, see “Sensor Setup Screen” in this chapter.

c. Set the lock sets to remain locked or to unlock in the event of each

listed fault. Enable the concealed door release to press a hidden

switch to manually unlock locked doors.

NOTE: The software cannot detect the concealed door release. Make sure the concealed

door release option is not selected for CMCs that control racks without a concealed door

release.

5. After entering the accessory information, click Save to save the changes

or click Cancel to cancel the changes.

6. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

Software 4-19

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Threshold Configuration Screen

Figure 4-11. Threshold Configuration screen

Click the Threshold Config link to access the Threshold Configuration

screen. Use this screen to modify the minimum and maximum acceptable

values for temperature, humidity, and voltage.

To modify the values:

1. Enter the minimum and maximum temperature, humidity, and voltage

values.

2. Enter the temperatures at which warnings are issued.

3. Enter the temperatures at which fans turn on and the degree of

temperature drop that must be achieved before fans turn off.

4-20 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

4. After entering the threshold information, click Save to save the changes

or click Cancel to cancel the changes.

5. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

Alert Handling Screen

Figure 4-12. Alert Handling screen

Click the Alert Handling link to access the Alert Handling screen. Use this

screen to choose how the software will issue each type of alert for each CMC.

Alarms can be issued by message, pager, email, audible alarm, switch alarm

relay 1, or switch alarm relay 2.

To set the behavior for each type of alert:

1. Select an alert situation from the pull-down menu.

2. Select the appropriate type of alert for that situation.

3. Click Save to save the changes.

Software 4-21

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

4. Repeat steps 1 through 3 for each alert situation in the pull-down menu.

5. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

NOTE: Computer names, email addresses, and phone numbers that display on the Alert

Handling screen can be set using the software settings screens.

Manual Control Screen

Figure 4-13. Manual Control screen

Click the Manual Control link to access the Manual Control screen. Use this

screen to manually control fan, door-locking, and alarm relay behaviors.

NOTE: Only enabled fans and enabled lock sets display on the Manual Control screen.

To enable fans and lock sets, see “Accessory Setup Screen” in this chapter.

4-22 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

To manually control the behaviors:

1. Select the appropriate radio button to manually turn fans on or off.

2. Lock a door that is unlocked or unlock a door that is locked. Doors can

be unlocked after a specified amount of time has passed, immediately,

or manually by activating the concealed door release.

NOTE: Activating the concealed door release on the Manual Control screen allows the

door to be unlocked using a hidden switch one time. After the door is closed, the door

locking feature automatically locks the door and the concealed door release option is

disabled. To permanently enable the concealed door release, see “Accessory Setup

Screen” in this chapter.

3. Deactivate alarm relays as necessary. Alarm relays are only available

after they are activated by an alarm. The alarm relay logic is set up on

the Accessory screen.

4. Click Save to save the changes.

5. Click Return to view the Device Home screen for this CMC. The

Device Home screen is discussed in detail later in this chapter.

Software 4-23

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Log Screen

Figure 4-14. Log screen

Click the Log link to access the Log screen. Use this screen to view

information about alerts issued for the CMC.

■ Click Clear to clear all entries in the log.

■ Click Return to view the Device Home screen for this CMC.

■ Click Print on the browser window to print the log.

Device Monitoring

After the software and each recognized CMC are configured, monitor the

CMC device status with the following:

■ Active Alarms Screen

■ Device Home Screen

4-24 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Active Alarms Screen

Figure 4-15. Active Alarms screen

Click the Devices icon, then click the CMC Devices heading in the left frame

to access the Active Alarms screen. The Active Alarms screen automatically

displays each time you log in to the software. Use this screen to view a

summary of all active alarms and status information for all CMC devices. This

information automatically updates every 15 seconds, or you can update the

information at any time by clicking the Refresh link.

Click the IP address of a CMC in the list to display the Device Home screen

and view details for that device.

Table 4-1 lists the meanings of the status symbols used on the Active Alarms

screen.

Table 4-1

Active Alarms Status Symbols

Symbol Meaning

Normal

Minor

Major

Critical

Software 4-25

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Device Home Screen

Figure 4-16. Device Home screen

The Device Home screen can be accessed by:

■ Clicking an IP address in the Active Alerts screen status list.

■ Clicking the IP address of a CMC in the left frame of the software

interface.

■ Clicking Return at the bottom of any device configuration screen.

Use this screen to view status information about individual CMC devices. The

Device Home screen contains the following:

■ CMC IP address, designation, and physical location

■ A Refresh link

4-26 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

■ Temperature, humidity, and voltage information in numerical and

graphical form, including an indication of whether the temperature is in

a safe range:

G White—Safe range

G Yellow—Warning

G Red—Critical

G Gray—No sensor

■ Component status information. Table 4-2 lists the meanings of the status

symbols used on the Device Home screen.

Table 4-2

Device Home Status Symbols

Symbol Meaning

Informational

Minor

Major

Critical

Software 4-27

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Terminal Program Operation

Much of the Intelligent Rack Manager Lite software functionality is available

in a simpler, text-based interface using a host computer and a terminal

program over a serial connection to the CMC. See “Configuring the CMC” in

Chapter 2 of this guide for more information on connecting the CMC to a host

computer.

The serial link:

■ Provides some additional functionality that lets you configure the CMC

for operation with other SNMP managers. This feature is not needed for

Intelligent Rack Manager Lite-only systems.

IMPORTANT: Up to four Compaq Intelligent Rack Manager Lite consoles or other trap

monitors can be specified to receive alerts. The first trap receiver is always reserved for

the last Compaq Intelligent Rack Manager Lite management console that accessed the

CMC device. Compaq Intelligent Rack Manager Lite and other trap monitors, such as

Compaq Insight Manager XE, cannot be loaded on the same server.

■ Can be used to flash the memory with new CMC software. This

operation is normally performed using the Intelligent Rack Manager

Lite software over the network.

Starting HyperTerminal

HyperTerminal is a terminal program that is included with Microsoft operating

systems. To start HyperTerminal:

1. Select Start, Programs.

2. Select Accessories and click HyperTerminal.

3. Do one of the following:

G For Windows NT 4.0, click HyperTerminal.

G For Windows 2000, click Communications, then click

HyperTerminal.

4-28 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

4. Set up the properties for your terminal connection:

a. Enter a name for your connection in the New Connection dialog

box. Select an icon to represent the connection, then click OK. The

Phone Number dialog box displays.

b. In the Connect Using field, select Direct Connection to the COM

port to which the CMC is connected, then click OK. The Properties

dialog box displays.

c. Enter the following port settings, then click OK.

Bits per second (baud rate) 9600

Data bits 8

Parity None

Stop bits 1

Flow control None

5. The main menu of the CMC displays on the HyperTerminal interface.

Navigating Menus

CAUTION: All configuration changes made in a terminal program are retained in

CMC memory. If you change the Read and Write Community strings in the

terminal program setup independently from the Compaq Intelligent Rack

Manager Lite software, the software can no longer control the CMC.

Use Table 4-3 as a reference when navigating the CMC menus.

■ To change values in HyperTerminal, type the new value in the field and

press Enter.

■ To select and toggle values, press the spacebar.

■ To save changes and jump back to the previous menu, press Esc.

Software 4-29

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Values Display rack information.

Status Display rack status.

Network

configuration

IP configuration

IP Address

IP Subnetmask

IP Router

Set network addresses.

Trap receiver

configuration

IP Trap receiver

Enable/Disable

IP Trap receiver

Enable/Disable

IP Trap receiver

Enable/Disable

IP Trap receiver

Enable/Disable

Set up to 4 trap receiver IP

addresses. Trap receiver

number 1 is dedicated to

the Compaq Intelligent

Rack Manager software.

Any IP address entered in

number 1 will be over

written when used with the

software.

SNMP IP Access

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

SNMP Manager

Set the authorized IP

addresses of the

management computers.

In the default setting (all

addresses set to 0.0.0.0),

all network IP addresses

are SNMP-authorized. If

one or more IP addresses

are entered, only those IP

addresses have SNMP

authorization. SNMP

communication with the

CMC can only be

established from this

system.

continued

4-30 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus continued

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Network

configuration

(continued)

Enable TFTP

Enable Auth. Traps

Read Community

Write Community

System Name

System Contact

System Location

Change Password

Enable Password

Activate actual values

Set network properties. All

configuration changes are

retained in CMC memory.

Changing the Read or

Write Community strings

independent of the

software prevents the

software from being able

to control the CMC. If

Enable TFTP is disabled,

the Compaq Intelligent

Rack Manager software

will not be able to perform

firmware upgrades.

General setup

Language

Temperature unit

Audible Alarm

Quit Alarm relay 1

Quit Alarm relay 2

Logic Alarm relay 1

Logic Alarm relay 2

Set date of internal clock

Set time of internal clock

Configure general CMC

properties.

Setup Detectors

(Analog/Fans)

Set up sensors.

Temperature 1 available

Temperature 2 available

Fan1 available

Fan2 available

Voltage available

Humidity available

continued

Software 4-31

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus continued

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Setup Detectors

(Digital)

Set up sensors.

Input 1

Available

Description

Fan option

Shock option

Input 2

Available

Description

Fan option

Shock option

Input 3

Available

Description

Fan option

Shock option

Input 4

Available

Description

Fan option

Shock option

Smoke sensor

Available

Fan option

Shock sensor

Available

Sensibility

continued

4-32 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus continued

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Setup Detectors

(Digital)

(continued)

Aux 1

Available

Description

Logic

Aux 2

Available

Description

Logic

Thresholds Sets threshold values.

Warning temp.1

Max.temp.1

Min.temp.1

Warning temp.2

Max.temp.2

Min.temp.2

Fan 1

Setpoint Fan 1

Hysteresis Fan 1

Fan 2

Setpoint Fan 2

Hysteresis Fan 2

Temperature unit

Max.voltage

Min.voltage

Max.humidity

Min.humidity

continued

Software 4-33

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus continued

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Alert handling Configure alert handling.

Temperature 1

Alarm relays max

Alarm relays warning

Alarm relays min

Audible Alarm max

Audible Alarm warning

Audible Alarm min

Temperature 2

Alarm relays max

Alarm relays warning

Alarm relays min

Audible Alarm max

Audible Alarm warning

Audible Alarm min

Fan 1

Alarm relays

Audible Alarm

Fan 2

Alarm relays

Audible Alarm

Voltage

Alarm relays max

Alarm relays min

Audible Alarm max

Audible Alarm min

Humidity

Alarm relays max

Alarm relays min

Audible Alarm max

Audible Alarm min

continued

4-34 Compaq Console Management Controller User Guide

Compaq Confidential – Need to Know Required

Writer: Hilary Stead Project: Compaq Console Management Controller User Guide Comments:

Part Number: 218258-002 File Name: e-ch4 Software.doc Last Saved On: 6/20/01 8:25 PM

Table 4-3

CMC Terminal Program Menus continued

Main Menu Items Submenu 1 Items Submenu 2 Items Brief Description

Alert handling

(continued)

Aux 1

Alarm relays

Audible Alarm

Aux 2

Alarm relays

Audible Alarm

System Info

Display system data and

network addresses.

Defaults

Set thresholds to default

Set setup to default

Revert settings to default

values.

Compaq Confidential – Need to Know Required
