Overview
Standard Features
HPC Interconnects
Models
Configuration Information - Factory Integrated Models
Options
Memory
Storage
Power Specifications
System Specifications
Technical Specifications

Hot Plug SAS/SATA and Non-Hot Plug SATA Models

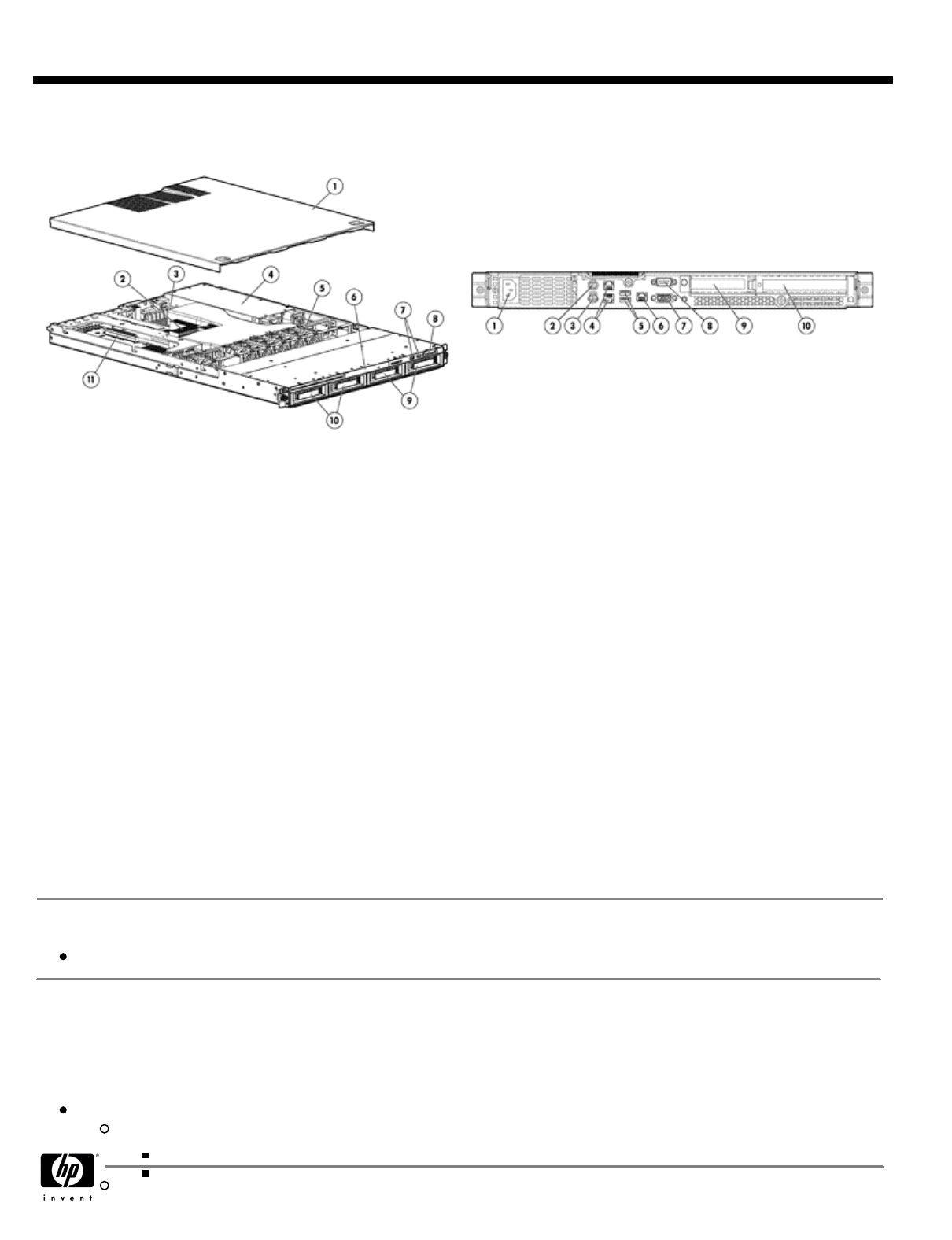

Front View:

Rear View:

Access panel

Power Supply Cable Socket

Quad-Core Intel® Xeon® 5400 series processors

(supports up to two)

PS/2 Mouse Port

PS/2 Keyboard Port

Eight PC2-5300 (DDR2-667) or PC2-6400 (DDR2-800)

fully buffered DIMM memory slots

Two GbE LAN ports for NIC 1 and NIC 2 (RJ-45)

Rear USB ports

Power supply (650 Watts)

LO100i 10/100 Mbps LAN port for IPMI management

(RJ-45)

System fans

Video Port

Optional CD-RW or DVD-ROM drive

Serial Port

Two USB ports

Low-Profile PCI Express x8/PCI-X riser board slot cover

Power on/off & system LEDs

10.

Standard height/full-height PCI Express x16/PCI-X riser

board

Optional 3

and 4

3.5” Non-Hot plug SATA or hot plug

SAS/SATA hard drive bays

10.

Standard 1

and 2

3.5” Non-Hot plug SATA or hot

plug SAS/SATA hard drive bays

11.

Expansion Slots:

Non-Hot Plug Models – Two available x16 PCI-Express

Gen2 slots

Hot Plug Models – One available x16 PCI-Express slot

Gen2 slot

What's New

Support for up 400GB 3G 10K 3.5" DP SAS Enterprise Hard Drive

At A Glance

The HP ProLiant DL160 G5 server is an affordable 1U, dual processor capable server equipped with essential performance

features that provide customers with a platform to design a fully optimized solution. It is ideal for general purpose and high

performance computing.

Processors

Supports up to two Intel® Quad-Core 5400 or Dual-Core 5200 sequence processors

QuickSpecs

HP ProLiant DL160 Generation 5

Overview

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 1

Quad-Core Intel® Xeon® processors 5400 sequence with 12 MB Level 2 cache

Dual-Core Intel® Xeon® processors 5200 sequence with 6 MB Level 2 cache

Intel® 5400 Chipset

Memory

Supports up to 64 GB of PC2-5300 (DDR2-667) and up to 32 GB of PC2-6400 (DDR2-800) fully buffered DIMMs

(DDR2-667) with Advanced ECC

Internal Drive Support

Support for up to four 3.5" Non-Hot plug serial ATA (SATA) hard drives or;

Support for up to four 3.5" Hot plug Serial Attached SCSI (SAS) or SATA hard drives.

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth Hard

Drives for Hot Plug models only.

Internal storage capacity of up to 1.0TB (4 x 1TB Hot Plug 3.5" SATA), 3.0TB (4 x 750 Non-Hot Plug SATA) or

4.0TB (4 x 1TB Hot Plug 3.5" SAS)

Network Controller

Two embedded NC105i PCIe Gigabit Server Adapters

Storage Controllers

Non-Hot Plug SATA Models: HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

Hot Plug SAS/SATA Models: HP SC40Ge 4-Port Internal SAS HBA with RAID 0, 1

NOTE:

When using the SC40Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required.

NOTE:

Transfer rate: 1.5 Gb/s SATA, 3Gb/s SAS

Expansion Slots

Non-Hot Plug Models: Two available PCI Express 2.0 slots:

Slot 1: full-length/full-height PCI-Express 2.0 x16

Slot 2: low-profile/half-height PCI-Express 2.0 x16

Hot Plug Models: One available PCI-Express slot:

Slot 1: full-length/full-height PCI-Express 2.0 x16

Slot 2: low-profile/half-height PCI-X slot populated by the SAS/SATA storage controller

Management

HP Lights Out 100i Advanced Remote Management with new licensed key activated upgrades for Virtual KVM

and virtual media support. LO100i management support for the DL160 G5 includes:

IPMI 2.0 & SMASH CLP support

ROM Setup Utility

Improvements to virtual media with the addition of USB 2.0 drives and protocol support for much faster transfer

speeds and DVD-ROM support plus simplified virtual media (floppy and CD with no FTTP server requirements)

Enhanced browser interface and embedded KVM over IP provides OS-independent remote graphical console

New Licenses that have EULAs with one-time, optional, license activation key to allow for easy, future upgrades

which will be chargeable when they become available.

USB Ports

Five USB ports (two front, one internal, two rear)

Optical Drive

Support for one (optional): DVD-ROM, DVD/CD RW

Power Supply

650W Power Supply (Non-Hot Plug, Autoswitching)

Optional high-efficiency model

NOTE:

Optional high-efficiency model requires the purchase of HP Power Supply Backplane (453652-

B21)

Additional Features

Support for:

NVIDIA Quadro FX3700 512MB PCIe x 16 graphics card

NVIDIA Quadro FX1700 512MB PCIe x 16 graphics card

Form Factor

Rack (1U)

Fixed mounting rails included with all models

QuickSpecs

HP ProLiant DL160 Generation 5

Overview

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 2

Deployment/Serviceability

Tool-less access to all system components for easy in rack serviceability

Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow

for greater flexibility in performing defective parts replacement

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of

HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of

purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to

warranty services are available through HP Care Pack services or customized service agreements. SATA hard

drives have a one year warranty. SAS Midline drives have a one-year warranty. SAS Enterprise drives have a

three-year warranty.

NOTE:

Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day

response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These

parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor

charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also

designed for easy replacement but may involve added complexity. Customers may choose to have HP replace

Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical

support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL160 Generation 5

Overview

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 3

NOTE:

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

specifications, please visit:

http://h71028.www7.hp.com/ERC/downloads/4AA1-6954ENW.pdf

NOTE:

For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information -

Factory Integrated Models" section.

Processor

One of the following

depending on Model

Quad-Core Intel® Xeon® processor X5482 (3.20 GHz, 120W, 1600MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600MHz FSB)

Quad-Core Intel® Xeon® processor X5470 (3.33 GHz, 120W, 1333MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor X5460 (3.16 GHz, 120W, 1333MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor L5430 (2.60 GHz, 50W, 1333MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB)

Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB)

Quad-Core Intel® Xeon® processor E5472 (3.00 GHz, 80W, 1600MHz FSB)

Quad-Core Intel® Xeon® processor E5462 (2.80 GHz, 80W, 1600MHz FSB)

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB)

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB)

Dual-Core Processors

Dual-Core Intel® Xeon® processor X5272 (3.40 GHz, 80W, 1600MHz FSB)

Dual-Core Intel® Xeon® processor L5240 (3.00 GHz, 40W, TDP, 1333MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Upgradeability

Upgradeable to two processors

Chipset

Intel® 5400 Chipset

Cache Memory

12 MB (2 x 6 MB) Level 2 cache (5400 sequence)

6 MB (1 x 6 MB) Level 2 cache (5200 sequence)

Memory Protection

Advanced ECC capabilities

Memory

Type

PC2-5300 (DDR2-667) and PC2-6400 (DDR2-800)

Standard

1 GB

(2 x 512 MB)

Maximum

32 GB

64 GB

(8 x 4 GB) PC2-6400

(8 x 8 GB)

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 4

Network Controller

Two embedded NC105i PCIe Gigabit Server Adapters

Expansion Slots #

Technology

Bus Width

Connector

Width

Bus

Number

Device No

Form Factor

Notes

PCI-Express

2.0

x16 x16

1 0

Full length,

full height

3.3 volts

PCI-X

***

64-bit

N/A

5 1

Full length,

full height

3.3 volts

PCI-Express

2.0

x16 x16

6 3

Low Profile

3.3 volts

PCI-X

***

64-bit

N/A

5 1

Low Profile

3.3 volts

NOTE:

All slots can accept universal keyed PCI cards

* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment

number.

** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest

Device ID by bus (starting with the lowest bus).

*** PCI-X bus speed will be 133MHz when only one PCI-X card is installed. It will be 100MHz

when both slots have PCI-X cards installed.

Storage Controller

Non-Hot Plug SATA

Models

HP Embedded SATA RAID Controller (integrated into the south-bridge)

supporting SW RAID 0,1

NOTE:

Transfer rate: 1.5 Gb/s SATA

Hot Plug SATA/SAS

Models

HP SC40Ge HBA with RAID 0, 1

NOTE:

When using the SC40Ge with SATA Hard Drives, 1.5G SATA

Hard Drives are required.

NOTE:

Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS

NOTE:

A diskette drive, USB floppy drive key or virtual FDD using LO100 Advanced Pack is

needed to install storage controller drivers during a Windows operating system installation from a

CD.

Storage

Optical Drives:

DVD-ROM

8x IDE (ATAPI) DVD-ROM drive, slim (optional)

DVD/CD RW

24x IDE (ATAPI) CD-ROM drive (optional)

Diskette Drives

Via USB only

Drive Bays:

Non-Hot Plug SATA

Up to 4 Non-hot plug SATA 3.5" drives

Hot Plug SATA/SAS

Up to 4 Hot plug SAS/SATA 3.5" drives

Maximum Internal

Storage

Non-Hot Plug SATA

3.0TB

4 x 750GB

Hot Plug SATA

4.0TB

4 x 1TB

Hot Plug SAS

4.0TB

4 x 1TB

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 5

Interfaces

Parallel

None

Network RJ-45(Ethernet)

2 10/100/1000 NIC ports (plus 1 dedicated for the HP ProLiant Lights

Out 100i Remote Management)

Serial

Pointing Device (Mouse)

Graphics

Keyboard

USB

5 (two front, one internal, two rear)

NOTE:

Please see the following URL for additional information

regarding USB support:

http://h18004.www1.hp.com/products/servers/platforms/usb-

support.html

Graphics

32MB shared supporting 1600x1200x16M resolution

Form Factor

Rack (1U), (1.75 in/4.45 cm)

Server Management

Stand Alone Software

Product and ProLiant

Essentials

Lights-Out 100i

HP Lights-Out 100i Remote Management delivers affordable, entry level

remote management capabilities for HP ProLiant 100 Series servers

with embedded LO100i. It allows customers or their service providers to

remotely manage ProLiant 100 Series servers remotely over a LAN or

the Internet and consists of the following:

LO100i Standard is embedded remote management and provides

basic remote control via telnet, browser, and IPMI 2.0 and

SMASH

LO100i Advanced Pack License are upgrades for essential,

secure, remote control, serial console, virtual media, and Virtual

KVM (graphical hardware-based, remote console)

NOTE:

Flexible and volume quantity (AKA) license kits are available for

the Lights-Out 100i Lights-Out 100 Advanced Pack licenses as well as

Electronic License To Use (E-LTU). AKA Tracking licenses require a

100 unit minimum forecast at initial contract signing. For these additional

part numbers, please refer to each software products' QuickSpecs at

this link for more information:

http://h18004.www1.hp.com/products/servers/management/

remotemgmt.html

ProLiant Essentials

Rapid Deployment Pack

Rapid Deployment Pack (RDP) extends HP Systems Insight Manager

with a complete deployment solution for HP ProLiant servers. RDP

provides a central location to configure server hardware, deploy

Windows, Linux and VMware ESX operating environments and install

using images and scripted profiles. For more information, visit:

http://www.hp.com/go/rdp

NOTE:

Flexible and volume quantity license kits are available for

ProLiant Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant

Essentials Value Pack product QuickSpecs for more information.

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 6

HP Systems Insight

Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and

extensible standards-based environment to centrally manage servers,

storage and other infrastructure devices, (both HP and non-HP) across

multiple operating system platforms.

Core Infrastructure

Management

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a web-

based email subscription service that provides software and driver

change notifications for ProLiant products. Sign up at:

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become

available, on a weekly or monthly basis.

ROMPaq, software and

latest drivers

The latest software, drivers, and firmware fully optimized and tested for

your ProLiant server and options, available through software and drivers

download pages website at:

http://www.hp.com/go/support

HP Serviceguard for

Linux (SG/LX)

HP Serviceguard for Linux is a high availability clustering solution designed to protect applications

and services from a wide variety of software and hardware failures, monitoring the health of each

server (node) and quickly responding to failures such as those that affect system processes,

system memory, LAN media and adapters, and application processes.

The following is a quick summary of HP Serviceguard for Linux features and support. For the most

recent list of Linux distributions & kernels, servers and storage supported with Serviceguard for

Linux, see the Serviceguard for Linux Datasheet, available at:

http://www.hp.com/go/sglx/info

Supported Linux Distributions:

Red Hat EL 4

Red Hat EL 5

SUSE SLES10

Supported Server Platforms

HP Integrity BladeSystem to Superdome

HP ProLiant BladeSystem p-Class & c-Class

HP ProLiant DL

HP ProLiant ML

IBM System x

Dell PowerEdge

Sun x64

Fujitsu Siemens PRIMERGY

Supported Virtual Machines

SG/LX in HP Integrity Virtual Machines guests

SG/LX in VMware ESX guests

SG/LX in Red Hat and SUSE Xen hosts (DOM0)

Application Integration Toolkits

HP Serviceguard for Linux Oracle Database Toolkit

HP Serviceguard Extension for SAP on Linux (SGeSAP/LX)

Free Application Integration Toolkits:

Apache

MySQL

NFS

PostgreSQL

Samba

Tomcat

Sendmail

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 7

Disaster Tolerant Solutions

HP Serviceguard for Linux Extended Distance Cluster (XDC) extends cluster

distances up to 100 km, utilizes software RAID mirroring for data replication and is

storage array independent

HP StorageWorks XP/EVA Cluster Extension Software for Linux (CLX) works

seamlessly with HP Serviceguard for Linux, HP StorageWorks Continuous Access,

and HP Disk Arrays to automate failover and failback between sites

Software updates are distributed by HP Services to customers with support contracts

NOTE:

For additional information on HP Serviceguard for Linux, visit:

http://www.hp.com/go/sglx

or see the HP Serviceguard for Linux QuickSpecs.

NOTE:

HP Serviceguard for Linux products for HP ProLiant and select 3rd party x86 class servers

include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid

access to HP support staff and proactive delivery of software updates. For more information about

this service, please visit:

http://www.hp.com/services/swsupport

Industry Standard

Compliance

ACPI V2.0 Compliant

PCI 2.2 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

IPMI 2.0, SMASH CLP compliant

Manageability

HP Lights-Out 100i Standard provides the following OS-independent remote control capabilities:

Virtual power

System event log access

System health

Remote serial console (serial redirection)

Browser, Telnet access

SMASH-CLP compliant

IPMI 2.0 compliant

HP Lights-Out 100i Advanced Pack provides license key activated upgrades to the following:

Virtual KVM (KVM over IP functionality embedded on the system board)

Security

Power-on password

Setup password

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 8

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002)

that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are

primarily connected to PDU's in data center racks so they now ship standard with only a PDU

power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle

(NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

If customers require a local power cord, they can check the power cord matrix for the appropriate

cord. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

UPS and PDU Power

Cord Matrix

Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and

specifications for UPS and PDU units:

http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html

Power Supply

650 Watts, auto-switching, PFC (Power Factor Correcting)

NOTE:

Factory upgradeable to high-efficiency (HE) power supply for lower TCO

System Fans

6 system fans ship standard; Non-hot plug, Non-redundant

OS Support

Microsoft Windows Server 2003 R2

Microsoft Windows Server 2008

Microsoft Windows Small Business Server 2008

Microsoft Windows Essential Server 2008

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Sun Solaris for x64/x86-based Systems

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and

Virtualization Software and latest listing of software drivers available for your server, please visit

our Support Matrix at:

http://www.hp.com/go/supportos

and our driver download page

http://www.hp.com/support/DL160G5

Rack Airflow

Requirements

Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling

efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for

maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow

5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate

airflow (equivalent to the required 64 percent open area for ventilation).

Side: The clearance between the installed rack component and the side panels of the rack must

be a minimum of 7 cm (2.75 inches)

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.

This arrangement ensures proper airflow. Using a rack without blanking panels results in improper

cooling that can lead to thermal damage.

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 9

NOTE:

For additional information, refer to the Setup and Installation Guide or the Documentation

CD provided with the server, or to the server documentation located in the Support section at the

following URL:

www.hp.com/servers/dl160

Rack Support

The DL Fixed Rail System supports installation in racks with square or round mounting holes

(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 24" - 36".

Installation into Telco 2 post, and 4 post, or threaded holes racks requires a 3rd party option kit.

For additional information, please visit:

www.racksolutions.com

Factory Express

Portfolio for Servers

and Storage

HP Factory Express offers configuration, customization, integration and deployment services for

HP servers and storage products. Customers can choose how their factory solutions are built,

tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex

configuration and design services as well as individual factory services, such as image loading,

asset tagging, and custom packaging. HP products supported through Factory Express include a

wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP

BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries

and configurable network switches.

For more information on Factory Express services for your specific server model please contact

your sales representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise

Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP

hardware portfolio. This approach is aligned with our strategic direction to meet the needs and

expectations of our valued customers. If you require "custom" rack configuration, please contact

HP's Customer Business Center or an Authorized Partner for assistance.

Service and Support

HP Care Pack Services provide total care and support expertise with committed response

designed to meet your IT and business needs.

HP Care Pack Services provide total care and support expertise with committed response

designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the

server that are purchased at the same time or afterward and internal to the enclosure. It also

includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items

will be covered at the same service level and for the same coverage period as the server.

Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For

servers or storage systems installed within a rack, service also covers all HP qualified rack

options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who

thoroughly understands your server technology and systems environment. HP Services, an

industry leader in provision of multi vender support solutions provides a range of support services

designed to meet the varying needs of business. Whether an SMB or large global corporation HP

has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service

– Simplify ProLiant solution implementation, maintenance and

management.

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 10

Support Service

– 3 Year, 9x5 Next Business Day coverage, excluding HP holidays only

Deployment Service

– Hardware Installation only

Enhanced Service

– Optimize service level to increase IT performance and availability

Support Service

– 3 Year 13x5 Same Business Day, 4-Hour response coverage

Deployment Service

– Installation and Start-up only

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer

Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP

holidays.

For a complete listing of service offerings and information visit:

http://www.hp.com/services/proliantservices

http://www.hp.com/go/proliant/carepack

QuickSpecs

HP ProLiant DL160 Generation 5

Standard Features

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 11

NOTE:

High Performance Computing (HPC) interconnect technologies are available for the DL160 G5 under the Cluster

Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure

to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the

following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects:

http://www.hp.com/techservers/clusters/ucp/index.html

HPC Interconnects

InfiniBand

PCI-X and PCI-Express adapters

Gigabit Ethernet

Use embedded ports

Myrinet XP

PCI-X Rev D, Rev E and Rev F adapters

QuickSpecs

HP ProLiant DL160 Generation 5

HPC Interconnects

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 12

Non-Hot Plug Serial ATA (SATA) Models

NOTE:

Non-Hot Plug models are not upgradeable to Hot Plug. Non-Hot Plug models require the addition of the HP HBA

SAS-SATA 4x1LN Cable Kit (P/N: 452130-B21) in order to connect a hardware RAID controller.

HP DL160 G5 X5472

Non-Hot Plug SATA,

2GB, (1P)

445198-xx1

HP DL160 G5 E5430

Non-Hot Plug SATA,

1GB, (1P)

445197-xx1

HP DL160 G5 E5405

Non-Hot Plug SATA,

1GB, (1P)

445196-xx1

Processor(s)

One of the following

depending on model

(1) Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600

MHz FSB)

(1) Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W,

1333MHz FSB)

(1) Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W,

1333MHz FSB)

Cache Memory

12MB (2 x 6MB) Level 2 cache

Memory

One of the following

depending on model

2GB (2 x 1GB) PC2-5300 DDR2 fully buffered DIMMs (667MHz) with

Advanced ECC (X5472 models)

1GB (2 x 512MB) PC2-5300 DDR2 fully buffered DIMMs (667MHz) with

Advanced ECC (E5430, E5405 models)

Network Controller

Two embedded NC105i PCIe Gigabit Server Adapters

Storage Controller

HP Embedded SATA RAID Controller

Hard Drive

160GB NHP SATA HDD

Internal Storage

3.0TB maximum (4 x 750GB Non-Hot plug 3.5" SATA hard drives)

Optical Drive

Optional CD/DVD-ROM, DVD/CD RW

Form Factor

Rack (1U)

Hot Plug Serial ATA (SATA)/ Serial Attached SCSI (SAS) Models

HP DL160 G5 X5472

Hot Plug SAS/SATA,

2GB, (1P)

445204-xx1

HP DL160 G5 E5430

Hot Plug SAS/SATA,

1GB, (1P)

445203-xx1

HP DL160 G5 E5405

Hot Plug SAS/SATA

1GB, (1P)

445202-xx1

Processor(s)

One of the following

depending on model

(1) Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600

MHz FSB)

(1) Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W,

1333MHz FSB)

(1) Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W,

1333MHz FSB)

Cache Memory

12 MB (2 x 6 MB) Level 2 cache

Memory

One of the following

depending on model

2 GB (2 x 1 GB) PC2-5300 DDR2 fully buffered DIMMs (667MHz) with

Advanced ECC (X5472 models)

1 GB (2 x 512 MB) PC2-5300 DDR2 fully buffered DIMMs (667MHz)

with Advanced ECC (E5430, E5405 models)

Network Controller

Two embedded NC105i PCIe Gigabit Server Adapters

Storage Controller

HP SC40Ge SAS HBA with RAID

Hard Drive

None ship standard (up to 4 Hot Plug SATA or SAS drives supported)

Internal Storage

4.0TB max. (4 x 1TB Hot Plug 3.5" SAS/SATA hard drives)

Optical Drive

Optional CD/DVD-ROM, DVD/CD RW

Form Factor

Rack (1U)

QuickSpecs

HP ProLiant DL160 Generation 5

Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 13

Country Code Key

xx = 00

U.S.

xx = 20

Brazil (P/N 445202-201 only)

xx = 29

Japan

xx = 37

APD

xx = 42

Euro

xx = AA

PRC

QuickSpecs

HP ProLiant DL160 Generation 5

Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 14

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid

configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales

representative for additional information.

NOTE:

HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must

start with a CTO Chassis.

NOTE:

This product offering does not support HP Factory Express Server Configuration Level 1.

NOTE:

FIO indicates that this option is a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Non-Hot Plug SATA Model

NOTE:

Non-Hot Plug models are not upgradeable to Hot Plug. Non-Hot Plug

models require the addition of the HP HBA SAS-SATA 4x1LN Cable Kit (P/N:

452130-B21) in order to connect a hardware RAID controller.

HP ProLiant DL160 G5 Non-Hot Plug SATA Rack CTO Chassis

445192-B21

Factory Integrated Model ships with:

Two embedded NC105i PCIe Gigabit Server Adapters (WOL & PXE-capable)

Two available PCI-Express 2 slots:

Slot 1: full-length/full-height

Slot 2: low-profile/half-height

650 Watt Power Supply

One Highline IEC Power Cord

6 Non-Hot Plug Fans

Rack (1U), (1.75 in / 4.45 cm)

Fixed Rails

Hot Plug Model

HP ProLiant DL160 G5 Hot Plug SAS/SATA Rack CTO Chassis

445193-B21

Factory Integrated Model ships with:

Two embedded NC105i PCIe Gigabit Server Adapters (WOL & PXE-capable)

Two available PCI-Express 2 slots:

Slot 1: full-length/full-height

Slot 2: low-profile/half-height

650 Watt Power Supply

One Highline IEC Power Cord

6 Non-Hot Plug Fans

Rack (1U), (1.75 in / 4.45 cm)

Fixed Rails

Step 2: Choose Required Options (only one of the following from each list unless

otherwise noted)

Processors

Quad-Core Processors

Quad-Core Intel® Xeon® processor X5482 (3.20 GHz, 120W, 1600MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 495614-L21 and one 495614-

B21.

495614-L21

QuickSpecs

HP ProLiant DL160 Generation 5

Configuration Information - Factory Integrated Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 15

Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 462465-L21 and one 462465-

B21.

462465-L21

Quad-Core Intel® Xeon® processor X5470 (3.33 GHz, 120W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 495612-L21 and one 495612-

B21.

495612-L21

Quad-Core Intel® Xeon® processor X5460 (3.16 GHz, 120W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 446085-L21 and one 446085-

B21.

446085-L21

Quad-Core Intel® Xeon® processor L5430 (2.60 GHz, 50W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 495616-L21 and one 495616-

B21.

495616-L21

Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 495479-L21 and one 495479-

B21.

495479-L21

Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 448369-L21 and one 448369-

B21.

448369-L21

Quad-Core Intel® Xeon® processor E5472 (3.00 GHz, 80W, 1600MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 448365-L21 and one 448365-

B21.

448365-L21

Quad-Core Intel® Xeon® processor E5462 (2.80 GHz, 80W, 1600MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 463076-L21 and one 463076-

B21.

463076-L21

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 446079-L21 and one 446079-

B21.

446079-L21

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB),

FIO

NOTE:

If 2 processors are desired, select one 446077-L21 and one 446077-

B21.

446077-L21

Dual-Core Processors

Dual-Core Intel® Xeon® processor X5272 (3.40 GHz, 80W, 1600MHz FSB)

NOTE:

If 2 processors are desired, select one 448371-L21 and one 448371-

B21.

448371-L21

Dual-Core Intel® Xeon® processor L5240 (3.00 GHz, 40W, 1333MHz FSB), FIO

NOTE:

If 2 processors are desired, select one 448373-L21 and one 448373-

B21.

448373-L21

QuickSpecs

HP ProLiant DL160 Generation 5

Configuration Information - Factory Integrated Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 16

Memory

1 GB FBD PC2-5300 2 X 512 MB Kit

397409-B21

2 GB FBD PC2-5300 2 X 1 GB Kit

397411-B21

4 GB FBD PC2-5300 2 X 2 GB Kit

397413-B21

8 GB FBD PC2-5300 2 X 4 GB Kit

397415-B21

Dual Rank

4 GB FBD PC2-6400 800MHz 2 x 2 GB Dual Rank Kit

484060-B21

8 GB FBD PC2-6400 2 x 4 GB Dual Rank Kit

484062-B21

16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit

413015-B21

64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit

495604-B21

Low Power

2 GB FBD PC2-5300 2 X 1 GB Low Power Kit

461826-B21

4 GB FBD PC2-5300 2 x 2 GB Low Power Kit

461828-B21

8 GB FBD PC2-5300 2 x 4 GB Low Power Kit

466440-B21

Hard Drive

NOTE:

Transfer rates of drives are dependent on the maximum transfer rate

supported by the HBA or Controller. Refer to the HBA or Controller technical

specifications for details.

SATA Non-Hot Plug Midline (MDL) Drive

NOTE:

A minimum of one hard drive is required when purchasing Non-Hot Plug

CTO Chassis Model (P/N 445192-B21).

NOTE:

SATA Non-Hot Plug Hard Drives ONLY required when purchasing Non-

Hot Plug CTO Chassis Models (445192-B21) in Step 1.

HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD

462595-B21

HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD

458941-B21

HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD

458939-B21

SATA Non-Hot Plug Entry (ETY) Drives

HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD

458947-B21

Storage Controllers

NOTE:

A minimum of one SAS Controller is required when purchasing Hot Plug

CTO Chassis Model (P/N 445193-B21).

NOTE:

The below storage controllers are intended for use with internal drives

ONLY in the Hot Plug CTO Chassis Model (P/N 445193-B21).

HP SC44Ge Host Bus Adapter

NOTE:

When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard

Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.

416096-B21

HP SC40Ge 4 Internal PCIe SAS RAID Half Height HBA, FIO

NOTE:

Recommended HBA when purchasing Hot Plug CTO Chassis Model

(P/N 445193-B21).

NOTE:

When using the SC40Ge with SATA Hard Drives, 1.5G SATA Hard

Drives are required. Transfer rate 1.5 Gb/s SATA, 3 Gb/s SAS.

449363-B21

HP Smart Array E500/256MB Controller with Battery, FIO

NOTE:

Customers can only order one Smart Array E500/256MB Controller and

one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant

DL160 G5 server based on battery space.

462105-B21

HP Smart Array E200/128 BBWC Controller

411508-B21

HP HBA SAS-SATA 4x1LN Cable Kit

452130-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Configuration Information - Factory Integrated Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 17

NOTE:

This option is required for any internal port HBA or controller that has a

standard 4 port SAS/SATA connector.

Step 3: Choose Additional Factory Integratable Options (only one of the following

from each list unless otherwise noted)

Power Supply

HP High Efficiency Power Supply Kit, FIO

NOTE:

Selection of the HE Power Supply Unit will remove the 650 Watt

standard power supply and requires the purchase of Power Supply Backplane

(p/n 453652-B21).

453650-B21

HP Power Supply Backplane, FIO

NOTE:

This backplane must be ordered with the High Efficiency Power Supply

(P/N 453650-B2).

453652-B21

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Options" section below. Some options may not be available for factory

integration. Please contact an HP sales representative for additional information.

QuickSpecs

HP ProLiant DL160 Generation 5

Configuration Information - Factory Integrated Models

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 18

Server Management

Stand Alone Software

Product and ProLiant

Essentials

NOTE:

Electronic licensing options are available for Insight Control suites and

select ProLiant Essentials software products. Please see the appropriate Insight

Control and ProLiant Essentials QuickSpecs for additional information.

Control

Lights-Out 100i Advanced Pack

HP Lights Out 100i Advanced Pack, No Media, 1-Server License

NOTE:

Supports HP ProLiant DL 160 G5, DL165 G5 and DL185 G5 servers.

455342-B21

NOTE:

Flexible and volume quantity (AKA) license kits are available for the

Lights-Out 100i Advanced Pack licenses as well as Electronic License To Use

(E-LTU). AKA Tracking licenses require a 100 unit minimum forecast at initial

contract signing. For these additional part numbers, please refer to each

software products' QuickSpecs at this link for more information:

http://h18004.www1.hp.com/products/servers/management/remotemgmt.html

DEPLOY

Rapid Deployment Pack

ProLiant Essentials Rapid Deployment Pack No Media 1-Server License

including 1 year of 24x7 Technical Support and Updates

NOTE:

This license allows 1 server to be deployed and managed via RDP.

Customer will receive a printed license entitlement certificate via physical

shipment. The license entitlement certificate must be redeemed online or via fax

in order to obtain the license activation key(s). Includes one year of 24 x 7 HP

Software Technical Support and Update Service.

452151-B21

NOTE:

For additional License Kits please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

NOTE:

Flexible and volume quantity license kits are available for ProLiant

Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials Value Pack product QuickSpecs for more

information.

Processor

Quad-Core Processors

Quad-Core Intel® Xeon® processor X5482 (3.20 GHz, 120W, 1600MHz FSB)

495614-B21

Quad-Core Intel® Xeon® processor X5472 (3.00 GHz, 120W, 1600MHz FSB)

462465-B21

Quad-Core Intel® Xeon® processor X5470 (3.33 GHz, 120W, 1333MHz FSB)

495612-B21

Quad-Core Intel® Xeon® processor X5460 (3.16 GHz, 120W, 1333MHz FSB)

446085-B21

Quad-Core Intel® Xeon® processor L5430 (2.60 GHz, 50W, 1333MHz FSB)

495616-B21

Quad-Core Intel® Xeon® processor L5420 (2.50 GHz, 50W, 1333MHz FSB)

495479-B21

Quad-Core Intel® Xeon® processor L5410 (2.33 GHz, 50W, 1333MHz FSB)

448369-B21

Quad-Core Intel® Xeon® processor E5472 (3.00 GHz, 80W, 1600MHz FSB)

448365-B21

Quad-Core Intel® Xeon® processor E5462 (2.80 GHz, 80W, 1600MHz FSB)

463076-B21

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80W, 1333MHz FSB)

446079-B21

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333MHz FSB)

446077-B21

Dual-Core Processors

Dual-Core Intel® Xeon® processor X5272 (3.40 GHz, 80W, 1600MHz FSB)

448371-B21

Dual-Core Intel® Xeon® processor L5240 (3.00 GHz, 40W, 1333MHz FSB)

448373-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 19

Memory

1 GB FBD PC2-5300 2 X 512 MB Kit

397409-B21

2 GB FBD PC2-5300 2 X 1 GB Kit

397411-B21

4 GB FBD PC2-5300 2 X 2 GB Kit

397413-B21

8 GB FBD PC2-5300 2 X 4 GB Kit

397415-B21

Dual Rank

4 GB FBD PC2-6400 2 X 2 GB Dual Rank Kit

484060-B21

8 GB FBD PC2-6400 2 x 4 GB Dual Rank Kit

484062-B21

16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit

413015-B21

64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit

495604-B21

Low Power

2 GB FBD PC2-5300 2 X 1 GB Low Power Kit

461826-B21

4 GB FBD PC2-5300 2 x 2 GB Low Power Kit

461828-B21

8 GB FBD PC2-5300 2 x 4 GB Low Power Kit

466440-B21

Hard Drives

NOTE:

Transfer rates of drives are dependent on the maximum transfer rate

supported by the HBA or Controller. Refer to the HBA or Controller technical

specifications for details.

SATA Non-Hot Plug Midline (MDL) Drives

(Non-Hot Plug Models Only)

HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD

462595-B21

HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD

458941-B21

HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD

458939-B21

SATA Non-Hot Plug Entry (ETY) Drives

HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD

458947-B21

NOTE:

When purchasing systems with the 500GB Non-Hot Plug SATA drives,

please reference the Configuration Information Section of this QuickSpecs to

order via Configuration to Order.

SATA Hot Plug Midline (MDL) Drives

(SAS/SATA Hot Plug Models Only)

NOTE:

A SAS HBA or Array Controller is required.

HP 1TB 3G SATA 7.2K 3.5" MDL HDD

454146-B21

HP 750GB 3G SATA 7.2K 3.5" MDL HDD

458930-B21

HP 500GB 3G SATA 7.2K 3.5" MDL HDD

458928-B21

HP 250GB 3G SATA 7.2K 3.5" MDL HDD

458926-B21

NOTE:

Server BIOS update is required to support 3G SATA drives when

configured with embedded SATA controller. Please see communication for

details:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?

objectID=

c01511475

SATA SFF Hot Plug Entry (ETY) Drives

HP 160GB 3G SATA 7.2K 3.5" ETY HDD

458945-B21

NOTE:

Server BIOS update is required to support 3G SATA drives when

configured with embedded SATA controller. Please see communication for

details:

http://h20000.www2.hp.com/bizsupport/TechSupport/Document.jsp?

objectID=

c01511475

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 20

NOTE:

SATA hard drives have a 1-year warranty. Please see QuickSpecs for

Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

(Worldwide)

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SAS Hot Plug 3.5" Midline (MDL) Drives

HP 1TB 7.2K 3.5" DP SAS MDL HDD

461137-B21

HP 750GB 7.2K 3.5" DP SAS MDL HDD

461135-B21

SAS Hot Plug 3.5" Enterprise (ENT) Drives

HP 400GB 3G 10K 3.5" DP SAS HDD

459508-B21

HP 450GB 3G 15K 3.5" DP SAS ENT HDD

454232-B21

HP 300GB 3G SAS 15K 3.5" SP HDD

431944-B21

HP 300GB 3G SAS 15K 3.5" DP HDD

416127-B21

HP 146GB 3G SAS 15K 3.5" SP HDD

375872-B21

HP 146GB 3G SAS 15K 3.5" DP HDD

384854-B21

HP 72GB 3G SAS 15K 3.5" SP HDD

375870-B21

HP 72GB 3G SAS 15K 3.5" DP HDD

384852-B21

NOTE:

The purchase of SAS HBA or array controller is required.

NOTE:

SAS Enterprise drives have a 3-year warranty Please see the

QuickSpecs for Technical Specifications and additional information:

hhttp://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

Hot Plug HDD

Backplane Option

Hot Plug HDD Backplane 1U 2S Kit

445985-B21

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is

required if ordering third or fourth Hard Drives for Hot Plug models only.

Graphic Cards

HP Nvidia Quadro FX1700 512 MB PCI-E 16x Kit

490646-B21

HP Nvidia FX3700 512 MB PCI-E 16x Kit

490062-B21

Optical Drives

DVD-ROM Drive (optional)

447889-B21

DVD/CD RW Drive (optional)

447891-B21

Storage Controllers

NOTE:

The addition of storage controllers for internal hard drive use is intended

for use ONLY with the Hot Plug SATA/SAS Model Chassis (P/N 445148-B21).

SAS HBA

HP 8 Internal Port SAS HBA with RAID

NOTE:

For use with Hot Plug SAS/SATA models.

NOTE:

The selection HP 8 Internal Port SAS HBA with RAID requires the

purchase of the LowProfile PCI-X Riser Option kit (P/N 452698-B21)

NOTE:

Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS

347786-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 21

HP SC44Ge Host Bus Adapter

NOTE:

PCI-Express SAS HBA.

NOTE:

When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard

Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.

416096-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html

(8 Internal Port SAS HBA)

http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html

(SC44Ge HBA)

SCSI HBA

HP SC11Xe Host Bus Adapter

412911-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html

(SC11Xe HBA)

SAS Controllers

Smart Array E200 Controller

HP Smart Array E200/128 BBWC Controller

411508-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html

(Smart Array E200 Controller)

Smart Array E500 Controller

HP Smart Array E500/256MB Controller

NOTE:

Standard RAID 0,1, 1+0.

NOTE:

Customers can only order one Smart Array E500/256MB Controller and

one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant

DL160 G5 server based on battery space.

435129-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html

(Smart Array E500 Controller)

Smart Array P400 Controller

HP Smart Array P400/256 Controller

NOTE:

Customers can only order one Smart Array P400/256MB Controller and

one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant

DL160 G5 server based on battery space.

405132-B21

HP Smart Array P400/512 Controller with BBWC

NOTE:

Customers can only order one Smart Array P400/512MB BBWC

Controllers for the HP ProLiant DL160 G5 server based on battery space.

411064-B21

512MB Battery-backed write cache upgrade

NOTE:

Contains batter and memory module. For Smart Array P400 Controller.

405148-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html

(Smart Array P400 Controller)

Smart Array P800 Controller

HP Smart Array P800/512 BBWC Controller

381513-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 22

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html

(Smart Array P800 Controller)

Riser Board Kits

HP PCI-X Riser Board Kit

NOTE:

Replaces the standard Full Height PCI Express slot with a Full Height

PCI-X slot.

445986-B21

HP PCI-X L/P Riser Kit

NOTE:

Replaces the standard Half Height (LP) PCI Express slot with a Half

Height (LowProfile) PCI-X slot.

452698-B21

Communications

HP NC110T PCI Express Gigabit Server Adapter

434905-B21

HP NC360T PCI Express Dual Port Gigabit Server Adapter

412648-B21

HP NC364T PCI Express Quad Port Gigabit Server Adapter

435508-B21

HP NC373F PCI Express Multifunction Gigabit Server Adapter

394793-B21

HP NC373T PCI Express Multifunction Gigabit Server Adapter

394791-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

HP NC510C PCIe 10 Gigabit Server Adapter

NOTE:

A minimum of 1 gigabyte (1 GB) of server memory is required per each

NC510C adapter.

414129-B21

HP NC510F PCIe 10 Gigabit Server Adapter

NOTE:

A minimum of 1 gigabyte (1 GB) of server memory is required per each

NC510F adapter.

414126-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

HPC Specific Options

HP IB 4X DDR PCI-e Dual Port 0 Memory HCA

483513-B21

HP IB 4X DDR Conn-X PCI-e G2 Dual Port HCA

483514-B21

HP IB 4X DDR PCI-e Dual Port HCA

409376-B21

HP IB 4X DDR PCI-e DUAL PORT HCA

448397-B21

NOTE:

For HPC interconnect adapters please see the HPC Interconnect section

of this QuickSpecs.

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 23

Tape Drives

NOTE:

For the complete listing of Tape Drive offerings, please see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

USB Rack-Mount Tape Drives

HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive

NOTE:

Pre-configured with one DAT 160 USB tape drive.

AG703A

SAS Rack-Mount Tape Drives

NOTE:

HP recommends purchasing the HP SC44Ge HBA (416096-B21) for a

dedicated SAS HBA for tape.

HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium 1760

NOTE:

Pre-configured with one LTO-4 Ultrium 1760 SAS tape drive.

EH946A

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE:

Supports up to (2) half-height SAS tape drives.

AE459A

HP StorageWorks DAT 160 SAS Internal Tape Drive

NOTE:

Mounts inside the 1U SAS Rack-Mount Kit (AE459A)

Q1587A

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

NOTE:

Mounts inside the 1U SAS Rack-Mount Kit (AE459A)

DW085A

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

NOTE:

Mounts inside the 1U SAS Rack-Mount Kit (AE459A)

EH847A

SCSI Rack-Mount Tape Solutions

NOTE:

SCSI Controller required. HP recommends purchasing the HP SC11Xe

HBA (412911-B21) for a dedicated SCSI HBA for tape.

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI

Tape Drive (Carbonite)

NOTE:

Pre-configured with one LTO-2 Ultrium 448 SCSI tape drive.

DW028B

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920

NOTE:

Pre-configured with one LTO-3 Ultrium 920 SCSI tape drive.

EH903A

HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive

NOTE:

Pre-configured with one LTO-4 Ultrium 1840 SCSI tape drive.

EH926A

For an up-to-date listing of the latest O/S and software support details for HP

Ultrium tape drives, please visit:

http://www.hp.com/go/connect

Disk-Based Backup

RDX Removable Disk Backup

HP StorageWorks RDX160 External Removable Disk Backup System

NOTE:

160GB of Disk Storage

AJ766A

HP StorageWorks RDX320 External Removable Disk Backup System

NOTE:

320GB of Disk Storage

AJ768A

HP StorageWorks RDX500 External Removable Disk Backup System

NOTE:

500GB of Disk Storage

AJ935A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

D2D Backup

HP StorageWorks D2D120 Backup System with Data Protector Express

Software Kit

NOTE:

2TB of Disk Storage

EH924A

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape

Drive

NOTE:

3TB of Disk Storage.

EH952A

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 24

HP StorageWorks D2D2503i Backup System

NOTE:

3TB of Disk Storage.

EH945A

HP StorageWorks D2D4004i Backup System

EH938A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html

(Worldwide)

Tape Autoloaders

HP StorageWorks DAT Autoloader

HP StorageWorks DAT 72x10 tape autoloader

AE313B

HP StorageWorks 1/8 G2 Tape Autoloader

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

AK377A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader

AH164A

HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit

NOTE:

Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;

includes rails and rackmount instructions.

AH166A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://www.hp.com/go/automation

needed to create a complete

solution; reference current compatibility information at:

http://www.hp.com/go/ebs

Tape Libraries

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ033A

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library

AG115A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library

AG116A

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library

AH560A

HP StorageWorks MSL4048 1 Ultrium 960 SCSI Drive Library

AG322A

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ035A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://www.hp.com/go/automation

needed to create a complete

solution; reference current compatibility information at:

http://www.hp.com/go/ebs

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 25

HP StorageWorks 50

Modular Smart Array

HP StorageWorks 50 Modular Smart Array

364430-B21

NOTE:

Rack-mountable 10 SFF drive enclosure with single I/O module,

redundant hot plug power supplies and hot plug fans.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html

(Worldwide)

HP StorageWorks 60

Modular Smart Array

HP StorageWorks 60 Modular Smart Array

418408-B21

NOTE:

Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with

3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

(Worldwide)

HP StorageWorks 70

Modular Smart Array

HP StorageWorks 70 Modular Smart Array

418800-B21

NOTE:

Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with

3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

(Worldwide)

High Availability

Cluster Options

HP Serviceguard for Linux

HP Serviceguard Linux for HP ProLiant/x86 Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463831-B21

HP Serviceguard Linux Oracle Database Toolkit for HP ProLiant/x86 Servers

Licensed per cluster

Includes media and One Year 24x7 Software Support & Updates

463833-B21

HP Serviceguard Extension for SAP on Linux for HP ProLiant/x86 Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463834-B21

HP Serviceguard Linux Extended Distance Cluster (XDC) for HP ProLiant/x86

Servers

Licensed per physical server

Includes media and One Year 24x7 Software Support & Updates

463835-B21

NOTE:

The above is not a complete list of all HP Serviceguard for Linux product

numbers For a detailed list of supported configuration/certification options for HP

Serviceguard for Linux please refer to the HP Serviceguard for Linux

Configuration & Ordering Guide available at:

http://www.hp.com/go/sglx/info

NOTE:

HP Serviceguard for Linux products running on x86 platforms now

include one year of 24 x 7 Software Technical Support and Updates. Please see

the Support Information section of the HP Serviceguard for Linux QuickSpecs for

details.

NOTE:

For additional information including a complete list of Product Numbers

for HP Serviceguard for Linux, please see the following QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 26

(Worldwide)

StorageWorks Options

StorageWorks Fibre Channel HBA

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for

Windows and Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks FC2142SR 4Gb PCI-e HBA

A8002A

HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA

A8003A

HP StorageWorks FC1142SR 4Gb PCI-e HBA

AE311A

HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA

AE312A

HP StorageWorks FC2143 4Gb PCI-X 2.0 - to Fibre Channel HBA

AD167A

HP StorageWorks FC2243 Dual Channel 4Gb PCI-X 2.0 HBA

AD168A

HP StorageWorks 81E 8Gb SP PCI-e FC HBA

AJ762A

HP 82E 8Gb Dual-port PCI-e FC HBA

AJ763A

HP 82Q 8Gb Dual Port PCI-e FC HBA

AJ764A

StorageWorks SCSI HBA

HP U320e SCSI Host Bus Adapter

NOTE:

Recommended Dual Channel Ultra320 SCSI Controller for connecting

multi-drive MSL tape libraries to ProLiant servers

AH627A

HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA

AD168A

Uninterruptible Power

Systems - Rack

HP UPS R1500 G2 UPS

HP, R1.5k VA UPS, 1U,NA

AF419A

HP, R1.5kVA UPS, 1U, INTL

AF418A

HP, R1.5kVA UPS, 1U, JPN/TW

AF421A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html

(Worlwide)

USB Options

HP 1GB USB 2.0 Floppy Drive Key

442085-B21

USB 1.44-MB External Diskette Drive

DC141B

USB Floppy Drive

DC361B

HP USB-P/S2 Mouse

DC369A

HP Keyboard (USB) standard 2004

DT528A#xxx

HP USB Internal Cable Kit

451363-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 27

HP Rack 10000 G2

Series

(Carbon/Graphite

Metallic)

10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet

AF034A

10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet

AF038A

10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet

AF044A

10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet

AF045A

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment

installed.

NOTE:

Please see the Rack 10000 G2 QuickSpecs for Technical Specifications

such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the

following URL:

http://www.hp.com/go/rackandpower

HP KVM Switch

Options

2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

Requires PS/2 and one USB port on server.

AF604A

HP Server Console Switch (KVM), 0 x 1 x 8 port

336044-B21

HP Server Console Switch (KVM), 0 x 2 x 16 port

336045-B21

PS/2 Interface Adapter, 1 pack

262588-B21

PS/2 Interface Adapter, 8 pack

262587-B21

HP 1x4 Console Switch

AF611A

HP PS2 Server Console Cable, 6 foot, 2-Pack

AF612A

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

required for supporting USB peripherals.

AF613A

NOTE:

Cat5e cables are required to connect Interface Adapters to Console

Switches. Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm

HP Serial Console

Server Options

HP 16 Port Serial Console Server (worldwide)

AF101A

HP 48 Port Serial Console Server (worldwide)

AF102A

Serial Adapter, RJ45-D89 DCE Female, 1-pack

AF103A

Serial Adapter, RJ45-D89 DCE Female, 8-pack

AF110A

NOTE:

For additional information regarding KVM switches, Serial Console

servers, rack mount monitors, keyboards and all related options please see the

following URL:

http://www.hp.com/go/kvm

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 28

Service and Support

Offerings

(HP Care Pack Services)

Hardware Services 4-Hour On-site Service

13-Hour x 5-Day Coverage, 3 Years, Electronic

U9509E

24-Hour x 7 Day Coverage, 3 Years, Electronic

U9510E

Hardware Services Next Business Day On-Site Service

9-Hour x 5-Day Coverage, 3 Years, Electronic

U9508E

Hardware Services 6-Hour Call to Repair On-Site Service

Hardware Installation, Electronic

U9520E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL160 Generation 5

Options

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 29

HP ProLiant DL160 G5 (all models)

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory

1GB (2x512MB) or 2GB (2 x 1GB) depending on model, PC2-5300 Fully Buffered DIMM memory, with Advanced ECC.

Maximum Memory

Up to 32GB memory is available with the optional installation of PC2-5300 Fully Buffered DIMM memory kits.

NOTE:

Memory should be installed in pairs and matched for optimum performance.

NOTE:

Chart does not represent all possible memory configurations.

Memory

Slot

12345678

Standard (1 GB)

512 MB

Empty

512 MB

Empty Empty Empty Empty Empty

Standard (2 GB)

1 GB

Empty

1 GB

Empty Empty Empty Empty Empty

Maximum (64GB)

8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB 8 GB

Following are memory options available from HP:

1 GB FBD PC2-5300 2 X 512 MB Kit

397409-B21

2 GB FBD PC2-5300 2 X 1 GB Kit

397411-B21

4 GB FBD PC2-5300 2 X 2 GB Kit

397413-B21

8 GB FBD PC2-5300 2 X 4 GB Kit

397415-B21

Dual Rank

4 GB FBD PC2-6400 2 X 2 GB Dual Rank Kit

484060-B21

8 GB FBD PC2-6400 2 x 4 GB Dual Rank Kit

484062-B21

16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit

413015-B21

64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit

495604-B21

Low Power

2 GB FBD PC2-5300 2 X 1 GB Low Power Kit

461826-B21

4 GB FBD PC2-5300 2 x 2 GB Low Power Kit

461828-B21

8 GB FBD PC2-5300 2 x 4 GB Low Power Kit

466440-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Memory

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 30

1-4

Four Non-hot plug SATA or four 3.5" Hot-plug

SAS/SATA hard drive bays

Optional DVD-ROM, or DVD/CD RW

Drive Support

Removable Media

Quantity

Supported

Position

Supported

Controller

DVD-ROM

Up to 1

Integrated IDE (ATAPI) (optional)

DVD/CD RW

Up to 1

Integrated IDE (ATAPI) (optional)

Hard Drives

NOTE:

Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to

the HBA or Controller technical specifications for details.

SATA Non-Hot Plug Midline (MDL) Drives 3.5"

Quantity

Supported

Position

Supported

Controller

250GB 1.5G SATA 7.2K

500GB 1.5G SATA 7.2K

750GB 1.5G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SATA Non-Hot Plug Entry (ETY) Drives 3.5"

Quantity

Supported

Position

Supported

Controller

160GB 1.5G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SATA Hot Plug Midline (MDL) Drives 3.5"

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth Hard Drives for

Hot Plug models only.

Quantity

Supported

Position

Supported

Controller

160GB SATA 7.2K

250GB SATA 7.2K

500GB SATA 7.2K

750GB SATA 7.2K

1TB SATA 7.2K

Up to 4

1-4

HP SC40Ge 4-Port Internal SAS HBA with RAID 0, 1

NOTE:

When using the SC40Ge with SATA Hard Drives, 1.5G

SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA,

3 Gb/s SAS

HP Smart Array P400 Controller

HP Smart Array P800 Controller

SATA Non-Hot Plug Enterprise (ENT) Drives 3.5"

Quantity

Supported

Position

Supported

Controller

160GB 1.5G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SAS Hot Plug 3.5"Midline (MDL) Drives

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth Hard Drives for

Hot Plug models only.

QuickSpecs

HP ProLiant DL160 Generation 5

Storage

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 31

Quantity

Supported

Position

Supported

Controller

1TB 3G 7.2K

750 3G 7.2K

Up to 4

1-4

Embedded SATA with integrated SATA RAID 0,1

HP Smart Array E200/128 BBWC Controller

HP Smart Array P400 Controller

HP Smart Array E500/256MB Controller

HP Smart Array P800 Controller

SAS Hot Plug 3.5" Enterprise (ENT) Drives

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth Hard Drives for

Hot Plug models only.

Quantity

Supported

Position

Supported

Controller

72GB 3G 15K

146GB 3G 15K

300GB 3G 15K

450GB 3G 15K

400GB 3G 10K

Up to 4

1-4

HP SC40Ge 4-Port Internal SAS HBA with RAID 0, 1

NOTE:

When using the SC40Ge with SATA Hard Drives, 1.5G

SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA,

3 Gb/s SAS

HP Smart Array P400 Controller

HP Smart Array P800 Controller

External Storage

Quantity

Supported

Position

Supported

Controller

20 Modular Smart Array

Up to 2 per SA-

6402

Up to 4 per SA-

6404

External

Smart Array 6402/128 Controller

Smart Array 6404/256 Controller

Smart Array 642 Controller

50 Modular Smart Array

Up to 2

External

Smart Array 6402/128 Controller

Smart Array 6404/256 Controller

Smart Array 642 Controller

60 HP StorageWorks

Modular Smart Array

Up to 8

External

HP Smart Array P800/512 BBWC Controller

70 HP StorageWorks

Modular Smart Array

Up to 8

External

HP Smart Array P800/512 BBWC Controller

QuickSpecs

HP ProLiant DL160 Generation 5

Storage

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 32

Tape and Disk-Based Backup

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the

following:

http://h18000.www1.hp.com/products/quickspecs/division/10233.html

(Worldwide)

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed

below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/division/10809.html

(Worldwide)

NOTE:

For complete listing of tape drive offerings see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE:

SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied

with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs

into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard

drive cage would mean drive bay 8 is deactivated.

Position

Supported

Controller

Controller/HBA

Option Kit Part

Number

HP StorageWorks SCSI

Tape Drives, External

LTO-1 Ultrium 232

LTO-2 Ultrium 448

LTO-3 Ultrium 920

LTO-3 Ultrium 960

LTO4 Ultrium 1760

LTO-4 Ultrium 1840

DAT 40

DAT 72

DAT 160

1U Rack-Mount Kit

3U Rack-Mount Kit

External

HP SC11Xe Host Bus Adapter

412911-B21

HP StorageWorks USB

Tape Drives, External

DAT 40 USB

DAT 72 USB

DAT 160 USB

1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP StorageWorks SAS

Tape Drives, External

DAT 160 SAS

LTO-2 Ultrium 448 SAS

LTO-3 Ultrium 920 SAS

LTO-4 Ultrium 1760 SAS

LTO-4 Ultrium 1840 SAS

1U Rack-Mount Kit

3U Rack-Mount Kit

External

HP SC44Ge Host Bus Adapter

416096-B21

HP StorageWorks SCSI

Tape Automation,

External

HP SC11Xe Host Bus Adapter

412911-B21

QuickSpecs

HP ProLiant DL160 Generation 5

Storage

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 33

External

DAT 72x10 Autoloader

1/8 G2 Autoloader

MSL2024

MSL4048

HP U320e SCSI Host Bus Adapter

NOTE:

Recommended for MSL tape libraries.

AH627A

HP StorageWorks SAS

Tape Automation,

External

1/8 G2 Autoloader

MSL2024

MSL4048

External

HP SC44Ge Host Bus Adapter

NOTE:

Please visit:

http://www.hp.com/go/connect

for details

about minimum SAS controller firmware version and SAS

cabling requirements.

416096-B21

HP StorageWorks Fibre

Tape Automation,

External

MSL2024

MSL4048

MSL8096

MSL6000

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for detailed connectivity information.

N/A

HP StorageWorks RDX

Removable Disk

Backup System,

External

RDX160

RDX320

RDX500

External

USB 2.0 port

N/A

HP StorageWorks D2D

Backup Systems

D2D120

D2D130

D2D2503i

D2D4004i

External

Embedded Network Controller

N/A

QuickSpecs

HP ProLiant DL160 Generation 5

Storage

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 34

Operational Input

Voltage Range

(Vrms)

90Vac to 264Vac full range

Frequency Range

(Nominal) (Hz)

47 Hz to 63 Hz

Nominal Input Voltage

(Vrms)

100 115 200 220 230 240

Max Rated Output

Wattage Rating

653.10 653.19 653.08 652.96 653.08 652.96

Nominal Input Current

(A rms)

8.55 7.31 4.12 3.77

3.6

3.46

Max Rated Input

Wattage Rating

(Watts)

855

840.72 824.12

827.5 806.3

805.71

Max. Rated VA

(Volt-Amp)

990 990 990 990 990 990

Efficiency

(%)

76.39 77.69 79.25 78.91

81.04

Power Factor

0.998 0.997 0.983 0.976 0.973 0.969

Leakage Current

(mA)

<3.5mA <3.5mA <3.5mA <3.5mA <3.5mA <3.5mA

Maximum Inrush

Current

(A peak)

60A 60A 60A 60A 60A 60A

Maximum Inrush

Current Duration

(mS)

1mS 1mS 1mS 1mS 1mS 1mS

QuickSpecs

HP ProLiant DL160 Generation 5

Power Specifications

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 35

Power

ProLiant DL160 G5 Fully Configured

115V/60Hz 220V/50Hz

Fully Loaded System Input Wattage

(W)

651 638

Fully Loaded System Input Current

(A rms)

5.7 3.0

Fully Loaded System Thermal

(BTU- Hr)

2218 2174

Fully Loaded System VA

(Volt-Amp)

657 657

System Leakage with all power supplies

loaded

(mA)

1.58 3.03

System Inrush Current with all power

supplies loaded

(A)

19 37

Power cord requirements

Nema 5-15P to IEC320-C13

IEC320-C13 to IEC320-C14

NOTE:

Power shown is for a fully configured system consisting of (2) CPU, (8) double-sided DIMMs, (2) HDDs, (1) CD-

ROM, and (2) PCI cards.

Power Cord

AF556A

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002)

that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are

primarily connected to PDU's in data center racks so they now ship standard with only a PDU

power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle

(NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

If customers require a local power cord, they can check the power cord matrix for the appropriate

cord. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

QuickSpecs

HP ProLiant DL160 Generation 5

System Specifications

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 36

System Unit

Dimensions

(H x W x D)

(with bezel)

1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)

Weight

(approximate)

Maximum

(all hard drives, power

supplies, and processors

installed)

37.00 lb (16.78 kg)

Minimum

(one hard drive, power

supply, and processor

installed)

30.00 lb (13.69 kg)

Input Requirements

(per power supply)

Rated Line Voltage

90 to 140 VAC

180 to 264 VAC

Rated Input Current

7.31A at 115VAC

3.6A at 230VAC

Rated Input Frequency

47 to 63 Hz

Rated Input Power

855W (at 100 VAC),

840.72W (at 200 VAC)

Power Specifications

To review typical system power ratings use the Power Calculator which

is available via the online tool located at URL:

http://h30099.www3.hp.com/configurator/calc/Power%

20Calculator%20Catalog.xls

- Click on the system of interest. Example: DL160 G5

- Follow the instructions of the next screens.

Power Supply Output

(per power supply)

Rated Steady-State

Power

653.10W (at 100 VAC),

653.08W (at 200 VAC)

System Inlet

Temperature

Operating

50° to 95° F (10° to 35° C) at sea level with an

altitude derating of 1.8°F per every 1000 ft

(1.0°C per every 305 m) above sea level to a

maximum of 10,000 ft (3050 m), no direct

sustained sunlight. Maximum rate of change

is 18°F/hr (10°C/hr). The upper limit may be

limited by the type and number of options

installed.

System performance may be reduced if

operating with a fan fault or above 86°F

(30°C).

Non-operating

40° to 140° F (-40° to 60° C)

Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity

(non-condensing)

Operating

10% to 85% relative humidity (Rh), 82.4°F

(28°C) maximum wet bulb temperature, non-

condensing.

Non-operating

10% to 95% relative humidity (Rh), 101.7°F

(38.7°C) maximum wet bulb temperature,

non-condensing.

Altitude

Operating

10,000 ft (3050 m). This value may be limited

by the type and number of options installed.

Maximum allowable altitude change rate is

1500 ft/min (457 m/min).

QuickSpecs

HP ProLiant DL160 Generation 5

Technical Specifications

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 37

Non-operating

30,000 ft (9144 m). Maximum allowable

altitude change rate is 1500 ft/min (457

m/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (L

WAd

) and

declared average bystander position A-Weighted sound pressure levels

pAm

) when the product is operating in a 23°C ambient environment.

Noise emissions were measured in accordance with ISO 7779 (ECMA

74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

WAd

6.86

pAm

52.36dBA

Operating

WAd

6.89

pAm

52.60dBA

Emissions

Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47,

Pt 15; ICES-003; CNS13438; GB9254;

K22;K24; EN 61000-3-2; EN 61000-3-3; EN

60950-1; IEC 60950-1

NOTE:

Product conformance to cited product specifications is based on

sample (type) testing, evaluation, or assessment. This product or family

of products is eligible to bear the appropriate compliance logos and

statements.

Non-Hot Plug SATA

Hard Drives

160-GB 7.2K

458947-B21

Capacity

160,041 MB

Height

1.028 in (2.61 cm)

Width

4.0 in (10.16 cm)

Depth

5.787 in (147.0 mm)

Interface

SATA ATA

Transfer Rate

Synchronous

(Maximum)

1.5Gb/s

Seek Time

(typical

reads, including settling)

Single Track

0.9 ms

Average

9.0 ms

Full-Stroke

17.8 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP ProLiant DL160 Generation 5

Technical Specifications

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 38

Embedded NC105i PCIe

Gigabit Server Adapter

Network Interface

Integrated 10/100/1000BASE-T Transceiver

Combines a triple-speed IEEE 802.3TM - Compliant Media Access

Controller (MAC) with a triple-speed Ethernet transceiver.

Data Transfer Method

Compliant to x1 PCIe Specification

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-

Duplex)

100 Mb/s

100Base-TX (Full-

Duplex)

200 Mb/s

1000Base-TX (Half and

Full-Duplex)

2000Mb/s

Connector

RJ-45 connector

Cable Support

Performs all the physical layer functions for 10BASE-T, 100BASE-T,

and 1000BASE-T Ethemet on standard Category 5 UTP

Environment-friendly

Products and

Approach

End-of-life

Management and

Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and

recycling programs in many geographic areas. For trade-in information,

please go to:

http://www.hp.com/go/green

. To recycle your product,

please go to:

http://www.hp.com/go/green

or contact your nearest HP

sales office. Products returned to HP will be recycled, recovered or

disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to

provide treatment information for each product type for use by treatment

facilities. This information (product disassembly instructions) is posted

on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These

instructions may be used by recyclers and other WEEE treatment

facilities as well as HP OEM customers who integrate and re-sell HP

equipment.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon

Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for

technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL160 Generation 5

Technical Specifications

DA - 12902 Worldwide QuickSpecs — Version 19 — 1/26/2009

Page 39

Hp Proliant Dl160 Users Manual Generation 5

DL160 to the manual dade5d02-8d30-4834-a30d-de6458dc0158

Navigation menu

Versions of this User Manual:

Views

Navigation
