hp psc 2300 series

all-in-one

reference guide

hp psc 2300 series

all-in-one

© Copyright Hewlett-Packard

Company 2003

All rights are reserved. No part of the

document may be photocopied,

reproduced, or translated to another

language without the prior written

consent of Hewlett-Packard Company.

This product incorporates Adobe’s

PDF technology, which contains an

implementation of LZW licensed

under U.S. Patent 4,558,302.

Portions Copyright © 1989-2003

Palomar Software Inc. The HP PSC

2300 Series includes printer driver

technology licensed from Palomar

Software, Inc. www.palomar.com

Copyright © 1999-2003 Apple

Computer, Inc.

Apple, the Apple logo, Mac, Mac

logo, Macintosh, and Mac OS are

trademarks of Apple Computer, Inc.,

registered in the U.S. and other

countries.

Publication number: Q3073-90183

First edition: July 2003

Printed in U.S.A., Mexico, Germany,

Singapore, or Malaysia.

Windows®, Windows NT®,

Windows ME®, Windows XP®, and

Windows 2000® are U.S.-registered

trademarks of Microsoft Corporation.

Intel® and Pentium® are registered

trademarks of Intel Corporation.

notice

The information contained in this

document is subject to change without

notice and should not be construed as

a commitment by the Hewlett-Packard

Company.

Hewlett-Packard assumes no

responsibility for any errors

that may appear in this

document, nor does it make

expressed or implied warranty

of any kind with regard to this

material, including, but not

limited to, the implied

warranties of merchantability

and fitness for a particular

purpose.

The Hewlett-Packard Company shall

not be liable for incidental or

consequential damages in connection

with, or arising out of the furnishing,

performance, or use of this document

and the program material which it

describes.

Note: Regulatory information can be

found in the “Technical information”

section of this guide.

It is not lawful in many places to make

copies of the following items. When in

doubt, check with a legal

representative first.

•Governmental paper or

documents:

-Passports

-Immigration papers

-Selective service papers

-Identification badges, cards, or

insignias

•Governmental stamps:

-Postage stamps

-Food stamps

•Checks or drafts drawn on

Governmental agencies

•Paper currency, traveler’s checks,

or money orders

•Certificates of deposit

•Copyrighted works

safety information

Warning! To prevent

fire or shock hazard, do

not expose this product

to rain or any type of

moisture.

Always follow basic safety

precautions when using this product to

reduce risk of injury from fire or

electric shock.

Warning! Potential

shock hazard

1Read and understand all

instructions in the setup poster.

2Use only a grounded electrical

outlet when connecting the unit to

a power source. If you do not

know whether the outlet is

grounded, check with a qualified

electrician.

3Observe all warnings and

instructions marked on the

product.

4Unplug this product from wall

outlets before cleaning.

5Do not install or use this product

near water or when you are wet.

6Install the product securely on a

stable surface.

7Install the product in a protected

location where no one can step

on or trip over the line cord, and

where the line cord will not be

damaged.

8If the product does not operate

normally, see the online

Troubleshooting help.

9No operator-serviceable parts

inside. Refer servicing to

qualified service personnel.

10 Use in a well-ventilated area.

Adobe and the Acrobat

logo are either registered

trademarks or trademarks

of Adobe Systems

Incorporated in the United

States and/or other

countries.

v

contents

1 hp psc overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

features at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

front panel overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

use the hp director software to do more with your hp psc . . . . . . . . . . . 6

2 load originals and load paper. . . . . . . . . . . . . . . . . . . . . . . . . . 11

load an original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

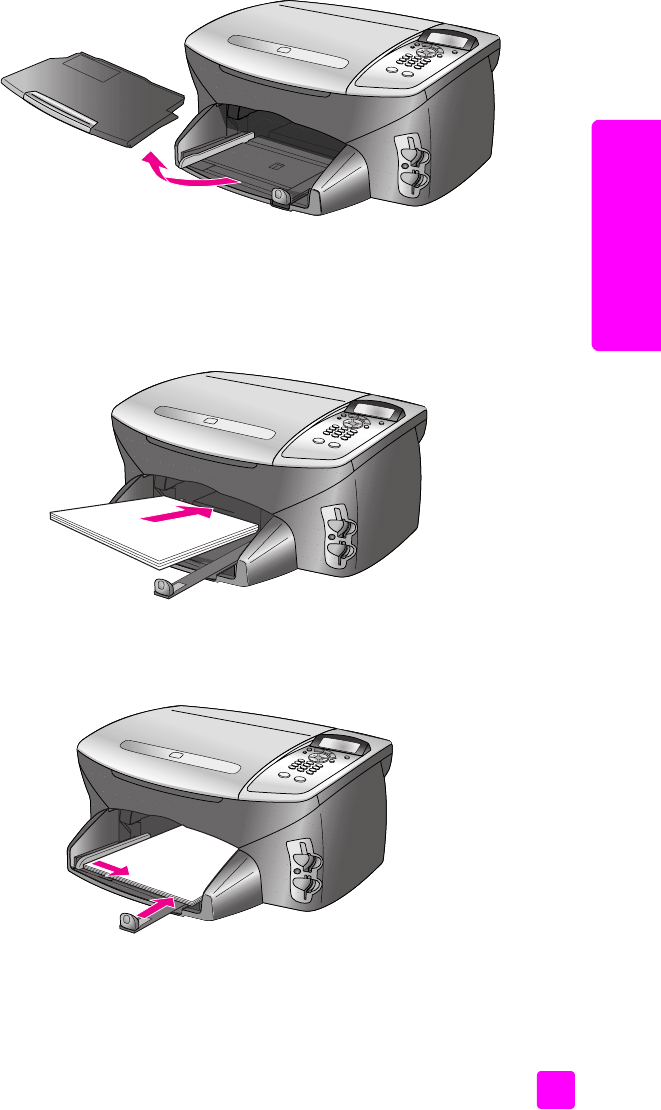

load paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

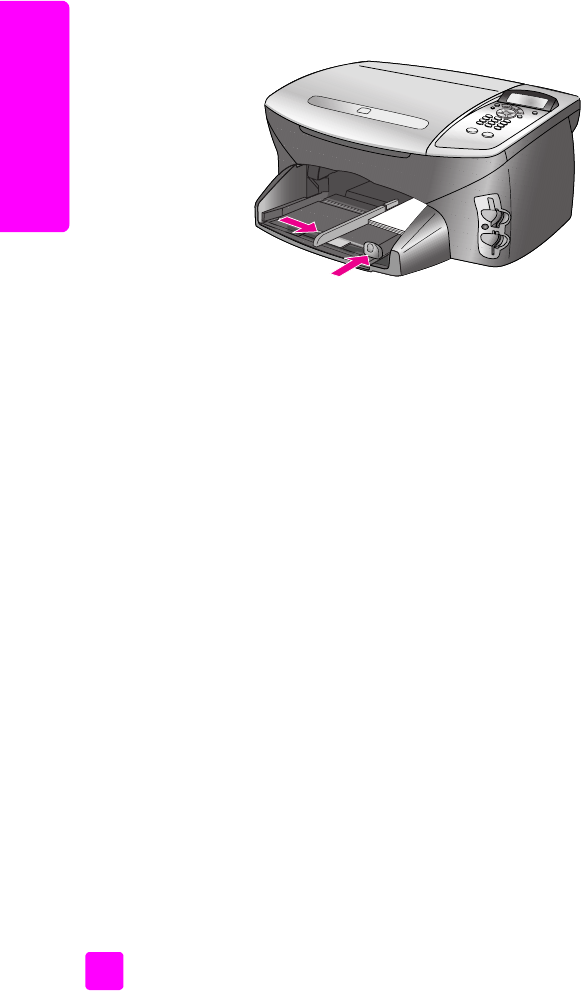

load envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

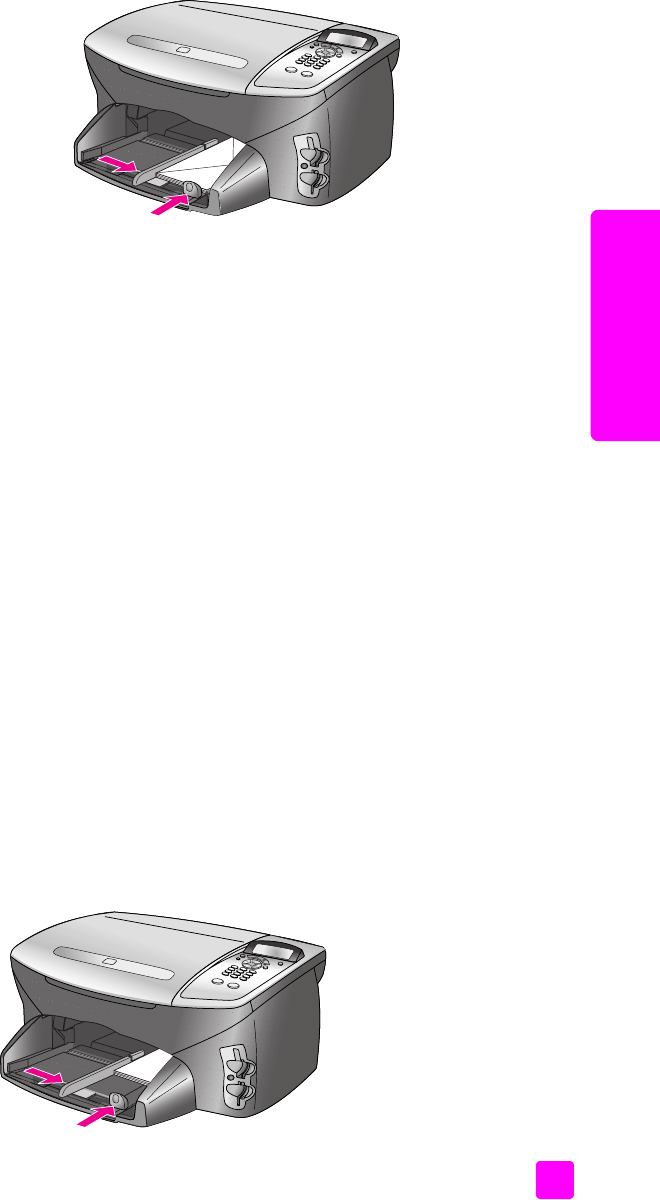

load 4 by 6 inch (10 by 15 cm) photo paper . . . . . . . . . . . . . . . . . . 15

load postcards or Hagaki cards . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

recommended papers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

load other types of paper in the input tray . . . . . . . . . . . . . . . . . . . . 17

set the paper type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

set the paper size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

avoid jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3 use a photo memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

what is a memory card? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

insert a memory card and save the files to your computer . . . . . . . . . . 22

print photos by using a proof sheet . . . . . . . . . . . . . . . . . . . . . . . . . 23

set photo print options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

print selected photos directly from a memory card . . . . . . . . . . . . . . . 29

use the hp photo & imaging gallery . . . . . . . . . . . . . . . . . . . . . . . . 33

4 use the copy features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

copy a two-page black-and-white document . . . . . . . . . . . . . . . . . . . 37

make a 4 by 6 inch (10 by 15 cm) borderless copy of a photo . . . . . . 38

make multiple copies of the same original . . . . . . . . . . . . . . . . . . . . 40

copy a 4 by 6 inch (10 by 15 cm) photo onto a full-size page . . . . . . 41

copy a photo several times on one page . . . . . . . . . . . . . . . . . . . . . 44

resize an original to fit onto letter paper . . . . . . . . . . . . . . . . . . . . . . 45

copy a washed-out original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

copy a document that has been faxed several times . . . . . . . . . . . . . . 47

enhance light areas of your copy . . . . . . . . . . . . . . . . . . . . . . . . . . 48

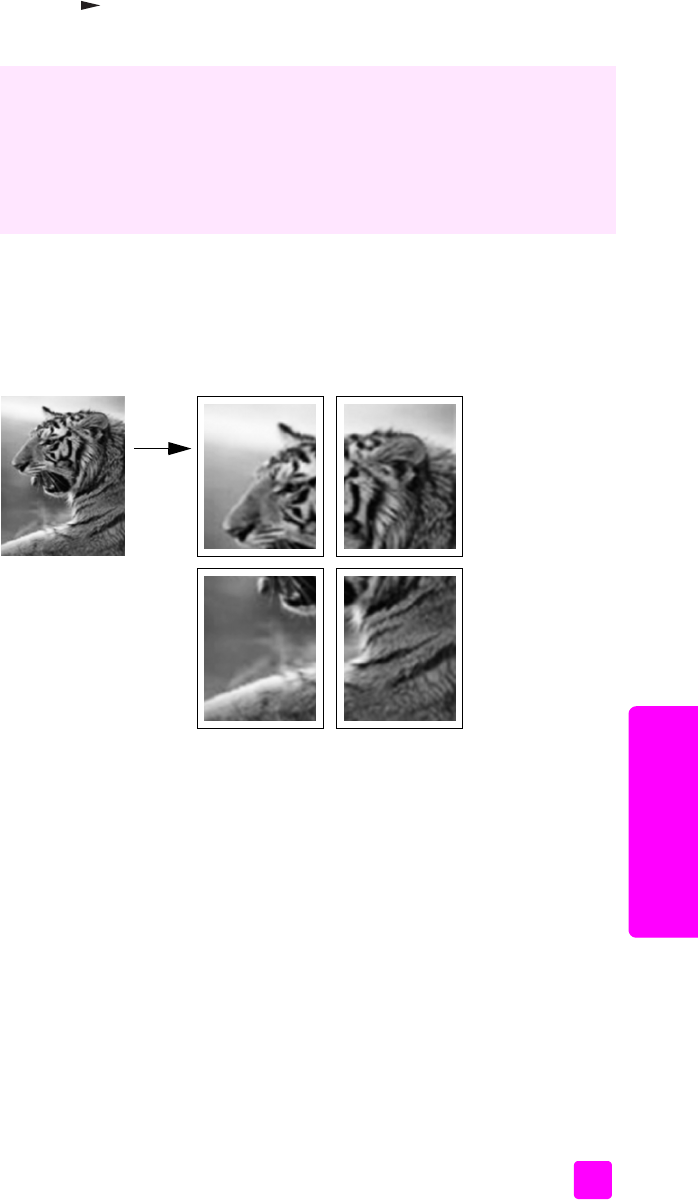

make a poster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

prepare a color t-shirt transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

stop copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5 use the scan features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

scan an original . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

stop scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

contents

hp psc 2300 series

vi

6 print from your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

print from a software application . . . . . . . . . . . . . . . . . . . . . . . . . . .55

set print options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

stop a print job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

7 order supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

order media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

order print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

8 maintain your hp psc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

clean the glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

clean the lid backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

clean the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

work with print cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

restore factory defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

set the power save time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

set the prompt delay time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

9 get hp psc support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

get support and other information from the Internet . . . . . . . . . . . . . . .73

hp customer support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

prepare your hp psc for shipment . . . . . . . . . . . . . . . . . . . . . . . . . . .76

hp distribution center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

10 warranty information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

duration of limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

warranty service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

warranty upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

returning your hp psc 2300 series for service . . . . . . . . . . . . . . . . . . .80

hewlett-packard limited global warranty statement . . . . . . . . . . . . . . .80

11 technical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

system requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

paper specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

print specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

print margin specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

copy specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

photo memory card specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .88

scan specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

physical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

environmental specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

additional specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

environmental product stewardship program . . . . . . . . . . . . . . . . . . . .89

regulatory notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

12 hp instant share setup and use . . . . . . . . . . . . . . . . . . . . . . . . . .95

use hp instant share in five easy steps (Windows) . . . . . . . . . . . . . . . .95

send a photo or image using your hp psc (Macintosh) . . . . . . . . . . . . .98

why should I register with hp instant share (Windows)? . . . . . . . . . . .100

reference guide

contents

vii

13 troubleshooting information . . . . . . . . . . . . . . . . . . . . . . . . . . 101

installation troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

operational troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

contents

hp psc 2300 series

viii

ix

get help

This Reference Guide contains information on using your HP PSC and provides

additional troubleshooting assistance for the installation process. The Reference

Guide also contains information on how to order supplies and accessories,

technical specifications, support, and warranty information.

The table below lists additional sources of information for your HP PSC.

help description

Setup Poster The Setup Poster provides instructions for setting up and configuring your

HP PSC. Make sure you use the correct instructions for your operating

system (Windows or Macintosh).

Product Tour The tour provides a brief introduction to the HP PSC and its capabilities,

so you can start using it immediately. You can take the tour immediately

after installing the HP PSC software, or to take the tour at any time, see

the product specific online help.

HP Photo & Imaging

Help The HP Photo & Imaging Help provides detailed information on using the

software for your HP PSC.

For Windows users: Go to the HP Director, and click Help.

For Macintosh users: Go to the HP Director, and click Help, then click hp

photo & imaging help.

Troubleshooting help To access troubleshooting information, go to the HP Director, then click

Help. Open the Troubleshooting book in the HP Photo & Imaging Help,

then follow the links to general troubleshooting as well as links to

Troubleshooting help that is specific to your HP PSC. Troubleshooting is

also available from the Help button that appears on some error messages

and in the Troubleshooting chapter of this Reference Guide.

Internet help and

technical support If you have Internet access, you can get help from the HP website at:

www.hp.com/support

The website also provides answers to frequently-asked questions.

Readme file After you install your software, you can access the Readme file (if any)

from either the HP PSC 2300 Series CD-ROM or the HP PSC 2300 Series

program folder. A Readme file contains late-breaking information that

does not appear in the Reference Guide or the online help.

Dialog-box help

(Windows only) For Windows: Use one of the following ways to find information on a

specific feature:

•Right-click on the feature

•Select the feature and press F1

•Select the ? in the upper-right corner then click on the feature

hp psc 2300 seriesx

1

1

hp psc overview

hp psc overview

Your HP PSC is ready when you are, as many features and functions of your

HP PSC can be used without turning on your computer. Functions such as

making a copy or printing photos from a photo memory card can be

accomplished quickly and easily.

Tip: You can do more with your HP PSC by using the HP Photo

& Imaging Director (HP Director) software that you installed on

your computer during the initial setup. The HP Director includes

troubleshooting tips, product-specific help, and enhanced copy,

scan, and photo functionality. For more information on the use of

the HP Director, see use the hp director software to do more with

your hp psc on page 6.

This section contains the following topics:

• features at a glance on page 2

•front panel overview on page 3

•menu overview on page 5

• use the hp director software to do more with your hp psc on page 6

hp psc 2300 series

chapter 1

2

hp psc overview

features at a glance

feature description

1Lid

2 Front panel display

3 Front panel

4 Photo memory card slots

5 Print-carriage access door

6Input tray

7 Paper-length guide

8 Output tray

9 Paper-width guide

10 Glass

11 USB port

12 Power connection

13 Rear cleanout door

1

2

4

6789

11 12 13

10

5

3

reference guide

hp psc overview

3

hp psc overview

front panel overview

button purpose

1Front panel display: view menus and messages.

2Cancel: stop a job, exit a menu, or exit settings.

3Scan: select the Scan function. When the button is lit, the Scan

function is selected. Use this button to scan documents to your

computer.

4Photo: select the Photo function. When the button is lit, the Photo

function is selected. Use this button to print photos from a photo

memory card or to save photos to your computer.

5Proof Sheet: print a proof sheet when a photo memory card has

been inserted in a photo memory card slot. A proof sheet shows

thumbnail views of all the photos on the photo memory card.

You can select photos on the proof sheet, then print those photos

by scanning the proof sheet.

6Options: navigate to the next menu item in a Copy, Scan, or

Photo menu.

7Right Arrow: scroll forward through menu settings or options.

8Keypad: enter numbers, values, or text.

9Start Black, Start Color: start a black or color Copy, Scan, or

Photo print job.

4

1

5

13

14

12

10

11

9

8

7

6

3

2

hp psc 2300 series

chapter 1

4

hp psc overview

10 OK: select a menu, setting, or value that appears on front panel

display.

11 Left Arrow: scroll backward through menu settings or options.

12 Copy: select the Copy function. When the button is lit, the Copy

function is selected. Use this button to make copies of your

documents.

13 Setup: access the menu system for reports, settings, and

maintenance.

14 On: turn the HP PSC on or off.

Warning! When the HP PSC is off, a minimal amount of

power is still supplied to the device. Unplug the power cord

to completely disconnect the power supply to the HP PSC.

button purpose

reference guide

hp psc overview

5

hp psc overview

menu overview

The following information provides a quick reference to top-level menus that

appear on the HP PSC front panel display.

Copy

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Scan

HP Photo & Imaging Gallery

Photo Memory Card

Note: Contents of this menu

vary depending on the

number of potential scan

destinations on your

computer.


Print What?*

Select Photos*

Borderless

Image Size

Paper Size

Paper Type

Number of Copies*

Layout Style

Set New Defaults

Note: Print What? appears

only if there is a DPOF file on

the memory card. Select

Photos and Number of

Copies are unavailable if the

DPOF option is chosen from

the Print What? menu.

Proof Sheet

Print Proof Sheet

Scan Proof Sheet

Setup

Print Report

Maintenance

hp psc 2300 series

chapter 1

6

hp psc overview

use the hp director software to do more with your hp psc

When you first install the HP PSC software on your computer during setup, the

HP Director is automatically installed on your computer.

open the hp director for Windows users

1Do one of the following:

–Double-click the HP Director icon on the desktop.

–In the Windows taskbar, click Start, point to Programs or All Programs

(XP), point to HP, then select HP Director.

2In the Select Device box, click to see a list of installed HP devices.

3Select the HP PSC 2300 Series.

The HP Director displays only the icons that are appropriate for the

selected device.

Note: The HP Director graphic below might appear differently on your

computer. The HP Director is customized based upon the HP device that is

selected. If your device is not equipped with a particular feature, (such as

fax capability) then the icon for that feature will not display in the

HP Director on your computer.

Tip: If the HP Director on your computer does not contain any

icons, an error might have occurred during the software

installation. To correct this, use the Control Panel in Windows to

completely uninstall the HP Director software, and then reinstall

the HP Director. For more information, see software and

hardware installation troubleshooting on page 101.

You can quickly and easily expand the functionality of your HP PSC. Look for

boxes, like this one, throughout this guide that provide topic-specific tips, and

helpful information for your projects.

23 4

5678910

13

1

11 12

feature purpose

1Status: use this feature to display the current status of your

HP PSC.

reference guide

hp psc overview

7

hp psc overview

open the hp director for Macintosh users

Use one of the following methods to launch or access the HP Director,

depending on which Macintosh OS you are using.

open the hp director (all-in-one) using Macintosh OS X

If you are using Macintosh OS X, the HP Director is launched automatically

during the HP Photo and Imaging software installation, and causes the

HP Director (All-in-One) icon to be created in the Dock for your device. You

access the device capabilities via the HP Director menu that is associated with

the HP Director (All-in-One) icon.

Tip: If you do not want the HP Director to launch automatically

each time to start your Macintosh, you can change this setting in

the HP Director Preferences menu.

2Settings: use this feature to view or change various settings for

your HP PSC, such as print, scan, or copy, or fax.

3Help: use this feature to access the HP Photo & Imaging Help,

which provides software help, a product tour, troubleshooting

information for your HP PSC, and HP PSC product-specific

help.

4Select Device: use this feature to select the device you want to

use from the list of installed HP devices.

5Scan Picture: use this feature to scan an image and display it

in the HP Photo & Imaging Gallery.

6Scan Document: use this feature to scan text and display it in

the selected text editing software program.

7Make Copies: use this feature to display the Copy dialog box

where you can select the copy quality, number of copies,

color, size, and then start a copy.

8HP Gallery: use this feature to display the HP Photo & Imaging

Gallery, where you can view and edit images, print photos in

multiple sizes, make and print a photo album, share images

through e-mail or a website, or make a multimedia CD.

9Transfer Images: use this feature to transfer images from a

photo memory card.

10 Creative Ideas: use this feature to learn about creative ways to

use your HP PSC.

11 HP Shopping: use this feature to shop for HP products.

12 Software Update: use this feature to check for software

updates for your HP PSC.

13 Click this arrow to display tool tips that explain each of the

HP Director options.

feature purpose

hp psc 2300 series

chapter 1

8

hp psc overview

To display the HP Director menu:

!In the Dock, click the HP Director (All-in-One) icon for your device.

The HP Director menu displays.

Note: If you install more than one HP device, an HP Director icon for each

device is displayed in the Dock. For example, if you have an HP scanner

and an HP PSC installed, two HP Director icons are present in the Dock,

one for each device. However, if you installed two of the same kind of

device (for example, two HP PSC devices) only one HP Director icon is

displayed in the Dock to represent all devices of that kind.

feature purpose

1Unload AiO Images: use this feature to unload images from a

photo memory card.

2Scan Picture: use this feature to scan an image and display it in

the HP Photo and Imaging Gallery.

3Scan document: use this feature to scan text and display it in the

selected destination text editing software program.

4Make Copies: use this feature to make a copy in black and white

or color.

5HP Gallery: use this feature to display the HP Photo and Imaging

Gallery to view and edit images.

6More Applications: use this feature to select other applications

on your computer.

7HP on the Web: use this feature to select an HP website.

8HP Help: use this feature to select a source for help with your

HP PSC.

9Settings: use this feature to select device settings.

9

1

3

2

4

6

7

8

5

reference guide

hp psc overview

9

hp psc overview

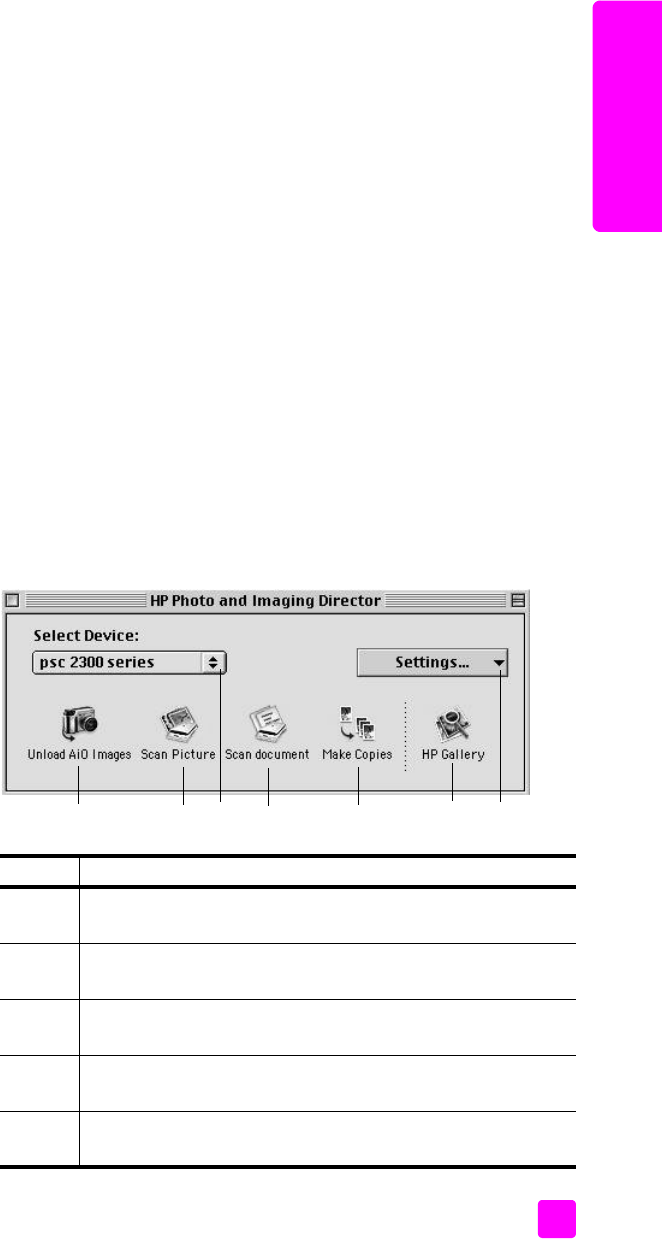

open the hp photo and imaging director using Macintosh OS 9

In Macintosh OS 9, the HP Photo and Imaging Director (HP Director) is

launched automatically during the HP Photo and Imaging software installation,

and the HP Photo and Imaging Director appears as an alias on the desktop. Use

one of the following methods to launch the HP Photo and Imaging Director.

!Double-click the HP Photo and Imaging Director alias on the desktop.

!Double-click HP Photo and Imaging Director in the Applications:Hewlett-

Packard:HP Photo and Imaging Software:HP Photo and Imaging Director

folder.

The HP Photo and Imaging Director displays only the icons that pertain to the

selected device. For more information, see the onscreen hp photo and imaging

help that came with your software.

The following figure shows some of the features available through the HP Photo

and Imaging Director for Macintosh OS 9. Consult the legend for a brief

explanation of specific features.

Note: The HP Photo and Imaging Director graphic below might appear

differently on your computer. The HP Photo and Imaging Director is

customized based upon the HP device that is selected. If your device is not

equipped with a particular feature (such as fax capability), then the icon for

that feature will not display in the HP Photo and Imaging Director on your

computer. Some HP devices might show additional buttons than shown

below.

feature purpose

1Unload AiO Images: use this feature to unload images from a

photo memory card.

2Scan Picture: use this feature to scan an image and display it in

the HP Photo and Imaging Gallery.

3Select Device: use this pull-down list to select the HP device you

want to use.

4Scan document: use this feature to scan text and display it in the

selected destination text editing software program.

5Make Copies: use this feature to make a copy in black and

white or color.

5467123

hp psc 2300 series

chapter 1

10

hp psc overview

6HP Gallery: use this feature to display the HP Photo and

Imaging Gallery to view and edit images.

7Settings: use this pull-down list to provide access to device

settings.

feature purpose

2

11

load originals & paper

load originals and load paper

You can load many different types and sizes of paper in your HP PSC, including

photo paper, transparencies, continuous banner paper, and envelopes. You

can also change settings for paper types and paper sizes to get the highest

quality copies from your HP PSC.

This section contains the following topics:

• load an original on page 11

• load paper on page 12

• load envelopes on page 14

• load 4 by 6 inch (10 by 15 cm) photo paper on page 15

• load postcards or Hagaki cards on page 16

• recommended papers on page 16

• load other types of paper in the input tray on page 17

• set the paper type on page 18

• set the paper size on page 19

•avoid jams on page 19

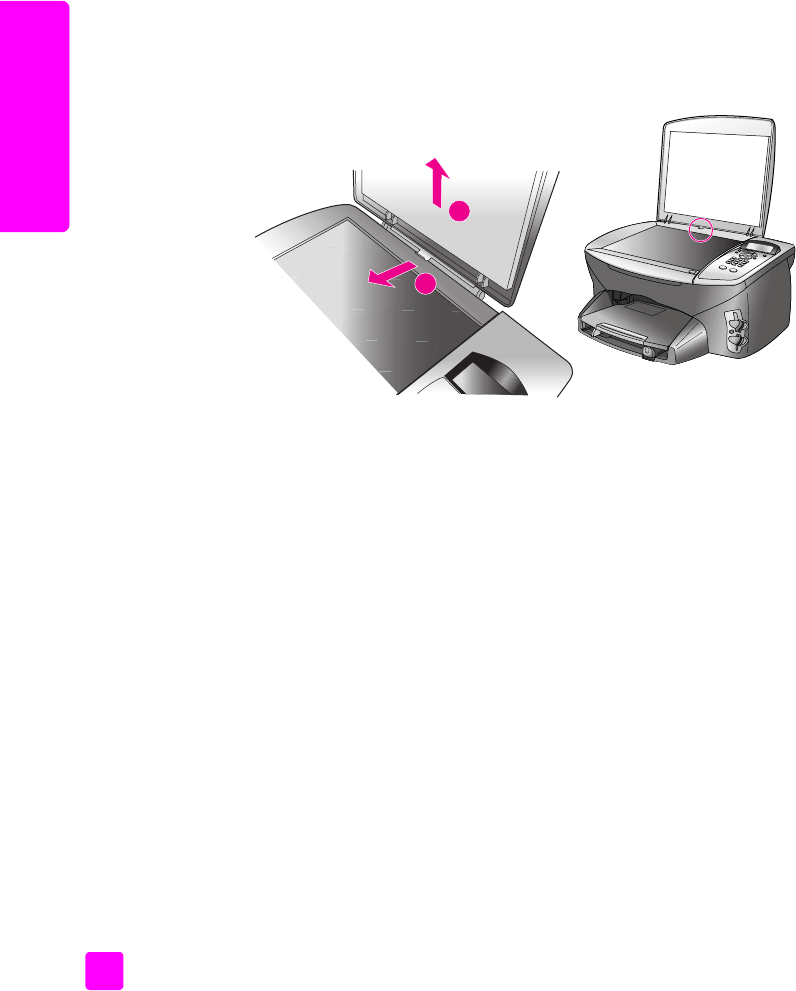

load an original

The following procedure describes how to load paper on the glass.

1Load your original face down on the right front corner of the glass.

Tip: Refer to the diagram on the right front corner of your HP PSC

for further assistance on loading an original.

Top edge of

original

hp psc 2300 series

chapter 2

12

load originals & paper

2Press Copy or Scan on the front panel to select the option you want to

perform.

3Press Start Black or Start Color on the front panel to start the job.

Note: Many of the Reduce/Enlarge options, such as Fit to Page or Poster,

will not work correctly if the glass and lid backing are not clean. For more

information, see clean the glass on page 61 and clean the lid backing on

page 61.

Tip: You can copy or scan oversized originals by completely

removing the lid from your HP PSC. To remove the lid, lift the lid

to the open position, and then pull the tab at the base of the lid

upward. Your HP PSC functions normally with the lid removed.

Replace the lid by inserting the tabs on the hinge back into the

appropriate slot.

load paper

This section describes the basic procedure for loading paper into your HP PSC.

There are specific considerations for loading certain types of paper,

transparency film, postcards, and envelopes.

After you review this procedure, see load other types of paper in the input tray

on page 17, load 4 by 6 inch (10 by 15 cm) photo paper on page 15, load

envelopes on page 14, and load postcards or Hagaki cards on page 16.

For best results, adjust the paper settings each time you change paper types or

paper sizes. For more information, see set the paper type on page 18.

Tip: Help prevent rips, wrinkles, curled or bent edges by storing

all media flat in a resealable bag. Extreme changes in

temperature and humidity might result in curled media that does

not work well in the HP PSC if the media is not stored properly.

1

2

reference guide

load originals and load paper

13

load originals & paper

load the input tray

1Remove the output tray, and slide the paper-width and paper-length

guides to their outermost positions.

2Tap a stack of paper on a flat surface to align the edges, and then check

to make sure all of the paper in the stack is the same size and type.

3Slide the short edge of the paper forward into the input tray with the print

side down until it stops. If you are using letterhead, insert the top of the

page first with the print side down.

4Slide the paper-width and paper-length guides inward until they stop at

the edges of the paper. Make sure the paper lies flat in the input tray and

is no higher than paper-length guide.

hp psc 2300 series

chapter 2

14

load originals & paper

5Replace the output tray.

6Extend the output-tray extender to prevent printed paper from falling out of

the tray.

load envelopes

This section describes the basic procedure for loading envelopes into your

HP PSC. Do not use shiny or embossed envelopes, or envelopes that have clasps

or windows.

Note: Consult the help files in your word processing software for specific

details on how to format text for printing on envelopes.

1Remove all paper from the input tray, and then insert one or more

envelopes into the input tray with the envelope flaps up and to the left.

Slide the stack of envelopes forward until it stops.

2Slide the paper-length and paper-width guides inward against the stack of

envelopes until they stop (do not bend the envelopes with the paper

guides).

reference guide

load originals and load paper

15

load originals & paper

load 4 by 6 inch (10 by 15 cm) photo paper

The following describes the procedure for loading 4 by 6 inch (10 by 15 cm)

photo paper into your HP PSC.

Note: For the best results, use a recommended type of 4 by 6 inch (10 by

15 cm) photo paper. For more information, see recommended papers on

page 16. In addition, for best results, set the paper type and paper size

before printing. See set the paper type on page 18 and set the paper size

on page 19.

Tip: Help prevent rips, wrinkles, curled or bent edges by storing

all media flat in a resealable bag. Extreme changes in

temperature and humidity might result in curled media that does

not work well in the HP PSC if the media is not stored properly.

1Remove the output tray.

2Remove all paper from the input tray.

3Slide the stack of photo paper (short edge forward, glossy side down)

completely forward and to the far right side of the input tray until it stops.

Note: If the photo paper you are using has perforated tabs, load the photo

paper so that the tabs are closest to you.

Tip: Refer to the diagram on the input tray of your HP PSC for

further assistance on loading 4 by 6 inch (10 by 15 cm) photo

paper.

4Slide the paper-length and paper-width guides inward against the stack of

photo paper until they stop. Make sure the paper lays flat. Do not

overload the input tray; make sure the stack of photo paper fits within the

input tray and is no higher than the top of the paper-length guide.

hp psc 2300 series

chapter 2

16

load originals & paper

load postcards or Hagaki cards

The following describes the procedure for loading postcards or Hagaki cards.

1Remove the output tray.

2Remove all paper from the input tray, and then slide a stack of cards

forward into the input tray until it stops.

Make sure the print side faces down.

3Adjust the paper-width guide against the cards, and then slide the paper-

length guide in until it stops.

Make sure the cards fit within the tray (do not overload it).

recommended papers

If you want the best print quality, we recommend HP Papers. Using paper that

is too thin, paper that has a slick texture, or paper that stretches easily can cause

paper jams. Using paper that has a heavy texture or does not accept ink can

cause images to smear, bleed, or not be filled in completely. For more

information about HP Premium Inkjet papers, go to our website at:

www.hp.com/support

reference guide

load originals and load paper

17

load originals & paper

load other types of paper in the input tray

The following table provides guidelines for loading certain types of paper and

transparency film. For best results, adjust the paper settings each time you

change paper types and paper sizes. For more information, see set the paper

type on page 18.

paper tips

HP Papers •HP Premium Paper: Locate the gray arrow on the nonprinting side

of the paper, and then insert paper with the arrow side facing up.

•HP Premium Inkjet Transparency Film: Insert the film so that the

white transparency strip (with arrows and the HP logo) is on top

and is going into the input tray first.

•HP Iron-On Transfer: Flatten the transfer sheet completely before

using it; do not load curled sheets. (To prevent curling, keep

transfer sheets sealed in the original package until you are ready

to use them.) Manually feed one sheet at a time, with the

unprinted side facing down (the blue stripe faces up).

•HP Matte Greeting Cards, HP Glossy Greeting Cards, or

HP Textured Greeting Cards: Insert a small stack of HP greeting-

card paper, with the print side down, into the input tray until it

stops.

Labels

(works only with

printing)

•Always use letter-size or A4-size label sheets designed for use

with HP Inkjet products (like Avery Inkjet Labels), and make sure

that the labels are not over two years old.

•Fan the stack of labels to make sure none of the pages are

sticking together.

•Place a stack of label sheets on top of the standard paper in the

input tray, print side down. Do not insert labels one sheet at a

time.

hp psc 2300 series

chapter 2

18

load originals & paper

set the paper type

The following procedure describes how to set the paper type for Copy and

Photo options. Select the Paper Type setting that matches the paper or

transparency film you are using.

Note: When printing from your computer, set the paper type properties in

the Print dialog box of the software application.

1Press Copy or Photo, if not already lit.

2Press Options until Paper Type appears.

3Press until the appropriate paper type appears.

4Press OK to choose the displayed paper type.

Continuous (banner)

paper

(works only with

printing)

Continuous banner paper is also known as computer or z-fold paper.

•Before loading banner paper, remove all other paper from the

input tray, then remove the output tray. Leave the output tray off

of the HP PSC while the banner prints to prevent the continuous

banner paper from tearing.

•If you use non-HP banner paper, use 20-lb. paper and fan the

paper before loading it.

•Verify the stack of banner paper contains at least five pages.

•Carefully tear off the perforated edge strips from both sides of the

paper stack, if any, and unfold and refold the paper to make sure

the pages do not stick together.

•Put the paper in the input tray so that the unattached edge is at

the top of the stack. Insert the first edge into the input tray until it

stops, as shown in the illustration above.

paper tips

Remove t

h

e output

tray.

Insert the unattached

edge of the paper into

the input tray.

reference guide

load originals and load paper

19

load originals & paper

set the paper size

The following procedure describes how to set the paper size for Copy and Photo

options. Select the Paper Size setting that matches the paper or transparency

film you are using.

Note: When printing from your computer, set the paper size properties in

the Print dialog box of the software application.

1Press Copy or Photo, if not already lit.

2Press Options until Paper Size appears.

3Press until the appropriate paper size appears.

4Press OK to choose the displayed paper size.

avoid jams

To help avoid paper jams, follow these guidelines:

•Prevent curled or wrinkled paper by storing all supplies of media flat in a

resealable bag.

•Remove printed papers from the output tray frequently.

•Ensure that media loaded in the input tray lay flat and the edges are not

bent or torn.

•Do not combine different paper types and paper sizes in the input tray;

load the same paper type and paper size in the input tray.

•Adjust paper guides in the input tray to fit snugly against all media. Make

sure the paper guides do not bend the media in the input tray.

•Do not force media too far forward in the input tray.

•Use paper types that are recommended for your HP PSC.

hp psc 2300 series

chapter 2

20

load originals & paper

3

21

memory card

use a photo memory card

This HP PSC can access memory cards used in almost any digital camera so you

can print, store, manage, and share your digital photos in some very exciting

ways.

This section contains the following topics:

• what is a memory card? on page 21

• insert a memory card and save the files to your computer on page 22

• print photos by using a proof sheet on page 23

• set photo print options on page 26

• print selected photos directly from a memory card on page 29

• use the hp photo & imaging gallery on page 33

what is a memory card?

If your digital camera uses a memory card to store photos, you can insert the

memory card in your HP PSC to print or save your photos.

You can print a proof sheet, which might be several pages long and shows

thumbnail views of photos stored on the memory card, and print photos from the

memory card, even if your HP PSC is not connected to a computer.

Your HP PSC can read CompactFlash (I, II), Memory Sticks, MultiMediaCard

(MMC), Secure Digital, SmartMedia, and xD memory cards.

Your HP PSC features four slots for memory cards, shown in the illustration

below with the memory cards that correspond to each slot.

hp psc 2300 series

chapter 3

22

memory card

The slots are configured as follows:

•Top left slot: CompactFlash (I, II)

•Top right slot: Secure Digital, MultiMediaCard (MMC)

•Bottom left slot: SmartMedia, xD (fits in top right of the main slot)

•Bottom right slot: Memory Stick, Magic Gate Memory Stick, Memory Stick

Duo (with user-supplied adapter), Memory Stick Pro

Note: By default, Windows XP will format a memory card of 8 MB or less

and 64 MB or more with the FAT32 format. Digital cameras and other

devices use the FAT (FAT16 or FAT12) format and cannot operate with a

FAT32 formatted card. Either format your card in your camera or select FAT

format to format your card in a Windows XP PC.

insert a memory card and save the files to your computer

After you take photos with your digital camera, you can print them immediately

or save them directly to your computer.

Note: You can only use one memory card in your HP PSC at a time.

1Insert the memory card into the appropriate slot on your HP PSC.

When the memory card is inserted correctly, the Photo button on the front

panel remains on.

If you insert a memory card backwards, the light next to the card slot

blinks amber and the front panel might display an error message such as

“Card is in backwards” or “Card is not fully inserted”.

2 Reading camera memory card... appears on the front panel display. The

light next to the card slots blinks green when the card is being accessed.

When the HP PSC finishes reading the card, both the Photo button and

access light stop blinking and remain illuminated.

3Another message appears showing the number of files found on the

memory card.

Warning! You can safely remove the card only when the light next to the

slots remains on. If you try to remove a card when the light blinks, you can

damage files on the card or even make the card unusable.

4If the card contains new files that have never been transferred to your

computer, a prompt on the display directs you to a dialog box on your

computer where you can continue the transfer of files from the card to the

computer, or cancel the transfer. Choose the option to continue with the

transfer.

This saves all the new photos from the memory card to your computer

using the HP PSC software.

For Windows: by default, files are saved in month and year folders

depending on when the photos were taken. The folders are created under

the C:\Documents and Settings\username\My Documents\My Pictures

folder in Windows XP and Windows 2000.

For Macintosh: by default, files are saved to the computer at the location

Hard Drive:Documents:HP All-in-One Data:Photos folder (OS 9) or Hard

Drive:Users:User Name:Pictures:HP Photos folder (OS X).

reference guide

use a photo memory card

23

memory card

By default, files are copied to your computer; they are not deleted from the

card.

print photos by using a proof sheet

A proof sheet is a simple and convenient way to order and make prints directly

from a memory card without the need for a computer. A proof sheet, which

might be several pages long, shows thumbnail views of photos stored on the

memory card. The file name, index number, and date appear under each

thumbnail.

This section covers the following topics:

• print a proof sheet on page 23

• complete the proof sheet on page 24

• print photos by scanning a proof sheet on page 25

Tip: You can improve the quality of the photos you print with your

HP PSC by purchasing a photo print cartridge. Remove the black

print cartridge and insert the photo print cartridge in its place.

With the tri-color print cartridge and photo print cartridge

installed, you have a six-ink system, which provides better quality

photos. When you want to print regular text documents, swap the

black print cartridge back in.

There are three steps to using a proof sheet to print photos:

• print a proof sheet on page 23

• complete the proof sheet on page 24

• print photos by scanning a proof sheet on page 25

print a proof sheet

1Insert the memory card into the appropriate slot on your HP PSC.

2Press Proof Sheet, and then press 1 to print a proof sheet.

Is your hard disk full? If your computer is equipped with an internal or external

CD writer, you can organize large collections of digital photos on CDs by

using the Memories Disc feature available through the HP Photo & Imaging

Director. Just start the HP Director and click HP Gallery. Click the Make CD tab

to begin collecting, organizing, and cataloging your images on CDs. On a

Macintosh see the hp gallery section in the hp photo and imaging help book

for information on the Memories Disc.

Do you want to do more than just print your photos? You can enhance and

edit digital photos before printing them by using the HP Image Editor

available through the HP Director. Just start the HP Director and click HP

Gallery. Select the photo you want to edit, and click Image Editor in the top

pane. Add text or special effects to the photo, improve a poor quality photo,

or get rid of red eye.

Macintosh users can simply double-click an image in HP Gallery to open it for

editing in an Image Window.

hp psc 2300 series

chapter 3

24

memory card

If there are more than 20 photos on the card, you can select the range of

photos to be printed on the proof sheet before it prints:

–All

–Last 20

–Custom

3Press to select one of these choices and then press OK.

If you choose Custom, the HP PSC prompts you for the first photo index

number and then for the last photo index number.

Note: Use the proof sheet index number to select which photos to print. This

number might be different from the number associated with the photo on

your digital camera. If you add photos to, or delete photos from, your

memory card, you will need to reprint the proof sheet to see the new index

numbers.

complete the proof sheet

After you have printed a proof sheet, you can select photos to be printed.

1Select the photos to print by using a dark pen or pencil to fill in the circles

under the thumbnail images on the proof sheet.

2Select one layout style by filling in a circle in step 2 of the proof sheet.

Note: If you need more control over print settings than the proof sheet

provides, you can print photos directly from the front panel. See print

selected photos directly from a memory card on page 29.

reference guide

use a photo memory card

25

memory card

3Load the proof sheet face down on the right front corner of the glass.

Position the proof sheet so the top of the page is along the right edge of

the glass.

proper placement of the proof sheet

print photos by scanning a proof sheet

After you have printed and completed a proof sheet (see print photos by using

a proof sheet on page 23 and complete the proof sheet on page 24), you can

print photos from the memory card by scanning the proof sheet.

Note: You might want to use a photo print cartridge for superior print

quality. With the tri-color and photo print cartridges installed, you have a

six-ink system. See work with print cartridges on page 62 for more

information. When you want to print regular text documents, swap the

black print cartridge back in.

1Make sure the memory card is inserted into the appropriate slot on your

HP PSC.

2Load the appropriate paper, such as photo paper, in the input tray.

3Press Proof Sheet, and then press 2 to scan the proof sheet.

The HP PSC scans the proof sheet and prints the selected photos.

Did you know you can create dazzling slide shows with the software that came

with your HP PSC? A multimedia presentation of your photos can be more

effective than simple prints. If your computer is equipped with an internal or

external CD writer, you can create multimedia presentations of your photo

collections by using the Memories Disc feature available through the HP

Director. Just start the HP Director and open the HP Photo & Imaging Gallery.

Click the Make CD tab to begin creating a movie-like presentation of selected

photos. You can add music, titles, and much more. On a Macintosh see the

hp gallery section in the hp photo and imaging help book for information on

the Memories Disc.

hp psc 2300 series

chapter 3

26

memory card

set photo print options

You can control many aspects of how your HP PSC prints photos directly from

the front panel, including paper type and size, number of copies, layout, and

more.

This section covers the following topics:

• change photo card job menu print options on page 27

• set new print photo defaults on page 28

1Make sure the memory card is inserted into the appropriate slot on your

HP PSC.

2Press Photo.

The Photo Card Job menu appears. The first setting or option of the menu

appears on the first line of the display.

Note: Print What? appears only if there is a DPOF file on the memory card.

Select Photos and Number of Copies are unavailable if the DPOF option is

chosen from the Print What? menu.

3Press Options until the appropriate setting appears in the top line of the

display, and then press until the correct value appears.

Press Options to navigate through the menu’s options or settings one by

one. You can see only one menu setting at a time. Press to navigate

through possible values for the setting or to increment a value (for

example, Number of Copies).

4Press OK to accept the new value and move on to the next option in the

menu.

Photo Card Job

Print What?

Select Photos

Borderless

Image Size

Paper Size

Paper Type

Number of Copies

Layout Style

Set New Defaults

reference guide

use a photo memory card

27

memory card

The Photo Card Job menu gives you access to a variety of settings that

affect the way digital photos print, including number of copies, paper

types, and so on. The default measurements and sizes vary according to

country/region. The paper types vary according to the paper size

selected.

Note: Press Cancel to close any menu or setting without making changes.

change photo card job menu print options

You change each of the Photo Card Job menu print options in the same way.

1Select the option you want to change by pressing Options on the front

panel until the option appears on the first line of the display.

2Change the setting by pressing to scroll to the appropriate value.

3Press OK to accept the new value and move on to the next printing option.

select borderless

This setting turns borderless printing on or off. Borderless printing lets you create

professional quality photo prints. When the Borderless option is on, the Image

Size and Layout Style options disappear. Any choices on other menus that are

unsupported for borderless printing are also unavailable. You still need to select

a paper size and paper type, and load the appropriate paper in the input tray.

Borderless

Off

On

Image Size

4 x 6 inch

5 x 7 inch

8 x 10 inch

2½ x 3¼ inch

3 x 4 inch

3½ x 5 inch

Paper Size

Letter

4 x 6

A4

Paper Type

Automatic

Plain Paper

Premium Paper

Photo Paper

Everyday Photo

PhotQual Inkjet

Brochure Glossy

Brochure Matte

Iron-On

Layout Style

Paper Saver

Album (Portrait)

Album (Landscape)

Set New Defaults

No

Yes

Number of Copies

1

hp psc 2300 series

chapter 3

28

memory card

select image size

This setting lets you select the size of the photo image to be printed.

select paper size

This setting lets you select the paper size for the current print job.

select paper type

This setting lets you select the best paper type for the current print job. The

default Automatic value lets the HP PSC set the paper type to the best choice.

The paper types shown in this setting vary depending on the paper size currently

selected.

change number of copies

This setting lets you control the number of copies for the current print job. The

maximum number of copies varies by model. In addition to pressing to

increment the number, you can enter any number up to the maximum for your

model directly on the front panel.

select layout style

The Paper Saver layout style fits as many photos on the paper as possible,

rotating and cropping photos, if necessary.

The Album layout styles keep the orientation of the original photos. Album

(Portrait) and Album (Landscape) refer to the orientation of the page, not the

photos themselves. Some cropping might occur.

set new print photo defaults

You can change the print photo defaults from the front panel.

1Press Photo. The first setting of the Photo Card Job menu appears on the

first line of the display. Press Options to navigate to the setting you want to

change.

2Make changes to any setting as needed and press OK to accept the new

value and move on to the next printing option.

3Press Options until Set New Defaults appears in the top line of the display.

reference guide

use a photo memory card

29

memory card

Note: Print What? appears only if there is a DPOF file on the memory card.

Select Photos and Number of Copies are unavailable if the DPOF option is

chosen from the Print What? menu.

4Press until Yes appears and then press OK.

All the current settings become the new device defaults.

print selected photos directly from a memory card

You can print selected photos, more than one copy of a selected photo, a

continuous range of photos (such as photos 5 through 15), or the photos tagged

by a Digital Print Order Format (DPOF) file created by your camera.

Note: When printing photos, you should first select options for the correct

paper type and photo enhancement. You can also improve the quality of

the photos you print with your HP PSC by purchasing a photo print

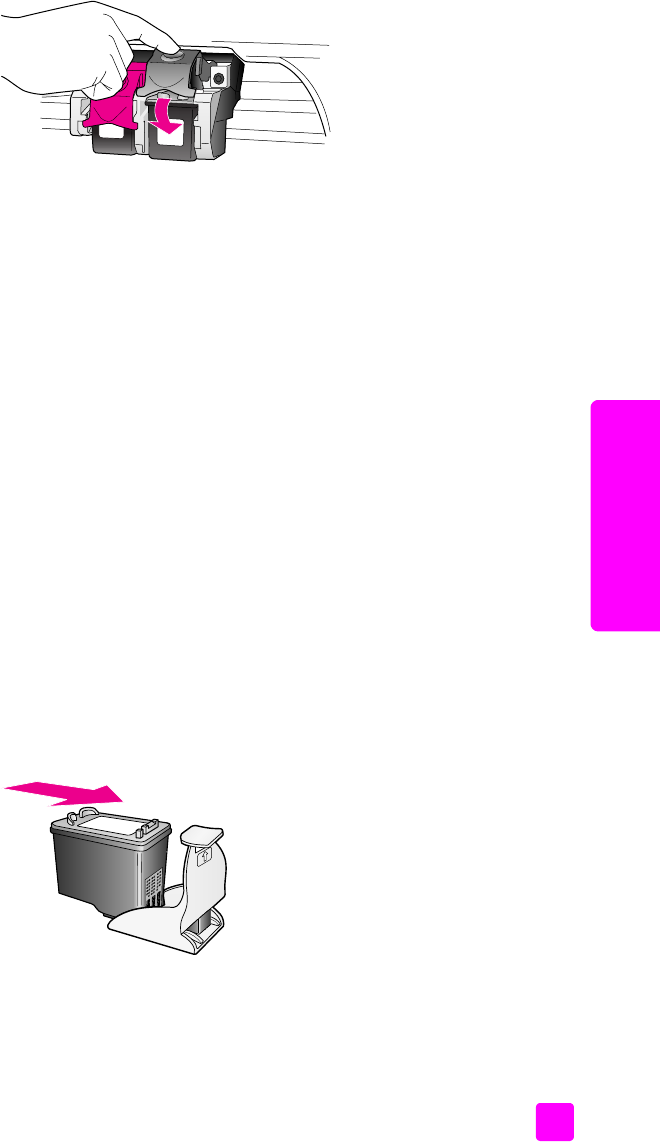

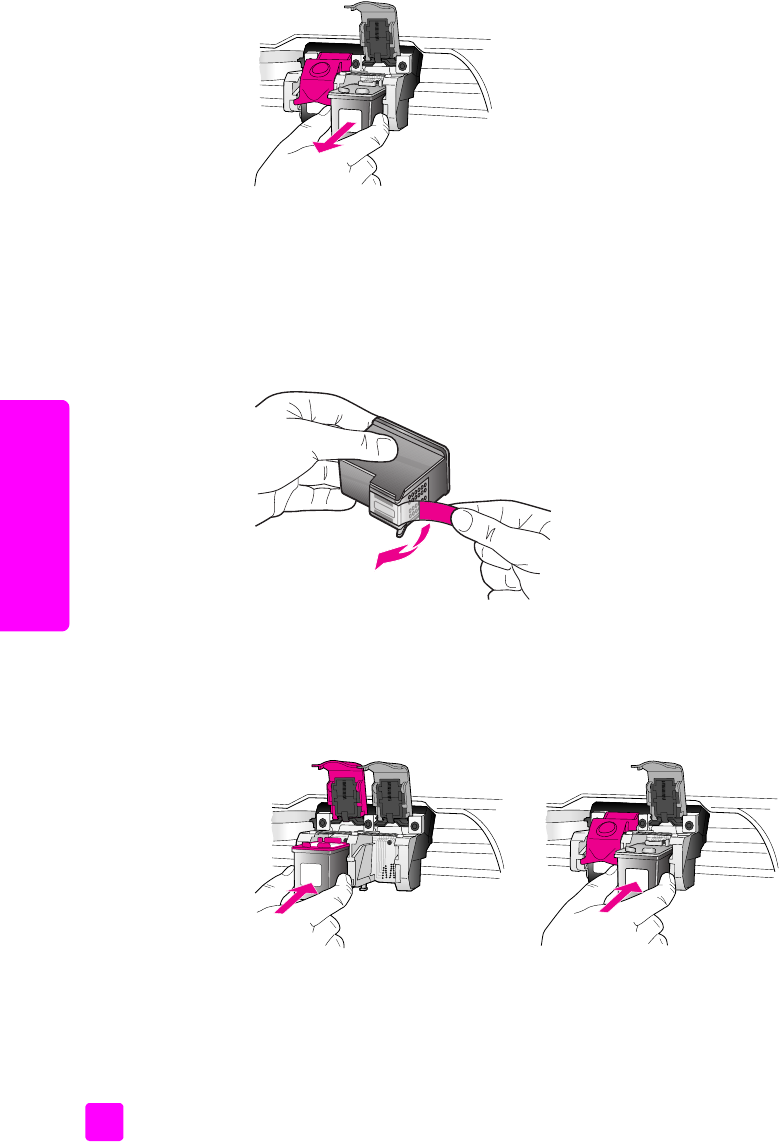

cartridge. Remove the black print cartridge and insert the photo print

cartridge in its place. With the tri-color print cartridge and photo print

cartridge installed, you have a six-ink system, which provides better quality

photos. When you want to print regular text documents, swap the black

print cartridge back in.

For more information, see order supplies on page 59 and work with print

cartridges on page 62.

Photo Card Job

Print What?

Select Photos

Borderless

Image Size

Paper Size

Paper Type

Number of Copies*

Layout Style

Set New Defaults

Set New Defaults

No

Yes

hp psc 2300 series

chapter 3

30

memory card

This section covers the following topics:

• print individual photos on page 30

• create borderless prints on page 31

•print a DPOF file on page 32

print individual photos

If you don’t know the photo index number, print a photo proof sheet before

selecting individual photos to print.

1Insert the memory card into the appropriate slot on your HP PSC.

2Press Photo to access the Photo Card Job menu.

You can do more than simply print your digital photos if you use the

HP Gallery feature of the HP Director. This software lets you use digital photos

for iron-on transfers, posters, banners, stickers, and other creative projects. Just

start the HP Director and click HP Gallery to begin exploring.

On a Macintosh see the hp gallery section in the hp photo and imaging help

book.

Index number Date

File name

reference guide

use a photo memory card

31

memory card

3Use Options to select one of the following:

– Print What?

Lets you choose to print DPOF-tagged files (Use DPOF) or choose files

yourself (Photos on Card). Press to make your selection. This option

is available only if there are DPOF-tagged files on the card. For

information on printing DPOF-tagged files, see print a DPOF file on

page 32.

– Select Photos

Lets you choose to print all the photos on the card or to select only

specific files.

4Choose Select Photos.

5Press to choose one of the following:

– All (1-nnnn)

–Custom

6If you selected All, press OK and skip to step 8. If you selected Custom,

press again and enter the photo index numbers (from a proof sheet)

for the photos you want to print. After you enter a number, the photo’s file

name (usually assigned to it by the digital camera) appears on the front

panel display.

You insert a comma between numbers by pressing or the comma key

located to the left of the 0 (zero) key. You can specify a range (for

example, 21-30) by pressing the pound button (#) to enter a dash.

Note: You can erase an index number by pressing . As the bottom line

gets filled, the data entry field scrolls left to show the number as it is entered.

7Press OK when you are finished entering the photo index numbers.

8At the Photo Card Job menu you can change various print settings. Press

Options until the setting you want to change appears on the first line of the

display.

For additional information, see set photo print options on page 26.

9Press Start Black or Start Color to print all selected photos using the current

settings.

create borderless prints

An exceptional feature of your HP PSC is its ability to turn the digital photos on

a memory card into professional, borderless prints.

1Insert the memory card into the appropriate slot on your HP PSC.

The Photo button lights up.

2Enter the index numbers of the photos you want to print:

–Use the pound key (#) to specify a range: 21-30.

You can erase index numbers by pressing to backspace.

3Press OK when you finish entering the photo index numbers.

4Press Options until Borderless appears on the first line of the display.

hp psc 2300 series

chapter 3

32

memory card

Note: Print What? appears only if there is a DPOF file on the memory card.

Select Photos and Number of Copies are unavailable if the DPOF option is

chosen from the Print What? menu.

5Press until On appears on the display and then press OK to confirm

this setting.

When the Borderless option is active, the Image Size and Layout Style

options disappear. Any choices on other menus that are unsupported for

borderless printing are unavailable.

6Select a paper type and paper size from the Paper Type and Paper Size

settings. Use Options to navigate to the setting and to select a value.

Only choices appropriate to borderless printing are available.

7Make sure you have photo paper of the size selected in step 6 loaded in

the input tray.

8Press Start Black or Start Color to print the selected photos as borderless

prints.

print a DPOF file

The Digital Print Order Format (DPOF) is an industry-standard print file request

that can be created by some digital cameras. See your digital camera

documentation to see if it supports Digital Print Order Format (DPOF).

The DPOF file is stored by the digital camera on a memory card. The HP PSC

recognizes only two DPOF settings: which photos to print and the quantity of

each photo to be printed.

1Press Photo to access the Photo Card Job menu.

2Press Options, if necessary, until Print What? appears on the first line of

the display.

3Press to select Use DPOF, and then press OK.

If you do not want to print just DPOF-tagged files, select Photos on Card

instead.

Photo Card Job

Print What?

Select Photos

Borderless

Image Size

Paper Size

Paper Type

Number of Copies*

Layout Style

Set New Defaults

Borderless

Off

On

reference guide

use a photo memory card

33

memory card

4At the Photo Card Job menu you can change various print settings.

For additional information, see set photo print options on page 26.

5Press Start Black or Start Color to print all DPOF-tagged photos on the

card.

use the hp photo & imaging gallery

You can use the HP Gallery for viewing and editing image files. You can print

images, send images by e-mail to family and friends or use images in fun and

creative printing projects with the HP Gallery. HP software lets you do all this

and much more. Explore the software to take full advantage of the features of

your HP PSC.

For information on how you can use HP Instant Share and HP Director with your

HP PSC to share digital photos, see hp instant share setup and use on page 95.

For Windows: If you want to open the HP Gallery at a later time, open the

HP Director and click the HP Gallery icon.

For Macintosh: If you want to open the HP Gallery at a later time, open the HP

Director and click HP Gallery (OS 9) or click HP Director in the Dock and select

HP Gallery from the Manage and Share section of the HP Director menu.

hp psc 2300 series

chapter 3

34

memory card

4

35

copy

use the copy features

The HP PSC enables you to produce high-quality color and black-and-white

copies on a variety of paper types, including iron-on transfers. You can enlarge

or reduce the size of an original to fit a specific paper size, adjust the copy’s

darkness and color intensity, and use special features to create a poster, make

many sizes of photos, and create transparencies.

This section contains the following topics:

•overview on page 35

• copy a two-page black-and-white document on page 37

• make a 4 by 6 inch (10 by 15 cm) borderless copy of a photo on page 38

• make multiple copies of the same original on page 40

• copy a 4 by 6 inch (10 by 15 cm) photo onto a full-size page on page 41

• copy a photo several times on one page on page 44

• resize an original to fit onto letter paper on page 45

• copy a washed-out original on page 47

• copy a document that has been faxed several times on page 47

• enhance light areas of your copy on page 48

• make a poster on page 49

• prepare a color t-shirt transfer on page 50

•stop copying on page 51

overview

You can make copies by using the front panel of your HP PSC or by using the

HP Photo & Imaging Director (HP Director) software on your computer. Many

copy features are available through either method. However, you might find that

the software offers easier access to special copy features.

This chapter explains how to perform common copy tasks from the HP PSC front

panel only. For information on performing copy tasks from the HP Director, see

the hp photo & imaging help that came with your software.

This section contains the following topics:

• increase copy speed or quality on page 36

• change default copy settings on page 36

hp psc 2300 series

chapter 4

36

copy

increase copy speed or quality

The HP PSC provides three options that affect copy speed and quality.

•Normal delivers high-quality output and is the recommended setting for

most of your copying. Normal copies faster than Best.

•Best produces the highest quality for all paper and eliminates the banding

(striping) effect that sometimes occurs in solid areas. Best copies more

slowly than the other quality settings.

•Fast copies faster than the Normal setting. The text is of comparable

quality to the Normal setting, but the graphics might be of lower quality.

Using Fast cuts down on the frequency of replacing your print cartridges,

because it uses less ink.

1Load your original face down on the right front corner of the glass.

2Press Copy, if it is not already lit.

3Press Options until Copy Quality appears in the top line of the display.

The following options are available in the Copy Quality menu.

4Press until the appropriate quality setting appears.

5Press Start Black or Start Color.

change default copy settings

When you change copy settings from the front panel or the HP Director, they

apply only to the current copy job. To apply copy settings to all future copy jobs,

you can save the settings as defaults.

1Load an original face down on the right front corner of the glass.

2Make any neededchanges to the options in the Copy menu.

3Press Options until Set New Defaults appears in the top line of the display.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Copy Quality

Normal

Best

Fast

reference guide

use the copy features

37

copy

4Press until Yes appears.

5Press Start Black or Start Color.

The HP PSC uses the new default settings to make a copy of your original.

copy a two-page black-and-white document

You can use the HP PSC to copy a single- or multiple-page document in color or

black and white. In this example, the HP PSC is used to copy a two-page black-

and-white original.

1Load the first page of your original face down on the right front corner of

the glass.

2Press Copy, if it is not already lit.

3Press Start Black.

4Remove the first page from the glass and load the second page.

5Press Start Black.

The settings you specify here are only saved on the HP PSC itself. They do not

adjust the settings in the software. If you use the HP Director software to control

the settings on copies you make, you should set your most frequently used

settings as the defaults in the HP Copy dialog box. To learn how, see the hp

photo & imaging help that came with your software.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

hp psc 2300 series

chapter 4

38

copy

make a 4 by 6 inch (10 by 15 cm) borderless copy of a photo

For the best quality when copying a photo, make sure you select options for the

correct paper type and photo enhancement. You might also want to use the

photo print cartridge for superior print quality. With the tri-color and photo print

cartridges installed, you have a six-ink system. See use a photo print cartridge

on page 67 for more information.

1Load your original photo face down on the right front corner of the glass.

Position the photo on the glass so the long edge of the photo is along the

front edge of the glass.

2Load 4 by 6 inch (10 by 15 cm) photo paper in the input tray.

3Press Copy, if it is not already lit.

4Press Options until Borderless appears in the top line of the display.

5Press until On appears.

The Reduce/Enlarge option is not available when Borderless is turned on.

6Press Options until Paper Size appears in the top line of the display.

The following options are available in the Paper Size menu.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Borderless

Off

On

reference guide

use the copy features

39

copy

*The paper sizes available vary by country/region.

7Press until 4 x 6 appears.

8Press Options until Paper Type appears in the top line of the display.

The following options are available in the Paper Type menu.

Note: Automatic and Plain Paper are not available in the Paper Type menu

when Borderless is turned on.

9Press until the type of photo paper you loaded in the input tray

appears.

Caution! When making borderless copies, you must have photo

paper (or other specialty paper) loaded. If you have plain paper

loaded, ink will bleed off the paper, staining your device.

10 Press Options until Enhancements appears in the top line of the display.

The following options are available in the Enhancements menu.

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Paper Size*

Letter

4 x 6

A4

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Paper Type

Premium Inkjet

Premium Photo

Photo Paper

PhotoQual Inkjet

Everyday Photo

Transparency

Iron-On

Brochure Glossy

Brochure Matte

hp psc 2300 series

chapter 4

40

copy

11 Press until Photo appears.

12 Press Start Color.

The HP PSC makes a 4 by 6 inch (10 by 15 cm) borderless copy of your

original photo, as shown below.

make multiple copies of the same original

1Load your original face down on the right front corner of the glass.

2Press Copy, if it is not already lit.

3Press Options until Number of Copies appears in the top line of the

display.

4Press or use the keypad to enter the number of copies, up to the

maximum.

(The maximum number of copies varies by model.)

Tip: If you hold down either of the arrow buttons, the number of

copies changes by increments of 5 to make it easier to set a large

number of copies.

5Press Start Black or Start Color.

You might find it easier to copy a photo by using the HP Director software that

you installed with your HP PSC. Using the HP Director, you can easily make

letter or 4 by 6 inch (10 by 15 cm) borderless copies of your photo, enlarge

or shrink the photo to fill the size of the paper you have loaded, and turn on

Photo enhancements to ensure you get the highest quality photos. For

information on using these features in the HP Director, see the onscreen hp

photo & imaging help.

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Enhancements

Text


Mixed

None

reference guide

use the copy features

41

copy

In this example, the HP PSC makes six copies of the original 4 by 6 inch

(10 by 15 cm) photo.

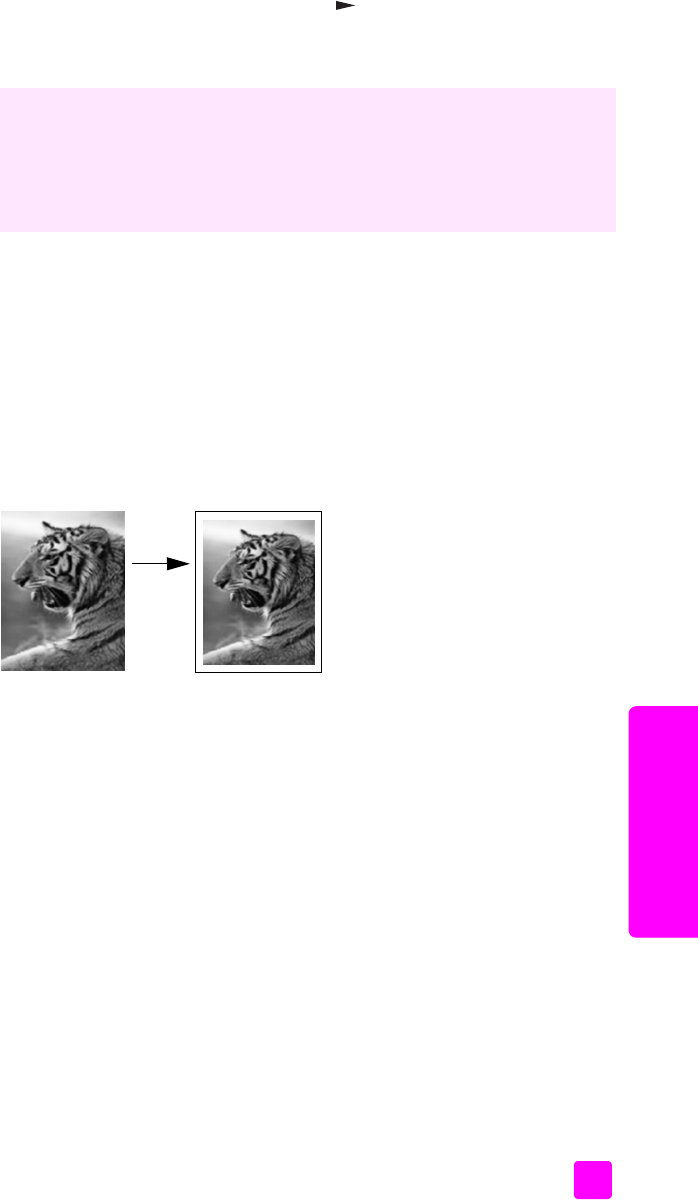

copy a 4 by 6 inch (10 by 15 cm) photo onto a full-size page

In addition to making actual size copies of an original, the Borderless feature

can automatically enlarge or reduce your original to fill the paper loaded in the

input tray. In this example, Borderless is used to enlarge a 4 by 6 inch (10 by

15 cm) photo to create a full-size borderless copy.

Note: In order to achieve a borderless print without changing the

proportions of the original, the HP PSC might crop some of the image

around the margins. In most cases, this cropping will not be noticeable.

1Make sure that the glass and lid backing are clean.

2Load your original photo face down on the right front corner of the glass.

Position the photo on the glass so the long edge of the photo is along the

front edge of the glass.

Tip: When copying a photo, you might want to use the photo

print cartridge for superior print quality. With the tri-color and

photo print cartridges installed, you have a six-ink system. See use

a photo print cartridge on page 67 for more information.

3Load letter or A4 photo paper in the input tray.

4Press Copy, if it is not already lit.

5Press Options until Borderless appears in the top line of the display.

hp psc 2300 series

chapter 4

42

copy

6Press until On appears.

The Reduce/Enlarge option is not available when Borderless is turned on.

7Press Options until Paper Size appears in the top line of the display.

The following options are available in the Paper Size menu.

*The paper sizes available vary by country/region.

8Press until Letter or A4 appears, as appropriate.

9Press Options until Paper Type appears in the top line of the display.

The following options are available in the Paper Type menu.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Borderless

Off

On

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Paper Size*

Letter

4 x 6

A4

reference guide

use the copy features

43

copy

Note: Automatic and Plain Paper are not available in the Paper Type menu

when Borderless is turned on.

10 Press until the type of photo paper you loaded in the input tray

appears.

Caution! When making borderless copies, you must have photo

paper (or other specialty paper) loaded. If you have plain paper

loaded, ink will bleed off the paper, staining your device.

11 Press Options until Enhancements appears in the top line of the display.

The following options are available in the Enhancements menu.

12 Press until Photo appears.

13 Press Start Color.

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Paper Type

Premium Inkjet

Premium Photo

Photo Paper

PhotoQual Inkjet

Everyday Photo

Transparency

Iron-On

Brochure Glossy

Brochure Matte

Copy Menu

Number of Copies

Borderless

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Enhancements

Text


Mixed

None

hp psc 2300 series

chapter 4

44

copy

copy a photo several times on one page

You can print multiple copies of an original on one page by selecting an image

size from the Reduce/Enlarge menu.

After you select one of the available sizes, you might be prompted whether you

want to print multiple copies of the photo to fill the paper you have loaded in

the input tray. If you select a photo size that is too large to accommodate

printing more than one copy on the page, the prompt does not appear.

1Load your original photo face down on the right front corner of the glass.

Position the photo on the glass so the long edge of the photo is along the

front edge of the glass.

2Press Copy, if it is not already lit.

3Press Options until Reduce/Enlarge appears in the top line of the display.

The following options are available in the Reduce/Enlarge menu.

*The image sizes available vary by country/region.

4Press until the size in which you want to copy the photo appears.

Depending on the image size you select, you might be prompted to print

multiple copies of the photo to fill the paper in the input tray.

Some larger sizes do not prompt you for a number of images. In this case,

only one image is copied to the page.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Reduce/Enlarge

Actual Size

Fit to Page

Custom 100%

4 x 6 inch*

5 x 7 inch

8 x 10 inch

2½ x 3¼ inch

3 x 4 inch

3½ x 5 inch

Poster

reference guide

use the copy features

45

copy

5If prompted, press OK, and then press to choose to fill the page or

print only one copy of the photo.

6Press Start Black or Start Color.

resize an original to fit onto letter paper

If the image or text on your original fills the entire sheet with no margins, use the

Fit to Page feature to reduce your original and prevent unwanted cropping of

the text or images at the edges of the sheet.

Tip: You can also use Fit to Page to enlarge a small photo to fit

within the printable area of a full-size page. In order to do this

without changing the proportions of the original or cropping the

edges, the HP PSC might leave an uneven amount of white space

around the edges of the paper.

1Load your original face down on the right front corner of the glass.

2Press Copy, if it is not already lit.

3Press Options until Paper Size appears in the top line of the display.

The following options are available in the Paper Size menu.

This feature and more are available through the HP Director software if you

scan your photo into the computer. Through the HP Director, you can print

multiple photos of different sizes. The HP PSC will fit as many photos as it can

on the paper you have loaded in the input tray. For information on scanning

your photos into the computer to use the HP Director Photo Print functions, see

the onscreen hp photo & imaging help that came with your software.

hp psc 2300 series

chapter 4

46

copy

*The paper sizes available vary by country/region.

4Press until Letter appears.

5Press Options until Reduce/Enlarge appears in the top line of the display.

The following options are available in the Reduce/Enlarge menu.

*The image sizes available vary by country/region.

6Press until Fit to Page appears.

7Press Start Black or Start Color.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults Paper Size*

Letter

4 x 6

A4

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Reduce/Enlarge

Actual Size

Fit to Page

Custom 100%

4 x 6 inch*

5 x 7 inch

8 x 10 inch

2½ x 3¼ inch

3 x 4 inch

3½ x 5 inch

Poster

reference guide

use the copy features

47

copy

copy a washed-out original

Use Lighter/Darker to adjust the lightness and darkness of the copies you make.

You can also adjust the color intensity to make colors on your copy more vivid

or more subtle.

1Load your original face down on the right front corner of the glass.

2Press Copy, if it is not already lit.

3Press Options until Lighter/Darker appears in the top line of the display.

The range of Lighter/Darker values appears as circles on a scale on the

front panel display.

4Press to darken the copy.

Note: You can also press to lighten the copy.

5Press Options until Color Intensity appears in the top line of the display.

The range of color intensity values appears as circles on a scale on the

front panel display.

6Press to make the image more vivid.

Note: You can also press to make the image more pale.

7Press Start Color.

copy a document that has been faxed several times

The Enhancements feature automatically adjusts the quality of text documents by

sharpening edges of black text or photographs by enhancing light colors that

might otherwise appear white.

Text enhancement is the default option. Use Text enhancement to sharpen edges

of black text.

1Load your original face down on the right front corner of the glass.

2Press Copy, if it is not already lit.

3Press Options until Enhancements appears in the top line of the display.

The following options are available in the Enhancements menu.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Enhancements

Text


Mixed

None

hp psc 2300 series

chapter 4

48

copy

4Press until Text appears.

5Press Start Black or Start Color.

Tip: If any of the following occur, turn off Text enhancement by

selecting Photo or None:

–Stray dots of color surround some text on your copies

–Large, black typefaces look splotchy (not smooth)

–Thin, colored objects or lines contain black sections

–Horizontal grainy or white bands appear in light- to medium-gray

areas

enhance light areas of your copy

Use Photo enhancements to enhance light colors that might otherwise appear

white. You can also copy with Photo enhancements to eliminate or reduce any

of the following that might occur when copying with Text enhancements:

•Stray dots of color surround some text on your copies

•Large, black typefaces look splotchy (not smooth)

•Thin, colored objects or lines contain black sections

•Horizontal grainy or white bands appear in light- to medium-gray areas

1Load your original photo face down on the right front corner of the glass.

Position the photo on the glass so the long edge of the photo is along the

front edge of the glass.

2Press Copy, if it is not already lit.

3Press Options until Enhancements appears in the top line of the display.

The following options are available in the Enhancements menu.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Enhancements

Text


Mixed

None

reference guide

use the copy features

49

copy

4Press until Photo appears.

5Press Start Color.

make a poster

When you use the Poster feature, the HP PSC divides your original into sections

and then enlarges the sections onto letter or A4 paper so you can assemble them

into a poster.

1Load your original face down on the right front corner of the glass.

If you are copying a photo, position the photo on the glass so the long

edge of the photo is along the front edge of the glass.

2Press Copy, if it is not already lit.

3Press Options until Reduce/Enlarge appears in the top line of the display.

The following options are available in the Reduce/Enlarge menu.

It is easy to set Enhancement settings for photos and other documents you copy

using the HP Director software that you installed with your HP PSC. With one

click of your mouse button, you can set a photo to copy with Photo

enhancements, a text document to copy with Text enhancements, or a

document that contains both images and text to copy with both Photo and Text

enhancements turned on. For more information, see the onscreen hp photo &

imaging help that came with your software.

hp psc 2300 series

chapter 4

50

copy

*The image sizes available vary by country/region.

4Press until Poster appears, and then press OK.

5Press until the appropriate page width appears, and then press OK.

The default poster size is two pages wide.

6Press Start Black or Start Color.

After you select the poster width, the HP PSC adjusts the length

automatically to maintain the proportions of the original.

Tip: If the original cannot be enlarged to the selected poster size

because it exceeds the maximum zoom percentage, an error

message appears that tells you the number of pages wide that are

possible. Select a smaller poster size and make the copy again.

prepare a color t-shirt transfer

You can copy an image or text onto a T-shirt transfer, then iron it onto a T-shirt.

Tip: We recommend that you practice applying a T-shirt transfer

on an old garment first.

1Load your original face down on the right front corner of the glass.

If you are copying a photo, position the photo on the glass so the long

edge of the photo is along the front edge of the glass.

2Load the T-shirt transfer paper in the input tray.

3Press Copy, if it is not already lit.

The HP Director software on your computer enables you to be even more

creative with your photos. You only need to scan your photo into the computer

to use the HP Director Quick Projects tool to create posters, banners, and iron-

on t-shirt transfers from your photo. To learn more, see the onscreen hp photo

& imaging help that came with your software.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Reduce/Enlarge

Actual Size

Fit to Page

Custom 100%

4 x 6 inch*

5 x 7 inch

8 x 10 inch

2½ x 3¼ inch

3 x 4 inch

3½ x 5 inch

Poster

reference guide

use the copy features

51

copy

4Press Options until Paper Type appears in the top line of the display.

The following options are available in the Paper Type menu.

5Press until Iron-On appears.

6Press Start Black or Start Color.

When you select Iron-On as the paper type, the HP PSC automatically

copies a mirror image of your original (as shown below) so that it will

appear properly when you iron it onto the T-shirt.

stop copying

!To stop copying, press Cancel on the front panel.

Copy Menu

Number of Copies

Borderless

Reduce/Enlarge

Copy Quality

Paper Type

Lighter/Darker

Enhancements

Paper Size

Color Intensity

Set New Defaults

Paper Type

Automatic

Plain Paper

Premium Inkjet

Premium Photo

Photo Paper

PhotoQual Inkjet

Everyday Photo

Transparency

Iron-On

Brochure Glossy

Brochure Matte

hp psc 2300 series

chapter 4

52

copy

5

53

scan

use the scan features

Scanning is the process of converting text and pictures into an electronic format

for your computer. You can scan just about anything: photos, magazine articles,

text documents, and even 3D objects, as long as you are careful not to scratch

the glass.

Because the scanned image or text is in an electronic format, you can bring it

into your word processor or graphics application and modify it to suit your

needs. You can do the following:

•Scan text from an article into your word processor and quote it in a report,

saving you a lot of retyping.

•Scan in a logo and use it in your publishing software, allowing you to

print business cards and brochures for yourself.

•Scan in photos of your kids and e-mail them to relatives, create a

photographic inventory of your house or office, or create an electronic

scrapbook.

To use the scan features, your HP PSC and computer must be connected and

turned on. The HP PSC software must also be installed and running on your

computer prior to scanning. To verify that the HP PSC software is running on a

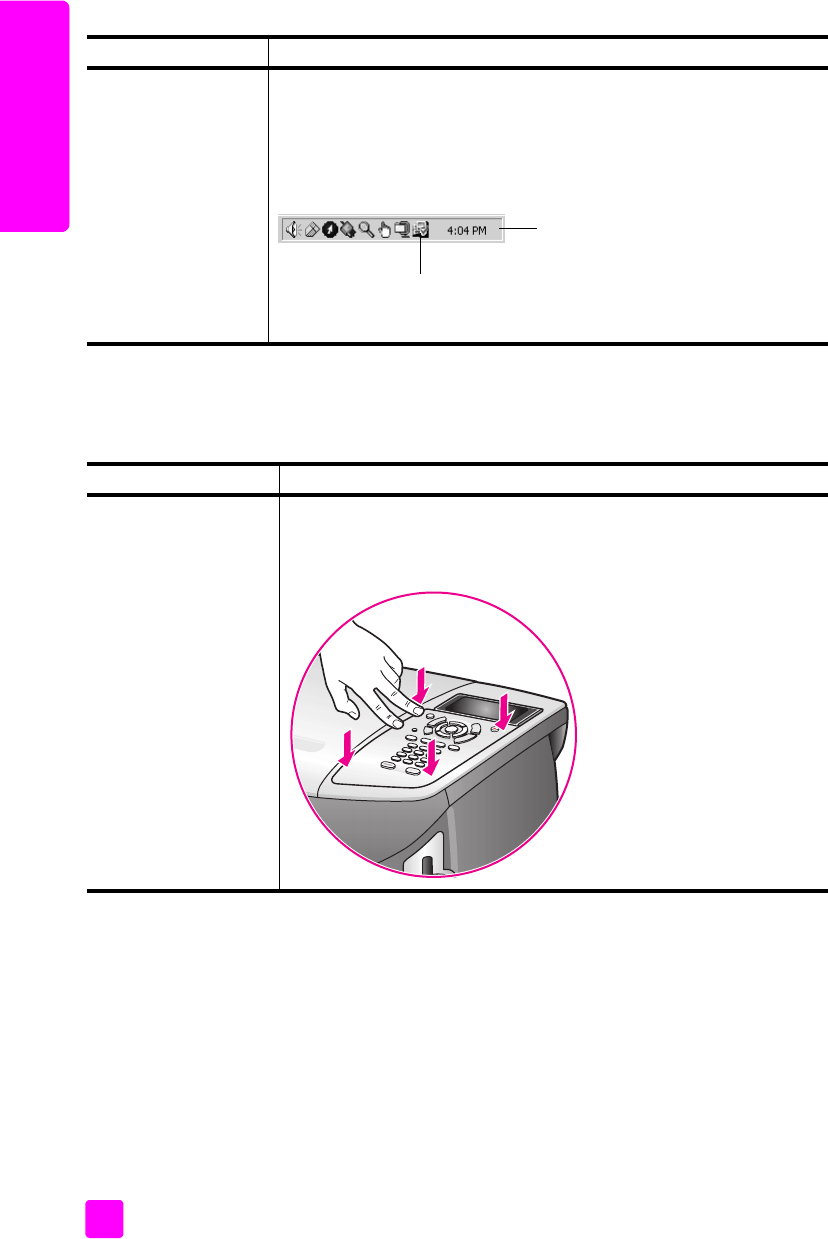

Windows PC, look for the hp psc 2300 series icon in the system tray at the

lower right side of the screen, next to the time. On a Macintosh, the HP PSC

software is always running.

You can start a scan from your computer or from your HP PSC. This section

explains how to scan from the front panel of the HP PSC.

For information about how to scan from the computer, and how to adjust, resize,

rotate, crop, and sharpen your scans, see the onscreen hp photo & imaging

help that came with your software.

This section contains the following topics:

• scan an original on page 53

• stop scanning on page 54

scan an original

This section contains the following topics:

• send the scan to a computer connected to the hp psc on page 54

hp psc 2300 series

chapter 5

54

scan

send the scan to a computer connected to the hp psc

Follow these steps if your HP PSC is connected to a computer via a USB or

parallel cable.

1Load your original face down on the front right corner of the glass.

2Press Scan, if it is not already lit.

A Scan menu appears, listing destinations that are set up to scan to. The

default destination is whichever one you selected the last time you used

this menu.

3Select the destination by pressing or , or by pressing the Scan

button repeatedly.

4Press Start Black or Start Color.

A preview image of the scan appears in the HP Scan window on the

computer, where you can edit it.

For more information about editing a preview image, see the onscreen

hp photo & imaging help that came with your software.

5Make any needed edits to the preview image in the HP Scan window.

When you have finished, click Accept.

The HP PSC sends the scanned image to the selected destination. If you

chose the HP Photo & Imaging Gallery (HP Gallery), it automatically

opens and displays the image.

stop scanning

!To stop scanning, press Cancel on the front panel.

The HP Gallery has many tools that you can use to edit your scanned image.

You can improve the overall image quality by adjusting the brightness,

sharpness, color tone, or saturation. You can also crop, straighten, rotate, or

resize the image. When the scanned image looks just the way you want it, you

can open it in another application, send it via e-mail, save it to a file, or print

it. For more information about using the HP Gallery, see the HP Photo &

Imaging Help.

Scan Menu

HP Photo & Imaging Gallery

HP InstantShare

MS Powerpoint

Adobe Photoshop

6

55

print

print from your computer

Most print settings are automatically handled by the software application you

are printing from or by HP ColorSmart technology. You only need to change the

settings manually when you change print quality, print on specific types of paper

or film, or use special features.

Note: If you have a photo memory card, you can select and print photos

directly from it using the HP PSC. For information, see use a photo memory

card on page 21.

This section contains the following topics:

• print from a software application on page 55

• set print options on page 56

• stop a print job on page 57

For more information on performing special print jobs, see the onscreen

HP Photo & Imaging Help that came with your software.

print from a software application

Follow these steps to print from the software application that you used to create

your document.

Windows users

1Load the input tray with the appropriate paper.

For more information, see load originals and load paper on page 11.

2From your software application’s File menu, select Print.

3Make sure that you select the HP PSC to print.

If you need to change settings, click the button that opens the Properties

dialog box (depending on your software application, this button might be

called Properties, Options, Printer Setup, or Printer), and then select the

appropriate options for your print job using the features available in the

Paper/Quality, Finishing, Effects, Basics, and Color tabs.

Note that when printing a photo, you must select options for the correct

paper type and photo enhancement. You might also want to use the photo

print cartridge for superior print quality. See work with print cartridges on

page 62 for more information.

The settings you select apply only to the current print job. To set print

settings for all jobs, see set print options on page 56.

4Click OK to close the Properties dialog box.

5Click OK to begin your print job.

hp psc 2300 series

chapter 6

56

print

Macintosh users

To specify a document’s paper size, scaling, and orientation, use the Page

Setup dialog box. To specify other print settings for a document, and to send the

document to the HP PSC, use the Print dialog box.

Note: The following steps are specific to OS X. For OS 9, the steps might

be slightly different. Be sure you have selected the HP PSC in the Print

Center (OS X) or in the Chooser (OS 9) before you begin printing.

1From your software application’s File menu, select Page Setup.

The Page Setup dialog box appears.

2In the Format for pop-up menu, select the HP PSC.

3Select the page attributes:

–Select the paper size.

–Select the orientation.

–Enter the scaling percentage.

For OS 9, the Page Setup dialog box includes options to mirror the image,

and to adjust page margins for two-sided printing.

4Click OK.

5From your software application’s File menu, select Print.

The Print dialog box appears.

If you are using OS X, the Copies & Pages panel opens. If you are using

OS 9, the General panel opens.

6Select the print settings appropriate for your project.

Use the pop-up menus to access the other panels.

7Click Print to begin printing.

set print options

You can customize the print settings of the HP PSC to handle nearly any print

task.

Windows users

If you want to change print settings, you need to decide if you want to change

them for the current job, or for all jobs. How you display print settings depends

on whether or not you want to make the setting permanent.

to change the print settings for all future jobs

1In the HP Photo & Imaging Director (HP Director) click Settings, and then

select Print Settings.

2Make changes to the print settings, and click OK.

to change the print settings for the current print job

1From your software application’s File menu, select Print, Print Setup, or

Page Setup. Make sure that the selected printer is the HP PSC.

2Click Properties, Options, Printer Setup, or Printer (the option names are

different depending on your software application) to display the print

settings.

reference guide

print from your computer

57

print

3Make changes to the settings, and click OK.

4Click OK to print the job.

Macintosh users

Use the Print dialog box to customize the print settings. The options displayed

depend on the panel selected.

!To display the Print dialog box, open the document you want to print, then

select Print from the File menu.

Note: To find out more about the settings in a particular panel, click the ?

in the lower left corner of the Print dialog box.

copies & pages panel

Use the Copies & Pages panel in OS X and the General panel in OS 9 in the

Print dialog box to select the number of copies and the pages you want to print.

You can also choose to collate your prints from this panel.

!Click the Preview button to see a preview of the printed document.

layout panel

Use the Layout panel in the Print dialog box to print multiple pages on a sheet

and to arrange the order in which the pages will print. You can also choose

border options from this panel.

output options panel

Use the Output Options panel in the Print dialog box to save your file as an

Adobe Acrobat PDF® (portable document format) file. The HP PSC does not

support PostScript printing.

!Select the Save as File check box to save your document as a PDF file.

Note: The Output Options panel is not available in OS 9.

paper type/quality panel

Use the Paper Type/Quality panel in the Print dialog box to select the paper

type, print quality, and color settings. You can also use this panel to change the

contrast and sharpness of your digital photos and to adjust the amount of ink

you want to use in your prints.

summary panel

Use the Summary panel in the Print dialog box to preview your settings and

make sure that they are correct before printing.

Note: In OS 9, the summary of your settings appears in the General panel.

stop a print job

You can stop a print job from the HP PSC or from your computer.

!To stop a print job from the HP PSC, press Cancel on the front panel. Look

for the Print cancelled message on the front panel display. If it doesn’t

appear, press Cancel again.

The HP PSC prints any pages it has already started printing and then

cancels the remainder of the print job. This can take a few moments.

hp psc 2300 series

chapter 6

58

print

7

59

order supplies

order supplies

You can order print cartridges, recommended types of HP Paper, and HP PSC

accessories online from the HP website.

This section contains the following topics:

•order media on page 59

• order print cartridges on page 59

order media

To order media such as HP Premium Paper, HP Premium Inkjet Transparency

Film, HP Iron-On Paper, or HP Greeting Cards, go to:

www.hp.com

Choose your country/region, and then select Buy or Shopping.

order print cartridges

The following table lists the print cartridges that are compatible with your

HP PSC. Use the information below to determine which print cartridge to order.

Get more information about print cartridges from the HP website:

www.hp.com

Choose your country/region, and then select Buy or Shopping.

print cartridges hp reorder number

HP black inkjet print cartridge

HP black inkjet print cartridge

#56, 19 ml black print cartridge

#27, 10 ml black print cartridge

HP tri-color inkjet print cartridge

HP photo inkjet print cartridge

HP tri-color inkjet print cartridge

#57, 17 ml color print cartridge

#58, 17 ml color print cartridge

#28, 8 ml color print cartridge

hp psc 2300 series

chapter 7

60

order supplies

8

61

maintain your hp psc

maintain your hp psc

The HP PSC requires little maintenance. Sometimes you might want to clean the

glass and lid backing to remove surface dust and ensure that your copies and

scans remain clear. You might also want to replace, align, or clean your print

cartridges from time to time. This section provides instructions for keeping your

HP PSC in top working condition. Perform these simple maintenance procedures

as necessary.

This section contains the following topics:

• clean the glass on page 61

• clean the lid backing on page 61

•clean the exterior on page 62

• work with print cartridges on page 62

• restore factory defaults on page 71

• set the power save time on page 71

• set the prompt delay time on page 72

clean the glass

Dirty glass from fingerprints, smudges, hair, and so on slows down performance

and affects the accuracy of features such as Fit to Page.

1Turn off the HP PSC, unplug the power cord, and raise the lid.

2Clean the glass with a soft cloth or sponge slightly moistened with a

nonabrasive glass cleaner.

Caution! Do not use abrasives, acetone, benzene, or carbon

tetrachloride on the glass; these can damage it. Do not place or

spray liquids directly on the glass. They might seep under it and

damage the HP PSC.

3Dry the glass with a chamois or cellulose sponge to prevent spotting.

clean the lid backing

Minor debris can accumulate on the white document backing located

underneath the lid of the HP PSC.

1Turn off the HP PSC, unplug the power cord, and raise the lid.

2Clean the white document backing with a soft cloth or sponge slightly

moistened with a mild soap and warm water.

3Wash the backing gently to loosen debris; do not scrub the backing.

hp psc 2300 series

chapter 8

62

maintain your hp psc

4Dry the backing with a chamois or soft cloth.

Caution! Do not use paper-based wipes as these might scratch

the backing.

5If this does not clean the backing well enough, repeat the previous steps

using isopropyl (rubbing) alcohol, and wipe the backing thoroughly with a

damp cloth to remove any residual alcohol.

clean the exterior

Use a soft cloth or slightly moistened sponge to wipe dust, smudges, and stains

off the case. The interior of the HP PSC does not require cleaning. Keep fluids

away from the interior of the device as well as the front panel.

Note: To avoid damage to painted parts of the HP PSC, do not use alcohol

or alcohol-based cleaning products on the front panel or the lid of the

device.

work with print cartridges

To ensure the best print quality from your HP PSC, you will need to perform some

simple maintenance procedures and, when prompted by a front panel message,

replace the print cartridges.

This section contains the following topics:

•check the ink levels on page 62

•print a self-test report on page 63

• handle the print cartridges on page 64

• replace the print cartridges on page 65

• use a photo print cartridge on page 67

• use the print cartridge protector on page 67

• align the print cartridges on page 68

• clean the print cartridges on page 69

• clean the print cartridge contacts on page 69

check the ink levels

You can easily check the ink supply level to determine how soon you might need

to replace a print cartridge. The ink level supply shows an approximation of the

amount of ink remaining in the print cartridges. This can only be done from the

HP Photo & Imaging Director (HP Director).

to check the ink level for Windows users

1From the HP Director, choose Settings, choose Print Settings, and then

choose Printer Toolbox.

2Click the Estimated Ink Levels tab.

The estimated ink levels appear for the print cartridges.

reference guide

maintain your hp psc

63

maintain your hp psc

to check the ink level for Macintosh users

1From the HP Director, click Settings, and then choose Maintain Printer.

2If the Select Printer dialog box opens, select your HP PSC, and then click

Utilities.

3From the list, select Ink Level.

The estimated ink levels appear for the print cartridges.

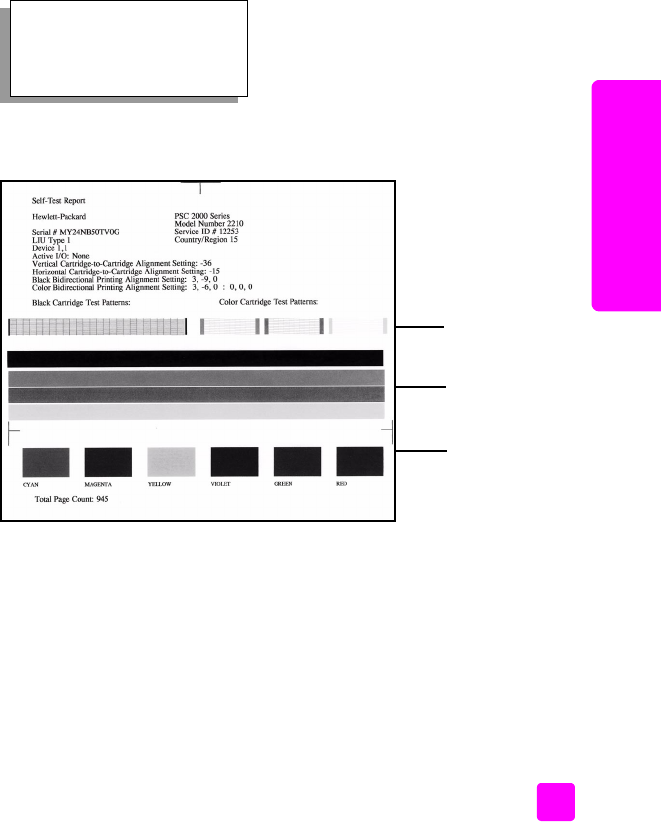

print a self-test report

If you are experiencing problems with printing, print a Self-Test Report before

you replace the print cartridges. This report provides useful information about

your print cartridges, including status information.

1Press Setup.

2Press 1, then press 2.

This selects Print Report and then selects Self-Test Report.

The HP PSC prints a Self-Test Report, which might indicate the source of

the printing problem.

Print Report

1: Menu Settings

2: Self-Test Report

Test patterns

Color blocks

Lines of color

hp psc 2300 series

chapter 8

64

maintain your hp psc

3Check the Self-Test Report for the following:

–The test patterns are even and show a complete grid. If the grids are

not complete, this might indicate a problem with the nozzles. You might

need to clean the print cartridges. For more information, see clean the

print cartridges on page 69.

–The Low Ink warning message value. The value will appear above the

test pattern for the black, photo (if applicable), or tri-color print

cartridges. This value represents the number of Low Ink warning

messages that have displayed for each of the print cartridges. If the

value displays 1, 2, or 3, the print cartridge might be low on ink. You

might need to replace the print cartridge. For more information on

replacing print cartridges, see replace the print cartridges on

page 65.

–The lines of color extend across the page.

–The color blocks have even consistency. You should see cyan,

magenta, yellow, violet, green, and red color blocks. If color blocks

are missing, this might indicate that the tri-color print cartridge is out of

ink. You might need to replace the print cartridge. For more

information on replacing print cartridges, see replace the print

cartridges on page 65. Also check for streaking or white lines. Streaks

might indicate clogged nozzles or dirty contacts. You might need to

clean the print cartridges. For more information on cleaning the print

cartridges, see clean the print cartridges on page 69. Do not clean

with alcohol.

handle the print cartridges

Before you replace or clean a print cartridge, you should know the part names

and how to handle the print cartridge.

Plastic tape with pink pull tab

(must be removed)

Copper contacts

Ink nozzles

under tape

Do not touch the copper contacts or the ink nozzles

reference guide

maintain your hp psc

65

maintain your hp psc

replace the print cartridges

A message appears on the front panel display to let you know when the ink level

for the print cartridge is low. In addition, you can check the ink levels through

the HP Director on your computer. For information, see check the ink levels on

page 62. When you receive this message, it is recommended that you replace

the print cartridge. You should also replace the print cartridges when you see

faded text or if you experience print quality issues related to the print cartridges.

You might also need to replace a print cartridge when you want to use the photo

print cartridge for printing high-quality photos.

For more information on ordering replacement print cartridges, see order print

cartridges on page 59.

1Turn on the HP PSC, then open the print-carriage access door by lifting the

handle until the door locks into place.

The print carriage will be on the far right side of the HP PSC. Wait for the

ramp below the print carriage to lower before removing the print

cartridges.

2After the carriage stops moving and the ramp has lowered, lift the latch up

to release the print cartridge.

Latches

Print-carriage access door

hp psc 2300 series

chapter 8

66

maintain your hp psc

3Push down on the print cartridge to release it, and then pull it toward you

out of its slot.

4If you are removing the black print cartridge in order to install the photo

print cartridge, store it in the print cartridge protector.

For information on the print cartridge protector, see use the print cartridge

protector on page 67.

5Remove the new print cartridge from its packaging and, being careful to

touch only the black plastic, gently remove the pink tape by using the pull

tab.

Caution! Do not touch the copper contacts or ink nozzles.

6Push the new print cartridge below the metal bar at a slight angle, into the

appropriate slot, until it clicks into place.

The tri-color print cartridge goes on the left and the black or photo print

cartridge goes on the right.

reference guide

maintain your hp psc

67

maintain your hp psc

7Press down on the latch until it stops. Make sure the latch catches below

the bottom tabs.

8Close the print-carriage access door.

use a photo print cartridge

You can optimize the quality of the photos you print with your HP PSC by

purchasing a photo print cartridge. To use the photo print cartridge, remove the

black print cartridge and insert the photo print cartridge in its place. With the

tri-color print cartridge and photo print cartridge installed, you have a six-ink

system, which provides enhanced quality photos. When you want to print

regular text documents, swap the black print cartridge back in. Use a print

cartridge protector to keep your print cartridge secure when it is not being used.

For more information on using the print cartridge protector, see use the print

cartridge protector on page 67 and for more information on replacing print

cartridges, see replace the print cartridges on page 65.

For more information on purchasing a photo print cartridge, see order print

cartridges on page 59.

use the print cartridge protector

When you purchase a photo print cartridge, you will receive a print cartridge

protector. The print cartridge protector is designed to keep your print cartridge

secure when it is not being used. It also prevents the ink from drying out.

Whenever you remove a print cartridge from the HP PSC, store it in the print

cartridge protector.

!To insert a print cartridge into the print cartridge protector, slide the print

cartridge into the print cartridge protector at a slight angle and snap it

securely into place.

hp psc 2300 series

chapter 8

68

maintain your hp psc

!To remove the print cartridge from the print cartridge protector, press

down and back on the top of the print cartridge protector to release the

print cartridge, then slide the print cartridge out of the print cartridge

protector.

align the print cartridges

The HP PSC prompts you to align cartridges every time you install or replace a

print cartridge. You can also align the print cartridges at any time from the front

panel or the HP Director. Aligning the print cartridges ensures high-quality

output.

Note: If you remove and reinstall the same print cartridge, the HP PSC will

not prompt you to align the print cartridges.

to align the print cartridges when prompted

!Press OK.

The HP PSC prints an alignment page and aligns the print cartridges.

Recycle or discard the page.

to align the cartridges from the front panel

1Press Setup.

2Press 2, then press 2.

This selects Maintenance and then selects Align Print Cartridges.

The HP PSC prints an alignment page and aligns the print cartridges.

Recycle or discard the page.

Maintenance

1: Clean Print Cartridges

2: Align Print Cartridges

3: Restore Factory Defaults

4: Set Language & Country/Region

5: Set Power Save Mode Time

6: Set Scroll Speed

7: Set Prompt Delay Time

reference guide

maintain your hp psc

69

maintain your hp psc

to align the print cartridges from the hp director for Windows users

1From the HP Director, choose Settings, choose Print Settings, and then

choose Printer Toolbox.

2Click the Device Services tab.

3Click Align the Print Cartridges.

The HP PSC prints an alignment page and aligns the print cartridges.

Recycle or discard the page.

to align the print cartridges from the hp director for Macintosh users

1From the HP Director, click Settings, and then choose Maintain Printer.

2If the Select Printer dialog box opens, select your HP PSC, and then click

Utilities.

3From the list, select Calibrate.

4Click Align.

The HP PSC prints an alignment page and aligns the print cartridges.

Recycle or discard the page.

clean the print cartridges

Use this feature when the Self-Test Report shows streaking or white lines through

any of the lines of color. Do not clean print cartridges unnecessarily. This wastes

ink and shortens the life of the ink nozzles.

1Press Setup.

2Press 2, then press 1.

This selects Maintenance and then selects Clean Print Cartridges.

If copy or print quality still seem poor after you clean the print cartridges,

replace the print cartridge that is affected. For information on replacing

print cartridges, see replace the print cartridges.

clean the print cartridge contacts

Clean the print cartridge contacts only if you get repeated front panel messages

prompting you to check a print cartridge after you already have cleaned or

aligned the print cartridges.

Caution! Do not remove both print cartridges at the same time.

Remove and clean each print cartridge one at a time.

Maintenance

1: Clean Print Cartridges

2: Align Print Cartridges

3: Restore Factory Defaults

4: Set Language & Country/Region

5: Set Power Save Mode Time

6: Set Scroll Speed

7: Set Prompt Delay Time

hp psc 2300 series

chapter 8

70

maintain your hp psc

Make sure you have the following materials available:

•Dry foam rubber swabs, lint-free cloth, or any soft material that will not

come apart or leave fibers.

•Distilled, filtered, or bottled water (tap water might contain contaminants

that can damage the print cartridges).

Note: Do not use platen cleaners or alcohol to clean the print cartridge

contacts. These can damage the print cartridge or the HP PSC.

1Turn the HP PSC on and open the print-carriage access door.

The print carriage will be on the far right side of the device. Wait for the

ramp below the print carriage to lower before removing the print

cartridges.

2After the print carriage has moved to the right and the ramp has lowered,

unplug the power cord from the back of the HP PSC.

3Lift the latch to release the print cartridge, then pull it out of its slot.

4Inspect the print cartridge contacts for ink and debris buildup.

5Dip a clean foam rubber swab or lint-free cloth into distilled water, and

squeeze any excess water from it.

6Hold the print cartridge by its sides.

7Clean the contacts. Do not clean the nozzles.

8Place the print cartridge back into the holder and close the latch.

9Repeat if necessary for the other print cartridge.

10 Gently close the print-carriage access door and plug in the HP PSC.

Contacts

Nozzles - do not clean

reference guide

maintain your hp psc

71

maintain your hp psc

restore factory defaults

You can restore the original factory settings to what they were when you

purchased your HP PSC.

You can perform this process from the front panel only.

1Press Setup.

2Press 2, then press 3.

This selects Maintenance and then selects Restore Factory Defaults.

The factory default settings are restored.

set the power save time

The bulb in your HP PSC remains on for a specified period so that the device is

immediately ready to respond to your request. When the HP PSC has not been

used within that specified period, it turns the bulb off to preserve power. You

can exit this mode by pressing any button on the front panel.

Your HP PSC is automatically set to enter power-save mode after 12 hours. You

can choose 1, 4, 8, or 12 hours for the power save time.

1Press Setup.

2Press 2, then press 5.

This selects Maintenance and then selects Set Power Save Mode Time.

3Press until the appropriate time appears, then press OK.

Maintenance

1: Clean Print Cartridges

2: Align Print Cartridges

3: Restore Factory Defaults

4: Set Language & Country/Region

5: Set Power Save Mode Time

6: Set Scroll Speed

7: Set Prompt Delay Time

Maintenance

1: Clean Print Cartridges

2: Align Print Cartridges

3: Restore Factory Defaults

4: Set Language & Country/Region

5: Set Power Save Mode Time

6: Set Scroll Speed

7: Set Prompt Delay Time

hp psc 2300 series

chapter 8

72

maintain your hp psc

set the prompt delay time

The Prompt Delay Time option allows you to control the amount of time that

passes before a message is displayed prompting you to take further action. For

example, if you press Copy and the prompt delay time passes without pressing

another button, “Press START Color or Black to begin copy.” appears in the front

panel display. You can choose Normal, Fast, or Slow. The default is Normal.

1Press Setup.

2Press 2, then press 7.

This selects Maintenance and then selects Set Prompt Delay Time.

3Press until the delay time appears, then press OK.

Maintenance

1: Clean Print Cartridges

2: Align Print Cartridges

3: Restore Factory Defaults

4: Set Language & Country/Region

5: Set Power Save Mode Time

6: Set Scroll Speed

7: Set Prompt Delay Time

9

73

hp psc support

get hp psc support

Hewlett-Packard provides Internet and phone support for your HP PSC.

This section contains the following topics:

• get support and other information from the Internet on page 73

• hp customer support on page 73

• prepare your hp psc for shipment on page 76

• hp distribution center on page 77

If you are unable to find the answer you need in the printed or onscreen documentation

supplied with your product, you can contact one of the HP support services listed in the

following pages. Some support services are available only in the U.S. and Canada, while

others are available in many countries/regions worldwide. If a support service number is

not listed for your country/region, contact your nearest authorized HP dealer for help.

get support and other information from the Internet

If you have Internet access, you can get help from the following HP website:

www.hp.com/support

This website offers technical support, drivers, supplies, and ordering information.

hp customer support

Software programs from other companies might be included with your HP PSC. If you

experience problems with any of those programs, you will receive the best technical

assistance by calling the experts at that company.

If you need to contact HP Customer Support, do the following before you call.

1Make sure that:

a. Your HP PSC is plugged in and turned on.

b. The specified print cartridges are installed correctly.

c. The recommended paper is properly loaded in the input tray.

2Reset your HP PSC:

a. Turn off the HP PSC by using the On button located on the front panel of the

device.

b. Unplug the power cord from the back of the HP PSC.

c. Plug the power cord back into the device.

d. Turn on the HP PSC by using the On button.

3For more information, go to the HP website at:

www.hp.com/support

hp psc 2300 series

chapter 9

74

hp psc support

4If you are still experiencing problems and need to speak with an HP Customer

Support Representative, do the following:

a. Have the specific name of your HP PSC, as it appears on the device, available.

b. Have your serial number and service ID ready. To display your serial number,

press OK and Start Black at the same time, until the serial number appears in

the front panel display. To display your service ID, on the front panel, press OK

and Start Color at the same time, until SERV ID: and the number appear in the

front panel display.

c. Print a Self-Test Report. For information on printing a Self-Test Report, see print

a self-test report on page 63.

d. Make a color copy.

e. Be prepared to describe your problem in detail.

5Call HP Customer Support. Be near your HP PSC when you call.

call in North America during warranty

Call 1-800-HP-INVENT. US phone support is available in both English and Spanish

languages 24 hours a day, 7 days a week (days and hours of support may change

without notice). This service is free during the warranty period. A fee may apply outside

the warranty period.

call elsewhere in the world

The numbers listed below are current as of the publication date of this guide. For a list of

current international HP Support Service numbers, go to this website and choose your own

country/region or language:

www.hp.com/support

You can call the HP support center in the following countries/regions. If your country/

region is not listed, contact your local dealer or nearest HP Sales and Support Office to

find out how to obtain services.

Support service is free during the warranty period; however, your standard long-distance

phone charges will apply. In some cases, a flat fee per single incident will also apply.

For phone support in Europe, please check for the details and conditions of phone support

in your country/region by going to the following website:

www.hp.com/support

Alternatively, you can ask your dealer or call HP at the phone number provided in this

guide.

As part of our constant efforts to improve our phone support service, we advise you to

check our website on a regular basis for new information regarding service features and

delivery.

country/region hp technical support country/region hp technical support

Algeria1+213(0)61 56 45 43 Luxembourg (French) 900 40 006

Argentina (54)11-4778-8380

0-810-555-5520 Luxembourg (German) 900 40 007

Australia +61 3 8877 8000

1902 910 910 Malaysia 1-800-805405

Austria +43 (0) 820 87 4417 Mexico 01-800-472-6684

Bahrain (Dubai) +973 800 728 Mexico (Mexico City) 5258-9922

Belgium (Dutch) +32 (0) 70 300 005 Morocco1+212 224 047 47

Belgium (French) +32 (0) 70 300 004 Netherlands (0.10 Euro/

min.) 0900 2020 165

reference guide

get hp psc support

75

hp psc support

Bolivia 800-100247 New Zealand 0800 441 147

Brazil (Grande São

Paulo) (11) 3747 7799 Norway +47 815 62 070

Brazil (Demais

Localidades) 0800 157751 Oman +971 4 883 8454

Canada during

warranty (905) 206 4663 Palestine +971 4 883 8454

Canada post-warranty

(per-call charge) 1-877-621-4722 Panama 001-800-7112884

Caribbean & Central

America 1-800-711-2884 Peru 0-800-10111

Chile 800-800-360-999 Philippines 632-867-3551

China 86-21-38814518

8008206616 Poland +48 22 865 98 00

Colombia 9-800-114-726 Portugal +351 808 201 492

Costa Rica 0-800-011-0524 Puerto Rico 1-877-232-0589

Czech Republic +42 (0) 2 6130 7310 Qatar +971 4 883 8454

Denmark +45 70202845 Romania +40 1 315 44 42

Ecuador (Andinatel) 999119+1-800-

7112884 Russia, Moscow +7 095 797 3520

Ecuador (Pacifitel) 1-800-225528+1-800-

7112884 Russia, St. Petersburg +7 812 346 7997

Europe (English) +44 (0) 207 512 5202 Saudi Arabia +966 800 897 14440

Egypt +20 02 532 5222 Singapore (65) 272-5300

Finland +358 (0) 203 66 767 Slovakia + 421 2 6820 8080

France (0.34 Euro/

min.) +33 (0) 892 6960 22 South Africa (RSA) 086 000 1030

Germany (0.12 Euro/

min.) +49 (0) 180 5652 180 South Africa, Outside

Republic +27-11 258 9301

Greece +30 10 6073 603 Spain +34 902 010 059

Hong Kong +85 (2) 3002 8555 Sweden +46 (0)77 120 4765

Guatemala 1800-995-5105 Switzerland 2 (0.08 CHF/

min. during peak hours,

0.04 CHF/min. during off-

peak hours)

+41 (0) 848 672 672

Hungary +36 (0) 1 382 1111 Taiwan +886-2-2717-0055

0800 010 055

India 1-600-112267

91 11 682 6035 Thailand +66 (2) 661 4000

Indonesia 62-21-350-3408 Tunisia1+216 1 891 222

Ireland +353 1890 923902 Turkey +90 216 579 7171

Israel +972 (0) 9 830 4848 Ukraine +7 (380-44) 490-3520

country/region hp technical support country/region hp technical support

hp psc 2300 series

chapter 9

76

hp psc support

call in Australia post-warranty

If your product is not under warranty, you can call 03 8877 8000. A per-incident, out-of-

warranty support fee of $27.50 (inc GST) will be charged to your credit card. You can

also call 1902 910 910 ($27.50 charged to your phone account) from 9:00 A.M. to

5:00 P.M. Monday through Friday. Charges and support hours are subject to change

without notice.

prepare your hp psc for shipment

If after contacting HP Customer Support or returning to the point of purchase, you are

requested to send your HP PSC in for service, please follow the power off and repackage

steps below to avoid further damage to the HP product.

1Turn on the HP PSC.

Disregard steps 1 through 6 if your HP PSC will not turn on and the print carriage is

in the home position. You will not be able to remove the print cartridges. Proceed to

step 7.

2Open the print-carriage access door.

3Remove the print cartridges from their holders, and lower the latches. See replace

the print cartridges on page 65 for information on removing the print cartridges.

Caution! Remove both print cartridges and lower both latches. Failure to

do so might damage your HP PSC.

4Place the print cartridges in an airtight bag so they will not dry out, and put them

aside. Do not send them with the HP PSC, unless instructed to by the HP customer

support call agent.

5Close the print-carriage access door and wait a few minutes for the print carriage

to move back to its home position.

6Turn off the HP PSC.

Italy +39 848 800 871 United Arab Emirates 800 4910

Japan 0570 000 511

+81 3 3335 9800 United Kingdom +44 (0) 870 010 4320

Jordan +971 4 883 8454 Venezuela 01-800-4746.8368

Korea +82 1588 3003 Venezuela (Caracas) (502) 207-8488

Kuwait +971 4 883 8454 Vietnam 84-8-823-4530

Lebanon +971 4 883 8454 Yemen +971 4 883 8454

1 This Call Center supports French-speaking customers from the following countries: Morocco,

Tunisia, and Algeria.

2 This Call Center supports German-, French- and Italian-speaking customers in Switzerland.

country/region hp technical support country/region hp technical support

reference guide

get hp psc support

77

hp psc support

7Remove the front panel cover as follows:

a. Place your finger in the notch on the right corner near the front panel display.

b. Gently pry the corner up and lift the front panel cover from the HP PSC.

8Retain the front panel cover. Do not return the front panel cover with the HP PSC.

9If available, pack the HP PSC for shipment by using the original packing materials

or the packaging materials that came with your exchange device.

If you do not have the original packaging materials, please use other adequate

packaging materials. Shipping damage caused by improper packaging and/or

improper transportation is not covered under the warranty.

10 Place the return shipping label on the outside of the box.

11 Include the following items in the box:

–A brief description of symptoms for service personnel (samples of print quality

problems are helpful).

–A copy of the sales slip or other proof of purchase to establish the warranty

coverage period.

–Your name, address, and a phone number where you can be reached during

the day.

hp distribution center

To order HP PSC software, a copy of the printed Reference Guide, a Setup Poster, or other

customer-replaceable parts, do one of the following:

•In the U.S. or Canada, call 1-800-HP-INVENT (1-800-474-6836).

•Outside of this country/region, go to this website:

www.hp.com/support

hp psc 2300 series

chapter 9

78

hp psc support

10

79

warranty information

warranty information

Your HP PSC comes with a limited warranty that is described in this section. Information

about how to obtain warranty service and how you can upgrade your standard factory

warranty is also provided.

This section contains the following topics:

• duration of limited warranty on page 79

•warranty service on page 79

• warranty upgrades on page 79

• returning your hp psc 2300 series for service on page 80

• hewlett-packard limited global warranty statement on page 80

duration of limited warranty

Duration of Limited Warranty (hardware and labor): 1 Year

Duration of Limited Warranty (CD media): 90 Days

Duration of Limited Warranty (ink cartridges): Until the genuine HP ink is depleted, or the

“end of warranty” date printed on the product is reached, whichever occurs first.

warranty service

express service

To obtain HP express repair service, the customer must contact an HP service office or an

HP Customer Support Center for basic troubleshooting first. See hp customer support on

page 73 for steps to take before calling Customer Support.

If a customer device needs a minor part replacement and these parts can normally be

replaced by the customer, the customer-replaceable components may be serviced through

expedited part shipment. In this event, HP will prepay shipping charges, duty and taxes;

provide telephone assistance on replacement of the component; and pay shipping

charges, duty, and taxes for any part that HP asks to be returned.

The HP Customer Support Center may direct customers to designated authorized service

providers who are certified by HP to service the HP product.

warranty upgrades

Upgrade your standard factory warranty to a total of three years with the

HP SUPPORTPACK. Service coverage begins on product purchase date and the pack must

be purchased within the first 180 days of product purchase. This program offers phone

support from 6:00 A.M. to 10:00 P.M. Mountain Standard Time (MST) Monday through

Friday and 9:00 A.M. to 4:00 P.M. (MST) on Saturdays. If during your technical support

call it is determined that you need a replacement product, then HP will ship you this

product next business day free of charge. Available in U.S. only.

For more information, please call 1-888-999-4747 or go to the HP website:

www.hp.com/go/hpsupportpack

Outside the U.S., please call your local HP Customer Support office. See call elsewhere

in the world on page 74 for a list of international Customer Support numbers.

hp psc 2300 series

chapter 10

80

warranty information

returning your hp psc 2300 series for service

Before returning your HP PSC for service, you must call HP Customer Support. See

hp customer support on page 73 for steps to take before calling Customer Support.

hewlett-packard limited global warranty statement

The following information specifies the HP limited global warranty.

This section contains the following information:

• extent of limited warranty on page 80

• limitations of warranty on page 81

• limitations of liability on page 81

•local law on page 81

• limited warranty information for EU countries on page 82

extent of limited warranty

Hewlett-Packard (“HP”) warrants to the end-user customer (“Customer”) that each HP PSC

2300 Series product (“Product”), including related software, accessories, media, and

supplies, shall be free from defects in material and workmanship for the duration, which

begins on the date of purchase by the Customer.

For each hardware Product, the duration of HP’s limited warranty is one year for parts

and one year for labor. For all other Products, the duration of HP’s limited warranty for

both parts and labor is ninety days.

For each software Product, HP’s limited warranty applies only to a failure to execute

programming instructions. HP does not warrant that the operation of any Product shall be

uninterrupted or error free.

HP’s limited warranty covers only those defects which arise as a result of normal use of a

Product, and does not cover any other problems, including those which arise as a result

of (a) improper maintenance or modification, (b) software, accessories, media, or

supplies not provided or supported by HP, or (c) operation outside the Product’s

specifications.

For any hardware Product, the use of a non-HP ink cartridge or a refilled ink cartridge

does not affect either the warranty to the Customer or any HP support contract with the

Customer. However, if Product failure or damage is attributable to the use of a non-HP or

refilled ink cartridge, HP shall charge its standard labor and materials charges to service

the Product for the failure or damage.

If HP receives, during the applicable warranty period, notice of a defect in any Product,

HP shall either repair or replace the defective Product, at HP’s option. Where labor

charges are not covered by HP’s limited warranty, repairs shall be at HP’s standard

charges for labor.

If HP is unable to repair or replace, as applicable, a defective Product which is covered

by HP’s warranty, HP shall, within a reasonable time after being notified of the defect,

refund the purchase price for the Product.

HP shall have no obligation to repair, replace, or refund until the Customer returns the

defective Product to HP.

Any replacement product may be either new or like-new, provided that it has functionality

at least equal to that of the Product being replaced.

HP products, including each Product, may contain remanufactured parts, components, or

materials equivalent to new in performance.

reference guide

warranty information

81

warranty information

HP’s limited warranty for each Product is valid in any country/region or locality where HP

has a support presence for the Product and where HP has marketed the Product. The level

of warranty service may vary according to local standards. HP shall have no obligation

to alter the form, fit, or function of the Product in order to make it operate in a country/

region or locality for which the Product was never intended to operate.

limitations of warranty

TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER HP NOR ITS THIRD PARTY

SUPPLIERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER

EXPRESS OR IMPLIED, WITH RESPECT TO THE COVERED HP PRODUCTS, AND

SPECIFICALLY DISCLAIM THE IMPLIED WARRANTIES OR CONDITIONS OF
