Huawei AP5130DN Access Points
Product Description
Issue
01
Date
2014-04-15
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://enterprise.huawei.com
Huawei AP5130DN Access Points
Product Description
Contents
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
Contents
1 Product Positioning and Characteristics ................................................................................... 1
1.1 Product Positioning ....................................................................................................................................................... 1
1.2 Product Characteristics ................................................................................................................................................. 6
2 Hardware Structure....................................................................................................................... 9
2.1 AP5130DN .................................................................................................................................................................... 9
3 Product Features .......................................................................................................................... 12
3.1 WLAN Features .......................................................................................................................................................... 12
3.2 Network Features ........................................................................................................................................................ 13
3.3 QoS Features ............................................................................................................................................................... 13
3.4 Security Features ........................................................................................................................................................ 14
3.5 Maintenance Features ................................................................................................................................................. 14
3.6 BYOD ......................................................................................................................................................................... 15
3.7 Locating Service ......................................................................................................................................................... 15
3.8 Spectrum Analysis ...................................................................................................................................................... 15
4 Technical Specifications ............................................................................................................ 16
4.1 Basic Specifications .................................................................................................................................................... 16
4.2 Radio Specifications ................................................................................................................................................... 17
4.3 Standards Compliance ................................................................................................................................................ 22
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Product Positioning and Characteristics
About This Chapter
1.1 Product Positioning
1.2 Product Characteristics
1.1 Product Positioning
Table 1-1 Product positioning
Product
Model
Frequency
Band
IEEE
Standard
Compliance
Positioning
Usage
Scenario
AP5130DN
Dual band:
2.4 GHz
5 GHz
The AP5130DN
can provide
services
simultaneously
on the 2.4 GHz
and 5 GHz
frequency
bands to
support more
access users.
IEEE
802.11a/b/g/n/a
c
The
cost-effective
AP5130DN
supports 3 x 3
MIMO and
provides
comprehensive
service support
capabilities. It
is deployed
indoors and
features high
reliability, high
security, simple
network
deployment,
automatic AC
discovery and
configuration,
and real-time
management
and
maintenance.
The AP5130DN
provides
802.11n/ac
wireless access
networks for
places with
simple building
structure, small
size, dense
users, and high
capacity
demands, such
as small and
medium
enterprises and
branches.
The AP5130DN
can be flexibly
deployed and
work in both fit
AP and bridge
mode.
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
Product
Model
Frequency
Band
IEEE
Standard
Compliance
Positioning
Usage
Scenario
Huawei
AP5130DN
complies with
IEEE 802.11ac
and can provide
gigabit access
for wireless
users. This high
capacity greatly
improves user
experience on
wireless
networks.
The AP5130DN can work as a Fat AP or Fit AP and switch flexibly between the two working
modes based on the network plan.
When the wireless network scale is small, customers need to purchase only AP products and
set the APs to work as Fat APs. As the network scale expands, tens of or hundreds of APs
exist on the network. To simplify network management, customers are advised to purchase
ACs to perform centralized management on the APs and set the APs to work as Fit APs.
Typical networking modes are as follows:
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

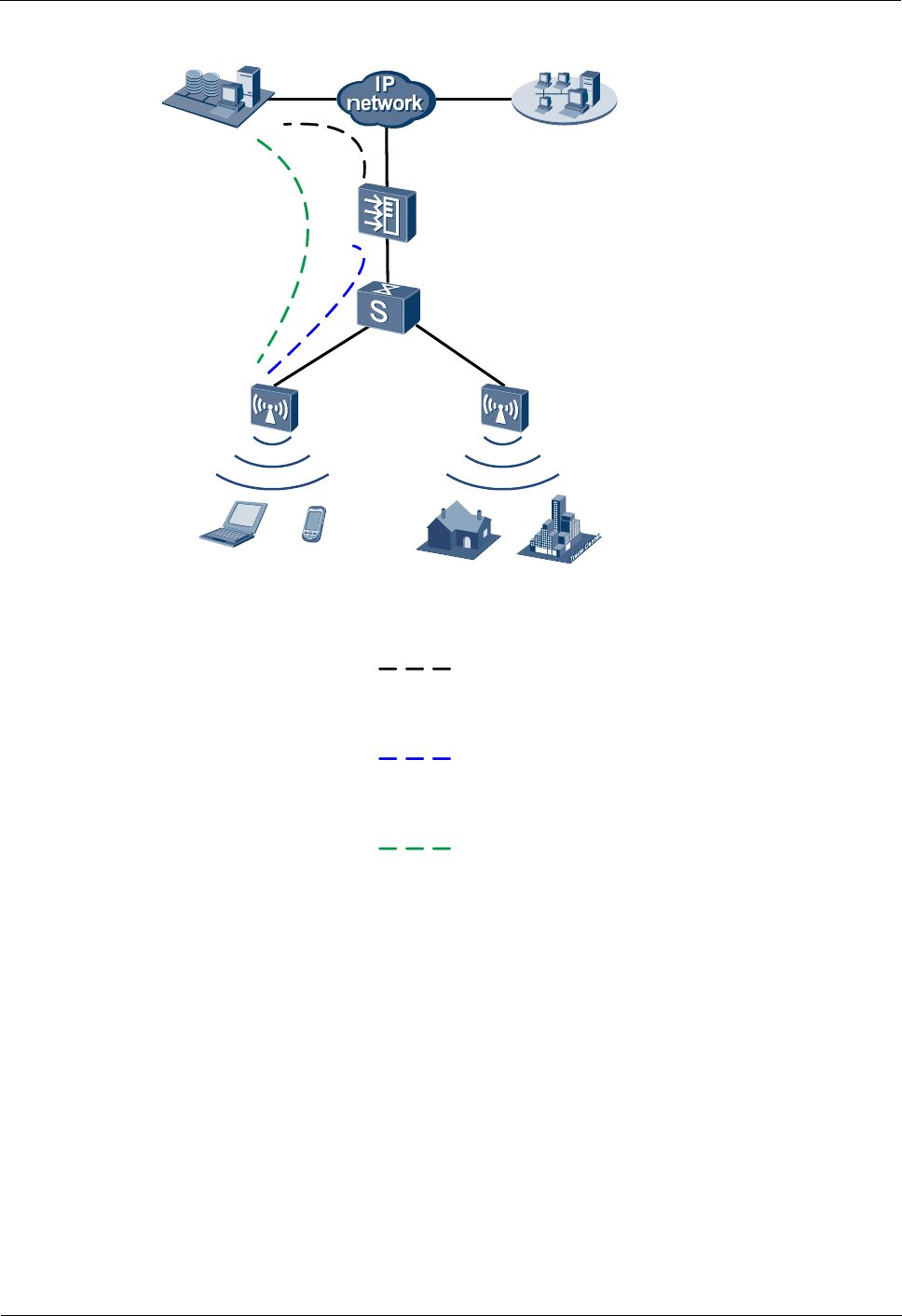

Figure 1-1 Fit AP networking (AP mode)
AP n
AP1
……
NMS
AC
Authentication system
Switch
Management channel between
NMS and AC
Management channel between the
AC and the AP and data channel
Where data flows are
encapsulated with CAPWAP
Channel where data flows are not
encapsulated with CAPWAP
Business
users
Residential
users
STA STA
In this networking, the AP functions as a fit AP and provides only data forwarding functions.
The AC is responsible for user access, AP go-online, AP management, authentication, routing,
security, and QoS.Huawei AC products include the AC6605, AC6005, and Access Controller
Unit (ACU2).
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4

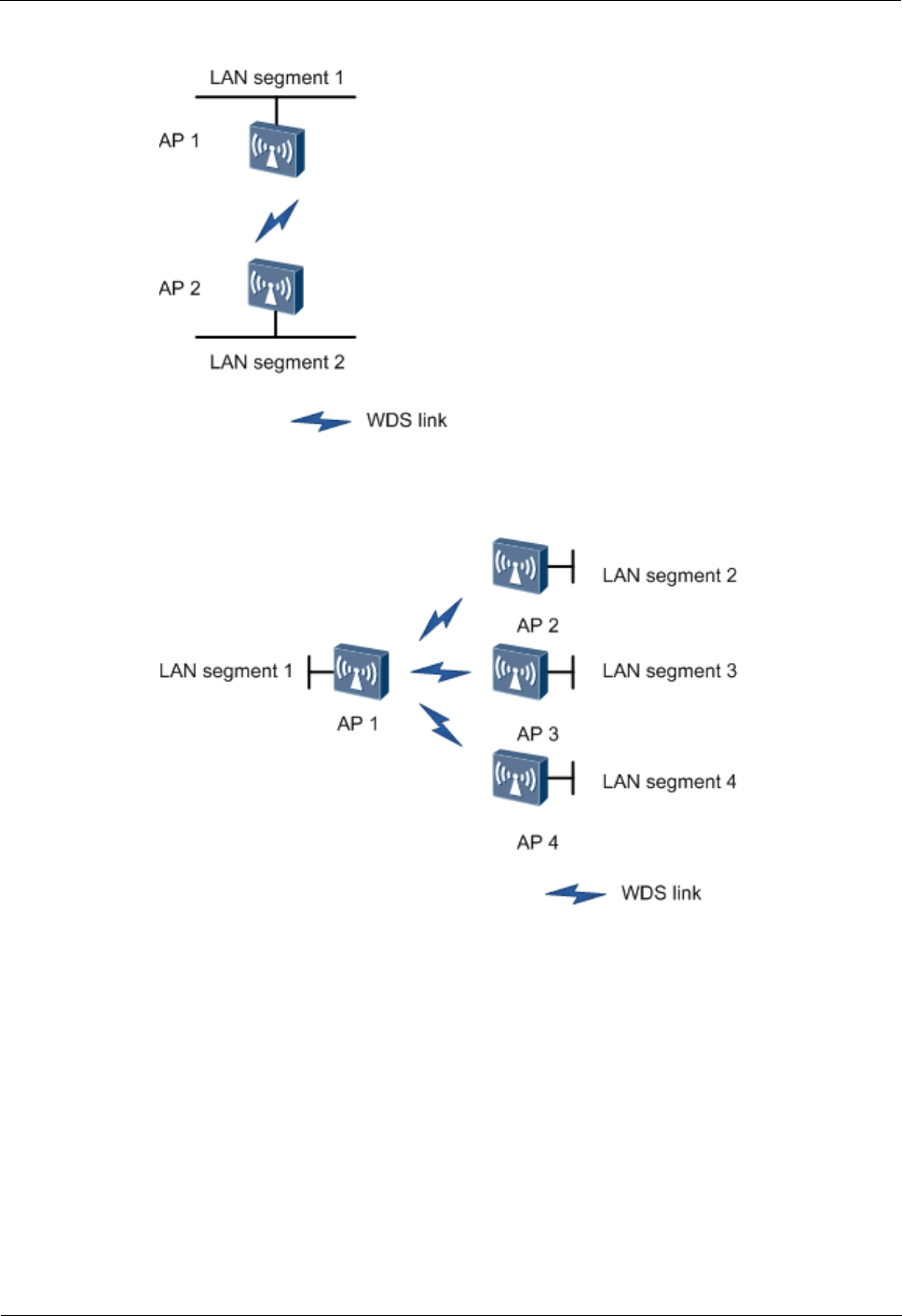

Figure 1-2 Fit AP networking (WDS mode: point-to-point)
Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)
In this networking, the AP connects two or more independently wired or wireless LANs
through wireless links to construct a network on which users can exchange data. In Wireless
Distribution System (WDS) mode, the AP supports point-to-point (P2P) and
point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands,
the AP can implement wireless bridging and access functions.
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5

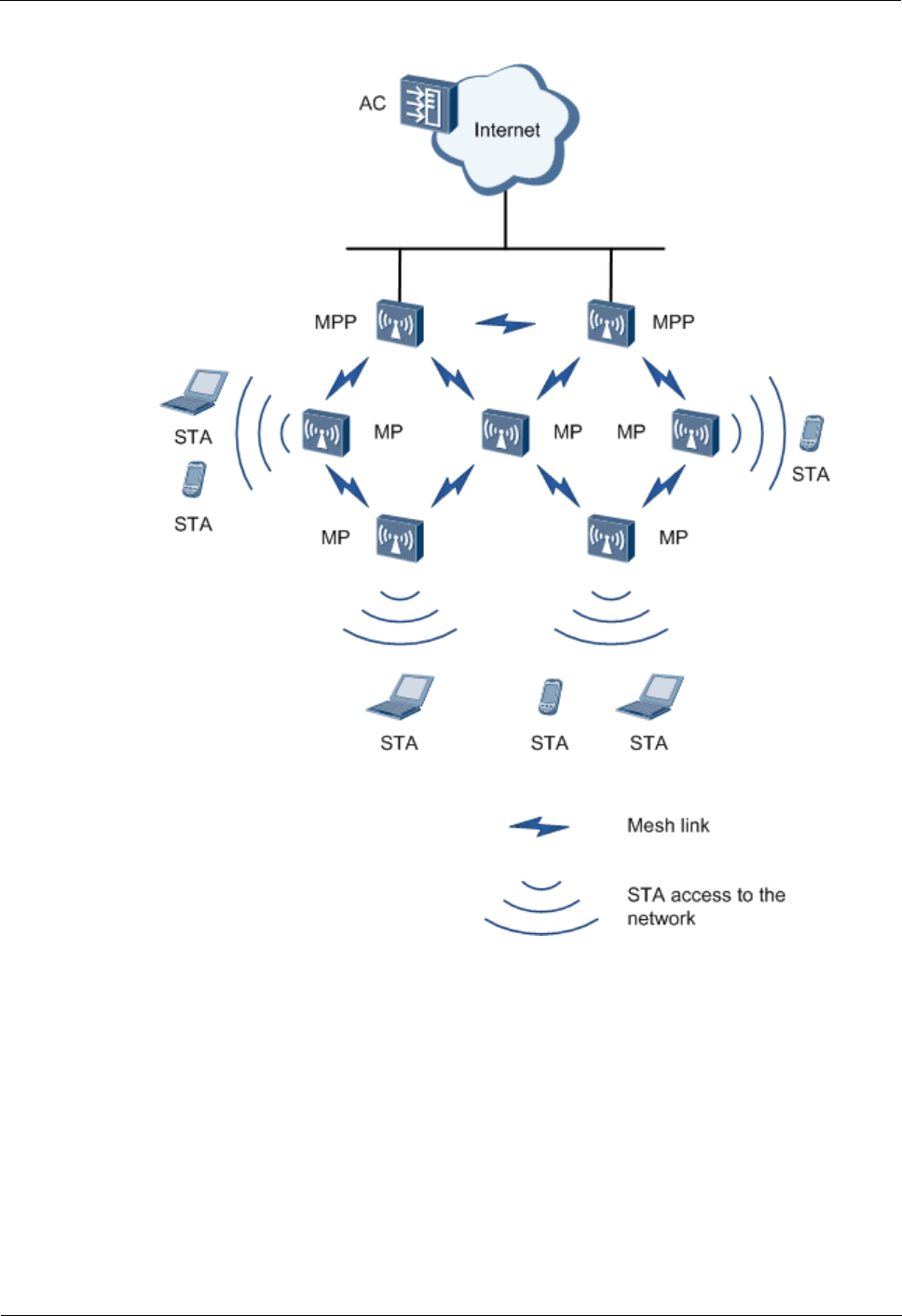

Figure 1-4 Fit AP mesh networking
On the preceding network, APs function as mesh points (MPs) and are fully-meshed to
establish an auto-configured and self-healing wireless mesh network (WMN). APs with the
gateway function can work as the mesh portal points (MPPs) through which the WMN can
provide access to the Internet. Terminals connect to APs to access the WMN. The WMN uses
dedicated mesh routing protocols to guarantee high transmission quality and is more
applicable to scenarios that require high bandwidth and highly stable Internet connections.
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6

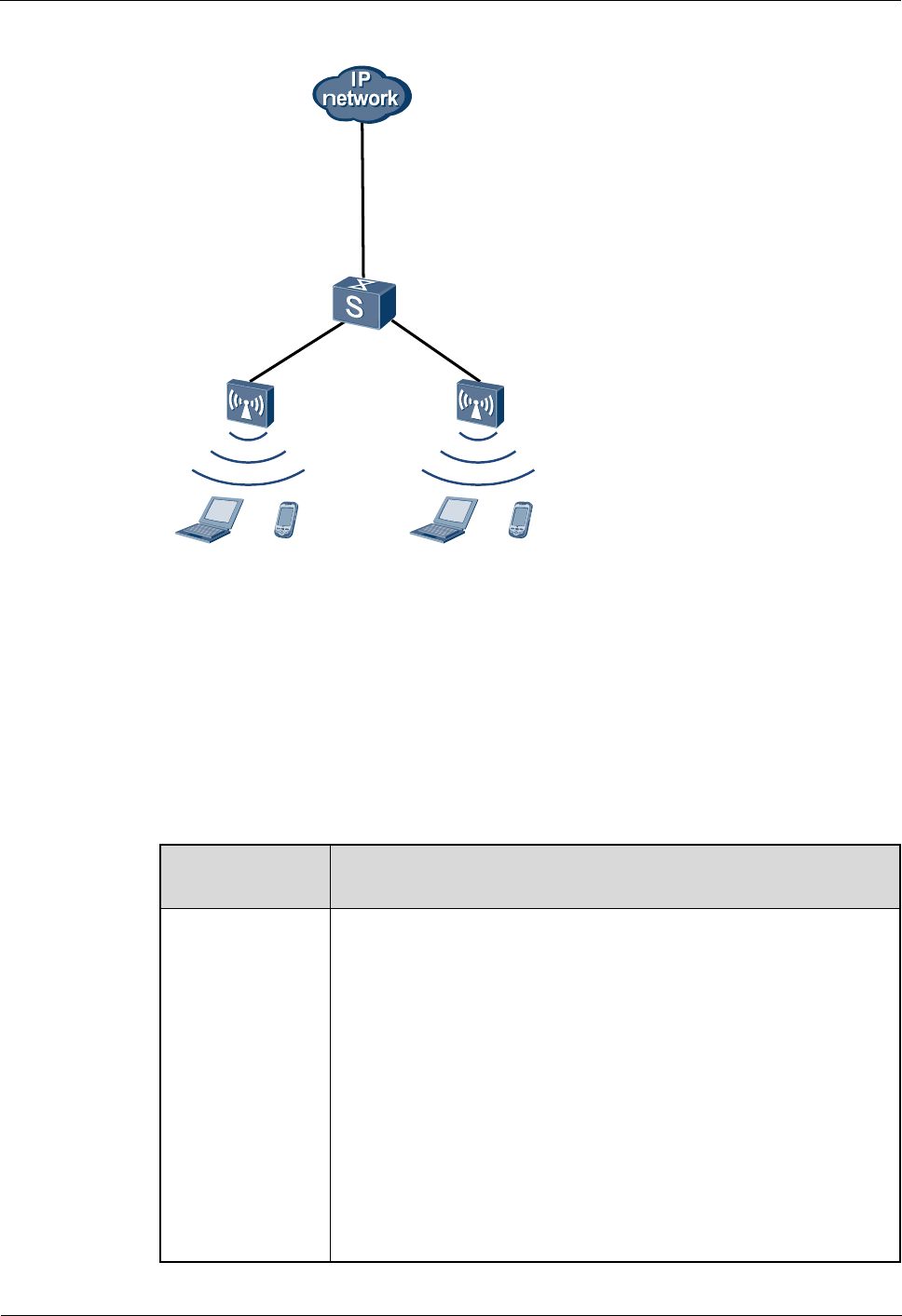

Figure 1-5 Fat AP networking
AP n
AP1
……
Switch
STA STASTA STA
On the preceding network, the device functions as a Fat AP to implement functions such as
user access, authentication, data security, service forwarding, and QoS.
1.2 Product Characteristics
The AP5130DN has the following advantages on a WLAN.
Product
Characteristics
Description
High-speed and
reliable wireless
access
Compatibility with IEEE 802.11a/b/g/n/ac
3 x 3 MIMO and a maximum rate of 1.75 Gbit/s
Link aggregation of dual Ethernet ports
Supports Wi-Fi Multimedia (WMM) and priority mapping on the
air interface and wired interface.
Supports wired link integrity check.
Supports load balancing.
Supports roaming without service interruption in Fit AP mode.
Supports AC dual-link backup in Fit AP mode.
Latest 802.11ac chip with higher performance and wider coverage
Supports airtime scheduling which ensures fairness in channel
occupation time for all users.
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
Product
Characteristics
Description
Comprehensive
user access control
capability
Supports access control lists (ACLs) and implements user access
control based on the user group policy.
Provides fine-grained bandwidth management for each user.
Supports user isolation policies.
Supports unified authentication on the AC in Fit AP mode.
Identifies the device type according to the organizationally unique
identifier (OUI) in the MAC address, user agent (UA) information
in an HTTP packet, and DHCP options in Fit AP mode.
The RADIUS server delivers packet forwarding, security, and
QoS policies according to the device type carried in the RADIUS
authentication and accounting packets in Fit AP mode.
High network
security
Open system authentication
WEP authentication/encryption
WPA/WPA2-PSK authentication and encryption
WPA/WPA2-802.1x authentication and encryption
WAPI authentication and encryption
Supports wireless intrusion detection system (WIDS) and wireless
intrusion prevention system (WIPS), including rogue device
detection and countermeasure, attack detection and dynamic
blacklist, STA/AP blacklist and whitelist.
Flexible
networking and
environment
adaptability
Provides flexible networking capabilities and applies to various
application scenarios. Mesh and WDS scenarios are supported
only in Fit AP mode.
Has strong environment adaptability. The AP can automatically
select the transmission rates, channels, and transmit power to
adapt to various radio environments and avoid interference in real
time.
Adjusts bandwidth allocation based on the user quantity and
environment to improve user experience.
Supports the MIMO antenna system, connects to the external
dual-band antenna (2.4 GHz and 5 GHz), and flexibly adjusts
antenna directions.
Identifies interference sources such as baby monitors, Bluetooth
devices, digital cordless phones (at 2.4 GHz frequency band only),
wireless audio transmitters (at both the 2.4 GHz and 5 GHz
frequency bands), wireless game controllers, and microwaves in
Fit AP mode and works with eSight to locate interference sources
and display spectrums.
Easy device
management and
maintenance
Automatically goes online and loads the configuration, and
supports plug-and-play (PnP) in Fit AP mode.
Supports batch upgrade.
Manages APs locally on the web platform and supports HTTP or
HTTPS login, configuration, and maintenance in Fat AP mode.
Allows real-time monitoring on the network management system
Huawei AP5130DN Access Points
Product Description
1 Product Positioning and Characteristics
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Product
Characteristics
Description
(NMS) to facilitate remote configuration and fast fault location.
Supports the Link Layer Discovery Protocol (LLDP) to implement
automatic link discovery and obtain the network topology.
Huawei AP5130DN Access Points
Product Description
2 Hardware Structure
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
2 Hardware Structure
About This Chapter
2.1 AP5130DN
2.1 AP5130DN
Appearance

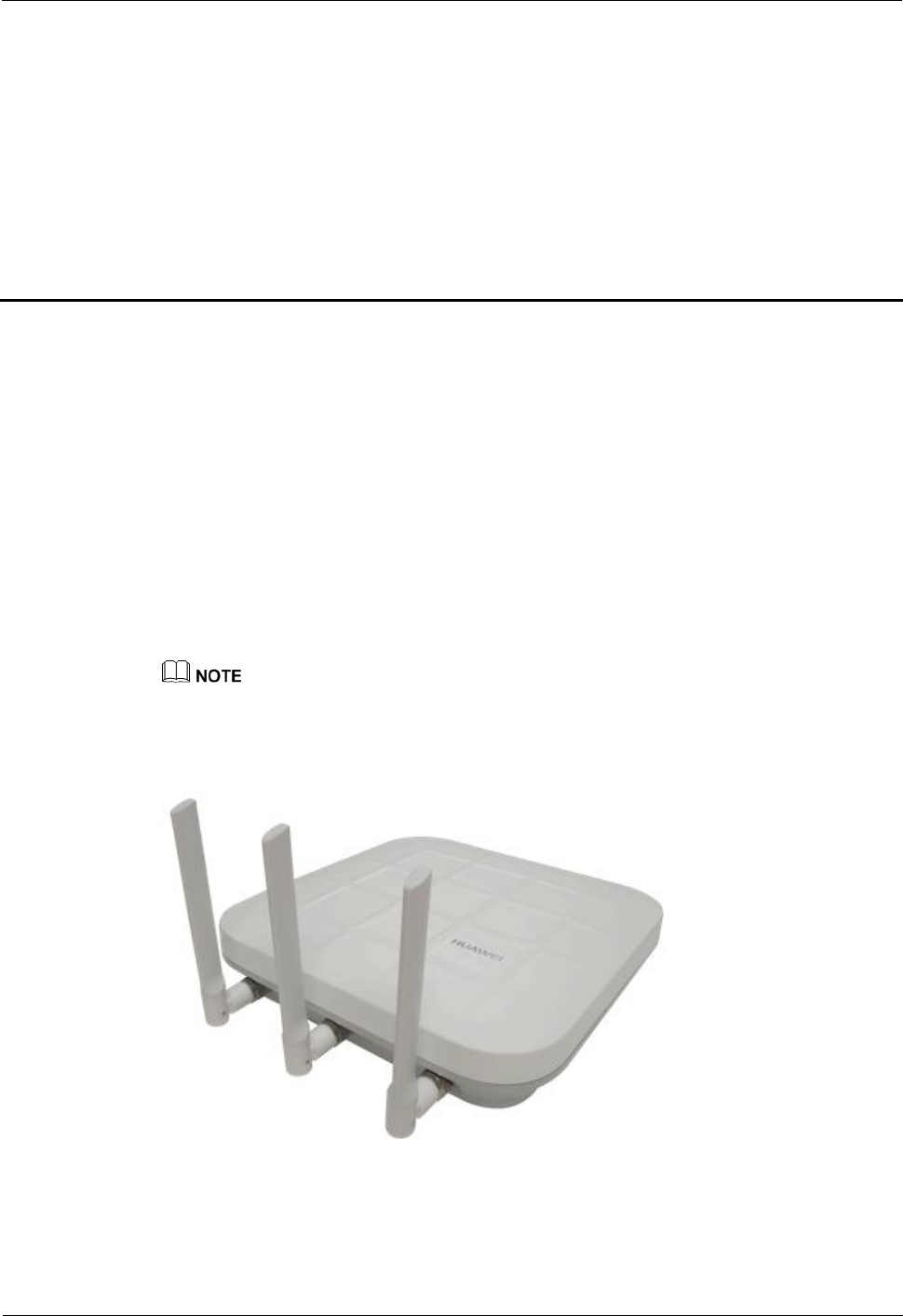

Figure 2-1 shows AP5130DN appearance.
The actual device appearance may be different from the following device appearance, but these
differences will not affect device functions.
Figure 2-1 AP5130DN appearance
Huawei AP5130DN Access Points
Product Description
2 Hardware Structure
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
Port

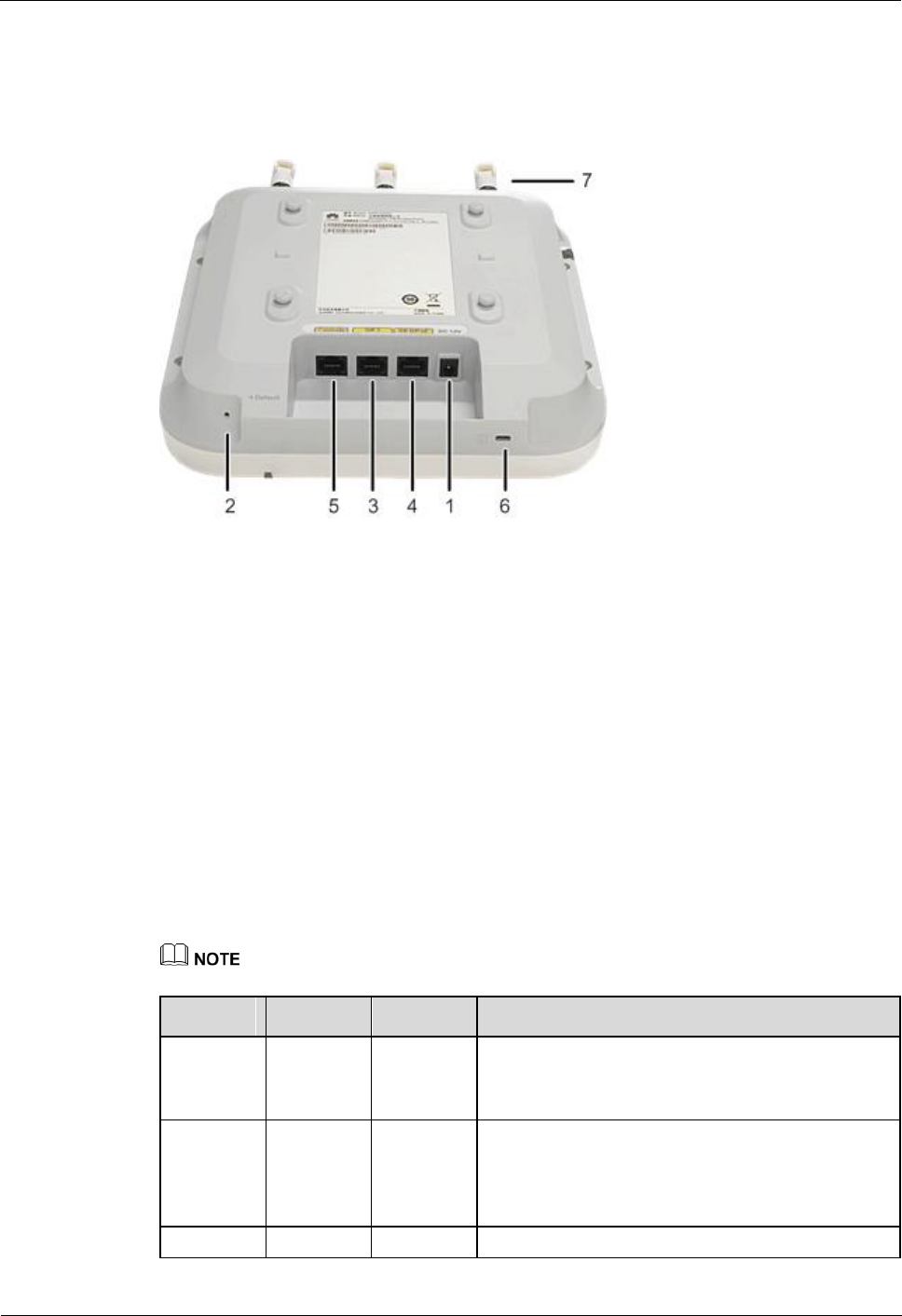

The following figure shows ports on the AP5130DN.
Figure 2-2 AP5130DN ports
As shown in Figure 2-2, each port can be described as follows:
1. Input port for 12 V DC power supply
2. Default button: restores factory settings if you hold down the button more than 3
seconds.
3. GE1: 10/100/1000M port used to connect to the wired Ethernet.
4. GE0/PoE: 10/100/1000M port used to connect to the wired Ethernet. The port can
connect to a PoE power supply to provide power for APs.
5. Console port: connects to the maintenance terminal for AP configuration and
management.
6. Lock port: protects the AP against theft.
7. Dual-band antenna port
LED Indicators
Indicator colors may vary slightly at different temperature.
Type
Color
Status
Description
Default
status after
power-on
Green
Steady on
The AP is just powered on and the software is not
started yet.
Software
startup
status
Green
Steady on
after
blinking
once
After the system is reset and starts uploading the
software, the indicator blinks green once. Until the
software is uploaded and started, the indicator
remains steady green.
Running
Green
Blinking
The system is running properly, the Ethernet
Huawei AP5130DN Access Points
Product Description
2 Hardware Structure
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
Type
Color
Status
Description
status
once every
2s (0.5
Hz)
connection is normal, and STAs are associated
with the AP.
The system enters the Uboot CLI.
Blinking
once every
5s (0.2
Hz)
The system is running properly, the Ethernet
connection is normal, and no STA is associated
with the AP. The system is in low power
consumption state.
Alarm
Green
Blinking
once every
0.25s (4
Hz)
The software is being upgraded.
After the software is uploaded and started, the
AP working in Fit AP mode requests to go
online on the AC and maintains this state until
it goes online successfully on the AC (before
the CAPWAP link is established).
The AP working in Fit AP mode fails to go
online on the AC (the CAPWAP link
disconnects).
Fault
Red
Steady on
A fault that affects services has occurred, such as a
DRAM detection failure or system software
loading failure. The fault cannot be automatically
rectified and must be rectified manually.
Huawei AP5130DN Access Points
Product Description
3 Product Features
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
3 Product Features
About This Chapter
3.1 WLAN Features
3.2 Network Features
3.3 QoS Features
3.4 Security Features
3.5 Maintenance Features
3.6 BYOD
3.7 Locating Service
3.8 Spectrum Analysis
3.1 WLAN Features
WLAN features supported by the AP are as follows:
Compatibility with IEEE 802.11a/b/g/n/ac
Maximum rate: 1.75 Gbit/s
Maximum ratio combining (MRC)
Space time block code (STBC)
Low-density parity-check (LDPC)
Maximum-likelihood detection (MLD)
Data unit aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
Supports 802.11 dynamic frequency selection (DFS).
Short GI in 20 MHz, 40 MHz, and 80 MHz modes
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
Automatic and manual rate adjustment
WLAN channel management and channel rate adjustment
Huawei AP5130DN Access Points
Product Description
3 Product Features
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
For details about WLAN channel management, see the Country Code & Channel Compliance Table.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
Automatic login in Fit AP mode
Extended Service Set (ESS) in Fit AP mode
Wireless distribution system (WDS) in Fit AP mode
Mesh networking in Fit AP mode
Multi-user CAC
3.2 Network Features
Network features supported by the AP are as follows:
Compliance with IEEE 802.3u
Auto-negotiation of the rate and duplex mode and automatic switchover between the
Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
Compliance with IEEE 802.1q
SSID-based VLAN assignment
VLAN trunk on uplink Ethernet ports
4094 VLAN IDs (1-4094) and a maximum of 16 virtual APs (VAPs) for each radio
AP control channel in tagged and untagged mode
DHCP client, obtaining IP addresses through DHCP
Tunnel data forwarding and direct data forwarding
STA isolation in the same VLAN
Access control lists (ACLs)
Link Layer Discovery Protocol (LLDP)
Uninterrupted service forwarding upon CAPWAP channel disconnection in Fit AP mode
Unified authentication on the AC in Fit AP mode
AC dual-link backup in Fit AP mode
NAT
IPv6 in Fit AP mode
3.3 QoS Features
QoS features supported by the AP are as follows:
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
WMM parameter management for each radio
Huawei AP5130DN Access Points
Product Description
3 Product Features
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
WMM power saving
Priority mapping for upstream packets and flow-based mapping for downstream packets
Queue mapping and scheduling
User-based bandwidth limiting
Adaptive bandwidth management (the system dynamically adjusts bandwidth based on
the number of users and radio environment to improve user experience)
Airtime scheduling
3.4 Security Features
Security features supported by the AP are as follows:
Open system authentication
WEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption key
WPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition)
WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition)
WPA-WPA2 hybrid authentication
WAPI authentication and encryption
Supports wireless intrusion detection system (WIDS) and wireless intrusion prevention
system (WIPS), including rogue device detection and countermeasure, attack detection
and dynamic blacklist, STA/AP blacklist and whitelist.
802.1x authentication, MAC address authentication, and Portal authentication
3.5 Maintenance Features
Maintenance features supported by the AP are as follows:
Unified management and maintenance on the AC in Fit AP mode
Automatic login and configuration loading, and plug-and-play (PnP) in Fit AP mode
WDS zero-configuration deployment in Fit AP mode
Mesh network zero-configuration deployment in Fit AP mode
Batch upgrade
Local AP management through the serial interface or using Telnet
STelnet or SFTP: user information protection using SSH v2
Web local AP management through HTTP or HTTPS
Real-time configuration monitoring and fast fault location using the NMS
SNMP v1/v2/v3
System status alarm
Network Time Protocol (NTP)
Huawei AP5130DN Access Points
Product Description
3 Product Features
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
3.6 BYOD
The AP supports bring your own device (BYOD) only in Fit AP mode.
BYOD features supported by the AP are as follows:
Identifies the device type according to the organizationally unique identifier (OUI) in the
MAC address.
Identifies the device type according to the user agent (UA) information in an HTTP
packet.
Identifies the device type according to DHCP options.
The RADIUS server delivers packet forwarding, security, and QoS policies according to
the device type carried in the RADIUS authentication and accounting packets.
3.7 Locating Service
The AP supports the locating service only in Fit AP mode.
Locating service features supported by the AP are as follows:
Locates tags manufactured by AeroScout or Ekahau.
Locates Wi-Fi terminals.
Works with eSight to locate rogue devices.
3.8 Spectrum Analysis
The AP supports spectrum analysis only in Fit AP mode.
Spectrum analysis features supported by the AP are as follows:
Identifies interference sources such as baby monitors, Bluetooth devices, digital cordless
phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4
GHz and 5 GHz frequency bands), wireless game controllers, and microwaves.
Works with eSight to perform spectrum analysis on interference sources.
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
4 Technical Specifications
About This Chapter
4.1 Basic Specifications
4.2 Radio Specifications
4.3 Standards Compliance
4.1 Basic Specifications
Table 4-1 Basic specifications
Item
Description
Technical
specifications
Dimensions (H x W
x D)
53 mm x 220 mm x 220 mm
Weight
1.0 kg
System memory
256 MB DDR2
32 MB flash memory
Power specifications
Power input
DC 12 V ± 10%
PoE power: -48 V DC (in compliance
with IEEE 802.3af/at)
Maximum power
consumption
11.5 W
NOTE
The actual maximum power consumption
depends on local laws and regulations.
Environment
specifications
Operating
temperature
-60 m to +1800 m: -10°C to +50°C
+1800 m to +5000 m: Temperature
decreases by 1°C every time the altitude
increases 220 m.
Storage temperature
-40°C to +70°C
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
Item
Description
Operating humidity
5% to 95% (non-condensing)
Waterproof grade
IP41
Atmospheric
pressure
70 kPa to 106 kPa
4.2 Radio Specifications
Table 4-2 Radio specifications
Item
Description
Antenna
type
Built-in antenna
Antenna
gain
2.4G: 2.5dBi
5G: 4dBi
Maximum
number of
concurrent
users
Fit AP mode: ≤ 256
Fat AP mode: ≤ 64
Maximum
transmit
power for
each radio
2.4 GHz: 20 dBm
5 GHz: 16 dBm
NOTE
The 2.4 GHz radio does not support the 40M bandwidth in FCC regions (including
America).
The actual transmit power depends on local laws and regulations.
You can adjust the transmit power from the maximum transmit power to 1 dBm, with
a step of 1 dB.
Maximum
number of
non-overlap
ping
channels
2.4 GHz
802.11b/g
20 MHz: 3
802.11n
20 MHz: 3
40 MHz: 1
5 GHz
802.11a
− 20 MHz:
5
802.11n
− 20 MHz:
5
− 40 MHz:
2
802.11ac
− 20MHz: 5
− 40MHz: 2
− 80MHz: 1
NOTE
The table uses the number of
non-overlapping channels supported by
China as an example. The number of
non-overlapping channels varies in
different countries. For details, see the
Country Code & Channels compliance
status
NOTICE
If the AP is delivered to the USA, pay
attention to the following on channel
and frequency band usage.
1. The country code of the AP is fixed.
2. The frequency band ranging from
5.15 GHz to 5.25 GHz can only be
used indoors.
3. High power radars working at
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
Item
Description
frequencies in the range of 5.25
GHz to 5.35 GHz, 5.47 GHz to 5.6
GHz, and 5.65 GHz to 5.725 GHz
can interfere with or even damage
APs working at the same frequency.
4. APs cannot work at channels in
frequencies ranging from 5.6 GHz
to 5.65 GHz or their overlapping
channels.
Channel rate
supported
802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n: 6.5 to 450 Mbit/s
802.11ac: 6.5 to 1300Mbit/s
Receiver
sensitivity
2.4 GHz
802.11b (CCK)
-101 dBm @
1 Mb/s
-96 dBm @ 2
Mb/s
-93 dBm @
5.5 Mb/s
-91 dBm @
11 Mb/s
2.4 GHz
802.11g
(non-HT20)
-92 dBm @ 6
Mb/s
-91 dBm @ 9
Mb/s
-91 dBm @
12 Mb/s
-90 dBm @
18 Mb/s
-89 dBm @
24 Mb/s
-85 dBm @
36 Mb/s
-82 dBm @
48 Mb/s
-81 dBm @
54 Mb/s
2.4 GHz
802.11n (HT20)
-92 dBm @
MCS0
-92 dBm @
MCS1
-92 dBm @
MCS2
-87 dBm @
MCS3
-85 dBm @
MCS4
-81 dBm @
MCS5
-79 dBm @
MCS6
-77 dBm @
MCS7
-90 dBm @
MCS8
-90 dBm @
MCS9
-90 dBm @
MCS10
-85 dBm @
MCS11
-83 dBm @
MCS12
-79 dBm @
MCS13
-77 dBm @
MCS14
2.4 GHz
802.11n(HT40)
-90 dBm @
MCS0
-90 dBm @
MCS1
-89 dBm @
MCS2
-85 dBm @
MCS3
-82 dBm @
MCS4
-78 dBm @
MCS5
-76 dBm @
MCS6
-75 dBm @
MCS7
-88 dBm @
MCS8
-88 dBm @
MCS9
-87 dBm @
MCS10
-83 dBm @
MCS11
-80 dBm @
MCS12
-76 dBm @
MCS13
-74 dBm @
MCS14
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
Item
Description
-75 dBm @
MCS15
-88 dBm @
MCS16
-88 dBm @
MCS17
-88 dBm @
MCS18
-83 dBm @
MCS19
-81 dBm @
MCS20
-77 dBm @
MCS21
-75 dBm @
MCS22
-73 dBm @
MCS23
-73 dBm @
MCS15
-86 dBm @
MCS16
-86 dBm @
MCS17
-85 dBm @
MCS18
-81 dBm @
MCS19
-78 dBm @
MCS20
-74 dBm @
MCS21
-72 dBm @
MCS22
-71 dBm @
MCS23
5 GHz
802.11a
(non-HT20)
-94 dBm @ 6
Mb/s
-93 dBm @ 9
Mb/s
-93 dBm @
12 Mb/s
-92 dBm @
18 Mb/s
-88 dBm @
24 Mb/s
-85 dBm @
36 Mb/s
-81 dBm @
48 Mb/s
-79 dBm @
54 Mb/s
5 GHz
802.11n (HT20)
-93 dBm @
MCS0
-93 dBm @
MCS1
-91 dBm @
MCS2
-86 dBm @
MCS3
-83 dBm @
MCS4
-78 dBm @
MCS5
-77 dBm @
MCS6
-76 dBm @
MCS7
-91 dBm @
MCS8
-91 dBm @
MCS9
-89 dBm @
MCS10
-84 dBm @
MCS11
-81 dBm @
5 GHz
802.11n (HT40)
-91 dBm @
MCS0
-91 dBm @
MCS1
-88 dBm @
MCS2
-83 dBm @
MCS3
-81 dBm @
MCS4
-76 dBm @
MCS5
-75 dBm @
MCS6
-74 dBm @
MCS7
-89 dBm @
MCS8
-89 dBm @
MCS9
-86 dBm @
MCS10
-81 dBm @
MCS11
-79 dBm @
-
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
Item
Description
MCS12
-76 dBm @
MCS13
-75 dBm @
MCS14
-74 dBm @
MCS15
-89 dBm @
MCS16
-89 dBm @
MCS17
-87 dBm @
MCS18
-82 dBm @
MCS19
-79 dBm @
MCS20
-74 dBm @
MCS21
-73 dBm @
MCS22
-72 dBm @
MCS23
MCS12
-74 dBm @
MCS13
-73 dBm @
MCS14
-72 dBm @
MCS15
-87 dBm @
MCS16
-87 dBm @
MCS17
-84 dBm @
MCS18
-79 dBm @
MCS19
-77 dBm @
MCS20
-72 dBm @
MCS21
-71 dBm @
MCS22
-70 dBm @
MCS23
5 GHz
802.11ac
(VTH20)
-93 dBm @
MCS0NSS1
-93 dBm @
MCS1NSS1
-91 dBm @
MCS2NSS1
-86 dBm @
MCS3NSS1
-83 dBm @
MCS4NSS1
-78 dBm @
MCS5NSS1
-77 dBm @
MCS6NSS1
-76 dBm @
MCS7NSS1
-71 dBm @
MCS8NSS1
-91 dBm @
5 GHz
802.11ac
(VTH40)
-91 dBm @
MCS0NSS1
-90 dBm @
MCS1NSS1
-88 dBm @
MCS2NSS1
-84 dBm @
MCS3NSS1
-81 dBm @
MCS4NSS1
-77 dBm @
MCS5NSS1
-75 dBm @
MCS6NSS1
-74 dBm @
MCS7NSS1
-69 dBm @
MCS8NSS1
-67 dBm @
5 GHz
802.11ac
(VTH80)
-89 dBm @
MCS0NSS1
-86 dBm @
MCS1NSS1
-85 dBm @
MCS2NSS1
-81 dBm @
MCS3NSS1
-78 dBm @
MCS4NSS1
-74 dBm @
MCS5NSS1
-72 dBm @
MCS6NSS1
-71 dBm @
MCS7NSS1
-67 dBm @
MCS8NSS1
-65 dBm @
-
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21
Item
Description
MCS0NSS2
-91 dBm @
MCS1NSS2
-89 dBm @
MCS2NSS2
-84 dBm @
MCS3NSS2
-81 dBm @
MCS4NSS2
-76 dBm @
MCS5NSS2
-75 dBm @
MCS6NSS2
-74 dBm @
MCS7NSS2
-69 dBm @
MCS8NSS2
-89 dBm @
MCS0NSS3
-89 dBm @
MCS1NSS3
-87 dBm @
MCS2NSS3
-82 dBm @
MCS3NSS3
-79 dBm @
MCS4NSS3
-74 dBm @
MCS5NSS3
-73 dBm @
MCS6NSS3
-72 dBm @
MCS7NSS3
-67 dBm @
MCS8NSS3
-65 dBm @
MCS9NSS3
MCS9NSS1
-89 dBm @
MCS0NSS2
-88 dBm @
MCS1NSS2
-86 dBm @
MCS2NSS2
-82 dBm @
MCS3NSS2
-79 dBm @
MCS4NSS2
-75 dBm @
MCS5NSS2
-73 dBm @
MCS6NSS2
-72 dBm @
MCS7NSS2
-66 dBm @
MCS8NSS2
-64 dBm @
MCS9NSS2
-87 dBm @
MCS0NSS3
-86 dBm @
MCS1NSS3
-84 dBm @
MCS2NSS3
-80 dBm @
MCS3NSS3
-77 dBm @
MCS4NSS3
-73 dBm @
MCS5NSS3
-71 dBm @
MCS6NSS3
-70 dBm @
MCS7NSS3
-63 dBm @
MCS8NSS3
-61 dBm @
MCS9NSS3
MCS9NSS1
-87 dBm @
MCS0NSS2
-84 dBm @
MCS1NSS2
-83 dBm @
MCS2NSS2
-79 dBm @
MCS3NSS2
-76 dBm @
MCS4NSS2
-72 dBm @
MCS5NSS2
-70 dBm @
MCS6NSS2
-69 dBm @
MCS7NSS2
-64 dBm @
MCS8NSS2
-62 dBm @
MCS9NSS2
-85 dBm @
MCS0NSS3
-82 dBm @
MCS1NSS3
-81 dBm @
MCS2NSS3
-77 dBm @
MCS3NSS3
-74 dBm @
MCS4NSS3
-70 dBm @
MCS5NSS3
-67 dBm @
MCS7NSS3
-61 dBm @
MCS8NSS3
-59 dBm @
MCS9NSS3
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
4.3 Standards Compliance
Safety standards
UL 60950–1
CAN/CSA 22.2 No.60950-1
IEC 60950–1
EN 60950–1
GB 4943
Radio standards
AP5010DN-AGN:
ETSI EN 300 328
ETSI EN 301 893
FCC Part 15C: 15.247
FCC Part 15C: 15.407
RSS-210
AS/NZS 4268
AP5010SN-GN:
ETSI EN 300 328
FCC Part 15C: 15.247
RSS-210
AS/NZS 4268
EMC standards
EN 301 489–1
EN 301 489–17
ETSI EN 60601-1-2
FCC Part 15
ICES-003
YD/T 1312.2-2004
ITU k.20
GB 9254
GB 17625.1
AS/NZS CIPSR22
EN 55022
EN 55024
CISPR 22
CISPR 24
IEC61000-4-6
IEC61000-4-2
Huawei AP5130DN Access Points
Product Description
4 Technical Specifications
Issue 01 (2014-04-15)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
IEEE standards
IEEE 802.11a/b/g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11h
IEEE 802.11d
IEEE 802.11e
Security standards
802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
802.1X
Advanced Encryption Standards (AES) and Temporal Key Integrity Protocol (TKIP)
EAP Type (s)
Environment standards
ETSI 300 019-2-1
ETSI 300 019-2-2
ETSI 300 019-2-3
ETSI 300 019-1-1
ETSI 300 019-1-2
ETSI 300 019-1-3
EMF
CENELEC EN 62311
CENELEC EN 50385
OET65
RSS-102
FCC Part1&2
FCC KDB
RoHS
Directive 2002/95/EC & 2011/65/EU
Reach
Regulation 1907/2006/EC
WEEE
Directive 2002/96/EC & 2012/19/EU
