Huawei Technologies Co.,Ltd Wireless LAN Access Point AP6010DN AGN 1

Contents

AP6010DN-AGN User Manual 1

HUAWEI TECHNOLOGIES CO., LTD.
AP6010DN-AGN Wireless LAN Access Point
Quick Start Guide
Huawei Technologies Co., Ltd.
Address: Administration Building,Huawei Technologies Co.,
Ltd.,Bantian,Longgang District,Shenzhen,People’s Republic of China
Postcode: 518129
Website: http://www.huawei.com
Email: support@huawei.com
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of
Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or
part of the products, services and features described in this document may not be within the purchase scope or the usage
scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation
of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document
do not constitute the warranty of any kind, express or implied.
1
Change History
Changes between document issues are cumulative. Therefore，the latest document issue contains all the
Changes in previous issues.
Change in Issue 01 (2012-05-30)
Initial commercial release.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
NOTE
CAUTION Indicates a potentially hazardous situation, which if not avoided, could
result in equipment damage, data loss, performance degradation, or
unexpected results.
Provides additional information to emphasize or supplement important
points of the main text.
2
Please download the detailed product documents from "http://support.huawei.com/support/".
The dEtaIled path is as follows: Technical Support->Documentation->Access Network -> WLAN ->WLAN -> Product
Documentation ->AP6010DN.

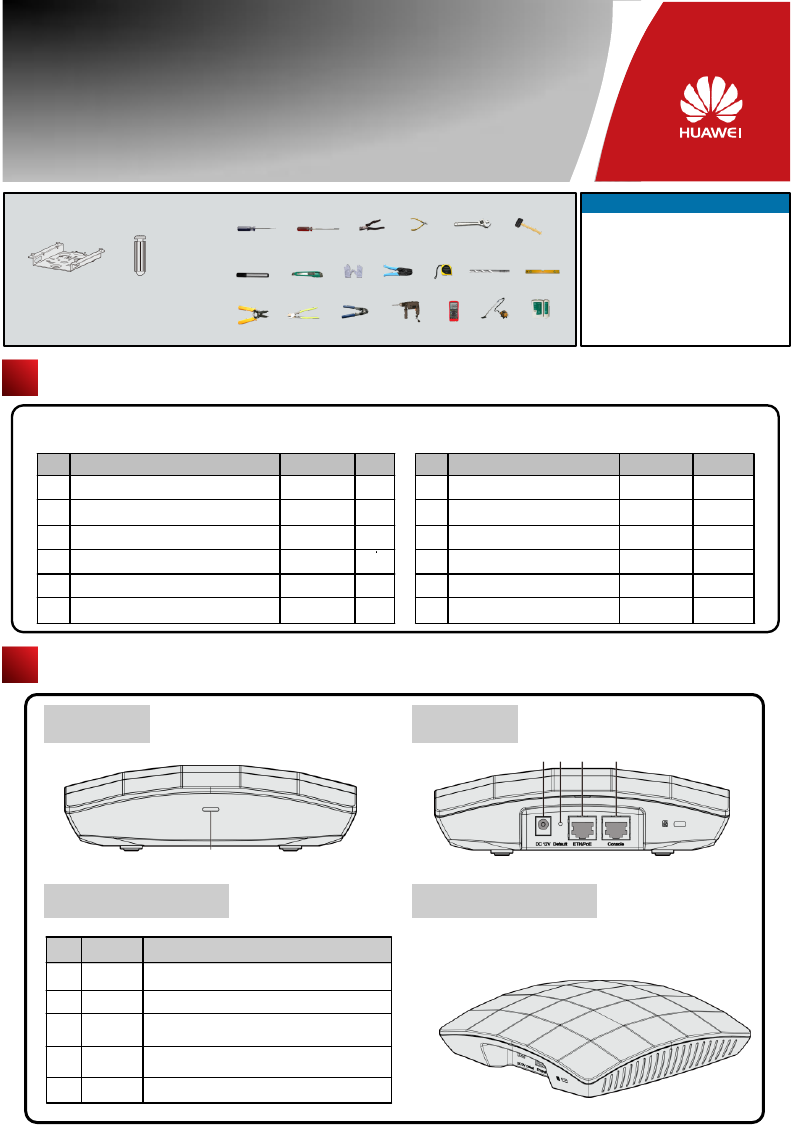

AP6010DN-AGN
Quick Start Guide
Before performing Installation, confirm that the installation accessories and tools are available.
Installation accessories: Technical Support
Huawei Technologies Co., Ltd.
Address:Administration Building,Huawei
Technologies Co., Ltd.,Bantian,Longgang
District,Shenzhen,People’s Republic of
China
Postcode:518129
Email:support@huawei.com
Website:http://www.huawei.com
Flat-head
screwdriver
Device Overview
Indicator and Interfaces
Unpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,
contact the supplier.
Front view
1
2
3
4
5
1
Item Quantity Unit
AP device
Sheetmetal wall-mounting bracket
6
Quick Start Guide (including the printed
packing list)
Power adapter（Optional）
7
81
Warranty card
Certificate of Conformance
Packing List
Expansion
bolt
Sheetmetal
wall-mounting
bracket
Expansion bolt
Toxic or Hazardous Substance & Elements
Declaration
1
Installation tools:
Phillips
screwdriver
Maker
Wire
stripper
Utility knife
Cable
cutter
RJ45
Crimping tool
Combination
pliers Diagonal
pliers
ESD
gloves
COAX
crimping tool
Adjustable
wrench
Measuring
tape
Hammer
drill Multimeter
Hammer
Level
Vacuum
cleaner
Network
Cable tester
1
1
3
1
1
PCS
PCS
PCS
PCS
PCS
PCS
PCS
PCS
Item Quantity Unit
Indicators
1
2 3 4 5
3
2
3
4
5Connected to the maintenance terminal.
Connected to a PoE power supply or switch, or
connected to the Ethernet.
Description
No. Name
DC 12V
Console
ETH/PoE
Default
Connected to the power adapter.
1Indicator For details about indicator, see the Power-on.
Perspective
Press and hold down the Reset button for 3 seconds
to restore the factory settings and restart the AP.
6mm drill
bit

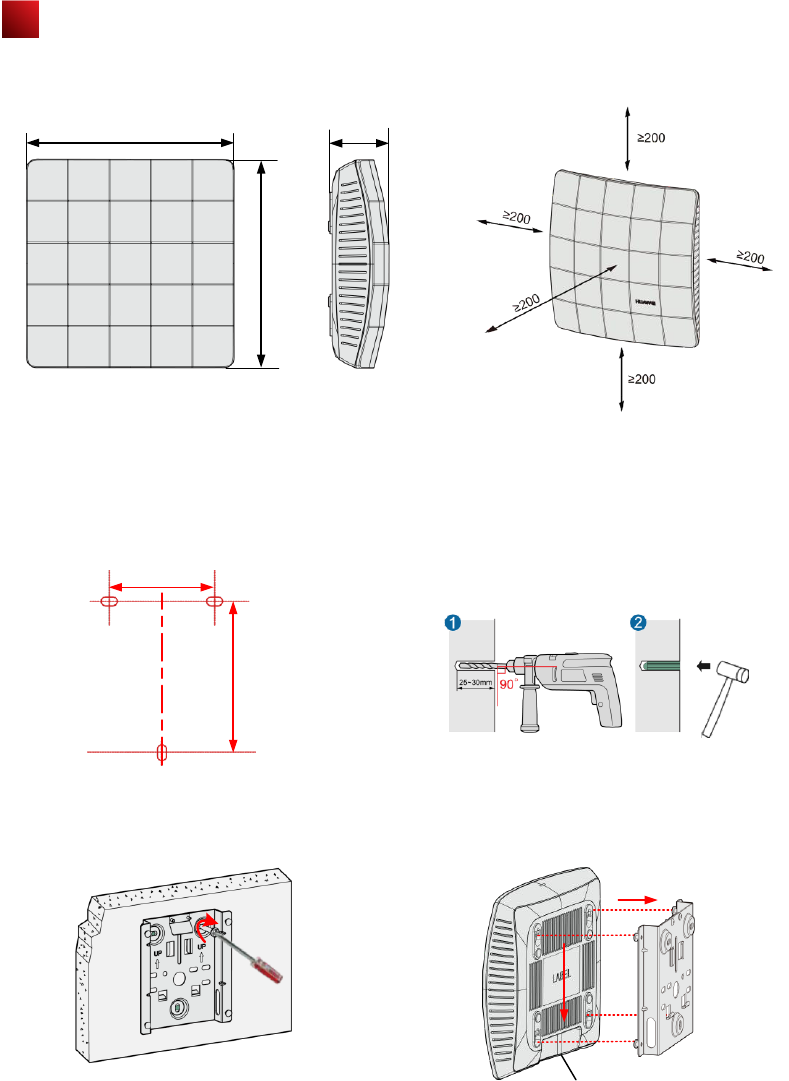

Installing the AP
Select an appropriate installation position and leave 20 cm space above and around the device for cooling air circulation.
AP6010DN dimensions (unit: mm) without a backplane support Recommended AP6010DN installation space (unit: mm)
The AP6010DN can be installed onto a workbench or mounted against a wall. In addition, the AP6010DN can be mounted
to a T-rail and mounted against the ceiling.
Wall-mount the AP6010DN using the plastic wall-mounting bracket:
180
180
50
Field
strength
场强示意
Field
strength
场强示意
1. Fix the wall-mounting bracket to the wall, adjust the
installation position, and use the marker to mark the drilling
positions where expansion bolts are installed.
2. Use #6 drill bit to drill 25-30 mm deep holes in the
drilling positions. Hammer the expansion tubes into
the holes until the expansion tubes are embedded into
the wall.
3. Fix the wall-mounting bracket to the wall, use the
Phillips screwdriver to fasten three self-tapping screws
into the expansion tube.
4. Align the holes at the rear side of the AP with the
hooks on the bracket and hang the AP on the bracket.
Hold the AP with one hand and press the AP
downwards with another hand to secure the AP on the
wall.
59mm
85mm
Underfloor
cabling
4
Installing the AP

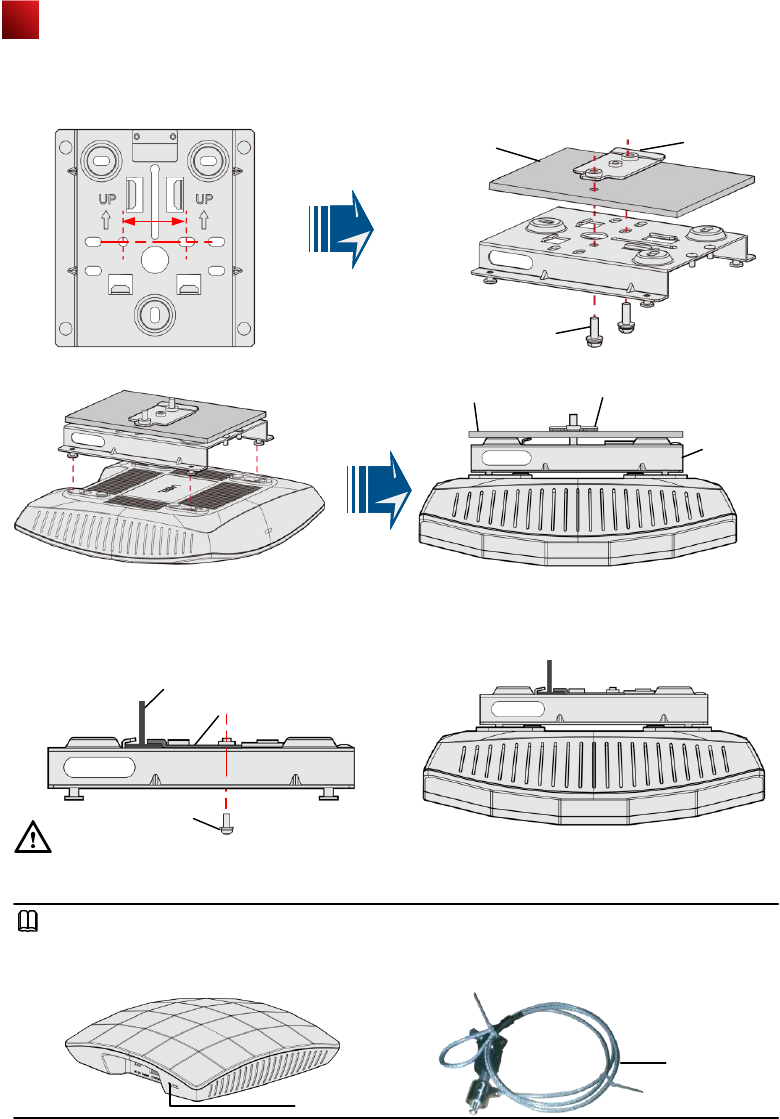

Ceiling-mount the AP6010DN using the sheetmetal wall-mounting bracket:
1. Remove the ceiling, determine locations of mounting holes based on the distance between two installation holes,
use the hammer drill to drill holes, and fix the wall-mounting bracket to the ceiling.
2. Align the cucurbit holes at the rear side of the AP with four screws on the wall-mounting bracket and secure the AP.
Adjustable
buckle
Ceiling
M4*30 screw
35mm
Adjustable buckle
Ceiling
Wall-mounting
bracket
Ensure that the AP is correctly installed on the wall-mounting bracket and there must be 20 cm space above and around
the AP for cooling air circulation.
Mounting the AP6010DN to the T-rail using the sheetmetal wall-mounting bracket:
2. Align the cucurbit holes at the rear side of the AP with
four screws on the wall-mounting bracket and secure the
AP.
T-rail Adjustable buckle
1. Use screws to fix the adjustable buckle to the wall-
mounting bracket, hook the adjustable buckle to the T-
rail, and secure the screw on the adjustable buckle to
fasten the wall-mounting bracket and T-rail.
NOTE
To prevent unauthorized personnel from moving the AP, lock the AP using the security lock and determine the position
for installing the security lock. When the sheetmetal wall-mounting bracket is used, fasten the security lock to the wall-
mounting bracket or other immovable object. The following figure shows the security lock. The carrier should purchase
the security lock.
Lock hole
Security lock
M3*6 screw
CAUTION
5

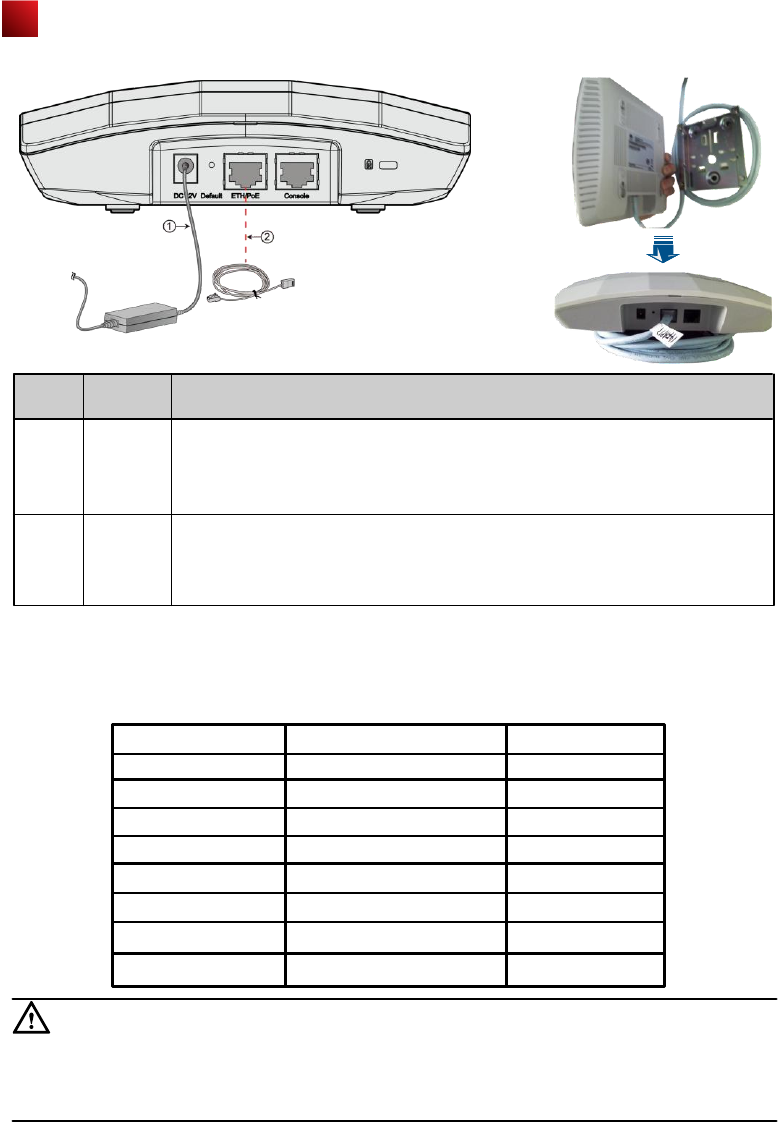

If the AP needs to connect to the Ethernet, ensure that the Ethernet cable is working
properly. If the Ethernet cable is not working properly, for example, RJ45 connectors are short-
circuited, the AP may fail to be powered on or fail to work. Before connecting an Ethernet cable
to the AP, use the cable test tool to check whether the cable is qualified. If the cable is
unqualified, replace it.
1
2
Description
No. Item
Power
adapter 12 V
DC
Network
cable
● The AP6010DN supports PoE power supply and DC power supply.
● When both the PoE power supply and DC power supply are available, the DC power
supply is used.
● When DC power supply is used, use the specified power adapter; otherwise, the device may
be damaged.
Connecting Cables
Requirements for making a network cable:
● Cut the cable of proper length based on the distance between the AP and the PSE device, peel the insulation on
both ends of the network cable, and crimp the wires to RJ45 connectors.
● Connect RT45 connectors to the network cable tester to test cable connectivity. The following shows the pin
assignment.
● The service network cable cannot be connected to the console port. Otherwise, the AP6010DN may be damaged
when using PoE power supply.
● Before connecting the cable to the AP, coil the cable around the wall-mounting bracket first. This prevents the cable
from being bent.
CAUTION
X1 Pin
1
2
3
4
5
6
7
8
X2 Pin
1
2
3
4
5
6
7
8
Wire Color
White and orange
Orange
White and green
Blue
White and blue
Green
White and brown
Brown
6
Connect the network cable to the AP

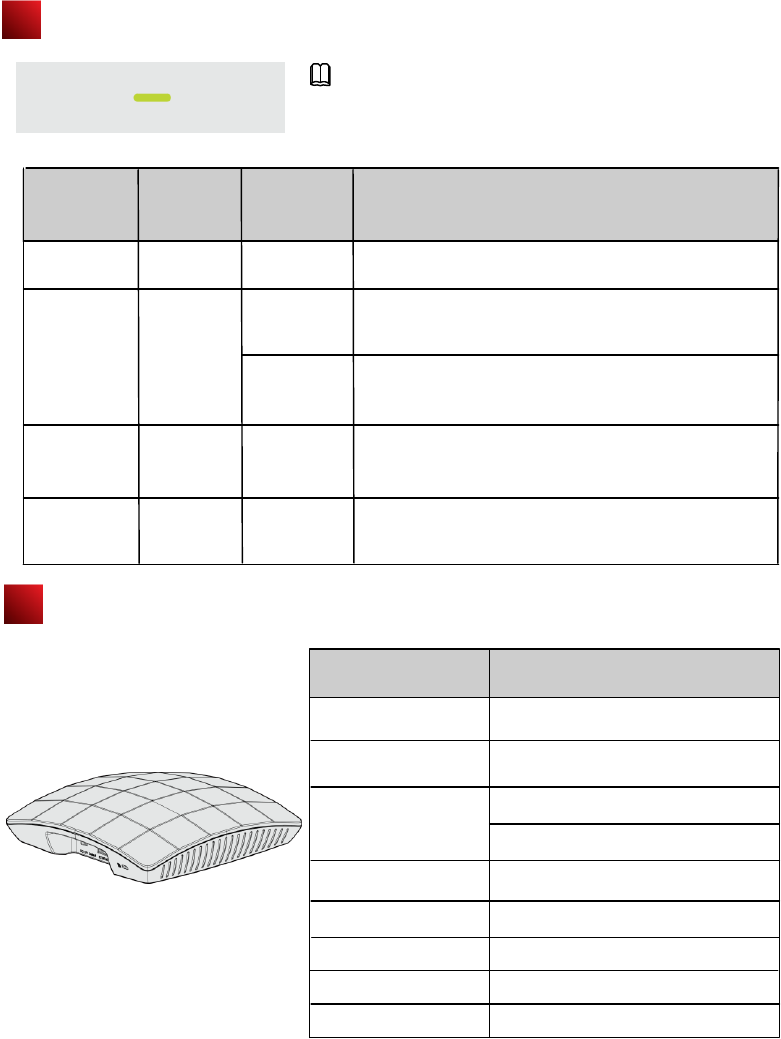

Power on the AP6010DN and check the indicator status to determine the
System running status.
NOTE
Power-on
Color Frequency Description
Type
Green
Green
0.5 Hz
Default status
Running
Steady on
The system is running properly, the Ethernet connection is
correct,and STAs are associated with the AP.
UBOOT:
The AP is just powered on.
Green
Red Steady on
0.2 Hz
The system is running properly, the Ethernet connection is
correct, no user is connected, and the system is in low power
consumption state.
Alarm 4 Hz
1. The AP is being upgraded.
2. The CAPWAP tunnel is disconnected.
3. The AP is running properly, but does not go online.
Error
A fault that affects services occurs and cannot be rectified
automatically. For example, the system fails to load the DRAM or
system software. The fault needs to be rectified manually.
Technical Specifications
50mm×180mm×180mm
400g
Item Description
Dimensions (H x W x D)
Weight
12 V DC (Power adapter)
Output: DC 12V ±10%
Input: 100V ~240V AC
Operating temperature -10℃ to +50℃
Relative humidity 10% to 95%
Altitude
Pressure
70kPa to 106kPa
PoE power -48V
–60 m to 4000 m
7
Logging In to the Router
1. Logging In to the AP Through the Console Port
This section describes how to log in to the AP through the console port. After logging in to the AP, you can configure the
AP using commands.
Procedure

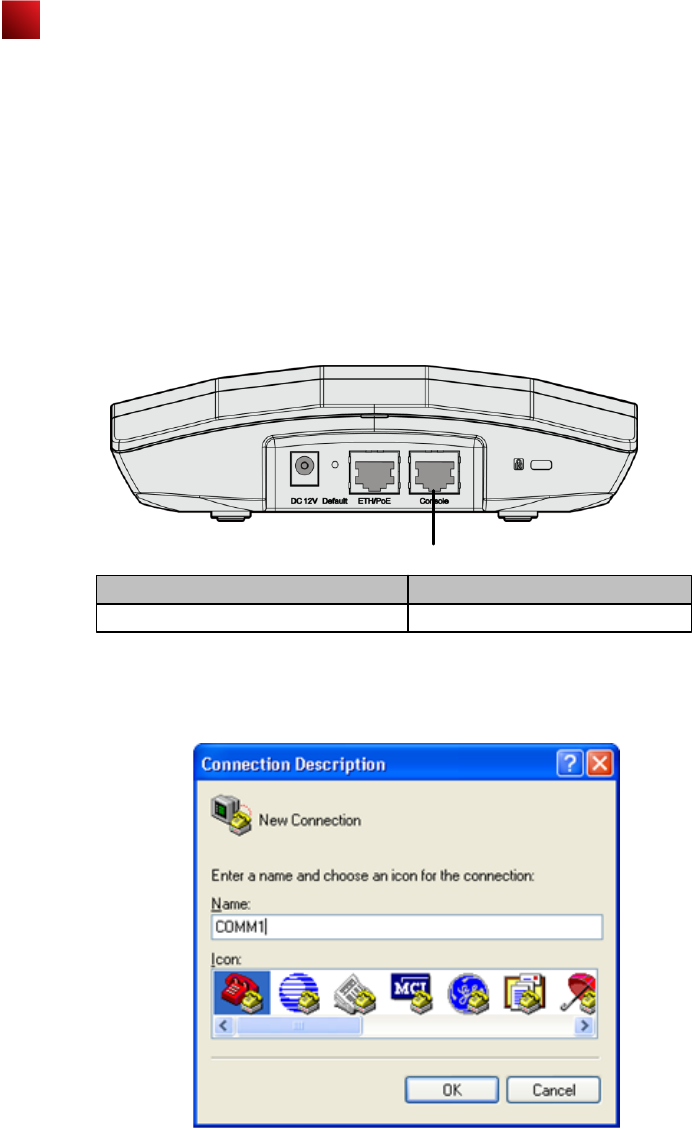

Step 1 Connect a PC to the AP with a console cable. Connect the RJ45 connector to the console port of the AP and
connect the DB9 connector to the serial port of the PC. Figure 1-1 shows the location of the AP's console port.
Figure 1-1 Location of the AP's console port
8
Step 2 Run the terminal emulation program on the PC. For example, to open the HyperTerminal of Windows XP on
the PC, choose Start > Programs > Accessories > Communications > HyperTerminal. Enter the name of
the new connection in the Name text box and click OK, as shown in Figure 1-2.
Figure 1-2 Setting up a connection
No Port
1Console port
1
After an AP is powered on, you can log in to the AP using the following methods.
1. Logging In to the AP Through the Console Port
This section describes how to log in to the AP through the console port. After logging in to the AP, you can configure
the AP using commands.
2. Logging In to the AP Using Telnet
This section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using
commands.
Logging In to the Router
Step 4 Click Restore Defaults, select 9600 bit/s from the Bits per second drop-down list box, and click OK, as shown
in Figure 1-4.
Figure 1-4 Setting communication parameters
Step 5 Press Enter on the subsequent dialog boxes until the command line prompt of the user view, such as
<Enterprise AP>, is displayed.
You can run commands to configure the AP. Enter a question mark (?) whenever you need help.
----End
9
Step 3 Select the serial port used on the PC and click OK, as shown in Figure 1-3.
Figure 1-3 Selecting the connected port
Logging In to the Router
10
2. Logging In to the AP Using Telnet
This section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using
Commands.
Procedure

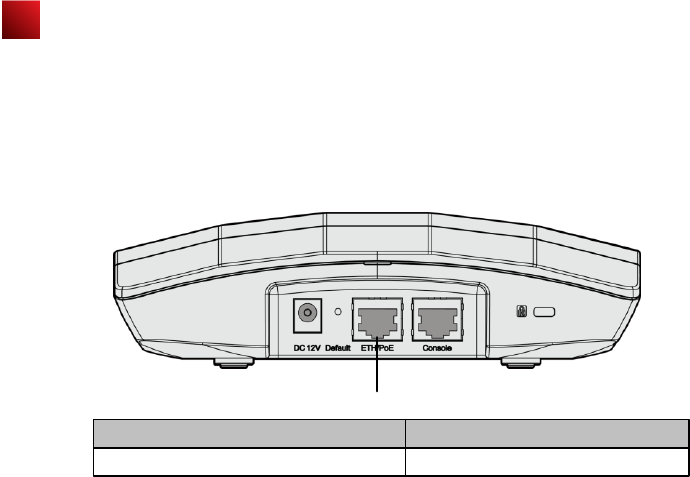

Step 1 Connect a PC to the uplink port of the AP with a network cable. Figure 1-5 shows the location of the AP's uplink
port.
Figure 1-1 Location of the AP's uplink port
Step 2 Configure a static IP address for the PC. The IP address must be on the network segment 192.168.0.1/24
(The IP address should not be same as the AP's default IP address 192.168.0.1.) and the subnet mask is
255.255.255.0.
After the configuration is complete, run the ping 192.168.0.1 command on the PC to check whether the PC
can be pinged. If the ping operation succeeds, the connection is set up successfully. If the ping operation fails,
The connection fails to be set up. Check whether the network cable works properly.
Step 3 Access the command line window on the PC. For example, if the PC runs Windows XP, choose Start > Run
And enter cmd in the displayed dialog box.
Step 4 Run the telnet 192.168.0.1 command to log in to the AP.
Step 5 Enter the default user name and password admin. If the user view is displayed, you have logged in
Successfully.
When you log in for the first time, the following page is displayed:
Username: super
Password:
Enterprise AP:
----End
1
No Port
1ETH/PoE
AP Local Configuration
WLAN services parameters of an AP are configured on the AC that is connected To the AP, and then delivered to the AP.
The following parameters are configured on the AP through Telnet or the console port.
1. Configuring the AP Access Mode
This section describes how to configure the mode in which an AP goes online.
2. Configuring VLANs on Wired Interfaces of an AP
This section describes how to configure VLANs on wired interfaces of an AP.
3. Configuring WDS
This section describes how to configure WDS parameters on an AP.
1 Configuring the AP Access Mode
This section describes how to configure the mode in which an AP goes online.
● AP Access Modes
After an AP starts, going online management module determines the mode in which the AP goes online. Users are
unaware of the AP access mode. In the AP startup phase, the AP obtains the its IP address, the gateway IP address,
and the AC IP address based on the access mode. After obtaining all the information, the AP sets up a Control And
Provisioning of Wireless Access Point (CAPWAP) link with the AC. The process is as follows:
1. The AP reads the configuration file and determines the mode to go online.
2. If the DHCP mode is used, the AP starts the DHCP process.
3. If the static mode is used, the AP starts the AC discovery process based on the static configuration, and
establishes a control tunnel with the discovered AC.
4. If the PPPoE mode is used, the AP initiates the PPPoE dial-up process. After obtaining the management IP
address and gateway address, the AP uses the statically configured AC IP address to discover the AC, and
establishes a control tunnel with the AC.
NOTE
By default, AP's go online in DHCP mode.
● Configuring the Mode for an AP to Go Online
● Configuring the AP to go online in DHCP mode
1. Use Telnet to log in to the AP from a PC.
login：admin
Password： //The default password is admin.
~ #
2. Configure the AP to go online in DHCP mode.
~ # cli
Enterprise AP# configure interface ethernet // Enter the AP interface view.
Enter Ethernet configuration commands，one per line.
Enterprise AP (if-ethernet) # ip mode dhcp // Set the mode in which the AP goes online.
Please reboot the AP，configuration will take effect
Enterprise AP (if-ethernet) #
3. Restart the AP to make the configuration take effect.
~ # reboot
● Configuring the AP to go online using a static IP address
1. Use Telnet to log in to the AP from a PC.
login: admin
Password: //The default password is admin.
~ #
2. Configure the AP to go online using a static IP address. The configuration items are the IP address of an AC that
is connected to the AP, the AP's IP address (mandatory), the mask address (mandatory), and the gateway
address (not required when in Layer 2 networking).
~ # cli
Enterprise AP# configure interface ethernet // Enter the AP interface view.
Enter Ethernet configuration commands，one per line.
Enterprise AP (if-ethernet) # ip mode static // Set the mode in which the AP goes online.
Enterprise AP (if-ethernet) # ac iplist 1.1.1.1 // Configure the IP address of an AC that is connected to the AP.
Enterprise AP (if-ethernet) # ip address 192.168.60.2 255.255.255.0 192.168.60.1 // Configure the IP
address of the AP.
Please reboot the AP，configuration will take effect
Enterprise AP (if-ethernet) #
3. Restart the AP to make the configuration take effect.
~ # reboot 11
AP Local Configuration
● Configuring the AP to go online in PPPoE mode
1. Use Telnet to log in to the AP from a PC.
login: admin
Password: // The default password is admin.
~ #
2. Configure the AP to go online in PPPoE mode.
~ # cli
Enterprise AP# configure interface ethernet // Enter the AP interface view.
Enter Ethernet configuration commands, one per line.
Enterprise AP (if-ethernet) # ip mode pppoe // Set the mode in which the AP goes online.
Please reboot the AP, configuration will take effect
Enterprise AP (if-ethernet) #
3. Configure a user name and password for going online in PPPoE mode. By default, the user name and password are
both wlan@huawei and the password type is simple.
Enterprise AP(if-ethernet) # user admin password simple admin //Set the user name and password to admin.
4. Restart the AP to make the configuration take effect.
~ # reboot
NOTE
● After the configuration is complete, run the reboot command to restart the AP.
● After the configuration is complete, run the show sysinfo command to check the configuration.
Enterprise AP(if-ethernet) # show sysinfo
ap_ipmode=pppoe
ap_ipaddr=
ap_ipversion=4
ap_netmask=
ap_gateway=
ac_ip1=
ac_ip2=
ac_ip3=
ac_ip4=
pppoe_username=wlan@huawei
pppoe_pwd_type=simple
pppoe_password=wlan@huawei
NOTE
By default, the PVID of a wired-side interface is 0, and no VLAN is configured on the interface.
1. Use Telnet to log in to the AP from a PC.
login: admin
Password: //The default password is admin.
~ #
2. Configure VLANs and PVID on the wired interface.
~ # cli
Enterprise AP# configure interface ethernet // Enter the AP interface view.
Enter Ethernet configuration commands，one per line.
Enterprise AP (if-ethernet) # ether-port 0 [1-4095] [tag/untag] // Configure the VLANs allowed by the wired
interface.
Enterprise AP (if-ethernet) # ether-port 0 pvid [1-4095] //Configure the PVID of the wired interface.
NOTE
The configuration takes effect immediately, and you do not need to restart the AP.
2. Configuring VLANs on Wired Interfaces of an AP
This section describes how to configure VLANs on wired interfaces of an AP.
● Introduction to the Wired Interfaces
A wired interface on an AP is connected to an AC or a switch. When the AP assigns service VLANs to packets, you can
configure VLANs on wired interfaces of the AP.
● Configuring VLANs on a Wired Interface
12
AP Local Configuration
● Enabling/Disabling the radio indicator that indicates the signal strength of the last hop bridge.
NOTE
By default, the radio indicator is enabled on an AP6010DN.
1. Use Telnet to log in to the AP from a PC.
login: admin
Password: // The default password is admin.
~ #
2. Enabling/Disabling the AP's radio indicator
Enterprise AP (config) # configure interface wireless 0 (1) // Enter the 2.4G 5G interface view.
Enter Wireless configuration commands,one per line.
Enterprise AP (if-wireless 0 (1)) # wds led flag 0 (1) // Enable/Disable the AP's radio indicator.
Please reboot the AP,configuration will take effect
3. Restart the AP to make the configuration take effect.
~ # reboot
13
3. Configuring WDS
This section describes how to configure WDS parameters on an AP.
● Introduction to WDS
WDS enables multiple AP6010DNs to establish wireless links to connect two or more wired or wireless LANs. WDS-
enabled AP6010DNs can switch data packets between the LANs. WDS facilitates network deployment, and device
installation, and allows flexible networking.
● Configuring WDS
Most WDS parameters are configured on the AC. For details, see the AC configuration guides. On an AP, you can enable
or disable the radio indicator that indicates the signal strength of the last hop bridge, and configure the WDS keys.
NOTE
● Configure the WDS key.
1. Use Telnet to log in to the AP from a PC.
login: admin
Password: // The default password is admin.
~ #
2. Configure the WDS key.
Enterprise AP (config) # configure interface wireless 0 // Enter the 2.4G 5G interface view.
Enter Wireless configuration commands, one per line.
Enterprise AP (if-wireless 0 (1) ) # wds psk 0 (1) 111111 // Set the key type to hex (parse) and the key to
111111.
3. Restart the AP to make the configuration take effect.
~ # reboot
After the configuration is complete, run the reboot command to restart the AP.
O: Indicates that the concentration of the hazardous substance contained in all the homogeneous materials of this
part is below the limit requirement of the SJ/T 11363-2006 standard.
X: Indicates that the Concentration of the hazardous substance contained in all the homogeneous materials of this
part is above the limit requirement.
Hazardous Substances
Pb Hg Cd Cr6+ PBB PBDE
Part
Mechanical part
Board/circuit module
Signal cable
Cable connector
Power adapter
Auxiliary equipment
O O O O O
O O O O O
O O O O O
O O O O O
O O O O O
O O O O O
Declaration on Hazardous Substances in Electronic
Information Products
QUALIFICATION CARD
14
O
O
O
O
O
O
Warranty Card
Thank you for choosing HUAWEI Technologies Co., Ltd-a leading telecom solution provider. To get better services, please
read this warranty card carefully, fill in the required information and preserve this card in good condition.
Preserve well. No reissue
Dealer´s Seal: Limited Warranty
Subject to the exclusions contained below, Huawei Technologies CO., Ltd. (hereinafter referred to as Huawei) warrants its
access terminals ("Products") to be free from defects in materials and workmanship under normal consumer usage for one
year from the date of purchase of the product ("Warranty period"). During the warranty period，a Huawei authorized
service partner shall remedy defects in materials and workmanship free of charge.
Special Notice:
1. The warranty card shall be applicable only after being stamped by the dealer.
2. The warranty card must be preserved in good condition and free of any scratch or alteration.
3. To claim such service for defects that are not included in The following exclusion terms, the warranty card and the
invoice that records the product serial number shall be presented to a Huawei authorized service partner.
Exclusions:
In any of the following cases, the warranty card becomes unenforceable or inapplicable without prior notice:
1. The defects are caused by improper handling in transportation and assembly.
2. The defects are caused by the fact that the product is dismantled or altered by anyone that is not from a Huawei
authorized service partner.
3. The defects are caused by the fact that the product is used in a harsh environment that is not suitable for the operation
of the product.
4. The defects are caused by any force majeure including but not limited to fire, earthquake, lightning and tsunami.
5. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the
applicable User Guide.
6. The normal wear and tear, including but not limited to the normal wear and tear of the shell and the power module, shall
not be covered by the limited warranty.
7. The warranty card is altered or illegible, or the product serial number recorded on the warranty card is inconsistent with
the actual one imprinted or labeled on the product.
In any case that is not covered by this limited warranty or should the warranty expire，Huawei shall charge for the
service(s) claimed for the products if the product is still remediable.
Huawei preserves the right for interpretation of this limited warranty.
Your Name
Address/Postal Code
Telephone
Product Type
Product Serial Number
Purchase Date
Invoice Number
Dealer Name
Dealer´s Address/Telephone
Huawei Industrial Base, Bantian, Longgang,
Shenzhen 518129, People's Republic of China
http://www.huawei.com
Huawei Technologies Co., Ltd.
15
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
www.huawei.com
Part Number: 31505361 Issue: 01

Navigation menu
