AP6010DN-AGN Wireless LAN Access Point

V200R001C00

Product Description

Issue 01

Date 2012-05-30

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

AP6010DN-AGN Wireless LAN Access Point

Product Description Contents

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Contents

1 Product Orientation and Characteristics .................................................................................. 1

2 Product Structure........................................................................................................................... 5

3 Functions and Features ................................................................................................................ 7

4 Technical Specifications .............................................................................................................. 9

AP6010DN-AGN Wireless LAN Access Point

Product Description 1 Product Orientation and Characteristics

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

1 Product Orientation and Characteristics

Product Orientation

The AP6010DN is a standard indoor dual-band 2x2 MIMO access point (AP) that supports

2.4 GHz and 5 GHz frequency bands. It complies with IEEE 802.11a/b/g/n connects a large

number of users, and works as a Fit AP. The AP6010DN has the following advantages:

z High reliability

z High security

z Simple network deployment

z Automatic AC discovery and configuration

z Real-time management and maintenance

The AP6010DN is recommended for use in buildings with a simple structure, small area, a

high density of users, and require a high capacity, for example, small-scale meeting rooms,

bars, and entertainment places. The AP6010DN APs can be flexibly deployed in these places

and work in both Fit AP and bridge mode.

The AP6010DN is for use in Fit AP and bridge networking scenarios.

AP6010DN-AGN Wireless LAN Access Point

Product Description 1 Product Orientation and Characteristics

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Figure 1-1 Fit AP networking

AP n

AP1

……

WLAN terminal Residential users Business users

eSight

Authentication system

Switch

Management channel between

eSight and the AC

Management channel between the

AC and the AP and data channel

where data flows are encapsulated

with CAPWAP

Channel where data flows are

not encapsulated with

CAPWAP

In this networking, the AP6010DN functions as a Fit AP that provides only data forwarding

functions. The AC is responsible for user access, authentication, AP management, and

configurations of security protocols, routing, and QoS.

Figure 1-2 WDS networking (point-to-point)

AP 1

AP 2

LAN Segment 1

LAN Segment 2

AP6010DN-AGN Wireless LAN Access Point

Product Description 1 Product Orientation and Characteristics

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

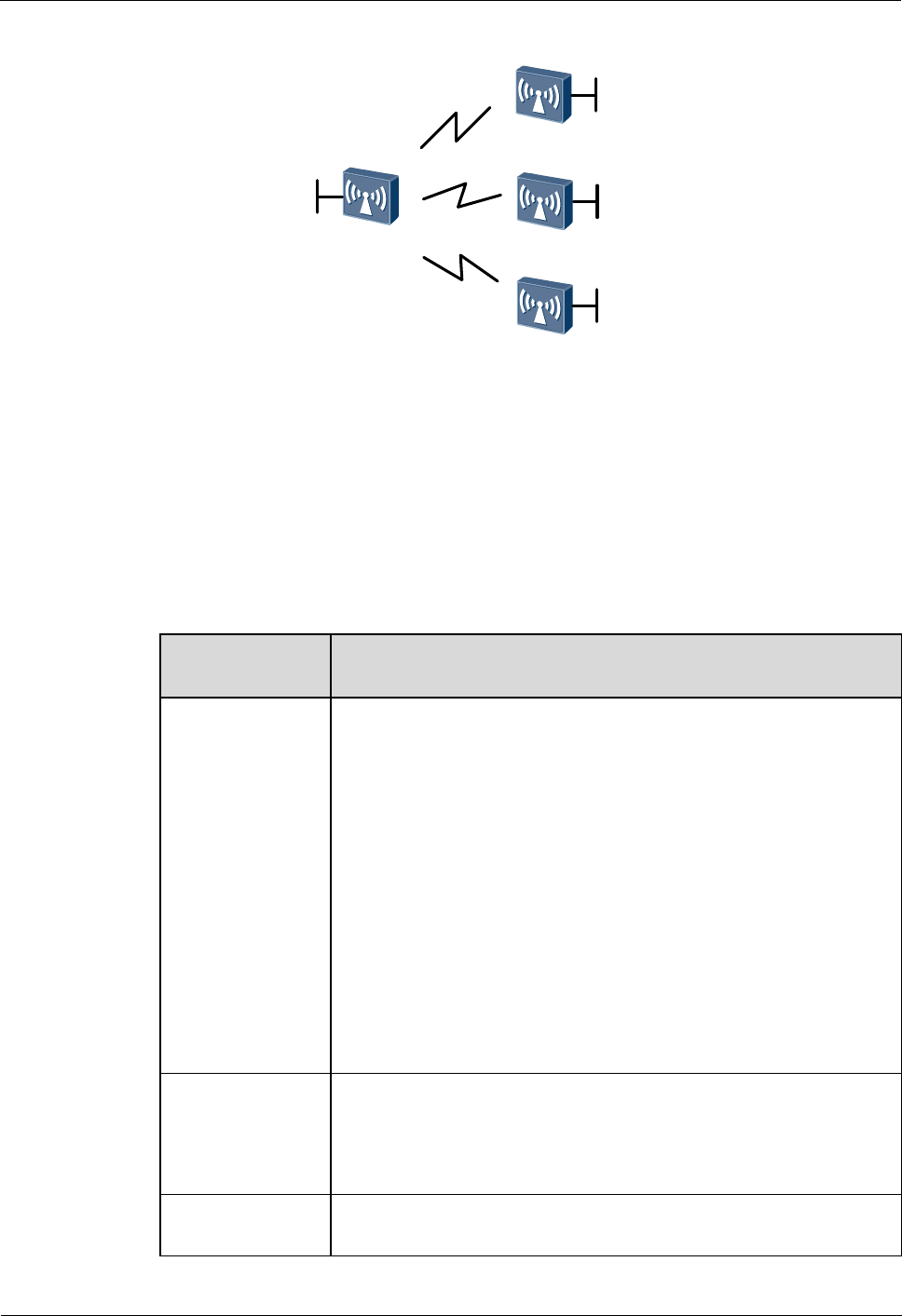

Figure 1-3 WDS networking (point-to-multipoint)

AP 2

AP 1

AP 3

AP 4

LAN Segment 1

LAN Segment 2

LAN Segment 3

LAN Segment 4

In this networking, the AP6010DN connects two or more independent wired or wireless

LANs through wireless links. In a Wireless Distribution System (WDS), the AP6010DN

supports point-to-point, point-to-multipoint networking modes. The AP implements wireless

bridging and access functions using 5 GHz and 2.4 GHz frequency bands.

Product Characteristics

The AP6010DN has the following characteristics on the WLAN.

Product

Characteristics

Description

Highly reliable

wireless access

z Complies with IEEE 802.11 a/b/g/n.

z Provides a maximum rate of 300 Mbit/s for each radio.

z Uses Wi-Fi Multimedia (WMM) to implement priority scheduling

based on the service type (voice, video, or data), and implements

end-to-end QoS through priority mapping on wireless and wired

interfaces.

z Supports wired link integrity check.

z Supports load balancing.

z Supports roaming without service interruptions.

z Supports AC hot standby.

z Supports the beamforming technique.

z Uses the latest 802.11n chip to increase the performance by 20%.

z Has a strong coverage capability.

Comprehensive

user access

control capability

z Supports access control lists (ACLs) and user access controls

based on user group policies.

z Provides per-user bandwidth management.

z Supports user isolation policies.

High security The AP6010DN supports multiple authentication and encryption

modes and provides various measures to enhance system security:

AP6010DN-AGN Wireless LAN Access Point

Product Description 1 Product Orientation and Characteristics

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Product

Characteristics

Description

z Wired Equivalent Privacy (WEP)

z Wi-Fi Protected Access (WPA)/WPA2

z WLAN Authentication and Privacy Infrastructure (WAPI)

z 802.1x

z Detection of unauthorized APs

Flexible

networking and

environment

adaptability

z For use in Fit AP and WDS networking scenarios.

z Automatically selects the transmission rate, channel, and transmit

power to adapt to multiple radio environments and limit

interference in real time.

z Adjusts bandwidth allocation based on the number of users and

radio environment.

Simple device

management and

maintenance

z Automatically discovers ACs and loads the AC (plug-and-play)

configuration.

z Supports batch upgrade.

z Monitored by the NMS in real time. You can remotely configure

APs and locate faults on APs using the NMS.

z Supports the Link Layer Discovery Protocol (LLDP) to implement

automatic link discovery and obtain the network topology.

AP6010DN-AGN Wireless LAN Access Point

Product Description 2 Product Structure

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

2 Product Structure

Appearance

Figure 2-1 shows the appearance of the AP6010DN.

The actual device appearance may differ from the figure, but the appearance does not affect device

Figure 2-1 Appearance of the AP6010DN

Ports

Figure 2-2 shows ports on the AP6010DN.

Figure 2-2 Ports of the AP6010DN

4 2 1

1. Console port.

2. ETH/PoE: 10/100/1000M port, which connects to the Ethernet. The port can connect to a

PoE switch or a PoE power source to receive power.

AP6010DN-AGN Wireless LAN Access Point

Product Description 2 Product Structure

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

3. Default: restores factory settings.

4. Power input port: 12 V DC.

LED Indicators

Type Color Frequency Description

Default

status

Green Steady on The AP is just powered on.

Runnin

Green 0.5 Hz The system is running properly, the Ethernet connection

is correct, and STAs are associated with the AP.

0.2 Hz The system is running properly, the Ethernet connection

is correct, no user is connected, and the system is in low

power consumption state.

Alarm Green 4 Hz z The AP is being upgraded.

z The CAPWAP tunnel is disconnected.

z The AP is running properly, but does not go online.

Error Red Steady on A fault that affects services occurs and cannot be

rectified automatically. For example, the system fails to

load the DRAM or system software. The fault needs to

be rectified manually.

AP6010DN-AGN Wireless LAN Access Point

Product Description 3 Functions and Features

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

3 Functions and Features

Functions and Features Supported by the AP6010DN

Table 3-1 Features

Features Description

WLAN

features

z Compliance with IEEE 802.11a/b/g/n, providing a maximum rate of

300 Mbit/s for each radio

z Priority mapping and packet scheduling based on a Wi-Fi Multimedia

(WMM) profile to implement priority-based data processing and

forwarding

z Automatic and manual rate adjustment (the rate is adjusted

automatically by default)

z WLAN channel management and channel rate adjustment:

− Number of 802.11a channels: 27

− Number of 802.11b/g channels: 13

− Number of 802.11n channels: 13 at 2.4 GHz

27 at 5 GHz

z Automatic channel scanning (the AP6010DN scans channels used by

other APs, measures their interference, and reports the scanning result

to the AC to trigger channel adjustment)

z Service set identifier (SSID) hiding

z Signal sustain technology (SST)

z STA power-saving mode

z Control and Provisioning of Wireless Access Points (CAPWAP)

z Automatic AC discovery

Network

features

z Compliance with IEEE 802.3u

z Ports: Auto-negotiation of the rate and duplex mode and automatic

switching between the Media Dependant Interface (MDI) and Media

Dependant Interface Crossover (MDI-X) mode

z 1024 unicast MAC addresses

z VLAN assignment based on SSIDs

z VLAN aggregation on uplink Ethernet ports

AP6010DN-AGN Wireless LAN Access Point

Product Description 3 Functions and Features

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Features Description

z 4093 VLAN IDs (1-4093) and 16 virtual APs (VAPs)

z Uplink ports in tagged and untagged mode

z DHCP client

z PPPoE dialup

z Centralized data forwarding and local data forwarding

z STA isolation in the same VLAN

z ACL

z LLDP

QoS features z Priority mapping and packet scheduling based on WMM profiles to

implement priority-based data processing and forwarding

z WMM parameter management for each radio frequency

z WMM power saving

z Priority mapping for upstream packets and flow-based mapping for

downstream packets

z Queue mapping and scheduling

z User-based bandwidth limiting

z Adaptive bandwidth allocation (the system dynamically adjusts

bandwidth based on the number of users and radio environment)

Security

features

z Open system authentication

z WEP authentication/encryption

z WPA/WPA2 authentication and encryption

z 802.1x authentication and encryption

z WAPI authentication and encryption

z SMS4 decryption for data packets

z Wired link integrity check (the AP stops sending radio signals if the

tunnel between the AP and AC is terminated)

Maintenance

features

z AP management and maintenance by the AC

z Plug-and-play: automatic AC discovery and automatic configuration

z Batch upgrade

z Debugging using Telnet and the serial interface

z Real-time configuration monitoring and fast fault location by using the

NMS

z System status alarm

AP6010DN-AGN Wireless LAN Access Point

Product Description 4 Technical Specifications

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

4 Technical Specifications

Specifications

Table 4-1 Specifications of the AP6010DN

Item Description

Technical specifications Dimensions (H x W x

50 mm x 180 mm x 180 mm

Weight 0.4 kg

System memory z 128 MB DRAM

z 32 MB flash memory

Power specifications Power input z DC 12V±10%

z POE Power:-48V DC

Maximum power

consumption

10.2 W

NOTE

The maximum power consumption

depends on local laws.

Environment parameters Operating temperature -10 to +℃50℃

Storage temperature -40 to +70℃℃

Humidity 5% to 95% (non-condensing)

Waterproof grade IP31

Altitude -60m to 4000 m

AP6010DN-AGN Wireless LAN Access Point

Product Description 4 Technical Specifications

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Antenna Parameters

Table 4-2 Antenna parameters of the AP6010DN

Item Description

Antenna

type

Built-in antenna

Antenna

gain

2.4G: 4dBi

5G: 5dBi

Maximum

number of

concurrent

users

≤ 128

Maximum

transmit

power

20dBm(max)

z You can adjust the transmit power by 100%, 50%, 25%, or 12.5%, with

a step of 3 dBm.

z You can adjust the transmit power from the maximum to 15 dBm, with a

step of 1 dBm.

NOTE

Actual transmit power depends on local laws and regulations.

Maximum

number of

non-overlap

ping

channels

2.4 GHz

z 802.11b/g

 20 MHz: 3

z 802.11n

 20 MHz: 3

 40 MHz: 1

5 GHz

z 802.11a

 20 MHz: 21

z 802.11n

 20 MHz: 21

 40 MHz: 9

Channel rate 802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate (2.4 GHz and 5 GHz)

MCS

index

GI=800 ns GI=400 ns

20 MHz

(Mbit/s)

40 MHz

(Mbit/s)

20 MHz

(Mbit/s)

40 MHz

(Mbit/s)

0 6.5 13.5 7.2 15

1 13 27 14.4 30

2 19.5 40.5 21.7 45

3 26 54 28.9 60

4 39 81 43.3 90

5 52 108 57.8 123

6 58.5 121.5 65 135

AP6010DN-AGN Wireless LAN Access Point

Product Description 4 Technical Specifications

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Item Description

7 65 135 72.2 150

8 13 27 14.4 30

9 26 54 28.9 60

10 39 81 43.3 90

11 52 108 57.8 120

12 78 162 86.7 180

13 104 216 115.6 240

14 117 243 130 270

15 130 270 144.4 300

NOTE

Modulation coding scheme (MCS) index: determines the spatial flow quantity,

modulation, coding rate, and data rate.

Guard interval (GI): indicates the period in nanoseconds the radio listens between

packets.

Receiver

sensitivity

2.4 GHz

802.11b (CCK)

z -97 dBm @ 1 Mb/s

z -92 dBm @ 2 Mb/s

z -92 dBm @ 5.5 Mb/s

z -90 dBm @ 11 Mb/s

2.4GHz

802.11g (non-HT20)

z -92 dBm @ 6 Mb/s

z -91 dBm @ 9 Mb/s

z -90 dBm @ 12 Mb/s

z -87 dBm @ 18 Mb/s

z -83 dBm @ 24 Mb/s

z -80 dBm @ 36 Mb/s

z -76 dBm @ 48 Mb/s

z -74 dBm @ 54 Mb/s

802.11a (non-HT20)

z -89 dBm @ 6 Mb/s

z -88 dBm @ 9 Mb/s

z -85 dBm @ 12 Mb/s

z -83 dBm @ 18 Mb/s

z -80 dBm @ 24 Mb/s

z -76 dBm @ 36 Mb/s

z -71 dBm @ 48 Mb/s

z -70 dBm @ 54 Mb/s

2.4 GHz

802.11n (HT20)

z -92 dBm @

MCS0/8

z -89 dBm @

MCS1/9

z -86 dBm @

MCS2/10

z -82 dBm @

MCS3/11

z -79 dBm @

MCS4/12

z -74 dBm @

MCS5/13

z -73 dBm @

2.4 GHz

802.11n (HT40)

z -89 dBm @

MCS0/8

z -86 dBm @

MCS1/9

z -83 dBm @

MCS2/10

z -79 dBm @

MCS3/11

z -76 dBm @

MCS4/12

z -72 dBm @

MCS5/13

z -70 dBm @

802.11n (HT20)

z -88 dBm @

MCS0/8

z -85 dBm @

MCS1/9

z -84 dBm @

MCS2/10

z -77 dBm @

MCS3/11

z -74 dBm @

MCS4/12

z -70 dBm @

MCS5/13

z -68 dBm @

802.11n (HT40)

z -85 dBm @

MCS0/8

z -80 dBm @

MCS1/9

z -78 dBm @

MCS2/10

z -74 dBm @

MCS3/11

z -71 dBm @

MCS4/12

z -67 dBm @

MCS5/13

z -65 dBm @

AP6010DN-AGN Wireless LAN Access Point

Product Description 4 Technical Specifications

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

Item Description

MCS6/14

z -71 dBm @

MCS7/15

MCS6/14

z -68 dBm @

MCS7/15

MCS6/14

z -67 dBm @

MCS7/15

MCS6/14

z -63 dBm @

MCS7/15

Standards Compliance

z Safety standards

− UL 60950-1

− IEC 60950-1

− EN 60950-1

− GB 4943

z Radio standards

− ESTI EN 300 328

− ESTI EN 301 893

− Part 15C:15.247

− Part 15E:15.407

− RSS-210

z EMC standards

− EN 301.489–1

− EN 301.489–17

− FCC Part 15 (15.107,15.109,15.247,15.407)

− ICES-003

− YD/T 1312.2-2004

− EN55022 (Class B)

z IEEE standards

− IEEE 802.11a/b/g

− IEEE 802.11n

− IEEE 802.11h

− IEEE 802.11d

− IEEE 802.11e

z Security standards

− 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

− 802.1x

− Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

− EAP Type(s)

z Environment standards

− ETSI 300 019-2-1

− ETSI 300 019-2-2

− ETSI 300 019-2-3

z EAP types

AP6010DN-AGN Wireless LAN Access Point

Product Description 4 Technical Specifications

Issue 01 (2012-05-30) Huawei Proprietary and Confidential

− EAP-TLS/TTLS, PEAP, EAP-MD5, EAP-SIM

z Multimedia

− WMMTM

Huawei Technologies AP6010DN-AGN Wireless LAN Access Point User Manual AP6010DN AGN V200R001C00 Product Description 01

Huawei Technologies Co.,Ltd Wireless LAN Access Point AP6010DN AGN V200R001C00 Product Description 01

Contents

AP6010DN-AGN User Manual 3

Navigation menu

Namespaces

Views

Navigation
