1 Product Orientation and Characteristics
Product Orientation
The AP6610DN-AGN-US is an outdoor dual-band access point (AP) that supports 2.4 GHz and
5 GHz frequency bands, and has enhanced coverage performance and protection capabilities. It
supports wireless bridging, complies with IEEE 802.11a/b/g/n,connects a large number of
users, and works as a Fit AP. The AP6610DN-AGN-US has the following advantages:
lHigh reliability
lHigh security
lSimple network deployment
lAutomatic AC discovery and configuration
lReal-time management and maintenance
.
The AP6610DN-AGN-US is recommended for use in residential or commercial properties
without wired resources. The AP6610DN-AGN-US APs can be deployed at both ends of a
commercial street or in the building opposite to a commercial property. The APs must be
equipped with external antennas to implement wireless signal coverage.
The AP6610DN-AGN-US is for use in Fit AP and bridge networking scenarios.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
![](/img.php?id=2274077&img=bg5.png)
Figure 1-1 Fit AP networking
AP n
AP1
……
NMS
AC
Authentication system
Switch
Management channel
between NMS and AC
Management channel
between the AC and the AP
and data channel Where
data flows are encapsulated
with CAPWAP
Channel where data flows
are not encapsulated with
CAPWAP
Business
users
Residential
users
WLAN teminal
In this networking, the AP6610DN-AGN-US functions as a Fit AP that provides only data
forwarding functions. The AC is responsible for user access, authentication, AP management,
and configurations of security protocols, routing, and QoS.
Figure 1-2 WDS networking (point-to-point)
AP 1
AP 2
LAN Segment 1
LAN Segment 2
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
![](/img.php?id=2274077&img=bg6.png)

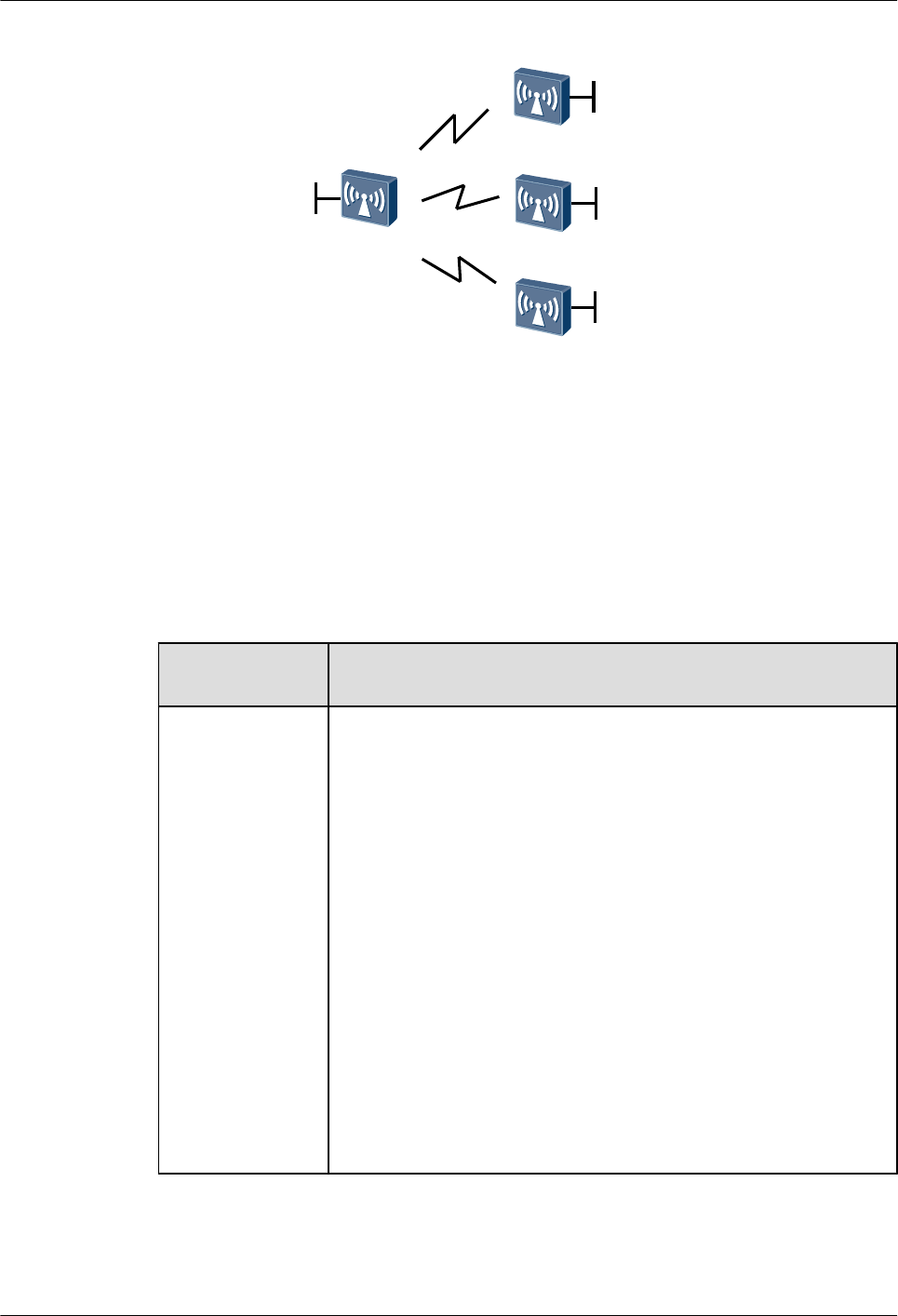

Figure 1-3 WDS networking (point-to-multipoint)
AP 2
AP 1
AP 3
AP 4
LAN Segment 1
LAN Segment 2
LAN Segment 3
LAN Segment 4
In this networking, the AP6610DN-AGN-US connects two or more independent wired or
wireless LANs through wireless links to realize communication between the LANs. In a Wireless
Distribution System (WDS), the AP6610DN-AGN-US supports point-to-point, point-to-
multipoint networking modes. The AP implements wireless bridging and access functions using
5 GHz and 2.4 GHz frequency bands.
Product Characteristics
The AP6610DN-AGN-US has the following characteristics on the WLAN.
Product
Characteristics
Description
Highly reliable
wireless access
lComplies with IEEE 802.11 a/b/g/n.
lSupports2x2 MIMO, and provides a maximum rate of 300 Mbit/s
for each radio.
lUses Wi-Fi Multimedia (WMM) to implement priority scheduling
based on the service type (voice, video, or data), and supports
priority mapping on the air interface and wired interface.
lSupports wired link integrity check.
lSupports load balancing.
lSupports roaming without service interruptions.
lSupports AC Dual-Link Backup.
lSupports the beamforming technique.
lUses the latest 802.11n chip to provide higher performance and
wider coverage.
lHas a strong coverage capability.
lUses a metal shell and a design that dissipates heat for high
reliability.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
![](/img.php?id=2274077&img=bg7.png)
Product
Characteristics
Description
Comprehensive
user access
control capability
lSupports access control lists (ACLs) and user access controls based
on user group policies.
lProvides per-user bandwidth management.
lSupports user isolation policies.
High security The AP6610DN-AGN-US supports multiple authentication and
encryption modes and provides various measures to enhance system
security:
lWired Equivalent Privacy (WEP)
lWi-Fi Protected Access (WPA)/WPA2
lWLAN Authentication and Privacy Infrastructure (WAPI)
l802.1X
lDetection of unauthorized APs
Flexible
networking and
environment
adaptability
lFor use in Fit AP and WDS networking scenarios.
lAutomatically selects the transmission rate, channel, and transmit
power to adapt to multiple radio environments and limit interference
in real time.
lAdjusts bandwidth allocation based on the number of users and radio
environment.
lSupports the MIMO antenna system and connects to external dual-
band antennas (2.4 GHz and 5 GHz). You can adjust the antennas
based on the radio environment.
Simple device
management and
maintenance
lAutomatically discovers ACs and loads the AC (plug-and-play)
configuration.
lSupports batch upgrade.
lMonitored by the NMS in real time. You can remotely configure
APs and locate faults on APs using the NMS.
lSupports the Link Layer Discovery Protocol (LLDP) to implement
automatic link discovery and obtain the network topology.
High reliability
and protection
level
lUses efficient hardware protection measures.
lSupports wide variations in temperate from -40℃ to +60℃.
lUses industry-standard components.
lProvides IP66 protection level.
lHas built-in 5 kA surge protection and requires no external surge
protection devices. This simplifies installation and lowers costs.
lProvides 6 kA/6 kV surge protection capability on an Ethernet
interface.
lProvides 20 kA surge protection on an AC power port, without
external AC surge protection devices.
lComplies with international standards.
lSupports uplink optical ports.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
![](/img.php?id=2274077&img=bg8.png)
2 Product Structure
Appearance
Figure 2-1 shows the appearance of the AP6610DN-AGN-US.
NOTE
The actual device appearance may differ from the figure, but the appearance does not affect device

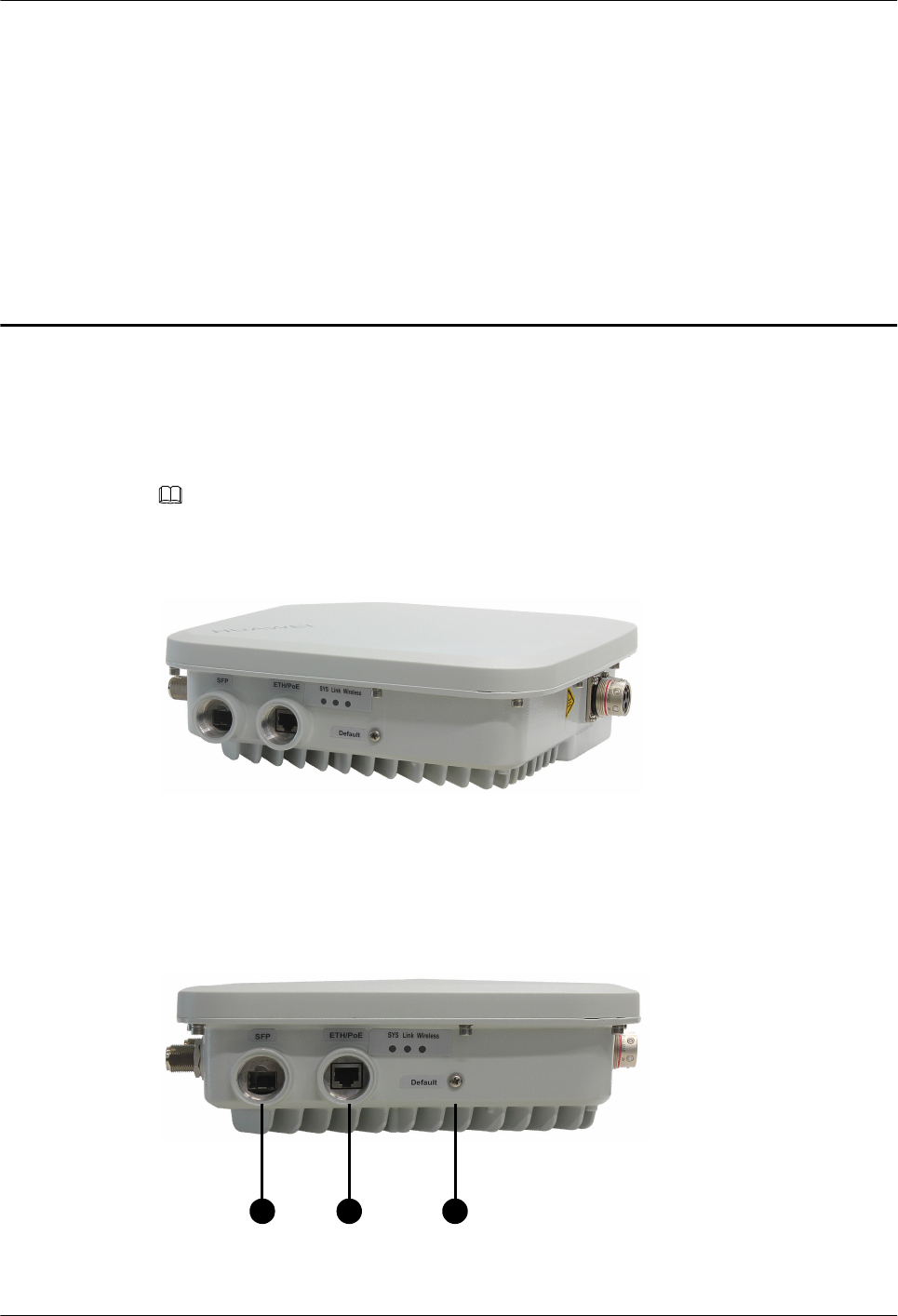

Figure 2-1 Appearance of the AP6610DN-AGN-US
Ports
The following figures show ports on the AP6610DN-AGN-US.
Figure 2-2 AP6610DN-AGN-US ports
1 2 3
1. SFP: optical port.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 2 Product Structure
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
![](/img.php?id=2274077&img=bg9.png)
2. ETH: 10/100/1000M port, which connects to the Ethernet network.

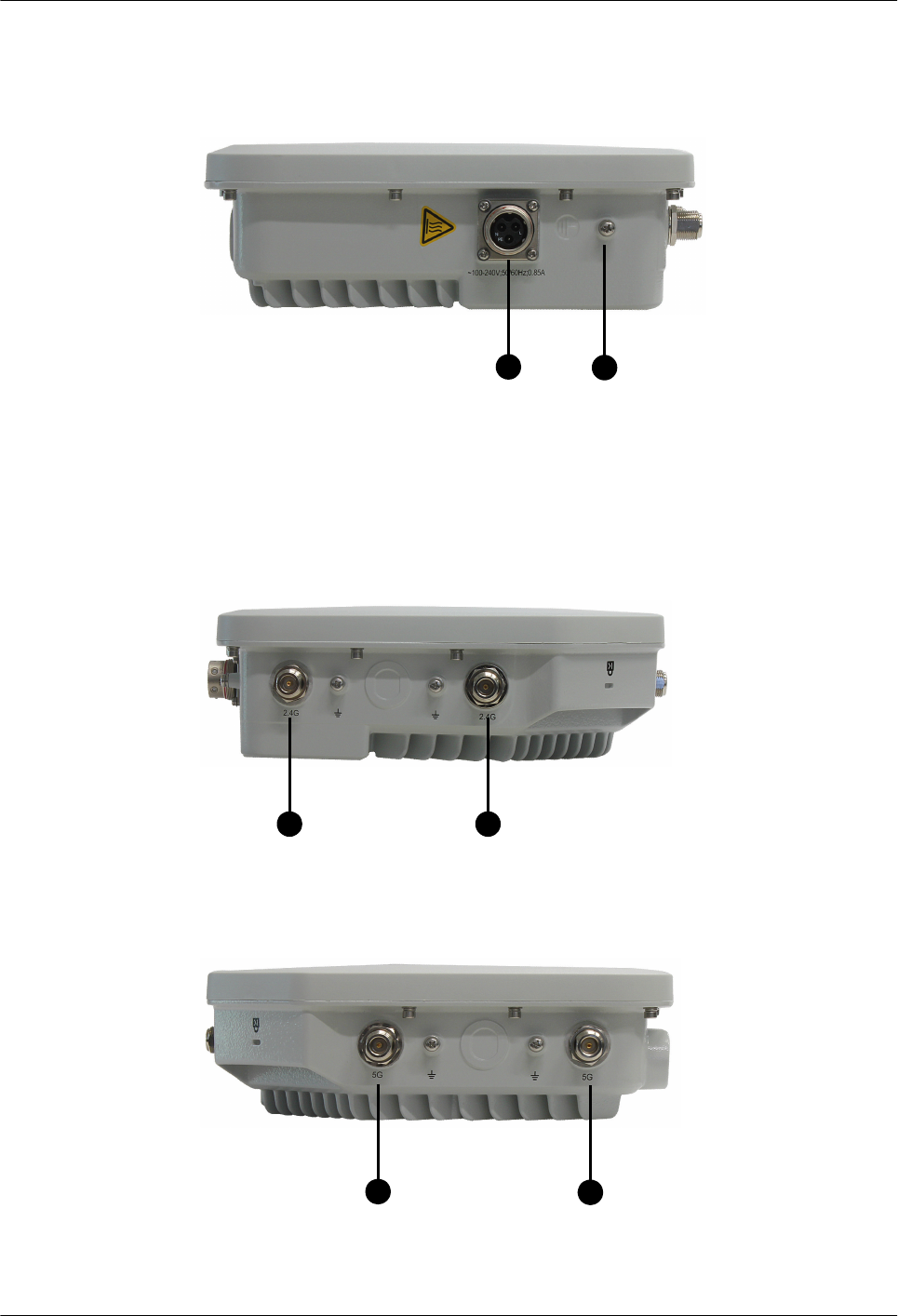

Figure 2-3 AP6610DN-AGN-US ports
5
4
3. Default: remove the screw and hold down the button from the hole to restore the factory
settings.
4. Power input port: 100–240 V AC.
5. Ground port: connects to a ground cable to ground an AP.
Figure 2-4 AP6610DN-AGN-US ports
6 6
6. 2.4 GHz antenna port.
Figure 2-5 AP6610DN-AGN-US ports
77
7. 5 GHz antenna port.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 2 Product Structure
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
![](/img.php?id=2274077&img=bga.png)
LED Indicators
Information
Type
SYS
LED
Link
LED
WiFi
LED
Description
Startup status Steady
green
Off Off The device is being started.
Blinki
ng
green
Off Off The system is working properly.
Steady
red
Off Off The system fails to load the DRAM or
system software.
Blinki
ng (0.5
Hz)
Off Off The system is working properly. However,
the Ethernet is not connected. Radios are
disabled and no user is connected to the AP.
Blinkin
g green
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz
band and is transmitting data. The indicator
blinks more quickly when more packets are
being transmitted.
Blinkin
g
yellow
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 5 GHz band
and is transmitting data. The indicator
blinks more quickly when more packets are
being transmitted.
Blinkin
g green
and
yellow
alternat
ely
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz
and 5 GHz bands and is transmitting data.
Blinki
ng (0.5
Hz)
Steady
or
blinkin
g green
Off The system is working properly, the
Ethernet is connected, and radios are
disabled. The indicator blinks more
quickly when more data is being
transmitted.
Blinkin
g green
The system is working properly, and the
Ethernet is connected. The AP has wireless
users connected to the 2.4 GHz band and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 2 Product Structure
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
![](/img.php?id=2274077&img=bgb.png)
Information
Type
SYS
LED
Link
LED
WiFi
LED
Description
Blinkin
g
yellow
The system is working properly, and the
Ethernet is connected. The AP has wireless
users connected to the 5 GHz band and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
Blinkin
g green
and
yellow
alternat
ely
The AP has wireless users connected to the
2.4 GHz and 5 GHz bands and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 2 Product Structure
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
![](/img.php?id=2274077&img=bgc.png)
3 Functions and Features
Functions and Features Supported by the AP6610DN-AGN-US
Table 3-1 Features
Features Description
WLAN
features
lCompliance with IEEE 802.11a/b/g/n, providing a maximum rate of 300
Mbit/s216 Mbit/s for each radio
lMaximum ratio combining (MRC)
lMaximum-likelihood detection (MLD)
lAggregate data units, including A-MPDU (Tx/Rx) and A-MSDU (Rx
only)
l802.11 dynamic frequency selection (DFS)
lShort GI in 20 MHz and 40 MHz modes
lPriority mapping and packet scheduling based on a Wi-Fi Multimedia
(WMM) profile to implement priority-based data processing and
forwarding
lAutomatic and manual rate adjustment (the rate is adjusted automatically
by default)
lWLAN channel management and channel rate adjustment
NOTE
For details about WLAN channel management, see the XXX.
lAutomatic channel scanning (the AP6610DN-AGN-US scans channels
used by other APs, measures their interference, and reports the scanning
result to the AC to trigger channel adjustment)
lService set identifier (SSID) hiding
lSignal sustain technology (SST)
lUnscheduled automatic power save delivery (U-APSD)
lControl and Provisioning of Wireless Access Points (CAPWAP)
lAutomatic AC discovery
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
![](/img.php?id=2274077&img=bgd.png)
Features Description
Network
features
lCompliance with IEEE 802.3u
lPorts: Auto-negotiation of the rate and duplex mode and automatic
switching between the Media Dependent Interface (MDI) and Media
Dependent Interface Crossover (MDI-X) mode
lVLAN assignment based on SSIDs
lVLAN aggregation on uplink Ethernet ports
l4093 VLAN IDs (1-4093) and 16 virtual APs (VAPs)
lUplink ports in tagged and untagged mode
lDHCP client
lPPPoE dialup
lCentralized data forwarding and local data forwarding
lSTA isolation in the same VLAN
lACL
lLLDP
lUninterrupted service forwarding upon CAPWAP channel
disconnection in direct forwarding mode
lUniform authentication on an AC
lDual-AC backup
QoS features lPriority mapping and packet scheduling based on WMM profiles to
implement priority-based data processing and forwarding
lWMM parameter management for each radio frequency
lWMM power saving
lPriority mapping for upstream packets and flow-based mapping for
downstream packets
lQueue mapping and scheduling
lUser-based bandwidth limiting
lAdaptive bandwidth allocation (the system dynamically adjusts
bandwidth based on the number of users and radio environment)
Security
features
lOpen system authentication
lWEP authentication/encryption
lWPA/WPA2 authentication and encryption
l802.1x authentication and encryption
lWAPI authentication and encryption
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
![](/img.php?id=2274077&img=bge.png)
Features Description
Maintenance
features
lAP management and maintenance by the AC
lPlug-and-play: automatic AC discovery and automatic configuration
loading
lBatch upgrade
lDebugging using Telnet
lReal-time configuration monitoring and fast fault location by using the
NMS
lSystem status alarm
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
![](/img.php?id=2274077&img=bgf.png)
4 Technical Specifications
Specifications
Table 4-1 Specifications of the AP6610DN-AGN-US
Item Description
Technical specifications Dimensions (H x W x D) 83 mm x 255 mm x 255 mm
Weight 2.65 kg
System memory l128 MB DRAM
l32 MB flash memory
Power specifications Power input lAC 100-240 Vac
NOTE
The AP6610DN-AGN-US cannot
receive power from a PoE device.
When installing the AP6610DN-
AGN-US, ensure that an AC power
source is available near the
AP6610DN-AGN-US.
Maximum power
consumption
30 W
NOTE
The maximum power consumption
depends on local laws.
Environment parameters Operating temperature -40℃ to +60℃
Storage temperature -40℃ to +70℃
Humidity 0% to 100% (non-condensing)
Waterproof grade IP66
Altitude –60 m to 4000 m
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
![](/img.php?id=2274077&img=bg10.png)
Antenna Parameters
Table 4-2 Antenna parameters of the AP6610DN-AGN-US
Item Description
Antenna
type
Dual-polarization antenna or common outdoor antenna
Maximum
number of
concurrent
users
≤ 128
Maximum
transmit
power
27 dBm
lYou can adjust the transmit power from the maximum to 15 dBm, with a
step of 1 dBm.
NOTE
Actual transmit power depends on local laws and regulations.
Maximum
number of
non-
overlappin
g channels
2.4 GHz
802.11b/g
l20MHz: 3
802.11n
l20MHz: 3
l40MHz: 1
5 GHz
802.11a
l20MHz: 21
802.11n
l20MHz: 21
l440MHz: 9
Channel
rate
802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n data rate (2.4 GHz and 5 GHz)
GI=800 ns GI=400ns
20 MHz (Mbit/s) 40 MHz (Mbit/s) 20 MHz (Mbit/s) 40 MHz (Mbit/s)
6.5 @ MCS0 13.5 @ MCS0 7.2 @ MCS0 15 @ MCS0
13 @ MCS1 27 @ MCS1 14.4 MCS1 30 MCS1
19.5 @ MCS2 40.5 @ MCS2 21.7 @ MCS2 45 @ MCS2
26 @ MCS3 54 @ MCS3 28.9 @ MCS3 60 @ MCS3
39 @ MCS4 81 @ MCS4 43.3 @ MCS4 90 @ MCS4
52 @ MCS5 108 @ MCS5 57.8 @ MCS5 120 @ MCS5
58.5 @ MCS6 121.5 @ MCS6 65 @ MCS6 135 @ MCS6
65 @ MCS7 135 @ MCS7 72.2 @ MCS7 150 @ MCS7
13 @ MCS8 27 @ MCS8 14.4 @ MCS8 30 @ MCS8
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
![](/img.php?id=2274077&img=bg11.png)
Item Description
26 @ MCS9 54 @ MCS9 28.9 @ MCS9 60 @ MCS9
39 @ MCS10 81 @ MCS10 43.3 @ MCS10 90 @ MCS10
52 @ MCS11 108 @ MCS11 57.8 @ MCS11 120 @ MCS11
78 @ MCS12 162 @ MCS12 86.7 @ MCS12 180 @ MCS12
104 @ MCS13 216 @ MCS13 115.6 @ MCS13 240 @ MCS13
117 @ MCS14 243 @ MCS14 130 @ MCS14 270 @ MCS14
130 @ MCS15 270 @ MCS15 144.4 @ MCS15 300 @ MCS15
NOTE
Modulation coding scheme (MCS) index: determines the spatial flow quantity,
modulation, coding rate, and data rate.
Guard interval (GI): indicates the period in nanoseconds the radio listens between packets.
Receiver
sensitivity
2.4 GHz
802.11b (CCK)
l-97 dBm @ 1
Mb/s
l-92 dBm @ 2
Mb/s
l-92 dBm @
5.5 Mb/s
l-90 dBm @ 11
Mb/s
2.4 GHz
802.11g (non-
HT20)
l-92 dBm @ 6
Mb/s
l-91 dBm @ 9
Mb/s
l-90 dBm @ 12
Mb/s
l-87 dBm @ 18
Mb/s
l-83 dBm @ 24
Mb/s
l-80 dBm @ 36
Mb/s
l-76 dBm @ 48
Mb/s
l-74 dBm @ 54
Mb/s
5 GHz
802.11a (non-HT20)
l-90 dBm @ 6 Mb/s
l-89 dBm @ 9 Mb/s
l-86 dBm @ 12 Mb/s
l-84 dBm @ 18 Mb/s
l-81 dBm @ 24 Mb/s
l-77 dBm @ 36 Mb/s
l-72 dBm @ 48 Mb/s
l-71 dBm @ 54 Mb/s
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
![](/img.php?id=2274077&img=bg12.png)
Item Description
2.4 GHz
802.11n (HT20)
l-92 dBm @
MCS0/8
l-89 dBm @
MCS1/9
l-86 dBm @
MCS2/10
l-82 dBm @
MCS3/11
l-79 dBm @
MCS4/12
l-74 dBm @
MCS5/13
l-73 dBm @
MCS6/14
l-71 dBm @
MCS7/15
5 GHz
802.11n (HT20)
l-84 dBm @
MCS0/8
l-81 dBm @
MCS1/9
l-79 dBm @
MCS2/10
l-76 dBm @
MCS3/11
l-72 dBm @
MCS4/12
l-68 dBm @
MCS5/13
l-67 dBm @
MCS6/14
l-67 dBm @
MCS7/15
5 GHz
802.11n (HT40)
l-83 dBm @ MCS0/8
l-80 dBm @ MCS1/9
l-78 dBm @ MCS2/10
l-75 dBm @ MCS3/11
l-71 dBm @ MCS4/12
l-67 dBm @ MCS5/13
l-66 dBm @ MCS6/14
l-65 dBm @ MCS7/15
Standards Compliance
lSafety standards
–UL 60950-1
–IEC 60950-1
–EN 60950-1
–EN 60950-22
–GB 4943
lRadio standards
–ESTI EN 300 328
–ESTI EN 301 893
–RSS-210
lEMC standards
–EN 301.489–1
–EN 301.489–17
–ICES-003
–YD/T 1312.2-2004
–EN55022 (Class B)
lIEEE standards
–IEEE 802.11a/b/g
–IEEE 802.11n
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
![](/img.php?id=2274077&img=bg13.png)
–IEEE 802.11h
–IEEE 802.11d
–IEEE 802.11e
lSecurity standards
–802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
–802.1x
–Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
–EAP Type(s)
lEnvironment standards
–ETSI 300 019-2-1
–ETSI 300 019-2-2
–ETSI 300 019-2-3
lEAP types
–EAP-TLS/TTLS, PEAP, EAP-MD5, EAP-SIM
lMultimedia
–WMMTM
AP6610DN-AGN-US Outdoor Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 01 (2012-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
