Huawei Technologies AP7050DE Wireless LAN Access Point User Manual AP7050DE Product Description new

Huawei Technologies Co.,Ltd Wireless LAN Access Point AP7050DE Product Description new

User Manual

AP7050DE
Product Description
Issue 01
Date 2016-05-31
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://e.huawei.com
AP7050DE
Product Description About This Document
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Intended Audience
This document describes the positioning, characteristics, hardware structure, product features,
and technical specifications of the AP.
This document helps you understand the characteristics and features of the AP.
This document is intended for:
Network planning engineers
Hardware installation engineers
Commissioning engineer
Data configuration engineers
On-site maintenance engineers
Network monitoring engineers
System maintenance engineers
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in
equipment damage, data loss, performance
deterioration, or unanticipated results.
NOTICE is used to address practices not
AP7050DE
Product Description About This Document
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Symbol Description
related to personal injury.
Calls attention to important information,
best practices and tips.
NOTE is used to address information not
related to personal injury, equipment
damage, and environment deterioration.
Change History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in previous issues.
Changes in Issue 01 (2016-05-31)
This is the initial commercial release.
AP7050DE
Product Description Contents
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
Contents
About This Document .................................................................................................................... ii
1 Product Positioning and Characteristics ................................................................................... 1
1.1 Product Positioning ....................................................................................................................................................... 1
1.2 Product Characteristics ................................................................................................................................................. 4
2 Hardware Structure....................................................................................................................... 7
2.1 AP7050DE .................................................................................................................................................................... 7
3 Product Features .......................................................................................................................... 11
3.1 WLAN Features .......................................................................................................................................................... 11
3.2 Network Features ........................................................................................................................................................ 12
3.3 QoS Features ............................................................................................................................................................... 12
3.4 Security Features ........................................................................................................................................................ 12
3.5 Maintenance Features ................................................................................................................................................. 13
3.6 BYOD ......................................................................................................................................................................... 13
3.7 Locating Service ......................................................................................................................................................... 13
3.8 Spectrum Analysis ...................................................................................................................................................... 14
4 Technical Specifications ............................................................................................................ 15
4.1 Basic Specifications .................................................................................................................................................... 15
4.2 Radio Specifications ................................................................................................................................................... 16
4.3 Standards Compliance ................................................................................................................................................ 23
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Product Positioning and Characteristics
1.1 Product Positioning
Table 1-1 Product positioning
Product
Model
Frequency
Band
IEEE
Standards
Compliance
Positioning Usage
Scenario
AP7050DE Dual band:
2.4 GHz
5 GHz
The AP7050DE
can provide
services
simultaneously
on the 2.4 GHz
and 5 GHz
frequency
bands to
support more
access users.
IEEE
802.11a/b/g/n/a
c/ac wave2
The AP7050DE
is the
next-generation
technology-lead
ing AP. It
supports
HT80+HT80
4SU-4MU
MU-MIMO and
features high
reliability, high
security, simple
network
deployment,
automatic AC
discovery and
configuration,
and real-time
management
and
maintenance. In
compliance
with IEEE
802.11ac, it
supports a
theoretical rate
of up to 2.53
Gbit/s, greatly
improving user
experience.
It provides high
quality wireless
services for
large- and
medium-sized
enterprises in
high-density
scenarios, such
as mobile
office,
elementary
education, and
higher
education. The
AP7050DE
provides
flexible
distribution
options in
different
environments.
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
Typical networking modes are as follows:
Figure 1-1 Fit AP networking (AP mode)
In this networking, the AP functions as a fit AP. The AC is responsible for user access, AP
go-online, AP management, authentication, routing, security, and QoS.Huawei AC products
include the AC6605, AC6005, ACU2 (with S7700, S9700, or S12700), S5720HI, S7700 (with
X1E board), S9700 (with X1E board), and S12700 (with X1E board).
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

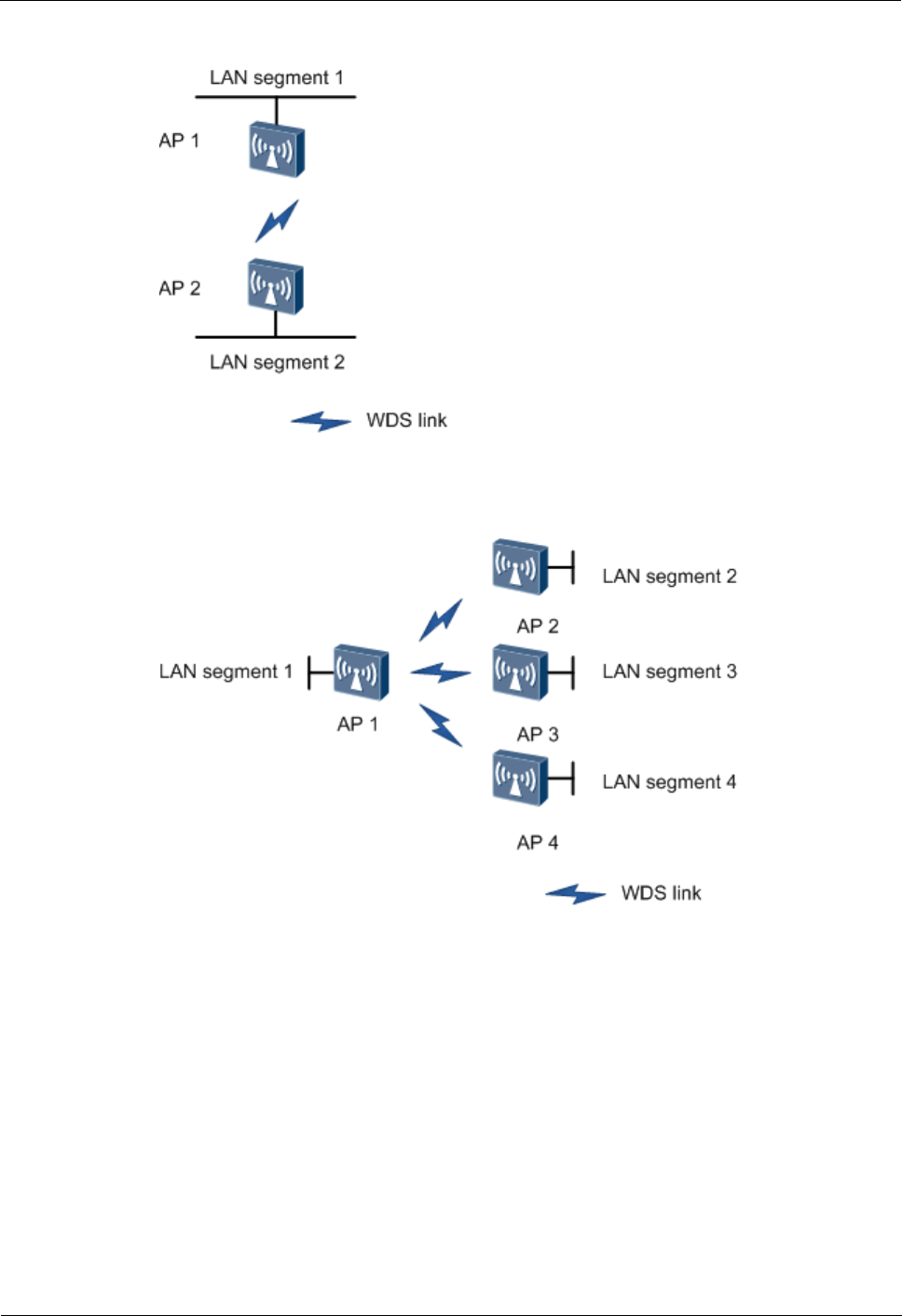

Figure 1-2 Fit AP networking (WDS mode: point-to-point)
Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)
In this networking, the AP connects two or more independently wired or wireless LANs
through wireless links to construct a network on which users can exchange data. In Wireless
Distribution System (WDS) mode, the AP supports point-to-point (P2P) and
point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands,
the AP can implement wireless bridging and access functions.
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4

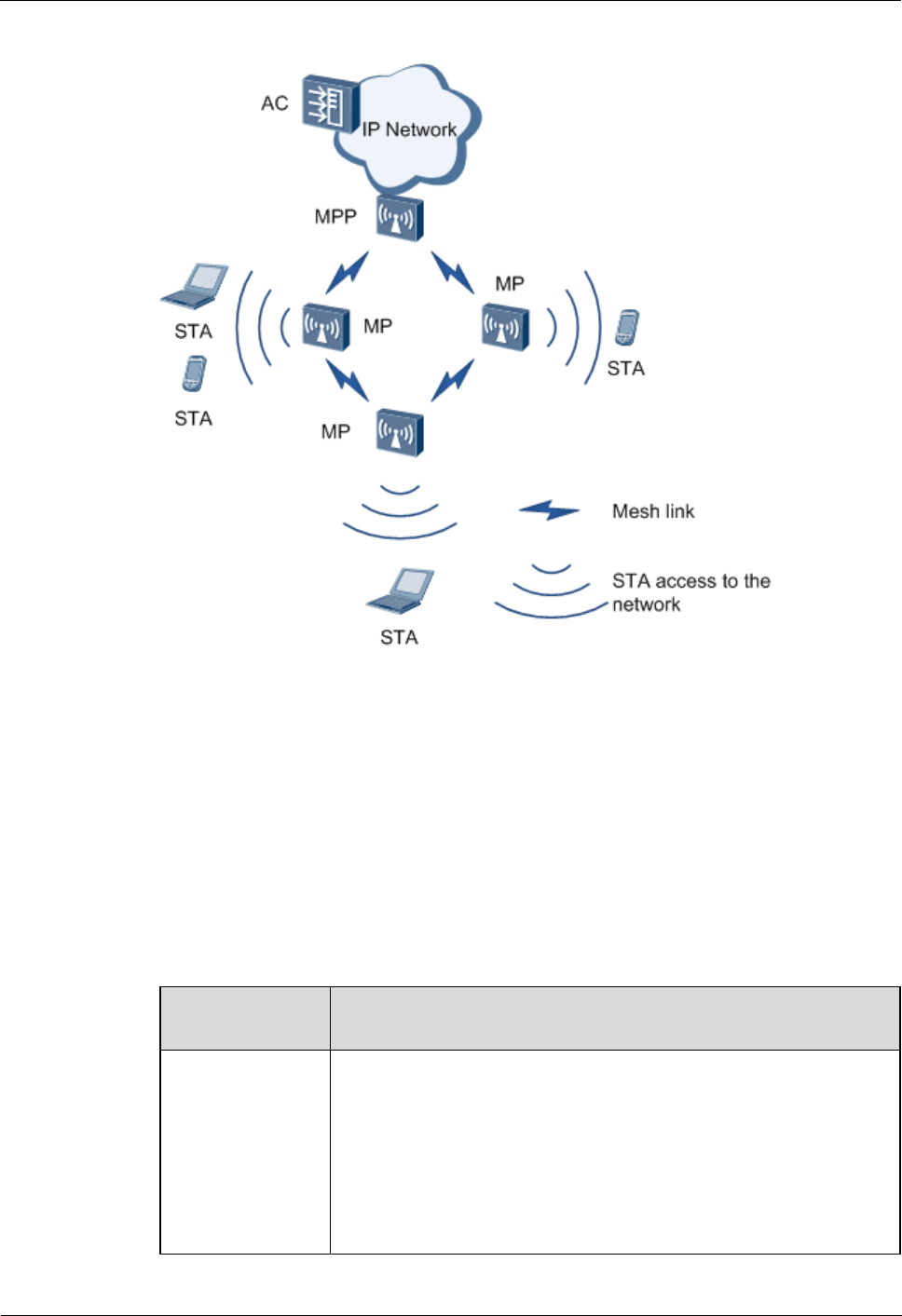

Figure 1-4 Fit AP mesh networking
In this networking, APs function as mesh points (MPs) and are fully-meshed to establish an
auto-configured and self-healing wireless mesh network (WMN). APs with the gateway
function can work as the mesh portal points (MPPs) through which the WMN can provide
access to the Internet. Terminals connect to APs to access the WMN. The WMN uses
dedicated mesh routing protocols to guarantee high transmission quality and is more
applicable to scenarios that require high bandwidth and highly stable Internet connections.
1.2 Product Characteristics
The AP7050DE has the following advantages on a WLAN.
Product
Characteristics
Description
High-speed and
reliable wireless
access
Compatibility with IEEE 802.11a/b/g/n/ac/ac wave2
Supports HT80+HT80 4SU-4MU MU-MIMO and a rate up to
2.53 Gbit/s.
Supports a rate of up to 800 Mbit/s at 2.4 GHz frequency band.
Supports a rate of up to 1.73 Gbit/s at 5 GHz frequency band.
Link aggregation of dual Ethernet ports
Supports Wi-Fi Multimedia (WMM) and priority mapping on the
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Product
Characteristics
Description
air interface and wired interface.
Supports wired link integrity check.
Supports load balancing.
Supports roaming without service interruptions.
Supports dual-AC backup.
Supports beamforming.
Latest 802.11ac wave2 chip with higher performance and wider
coverage
Comprehensive
user access control
capability
Supports access control lists (ACLs) and implements user access
control based on the user group policy.
Provides fine-grained bandwidth management for each user.
Supports user isolation policies.
Supports uniform authentication on an AC.
Identifies the device type according to the organizationally unique
identifier (OUI) in the MAC address, user agent (UA) information
in an HTTP packet, and DHCP options in Fit AP mode.
The RADIUS server delivers packet forwarding, security, and
QoS policies according to the device type carried in the RADIUS
authentication and accounting packets in Fit AP mode.
High network
security
Open system authentication
WEP authentication/encryption
WPA/WPA2-PSK authentication and encryption
WPA/WPA2-802.1x authentication and encryption
Supports wireless intrusion detection system (WIDS) and wireless
intrusion prevention system (WIPS), including rogue device
detection and countermeasure, attack detection and dynamic
blacklist, STA/AP blacklist and whitelist.
Flexible
networking and
environment
adaptability
Provides flexible networking capabilities and applies to various
application scenarios. Mesh and WDS scenarios are supported
only in Fit AP mode.
Has strong environment adaptability. The AP can automatically
select the transmission rates, channels, and transmit power to
adapt to various radio environments and avoid interference in real
time.
Adjusts bandwidth allocation based on the user quantity and
environment to improve user experience.
Supports the MIMO antenna system with built-in dual-band smart
antennas.
Identifies interference sources such as baby monitors, Bluetooth
devices, digital cordless phones (at 2.4 GHz frequency band only),
wireless audio transmitters (at both the 2.4 GHz and 5 GHz
frequency bands), wireless game controllers, and microwaves in
Fit AP mode and works with eSight to locate interference sources
AP7050DE
Product Description 1 Product Positioning and Characteristics
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
Product
Characteristics
Description
and display spectrums.
Easy device
management and
maintenance
Automatically goes online and loads the configuration, and
supports plug-and-play (PnP) in Fit AP mode.
Supports batch upgrade.
Allows real-time monitoring on the network management system
(NMS) to facilitate remote configuration and fast fault location.
Supports the Link Layer Discovery Protocol (LLDP) to implement
automatic link discovery and obtain the network topology.
AP7050DE
Product Description 2 Hardware Structure
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
2 Hardware Structure
2.1 AP7050DE
Appearance
Figure 2-1 shows the appearance of the AP.
The actual device appearance may be different from the following device appearance, but these
differences will not affect device functions.

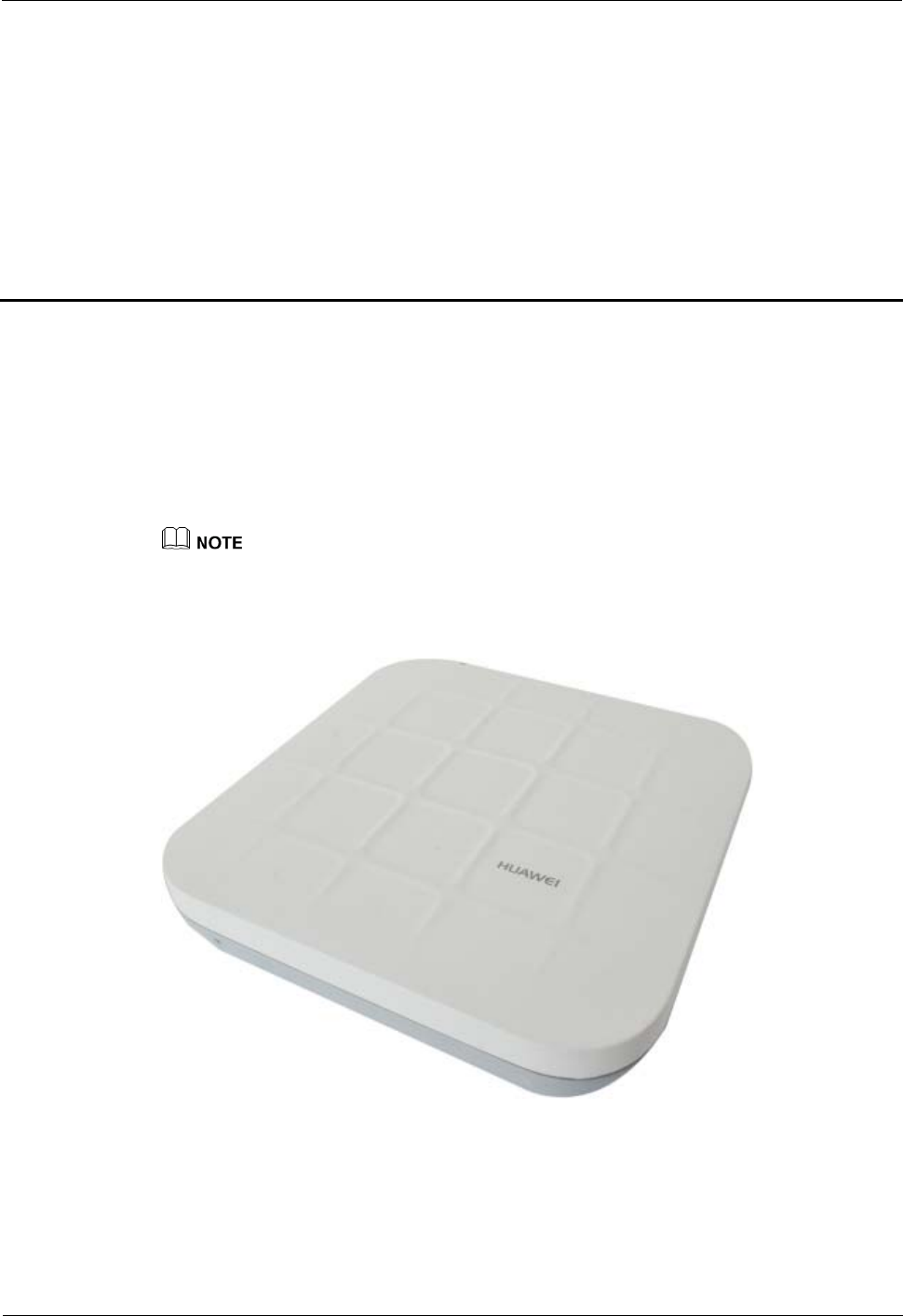

Figure 2-1 AP7050DE appearance
Port
The following figure shows ports on the AP7050DE.
AP7050DE
Product Description 2 Hardware Structure
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8

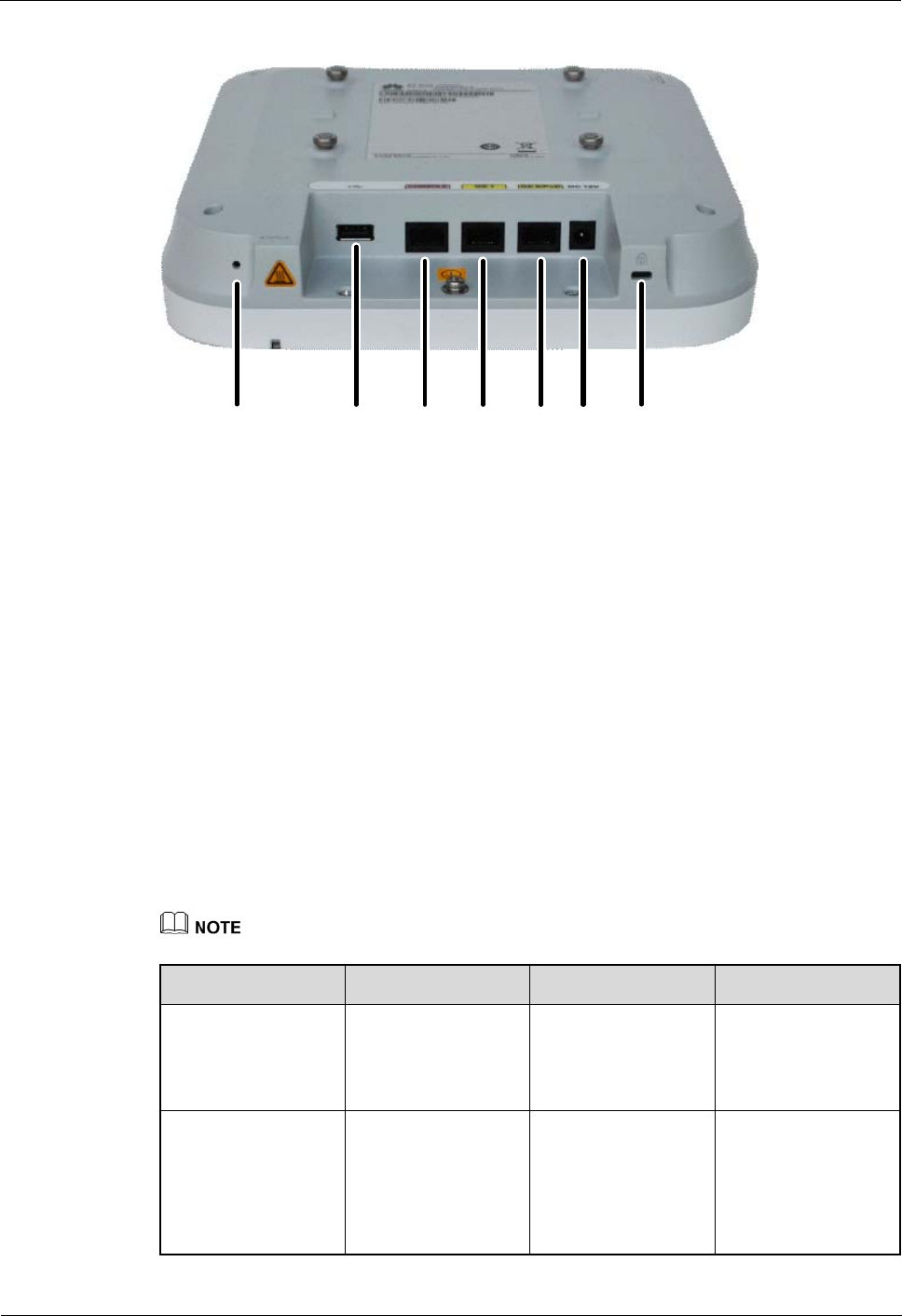

Figure 2-2 AP7050DE ports
2 3 4 5 61 7
As shown in Figure 2-2, each port can be described as follows:
1. Default button: restores factory settings if you hold down the button more than 3
seconds.
2. USB port: connects to a USB flash drive to extend the storage space of the AP, and
provides a maximum of 1 W power.
3. Console port: connects to the maintenance terminal for AP configuration and
management.
4. GE1: 10/100/1000M port used to connect to the wired Ethernet.
5. GE0/PoE: 10/100/1000M port used to connect to the wired Ethernet. The port can
connect to a PoE power supply to provide power for APs.
6. Input port for 12 V DC power supply.
7. Lock port: protects the AP against theft.
LED Indicators
Indicator colors may vary slightly at different temperature.
Type Color Status Description
Default status after
power-on
Green Steady on The AP is just
powered on and the
software is not
started yet.
Software startup
status
Green Steady on after
blinking once
After the system is
reset and starts
uploading the
software, the
indicator blinks
green once. Until the
AP7050DE
Product Description 2 Hardware Structure
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Type Color Status Description
software is uploaded
and started, the
indicator remains
steady green.
Running status Green Blinking once every
2s (0.5 Hz)
The system is
running properly,
the Ethernet
connection is
normal, and
STAs are
associated with
the AP.
The system
enters the Uboot
CLI.
Blinking once every
5s (0.2 Hz)
The system is
running properly,
the Ethernet
connection is
normal, and no STA
is associated with
the AP. The system
is in low power
consumption state.
Alarm Green Blinking once
Alarm Green every
0.25s (4 Hz)
The software is
being upgraded.
After the
software is
uploaded and
started, the AP
requests to go
online on the AC
and maintains
this state until it
goes online
successfully on
the AC (before
the CAPWAP
link is
established).
The AP fails to
go online on the
AC (the
CAPWAP link
disconnects).
Fault Red Steady on A fault that affects
services has
occurred, such as a
DRAM detection
AP7050DE
Product Description 2 Hardware Structure
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
Type Color Status Description
failure or system
software loading
failure. The fault
cannot be
automatically
rectified and must be
rectified manually.
AP7050DE
Product Description 3 Product Features
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
3 Product Features
3.1 WLAN Features
WLAN features supported by the AP are as follows:
Compliance with IEEE 802.11a/b/g/n/ac/ac wave 2
Maximum rate of 2.53 Gbit/s
Maximum ratio combining (MRC)
Space time block code (STBC)
Beamforming
Low-density parity-check (LDPC)
Maximum-likelihood detection (MLD)
Frame aggregation, including A-MPDU (Tx/Rx) and A-MSDU (Rx only)
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz and 80 MHz modes
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
Automatic and manual rate adjustment
WLAN channel management and channel rate adjustment
For details about WLAN channel management, see the Country Code & Channel Compliance Table.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Signal sustain technology (SST)
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP)
Automatic login
Extended Service Set (ESS)
Wireless distribution system (WDS)
Mesh networking
Multi-user CAC
AP7050DE
Product Description 3 Product Features
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
3.2 Network Features
Network features supported by the AP are as follows:
Compliance with IEEE 802.3u
Auto-negotiation of the rate and duplex mode and automatic switchover between the
Media Dependent Interface (MDI) and Media Dependent Interface Crossover (MDI-X)
Compliance with IEEE 802.1q
SSID-based VLAN assignment
VLAN trunk on uplink Ethernet ports
AP control channel in tagged and untagged mode
DHCP client, obtaining IP addresses through DHCP
Tunnel data forwarding and direct data forwarding
STA isolation in the same VLAN
Access control lists (ACLs)
Link Layer Discovery Protocol (LLDP)
Uninterrupted service forwarding upon CAPWAP channel disconnection
Unified authentication on the AC
AC dual-link backup
IPv6
3.3 QoS Features
QoS features supported by the AP are as follows:
Priority mapping and packet scheduling based on a Wi-Fi Multimedia (WMM) profile to
implement priority-based data processing and forwarding
WMM parameter management for each radio
WMM power saving
Priority mapping for upstream packets and flow-based mapping for downstream packets
Queue mapping and scheduling
User-based bandwidth limiting
Adaptive bandwidth management (the system dynamically adjusts bandwidth based on
the number of users and radio environment to improve user experience)
3.4 Security Features
Security features supported by the AP are as follows:
Open system authentication
WEP authentication/encryption using a 64-bit, 128-bit, or 152-bit encryption key
WPA/WPA2-PSK authentication and encryption (WPA/WPA2 personal edition)
WPA/WPA2-802.1x authentication and encryption (WPA/WPA2 enterprise edition)
WPA-WPA2 hybrid authentication
AP7050DE
Product Description 3 Product Features
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Supports wireless intrusion detection system (WIDS) and wireless intrusion prevention
system (WIPS), including rogue device detection and countermeasure, attack detection
and dynamic blacklist, STA/AP blacklist and whitelist.
802.1x authentication, MAC address authentication, and Portal authentication
DHCP Snooping
DAI (Dynamic ARP Inspection)
IPSG (IP Source Guard)
3.5 Maintenance Features
Maintenance features supported by the AP are as follows:
Unified management and maintenance on the AC
Automatic login and configuration loading, and plug-and-play (PnP)
Batch upgrade
Telnet
STelnet using SSH v2
Local AP management through the serial interface
Real-time configuration monitoring and fast fault location using the NMS
System status alarm
Dying Gasp
3.6 BYOD
The AP supports bring your own device (BYOD) only in Fit AP mode.
BYOD features supported by the AP are as follows:
Identifies the device type according to the organizationally unique identifier (OUI) in the
MAC address.
Identifies the device type according to the user agent (UA) information in an HTTP
packet.
Identifies the device type according to DHCP options.
The RADIUS server delivers packet forwarding, security, and QoS policies according to
the device type carried in the RADIUS authentication and accounting packets.
3.7 Locating Service
The AP supports the locating service only in Fit AP mode.
Locating service features supported by the AP are as follows:
Locates tags manufactured by AeroScout or Ekahau.
Locates Wi-Fi terminals.
AP7050DE
Product Description 3 Product Features
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
Works with eSight to locate rogue devices.
Supports Bluetooth and RFID location.
3.8 Spectrum Analysis
The AP supports spectrum analysis only in Fit AP mode.
Spectrum analysis features supported by the AP are as follows:
Identifies interference sources such as baby monitors, Bluetooth devices, digital cordless
phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4
GHz and 5 GHz frequency bands), wireless game controllers, and microwaves.
Works with eSight to perform spectrum analysis on interference sources.
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
4 Technical Specifications
4.1 Basic Specifications
Table 4-1 Basic specifications
Item Description
Technical
specifications
Dimensions (H x
W x D)
53 mm x 220 mm x 220 mm
Weight 1.3 kg
System memory 256 MB DDR3L
4 MB NOR FLASH + 128 MB NAND FLASH
Power
specifications
Power input DC: 12 V ± 10%
PoE power supply: in compliance with IEEE
802.3at
Maximum power
consumption
25 W
NOTE
The actual maximum power consumption depends on local
laws and regulations.
Environment
specifications
Operating
temperature
-60 m to +1800 m: -10°C to +50°C
1800 m to 5000 m: Temperature decreases by
1°C every time the altitude increases 300 m.
Storage
temperature
-40°C to +70°C
Operating
humidity
5% to 95% (non-condensing)
IP rating IP41
Atmospheric
pressure
53 kPa to 106 kPa
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
4.2 Radio Specifications
Table 4-2 Radio specifications
Item Description
Antenna
type
Built-in dual-band smart antenna
Antenna
gain
2.4 GHz: 2dBi
5 GHz: 2.7dBi
Maximum
number of
concurrent
users
≤512
Maximum
number of
VAPs for
each radio
16
Maximum
transmit
power
2.4 GHz: 26 dBm (combined power)
5 GHz: 27 dBm (combined power)
NOTE
The actual transmit power depends on local laws and regulations.
You can adjust the transmit power from the maximum transmit power to 1 dBm, with
a step of 1 dB.
Maximum
number of
non-overlap
ping
channels
2.4 GHz
802.11b/g
20 MHz: 3
802.11n
20 MHz: 3
40 MHz: 1
5 GHz
802.11a
− 20 MHz:
13
802.11n
− 20 MHz:
13
− 40 MHz:
6
802.11ac
− 20MHz:
13
− 40MHz: 6
− 80MHz: 3
− 160MHz:
1
NOTE
The table uses the number of
non-overlapping channels supported by
China as an example. The number of
non-overlapping channels varies in
different countries. For details, see the
Country Codes & Channels Compliance
NOTICE
If the AP is delivered to the USA, pay
attention to the following on channel
and frequency band usage.
1. The country code of the AP is fixed.
2. High power radars working at
frequencies in the range of 5.25
GHz to 5.35 GHz, 5.47 GHz to 5.6
GHz, and 5.65 GHz to 5.725 GHz
can interfere with or even damage
APs working at the same frequency.
Channel rate
supported
802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n: 6.5 to 800 Mbit/s
802.11ac wave2: 6.5 to 1733.3 Mbit/s
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
Item Description
Receiver
sensitivity
(Typical
values)
2.4 GHz
802.11b
-104 dBm @
1 Mbit/s
-100 dBm @
2 Mbit/s
-100 dBm @
5.5 Mbit/s
-97 dBm @
11 Mbit/s
2.4 GHz
802.11g
-97 dBm @ 6
Mbit/s
-97 dBm @ 9
Mbit/s
-96 dBm @
12 Mbit/s
-95 dBm @
18 Mbit/s
-91 dBm @
24 Mbit/s
-89 dBm @
36 Mbit/s
-84 dBm @
48 Mbit/s
-78 dBm @
54 Mbit/s
2.4 GHz
802.11n (HT20)
-97 dBm @
MCS0 Mbit/s
-95 dBm @
MCS1 Mbit/s
-93 dBm @
MCS2 Mbit/s
-89 dBm @
MCS3 Mbit/s
-86 dBm @
MCS4 Mbit/s
-83 dBm @
MCS5 Mbit/s
-81 dBm @
MCS6 Mbit/s
-79 dBm @
MCS7 Mbit/s
-95 dBm @
MCS8 Mbit/s
-93 dBm @
MCS9 Mbit/s
-91 dBm @
MCS10
Mbit/s
-87 dBm @
MCS11
Mbit/s
-84 dBm @
MCS12
Mbit/s
-81 dBm @
MCS13
Mbit/s
-79 dBm @
MCS14
Mbit/s
-77 dBm @
MCS15
Mbit/s
-93 dBm @
MCS16
Mbit/s
-91 dBm @
MCS17
Mbit/s
2.4 GHz
802.11n(HT40)
-95 dBm @
MCS0 Mbit/s
-92 dBm @
MCS1 Mbit/s
-90 dBm @
MCS2 Mbit/s
-87 dBm @
MCS3 Mbit/s
-84 dBm @
MCS4 Mbit/s
-80 dBm @
MCS5 Mbit/s
-79 dBm @
MCS6 Mbit/s
-77 dBm @
MCS7 Mbit/s
-93 dBm @
MCS8 Mbit/s
-90 dBm @
MCS9 Mbit/s
-88 dBm @
MCS10
Mbit/s
-85 dBm @
MCS11
Mbit/s
-82 dBm @
MCS12
Mbit/s
-78 dBm @
MCS13
Mbit/s
-77 dBm @
MCS14
Mbit/s
-75 dBm @
MCS15
Mbit/s
-91 dBm @
MCS16
Mbit/s
-88 dBm @
MCS17
Mbit/s
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
Item Description
-89 dBm @
MCS18
Mbit/s
-85 dBm @
MCS19
Mbit/s
-82 dBm @
MCS20
Mbit/s
-79 dBm @
MCS21
Mbit/s
-77 dBm @
MCS22
Mbit/s
-75 dBm @
MCS23
Mbit/s
-91 dBm @
MCS24
Mbit/s
-89 dBm @
MCS25
Mbit/s
-87 dBm @
MCS26
Mbit/s
-83 dBm @
MCS27
Mbit/s
-80 dBm @
MCS28
Mbit/s
-77 dBm @
MCS29
Mbit/s
-75 dBm @
MCS30
Mbit/s
-73 dBm @
MCS31
Mbit/s
-86 dBm @
MCS18
Mbit/s
-83 dBm @
MCS19
Mbit/s
-80 dBm @
MCS20
Mbit/s
-76 dBm @
MCS21
Mbit/s
-75 dBm @
MCS22
Mbit/s
-73 dBm @
MCS23
Mbit/s
-89 dBm @
MCS24
Mbit/s
-86 dBm @
MCS25
Mbit/s
-84 dBm @
MCS26
Mbit/s
-81 dBm @
MCS27
Mbit/s
-78 dBm @
MCS28
Mbit/s
-74 dBm @
MCS29
Mbit/s
-73 dBm @
MCS30
Mbit/s
-71 dBm @
MCS31
Mbit/s
5 GHz
802.11a
-97 dBm @ 6
Mbit/s
-97 dBm @ 9
5 GHz
802.11n (HT20)
-97 dBm @
MCS0 Mbit/s
-94 dBm @
5 GHz
802.11n (HT40)
-94 dBm @
MCS0 Mbit/s
-91 dBm @
-
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19
Item Description
Mbit/s
-95 dBm @
12 Mbit/s
-93 dBm @
18 Mbit/s
-89 dBm @
24 Mbit/s
-86 dBm @
36 Mbit/s
-83 dBm @
48 Mbit/s
-79 dBm @
54 Mbit/s
MCS1 Mbit/s
-92 dBm @
MCS2 Mbit/s
-87 dBm @
MCS3 Mbit/s
-83 dBm @
MCS4 Mbit/s
-81 dBm @
MCS5 Mbit/s
-80 dBm @
MCS6 Mbit/s
-78 dBm @
MCS7 Mbit/s
-95 dBm @
MCS8 Mbit/s
-92 dBm @
MCS9 Mbit/s
-90 dBm @
MCS10
Mbit/s
-85 dBm @
MCS11
Mbit/s
-81 dBm @
MCS12
Mbit/s
-79 dBm @
MCS13
Mbit/s
-78 dBm @
MCS14
Mbit/s
-76 dBm @
MCS15
Mbit/s
-93 dBm @
MCS16
Mbit/s
-90 dBm @
MCS17
Mbit/s
-88 dBm @
MCS18
Mbit/s
-83 dBm @
MCS19
Mbit/s
MCS1 Mbit/s
-88 dBm @
MCS2 Mbit/s
-84 dBm @
MCS3 Mbit/s
-81 dBm @
MCS4 Mbit/s
-77 dBm @
MCS5 Mbit/s
-75 dBm @
MCS6 Mbit/s
-74 dBm @
MCS7 Mbit/s
-92 dBm @
MCS8 Mbit/s
-89 dBm @
MCS9 Mbit/s
-86 dBm @
MCS10
Mbit/s
-82 dBm @
MCS11
Mbit/s
-79 dBm @
MCS12
Mbit/s
-75 dBm @
MCS13
Mbit/s
-73 dBm @
MCS14
Mbit/s
-72 dBm @
MCS15
Mbit/s
-90 dBm @
MCS16
Mbit/s
-87 dBm @
MCS17
Mbit/s
-84 dBm @
MCS18
Mbit/s
-80 dBm @
MCS19
Mbit/s
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
Item Description
-79 dBm @
MCS20
Mbit/s
-77 dBm @
MCS21
Mbit/s
-76 dBm @
MCS22
Mbit/s
-74 dBm @
MCS23
Mbit/s
-91 dBm @
MCS24
Mbit/s
-88 dBm @
MCS25
Mbit/s
-86 dBm @
MCS26
Mbit/s
-81 dBm @
MCS27
Mbit/s
-77 dBm @
MCS28
Mbit/s
-75 dBm @
MCS29
Mbit/s
-74 dBm @
MCS30
Mbit/s
-72 dBm @
MCS31
Mbit/s
-77 dBm @
MCS20
Mbit/s
-73 dBm @
MCS21
Mbit/s
-71 dBm @
MCS22
Mbit/s
-70 dBm @
MCS23
Mbit/s
-88 dBm @
MCS24
Mbit/s
-85 dBm @
MCS25
Mbit/s
-82 dBm @
MCS26
Mbit/s
-78 dBm @
MCS27
Mbit/s
-75 dBm @
MCS28
Mbit/s
-71 dBm @
MCS29
Mbit/s
-69 dBm @
MCS30
Mbit/s
-68 dBm @
MCS31
Mbit/s
5 GHz
802.11ac
(VTH20)
-97 dBm @
MCS0NSS1
Mbit/s
-94 dBm @
MCS1NSS1
Mbit/s
-92 dBm @
MCS2NSS1
5 GHz
802.11ac
(VTH40)
-94 dBm @
MCS0NSS1
Mbit/s
-91 dBm @
MCS1NSS1
Mbit/s
-88 dBm @
MCS2NSS1
5 GHz
802.11ac
(VTH80)
-90 dBm @
MCS0NSS1
Mbit/s
-87 dBm @
MCS1NSS1
Mbit/s
-84 dBm @
MCS2NSS1
5 GHz
802.11ac
(VTH160)
-85 dBm @
MCS0NSS1
Mbit/s
-82 dBm @
MCS1NSS1
Mbit/s
-80 dBm @
MCS2NSS1
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21
Item Description
Mbit/s
-87 dBm @
MCS3NSS1
Mbit/s
-83 dBm @
MCS4NSS1
Mbit/s
-81 dBm @
MCS5NSS1
Mbit/s
-80 dBm @
MCS6NSS1
Mbit/s
-77 dBm @
MCS7NSS1
Mbit/s
-76 dBm @
MCS8NSS1
Mbit/s
-95 dBm @
MCS0NSS2
Mbit/s
-92 dBm @
MCS1NSS2
Mbit/s
-90 dBm @
MCS2NSS2
Mbit/s
-85 dBm @
MCS3NSS2
Mbit/s
-81 dBm @
MCS4NSS2
Mbit/s
-79 dBm @
MCS5NSS2
Mbit/s
-78 dBm @
MCS6NSS2
Mbit/s
-75 dBm @
MCS7NSS2
Mbit/s
-74 dBm @
MCS8NSS2
Mbit/s
-93 dBm @
MCS0NSS3
Mbit/s
-84 dBm @
MCS3NSS1
Mbit/s
-81 dBm @
MCS4NSS1
Mbit/s
-77 dBm @
MCS5NSS1
Mbit/s
-75 dBm @
MCS6NSS1
Mbit/s
-74 dBm @
MCS7NSS1
Mbit/s
-73 dBm @
MCS8NSS1
Mbit/s
-72 dBm @
MCS9NSS1
Mbit/s
-92 dBm @
MCS0NSS2
Mbit/s
-89 dBm @
MCS1NSS2
Mbit/s
-86 dBm @
MCS2NSS2
Mbit/s
-82 dBm @
MCS3NSS2
Mbit/s
-79 dBm @
MCS4NSS2
Mbit/s
-75 dBm @
MCS5NSS2
Mbit/s
-73 dBm @
MCS6NSS2
Mbit/s
-72 dBm @
MCS7NSS2
Mbit/s
-70 dBm @
MCS8NSS2
Mbit/s
-80 dBm @
MCS3NSS1
Mbit/s
-77 dBm @
MCS4NSS1
Mbit/s
-73 dBm @
MCS5NSS1
Mbit/s
-71 dBm @
MCS6NSS1
Mbit/s
-70 dBm @
MCS7NSS1
Mbit/s
-68 dBm @
MCS8NSS1
Mbit/s
-67 dBm @
MCS9NSS1
Mbit/s
-88 dBm @
MCS0NSS2
Mbit/s
-85 dBm @
MCS1NSS2
Mbit/s
-82 dBm @
MCS2NSS2
Mbit/s
-78 dBm @
MCS3NSS2
Mbit/s
-75 dBm @
MCS4NSS2
Mbit/s
-71 dBm @
MCS5NSS2
Mbit/s
-69 dBm @
MCS6NSS2
Mbit/s
-68 dBm @
MCS7NSS2
Mbit/s
-65 dBm @
MCS8NSS2
Mbit/s
-76 dBm @
MCS3NSS1
Mbit/s
-73 dBm @
MCS4NSS1
Mbit/s
-68 dBm @
MCS5NSS1
Mbit/s
-67 dBm @
MCS6NSS1
Mbit/s
-66 dBm @
MCS7NSS1
Mbit/s
-62 dBm @
MCS8NSS1
Mbit/s
-60 dBm @
MCS9NSS1
Mbit/s
-83 dBm @
MCS0NSS2
Mbit/s
-80 dBm @
MCS1NSS2
Mbit/s
-78 dBm @
MCS2NSS2
Mbit/s
-74 dBm @
MCS3NSS2
Mbit/s
-71 dBm @
MCS4NSS2
Mbit/s
-66 dBm @
MCS5NSS2
Mbit/s
-65 dBm @
MCS6NSS2
Mbit/s
-64 dBm @
MCS7NSS2
Mbit/s
-60 dBm @
MCS8NSS2
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
Item Description
Mbit/s
-90 dBm @
MCS1NSS3
Mbit/s
-88 dBm @
MCS2NSS3
Mbit/s
-83 dBm @
MCS3NSS3
Mbit/s
-79 dBm @
MCS4NSS3
Mbit/s
-77 dBm @
MCS5NSS3
Mbit/s
-76 dBm @
MCS6NSS3
Mbit/s
-73 dBm @
MCS7NSS3
Mbit/s
-72 dBm @
MCS8NSS3
Mbit/s
-70 dBm @
MCS9NSS3
Mbit/s
-91 dBm @
MCS0NSS4
Mbit/s
-88 dBm @
MCS1NSS4
Mbit/s
-86 dBm @
MCS2NSS4
Mbit/s
-81 dBm @
MCS3NSS4
Mbit/s
-77 dBm @
MCS4NSS4
Mbit/s
-75 dBm @
MCS5NSS4
Mbit/s
-74 dBm @
MCS6NSS4
Mbit/s
-69 dBm @
MCS9NSS2
Mbit/s
-90 dBm @
MCS0NSS3
Mbit/s
-87 dBm @
MCS1NSS3
Mbit/s
-84 dBm @
MCS2NSS3
Mbit/s
-80 dBm @
MCS3NSS3
Mbit/s
-77 dBm @
MCS4NSS3
Mbit/s
-73 dBm @
MCS5NSS3
Mbit/s
-71 dBm @
MCS6NSS3
Mbit/s
-70 dBm @
MCS7NSS3
Mbit/s
-67 dBm @
MCS8NSS3
Mbit/s
-66 dBm @
MCS9NSS3
Mbit/s
-88 dBm @
MCS0NSS4
Mbit/s
-85 dBm @
MCS1NSS4
Mbit/s
-82 dBm @
MCS2NSS4
Mbit/s
-78 dBm @
MCS3NSS4
Mbit/s
-75 dBm @
MCS4NSS4
Mbit/s
-64 dBm @
MCS9NSS2
Mbit/s
-86 dBm @
MCS0NSS3
Mbit/s
-83 dBm @
MCS1NSS3
Mbit/s
-80 dBm @
MCS2NSS3
Mbit/s
-76 dBm @
MCS3NSS3
Mbit/s
-73 dBm @
MCS4NSS3
Mbit/s
-69 dBm @
MCS5NSS3
Mbit/s
-66 dBm @
MCS7NSS3
Mbit/s
-64 dBm @
MCS8NSS3
Mbit/s
-63 dBm @
MCS9NSS3
Mbit/s
-84 dBm @
MCS0NSS4
Mbit/s
-81 dBm @
MCS1NSS4
Mbit/s
-78 dBm @
MCS2NSS4
Mbit/s
-74 dBm @
MCS3NSS4
Mbit/s
-71 dBm @
MCS4NSS4
Mbit/s
-67 dBm @
MCS5NSS4
Mbit/s
-58 dBm @
MCS9NSS2
Mbit/s
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
Item Description
Mbit/s
-71 dBm @
MCS7NSS4
Mbit/s
-70 dBm @
MCS8NSS4
Mbit/s
Mbit/s
-71 dBm @
MCS5NSS4
Mbit/s
-69 dBm @
MCS6NSS4
Mbit/s
-68 dBm @
MCS7NSS4
Mbit/s
-65 dBm @
MCS8NSS4
Mbit/s
-64 dBm @
MCS9NSS4
Mbit/s
Mbit/s
-65 dBm @
MCS6NSS4
Mbit/s
-64 dBm @
MCS7NSS4
Mbit/s
-62 dBm @
MCS8NSS4
Mbit/s
-61 dBm @
MCS9NSS4
Mbit/s
4.3 Standards Compliance
Safety standards
UL 60950–1
CAN/CSA 22.2 No.60950-1
IEC 60950–1
EN 60950–1
GB 4943
Radio Standards
ETSI EN 300 328
ETSI EN 301 893
FCC Part 15C: 15.247
FCC Part 15C: 15.407
RSS-210
AS/NZS 4268
EMC standards
EN 301 489–1
EN 301 489–17
ETSI EN 60601-1-2
FCC Part 15
ICES-003
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
24
YD/T 1312.2-2004
ITU k.20
GB 9254
GB 17625.1
AS/NZS CISPR22
EN 55022
EN 55024
CISPR 22
CISPR 24
IEC61000-4-6
IEC61000-4-2
IEEE Standards
IEEE 802.11a/b/g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11h
IEEE 802.11d
IEEE 802.11e
Security standards
802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
802.1X
Advanced Encryption Standards (AES) and Temporal Key Integrity Protocol (TKIP)
EAP Type (s)
EMF
CENELEC EN 62311
CENELEC EN 50385
OET65
RSS-102
FCC Part1&2
FCC KDB
RoHS
Directive 2002/95/EC & 2011/65/EU
Reach
Regulation 1907/2006/EC
WEEE
Directive 2002/96/EC & 2012/19/EU
AP7050DE
Product Description 4 Technical Specifications
Issue 01 (2016-05-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provide with
antenna installation instructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Caution!
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

Navigation menu
