Huawei Technologies B5338-168 LTE Indoor CPE User Manual Quick Start Guide
Huawei Technologies Co.,Ltd LTE Indoor CPE Quick Start Guide
User Manual
LTE CPE B5338-168
V100R001C00
Quick Start Guide
Issue
01
Date
2016-10-14
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2016-08-164)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer.
All or part of the products, services and features described in this document may not be within the purchase scope or
the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this
document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or
implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation
of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this
document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://www.huawei.com
Email:
support@huawei.com
LTE CPE B2338-168
Quick Start Guide
About This Document
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Change History
Changes between document issues are cumulative.
The latest document issue contains all the changes made in earlier issues.
Issue 01 (2017-01-20)
This issue is the first release.
LTE CPE B2338-168
Quick Start Guide
Contents
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Contents
About This Document ....................................................................................................................... ii
Contents ............................................................................................................................................ iii
1 What You Need ................................................................................................................................ 1
2 IDU Panel ......................................................................................................................................... 2
3 Installation ....................................................................................................................................... 6
4 Connect to the Internet ................................................................................................................... 8
5 Europe - EU Declaration of Conformity ..................................................................................... 13
6 Federal Communication Commission Interference Statement ................................................. 16
LTE CPE B2338-168
Quick Start Guide
1 What You Need
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1

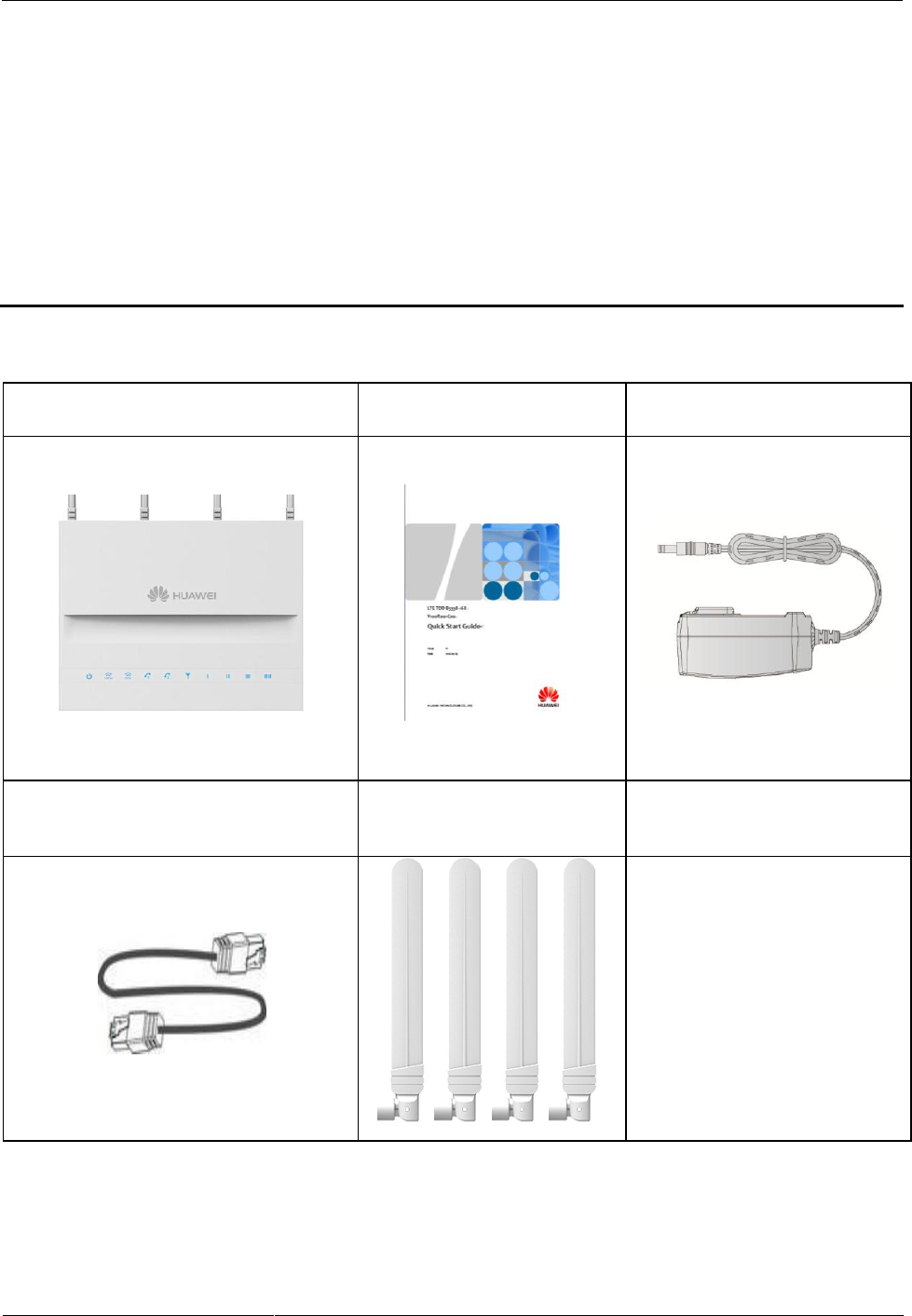

1 What You Need
LTE IDU Device
Quick Start Guide
Power Adapter
One RJ-45 cable for connecting IDU and
computer
TDD antenna*4
LTE CPE B2338-168
Quick Start Guide
2 IDU Panel
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2 IDU Panel

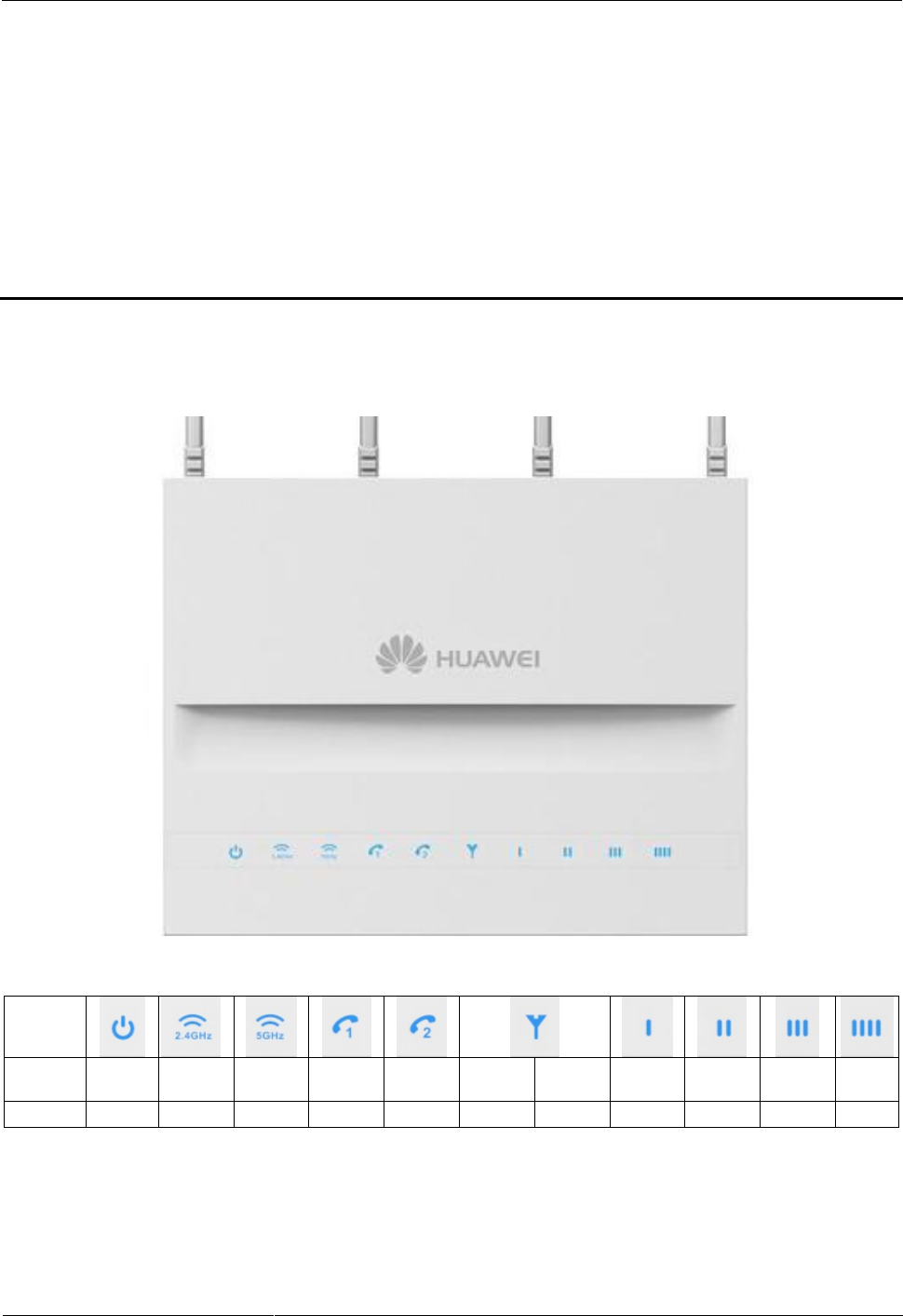

2.1 IDU Front Panel
.
IDU LED Indicators as following：
ALL
LEDs
LED
name
Power
2.4G W
5G W
VoIP1
VoIP2
SINR_1
SIM_issue
SINR_2
SINR_3
SINR_4
SINR_5
LED list
●
●
●
●
●
●
●
●
●
●
●
LTE CPE B2338-168
Quick Start Guide
2 IDU Panel
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3

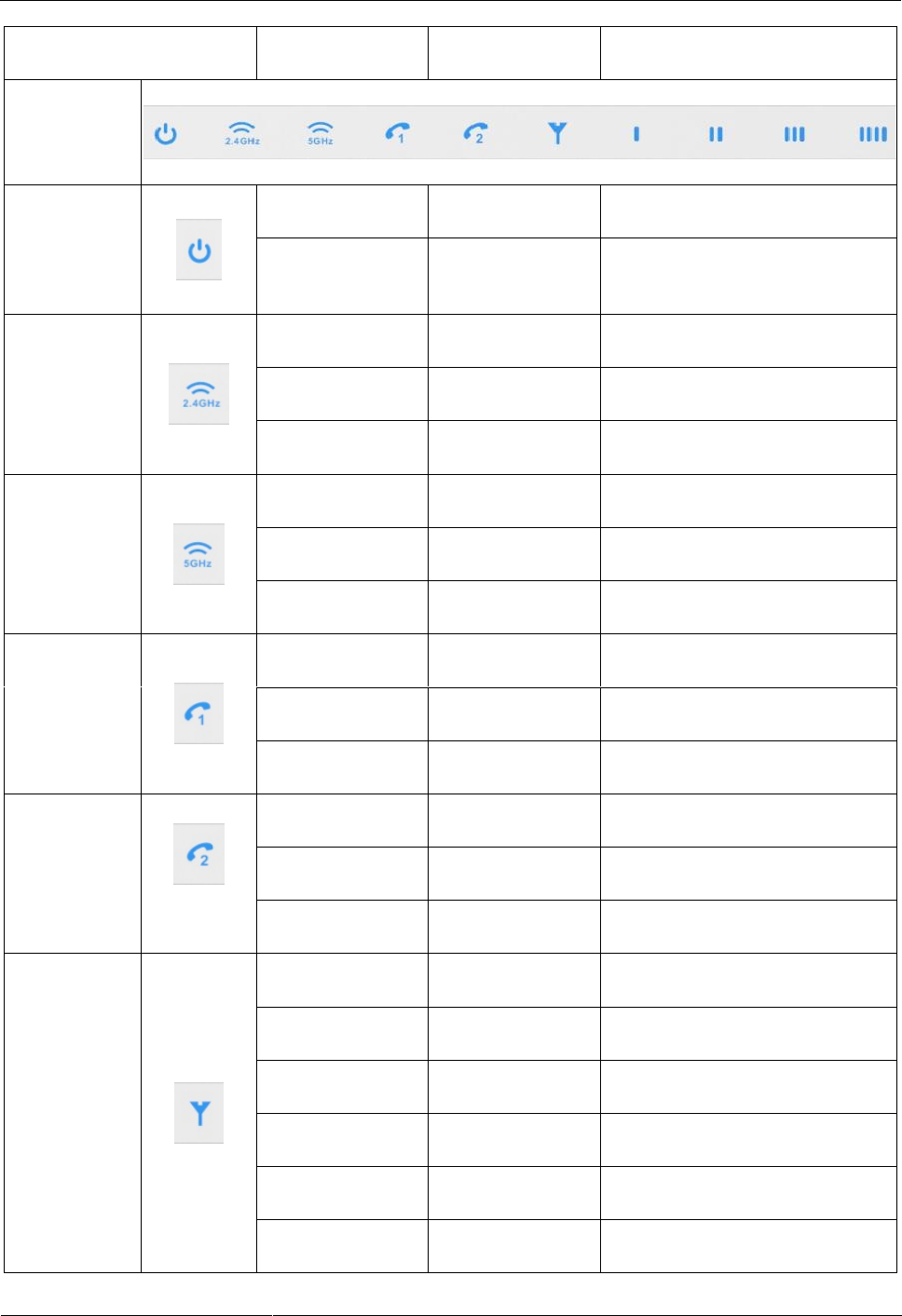

LED
Color
LED Behavior
Status Indication
10 LEDs List
Left to Right
from Front
Power Status
Blue
Steady ON
Device On ( AC plug in )
Blue
OFF
Device Off ( AC not plug in or
device damaged )
Wi-Fi_2.4G
Blue
Steady ON
2.4GHz Wi-Fi On
Blue
Blanking
2.4GHz Data
Blue
OFF
2.4GHz Wi-Fi Off
Wi-Fi_5G
Blue
Steady ON
5GHz Wi-Fi On
Blue
Blanking
5GHz Data
Blue
OFF
5GHz Wi-Fi Off
VoIP_1
Blue
Steady ON
SIP register
Blue
Blanking
busy
Blue
OFF
SIP not register
VoIP_2
Blue
Steady ON
SIP register
Blue
Blanking
busy
Blue
OFF
SIP not register
Signal Strength
/ SIM
Blue
Steady ON
SINR < 0dB
Blue
Chasing light
Searching
Blue
Blanking
Registering
Blue
OFF
No Signal
Orange Red
Steady ON
SIM issue; no sim / sim broken
Orange Red
Blinking
PUK / PIN Code
LTE CPE B2338-168
Quick Start Guide
2 IDU Panel
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Orange Red
OFF
SIM is detected and working
properly

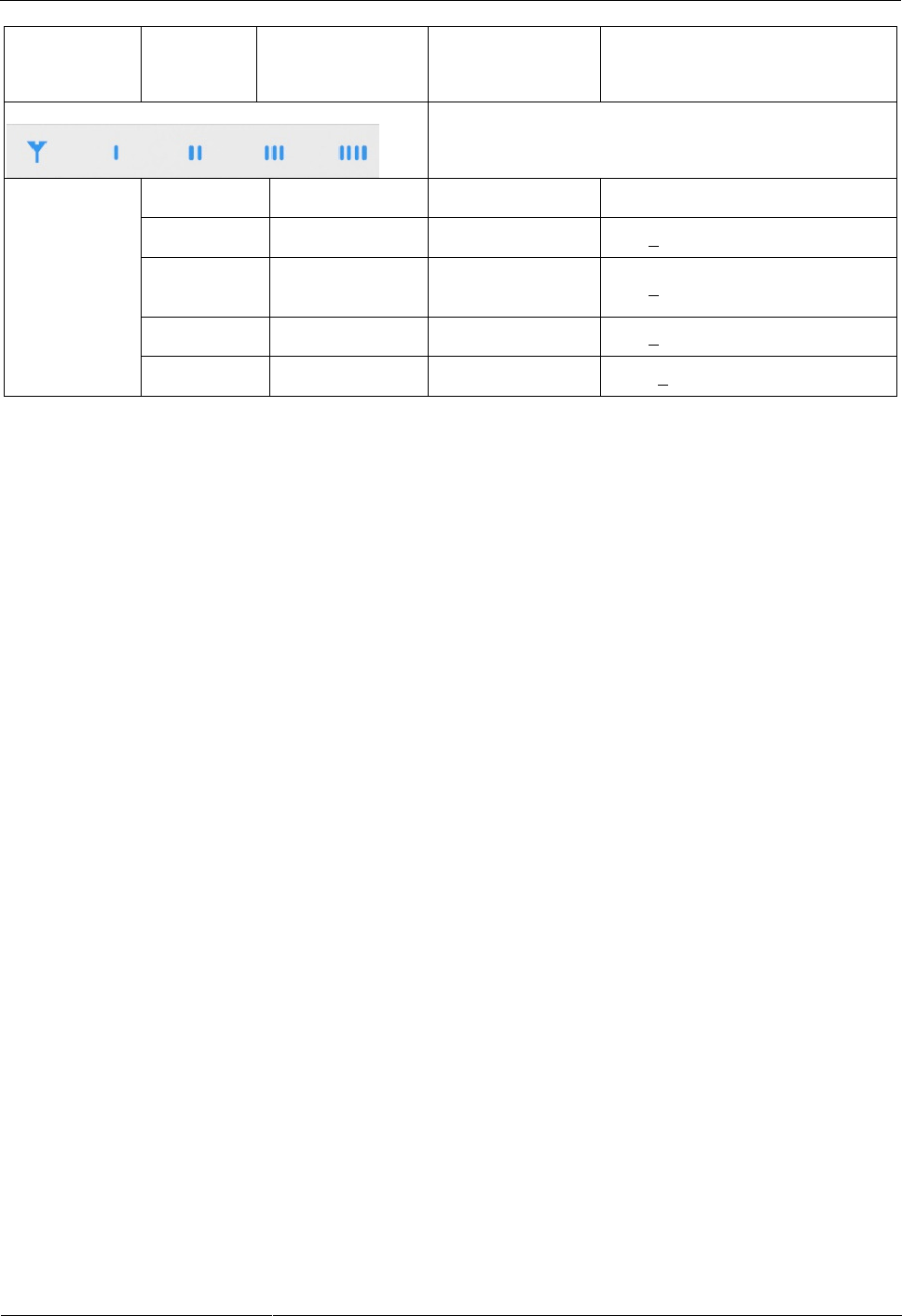

LTE Status LED : SINR Status
When CPE connect to BS, the 5 LED became Signal Quality
indication according to SINR or other pre-defined quality
indicator
LTE 1+2+3+4+5
Blue
Steady ON
SINR < 0dB
Blue
Steady ON
0dB < SINR < 4dB
Blue
Steady ON
4dB < SINR < 9dB
Blue
Steady ON
9dB < SINR < 16dB
Blue
Steady ON
16dB < SINR
LTE CPE B2338-168
Quick Start Guide
2 IDU Panel
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5

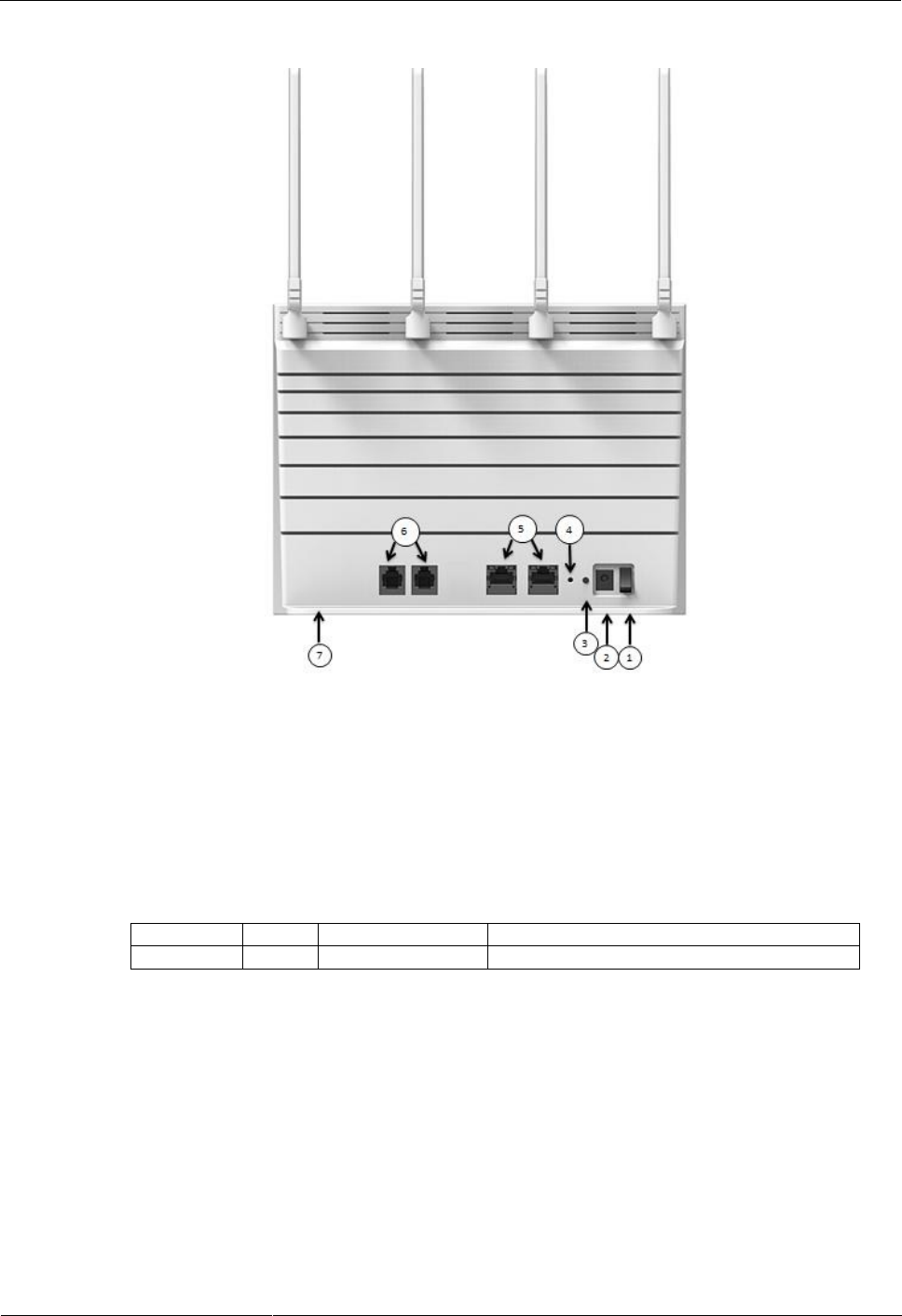

2.2 IDU Rear Panel
1. Power switch: Power on or Power Off.
2. Power Adapter Socket(DC-12V):Plug adapter DC pin into this socket
3. WPS Button: Pr
function.
4. evice. Or press and hold the Reset
button 10 seconds to set router to factory default settings.
LED name
Color
LED Behavior
Status Indication
Reset
Blue
Blinking
Except for Power LED is always on
5. LAN Port (RJ45): Port for connecting PC, hub and switch or other network equipment by RJ-45
Ethernet cable.
6. Telephone Port(RJ-11):Connector your telephone to Indoor CPE with a RJ-11 telephone cable
7. SIM card Slot Cover: Open the cover and insert SIM card into the slot with right direction.
LTE CPE B2338-168
Quick Start Guide
3 Installation
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
3 Installation
Before installing the IDU, please verify that you have all the items listed in 1 What You Need.
If any of the items is missing or damaged, please contact your LTE service provider.
1. Connector the device LAN port to your PC with a RJ-45 Ethernet cable which is supplied.
LTE CPE B2338-168
Quick Start Guide
3 Installation
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
2. Insert SIM card into device with right direction.
3. -12V Power Jack: and insert the plug into
power outlet
4. Switch ON the power. The device will start the booting process. After a few seconds, the LED
lights will start blinking
LTE CPE B2338-168
Quick Start Guide
4 Connect to the Internet
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
4 Connect to the Internet

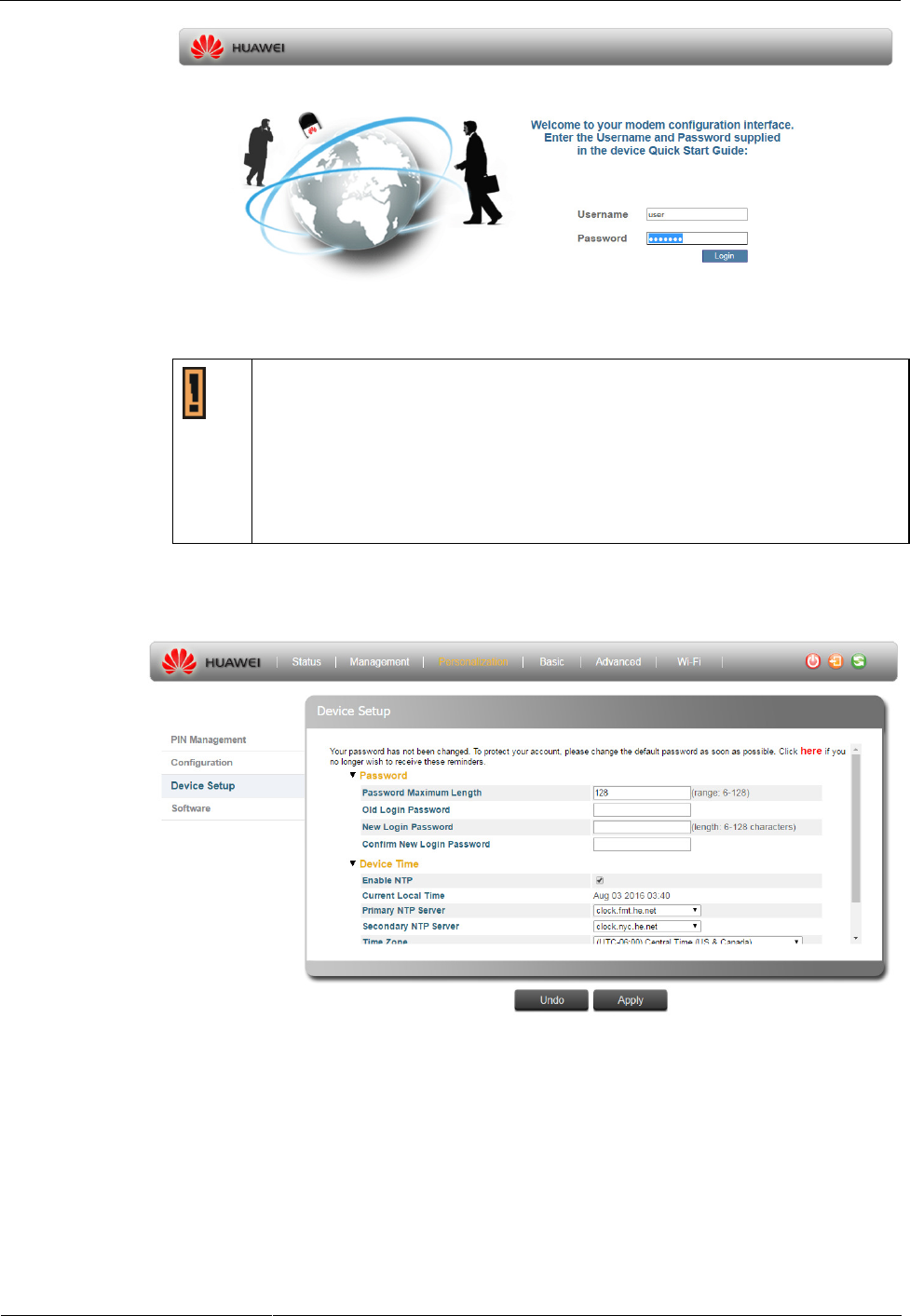

4.1. Login in the web GUI.
Step 1 Make sure the physical connection is OK

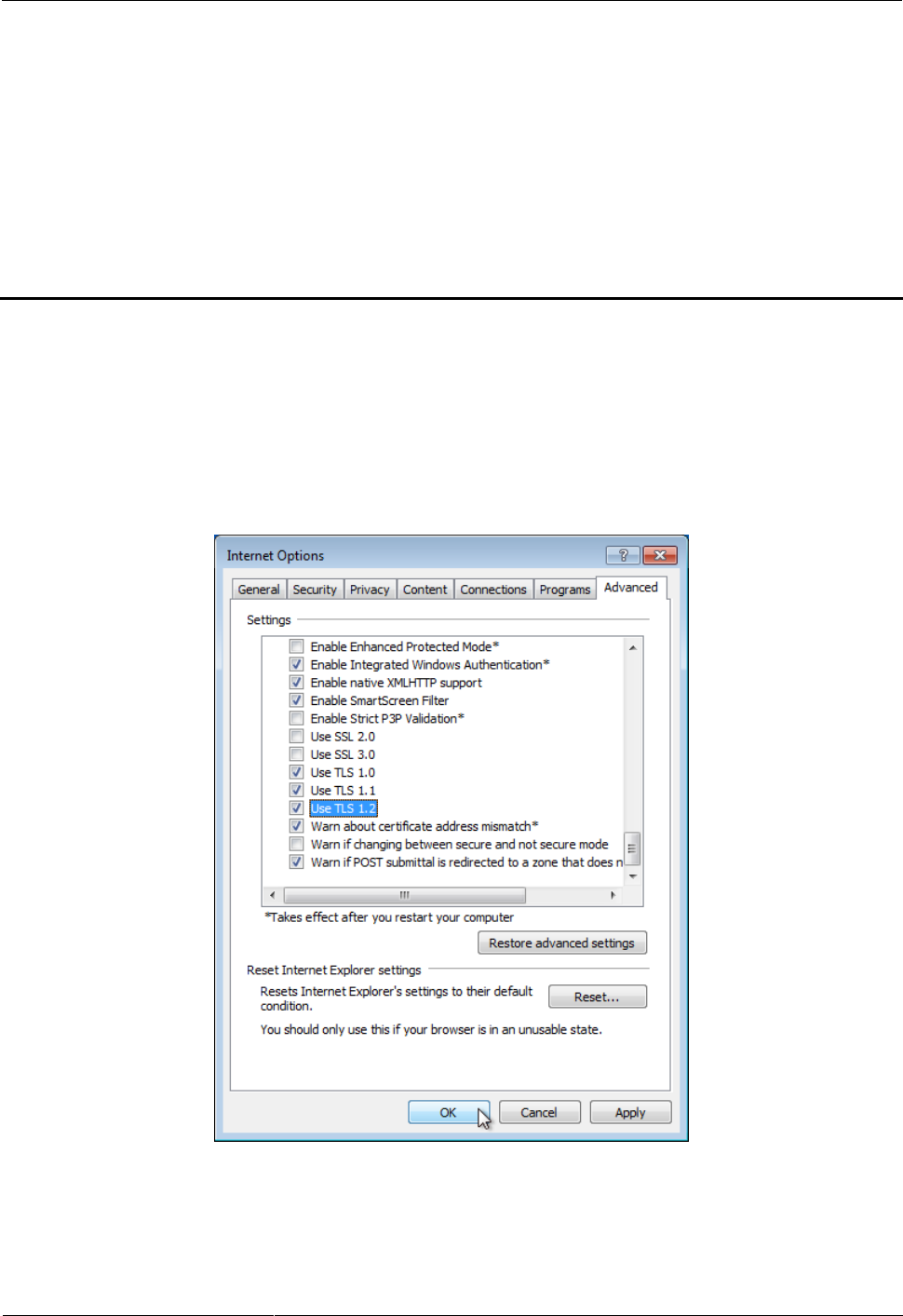

Step 2 PC will get default IP 192.168.1.x (x: 2-254). Open a web browser and go to
https://192.168.1.1. If your web browser is IE8.0/IE9.0, or 10.0, please
from the IE->
Step 3 Enter the default Username (user) and Password (Enduser), and then click Login.
LTE CPE B2338-168
Quick Start Guide
4 Connect to the Internet
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
For your internet security, we recommend you to change the default Wi-Fi
password while the first time log-in. Please go Management>Setup Wizard or
Wi-Fi > Basic to change the Wi-Fi password.
Try to enter a new password, retype it to confirm, and click Apply. Alternatively
click Undo to proceed to the main menu if you do not want to change the password.
4.2. Operation in the web GUI.
1. Chang Password

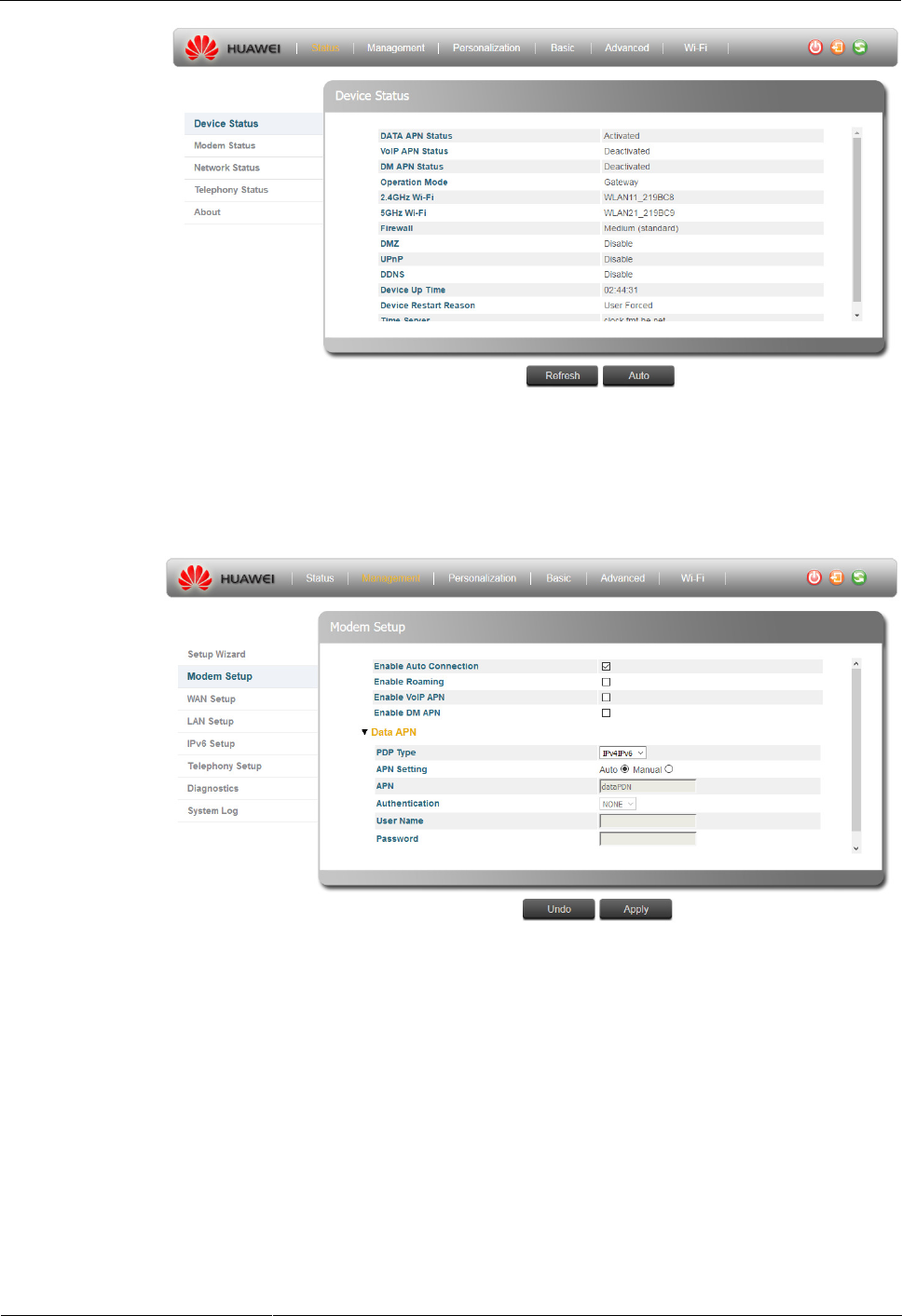

2. Status Page
LTE CPE B2338-168
Quick Start Guide
4 Connect to the Internet
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
3. Setting for APN
If the LTE SIGNAL STRENGTH light keeps BLINKING, which means the LTE connection
is fail, please try to manually configure the Internet connection. Click Management >
Modem Setup. If the APN (Access Point Name) is not the same as what you were given,
click the Manual icon, after revising the APN what you want, apply it.

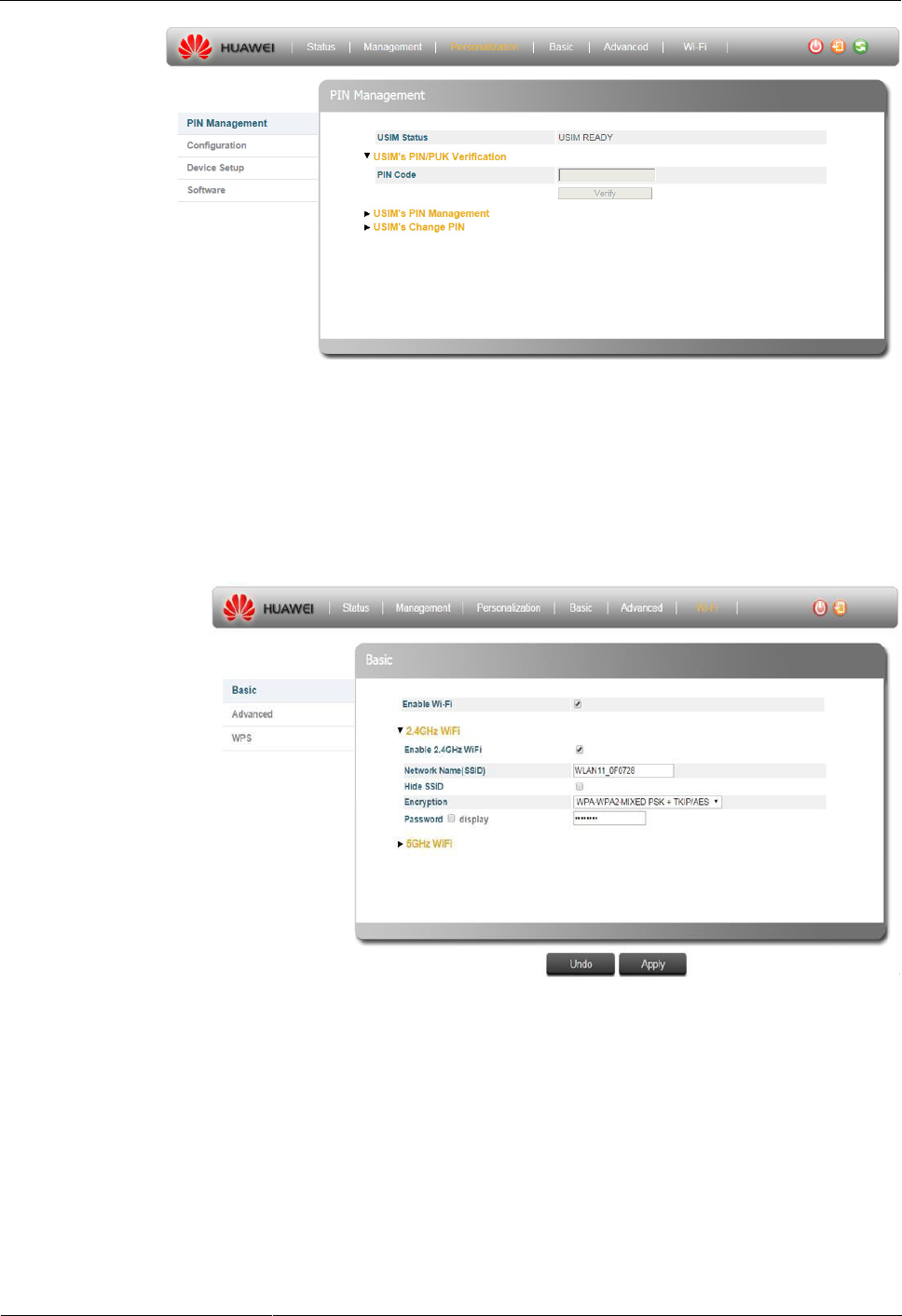

4. Setting for PIN
If a PIN code is required, click Personalization > PIN Management > USIM's PIN/PUK
Verification. Enter it and then click Verify.
LTE CPE B2338-168
Quick Start Guide
4 Connect to the Internet
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
After LTE SIGNAL STRENGTH is steady on, you can start to browse the website. For more
information, go to Status > Help page to check the details.
4.3. WIFI Setting.
1. Turn the Wireless On or Off.
You can go to Wi-Fi > Basic in the Web GUI, select Enable Wi-Fi, and configure wireless
settings and then click Apply. Go to Status > Help page for more information.
2. Activate WPS
You can set up a wireless network with WPS (WiFi Protected Setup) or manually add a client
to your wireless network. Activating WPS helps you quickly set up a wireless network with
strong security.
Using the physical WPS button:
b) Make sure the Power LED is on (not blinking).
c) Press the WPS button more than one second and release it. The WPS LED would
flash while the LTE Device sets up a WPS connection with the wireless device.
LTE CPE B2338-168
Quick Start Guide
4 Connect to the Internet
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12

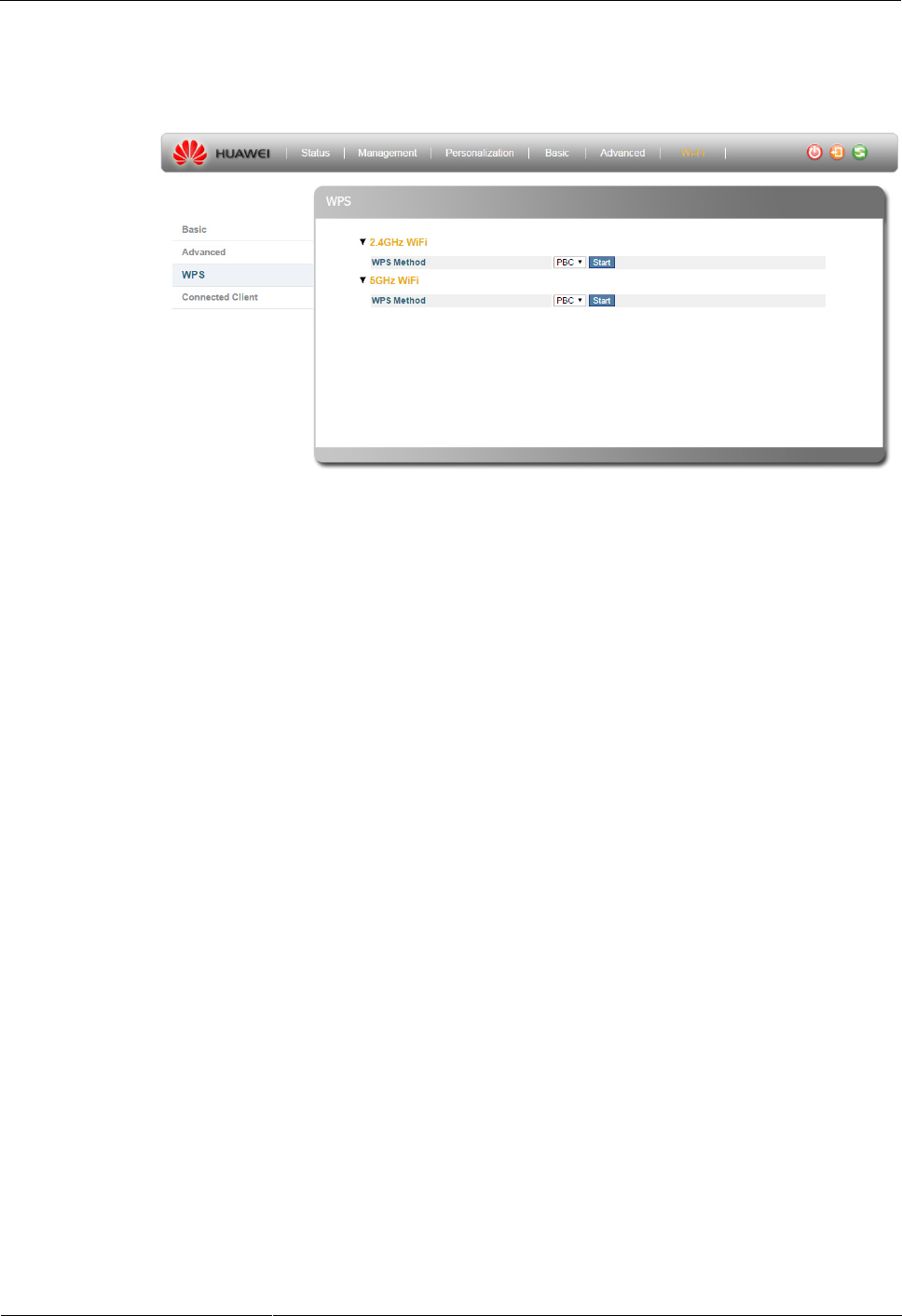

Using the WPS Button in the Web Configuration:
a) Click WiFi > WPS
b) Choose the PBC or PIN and click Start.
LTE CPE B2338-168
Quick Start Guide
5 Europe - EU Declaration of Conformity
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
5 Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of the
R&TTE Directive 1999/5/EC.
EN 301 908-1 V7.1.1
EN 301 908-13 V6.2.1
EN 300 328 V1.9.1
EN 301 893 V1.8.1
EN 62311:2008, EN50385:2002
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 301 489-24 V1.5.1
EN 55032: 2012/AC:2013
EN 55024:2010
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
The minimum distance between the user and/or any bystander and the radiating structure of the transmitter is
20 cm.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization
to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications
and/or network services.
0560
[Jméno výrobce] [typ zařízení]
LTE CPE B2338-168
Quick Start Guide
5 Europe - EU Declaration of Conformity
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
Dansk [Danish]
Undertegnede [fabrikantens navn] erklærer herved, at følgende udstyr [udstyrets
typebetegnelse] overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt [Name des Herstellers], dass sich das Gerät [Gerätetyp] in
Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]
Käesolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme
tüüp = type of equipment] vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, [Gemtek], declares that this [WiMAX/LTE CPE] is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de
equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
[Greek]
[name of manufacturer] [type of
equipment]
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano [Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio]
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Latviski
[Latvian]
[name of manufacturer / izgatavotāja nosaukums] [type of
equipment / iekārtas tips]
[Lithuanian]
[manufacturer name] [equipment type] atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EG.
Malti [Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott]
jikkonforma mal-
hemm fid-Dirrettiva 1999/5/EC.
Magyar
Alulírott, [gyártó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó
LTE CPE B2338-168
Quick Start Guide
5 Europe - EU Declaration of Conformity
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
[Hungarian]
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym [nazwa producenta] [nazwa wyrobu] jest zgodny z
Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme com
os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami
i direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] [typ zariadenia]
Suomi [Finnish]
[Valmistaja = manufacturer] vakuuttaa täten että [type of equipment = laitteen
tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten
ja sitä koskevien direktiivin muiden ehtojen mukainen.
LTE CPE B2338-168
Quick Start Guide
6 Federal Communication Commission Interference
Statement
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
6 Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20 cm between the radiator & your body.
LTE CPE B2338-168
Quick Start Guide
6 Federal Communication Commission Interference
Statement
Issue 01 (2016-08-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
