User Manual

C2800

CDMA 1X Mobile Phone

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other

trademarks and trade names mentioned in this document are the property of their respective holders.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co.,Ltd.

Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China

Tel: +86-755-28780808 Global Hotline: +86-755-28560808

E-mail: mobile@huawei. com Website: www.huawei.com

Your Phone

Earpiece

Number Keys

Navigation Keys

Left Soft Key

Keyguard Key

Right Soft Key

End /Power Key

Vibrate Only Key

Talk /Send Key

Speaker

OK Key

Charger Interface

/Headset Jack

Screen

/Data Cable Connector

Keys and Functions

Press… To…

z View the call log in the standby mode.

z Make or answer a call.

z Power on or off the phone (by pressing and holding

it).

z End a call or reject an incoming call.

z Return to the home screen.

Press… To…

z Display the Magic interface in the standby mode.

z Confirm a selection.

Select the option displayed on the lower left corner of

the screen.

Select the option displayed on the lower right corner of

the screen.

z Display the Profiles interface ( ), the Messages

interface ( ), the Create Message interface (by

pressing and holding ), the Scheduler interface

(), and the Alarms interface ( ) in the

standby mode.

z Increase the volume ( ) or decrease the volume

() during a call.

–

z Enter numbers, letters, and symbols.

z Access the voice mailbox in the standby mode (by

pressing and holding the 1 key).

z Speed-dial phone numbers in the standby mode (by

pressing and holding the 2–9 keys).

z Select a submenu item labeled with the

corresponding number.

Press… To…

z Enter the * symbol.

z Enable or disable the meeting profile (by pressing

and holding it).

z Provide different functions according to the phone

features being used.

z Enter the # symbol.

z Lock the keypad in the standby mode (by pressing

and holding it).

z Provide different functions according to the phone

features being used.

Screen Icons

Icon Description Icon Description

Network signal strength Battery power level

No network signal Data service

CDMA 1X network Alarm clock on

Domestic roaming General profile

Overseas roaming Silence profile

Calling Meeting profile

Call privacy enabled Outdoor profile

Keypad locked My profile

Message received Open Handsfree

Memory for messages full Close Handsfree

Urgent message received Voice mail received

Menu Tree

1AllCalls

2 Missed Calls

3ReceivedCalls

4 Dialed Calls

5CallMemo

6 Call Durati on

1 Create Message

2 Inbox

3 Outbox

4Drafts

5VoiceMail

6Templates

7 Recipients List

8My Folder

9 Settings

0 Delet e All

Tools

1 Automatic Tuning

2 Manual Tuning

1 General

2 Silence

3 Meeting

4 Outdoor

5MyProfile1

6MyProfile2

1 Display Settings

2Date&Time

3 Call Settings

4 Phone Settings

5 Security Settings

6 Restore Fatory

Settings

1 Search

2 Search by

3AddNew

4 Groups

5 Speed Dial

6 My Number

7 Management

1 Recorder

2Alarms

3 Schedulers

4Calculator

5Stopwatch

6 World Clock

7 Gallery

Profiles

Contacts

Settings

Call History

Brew

Messages Tools

Profiles

Contacts

Settings

Call Log

Radio

Messages

Location

1UTK

2 BAM

BrewBrew

3 Inching Tuning

4 Set Frequency

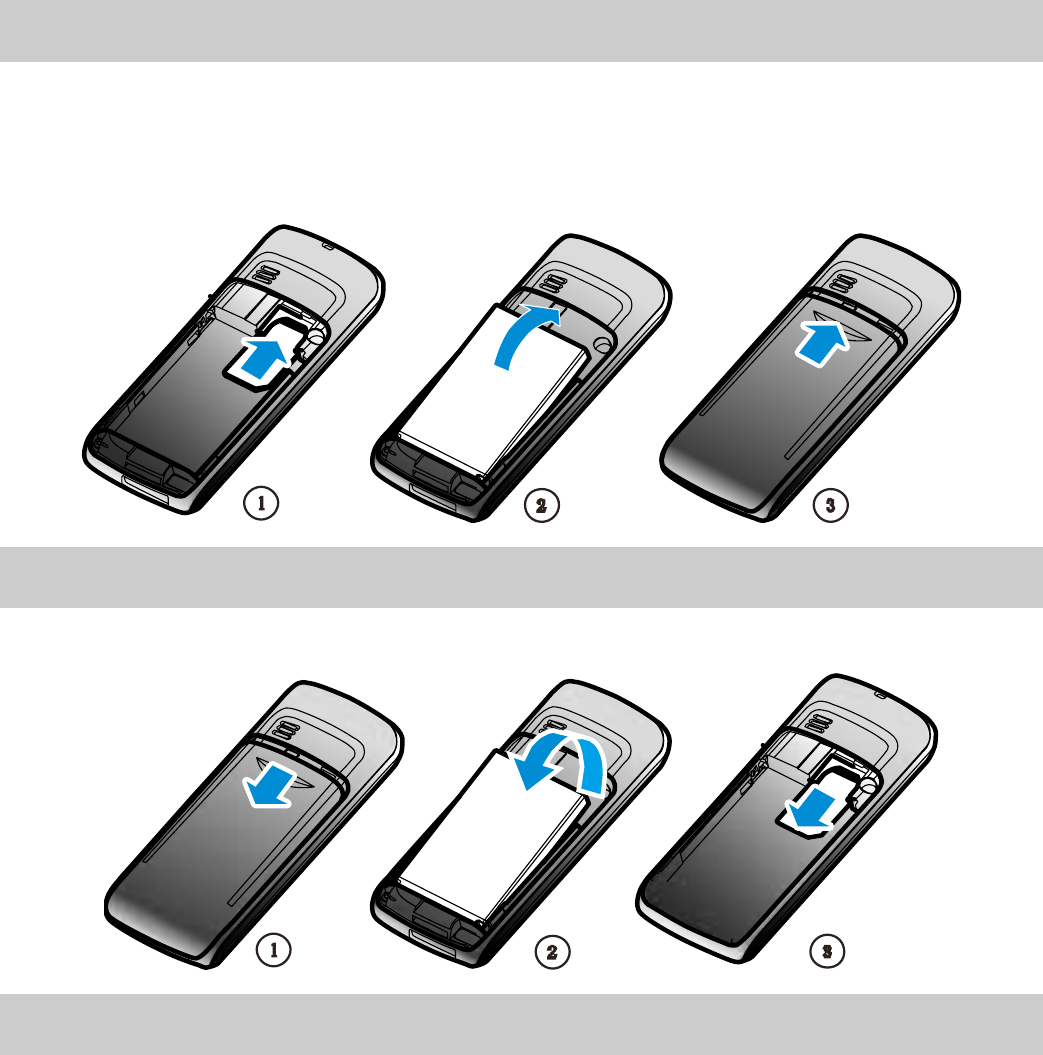

Installing the UIM Card and Battery

Contact the network operator whether a UIM card is needed.

Make sure that the golden area on the UIM card faces downwards

and the cut-off edge is correctly aligned with the card holder.

Removing the Battery and UIM Card

Make sure that your phone is powered off.

Charging the Battery

1. Connect the charger to the charger interface at the bottom of your

phone.

Make sure that the side labeled "TOP" of the charger faces the

front side of the phone.

2. Connect the charger to an alternating current (AC) power socket.

3. During the charging, the charging icon is displayed in the

animated status.

When the charging icon becomes static, the phone is fully

charged.

4. Disconnect the charger from the AC power socket.

5. Press the gray buttons on both sides of the charger connector

inwards to disconnect the charger from the phone.

Using the Function Menu

1. In the standby mode, press to display the Menu interface.

2. Press to scroll to a menu item.

3. Press (Select) or to display the menu.

4. Do the following to display the submenu:

¾ Press to scroll to a submenu item and press

(Select) or to display the submenu.

¾ Press the number key corresponding to the number of a

submenu to display it.

5. Press (Back) to return to the previous menu or quit the

function menu.

Alternatively, press to return to the home screen.

Making a Call

1. In the standby mode, enter a phone number.

z To make an international call, press twice to enter the

international long distance code of "+". Then enter the number to

be dialled, in the format of "country code + region code + phone

number".

z To call a number with an extension, press third to insert

"P" or press fourth to insert "T" between the phone

number and the extension number.

2. Press to dial the number.

3. Press to end the call.

Note

z When the phone is locked, enter the lock code to unlock

the phone first; otherwise, you can make only emergency

calls or answer calls.

z In the standby mode, press to view the call log.

Select a record and press to dial.

z Select a contact from the phonebook and press to

dial.

Answering a Call

When there is an incoming call, press , (Answer), or

to answer it, or press to reject it.

z If the any key answer function is enabled, press any key (except

or ) to answer an incoming call.

z If the headset auto answer function is enabled, and the headset is

connected to the phone, the incoming call is answered

automatically.

Note If the headset is connected to the phone, you can press the

button on the headset cable to answer or end a call.

Phone Lock

The phone lock protects your phone from unauthorized use. The

default phone lock code is 000000. You can change it into any

numeric string of 4 to 8 digits.

If the phone lock is enabled, you need to enter the correct phone lock

code when the phone is powered on.

PIN and PUK

The personal identity number (PIN) protects your UIM card from

unauthorized use. The PIN unlocking key (PUK) can unblock the

blocked PIN. Both PIN and PUK are delivered with the UIM card.

For details, contact your service provider.

If you enter wrong PINs three times consecutively, the phone asks

you to enter the PUK code.

If you enter wrong PUKs ten times, the UIM card is invalidated

permanently. Contact your service provider for a new card.

Locking the Keypad

In the standby mode, press and hold to lock the keypad.

When the keypad is locked, press to answer incoming calls or

make emergency calls.

You can press and to unlock the keypad.

When the keyguard function is enabled, if there is no operation on

the phone for a preset period, the keypad is locked automatically.

Changing the Text Input Modes

The indicator of the current text input mode is displayed on the

screen. When no letters are selected in the input field, press to

change the input mode. When letters are selected, press to

change the letters between lowercase and uppercase.

Note

z In the editing mode, press (Clear) once to delete

the letter on the left of the cursor. Press and hold

(Clear) to delete all the letters at a time.

z In the "En" input mode, press to enter a space. In

the "Abc" input mode, press once to enter a

space and twice to enter 0.

z In the "Abc" , "abc" or "ABC" input mode, press

repeatedly to select and enter the commonly-used

punctuations. In the "En" input mode, press

repeatedly to enter a full stop or smiley.

Entering English (En)

In the "En" input mode, do the following to enter the English letters:

1. Press each desired key once corresponding to the sequence of the

letters. Then the phone displays the commonly-used words

according to the numeric sequence of key presses.

2. Press to scroll to the desired word.

3. Press to select the word.

Press to enter the word and a space.

Entering English (Abc/abc/ABC)

In the "Abc" , "abc" or "ABC" input mode, press a key labeled with

the desired letters once to enter the first letter on the key, twice to

enter the second letter on the key, and so on.

Note If the letter you want to enter is on the same key as the

previous one, enter the latter only after the cursor appears

again or after you press to move the cursor to the

next space.

Entering Numbers

1. In the "123" input mode, press a key labeled with the desired

number.

2. In the "Abc" , "abc" or "ABC" input mode, press a key

continuously or press and hold it until the desired number appears

on the screen.

3. In the "En" input mode, press a key and then press until

the desired number appears on the screen.

Entering Symbols

1. In any input mode, press to display a symbol list.

2. Press to scroll to the desired symbol.

3. Press the numeric key to enter the symbol.

Warnings and Precautions

Electronic Device

z Power off your phone near high-precision electronic devices. The

phone may affect the performance of these devices.

z Such devices include hearing aids, pacemakers, fire alarm systems,

automatic gates, and other automatic-control devices. If you are using

an electronic medical device, consult the device manufacturer to

confirm whether the radio wave affects the operation of this device.

z Pacemaker manufacturers recommend that a minimum separation of

15cm be maintained between a mobile phone and a pace-maker to

avoid potential interference with the pace-maker. To achieve this use

the phone on the opposite ear to your pacemaker and do not carry it in

a breast pocket.

Hospital

Pay attention to the following points in hospitals or health care facilities:

z Do not take your phone into the operating room (OR), intensive care

unit (ICU), or coronary care unit (CCU).

z Do not use your phone at places for medical treatment where phone

use is prohibited.

z When using your phone near someone who is suffering from a heart

disease, turn down the ring tone volume or vibration properly so that it

does not affect the person.

Area with Inflammables and Explosives

In any area with inflammables and explosives, power off your phone and

do not take out, install or charge the battery, to avoid explosion and fire.

Areas with inflammables and explosives include, but are not limited to:

z Gas station

z Area for storing fuels (such as the bunk under the deck of a ship)

z Device/Vehicle for transporting and storing fuels or chemical products

z Area with chemical substances and particles (such as: granule, dust,

metal powder) in the air

z Area with the sign of "Explosives"

z Area with the sign of "Power off bi-direction wireless equipment"

z Area where it is generally suggested to stop the engine or a vehicle

Traffic Safety

z Please observe local laws and regulations on phone use. Do not use

your phone while driving to avoid traffic accident.

z Secure the phone on its holder. Do not place the phone on the seat or

other places where it can get loose in a sudden stop or collision.

z Use the phone after the vehicle stops at a safe place.

z If your phone supports the hands-free function, or the phone can be

used with earphones, or there is any vehicle-mounted equipment with

hands-free function, use them in emergency.

z Do not place the phone over the air bag or in the air bag outspread area.

Otherwise, the phone may hurt you owing to the strong force when the

air bag inflates.

z Observe the rules and regulations of airline companies. When boarding

or approaching a plane, power off the phone and take out the battery. In

areas where phone use is prohibited, power off the phone. Otherwise,

the radio signal of the phone may disturb the plane control signals.

Power off your phone before boarding an aircraft.

Storage Environment

z Do not place magnetic storage media such as magnetic cards and

floppy disks near the phone. Radiation from the phone may erase the

information stored on them.

z Do not put your phone, battery, or other accessories in containers with

strong magnetic field, such as an induction cooker and a microwave

oven. Otherwise, circuit failure, fire, or explosion may occur.

z Do not leave your phone, battery, or charger in a very hot or cold place.

Otherwise, malfunction of the products, fire, or explosion may occur.

z Keep the ambient temperature between 0℃ and 45 while the battery ℃

is being charged. Keep the ambient temperature between –20℃ and

60 for storing the battery. If the ambient temperature is too low ℃

(especially below 0 ) or too high, the capacity and life of the battery ℃

will be reduced.

z Do not place sharp metal objects such as pins near the earpiece. The

earpiece may attract these objects and hurt you when you are using the

phone.

z Do not subject your phone, battery, and charger to serious collision or

shock. Otherwise, battery leakage, phone malfunction, overheat, fire, or

explosion may occur.

z Do not put your phone in the back pocket of your trousers or skirt, to

avoid phone damage while seated.

Children Safety

z Put your phone, battery, and charger in places beyond the reach of

children. Do not allow children to use the phone, battery, or charger

without guidance.

z Do not allow children to put the battery in mouth, for electrolyte in the

battery is poisonous.

z Do not allow children to touch the small fittings. Otherwise, suffocation

or gullet jam can be caused if children swallow the small fittings.

Operating Environment

z The phone, battery, and charger are not water-resistant. Keep them dry.

Protect the phone, battery and charge from water or vapor. Do not

touch the phone with a wet hand. Otherwise, short-circuit and

malfunction of the product or electric shock may occur.

z Do not use the phone in dusty, damp and dirty places or places with

magnetic field. Otherwise, malfunction of the circuit may occur.

z Do not power on or off the phone when it is near your ears to avoid

negative impact on your health.

z When carrying or using the phone, keep the antenna at least one inch

(2.5 centimeters) away from your body, to avoid negative impact on

your health caused by radio frequency leakage.

z If you feel uncomfortable (such as falling sick or qualm) after playing

games on your phone for a long time, please go to see a doctor

immediately.

z On a thunder stormy day, do not use your phone outdoors or when it is

being charged.

z Do not touch the antenna when a call is going on. Touching the antenna

may affect call quality and cause the phone to operate with more power.

As a result, the talk time and standby time are shortened.

z The phone may interfere with nearby TV sets, radios and PCs.

z In accordance with international standards for radio frequency and

radiation, use phone accessories approved by the manufacturer only.

z While using the mobile phone, observe the local laws and regulations,

and respect others' privacy and legal rights.

Clearing and Maintenance

z Before you clean or maintain the phone, power off the phone and

disconnect it from the charger. Otherwise, electric shock or short-circuit

of the battery or charger may occur.

z Do not use any chemical detergent, powder, or other chemical agent

(such as alcohol and benzene) to clean the phone and the charge.

Otherwise, part damage or a fire can be caused. You can clean the

phone and the charger with a piece of soft antistatic cloth that is a little

wet.

z Do not scratch the shell of the phone. Otherwise, the shed coating may

cause skin allergy. Once it happens, stop using the phone at once and

go to see a doctor.

z Keep the plug dry when you clean it, to prevent fire.

z If the phone or any of its fittings does not work, turn to the local

authorize service center for help.

z Do not dismantle the mobile phone or accessories. Only an authorized

service center is allowed to maintain the mobile phone.

Environment Protection

z Please observe the local regulations regarding the disposal of your

packaging materials, exhausted battery and old phone and please

promote their recycling. Do not dispose of exhausted battery or old

phone in municipal waste or fire. Otherwise, explosion may occur.

z This HUAWEI device complies with Directive 2002/95/EC on the

restriction of the use of certain hazardous substances in electrical and

electronic equipment.

Emergency Call

You can use your phone for emergency calls. However, connections in all

conditions cannot be guaranteed. You should never rely solely on the

phone for essential communications.

Battery

z Use the battery approved by the manufacturer only. Otherwise,

explosion may occur.

z Do not dispose of the battery in fire. Otherwise, the battery may ignite

or explode.

z Do not connect two poles of the battery with conductors such as cables,

jewelries or any other metal material. Otherwise, the battery is

short-circuited and it may burn your body.

z Do not disassemble the battery or solder the battery poles. Otherwise

fluid leakage, overheat, fire, or explosion may occur.

z If there is battery leakage, smoke, or strange smell, stop using the

battery and keep it away from open flame to avoid fire or explosion.

Then turn to an authorized maintenance engineer for help.

z If the battery fluid contacts your skin or cloth, wash with clean water

immediately to avoid irritation to the skin.

z If the battery fluid gets into eyes, do not rub your eyes. Otherwise, your

eyes can be hurt. Wash with clean water and go to see a doctor

immediately.

z If there is battery deformation, color change or abnormal heating while

you charge or store the battery, take it out immediately and stop using it.

Otherwise, battery leakage, overheat, explosion, or fire may occur.

z When installing the battery, do not push the battery by force lest battery

fluid leak out or the battery crack.

z Do not take out the battery when the phone is turned on.

z If you do not use the battery for a long time, store it in normal

temperature after charging.

Charger

z Use the charger approved by the phone manufacturer only. Any

violation of this rule may result in fire or malfunction of the charger.

z Do not short-circuit the charger. Short-circuiting the charger may cause

fire or malfunction of the charger.

z If the power cord is damaged (for example, the lead is exposed or

broken), or the plug becomes loose, stop using the cable at once.

Otherwise, electric shock, short-circuit of the charger, or fire may occur.

z Keep the charger dry. Once water or other liquid leaks into the charger,

electrical leakage or other faults may occur.

z Do not use the charger in a dusty and damp environment. Keep the

power cord away from any heating appliance.

z Ensure the charger is properly plugged into the power socket properly

when charging the battery. Improper insertion may result in electric

shock, fire, or explosion. To unplug the charger, pull the plug off rather

than tear the power cord.

z Use the AC power supply defined in the specifications of the charger.

An improper power voltage can cause fire or malfunction of the charger.

z Do not place any heavy object on the power cord of the charger. Do not

damage, change, or pluck the power cord. Otherwise electric shock or

fire may occur.

z When you are charging the battery with the charger, do not touch the

plug, power cord or the charger with a wet hand. Otherwise, electric

shock can be caused.

z Once the liquid such as water leaks into the charger, remove the plug of

the charger from the socket immediately. Otherwise, overheating, fire

and other malfunction may occur.

Certification Information (SAR)

THIS DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS FOR

EXPOSURE TO RADIO FREQUENCY ELECTROMAGNETIC FIELD.

Your mobile phone is a low-power radio transmitter and receiver. When it is

turned on, it emits low levels of radio frequency energy (also known as

radio waves or radio frequency fields).

Governments around the world have adopted comprehensive international

safety guidelines, developed by scientific organizations, e.g. ICNIRP

(International Commission on Non-Ionizing Radiation Protection) and IEEE

(Institute of Electrical and Electronics Engineers Inc.), through periodic and

thorough evaluation of scientific studies. These guidelines establish

permitted levels of radio wave exposure for the general population. The

levels include a safety margin designed to assure the safety of all persons,

regardless of age and health, and to account for any variations in

measurements.

Specific Absorption Rate (SAR) is the unit of measurement for the amount

of radio frequency energy absorbed by the body when using a mobile

phone. The SAR value is determined at the highest certified power level in

laboratory conditions, but the actual SAR level of the mobile phone while

operating can be well below the value. This is because the mobile phone is

designed to use the minimum power required to reach the network.

All models of Huawei’s mobile phone are designed to meet radio frequency

exposure guidelines. Before a phone model is available for sale to the

public, it must be tested and certified to the FCC that it does not exceed the

limit established by the government-adopted requirement for safe

exposure. The tests are performed in positions and locations (that is, at the

ear and worn on the body) as required by the FCC for each model. For

body worn operation, this phone has been tested and meets FCC RF

exposure guidelines when the handset is positioned a minimum of 15 mm

from the body with an accessory that contains no metal part. Use of other

accessories may not ensure compliance with FCC RF exposure

guidelines.

The SAR limit adopted by the USA and Canada is 1.6 watts/kilogram (W/kg)

averaged over one gram of tissue. The highest SAR value reported to the

FCC and IC for this device type when tested for use at the ear is 0.957

W/kg, and when properly worn on the body is 0.507 W/kg.

The SAR limit adopted by the CNIRP is 2.0W/kg over one gram of tissue.

The value guarantees a safe distance to protect mobile phone users and

the difference caused by measurement errors. Under different test

requirements and frequency, the value varies.

Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

z Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications made to this equipment not expressly

approved by HUAWEI may void the FCC authorization to operate this

equipment.

Version: V100R001C16_01 BOM: 31017412

Huawei Technologies C2800 CDMA Mobile Phone User Manual

Huawei Technologies Co.,Ltd CDMA Mobile Phone

User Manual

Navigation menu

Namespaces

Views

Navigation
