eA380-135 CPE
Product Description
Issue V2.3
Date 2017-02-06
HUAWEI TECHNOLOGIES CO., LTD.
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 2 of 21
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: support@huawei.com
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 3 of 21
Contents
1 Product Overview ......................................................................................................................... 4
2 Application Scenarios .................................................................................................................. 6
3 Technical Specifications .............................................................................................................. 9
3.1 Hardware .......................................................................................................................................................... 9
3.1.2 Antenna Specifications ...................................................................................................................... 10
3.2 Software ......................................................................................................................................................... 11
3.3 User Interfaces ............................................................................................................................................... 13
4 Services and Applications ......................................................................................................... 15
5 Adopted Standards ..................................................................................................................... 16
6 Packing List .................................................................................................................................. 17
7 Acronyms and Abbreviations ................................................................... 错误！未定义书签。
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 4 of 21
1 Product Overview
Introduction
The Huawei eA380-135 V1R1 CPE is the Long Term Evolution (LTE) customer premises
equipments (CPE). As a wireless gateway, the eA380-135 can be deployed outdoors to
provide services such as data collection and video surveillance.
The eA380-135 V1R1 CPE supports LTE Release 11/12. The eA380-135 provides the
following functions:
Data service
Wi-Fi Service
Security service
Local and remote maintenance and management
Data routing
Product Features
The eA380-135 is developed based on the same hardware and software platform. The
eA380-135's main features are as follows:
Multiple LTE band connectivity
Support multiple LTE TDD Band:
eA380-135:3.5GHz（B43）
1T4R for B43
2CC CA (Intra-band Contiguous)
4×4 MIMO
High speed experience
LTE DL Category12,UL Category 13
5MHz,10MHz,15MHz,20MHz bandwidth
Wireless LAN Access Point
For wireless LAN connectivity with integrated 802.11b/g/n access point,support
maximum 4 different SSID. Wireless security features including standard WLAN
WEP,WPA,WPA2 encryptions.
Soft SIM
Frequency lock(band,frequency,cell)
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 5 of 21
Flexible networking capabilities
Provide high-speed routing capability.Comprehensive set of networking and IP protocols
such as bridging,routing,DNS, DHCP server,and NAT.
Support Routing behind MS and DHCP relay.
GRE transparent ethernet bridging (L2VPN over GRE).
UE direct connect.
Support L2TP
Dual APN,one for voice and the other for data
Flexible security services
Support packet filtering firewall.Provide instant protection to block potential security
risks and intrusion attempts.
Web-based Configuration
Built-in web based configuration supports local administration and management with
User-friendly Web interface.
TR069-Based Device management
Support the CPE WAN Management Protocol (CWMP) as specified in Broadband
Forum TR-069 Amendment II.Support remote software installation, setting of
configuration and status parameters.
Antenna
Built-in LTE and WLAN high gain antenna with high performance.
Outdoor adaptability
IP65 dust and water proof
Surge protection in outdoor environments
Others
User-friendly design of LED indicator shows the status of equipment.
Supports Windows XP,Windows Vista,Windows 7,Linux,MAC.Compatible with
Browser include Internet Explorer, Firefox,Chrome,Safari.
Appearance

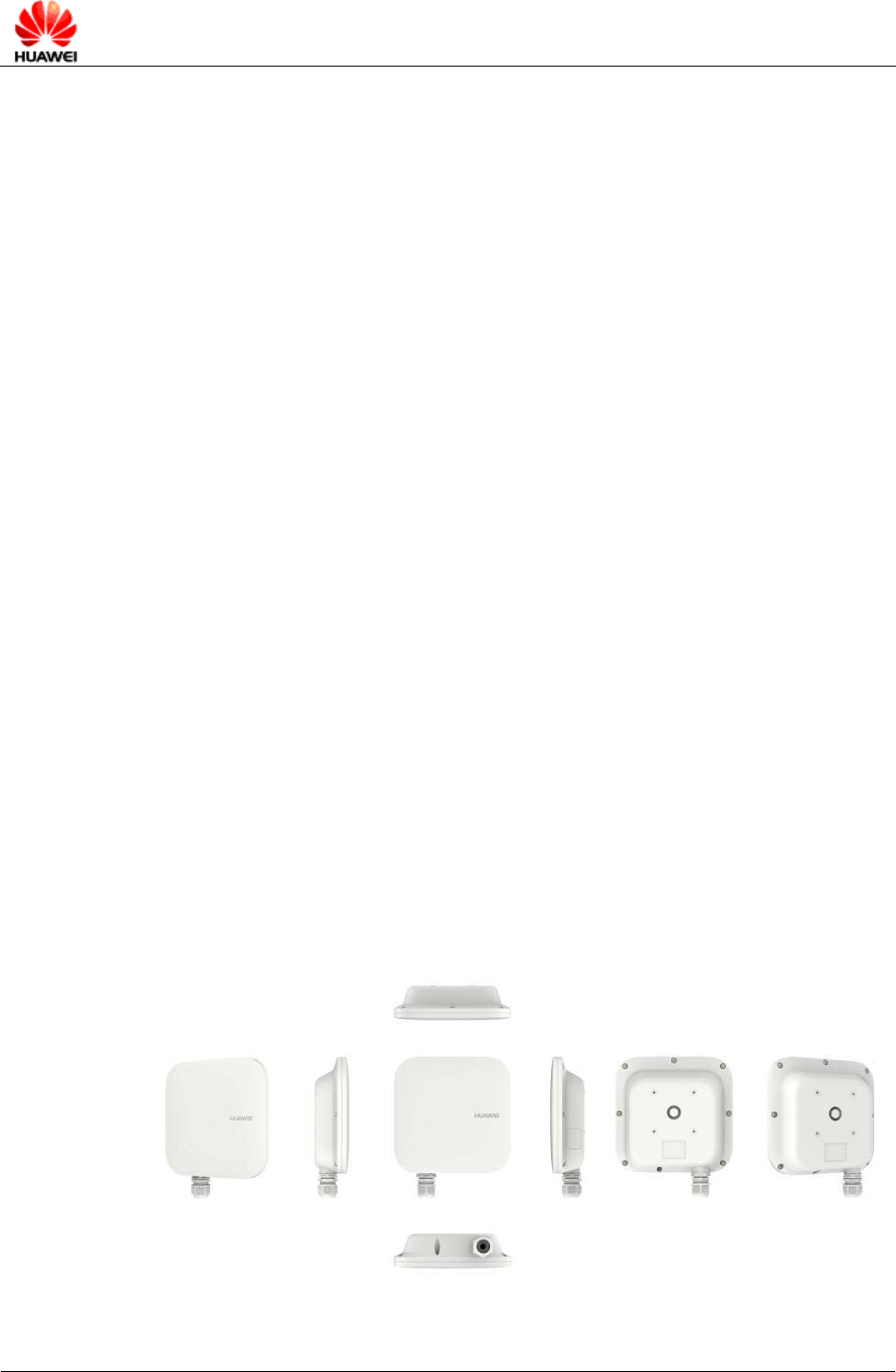

Figure 1-1 Appearance of eA380-135
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 6 of 21
2 Application Scenarios
The eA380-135 is specially designed for outdoor deployment to obtain better wireless access
performance to the LTE network.
The eA380-135 is intended to be deployed in wISP network. They can also be deployed in
industrial,public security and enterprise network if the performance is acceptable to the
network operator.
LTE access function:The eA380-135 adopt the LTE access technology at the WAN side.
LAN access function:One 1000Mbps high-speed Ethernet interfaces are provided at the
LAN side.
AP function: An 802.11 b/g/n-compliant WLAN AP interface is provided,used for
wireless networking at home. The interface is compliant with the IEEE802.11 b/g/n
standard and the WEP-OPEN,WEP-SHARED,WPA-PSK(TKIP),WPA-PSK(AES),
WPA2-PSK(TKIP),WPA2-PSK(AES) security authentication.
DHCP/DNS: The DHCP server dynamically allocates IP addresses to PCs.
WEB management: You can configure, modify and query the configuration information
of the eA380-135.
IP route protocol and NAT:High-speed routing capability. With the built-in NAT,the
eA380-135,together with LTE terminals,can provide flexible broadband access solutions
and networking schemes.
.
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 7 of 21

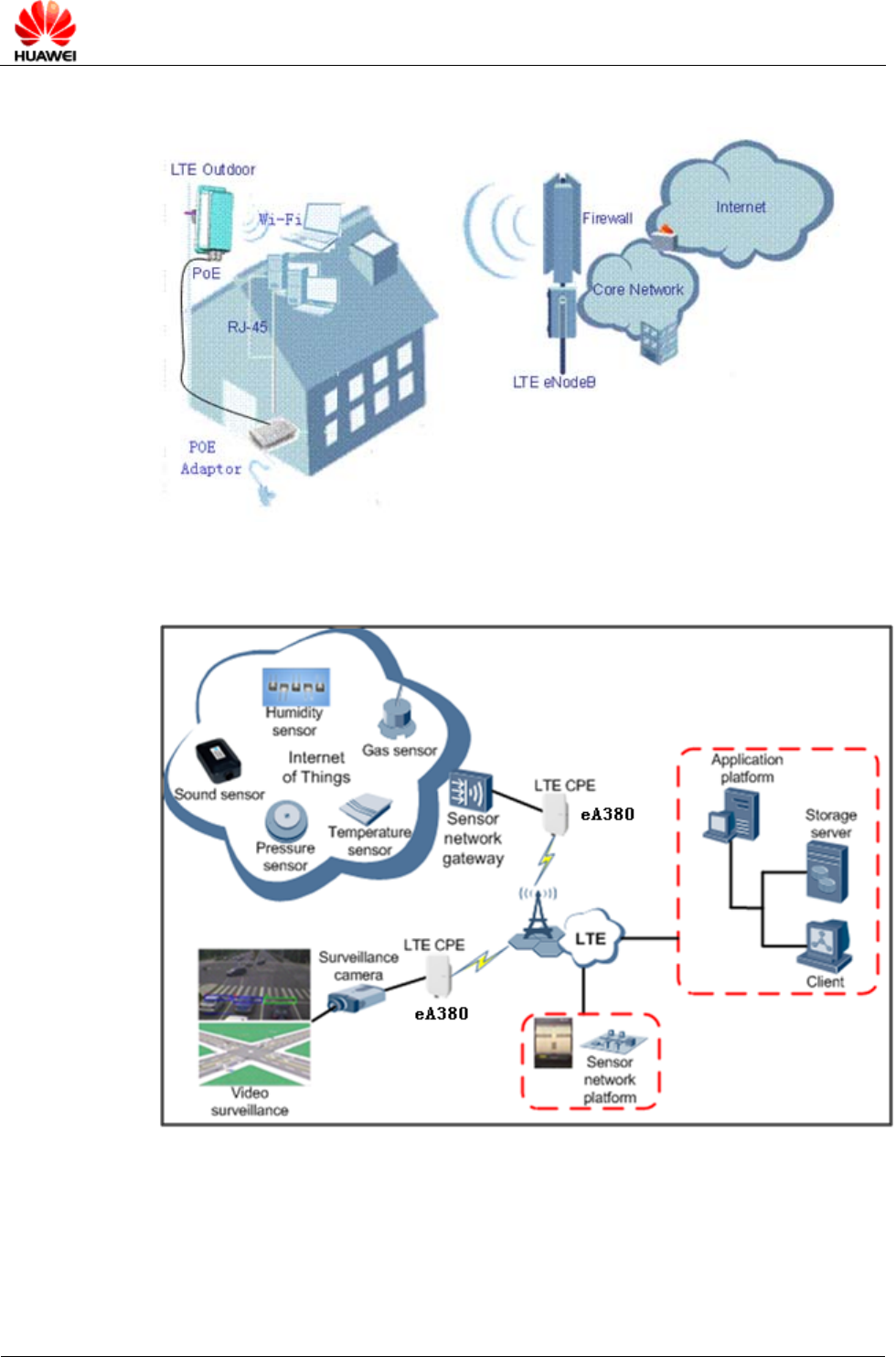

Figure 2-1 The eA380-135 deployed in wISP network
Figure 2-2 The eA380-135 deployed in industrial network
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 8 of 21

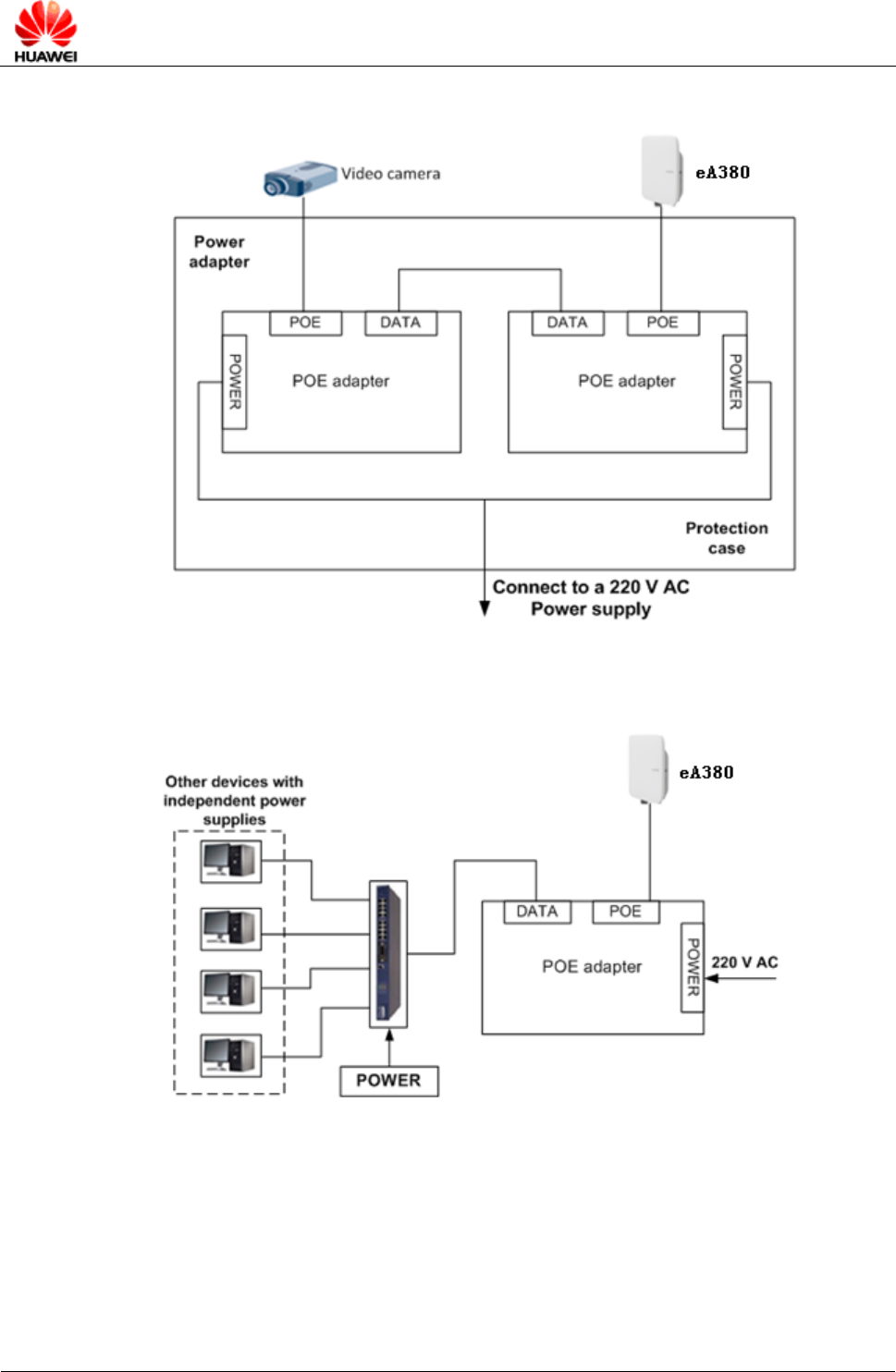

Figure 2-3 The eA380-135 connected to a video camera.
Figure 2-4 The eA380-135 connected to multiple devices
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 9 of 21
3 Technical Specifications
3.1 Hardware
Table 3-1 Technical specifications of eA380-135
Category Description
Technical standard WAN:LTE 3GPP Release 11
LAN:IEEE 802.3/802.3u
WLAN:IEEE 802.11b/g/n
Working
frequency band
LTE eA380-135: LTE TDD (3600 MHz to 3800 MHz)
WLAN 2.400 GHz ~ 2.4835 GHz[2]
External
interface
1 Ethernet and voice interface (RJ45): 10/100/1000Base-TX Ethernet,
POE combined
1 USB interface(for local maintenance only)
1 SIM card slot
LED indicator One POWER indicator
One LAN indicator
Three LTE signal strength indicators
Maximum
transmit power
LTE 23 dBm (±2)
WLAN 16dBm(±2 dB)
EIRP LTE
37 dBm
Receiving
sensitivity
LTE eA380-135
B43:
< -99 dBm/5 MHz
< -96 dBm/10 MHz
< -93 dBm/20 MHz
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 10 of 21
Category Description
WLAN 802.11b: -92 dBm@1 Mbps,
-85 dBm@11 Mbps
802.11g: -88 dBm@6 Mbps
-73 dBm@54 Mbps
802.11n:
HT20: -87 dBm@MCS0
-71 dBm@MCS7
HT40: -84 dBm@MCS0
-68 dBm@MCS7
Power
consumption
<9W when heater off
<25W when heater works
Power supply POE (should be powered by CAT-5e cable eight line ); AC
100V~240V,DC 48V/650mA
Dimensions
(W×D×H)
258mmx220mmx66mm
Weight About 1kg (The power supply adapter is not included)
Water and dust
proof
IP65
Temperature Working temperature:-40℃~ +55℃
Storage temperature:-40℃ ~ +70℃
Humidity 5% ~ 95%
Installation Mounted on poles or walls
Tip: Within three months after the arrival,it is recommended to use the equipment,or store in
the following environment:
Temperature:-10 ℃ to 35 ℃
Relative humidity (RH):30% RH to 85% RH
Storage environment should be equipped with temperature and humidity equipments and
dehumidification equipment to monitor and adjust the temperature and humidity.
3.1.2 Antenna Specifications
Table 3-2 eA380-135 LTE antenna specifications
Item eA380–135
Band 3600 to 3800 MHz (Band 43)
Gain 13±1 dBi
Input 50 ohm
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 11 of 21
Item eA380–135
impedance
SWR < 2
Polarization Dual cross polarization
Radiation
pattern
Directional antenna
Table 3-3 WLAN antenna specifications
Item Description
Frequency 2.4 GHz ~ 2.483 GHz
Input
impedance
50 Ω
Standing
wave ratio
< 3
efficiency ≥50%
Gain ≥2dBi
Polarization Linear polarization
3.2 Software
Table 3-4 Software specifications
Item Description
Gateway Router: The default routing address is 0.0.0.0. The default routing table
items can be generated accordingly.
Supports Address Resolution Protocol (ARP)
Supports domain name service (DNS)
Supports Internet Control Message Protocol (ICMP)
NAT
Supports Network Address Translation (NAT) and Network Address
Port Translation (NAPT).
Supports fragment message identification for normal NAT
Supports NAT traverse
DHCP server
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 12 of 21
Item Description
The default DHCP server address ranges from 192.168.1.2 to
192.168.1.254. The default gateway address is 192.168.1.1.
The default DHCP lease is 24 hours.
The DHCP server can be enabled or disabled.
The DHCP server's address pool can be configured.
The DHCP lease can be configured.
IP address status such as the hostname, Media Access Control (MAC)
address,IP address,and remaining DHCP lease can be displayed.
Supports static IP address reservation
Support DHCP relay.
Routing behind MS
UE direct connect
Firewall Firewall switch
LAN MAC address filtering
IP address filtering
URL filtering
Security Parameter Index (SPI) filtering
Demilitarized Zone (DMZ)
Port forwarding
Service access control
LAN Auto-negotiation between 10 Mbit/s /100 Mbit/s/1000 Mbit/s
MDI/MDIX auto-sensing
Compatible with IEEE 802.3/802.3u
WLAN SSID broadcast and hiding is supported.
Authentication:
Open System authentication
Shared Key authentication
64/128-digit WEP encryption
256-digit WPA-PSK/ WPA2-PSK encryption
AES ciphering algorithm
TKIP and AES ciphering algorithm synchronously
MAC address authentication:
Up to 16 MAC address items.
Ratio adjustment:
Automatically
Manually
STA management:
Supports limit of access users (up to 32 users)
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 13 of 21
Item Description
Upgrade Supports TR-069 upgrade and local upgrade.
SIM Supports PIN management and SIM card authentication
soft SIM
Dial-up
connection
Supports automatic and manual connection
Importing and
exporting
configuration
Encrypt and back up the current configuration, and then restore from a
backup configuration
3.3 User Interfaces
Table 3-5 User interfaces (gateway)
Item Description
Configuration LAN:
DHCP
IP address
WAN:
WAN connection configuration, such as the user
name, password,and APN
Network search mode
Band type
Dial-up connection type
Frequency lock(band, frequency, cell)
WLAN:
Wireless status
SSID
Mode (802.11 b/g/n)
Channel
Hidden SSID
Tx Rate
Authentication (Open System and Shared Key)
Security (WEP and WPA and WPA2)
Access list (MAC)
Firewall:
Firewall switch
LAN MAC address filtering
IP address filtering
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 14 of 21
Item Description
Security Parameter Index (SPI) filtering
URL filtering
DMZ
Port forwarding
Service access control
Status Signal strength and SINR
Network type
Network connection status
SIM card state
Operator name and system mode
Others Network connection settings:
Automatic network registration
Manual network registration
Select network connection type: LTE
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 15 of 21
4 Services and Applications
Data Services
The eA380-135 provides access to LTE wireless broadband networks with high-speed data
services.
Small-Scale LAN
Devices can connect to the eA380-135 by wired connection to use data services. A LAN
consisting of multiple computers can be built using external hubs, Ethernet switches,or
routers.
Security Services
The eA380-135 has firewall functions which enable users to protect their computers when
accessing the Internet.
Firewall
The following firewall functions are provided:
Firewall switch:Enable or disable the network connection's firewall.
LAN MAC address filtering:Prevent devices with specified MAC addresses from
accessing the network.
LAN IP filtering: Prevent devices with specified IP addresses from accessing computers
on the LAN.
URL filtering:Prevent computers on the LAN from visiting specified URLs.
Local Management and Maintenance
The eA380-135 supports local configuration to manage devices,configure network
parameters,and help ensure that the device functions properly and stably.
Remote Management and Maintenance
The eA380-135 supports remote configuration to manage devices,configure network
parameters, and query the status by TR069.
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 16 of 21
5 Adopted Standards
Communication Protocols
Table 5-1 lists the standards and communication protocols supported by the eA380-135.
Table 5-1 eA380-135' standards and communication protocols
Item Description
Physical layer RFC894
ARP RFC826
IP RFC791,RFC1122,RFC1071,RFC1141, RFC1624,
RFC792,RFC950,RFC1256
ICMP RFC792,RFC950,RFC1256
TCP RFC793
UDP RFC768
DHCP RFC1531,RFC1533
NAT RFC1631
Wireless Port
The eA380-135's wireless Uu port complies with LTE R11/12.
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 17 of 21
6 FCC Statement
eA380-135' FCC Statement
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be
installed and operated in accordance with provided instructions and the antenna(s) used for
this transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provide with antenna installation instructions and
consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
eLTE2.3 eA360 Series CPE
Product Description
Issue Draft B (2016-03-22) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 18 of 21
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 19 of 21
7 Packing List
Table 6-1 describes the eA380-135' packing list.
Table 7-1 eA380-135' packing list
Item Quantity Description
eA380-135 1 Standard
Quick installation guide 1 Standard
Installation accessory 1 Standard
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 20 of 21
8 Acronyms and Abbreviations
This section lists the acronyms and abbreviations related to the eA380-135.
Table 8-1 List of acronyms and abbreviations
Acronym/Abbreviation Full Name
ARP Address Resolution Protocol
CPE Customer Premises Equipment
DHCP Dynamic Host Configuration Protocol
DMZ Demilitarized Zone
DNS Domain Name Service
ICS Implementation Conformance Statement
ICMP Internet Control Message Protocol
LTE Long Term Evolution
MAC Media Access Control
MSN Windows Messenger
NAPT Network Address Port Translation
NAS Non-Access-Stratum
NAT Network Address Translation
PDCP Packet Data Convergence Protocol
RLC Radio Link Control
RRC Radio Resource Control
RTU Remote Terminal Unit
SPI Security Parameter Index
SSID Service Set Identifier
UE User Equipment
eLTE2.3 eA360 Series CPEs
Product Description
Issue Draft B(2016-03-2206) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Page 21 of 21
Acronym/Abbreviation Full Name
USIM Universal Subscriber Identity Module
