Contents

Users Manual_Quick Installation Guide

CPE eA380
HUAWEI TECHNOLOGIES CO., LTD.
Quick Installation Guide

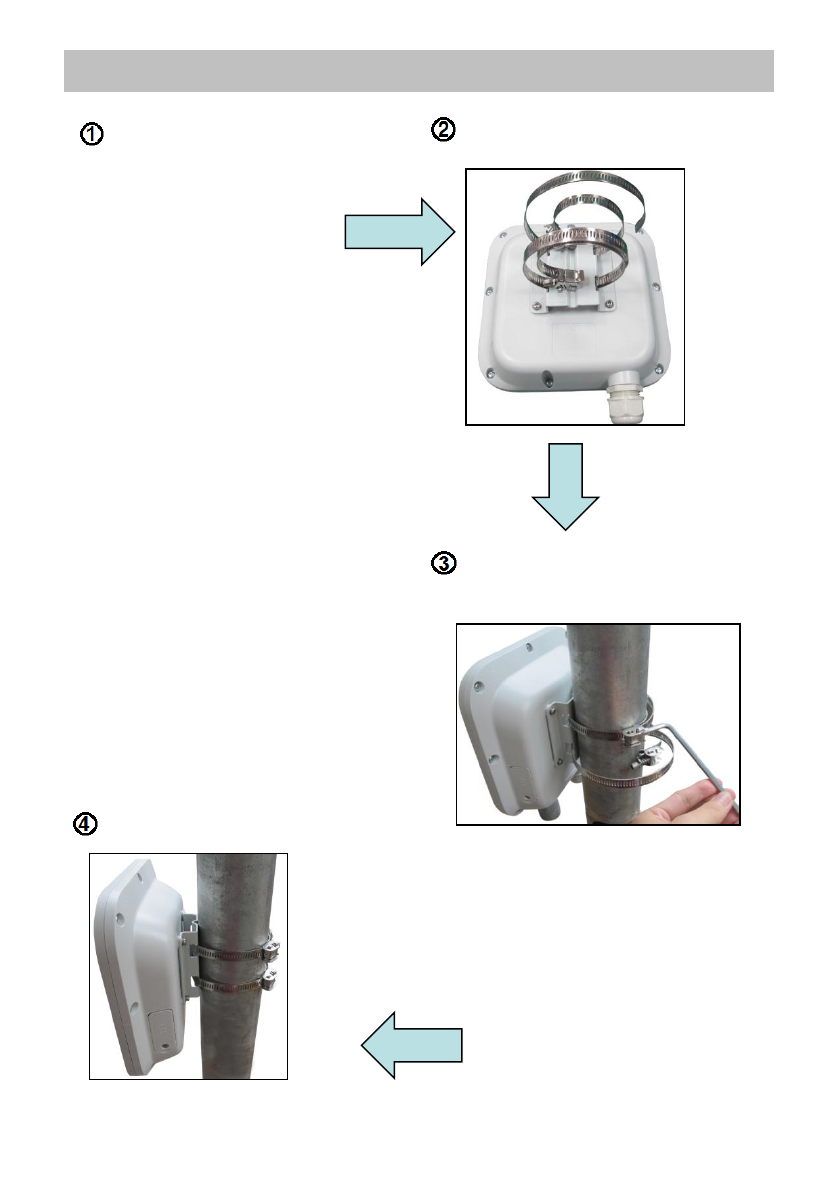

Install the CPE eA380（Mounting on a Utility Pole）
Insert the SIM card.
1
The installation is complete.
3-a Loosen the bolt of hose clamps.
3-b Adjust the length of the hose clamps.
3-c Fasten the bolt of hose clamps to fix
the length of the hose clamp.
3-d Use the M6 hex key to tighten the bolt
and fix the hose clamps completely.
Install the hose clamps on the utility
pole and adjust the length of the hose
and fix it.
1-a Loosen the screws on the
SIM card cover.
1-b Open the SIM card cover.
1-c Insert the SIM card.
1-d Close the SIM card cover
and fasten the screws.
Insert the two hose clamps into the
sheet-metal mounting bracket.
Note: When fastening the
SIM card cover, press the
rubber washer into the slot
to avoid that it is exposed.

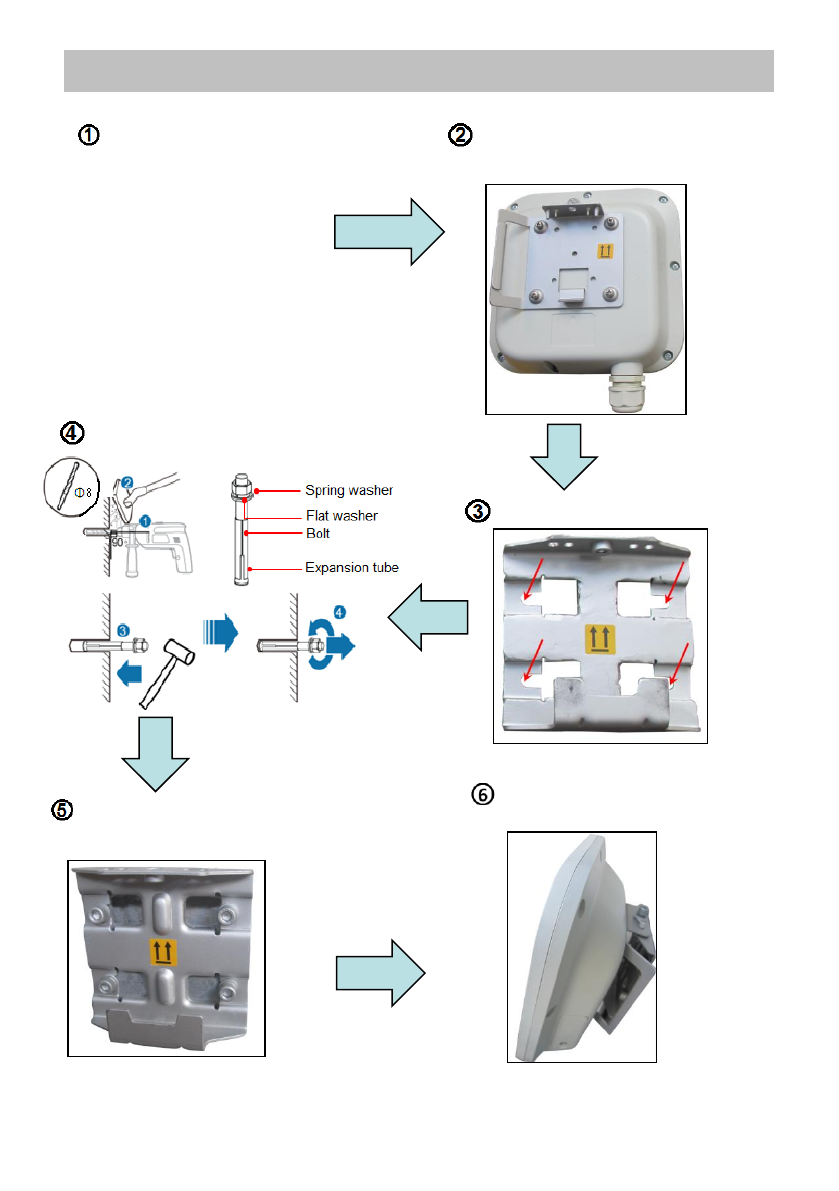

Install the CPE eA380（Mounting on the Wall）
Insert the SIM card.
Mark the fixing points.
Install the expansion bolt.
Fix the wall-mounting
frame to the wall.
Fix the eA380 on the
wall-mounting frame.
2
Remove the sheet-metal mounting
Bracket and install the wall mounting
frame.
1-a Loosen the screws on the
SIM card cover.
1-b Open the SIM card cover.
1-c Insert the SIM card.
1-d Close the SIM card cover
and fasten the screws.
Note: When fastening the
SIM card cover, press the
rubber washer into the slot
to avoid that it is exposed.
Huawei Technologies Co., Ltd.
Huawei Industrial Base Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: support_e@huawei.com
Customer Service Tel: 4008229999
Issue: 01
Part number: 31010WQX
3
Install the POE Network Cable
For more details, please refer to “eA380 Series CPE User Guide”.
You can download the eA380 Series CPE User Guide in the following path of
http://support.huawei.com/enterprise :
Product Support > Enterprise Wireless > eLTE Broadband > eLTE Broadband
Terminal.

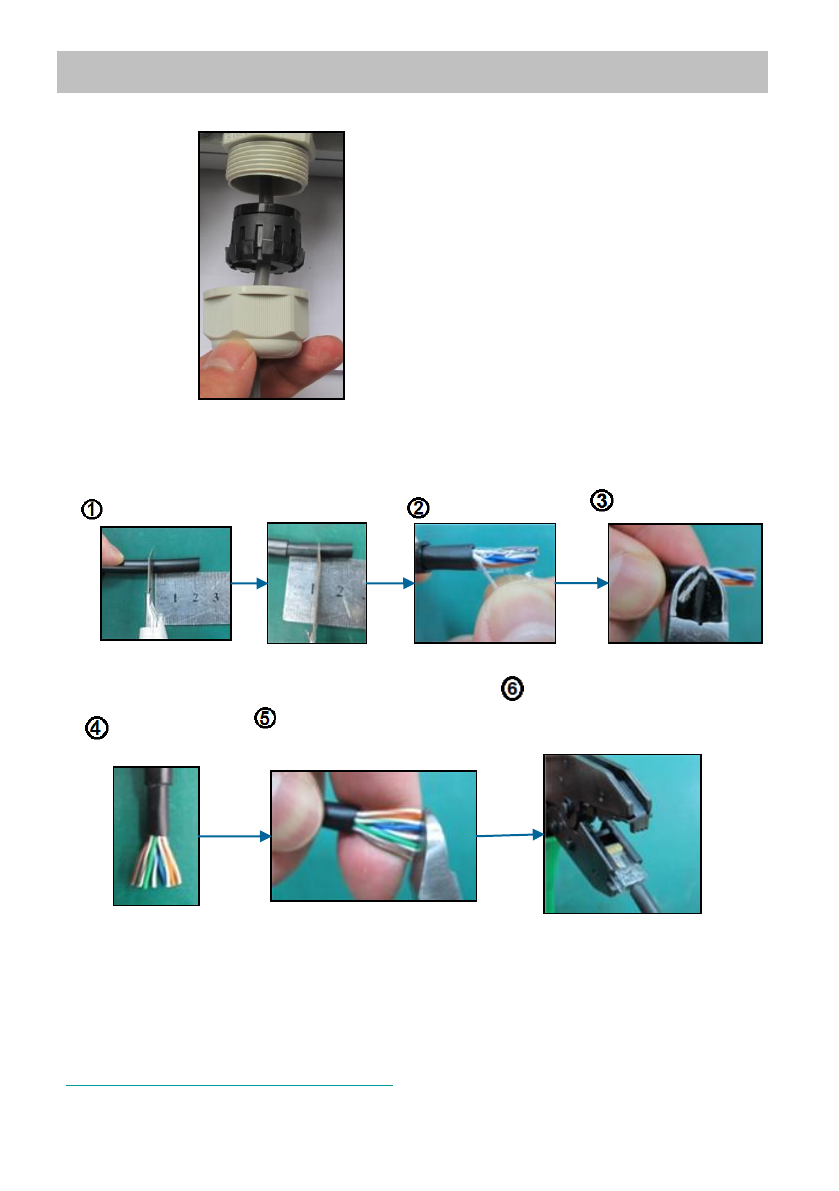

Install the Cables of CPE eA380
Strip the cable Strip the PET Cut the unnecessary
rip-cord
Distribute
the wires
Assemble the
ferrules and cut the
surplus cables
Insert the network cable
into the crystal connector.
Use the crimping tool to
press the crystal connector
Notice：Donot press the outer-jacket into the crystal
connector.
Make the POE Network Cable
Following All Safety Precautions
Before any operation, read the instructions and precautions in this document carefully to
minimize the possibility of accidents. The Danger, Caution, and Note items in the
documents do not cover all the safety precautions that must be followed. They only
provide the generic safety precautions for operations.
When operating Huawei products and equipment, you must comply with safety
precautions and special safety instructions related to the equipment provided by Huawei.
The safety precautions in the document are related to only Huawei products. Huawei is
not liable for any consequence that results from the violation of universal regulations for
safety operations and safety codes on design, production, and equipment use.
Complying with the Local Safety Regulations
When operating the device, comply with the local safety regulations.
Qualified Personnel Only
The installation and maintenance personnel of Huawei equipment must be trained and
master the correct operating methods and safety precautions before beginning work.
Safety of Personnel
•The AC power supply provides power for running the system. Direct contact with the
high voltage power supply or contact through damp objects may result in serious injury.
•In a thunderstorm, do not perform operations on high voltage and AC power supply
facilities or on a steel tower and mast.
•Power off the device before performing operations on the power supply equipment.
•Protect yourself when drilling holes. Flying dust may hurt your eyes or you may inhale
the dust.
•When working at a height, be cautious about falling objects.
Device Safety
•Leave space around the device for heat dissipation. Keep the device away from heat
and fire, for example, electric heaters and candles.
•Do not disassemble the device. When the device has a fault, contact the operator.
•Ensure that the device is always kept in a dry environment. If any liquid leaks through
the device, power off the device and contact the operator.
•If you detect smoke, unusual sound, or smell emanating from the device, unplug the
device immediately.
•Power off the device during thunder and lightning.
•Do not hang anything on the power cable or plug. Do not cover the device.
•Before cleaning the device, unplug it. Use a soft, dry cloth to clean the device exterior.
•Ensure that the power plug is clean and dry. Do not use a damaged or aged power
cable.
•Power on an CPE within 24 hours after unpacking it. If you power off an CPE for
maintenance, restore power to the CPE within 24 hours.
•To avoid direct lightning, CPE must be installed in the protection angle of 45 degrees
below a separate lightning rod, or protection angle of 45 degrees below a surrounding
high-rise building.
■
■
■
■
■
■
Safety Information
4
Environmental protection
This product complies with the design requirements for environmental protection. The
storage, use, and placement of the product must follow national laws and regulations.
■ Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/privacy-policy.
