User's Guide
3G/4G Dual Mode Wireless Router
PCDH5072HS
Sprint UG_032511
![](/img.php?id=1453256&img=bg3.png)
i
Introduction
This User's Guide introduces you to Sprint® service and
the features of your router. It’s divided into six sections:
ࡗSection 1: Getting Started
ࡗSection 2: Your Router
ࡗSection 3: Quick Start Guide
ࡗSection 4: Web management page
ࡗSection 5: Resources
ࡗSection 6: Safety and Warranty Information
Legal Notice
Copyright © Sprint and its licensors. 2011. All
rights reserved.
No part of this document may be reproduced or
transmitted in any form or by any means without prior
written consent of Sprint and its licensors.
The product described in this manual may include
copyrighted software of Sprint and its possible
licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or
sublicense the said software, unless such restrictions
are prohibited by applicable laws or such actions are
approved by respective copyright holders under
licenses.
Trademarks and Permissions
Sprint, sprint, SPRINT and the logo are trademarks or
registered trademarks of Sprint.
Other trademarks, product, service and company
names mentioned are the property of their respective
owners.
Note: Because of updates in the router software, this user's
guide may not be the most current version for your
router. Visit www.sprint.com and sign on to My Sprint
to access the most recent version of the user's guide.
WARNING: Please refer to the Important Safety Information
section on page 16 to learn about information
that will help you safely use your router. Failure to
read and follow the Important Safety Information
in this user's guide may result in serious bodily
injury, death, or property damage.
ii
Notice
Some features of the product and its accessories
described herein rely on the software installed,
capacities and settings of local network, and may not
be activated or may be limited by local network
operators or network service providers. Thus the
descriptions herein may not exactly match the product
or its accessories you purchase.
Sprint reserves the right to change or modify any
information or specifications contained in this manual
without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED
“AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY, RELIABILITY OR CONTENTS OF
THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO CASE SHALL SPRINT BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or
import laws and regulations and will obtain all
necessary governmental permits and licenses in order
to export, re-export or import the product mentioned in
this manual including the software and technical data
therein.
![](/img.php?id=1453256&img=bg5.png)
Section 1
Getting Started
![](/img.php?id=1453256&img=bg6.png)
2 1A. Setting Up Service
ࡗSetting Up Your Router (page 2)
ࡗActivating Your Router (page 3)
ࡗSprint Account Passwords (page 3)
ࡗGetting Help (page 4)
Setting Up Your Router

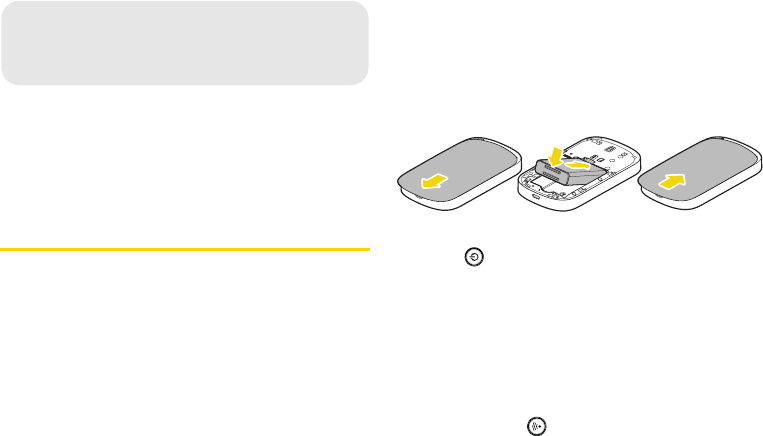

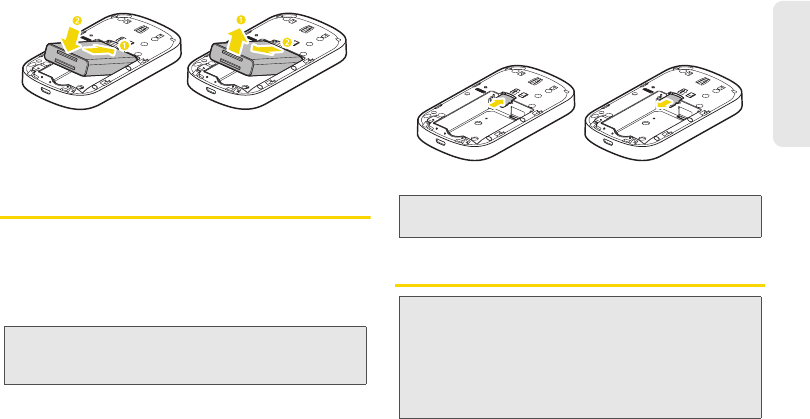

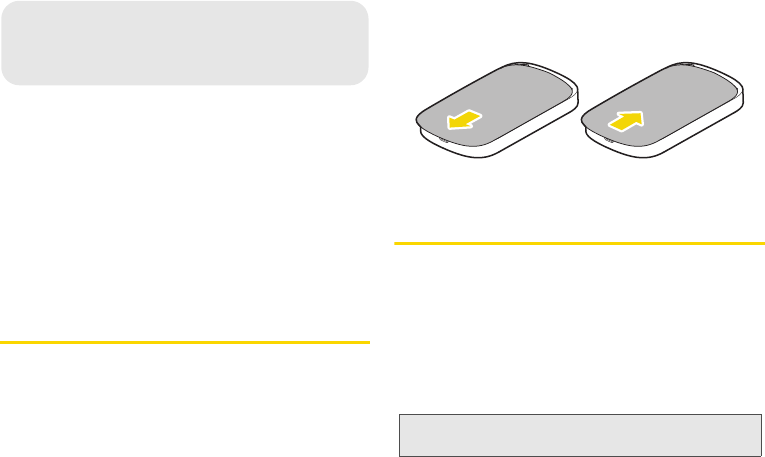

1. Remove the back cover.
ⅢSimply slide the cover down (in the direction of
the arrow in Figure A). You may hear a click
sound.
2. Install the battery.
ⅢRemove the battery from its packaging.
ⅢAs shown in Figure B, Insert the battery into the
opening in the back of the router, making sure the
connectors align, and gently press down to
secure the battery.
3. Install the back cover onto your router.
ⅢPlace the back cover on the back of the router,
then slide up (in the direction of the arrow in
Figure C). You may hear a pop sound.

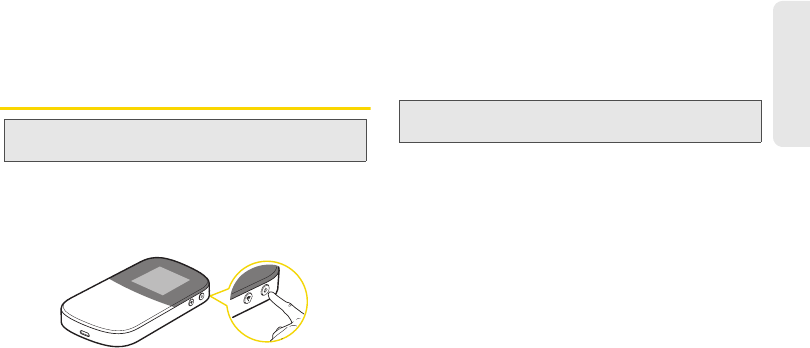

4. Press on the right side of the router for about 3
seconds to turn the router on.
ⅢIf your router is activated, it will turn on, search for
Sprint service, and ready for Internet connection.
ⅢIf your router is not yet activated, see “Activating
Your Router” on page 3 for more information.
5. Make your first wireless connection with a wireless
client through Wi-Fi.
ⅢDouble press on the right side of the router,
the Wi-Fi SSID and the key of the router displays
1A. Setting Up Service
Figure A Figure B Figure C
![](/img.php?id=1453256&img=bg7.png)
1A. Setting Up Service 3
Setting Up Service
on the screen for about five seconds. Take down
the SSID and the network key.
ⅢFrom a wireless client such as a PC on which a
wireless network adapter is installed, seach for
the wirelss network of the router which is named
with the SSID you have taken down.
ⅢConnect the wireless client to the Wireless
network of the router with the key you have taken
down.
Activating Your Router
ⅷIf you purchased your router at a Sprint Store, it is
probably activated and ready to use.
ⅷIf you received your router in the mail and it is for a new
Sprint account or a new line of service, it is designed to
activate automatically. To confirm your activation,
make a wireless connection with a wireless client.
ⅷIf you received your router in the mail and you are
activating a new router for an existing number on your
account, you will need to go online to activate your
new router.
ⅢFrom your computer’s Web browser, go to
www.sprint.com/activate and complete the
onscreen instructions to activate your router.
When you have finished, make a wireless connection
with a wireless client to confirm your activation. If your
router is still not activated or you do not have access
to the Internet, contact Sprint Customer Service at 1-
888-211-4727 for assistance.
Sprint Account Passwords
As a Sprint customer, you enjoy unlimited access to
your personal account information and your data
services account. To ensure that no one else has
access to your information, you will need to create
passwords to protect your privacy.
Note: You should fully charge the battery before attempting to
set up any connections. See “Charging the Battery” on
page 13 for details.
Tip: Do not press while the router is being activated.
Pressing cancels the activation process.
Note: If you are having difficulty with activation, contact Sprint
Customer Service by dialing 1-888-211-4727 for
assistance.
![](/img.php?id=1453256&img=bg8.png)
4 1A. Setting Up Service
Account Username and Password
If you are the account owner, you will create an account
username and password when you sign on to
www.sprint.com. (Click Sign in and then click Sign up
now! to get started.) If you are not the account owner (if
someone else receives the bill for your Sprint service),
you can get a sub-account password at www.sprint.com.
Data Services Password
With your Sprint router, you may elect to set up an
optional data services password to control access and
authorize Premium Service purchases.
For more information, or to change your passwords,
sign on to www.sprint.com or call Sprint Customer
Service at 1-888-211-4727.
Getting Help
Managing Your Account
Online: www.sprint.com
ⅷAccess your account information.
ⅷCheck your minutes used (depending on your Sprint
service plan).
ⅷView and pay your bill.
ⅷEnroll in Sprint online billing and automatic payment.
ⅷPurchase accessories.
ⅷShop for the latest Sprint phones.
ⅷView available Sprint service plans and options.
ⅷLearn more about data services and other products.
From A Phone
ⅷSprint Customer Service: 1-888-211-4727.
ⅷBusiness Customer Service: 1-800-927-2199.
For more information or to see the latest in products
and services, visit us online at www.sprint.com.
![](/img.php?id=1453256&img=bg9.png)
Section 2
Your Router
![](/img.php?id=1453256&img=bga.png)
6 2A. Router Basics
ࡗPackage Contents (page 6)
ࡗYour Router (page 6)
ࡗKey Functions (page 8)

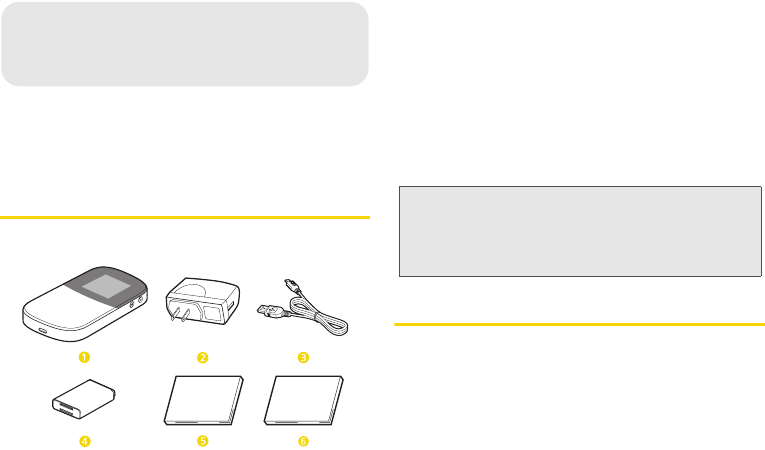

Package Contents
Check the following items in the product package:
Your Router
With embedded modules including Wi-Fi access
points, 3G (CDMA 1X/EVDO) modem, 4G (WiMAX)
modem, and routing hardware handling traffic between
the 3G/4G networks, the Wi-Fi access points and the
Wi-Fi network, your router provides a simple way for
3G/4G Internet connection with mutiple (up to five) Wi-
Fi supported devices.
2A. Router Basics
13G/4G Dual Mode Wireless Router
2Battery Charger
3USB Cable
4Battery
5Getting Started Poster
6Important Information Booklet
Note: Please contact the Sprint store where you purchased
your router if any items are missing or damaged when
you first open the package. And note that the figures in
this guide are provided only for reference, see the
actual product for details.
![](/img.php?id=1453256&img=bgb.png)
2A. Router Basics 7

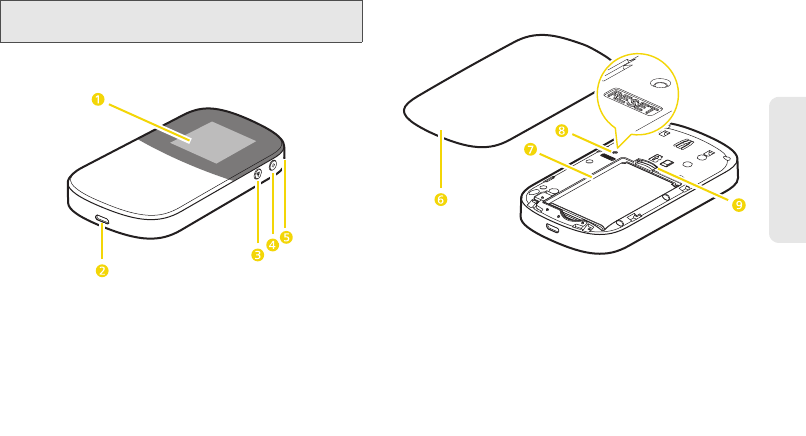

Phone Basics
Front Overview
Rear Overview
Note: Generally, the 3G/4G Dual Mode Wireless Router will
be referred to as "the router" in this guide.
1Display screen
2Micro USB port
3WLAN button
4Power button
5Strap hole
6Back cover
7Battery compartment
8Reset button
9MicroSDTM card slot
![](/img.php?id=1453256&img=bgc.png)
8 2A. Router Basics
Key Functions

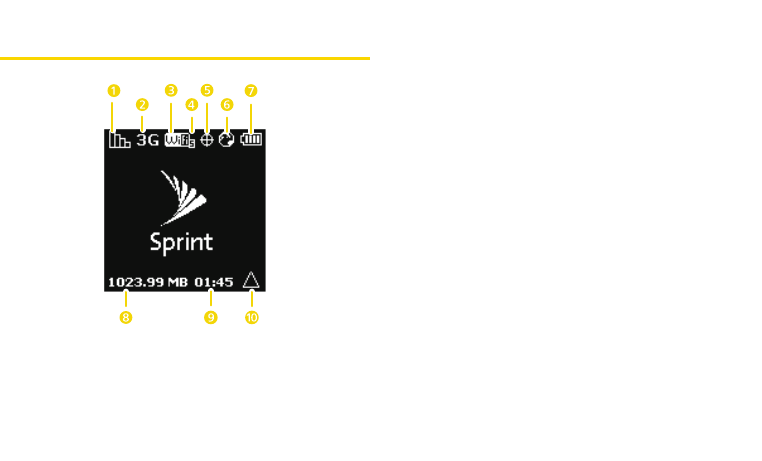

1. Display screen provide information about your
router’s status.
Tip: If the display screen is off while the router is on, you can
press any button to turn on it.
2. Micro USB port allows you to connect the router
charger or a compatible PC through the USB
cable for charging the battery.
CAUTION! Inserting an incorrect accessory into the
port may damage the router.
3. WLAN button
When the router is on:
●Double press the WLAN button to display the
SSID and key of the wireless network on the
display screen.
●Press and hold the WLAN button for about two
seconds to disable or enable the WLAN
feature.
●Press and hold the WLAN button for about five
seconds or more to start a WPS negotiation.
4. Power button
●When the router is off, press and hold the
power button for about 3 s to turn on it.
●When the router is on, press and hold the
power button for about 3 s to turn off it.
5. Strap hole allows you to thread a strap to the router
through the strap holes for more portable.
6. Battery slot allows you to install the battery.
CAUTION! Inserting an incorrect accessory into the
slot may damage the router.
7. Reset button
●press and hold the Reset button for less than
5 s to restore the default settings of WLAN.
●press and hold the Reset button for 5 s or
more than 5 s to retore the default settings or
the device.
8. MicroSDTM card slot allows you to install a microSDTM
card.
CAUTION! Inserting an incorrect accessory into the
slot may damage the router.
![](/img.php?id=1453256&img=bgd.png)
2A. Router Basics 9
Phone Basics
![](/img.php?id=1453256&img=bge.png)
10 2A. Installing and Startup
ࡗRemoving or Installing the Back Cover (page 10)
ࡗInstalling or Removing the Battery (page 10)
ࡗInstalling or Removing a MicroSDTM card (optional) (page
7)
ࡗ (page 11)
ࡗTurning Your Router On or Off (page 13)
ࡗChecking the status of the router via the screen (page 14)
Removing or Installing the Back
Cover
To remove the back cover, simply slide the cover down
(in the direction of the arrow in Figure A). You may
hear a click sound.
To install the back cover onto your router, place it on
the back of the router, then slide up (in the direction of
the arrow in Figure B). You may hear a pop sound.
Installing or Removing the Battery
To install the battery, gently insert the battery into the
battery slot on the back of the router, making sure the
connectors align, and gently press down to secure the
battery (as shown in Diagram A).
To remove the battery, make sure the power is off so
that you don’t lose any data, and then press the battery
release latch up (in the direction of the arrows in
Diagram B) and remove the battery from the router.
2A. Installing and Startup
WARNING: Do not handle a damaged or leaking Li-Ion
battery as you can be burned.
Figure A Figure B
![](/img.php?id=1453256&img=bgf.png)
2A. Installing and Startup 11
Setting Up Service
Installing or Removing a MicroSDTM
card (optional)
Your router supports a microSD™ card (sold
separately) up to 32 GB for file sharing and transfer or
storage. When connected to a computer through the
usb cable, the microSD card is recognized as a
removable storage device.
To install a microSDTM card, gently insert the card into
the microSDTM card slot on the back of the router,
making sure the side with the metal contacts face to
the back of the router (as shown in Figure A).
To remove the microSDTM card, slightly push in on it to
release it, and then remove it from the router (as shown
in Figure B).
Charging the Battery
Sprint-approved or [manufacturer]-approved batteries
and accessories can be found at Sprint Stores or
WARNING: Before installing or removing a microSDTM card,
power off the router to protect the router and the
SD card from being damaged.
Diagram A Diagram B
WARNING: Using microSD cards larger than 32 GB may
cause data loss and damage your device.
WARNING: Use only Sprint-approved or [manufacturer]-
approved batteries and chargers with your router.
The failure to use a Sprint-approved or
[manufacturer]-approved battery and charger
may increase the risk that your router will
overheat, catch fire, or explode, resulting in
serious bodily injury, death, or property damage.
Figure A Figure B
![](/img.php?id=1453256&img=bg10.png)
12 2A. Installing and Startup
through [manufacturer]; or call 1-866-866-7509 to
order. They’re also available at www.sprint.com.
Battery Capacity
Your router is equipped with a Lithium Ion (Li-Ion)
battery. It allows you to recharge your battery before it is
fully drained. The battery provides up to four hours of
continuous data-transferring time.
When the battery reaches 5% of its capacity, the battery
icon blinks. When there are approximately two minutes
of data-transferring time left, the router turns off.
Charging the Battery
Keeping track of your battery’s charge is important. If
your battery level becomes too low, your phone
automatically turns off, and you will lose any
information you were just working on.
To charge the battery installed on the router, plug the
USB end (The larger) of USB cable into the router’s
micro USB port, and the other end into an electrical
outlet (as shown in Figure A) or an USB port of a
compatible PC with the power is on (as shown in
Figure B).
ⅢCharging the battery while the router is on, the
battery icon on the display screen changes
dynamically and repeatedly in incremental
sequence from the right to the left until the battery
is fully charged.
ⅢCharging the battery while the router is off, the
charging animation on the display screen
changes dynamically and repeatedly until the
charging is over.
Note: Long backlight settings, searching for service and other
variables may reduce the battery’s data-transferring
and standby times.
Tip: Watch your router’s battery level indicator and charge the
battery before it runs out of power.
Note: Charging through a computer usually takes longer than
charging through the battery charger.
Figure A Figure B
![](/img.php?id=1453256&img=bg11.png)
2A. Installing and Startup 13
Setting Up Service
With the Sprint-approved Li-Ion battery, you can
recharge the battery before it becomes completely run
down.
Turning Your Router On or Off
To turn the router on or off, press and hold the power
button for about three seconds until you see the
powering-on or powering-down animation on the
display screen.
Once your router is on, it searches for the service.
When the router finds a signal, you are ready to begin
making connections with other Wi-Fi devices.
If your router is unable to find a signal after searching
of 10 minutes by default or the period you have set , a
Power Save feature is automatically activated. In Power
Save mode, your router searches for a signal
periodically without your intervention. You can also
initiate a search for Sprint service by pressing any key
(When your router is turned on).
Your screen remains blank while your router is off
(unless the battery is charging).
Note: Before turn on the router, make sure the router has a
charged or charging battery installed.
Tip: The Power Save feature conserves your battery power
when you are in an area where there is no signal.
![](/img.php?id=1453256&img=bg12.png)
14 2A. Installing and Startup
Checking the status of the router via
the screen
1Signal Strength – The current signal strength of the
network. (More bars = stronger signal.)
23G or 4G status– Your current network is in 3G
mode or in 4G mode.
3Wi-Fi On – Your router’s wireless feature is on.
4Clients – The number of currently connected client
Wi-Fi devices (including 0,1,2,3,4,5).
5Location On – Your router’s location feature is on
and available for location-based services such as
GPS Navigation.
6Internet – You are connected to the Internet.
7Battery Status – The current battery charge level.
When charging, the icon is animated.
8Throughput – The amount of the data transferred of
the current connection.
9Duration – Duration of the current connection.
10 Roaming – Your router is “roaming” off the
Nationwide Sprint Network.
![](/img.php?id=1453256&img=bg13.png)
Section 6
Safety and Warranty
Information
![](/img.php?id=1453256&img=bg14.png)
16 4A. Important Safety Information
ࡗGeneral Precautions (page 16)
ࡗEnvironmental Requirements (page 17)
ࡗPrecautions for Using Wireless Devices (page 17)
ࡗAreas with Inflammables and Explosives (page 18)
ࡗAccessory Requirements (page 18)
ࡗBattery and Charger (page 19)
ࡗSafety of Children (page 20)
ࡗTraffic Security (page 21)
ࡗTraffic Security (page 21)
ࡗEnvironmental Protection (page 22)
ࡗSpecific Absorption Rates (SAR) (page 22)
ࡗBody-Worn Operation (page 22)
ࡗFederal Communications Commission (FCC) Notice
(page 23)
This guide contains important operational and safety
information that will help you safely use the router. Failure
to read and follow the information provided in this
guide may result in serious bodily injury, death, or
property damage.
General Precautions
ⅷDuring storage, transportation, and operation of the
router, keep it dry and prevent it from colliding with
other objects.
ⅷDo not dismantle the router. In case of any fault,
contact an authorized service center for assistance
or repair.
ⅷWithout authorization, no organization or individual
can change the mechanical, safety, or performance
design of the router.
ⅷWhen using the router, observe all applicable laws
and regulations and respect the legal rights of other
people.
ⅷAlthough the router is quite sturdy, it is a complex
piece of equipment and can be broken. Avoid
dropping, hitting, bending, or sitting on it.
4A. Important Safety
Information Note: Unless otherwise specified, the term "device" refers to
the device and its accessories.
![](/img.php?id=1453256&img=bg15.png)
4A. Important Safety Information 17
Important Safety Information
ⅷAny changes or modifications to the router not
expressly approved in this guide could void your
warranty for this router and void your authority to
operate this router.
Environmental Requirements
ⅷKeep the router far from sources of heat and fire,
such as a heater or a candle.
ⅷKeep the router far from electronic appliances that
generate strong magnetic or electric fields, such as a
microwave oven or a refrigerator.
ⅷPlace the router on a stable surface.
ⅷPlace the router in a cool and well-ventilated indoor
area. Do not expose the device to direct sunlight for
extended periods of time (such as on the dashboard
of a car).
ⅷKeep the ambient temperature between 32° F (0° C )
and 113° F (45° C) while the router battery is being
charged. Keep the ambient temperature between
32° F (0° C ) and 104° F (40° C) for using the router
powered by a battery.
ⅷDo not use or charge the router in dusty, damp, and
dirty places. Otherwise, it may result in a malfunction
of the circuit.
ⅷDo not block the openings on the router with any
object. Reserve a minimum space of 10 cm around
the router for heat dissipation.
ⅷAvoid exposing the router and accessories to rain or
liquid spills. If the router does get wet, immediately
turn the power off and remove the battery, remove all
the cables connected to it, and then contact an
authorized service center.
ⅷDuring thunderstorms, power off the router, and then
remove all the cables connected to it to prevent it
from getting damaged due to lightning strikes.
Precautions for Using Wireless
Devices
ⅷTo operate the router safely and efficiently, always
follow any special regulations in a given area. Turn
the power off in areas where use is forbidden or
when it may cause interference or danger.
![](/img.php?id=1453256&img=bg16.png)
18 4A. Important Safety Information
ⅷThe radio waves generated by the router may
interfere with the operation of other electronic
devices. Before using any electrical medical device,
consult its manufacturer for the restrictions on the
use of the router.
ⅷDo not take the router into operating rooms, intensive
care units (ICUs), or coronary care units (CCUs).
Areas with Inflammables and
Explosives
ⅷTurn the router off when you are in any area that has
a potentially inflammable or explosive atmosphere.
Although it is rare, the router and accessories could
generate sparks. Sparks can cause an explosion or
fire, resulting in bodily injury or even death. These
areas are often, but not always, clearly marked. They
include:
ⅢFueling areas such as gas stations oil depots, or
chemical plants.
ⅢBelow deck on boats.
ⅢFuel or chemical transfer or storage facilities.
ⅢAreas where the air contains chemicals or
particles such as grain, dust, or metal powders.
ⅢAny other area where you would normally be
advised to turn off your vehicle’s engine.
ⅷNever transport or store flammable gas, flammable
liquids, or explosives in the compartment of your
vehicle that contains the router or accessories.
Accessory Requirements
ⅷUse only the accessories supplied or authorized by
the router manufacturer for using with this router
model. Otherwise, the performance of the router may
get affected, the warranty for the router or the laws
Note: Always turn off the router in healthcare facilities, and
request permission before using the router near
medical equipment.
Important: This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End users must follow the specific
operating instructions for satisfying RF exposure
compliance. To maintain compliance with FCC
RF exposure compliance requirements, please
follow operation instruction as documented in this
manual.
![](/img.php?id=1453256&img=bg17.png)
4A. Important Safety Information 19
Important Safety Information
and regulations related to telecommunications
terminals may become null and void, or an injury
may occur.
ⅷDo not use the accessories if they are damaged.
Otherwise, electric shocks or fires may occur.
For pluggable device, the socket-outlet shall be
installed near the router and shall be easily accessible.
Battery and Charger
ⅷThe power supply must be a Limited Power Source
in accordance with the requirements of IEC 60950-1/
EN 60950-1, Clause 2.5. It must be tested and
approved to national or local standards.
ⅷUse the AC power supply defined in the
specifications of the charger. An improper power
voltage may cause a fire or a malfunction of the
charger.
ⅷUse the compatible battery and charger delivered
only by the manufacturer with this router model.
Using battery and charger of other device model,
other manufacturers or vendors may invalidate any
approval or warranty applicable to the router, result in
the non-operation of the router, and cause danger.
ⅷUnplug the charger from the electrical plug and the
router when not in use.
ⅷIf the power cable is damaged (for example, the cord
is exposed or broken), or the plug loosens, stop
using the cable at once. Otherwise, it may lead to an
electric shock, a short circuit of the charger, or a fire.
ⅷDo not use the battery charger in direct sunlight or in
high humidity areas, such as the bathroom.
ⅷIn order to avoid damage, charge the battery only in
temperatures that range from 32° F to 113° F (0° C to
45° C).
ⅷDo not connect two poles of the battery with
conductors, such as metal materials, keys, or
jewelries. Otherwise, the battery may be short-
circuited and may cause injuries and burns on your
body.
ⅷKeep the metal contacts on top of the battery clean.
ⅷDo not modify or remanufacture, attempt to insert
foreign objects into the battery, immerse or expose to
water or other liquids, expose to fire, as any damage
to the battery may result in a fire, explosion or other
hazard.
![](/img.php?id=1453256&img=bg18.png)
20 4A. Important Safety Information
ⅷAvoid dropping the router or battery. If the router or
battery is dropped, especially on a hard surface, and
the user suspects damage, take it to a qualified
service center for inspection.
ⅷDo not disassemble the battery or solder the battery
poles. Otherwise, it may lead to electrolyte leakage,
overheating, fire, or explosion.
ⅷIf battery electrolyte leaks out, ensure that the
electrolyte does not touch your skin and eyes. When
the electrolyte touches your skin or splashes into
your eyes, wash your eyes with clean water
immediately and consult a doctor.
ⅷIf there is a case of battery deformation, color
change, or abnormal heating while you charge or
store the battery, remove the battery immediately and
stop using it. Otherwise, it may lead to battery
leakage, overheating, explosion, or fire.
ⅷThe battery can be charged and discharged
hundreds of times before it eventually wears out.
When the standby time and the data-transferring
time are shorter than the normal time, replace the
battery. Danger of explosion if battery is incorrectly
replaced.
ⅷNew batteries or batteries stored for a long time may
take more time to charge. When charging your
battery, keep it near room temperature. When storing
your battery, keep it uncharged in a cool, dark, dry
place. Some batteries perform best after several full
charge and discharge cycles.
ⅷDo not store the battery in high temperature areas for
long periods of time. Leaving the battery in a hot
vehicle may degrade long-term performance of Li-
lon batteries. It is best to store the battery in
temperatures that range from 32° F to 104° F (0° C
to 40° C).
ⅷBe sure to recycle or dispose of used batteries in
accordance with local regulations or reference
instruction supplied with your router. In some areas,
the disposal of batteries in household or business
trash may be prohibited.
Safety of Children
The router is not a toy. Do not allow children to play
with the router and keep the router and its accessories
out of the reach of children. Otherwise, they may
damage the router and its accessories, hurt themselves
![](/img.php?id=1453256&img=bg19.png)
4A. Important Safety Information 21
Important Safety Information
or others by mistake, or they may swallow the small
components of the router, causing suffocation or other
dangerous situations.
Traffic Security
ⅷObserve local laws and regulations while using the
router. To prevent accidents, do not use the router
while driving. Remember that safety always comes
first.
ⅷRF signals may affect electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
ⅷIn a motor vehicle, do not place the router over the
air bag or in the air bag deployment area. Otherwise,
the router may hurt you owing to the strong force
when the air bag inflates.
ⅷKeep the router off while flying in an aircraft and
before boarding an aircraft. Using wireless devices in
an aircraft may cause danger to the operation of the
aircraft and disrupt the wireless telephone network. It
may also be considered illegal.
Maintenance
ⅷIf the router is not used for a long time, power it off,
and then remove all the cables connected to it.
ⅷThe router and its accessories are not water-resistant.
Keep them dry and protect the them from water or
vapor. Do not touch the router or the charger with a
wet hand. Otherwise, it may lead to a short circuit, a
malfunction of the router, and an electric shock to the
user.
ⅷIf any exception occurs, for example, if the router
emits any smoke or unusual sound or smell, stop
using the router immediately, power it off, remove all
the cables connected to it, and then contact an
authorized service center.
ⅷDo not trample, pull, or overbend any cable.
Otherwise, the cable may get damaged, causing
malfunction of the device.
ⅷBefore cleaning the router, power it off, and then
remove all the cables connected to it.
ⅷUse a clean, soft, and dry cloth to clean the router
shell, and do not use any cleaning agent or spray.
![](/img.php?id=1453256&img=bg1a.png)
22 4A. Important Safety Information
Environmental Protection
ⅷDo not dispose of the router and the accessories in a
garbage can.
ⅷDispose of the router according to the local
regulations on disposing of packing materials,
exhausted batteries and abandoned devices, and
support the recycling activity.
Specific Absorption Rates (SAR)
This router meets guidelines for exposure to radio
waves.
This router is a low-power radio transmitter and
receiver. As recommended by international guidelines,
the router is designed not to exceed the limits for
exposure to radio waves. These guidelines were
developed by the independent scientific organization
International Commission on Non-Ionizing Radiation
Protection (ICNIRP) and include safety measures
designed to ensure safety for all users, regardless of
age and health.
The Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a device. The SAR
value is determined at the highest certified power level
in laboratory conditions, but the actual SAR level of the
device when being operated can be well below the
value. This is because the router is designed to use the
minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of
tissue. The highest SAR value reported to the FCC and
IC for this device type when tested for use in portable
exposure conditions are as follows:
WLAN 0.00341W/kg
CDMA 0.813W/kg
WiMAX 0.715W/kg
Body-Worn Operation
Important safety information regarding radiofrequency (RF)
radiation exposure is as follows:
ⅷTo ensure compliance with RF exposure guidelines,
the device must be used with a minimum of 1 cm
(0.393 inches) distance from the body.
![](/img.php?id=1453256&img=bg1b.png)
4A. Important Safety Information 23
Important Safety Information
ⅷFailure to observe the instructions could result in your
RF exposure exceeding the relevant guideline limits.
For more information about RF exposure, visit the FCC
website at www.fcc.gov.
Federal Communications
Commission (FCC) Notice
FCC ID number: QISEC5072
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
ⅷReorient the direction of the internal antenna.
ⅷIncrease the separation between the equipment and
receiver.
ⅷConnect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
ⅷConsult the dealer or an experienced radio/TV
technician for help.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
24 4A. Important Safety Information
![](/img.php?id=1453256&img=bg1d.png)
12 MONTH LIMITED WARRANTY 25
Warranty
ࡗ12 MONTH LIMITED WARRANTY (page 25)
Your router has been designed to provide you with
reliable, worry-free service. If for any reason you have a
problem with the device, please refer to the
manufacturer’s warranty in this section.
For information regarding the terms and conditions of
service for your router, please visit www.sprint.com or
call Sprint Customer Service at 1-888-211-4727.
12 MONTH LIMITED WARRANTY
Personal Communications Devices, LLC. (the
“Company”) warrants to the original retail purchaser of
this portable wireless router, that should this product or
any part thereof during normal consumer usage and
conditions, be proven defective in material or
workmanship that results in product failure within the
first twelve (12) month period from the date of
purchase, such defect(s) will be repaired or replaced
(with new or rebuilt parts) at the Company’s option,
without charge for parts or labor directly related to the
defect(s).
The rechargeable battery and battery charger, if
included, are similarly warranted for twelve (12) months
from date of purchase. This Warranty extends only to
consumers who purchase the product in the United
States or Canada and it is not transferable or
assignable.
This Warranty does not apply to:
ⅷ(a)Product subjected to abnormal use or conditions,
accident, mishandling, neglect, unauthorized
alteration, misuse, improper installation or repair or
improper storage;
Note: In addition to the warranty provided by your router’s
manufacturer, which is detailed on the following pages, Sprint
offers a number of optional plans to cover your device for non-
warranty claims. Sprint Total Equipment Protection provides
the combined coverage of the Sprint Equipment
Replacement Program and the Sprint Equipment Service
and Repair Program, both of which are available separately.
Each of these programs may be signed up for within 30 days
of activating your router. For more details, please visit your
nearest Sprint Store or call Sprint at 1-800-584-3666.
4B. Manufacturer’s Warranty
26 12 MONTH LIMITED WARRANTY
ⅷ(b)Product whose mechanical serial number or
electronic serial number has been removed, altered
or defaced.
ⅷ(c)Damage from exposure to moisture, humidity,
excessive temperatures or extreme environmental
conditions;
ⅷ(d)Damage resulting from connection to, or use of
any accessory or other product not approved or
authorized by the Company;
ⅷ(e)Defects in appearance, cosmetic, decorative or
structural items such as framing and non-operative
parts;
ⅷ(f)Product damaged from external causes such as
fire, flooding, dirt, sand, weather conditions, battery
leakage, blown fuse, theft or improper usage of any
electrical source.
The Company disclaims liability for removal or
reinstallation of the product, for geographic coverage,
for inadequate signal reception by the antenna or for
communications range or operation of the cellular
system as a whole.
When sending your wireless device to Personal
Communications Devices for repair or service, please
note that any personal data or software stored on the
device may be inadvertently erased or altered.
Therefore, we strongly recommend you make a back
up copy of all data and software contained on your
device before submitting it for repair or service. This
includes all contact lists and any other data added to
your device. In addition, if your wireless device utilizes a
microSDTM card, please remove the card before
submitting the device and store for later use when your
device is returned, Personal Communications Devices
is not responsible for and does not guarantee
restoration of any personal information or memory data
contained in, stored on, or integrated with any wireless
device, whether under warranty or not, returned to
Personal Communications Devices for repair or
service.
To obtain repairs or replacement within the terms of
this Warranty, the product should be delivered with
proof of Warranty coverage (e.g. dated bill of sale), the
consumer’s return address, daytime phone number
and/or fax number and complete description of the
problem, transportation prepaid, to the Company at the
address shown below or to the place of purchase for
repair or replacement processing. In addition, for
reference to an authorized Warranty station in your
![](/img.php?id=1453256&img=bg1f.png)
12 MONTH LIMITED WARRANTY 27
Warranty
area, you may telephone in the United States (800)
229-1235, and in Canada (800) 465-9672 (in Ontario
call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER
THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LAIBILITY EXCEED
THE PURCHASE PRICE PAID BY PURCHASER FOR
THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL BE
LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY MUST BE BROUGHT WITHIN A PERIOD
OF 18 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE
LIABLE FOR AN SPECIAL CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR
ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE
LIABLE FOR THE DELAY IN RENDERING SERVICE
UNDER THIS WARRANTY OR LOSS OF USE DURING
THE TIME THE PRODUCT IS BEING REPAIRED OR
REPLACED.
No person or representative is authorized to assume
for the Company any liability other than expressed
herein in connection with the sale of this product.
Some states or provinces do not allow limitations on
how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damage so the
above limitation or exclusions may not apply to you.
This Warranty gives you specific legal rights, and you
may also have other rights, which vary from state to
state or province to province.
IN USA: Personal Communications Devices, LLC.
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA: PCD Communications Canada Ltd.
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
