Thank you for purchasing Huawei EM770U HSPA Module.
Note:
This manual briefly describes the preparation, the process for
installing/uninstalling, and safety precautions for using Huawei EM770U
HSPA/Wi-Fi Module (hereinafter referred to as the EM770U).
You are recommended to read the manual before using the EM770U.
The signal strength and the transmission rate are affected by the actual
environment.
Getting to Know the EM770U

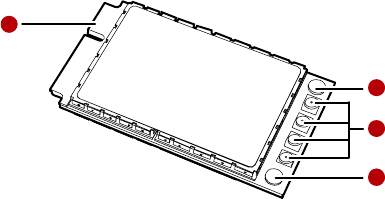

The following figure shows the appearance of the EM770U. The actual product
may differ.
1
3
2
2
1
![](/img.php?id=1143327&img=bg4.png)
Mini PCI Express connector
It is used to connect the EM770U to the WWAN Mini PCI Express interface of the
PC.
Screw holes
They are used to fix the EM770U on the main board of the PC with screws.
Antenna interfaces
They are used to connect antennas.
EM770U has an external antenna which connect with laptop.
The max gain which is allowed of external antenna is :
850M<4.28
1700M<2.6
1900M<3.6
Requirements for the PC
To use the EM770U, the PC must meet the following requirements:
WWAN Mini PCI Express interface.
Windows 2000 SP4, Windows XP SP2, Windows Vista and Linux 2.6.18 or
above
The hardware of your PC must meet or exceed the recommended system
requirements for the installed version of OS.
Display resolution: 800 × 600 or above.
2
Preparing the EM770U
Locate the WWAN Mini PCI Express interface on the main board of the PC. Find the
main antenna and the auxiliary antenna.
If a USIM/SIM card is provided by your service provider, insert the USIM/SIM card
into the USIM/SIM card slot on the main board of the PC.
Note:
In certain cases, your PC may be disassembled only by the professionals.
Before you install the EM770U onto the main board of the PC, consult the PC
manufacturer or read the user manual of the PC.
3
![](/img.php?id=1143327&img=bg6.png)
Installation Guide
Installing the EM770U onto the Main Board of the PC

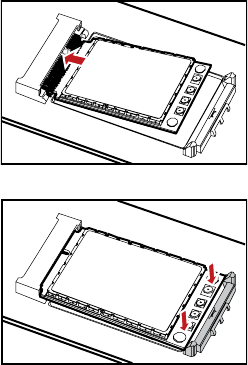

1. Insert the Mini PCI Express connector of the EM770U into the WWAN Mini PCI
Express interface on the main board of the PC.
2. Press downwards to fix the EM770U in the module slot.
4
![](/img.php?id=1143327&img=bg7.png)
3. Use a screwdriver to fix the EM770U onto the main board of the PC with two
screws provided in the EM770U packing box.
4. Insert the connector of the main antenna into the MAIN antenna interface (M)
of the EM770U according to the indication on the label of the EM770U. Insert
the connector of the auxiliary antenna into the AUX antenna interface (A) of
the EM770U in the same way.
Note:
Insert the antenna connectors vertically into the antenna interfaces of the
EM770U.
5
Do not pinch the antenna cable or damage the connectors. Otherwise, the
wireless performance of the EM770U may be reduced or the EM770U cannot
work normally.
Ensure that the antenna cables are routed through the channel in the frame of
the PC and do not lay across the raised edges of the frame.
6
![](/img.php?id=1143327&img=bg9.png)
Removing the EM770U from the Main Board of the PC

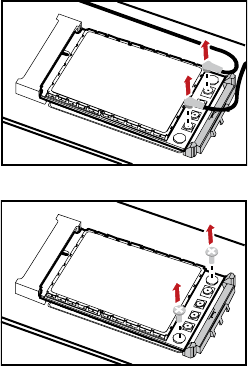

1. Disconnect the antenna cables from the EM770U. You can lift the connectors
with a small screwdriver.
2. Remove the two screws with the screwdriver.
7
![](/img.php?id=1143327&img=bga.png)

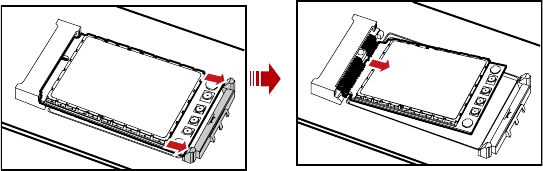

3. Slide backwards the two clips to release the EM770U from the slot. Then, lift
up the EM770U.
Installing the EM770U Software
A disk is provided in the EM770U packing box. The disk contains the management
program and the driver of the EM770U.
1. Insert the disk into the disk drive of the PC.
2. Find the AutoRun.exe file under the disk path. Then double-click
AutoRun.exe to run the program.
3. Follow the prompts of the installation wizard.
4. After the program is installed, the shortcut icon of the management program
is displayed on the desktop.
Uninstalling the Management Program
1. Choose Start > Control Panel.
2. Find the management program, and click Add/Remove Program to
uninstall the management program.
8
Note: It is recommended to restart the PC after the uninstallation to ensure that
the management program is completely uninstalled.
9
