User Manual 1
1
HG630 Home Gateway
Quick Start
1 Installing the Base
When you install the base, ensure that the arrow on the base points to the front panel of the
HG630 Home Gateway (HG630 for short).

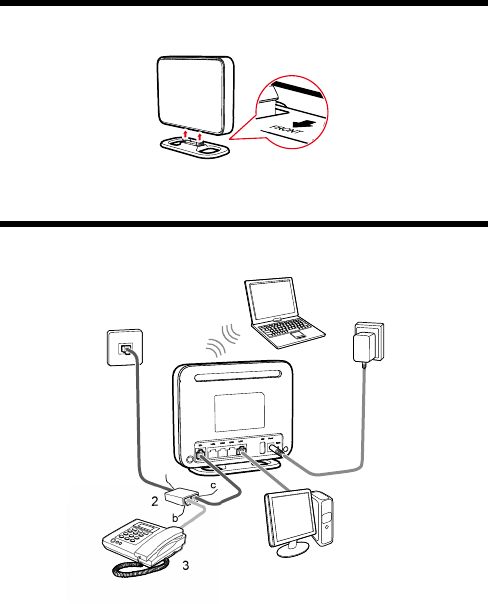

2 Connecting Cables Using the DSL Port
If there is at least one telephone jack available in your home, you can access the Internet
using digital subscriber line (DSL) services.
1
3
2
4
5
6
a
b
c
5
7
2
1. Telephone wall jack 2. Splitter 3. Telephone
4. Desktop computer 5. Power adapter 6. Laptop computer
7. HG630
a. Splitter LINE port b. Splitter PHONE port c. Splitter MODEM port
3 Powering On the HG630
After you connect the cables, power on the HG630 by pressing the On/Off button on its side
panel.
After you power on the HG630, the Power indicator lights up,the DSL indicator lights up and
starts blinking, indicating that the DSL port is being activated. The blinking may last from 40
seconds to 3 minutes. When the DSL indicator stops blinking and turns steady on, it indicates
that the cables are connected correctly and the HG630 has been activated using DSL.
4 Setting Network Access Parameters
Configuring a Dial-Up Connection for Internet Access
By default, the HG630 works in routing mode. The HG630 starts to set up a dial-up
connection automatically after you power it on. You do not need to install any dial-up
software or perform any dial-up operations on your computer.
To set up a dial-up connection for Internet access:
Step 1 Launch a browser on your computer. Enter http://192.168.1.1 in the address box,
and press Enter.
Step 2 On the login page, enter your user name and password.
By default, the user name is user and password is HuaweiUser.
For security reasons or to make the password easy to remember, you can
change the user name and password for login. For details, check the HG630
user guide.
If the user name and password have been changed, use the new ones to log in.
Step 3 Click Login.
Step 4 Click Setup Wizard to display the Wizard tab.
Step 5 Click Next.
Step 6 In WAN device, select your ADSL or VDSL WAN device.
Step 7 In User name and Password, enter the user name and password that are provided by
your service provider, and then click Next.
Step 8 In SSID and WPA pre-shared key, set a wireless network name and password, and
then click Next.
3
The default wireless network name (SSID) and password (WLAN Key) which
are printed on the label of the HG630's rear panel are preset before delivery.
They are unique and safe. If you do not want to modify them, click Next.
For security reasons or to make the password easy to remember, you can
change it. For details, see section "Configuring a Wireless Network Name and
Password".
If the default wireless network name and password have been changed, use
the new ones.
Step 9 Confirm the information you set and then click Submit.
Then check the status of the Internet indicator. When the Internet indicator turns green, you
can access the Internet.
The preceding operations need only be performed once. The next time you power on the
computer, you can access the Internet without any other configurations.
Configuring a Wireless Network Name and Password
When the HG630 is delivered, the wireless network name and password are preset. You can
find them on the HG630’s rear panel label. For security reasons or to make the password
easier to remember, change the wireless network name and password as follows:
(The default wireless network encryption mode WPA-PSK/WPA2-PSK is used as an
example)
Step 1 Log in to the HG630's web-based configuration utility.
Step 2 Choose Basic > WLAN to display the WLAN tab.
Step 3 Select Enable WLAN.
Step 4 In SSID, enter a new wireless network name.
Step 5 For Security, select WPA-PSK/WPA2-PSK.
Step 6 In WPA Pre-Shared Key, enter a new password. Use the default settings for other
parameters.
Step 7 Click Submit.
Remember the new wireless network name and password you just set. You will be prompted
to enter this password when connecting wireless devices, such as a computer, to the
HG630's wireless network.
4
5 Setting Up a Wireless Connection
A computer running Windows 7 is used as an example to describe how to set up a wireless
connection:
Step 1 Start the computer’s wireless configuration service:
1. Click Start, enter services.msc in the search box, and press Enter.
2. In the Services window, right-click WLAN AutoConfig to display a shortcut
menu, and choose Properties.
3. Check that Service status is Started.
4. Click OK to close the dialog box, and then close the Services window.
Step 2 Find and make note of the wireless network name (SSID) and password (WLAN
Key) printed on the label on the HG630's rear panel.
If the wireless network name and password have been changed, use the new ones.
Step 3 Configure the wireless network connection on the computer as follows:
1. Choose Start > Control Panel > Network and Sharing Center > Change
adapter settings.
2. In the Network Connections window, right-click the Wireless Network
Connection to display a shortcut menu, and select Connect/Disconnect.
3. In the Wireless Network Connection dialog box, select the wireless
network whose name is the same as the one you recorded in Step 2, and click
Connect.
4. In the Connect to Network dialog box, enter the wireless network password you
recorded in Step 2, and click OK.
After the system verifies the password, Connected appears on the wireless network
icon in the wireless network list, indicating that your computer has established
a wireless connection to the HG630.
For more information, visit http://www.huaweidevice.com to download the HG630 user
guide. Enter HG630 in the search box to find the user guide.
6 Warnings and Precautions
To use the device properly and safely, read these warnings and precautions carefully and
strictly observe them during operation. Unless otherwise specified, the term "device" refers to
the device and its accessories.
Basic Requirements
During storage, transportation, and operation of the device, keep it dry and prevent it from
colliding with other objects.
Do not dismantle the device. In case of any fault, contact an authorized service center for
assistance or repair.
5
Without authorization, no organization or individual can change the mechanical, safety, or
performance design of the device.
When using the device, observe all applicable laws and regulations and respect the legal
rights of other people.
Environmental Requirements for Using the Device
Before connecting and disconnecting cables, stop using the device, and then disconnect it
from the power supply. Ensure that your hands are dry during operation.
Keep the device far from sources of heat and fire, such as a heater or a candle.
Keep the device far from electronic appliances that generate strong magnetic or electric
fields, such as a microwave oven or a refrigerator.
Place the device on a stable surface.
Place the device in a cool and well-ventilated indoor area. Do not expose the device to
direct sunlight.
Use the device in an area with a temperature ranging from 0°C to 40°C.
Do not block the openings on the device with any object. Reserve a minimum space of 10
cm around the device for heat dissipation.
Do not place any object (such as a candle or a water container) on the device. If any foreign
object or liquid enters the device, stop using the device immediately, power it off, remove
all the cables connected to it, and then contact an authorized service center.
During thunderstorms, power off the device, and then remove all the cables connected to it
to prevent it from getting damaged due to lightning strikes.
Precautions for Using Wireless Devices
When using the device, ensure that the antenna of the device is at least 20 cm away from all
persons.
Do not use the device where using wireless devices is prohibited or may cause interference
or danger.
The radio waves generated by the device may interfere with the operation of electronic
medical devices. If you are using any electrical medical device, contact its manufacturer
for the restrictions on the use of the device.
Do not take the device into operating rooms, intensive care units (ICUs), or coronary care
units (CCUs).
Areas with Inflammables and Explosives
Do not use the device where inflammables or explosives are stored, for example, in a gas
station, oil depot, or chemical plant. Otherwise, explosions or fires may occur. In addition,
follow the instructions indicated in text or symbols.
Do not store or transport the device in the same box as inflammable liquids, gases, or
explosives.
Accessory Requirements
Use only the accessories supplied or authorized by the device manufacturer. Otherwise, the
performance of the device may get affected, the warranty for the device or the laws and
regulations related to telecommunications terminals may become null and void, or an
injury may occur.
6
Do not use the power adapter if its cable is damaged. Otherwise, electric shocks or fires
may occur.
Ensure that the power adapter meets the specifications indicated on the device nameplate.
Ensure that the power adapter meets the requirements of Clause 2.5 in
IEC60950-1/EN60950-1 and it is tested and approved according to national or local
standards.
For pluggable device, the socket-outlet shall be installed near the device and shall be easily
accessible.
The maximum voltage/current output from the USB port is 5 V/1 A. That is, the input
voltage/current of the USB device connected to the USB port cannot exceed 5 V/1 A.
Otherwise, the device may not work correctly.
Safety of Children
Keep the device and its accessories out of the reach of children. Otherwise, they may damage
the device and its accessories by mistake, or they may swallow the small components of the
device, causing suffocation or other dangerous situations.
Maintenance
If the device is not used for a long time, power it off, and then remove all the cables
connected to it.
If any exception occurs, for example, if the device emits any smoke or unusual sound or
smell, stop using the device immediately, power it off, remove all the cables connected to it,
and then contact an authorized service center.
Do not trample, pull, or overbend any cable. Otherwise, the cable may get damaged,
causing malfunction of the device.
Before cleaning the device, stop using it, power it off, and then remove all the cables
connected to it.
Use a clean, soft, and dry cloth to clean the device shell. Do not use any cleaning agent or
spray to clean the device shell.
Disposal and Recycling Information
This symbol on the device (and any included batteries) indicates that the device
(and any included batteries) should not be disposed of as normal household
garbage. Do not dispose of your device or batteries as unsorted municipal waste.
The device (and any batteries) should be handed over to a certified collection
point for recycling or proper disposal at the end of its life.
For more detailed information about the recycling of the device or batteries,
contact your local city office, the household waste disposal service, or the retail store where
you purchased this device.
The disposal of this device is subject to the Waste from Electrical and Electronic Equipment
(WEEE) Directive of the European Union. The purpose for separating WEEE and batteries
from other waste is to minimize any environmental impact and health hazard due to the
presence of hazardous substances.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation, Authorisation and Restriction
of Chemicals (REACH) Regulation (Regulation No 1907/2006/EC of the European
7
Parliament and of the Council) and the EU Restriction of Hazardous Substances
(RoHS) Directive (Directive 2002/95/EC of the European Parliament and of the Council). For
more information about the REACH compliance of the device, visit the Web
site www.huaweidevice.com/certification. You are recommended to visit the Web site
regularly for up-to-date information.
EU Regulatory Conformance
This device should be installed and operated with a minimum distance of 20 cm between the
antenna and all persons.
Български: С настоящето Huawei Technologies Co., Ltd. декларира, че този уред
съответства на основните изисквания и другите разпоредби на Директива 1999/5/EC.
Česky: Huawei Technologies Co., Ltd., tímto prohlašuje, že toto zařízení je ve shodě se
základními požadavky a dalšími souvisejícími opatřeními směrnice 1999/5/EC.
Dansk: Huawei Technologies Co., Ltd. erklærer hermed at denne enhed er i
overensstemmelse med de obligatoriske krav og andre relevante bestemmelser i direktiv
1999/5/EF.
Nederlands: Hierbij verklaart Huawei Technologies Co., Ltd. dat dit apparaat in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EC.
English: Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
Eesti: Käesolevaga kinnitab Huawei Technologies Co., Ltd., et see seade vastab Direktiivi
1999/5/EÜ põhinõudmistele ja teistele asjakohastele määrustele.
Suomi: Huawei Technologies Co., Ltd. vakuuttaa täten, että tämä laite on yhdenmukainen
direktiivin 1999/5/EY olennaisten vaatimusten ja direktiivin muiden asiaankuuluvien
lausumien kanssa.
Français (Européen) : Le fabricant déclare que ce produit est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch: Huawei Technologies Co., Ltd. erklärt hiermit, dass dieses Produkt die
erforderlichen Bestimmungen und andere relevante Verordnungen der Richtlinie 1999/5/EG
einhält.
Ελληνικά: Δια της παρούσης η Huawei Technologies Co., Ltd. δηλώνει ότι αυτή η συσκευή
συμμορφώνεται με τις βασικές απαιτήσεις και άλλες σχετικές διατάξεις της οδηγίας
1999/5/Ε.Κ.
Magyar: Jelen nyilatkozaton keresztül a Huawei Technologies Co., Ltd. kijelenti, hogy a
készülék megfelel az EC/5/1999 Irányelv összes lényeges követelményének és vonatkozó
előírásának.
Gaeilge: Fograíonn Huawei Technologies Co., Ltd. leis seo go bhfuil an fheiste seo i
gcomhlíonadh leis na fíor-riachtanais agus na forálacha eile maidir le Treoir 1999/5/AE.
Italiano: Col presente documento, Huawei Technologies Co., Ltd. dichiara che questo
dispositivo è conforme ai requisiti essenziali e alle altre disposizioni applicabili
della Direttiva 1999/5/CE.
8
Latviski: Ar šo Huawei Technologies Co., Ltd. paziņo, ka šī ierīce atbilst Direktīvas
1999/5/EC pamatprasībām un piemērojamajiem nosacījumiem.
Lietuviškai: Šiuo Huawei Technologies Co., Ltd. praneša, kad šis įtaisas
atitinka Direktyvos 1999/5/EC pagrindinius reikalavimus ir taikomas sąlygas.
Malti: Hawnhekk, Huawei Technologies Co., Ltd. tiddikjara li dan it-tagħmir hu konformi
mal-ħtiġijiet essenzjali u provvedimenti rilevanti oħrajn ta’ Direttiva 1999/5/KE.
Polski: Wymieniona w tym dokumencie firma Huawei Technologies Co., Ltd. deklaruje, że
niniejsze urządzenie spełnia zasadnicze wymagania w zakresie zgodności oraz inne odnośne
postanowienia Dyrektywy 1999/5/EC.
Português (Europeu) : Deste modo, a Huawei Technologies Co., Ltd. declara que este
dispositivo está em conformidade com os requisitos essenciais e outras provisões relevantes
da Directiva 1999/5/CE.
Română: Prin prezenta Huawei Technologies Co., Ltd. declară că acest dispozitiv este
conform cu cerinţele esenţiale şi alte prevederi relevante ale directivei 1999/5/CE.
Slovenčina: Huawei Technologies Co., Ltd. týmto vyhlasuje, že zariadenie je v súlade so
základnými požiadavkami a inými relevantnými predpismi Smernice 1999/5/ES.
Slovenščina: Huawei Technologies Co., Ltd. izjavlja, da je ta naprava v skladu z bistvenimi
zahtevami in drugimi ustreznimi določbami Direktive 1999/5/ES.
Español (Europeo) : Con el presente documento, Huawei Technologies Co., Ltd. declara
que este dispositivo cumple con los requisitos esenciales y con las demás disposiciones
correspondientes de la Directiva 1999/5/CE.
Svenska: Huawei Technologies Co., Ltd. förklarar härmed att denna produkt
överensstämmer med de grundläggande kraven och andra relevanta föreskrifter i direktiv
1999/5/EG.
For the declaration of conformity, visit the Web site www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the location where the device is to be used.
This device may be restricted for use in some or all member states of the European Union
(EU).
Notice: This device can be operated in all European countries.
Italy: For private use, a general authorisation is required if WAS/RLAN's are used outside
own premises. For public use, a general authorisation is required.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device should be installed and operated with a minimum distance of 20 cm between the
antenna and all persons.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
9
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Huawei
Technologies Co., Ltd. may void the FCC authorization to operate this device.
10
Copyright © Huawei Technologies Co., Ltd. 2012. All rights
reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei Technologies Co., Ltd and
possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, , and
are trademarks or registered trademarks of Huawei Technologies
Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities and
settings of local network, and may not be activated or may be limited by local network operators or network
service providers. Thus the descriptions herein may not exactly match the product or its accessories you
purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or specifications
contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY
KIND OF WARRANTIES.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain all necessary
governmental permits and licenses in order to export, re-export or import the product mentioned in this manual
including the software and technical data therein.
----------------------------------------------------------------------------------------------------------------------------------
Please visit www.huaweidevice.com/worldwide/support/hotline for recently updated hotline
and email address in your country or region.
-----------------------------------------------------------------------------------------------------------------------------------
Issue: 01 (2012-07-24)
Part Number: 96721344
