User Manual 2

Part Number: 203197

HG630 Home Gateway Product

Description

Issue

Date

2012-05-20

HUAWEI TECHNOLOGIES CO., LTD.

No part of this document may be reproduced or transmitted in any form or by any means without

prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other

trademarks and trad

e names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the commercial contract made

between Huawei and the customer. All or partial products, services and features described in this

document may not be within the purchased scope or the usage scope. Unless otherwise agreed by

the contract, all statements, information, and recommendations in this document are provided “AS

IS” without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in

the preparation of this document to ensure accuracy of the contents, but all statements, information,

nd recommendations in this document do not constitute the warranty of any kind, express or

implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huaweidevice.com

Email: mobile@huawei.com

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

Contents

1 Overview............................................................................................................................... 4

1.1 Introduction to the HG630 ................................................................................................................... 4

1.2 Hardware Features ............................................................................................................................... 5

1.3 Network Architecture ........................................................................................................................... 8

2 Functional Features ........................................................................................................... 10

2.1 High- bandwidth VDSL2 and HSPA Upstream Link ......................................................................... 10

2.2 Support 802.11n ................................................................................................................................. 10

2.3 WPS Function .................................................................................................................................... 10

2.4 Routing Function ................................................................................................................................ 10

2.5 IPv6 Function ..................................................................................................................................... 10

2.6 Flexible QoS Policies ......................................................................................................................... 11

2.7 Standardized TR-069 Management .................................................................................................... 11

2.8 Convenient and Secure Management and Maintenance ..................................................................... 11

3 Technical Specifications .................................................................................................. 12

3.1 Interface Features ............................................................................................................................... 12

3.2 Security Features ................................................................................................................................ 13

3.3 Routing & Bridged Features .............................................................................................................. 13

3.4 QoS Features ...................................................................................................................................... 14

3.5 Network Management ........................................................................................................................ 14

3.6 Power Supply Specifications .............................................................................................................. 14

3.7 Physical Specifications ....................................................................................................................... 14

3.8 Environmental Specifications ............................................................................................................ 14

4 Acronyms and Abbreviations ......................................................................................... 15

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

1 Overview

1.1 Introduction to the HG630

Figure 1-1 Appearance of the HG630

HG630 Home Gateway (hereinafter referred to as the HG630) is a type of Very High

Speed Digital Subscriber Line (VDSL) terminal. It's also compatible with Asymmetric

Digital Subscriber Line (ADSL), ADSL2, ADSL2+. On the network side, the HG630

provides a DSL interface.

For users, it provides an 2×2 MIMO 802.11b/g/n interface and four Ethernet interfaces.

After connecting to a PC, STB, video phone, or another terminal, users can enjoy data,

voice, and a range of other services.

The HG630 supports the triple play service completely and provides powerful routing

and bridging functions. It supports the IPv4 & IPv6 dual stack mode and the DS-Lite

mode, and various access modes such as PPPoE, IPoA and IPoE. Besides, it supports

DHCP, DNS, NAT, IGMP Proxy and Snooping, ACL, ﬁrewall, and ALG technologies.

With ﬂexible conﬁguration and QoS strategy, the HG630 ensures the quality of audio

service and video service that are respectively sensitive to time delay and packet loss.

Using the HG630, users can enjoy high-speed and high-quality broadband services at

home.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

As a broadband network terminal, the HG630 is an extension of an operator's

broadband network. HG630 provides powerful remote maintenance and administration

functions. It supports the latest TR-069 terminal management standards and remote

upgrades, thus facilitating large-scale deployment and maintenance.

1.2 Hardware Features

1.2.1 Interfaces and Buttons

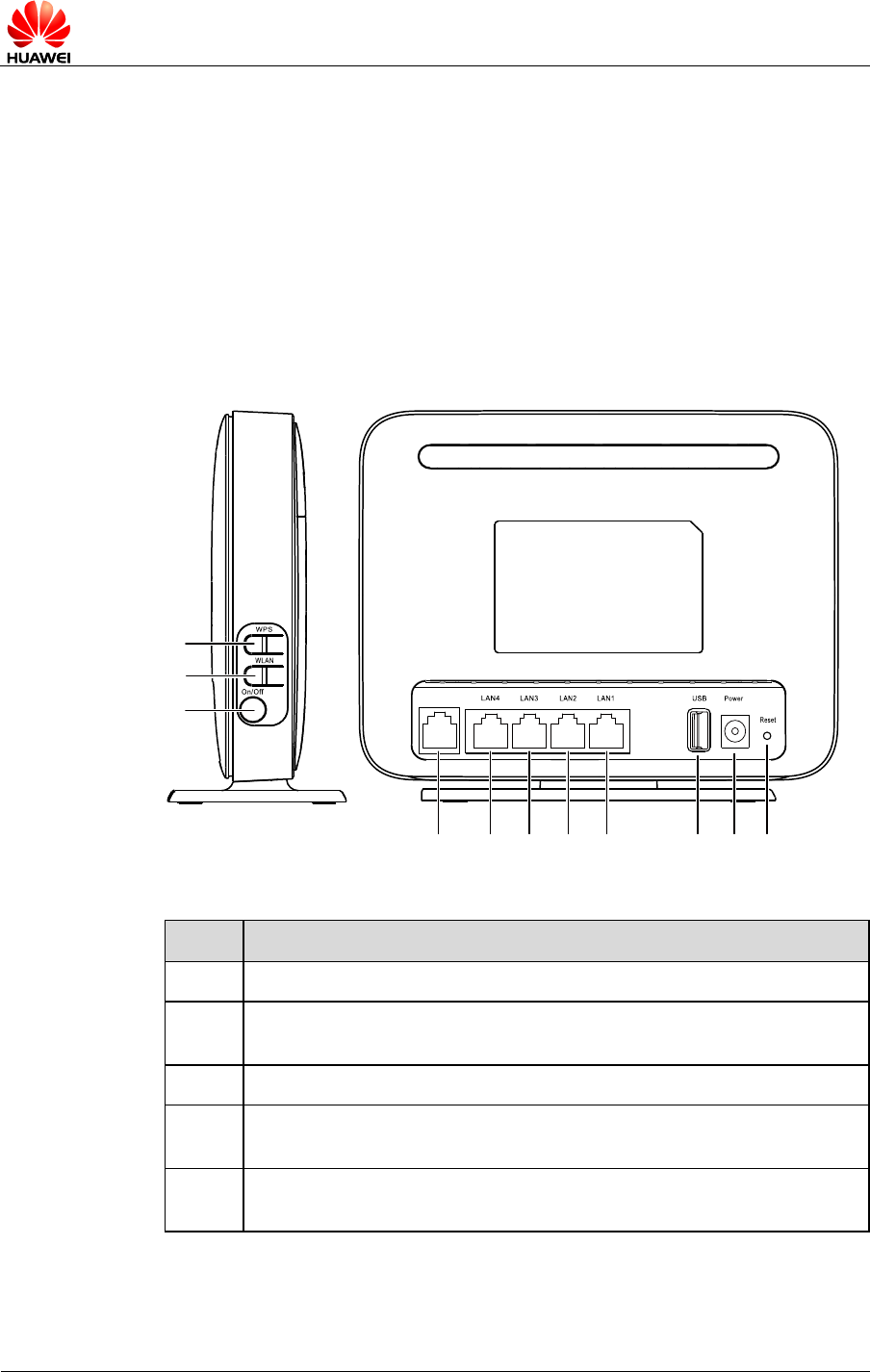

Figure 1-2 Interfaces and buttons on the HG630

DSL

4 5 6 7 8 9 10 11

Table 1-1 Interfaces and buttons on the HG630

No. Description

1 WPS button, which is used to enable the WPS negotiation function.

2 WLAN button, which is used to enable or disable wireless network

function quickly.

3 Power button, which is used to power on or off the HG630.

4 DSL interface, which is used to connect HG630 to the MODEM interface

on the splitter or to the telephone jack on the wall.

5-8 LAN interfaces, which are used to connect the HG630 to the Ethernet

interface on the computer.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

No. Description

USB interface, which is used to connect a USB device, such as a Huawei

HSPA USB interface link device.

The maximum voltage/current output from the USB port is 5 V/0.8 A. That is, the

input voltage/current of the USB device connected to the USB port cannot exceed

5 V/0.8 A. Otherwise, the HG532s may not work correctly.

Power interface, which is used to connect the HG630 to the power

adapter.

11 Reset button, which is used to restore the factory settings of the HG630.

1.2.2 Indicators

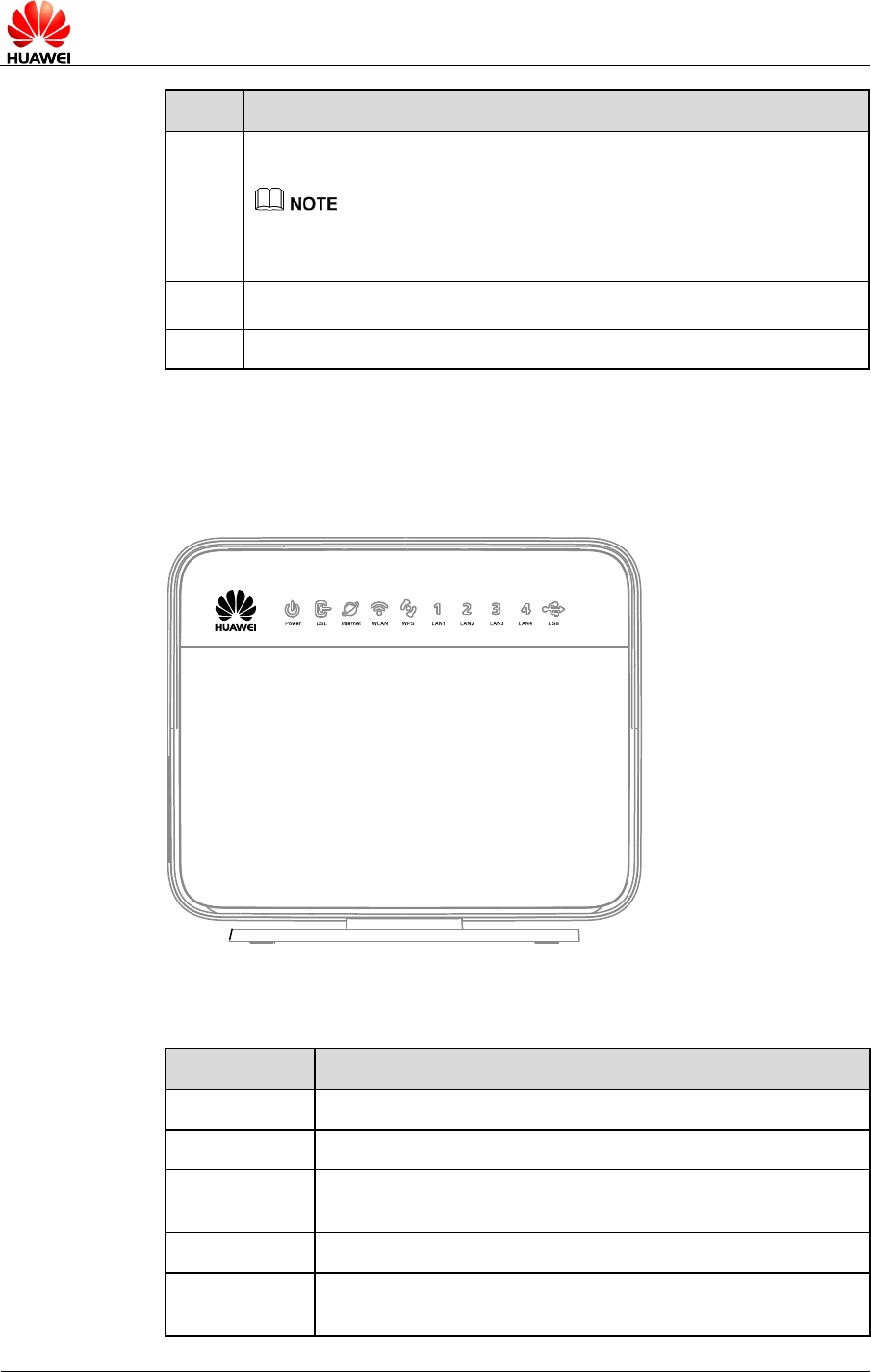

Figure 1-3 Indicators on the HG630

Table 1-2 Indicators on the HG630

Indicator Description

Power Indicates the power condition of the HG630.

DSL Indicates the status of the DSL line.

Internet Indicates whether the WAN uplink service is available in routing

mode.

WLAN Indicates the status of the wireless network connection.

WPS Indicates the status of the wireless network connection through

the WPS protocol.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

Indicator Description

LAN1 ~ LAN4 Indicate the status of the Ethernet connection between the HG630

and the PC.

USB Indicates the status of the USB connection between the HG630

and the USB device.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

1.3 Network Architecture

Figure 1-4 shows the location of the HG630 in the network.

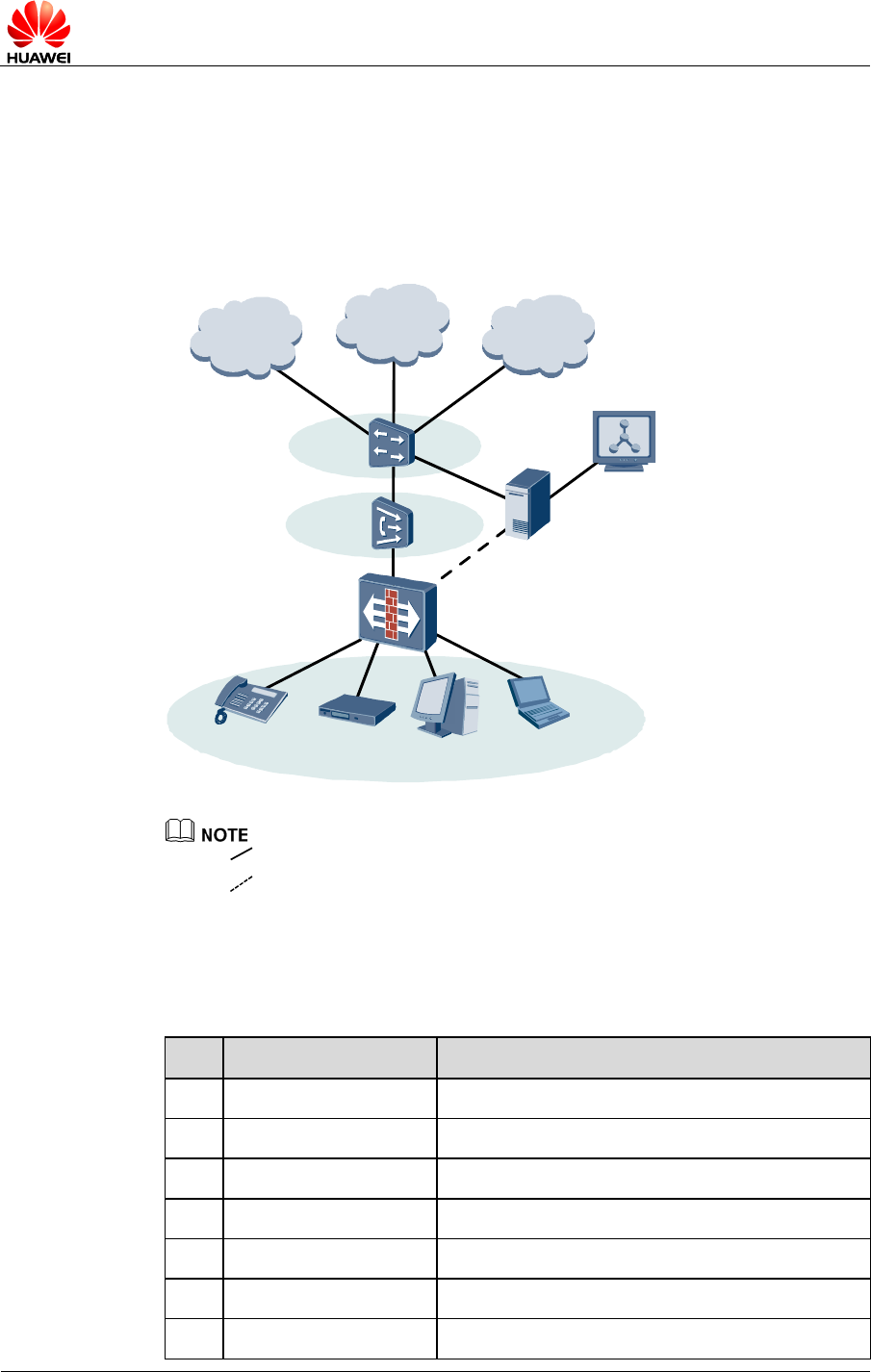

Figure 1-4 Networking diagram of the HG630

11 12



indicates an actual network connection.



indicates a logical management channel.

Table 1-3 lists the network units in the networking diagram of the HG630.

Table 1-3 Network units in the networking diagram of the HG630

No. Item Full Name

1 NGN Next Generation Network

2 Internet -

3 IPTV Internet Protocol Television

4 BRAS Broadband Remote Access Server

5 DSLAM Digital Subscriber Line Access Multiplexer

6 OSS Operations Support System

7 ACS Auto-Configuration Server

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

No. Item Full Name

8 HG630 -

9 Telephone -

10 STB Set-Top Box

11 Desktop computer -

12 Notebook computer -

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

2 Functional Features

2.1 High- bandwidth VDSL2 and HSPA Upstream

Link

With an embedded high-performance VDSL2 network processor and High-Speed

Packet Access (HSPA) uplink through HSPA modem, the HG630 can bring more

abundant service experiences to users. It's also compatible with ADSL, ADSL2 and

ADSL2+.

2.2 Support 802.11n

The HG630 provides high-speed, secure, and convenient wireless network access, and

supports 802.11n (2.4 GHz ~ 2.4835 GHz), 802.11b, and 802.11g. It can implement

the network access at a high speed by using a powerful built-in antenna. The IEEE

802.11n supports the MIMO 2×2 technology and the access rate can reach 300Mbit/s.

2.3 WPS Function

The HG630 provides the WPS 2.0 function. A wireless connection can be set up

between the computer and the HG630 conveniently and securely.

2.4 Routing Function

The HG630 has an embedded PPP dialer. It supports the functions of a Dynamic Host

Configuration Protocol (DHCP) server and simultaneous access of multiple users and

devices.

2.5 IPv6 Function

The HG630 provides the IPv6 function. It supports the IPv4 & IPv6 dual stack mode

and the DS-Lite mode.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

2.6 Flexible QoS Policies

The HG630 supports multiple methods of traffic classification, thus ensuring that user

services at different levels of network applications are smoothly implemented and that

end users can enjoy quality video and audio services.

2.7 Standardized TR-069 Management

The HG630 is completely compatible with the TR-069 standard defined by the Digital

Subscriber Line (DSL) Forum. Providing complete remote management and

diagnostic functions, it can implement the zero configuration solution. In addition, the

HG630 can carry out customized service provisioning conveniently through automatic

upgrade based on the service provisioning process. Hence operation and maintenance

cost can be greatly reduced.

2.8 Convenient and Secure Management and

Maintenance

The HG630 supports the TR-069 remote management, provides a Web-based

configuration utility, and ensures secure use of the Web-based configuration utility

through password verification.

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

3 Technical Specifications

3.1 Interface Features

3.1.1 DSL Interface

Multiple DSL Standards

 VDSL2

− Supports G.993.2 VDSL2

− Supports VDSL2 Profiles for 8a, 8b, 8c, 8d, 12a, 17a

− Supports VDSL Vectoring

 ADSL2+

− Supports G.992.5 (G.dmt.bitplus)

 ADSL2

− Supports G.992.3 (G.dmt.bis) Annex L

 ADSL

− Supports G.992.1 (G.dmt)

− Supports G.992.2 (G.lite)

− Supports G.994.1 (G.hs)

− Supports ANSI T1.413 Issue 2

Other Features

 Supports multiple permanent virtual channels (PVCs)

 Supports manual configuration of PVC parameters

3.1.2 WLAN Interface

 Supports 802.11n 2×2 antenna

 Supports 802.11b, 802.11g, 802.11n (2.4 GHz ~ 2.4835GHz)

 Supports WPS 2.0 (PBC mode and PIN mode)

 Supports DQPSK, DBPSK, CCK, OFDM, BPSK, QPSK, 16-QAM and 64-QAM

wireless modulation method

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

 Supports SSID hiding

 Supports WPA1.0 and WPA2.0 security

 Supports 64/128 digits WEP encryption

 Supports TKIP and AES encryption

 Supports multiple SSIDs

 Supports WMM

 Supports enable or disable the WLAN function by press WLAN button or config

the web-based utility

 WLAN Rates:

− 802.11b: Up to 11 Mbit/s

− 802.11g: Up to 54 Mbit/s

− 802.11n(with a 2×2 antenna used):Up to 300.0 Mbit/s

3.1.3 USB Interface

 Functions as a USB Host 2.0 interface

 Supports mass storage device

 Supports accessing a portable storage device through FTP server

 Supports a printing function

 Supports USB modem

 Supports DLNA

3.2 Security Features

 Supports powerful wireless network security

 Supports IP/MAC ﬁltering

 Supports URL ﬁltering

 Supports ACL access control

 Prevents DoS attacks such as LAND, SYN ﬂooding, ICMP Smurf, Ping of Death,

Ping Sweep, Teardrop, Unreachable, TCP/UDP PortScan and ICMP Redirection.

3.3 Routing & Bridged Features

 Supports IPv6

− Supports IPv4 and IPv6 dual-stack

− Supports DS-Lite Tunnel

− Supports SLAAC

 Supports NAT and ALG expansion

 Supports DHCP Server/Client

 Supports DNS Relay/Client

 Supports IGMP proxy and IGMP snooping

 Supports DMZ

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

 Supports UpnP

 Supports SNTP

 Supports port mapping

 Supports RIP V1&V2

 Bridging between the WAN port and the LAN port

3.4 QoS Features

 Supports 802.1p and 802.1q

 Agile QoS Strategy

 Rich of stream classiﬁcation strategy

3.5 Network Management

 Supports TR-069

 Supports Views system logs

 Supports two levels of web access control

 Prevents improper upgrades

 Supports the upgrade through TR-069

 Supports remote and local web conﬁguration and management

 Backing up and restoring the conﬁguration

3.6 Power Supply Specifications

 Entire-device power supply: 12 V DC, 2 A

 Entire-device power consumption: < 24 W

3.7 Physical Specifications

 Dimensions (L × W × H): about 162 mm × 137 mm × 32 mm

(Including the base plate)

 Weight: about 266 g (Not including the power adapter)

3.8 Environmental Specifications

 Ambient temperature for operation: 0°C to 40°C (32°F to 104°F)

 Relative humidity for operation: 5% to 95%, non-condensing

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

4 Acronyms and Abbreviations

ACS Auto-Configuration Server

ADSL Asymmetrical Digital Subscriber Line

ADSL2+ Asymmetrical Digital Subscriber Line 2 plus

AES Advanced Encryption Standard

ATM Asynchronous Transfer Mode

BRAS Broadband Remote Access Server

CBR Constant Bit Rate

DHCP Dynamic Host Configuration Protocol

DNS Domain Name System

DoS Denial of Service

DSCP Differentiated Services Code Point

DSL Digital Subscriber Line

DSLAM Digital Subscriber Line Access Multiplexer

HSPA High Speed Packet Access

HTTP Hyper Text Transport Protocol

IP Internet Protocol

IPTV Internet Protocol Television

LAN Local Area Network

MAC Media Access Control

MER MAC Encapsulation Routing

NAPT Network Address and Port Translation

NAT Network Address Translation

NGN Next Generation Network

nrt-VBR Non-real-time Variable Bit Rate

OSS Operations Support System

PC Personal Computer

PPPoA Point-to-Point Protocol over ATM

HG630 Home Gateway Product

Description

Issue: 01 (2012-05-20)

Huawei Proprietary and Confidential

PPPoE Point-to-Point Protocol over Ethernet

PTM Packet Transfer Mode

PVC Permanent Virtual Channel

QoS Quality of Service

RIP Routing Information Protocol

rt-VBR Real-time Variable Bit Rate

SSID Service Set Identifier

STB Set-Top Box

TKIP Temporal Key Integrity Protocol

ToS Type of Service

UBR Unspecified Bit Rate

VDSL Very High Speed Digital Subscriber Line

VDSL2 Very High Speed Digital Subscriber Line 2 plus

WEP Wired Equivalent Privacy

WLAN Wireless Local Area Network

WPA Wi-Fi Protected Access

WPS Wi-Fi Protected Setup

Huawei Technologies HG630 Home Gateway User Manual 2

Huawei Technologies Co.,Ltd Home Gateway 2

Contents

User Manual 2

Navigation menu

Namespaces

Views

Navigation
