Huawei Technologies HG8245 GPON Terminal User Manual

Huawei Technologies Co.,Ltd GPON Terminal

UserManual.wiki >

Huawei Technologies >

HG8245 User Manual HTML Version

User Manual

Quick Start

EchoLife HG8245 GPON Terminal

Huawei Proprietary and Condential

EchoLife HG8245 GPON Terminal

V100R002C06

Quick Start

Issue 01

Date 2011-06-30

BOM number 31505131

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support.

Please feel free to contact our local ofces or headquarters.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Web site: http://www.huawei.com

Tel: 0755-28560000 4008302118

Fax: 0755-28560111

Email: support@huawei.com

Huawei Proprietary and Condential

No part of this document may be reproduced or transmitted in any form or by any means without

prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their

respective holders.

Notice

The information in this document is subject to change without notice. Unless otherwise stated, this

guide serves only as a guide. All statements, information, and recommendations in this document

do not constitute a warranty of any kind, expressed or implied.

Changes or modications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

Safety Precautions

Basic Requirements

� Keep the device dry when it is stored, transported, and used.

� Prevent any violent collision when the device is stored, transported, and

used.

� Install the device in strict compliance with the requirements of the supplier.

� Do not disassemble the device without permission. In the case of a

device fault, contact the authorized service center.

� Do not change the structure, safety design, or performance design of

the device without prior authorization.

� Observe relevant laws and regulations and respect legal rights of others

when using the device.

Environmental Requirements

� Install the device in a well-ventilated environment that is free from direct

sunlight.

� Keep the device clean and free from dust.

� Keep the device away from water sources or damp areas.

� Do not place any object on the device, so that the device will not be

damaged due to overheating or deformation.

� Reserve a space of at least 10 cm above and around the device for heat

dissipation.

� During the installation, keep the device away from heat sources or

exposed ﬁre sources such as electric heaters and candles.

� During the installation, keep the device away from electric appliances

that generate strong magnetic or electric ﬁelds, such as microwave

ovens, refrigerators, and mobile phones.

Instructions for Cleaning

� Before cleaning the device, stop the device, switch off the power, and

disconnect all cables, including the power cable, optical ﬁber, and

network cable.

� Use a clean, soft, and dry cloth to clean the shell of the device. Do not

use any cleaning agent or spray to clean the shell of the device.

To use the device properly and safely, read the safety precautions carefully before using the

device and strictly observe these precautions when using the device.

Safety Precautions

Instructions for Use

� Use only the accessories delivered or recommended by the supplier, for

example, the power adapter and battery.

� The power supply voltage of the device must meet the requirements for

the input voltage of the device.

� Keep the power plug clean and dry to prevent electric shocks or any

other hazard.

� Dry your hands before connecting or disconnecting cables.

� Stop the device and switch off the power before connecting or

disconnecting cables.

� Switch off the power and disconnect all cables, including the power

cable, optical ﬁber, and network cable, during periods of lightning

activities.

� Switch off the power and then remove the power plug if the device is

to be unused for a long time.

� Prevent water or other liquid from entering the device. If any liquid

enters the device accidentally, immediately switch off the power and

disconnect all cables, including the power cable, optical ﬁber, and

network cable. In the case of a device fault, contact the authorized

service center.

� Do not crush, pull, drag, or excessively bend the cables as doing so may

damage the device and cause the device to malfunction.

� Do not use damaged or deteriorating cables.

� Do not look into the optical port without eye protection.

� If an abnormality occurs, for example, smoke, unusual sound, and smell,

stop the device immediately, switch off the power, disconnect all cables

(such as the power cable, optical cable, and network cable) to the

device, and contact the authorized service center.

� Prevent objects, such as metal, from entering the device through the

heat dissipation hole.

� Do not scratch or abrade the shell of the device. Otherwise, the fallen

coating may lead to device abnormalities (such as short-circuit) and

bodily allergy.

� Keep the device out of the reach of children as the components or

accessories may be swallowed.

�Keep the running device at least 20 cm away from the human body.

Environmental Protection

� Dispose of the device or batteries properly and hand them over to the

certied recycling station.

� Dispose of the packing materials, expired batteries, and old or

abandoned devices in accordance to local laws and regulations

(recycling them is strongly recommended).

After opening the product packaging, check each item against the following checklist.

Contact the supplier if there are any discrepancies.

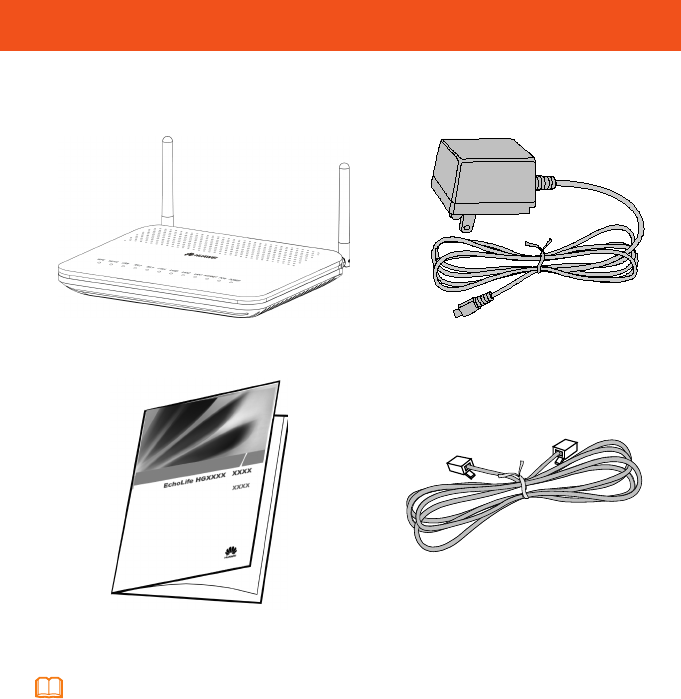

GPON terminal Power adapter

Quick Start Network cable

Packing List

NOTE

The gures shown in this document may differ from the actual products, but the difference

does not affect the functions of the products.

Product Overview

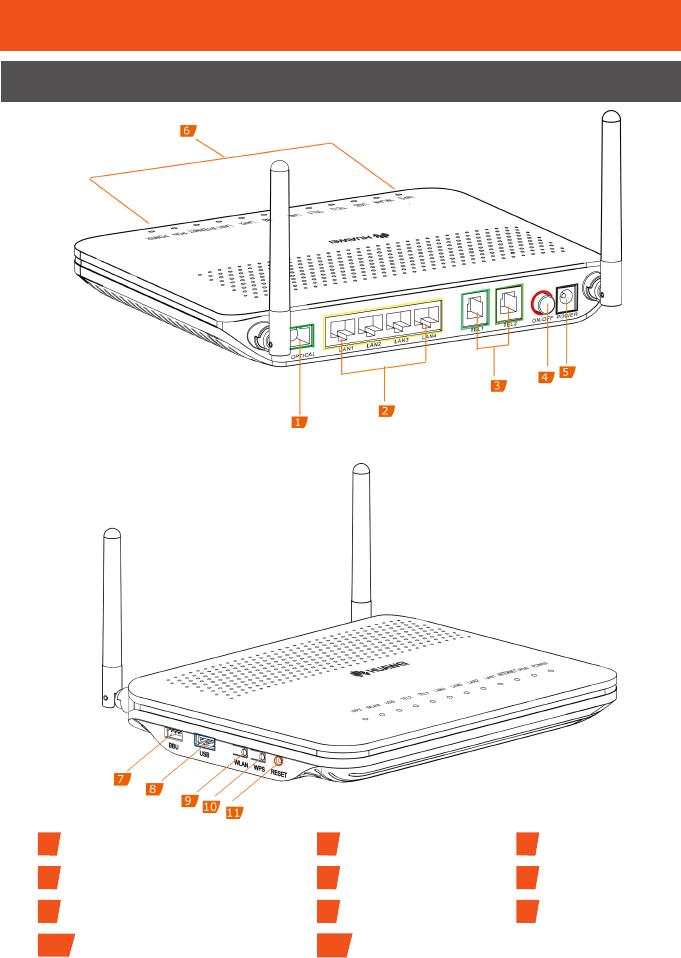

Appearance and ports of the HG8245

1Optical port 2Ethernet port 3POTS port

4Power switch 5Power port 6Indicator

7Backup battery monitoring port 8USB port 9WLAN switch

10 WPS switch 11 RESET

Installing the GPON Terminal

NOTE

1. HG8245 can be mounted onto a wall or be placed on a workbench.

2. Other installation modes are not allowed.

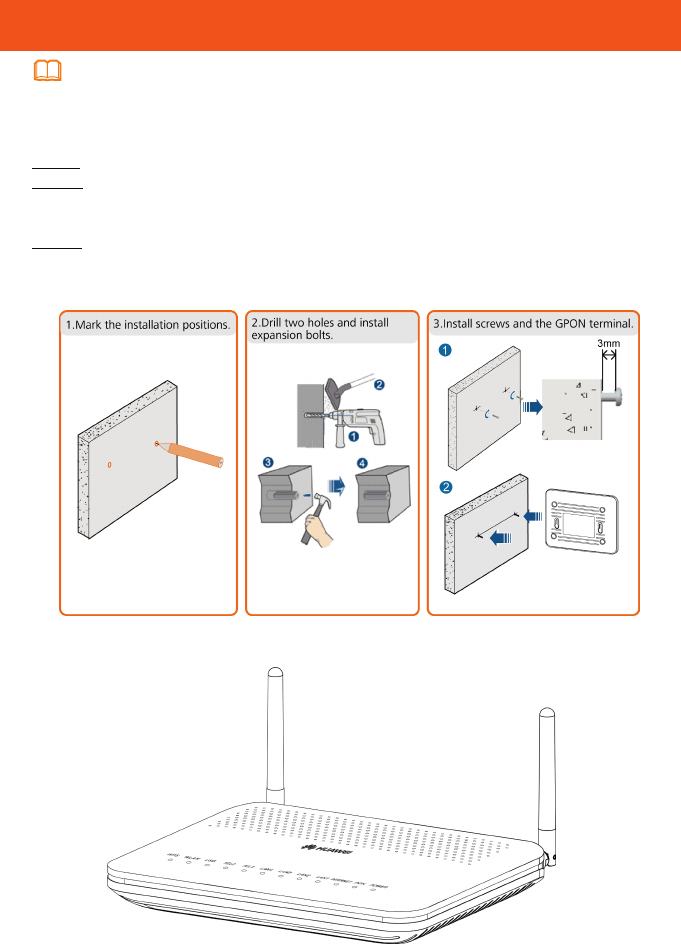

Perform the following operations to mount HG8245 onto the wall.

Step 1 Mark the positions of two holes, keeping the holes 72 mm from each other.

Step 2 Select a proper drill according to the outer diameter of the screws. Use a

hammer drill to drill the marked positions on the wall. Then clean the wall and

install two expansion bolts.

Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving the

heads of the screws 3 mm over the wall. Then install the GPON terminal to the

screws.

Place the GPON terminal on the workbench.

Connecting Cables

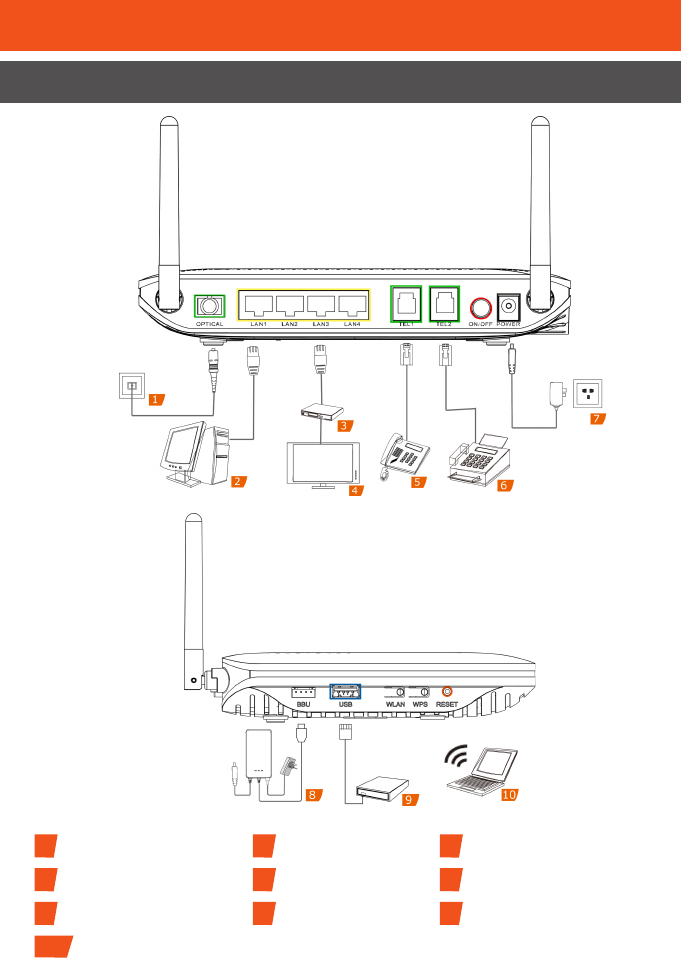

Cable Connections Between the HG8245 and Other Devices

1Optical port in the wall 2PC 3IP STB

4TV set 5Phone 6Fax machine

7Power socket 8Backup battery unit 9USB storage device

10 Wi-Fi terminal

Step 1 Use an optical fiber to connect the OPTICAL port on the GPON terminal to

the optical port in the wall.

Step 2 Use a network cable to connect the LAN port to a PC or the Ethernet port on

the IP STB.

Step 3 Use a phone line to connect the TEL port to a phone or fax machine.

Step 4 Use a power adapter to connect the POWER port to the power socket.

Step 5 Use a USB data cable to connect the USB port to the USB storage device.

Step 6 Press the ON/OFF power switch.

Step 7 Press the WLAN switch to enable the Wi-Fi access function. By default, this

function is enabled.

Step 8 Press the WPS switch to enable the WPS encryption function.

NOTE

Connecting Cables

Refer to the preceding cable connections of each product and select the following

corresponding steps to connect the GPON terminal.

NOTE

The optical connector connected to the OPTICAL port on the HG8245 is an SC/APC

connector, and the type of the optical connector connected to the optical port in the

wall is determined by practical conditions.

The preceding figure connects the power adapter as an example. When the backup

battery unit is used, a power monitoring cable is used for connecting the BBU port

to the monitoring port of the backup battery unit. This allows the GPON terminal to

monitor the backup battery unit. For details on how to use the backup battery unit, see

the usage guide to the backup battery.

NOTE

Before enabling the WPS encryption function of a GPON terminal, ensure that the

function is set in the system software in advance. After successful setting, press the

WPS switch for the settings to take effect.

NOTE

The Ethernet port on the HG8245 is a 10/100/1000M Base-T Ethernet port.

Step 1 Set the IP address of the PC in the same subnet 192.168.1.64 – 192.168.1.253.

Example:

- IP address: 192.168.1.100

- Subnet mask: 255.255.255.0

Step 2 Enter the management IP address of the GPON terminal in the address box of

Internet Explorer and press Enter. The login window is displayed.

Step 3 In the login window, select your preferred language, enter the user name

and password (default user name is TELMEX and default password is

WEP Key), and click Login. After the password is authenticated, the Web

configuration window is displayed.

Logging in to the Web Conguration Window

Perform the following steps to log in to the Web configuration window of a GPON

terminal.

NOTE

The default management IP address and subnet mask of the GPON terminal are as

follows:

- IP address: 192.168.1.254

- Subnet mask: 255.255.255.0

Indicator Description

Indicator Status Description

WPS

Steady on The WPS function is enabled.

Blinking A Wi-Fi terminal is connecting to the system.

Off The WPS function is disabled.

WLAN

Steady on The WLAN function is enabled.

Blinking Data is being transmitted.

Off The WLAN function is disabled.

USB

Steady on The USB port is already connected but no data is transmitted.

Blinks twice a

second Data is being transmitted.

Off

The system is not powered on or the USB port is not connected.

TEL1 – TEL2

Steady on The connection between the TEL port and the voice server has

been set up.

Blinks twice a

second

The connection between the TEL port and the voice server is

set up and the phone is in the off-hook or ringing state.

Blinks once

two seconds The TEL port is registering with the voice server.

Off The connection between the TEL port and the voice server is

not set up.

LAN1 – LAN4

Steady on The Ethernet connection is in the normal state.

Blinking Data is being transmitted on the Ethernet port.

Off The Ethernet connection is not set up.

INTERNET

Steady on The internet connection is in the normal state.

Blinks once

two seconds The terminal is connecting to the internet.

Off The internet connection is not set up.

PON See Table 2.

POWER

Steady green The terminal is powered on.

Steady yellow The backup battery is supplying power.

Off The power supply is cut off.

Table 1 Indicator status description 1

NOTE

In the preceding table, if the indicator status is blinking but the duration is not specied, the

blinking duration of the indicator is determined by the transmitted data trafc.

Table 2 Indicator status description 2

Indicator Description

Indicator Status Description

PON

Green steady on The fiber connection between the terminal and the uplink

device is set up.

Green blinking The terminal attempts to set up a connection with its upper-

layer device.

Red steady on The fiber connection between the terminal and the uplink

device is interrupted.

Red blinking The terminal is a rogue terminal.

PON is GPON indicator. The status of PON reflects the connection between GPON

terminal and its upper-layer device. The following table describes the status of the PON

indicator.

NOTE

If the indicator is in the state described in No. 4, that is, the terminal is a rogue terminal, contact

the service provider immediately.

FAQs

The POWER indicator Is off.

� Check whether the ON/OFF button on the rear plane is depressed.

� Ensure that the power adapter matches the GPON terminal.

� Check whether the power supply is connected properly.

The LAN indicator is off.

� Ensure that the network cable matches the GPON terminal.

� Check whether the network cable is properly connected.

� Check whether the network adapter works in the normal state.

The TEL indicator is off.

� Check whether a voice service user is configured and enabled.

The WPS indicator is off.

� Check whether the WPS function is enabled.

The WLAN indicator is off.

� Check whether the WLAN function is enabled.

The USB indicator is off.

� Check whether the USB device is properly connected.

The phone does not ring upon an incoming call but communication

is in normal state when the phone is in the off-hook state.

� The GPON terminal provides a maximum of 60 V AC ringing current voltage. Check

whether the ringing current voltage of the phone is higher than 60 V AC. If it is

higher than 60 V AC, replace it with another phone.

How can I reset the GPON terminal?

� Press RESET by using a needle-type object to reset the GPON terminal.

How can I restore factory defaults?

� Press RESET by using a needle-type object for longer than 10s to restore factory

defaults and reset the GPON terminal. If the indicator is off and then is lit, the

system is reset successfully.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

&$87,21

Item HG8245

Dimensions(H x W x D) 195mm×174mm×34mm

Weight (including the power adapter) About 550g

System power supply 11V – 14V DC, 2A

Power adapter input 100V – 240V AC 50Hz – 60Hz

Maximum system power consumption 14W

Ambient temperature 0oC – +40oC

Ambient humidity 5% – 95%(non-condensing)

Technical Specications

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired

operation.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

User Information

Personal or company's full name: __________________________________________________

Address/Postal Code: ____________________________________________________________

Telephone: ____________________________________________________________________

Email: ________________________________________________________________________

Product Type: __________________________________________________________________

Product Serial Number: __________________________________________________________

Purchase Date: _________________________________________________________________

Invoice Number: ________________________________________________________________

Dealer's Name: _________________________________________________________________

Dealer's Address: _______________________________________________________________

Dealer's Telephone: _____________________________________________________________

Warranty Card

Thank you for choosing Huawei Technologies Co., Ltd.To get better services, please

read this warranty card carefully, ll in the required information, and preserve this

card in good condition.

Preserve well. No reissue.

Dealer's Seal

Limited Warranty

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Code: 518129

Web site: http://www.huawei.com

Subject to the exclusions contained below, Huawei Technologies Co., Ltd. (Huawei

for short) warrants its access terminals ("Products") to be free from defects in

materials and workmanship under normal consumer usage for one year from

the date of purchase of the product ("Warranty period"). During the warranty

period, a Huawei authorized service partner shall remedy defects in materials and

workmanship free of charge.

Special Notice:

1. The warranty card shall be applicable only after being stamped by the dealer.

2. The warranty card must be preserved in good condition and free of any scratch

or alteration.

3. To claim such service for defects that are not included in the following exclusion

terms, the warranty card and the invoice that records that product serial number

shall be presented to a Huawei authorized service partner.

Exclusions:

In any of the following cases, the warranty card becomes unenforceable or

inapplicable without prior notice:

1. The defects are caused by improper handling in transportation and assembly.

2. The defects are caused by the fact that the product is dismantled or altered by

anyone that is not from a Huawei authorized service partner.

3. The defects are caused by the fact that the product is used in a harsh

environment that is not suitable for the operation of the product.

4. The defects are caused by any force majeure including but not limited to re,

earthquake, lightning, and tsunami.

5. The defects are caused by the fact that the product is used or handled

incorrectly, roughly or not as instructed in the applicable User Guide.

6. The normal wear and tear, including but not limited to the normal wear and tear

of the shell and the power module, shall not be covered by the limited warranty.

7. The warranty card is altered or illegible, or the product serial number recorded

on the warranty card is inconsistent with the actual one imprinted or labeled on

the product.

In any case that is not covered by this limited warranty or should the warranty

expire, Huawei shall charge for the service(s) claimed for the products if the product

is still remediable. Huawei reserves all rights to interpret this limited warranty.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Web site: http://www.huawei.com

Qualiﬁcation Card

PASS

Huawei Technologies HG8245 GPON Terminal User Manual

Huawei Technologies Co.,Ltd GPON Terminal

User Manual

Navigation menu

Namespaces

Views

Navigation
