Huawei Technologies MC509 CDMA 1X EVDO Rev.A Module User Manual English

Huawei Technologies Co.,Ltd CDMA 1X EVDO Rev.A Module English

UserManual.pdf

Copyright © Huawei Technologies Co., Ltd. 2013.
All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without
prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei Technologies Co.,
Ltd and possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said
software, unless such restrictions are prohibited by applicable laws or such actions are approved by
respective copyright holders under licenses.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies
Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and may not be activated or may be limited by local
network operators or network service providers, thus the descriptions herein may not exactly match
the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain all
necessary governmental permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
i
Contents
Getting to Know the MC509-P ......................................................................................................... 1
Dimension .................................................................................................................................1
Position of RF Connectors ......................................................................................................2
Pin Definitions ..........................................................................................................................2
1
Thank you for purchasing HUAWEI MC509 LTE mini PCIE
Module (hereinafter referred to as the MC509)
Note:
This manual briefly describes the dimension, the position of RF connectors and Pin definitions.
You are recommended to read the manual before using the MC509.
Getting to Know the MC509

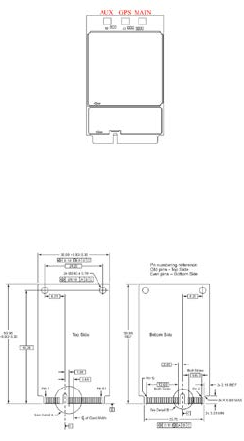

Dimension
The package of the mini PCIE module is 52 pin PCIE with a dimension of 51 mm × 30.4 mm ×
3.4 mm. It is applied to the user interface board, and can be used as a wireless terminal in a
network environment.
2
Position of RF Connectors
The PCIE module provided three antenna connectors (MAIN_ANT, GPS_ANT and AUX_ANT) for
connecting the external antennas.
Pin Definitions
The sequence of mini-PCIE interface is shown below.
3
The Pin definitions of the Mini PCIE interface is shown below.
PIN
No.
Pin Name
I/O
Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
1 WAKE# WAKE# O Open
collector
active low
signal. This
signal is used
to wake up
the host.
–0.3 - -
2 3.3Vaux VCC_3V3 P 3.3 V DC
supply rails
from the PC
side
3.0 3.3 3.6
3 COEX1 NC - Not
connected - - -
4 GND GND - Ground - - -
5 COEX2 NC - Not
connected - - -
6 1.5 V NC - Not
connected - - -
7 CLKREQ# NC - Not
connected - - -
4
PIN
No.
Pin Name
I/O Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
8 UIM_PWR RUIM_PWR P Power source
for the
external
RUIM card
- 1.8/2.
85 -
9 GND GND - Ground - - -
10 UIM_DATA RUIM_DATA I/O External
RUIM data
signal
- 1.8/2.
85 -
11 REFCLK- NC - Not
connected - - -
12 UIM_CLK RUIM_CLK O External
RUIM clock
signal
- 1.8/2.
85 -
13 REFCLK+ NC - Not
connected - - -
14 UIM_RESET RUIM_RESET O External
RUIM reset
signal
- 1.8/2.
85 -
15 GND GND - Ground - - -
16 UIM_Vpp NC - Not
connected - - -
17 Reserved Reserved - Reserved - - -
5
PIN
No.
Pin Name
I/O Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
18 GND GND - Ground - - -
19 Reserved Reserved - Reserved - - -
20 W_DISABLE
# W_DISABLE# I The
W_DISABL
E# signal is
an active low
signal that
when
asserted
(driven low)
by the system
shall disable
radio
operation.
- - -
21 GND GND - Ground - - -
22 PERST# RESIN_N
I Reset module
Active-low
- - -
23 PERn0 NC - Not
connected - - -
24 3.3Vaux VCC_3V3 P 3.3 V DC
supply rails
from the PC
side
3.0 3.3 3.6
6
PIN
No.
Pin Name
I/O Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
25 PERp0 NC - Not
connected - - -
26 GND GND - Ground - - -
27 GND GND - Ground - - -
28 1.5 V NC - Not
connected - - -
29 GND GND - Ground - - -
30 SMB_CLK NC - Not
connected - - -
31 PETn0 NC - Not
connected - - -
32 SMB_DATA NC - Not
connected - - -
33 PETp0 NC - Not
connected - - -
34 GND GND - Ground - - -
35 GND GND - Ground - - -
36 USB_D- USB_DM I/O USB signal
D- - - -
37 GND GND - Ground - - -
7
PIN
No.
Pin Name
I/O Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
38 USB_D+ USB_DP I/O USB signal
D+ - - -
39 3.3Vaux VCC_3V3 P 3.3 V DC
supply rails
from the PC
side
3.0 3.3 3.6
40 GND GND - Ground - - -
41 3.3Vaux VCC_3V3 P 3.3 V DC
supply rails
from the PC
side
3.0 3.3 3.6
42 LED_WWAN
# LED_WWAN# O Active-low
LED signal
indicating the
state of the
card
SINK current
source
Drive
strength: 10
mA
- - -
43 GND GND - Ground - - -
44 LED_WLAN# NC - Not
connected - - -
8
PIN
No.
Pin Name
I/O Description
DC Characteristics (V)
Express
Standard
HUAWEI Pin
Description
Min.
Typ.
Max.
45 Reserved PCM_CLK O PCM
interface
clock
–0.3 2.6 2.9
46 LED_WPAN# NC - Not
connected - - -
47 Reserved PCM_DOUT O PCM I/F data
out –0.3 2.6 2.9
48 1.5 V NC - Not
connected - - -
49 Reserved PCM_DIN I PCM I/F data
in –0.3 2.6 2.9
50 GND GND - Ground - - -
51 Reserved PCM_SYNC O PCM
interface
sync
–0.3 2.6 2.9
52 3.3Vaux VCC_3V3 P 3.3 V DC
supply rail
from the PC
side
3.0 3.3 3.6
