HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Issue 03

Date 2017-07-18

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").

The product described in this manual may include copyrighted software of Huawei and possible licensors.

Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,

reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by

applicable laws or such actions are approved by respective copyright holders.

Trademarks and Permissions

, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.

LTE is a trade mark of ETSI.

Other trademarks, product, service and company names mentioned may be the property of their respective

owners.

Notice

Some features of the product and its accessories described herein rely on the software installed, capacities

and settings of local network, and therefore may not be activated or may be limited by local network operators

or network service providers.

Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.

Huawei reserves the right to change or modify any information or specifications contained in this manual

without prior notice and without any liability.

DISCLAIMER

ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE

LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,

ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE

LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF

PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS

REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.

THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY

TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE

USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY

CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain

all necessary governmental permits and licenses in order to export, re-export or import the product mentioned

in this manual including the software and technical data therein.

Privacy Policy

To better understand how we protect your personal information, please see the privacy policy at

http://consumer.huawei.com/privacy-policy.

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

About This Document

Revision History

Document

Version

Date Chapter Descriptions

01 2017-03-23 - Draft release

02 2017-05-26 - 1.Cancel SPI/I2C function;

2.Cancel wake_up out function, use

RING to replace it;

3.Update the pin map interface picture

because the change above.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Contents

1 Introduction.................................................................................................................................... 5

2 Overall Description ...................................................................................................................... 6

2.1 About This Chapter ........................................................................................................................... 6

2.2 Function Overview............................................................................................................................ 6

2.3 Circuit Block Diagram ....................................................................................................................... 7

2.4 Application Block Diagram ............................................................................................................... 8

3 Description of the Application Interfaces .............................................................................. 10

3.1 About This Chapter ......................................................................................................................... 10

3.2 LGA Interface ................................................................................................................................. 10

4 Mechanical Specifications ......................................................................................................... 20

4.1 About This Chapter ......................................................................................................................... 20

4.2 Storage Requirement ..................................................................................................................... 20

4.3 Moisture Sensitivity ........................................................................................................................ 20

4.4 Dimensions ..................................................................................................................................... 20

4.5 Customer PCB Design ................................................................................................................... 22

4.5.1 PCB Surface Finish ............................................................................................................... 22

4.5.2 PCB Pad Design .................................................................................................................... 22

4.5.3 Solder Mask ........................................................................................................................... 24

4.5.4 Requirements on PCB Layout ............................................................................................... 24

4.5.5 Stencil Design ........................................................................................................................ 24

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

1 Introduction

This document describes the hardware application interfaces and air interfaces

provided by HUAWEI ME309-562 eMTC LGA module (hereinafter referred to as the

ME309-562 module).

This document helps hardware engineer to understand the interface specifications,

electrical features and related product information of the ME309-562 module.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

2 Overall Description

2.1 About This Chapter

This chapter gives a general description of the ME309-562 module and provides:

 Function Overview

 Circuit Block Diagram

 Application Block Diagram

2.2 Function Overview

Table 2-1 ME309-562 module features

Feature Description

Physical

Dimensions

 Dimensions (W × L × H): 18 mm × 24 mm × 2.5 mm

 Weight TBD

Operating

Bands

 HD-FDD LTE: Band 2, Band 4, Band 12, Band13

Operating

Temperature Normal operating temperature: –30°C to +75°C (Characteristics

guaranteed)

Extended operating temperature[1]: –40°C to +85°C (Normal

working)

Storage

Temperature –40°C to +95°C

Power

Voltage 3.3 V to 4.2 V (3.8 V is recommended.)

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Feature Description

Application

Interface

(120-pin LGA

interface)

GPIO x 5

UART interface (one 8-wire UART0, two 4-wire UART1&UART2,

and UART2 is only for debugging)

Standard SIM interface

ADC interface x 2

SPI interface (software not support)

I2C interface (software not support)

LED interface x 2

JTAG interface

Power supply interface

Power on/off interface

Hardware reset interface

Wake in/out interface

Antenna

Interface RF antenna pad x 1

Data Services LTE FDD: DL 300kbps; UL 375kbps @1.4MHz BW catM1

 [1]: When the ME309-562 module works at –40°C to –30°C or +75°C to +85°C, NOT all its

RF performances comply with the 3GPP specifications.

2.3 Circuit Block Diagram

Figure 2-1 shows the circuit block diagram of the ME309-562 module. The major

functional units of the ME309-562 module contain the following parts:

 Baseband controller

 Nor flash

 RF Circuit

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

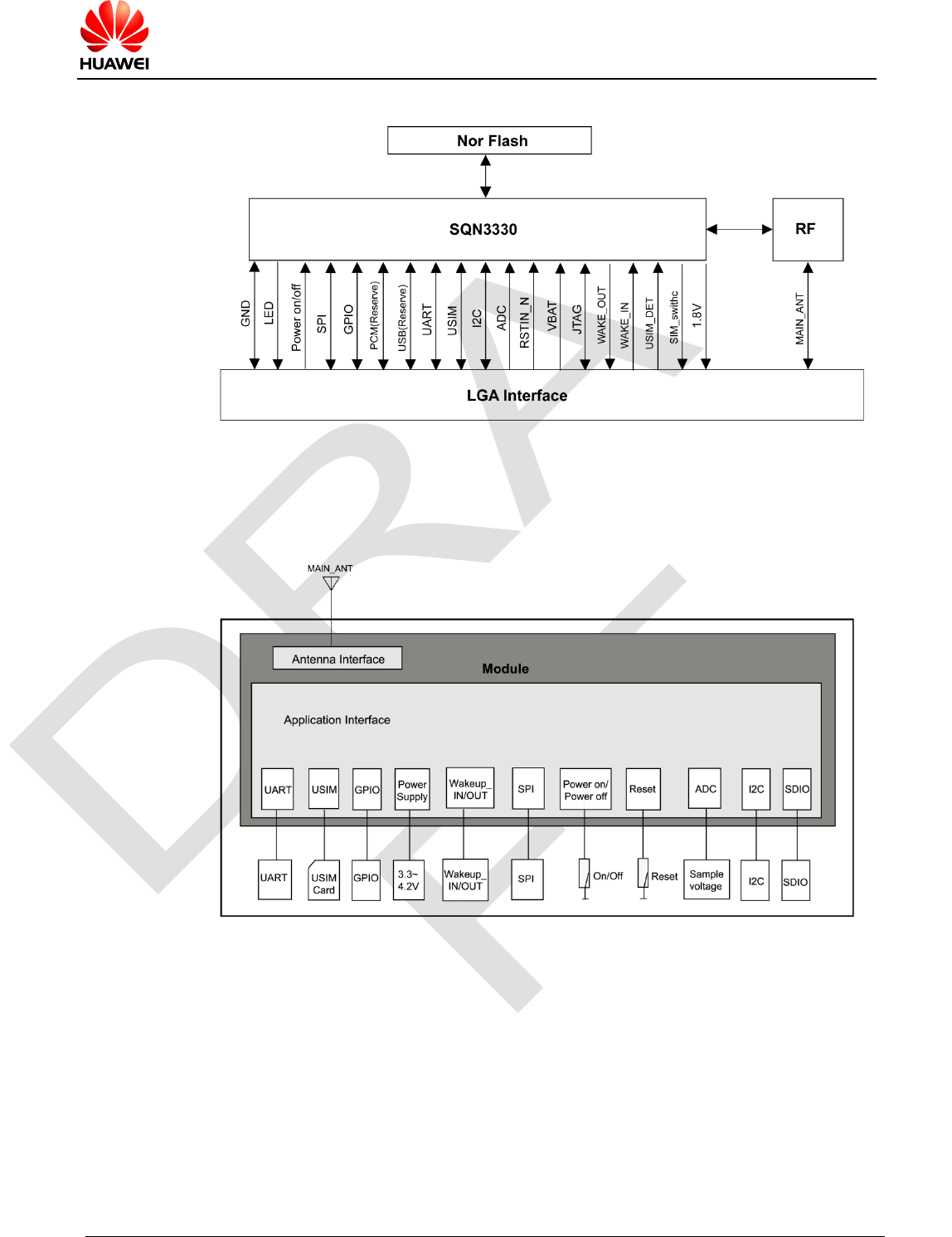

Figure 2-1 Circuit block diagram of the ME309-562 module

2.4 Application Block Diagram

Figure 2-2 Application block diagram of the ME309-562 module

UART Interface: The module supports 3 UART interfaces. Two are 4-wire

UARTs, and the other one is 8-wire UART. Uart02 is only for

debugging.

SIM Interface: The SIM interface provides the interface for a SIM card.

GPIO: General Purpose I/O pins.

External Power

Supply: DC 3.8 V is recommended.

ADC: Analog-to-Digital Converter

I2C: Inter－Integrated Circuit

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

SPI: Serial Peripheral Interface

RF Pad: RF antenna interface.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

3 Description of the Application Interfaces

3.1 About This Chapter

This chapter mainly describes the external application interfaces of the ME309-562

module LGA Interface.

3.2 LGA Interface

The ME309-562 module uses a 120-pin LGA as its external interface. For details

about the module and dimensions, see 4.4 Dimensions.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

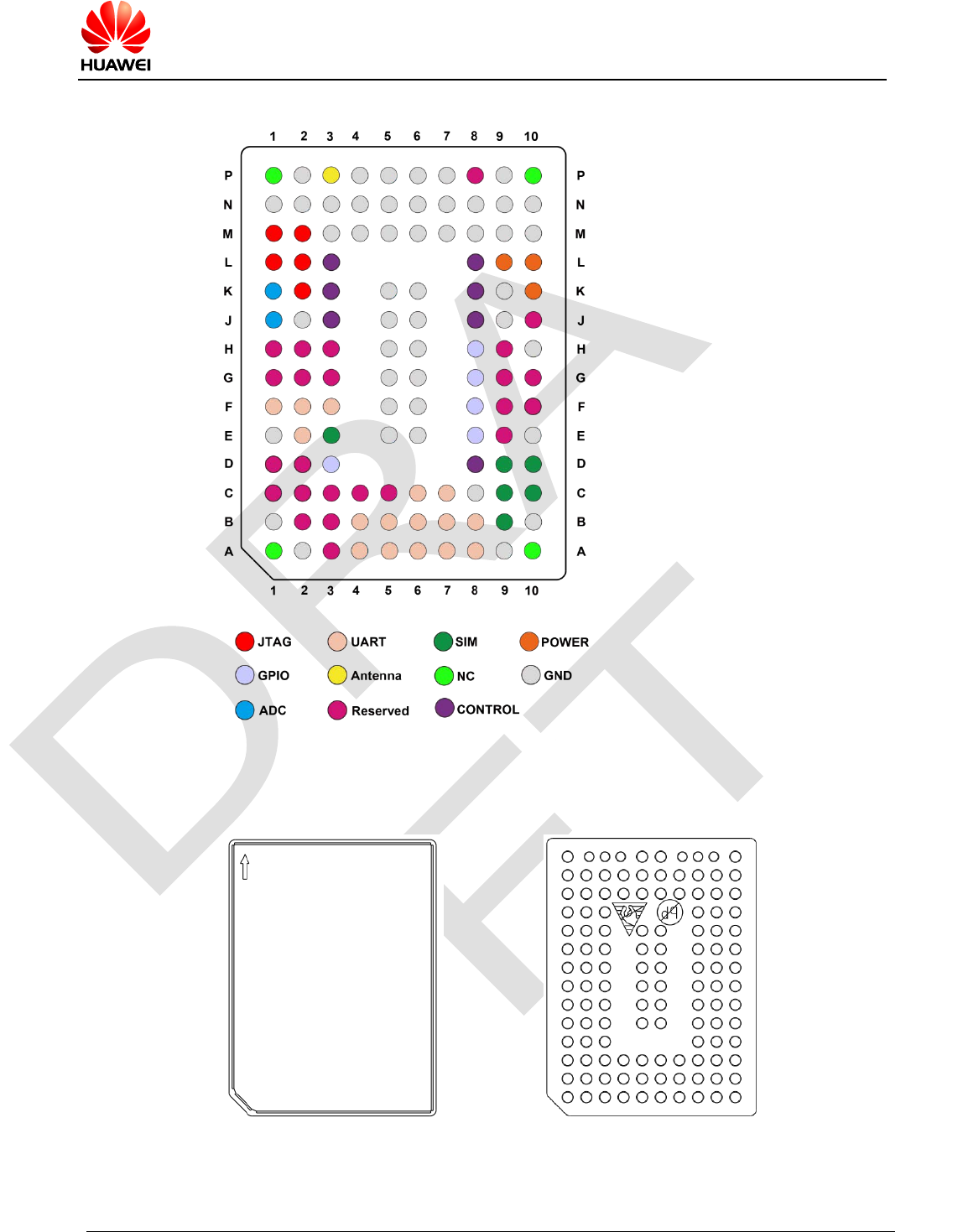

Figure 3-1 Pin map of LGA interface (Top view)

Update 26/05/2017

Figure 3-2 Appearance of ME309-562 module (without label)

Top View

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Table 3-1 Definitions of pins on the LGA interface

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

A8 UART0_TX O UART0 transmit

output

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

A7 UART0_RX I UART0 receive

data input

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

B7 UART0_CTS I UART0 clear to

send

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

B8 UART0_RTS O UART0 ready

for

receive

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

C7 UART0_DTR I Data terminal

ready

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

C6 UART0_DSR O UART0 data set

ready

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

B6 UART0_DCD O UART0 data

carrier detect

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

A6 UART0_RING O UART0 ring

indicator

VOH 1.44 1.8 1.8 Use as

wake_up out

VOL 0 - 0.36

A4 UART1_TX O UART1 transmit

output

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

A5 UART1_RX I UART1 receive

data input

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

B4 UART1_CTS I UART1 clear to

send

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

B5 UART1_RTS O UART1 ready

for

receive

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

F3 UART2_TX O UART2 transmit

output

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

F1 UART2_RX I UART2 receive

data input

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

F2 UART2_CTS I UART2 clear to

send

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

E2 UART2_RTS O UART2 ready

for

receive

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

D1 SPI_CS_N O Active low chip

select to SPI

device

VOH 1.44 1.8 1.8 NOT support

VOL 0 - 0.36

D2 SPI_CLK O Clock to SPI

device, running

at 104MHz

VOH 1.44 1.8 1.8 NOT support

VOL 0 - 0.36

C2 SPI_MOSI O Serial data line

for transmitted

data, master out

VOH 1.44 1.8 1.8 NOT support

VOL 0 - 0.36

C1 SPI_MISO I Serial data line

for received

data, master in

VIH 1.26 1.8 1.8 NOT support

VIL 0 - 0.54

G1 I2C_SCL O I2C bus serial

clock line (need

pull up to

VCC_EXT)

VOH 1.44 1.8 1.8 NOT support

VOL 0 - 0.36

H1 I2C_SDA I/O I2C bus serial

data line (need

pull up to

VCC_EXT)

VOH 1.44 1.8 1.8 NOT support

VOL 0 - 0.36

VIH 1.26 1.8 1.8

VIL 0 - 0.54

D9 SIM_VCC PO Power supply for

SIM

- - 1.8/

3.0

- -

D10 SIM_IO I/O SIM data - - 1.8/

3.0

- -

B9 SIM_CLK O SIM clock - - 1.8/

3.0

- -

C9 SIM_RST O SIM reset - - 1.8/

3.0

- -

C10 SIM_DETECT I SIM hot swap VIH 1.26 1.8 1.8 If not use,

please pull it

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

detection

H: SIM is resent

L: SIM is absent

VIL

0 - 0.54 high to

VCC_EXT on

your board.

E3 SIM_SWITCH O Switch from one

card to the

other, should

cooperate with

SIM switch IC

chip.

VOH 1.44 1.8 1.8 If not use,

please leave it

open.

VOL 0 - 0.36

L8 WAKEUP_IN I The host sets

the module into

sleep mode or

wakes up the

module from

sleep mode.

H: Sleep mode

is disabled.

L: Sleep mode is

enabled.

(default L )

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

L3 WAKEUP_OUT O Module wakes

up the host

VOH 1.44 1.8 1.8 NOT support,

please use

RING as

wake_up out

VOL 0 - 0.36

K3 SLEEP_STATUS O Sleep status

indicator

H: The module

is in wakeup

state.

L: The module is

in sleep state.

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

J8 LED_MODE O Network mode

indicator.

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

E8 GPIO1 I/O General

Purpose I/O

pins.

VOH 1.44 1.8 1.8 Default

configuration

is input pull

down.

VOL 0 - 0.36

VIH VIH 1.26 1.8

VIL VIL 0 -

G8 GPIO2 I/O General

Purpose I/O

VOH 1.44 1.8 1.8 Default

configuration

is input pull

VOL 0 - 0.36

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

pins. VIH VIH 1.26 1.8 down.

VIL VIL 0 -

D3 GPIO3 I/O General

Purpose I/O

pins.

VOH 1.44 1.8 1.8 Default

configuration

is input pull

down.

VOL 0 - 0.36

VIH VIH 1.26 1.8

VIL VIL 0 -

F8 GPIO4 I/O General

Purpose I/O

pins.

VOH 1.44 1.8 1.8 Default

configuration

is input pull

down.

VOL 0 - 0.36

VIH VIH 1.26 1.8

VIL VIL 0 -

H8 GPIO5 I/O General

Purpose I/O

pins.

VOH 1.44 1.8 1.8 Default

configuration

is input pull

down.

VOL 0 - 0.36

VIH VIH 1.26 1.8

VIL VIL 0 -

L2 JTAG_TMS I JTAG test mode

select

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

M2 JTAG_TRST_N I JTAG test reset VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

K2 JTAG_TCK I JTAG test clock VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

L1 JTAG_TDO O JTAG test data

output

VOH 1.44 1.8 1.8 -

VOL 0 - 0.36 -

M1 JTAG_TDI I JTAG test serial

data input

VIH 1.26 1.8 1.8 -

VIL 0 - 0.54 -

K1 ADC_1 AI Conversion

interface for

analog signals

to digital signals

- -0.036 - 1.836 The ADC’s

resolution is

10bit

J1 ADC_2 AI Conversion

interface for

analog signals

to digital signals

- -0.036 - 1.836

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

D8 POWER_ON I System power -

on

- - 1.8 - Not support,

will cancel it

J3 POWER_OFF I System power -

off

- - 1.8 - Not support,

will cancel it

F9 RESIN_N I System reset,

active low.

- - 1.8 - Please add a

pull-high

resister to

1.8V on your

board (not

VCC_EXT).

K8 BOOT_MODE I Boot mode

configure

H: boot from

flash

L: boot from

host

VIH 1.26 1.8 1.8 Please design

a pull-high

resister to

VCC_EXT and

a pull down

resister to

Ground on

your board,

default pull

high resister is

on the PCB

board.

VIL 0 - 0.54

K10 VCC_EXT PO Pin for external

power output

- 1.71 1.8 1.89 Max current is

10mA

L9 VCC_Module PI Power supply

Input

- 3.3 3.8 4.2 Max current is

about 300mA

L10 VCC_Module PI Power supply

input

- 3.3 3.8 4.2

P3 RF_ANT RF RF pin of

module

- - - - -

A3 Reserved - Reserved,

please keep this

pin open.

- - - - -

B2 Reserved - Reserved,

please keep this

pin open.

- - - - -

B3 Reserved - Reserved,

please keep this

pin open.

- - - - -

C3 Reserved - Reserved,

please keep this

pin open.

- - - - -

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

G9 Reserved - Reserved,

please keep this

pin open.

- - - - -

G10 Reserved - Reserved,

please keep this

pin open.

- - - - -

F10 Reserved - Reserved,

please keep this

pin open.

- - - - -

E9 Reserved - Reserved,

please keep this

pin open.

- - - - -

J10 Reserved - Reserved,

please keep this

pin open.

- - - - -

H9 Reserved - Reserved,

please keep this

pin open.

- - - - -

C5 Reserved - Reserved,

please keep this

pin open.

- - - - -

G2 Reserved - Reserved,

please keep this

pin open.

- - - - -

G3 Reserved - Reserved,

please keep this

pin open.

- - - - -

H2 Reserved - Reserved,

please keep this

pin open.

- - - - -

H3 Reserved - Reserved,

please keep this

pin open.

- - - - -

P8 Reserved - Reserved,

please keep this

pin open.

- - - - -

C4 Reserved - Reserved,

please keep this

pin open.

- - - - -

A1 NC - Not connected - - - - -

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

A10 NC - Not connected - - - - -

P1 NC - Not connected - - - - -

P10 NC - Not connected - - - - -

A2 GND - Ground - - - - -

A9 GND - Ground - - - - -

B1 GND - Ground - - - - -

B10 GND - Ground - - - - -

C8 GND - Ground - - - - -

E1 GND - Ground - - - - -

E5 GND - Ground - - - - -

E6 GND - Ground - - - - -

E10 GND - Ground - - - - -

F5 GND - Ground - - - - -

F6 GND - Ground - - - - -

G5 GND - Ground - - - - -

G6 GND - Ground - - - - -

H5 GND - Ground - - - - -

H6 GND - Ground - - - - -

H10 GND - Ground - - - - -

J2 GND - Ground - - - - -

J5 GND - Ground - - - - -

J6 GND - Ground - - - - -

J9 GND - Ground - - - - -

K5 GND - Ground - - - - -

K6 GND - Ground - - - - -

K9 GND - Ground - - - - -

M3 GND - Ground - - - - -

M4 GND - Ground - - - - -

M5 GND - Ground - - - - -

M6 GND - Ground - - - - -

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

No.

Pin Name Pad

Type

Description Parameter Min.

(V)

Typ.

(V)

Max.

(V)

Comments

M7 GND - Ground - - - - -

M8 GND - Ground - - - - -

M9 GND - Ground - - - - -

M10 GND - Ground - - - - -

N1 GND - Ground - - - - -

N2 GND - Ground - - - - -

N3 GND - Ground - - - - -

N4 GND - Ground - - - - -

N5 GND - Ground - - - - -

N6 GND - Ground - - - - -

N7 GND - Ground - - - - -

N8 GND - Ground - - - - -

N9 GND - Ground - - - - -

N10 GND - Ground - - - - -

P2 GND - Ground - - - - -

P4 GND - Ground - - - - -

P5 GND - Ground - - - - -

P6 GND - Ground - - - - -

P7 GND - Ground - - - - -

P9 GND - Ground - - - - -

 I indicates pins for digital signal input; O indicates pins for digital signal output; AI indicates

pins for analog signal input; PI indicates power input pins; PO indicates power output pins;

P indicates power pins.

 VIL indicates low-level input voltage; VIH indicates high-level input voltage; VOL indicates low-

level output voltage; VOH indicates high-level output voltage.

 The NC (Not Connected) pins are floating and there are no signal connected to these pins.

 The Reserved pins are internally connected to the module. Therefore, these pins should

not be used, otherwise they may cause problems. Please contact with us for more details

about this information.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

4 Mechanical Specifications

4.1 About This Chapter

 Storage Requirement

 Moisture Sensitivity

 Dimensions

 Customer PCB Design

4.2 Storage Requirement

The module must be stored and sealed properly in vacuum package under a

temperature below 40°C and the relative humidity less than 90% in order to ensure

the weldability within 12 months.

4.3 Moisture Sensitivity

 The moisture sensitivity is level 3.

 After unpacking, the module must be assembled within 168 hours under the

environmental conditions that the temperature is lower than 30°C and the

relative humidity is less than 60%. If the preceding conditions cannot be met, the

module needs to be baked according to the parameters specified in Table 4-1 .

Table 4-1 Baking parameters

Baking

Temperature

Baking

Condition

Baking Duration Remarks

125°C±5°C Relative humidity

≤ 60% 8 hours Refer to JESD-033C

in detail

Moving, storing, and processing the product must comply with IPC/JEDEC J-STD-033.

4.4 Dimensions

Figure 4-1 shows the dimensions of the ME309-562 module in details.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

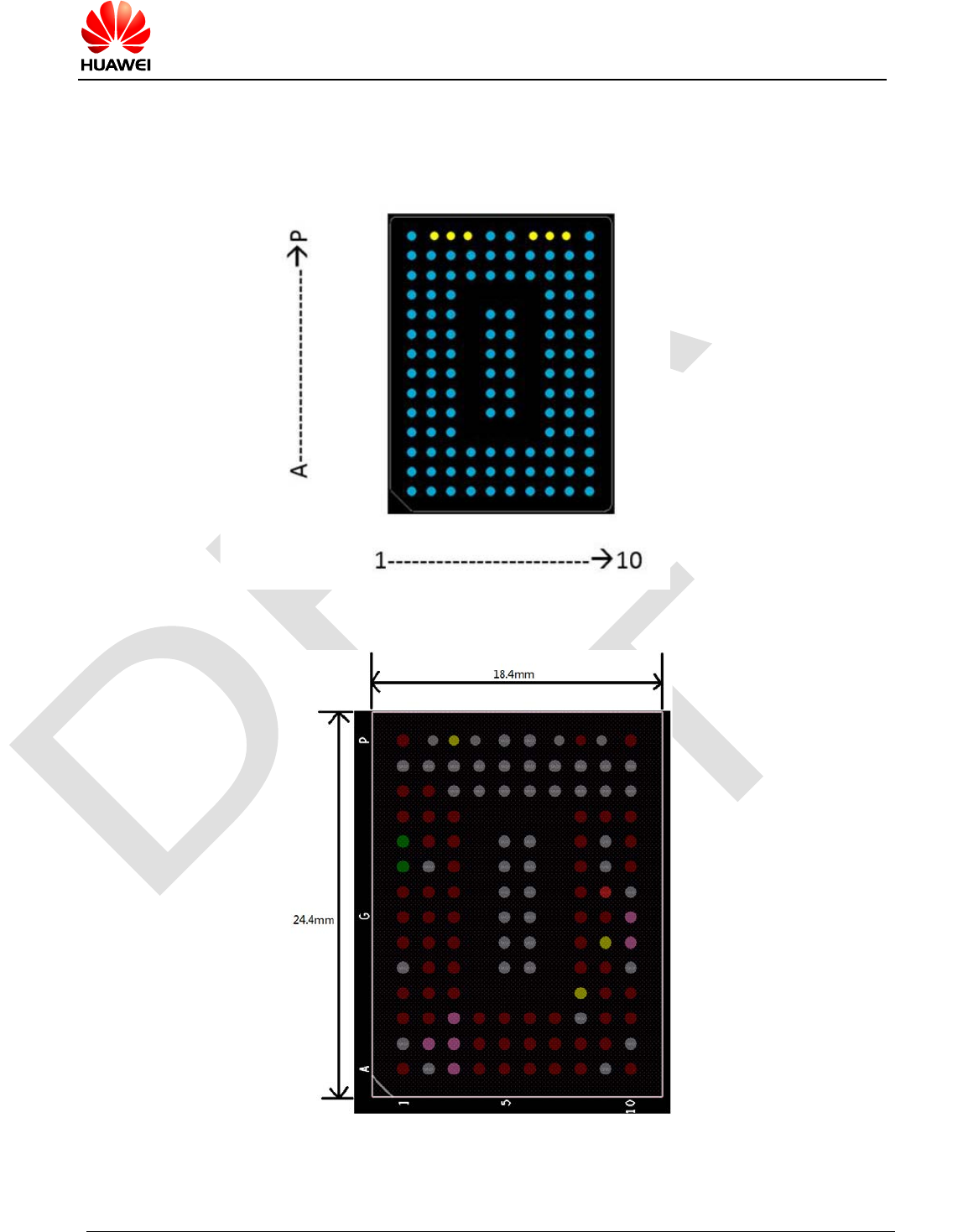

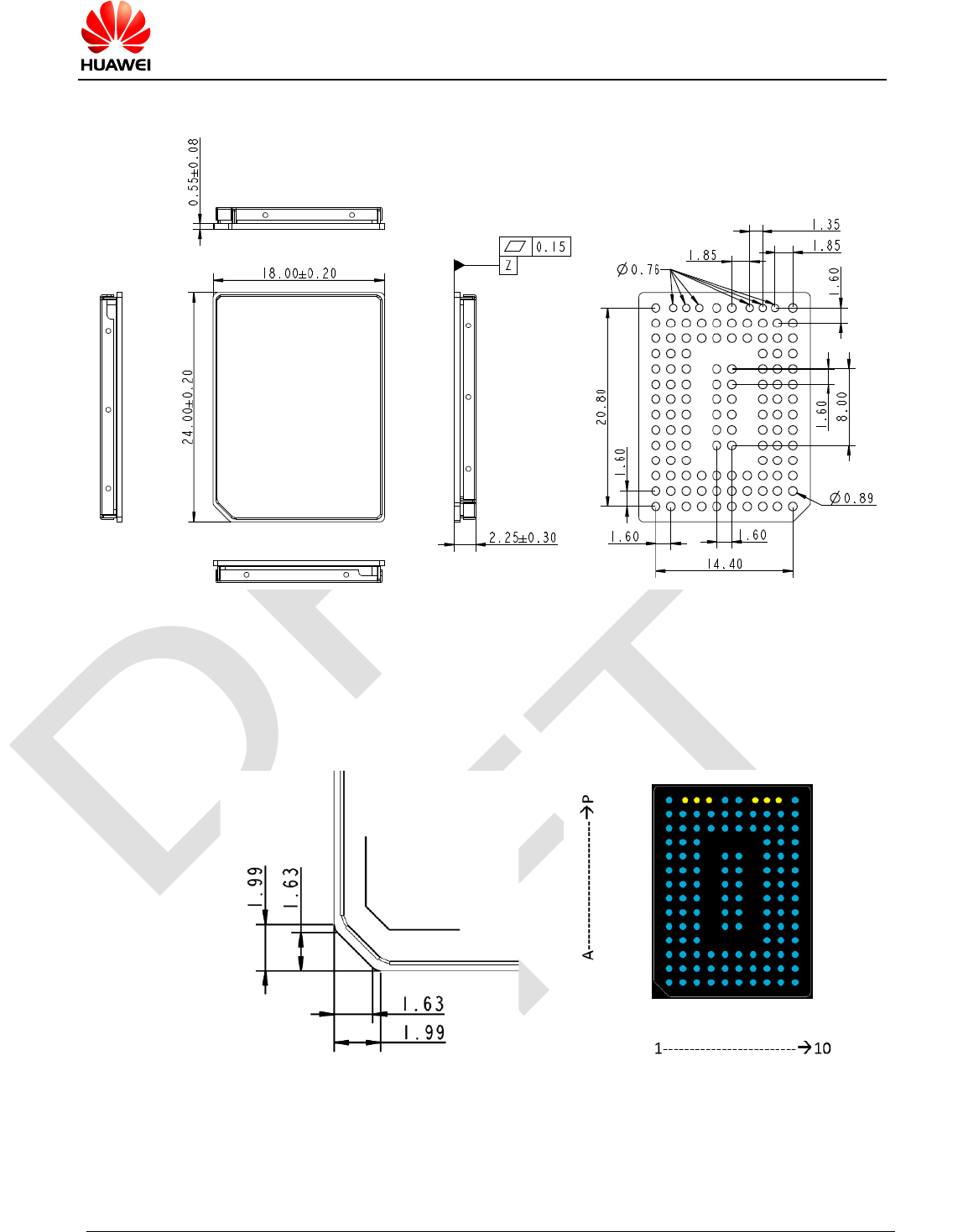

Figure 4-1 Dimensions (Unit: mm)

The detail information about the corner and the module pin description top view:

1. the yellow pins, diameter is 0.76 mm, pitch is 1.35 mm,

2. the blue pins, diameter is 0.89 mm, pitch is 1.60 mm.

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

4.5 Customer PCB Design

4.5.1 PCB Surface Finish

The PCB surface finish recommended is Electroless Nickel Immersion Gold (ENIG).

Organic Solderability Preservative (OSP) may also be used, ENIG preferred.

4.5.2 PCB Pad Design

To achieve assembly yields and solder joints of high reliability, it is recommended that

the PCB pad size be designed as follows:

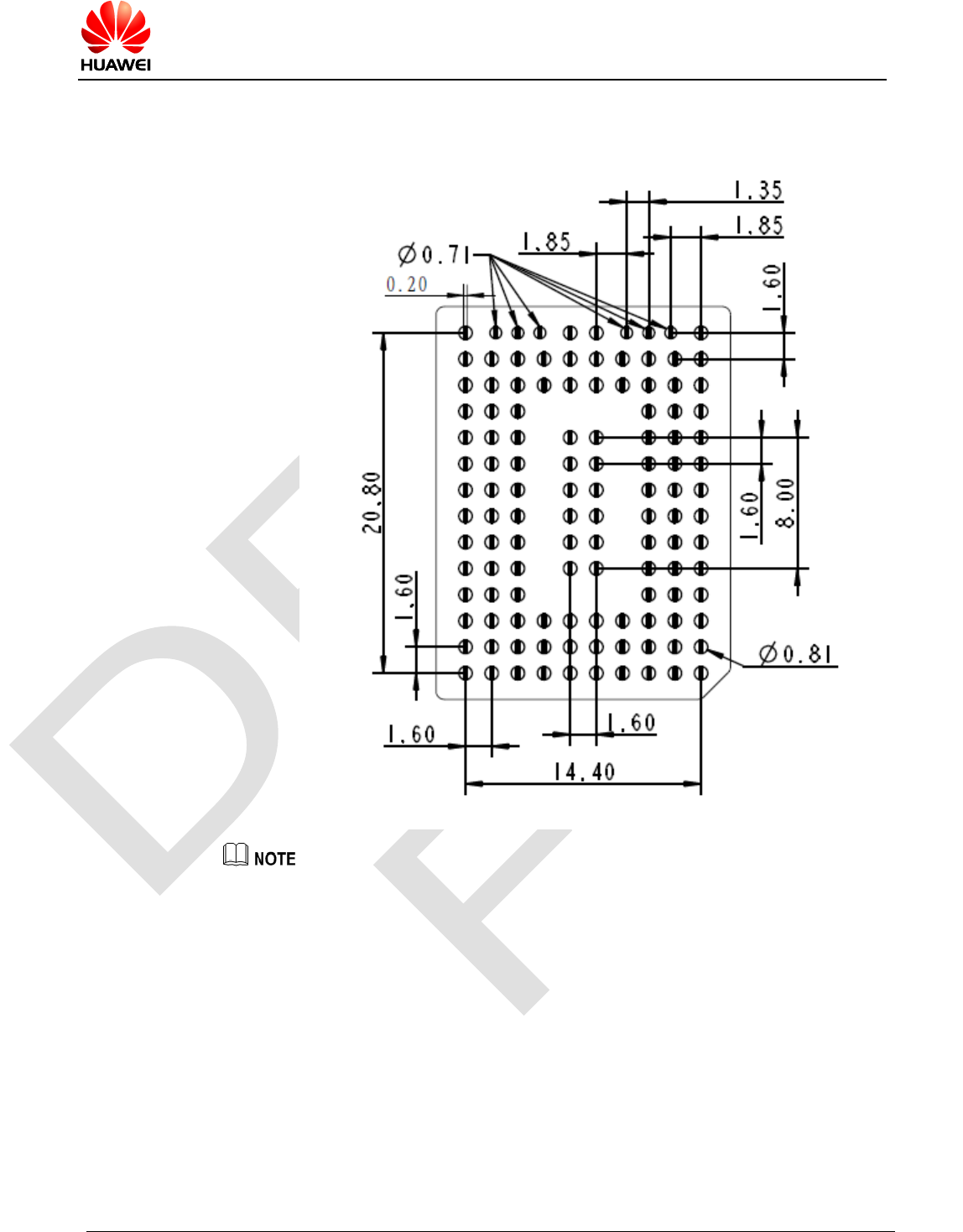

Figure 4-2 Footprint design of customer's PCB (Unit: mm)

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Some detail information about the recommend module footprint:

1. the yellow pins, diameter is 0.71 mm, pitch is 1.35 mm,

2. the blue pins, diameter is 0.81 mm, pitch is 1.60 mm.

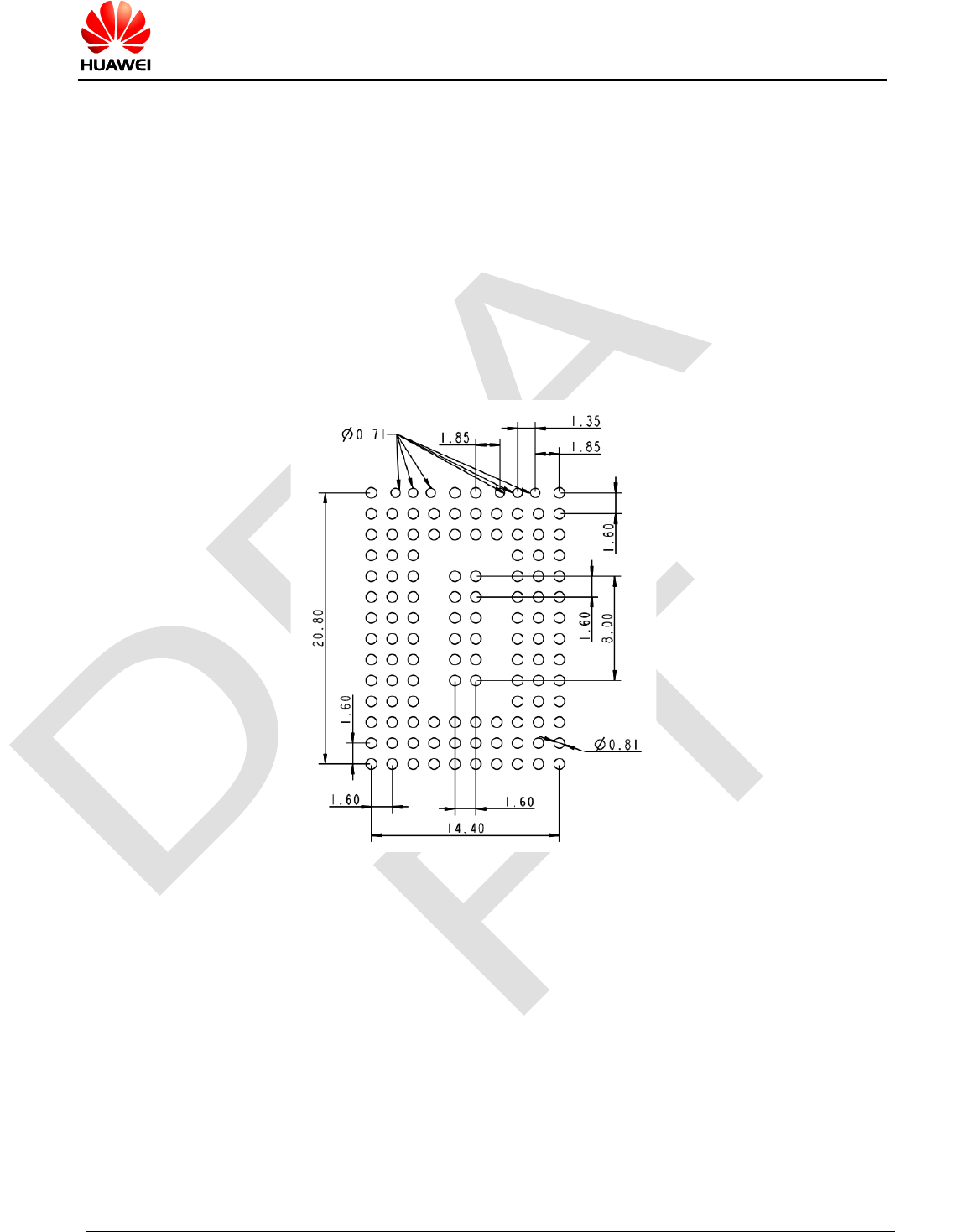

Figure 4-3 Detail information about the recommend module footprint

Figure 4-4 Recommended Package Size on HUAWEI motherboard (Unit: mm)

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

4.5.3 Solder Mask

Non Solder Mask Defined (NSMD) is recommended. In addition, the solder mask of

the NSMD pad design is larger than the pad so the reliability of the solder joint can be

improved.

The solder mask must be 100 µm–150 µm larger than the pad, that is, the single side

of the solder mask must be 50 µm–75 µm larger than the pad. The specific size

depends on the processing capability of the PCB manufacturer.

4.5.4 Requirements on PCB Layout

 To reduce deformation, a thickness of at least 1.0 mm is recommended.

 Other devices must be located more than 3 mm (5 mm recommended) away

from the two parallel sides of the LGA module (rework requirement),and other

sides with 0.6 mm. The minimum distance between the LGA module and the

PCB edge is 0.3 mm.

 When the PCB layout is double sided, the LGA module must be placed on the

second side for assembly; so as to avoid module dropped from PCB or

component (located in module) re-melding defects caused by uneven weight.

 Customers PCB together with ME309-562 should be placed in an enclosed box

to reduce the impact of high humidity as far as possible.

 The bottom of the module is not allowed to put non-ground line or non-ground

hole. If the design can not be achieved, then the non-gound line and hole must

be covered by green oil.

4.5.5 Stencil Design

It is recommended that the stencil for the LGA module be 0.15 mm in thickness. The

stencil design is shown as Figure 4-5 :

Huawei Proprietary and Confidential

HUAWEI ME309-562 eMTC LGA Module

Hardware Guide

Figure 4-5 Recommended stencil design of LGA module (Unit: mm)

The stencil design has been qualified for HUAWEI motherboard assembly, customers can

adjust the parameters by their motherboard design and process situation to assure LGA

soldering quality and no defect.

Huawei Proprietary and Confidential

Huawei Technologies ME309-562 eMTC Module User Manual pt 1

Huawei Technologies Co.,Ltd eMTC Module pt 1

Contents

User Manual pt 1

Navigation menu

Namespaces

Views

Navigation
