Huawei Technologies MU609 Mobile Cellular module supporting GSM850, PCS1900, UMTS FDD II/V. User Manual English

Huawei Technologies Co.,Ltd Mobile Cellular module supporting GSM850, PCS1900, UMTS FDD II/V. English

Contents

MU609 Module QSG-English

Copyright © Huawei Technologies Co., Ltd. 2013.
All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce,
distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign,
or sublicense the said software, unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers, thus the descriptions herein
may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will
obtain all necessary governmental permits and licenses in order to export, re-export or
import the product mentioned in this manual including the software and technical data
therein.
i
Contents
Getting to Know the MU609 ........................................................................................................................... 1
Dimension .................................................................................................................................1
Position of RF Connectors ......................................................................................................2
Pin Definitions ..........................................................................................................................3
1
Thank you for purchasing HUAWEI MU609 HSPA mini PCIE
Module (hereinafter referred to as the MU609)
Note:
This manual briefly describes the dimension, the position of RF connectors and Pin
definitions.
You are recommended to read the manual before using the MU609.
Getting to Know the MU609
Dimension

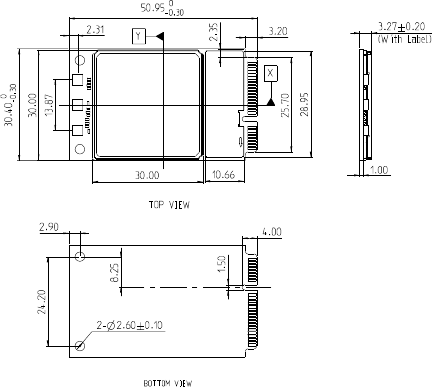

The package of the mini PCIE module is 52 pin PCIE with a dimension of 51 mm × 30.4
mm × 3.4 mm. It is applied to the user interface board, and can be used as a wireless
terminal in a network environment.
2
Position of RF Connectors

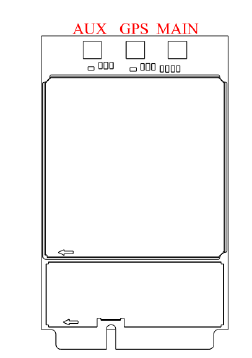

The PCIE Adapter module provided three antenna connectors (MAIN_ANT, GPS_ANT and
AUX_ANT) for connecting the external antennas.
3
Pin Definitions

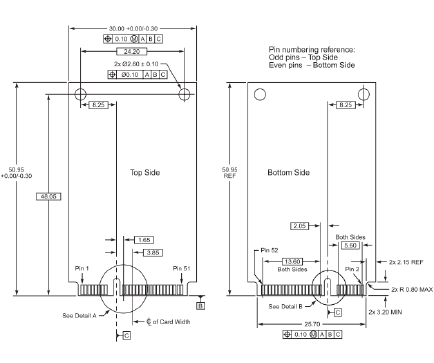

The sequence of mini-PCIE interface is shown below.
4
The Pin definitions of the Mini PCIE interface is shown below.
5
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
1
WAKE#
WAKE#
O
Open collector
active low
signal. This
signal is used to
wake up the
host.
–0.3
-
-
2
3.3Vaux
VCC_3V3
P
3.3 V DC supply
rails from the PC
side.
3.0
3.3
3.6
3
COEX1
NC
-
Not connected
-
-
-
4
GND
GND
-
Mini Card
ground
-
-
-
5
COEX2
NC
-
Not connected
-
-
-
6
1.5 V
NC
-
Not connected
-
-
-
7
CLKREQ#
NC
-
Not connected
-
-
-
8
UIM_PWR
UIM_PWR
O
Power source for
the external
UIM/SIM card
-
1.8/2.
85
-
9
GND
GND
-
Mini Card
ground
-
-
-
6
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
10
UIM_DATA
UIM_DATA
I
/
O
External
UIM/SIM data
signal
–0.3
1.8/2.
85
2.1/
3.05
11
REFCLK-
NC
-
Not connected
-
-
-
12
UIM_CLK
UIM_CLK
O
External
UIM/SIM clock
signal
–0.3
1.8/2.
85
2.1/
3.05
13
REFCLK+
NC
-
Not connected
-
-
-
14
UIM_RESET
UIM_RESET
O
External
UIM/SIM reset
signal.
–0.3
1.8/2.
85
2.1/
3.05
15
GND
GND
-
Mini Card
ground
-
-
-
16
UIM_Vpp
Reserved
-
Reserved
-
-
-
17
Reserved
Reserved
-
Reserved
-
-
-
18
GND
GND
-
Mini Card
ground
-
-
-
19
Reserved
Reserved
-
Reserved
-
-
-
7
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
20
W_DISABLE
#
W_DISABLE
#
-
For ending the
wireless
communications
. Please refer to
the LGA module,
which is on the
PCIE Adapter.
For MU609 the
module cannot
support this
function.
-
-
-
21
GND
GND
-
Mini Card
ground
-
-
-
22
PERST#
NC
-
Not connected
-
-
-
23
PERn0
NC
-
Not connected
-
-
-
24
3.3Vaux
VCC_3V3
-
3.3 V DC supply
rails from the PC
side.
3.0
3.3
3.6
25
PERp0
NC
-
Not connected
-
-
-
26
GND
GND
-
Mini Card
ground
-
-
-
8
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
27
GND
GND
-
Mini Card
ground
-
-
-
28
1.5 V
NC
-
Not connected
-
-
-
29
GND
GND
-
Mini Card
ground
-
-
-
30
SMB_CLK
NC
-
Not connected
-
-
-
31
PETn0
NC
-
Not connected
-
-
-
32
SMB_DATA
NC
-
Not connected
-
-
-
33
PETp0
NC
-
Not connected
-
-
-
34
GND
GND
-
Mini Card
ground
-
-
-
35
GND
GND
-
Mini Card
ground
-
-
-
36
USB_D-
USB_D-
I
/
O
USB signal D-
-
-
-
37
GND
GND
-
Mini Card
ground
-
-
-
9
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
38
USB_D+
USB_D+
I
/
O
USB signal D+
-
-
-
39
3.3Vaux
VCC_3V3
P
3.3 V DC supply
rails from the PC
side.
3.0
3.3
3.6
40
GND
GND
-
Mini Card
ground
-
-
-
41
3.3Vaux
VCC_3V3
P
3.3 V DC supply
rails from the PC
side
3.0
3.3
3.6
42
LED_WWAN
#
LED_WWA
N
I
Active-low LED
signal indicating
the state of the
card
-
-
-
43
GND
GND
-
Mini Card
ground
-
-
-
44
LED_WLAN#
NC
-
Not connected
-
-
-
45
Reserved
PCM_CLK
O
PCM interface
clock
–0.3
1.8
2.1
10
PIN
No.
Pin Name
I
/
O
Description
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
Min.
Typ.
Max
.
46
LED_WPAN#
NC
-
Not connected
-
-
-
47
Reserved
PCM_DOUT
O
PCM I/F data
out
–0.3
1.8
2.1
48
1.5 V
NC
-
Not connected
-
-
-
49
Reserved
PCM_DIN
I
PCM I/F data in
–0.3
1.8
2.1
50
GND
GND
-
Mini Card
Ground
-
-
-
51
Reserved
PCM_SYNC
O
PCM interface
sync
–0.3
1.8
2.1
52
3.3Vaux
VCC_3V3
P
3.3 V DC supply
rail from the PC
side.
3.0
3.3
3.6
