Huawei MU709 Series HSPA Mini PCIe Module Hardware Guide (V100R001 04, English)
2015-07-02
User Manual: Huawei
Open the PDF directly: View PDF .
Page Count: 63
- 1 Introduction
- 2 Overall Description
- 3 Description of the Application Interfaces
- 4 RF Specifications
- 5 Electrical and Reliability Features
- 6 Mechanical Specifications
- 7 Certifications
- 8 Safety Information
- 8.1 Interference
- 8.2 Medical Device
- 8.3 Area with Inflammables and Explosives
- 8.4 Traffic Security
- 8.5 Airline Security
- 8.6 Safety of Children
- 8.7 Environment Protection
- 8.8 WEEE Approval
- 8.9 RoHS Approval
- 8.10 Laws and Regulations Observance
- 8.11 Care and Maintenance
- 8.12 Emergency Call
- 8.13 Regulatory Information
- 9 Appendix A Circuit of Typical Interface
- 10 Appendix B Acronyms and Abbreviations
![](asset-1.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Issue 04
Date 2015-06-25
![](asset-2.png)
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible licensors.
Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract,
reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by
applicable laws or such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the property of their respective
owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities
and settings of local network, and therefore may not be activated or may be limited by local network operators
or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.
Huawei reserves the right to change or modify any information or specifications contained in this manual
without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS
REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL
INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING
FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE
AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain
all necessary governmental permits and licenses in order to export, re-export or import the product mentioned
in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy
![](asset-3.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
About This Document
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
About This Document
Revision History
Document
Version
Date Chapter Descriptions
01 2014-09-15 Creation
02 2014-09-18 3.3.2 Updated section 3.3.2: Reset the Module
03 2015-02-16 All Added the description of MU709s-6 module
04 2015-06-25 2.2 Updated Table 2-1: Features
5.3 Updated Table 5-2: Operating and storage
temperatures
7.2 Updated Table 7-1: Product Certifications
Scope
MU709s-2
MU709s-6
![](asset-4.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Contents
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
Contents
1 Introduction.................................................................................................................................... 7
2 Overall Description ...................................................................................................................... 8
2.1 About This Chapter ........................................................................................................................... 8
2.2 Function Overview............................................................................................................................ 8
2.3 Circuit Block Diagram ....................................................................................................................... 9
3 Description of the Application Interfaces .............................................................................. 11
3.1 About This Chapter .......................................................................................................................... 11

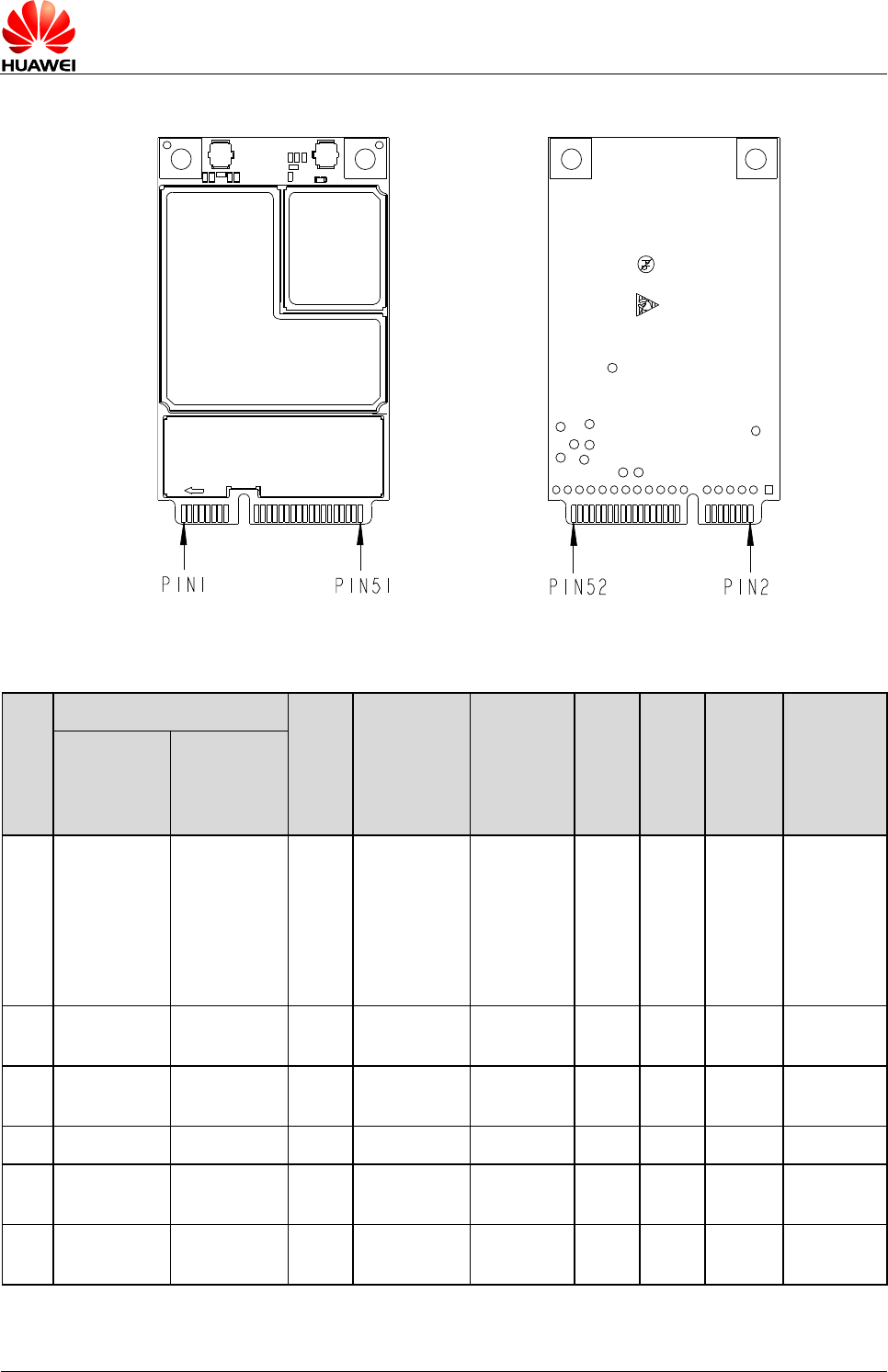

3.2 Mini PCIe Interface .......................................................................................................................... 11
3.3 Power Interface .............................................................................................................................. 16
3.3.1 Sources and Grounds ............................................................................................................ 16

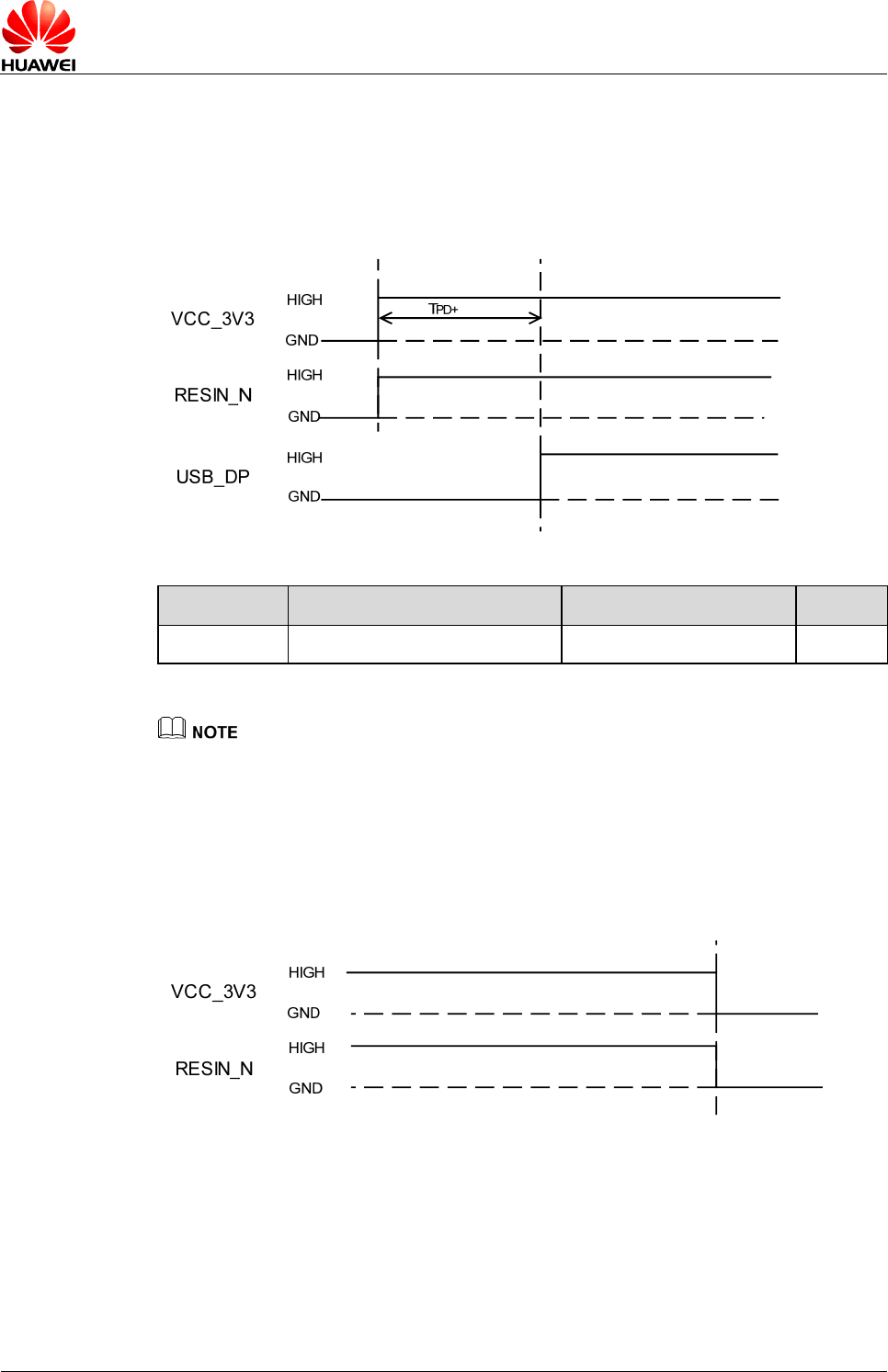

3.3.2 Power Supply Time Sequence .............................................................................................. 17
3.4 Signal Control Interface .................................................................................................................. 18
3.4.1 Overview ................................................................................................................................ 18
3.4.2 WAKE# Signal ....................................................................................................................... 18
3.4.3 RESIN_N Signal .................................................................................................................... 19

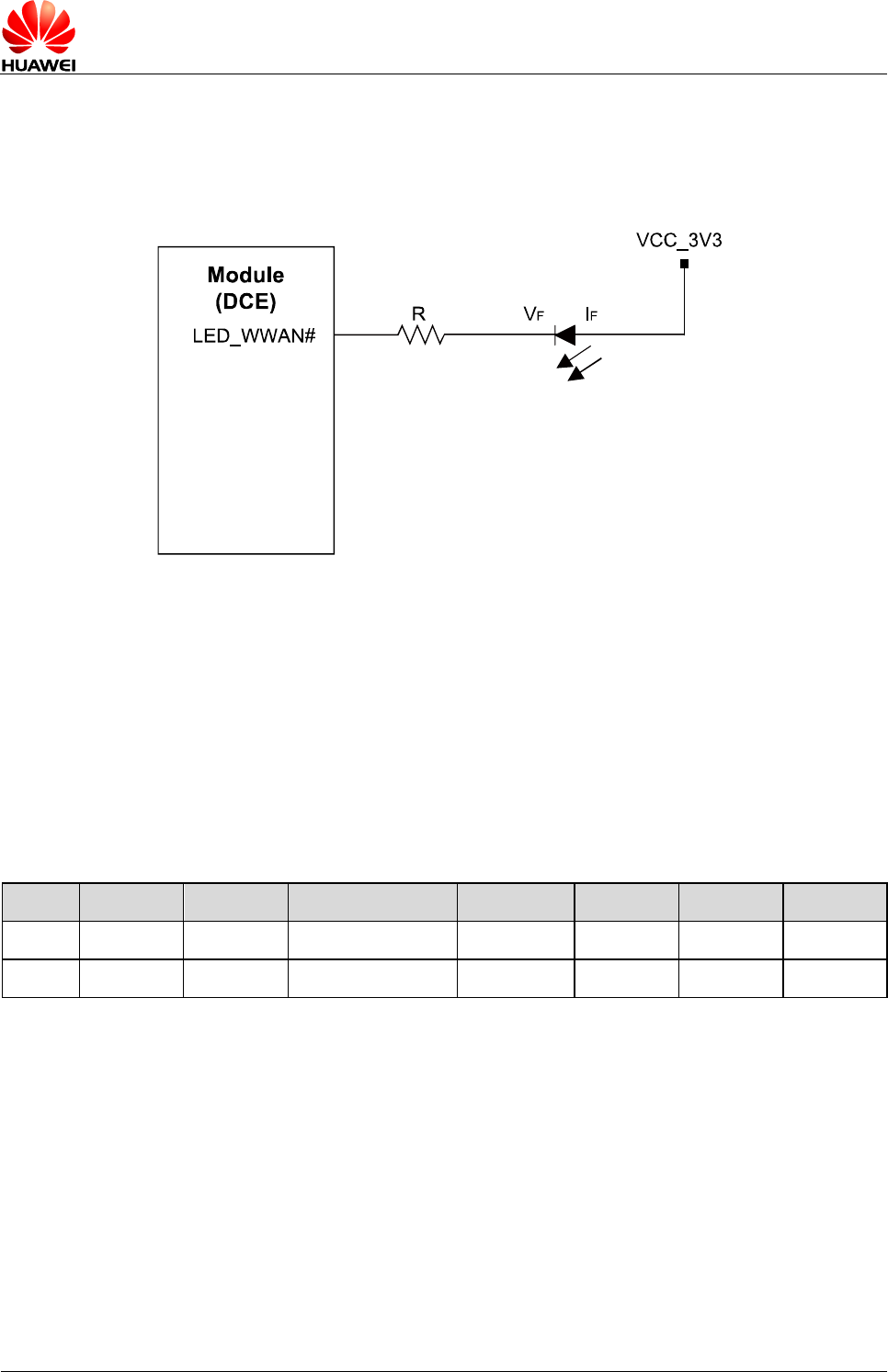

3.4.4 LED_WWAN# Signal ............................................................................................................. 20
3.5 USB Interface ................................................................................................................................. 21
3.5.1 Overview ................................................................................................................................ 21

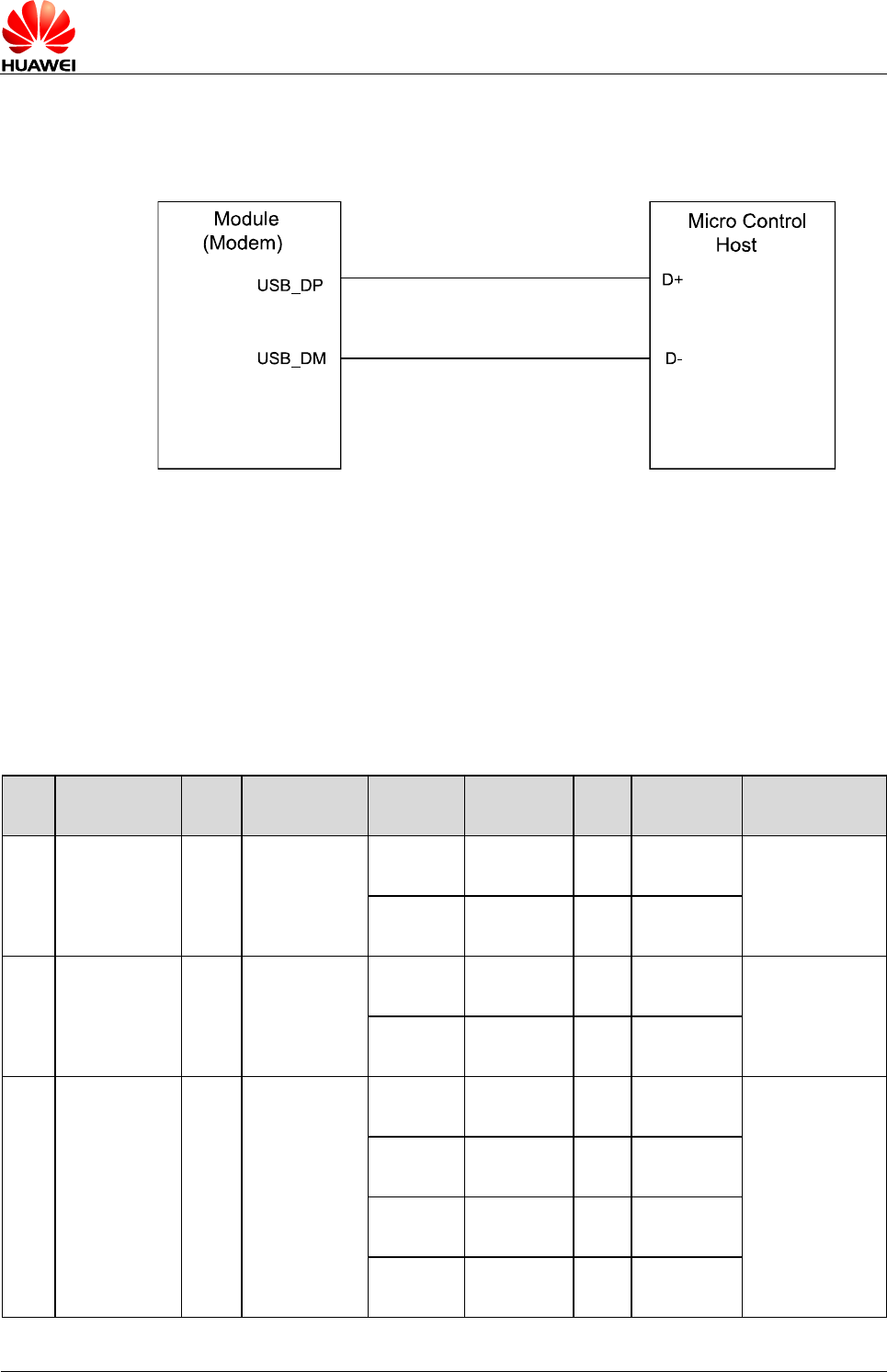

3.5.2 Circuit Recommended for the USB Interface ........................................................................ 22
3.6 USIM Card Interface ...................................................................................................................... 22
3.6.1 Overview ................................................................................................................................ 22
3.6.2 Circuit Recommended for the USIM Card Interface .............................................................. 23
3.7 Audio Interface ............................................................................................................................... 24
3.7.1 Overview ................................................................................................................................ 24
3.7.2 Circuit Recommended for the Audio Interface ...................................................................... 25
3.8 NC Pins .......................................................................................................................................... 25
4 RF Specifications ......................................................................................................................... 27
4.1 About This Chapter ......................................................................................................................... 27
4.2 Operating Frequencies ................................................................................................................... 27
4.3 Conducted RF Measurement ......................................................................................................... 28
4.3.1 Test Environment ................................................................................................................... 28
4.3.2 Test Standards ....................................................................................................................... 28
![](asset-5.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Contents
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
4.4 Conducted Rx Sensitivity and Tx Power ........................................................................................ 28
4.4.1 Conducted Receive Sensitivity .............................................................................................. 28
4.4.2 Conducted Transmit Power ................................................................................................... 29
4.5 Antenna Design Requirements ...................................................................................................... 30
4.5.1 Antenna Design Indicators..................................................................................................... 30
4.5.2 Interference ........................................................................................................................... 33
4.5.3 GSM/WCDMA Antenna Requirements .................................................................................. 33
5 Electrical and Reliability Features ........................................................................................... 35
5.1 About This Chapter ......................................................................................................................... 35
5.2 Absolute Ratings ............................................................................................................................ 35
5.3 Operating and Storage Temperatures ............................................................................................ 35
5.4 Power Supply Features .................................................................................................................. 36
5.4.1 Input Power Supply ............................................................................................................... 36
5.4.2 Power Consumption .............................................................................................................. 37
5.5 Reliability Features ......................................................................................................................... 41
5.6 EMC and ESD Features ................................................................................................................. 44
6 Mechanical Specifications ......................................................................................................... 46
6.1 About This Chapter ......................................................................................................................... 46
6.2 Dimensions and Interfaces ............................................................................................................. 46
6.3 Dimensions of the Mini PCI Express Connector ............................................................................ 47

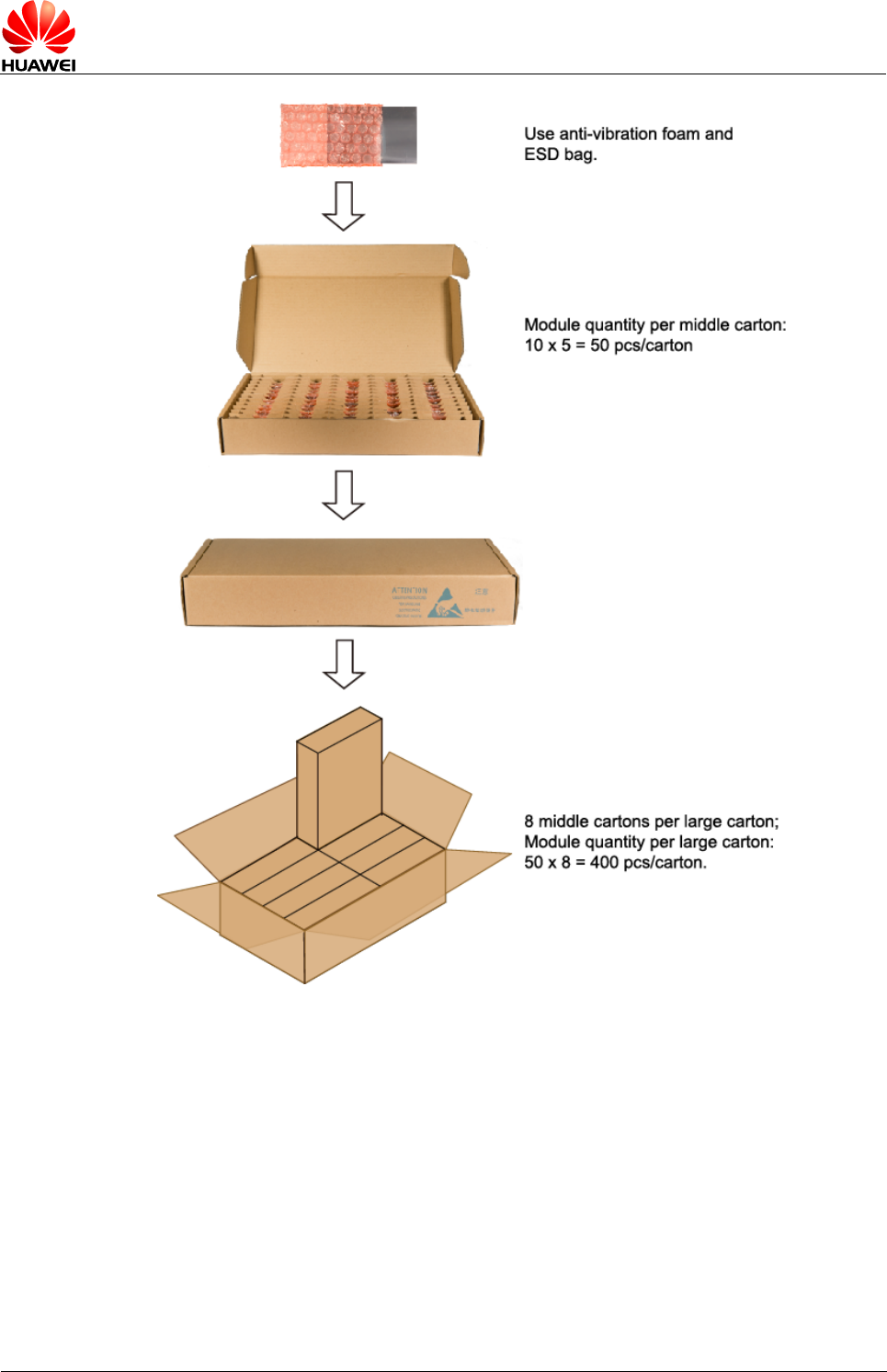

6.4 Packaging ....................................................................................................................................... 48
6.5 Specification Selection for Fasteners ............................................................................................. 49

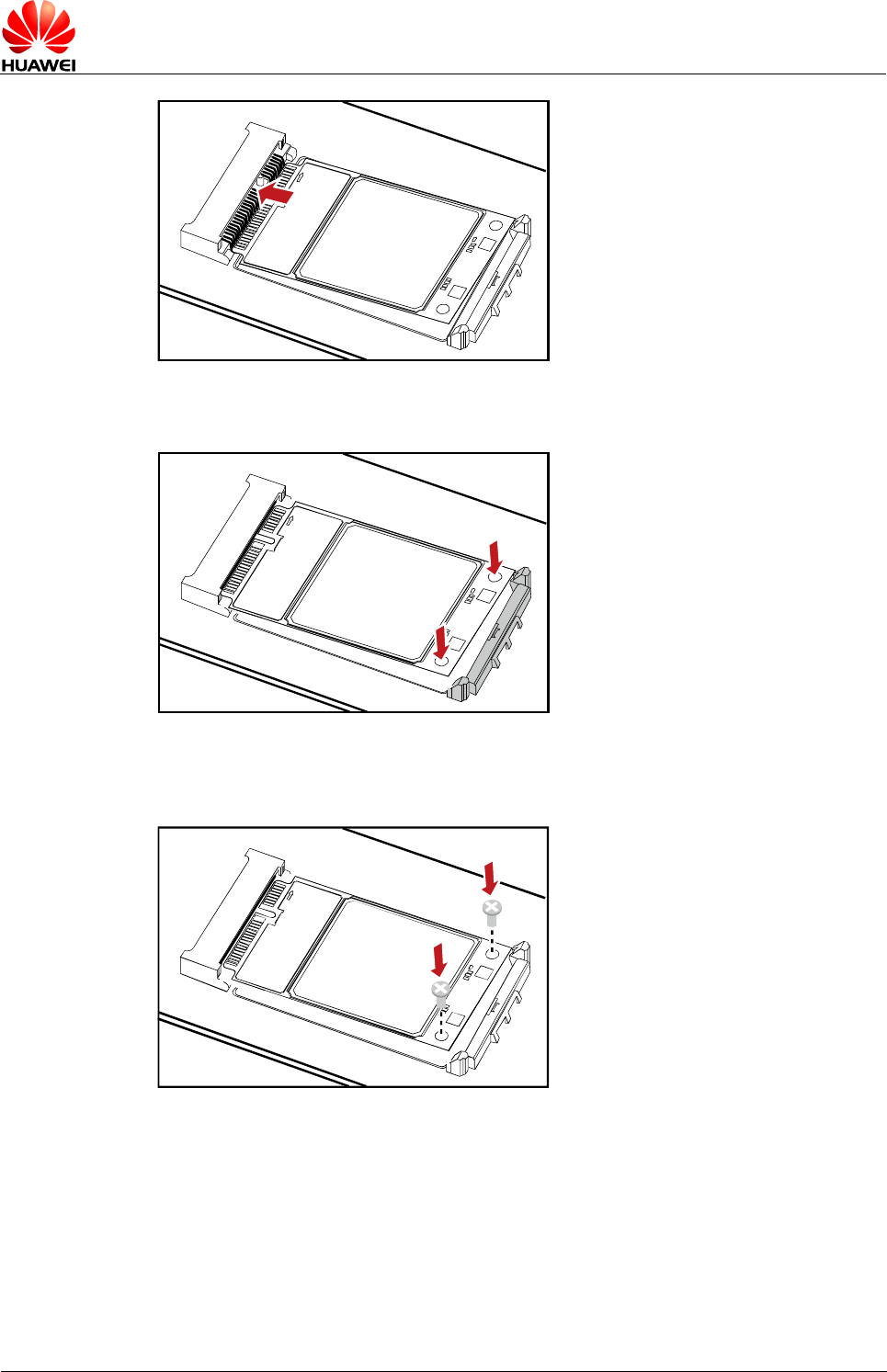

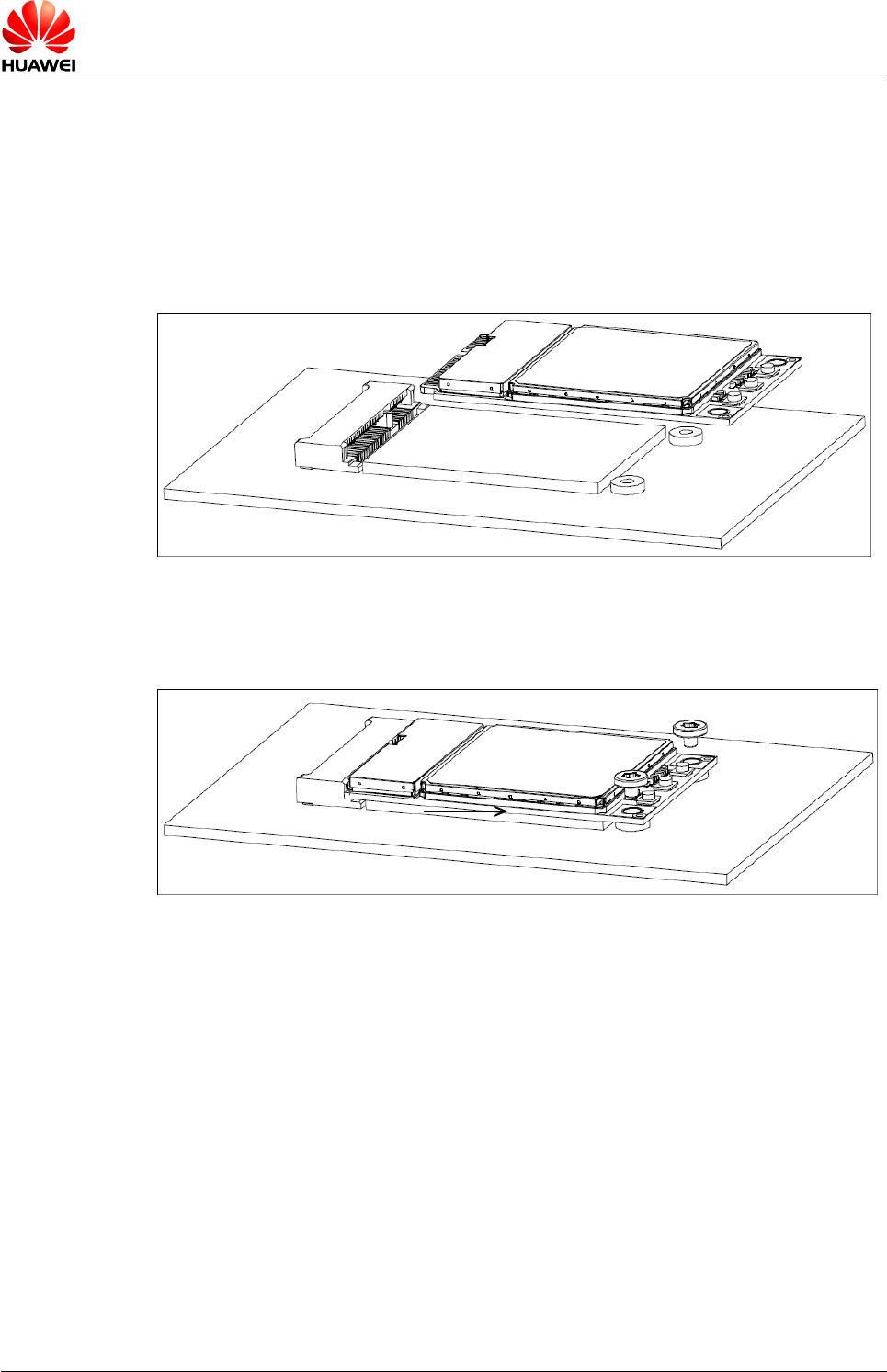

6.5.1 Installing the Mini PCIe Adapter on the Main Board .............................................................. 49

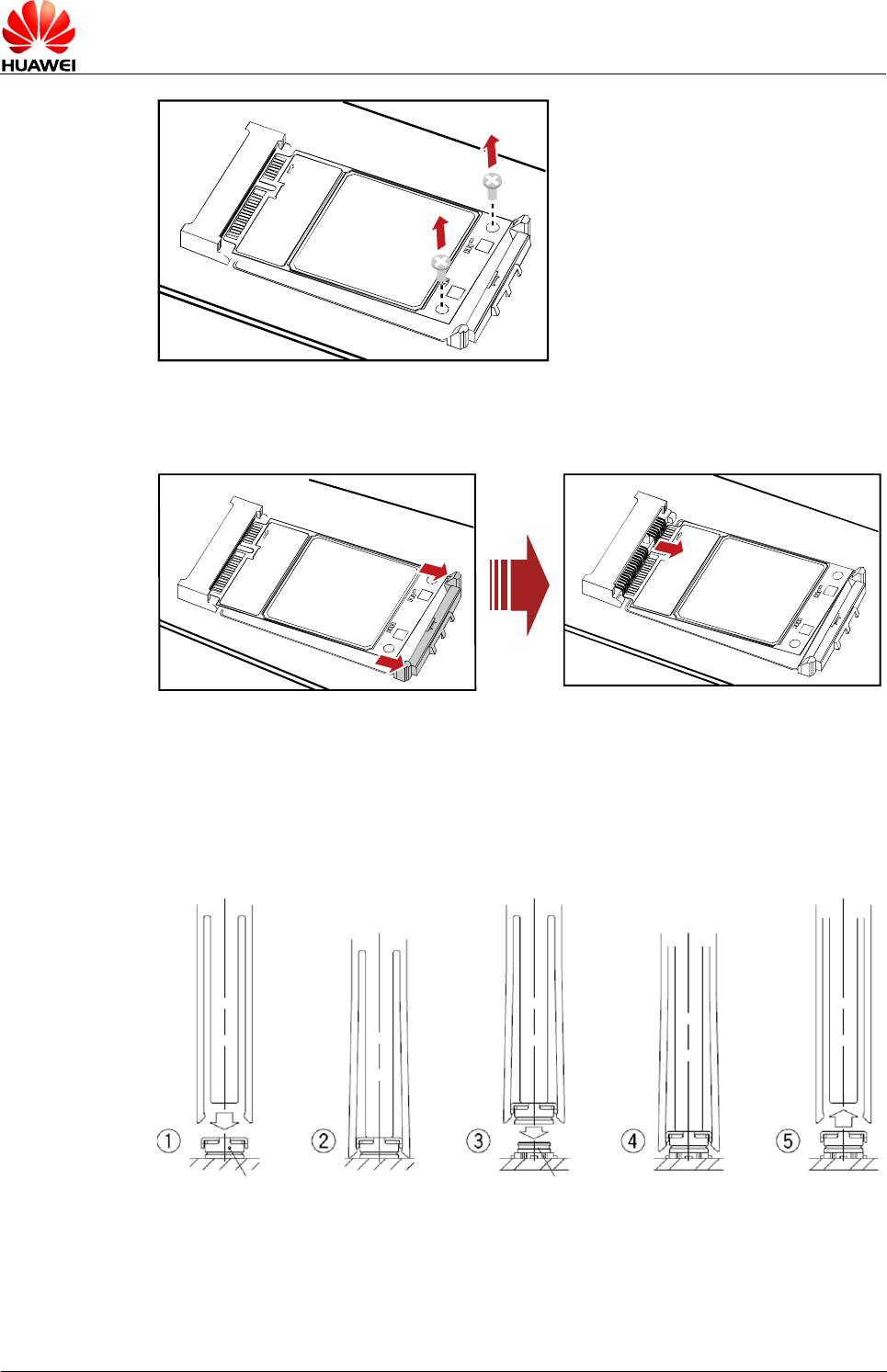

6.5.2 Romoving the Mini PCIe Adapter from the Main Board ........................................................ 51
6.6 Antenna Plug .................................................................................................................................. 52
6.7 Thermal Design Guide ................................................................................................................... 53
7 Certifications ................................................................................................................................ 56
7.1 About This Chapter ......................................................................................................................... 56
7.2 Certifications ................................................................................................................................... 56
8 Safety Information ...................................................................................................................... 57
8.1 Interference .................................................................................................................................... 57
8.2 Medical Device ............................................................................................................................... 57
8.3 Area with Inflammables and Explosives ......................................................................................... 57
8.4 Traffic Security ................................................................................................................................ 58
8.5 Airline Security ................................................................................................................................ 58
8.6 Safety of Children ........................................................................................................................... 58
8.7 Environment Protection .................................................................................................................. 58
8.8 WEEE Approval .............................................................................................................................. 58
8.9 RoHS Approval ............................................................................................................................... 58
8.10 Laws and Regulations Observance ............................................................................................. 59
![](asset-6.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Contents
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
8.11 Care and Maintenance ................................................................................................................. 59
8.12 Emergency Call ............................................................................................................................ 59
8.13 Regulatory Information ................................................................................................................. 59
8.13.1 CE Approval (European Union) ........................................................................................... 59
8.13.2 FCC Statement .................................................................................................................... 60
9 Appendix A Circuit of Typical Interface ................................................................................ 61
10 Appendix B Acronyms and Abbreviations .......................................................................... 62
![](asset-7.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Introduction
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
1 Introduction
This document describes the hardware application interfaces and air interfaces
provided by HUAWEI MU709 series (MU709s-2 and MU709s-6) HSPA+ Mini PCIe
Module (hereinafter referred to as the MU709 module).
This document helps hardware engineer to understand the interface specifications,
electrical features and related product information of the MU709 module.
![](asset-8.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Overall Description
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
2 Overall Description
2.1 About This Chapter
This chapter gives a general description of the MU709 module and provides:
- Function Overview

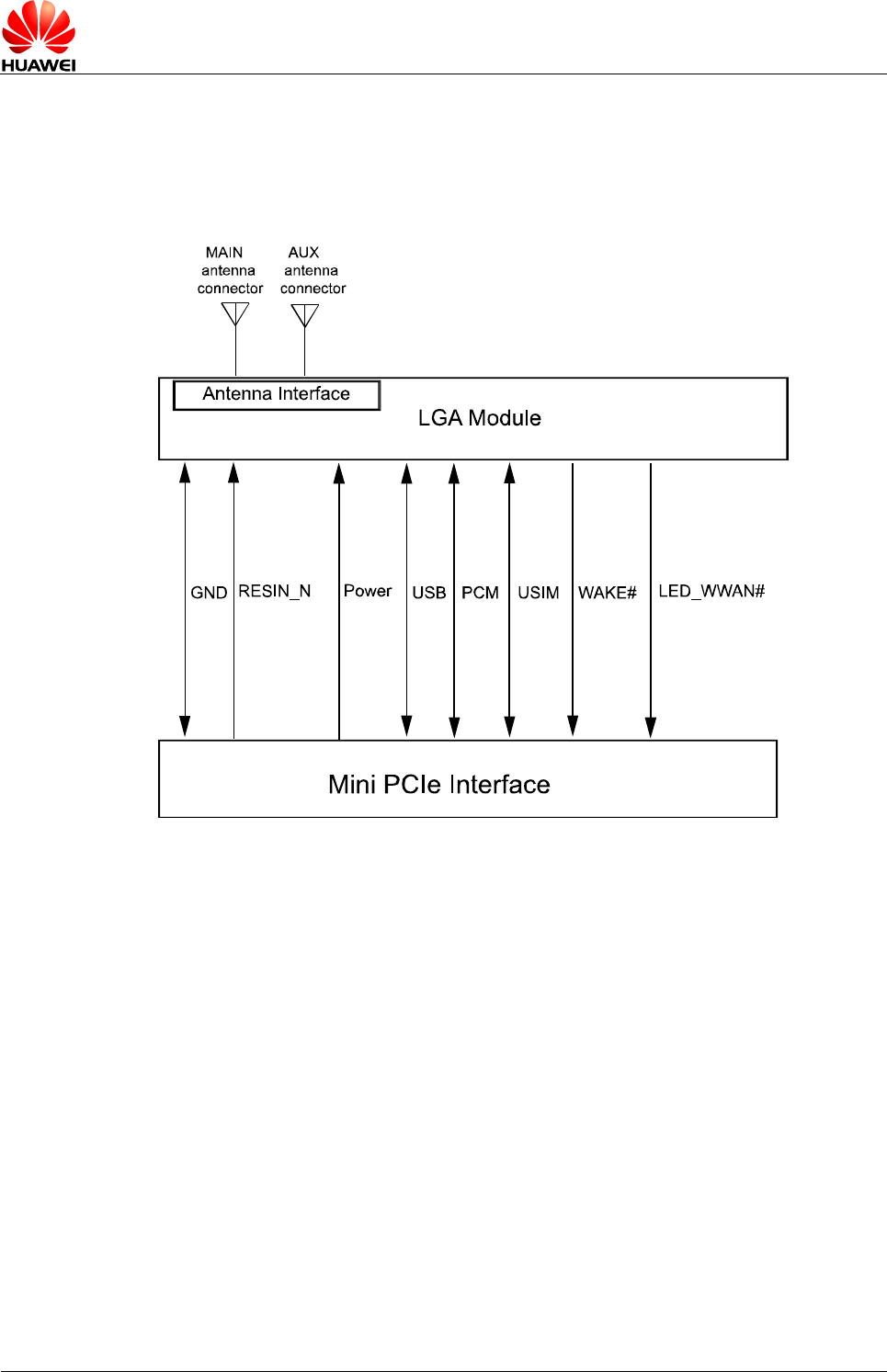

- Circuit Block Diagram
2.2 Function Overview
Table 2-1 Features
Feature Description
Physical
Dimensions
- Dimensions: (L × W × H): 51 mm × 30.4 mm × 3.27 mm
- Weight: about 12 g
Operating
Bands
- MU709s-2
WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 8, all bands with
diversity
GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
- MU709s-6
WCDMA/HSDPA/HSUPA/HSPA+: Band 1, Band 2, Band 5, all
bands with diversity
GSM/GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
Operating
Temperature Normal operating temperature: –20°C to +70°C
Extended operating temperature[1]: –30°C to +75°C
Storage
Temperature –40°C to +85°C
Humility RH5% to RH95%
Power
Voltage DC 3.0 V to 3.6 V (typical value is 3.3 V)
![](asset-9.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Overall Description
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Feature Description
AT
Commands See the HUAWEI MU709 Series HSPA+ Module AT Command
Interface Specification.
Application
Interface
(52-pin Mini
PCIe interface
One standard USIM card (Class B and Class C)
Audio interface: PCM interface
USB 2.0 (High Speed)
RESIN_N: Reset module
WAKE#: Wake up signal
LED_WWAN#: Active-low LED signal indicating the state of the
module
Antenna
connector
- WWAN MAIN antenna connector x1
- WWAN AUX antenna connector x1
SMS New message alert
Management of SMS: read SMS, write SMS, send SMS, delete
SMS and list SMS
Supports MO and MT: Point-to-point
Data Services GPRS: UL 85.6 kbit/s; DL 85.6 kbit/s
EDGE: UL 236.8 kbit/s; DL 236.8 kbit/s
WCDMA PS: UL 384 kbit/s; DL 384 kbit/s
HSPA+: UL 5.76 Mbit/s; DL 21.6 Mbit/s
Operating
Systems
Android 2.x/3.x/4.x
Linux (Kernel 2.6.18 or later)
Windows 7/8/8.1
Windows CE 5.0/6.0/7.0
- [1]: When the ME909s LGA module works in the range from –30°C to –20°C or +70°C to
+75°C, NOT all their RF performances comply with 3GPP specifications.
- The thermal design must be implemented according to the chapter 6.7 Thermal Design
Guide. If not, the overheat protection mechanism will be triggered due to overheated Mini
PCIe and the network connection will be terminated.
2.3 Circuit Block Diagram
Figure 2-1 shows the circuit block diagram of the MU709 adapter. The major
functional unit of the Mini PCIe Adapter contains the following parts:
- Power supply circuit
![](asset-b.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
3 Description of the Application Interfaces
3.1 About This Chapter
This chapter mainly describes the external application interfaces of the MU709
module, including:
- Mini PCIe Interface
- Power Interface
- Signal Control Interface
- USB Interface
- USIM Card Interface
- Audio Interface
- NC Pins
3.2 Mini PCIe Interface
The MU709 module uses a Mini PCIe interface as its external interface. For details
about the module and dimensions, see Dimensions and Interfaces.
![](asset-c.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
Figure 3-1 Sequence of Mini PCIe interface
Table 3-1 Pin definitions of the Mini PCIe Interface
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
Comments
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
1 WAKE# WAKE# O Open
collector
active low
signal. This
signal is
used to wake
up the host.
- –0.3 - 0.45 -
2 3.3Vaux VCC_3V3 PI 3.3 V DC
supply input.
- 3.0 3.3 3.6 -
3 COEX1 NC - Not
connected
- - - - -
4 GND GND - Ground - - - - -
5 COEX2 NC - Not
connected
- - - - -
6 1.5 V NC - Not
connected
- - - - -
![](asset-d.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
Comments
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
7 CLKREQ# NC - Not
connected
- - - - -
8 UIM_PWR USIM_PWR PO Power
source for
the external
USIM card
- –0.3 1.8 1.98 USIM_PW
R=1.8 V
- –0.3 3.0 3.3 USIM_PW
R=3.0 V
9 GND GND - Ground - - - - -
10 UIM_DATA USIM_DATA I/O External
USIM data
signal
VOH 0.7 x
USIM
_PW
R
- 3.3 USIM_PW
R=1.8 V or
3.0 V
VOL 0 - 0.2 x
USIM_
PWR
VIH 0.65 x
USIM
_PW
R
- 3.30
VIL 0 - 0.25x
USIM_
PWR
11 REFCLK- NC - Not
connected
- - - - -
12 UIM_CLK USIM_CLK O External
USIM clock
signal
VOH 0.7 x
USIM
_PW
R
- 3.3 USIM_PW
R=1.8 V or
3.0 V
VOL 0 - 0.2 x
USIM_
PWR
13 REFCLK+ NC - Not
connected
- - - - -
14 UIM_RESET USIM_RESE
T
O External
USIM reset
signal
VOH 0.7 x
USIM
_PW
R
- 3.3 USIM_PW
R=1.8 V or
3.0 V
VOL 0 - 0.2 x
USIM_
PWR
![](asset-e.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
Comments
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
15 GND GND - Ground - - - - -
16 UIM_Vpp NC - Not
connected
- - - - -
17 Reserved NC - Not
connected
- - - - -
18 GND GND - Ground - - - - -
19 Reserved NC - Not
connected
- - - - -
20 W_DISABLE
#
NC - Not
connected
- - - - -
21 GND GND - Ground - - - - -
22 RERST# RESIN_N I Reset
module
Active-low
VIL –0.3 0 0.3 -
VIH 1.17 1.8 3.6 -
23 PERn0 NC - Not
connected
- - - - -
24 3.3Vaux VCC_3V3 PI 3.3 V DC
supply input.
- 3.0 3.3 3.6 -
25 PERp0 NC - Not
connected
- - - - -
26 GND GND - Ground - - - - -
27 GND GND - Ground - - - - -
28 1.5 V NC - Not
connected
- - - - -
29 GND GND - Ground - - - - -
30 SMB_CLK NC - Not
connected
- - - - -
31 PETn0 NC - Not
connected
- - - - -
32 SMB_DATA NC - Not
connected
- - - - -
33 PETp0 NC - Not
connected
- - - - -
34 GND GND - Ground - - - - -
![](asset-f.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
Comments
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
35 GND GND - Ground - - - - -
36 USB_D- USB_DM I/O USB signal
D-
- - - - -
37 GND GND - Ground - - - - -
38 USB_D+ USB_DP I/O USB signal
D+
- - - - -
39 3.3Vaux VCC_3V3 PI 3.3 V DC
supply input.
- 3.0 3.3 3.6 -
40 GND GND - Ground - - - - -
41 3.3Vaux VCC_3V3 PI 3.3 V DC
supply input.
- 3.0 3.3 3.6 -
42 LED_WWAN
#
LED_WWAN
#
O Active-low
LED signal
indicating the
state of the
card.
VOL –0.3 - 0.45 -
43 GND GND - Ground - - - - -
44 LED_WLAN
#
NC - Not
connected
- - - - -
45 Reserved PCM_CLK O PCM
interface
clock
VOL –0.3 0 0.45 -
VOH 1.35 1.8 2.1 -
46 LED_WPAN
#
NC - Not
connected
- - - - -
47 Reserved PCM_DOUT O PCM I/F data
output
VOL –0.3 0 0.45 -
VOH 1.35 1.8 2.1 -
48 1.5 V NC - Not
connected
- - - - -
49 Reserved PCM_DIN I PCM I/F data
input
VIL –0.3 0 0.63 -
VIH 1.17 1.8 2.1 -
50 GND GND - Ground - - - - -
51 Reserved PCM_SYNC O PCM
interface
sync
VOL –0.3 0 0.45 -
VOH 1.35 1.8 2.1 -
![](asset-10.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
Comments
Mini PCI
Express
Standard
Description
HUAWEI
Pin
Description
52 3.3Vaux VCC_3V3 PI 3.3 V DC
supply input
- 3.0 3.3 3.6 -
- P indicates power pins; I indicates pins for digital signal input; O indicates pins for digital
signal output; PO indicates power output pins; PI indicates power input pins.
- VIL indicates Low-level Input voltage; VIH indicates High-level Input voltage; VOL indicates
Low-level Output voltage; VOH indicates High-level Output voltage.
- The NC pins are floating and there are no signal connected to these pins. Therefore, these
pins should not be used.
3.3 Power Interface
3.3.1 Sources and Grounds
For the Mini PCIe Adapter, +3.3Vaux is the only voltage supply that is available. The
input voltage is 3.3 V±9%, as specified by PCI Express Mini Card Electromechanical
Specification Revision 1.2.
Table 3-2 Power and ground specifications
Pin No. Pin Name Pad
Type
Descriptiom Min.(V) Typ .(V) Max.(V)
2, 24, 39, 41 and 52 VCC_3V3 PI 3.3 V DC supply input 3.0 3.3 3.6
4, 9, 15, 18, 21, 26, 27,
29, 34, 35, 37, 40, 43
and 50
GND - Ground - - -
To minimize the RF radiation through the power lines, it is suggested to add ceramic capacitors
of 10 pF and 100 nF in the power lines beside the Mini PCIe connector on the host side.
![](asset-11.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd. 17
3.3.2 Power Supply Time Sequence
Power on Sequence
Figure 3-2 Power on timing sequence
Parameter Remarks Time (Nominal value) Unit
TPD+ Power Valid to USB D+ high 7.0 s
Do not toggle RESIN_N pin during the power on sequence. Pull-Down RESIN_N pin will extend
time for module startup.
Power off Sequence
Cutting off the VCC_3V3 power supply will power off the module.
Figure 3-3 Power off timing sequence
![](asset-12.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
3.4 Signal Control Interface
3.4.1 Overview
The signal control part of the interface in the MU709 module consists of the following:
- WAKE# Signal
- RESIN_N Signal
- LED_WWAN# Signal

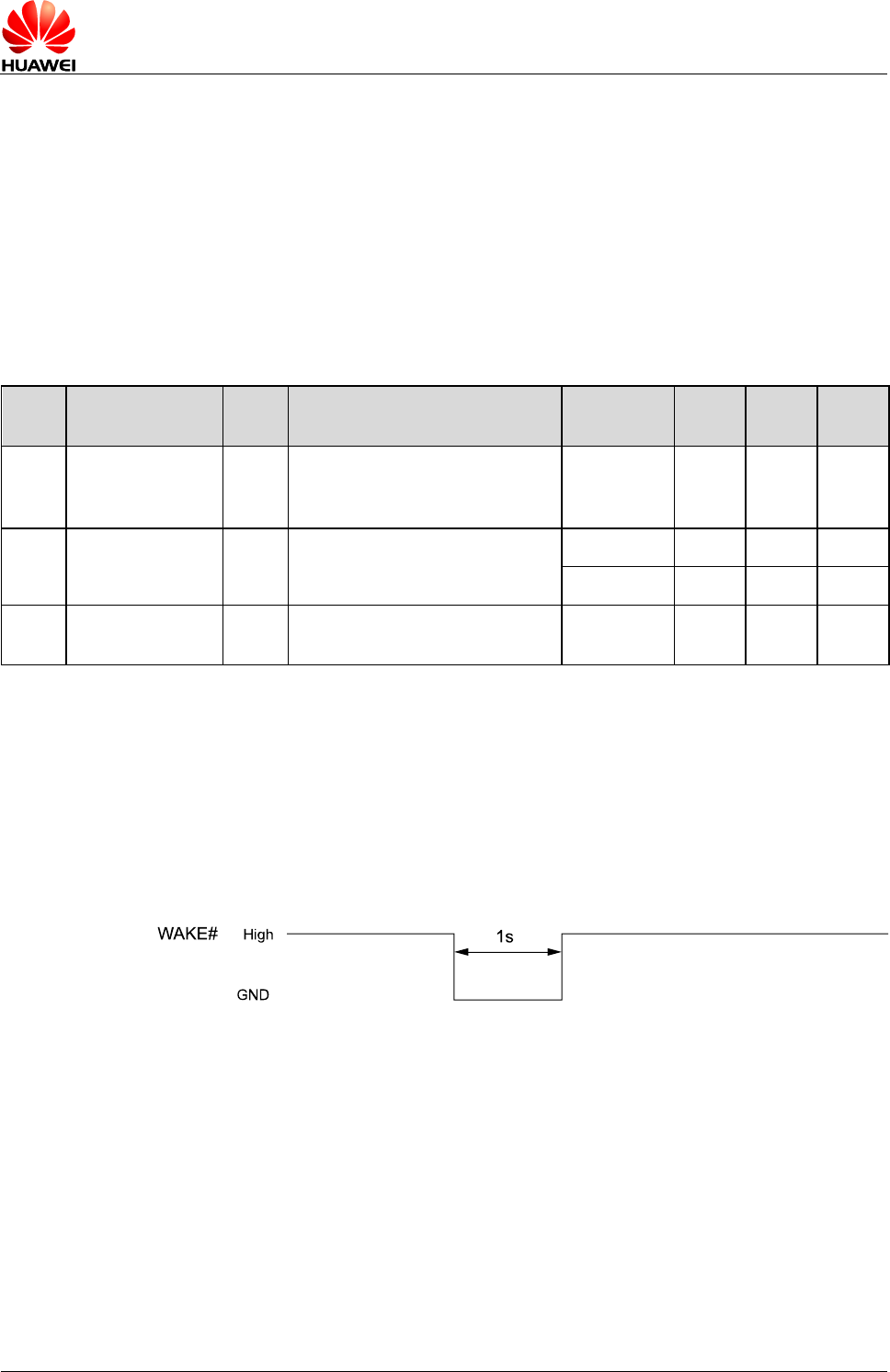

Table 3-3 Definitions of the pins on the signal control interface
Pin
No.
Pin Name Pad
Type
Description Parameter Min.
(V)
Typ.
(V)
Max.
(V)
1 WAKE# O Open collector active low signal.
This signal is used to wake up the
host.
- –0.3 - 0.45
22 RESIN_N I Reset module
Active-low
VIL –0.3 0 0.3
VIH 1.17 1.8 3.6
42 LED_WWAN# O Active-low LED signal indicating
the state of the card.
VOL –0.3 - 0.45
3.4.2 WAKE# Signal
WAKE# signal supports software control.
This signal is used for module to wake up the host. It is designed as an OC (Open
Collector) gate, so it should be pulled up by the host and it is active-low.
When the module wakes up the host, the WAKE# pin will output low-level-voltage for
1s to wake up the host.
![](asset-13.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19

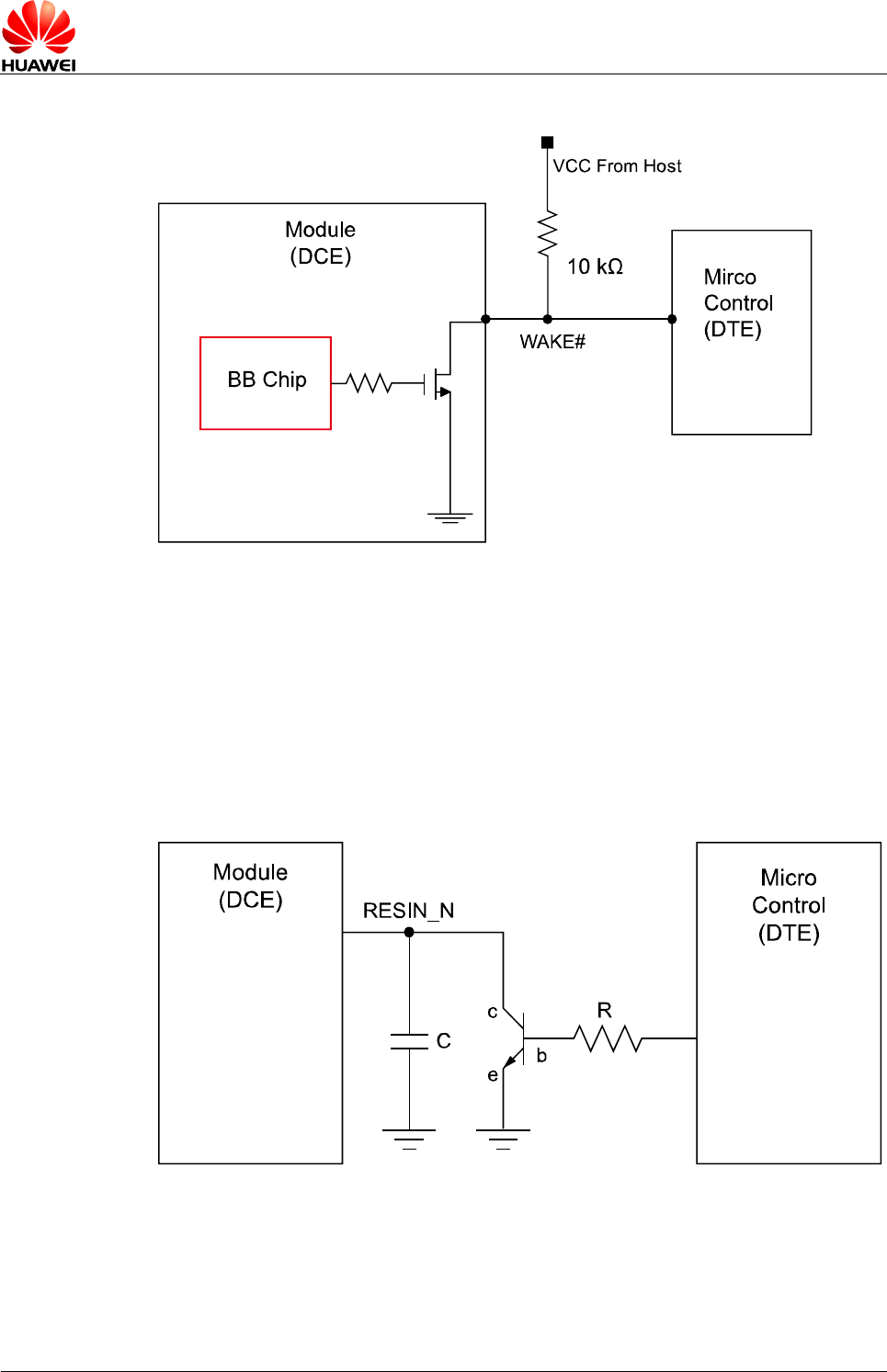

Figure 3-4 Connections of the WAKE# pin

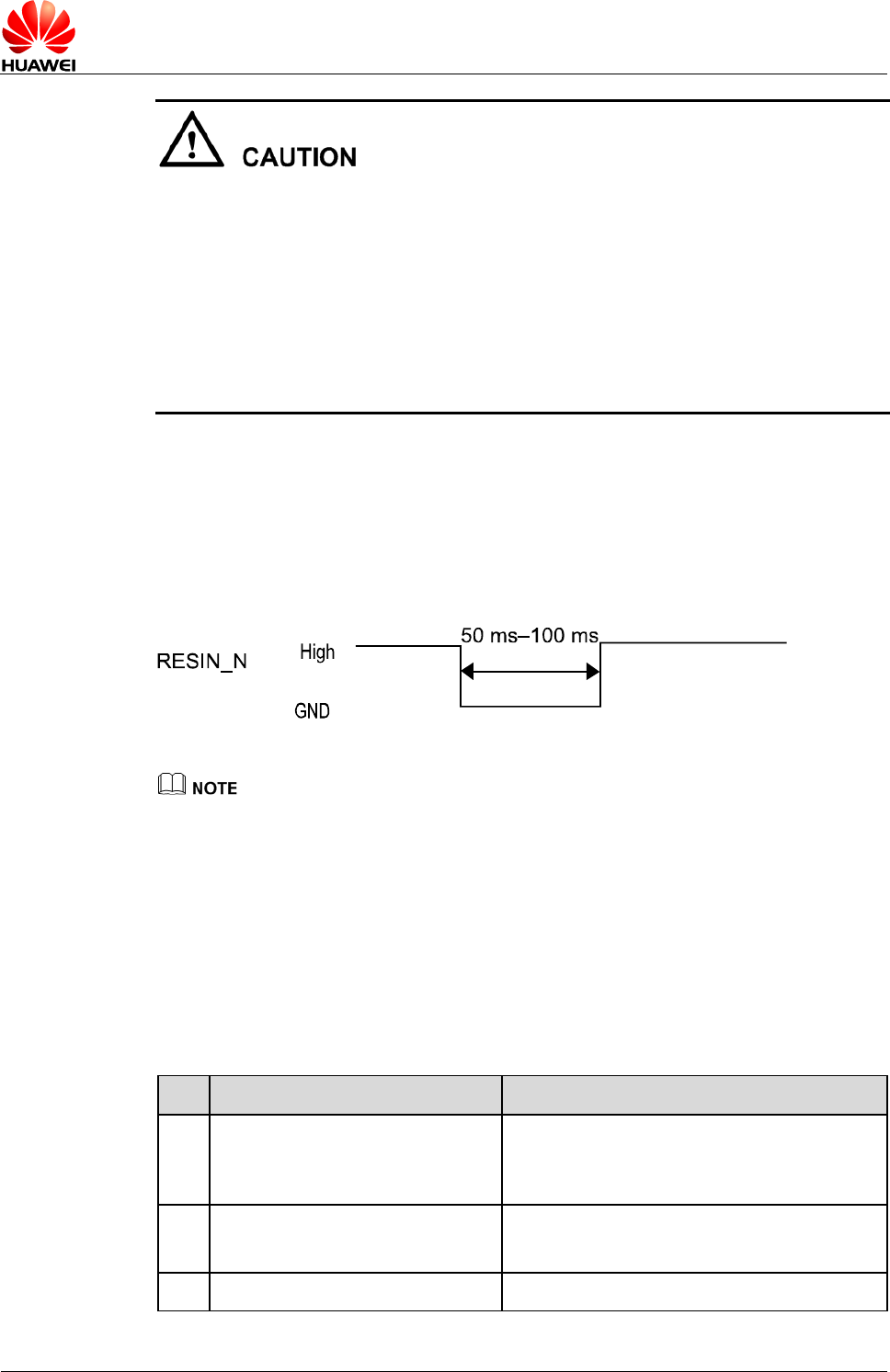

3.4.3 RESIN_N Signal
The RESIN_N signal is used to reset the module's system. When the module software
stops responding, the RESIN_N pin can be pulled down to reset the module
hardware.
The RESIN_N signal is internally pulled up to 1.8 V, and it turns on automatically when
the VCC_3V3 is pulled up. The RESIN_N signal is active-low.
Figure 3-5 Connections of the RESIN_N pin
![](asset-14.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
20
- As the RESIN_N signal is relatively sensitive, it is recommended that you install a
10 nF–0.1 µF capacitor near the RESIN_N pin of the interface for filtering. In
addition, when you design a circuit on the PCB of the interface board, it is
recommended that the circuit length should not exceed 20 mm and that the circuit
should be kept at a distance of 2.54 mm (100 mil) at least from the PCB edge.
Furthermore, you need to wrap the area adjacent to the signal wire with a ground
wire. Otherwise, the module may be reset due to interference.
- The maximum Forward Voltage Drop of the diode used in the module is 0.6 V. So
when the host wants to reset the module, the low-level-voltage in the RESIN_N pin
should be below 50 mV.
The MU709 module supports hardware reset function. If the software of the MU709
module stops responding, you can reset the hardware through the RESIN_N signal as
shown in Figure 3-6 . When a low-level pulse is supplied through the RESIN_N pin,
the hardware will be reset. After the hardware is reset, the software starts powering on
the module and reports relevant information according to the actual settings. For
example, the AT command automatically reports ^SYSSTART.
Figure 3-6 Reset pulse timing
- The RESIN_N pin must not be pulled down for more than 1s.
- The RESIN_N pin is optional, which can not be connected.
3.4.4 LED_WWAN# Signal
MU709 series module provides an LED_WWAN# signal to indicate the work status.
This function is disabled by default, it is controlled by AT^LEDCTRL. For details about
the command, please refer to HUAWEI MU709 Series HSPA+ Module AT Command
Interface Specification.
Table 3-4 State of the LED_WWAN# pin
No. Operating Status LED_WWAN#
1 No service or Restricted service Outputs: low (0.1s)-high (0.1s)-low
(0.1s)-high (1.7s)
2s cycle
2 Register to the network Outputs: low (0.1s)-high (1.9s)
2s cycle
3 Dial-up successfully Outputs: low
![](asset-15.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
21
Figure 3-7 shows the recommended circuits of the LED_WWAN# pin. According to
LED feature, you can adjust the LED brightness by adjusting the resistance of resistor
R.
Figure 3-7 Driving circuit
3.5 USB Interface
3.5.1 Overview
The MU709 module is compliant with USB 2.0 protocol. The USB interface is powered
directly from the VBAT supply. The USB input/output lines are compatible with the
USB 2.0 signal specifications. Figure 3-8 shows the circuit of the USB interface.
Table 3-5 Definition of the USB interface
Pin No. Pin Name Pad Type Description Parameter Min.(V) Typ.(V) Max.(V)
36 USB_DM I/O USB signal D- - - - -
38 USB_DP I/O USB signal D+ - - - -
According to USB protocol, for bus timing or electrical characteristics of MU709 USB
signal, please refer to the chapter 7.3.2 of Universal Serial Bus Specification 2.0.
![](asset-16.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
22
3.5.2 Circuit Recommended for the USB Interface
Figure 3-8 Recommended circuit of USB interface
3.6 USIM Card Interface
3.6.1 Overview
The MU709 module provides a USIM card interface complying with the ISO 7816-3
standard and supports both Class B and Class C USIM cards.
Table 3-6 USIM card interface signals
PIN
No.
Pin Name Pad
Type
Description Parameter Min. (V) Typ.
(V)
Max. (V) Comments
14 USIM_RESET O External USIM
reset signal
VOH 0.7 x
USIM_PWR
- 3.3 USIM_PWR=1.8
V or 3.0 V
VOL 0 - 0.2 x
USIM_PWR
12 USIM_CLK O External USIM
clock signal
VOH 0.7 x
USIM_PWR
- 3.3 USIM_PWR=1.8
V or 3.0 V
VOL 0 - 0.2 x
USIM_PWR
10 USIM_DATA I/O External USIM
data signal
VIH 0.7 x
USIM_PWR
- 3.3
USIM_PWR=1.8
V or 3.0 V
VIL 0 - 0.2 x
USIM_PWR
VOH 0.65 x
USIM_PWR
- 3.3
VOL 0 - 0.25 x
USIM_PWR
![](asset-17.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
23
PIN
No.
Pin Name Pad
Type
Description Parameter Min. (V) Typ.
(V)
Max. (V) Comments
8 USIM_PWR PO
Power source
for the
external USIM
card
- –0.3 1.8 1.98 USIM_PWR=1.8
V
- –0.3 3.0 3.3 USIM_PWR=3.0
V
3.6.2 Circuit Recommended for the USIM Card Interface
As the Mini PCIe Adapter is not equipped with a USIM socket, you need to place a
USIM socket on the user interface board. Figure 3-9 shows the circuit of the USIM
card interface.
Figure 3-9 Circuit of the USIM card interface
- To meet the requirements of 3GPP TS 51.010-1 protocols and electromagnetic
compatibility (EMC) authentication, the USIM socket should be placed near the
PCIe interface (it is recommended that the PCB circuit connects the PCIe interface
and the USIM socket does not exceed 100 mm), because a long circuit may lead to
wave distortion, thus affecting signal quality.
- It is recommended that you wrap the area adjacent to the USIM_CLK and
USIM_DATA signal wires with ground. The Ground pin of the USIM socket and the
Ground pin of the USIM card must be well connected to the power Ground pin
supplying power to the PCIe Adapter.
- A 100 nF capacitor and1 μF capacitor are placed between the USIM_PWR and
Ground pins in a parallel manner (If USIM_PWR circuit is too long, that the larger
capacitance such as 4.7 μF can be employed if necessary). Three 33 pF
![](asset-18.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
24
capacitors are placed between the USIM_DATA and Ground pins, the
USIM_RESET and Ground pins, and the USIM_CLK and Ground pins in parallel to
filter interference from RF signals.
- It is recommended to take electrostatic discharge (ESD) protection measures near
the USIM card socket. The TVS diode with Vrwm of 5 V and junction capacitance
less than 10 pF must be placed as close as possible to the USIM socket, and the
Ground pin of the ESD protection component is well connected to the power
Ground pin that supplies power to the PCIe Adapter.
3.7 Audio Interface
3.7.1 Overview
The MU709 module provides one PCM digital audio interface. Table 3-7 lists the
signals on the digital audio interface.
Table 3-7 Signals on the digital audio interface
Pin
No.
Pin Name Pad
Type
Description Parameter Min.(V) Typ.(V) Max.(V)
45 PCM_CLK O PCM clock VOL –0.3 0 0.45
VOH 1.35 1.8 2.1
47 PCM_DOUT O PCM I/F data output VOL –0.3 0 0.45
VOH 1.35 1.8 2.1
49 PCM_DIN I PCM I/F data input VIL –0.3 0 0.63
VIH 1.17 1.8 2.1
51 PCM_SYNC O PCM interface sync VOL –0.3 0 0.45
VOH 1.35 1.8 2.1
The MU709 module interface enables communication with an external codec to
support linear format.
![](asset-19.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
25
3.7.2 Circuit Recommended for the Audio Interface

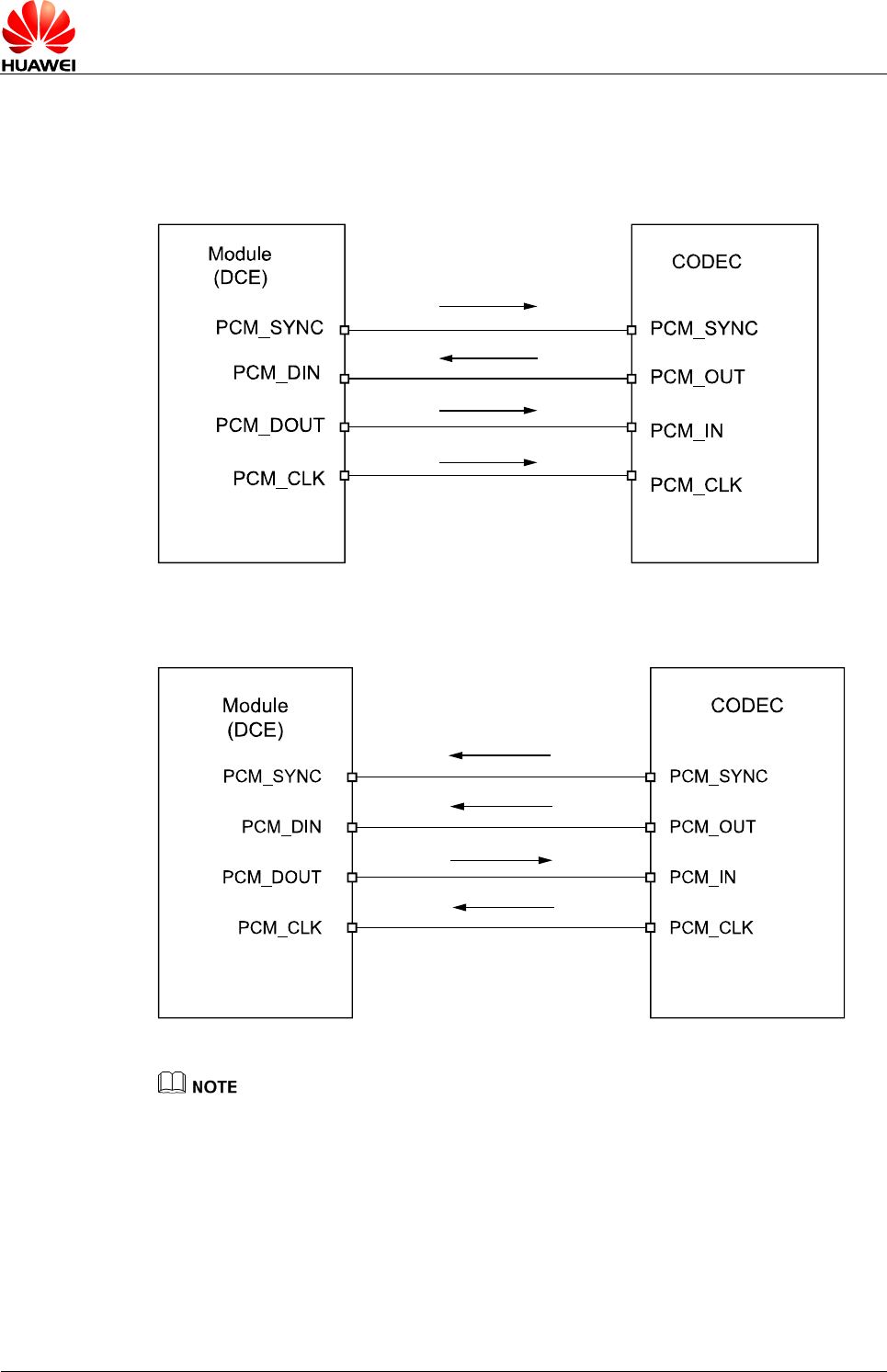

Figure 3-10 Circuit diagram of the interface of the PCM (MU709 module is used as PCM
master)
Figure 3-11 Circuit diagram of the interface of the PCM (MU709 is used as PCM slave)
- MU709 module supports both master and slave mode.
- PCM_SYNC and PCM_CLK: Output when PCM is in master mode; Input when PCM is in
slave mode.
- It is recommended that a TVS be used on the related interface, to prevent electrostatic
discharge and protect integrated circuit (IC) components.
![](asset-1a.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Description of the Application Interfaces
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26
3.8 NC Pins
The MU709 module has some NC pins. All of NC pins should not be connected.
Please keep these pins open.
Table 3-8 NC pins
Pin No. Pin
Name
Pad
Type
Description Parameter Min.(
V)
Typ.(
V)
Max.(
V)
3, 5–7, 11, 13, 16, 17,
19, 20, 23, 25, 28,
30–33, 44, 46 and 48
NC - Not connected, please
keep open.
- - - -
![](asset-1b.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
27
4 RF Specifications
4.1 About This Chapter
This chapter describes the RF specifications of the MU709 module, including:
- Operating Frequencies
- Conducted RF Measurement
- Conducted Rx Sensitivity and Tx Power
- Antenna Design Requirements
4.2 Operating Frequencies
Table 4-1 and Table 4-2 show the RF bands supported by the MU709 module.
Table 4-1 RF bands of the MU709s-2 module
Operating Band Tx Rx
UMTS Band 1 1920 MHz–1980 MHz 2110 MHz–2170 MHz
UMTS Band 8 880 MHz–915 MHz 925 MHz–960 MHz
GSM 850 824 MHz–849 MHz 869 MHz–894 MHz
GSM 900 880 MHz–915 MHz 925 MHz–960 MHz
GSM 1800 (DCS) 1710 MHz–1785 MHz 1805 MHz–1880 MHz
GSM 1900 (PCS) 1850 MHz–1910 MHz 1930 MHz–1990 MHz
Table 4-2 RF bands of MU709s-6 module
Operating Band Tx Rx
UMTS Band 1 1920 MHz–1980 MHz 2110 MHz–2170 MHz
UMTS Band 2 1850 MHz–1910 MHz 1930 MHz–1990 MHz
![](asset-1c.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
28
Operating Band Tx Rx
UMTS Band 5 824 MHz–849 MHz 869 MHz–894 MHz
GSM 850 824 MHz–849 MHz 869 MHz–894 MHz
GSM 900 880 MHz–915 MHz 925 MHz–960 MHz
GSM 1800 (DCS) 1710 MHz–1785 MHz 1805 MHz–1880 MHz
GSM 1900 (PCS) 1850 MHz–1910 MHz 1930 MHz–1990 MHz
4.3 Conducted RF Measurement
4.3.1 Test Environment
Test instrument R&S CMU200
Power supply KEITHLEY 2306
RF cable for testing L08-C014-350 of DRAKA COMTEQ or Rosenberger
Cable length: 29 cm
- The compensation for different frequency bands relates to the cable and the test
environment.
- The instrument compensation needs to be set according to the actual cable conditions.
4.3.2 Test Standards
Huawei modules meet 3GPP test standards. Each module passes strict tests at the
factory and thus the quality of the modules is guaranteed.
4.4 Conducted Rx Sensitivity and Tx Power
4.4.1 Conducted Receive Sensitivity
The conducted receive sensitivity is a key parameter that indicates the receiver
performance of MU709 module. The conducted receive sensitivity refers to the
weakest signal that the module at the antenna port can receive. Table 4-3 and Table
4-4 list the typical tested values of the MU709 module.
Table 4-3 MU709s-2 module conducted Rx sensitivity
Band Typical value (Unit:
dBm) Note
GSM 850 –109.5 BER Class II < 2.44%
![](asset-1d.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
29
Band Typical value (Unit:
dBm) Note
GSM 900 –109 BER Class II < 2.44%
GSM 1800 (DCS) –108 BER Class II < 2.44%
GSM 1900 (PCS) –108 BER Class II < 2.44%
WCDMA Band 1 –109 BER < 0.1%
WCDMA Band 8 –110 BER < 0.1%
Table 4-4 MU709s-6 module conducted Rx sensitivity
Band Test Value (Unit: dBm) Note
GSM 850 –109.5 BER Class II < 2.44%
GSM 900 –109 BER Class II < 2.44%
GSM 1800 (DCS) –108 BER Class II < 2.44%
GSM 1900 (PCS) –108 BER Class II < 2.44%
WCDMA Band 1 –109 BER < 0.1%
WCDMA Band 2 –110.5 BER < 0.1%
WCDMA Band 5 –111.5 BER < 0.1%
The test values are the average of some test samples.
4.4.2 Conducted Transmit Power
The conducted transmit power is another indicator that measures the performance of
MU709 module. The conducted transmit power refers to the maximum power that the
module tested at the antenna connector can transmit. According to the 3GPP protocol,
the required transmit power varies with the power class. Table 4-5 and Table 4-6 list
the typical tested values of the MU709 module.
Table 4-5 MU709s-2 module conducted Tx power
Band Typical Value (Unit: dBm) Note (Unit: dB)
GSM 850 GMSK(1Tx Slot) 32 ±1.5
8PSK(1Tx Slot) 26.5 ±2
GSM 900 GMSK(1Tx Slot) 32 ±1.5
8PSK(1Tx Slot) 26.5 ±2
GSM 1800 GMSK(1Tx Slot) 29 ±1.5
![](asset-1e.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
30
Band Typical Value (Unit: dBm) Note (Unit: dB)
(DCS)
8PSK(1Tx Slot) 25 ±2
GSM 1900
(PCS) GMSK(1Tx Slot) 29 ±1.5
8PSK(1Tx Slot) 25 ±2
WCDMA Band 1 23 ±1
WCDMA Band 8 23 -1.5/+1
Table 4-6 MU709s-6 module conducted Tx power
Band Typical Value (Unit: dBm) Note (Unit: dB)
GSM 850 GMSK(1Tx Slot) 32 ±1.5
8PSK(1Tx Slot) 26.5 ±2
GSM 900 GMSK(1Tx Slot) 32 ±1.5
8PSK(1Tx Slot) 26.5 ±2
GSM 1800
(DCS) GMSK(1Tx Slot) 29 ±1.5
8PSK(1Tx Slot) 25 ±2
GSM 1900
(PCS) GMSK(1Tx Slot) 29 ±1.5
8PSK(1Tx Slot) 25 ±2
WCDMA Band 1 23 ±1
WCDMA Band 2 23 ±1
WCDMA Band 5 23 -1.5/+1
4.5 Antenna Design Requirements
4.5.1 Antenna Design Indicators
Antenna Efficiency
Antenna efficiency is the ratio of the input power to the radiated or received power of
an antenna. The radiated power of an antenna is always lower than the input power
due to the following antenna losses: return loss, material loss, and coupling loss. The
efficiency of an antenna relates to its electrical dimensions. To be specific, the
antenna efficiency increases with the electrical dimensions. In addition, the
transmission cable from the antenna connector of PCIe Adapter to the antenna is also
part of the antenna. The cable loss increases with the cable length and the frequency.
![](asset-1f.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
31
It is recommended that the cable loss is as low as possible, for example, U.FL-LP-088
made by HRS.
The following antenna efficiency (free space) is recommended for MU709 module to
ensure high radio performance of the module:
- Efficiency of the primary antenna: ≥ 40% (below 960 MHz); ≥ 50% (over 1710
MHz)
- Efficiency of the diversity antenna: ≥ half of the efficiency of the primary
antenna in receiving band
In addition, the efficiency should be tested with the transmission cable.
S11 or VSWR
S11 indicates the degree to which the input impedance of an antenna matches the
reference impedance (50 Ω). S11 shows the resonance feature and impedance
bandwidth of an antenna. Voltage standing wave ratio (VSWR) is another expression
of S11. S11 relates to the antenna efficiency. S11 can be measured with a vector
analyzer.
The following S11 value is recommended for the antenna of MU709 module:
- S11 of the primary antenna: ≤ –6 dB
- S11 of the diversity antenna: ≤ –6 dB
In addition, S11 is less important than the efficiency, and S11 has weak correlation to
wireless performance.
Isolation
For a wireless device with multiple antennas, the power of different antennas is
coupled with each other. Antenna isolation is used to measure the power coupling.
The power radiated by an antenna might be received by an adjacent antenna, which
decreases the antenna radiation efficiency and affects the running of other devices. To
avoid this problem, evaluate the antenna isolation as sufficiently as possible at the
early stage of antenna design.
Antenna isolation depends on the following factors:
- Distance between antennas
- Antenna type
- Antenna direction
The primary antenna must be placed as near as possible to the MU709 module to
minimize the cable length. The diversity antenna needs to be installed
perpendicularly to the primary antenna. The diversity antenna can be placed farther
away from the MU709 module. Antenna isolation can be measured with a two-port
vector network analyzer.
The following antenna isolation is recommended for the antennas on laptops:
- Isolation between the primary and diversity antennas: ≤ –12 dB
- Isolation between the primary antenna and the Wi-Fi antenna: ≤ –15 dB
![](asset-20.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
32
Polarization
The polarization of an antenna is the orientation of the electric field vector that rotates
with time in the direction of maximum radiation.
The linear polarization is recommended for the antenna of MU709 module.
Radiation Pattern
The radiation pattern of an antenna reflects the radiation features of the antenna in the
remote field region. The radiation pattern of an antenna commonly describes the
power or field strength of the radiated electromagnetic waves in various directions
from the antenna. The power or field strength varies with the angular coordinates (θ
and φ), but is independent of the radial coordinates.
The radiation pattern of half wave dipole antennas is omnidirectional in the horizontal
plane, and the incident waves of base stations are often in the horizontal plane. For
this reason, the receiving performance is optimal.
The following radiation patterns are recommended for the antenna of MU709 module.
Primary/Diversity antenna: omnidirectional
In addition, the diversity antenna's pattern should be complementary with the
primary's.
Envelope Correlation Coefficient
The envelope correlation coefficient indicates the correlation between different
antennas in a multi-antenna system (primary antenna, diversity antenna, and MIMO
antenna). The correlation coefficient shows the similarity of radiation patterns, that is,
amplitude and phase, of the antennas. The ideal correlation coefficient of a diversity
antenna system or a MIMO antenna system is 0. A small value of the envelope
correlation coefficient between the primary antenna and the diversity antenna
indicates a high diversity gain. The envelope correlation coefficient depends on the
following factors:
- Distance between antennas
- Antenna type
- Antenna direction
The antenna correlation coefficient differs from the antenna isolation. Sufficient
antenna isolation does not represent a satisfactory correlation coefficient. For this
reason, the two indicators need to be evaluated separately.
For the antennas on laptops, the recommended envelope correlation coefficient
between the primary antenna and the diversity antenna is smaller than 0.5.
Gain and Directivity
The radiation pattern of an antenna represents the field strength of the radiated
electromagnetic waves in all directions, but not the power density that the antenna
radiates in the specific direction. The directivity of an antenna, however, measures the
power density that the antenna radiates.
![](asset-21.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
33
Gain, as another important parameter of antennas, correlates closely to the directivity.
The gain of an antenna takes both the directivity and the efficiency of the antenna into
account. The appropriate antenna gain prolongs the service life of relevant batteries.
The following antenna gain is recommended for MU709 module. Gain of the
primary/diversity antenna ≤ 2.5 dBi
- The antenna consists of the antenna body and the relevant RF transmission cable. Take the
RF transmission cable into account when measuring any of the preceding antenna
indicators.
- Huawei cooperates with various famous antenna suppliers who are able to make
suggestions on antenna design, for example, Amphenol, Skycross, etc.
4.5.2 Interference
Besides the antenna performance, the interference on the user board also affects the
radio performance (especially the TIS) of the module. To guarantee high performance
of the module, the interference sources on the user board must be properly controlled.
On the user board, there are various interference sources, such as the LCD, CPU,
audio circuits, and power supply. All the interference sources emit interference signals
that affect the normal operation of the module. For example, the module sensitivity
can be decreased due to interference signals. Therefore, during the design, you need
to consider how to reduce the effects of interference sources on the module. You can
take the following measures: Use a LCD with optimized performance; shield the LCD
interference signals; shield the signal cable of the board; or design filter circuits.
Huawei is able to make technical suggestions on radio performance improvement of
the module.
4.5.3 Antenna Requirements
The antenna for MU709 module must fulfill the following requirements:
Table 4-7 MU709s-2 module antenna requirements
Antenna Requirements
Frequency range Depending on frequency band(s) provided by the network
operator, the customer must use the most suitable
antenna for that/those band(s)
Bandwidth of primary
antenna 70 MHz in GSM 850
80 MHz in GSM 900
170 MHz in GSM 1800
140 MHz in GSM 1900
80 MHz in WCDMA Band 8
250 MHz in WCDMA Band 1
Bandwidth of
secondary antenna 35 MHz in WCDMA Band 8
60 MHz in WCDMA Band 1
Gain ≤ 2.5 dBi
![](asset-22.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
RF Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
34
Antenna Requirements
Impedance 50 Ω
VSWR absolute max ≤ 3:1
VSWR recommended ≤ 2:1
Table 4-8 MU709s-6 module antenna requirements
Antenna Requirements
Frequency range Depending on frequency band(s) provided by the network
operator, the customer must use the most suitable
antenna for that/those band(s)
Bandwidth of primary
antenna 70 MHz in GSM 850
80 MHz in GSM 900
170 MHz in GSM 1800
140 MHz in GSM 1900
70 MHZ in WCDMA Band 5
140 MHz in WCDMA Band 2
250 MHz in WCDMA Band 1
Bandwidth of
secondary antenna 25 MHz in WCDMA Band 5
60 MHz in WCDMA Band 2
60 MHz in WCDMA Band 1
Gain ≤ 2.5 dBi
Impedance 50 Ω
VSWR absolute max ≤ 3:1
VSWR recommended ≤ 2:1
![](asset-23.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
35
5 Electrical and Reliability Features
5.1 About This Chapter
This chapter describes the electrical and reliability features of the interfaces in the
MU709 module, including:
- Absolute Ratings
- Operating and Storage Temperatures
- Power Supply Features
- Reliability Features
- EMC and ESD Features
5.2 Absolute Ratings
Table 5-1 lists the absolute ratings for the MU709 module. Using the module beyond
these conditions may result in permanent damage to the module.
Table 5-1 Absolute ratings for the MU709 module
Symbol Specification Min. Max. Unit
VCC_3V3 External power voltage –0.3 4.0 V
VI Digital input voltage –0.3 2.1 V
5.3 Operating and Storage Temperatures
Table 5-2 lists the operating and storage temperatures for the MU709 module.
![](asset-24.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
36
Table 5-2 Operating and storage temperatures for the MU709 module
Specification Min. Max. Unit
Normal working temperatures –20 +70 °C
Extended temperatures –30 +75 °C
Ambient temperature for storage –40 +85 °C
- [1]: When the ME909s LGA module works in the range from –30°C to –20°C or +70°C to
+75°C, NOT all their RF performances comply with 3GPP specifications.
- The thermal design must be implemented according to the chapter 6.7 Thermal Design
Guide. If not, the overheat protection mechanism will be triggered due to overheated Mini
PCIe and the network connection will be terminated.
5.4 Power Supply Features
5.4.1 Input Power Supply
Table 5-3 Requirements for input power for the MU709 module
Parameter Min. Typ. Max. Ripple Unit
VCC_3V3 3.0 3.3 3.6 0.05 V
Figure 5-1 Power Supply During Burst Emission
The VCC_3V3 minimum value must be guaranteed during the burst (with 2.7 A Peak in GSM 2
slot mode). So a low-dropout (LDO) regulator or switch power with current output of more than
3.5 A is strongly recommended for external power supply.
Table 5-4 Requirements for input current of the MU709 module
Power Module Peak (GSM 2 slot) Normal (WCDMA)
VCC_3V3 MU709 2750 mA 1100 mA
![](asset-25.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37
5.4.2 Power Consumption
The power consumptions of MU709 module in different scenarios are respectively
listed in Table 5-5 to Table 5-8 .
The power consumption listed in this section is tested when the power supply of the
MU709 module is 3.3 V, and all of test values are measured at room temperature.
Table 5-5 Averaged standby DC power consumption of MU709 module
Description Bands Test Value (Unit: mA) Notes/Configuration
Typical
Sleep HSPA+/WCDMA UMTS bands 3.1 Module is powered up.
DRX cycle=7 (1.28s)
Module is registered on the
network.
USB is in suspend.
GPRS/EDGE GSM bands 2.8 Module is powered up.
MFRMS=5 (1.175s)
Module is registered on the
network.
USB is in suspend.
Radio Off All bands 1.6 Module is powered up.
RF is disabled
USB is in suspend.
Idle HSPA+/WCDMA UMTS bands 50 Module is powered up.
DRX cycle=7 (1.28s)
Module is registered on the
network, no data is transmitted.
USB is in active.
GPRS/EDGE GSM bands 50 Module is powered up.
MFRMS=5 (1.175s)
Module is registered on the
network, no data is transmitted.
USB is in active.
Radio Off All bands 50 Module is powered up.
RF is disabled.
USB is in active.
![](asset-26.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
38
Table 5-6 Averaged data transmission DC power consumption of MU709s-2 module
(HSPA/WCDMA)
Description Band Test Value (Unit: mA) Power
Typical
WCDMA Band 1
(IMT2100)
250 0 dBm Tx Power
320 10 dBm Tx Power
720 23.5 dBm Tx Power
Band 8
(900 MHz)
250 0 dBm Tx Power
320 10 dBm Tx Power
720 23.5dBm Tx Power
HSPA Band 1
(IMT2100)
270 0 dBm Tx Power
340 10 dBm Tx Power
720 23.5 dBm Tx Power
Band 8
(900 MHz)
270 0 dBm Tx Power
360 10 dBm Tx Power
740 23.5 dBm Tx Power
Table 5-7 Averaged data transmission DC power consumption of MU709s-6 module
(HSPA/WCDMA)
Description Band Test Value (Unit: mA) Power (dBm)
WCDMA Band 1
(IMT 2100)
192 0 dBm Tx Power
237 10 dBm Tx Power
652 23.5 dBm Tx Power
Band 2
(1900 MHz)
191 0 dBm Tx Power
245 10 dBm Tx Power
688 23.5 dBm Tx Power
Band 5
(850 MHz)
182 0 dBm Tx Power
219 10 dBm Tx Power
562 23.5 dBm Tx Power
HSPA Band 1
(IMT 2100)
202 0 dBm Tx Power
255 10 dBm Tx Power
629 23.5 dBm Tx Power
![](asset-27.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
39
Description Band Test Value (Unit: mA) Power (dBm)
Band 2
(1900 MHz)
210 0 dBm Tx Power
274 10 dBm Tx Power
703 23.5 dBm Tx Power
Band 5
(850 MHz)
197 0 dBm Tx Power
234 10 dBm Tx Power
552 23.5 dBm Tx Power
Table 5-8 Averaged data transmission DC power consumption of MU709 module
(GPRS/EDGE)
Description Test Value (Unit: mA) PCL Configuration
Typical
GPRS 850 250 5 1 Up/1 Down
370 2 Up/1 Down
510 4 Up/1 Down
120 10 1 Up/1 Down
200 2 Up/1 Down
330 4 Up/1 Down
GPRS 900 250 5 1 Up/1 Down
370 2 Up/1 Down
520 4 Up/1 Down
120 10 1 Up/1 Down
200 2 Up/1 Down
330 4 Up/1 Down
GPRS 1800 200 0 1 Up/1 Down
280 2 Up/1 Down
400 4 Up/1 Down
80 10 1 Up/1 Down
115 2 Up/1 Down
160 4 Up/1 Down
GPRS 1900 190 0 1 Up/1 Down
![](asset-28.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
40
Description Test Value (Unit: mA) PCL Configuration
Typical
260 2 Up/1 Down
370 4 Up/1 Down
80 10 1 Up/1 Down
110 2 Up/1 Down
160 4 Up/1 Down
EDGE 850 190 8 1 Up/1 Down
290 2 Up/1 Down
490 4 Up/1 Down
100 15 1 Up/1 Down
145 2 Up/1 Down
235 4 Up/1 Down
EDGE 900 190 8 1 Up/1 Down
290 2 Up/1 Down
490 4 Up/1 Down
100 15 1 Up/1 Down
150 2 Up/1 Down
240 4 Up/1 Down
EDGE 1800 160 2 1 Up/1 Down
255 2 Up/1 Down
415 4 Up/1 Down
100 10 1 Up/1 Down
140 2 Up/1 Down
220 4 Up/1 Down
EDGE 1900 160 2 1 Up/1 Down
255 2 Up/1 Down
415 4 Up/1 Down
100 10 1 Up/1 Down
140 2 Up/1 Down
220 4 Up/1 Down
![](asset-29.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
41
- All power consumption test configuration can be referenced by GSM Association Official
Document TS.09: Battery Life Measurement and Current Consumption Technique.
- Test condition: For Max. Tx. power, see 4.4.2 Conducted Transmit Power, which are listed in
Table 4-5 ; for Max. data throughput, see 2.2 Function Overview, which are listed in Table
2-1 .
5.5 Reliability Features
Table 5-9 lists the test conditions and results of the reliability of the MU709 module.
Table 5-9 Test conditions and results of the reliability of the MU709 module
Item Test Condition Standard Sample size Results
Stress Low-temperature
storage
- Temperature: –40ºC
- Operation mode: no
power, no package
- Test duration: 24 h
JESD22-
A119-C 3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
High-temperature
storage
- Temperature: 85ºC
- Operation mode: no
power, no package
- Test duration: 24 h
JESD22-
A103-C 3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Low-temperature
operating
- Temperature: –30ºC
- Operation mode:
working with service
connected
- Test duration: 24 h
IEC60068
-2-1
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
High-temperature
operating
- Temperature: 70ºC
- Operation mode:
working with service
connected
- Test duration: 24 h
JESD22-
A108-C 3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Damp heat
cycling
- High temperature:
55ºC
- Low temperature:
25ºC
- Humidity: 95%±3%
- Operation mode:
working with service
connected
- Test duration: 6
cycles; 12 h+12
h/cycle
JESD22-
A101-B
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
![](asset-2a.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
42
Item Test Condition Standard Sample size Results
Thermal shock - Low temperature:
–40ºC
- High temperature:
85ºC
- Temperature change
interval: < 20s
- Operation mode: no
power
- Test duration: 100
cycles; 15 Min+15
Min/cycle
JESD22-
A106-B
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Salty fog test - Temperature: 35°C
- Density of the NaCl
solution: 5%±1%
- Operation mode: no
power, no package
- Test duration:
Spraying interval: 8 h
Exposing period after
removing the salty fog
environment: 16 h
JESD22-
A107-B 3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Sine vibration - Frequency range: 5 Hz
to 200 Hz
- Acceleration: 1 Grms
- Frequency scan rate:
0.5oct/min
- Operation mode:
working with service
connected
- Test duration: 3 axial
directions. 2 h for each
axial direction
JESD22-
B103-B
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Shock test - Half-sine wave shock
- Peak acceleration: 30
Grms
- Shock duration: 11 ms
- Operation mode:
working with service
connected
- Test duration: 6 axial
directions. 3 shocks
for each axial
direction.
JESD-B1
04-C
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
![](asset-2b.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
43
Item Test Condition Standard Sample size Results
Drop test - 0.8 m in height. Drop
the module on the
marble terrace with
one surface facing
downwards. Six
surfaces should be
tested.
- Operation mode: no
power, no package
IEC60068
-2-32
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Life High temperature
operating life
- Temperature: 70ºC
- Operation mode:
working with service
connected
- Test duration: 168 h,
336 h, 500 h for
inspection point
JESD22-
A108-B 50 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
High temperature
& high humidity
- High temperature:
85ºC
- Humidity: 85%
- Operation mode:
powered on and no
working
- Test duration: 168 h,
336 h, 500 h for
inspection point
JESD22-
A110-B
50 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
Cross section: ok
Temperature
cycle
- High temperature:
85ºC
- Low temperature:
–40ºC
- Temperature change
slope: 6ºC/min
- Operation mode: no
power
- Test duration: 168 h,
336 h, 500 h for
inspection point
JESD22-
A104-C 50 pcs/group Visual inspection: ok
Function test: ok
RF specification:
ok
Cross section: ok
ESD HBM (Human
Body Model)
- 2 kV (Class 1B)
- Operation mode: no
power
JESD22-
A114-D
3 pcs/group Visual inspection: ok
Function test: ok
RF specification: ok
![](asset-2c.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
44
Item Test Condition Standard Sample size Results
ESD with DVK (or
embedded in the
host)
- Contact and Air
discharges: 10
positive and 10
negative applied
- Contact Voltage: ±2
kV, ±4 kV
- Air Voltage : ±2 kV, ±4
kV, ±8 kV
- Operation mode:
working with service
connected
IEC61000
-4-2
2 pcs Visual inspection: ok
Function test: ok
RF specification: ok
Groups ≥ 2
5.6 EMC and ESD Features
The following are the EMC design comments:
- Attention should be paid to static control in the manufacture, assembly, packaging,
handling, storage process to reduce electrostatic damage to HUAWEI module.
- RSE (Radiated Spurious Emission) may exceed the limit defined by EN301489 if
the antenna port is protected by TVS (Transient Voltage Suppressor), which is
resolved by making some adjustment on RF match circuit.
- TVS should be added on the USB port for ESD protection, and the parasitic
capacitance of TVS on D+/D- signal should be less than 2 pF. Common-mode
inductor should be added in parallel on D+/D- signal.
- TVS should be added on the USIM interface for ESD protection. The parasitic
capacitance of TVS on USIM signal should be less than 10 pF.
- Resistors in parallel and a 10 nF capacitor should be added on RESIN_N signal
to avoid shaking, and the distance between the capacitor and the related pin
should be less than 100 mil.
- PCB routing should be V-type rather than T-type for TVS.
- An integrated ground plane is necessary for EMC design.
The following are the requirements of ESD environment control:
- The electrostatic discharge protected area (EPA) must have an ESD floor whose
surface resistance and system resistance are greater than 1 x 104 Ω while less
than 1 x 109 Ω.
- The EPA must have a sound ground system without loose ground wires, and the
ground resistance must be less than 4 Ω.
- The workbench for handling ESD sensitive components must be equipped with
common ground points, the wrist strap jack, and ESD pad. The resistance
between the jack and common ground point must be less than 4 Ω. The surface
resistance and system resistance of the ESD pad must be less than 1 x 109 Ω.
![](asset-2d.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Electrical and Reliability Features
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
45
- The EPA must use the ESD two-circuit wrist strap, and the wrist strap must be
connected to the dedicated jack. The crocodile clip must not be connected to the
ground.
- The ESD sensitive components, the processing equipment, test equipment, tools,
and devices must be connected to the ground properly. The indexes are as
follows:
− Hard ground resistance < 4 Ω
− 1 x 105 Ω ≤ Soft ground resistance < 1 x 109 Ω
− 1 x 105 Ω ≤ ICT fixture soft ground resistance < 1 x 1011 Ω
− The electronic screwdriver and electronic soldering iron can be easily oxidized.
Their ground resistance must be less than 20 Ω.
- The parts of the equipment, devices, and tools that touch the ESD sensitive
components and moving parts that are close to the ESD sensitive components
must be made of ESD materials and have sound ground connection. The parts
that are not made of ESD materials must be handled with ESD treatment, such
as painting the ESD coating or ionization treatment (check that the friction voltage
is less than 100 V).
- Key parts in the production equipment (parts that touch the ESD sensitive
components or parts that are within 30 cm away from the ESD sensitive
components), including the conveyor belt, conveyor chain, guide wheel, and SMT
nozzle, must all be made of ESD materials and be connected to the ground
properly (check that the friction voltage is less than 100 V).
- Engineers that touch IC chips, boards, modules, and other ESD sensitive
components and assemblies must wear ESD wrist straps, ESD gloves, or ESD
finger cots properly. Engineers that sit when handling the components must all
wear ESD wrist straps.
- Noticeable ESD warning signs must be attached to the packages and placement
areas of ESD sensitive components and assemblies.
- Boards and IC chips must not be stacked randomly or be placed with other ESD
components.
- Effective shielding measures must be taken on the ESD sensitive materials that
are transported or stored outside the EPA.
HUAWEI MU709 module does not include any protection against overvoltage.
![](asset-2e.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
46
6 Mechanical Specifications
6.1 About This Chapter
This chapter mainly describes mechanical specifications of MU709 module, including:
- Dimensions and Interfaces
- Dimensions of the Mini PCI Express Connector
- Packaging
- Specification Selection for Fasteners
- Antenna Plug
- Thermal Design Guide
6.2 Dimensions and Interfaces
The dimensions (L × W × H) of the MU709 module is 51 mm × 30.4 mm × 3.27 mm.
Figure 6-1 shows the dimensions of MU709 module in detail.
![](asset-2f.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
47

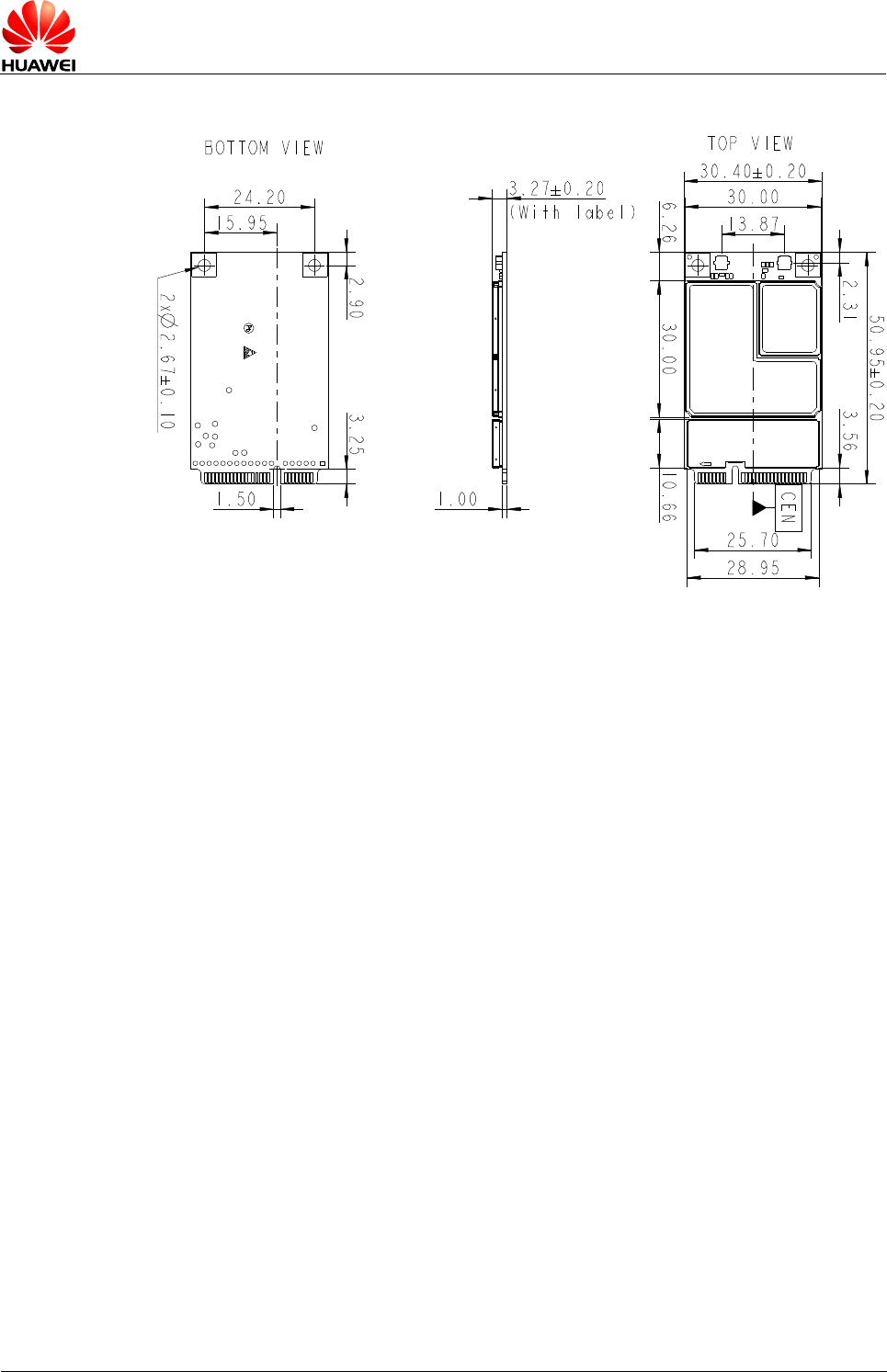

Figure 6-1 Dimensions of the MU709 module (Unit: mm)
6.3 Dimensions of the Mini PCI Express Connector
The Mini PCIe Adapter adopts a standard Mini PCI Express connector that has 52
pins and complies with the PCI Express Mini Card Electromechanical Specification
Revision 2.0.
Figure 6-2 shows a 52-pin Mini PCI Express connector (take the Molex 67910002 as
an example).
![](asset-30.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
48
Figure 6-2 Dimensions of the Mini PCI Express connector (Unit: mm)
6.4 Packaging
HUAWEI Mini PCIe module uses anti-vibration foam and ESD bag into cartons.
![](asset-31.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
49
6.5 Specification Selection for Fasteners
6.5.1 Installing the Mini PCIe Adapter on the Main Board
To install the Mini PCIe Adapter on the main board, do the following:
Step 1 Insert the Mini PCIe Adapter into the Mini PCI Express connector on the main board.
![](asset-32.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50
Step 2 Press downwards to fix the Mini PCIe Adapter in the module slot.
Step 3 Use a screwdriver to fix the Mini PCIe Adapter on the main board with two screws
provided in the Mini PCIe Adapter packing box.
Step 4 Insert the connector of the main antenna into the MAIN antenna interface (M) of the
Mini PCIe Adapter according to the indication on the label of the Mini PCIe Adapter.
Insert the connector of the auxiliary antenna into the AUX antenna interface (A) of the
Mini PCIe Adapter of the Mini PCIe Adapter in the same way.
![](asset-33.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
51
- Insert the antenna connectors vertically into the antenna interfaces of the Mini PCIe
Adapter.
- Do not press or squeeze the antenna cable or damage the connectors. Otherwise, the
wireless performance of the Mini PCIe Adapter may be reduced or the Mini PCIe Adapter
cannot work normally.
- Ensure that the antenna cables are routed through the channel in the frame of the PC and
do not lay the cables across the raised edges of the frame.
- The module could not be installed or removed when the host is powered on. Otherwise, it
may result in permanent damage to the module.
6.5.2 Romoving the Mini PCIe Adapter from the Main Board
Step 1 Disconnect the antenna cables from the Mini PCIe Adapter. You can lift the
connectors using a small screwdriver.
Step 2 Remove the two screws with the screwdriver.
![](asset-34.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
52
Step 3 Slide backwards the two clips to release the Mini PCIe Adapter from the slot. Then, lift
up the Mini PCIe Adapter.
6.6 Antenna Plug
Figure 6-3 Mating the plug
1. Align the mating tool or the mating end of the tool over the plug end of the cable
assembly.
2. Firmly place the tool over the plug until it is secured in the tool.
![](asset-35.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
53
3. Place the plug cable assembly (held in the tool) over the corresponding
receptacle.
4. Assure that the plug and receptacle are aligned press-down perpendicular to the
mounting surface until both connectors are fully mated.
5. Remove the mating tool by pulling it up carefully.

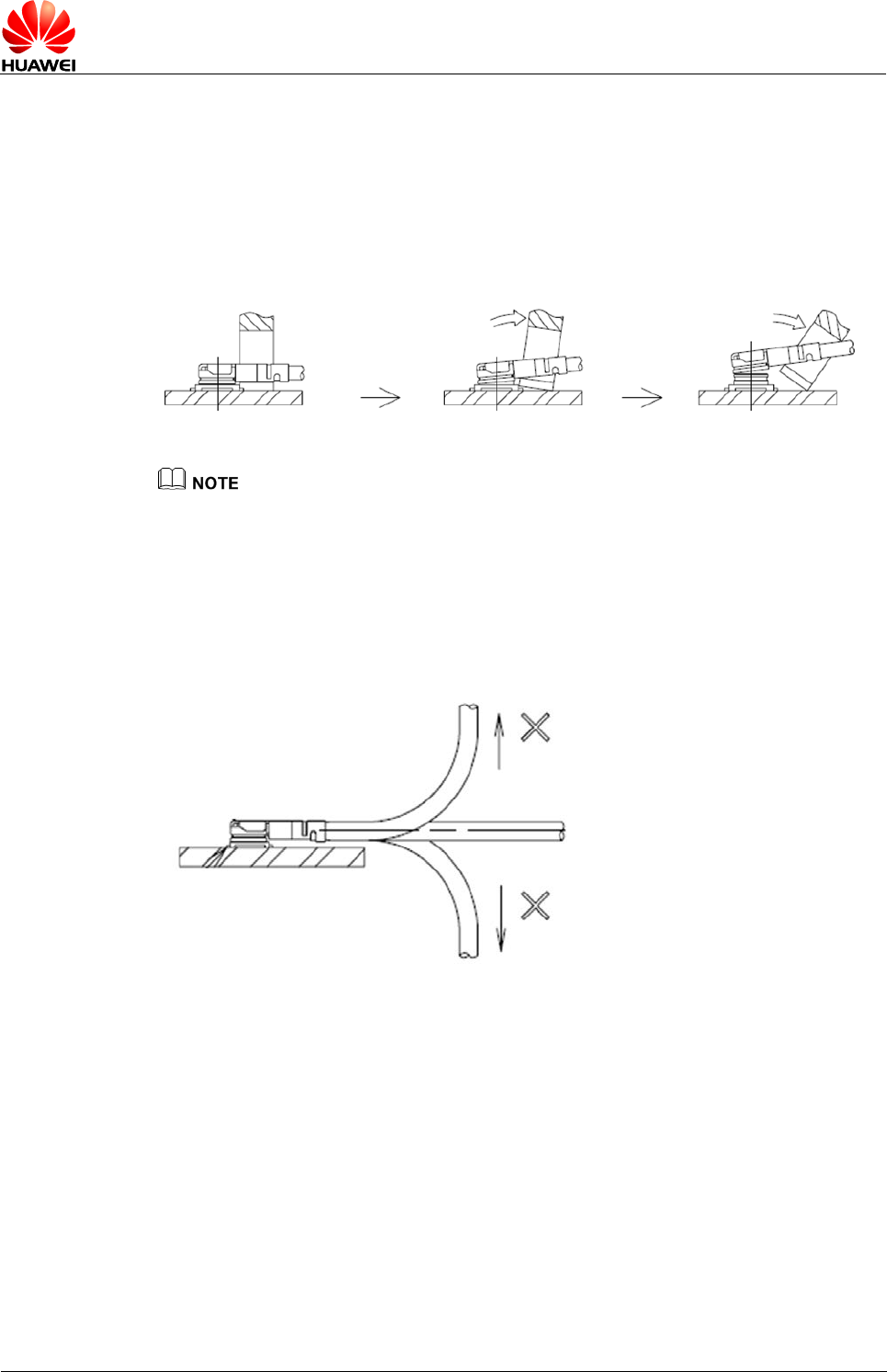

Figure 6-4 Unmating the plug
- The extraction tool is recommended.
- Any attempt of unmating by pulling on the cable may result in damage and influence the
mechanical/electrical performance.
It is recommended not to apply any pull forces after the bending of the cable, as
described in Figure 6-5 .
Figure 6-5 Do not apply any pull forces after the bending of the cable
6.7 Thermal Design Guide
When using in the network, the MU709 module (Mini PCIe) have high power
consumption. To improve the module reliability and stability, focus on the thermal
design of the device to speed up heat dissipation.
Take the following heat dissipation measures:
- Do not hollow out the customer PCB.
- Attach the thermal conductive material between the Mini PCIe and the customer
PCB. The recommended thermal conductivity of the thermal conductive material
is 1.0 W/m-k or higher (recommended manufacturers: Laird and Bergquist). The
![](asset-36.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
54
dimensions (W x D) of the thermal conductive material are 38 mm x 28 mm (1.50
in. x 1.10 in.), and its height depends on the height of the Mini PCIe connector
you use and the method for installing the Mini PCIe. When deciding the height of
the thermal conductive material, you are advised to obey the following rule: After
the Mini PCIe is fastened to the customer PCB, the compression amount of the
thermal conductive material accounts for 15% to 30% of the thermal conductive
material size. For example, if you use a connector shown in the following figure
and install the Mini PCIe like this, the recommended height of the thermal
conductive material is 1.8 mm (0.07 in.).
- On the customer PCB, reserve two metal screw holes, which are connected to
the PCB ground plane. When installing the Mini PCIe, use two metal screws to
fasten the Mini PCIe to the customer PCB. See the following figure.
- Ensure that the air flow around the Mini PCIe is sufficient.
- Try not to place any component in the Mini PCIe's projection region on the
customer PCB. Do not place components with 1.5 W or higher power
consumption or heat sensitive components (such as crystals) near the Mini PCIe.
- Use a large customer PCB. The recommended size (W x D) is 70 mm x 70 mm
(2.76 in. x 2.76 in.).
- If the thermal conductive material is attached between the Mini PCIe and the
customer PCB, then the heat dissipation performance will be better for multilayer
PCB.
- Apply copper to the region for attaching the thermal conductive material to the
customer PCB. Try to use the continuous ground plane design on the customer
PCB, and each ground plane must be connected through holes. Therefore,
reserve holes as many as possible.
Thermal Conductive Material
Screw
Mini PCIe
Customer PCB
Thermal Conductive Material
Mini PCIe
Customer PCB
![](asset-37.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Mechanical Specifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
55
If you do not take the preceding heat dissipation measures, the overheat protection mechanism
is triggered due to overheated Mini PCIe and the network connection is terminated when the
Mini PCIe keeps working in enclosed space with a 70ºC temperature and a big current for a
period of time. You can resume the network connection only after the temperature drops.
![](asset-38.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Certifications
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
56
7 Certifications
7.1 About This Chapter
This chapter gives a general description of certifications of MU709 module.
7.2 Certifications
Table 7-1 shows certifications of the MU709 module have been implemented. For more
demands, please contact us for more details about this information.
Table 7-1 Product Certifications
Certification Model name
MU709s-2 MU709s-6
CE √ √
CCC √ -
FCC - √
Anetel - √
RoHS √ √
WEEE √ √
NAL √ -
SRRC √ -
REACH √ √
RCM - √
NCC √ √
![](asset-39.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Safety Information
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
57
8 Safety Information
Read the safety information carefully to ensure the correct and safe use of your
wireless device. Applicable safety information must be observed.
8.1 Interference
Power off your wireless device if using the device is prohibited. Do not use the
wireless device when it causes danger or interference with electric devices.
8.2 Medical Device
- Power off your wireless device and follow the rules and regulations set forth by
the hospitals and health care facilities.
- Some wireless devices may affect the performance of the hearing aids. For any
such problems, consult your service provider.
- Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between the wireless device and a pacemaker to prevent potential
interference with the pacemaker. If you are using an electronic medical device,
consult the doctor or device manufacturer to confirm whether the radio wave
affects the operation of this device.
8.3 Area with Inflammables and Explosives
To prevent explosions and fires in areas that are stored with inflammable and
explosive devices, power off your wireless device and observe the rules. Areas stored
with inflammables and explosives include but are not limited to the following:
- Gas station
- Fuel depot (such as the bunk below the deck of a ship)
- Container/Vehicle for storing or transporting fuels or chemical products
- Area where the air contains chemical substances and particles (such as granule,
dust, or metal powder)
- Area indicated with the "Explosives" sign
![](asset-3a.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Safety Information
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
58
- Area indicated with the "Power off bi-direction wireless equipment" sign
- Area where you are generally suggested to stop the engine of a vehicle
8.4 Traffic Security
- Observe local laws and regulations while using the wireless device. To prevent
accidents, do not use your wireless device while driving.
- RF signals may affect electronic systems of motor vehicles. For more information,
consult the vehicle manufacturer.
- In a motor vehicle, do not place the wireless device over the air bag or in the air
bag deployment area. Otherwise, the wireless device may hurt you owing to the
strong force when the air bag inflates.
8.5 Airline Security
Observe the rules and regulations of airline companies. When boarding or
approaching a plane, power off your wireless device. Otherwise, the radio signal of
the wireless device may interfere with the plane control signals.
8.6 Safety of Children
Do not allow children to use the wireless device without guidance. Small and sharp
components of the wireless device may cause danger to children or cause suffocation
if children swallow the components.
8.7 Environment Protection
Observe the local regulations regarding the disposal of your packaging materials,
used wireless device and accessories, and promote their recycling.
8.8 WEEE Approval
The wireless device is in compliance with the essential requirements and other
relevant provisions of the Waste Electrical and Electronic Equipment Directive
2012/19/EU (WEEE Directive).
8.9 RoHS Approval
The wireless device is in compliance with the restriction of the use of certain
hazardous substances in electrical and electronic equipment Directive 2011/65/EU
(RoHS Directive).
![](asset-3b.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Safety Information
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
59
8.10 Laws and Regulations Observance
Observe laws and regulations when using your wireless device. Respect the privacy
and legal rights of the others.
8.11 Care and Maintenance
It is normal that your wireless device gets hot when you use or charge it. Before you
clean or maintain the wireless device, stop all applications and power off the wireless
device.
- Use your wireless device and accessories with care and in clean environment.
Keep the wireless device from a fire or a lit cigarette.
- Protect your wireless device and accessories from water and vapour and keep
them dry.
- Do not drop, throw or bend your wireless device.
- Clean your wireless device with a piece of damp and soft antistatic cloth. Do not
use any chemical agents (such as alcohol and benzene), chemical detergent, or
powder to clean it.
- Do not leave your wireless device and accessories in a place with a considerably
low or high temperature.
- Use only accessories of the wireless device approved by the manufacture.
Contact the authorized service center for any abnormity of the wireless device or
accessories.
- Do not dismantle the wireless device or accessories. Otherwise, the wireless
device and accessories are not covered by the warranty.
- The device should be installed and operated with a minimum distance of 20 cm
between the radiator and your body.
8.12 Emergency Call
This wireless device functions through receiving and transmitting radio signals.
Therefore, the connection cannot be guaranteed in all conditions. In an emergency,
you should not rely solely on the wireless device for essential communications.
8.13 Regulatory Information
The following approvals and notices apply in specific regions as noted.
8.13.1 CE Approval (European Union)
The wireless device is approved to be used in the member states of the EU. The
wireless device is in compliance with the essential requirements and other relevant
provisions of the Radio and Telecommunications Terminal Equipment Directive
1999/5/EC (R&TTE Directive).
![](asset-3c.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Safety Information
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
60
8.13.2 FCC Statement
Federal Communications Commission Notice (United States): Before a wireless
device model is available for sale to the public, it must be tested and certified to the
FCC that it does not exceed the limit established by the government-adopted
requirement for safe exposure.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications made to this equipment not expressly approved
by HUAWEI may void the FCC authorization to operate this equipment.
![](asset-3d.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
Appendix A Circuit of Typical Interface
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61

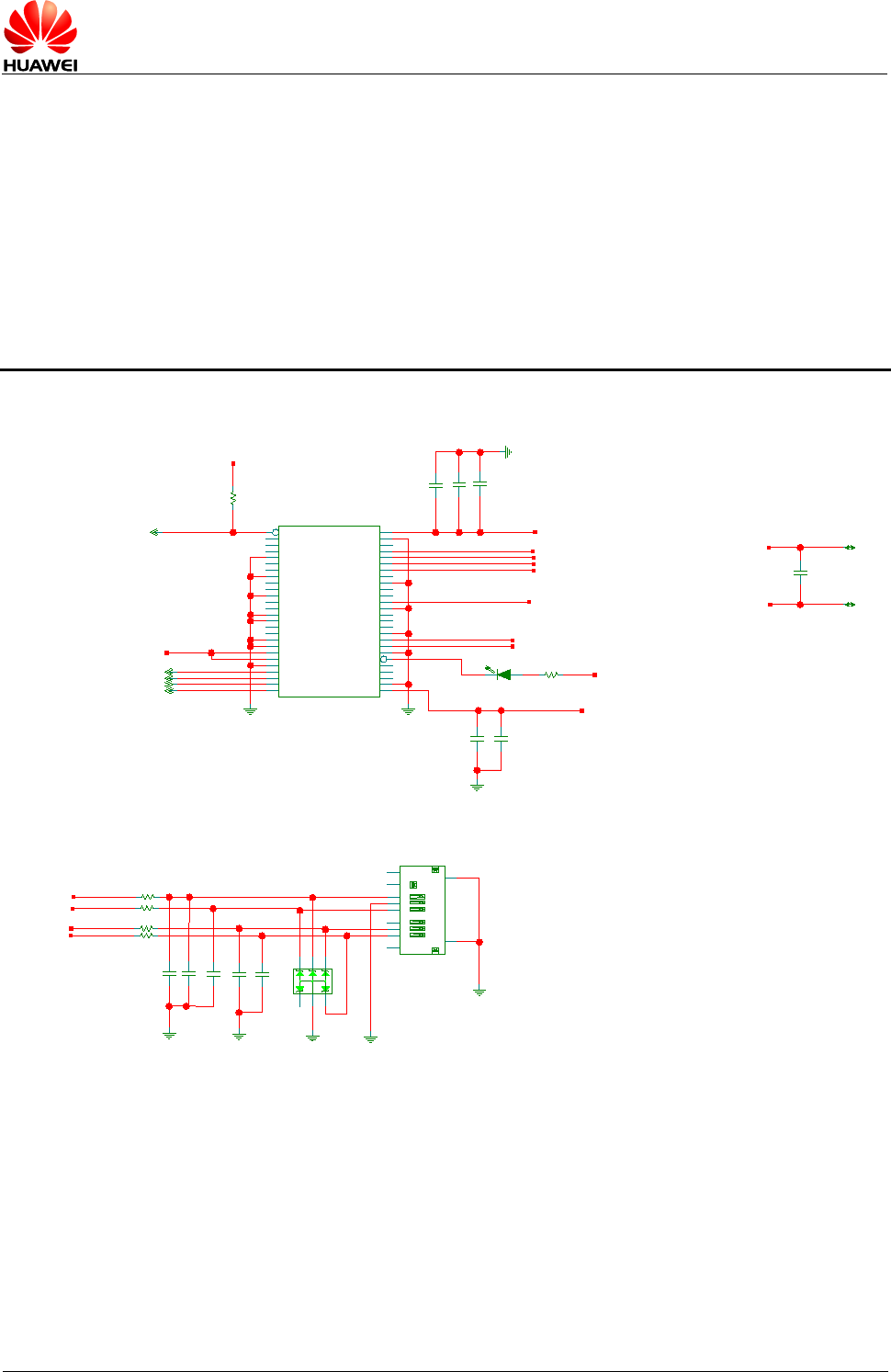

9 Appendix A Circuit of Typical Interface
150uF C5
R1 10K
D1 R2 470
J2
11
7
3
6
2
5
1
4
10
9
8
S2
S3
M1
CD
VCC
GND
RS T
VP P
CL K
I/O
M2
R3 0
R4 0
R5 0
R6 0
D2
61
3 4
2 5
1uF
C8
33pF
C9
150uF C3
33pF
C10
33pF
C11
33pF
C12
C1
100nF
J1
24
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
2
4
6
8
10
12
14
16
18
20
22
26
28
30
32
34
36
38
40
42
44
46
48
50
52
GND14
NC
NC
NC
LED_WW AN#
GND12
USB _D P USB _D P
USB _ DP
USB _ DM USB _ DM
USB _ DM
GND9
NC
NC
NC
GND6
NC
NC
GND4
NC
US IM_RESE T
USIM_CLK
USIM_DATA
US IM_PWR
NC
GND1
VCC_3V3
GND13
GND11
GND10
NC
NC
GND8
GND7
NC
NC
GND5
NC
NC
GND3
NC
NC
GND2
NC
NC
NC
WAK E#
VCC_3V3
VCC_3V3
VCC_3V3
VCC_3V3
C2
10pF
C4
150uF
C7 1.8pF
GN D
GN D
US IM_DATA
US IM_DATA
US IM_CLK
US IM_CLK
US IM_RESET
US IM_RESET
US IM_PWR
US IM_PWR
LED_WW AN
PCM_CLK PCM_CLK
PCM_DOU TP CM_DOU T
PCM_DIN PCM _DIN
P CM _S YN C PC M _S YN C
VCC_3V3
VCC _3V3
VCC _3V3
VCC_3V3
VCC _3V3
Wake the host
VCC From Host
DNI
DNI,R eserve for
USB eye d ebug
to USB 2.0 interfac e
Open drain,active low
No te the signal d irec tion o f PC M_DOU T,P C M_DIN
Don't support Hot Plug.
![](asset-3e.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
9BAppendix B Acronyms and
Abbreviations
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
62
10 Appendix B Acronyms and
Abbreviations
Acronym or Abbreviation Expansion
3GPP Third Generation Partnership Project
AUX Auxiliary
CCC China Compulsory Certification
CE European Conformity
DC Direct Current
EDGE Enhanced Data Rate for GSM Evolution
EMC Electromagnetic Compatibility
ESD Electrostatic Discharge
EU European Union
FCC Federal Communications Commission
GPIO General-purpose I/O
GPRS General Packet Radio Service
GSM Global System for Mobile Communication
HSDPA High-Speed Downlink Packet Access
HSPA High Speed Packet Access
HSUPA High Speed Up-link Packet Access
ISO International Standards Organization
LDO Low-Dropout
LED Light-Emitting Diode
OC Open Collector
![](asset-3f.png)
HUAWEI MU709 Series HSPA+ Mini PCIe Module
Hardware Guide
9BAppendix B Acronyms and
Abbreviations
Issue 04 (2015-06-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63
Acronym or Abbreviation Expansion
PCB Printed Circuit Board
RF Radio Frequency
RoHS Restriction of the Use of Certain Hazardous
Substances
TVS Transient Voltage Suppressor
UMTS Universal Mobile Telecommunications System
USB Universal Serial Bus
USIM Universal Subscriber Identity Module
VSWR Voltage Standing Wave Ratio
WCDMA Wideband Code Division Multiple Access
WEEE Waste Electrical and Electronic Equipment
