Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 1 of 18 User Manual Daimler LF-SPG History of changes Version Date Editor Changes / Comments 1.0 07.12.2015 Sven Berling, Daniel Klenner
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 2 of 18 Regulatory Information for USA and Canada NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made to this equipment not expressly approved by Huf Tools may void the FCC authorization to operate this equipment. FCC ID: PD6LFSPG125218 IC ID: 4008A-LFSPG125218 List of abbreviations / Glossary API.DLL Software interface to enable interaction between the application and a device. Download Firmware Installation of the Key Programmer Driver Software Interface between hardware device and operating system Firmware Program which is installed on the Key Programmer Flash Tool Windows Software to install the Key Programmer Firmware IR Infrared LED Light Emitting Diode LF Low Frequency LF-SPG Key Reading Station SPG.DLL Software interface to enable interaction between the application and the LF-SPG Key Programmer USB Universal Serial Bus
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 3 of 18 Contents 1. INTRODUCTION ..................................................................................................................................................... 4 1.1. TRADE MARKS .................................................................................................................................................... 4 1.2. SYSTEM REQUIREMENTS FOR OPERATING THE KEY READING STATION .............................................................. 4 1.3. UNPACKING THE LF-SPG KEY PROGRAMMER ................................................................................................... 4 1.4. SCOPE OF SUPPLY ................................................................................................................................................ 4 2. OPERATION ............................................................................................................................................................. 5 3. INSTALLATION ...................................................................................................................................................... 6 3.1. CHOICE OF LOCATION ......................................................................................................................................... 6 3.2. INSTALLING THE HARDWARE .............................................................................................................................. 6 3.3. INSTALLING THE DRIVER ..................................................................................................................................... 6 3.3.1. Installing the USB driver on Windows XP .................................................................................................... 7 3.3.2. Installing the USB driver on Windows 7 ..................................................................................................... 10 3.4. INSTALLATION OF SPG.DLL ............................................................................................................................ 14 3.4.1. 32bit operating system ................................................................................................................................ 14 3.4.2. 64bit operating system ................................................................................................................................ 14 4. STATUS INDICATION BY LED .......................................................................................................................... 15 5. FLASHING FIRMWARE ...................................................................................................................................... 16 6. ERROR LIST........................................................................................................................................................... 17 7. DECLARATION OF CONFORMITY .................................................................................................................. 18

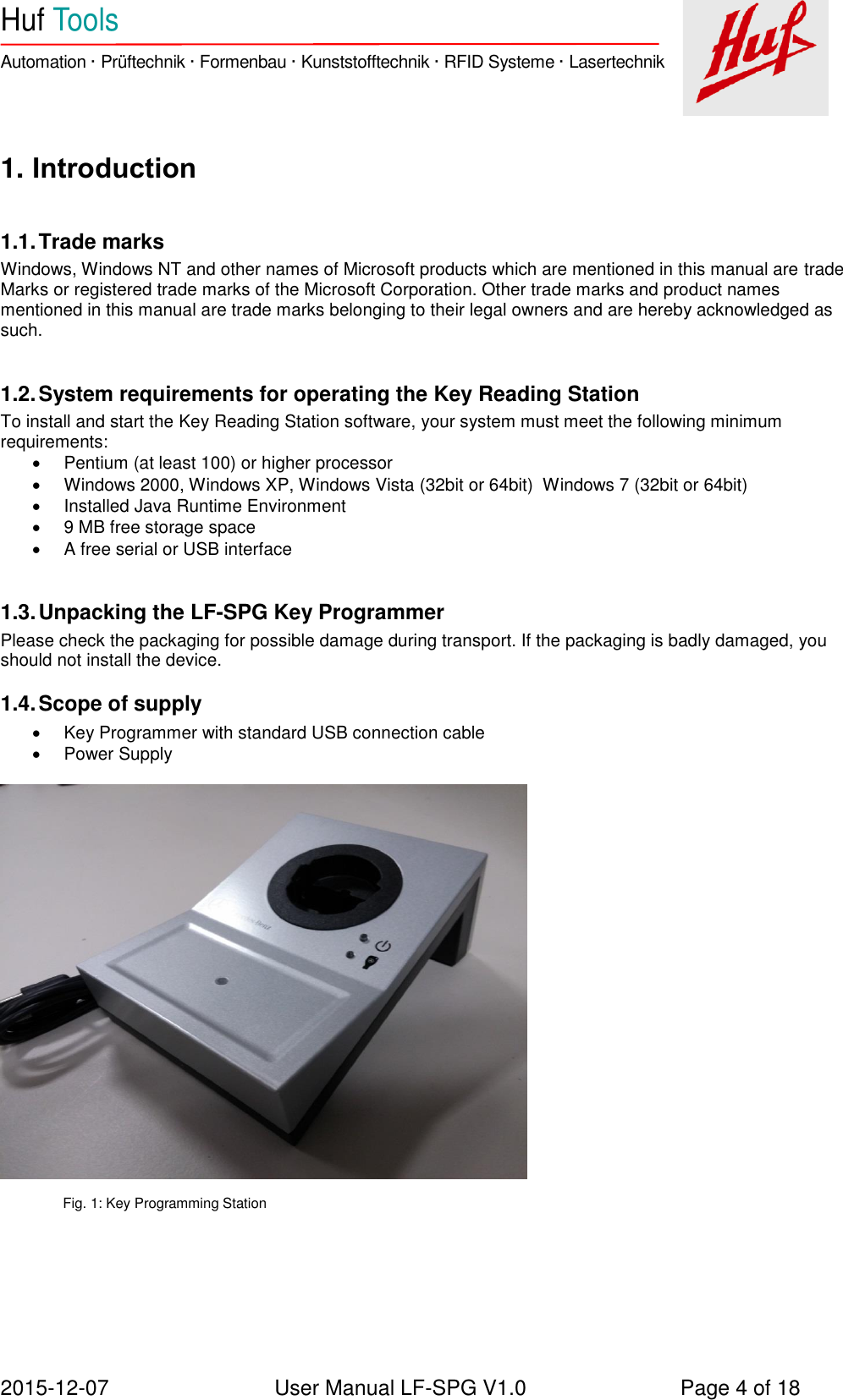

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 4 of 18 1. Introduction 1.1. Trade marks Windows, Windows NT and other names of Microsoft products which are mentioned in this manual are trade Marks or registered trade marks of the Microsoft Corporation. Other trade marks and product names mentioned in this manual are trade marks belonging to their legal owners and are hereby acknowledged as such. 1.2. System requirements for operating the Key Reading Station To install and start the Key Reading Station software, your system must meet the following minimum requirements:  Pentium (at least 100) or higher processor  Windows 2000, Windows XP, Windows Vista (32bit or 64bit) Windows 7 (32bit or 64bit)  Installed Java Runtime Environment  9 MB free storage space  A free serial or USB interface 1.3. Unpacking the LF-SPG Key Programmer Please check the packaging for possible damage during transport. If the packaging is badly damaged, you should not install the device. 1.4. Scope of supply  Key Programmer with standard USB connection cable  Power Supply Fig. 1: Key Programming Station

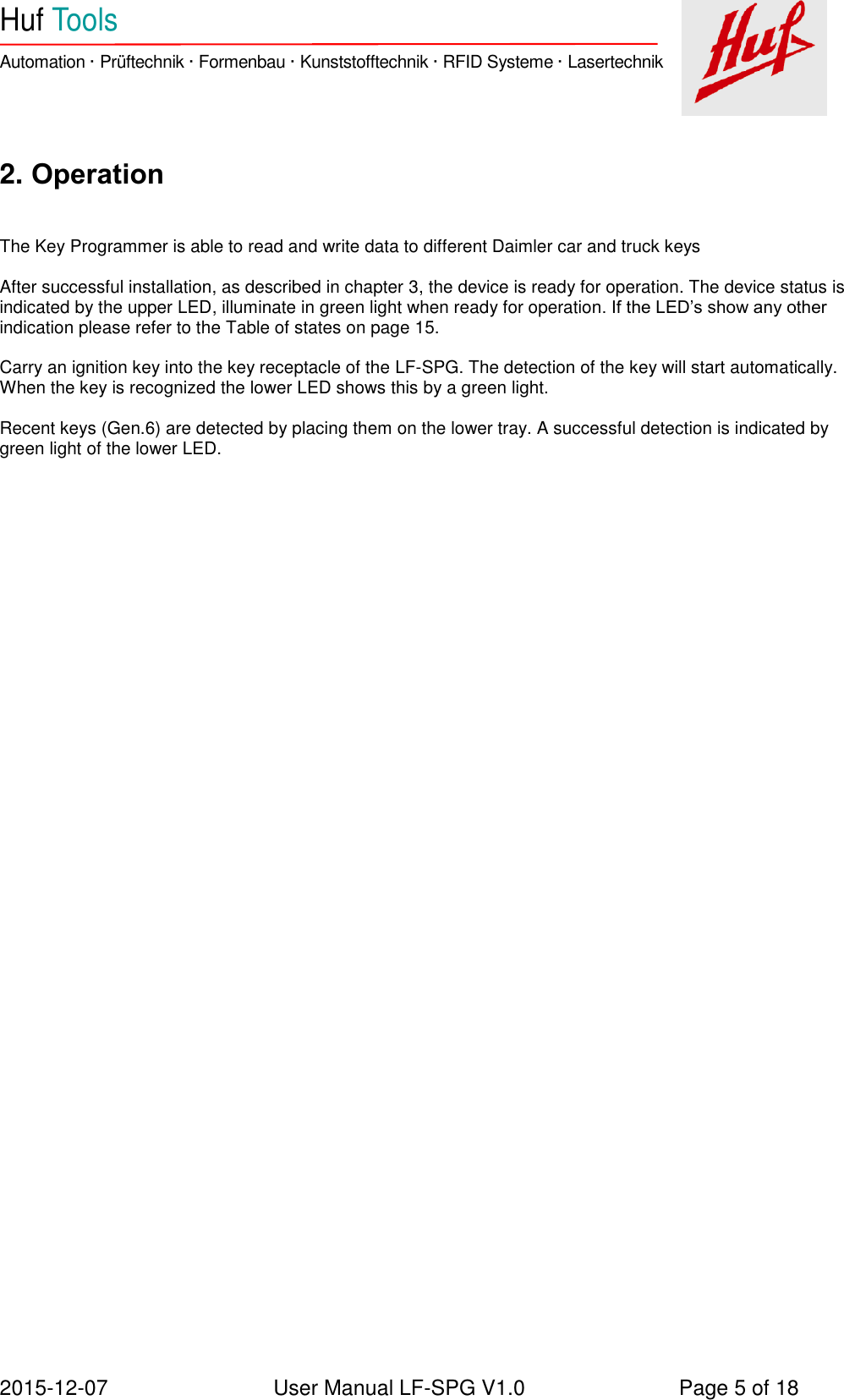

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 5 of 18 2. Operation The Key Programmer is able to read and write data to different Daimler car and truck keys After successful installation, as described in chapter 3, the device is ready for operation. The device status is indicated by the upper LED, illuminate in green light when ready for operation. If the LED’s show any other indication please refer to the Table of states on page 15. Carry an ignition key into the key receptacle of the LF-SPG. The detection of the key will start automatically. When the key is recognized the lower LED shows this by a green light. Recent keys (Gen.6) are detected by placing them on the lower tray. A successful detection is indicated by green light of the lower LED.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 6 of 18 3. Installation To install the driver under all specified Windows operating systems you must have administrator rights. This is a default setting from Microsoft. 3.1. Choice of location Please do not install the Key Reading Station at locations in which the device is exposed to the following environmental conditions:  Strong vibrations  Strong electromagnetic fields, elder types of monitors.  Temperatures beyond 5°C - 40°C,  Moist environment (IP30 Device) For optimal use of the Key Programmer, you should set up the device as follows:  Near the computer on which the software has been installed, whereby the distance to the nearest CRT monitor should be at least 0.5 m  On a level, stable surface 3.2. Installing the Hardware 1. Plug in the USB connector coming from the Key Programmer Station into a free USB connection on your computer Fig.2: USB Device Connection to the computer 2. Connect the power adapter into the socket provided on the back of the key programmer 3.3. Installing the driver To install the driver you need operating system independent administrator rights. This is a Windows default. The installation of the drivers is analogous with the 32Bit and 64Bit versions of each operating system.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 7 of 18 3.3.1. Installing the USB driver on Windows XP After connecting the LF-SPG to the computer, it will be recognized automatically by Windows. A message is displayed on the screen indicating „Welcome to the Found New Hardware Wizard“. In the following dialog, select the option: No, not this time and press Next Fig. 3: Start dialog for driver installation Please insert CD delivered with the package and select the option: Install the software automatically (recommended) and press Next. Fig.4: Selection of automatic or manual installation

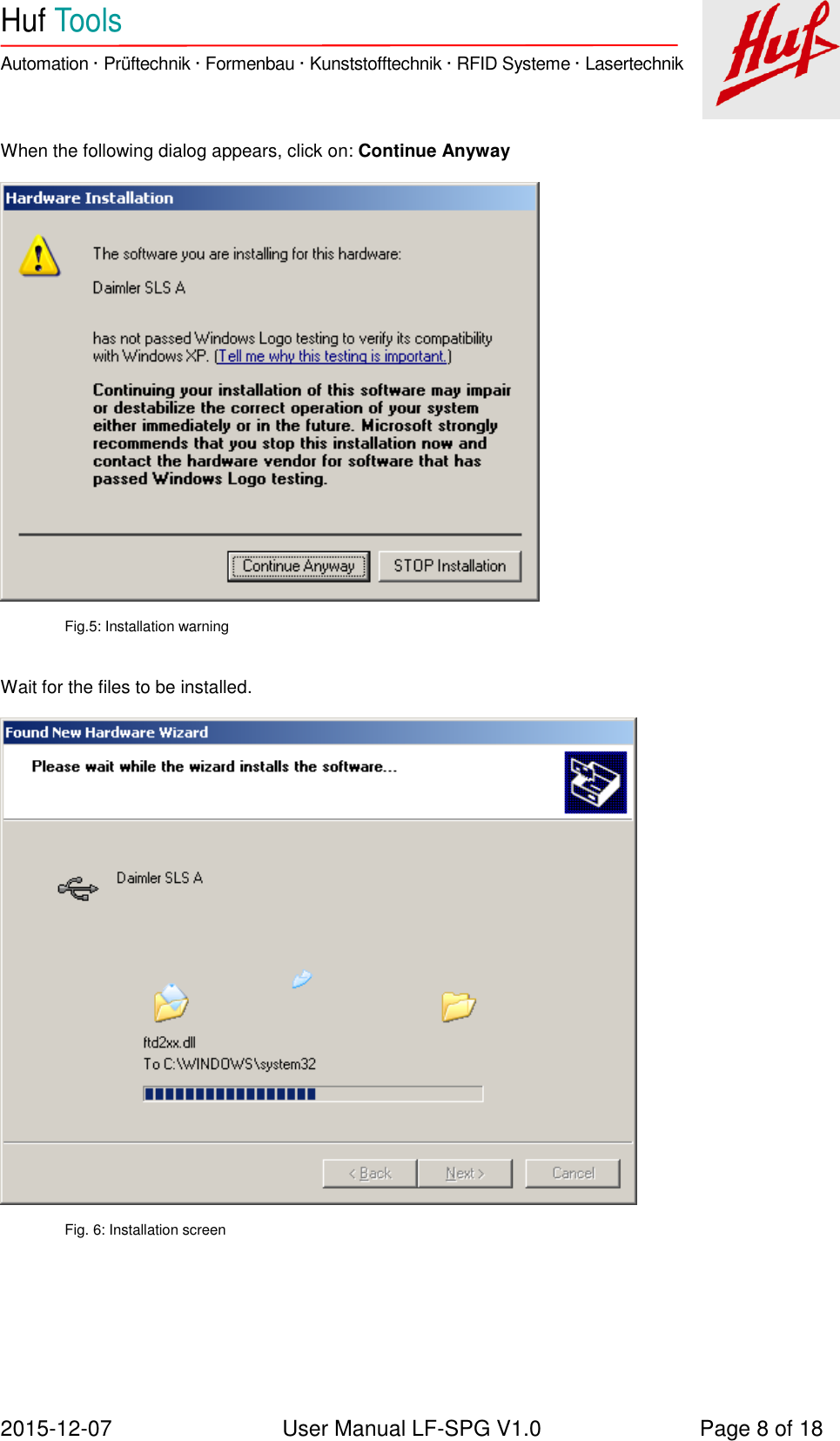

Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 8 of 18 When the following dialog appears, click on: Continue Anyway Fig.5: Installation warning Wait for the files to be installed. Fig. 6: Installation screen
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 9 of 18 After completion click on: Finish Fig. 7: Completing the installation Installation is complete now.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 10 of 18 3.3.2. Installing the USB driver on Windows 7 After connecting the LF-SPG to the computer for the first time it will be recognized automatically by Windows. A message is shown on the screen, that the driver will be installed. Fig. 8: Windows install message After a short time an error message appears, indicating the driver was not installed. Fig.9: Error Message The driver has to be installed manually. Please open the device Manager. The device Manager is a component of the operating system. To obtain more information about the device manager, please refer to the Help of the operating system. Now there is displayed the unknown device with a Daimler LF SPG description. Right click on the device and choose Update Driver Software. Fig. 10: Device Manager
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 11 of 18 In the next dialog click on: Browse my computer for driver software. Fig.11: Selection of automatic or manual installation The driver files are in the USB Treiber folder on the CD ROM. Choose the folder and press Next.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 12 of 18 Fig.12: Search for the driver When the following dialog appears, click on: Install this driver software anyway. Fig.13: Installation warning Wait for the files to be installed. Fig. 14: Installation screen After completion click on: Close
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 13 of 18 Fig. 15: Completing the installation Now installation is complete.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 14 of 18 3.4. Installation of SPG.DLL The SPG.DLL represents the software interface between an application program and the SPG. You must be present on the target system, so that Daimler can access applications on their functions. The path where the SPG.DLL must reside is different for 32-bit and 64-bit operating system versions. 3.4.1. 32bit operating system When using the 32-bit DLL which SPG.DLL must be copied into the Windows System32 subdirectory. 3.4.2. 64bit operating system The 32-bit DLL must be copied to the Windows subdirectory SysWOW64. The 64-bit DLL must be copied into the Windows System32 subdirectory.
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 15 of 18 4. Status Indication by LED Two status indicating LED’s are integrated in the LF-SPG. The upper LED indicates the status of the device hardware, the second LED indicates the status of communication between the LF-SPG and car key. Both LED’s can be illuminated in different colours and show the states described hereafter: Description Upper LED Lower LED SLS-Status LF-SPG not working off off LF-SPG in working condition green X Firmware Download in progress blue off Mercedes Car Key Communication Status Communication with the key X blue Car key recognized X green Error while communicating with car key X red Table 1: LED’s color indication
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 16 of 18 5. Flashing Firmware To change the firmware of the device a separate Windows program (Flash Tool) is used. Before starting the Flash Tool, any programs that access the key programmer, must be terminated. Any firmware version can be copied to the key programmer, thus also downgrade the firmware is possible at any time. The current firmware version on the SPG can not be saved. To Flash the firmware, the Flash Tool needs to be launched. The execution location is irrelevant. No additional files are required. Fig. 16: User Interface of Flash Tool With "Start", a file dialog is opened, so you can select the firmware file to Flash into the LF-SPG. The Flash-process is started by pressing the Open button. The top LED of the SPS lights blue for the duration of the operation. Fig. 17: File Dialog to choose the Firmware
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 17 of 18 The LF-SPG is restarted after successful Flash process and the new firmware is active. After closing the program, the LF-SPG can be used again by another application program. If the Flash process was not completed correctly or the LF-SPG is not working anymore, restart the Flash process. 6. Error list Possible errors are listed in the table below : Description Actions Upper LED doesn’t light SLS might be not correctly connected. Check the USB connection and the Power supply connection Hardware Error, return the device No connection to the LF-SPG Download interrupted. Start Download again LF-SPG might be not correctly connected. Check the USB connection and if your PC is working Driver not installed, please install the driver Application not installed, please install the application Check power supply, properly connected? Hardware Error, please return the device Communication with the car key not successful IR connection disturbed, insert key all the way into the receptacle IR connection disturbed, Key defect? Please try another car key. LF connection disturbed, please hang up key again LF connection disturbed, defect key? Please try a different key. Hardware Error, please return the device Table 2: Error list
Huf Tools Automation · Prüftechnik · Formenbau · Kunststofftechnik · RFID Systeme · Lasertechnik 2015-12-07 User Manual LF-SPG V1.0 Page 18 of 18 7. Declaration of Conformity Fig. 18: Declaration of Conformity
