User’s Manual
(AGC-3220YF)
Type A (with MUTE button)
SAA3476

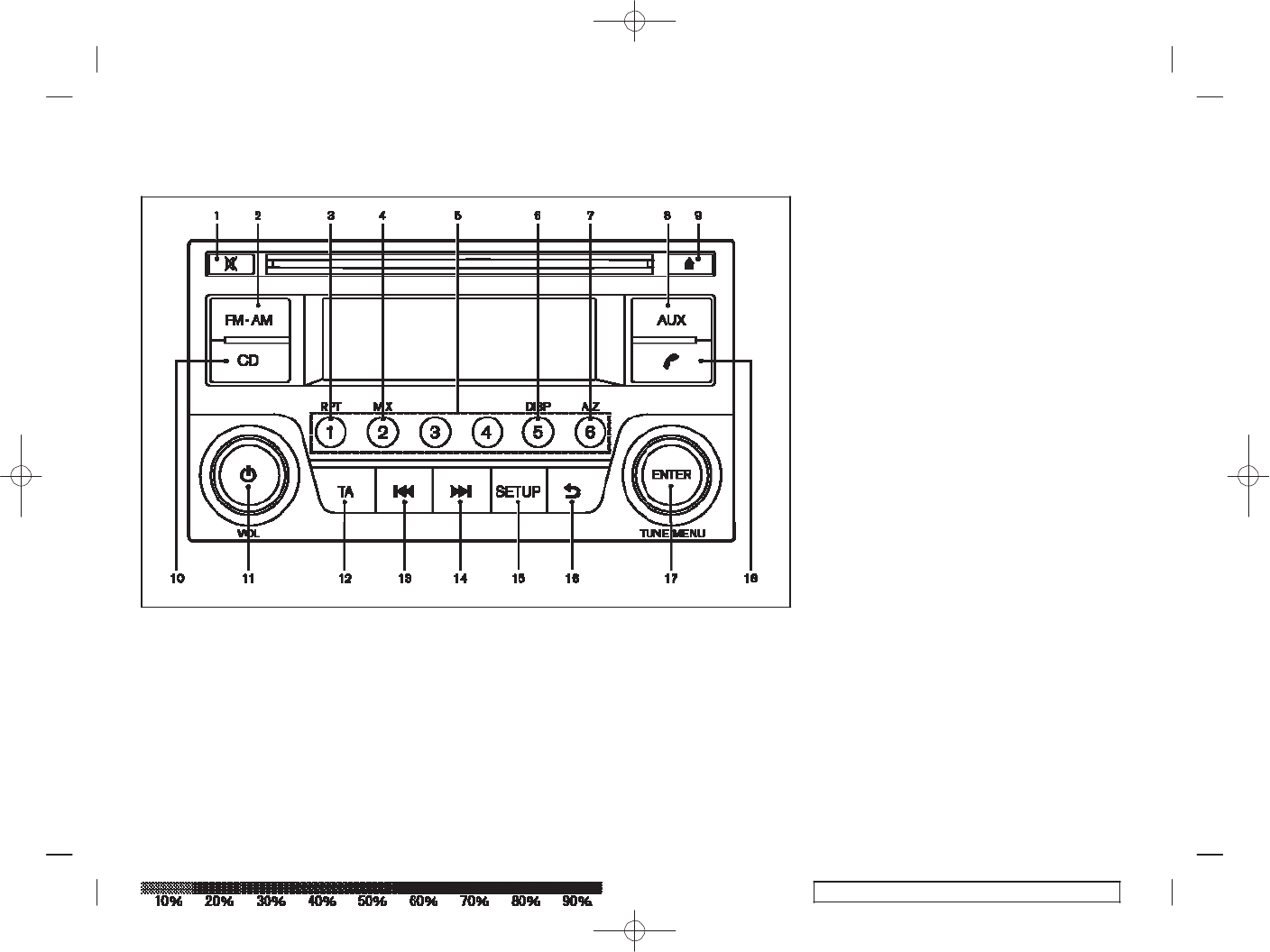

1. MUTE button
2. FM·AM band select button
3. RPT (Repeat) button
4. MIX (Mix play) button
5. Radio memory buttons
6. DISP (Display) button
7. Quick search button
8. AUX button
9. CD EJECT button
10.
CD button
11. VOLUME control knob/POWER ON/OFF button
12. TA (Traffic Announcement) button
13. Rewind button
14. Fast Forward button
15. SETUP button
16.
BACK button
17. TUNE/MENU knob/ENTER button
18. PHONE button
Black plate (162,1)
Model "AGC-3220YF: 2010/ 12/ 13
FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER (for Europe, Russia and
Ukraine)

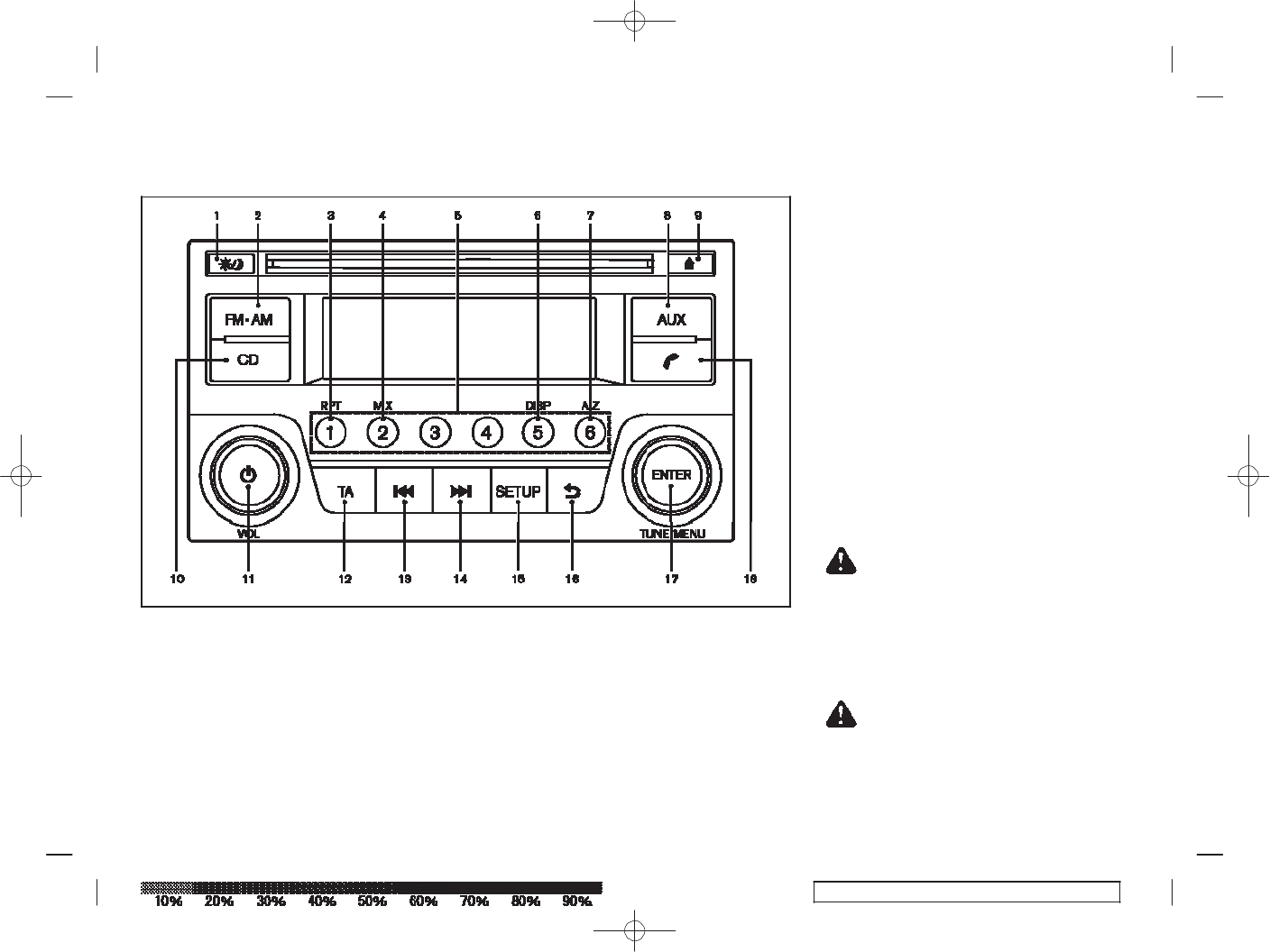

Type B (with DAY/NIGHT button)
SAA3642
N04AE19
Anti-theft system (with personal code)
N04AE1901
By using a personal 4-digit code known only to
the vehicle owner, the possibility of the audio
unit being stolen is effectively reduced, because
without the code, the unit can not be activated.
When used normally, the unit is unlocked and
accessible in the usual way.
If however, force is used to try and remove the
unit, the anti-theft system activates and the unit
locks. The only way it can be unlocked is by
entering the personal code number known only
by the owner. This code number cannot be
altered and applies only to your vehicle. This
code number is shown on a radio pass card. Ask
your NISSAN dealer for the location of your
radio pass card.
WARNING:
Keep the radio pass card in a safe place
and refrain from keeping it in the vehicle.
1. DAY/NIGHT button
2. FM·AM band select button
3. RPT (Repeat) button
4. MIX (Mix play) button
5. Radio memory buttons
6. DISP (Display) button
7. Quick search button
8. AUX button
9. CD EJECT button
10.
CD button
11. VOLUME control knob/POWER ON/OFF button
12. TA (Traffic Announcement) button
13. Rewind button
14. Fast Forward button
15. SETUP button
16.
BACK button
17. TUNE/MENU knob/ENTER button
18. PHONE button
Contact your NISSAN dealer if you lose the
radio pass card or forget the code number
of your radio.
Unlocking the unit:
N04AE190101
CAUTION:
Read this section very carefully. It is
important that the instructions are fol-
lowed precisely.
Black plate (163,1)
Model "AGC-3220YF: 2010/ 12/ 13
If the battery supply to the vehicle is interrupted
by accident for some reason, the unit will lock.
To unlock the unit, proceed as follows:
1.
Turn the ignition switch to the “ACC” or
“ON” position.
2.
Turn on the audio unit by pushing the
POWER ON/OFF button.
3.
Radio Code is displayed along with four
numerical zero digits.
4.
Push preset button
*
1
the number of times
corresponding with the first digit of the
radio
code.
For example, if the radio code is 5169: for
the first digit, “5”, push the preset button
*
1
five times.
5.
The second, third, and fourth digits of the
radio code must be entered, in the same
way, only now using preset buttons
*
2
,
*
3
,
and
*
4
.
For example, push
*
2
once,
*
3
six times,
and
*
4
nine times.
6.
Push and hold preset button
*
6
to confirm
the
code. If you entered the code correctly
the unit
will switch on.
7.
If the code is entered incorrectly a notifica-
tion message (INCORRECT PIN) and the
number of attempts left (REMAINING
TRIES: XX) will be shown.
After reading the message, push the ENTER
button to return to the entry screen and
enter the correct radio code.
—
If the wrong code is entered after the third
attempt, the audio unit will lock for 60
minutes. The display will show a count down
timer from 60 to 0 (minutes). After 60
minutes enter the correct radio code.
—
If the wrong code is entered after eight sets
of three entries, the audio unit will lock
permanently. Contact a NISSAN dealer for
further details.
Audio main operation
N04AE1902
The audio system operates when the ignition
switch is in the “ACC” or “ON” position.
POWER ON/OFF button:
N04AE190201
To turn on the audio system, push the POWER
ON/OFF button.
●
The system will turn on in the mode, (radio or
CD) which was used immediately before the
system was turned off.
●
If there is no CD loaded, the radio will be
turned on.
To turn off the audio system, push the POWER
ON/OFF button.
Volume control:
N04AE190202
To control the volume, turn the VOLUME control
dial.
Turn the VOLUME control dial clockwise to
make the sound louder.
Turn the VOLUME control dial counterclockwise
to make the sound quieter.
SETUP button:
N04AE190217
To configure Audio, Clock, Bluetooth, Language
or Scroll direction settings, perform the following
procedure:
1.
Push the SETUP button.
2.
Push the ENTER button.
3.
Turn the TUNE/MENU knob clockwise or
counterclockwise, the display will appear in
the following order:
Audio
Û
Clock
Û
Bluetooth
Û
Language
Û Scroll Direction
After the desired levels have been set, push
either the BACK button repeatedly, the SETUP
button, or wait for 8 seconds without pushing
any buttons to exit the menu screen.
Audio adjustments:
N04AE190207
Push the SETUP button to enter the setup menu
screen then select Audio.
Each time the ENTER button is pushed, the
mode will change as follows:
Bass
?
Treble
?
Balance
?
Fade
?
AUX VOL
?
SPD VOL
?
Audio (setup menu screen)
?
Bass
Turn the TUNE/MENU knob clockwise or
counterclockwise to adjust the following items
and push ENTER to confirm.
Black plate (164,1)
Model "AGC-3220YF: 2010/ 12/ 13
Bass control:
Turn the TUNE/MENU knob, the mode will
change as follows:
Language setting:
N04AE190219
Use this control to enhance or attenuate bass
response sound.
Treble control:
Use this control to enhance or attenuate the
treble.
Balance control:
Use this control to adjust the balance of the
volume between the left and right speakers.
Fade (Fader) control:
Use this control to adjust the balance of the
volume between the front and rear (if equipped)
speakers.
AUX VOL (Auxiliary volume) control:
Use this control to adjust the volume output from
the auxiliary source.
SPD VOL (Speed volume) control:
This mode controls the volume output from the
speakers automatically in relation to vehicle
speed.
Adjusting the setting to 0 (zero) turns off the
speed volume feature.
Clock setting:
N04AE190221
Push the SETUP button to enter the setup menu
screen then select Clock.
Set Time
Û
ON/OFF
Û
Clock Format
Û
Set
time
Set Time:
Select Set Time then adjust the clock as follows:
The hour display will start flashing. Turn the
TUNE/MENU knob to adjust the hour and push
the ENTER button. The minute display will start
flashing. Turn the TUNE/MENU knob to adjust
the minute and push the ENTER button to finish
the clock adjustment.
ON/OFF
Set the clock display between on or off when the
audio unit is turned off. If set in the ON position,
the clock will be displayed when the audio unit is
turned off either by pushing the POWER ON/
OFF button or when the ignition switch is placed
in the “OFF” position.
Clock Format:
Switch the clock display between 24-hour mode
and 12-hour clock mode.
Bluetooth setting:
Refer to “
n04ae50
BLUETOOTH
®
OPERATION”
later in this section and “
n04bj
BLUETOOTH
®
MOBILE PHONE FEATURE (if equipped for
models without navigation system)” later
in this section.
Push the SETUP button to enter the setup menu
screen then select Language.
Select the appropriate language and push the
ENTER button. Upon completion, the screen will
automatically adapt the language setting.
●
Frenc
h
●
Englis
h
●
Germa
n
●
Spanish
●
Portuguese
●
Italian
●
Dutch
●
Turkish
●
Russia
n
Scroll direction:
N04AE190220
Set the scrolling behavior of the TUNE/MENU
knob to scroll UP or DOWN.
Display brightness (Day/Night mode):
N04AE190218
For Type A:
Push and hold the SETUP button to switch the
display brightness between the daytime and
nighttime mode.
For Type B:
Push DAY/NIGHT button to switch the display
Black plate (165,1)
Model "AGC-3220YF: 2010/ 12/ 13
brightness between the daytime and nighttime
modes.
Mute button (for Type A):
N04AE190209
Push the MUTE button to mute the audio
system, and MUTE appears on the display. To
unmute, use any one of the following options:
—
Push the MUTE button again.
—
Turn the MENU/VOL dial.
●
The audio unit will automatically detect
if a CD containing MP3/WMA files is
inserted, and [MP3CD] will be indi-
cated.
●
An error notification message will be
displayed when inserting an incompa-
tible disc type (e.g. DVD), or if the
player cannot read the CD. Eject the
disc and insert another disc.
List view:
—
Push the CD or FM·AM button.
—
Push the AUX button.
AUX button:
N04AE190216
CD player operation
SAA3643
N04AE1903
N04AE190327
While the track is being played, push either the
ENTER or BACK button to display the available
tracks in a listed view mode. To select a track
from the list, or a track to start listening to, turn
the MENU select knob then push ENTER.
Push the AUX button to play a compatible
device when it is connected.
The audio system operates when the ignition
switch is in the “ACC” or “ON” position.
Quick search:
N04AE190328
Loading:
N04AE190301
In the list view mode, a quick search can be
performed to find a track from the list. Push the
Insert a CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and will start playing. After loading
the disc, track information will be displayed.
CAUTION:
Do not force the CD into the slot. This
could damage the player.
A-Z
*
6
(Quick search) button, turn the MENU
select knob dial to the first alphabetic letter of
the song title and then push ENTER. When
found, a list of the available songs will be
displayed. Select, and push ENTER to play the
preferred track.
CD button:
After loading the CD, the number of tracks and
the playtime will appear on the display.
NOTE:
●
The CD player accepts normal audio
CDs or CDs containing MP3/WMA files.
N04AE190312
When the button is pushed while the audio
system is off and a CD is loaded, the audio
system will turn on and a CD will start playing
automatically. If the radio or AUX source mode is
already playing, it will automatically turn off and
the CD will start playing.
Black plate (166,1)
Model "AGC-3220YF: 2010/ 12/ 13
However, if the CD is not loaded, then a
notification message will be displayed and the
audio unit will remain in the radio or AUX source
mode.
Fast Forward, Fast Rewind
buttons:
N04AE190306
Push and hold the or button to fast-
forward or rewind through the track. When the
button is released, the track will play at normal
playing speed.
Track up/down:
Pushing the or button once, the track
will skip forward to the next track or backward to
the beginning of the current track. Push the
or button more than once to skip through
the tracks.
Folder browsing:
If the recorded media contains folders with
music files, pushing the or button will
play in sequence the tracks of each folder.
To select a preferred folder:
1.
Push the ENTER or BACK button and a list
of tracks in the current folder is displayed.
2.
Push the BACK button.
3.
Turn the MENU select knob for the preferred
folder.
4.
Push ENTER to access the folder. Push
ENTER again to start playing the first track
or turn the MENU select knob, and push
ENTER to select another track.
If the current selected folder contains sub
folders, push ENTER, a new screen with a list
of sub folders will be displayed. Turn the TUNE/
MENU knob for the sub folder then push ENTER
to select. Select the root folder item when songs
are recorded additionally in the root folder.
To return to the previous folder screen, push
BACK.
button:
N04AE190309
Push the RPT button and the current track will
be played continuously.
button:
N04AE190324
Push the MIX button and all the tracks will be
played in a random order.
button:
N04AE190308
While a CD with recorded music information
tags (CD-text/ID3-text tags) is being played, the
title of the played track is displayed. If the title
information is not provided then “Track” is
displayed.
When the button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:
CD:
Track time
?
Artist
?
Song
?
Album
?
Track
time
CD with MP3/WMA:
Track time
?
Artist
?
Album
?
Folder name
?
Track time
Track details:
Pushing and holding the button will turn the
display into a detailed overview and after a few
seconds it returns to the main display, or push
briefly.
CD EJECT button:
N04AE190305
When the button is pushed while a CD is
loaded, the CD will be ejected.
When the button is pushed twice, the CD
will be ejected further, and the CD can be
removed with ease.
When the ignition switch is in the “OFF” or
“LOCK” position it is possible to eject the CD
currently being played. However the audio unit
will not be activated.
If a CD is ejected by pushing the button,
and it is not taken out from the loading slot
within 8 seconds, the CD will automatically be
reloaded to the slot to protect the CD.
Black plate (167,1)
Model "AGC-3220YF: 2010/ 12/ 13
FM-AM radio operation
SAA3643
N04AE1904
are turned in. During the search, the notification
message AUTOSTORE appears in the display
and the sound is muted until the autostore
operation is completed, upon which preset
channel 1 is automatically tuned in.
TUNE/MENU knob:
N04AE190403
When adjusting the broadcasting station fre-
quency manually, turn the TUNE/MENU knob
until the preferred frequency is achieved.
The frequency changes in steps of 100 kHz on
the FM band and 9 kHz on the AM band.
button:
N04AE190404
When adjusting the broadcasting station fre-
2.
Push and hold a radio memory button
*
1
-
*
6
until a beep sounds. (The radio mutes
when the memory button is pushed.)
3.
The channel indicator will display and the
radio mute disengages, indicating that the
memory is stored properly.
4.
Perform steps 1 - 3 for all other memory
buttons.
If the battery cable is disconnected, or if the
audio fuse blows, the radio memory will be
erased. In such a case, reset the desired
stations.

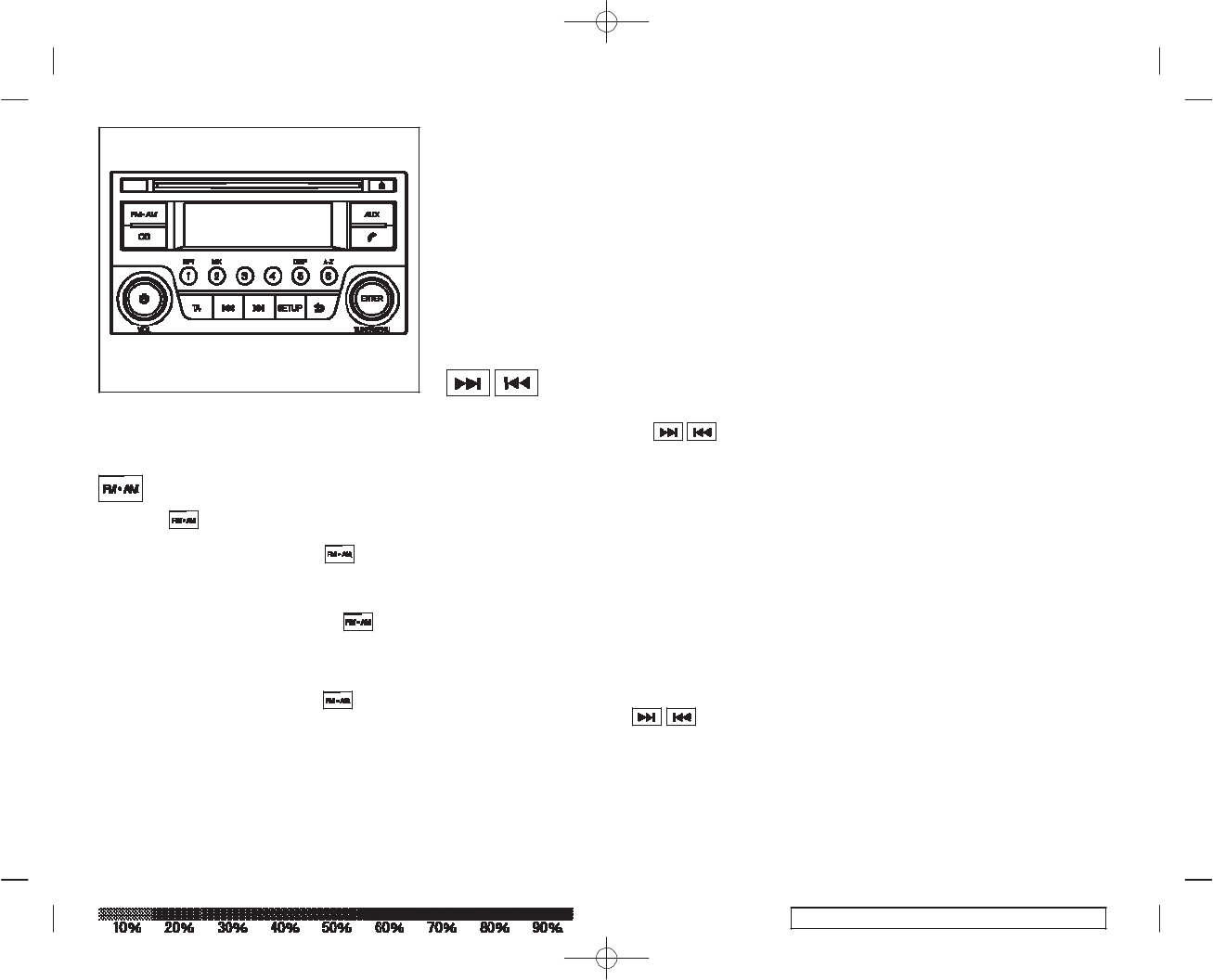

Radio data system (RDS)
N04AE1905
The RDS is a system through which encoded
The audio system operates when the ignition
switch is in the “ACC” or “ON” position.
FM-AM button:
N04AE190402
When the button is pushed while the audio
system is off, the audio system will turn on and
the radio will turn on. When the button is
pushed while CD is already operating, it will
automatically turn off, and the radio will turn on.
To change the radio bands, push the button
until the desired band appears.
FM 1
?
FM 2
?
FM T
?
AM
?
FM 1
During FM reception, when the button is
pushed for longer than 1.5 seconds, stations are
searched for and the 6 stations of the FM T band
quency automatically, push the button.
When the system detects a broadcasting
station, it will stop at the station.
*
1
*
2
*
3
*
4
*
5
*
6
Radio memory
buttons:
N04AE190405
During radio reception, pushing the radio
memory button for less than 2 seconds will
select the stored radio station.
The audio system can store up to 18 FM station
frequencies (six in each of FM 1, FM 2 and FM
T) and AM station frequencies.
To store the station frequency manually:
1. Tune to the desired broadcasting station
frequency by using the button.
digital information is transmitted by FM radio
stations in addition to the normal FM radio
broadcasting. The RDS provides information
services such as station name, traffic informa-
tion, or news.
NOTE:
In some countries or regions, some of
these services may not be available.
Alternative Frequency (AF) mode:
N04AE190507
The AF mode operates in the FM (radio) mode.
●
The AF mode operates both in the FM
(radio) and CD mode (if FM was previously
selected in the radio mode).
●
The AF function compares signal strengths
and selects the station with the optimum
reception conditions for the currently tuned-
Black plate (168,1)
Model "AGC-3220YF: 2010/ 12/ 13
in station.
RDS functions
N04AE1909
Programme Service (PS) function (station
name display function):
N04AE190901
When an RDS station is tuned in with seek or
manual tuning, the RDS data is received and the
PS name is displayed.
TA Traffic announcement
N04AE1910
This function operates in both FM (radio) and
CD mode.
●
Pushing the TA button selects the TA mode.
The TA indicator is displayed while TA mode
is on.
●
When TA is pushed again. The mode will be
switched off and the TA indicator will
SAA2589
FM-AM RADIO WITH COMPACT DISC
CD PLAYER AND NAVIGATION (if
equipped)
USB MEMORY OPERATION (if
equipped)
SAA3444
N04AE48
disappear from the display.
Traffic announcement interrupt function:
N04AE191001
When a traffic announcement is received, the
announcement is tuned in and the TA indicator
starts to flash.
Once the traffic announcement has finished, the
unit returns to the source that was active before
the traffic announcement started.
If TA is pushed during a traffic announcement,
the traffic announcement interrupt mode is
cancelled. The TA mode returns to the standby
mode and the audio unit returns to the previous
source.
N04AE03
For details, see the separately provided NISSAN
Connect Owner’s Manual.

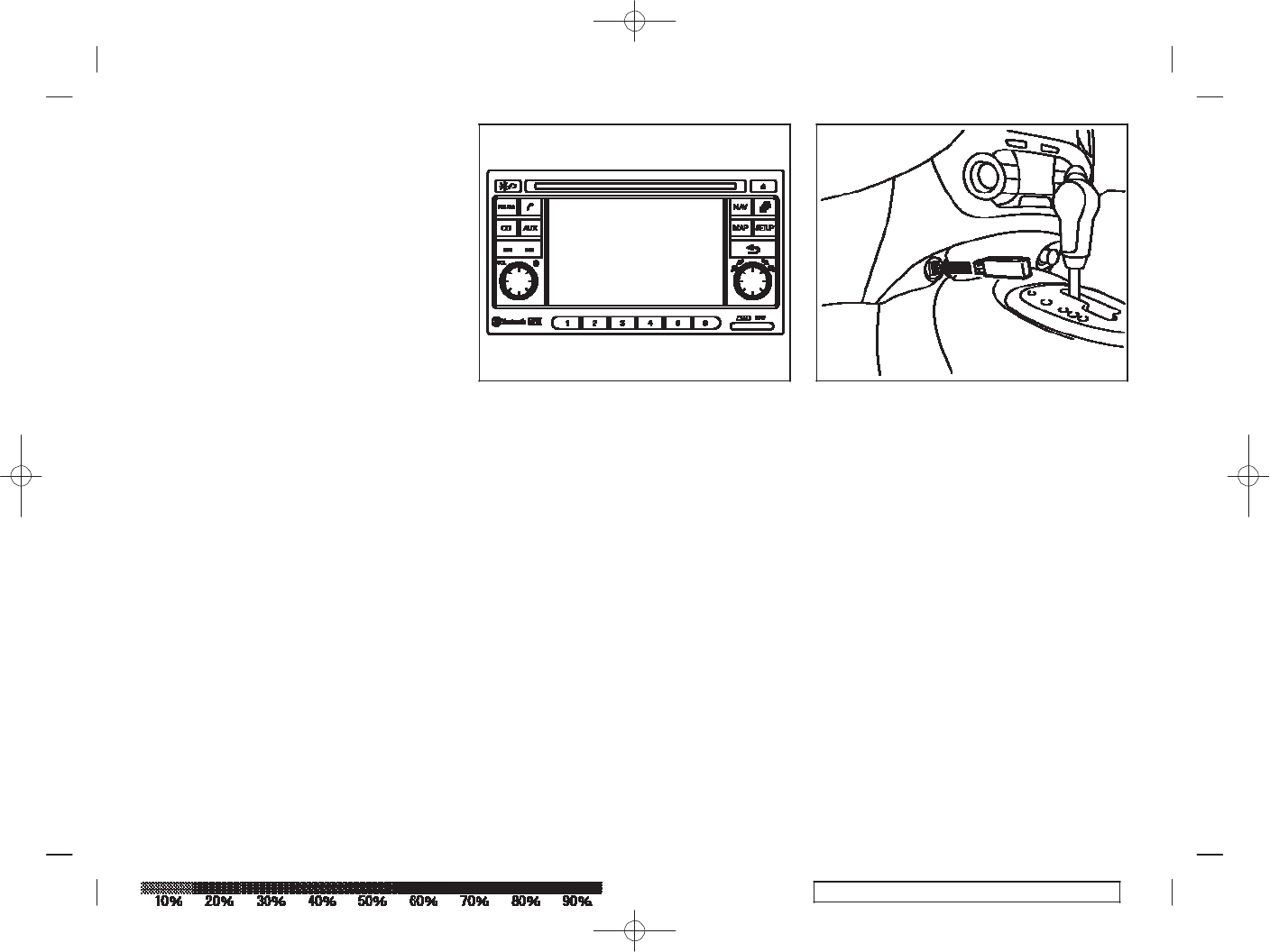

Connecting USB memory
N04AE4801
Connect a USB memory stick as illustrated. A
notification message will be displayed for a few
seconds while the system reads the data.
If the audio system has been turned off while the
USB memory was playing, pushing the POWER
ON/OFF button will start the USB memory
operation.
NOTE:
For models with Navigation system, see
the separately provided NISSAN Connect
Owner’s Manual.
Black plate (169,1)
Model "AGC-3220YF: 2010/ 12/ 13
AUX button
N04AE4802
displayed along with the track title as follows:
To operate the USB memory use one of the
following methods:
●
Push the AUX button then turn the TUNE/
MENU knob to the USB item. Once high-
lighted, push ENTER.
●
Push AUX repeatedly until USB is high-
lighted, then push ENTER.
Audio main operation
Track time
?
Artist
?
Album
?
Folder name
?
Track time
Track details:
Pushing and holding the button will turn the
display into a detailed overview and after a few
seconds it returns to the main display, or push
briefly.
N04AE4803
The following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see “
n04ae1903
CD player
operation” earlier in this section.
●
List view
SAA3445
iPod PLAYER OPERATION (if equipped)
N04AE49
●
Quick search
. ,
●
MIX (Random play)
●
RPT (Repeat track)
●
Folder browsing
button
N04AE4804
NOTE:
For models with Audio with Navigation
system, see the separately provided
NISSAN Connect Owner’s Manual.

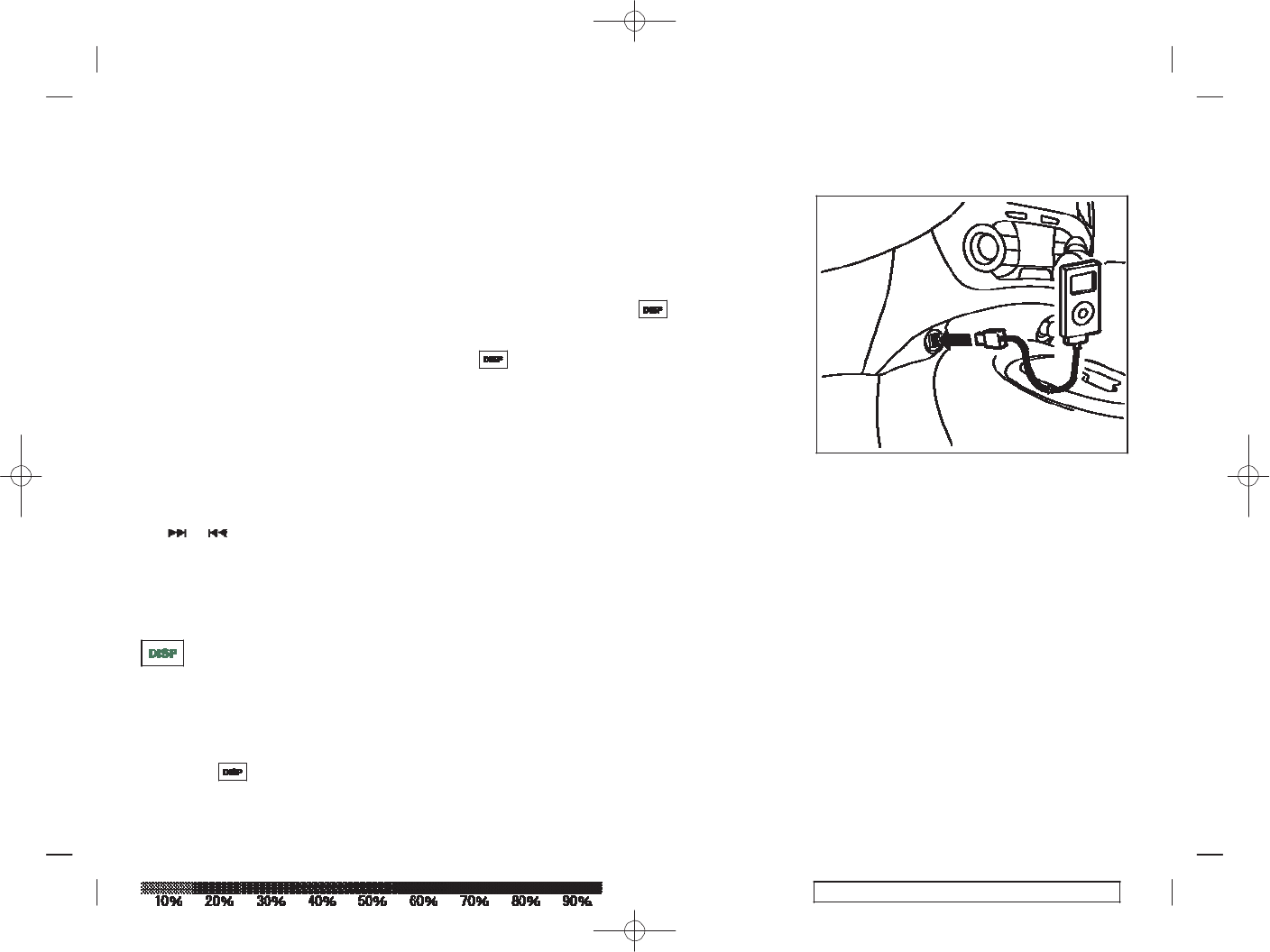

Connecting iPod
N04AE4901
Connect the iPod cable to the USB connector
as illustrated. The battery of the iPod will be
charged during the connection to the vehicle. A
notification message will be displayed for a few
While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.
When the button is pushed repeatedly,
further information about the track can be
seconds while the system is reading the data.
If the audio system has been turned off while the
iPod was playing, pushing the POWER ON/
OFF button will start the iPod operation. During
the connection, the iPod can only be operated
with the audio controls.
* iPod is a trademark of Apple Inc., registered in
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (170,1)
the U.S. and other countries.
Compatibility
The following models are supported:
N04AE4902
●
First generation iPhone (firmware version
2.2.1)
●
Second generation iPhone 3G (firmware
version 3.1.3 (7E18))
●
Artists
●
Albums
●
Tracks
●
Fourth generation iPod Classic (firmware
version 3.1.1)
●
Fifth generation iPod video (firmware version
1.3)
●
Sixth generation iPod Classic 80 GB (firm-
ware version 1.1.2PC)
●
Sixth generation iPod Classic 120 GB
(firmware version 1.1.2)
●
Sixth generation iPod Classic 160 GB
(2.0.4PC)
●
First generation iPod touch (firmware ver-
sion 2.2.1 (5H11))
●
Second generation iPod touch (firmware
version 3.1.2 (7D11))
●
Third generation iPod touch (firmware ver-
sion 3.1.3 (7E18))
●
First generation iPod nano (firmware version
1.3.1)
●
Second generation iPod nano (firmware
version 1.1.3)
●
Third generation iPod nano (firmware ver-
sion 1.1.3PC)
●
Fifth generation iPod nano (firmware version
1.0.2PC)
●
iPhone 3GS (firmware version 3.1.2)
Operating tips
N04AE4903
●
iPod Shuffle and iPod mini are not sup-
ported.
●
Some iPod operations may not be available
with this system.
AUX button
N04AE4904
To operate the iPod use one of the following
methods:
●
Push the AUX button then turn the TUNE/
MENU knob for the USB item. Once high-
lighted, push ENTER.
●
Push AUX repeatedly until USB is high-
lighted then push ENTER.
Audio main operation
N04AE4905
Interface:
The interface for iPod operation shown on the
audio system display is similar to the iPod
interface. Use the TUNE/MENU knob and the
ENTER button to play a track on the iPod.
The following items can be chosen from the
menu list screen.
●
Playlists
●
Genres
For further information about each item, see the
iPod owner’s manual.
The following operations are identical to the
audio main operation of the Compact Disc (CD)
operation. For details, see “
n04ae1903
CD player
operation” earlier in this section.
●
List view
●
Quick search
. ,
●
MIX (Random play)
●
RPT (Repeat track)
●
Folder browsing
button
N04AE4906
While a track with recorded music information
tags (ID3-tags) is being played, the title of the
played track is displayed. If the tags are not
provided then a notification message is dis-
played.
When the button is pushed repeatedly,
further information about the track can be
displayed along with the track title as follows:
Track time
?
Artist
?
Album
?
Folder name
?
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (171,1)
Track time
Track details:
Pushing and holding the button will turn the
display into a detailed overview and after a few
seconds it returns to the main display or push
briefly.
BLUETOOTH
®
OPERATION (if
equipped)
N04AE50
Regulatory information
N04AE5001
Bluetooth
®
is a trademark owned
by Bluetooth SIG, Inc. and li-
censed to Daewoo IS Corp.
CE statement
N04AE5002
Hereby DAEWOO IS Corp. declares that this
system is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
NOTE:
The audio system only supports Bluetooth
®
devices with AVRCP (Audio Video Remote
Control Profile) version 1.3, or 1.0 or ear-
lier.
NOTE:
For models with Audio with Navigation
system, see the separately provided
NISSAN Connect Owner’s Manual.
BLUETOOTH
®
AUDIO PLAYER settings
N04AE5003
To set up the Bluetooth
®
system with your
preferred device, push the SETUP button and
select Bluetooth
®
, then push the ENTER button
or alternatively, push the PHONE button. The
following items are available:
●
Pair Device
Bluetooth
®
devices can be paired with the
system. A maximum of 5 devices can be
registered.
●
Select Device
Paired Bluetooth
®
devices are listed and can
be selected for connection.
●
Delete Device
A registered Bluetooth
®
device can be
deleted.
●
On/Off
If this setting is turned off, the connection
between the Bluetooth
®
devices and the in-
vehicle Bluetooth
®
module will be cancelled.
Pair Device:
1.
Push the SETUP button. Select the Blue-
tooth
®
key using the TUNE/MENU knob.
Then push the ENTER button.
You can register up to 5 different Bluetooth
®
mobile phones. However, you can only use
one device at a time. If you have 5 different
Bluetooth
®
registered devices, a new device
can only replace one of the 5 existing paired
devices. Use Delete Device key to delete
one of the existing paired devices.
2.
Select the Pair Device key.
The pairing procedure depends on the
connected device:
●
Mobile phone:

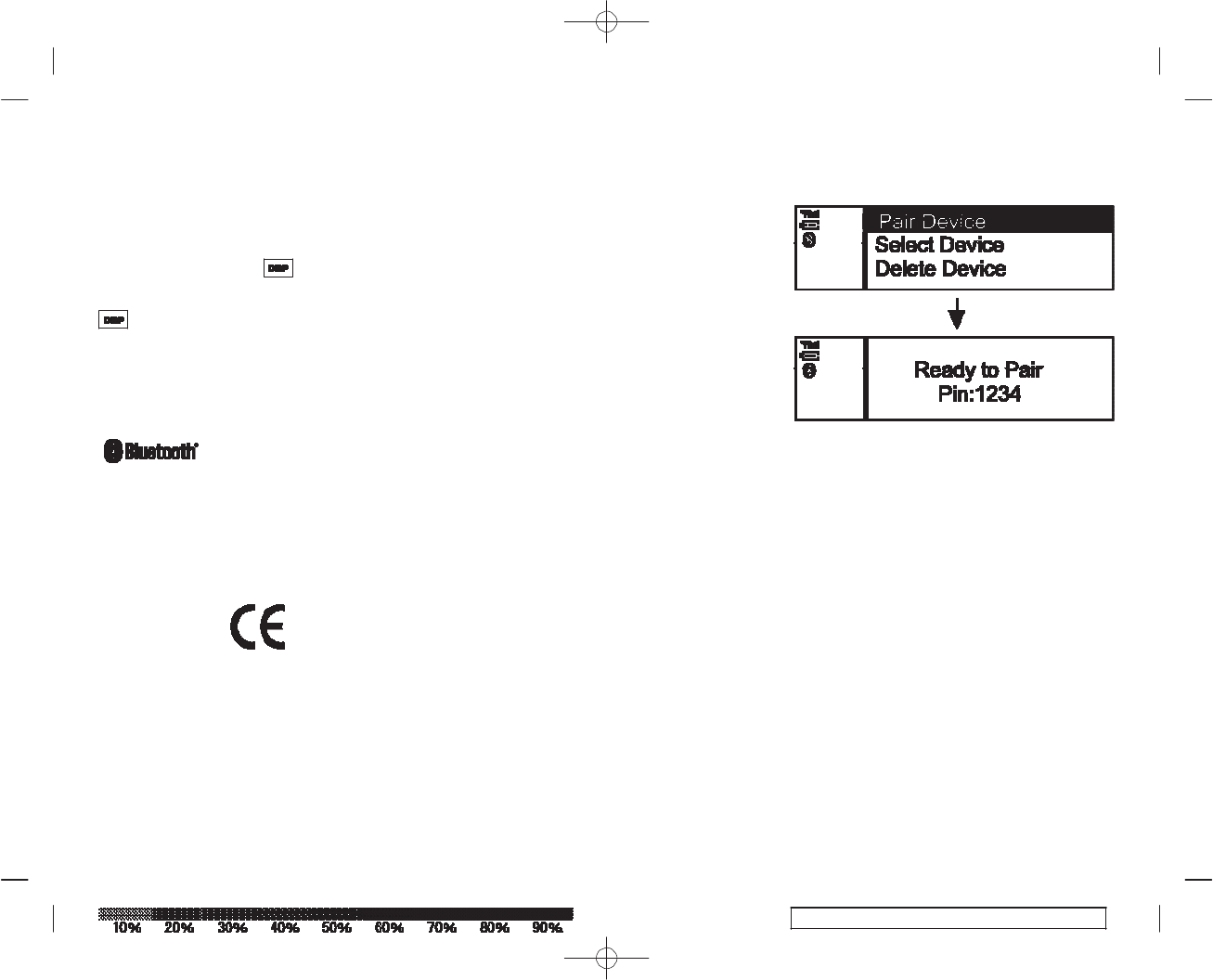

The message Ready to Pair Pin:1234 will be
displayed.
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (172,1)
●
Audio device without PIN code:
The Bluetooth
®
connection will be automa-
tically connected without any further input.
display. During connection the following status
icons will be displayed (top left of the display):
Signal strength ( ), Battery status*
()
and Bluetooth
®
“ON” ( ).
Bluetooth
®
from the setup menu screen, or push
the Phone button. To switch the Bluetooth
®
signal on, push ENTER and a follow up screen
will appear. Then select “On” and push ENTER
®
●
Audio device with PIN code:
A new screen will appear. Assign the 4 digit
PIN code by turning the TUNE/MENU knob
to each code and push the ENTER button to
confirm. Then select “Validate” and push
ENTER. The Bluetooth
®
connection will be
made.
The 4-digit PIN code is provided with the
audio device, see the owner’s manual of the
audio device.
*: If the low battery message comes on, the
Bluetooth
®
device must be recharged soon.
The pairing procedure and operation may vary
according to device type and compatibility. See
the Bluetooth
®
owner’s manual for further de-
tails.
Select Device:
The paired device list shows which Bluetooth
®
audio or mobile phone devices have been paired
to display the Bluetooth
settings menu screen.
3.
On Bluetooth
®
audio/mobile
phone devices.
or registered with the Bluetooth
®
audio system.
Bluetooth
®
audio streaming main opera-
If the list contains devices then select the
tion
N04AE5004
1)
Switch on the Bluetooth
®
connection, if not
already switched on.
appropriate device to connect to the Bluetooth
®
audio system.
Turn the ignition switch to the “ACC” or “ON”
position. If the audio system was turned off while
®
2)
Switch on the search mode for Bluetooth
®
The following symbols indicate the capability of
the Bluetooth
audio was playing, pushing the
devices. If the search mode finds a device it
will be shown on the device display.
3)
When a device is found use the TUNE/
MENU knob to scroll to, and push ENTER to
select My Car.
4)
Enter the number code shown on the
relevant device with the device’s own key-
pad, and push the confirmation key on the
device itself. Refer to the relevant Bluetooth
®
device owner’s manual for further details.
When successfully paired a notification mes-
sage will be displayed, then the audio system
display will return to the current audio source
the registered device:
. : Mobile phone integration
. : Audio streaming (A2DP- Advanced
Audio Distribution Profile)
Delete Device:
A registered device can be removed from the
Bluetooth
®
audio system. Select a registered
device then push ENTER to confirm to deletion.
On/Off:
If Bluetooth
®
has been switched off a notification
message On/Off appears when you select
POWER ON/OFF button will start the Blue-
tooth
®
audio streaming.
AUX button
To operate the Bluetooth
®
audio streaming use
one of the following methods:
●
Push the AUX button, then turn the TUNE/
MENU knob to highlight BT Audio, and push
ENTER.
●
Push AUX repeatedly until BT Audio is
highlighted, then push ENTER.
The type of display,
*
A
or
*
B
, shown on the
audio system can vary depending on the Blue-
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (173,1)
tooth
®
version of the device.
buttons:
Fast Forward, Fast Reverse:
N04AE500401
memory modes will be skipped.
VOLUME control switch
N04AE1003
Push up or down the VOLUME control switch to
increase or decrease the volume.
When the or button is pushed
continuously, the track will be played at high
speed. When the button is released, the track
will be played at normal playing speed.
Tuning switch
Memory change (radio):
N04AE1007
N04AE100701
Track up/down:
Pushing the or button once, the track
will be skipped forward to the next track or
backward to the beginning of the current played
track. Push the or button more than
once to skip through the tracks.
PAUSE
1. SOURCE select switch
2. Tuning switch
3. VOLUME control switch
SAA3641
Push the tuning switch for less than 1.5 seconds
to change the next or previous radio preset.
SEEK tuning (radio):
N04AE100702
Push the tuning switch for more than 1.5
seconds to seek the next or previous radio
station.
APS (Automatic Program Search) FF, APS
REW (CD):
Push the MUTE button to pause. To resume,
push MUTE again.
DISP button (Type B display screen only):
N04AE500402
If the song contains music information tags (ID3-
tags), the title of the played song will be

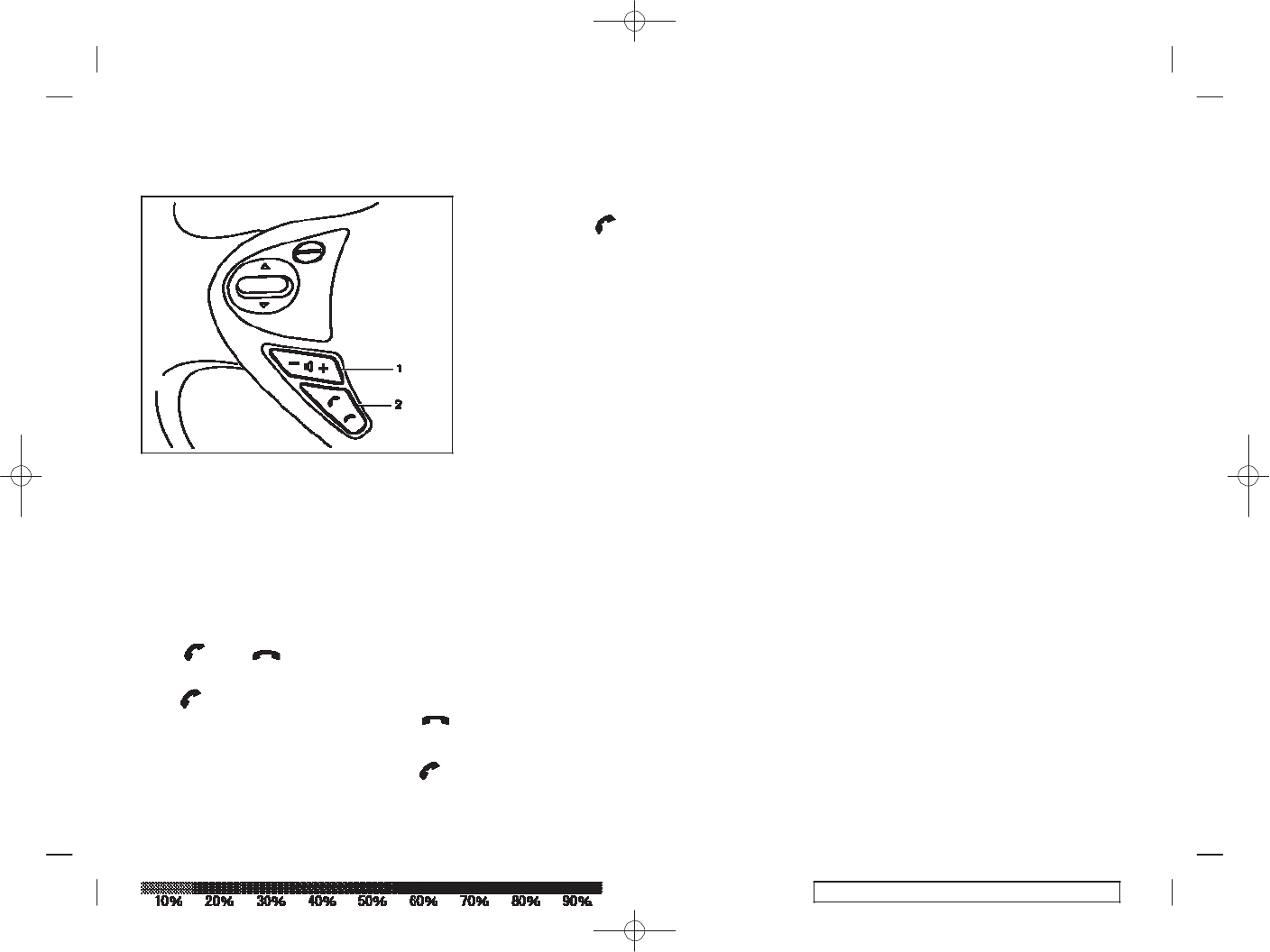

STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if equipped)
N04AE10
The audio system can be operated using the
controls on the steering wheel.
SOURCE select switch
N04AE100703
Push the tuning switch for less than 1.5 seconds
to return to the beginning of the present
program or skip to the next program. Push
several times to skip back or skip through
programs.
displayed. If tags are not provided then the
display will not show any messages.
When the DISP button is pushed repeatedly
further information about the song can be
displayed along with the song title.
A long push on the DISP button will turn the
display into a detailed overview which after a few
seconds returns to the main display; or push the
DISP button briefly.
N04AE1004
With the ignition switch placed in the “ACC” or
“ON” position, push the SOURCE select switch
to turn the audio system on.
Push the SOURCE select switch to change the
mode.
AM, FM, CD, AUX, iPod and USB memory
If no CD is loaded or AUX/iPod/USB memory is
not connected, the CD and AUX/iPod/USB
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval
between programs, the system may not stop in
the desired or expected location.
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (174,1)
CAR PHONE OR CB RADIO
N04AK
BLUETOOTH
®
MOBILE PHONE
FEATURE (if equipped for models
without navigation system)
N04BJ
When installing a CB, ham radio or a car phone
in your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine Control System and
other electronic parts.
CAUTION:
●
Keep the antenna as far away as
possible from the Electronic Control
Module.
●
Keep the antenna wire at least 20 cm (8
in) away from the Engine Control
harnesses. Do not route the antenna
wire next to any harnesses.
●
Adjust the antenna standing wave ratio
as recommended by the manufacturer.
●
Connect the ground wire from the radio
chassis to the body.
WARNING:
Whilst driving, using the mobile phone is
extremely dangerous because it signifi-
cantly impairs your concentration and
diminishes your reaction capabilities to
sudden changes on the road, and it may
lead to a fatal accident. This applies to all
phone call situations such as when receiv-
ing an incoming call, during a phone
conversation, when calling through the
phone book search, etc.
CAUTION:
Certain country jurisdictions prohibit the
use of the mobile phone in the car without
hands-free support.
This chapter provides information about the
NISSAN hands-free phone system using a
®
automatically activated on the registered mobile
phone (via Bluetooth
®
) when it comes into
range.
A notification message appears on the audio
display when the phone is connected, when an
incoming call is being received, as well as when
a call is initiated.
When a call is active, the audio system,
microphone (located in the ceiling in front of
the rear view mirror), and steering wheel
switches enable hands-free communication.
If the audio system is in use at the time, the
radio, CD or AUX source mode will be muted
and will stay muted until the active call has
ended.
The Bluetooth
®
system may be not be able to
connect with your mobile phone for the following
reasons:
●
For details, consult a NISSAN dealer.
Bluetooth
connection.
●
The mobile phone is too far away from the
NOTE:
For further information, visit the NISSAN
Bluetooth
®
is a wireless radio communication
standard. This system offers a hands-free facility
for your mobile telephone to enhance driving
vehicle.
●
The Bluetooth
®
mode on your mobile phone
web site: www.nissan-europe.com. Select
your country from the list and go to the
“SERVICES” menu. If not available on the
web site, contact a NISSAN dealer.
comfort.
NOTE:
For models with Navigation system, see
the separately provided NISSAN Connect
Owner’s Manual.
In order to use your mobile phone with the
Bluetooth
®
of the audio system, the mobile
phone must first be setup. For details, see.
Once it has been setup, the hands-free mode is
has not been activated.
●
Your mobile phone has not been paired with
the Bluetooth
®
system of the audio unit.
●
The mobile phone does not support Blue-
tooth
®
technology (BT Core v1.2, Hands
Free Profile v1.0 and Object Push Profile
v1.0).
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (175,1)
NOTE:
For details, see your mobile phone’s own-
er’s manual.

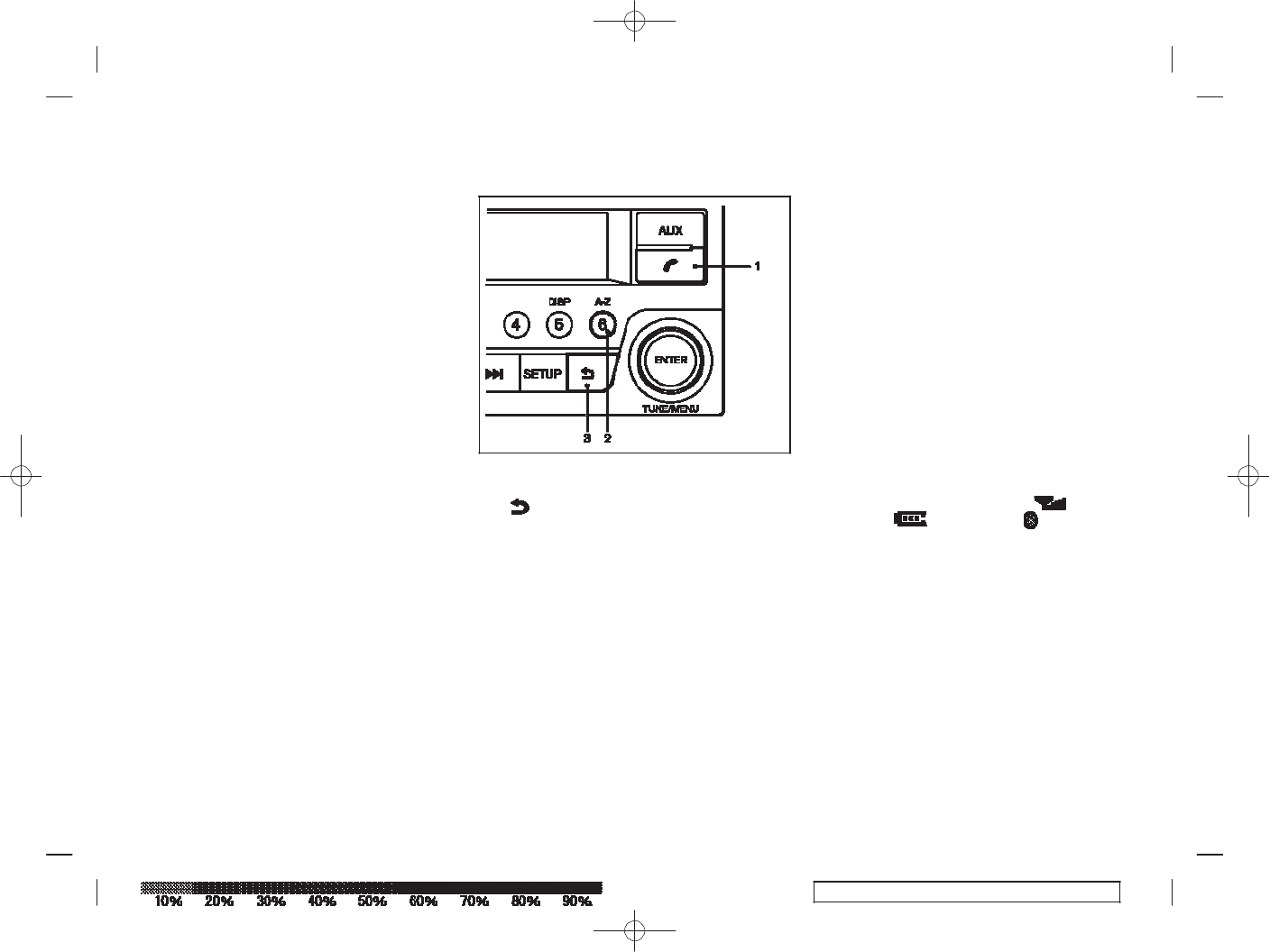

1. Phone button
2. Phone book quick search button
3.
(Back) button
BLUETOOTH
®
SETTINGS
SAA3478
N04BJ01
●
Select Device
Paired Bluetooth
®
mobile phone are listed
on the display and can be selected for
connection.
●
Delete Device
A registered Bluetooth
®
mobile phone can
be deleted.
●
On/Off
If this setting is turned off, the connection
between the Bluetooth
®
devices and the in-
vehicle Bluetooth
®
module will be cancelled.
When successfully paired, a notification mes-
sage will be displayed. During the connection
the following status icons will be displayed (top
left of display): Signal strength ( ), Battery
status ( ) and Bluetooth
®
( ).
*: If the low battery message comes on, the
To setup the Bluetooth
®
system to pair (connect
or register) your preferred mobile phone, push
the SETUP button, select the Bluetooth
®
key,
and then push the ENTER button. It is also
possible to enter the setup menu directly via the
Phone button. For details, see “
n04ae50
BLUE-
TOOTH
®
OPERATION” earlier in this section.
●
Pair Device
Bluetooth
®
mobile phones can be paired
with the system. A maximum of 5 mobile
phones can be registered.
Bluetooth
®
device must be recharged soon.
HANDS-FREE TELEPHONE CONTROL
N04BJ02
The hands-free mode can be operated using the
Phone button on the audio system, or on the
steering wheel.
Initiating a call
N04BJ0201
A call can be initiated using one of the following
methods:
—
Redial
—
Phone book
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (176,1)
—
Manual dialling
—
Missed calls
—
Dialled calls
—
Received calls
Redial:
N04BJ020101
To dial a contact from the phone book proceed
as follows:
1.
Push the Phone button.
2.
Turn the TUNE/MENU knob and scroll down
to Phone Book then push ENTER.
3.
Scroll down through the list, select the
To redial or call the last number dialled, push the
Phone button for more than 2 seconds.

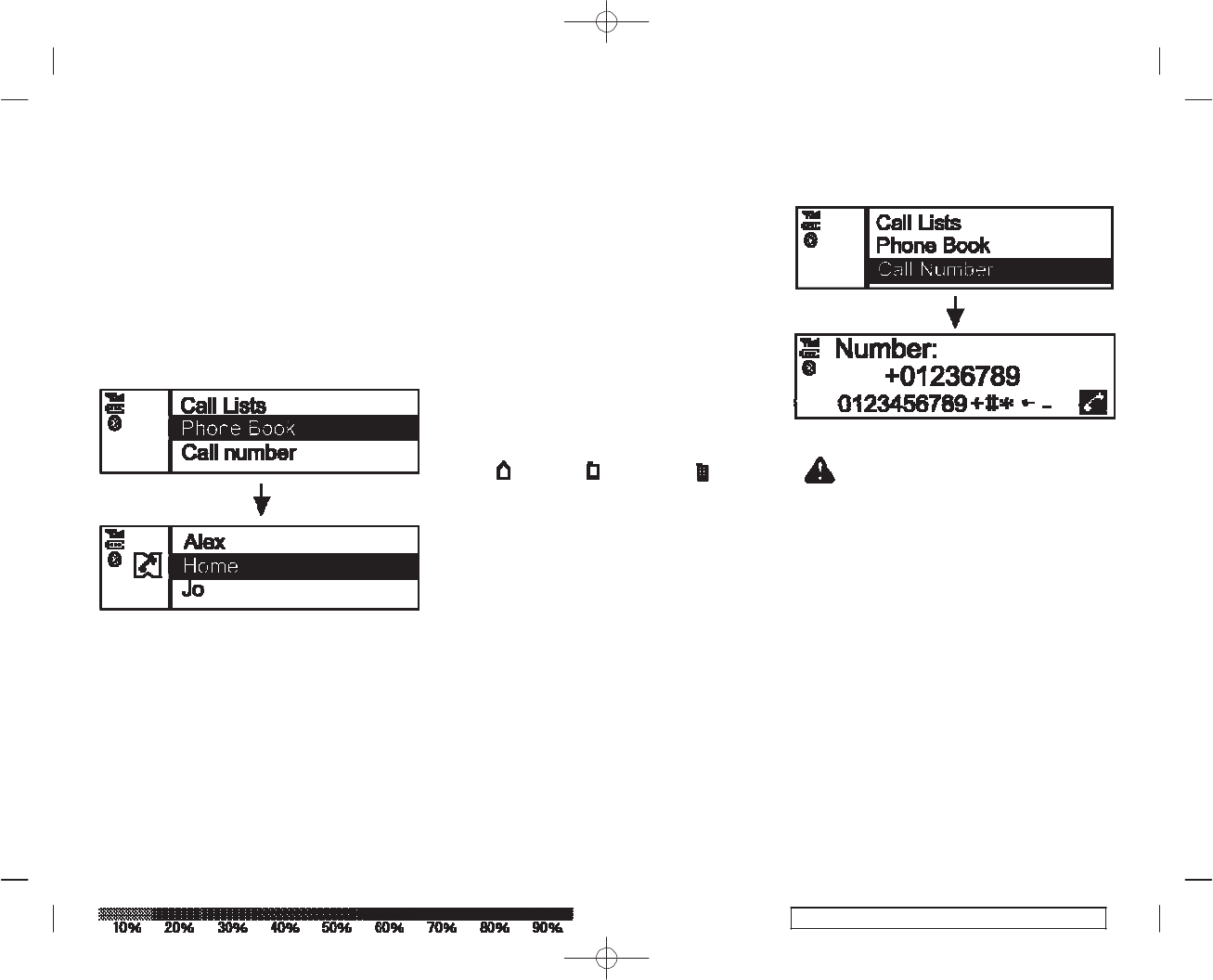

Making a call from the phone book:
N04BJ020102
Once the Bluetooth
®
connection has been
made, between the registered mobile phone
and the audio system, phone book data will be
transferred automatically to the audio system.
The transfer may take a while before completion.
The phone book data is available only when the
phone is connected to the system. The system
downloads the latest phone book data each time
the phone is connected.
appropriate contact name (highlighted),
and push ENTER.
4.
A following screen will show the number to
be dialled. If correct, push ENTER again to
dial the number.
If the contact has more numbers assigned
for
(home),
(mobile) or
(office),
scroll, and select the appropriate number to
dial.
Alternatively, the quick search mode can be
used as follows:
1.
Push A-Z.
2.
Turn the TUNE/MENU knob for the first
alphabetic or numerical letter of the contact
name. Once highlighted, push ENTER to
select the letter.
3.
The display will show the corresponding
contact name(s). Where necessary, use the
TUNE/MENU knob again to scroll further for
the appropriate contact name to call.
4.
A following screen will show the number to
be dialled. If correct, push ENTER again to
dial the number.
Manually dialling a phone number:
N04BJ020103
WARNING:
Park the vehicle in a safe location, and
apply the parking brake before making a
call.
To dial a phone number manually use the audio
system display (virtual keyboard pad) as follows:
1.
Push the Phone button, and turn the TUNE/
MENU knob to highlight Call Number.
2.
Push ENTER to select Call Number.
3.
Turn the TUNE/MENU knob to scroll along,
and select each number of the phone
number. Once highlighted, push ENTER
after each number selection.
To delete the last number entered scroll to
the
/
(Backspace) symbol, and once high-
lighted push ENTER. The last number will be
deleted. Pushing ENTER repeatedly will
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (177,1)
delete each subsequent number.
During a call:
N04BJ020201
4.
After entering the last number,
scroll to the
symbol, and push ENTER, or push the
Phone button to dial the number.
Call Lists:
N04BJ020104
A number from the dialled, received, or missed
call lists can also be used to make a call.
●
Dialled call
Use the dialled call mode to make a call
which is based on the list of outgoing
(dialled) calls.
●
Received call
Receiving a call
N04BJ0202
During a call, by scrolling and pushing ENTER,
you can select the following options:
●
“ ” — Use this item to enter numbers
during a call. For example, if directed by an
automated phone system to dial an exten-
sion number the system will send the tone
associated with the selected number.
●
“ ” — Use this item (the transfer handset
command) to transfer the call from the audio
system to your mobile phone.
To transfer the call back to hands-free via
the audio system select “ ”.
Use the received call mode to make a call
which is based on the list of received calls.
●
Missed call
Use the missed call mode to make a call
which is based on the list of missed calls.
1.
Push the Phone button, and select Call
Lists.
2.
Turn the TUNE/MENU knob to scroll to an
item, and push ENTER to select it.
3.
Scroll to the preferred phone number then
push ENTER, or push the Phone button to
dial the number.

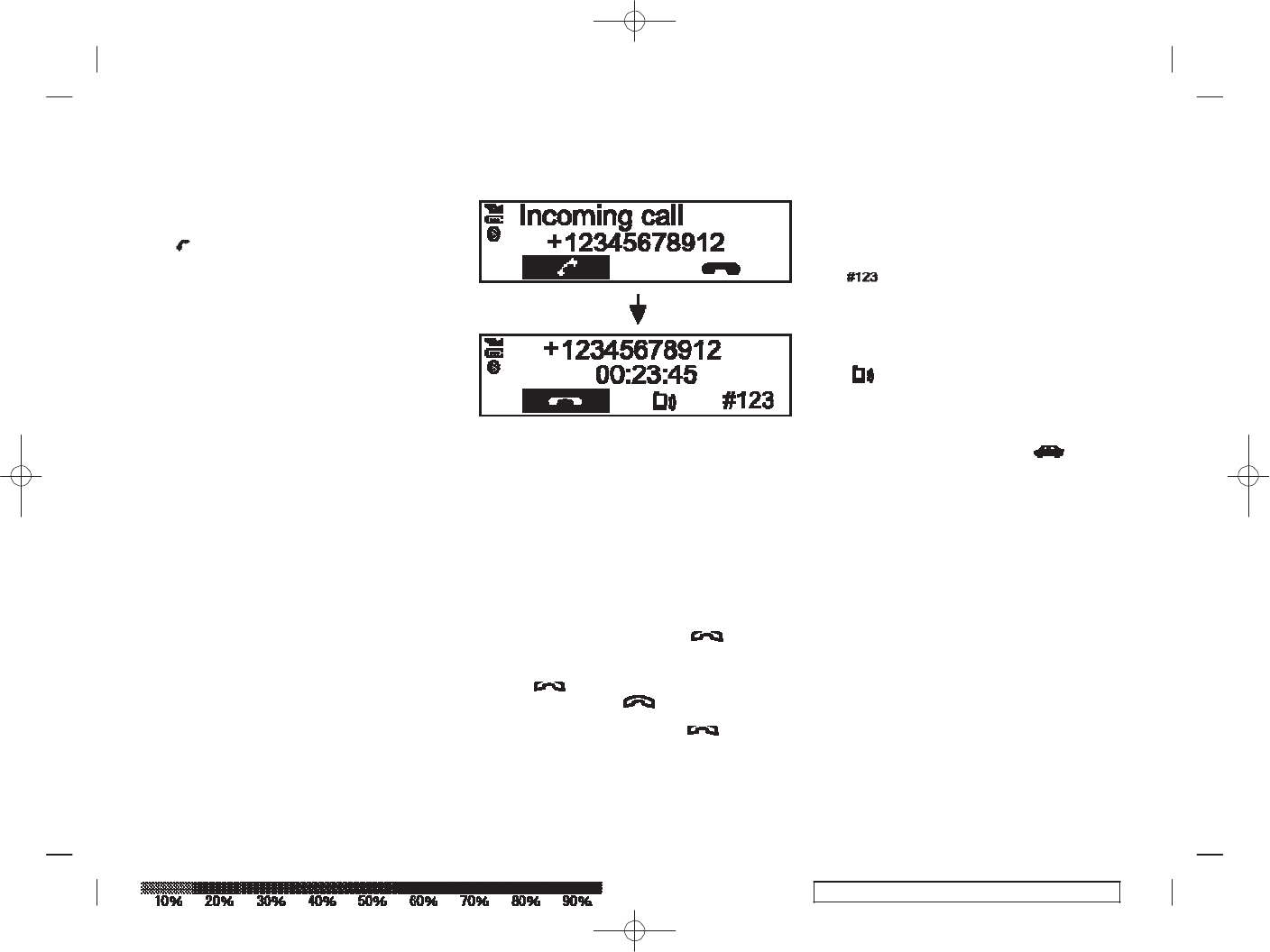

When receiving an incoming call, the display will
show the caller’s phone number (or a notification
message that the caller’s phone number cannot
be shown):
●
Answer the call by pushing the Phone
button briefly, or push ENTER.
●
End the call, after the conversation, by:
—
Pushing the Phone button briefly again.
—
Pushing ENTER when the
symbol is
highlighted.
If
is not highlighted, turn the TUNE/
MENU knob to , and push ENTER.
●
Reject the call by selecting
symbol on
the
screen using TUNE/MENU knob and
pushing ENTER to select it.
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (178,1)
●
redial the last outgoing call by pushing and
holding the button for a short period
of time.
SAA2362
Steering wheel switch for Bluetooth
®
N04BJ0203
The hands-free mode can be operated using the
controls on the steering wheel.
Volume control switch:
N04BJ020301
The volume control switch allows you to adjust
the volume of the speakers by pushing the + or
− buttons
*
1
.
Telephone button:
N04BJ020302
The
and buttons
*
2
allow you to:
●
accept an incoming call by pushing the
button.
●
reject an incoming call by pushing the
button during the incoming call.
●
end an active call by pushing the
button once.
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (180,1)
FCCInformationtoUser
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandused
inaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular
installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris
encouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Caution
Modificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.
FCCComplianceInformation
:
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemust
acceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation
Model "AGC-3220YF: 2010/ 12/ 13
Black plate (180,1)
MEMO
