Lift Accessories
For Hunter Wheel Alignment Lift Racks
2
Hunter lifts with FIA capabilites streamline the entire
alignment process.
Direct communication between the lift and aligner
automate tasks once performed by the technician
manually, eliminating time-consuming trips
around the vehicle and to-and-from the console.
Hunter lifts with FIA capabilites streamline the entire
alignment process.
Direct communication between the lift and aligner
automate tasks once performed by the technician
manually, eliminating time-consuming trips
around the vehicle and to-and-from the console.
Fully Integrated Alignment RX-series &
Four-Post lift family
3
Lift console
Raising the vehicle triggers the
sensors to look for wheel targets*
Controls PowerSlide® and Infl ation
Station settings on the lift console Optional AlignLights sytem
turns on automatically at
alignment height
WinAlign® console*
Centralized control of entire system
Communicates directly with lift to set tire
pressure and automatically operate
turnplates and slipplates
Guides the technician through the
alignment process
Rack Track auto-adjusts electronic
movable-camera sensors to match lift height*
Cameras capture
measurements automatically
once the fourth target is
installed
PowerSlide® system
Slipplates and turnplates automatically
lock and unlock at appropriate times*
Turnplate bridges automatically raise
and lower at appropriate times*
No more struggles with lock pins
Auto-locking turnplates and
slipplates save trips around
the vehicle
Inflation Station
Automatically infl ates all four tires
simultaneously
Records starting and fi nal pressure*
Hose recoils to keep work area clear Software tracks before
and
after tire pressures for
the
customer's printout*
*Requires WA400 or WA300 series alignment console and FIA-equipped lift.
WinAlign
4
The PowerSlide® system secures and releases
slipplates and turnplates with one touch.
With the PowerSlide system, technicians no longer have to
make multiple trips around the vehicle or struggle to remove
and replace lock pins during an alignment.
PowerSlide SlipplatesPowerSlide Turnplates
See page 7 for PowerSlide turnplate
options.
Four-Post Lift PowerSlide control RX Lift PowerSlide control
RX Lift PowerSlide control
RX PowerSlide/FIA upgrade – 20-2583-1
Upgrades standard RX-10, RX12A or RX-16 lift
with PowerSlide capability and FIA connectivity
PowerSlide turnplates not included.
Four-Post PowerSlide upgrade – 20-2586-1
Upgrades standard L451 or L454 lift with
PowerSlide capability
FIA connectivity and PowerSlide turnplates not included.
*Automatic PowerSlide operation requires WA400 or WA300 series alignment console and FIA-equipped lift.
PowerSlide saves
time operating as a
stand-alone system,
but operates most
efficiently when
connected to an
aligner through FIA.
Conveniently located on the lift console
Locks and unlocks slipplates and turnplates with the touch of a button
Automatically locks when lift is lowered*
PowerSlide® system RX-series &
Four-Post lift family
5
The Infl ation Station system infl ates all four tires to a pre-selected
pressure simultaneaously - while you raise the lift or do other tasks!
Saves steps and save time!
Integrated infl ation hoses,
located at each wheel position,
retract when not in use to keep
the work area clear.
RX Lift Infl ation Station
control panel
Set tire pressure at the lift console or at the aligner*
Automatically infl ate all four tires simultaneously
Record starting and fi nal pressure**
Four-Post Lift
Infl ation Station/FIA console
RX Infl ation Station upgrade – 20-2584-1
Upgrades a PowerSlide-equipped RX-10 lift
with Infl ation Station
RX Infl ation Station/PowerSlide/FIA
upgrade – 20-2585-1
Upgrades standard RX-10, RX12A or RX-16 lift
with Infl ation Station, PowerSlide capability
and FIA connectivity
PowerSlide turnplates not included.
Four-Post Infl ation Station/FIA
upgrade – 20-2587-1
Upgrades a PowerSlide-equipped L451 or L454 lift
with Infl ation Station and FIA connectivity
Four-Post Infl ation Station/PowerSlide/FIA
upgrade – 20-2588-1
Upgrades standard L451 or L454 lift with Infl ation
Station, PowerSlide capability and FIA connectivity
PowerSlide turnplates not included.
*Infl ation Station operation at the aligner requires WA400 or WA300 series alignment console and FIA-equipped lift. **Requires FIA-equipped aligner with WinAlign 10.x software or greater
Infl ation Station saves time operating as a stand-alone system, but
operates most ef ciently when connected to an aligner through FIA.
Four-Post Lift
Inflation Station system RX-series &
Four-Post lift family
Hunter Swing Air Jacks provide
reliable, full-pneumatic operation
Proven over decades of use, air-operated cylinders
raise telescoping arms to contact either the
suspension or frame. Four models provide jacking
capability for all Hunter alignment lifts. Swing
air jacks are engineered to handle a wide variety of
vehicles and provide easy, low-maintenance service.

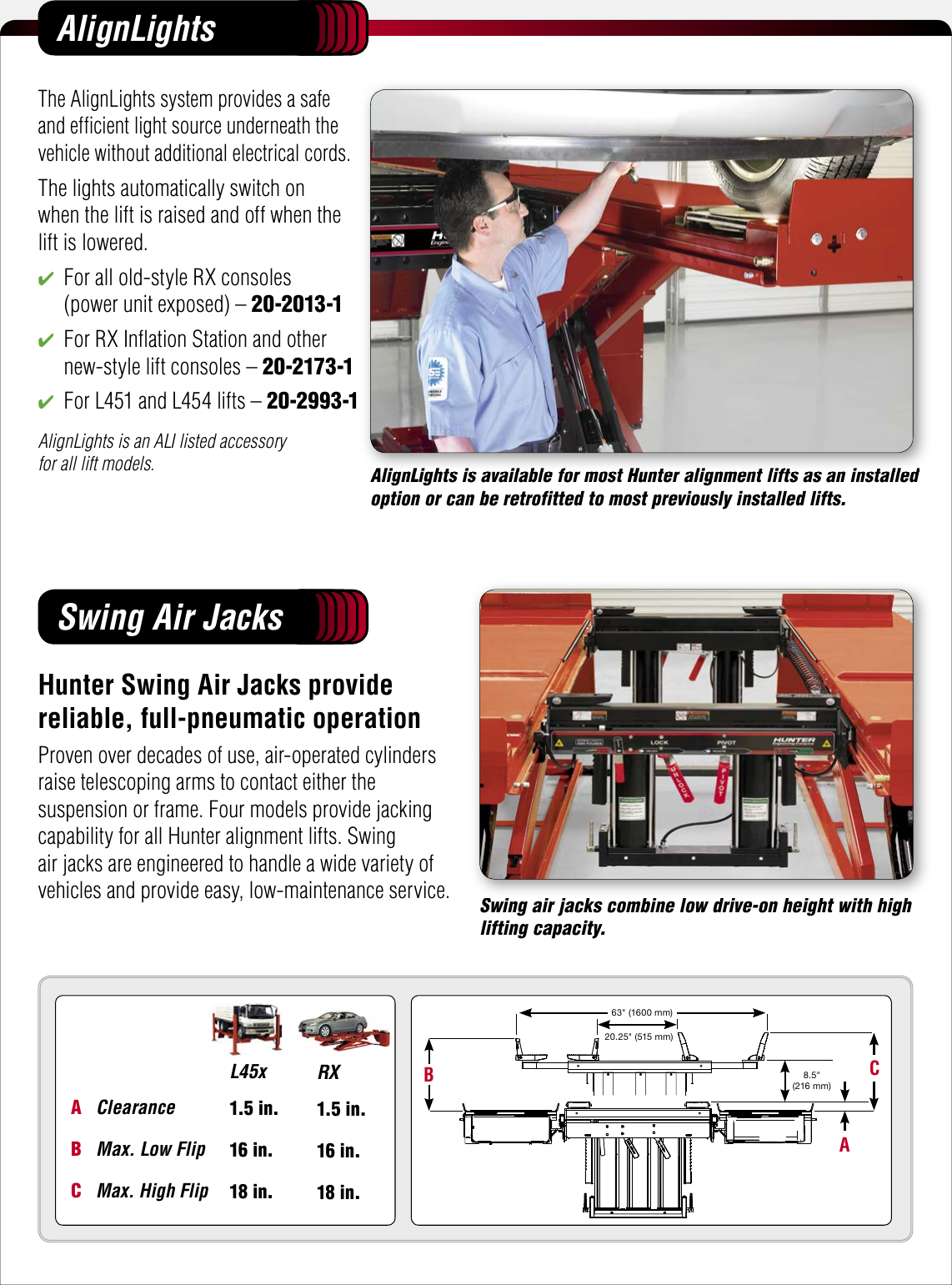

The AlignLights system provides a safe
and ef cient light source underneath the
vehicle without additional electrical cords.
The lights automatically switch on
when the lift is raised and off when the
lift is lowered.
For all old-style RX consoles
(power unit exposed) – 20-2013-1
For RX Infl ation Station and other
new-style lift consoles – 20-2173-1
For L451 and L454 lifts – 20-2993-1
AlignLights is an ALI listed accessory
for all lift models.
AlignLights is available for most Hunter alignment lifts as an installed
option or can be retrofitted to most previously installed lifts.
AlignLights is available for most Hunter alignment lifts as an installed
Swing air jacks combine low drive-on height with high
lifting capacity.
A Clearance
B Max. Low Flip
C
Max. High Flip
L45x
1.5 in.
16 in.
18 in.
RX
1.5 in.
16 in.
18 in.
6
63" (1600 mm)
BC
8.5"
(216 mm)
20.25" (515 mm)
A
Swing Air Jacks
AlignLights
6,000-lb. Capacity, Dual Composite
Cylinder Jack – 133-85-1
Ideal for use with RX-10 and RX12A
lift models.
9,000-lb. Capacity, Triple Composite
Cylinder Jack – 133-84-1
Ideal for use with RX16, L451 and L454
lift models.
PowerSlide® Turnplates
PowerSlide® turnplates eliminate the hassle of removing and
replacing lock pins during an alignment. Integrated bridges
lower and raise as plates are locked. PowerSlide turnplates
are an optional feature that may be added later to qualifi ed
RX and Four-Post series lifts.
PowerSlide turnplates with automatic bridges - 20-2076-1
Used with camera-based alignment sensors.
PowerSlide turnplates without automatic bridges – 20-2075-1
Used with conventional alignment sensors.
7
Turnplates
Stainless Steel Turnplates
Resists corrosion and maintains free movement during the
alignment procedure. Stainless steel construction
for long, trouble-free life. No pointer.
Stainless Steel:
Set of two stainless steel turnplates for 1.5" or 50 mm
turnplate pockets – 20-2532-1 (includes guide strips)
Stainless Steel, Low Friction:
Set of two stainless steel turnplates for 50 mm turnplate
pockets – 20-2533-1 (includes guide strips)
Electronic Turnplates
Ideal for integrating advanced alignment angle
measurements. Cast aluminum design with a powder-coated
paint fi nish. 50 mm high.
Set of two electronic turnplates and cables to connect
turnplates to wireless sensors – 20-1487-1
Set of two electronic turnplates, cables and board
to connect turnplates to rack wiring kit – 20-1477-1
Electronic Wiring Cables – 20-1386-1
Set of two cables to connect turnplates to wireless sensors.
Use this part number when ordering cables only.
Painted Turnplates – 20-2531-1
Set of two turnplates for 1.5" or 50 mm turnplate
pockets. Steel construction with a powder-coated paint
nish. No pointer.
† See Form 4599-T for more details on electronic turnplate applications.
8
Turnplates cont.
Turning Angle Gauge – 25-18-1
Turnplate with pointer and scale for 1.5" turnplate
pocket. Steel construction with a powder-coated
paint fi nish (two required).
Filler Plates
Fills turnplate pockets when turnplates are not used.
19.5" wide.
For 1.5" pockets – 20-2396-1 (two included)
For 50 mm pockets – 20-2395-1 (two included)
Drive-Thru Kits
RX10, RX12A and RX16 drive-thru kit for
camera sensors – 20-2498-1
Adds 52" to overall length.
RX10, RX12A and RX16 drive-thru kit for
conventional sensors – 20-2501-1
Adds 63" to overall length.
L451 and L454 drive-thru kit – 20-2682-1
Adds 38" to overall length.
Turnplate Bridge
Eases rolling compensation when rack is used with
camera-based alignment sensors.
Universal Bridge for 50 mm and 1.5" turnplate
pockets – 20-2307-1
9
Drive-Thru Kits
High-fl oor-slope conditions and low-ground-clearance vehicles occasionally
require additional approach ramp length. Several options are available.
Stage 2 RX Approach Ramp Extensions
RX ramp extension kit – 20-3113-1 (two included)
Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12
and RX12A when substituted for 20-3112-1. Standard on RXDC.
RX ramp extension kit – 20-3112-1 (two included)
12" extensions for RX10, RX12 and RX16.
Standard on RX-12 and RX12A.
(two included)
RX ramp extension – 20-2169-1
(includes quick-release pins) – Adds 40" to length
of RX9, RX10, and RX16; adds 27.25" to RX-12 and RX12A,
or 22.25" to RX-12-PS/IS.
RX ramp extension – 20-2189-1
(includes quick-release pins) – Adds 50" to length
of RX9, RX10, and RX16; adds 37.25" to RX-12 and RX12A,
or 32.25" to RX-12-PS/IS.
Stage 2 Four-Post Ramp Extension Kit
(Suitable for L451 and L454 models)
Four-post ramp extensions – 20-1365-1
Adds 17.5" to the length of ramps.
Four-post ramp extensions – 20-2033-1
Adds 40" to the length of ramps.
RX10 Long Wheel Stops – 20-2497-1
For use with conventional sensors and low spoilers.
Adds approximately 12" in length.
Stage 2 Four-Post Ramp Extension Kit
Flush-Mount Conversion Kits
Converts surface-mount installations to
flush-mount installations, using current site
requirements.
For RX-9 and RX-12 PowerSlide® or
Inflation Station models including RXDC
and RX40 – 20-2103-1
For all other RX-9 and RX-12 models
20-2102-1
For RX10, RX12A and RX16 models
20-2736-1
Flush-Mount Conversion Kits
10
Ramps & extensions
11
L421 Runway Extension Kit – 20-1587-1
Extends maximum general service wheelbase
to 226.5" and maximum two-wheel alignment
wheelbase to 210.5". Includes two 19.5" filler plates.
Front-Mount Power
Unit Bracket
Moves power unit
mounting to front of
four-post column for
bays with very little space.
L44X – 20-2391-1
L45X – 20-3072-1
four-post column for
Work Step – 51-1696-1
Work step makes custom steer or underhood shim
work easier. Can be used with RX, L45X, L42X,
L44X, RM, PN and RMHD models.
Pit Hose Reel Cover Plate – 51-2308-1
Cover plate for Inflation Station lifts to trim around
flush-mount cut-outs (four required).
Center Lift Jack Adaptor
20-2853-1 (6,000 lb) 20-2854-1 (9,000 lb)
Ideal accessory for lifting from the differential or
subframe on many vehicles. Includes storage bracket.
Jack Riser Kit (Set of two) – 20-2801-1
Extends the reach of the jack to make lifting
high- ground-clearance and long-wheelbase vehicles
easier. Adds 4.5" to overall jack lift height.
Jack Riser Kit (Set of two) – 20-2801-1
Center Lift Jack Adaptor
Additional lift accessories
Copyright © 2015, Hunter Engineering Company Form 5262-T, 03/15
Supersedes 5262-T, 09/14
0315QAP3M.86
Be sure to check out other Hunter literature for more
quality products from Hunter Engineering.
Wheel Chock – 22-525-2
Prevents vehicle from rolling once on the lift.
Two chocks are included standard in any new
lift purchase.
Wheel Chock – 22-525-2
Hook – 216-83-1
Suitable for brake pedal depressor.
Jack Pad – 64-50-2
Rubber pads cover jack lifting points to prevent
damage to the underside of the vehicle (two required).
Storage Bracket Kit
20-2528-1
Provides storage for wheel adaptors on console,
lift or HawkEye Elite® sensor column. Simply bolts
on to clip-on work step holes, no drilling required.
Includes four brackets.
Storage Bracket Kit
Provides storage for wheel adaptors on console,
Additional lift accessories
Page 1 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 2 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 3 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 4 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 5 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 6 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 7 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 8 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 9 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 10 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 11 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure
Page 12 of 12 - Hunter-Engineering Hunter-Engineering-5262-T-Brochure-  Hunter-engineering-5262-t-brochure

Navigation menu
