Alignment Accessories

20-2150-1

CodeLink with

XF2 Pod Kit*

Data link from

WinAlign to

the vehicle

OBD-II (J1962)

connector. Order

this kit if you

want wireless

capability and do

not currently own an XF2 Pod Kit. Includes CodeLink

device, XF2 Pod Kit, and J1962 cable. Also includes

a burndy cable that may be used to connect the

CodeLink device to the alignment console.

20-2333-1

BMW 20-Pin

Cable

CodeLink

connection cable

required for 2001

and older BMW

models with

Dynamic Stability

Control (DSC).

20-2151-1

CodeLink

without XF2

Pod Kit*

Data link from

WinAlign to the

vehicle OBD-II

(J1962) connector.

Order this kit if

you currently own

an XF2 Pod Kit or you do not want wireless capability.

Includes CodeLink device and J1962 cable. Also includes

a burndy cable that may be used to connect the CodeLink

device to the alignment console.

*Requires WinAlign version 11.0 or greater software. CodeLink is not compatible with PA consoles.

Which OEMs require resets?

Audi • BMW • Chevy • Ford •

Hyundai • Infiniti • Lexus •

Mazda • Mercury • MINI •

Nissan • Pontiac • Saturn • Scion •

Toyota • Volkswagen

Steering system reset typically involves resetting the

steering angle sensor, but on some vehicles, torque

angle, yaw rate and other steering-related sensors are

also reset.

CodeLink handles them all with a single, integrated

procedure.

The New Last Step in Alignment Service

CodeLink® directly “links” the vehicle OBD-II

to the aligner to reset steering system sensors,

as required by the manufacturer.

CodeLink®

20-2880-1 Cordless** Plus Remote Indicator Easily

Records Tire and Suspension Measurements

Hunter’s Plus Remote Indicator refines your alignment service by

measuring tire temperature and frame angle and letting you enter

in values for tire pressure, tread depth and ride height without

repeated trips back to the console.

Includes: 20-2056-1 Hanger kit with remote hanger recharge

38-944-3 30-foot cable

27-13-2 Tire temperature probe

For use with WA Series and Series 811 aligners using WinAlign®

alignment software version 9.0 and greater.

20-2882-1 Icon Remote Indicator

Icon Remote Indicator is compatible with WA Series,

Series 111/211/311/411/511/611/811 and PA100 aligners.

Includes: 20-2055-1 Hanger kit

38-944-3 30-foot cable

For use with WinAlign alignment software version 1.5.1 and greater.

20-2881-1 Cordless** Icon Remote Indicator

Cordless Icon Remote Indicator is compatible with WA Series,

Series 811, Series 611 with USB support and PA100 aligners.

Includes: 20-2056-1 Hanger kit with remote hanger recharge

38-944-3 30-foot cable

For use with WinAlign alignment software version 1.5.1 and greater.

**Cordless communication requires 20-2072-1 XF2 Pod Kit.

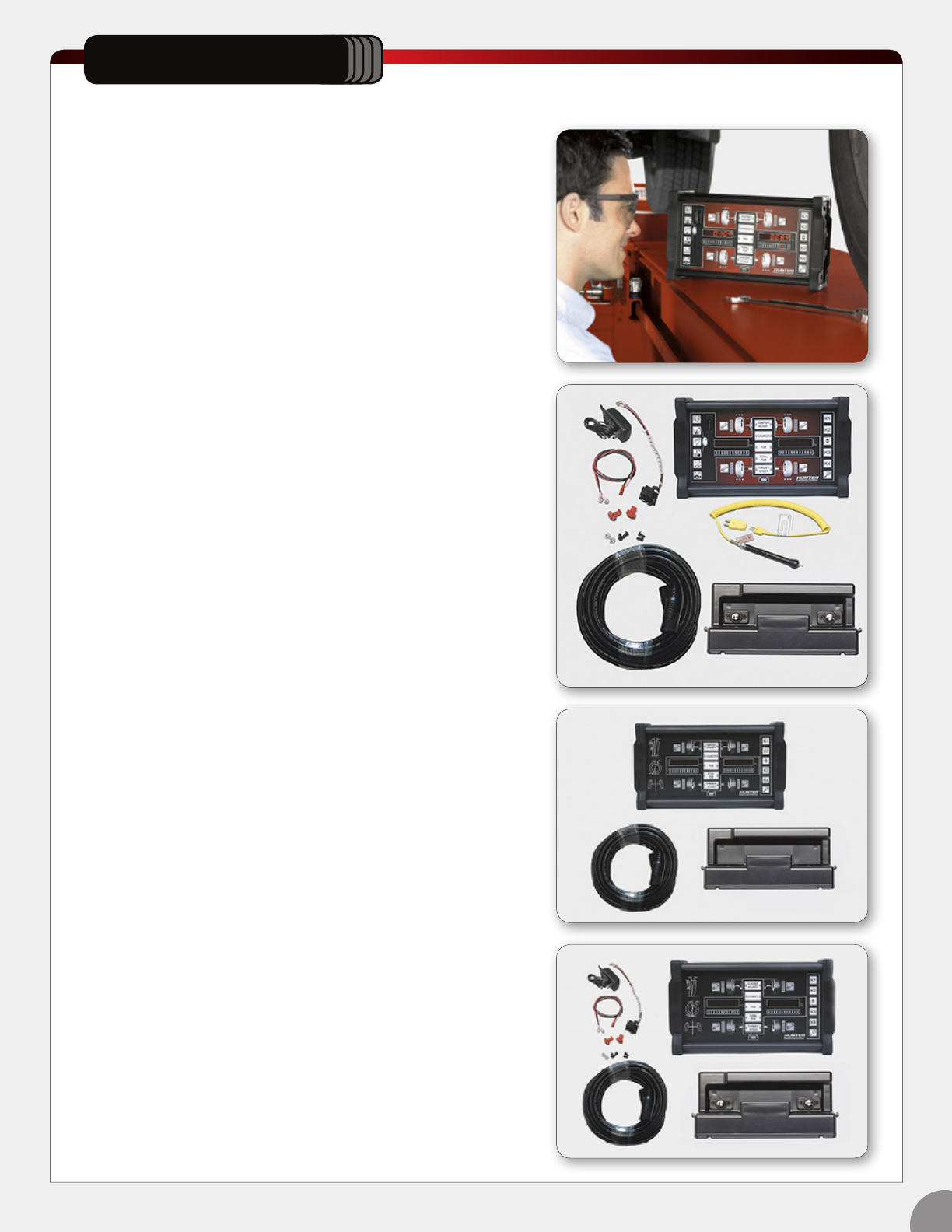

Remote Indicators

Hunter Remote Indicators

Speed Alignment Service

Hunter Remote Indicators provide the operator complete control

of the alignment system while making adjustments to the vehicle.

4 Displays measurements

4 Functions as a remote control

4 Eliminates need for a separate remote control under the vehicle

4 Allows the technician to perform rolling compensation

when the console is out of view

Adjustable Tire

Hook Kit

Covers clamping

range of 20" to

36" tires (outside

diameter).

20-2521-1

8 hooks to cover

both axles.

20-2639-1

4 hooks to handle very

limited clearance applications

encountered on the front axles

of modified and some European

model vehicles.

20-2621-1

Medium-Duty

Truck Spacer Kit

This kit contains

4 spacers for

medium-duty

trucks. These

spacers may be

used with kit

20-2640-1.

20-2638-1 Complete Medium-Duty Truck Kit

Contains 20-2621-1 and 20-2640-1.

20-2640-1 Medium-Duty Truck Tire Hook Kit

Set of 8 two-position adjustable black tire hooks.

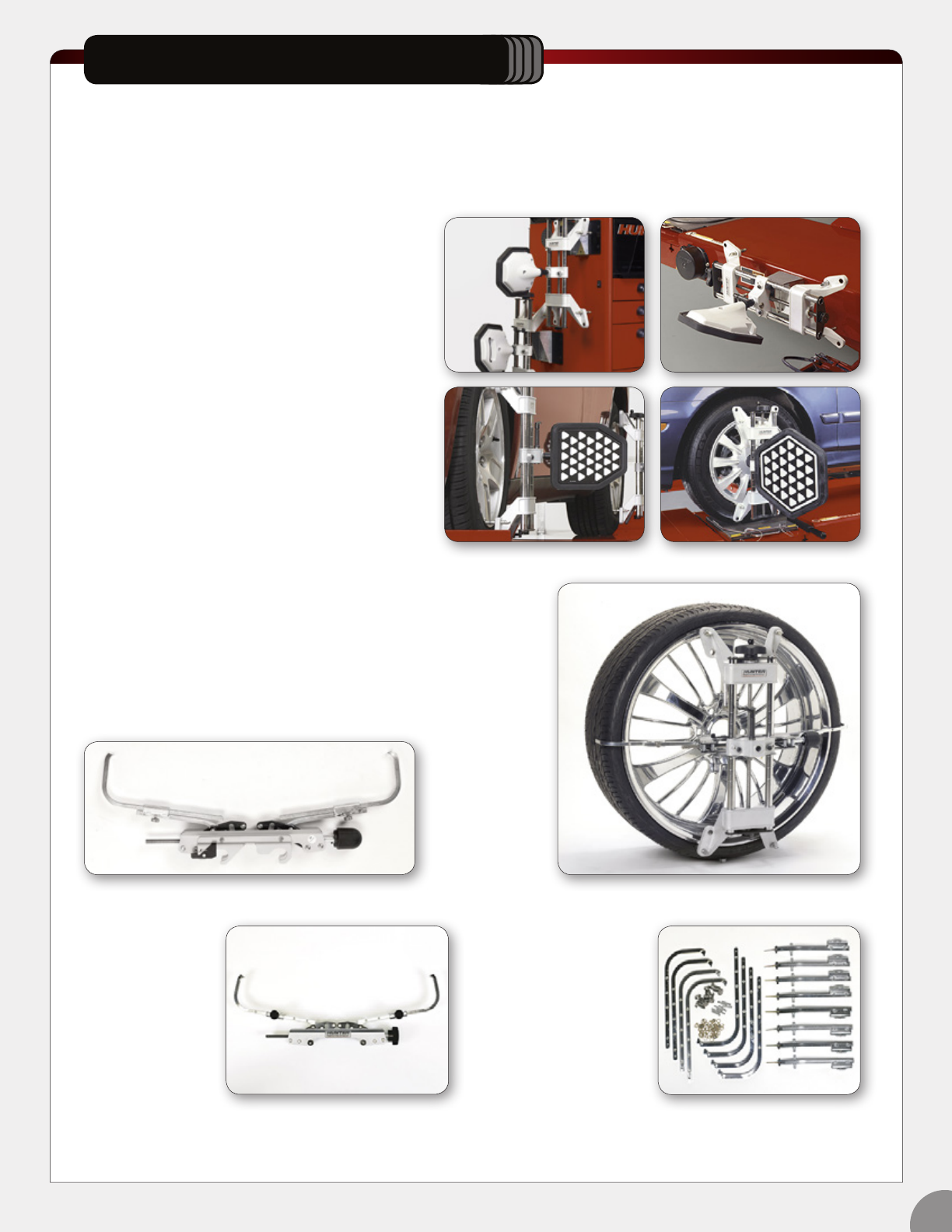

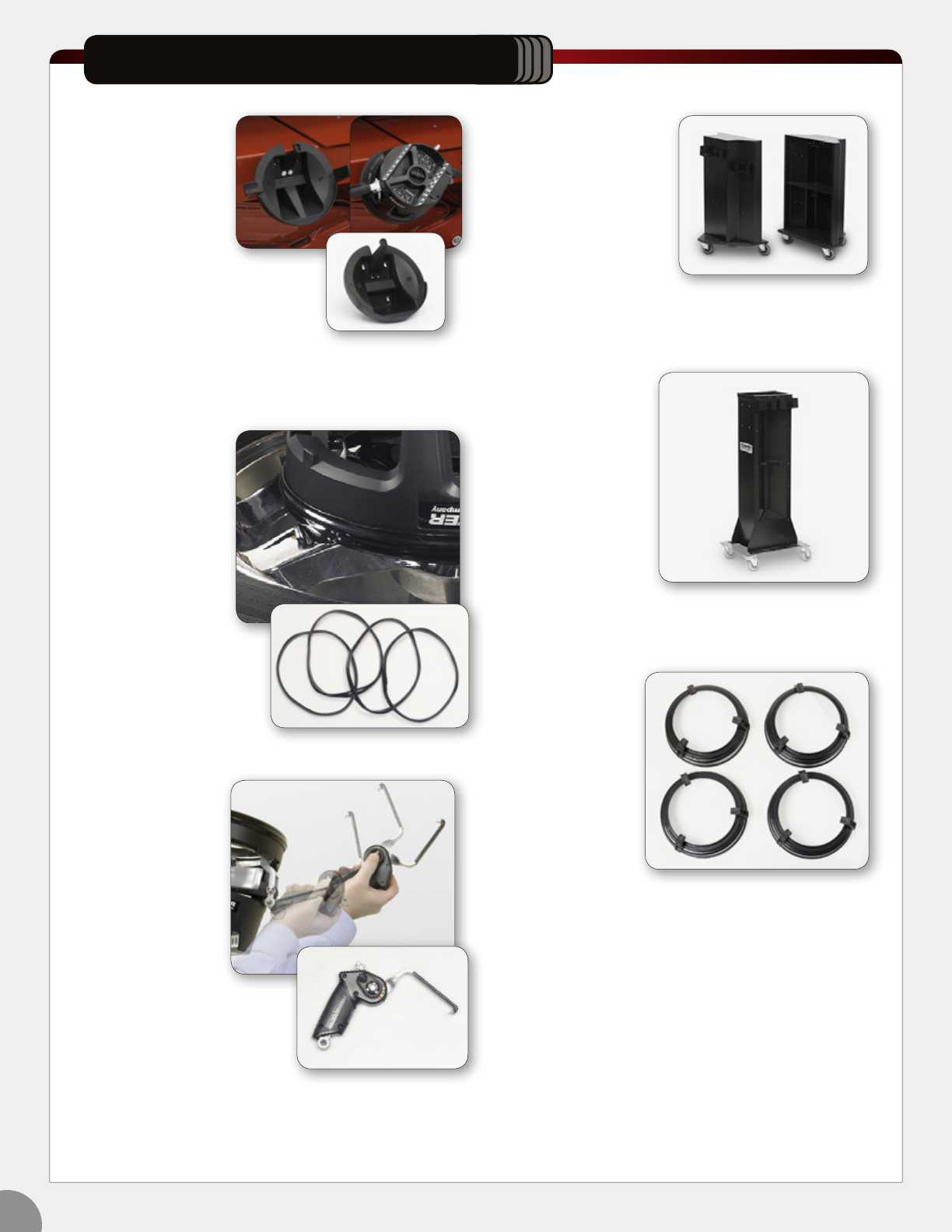

QuickGrip™ Adaptor Accessories

20-2563-1

Protective Ring

Replacement Kit

Attaches to adaptor

base to protect

rims. Standard

with HawkEye Elite

sensors.

20-2528-1

Storage

Bracket Kit

Provides storage for

adaptors on console,

lift, HawkEye Elite™

sensor column, or

Roll-Around Storage

Cart Kit (11-1509-2). Standard

with HawkEye Elite sensors.

20-2856-1

Roll-Around Storage

Cart Kit

Provides convenient

access to adaptors when

you need them and

convenient storage when

you don’t. (kit includes

two carts)

Single Cart (20-3082-1)

20-2819-1

Drivers-side

Accessories

Storage Upgrade

for 20-2552-1 Cart

Provides additional

storage for Quick

Check accessory

bundle.

Kit 11-1509-2

includes four

brackets

20-2792-1 Drivers-side

Accessories Storage Upgrade

for 20-2552-1 Cart

Requires two molded

target hangers (11-1509-2)

(sold separately)

Kit 20-2563-1

includes four

rings

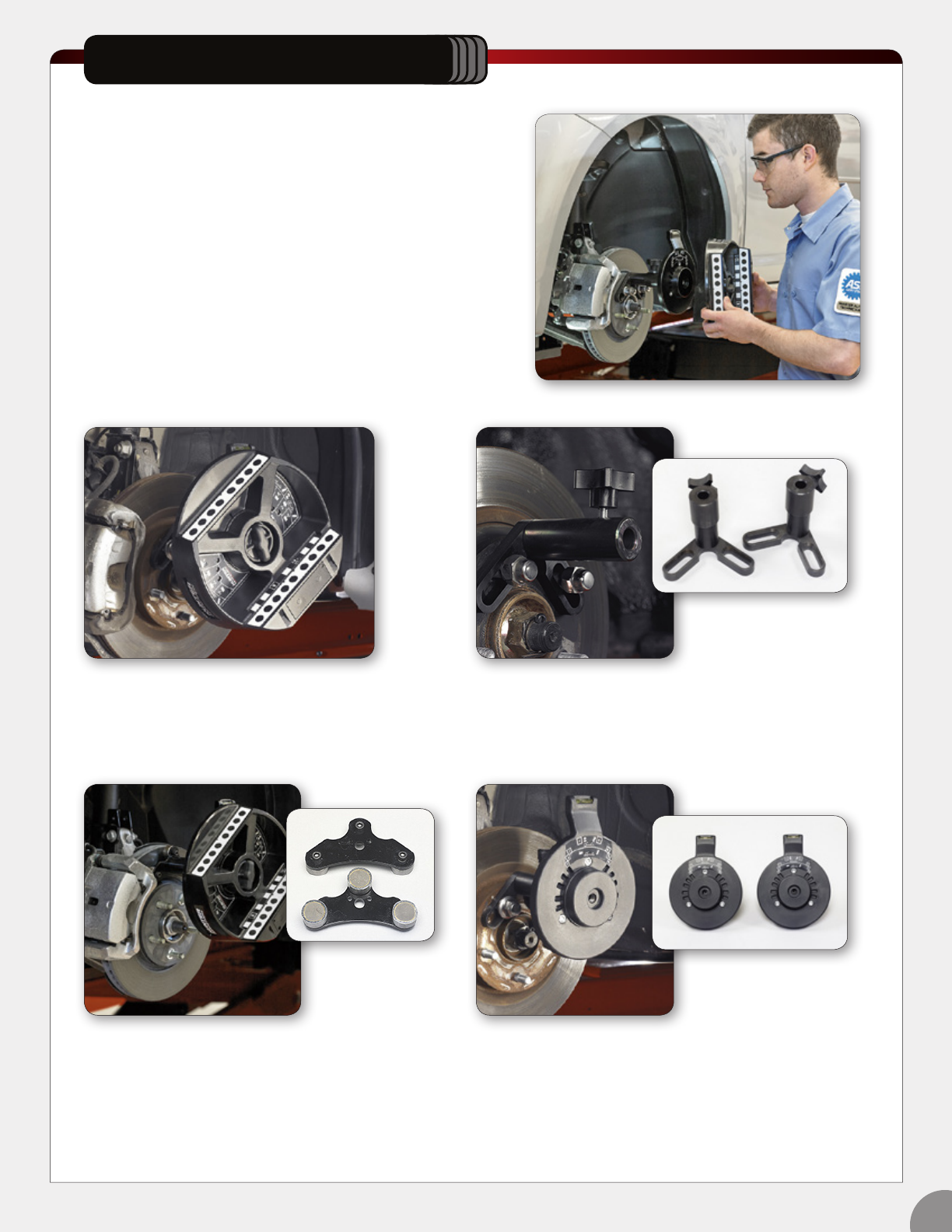

20-1978-1 Wheel-Off Adaptor Kit

Adaptors mount directly to the hub bolts once the wheel is

removed. Requires WinAlign software version 9.0 or greater.

Make fast, accurate alignment

adjustments... with the wheel removed!

Wheel-Off Adjustment Kits allow the installation of alignment

targets or sensors on hubs to ease adjustments with the wheel

out of the way.

4 Creates easy access to alignment points

4 Applicable on more than 30% of vehicles in production

4 Kits cover all Hunter target and sensor designs

20-1979-1 Wheel-Off Adjustment Kit

Magnetic adaptors attach to the rotor once the

wheel is removed. Requires WinAlign software

version 9.0 or greater and 20-1978-1 Wheel-Off

Adjustment Kit.

Wheel-Off Adjustment Kits

20-2577-1 Self-Centering Adaptors for TD Targets

Adaptors required to perform wheel-off adjustments using TD

Targets. Also requires 20-1978-1 Wheel-Off Adjustment Kit.

Four Adaptor Kit (20-2513-1).

20-2664-1 TD Target Wheel-Off

Adjustment Kit

Kit includes 20-1978-1 and 20-2577-1.

Kit 20-1978-1 includes

two adaptors

Kit 20-1979-1

includes two

adaptors

Kit 20-2577-1 includes

two adaptors

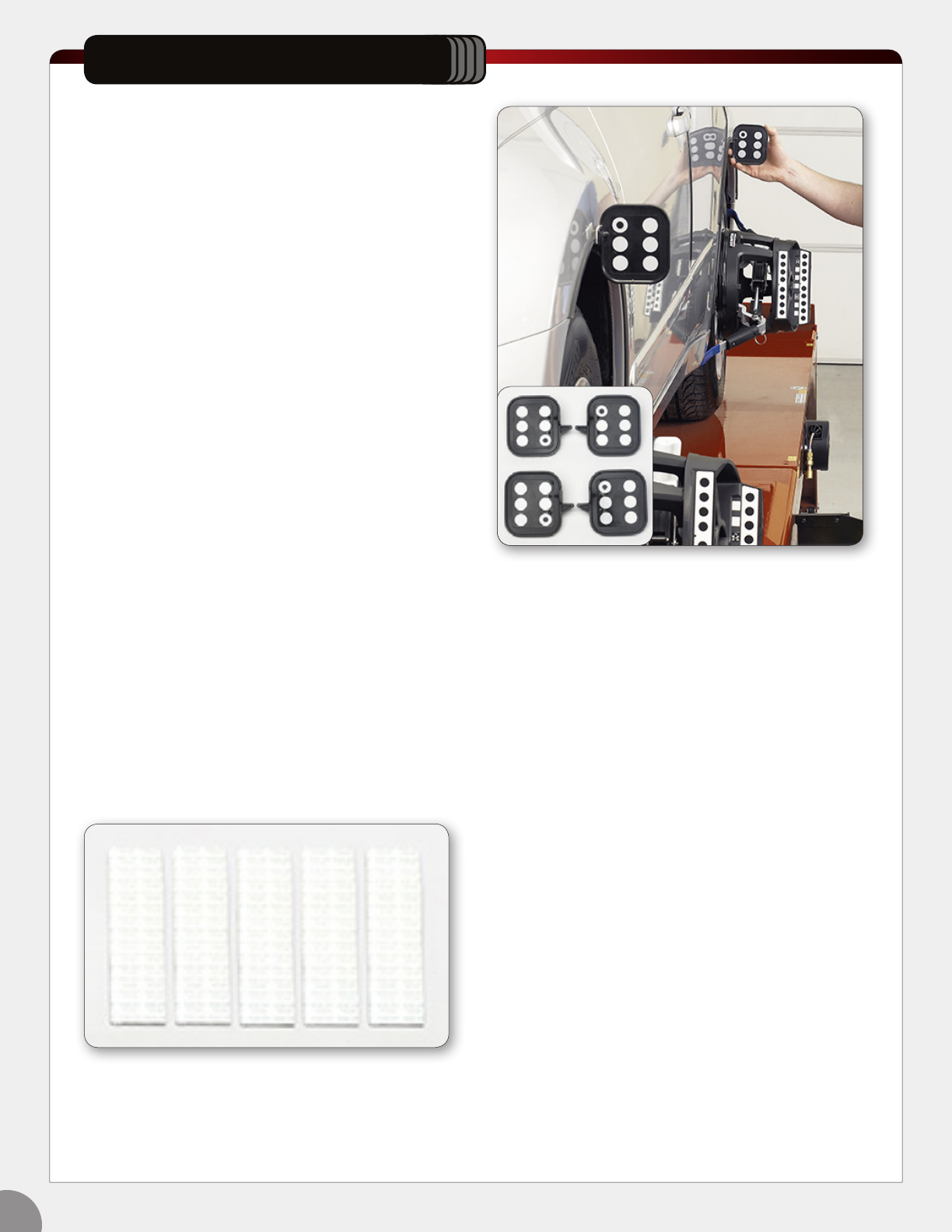

20-2050-1 Live Ride Height Measurement Kit

Includes four targets used for measuring ride height.

Requires a WA Series or Series 811 console with

WinAlign software version 9.0 or greater and HE421,

HS401 or DSP600 sensors.

20-2112-1 Live Ride Height Adhesive Strips Kit

For use with HS401 and DSP600 Live Ride Height

Targets (100 Adhesive Strips).

Live Ride Height Measurement

and Adjustment System for HE421,

HS421, HS401 and DSP600 Sensors

Ride Height can change over time as a vehicle ages.

These changes in ride height can prevent proper

alignment.

4 Hunter Live Ride Height Adjustment allows the

technician to easily measure, adjust, jounce and

confirm ride height.

4 Accurately adjust ride height in just one trip around

the car.

4 Make ride height adjustments in half the time.

4 Integrate with WinAlign Tuner™ software to better

service modified vehicles.

4 Use the Suspension Body Dimension Audit to

determine alignability or need for collision repairs.

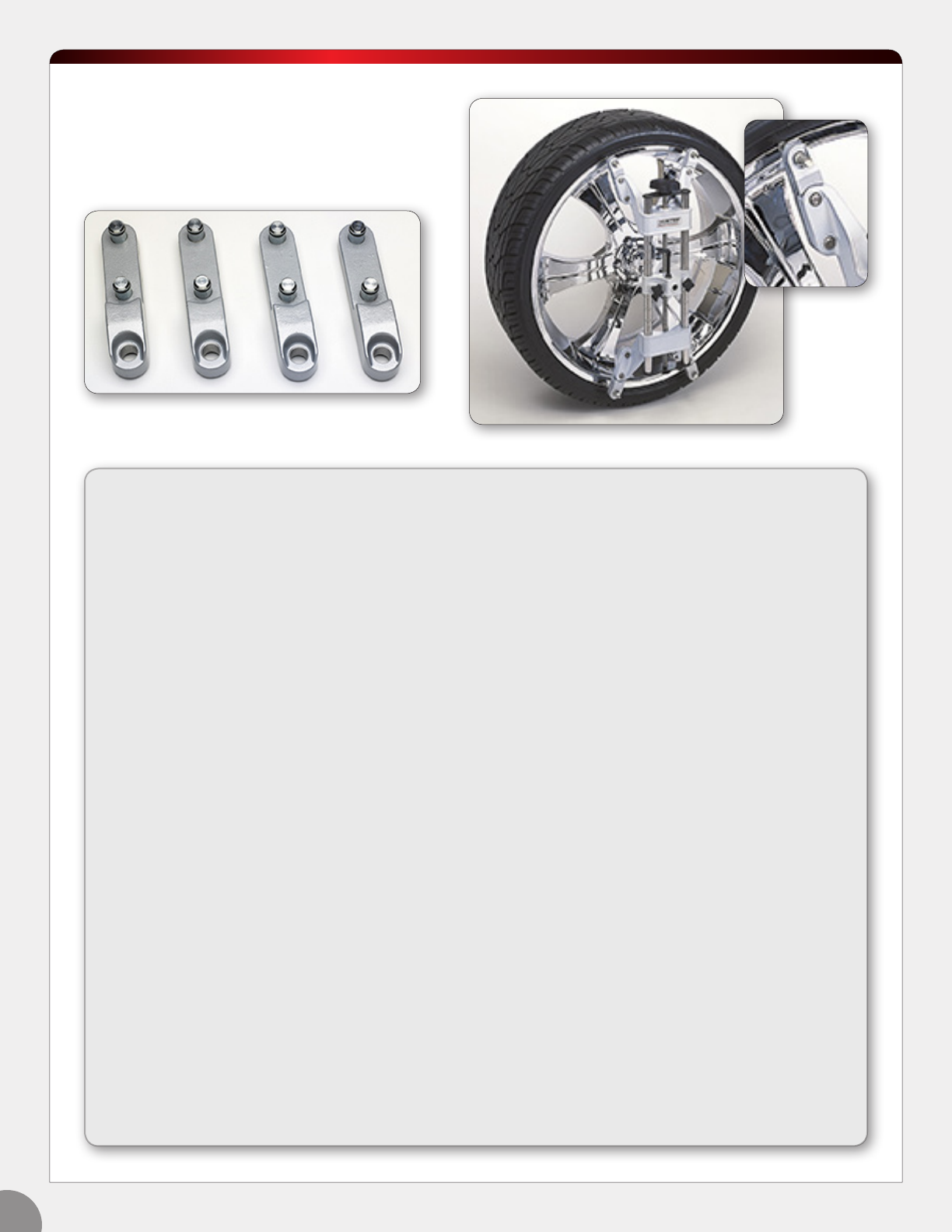

Suspension Body Dimension Audit Option

The patented Suspension Body Dimension Audit

(SBDA) option provides a quick audit to determine

if the vehicle is alignable and identifies the potential

need for body shop procedures by measuring ride

height, body angle, body wheel offset, body wheel

setback and body roll.

Requires 20-2050-1 Live Ride Height Measurement

Kit and WinAlign® software version 9.0 or greater.

Ride Height Measurement

Self-Centering Wheel Adaptors

For Hunter HS401, DSP700, DSP600 and DSP500 Wheel Alignment Sensors

Extended range fits 10" to 24.5" (254 mm to 622 mm) rims

175-325-1 Self-Centering Wheel Adaptor

Wheel adaptor for DSP600 Hexagonal or HS401

High-Definition Alignment Targets.

175-321-1 Self-Centering Wheel Adaptor

Wheel adaptor for DSP700 and DSP500

Alignment Sensors.

20-1789-1 Tire Clamp Adaptor

Clamps wheel adaptors on tires with an outside dimension of

21” (533 mm) to 40” (1016 mm). Ideal for rims without rim lips or

when space between tire and rim is limited. Grips onto tire treads

and protects alloy wheels from damage. Required for use with PAX

System Wheels. Compatible with 175-321-1 and 175-325-1

Self-Centering Adaptors.

20-1558-1 Tire

Clamp Adaptor

Compatible with

175-200-1,

175-285-1,

175-304-1 and

175-305-1 Self-

Centering Adaptors.

Grips tread of tires

21” to 40” outside

diameter.

20-1559-1 Upgrade Kit

for Tire Clamp Adaptor

Kit 20-1108-1

Replaces the current tire

hooks on kit 20-1108-1,

increasing maximum tire

range from 28” to 40”.

Compatible with

175-200-1, 175-285-1,

175-304-1 and 175-305-1

Self-Centering Adaptors.

20-2375-1 Dual-Purpose Sensor

and Adaptor Mounting Kit

Set of four brackets that may be mounted to HS401

columns, alignment consoles or in a horizontal

position for use on RX lifts. The brackets will hold

self-centering wheel adaptors and sensors/targets

(not suitable for cordless sensors). Compatible

with 175-321-1 and 175-325-1 Self-Centering

Adaptors.

Wheel Adaptors & Accessories

Kit 20-1792-1 contains 16 pieces, four for each adaptor.

20-1792-1 Wheel Adaptor Extensions

Increase maximum rim range of self-centering

adaptors from 24.5" (622mm) to 28" (711mm).

Compatible with 175-321-1 and 175-325-1

Self-Centering Adaptors.

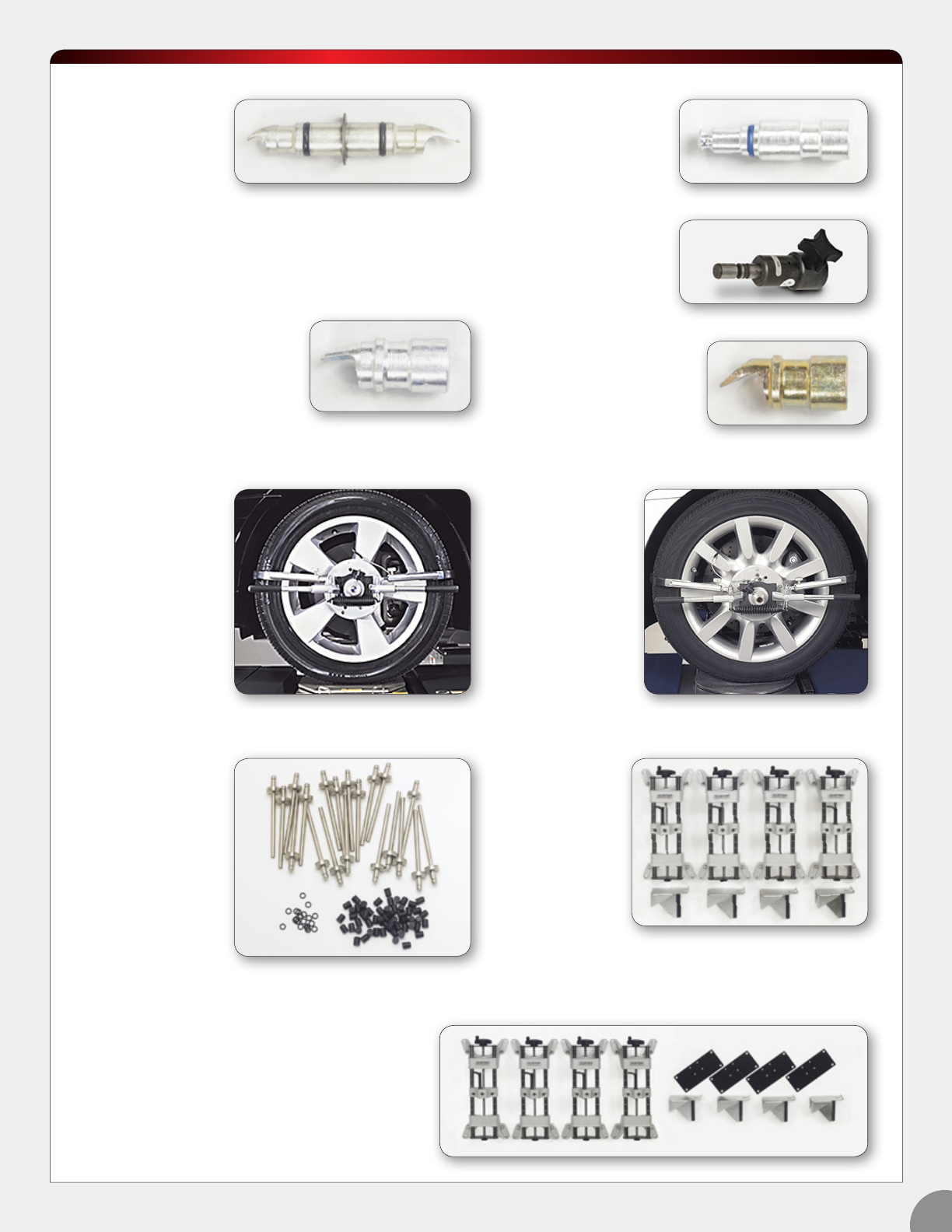

175-214-1 BMW Quick Clamp Adaptor Hunter Quick Clamp Adaptor approved by BMW. BMW special adaptors

with large tire hooks and 100 mm pins. For use with all HawkEye HS401

and DSP sensors. (Replacement only for older installations. For new

installations, use 175-348-1.)

175-215-1 Mercedes-Benz Clamp

Adaptor

Hunter Quick Clamp Adaptor approved by Mercedes-Benz. Mercedes-

Benz special adaptors with large tire hooks and 100 mm pins. For use

with all HawkEye HS401 and DSP sensors. (Replacement only for older

installations. For new installations, use 175-349-1.)

20-1329-1 Mercedes-Benz

100 mm Pin Kit

Use with Mercedes-Benz Clamp Adaptors 175-349-1 and 175-215-1

(one kit covers one adaptor).

20-1857-1 Long Hooks for Special

Adaptors

Long hooks for BMW and Mercedes-Benz Clamp Adaptors. May be used

with 175-214-1 and 175-215-1 Clamp Adaptors. Standard on 175-348-1

BMW Quick Clamp Adaptors.

20-1097-1 Wheel Adaptor Extensions

Increases maximum wheel diameter on self-centering adaptors by 2 1/2

inches. Compatible with 175-200-1, 175-285-1, 175-304-1 and 175-305-1

Self-Centering Adaptors.

20-551-1 Spade Sleeve Kit Includes eight Rim Stud Sleeves (106-70-2) and eight Storage Plug

Assemblies (one kit covers two adaptors).

20-1688-1 Additional Rim Stud

Retainers

For 16” - 20” wheel adaptors. Includes eight rim stud retainers (one kit

covers two adaptors).

20-1578-1 Mag Wheel Short Kit Includes four Mag Assembly Adaptors (175-63-3) (one kit covers one

adaptor).

20-550-1 Rubber Pad Sleeve Kit Includes four each of the following: 175-37-3 Mag Assembly Adaptor and

175-63-3 Mag Assembly Adaptor (one kit covers two adaptors).

20-1842-1

Adaptor Upgrade

Kit for HS401,

HS400, DSP600

and DSP400

Sensors

For mounting to

sensor columns.

Includes four 175-

325-1 Self-Centering

Adaptors (clamping range 10

” - 24.5”), four storage brackets

and mounting hardware.

175-348-1 BMW

Quick Clamp

Adaptor

Hunter Quick Clamp

Adaptor approved by

BMW. BMW special

adaptors with large

tire hooks and 120

mm pins. For use

with all HawkEye

HS401 and DSP

sensors.

175-349-1

Mercedes-Benz

Clamp Adaptor

Hunter Quick Clamp

Adaptor approved

by Mercedes-Benz.

Mercedes-Benz

special adaptors with

large tire hooks and

100 mm pins. For

use with all HawkEye

HS401 and DSP sensors.

20-831-1 Spade Sleeve Kit

Kit includes eight Rim Stud

Sleeves (106-70-2), covering

two adaptors. Standard with

175-34-1 and 175-325-1 Self-

Centering Adaptors.

20-1522-1 Spade Sleeve Kit

Kit includes eight Rim Guard Tire

Sleeves (106-118-2), covering

two adaptors.

20-823-1

Rim Stud Extension Kit

Kit includes eight Rim Stud

Extensions (134-81-1),

covering two adaptors.

20-2916-1

Sensor Shaft Extension

Kit includes two sensor

shaft extentions

20-1867-1 BMW

120 mm Pin Kit

120 mm pins are

standard on

175-348-1 Quick

Clamp Adaptors.

May also be used with

175-214-1

Quick Clamp

Adaptors for some

specialty wheels with

deeper offsets. One kit covers four adaptors.

20-1841-1 Adaptor Upgrade Kit for HS401,

HS400, DSP600 and DSP400 Sensors

For mounting to aligner cabinet or wall. Includes

four 175-325-1 Self-Centering Adaptors (clamping

range 10

” - 24.5”), four storage brackets and

20-1822-1 Instrument Support Adaptor Plate Kit.

20-1898-1 Rim

Stud Retainer Kit

Rim Stud Retainers

for mounting

adaptors. Compatible

with all current production slip-on spade sleeves.

Standard and compatible with 175-321-1 and 175-325-

1 Self-Centering Adaptors. Kit includes eight retainers

covering two adaptors.

20-1900-1 Instrument

Support Kit

For use with Mercedes-Benz and

BMW Quick Clamp Adaptors and

HawkEye HS401 and DSP600

Sensors.

20-1832-1 Five-Position

Battery Charger

Provides a charging station for up

to five DSP500 Sensor batteries.

20-2760-1 Six-Position

Battery Charger

Provides a charging station for up

to six DSP700 Sensor batteries.

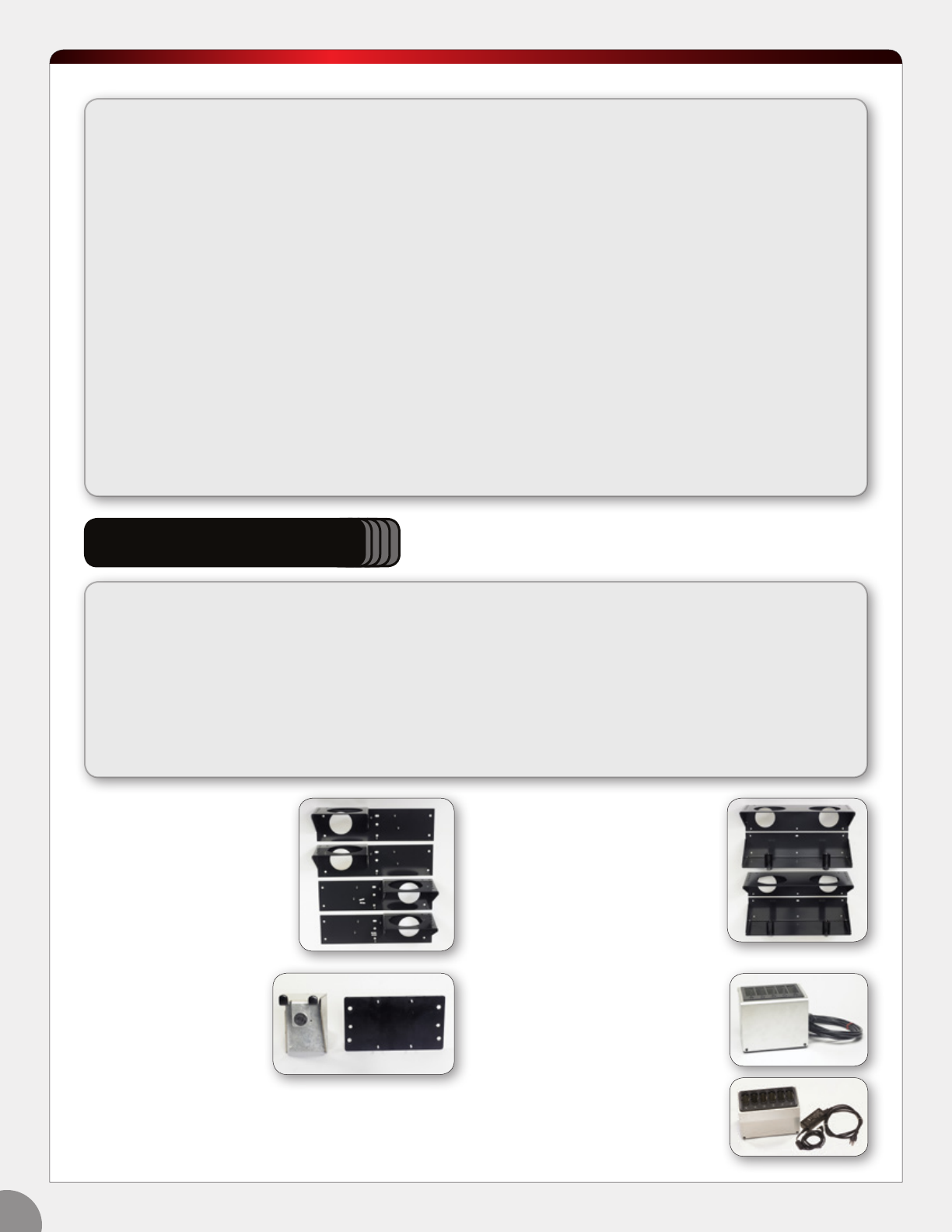

Sensor Accessories

20-1899-1 Instrument

Support Kit

For use with Mercedes-Benz

and BMW Quick Clamp

Adaptors and DSP500

Sensors.

20-2187-1 Instrument

Support Plate Kit

Set of four brackets mount

to HS401 columns. The

brackets will hold self-

centering wheel adaptors

and sensors/targets (not suitable for cordless

sensors). Compatible with 175-321-1 and 175-325-1

Self-Centering Adaptors.

20-1770-1 Instrument Support Kit Set of four brackets mount to DSP600 or DSP400 columns. The brackets will

hold self-centering wheel adaptors and sensors/targets (not suitable for cordless

sensors). Compatible with 175-321-1 and 175-325-1 Self-Centering Adaptors.

20-1762-1 Instrument Support

Adaptor Plate Kit

Set of four adaptor plates allow DSP500 hangers to be mounted to alignment

cabinets that only have mounting holes for older, horseshoe-style sensor

supports. Does not include DSP500 Sensor hangers.

20-1427-1 Instrument Support Kit Set of four brackets mount to two-post and four-post Hunter lift rack columns.

The brackets will hold self-centering wheel adaptors and sensors/targets (not

suitable for cordless sensors). Compatible with 175-200-1, 175-285-1,

175-304-1 and 175-305-1 Self-Centering Adaptors.

20-1822-1 Instrument Support

Adaptor Plate Kit

Set of four adaptor plates allow 20-1770-1 Bracket Kit to be mounted to walls

or alignment cabinets. Does not include 20-1770-1 Kit.

20-1446-1 Safety Hook Assembly Set of four, compatible with 39-22-1, 39-25-1, and 39-44-1 safety cables.

Includes four Safety Cable Hook Assemblies (216-58-1).

20-2193-1 Instrument Support Kit Set of four adaptor plates allow HS401 hangers to be mounted to walls or

alignment cabinets. Does not include sensor hangers.

20-1864-1 AC Conversion Kit Allows the Five Position Battery Charger (20-1832-1) to be used as

a free-standing charger without using the aligner power supply.

20-1488-1 Auxiliary DSP Sensor

Charging Station

Provides a second charging station where cordless sensors and HS401,

DSP600 or DSP400 Sensors are being used with the same console.

194-18-2 Cordless Sensor Battery For DSP200 and DSP300 Sensors.

194-23-2 Cordless Sensor Battery For DSP500 Sensors, 30-418-1 Cordless Plus Remote Indicator and

30-421-1 Icon Remote Cordless Remote Indicator.

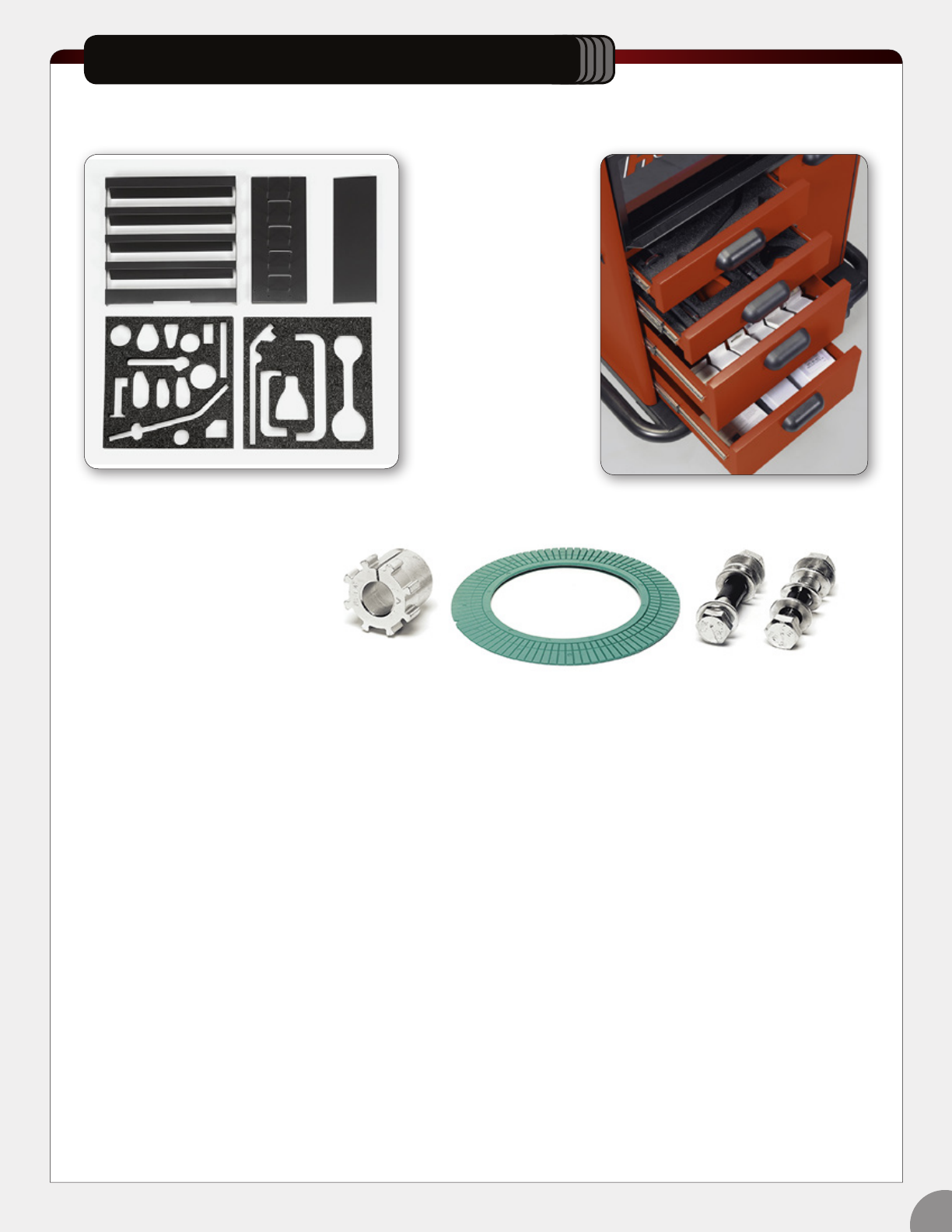

Drawer Organizer Kit

20-2199-1 Drawer

Organizer Kit

Provides dividers and

tool and part organizers

for the drawers on

WA445, WA444,

WA245, WA244, R811P

and R611P consoles.

Does not include

20-1561-3 Alignment

Tool Kit or 20-1575-3

Shim/Bushing/CAM

Assortment.

* Drawer Organizer Kit

requires a four-week lead time.

Shim/Bushing/CAM Assortment

20-1575-3 Shim/Bushing/CAM

Assortment

This kit contains many of the more

commonly used shim, bushing and

CAM correction kits.

Kit includes:

RP5-42-778

1997-2003 F150 DEG CAM BOLT 2-1/2 (2 EA.)

RP5-42-951 CAST/CAMB BUSHING 1/4 (1 EA.)

RP5-42-952 CAST/CAMB BUSHING 1/2 (1 EA.)

RP5-42-953 CAST/CAMB BUSHING 3/4 (1 EA.)

RP5-42-954 CAST/CAMB BUSHING 1 (1 EA.)

RP5-42-955 CAST/CAMB BUSHING 1-1/4 (1 EA.)

RP5-42-956 CAST/CAMB BUSHING 1-1/2 (1 EA.)

RP5-42-957 CAST/CAMB BUSHING 1-3/4 (1 EA.)

RP5-42-958 CAST/CAMB BUSHING 2 (1 EA.)

RP5-42-959 CAST/CAMB BUSHING 2-1/4 (1 EA.)

RP5-42-960 CAST/CAMB BUSHING 2-1/2 (1 EA.)

RP5-42-961 CAST/CAMB BUSHING 2-3/4 (1 EA.)

RP5-44-5001 4WD BUSHING (1 EA.)

RP5-44-5002 4WD BUSHING (1 EA.)

RP5-44-5003 4WD BUSHING (1 EA.)

RP5-44-5004 4WD BUSHING (1 EA.)

RP5-44-5005 4WD BUSHING (1 EA.)

RP5-44-5006 4WD BUSHING (1 EA.)

RP5-44-5007 4WD BUSHING (1 EA.)

RP5-44-5008 4WD BUSHING (1 EA.)

RP5-44-5009 4WD BUSHING (1 EA.)

RP5-44-5010 4WD BUSHING (1 EA.)

RP5-44-768

SHIM EXPLORER/RANGER (1 EA.)

RP5-44-786 SHIM 2003 EXPEDITION (1 EA.)

RP5-44-789 SHIM 2004 F150 (1 EA.)

RP5-44-792 SHIM 2003 DODGE 1/2-TN. TRUCKS (1 EA.)

RP5-41-147

KIT-MAGNA CAM 12MM (1 EA.)

RP5-41-157 HEAVY-DUTY 9/16-IN. MAGNA CAM (1 EA.)

RP5-41-158 KIT-MAGNA CAM 14MM (1 EA.)

RP5-41-160 KIT-MAGNA CAM 16MM (1 EA.)

RP5-46-2100 UNIVERSAL BLUE SHIM [0 – 1-1/2] (2 EA.)

RP5-46-2200 UNIVERSAL WHITE SHIM [0 – 1-1/2] (2 EA.)

RP5-46-2300 UNIVERSAL GRAY SHIM [0 – 1-1/2] (2 EA.)

RP5-46-2400 UNIVERSAL BURG. SHIM [0 – 1-1/2] (2 EA.)

RP5-46-1121 SHIM-1/4 DEGREE GREEN (1 EA.)

RP5-46-1122 SHIM-1/2 DEGREE GREEN (1 EA.)

RP5-46-1123 SHIM-3/4 DEGREE GREEN (1 EA.)

RP5-46-1124 SHIM-1 DEGREE GREEN (1 EA.)

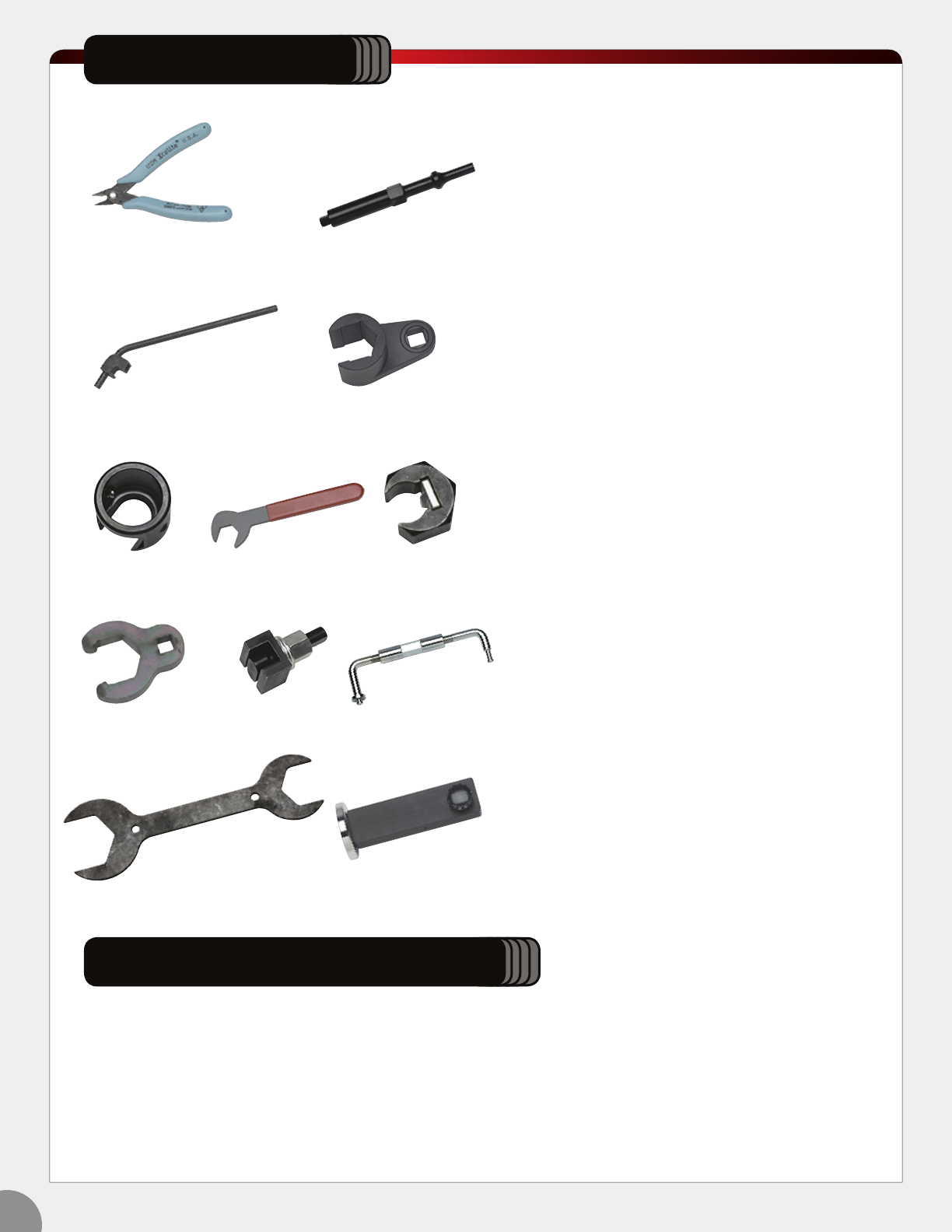

Alignment Tools, Kits & Accessories

RP5-88-7203

RP5-88-7101

RP5-88-7491

RP5-88-7102

RP5-88-343

RP5-88-9200

RP5-88-7103

RP5-88-1110

RP5-88-8923

RP5-88-7201

RP5-88-7099

RP5-88-9480

20-2198-3 Alignment Tool Kit

This kit contains many of the more commonly used

correction tools. Kit includes:

RP5-88-343

Full contact/dual angle rear shim tab cutting

tool works equally well on both the original

design or the new SYSTEM 2000 universal

design

RP5-88-1110 3/8-in. drive bolt/nut remover

RP5-88-7095 Tie rod adjuster for compact vehicles

(not shown)

RP5-88-7096 Tie rod adjuster for full-size vehicles

(not shown)

RP5-88-7097 Lt. truck tie rod tool for 1/2-in. drive

(not shown)

RP5-88-7098 Toe adjuster for Ford Super-Duty

(not shown)

RP5-88-7099 Tie rod adjusting tool

RP5-88-7101 Tie rod adjuster for Chrysler “LH” models

RP5-88-7102 Tie rod stabilizer for Chrysler “LH” models

RP5-88-7103 Tie rod wrench for Chrysler “LH”

RP5-88-7201 Sleeve adjusting tool

RP5-88-7203 Sleeve outer wrench for Chrysler “LH”

RP5-88-7301 Universal Inner Tie Rod Socket

(not shown)

RP5-88-7491 GM upper control arm knock out tool

RP5-88-8923 GM “W” body rear toe adjuster

RP5-88-8925 Camaro/Firebird (1994 & newer)

caster/camber adjuster (not shown)

RP5-88-8927 Camber/caster adjusting tool

(not shown)

RP5-88-9200 Taurus/Sable sedan rear toe adjuster

RP5-88-9480 Magnetic camber change gauge

Software Upgrades & Services

20-1970-1 Digital-PHOTO

Provides digital inspection and adjustment photos for

new or existing WA100 or 811 consoles with WinAlign

8.X or higher. Standard with WA400 and WA200

consoles.

More than 4,000 vehicle-specific digital

photos improve productivity by quickly identifying

adjustment and inspection points.

20-1971-1 Combination Digital-PHOTO/VIDEO

Provides digital inspection and adjustment photos for new or existing

WA100 or 811 consoles with WinAlign 8.X or higher. Standard with

WA400 and WA200 consoles.

More than 400 live videos cover

vehicle adjustments, inspection of components, use of special

tools, installation of after-market correction kits and equipment

operation for over 90% of cars and light trucks sold in the U.S.

Alignment Tool Kit

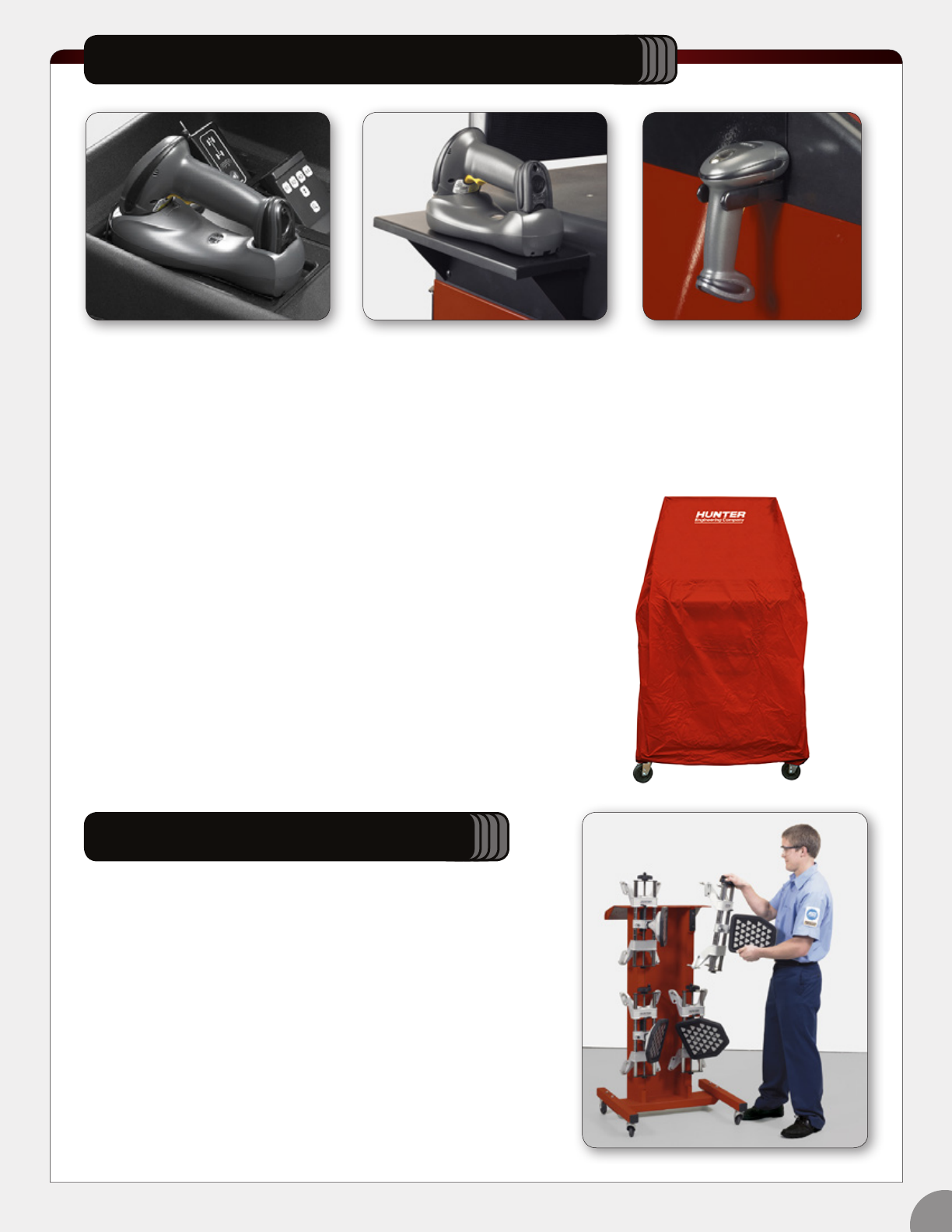

69-1025-2 Equipment Cover

For WA380/480 large mobile cabinets with conventional passenger-car

sensors/targets or HD truck cabinets.

69-1187-2 Equipment Cover

For WA370/470 small mobile cabinets without hangers for sensors or targets.

213-47-2 Convex Mirror

WA15-S Brake Pedal Depressor

28-75-1 Steering Wheel Holder

20-1922-1 Wheel Adaptor Storage Cart

Hunter’s Wheel Adaptor Storage Cart provides convenient access to

alignment instruments when you need them and convenient storage

when you don’t. Storage Cart is compatible with hexagonal and high-

definition targets and conventional sensors.

Storage Cart shown with

HawkEye HS401 High-Definition

Targets and adaptors.

20-2900-1 Bar Code

Reader Kit for WA370/470,

WA380/480

Includes a 2D Bar Code Reader.

20-2389-1 Bar Code Reader

Storage Tray for WA330/430,

WA340/440

Provides a storage tray for a bar

code reader cradle and an alternative

mounting for the bar code reader itself.

(Bar Code Reader not included)

Console Accessories & System Upgrades

Wheel Adaptor Storage Cart

20-2538-1 Bar Code

Reader Kit for WA330/430,

WA340/440

Includes a 2D Bar Code Reader

and shelf.

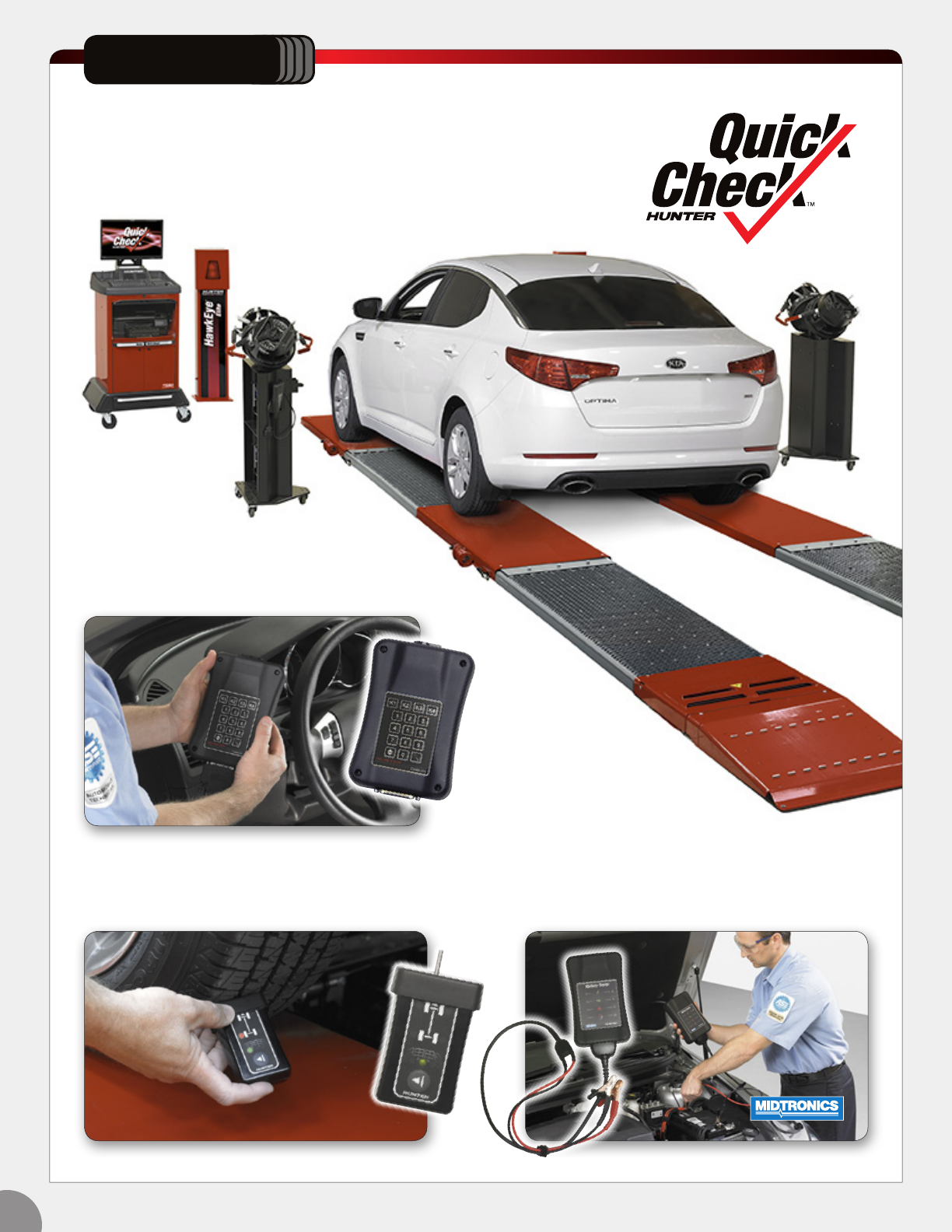

The inspection process that locates

repair orders in under three minutes

Quick Check™

20-2782-1 Tire Tread Depth*

Quick and easy tire wear check. Conditions transmitted

to console automatically.

20-2781-3 Battery Health*

Tests battery to OEM specs. Sends results to console

wirelessly in 10 seconds.

20-2813-1 CodeLink*

Retrieves emission codes. Wirelessly transfers

important vehicle information to console.

*Requires WinAlign® 14.1 software in Quick Check™ mode.

20-2004-1 WinAlign Tuner Kit

WinAlign Tuner software, hardware and procedures enable

your shop to align modified vehicles and increase your

shop’s profitability.

WinAlign Tuner software is an optional feature of WinAlign®

software. Additional hardware is required, see Form 5118-T

for more information.

WinAlign Tuner is standard with WA400, WA200 and 811 Plus consoles.

WinAlign Tuner™ features include:

Enhanced Tools and Kits

Integrated Bump Steer Measurement System

Electronic Vehicle Ride Height Measurement

20-2011-1 Bump Steer Winch Kit

Bump steer winch and laser scale enables the

technician to collect bump steer measurements.

Requires WinAlign software version 8.1 or higher.

20-2005-1 WinAlign Plus Kit

Provides PHOTO/VIDEO on DVD and WinAlign

Tuner for new or existing WA300, WA100 and

811 consoles with WinAlign 8.1 or higher.

These features are standard on WA400 and WA200 consoles.

Enhance your point-of-sale performance

20-2195-1 Wireless Network Kit

Connects WA100 or 811 consoles to a shop’s existing

802.11 a/b/g wireless network.

Standard on WA400 and WA200 consoles.

Hunter Networking Accessories

HunterNet™ and WinAlign Tuner™

HunterNet™ (HunterNetwork.com) provides front-shop

personnel with quick, convenient access to a vast

collection of vehicle-specific undercar information

to help explain and sell service.

4 Eliminate confusing technical conversations with

easy-to-understand videos, animations and images

4 Help your customers make informed decisions

4 Drive repair authorizations to a new level

4 Supplement other counter merchandising tools

4 Make more informed pricing estimates

4 Simplify training of service writers

For ordering information, contact your local

Hunter Service Representative.

Complimentary HunterNet 3-year subscription included

with HawkEye Elite and HawkEye alignment systems.

Complimentary HunterNet 1-year subscription included

with current-year WinAlign specification updates.

Subscription valid for single-user only. Additional

subscriptions required for multiple, simultaneous access.

For detailed information on models, cabinets and

accessories, contact your Hunter representative.

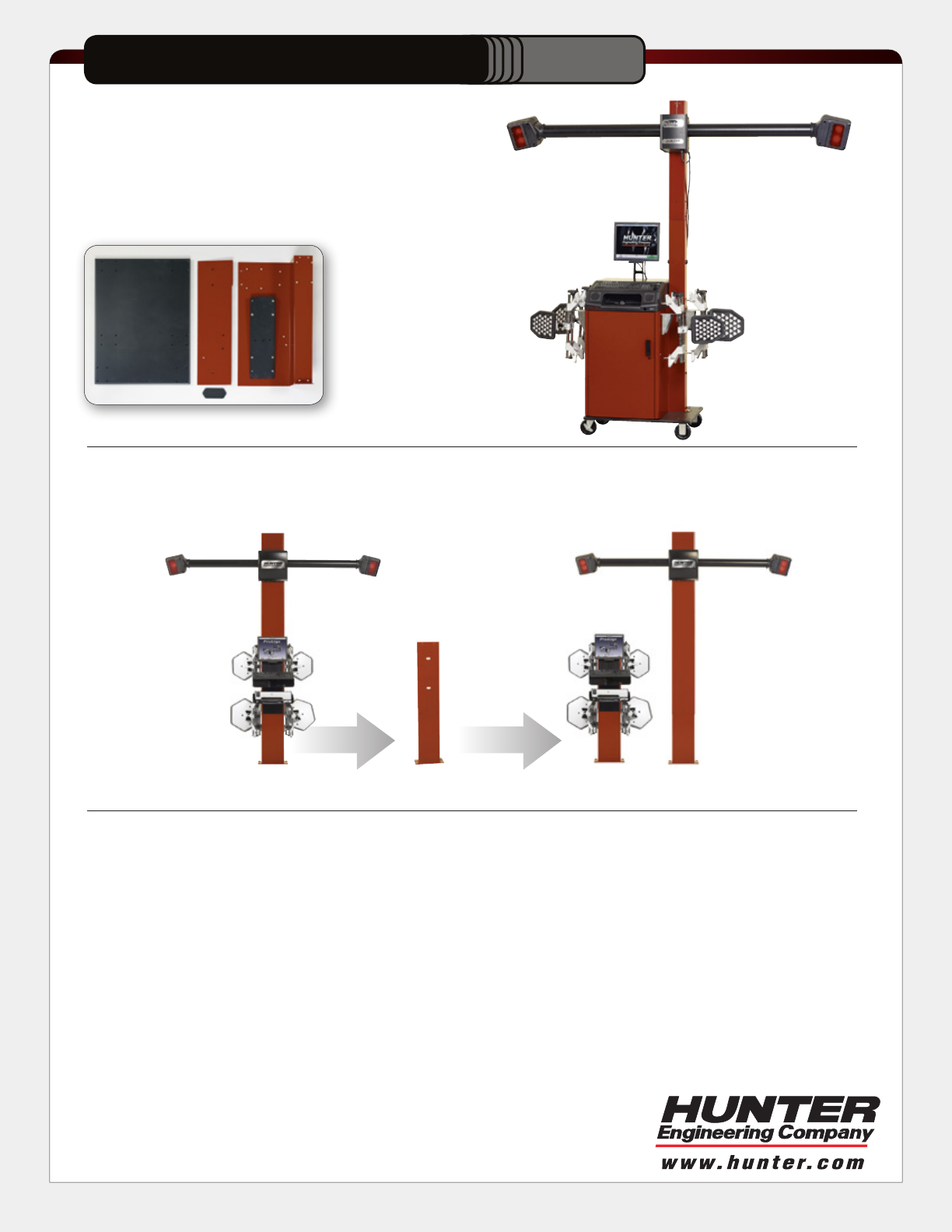

20-2321-1 HS401CM to Stand-Alone Mount Conversion Kit (Black)

20-2320-1 HS401CM to Stand-Alone Mount Conversion Kit (Red)

Two Stand-Alone Mount (SAM) conversion kits are available to convert

a HS401CM with a movable camera boom from cabinet-mount to a floor

stand-alone mount.

Form 5414-T, 06/15

Supersedes 5414-T, 02/14

0615NAP2M.1.36

20-2313-1 Alternative Mounting Base for Pronto and PA121

Floor-mounted base holds a Pronto or PA121 console and wheel adaptors with targets.

20-2313-1

Hunter, ShopResults.NET, WebSpecs, HawkEye, QuickGrip, WinAlign

and WinAlign Tuner are trademarks of Hunter Engineering Company.

20-2479-1 CM Sensor Mounting Kit for

Compact Cabinets

Replaces the existing cabinet base with a wider,

more stable base for the HawkEye HS401CM

sensors. This kit supports WA233, WA234,

WA131, WA132, and S811 cabinets.

Alternative Mounting Options HS401 Sensors

Hunter Engineering 5414 T Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
