NITETIME PRONITETIME PRO
NITETIME PRO
Owner’s Guide and
Installation Manual
Wireless Timer
Model
45043
©2008 Hunter Fan Company
2
43073-01 20080827 3
Table of ConTenTs
Description................................................................4
Features ...................................................................6
Features ...................................................................6
Limitations / Warnings ..............................................7
Program the NITETIME Pro™ ................................9
Setup the NITETIME Pro™ ..................................12
KeyChain Operation ...............................................18
Battery Replacement ..............................................20
Troubleshooting ......................................................22
Technical Support ...................................................24
The Hunter Product Family.....................................25
©2008 Hunter Fan Company
4
DesCripTion
The NiteTime Pro™ combines the convenience of photocell
controlled time operation and remote control on/off
functions. The NiteTime Pro™ plugs into a wall outlet and
connects to a standard household lamp or small appliance.
Eight pre-programmed settings allow for instant, one-time
setup. Programs include basic On and Off timed settings
triggered by lighting conditions, as well as randomly-timed
modes for creating a lived-in appearance while you are
away from home.
A built-in photocell automatically adjusts the timer to
Daylight Savings Time changes so no resetting is required
– even after power outages. The convenient Keychain
Remote allows temporary override of programming for use
of a lamp or small appliance.
43073-01 20080827 5

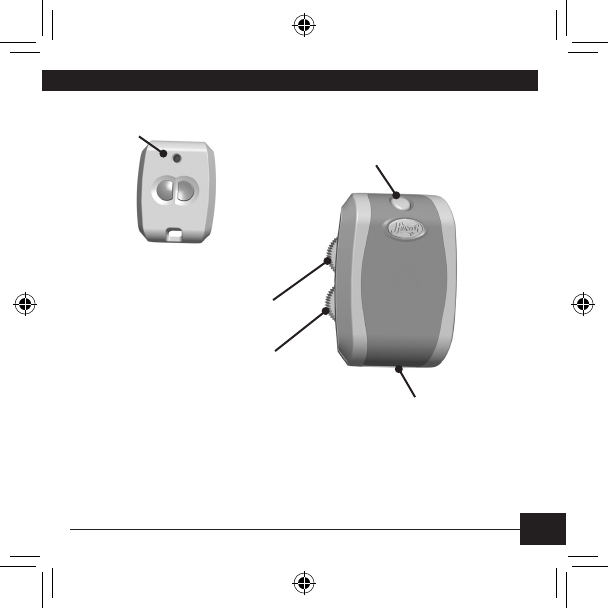

Figure 1: NiteTime Pro™ Components
Photocell
Program
Dial
A/C
Plug
House Code
Dial
Remote
©2008 Hunter Fan Company
6
feaTures
• Eightpre-programmedOn-Offtimesegmentsallowfor
instant, one-time setup.
• Built-inphotocellsensesambientroomlightand
automatically triggers On-Off time segments.
• Built-inphotocellautomaticallyadjuststimerforDaylight
Savings Time changes.
• Timerrequiresnoresetting–evenafterpoweroutages.
• Timercanbeusedwithincandescent(standardbulb),
compactfluorescent(CFL),orhalogen-basedbulb
lamps.
• Timercanbeusedwithsmallappliancesunder500
watts or four Amps such as a radio or television.
• RFsignalwithupto60FT.openairrange(Range may
vary between installations.Refer to Limitations/Warnings
for more information.)
• 3YearWarranty
feaTures
43073-01 20080827 7
limiTaTions / Warnings
• Forindooruseonly
• Notrecommendedfordevicesover500wattsorfour
Amps
• Whenusedonadevicecontrolledbyawallswitch,the
wall switch must remain on at all times for the NiteTime
Pro™ to function properly.
• PowermustremainontothedeviceusingtheNiteTime
Pro.
• ObstructionsbetweenRemoteandReceivermodule
including walls and doors will reduce signal range.
• Toreducetheriskofelectricalshock,thisequipment
hasapolarizedplug(onebladeiswiderthentheother).
This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact qualified personnel to install the
porper outlet. Do not alter the plug in anyway.
• Notforusewithgrounded3prongeddevices.
©2008 Hunter Fan Company
8
limiTaTions / Warnings
• This device complies with Part 15 of the FCC Rules.
Operationissubjecttothefollowingtwoconditions:(1)
this device may not cause harmful interference, and
(2)thisdevicemustacceptanyinterferencereceived,
including interference that may cause undesired
operation.
43073-01 20080827 9
Choose the Timer Setting
Before plugging the timer into a wall outlet, choose the
desired time program using the Program dial. These
instructions apply to both lamps and small electronics.
Once set, the program never needs resetting for Daylight
Savings Time or power outages.
If a timed program is not needed, set the Program dial to 1,
PowerOn.Torevertbacktoatimedprogram,changethe
Program dial to one of the settings on page 10.
program The niTeTime pro™
©2008 Hunter Fan Company
10
1 - Power On.
2–Dusk+2hrturnspowerOnatdusk,turnspoweroff2
hours later.
3–Dusk+4hrturnspowerOnatdusk,turnspoweroff4
hours later.
4–Dusk+6hrturnspowerOnatdusk,turnspoweroff6
hours later.
5–Dusk+8hrturnspowerOnatdusk,turnspoweroff8
hours later.
6–Dusk+2hrRandomlypowersOn/offfor30minutes
withineachhourafterduskfor2hours.
7–Dusk+4hrRandomlypowersOn/offfor30minutes
withineachhourafterduskfor4hours.
8–Dusk+6hrRandomlypowersOn/offfor30minutes
withineachhourafterduskfor6hours.
program The niTeTime pro™
43073-01 20080827 11
Menu of Timer
Settings
1
2
8
2
3
1
Figure 2: NiteTime Pro™ Programs
©2008 Hunter Fan Company
12
seTup The niTeTime pro™
1.Slidethebatterycoveroffthebackoftheremote.
2. Pull out the battery from the battery compartment.
3.Removetheprotectivefilmfrombetweenthebatteryand
battery compartment. (Refer to Figure 3)
43073-01 20080827 13

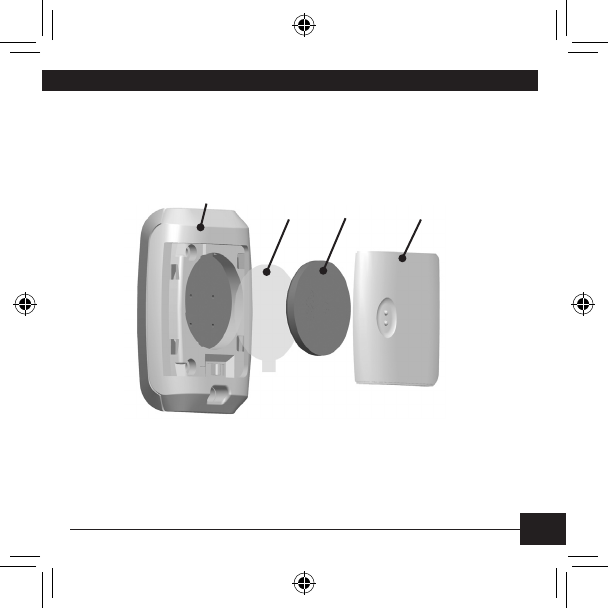

Re c e i v e R
PR o t e c t i v e
Fi l m Ba t t e R y
Ba t t e R y
co v e R
Ke y c h a i n
Re m o t e

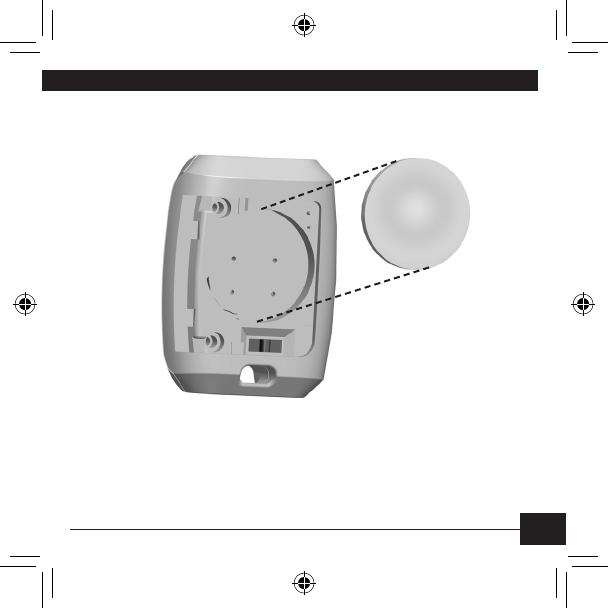

Figure3-KeychainComponents
©2008 Hunter Fan Company
14
seTup The niTeTime pro™
4. Check the house code on the remote, reinstall the
battery, and slide the battery cover back on.
5. Ensure that the house code switches on both the Remote
andReceivermatch.(refertoFigure4)
6. Turn power off to your lamp or appliance and unplug it
from your wall outlet.
43073-01 20080827 15

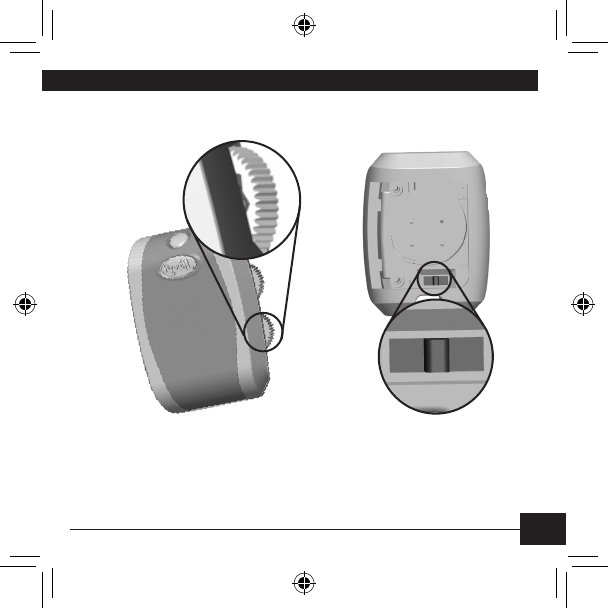

Figure 4 - House Code
123
1
2
3
©2008 Hunter Fan Company
16
7. Plug your lamp or applaince into the NiteTime Pro™
Receiver.(refertoFigure5)
8. Plug your NiteTime Pro™ Receiver into the wall outlet.
9.Turnpowerbackontoyourlamp.
seTup The niTeTime pro™
43073-01 20080827 17
Lamp or
Appliance Cord
Wall
outlet
NiteTime
Pro

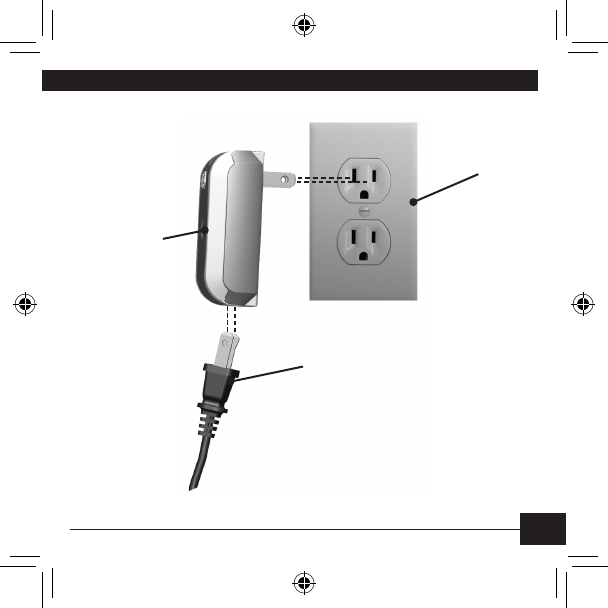

Figure 5 - Installation
©2008 Hunter Fan Company
18
KEYCHAIN OPERATION
The Keychain Remote included with the NiteTime Pro™
lets you control the attached lamp or appliance with the
remote.
Press the resessed button once to power the lamp or
appliance on and the raised button once to power the
lamporapplianceoff.(refertoFigure6)
The NiteTime Pro™ will automatically revert to it's
programming during the next time program sequence.
43073-01 20080827 19
LED
ON
OFF
Figure 6 - Remote Operation
©2008 Hunter Fan Company
20
Battery Replacement
1. To replace the battery in the NiteTime ProTM Remote,
removethebatterycoverandtakeoutthebattery.
(refertoFigure7)
2. Place the new battery, positive side up, inside the
Remoteandslidethebatterycoverbackon.
NOTE:OnlyreplacewithMAXELLCR2032,3Vbattery
or equivalent.
43073-01 20080827 21
CR2032
3V
+
Figure 7 - Battery Replacement
©2008 Hunter Fan Company
22
TroubleshooTing
1. My NiteTimer ProTM turns itself on / off.
 YourproductmaybeexperiencingRFinterference.
Refer to "Operation" to learn how to change the house
code settings.
2. I can't operate the NiteTimer ProTM Remote.
Try changing the battery in the remote control. See
"Battery Replacement"
3.OneofmylampsdoesnotactivatewiththeNiteTimer
ProTM product.
Ensure the lamp you are trying to activate with the
NiteTimerTM isturnedon.Checkyourhousecode
setting to ensure they are set the same.
4. I receive erratic behavior from the NiteTimer Pro™
product.
It may be necessary to change the house code your
product is set to.
43073-01 20080827 23
1. Slide the battery cover from your Remote Control
and remove the battery.
2. Change the House code Switch to another house
codenumber.(Figure4)
3.ReplacethebatteryandslidetheBatteryCover
backontheRemote.
4. Turn off your lamp and unplug from the NiteTimer
Pro™ Receiver.
5. Unplug the Receiver and change the dial to the
same number you set your Remote Control too.
(Figure3)
6. Plug your lamp into the NiteTimer Pro receiver and
the NiteTimer Pro receiver into the wall outlet.
©2008 Hunter Fan Company
24
TeChniCal supporT
If you have any additional questions or problems with your
Hunter Air Purifier, please call:
USA:1-888-830-1326
Canada: 1-866-268-1936
Hours of operation are from 7:00 am to 7:00 pm Monday -
Friday and 8:00 am to 5:00 pm on Saturday, Central Time.
YoumayalsocontactusovertheInternetat:
WWW.HUNTERFAN.COM
43073-01 20080827 25
The hunTer proDuCT family
Thermostats
Bath Fans
Ceiling Fans
Air Purifiers
Humidifiers
