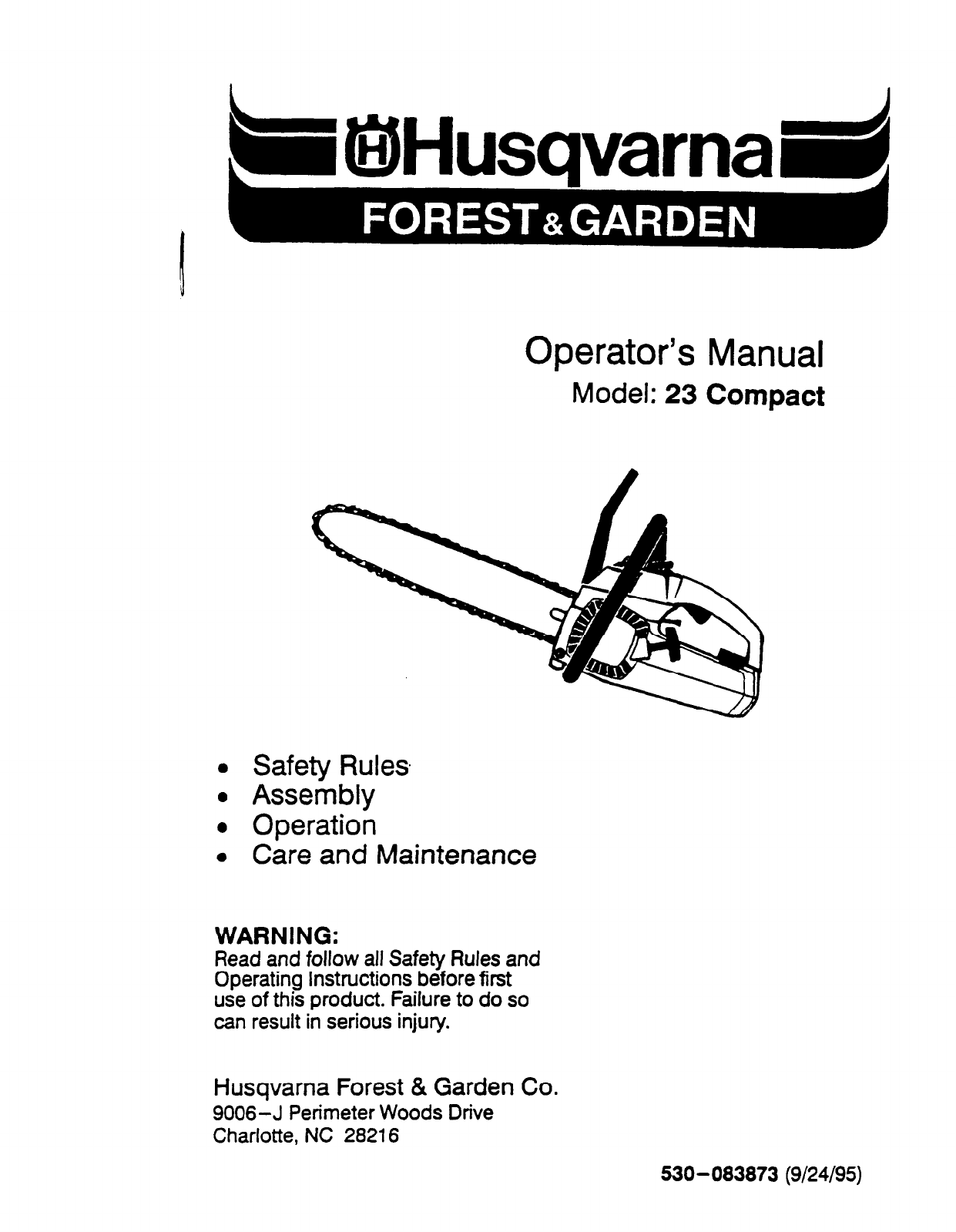

Operator’s Manual

Model: 23 Compact

l Safety Rules

l Assembly

0 Operation

l Care and Maintenance

WARNING:

Read and follow all Safety Rules and

Operating Instructions before first

use of this product. Failure to do so

can result in serious injury.

Husqvarna Forest & Garden Co.

9006-J Perimeter Woods Drive

Charlotte, NC 28216

530-083873 (9/24/95)

Lookforthis symbol A

to point out impor-

tant safety precautions. It means: Attention!

Become alert! Your safety is invofved.

A WARNING: Always disconnect spark

1 lug wire when making repairs except car-

uretor adjustments.

Because a chain saw is a high-speed wood-

cuttingtool, specialsafetyprecautionsmust

be observed to reduce risk of accidents.

Careless or improper use of this tool can

cause serious injury.

PLAN AHEAD

l Restrict the use of your saw to adult us-

ers who understand and can follow

safety rules, precautions, and operat-

ing instructrons found in this manual.

Hearing Safety Hat

Protection / Eye

k4 -4 Protection

Wear protective gear. Always use steel-

toed safety footwear with non-slip

soles; snug-fitting clothing; heavy-duty,

non-slip gloves; eye

CP

rotection such as

non-fogging, vente go

screen; an approved sa ety hard hat;

B

gles or face

and sound barriers (ear plugs or

mufflers) to protect your hearing. Users

should have hearing checked regularfy

as chain saw noise can damage hear-

ing. Secure hair above shoulder length.

Keep all parts of your body away from

the chain when the engine is running.

Keep children, bystanders, and ani-

mals a minimum of 30 feet (10 Meters)

away from work area or when starting.

Do not handle or operate a chain saw

when you are fatigued, ill, or upset, or if

you have taken alcohol, drugs, or

medication. You must be in good physi-

cal condition and mentally alert. If you

have any condition that might be aggra-

vated by strenuous work, check wfth

our doctor.

Y;

o not start cutting until you have a

clear work area, secure footing, and, if

you are felling a retreat path.

OPERATE YOUR SAW SAFELY

l Do not operate with one hand as seri-

ous injury to the operator, helpers; by-

standers may resutt. A chain saw is in-

tended for two-handed use..

~o~;$~nly in a well-venMated out-

Do not operate from a ladder or in a

tree, unless you are specifically trained.

Make sure the chain will not make con-

tact with any object while starting the

engine. Never try to start the saw when

theguide barisinacut

Do not put pressure on the saw at the

end of the cut Applying pressure can

cause you to lose control when the cut

is completed.

Stop engine before setting saw down.

Do not operate a chain saw that is dam-

a

p etely and securely assembled. Ai.-

a

ed improperly adjusted, or not com-

ways replace handguard immediately rf

ft becomes damaged, broken or is

otherwise removed.

MAINTAIN YOUR SAW IN GOOD

WORKING ORDER

Have all chain saw service performed

by a qualified setice dealer with the ex-

ception of the items listed in the mainte-

nance section of this manual. For ex-

ample, if impro

t! et tools are used to

remove or hold e flywheel when sew-

icin

p !i the clutch, structural damage to

yw$girs occur and cause the

rx”t’

ake certain the-saw chain stops mov-

ingwhenthefhrottletri~ erisreleased.

For correction, refer to 8 arburetor Ad-

ustments.’

kee p the handles dry, clean, and free of

oil or fuel mixture.

With the engine stopped, hand carry

the chain saw with muffler away from

your body, and guide bar and chain to

the rear, and covered with a scabbard.

Keep caps and fasteners securefytight-

ened. .

Never modii your saw in any way. Use

only Husqvarna accessories and re-

placement parts as recommended.

HANDLE FUEL WITH CdJrJTlON

Do not smoke while handling fuel or

while operating the saw.

Efiminate all sources of sparks or flame

in areas where fuel is mixed or poured.

Mix and pour fuel in an outdoor area

and use an approved, marked fuel con-

tainer. Wipe up all fuel spills.

Move at least 10 feet (3 mete?) from

fueling site before starbng engne.

Turn the engine off and let saw cool in a

non-combustible area, not on dry

leaves, straw, paper, etc. Slowly re

move fuel cap and refuel unit.

Store the unit in a cool, dry well-venti-

lated space where fuel vapors cannot

reach sp&s or open flames from water

tte~t~se;;ectnc motors or switches, fur-

, *

2

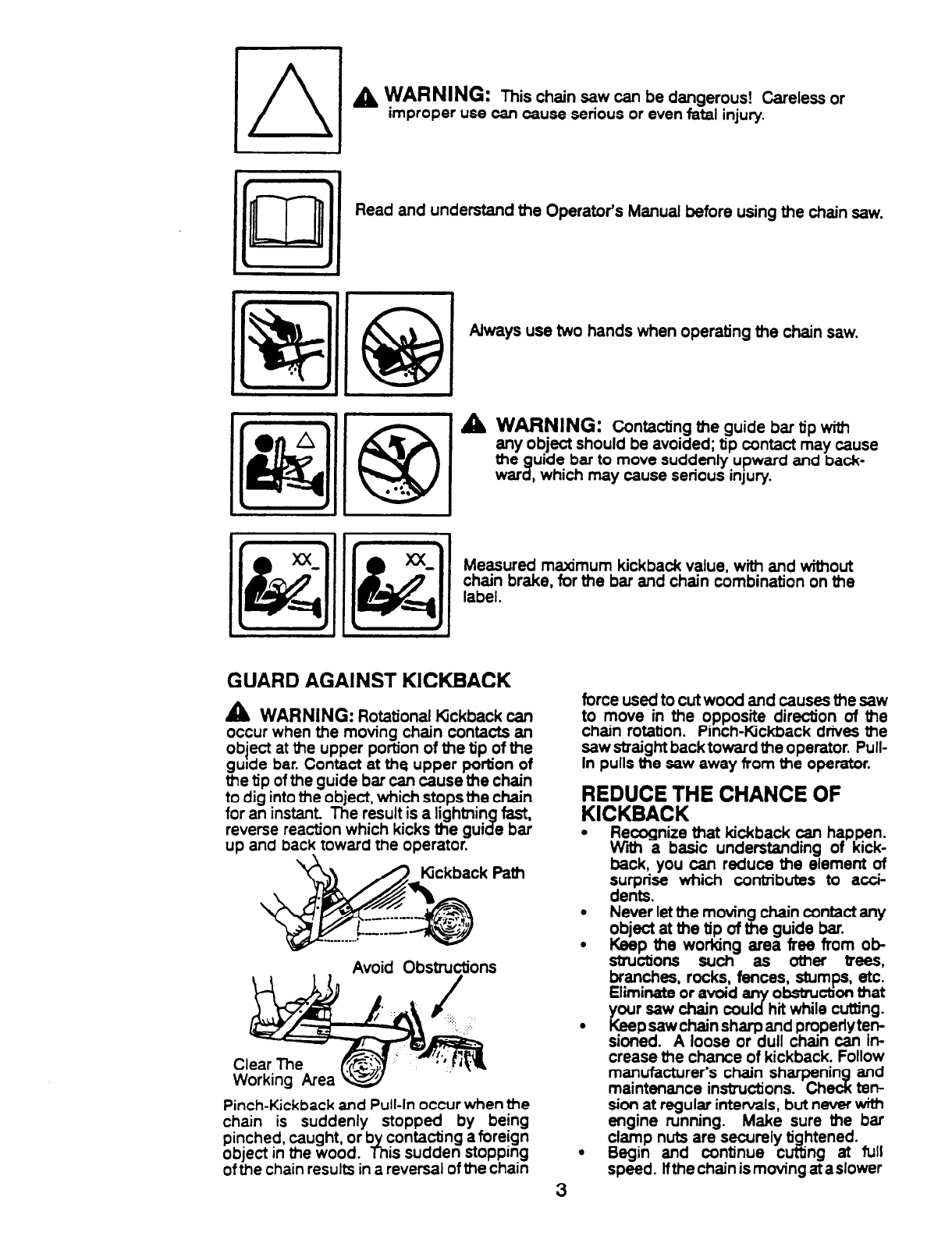

WARNING: m

IS c

h

ain saw can be dangerous! Careless or

improper use can cause serious or even fatal injury.

Read and understand the Operator’s Manual before using the chain saw.

rnBl

Always use two hands when operating the chain saw.

WARNING: Contacting the guide bar tip with

any object should be avoided; tip contact may cause

the

war 3 uide bar to move suddenly upward and back-

, which may cause serious injury.

I[~]~~[~]~

Measured maximum kickback value, with and without

chain brake, for the bar and chain combination on the

label.

GUARD AGAINST KICKBACK

A WARNING: Rotational Kickback can

occur when the moving chain contacts an

object at the upper portion of the tip of the

guide bar. Contact at the upper portion of

the tip of the guide bar can cause the chain

to dig into the object, which stops the chain

for an instant The result is a lightnin fast,

reverse reaction which kicks the gui 8 e bar

up and back toward the operator.

Avoid Obstructions

Pinch-Kickback and Pull-In occur when the

chain is suddenly stopped by being

pinched, caught, or b contacting a foreign

object in the wood. $;I is sudden stopping

of the chain results in a reversal of the chain

force used to cut wood and causes the saw

to move in the opposite direction of the

chain rotation. Pinch-Kickback drives the

saw straight back toward the operator. Pull-

In pulls the saw away from the operator.

REDUCE THE CHANCE OF

KICKBACK

.

3

Recognize that kickback can happen.

Wti a basic understanding of kick-

back,. you F reduce the element @

re~;se which contnbutes to acu-

Neve; let the moving chain contact any

object at the tip of the guide bar.

Keep the working area free from ob-

stnrctions such as other trees,

branches, rocks, fences, stumps, etc.

Eliminate or avoid 7 obstvucbon that

our saw chain wul

Lee hit while cutting.

p saw chain sharp and properiyten-

sioned. A loose or dull chain can in-

crease the chance of kickback. Follow

manufacturer’s chain sharpenin and

maintenance instructions. Ch & ten-

sion at regular intervals, but never with

engine running. Make sure the bar

clamp nuts are securely tightened.

Begin and continue cutting at full

speed. If the chain is moving at a slower

speed, there is greater chance of kick-

back occurring.

l Use extreme caution when reentering

a cut.

l Do not attempt cuts starting with the tip

of the bar (plunge cuts).

l Watch for shifting logs or other forces

that could close a cut and pinch or fall

into chain.

l Use the specified Reduced- Kickback

Guide Bar and Low-Kickback Chain.

Avoid Pinch-Kickback:

l Be extremely aware of situations or ob

structions that can cause material to

pinch the top of or otherwise stop the

chain.

l Do not cut more than one log at a time.

l Donottwistthesawasthebariswith-

drawn from an undercut when bucking.

Avoid Pull - In:

l Always begin cutting with the engine at

fuueed and the saw houstng agarnst

l Use wedges made of plastic or wood.

Never use metal to hold the cut open.

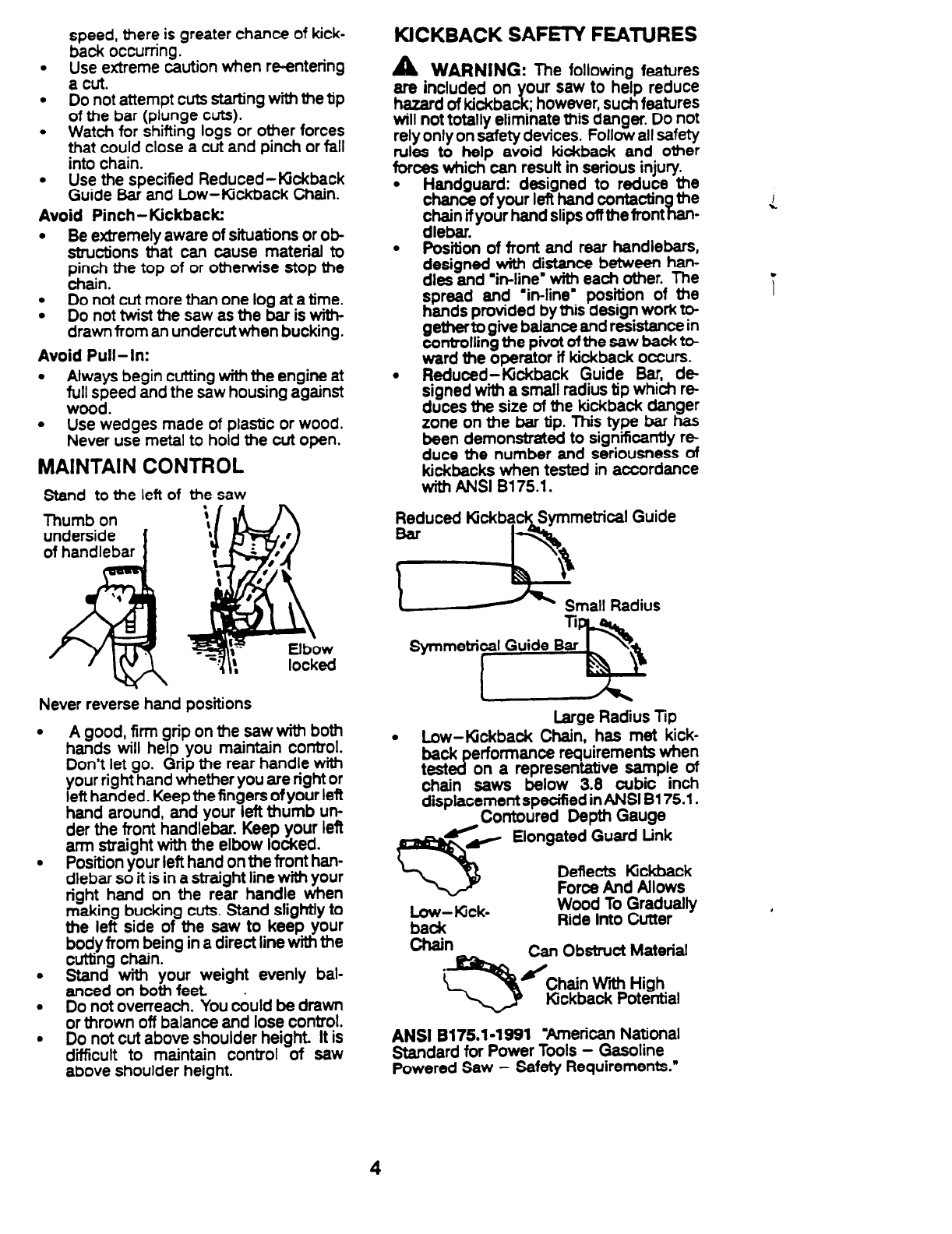

MAINTAIN CONTROL

Stand to the left of the saw

Never reverse hand positions

. A good, firm grip on the saw with both

hands will help you maintain control.

Don’t let go. Grip the rear handle with

your right hand whether you are right or

left handed. Keep the fingers of your left

hand around, and your left thumb un-

der the front handlebar. Keep your left

arm straight with the elbow locked.

l Position your left hand on the front han-

dlebar so it is in a straight line with your

right hand on the rear handle when

making bucking cuts. Stand slightly to

the left side of the saw to keep your

body from being in a direct line with the

cutting chain.

l Stand with your weight evenly bal-

anced on both feet

l Do not overreach. You could be drawn

or thrown off balance and lose control.

l Do not cut above shoulder height- It is

difficult to maintain control of saw

above shoulder height.

KJCKBACK SAFETY FEATURES

A WARNING: me following features

are included on our saw to help reduce

YI

hazard of kickbac .; however, such features

will not totally elimtnate this danger. Do not

rely only on safety devices. Follow all safety

rules to help avoid kickback and other

forces which can result in serious iniurv.

Handguard: designed to reduceVthe

chance of your left hand contactin the

tan

$uu your hand slips offthefront -

Posit& of front and rear handlebars,

designed with distance between han-

dles and %-line” with each other. The

spread and ‘in-line’ position of the

hands provided by this design work to-

getherto give balance and resistance in

controlling the pivot of the saw back to-

ward the operator if kickback occurs.

Reduced-Kickback Guide Bar, de-

signed with a small radius tip which re-

duces the size of tie kickback danger

zone on the bar tip. This type bar has

been demonstrated to significantly re

duce the number and seriousness of

kickbacks when tested in accordance

with ANSI B175.1.

Large Radius lip

l Low-Kickback Chain, has met kick-

back erformance requirements when

test J on a representative sample of

chain saws below 3.8 cubic inch

displacement specified in ANSI 8175.1.

Contoured Depth Gauge

Elongated Guard Link

DeRects Kickback

Force And Allows

Wood To Gradually

Ride Into Cutter

Chain Can Obstruct Material

Wti High

Kickback Potential

ANSI 8175.1-l 991 ‘American National

Standard for Power Tools - Gasoline

Powered Saw - Safety Requirements.”

4

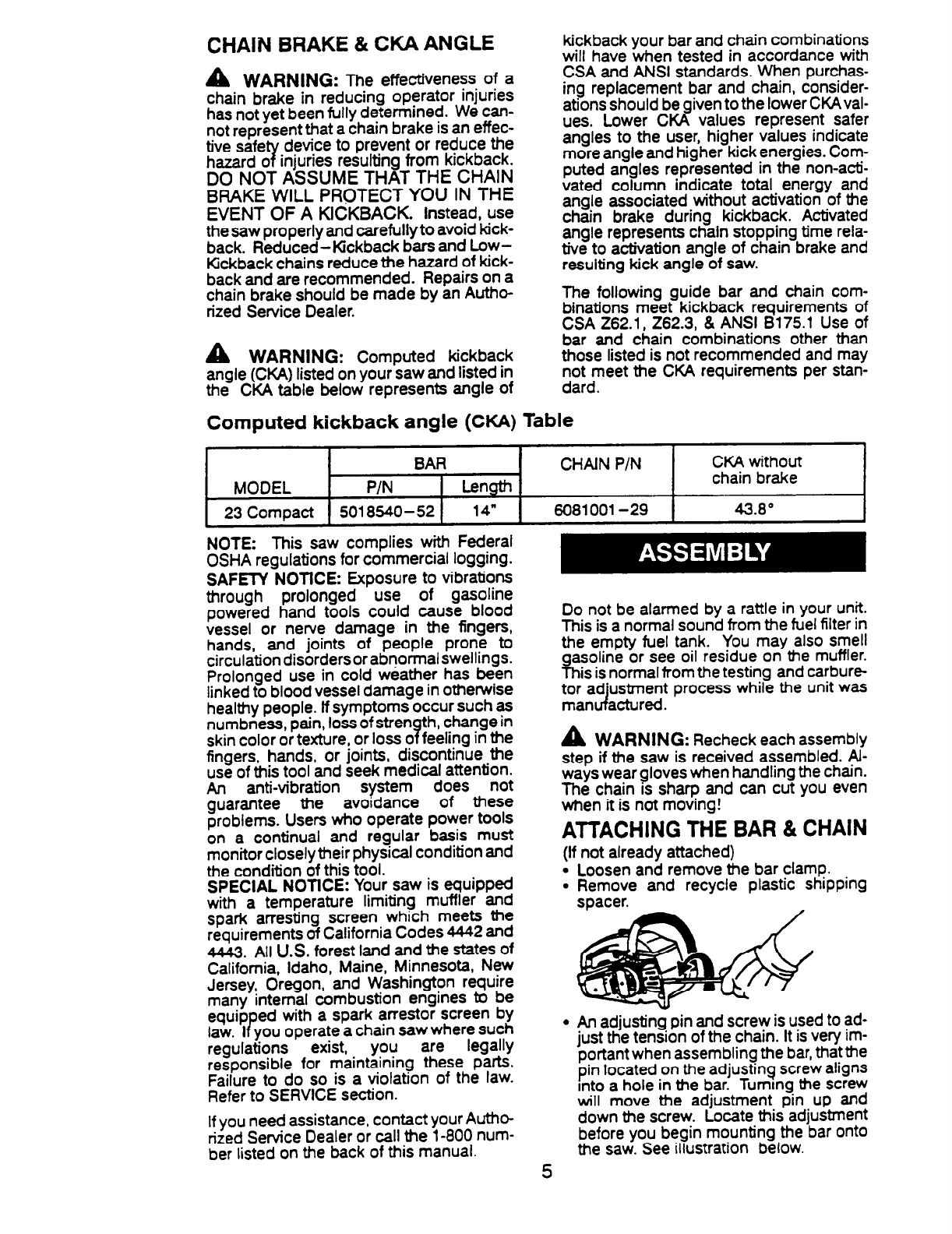

CHAIN BRAKE & CKA ANGLE

A WARNING: me effectiveness of a

chain brake in reducing operator injuries

has not yet been fully determined. We can-

not represent that a chain brake is an effec-

tive safe device to prevent or reduce the

hazard o injuries resulting from kickback.

‘y

DO NOT ASSUME THAT THE CHAIN

BRAKE WILL PROTECT YOU IN THE

EVENT OF A KICKBACK. instead, use

the saw properly and carefully to avoid kick-

back. Reduced-Kickback bars and Low-

Kickback chains reduce the hazard of kick-

back and are recommended. Repairs on a

chain brake should be made by an Autho-

rized Service Dealer.

A WARNING: Computed kickback

angle (CKA) listed on your saw and listed in

the CKA table below represents angle of

kickback your bar and chain combinations

will have when tested in accordance with

CSA and ANSI standards. When purchas-

ing replacement bar and chain, consider-

ations should be given to the lower CKAval-

ues. Lower CKA values represent safer

angles to the user, higher values indicate

more angle and higher kick energies. Com-

puted angles represented in the non-acti-

vated column indicate total energy and

angle associated without activation of the

chain brake during kickback. Activated

angle represents chain stopping time reia-

tive to activation angle of chain brake and

resulting kick angle of saw.

The following guide bar and chain com-

binations meet kickback requirements of

CSA 262.1, 262.3, & ANSI 8175.1 Use of

bar and chain combinations other than

those listed is not recommended and may

not meet the CKA requirements per stan-

dard.

Computed kickback angle (CKA) Table

BAR CHAlN P/N CKA without

MODEL P/N Length chain brake

23 Compact 5018640-52 14" 6081001-29 43.8”

NOTE: This saw complies with Federal

OSHA regulations for commercial logging.

SAFEN NOTICE: Exposure to vibrations

through prolonged use of gasoline

powered hand tools could cause blood

vessel or nerve damage in the fingers,

hands, and joints of people prone to

circulation disorders or abnormal swellings.

Prolonged use in cold weather has been

linked to blood vessel damage in otherwise

healthy people. If symptoms occur such ?s

numbness, pain, loss of stren f th, change rn

skin color or texture, or loss o feeling in the

fingers, hands, or joints, discontrnue the

use of this tool and seek medical attention.

An anti-vibration system does not

guarantee the avoidance of these

problems. Users who operate power tools

on a continual and regular basis must

monitor closely their physical condition and

the condition of this tool.

SPECIAL NOTICE: Your saw is equipped

with a temperature limiting muffler and

spark arresting screen which meets the

requirements of California Codes 4442 and

4443. All U.S. forest land and the states of

California, Idaho, Maine, Minnesota, New

Jersey, Oregon, and Washington require

many internal combustion engines to be

equip P ed with a spark arrestor screen by

law. I you operate a chain saw where such

regulations exist, You are legally

responsible for maintaining these parts.

Failure to do so is a violation of the law.

Refer to SERVICE section.

If you need assistance, contact your Autho

rized Service Dealer or call the l-800 num-

ber listed on the back of this manual.

Do not be alarmed by a rattle in your unit.

This is a normal sound from the fuel filter in

the empty fuel tank. You may also smell

asoline or see oil residue on the muffler.

?h is is normal from the testing and carbure-

tor ad’ustment process while the unit was

man actured. J

A WARNING: Recheck each assembly

step if the saw is received assembled. Al-

ways wear gloves when handling the chain.

The chain is sharp and can cut you even

when it is not moving!

ATTACHING THE BAR & CHAIN

(If not already attached)

.

.

.

5

Loosen and remove the bar clamp.

Remove and recycle plastic shipping

spacer.

An adjusting pin and screw is used to ad-

just the tension of the chain. It is very im-

portant when assembling the bar, that the

pin located on the adjusting screw aligns

Into a hole in the bar. Tumtng the screw

will move the adjustment pin up and

down the screw. Locate this adjustment

before you begin mounting the bar onto

the saw. See illustration below.

Turn the adjusting screw to move adjust-

ing pin to the back. Further adjustment

may be necessary as you mount the bar.

Mount the bar as illustrated.

Slide the bar toward the back.

Use the illustration of the chain to deter-

mine the proper direction.

Place the chain onto the sprocket located

behind the clutch drum.

Start at the top of the bar and fit chain into

roove

B around the guide bar.

ull the bar foward until the chain is snug

in the groove of the bar.

Hold guide baragainstthe saw frame and

install the bar clamp. Make sure the ad-

jutin pin is aligned with the hole in the

bar. 8 emember this pin moves the bar

forward and backward to adjust chain

tension.

Replace the bar clamp nuts and tighten

finger tight Once the chain is tensioned

you will need to tighten bar clamp nuts.

Mount the Bar

Tp of Bar -

Proper chain direction

. If chain is too tight, turn ad&sting

Ll

screw l/4 turn countercloc ‘se.

l If chain is too loose, turn adjusting

sorew l/4 turn clookwise.

l UftupthetipofthebatandtigMenthebar

clamp nuts with the combination screw-

driver/wrench.

l Recheck chain tension.

A

3 :

Chain moves freely

Lifts only l/8 of an inch from bar.

Turn to decrease chain tension

r

Place chain onto the sprocket

CHAIN TENSION (Including unitswith

chain already installed)

NOTE When adjusting chain tension,

make sure the bar nuts are finger tight Only.

Attempting to tension the chain when the

bar nuts are tight will cause damage.

Checking the tension:

Move chain around the bar. If the chain does

not rotate, it is too tight. If too loose, the

chain will sag below the bar.

Adjusting the tension:

Chain tension is ve important. Chain

stretches durin

P use. XI is is especially true

during the first ew times you use your saw.

Always check chain tension each time you

use and refuel your saw.

You can adjust the chain tension by loosen-

ing the bar clamp nuts and turnjn.9 the ad-

jgeti;jrscrew l/4 of a turn while Irftrng up on

FUELING ENGINE

lhrh; EI in6 is *certified to operate. on

gasobne. Before operatron,

!!

asoiine must be mixed with a good qt.&$

-cycle aircoded engine oil.

recommendHusqvamabrandSO:l oil. If you

donotusethisoil,useagoodquality2cycle

air-cooled oil designed to be mixed ata.ratio

of32:l (A32:l ratroisobtainedbymuun 4

ounces of oil with each gallon of unlea c?

ed

gasoline). When mixing fuel follow the

instructions printed on the container. Alwa s

read and follow the safety rules oy

un er

uHandle Fuel with Caution’.

BAR AND CHAIN LUBRICATION

The bar and chain require oontinuws lubrf-

cation. Lubrication is provided by the auk+

matic oiler system when the oil tank is kept

filled. Lack of oil will quickly ruin the bar and

chain. Too little oil will cause overheating

shown by smoke coming from the chain

and/or discoloration of the bar.

_

In freezing weather oil will thicken, making it

necessary to thin bar and chain oil with a

small amount (Sto 1096) of #l Diesel Fuel or

kerosene. Bar and chain oil must be free

flowing.

Husqvama bar and chain oil is formulated to

protect your unit against excessive wear

6

from heat and friction, and resists high

temperature thinning.

l Never use waste oil.

l Stop the engine before removing caps.

Fill the oil tank each time the fuel

tank is filled

l Pull the starter rope quickly with your right

hand unbil the en f

then push the cho ine attempts to start,

e to the Off position.

l Pullthestarterropequicklywithyourright

hand until the engine starts.

l Allow the engine to run for approximately

five seconds. Then, release the throttle

trigger.

IGNITION SWITCH

-T

START (ON) - STOP (OFF)

A WARNING:Thechainmustnotmove

at idle speed. lf the chain moves refer to

CARBURETOR ADJUSTMENT Avoid contact

with the muffler. A hot muffler can cause se

rious burns.

To stop the engine move the switch to the

STOP or OFF position.

To start the engine hold the saw firmly as

shown below.

l Move switch to the START or ON pOSitiOn.

l Pushsawawaywithyournghthandwhile

pulling starter rope with your left hand.

(Never reverse hand positions)

Hold saw firmly while pulling starter rope.

Important points to remember

When pulling the starter rope, do not use

the full extent of the rope as this can

cause the rope to break. Do not let starter

rope snap back. Hold the handle and let

the rope rewind slowly.

For cold weather starting, start the unit at

full choke; allow the engine to warm up

before squeezing the throttle tn si

ger.

Do not cut matenal with the cho e/fast idle

lever at the FULL position.

For cold engine or warm engine after

running out of fuel.

l Position choke to the FULL position.

l Squeeze and hold the throttle trigger.

CHOKE

For a warm engine:

l Position choke to the OFF position.

l Pull the starter rope quickly with your right

hand until the engine starts.

l Squwzeandreleasethethroffletriggerto

allowing engine to idle.

Difficult starting or flooded engine:

The engine may be flooded with too much

fuel if it has not started after 10 pulls.

Flooded engines can be cleared of excess

fuel by followin the warm engine stanfng

procedure list

e%

above. Insure the ignition

switch is in the ON or START position.

Starting could require pulling the starter

rope handle many times depending on how

badly the unit is flooded. tf engine fails to

start refer to the troubleshooting chart

CHAIN BRAKE

This saw is equipped with a chain brake

designed to stop the chain if kickback oc-

%?chain brake is activated if the front

hand uard is pushed forward, either

manu 9 ly or by centrifugal force.

Ifthe brake is alrea

gaged by pulling % activated, it is disen-

e front hand uard

back toward the front handle as i&f as

possible.

When cutting with the saw, the chain

brake must be disengaged.

Braking function control

Chain brake must be checked before each

use. Engage the chain brake with the saw at

idle. Accelerate to full throttle momentarily. ff

chain moves have chain brake repaired by

Authorized Service Dealer before use.

Disengaged %

m

IMPORTANT POINTS

.

.

.

.

.

l

.

l

.

.

.

Cut wood only. Do not cut metal, plastics,

masonry, non-wood building materials,

etc.

Stop the saw if the chain strikes a foreign

object. inspect the saw and repair parts

as necessary.

Keep the chain out of dirt and sand. Even

a small amount of dirt will quickly duff a

chain and increase the possrbility of kick-

back.

Practice cutting a few small logs using the

foflowina techniques to get the %el” of

using ygur saw bkfore yti begin a major

sawing operation.

Squeeze the throttle trigger and allow.the

engine to reach full speed before cutb.ng.

Begin cutting with the saw frame agarnst

the log.

Keep the engine at full speed the entire

time you are cutting.

Allow the chain to cut for you. Exert only

light downward pressure.

Release the throttle trigger as soon as the

cut is completed, allowrng the engine to

idle. If you run the saw at full throttle with-

out a cutting load, unnecessary wear can

occur.

To avoid losing control when cut is com-

p$t!t do not put pressure on saw at end

Stop ihe engine before setting fhe saw

down.

TREE FELLING TECHNIQUES

A WARNING: Donotcutnaarbuildings

or electrical wires if you do not know the di-

rection of tree fall, at night since you will not

be able to see well, or during bad weather

such as rain, snow, or strong winds. as fall is

unpredictable.

Carefully plan your sawing operation in ad-

vance. You need a clear area all around the

tree so you can have secure footin .

ft Check

for broken or dead branches whit can fall

on you causing serious injury.

Natural conditions that can cause a tree to

fall in a particular direction include:

.

. The wind direction and speed.

The lean of the tree. The lean of a tree

might not be apparent due to uneven or

sloping terrain. Use a plumb or level to

determine the direction of tree lean.

l Weight and branches on one side.

l Surrounding trees and obstacles.

Lookfordecayand rot. !f the trunk is

rotted, it can snap and fall toward the

Operator

Make sure there is enough room for the tree

to fall. Maintain a distance of 2-l/2 tree

lengthsfromthe nearest person or other ol,

&&&Engine norse can drown out a wam-

Remove dirt, stones, loose bark, nails, sta-

ples, and wire from the tree where cuts are

to be made.

\

*%

Plan a clear retreat path

%

\

Li-

0

-d- Direction of Fall

&++

e

FELLING LARdE TREES

(6 inches in diameter or larger)

The notoh method is used to fell large trees.

Anotohiscutonthesideofthetreeinthe

desired direction of fall. After a felling cut is

made on the opposite side of tree, the tree

will tend to fall into the notch.

NOTCH CUT AND FELLING THE TREE

Make notch cut by cutting the top of the

notch first Cut through t/a of the diameter

of the tree. Next complete the notch b

Y

cutting the bottom of the notch. See I -

lust&on. Once the notch is cut remove

the notch of wood from the tree.

After removing the cutout of wood, make

the felling cut on the opposite side of the

notch. This is done by making a cut about

two inches hi her than the center of the

notch. This wi I leave enough uncut wood

B

between the felling out and the notch to

form a hinge. This hin e will help-prevent

thetreefromfallingin ewrongdrrecbon.

8

Final out here. 2 inches

F&stout

NOlEr Before felling out is complete, use

wedges to open the cut when necessary to

6

Hinge holds tree on stump and helps

control fall

Closing 0

notch

control the direction of fall. Use wood or

plastic wedges, but never steel or iron, to

avoid kickback and chain damage.

l Be alert to signs that the tree is ready to

fall: cracking sounds, widening ofthefell-

ing cut, or movement in the upper

branches.

l Astreestartstofail,stopsaw, putitdown,

and get away quickly on your planned re-

treat path.

l Be extremely cautious with partially fallen

trees that may be P

oorly supported.

When a tree doesn’t all completely, set

the saw aside and pull down the tree with

a cable winch, block and tackle, ortractor.

To avoid injury, do not cut down a partially

fallen tree with your saw.

CUTTING A FALLEN TREE

(BUCKING)

Bucking is the term used for cutting a fall-

en tree to the desired log length.

A WARNING: Do not stand on the log

being cut. An potion can roll causin loss

of footing an J control. Do not stand 8 own-

hill of the log being cut.

Important points

Cut only one log at a time.

Cut shattered wood very carefully; sharp

pieces of wood could be flung toward op

erator.

Use a sawhorse to cut small logs. Never

allow another person to hold the lo while

#ii

cutting and never hold the log ’ your

leg or foot.

Do not cut in an area where logs, limbs,

and roots aretangled. Drag the logsinto a

clear area before cutting by pulling out ex-

posed and cleared logs first

TYPES OF CUTTING USED

FOR BUCKING

, A WARNING: If saw becomes pinched

or hung in a log, don’t try to force it out You

can lose control of the saw resulting in injury

and/or damage to the saw. Stop the saw,

drive a wedge of lastic or wood into the cut

until the saw can lz e removed easily. Restart

the saw and carefully reenterthecut. Do not

attempt to restart your saw when it is

pinched or hung in a log.

Turn saw OFF and use a plastic or

wooden wedge to force cut open.

Overcutting begins on the top side of the

log with the saw a ainstthe log. When over-

cutting use light ownward pressure.

8

Ovmcuttlng Undercutting

Undercutting involves cutting on the un-

derside of the log with top of saw againstthe

log. When undercuttin use light upward

pressure. Hold saw rmly and maintain

f?

control. The saw will tend to push back tr>-

ward you.

A WARNING: Never turn saw upside

down to undercut The saw cannot be con-

trolled in this position.

First cut on procure side of log

Second cut

-P

. .

First cut on pressure side of log

BUCKING WlTHOUT A

SUPPORT

l Cvercutthrough1/3ofthediameterofthe

log.

l Roll the log over and finish with a second

overcut

l Give special attention to logs under strain

to prevent the saw from pinching. Make

the first cut on the pressure side to relieve

the stress on the log.

BUCKING USING A LOG OR

SUPPORT STAND

l Remember

pressure si

J our first cut is always on the

e of the log.

l Your first cut should extend i/3 of the

diameter of the log.

l Finish wifh your second cut.

9

2nd cut collar from the trunk of the tree.

Using a support stand,

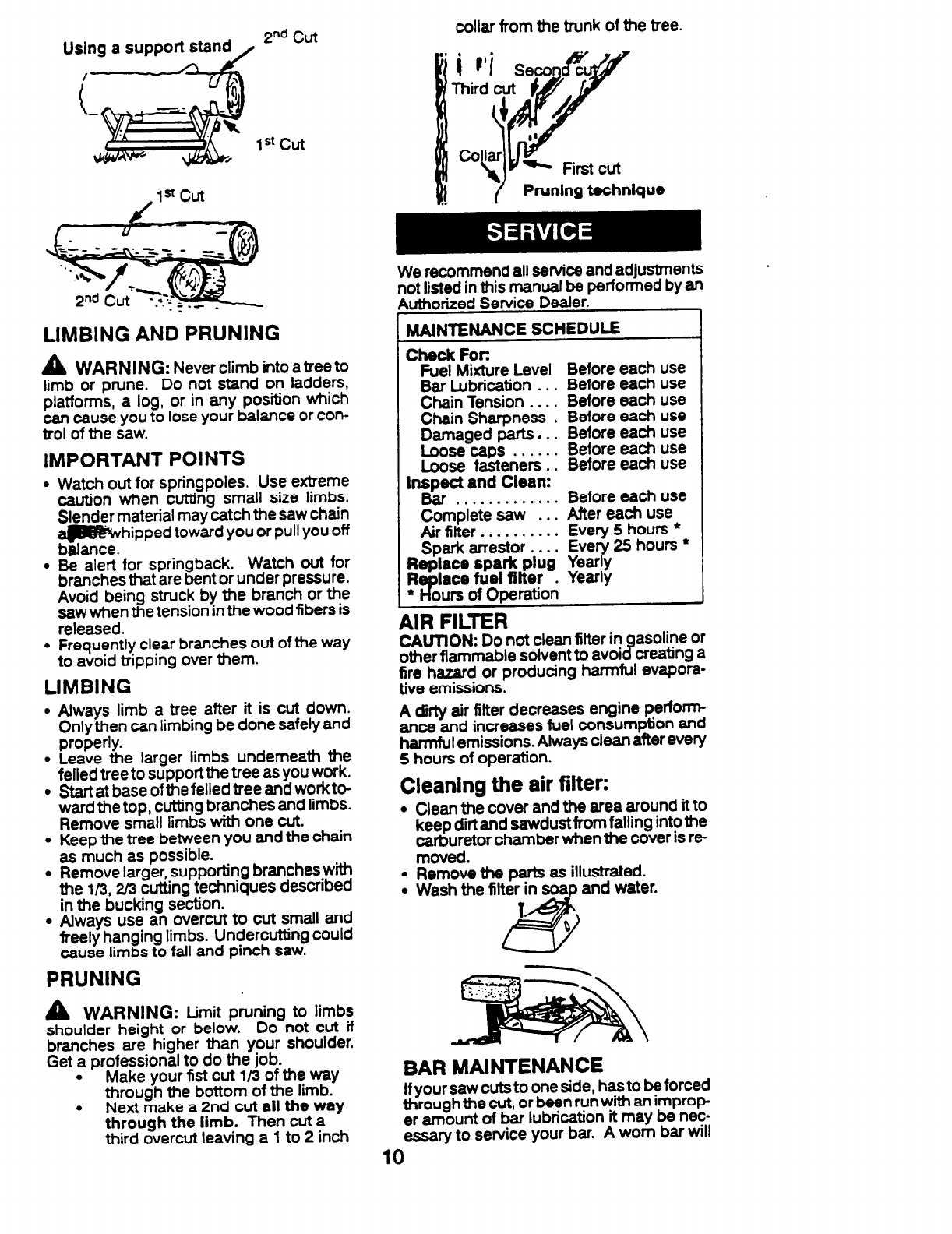

LIMBING AND PRUNING

A WARNING: Never climb into atree to

limb or prune. Do not stand on ladders,

platforms, a log, or in any position whrch

can cause you to lose your balance or con-

trol of the saw.

IMPORTANT POINTS

Watch out for springpoles. Use extreme

caution when cutting small size limbs.

Slender material may catch the saw chain

mhipped toward you or pull you off

balance.

Be alert for springback. Watch out for

branchesthatare bentor under pressure.

Avoid being struck by the branch or the

saw when the tension in the wood fibers is

released.

Frequently clear branches out of the way

to avoid tripping over them.

LIMBING

Always limb a tree after it is cut down.

Only then can iimbing be done safely and

properly.

Leave the larger limbs underneath the

felled tree to support the tree as you work.

Start at base of the felled tree and work to-

ward the top, cutting branches and limbs.

Remove small limbs with one cut.

Keep the tree between you and the chain

as much as possible.

Remove larger, supporting branches with

the l/3,2/3 cutting techniques described

in the bucking section.

Always use an overcut to cut small and

freely hanging limbs. Undercutting could

cause limbs to fall and pinch saw.

PRUNING

A WARNING: Limit pruning to limbs

shoulder height or below. Do not cut if

branches are higher than your shoulder.

Get a professional to do the job.

l Make your fist cut l/3 of the way

through the bottom of the limb.

. Next make a 2nd cut all the way

through the limb. Then cut a

third overcut leaving a 1 to 2 inch

Pruning technique

We recommend all service and adjustments

not listed in this manual be performed by an

Authorized Service Dealer.

MAINTENANCE SCHEDULE

Check For:

Fuel Mixture Level Before each use

Bar Lubrication . . . Before each use

Chain Tension . . . . Before each use

Chain Sharpness . Before each use

Es;g;$artsI. . Before each use

Before each use

Loose faster& : : Before each use

Ins&& and Clean:

. . . . . . . . . . . Before each use

Combjete saw . . . After each use

Air fitter.. . . . . . . . . Every 5 hours l

Spark arrestor . . . . Every 25 hours l

Replace spark plug Yearly

Re lace fuel filter . Yearly

l ours of Operation

tP

AIR FILTER

CAUTION: Do not clean filter in gasoline or

other flammable solvent to avoid creating a

fire hazard or producing harmful evapora-

tive emissions.

A dirty air filter decreases engine perfonn-

ante and increases fuel consumption and

harmful emissions. Always clean after every

5 hours of operation.

Cleaning the air filter:

Clean the cover and the area around it to

keep dirt and sawdust from falling into the

carburetor chamber when the cover IS re

moved.

Remove the parts as illustrated.

and water.

BAR MAINTENANCE

If your saw cuts to one side, has to be forced

through the cut, or been run with an rmprop

er amount of bar lubrication it may be nv-

essary to service your bar. A worn bar wrll

10

ia~s~u te your chain and make cutting

9

Replace your bar if bent or the inside rails of

the bar are worn.

l Clean the oil holes and bar groove after

each 5 hours of operation

l Remove sawdust from bar groove period-

ically with a wife or putty knife.

CARBURETOR ADJUSTMENTS

Carburetor adjustment is critical and if done

improperly can permanently damage your

unit We recommend

rized Service Dealer or ad’ustrnents.

Y

ou contact an Autho-

IDLE SPEED ADJUSTME &r

. . . Turn the Idle

Speed Screw clockwise until rt stops. Now

turn the screw counterclockwise 4-l/2

turns. This should allow the engine to n$

without the chain turning. If the chatn

moves at idle speed, do not use your unit.

Contact an Authorized Service Dealer. Idle

speed is correct.when engine runs without

$lrn

XT3 and charn does not turn.

RE ADJUSTMENTS: Your Carbure-

tor includes limiter caps (Plastic caps on the

mixture screws) , do not force the screws

beyond the stops of the limiter caps or dam-

age will occur. Do not remove these caps.

Small adjustments will affect your un.ft. Do

not adjust more than l/l 6th turn v&out

checking performance.

CHAIN SHARPENING

Chain sharpening is a complicated task that

requires special tools. We recommended

you refer chain sharpening to a professronal

chain sharpener. If you choose to perform

your own chain sharpening, call or+

toll-free helpline and order a free charn

sharpening guide. (See the back page of

this manual for the toll-free phone number.)

IGNITION TIMING

Ignition timing is fixed and nonadjustable.

MUFFLER/SPARK ARRESTOR

Remove and inspect the spark arrestor

screen, Clean with a wire brush. Replace

damaged or worn parts.

STORAGE

A WARNING: Stop engine and allow to

cool, and secure the unit before storin or

transporting in a vehicle. Store unit and R el

in an area where fuel vapors cannot reach

sparks or open flames from water heaters,

electric motors or switches, furnaces, etc.

Store unit with all uards in place. Position

sothatanysharpo jectcannotaccidentally zb

cause injury to passersby. Store the unit out

of reach of children.

l Clean the unit before storing. Pay particu-

lar attention to the air intake area, keeping

it free of debrfs. Use a mild detergent and

;geyte to clean the plastrc surfaces and

l Before storing, drain all fuel from the

unit Start engine and allow to run until it

stops.

CAUTION: tt is important to prevent gum

deposits from forming in essential fuel sys-

tem parts such as the carburetor, fuel filter,

fuel hose, or fuel tank during storage. Alto-

hol blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to fuel mixture separation and

formation of acids during storage. Acidic

was can damage the engrne.

Engine will not start.

l I nition switch off.

I& gine flooded.

: Fuel tank empty.

l Spark plug not firing.

l Fuel not reaching carburetor.

Engine will not idle properly.

l Carburetor requires adjustment

l Crankshaft seals worn.

Engine will not accelerate, lacks

power, or dies under a load.

l Air filter dirty.

l Spark plug fouled.

l Carburetor requires adjustment

Engine smokes excessively.

i Too much oil mixed with gasoline

SPARK PLUG

Replace the spark plug yearly. Use RCJ8Y

Plug. Gap = .025”

11

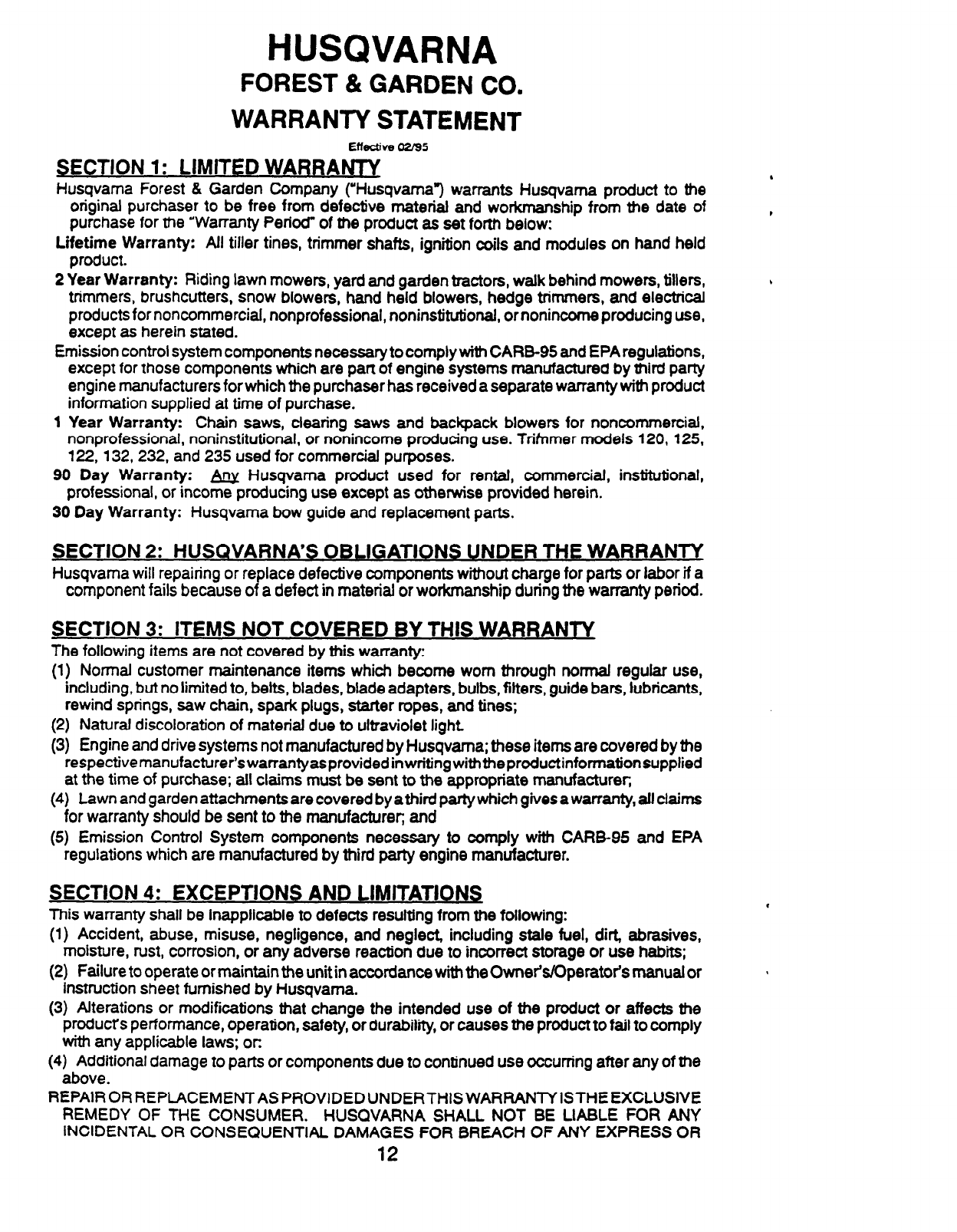

HUSQVARNA

FOREST & GARDEN CO.

WARRANTY STATEMENT

Effective 02iS5

SECTION 1: LIMITED WARRAW

Husqvama Forest 8 Garden Company (‘HusqvamaT warrants Husqvama product to the

original purchaser to be free from defective material and workmanship from the date of

purchase for the “Warranty Periti of the product as set forth below:

Lifetime Warranty: All tiller tines, trimmer shafts, ignition coils and modules on hand held

product.

2 Year Warranty: Riding lawn mowers, yard and garden tractors, walk behind mowers, tillers,

trimmers, brushcutters, snow blowers, hand held blowers, hedge trimmers, and electrical

products for noncommercial, nonprofessional, noninstitutional, ornonincome producing use,

except as herein stated.

Emission control system components necessary to comply wtth CARE95 and EPA regulations,

except for those components which are part of engine systems manufactured by third party

engine manufacturers for which the purchaser has received a separate warranty with product

information supplied at time of purchase.

1 Year Warranty: Chain saws, clearing saws and backpack blowers for noncommercial,

nonprofessional, noninstitutional, or nonincome producing use. Trimmer models 120,125,

122,132,232, and 235 used for commercial purposes.

90 Day Warranty: &y Husqvama product used for rental, commercial, institutional,

professional, or income producing use except as otherwise provided herein.

30 Day Warranty: Husqvama bow guide and replacement parts.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY

Husqvama will repairing or replace defective components without charge for parts or labor if a

component fails because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1) Nonal customer maintenance items which become worn through normal regular use,

including, but no limited to, belts, blades, blade adapters, bulbs, fitters, guide bars, lubricants,

rewind springs, saw chain, spark plugs, starter ropes, and tines;

(2) Natural discoloration of material due to ultraviolet light.

(3) Engine and drive systems not manufactured by Husqvama; these items are covered by the

respectivemanufacturer’swarrantyasprovidedinwritingwiththeproductinformationsupplied

at the time of purchase; all claims must be sent to the appropriate manufacturer,

(4) Lawn and garden attachmentsare covered by athird party which gives a warranty, all claims

for warranty should be sent to the manufacturer; and

(5) Emission Control System components necessary to comply with CARE95 and EPA

regulations which are manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1) Accident, abuse, misuse, negligence, and neglect, including stale fuel, dirt, abrasives,

moisture, rust, corrosion, or any adverse reaction due to incorrect storage or use habii;

(2) Failure to operate or maintain the unit in accordance with the Owner’sIOperator’s manual or

instruction sheet furnished by Husqvama.

(3) Alterations or modifications that change the intended use of the product or affects the

products performance, operation, safety, or durability, or causes the product to fail to comply

with any applicable laws; on

(4) Additional damage to parts or components due to continued use occurring after any of the

above.

REPAlRORREPLACEMENTASPROVlDEDUNDERTHlSWARRANNlSTHEEXCLUSlVE

REMEDY OF THE CONSUMER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY

INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR

12

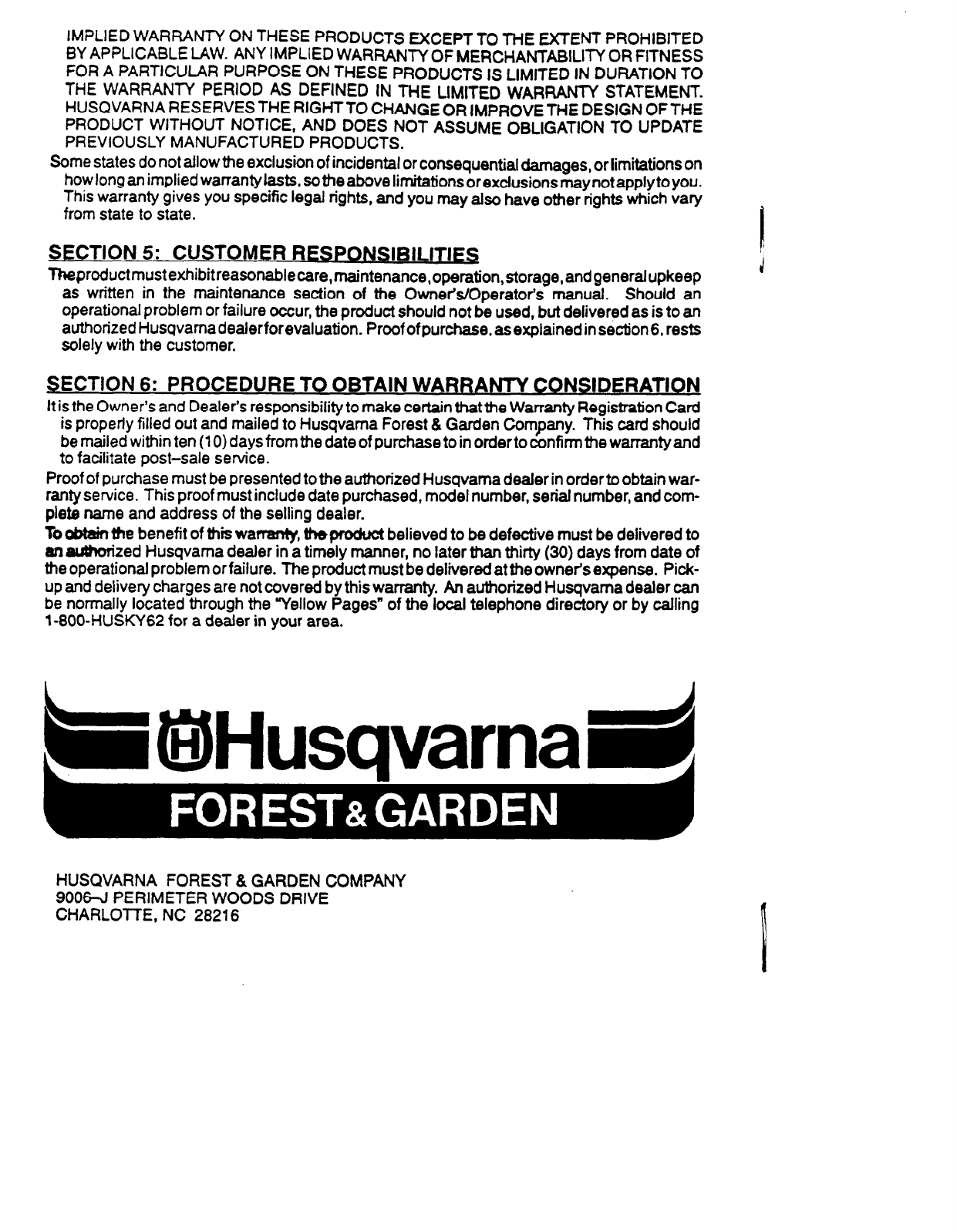

IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT TO THE EXTENT PROHIBITED

BY APPLICABLE LAW. ANY IMPLIED WARRANTYOF MERCHANTABlLi-fYOR FITNESS

FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT.

HUSQVARNA RESERVES THE RIGHTTO CHANGE OR IMPROVE THE DESIGN OFTHE

PRODUCT WITHOUT NOTICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE

PREVIOUSLY MANUFACTURED PRODUCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on

howlonganimpliedwanantylasts,sotheabovelimitationsorexdusionsmaynotapplytoyou.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

Theproductmustexhibitreasonablecare,maintenance,operation,storage,andgeneralupkeep

as written in the maintenance section of the Owner’s/Operator’s manual. Should an

operational problem or failure occur, the product should not be used, but delivered as is to an

authorized Husqvama dealerforevaluation. Proof ofpurchase, asexplained insetion6, rests

solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain thatthe Warranty Registration Card

is properly filled out and mailed to Husqvama Forest & Garden Company. This card should

be mailed within ten (IO) days from the date of purchase to in order to confirm the warranty and

to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvama dealer in order to obtain war-

rantyservice. This proof must include date purchased, model number, serial number, and com-

plete name and address of the selling dealer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to

ana&torized Husqvama dealer in a timely manner, no later than thirty (30) days from date of

the operational problem or failure. The product must be delivered at the owner’s expense. Pick-

up and delivery charges are not covered by this warranty. An authorized Husqvama dealer can

be normally located through the “Yellow Pages” of the local telephone directory or by calling

1-800-HUSKY62 for a dealer in your area.

HUSQVARNA FOREST & GARDEN COMPANY

9006-J PERIMETER WOODS DRIVE

CHARLOTTE, NC 28216

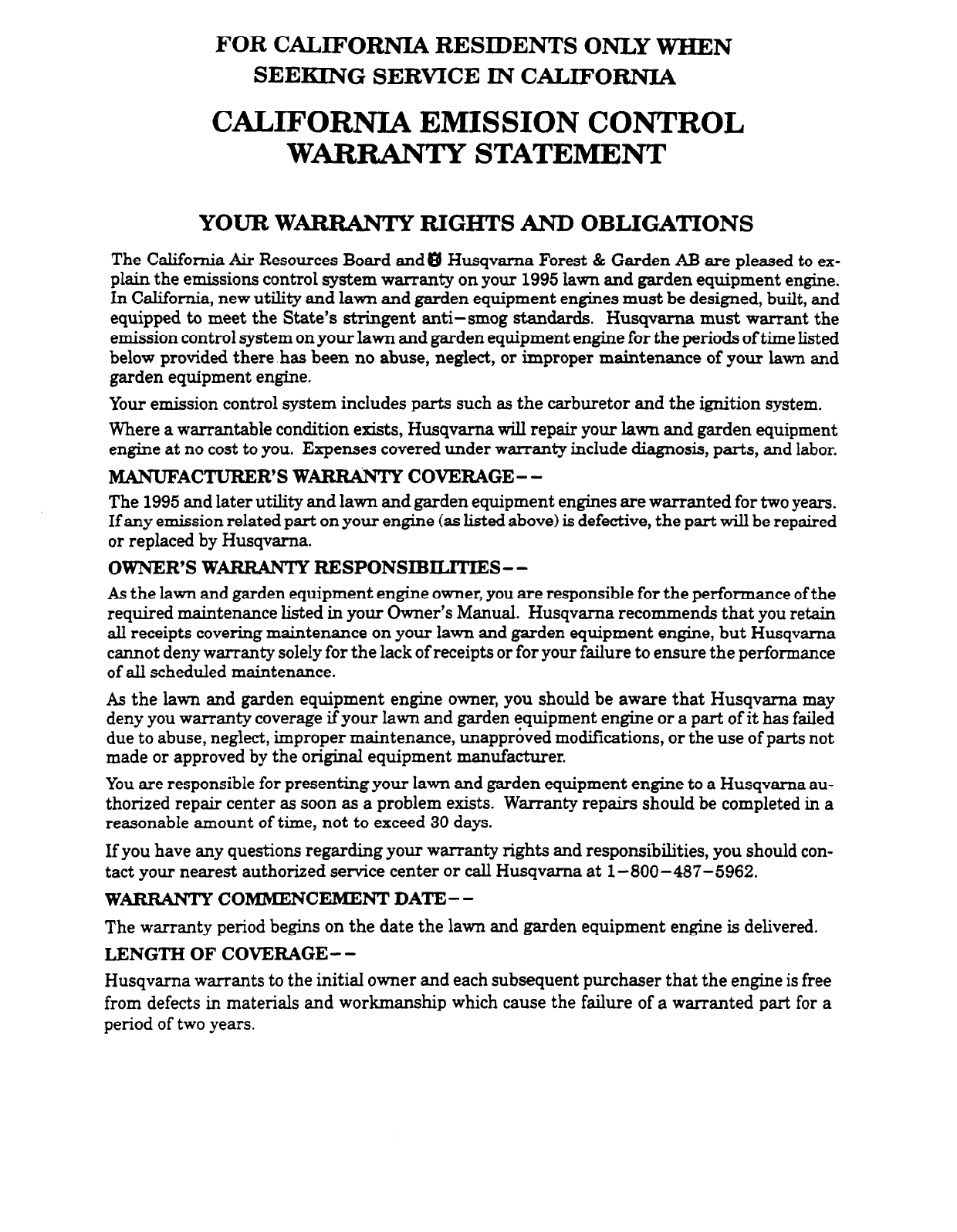

FOR CALIFORNIA RESIDENTS ONLY WHEN

SEEKING SERVICE IN CALIFORNIA

CALIF’ORNIA EMISSION CONTROL

WARRANTY STATEMENT

YOUR Wm RIGHTS AND OBLIGATIONS

The California Air Resources Board and@ Husqvarna Forest & Garden AB are pleased to ex-

plain the emissions control system warranty on your 1995 lawn and garden equipment engine.

In California, new utility and lawn and garden equipment engines must be designed, built, and

equipped to meet the State’s stringent anti-smog standards. Husqvarna must warrant the

emission control system on your lawn and garden equipment engine for the periods of time listed

below provided there has been no abuse, neglect, or improper maintenance of your lawn and

garden equipment engine.

Your emission control system includes parts such as the carburetor and the ignition system.

Where a warrantable condition exists, Husqvarna will repair your lawn and garden equipment

engine at no cost to you. Expenses covered under warranty include diagnosis, parts, and labor.

MANUFACTURER’S WARRANTY COVERAGE--

The 1995 and later utility and lawn and garden equipment engines are warranted for two years.

If any emission related part on your engine (as listed above) is defective, the part will be repaired

or replaced by Husqvama.

OWNER’S WARRANTY RESPONSIBILITIES--

As the lawn and garden equipment engine owner, you are responsible for the performance of the

required maintenance listed in your Owner’s Manual. Husqvama recommends that you retain

all receipts covering maintenance on your lawn and garden equipment engine, but Husqvarna

cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance

of all scheduled maintenance.

As the lawn and garden equipment engine owner, you should be aware that Husqvama may

deny you warranty coverage if your lawn and garden equipment engine or a part of it has failed

due to abuse, neglect, improper maintenance, unapproved modifications, or the use of parts not

made or approved by the original equipment manufacturer.

You are responsible for presenting your lawn and garden equipment engine to a Husqvama au-

thorized repair center as soon as a problem exists. Warranty repairs should be completed in a

reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should con-

tact your nearest authorized service center or call Husqvama at l-800-487-5962.

WARRANTY COMMENCEMENT DATE--

The warranty period begins on the date the lawn and garden equipment engine is delivered.

LENGTH OF COVERAGE- -

Husqvama warrants to the initial owner and each subsequent purchaser that the engine is free

from defects in materials and workmanship which cause the failure of a warranted part for a

period of two years.

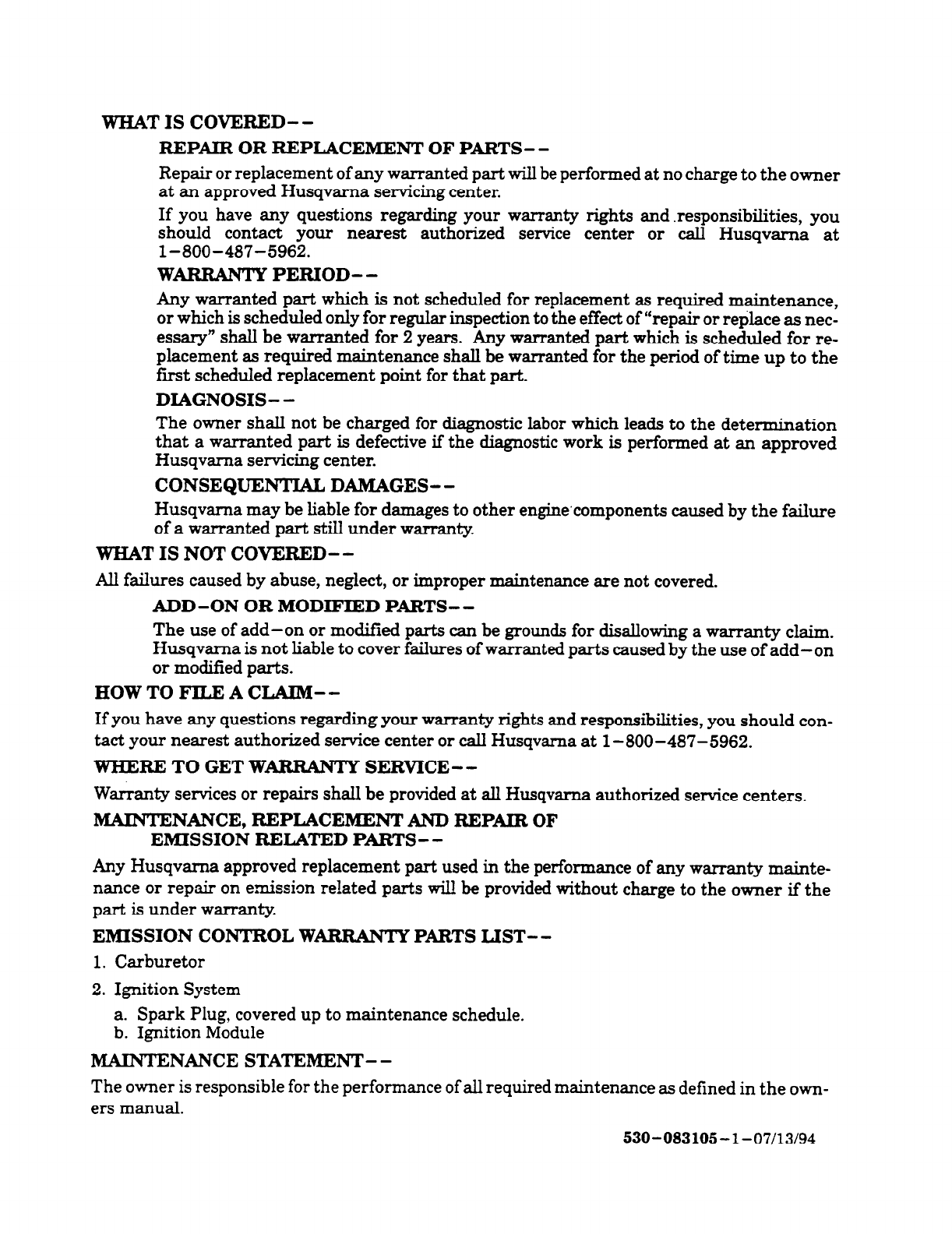

WHAT IS COVERED--

REPAIR OR REPLACEMENT OF PARTS- -

Repair or replacement of any warranted part will be performed at no charge to the owner

at an approved Husqvarna servicing center.

If you have any questions regarding your warranty rights and .responsibilities, you

should contact your nearest authorized service center or call Husqvarna at

l-800-487-5962.

WARRANTY PERIOD--

Any warranted part which is not scheduled for replacement as required maintenance,

or which is scheduled only for regular inspection to the effect of “repair or replace as nec-

essary” shall be warranted for 2 years. Any warranted part which is scheduled for re-

placement as required maintenance shall be warranted for the period of time up to the

first scheduled replacement point for that part.

DIAGNOSIS- -

The owner shall not be charged for diagnostic labor which leads to the determination

that a warranted part is defective if the diagnostic work is performed at an approved

Husqvsma servicing center.

CONSEQUENTIAL DAMAGES- -

Husqvarna may be liable for damages to other enginecomponents caused by the failure

of a warranted part still under warranty.

WHAT IS NOT COVERED- -

All failures caused by abuse, neglect, or improper maintenance are not covered.

ADD-ON OR MODIFIED PARTS--

The use of add-on or modified parts can be grounds for disallowing a warranty claim.

Husqvama is not liable to cover failures of warranted parts caused by the use of add-on

or modified parts.

HOW TO FILE A CLAIM--

If you have any questions regarding your warranty rights and responsibilities, you should con-

tact your nearest authorized service center or call Husqvarna at l-800-487-5962.

WHERE TO GET WARRANTY SERVICE--

Warranty services or repairs shall be provided at all Husqvarna authorized service centers.

MAINTENANCE, REPLACEMENT AND REPAIR OF

EMISSION RELATED PARTS- -

Any Husqvarna approved replacement part used in the performance of any warranty mainte-

nance or repair on emission related parts will be provided without charge to the owner if the

part is under warranty.

EMISSION CONTROL WARRANTY PARTS LIST- -

1. Carburetor

2. Ignition System

a. Spark Plug, covered up to maintenance schedule.

b. Ignition Module

MAINTENANCE STATEMENT- -

The owner is responsible for the performance of all required maintenance as defined in the own-

ers manual.

530-083105-1-07/13/94
