Husqvarna 917 37583 Users Manual OM, 917.375830, 2006 01, Walk Mower

CAUTION:

Read and follow all

Safety Rules and In struc tions

before operating this equipment

Owner’s Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.sears.com/craftsman

Model No.

917.375830

ROTARY LAWN MOWER

7.0 Horsepower

Power-Propelled

21" Multi-Cut

2

Safe ty Rules ..........................................2-3

Warranty ...................................................4

Prod uct Spec i ﬁ ca tions..............................5

Assembly / Pre-Operation ........................6

Op er a tion.............................................7-11

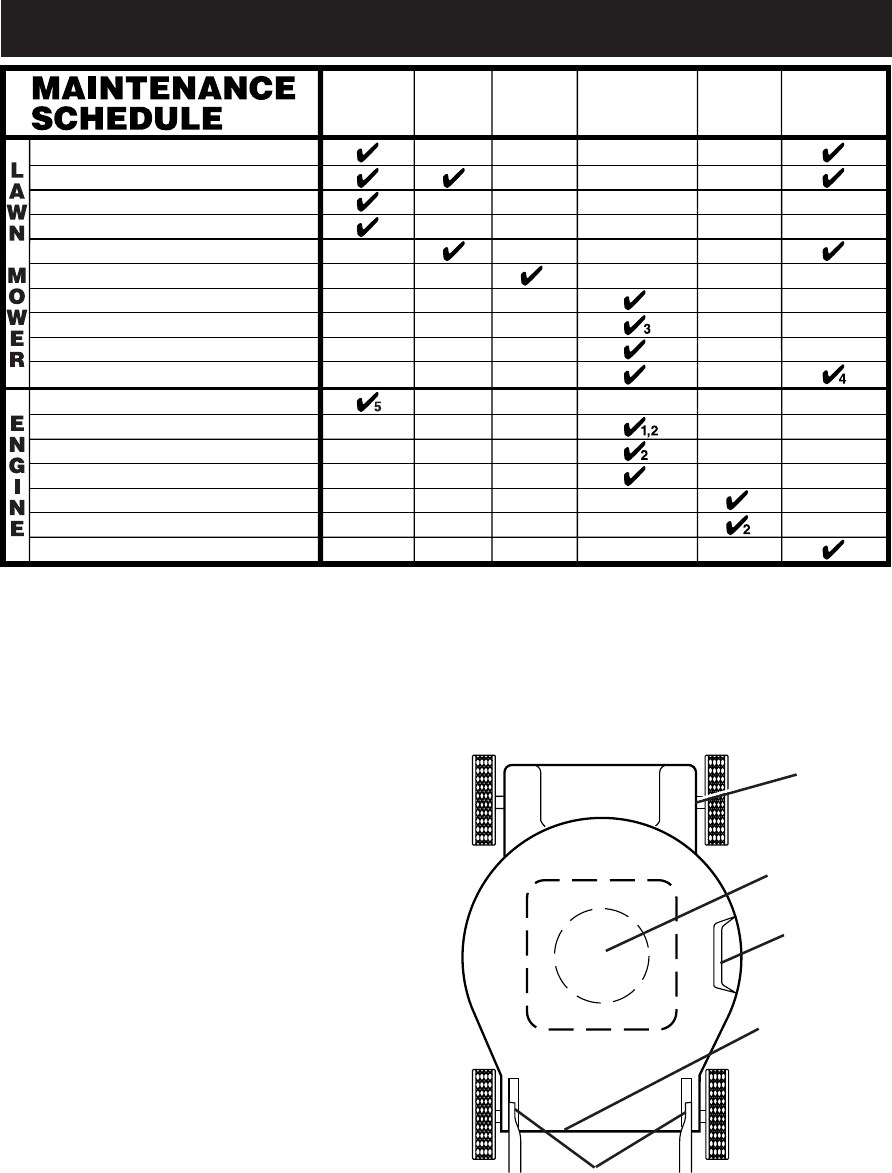

Maintenance Sched ule...........................12

Maintenance......................................12-15

Ser vice and Ad just ments...................15-16

Stor age..............................................17-18

Trou ble shoot ing .................................18-19

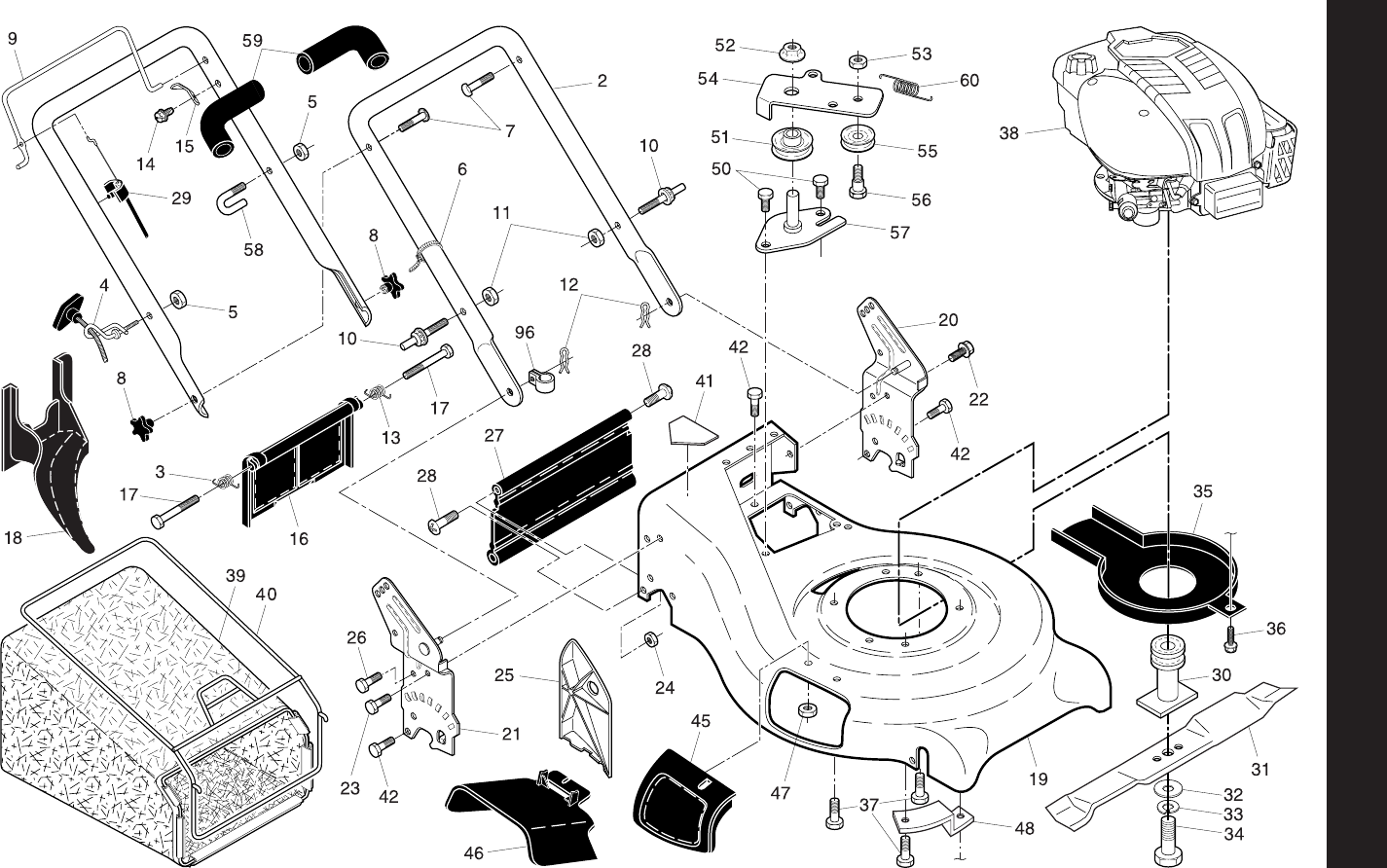

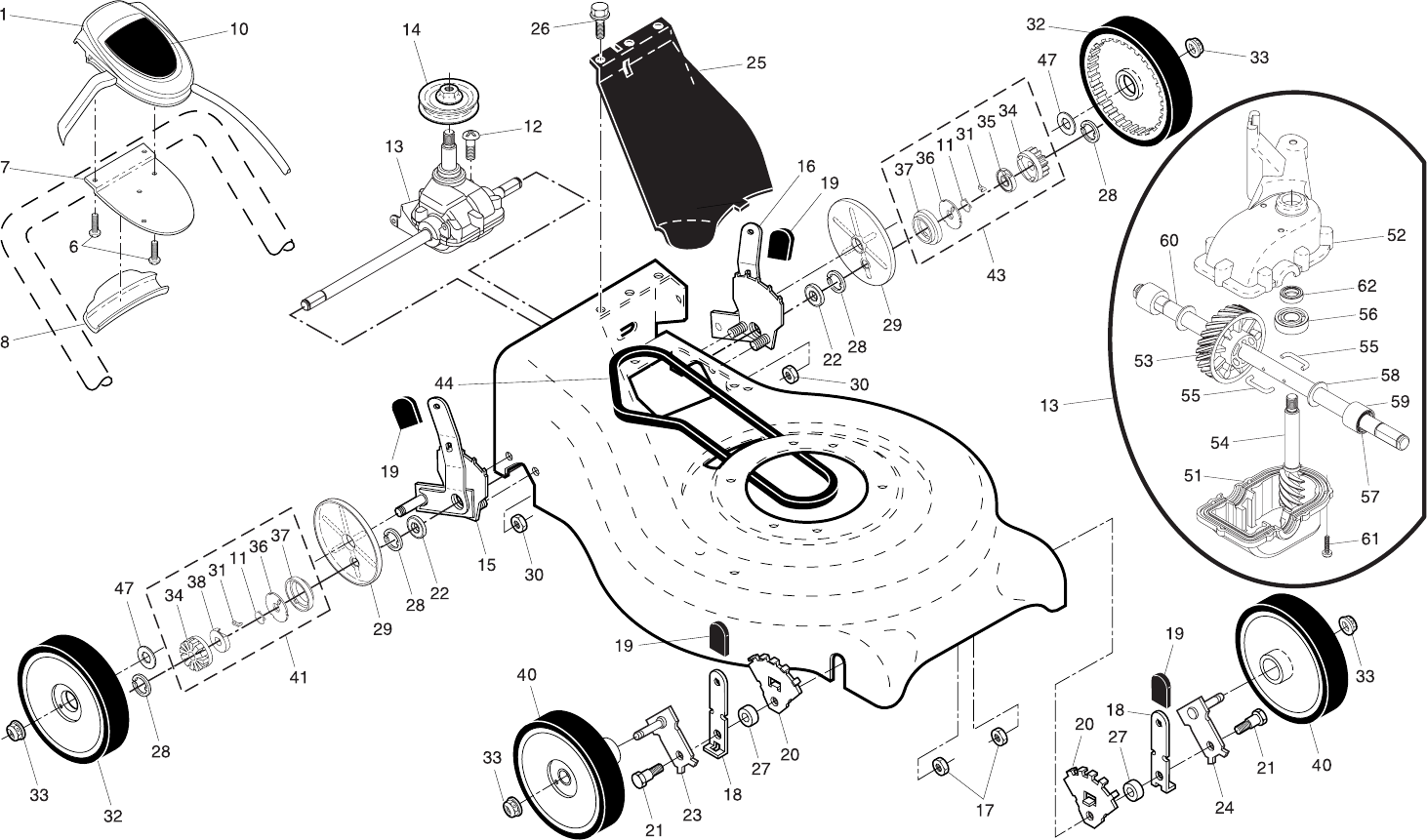

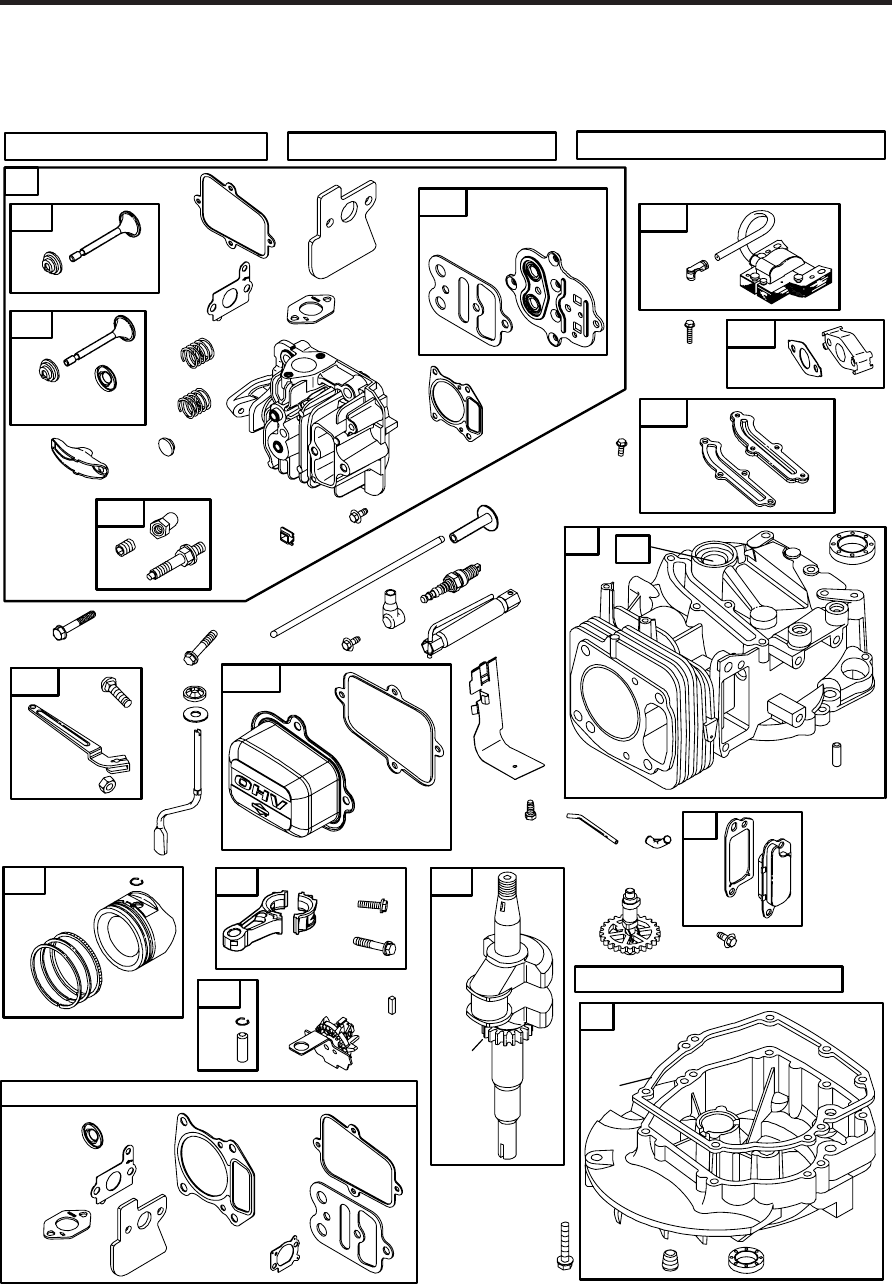

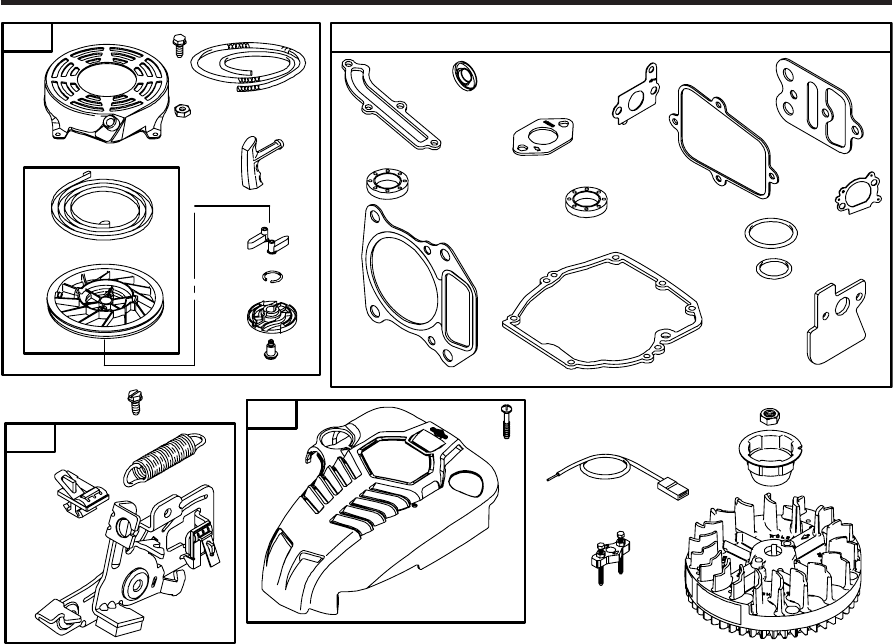

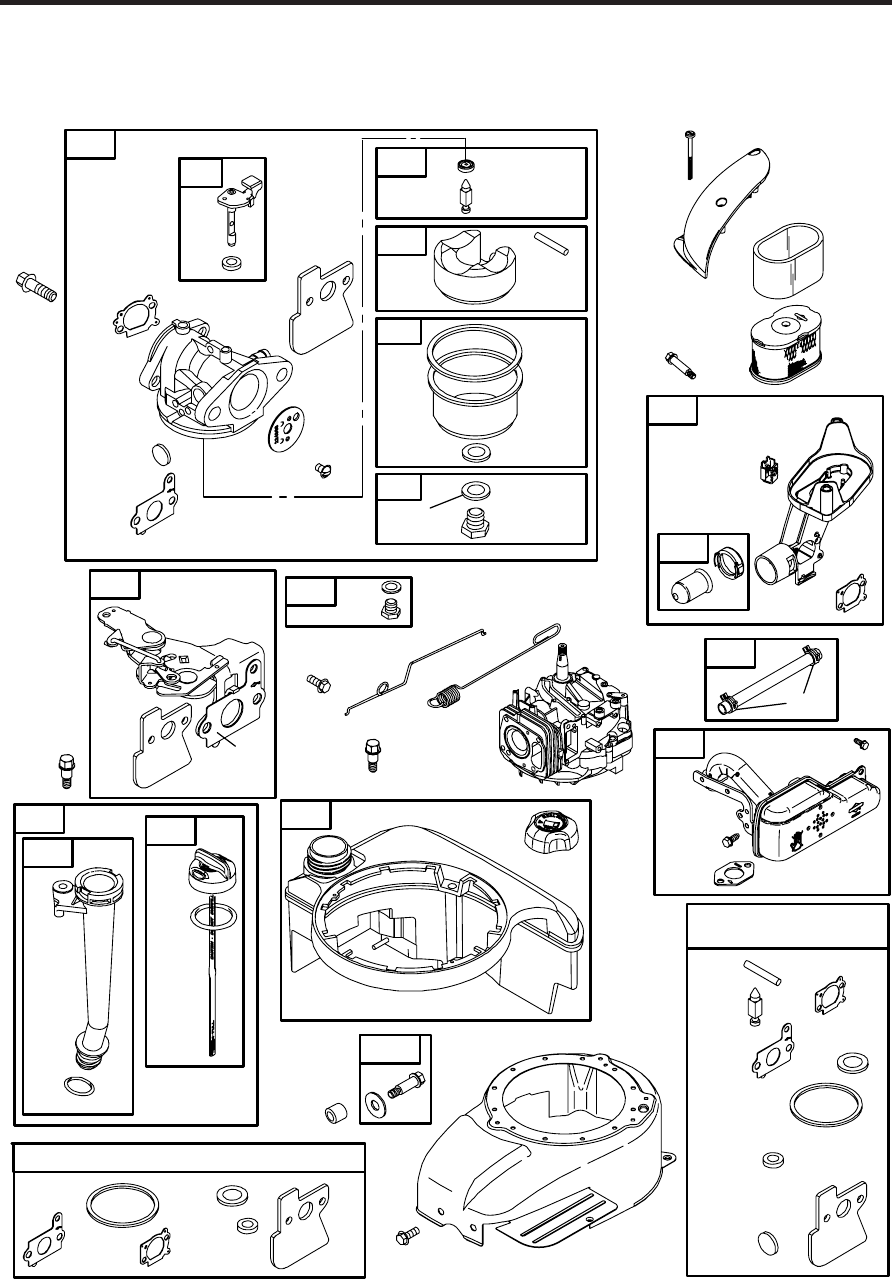

Re pair Parts.......................................38-45

TABLE OF CONTENTS

IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing ob-

jects. Failure to observe the following safety instructions could result in serious injury or death.

Look for this symbol to point out im-

por tant safety precautions. It means

CAU TION!!! BECOME ALERT!!!

YOUR SAFE TY IS INVOLVED.

WARNING: In order to prevent ac ci den tal

starting when setting up, trans port ing, ad-

just ing or making repairs, always dis con nect

spark plug wire and place wire where it can not

come in contact with plug.

WARNING: Engine exhaust, some of its

constituents, and certain vehicle com po -

nents contain or emit chem i cals known to

the State of Cal i for nia to cause can cer and

birth defects or oth er re pro duc tive harm.

WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of Cal i for nia to cause can cer and birth

defects or oth er re pro duc tive harm. Wash

hands after handling.

CAUTION: Mufﬂ er and other engine

SAFETY RULES

parts become extremely

hot during operation and

remain hot after engine

has stopped. To avoid

severe burns on contact,

stay away from these areas.

I. GENERAL OPERATION

• Read, understand, and follow all

in struc tions on the machine and in the

manual(s) before starting. Be thor ough ly

familiar with the controls and the proper

use of the machine before starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Only allow responsible individuals, who

are familiar with the in struc tions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which could

be picked up and thrown by blade.

• Be sure the area is clear of other people

before mowing. Stop the ma chine if

anyone enters the area.

• Do not operate the mower when bare-

foot or wearing open sandals. Al ways

wear substantial foot wear.

• Do not pull mower backwards unless abso-

lutely nec es sary. Always look down and be-

hind before and while moving backwards.

• Never direct discharged material toward

anyone. Avoid discharging material

against a wall or obstruction. Material may

richochet back toward the operator. Stop

the blade when crossing gravel surfaces.

• Do not operate the mower without prop-

er guards, plates, grass catcher or oth er

safety protective devices in place.

• See manufacturer’s instructions for

proper operation and installation of

accessories. Only use accessories ap-

proved by the manufacturer.

• Stop the blade(s) when crossing grav el

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equip ment, before clean ing

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artiﬁ cial light.

• Do not operate the machine while under

the inﬂ uence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

ﬁ rm hold on the handle; walk, never run.

• Disengage the self-propelled mech-

a nism or drive clutch on mowers so

equipped before starting the engine.

• If the equipment should start to vi brate

abnormally, stop the engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

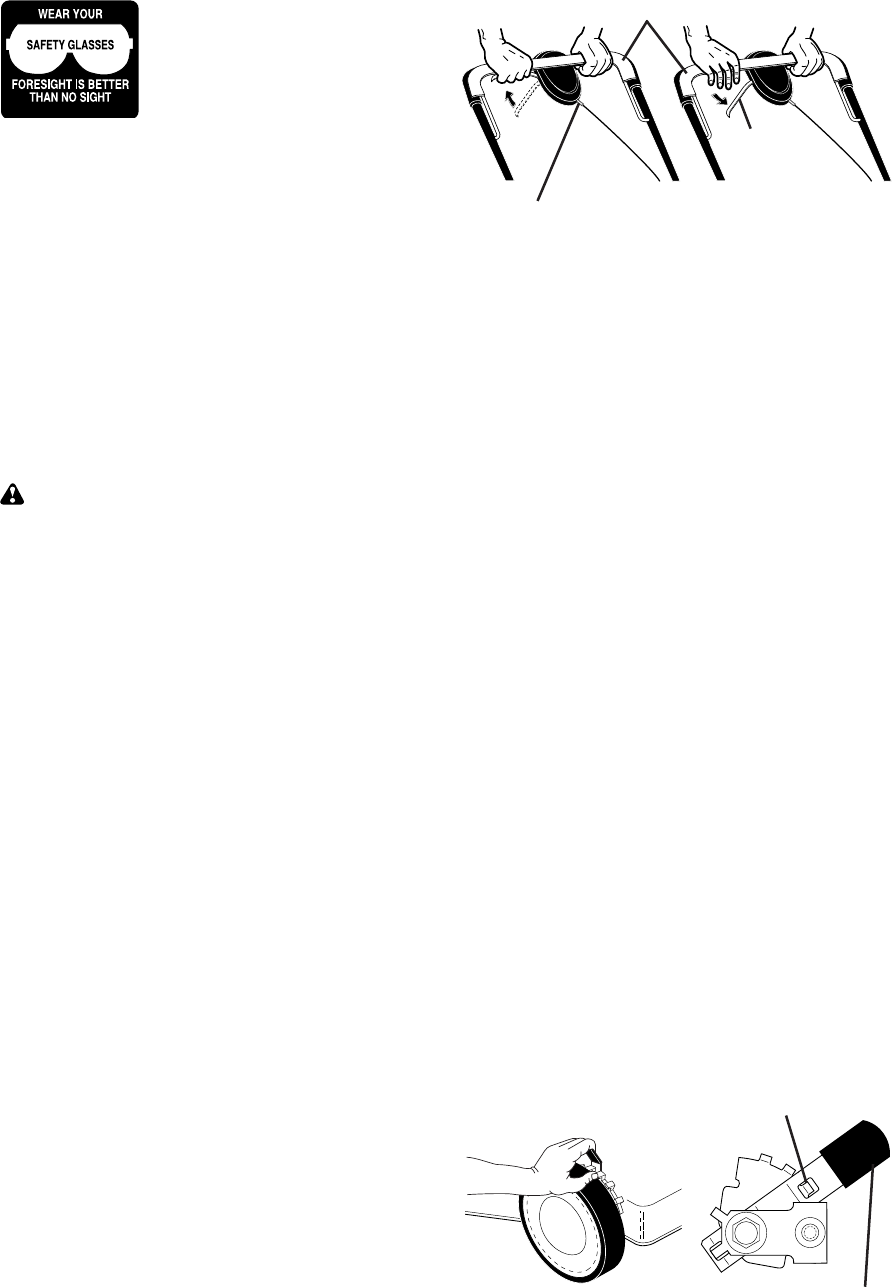

• Always wear safety goggles or safe ty glass-

es with side shields when op er at ing mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip &

fall accidents which can result in severe

injury. All slopes require extra caution. If

you feel uneasy on a slope, do not mow it.

3

DO:

• Mow across the face of slopes: nev er

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the op er a tor is

not alert to the presence of children. Children

are often attracted to the ma chine and the

mowing activity.

Never

assume that children

will remain where you last saw them.

• Keep children out of the trimming area

and under the watchful care of an oth er

re spon si ble adult.

• Be alert and turn machine off if chil dren

enter the area.

• Before and while walking back wards,

look behind and

down

for small chil dren.

• Never allow children to operate machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SAFE HANDLING OF GASOLINE

Use extreme care in handling gasoline.

Gasoline is extremely ﬂ ammable and the

vapors are explosive.

• Extinguish all cigarettes, cigars, pipes

and other sources of ignition.

• Use only an approved container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never refuel the machine indoors.

• Never store the machine or fuel contain-

er where there is an open ﬂ ame, spark

or pilot light such as a water heater or

on other appliances.

• Never ﬁ ll containers inside a vehicle, on

a truck or trailer bed with a plastic liner.

Always place containers on the ground

away from your vehicle before ﬁ lling.

• Remove gas-powered equipment from the

truck or trailer and refuel it on the ground. If

this is not possible, then refuel such equip-

ment with a portable container, rather than

from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overﬁ ll fuel tank. Replace gas

cap and tighten securely.

V. GENERAL SERVICE

• Never run machine inside a closed area.

• Never make adjustments or repairs with

the engine (motor) running. Dis con nect the

spark plug wire, and keep the wire away

from the plug to prevent ac ci den tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation reg u lar ly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel spill-

age. Allow machine to cool before storing.

• Stop and inspect the equipment if you

strike an object. Repair, if nec es sary,

before restarting.

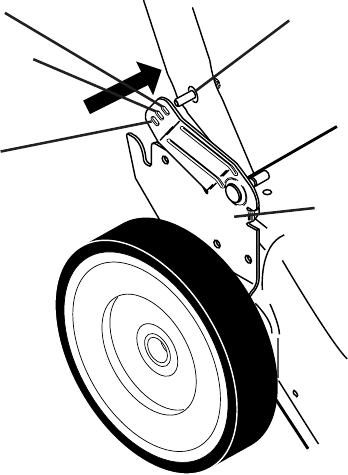

• Never attempt to make wheel height

adjustments while the engine is running.

• Grass catcher components are sub ject to

wear, dam age, and de te ri o ra tion, which

could expose moving parts or allow objects

to be thrown. Frequently check com po -

nents and replace with man u fac tur er’s

recommended parts, when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when ser vic ing them.

• Do not change the engine governor set-

ting or overspeed the engine.

• Maintain or replace safety and instruc-

tion labels, as necessary.

WARNING: This lawn mower is equipped with an internal com bus tion engine and

should not be used on or near any un im proved forest-covered, brush-covered or

grass-cov ered land unless the engine’s exhaust system is equipped with a spark

arrester meeting applicable local or state laws (if any). If a spark arrester is used, it

should be maintained in effective working order by the operator.

In the state of California the above is required by law (Section 4442 of the California Public

Resources Code). Other states may have similar laws. Federal laws apply on federal

lands. A spark arrester for the mufﬂ er is available through your nearest Husqvarna or

other authorized service center (See the REPAIR PARTS section of this manual).

4

WARRANTY

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”)

warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship

from the date of purchase for the “Warranty Period” of

the product as set forth below:

2 YEAR NON-COMMERCIAL WARRANTY: Auto-

matic Mower, Riding lawn mowers, yard and garden

tractors, walk behind mowers, tillers, chain saws,

trimmers, brushcutters, clearing saws, snow blowers,

handheld blowers, backpack blowers, hedge trimmers,

electrical products and power-assist collection systems

for non com mer cial, nonprofessional, noninstitutional or

nonincome producing use, except as herein stated.

Emission control system components necessary to

comply with CARB-TIER-II and EPA regulations.

Husqvarna Safety Apparel carries a 90-day warranty

from the date of the customer’s original purchase for

defects in material and workmanship. Normal wear,

tear or abuse is not covered under warranty. Product

must be returned to Charlotte with a warranty claim

form. All care and maintenance instructions must be

followed as stated by the manufacturer on the care

label. The ﬁ t of the protective apparel/boot is not

covered under warranty.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER

THE WARRANTY

Husqvarna will repair or replace defective components

without charge for parts or labor if a component fails

because of a defect in material or workmanship during

the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WAR-

RANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become

worn through normal regular use, including, but

not limited to, belts, blades, blade adapters, bulbs,

ﬁ lters, guide bars, lubricants, rewind springs, saw

chain, spark plugs, starter ropes and tines;

(2) Natural discoloration of material due to ultraviolet

light;

(3) Lawn and garden attachments are covered by a

third party which gives a warranty, all claims for

warranty should be sent to the manufacturer; and

(4)Emission Control System components necessary

to which are manufactured by third party engine

manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting

from the following:

(1) Accident, abuse, misuse, negligence and neglect,

including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect

storage or use habits;

(2) Failure to operate or maintain the unit in accor-

dance with the Owner’s/Operator’s manual or

instruction sheet furnished by Husqvarna;

(3) Alterations or modiﬁ cations that change the

intended use of the product or affects the product’s

performance, operation, safety, or durability, or

causes the product to fail to comply with any ap-

plicable laws; or:

(4) Additional damage to parts or components due to

continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE PUR CHAS ER. HUSQVARNA SHALL NOT BE

LIABLE FOR ANY INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES FOR BREACH OF ANY EXPRESS

OR IMPLIED WARRANTY ON THESE PRODUCTS

EXCEPT TO THE EXTENT PROHIBITED BY AP-

PLICABLE LAW. ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICU-

LAR PURPOSE ON THESE PRODUCTS IS LIMITED

IN DURATION TO THE WARRANTY PERIOD AS

DEFINED IN THE LIMITED WARRANTY STATE-

MENT. HUSQVARNA RE SERVES THE RIGHT TO

CHANGE OR IMPROVE THE DESIGN OF THE

PRODUCT WITHOUT NO TICE, AND DOES NOT

ASSUME OBLIGATION TO UPDATE PREVIOUSLY

MANUFACTURED PROD UCTS.

Some states do not allow the exclusion of incidental

or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or

exclusions may not apply to you. This warranty gives

you speciﬁ c legal rights, and you may also have other

rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, mainte-

nance, operation, storage and general upkeep as

written in the maintenance section of the Owner’s/

Operator’s manual. Should an operational problem

or failure occur, the product should not be used, but

delivered as is to an authorized Husqvarna dealer for

evaluation. Proof of purchase, as explained in section

6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY

CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make

certain that the Warranty Registration Card is properly

ﬁ lled out and mailed to Husqvarna Forest & Garden

Company. This card should be mailed within ten (10)

days from the date of purchase in order to conﬁ rm the

warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized

Husqvarna dealer in order to obtain warranty service.

This proof must include date purchased, model num-

ber, serial number, and complete name and address of

the selling dealer.

To obtain the beneﬁ t of this warranty, the product

believed to be defective must be delivered to an

authorized Husqvarna dealer in a timely manner, no

later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at

the owner’s expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna

dealer can be normally located through the “Yellow

Pages” of the local telephone directory or by calling

1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

5

Serial Number:

Date of Purchase:

Gasoline Capacity / Type: 1.6 Quarts (Unleaded Regular)

Oil Type (API SG–SL): SAE 30 (above 32°F); SAE 5W-30 (below 32°F)

Oil Capacity: 20 Ounces

Spark Plug (Gap: .030") Champion RC12YC

Blade Bolt Torque: 35-40 ft. lbs.

• The model and serial numbers will be found on a decal on the rear of the lawn mower

housing. Record both serial number and date of purchase in space provided above.

PRODUCT SPECIFICATIONS

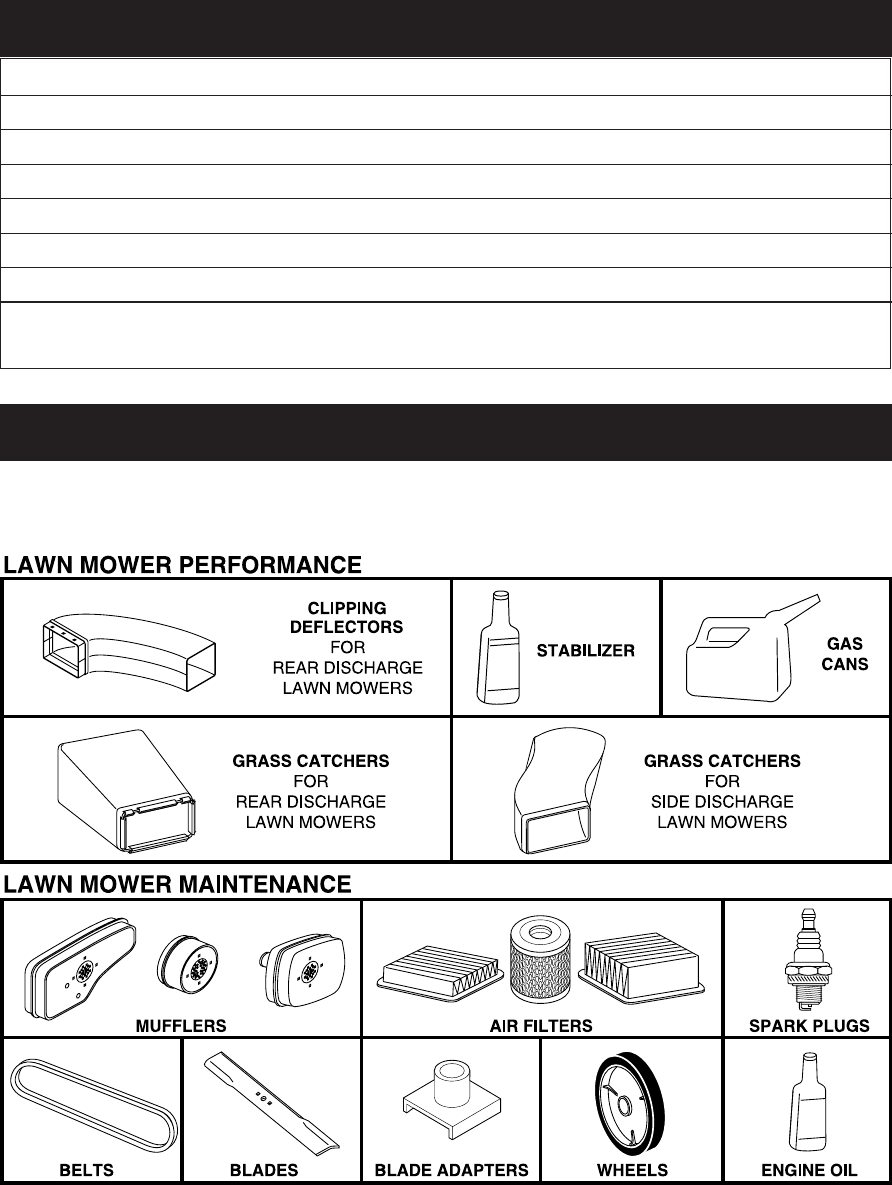

ACCESSORIES

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Husqvarna retailers and

service centers. Some of these accessories may not apply to your lawn mower.

6

ASSEMBLY / PRE-OPERATION

TO ASSEMBLE GRASS CATCH ER

1. Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert mower to

bagging or discharging, see “TO CON-

VERT MOWER” in the Operation section

of this manual.

Frame

handle

Frame

opening

Vinyl

bindings

MOWING

POSITION

Lower handle

LIFT

UP

Operator

presence

control bar

Upper

handle

LIFT

UP

Handle

knob

Read these instructions and this man u al in its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

Your new lawn mower has been as sem bled at the factory with the ex cep tion of those

parts left unassembled for shipping purposes. All parts such as nuts, washers, bolts, etc.,

necessary to com plete the as sem bly have been placed in the parts bag. To ensure safe

and proper operation of your lawn mow er, all parts and hard ware you assemble must be

tightened se cure ly. Use the correct tools as necessary to ensure proper tightness.

Handle

bracket

Handle pin

SQUEEZE

TO RE MOVE MOW ER FROM CAR TON

1. Remove loose parts included with

mower.

2. Cut down two end corners of carton

and lay end panel down ﬂ at.

3. Remove all packing materials ex cept

padding be tween upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check carton thorougly for ad di tion al

loose parts.

HOW TO SET UP YOUR MOW ER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage con trol cables.

1. Raise lower handle section to operat-

ing position and squeeze the bottom

ends of lower handle towards each

other until the pin in handle can be

inserted into one of the three height

adjustment holes.

2. Remove protective padding, raise up-

per handle sec tion into place on lower

handle and tighten both handle knobs.

3. Remove any packing material from

around control bar.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to “AD-

JUST HANDLE” in the Service and Adjust-

ments section of this manual.

7

Wheel adjuster

(on each wheel)

IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine.

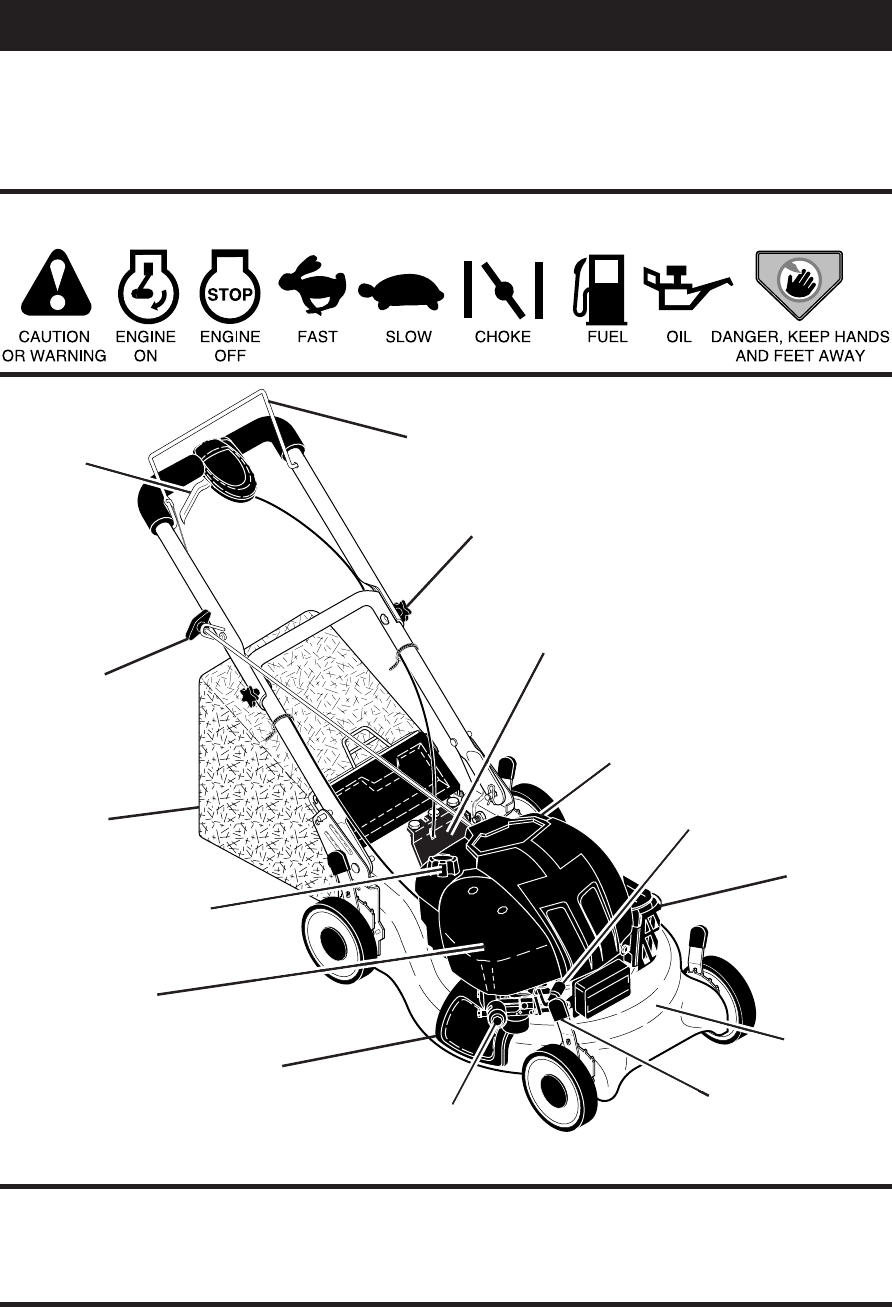

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OP ER AT ING

YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize

yourself with the location of various controls and adjustments. Save this manual for

future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

Operator presence control bar

Starter

handle

Handle knob

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Com-

mis sion. The blade turns when the engine is running.

Operator presence control bar – must

be held down to the handle to start the

engine. Release to stop the engine.

Starter handle – used for starting engine.

Mulcher door – allows con ver sion to

discharging or bagging operation.

Drive control lever – used to engage

power-pro pelled forward mo tion of mower.

Primer– pumps additional fuel from the

carburetor to the cylinder for use when

starting a cold engine.

Mufﬂ er

Grass

catcher

Drive

control

lever

OPERATION

Spark plug

Drive cover

Engine oil cap with dipstick

Air ﬁ lter

Gasoline ﬁ ller cap

Housing

Mulcher door

Primer

8

DRIVE CONTROL ADJUSTMENT

Over time, the drive control system may

become “loose”, resulting in decreased

speed. There is a turnbuckle on the drive

control housing to increase tension on the

drive cable. Pro ceed as follows:

1. Turn unit off and disconnect spark plug

wire from spark plug.

2. Rotate turnbuckle on drive control to

increase drive speed.

3. Operate mower to test drive speed.

Readjust as required.

4. If condition fails to improve after the

above steps (forward speed remains

the same), your drive belt is worn and

should be re placed.

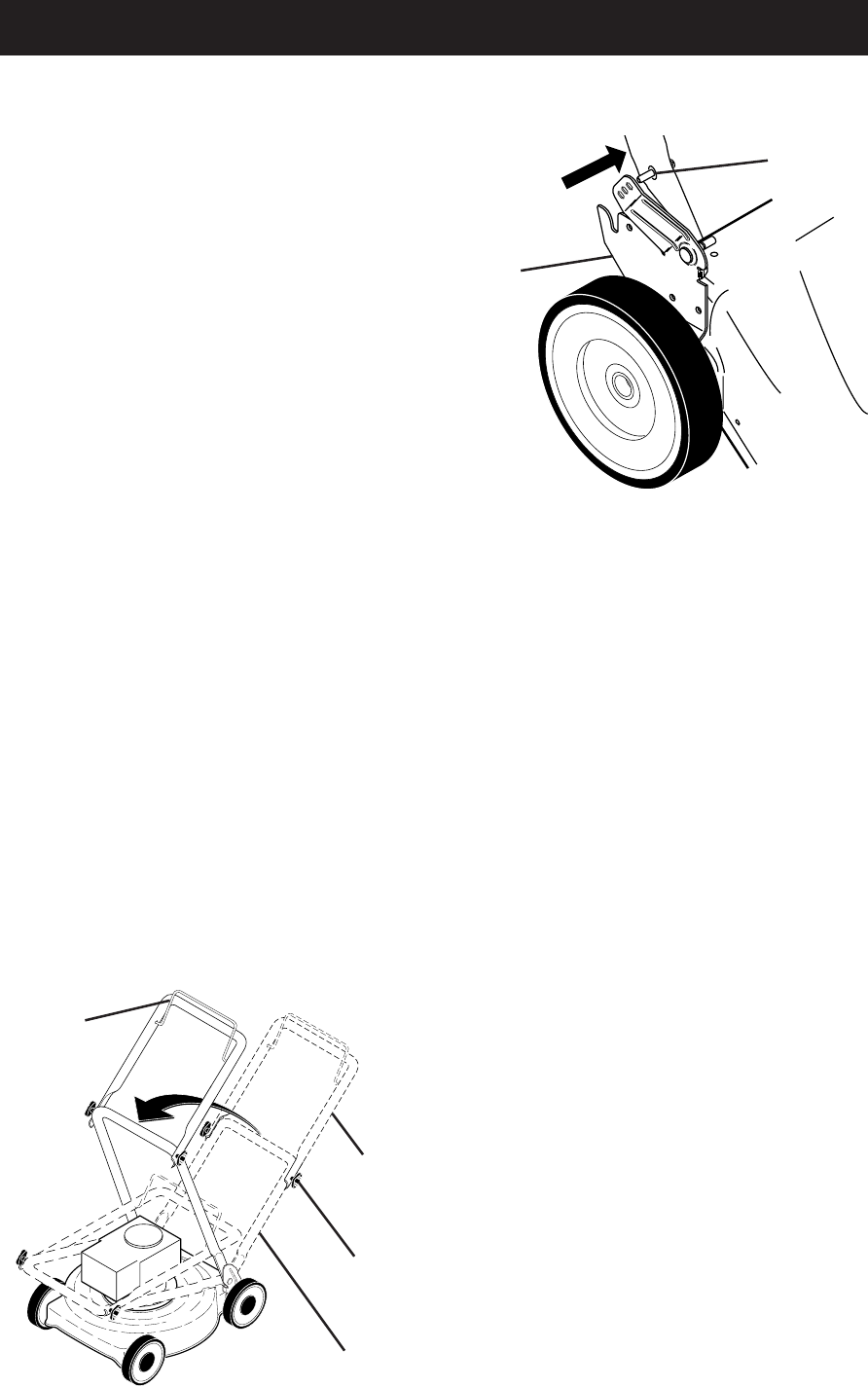

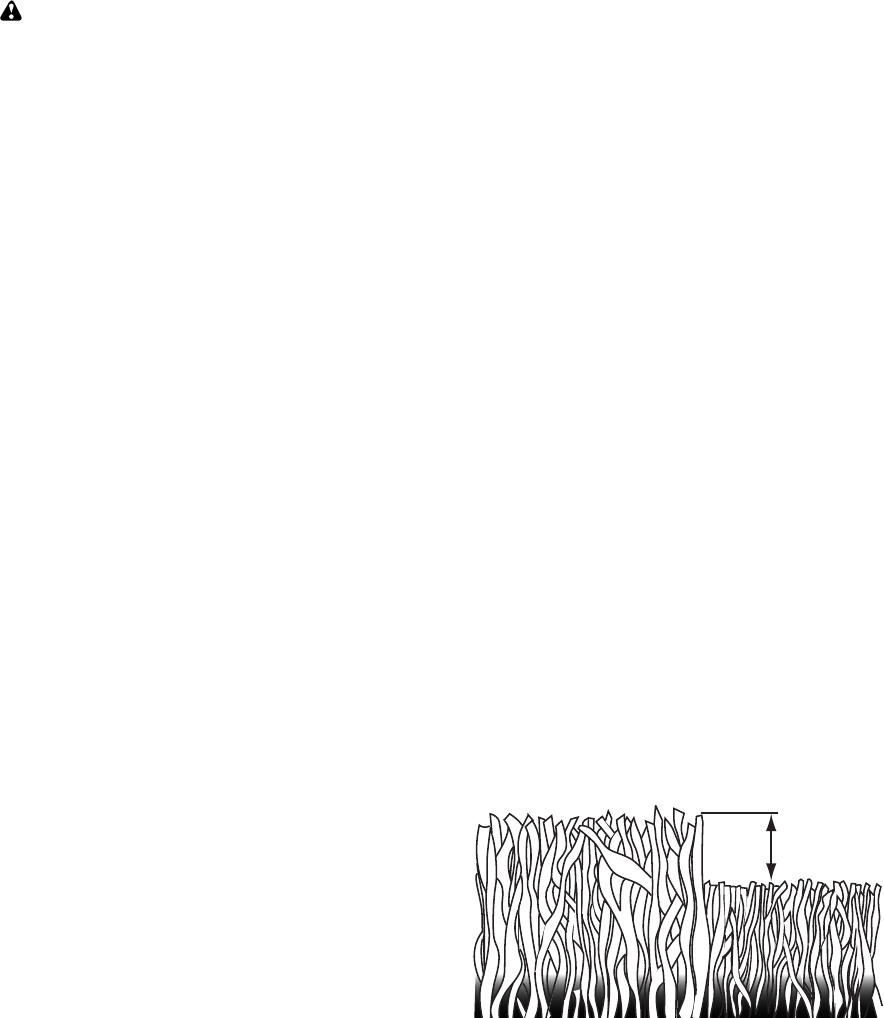

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower wheels

for high cut, adjust cutting height to suit

your requirements. Me di um position is

best for most lawns.

• To change cutting height, squeeze ad-

juster lever to ward wheel. Move wheel

up or down to suit your re quire ments. Be

sure all wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

The operation of any

lawn mower can result

in foreign objects thrown

into the eyes, which can

result in severe eye dam-

age. Always wear safety glasses or eye

shields while operating your lawn mower

or performing any ad just ments or repairs.

We recommend a standard safety glasses

or wide vision safety mask worn over

spectacles.

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

CAUTION: Federal regulations re quire

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not un der

any circumstances attempt to de feat the

func tion of the operator con trol. The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator pres ence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

DRIVE CONTROL

• Self-propelling is controlled by hold-

ing the operator presence control bar

down to the handle and pulling the drive

control lever rearward to the handle.

The farther toward the handle the lever

is pulled, the faster the unit will travel.

• Forward motion will stop when either

the operator presence control bar or

drive control lever are released. To stop

forward motion without stop ping engine,

re lease the drive control lever only. Hold

op er a tor presence control bar down

against handle to con tin ue mowing

without self-propelling.

NOTE: If after releasing the drive control

the mower will not roll backwards, push

the mower forward slightly to disengage

drive wheels.

LEVER BACKWARD

TO LOWER MOWER

LEVER FORWARD TO RAISE MOWER

Plate tab

Lever

TO

ENGAGE

DRIVE

CONTROL

Drive

control

lever DRIVE

CONTROL

DISENGAGED

Operator presence control bar

Adjustment

turnbuckle

9

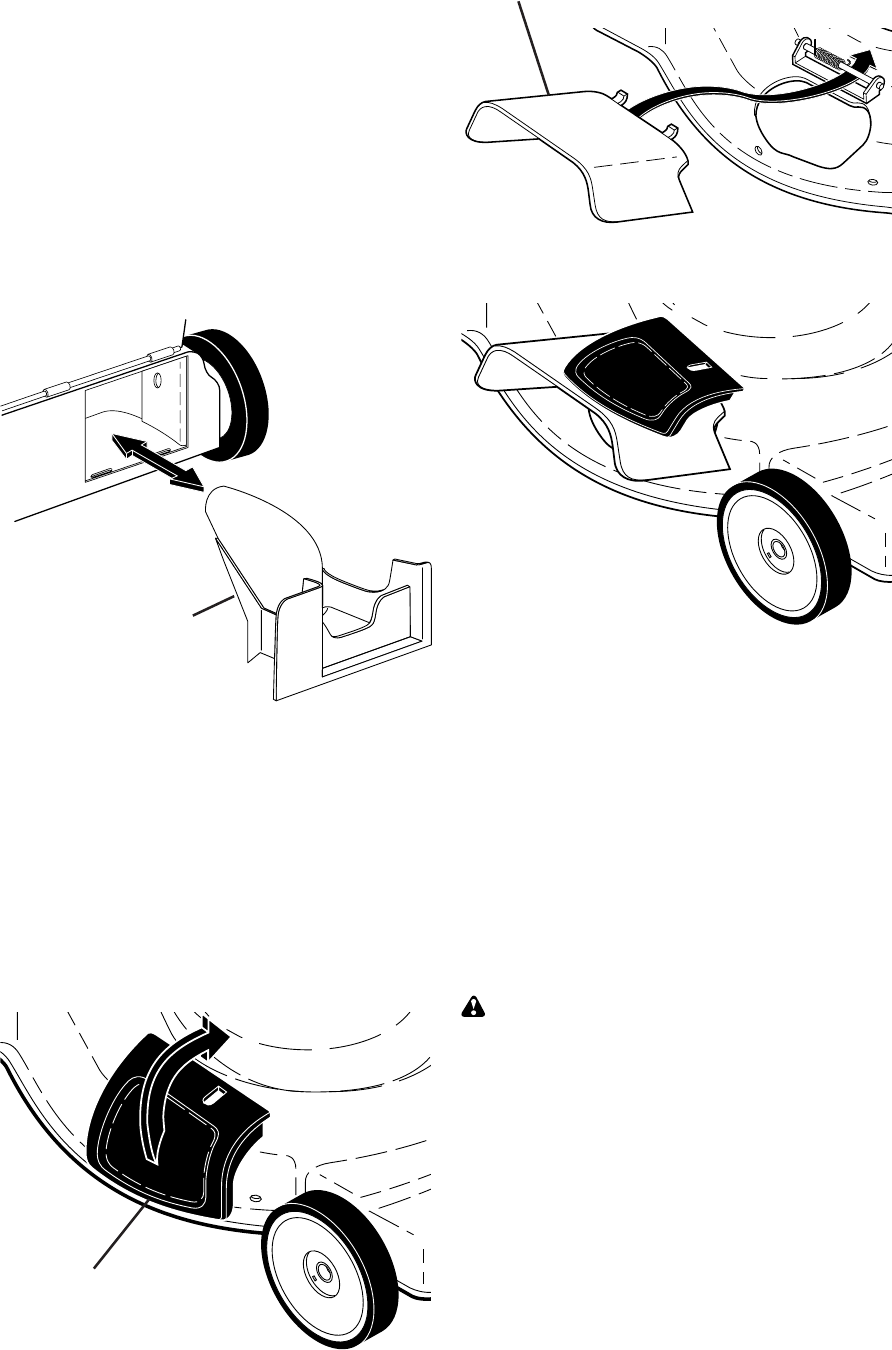

TO CONVERT MOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging

or discharging:

REAR BAGGING

• Open rear door and remove mulcher

plug. Store mulcher plug in a safe

place.

• You can now install the grass catcher or

optional clipping deﬂ ector.

• To convert to mulching or discharging

operation, install mulcher plug into rear

discharge opening of mower.

SIDE DIS CHARG ING

• Mulcher plug must be installed into rear

discharge open ing of mower.

• Open mulcher door and install dis-

charge deﬂ ector under door as shown.

• Mower is now ready for discharging

operation.

• To convert to mulching or bagging

operation, dis charge deﬂ ector must be

removed and mulcher door closed.

Open mulcher door

Discharge deﬂ ector

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING -

1. Rear mulcher plug installed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Rear mulcher plug removed.

2. Grass catcher installed.

3. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear mulcher plug installed.

2. Discharge deﬂ ector installed.

CAUTION: Do not run your lawn

mower with out mulcher plug or ap proved

grass catch er in place. Never at tempt to

op er ate the lawn mow er with the rear door

re moved or propped open.

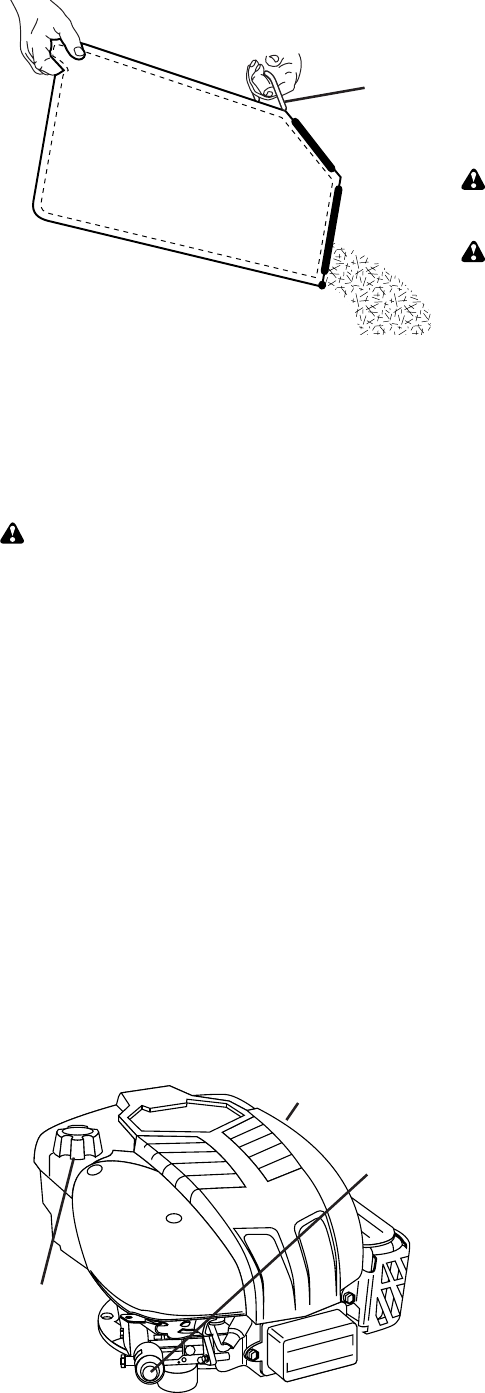

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame han dle.

2. Remove grass catcher with clippings

from under lawn mower han dle.

3. Empty clippings from bag.

NOTE: Do not drag the bag when empty-

ing; it will cause unnecessary wear.

Mulcher plug

10

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. For type and grade of oil to

use, see “EN GINE” in the Maintenance

section of this manual.

CAUTION: DO NOT overﬁ ll engine with

oil, or it will smoke heavily from the mufﬂ er

on startup.

1. Be sure lawnmower is level.

2. Remove oil dipstick from oil ﬁ ll spout.

3. You receive a container of oil with the

unit. Slowly pour the entire container

down the oil ﬁ ll spout into the engine.

NOTE: Initial oil ﬁ ll requires only 18 oz.

due to residual oil in engine from the

manufacturers 100% quality testing. When

changing oil you may need 20 oz.

4. Insert and tighten dipstick.

IMPORTANT:

• Check oil level before each use. Add oil

if needed. Fill to full line on dipstick.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions. See “TO

CHANGE ENGINE OIL” in the Mainte-

nance section of this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank ﬁ ller neck.

Do not overﬁ ll. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline. Pur-

chase fuel in quan ti ties that can be used

within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open ﬂ ame.

CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or metha-

nol) can attract moisture which leads to

separation and for ma tion of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before stor age of 30

days or longer. Empty the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage In struc tions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO STOP ENGINE

• To stop engine, release operator pres-

ence con trol bar.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the product

and should be considered normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use a ﬁ rm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

2. Hold operator presence control bar

down to the han dle and pull starter

handle quickly. Do not allow starter

rope to snap back.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

ﬂ ooding and engine will not start. If you do

ﬂ ood engine, wait a few minutes before

attempting to start and do not repeat

priming steps.

Grass

catcher

frame

handle

Engine oil cap

Gasoline

ﬁ ller cap

Primer

11

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See “CLEANING” in the

Maintenance section of this manual.

• The special mulching blade will recut

the grass clip pings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will bio de grade quick ly

to provide nu tri ents for the lawn. Always

mulch with your highest engine (blade)

speed as this will provide the best recut-

ting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

in ter feres with the mulch ing action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried, yet the newly cut area will not be

exposed to direct sunlight.

• For best results, adjust the lawn mower

cutting height so that the lawn mower

cuts off only the top one-third of the

grass blades. If the lawn is over grown it

will be nec es sary to raise the height of

cut to reduce pushing effort and to keep

from over load ing the engine and leaving

clumps of mulched grass. For ex tremely

heavy grass, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass

con di tions may re quire that an area be

mulched a second time to com pletely

hide the clip pings. When doing a sec-

ond cut, mow across (perpendicular) to

the ﬁ rst cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting and

graining of the lawn.

MOWING TIPS

CAUTION: Do not use de-thatcher

blade attachments on your mower. Such

attachments are hazardous, will damage

your mower and could void your warranty.

• Under certain conditions, such as very

tall grass, it may be nec es sary to raise

the height of cut to reduce pushing effort

and to keep from overloading the engine

and leaving clumps of grass clippings.

It may also be necessary to re duce

ground speed and/or run the lawn

mower over the area a sec ond time.

• For extremely heavy cutting, re duce the

width of cut by over lap ping previously

cut path and mow slowly.

• For better grass bagging and most cut-

ting conditions, the engine speed should

be set in the FAST po si tion.

• Pores in cloth grass catchers can

become ﬁ lled with dirt and dust with use

and catchers will collect less grass. To

prevent this, reg u lar ly hose catcher off

with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air ﬂ ow and extend

engine life.

MAX 1/3

12

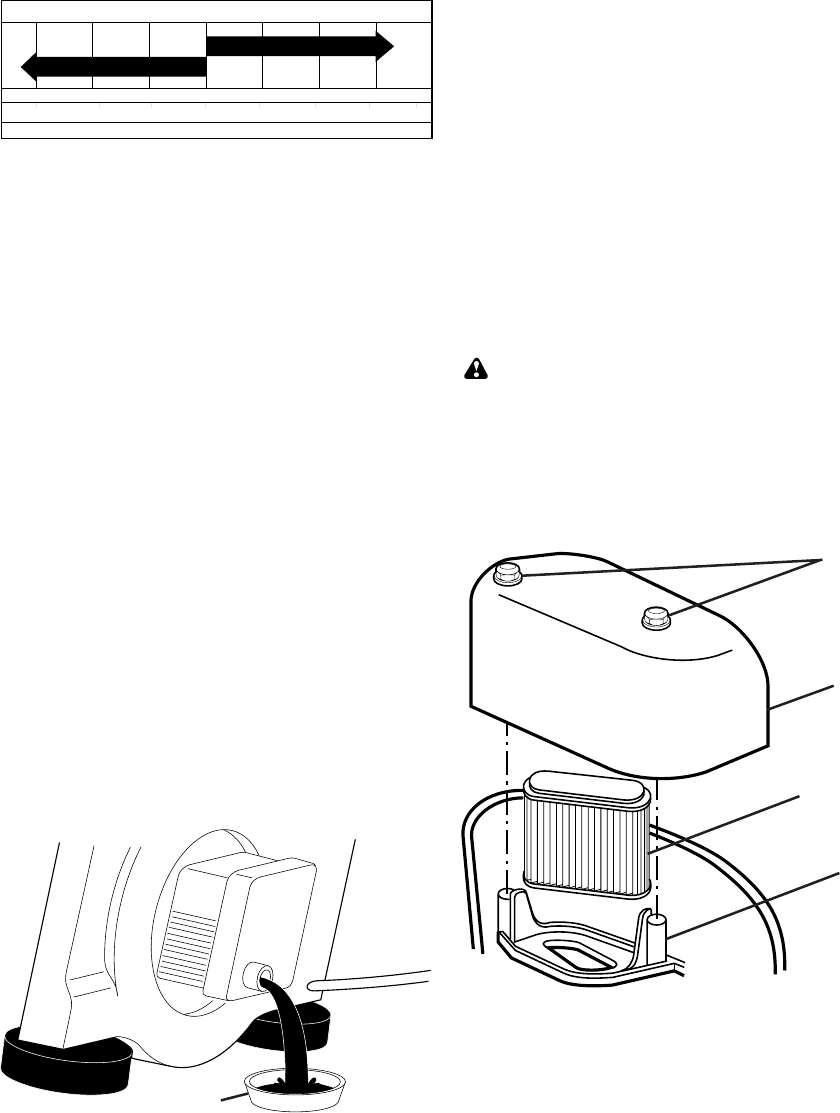

Check for Loose Fasteners

Clean / Inspect Grass Catcher *

Check Tires

Check Drive Wheels ***

Clean Lawn Mower ****

Clean under Drive Cover ***

Check Drive Belt / Pulleys ***

Check / Sharpen / Replace Blade

Lubrication

Clean and Recharge Battery **

Check Engine Oil level

Change Engine Oil

Clean Air Filter

Inspect Muffler

Replace Spark Plug

Replace Air Filter Paper Cartridge

Empty fuel system or add Stabilizer

BEFORE

EACH

USE

AFTER

EACH

USE

EVERY

10

HOURS

EVERY

25 HOURS

OR SEASON

EVERY

100

HOURS

BEFORE

STORAGE

1- Change more often if operating under a heavy load or in high outdoor temperatures.

2- Service more often if operating in dirty or dusty conditions.

3- Replace blades more often when mowing in sandy soil.

4- Charge 48 hours at end of season.

5- And after each 5 hours of use.

(if so equipped)

Electric-Start mowers

Power-Propelled mowers

Use a scraper

to clean under deck

*

**

***

****

MAINTENANCE

GENERAL REC OM MEN DA TIONS

The warranty on this lawn mower does not

cover items that have been sub ject ed to

operator abuse or negligence. To receive

full value from the warranty, operator must

maintain unit as in struct ed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Ad just ments

section of this manual.

• At least once a year, replace the spark

plug, clean or replace air ﬁ lter element

and check blade for wear. A new spark

plug and clean/new air ﬁ lter element

assure proper air-fuel mix ture and help

your engine run bet ter and last longer.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated

(See “LU BRI CA TION CHART”).

LUBRICATION CHART

➀ Spray lubricant

➁ See "ENGINE" in Maintenance section.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lu bri cants will

attract dust and dirt that will short en the life of

the self-lu bri cat ing bearings. If you feel they

must be lu bri cated, use only a dry, pow dered

graphite type lubricant spar ingly.

➀ Wheel

adjuster (on

each wheel)

➁ Engine oil

➀ Rear door

hinge

➀ Handle bracket mounting pins

➀ Mulcher

door hinge

13

LAWN MOWER

Always observe safety rules when per-

form ing any main te nance.

TIRES

• Keep tires free of gasoline, oil, or insect

control chemi cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

DRIVE WHEELS

Check rear drive wheels each time be fore

you mow to be sure they move freely.

The wheels not turning freely means trash,

grass cuttings, etc. are in the drive wheel area

and must be cleaned to free drive wheels.

If necessary to clean the drive wheels, be

sure to clean both rear wheels.

BLADE CARE

For best results, blade must be kept

sharp. Re place a bent or dam aged blade.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your mower. Using a blade not approved

by the manufacturer of your mower is haz-

ardous, could damage your mower and

void your warranty.

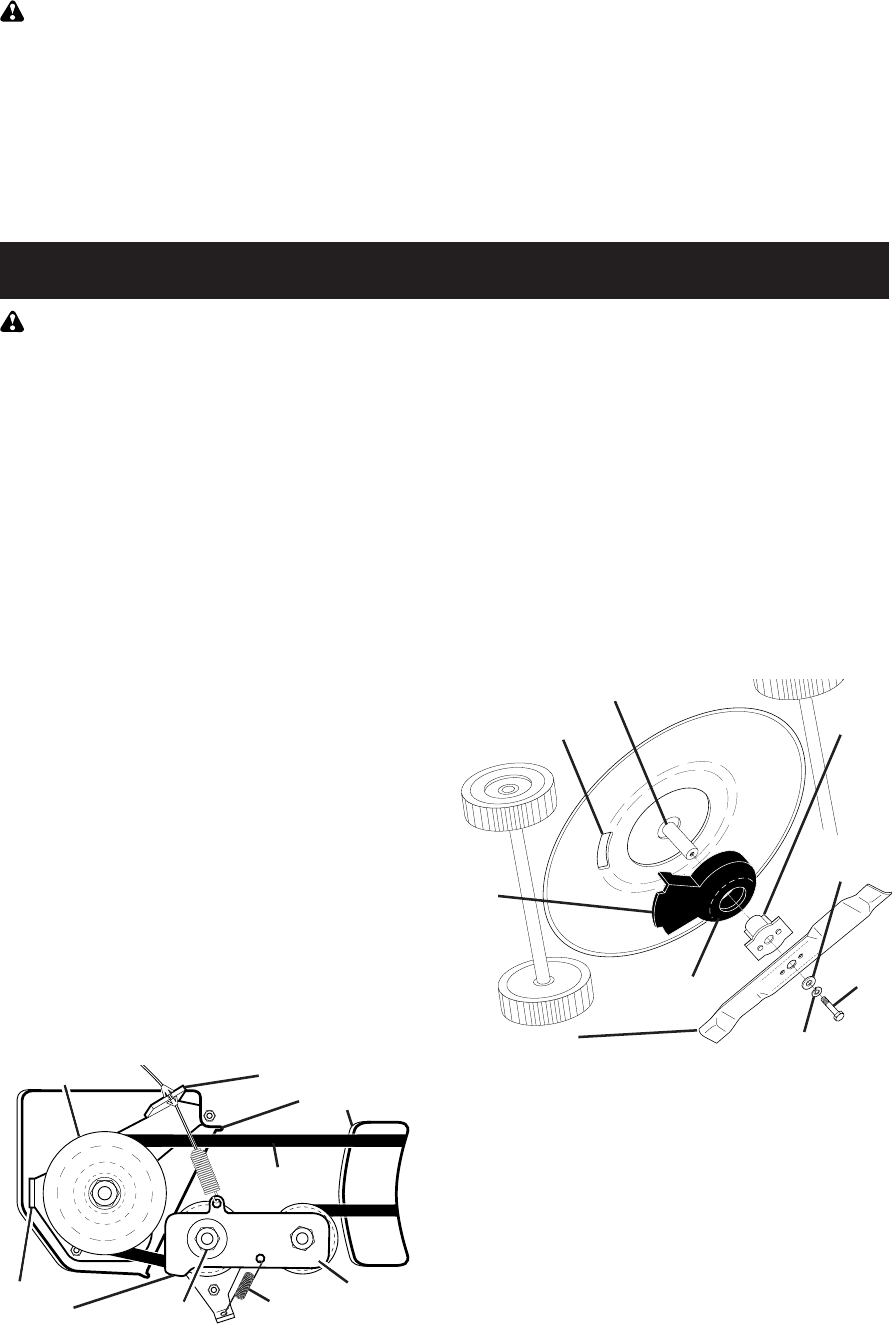

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Turn lawn mower on its side. Make

sure air ﬁ lter and carburetor are up.

3. Use a wood block between blade and

mower hous ing to prevent blade from

turning when re mov ing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade & attaching hard ware

(bolt, lock wash er & hardened wash er).

TO REPLACE BLADE

1. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

2. Be sure the trailing edge of blade (oppo-

site sharp edge) is up toward engine.

3. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

4. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. lbs.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approved bolt shown in the Repair Parts

section of this manual.

Blade

bolt

Crankshaft

keyway

Hardened

washer

Lockwasher

Blade adapter Key

Blade

Trailing edge Crankshaft

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

en ing the blade - but if you do, be sure the

blade is balanced. An un bal anced blade

will cause eventual damage to mower or

engine.

• The blade can be sharp ened with a ﬁ le

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail into

a beam or wall. Leave about one inch of

the straight nail ex posed. Place center

hole of blade over the head of the nail.

If blade is balanced, it should remain in

a horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

GRASS CATCHER

• The grass catcher may be hosed with

water, but must be dry when used.

• Check your grass catcher often for dam-

age or de te ri o ra tion. Through normal

use it will wear. If catcher needs replac-

ing, replace only with ap proved replace-

ment catcher shown in the Repair Parts

section of this manual. Give the lawn

mower model number when ordering.

GEAR CASE

• To keep your drive system working

properly, the gear case and area around

the drive should be kept clean and free

of trash build-up. Clean under the drive

cover twice a season.

• The gear case is ﬁ lled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the gear

case.

• If lubricant is required, use only Elf Mul-

tis EP00. Do not substitute.

14

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40 80 100

-30 -20 0 20 30 40

F

C

32

-10 10

60

5W-30

SAE 30

4. Wipe off any spilled oil from lawn

mower or side of engine.

5. Slowly pour oil down the oil ﬁ ll spout,

stopping every few ounces to check the

oil level with the dipstick.

6. Stop adding oil when you reach the

FULL mark on the dipstick. Wait a

minute to allow oil to settle.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils will

result in in creased oil consumption when

used above 32°F. Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oil after every 25 hours of op-

eration orat least once a year if the mower

is not used for 25 hours in one year.

Check the crankcase oil level before

starting the engine and after each ﬁ ve (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to drain

oil, empty fuel tank by running engine until

fuel tank is empty.

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to re-

move any oil trapped inside of engine.

MUFFLER

Inspect and replace corroded mufﬂ er as it

could create a ﬁ re hazard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

ﬁ rst. Spark plug type and gap setting

are shown in the “PROD UCT SPEC I FI C-

A TIONS” section of this manual.

Cartridige

Cover

Screws

Base

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classiﬁ cation SG–SL. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature.

7. Continue adding small amounts of oil,

rechecking the dipstick until oil level

settles at FULL. DO NOT overﬁ ll, or

engine will smoke heavily from the

mufﬂ er on startup.

8. Always be sure to retighten oil dipstick

before starting engine.

9. Re con nect spark plug wire to spark

plug.

AIR FILTER

Your engine will not run properly using

a dirty air ﬁ lter. Replace paper cartridge

every 100 hours of operation or every

season, which ev er occurs ﬁ rst. Service

air cleaner more often under dusty condi-

tions.

1. Loosen screws and remove cover.

2. Carefully remove cartridge.

3. Clean by gently tapping on a ﬂ at sur-

face. If very dirty, replace cartridge.

CAUTION: Petroleum solvents, such

as ker o sene, are not to be used to clean

car tridge. They may cause de te ri o ra tion

of the cartridge. Do not oil car tridge. Do

not use pres sur ized air to clean or dry

car tridge.

4. Install cartridge, then replace cover.

Container

15

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-grass

and trash. Clean the underside of your

mower after each use.

CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with plug.

• Clean the underside of your lawn mower

by scraping to remove build-up of grass

and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury, before performing any service and adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving parts have completely stopped.

3. Disconnect spark plug wire from spark plug and place wire where it cannot come in

contact with plug.

Trailing edge

Crankshaft

Debris shield

Blade

adapter

Hardened

washer

Lock-washer

Blade

bolt

Tab

Housing hole

Drive cable anchorDrive pulley

Housing holes

Drive belt

Idler arm

assembly

Belt

keepers Hex nut Return

spring

4. Remove idler arm assembly from

housing by removing hex nut; then

remove drive belt from drive pulley, belt

keepers and idler arm assembly.

5. Turn lawn mower on its side. Make

sure air ﬁ lter and carburetor are up.

6. Remove screw securing debris shield.

Note that the debris shield has a tab

which ﬁ ts into a gap in the housing.

7. Use a wood block between blade and

mower hous ing to prevent blade from

turning when re mov ing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

8. Remove blade bolt.

9. Remove blade, attaching hardware

(bolt, lock wash er, hardened wash er),

blade adapter and debris shield. Note

that the debris shield has a tab which

ﬁ ts into the housing hole.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See “TO ADJUST CUTTING HEIGHT” in

the Operation sec tion of this manual.

REAR DEFLECTOR

The rear deﬂ ector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

deﬂ ector becomes dam aged, it should be

replaced.

TO REMOVE DRIVE BELT

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with plug.

2. Remove screws retaining drive cover

(not shown); and remove drive cover

from lawn mower housing.

3. Remove drive cable from anchor, then

detach it and return spring from idler

arm assembly.

• Keep ﬁ nished surfaces and wheels free

of all gasoline, oil, etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

elec tri cal system, mufﬂ er, air ﬁ lter and

carburetor are covered to keep water

out. Water in engine can result in short-

ened engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a

season. Scrape underside of cover with

putty knife or similar tool to remove any

build-up of trash or grass on underside of

drive cover.

16

10.Remove drive belt from engine pulley;

discard old belt.

TO REPLACE DRIVE BELT

1. Place new drive belt on engine pulley.

2. Route the other end of the new drive

belt through hole in housing.

3. Return mower to upright position.

4. Install new drive belt into idler arm

assembly, then around the drive pulley.

Be sure belt is inside of belt keepers.

5. Reattach idler arm assembly with hex

nut previously removed.

6. Turn lawn mower on its side. Make

sure air ﬁ lter and carburetor are up.

7. Reattach debris shield to housing with

tab of debris shield in housing hole.

8. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

9. Be sure the trailing edge of blade (op-

posite sharp edge) is up toward the

engine as shown.

10.Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

11.Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. lbs.

IMPORTANT: Blade bolt is heat treated.

If bolt needs replacing, replace only with

approved bolt shown in the Repair Parts

section of this manual.

12.Return mower to upright position.

13.Reattach drive cable and return spring

to the idler arm assembly, then reat-

tach drive cable to anchor.

14.Reattach drive cover with screw(s)

previously removed.

15.Connect spark plug wire to spark plug.

TO ADJUST HANDLE

The handle on your lawn mower has three

(3) height positions - adjust to height that

suits you.

• Squeeze the bottom ends of lower

handle towards each other until the pin

in handle can be inserted into one of the

three height adjustment holes.

High

Handle

bracket

Handle pin

Medium

Low

SQUEEZE

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase en gine speed

or it may result in personal injury. If you

believe that engine is running too fast or

too slow, take your mower to a Husqvarna

or other qualiﬁ ed service cen ter for repair

and ad just ment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due

to suspected carburetor problems, take

your lawn mower to a Husqvarna or other

qualiﬁ ed service center for repair and/or

ad just ment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Over speed ing

the engine above the factory high speed

setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact a Husqvarna or other

qualiﬁ ed service center, which has proper

equip ment and ex pe ri ence to make any

nec es sary adjustments.

17

STORAGE

Immediately prepare your lawn mower for storage at the end of the season or if the unit

will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thor oughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

“CLEANING” in the Maintenance sec-

tion of this manual).

2. Lubricate as shown in the Main te nance

section of this manual.

3. Be sure that all nuts, bolts, screws, and

pins are securely fas tened. Inspect

moving parts for damage, breakage

and wear. Replace if necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

1. Loosen the two (2) handle knobs on

sides of the upper handle and allow

handle to fold down to the rear.

2. Squeeze the bottom ends of lower

handle toward each other until pins in

handle clear the brackets and pivot

entire handle assembly forward and

allow it to rest on mower.

• When setting up your handle from the

storage position, you must manually

lock lower handle into mowing position.

IMPORTANT: When folding the handle

for storage or trans por ta tion, be sure to

fold the handle as shown or you may dam-

age the control cables.

Handle pin

Handle

bracket

SQUEEZE

FOLD

FORWARD

FOR

STORAGE

MOWING

POSITION

Lower handle

Operator

presence

control bar

Upper

handle

Handle

knob

3. Reinstall knobs and carriage bolts to

lower handle / handle brackets for safe

keeping.

• When setting up your handle from

the storage position, lower han dle will

require manually locking into mowing

position.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may dam-

age the control cables.

ENGINE

FUEL SYS TEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

ﬁ lter, fuel hose, or tank during storage.

Alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and car bu re tor are empty.

• Never use engine or carburetor cleaner

prod ucts in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

18

Does not start 1. Dirty air ﬁ lter. 1. Clean/replace air ﬁ lter.

2. Out of fuel. 2. Fill fuel tank.

3. Stale fuel. 3. Empty fuel tank and reﬁ ll tank

with fresh, clean gasoline.

4. Water in fuel. 4. Empty fuel tank and reﬁ ll tank

with fresh, clean gasoline.

5. Spark plug wire disconnected. 5. Connect wire to plug.

6. Bad spark plug. 6. Replace spark plug.

7. Loose blade or broken 7. Tighten blade bolt or

blade adapter. replace blade adapter.

8. Control bar in released 8. Depress control bar to

position. handle.

PROBLEM CAUSE CORRECTION

TROUBLESHOOTING - See appropriate section in manual unless directed

to a Husqvarna Parts & Repair Center.

NOTE: Fuel stabilizer is an acceptable

alternative in min i miz ing the formation of

fuel gum deposits during stor age. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 min utes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See “ENGINE” in

the Maintenance section of this man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times to

dis trib ute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to protect it from dust and dirt.

• Cover your unit with a suitable pro tec -

tive cover that does not retain mois ture.

Do not use plastic. Plastic cannot

breathe, which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

CAUTION: Never store the lawn

mower with gaso line in the tank in side a

build ing where fumes may reach an open

ﬂ ame or spark. Allow the engine to cool

before storing in any enclosure.

19

Does not start 9. Control bar defective. 9. Replace control bar.

(continued)

10.Fuel valve lever (if so 10.Turn fuel valve lever

equipped) in OFF position. to the ON position.

11.Weak battery (if equipped). 11.Charge battery.

12.Disconnected battery 12.Connect battery to engine.

connector (if equipped).

Loss of power 1. Rear of mower housing or 1. Raise cutting height.

blade dragging in grass.

2. Cutting too much grass. 2. Raise cutting height.

3. Dirty air ﬁ lter. 3. Clean/replace air ﬁ lter.

4. Buildup of grass, leaves, 4. Clean underside of mower

and trash under mower. housing.

5. Too much oil in engine. 5. Check oil level.

6. Walking speed too fast. 6. Cut at slower walking speed.

Poor cut – 1. Worn, bent or loose blade. 1. Replace blade. Tighten

uneven blade bolt.

2. Wheel heights uneven. 2. Set all wheels at same

height.

3. Buildup of grass, leaves 3. Clean underside of

and trash under mower. mower housing.

Excessive 1. Worn, bent or loose blade. 1. Replace blade. Tighten

vibration blade bolt.

2. Bent engine crankshaft. 2. Contact a Husqvarna or other

qualiﬁ ed service center.

Starter rope 1. Engine ﬂ ywheel brake is on 1. Depress control bar to

hard to pull when control bar is released. upper handle before

pulling the starter rope.

2. Bent engine crankshaft. 2. Contact a Husqvarna or other

qualiﬁ ed service center.

3. Blade adapter broken. 3. Replace blade adapter.

4. Blade dragging in grass. 4. Move lawn mower to cut

grass or to hard surface.

Grass catcher 1. Cutting height too low. 1. Raise cutting height.

not ﬁ lling 2. Lift on blade worn off. 2. Replace blade.

(If so equipped) 3. Catcher not venting air. 3. Clean grass catcher.

Hard to push 1. Grass is too high or wheel 1. Raise cutting height.

height is too low.

2. Rear of mower housing or 2. Raise rear of mower housing

blade dragging in grass. one (1) setting higher.

3. Grass catcher too full. 3. Empty grass catcher.

4. Handle height position not 4. Adjust handle height to suit.

right for you.

Loss of drive 1. Belt wear. 1. Check/replace drive belt.

or slowing of 2. Belt off of pulley. 2. Check/reinstall drive belt.

drive speed 3. Drive cable worn or broken. 3. Replace drive cable.

4. “Loose” drive control system. 4. Adjust drive control.

PROBLEM CAUSE CORRECTION

TROUBLESHOOTING - See appropriate section in manual unless directed

to a Husqvarna Parts & Repair Center.

38

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375830

REPAIR PARTS

39

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375830

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 199982 Upper Handle Assembly

(Includes Foam Grip)

2 193664X498 Handle, Lower

3 186053 Spring, Rear Door, RH

4 194788 Rope Guide

5 132004 Nut, Hex, with

Lockwasher Insert 1/4-20

6 66426 Wire, Tie

7 191574 Bolt, Handle 5/16-18 x 2-5/8

8 185588 Knob, Handle

9 194580X422 Control Bar

10 188821 Pin, Handle Adjustment

11 73930500 Nut, Hex

12 51793 Cotter, Hairpin

13 186052 Spring, Rear Door, LH

14 750634 Screw

15 850733X004 Bracket, Upstop

16 185855X428 Rear Door Assembly

17 184193 Bolt, Rear Door

18 198170 Plug, Mulcher

19 402549 Kit, Housing

20 192980X479 Handle Bracket Asembly, LH

21 192979X479 Handle Bracket Assembly, RH

22 150078 Screw, Hex Washer Head

23 163183 Bolt, Hex Head 5/16-18 x 5/8

24 73800500 Nut, Hex, with

Lockwasher Insert 5/16-18

25 161333 Bafﬂ e, Side

26 163409 Screw #12 x 5/8

27 192876 Skirt, Rear

28 88652 Screw, Hinge 1/4-20 x 1.25

29 191221 Cable, Operator Presence

30 189179 Blade Adapter / Pulley

31 189028 Blade, 21"

32 851074 Washer

33 850263 Washer, Lock

34 851084 Bolt, Hex Head

35 188786 Debris Shield

36 192325 Bolt

37 150406 Bolt, Engine

38 - - - Engine, Briggs & Stratton,

Model Number 128602-

0551-E1 (See Breakdown)

39 401683 Grassbag

40 194644 Frame, Grassbag

41 85463 Danger Decal

42 54583 Screw

45 183058X418 Mulcher Door Assembly

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

46 169699X418 Discharge Guard

47 88349 Nut, Hex

48 188839X004 Mounting Bracket,

Debris Shield

50 57808 Screw

51 193791 Pulley, Idler

52 145212 Flanged Nut

53 155552 Locknut

54 193792X004 Idler Arm

55 166043 Idler Pulley

56 160829 Shoulder Bolt

57 193315 Bracket Assembly

58 182003 Clip, Wireform (Packaging)

59 182748 Grip, Foam

60 182226 Spring, Return

96 197991 Clip, Cable

- - 161058 Warning Decal (not shown)

- - 402780 Owner’s Manual,

English / Spanish

Available accessories not included with mower:

- - 71 33623 Gas Can

(2.5 Gallon Container)

- - 71 33500 Fuel Stabilizer

- - 71 33000 SAE 30W Oil

(20 Ounce Bottle)

40

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375830

41

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.375830

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 403326 Drive Control Assembly (Includes Cable)

2 195745 Cover, Top

3 187353 Pulley

4 190039 Lever, Drive Control

5 195744 Cover, Bottom

6 181698 Screw

7 400235X479 Mounting Bracket

8 184987 Cap, Bottom

9 196002 Cable, Drive

10 189074 Decal, Drive Control Operation

11 188291 Spring, Torsion

12 750634 Screw

13 193354 Gear Case Assembly, Complete

14 193443 Pulley, Drive

15 197235 Kit, Wheel Adjuster Assembly, RH

(Includes Knob and Bearing)

16 197234 Kit, Wheel Adjuster Assembly, LH

(Includes Knob and Bearing)

17 166785 Nut, Hex

18 168360X004 Spring, Selector

19 196401 Knob, Selector Spring

20 160835X007 Bracket, Wheel Adjusting

21 160828 Bolt, Shoulder, Hex Head

22 169911 Bearing, Ball

23 186578X004 Axle Arm Assembly, RH

24 186577X004 Axle Arm Assembly, LH

25 199775X418 Cover Drive

26 750634 Screw, Threaded, Rolled #10-25 x .50

27 183901 Spacer

28 12000058 E-Ring 7/16

29 189403 Cover, Dust, Wheel

30 73800400 Nut, Hex

31 175098 Pawl

32 193912X460 Wheel & Tire Assembly, Rear 8 x 1-3/4

33 83923 Nut, Flangelock 3/8-16

34 175103 Gear

35 175105 Retainer, Drive, LH

36 175104 Disc, Drive

37 184172 Seal, Friction

38 175102 Retainer, Drive, RH

40 193909X460 Wheel & Tire Assembly, Front 8 x 1-3/4

41 188330 Pinion Assembly, RH

43 188331 Pinion Assembly, LH

44 183688 V-Belt

47 67725 Washer

51 187530 * Case, Lower

52 187531 * Case, Upper

53 187532 Gear, 24 Teeth

54 187533 Shaft, Input

55 183505 Wire, Formed

56 183506 Bearing, Ball

57 183508 Seal, Output Shaft

58 183509 Washer

59 183511 Bushing

60 197385 Shaft, Output

61 183513 Screw

62 183514

Seal, Input Shaft

* Use Dow Corning #709 to reseal Gear Case Halves.

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

42

MODEL NUMBER 128602-0551-E1

BRIGGS & STRATTON 4-CYCLE ENGINE

7

1022

35

238

40

1034

1029

883

45

13

684

9

10

337

635

5

40

1022

914 383

8

868

306

307

585

619

33

34

1023

51A

1058 OWNER’S MANUAL

741

24

20

12

22

46

43

15

4

1022

7

1095 VALVE GASKET SET

26

32

27

562

505

616

615

404

227

25 29

28

16

3

1

718

868

993

1026

36

830

192

51

11

886

51

11A

32A

163

2

993

914A

584

122

51A

883

1036 EMISSIONS LABEL 1330 REPAIR MANUAL 1329 REPLACEMENT ENGINE

334

851

333

43

MODEL NUMBER 128602-0551-E1

BRIGGS & STRATTON 4-CYCLE ENGINE

524

842

847 523

525

95

365

127

633

130

125

104

137

134

133

975

117

163

276

51A

202 209

188

287

957

190

972

121 CARBURETOR

104

134

127

137 276

977 CARBURETOR GASKET SET

633

163

137

51

613

883

300

613A

670

601

187

51

97

276

OVERHAUL KIT

276

118

51

51A

222

1059 1059

163

443

259

976

966

445

967

425

968

51A

51A 305

48

304

44

MODEL NUMBER 128602-0551-E1

BRIGGS & STRATTON 4-CYCLE ENGINE

1022

12

883

20

585

3

842

524

163

7

358 ENGINE GASKET SET

993

868

356

324

332

23

363

55

456

58

60

459

689

597

608

592

65

1211

1210

922

923

745

51

969

921

621

51A

KEY PART

NO. NO. DESCRIPTION

1 692670 Cylinder Assembly

2 399269 Kit-Bushing/Seal

3 299819s • Seal-Oil (Magneto Side)

4 493279 Sump-Engine

5 792381 Head-Cylinder

7 697230 •+ Gasket-Cylinder Head

8 495786 Breather Assembly

9 699833 Gasket-Breather

10 691125 Screw (Breather Assembly)

11 691260 Tube-Breather

11A 692937 Tube-Breather

12 692232 • Gasket-Crankcase

13 691137 Screw (Cylinder Head)

15 691680 Plug-Oil Drain

16 691456 Crankshaft

20 399781s • Seal-Oil (PTO Side)

22 691092 Screw (Engine Sump)

23 697610 Flywheel

24 222698s Key-Flywheel

25 791968 Piston Assembly (Standard)

791326 Piston Assembly

(.020" Oversize)

26 791969 Ring Set-Piston (Standard)

791324 Ring Set-Piston

(.020" Oversize)

27 691866 Lock-Piston Pin

28 499423 Pin-Piston

29 499424 Rod-Connecting

KEY PART

NO. NO. DESCRIPTION

32 691664 Screw (Connecting Rod)

32A 695759 Screw (Connecting Rod)

33 499642 Valve-Exhaust

34 499641 Valve-Intake

35 691304 Spring-Valve (Intake)

36 691304 Spring-Valve (Exhaust)

40 692194 Retainer-Valve

43 691997 Slinger-Governor/Oil

45 690977 Tappet-Valve

46 694039 Camshaft

48 692748 Short Block

51 692668• Ø‡+Gasket-Intake

51A 692555•Ø‡+ Gasket-Intake

55 691421 Housing-Rewind Starter

58 697316 Rope-Starter (Cut to Length)

60 281434 Grip-Starter Rope

65 690837 Screw (Rewind Starter)

95 691636 Screw (Throttle Valve)

97 790121 Shaft-Throttle

104 691242 Ø Pin-Float Hinge

117 498981 Jet-Main (Standard)

118 498978 Jet-Main (High Altitude)

121 792383 Kit-Carburetor Overhaul

122 792382 Spacer-Carburetor

125 790120 Carburetor

127 694468 Ø Plug-Welch

130 696564 Valve-Throttle

133 398187 Float-Carburetor

45

MODEL NUMBER 128602-0551-E1

BRIGGS & STRATTON 4-CYCLE ENGINE

KEY PART

NO. NO. DESCRIPTION

134 398188 Ø Valve-Needle/Seat

137 693981 Ø‡ Gasket-Float Bowl

163 691894•Ø‡+ Gasket-Air Cleaner

187 791766 Line-Fuel (Cut to Length)

188 691147 Screw (Control Bracket)

190 690940 Screw (Fuel Tank)

192 694543 Ball-Rocker Arm

202 691303 Link-Mechanical Governor

209 691851 Spring-Governor

222 697614 Bracket-Control

227 691467 Control Lever-Governor

238 691300 Cap-Valve

259 691189 Bracket-Casing Clamp

276 271716 Ø‡ Washer-Sealing

287 690940 Screw (Dipstick Tube)

300 697590 Mufﬂ er

304 695976 Housing-Blower

305 691108 Screw (Blower Housing)

306 691232 Shield-Cylinder

307 690345 Screw (Cylinder Shield)

324 695161 Cup/Screen Assembly

332 690662 Nut (Flywheel)

333 802574 Armature-Magneto

334 691061 Screw (Armature Magneto)

337 692051 Plug-Spark

356 692390 Wire-Stop

358 792384 Gasket Set-Engine

363 19069 Puller-Flywheel

365 691129 Screw (Carburetor)

383 19374s Wrench-Spark Plug

404 690272 Washer (Governor Crank)

425 690244 Screw (Air Cleaner Cover)

443 690255 Screw (Air Cleaner Base)

445 697029 Filter-Air Cleaner Cartridge

456 692299 Plate-Pawl Friction

459 281505s Pawl-Ratchet

505 691251 Nut (Gov. Control Lever)

523 499621 Dipstick

524 692296 • Seal-Dipstick Tube

525 495265 Tube-Dipstick

562 92613 Bolt (Gov. Control Lever)

584 697734 Cover-Breather Passage

585 691879 • Gasket-Breather Passage

592 690800 Nut (Rewind Starter)

597 691696 Screw (Pawl Friction Plate)

601 791850 Clamp-Hose

608 497680 Starter-Rewind

613 691108 Screw (Mufﬂ er)

613A 691140 Screw (Mufﬂ er)

615 690340 Retainer-Governor Shaft

616 698801 Crank-Governor

619 691108 Screw (Cylinder Head Plate)

621 692310 Switch-Stop

633 691321 Ø‡ Seal-Throttle Shaft

635 66538s Boot-Spark Plug

KEY PART

NO. NO. DESCRIPTION

670 692294 Spacer-Fuel Tank

684 690345 Screw (Breather Cover)

689 691855 Spring-Friction

718 690959 Pin-Locating

741 790345 Gear-Timing

745 691648 Screw (Brake)

830 694544 Stud (Rocker Arm)

842 691031 • Seal-O Ring (Dipstick Tube)

847 692047 Assembly-Dipstick/Tube

851 493880s Terminal-Spark Plug

868 692044 •+ Seal-Valve

883 691893 •+ Gasket-Exhaust

886 696268 Gasket Kit -

Cylinder Head / Plate

914 691108 Screw (Rocker Cover)

914A 691127 Screw (Rocker Cover)

921 691465 Cover-Blower Housing

922 692135 Spring-Brake

923 695891 Brake

957 692046 Cap-Fuel Tank

966 690243 Base-Air Cleaner Primer

967 273356 Filter-Pre Cleaner

968 691342 Cover-Air Cleaner

969 691138 Screw (Blower Cover)

972 699374 Tank-Fuel

975 493640 Bowl-Float

976 694395 Primer-Carburetor

977 792385 Set-Carburetor Gasket

993 694088 •+ Gasket-Cylinder Head Plate

1022 691890 •+ Gasket-Rocker Cover

1023 499624 Cover-Rocker Arm

1026 692045 Rod-Push

1029 691230 Arm-Rocker

1034 691343 Guide-Push Rod

1036 792166 Label-Emissions

1058 275054 Owner’s Manual

1059 692311 Kit-Screw/Washer

1095 792386 Set-Valve Gasket

1210 498144 Pulley/Spring Assy. (Pulley)

1211 498144 Pulley/Spring Assy. (Spring)

1329 121602-0625 Replacement Engine

1330 272147 Repair Manual

- - 398067 Spark Arrester

(available accessory)

• Included in Engine Gasket Set, Key No. 358

Ø Included in Carb. Overhaul Kit, Key No. 121

‡ Included in Carb. Gasket Set, Key No. 977

+ Included in Valve Gasket Set, Key No. 1095

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

46

SERVICE NOTES

47

SERVICE NOTES

402780 Rev. 1 01.20.06 BY Printed in U.S.A.

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYER

MC

(1-800-533-6937)

www.sears.ca

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears.com

Your Home

For repair – in your home –ofall major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®Anytime, day or night

(1-800-469-4663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Get it fixed, at your home or ours!

® Registered Trademark /

TM

Trademark /

SM

Service Mark of Sears Brands, LLC

® Marca Registrada /

TM

Marca de Fábrica /

SM

Marca de Servicio de Sears Brands, LLC

MC

Marque de commerce /

MD

Marque déposée de Sears Brands, LLC
