Operator Manual
EZ4824EC / 965880201 EZ4824K / 965880301
EZ4824 / 965880401 EZ5221 / 965880501
EZ5224 / 965880601 EZ5226 / 965921601
EZ6124 / 965880701
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.
©2008 HTC. All rights reserved.
Beatrice, NE. Printed in U.S.A.
In order to implement improvements, specications and designs can be altered without prior
notication.
Note that no legal demands can be placed based on the information contained in these instructions.
Use only original parts for repairs. The use of other parts voids the warranty.
Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modications to the unit may cause unsafe operations or damage the unit.
CONTENTS
English-3
INTRODUCTION ............................................................... 5
Driving and Transport on Public Roads ...................... 5
Towing......................................................................... 5
Operating .................................................................... 5
Good Service .............................................................. 6

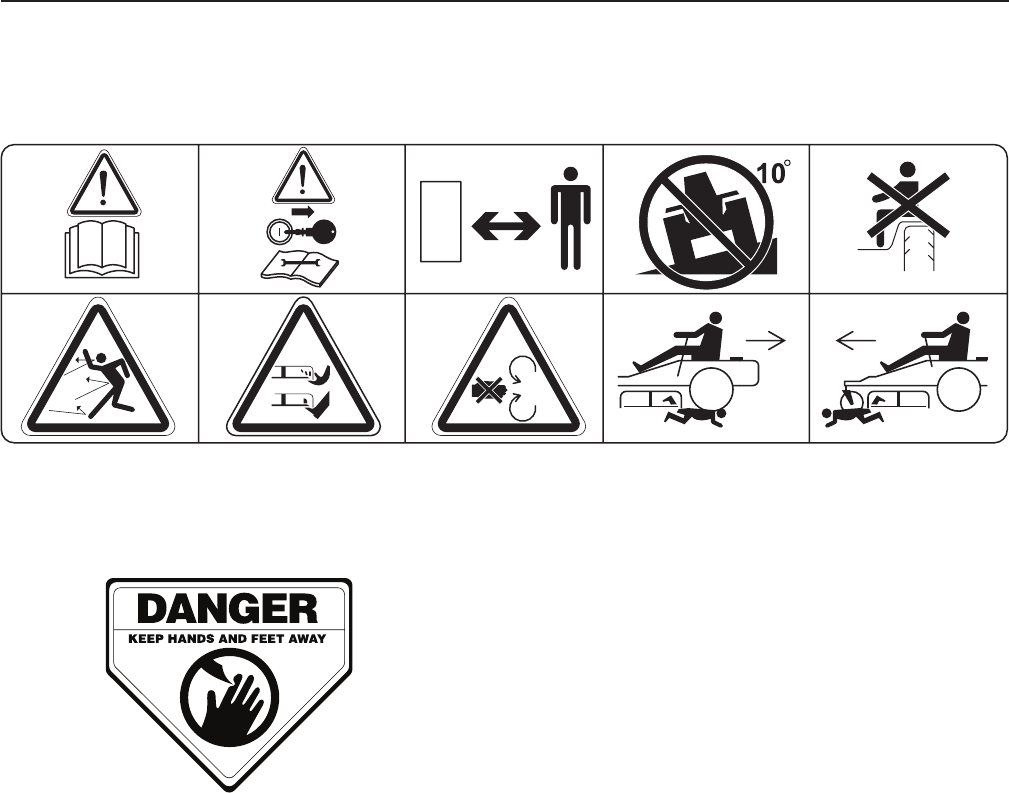

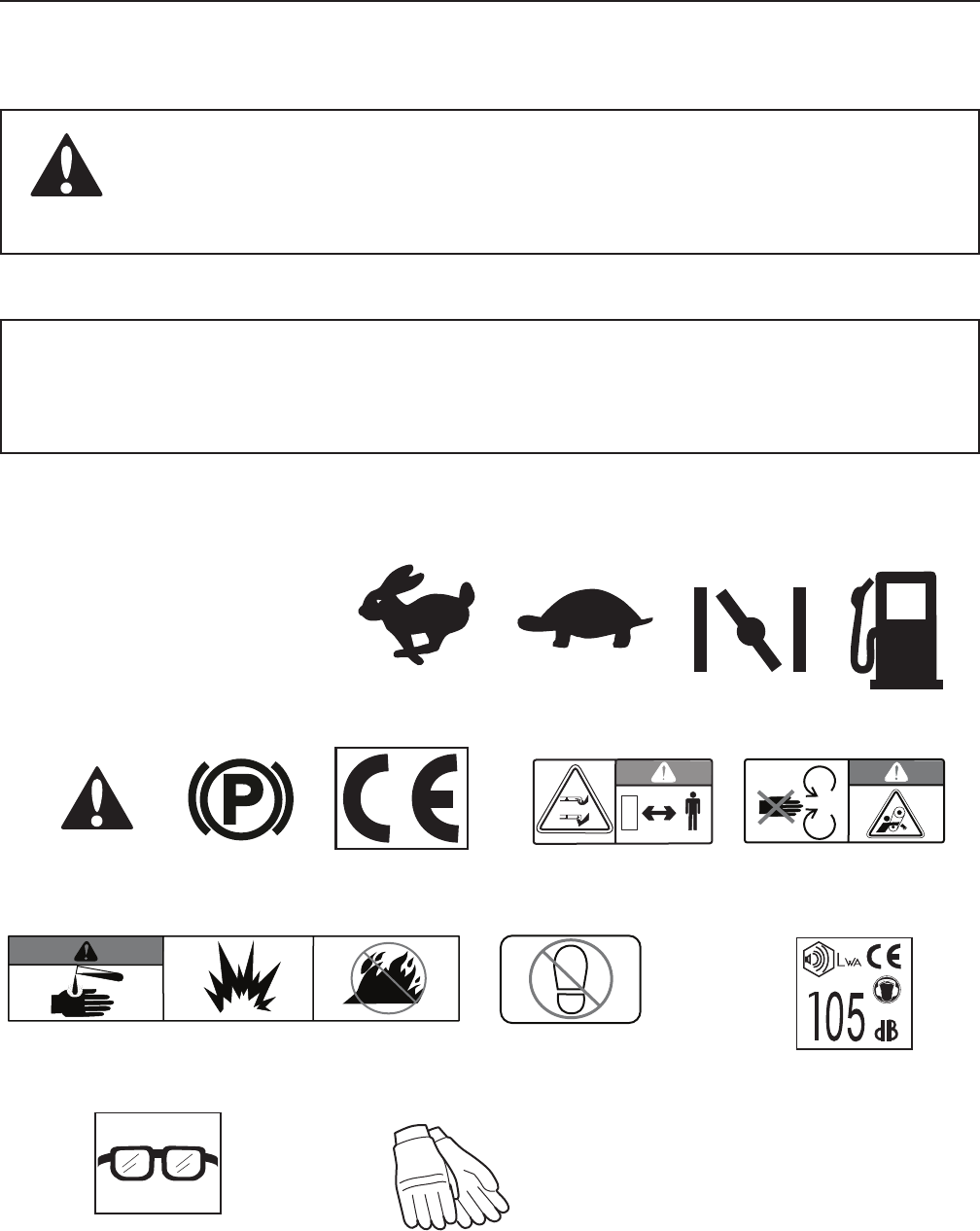

SYMBOLS AND DECALS ................................................. 7
SAFETY ............................................................................ 9
Safety Instructions ...................................................... 9

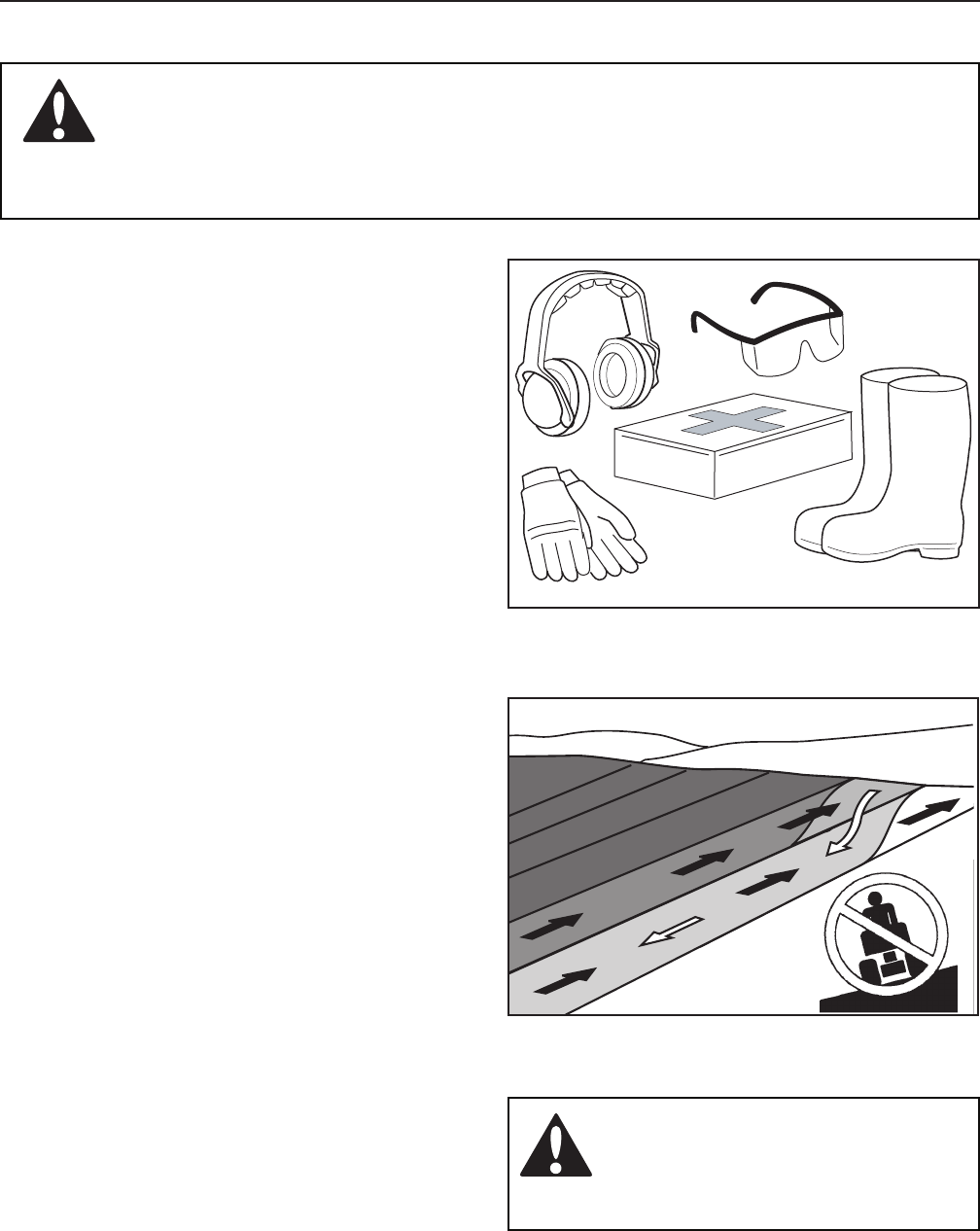

Personal Safety Equipment ...................................... 11
Slope Operation ........................................................ 11
Safe Handling of Gasoline ........................................ 13
General Maintenance ............................................... 14
Transport .................................................................. 16
CONTROLS .................................................................... 17

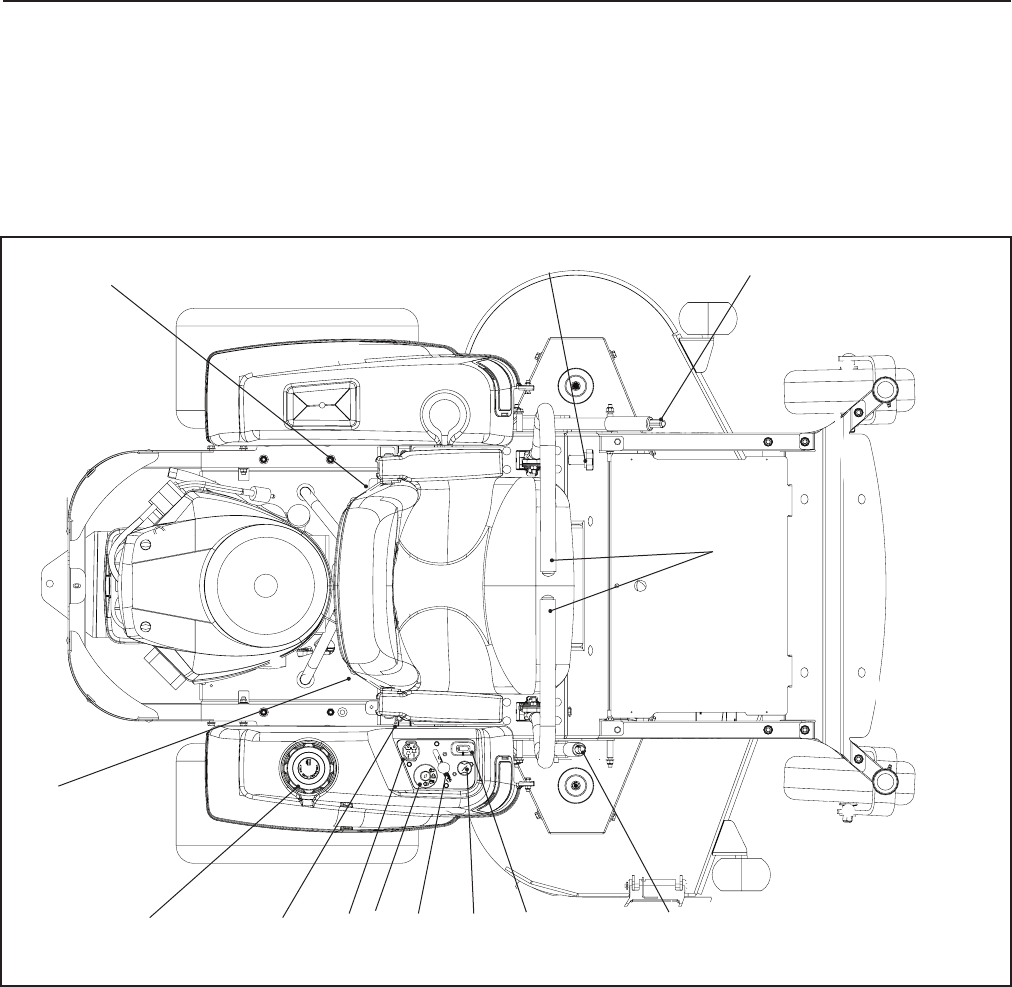

Control Locations ...................................................... 17
Steering Control Levers ............................................ 18
Parking Brake ........................................................... 19
Throttle Control ......................................................... 19
Blade Switch ............................................................. 19
Ignition Switch........................................................... 20
Choke Control ........................................................... 20
Fuses ........................................................................ 20
Fuel Tank .................................................................. 21
Fuel Shut Off Valve ................................................... 22
Cutting Height Adjuster ............................................. 22
Seat Adjustment Lever.............................................. 23
Hour Meter ................................................................ 23
Tracking Knob ........................................................... 23
OPERATION ................................................................... 24
Training ..................................................................... 24
Steering .................................................................... 24
Before Starting .......................................................... 25
Starting the Engine ................................................... 25
Weak Battery ............................................................ 28

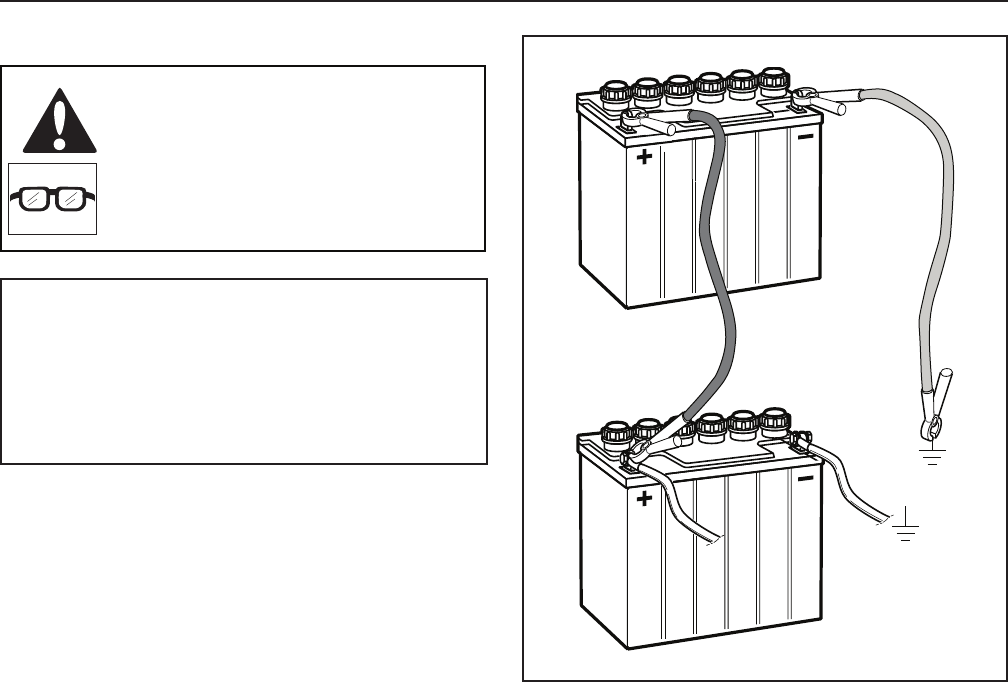

Jumper Cables................................................ 28
Running .................................................................... 29
Operating On Hills .................................................... 30
Mowing Tips ............................................................. 31
Stopping the Engine ................................................. 32
Manual Transport ...................................................... 33
ZT-2800 Bypass Linkages .............................. 33
Pump Release Valves ..................................... 33
MAINTENANCE .............................................................. 34

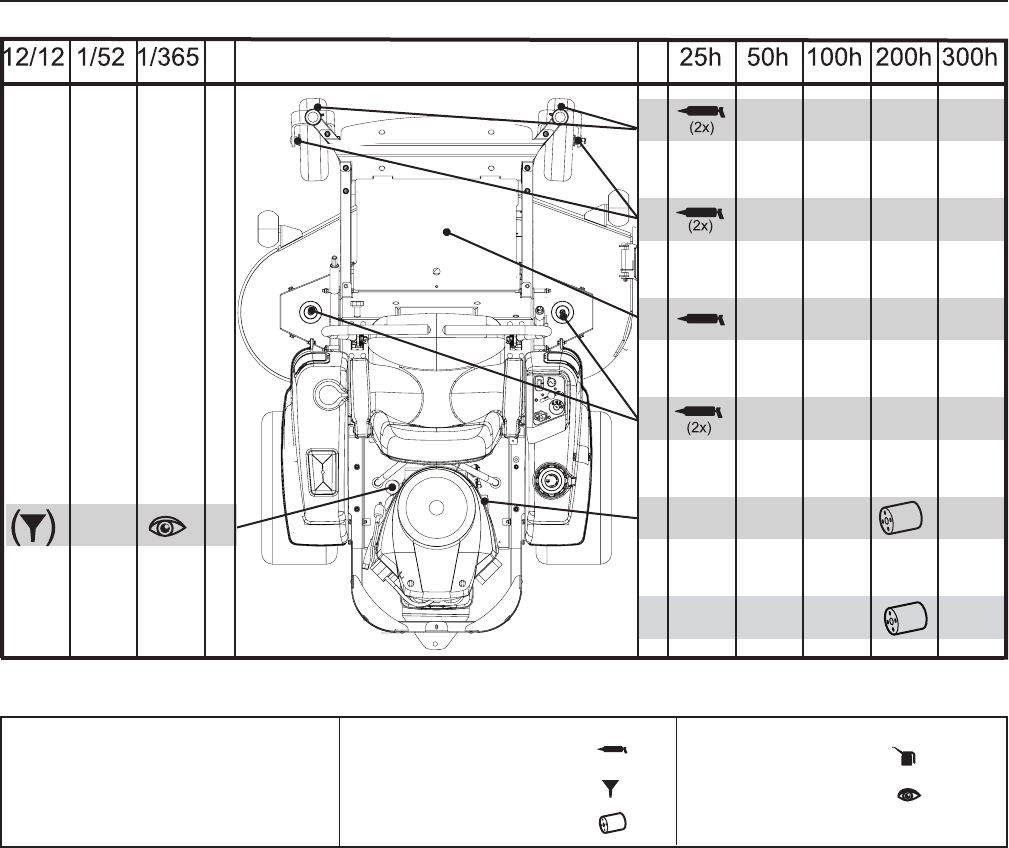

Maintenance Schedule ............................................. 34

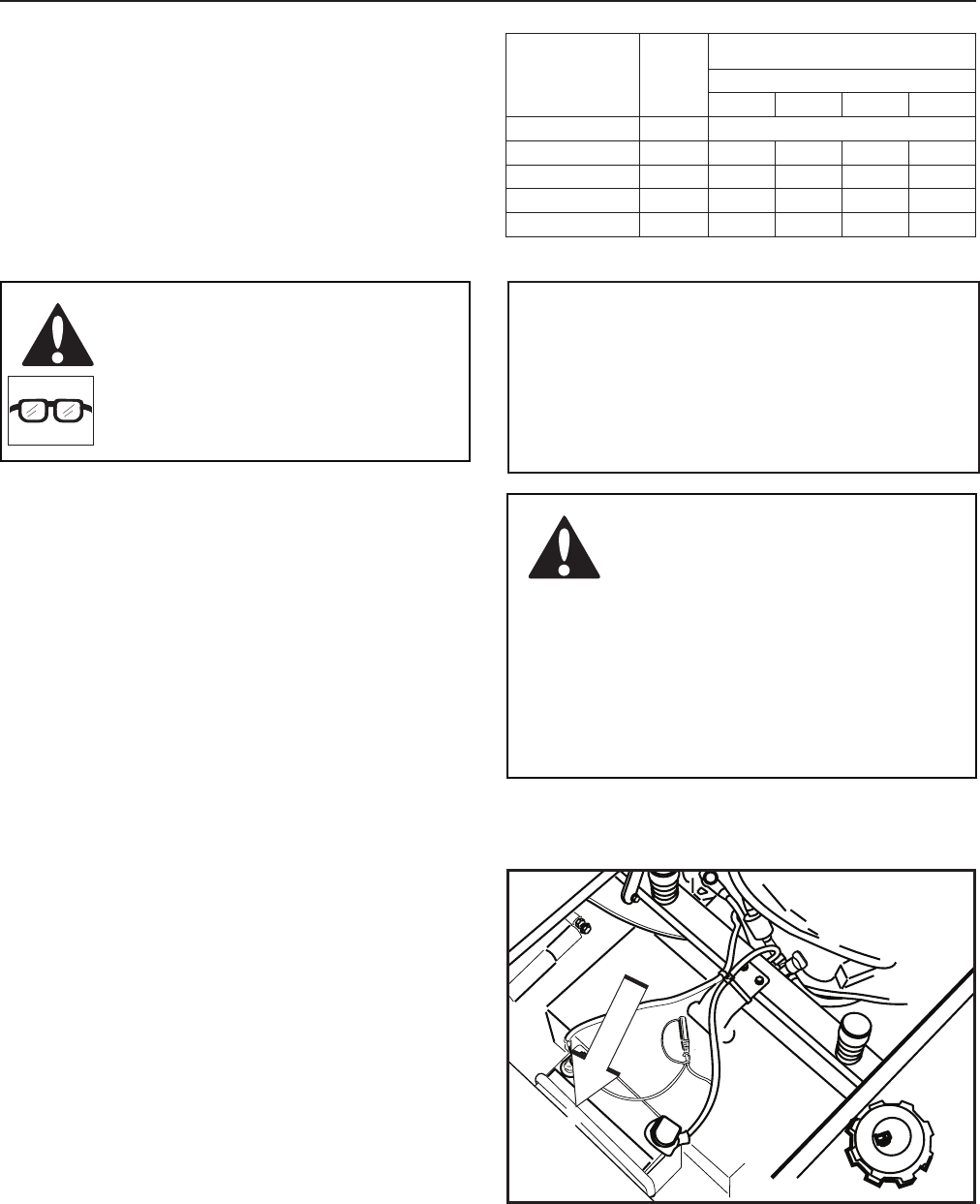

Battery ...................................................................... 36
Ignition System ......................................................... 37
Safety System........................................................... 37
Engine Cooling Air Intake ......................................... 38
Throttle Cable ........................................................... 38
Choke Cable ............................................................. 38

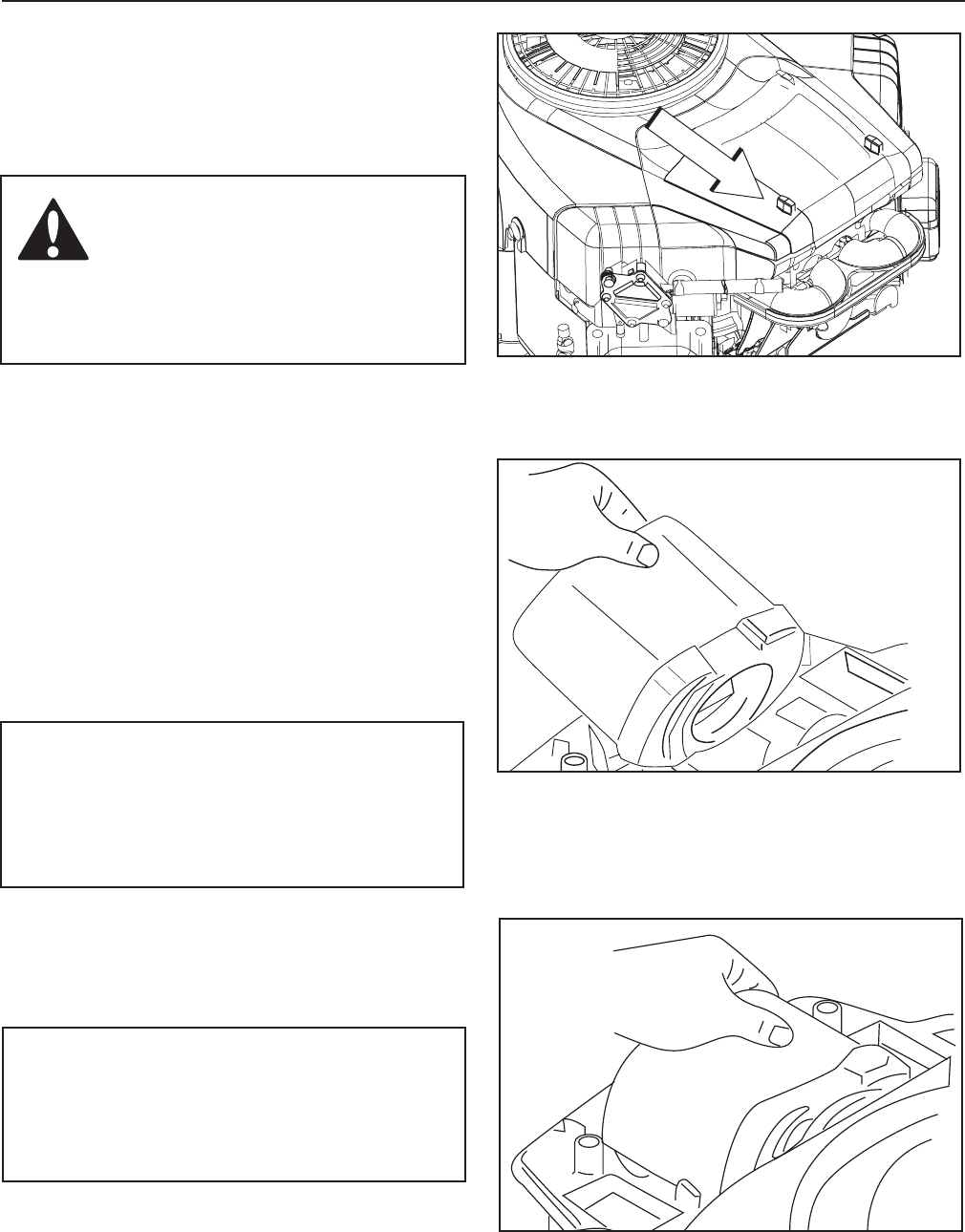

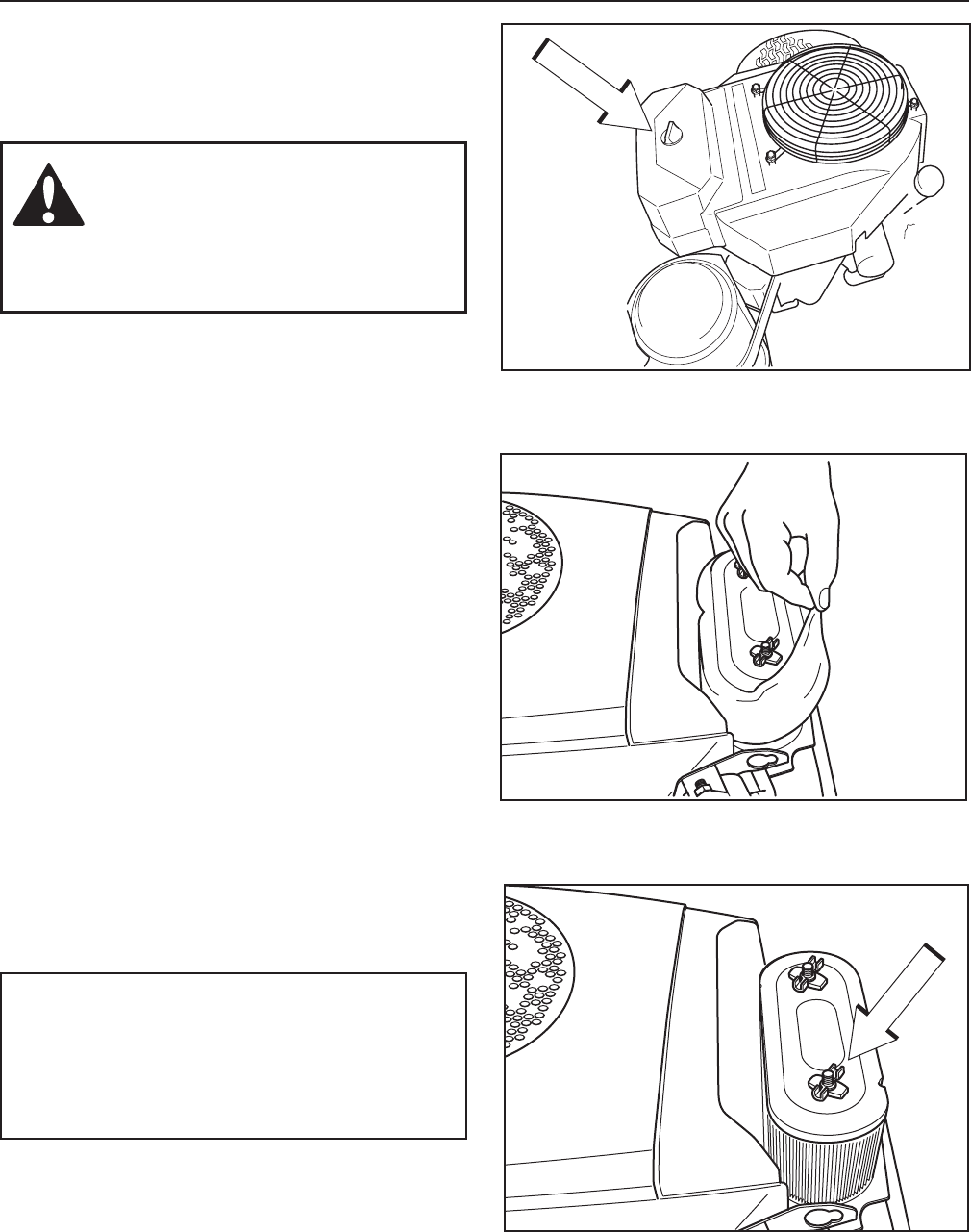

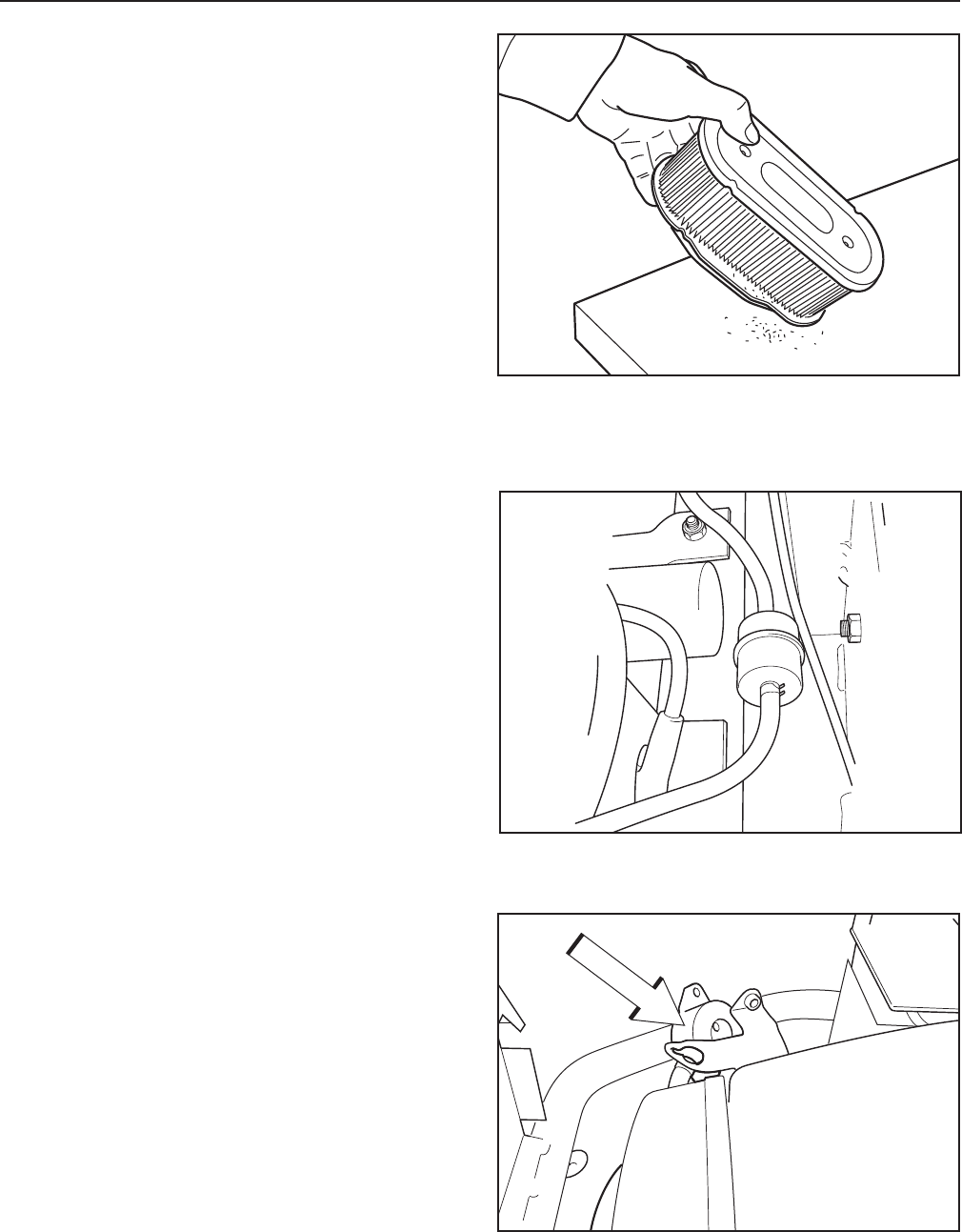

Air Filter .................................................................... 39
Briggs & Stratton Engine ................................ 39
Kohler Engine ................................................. 40
Kawasaki Engine ............................................ 41
Fuel Filter .................................................................. 42
Tire Pressures .......................................................... 43
Parking Brake ........................................................... 43
V-belts ....................................................................... 44
Deck Belt Removal ......................................... 44
Pump Belt ....................................................... 45
Cutting Blades .......................................................... 46

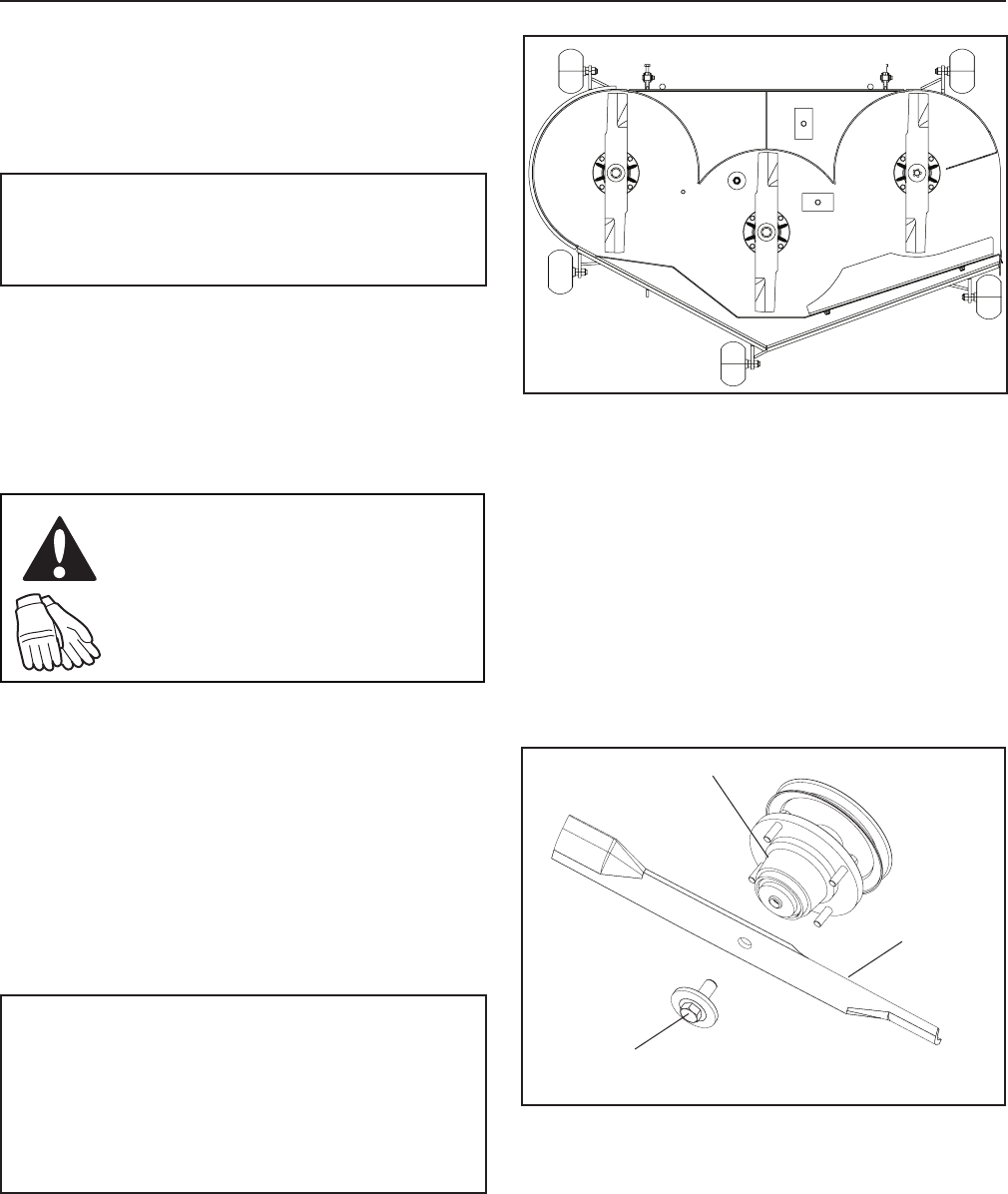

Blade replacement .......................................... 46
Adjusting the Mower Deck ........................................ 47
Leveling deck .................................................. 47

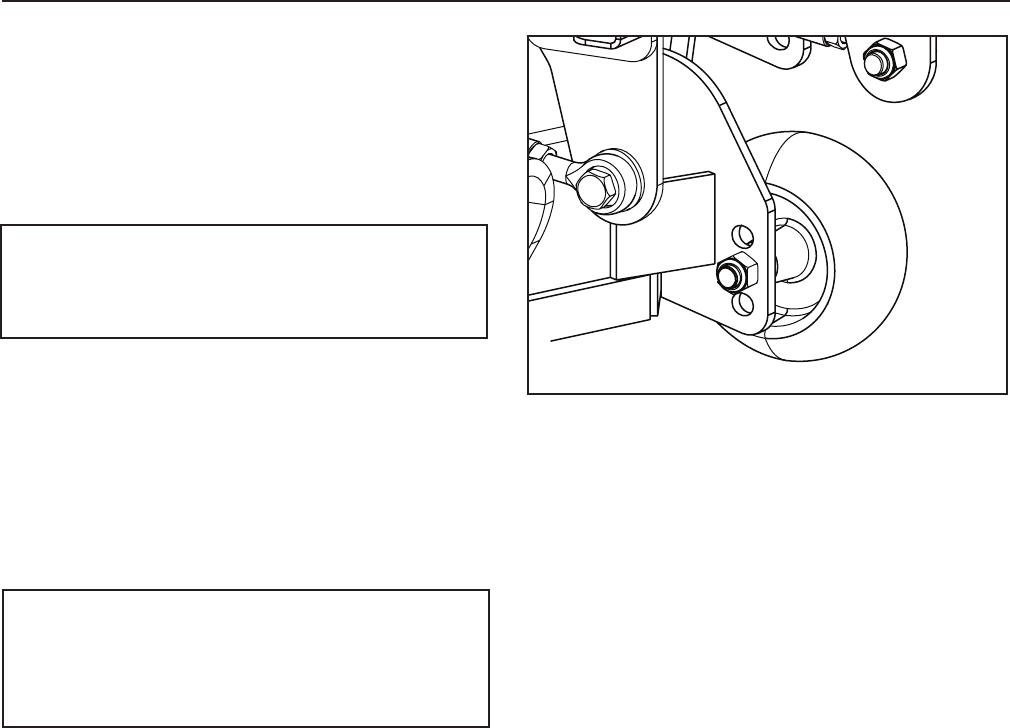

Anti-scalp rollers ............................................. 48

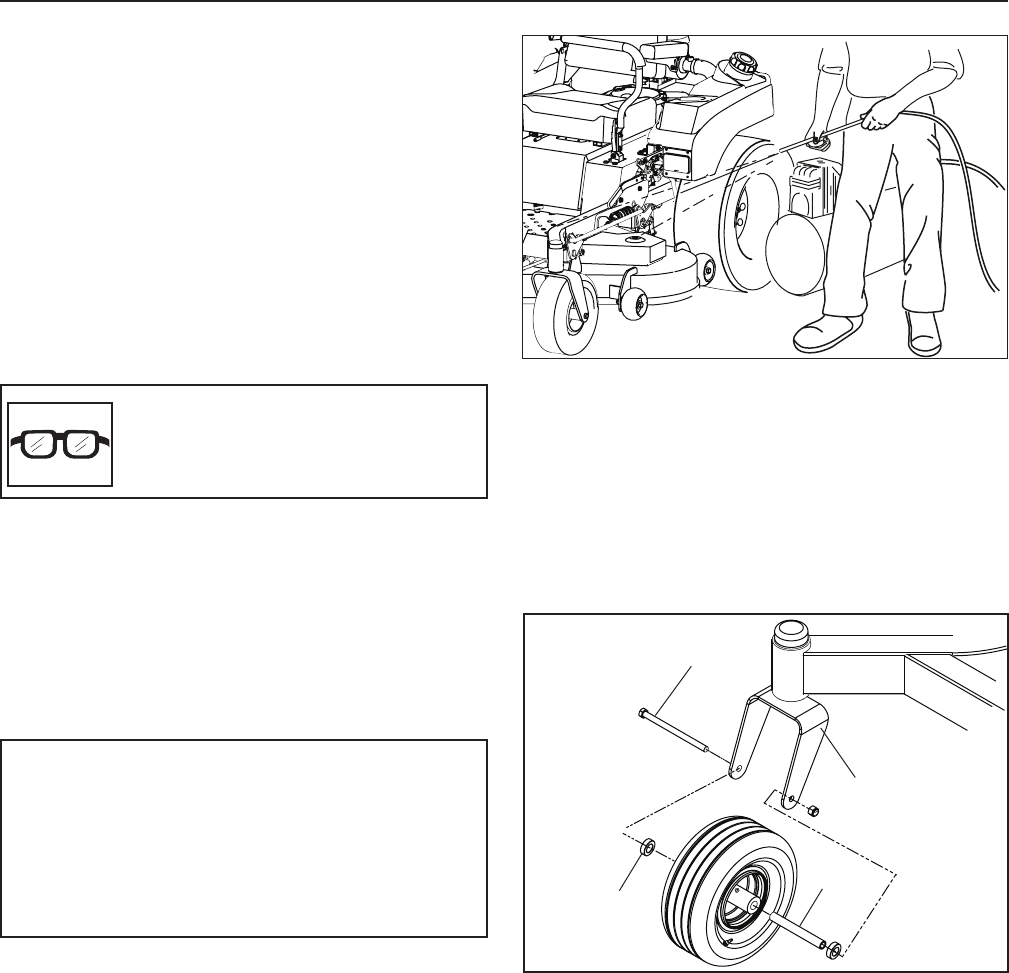

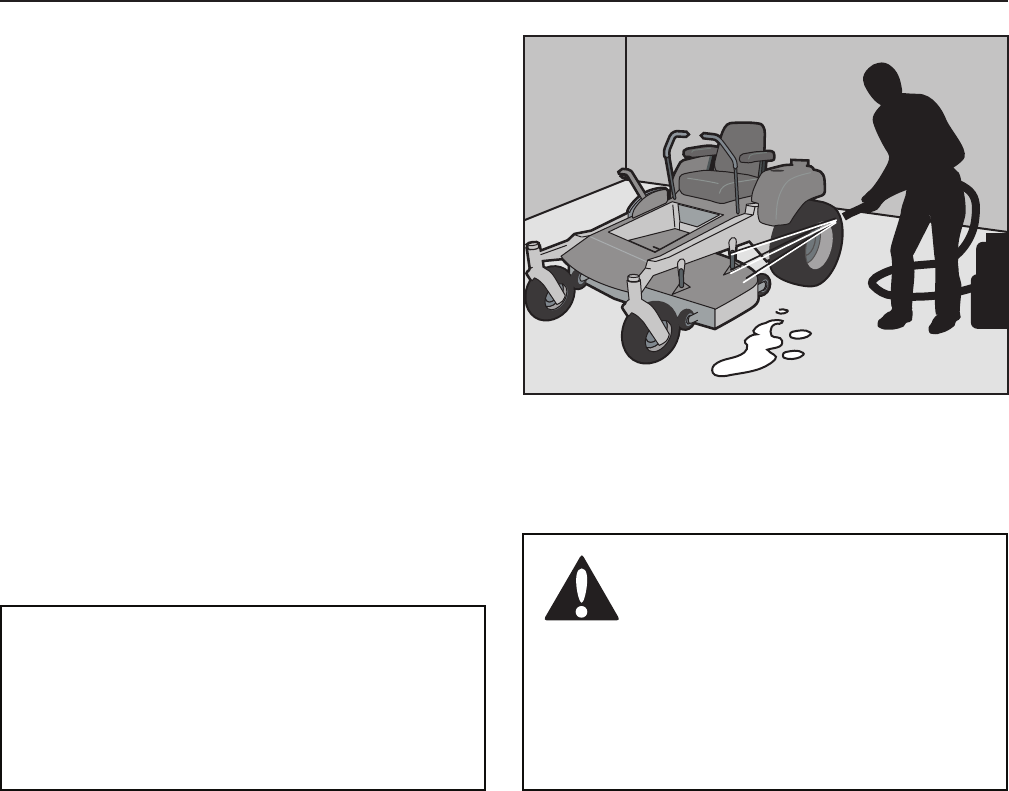

Cleaning.................................................................... 49
Caster Wheels .......................................................... 49
Hardware .................................................................. 49
LUBRICATION ................................................................ 50
Front Wheel Mount ................................................... 51
Front Wheel Bearings ............................................... 51
Deck Spindle............................................................. 51
Deck Outer Spindle................................................... 51

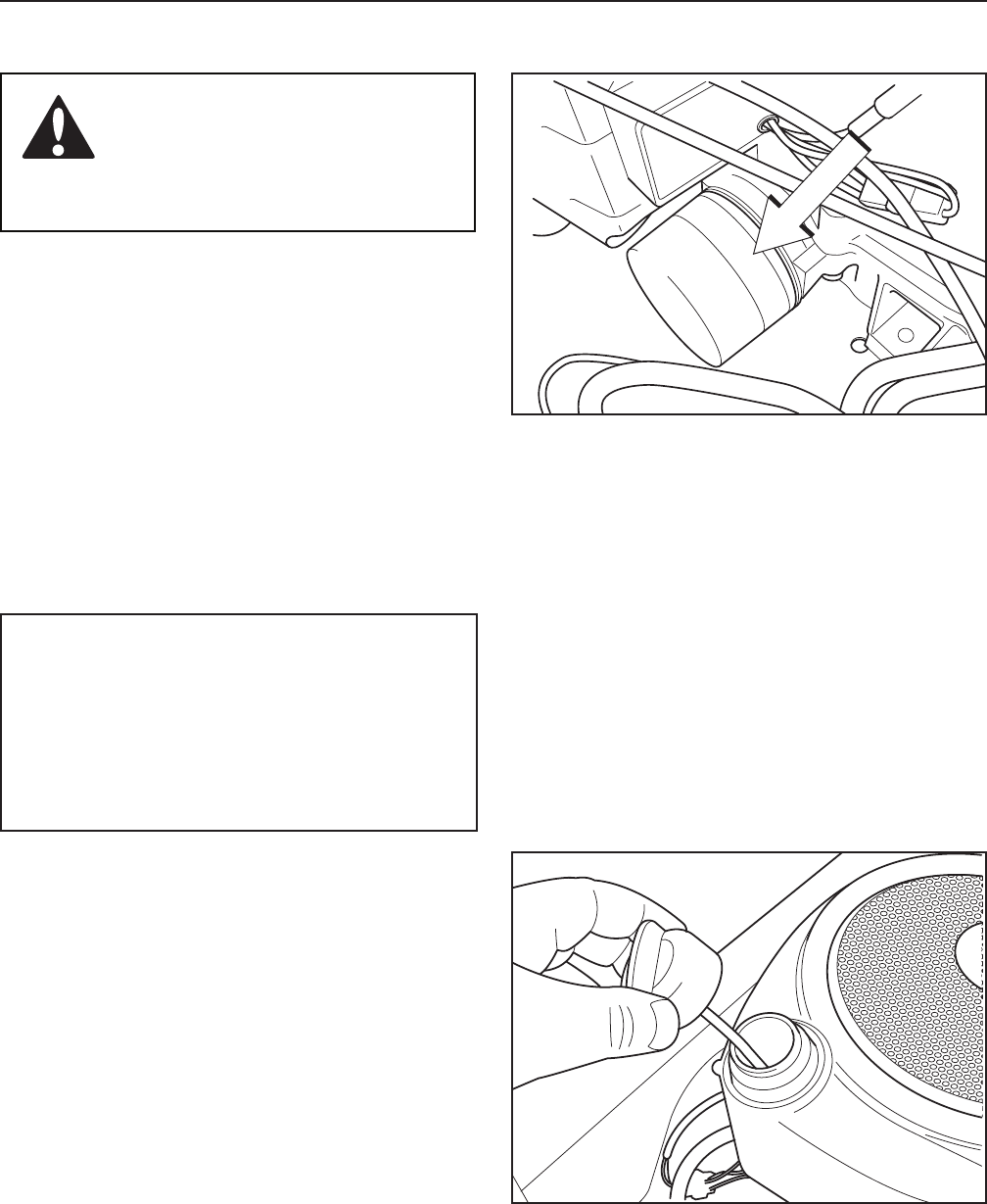

Engine Oil ................................................................. 52
Engine Oil Levels ............................................ 52
Changing the Engine Oil ................................. 53

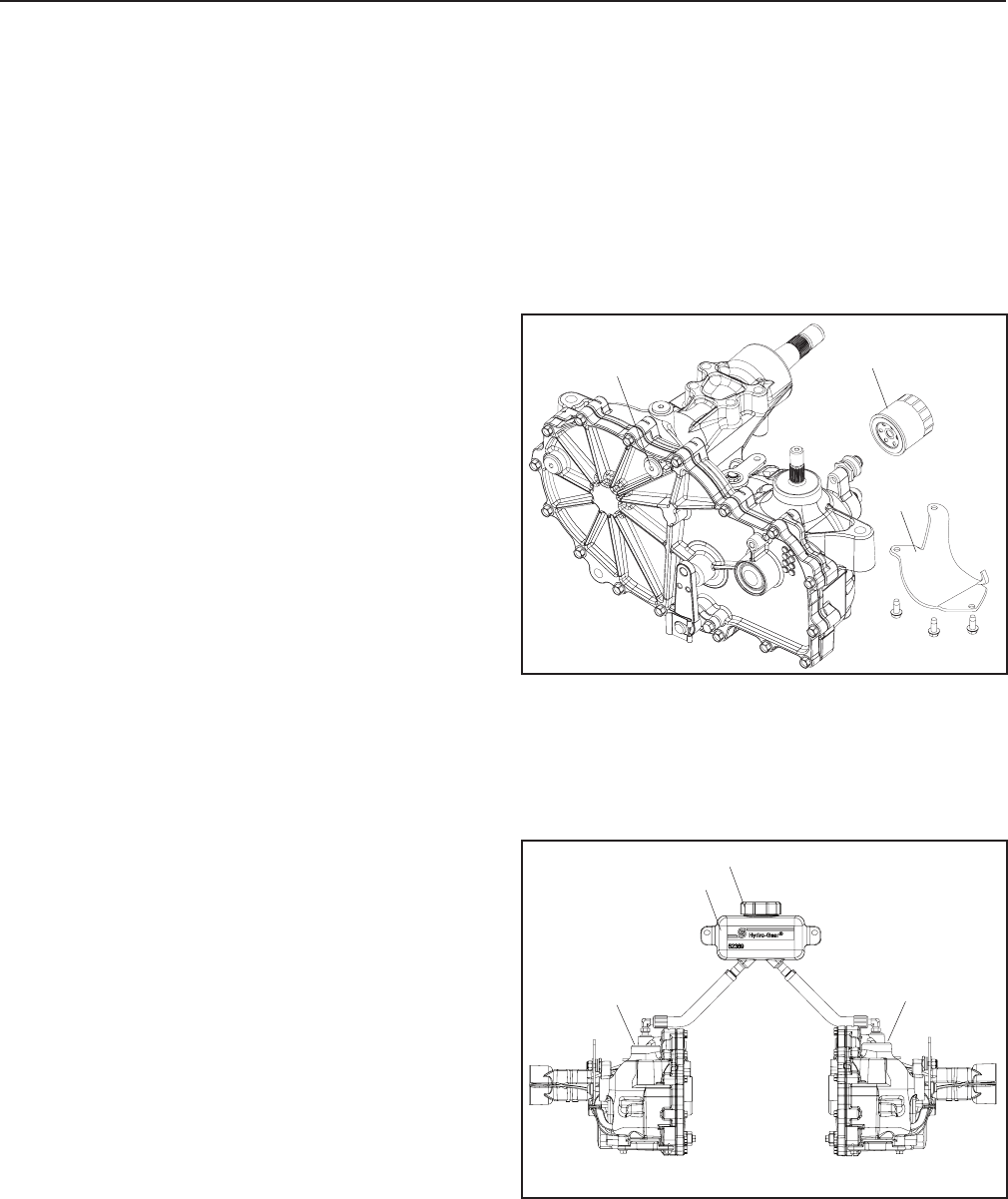

*Transaxle (Transmission) Fluid Change .................. 54
Hydraulic Pump Fluid Change .................................. 55
Purging Procedures ........................................ 56
TROUBLESHOOTING .................................................... 57
STORAGE ....................................................................... 59
Winter Storage .......................................................... 59
Service ...................................................................... 59

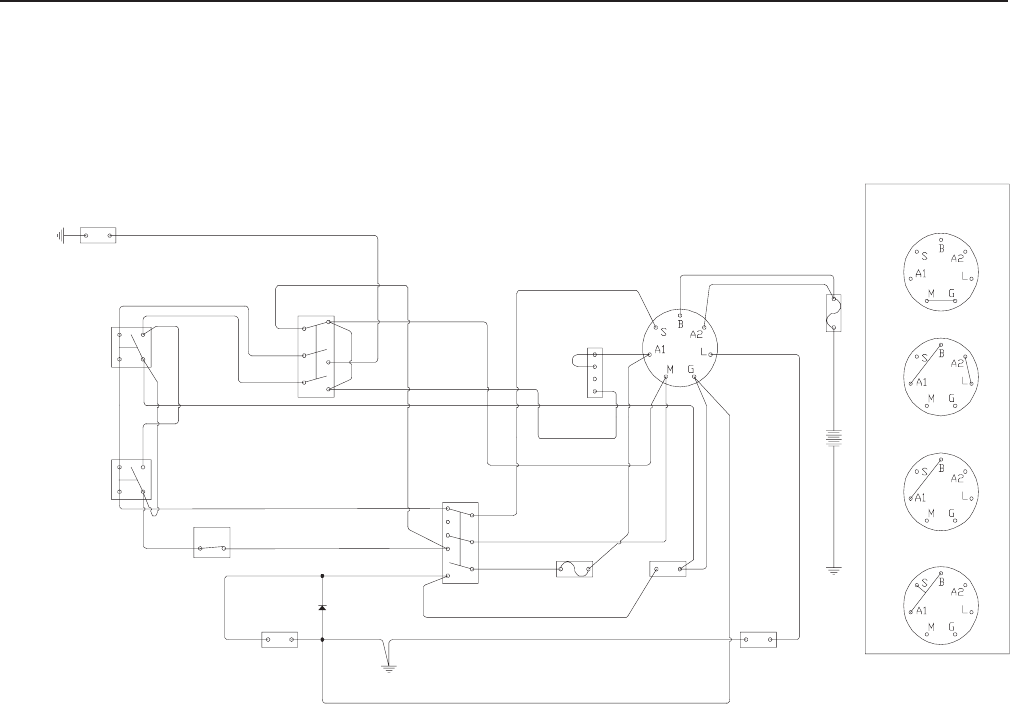

SCHEMATICS ................................................................. 60
TECHNICAL DATA .......................................................... 61
Accessories .............................................................. 61
Torque Specications................................................ 61
CONFORMITY CERTIFICATES ..................................... 68
SERVICE JOURNAL ....................................................... 70
WARNING!
Failure to follow cautious operating practices can result in serious injury to the
operator or other persons. The owner must understand these instructions, and must
allow only trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and must not be
under the inuence of any mind altering substance.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain
or emit chemicals known to the State of California to cause cancer and birth defects
or other reproductive harm.
WARNING!

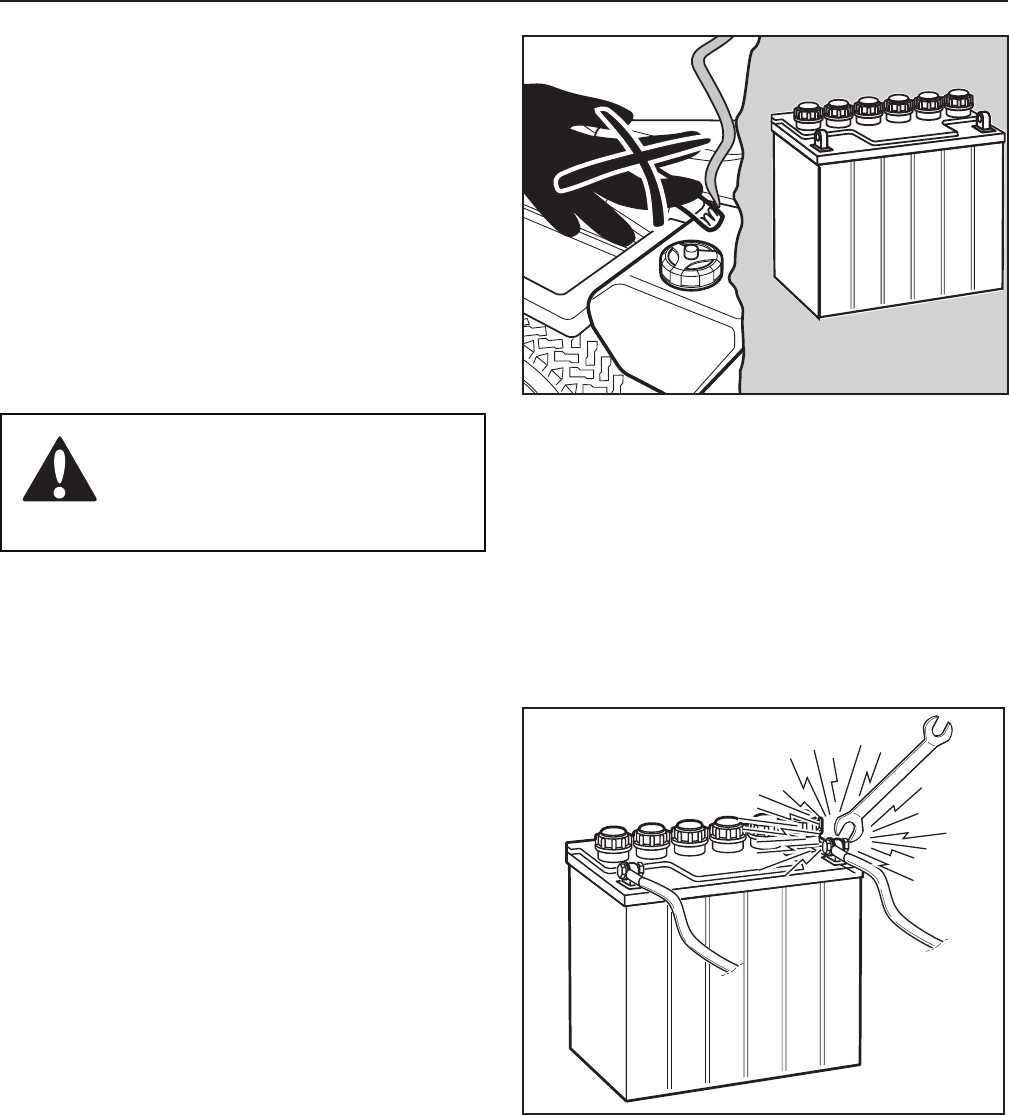

Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
English-4
INTRODUCTION
Husqvarna-5
Congratulations
Thank you for purchasing a Husqvarna ride-on
mower. This machine is built for superior efciency
to rapidly mow primarily large areas. A control panel
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine’s performance.
This manual is a valuable document. Read the
contents carefully before using or servicing the
machine. The following of instructions (use, service,
maintenance) by all who operate this machine is
important for the safety of the operator and others.
It can also considerably increase the life span of the
machine and increase its resale value.
If you sell your machine, be sure to give the operator’s
manual to the new owner.
The nal chapter of this operator’s manual provides a
Service Journal. Ensure that service and repair work
are documented. A well-kept service journal reduces
service costs for the maintenance and affects the
machine’s resale value. Please contact your dealer for
more information. Take the operator’s manual along
when the machine is taken to your dealer for service.
General
In this operator’s manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.
Continuous dedication to improve our products require
that specications and design are subject to change
without notice.
Driving and Transport on Public Roads
Check applicable road trafc regulations before
transporting on public roads. If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored. DO NOT operate this machine on public
roadways.
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on the towed equipment. Make wide turns to avoid
jack-kning. Travel slowly and allow extra distance to
stop.
Do not tow on sloped ground. The weight of the towed
equipment may cause loss of traction and loss of
control.
Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Operating
This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc. The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer. Operating
instructions for the accessories are provided with
delivery. All other types of uses are incorrect. The
manufacturer’s directions concerning operation,
maintenance, and repairs must be carefully followed.
Lawn mowers and all power equipment, can be
potentially dangerous if used improperly. Safety
requires good judgement, careful use in accordance
with these instructions and common sense.
The machine must only be operated, maintained, and
repaired by persons familiar with the machine’s special
characteristics and who are also knowledgeable about
the safety instructions. Use only approved repair parts
to maintain this machine.
Accident prevention regulations, other general safety
regulations, occupational safety rules, and trafc
regulations must be followed without fail.
Unauthorized modications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage.
INTRODUCTION
6-Husqvarna
Good Service
Husqvarna’s products are sold all over the world and only in specialized retail stores with complete service. This
ensures that you as a customer receive only the best support and service. Before the product is delivered, the
machine has, for example, been inspected and adjusted by your retailer. See the certicate in the Service Journal
in this operator’s manual.
When you need spare parts or support in service questions, warranty issues, etc., please consult the following
professional:
Manufacturing Number
The machine’s manufacturing number can be found on the printed plate afxed to the right in the engine
compartment. Stated on the plate, from the top are:
The machine’s type designation (I.D.).
The manufacturer’s type number (Model).
The machine’s serial number (Serial no.)
Please have the type designation and serial number available when ordering spare parts.
The engine’s manufacturing number is stamped on one of the valve covers.
The plate states:
The engine’s model.
The engine’s type.
Code
Please have these available when ordering spare parts.
The wheel motors and hydrostatic pumps have a barcode decal afxed at the rear.
This Operator’s Manual belongs to the machine with
the manufacturing number:
Engine Transmission
SYMBOLS AND DECALS
Husqvarna-7
These symbols are found on the machine and in the operator’s manual.
Study them carefully so that you know what they mean.
Used in this publication to notify the reader of a risk of personal injury or death, particularly if the reader should
neglect to follow instructions given in the manual.
Used in this publication to notify the reader of a risk of material damage, particularly if the reader should neglect
to follow instructions given in the manual. Used also when there is a potential for misuse or misassembly.
WARNING!
Xxxx xxxxxx xxxxx xxxx
xxxxxxxxx xxxxxx xxxxxxxxx. xx
xxxxxxxx xxxx xxxxxx.
IMPORTANT INFORMATION
Xxxx xxxxxx xxxxx xxxx xxxxxxxxx xxxxxx
xxxxxxxxx. xx xxxxxxxx xxxx xxxxxx.
R N
Reverse Neutral Fast Slow Choke Fuel
Warning! Parking Brake CE conformity Warning! Rotating blades, Do not touch parts
marking. Only for keep away from the
European market discharge deck
Battery acid is corrosive, explosive and ammable Do not stand here
Noise emissions to the
surroundings in accordance with
the European Union’s directive.
The machine’s emission is stated
in the chapter TECHNICAL DATA
and on the decals.
Only machines for European
market
Use protective glasses Use protective gloves
SYMBOLS AND DECALS
8-Husqvarna
Read Shut off engine and Keep a safe Use on slopes No passengers
Operator’s remove key before distance from no greater
Manual performing any the machine than 10°
maintenance or repair work
Whole body Severing of ngers Do not open or Careful backing up, Careful going
exposure to and toes remove safety watch for other forward, watch for
thrown objects shields while people other people
engine is running
Moving sharp blades under cover
SAFETY
Husqvarna-9
Safety Instructions
These instructions are for your safety. Read them carefully.
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING
OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN
SERIOUS INJURY OR DEATH.
General Operation
Read, understand, and follow all instructions on •
the machine and in the manual before starting.
Do not put hands or feet near rotating parts or •
under the machine. Keep clear of the discharge
opening at all times.
Only allow responsible adults, who are familiar •
with the instructions, to operate the machine.
Clear the area of objects such as rocks, toys, wire, •
etc., which could be picked up and thrown by the
blades.
Be sure the area is clear of bystanders before •
operating. Stop machine if anyone enters the area.
Never carry passengers. The machine is only •
intended for use by one person.
Do not mow in reverse unless absolutely •
necessary. Always look down and behind before
and while backing.
Never direct discharged material toward anyone. •
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the
operator. Stop the blades when crossing gravel
surfaces.
Do not operate machine without the entire grass •
catcher, discharge guard, or other safety devices
in place and working
Slow down before turning.•
Never leave a running machine unattended. •
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting.
Disengage blades when not mowing. Shut off •
engine and wait for all parts to come to a complete
stop before cleaning the machine, removing the
grass catcher, or unclogging the discharge guard.
Operate machine only in daylight or good articial •
light.
Do not operate the machine while under the •
inuence of alcohol or drugs.
8011-512

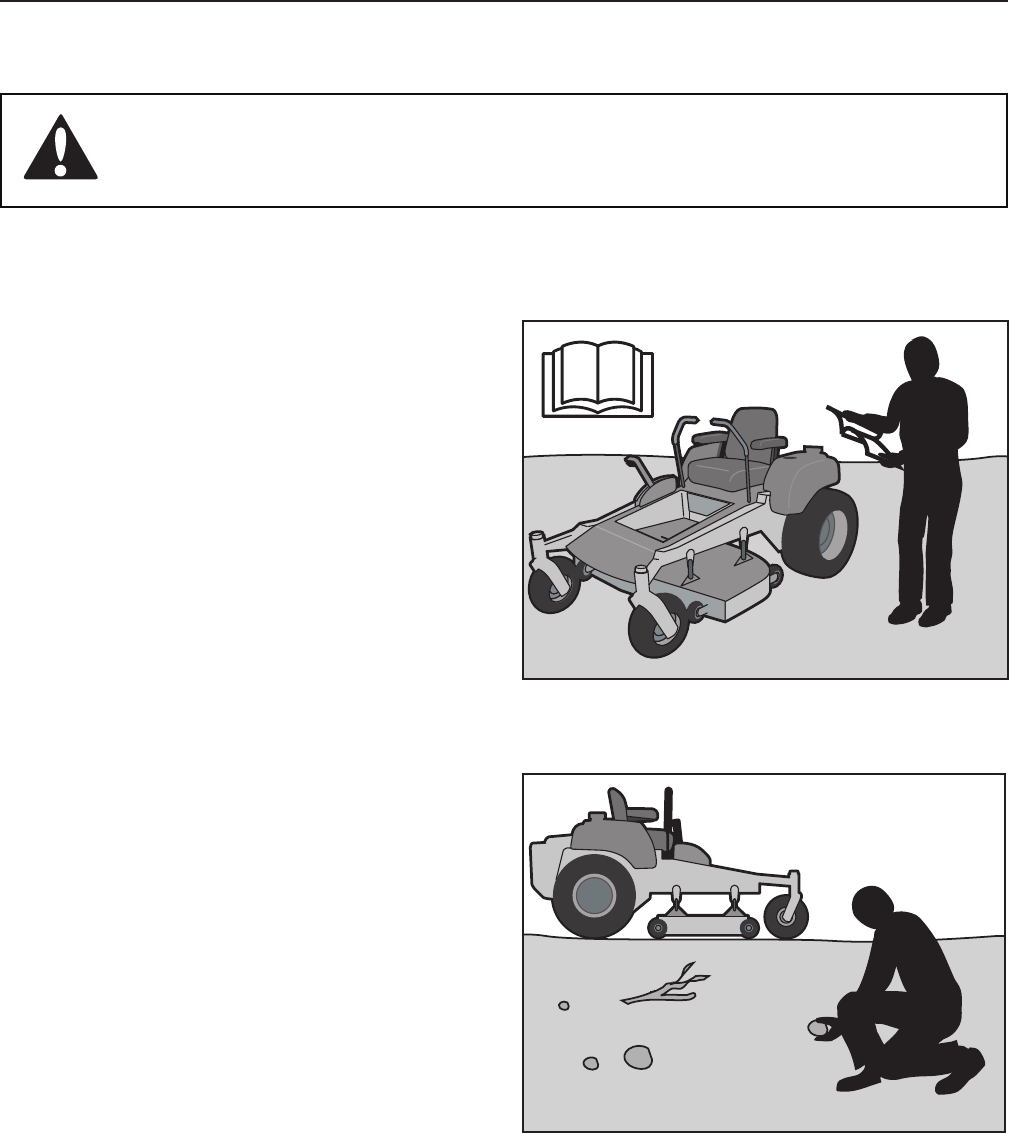

Read the operator’s manual before starting the machine
8011-513
Clear the area of objects before mowing
WARNING!
This symbol means that important safety instructions need to be emphasized. It concerns
your safety.
SAFETY
10-Husqvarna
8011-520

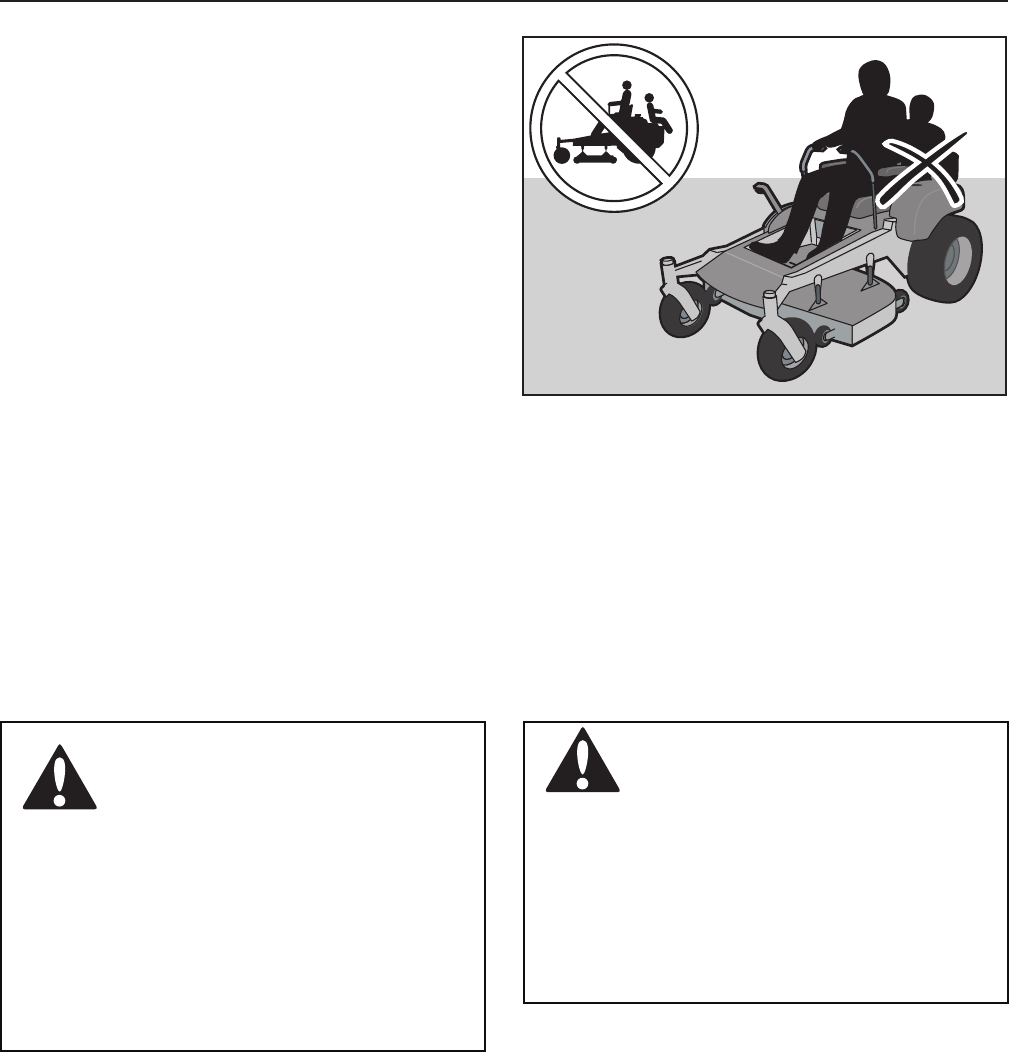

Never take passengers
Watch for trafc when operating near or crossing •
roadways.
Use extra care when loading or unloading the •
machine into a trailer or truck.
Always wear eye protection when operating •
machine.
Data indicates that operators age 60 years and •
above are involved in a large percentage of riding
mower-related injuries. These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury.
Follow the manufacturer’s recommendation for •
wheel weights or counterweights.
Anyone who operates this machine must rst read •
and understand this Operation Manual. Local laws
may regulate the age of the user.
Keep machine free of grass, leaves or other debris •
buildup which can touch the hot exhaust or engine
parts and burn. Do not allow the mower deck to
plow leaves or other debris, causing buildup to
occur.
Clean any oil or fuel spillage before operating or •
storing the machine.
Allow machine to cool before storage.•

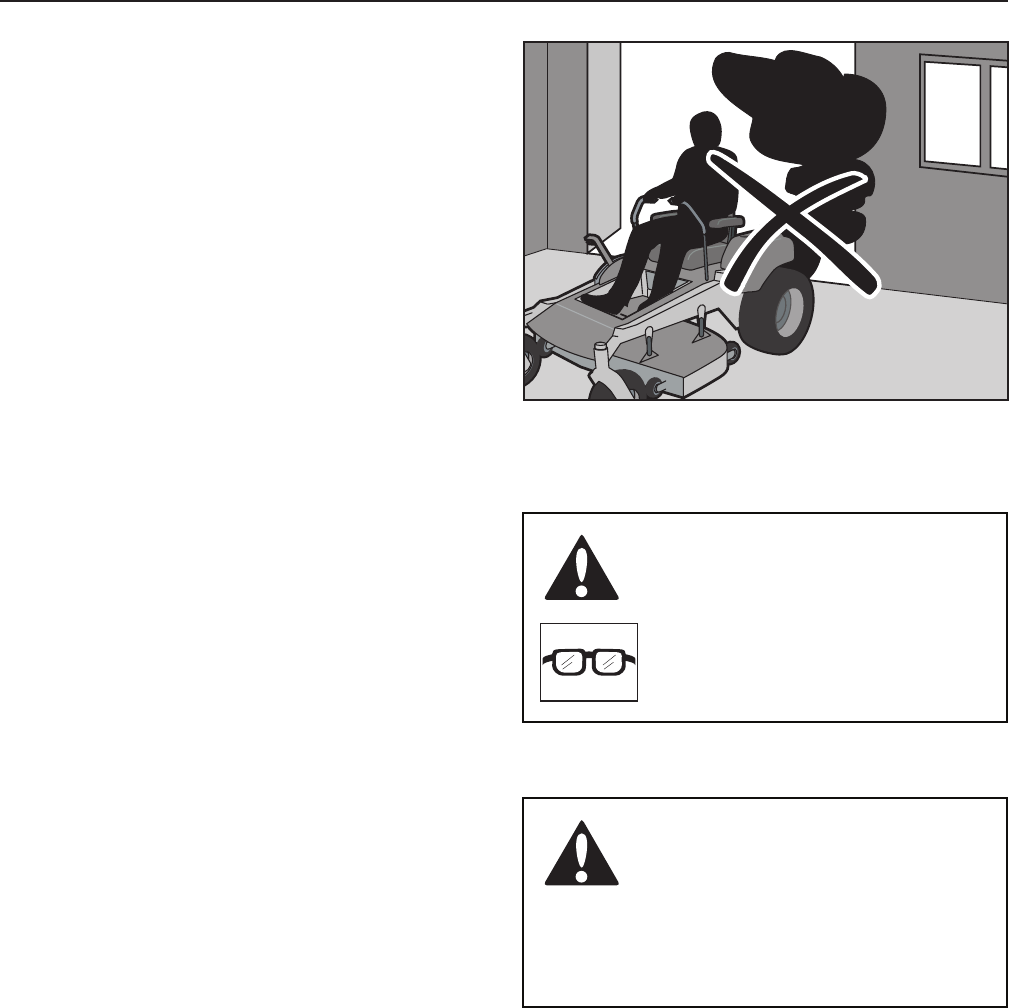

WARNING!
Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects, or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is a odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
WARNING!
This mower is equipped with an
internal combustion engine and
should not be used on or near any
unimproved forested, bush covered
or grassy lands unless the engine's
system is equipped with a spark
arrester meeting applicable local or
state laws (if any). If a spark arrester
is used, it should be maintained
in effective working order by the
operator.
SAFETY
Husqvarna-11
Personal Safety Equipment
8011-670a
Personal protective equipment
6003-004
Mow up and down, not side to side
Make sure that you have rst aid equipment close •
at hand when using the machine.
Never use the machine when barefoot. •
Always wear protective shoes or boots, preferably •
with steel toe caps.
Always wear approved protective glasses or a full •
visor when assembling or driving.
Always wear gloves when handling the blades.•
Never wear loose clothing that can get caught in •
moving parts.
Use ear protectors to avoid damage to hearing.•
Slope Operation
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution. If
you cannot back up the slope or if you feel uneasy on
it, do not mow it.
Mow up and down slopes (10 degrees maximum), •
not across.
Watch for holes, ruts, bumps, rocks, or other •
hidden objects. Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
Choose a low ground speed so that you will not •
have to stop while on the slope.
Do not mow on wet grass. Tires may lose traction.•
Avoid starting, stopping, or turning on a slope. If •
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.
Keep movement on the slopes slow and gradual. •
Do not make sudden changes in speed or
direction, which could cause machine to roll over.
Use extra care while operating machine with grass •
catchers or other attachments; they can affect the
stability of the machine.
Do not use on steep slopes.•
Do not try to stabilize the machine by putting a foot •
on the ground.
Do not mow near drop-offs, ditches, or •
embankments. The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.
WARNING!
When using the machine, approved personal protective equipment (shown in illustrations)
shall be used. Personal protective equipment cannot eliminate the risk of injury but it
will reduce the degree of injury if an accident does happen. Ask your retailer for help in
choosing the right equipment.
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across any slopes.
SAFETY
12-Husqvarna
8011-509

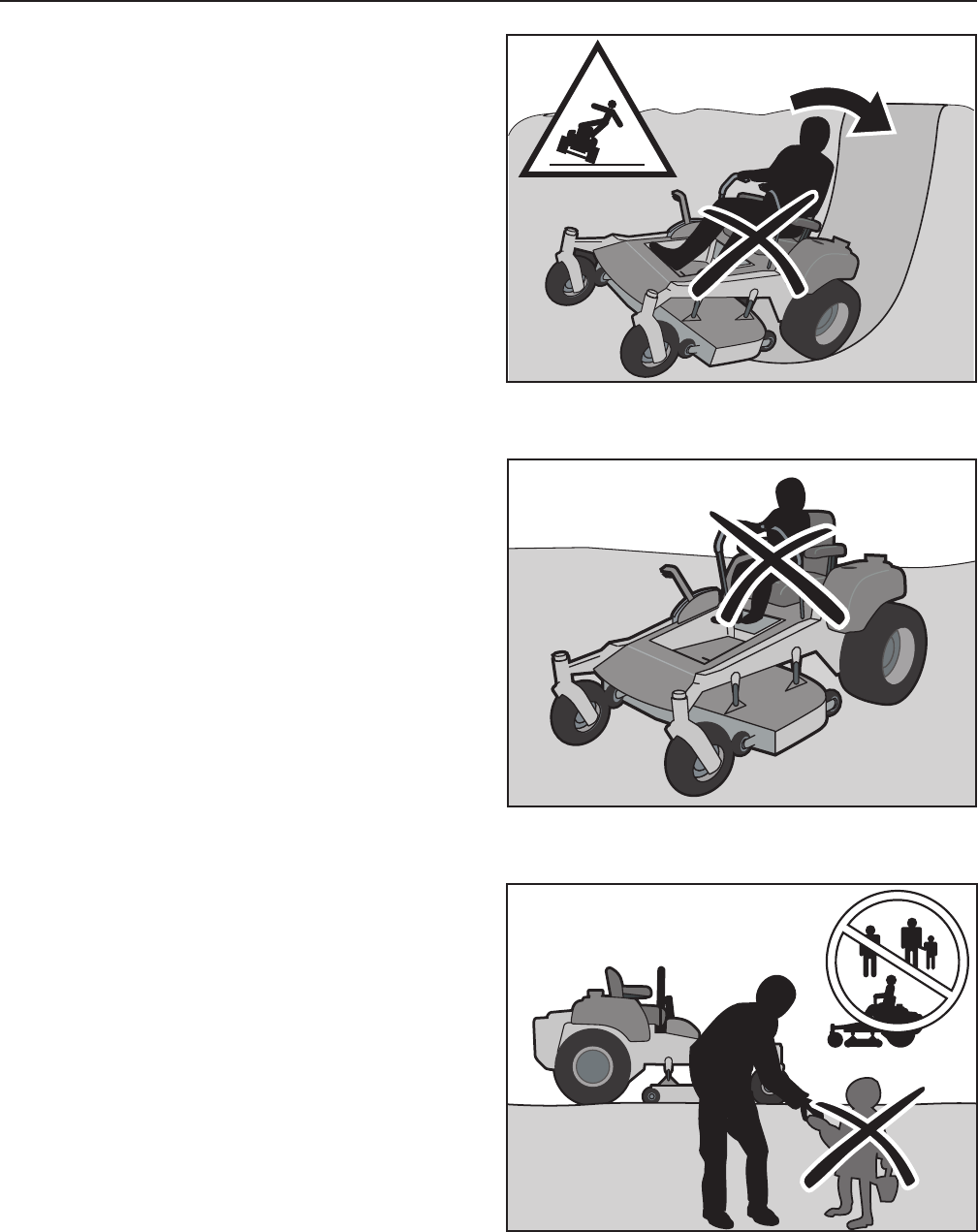

Be extra cautious when driving on slopes
8011-517
Never allow children to operate the machine
8011-518
Keep children away from work area
Children
Tragic accidents can occur if the operator is not
alert to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you last
saw them.
Keep children out of the mowing area and in the •
watchful care of a responsible adult other than the
operator.
Be alert and turn machine off if a child enters the •
area.
Before and while backing, look behind and down •
for small children.
Never carry children, even with the blades shut •
off. They may fall off and be seriously injured or
interfere with safe machine operation. Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine.
Never allow children to operate the machine.•
Use extra care when approaching blind corners, •
shrubs, trees, or other objects that may block your
view of a child.
SAFETY
Husqvarna-13
Safe Handling of Gasoline
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely ammable and the vapors are explosive.
Extinguish all cigarettes, cigars, pipes, and other •
sources of ignition.
Use only approved gasoline container.•
Never remove gas cap or add fuel with the engine •
running. Allow engine to cool at least two (2)
minutes before refueling.
Never fuel the machine indoors.•
Never store the machine or fuel container where •
there is an open ame, spark, or pilot light such as
on a water heater or other appliance.
Before you begin refueling, minimize the risk of •
static electricity by touching a metal surface.
Never ll containers inside a vehicle or on a •
truck or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when lling.
Remove gas-powered equipment from the truck •
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.
Keep the nozzle in contact with the rim of the fuel •
tank or container opening at all times until fueling
is complete. Do not use a nozzle lock-open device.
If fuel is spilled on clothing, change clothing •
immediately.
Never overll fuel tank. Replace gas cap and •
tighten securely.
Do not start the engine near spilled fuel.•
Never use gasoline as a cleaning agent.•
If leaks arise in fuel system, engine must not be •
started until problem has been resolved.
Check the fuel level before each use and leave •
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overow.
8011-516

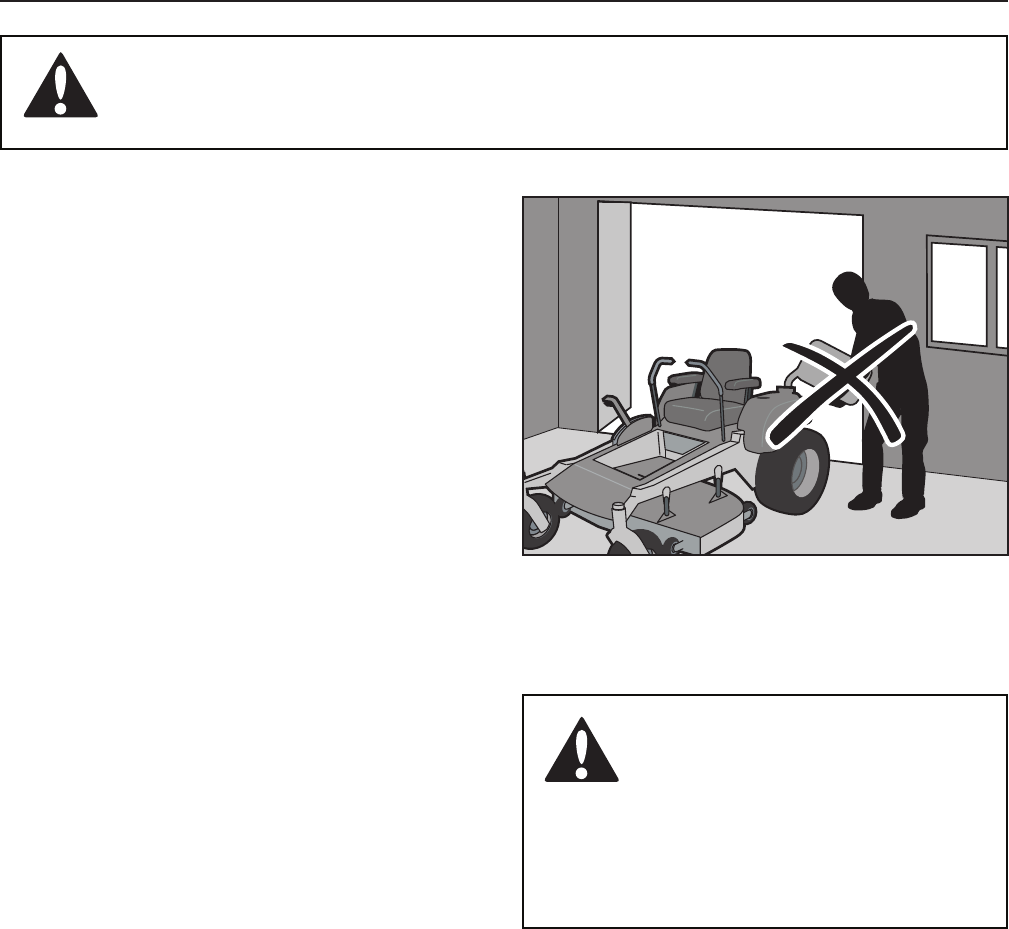

Never ll the fuel tank indoors
WARNING!
The engine must not be started when the driver’s oor plate or any protective plate for the
mower deck’s drive belt is removed.
WARNING!
The engine and the exhaust system
become very hot during operation.
There is risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes before
refueling.
SAFETY
14-Husqvarna
8011-515
Never drive the machine in an enclosed space
General Maintenance
Never operate machine in a closed area.•
Keep all nuts and bolts tight to be sure the •
equipment is in safe working condition.
Never tamper with safety devices. Check their •
proper operation regularly.
Keep machine free of grass, leaves, or other •
debris buildup. Clean oil or fuel spillage and
remove any fuel-soaked debris. Allow machine to
cool before storing.
If you strike a foreign object, stop and inspect the •
machine. Repair, if necessary, before restarting.
Never make any adjustments or repairs with the •
engine running.
Check grass catcher components and the •
discharge guard frequently and replace with
manufacturer’s recommended parts, when
necessary.
Mower blades are sharp. Wrap the blade or wear •
gloves, and use extra caution when servicing
them.
Check brake operation frequently. Adjust and •
service as required.
Maintain or replace safety and instruction labels, •
as necessary.
Do not modify safety equipment. Check regularly •
to be sure it works properly. The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices.
Do not change the settings of governors and avoid •
running the engine with overly high engine speeds.
If you run the engine too fast, you risk damaging
the machine components.
Be very careful when handling battery acid. Acid •
on skin can cause serious corrosive burns. If you
spill battery acid on your skin, rinse immediately
with water.
Acid in the eyes can cause blindness, contact a •
doctor immediately.
Be careful when servicing the battery. Explosive •
gases form in the battery. Never perform
maintenance on the battery when smoking or near
open ames or sparks.
The battery can explode and cause serious injury/•
damage.
Ensure that nuts and bolts, especially the •
fastening bolts for the blade attachments, are
properly tightened, torqued and that the equipment
is in good condition.
WARNING!
The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive
system damage. Wash your hands
after handling the battery.
WARNING!
Use protective glasses for
maintenance work.
SAFETY
Husqvarna-15
Sparking can occur when working with the battery •
and the heavy cables of the starter circuit. This
can cause battery explosion, re or eye injury.
Sparking in this circuit can not occur after the
chassis cable (normally negative, black) is
removed from the battery.
Use protective goggles.•
Ensure that the fuel ller cap is mounted tightly •
and no ammable substances are stored in an
open vessel.
Never work with the starter circuit if there is spilled •
fuel.
Disconnect the chassis cable from the battery rst •
and reconnect it last.
Do not make a bridge short circuit across the •
starter relay to run the starter.
Never use the machine indoors or in spaces •
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless, poisonous,
and lethal gas.
Stop and inspect the equipment if you run over or •
into anything. If necessary, make repairs before
starting.
Never make adjustments with the engine running.•
The machine is tested and approved only with the •
equipment originally provided or recommended by
the manufacturer. Only use approved repair parts
for the machine.
The blades are sharp and can cause cuts and •
gashes. Wrap the blades or use protective gloves
when handling them.
Check the parking brake’s functionality regularly. •
Adjust and service as necessary.
The mulch blades should only be used in familiar •
areas when higher quality mowing is desired.
Reduce the risk of re by removing grass, leaves, •
and other debris that may have accumulated on
the machine. Allow the machine to cool before
putting it in storage.
Regularly clean deck and underside of deck, avoid •
spraying engine and electrical components with
water.
6003-009
Do not smoke when performing maintenance on the battery.
The battery can explode and cause serious injury/damage.
8009-728
Risk of sparking
WARNING!
Avoid electrical sparking and its
consequences by the following
routines:
SAFETY
16-Husqvarna
IMPORTANT INFORMATION
The parking brake is not sufcient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.
Transport
The machine is heavy and can cause serious •
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.
Use an approved trailer to transport the machine. •
Activate the parking brake, turn off the fuel supply,
and fasten the machine with approved fastening
devices, such as bands, chains, or straps, when
transporting.
Do not operate this machine on public roadways.•
Check and abide by local trafc regulations before •
transporting the machine on any road.
Do not tow this machine, it may cause damage to •
the drive system.
Do not tow with this mower. They may jackknife •
or overturn causing damage to the mower and
possibly serious injury to the operator.
Load the unit onto truck or trailer by driving up •
ramps of suitable strength using a slow speed. Do
not lift! The machine is not intended to be lifted by
hand.
8011-514
Regularly clean deck
WARNING!
Escaping hydraulic oil under
pressure can have sufcient force
to penetrate the skin, causing
serious injury. If injured by escaping
uid, see a doctor at once. Serious
infection or reaction can develop
if proper medical treatment is not
administered immediately.
CONTROLS
Husqvarna-17
This operator’s manual describes the Husqvarna Zero
Turn Rider. The rider is tted with either a Kohler or
Briggs & Stratton four-stroke overhead valve engine
developing 24-26 horse power*.
Transmission from the engine is made via a belt-driven
hydraulic pumps. Using the left and right steering
controls, the ow is regulated and thereby the direction
and speed.
Control Locations
Steering control levers1.
Parking brake2.
Throttle control3.
Blade switch4.
Ignition switch5.
Choke control6.
Fuses7.
1
2
6 10
9
4 5 12
7
311
Fuel tank cap8.
Fuel shut off valve9.
Deck lift10.
Seat adjustment lever11.
Hour meter12.
Tracking adjustment13.
*As rated by the engine manufacturer.
8
12
CONTROLS
18-Husqvarna
8058-022
Steering controls
Steering Control Levers
The machine’s speed and direction are continuously
variable using the two steering controls. The steering
controls can be moved forward or backward about
a neutral position. Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward.
When both controls are in the neutral position (N), the
machine stands still.
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.
In order, for example, to turn right while moving
forward, move the right control towards the neutral
position. The rotation of the right wheel is reduced and
the machine turns to the right.
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position. The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left. Use extra care when using this maneuver.
If the steering controls are in uneven positions when
standing still or do not t in the slots for moving the
controls outward, they can be adjusted.
8011-7912a
1. Forward
2. Neutral
3. Neutral slot, Neutral lock
4. Reverse
Motion control lever, right side
WARNING!
The machine can turn very rapidly if
one steering control is moved much
further forward than the other.
1
23
4
CONTROLS
Husqvarna-19

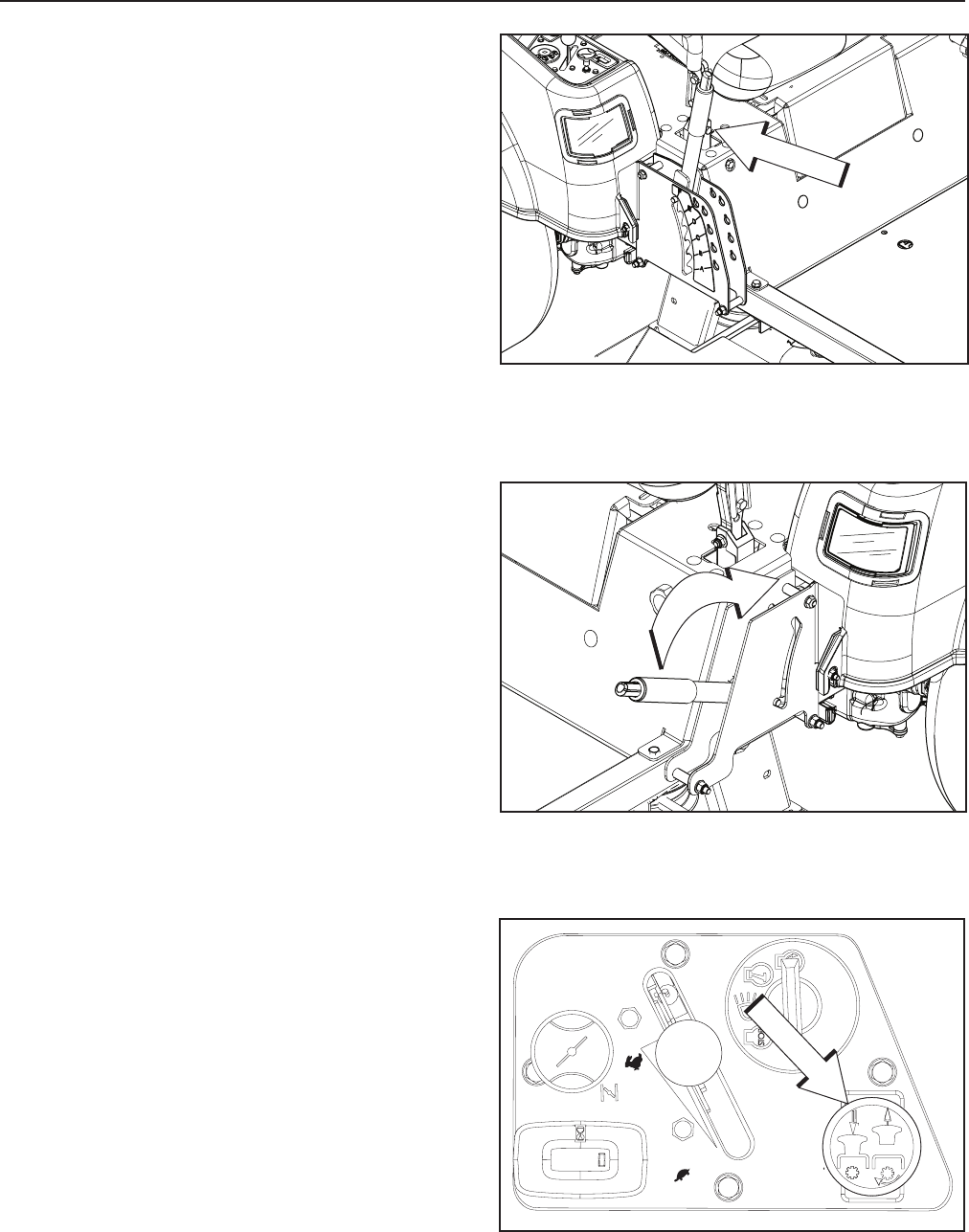

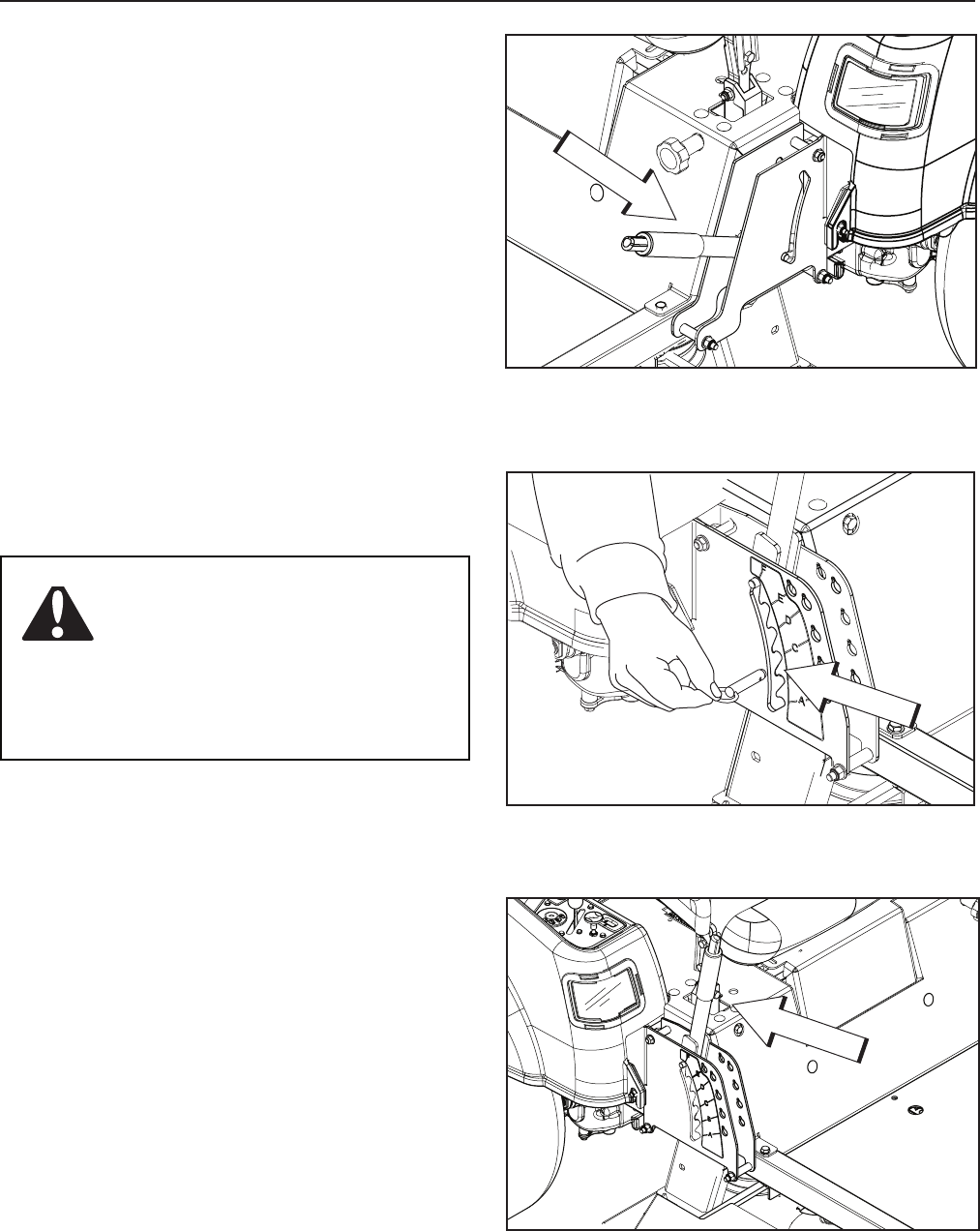

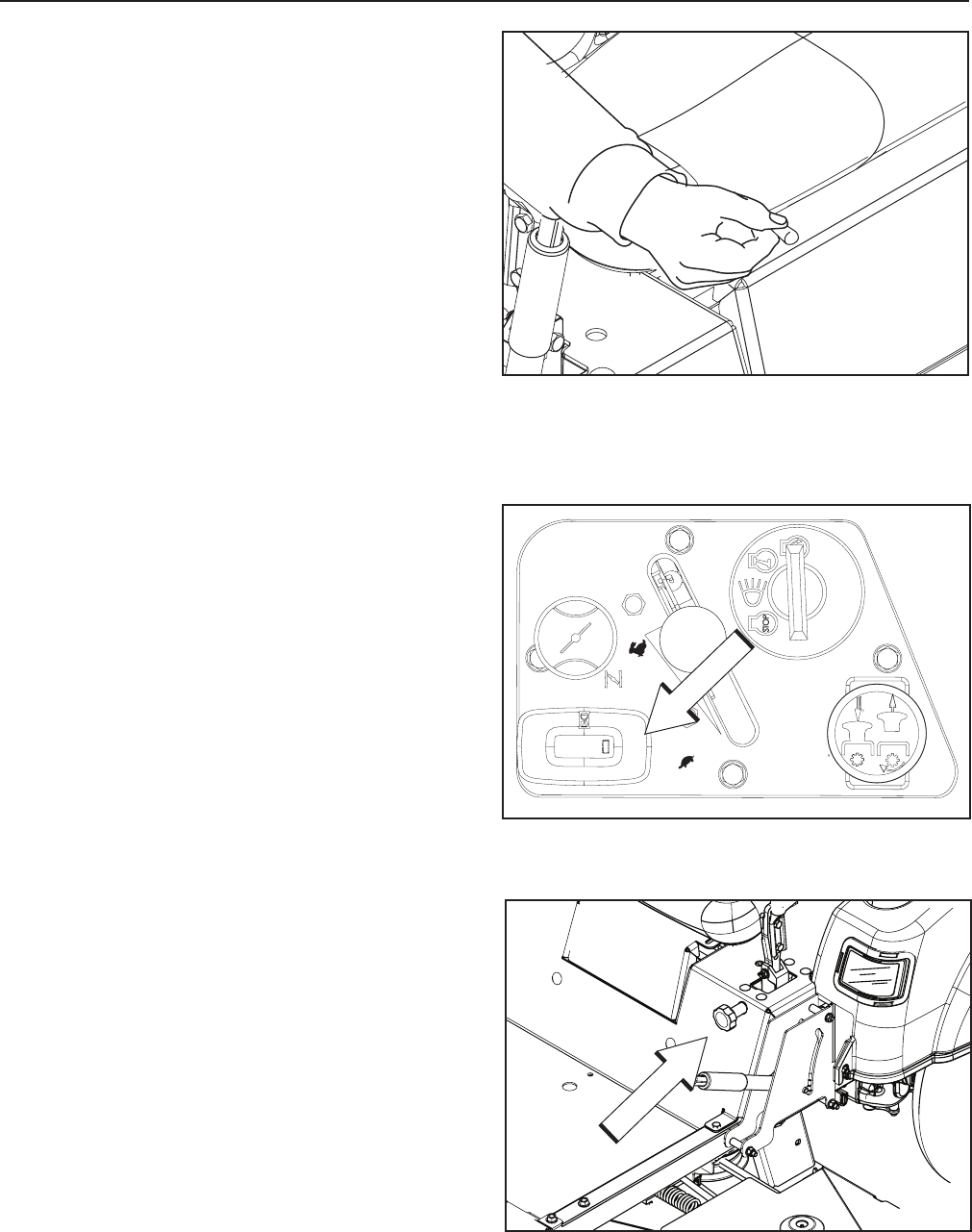

Parking Brake
8058-020
Parking brake released
IMPORTANT INFORMATION
The machine must stand absolutely still when
applying the parking brake. Always set the
parking brake before dismounting. Release the
parking brake before moving the mower.
Blade Switch
In order to engage the mower deck, pull the knob out;
the mower blades are disengaged when the knob is
depressed.
Throttle Control
The throttle control regulates the engine speed and
thereby the rate of rotation of the blades, assuming the
blade switch is pulled out, see Engaging the Mower
Deck.
In order to increase or decrease the engine speed, the
control is moved forward or back respectively.
Avoid idling the engine for long periods, as there is a
risk of fouling the spark plugs.
USE FULL THROTTLE WHEN MOWING, for best
mower performance and battery charging.
The parking brake is found on the left of the machine.
Push button and pull the lever backward to activate the
brake and push button and push forward to release it.
8052-001
Blade switch
8052-001
Throttle control
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
CONTROLS
20-Husqvarna
8052-001

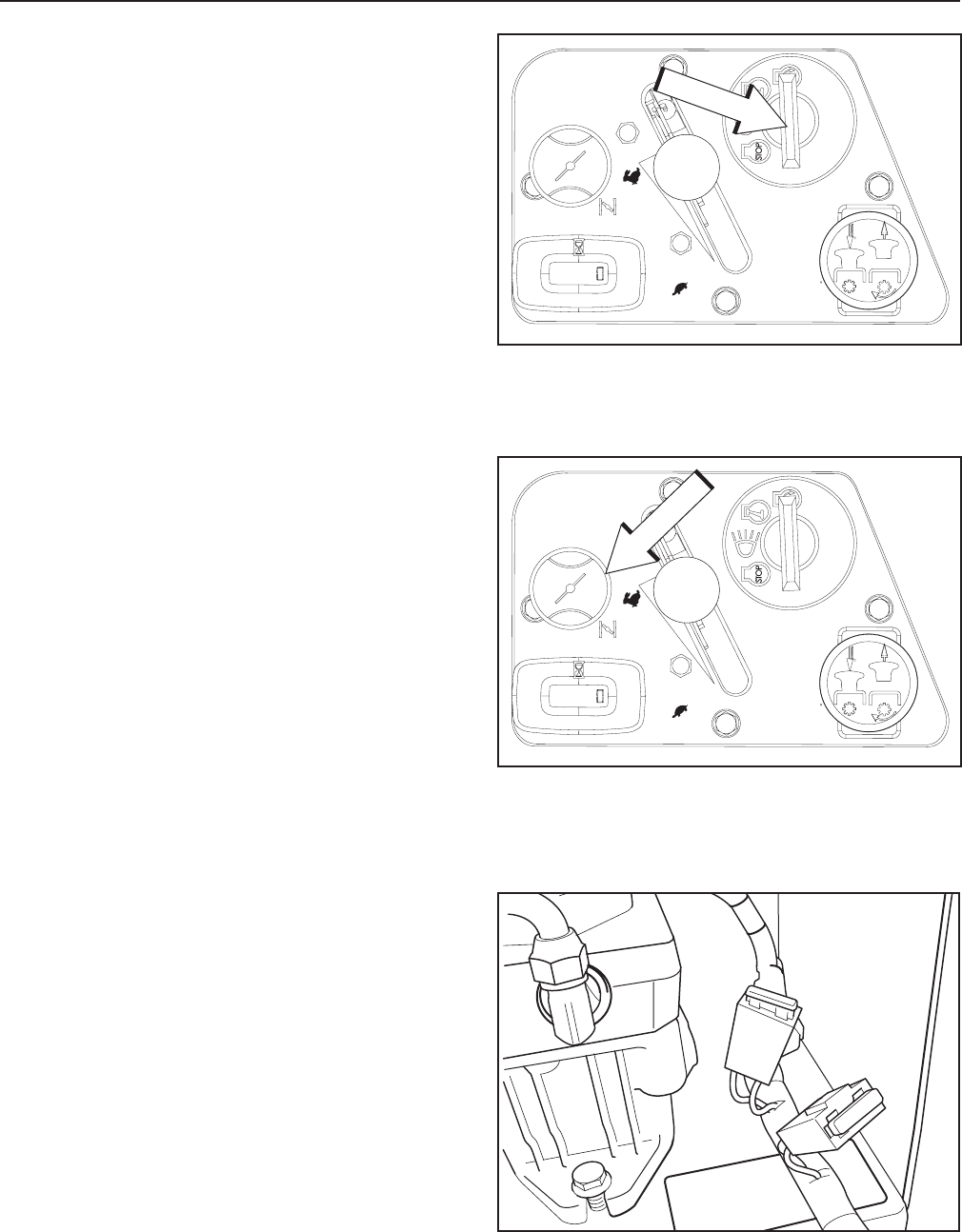

Choke control

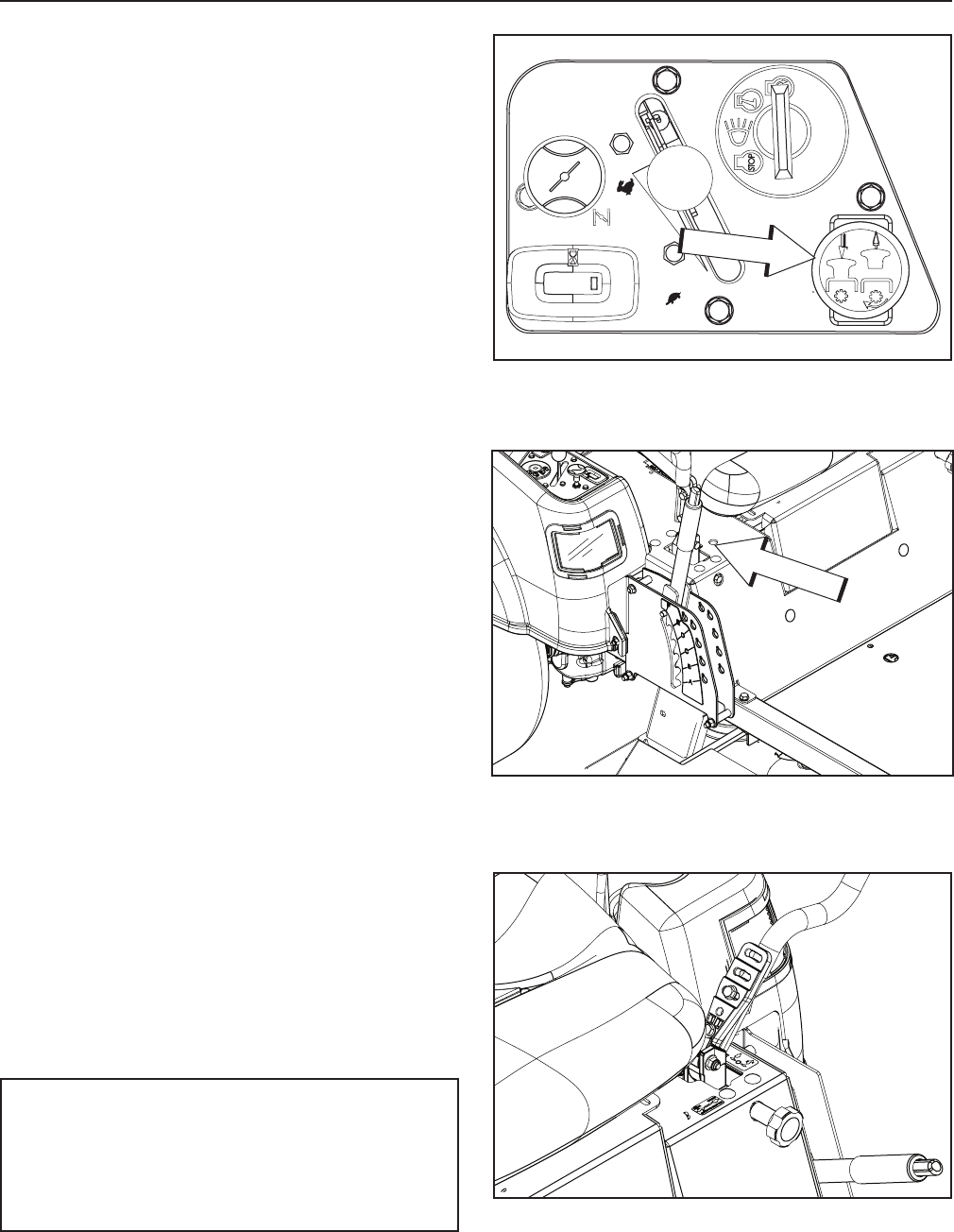

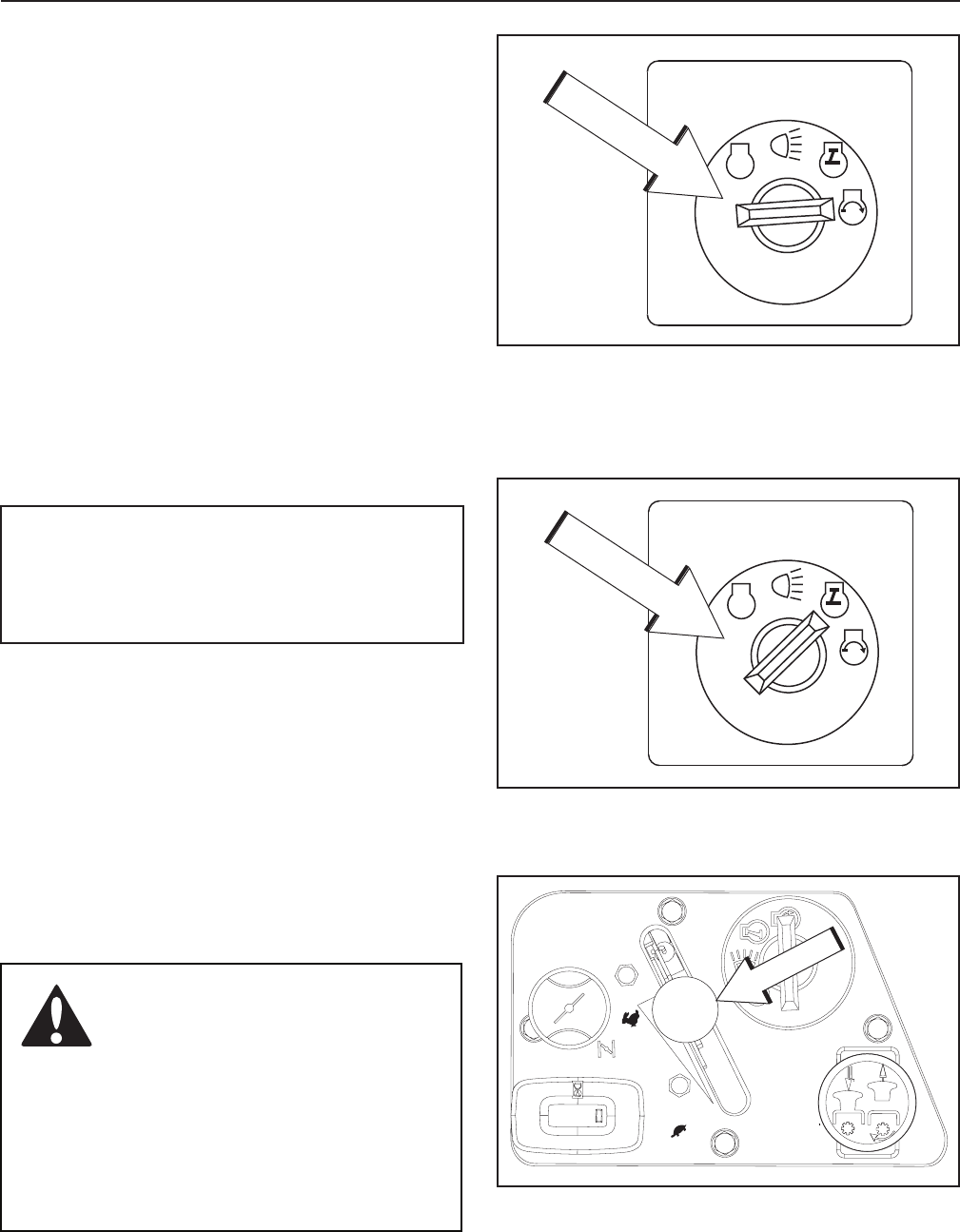

Ignition Switch
The ignition key is placed on the control panel and is
used to start and stop the engine.
Fuses
Fuses are located under the seat of the machine. They
are accessed by tilting the seat forward. They are at
pin fuses of the same type used in automobiles.
There are two fuses with ratings and functions:
20 Amp Primary fuse
7.5 Amp Mower deck coupling
Choke Control
The choke control is used for cold starts in order to
provide the engine with a richer fuel mixture.
For cold starts the control should be pulled out.
8011-420
Fuses
8052-001
Ignition switch
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
CONTROLS
Husqvarna-21

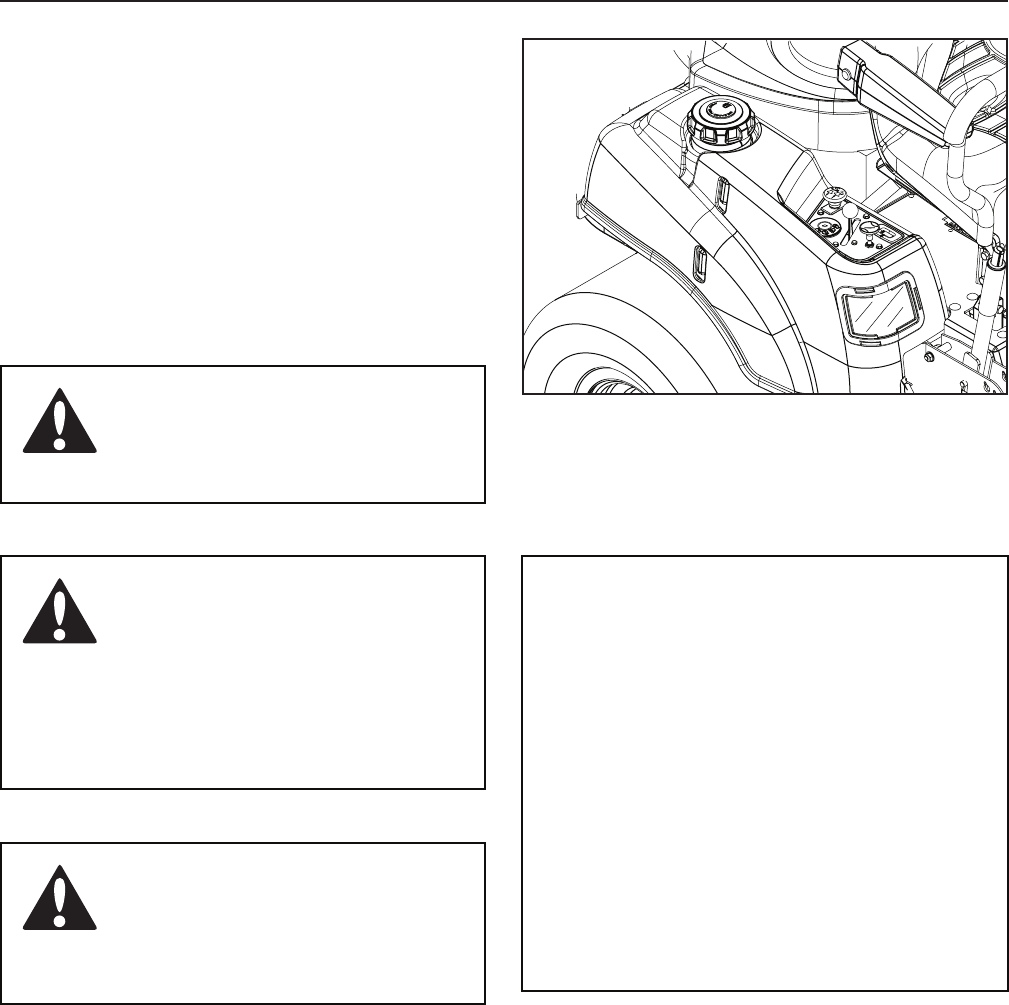

Fuel Tank
Read the safety instructions before refueling. The
machine has one fuel tank, just behind the seat. The
tank capacity is 4 gallons (15.1 liters).
Regularly check the gas cap gasket for damage and
keep the cap properly tightened.
The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix). Environmentally
adapted alkylate gasoline can be used. See also
Technical Data concerning ethanol fuel. Methanol fuel
is not allowed. Do not use E85 alcohol based fuel.
Damage to engine and components may occur.
When operating in temperatures below 32° F. (0° C.),
use fresh, clean winter grade gasoline to insure good
cold weather starting.
IMPORTANT INFORMATION
Experience indicates that alcohol blended
fuels (called gasohol, ethanol or methanol) can
attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine while
in storage. To avoid engine problems, the fuel
system should be emptied before storage of
30 days or longer. Drain the gas tank, start the
engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel the next
season. See Storage Instructions for additional
information. Never use engine or carburetor
cleaners in the fuel tank or permanent damage
may occur.
8058-021
Fuel tank
WARNING!
Gasoline is highly ammable.
Observe caution and ll the tank
outdoors (see the safety instruction).
WARNING!
The engine and the exhaust system,
become very hot during operation.
Risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes before
refueling.
WARNING!
Fill to bottom of ller neck. Do not
overll. Wipe off any spilled oil
or fuel. Do not store, spill or use
gasoline near an open ame.
CONTROLS
22-Husqvarna

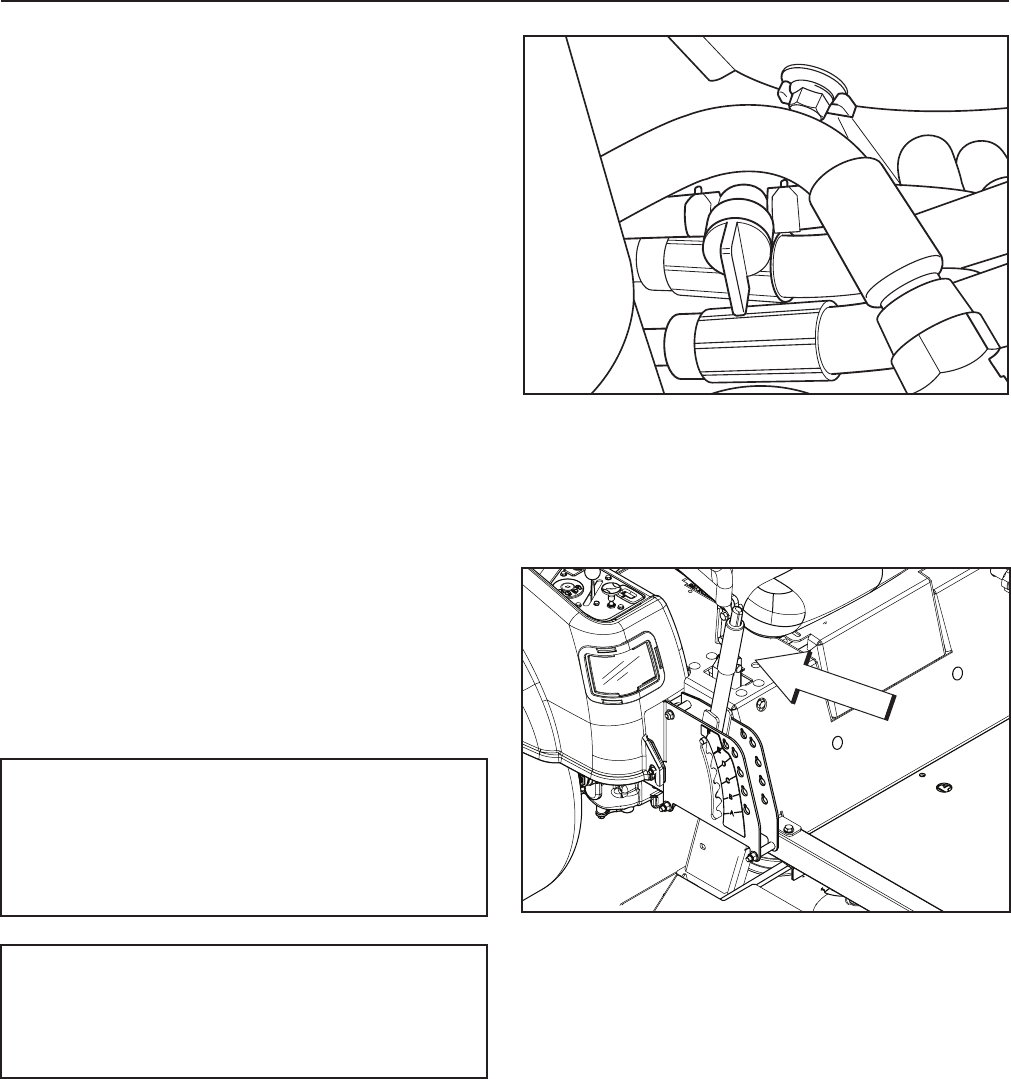

Fuel Shut Off Valve
The fuel shut off valve is located at the left rear of the
seat. The valve is off when the handle tab is turned
perpendicular to the fuel line.
8011-419
Fuel shut off valve in the CLOSED position
Cutting Height Adjuster
The deck cutting height is obtained by pressing the
button and moving the lever forward to the correct
cutting height on the cutting plate. The cutting height
range is from 1½" (38mm) to 4" (102mm) in ½ (13mm)
increments. The heights are measured from the
ground up to the blade tip with the engine not running.
8058-019
The mower deck’s lifting lever
IMPORTANT INFORMATION
In order to obtain an even cutting height, it is
important that the air pressure in all tires is 15
psi / 103 kPa / 1 bar.
IMPORTANT INFORMATION
Always raise the deck to the highest position
for transport.
CONTROLS
Husqvarna-23
Seat Adjustment Lever
The seat can be adjusted lengthways. When making
adjustments, the lever under the right front side of the
seat is pulled to the side, after which the seat can be
moved backward or forward.
8058-034
Lengthways adjustment
Hour Meter
The hour meter displays the total operating time.
It will ash CHG OIL (Change Oil) at 50 hour intervals.
The ash duration is one hour before and one hour
after the interval. The CHG OIL icon will come on
and shut off automatically. The hour meter cannot be
manually reset.
8052-001
Hour meter
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
Tracking Knob

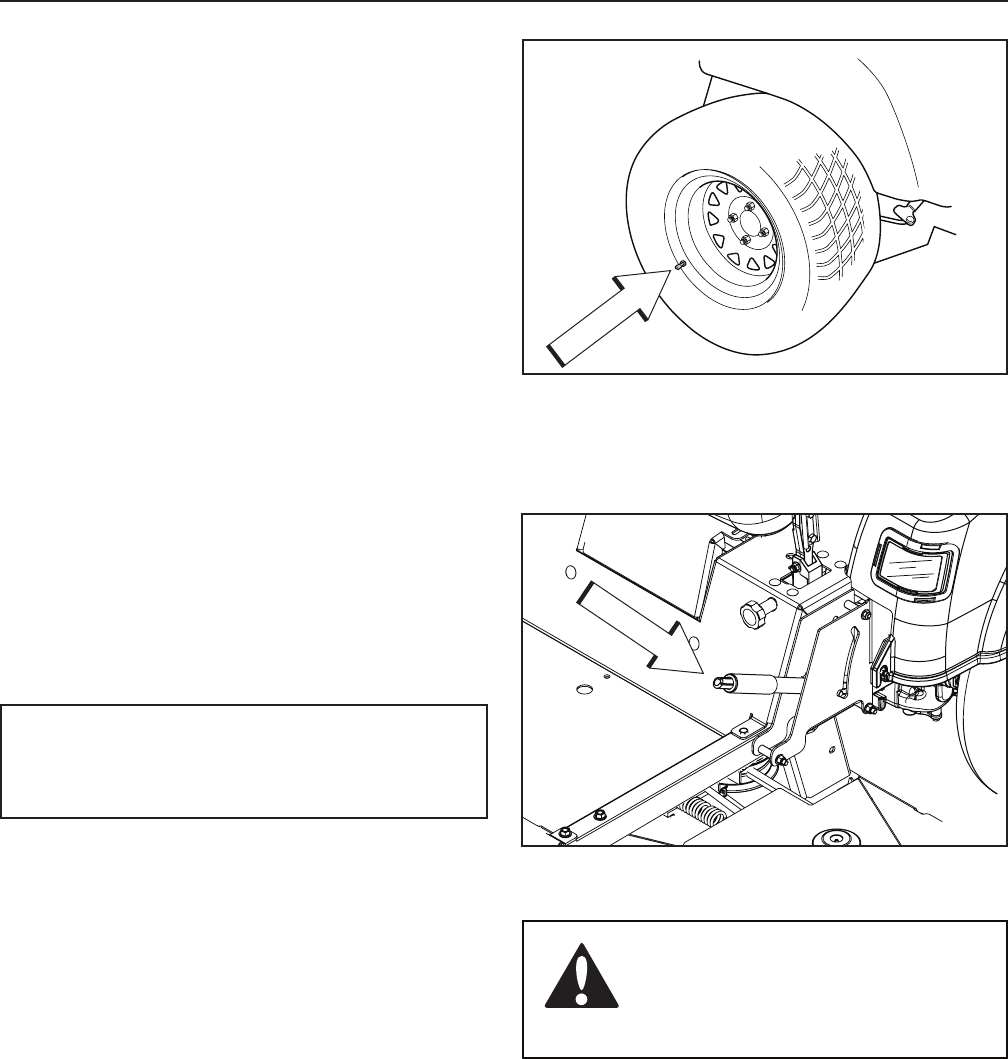

If the mower is not tracking straight, check the air
pressure in both rear tires. Recommended air pressure
is 15 psi (103 kPa / 1 bar) for all tires. Tracking must
be checked on a at and level concrete or blacktop
surface.
Rotating the tracking knob allows ne tuning
adjustments so the machine tracks straight with the
steering control levers in the full forward position.
Rotate the knob clockwise (as viewed from the
operation position) to increase the speed on the left
lever. Rotate counterclockwise to decrease speed.
8058-020
Tracking knob
OPERATION
24-Husqvarna
Read “Safety Instructions” section and following
pages, if you are unfamiliar with the machine.
Training
Zero turn mowers are far more maneuverable than
typical riding mowers due to their unique steering
capabilities.
We suggest that this section be reviewed in its entirety
prior to attempting to move the mower under its own
power. Additionally, we suggest when rst operating
the mower, use a reduced throttle speed and reduced
ground speed by NOT moving control levers to the
furthest forward or reverse positions during initial
operation, or until operator becomes comfortable with
controls. We also suggest rst time users, or new
users to Zero Turn mowers to become familiar with
the mower’s movement on a hard surface, such as
concrete or blacktop PRIOR to attempting to operate
on turf. Until operator becomes comfortable with
mower controls and zero turning capability, they may
damage turf due to overly aggressive maneuvers.
IMPORTANT INFORMATION
When control levers are in the reverse position
they return to neutral when released. This may
cause the mower to suddenly stop.
Steering
To move forward and backward
The direction and speed of the mower’s movements
is effected by the movement of the control lever(s)
on each side of mower. The left control lever controls
the left wheel. The right control lever controls the right
wheel.
First time users should push mower (see “Moving by
Hand” in the Operation section) to an open, at area,
without other people or vehicles/obstacles nearby. In
order to move unit under its own power, the operator
must be in the seat, start engine (see “Before Starting”
in Operation section), adjust engine speed to idle,
disengage parking brake, do not engage blades at
this time, rotate control levers inward. As long as
the control levers have not been moved forward or
backwards, mower will not move. Slowly move both
control levers forward slightly. This will allow mower
to start moving forward in a straight line. Pull back on
control levers to the neutral position and mower should
stop moving. Pull back slightly on control levers, this
will allow mower to start moving backwards. Push
forward on control levers to the neutral position and
mower should stop moving.
To turn to the right
While moving in a forward direction, pull the right lever
back towards the neutral position while maintaining the
position of the left lever, this will slow the rotation of
the right wheel and cause the machine to turn in that
direction.
To turn to the left
While moving in a forward direction pull the left lever
back towards the neutral position while maintaining
the position of the right lever, this will slow the rotation
of the left wheel and cause the machine to turn in that
direction.
To zero turn
While moving in a forward direction, rst pull both
control levers back until the mower stops or slows
dramatically.
Then by alternating one lever slightly to the forward
position and the other in the reverse position.
OPERATION
Husqvarna-25
Before Starting
Read the sections Safety Instructions and Controls •
before starting the machine.
Perform the daily maintenance before starting •
(see Maintenance Schedule in the Maintenance
section).
Check that there is sufcient fuel in the fuel tank.•
Adjust the seat to the desired position.•
The following conditions must be fullled before the
engine can be started:
The blade switch for engaging the mower blades •
must be depressed.
The parking brake must be on.•
Both steering controls must be in the locked •
(outer) neutral position.
Starting the Engine
Sit on the seat. •
Raise the mower deck by pushing the release •
button on the top of the lifting lever. Pull the lifting
lever backward to the locked position (transport)
position.
Activate the parking brake by pushing the release •
button in and pulling the lever fully upwards.
Disengage the mower blades by pressing the blade
switch downwards.

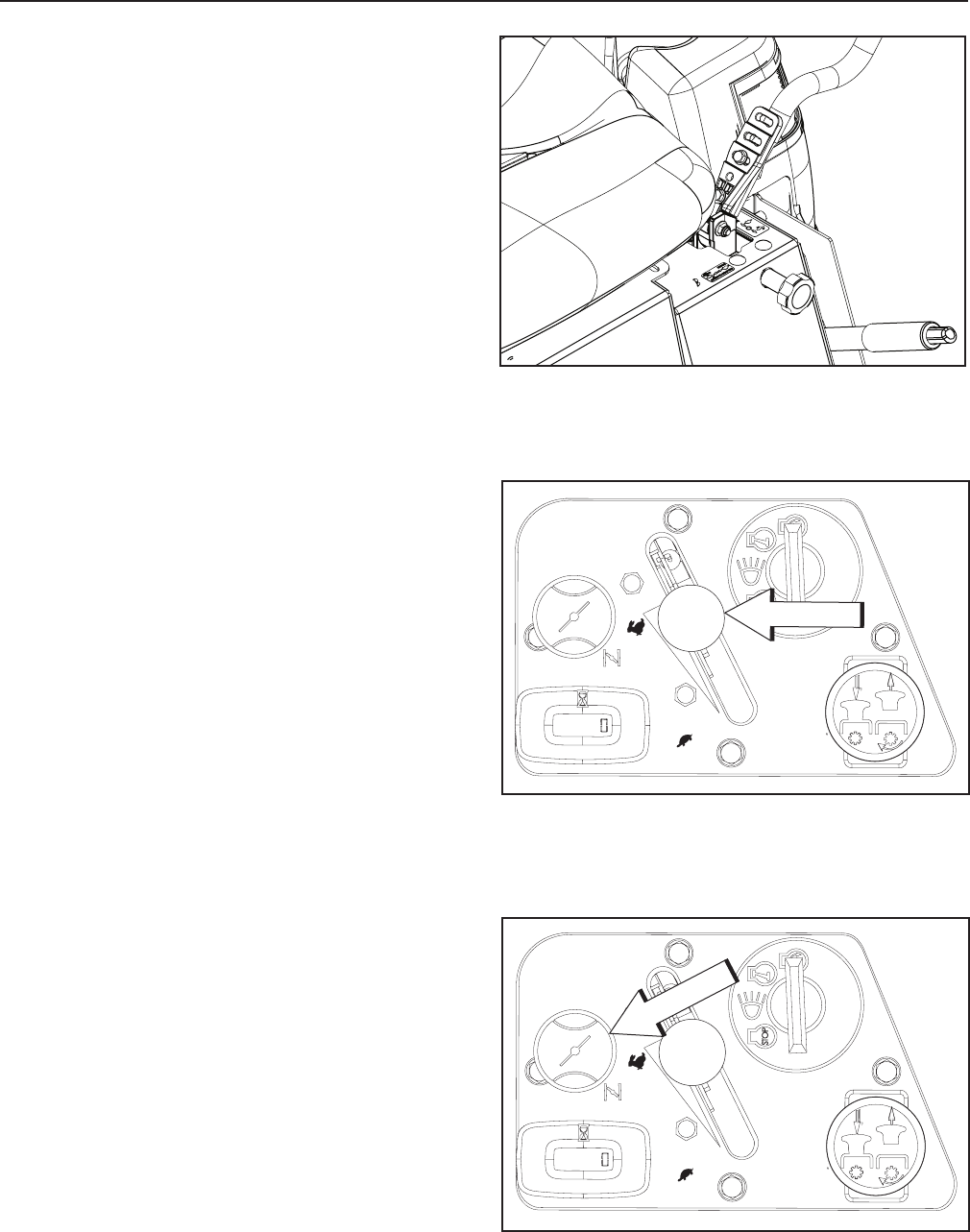

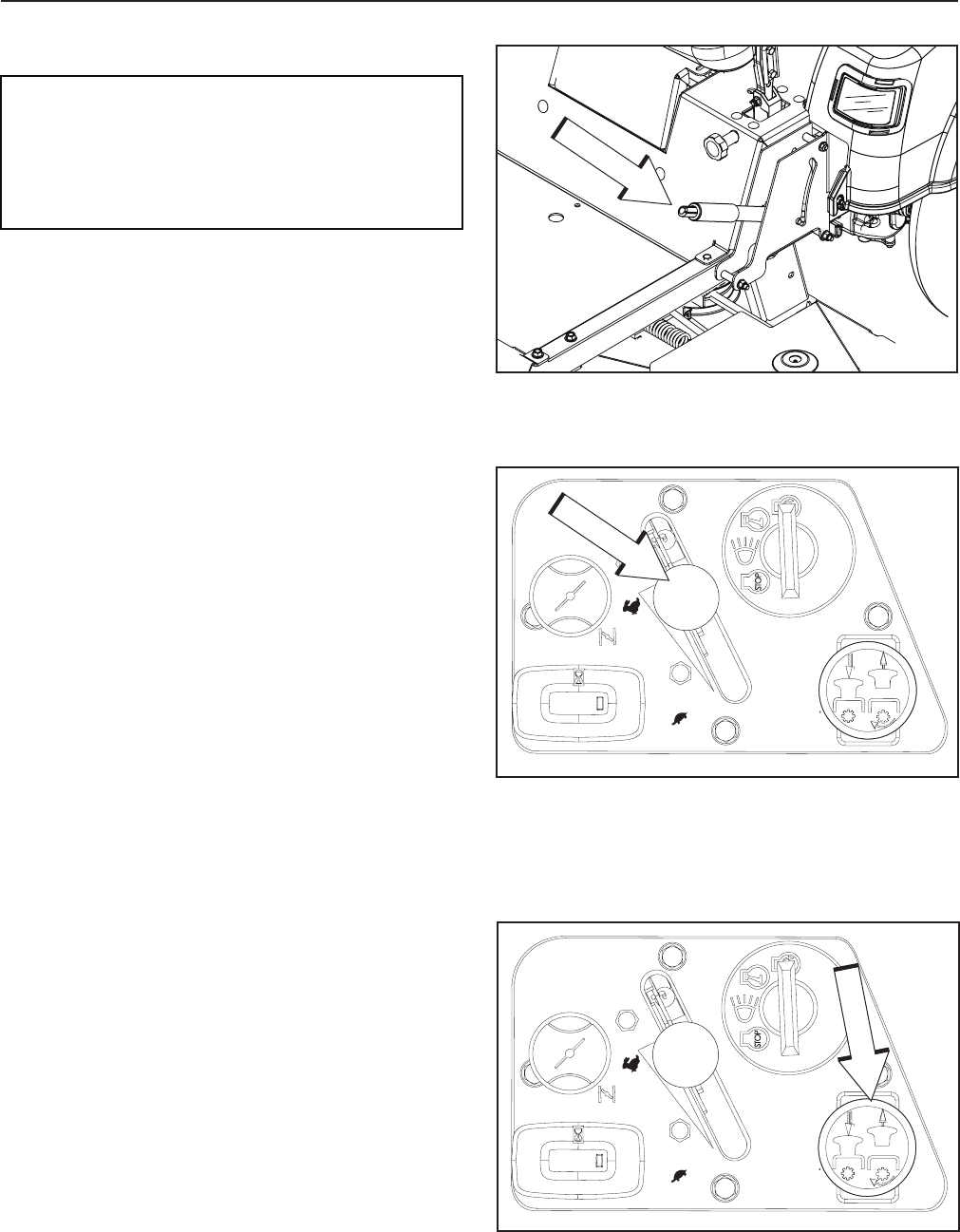

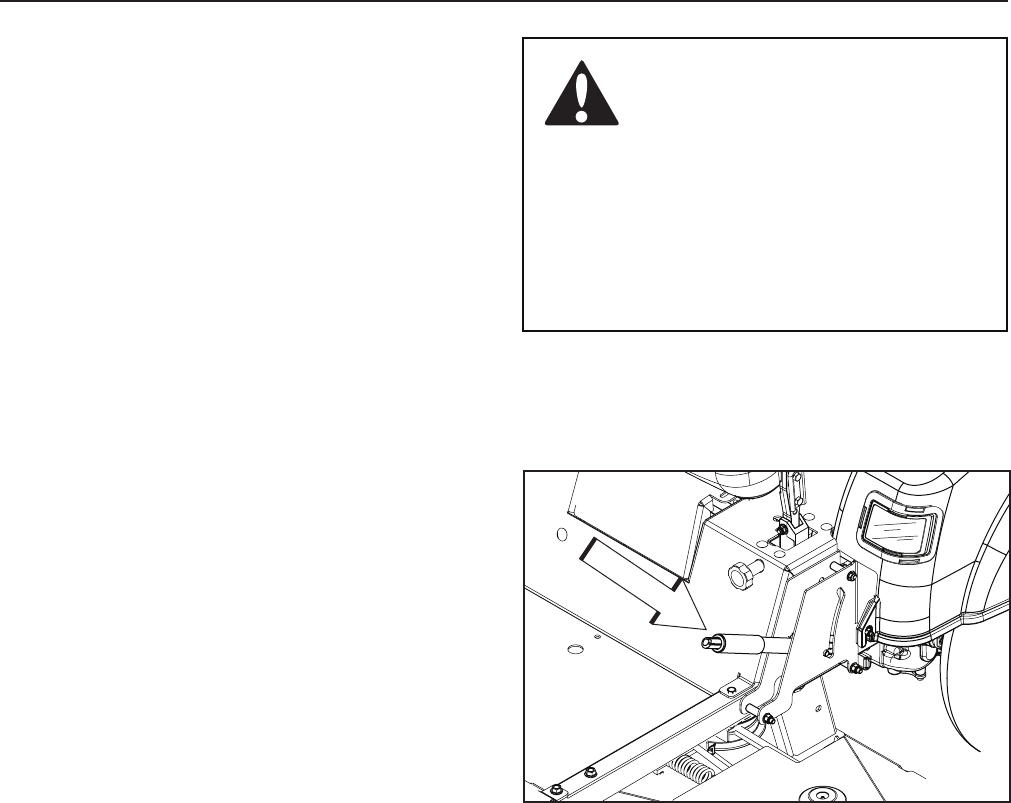

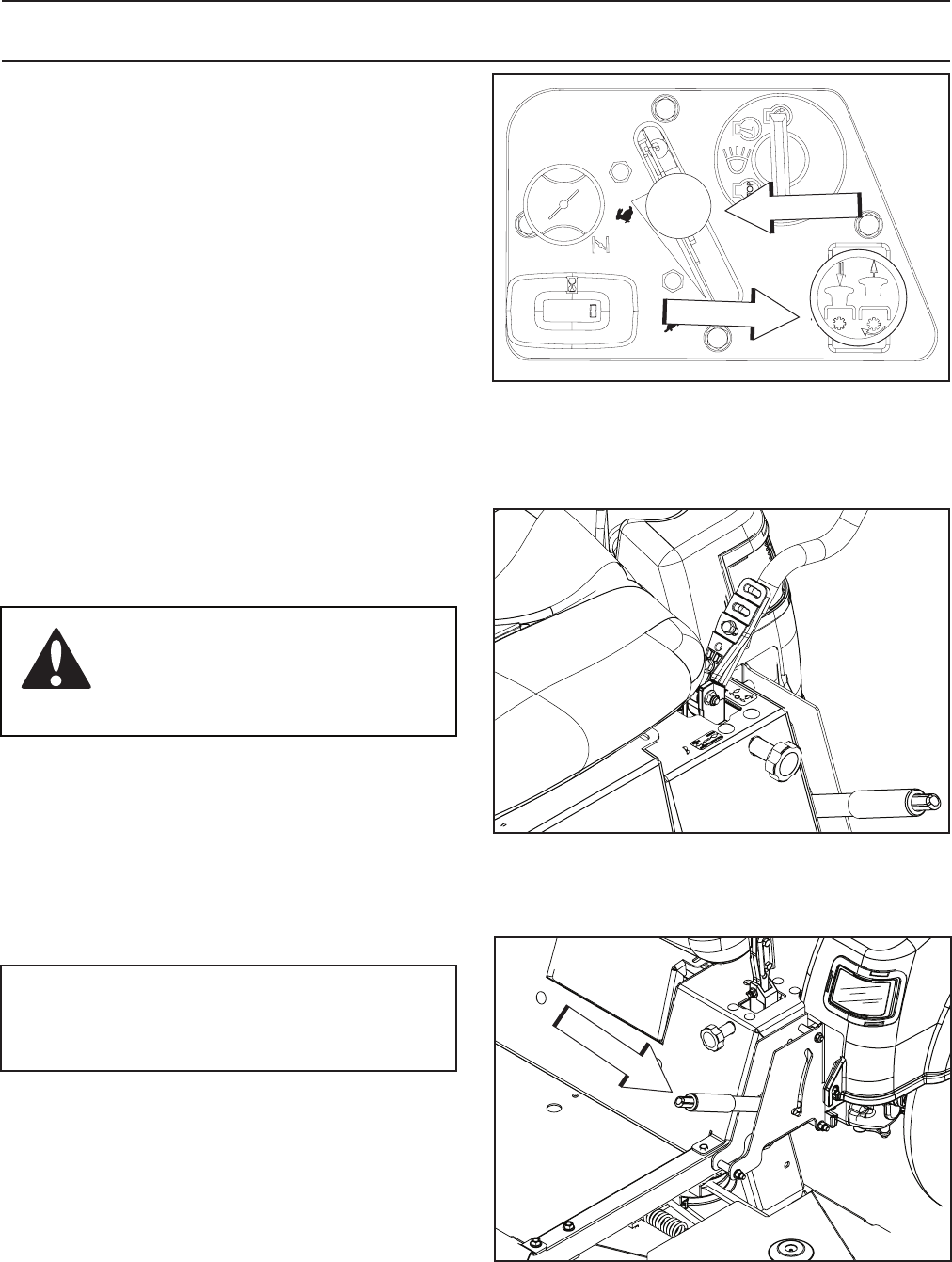

8058-019
Set mower deck to transport position
8058-020
Pull parking brake upwards to activate.
8052-001
Depress blade switch
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
OPERATION
26-Husqvarna

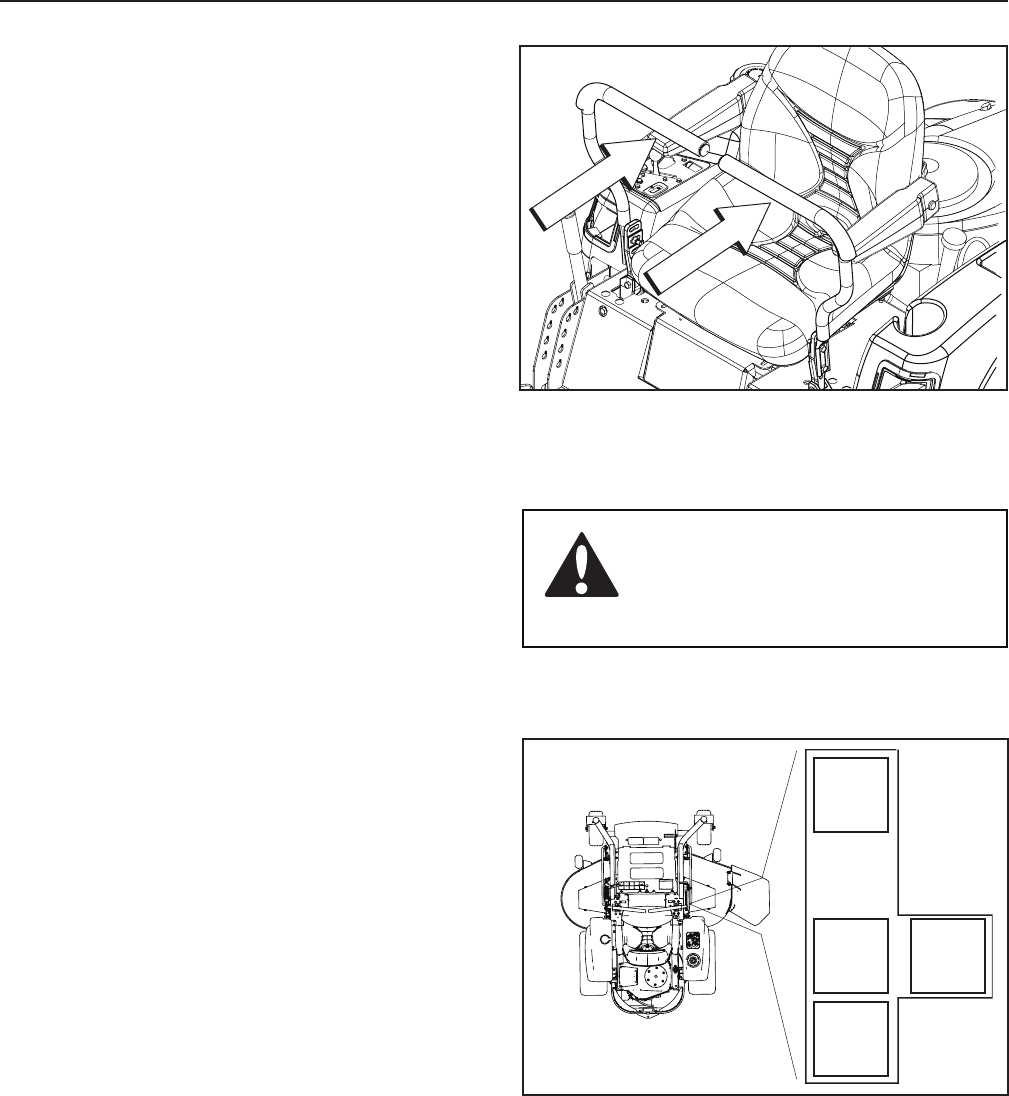

Move the steering controls outward to the locked
(outer) neutral position.
Move the throttle to the middle position.
If the engine is cold, the choke control should be
pulled up.
8052-001
Set the throttle
8052-001
Set the choke control
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
8061-026
Place controls in neutral position
OPERATION
Husqvarna-27
Press in and turn the ignition key to the start position.
When the engine starts, immediately release the
ignition key back to the run position.
IMPORTANT INFORMATION
Do not run the starter for more than 5 seconds
each time. If the engine does not start, wait
approximately 10 seconds before retrying.
Set the desired engine speed with the throttle. Allow
the engine to run at a moderate speed, “half throttle”
for 3-5 minutes before loading it too heavily. USE
FULL THROTTLE WHEN MOWING (no choke).
WARNING!
Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is a odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
8050-780
Turn to the start position
8056-001
Set the engine speed
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
8050-781
Return to run position
STOP
STOP
OPERATION
28-Husqvarna
8011-642
Jumper cable connection
IMPORTANT INFORMATION
Your mower is equipped with a 12-volt
negative grounded system. The other vehicle
must also be a 12-volt negative grounded
system. Do not use your mower to start other
vehicles.
Weak Battery
If your battery is too weak to start the engine, it should
be recharged. (See “Battery” in the Maintenance
Section.)
If “jumper cables” are used for emergency starting,
follow this procedure:
Jumper Cables
Connect each end of the RED cable to the •
POSITIVE (+) terminal on each battery, taking care
not to short against chassis.
Connect one end of the BLACK cable to the •
NEGATIVE (-) terminal of the fully charged battery.
Connect the other end of the BLACK cable to a •
good CHASSIS GROUND on the mower with the
discharged battery, away from the fuel tank and
battery.
To remove cables, reverse order
Remove BLACK cable rst from chassis and then •
from the fully charged battery.
Remove RED cable last from both batteries.•
WARNING!
Lead-acid batteries generate
explosive gases. Keep sparks, ame
and smoking materials away from
batteries. Always wear eye protection
when around batteries.
OPERATION
Husqvarna-29
Running
Release the parking brake by pushing the button 1.
and moving the lever downward.
NOTE: The mower is equipped with an operator
presence system. When the engine is running, any
attempt by the operator to leave the seat without
rst setting the parking brake will shut off the
engine.
Move the steering controls to the neutral position 2.
(N).
Set retaining pin into selected cutting height and 3.
secure the opposite side with a cotter hairpin.
Push the release button on the cutting height lever 4.
and move lever to the pin, release the button.
Set the cutting height with the cutting height 5.
adjustment lever.
8058-019
Mower deck lifting lever
WARNING!
Ensure that no one is near mower
when engaging blade switch.
Make sure the work area is free from
objects that could be thrown by the
rotating blades.
8058-020
Parking brake released
8058-024
Secure selected cutting height
OPERATION
30-Husqvarna
8052-001
Set blade engagement and throttle control
Engage the mower deck by pulling out the blade 6.
switch.
Move throttle control to full throttle. 7.
The machine’s speed and direction are
continuously variable using the two steering
controls. When both controls are in the neutral
position, the machine stands still.
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively.
In order, for example, to turn right while moving
forward, move the right control towards the neutral
position. The rotation of the right wheel is reduced
and the machine turns to the right.
Turning on the spot (zero turn) can be achieved by
moving one control backward (behind the neutral
position) and carefully moving the other steering
control forward from its neutral position.
Operating On Hills
Read the Safety Instructions “Driving on Slopes” in the
“Safety Instructions”.
The slowest speed possible should be used before •
starting up or down hills.
Avoid stopping or changing speed on hills.•
If stopping is absolutely necessary, pull drive •
levers into the neutral position and push to the
outside of the unit and engage the parking brake.
To restart movement, release the parking brake.•
Pull the control levers back to the center of the •
mower and press forward to regain forward
motion.
Make all turns slowly.•
IMPORTANT INFORMATION
Control levers return to neutral when released.
This may cause the mower to suddenly stop.
8058-020
Parking brake released
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across slopes.
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
8061-026
Place controls in neutral position
OPERATION
Husqvarna-31
Mowing Tips
Observe and ag rocks and other xed objects to •
avoid collisions.
Begin with a high cutting height and reduce it until •
the desired mowing result is attained.
The average lawn should be cut to 2½" (64 mm)
during the cool season and over 3" (76 mm)
during the hot months. For healthier and better
looking lawns, mow often after moderate growth.
For best cutting performance, grass over 6" (15
cm) in height should be mowed twice. Make the
rst cut relatively high, the second to the desired
height.
The mowing result will be best with a high engine •
speed (the blades rotate rapidly) and low speed
(the rider moves slowly). If the grass is not
too long and dense, the driving speed can be
increased without negatively affecting the mowing
result.
The nest lawns are obtained by mowing often. •
The lawn becomes more even and the grass
clippings more evenly distributed over the mown
area. The total time taken is not increased as a
higher operating speed can be used without poor
mowing results.
Avoid mowing wet lawns. The mowing result is •
poorer because the wheels sink into the soft lawn,
clumps build, and the grass clippings fasten under
the cowling.
Hose the mower deck underside with water after •
each use. When cleaning, the mower deck shall
be raised into the transport position. Make sure
the mower is cooled and the engine is off.
Use compressed air to clean top surface of the •
deck. Avoid ooding water on top surface, engine
and electrical components.
When the mulching kit is used, it is important that •
the mowing interval is frequent.
WARNING!
Clear the lawn of stones and other
objects that can be thrown out by the
blades.

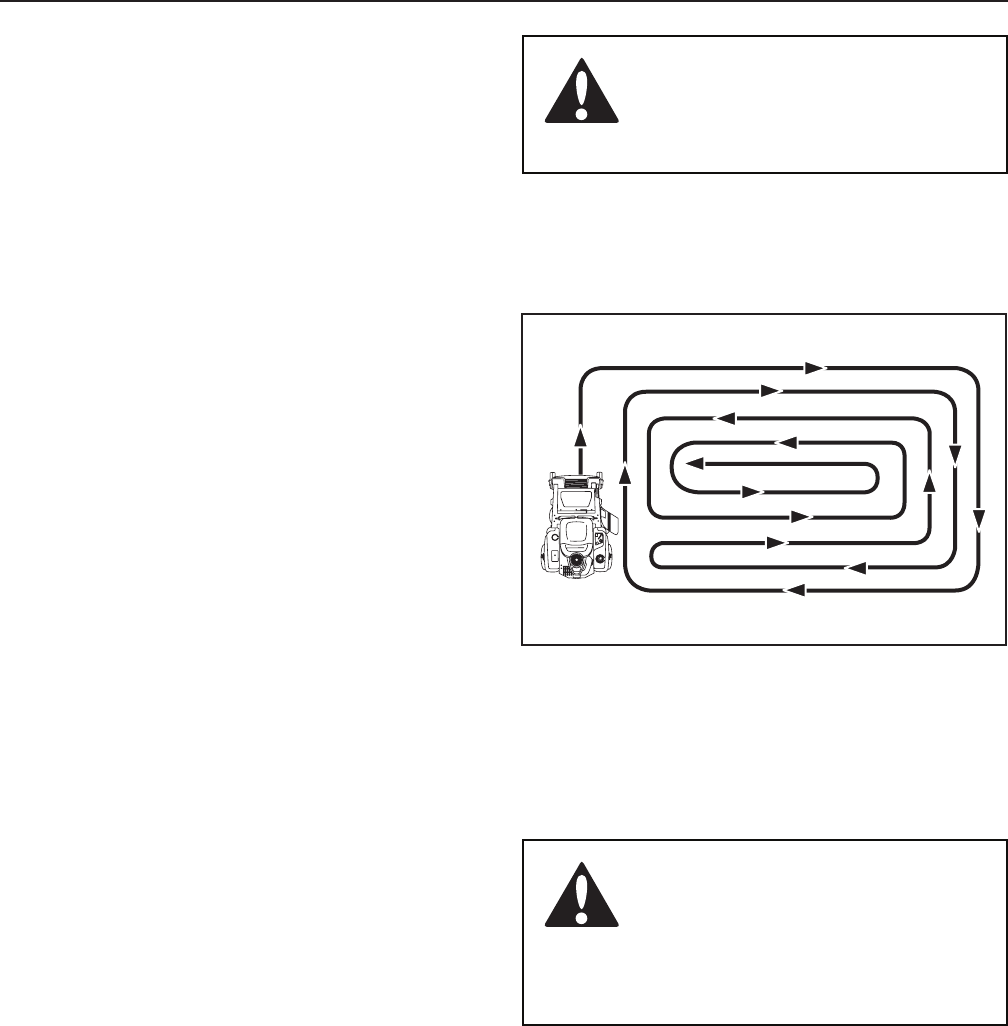

8011-603
Mowing pattern
WARNING!
Never drive the rider on terrain that
slopes more than 10 degrees. Mow
slopes up and down, never side
to side. Avoid sudden directional
changes.
OPERATION
32-Husqvarna
UP
BLADES ON
DOWN
BLADES OFF
CHOKE
FAST
SLOW
IMPORTANT INFORMATION
Leaving the ignition switch in any other
position than “OFF” will cause the battery to
be discharged.
Stopping the Engine
Allow the engine to idle a minute in order to attain
normal operating temperature before stopping it, if
it has been worked hard. Avoid idling the engine for
longer periods, as there is a risk of the spark plugs
fouling.
Disengage the mower deck by depressing the •
blade switch.
8052-001
Disengage the mower deck and move throttle to minimum
Raise the mower deck by pressing the button on •
the lever and pullng backward to the transport
position.
When the machine is standing still, activate the •
parking brake by pushing the lever button and
pulling the lever upward.
Move the steering controls outward.•
Remove key. Always remove key when leaving the •
mower to prevent unauthorized use.
8058-019
The mower deck’s lifting lever
Move the throttle to the minimum position (tortoise •
symbol). Turn the ignition key to the stop position.
8061-026
Place controls in neutral position
OPERATION
Husqvarna-33

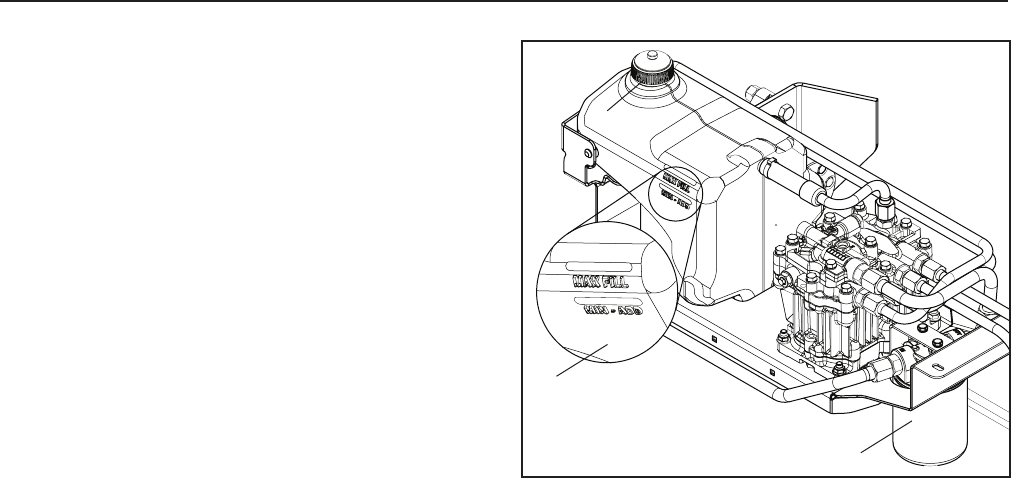

Pump Release Valves
Pump release valves are located at the left and right of
the pump. They are used to release the system so the
machine may be moved by hand when not running.
Tilt seat forward to gain access to the pump. The left
bypass valve sits directly opposite the right valve. It is
not visible in the illustration.
Use a 17 mm open end wrench or socket and ratchet.
Turn the outer locknut 2-3 turns. Using an 8mm
wrench or socket, turn the inner nut one turn.
Reverse the procedure to reset the pump, makng sure
the outer locknut is tightened.
IMPORTANT INFORMATION
Tighten the valve moderately.
Do not overtighten the valve when closing.
That can damage the valve seat. 8011-507
Pump release valve - right

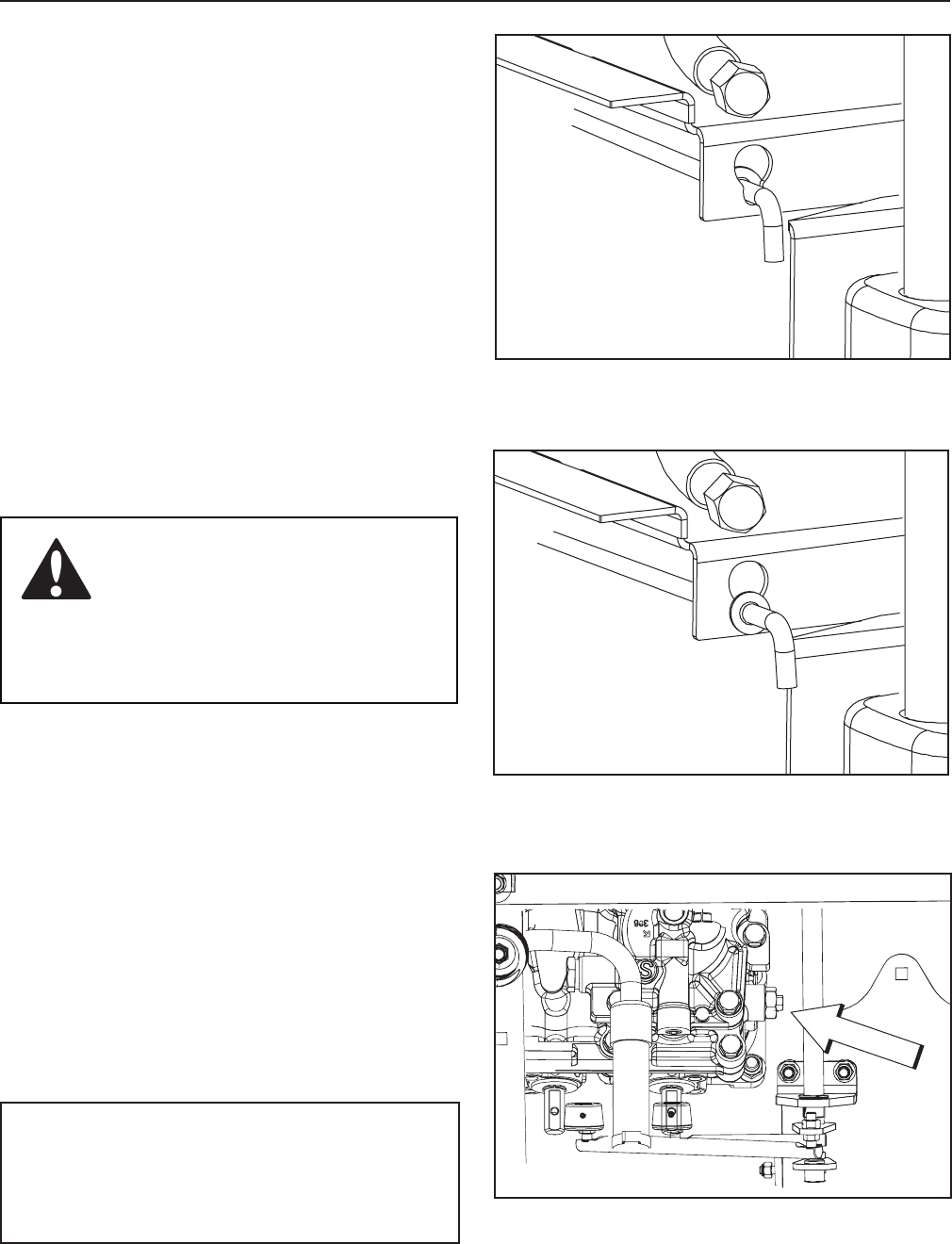

Manual Transport

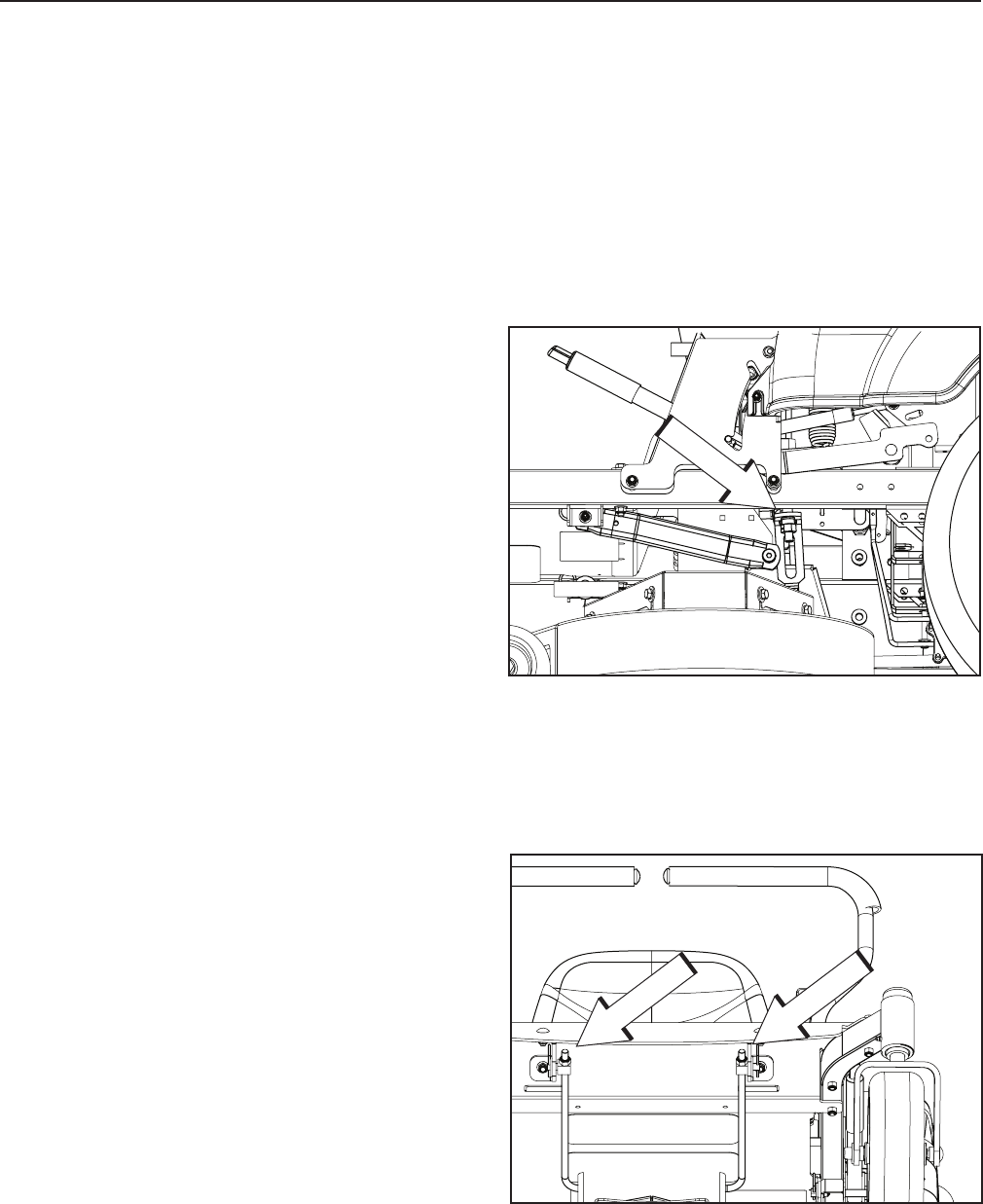

ZT-2800 Bypass Linkages
When pushing or pulling the mower, engage the
ZT-2800 (Integrated Zeroturn Transaxle) bypass
linkages. The ZT-2800 bypass linkages are located on
the rear of the frame, below the rear engine guard.
Raise the deck into the highest cutting position.1.
Pull the ZT-2800 bypass linkages up and out of 2.
the keyhole slots. Release the levers with the
head outside the frame and held in the bypass
position.
To reengage the ZT-2800 to drive, reverse the 3.
above procedure.
Load the machine into truck or trailer by driving up
ramps in low gear. DO NOT LIFT! The machine is not
intended to be lifted by hand.
8058-032
Bypass linkage, ZT-2800 engaged
8058-032
Bypass linkage, ZT-2800 locked in the bypass position
WARNING!
Make no adjustments without:
the engine stopped,•
the ignition key removed,•
the parking brake activated•
MAINTENANCE
34-Husqvarna
Check the parking brake ●

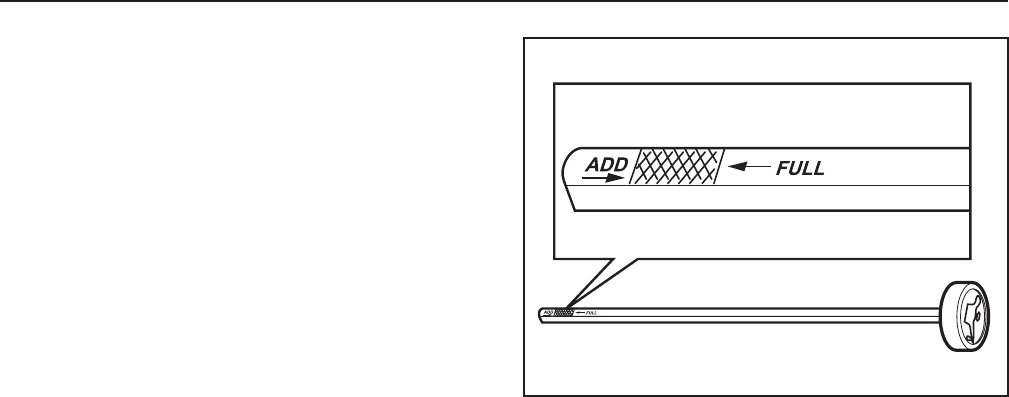

Check the engine’s oil level (every refueling) ●
Check the safety system ●
Check for fuel and oil leakages ♦
Check/clean the engine’s cooling air intake ●
Check the mower deck ●
Check for loose hardware (screws, nuts) ●
Clean under the mower deck ●
Start the engine and blades, listen for unusual sounds ♦
Check for damage ♦
Thoroughly clean around the engine ♦
Clean around belts, belt pulleys ♦
Check the tire pressures ●
Check battery ●
Sharpen/Replace mower blades ●
Clean the engine’s cooling air intake 2) ● ●
Clean the air cleaner’s pre-lter 2) (foam) ● ●
Clean the air cleaner’s lter cartridge 2) (paper lter) ● ●
Check/adjust the parking brake ♦ ♦
Inspect mufer/Spark arrester ♦ ♦
Maintenance Before After
Daily Weekly At
least
once
each
year
Maintenance interval
in hours
25 50 100 300
Maintenance Schedule
The following is a list of maintenance procedures that must be performed on the machine. For those points not
described in this manual, visit an authorized service workshop. An annual service carried out by an authorized
service workshop is recommended to maintain your machine in the best possible condition and to ensure safe
operation.
Read “Maintenance” in the Safety Instructions section.
1) First change after 5-8 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours. 2) In dusty conditions, cleaning and
replacement are required more often. 3) For daily use, the machine should be lubricated twice weekly. 4) Performed by authorized service workshop.
● = Described in this manual
♦ = Not described in this manual
MAINTENANCE
Husqvarna-35
WARNING!
Before performing any service or adjustment checklist
• Engage the parking brake.
• Place the Blade-switch in the disengaged position.
• Turn the ignition switch to “OFF” position and remove the key.
• Make sure the blades and all moving parts have completely stopped.
• Disconnect the spark plug wire from all spark plugs and place the wire where it cannot
come in contact with the plug.
1) First change after 5-8 hours. When operating with a heavy load or at high ambient temperatures, replace every 50 hours. 2) In dusty
conditions, cleaning and replacement are required more often. 3) Performed by authorized service workshop.
● = Described in this manual
♦ = Not described in this manual
Check/adjust throttle cable ●
Check the condition of belts, belt pulleys ● ●
Change the engine oil 1) ● ●
Replace the engine oil lter ● ●
Clean/replace the spark plugs ● ●
Replace the fuel lter ● ●
Replace the air lter (paper lter) 2) ● ●

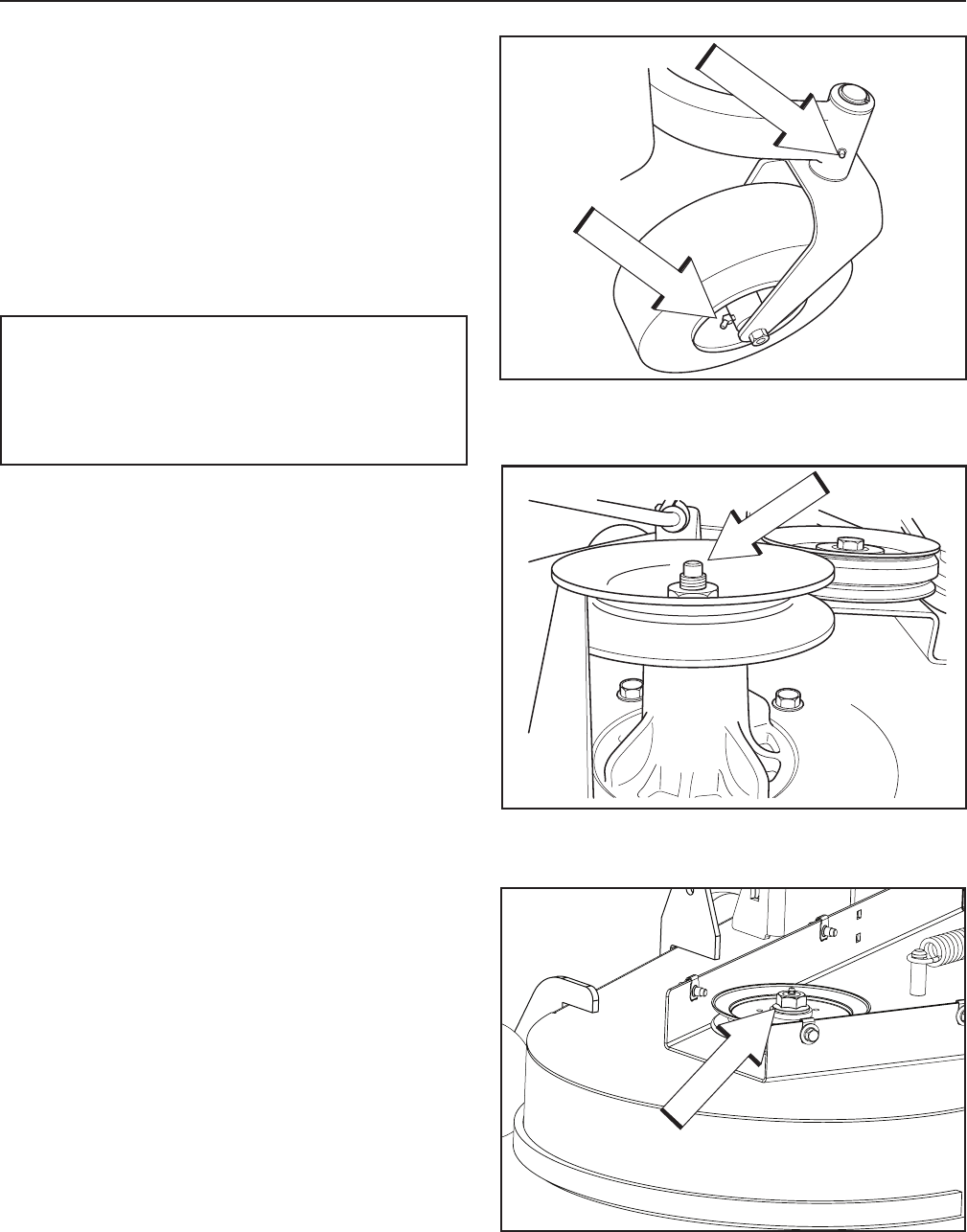

Check the caster wheels (every 200 hours) ●
Replace the air cleaner’s pre-lter 2) (foam) ●
Check/adjust the mower deck ● ●
Check the engine valve clearance 3) ♦ ♦
Perform the 300-hour service 3) ♦ ♦
Maintenance Before After
Daily Weekly At
least
once
each
year
Maintenance interval
in hours
25 50 100 300
MAINTENANCE
36-Husqvarna
Battery
Your mower is equipped with a maintenance free
battery and does not need servicing. However,
periodic charging of the battery with an automotive
type battery charger will extend its life.
• Keep battery and terminals clean.
• Keep battery bolts tight.
• See chart for charging times
IMPORTANT INFORMATION
Do not attempt to open or remove caps or
covers. Adding or checking level of electrolyte
is not necessary.
Always use two wrenches for the terminal
screws.
WARNING!
Always wear eye protection when
around batteries.
WARNING!
Do not short battery terminals by
allowing a wrench or any other
object to contact both terminals at
the same time. Before connecting
battery, remove metal bracelets,
wristwatch bands, rings, etc.
Positive terminal must be connected
rst to prevent sparks from
accidental grounding.
STANDARD
BATTERY
STATE
OF
CHARGE
APPROXIMATE BATTERY CHARGING TIME*
TO FULL CHARGE AT 80OF / 27OC
Maximum Rate at:
50 Amps 30 Amps 20 Amps 10 Amps
12.6V 100%
- FULL CHARGE -
12.4V 75% 20 min. 35 min. 48 min. 90 min.
12.2V 50% 45 min. 75 min. 95 min. 180 min.
12.0V 25% 65 min. 115 min. 145 min. 280 min.
11.8V 0% 85 min. 150 min. 195 min. 370 min.
*Charging time depends on battery capacity,
condition, age, temperature and efciency of charger
Cleaning battery and terminals
Corrosion and dirt on the battery and terminals can
cause the battery to “leak” power.
Move terminal covers.1.
Disconnect BLACK battery cable rst, then the 2.
RED battery cable and remove the battery from
the machine.
Rinse the battery with plain water and dry.3.
Clean terminals and battery cable ends with wire 4.
brush until shiny.
Coat terminals with grease or petroleum jelly5.
Reinstall battery.6.
Replacing battery
Lift seat and rotate forward. 1.
Using two ½” wrenches disconnect BLACK 2.
battery cable then RED battery cable.
Position deck to lowest setting.3.
Front underside of frame, remove the nuts that 4.
secure the battery hold-down.
Carefully remove the battery from the mower.5.
Install new battery with terminals in the same 6.
position as the old battery.
Reinstall battery hold-down and secure with 7.
nuts removed in Step 4.
Reconnect RED battery cable to positive (+) 8.
battery terminal with hex bolt and hex nut.
Connect BLACK grounding cable to negative 9.
(-) battery terminal with remaining hex bolt and
nut
Replace terminal boot cover.10.
Lower seat11.
8050-109
Remove battery hold-down to replace battery
MAINTENANCE
Husqvarna-37
Ignition System
The engine is equipped with an electronic ignition
system. Only the spark plugs require maintenance.
For recommended spark plugs, see Technical Data.
Remove the ignition cable boot and clean around 1.
the spark plug.
Remove the spark plug with a spark plug socket 2.
wrench.
Check the spark plug. Replace the spark plug 3.
if fouled, the electrodes are burned and if the
insulation is cracked or damaged. Clean the spark
plug with a steel brush if it is to be reused.
Measure the electrode gap with a gapping tool. 4.
The gap should be .030" (0.75 mm). Adjust as
necessary by bending the side electrode.
Reinsert the spark plug, turning by hand to avoid 5.
damaging the threads.
After the spark plug is seated, tighten it using 6.
a spark plug wrench so that the washer is
compressed. A used spark plug should be turned
1/8 of a turn from the seated position. A new spark
plug should be turned a ¼ turn from the seated
position.
Replace the ignition cable.7.
IMPORTANT INFORMATION
Fitting the wrong spark plug type can damage
the engine.
Inadequately tightened spark plugs can
cause overheating and damage the engine.
Tightening the spark plugs too hard can
damage the threads in the cylinder head.
Safety System
The machine is equipped with a safety system that
prevents starting or driving under the following
conditions.
The engine can only be started when:
The mower deck is disengaged. 1.
The steering controls are in the outer, locked 2.
neutral position.
The parking brake is on.3.
Make daily inspections to ensure that the safety
system works by attempting to start the engine
when one of the conditions is not met. Change the
conditions and try again.
If the machine starts when one of these conditions
is not met, turn the machine off and repair the safety
system before using the machine again.
Make sure the engine stops when the park brake is not
engaged and the operator leaves the seated position.
Check that the engine stops if the mower blades are
engaged and the driver temporarily moves off the
drivers seat.
IMPORTANT INFORMATION
In order to be able to drive, the driver must
sit in the seat and release the parking brake
before the steering controls can be moved into
the neutral position, otherwise the engine will
stop.

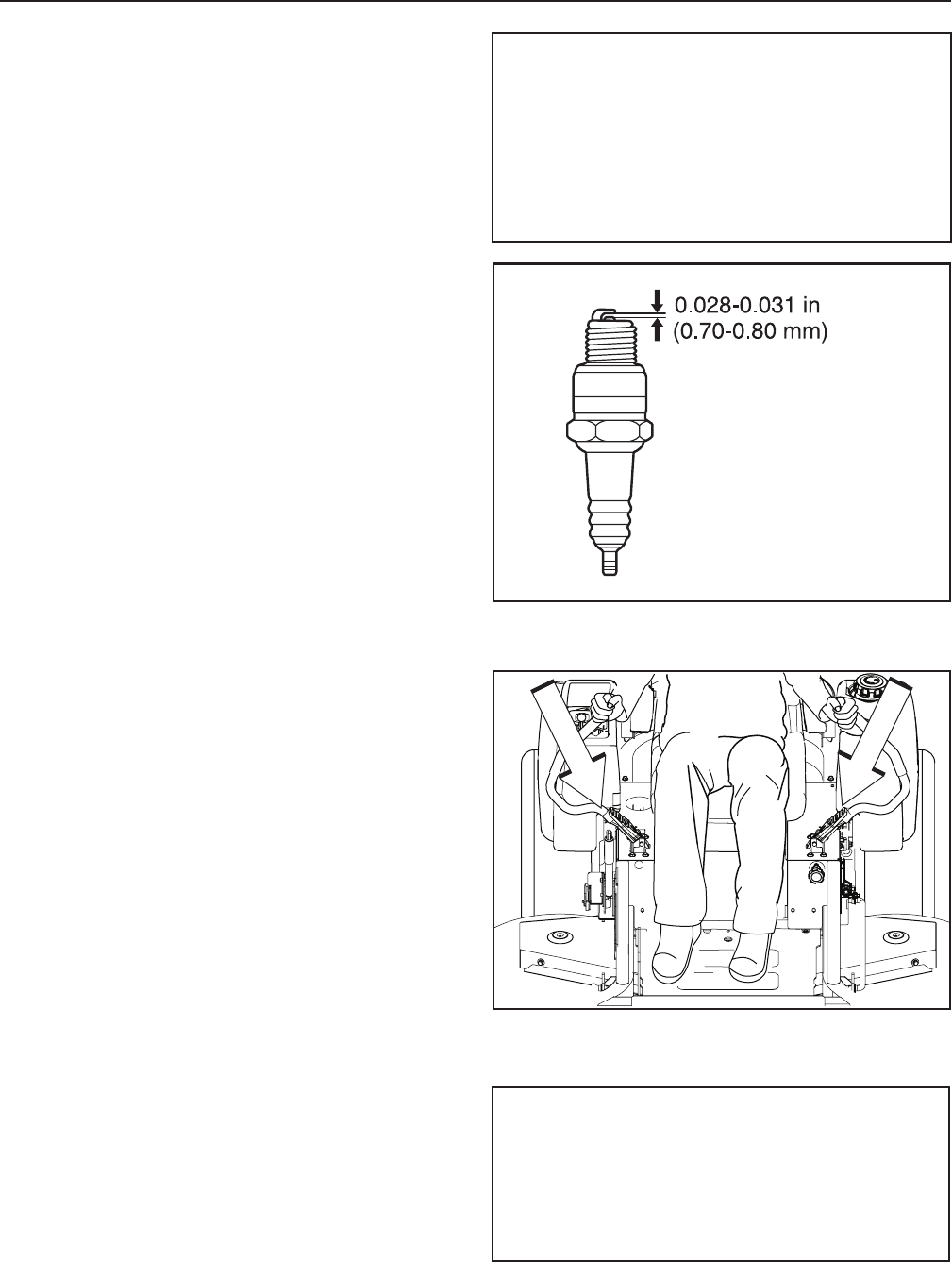

8011-054
Measure the electrode gap
8058-026
Steering controls locked in neutral
MAINTENANCE
38-Husqvarna
Engine Cooling Air Intake
Check that the engine’s cooling air intake is free from
leaves, grass, and dirt.
If the cooling air intake is clogged, engine cooling
deteriorates, which can lead to engine damage.
The cooling air intakes rotates when the engine is
running. Keep ngers away.
Throttle Cable
Check that the engine responds to throttle increases
and that a good engine speed is attained at full
throttle.
If doubts arise, contact the service workshop.
If adjustments are necessary, they can be made as
follows for the lower cable:
Loosen the clamping screw for the cable’s 1.
outer casing and move the throttle to the full
throttle position.
Check that the throttle cable is mounted 2.
in the correct hole in the lower lever, see
illustration.
Push the throttle cable’s outer casting as 3.
far to the right as possible and tighten the
clamping screw.

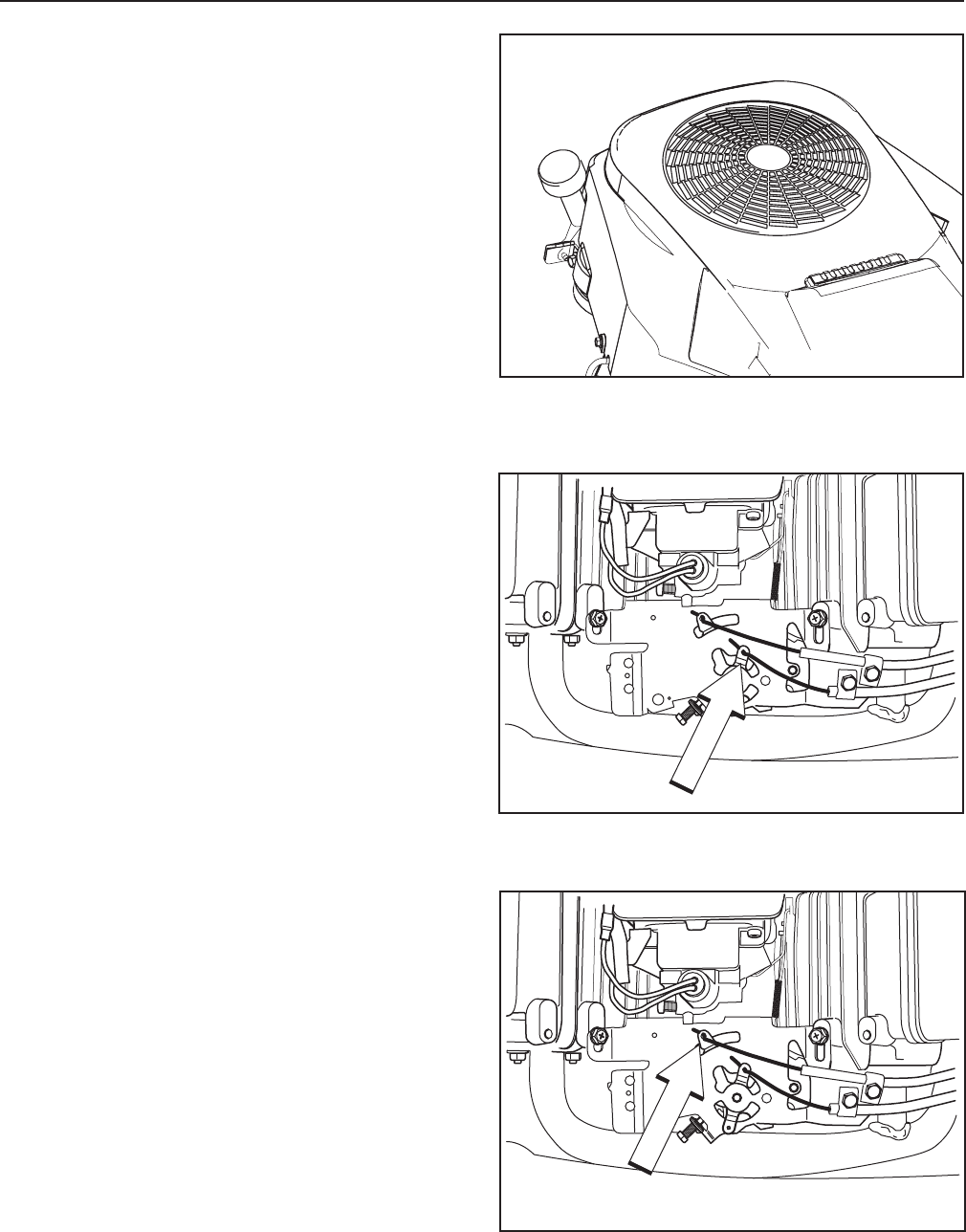

8061-014
Check and clean the cooling air intake
8011-605
Adjusting the throttle cable
8011-605
Adjusting the choke cable
Choke Cable
If the engine produces black smoke or is difcuIt
to start, this can be because the choke cable is
incorrectly adjusted (upper cable).
If doubts arise, contact the service workshop.
If adjustments are necessary, they can be made as
follows:
Loosen the clamping screw for the cable’s 1.
outer casing and push the choke control fully
in.
Check that the choke cable is mounted in the 2.
upper lever, see illustration. Push the choke
cable’s outer casing as far to the left as
possible and tighten the clamping screw.
MAINTENANCE
Husqvarna-39
Air Filter
Briggs & Stratton Engine
Loosen screws and remove air lter cover.1.
Remove the lter cartridge by pulling 2.
upwards along the outside edge.
IMPORTANT INFORMATION
Operating the engine with loose or damaged
air cleaner components could allow unltered
air into the engine causing premature wear
and failure.
IMPORTANT INFORMATION
Do not use compressed air to clean the air
lter.
Do not wash the paper lter.
Do not oil the paper lter.
WARNING!
The engine and the exhaust system
become very hot during operation.
Risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes.
Remove the foam lter (precleaner). Clean 3.
the foam lter with mild detergent and water.
Squeeze dry in a clean cloth. Do not oil the
foam sleeve.
Tap the paper lter against a xed surface to 4.
remove dust. If the paper lter is still dirty, it
must be replaced.
Wipe clean the inside of air lter housing.5.
Ret the foam lter (pre lter).6.
8009-406
Loosen cover screws
8019-014
Remove lter
8019-015
Reinstall lter
Mount the lter in the air lter housing.7.
Replace the cover over the air lter housing 8.
and secure with screws.
MAINTENANCE
40-Husqvarna
Kohler Engine
These engines are equipped with a replaceable, high
density paper air cleaner element. Some engines
are also equipped with an oiled, foam precleaner
surrounding the paper element.
Check the air cleaner daily or before starting the
engine. Check for a buildup of dirt and debris around
the air cleaner system. Keep this area clean. Also
check for loose or damaged components. Replace all
bent or damaged air cleaner components.
Servicing Precleaner
If so equipped, wash and re-oil the precleaner every
25 hours of operation (more often under extremely
dusty or dirty conditions). Replace the precleaner
annually, or every 100 hours.
Open the door on the blower housing 1.
to access the air cleaner element and
precleaner.
Unhook the latch and remove the air cleaner 2.
element assembly for servicing. Make sure
the base and the sealing areas are clean
before reassembly.
Wash the precleaner in warm water with 3.
detergent. Rinse the precleaner thoroughly
until all traces of detergent are eliminated.
Squeeze out excess water (do not wring).
Allow the precleaner to air dry.
Saturate the precleaner with new engine oil. 4.
Squeeze out all excess oil.
Servicing Paper Element
Check the paper element every 50 hours of operation,
(more often under extremely dusty or dirty conditions).
Clean or replace the element as necessary. Replace
the air cleaner element annually, or every 100 hours.
Remove the precleaner (if so equipped) from 1.
the paper element.
Gently tap the paper element to dislodge 2.
dirt. Do not wash the paper element or use
pressurized air, as this will damage the
element. Replace a dirty, bent, or damaged
element with a new one. Handle the new
element carefully; do not use if the sealing
surfaces are bent or damaged.
Clean the air cleaner base as required and 3.
check condition.
Reinstall the precleaner (if equipped) over 4.
the paper air cleaner element and install on
the base. Secure with the latch.
Close and latch the door.5.
IMPORTANT INFORMATION
Operating the engine with loose or damaged
air cleaner components could allow unltered
air into the engine causing premature wear
and failure.

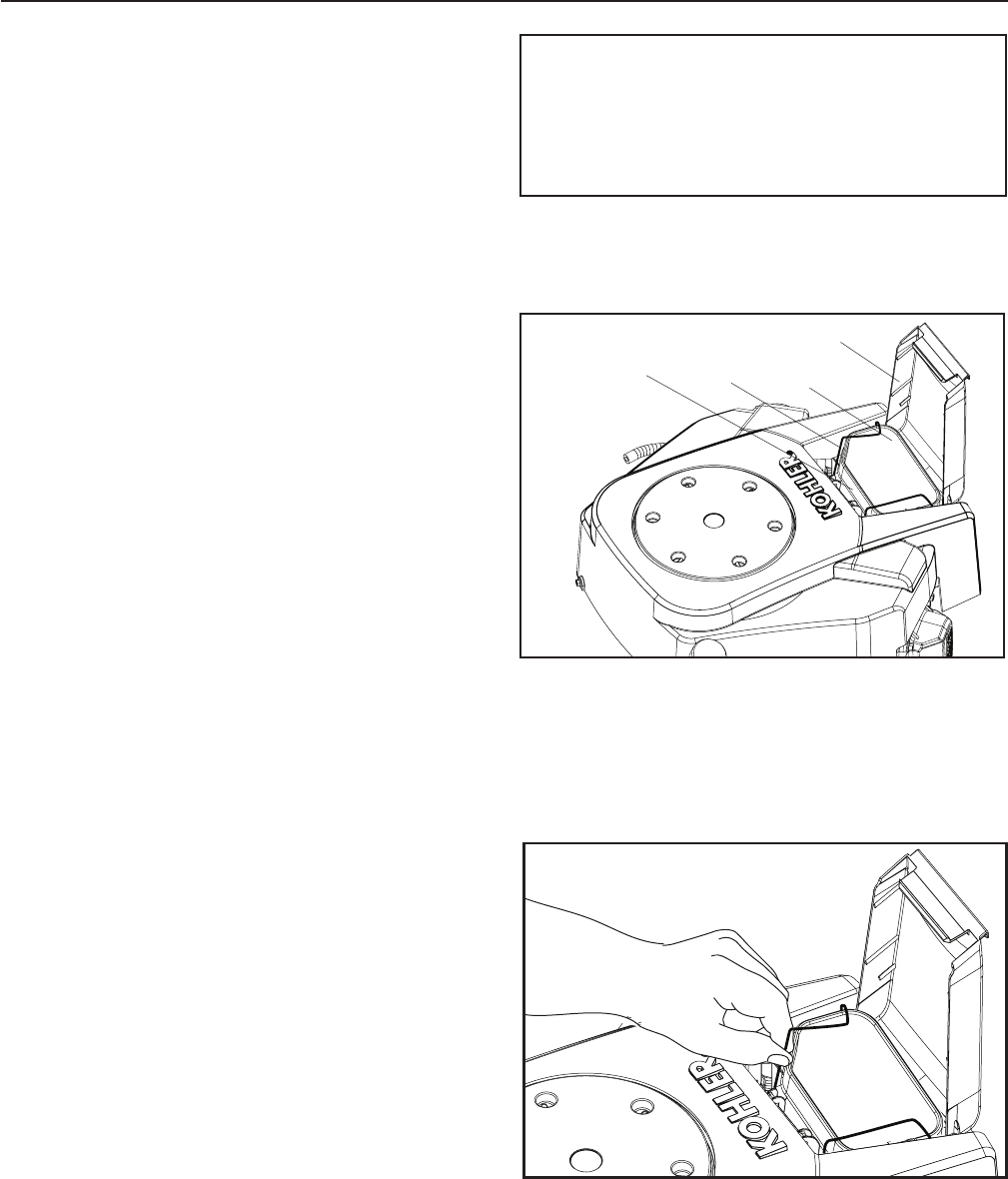

8058-028
1. Air cleaner access door
2. Air cleaner element
3. Latch
4. Precleaner (on some models)
Air lter cleaning and replacement
1
432
8058-029
Unlatch and remove element
MAINTENANCE
Husqvarna-41
Kawasaki Engine
Remove the plastic fastener on the top of 1.
the air lter cowling and remove the air lter
cowling.
Remove the foam rubber pre-lter and clean 2.
using a mild detergent. Squeeze it dry with a
clean cloth.
WARNING!
The engine and the exhaust system
become very hot during operation.
There is a risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes.
8011-557
Remove pre-lter
8011-768
Remove the air lter cowling
8011-558
Remove paper lter
Remove the wing nuts for the air lter and 3.
remove the paper lter.
IMPORTANT INFORMATION
Do not use compressed air to clean the air
lter.
Do not wash the paper lter.
Do not oil the paper lter.
MAINTENANCE
42-Husqvarna
Fuel Filter
Replace the line-mounted fuel lter every 100 hours
(once per season) or more regularly if it is clogged.
Replace the lter as follows:1.
Move the hose clamps away from the lter. Use 2.
at-nosed pliers.
Pull the lter loose from the hose ends.3.
Push the new lter into the hose ends. Position the 4.
lter with the “FLOW” arrow pointing up toward the
fuel pump. If necessary, a soap solution can be
applied to the lter ends to ease mounting.
Move the hose clamps back toward the lter.5.
8011-468
Fuel lter
Fuel Pump Air Filter
Regularly check that the fuel pump’s air lter is free
from dirt.
Remove the screws and open the pump, no hoses
need be removed.
The lter can be cleaned with a brush if necessary.
Replace the lter on the console.
8009-147
Fuel pump air lter
8009-181
Remove dust
Tap the paper lter against a xed surface to 4.
remove dust. If the paper lter is still dirty, it
must be replaced.
To ret lter:
Check that the seal on the bottom of the paper 1.
lter is whole.
Mount the paper lter in the air lter housing 2.
and tighten the wing nuts.
Ret the pre-lter on the paper lter.3.
Replace the cowling over the air lter housing. 4.
Do not over tighten the plastic fastener.
MAINTENANCE
Husqvarna-43
Parking Brake
Visually check that no damage is found on the lever,
cables, or switch belonging to the parking brake.
Perform a standstill test and check that there is
sufcient braking action.
To adjust the parking brake, contact the Husqvarna
service workshop.
IMPORTANT INFORMATION
The machine must be absolutely standing still
when applying the parking brake.
Tire Pressures
All tires should be at 15 psi / 103 kPa / 1 bar.
8011-564
Check tire pressures
8058-020
Parking brake
WARNING!
Faulty adjustment will result in
reduced braking ability and can
cause an accident.
MAINTENANCE
44-Husqvarna
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks.
NOTE: The belt will show some small cracks in normal
operation.
The belts are not adjustable. Replace belts if they
begin to slip from wear.
Deck Belt Removal
Park on a level surface. Apply parking brake.1.
Lower the deck into the lowest cutting position.2.
Remove bolts from belt shields and remove 3.
shields.
Remove any dirt or grass that may have 4.
accumulated around the cutter housings and entire
deck surface.
Remove tension on the belt by moving the idler 5.
arm.
Carefully slip belt up over the top of the cutter 6.
housing pulleys and remove belt. Rolling belt over
the pulleys may damage the belt.

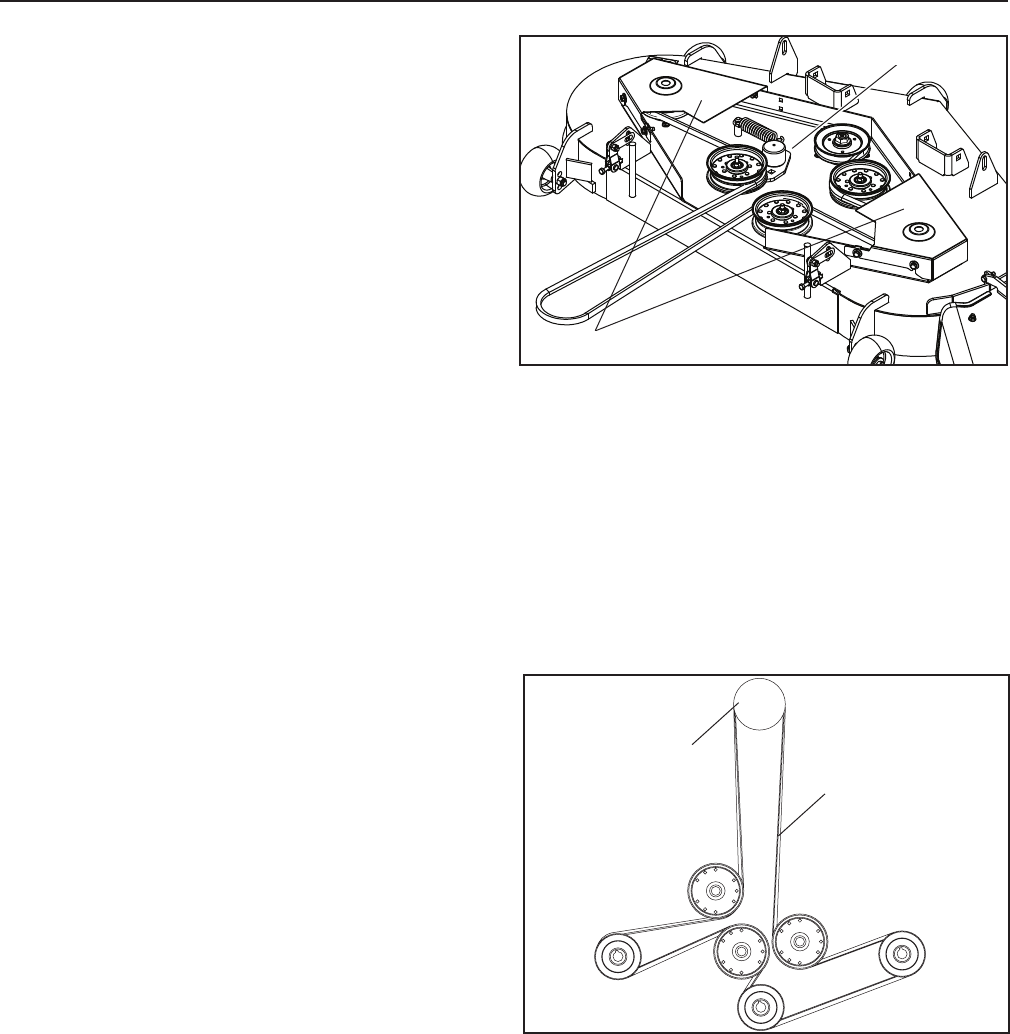

Removing deck belt
8011-764
1. Clutch pulley
2. Deck belt
Belt routing, deck belt
1
2
Belt Shields
Deck Belt Installation
NOTE: For ease in installing the deck belt, refer to
the routing decal on the top of the deck.
Wrap the deck belt around the electric clutch 1.
pulley that is located on the engine shaft.
Route the belt forward and up onto the deck.2.
Place belt around spring loaded idler pulley.3.
Wrap the belt around the stationary idler pulley 4.
and around the mandrel housings.
Push inward on the idler arm and carefully route 5.
belt over stationary idler pulley. Once belt is
properly routed, slowly release idler arm to tension
belt.
Double check belt routing to make sure it matches 6.
the routing decal, and the belt does not have any
twist. Correct as needed.
Replace belt shields on both mandrel housings 7.
and secure with fasteners.
Idler arm
MAINTENANCE
Husqvarna-45
Pump Belt
Replacing pump belt
Park the mower on a level surface. Engage the
parking brake.
Belt removal
Remove the deck belt (see Deck Belt Removal in 1.
this section of the manual).
Create slack in the belt by removing the spring on 2.
the pump idler arm.
The belt should now be able to be removed from 3.
the engine pulley and pump pulleys.
Belt installation
Wrap the belt around the pulley1.
Route the belt around the inside of the idler 2.
pulley.
Wrap the belt around the engine pulley.3.
Reattach the spring on the pump idler arm.4.
Reinstall the deck belt. (see Deck Belt 5.
Installation in this section of the manual).

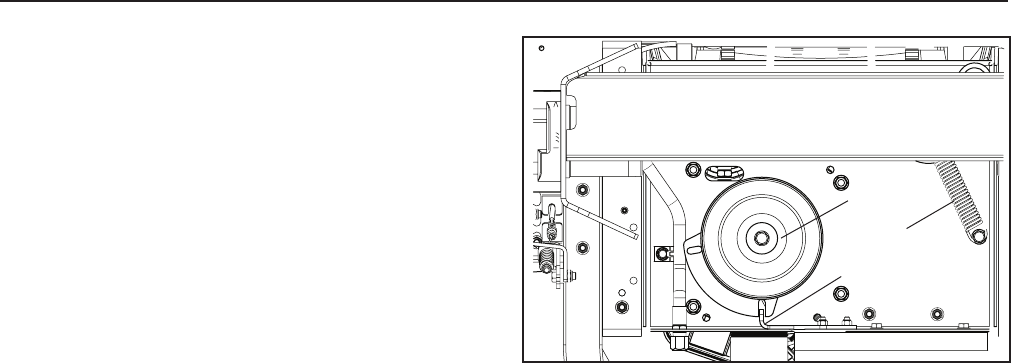

8054-002
Electric clutch1.
Idler spring2.
Clutch stop3.
Pump belt removal
1
2
3
MAINTENANCE
46-Husqvarna
Blade replacement
Remove blade bolt by turning counterclockwise.1.
Install new or resharpened blade with stamped 2.
“GRASS SIDE” facing towards ground/grass
(down) or “THIS SIDE UP” facing deck and cutter
housing.
Install and tighten blade bolt securely.3.
Torque blade bolt to 90 ft/lbs (122 Nm).4.
IMPORTANT INFORMATION
Special blade bolt is heat treated.
Replace with a Husqvarna bolt if required.
Do not use lower grade hardware than
specied. 1. Blade
2. Blade bolt (special)
3. Cutter housing
Blade attachment
1
2
3
Cutting Blades
In order to attain the best mowing effect, it is important
that the blades are well sharpened and not damaged.
Bent or cracked blades or blades with large nicks
should be replaced.
IMPORTANT INFORMATION
The sharpening of blades should be carried
out by an authorized service workshop.
WARNING!
Blades are sharp. Protect your hands
with gloves and/or wrap blades with
a heavy cloth when handling.
8011-604-1
Check the blades
Damaged blades should be replaced when hitting
obstacles that result in a breakdown. Let the service
workshop decide whether the blade can be repaired/
ground or must be replaced.
Balance the blades after sharpening.
Check the blade mounts.
MAINTENANCE
Husqvarna-47
Adjusting the Mower Deck
Leveling deck
Adjust the deck while the mower is on a level surface.
Make sure the tires are inated to the correct pressure.
See “Technical Data” under Transmission. If tires are
under or over inated, the deck cannot be properly
adjusted.
The deck should be adjusted slightly higher in the rear.
NOTE:To insure accuracy of leveling procedure,
mower deck drive belt must be installed prior to
leveling deck.
Wear heavy gloves. Turn each outer blade tip to 1.
align with the deck or in a side-to-side manner.
Measure from the oor surface up to the bottom of 2.
the blade tip on the discharge side of the mower
deck. Retain this measurement.
Move to the opposite side, check that 3.
measurement is the same. If adjustment is
required—with a ¾" or adjustable wrench, turn the
lift link adjustment nuts on either side counterwise
to lower or clockwise to raise. Adjust until both
side-to-side measurements are equal.
8058-030
Lift link adjustment nut
8058-031
Deck front adjustment nuts
Turn any blade to align with the deck in front-4.
to-rear manner. If the rear blade tip does not
measure 1/8" to ½" higher, follow the front
adjustment instructions that follow.
With a 5. 5/8 or adjustable wrench, turn the nuts on
the front suspension linkage. Clockwise raises the
front of the mower, counter clockwise will lower
the front. Adjust nuts until rear of mower deck is
positioned level to 1/8" higher in the rear than the
side-to-side measurement.
NOTE: This will place the mower deck in a base
measurement position. Additional adjustment may
be required to achieve desired cut for the type of
grass or conditions being mowed.
MAINTENANCE
48-Husqvarna
Anti-scalp rollers
Anti-scalp rollers are properly adjusted when they
are just slightly off of the ground when the deck is at
the desired cutting height in the operating position.
Anti-scalp rollers then keep the deck in the proper
position to help prevent scalping in most terrain
conditions.
IMPORTANT INFORMATION
Adjust anti-scalp rollers with the mower on a
at level surface.
The anti-scalp rollers can be set in three positions:
Upper position 1½ to 2½" (38 to 64 mm) grass•
Middle position 2½" to 4" (64 to 102 mm) grass•
Lower position 4" to 6" (102 to 128 mm) grass.•
The rollers should be approximately ¼" (6.5 mm) from
ground. Do not adjust the rollers to support the deck.
IMPORTANT INFORMATION
The anti-scalp rollers must not be used for
gauge wheels or the roller and deck may be
damaged.
8050-830
Anti-scalp rollers
MAINTENANCE
Husqvarna-49
Cleaning
Regular cleaning and washing, especially under the
mower deck, will increase the machine’s life-span.
Make it a habit to clean the machine directly after use
(after it is cooled), before the dirt sticks.
Do not spray water on the top of the mower deck. Use
compressed air to clean the top side of mower deck.
Regularly clean deck and underside of the deck with
normal water pressure. Do not use a high pressure
washer or steam cleaner. Avoid spraying engine and
electrical components with water
Do not rinse hot surfaces with cold water. Let unit cool
before washing.
IMPORTANT INFORMATION
DO NOT add any type of tire liner or foam ll
material to the tires. Excessive loads created
by foam lled tires will cause premature
failures.
Only use O.E.M. specied tires.
8050-831
Clean regularly
IMPORTANT INFORMATION
Use protective glasses when
cleaning and washing.
Caster Wheels
Check every 200 hours. Check that wheels rotates
freely. If wheels do not rotate freely take the unit to
your dealer for service.
Foam lled tires or solid tires will void the warranty.
Removal and installation of caster wheel
Remove nut and caster bolt.
Pull the wheel out of the yoke and take care of
spacers.
Install in reverse order. Tighten caster bolt.
Hardware
Check daily. Inspect the entire machine for loose or
missing hardware.
8011-619-4
1. Caster yoke
2. Caster bolt
3. Caster long spacer
4. Caster small spacers (not on all models)
Caster wheels
2
1
3
4
LUBRICATION
50-Husqvarna
General
Remove the ignition key to prevent unintentional
movements during lubrication.
When lubricating with an oil can, it must be lled with
engine oil.
When lubricating with grease, unless otherwise stated,
use a high grade molybdenum disulphide grease.
For daily use, the machine should be lubricated twice
weekly.
12/12 Every year
1/52 Every Week
1/365 Every day
Lubricate with grease gun
Oil change
Filter change
Lubricate with oil can
Level check
8050-832
Wipe away excess grease after lubrication.
It is important to avoid getting lubricant on the belts
or the drive surfaces on the belt pulleys. Should this
happen, attempt to clean them with spirits. If the belt
continues to slip after cleaning, it must be replaced.
Gasoline or other petroleum products must not be
used to clean belts.
* Change transmission lter
*
2
3
6
4
1
5
LUBRICATION
Husqvarna-51
Front Wheel Mount
Lubricate with a grease gun, one zerk for each wheel
mount, until the grease is forced out.
Use only good quality bearing grease.
Grease from well-known brand names (petrochemical
companies) usually maintains a good quality.
Front Wheel Bearings
Lubricate with a grease gun, one zerk for each set of
wheel bearings, until the grease is forced out.
Use only good quality bearing grease.
8011-731
Lubricating the front wheels
8011-732
Deck spindle
IMPORTANT INFORMATION
Use minimal lubrication and remove
excess lubricant so that is does not come
into contact with belts or belt pulley drive
surfaces.
Deck Spindle
Lower the cutting deck completely.
If a grease gun without a rubber hose is used, the foot
plate must be removed.
Lubricate with a grease gun, one zerk, 2-3 strokes.
Use only good quality bearing grease.
Deck Outer Spindle
Lubricate using a grease gun, one zerk, each side 2-3
strokes. Use only good quality bearing grease.
8061-025
Deck outer spindle (with belt shield removed)
LUBRICATION
52-Husqvarna
IMPORTANT INFORMATION
Used engine oil is a health hazard and must
not be disposed of on the ground or in nature;
it should always be disposed of at a workshop
or appropriate disposal location.
Avoid skin contact; wash with soap and water
in case of spills.
Engine Oil
Engine Oil Filter
Drain the engine oil in accordance with the work •
description under the heading Engine Oil/Change
Engine Oil.
Remove the oil lter. If necessary, use a lter •
remover.
Wipe new, clean engine oil onto the seal for the •
new lter.
Mount the lter by hand with +¾ turn.•
Run the engine warm, then check that there are •
no leaks around the oil lter seal.
Check the oil level in the engine, ll if necessary. •
The oil lter holds 0.1 qt (0.1 liters) of oil.
8011-734
Changing the oil lter
WARNING!
Engine oil can be very hot if it is
drained directly after stopping the
engine. Allow the engine to cool to a
safe temperature before draining.
Engine Oil Levels
Check the oil level in the engine when the machine is
standing level and the engine is stopped.
Remove the dipstick, wipe it clean, and then replace it.
The dipstick should be screwed into place.
Take the dipstick out again and read the oil level.
The oil level should lie between the markings on the
dipstick. If the level is approaching the “ADD” mark, ll
the oil to the “FULL” mark on the dipstick.
Never ll to above the “FULL” mark.
The oil is lled through the hole for the dipstick.
API class SF, SG, SH, SJ or higher must be used.
Synthetic oil SAE 5W-30 or 10W-30 is recommended
at all temperatures. Mineral oil SAE 5W-30, 10W-30
can be used between -18 °C/0 °F and +75 °C/40 °F. At
temperature above +5 °C/40 °F single grade SAE 30
must be used.
See the Technical Data section for oil amounts.
8011-500
Remove the dipstick
LUBRICATION
Husqvarna-53
8009-159
The dipstick markings
Changing the Engine Oil
The engine oil should be changed for the rst time
after 5-8 hours of operation. Thereafter, it should be
changed every 50 hours. The oil drain valve is located
on the left side of the unit, below the oil lter.
Place the machine on a at surface.•
Place a container under the engine where the oil •
drain valve exits.
Remove the valve cap. •
Allow the oil to run out into the container.•
Reinstall the oil drain valve cap.•
Replace the oil lter if necessary.•
Fill with new engine oil in accordance with •
Checking the Oil Level.
Start the engine. Run it for 3-5 minutes. Stop and •
recheck the oil level.
LUBRICATION
54-Husqvarna
*Transaxle (Transmission) Fluid Change
This transaxle is designed with an external lter for
ease of maintenance. To ensure constant uid quality
levels and longer life, an oil lter change interval of
every 200 hours is recommended.
The following procedure is performed with the
transaxles installed in the mower and the mower on
level ground. Apply the pump release valve for each
transaxle and set the parking brake.
Remove the three ¼" lter guard screws and lter 1.
guard. Clean any loose debris from around the
perimeter of the lter. See illustration.
Place an oil drain pan (12" or more diameter and 2.
8 qt. capacity is optimal) beneath the oil lter.
Remove the oil lter from the transaxle.
After the oil has drained, wipe the lter base 3.
surface and apply a lm of new oil to the gasket of
the replacement lter.
Install the new lter by hand, turning it three-4.
quarters to one full turn after the lter gasket
contacts the lter base surface.
Reinstall the lter guard. Torque screws to 5.
65 in/lbs. each.
Repeat steps on the opposite side.6.
Drain old oil lters of all free owing oil prior to 7.
disposal. Place used oil in appropriate containers
and dispose of it in accordance with laws in your
area.
Remove the top port plug (see illustration) from 8.
the left side and right side of the transaxles prior to
lling with oil. This will allow the transaxles to vent
during oil ll.
Remove the cap from the transaxles’ expansion 9.
tank located on the vehicle frame.
Fill with 20W50 motor oil until oil just appears 10.
at the bottom of each transaxles’ top port
(approximately 2 quarts per transaxle, 4 quarts
total). Install the top port lug into each transaxle as
the oil level reaches the port.
Install and torque the top port plugs to 180 in./lbs.11.
Continue to ll the transaxles through the 12.
expansion tank until the “Full Cold” line is reached
(this will take approximately 23 additional ounces).
Reinstall the expansion tank cap by hand. Be 13.
careful to not overtighten.
Proceed to the purge procedure.14.
8019-010
1. Filter guard
2. Transaxle lter
3. Top port plug
EZT lter change
2
1
3
33
2
1
8019-012
1. Expansion tank
2. Tank cap
3. Transaxles
EZT lter change
LUBRICATION
Husqvarna-55
Hydraulic Pump Fluid Change
This transaxle is designed with an external lter for
ease of maintenance. To ensure constant uid quality
levels and longer life an oil lter change interval of
every 200 hours is recommended.
The following procedure can be performed with the
pump installed in the vehicle, and the vehicle on level
ground. Apply the bypass valve and lock the vehicle
parking brake.
Place an oil drain pan with a two gallon 1.
capacity beneath the oil lter. Remove the
oil lter from the pump.
After the oil has drained, wipe the lter 2.
base surface off and apply a lm of new oil
to the gasket of the new replacement lter.
Prell the oil lter with new oil and 3. install
the new lter by hand. Turn ¾ to one full
turn after the lter gasket contacts the lter
base surface.
Drain old oil lters of all free-owing 4.
oil prior to disposal. Place used oil in
appropriate containers and dispose of it in
accordance with laws in your area.
Remove the cap from the pump’s tank 5.
located on the vehicle frame.
Fill reservoir with SAE 10W30 oil to just 6.
above the MIN-ADD line on the reservoir.
After purging, check levels and add oil if
necessary.
Reinstall the tank cap by hand. Do not 7.
overtighten.
Proceed to the purge procedure.8.
8061-016
1. Pump lter
2. Pump reservoir
3. Fluid ll lines
Changing the hydraulic pump oil lter
1
2
3
LUBRICATION
56-Husqvarna
Purging Procedures
Due to the effects air has on efciency in hydrostatic
drive applications, it is critical to purge the system.
These purge procedures should be implemented
any time a hydrostatic system has been opened to
facilitate maintenance or any additional oil has been
added to the system.
Resulting symptoms in hydrostatic systems may be:
Noisy operation.1.
Lack of power or drive after short term operation.2.
High operation temperature and excessive 3.
expansion of oil.
Shortened component life.4.
Before starting, make sure the pump is at the proper
oil level. If not, ll to the specications outlined prior.
The following procedures are best performed with the
vehicle drive wheels off the ground, then repeated
under normal operating conditions.
Disengage the brake if activated.1.
With the bypass valve open and the engine 2.
running at fast idle, slowly move the steering
control in both forward and reverse directions (5 or
6 times). As air is purged from the unit, the oil level
will drop.
With the bypass valve closed and the engine 3.
running, slowly move the steering control in both
forward and reverse directions (5 to 6 times).
Check the oil level and add oil as required after
stopping the engine.
It may be necessary to repeat Steps 2 and 3 until 4.
all the air is completely purged from the system.
When the transaxle operates at normal noise
levels and moves smoothly forward and reverse
at normal speeds, the transaxle is considered
purged.
After the vehicle has been used two times, the oil 5.
level should be checked while the oil is cold and
adjusted accordingly.
8058-020
Disengage the parking brake
WARNING!
Escaping hydraulic oil under
pressure can have sufcient force to
penetrate the skin, causing serious
injury.
If injured by escaping uid,
see a doctor at once. Serious
infection or reaction can develop
if proper medical treatment is not
administered immediately.
TROUBLESHOOTING
Husqvarna-57
Problem Cause
Engine will not start Blade switch is engaged.•
Steering controls are not locked in the neutral position•
Parking brake is not activated•
Battery is dead•
Contamination in the carburetor or fuel line.•
Fuel supply is closed or the shutoff valve for the fuel tank is in •
the wrong position
Clogged fuel lter or fuel line•
Ignition system faulty•
Starter does not turn the engine over Battery is dead•
Poor contact of the battery terminal cable connections•
Blown fuse•
Fault in the starter safety circuit. See Checking the Safety •
System in the “Maintenance Section”
Engine runs rough Faulty carburetor•
Choke control is pulled out with a warm engine•
Clogged fuel lter or jet•
Clogged ventilation valve on the fuel cap•
Fuel tank nearly empty•
Fouled spark plugs•
Rich fuel mixture or fuel-air mixture.•
Wrong fuel type•
Water in fuel•
Clogged air lter•
Engine seems weak Clogged air lter•
Fouled spark plugs•
Carburetor incorrectly adjusted•
Air trapped in hydraulic system•
Machine vibrates Blades are loose•
Blades are incorrectly balanced•
Engine is loose•
TROUBLESHOOTING
58-Husqvarna
Problem Cause
Engine overheats Clogged air intake or cooling ns•
Engine overloaded•
Poor ventilation around engine•
Defective engine speed regulator•
Too little or no oil in the engine•
Contamination in the carburetor or fuel line.•
Fouled spark plugs•
Battery not charging Poor contact of the battery terminal cable connections•
Charging lead is disconnected•
The machine moves slowly, unevenly, or not at all Parking brake on•
Bypass valve on pump open•
Drive belt for the transmission slack or has come off•
Air trapped in hydraulic system•
Mower deck not engaging Drive belt for the mower deck has come loose•
Contact for the electromagnetic coupling has loosened•
Blade switch is faulty or has come loose from cable •
contact
Blown fuse•
Transaxle leaks oil Damaged seals, housing, or gaskets•
Air trapped in hydraulic system•
Uneven mowing results Different air pressure in tires on the left and right sides.•
Bent blades•
Suspending for the mower deck is uneven•
Blades are dull•
Driving speed too high•
Grass is too long•
Grass collected under the mower deck•
Husqvarna-59
STORAGE
Husqvarna-59
Winter Storage
At the end of the mowing season, the machine should
be readied for storage (or if it will not be in use for
longer than 30 days). Fuel allowed to stand for long
periods of time (30 days or more) can leave sticky
residues that can plug the carburetor and disrupt
engine function.
Fuel stabilizers are an acceptable option as regards to
the sticky residues that can occur during storage.
Add stabilizer to the fuel in the tank or in the storage
container. Always use the mixing ratios specied by
the manufacturer of the stabilizer. Run the engine for
at least 10 minutes after adding the stabilizer so that it
reaches the carburetor. Do not empty the fuel tank and
the carburetor if you have added stabilizer
To ready the machine for storage:
Thoroughly clean the machine, especially under 1.
the mower deck. Touch up damage to the paint
and spray a thin layer of oil on the underside of the
mower deck to avoid corrosion.
Inspect the machine for worn or damaged parts 2.
and tighten any nuts or screws that may have
become loose.
Change the engine oil; dispose of properly.3.
Empty the fuel tanks or add a fuel stabilizer. Start 4.
the engine and allow it to run until the carburetor
is drained of fuel or the stabilizer has reached the
carburetor.
Remove the spark plug and pour about a 5.
tablespoon of engine oil into the cylinder. Turn
over the engine so that the oil is evenly distributed
and then ret the spark plug.
Lubricate all grease zerks, joints, and axles.6.
Remove the battery. Clean, charge, and store the 7.
battery in a cool place, but protect it from direct
cold.
Store the machine in a clean, dry place and cover 8.
it for extra protection.
Service
When ordering spare parts, please specify the
purchase year, model, type, and serial number.
Always use genuine Husqvarna spare parts.
An annual check-up at an authorized service workshop
is a good way to ensure that the machine performs its
best the following season.
WARNING!
Never store an engine with fuel
in the tank indoors or in poorly
ventilated spaces where fuel vapor
can come in contact with open
ames, sparks, or a pilot light such
as in a boiler, hot water tank, clothes
dryer, etc. Handle the fuel with
care. It is very ammable and can
cause serious personal injury and
property damage. Drain the fuel into
an approved container outdoors and
far away from open ame. Never
use gasoline for cleaning. Use
a degreaser and warm water instead.
SCHEMATICS
60-Husqvarna
SOLENOID
RIGHT MOTION
CONTROL LEVER
LEFT MOTION
CONTROL LEVER
SEAT SW.
ELECTRIC
CLUTCH
ENGINE
GROUND
PTO SW. 7.5 AMP HOURMETER
ACCESSORY
OUTLET
20 AMP
TO
ENGINE
PIGTAIL
KEY SWITCH
POSITIONS
POSITION 1 - OFF
POSITION 2 - RUN1
POSITION 3 - RUN2
POSITION 4 - START
YEL
BRN
BRN
YEL
BRAKE SW.
BLU
BRN BRN
PUR
BRN
GRY
GRN
BLK
PUR
BLK BLK
BLK
PUR
WHT
WHT
GRN
BLK
RED/BLK
RED
YEL/RED
RED/BLK
PUR
BRN
BLU
WHT
BLK
YEL
YEL
YEL
NOTE: 1. SEAT UNOCCUPIED
2. BRAKE SWITCH IN OFF POSITION
3. MOTION CONTROL LEVERS OUT
4. PTO IN OFF POSITION
TECHNICAL DATA
Husqvarna-61
Accessories
Collection system
HEX HEAD CAP SCREWS
The torque values shown should be used as a general guideline when specic torque values are not given.
U.S. Standard Hardware
Grade SAE Grade 5 SAE Grade 8 Flangelock Screw
w/Flangelock Nut
ft./lbs ft./lbs Nm ft./lbs Nm ft./lbs Nm
Shank Size (Diameter in inches, ne or coarse thread)
¼ 9 12 13 18
5/16 18 24 28 38 24 33
3/8 31 42 46 62 40 54
7/16 50 68 75 108
½ 75 102 115 156
9/16 110 150 165 224
5/8 150 203 225 305
¾ 250 339 370 502
7/8 378 513 591 801
11/8 782 1060 1410 1912
** Grade 5 - Minimum commercial quality (lower quality not recommended)
Metric Standard Hardware
Grade Grade 8.8 Grade 10.9 Grade 12.9
ft./lbs ft./lbs Nm ft./lbs Nm ft./lbs Nm
Shank Size (Diameter in millimeters, ne or coarse thread)
M4 1.5 2 2.2 3 2.7 3.6
M5 3 4 4.5 6 5.2 7
M6 5.2 7 7.5 10 8.2 11
M7 8.2 11 12 16 15 20
M8 13.5 18 18.8 25 21.8 29
M10 24 32 35.2 47 43.5 58
M12 43.5 58 62.2 83 75 100
M14 70.5 94 100 133 119 159
M16 108 144 147 196 176 235
M18 142 190 202 269 242 323
M20 195 260 275 366 330 440
M22 276 368 390 520 471 628
M24 353 470 498 664 596 794
M27 530 707 474 996 904 1205
Engine crankshaft bolt 50 ft/lb (67 Nm)
Deck pulley bolts 150 ft/lb (203 Nm)
Lug nuts 75 ft/lb (100 Nm)
Blade bolt 90 ft/lb (122 Nm)
Standard ¼" fasteners 9 ft/lb (12 Nm)
Standard 5/16" fasteners 18 ft/lb (25 Nm)
Standard 3/8" fasteners 33 ft/lb (44 Nm)
Standard 7/16" fasteners 52 ft/lb (70 Nm)
Standard ½” fasteners 80 ft/lb (110 Nm)
Torque Specications
TECHNICAL DATA
62-Husqvarna
*As rated by the engine manufacturer.
EZ4824 / 965880301K EZ4824 / 965880401
Engine
Manufacturer Kohler Briggs & Stratton
Type Courage Endurance
Power 24 hp* 24 hp*
Lubrication Pressure with oil lter Pressure with oil lter
Oil capacity excluding lter 1.78 qts / 1.65 liters 1.78 qts / 1.65 liters
Oil capacity including lter 2 qts / 1.89 liters 2 qts / 1.89 liters
Engine oil (See viscosity diagram) SAE 10W30, 10W40, 5W20,
5W30, API SF-SJ
SAE 10W30, 10W40, 5W20,
5W30, API SF-SJ
Fuel Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Fuel tank capacity 4 gallons / 15.1 liters 4 gallons / 15.1 liters
Spark plugs / gap Champion RC12YC
.030" / 0.75 mm
Champion XC12YC
.030" / 0.75 mm
Cooling Air cooled Air cooled
Air lter Standard Standard
Alternator 12V 12V
Starter Electric Electric
Transmission
Transmission Hydrostatic pump ZT2800 Hydro Gear
Speed and direction controls Dual levers, foam gripped Dual levers, foam gripped
Speed forward 0-8 mph / 0-12.9 km/h 0-7 mph / 0-11.3 km/h
Speed reverse 0-4 mph / 0-6.4 km/h 0-3.5 mph / 0-5.6 km/h
Brakes Mechanical parking brake Mechanical parking brake
Front caster tires, smooth tread 13 x 5.0-6, 4 ply 13 x 5.0-6, 4 ply
Rear tires, turf pneumatic 22 x 9.5-10 20 x 8-8
Tire pressure 15 PSI / 103 kPa / 1 bar 15 PSI / 103 kPa / 1 bar
TECHNICAL DATA
Husqvarna-63
EZ4824 / 965880301K EZ4824 / 965880401
Frame
Cutting Width 48" / 122cm 48" / 122cm
Cutting Height 1.5 - 4.5" / 3.8 - 11.4 cm 1.5 - 4.5" / 3.8 - 11.4 cm
Uncut Circle 0 0
Number of Blades 3 3
Blade Length 16.25" / 41 cm 16.25" / 41 cm
Nose Rollers No No
Sprung Seat Standard Standard
Hinged Arm Rests Standard Standard
Hour Meter Standard Standard
Blade Engagement Electromagnetic clutch Electromagnetic clutch
Deck Construction 11 gauge w/ 10 gauge skirts 11 gauge w/ 10 gauge skirts
Productivity 3.2 acres /h 12950 m2/h 2.9 acres /h 11770 m2/h
Dimension
Weight 605 / 274 kg 605 lbs / 274 kg
Base Machine Length 76" / 193 cm 74½" / 189 cm
Base Machine Height 47" / 119 cm 47" / 119 cm
Base Machine Width 46½" / 118 cm 46½" / 118 cm
Overall Width, Chute Up 48½" / 123 cm 48½" / 123 cm
Overall Width, Chute Down 59¾" / 152 cm 59¾" / 152 cm
TECHNICAL DATA
64-Husqvarna
EZ5224 / 965880601 EZ5226 / 965921601
Engine
Manufacturer Kohler Briggs & Stratton
Type Courage Endurance
Power 24 hp* 26 hp*
Lubrication Pressure with oil lter Pressure with oil lter
Oil capacity excluding lter 1.78 qts / 1.65 liters 1.78 qts / 1.65 liters
Oil capacity including lter 2 qts / 1.89 liters 2 qts / 1.89 liters
Engine oil (See viscosity diagram) SAE 10W30, 10W40, 5W20,
5W30, API SF-SJ
SAE 10W30, 10W40, 5W20,
5W30, API SF-SJ
Fuel Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Fuel tank capacity 4 gallons / 15.1 liters 4 gallons / 15.1 liters
Spark plugs / gap Champion RC12YC
.030" / 0.75 mm
Champion XC12YC
.030" / 0.75 mm
Cooling Air cooled Air cooled
Air lter Standard Standard
Alternator 12V 12V
Starter Electric Electric
Transmission
Transmission Hydrostatic pump ZT2800 Hydro Gear
Speed and direction controls Dual levers, foam gripped Dual levers, foam gripped
Speed forward 0-8 mph / 12.9 km/h 0-7 mph / 0-11.3 km/h
Speed reverse 0-4 mph / 0-6.4 km/h 0-4 mph / 0-6.4 km/h
Brakes Mechanical parking brake Mechanical parking brake
Front caster tires, smooth tread 13 x 5.0-6, 4 ply 11 x 4.5, 4 ply
Rear tires, turf pneumatic 22 x 9.5-10 20 x 10-8
Tire pressure 15 PSI / 103 kPa / 1 bar 15 PSI / 103 kPa / 1 bar
TECHNICAL DATA
Husqvarna-65
EZ5224 / 965880601 EZ5226 / 965921601
Frame
Cutting Widthr 52" / 132cm 52" / 132cm
Cutting Height 1.5 - 4.5" / 3.8 - 11.4 cm 1.5 - 4.5" / 3.8 - 11.4 cm
Uncut Circle 0 0
Number of Blades 3 3
Blade Length 18" / 45.7 cm 18” / 45.7 cm
Nose Rollers Yes Yes
Sprung Seat Standard Standard
Hinged Arm Rests Standard Standard
Hour Meter Standard Standard
Blade Engagement Electromagnetic clutch Electromagnetic clutch
Deck Construction 11 gauge w/ 10 gauge skirts 11 gauge w/ 10 gauge skirts
Productivity 3.57 acres /h 14447 m2/h 3.13 acres /h 12648 m2/h
Dimension
Weight 660 lbs / 299 kg 660 lbs / 299 kg
Base Machine Length 76" / 193 cm 74½" / 189 cm
Base Machine Height 47" / 119 cm 47" / 119 cm
Base Machine Width 46½" / 118 cm 46½" / 118 cm
Overall Width, Chute Up 52½" / 133 cm 52½" / 133 cm
Overall Width, Chute Down 66¼" / 168 cm 66¼" / 168 cm
TECHNICAL DATA
66-Husqvarna
EZ5221 / 965880501 EZ6124 / 965880701
Engine
Manufacturer Kawasaki Kohler
Type FJ641V-AS01 Courage
Power 21 hp* 24 hp*
Lubrication Pressure with oil lter Pressure with oil lter
Oil capacity excluding lter 1.9 qt / 1.8 liter 1.78 qts / 1.68 liters
Oil capacity including lter 2.2 qt / 2.1 liter 2 qts / 1.89 liters
Engine oil (See viscosity diagram) SAE 10W30, 5W30, 5W20,
SAE 30, API SF,SG,SH
SAE 10W30, 10W40, 5W20,
5W30, API SF-SJ
Fuel Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Min 87 octane unleaded (Max
ethanol 10%, Max MTBE 15%)
Fuel tank capacity 4 gallon / 15.1 liters 4 gallon / 15.1 liters
Spark plugs / gap NGK BPR5ES
.030" / 0.75 mm
Champion XC12YC
.030" / 0.75 mm
Cooling Air cooled Air cooled
Air lter Standard Standard
Alternator 12V 12V
Starter Electric Electric
Transmission
Transmission Hydrostatic pump Hydrostatic pump
Speed and direction controls Dual levers, foam gripped Dual levers, foam gripped
Speed forward 0-9.5 mph / 15.3 km/h 8 mph / 12.9 km/h
Speed reverse 0-5 mph / 0-8 km/h 4 mph / 6.45 km/h
Brakes Mechanical parking brake Mechanical parking brake
Front caster tires, smooth tread 13 x 5.0-6, 4 ply 13 x 5.0-6, 4 ply
Rear tires, turf pneumatic 22 x 9.5-10 22 x 9.5-10
Tire pressure 15 PSI / 103 kPa / 1 bar 15 PSI / 103 kPa / 1 bar
*As rated by the engine manufacturer.
TECHNICAL DATA
Husqvarna-67
EZ5221 / 965880501 EZ6124 / 965880701
Frame
Cutting Widthr 52" / 132cm 61" / 155cm
Cutting Height 1.5 - 4.5" / 3.8 - 11.4 cm 1.5 - 4.5" / 3.8 - 11.4 cm
Uncut Circle 0 0
Number of Blades 3 3
Blade Length 18" / 45.7 cm 21" / 53.3 cm
Nose Rollers Yes Yes
Sprung Seat Standard Standard
Hinged Arm Rests Standard Standard
Hour Meter Standard Standard
Blade Engagement Electromagnetic clutch Electromagnetic clutch
Deck Construction 11 gauge w/ 10 gauge skirts 11 gauge w/ 10 gauge skirts
Productivity 3.57 acres /h 14447 m2/h 4.18 acres /h 16955 m2/h
Dimension
Weight 660 lbs / 299 kg 690 lbs / 313 kg
Base Machine Length 76" / 193 cm 76" / 193 cm
Base Machine Height 47" / 119 cm 47" / 119 cm
Base Machine Width 46½" / 118 cm 46½" / 118 cm
Overall Width, Chute Up 52½" / 133 cm 61¾" / 157 cm
Overall Width, Chute Down 66¼" / 168 cm 75½" / 192 cm
68-Husqvarna
CONFORMITY CERTIFICATES
USA requirements
Labels are placed on the engine and/or in the engine compartment stating that the machine will fulll the
requirements. This is also applicable to special requirements for any of the states, (California emission rules etc.).
Do not remove any of these labels. Certicates can also be supplied with the machine at delivery or written in the
Engine manual. Take care of them as they are valuable documents.
CE requirements
The Declaration of Conformity is included in the literature packet.
Husqvarna-69
All Husqvarna products can be registered online at www.usa.husqvarna.com quickly and easily regardless of their
model year. Click the Support tab, click on the Online Product Registration link and ll out the electronic form and
submit. Ask about Husqvarna’s extended service plan!
SECTION 1 - LIMITED WARRANTY
Husqvarna Professional Products, Inc (“Husqvarna”) warrants the original purchaser the Husqvarna branded product to which this warranty apply (the
“Product”) that the Product shall be free from defects in material and workmanship from the date of purchase for the period of the applicable “Warranty
Schedule” of the Product as set forth below. Additional limitations are described in Section 2 through 6, inclusive.
PRODUCT CONSUMER l
WARRANTY SCHEDULE
COMMERCIAL/PROFESSIONAL
WARRANTY SCHEDULE
RENTAL
WARRANTY SCHEDULE
Zero Turn Rider 3 Years or 600 Hours 1 Year or 600 Hours 90 Days
l All consumer product use must have been limited to the owner’s residence. Warranted for noncommercial, nonprofessional,
noninstitutional and nonincome producing use.
SECTION 2 - HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY
Husqvarna will repair or replace defective components without charge for parts or labor if a component fails because of a defect in material or workmanship
during the warranty period.
SECTION 3 - ITEMS NOT COVERED BY THIS WARRANTY
The following items are not covered by this warranty:
(1) Normal customer maintenance items which become worn through normal regular use, including, but not limited to belts, blades, blade adapters, bulbs,
clutches, clutch drums, lters (fuel line, fuel lters, air lters, oil lters), sprockets, guide bars, lubricants, rewind springs, spark plugs;
(2) Natural discoloration of material due to ultraviolet light;
(3) Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective manufacturer’s warranty as provided in writing with
the product information supplied at the time of purchase; all claims must be sent to the appropriate manufacturer.
(4) Lawn and garden attachments that are covered by a third party which gives a warranty, all claims for warranty should be sent to the manufacturer.
(5) Commercial or consumer mowing decks with sand abrasion damage.
(6) Emission Control System components necessary to comply with CARB-TIER II and EPA regulations which are manufactured by third party engine
manufacturer.
SECTION 4 - EXCEPTIONS AND LIMITATIONS
This warranty shall be inapplicable to defects resulting from the following:
(1) Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust, corrosion, or any adverse reaction due to incorrect
storage or use habits;
(2) Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruction sheet furnished by Husqvarna;
(3) Alterations or modications that change the intended use of the product or affects the product’s performance, operation, safety, or durability, or causes the
product to fail to comply with any applicable laws; or:
(4) Additional damage to parts or components due to continued use occurring after any of the above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HUSQVARNA SHALL NOT
BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT.
HUSQVARNA RESERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE, AND DOES NOT ASSUME
OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PRODUCTS.
Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary by state.
SECTION 5 - CUSTOMER RESPONSIBILITIES
The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written in the maintenance section of the Owner’s/
Operator’s manual. Should an operational problem or failure occur, the product should not be used. Failure caused by continued use is not covered by warranty.
Product should be delivered, at owners expense, as is, to an authorized Husqvarna Servicing Retailer for evaluation. Proof of purchase, as explained in section
6, rests solely with the customer.
SECTION 6 - PROCEDURE TO OBTAIN WARRANTY CONSIDERATION
It is the Owner’s and Retailer’s responsibility to make certain that the Warranty Registration Card is properly lled out and mailed to Husqvarna. This card
should be mailed within ten (10) days from the date of purchase in order to conrm the warranty and to facilitate post-sale service. Proof of purchase must
be presented to the authorized Husqvarna retailer in order to obtain warranty service. This proof must include date purchased, model number, serial number,
and complete name and address of the selling retailer. To obtain the benet of this warranty, the product believed to be defective must be delivered to an
authorized Husqvarna retailer in a timely manner, no later than thirty (30) days from date of the operational problem or failure. The product must be delivered
at the owner’s expense. Downtime, pick-up and delivery charges are not covered by this warranty. An authorized Husqvarna retailer can be located by calling
1-800-HUSKY-62 or visiting www.husqvarna.com
Subject to change without notice.
WARRANTY
70-Husqvarna
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
Delivery Service
1. Charge the battery. □
2. Adjust the tire pressure of all wheels to 15 PSI (1 bar). □
3. Mount the steering controls in the normal position. □
4. Connect the contact box to the cable for the seat’s safety switch. □
5. Check that the right amount of oil is in the engine. □
6. Adjust the position of the steering controls. □
7. Fill with fuel and open the fuel shut off valve. □
8. Start the engine. □
9. Check that there is drive to both wheels. □
10. Check the mower deck adjustment. □
11. Check:
The safety switch for the parking brake. □
The safety switch for the mower deck. □
The safety switch in the seat. □
The safety switch in the steering controls. □
Parking brake functionality. □
Driving forward. □
Driving backward. □
Engaging the blades. □
12. Check the idle speed □
13. Check the engine high idle speed □
14. Inform the customer about: □
The need and advantages of following the service
schedule.
The need and advantages of leaving the machine for
service every 300 hours.
The effects of service and maintaining a service journal on
the machine’s resale value.
Application areas for mulching.
15. Fill in the sales papers
Delivery service has been carried out.
No remaining notes.
Certied:
Husqvarna-71
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
After the First 5-8 Hours
1. Change engine oil. □
72-Husqvarna
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
25-Hour Service
1. Check the engine air lter. □
2. Sharpen/Replace mower blades if required. □
3. Check the tire pressures. □
4. Check battery with cables. □
5. Lubricate according to lubrication chart. □
6. Check/clean the engine’s cooling air intake. □
7. Clean the air cleaner’s prelter (foam). □
Husqvarna-73
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
50-Hour Service
1. Perform the 25-hour service. □
2. Clean/replace the air cleaner’s lter cartridge (paper lter)
(shorter intervals for dusty operating conditions). □
3. Change engine oil. □
4. Lubricate according to lubrication chart. □
5. Check/adjust the parking brake. □
6. Change hydraulic pump oil and lter. □
74-Husqvarna
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
100-Hour Service
1. Perform the 25-hour service. □
2. Perform the 50-hour service. □
3. Change the engine oil lter. □
4. Clean/replace the spark plugs. □
5. Replace the fuel lter. □
6. Check V-belts. □
7. Check tighten caster wheel axle bolts (every 200 hours). □
8. Change the air lter’s paper cartridge. □
9. Change hydraulic pump oil and lter. (200 hours) □
Husqvarna-75
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
300-Hour Service
1. Perform the 25-hour service. □
2. Perform the 50-hour service. □
3. Perform the 100-hour service. □
4. Check/adjust the mower deck. □
5. Clean the combustion chamber and grind the valve seats. □
6. Check the engine valve clearance. □
7. Replace the air cleaner’s prelter (foam). □
76-Husqvarna
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
At Least Once Each Year
1. Clean the engine’s cooling air intake (25 hours). □
2. Replace the air cleaner’s pre-lter (foam) (300 hours). □
3. Replace the air lter’s paper cartridge. □
4. Change the engine oil (50 hours). □
5. Replace the engine oil lter (100 hours). □
6. Check/adjust the cutting height. □
7. Check/adjust the parking brake (50 hours). □
8. Clean/change the spark plugs (100 hours). □
9. Change the fuel lter (100 hours). □
10. Check the engine valve clearance. □
Husqvarna-77
SERVICE JOURNAL
Action Date, mtr reading, stamp, sign
P/N 115 129627 IR 10/29/08
