03002

LGT2654

Owner's Manual

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the

machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under

the machine. Keep clear of the discharge opening at

all times.

• Only allow responsible adults, who are familiar with the

in struc tions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing.

• Never direct discharged material toward anyone. Avoid

discharging material against a wall or obstruction. Ma-

terial may ricochet back toward the operator. Stop the

blades when crossing gravel surfaces.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE

TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING: In order to prevent ac-

ci den tal starting when setting up,

trans port ing, ad just ing or making re-

pairs, al ways dis con nect spark plug

wire and place wire where it can not

contact spark plug.

WARNING: Do not coast down a hill

in neutral, you may lose control of the

tractor.

WARNING: Tow only the attachments

that are rec om mend ed by and com-

ply with spec i fi ca tions of the man u -

fac tur er of your tractor. Use common

sense when towing. Operate only at

the low est possible speed when on a

slope. Too heavy of a load, while on

a slope, is dan ger ous. Tires can lose

trac tion with the ground and cause you

to lose control of your tractor.

WARNING

Engine exhaust, some of its con stit u ents, and cer-

tain vehicle com po nents contain or emit chem i cals

known to the State of Cal i for nia to cause can cer and

birth de fects or oth er re pro duc tive harm.

WARNING

Battery posts, terminals and related ac ces so ries

contain lead and lead compounds, chem i cals known

to the State of Cal i for nia to cause can cer and birth

defects or oth er re pro duc tive harm. Wash hands

after handling.

• Do not operate machine without the entire grass catcher,

discharge guard, or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing. Shut off engine

and wait for all parts to come to a complete stop before

cleaning the machine, removing the grass catcher, or

unclogging the discharge guard.

• Operate machine only in daylight or good artificial

light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing road-

ways.

• Use extra care when loading or unloading the machine

into a trailer or truck.

• Always wear eye protection when operating ma-

chine.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect them selves and others from serious injury.

• Follow the manufacturer's recommendation for wheel

weights or counterweights.

• Keep machine free of grass , leaves or other debris

build-up which can touch hot exhaust / engine parts

and burn. Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur.

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and

tip-over accidents, which can result in severe injury or

death. Operation on all slopes requires extra caution. If

you cannot back up the slope or if you feel uneasy on it,

do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes. Do not shift to neutral and coast downhill.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction,

which could cause the machine to roll over.

• Use extra care while operating machine with grass

catchers or other at tach ments; they can affect the

stability of the machine. Do no use on steep slopes.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly roll over if a wheel is over

the edge or if the edge caves in.

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Al ways look down and behind before and while back-

ing.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Keep children out of the mowing area and in the watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the

area.

• Before and while backing, look behind and down for

small children.

• Mow up and down slopes (15° Max), not across.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

SAFETY RULES

Safe Operation Practices for Ride-On Mowers

III. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the ma chine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and in the watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the

area.

• Before and while backing, look behind and down for

small children.

• Never carry children, even with the blades shut off. They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a

child.

IV. TOWING

• Tow only with a machine that has a hitch designed for

towing. Do not attach towed equipment except at the

hitch point.

• Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equip-

ment.

• On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes, and other

sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with the engine run-

ning. Allow engine to cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle or on a truck or

trailer bed with plastic liner. Always place containers

on the ground away from your vehicle when filling.

• Remove gas-powered equipment from the truck or trailer

and refuel it on the ground. If this is not possible, then

refuel such equipment with a portable container, rather

than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank

or container opening at all times until fueling is complete.

Do not use a nozzle lock-open device.

• If fuel is spilled on clothing, change clothing immedi-

ately.

• Never overfill fuel tank. Replace gas cap and tighten

securely.

GENERAL SERVICE

• Never operate machine in a closed area.

• Keep all nuts and bolts tight to be sure the equipment

is in safe working condition.

• Never tamper with safety devices. Check their proper

operation regularly.

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage and remove any fuel-

soaked debris. Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine

run ning.

• Check grass catcher components and the discharge

guard frequently and replace with manufacturer's rec-

ommended parts, when necessary.

• Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service

as required.

• Maintain or replace safety and instruction labels, as

necessary.

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 6-9

OPERATION ........................................................... 10-16

MAINTENANCE SCHEDULE ...................................... 17

MAINTENANCE ..................................................... 17-20

SERVICE AND AD JUST MENTS ............................ 21-25

STORAGE .................................................................... 26

TROU BLE SHOOT ING ............................................ 27-28

REPAIR PARTS ...................................................... 30-43

WARRANTY ................................................................. 44

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: W/ Filter: 64 oz

W/O Filter: 60 oz

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed (MPH): Forward: 0 – 5.8

Reverse: 0 – 2.1

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35

MIN. CCA: 280

Case Size: U1R

Blade Bolt Torque: 45-55FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

It has been designed, engineered and manu fac tured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

de part ment We have competent, well-trained tech ni cians

and the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor prop erly.

Always observe the “SAFETY RULES”.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under “Maintenance” and “Stor-

age” sec tions of this own er’s manual.

WARNING: This tractor is equipped with an internal com-

bus tion engine and should not be used on or near any

un im proved forest-covered, brush-covered or grass-cov ered

land unless the en gine’s exhaust system is equipped with

a spark arrester meeting ap pli ca ble local or state laws (if

any). If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code).

Other states may have similar laws. Federal laws apply on

federal lands.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See RE PAIR

PARTS section of this manual).

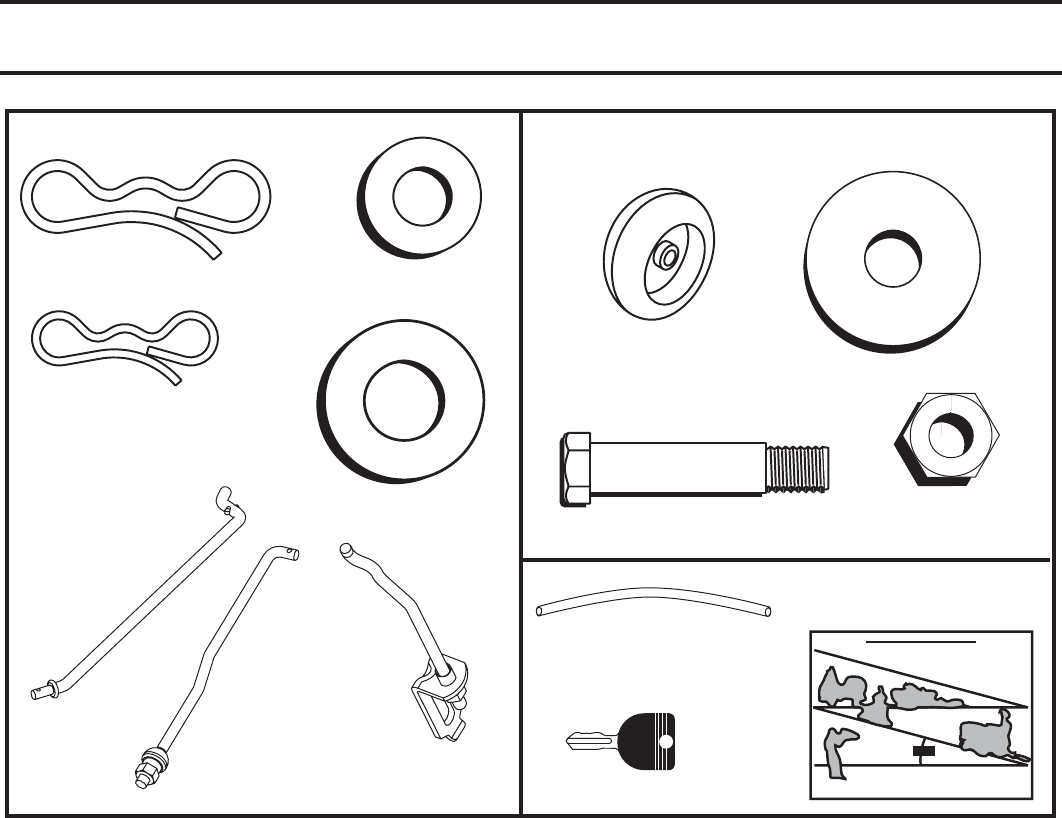

UNASSEMBLED PARTS

(2) Keys

Slope Sheet

Keys

Mower

(1) Wheel

(5) Large Retainer

Springs - 7/16

(2) Smaller Retainer

Springs - 5/16

(1) Locknut

3/8-16

(1) Oil Drain Tube

For Future Use

(1) Shoulder Bolt

Mower Front Wheel

(1) 3/4 O.D. Washers

(1) Anti-Sway Bar

(1) Front Link

Assembly

(1) 1-1/4 O.D. Washer

(5) 1-3/16 O.D. Washers

(2) Rear Lift Link

Assemblies

ASSEMBLY

FIG. 1

02931

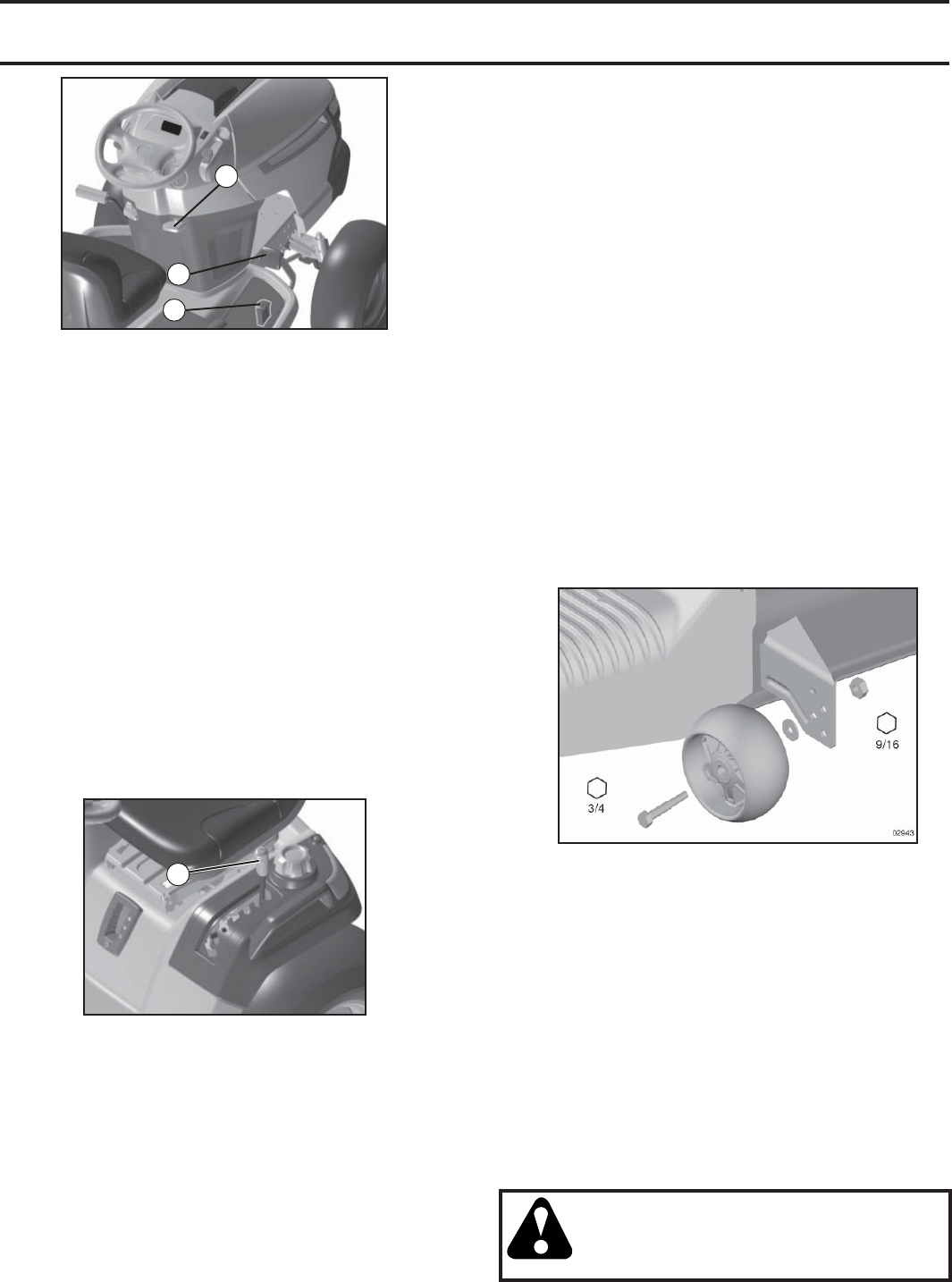

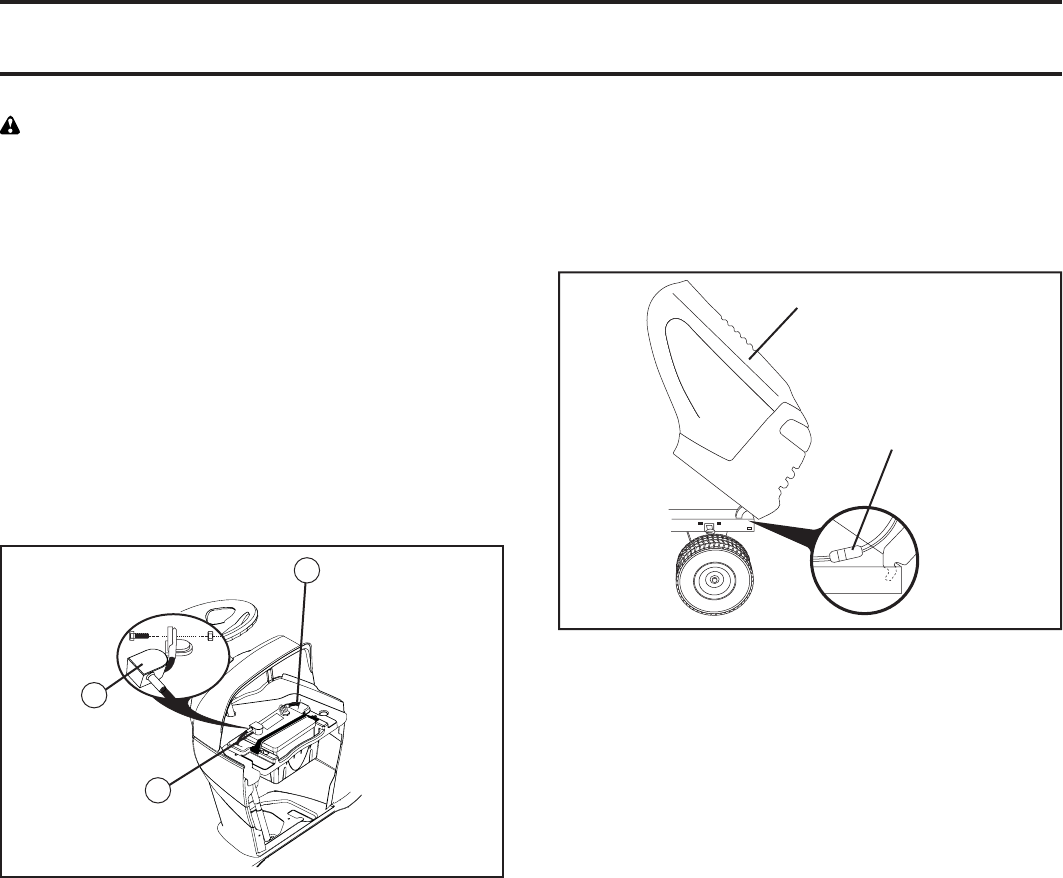

CHECK BATTERY (See Fig. 1)

• Lift hood to raised position.

NOTE: If this battery is put into service after month and year

indicated on label (L) (label is located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section of this manual

for charging instructions).

FIG. 2

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a com-

fortable position is reached which allows you to press

clutch/brake pedal all the way down.

• Release lever to lock seat in position.

NOTE: You may now roll or drive your tractor off the skid.

Follow the ap pro pri ate instruction below to remove the

tractor from the skid.

WARNING: Before start ing, read, un der stand and fol low

all in struc tions in the Op er a tion section of this man u al. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other peo ple and objects.

TO ROLL TRACTOR OFF SKID (See Op-

er a tion section for location and function of

con trols)

• Raise attachment lift lever to its highest po si tion.

• Release parking brake by de press ing brake ped al.

• Place freewheel control in dis en gaged po si tion to dis-

en gage trans mis sion (See “TO TRANS PORT” in the

Op er a tion section of this manual).

• Roll tractor forward off skid.

TO DRIVE TRAC TOR OFF SKID (See Op-

er a tion section for location and function of

con trols)

• Be sure all the above assembly steps have been com-

pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "trans mis sion engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress brake pedal

and set the parking brake.

• Raise attachment lift lever to its highest position.

• Remove key from bag and start the engine (see "TO

START" in the Operation section of this manual). After

engine has started, move throttle control to idle (slow)

position.

• Release parking brake.

• Slowly depress forward drive pedal and drive tractor

off skid.

• Apply brake to stop tractor and set park ing brake.

• Turn ignition key to "STOP" position.

Continue with the in struc tions that follow.

Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping pur-

poses.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Stan dard

wrench sizes are listed.

(1) 3/4" wrench (1) Utility knife

(1) 9/16" wrench (1) Pliers

(1) Tire Pressure Gauge

When right or left hand is mentioned in this man ual, it

means from your point of view, when you are in the operat-

ing po si tion (seated be hind the steer ing wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton .

• Cut along dashed lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Check for any additional loose parts or cartons and

remove.

ASSEMBLY

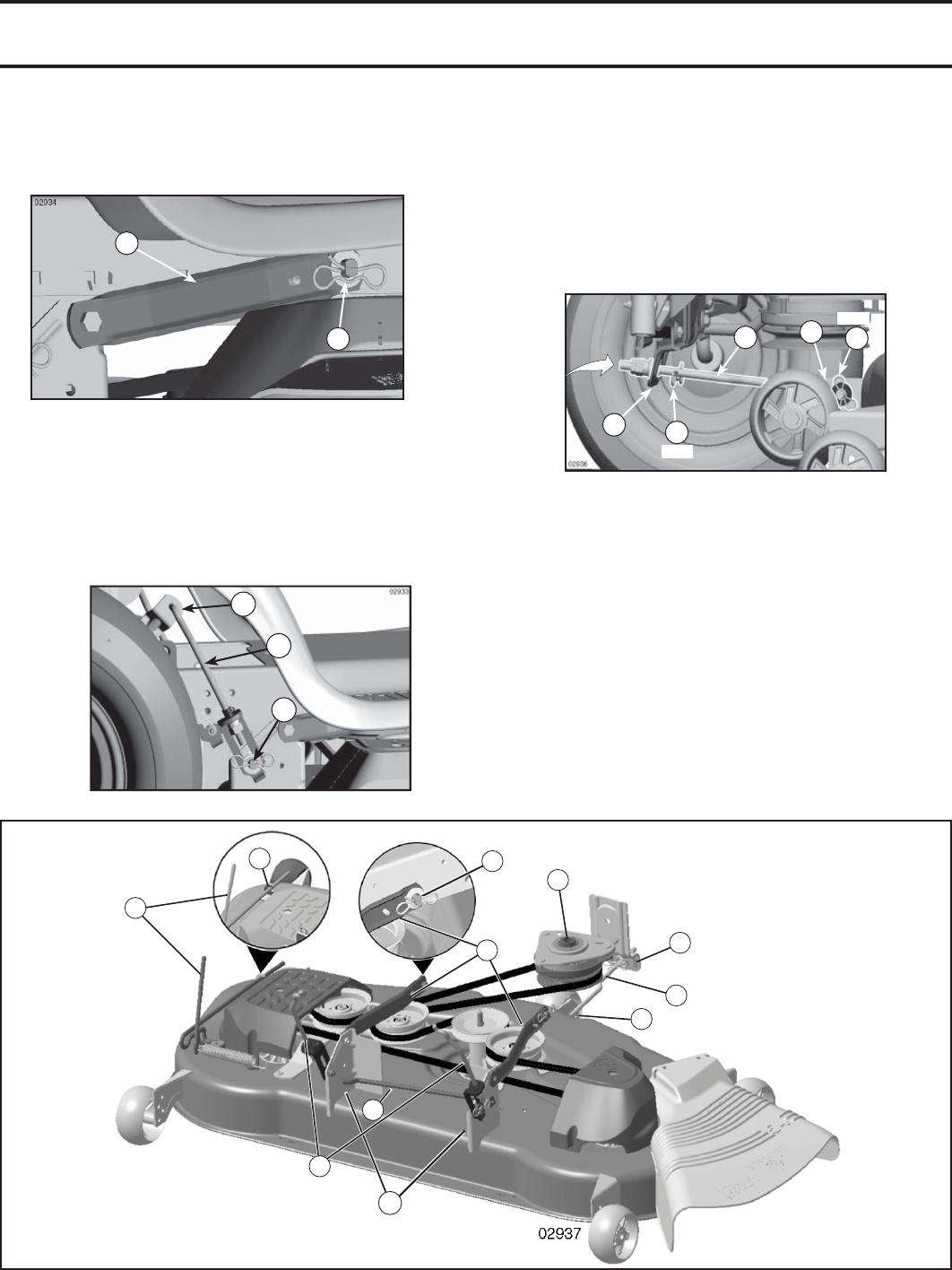

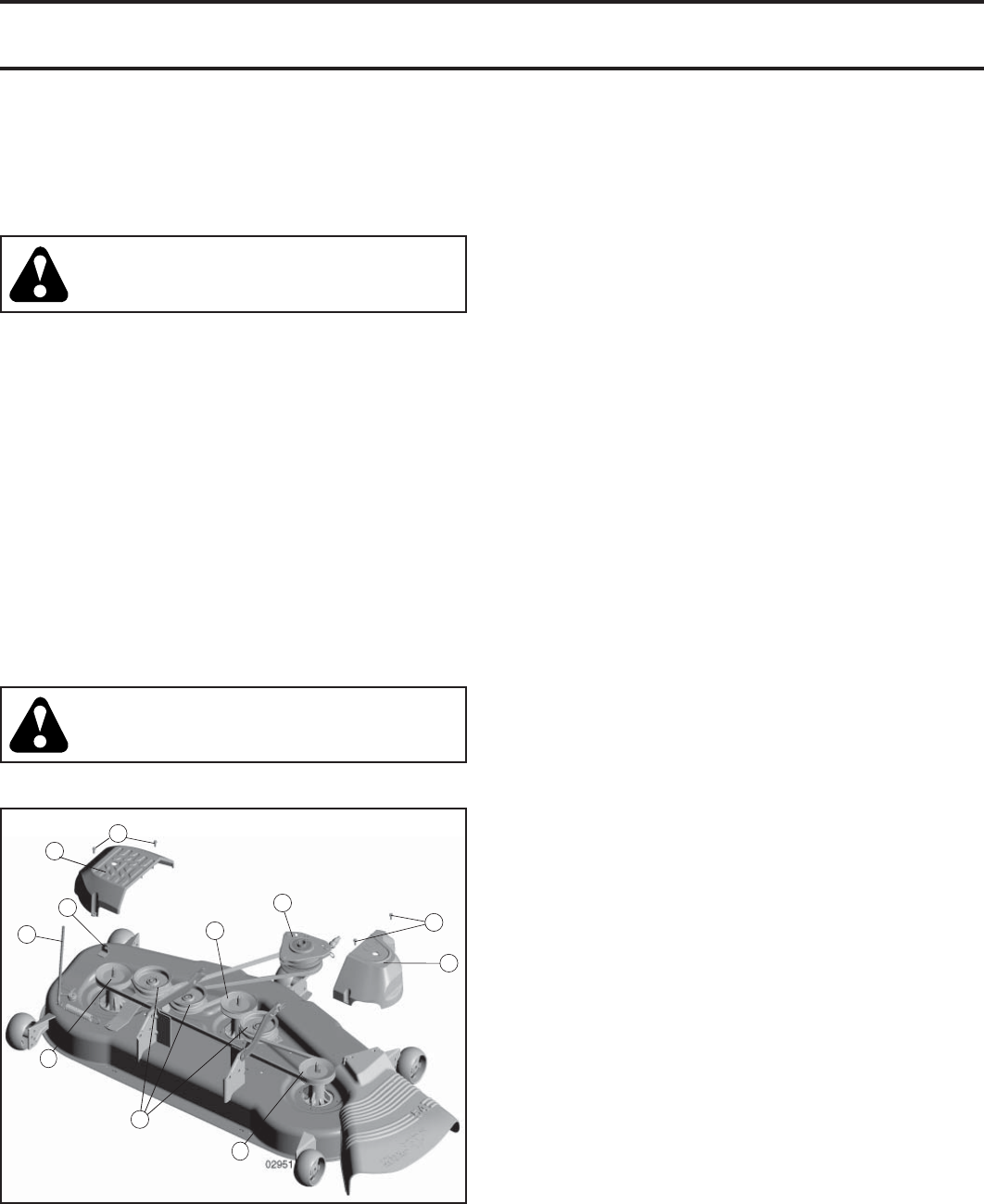

INSTALL MOWER AND DRIVE BELT

(See Figs. 4-12)

See MOWER AND DRIVE BELT ASSEMBLY Supplement

Sheet for additional guidance on this assembly.

Be sure tractor is on level surface and engage park ing

brake.

• Lower attachment lift lever to it's lowest position.

CAUTION: Lift lever is spring loaded. Have

a tight grip on lift lever, lower it slowly and

engage in lowest position.

• Turn steering wheel to the left as far as it will go and

position mower on right side of tractor with deflector

shield to the right.

• Remove plastic tie securing belt, bring belt forward

and check belt for proper routing in all mower pulley

grooves.

- Pivot bar towards you and insert other end of bar

into hole in rear mower bracket (D). Move mower as

needed to insert bar.

- Secure with washer and retainer spring as shown

using small 5/16 retainer spring.

NOTE: Be sure mower side suspension arms (A) are point-

ing forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under

tractor.

• FIRST INSTALL ANTI-SWAY BAR (S).

- From right side of mower, insert anti-sway bar into

hole in transmission bracket (T).

02965

02051

02996

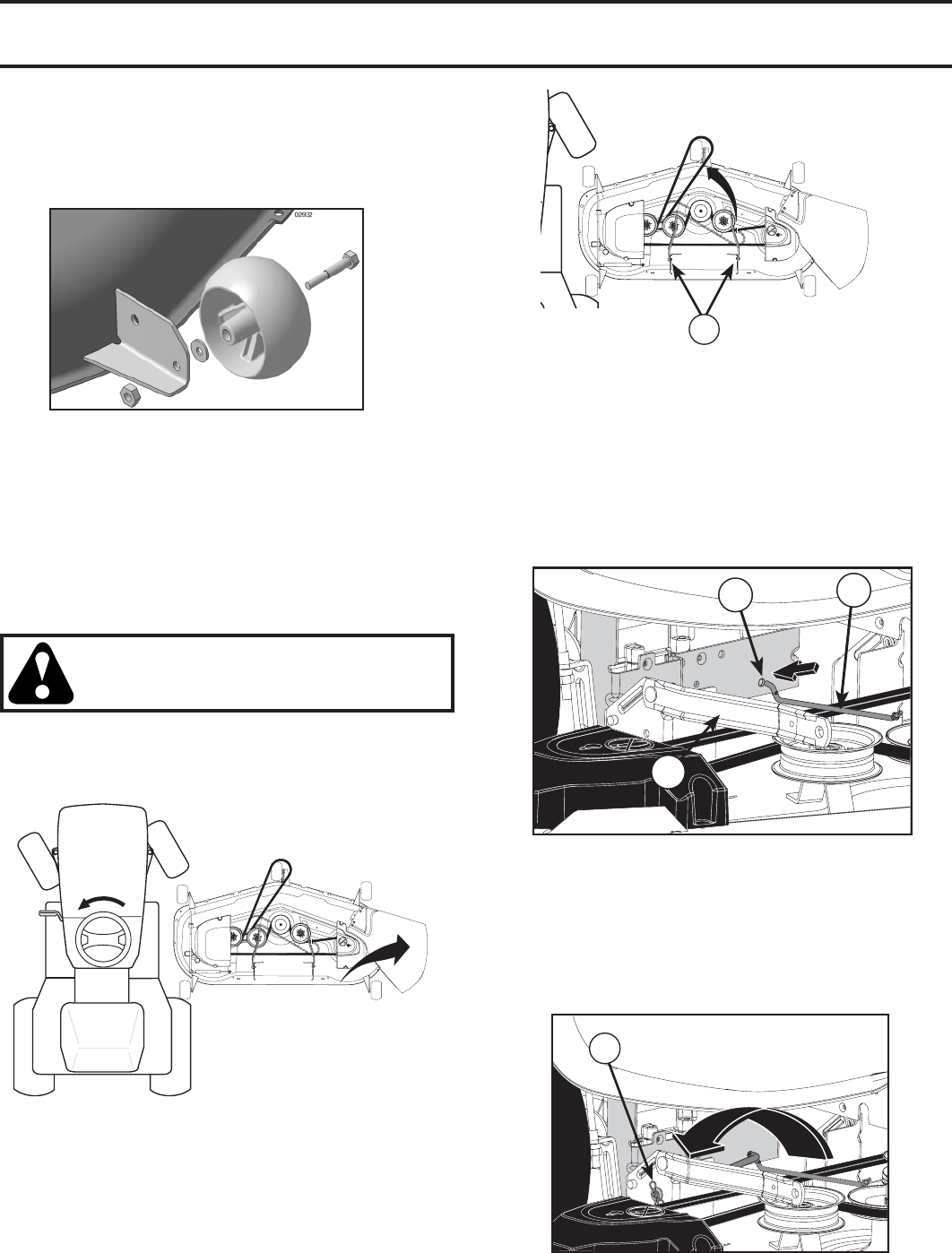

ASSEMBLE FRONT WHEEL TO

MOWER (See Fig. 3)

• Using shoulder bolt, washer and locknut from parts

bag, as sem ble front wheel to mower as shown. Tighten

securely.

FIG. 3

FIG. 4

FIG. 5

FIG. 6

FIG. 7

02995

ASSEMBLY

• ATTACH REAR LIFT LINKS (C) - Insert rod end of lift

link assembly into hole in tractor lift shaft suspension

arm (L) and pivot link down to mower. Lift rear corner

of mower and position slot in link assembly over pin on

rear mower bracket (D) and secure with washer and

retainer spring.

• Repeat on opposite side of tractor.

• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO

CHASSIS - Position hole in arm over pin (B) on outside

of tractor chassis and secure with washer and retainer

spring.

• Repeat on opposite side of tractor.

• Turn steering wheel to position wheels straight for-

ward.

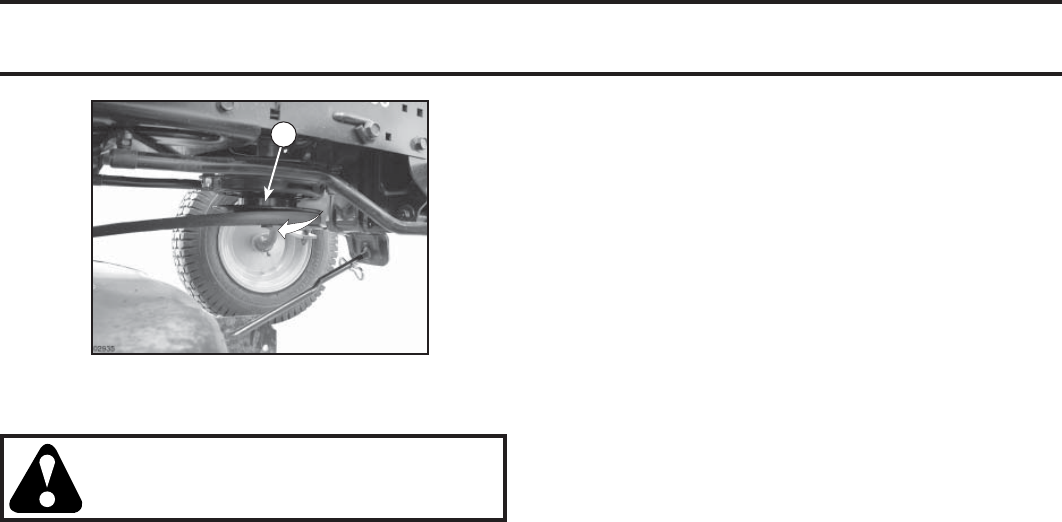

• ATTACH FRONT LINK (E) - Work from left side of

tractor. Insert rod end of link assembly through front

hole in tractor front suspension bracket (F) and secure

with7/16 retainer spring (G) through hole in link located

behind the bracket.

• Insert other end of link (E) into hole in front mower

bracket (H) and secure with washer and 5/16 retainer

spring (J).

• Disengage belt tension rod (K) from locking bracket

(L).

• Install belt onto engine clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

FIG. 8

FIG. 9

FIG. 10

FIG. 11

5/16

7/16

ASSEMBLY

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See “TO LEVEL MOWER HOUSING” in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

sec tion of this manual. Verify that the belts are routed

cor rect ly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is operating properly. See “TO CHECK BRAKE”

in the Service and Adjustments section of this manual.

✓CHECKLIST

BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE

WISH TO ASSURE THAT YOU RECEIVE THE BEST PER-

FORMANCE AND SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

✓ All assembly instructions have been com plet ed.

✓ No remaining loose parts in carton.

✓ Battery is properly prepared and charged.

✓ Seat is adjusted comfortably and tightened securely.

✓ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

✓ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

✓ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

✓ Check wiring. See that all connections are still secure

and wires are properly clamped.

✓ Before driving tractor, be sure free wheel control is in

“transmission engaged” position (see “TO TRANS-

PORT” in the Operation section of this man u al).

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

✓ Engine oil is at proper level.

✓ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

✓ Become familiar with all controls, their location and

function. Operate them before you start the engine.

✓ Be sure brake system is in safe operating condition.

✓ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the

Operation and Maintenance sections in this manual).

✓ It is important to purge the transmission before op-

er at ing your tractor for the first time. Follow proper

starting and transmission purging instructions (See

“TO START EN GINE” and “PURGE TRANSMISSION”

in the Op er a tion section of this manual).

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

• Raise attachment lift lever to highest position.

• If necessary, adjust gauge wheels before op er at ing

mower as shown in the Operation section of this

manual.

FIG. 12

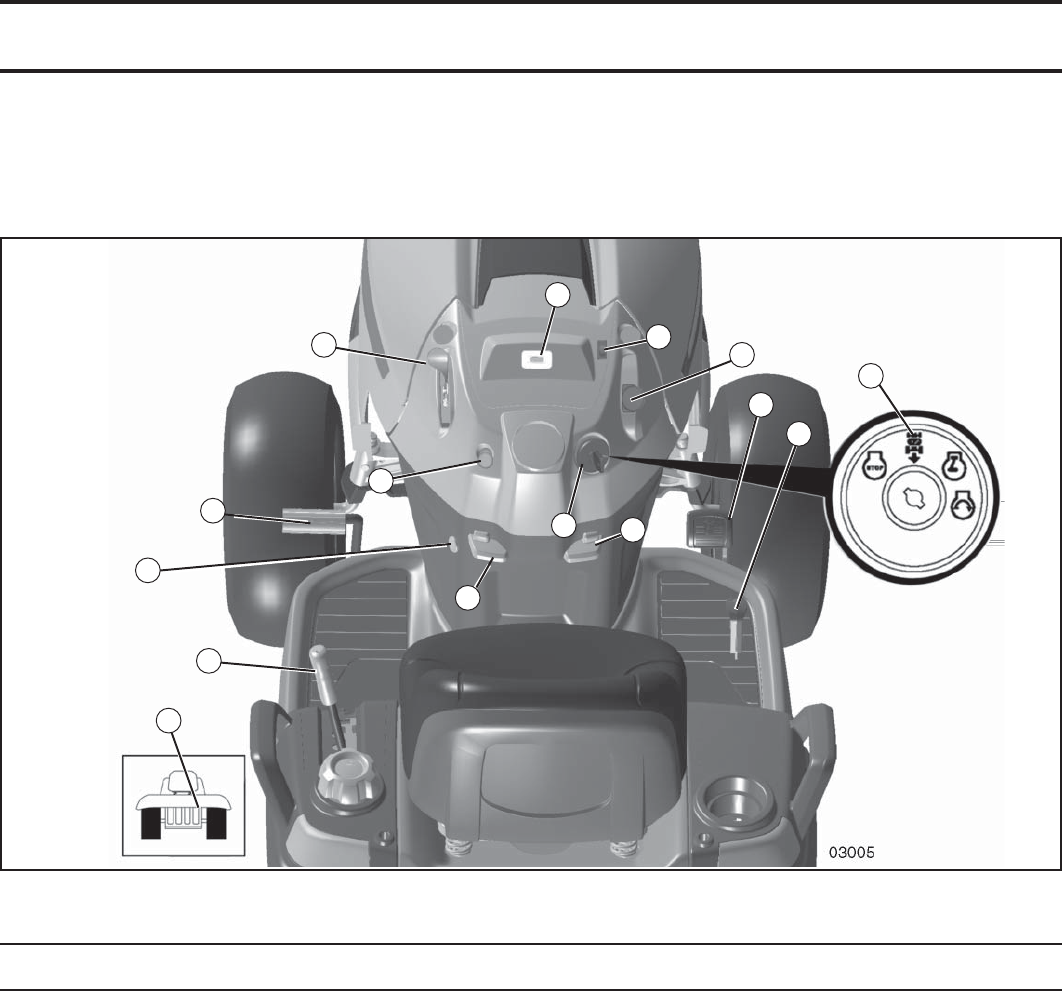

OPERATION

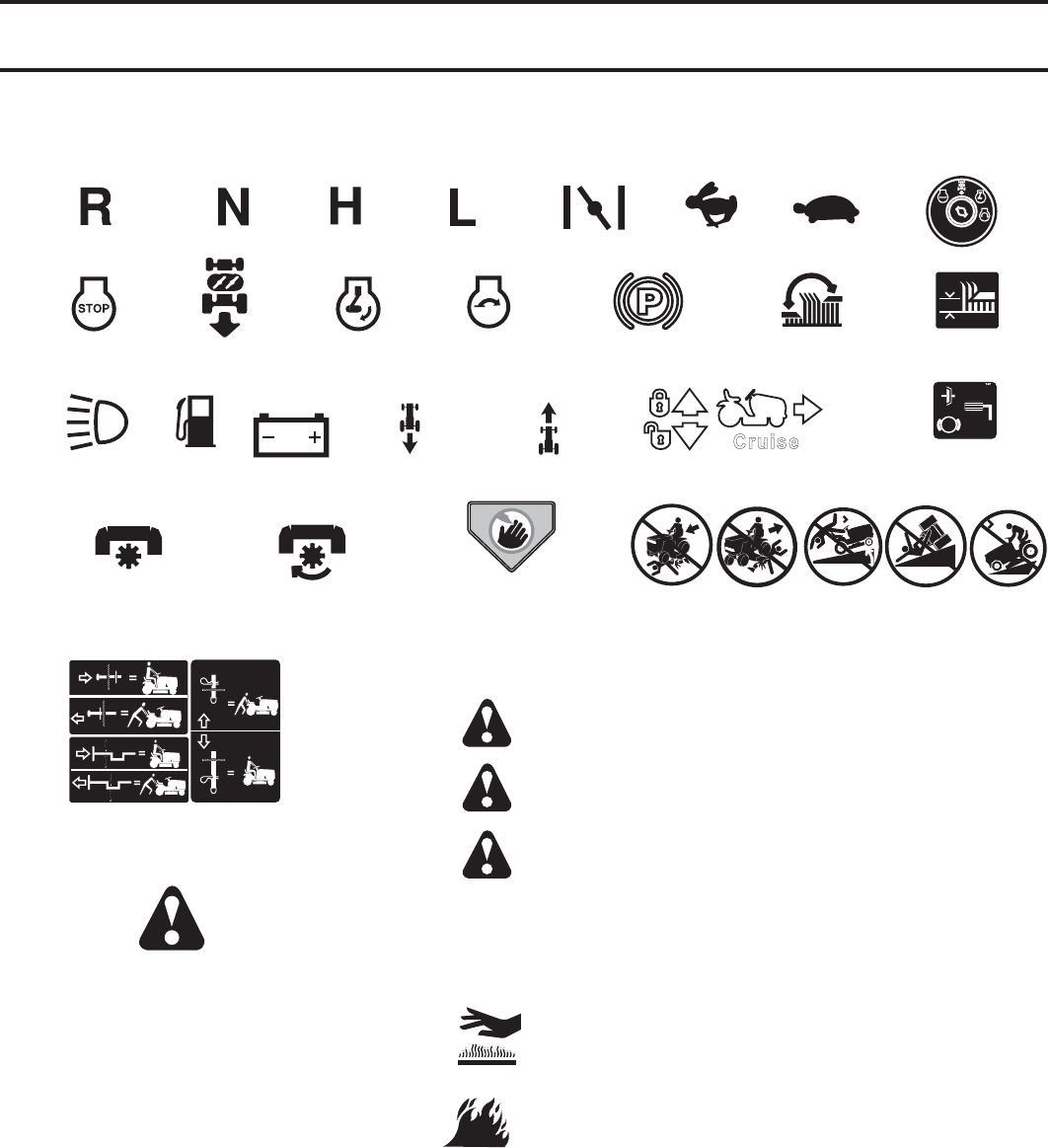

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean-

ing.

DANGER, KEEP HANDS

AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

BATTERY REVERSE FORWARD

FAST SLOW

ENGINE ON

ENGINE OFF

FUEL

CHOKE

MOWER HEIGHT

REVERSE NEUTRAL HIGH LOW

ATTACHMENT

CLUTCH ENGAGED

PARKING BRAKE

IGNITION SWITCH

ATTACHMENT

CLUTCH DISENGAGED

ENGINE START MOWER LIFT

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

REVERSE

OPERATION

SYSTEM (ROS)

LIGHTS ON CLUTCH/BRAKE

PEDAL

CRUISE CONTROL

OPERATION

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments.

Save this manual for future reference.

Our tractors conform to the applicable safety standards of the American National Standards Institute.

FIG. 13

(A) ATTACHMENT LIFT LEVER – Used to raise and lower the

mower or other attachments mounted to your trac tor.

(B) BRAKE PEDAL – Used for brak ing the tractor and start ing

the engine.

brake position.

(D) THROTTLE CONTROL – Used to control engine speed.

(E) ATTACHMENT CLUTCH SWITCH – Used to engage the

mow er blades, or other at tach ments mounted to your tractor.

(F) IGNITION SWITCH – Used for starting and stopping the

engine.

(G) REVERSE OPERATION SYSTEM (ROS) "ON" POSITION

– Allows operation of mower or other powered attachment

while in reverse.

(H) LIGHT SWITCH – Turns the headlights on and off.

(J) CRUISE CONTROL LEVER – Used to set forward

movement of tractor at desired speed without holding the

forward drive pedal.

(K) FORWARD DRIVE PEDAL – Used for forward movement

of tractor.

(L) REVERSE DRIVE PEDAL – Used for reverse movement of

tractor.

(M) FREEWHEEL CONTROL – Disengages transmission for

pushing or slowly tow ing the trac tor with the engine off.

(N) CHOKE CONTROL – Used when starting a cold engine.

(P) SERVICE REMINDER / HOUR METER – Indicates when

service is required for the engine and mower.

(Q) 12-VOLT POWER PORT – Used for 12-volt acces-

sories.

OPERATION

FIG. 14

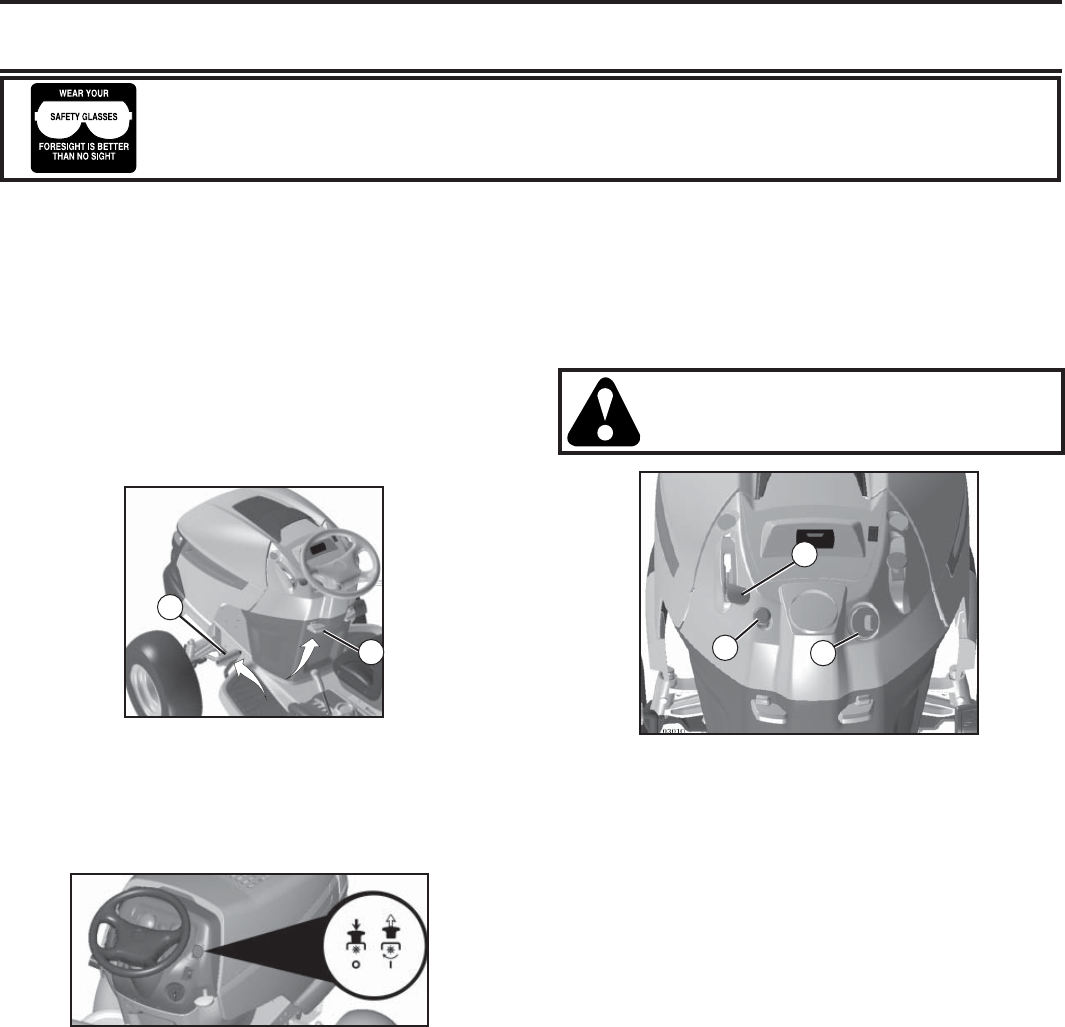

TO USE CHOKE CONTROL -D (See Fig. 16)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push

knob in to disengage.

The operation of any tractor can result in foreign objects thrown into the eyes, which can result

in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor

or per form ing any ad just ments or repairs. We rec om mend standard safety glasses or a wide

vision safety mask worn over spectacles.

FIG. 16

TO USE THROTTLE CONTROL (See Fig. 16)

Always operate engine at full speed (fast).

• Operating engine at less than full speed (fast) reduces

engines operating efficiency.

• Full speed (fast) of fers the best bagging and mower

per for mance.

HOW TO USE YOUR TRAC TOR

TO SET PARKING BRAKE(See Fig. 14)

Your tractor is equipped with an operator presence sens-

ing switch. When engine is running, any attempt by the

op er a tor to leave the seat without first setting the parking

brake will shut off the engine.

• Depress brake pedal (B) all the way down and hold.

• Pull parking brake lever (C) up and hold, re lease pres-

sure from brake pedal (B), then release parking brake

lever. Pedal should re main in brake position. Make

sure parking brake will hold tractor secure.

STOPPING

MOWER BLADES

• To stop mower blades, push at tach ment clutch switch in

to disengaged position (o).

GROUND DRIVE -

• To stop ground drive, depress brake pedal all the way

down.

ENGINE -

• Move throttle control (D) between half and full speed

(fast) position.

NOTE: Failure to move throttle control between half and

full speed (fast) position, before stopping, may cause en-

gine to “backfire”.

• Turn ignition key (F) to “STOP” position and remove

key. Always remove key when leaving tractor to prevent

un au tho rized use.

• Never use choke (N) to stop engine.

IMPORTANT: Leaving the ignition switch in any position

other than "STOP" will cause the battery to discharge and

go dead.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause “browning” of grass. To elim i nate this possibility, al-

ways stop en gine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

plete ly, as de scribed above, before

leav ing the operator's position.

TO MOVE FORWARD AND BACKWARD -N

(See Fig. 17)

The direction and speed of movement is controlled by the

forward and reverse drive pedals.

• Start tractor and release parking brake.

• Slowly depress forward (K) or reverse (L) drive pedal to

begin movement. Ground speed increases the further

down the pedal is depressed.

FIG. 15

(O) PUSH-IN TO

“DIS EN GAGED”

(I) ATTACHMENT

CLUTCH SWITCH

PULL OUT TO “ENGAGE”

OPERATION

TO ADJUST MOWER CUT TING HEIGHT

(See Fig. 18)

The po si tion of the at tach ment lift le ver (A) de ter mines the

cut ting height.

• Put attachment lift lever in desired cutting height slot.

The cutting height range is ap prox i mate ly 1" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate and

may vary depending upon soil conditions, height of grass

and types of grass being mowed.

TO USE CRUISE CONTROL -J (See Fig. 17)

The cruise control feature can be used for forward travel

only.

SYSTEM CHARACTERISTICS

The cruise control should only be used while mowing or

transporting on relatively smooth, straight surfaces. Other

con di tions such as trimming at slow speeds may cause the

cruise control to dis en gage. Do not use the cruise control

on slopes, rough terrian or while trimmimg or turning.

• With forward drive pedal depressed to desired speed,

pull cruise control lever (J) up and hold while lifting

your foot off the pedal, then release the lever.

To disengage the cruise control, depress the brake pedal

or tap on forward drive pedal.

FIG. 17

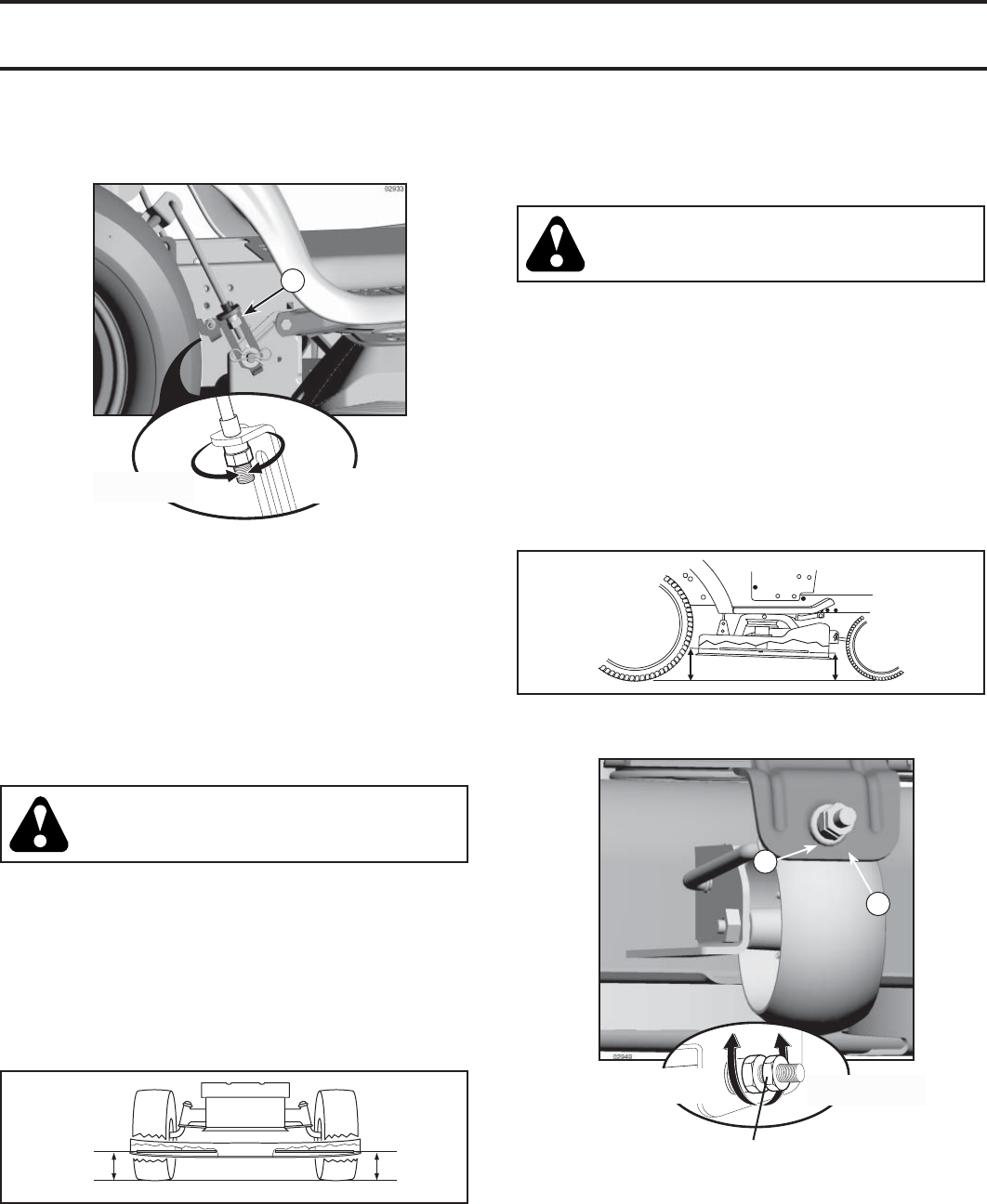

TO ADJUST GAUGE WHEELS (See Fig. 19)

Gauge wheels are prop er ly ad just ed when they are slight ly

off the ground when mower is at the desired cutting height

in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

conditions.

NOTE: Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See “TO AD-

JUST MOWER CUT TING HEIGHT” in this sec tion of

manual).

• With mower in desired height of cut po si tion, gauge

wheels should be assembled so they are slightly off

the ground. In stall gauge wheel in ap pro pri ate hole.

Tighten se cure ly.

• Repeat for all, installing gauge wheel in same adjust-

ment hole.

FIG. 18

FIG.19

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged

will shut off the engine. You must remain fully and centrally

positioned in the seat to prevent the engine from hesitating

or cutting off when operating your equipment on rough,

rolling terrain or hills.

• Select desired height of cut with attachment lift lever.

• Start mower blades by engaging at tach ment clutch

control.

TO STOP MOWER BLADES -

disengage at tach ment clutch con trol.

CAUTION: Do not operate the mower

without either the en tire grass catcher,

on mowers so equipped, or the deflector

shield (S) in place.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches

in height should be mowed twice. Make the first cut

relatively high; the second to de sired height.

OPERATION

FIG. 21

TOWING CARTS AND OTHER AT TACH MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing. Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

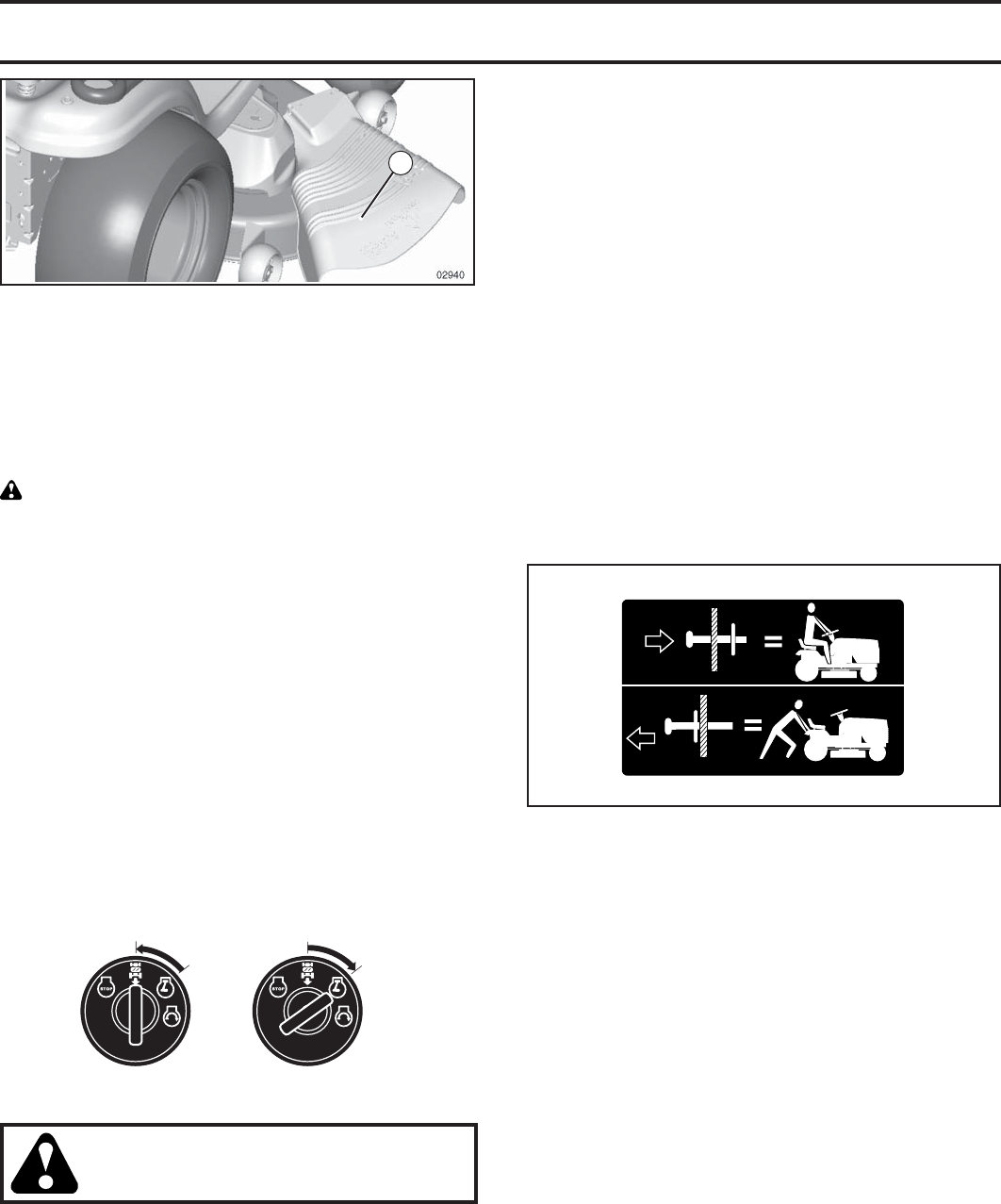

TO TRANSPORT (See Figs. 13 and 21)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in free wheel ing

po si tion. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with at tach ment

lift control.

• Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)

MPH.

• To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

Transmission Engaged

Transmission Disengaged

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System

(ROS). Any attempt by the operator to travel in the reverse

direction with the attachment clutch engaged will shut off

the engine unless ignition key is placed in the ROS "ON"

position.

WARNING: Backing up with the attachment clutch en-

gaged while mowing is strongly discouraged. Turning the

ROS "ON", to allow reverse operation with the attachment

clutch engaged, should only be done when the operator

decides it is necessary to reposition the machine with the

attachment engaged. Do not mow in reverse unless

absolutely necessary.

USING THE REVERSE OPERATION SYSTEM -

Only use if you are certain no children or other bystanders

will enter the mowing area.

• Depress brake pedal all the way down.

• With engine running, turn ignition key counterclockwise

to ROS "ON" position.

• Look down and behind before and while backing.

• Slowly depress reverse drive pedal to start move-

ment.

• When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

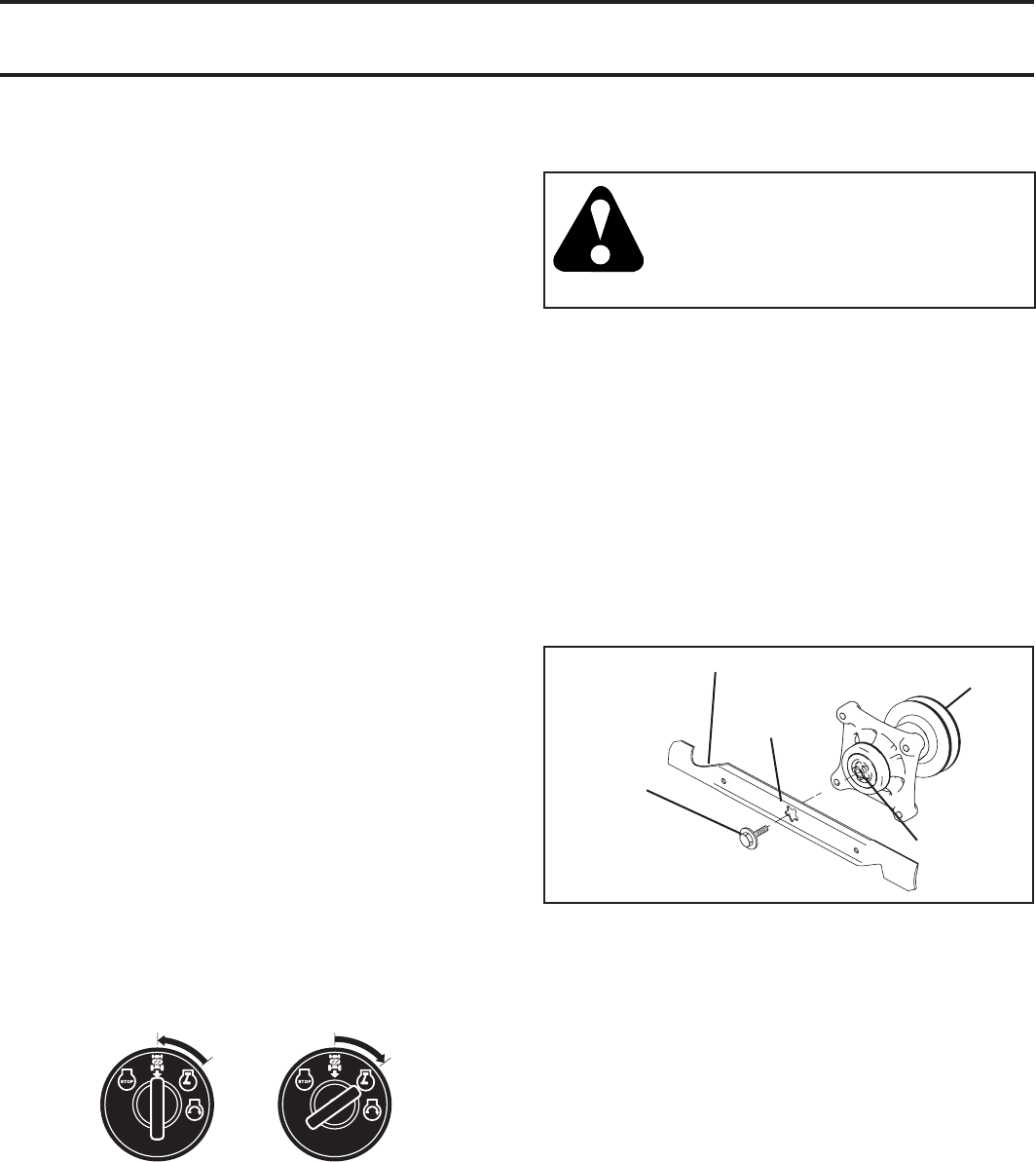

ROS "ON" POSITION ENGINE "ON" POSITION

(NORMAL OPERATING)

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills

with slopes greater than 15° and do not

drive across any slope.

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If stopping is absolutely necessary, push brake pedal

quickly to brake position and engage parking brake.

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the

engine has run and flashes to indicate that the engine

or mower needs servicing. When service is required, the

service reminder will flash for two hours. To service engine

and mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in

any position but "STOP". For accurate reading, be sure

key remains in the "STOP" position when engine is not

running.

FIG. 20

• To restart movement, slowly release parking brake and

brake pedal.

• Slowly depress appropriate drive pedal to slowest set-

ting.

• Make all turns slowly.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill. Use

fresh, clean, regular un lead ed gasoline with a minimum of

87 octane. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in quan ti ties that can

be used within 30 days to assure fuel freshness.

CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GAS O LINE TO HELP INSURE GOOD COLD WEATHER

START ING.

CAUTION: Alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract moisture which

leads to sep a ra tion and for ma tion of acids during

storage. Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine problems,

the fuel system should be emptied before stor age

of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor

are empty. Use fresh fuel next season. See Storage

In struc tions for additional information. Never use

engine or carburetor cleaner products in the fuel

tank or permanent damage may occur.

OPERATION

TO START ENGINE (See Fig. 13)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

• Be sure freewheel control is in the transmission en gaged

position.

• Sit on seat in operating position, depress brake pedal

and set parking brake.

• Move attachment clutch to “DISENGAGED” position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to “START”

position and release key as soon as engine starts. Do not

run starter continuously for more than fifteen sec onds

per minute. If the engine does not start after several

attempts, push choke control in, wait a few minutes and

try again. If engine still does not start, pull the choke

control out and retry.

WARM WEATHER STARTING (50° F and above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and

then continue to push the control in slowly. This may

require an engine warm-up period from several sec onds

to several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather, the trans mis sion

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Release the parking brake and let the brake slowly

return to operating po si tion.

• Allow one minute for transmission to warm up. This

can be done during the engine warm up period.

• The attachments can be used during the engine warm-up

period after the transmission has been warmed up and

may require the choke con trol be pulled out slight ly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See “TO

ADJUST CARBURETOR” in the Service and Ad just ments

section of this manual.

PURGE TRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is rec om -

mend ed that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de-

vel oped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION RE QUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGED AFTER REINSTALLATION BEFORE OPERATING

THE TRACTOR.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with sum mer weight oil.

• Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

“FULL” mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See “OIL VISCOSITY CHART” in the

Maintenance sec tion of this manual).

• To change engine oil, see the Maintenance section in

this manual.

FIG. 22

MOWING TIPS

• Mower should be properly leveled for best mowing per-

formance. See “TO LEVEL MOWER HOUSING” in the

Service and Adjustments section of this manual.

• The left hand side of mower should be used for trim-

ming.

• Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

machine. This will result in a more even dis tri bu tion of

clippings and more uniform cutting.

• When mowing large areas, start by turning to the right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

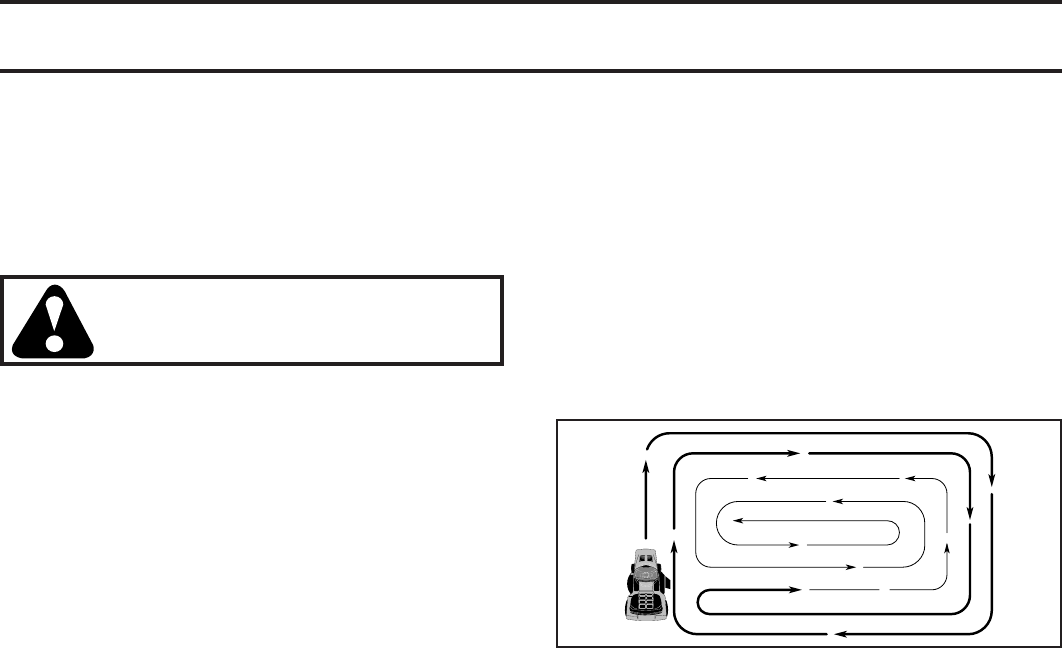

(See Fig. 22).

• If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

dis charge of material. Regulate ground speed by se-

lect ing a low enough gear to give the mower cut ting

per for mance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the at tach ment being used.

• Place tractor safely on a level surface - that is clear

and open - with engine off and parking brake set.

• Disengage transmission by placing freewheel control

in freewheeling position (See “TO TRANSPORT” in this

section of manual).

• Sitting in the tractor seat, start engine. After the en-

gine is running, move throttle control to slow position.

Dis en gage parking brake

CAUTION: At any time, during step 4,

there may be movement of the drive

wheels.

• Depress forward drive pedal to full forward position,

hold for five (5) seconds and release pedal. Depress

reverse drive pedal to full reverse position, hold for five

(5) seconds and release pedal. Repeat this procedure

three (3) times.

• Shut- off engine and set parking brake.

• Engage transmission by placing freewheel control in

engaged position (See “TO TRANSPORT” in this sec-

tion of manual).

• Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1/2) speed.

Disengage parking brake.

• Drive tractor forward for approximately five feet then

backwards for five feet. Repeat this driving procedure

three times.

Your transmission is now purged and now ready for normal

op er a tion.

OPERATION

MAINTENANCE

Inspect Muffler/Spark Arrester

Clean Air Filter

Change Engine Oil (with oil filter)

Replace Air Filter Paper Cartridge

Replace Spark Plug

Check Engine Oil Level

Clean Engine Cooling Fins

Clean Air Screen

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

Replace Oil Filter (If equipped)

Replace Fuel Filter

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

1,2

Change Engine Oil (without oil filter)

1,2

maint_sch-tractore.ROS.e

BEFORE

EACH

USE

EVERY

HOURS

EVERY

HOURS

EVERY

HOURS

EVERY

100

HOURS

EVERY

SEASON

BEFORE

STORAGE

Lubrication Chart

Check Brake Operation

Check Battery Level

Check Tire Pressure

Clean Battery and Terminals

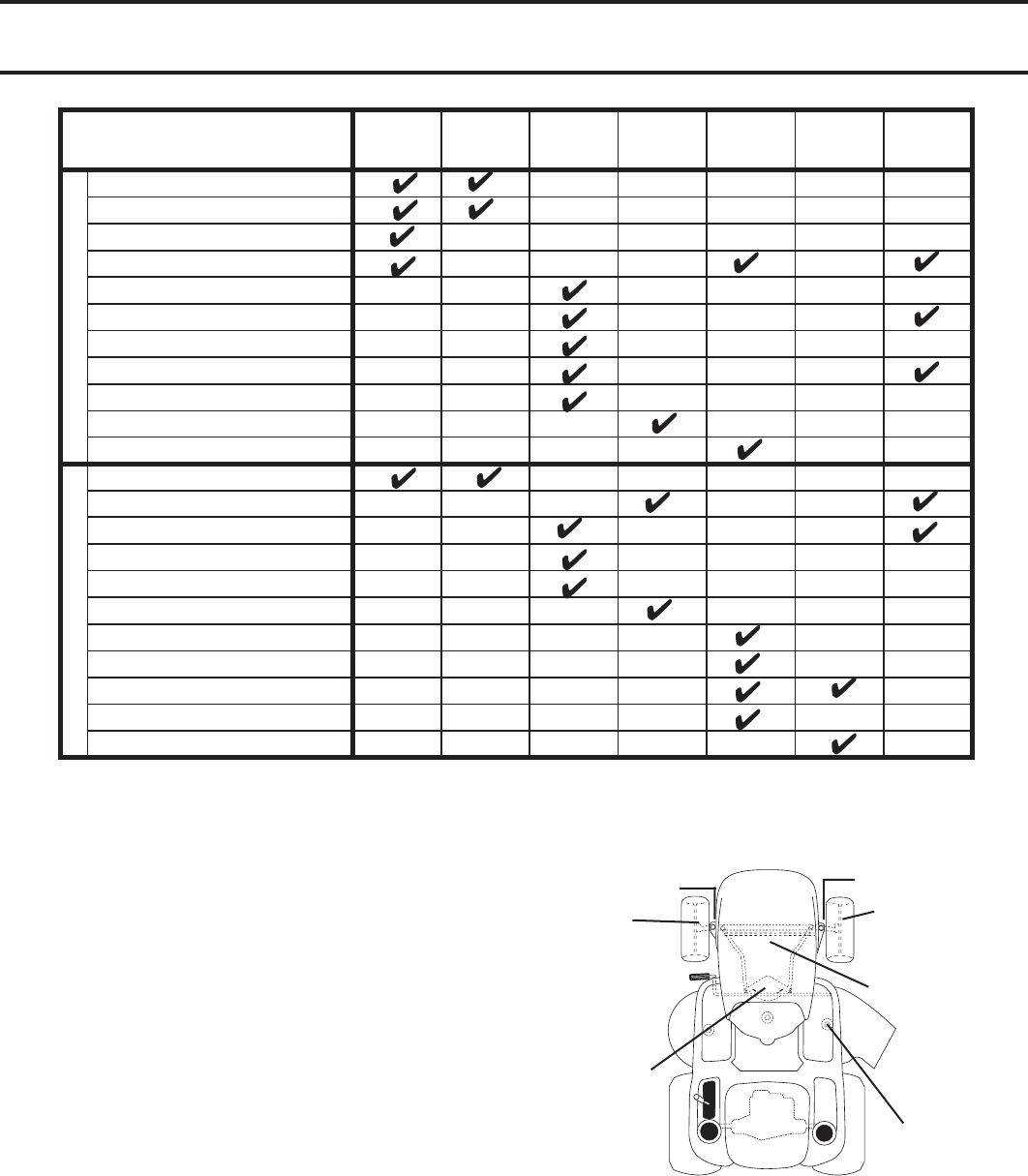

MAINTENANCE

SCHEDULE

Check for Loose Fasteners

Check/Replace Mower Blades

Check Operator Presence & ROS Systems

Check Transaxle Cooling

Check V-Belts

Check Mower Levelness

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must main tain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should make

any of the adjustments described in the Service and

Adjustments section of this manual.

• At least once a year you should replace the spark plug,

clean or replace air filter, and check blades and belts

for wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

ROS systems for proper operation.

• Check for loose fasteners.

02956

LUBRICATION CHART

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LU BRI CANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORT EN THE LIFE OF THE SELF-LU BRI CAT ING BEARINGS.

IF YOU FEEL THEY MUST BE LU BRI CAT ED, USE ONLY A DRY,

POW DERED GRAPHITE TYPE LU BRI CANT SPARINGLY.

➀ General Purpose Grease

➁ Refer to Maintenance “ENGINE” Section

➀ SPINDLE ZERK

➀ FRONT

WHEEL

BEARING

ZERK

➁ ENGINE

➀ MANDREL

ZERKS

➀ SPINDLE ZERK

➀ FRONT

WHEEL

BEARING

ZERK

➀ STEERING

SECTOR GEAR

TETH

MAINTENANCE

FIG. 23

02544

MANDREL

ASSEMBLY

BLADE

BLADE BOLT

(SPECIAL)

CENTER

HOLE

STAR

BATTERY

Your tractor has a battery charging system which is suf fi cient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps

or covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to “leak” power.

• Remove terminal guard.

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

TRACTOR

Always observe safety rules when per form ing any main-

te nance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be serviced. (See “TO CHECK

BRAKE” in the Ser vice and Ad just ments section of this

manual).

TIRES

• Maintain proper air pressure in all tires (See PSI on

tires).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and pre vent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also pre vents tire dry rot and

corrosion.

OPERATOR PRESENCE SYS TEM AND REVERSE OP-

ERATION SYSTEM (ROS)

Be sure operator presence and reverse operation sys tems

are work ing properly. If your tractor does not function as

described, repair the problem immediately.

• The engine should not start unless the brake pedal is

fully de pressed, and the attachment clutch con trol is

in the dis en gaged position.

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the op er a tor

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the at tach ment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in

the engine "ON" position and the at tach ment clutch

engaged, any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the ignition switch in

the ROS "ON" position and the at tach ment clutch en-

gaged, any attempt by the operator to shift into reverse

should NOT shut off the engine.

BLADE CARE

For best results mower blades must be sharp. Re place

worn, bent or damaged blades.

CAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is haz-

ardous, could damage your tractor and void

your warranty.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

BLADE REMOVAL (See Fig. 23)

• Raise mower to highest position to allow access to

blades.

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth.

• Remove blade bolt by turning coun ter clock wise.

• Install new blade with stamped "GRASS SIDE" facing

the ground.

IMPORTANT: To ensure proper as sem bly, center hole in

blade must align with star on mandrel assembly.

• Install and tighten blade bolt securely (45-55 Ft. Lbs.

torque).

IMPORTANT: Special blade bolt is heat treated.

MAINTENANCE

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

ad just able. Re place belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot. To prevent pos-

si ble damage to seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean cool-

ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid main te -

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

near est au tho rized ser vice center/department.

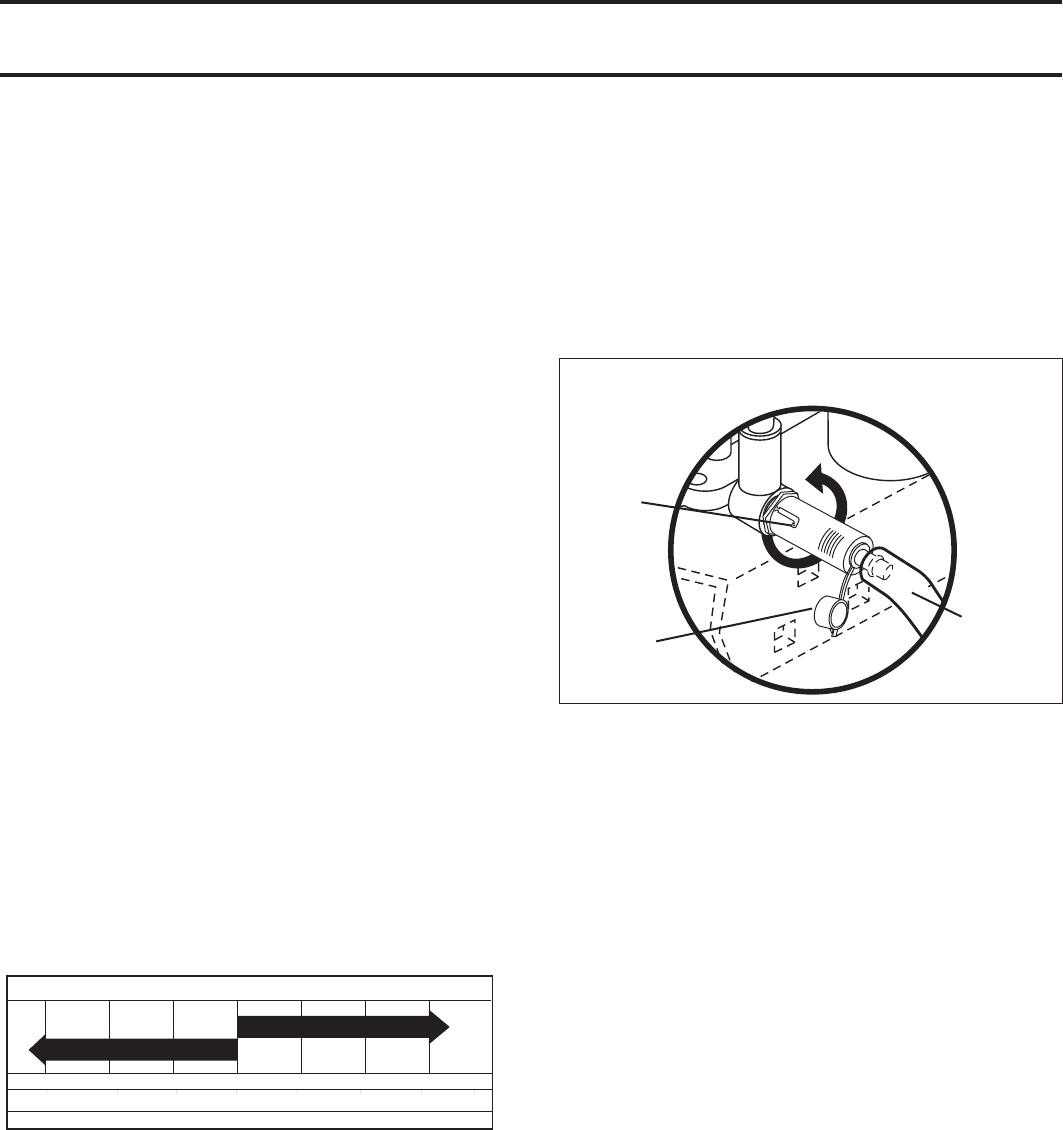

FIG. 25

FIG. 24

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil’s SAE viscosity grade

according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, they will result in increased

oil consumption when used above 32°F. Check your engine

oil level more frequently to avoid possible engine damage

from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

SAE VISCOSITY GRADES

-20 0 30 40 80 100

-30 -20 0 20 30 40

-10 10

5W-30

SAE 30

oil_visc_chart1_e

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See “REPLACING BATTERY" in

the SERVICE AND ADJUSTMENTS section of this

man u al).

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine dam age from overheating. Clean with a wire brush

or compressed air to re move dirt and stubborn dried gum

fibers.

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions. See

Engine Manual.

TO CHANGE ENGINE OIL (See Figs. 24 and 25)

Determine temperature range expected before oil change.

All oil must meet API service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install

the drain tube onto the fitting.

02463

CLOSED

AND

LOCKED

POSITION

YEL LOW CAP

DRAIN

TUBE

OIL DRAIN VALVE

• Unlock drain valve by pushing inward and turning

coun ter clock wise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” section of this man-

u al.

• Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate

reading. Keep oil at “FULL” line on dipstick. Tighten cap

onto the tube securely when finished.

MAINTENANCE

MUFFLER

Inspect and replace corroded muffler and spark arrester

(if equipped) as it could create a fire hazard and/or dam-

age.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

“PROD UCT SPECIFICATIONS” section of this manual.

IN-LINE FUEL FILTER (See Fig. 26)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, ob struct ing fuel flow to car bu re tor,

re place ment is re quired.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

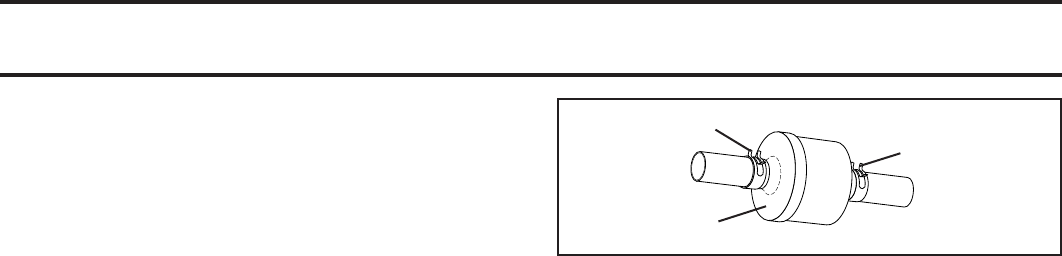

CLAMP

FUEL FILTER

CLAMP

FIG. 26

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out. Water in engine or

transmission will shorten the useful life of your tractor. Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other

oil change if the tractor is used more than 100 hours in

one year.

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on

tires. If tires are over or under inflated, it may affect the

appearance of your lawn and lead you to think the mower

is not adjusted properly.

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig. 28)

• With all tires properly inflated and if your lawn appears

unevenly cut, determine which side of mower is cutting

lower.

NOTE: As desired, you can raise the low side of mower or

lower the high side.

SERVICE AND ADJUSTMENTS

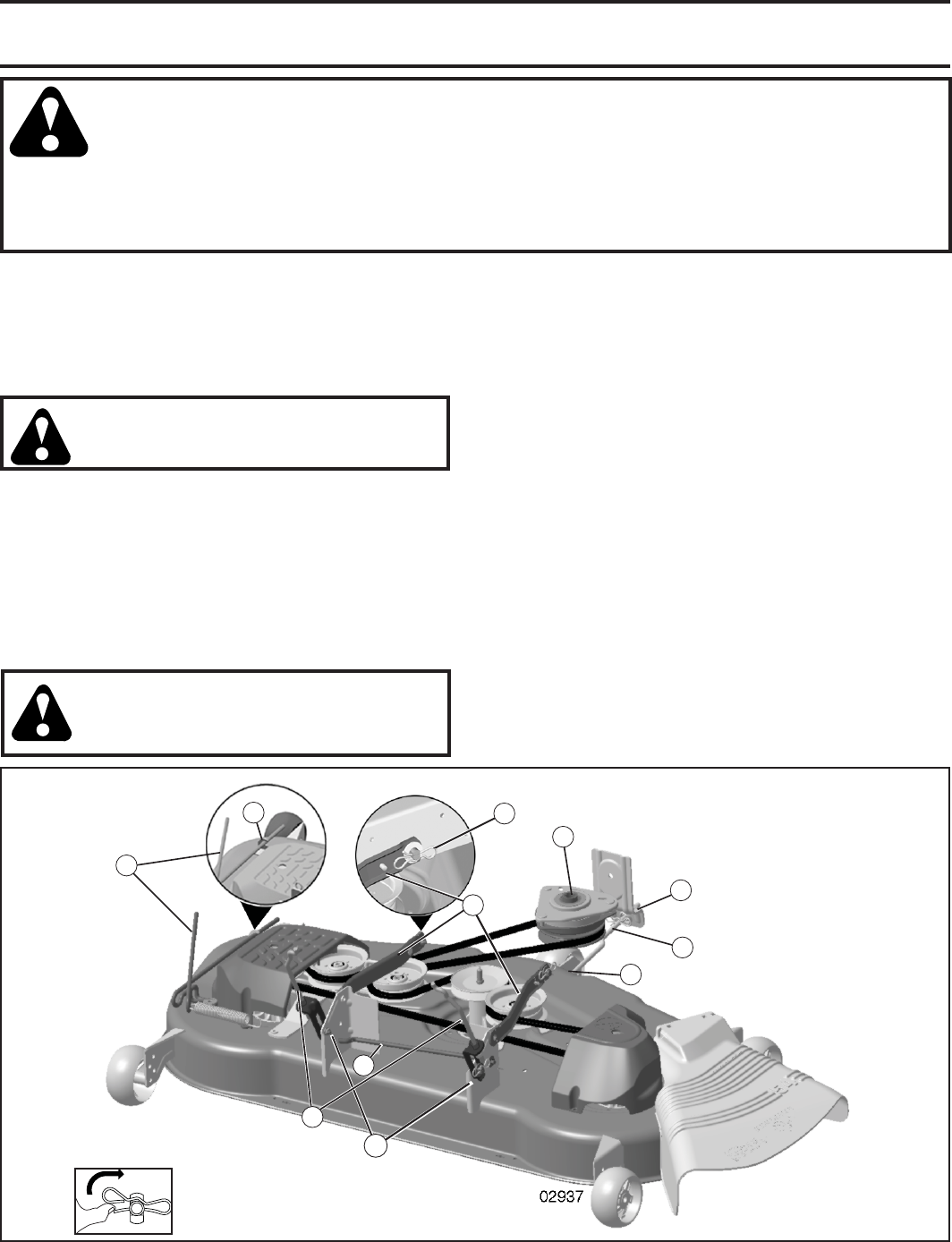

FIG. 27

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST -

MENTS:

• Depress brake pedal fully and set parking brake.

• Place attachment clutch in “DISENGAGED” position.

• Turn ignition key to “STOP” and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR (See Fig. 27)

TO REMOVE MOWER

• Place attachment clutch in “DIS EN GAGED” position.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and re-

lease slowly.

• Remove mower belt from electric clutch pulley (M).

• Disconnect front link (E) from mower - remove retainer

spring and washer.

• Go to either side of mower and disconnect mower

suspension arm (A) from chassis and rear lift link (C)

from rear mower bracket (D) - remove retainer springs

and washers.

• Go to other side of mower and disconnect the suspen-

sion arm and rear lift link.

CAUTION: After rear lift links are discon-

nected, the attachment lift lever will be

spring loaded. Have a tight grip on lift lever

when changing position of the lever.

• From right side of mower, disconnect anti-sway bar (S)

from right rear mower bracket (D) - remove retainer

spring and washer and pull mower toward you until

the bar falls from the hole in bracket.

• Turn tractor steering wheel to the left as far as it will

go.

• Slide mower out from under right side of tractor.

TO IN STALL MOWER

Follow procedure described in “INSTALL MOWER AND

DRIVE BELT” in the As sem bly section of this manual.

SERVICE AND ADJUSTMENTS

02966

02548

• Go to side of mower you wish to adjust.

• With a 3/4" or adjustable wrench, turn lift link adjust-

ment nut (A) to the left to lower the mower, or, to the

right to raise the mower.

FRONT-TO-BACK ADJUSTMENT (See Figs. 30 and 31)

IMPORTANT: Deck must be level side-to-side.

To obtain the best cutting re sults, the mower blades should

be adjusted so the front tip is 1/8" to 1/2" lower than the

rear tip when the mower is in its highest position.

CAUTION: Blades are sharp. Protect your

hands with gloves and/or wrap blade with

heavy cloth.

• Raise mower to highest position.

• Position any blade so the tip is pointing straight forward.

Measure distance (B) to the ground at front and rear

tip of the blade.

• If front tip of blade is not 1/8" to 1/2" lower than the rear

tip, go to the front of tractor.

• With an 11/16" or adjustable wrench, loosen jam nut

A several turns to clear adjustment nut B.

• With a 3/4" or adjustable wrench, turn front link adjust-

ment nut (B) clockwise (tighten) to raise the front of

mower, or, counterclockwise (loosen) to lower the front

mower.

Turn nut left

to lower mower

Turn nut right

to raise mower

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8".

• Recheck measurements, adjust if necessary until front

tip of blade is 1/8" to 1/2" lower than the rear tip.

• Hold adjustment nut in position with wrench and tighten

jam nut securely against adjustment nut.

NOTE: Each full turn of adjustment nut will change mower

height about 3/16".

• Test your adjustment by mowing some uncut grass

and visually checking the appearance. Readjust, if

necessary, until you are satisfied with the results.

PRECISION SIDE-TO-SIDE ADJUSTMENT

(See Fig. 29)

• With all tires properly inflated, park tractor on level

ground or driveway.

CAUTION: Blades are sharp. Protect your

hands with gloves and/or wrap blade with

heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and

measure the distance (A) from bottom edge of blade

to the ground. The distance should be the same on

both sides.

• If adjustment is necessary, see steps 2 and 3 in Visual

Adjustment instructions above.

• Recheck measurements, adjust if necessary until both

sides are equal.

FIG. 28

FIG. 29

FIG. 30

02950

Tighten adjust nut

B to raise mower Loosen adjust nut

B to lower mower

Loosen jam nut A first

FIG. 31

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

MOWER DRIVE BELT REMOVAL (See Fig. 32)

• Park tractor on a level surface. En gage parking

brake.

• Lower attachment lift lever to its lowest position.

• Disengage belt tension rod (K) from lock bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a firm grip on rod and

release slowly.

• Remove screws (P) from mandrel covers (Q) and re-

move covers.

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface.

• Remove belt from electric clutch pulley (M), both man-

drel pulleys (R) and all idler pulleys (S).

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around

idler pulleys (S) as shown.

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower

pulley grooves.

• Reassemble mandrel covers (Q). Securely tighten all

screws.

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

engage slowly.

• Raise attachment lift lever to highest position.

FIG. 32

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest

speed in high est gear on a level, dry concrete or paved

surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface,

depress brake pedal all the way down and engage

parking brake.

• Disengage transmission by placing freewheel control

in “transmission disengaged” position. Pull freewheel

control out and into the slot and release so it is held in

the disengaged position.

The rear wheels must lock and skid when you try to manu-

ally push the tractor forward. If the rear wheels rotate, then

the brake needs to be serviced. Contact a qualified service

center.

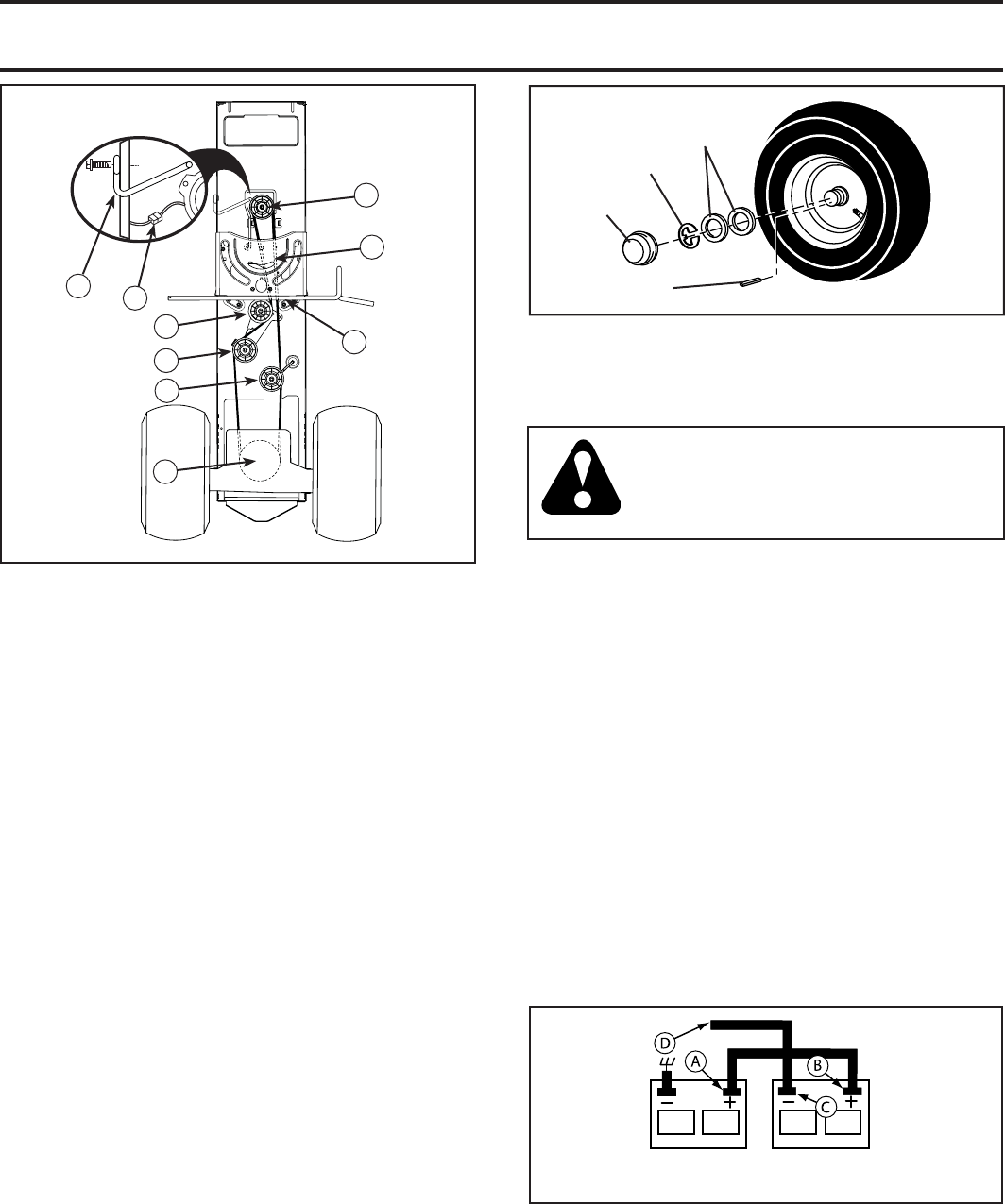

TO REPLACE MOTION DRIVE BELT

(See Fig. 33)

Park the tractor on level surface. En gage parking brake.

For as sis tance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See “TO RE MOVE MOWER” in this

section of manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

• Disconnect clutch wire harness (A).

• Remove anti-rotation link (B) on right side of tractor.

• Remove belt from stationary idler (C) and clutching

idler (D).

• Remove belt from centerspan idler (E).

• Pull belt slack toward rear of trac tor. Carefully remove

belt up wards from trans mis sion input pulley and over

cooling fan blades (F).

• Remove belt downward from engine pulley and around

electric clutch (G).

• Slide belt toward rear of tractor, off the steering plate

(H) and remove from tractor.

BELT INSTALLATION -

• Install new belt from tractor rear to front, over the steer-

ing plate (H) and above clutch brake pedal shaft (J).

• Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley (G).

• Pull belt toward rear of tractor. Carefully work belt down

around transmission cooling fan and onto the input

pulley (F). Be sure belt is inside the belt keeper.

• Install belt on centerspan idler (E).

• Install belt through stationary idler (C) and clutch ing

idler (D).

• Reinstall anti-rotation link (B) on right side of tractor.

Tighten securely.

• Reconnect clutch harness (A).

• Make sure belt is in all pulley grooves and in side all

belt guides and keep ers.

• Install mower (See “TO IN STALL MOWER” in this sec-

tion of manual).

SERVICE AND ADJUSTMENTS

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 34)

• Block up axle securely.

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

FIG. 34

RE TAIN ING

RING

WASH ERS

SQUARE KEY (REAR

WHEEL ONLY)

AXLE COVER

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 35)

WARNING: Lead-acid batteries gen-

er ate ex plo sive gases. Keep sparks,

flame and smoking ma te ri als away from

bat ter ies. Always wear eye pro tec tion

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this man u al).

If “jumper ca bles” are used for emer gen cy starting, follow

this pro ce dure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12 VOLT

SYSTEM. THE OTHER VEHICLE MUST ALSO BE A 12 VOLT

SYSTEM. DO NOT USE YOUR TRACTOR BATTERY TO START

OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

• Connect one end of the BLACK ca ble to the NEGA TIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and bat tery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

electric

02953

FIG. 33

FRONT WHEEL TOE-IN/CAM BER

Your new tractor front wheel toe-in and camber is set at the

factory and is normal. The front wheel toe-in and camber

are not adjustable. If damage has occurred to affect the

factory set front wheel toe-in or camber, contact a qualified

service center.

FIG. 35

WEAK OR DEAD

BATTERY

FULLY CHARGED

BATTERY

SERVICE AND ADJUSTMENTS

REPLACING BATTERY (See Fig. 36)

WARNING: Do not short battery ter mi nals by allowing

a wrench or any other object to contact both terminals at

the same time. Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to prevent spark-

ing from ac ci den tal grounding.

• Lift hood to raised position.

• Disconnect BLACK battery cable (A) then RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as

old battery.

• First connect RED battery cable (B) to positive (+) battery

terminal with hex bolt and keps nut as shown. Tighten

securely. Slide terminal cover (C) over terminal.

• Connect BLACK grounding cable to negative (-) bat tery

terminal with re main ing hex bolt and keps nut. Tight en

securely

• Close hood.

Positive

(Red)

Cable

Negative

(Black)

Cable

02954

FIG. 36

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 37)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

02778

HEADLIGHT

WIRE

CONNECTOR

HOOD

ENGINE

TO AD JUST THROTTLE CON TROL CABLE

The throttle control has been preset at the factory and

ad just ment should not be necessary. If adjustment is nec-

es sary, see engine manual.

TO AD JUST CHOKE CON TROL

The choke control has been preset at the factory and ad-

just ment should not be necessary. If adjustment is neces-

sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

FIG. 37

STORAGE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more.

WARNING: Never store the trac tor with

gas o line in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any en clo sure.

TRACTOR

Remove mower from tractor for winter storage. When mower

is to be stored for a period of time, clean it thor oughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See “CLEANING” in the Mainte-

nance section of this manual).

• Inspect and replace belts, if necessary (See belt re-

place ment instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance sec tion of this

man ual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

re charg ing.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

con nect ed and battery cleaned thoroughly (see “TO

CLEAN BATTERY AND TERMINALS” in the Mainte-

nance section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH

AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOIS TURE WHICH

LEADS TO SEPARATION AND FOR MA TION OF ACIDS DURING

STOR AGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during stor age.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil. (See “ENGINE” in the Maintenance section of

this man ual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to “START” position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE EN GINE AND

EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

Will not start 1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section.

3. Engine flooded. 3. Wait several minutes before attempting to start.

4. Bad spark plug. 4. Replace spark plug.

5. Weak or dead battery. 5. Recharge or replace battery.

6. Dirty air filter. 6. Clean/replace air filter.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Water in fuel. 8. Empty fuel tank and carburetor, refill tank with

fresh gasoline and replace fuel filter.

9. Loose or damaged wiring. 9. Check all wiring.

10. Carburetor out of adjustment. 10. See “To Adjust Carburetor” in Service Adjust

ments section.

11. Engine valves out of adjustment. 11. Contact an authorized service center/

department.

Hard to start 1. Dirty air filter. 1. Clean/replace air filter.

2. Bad spark plug. 2. Replace spark plug.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Dirty fuel filter. 4. Replace fuel filter.

5. Stale or dirty fuel. 5. Empty fuel tank and refill tank with fresh, clean

gasoline.

6. Loose or damaged wiring. 6. Check all wiring.

7. Carburetor out of adjustment. 7. See “To Adjust Carburetor” in Service Adjust

ments section.

8. Engine valves out of adjustment. 8. Contact an authorized service center/

department.

Engine will not 1. Brake pedal not depressed. 1. Depress brake pedal.

turn over 2. Attachment clutch is engaged. 2. Disengage attachment clutch.

3. Weak or dead battery. 3. Recharge or replace battery.

4. Blown fuse. 4. Replace fuse.

5. Corroded battery terminals. 5. Clean battery terminals.

6. Loose or damaged wiring. 6. Check all wiring.

7. Faulty ignition switch. 7. Check/replace ignition switch.

8. Faulty solenoid or starter. 8. Check/replace solenoid or starter.

9. Faulty operator presence switch(es). 9. Contact an authorized service center/

department.

Engine clicks but 1. Weak or dead battery. 1. Recharge or replace battery.

will not start 2. Corroded battery terminals. 2. Clean battery terminals.

3. Loose or damaged wiring. 3. Check all wiring.

4. Faulty solenoid or starter. 4. Check/replace solenoid or starter.

Loss of power 1. Cutting too much grass/too fast. 1. Raise cutting height/reduce speed.

2. Throttle in “CHOKE” position. 2. Adjust throttle control.

3. Build-up of grass, leaves and trash under mower. 3. Clean underside of mower housing.

4. Dirty air filter. 4. Clean/replace air filter.

5. Low oil level/dirty oil. 5. Check oil level/change oil.

6. Faulty spark plug. 6. Clean and regap or change spark plug.

7. Dirty fuel filter. 7. Replace fuel filter.

8. Stale or dirty fuel. 8. Empty fuel tank and refill tank with fresh, clean

gasoline.

9. Water in fuel. 9. Empty fuel tank and carburetor, refill tank with

fresh gasoline and replace fuel filter.

10. Spark plug wire loose. 10. Connect and tighten spark plug wire.

11. Dirty engine air screen/fins. 11. Clean engine air screen/fins.

12. Dirty/clogged muffler. 12. Clean/replace muffler.

13. Loose or damaged wiring. 13. Check all wiring.

14. Carburetor out of adjustment. 14. See “To Adjust Carburetor” in Service Adjust

ments section.

15. Engine valves out of adjustment. 15. Contact an authorized service center/

department.

Excessive vibration 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Bent blade mandrel. 2. Replace blade mandrel.

3. Loose/damaged part(s). 3. Tighten loose part(s). Replace damaged parts.

PROBLEM CAUSE CORRECTION

TROUBLESHOOTING POINTS

Engine dies when 1. Reverse operation system 1. Turn ignition key to

tractor is shifted (ROS) is not "ON" while ROS "ON" position.

into reverse mower or other attachment See Operation section.

is engaged.

Engine continues to 1. Faulty operator-safety presence control system. 1. Check wiring, switches and connections. If not

run when operator corrected, contact an authorized service center/

leaves seat with department.

attachment clutch

engaged

Poor cut - uneven 1. Worn, bent or loose blade. 1. Replace blade. Tighten blade bolt.

2. Mower deck not level. 2. Level mower deck.

3. Buildup of grass, leaves, and trash under mower. 3. Clean underside of mower housing.

4. Bent blade mandrel. 4. Replace blade mandrel.

5. Clogged mower deck vent holes from buildup of 5. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Mower blades will not 1. Obstruction in clutch mechanism. 1. Remove obstruction.

rotate 2. Worn/damaged mower drive belt. 2. Replace mower drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow. 1. Place throttle control in “FAST” position.

2. Travel speed too fast. 2. Shift to slower speed.

3. Wet grass. 3. Allow grass to dry before mowing.

4. Mower deck not level. 4. Level mower deck.

5. Low/uneven tire air pressure. 5. Check tires for proper air pressure.

6. Worn, bent or loose blade. 6. Replace blade. Tighten blade bolt.

7. Buildup of grass, leaves and trash under mower. 7. Clean underside of mower housing.

8. Mower drive belt worn. 8. Replace mower drive belt.

9. Blades improperly installed. 9. Reinstall blades sharp edge down.

10. Improper blades used. 10. Replace with blades listed in this manual.

11. Clogged mower deck vent holes from buildup of 11. Clean around mandrels to open vent holes.

grass, leaves, and trash around mandrels.

Headlight(s) not 1. Light switch is “OFF”. 1. Turn light switch “ON”.

working 2. Bulb(s) or lamp(s) burned out. 2. Replace bulb(s) or lamp(s).

(if so equipped) 3. Faulty light switch. 3. Check/replace light switch.

4. Loose or damaged wiring. 4. Check wiring and connections.

5. Blown fuse. 5. Replace fuse.

Battery will not charge 1. Bad battery cell(s). 1. Replace battery.

2. Poor cable connections. 2. Check/clean all connections.

3. Faulty regulator (if so equipped). 3. Replace regulator.

4. Faulty alternator. 4. Replace alternator.

Loss of drive 1. Freewheel control in “disengaged” position. 1. Place freewheel control in “engaged” position.

2. Motion drive belt worn, damaged, or broken. 2. Replace motion drive belt.

3. Air trapped in transmission during shipment 3. Purge transmission.

or servicing.

Engine “backfires” 1. Engine throttle control not set between half and 1. Move throttle control between half and full speed

when turning full speed (fast) position before stopping engine. (fast) position before stopping engine.

engine “OFF”

PROBLEM CAUSE CORRECTION

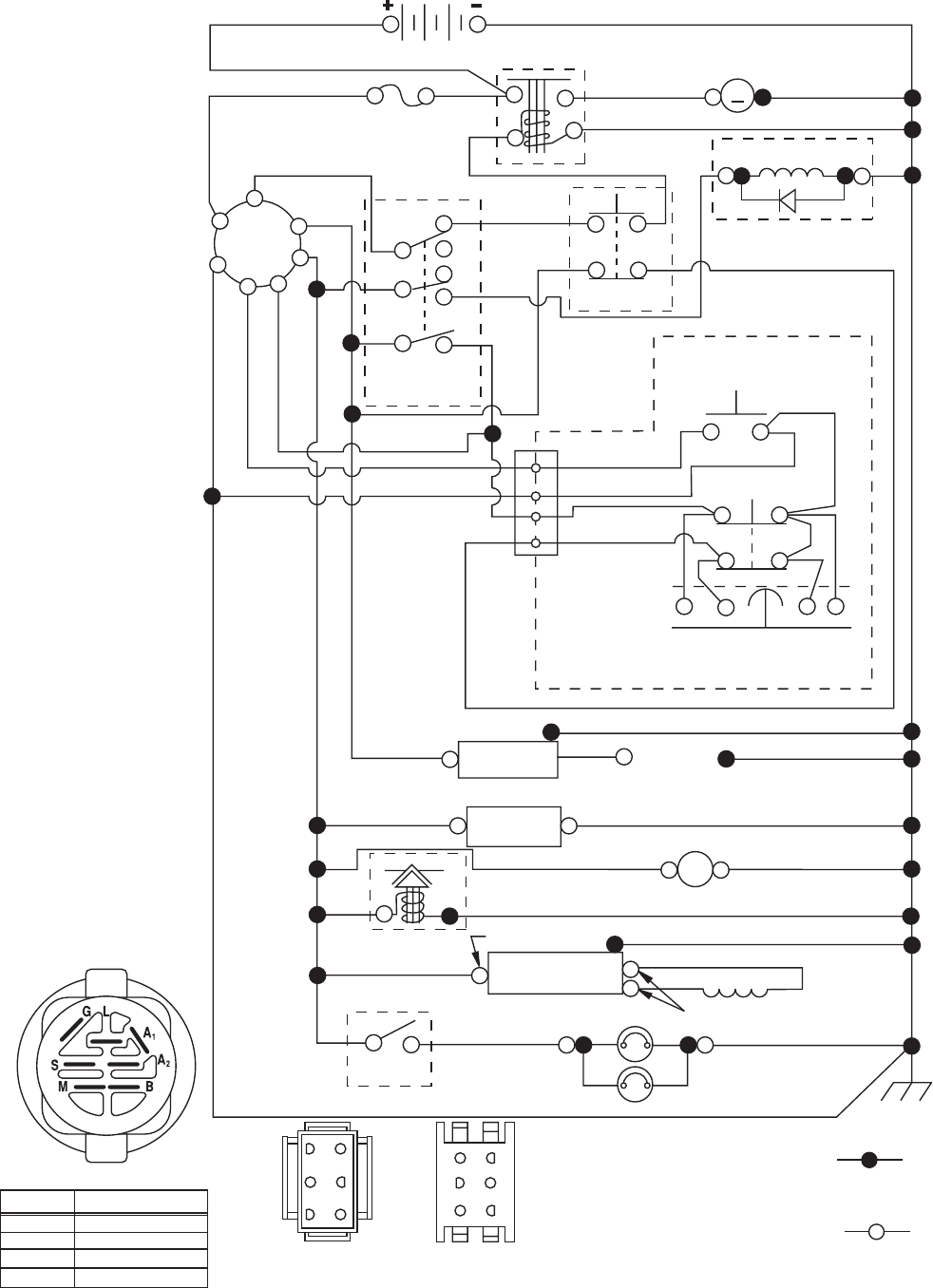

FUSE

STARTER

SOLENOID

BATTERY

ELECTRIC CLUTCH

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

REGULATOR

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

STATOR

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IFSOEQUIPPED)

JUNCTION

CONNECTOR

PTO SWITCH

(DISENGAGED)

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

16 AMP DC @ 36 RPM

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

02929-194276_Regulated-Tex

IGNITION SWITCH

CIRCUITPOSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

02929

BLACK

BLACK /WHITE

ORANGE

RED

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

RED

RED RED

RED

WHITE

GRAY

BLACK

POWER OUTLET

(IF SO EQUIPPED)

12V

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

SCHEMATIC

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

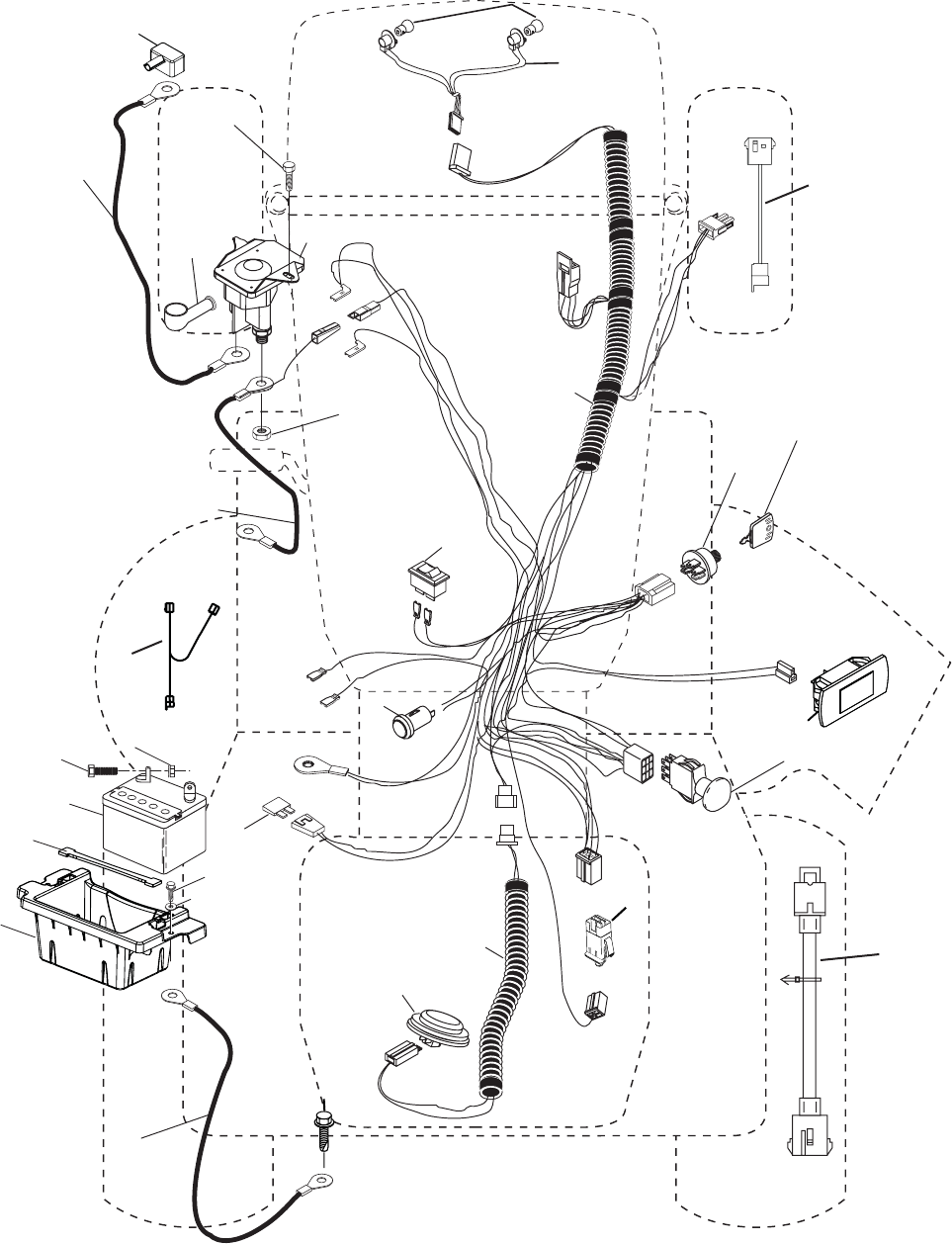

ELECTRICAL

194276D

Battery _28

100

4646

101

102

103

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 19 88-93 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 14 54-91 Cable Ground 21" Blk 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 14 04-01 Key Ign Molded Generic

34 532 11 07-12 Switch Light/Reset

40 532 40 11-04 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 49 05-12 Screw Thdrol 5/16-18 x 3/4

59 532 40 03-03 Outlet 12-Volt

71 532 19 42-76 Harness Ign

90 532 40 07-24 Cover Terminal Battery

91 532 19 02-70 Strap Battery

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.

101 532 19 83-17 Pigtail MATNLK

102 532 40 44-54 Harness Pigtail K46 Tex ROS

103 532 40 79-62 Harness Pigtail 12V Outlet

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

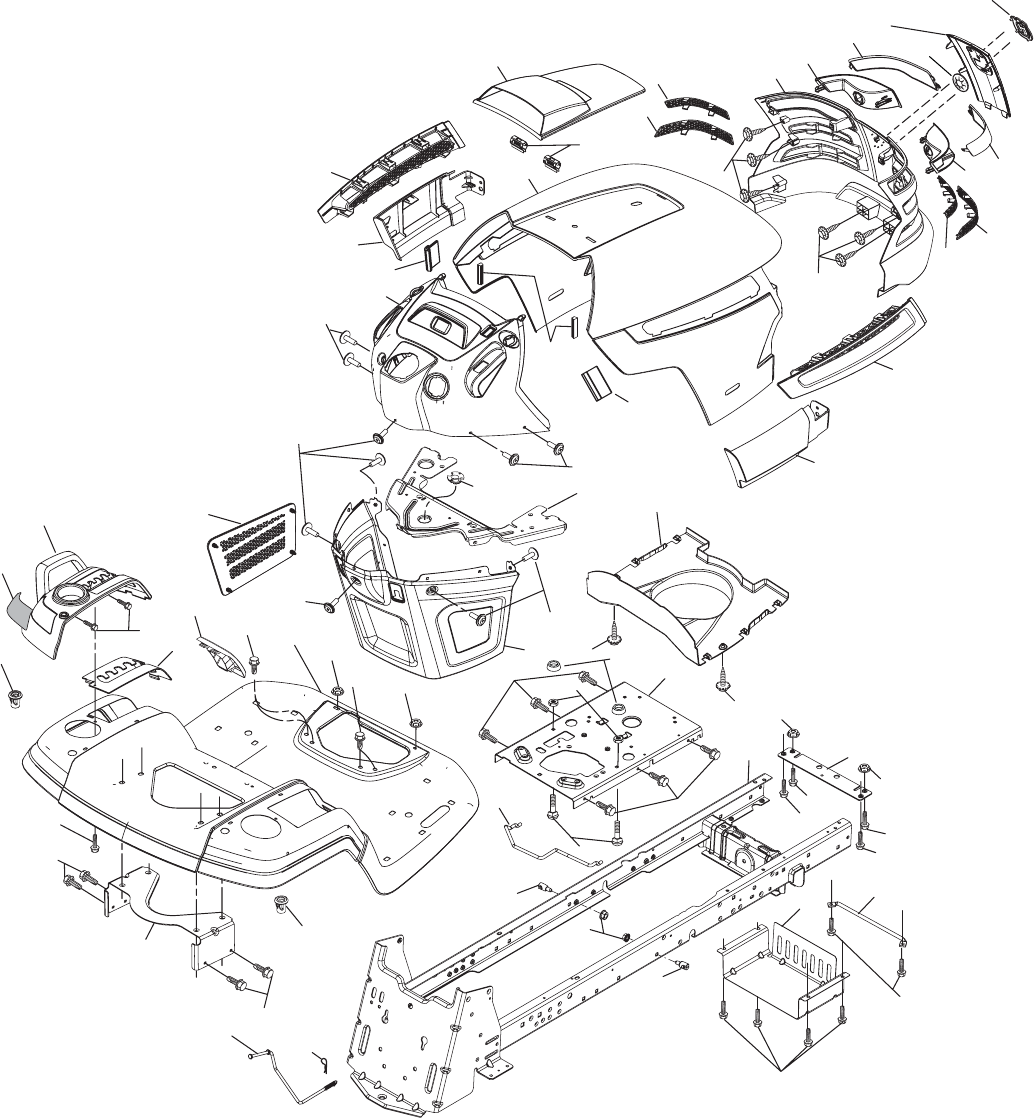

CHASSIS







































































































 







CHASSISTEX?GTHUSQ



137

234

238







TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

CHASSIS

KEY PART

NO. NO. DESCRIPTION

3 532 40 50-12 Logo

5 532 40 87-01 Dash

14 532 41 10-46 Hood

15 532 19 89-07 Lens LH

18 532 40 86-07 Grille

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

37 532 40 18-25 Fender

52 873 68-05-00 Nut Crown Lock 5/16-18

58 532 19 43-14 Bracket Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

99 532 40 59-17 Rod Bypass Asm.

102 532 12 47-88 Retainer Spring 1"

130 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

137 532 40 75-90 Bumper Dash

139 817 49 05-08 Screw 5/16-18 x 1/2

150 532 19 85-12 Duct Heat Hood

152 532 19 95-35 Shield Browning/Debris

156 817 06 05-12 Screw 5/16-18 x 3/4

161 532 40 18-26 Console Fuel Window

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

165 532 19 68-26 Bracket Support Tank

175 532 19 63-04 Crossmember

176 532 19 32-32 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Asm. Net

180 532 40 15-59 Chassis

181 532 40 30-25 Bushing Mtg. Fender Crgo.

182 532 19 47-87 Dash Lower

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

183 873 47 85-20 Bolt 5/16-18 UNC x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 80 05-00 Nut Lock Hex Flange 5/16-18

196 532 40 02-99 Console Asm. Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 40 30-48 Vent Side Hood RH

203 532 40 30-76 Vent Side Hood LH

204 532 19 89-04 Vent Asm Hood Top

205 532 40 17-09 Skirt Hood Side RH

206 532 40 17-11 Skirt Hood Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert Hex Top LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4

214 532 19 91-45 Clip Retainer

217 532 15 65-24 Rod Pivot

218 532 19 63-95 Hood Stop

219 532 19 51-61 Stud Fastener

221 532 19 89-09 Reflector LH

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18 UNC

238 532 40 86-06 Trim

239 532 11 04-52 Nut Push

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

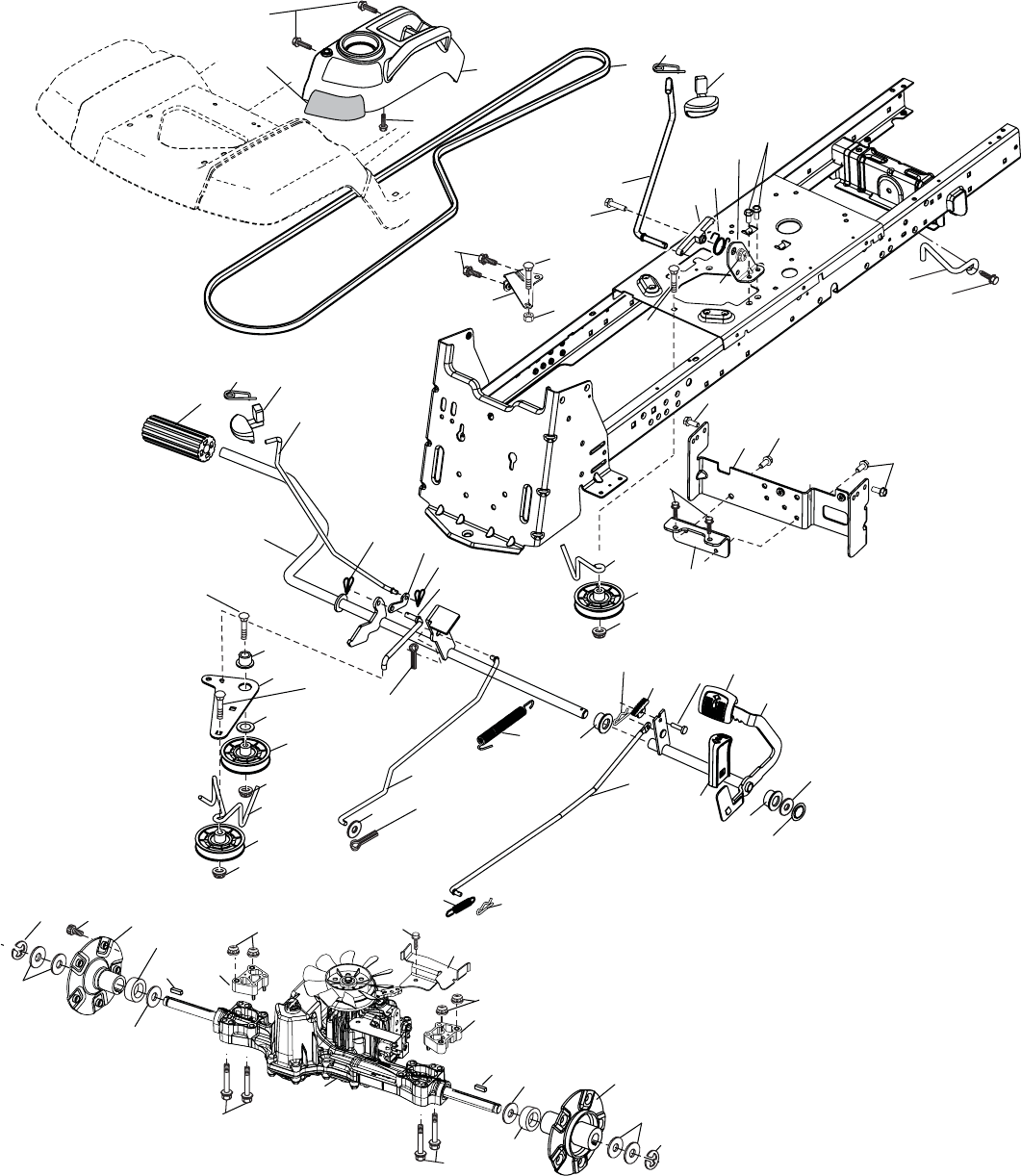

DRIVE

220

213

171

197

196

206

207

209

218

216 219

143

186

189

187

190

208

210

170

211

166

211

185 188

161

184

167

160

163

214

125

215

125

153

222

125

226

125

80 125

159

15 159

116

221

225

125

116

162

169

116

153

drive-tex_31-Husq TuffTorq

205

230

183

230

183

205

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 532 41 40-06 Transaxle, TUFFTORQ K46BN

2 532 18 62-11 Key 1/4 x 2.5

7 532 19 98-44 Hub Asm. Wheel

9 532 14 00-80 Bolt Hub Wheel

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

26 532 19 96-79 Spring Return Cruise

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 95-91 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 78-65 Shaft Asm. Pedal Brake Control

70 532 40 05-30 Control Asm.

74 532 14 24-32 Screw 1/4 x 1/2

80 532 40 44-83 Strap Torque

96 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring, Return, Clutch

162 532 19 57-85 Spacer Transaxle

163 532 40 10-34 Rod Pedal Control

166 532 19 72-90 Nut Push .625

167 532 40 52-57 Latch Brake Parking

169 874 49 05-60 Bolt Hex Flghd 5/16-18 x 3.75

170 532 19 43-22 Keeper Belt Centerspan

171 872 11 06-16 Bolt RDHD SQNK 3/8-16UNC x 2

183 532 40 04-24 Spacer Split

184 532 40 31-18 Handle Parking Brake

185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

196 817 00 06-16 Screw 3/8-16 x 1

197 532 19 97-69 Bracket Clutch Anti-Rotation

205 532 12 17-48 Washer

206 532 19 78-67 Bracket Mount Latch Cruise

207 532 19 78-68 Latch Control Cruise

208 532 19 78-69 Gear Sector Control Cruise

209 532 19 95-92 Rod Control Cruise

210 532 19 78-60 Rocker Asm. Pedal Control

211 532 12 01-83 Bearing Nylon

213 532 40 31-19 Knob Control Cruise

214 532 40 17-22 Pedal Forward

215 532 40 17-23 Pedal Reverse

216 532 19 61-31 Bracket Pulley Idler

218 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4

219 873 93 05-00 Nut Center Lock 5/16-18 UNC

220 532 19 89-08 Reflector RH

221 532 40 31-87 Retainer Spring Clip Handle

222 819 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.

225 532 40 33-19 Keeper Belt Trans.

226 532 40 08-31 Bracket Mount Touque

230 532 18 89-67 Washer

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

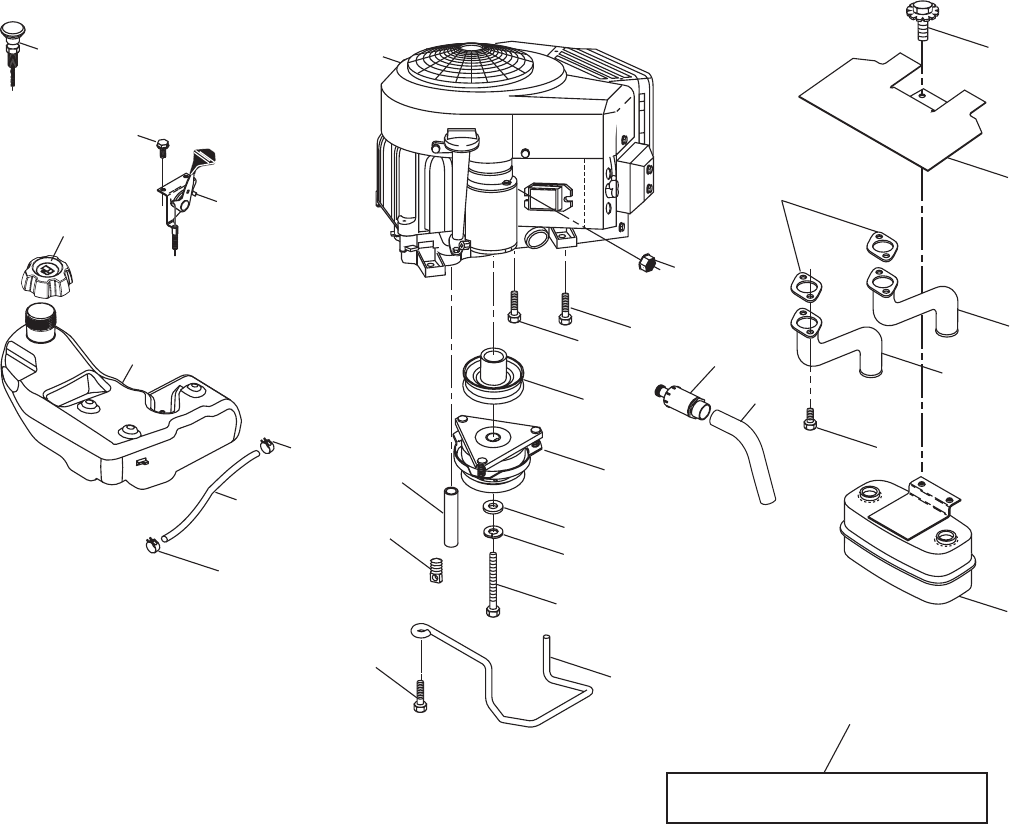

ENGINE

SPARK ARRESTER KIT

engine-tex_7-vgt

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

For engine service and replacement parts, call the toll free

number for your engine manufacturer listed below:

Briggs & Stratton 1-800-233-3723

Kohler Co. 1-800-544-2444

Tecumseh Products 1-800-558-5402

Honda Engines 1-800-426-7701

Kawasaki 1-949-460-5688

1 - - - - - - Engine Briggs Model No. 445877

2 532 14 97-23 Muffler

9 532 19 43-20 Keeper Belt Engine

11 532 17 93-35 Clutch Electric

12 532 19 43-43 Pulley Engine

15 532 19 34-99 Tank Fuel 4.0

18 532 19 42-67 Cap Asm

20 532 17 83-85 Control Throttle

21 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

22 532 19 15-96 Control Choke

28 532 40 11-35 Fuel Line

29 532 13 71-80 Spark Arrester Kit

31 532 14 50-06 Clip Push-In

37 532 12 34-87 Clamp Hose

41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250

42 810 04 07-00 Washer Lock 7/16

45 873 51 04-00 Nut Keps Hex 1/4-20 unc

62 532 14 66-29 Shield Heat Muffler

69 532 16 53-91 Gasket

70 532 15 99-55 Tube Exhaust LH

KEY PART

NO. NO. DESCRIPTION

71 532 16 05-89 Tube Exhaust RH

79 532 18 39-06 Screw Socket Head 5/16-18 x 1

81 532 14 84-56 Tube Drain Oil Easy

82 532 18 16-54 Plug Drain Oil

84 817 06 06-20 Screw 3/8-16 x 1-1/4

85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5

87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems

90 817 00 06-16 Screw 3/8-16 x 1

91 532 18 74-95 Bushing

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

ENGINE

ENGINE POWER RATING INFORMATION

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-

neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and

corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,

among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-

ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the

gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or

net horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, ex-

haust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature,

humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton

may substitute an engine of higher rated power for this Series engine.

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

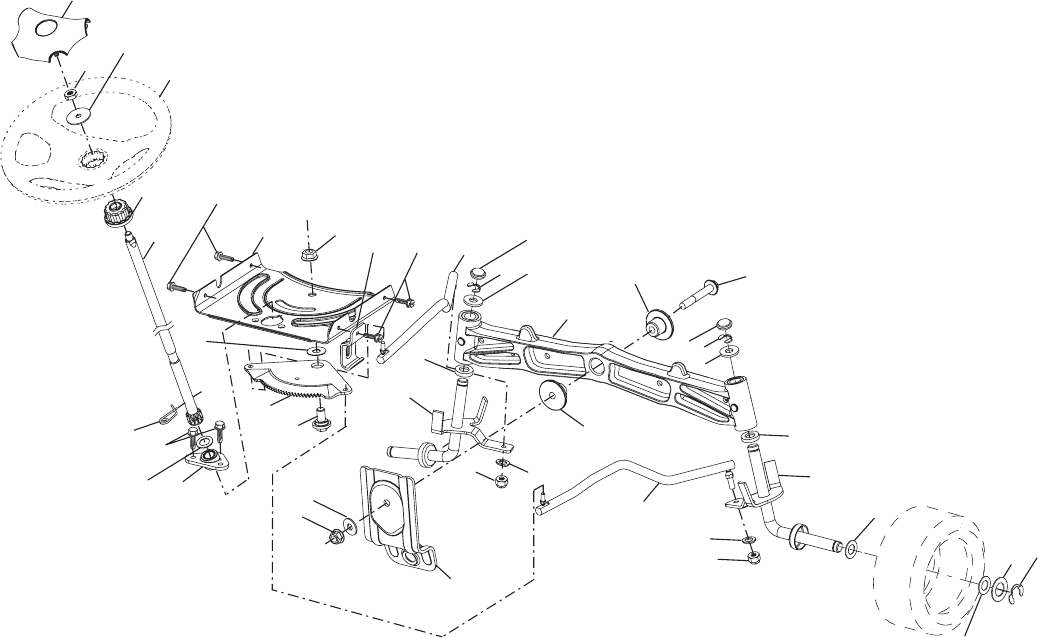

STEERING ASSEMBLY

53 8

16 19

13 22

67 66

steering-tex_4-husq

KEY PART

NO. NO. DESCRIPTION

1 532 19 39-43 Wheel, Steering

2 532 19 59-68 Axle Asm., Front

4 532 40 30-89 Spindle Asm., LH

5 532 40 30-90 Spindle Asm., RH

6 532 12 49-31 Bearing, Race Thrust Harden

7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

8 812 00 00-29 Ring, Klip #T5304-75

9 532 12 12-32 Cap, Spindle

13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8

15 873 54 06-00 Nut, Crown Lock 3/8-24 unf

16 532 40 82-19 Shaft Steering

19 532 19 47-29 Plate Steering

21 532 18 67-37 Adapter, Wheel Steering

22 532 19 48-45 Bushing, Strg. Blk

26 532 19 36-52 Insert, Wheel Steering

28 817 00 06-12 Screw 3/8-16 x 3/4

35 532 19 47-32 Gear, Sector Plate

45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga. NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf

53 532 18 89-67 Washer Hardened .793 x 1.637 x

.060

57 532 19 72-46 Bracket Upstop

58 532 19 47-47 Bolt Shoulder Sector Pivot CFM

59 532 19 47-48 Washer Thrust Sector Steering

60 873 97 10-00 Nut Flange Lock 5/8-11

61 532 19 47-40 Draglink LH

62 532 19 47-41 Draglink, RH

63 817 00 05-12 Screw 5/16-18 x 3/4

64 532 19 98-49 Retainer Clip Spring Steering

66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr

67 532 19 47-37 Bushing PM Front Axle

68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

69 532 19 91-62 Washer 1.5 x .505 x .118

70 532 19 61-97 Bracket Deck Susp. Front

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

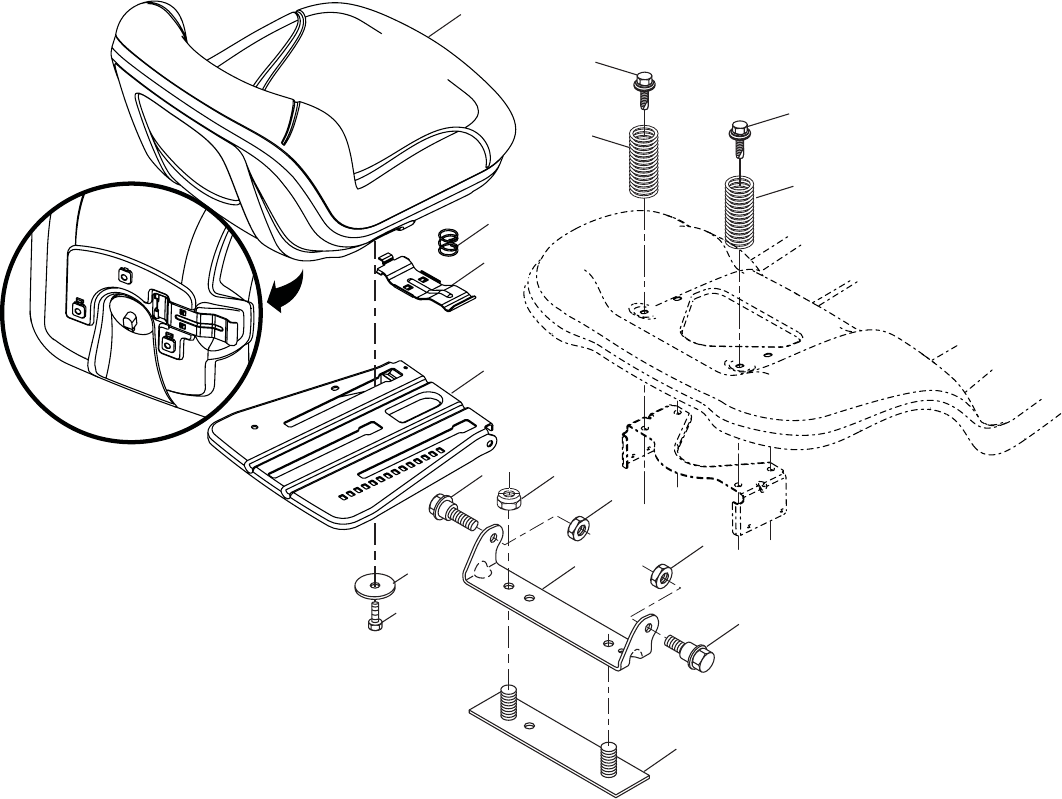

SEAT ASSEMBLY

1 532 40 66-21 Seat

2 532 18 01-66 Bracket Pivot Fender

3 532 14 06-75 Strap, Asm Fender

6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc

7 532 12 41-81 Spring, Seat Cprsn

8 532 17 18-77 Bolt 5/16-18 uncx 3/4 w/Sems

10 532 19 69-77 Pan, Seat

21 532 17 18-52 Bolt, Shoulder 5/16-18

37 873 80 05-00 Nut, Lock 5/16-18 unc

40 532 19 76-61 Handle Slide Seat

41 532 19 82-00 Spring Latch Seat

43 874 76 06-12 Bolt 3/8-16 x 3/4

44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

seat-tex_7-vgt

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

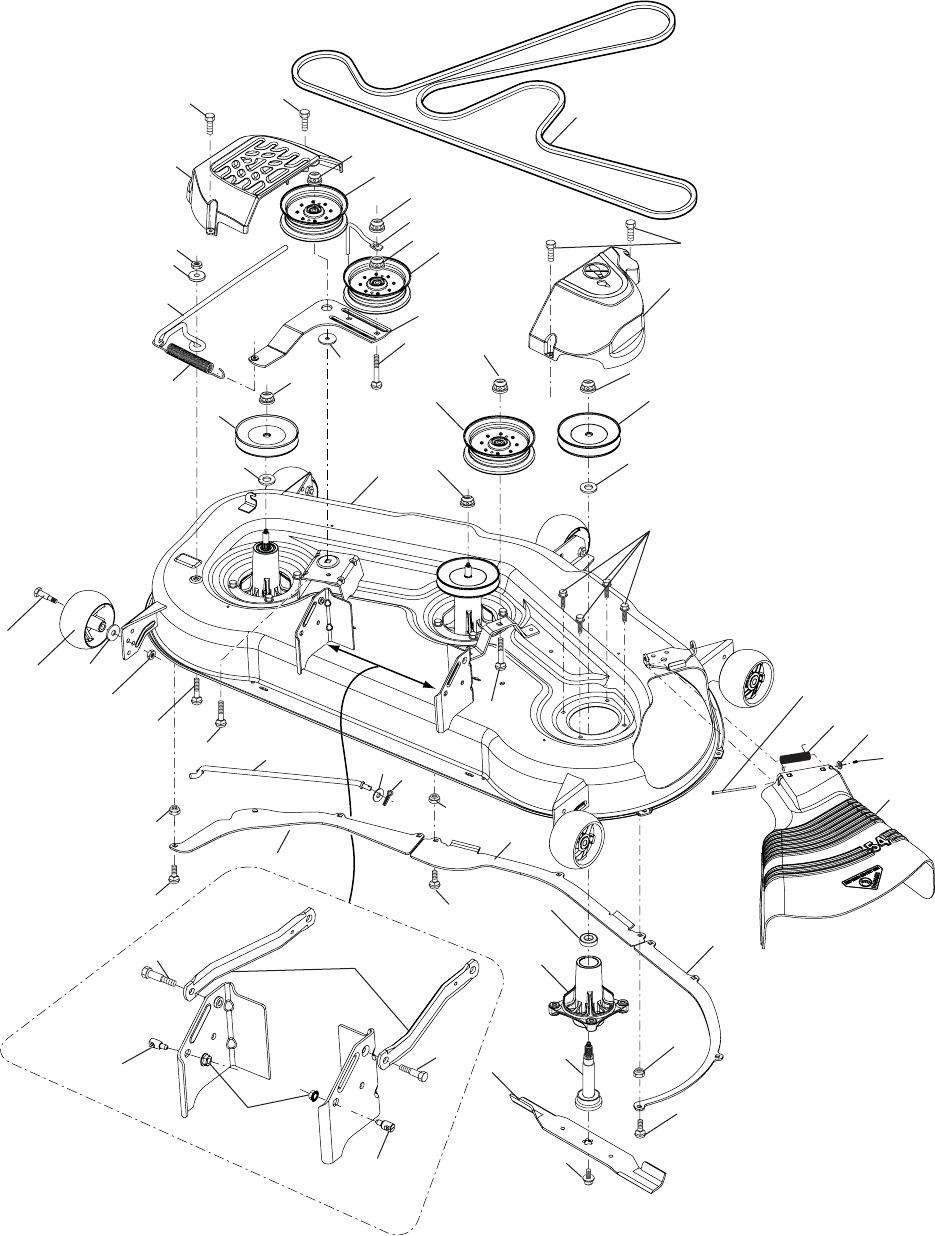

MOWER DECK

133

196

192

185

122

114

25 26

194

113

187

190

188

190

187

120

117

116

189

mower_deck 54-tex_3

16 19

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

MOWER DECK

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 532 40 31-25 Deck Weldment Mower

6 532 19 60-66 Cover Mandrel LH

7 532 19 71-81 Cover Mandrel RH

8 532 17 43-65 Bolt 7/16 Asm. Blade

11 532 18 72-56 Blade Bagging

- - 532 18 72-54 Blade Discharge

12 532 40 48-51 Rod Anti Sway

13 532 18 72-91 Shaft Asm. w/Lower Bearing

14 532 18 72-81 Housing, Mandrel

16 819 13 13-12 Washer 3/8

15 532 11 04-85 Bearing, Ball, Mandrel

18 872 14 05-05 Bolt Carriage 5/16-18 x 5/8

19 532 19 42-08 Pin Cotter 5/16 Bowtie

21 873 68 05-00 Nut, Crownlock 5/16-18 unc

24 532 10 53-04 Cap Sleeve

25 532 17 81-02 Spring, Torsion

26 532 11 04-52 Nut, Push

27 532 18 89-38 Deflector Shield

29 532 13 14-91 Rod, Hinge

30 532 17 39-84 Screw, Thdroll Washer Head

31 532 18 76-90 Washer, Spacer Mower Vented

32 532 17 34-36 Pulley, Mandrel

33 532 40 02-34 Nut, Flg. Top Lock

34 873 68 06-00 Nut Crownlock 3/8-16 unc

39 532 19 61-04 Pulley, Idler, Stationary LH

43 532 19 60-65 Arm, Idler

46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8

47 532 19 61-03 Belt Deck Drive

49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc

50 872 11 06-16 Bolt Rdhd Sqnk 3/8-16 unc x 2

52 532 19 61-06 Pulley Idler

58 532 18 73-42 Baffle Right

59 532 18 73-44 Baffle Left

60 532 18 76-07 Baffle Center

97 532 17 85-15 Washer Hardened

98 532 19 61-05 Spring Drive

113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4

114 532 18 75-56 Rod Tension Relief

116 532 19 34-06 Bolt, Shoulder

117 532 17 48-73 Gauge Wheel

120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.

122 532 18 75-57 Bushing Tension Relief

185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5

187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation

188 873 90 05-00 Nut Lock Hex Flange

189 532 19 51-85 Arm Susp. Mower Rear

190 532 19 65-39 Bolt Shoulder

192 532 19 84-68 Keeper Belt Idler

194 872 14 07-16 Bolt Carr Sqnk 7/16-24 x 2

196 872 14 06-20 Bolt Rdhd 3/8-16 x 2-1/2 Gr. 5

- - 532 18 72-92 Mandrel Asm. Service (Includes

Key Nos. 13-15 and 33)

- - 532 19 93-00 Replacement Mower, Complete

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

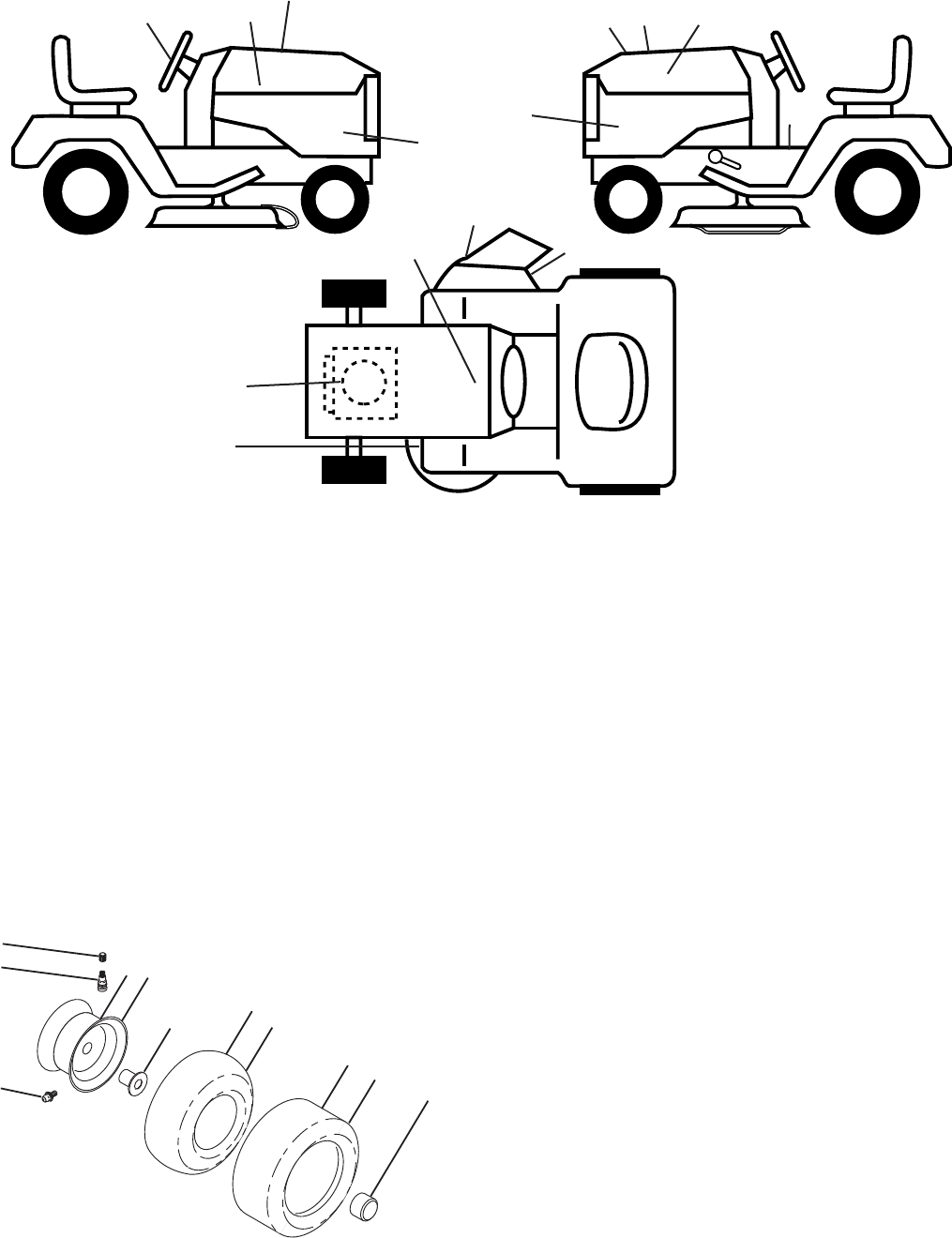

DECALS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

wheel_art_1-tex

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

16 16

1 532 05 91-92 Cap, Valve, Tire

2 532 06 51-39 Stem, Valve

3 532 14 45-09 Rim Assembly, Front

4 532 05 99-04 Tube, Front (Ser vice Item Only)

5 532 10 62-30 Tire, Front

6 532 12 49-57 Fitting, Grease (Front Wheel Only)

7 532 12 49-59 Bearing, Flange (Front Wheel Only)

8 532 17 50-39 Cap, Axle (Front Wheel Only)

9 532 18 47-08 Tire, Rear

10 532 12 49-26 Tube, Rear (Service Item Only)

11 532 40 17-82 Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 21-04 Decal, Operator's

2 532 40 21-28 Decal, Hood Insert

3 532 17 05-63 Decal, Warning

4 532 18 09-41 Decal, Hood Cust Resp

5 532 17 85-02 Decal, Caution

6 532 40 88-43 Decal, Eng. HP

8 532 19 87-85 Decal, Mower Sch.

9 532 14 50-05 Decal, Battery Dnge/Poi

13 532 40 44-84 Decal, Steering Whl

14 532 41 01-09 Decal, Panel Side

16 532 40 28-32 Decal, Hood Logo

17 532 41 06-29 Decal, Replacement

- - 532 16 69-60 Decal, Bypass

- - 532 40 17-71 Pad, Footrest, LH

- - 532 40 37-73 Pad, Footrest, RH

- - 532 41 07-08 Manual, Owner's (Eng)

- - 532 41 07-09 Manual, Owner's (Fr)

TRACTOR - MODEL NO. LGT2654 (96043003600), PRODUCT NO. 960 43 00-36

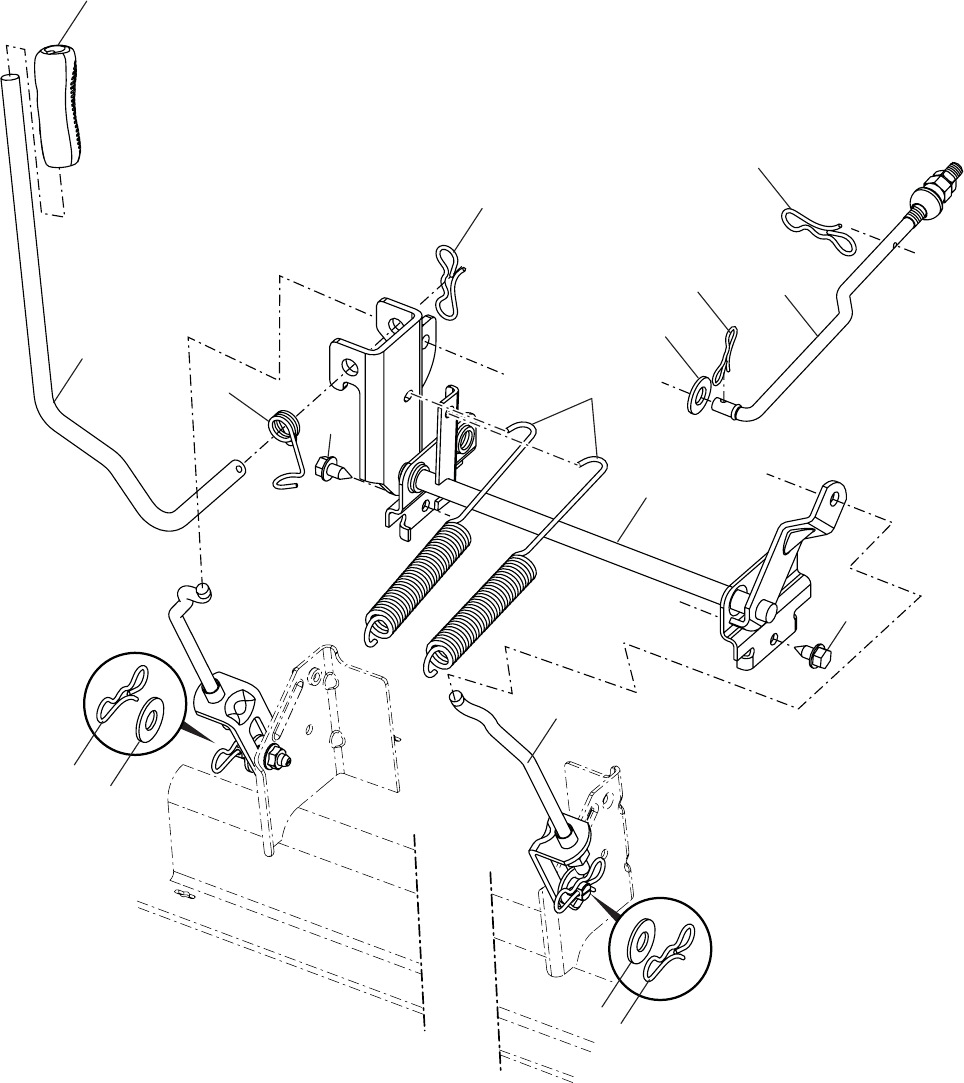

MOWER LIFT

10 88

lift-tex_3

2 532 19 52-23 Shaft Asm., Lift

3 532 19 52-30 Lever Asm., Lift Rh

7 532 41 15-55 Grip, Lever

10 532 19 63-14 Spring Torsion

87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock

88 532 19 53-04 Spring Lift Assist

89 819 19 19-12 Washer Clear Zinc

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock

91 532 40 34-07 Link Lift Susp Mower Rear

97 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z

98 532 19 52-64 Link Lift Susp. Front Mower

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company (“Husqvarna”) warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship from the date of purchase for the “Warranty Period” of the

product as set forth below:

Lifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held

prod uct.

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment—zero turn riders, wide area walks,

and ground engaging commercial equipment.

2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk

behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld blowers,

backpack blowers, hedge trimmers, electrical products and power-assist collection systems for non com mer cial,

nonprofessional, noninstitutional or nonincome producing use, except as herein stated.

Emission control system components necessary to comply with CARB-TIER-II and EPA regulations, except

for those components which are part of engine systems manufactured by third party engine manufacturers for

which the purchaser has received a separate warranty with product information supplied at time of purchase.

1 Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-pro-

fessional, non-institutional or non-income producing use. All trimmers, brushcutters, clearing saws, hovering

trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems

used for commercial, institutional, professional or income producing purposes or use.

Batteries have a one-year prorated limited warranty with 100% replacement during the first 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole pruners,

snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvarna

product used for commercial, institutional, professional, or income producing purposes or use except as oth-

erwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer’s original purchase for

defects in material and workmanship. Normal wear, tear or abuse is not covered under warranty. Product must

be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed

as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not covered under

warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.

SECTION 2: HUSQVARNA’S OBLIGATIONS UNDER THE WARRANTY

Husqvarna will repair or replace defective components without charge for parts or labor if a component fails

because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become worn through normal regular use, including, but not

limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw chain,

spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective

manufacturer’s warranty as provided in writing with the product information supplied at the time of pur-

chase; all claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for war-

ranty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB-TIER-II and EPA regulations

which are manufactured by third party engine manufacturer.

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner’s/Operator’s manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modifications that change the intended use of the product or affects the product’s per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY

OF THE PUR CHAS ER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUEN-

TIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN

DURATION TO THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT.

HUSQVARNA RE SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT

WITHOUT NO TICE, AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFAC-

TURED PROD UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as writ-

ten in the maintenance section of the Owner’s/Operator’s manual. Should an operational problem or failure

occur, the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation.

Proof of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner’s and Dealer’s responsibility to make certain that the Warranty Registration Card is properly

filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10)

days from the date of purchase in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty ser-

vice. This proof must include date purchased, model number, serial number, and complete name and address

of the selling dealer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner’s expense. Pick-up and delivery charges are

not covered by this warranty. An authorized Husqvarna dealer can be normally located through the “Yellow

Pages” of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

WARRANTY STATEMENT

15 DEGREES MAX.

FOLD ALONG DOTTED LINE

THIS IS A 15 DEGREE SLOPE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

SERVICE NOTES

532 41 07-08 Rev. 2 05.17.07 AP Printed in U.S.A.

Husqvarna Lgt2654 Owners Manual ManualsLib Makes It Easy To Find Manuals Online!

Navigation menu

Versions of this User Manual:

Views

Navigation
