Hyco Genyong Technology W562 Smart Watch ( with BT,WIFI) User Manual
Hyco Genyong Technology Co., Ltd. Smart Watch ( with BT,WIFI) Users Manual
User Manual
FCC ID:2ARHS-W562
Smart Watch
User Manual
Smart Watch User Manual
Disclaimer：
Please read through the manual carefully before using the product and operate it
according to the manual. It is advised that you should keep this manual for future
reference.
Do not disassemble the device or remove the seal label from the device. Otherwise,
Shanghai Hyco Genyong Technology Co., Ltd. does not assume responsibility for the
warranty or replacement.
The products depicted in this manual may include software copyrighted by Shanghai
Hyco Genyong Technology Co., Ltd. or a third party. The user, corporation or
individual, shall not duplicate, in whole or in part, distribute, modify, decompile,
disassemble, decode, reverse engineer, rent, transfer or sublicense such software
without prior written consent from the copyright holders.
Shanghai Hyco genyong Technology Co., Ltd. reserves the right to make final
interpretation of the statement above. .
http://www.hyco.cc
Smart Watch User Manual

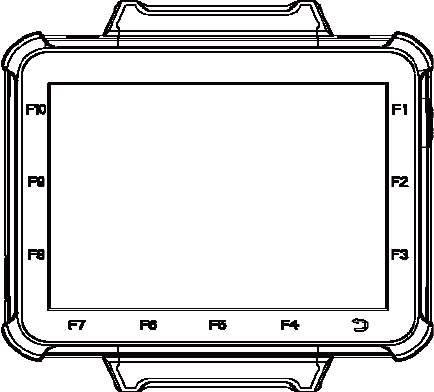

1.Design
Smart Watch User Manual

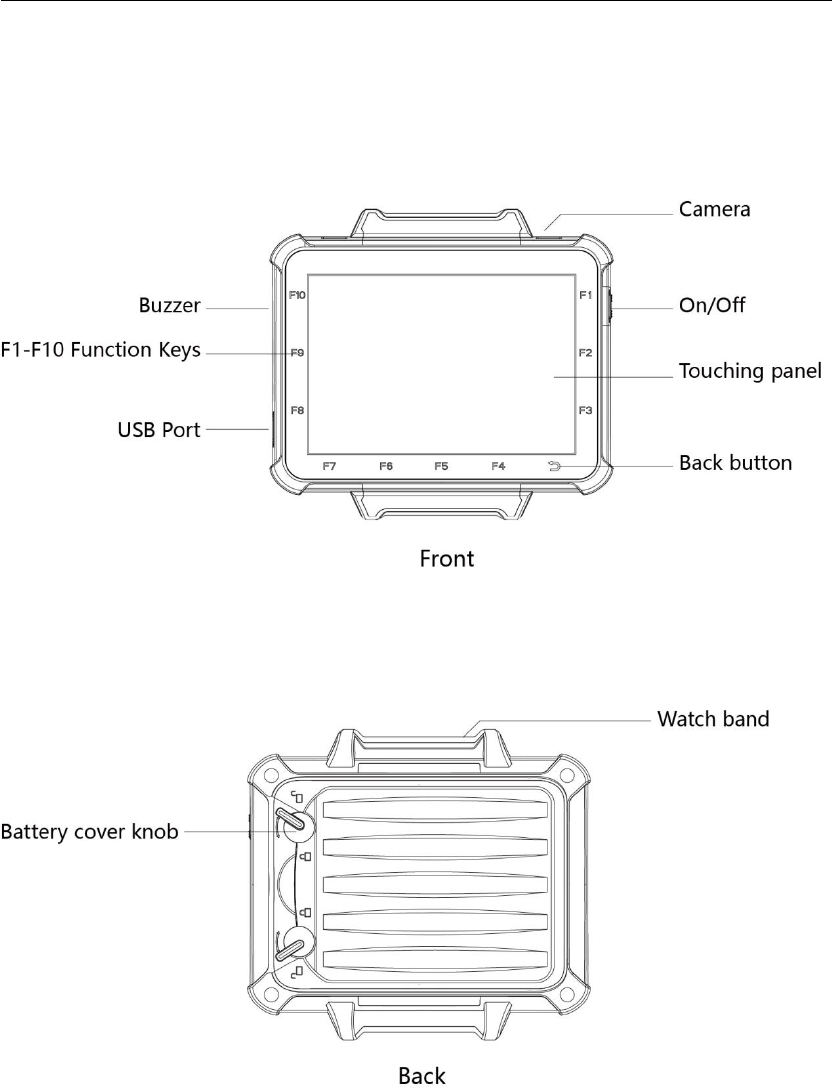

2.Components
3.Specifications
Weight
245g
Display
3.5 inch, image resolution 320*480
CPU
Quad core, 1.3GHz
ROM
16GB Flash
Operating System
Android 6.0
Function keys
10 functional touch keys, customizable
Touching Panel
Capacitive touching panel
Vibration Reminder
Yes
MIC
High sensitivity waterproofing
WiFi
802.11 a/b/g/n
Bluetooth
BT4.2 BLE+EDR
USB
USB 2.0
Battery
3600mA @3.8V
Operating Time
15 hrs
Wearing
At the left or right hand
IP Level
IP66
Operating temp
-10 ºC ~ +50ºC
Smart Watch User Manual
4.Functions
1.Power on/off
Long press the power button on the right side of watch for three seconds.
2.How to charge
Connect USB cable with adapter and watch, plug the adapter into power port.
Tips: it is recommended to charge watch after watch is switched off.

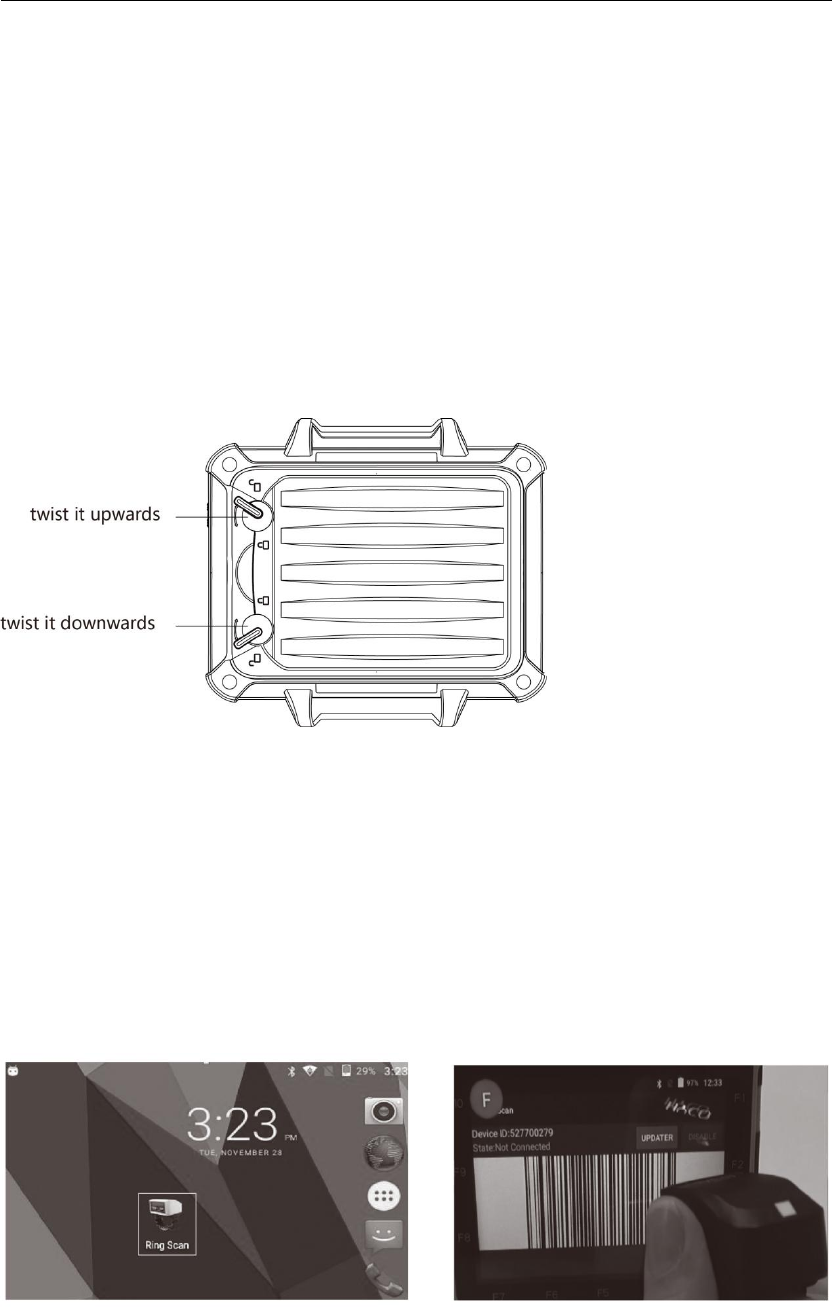

3.How to replace the battery
Twist the two battery locks and take the battery out of the watch, replace it with the
replacement battery. no
4、How to pair with ring scanner
Method 1:
Click the“Ring Connection”icon in the drop‐down menu or the“Ring Connection”
app on home page, scan the barcode as closely as possible, when the ring light turns
green, it will automatically jump back to home page and shows successful connection
icon on the top right corner in watch.
Smart Watch User Manual
Method 2:
2）In the Settings, click “Bluetooth ”, turn on the Bluetooth, choose the series
number printed on ring to connect, when the ring light turns on green, Bluetooth is
connected successfully.
5、How to connect with Bluetooth headset?
In the Settings, click “Bluetooth ”, turn on the Bluetooth, choose the Bluetooth
headset name to connect.
6、How to synchronize date and time
In the Settings, click the “Date and time" to set and synchronize the date and time.
7、How to export the scanning data into the text field in watch?
1）APP which is developed by HYCO could receive and display the scanning data from
ring directly.
2）APP which is not developed by HYCO and the Browser need to open the HID mode
in watch. How to open: In the Settings, click“Language and Input”, choose“Google
Pinyin IME”to activate HID mode. Scanning data could be exported to any text field
in watch after HID activated.
8、Input method setting
Click “Language and Input”, choose and change the keyboard mode in the current
keyboard list.
9、How to change on‐screen keyboard color?
In the Settings, click the “Language and Input”, then choose the “Keyboard & Input
methods”‐‐“Current Keyboard”‐‐select “Google Pinyin IME”, choose the color of
keyboard font (white, black, blue, yellow, red, green) in the “Google Pinyin IME”to
differentiate the background color of the interface.
10、How to uninstall the APP
1）Press and drag the APP icon to “Recycle Bin”on home page
2）In the Settings –choose and click the app you want –click uninstall.
11、USB debugging setting
Steps:
Click the “Settings”‐System‐Developer Options‐Debugging‐USB debugging, click
“confirm ”to activate the debugging mode. It is only used when user needs to
develop procedures or install procedures from PC into watch.
12、How to upgrade system?
Upgrade system online, steps: Settings ‐about Smart Watch ‐System Upgrade ‐
Check Now ‐Choose new system version to upgrade.
Smart Watch User Manual
SERVICE
1.Warranty: one year for smart watch, half year for battery and accessories.
2.Contact: junqi.zheng@hyco.cc
Notice
»The watch window must be kept clean. Improper usage will breach the limited
warranty clauses
»Avoid rough objects scratching the window
»Remove stains from window by soft cloth
»Do not spray any liquid onto the window
»Use cleaning water to clean.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or changes could
void the user’s authority to operate the equipment.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
‐ Reorient or relocate the receiving antenna.
‐ Increase the separation between the equipment and receiver.
‐Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
‐Consult the dealer or an experienced radio/TV technician for help.
The SAR limit of USA (FCC) is next to mouth1.6 W/kg and wrist worn 4.0W/kg averaged over
one gram of tissue. Device types Smart Watch (FCC ID: 2ARHS-W562) has also been tested
against this SAR limit. The highest SAR value reported under this standard during product
certification for use when properly worn Next to mouth is 0.115W/kg and for wrist-wore is 0.576
W/kg.
