Hydration Labs RF-1031 TABLET PC User Manual GL3966 Design Spec

Hydration Labs, Inc. TABLET PC GL3966 Design Spec

User manual

RF-1031 Operational Guide Document Version V2.0 Total Pages 10 Issued Date 20160907

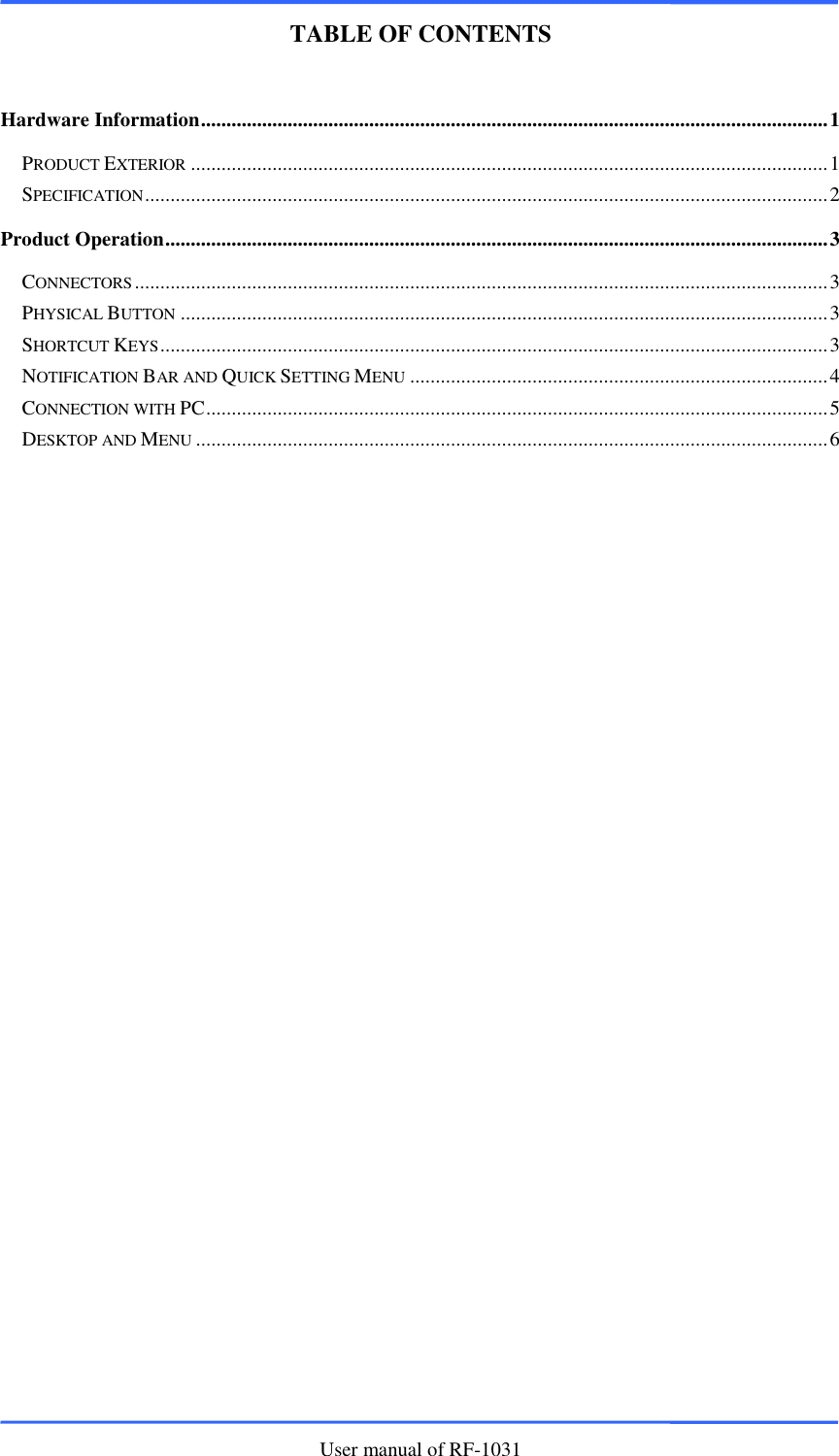

User manual of RF-1031 TABLE OF CONTENTS Hardware Information ........................................................................................................................... 1 PRODUCT EXTERIOR ............................................................................................................................. 1 SPECIFICATION ...................................................................................................................................... 2 Product Operation .................................................................................................................................. 3 CONNECTORS ........................................................................................................................................ 3 PHYSICAL BUTTON ............................................................................................................................... 3 SHORTCUT KEYS ................................................................................................................................... 3 NOTIFICATION BAR AND QUICK SETTING MENU .................................................................................. 4 CONNECTION WITH PC .......................................................................................................................... 5 DESKTOP AND MENU ............................................................................................................................ 6

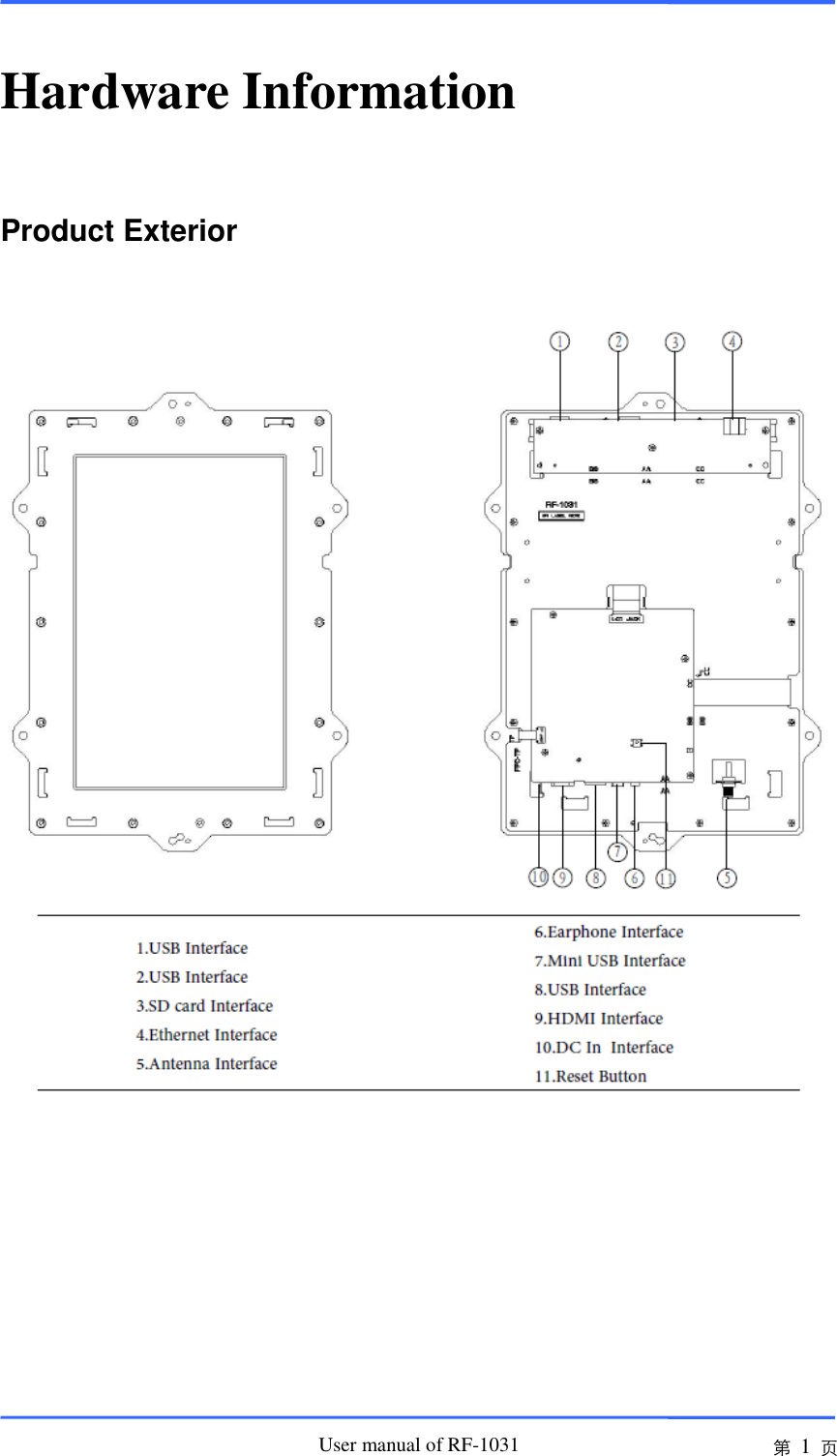

User manual of RF-1031 第 1 页 Hardware Information Product Exterior

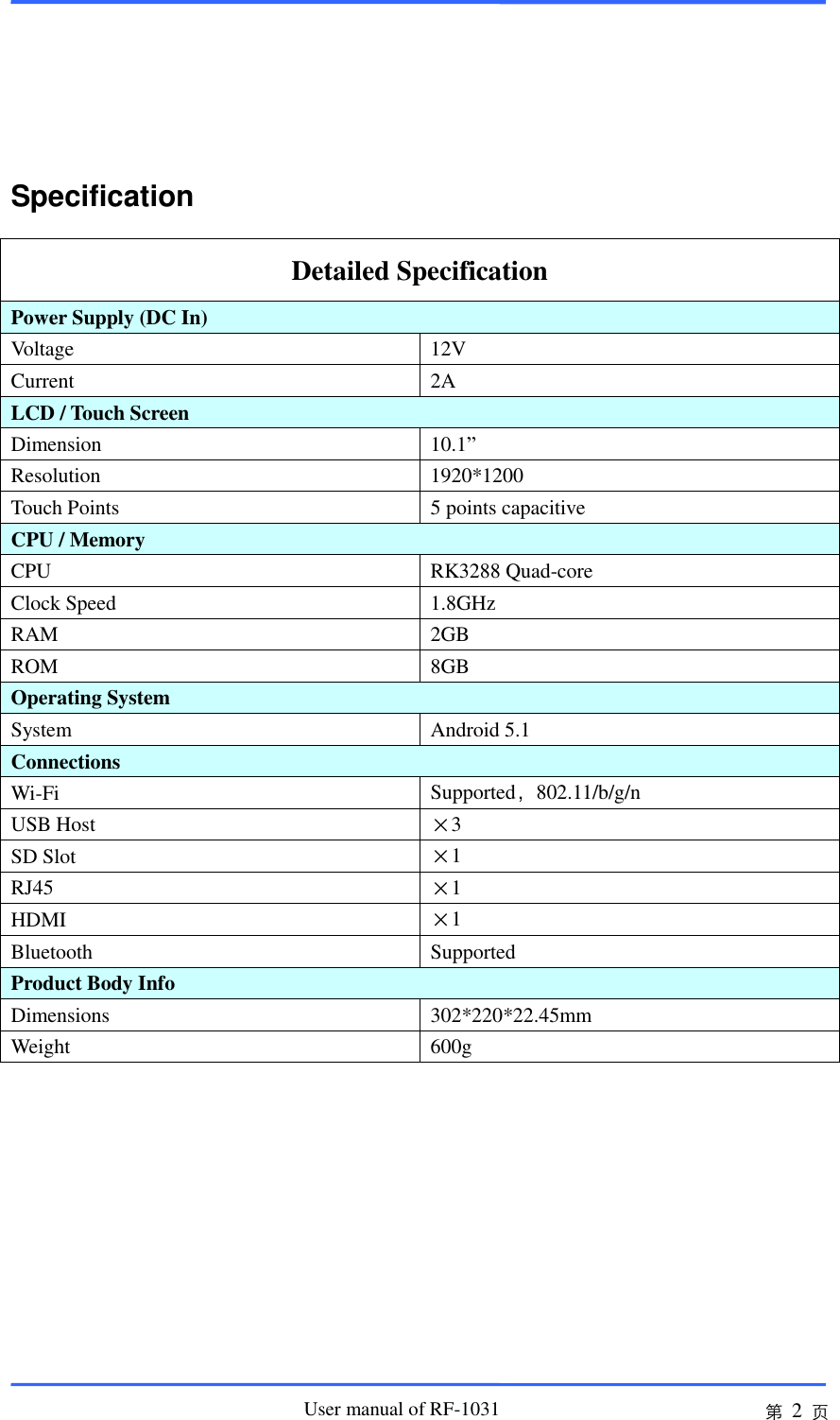

User manual of RF-1031 第 2 页 Specification Detailed Specification Power Supply (DC In) Voltage 12V Current 2A LCD / Touch Screen Dimension 10.1” Resolution 1920*1200 Touch Points 5 points capacitive CPU / Memory CPU RK3288 Quad-core Clock Speed 1.8GHz RAM 2GB ROM 8GB Operating System System Android 5.1 Connections Wi-Fi Supported，802.11/b/g/n USB Host ×3 SD Slot ×1 RJ45 ×1 HDMI ×1 Bluetooth Supported Product Body Info Dimensions 302*220*22.45mm Weight 600g

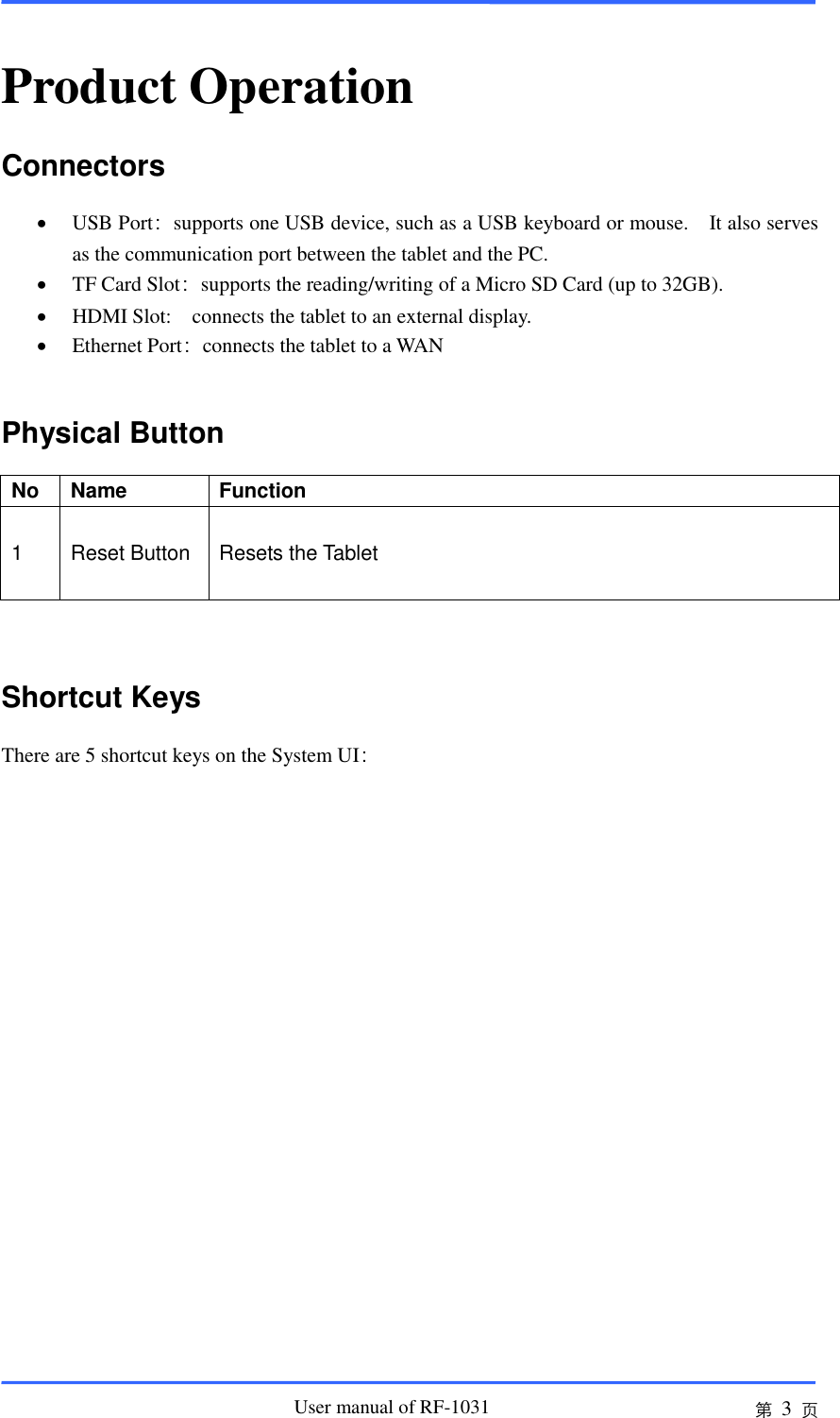

User manual of RF-1031 第 3 页 Product Operation Connectors  USB Port：supports one USB device, such as a USB keyboard or mouse. It also serves as the communication port between the tablet and the PC.  TF Card Slot：supports the reading/writing of a Micro SD Card (up to 32GB).  HDMI Slot: connects the tablet to an external display.  Ethernet Port：connects the tablet to a WAN Physical Button No Name Function 1 Reset Button Resets the Tablet Shortcut Keys There are 5 shortcut keys on the System UI：

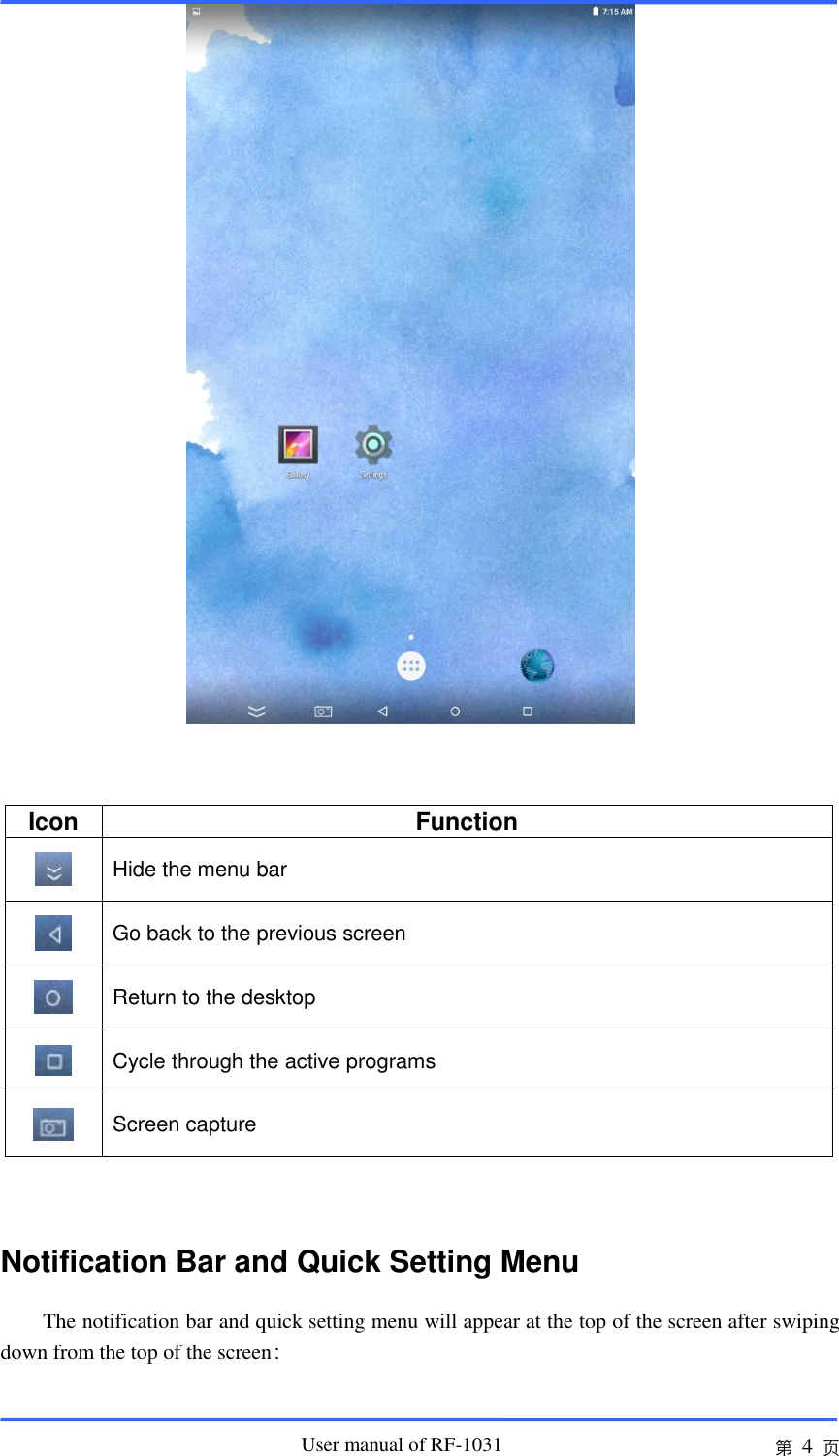

User manual of RF-1031 第 4 页 Notification Bar and Quick Setting Menu The notification bar and quick setting menu will appear at the top of the screen after swiping down from the top of the screen： Icon Function Hide the menu bar Go back to the previous screen Return to the desktop Cycle through the active programs Screen capture

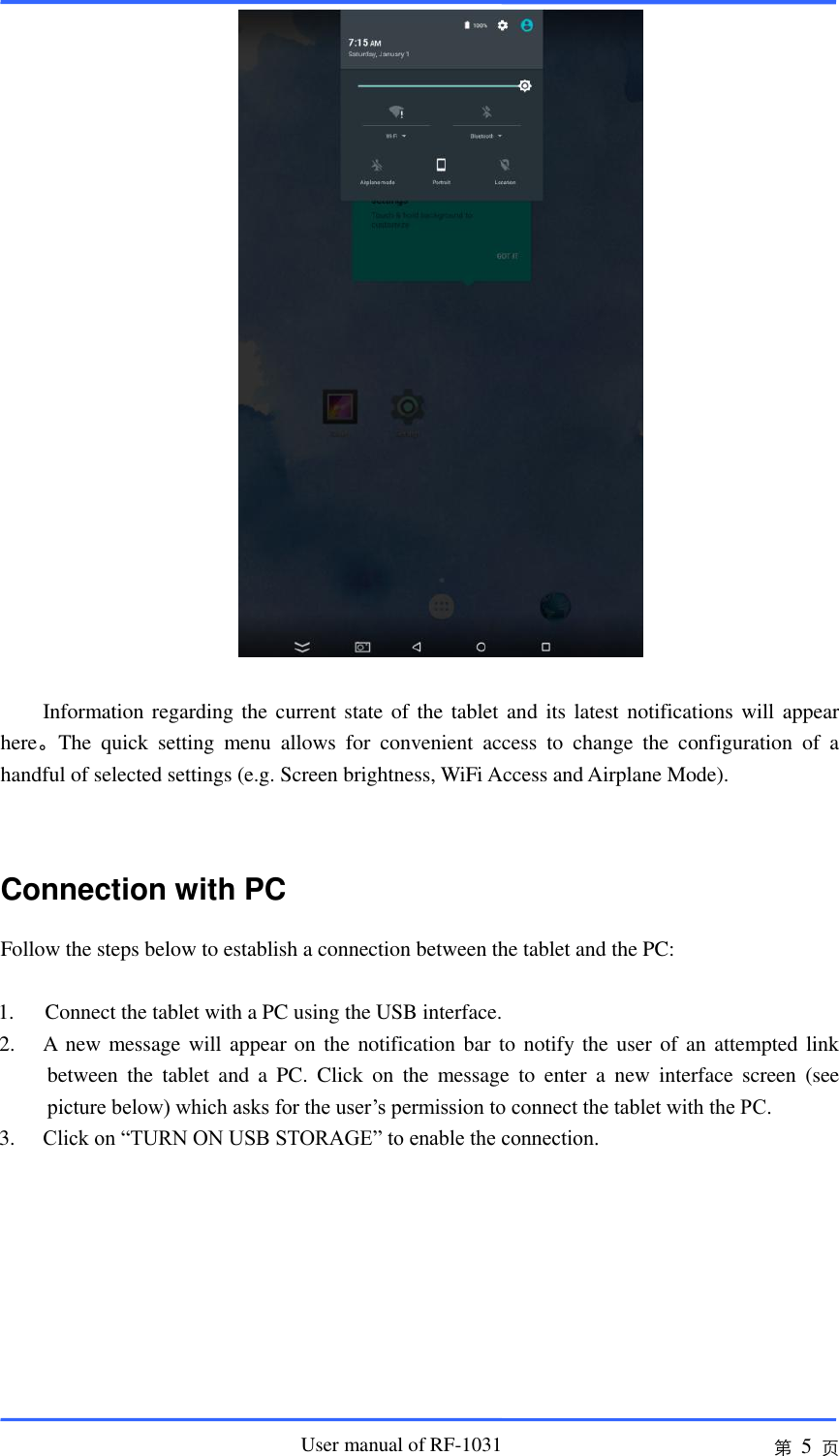

User manual of RF-1031 第 5 页 Information regarding the current state of the tablet and its latest notifications will appear here。The quick setting menu allows for convenient access to change the configuration of a handful of selected settings (e.g. Screen brightness, WiFi Access and Airplane Mode). Connection with PC Follow the steps below to establish a connection between the tablet and the PC: 1. Connect the tablet with a PC using the USB interface. 2. A new message will appear on the notification bar to notify the user of an attempted link between the tablet and a PC. Click on the message to enter a new interface screen (see picture below) which asks for the user’s permission to connect the tablet with the PC. 3. Click on “TURN ON USB STORAGE” to enable the connection.

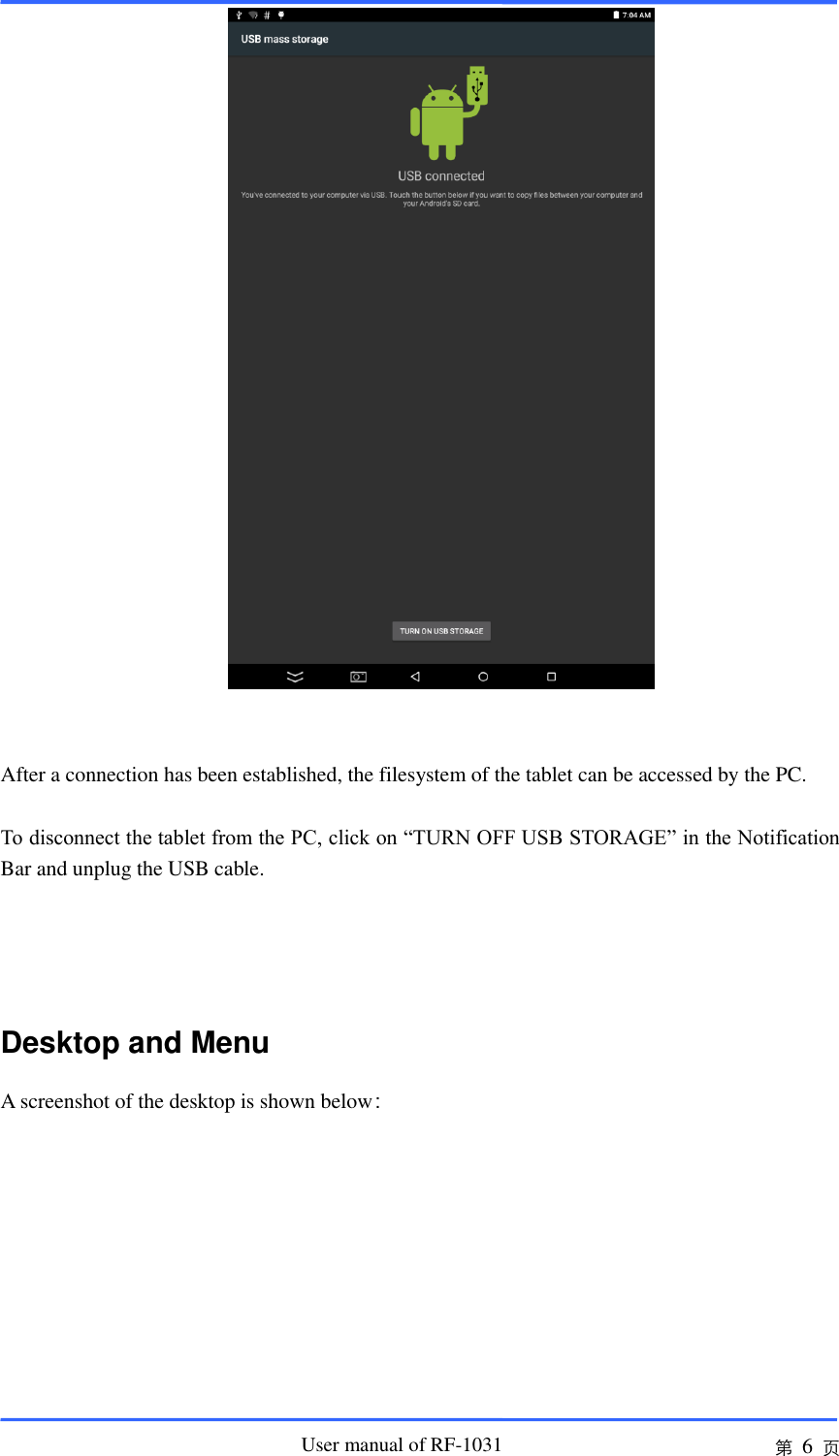

User manual of RF-1031 第 6 页 After a connection has been established, the filesystem of the tablet can be accessed by the PC. To disconnect the tablet from the PC, click on “TURN OFF USB STORAGE” in the Notification Bar and unplug the USB cable. Desktop and Menu A screenshot of the desktop is shown below：

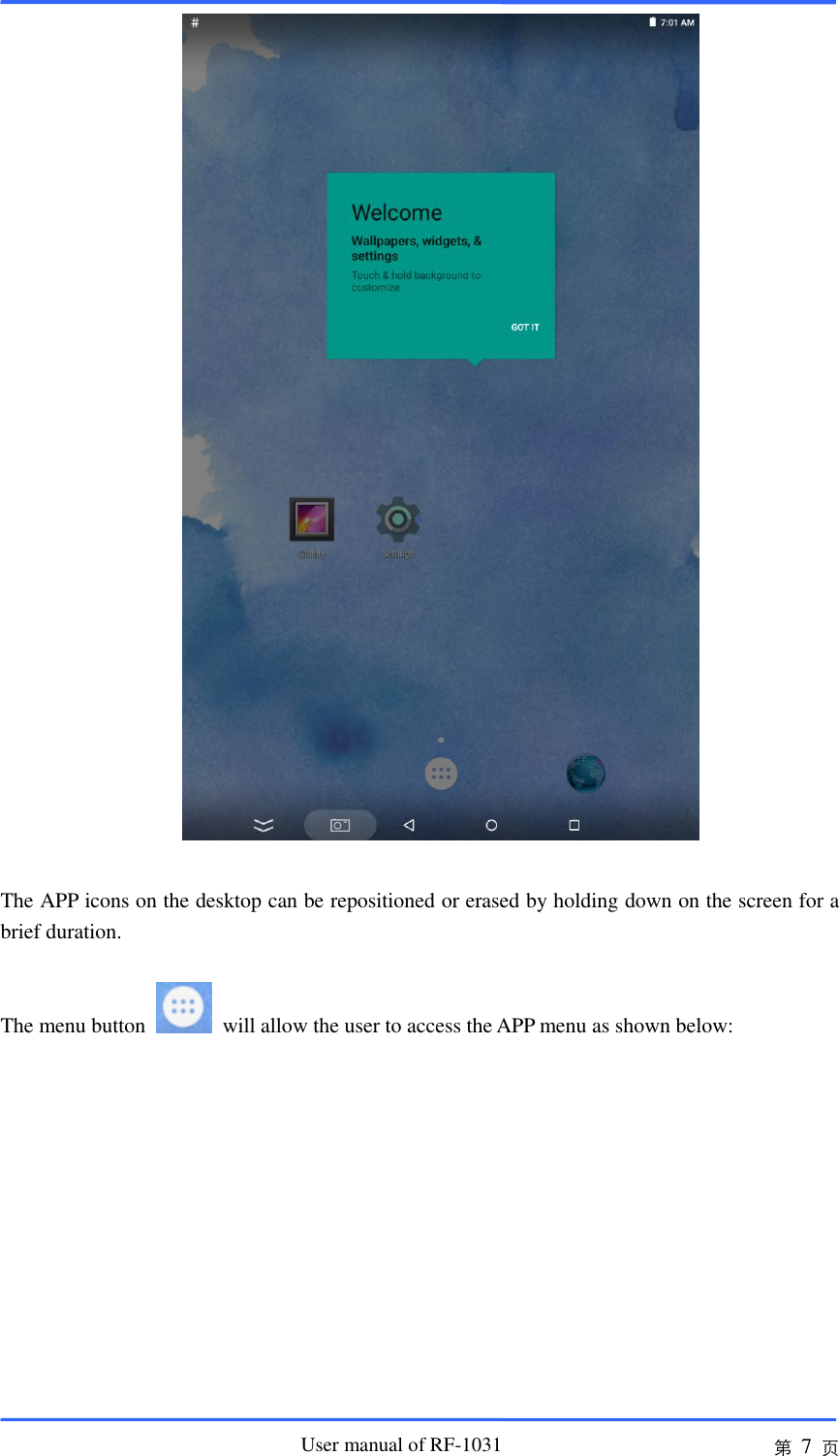

User manual of RF-1031 第 7 页 The APP icons on the desktop can be repositioned or erased by holding down on the screen for a brief duration. The menu button will allow the user to access the APP menu as shown below:

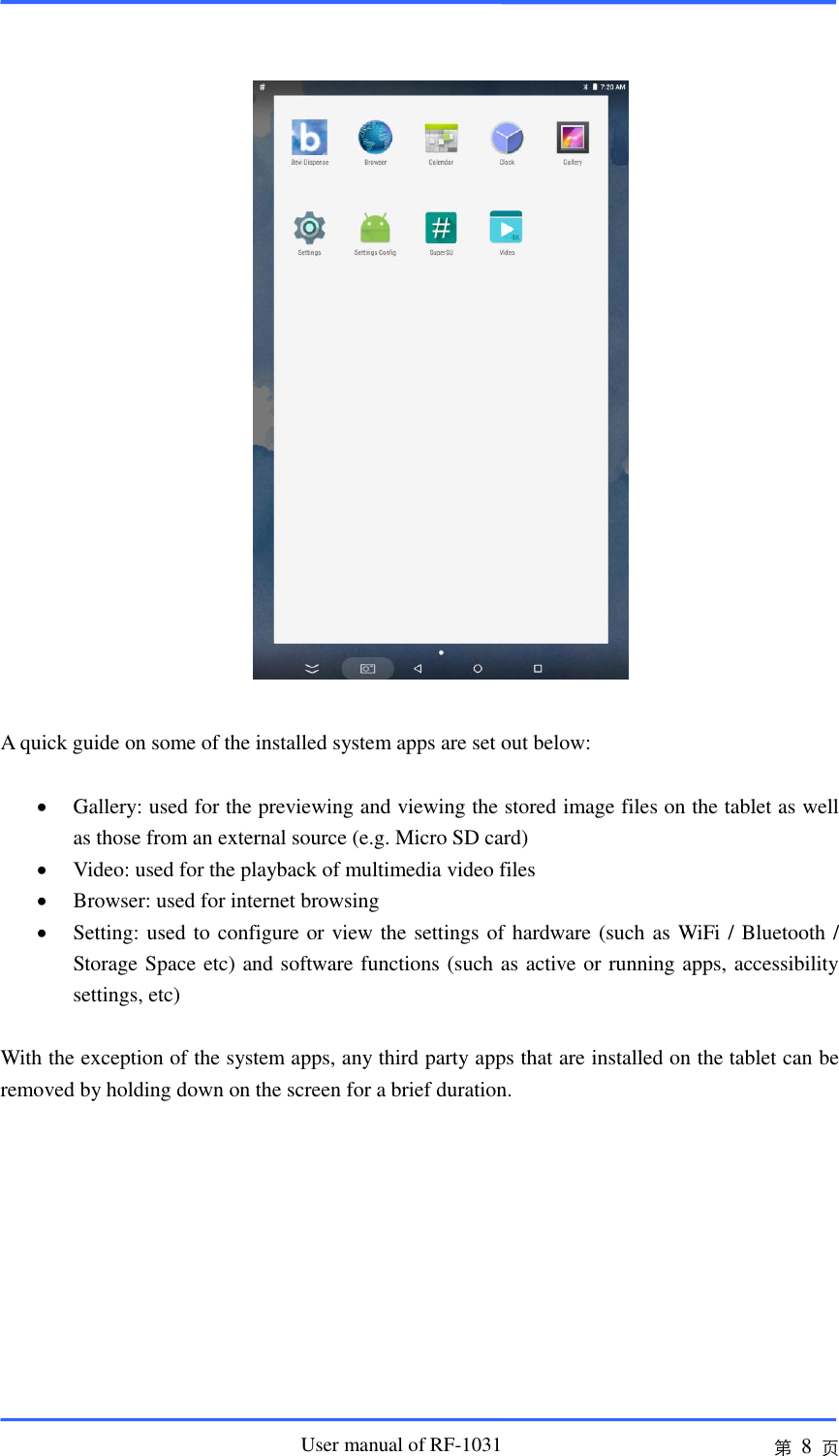

User manual of RF-1031 第 8 页 A quick guide on some of the installed system apps are set out below:  Gallery: used for the previewing and viewing the stored image files on the tablet as well as those from an external source (e.g. Micro SD card)  Video: used for the playback of multimedia video files  Browser: used for internet browsing  Setting: used to configure or view the settings of hardware (such as WiFi / Bluetooth / Storage Space etc) and software functions (such as active or running apps, accessibility settings, etc) With the exception of the system apps, any third party apps that are installed on the tablet can be removed by holding down on the screen for a brief duration.

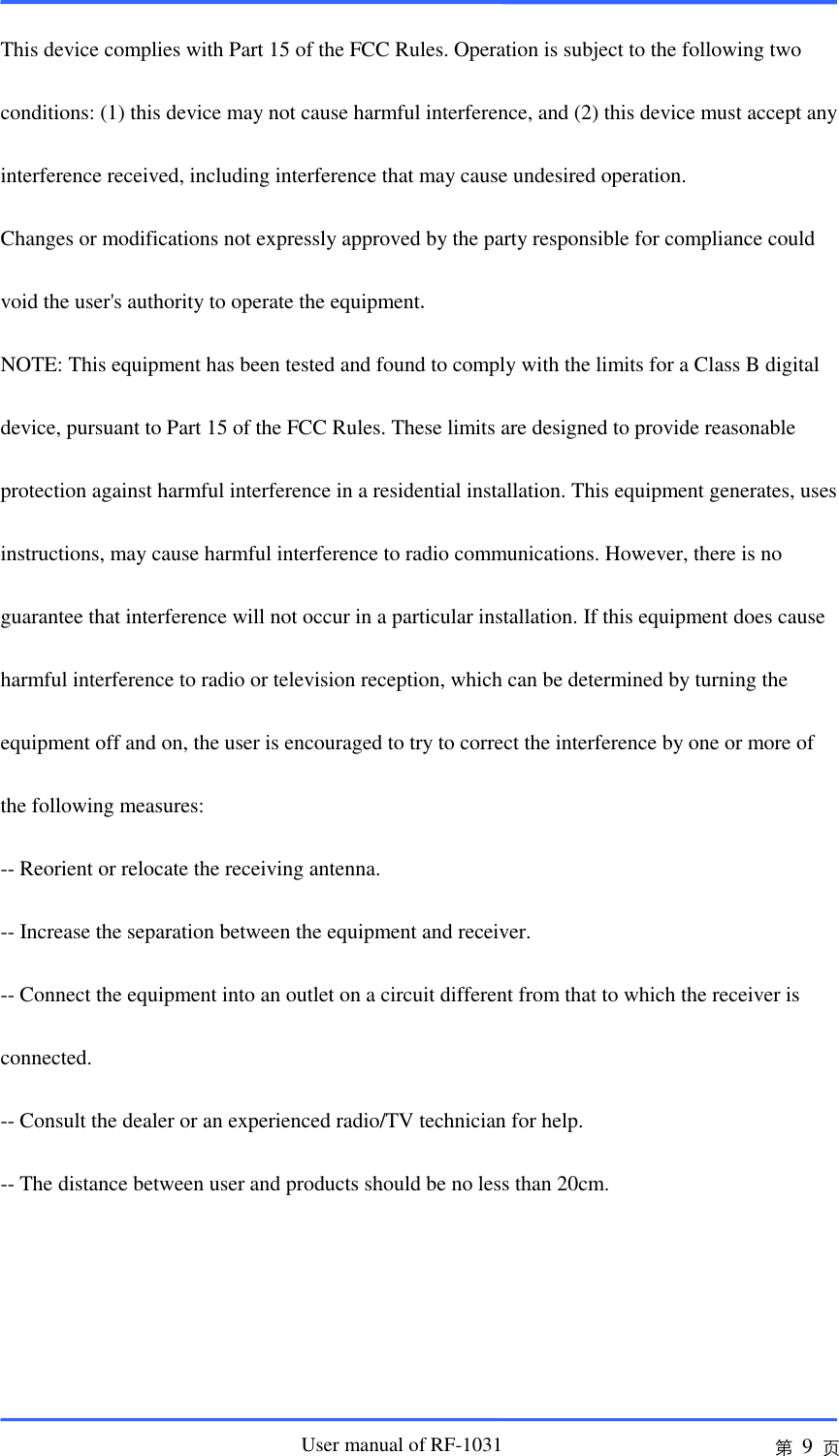

User manual of RF-1031 第 9 页 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. -- The distance between user and products should be no less than 20cm.

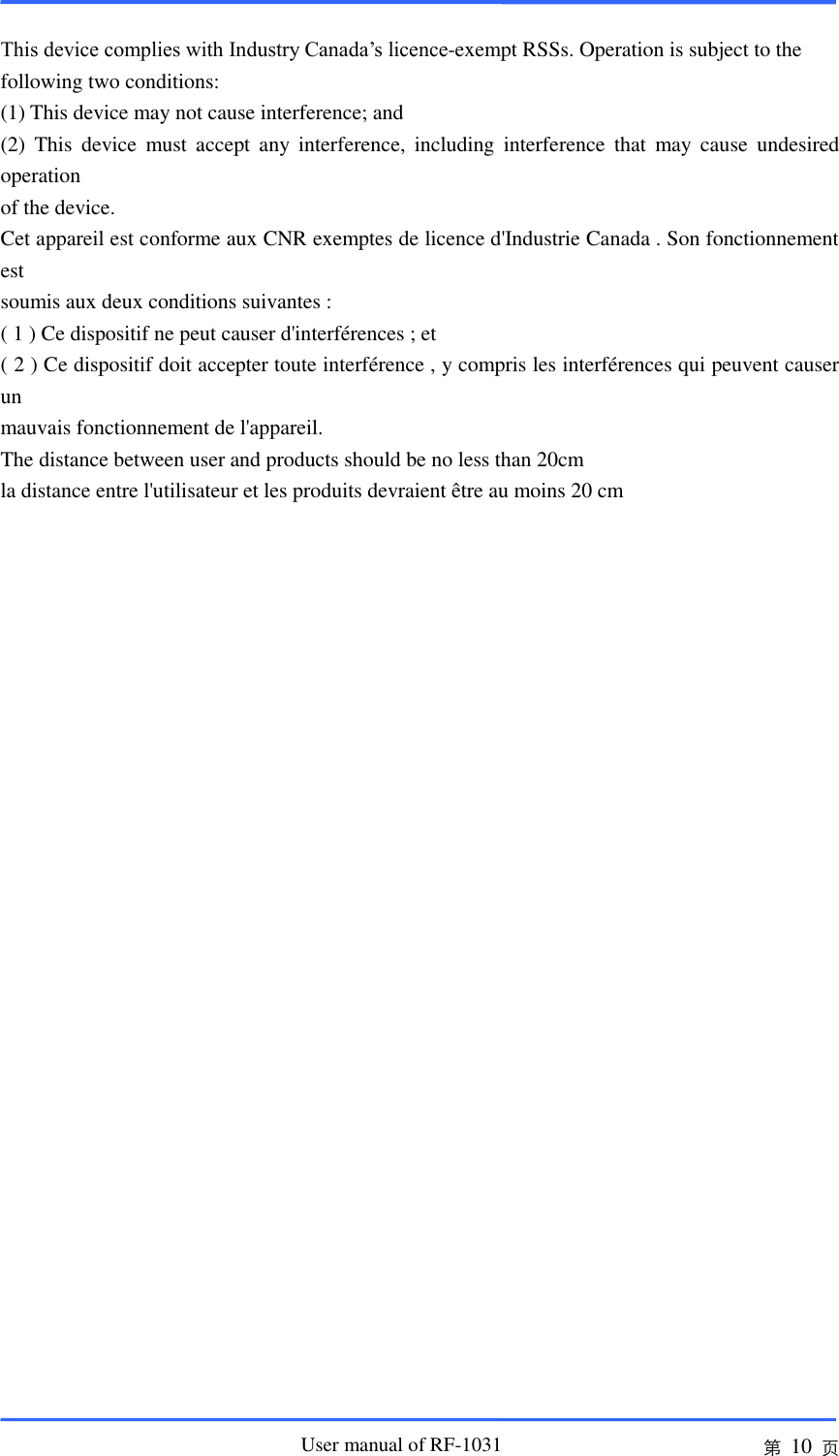

User manual of RF-1031 第 10 页 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement est soumis aux deux conditions suivantes : ( 1 ) Ce dispositif ne peut causer d'interférences ; et ( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. The distance between user and products should be no less than 20cm la distance entre l'utilisateur et les produits devraient être au moins 20 cm

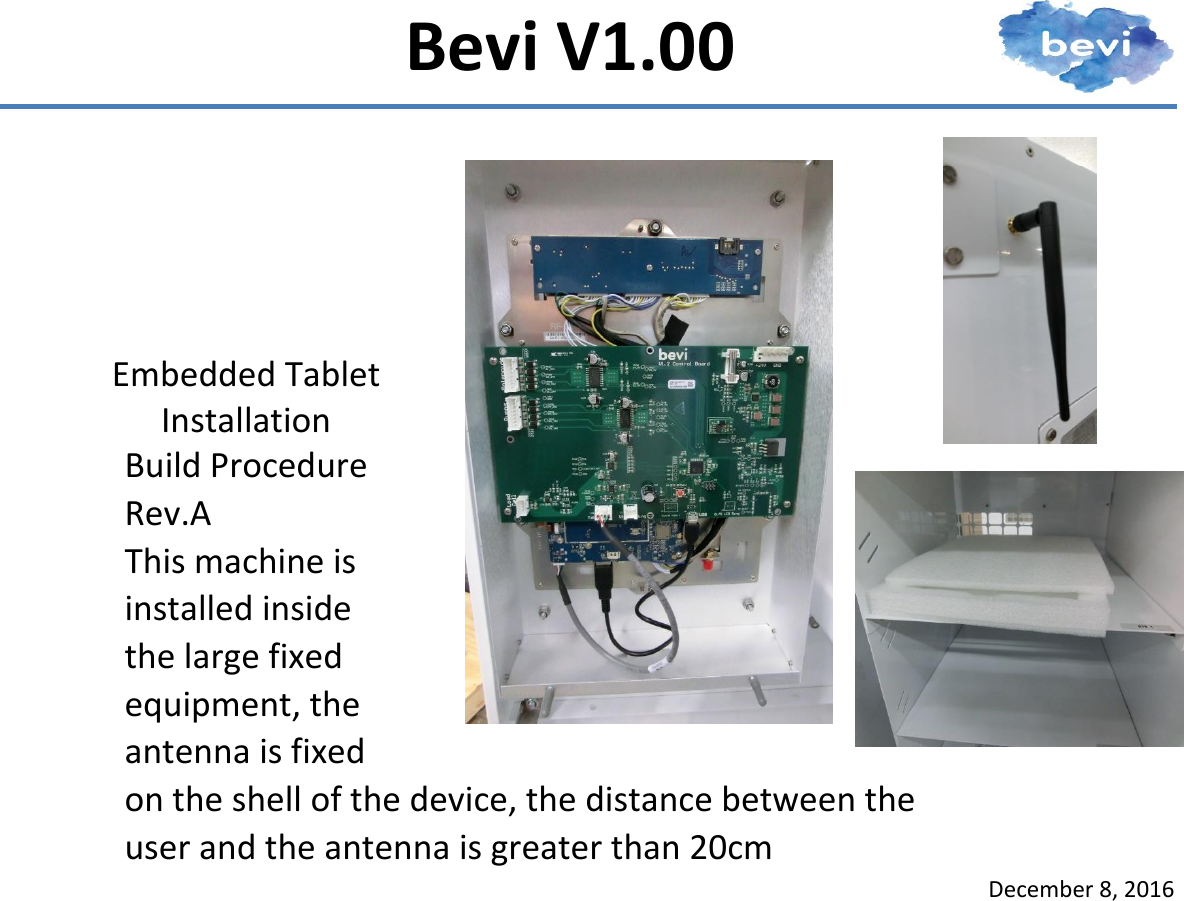

December 8, 2016 Bevi V1.00 Embedded Tablet Installation Build Procedure Rev.AThis machine is installed inside the large fixed equipment, the antenna is fixed on the shell of the device, the distance between the user and the antenna is greater than 20cm

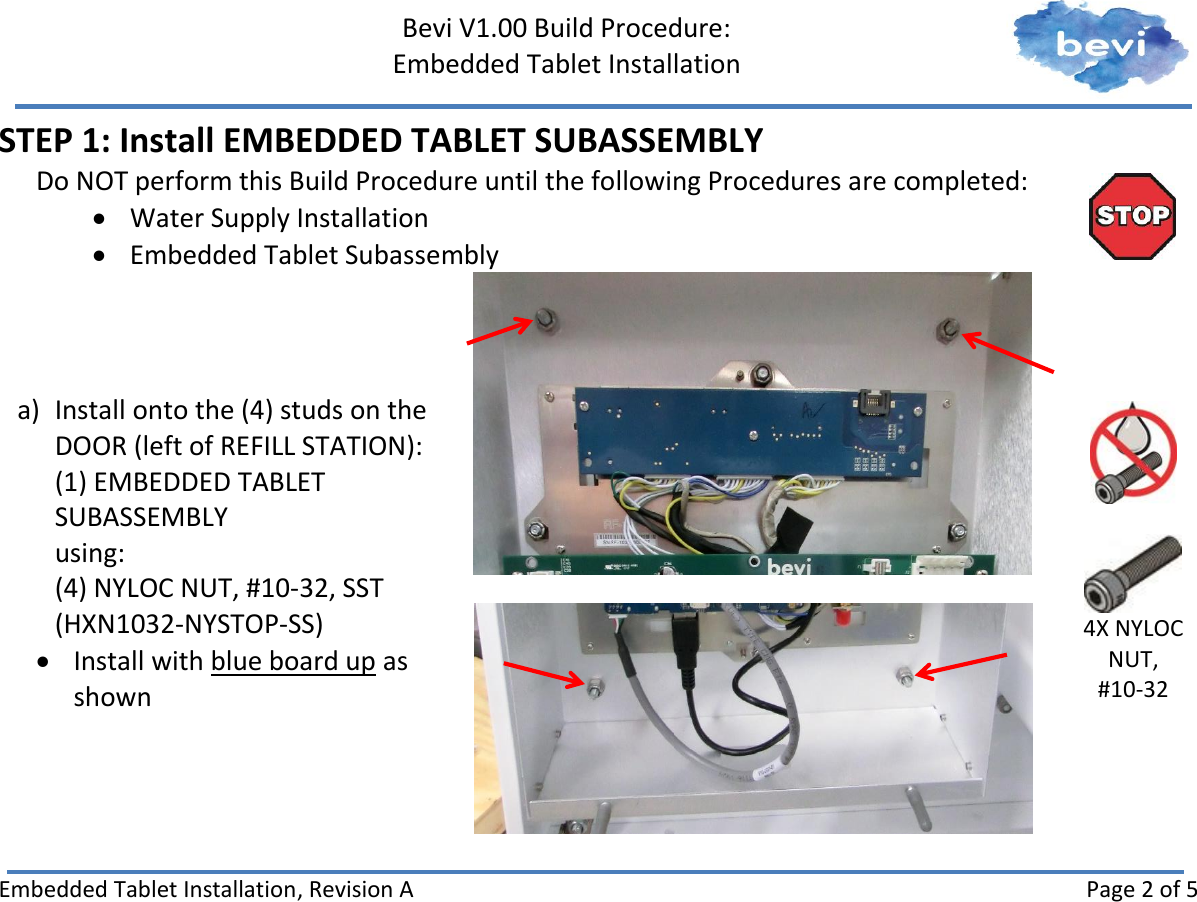

Bevi V1.00 Build Procedure: Embedded Tablet Installation Embedded Tablet Installation, Revision A Page 2 of 5 STEP 1: Install EMBEDDED TABLET SUBASSEMBLY Do NOT perform this Build Procedure until the following Procedures are completed:  Water Supply Installation  Embedded Tablet Subassembly a) Install onto the (4) studs on the DOOR (left of REFILL STATION): (1) EMBEDDED TABLET SUBASSEMBLY using: (4) NYLOC NUT, #10-32, SST (HXN1032-NYSTOP-SS)  Install with blue board up as shown 4X NYLOC NUT, #10-32

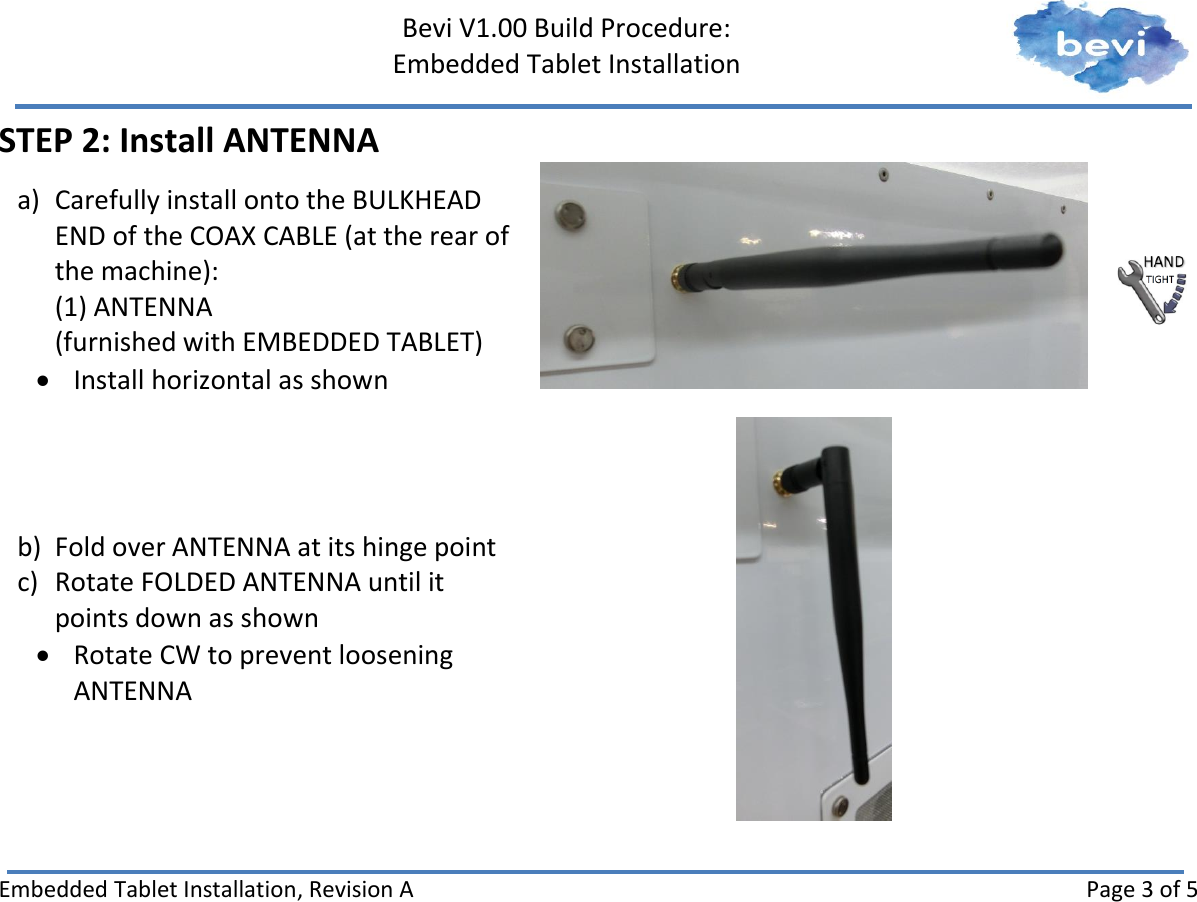

Bevi V1.00 Build Procedure: Embedded Tablet Installation Embedded Tablet Installation, Revision A Page 3 of 5 STEP 2: Install ANTENNA a) Carefully install onto the BULKHEAD END of the COAX CABLE (at the rear of the machine): (1) ANTENNA (furnished with EMBEDDED TABLET)  Install horizontal as shown b) Fold over ANTENNA at its hinge point c) Rotate FOLDED ANTENNA until it points down as shown  Rotate CW to prevent loosening ANTENNA

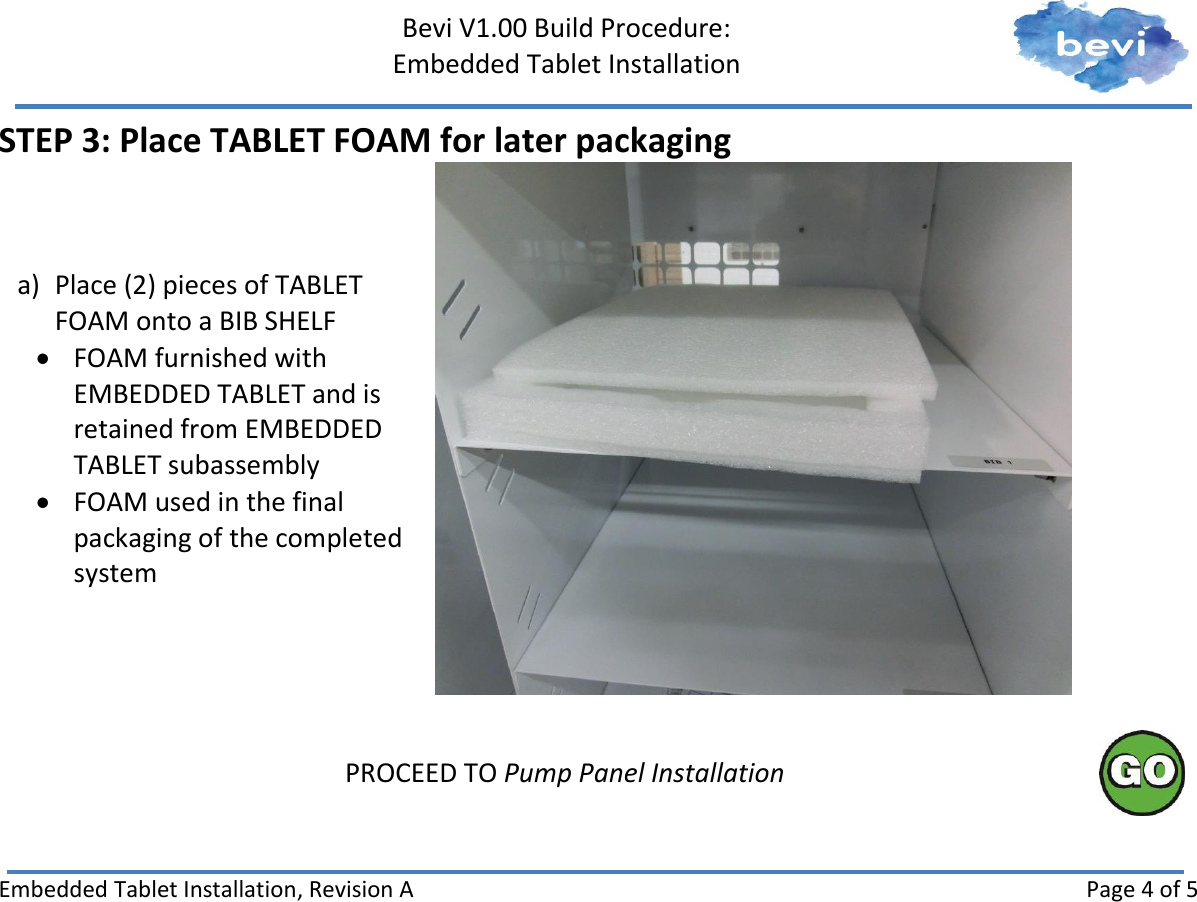

Bevi V1.00 Build Procedure: Embedded Tablet Installation Embedded Tablet Installation, Revision A Page 4 of 5 STEP 3: Place TABLET FOAM for later packaging a) Place (2) pieces of TABLET FOAM onto a BIB SHELF  FOAM furnished with EMBEDDED TABLET and is retained from EMBEDDED TABLET subassembly  FOAM used in the final packaging of the completed system PROCEED TO Pump Panel Installation

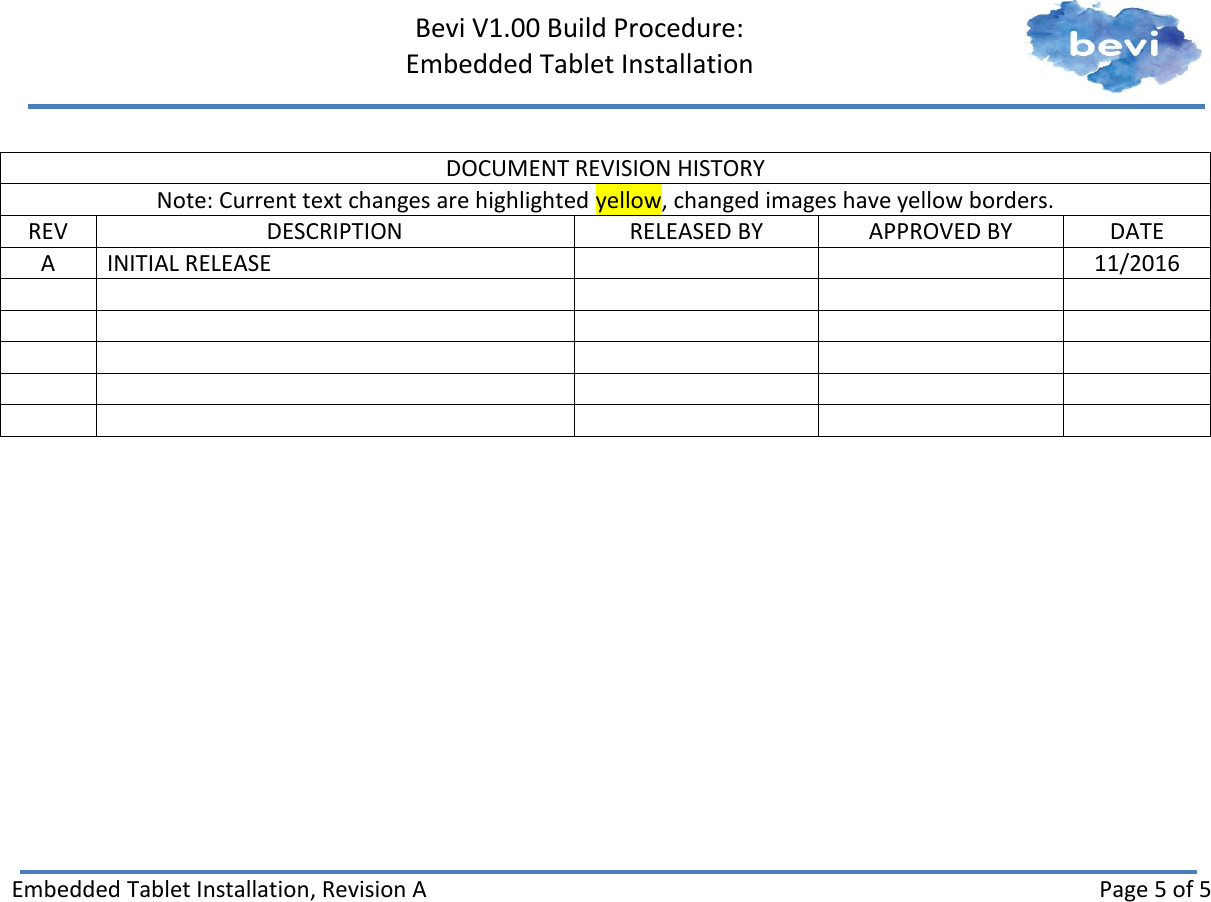

Bevi V1.00 Build Procedure: Embedded Tablet Installation Embedded Tablet Installation, Revision A Page 5 of 5 DOCUMENT REVISION HISTORY Note: Current text changes are highlighted yellow, changed images have yellow borders. REV DESCRIPTION RELEASED BY APPROVED BY DATE A INITIAL RELEASE 11/2016
