Hydration Labs RF-1031 TABLET PC User Manual GL3966 Design Spec

Hydration Labs, Inc. TABLET PC GL3966 Design Spec

User manual

RF-1031
Operational Guide
Document Version
V2.0
Total Pages
10
Issued Date
20160907
User manual of RF-1031
TABLE OF CONTENTS
Hardware Information ........................................................................................................................... 1
PRODUCT EXTERIOR ............................................................................................................................. 1
SPECIFICATION ...................................................................................................................................... 2
Product Operation .................................................................................................................................. 3
CONNECTORS ........................................................................................................................................ 3
PHYSICAL BUTTON ............................................................................................................................... 3
SHORTCUT KEYS ................................................................................................................................... 3
NOTIFICATION BAR AND QUICK SETTING MENU .................................................................................. 4
CONNECTION WITH PC .......................................................................................................................... 5
DESKTOP AND MENU ............................................................................................................................ 6
User manual of RF-1031
第 1 页
Hardware Information

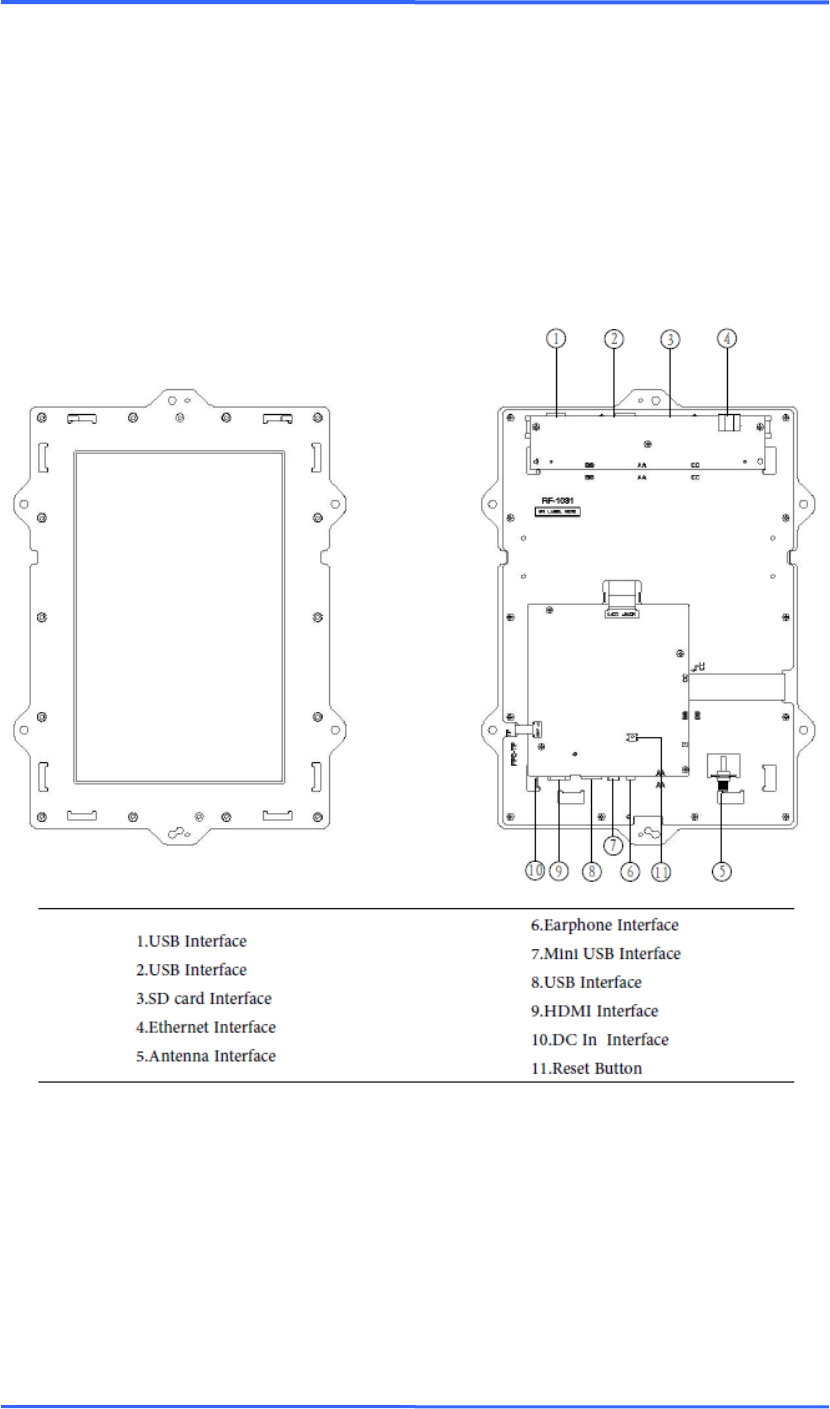

Product Exterior
User manual of RF-1031
第 2 页
Specification
Detailed Specification
Power Supply (DC In)
12V
2A
LCD / Touch Screen
10.1”
1920*1200
5 points capacitive
CPU / Memory
RK3288 Quad-core
1.8GHz
2GB
8GB
Operating System
Android 5.1
Connections
Supported，802.11/b/g/n
×3
×1
×1
×1
Supported
Product Body Info
302*220*22.45mm
600g
User manual of RF-1031
第 3 页
Product Operation
Connectors
USB Port：supports one USB device, such as a USB keyboard or mouse. It also serves
as the communication port between the tablet and the PC.
TF Card Slot：supports the reading/writing of a Micro SD Card (up to 32GB).
HDMI Slot: connects the tablet to an external display.
Ethernet Port：connects the tablet to a WAN
Physical Button
No
Name
Function
1
Reset Button
Resets the Tablet
Shortcut Keys
There are 5 shortcut keys on the System UI：
User manual of RF-1031
第 4 页

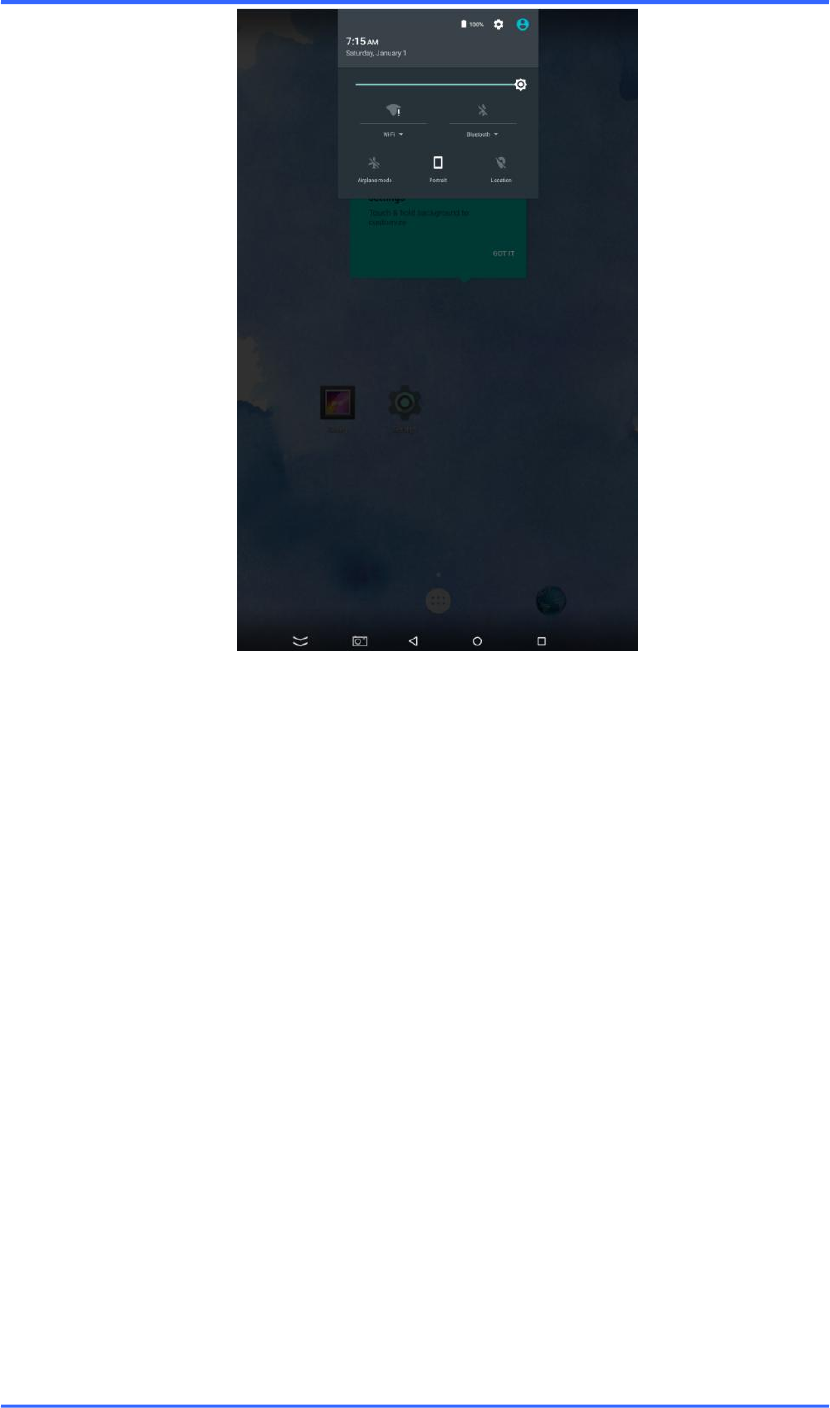

Notification Bar and Quick Setting Menu
The notification bar and quick setting menu will appear at the top of the screen after swiping
down from the top of the screen：
Icon
Function
Hide the menu bar
Go back to the previous screen
Return to the desktop
Cycle through the active programs
Screen capture
User manual of RF-1031
第 5 页
Information regarding the current state of the tablet and its latest notifications will appear
here。The quick setting menu allows for convenient access to change the configuration of a
handful of selected settings (e.g. Screen brightness, WiFi Access and Airplane Mode).
Connection with PC
Follow the steps below to establish a connection between the tablet and the PC:
1. Connect the tablet with a PC using the USB interface.

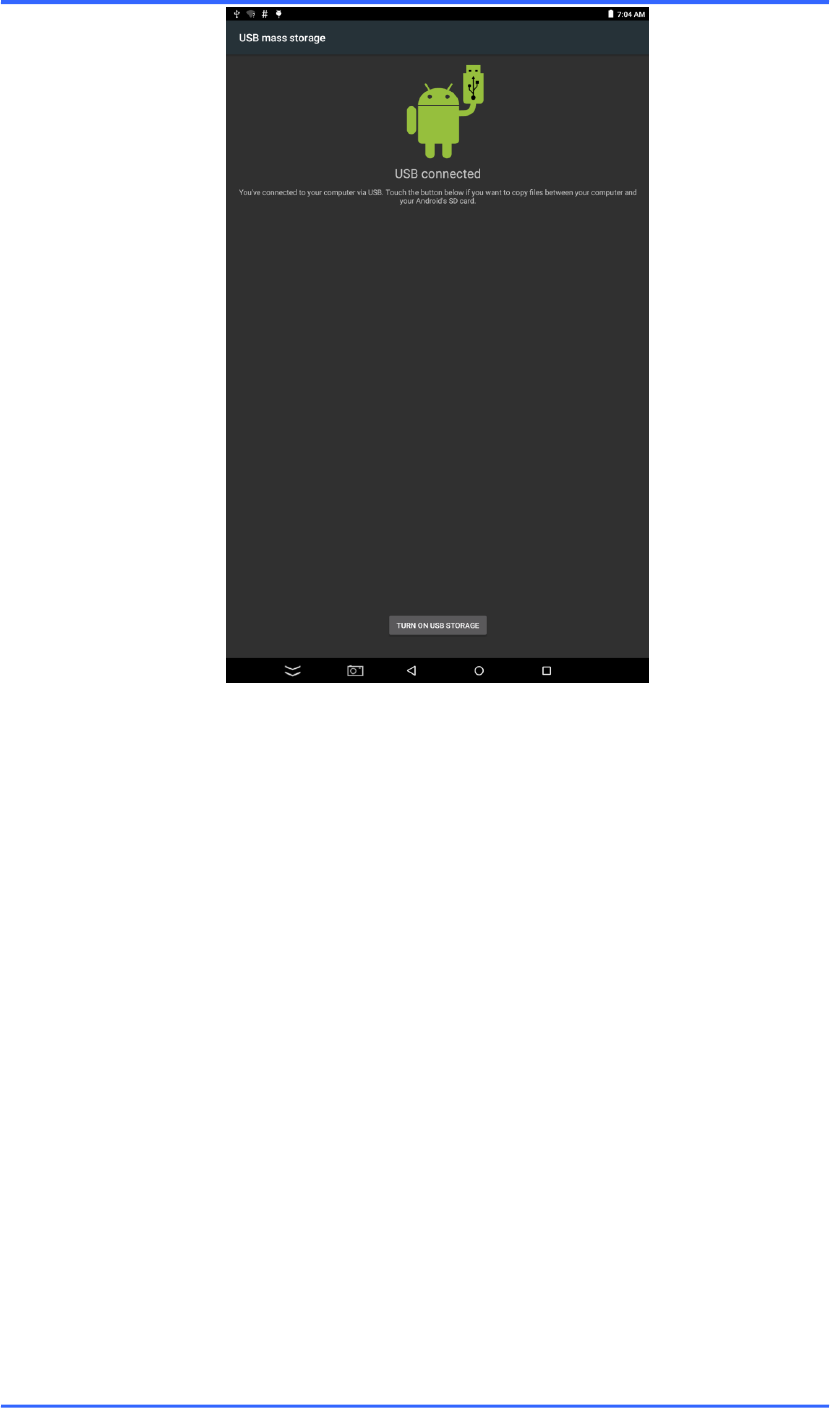

2. A new message will appear on the notification bar to notify the user of an attempted link
between the tablet and a PC. Click on the message to enter a new interface screen (see
picture below) which asks for the user’s permission to connect the tablet with the PC.
3. Click on “TURN ON USB STORAGE” to enable the connection.
User manual of RF-1031
第 6 页
After a connection has been established, the filesystem of the tablet can be accessed by the PC.
To disconnect the tablet from the PC, click on “TURN OFF USB STORAGE” in the Notification
Bar and unplug the USB cable.
Desktop and Menu
A screenshot of the desktop is shown below：
User manual of RF-1031
第 7 页
The APP icons on the desktop can be repositioned or erased by holding down on the screen for a
brief duration.

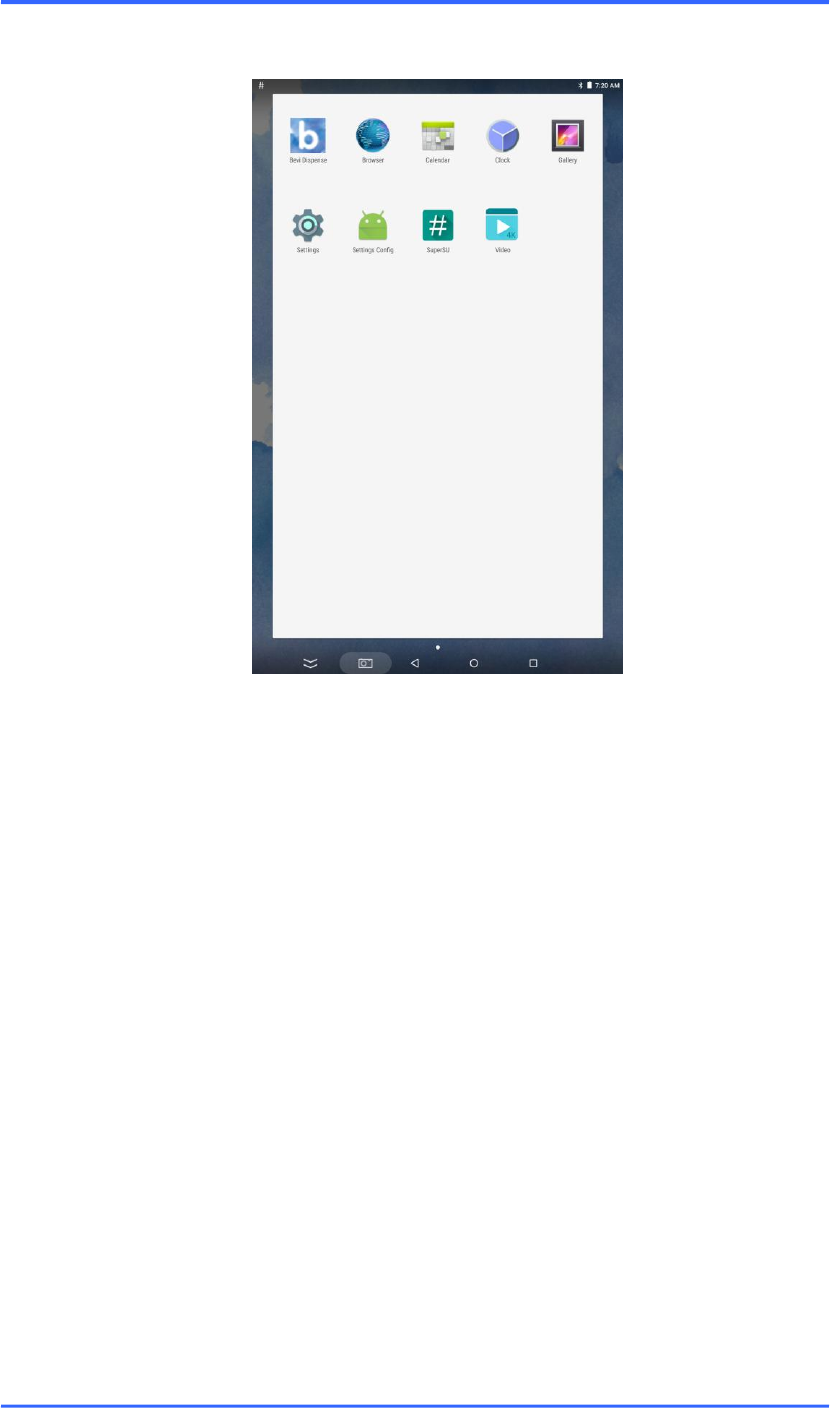

The menu button will allow the user to access the APP menu as shown below:
User manual of RF-1031
第 8 页
A quick guide on some of the installed system apps are set out below:
Gallery: used for the previewing and viewing the stored image files on the tablet as well
as those from an external source (e.g. Micro SD card)
Video: used for the playback of multimedia video files
Browser: used for internet browsing
Setting: used to configure or view the settings of hardware (such as WiFi / Bluetooth /
Storage Space etc) and software functions (such as active or running apps, accessibility
settings, etc)
With the exception of the system apps, any third party apps that are installed on the tablet can be
removed by holding down on the screen for a brief duration.
User manual of RF-1031
第 9 页
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
-- The distance between user and products should be no less than 20cm.
User manual of RF-1031
第 10 页
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation
of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son fonctionnement
est
soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent causer
un
mauvais fonctionnement de l'appareil.
The distance between user and products should be no less than 20cm
la distance entre l'utilisateur et les produits devraient être au moins 20 cm
December 8, 2016
Bevi V1.00
Embedded Tablet
Installation
Build Procedure
Rev.A
This machine is
installed inside
the large fixed
equipment, the
antenna is fixed
on the shell of the device, the distance between the
user and the antenna is greater than 20cm
Bevi V1.00 Build Procedure:
Embedded Tablet Installation
Embedded Tablet Installation, Revision A
Page 2 of 5
STEP 1: Install EMBEDDED TABLET SUBASSEMBLY
Do NOT perform this Build Procedure until the following Procedures are completed:
Water Supply Installation
Embedded Tablet Subassembly

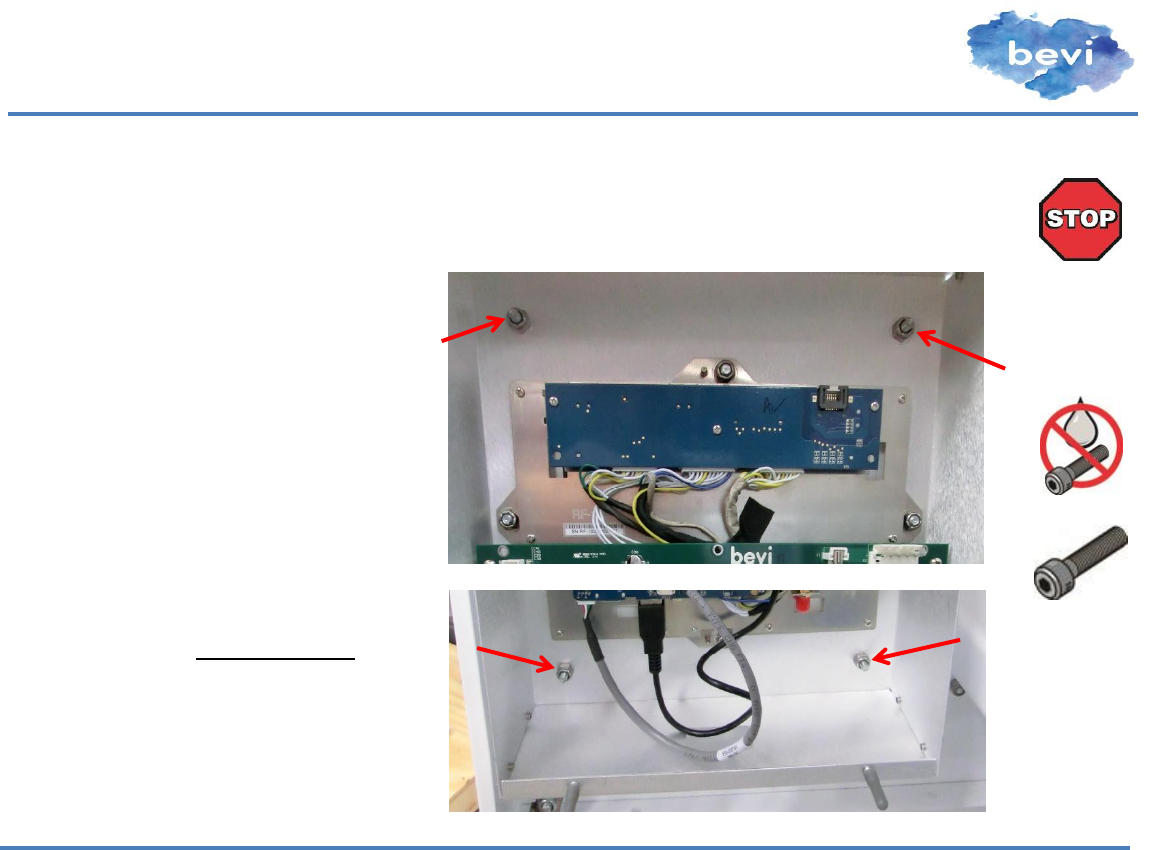

a) Install onto the (4) studs on the
DOOR (left of REFILL STATION):
(1) EMBEDDED TABLET
SUBASSEMBLY
using:
(4) NYLOC NUT, #10-32, SST
(HXN1032-NYSTOP-SS)
Install with blue board up as
shown
4X NYLOC
NUT,
#10-32
Bevi V1.00 Build Procedure:
Embedded Tablet Installation
Embedded Tablet Installation, Revision A
Page 3 of 5

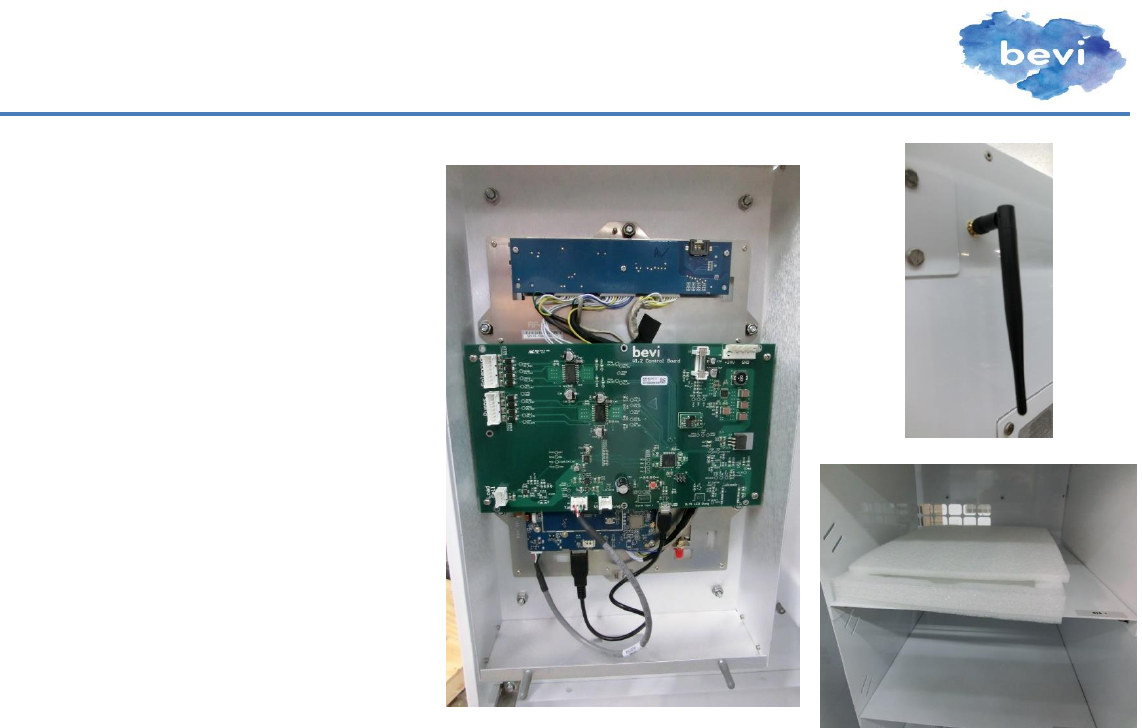

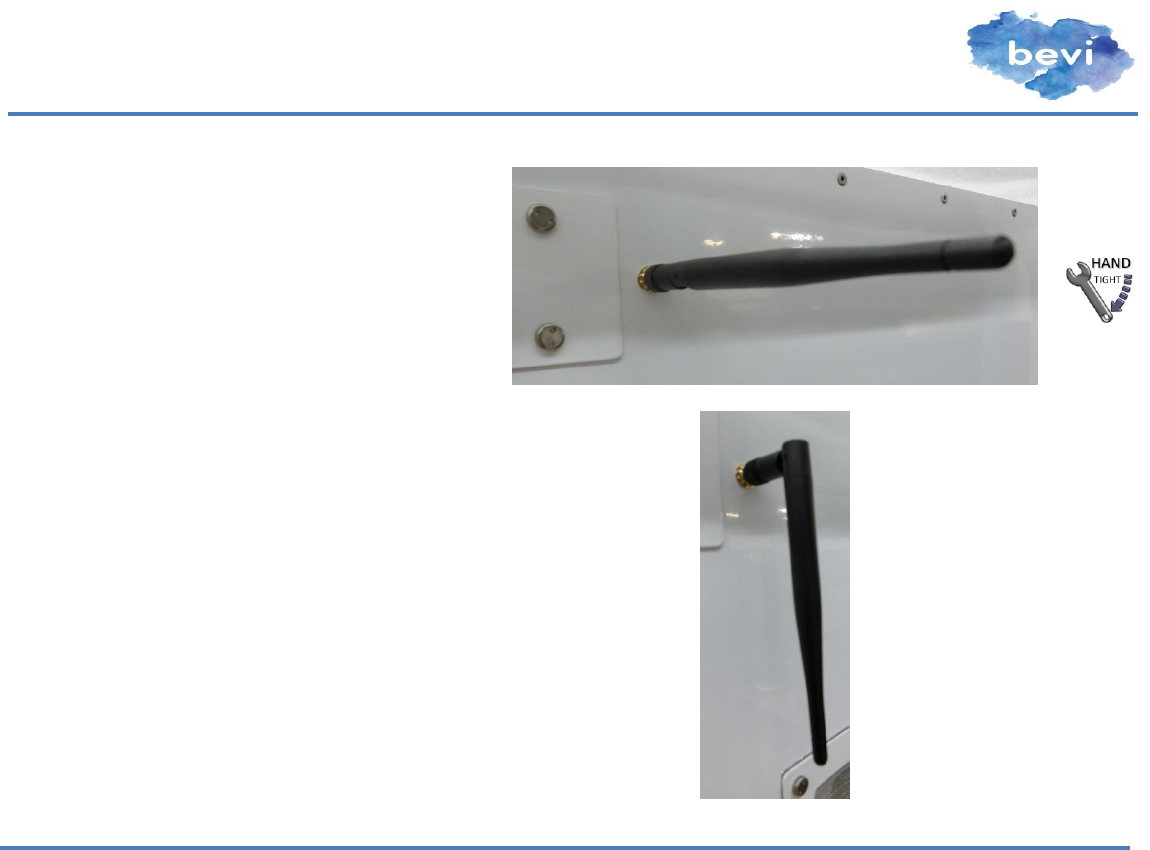

STEP 2: Install ANTENNA
a) Carefully install onto the BULKHEAD
END of the COAX CABLE (at the rear of
the machine):
(1) ANTENNA
(furnished with EMBEDDED TABLET)
Install horizontal as shown
b) Fold over ANTENNA at its hinge point
c) Rotate FOLDED ANTENNA until it
points down as shown
Rotate CW to prevent loosening
ANTENNA
Bevi V1.00 Build Procedure:
Embedded Tablet Installation
Embedded Tablet Installation, Revision A
Page 4 of 5

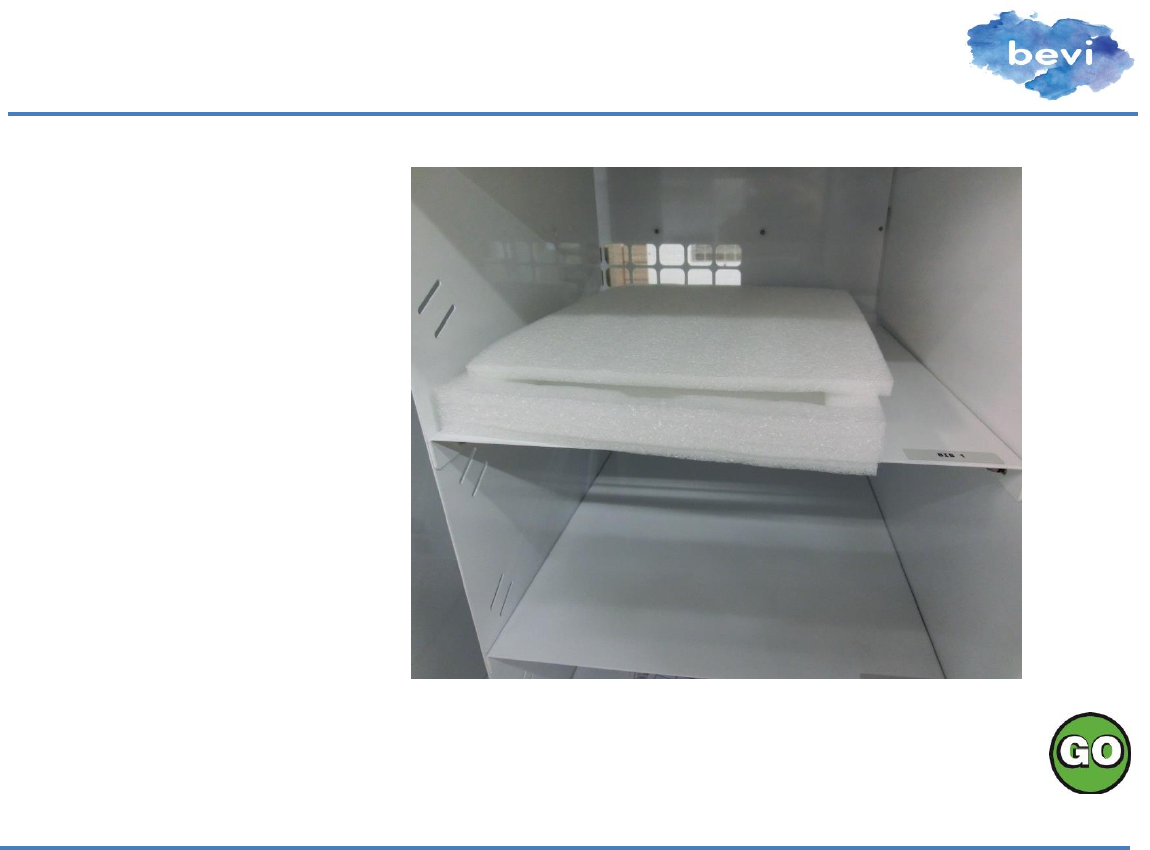

STEP 3: Place TABLET FOAM for later packaging
a) Place (2) pieces of TABLET
FOAM onto a BIB SHELF
FOAM furnished with
EMBEDDED TABLET and is
retained from EMBEDDED
TABLET subassembly
FOAM used in the final
packaging of the completed
system
PROCEED TO Pump Panel Installation
Bevi V1.00 Build Procedure:
Embedded Tablet Installation
Embedded Tablet Installation, Revision A
Page 5 of 5
DOCUMENT REVISION HISTORY
Note: Current text changes are highlighted yellow, changed images have yellow borders.
REV
DESCRIPTION
RELEASED BY
APPROVED BY
DATE
A
INITIAL RELEASE
11/2016
