Hytera Communications ADN01 Wireless Audio Adapter User Manual
Hytera Communications Corporation Ltd. Wireless Audio Adapter Users Manual
Users Manual
Items in the Package
Please unpack carefully and check that all
items listed below are received. If any item
is missing or damaged, please contact your
dealer.
No. Name Qty.
1 Wireless Earpiece 1
2 Earhook 1
3 Rubber Ear Cushion 3
4Wireless Audio Adapter 1
5 Owner’s Manual 1
Function Overview
This exquisite, easy-wearing and low-
powered wireless earpiece is applicable to
Hytera portable radios with rmware version
of 5.05 and above.
With Hands-free function, you can have
convenient and safe communication within a
distance of 10 meters from the radio.
You can use the wireless earpiece to
communicate regardless whether the radio
supports BT feature or not.

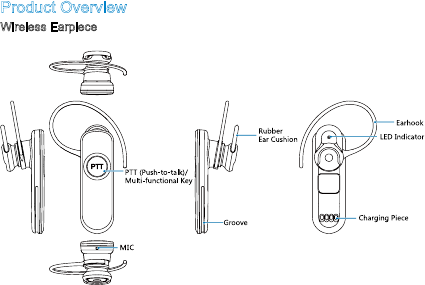

Product Overview
Wireless Earpiece

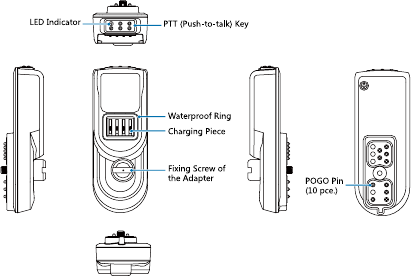

Wireless Audio Adapter
Specication
Talk Time >4 hours
D u s t/Wa t e r
P r o t e c t i o n
Class
IP54
Operation
Temperature
Wireless Earpiece: -20˚C to
＋60˚C
Wireless Audio Adapter:
-25˚C to +65˚C
Storage
Temperature
Wireless Earpiece: -40˚C to
＋75˚C
Wireless Audio Adapter:
-40˚C to +75˚C
Charging the Wireless
Earpiece
Note：
●To charge the wireless earpiece,
simply connect it to the adapter on
the radio. It is recommended to use
the high-capacity battery specified
by the Company to ensure the
optimal operation duration of the
radio.
●Charging the wireless earpiece will
not affect the radio operation.
●If the earpiece is idle for a long
time, charge it at least once within
three months.
●If the LED indicator does not glow
red while the wireless earpiece is
being charged, charge the earpiece
for 10 to 20 minutes for it to
recover to normal status.
Charge the wireless earpiece before use.
The LED indicator of the wireless earpiece
glows red during charging and glows blue
when the wireless earpiece is fully charged.
Also, the LED indicator indicates the pairing
and connection status. Please refer to LED
Indication for details.

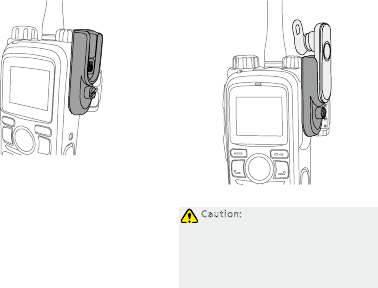

1. Connect the wireless audio adapter to
the radio and secure the screw to fasten
it.
3. Turn on the radio.
Caution: The wireless earpiece can
be charged only when the radio is
powered on. Please ensure the radio is
powered on when charging the radio
(with battery attached) and the wireless
earpiece at the same time.
2. Fix the wireless earpiece into the
wireless audio adapter.
Make sure the wireless earpiece is fully
xed into the adapter.
Pairing with and Connecting
to the Adapter
Before initial connection, the wireless
earpiece needs to be paired with the adapter
rst. Afterwards, the wireless earpiece can
connect to the adapter without pairing.
1. Disconnect the wireless earpiece from
other devices.
2. Connect the wireless earpiece with
the radio. (See Charging the Wireless
Earpiece for details)
3. Turn on the radio, and the wireless
earpiece will be powered up.
4. The wireless earpiece will be paired
with and connected to the adapter
automatically.
●Pairing mode: The LED indicator of the
wireless earpiece/adapter flashes red
and blue alternatively.
●Connection status: The LED indicator
ashes blue rapidly after the connection
is completed.
Wearing the Wireless
Earpiece

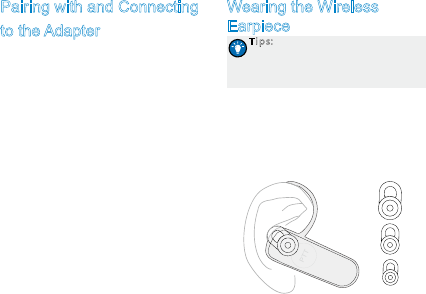

Tips: There are three rubber ear
cushions with different sizes provided
with the wireless earpiece for your
comfortable wearing.
Wear the wireless earpiece after the
connection is completed. Adjust the rubber
ear cushion to position it into your ear
canal, and adjust the earhook to secure the
earpiece.
Transmitting
After detaching the wireless earpiece from
the adapter, you can hold down the PTT key
on the wireless earpiece or the PTT key on
the adapter to make a call.
Powering On/Off
The wireless earpiece will give ring indication
(you can hear it only when you are wearing
the wireless earpiece) upon power-on/off.
Powering On
●Automatic power-on: When attached
to the radio via the adapter, the
wireless earpiece will be powered on
automatically when the radio is turned
on.
●Manual power-on: When the wireless
earpiece is not attached with the
adapter, you can power on the wireless
earpiece by long pressing the PTT key
on it. The adapter can be powered on by
turning on the radio only.
The LED indicator ashes after the wireless
earpiece is powered on. Please refer to LED
Indication for indication details.
Powering Off
To power off the adapter, turn off the radio.
To power off the wireless earpiece, long
press the PTT key after the BT connection is
disconnected (the LED indicator ashes blue
slowly). The LED indicator goes out when
the wireless earpiece is powered off.
LED Indication
Caution:
●When the wireless earpiece is being
charged on the adapter, the LED
indicator glows red when charging
is in process and glows blue
when the wireless earpiece is fully
charged. In this case, the following
indications are not applicable.
You can identify the status of
the wireless earpiece via the LED
indication of the adapter. You can
also detach the wireless earpiece
from the adapter to identify the
status of the wireless earpiece.
●The following indications do not
include the charging indications.
LED Indication Earpiece Status
The LED indicator
ashes red and blue
alternatively.
Pairing
The LED Indicator
glows red.
Transmitting
The LED indicator
ashes red.
Low battery power
(applicable to
wireless earpiece
only)
The LED indicator
ashes blue twice
rapidly.
Connected with no
voice
The LED indicator
ashes blue once
rapidly.
Connected with
voice
The LED indicator
ashes blue slowly.
Paired but not
connected
Troubleshooting
Phenomena Analysis Solution
The LED
indicator
does not
glow red
while the
wireless
earpiece
is being
charged.
The battery
power of
the wireless
earpiece
may run out
completely.
Charge the
wireless
earpiece
for 10 to 20
minutes.
The wireless
earpiece
cannot pair
with the
adapter.
The wireless
earpiece or
the adapter
may pair
with other BT
devices.
Move away
from other BT
devices and
restart the
radio to pair
the wireless
earpiece with
the adapter.
