Hytera Communications MD62XU1 Digital Mobile Radio User Manual
Hytera Communications Corporation Limited Digital Mobile Radio
User manual
Preface
Thanks for your favor in our product. This manual is helpful for you to quickly know how to use the
product. For detailed features and operations, please refer to the Feature Description and Operation
Manual along with the product.
To avoid body injury or property loss caused by misoperation, please read the Safety Information
Booklet carefully before use.
This manual is applicable to the following product:
MD62X Digital Mobile Radio (X may represent 2, 5, 6 or 8)
Icon Conventions
: Indicates functions that are available on digital channel only.
: Indicates functions that are available on analog channel only.
Functions marked with no icon are available on both analog and digital channels.
Disclaimer
Hytera Communications Corporation Limited (the Company) endeavors to achieve the accuracy and
completeness of this manual, but no warranty of accuracy or reliability is given. All the specifications and
designs are subject to change without notice due to continuous technology development. No part of this
manual may be copied, modified, translated, or distributed in any manner without the express written
permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and contents involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com.
RF Radiation Information
This product must be restricted to operations in an occupational/controlled RF exposure environment.
Users must be fully aware of the hazards of the exposure and able to exercise control over their RF
exposure to qualify for the higher exposure limits.
RF Radiation Profile
Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are
transmitted. RF technology is widely used in communication, medicine, food processing and other fields.
It may generate radiation during use.
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering, medicine
and health work with international organizations to develop standards for safe exposure to RF radiation.
These standards consist of:
United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2
sub-part J;
American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE)
C95. 1-1992;
Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999;
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998;
FCC Regulations
Federal Communication Commission (FCC) requires that all radio communication products should meet
the requirements set forth in the above standards before they can be marketed in the U.S, and the
manufacturer shall post a RF label on the product to inform users of operational instructions, so as to
enhance their occupational health against exposure to RF energy.
Operational Instructions and Training Guidelines
To ensure optimal performance and compliance with the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines, users should transmit not more than 50% of the
time and always adhere to the following procedures:
Antenna gain must not exceed 5dBi for UHF or 3.5dBi for VHF.
The antenna installation must comply with the requirements of manufacturer or supplier, and it must
be at least one meter away from human body.
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with the essential requirements and
other relevant provisions of the Directive 1999/5/EC.
Please note that the above information is applicable to EU countries only.
Contents
1. Items in the Package .......................................................................................................................... 1
2. Product Overview ............................................................................................................................... 1
2.1 Front Panel ..................................................................................................................................... 2
2.2 Rear Panel ...................................................................................................................................... 3
2.3 Programmable Keys ....................................................................................................................... 3
2.4 LCD Icon ......................................................................................................................................... 3
2.5 LED Indicator .................................................................................................................................. 4
3. Installation .......................................................................................................................................... 5
3.1 Instructions ..................................................................................................................................... 5
3.2 Installation Tools ............................................................................................................................. 5
3.3 Installation Parts ............................................................................................................................. 6
3.4 Installation Procedure ..................................................................................................................... 7
4. Basic Operations ................................................................................................................................ 8
4.1 Turning the Radio On/Off ................................................................................................................ 8
4.2 Adjusting the Volume ...................................................................................................................... 8
4.3 Selecting a Zone ............................................................................................................................. 8
4.4 Selecting a Channel ........................................................................................................................ 9
5. Call Services ..................................................................................................................................... 10
5.1 Private Call ................................................................................................................................ 9
5.2 Group Call ............................................................................................................................... 10
5.3 Call on Analog Channel (Without Signaling) ............................................................................ 11
5.4 Emergency Call ............................................................................................................................ 11
6. Troubleshooting .................................................................................................. 错误！未定义书签。
7. Available Features ............................................................................................................................ 12
8. Care and Cleaning ............................................................................................................................ 14
9. Optional Accessories ....................................................................................................................... 15
1
1. Items in the Package
Please unpack carefully and check if all items listed below are received. If any item is missing or
damaged, please contact your dealer.

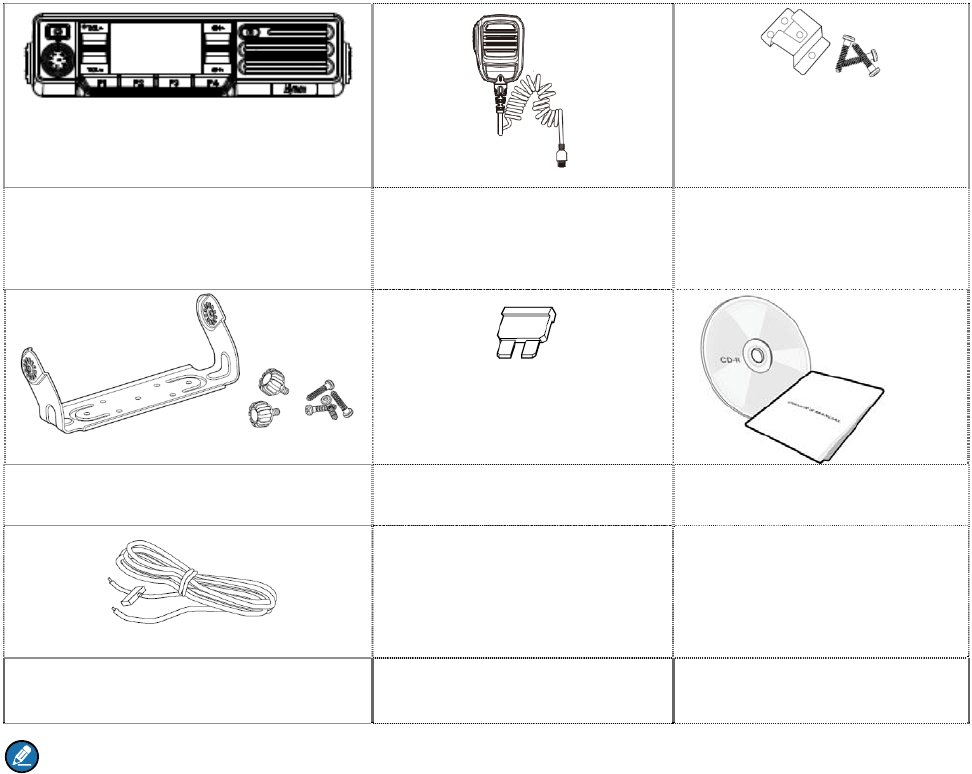

Radio Palm Microphone
Microphone Hanger and
Screws
Mounting Bracket Kit Fuse Documentation Kit
Power Cord
Note
The frequency band is marked on the label of antenna; if not, please refer to the label on the radio for
frequency band information.
2
2. Product Overview
2.1 Front Panel

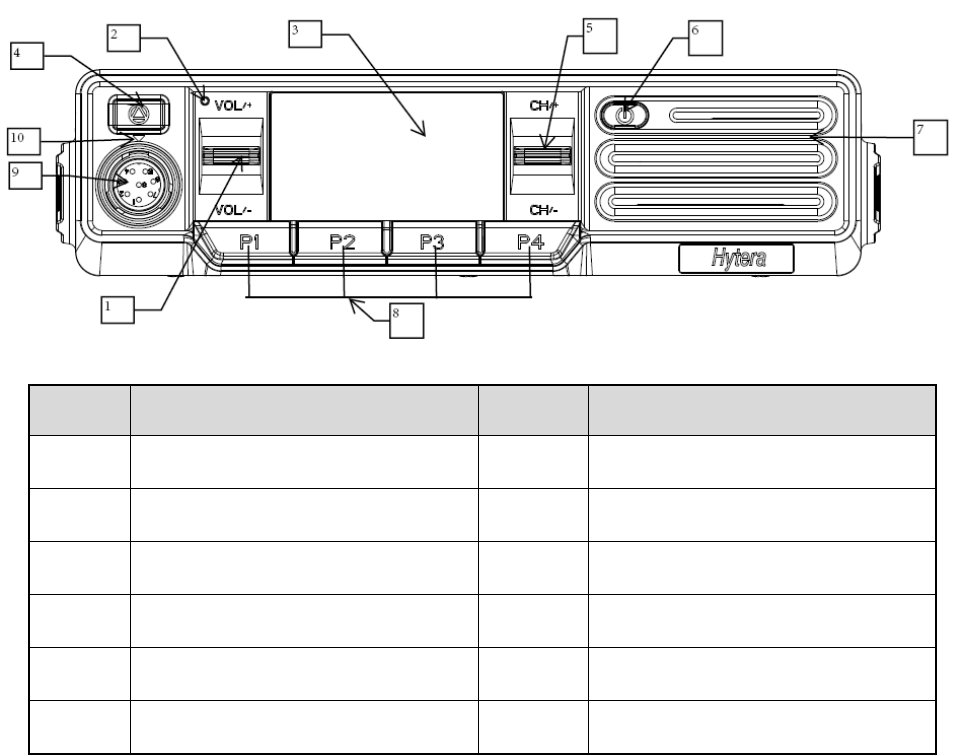

No. Part Name No. Part Name
1 Volume Control 7 Speaker
2 LED Indicator 8 Programmable Keys
3 LCD Display 9 Microphone Connector
4 Programmable Keys 10 Microphone Installation Index
5 Channe selector 11
6 Power On/Off Key 12
3
2.2 Rear Panel

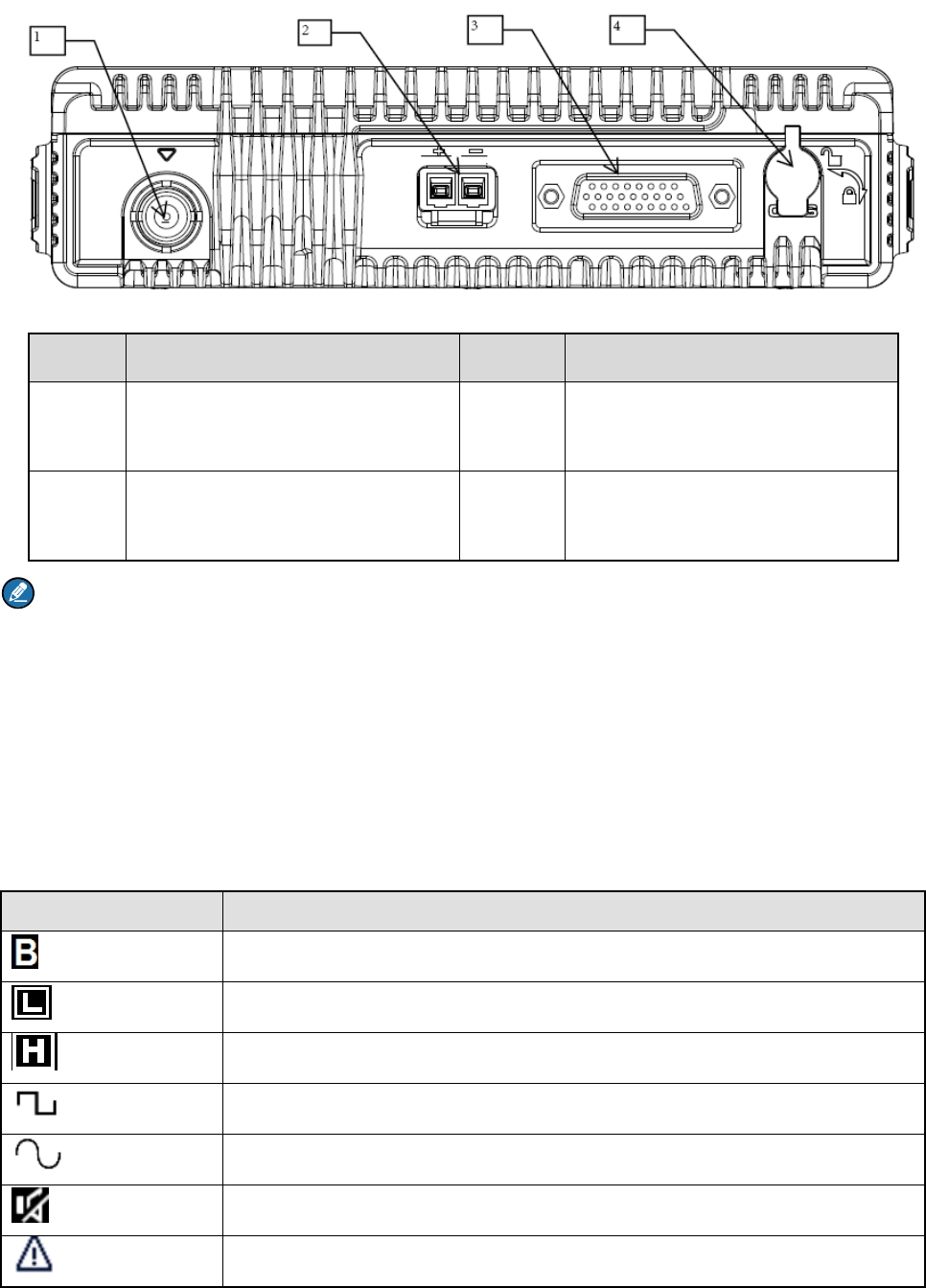

No. Part Name No. Part Name
1
RF Antenna Connector (BNC
female)
3 Accessory Connector
2 Power Inlet 4
GPS Antenna Connector (SMA
female)
Note: The GPS antenna connector is available for MD62X mobile radios only.
2.3 Programmable Keys
For enhanced convenience, you may request your dealer to program the SK1, SK2, P1, P2 and P3 keys
as shortcuts to certain feature.
2.4 LCD Icon
Icon Radio Status
Blue Tooth is open and connet
Low TX power for the current channel.
High TX power for the current channel.
Digital channel
Analog channel
The Monitor feature is active.
The radio is in emergency state or an emergency call is received.
4
Icon Radio Status
The radio is roaming.
The radio is scanning.
More bars indicate stronger signal strength.
2.5 LED Indicator
LED Indication Radio Status
The LED indicator flashes
green.
Powering on
The LED indicator glows
red.
Transmitting
The LED indicator glows
green.
Receiving
The LED indicator flashes
orange slowly.
Scanning or Roaming
The LED indicator flashes
orange rapidly.
Emergency
The LED indicator glows
orange.
Call hang time. No voice is being transmitted or received on the traffic
channel during a call. Within such period, you can hold down the PTT
key to talk to the other party.
Note: Unless otherwise specified, the PTT key mentioned in this manual indicates that of the palm
microphone.
5
3. Installation
3.1 Instructions
Before you install the radio in a vehicle, be sure to read the following instructions carefully:
The radio must work with a13.6V ± 15% negative ground electrical system only. Ensure to check the
ground polarity and voltage of the vehicle power supply prior to installation.
Install the radio in a location where you can reach the front panel conveniently.
Check how long the screws will extend from the bottom surface of the radio before installation. Drill
the mounting hole cautiously to avoid damage to the vehicle wiring and other parts.
Install the radio with mounting bracket supplied by the Company, to avoid radio looseness in case of
accidents. The loose radio may cause bodily injury.
Connect the antenna and power cord to the radio before you install it in the bracket. And make sure
the antenna and power cord are dedicated for digital radios of the Company.
Keep sufficient clearance at the back of the radio for wiring.
Be sure to use the fuse with the same specification for DC power cord upon replacement.
If there are any other device in the vicinity of this radio, the distance between the antenna of this radio
and the antenna of such RF device shall be no less than 10 meters.
3.2 Installation Tools
Electric Drill
Cross head screwdriver
Hex socket sleeve (for 4.8 * 20mm self-tapping screws)
6
3.3 Installation Parts

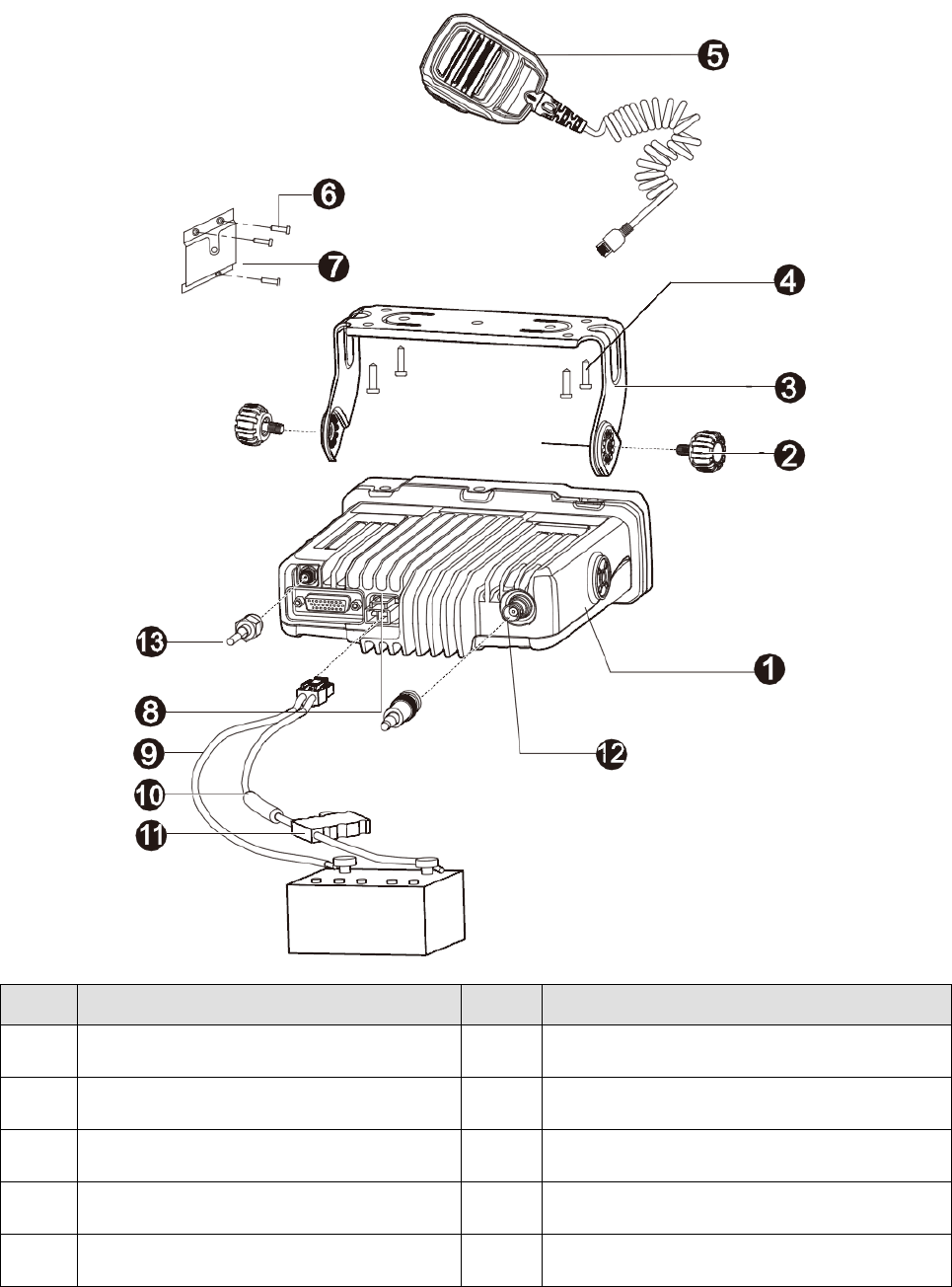

No. Part Name No. Part Name
1 Radio 8 Power Inlet
2 Locking Knobs 9 Power Cord (black)
3 Mounting Bracket 10 Power Cord (red)
4 4.8 * 20mm Self-tapping Screws 11 Fuse
5 Palm Microphone 12 RF Antenna Connector
7
No. Part Name No. Part Name
6 4 * 16mm Self-tapping Screws 13 GPS Antenna Connector
7 Microphone Hanger / /
3.4 Installation Procedure
1. Install the bracket in a location where you can operate the radio conveniently.
2. Connect accessories such as the antenna and power cord to the radio.
3. Slide the radio into the properly mounted bracket and secure it using the locking knobs.
4. Install the microphone hanger in a location where it can be reached easily.
5. Plug the palm microphone into the radio, but at first align the triangle index on the palm microphone
with the microphone installation index. Place the palm microphone on the hanger when you do not
use it.
8
4. Basic Operations
4.1 Turning the Radio On/Off
Long press Power On/Off key to turn the radio on and off.
4.2 Adjusting the Volume
After the radio is powered on,turn the volume menu up increase the voice volume, turn the volume menu
down is to decease it.
4.3 Selecting a Zone
A zone is a group of channels with the same property, which can facilitate convenient management over
the channels. The radio supports 3 zones, each of which consists of up to 16 channels. If the Zone Notify
feature is enabled by your dealer, the radio will announce the zone number when selecting zone.
4.4 Selecting a Channel
You can press the Channel Selector knob to switch it to channel selection
If the Channel Notify feature is enabled by your dealer, the radio will announce the channel number upon
channel switching.
Note
The number and alias of a new contact must be unique.
9
5. Call Services
After the radio is powered on, you can make and receive calls. To ensure optimal volume of the
receiving radio, keep the microphone about 2.5 to 5 centimeters away from your mouth when the radio is
transmitting.
5.1 Private Call
5.1.1 Initiating a Private Call
When you initiate a private call, the radio will display the icon . You can make a private call through
any of the following ways:
Preset Contact
In the home screen, hold down the PTT key to initiate a private call to the private contact preset for the
current channel.
You may request your dealer to preset a regular private contact for each digital channel.
Contact List
Step 1 Go to “Menu -> Contact -> Contact List”.
Step 2 Use the Up/Down key to select an appropriate contact.
Step 3 Hold down the PTT key to initiate a private call.
Call Logs
Step 1 Go to “Menu -> Call Logs -> Outgoing/Incoming/Missed”.
Step 2 Use the Up/Down key to select an appropriate contact.
Step 3 Hold down the PTT key to initiate a private call.
10
Manual Dial
Step 1 Go to “Menu -> Contact -> Manual Dial”.
Step 2 Input the private call number using the numeric keypad.
Step 3 Hold down the PTT key to initiate a private call.
Note
If both the Private Call Manual Dial and Group Call Manual Dial are available, you can press
to switch between the two dialing methods, and the radio will display the call type (Private
ID/ Group ID).
If the Default Numeric Key Selection feature is enabled by your dealer, you can enter a private call
number in the home screen, and then hold down the PTT key to initiate a private call. However, if
the DTMF keypad is enabled, the number entered in the home screen is a phone number. You
can dial the private call number through the “Manual Dial” menu only.
5.1.2 Receiving and Responding to a Private Call
When you receive a private call, the radio will display the icon , then you can listen to it without any
operation. You can hold down the PTT key to call back within the preset time. If you do not respond to it,
the radio will display appropriate indications.
5.2 Group Call
5.2.1 Initiating a Group Call
When you initiate a group call, the radio will display the icon . You can make a group call through
any of the following ways. The operation is similar to initiating a private call.
Preset Contact
In the home screen, hold down the PTT key to initiate a group call to the group call contact preset for the
current channel.
Contact List
Step 1 Go to “Menu -> Contact -> Contact List”.
Step 2 Use the Up/Down key to select an appropriate contact.
Step 3 Hold down the PTT key to initiate a group call.
Manual Dial
The operation is the same as initiating a private call.
11
5.2.2 Receiving and Responding to a Group Call
When you receive a group call, the radio will display the icon on the LCD. You can hold down the
PTT key to call back within the preset time.
5.3 Call on Analog Channel (Without Signaling)
To transmit on an analog channel, hold down the PTT and speak into the microphone. To receive,
release the PTT key.
Please refer to the Feature Description and Operation Manual along with the product for operation
description on how to make and receive calls on the analog channel with signaling.
5.4 Emergency Call
In case of emergency, you can use Emergency Call to ask for help from your companion or the control
center.
Emergency Call needs to be configured and enabled by your dealer. Please refer to the Feature
Description and Operation Manual along with the product for details.
12
6. Troubleshooting
Phenomena Analysis Solution
The radio cannot
be powered on.
The power cord may be
disconnected.
Connect the power cord properly.
During receiving,
the voice is weak,
discontinuous or
totally inactive.
The volume level may be low.
Increase the volume by rotating the Volume
Control knob.
The antenna may get loose or
may be improperly installed.
Turn off the radio and reattach the antenna.
The speaker may be blocked
or damaged.
Clean the surface of the speaker.
You cannot
communicate with
other members in
analog mode.
The frequency or signaling may
be inconsistent with that of
other members.
Set your TX/RX frequency and signaling to the
same as that of other members.
You may be too far away from
the group members.
Move towards other members.
In digital mode,
there’s RX
indication on the
radio, you cannot
communicate with
other members.
The digital carrier may be
received but may not be
demodulated due to
inconsistent ID with that of
other members.
Sets the same ID of other members.
Irrelevant
communication or
noise is heard on
the channel.
You may be interrupted by
radios using the same
frequency.
Adjust the squelch level.
The radio may be set with no
signaling.
Set your radio with signaling to avoid
interference at the same frequency, and make
sure that all members share the same
signaling.
The noise is too
loud.
You may be too far away from
other members.
Move towards other members, and restart the
radio to try again.
13
Phenomena Analysis Solution
You may locate in an
unfavorable position. For
example, your communication
may be blocked by high
buildings or frustrated in the
underground areas.
Move to an open and flat area, and restart the
radio to try again.
You may suffer from external
disturbance (such as
electromagnetic interference).
Stay away from equipment that may cause
interference.
You cannot use the
keys.
The keypad may fail to function
temporarily.
Restart the radio.
The LCD does not
display any
information.
The LCD may fail to function
temporarily.
Restart the radio.
The GPS cannot
locate your
position.
The GPS antenna may be
connected improperly.
Properly connect the GPS antenna.
GPS signals may not be
received due to unfavorable
position.
Move to an open and flat area to try again.
If the above solutions cannot fix your problems, or you may have some other queries, please contact us
or your local dealer for more technical support.
14
7. Care and Cleaning
To guarantee optimal performance as well as a long service life of the product, please follow the tips
below.
Product Care
Do not pierce or scrape the product.
Keep the product far away from substances that can corrode the circuit.
Do not hold the product by its antenna or earpiece cable directly.
Attach the accessory connector cover when the accessory is not in use.
Product Cleaning
Caution: Power off the product and disconnect the power supply before cleaning.
Clean up the dust and fine particles on the product surface and charging piece with a clean and dry
lint-free cloth or a brush regularly.
Use neutral cleanser and a non-woven fabric to clean the keys, control knobs and front case after
long-time use. Do not use chemical preparations such as stain removers, alcohol, sprays or oil
preparations, so as to avoid surface case damage.
Make sure the product is completely dry before use.
15
8. Optional Accessories
The following items are the main optional accessories for the product, and please consult your local
dealer for more other accessories.
Caution: Use the accessories specified by the Company only. If not, the Company shall not be liable
for any loss or damage arising out of use of unauthorized accessories.
Type Model Name
Power
Supply
PS16001 Power Supply of Base Station Cabinet
PS22002 Power Supply for Mobile Radio (220W, Backup Power
Supply applicable)
Audio
Accessories
SM09D1 External Speaker
SM10A1 Desktop Microphone
SM19A1 Keypad Microphone
SM20A1 Telephone Style Handset
SM20A2 Telephone Style Handset with Keypad
Cable
PC37 DB26-connector Programming Cable (USB port)
PC40 DB26-connector Data Cable (USB port)
PC43 DB26-connector Dispatching Cable with USB Port&Dual
Audio Jack
PC46 Data Cable(COM Port)
PC47 Programming Cable (USB port)
PC48 Data Cable(COM Port)(6 meters)
PC49 Back-to-back Data Cable (DB26 to DB26)
PC60 Ignition Cable for Mobile Radio
PC71 Serial Device Server
Others
BRK15 Installation Accessory for Rack-mounted Power Supply
(2U)(Black)(Dual channel)
RCC04 Mobile Radio Remote Mount Kit (3 meters)(IP67)
16
Type Model Name
RCC05 Mobile Radio Remote Mount Kit (6 meters)(IP67)
RCC06 Mobile Radio Remote Mount Kit (3 meters)(IP54)
RCC07 Mobile Radio Remote Mount Kit (6 meters)(IP54)
- Omni-directional Antenna
17
9. Technical parameters
PMR
Operation
Frequency Range:
From 400MHz to 470MHz
Rated Output Power: High Power: 45W (46.53dBm)/Low Power: 5W (36.99dBm)
Modulation Type: Analog Voice: FM
Digital Voice/Digital Data: 4FSK
Digital Type: DMR
Channel Separation: Analog Voice: 12.5kHz 25kHz
Digital Voice/Digital Data: 12.5kHz
Emission Designator: Analog Voice: 12.5kHz Channel Separation: 9K89F3E
25kHz Channel Separation: 14K6F3E
Digital Voice& Data: 12.5kHz Channel Separation: 7K29FXW
Digital Data: 12.5kHz Channel Separation: 7K29FXD
Support data rate: 9.6kbps
Antenna Type: External
Bluetooth
Version: Supported BT4.0+EDR/BLE
Modulation: GFSK, π/4DQPSK, 8DPSK
Operation frequency: 2402MHz~2480MHz
Channel number: 79/40
Channel separation: 1/2MHz
Antenna type: Integral Antenna
Antenna gain: 0dBi
18
10. FCC STATEMENT
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay
causeundesiredoperation.
NOTE1:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,
pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst
harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurin
aparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,
whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneormoreofthefollowingmeasures:
‐Reorientorrelocatethereceivingantenna.
‐Increasetheseparationbetweentheequipmentandreceiver.
‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
NOTE2:Anychangesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
RFradiationsafetywarningsandthefollowing:
Antenna
Safe Distance, Rsafe, (cm)
FCC Part 2.1091
Controlled RF Exposure
TQC-150CII (5.5dBi) 70
Theantennaonlycanbeinstalledontheroofofthevehicle.
19
11. IC STATEMENT
ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s):Operationissubjecttothefollowing
twoconditions:
(1)Thisdevicemaynotcauseinterference,and
(2)Thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe
device.
LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1) l'appareilnedoitpasproduiredebrouillage,et
(2) (2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest
susceptibled'encompromettrelefonctionnement.
RFradiationsafetywarningsandthefollowing:
Antenna
SafeDistance,Rsafe,(cm)
RSS‐102
ControlledUseDevices(ControlledEnvironment)
TQC‐150CII(5.5dBi)76
AvertissementsdesécuritéradiologiqueRFetlesélémentssuivants:
Antenne
Distancedesécurité,Rsûr,(cm)
RSS‐102
Dispositifsd'utilisationcontrôlée(environnementcontrôlé)
TQC-150CII (5.5dBi)76
