Hytera Communications POA121 Wireless PTT User Manual 1

Hytera Communications Corporation Limited Wireless PTT 1

User manual

1
Preface
Welcome to the world of Hytera and thank you for purchasing this product. To derive optimum performance from
the product, please carefully read this manual before use.
This manual is applicable to the following products:
Packing List
Please unpack carefully and check that you have received the following items. If any item is missing or damaged,
please contact your dealer.
No. Item Qty.
1 Wireless PTT 1
2 Charger 1
3 Owner’s Manual 1
2
Product Introduction

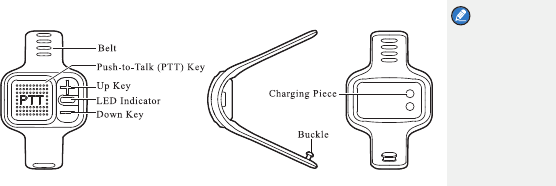

Product Layout
Wireless PTT
The Up Key and
Down Key can be
programmed to
Volu m e C o ntro l
keys or Channel
Selector keys. For
details, consult your
dealer.
Note
3

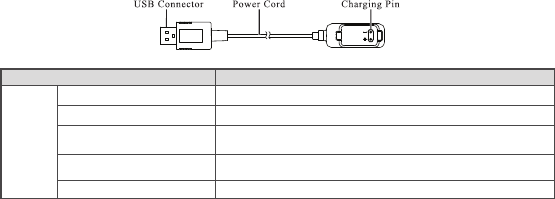

Charger
LED Indicator
LED Indication Description
Blue
Flashes for 4 times The product is being turned on.
On The BT is pairing.
Flashes twice every 3s The wireless connection is established, but no voice is being
transmitted.
Flashes once every 1s The wireless connection is established, and voice is being
transmitted.
Flashes once every 3s The wireless connection is not established.
4
LED Indication Description
Red
Flashes for 4 times The product is being turned off (BT not connected).
Flashes 2 times, and then
ÀDVKHVWLPHVDIWHUVVWRS The product is being turned off (BT connected).
Flashes once every 3s The battery is low.
Flashes once every 1s The product is being charged.
On The product is transmitting.
Green On The product is fully charged.
6SHFL¿FDWLRQV
Item 6SHFL¿FDWLRQ
Communication Distance 10 m
Battery Life (5-5-90 Duty Cycle) 120 h
Battery Capacity 33mAh
Charging Time 1.5 h
Dust & Water Protection IP67
Operating Temperature –20°C to +60°C
Storage Temperature –40°C to +85°C
5
Before Use

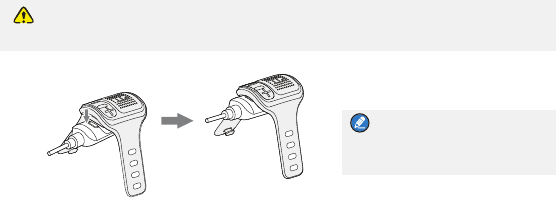

Charging the Product
ƔTurn off the product and get it fully charged if it stays idle for a long time. Charge it every three
months to prolong its lifespan.
ƔTurn off the product before charging; otherwise, it will be reset and turned off automatically.
7KH/('LQGLFDWRUÀDVKHVRQFHHYHU\VLQGLFDWLQJWKDWWKHEDWWHU\LVORZ7RFKDUJHWKHSURGXFWGRDVIROORZV
Caution
Note
After the product is fully charged, go
through the steps reversely to remove it.
6
Wearing the Wireless PTT
$GMXVWWKHULQJEHOWWR¿W\RXU¿QJHUDQGZHDULW
Basic Operations
Turning the Product On or Off
To turn on the product, press and hold both Up Key and Down .H\VLPXOWDQHRXVO\XQWLOWKH/('LQGLFDWRUÀDVKHV
blue rapidly.
To turn off the product, press and hold both Up Key and Down .H\VLPXOWDQHRXVO\XQWLOWKH/('LQGLFDWRUÀDVKHV
red rapidly.
If the product does not establish wireless connection within five minutes, it will be turned off
automatically.
Note
7
Note
Pairing the Product
The product can work properly only when it is paired with the wireless audio adapter or the radio with BT module.
After initial pairing, whenever you turn on the product, the connection will be automatically established.
To enter paring mode:
ƔFor Wireless Ring PTT: press and hold both Up Key and Down.H\XQWLOWKH/('LQGLFDWRUÀDVKHVEOXH
ƔFor wireless audio adapter or radio with BT module: refer to corresponding User Manual for details.
7KH/('LQGLFDWRUÀDVKHVEOXHLQGLFDWLQJWKDWWKHZLUHOHVVFRQQHFWLRQLVHVWDEOLVKHG
ƔThe product will exit if the connection is not established three minutes after entering pairing mode.
ƔThe product will always pair with the last connected wireless audio adapter or radio.
Making a call
To make a call, press and hold the PTT key, and then speak into the microphone on the audio device. Release the
PTTNH\ZKHQ¿QLVKHG
FCC Notice:
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept
any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
IC Notice:
This device complies with Canada Industry licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference; and
(2) this device must accept any interference. Including interference that may cause
undesired operation of the device.
Cet appareil est conforme aux CNR exemptes de licence d'Industrie Canada . Son
fonctionnement est soumis aux deux conditions suivantes :
( 1 ) Ce dispositif ne peut causer d'interférences ; et
( 2 ) Ce dispositif doit accepter toute interférence , y compris les interférences qui peuvent
causer un mauvais fonctionnement de l'appareil.
CAN ICES-3 (B)
Avis d’Industrie Canada
Le présent appareil est conforme aux CNR d'industrie Canada applicables aux appareils
radio exem pts de licence L'exploitation est autorisée aux deux conditions suivantes:
1) I'appareil ne doit pas produire de brouillage; et
2) I'utillsateur de I'appareil doit accepterbrouillage radioélectrique subi meme si le
brouillage est susceptible d'encompromettre le fonctionnement. mauvais fonctionnement
de I'appareil.
Cet appareil numériquie de la classe B est conforme à la norme NMB-003 du Canada.
CAN NMB-3 (B)
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
0mm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 0mm de distance entre la source de rayonnement et votre corps.
Caution
1.Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
3.The max operating of the EUT is 60°C. and shouldn’t be lower than -20°C.
4.The device complies with RF specifications when the device used at 0mm form your body.
5.Declaration of Conformity
We, Hytera Communications Corporation Limited
hereby, declare that the essential requirements compliance with the Directive 2014/53/EU.
have been fully fulfilled on our product with indication below:
Product Name: Wireless PTT
Brand Name : Hytera
Model : POA121
This product can be used across EU member states.
