User Manual

NOTE :

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouragedto try to correct the interference by one or more of the following

measures :

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio / TV technician for help.

Modifications not expressly approved by the manufacturer could void the user's

authority to operated the equipment under FCC rules.

Contents

11. Introduction 2

1.1. Overview

1.2. Main Features

12. Safety/Precautions 3

2.1. Safety

2.2. Precautions

13. Check Point before Use 5

3.1. Accessories

14. Controls/Functions 6

4.1. Front Panel

4.2. Rear Panel

4.3. Remote Control

15. How to Connect 10

16. Operation 13

6.1. Getting Started

6.2. Channel Editing

6.3. System Parameters

6.4. Transponder

6.5. Factory Set

6.6. On Air Download

6.7. Other Function on Remote Control

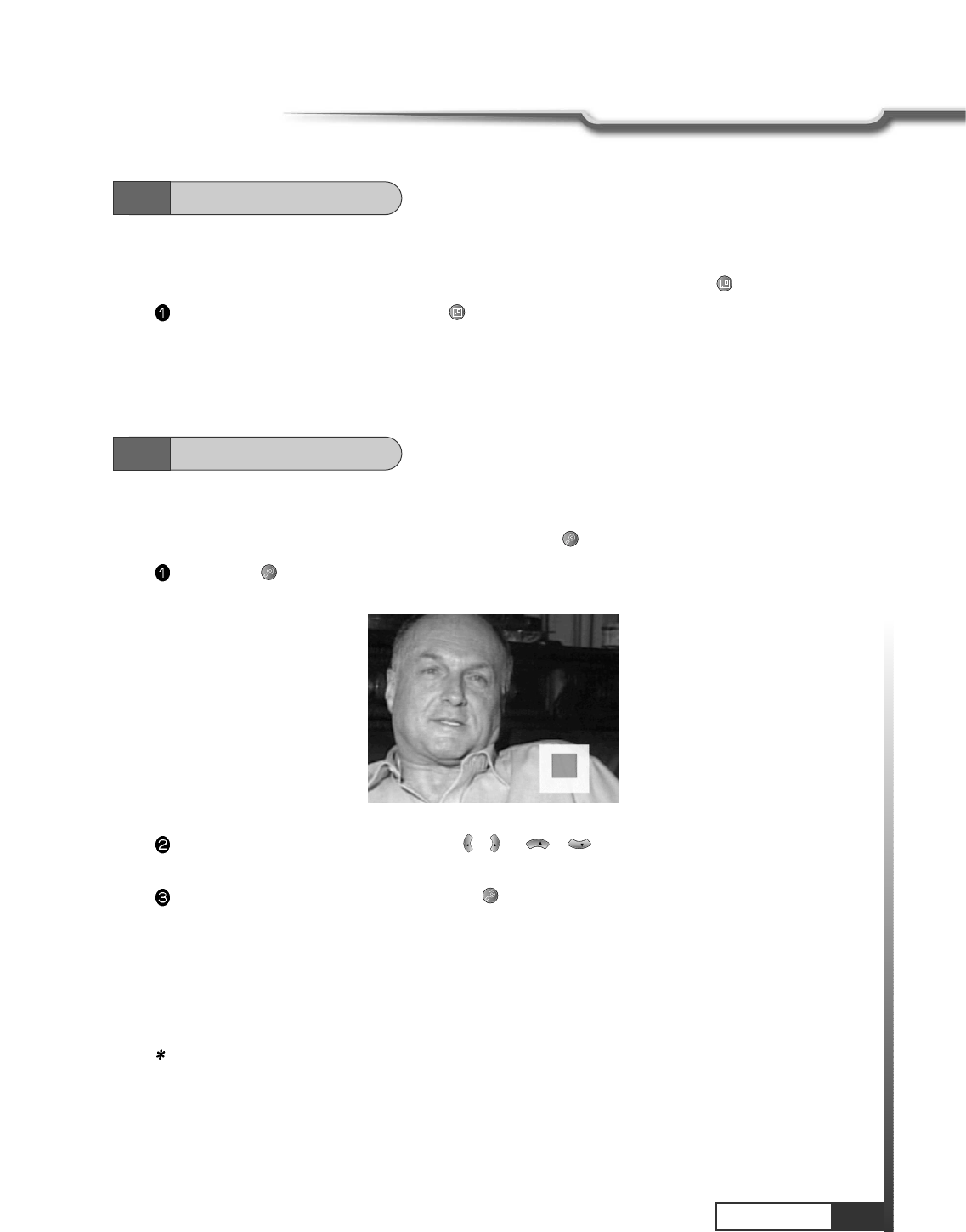

6.8. Picture in Picture

6.9. Zoom Function

17. Hard Disk Operation 44

7.1. Recording

7.2. Playing

7.3. Delete Programs

7.4. Descrambling Service

7.5. Lock Programs

7.6. Skip Play

7.7. Bookmark

7.8. Repeat

7.9. Split Operation

7.10. Trick Play Controls without OSD

19. Trouble Shooting 53

10. Specifications 54

Introduction

This Dual tuner PVR(Personal Video Recorder) with Common Interface is your “Window to the World”

giving you the opportunity to enjoy scrambled programs. Enjoy the rich choice of more than 4,000

different channels, broadcasting a large range of culture, sports, cinema, news, events, etc. This

receiver is a technical masterpiece, assembled with the highest qualified electronic parts.

Fully compliant with MPEG-2 and DVB standards

Dual Tuners for watch and record

User friendly operating Menu and On-Screen Graphic Menu

Easy to use EPG(Electronic Program Guide) on screen

Age protection lock function

Tele-text supported by VBI insertion and OSD

Manual PID control

Hard Disk extensible upto 160GB

Picture in Picture(Dual Decoding)

S/PDIF for digital audio and Dolby AC-3 bitstream output

Dual Recording and Playback simultaneously

Recording and Time Shifting simultaneously

Playback of the selected region repeatedly

Powerful trick mode supported

Zoom function

1.1

Overview

1.2

Main Features

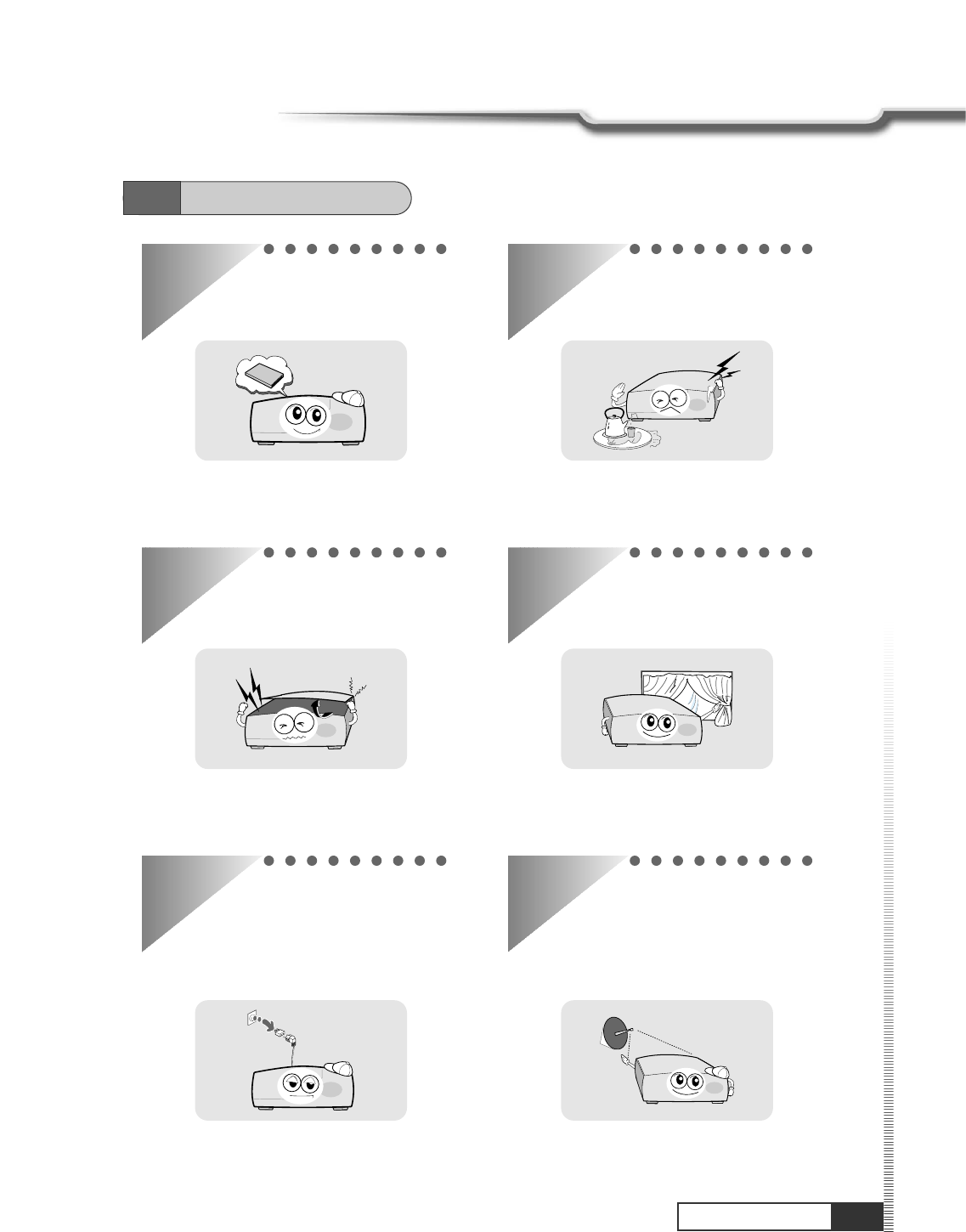

Safety/Precaution

Be sure to read the user's manual before

starting the operation of the unit.

Do not touch the power cord with wet hands

as it may cause electric shock.

Never open the cover. It is very dangerous to

touch the inside of the unit due to possible

electric shock.

Place the unit in a well ventilated and no-

heat environment.

When you do not use this unit for a long time,

make sure that power cord is pulled out from

the outlet. Also do not use a damaged

power cord as it may cause fire or electric

shock.

A professional installation is required.

If reception is interrupted, contact your local

service centre.

2.1

Safety

Safety/Precaution

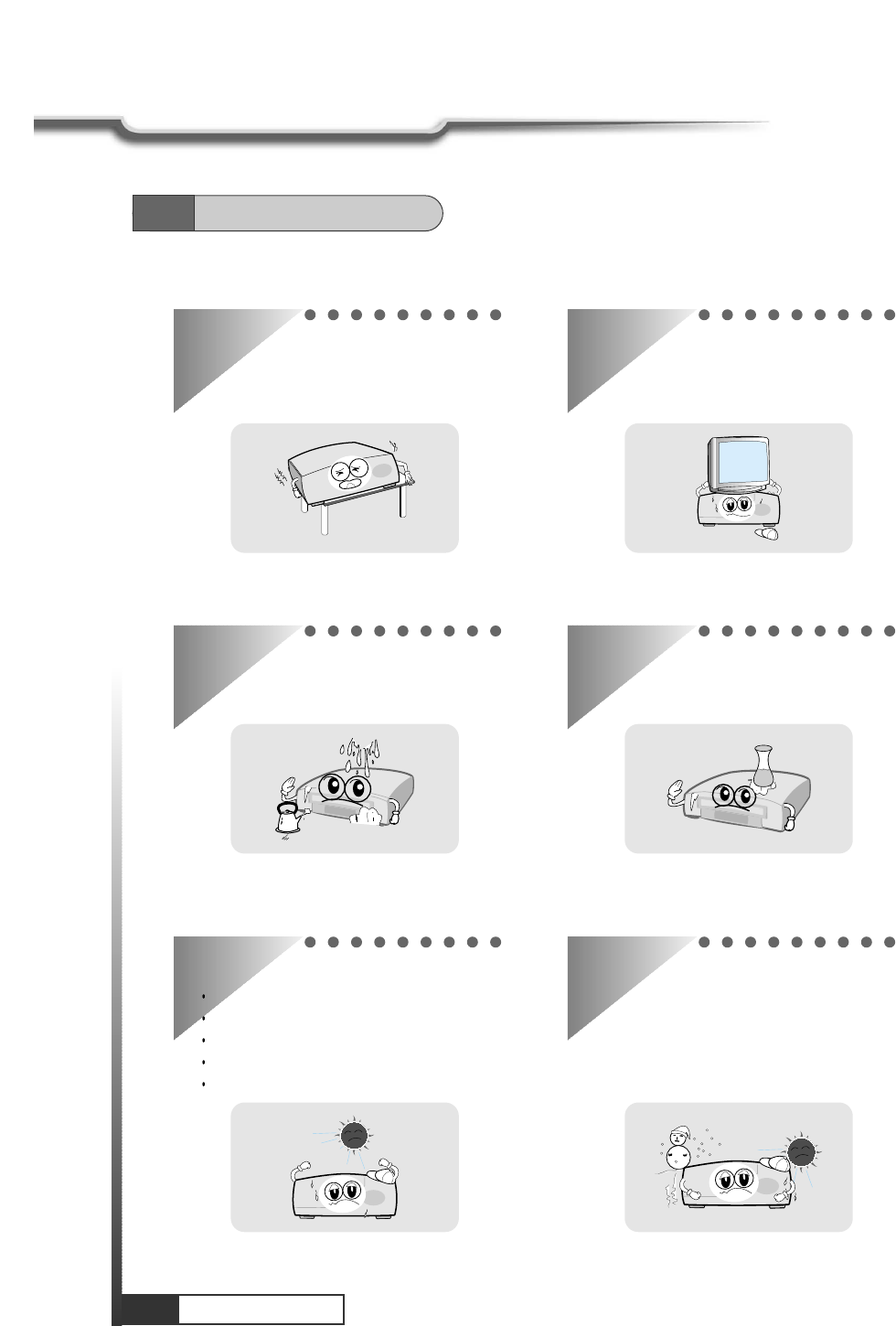

Safety Precautions

When installing the unit

Install the unit horizontally. An uneven

installation may cause the unit to be

damaged.

Do not put heavy items such as a TV on the

unit. That may cause the unit to be

damaged.

Do not leave the unit where the water drops

or splashs. Do not put water holding items such as vase

on the unit.

Do not install the unit:

Where it is subject to vibrations

Where it is exposed to direct sunlight

Where there is humidity

Where the temperature is too high or too low.

Where there is no ventilation

Moving the unit to a hot area from a cold

one will cause condensation.

Do not operate the unit for one or two hours

or until it has dried completely.

2.2

Precautions

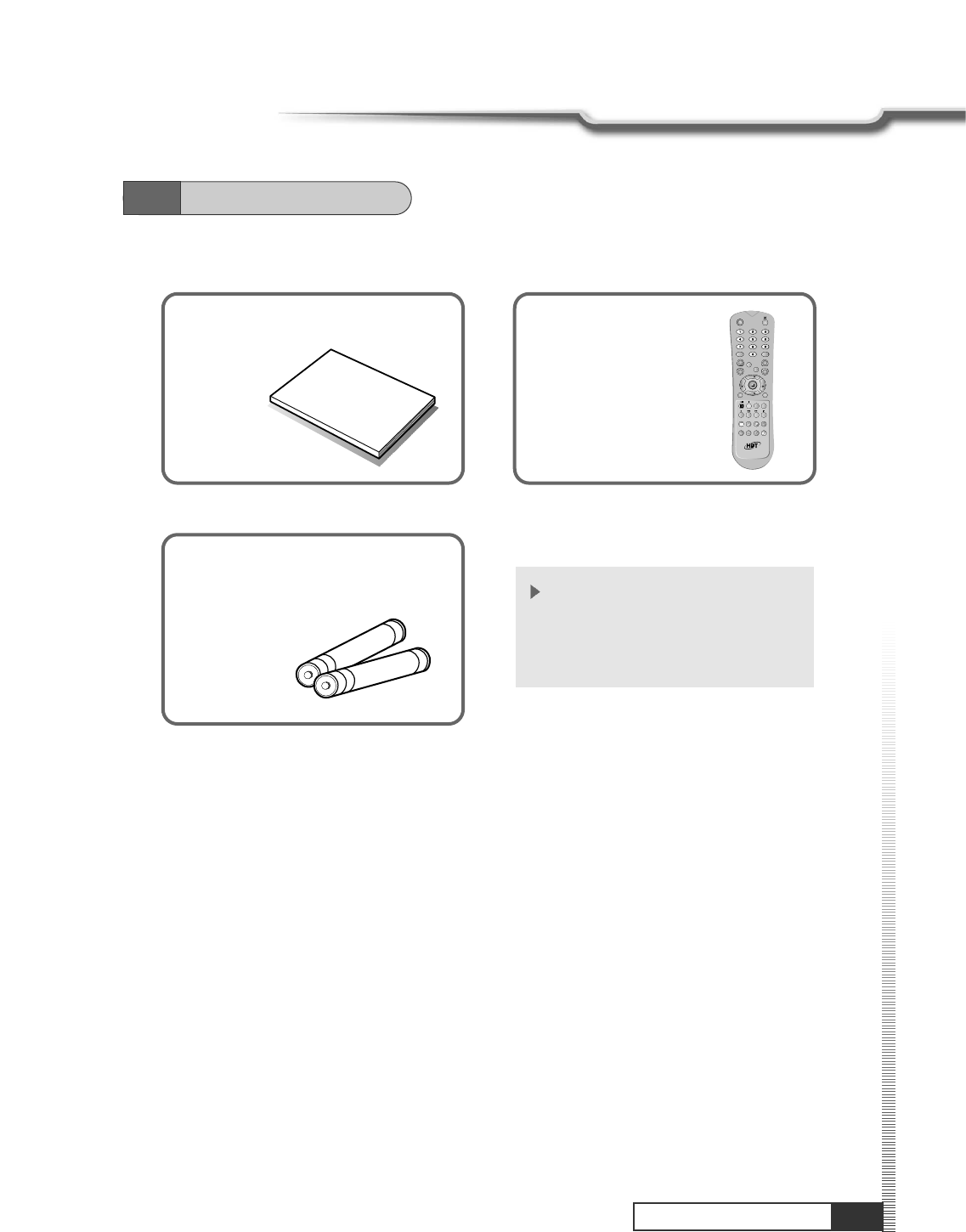

Check Point before Use

User's manual : 1

User's manual

Batteries (AAA type) : 2

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

Remote control : 1

If any accessories listed above are

missing, contact the sales

representative where you purchased

this unit.

Accessories of the Unit

3.1

Accessories

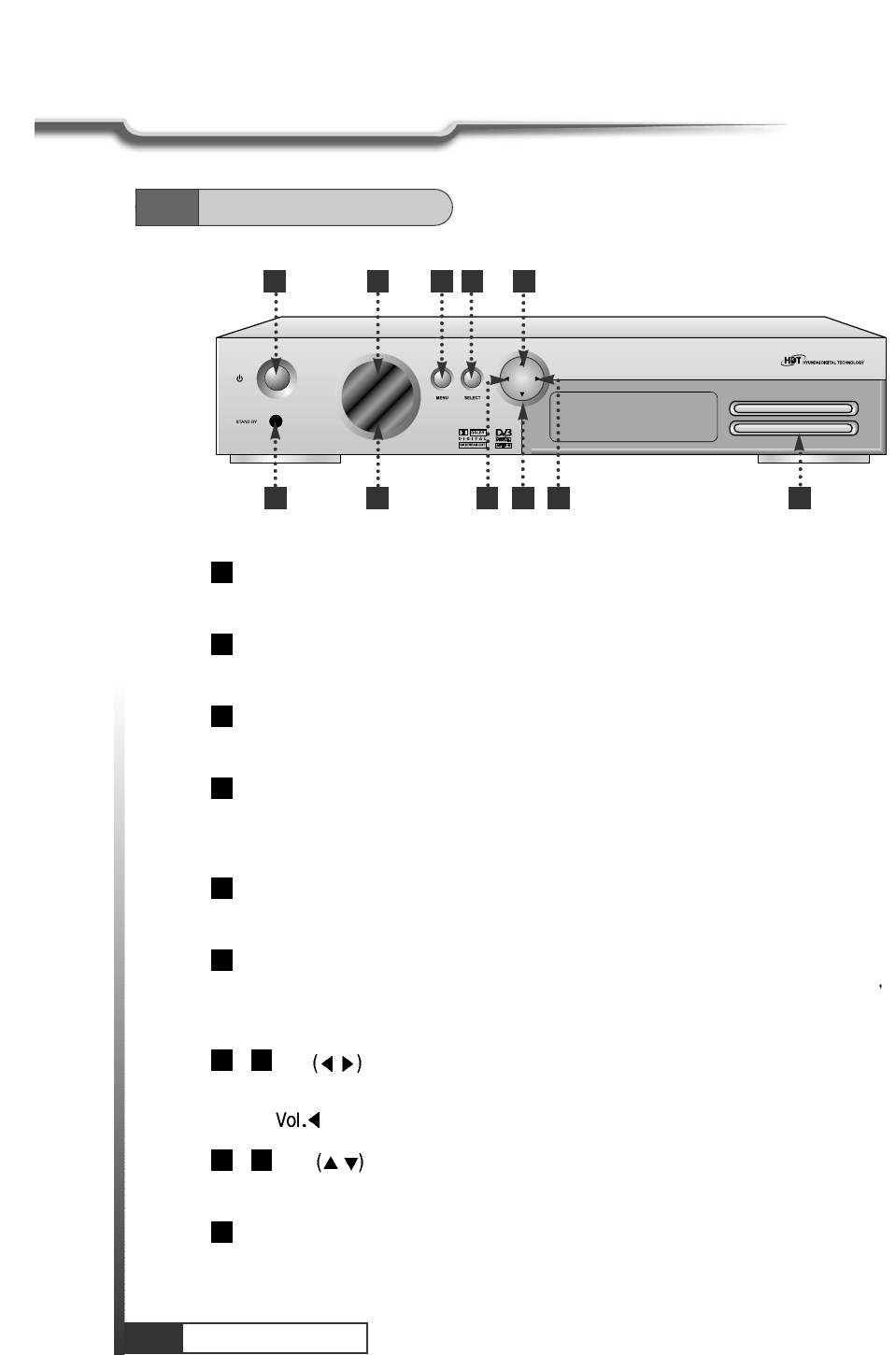

Controls/Functions

Power

To switch the receiver in “standby” mode or in power on mode.

Standby/Power on Indication light

Flashing red in “standby” and no light in power on mode.

Remote Sensor

Receives the infrared signal from remote control.

Channel Display(4 Digit)

- When you connect the power line of the receiver, the current time is displayed.

- After programming, the program number or name is displayed.

To launch or terminate the menu application.

Select

To activate a highlighted item or go to next level on hypertext menu or confirm the user s

action.

- Vol. /

To adjust the volume level or change the value of an item with preprogrammed values. The

Key can be used as a backspace to cancel the numerical input.

- CH. /

1 3 5 6

2 4

4.1

Front Panel

To change channel or cursor position on the application screen.

Smart Card

Controls/Functions

4.2

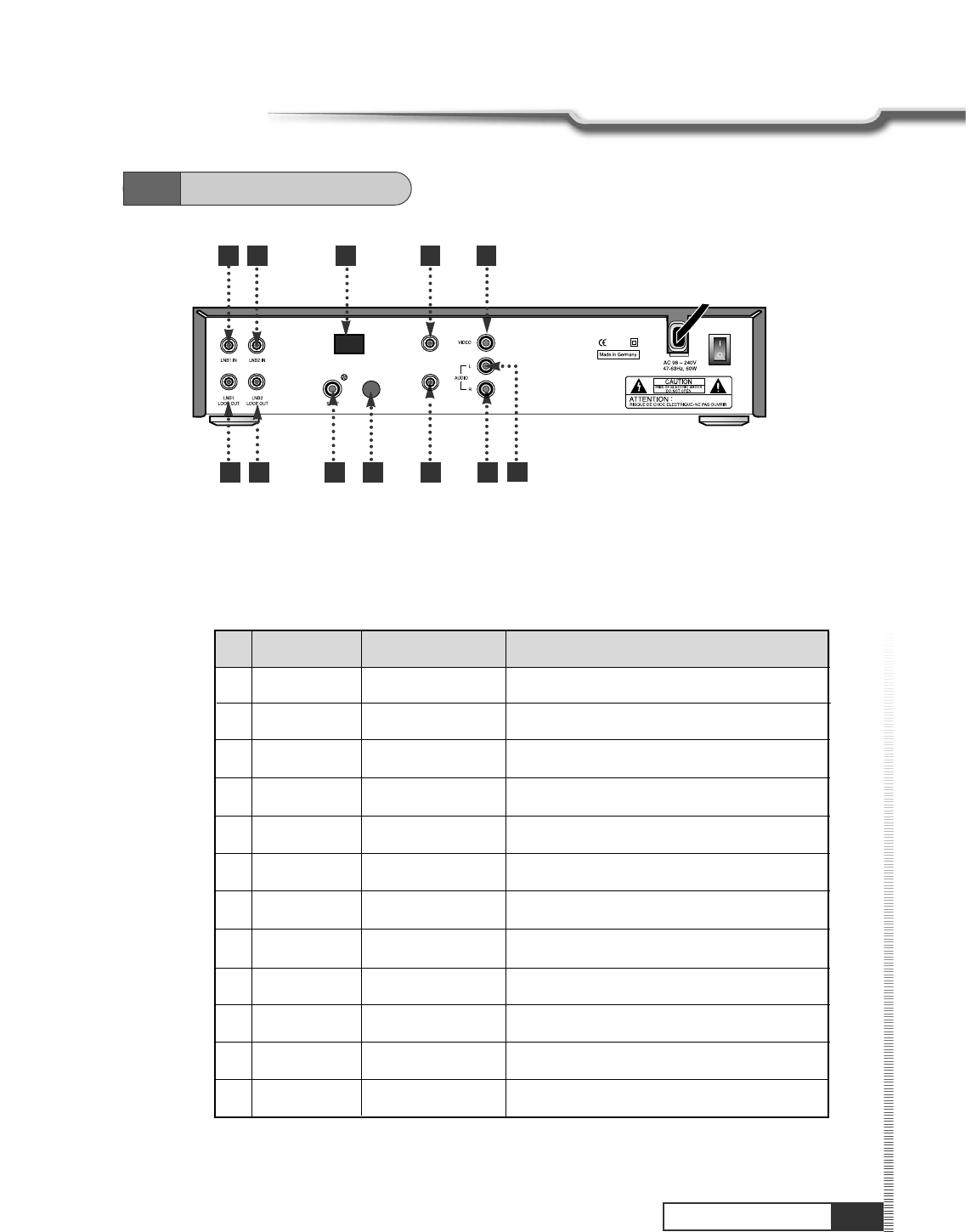

Rear Panel

No. Name Connector Function

1 LNB1 INPUT IEC 169-23 Female IF input from LNB to Digital Tuner 1

2 LOOP1 OUT IEC 169-23 Female IF Loop-through output from Digital Tuner 1

3 LNB2 INPUT IEC 169-23 Female IF input from LNB to Digital Tuner 2

4 LOOP2 OUT IEC 169-23 Female IF Loop-through output from Digital Tuner 2

5 Digital Audio RCA Cinch Digital Audio Output (S/PDIF)

6 S-VHS S-VHS Super Video Output

7 RF IN IEC 169-23 Female Input from Terrestrial Antennal

8 RF OUT IEC 169-23 Female Output to TV

9 VIDEO RCA Cinch Composite Video Output

10 AUDIO L RCA Cinch Left Audio Output

11 AUDIO R RCA Cinch Right Audio Output

2 4

MODEM

RJ11

Line In (Telephome)

Controls/Functions

POWER :To switch into ‘standby’ or ‘power on’ mode.

MUTE : To turn the sound on/off.

Numeric Keys(0-9) : To input numeric value, channel

number or characters.

INFO. :To display the information of the current

channel.

AUDIO :To change the audio track, stereo-mono

mode.

GUIDE : (EPG : Electronic Program Guide)

To watch program information. Press once more to

return to normal mode.

CH LIST :To watch the channel list. Press to

confirm or press EXIT to return to previous

chosen channel.

MENU : To enter/exit the main menu.

EXIT :To return to previous status or menu.

AUX IN : To select in/out mode of scart connector. SAT,

AUX, AUX2 and TV mode are toggled in turn.

RECALL :To return to the previous chosen channel.

- Left & Right : To change the value of a

selected item with preprogrammed value in menu.

can be used as a backspace to cancel the

numerical input.

(ENTER):To select an item or to confirm a menu.

- Up & Down : To move the cursor up

and down in menu.

TV/RADIO :To switch between the TV and radio

channels.

TV/SAT :To toggle the TV output source between the

satellite input and UHF/VHF antenna input.(Option)

BLUE : To delete a channel from the Channel List

menu. To show extended program information in the

EPG menu. To see Teletext Service Data. To play or

pause the stored programs on HD.

1615

VOL

1312

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

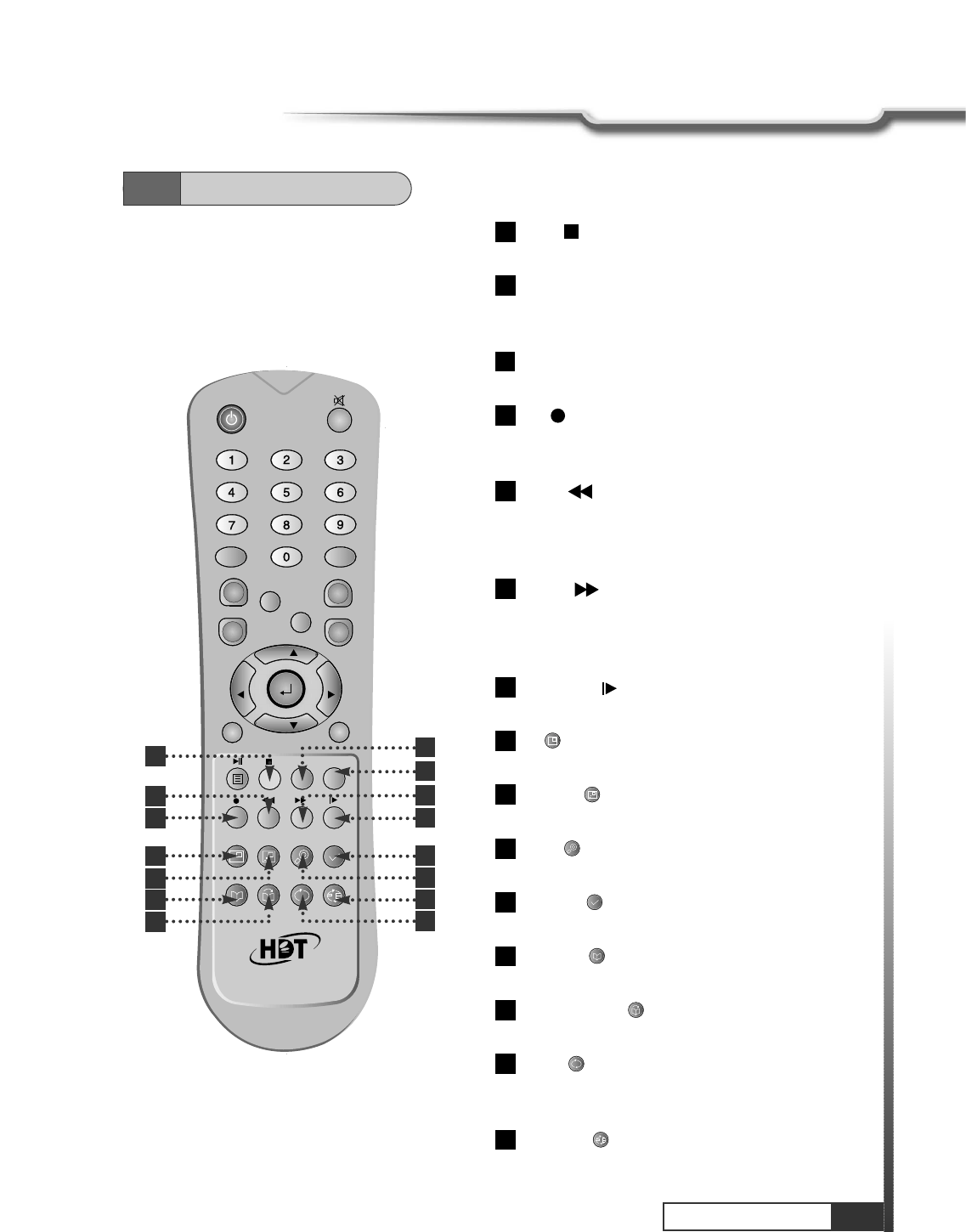

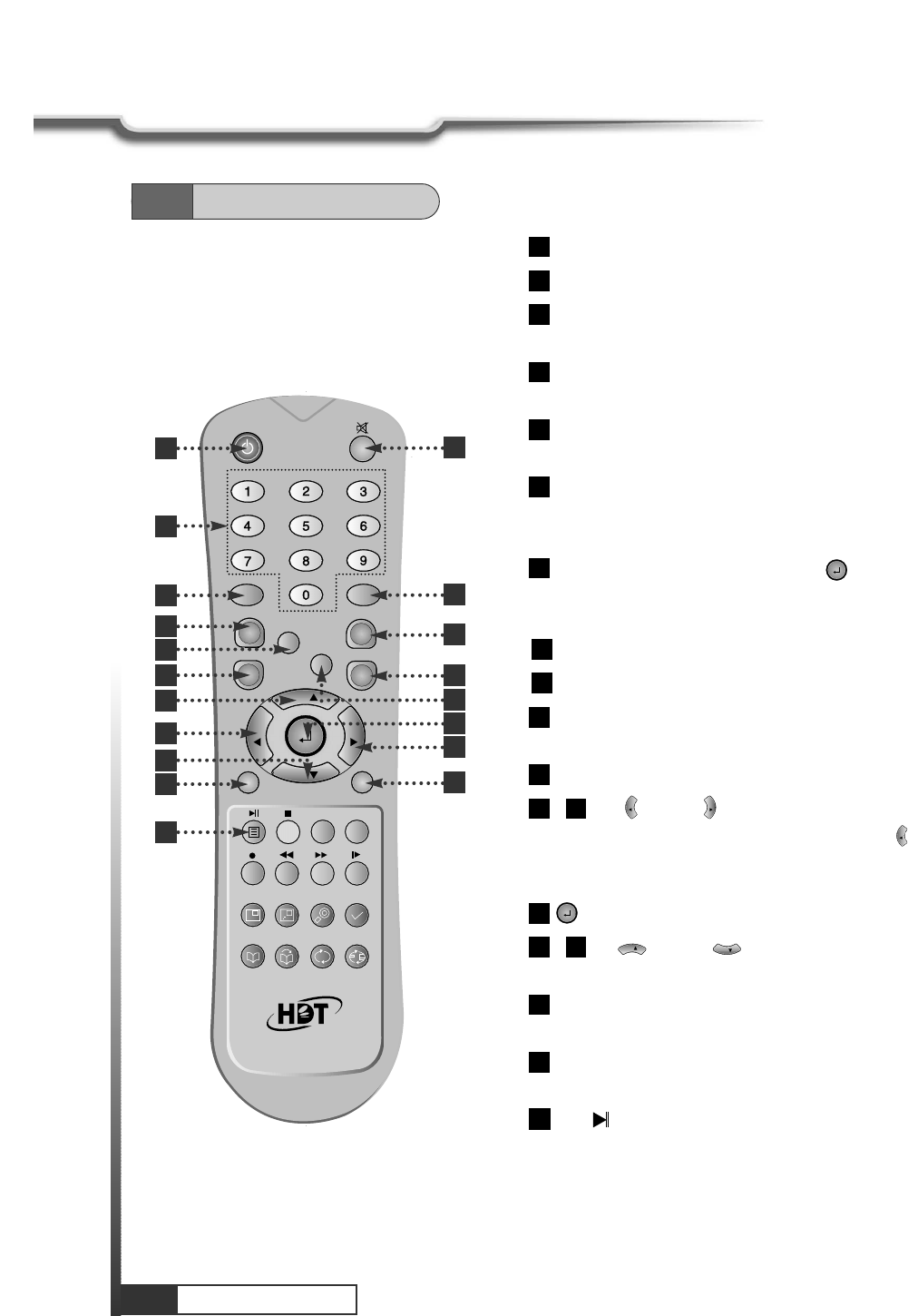

4.3

Remote Control

Controls/Functions

4.3

Remote Control

IVORY : To add a new channel to the Channel List

menu. To stop the played programs on HD.

ORANGE(LIST):To see variant channel lists for user's

convenience in the Channel List menu. To watch the list of

stored programs on HD.

SLEEP : To switch off the receiver automatically after 30

upto 150 minutes.

RED :To setup favorite channel lists in the Channel

List menu. To record the program on to HD. To delete

the stored programs on HD or set skip points.

GREEN : To lock channel in the Channel List

menu. To show current/next program information in the

EPG menu. To play the stored programs on HD with fast

reverse mode.

YELLOW : To move a channel to other position in

the Channel List menu. To show program schedule

information in the EPG menu. To play the stored

programs on HD with fast forward mode.

Slow Motion :To play the stored program on HD with

slow motion mode.

PIP :To Set PIP Window. Live, HDD and Diasble the

Sub-picture.

PIP SWAP : To Switch between Main-Picture and

Sub-Picture.

ZOOM : To set zoom function. Control zoom

function beginning and magnification.

Time-Shift : To start the time-shift function for the

current channel.

Bookmark : To set the bookmark position while

playback.

Go to Bookmark : To jump to the bookmark

position while playing.

REPEAT : To repeat playback of the stored program

on HD. Repeat 1, Repeat All and Normal are toggled

in turn.

PEPEAT A-B : To repeat playback of the selected

section of the stored program on HD.

QZ-

ABC DEF

GHI JKL MNO

PRS TUV WXY

INFO

AUDIO

GUIDE

CH.LIST

AUX IN

RECALL

TV/RADIO

TV/SAT

EXIT

VOLVOL

SLEEP

LIST

20 21

24 25

28 29

32 33

How to Connect

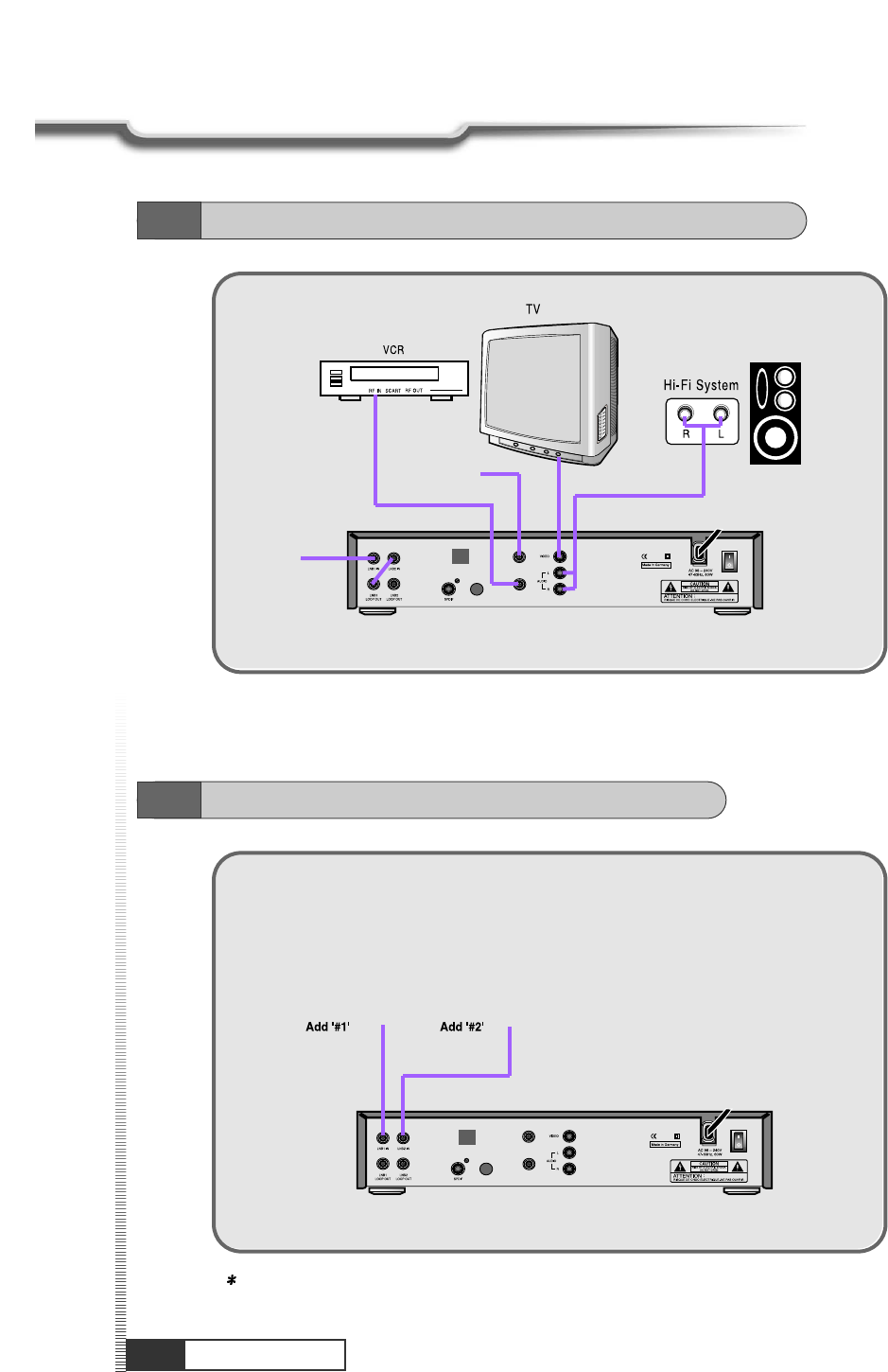

5.1

Connecting IRD to Hi-Fi system and TV, VCR

5.2

Connecting Tuner to two separated Cable

Cable

TV ANT

Cable Cable

Note : At tuner select in LNB Configuration menu, #1 or #2 mode should be selected

How to Connect

Note : Tuner select in LNB Configuration menu, Loop mode should be selected.

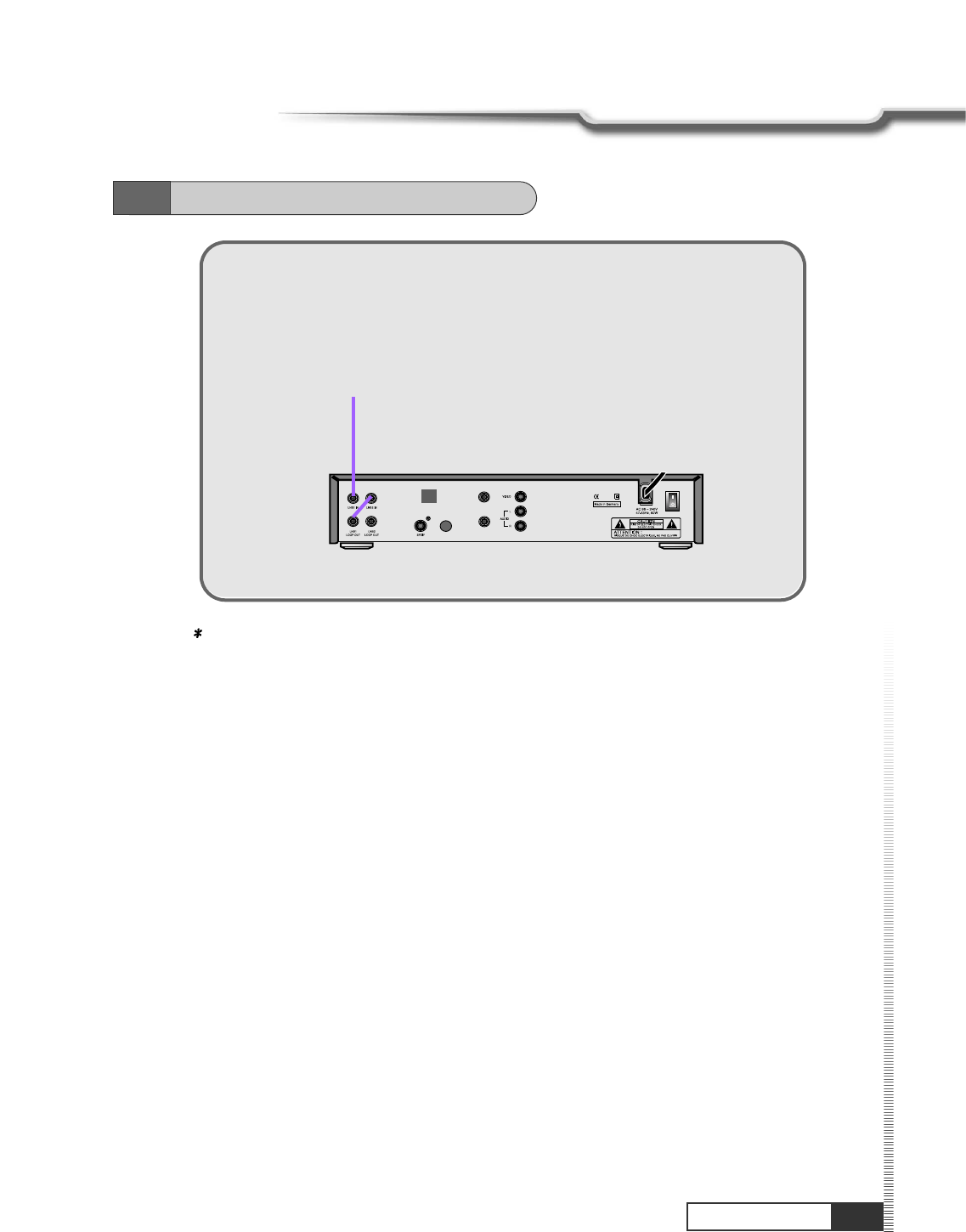

5.3

Connecting Tuner to one Cable

Cable

MEMO

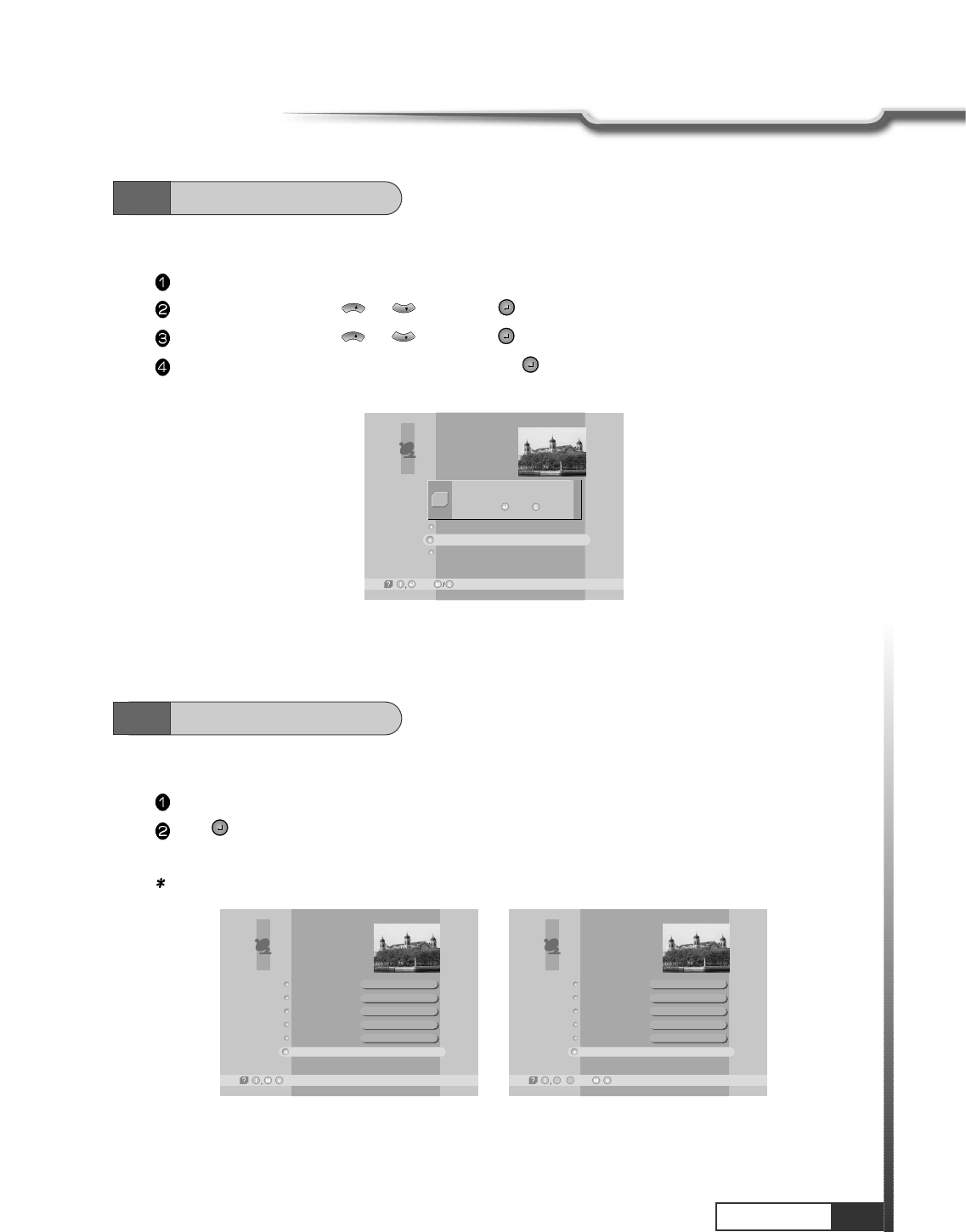

Operation

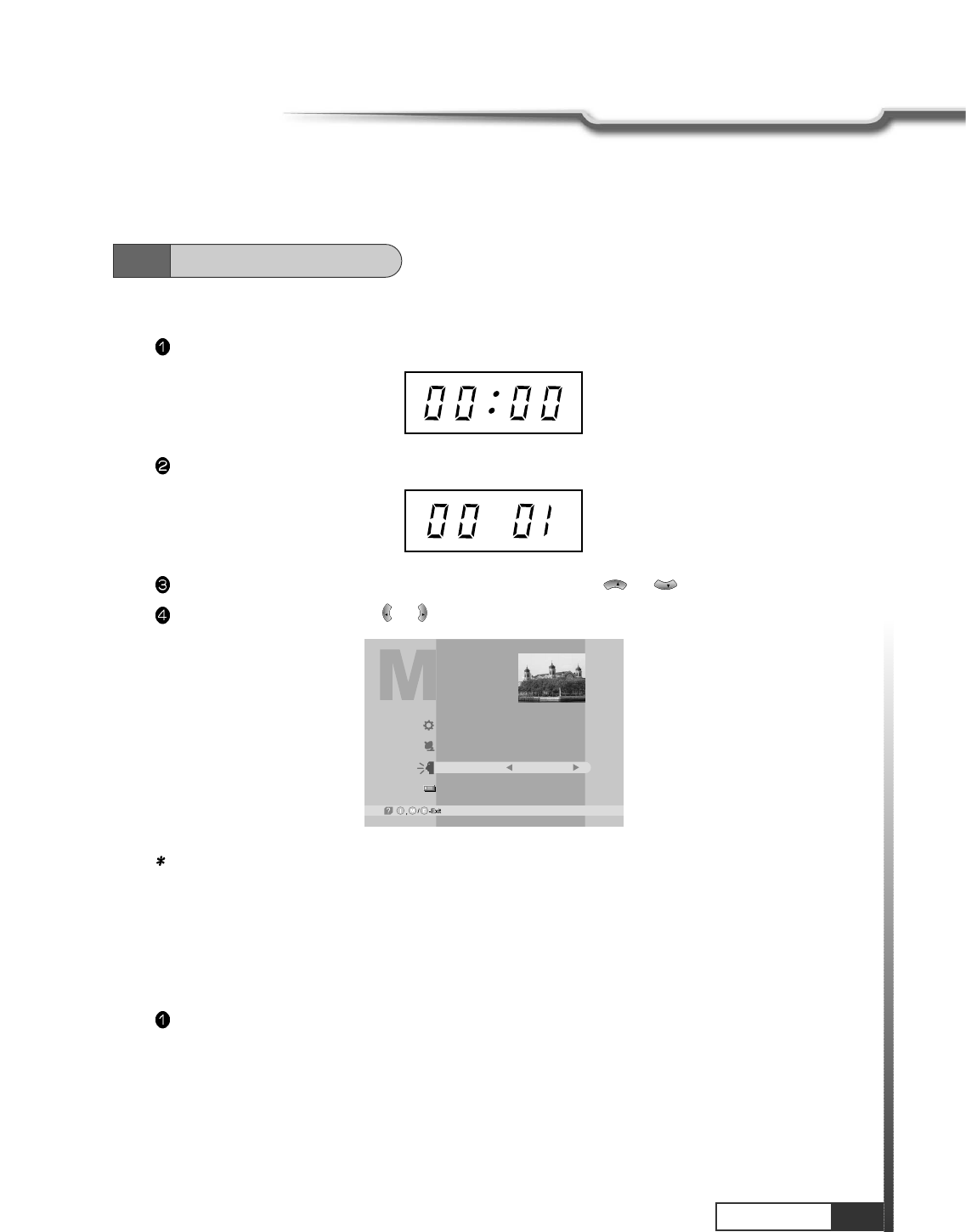

1. Menu Language Setting

When you plug in AC power, the following will be displayed on the front.

Press POWER on remocon, the LED number will be displayed as follows;

Press MENU key and position cursor on ‘Language' column with or .

Select language you want with or .

VOL

Note : Languages displayed in 'Language' column are supported by your receiver.

After your receiver is powered up, proceed with installation as follows:

Main Menu

System Parameters

Installation

Language

Common Interface

English

6.1

Getting Started

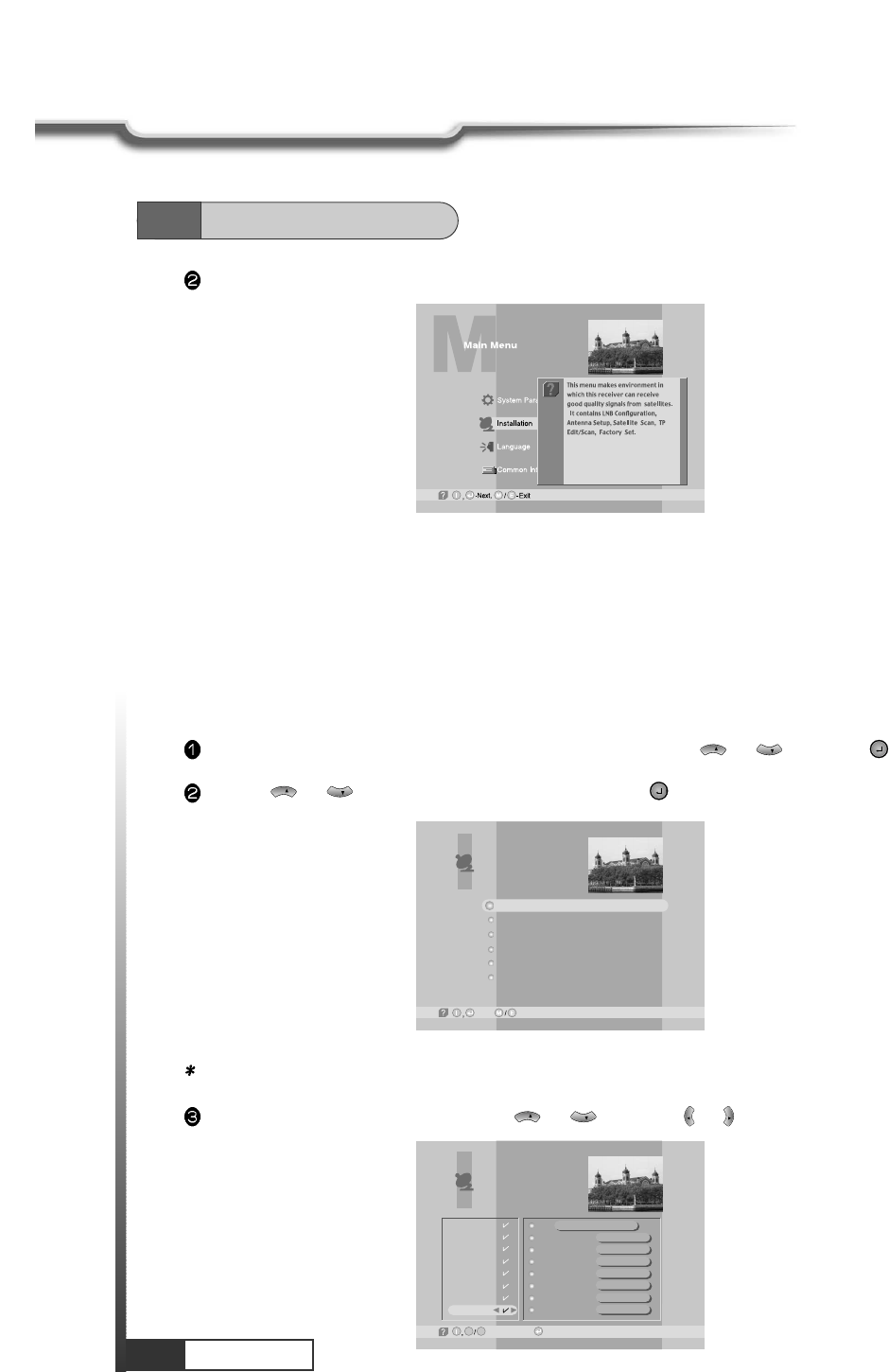

2. Help

If you want to know how to use current part in the menu, use ‘help' function.

Select a content in the menu.

For example, if you want to know about the installation menu, select installation.

Operation

3. Cable Setting

Since your receiver has the basic data of most satellites and channels, you can receive programs just by

plugging in. But, according to the status of your antenna setup, you may have to modify the basic data

of satellites and / or channels.

When you need to modify the data, proceed as follows ;

Press MENU key and position the cursor on Installation column with or and press .

6.1

Getting Started

By using or , select ‘LNB Configuration’ and press .

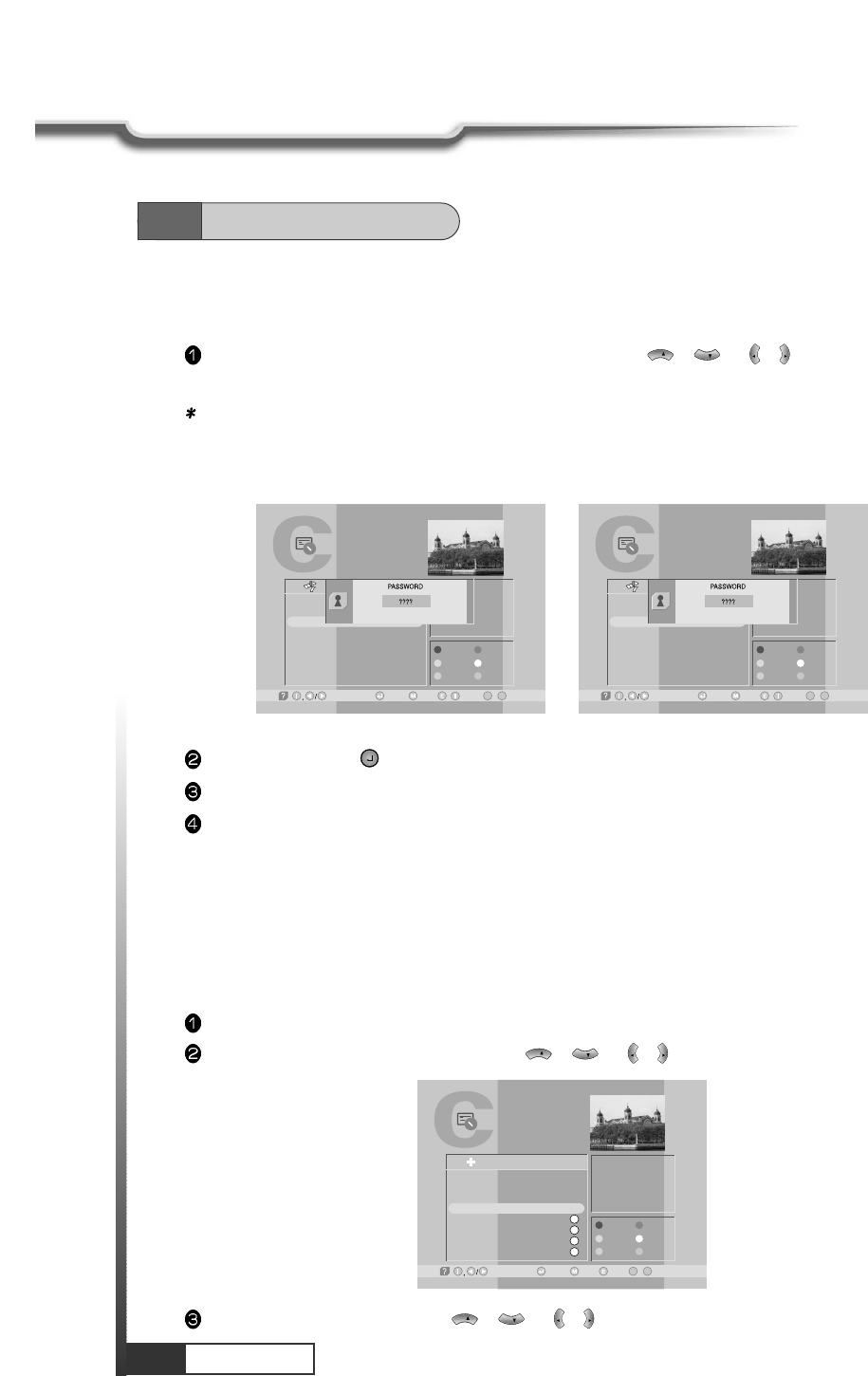

Note : Enter 4-Digit password if need arise. The default password is ‘0000’.

LNB Configuration

Antenna Setup

Satellite Scan

TP Edit/Scan

Factory Set

On Air Download

Installation

-Next, -Prev.

Press INFO. Then you can see the help window of the selected content.

Position

High L.O.

Low L.O.

Power

0/22KHz

DiSEqC

Tuner Select

LNB Configuration

USER1

-Page Up/Down, -Edit

G L

USER7

USER8

USER9

USER10

USER11

USER12

USER13

USER14

000.0

5,150 GHz

0 GHz

0 KHz

----

#1 & #2

Select the Satellite you want to add with or and press or .

VOL

Operation

6.1

Getting Started

Select item you want to edit with or and change each parameter.

- Position : You can input the longitude of the satellite with numeric keys.

- High L.O. / Low L.O. : Enter LNB oscillator frequency with numeric keys.

- Power : Set LNB power ON or OFF with or .

- 0/22KHz : Set the path of 0/22KHz switch box with or .

- DiseqC : Set the path of DiSEqC box with or .

- Tuner Select : Set the tuner #1, #2, #1 & #2 and Loop with or .

If you do not use the switch box, set as “---”.

Note : When you change each parameter, you need to know exact parameter of LNB to modify

L.O.(local oscillator) frequency.

Note : When you change each parameter, you need to understand environment of connecting the

receiver and antenna in order for you to set 22KHz and DiSEqC properly.

Note : For more information, refer to Chapter.6 How to Connect

When necessary, you can change a satellite name as you wish.

You can enter alphabetic characters with the numeric keys.

For example, if you want to enter ‘SAT-1',

Press .

Note : Press for space.

After the installation procedure, press EXIT key or MENU key to store your entered data.

VOL

If you press , the selected Satellite will be added and the cursor will move to right window for

detailed installation.

Note : If you just want to edit the data of the satellite which is already contained in the receiver, press

after you select the satellite.

4. Antenna Setup

You need to position your antenna correctly for reception of the best signal.

Press MENU key.

Select ‘Installation’ with or , and press .

Select ‘Antenna Setup’ with or and press .

Antenna Setup

-Prev.-Main,

Motor / Goto 0

Move / Save

Set Limit

My longitudo

My latitudo

Off

Stop

Disable

000.0

00.0

ASIA3

[7] 3,710 GHz

Vertical - 14V

3,300 MSPS

Tuner Lock

FEC

Level

47% 51%

Qual.

3/4

Operation

6.1

Getting Started

Level Indicating selected satellite signal strength level

Quality Indicating signal to noise ratio

Select the satellite you want with or .

Press to move to TP section and select the TP you want with or .

When the satellite and the TP are selected, you can check the reception status of the satellite signal.

If the reception signal status is bad, adjust antenna to get the following result.

VOL

Tuner Lock FEC 1/2, 2/3, 3/4, 5/6 or 7/8

Level over 30% Quality over 10%

If you press , DiSEqc Motor will move toward Zero Equator.

- Move/Save

Motor moves to West & East direction.

- Set Limit

Determine the value of Limit of Motor.

If you select , the value of Limit will be changed.

- My longitude/My latitude

You can use this item when STAB is setted on ‘Motor/Goto 0'.

Determine your longitude & latitude at present.

‘East/West' is changed by using or .

VOL

DiSEqC 1.2 Positioner Setting

- Motor/Goto 0

Determine the kind of Motor & whether or not controlling it by using or .

VOL

On Using DiSEqC Motor.

Off Not using DiSEqC Motor.

STAB Using the specific Motor supplied by Stab company. Determine the longitude of the

satellite on LNB Configuration Menu. If the longitude of the satellite on LNB Configuration

Menu is setted, user must input the longitude about your position at present.

Operation

6.1

Getting Started

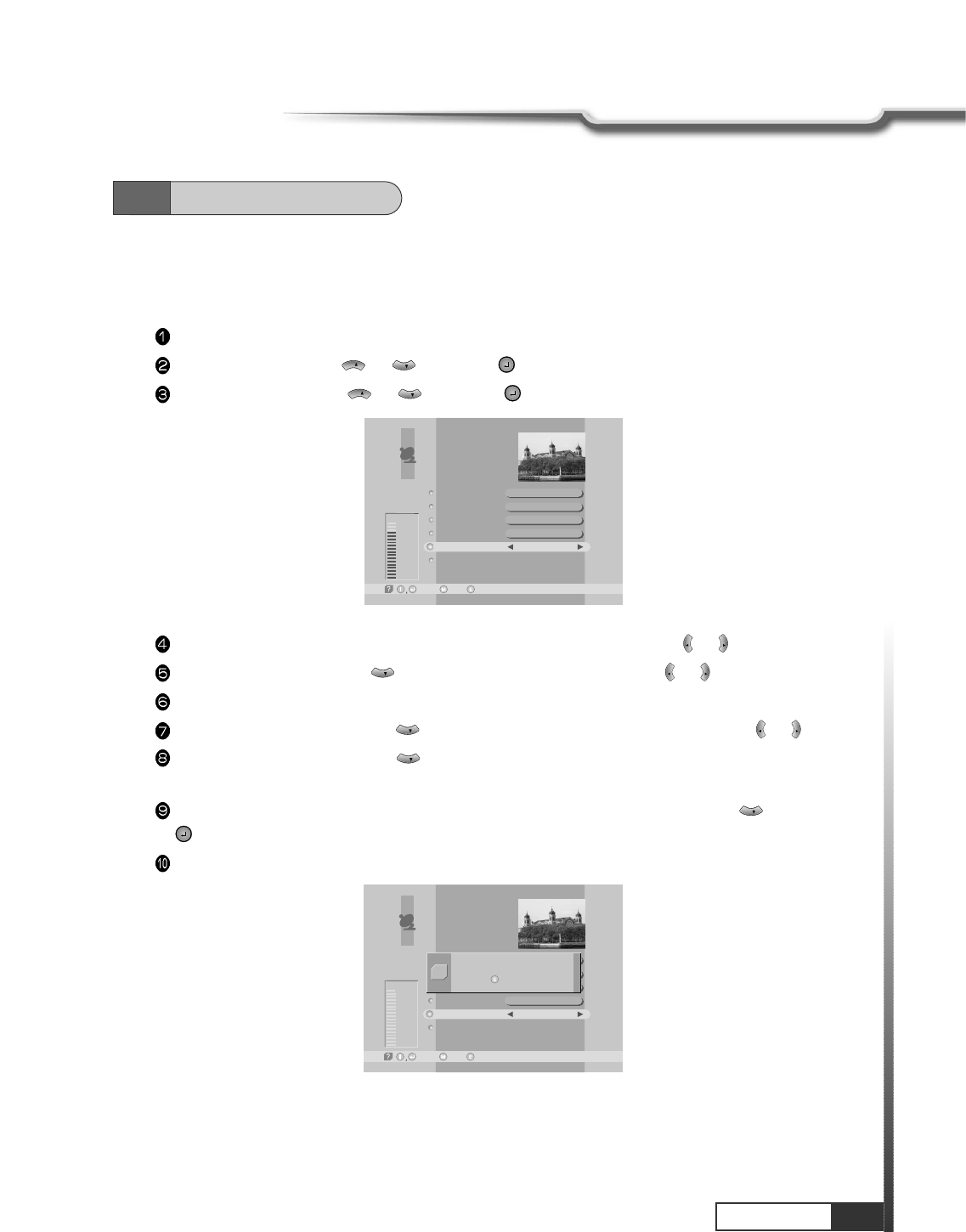

5. Satellite Scan

After finishing ‘Antenna Setup’, execute a ‘Satellite Scan’.

Then you can get all channels in the pre-programmed TPs. This function can also be used to get the

latest channel data while receiver is in use. Through this function, the receiver searches for all the

available channels and saves them in the memory.

Press MENU key.

Select ‘Installation’ with or , and press .

Select ‘Satellite Scan’ with or , and press .

Select ‘Scan Mode’ with or .

Select the scan mode you want with or .

Select the satellite name you want with or .

VOL

Satellite Scan

-Select, -Prev.-Main,

Free+Scrambled

AsiaSat 2

Scan Mode

Satellite Name

If you press

, the selected satellites will be scanned.

While scanning, you can see the following menu on the screen.

Satellite Scan

-Select, -Main,

-Prev.

Good

84%

TV: 2 Scanning:10% Radio: 0

SATLINK 972 2

APTN1 + 442074

NMTV

Guangdong 2

Hunan 2

Hubei 1

Hubei 2

DW 9

RDP ANTENA 1

RDP ESPECIAL

¥xÆWaN¥

TWN

¥@uØ

1/2

Auø USA

AsiaSat 2 [4] 3,720 GHz Hor. 4,420

Satellite Scan

-Watch, /

-Prev.

Bad

-Page Up/Down,

TV: 39 Scanning:10% Radio: 22

DW 9

RDP ANTENA 1

RDP ESPECIAL

¥xÆW

N¥

TWN

¥@uØ

1/2

Auø USA

AsiaSat 2 [28] 3,960 GHz Hor. 30,000

SATLINK 972 2

APTN1 + 442074

NMTV

Guangdong 2

Hunan 2

Hubei 1

Hubei 2

Satellite scan is done.

Press Key.

Operation

6. Select Channel

You can change the current channel to any other channel you want.

If you do not know the channel name, or you want to select a channel at random, you can

navigate between channels with or (CH. Up/Down)till you find the channel you want.

If you know the channel number, enter the number and wait 5 seconds for the channel to change.

If you know the channel name, press CH LIST key then channel list will pop-up.

In the right section, detailed information of the selected channel will be displayed.(Name of satellite,

frequency, symbol rate, etc.)

Select the channel you want with / (scroll up/down) or / (page up/down).

When the scroll bar is positioned on the channel you want to see, press .

VOL

TV Channel List

-Watch, -EXIT, ~ -Move

-Main,-Page Up/Down,

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

6.1

Getting Started

After the scanning process, the first channel of the last scanned TP will be displayed on the back

screen.

Press to finish the process. Then select a channel and press to watch a program or press

MENU key or EXIT key.

Note : Now you have completed all steps needed for watching programs. If you could not see the

program after finishing these procedures, please contact your engineer or representative.

Operation

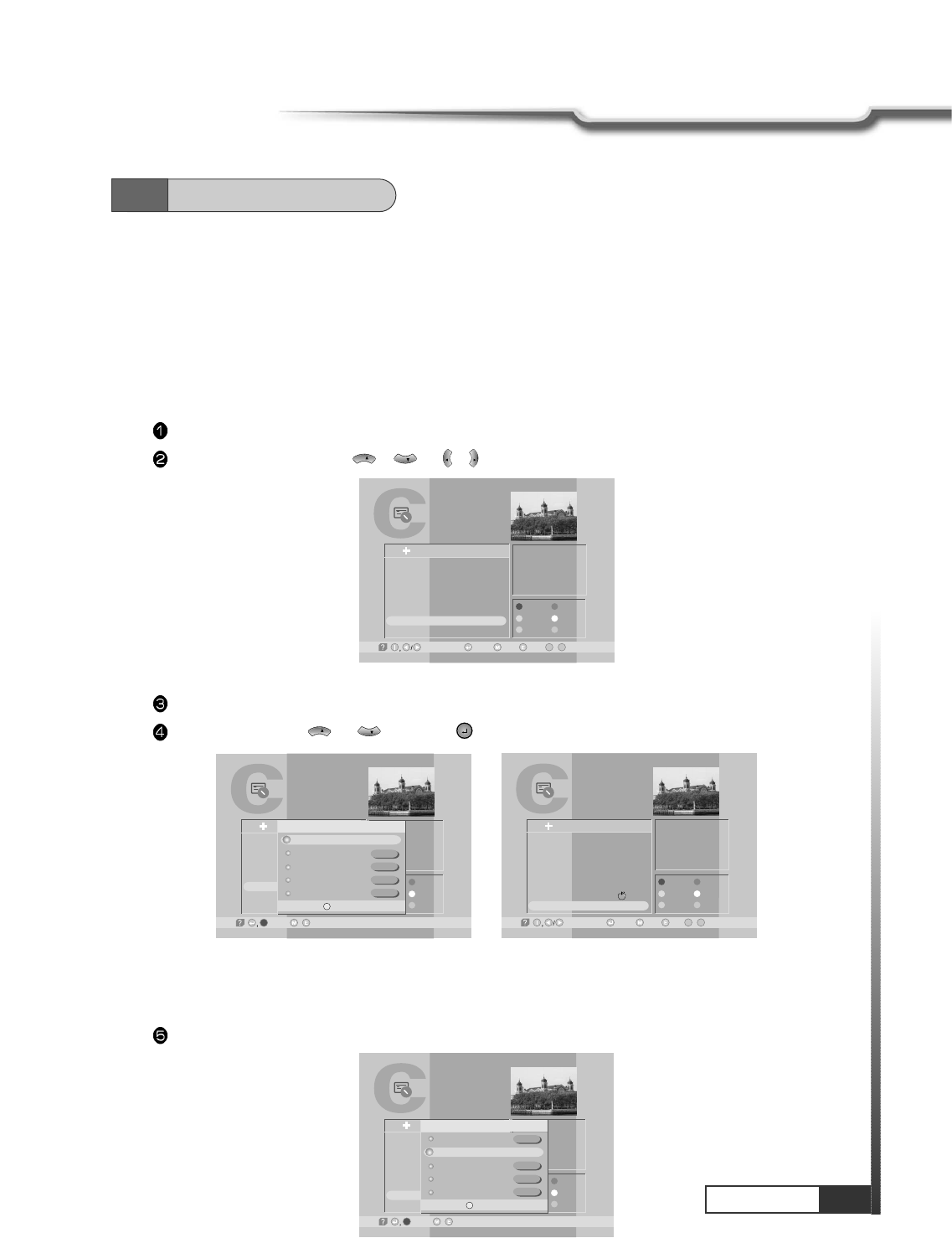

1. Favorite Channel

You can set up favorite channel lists as you want.

For example, if you want to set favorite channel lists as following.

Favorite1 : 7 DWtv, 6 Hunan1

Favorite2 : 1 Fujian1

Favorite3 : 3 ANHUI TV, 5 Guangdong1

Firstly, set favorite1 channels.

Press CH.LIST.

Select ‘DWtv' channel with / or / .

VOL

TV Channel List

-Watch, -EXIT, ~ -Move

-Main,-Page Up/Down,

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

TV Channel List

-Select, -Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,847 GHz

Horizontal-18V

28,123 MSPS

Dban

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Favorite State

Favorite 1

Favorite 2

Favorite 3

Favorite 4

Favorite 5

Rename.

TV Channel List

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

-Watch, -Exit, ~ -Move

-Main,-Page Up/Down,

6.2

Channel Editing

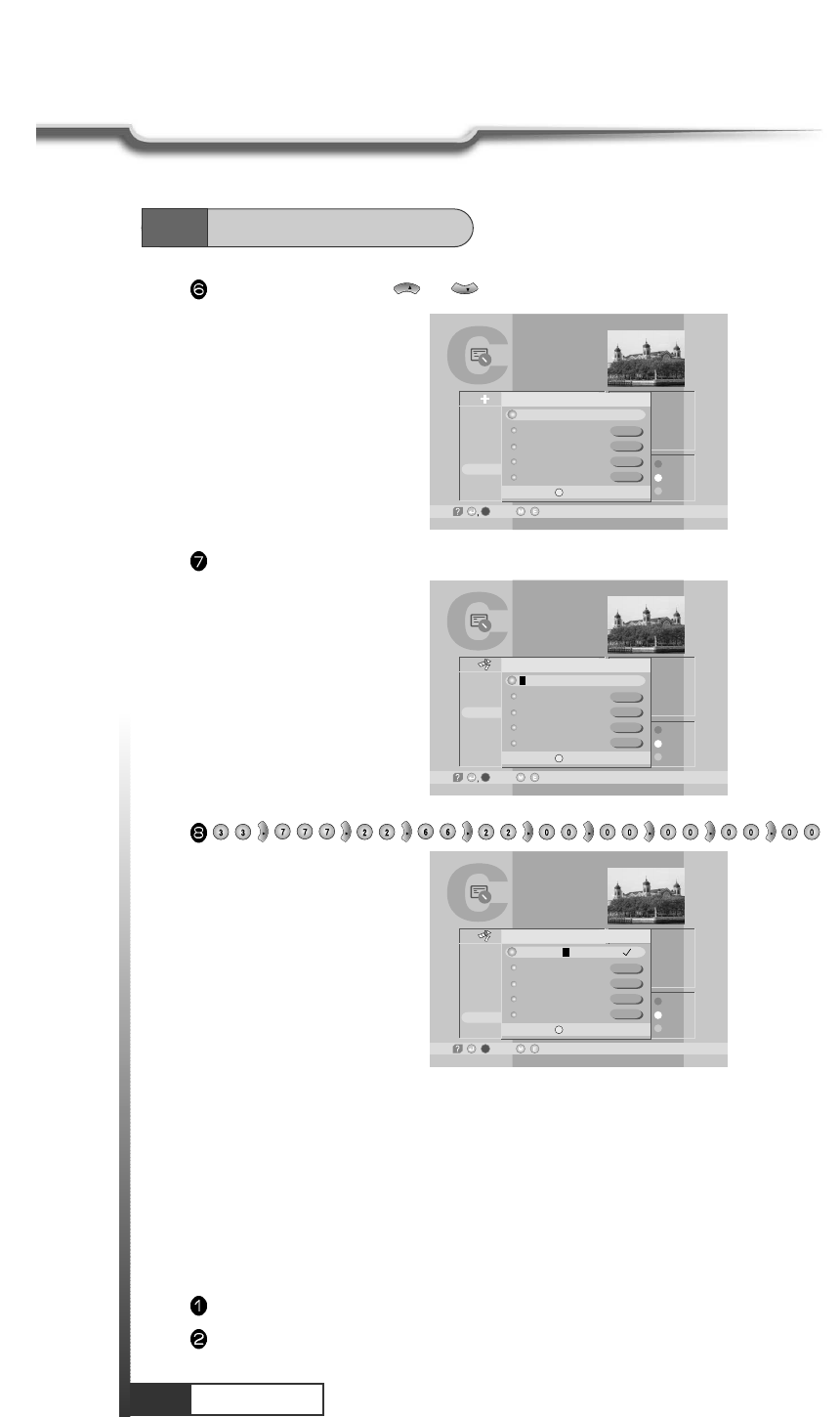

Press RED.

Select favorite1 with or and Press .

Favorite1 ~Favorite5 are default name. Users can rename them for their convenience.

If you want to rename ‘Favorite1' (for example ‘Drama').

Press RED.

TV Channel List

-Select, -Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Favorite State

Favorite 1

Favorite 2

Favorite 3

Favorite 4

Favorite 5

Rename.

Operation

Select ‘Favorite 1’ with or .

Press IVORY.

TV Channel List

-Select, -Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,847 GHz

Horizontal-18V

28,123 MSPS

Dban

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Favorite State

Favorite 1

Favorite 2

Favorite 3

Favorite 4

Favorite 5

Rename.

TV Channel List

-Select, -Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,830 GHz

Horizontal-18V

28,123 MSPS

HTV1

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Favorite State

Rename.

Favorite 1

Favorite 2

Favorite 3

Favorite 4

Favorite 5

VOL

TV Channel List

-Select, -Exit//

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

he Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Favorite State

Rename.

DRAMA

Favorite 2

Favorite 3

Favorite 4

Favorite 5

6.2

Channel Editing

2. Channel List Mode

Using this function, you can see variant channel lists which may enable you to edit and select channels

more conveniently.

Favorite Mode

If you have set up favorite channel lists as the previous section, you can use them as following.

Press CH.LIST.

Press ORANGE.

Operation

6.2

Channel Editing

You can see ‘Channel List Mode' window. Select ‘Favorite' with or and select ‘Favorite1'

with or .

VOL

TV Channel List

-Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[20] 3,847 GHz

Horizontal-18V

4,420 MSPS

Hunan

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

Channel List Mode

Favorite

Satellite

Alphabet

Favorite 1

AsiaSat 2

Free+Scrambled

Press .

You can see only favorite1 channels are listed. With similar way, you can see favorite2 ~favorite5

channel list.

If you want to return to all channel list (all channels of the selected satellite), press ORANGE and select

‘Satellite' with or and press .

TV Channel List

-Watch, -Exit, ~ -Move

-Main,-Page Up/Down,

AsiaSat 2

[20] 3,847 GHz

Horizontal-18V

4,420 MSPS

Hunan

FAV.

LOCK

MOVE

DEL

ADD

MODE

Hunan 1

DWtv

Favorite 1

TV Channel List

-Exit/

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

DIGITL VID

DWtv

Channel List Mode

Favorite

Satellite

Alphabet

Favorite 1

AsiaSat 2

Free+Scrambled

Alphabet Mode

Using this function, you can see the channel list which have same initial. This function is useful when you

search specific channel among the list of thousands channels.

For example, if you want to see the channel lists which start with ‘D'.

Press ORANGE in the channel list and select ‘Alphabet' with or .

Operation

TV Channel List

-Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[20] 3,000 GHz

Horizontal-18V

4,420 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

Channel List Mode

Favorite

Satellite

Alphabet

Favorite 1

AsiaSat 2

Free+Scrambled

Select ‘D' with or .

VOL

Press .

You can see the channel list where all channels have initial ‘D'.

TV Channel List

-Watch, -Exit, ~ -Move

-Main,-Page Up/Down,

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

DIGITL VID

DWtv

Free only Mode

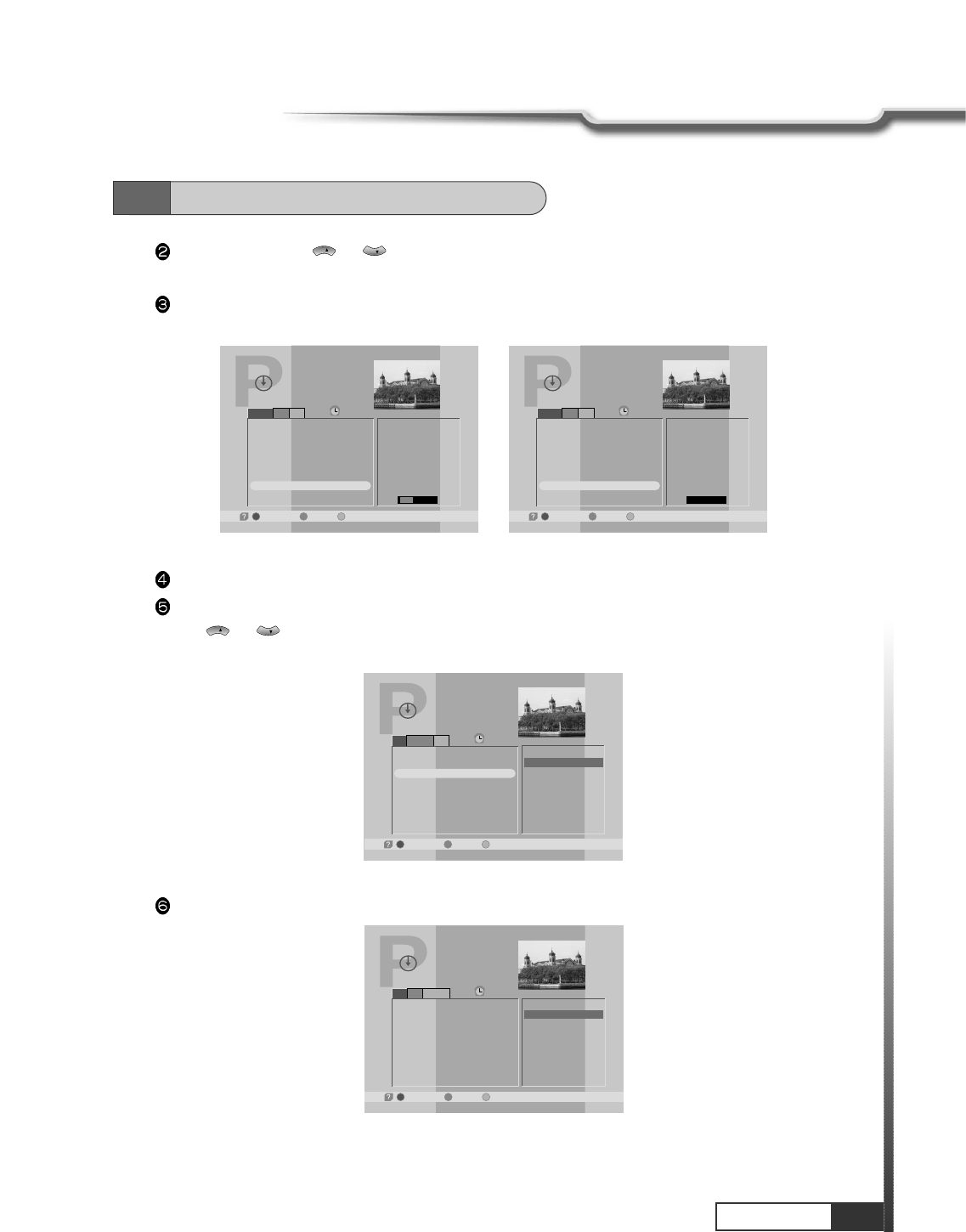

Press ORANGE in the channel list and select first line with or .

Select ‘Free only' with or .

Select ‘Favorite' or ‘Satellite' or ‘Alphabet' and press . You can see only the selected ‘free'

channel list.

VOL

TV Channel List

-Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[20] 3,000 GHz

Horizontal-18V

4,420 MSPS

Hunan

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

Channel List Mode

Favorite

Satellite

Alphabet

Favorite 1

AsiaSat 2

Free+Scrambled

6.2

Channel Editing

Operation

6.2

Channel Editing

Free + Scrambled Mode

Press ORANGE in the channel list and select first line with or .

Select ‘Free+ Scrambled' with or .

VOL

TV Channel List

-Exit/

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

AsiaSat 2

[20] 3,20 GHz

Horizontal-18V

4,420 MSPS

Dian

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

Channel List Mode

Favorite

Satellite

Alphabet

DRAMA

AsiaSat 2

Free+Scrambled

Satellite Mode

By using this function, you can see all channel list of the selected satellite.

Press ORANGE and select ‘Satellite’ item with or .

TV Channel List

-Exit/

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

DIGITL VID

DWtv

Channel List Mode

Favorite

Satellite

Alphabet

Favorite 1

AsiaSat 2

Free+Scrambled

Select ‘Favorite' or ‘Satellite' or ‘Alphabet' and press . You can see the selected free and

scrambled channel list.

Note : ‘Scrambled’ channel can be shown only with CI (Common Interface) model and CAS

(Conditional Access System) model. ‘Free’ channel can be shown with all (FTA(Free To Air) and CI

and CAS) models.

Press or to select a satellite and press .

VOL

Operation

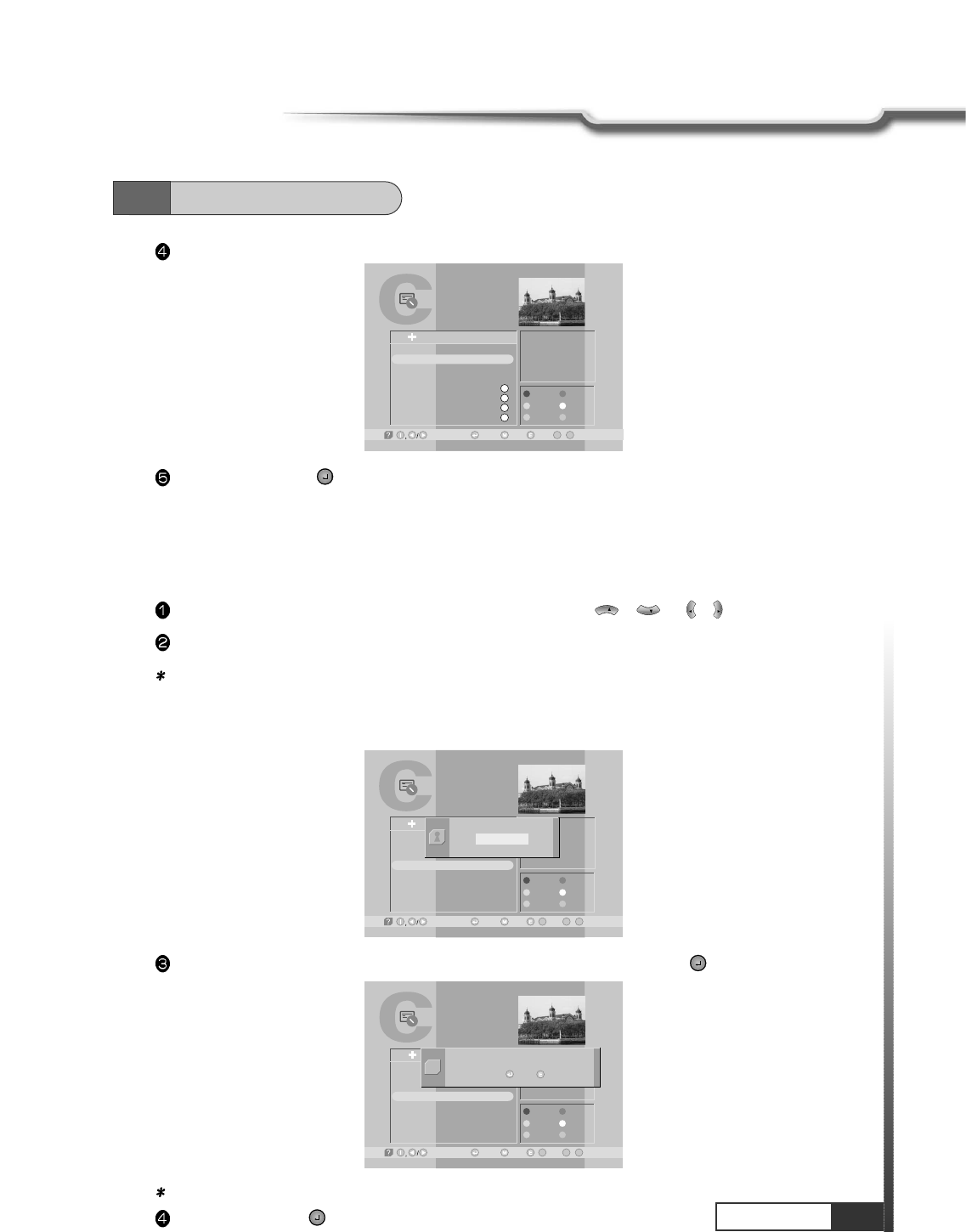

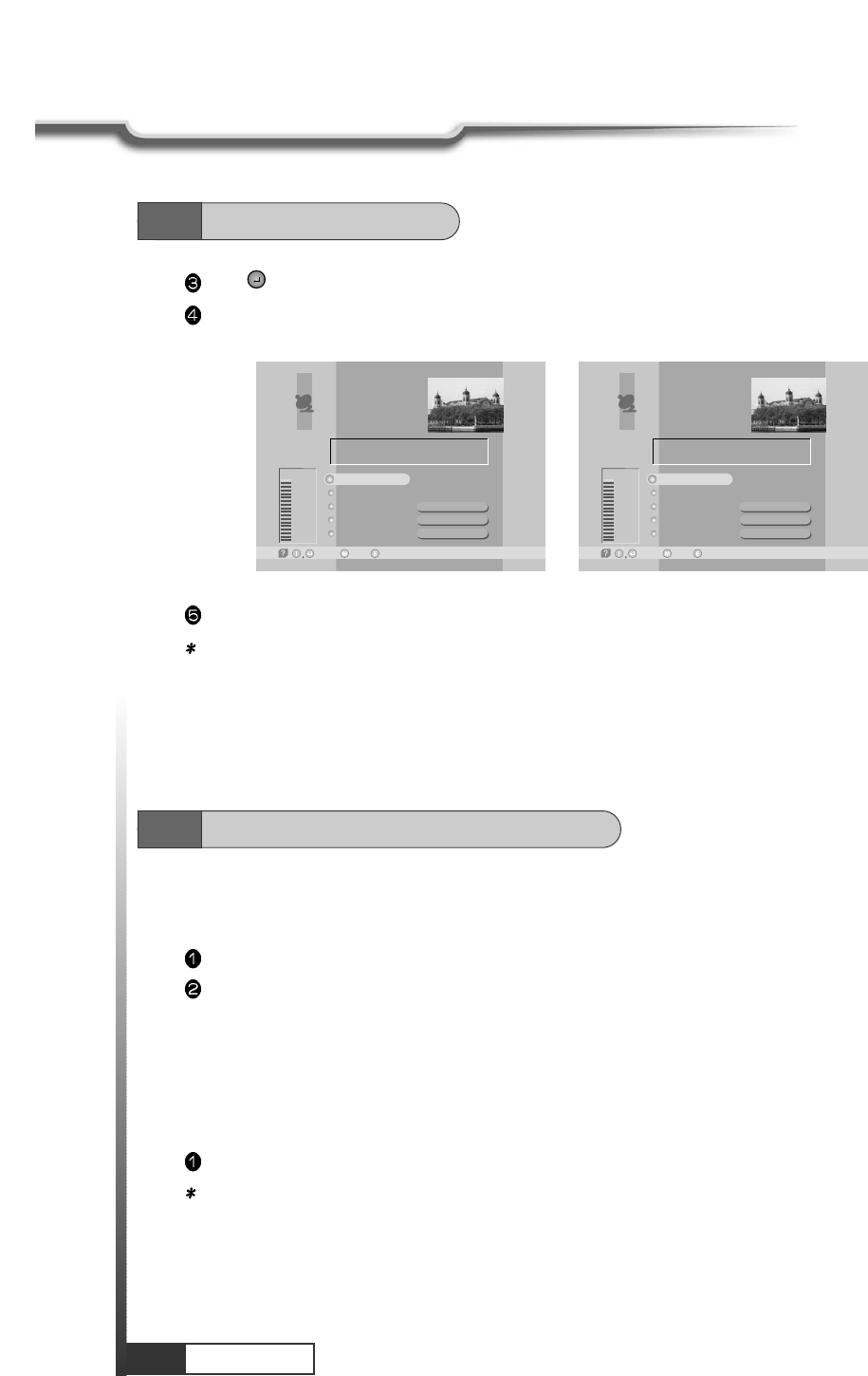

3. Lock Channel

This menu enables you to prevent children from viewing programs unsuitable for their age.

Press CH.LIST and select the channel you want to lock with / or / and press GREEN.

Then the selected channel is locked.

Note : If ‘password’ window is risen as following picture, enter password with numeric keys (default

password is ‘0000’). Then you can lock the channel. If you don't want this window, change

‘Parental Control' set up in the ‘System Parameters’ menu. Refer to the ‘Parental control' in

‘System parameters’ in this manual for detail.

VOL

TV Channel List

-Watch, / -EXIT, ~-Move

-Main,-Page Up/Down,

Fujian 1

NMCHTV

RAI

Guangdong 1

Hunan 1

MCM

DWtv

TVE

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

TV Channel List

-Watch, / -EXIT, ~-Move

-Main,-Page Up/Down,

Fujian 1

NMCHTV

RAI

Guangdong 1

Hunan 1

MCM

DWtv

TVE

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

<< Authorized! >>

6.2

Channel Editing

Press MENU, EXIT or to finish the process.

Without entering your password, you cannot watch a locked channel's program.

If you want to cancel the channel lock, go to the channel list and select the channel and press

GREEN.

4. Channel Order Setting

You can organize the number or sequence of the channels.

Press CH.LIST.

Select the channel you want to move with / or / and press YELLOW.

VOL

TV Channel List

-Watch, -EXIT, ~ -Move

-Main,-Page Up/Down,

RAI Internati

TVE

TV5-Asia

RTPi

uØoH-u1/4Ö¥x CS

ªFËê>>Ú¥x ET

«DoZ¥x USTV-I

oé¥>>¥x JET

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

Move the selected channel with / or / to the position you want.

VOL

Operation

6.2

Channel Editing

Press YELLOW.

Press MENU,EXIT or to finish the process.

TV Channel List

-Watch, -EXIT, ~ -Move

-Main,-Page Up/Down,

RAI Internati

RTPi

TVE

TV5-Asia

uØoH-u1/4Ö¥x CS

ªFËê>>Ú¥x ET

«DoZ¥x USTV-I

oé¥>>¥x JET

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Deutsche Well

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List

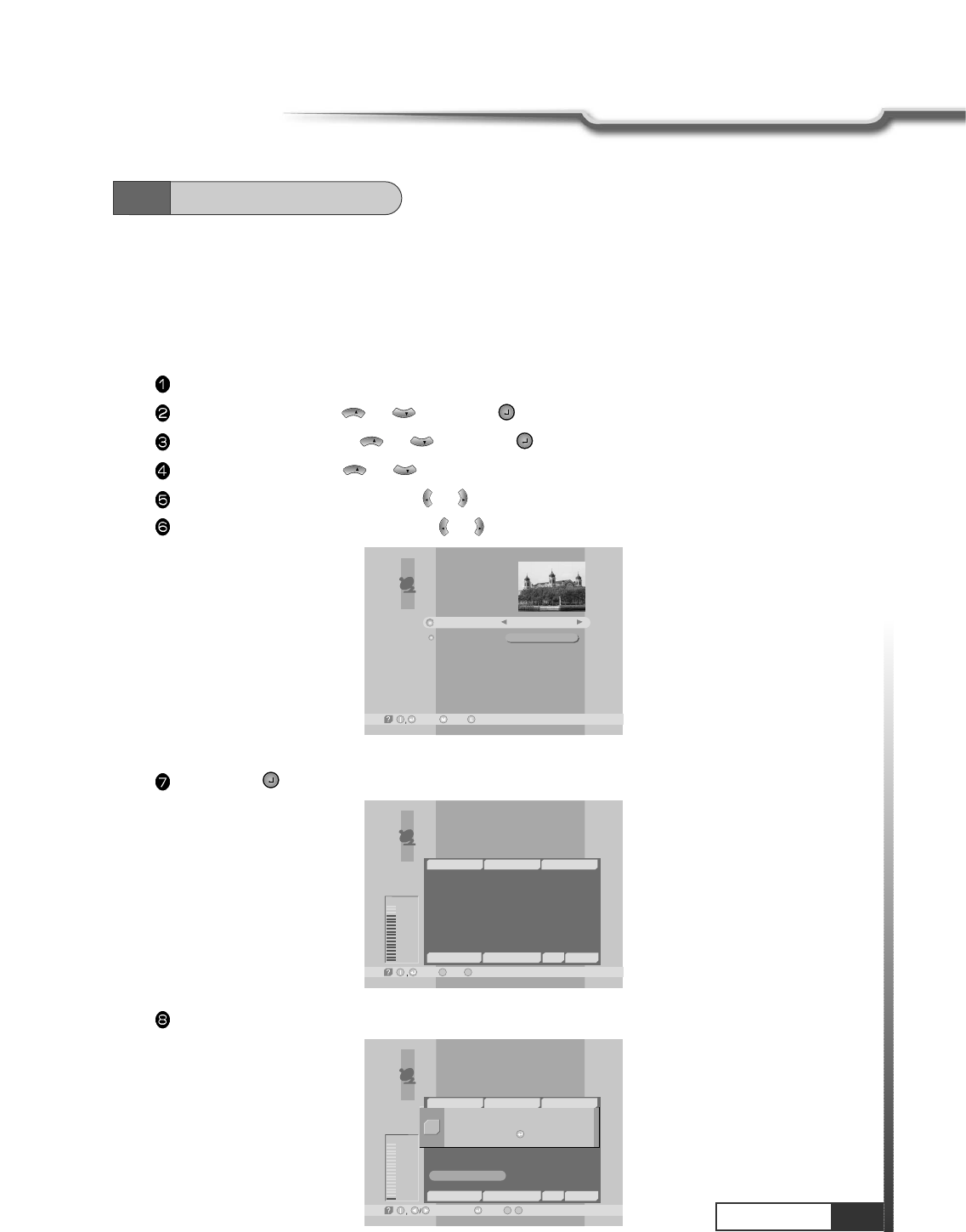

5. Delete Channel

You can delete channels from the channel list.

Press CH.LIST and select the channel you want to remove with / or / .

Press BLUE.

Note : If ‘password' window is risen as following picture, enter password with numeric keys (default

password is' 0000'). Then you can delete the channel. If you don't want this window, change

‘Parental Control' set up in the ‘System Parameters' menu. Refer to the 'Parental control' in System

parameters' in this manual for detail.

VOL

Then, you need to confirm the deletion. If you definitely want to delete, press . If not, press EXIT.

Note : Please be careful when you delete channel(s).

Press MENU, EXIT or to finish the process.

TV Channel List

-Watch, -Exit,/ ~ -Move

-Main,-Page Up/Down,

TVE

TV5 - Asia

Hubei 1

Hubei 2

RAI Internati

Fujian 2

Jiangxi 1

Jiangxi 2

AsiaSat 2

[3] 3,713 GHz

Horizontal-18V

4,420 MSPS

Hubei

FAV.

LOCK

MOVE

DEL

ADD

MODE

PASSWORD

????

TV Channel List

-Watch, -Exit,/ ~ -Move

-Main,-Page Up/Down,

TVE

TV5 - Asia

Hubei 1

Hubei 2

RAI Internati

Fujian 2

Jiangxi 1

Jiangxi 2

AsiaSat 2

[3] 3,713 GHz

Horizontal-18V

4,420 MSPS

Hubei

FAV.

LOCK

MOVE

DEL

ADD

MODE

All List Do you want to delete this channel?

Yes / No

Operation

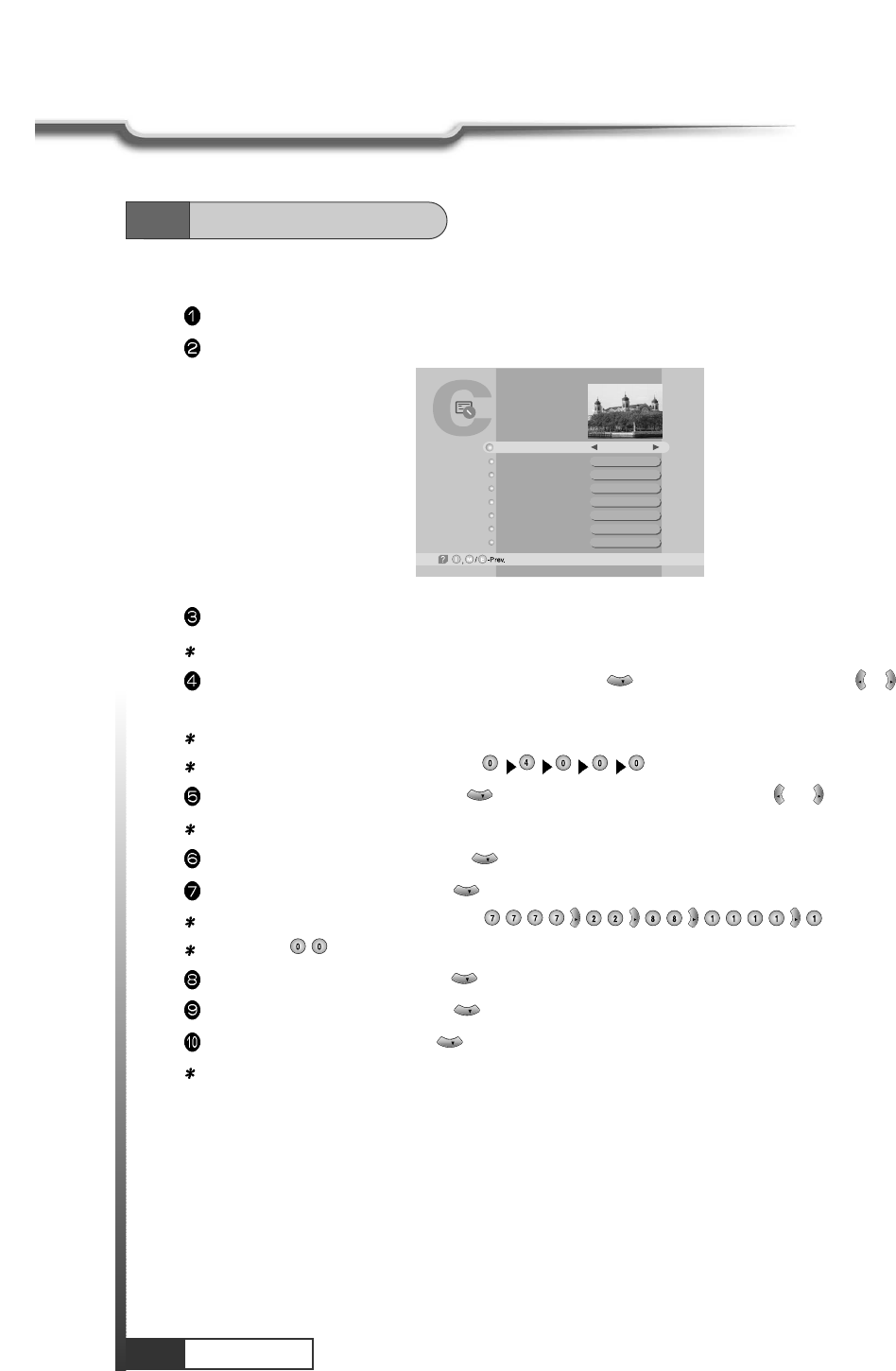

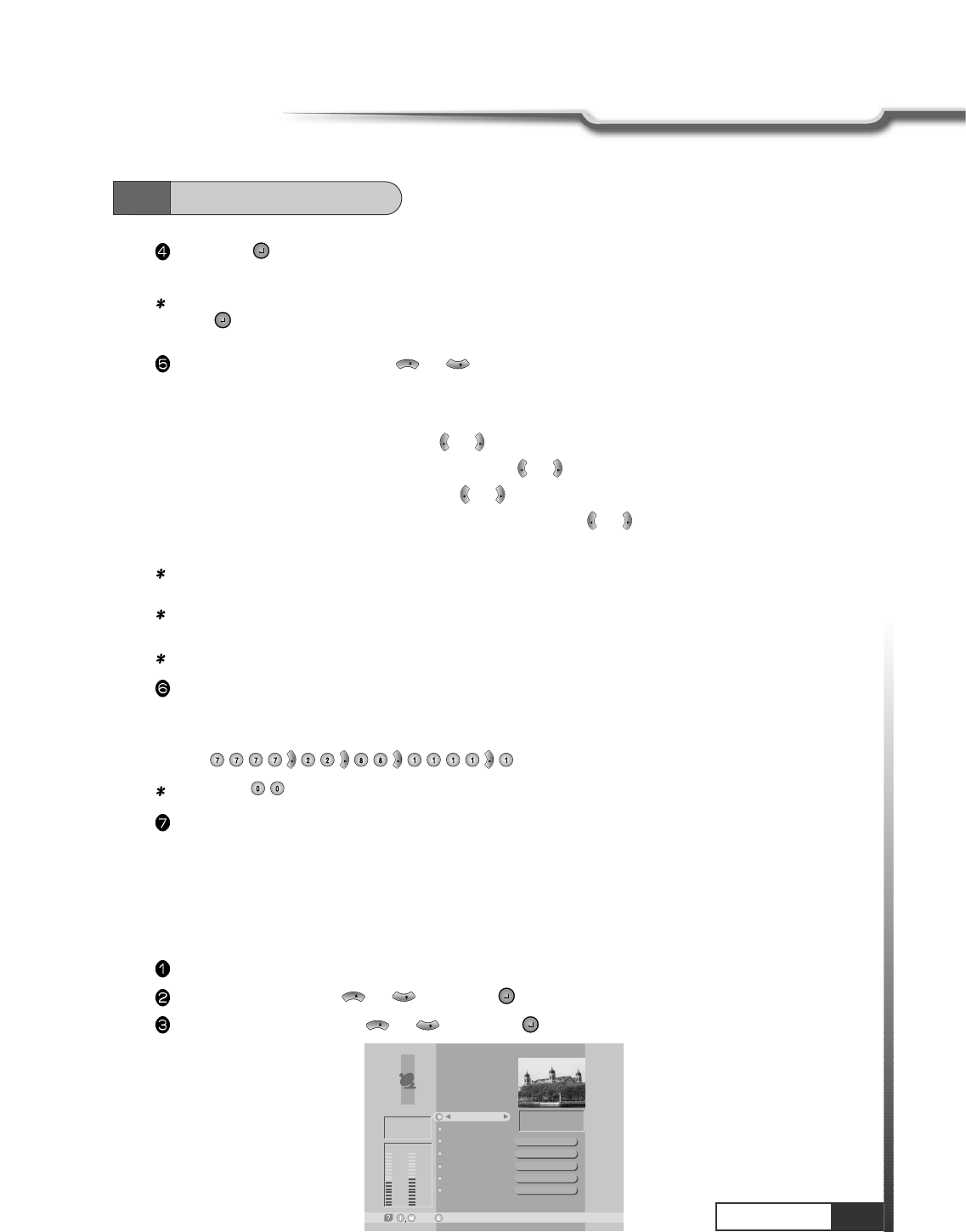

6. Add Channel

Press CH.LIST.

Press Ivory.

Select a satellite into which you want to add your new channel.

Note : You can only select satellites which you set in ‘Installation’ menu.

Move to ‘TP Frequency' section (column)by pressing and change frequency with / or enter

frequency with numeric keys.

Note : TP frequency consists of 5 digits ending with GHz.

For example : TP Frequency 4.000GHz is

Move to ‘Polarization' by pressing and select Horizontal or Vertical with or .

Note : Please check whether LNB Power is ON in ‘Installation’ menu.

Move to ‘Symbol Rate' by pressing and enter the Symbol Rate value with numeric keys.

Move to ‘CH. Name' by pressing and enter the alphabetic characters with numeric keys.

For example : if you want to enter SAT-1,

Note : Press for space.

Move to ‘VIDEO PID' by pressing key and enter the proper value with numeric keys.

Move to ‘AUDIO PID' by pressing key and enter the proper value with numeric keys.

Move to ‘PCR PID' by pressing key and enter the value between 0000~8192 with numeric keys.

Note : The above mentioned TP Frequency, Symbol Rate, VIDEO PID, AUDIO PID, PCR PID are very

important for optimal satellite signal reception. We recommend you get professional advice

where available. You cannot setup ‘VIDEO PID’ for RADIO channels.

VOL

Add Digital Channel

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

DWtv

2305

2306

2304

Satellite Name

TP Frequency

Polarization

Symbol Rate

CH. Name

Video PID

Audio PID

PCR PID

6.2

Channel Editing

Operation

DL Saving

TV Type

Aspect Ratio

Screen

A/V Mode

System Parameters

-Next, -Prev./

Y/CNo

PAL

4X3

P/S

Parental Control

System Information

Local time/Timer 19/06/2001 11:57

PASSWORD

????

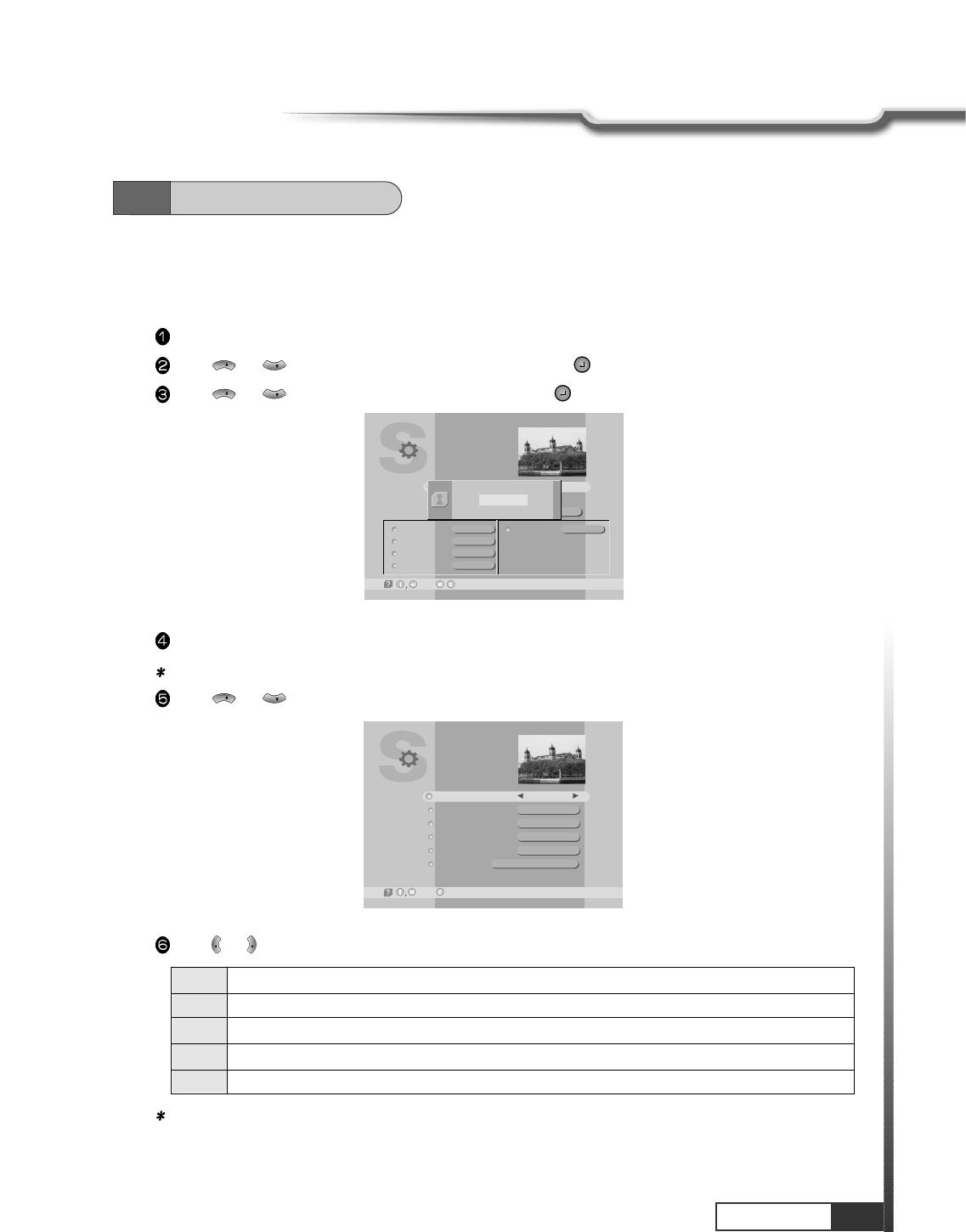

1. Setting Age Restrictions

This sub-menu allows you to set the age for parental locking and protect children from viewing programs

unsuitable for their age.

Press MENU key.

Press or to select ‘System Parameters' and press .

Press or to select ‘Parental Control' and press .

6.3

System Parameters

Enter 4-digit password.

Note : The default password is '0000'.

Press or to select ‘Age Limit’.

Press or to select age you want.

VOL

None No age limit

8Without entering password, programs are restricted to those who are over 8 years old.

12 over 12 years old.

15 over 15 years old.

18 over 18 years old.

Parental Control

-Prev.-Main,

Age Limit

Lock Channel Editing

Lock Installation

New Password

Verify Password

Personal

None

????

*****

Note : ‘Age limit’ can be applicable only for the signal which carries age limit information.

Operation

2. Security Check

You can set SECURITY CHECK to protect your current installation from being changed (location shift,

deletion, adding etc.) or modifying of installed data.

Press MENU key.

Press or to select ‘System Parameters' and press .

Press or to select ‘Parental Control' and press .

Enter 4-digit password.

Note : The default password is '0000'.

Press or to select ‘Lock channel Editing’, or ‘Lock Installation’.

Press or to select ‘Yes’, or ‘No’.

Note : Your receiver is pre-set as ‘No’.

VOL

3. Password Changing

You can change your password.

Press MENU key.

Press or to select ‘System Parameters' and press .

Press or to select ‘Parental Control' and press .

Enter 4-digit password.

Note : The default password is '0000'.

Press or to select ‘New Password’.

Press ~numeric numbers to enter new password.

Press ~numeric numbers again to verify the new password.

Note : When you forget your new password, please consult the shop where you bought the receiver or

the nearest dealer.

Yes When you process with ‘Channel Editing’ or ‘Installation’ of Main Menu, your receiver will

ask for password. If you enter wrong password, you cannot proceed further.

No You do not enter password during your processing.

6.3

System Parameters

Operation

6.3

System Parameters

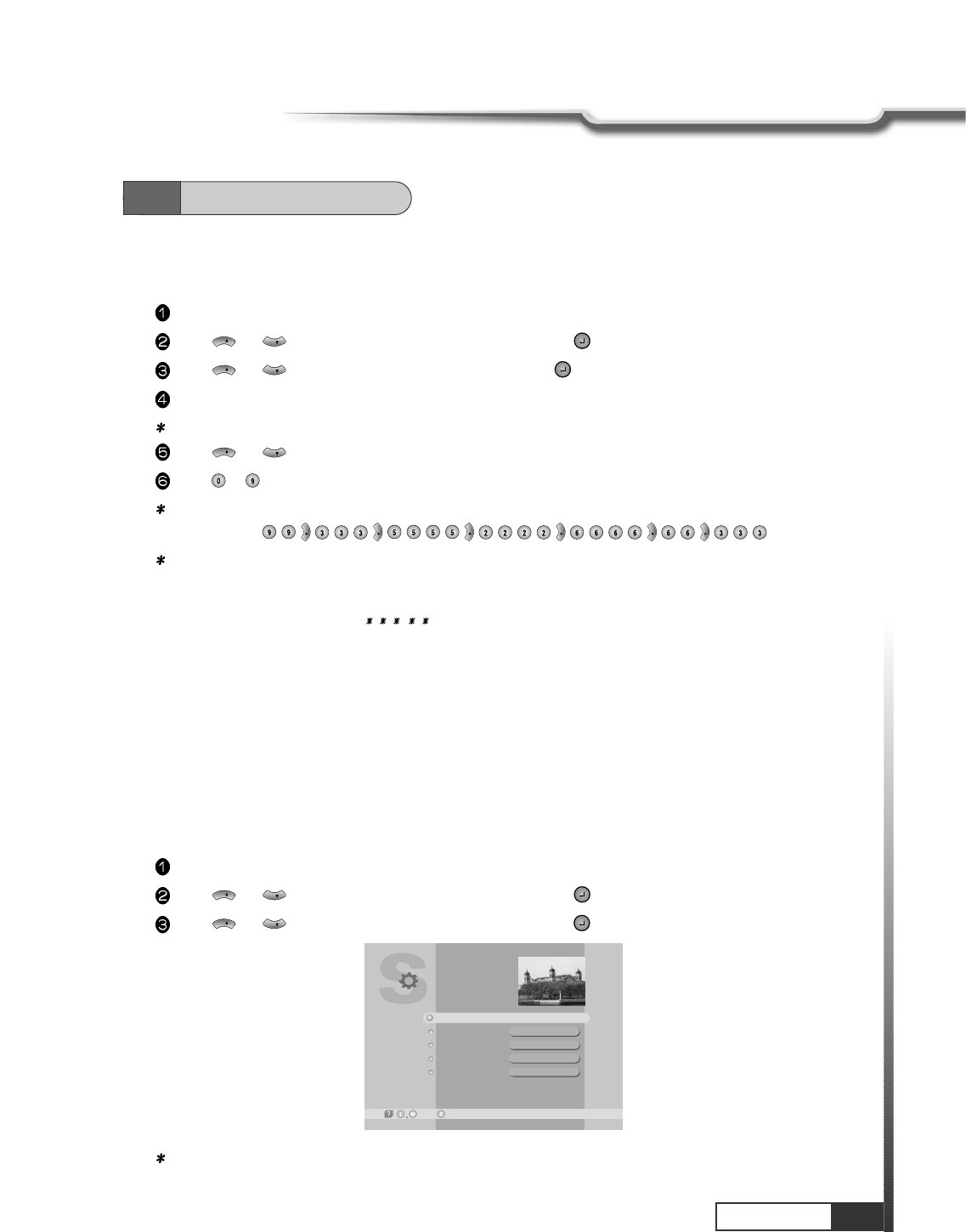

4. Personal Information Setting

You can enter your personal information, such as your name and address, etc.

Press MENU key.

Press or to select ‘System Parameters' and press .

Press or to select ‘Parental Control' and press .

Enter 4-digit password.

Note : The default password is '0000'.

Press or to select ‘Personal’.

Press ~numeric numbers to enter new personal information.

For example : If you want to enter ‘WELCOME',

Note : 1. Maximum 32 letters can be entered.

2. Your entered personal information will be displayed on the TV screen as Welcome Window

when you power on your receiver.

3. Initial information is ‘ ’.

4. After purchasing the receiver, if information other than that which you entered is displayed,

please consult the shop where you bought it.

5. Personal Information does not affect your viewing in any way.

VOL

5. System Information

You can check the current information about your receiver such as receiver’s software and hardware

version or manufacturing date.

Press MENU key.

Press or to select ‘System Parameters' and press .

Press or to select ‘System Information' and press .

Note : This information is necessary when you download new software or you need to repair the

receiver.

System Information

-Prev.-Main,

Product Name

Hardware Version

Software Version

Channel List

Last Update

HSS880

HSS880-100

HSS880 0000b

HSS880-001

Nov 03 2003

Operation

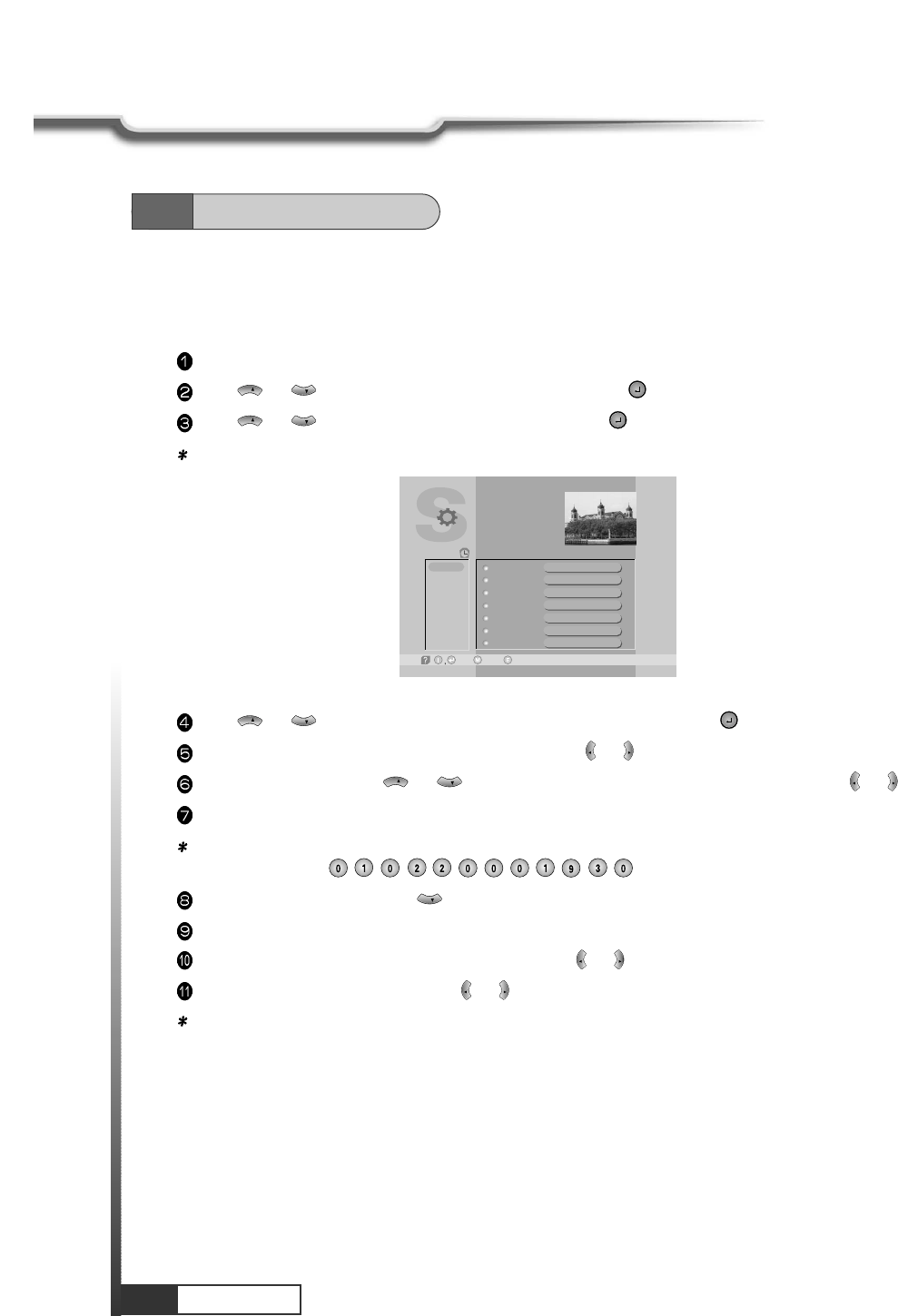

6. Setting Timer (Automatic power On/Off)

You can pre-set the on/off time of your receiver.

During your absence, you can record programs on your VCR.

Press MENU key.

Press or to select ‘System Parameters’, and press .

Press or to select ‘Local Time/Timer’, and press .

Note : Without the local time setting, this ‘TIMER’ function does not work.

Press or to select ‘Timer #(number)’ you want to set and press .

determine ‘CH. Type' by selecting ‘TV' or ‘RADIO' with or .

Select ‘CH. Number' with or and enter channel number with numeric keys or with or .

Select ‘Start Time’ for your receiver power-on.

For example : For 1st of February in the year of 2000, 7:30 P.M.,

Enter in sequence

Select ‘Stop Time’ by pressing .

Enter power off time in the same way as you entered ‘Start Time’.

Select ‘Status’ and set ‘Once/Daily/Weekly/No’ with or .

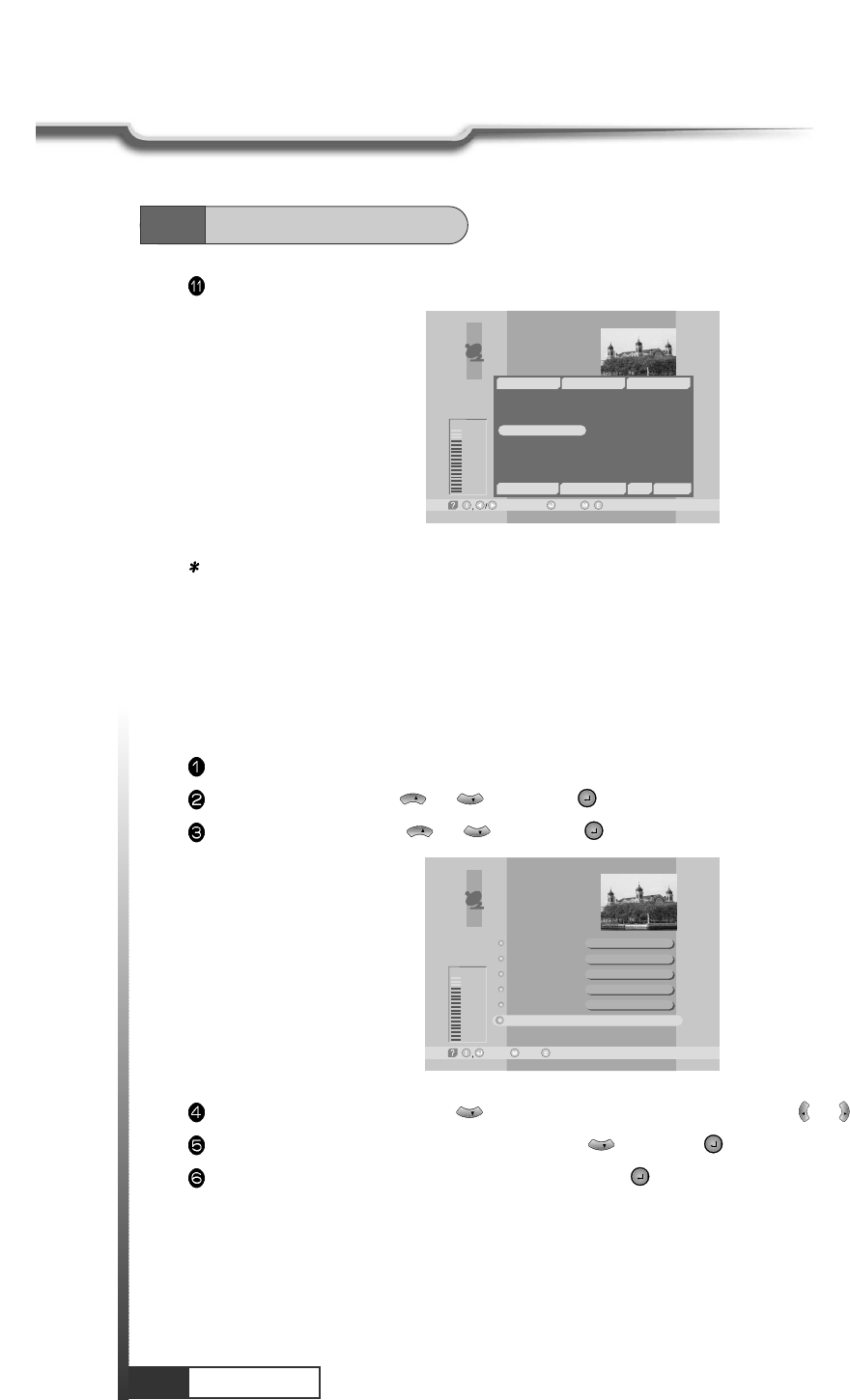

Select ‘HD record’ and set ‘ON’ with or if you want to record auto matically.

Note : 1. Without ‘STATUS’ being activated (ON), Timer does not work.

2. If Prior time than current is entered, Timer does not work.

3. You can pre-set 14 TIMERs simultaneously. Regardless of number of TIMER, Timer will work in

sequence of time sequence.

4. Remocon Key doesn’t work while VCR recording.(While HDD recording, remocon key works)

VOL

CH. Type

CH. Number

CH. Name

Start Time

Stop Time

Status

HD record

Fujian 1

18/07/2001 16:42

18/07/2001 17:42

18/07/2001 16:40

Timer

-Edit, -Prev.-Main,

Timer #1

Timer #2

Timer #3

Timer #4

Timer #5

Timer #6

Timer #7

6.3

System Parameters

Operation

7. Setting Day Light Saving Time (Summer Time)

You can adjust current local time when summer time is applicable.

Press MENU key.

Press or to select ‘System Parameters’, and press .

Press or to select ‘DL Saving’.

Press or to select ‘Yes’ or ‘No’.

Note : Without current local time setting, this menu cannot be processed.

Yes Set for daylight saving function activated. The current time automatically moves

one hour ahead.

No Set for daylight saving function deactivated. The current time automatically moves

on hour behind.

6.3

System Parameters

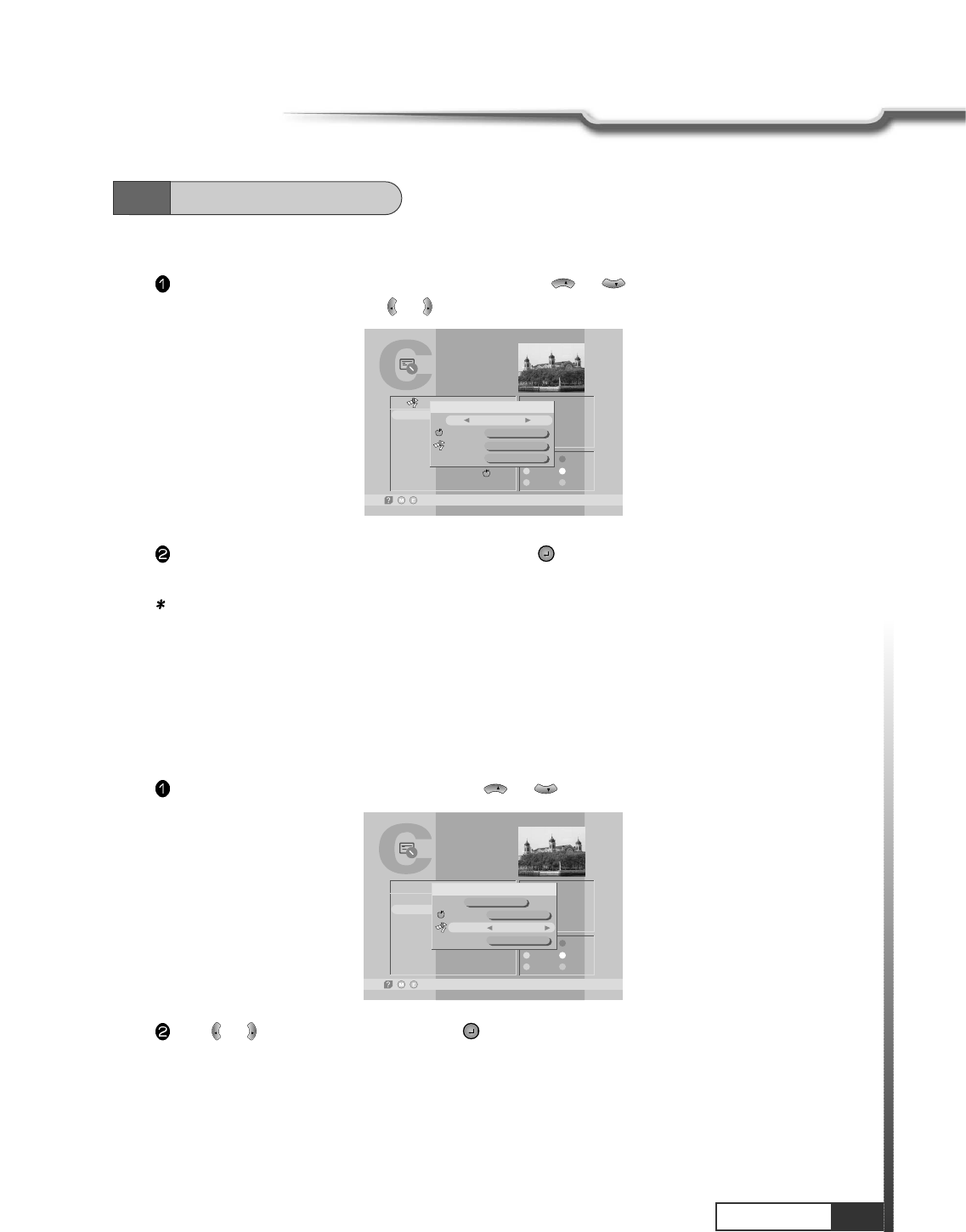

8. Setting TV Type

You can set your TV display mode with this sub-menu.

Press MENU key.

Press or to select ‘System Parameters’, and press .

Press or to select ‘TV Type’.

Press or to select ‘Multi’, ‘PAL’, or ‘NTSC’.

VOL

Note : If the satellite signal and your TV type are mismatched, the TV picture may be distorted. Even in

this case, MENU will be displayed as normal. (e.g. When you receive PAL satellite signal with NTSC

TV type setting or vice versa)

Multi When your TV is compatible with NTSC/PAL dual mode.

PAL When your TV is only for PAL reception. Regardless of satellite signal, the display will be

done in PAL format.

NTSC When your TV is only for NTSC reception. Regardless of satellite signal, the display will be

done in NTSC format.

9. Setting Aspect Ratio

This sub-menu allows you to select your TV aspect ratio to 4:3 or 16:9 according to your wishes.

Press MENU key.

Press or to select ‘System Parameters’, and press .

Press or to select ‘Aspect Ratio’.

Press or to select ‘4x3’ or ‘16x9’ or ‘Auto’.

Operation

Note : If you set 4 x 3 when the Satellite input signal is 16 x 9, the right and the left parts of the original

picture may not be seen.

4x3 When your TV is 4:3.

16x9 When your TV is 16:9.

Auto When setting suitable aspect ratio automatically.

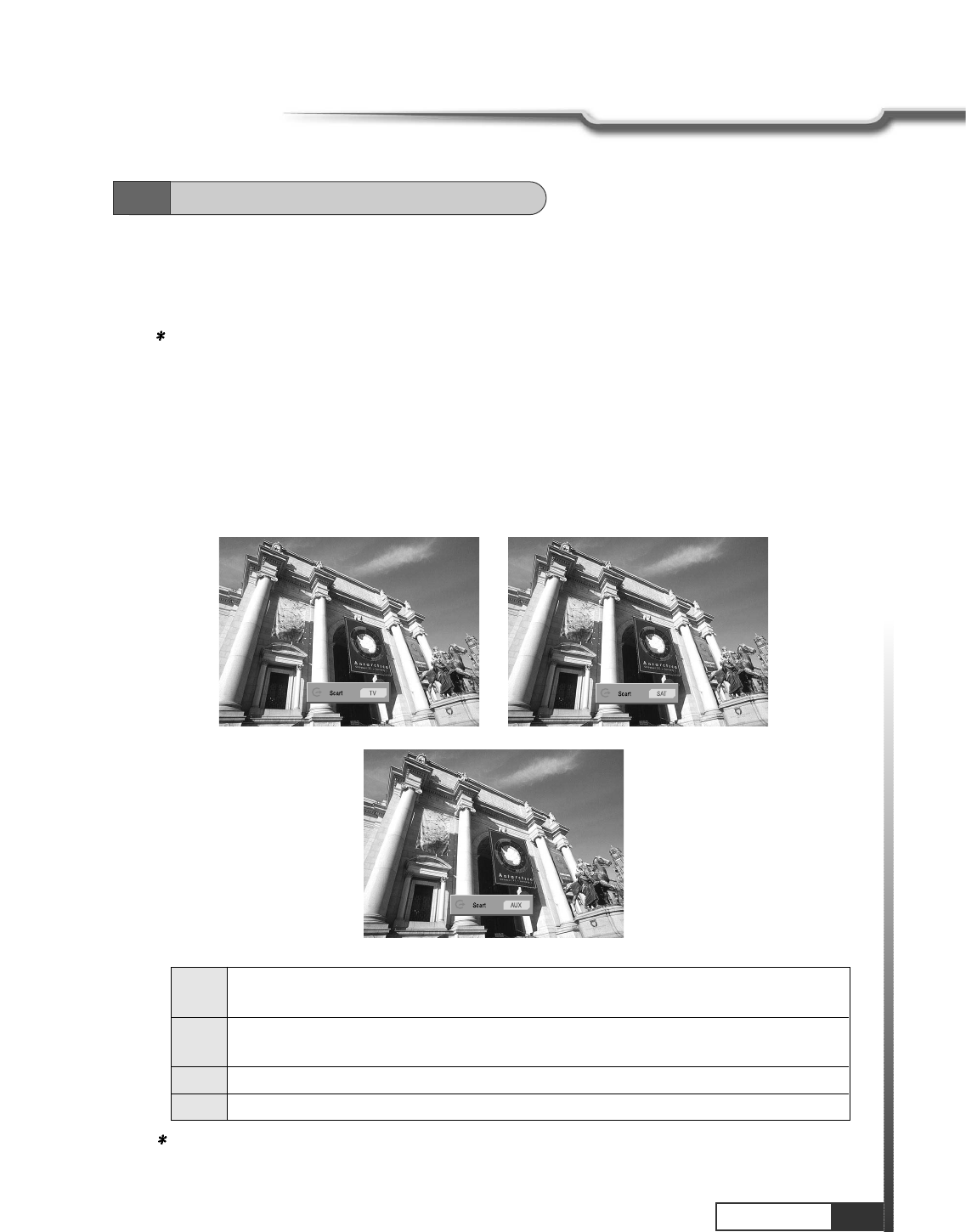

10. Setting Screen

You can select the satellite input signal display mode.

Press MENU key.

Press or to select ‘System Parameters’ , and press .

Press or to select ‘Screen’.

Press or to select ‘P/S’ or ‘L. Box’.

VOL

Note : 1. If you select ‘L.Box’, t he screen might be distorted. Upper and lower part of the screen will be

blocked with black stripes.

2. ‘Screen’ function is helpful when receiving 16x9 signal with TV of 4x3 format.

P/S When you set screen display boundary from Pan/Scan data of Satellite input signal. (For

signal for 16x9 program )

L.Box You can watch 16 x 9 ratio screen by reducing original size vertically and horizontally.

6.3

System Parameters

Operation

1. TP Edit / Scan

After ‘LNB Configuration’ and ‘Antenna Setup’ procedure, when necessary, you can edit and/or add

certain TPs (transponders)

Press MENU key.

Select ‘Installation’ with or , and press .

Select ‘TP Edit/Scan’ with or , and press .

Select the ‘Satellite Name’ which includes the TP you want to add/edit with or .

Move to ‘TP Frequency’ with and select the TP you want to edit with or .

If you want to add the new TP, enter the TP frequency with numeric keys.

Select ‘Polarization’ by pressing and the set the proper value for selected TP with or .

Select ‘Symbol rate’ by pressing and enter the symbol rate value for the selected TP with

numeric keys .

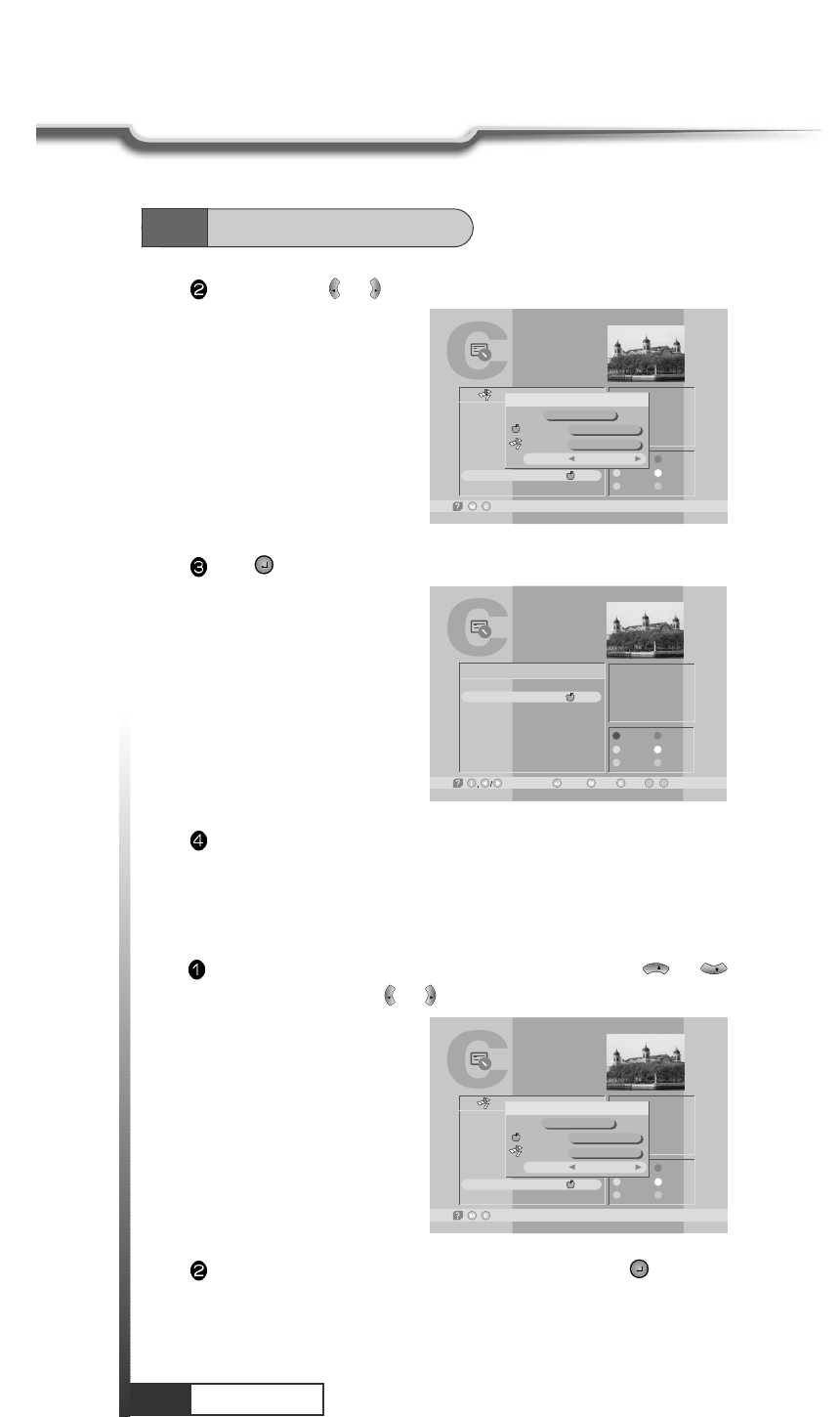

After entering all values of the TP parameters, move to ‘SCAN’ section (column) with and press

for storing all the entered TP data.

As a result, you can get the following menu showing the scanning process.

VOL

TP Edit/Scan

-Select, -Prev.-Main,

AsiaSat 2

[24] 4,000 GHz

Horizontal-18V

28,123 MSPS

Free+Scrambled

Good

81%

Satellite Name

TP Frequency

Polarization

Symbol Rate

Scan

TP Delete

6.4

Transponder

TP Edit/Scan

-Select, -Prev.-Main,

USER

[15] 3,820 GHz

Vertical-14V

28,123 MSPS

Free+Scrambled

Good

81%

Satellite Name

TP Frequency

Polarization

Symbol Rate

Scan

TP Delete

Scanning

Press to stop scanning

Operation

6.4

Transponder

After scanning process, the first channel of scanned TP will be displayed.

Note : If the scan fails, please check whether your entered values are correct or not and the signal

reception sensitivity is good or bad.

TP Edit/Scan

Good

82%

-Watch, -Prev./-Page Up/Down,

TV: 6 Success Radio: 20

DW 9

RDP ANTENA 1

RDP ESPECIAL

¥xÆW

N¥

TWN

¥@uØ

1/2

Auø USA-

AsiaSat 2 [24] 4,000 GHz Hor. 28,123

RAI Internati

TVE

TV5-Asia

RTPi

uØoH-u1/4Ö¥x CS

ªFËê>>Ú¥x ET

«DoZ¥x USTV-I

oé¥>>¥x JET

2. TP Delete

Press MENU key.

Select ‘Installation’ with or , and press .

Select ‘TP Edit/Scan’ with or , and press .

TP Edit/Scan

-Select, -Prev.-Main,

AsiaSat 2

[24] 4,000 GHz

Horizontal - 18V

28,123 MSPS

Free+Scrambled

Good

80%

Satellite Name

TP Frequency

Polarization

Symbol Rate

Scan

TP Delete

Move to TP section (column) with and select the TP you want to delete with or .

Move to ‘TP Delete’ section (column) by pressing and press .

When the menu asks you to confirm the deletion, press if you want to delete it or press EXIT key if

you want to void the deletion.

VOL

Operation

6.6

On Air Download

The status of the receiver will return to factory default parameters by using this function.

Press MENU key.

Select ‘Installation’ with or , and press .

Select ‘Factory Set’ with or , and press .

When the menu asks you to confirm the reset, press if you want to reset or press EXIT key if you

want to void the reset.

6.5

Factory Set

LNB Configuration

Antenna Setup

Satellite Scan

TP Edit/Scan

Factory Set

On Air Download

Installation

-Next, -Prev.

Do you want to reset all data?

Yes / No

To upgrade firmware of the receiver via satellite.

Press Menu Key, and select Select ‘Installation'.

Press at ‘On Air Download'.

Set Satellite, TP frequency, Symbol rate and data PID like as picture.

Note : Don't edit each section carelessly.

On Air Download

-Prev./

Astra

12,600 GHz

Horizontal - 18V

22,000 MSPS

1211

Satellite Name

TP Frequency

Polarization

Symbol Rate

Data PID

Start

On Air Download

-Edit,

~-Prev./

HotBird

12,475 GHz

Horizontal - 18V

27,500 MSPS

1997

Satellite Name

TP Frequency

Polarization

Symbol Rate

Data PID

Start

Operation

Press at ‘Start'.

It takes a few minutes to search the group of program & download channel. If there is problem in

searching the necessary information, then other window is open.

If you select ‘Start' again, upgrade will start. On finishing upgrade, if necessary, Receiver is restarted.

Note : Do not turn off the power, while upgrading Receiver.

-Select, -Prev.-Main,

Astra

Horizontal-18V

[1] 12,603 GHz

22,000 MSPS

On Air Download

Good

98%

Select

Ye s

Start

Display Info

Main SW

Ch List

Info Text

-Select, -Prev.-Main,

HotBird

Horizontal-18V

[1] 11,750 GHz

27,500 MSPS

On Air Download

Good

98%

Select

Ye s

Start

Display Info

Main SW

Ch List

Info Text

1. TV / RADIO switching

You can use this menu when you change a TV channel to a Radio channel or vice versa.

Press ‘TV/RADIO’.

When listening a radio channel, ‘r001’ will be displayed on the front panel.

6.7

Other Function on Remote Control

2. GUIDE(EPG:Electronic Program Guide)

You can check the channel information on the channels of the transponder you are watching.

Press GUIDE key, then the following menu will be displayed.

Note : 1. You can check local time, channel name, and other brief information on the current program.

2. If you didn't set local time under ‘System Parameters’ section, the GUIDE function may not work

properly.

3. EPG information is delivered by satellite from service providers. If the channel does not carry

any signal on the guide data, this function may not work properly.

6.6

On Air Download

Operation

6.7

Other Function on Remote Control

Select Channel with or .

Then you can see current or next program information of the selected channel.

If you press GREEN, current or next program information would be converted to next or current

program information respectively.

Program Guide

-Schedule, -Extended-Current/Next,

19:33

19:23 19:53

Current

JOURNAL News - Sports -

Weather - Interview

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

JOURNAL Ne..

Program Guide

-Schedule, -Extended-Current/Next,

19:34

19:53 20:23

In Focus

Fujian 1

DIGITL VID

ANHUI TV

NMCHTV

Guangdong 1

Hunan 1

DWtv

MCM

In Focus

If you press YELLOW, you can see program schedule list of the selected channel.

If you want to see program information of a program in the program schedule list, select the program

with or .

Then you can see the program information in the right window.

If you press BLUE, you can see extended program information of the selected program.

Program Guide

-Schedule, -Extended-Current/Next,

19:39

Guest: Marianne Birthler Commissioner

for Stasi Files

[7] DWtv

11/03/1998 19:27~19:57

JOURNAL News-Sports-

Weather - Interview

Program Guide

-Schedule, -Extended-Current/Next,

19:42

19:27~19:57

19:57~20:27

20:27~20:57

20:57~21:27

21:27~21:57

21:57~22:27

22:27~22:57

22:57~23:27

JOURNAL News - Sports..

In Focus

JOURNAL Nachrichten - ..

Thema

JOURNAL News - Busines..

Germany Live

JOURNAL Nachrichten - ..

Im Focus

[7] DWtv

11/03/1998 20:27~20:57

JOURNAL Nachrichten -

Wirtsohaft - Wetter -

Tagesthema

Operation

6.7

Other Function on Remote Control

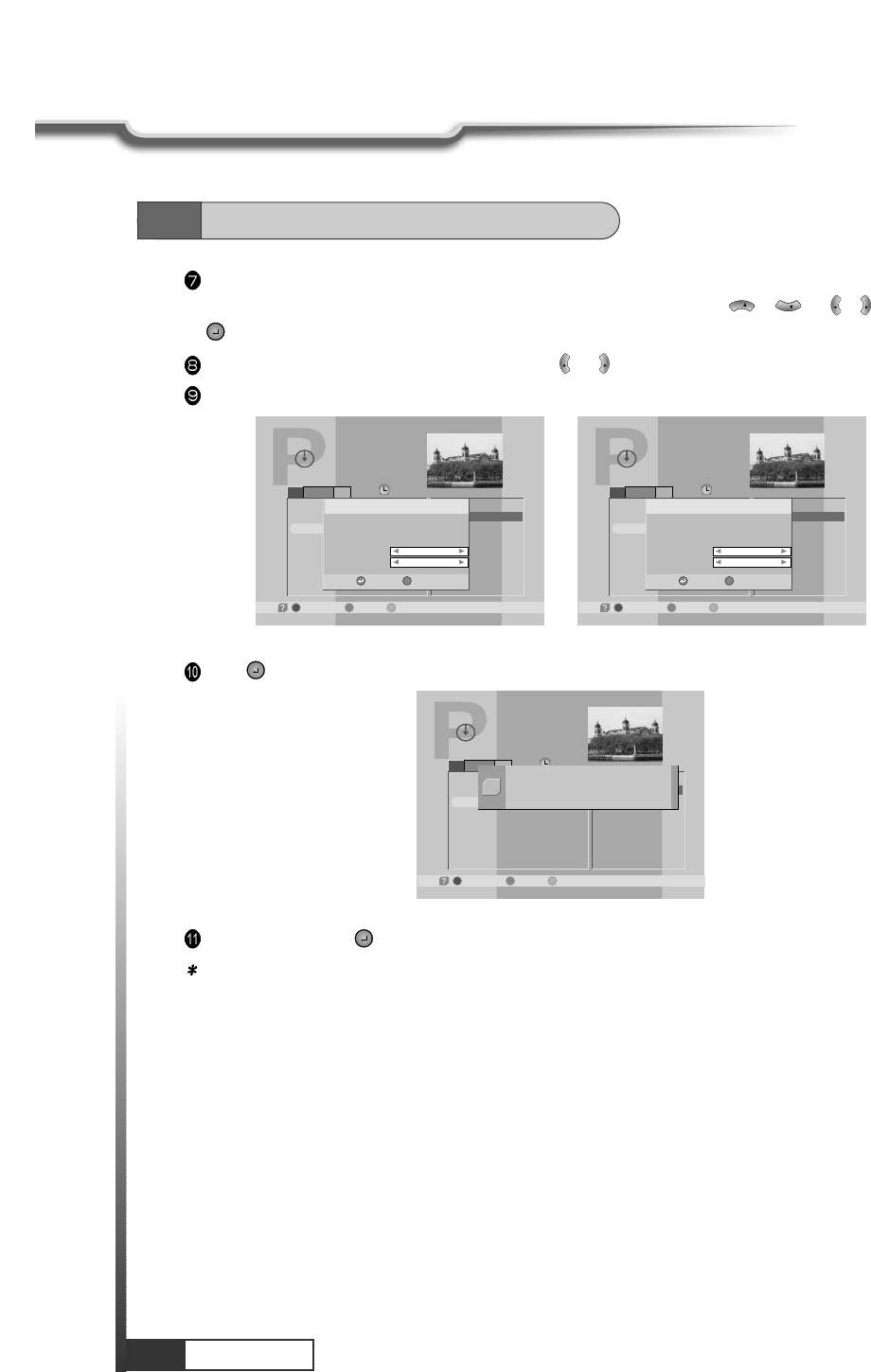

You can set up automatic power on-off (Timer)or automatic recording on the program schedule list.

After pressing YELLOW in the Guide(EPG)menu, select a program with / or / and press

Select ‘Once/Daily/Weekly/No' of ‘Status' with or .

Select ‘HD record’ and set ‘ON’ with if you want to record automatically.

VOL

Press to save the new ‘Timer' setting.

Press MENU,EXIT or to finish GUIDE menu.

Note : 1. Without 'STATUS' being actuated (Yes), 'Timer' does not work.

2. If a program of prior time than current time ('Local Time' in 'System Parameters' menu) is

selected, Timer does not work.

3. Refer to 'Setting Timer' in 'System Parameters' in this manual.

Program Guide

-Schedule, -Extended-Current/Next,

19:42

19:27~19:57

19:57~20:27

20:27~20:57

20:57~21:27

21:27~21:57

21:57~22:27

22:27~22:57

22:57~23:27

JOURNAL News - Sports..

In Focus

JOURNAL Nachrichten - ..

Thema

JOURNAL News - Busines..

Germany Live

JOURNAL Nachrichten - ..

Im Focus

[7] DWtv

11/03/1998 20:27~20:57

JOURNA chrichten -

Weather -- Wetter -

11/03/1998 20:26

Timer

Status

HD record

11/03/1998 21:02

-Reserve, -Cancel

Once

Program Guide

-Schedule, -Extended-Current/Next,

19:42

19:27~19:57

19:57~20:27

20:27~20:57

20:57~21:27

21:27~21:57

21:57~22:27

22:27~22:57

22:57~23:27

JOURNAL News - Sports..

In Focus

JOURNAL Nachrichten - ..

Thema

JOURNAL News - Busines..

Germany Live

JOURNAL Nachrichten - ..

Im Focus

[7] DWtv

11/03/1998 20:27~20:57

JOURNA chrichten -

Weather -- Wetter -

11/03/1998 20:26

Timer

Status

HD record

11/03/1998 21:02

-Reserve, -Cancel

Program Guide

-Schedule, -Extended-Current/Next,

19:42

19:27~19:57

19:57~20:27

20:27~20:57

20:57~21:27

21:27~21:57

21:57~22:27

22:27~22:57

22:57~23:27

JOURNAL News - Sports..

In Focus

JOURNAL Nachrichten - ..

Thema

JOURNAL News - Busines..

Germany Live

JOURNAL Nachrichten - ..

Im Focus

[7] DWtv

11/03/1998 20:27~20:57

Wirtsohaft - Wetter -

Tagesthema

Reserved at Timer #1

Operation

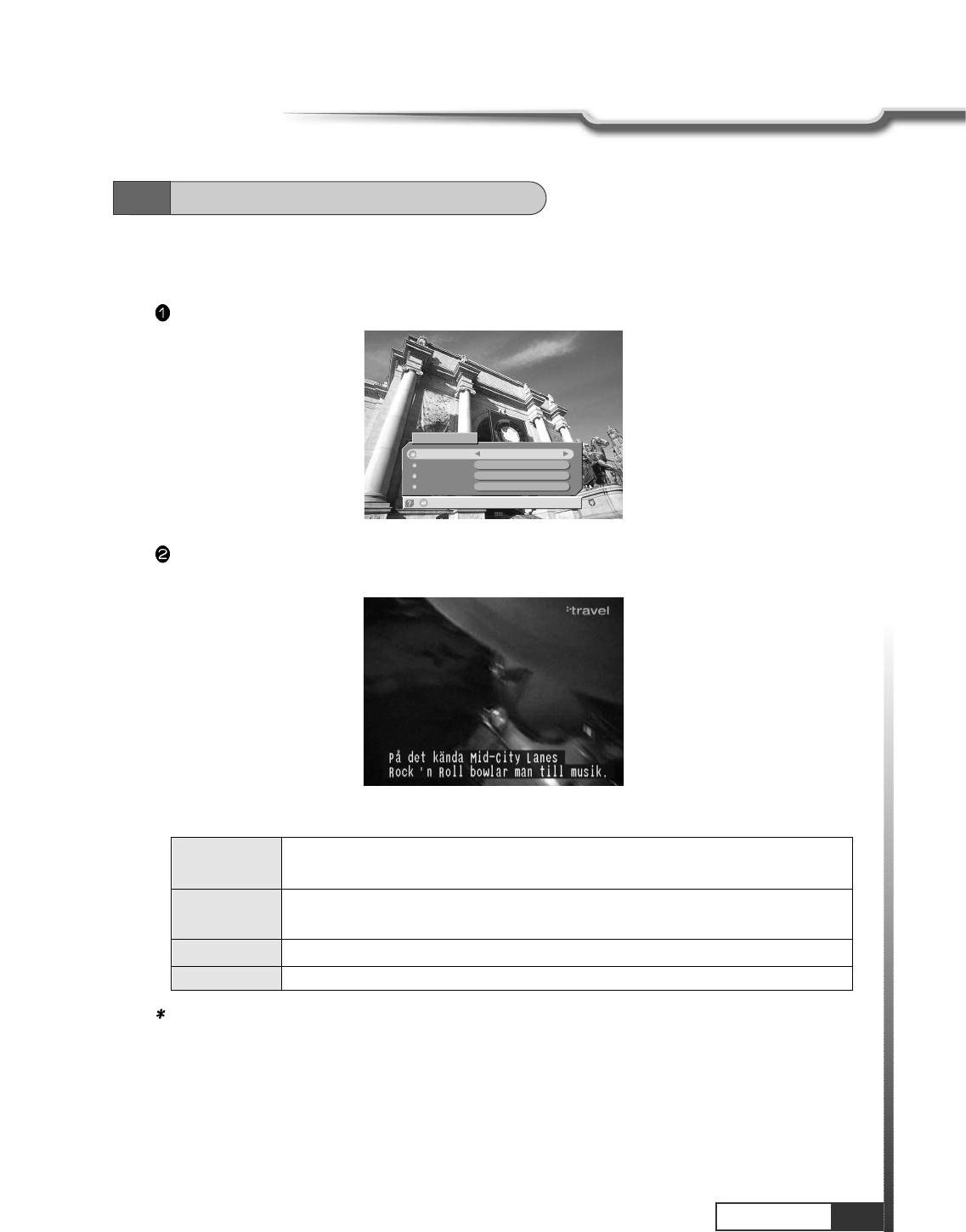

3. Subtitle/Audio

You can adjust the subtitle and audio condition/status of the current channel.

Press ‘AUDIO’ and subtitle and audio related window will be displayed on the screen.

In this example, program spoken language is ‘English' and user's selected subtitle language is

‘Swedish'.

The contents of each parameter are as follows ;

Note : These subtitle and audio parameters are workable only when the receiving channel supports

these functions.

-Subtitle On/Off

Subtitle Track

Audio Track

Audio Mode

Dig.Output

2 of 10 [Swedish]

1 of 8 [English]

Stereo

Non-compressed

Subtitle/Audio

Subtitle Track (Subtitle language #)of (all subtitle language available in this program)

[Current selected subtitle language]

Audio Track (Audio track #)of (all tracks available in this program)[spoken language in this

program]

Audio Mode Stereo -> Mono-Left -> Mono-Right

Dig.Output Non-compressed / Compressed

6.7

Other Function on Remote Control

Operation

6.7

Other Function on Remote Control

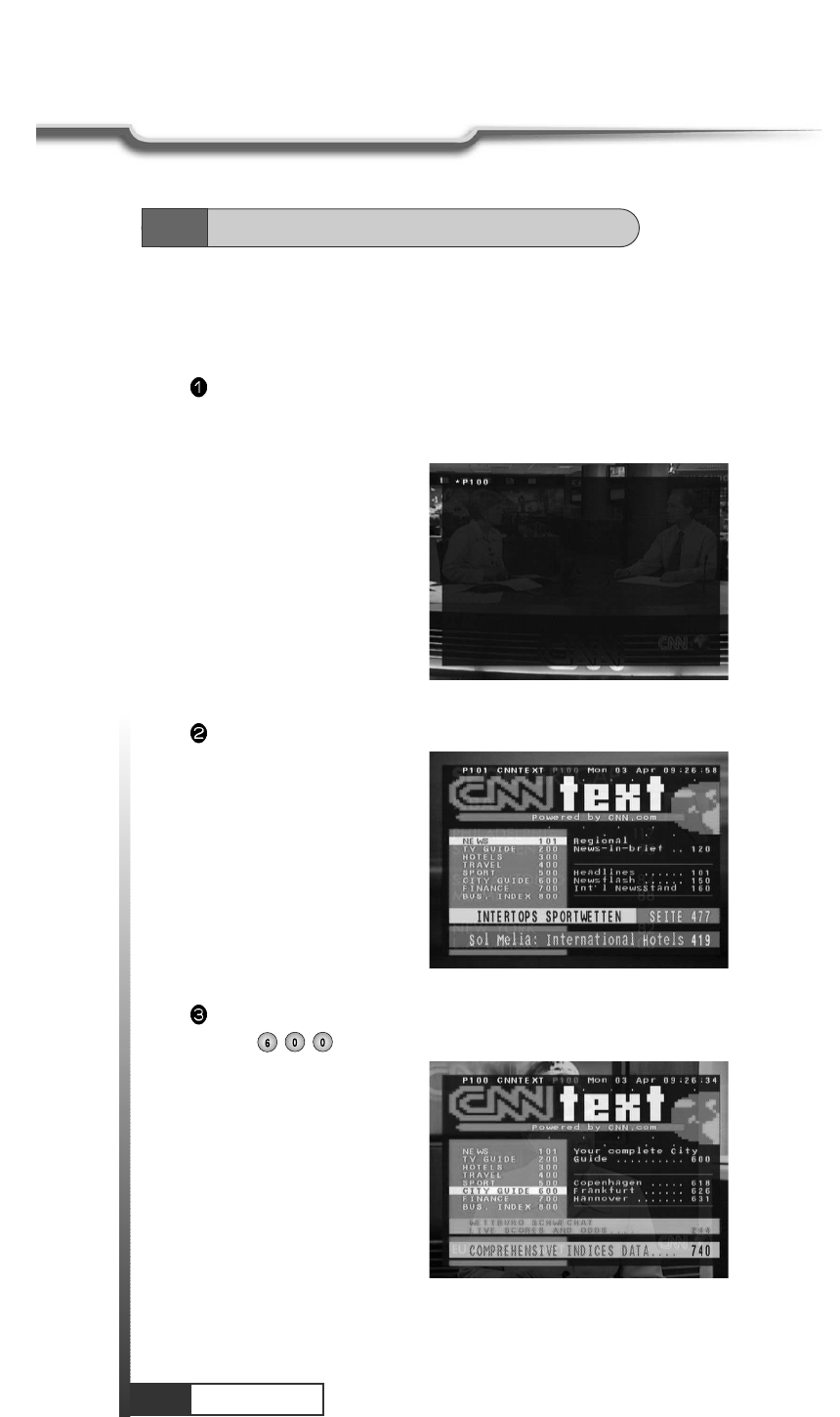

4. Teletext

Teletext Service is text data service from Service Provider.

It is available only when the satellite signal carries teletext service data.

Press BLUE key and wait.

If ‘*’ sign is pops up in the left upside of the screen as the following picture, wait until teletext service

menu is displayed because ‘*’ means ‘This program provides teletext service. So wait a moment'.

Teletext Service Data is displayed as following picture.

Select your interesting item with numeric keys. For example, if you want to see about ‘CITY GUIDE',

press .

Operation

5. Sleep Timer

Your receiver will automatically power-off when the time you set is passed.

Press ‘SLEEP’ key until the right time you want appears.

Note : 1. You can set SLEEP TIMER in 30 minute steps up to 150 minutes.

2. The SLEEP TIMER does not work while you are in ‘MENU’, ‘GUIDE’ or ‘CHANNEL LIST’.

6. Aux in

You can set in/out mode of the two scart connectors (TV, AUX) on the rear panel. Press ‘Aux in’ key until

the scart mode you want is displayed.

6.7

Other Function on Remote Control

Note : You cannot see picture when set to AUX2 mode if there is no input signal from AUX scart.

SAT Input satellite signal will be output to TV Scart and AUX (VCR)Scart. (VCR is connected to

AUX to connector for recording)

AUX Input signal from AUX scart connector will be output to TV scart. If there is no input from

AUX scart, your receiver will operate as if you chose SAT mode.

AUX 2 Input signal from AUX scart connector will be output to TV scart by force.

TV This is special mode for hiding TV scart video output. AUX scart video out is not affected.

Operation

6.7

Other Function on Remote Control

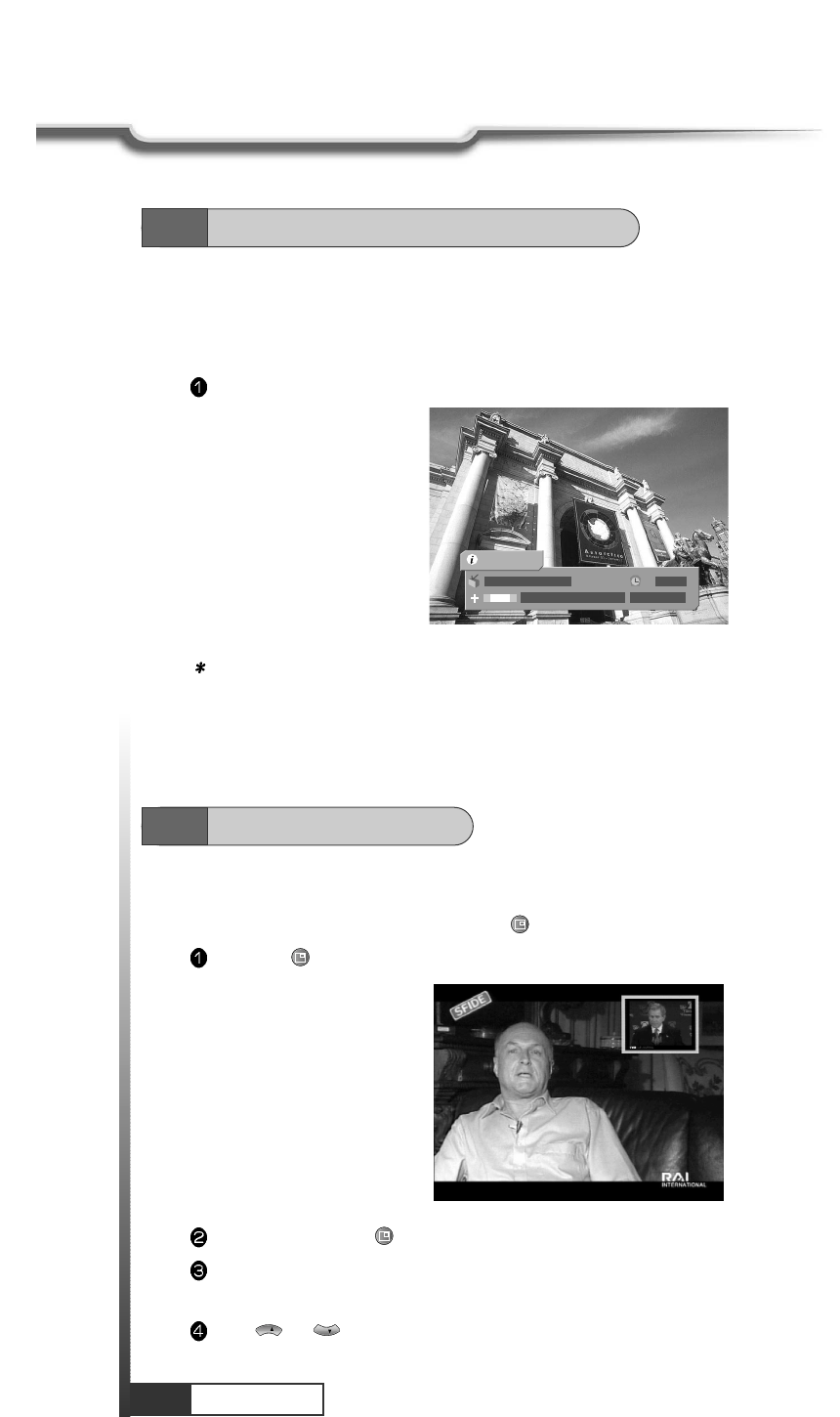

7. Channel / Information

Brief information is displayed, such as current channel type, name, local start/end time, guide

information, current time, fav/normal mode, Audio mode and Audio ID.

Press INFO, then the information bar will pop-up.

Note : If you have no information :

- Check your local time setting is correct.

- Information is not sent by the channel provider.

5 DWtv

JOURNAL News-Busin...

13:41

13:26 ~ 13:56

(((

1/8

AsiaSat 2

6.8

Picture in Picture

1. Start PIP

You can use PIP function by pressing PIP ()

key.

Press PIP ()

key to display sub-picture window.

Whenever press PIP ()

,the sub-picture window changes like as Live, HDD and Disable.

If sub-picture window pops up, you can select main-picture window or sub-picture window by pressing

volume up/down key.

Press or to change channel (or HDD program)of selection window.

Operation

2. PIP swaping

You can swap main-picture window and sub-picture window by pressing PIP swap ()

key.

If PIP function is running, press PIP swap ()

key. Main-picture and sub-picture will be swapped

6.8

Picture in Picture

If you want to magnify other position, press / or / key.

Zoom window will move to the selected position.

You can adjust zoom ratio by pressing ZOOM()

key.

VOL

1. Start ZOOM Function

You can magnify selected part of screen by pressing ZOOM()

key.

Press ZOOM()

key to magnify selected part of screen by pressing.

And zoom position window is displayed.

2. Stop ZOOM Function

To Stop zoom function, press EXIT key.

Note : Maximum magnification is by four.

6.9

Zoom Function

7.1

Recording

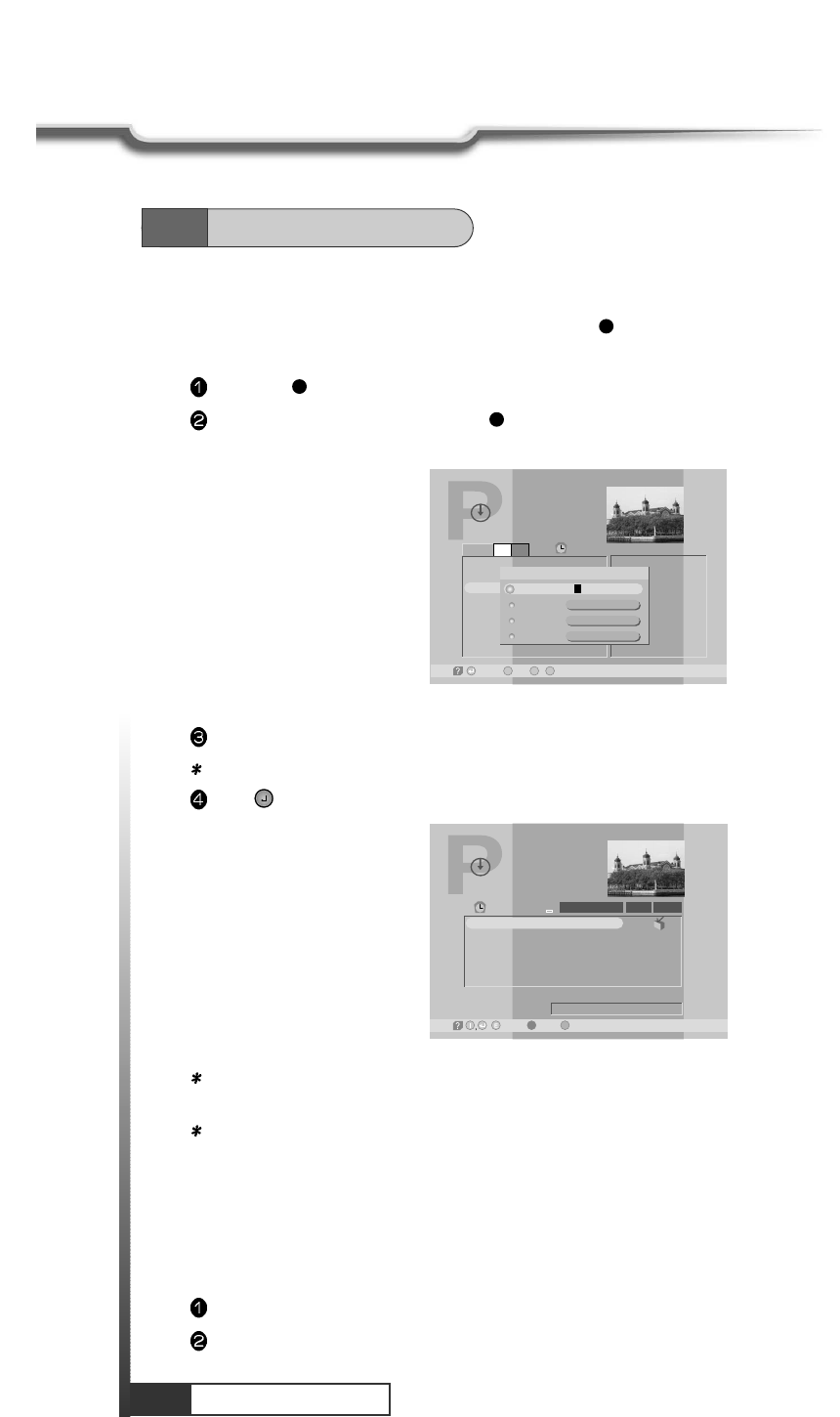

1. Start Recording

You can record the current channel by pressing RED()

key.

If program Guide menu pops up, you can record any channel you want.

Press RED()

key to record current channel.

In Program Guide menu, press RED()

key to record after selecting a program you want.

Then Record dialog menu will be displayed.

Some items can be edited in Record dialog menu.

Note : Direct recording is stopped only when user stops it or there is no HDD space.

Press to start recording.

Program Guide

-Record, -Exit,

11:19

Current

00:36 00:35

-Edit

CH 22 - Indue

Sa Name

Information

start

Stop

REC

SABo TV Notwo

Default Event

11:19

00:40

HD-Program Guide

-Delete, -Satellite Mode

11:20

REC

Title

Play time REC

28/08/2001 11:20

Free 38.8 GB (99.4%)

Default Event

Play Type

1 Default Event

/ -Wotoh,

Note : When a program is recorded, red R-icon is flickered on the upper-left conner. If you want to play

during recording press ORANGE(LIST) key to enter HD-Program Guide Menu.

Note : If you insert or take out CAM module during recording or replaying scrambled contents, it may

not work properly.

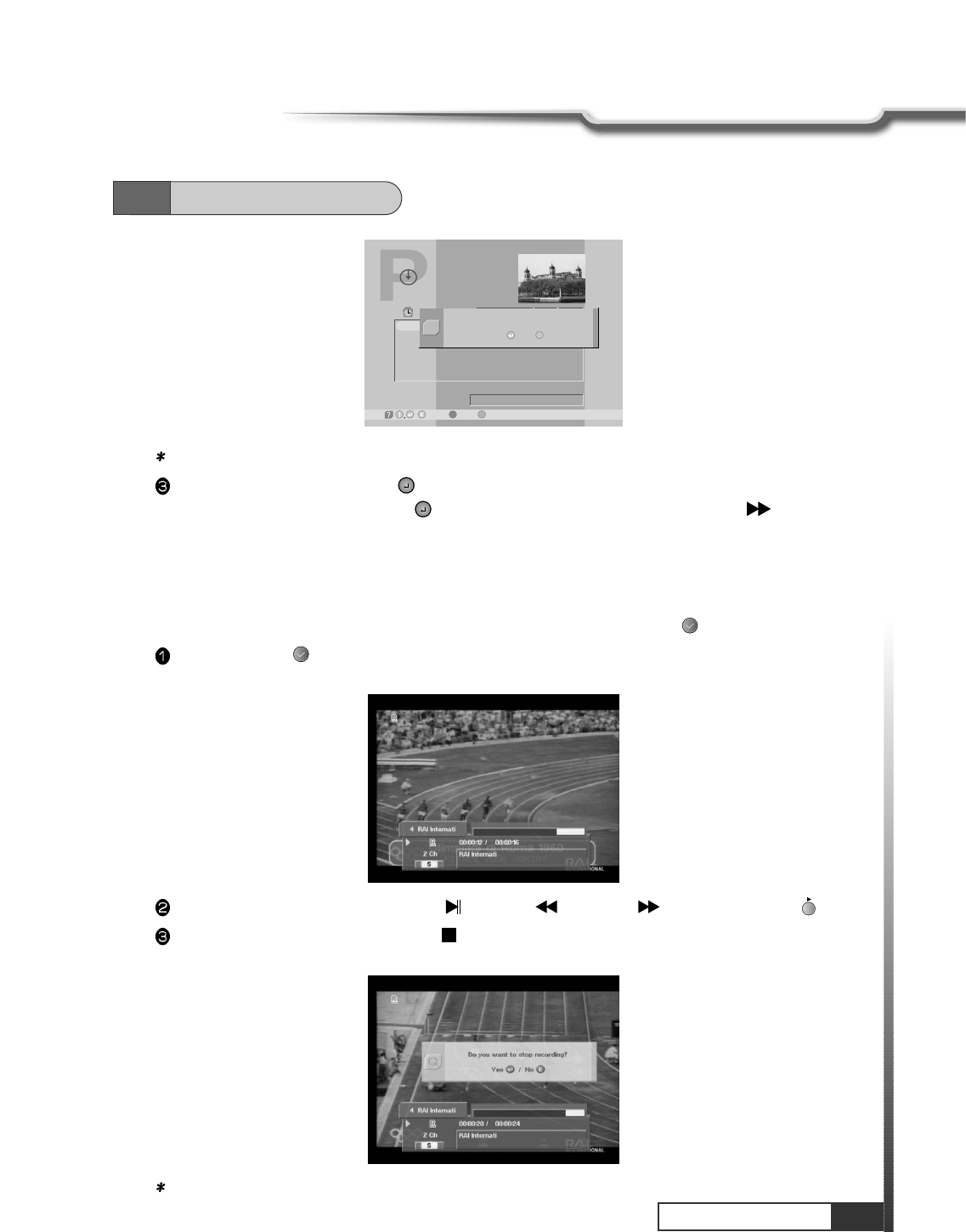

2. Stop Recording

To stop recording maunally, you must enter into HD-Program Guide menu by pressing ORANGE(LIST)key.

If any program has been played, press ORANGE(LIST) key to enter HD-Program Guide menu.

Press ORANGE(LIST)or EXIT key to display message of stop recording.

Hard Disk Operation

Note : If there is no HDD access for 5-minutes, the receiver will go into sleep mode.

If one channel is recorded, press key to stop recording.

If two channels are recorded, press key to stop First recording and press YELLOW ()

Key to

stop Second recording.

HD-Program Guide

-Delete, -Satellite Mode

11:20

REC

Title

Play time REC

28/08/2001 11:20

Free 38.8 GB (99.4%)

Default Event

Play Type

1 Default Event

/ -Wotoh,

Do you want to stop recording?

Yes /

No E

7.1

Recording

3. Time Shifting

You can use time-shift function for the current channel by pressing TIME-SHIFT ()

key.

Press TIME-SHIFT ()

key to start time-shift of the current channel.

HD-information Bar will pop-up and red R-icon is displayed.

You can use trick play by pressing BLUE ()

, GREEN ()

, YELLOW ()

, or SLOW-MOTION()

key.

To stop time-shift function, press WHITE ()

or ORANGE (LIST)key.

If HD-Program Guide menu is displayed, press ORANGE (LIST)or EXIT key to stop time-shift function.

Note : Channel up/down will stop time shift.

Hard Disk Operation

7.2

Playing

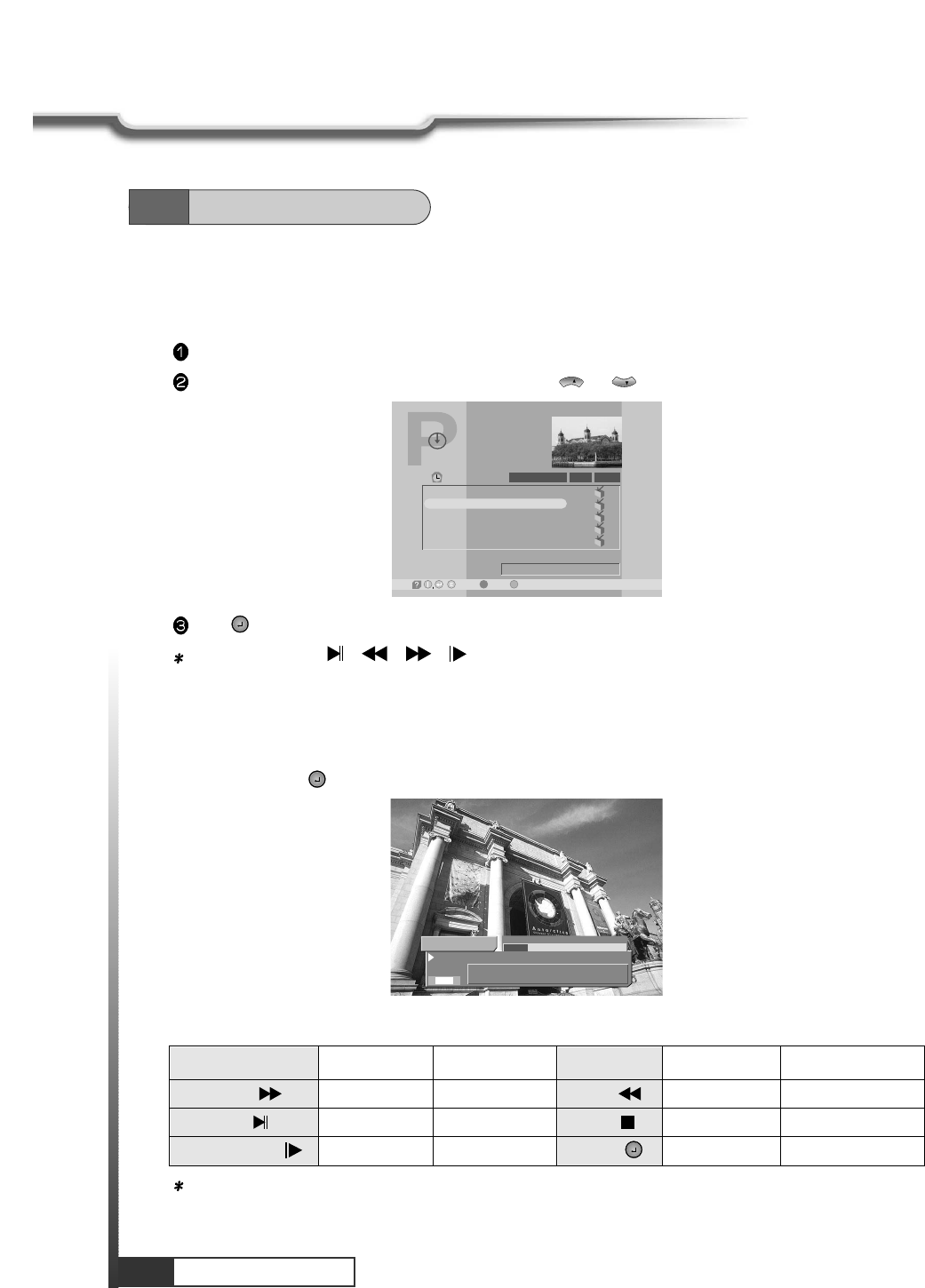

1. Start Playing

You must select a program to play stored programs.

For entering HD-Program Guide menu, press ORANGE (LIST)key.

Press ORANGE (LIST)key.

In HD-Program Guide, select a program by pressing or .

Press to start playing.

Note : You can use , , , keys while playing.

HD-Program Guide

-Delete, -Satellite Mode

11:52

00:01

00:03

00:01

00:25

Title

Play time 00:03

28/08/2001 11:22

Free 37.3 GB (95.6%)

CH 23 - Indus

Play Type

Default Event

CH 23 - Indus

CH 25 - DBN24

RAI Internati

CH 22 - Indus

/ -Wotoh,

CH 22 - Indus

2 Ch

(((

HD Playing HD Paused HD Playing HD Paused

YELLOW Fast Forward Jump Forward GREEN Fast Reverse Jump Backward

BLUE Pause Resume IVORY Stop Stop

SLOW-MOTION Slow-Motion Slow-Motion INFO or Info On/Off Info On/Off

Hard Disk Operation

Note : In case of rewinding of recorded scrambled contents, it may not work properly. If you want to

activate rewinding function, descramble the contents with relevant CAM module first and then

do rewind.

Hard Disk Operation

Press to delete the program or EXIT key to void.

Note : For deleting any stored program, you must stop both playing and recording.

HD-Program Guide

-Delete, -Satellite Mode

11:52

00:01

00:03

00:01

00:25

Title

Play time 00:03

28/08/2001 11:22

Free 37.3 GB (95.6%)

CH 23 - Indus

Play Type

Default Event

CH 23 - Indus

CH 25 - DBN24

RAI Internati

CH 22 - Indus

/ -Wotoh,

Do you want to delete this ?

Yes /

No E

1. Descrambling Start

You must select a program to descramble stored programs.

Press Orange (LIST)Key.

In HD-Program Guide, select a scrambled program by pressing or .

Press Time shift ()

to start descramble.

Note : Necessarily correct CAM must be inserted for descrambling.

7.4

Descrambling Service

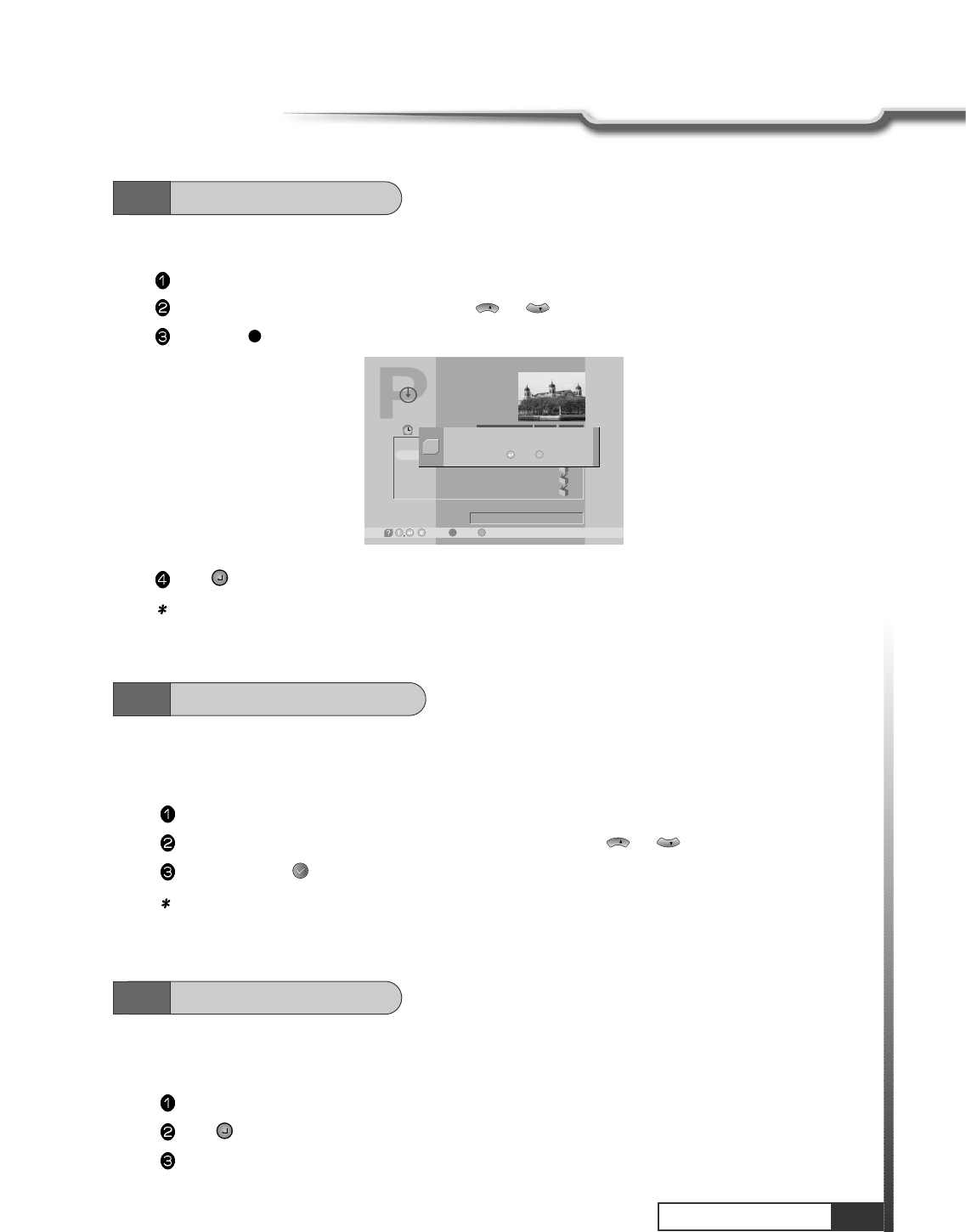

You can delete any program in HD-Program Guide menu.

Press ORANGE (LIST)key then HD-Program Guide menu will pop-up.

In HD-Program Guide, select a program with or .

Press RED ()

key to delete the program then Delete dialog menu will pop-up.

7.3

Delete Programs

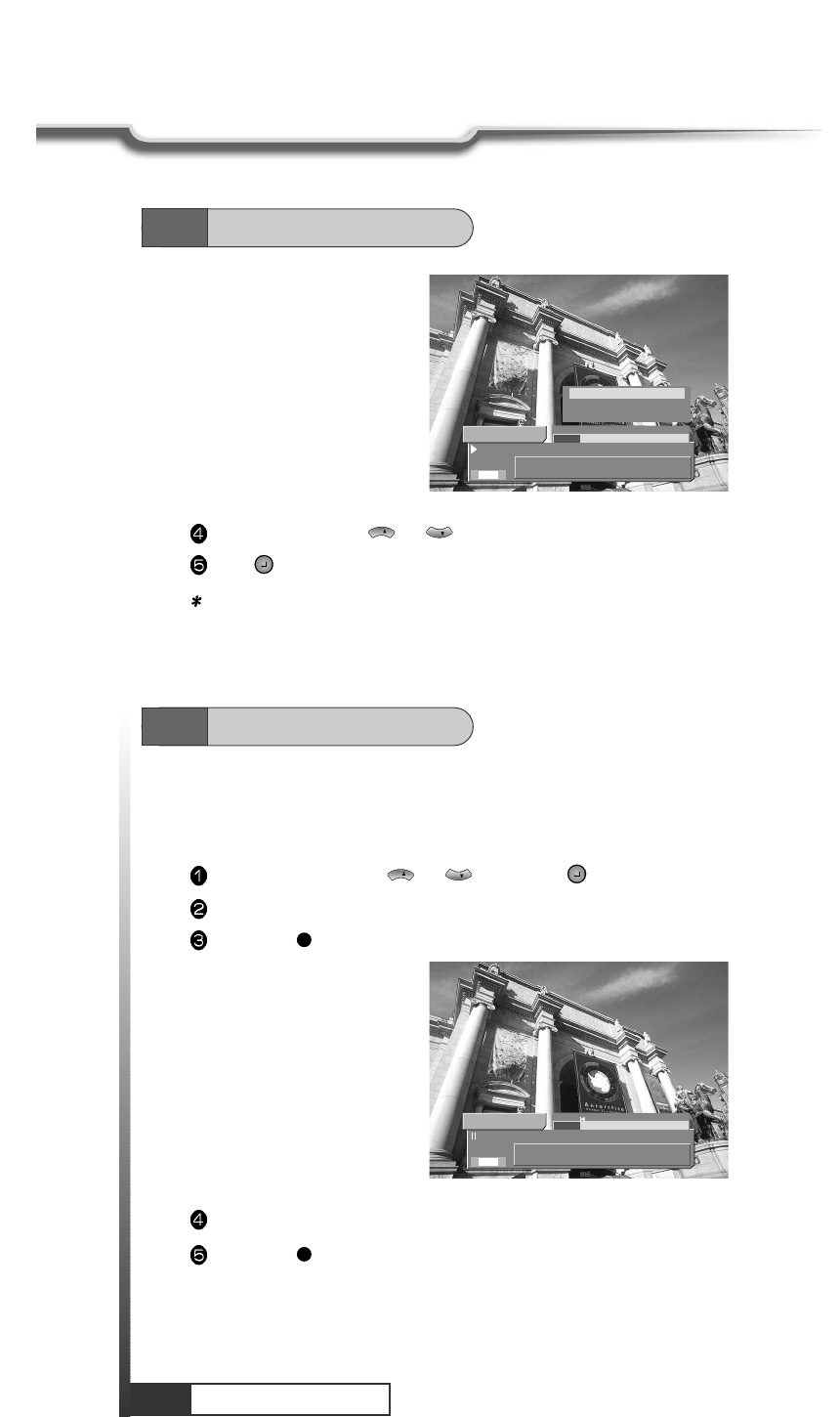

If you want to lock any program, enter the advanced menu by pressing MENU key with HD- Information

Bar. After locking a program, you must enter the password for playing the program.

Start playing a program.

Press then HD-Information Bar will pop-up.

Press MENU key, the advanced menu will pop-up.

7.5

Lock Programs

Hard Disk Operation

Select ‘LOCK’ using or .

Press , LOCK enable or disable will be setted with Yes or No.

Note : The password for playing a stored program is the same password for any other lock operation.

1 SABe TV Netwo

00:00:16 / 00:01:10

Default Event

2 Ch

(((

Lock

Clear skip points

Split take

Yes

Temperary start point will be displayed with a red pointer on the Bar.

Press RED ()

key to set the end point you want.

You can set the part you don't want to play, such asadvertisements.

The skip part consists of start and end points.

In all, 10 skip points are available.

Select a program with or , and press to play in HD-Program Guide menu.

Start playing and search the start point of skip play using trick play controls.

Press RED ()

key to set the start point.

5 CH 22 - Indus

00:06:03 / 00:24:53

CH 22 - Indus

2 Ch

(((

7.5

Lock Programs

7.6

Skip Play

Hard Disk Operation

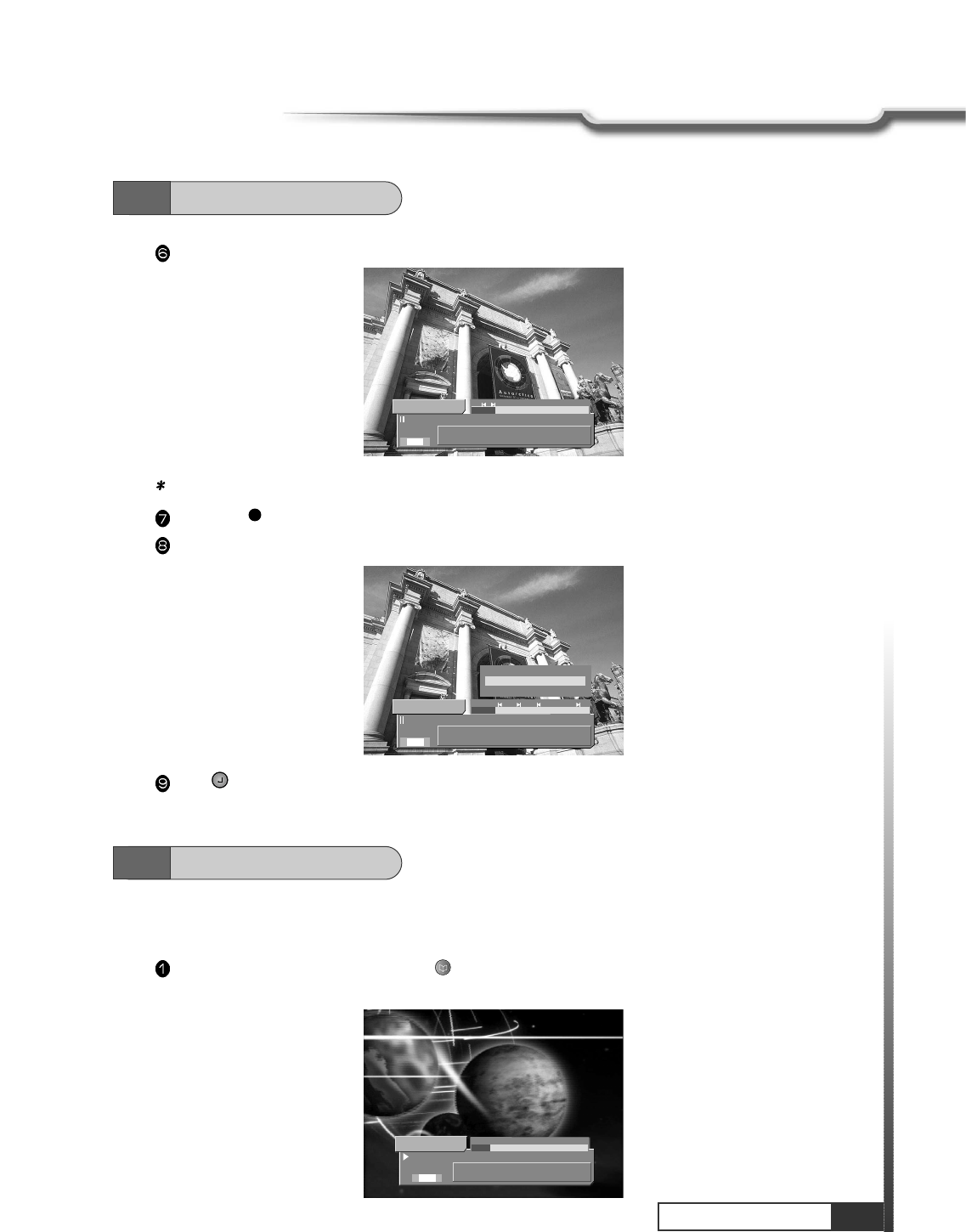

Then a proper pair of start and end points will be displayed with yellow pointers on the Bar.

Note : To try to set an improper pair will be rejected.

Press RED ()

key at the position between start and end points, then the skip-point will be removed.

Press MENU key and select ‘Clear skip points’.

Press , to remove all skip points.

5 CH 22 - Indus

00:06:03 / 00:24:53

CH 22 - Indus

2 Ch

(((

5 CH 22 - Indus

00:07:06 / 00:24:53

CH 22 - Indus

2 Ch

(((

Lock

Clear skip points

Split take

7.6

Skip Play

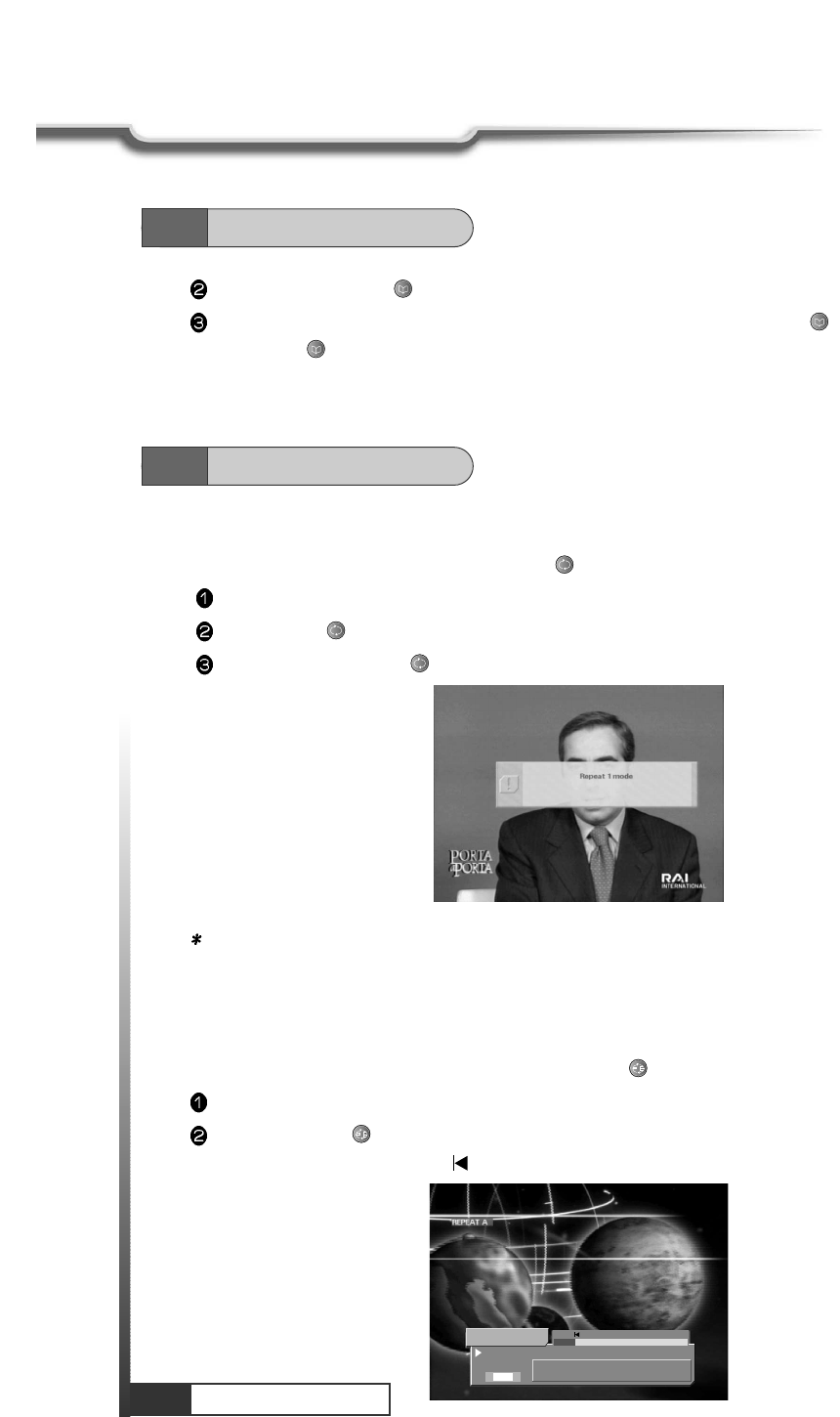

You can jump to a position directly by bookmark function in playback and time-shifted playback. To

search positions very quickly and easily, use bookmarks.

To add a bookmark, press bookmark ()

key at the position you want to add it.

Green dot is displayed at HD-information bar.

1 RAI Internati

00:00:09 / 00:01:10

RAI Internati

2 Ch

(

7.7

Bookmark

Hard Disk Operation

Press go to bookmark ()

key to jump to the previous bookmark.

To remove a bookmark, select the bookmarked position by go to bookmark ()

key and press

bookmark ()

key.

7.7

Bookmark

7.8

Repeat

1. Repeat Mode

You can repeat playback by pressing REPEAT ()

key.

Start playback a stored program on HD.

Press REPEAT ()

key to repeat playback.

Whenever press REPEAT ()

,Repeat 1, Repeat All, Normal mode are displayed in turn.

Note : If Repeat 1 mode is selected, only current program is repeated. If Repeat all mode is selected,

every program on HD is repeated. If Normal mode is selected, any program will not be repeated.

2. Repeat A-B

You can repeat selected region by pressing REPEAT A-B ()

key.

Start playback a stored program on HD.

Press REPEAT A-B ()

key to display repeat A message.

If HD-Information bar pops up, icon is displayed on HD-Information bar.

1 RAI Internati

00:00:10 / 00:01:10

RAI Internati

2 Ch

(

Hard Disk Operation

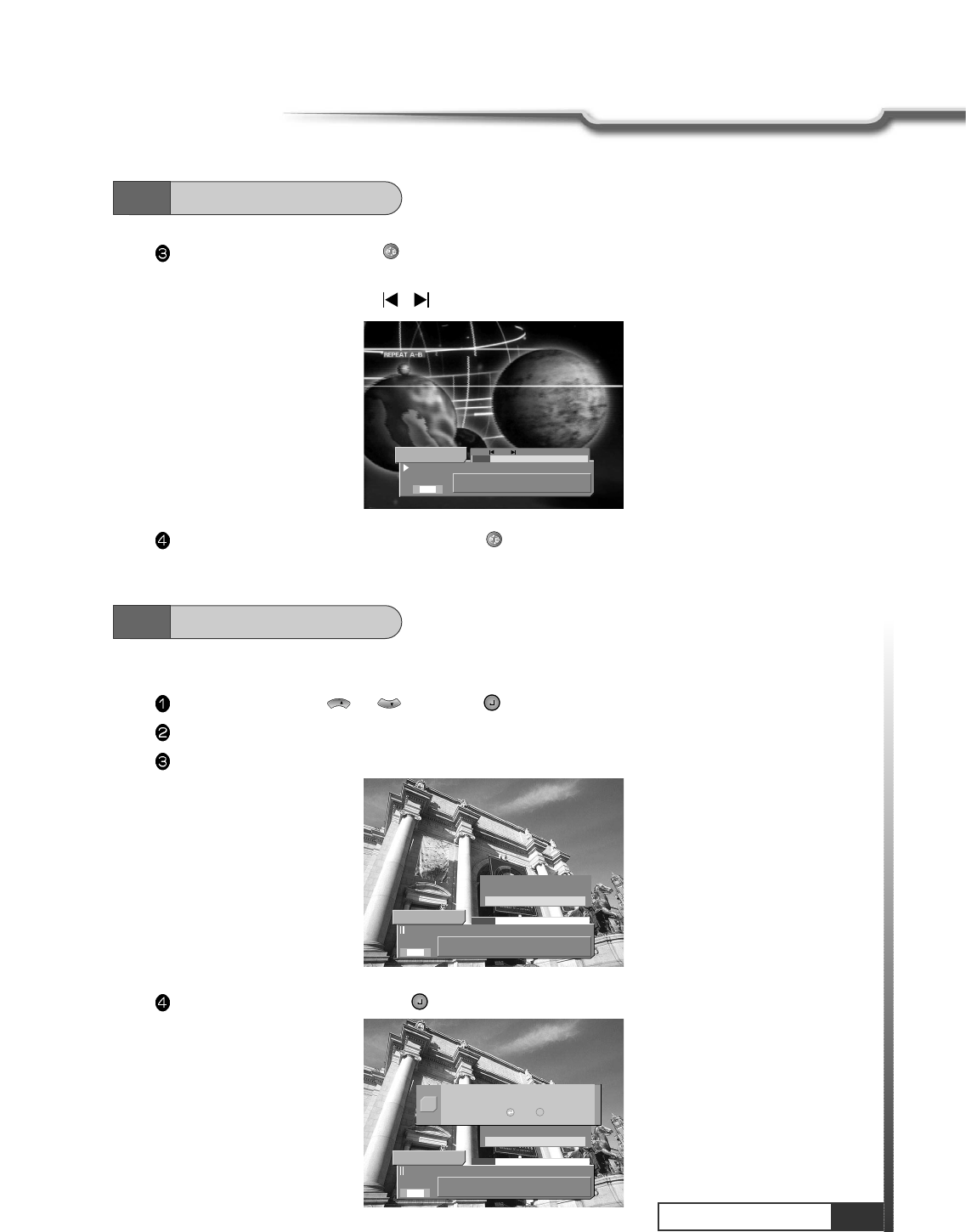

Once more, Press REPEAT A-B ()

key to display repeat A-B message.

And selected region is played repeatedly.

If HD-Information bar pops up, , icon display on HD-Information bar.

To stop repeat A-B function, press REPEAT A-B ()

key once more.

1 RAI Internati

00:00:10 / 00:01:10

RAI Internati

2 Ch

(

7.8

Repeat

Select ‘Split take’ menu and press , then Split take dialog will pop-up.

You can split a program in two programs. The operation takes a few minutes to complete splitting.

Select a program with or , and press to play in HD-Program Guide menu.

Go to the split point using trick play control.

Press MENU key, then the additional menu will pop-up.

4 CH 22 - Indus

00:05:06 / 00:23:12

CH 22 - Indus

2 Ch

(((

Lock

Clear skip points

Split take

4 CH 22 - Indus

00:05:06 / 00:23:12

CH 22 - Indus

2 Ch

(((

Lock

Clear skip points

Split take

Split this program in two ?

Yes /

No E

7.9

Split Operation

Hard Disk Operation

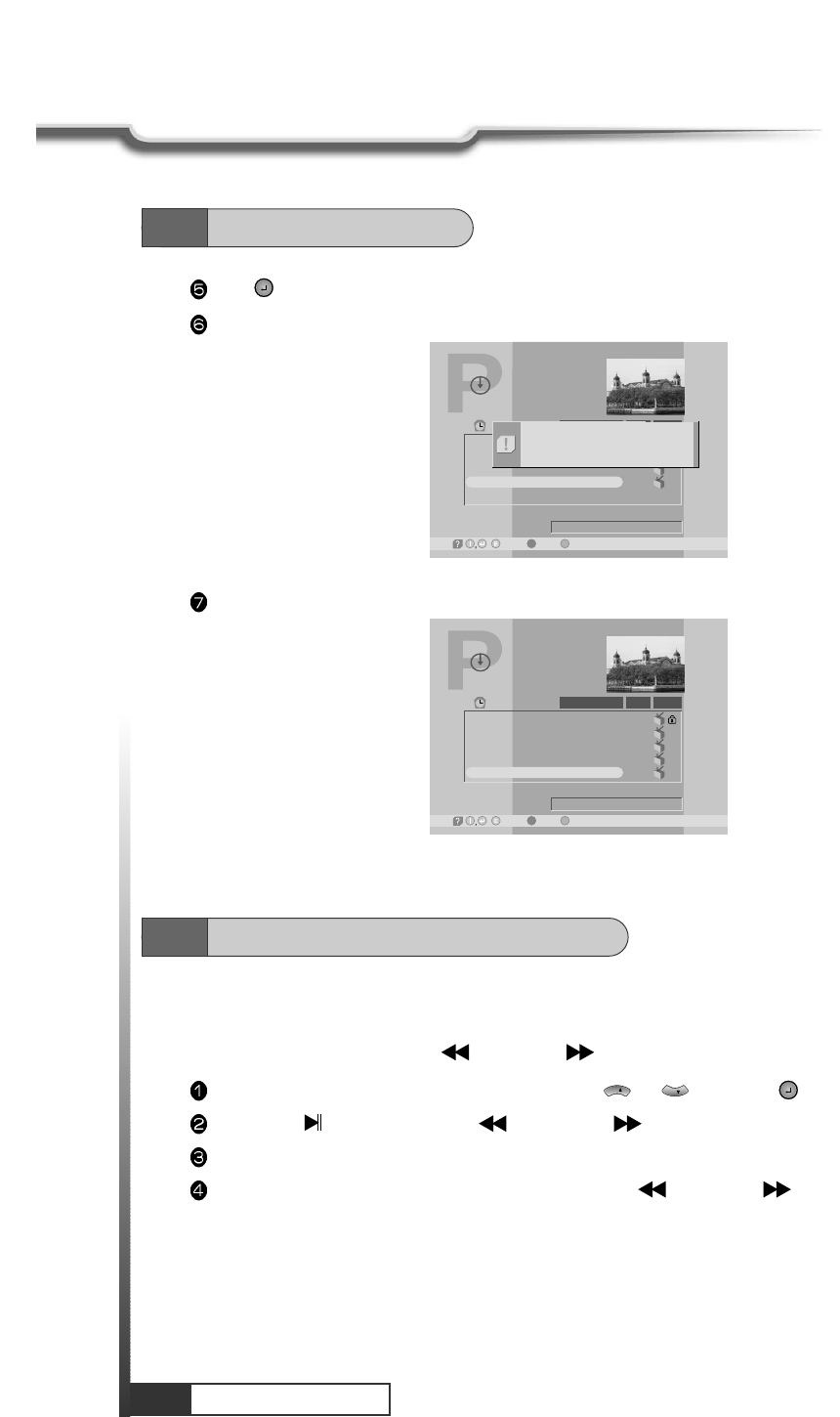

Press to start splitting or EXIT key to cancel.

If split operation starts, the progress window will pop-up and you can see the status of process.

HD-Program Guide

-Delete, -Satellite Mode

12:00

00:01

00:23

Title

Play time 00:23

28/08/2001 11:27

Free 37.7 GB (96.6%)

CH 22 - Indus

Play Type

Default Event

CH 25 - DBN 24

RAI Internati

CH 22 - Indus

/ -Wotoh,

Now splitting program

42%

After splitting, HD-Program Guide menu will pop-up and splitted program will be selected.

HD-Program Guide

-Delete, -Satellite Mode

12:00

00:01

00:05

00:18

Title

Play time 00:10

28/08/2001 11:27

Free 37.5 GB (96.1%)

CH 22 - Indus

Play Type

Default Event

CH 25 - DBN 24

RAI Internati

CH 22 - Indus

/ -Wotoh,

7.9

Split Operation

7.10

Trick Play Controls without OSD

You can use trick play controls without HD-Information Bar.

Small yellow icon will be displayed for trick play controls.

At pause state, pressing GREEN ()

/ YELLOW ()

will make the program be played step by step.

In HD-Program Guide menu select a program with or and press to play.

Press BLUE ()

and then GREEN ()

or YELLOW ()

to start trick play without any OSD.

You can control trick play while yellow icons are displayed.

Besides, you can control step by step play with GREEN ()

/ YELLOW ()

at pause state.

Hard Disk Operation

Trouble Shooting

There may be various reasons for the abnormal operation of the unit. Therefore, if the unit does not

work properly, check it according to the procedures shown in the table below :

Remedy

Connect power cord properly into

the power socket.

Connect terminals correctly with

scart cable or RCA or RF cable.

Connect the antenna cable

correctly.

Adjust the direction of antenna.

Check the cable connections,

LNB and other equipment

connected between the LNB and

the receiver or adjust the antenna.

Type the setting value correctly.

Use TV of same mode.

Use the NTSC/PAL converter

connected to the receiver and TV.

Change the batteries.

Switch off the light.

Possible causes

AC power cord disconnected.

Wrong connection of the

video/audio output to TV input

terminal.

Wrong connection of satellite

antenna cable.

Wrong direction of satellite

antenna.

No signal or weak signal.

Wrong setting of channel

information in MENU screen.

Your TV mode is different from

satellite broadcasting mode.

Battery exhausted.

Fluorescent light interfering

with the remote controller

Remote controller is

incorrectly aimed.

Problem

LED on front panel

does not light.

No Picture or sound.

Black-and-white

screen or V-Hold.

The remote

controller is not

working.

IEC 169-24, female

50MHz 870MHz

-20dBm

+30dBm

QAM

75 Ohm unbalanced

32bit processor (166MHz)

32Mbyte

8Mbyte

4Kbyte

Main Proflie @ Main Level

up to 15Mbits/s

720 X 576, 720 X 480

NTSC, PAL-M

4:3, 16:9

VBI insertion and OSD

Mono, Dual mono, Stereo, Joint Stereo

32, 44.1 and 48 KHz

9pin D-sub male, Max 115Kbps

NEC-IR

up to 7 Meter

Fully DVB compliant

Connector

Frequency range

Signal level

Front end

Symbol rate

Input impedance

Processor

SDRAM

FLASH

EEPROM

MPEG 2

Data Rate

Resolution

Video format

Aspect Ratio

DVB compliant

MPEG 1 layer 1 & 2

Type

Sampling rates

Connector

Code

Operating condition

System capabilities

LNB/Tuner input

Demodulator

System resource

Video Decoder

Teletext

MPEG Audio

Serial data interface

Remote control

Specifications

2Msps 5.5Msps

max 60W

98V 240V

47Hz 63Hz

Power consumption

Supply voltage

Supply frequency

Power supply

Specifications

1 X RCA cinch

2 X RCA cinch

1 X RCA cinch

1 X 4P MINI DIN

IEC 169 24

IEC 169 - 24

335 X 58.5 X 268(mm)

3.2Kg

Video out

Audio L/R

DIGITAL OUT

S-VHS out

Digital tuner input

Loop-through Digital tuner

Size (W X H X D )

Weight (Net)

Rear Panel connectors

Physical Specification

RF ANT IN

RF OUT

Hyundai Digital Technology HSC-880HNA Cable Set-top Box User Manual

Hyundai Digital Technology Co., Ltd. Cable Set-top Box

User Manual

Navigation menu

Namespaces

Views

Navigation
