Hyundai IBT L19C0H020 LCD MONITOR User Manual 002

Hyundai IBT Corp. LCD MONITOR 002

User manual

19” Wide LCD Monitor
User Manual
Modelo : P90W, P90WU
G
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
T
hese limits are designed to provide reasonable protection against harmful
interference in a residential installation.
T
his equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
Precautions
AC outlet
Power cord
Warning
aG
The following information will help you avoid the risk of electric shock, serious injury or death.
Plug the power cord into a
properly grounded outlet.
There is the risk of electric
shock.
Do not unplug from the outlet
by pulling the power cord or
when your hands are wet.
There is the risk of electric
shock or fire.
Do not allow any object or liq-
uid to enter inside the monitor.
There is the risk of electric
shock, fire or damage to the
monitor.
Do not bend the power cord
excessively nor place heavy objects
on it. Keep children and pets away
from the power cord as they may
damage the power cord. There is
the risk of electric shock or fire.
Do not use a damaged power
cord or plug. Make sure the
plug fits snugly into the outlet.
There is the risk of electric
shock or fire.
Do not expose the monitor to
the direct sun light.
Keep the monitor away from high
temperature, humidity, and dust.
̰Operating environment
=10~40degrees Celsius
̰Operating environment
=20~80relative humidity.
Do not block the fan louvers.
There is the risk of fire or dam-
age to the monitor.
Use a proper voltage/current
level indicated
Do not clean the LCD with
abrasive chemicals.
There is the risk of damage to
the LCD.
Do not scratch and damage
the LCD with sharp objects.
Keep the monitor away from
objects and electrical appli-
ances that may generate elec-
tromagnetic fields.
Place the monitor on a flat, sta-
ble surface. The monitor may
fall and there is the risk of
damage or injury.
Unplug the power cord when
the monitor is not in use for a
long period of time.
If you hear a noise or smell
smoke from the computer or
adaptor, unplug the power cord
immediately, and call the service
center. There is the risk of elec-
tric shock or fire.
Do not overload an electrical
outlet with too many devices.
There is the risk of fire.
Do not attempt to disassemble,
fix or modify the monitor.
There is the risk of electric
shock or fire.
Caution
a
The following information will help you avoid the risk of minor or moderate injury or damage to the monitor.
Precautions
3
3 : For Audio Model Only.
*3
*3 : For Audio Model Only.
*1
*1
*1 : For Audio Model Only.
*1 : For Audio Model Only.
(ź)
(ź)
(ź)
Appendix

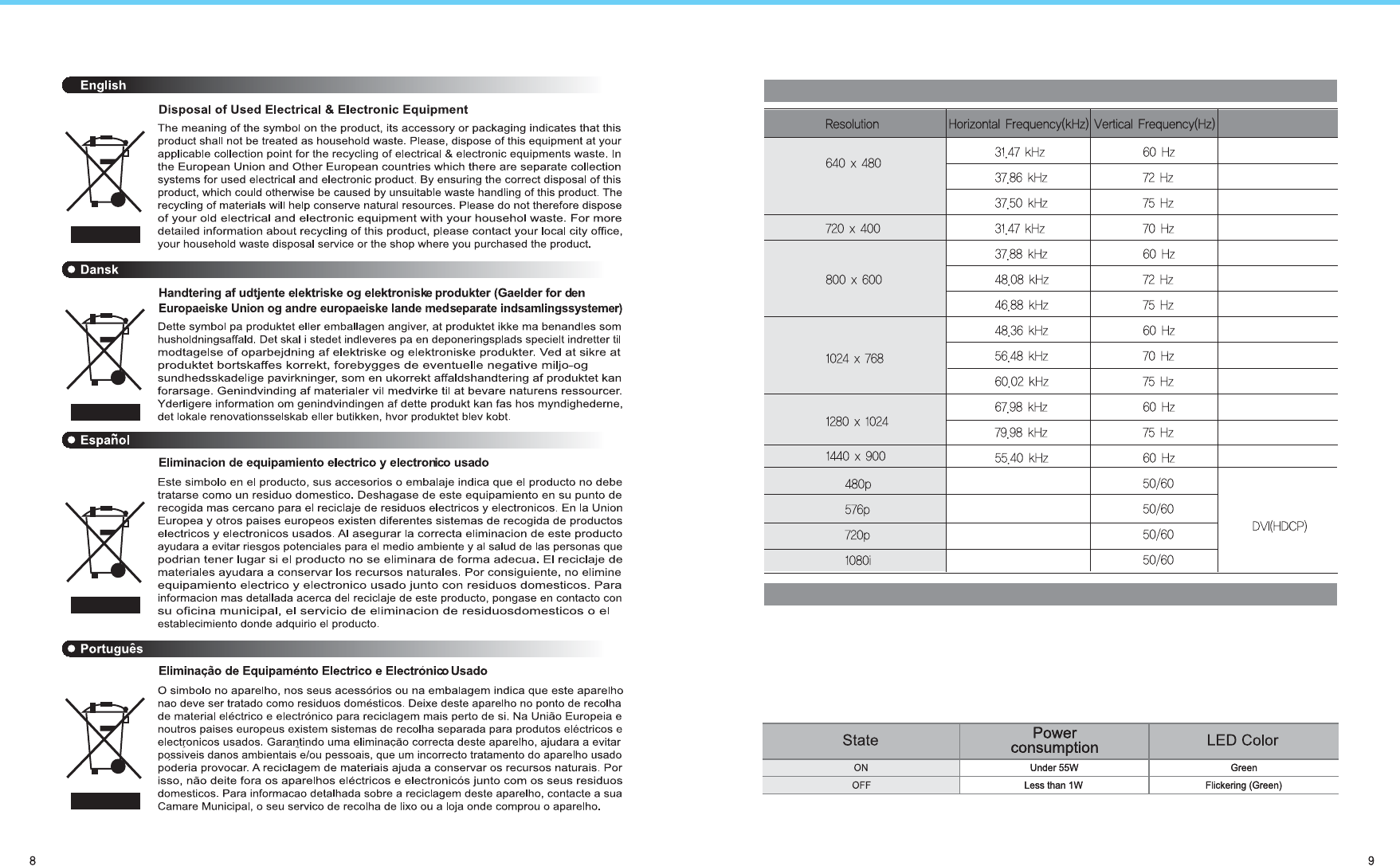

WEEE Mark Information
Display Modes and frequency
This monitor has a built-in power management system called PowerSave. This system
saves energy by switching your monitor into a low-power mode when it has not been
used for a certain period of time. The monitor automatically returns to normal opera-
tion when you press a key on the keyboard. For energy saving, turn your monitor OFF
when it is not used, or when leaving it unattended for a long period.
Power Save
cable to PC.
Abnormal colors appear. It is in
black and white.
Green.
No Signal
Out of Range
Multimedia Speakers
Operating Environment
Input
Signal
Power
LCD
Specification P90U, P90WU
The above specifications are subject to change without prior notice to improve performance.
408.24mm(H) x 255.15mm(V)(19inch)
0.2835mm(H) x 0.2835mm(W)
1440 x 900@60Hz
160ȋ/160ȋ(H/V)
16.7M
300cd/༇
1000:1
5 msec
30KHz-80KHz
60KHz-75KHz
Analong RGB, DVI*
2
<55W
<1W
AC:100V-240V 50/60Hz, 0.7A
Operation:10 to 40ȋC, humidity: 20-80%(non-condensing)
Storage: -10 to Û&, humidity: 10-90%(non-condensing)
Visible Screen Area
Pixel Pitch
Recommended Resolution
Maxium Visible Angle
Displayed Color
Brightness
Contrast Ratio
Response Time
Horizontal Frequency
Vertical Frequency
Video Signal
Connector
Power Consumption
Stand by Power
Input Power
3 : For Audio Model Only.
*2
*3
*3
*1
