I Link Technology SF-LY001A BLUETOOTH MUSIC RECEIVER User Manual Manual

Shenzhen I-Link Technology Co., Ltd. BLUETOOTH MUSIC RECEIVER Manual

Users Manual

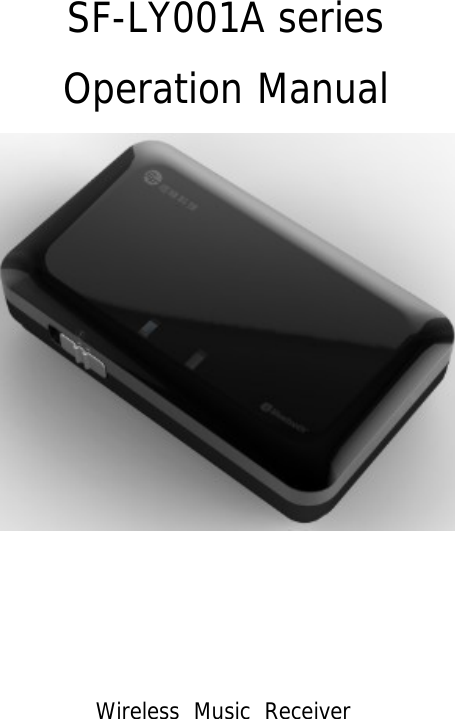

SF-LY001A series Operation Manual Wireless Music Receiver

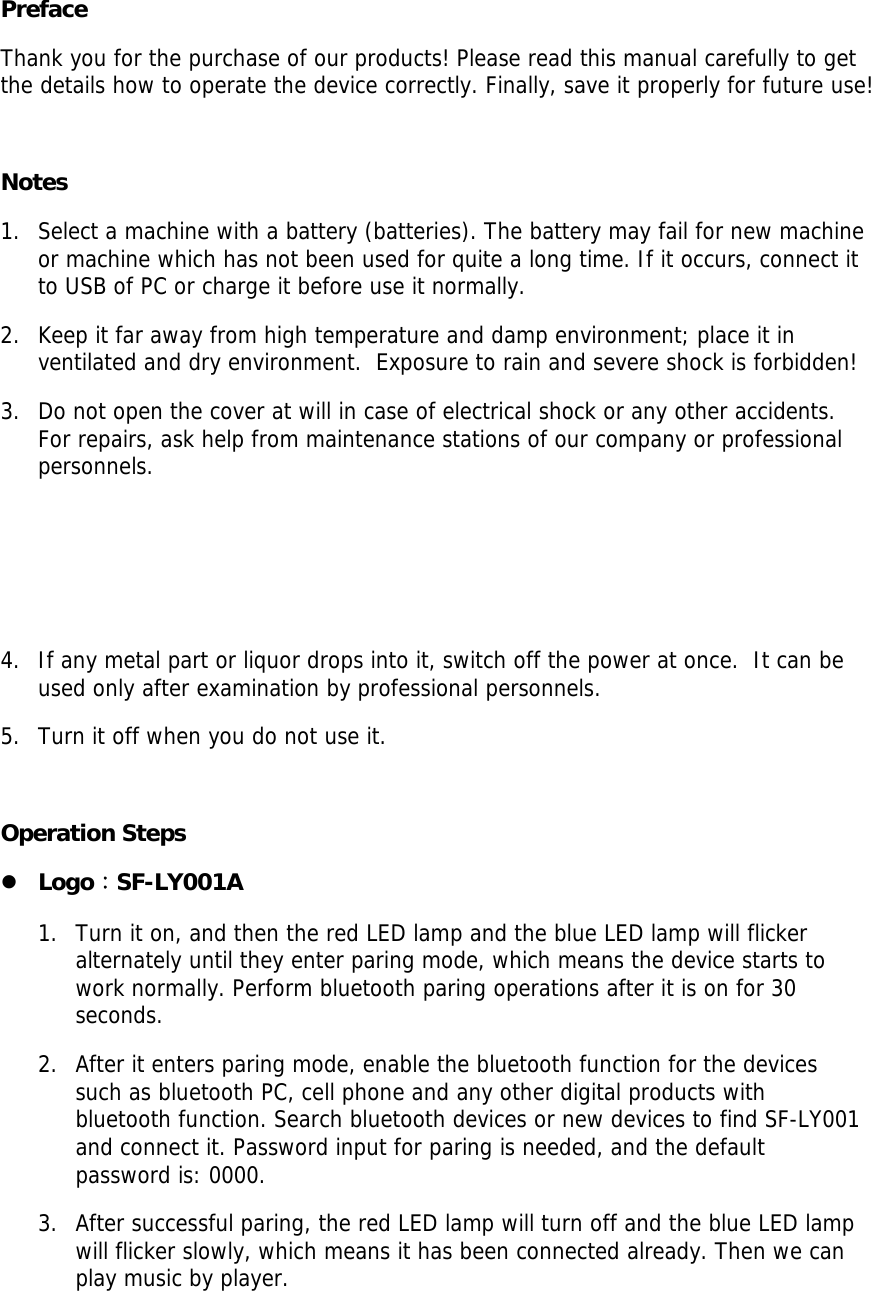

Preface Thank you for the purchase of our products! Please read this manual carefully to get the details how to operate the device correctly. Finally, save it properly for future use! Notes 1. Select a machine with a battery (batteries). The battery may fail for new machine or machine which has not been used for quite a long time. If it occurs, connect it to USB of PC or charge it before use it normally. 2. Keep it far away from high temperature and damp environment; place it in ventilated and dry environment. Exposure to rain and severe shock is forbidden! 3. Do not open the cover at will in case of electrical shock or any other accidents. For repairs, ask help from maintenance stations of our company or professional personnels. 4. If any metal part or liquor drops into it, switch off the power at once. It can be used only after examination by professional personnels. 5. Turn it off when you do not use it. Operation Steps z Logo：SF-LY001A 1. Turn it on, and then the red LED lamp and the blue LED lamp will flicker alternately until they enter paring mode, which means the device starts to work normally. Perform bluetooth paring operations after it is on for 30 seconds. 2. After it enters paring mode, enable the bluetooth function for the devices such as bluetooth PC, cell phone and any other digital products with bluetooth function. Search bluetooth devices or new devices to find SF-LY001 and connect it. Password input for paring is needed, and the default password is: 0000. 3. After successful paring, the red LED lamp will turn off and the blue LED lamp will flicker slowly, which means it has been connected already. Then we can play music by player.

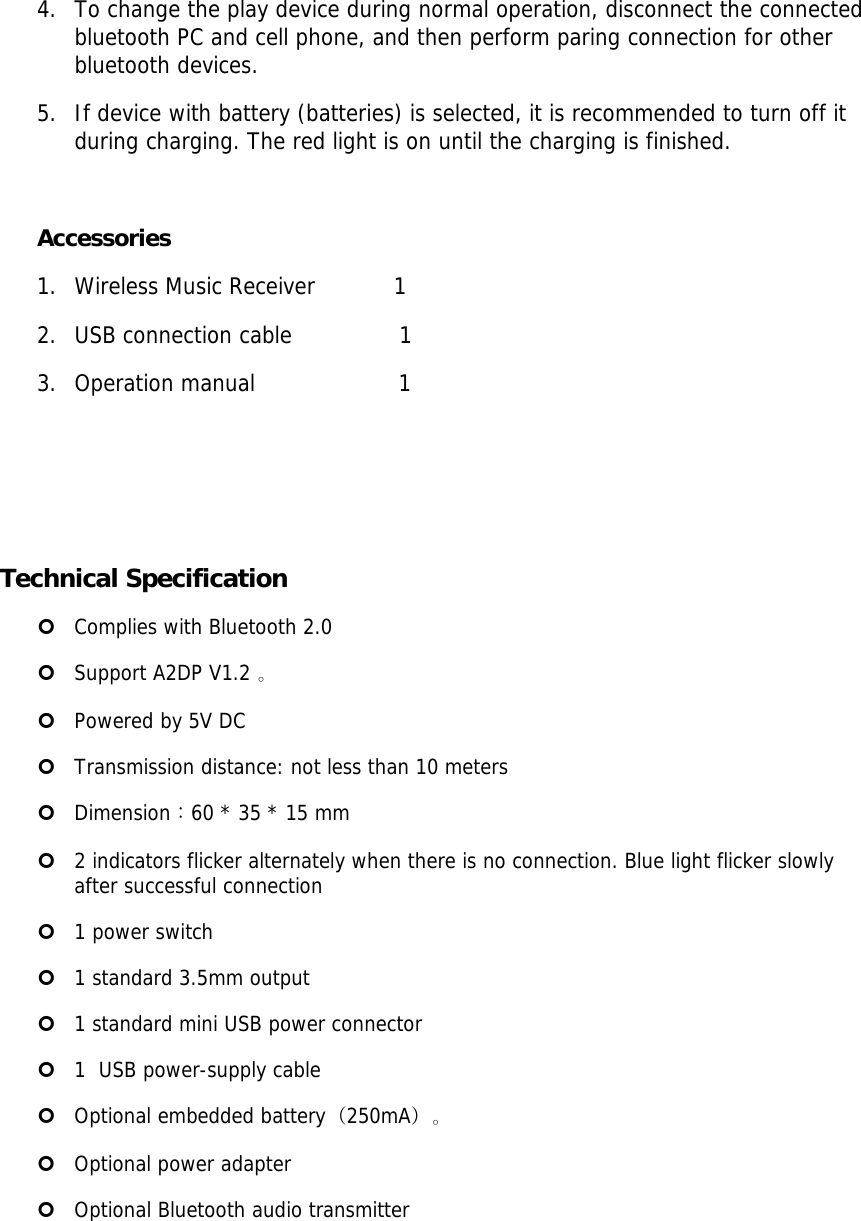

4. To change the play device during normal operation, disconnect the connected bluetooth PC and cell phone, and then perform paring connection for other bluetooth devices. 5. If device with battery (batteries) is selected, it is recommended to turn off it during charging. The red light is on until the charging is finished. Accessories 1. Wireless Music Receiver 1 2. USB connection cable 1 3. Operation manual 1 Technical Specification | Complies with Bluetooth 2.0 | Support A2DP V1.2 。 | Powered by 5V DC | Transmission distance: not less than 10 meters | Dimension：60 * 35 * 15 mm | 2 indicators flicker alternately when there is no connection. Blue light flicker slowly after successful connection | 1 power switch | 1 standard 3.5mm output | 1 standard mini USB power connector | 1 USB power-supply cable | Optional embedded battery（250mA）。 | Optional power adapter | Optional Bluetooth audio transmitter

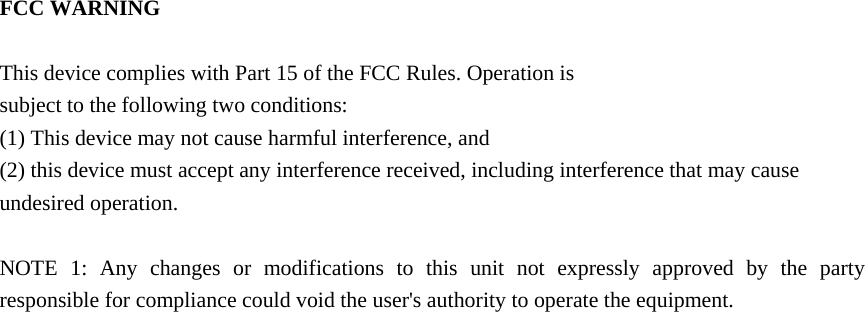

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
