Shenzhen I-Link Technology Co., Ltd. BLUETOOTH MUSIC RECEIVER Manual
Users Manual
SF-LY001A series
Operation Manual

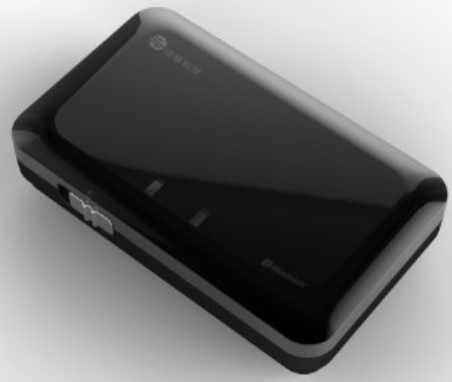

Wireless Music Receiver
Preface
Thank you for the purchase of our products! Please read this manual carefully to get
the details how to operate the device correctly. Finally, save it properly for future use!
Notes
1. Select a machine with a battery (batteries). The battery may fail for new machine
or machine which has not been used for quite a long time. If it occurs, connect it
to USB of PC or charge it before use it normally.
2. Keep it far away from high temperature and damp environment; place it in
ventilated and dry environment. Exposure to rain and severe shock is forbidden!
3. Do not open the cover at will in case of electrical shock or any other accidents.
For repairs, ask help from maintenance stations of our company or professional
personnels.
4. If any metal part or liquor drops into it, switch off the power at once. It can be
used only after examination by professional personnels.
5. Turn it off when you do not use it.
Operation Steps
z Logo：SF-LY001A
1. Turn it on, and then the red LED lamp and the blue LED lamp will flicker
alternately until they enter paring mode, which means the device starts to
work normally. Perform bluetooth paring operations after it is on for 30
seconds.
2. After it enters paring mode, enable the bluetooth function for the devices
such as bluetooth PC, cell phone and any other digital products with
bluetooth function. Search bluetooth devices or new devices to find SF-LY001
and connect it. Password input for paring is needed, and the default
password is: 0000.
3. After successful paring, the red LED lamp will turn off and the blue LED lamp
will flicker slowly, which means it has been connected already. Then we can
play music by player.
4. To change the play device during normal operation, disconnect the connected
bluetooth PC and cell phone, and then perform paring connection for other
bluetooth devices.
5. If device with battery (batteries) is selected, it is recommended to turn off it
during charging. The red light is on until the charging is finished.
Accessories
1. Wireless Music Receiver 1
2. USB connection cable 1
3. Operation manual 1
Technical Specification
| Complies with Bluetooth 2.0
| Support A2DP V1.2 。
| Powered by 5V DC
| Transmission distance: not less than 10 meters
| Dimension：60 * 35 * 15 mm
| 2 indicators flicker alternately when there is no connection. Blue light flicker slowly
after successful connection
| 1 power switch
| 1 standard 3.5mm output
| 1 standard mini USB power connector
| 1 USB power-supply cable
| Optional embedded battery（250mA）。
| Optional power adapter
| Optional Bluetooth audio transmitter
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
