IAdea Corporation Digital Signage Media Appliance Users Manual

Users Manual

MBR-1100
Hardware User Manual
i
Contents
1. Introduction 1
1.1. Package contents 1
1.2. Installation 1
1.3. Physical view 3
2. Technical Data 4
2.1. Specifications 4
1
1. Introduction
This document describes the hardware of the MBR-1100.

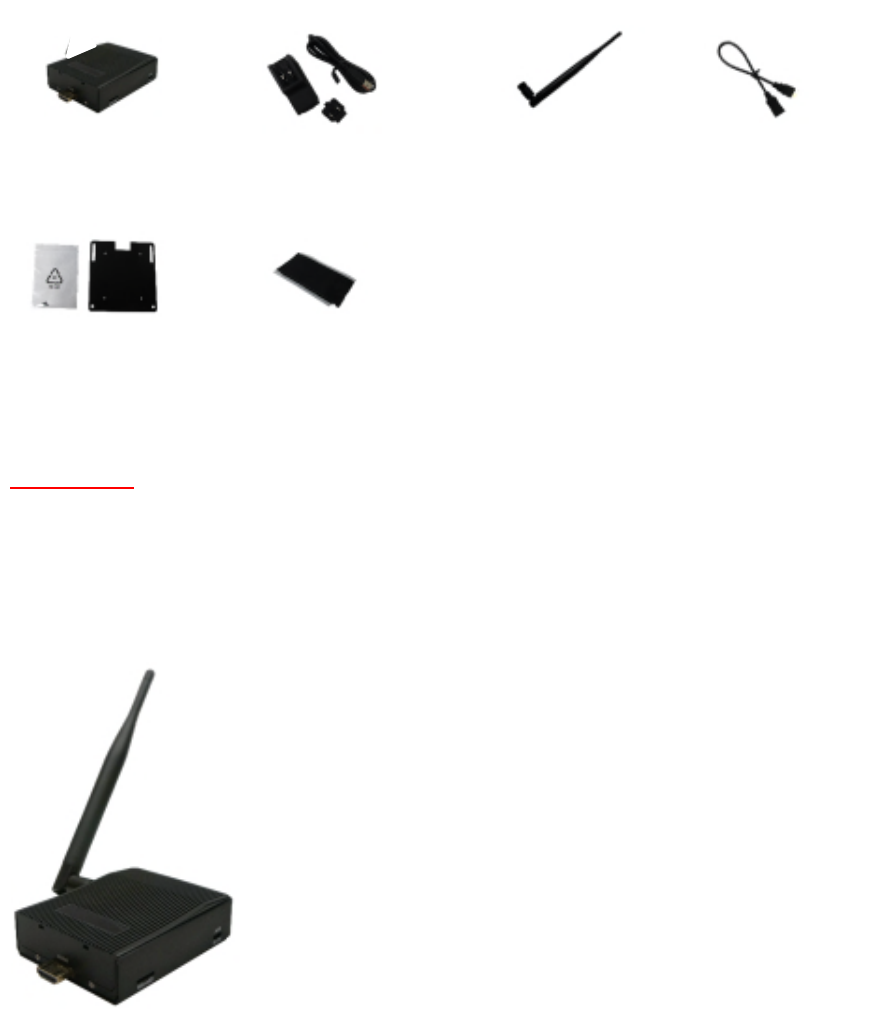

1.1. Package contents
NOT INCLUDED: A USB mouse is required for system setup
1.2. Installation
Attach wireless antenna
Attach the wireless antenna as shown below, and then screw antenna clockwise onto the post.
Mounting Option 1: [VESA Mount] The media bar can be attached to mounting posts on the back of screens
by the supplied VESA MIS-D100 (100mmx100mm) compatible mounting plate(screw thread on the plate: M4)
Attach media bar to the VESA mount plate
1. Put the VESA mount plate on the bottom of the player, with the screw holes aligned.
2. Make sure the countersunk holes are facing up, so when the screw goes in, the screw head is level
with the surface.
Media Bar Unit HDMI Extension Cord
Wireless
Antenna
AC Adapter
(with select power plug)
VESA Mount Plate
and screws
Velcro
2

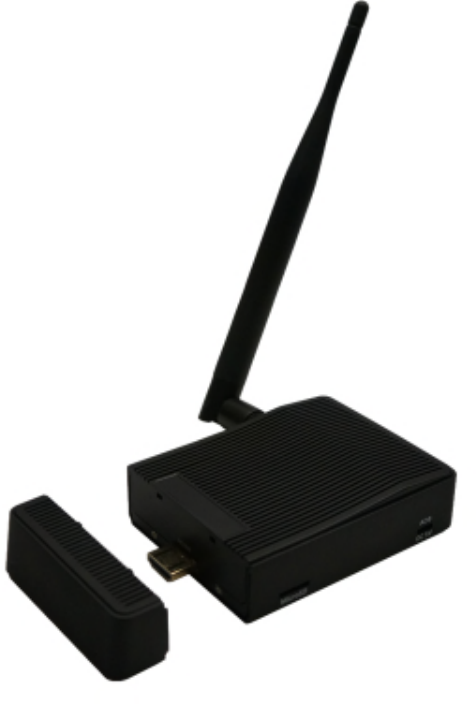

Mounting Option 2: [Attach to HDMI port] Simply plug the player into the HDMI port of the monitor as
shown below.

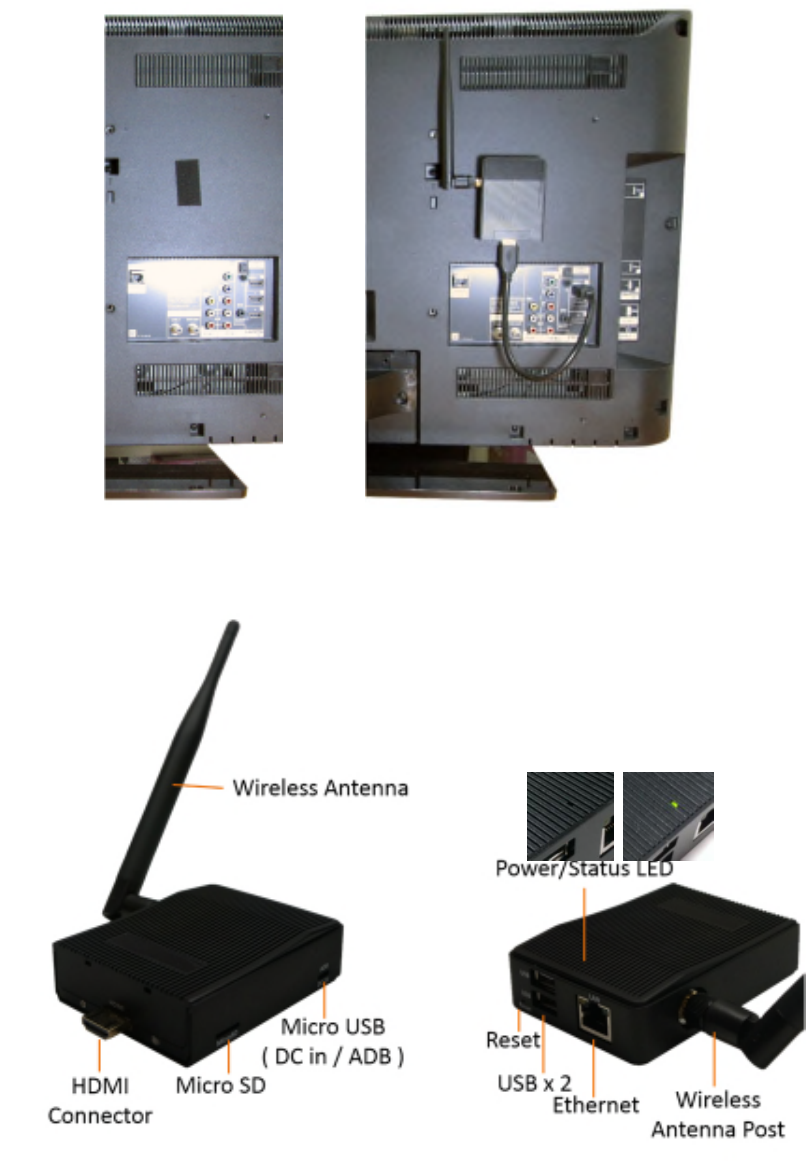

Mounting Option 3: [Attach the player on the back of the monitor using Velcro]
1. Separate the Velcro pads and stick one of them to the bottom of player.
2. Stick the other Velcro pad onto the back of monitor, and then attach the player to it. Use HDMI extension
cord to connect player and the monitor.
3
1.3. Physical view
4
Physical features (left to right in above illustration)
•HDMI connector for digital video and audio combined output
•Micro SD card slot
•Micro USB for power adapter and ADB , Android debug console port
•Reset button to perform factory reset
•USB ports for USB content update and configuration
•Power(green) and Status(orange) LED indicator
•Ethernet port for network content update
•Wireless antenna post
2. Technical Data
2.1. Specifications
MBR-1100
Video format support H.264 (up to 1080p,10Mbps)
VC-1 (up to 1080p,10Mbps)
MPEG-4 ASP (up to 1080p,10Mbps)
MPEG-2 (up to 1080p,10Mbps)
POPAI Screen Media Standards : S6 to S12, E4,E7,E8
Image format support JPEG,PNG up to 1920x1080
POPAI Screen Media Standards : S1 to S3, E1 to E3
Audio codec support
MP3 up to 320Kbps
POPAI Screen Media Standards : S4, S5
Dynamic content W3C HTML5 (HTML, CSS, JavaScript)
W3C SMIL 3.0 instructions (sub-set)
Physical I/O connectors
HDMI
USB 2.0 x 2
RJ45 Ethernet port
Wireless antenna port
Micro USB for DC in/ADB
Micro SD card slot
LED: Power(green)/Status(orange)
Local storage
GB
on
-
board flash
memory
or 8GB eMMC memory (only on Rev1.1)
(up to 6 hrs of typical 720p video @ 3 Mbps)
Micro SD card expansion slot
Accessories
AC
adapter
(UL/FCC/CE/CCC/C
-
Tick
certified power supplies
)
HDMI extension cord
Wireless antenna
VESA mount plate (screw thread : M4 )
Velcro
Power requirement
5V 2A DC
Power consumption
Average 6 W
Environmental Operating temperature: 0 – 40° C / 32 – 104° F
Humidity: 10 – 85% @ 40° C / 32 – 104° F non-condensing
Dimensions
1
07
x
6
8 x
25.3
mm (
4.21
x
2
.68 x
inches)
Weight
108.1
g
0.24
lbs
Certifications
CE/FCC/IC
Warranty One-year limited parts & labor
5
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 cm between the
radiator and your body.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio
exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage adioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
RF Radiation Exposure Statement:
6
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your
body. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
