INSTRUCTION MANUAL

i208H

VHF/UHF FM TRANSCEIVER

This device complies with Part 15 of the FCC rules. Operation is sub-

ject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

New2001

IC-208H.qxd 03.2.26 20:00 Page 1 (1,1)

New2001

FOREWORD

Thank you for purchasing this Icom product. The IC-208H

VHF

UHF FM TRANSCEIVER

is designed and built with Icom’s su-

perior technology and craftsmanship. With proper care, this

product should provide you with years of trouble-free operation.

We want to take a couple of moments of your time to thank

you for making your IC-208H your radio of choice, and hope

you agree with Icom’s philosophy of “technology ﬁrst.” Many

hours of research and development went into the design of

your IC-208H.

FEATURES

❍Switchable VHF and UHF transceiver

❍Selectable backlit color from amber, green

and yellow

❍Detachable controller for ﬂexible installation

❍55 W* of high transmit output power

*VHF band; 50 W for UHF and Korean version, 25 W for

Taiwan version

❍Remote control microphone standard

❍New DMS (Dynamic Memory Scan) system

IMPORTANT

READ ALL INSTRUCTIONS carefully and completely

before using the transceiver.

SAVE THIS INSTRUCTION MANUAL— This in-

struction manual contains important operating instructions for

the IC-208H.

EXPLICIT DEFINITIONS

WORD DEFINITION

RWARNING!

CAUTION

NOTE

Personal injury, ﬁre hazard or electric shock

may occur.

Equipment damage may occur.

Recommended for optimum use. No risk of

personal injury, ﬁre or electric shock.

Icom, Icom Inc. and the logo are registered trademarks of Icom

Incorporated (Japan) in the United States, the United Kingdom, Ger-

many, France, Spain, Russia and/or other countries.

IC-208H.qxd 03.2.26 20:00 Page i (1,1)

RWARNING RF EXPOSURE! This device emits Radio

Frequency (RF) energy. Extreme caution should be observed when

operating this device. If you have any questions regarding RF expo-

sure and safety standards please refer to the Federal Communica-

tions Commission Ofﬁce of Engineering and Technology’s report on

Evaluating Compliance with FCC Guidelines for Human Radio fre-

quency Electromagnetic Fields (OET Bulletin 65).

RWARNING! NEVER connect the transceiver to an AC out-

let. This may pose a ﬁre hazard or result in an electric shock.

RWARNING! NEVER operate the transceiver while driving a

vehicle. Safe driving requires your full attention—anything less may

result in an accident.

NEVER connect the transceiver to a power source of more than

16 V DC. This will damage the transceiver.

NEVER connect the transceiver to a power source using reverse

polarity. This will damage the transceiver.

NEVER cut the DC power cable between the DC plug and fuse

holder. If an incorrect connection is made after cutting, the transceiver

may be damaged.

NEVER expose the transceiver to rain, snow or any liquids. The

transceiver may be damaged.

NEVER operate or touch the transceiver with wet hands. This may

result in an electric shock or damage the transceiver.

NEVER place the transceiver where normal operation of the vehi-

cle may be hindered or where it could cause bodily injury.

NEVER let objects impede the operation of the cooling fan on the

rear panel.

DO NOT push the PTT when not actually desiring to transmit.

DO NOT allow children to play with any radio equipment contain-

ing a transmitter.

During mobile operation, DO NOT operate the transceiver with-

out running the vehicle’s engine. When the transceiver’s power is ON

and your vehicle’s engine is OFF, the vehicle’s battery will soon be-

come exhausted.

AVOID using or placing the transceiver in direct sunlight or in

areas with temperatures below –10°C or above +60°C.

BE CAREFUL! The transceiver will become hot when operat-

ing it continuously for long periods.

AVOID setting the transceiver in a place without adequate venti-

lation. Heat dissipation may be affected, and the transceiver may be

damaged.

AVOID the use of chemical agents such as benzine or alcohol

when cleaning, as they can damage the transceiver’s surfaces.

USE Icom microphones only (supplied or optional). Other manu-

facturer’s microphones have different pin assignments and may dam-

age the transceiver if attached.

For U.S.A. only

CAUTION: Changes or modiﬁcations to this device, not ex-

pressly approved by Icom Inc., could void your authority to

operate this device under FCC regulations.

New2001

PRECAUTION

IC-208H.qxd 03.2.26 20:00 Page ii (1,1)

New2001

iii

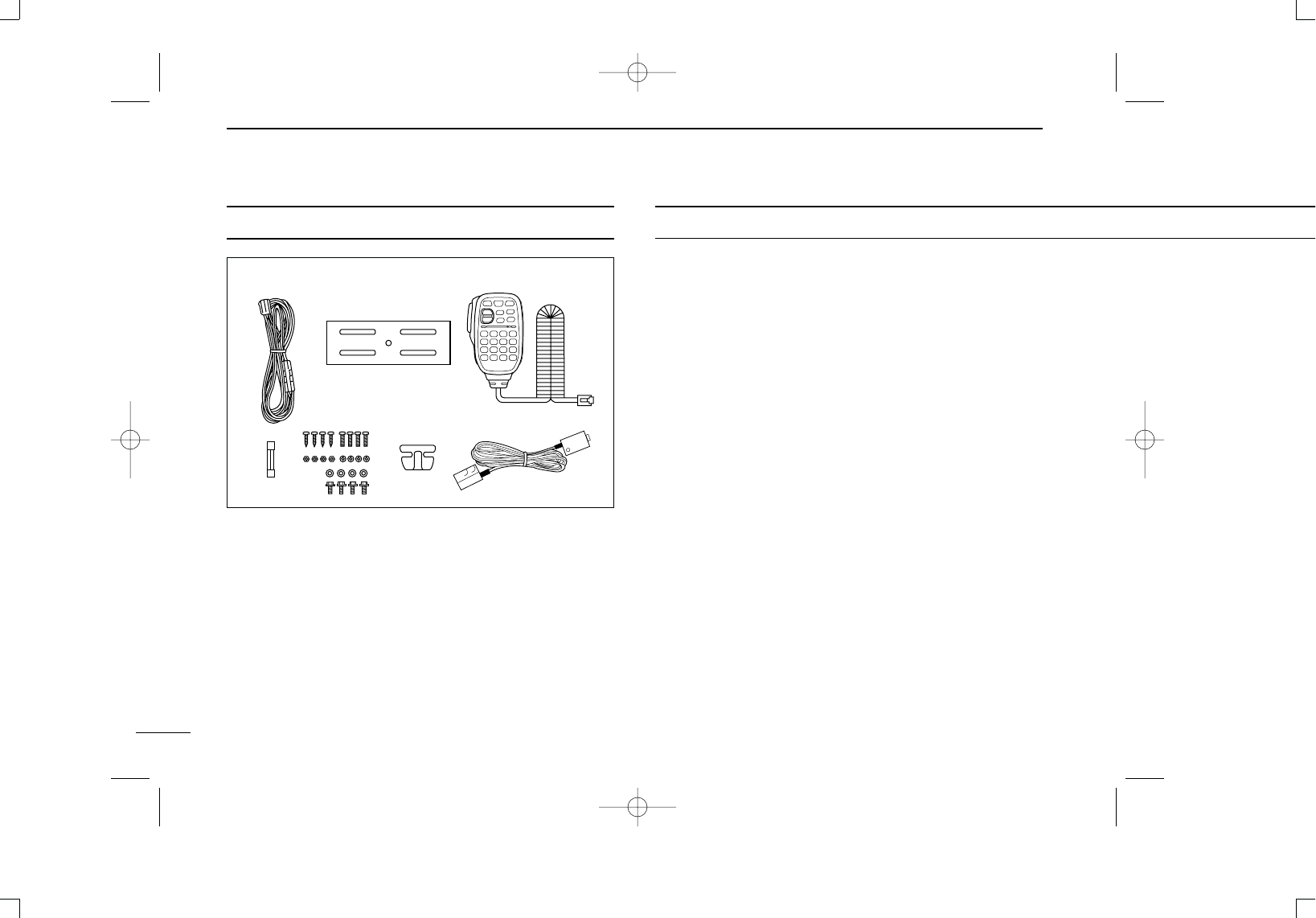

TABLE OF CONTENTSSUPPLIED ACCESSORIES

qDC power cable (3 m) ………………………………………1

wMobile mounting bracket …………………………………1

eMicrophone (HM-133)* ……………………………………1

rFuse (20 A) …………………………………………………1

tMounting screws, nuts and washers …………………1 set

yMicrophone hanger …………………………………………1

uSeparation cable†(3.5 m; 11.5 ft) …………………………1

*HM-118N

HAND MICROPHONE

or HM-118TN/TAN

DTMF MICROPHONE

supplied versions are also available.

†A ferrite core is adapted for the USA version.

tyu

FOREWORD ........................................................................................... i

IMPORTANT ............................................................................................ i

EXPLICIT DEFINITIONS ......................................................................... i

PRECAUTION ........................................................................................ ii

SUPPLIED ACCESSORIES .................................................................. iii

TABLE OF CONTENTS ......................................................................... iii

QUICK REFERENCE GUIDE ............................................................. I–X

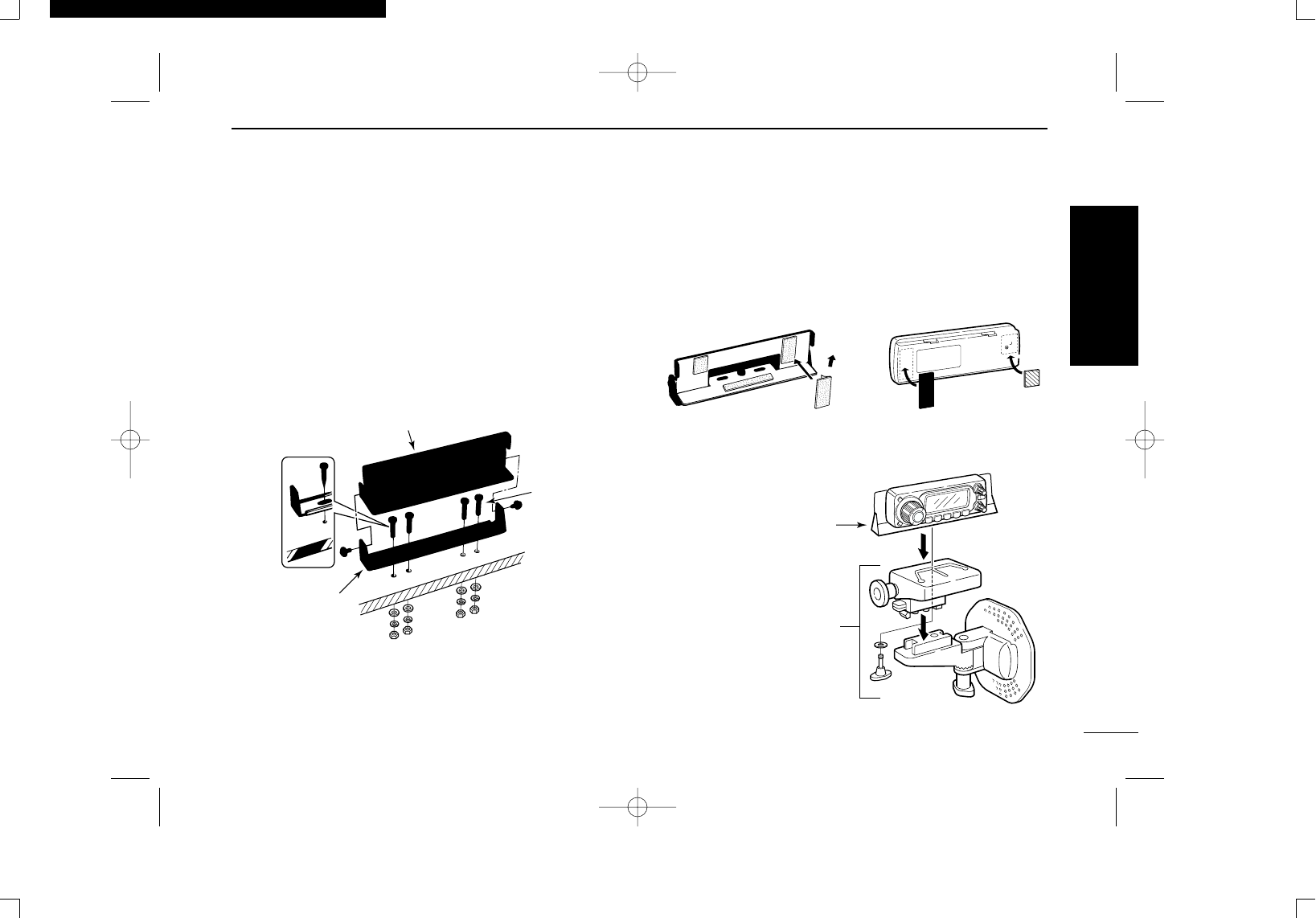

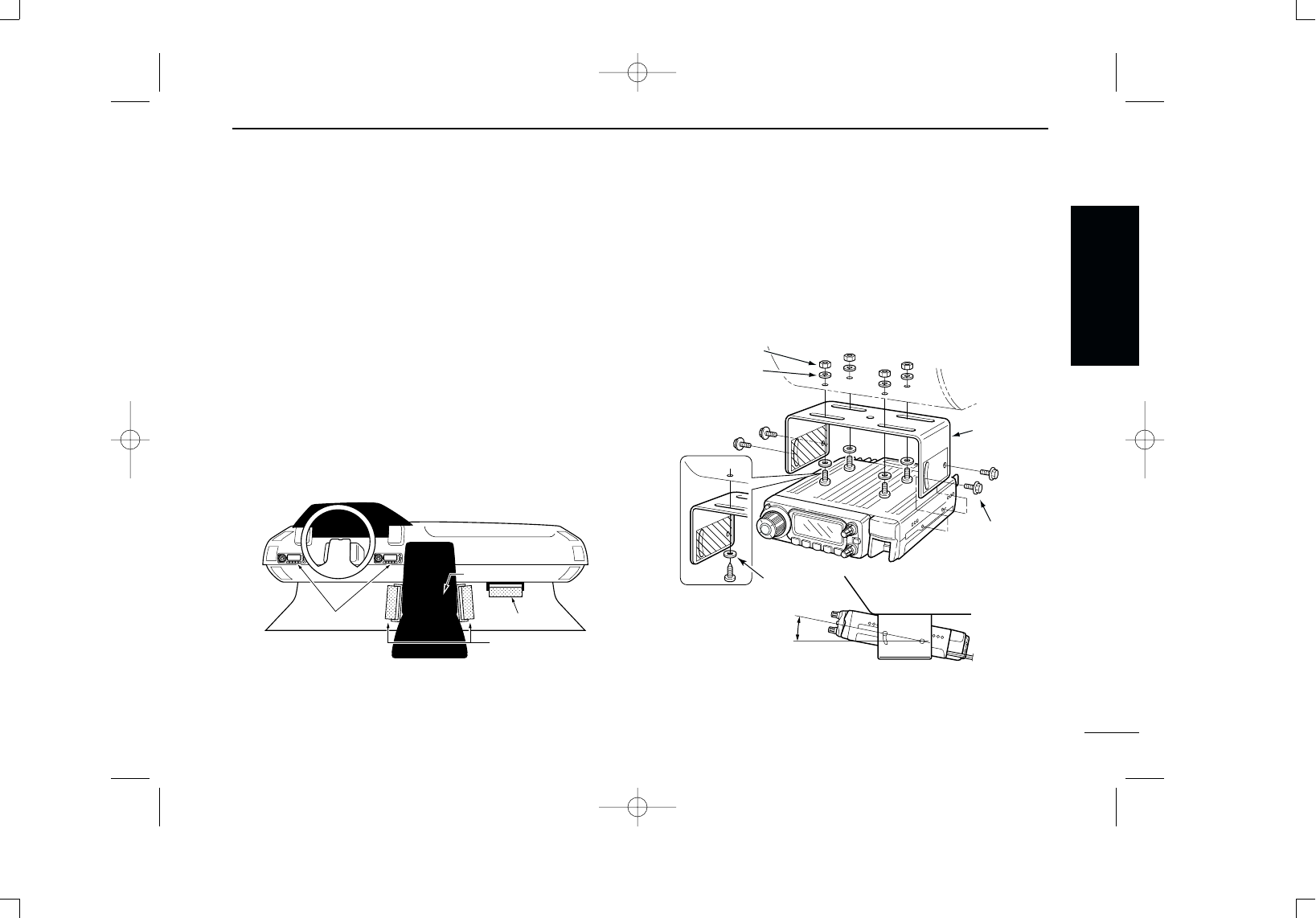

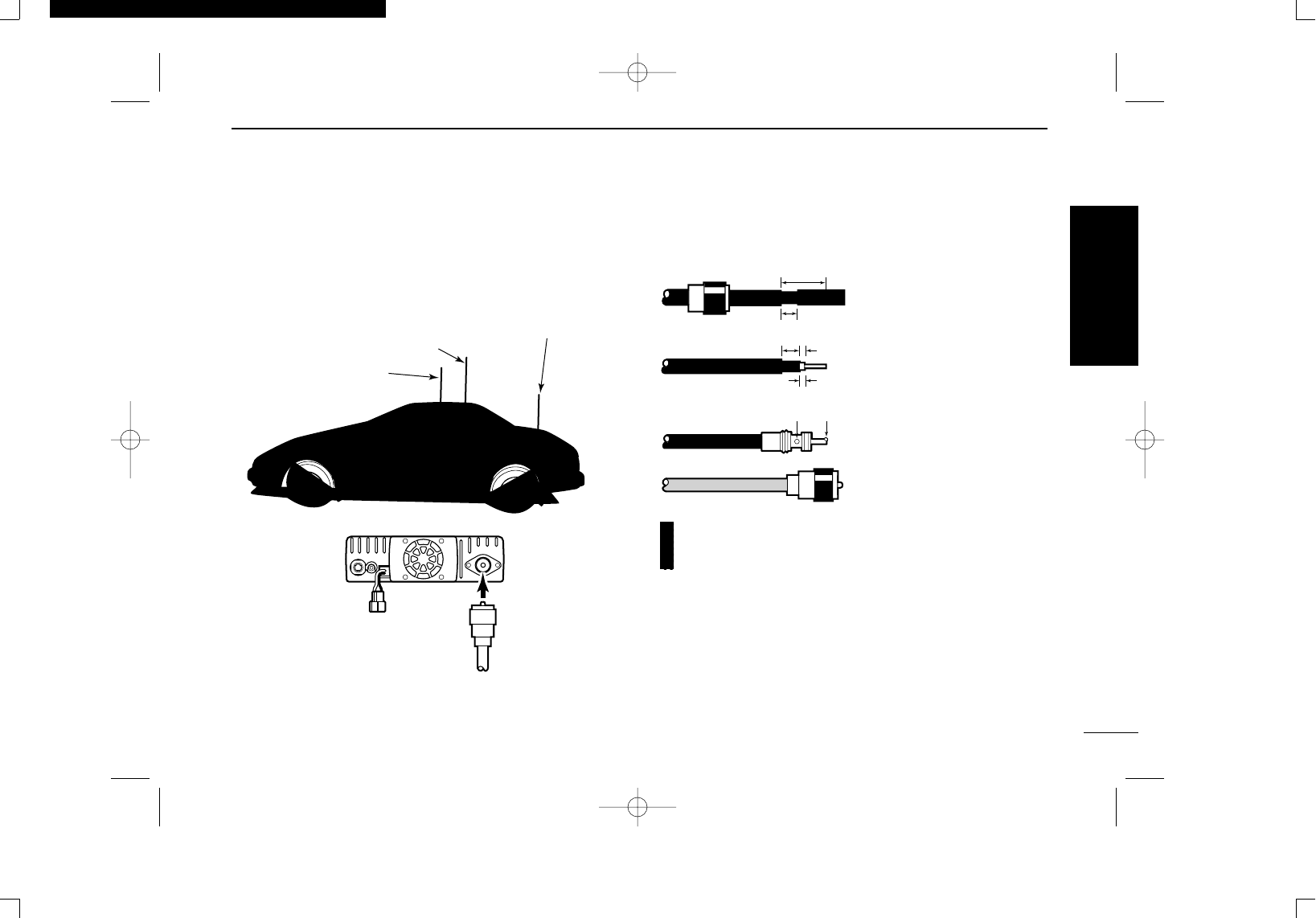

■Installation ....................................................................................... I

■Your ﬁrst contact .......................................................................... VII

■Repeater operation ....................................................................... IX

■Programming memory channels..................................................... X

1 PANEL DESCRIPTION ............................................................... 1–10

■Front panel— controller ................................................................. 1

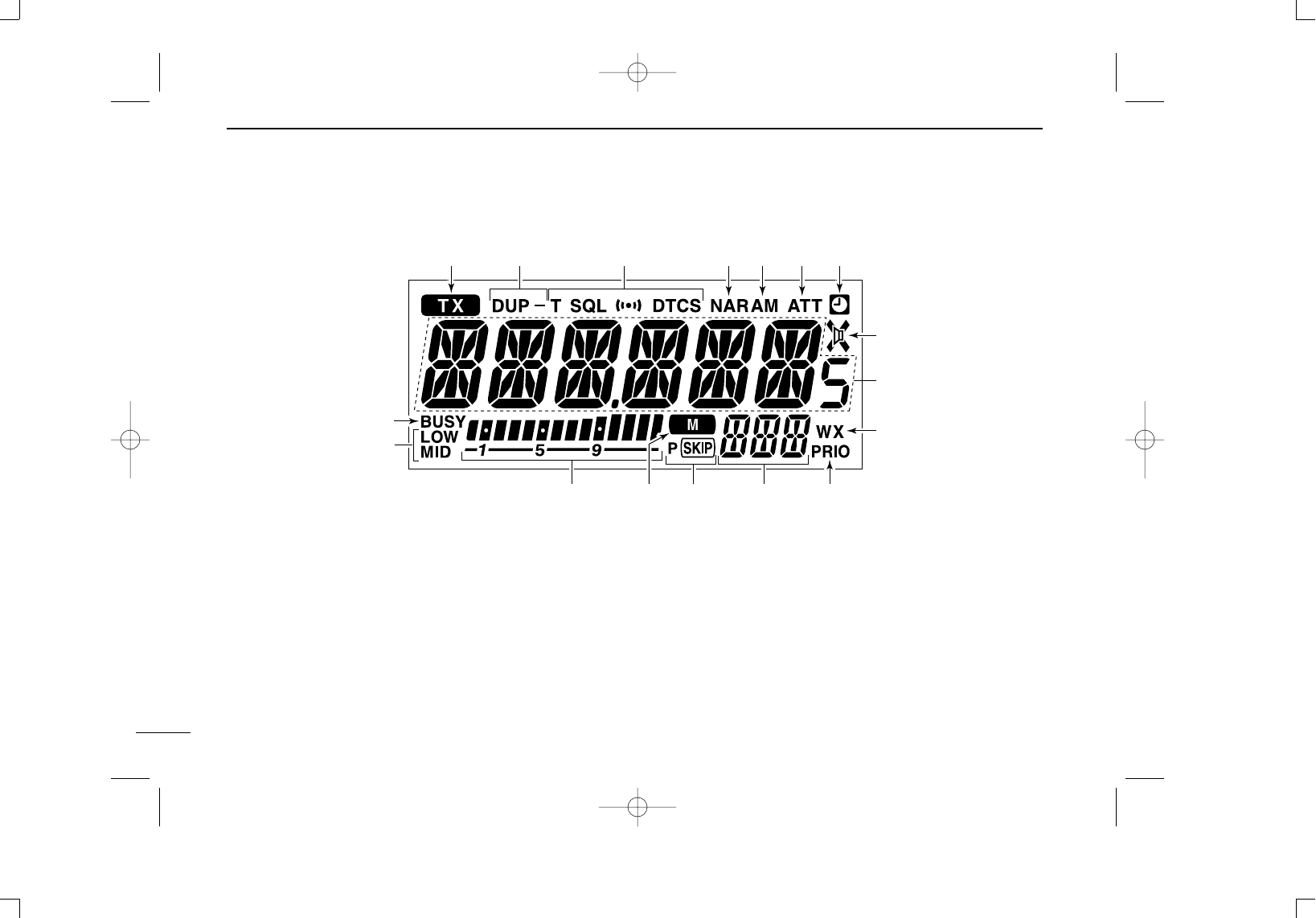

■Function display ............................................................................. 3

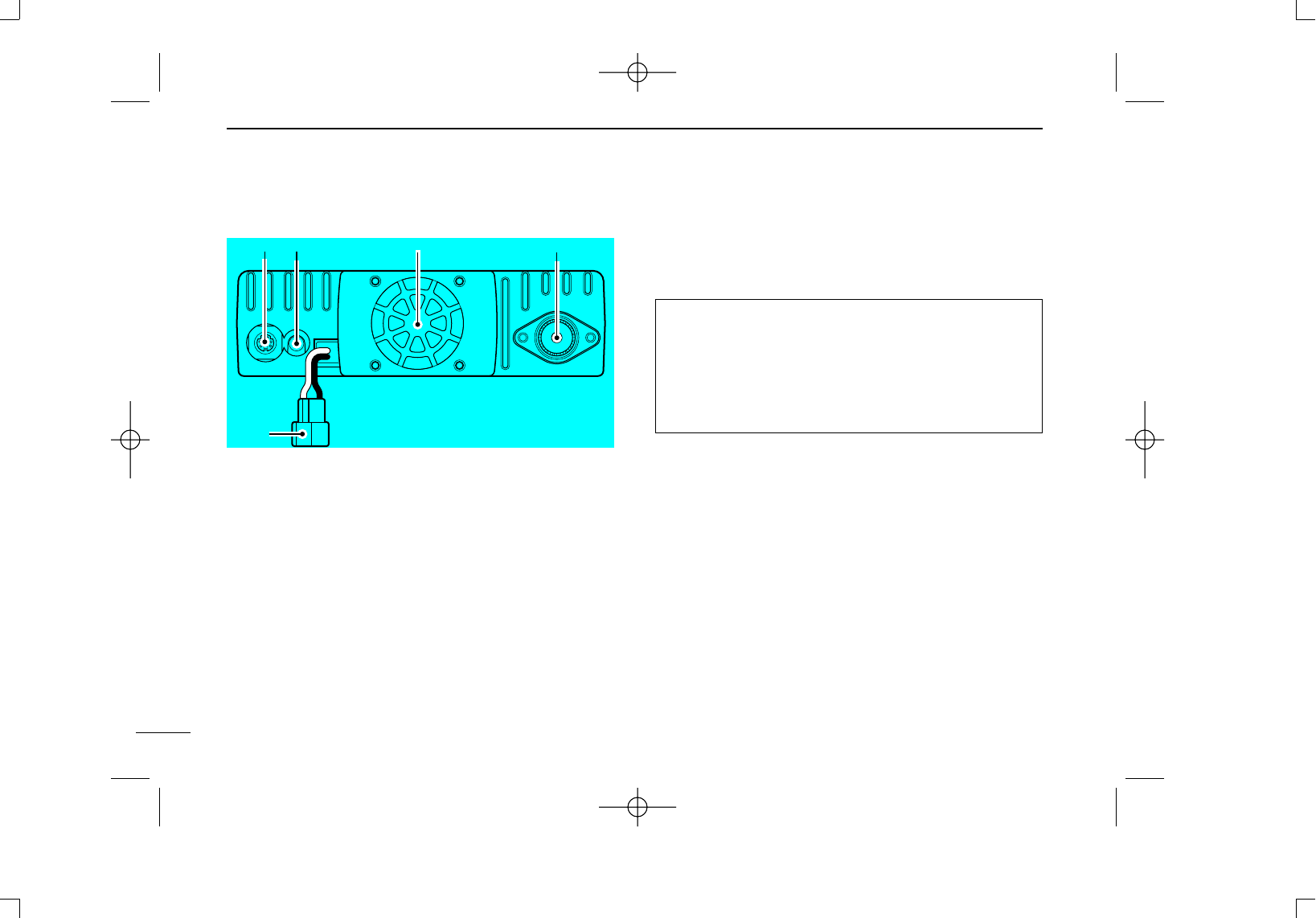

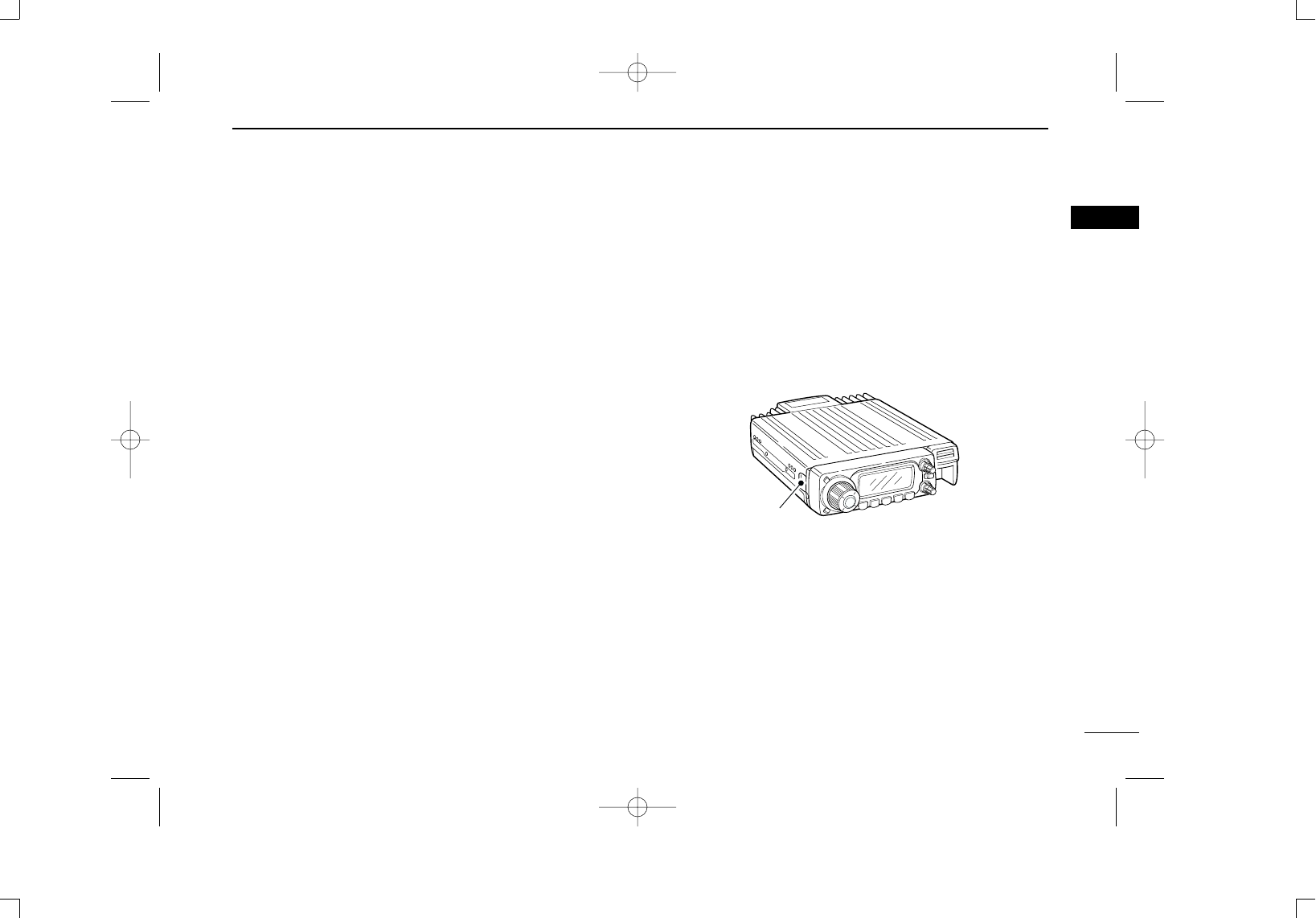

■Main unit ........................................................................................ 5

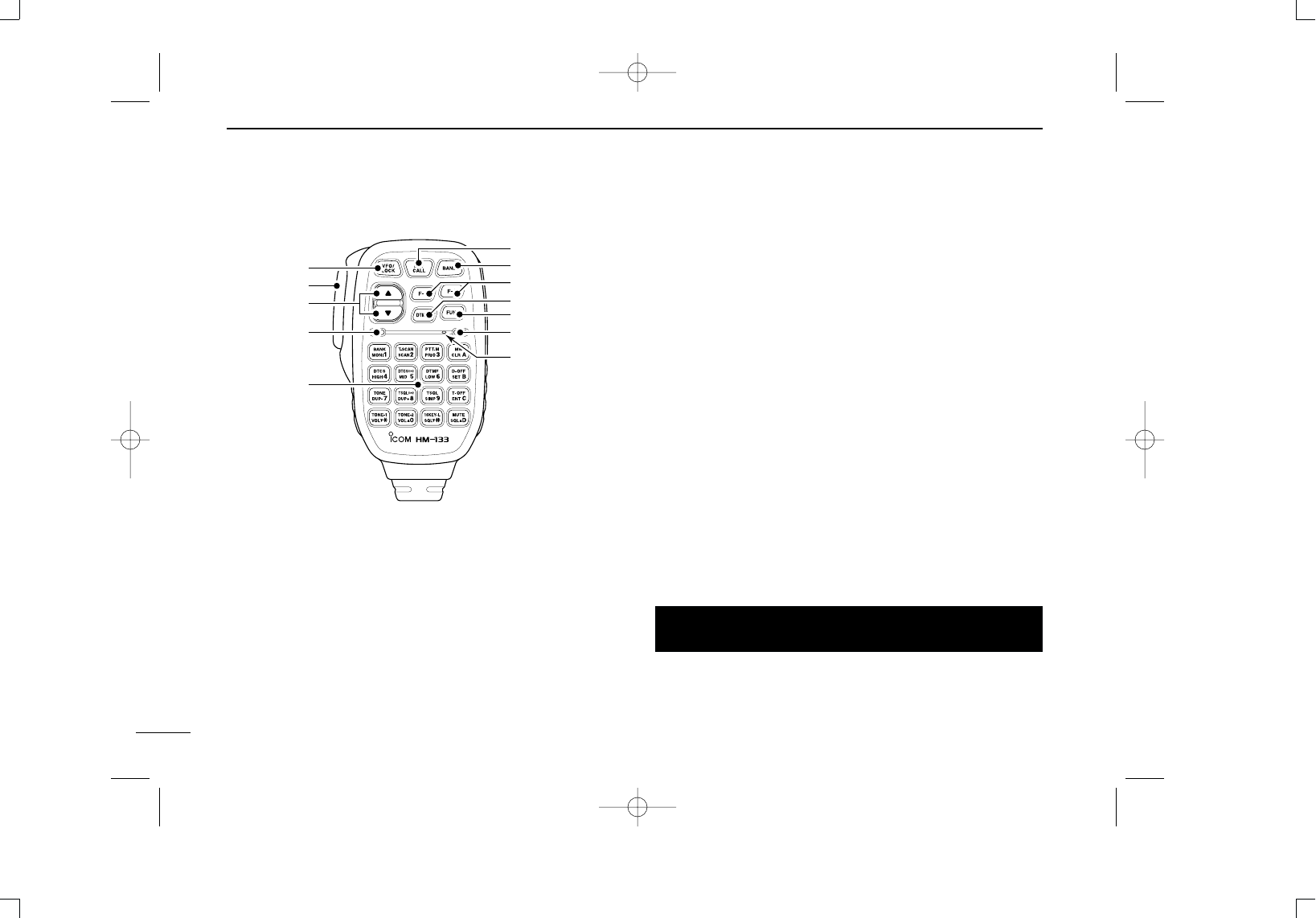

■Microphone (HM-133) .................................................................... 7

■Microphone keypad ........................................................................ 8

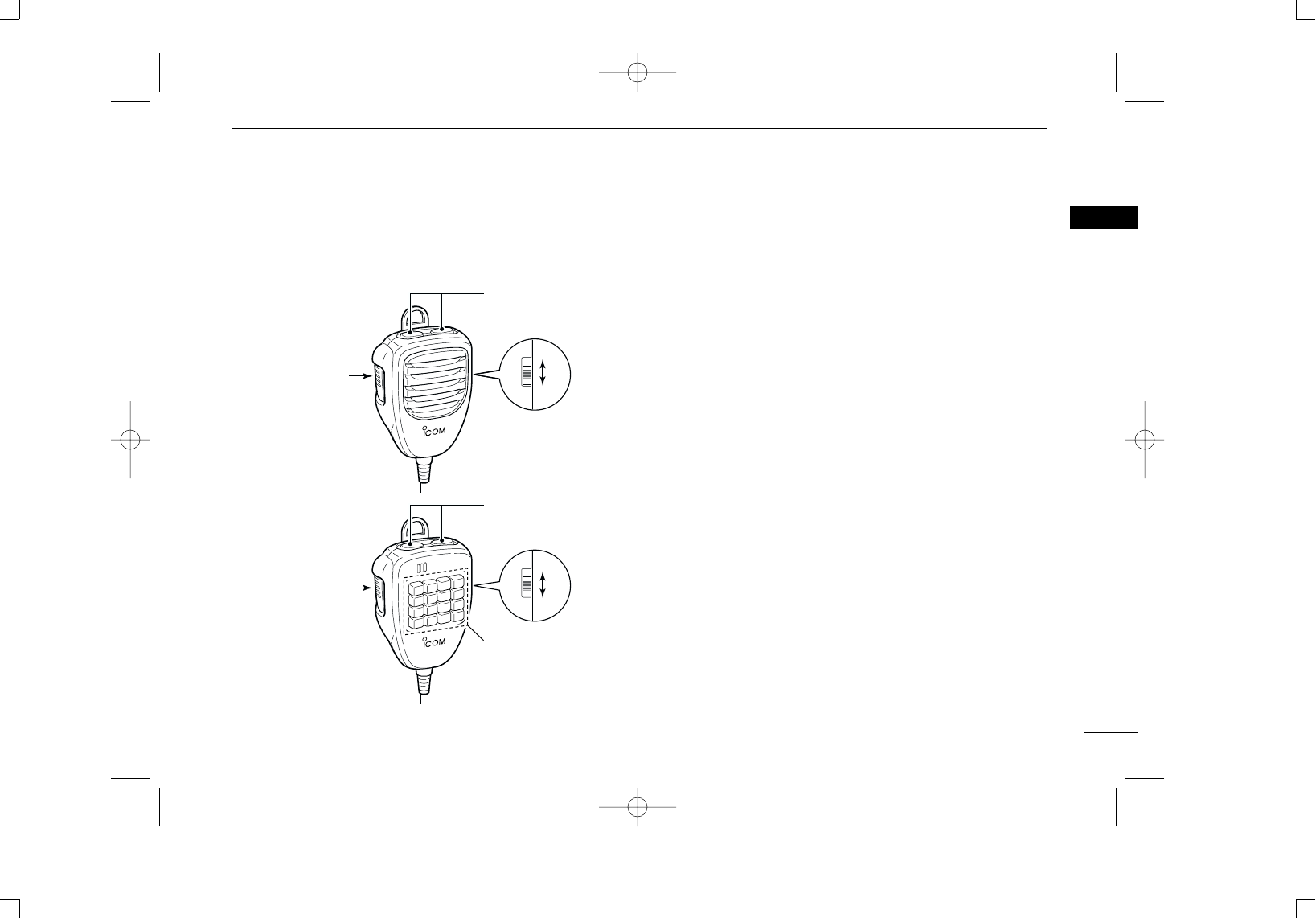

■Optional microphones (HM-118N/TN/TAN)................................... 10

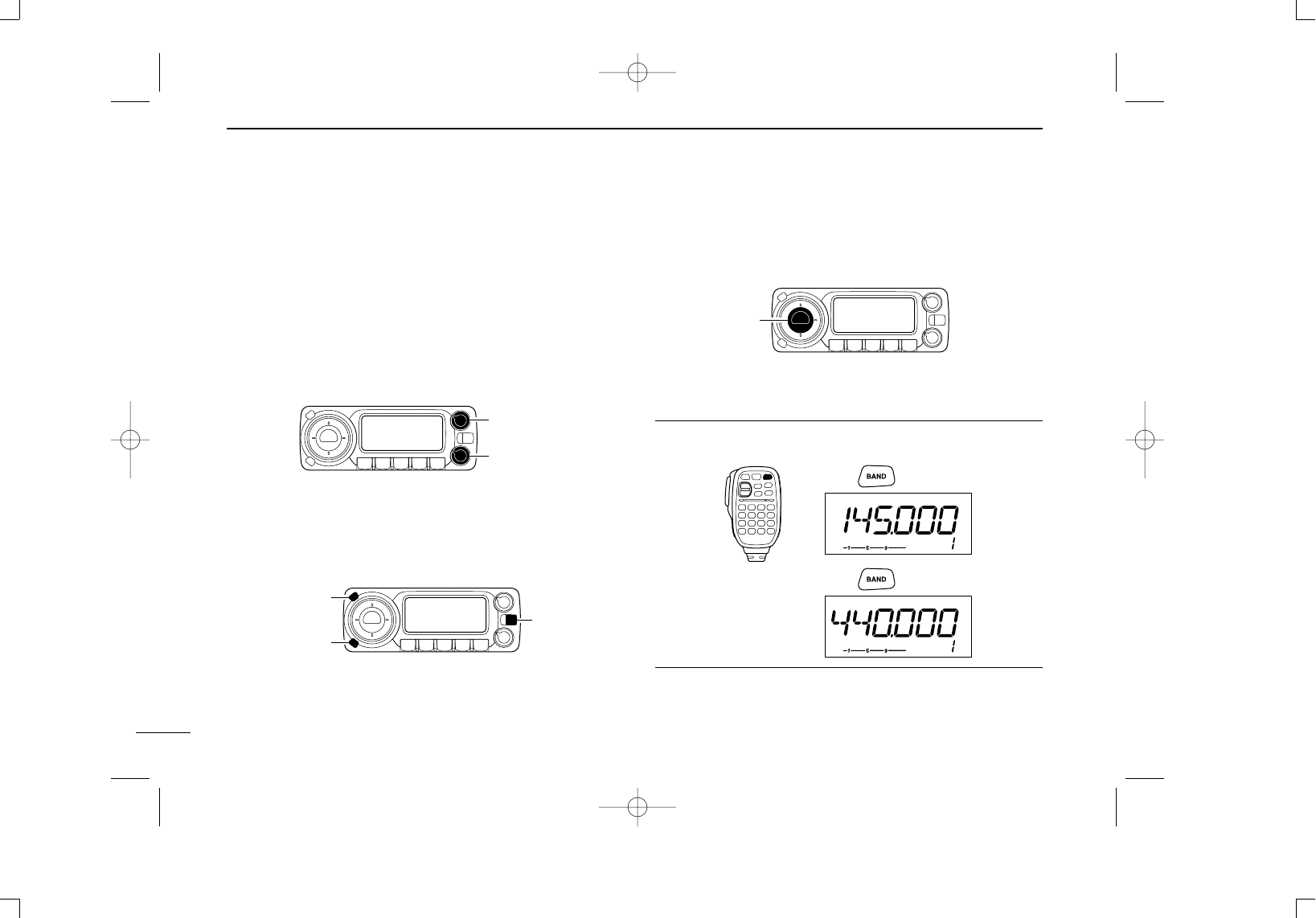

2 SETTING A FREQUENCY ........................................................ 11–14

■Preparation ................................................................................... 11

■Using the tuning dial .................................................................... 12

■Using the [Y]/[Z] keys ................................................................. 12

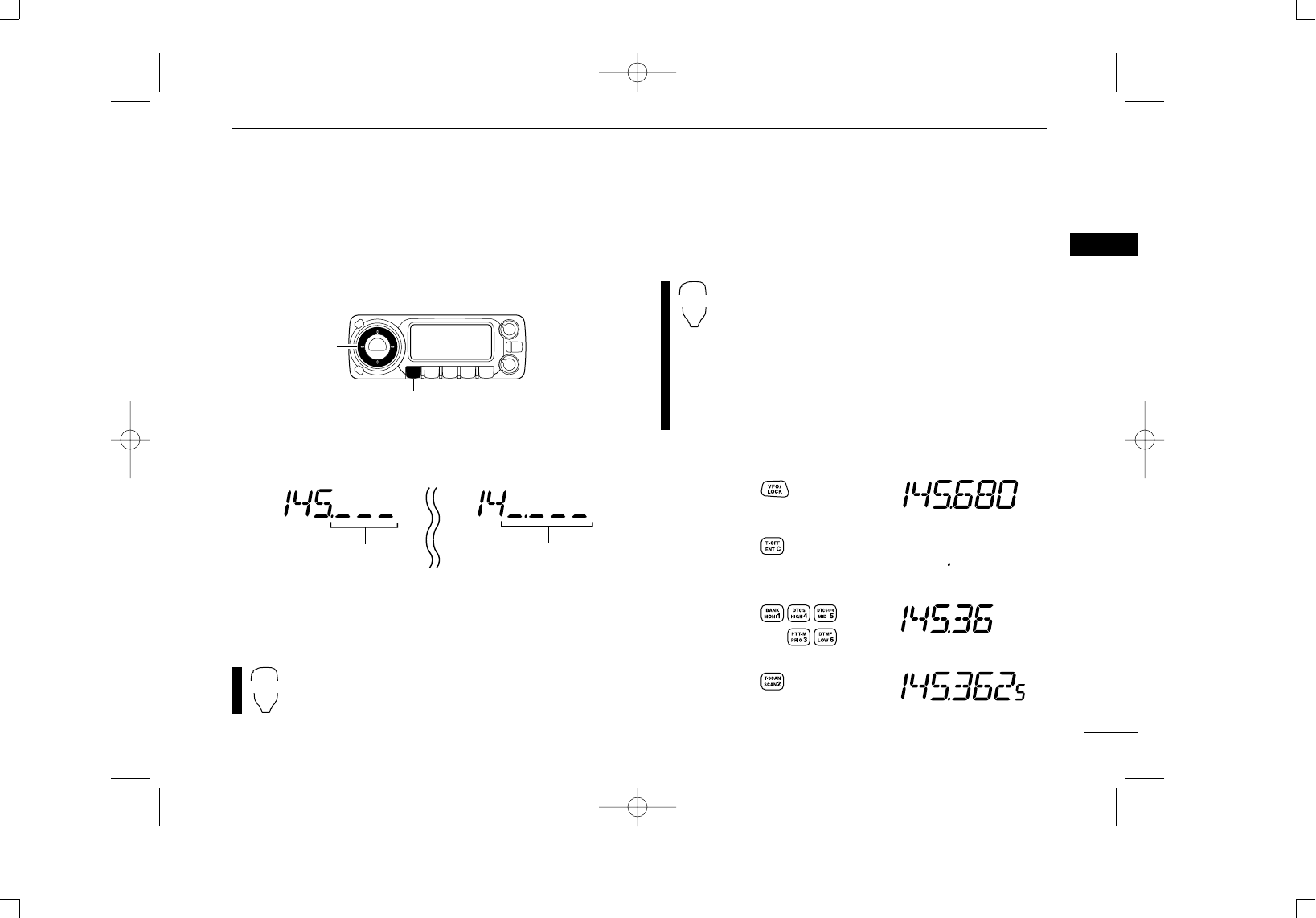

■Using the keypad ......................................................................... 12

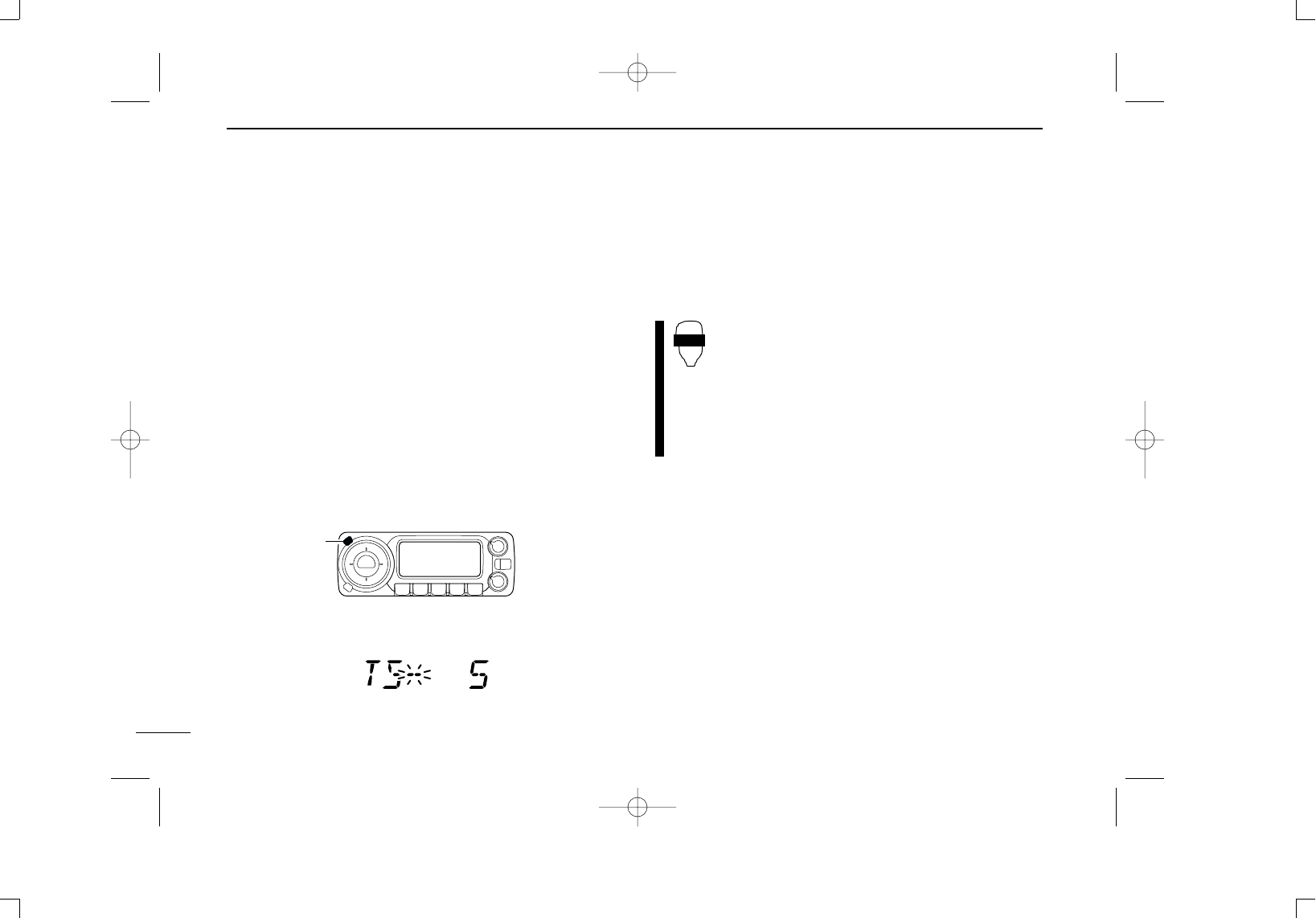

■Tuning step selection ................................................................... 13

■Lock functions .............................................................................. 14

3 BASIC OPERATION ................................................................. 15–18

■Receiving ..................................................................................... 15

■Monitor function ........................................................................... 15

■Squelch attenuator ....................................................................... 16

■Transmitting ................................................................................. 17

■Selecting output power ................................................................ 17

IC-208H.qxd 03.2.26 20:00 Page iii (1,1)

New2001

■One-touch PTT function ............................................................... 18

■Audio mute function ..................................................................... 18

4 REPEATER OPERATION ......................................................... 19–25

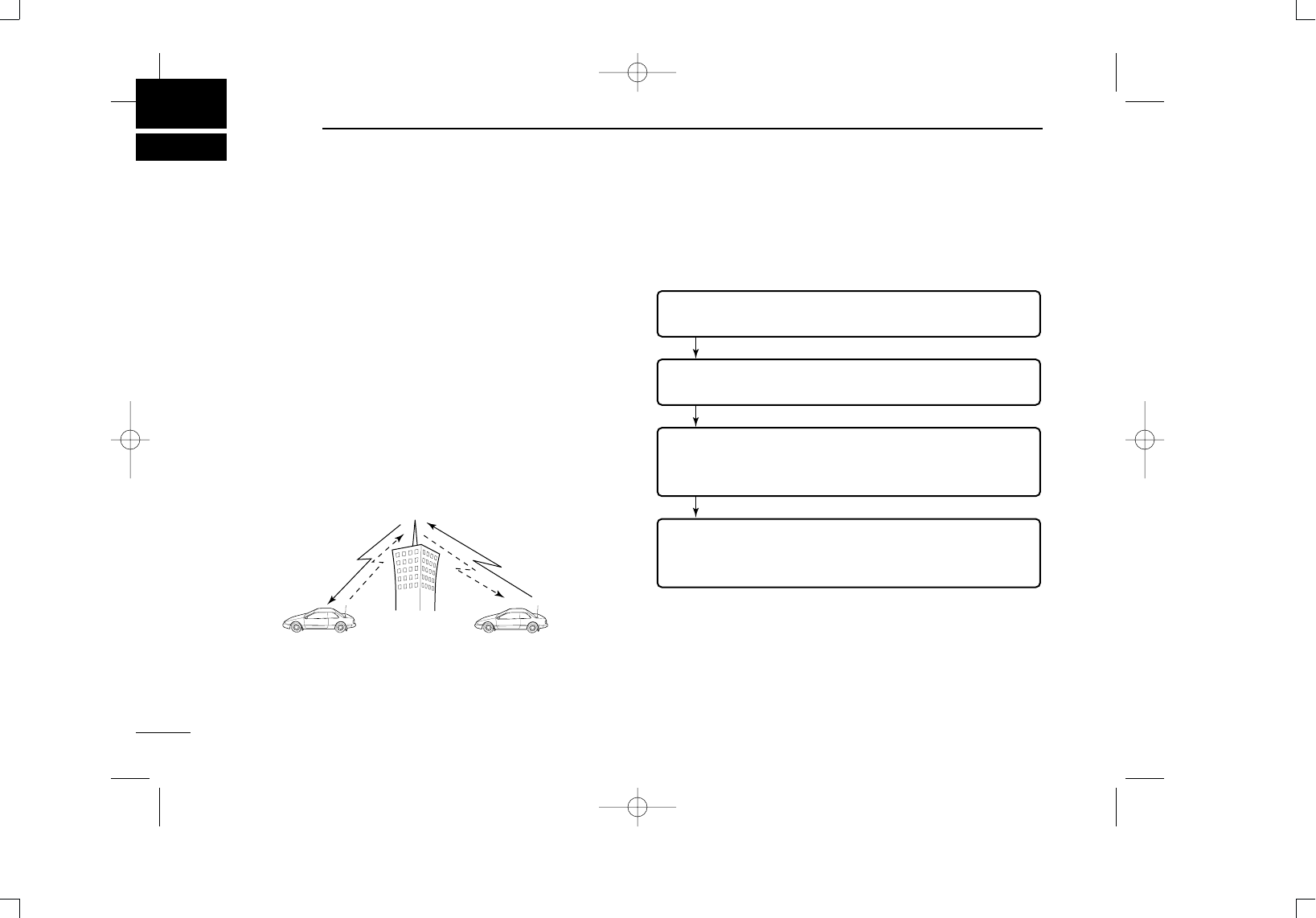

■General ........................................................................................ 19

■Accessing a repeater ................................................................... 20

■Subaudible tones ......................................................................... 22

■Offset frequency .......................................................................... 24

■Auto repeater (USA version only) ................................................ 25

5 MEMORY OPERATION ............................................................ 26–37

■General description ...................................................................... 26

■Memory channel selection ........................................................... 26

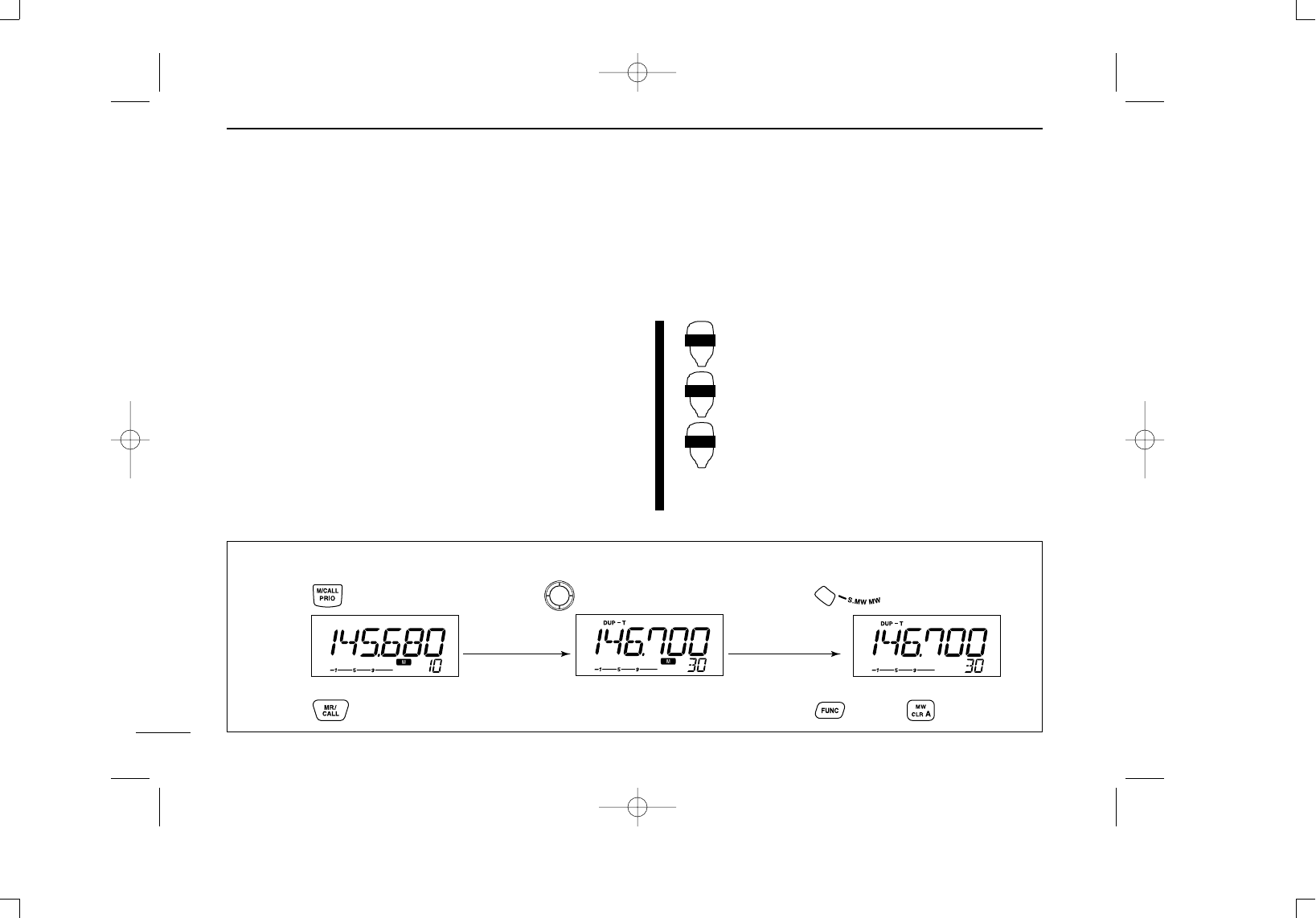

■Programming a memory channel ................................................. 27

■Copying memory contents ........................................................... 29

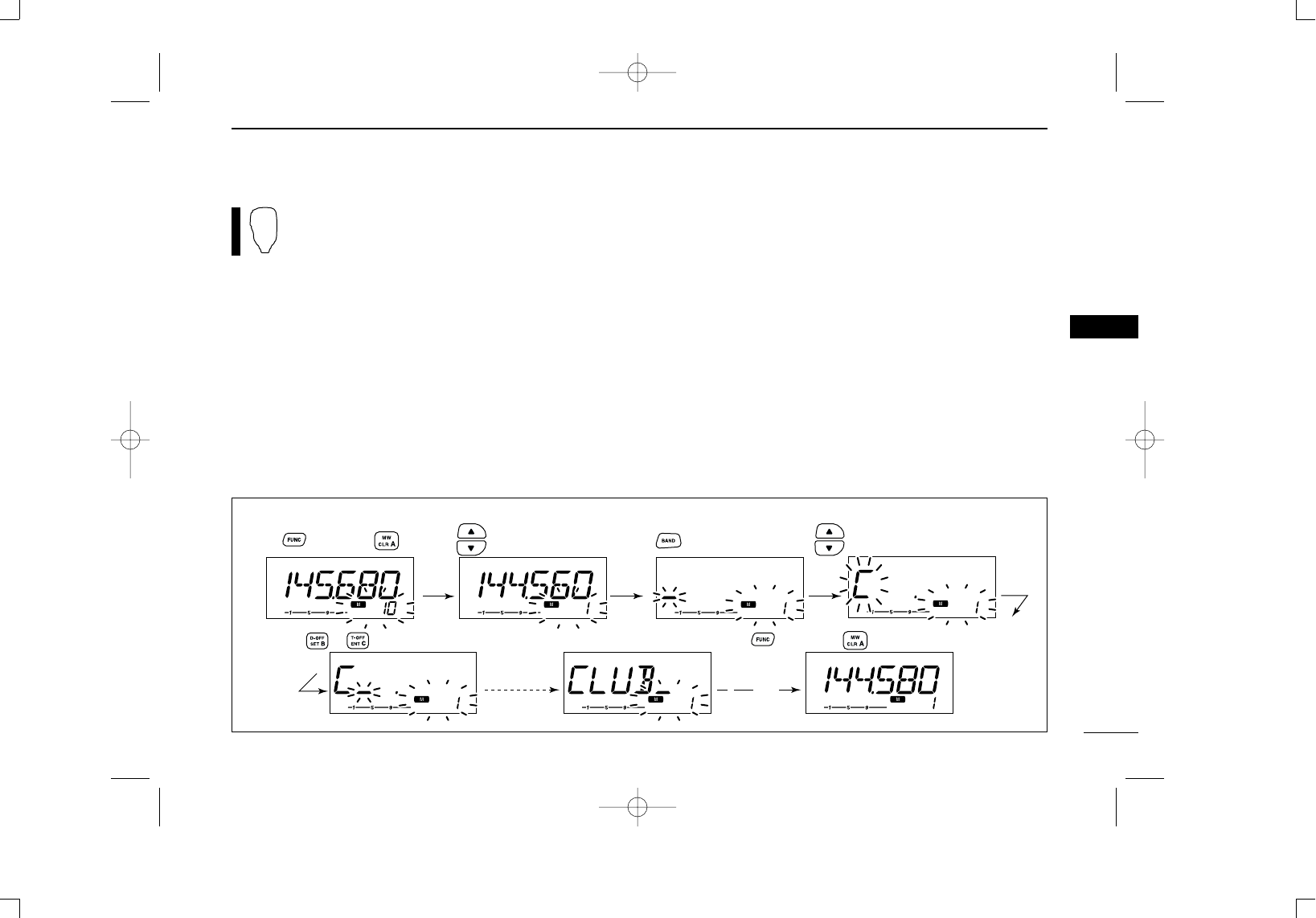

■Programming channel names ..................................................... 31

■Memory clearing .......................................................................... 34

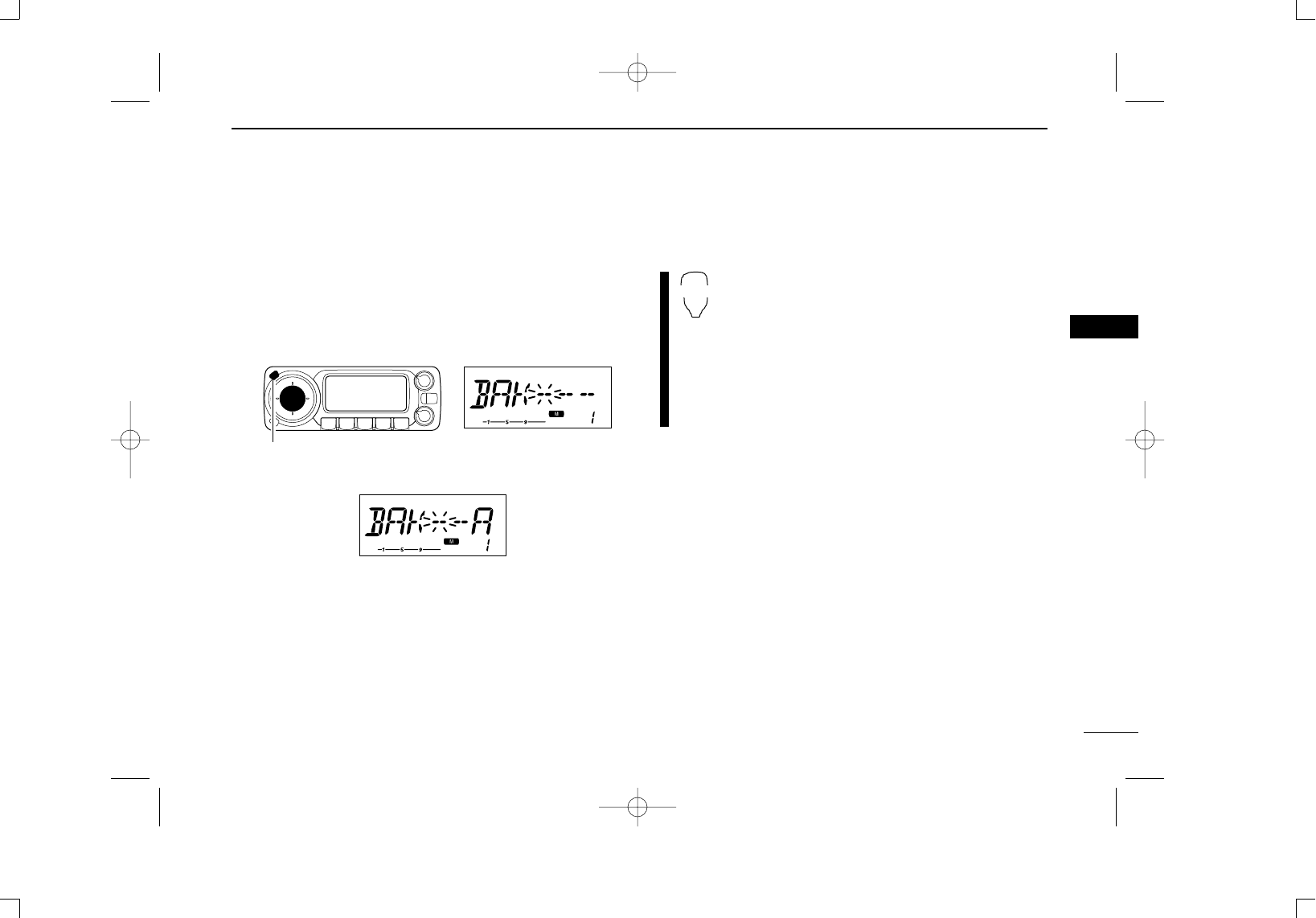

■Memory bank selection ................................................................ 35

■Memory bank setting .................................................................... 36

■Transferring bank contents .......................................................... 37

6 CALL CHANNEL OPERATION ................................................ 38–39

■Call channel selection .................................................................. 38

■Call channel transferring .............................................................. 38

■Programming a call channel ........................................................ 39

7 SCAN OPERATION .................................................................. 40–45

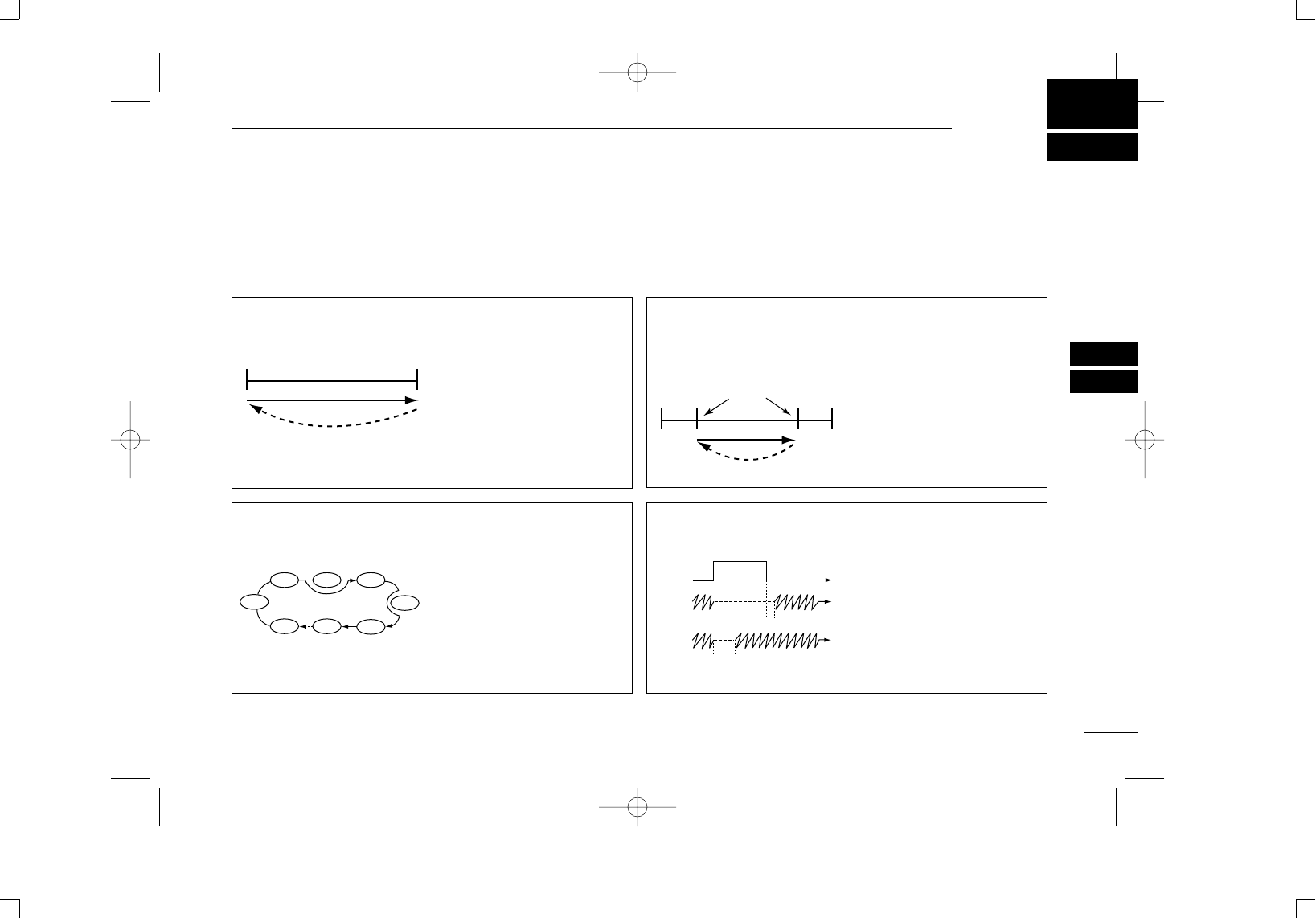

■Scan types ................................................................................... 40

■Scan start/stop ............................................................................. 41

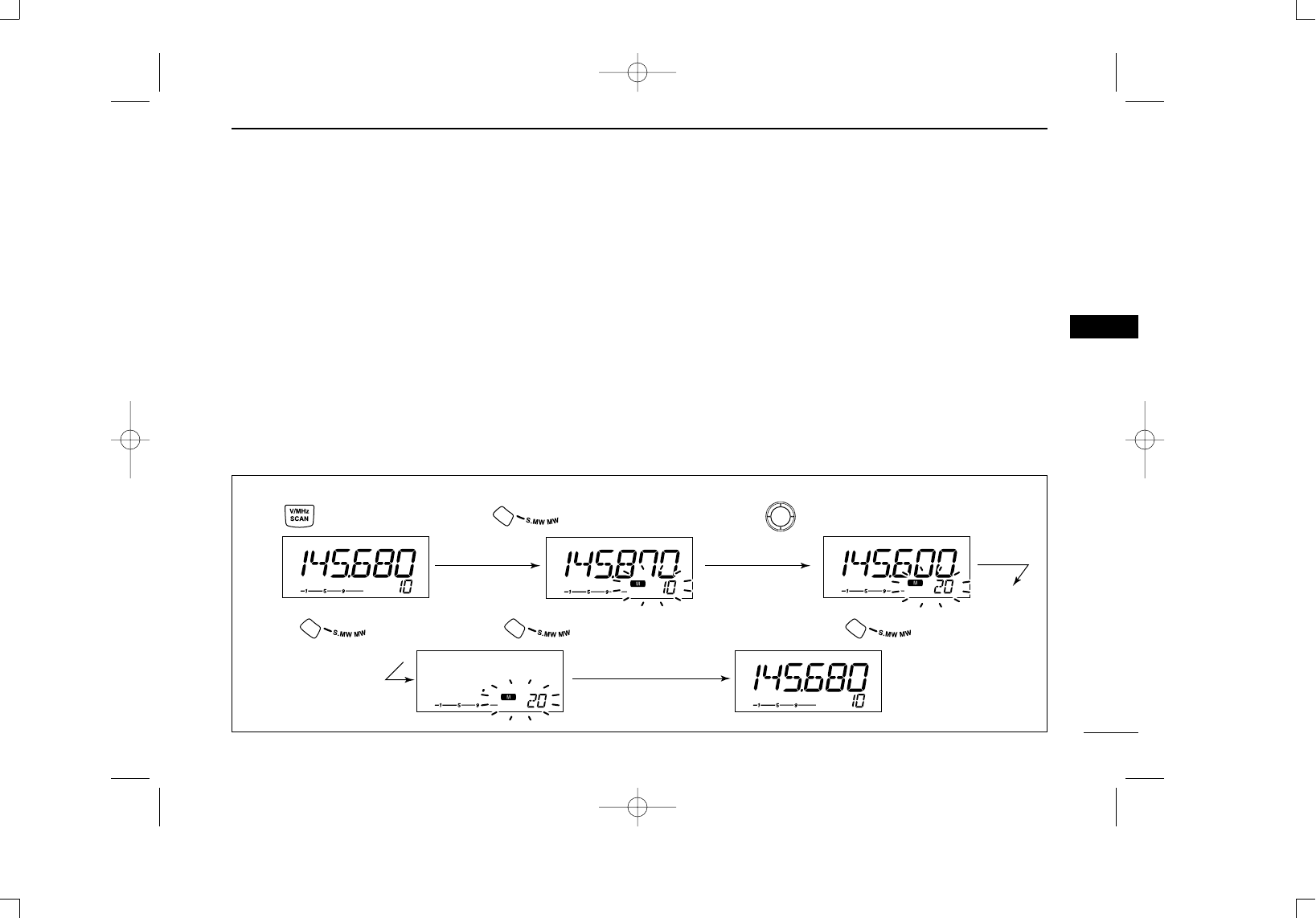

■Scan edges programming ............................................................ 42

■Skip channel setting ..................................................................... 44

■Scan resume condition ................................................................ 45

8 PRIORITY WATCH .................................................................... 46–47

■Priority watch types ...................................................................... 46

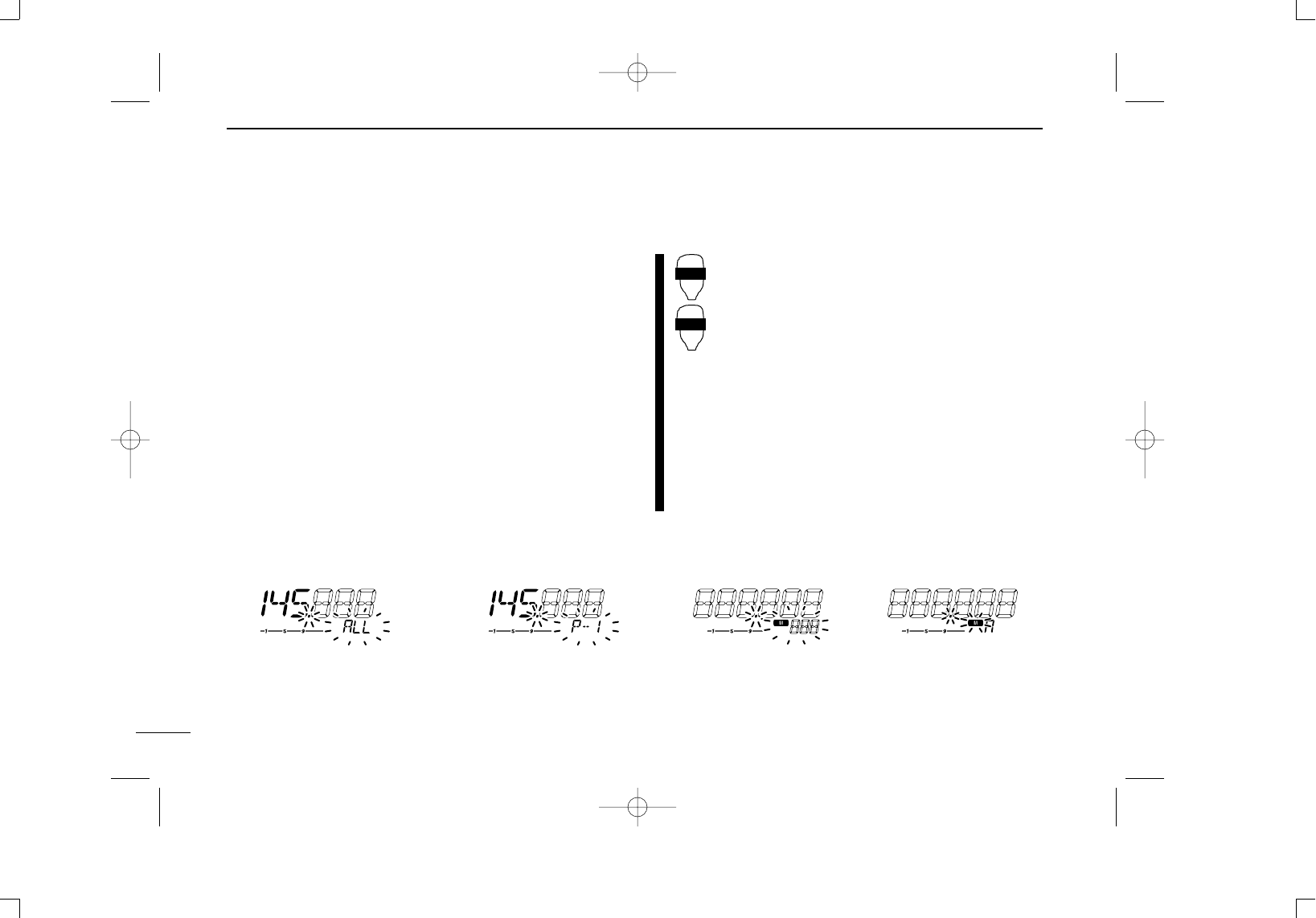

■Priority watch operation ............................................................... 47

9 DTMF MEMORY ENCODER ..................................................... 48–51

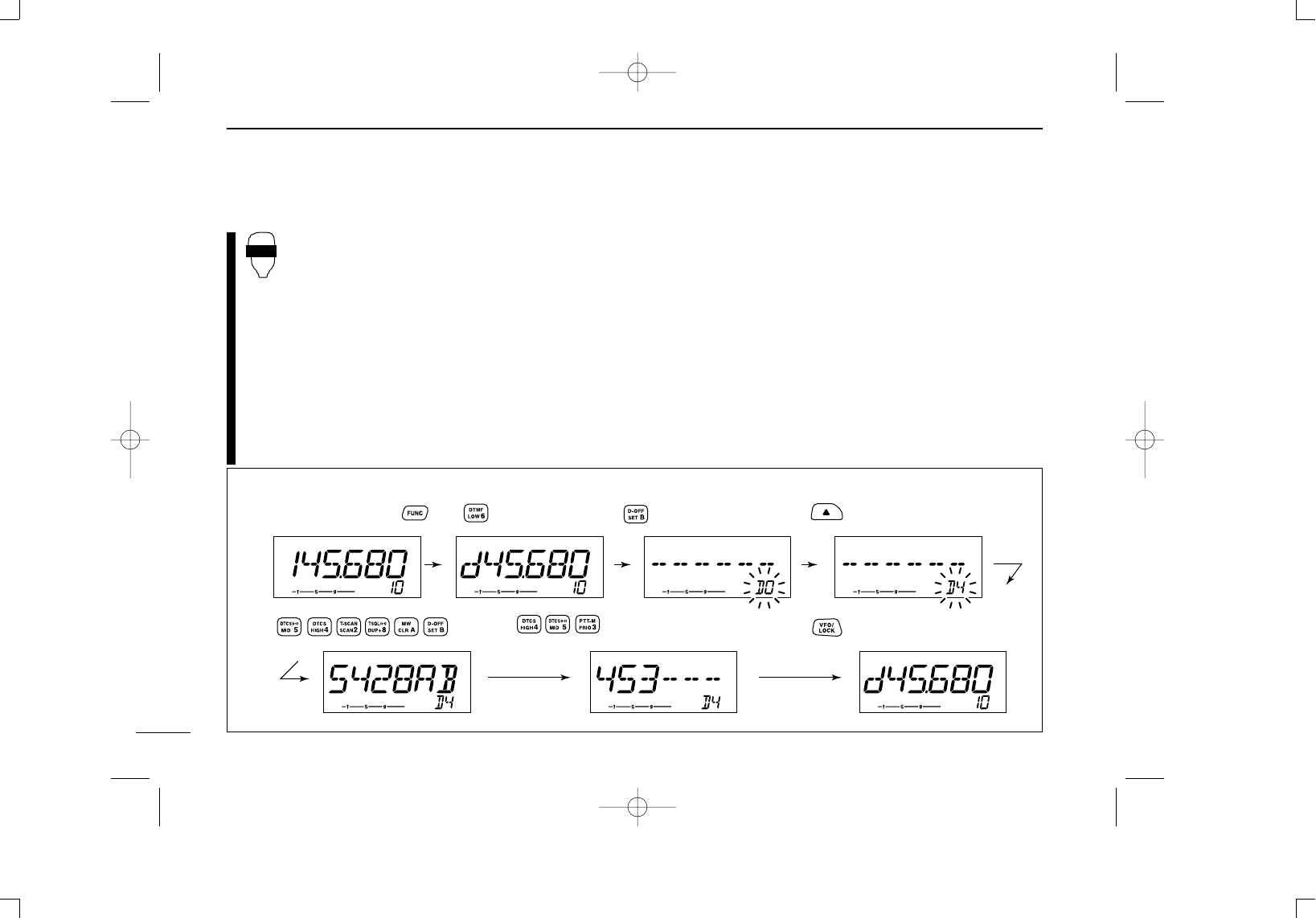

■Programming a DTMF code ......................................................... 48

■Transmitting a DTMF code .......................................................... 50

■DTMF speed ................................................................................ 51

10 POCKET BEEP AND TONE SQUELCH ................................... 52–55

■Pocket beep operation ................................................................. 52

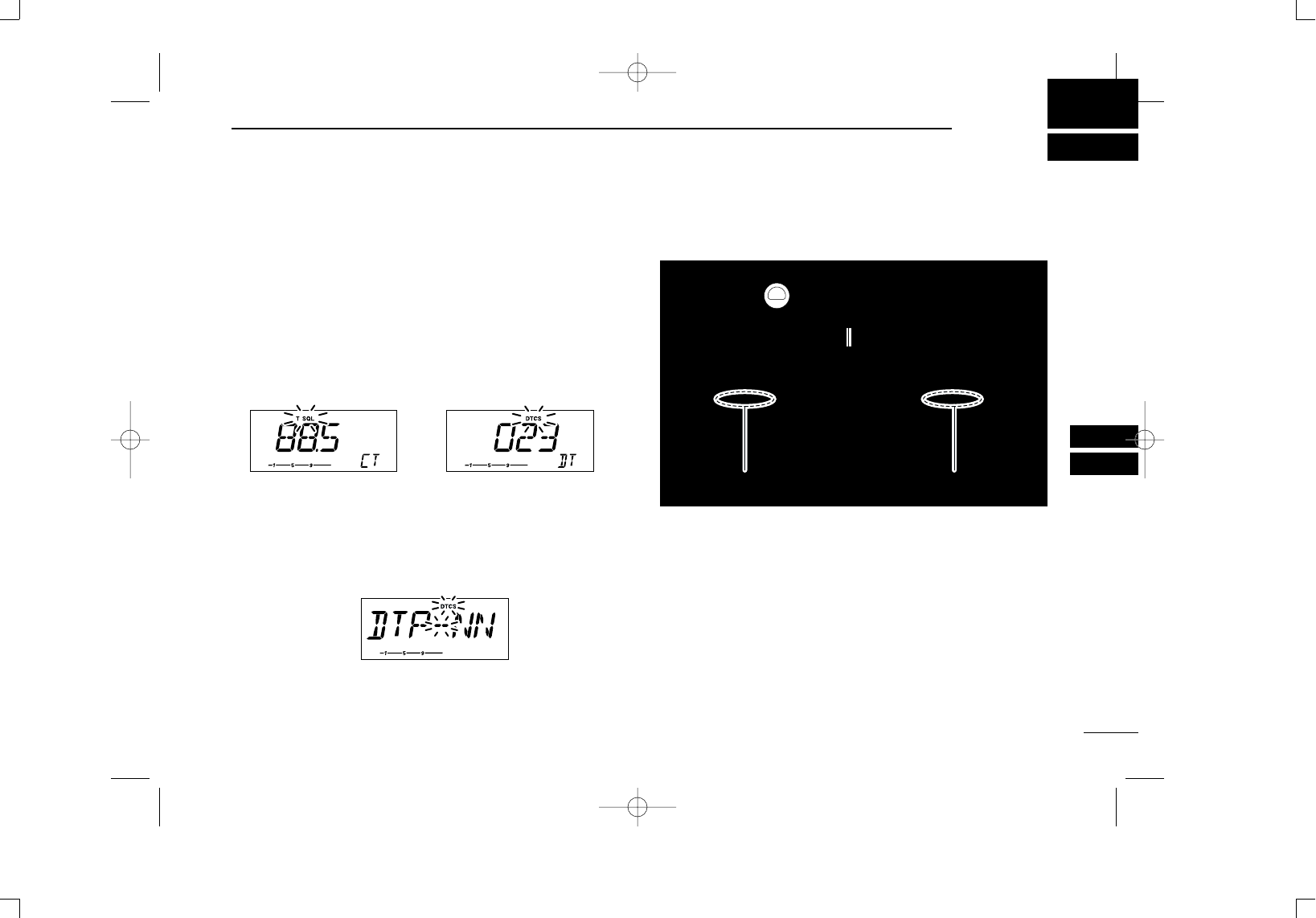

■Tone/DTCS squelch operation ..................................................... 54

■Tone scan ..................................................................................... 55

11 OTHER FUNCTIONS ................................................................ 56–72

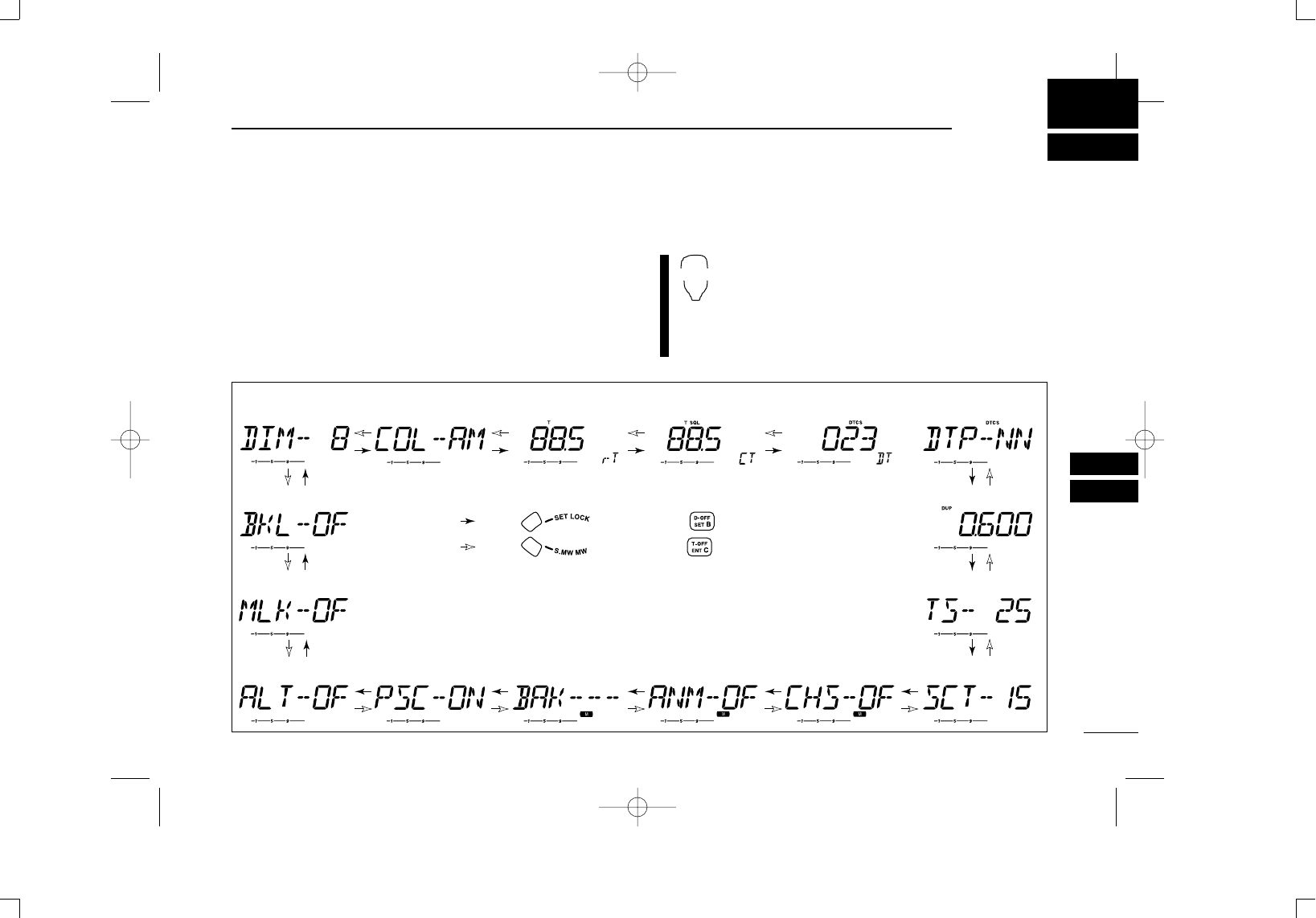

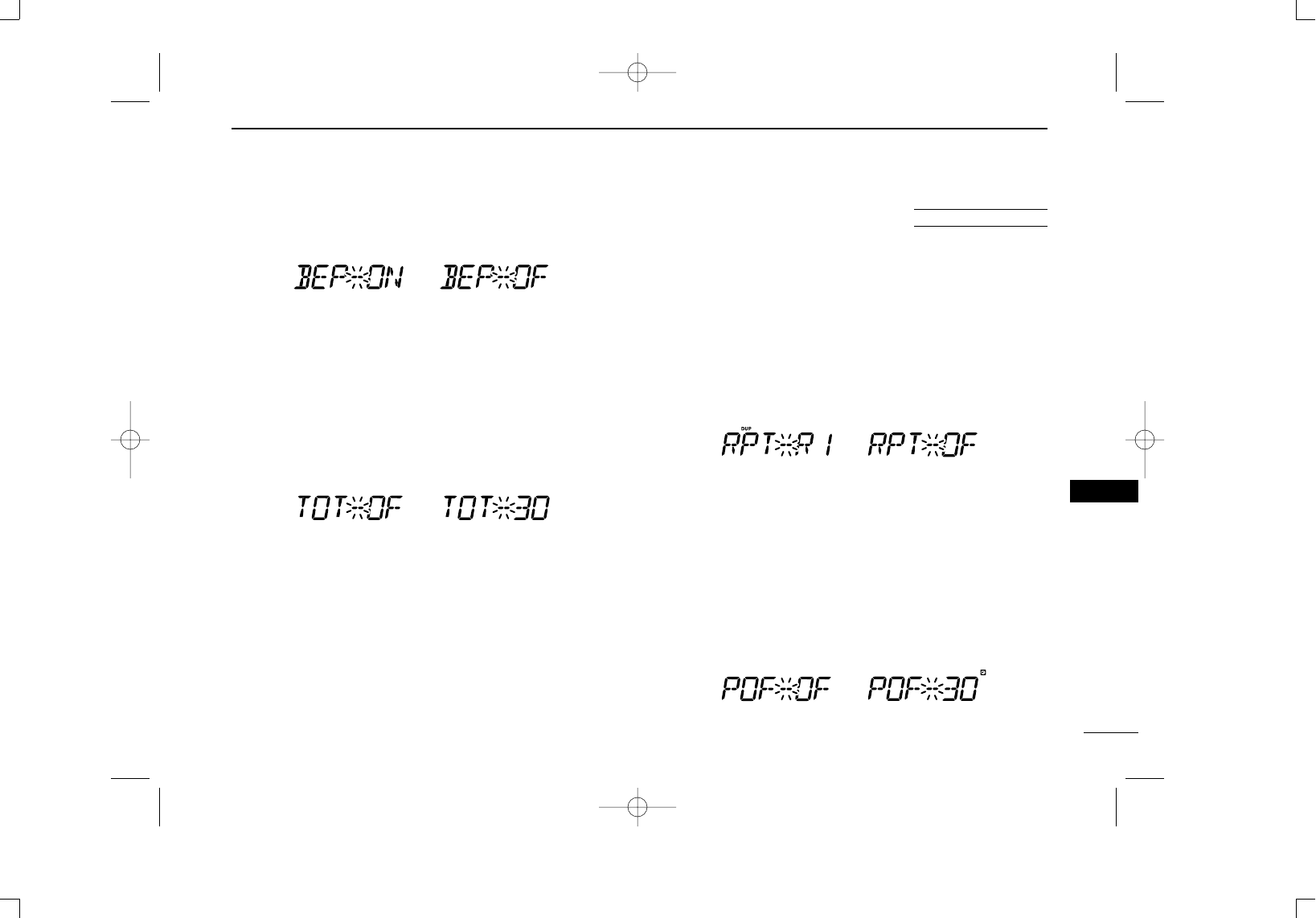

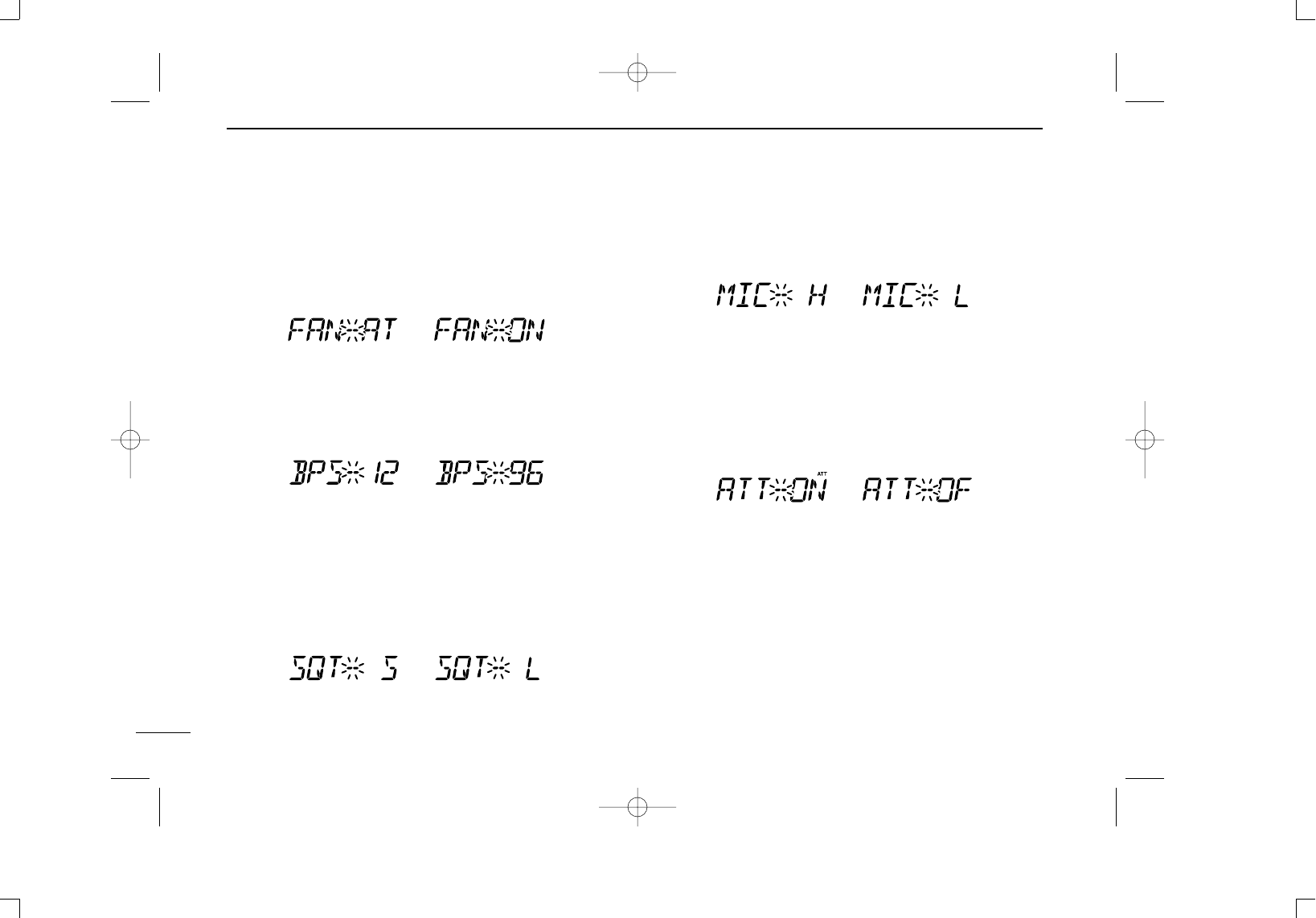

■Set mode ...................................................................................... 56

■Initial set mode ............................................................................. 61

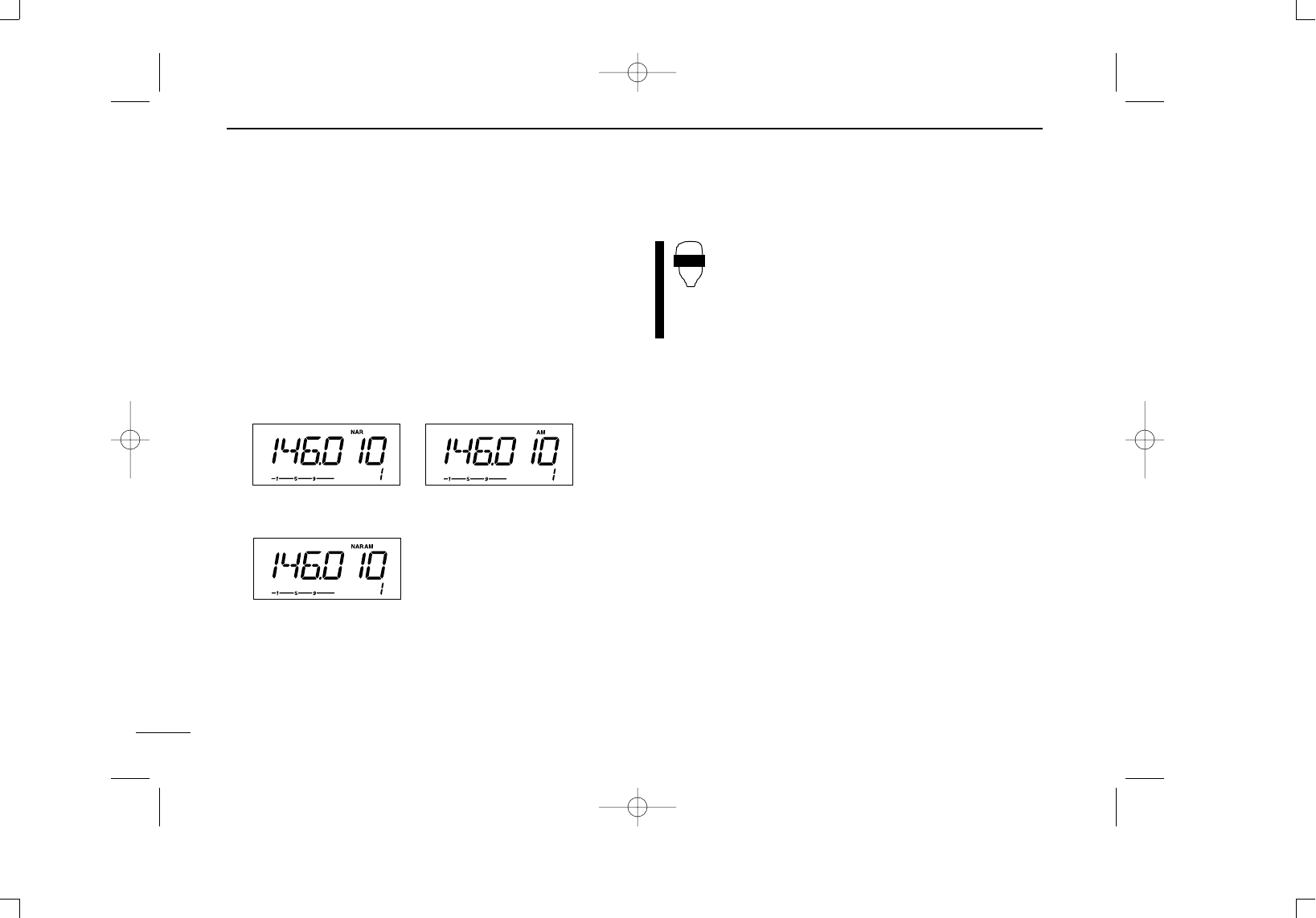

■AM/FM narrow mode ................................................................... 65

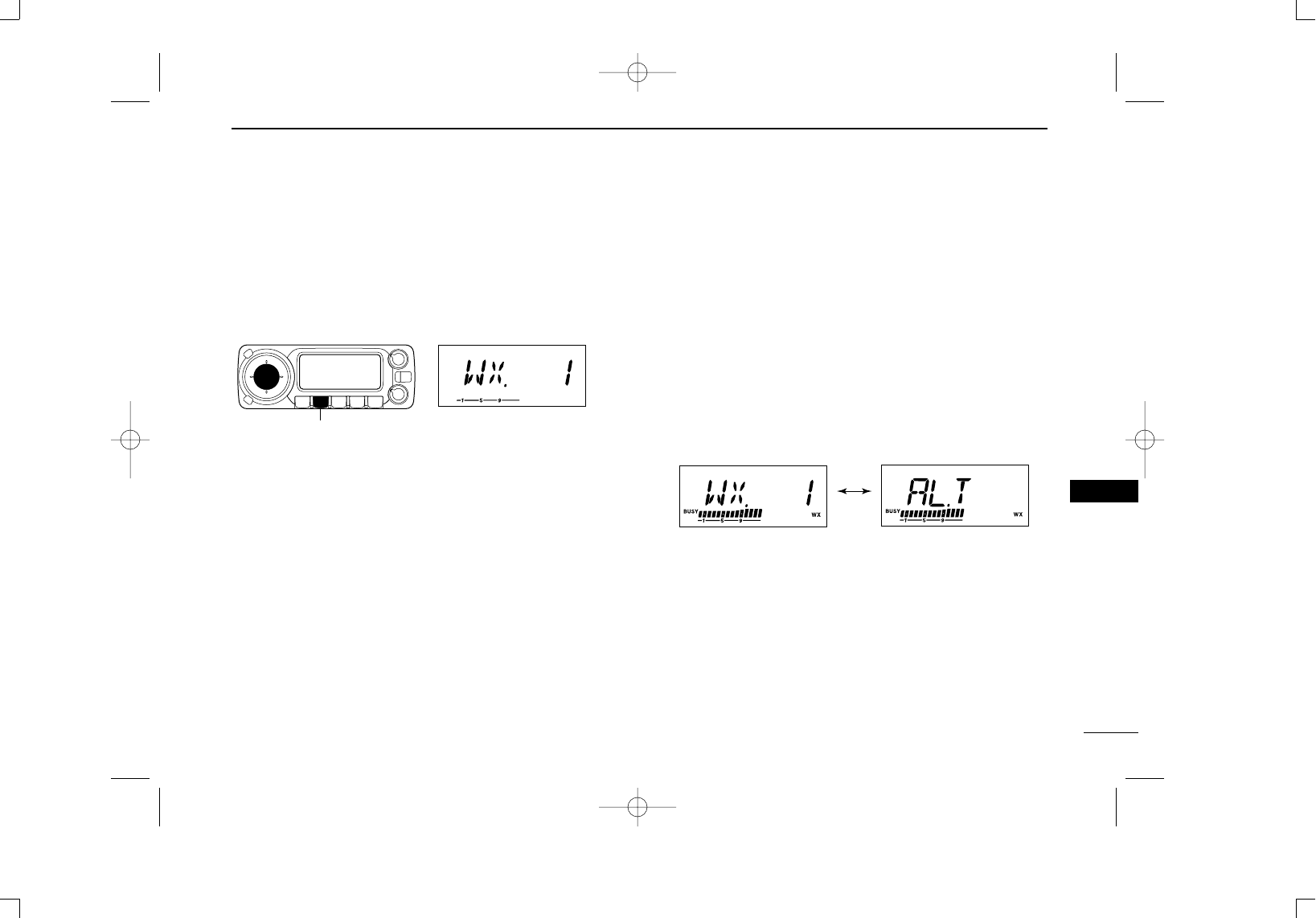

■Weather channel operation (USA version only) ........................... 66

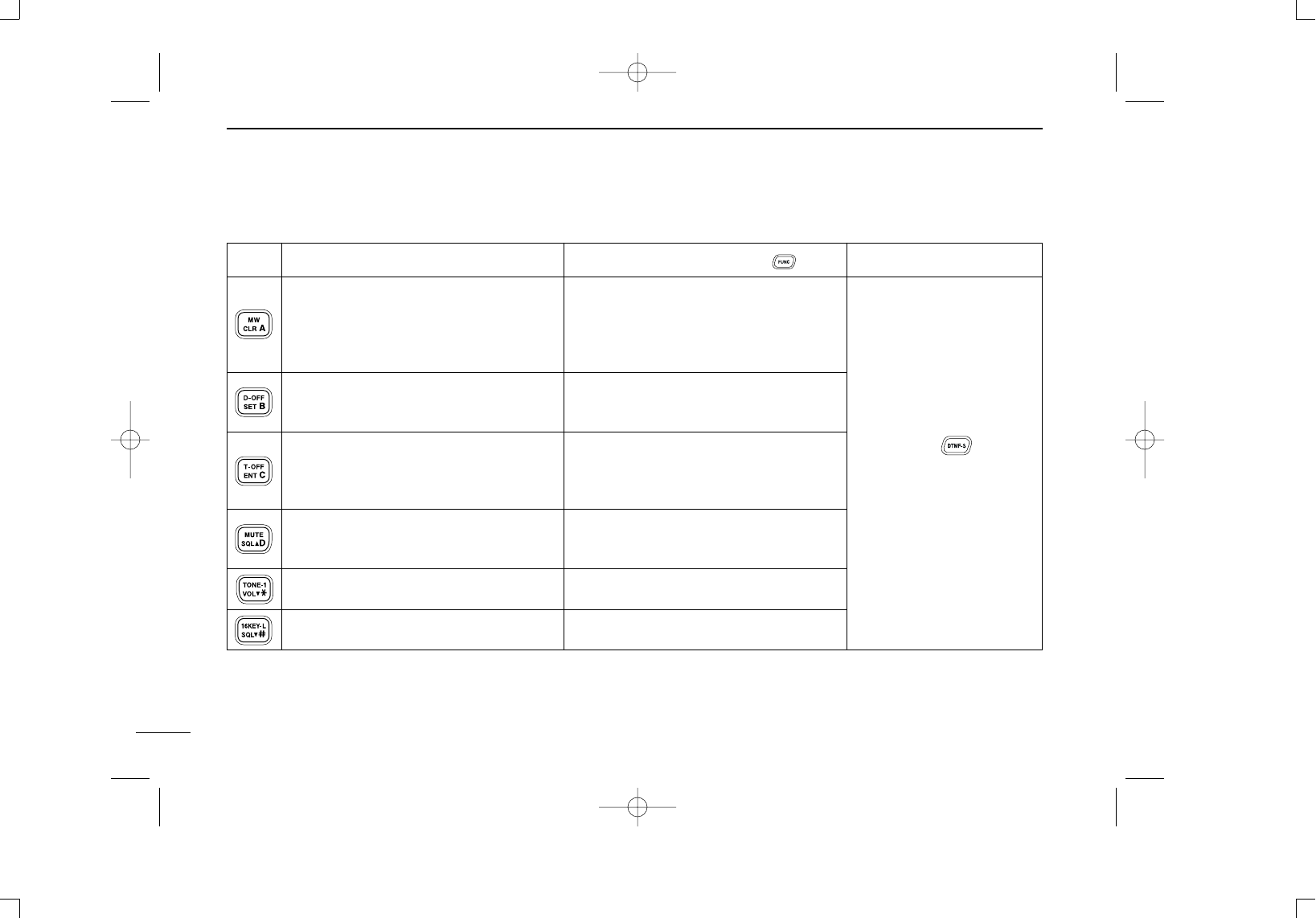

■Microphone keys .......................................................................... 67

■Partial reset .................................................................................. 68

■All reset ........................................................................................ 68

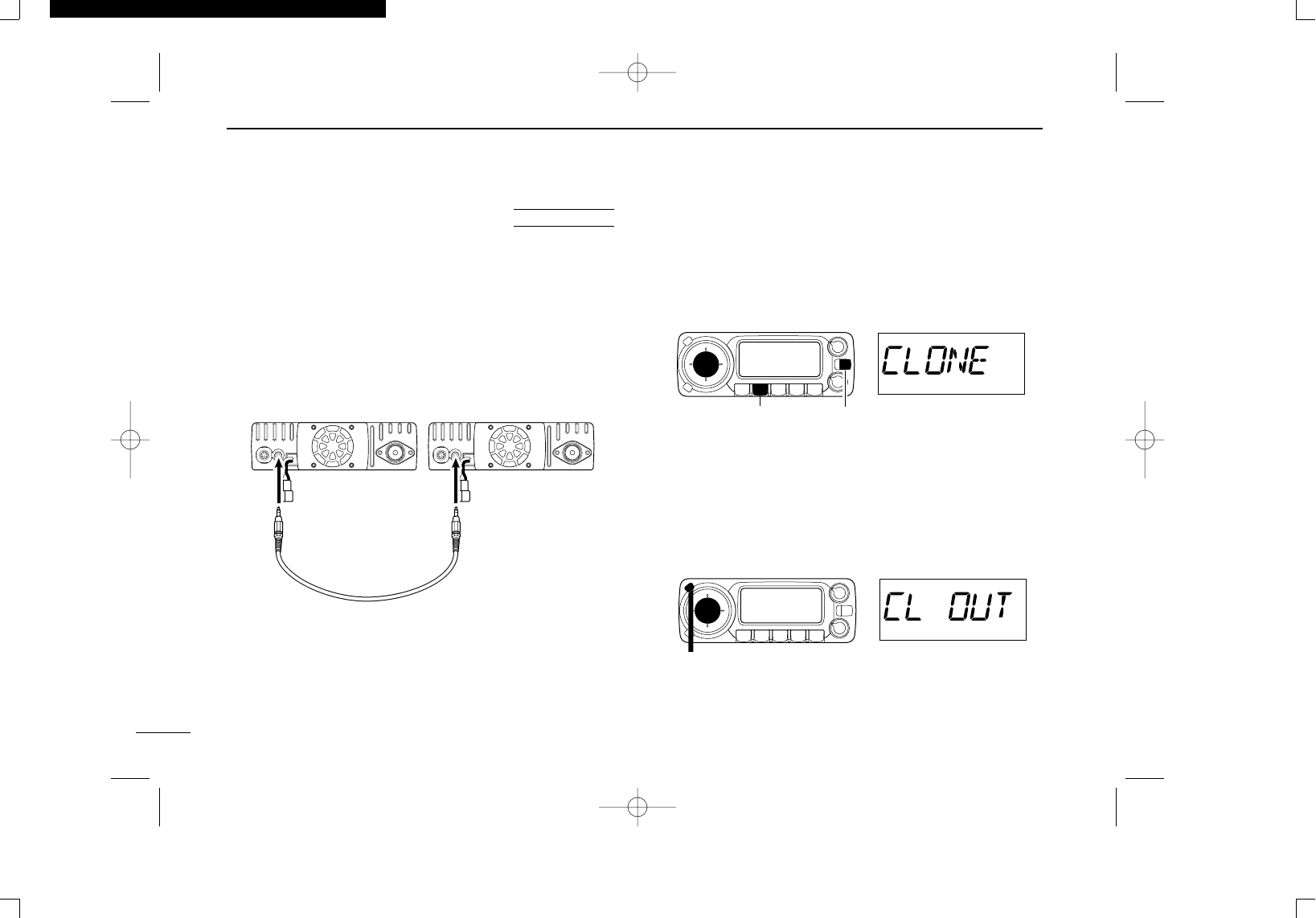

■Data cloning ................................................................................. 69

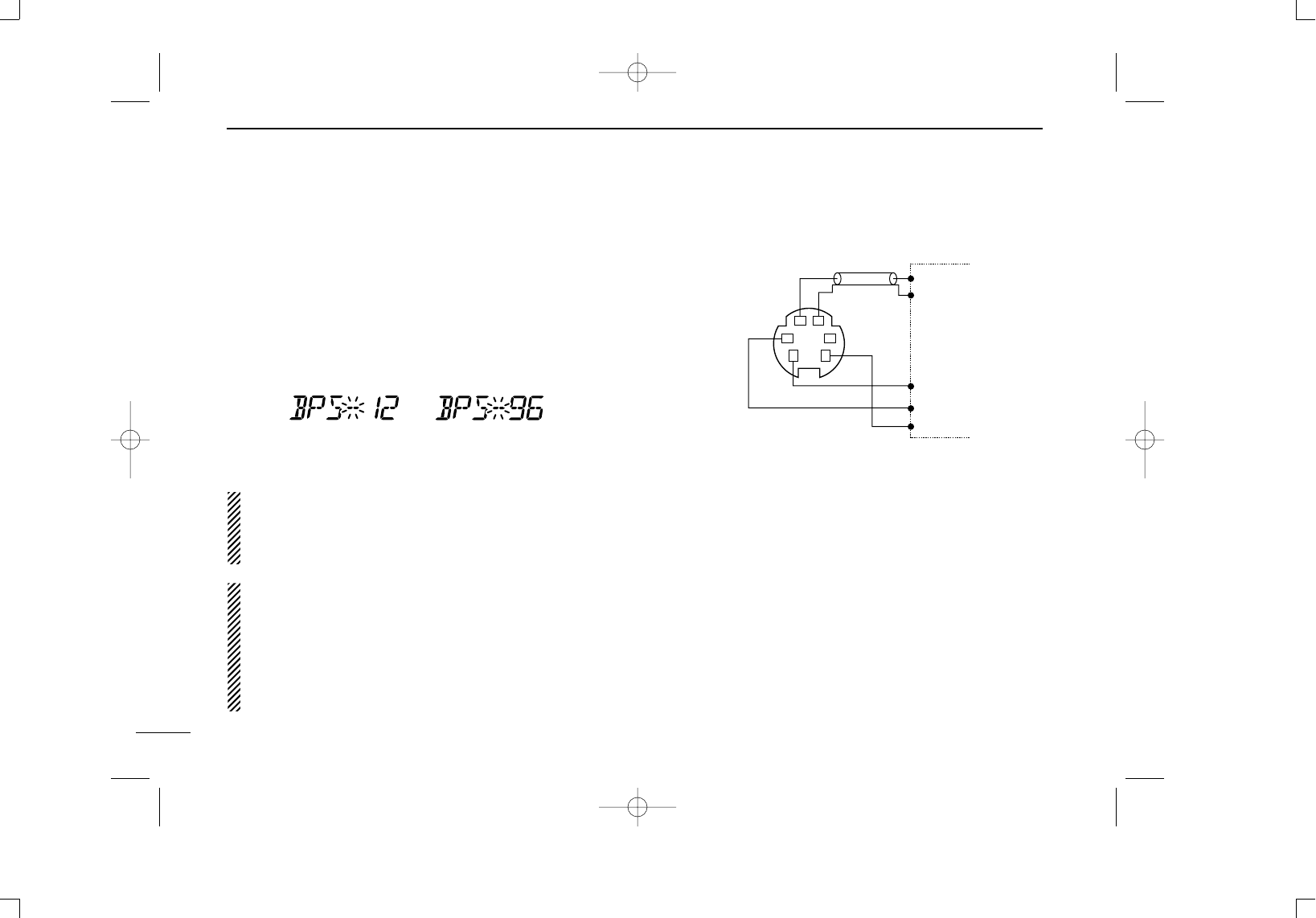

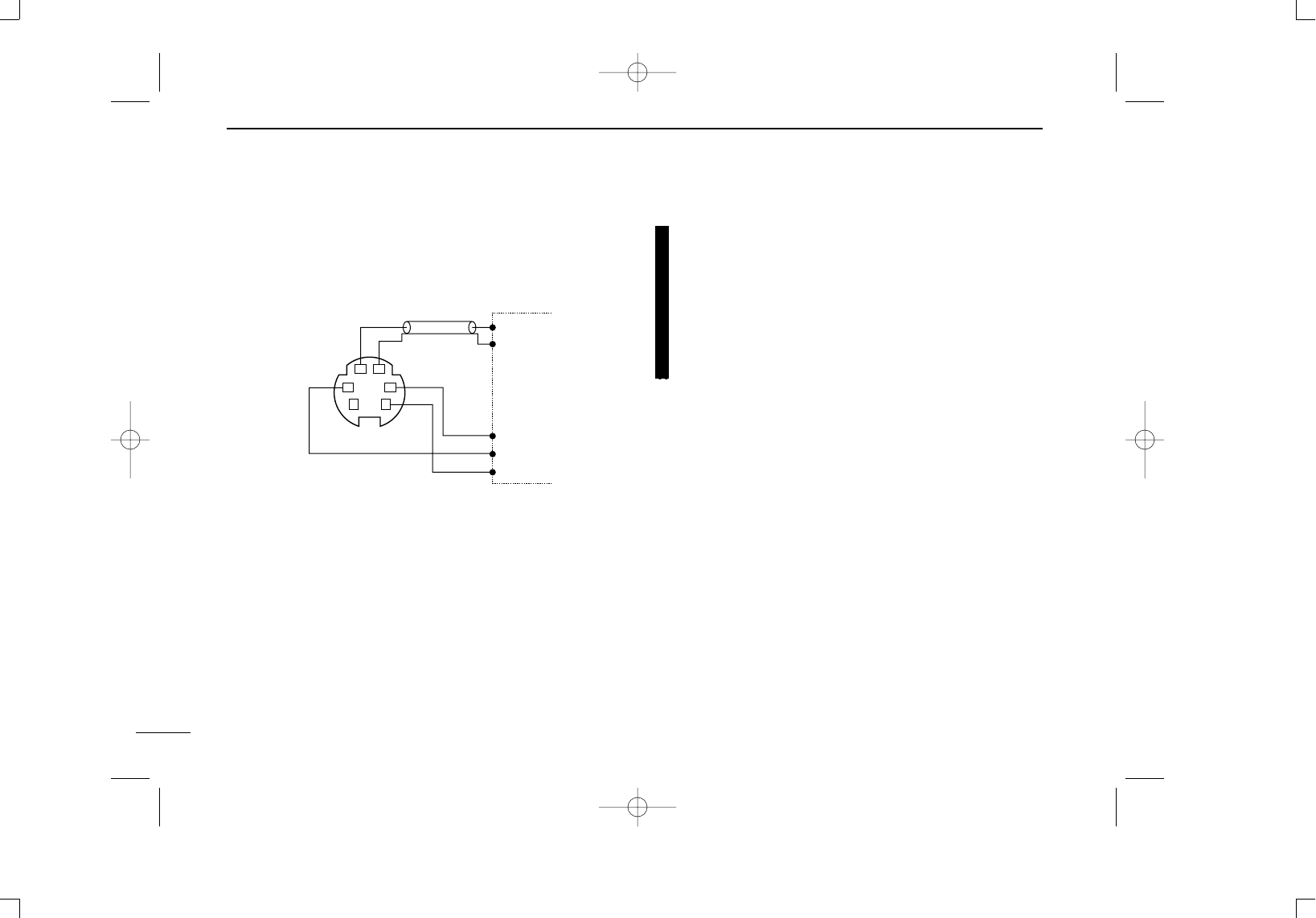

■Packet operation .......................................................................... 71

12 MAINTENANCE ........................................................................ 75–76

■Troubleshooting ........................................................................... 75

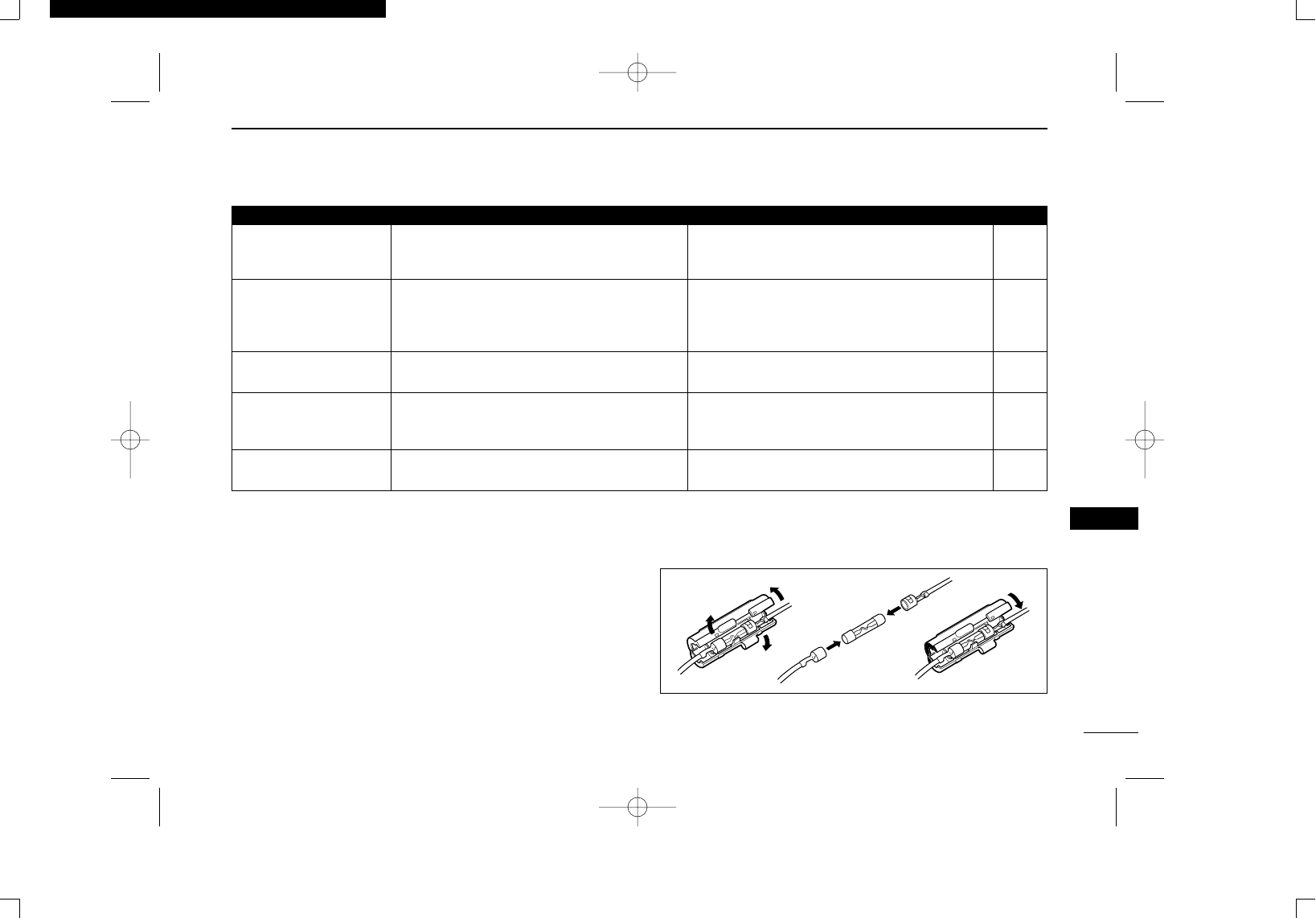

■Fuse replacement ........................................................................ 76

13 SPECIFICATIONS AND OPTIONS ........................................... 77–78

■Speciﬁcations ............................................................................... 77

■Options ......................................................................................... 78

14 MODE ARRANGEMENT ........................................................... 79–80

IC-208H.qxd 03.2.26 20:00 Page iv (1,1)

QUICK REFERENCE GUIDE

New2001

■Installation

DInstallation methods

• Single body installation

• The supplied mounting bracket (or optional MB-17A) can be

used for the main unit installation.

• Remote installation

• The supplied OPC-600(?)

SEPARATION CABLE

can be used

for remote installation.

• Optional OPC-601(?)

SEPARATION CABLE

(7 m; 23 ft) is avail-

able for extend installation.

• Optional MB-58

REMOTE CONTROLLER BRACKET

and MB-65

MOUNTING BASE

are available for increasing front panel

mounting possibilities.

• Optional OPC-440

MICROPHONE CABLE

(5.0 m; 16.4 ft) and

OPC-647 (2.5 m; 8.2 ft) are available to extend the micro-

phone cable.

• Optional OPC-441

SPEAKER CABLE

(5.0 m; 16.4 ft) is avail-

able to extend the speaker cable.

Main unit

Front panel

Transceiver

IC-208H.qxd 03.2.26 20:00 Page I (1,1)

QUICK REFERENCE GUIDE

New2001

DLocation

Select a location which can support the weight of the trans-

ceiver and does not interfere with driving. We recommend the

locations shown in the diagram below.

NEVER place the transceiver or remote controller where nor-

mal operation of the vehicle may be hindered or where it

could cause bodily injury.

NEVER place the transceiver or remote controller where air

bag deployment may be obstructed.

DO NOT place the transceiver or remote controller where hot

or cold air blows directly onto it.

AVOID placing the transceiver or remote controller in direct

sunlight.

DUsing the mounting bracket

qDrill 4 holes where the mounting bracket is to be installed.

•Approx. 5.5–6 mm (1⁄4″) when using nuts; approx. 2–3 mm (1⁄8″)

when using self-tapping screws.

wInsert the supplied screws, nuts and washers through the

mounting bracket and tighten.

eAdjust the angle for your suitable position.

25˚

Nut

Spring washer

When using

self-tapping

screws

Flat washer

Mounting nut

Mounting

bracket

Controller

Main unit

Quick reference guide

IC-208H.qxd 03.2.26 20:00 Page II (1,1)

III

QUICK REFERENCE GUIDE

New2001

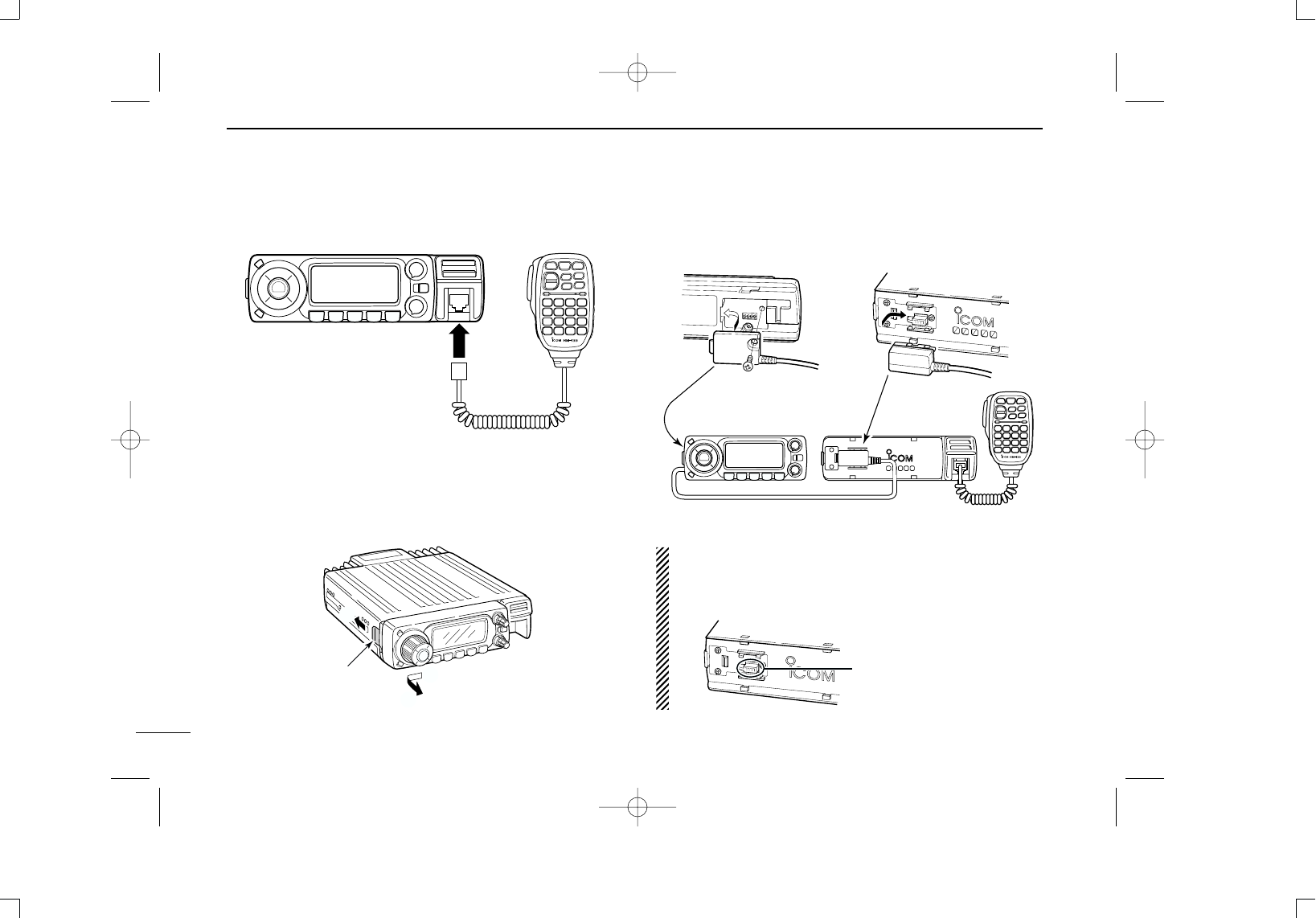

DMicrophone connection

Connect the supplied microphone as illustrated below.

DSeparation cable connection

Using the supplied separation cable (3.5 m; 11.5 ft) or the op-

tional separation cable (7 m; 23 ft) the controller can be sep-

arated from the main unit, doubling as a remote controller.

qDetach the controller as below.

wConnect a separation cable between the controller and

main unit using the supplied screws as illustrated below.

CAUTION!

NEVER short the terminals of the separation connector.

The 13.8 V power line is available in the connector, so the

transceiver may damage when short circuited.

NEVER short the terminals

• Controller’s rear panel • Main unit

OPC-600 or OPC-601

Release latch

IC-208H.qxd 03.2.26 20:00 Page III (1,1)

QUICK REFERENCE GUIDE

New2001

DOptional MB-58 installation

The optional MB-58

REMOTE CONTROLLER BRACKET

is avail-

able for separate installation.

qDrill 2 or 4 holes where the bracket is to be installed.

•Approx. 4 mm (1⁄8″) when using nuts; approx. 1–2mm (

1⁄16″)

when using self-tapping screws.

wInsert the supplied screws, bolts and washers through the

mounting vase and tighten.

eAdjust the angle for the clearest view of the function dis-

play and tighten 2 screws when the mounting base is used.

rAttach the supplied Velcro pads (large) to the remote con-

troller and bracket.

tAttach the supplies Velcro pads (small) or rubber pad to

the bracket as shown below; then attach the remote con-

troller.

•When using the optional MB-65

MB-58

MB-65

Adjust the viewing

angle for maximum

visibility of the

function display.

MB-58 IC-208H remote controller

Bracket

When using self-

tapping screws.

Mounting

base

Mounting

bolt

Quick reference guide

IC-208H.qxd 03.2.26 20:00 Page IV (1,1)

New2001

DBattery connection

☞RWARNING NEVER remove the fuse holders from the

DC power cable.

☞NEVER connect the transceiver directly to a 24 V battery.

☞DO NOT use the cigarette lighter socket for power con-

nections. (See p. ? for details)

Attach a rubber grommet when passing the DC power cable

through a metal plate to prevent a short circuit.

•CONNECTING TO A DC POWER SOURCE

DDC power supply connection

Use a 13.8 V DC power supply with at least 15 A capacity.

Make sure the ground terminal of the DC power supply is

grounded.

•CONNECTING TO A DC POWER SUPPLY

See p. ?? for fuse replacement.

DC power

supply 13.8 V

to an

outlet

Fuses

20 A

black

red⊕

−

⊕

−

IC-208H

Fuses

20 A

black

red⊕−

12 V

Grommet

NOTE:

Use terminals for the

cable connections.

WARNING!

NEVER

remove the

fuse holders.

Crimp Solder

12 V

battery Supplied

DC power cable

+ red

_ black

QUICK REFERENCE GUIDE

IC-208H.qxd 03.2.26 20:00 Page V (1,1)

QUICK REFERENCE GUIDE

New2001

DAntenna installation

•Antenna location

To obtain maximum performance from the transceiver, select

a high-quality antenna and mount it in a good location. A non-

radial antenna should be used when using a magnetic mount.

•Antenna connector

The antenna uses a PL-259 connector.

•PL-259 CONNECTOR

qSlide the coupling ring

down. Strip the cable

jacket and soft solder.

wStrip the cable as shown

at left. Soft solder the cen-

ter conductor.

eSlide the connector body

on and solder it.

rScrew the coupling ring

onto the connector body.

(10 mm ≈3⁄8 in)

NOTE: There are many publications covering proper an-

tennas and their installation. Check with your local dealer

for more information and recommendations.

30 mm

10 mm (soft solder)

10 mm

1–2 mm

solder solder

Soft

solder

Coupling ring

To antenna

Roof-mount antenna

(Drill a hole or use a magnetic mount.)

Gutter-mount antenna

Trunk-mount

antenna

Quick reference guide

IC-208H.qxd 03.2.26 20:00 Page VI (1,1)

VII

QUICK REFERENCE GUIDE

New2001

■Your ﬁrst contact

Now that you have your IC-208H installed in your car or

shack, you are probably excited to get on the air. We would

like to take you through a few basic operation steps to make

your ﬁrst “On The Air” an enjoyable experience.

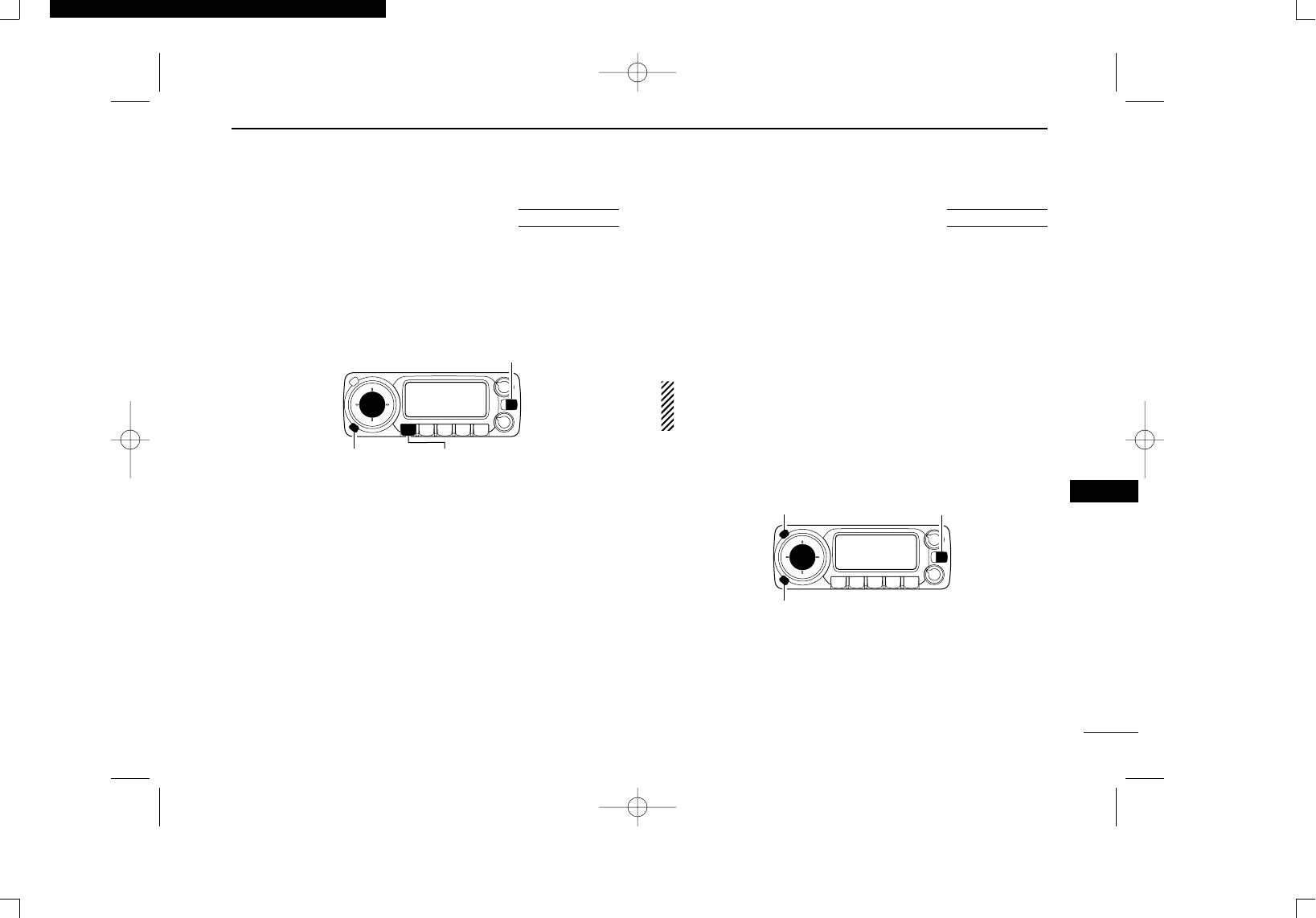

1. Turning ON the transceiver

Before powering up your IC-208H, you may want to make

sure the audio volume and squelch level controls are set in

9–10 o’clock positions.

Although you have purchased a brand new transceiver, some

settings may be changed from the factory defaults because

of the QC process. Resetting the CPU is necessary to start

from factory default.

➥While pushing both [SET•LOCK] and [S.MW•MW], push

[PWR] for 1 sec. to reset the CPU.

2. Selecting the operating frequency band

The IC-208H has 2 m and 70 cm bands.

➥Push [BAND] to select the desired frequency band.

Using the HM-133

You can select the main band from the HM-133.

Push

Push again

Push [BAND] to select the desired frequency band.

[BAND]

[PWR]

While pushing [SET•LOCK] and [S.MW•MW], turn power ON.

[SET•LOCK]

[S.MW•MW]

[VOL]

Set [VOL] and [SQL] controls to 9–10 o’clock positions.

[SQL]

IC-208H.qxd 03.2.26 20:00 Page VII (1,1)

VIII

QUICK REFERENCE GUIDE

New2001

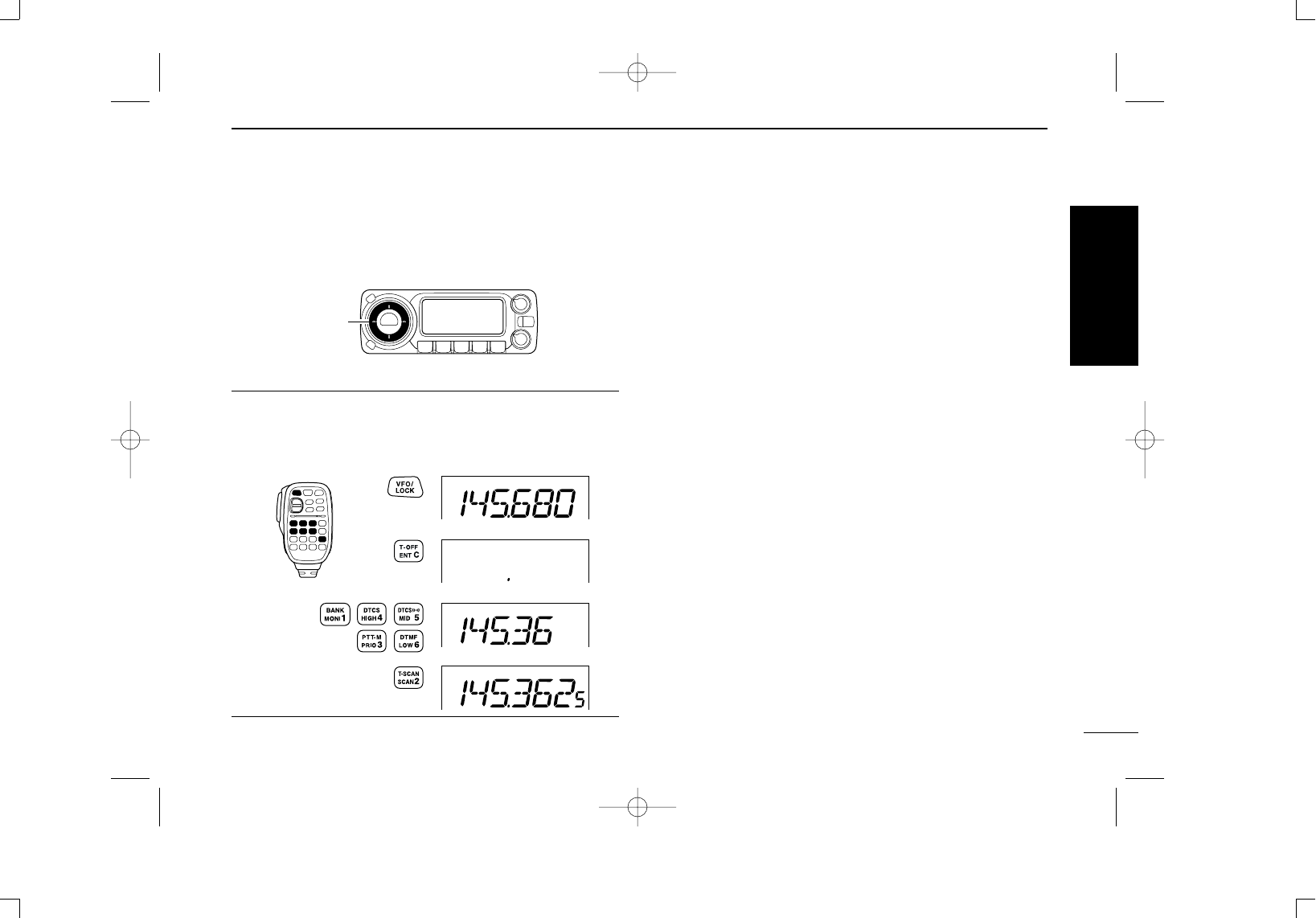

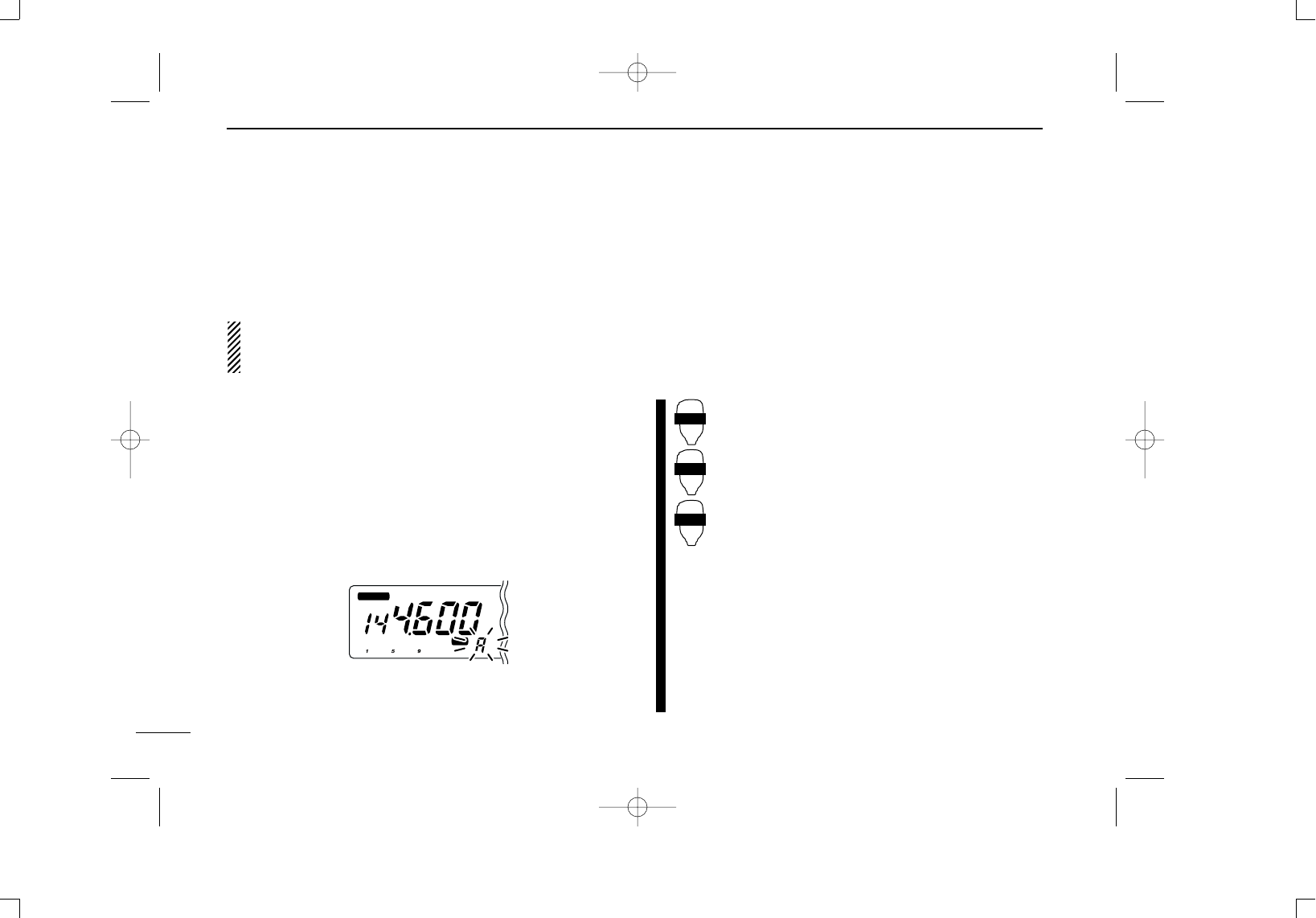

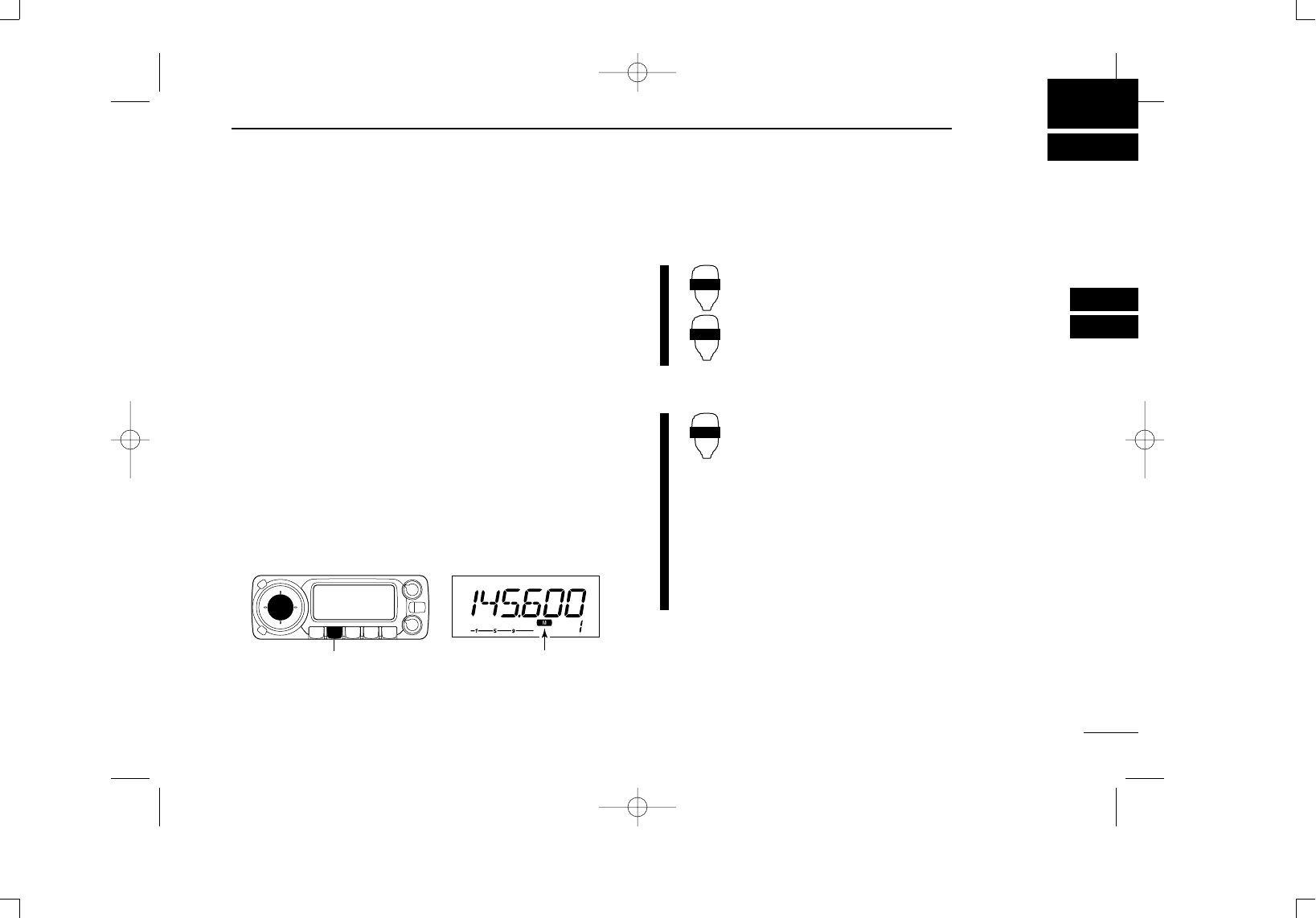

3. Tune the frequency

The tuning dial will allow you to dial in the frequency you want

to operate. Pages ?? and ?? will instruct you on how to set

the tuning speed.

Using the HM-133

You can directly enter the frequency with the HM-133 keypad

for the main band.

[EXAMPLE]: Setting frequency to 145.3625 MHz.

Push

Rotate [DIAL] to tune the frequency.

[DIAL]

Quick reference guide

IC-208H.qxd 03.2.26 20:00 Page VIII (1,1)

QUICK REFERENCE GUIDE

New2001

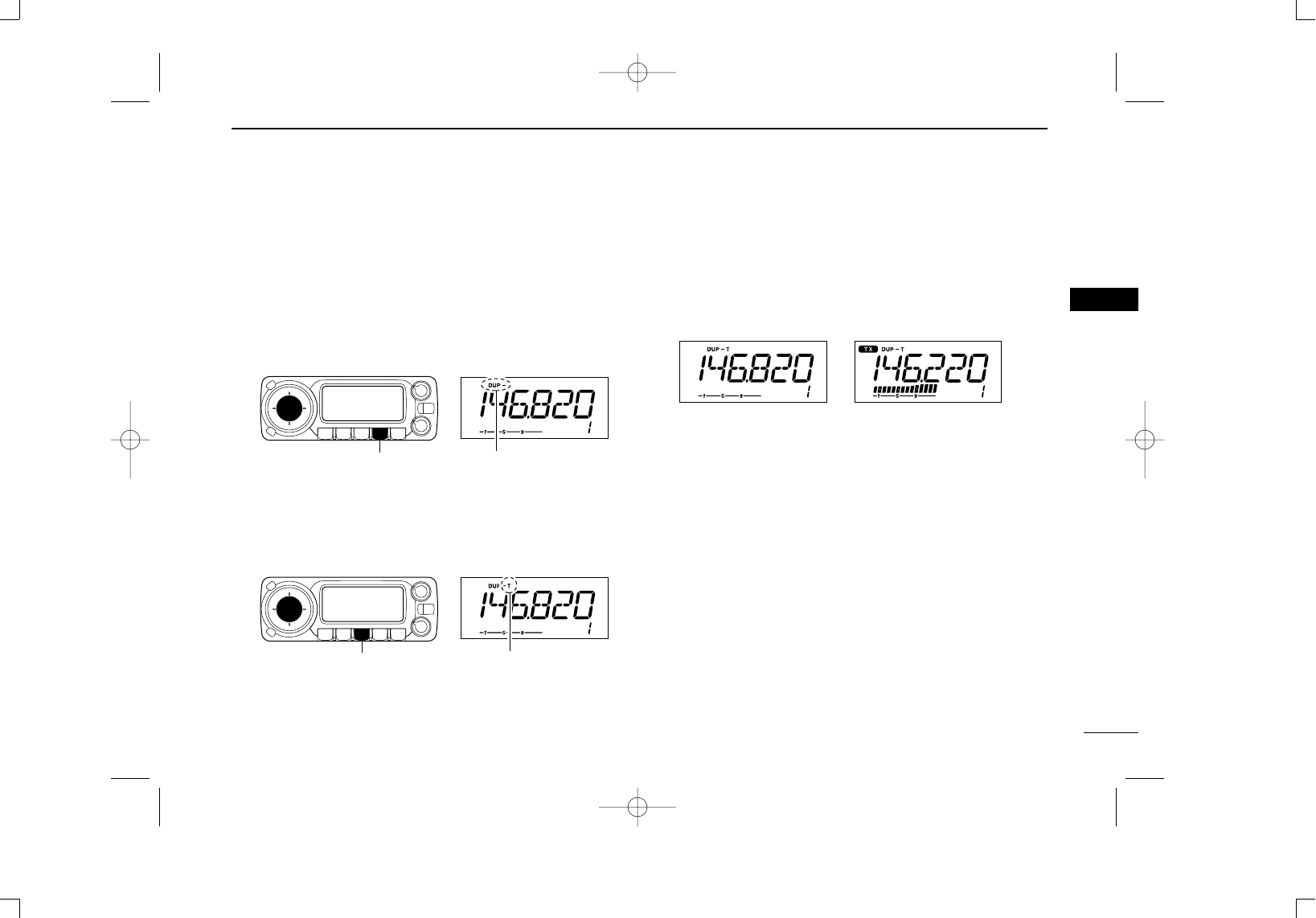

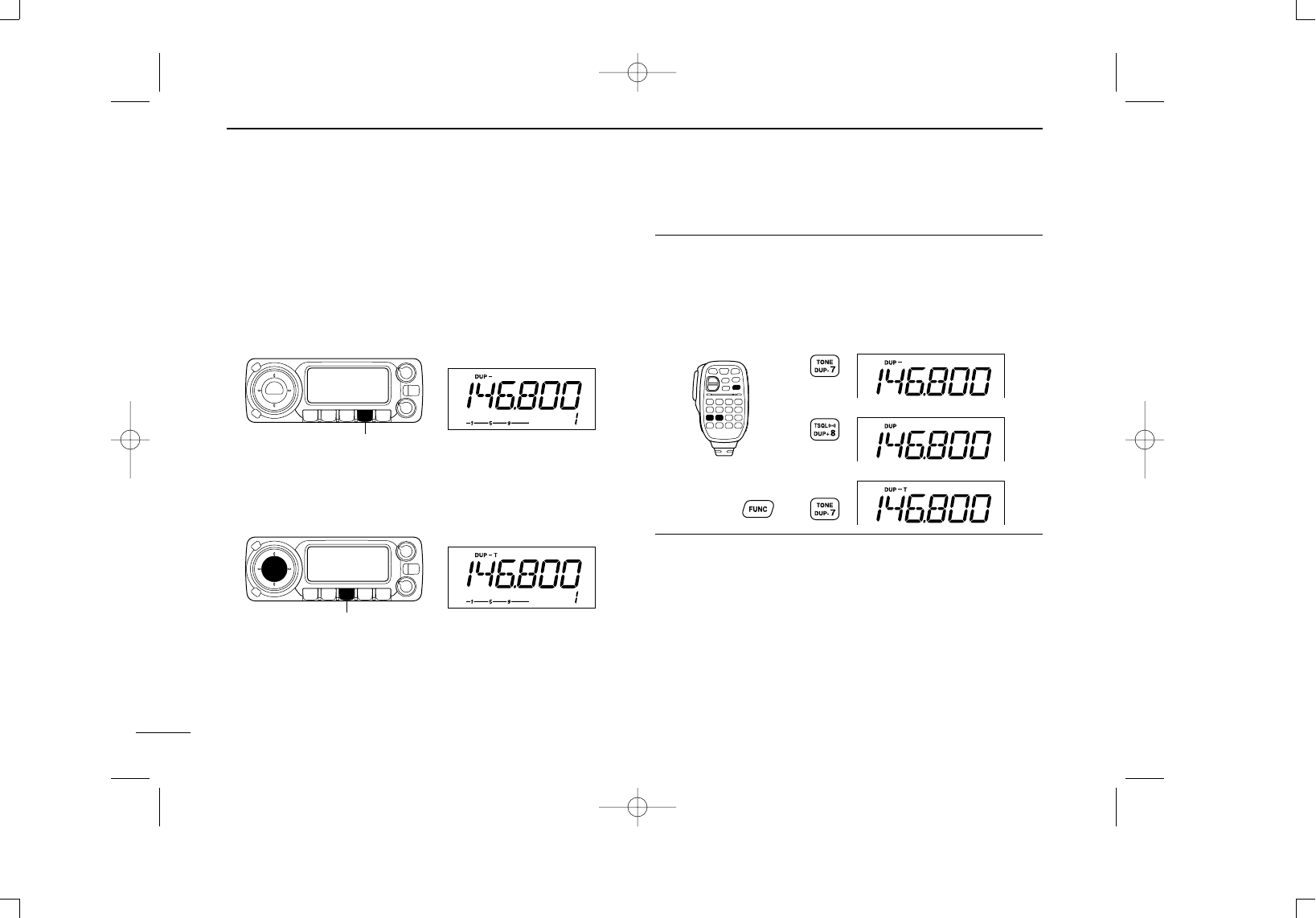

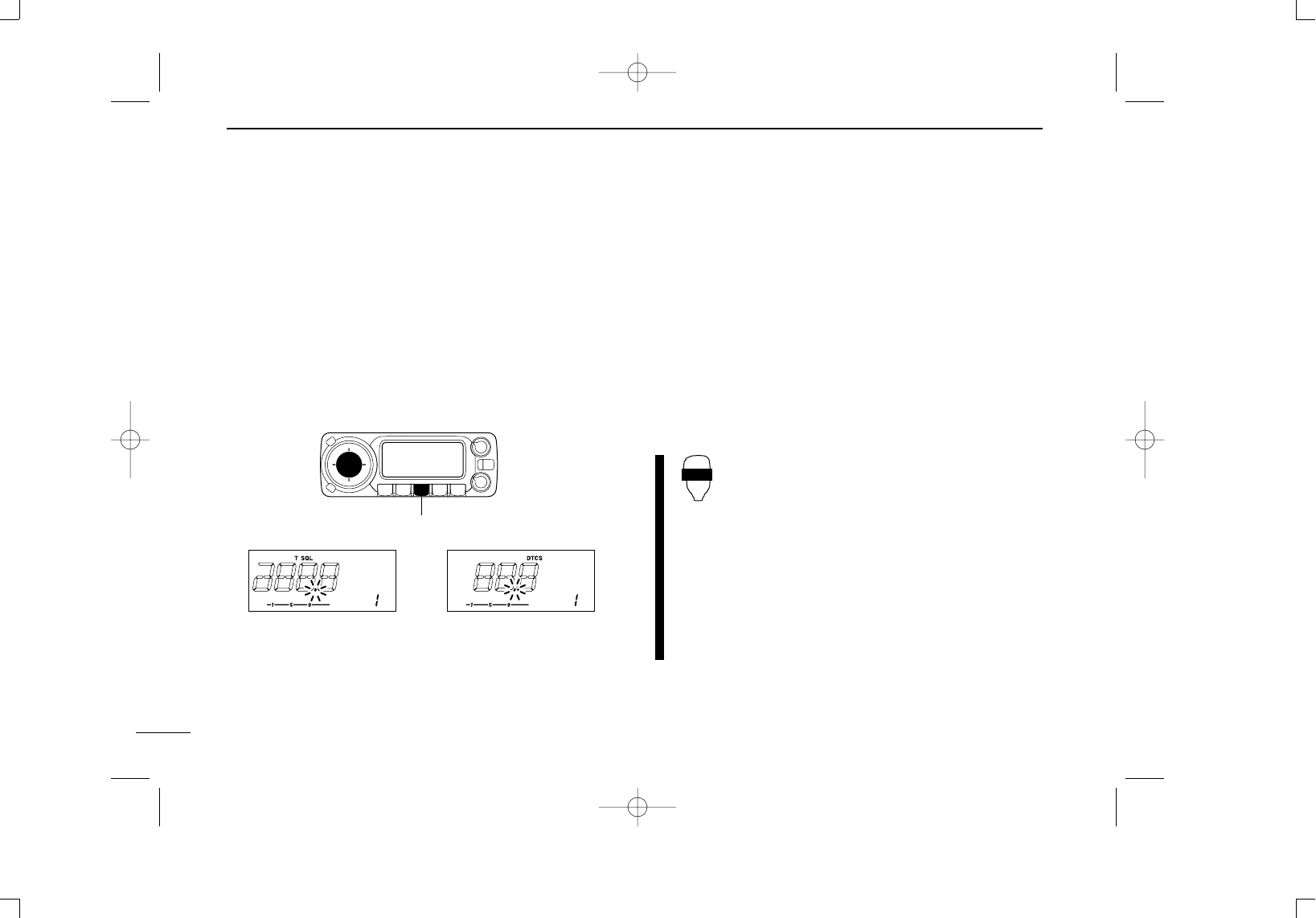

■Repeater operation

1. Setting duplex

Push [BAND] to select the frequency band.

Push [LOW•DUP] for 1 sec. once or twice to select minus du-

plex or plus duplex.

•The USA version has an auto repeater function, therefore, setting

duplex is not required.

2. Repeater tone

Push [TONE•T-SCAN] several times until “T” appears, if the

repeater requires a subaudible tone to be accessed.

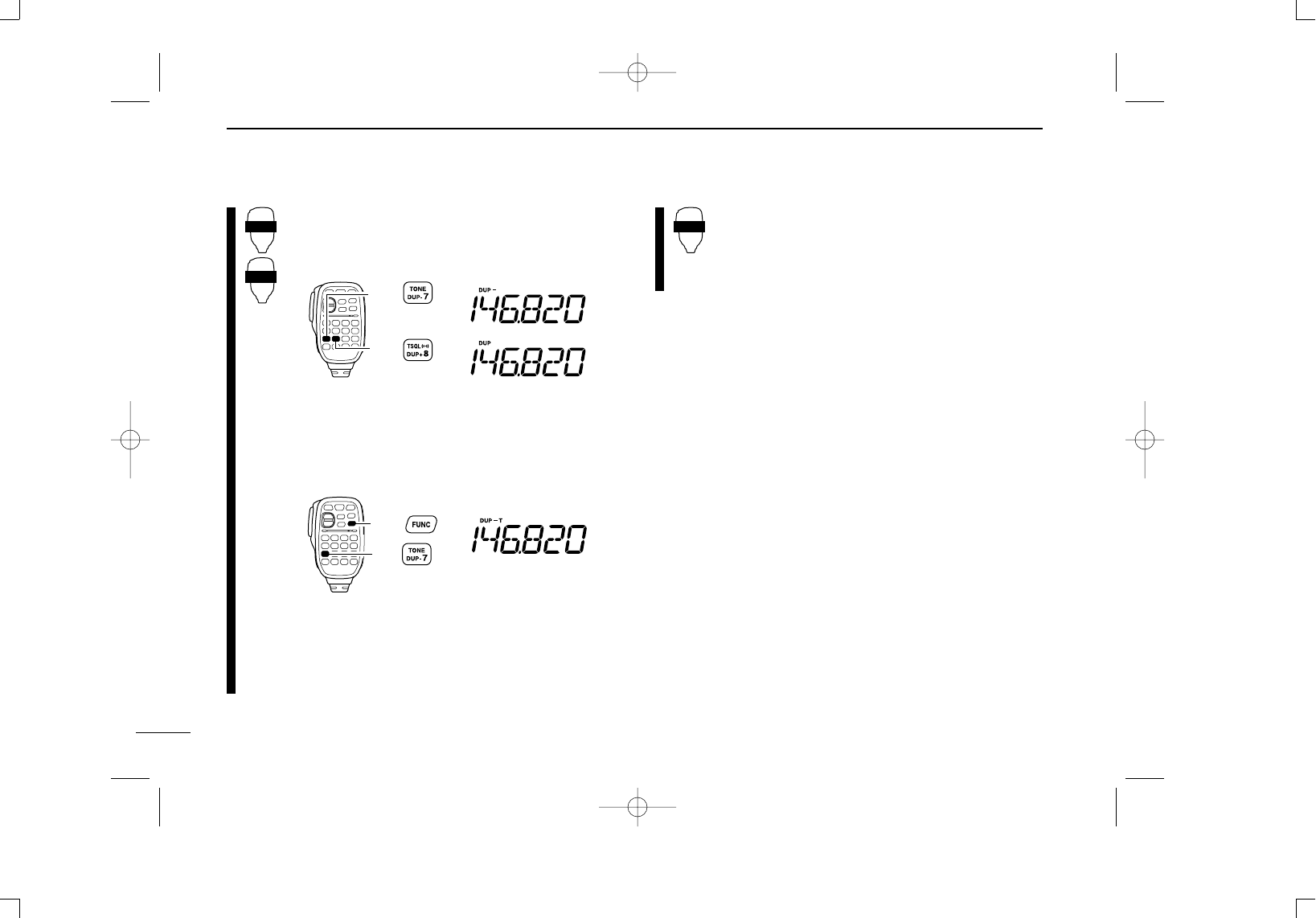

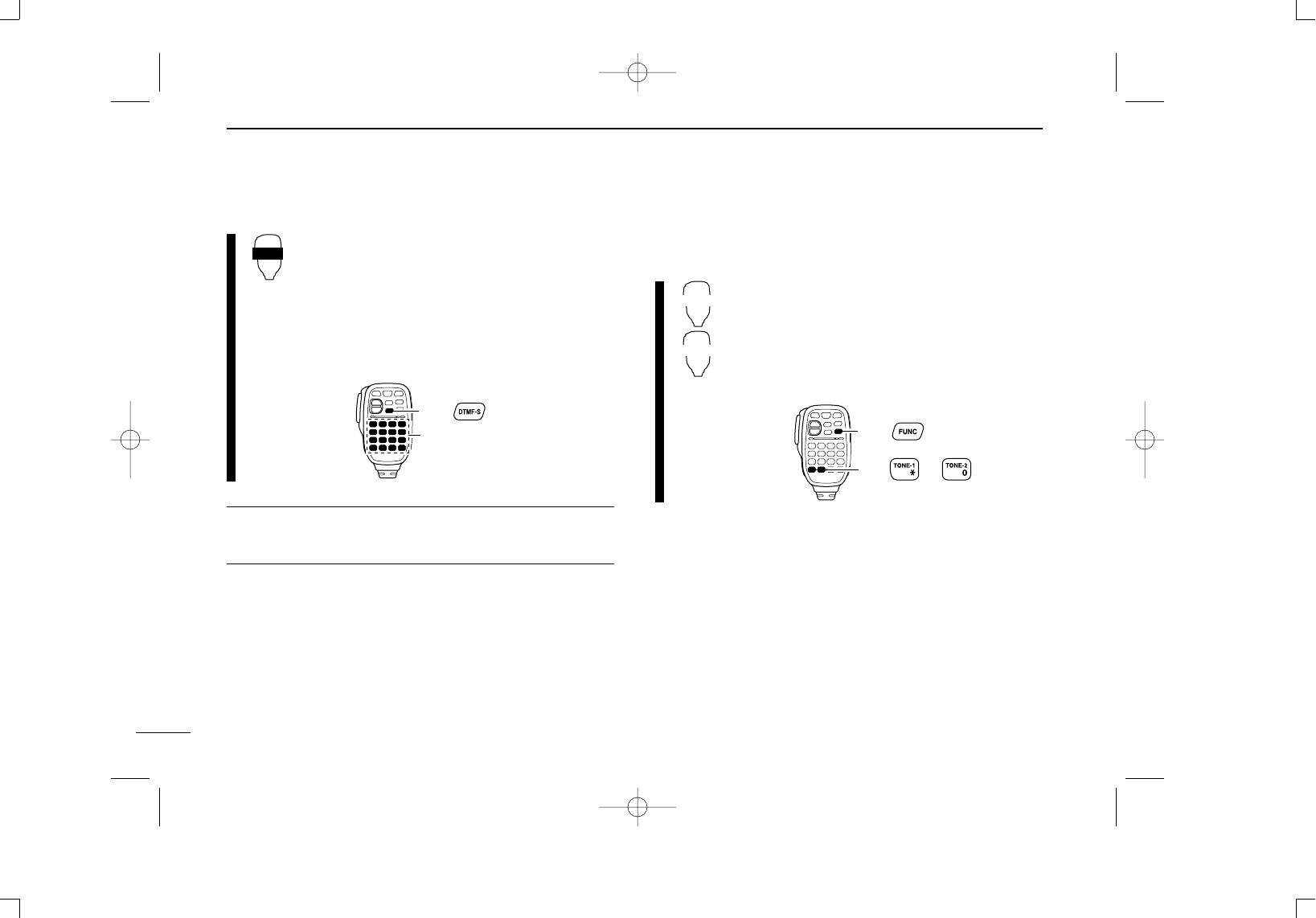

Using the HM-133

Plus or minus duplex selection and the repeater tone setting

can be made easily via HM-133.

Push [

DUP

–7(TONE)] for minus duplex; [

DUP

+8(TSQLS)]

for plus duplex selection, push [FUNC] then [

DUP

–7(TONE)]

to turn the repeater tone ON.

Push

Push , then

Push

[TONE•T-SCAN]

[LOW•DUP]

IC-208H.qxd 03.2.26 20:00 Page IX (1,1)

QUICK REFERENCE GUIDE

New2001

Quick reference guide

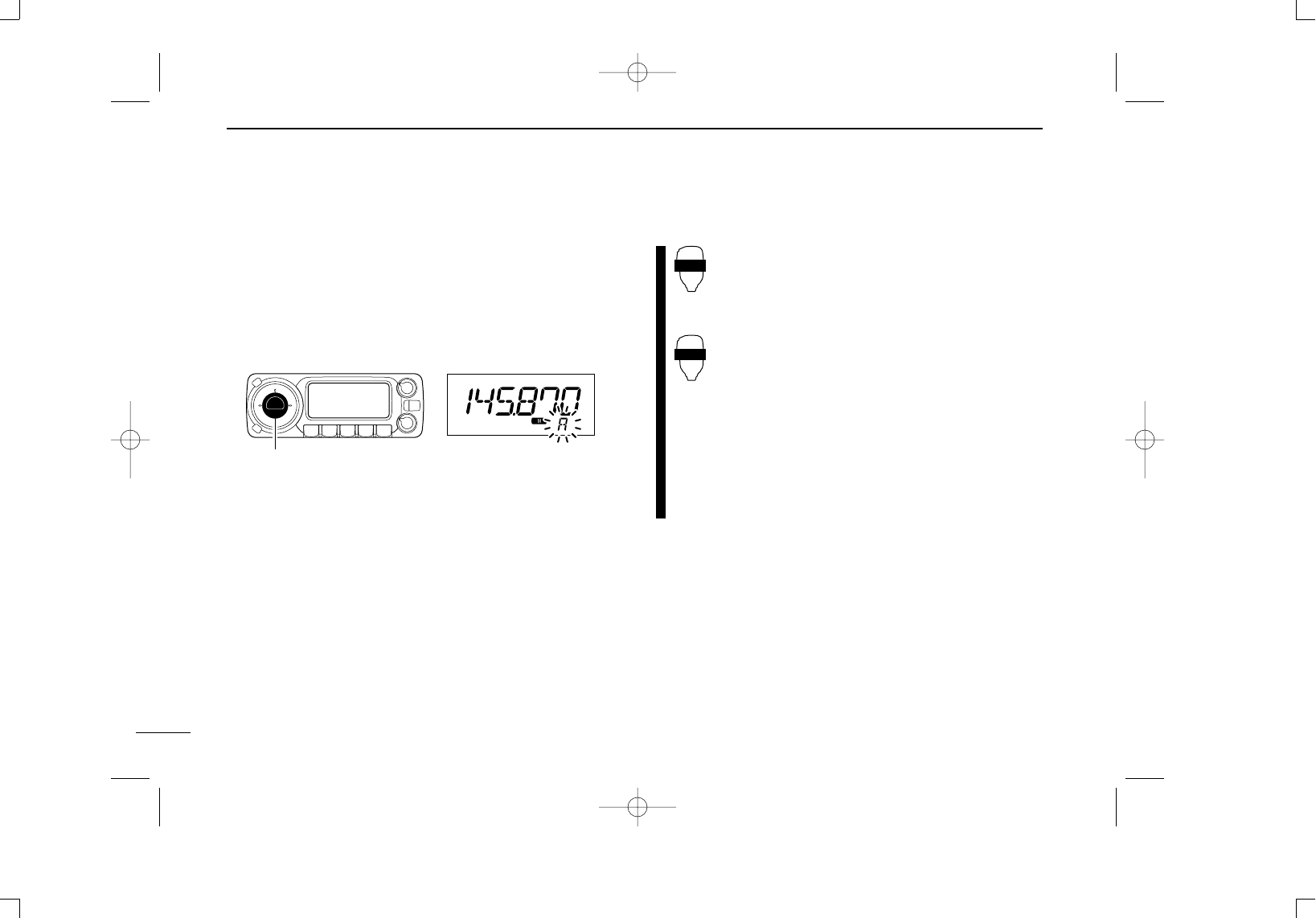

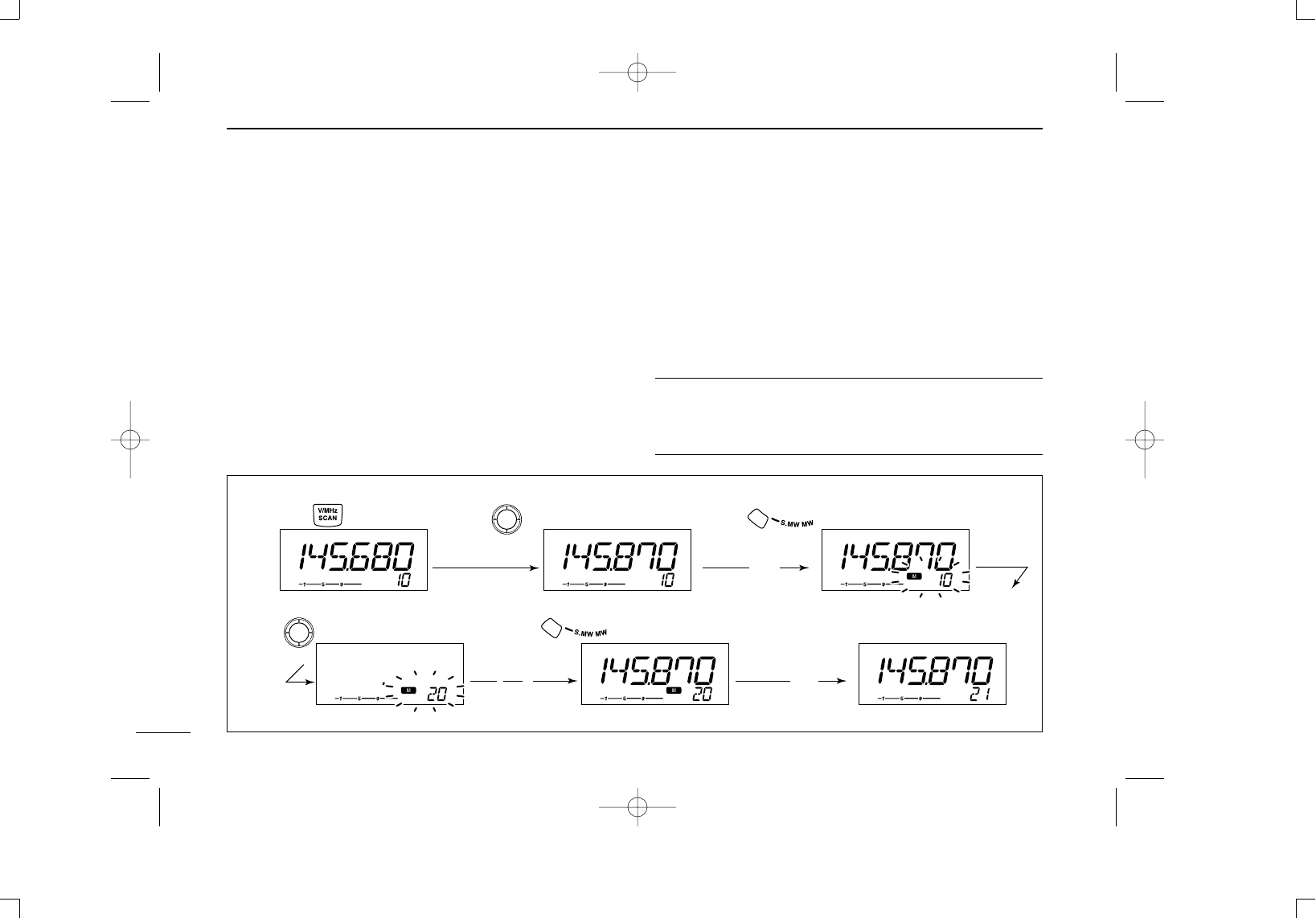

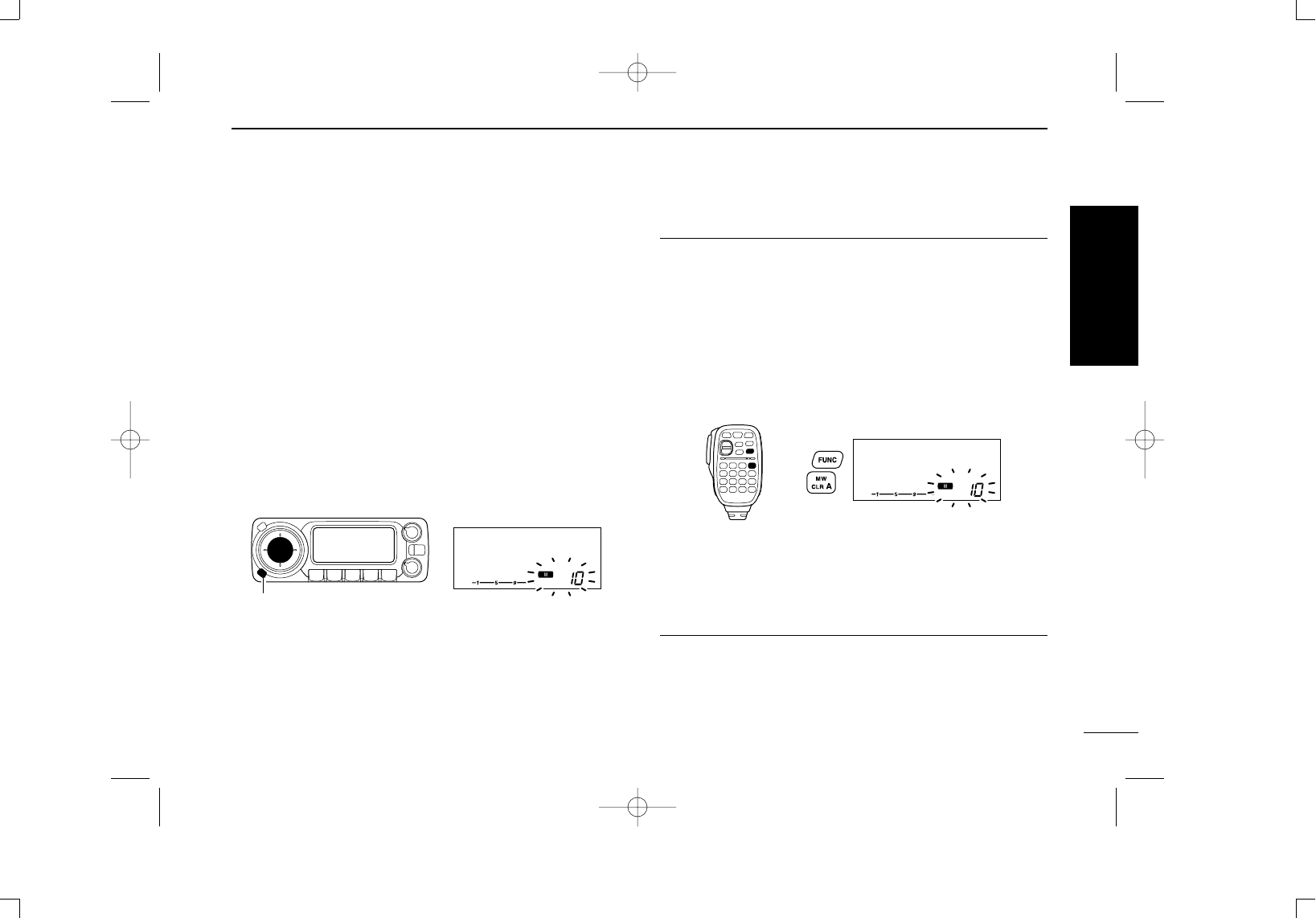

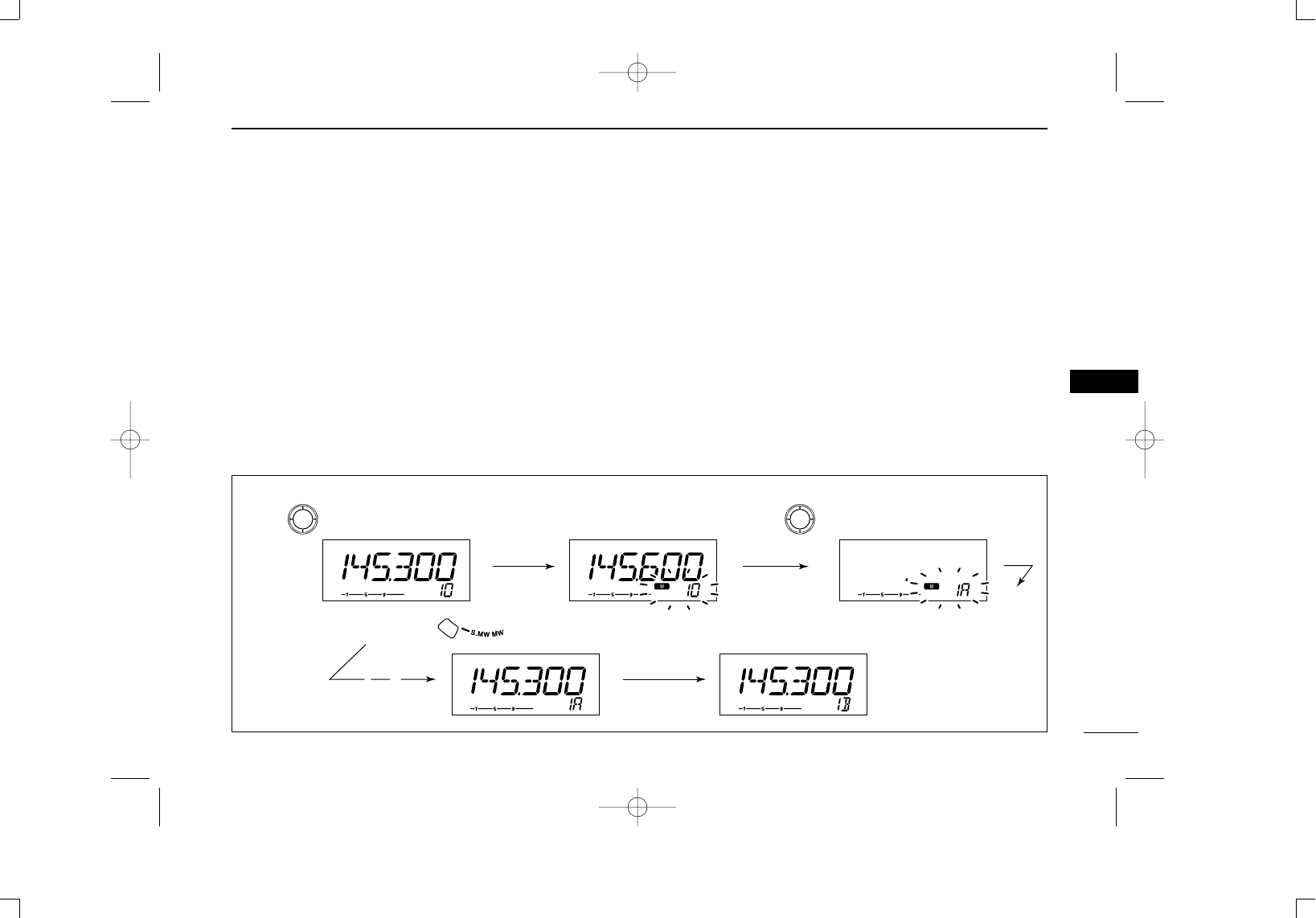

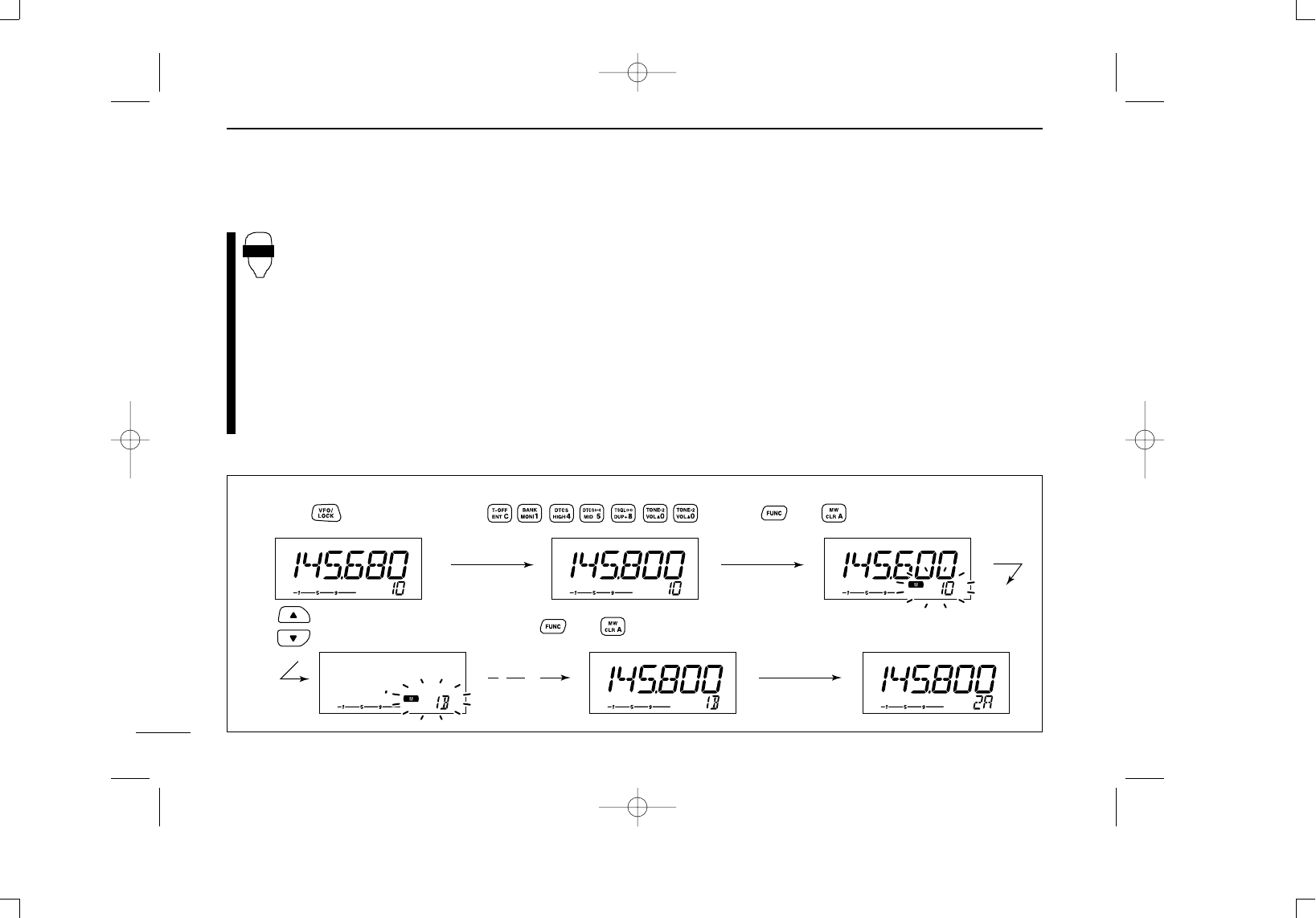

■Programming memory channels

The IC-208H has a total of 512 memory channels (including

10 scan edges and 2 call channels) for storing often used op-

erating frequency, repeater settings, etc.

1. Setting a frequency

In VFO mode, set the desired operating frequency with re-

peater, tone and tuning steps, etc.

➥Push [V/MHz•SCAN] to select VFO.

➥

Rotate [DIAL] to set the desired frequency.

•Set other data, such as repeater tone, duplex information, tuning

step), if desired.

2. Selecting a memory channel

Push [S.MW•MW], then rotate [DIAL] to select the desired

memory channel.

•“!” indicator and memory channel number blink.

3. Writing a memory channel

Push and hold [S.MW•MW] for 1 sec. to program.

•3 beeps sound

•Return to VFO mode automatically after the program.

•Memory channel number automatically increases when continuing

to push [S.MW•MW] after programming.

Using the HM-133

qIn VFO mode, set the desired operating frequency, includ-

ing offset direction, tone settings, etc.

➥Push [VFO/LOCK] to select VFO.

➥Push [

ENT

C(T-OFF)] ﬁrst, then enter the desired oper-

ating frequency via the keypad.

•Set other data, such as repeater tone, duplex information,

tuning step, if necessary.

wPush [FUNC] then [

CLR

A(MW)].

•“!” indicator and memory channel number blink.

ePush [Y]/[Z] to select the desired memory channel.

rPush [FUNC] then push [

CLR

A(MW)] for 1 sec. to pro-

gram.

•3 beeps sound

•Memory channel number automatically increases when continu-

ing to push [

CLR

A(MW)] after programming.

Push ,

then

[S.MW•MW]

IC-208H.qxd 03.2.26 20:00 Page X (1,1)

■Front panel— controller

qSET•LOCK SWITCH [SET•LOCK]

➥Enters set mode when pushed. (p. ??)

➥Switches the lock function ON and OFF when pushed

for 1 sec. (p. ??)

wTUNING DIAL [DIAL]

Selects the operating frequency (p. ??), memory channel

(p. ??), the setting of the set mode item and the scanning

direction (p. ??).

eVOLUME CONTROL [VOL] (p. ??)

Adjusts the audio level for relative band.

rPOWER SWITCH [PWR]

Turns power ON and OFF when pushed for 1 sec.

tMICROPHONE CONNECTOR (p. ??)

Connects the supplied microphone.

q+8 V DC output (Max. 10 mA)

wChannel up/down

e8 V control IN

rPTT

tGND (microphone ground)

yMIC (microphone input)

uGND

iData IN

q w Function display (p. 3) e r

yuio!0!1!2!3

PANEL DESCRIPTION

New2001

IC-208H.qxd 03.2.26 20:00 Page 1 (1,1)

PANEL DESCRIPTION

New2001

ySQUELCH CONTROL [SQL]

Varies the squelch level. (p. ??)

•The RF attenuator activates and increases the attenuation when

rotated clockwise to the center position and further. (p. ??)

uMONITOR•DTMF SWITCH [MONI•DTMF]

➥Push to switch the monitor function ON and OFF. (p. 00)

➥Turns DTMF memory encoder ON and OFF when

pushed for 1 sec. (p. ??)

iOUTPUT POWER•DUPLEX SWITCH [DUP•DUP]

➥Each push changes the output power selection. (p. ??)

➥Push for 1 sec. to select DUP–, DUP+ and simplex op-

eration. (p. ??)

oTONE•TONE SCAN SWITCH [TONE•T-SCAN]

➥Each push selects a tone function. (pgs. ??, ??)

•Subaudible tone encoder, pocket beep (CTCSS), tone

squelch, pocket beep (DTCS), DTCS squelch or tone func-

tion OFF can be selected.

➥Push for 1 sec. to starts the tone scan. (p. ??)

!0MEMORY/CALL•PRIORITY SWITCH [M/CALL•PRIO]

➥Push to select and toggle memory, call and weather

channel* modes. (pgs. ??, ??, ??, ??)

*Weather channels available for USA versions only.

➥Starts priority watch when pushed for 1 sec. (p. ??)

!1VFO/MHz TUNING•SCAN SWITCH [V/MHz•SCAN]

➥Selects and toggles VFO mode and 1 MHz (or 10 MHz

for some versions) tuning when pushed. (p. ??)

➥Starts scan when pushed for 1 sec. (p. ??)

•Cancels a scan when pushed during scan.

!2BAND SWITCH [BAND]

➥Push to select the operating frequency band. (p. ??)

➥Push to select the call channel during call channel op-

eration. (p. ??)

➥Push for 1 sec. to select the operating mode. (p. ??)

!3MEMORY WRITE SWITCH [S.MW•MW]

➥Selects a memory channel for programming when

pushed. (pgs. ??, ??, ??)

➥Programs the selected memory channel when pushed

for 1 sec. (pgs. ??, ??, ??)

!4CONTROLLER RELEASE LATCH

While pushing this latch, slide the controller to the left to

remove it.

IC-208H.qxd 03.2.26 20:00 Page 2 (1,1)

1PANEL DESCRIPTION

New2001

■Function display

qTRANSMIT INDICATOR

➥Appears while transmitting. (p. ??)

➥Blinks while transmitting with the one-touch PTT func-

tion. (p. ??)

wDUPLEX INDICATORS (p. ??)

“DUP” appears when plus duplex, “DUP –” appears when

minus duplex (repeater) operation is selected.

eTONE INDICATORS

➥“T” appears while the subaudible tone encoder is in use.

(p. ??)

➥“T SQL” appears while the tone squelch function is in

use. (p. ??)

➥“DTCS” appears while the DTCS squelch function is in

use. (p. ??)

➥“S” appears with the “T SQL” or “DTCS” indicator

while the pocket beep function (with CTCSS or DTCS) is in

use. (p. ??)

q u

r t y

w e

!2!3!5

IC-208H.qxd 03.2.26 20:00 Page 3 (1,1)

PANEL DESCRIPTION

New2001

rNARROW MODE INDICATOR (p. ??)

Appears when the FM/AM narrow mode is selected.

Narrow mode is available with USA version only.

tAM INDICATOR (p. ??)

Appears when AM mode is selected.

ySQUELCH ATTENUATOR INDICATOR (p. ??)

Appears when the squelch attenuator function is activated.

•The attenuator can be switched OFF in initial set mode. (p. ??)

uAUTO POWER-OFF INDICATOR (p. ??)

Appears while the auto power OFF function is in use.

iAUDIO MUTE INDICATOR (P. ??)

Appears when the audio mute function is activated.

•The mute can only be switched ON and OFF from the HM-133

only.

oFREQUENCY READOUT

Shows the operating frequency, channel names, set mode

contents, etc.

•Frequency decimal point blinks while scanning. (p. ??)

•“d” appears in place of the 1st digit while the DTMF memory

function is in use. (p. ??)

!0WEATHER ALERT INDICATOR (p. ??)

Appears when the weather alert function is activated.

•The either alert function is available with the USA version only.

!1PRIORITY INDICATOR (p. ??)

Appears while the priority watch is activated; blinks while

the watch is paused.

!2MEMORY CHANNEL NUMBER INDICATORS

➥Shows the selected memory channel number. (p. ??)

➥Shows the selected bank initial. (p. ??)

➥“C” appears when the call channel is selected. (p. ??)

➥“L” appears when the lock function is activated. (p. ??)

!3SKIP INDICATORS

➥“~”appears when the displayed memory channel is

speciﬁed as a skip channel. (p. ??)

➥“P~” appears when the displayed frequency is spec-

iﬁed as a program skip frequency. (p. ??)

!4MEMORY INDICATOR (pgs. ??, ??)

Appears when memory mode is selected.

!5S/RF INDICATORS

➥Shows the relative signal strength while receiving sig-

nals. (p. ??)

➥Shows the output power level while transmitting. (p. ??)

!6OUTPUT POWER INDICATORS

“LOW” appears when low output power; “MID” appears

when middle output power is selected.

No indicator appears when high output power is selected.

!7BUSY INDICATOR

➥Appears when a signal is being received or the squelch

is open. (p. ??)

➥Blinks while the monitor function is activated. (p. ??)

IC-208H.qxd 03.2.26 20:00 Page 4 (1,1)

1PANEL DESCRIPTION

New2001

■Rear Panel

qDATA SOCKET [DATA]

Connects a TNC (Terminal Node Controller), etc. for data

communications.

•See p. ? for connection information.

wEXTERNAL SPEAKER JACK 1 [SP]

Connects an 8 Ωspeaker.

•Audio output power is more than 2.4 W.

eCOOLING FAN

Rotates while transmitting.

Also rotates while receiving depending on the setting in ini-

tial set mode. (p. ??)

rANTENNA CONNECTOR [ANT]

Connects a 50 Ωantenna with a PL-259 connector and a

50 Ωcoaxial cable.

tPOWER RECEPTACLE [DC13.8V]

Accepts 13.8 V DC ±15% with the supplied DC power

cable.

☞NOTE: DO NOT use a cigarette lighter socket as a

power source when operating in a vehicle. The plug

may cause voltage drops and ignition noise may be su-

perimposed onto transmit or receive audio.

ANTENNA INFORMATION

For radio communications, the antenna is of critical impor-

tance, to maximize your output power and receiver sensi-

tivity. The transceiver accepts a 50 Ωantenna and less

than 1:1.5 of Voltage Standing Wave Ratio (VSWR). High

SWR values not only may damage the transceiver but also

lead to TVI or BCI problems.

qwre

IC-208H.qxd 03.2.26 20:00 Page 5 (1,1)

PANEL DESCRIPTION

New2001

DDATA JACK PIN ASSIGNMENT

qDATA IN

Input terminal for data transmit. See p. ?? for details on

how to toggle data speed between 1200 (AFSK) and

9600 bps (G3RUH, GMSK).

wGND

Common ground for DATA IN, DATA OUT and AF OUT.

ePTT P

PTT terminal for packet operation only. Connect ground to

transmit data.

rDATA OUT

Data out terminal for 9600 bps operation only.

tAF OUT

Data out terminal for 1200 bps operation only.

yP SQL

Becomes high (+5 V) when the transceiver receives a sig-

nal which opens the squelch.

•To avoid unnecessary TNC transmission, connect squelch to the

TNC to inhibit transmission when receiving signals.

•Keep audio output at a normal level, otherwise a “P SQL” signal

will not be output.

Front panel view

IC-208H.qxd 03.2.26 20:00 Page 6 (1,1)

1PANEL DESCRIPTION

New2001

■Microphone (HM-133*)

qVFO/LOCK SWITCH [VFO/LOCK]

➥Push to select VFO mode. (p. ??)

➥Push for 1 sec. to switch the lock function ON and OFF.

(p. ??)

wPTT SWITCH

➥Push and hold to transmit; release to receive.

➥Switches between transmitting and receiving while the

one-touch PTT function is in use. (p. ??)

eUP/DOWN SWITCHES [Y]/[Z]

➥Push either switch to change operating frequency,

memory channel, set mode setting, etc.

(pgs. ??, ??, ??)

➥Push either switch for 1 sec. to start scanning. (p. ??)

rACTIVITY INDICATOR

➥Lights red while any key, except [FUNC] and [DTMF-S],

is pushed, or while transmitting.

➥Lights green while the one-touch PTT function is in use.

tKEYPAD (pgs. ?, ?)

yFUNCTION INDICATOR

➥Lights orange while [FUNC] is activated—indicates the

secondary function of switches can be accessed.

➥Lights green when [DTMF-S] is activated—DTMF sig-

nals can be transmitted with the keypad.

u2nd FUNCTION SWITCH [FUNC]

iDTMF SELECT SWITCH [DTMF-S] (p. ??)

oFUNCTION SWITCHES [F-1]/[F-2] (p. ??)

Program and recall your desired transceiver conditions.

!0BAND SWITCH [BAND]

➥Push to select the frequency band. (p. ??)

➥Push for 1 sec. to select the operating mode. (p. ??)

!1MEMORY/CALL SWITCH [MR/CALL]

➥Push to select memory mode. (p. ??)

➥Push for 1 sec. to select call channel. (p. 38)

✔

Important!

All keys on the microphone function for the main band only.

Mic element

A different microphone

may be supplied de-

pending on version.

IC-208H.qxd 03.2.26 20:00 Page 7 (1,1)

PANEL DESCRIPTION

New2001

■Microphone keypad

KEY FUNCTION SECONDARY FUNCTION ( +key) OTHER FUNCTIONS

Switches between opening and closing the

squelch. (p. ??)

Starts and stops scanning. (p. ??)

Starts and stops priority watch. (p. ??)

Selects high output power. (p. ??)

Selects mid. output power. (p. ??)

Selects low output power (p. ??)

Selects minus duplex operation. (p. ??)

Selects plus duplex operation. (p. ??)

Selects simplex operation. (p. ??)

Increases audio output level. (p. ??)

In memory mode enters bank selecting

condition. (p. ??)

Starts and stops tone scanning. (p. ??)

Turns the one-touch PTT function ON and

OFF. (p. ??)

Turns the DTCS squelch ON. (p. ??)

Turns the DTCS pocket beep function ON.

(p. ??)

Turns the DTMF memory encoder function

ON. (p. ??)

Turns the subaudible tone encoder ON.

(p. ??)

Turns the CTCSS pocket beep function

ON. (p. ??)

Turns the tone squelch function ON.

(p. ??)

Sends a 1750 Hz tone signal while pushing

and holding. (p. ??)

After pushing :

Transmits the appropriate

DTMF code. (pgs. ??, ??)

When the DTMF memory en-

coder is activated, push [0] to

[9] to transmit the appropriate

DTMF memory contents .

(p. ??)

IC-208H.qxd 03.2.26 20:00 Page 8 (1,1)

1PANEL DESCRIPTION

New2001

➥Cancels frequency entry. (p. ??)

➥Cancels the scan or priority watch.

(pgs. ??, ??)

➥Exit set mode. (p. ??)

➥Enters set mode (p. ??)

➥Advances the set mode selection order

after entering set mode. (p. ??)

➥Sets the keypad for numeral input.

(p. ??)

➥Reverses the set mode selection order

after entering set mode. (p. ??)

Adjusts the squelch level increments.

(p. ??)

Decreases audio output level. (p. ??)

Adjusts the squelch level decrement.

(p. ??)

➥Selects a memory channel for program-

ming. (p. ??)

➥Advances the memory channel number

when continuously pushed after pro-

gramming is completed. (p. ??)

DTMF memory encoder function OFF.

(p. ??)

Turns the subaudible tone encoder, pocket

beep or CTCSS/DTCS tone squelch OFF.

(pgs. ??, ??)

Mutes the audio. (p. ??)

•Mute function is released when any oper-

ation is performed.

Sends a 1750 Hz tone signal for 0.5 sec.

(p. ??)

Locks the digit keys on the keypad (includ-

ing the A to D, # and Mkeys. (p. ??)

After pushing :

Transmits the appropriate

DTMF code. (pgs. ??, ??)

KEY FUNCTION SECONDARY FUNCTION ( +key) OTHER FUNCTIONS

IC-208H.qxd 03.2.26 20:00 Page 9 (1,1)

PANEL DESCRIPTION

New2001

■Optional Microphones

(HM-118N/TN/TAN)

qPTT SWITCH

➥Push and hold to transmit; release to receive.

wUP/DOWN SWITCHES [UP]/[DN]

➥Push either switch to change operating frequency,

memory channel, set mode setting, etc.

(pgs. ??, ??, ??)

➥Push either switch for 1 sec. to start scanning. (p. ??)

eUP/DN LOCK SWITCH

Slide to toggle [UP]/[DN] switches function ON and OFF.

rKEYPAD (HM-118TN/TAN only)

While pushing [PTT], push the desired key to send the

DTMF code.

OFF

• HM-118N

• HM-118TN/TAN

(DTMF)

IC-208H.qxd 03.2.26 20:00 Page 10 (1,1)

SETTING A FREQUENCY

New2001

■Preparation

DTurning power ON/OFF

➥Push [PWR] for 1 sec. to turn power ON and OFF.

DOperating frequency band selection

The IC-208H has 2 m and 70 cm bands for transmission and

reception. In addition, extra frequency bands 127, 220, 350,

500 and 900 MHz bands are available for wide-band receiver

capability (except Taiwan and Korean version).

➥Push [BAND] to select the desired frequency band.

➥Push [BAND] to select the desired band.

DVFO and memory modes

The transceiver has 2 basic operating modes: VFO mode and

memory mode. Select VFO mode ﬁrst to set an operating fre-

quency.

➥Push [V/MHz•SCAN] to select VFO mode.

•When VFO mode is already selected, the digit below 10 MHz

(the digit below 1 MHz or 100 kHz disappear depending on ver-

sions) disappear. In this case, push [V/MHz•SCAN] again (or

twice or 3 times depending on version).

➥Push [M/CALL•PRIO] to select memory mode.

•“!” indicator appears when memory mode is selected.

➥Push [VFO/LOCK] to select VFO mode.

➥Push [MR/CALL] to select memory mode.

VFO/LOCK

[V/MHz•SCAN]

[M/CALL•PRIO] Appears

BAND

[BAND]

[PWR]

Note that in this manual, sections beginning with a micro-

phone icon (as above), designate operation via the HM-133

microphone.

IC-208H.qxd 03.2.26 20:00 Page 11 (1,1)

SETTING A FREQUENCY

New2001

■Using the tuning dial

qRotate [DIAL] to set the frequency.

•If VFO mode is not selected, push [V/MHz•SCAN] to select VFO

mode.

•The frequency changes in the selected tuning steps. (p. ??)

To change the frequency in 1 MHz (10 MHz for some versions)

steps, push [V/MHz•SCAN], then rotate [DIAL].

•Pushing [V/MHz•SCAN] for 1 sec. starts scan function. If scan

starts, push [V/MHz•SCAN] again to cancel it.

■Using the [Y]/[Z] keys

➥Push [Y] or [Z] to select the desired frequency.

•Pushing [Y]/[Z] for 1 sec. activates a scan. If scan

starts, push [Y]/[Z] or [

CLR

A(MW)] to cancel it.

■Using the keypad

The frequency can be directly set via numeral keys on the mi-

crophone.

zPush [VFO/LOCK] to select VFO mode, if neces-

sary.

xPush [

ENT

C(T-OFF)] to activate the keypad for

digit input.

cPush 6 keys to input a frequency.

•When a digit is mistakenly input, push [

ENT

C(T-OFF)]

to clear the input, then repeat input from the 1st digit.

•Pushing [

CLR

A(MW)] clears input digits and retrieves

the frequency.

Push

[EXAMPLE]: Setting frequency to 145.3625 MHz.

ENT

While 1 MHz tuning step is

selected, the digit below

100 kHz disappear.

While 10 MHz tuning step

is selected, the digit below

1 MHz disappear.

[DIAL]

[V/MHz•SCAN]

IC-208H.qxd 03.2.26 20:00 Page 12 (1,1)

2SETTING A FREQUENCY

New2001

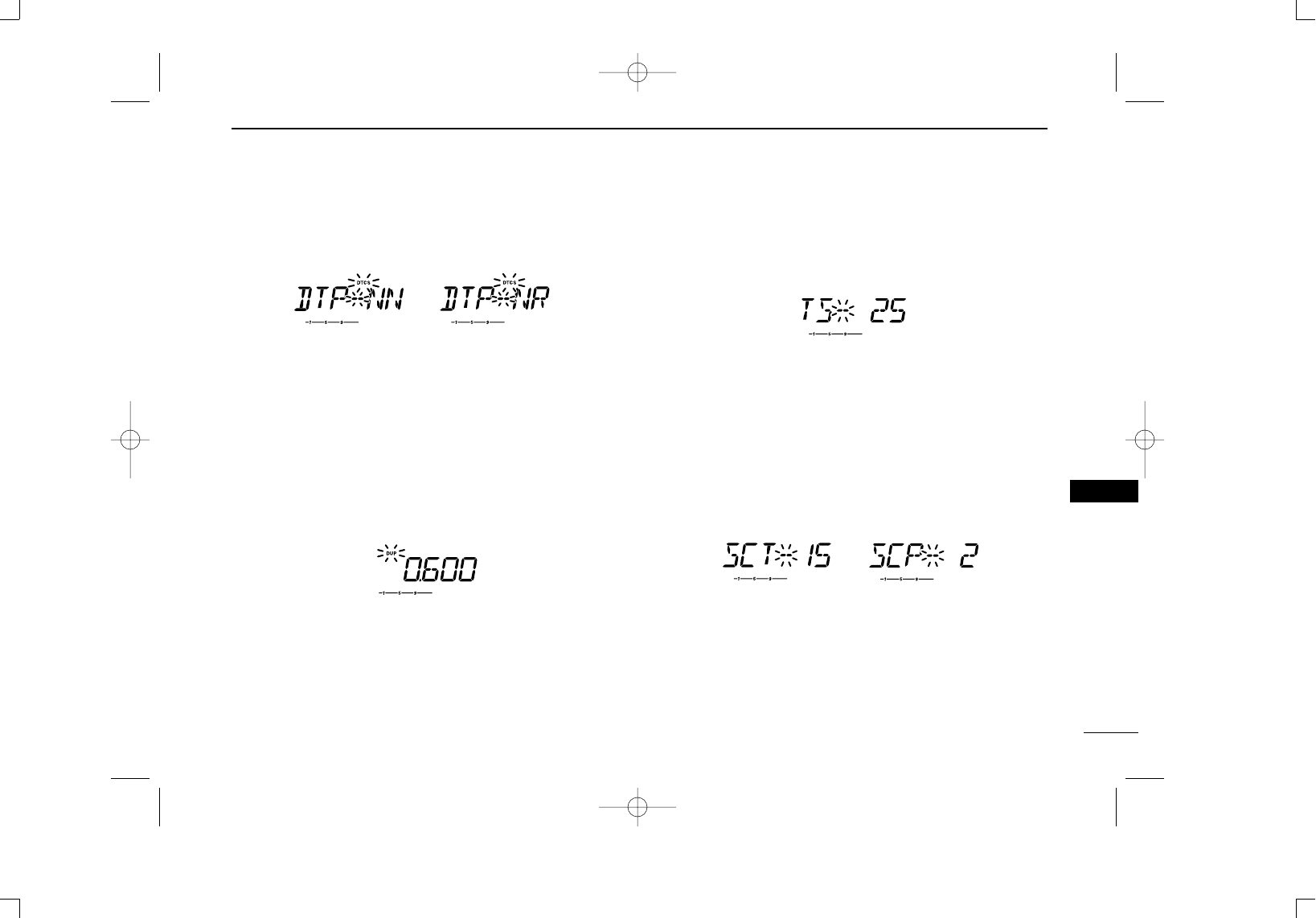

■Tuning step selection

[

Tuning steps are the minimum frequency change increments

when you rotate [DIAL] or push [Y]/[Z] on the microphone.

Independent tuning step for each frequency bands can be set

for individual tuning convenience. The following tuning steps

are available.

•5 kHz •10 kHz •12.5 kHz •15 kHz

•20 kHz •25 kHz •30 kHz •50 kHz

•100 kHz •200 kHz

☞NOTE: For convenience, select a tuning step that matches

the frequency intervals of repeaters in your area.

qPush [BAND] to select the desired frequency band.

•Push [V/MHz•SCAN] to select VFO mode, if necessary.

wPush [SET•LOCK] to enter set mode.

ePush [SET•LOCK] or [S.MW•MW] several times until “TS”

appears as shown below.

rRotate [DIAL] to select the desired tuning step.

tPush [V/MHz•SCAN] to exit set mode.

zPush [BAND] to select the desired frequency

band.

•Push [VFO/LOCK] to VFO mode, if necessary.

xPush [

SET

B(D-OFF)] to enter set mode.

cPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “tS” appears.

vPush [Y] or [Z] to select the desired tuning step.

bPush [

CLR

A(MW)] to exit set mode.

SET

[SET•LOCK]

IC-208H.qxd 03.2.26 20:00 Page 13 (1,1)

SETTING A FREQUENCY

New2001

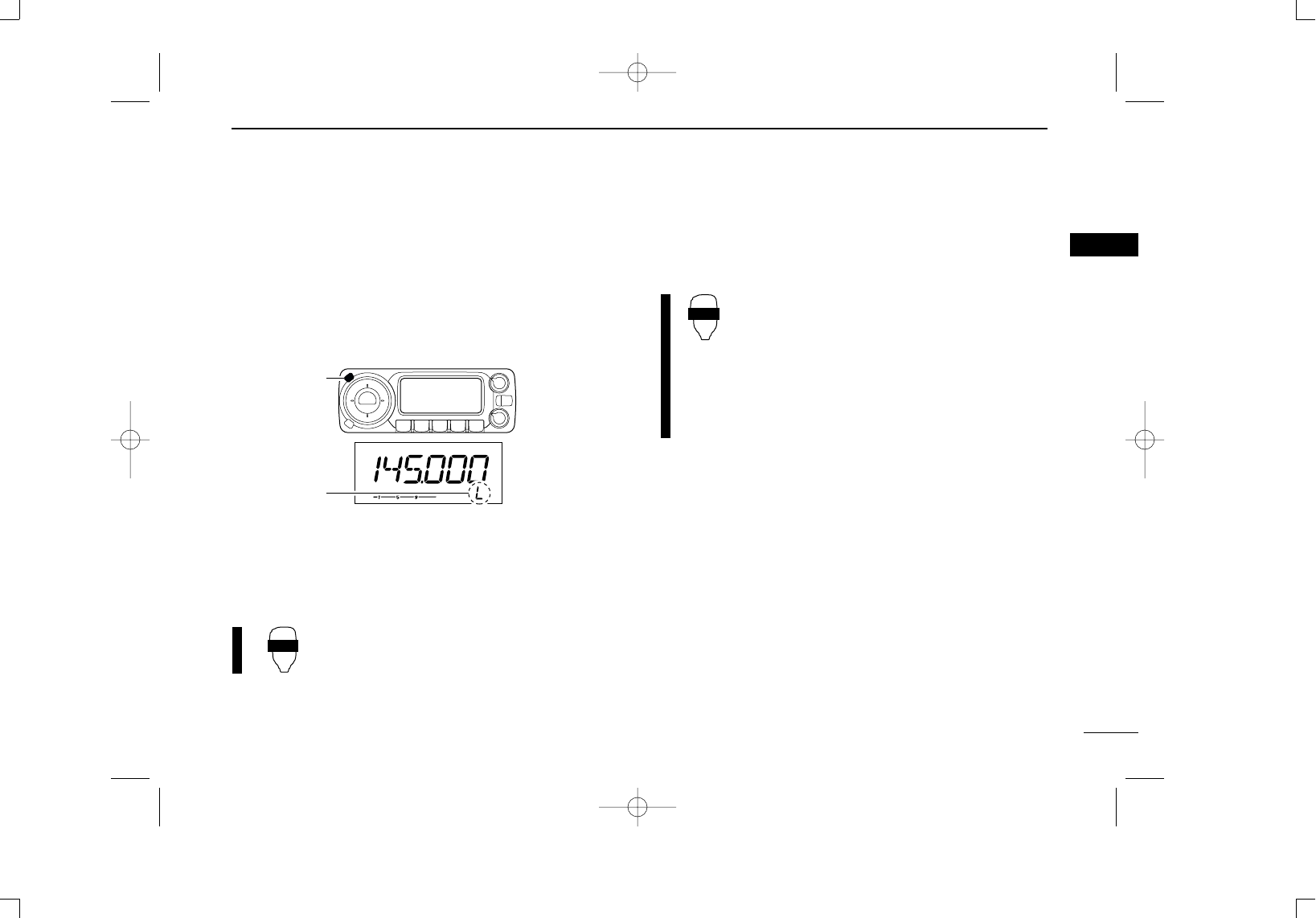

■Lock functions

To prevent accidental frequency changes and unnecessary

function access, use the lock function. The transceiver has 2

different lock functions.

DFrequency lock

This function locks [DIAL] and switches electronically and can

be used together with the microphone lock function.

➥Push [SET•LOCK] for 1 sec. to turn the lock function ON

and OFF.

•[PTT], [MONI•DTMF] (monitor function only), [VOL] and [SQL]

only) can be used while the channel lock function is in use. Also,

TONE-1, TONE-2, DTMF tones or DTMF memory contents can

be transmitted from the microphone.

➥Push [VFO/LOCK] for 1 sec. to switch the

lock function ON and OFF.

DMicrophone keypad lock

This function locks the microphone keypad.

➥Push [FUNC] then [

SQL

ZD(16KEY-L)] to

switch the microphone keypad lock function

ON and OFF.

•[PTT], [VFO/LOCK], [MR/CALL], [BAND], [Y], [Z],

[F-1], [F-2] and [FUNC] on the microphone can be

used.

•All switches on the transceiver can be used.

•The keypad lock function is released when the

power is turned OFF then ON again.

16KEY-L

VFO/LOCK

[SET•LOCK]

“L” appears

IC-208H.qxd 03.2.26 20:00 Page 14 (1,1)

BASIC OPERATION

New2001

■Receiving

qSet the audio level.

➥Push [MONI•DTMF] to open the squelch.

➥Rotate [VOL] to adjust the audio level.

➥Push [MONI•DTMF] to close the squelch.

wSet the squelch level.

➥Rotate [SQL] fully counterclockwise in advance, then ro-

tate [SQL] clockwise until the noise just disappears.

•When interference is received, rotate [SQL] clockwise again

for attenuator operation. (p. ??)

eSet the operating frequency. (pgs. ??–??)

rWhen receiving a signal on the set frequency, squelch

opens and the transceiver emits audio.

•“BUSY” appears and the S/RF

indicator shows the relative

signal strength for the re-

ceived signal.

✔

CONVENIENT!

The audio and squelch level can also be adjusted

with [

VOL

Y(TONE-1)]/[

VOL

Z0(TONE-2)] and

[

SQL

YD(MUTE)]/[

SQL

Z#(16KEY-L)], respectively.

•“VOL” for audio or “SQL” for squelch appears during set.

■Monitor function

This function is used to listen to weak signals without disturb-

ing the squelch setting.

➥Push [MONI•DTMF] to open the squelch.

•“BUSY” blinks.

•Push [MONI•DTMF] again to cancel the function.

➥Push [

MONI

1(BANK)] to open the squelch.

•Push [

MONI

1(BANK)] again to cancel the function.

NOTE: When [SQL] adjustment is set too far clockwise,

(12–5 o’clock position) the squelch attenuator is activated.

To monitor weak signals on the operating frequency, deac-

tivate the squelch attenuator function. See p. ?? for details.

MONI

[MONI•DTMF] Blinks

Show set level

SQLY/Z

D/#

VOLY/Z

M/0

Appears when receiving a signal

IC-208H.qxd 03.2.26 20:00 Page 15 (1,1)

BASIC OPERATION

New2001

■Squelch attenuator

The transceiver has an RF attenuator related to the squelch

level setting. Approx. 10 dB attenuation is obtained at maxi-

mum setting.

The squelch attenuator allows you to set a minimum signal

level needed to open the squelch. The attenuator function can

be deactivated in initial set mode.

➥Rotate [SQL] clockwise past the 12 o’clock position to ac-

tivate the squelch attenuator.

•Attenuation level can be adjusted up to 10 dB (approx.) between

12 o’clock and fully clockwise position.

•When setting the squelch from the microphone, a level greater

than ‘19’activates the squelch attenuator.

NOTE: The squelch attenuator functions even when the

monitor function is in use. Thus set [SQL] control within 10

to 12 o’clock position is recommended when using the

monitor function.

DSquelch attenuator setting

qTurn the transceiver power OFF.

wWhile pushing

[SET•LOCK],

turn the power ON to enter ini-

tial set mode.

ePush

[SET•LOCK] or [S.MW•MW] to select “ATT” (squelch

attenuator) item.

rRotate [DIAL] to toggle the function ON and OFF.

•Select “OF” to deactivate the squelch attenuator function.

tPush [PWR] to exit initial set mode.

[PWR]

[SET•LOCK]

USING

INITIAL SET MODE

Squelch is

open.

Squelch

attenuator

Squelch

threshold

Shallow Deep

Noise squelch

IC-208H.qxd 03.2.26 20:00 Page 16 (1,1)

3BASIC OPERATION

New2001

■Transmitting

☞NOTE: To prevent interference, listen on the channel be-

fore transmitting by pushing [MONI•DTMF] on the front

panel or [

MONI

1(BANK)] on the microphone.

qSelect the frequency band. (p. ??)

wSet the operating frequency. (pgs. ??–??)

•Select output power if desired. See section at right for details.

ePush and hold [PTT] to transmit.

•“$” appears.

•The S/RF indicator shows the output power selection.

•A one-touch PTT function is available. See p. ?? for details.

rSpeak into the microphone using your normal voice level.

•DO NOT hold the microphone too close to your mouth or speak

too loudly. This may distort the signal.

tRelease [PTT] to return to receive.

■Selecting output power

The transceiver has 3 output power levels to suit your oper-

ating requirements. Low output powers during short-distance

communications may reduce the possibility of interference to

other stations and will reduce current consumption.

➥Push [LOW•DUP] once or twice to select the output power.

†50 W for Korean version; *approx

•The output power can be changed while transmitting.

The microphone can also be used to select output power.

➥Push [

HIGH

4(DTCS)] for high output power;

[

MID

5(DTCSS)] for middle output power; and

[

LOW

6(DTMF)] for low output power.

•The output power can be changed via the microphone

during receive only.

HIGH

MID

LOW

IMPORTANT! (for 55/50 W transmission):

The IC-208H is equipped with protection circuit to protect

the power amplifier circuit from high SWR (Standing Wave

Ratio) and temperature. When a high SWR antenna or no

antenna is connected, or when the transceiver temperature

becomes extremely high, the transceiver reduces transmit

output power to 15 W (approx.) automatically.

CAUTION: Transmitting without an antenna will damage

the transceiver.

S/RF INDICATOR POWER OUTPUT

VHF/UHF Taiwan

55 W†/50 W 25 W

15 W*/15 W* 15 W*

5 W*/5 W* 5 W*

High:

Mid:

Low:

IC-208H.qxd 03.2.26 20:00 Page 17 (1,1)

■One-touch PTT function

The PTT switch can be operated as a one-touch PTT switch

(each push toggles between transmit/receive). Using this

function you can transmit without pushing and holding the

PTT switch.

To prevent accidental, continuous transmissions with this

function, the transceiver has a time-out timer. See p. ?? for

details.

zPush [FUNC] then [

PRIO

3(PTT-M)] to turn the

one-touch PTT function ON.

•The activity indicator lights green.

xPush [PTT] to transmit and push again to re-

ceive.

•A beep sounds when transmission is started and a

long beep sounds when returning to receive.

•“$” blinks when transmitting with the one-touch

PTT function.

cPush [FUNC] then [

PRIO

3(PTT-M)] to turn the

one-touch PTT function OFF.

•The activity indicator goes out.

■Audio mute function

This function temporarily mutes the audio without disturbing

the volume setting.

➥Push [FUNC] then [

SQL

YD(MUTE)] to mute

audio signals.

•The audio mute indicator, “” appears.

•Push [

CLR

A(MW)] (or any other key) to cancel the

function.

Appears

MUTE

indicator blnks

PTT-M

BASIC OPERATION

New2001

IC-208H.qxd 03.2.26 20:00 Page 18 (1,1)

REPEATER OPERATION

New2001

Repeaters allow you to extend the operational range of your

radio because a repeater has much higher output power than

the typical transceiver.

Normally, a repeater has independent frequencies for each

receiver and transmitter.

A subaudible tone may also be required to access a repeater

Reference amateur radio hand books and local ham maga-

zines for details of local repeaters such as repeater input/out-

put frequencies and locations.

•Repeater operation ﬂow chart

•The IC-208H USA version has the auto repeater function. Thus the

steps 3 and 4 may not be necessary, depending on the setting.

•Repeater settings can be stored into a memory channel.

Step 3:

Set the duplex (shifting) direction (– duplex or +duplex).

- Set the offset frequency (shifting value), if required.

Step 4:

Set the subaudible tone (repeater tone) encoder function ON.

- Set the subaudible tone frequency, if required.

Step 1:

Set the desired band to operate the repeater.

Step 2:

Set the desired receive frequency (repeater output frequency).

Repeater example;

Receives the 444.540 MHz signal

and the detected audio signals are

transmitted on 449.540 MHz simul-

taneously.

Station A:

Tx: 444.540 MHz

Rx: 449.540 MHz

Station B:

Tx: 444.540 MHz

Rx: 449.540 MHz

■General

IC-208H.qxd 03.2.26 20:00 Page 19 (1,1)

REPEATER OPERATION

New2001

■Accessing a repeater

qSet the receive frequency (repeater output frequency).

(pgs. ??–??)

wPush [LOW•DUP] for 1 sec. one or two times, to select

minus duplex or plus duplex.

•“DUP–” or “DUP” appears to indicate the transmit frequency for

minus shift or plus shift, respectively.

•When the auto repeater function is turned ON (available for the

USA version only), steps wand eare not necessary. (p. ??)

ePush [TONE•T-SCAN] several times to turn ON the sub-

audible tone encoder, according to repeater requirements.

•“T” appears

•88.5 Hz is set as the default; refer to p. ?? for tone frequency

settings.

•When the repeater requires a different tone system, see p. ??.

rPush and hold [PTT] to transmit.

•The displayed frequency automatically changes to the transmit

frequency (repeater input frequency).

•If “OFF” appears, conﬁrm that the offset frequency (p. ??) is set

correctly.

tRelease [PTT] to receive.

yPush [MONI•DTMF] to check whether the other station’s

transmit signal can be received directly.

uTo return to simplex operation, push [LOW•DUP] once or

twice, to clear the “DUP–” or “DUP” indicator.

iTo turn OFF the subaudible tone encoder, push [TONE•T-

SCAN] several times until no tone indicators appear.

While transmittingWhile receiving

[TONE•T-SCAN] “T” appears

[LOW•DUP] “DUP–” or “DUP” appears

IC-208H.qxd 03.2.26 20:00 Page 20 (1,1)

4REPEATER OPERATION

New2001

zSet the receive frequency (repeater output fre-

quency). (pgs. ??–??)

xPush [

DUP

–7(TONE)] to select minus duplex;

push [

DUP

+ 8(TSQLS)] to select plus duplex.

cPush [FUNC] then [

DUP

–7(TONE)] to turn ON

the subaudible tone encoder according to re-

peater requirements.

•Refer to p. ?? for the tone frequency setting.

•When the repeater requires a different tone system,

see p. ??.

vPush and hold [PTT] to transmit.

bRelease [PTT] to receive.

nPush [

MONI

1(BANK)] to check whether the

other station’s transmit signal can be received

directly.

mPush [

SIMP

9(TSQL)] to return to simplex opera-

tion.

•“DUP” or “DUP–” indicator disappears.

,To turn OFF the subaudible tone encoder, push

[FUNC] then [

ENT

C(T-OFF)].

SIMP

Push ,

then .

Push

DUP–

DUP+

IC-208H.qxd 03.2.26 20:00 Page 21 (1,1)

REPEATER OPERATION

New2001

■Subaudible tones [

(Encoder function)

DSubaudible tones

qSelect the frequency band, mode/channel you wish to set

the subaudible tones to, such as VFO mode or

memory/call channel.

wPush [SET•LOCK] to enter set mode.

ePush [SET•LOCK] or [DUP•MONI] several times until “T”

and “rT” appear; or until “T SQL” and “CT” appear for tone

squelch or pocket beep use.

•When “d” is displayed in place of the 100 MHz digit, cancel the

DTMF memory encoder in advance. (p. ??)

rRotate [DIAL] to select and set the desired subaudible fre-

quency.

tPush [V/MHz•SCAN] to exit set mode.

☞NOTE: The subaudible tone encoder frequency can be set

in a memory/call channel temporarily. However, the set fre-

quency is cleared once another memory channel or VFO

mode is selected. To store the tone frequency permanently,

overwrite the channel information.

zSet the frequency band, mode/channel you wish

to set the subaudible tones to, such as VFO

mode or memory/call channel.

•The subaudible tone frequency is independently pro-

grammed into each mode or channel.

xPush [

SET

B(D-OFF)] to enter set mode.

Push [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “T”

and “rT” appears; or until “T SQL”

and “CT” appears for tone squelch or pocket

beep use.

•

When “d” is displayed in place of the 100 MHz digit,

cancel the DTMF memory encoder in advance. (p. ??)

vPush [Y] or [Z] to select and set the desired

subaudible tone frequency.

•Push and hold [Y]/[Z] to change the above tones

continuously.

bPush [

CLR

A(MW)] to exit set mode.

•Subaudible tone frequency list (unit: Hz)

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

Push

SET

[SET•LOCK] “T” and “rT” appears

IC-208H.qxd 03.2.26 20:00 Page 22 (1,1)

DDTMF tones

➥Push [DTMF-S], then push the keys of the de-

sired DTMF digits.

•The function indicator lights green.

•0–9, A–D, M(E) and #(F) are available.

•When “d” is displayed in place of the 100 MHz digit,

cancel the DTMF memory encoder in advance.

(p. 50)

•Push [DTMF-S] again to return the keypad to nor-

mal function control.

✔

For your convenient!

The transceiver has 16 DTMF memory channels for au-

topatch operation. See p. ?? for details.

D1750 Hz tone

The microphone has 1750 Hz tone capability, used for ring

tone when calling, etc.

zPush [FUNC].

•The function indicator lights orange.

xPush [MM(TONE-1)] to transmit a 1750 Hz tone

call signal for 0.5 sec.; push and hold

[0(TONE-2)] to transmit a 1750 Hz tone call

signal for an arbitrary period.

•The function indicator goes out automatically.

Push ,

then or .

TONE-1

TONE-2

then push desired keys.

Push ,

DTMF-S

4REPEATER OPERATION

New2001

IC-208H.qxd 03.2.26 20:00 Page 23 (1,1)

REPEATER OPERATION

New2001

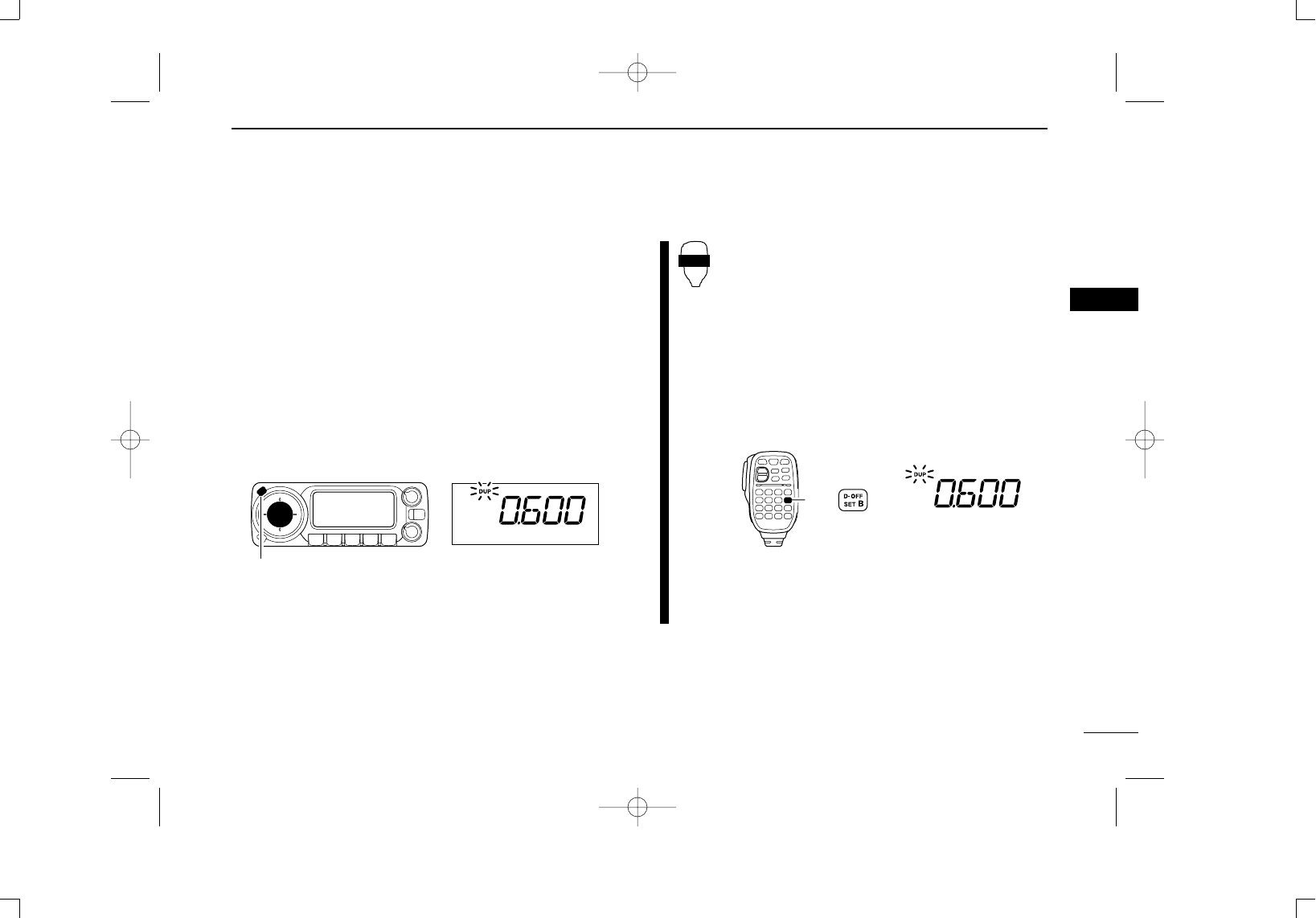

■Offset frequency [

When communicating through a repeater, the transmit fre-

quency is shifted from the receive frequency by an amount

determined by the offset frequency.

Independent offset frequencies can be set for each operating

frequency.

qPush [BAND] to select the desired frequency band.

wSelect the desired mode/channel you wish to set the offset

frequency to, such as VFO mode or memory/call channel.

•The offset frequency can be independently programmed into

each mode or channel.

ePush [SET•LOCK] to enter set mode.

rPush [SET•LOCK] or [S.MW•MW] until “DUP” and offset

frequency appear.

tRotate [DIAL] to set the desired offset frequency.

yPush [V/MHz•SCAN] to exit set mode.

zPush [BAND] to select the desired frequency

band.

•Enter the desired frequency via the keypad if neces-

sary.

xSelect the desired mode/channel you wish to

set the offset frequency to, such as VFO mode

or memory/call channel.

•The offset frequency can be independently pro-

grammed into each mode or channel.

cPush [

SET

B(D-OFF)] to enter set mode.

vPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] until

“DUP” and offset frequency appear.

bPush [Y] or [Z] to set the desired offset.

•Direct frequency entry from the keypad is not possi-

ble.

nPush [

CLR

A(MW)] to exit set mode.

☞NOTE: The offset frequency can be set in a memory/call

channel temporarily. However, the set frequency is cleared

once another memory channel or VFO mode is selected.

To store the offset frequency permanently, overwrite the

channel information.

Push

SET

[SET•LOCK] “DUP” and offset frequency appear

IC-208H.qxd 03.2.26 20:00 Page 24 (1,1)

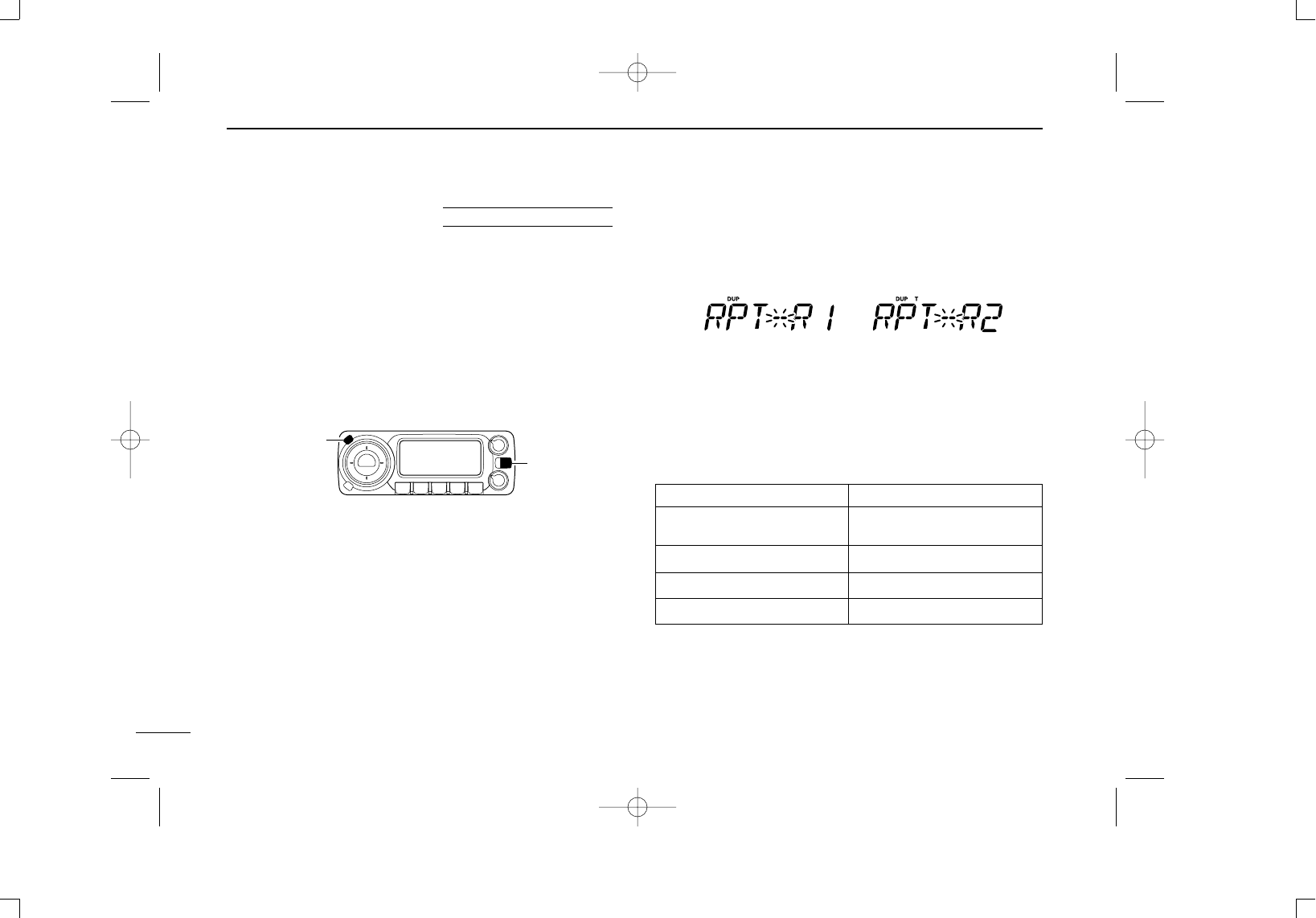

■Auto repeater

(U.S.A. version only)

The USA version automatically activates the repeater settings

(DUP– or DUP+ and tone encoder ON/OFF) when the operating

frequency falls within the general repeater output frequency

range and deactivate them when outside of the range.

DSetting the auto repeater function ON/OFF

qPush [PWR] to turn power OFF.

wWhile pushing [SET•LOCK], turn power ON to enter initial

set mode.

ePush [SET•LOCK] or [S.MW•MW] several times until the

“RPT” display appears as shown above right.

rRotate [DIAL] to select the auto repeater function from

“R1,” “R2” or OFF.

•“R1”: auto repeater is ON, tone encoder is OFF.

•“R2”: auto repeater is ON, tone encoder is ON.

tPush [PWR] to exit initial set mode.

DFrequency range and offset direction

Auto DUP: ON

Auto tone set: OFF

Auto DUP: ON

Auto tone set: ON

[PWR]

[SET•LOCK]

USING

INITIAL SET MODE

4REPEATER OPERATION

New2001

Frequency range Duplex direction

145.200–145.495 MHz “DUP–” appears

146.610–146.995 MHz

147.000–147.395 MHz “DUP” appears

442.000–444.995 MHz “DUP” appears

447.000–449.995 MHz “DUP–” appears

IC-208H.qxd 03.2.26 20:00 Page 25 (1,1)

MEMORY OPERATION

■General description

The transceiver has 512 memory channels including 10 scan

edge memory channels (5 pairs), and 2 call channels. Each of

these channels can be individually programmed with operat-

ing frequency (pgs. ??–??), duplex direction (p. ??) and off-

set (p. ??), subaudible tone encoder or tone squelch and its

tone frequency (pgs. ??, ??, ??, ??) and skip information*

(p. ??).

In addition, a total of 10 memory banks, A to J, are available

for usage by group, etc.

*except for scan edge memory channels.

■Memory channel selection

DUsing the tuning dial

qPush [M/CALL•PRIO] several times to select memory

mode.

•“!” indicator appears

wRotate [DIAL] to select the desired memory channel.

•Programmed memory channels only can be selected.

DUsing the [Y]/[Z] keys

zPush [MR/CALL] to select memory mode.

xPush [Y] or [Z] to select and set the desired

memory channel.

•Pushing [Y]/[Z] for 1 sec. activates a scan.

•If scan is activated, push [Y]/[Z] again or push

[

CLR

A(MW)] to stop it.

DUsing the keypad

zPush [MR/CALL] to select memory mode.

xPush [

ENT

C(T-OFF)] to activate the keypad

for numeral input.

cPush 3 appropriate digit keys to input a chan-

nel number.

•Blank channel can be selected.

•Push only 1 appropriate digit key, [

MONI

1(BANK)],

[

SCAN

2(T-SCAN)], [

PRIO

3(PTT-M)],

[

HIGH

4(DTCS)] or [

MID

5(DTCSS)] then push

[MM(TONE-1)] or [

SQL

Z#(16KEY-L)] to select scan

edge channels. “MM” and “#” can be used for “A”

and “b” respectively.

MR/CALL

Y/Z

[M/CALL•PRIO] “!” appears

IC-208H.qxd 03.2.26 20:00 Page 26 (1,1)

5MEMORY OPERATION

New2001

■Programming a memory channel

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the controller.

Push Rotate for setting frequency, etc. Push .

Rotate Push for 1 sec. and continue to push

➠

Beep

“

Beep

“

Beep

“

VFO settings, including the set mode contents such as sub-

audible tone frequency, offset, can be programmed into a

memory channel.

qSet the desired frequency.

➥Push [V/MHz•SCAN] to select VFO mode.

➥Set the frequency using [DIAL].

➥Set other data (e.g. tone frequency, duplex information,

etc.) if required.

wPush [S.MW•MW].

•“!” indicator and the memory channel number blink.

eRotate [DIAL] to select the memory channel to be pro-

grammed.

•Memory channels not yet programmed are blank.

rPush [S.MW•MW] for 1 sec. to program.

•3 beeps sound

•Memory channel number automatically increases when contin-

uing to push [M/CALL•MW] after programming.

✔CONVENIENT

Memory programming can be performed in versatile ways

e.g. memory channel to the same (or different) memory chan-

nel, memory channel to the call channel, etc.

IC-208H.qxd 03.2.26 20:00 Page 27 (1,1)

MEMORY OPERATION

New2001

DProgramming a memory channel via the microphone

[EXAMPLE]: Programming 145.870 MHz into memory channel 20 (blank channel) via the microphone.

Push 10 times

Beep

“

Beep

“

Beep

“

Push Push then

Push then for 1 sec. and continue to push

➠

The microphone can also be used to program mem-

ory channels.

zSet the desired frequency in VFO mode.

➥Push [VFO/LOCK] to select VFO mode.

➥Set the frequency using the keypad.

➥Set other data (e.g. offset frequency, duplex direction, sub-

audible tone encoder ON/OFF and its frequency), if neces-

sary.

xPush [FUNC] then [

CLR

A(MW)] momentarily.

cPush [Y] or [Z] to select the memory channel.

•Direct numeral input cannot be used.

vPush [FUNC] then [

CLR

A(MW)] for 1 sec. to program.

➥3 beeps may sound and the VFO contents (including

the subaudible tone frequency, etc.) are programmed.

➥Memory channel number increases when continuing to

push [

CLR

A(MW)] after programming.

IC-208H.qxd 03.2.26 20:00 Page 28 (1,1)

5MEMORY OPERATION

New2001

■

Copying memory contents

This function copies a memory channel’s contents to VFO (or

another memory/call channel). This is useful when searching

for signals around a memory channel frequency and for re-

calling the offset frequency, subaudible tone frequency etc.

DMemory/call➪VFO

qSelect the desired memory or call channel.

➥Push [M/CALL•PRIO] several times to select memory

mode or call channel, then rotate [DIAL] to select the de-

sired memory or call channel.

wPush [S.MW•MW] for 1 sec. to transfer the selected mem-

ory/call channel contents to the VFO.

•VFO mode is selected automatically.

zSelect the memory/call channel to be

transferred.

➥Push [MR/CALL] to select memory mode,

then select the desired memory channel

via [Y]/[Z] or keypad.

➥Push [MR/CALL] for 1 sec. then push

[Y]/[Z] to select the call channel.

xPush [FUNC], then [

CLR

A(MW)] for 1 sec. to

transfer the selected memory/call channel

contents to the VFO.

•VFO mode is selected automatically.

MR/CALL

[Y]/[Z]

[EXAMPLE]: Transferring memory channel 30 contents to VFO.

Push to select memory mode.

Front panel operation:

HM-133 operation:

Push to select memory mode.

Rotate for selecting memory channel.

Select memory channel.

Push for 1 sec.

Push then push for 1 sec.

IC-208H.qxd 03.2.26 20:00 Page 29 (1,1)

MEMORY OPERATION

New2001

DMemory/call➪call/memory

qSelect the memory/call channel to be transferred.

➥Push [M/CALL•PRIO] several times to select memory

mode or call channel, then rotate [DIAL] to select the

desired memory or call channel.

wPush [S.MW•MW] momentarily.

•“!” indicator and “-- -- --” indication blink, and shows VFO con-

ditions.

eRotate [DIAL] to select the target memory channel.

•“C1” or “C2” blinks when the call channel is selected.

•Scan edge channels, 1A/1B, 2A/2B, 3A/3B, 4A/4B, 5A/5B can

also be selected.

rPush [S.MW•MW] for 1 sec. to transfer the selected mem-

ory/call channel contents to the target memory.

•The targeted memory and transferred contents are indicated.

zSelect the memory/call channel to be trans-

ferred.

➥Push [MR/CALL] to select memory mode,

then select the desired memory channel

via [Y]/[Z] or keypad.

➥Push [MR/CALL] for 1 sec. then push

[Y]/[Z] to select the desired call channel.

Push [FUNC], then [

CLR

A(MW)] momentarily.

•“!” indicator and “-- -- --” indication blink, and

shows VFO conditions.

cPush [Y]/[Z] to select the target memory

channel.

•

“C1” or “C2” blinks when the call channel is selected.

•Scan edge channels can also be selected.

•The keypad cannot be used for the selection.

vPush [FUNC] then push [

CLR

A(MW)] for

1 sec. to transfer the selected memory/call

channel contents to the target memory.

•The targeted memory and transferred contents

are indicated.

MR/CALL

[Y]/[Z]

[EXAMPLE]: Transferring memory channel 30 contents to channel 31.

Select the target channel. Push for 1 sec.

Push then push for 1 sec.

Select the memory channel, then push .

Select the memory channel, push then push .

Front panel operation:

HM-133 operation:

IC-208H.qxd 03.2.26 20:00 Page 30 (1,1)

5MEMORY OPERATION

New2001

■Programming channel names

Each memory channel and the call channel can be pro-

grammed with an alphanumeric channel name for easy

recognition and can be indicated independently by channel.

Names can be a maximum of 6 characters— see the table

below for available characters.

qPush [S.MW•MW] momentarily.

•“!” and memory channel number blink.

wRotate the tuning dial to select the desired memory or call

channel.

ePush [BAND] to select the memory name programming

condition.

•Frequency readouts disappear and a cursor blinks.

rRotate the tuning dial to select the desired character.

•The selected character blinks.

tPush [SET•LOCK] to move the cursor to the right.

yRepeat steps rand tuntil the desired channel names

are displayed.

iPush [S.MW•MW] for 1 sec. to program the name and exit

the channel name programming condition.

(1)

(B)

(L)

(V)

(+)

(2)

(C)

(

)

(

)

(–)

(3)

(

)

(N)

(X)

(=)

(4)

(E)

(O)

(Y)

(✱)

(5)

(F)

(P)

(Z)

(/)

(6)

(G)

(

)

(space)

(7)

(()

(

)

(

)

())

(8)

(I)

(S)

(|)

(9)

(J)

(T)

(0)

(A)

(

)

(U)

[EXAMPLE]: Programming “CLUB” into memory channel 1.

RotatePush Push Rotate

Push for 1 sec.

Repeat the

steps.

Beep

“

Push

IC-208H.qxd 03.2.26 20:00 Page 31 (1,1)

MEMORY OPERATION

New2001

Channel names can also be programmed via the mi-

crophone.

zPush [FUNC] then [

CLR

A(MW)] momentarily.

•“!” and memory channel number blink.

xPush [Y]/[Z] to select the memory/call channel to be as-

signed memory names.

cPush [BAND].

•Frequency readouts disappear and a cursor blinks.

vPush [Y]/[Z] to select the desired character.

•The selected character blinks.

bPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] to move the cur-

sor to left or right, respectively.

nRepeat steps vand buntil the desired channel names

are displayed.

mPush [FUNC] then [

CLR

A(MW)] for 1 sec. to program the

name and exit the channel name programming condition.

[EXAMPLE]: Programming “CLUB” into memory channel 1.

Push

Repeat the

steps.

Beep

“

Push to select the channel. Push to select the character

Push or to move the cursor.

Push , then push .

Push , then push for 1 sec.

IC-208H.qxd 03.2.26 20:00 Page 32 (1,1)

5MEMORY OPERATION

New2001

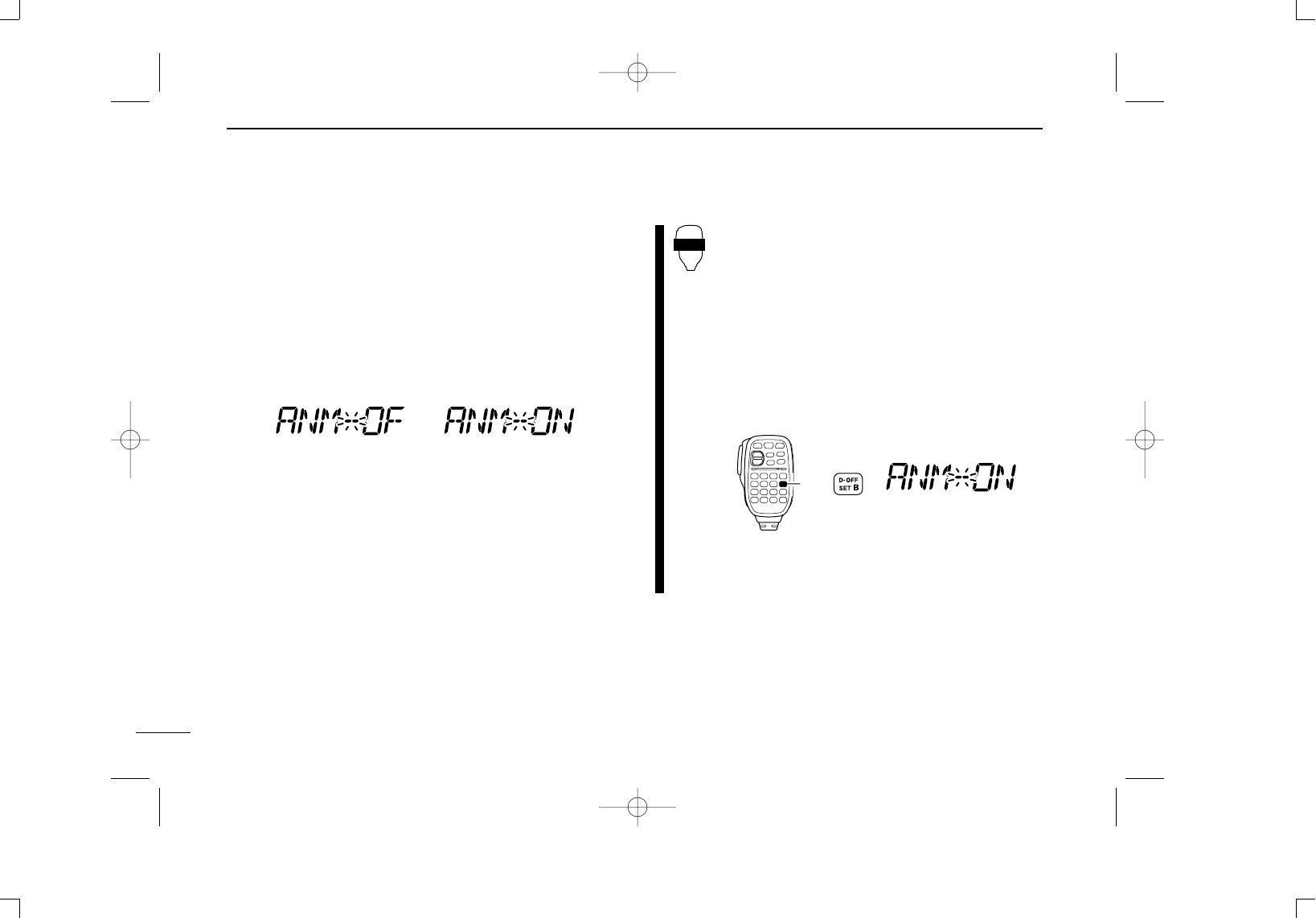

DDTo indicate the channel name [

The channel name indication can be set for independent

memory channels.

qPush [M/CALL•PRIO] to select the memory mode.

wRotate [DIAL] to select the desired memory channel to be

indicated the channel names.

wPush [SET•LOCK] to enter set mode.

ePush [SET•LOCK] or [S.MW•MW] several times to select

“ANM” item.

rRotate [DIAL] to turn the memory name indication ON.

tPush [V/MHz•SCAN] to exit set mode.

NOTE: When no memory name is programmed, the stored

frequency is displayed.

zPush [BAND] to select the desired frequency

band.

•Enter the desired frequency via the keypad if neces-

sary.

xSelect the desired mode/channel you wish to

set the offset frequency to, such as VFO mode

or memory/call channel.

•The offset frequency can be independently pro-

grammed into each mode or channel.

cPush [

SET

B(D-OFF)] to enter set mode.

vPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] until

“ANM” appear.

bPush [Y] or [Z] to set the memory name indi-

cation ON and OFF.

nPush [

CLR

A(MW)] to exit set mode.

Push

SET

IC-208H.qxd 03.2.26 20:00 Page 33 (1,1)

MEMORY OPERATION

New2001

■Memory clearing

Contents of programmed memories can be cleared (blanked),

if desired.

qPush [V/MHz•SCAN] to select VFO mode.

wPush [S.MW•MW] momentarily.

•“!” indicator and the memory channel number blink.

eRotate [DIAL] to select the memory channel to be cleared.

•Memory channels not yet programmed are blank.

rPush [S.MW•MW] momentarily, then push [S.MW•MW]

again for 1 sec.

☞This operation must be performed within 1.5 sec.

•3 beeps sound, then the frequency is cleared.

•“!” indicator and the channel number blink continuously.

•When clearing the call channel, the current VFO conditions are

re-programmed into the call channel automatically.

tPush [V/MHz•SCAN] to return to VFO mode.

☞NOTE: Be careful!— the contents of cleared memories

CANNOT be recalled.

[EXAMPLE]: Clearing memory channel 20.

Push to select VFO. Rotate for selecting memory channel.

Push .

Push any switch, except .

Push momentarily, then push again for 1 sec.

Beep

“

IC-208H.qxd 03.2.26 20:00 Page 34 (1,1)

New2001

5MEMORY OPERATION

■Memory bank selection

The IC-208H has a total of 10 banks (A to J). Regular memory

channels, 1 to 500, are assigned into the desired bank for

easy memory management.

qPush [M/CALL•PRIO] several times to select memory

mode, if desired.

wPush [BAND] to select memory bank condition.

•Bank initial blinks

eRotate [DIAL] to select the desired bank, A to J.

•Banks that have no programmed contents are skipped.

rPush [BAND] to set the bank.

•Initial stops blinking.

tRotate [DIAL] to select the contents in the bank.

•No channel numbers are displayed for memory bank operation.

yTo return to regular memory condition, push [BAND] twice.

zPush [MR/CALL] to select memory mode, if de-

sired.

xPush [FUNC] then [

MONI

1(BANK)] to select

memory bank condition.

•Bank initial blinks

cPush [Y]/[Z] to select the desired bank, A to J.

•Only programmed memory bank can be selected.

vPush [

CLR

A(MW)] to set the bank.

•Initial stops blinking.

bPush [Y]/[Z] to select the desired contents in

the bank.

•No channel numbers are displayed for memory

bank operation.

nTo return to regular memory condition, push

[FUNC], [

MONI

1(BANK)] then push

[

CLR

A(MW)].

BANK

[Y]/[Z]

[BAND] Bank initial blinks

IC-208H.qxd 03.2.26 20:00 Page 35 (1,1)

MEMORY OPERATION

New2001

■Memory bank setting

[

qPush [M/CALL•PRIO] several times to select memory

mode, then select the desired memory channel via [DIAL].

wPush [SET•LOCK] to enter set mode.

ePush [SET•LOCK] or [S.MW•MW] several times until

“BAK” appears.

rRotate [DIAL] to select the desired bank to be set.

tPush [V/MHz•SCAN] to exit set mode.

zPush [MR/CALL] then select the desired mem-

ory channel via [Y]/[Z] or keypad.

xPush [

SET

B(D-OFF)] to enter set mode.

cPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “BAK” appears.

vPush [Y]/[Z] to select the desired bank to be

set.

bPush [

CLR

A(MW)] to set the channel into the

bank and exit set mode.

SET

[SET•LOCK] Bank initial blinks

IC-208H.qxd 03.2.26 20:00 Page 36 (1,1)

5MEMORY OPERATION

New2001

■Transferring bank contents

[

Contents of programmed memory banks can be cleared or

transferred to another bank.

INFORMATION: Even if the memory bank contents are

cleared, the memory channel contents still remain pro-

grammed.

qSelect the desired bank contents to be transferred or

erased.

➥Push [M/CALL•PRIO] several times to select memory

mode.

➥Push [BAND] then rotate [DIAL] to select the desired

memory bank.

•Bank initial blinks.

➥Push [BAND] to select the bank then rotate [DIAL] to se-

lect the desired contents.

•Bank initial stops blinking.

wPush [SET•LOCK].

ePush [SET•LOCK] or [S.MW•MW] several times until

“BAK” appears.

•The bank initial for the selected memory channel is displayed.

rRotate [DIAL] to select the desired bank initial to transfer

or erase.

•Select “-- --” indication when erasing the contents from the bank.

rPush [V/MHz•PRIO] to set the bank and exit set mode.

tRepeat steps qto rfor transferring or erasing an an-

other banks contents.

zSelect the desired bank contents in the main

band.

➥Push [MR/CALL] to select memory mode.

➥Push [FUNC], [

MONI

1(BANK)] then select

the desired memory bank via [Y]/[Z].

➥Push [

CLR

A(MW)] to select the bank then

select the desired contents via [Y]/[Z].

xPush [

SET

B(D-OFF)] to enter set mode.

cPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “BAK” appears.

vPush [Y]/[Z] to select the desired bank initial to

transfer or erase.

•Select “-- --” indication when erasing the contents

from the bank.

vPush [

CLR

A(MW)] to set the bank and exit set

mode.

bRepeat steps zto vfor transferring or eras-

ing an another banks contents.

BANK

[Y]/[Z]

SET

MAIN

T X

IC-208H.qxd 03.2.26 20:00 Page 37 (1,1)

CALL CHANNEL OPERATION

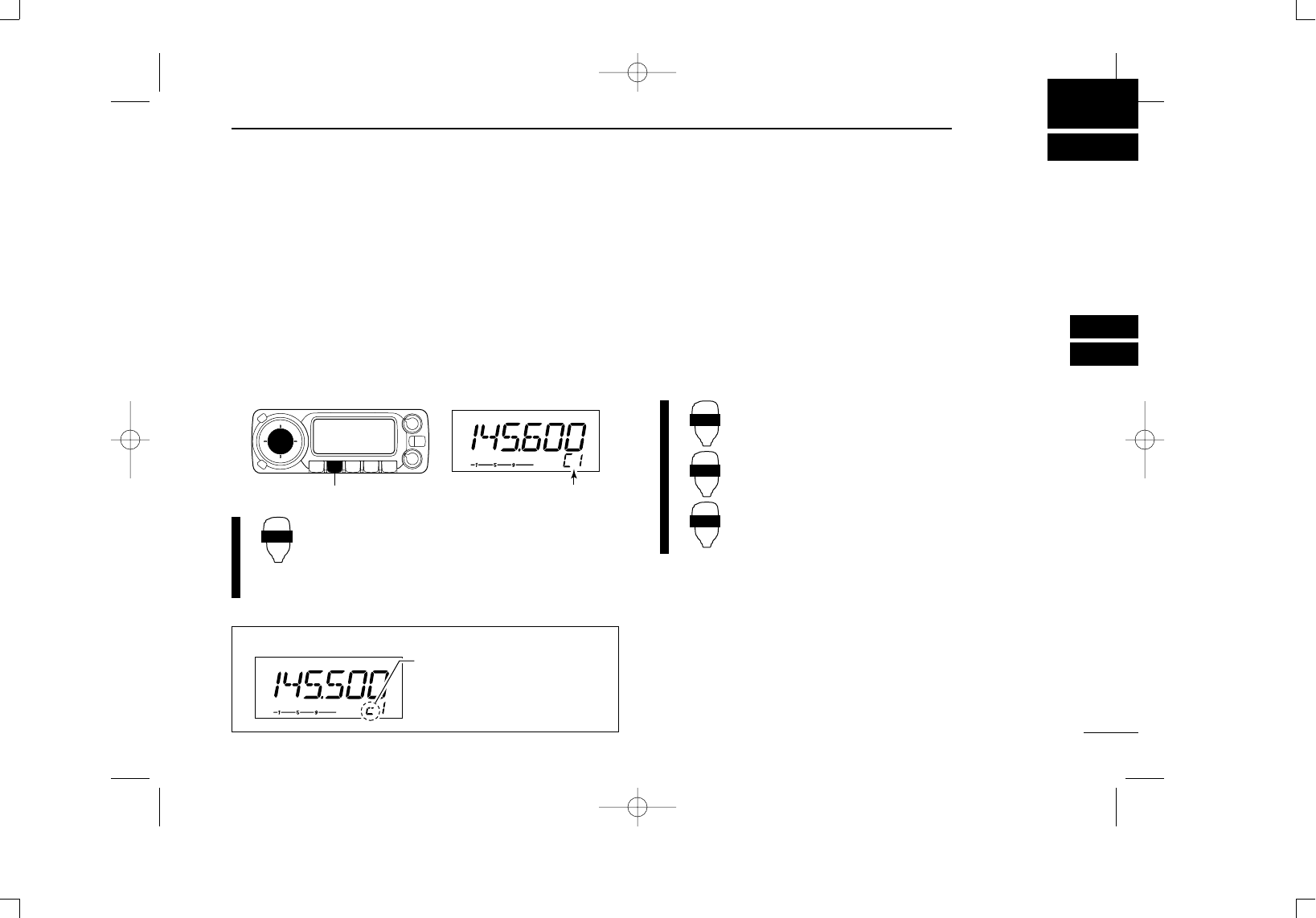

■Call channel selection

Call channel is pre-programmed memory channel that can be

accessed by simply pushing call channel button.

➥Push [M/CALL•PRIO] several times to select the call chan-

nel mode then push [BAND] to select the desired call

channel.

•“C1” or “C2” appears instead of memory channel number indi-

cation.

•

Push [M/CALL•PRIO] several times to select memory mode, or

push [V/MHz•SCAN] to select VFO mode.

➥Push [MR/CALL] for 1 sec. to select the call

channel mode then push [Y]/[Z] to select the

desired call channel in the main band.

•Push [MR/CALL] to select memory mode, or push

[VFO/LOCK] to select VFO mode.

■Call channel transferring

qPush [M/CALL•PRIO] several times then push [BAND] to

select the desired call channel.

•“C1” or “C2” appears.

wPush [S.MW•MW] then rotate [DIAL] to select the memory

channel to transfer the contents to.

•“!” indicator and memory channel number blink.

•To transfer to the VFO, select “-- -- --” with [DIAL] then push.

ePush [M/CALL•MW] for 1 sec. to transfer the contents.

zPush [MR/CALL] for 1 sec. then push [Y]/[Z]

to select the desired call channel.

xPush [FUNC], [

CLR

A(MW)] momentarily, then

push [Y]/[Z] to select the memory channel to

transfer the contents to.

•To transfer to the VFO, push [Y]/[Z] to select

“-- -- --”.

cPush [FUNC], then [

CLR

A(MW)] for 1 sec. to

transfer the contents.

MR/CALL

[Y]/[Z]

MR/CALL

[M/CALL•PRIO] “C1” or “C2” appears

✔INFORMATION

When the VFO mode is

selected from the call channel,

a small “c” appears instead of

memory channel number.

IC-208H.qxd 03.2.26 20:00 Page 38 (1,1)

6CALL CHANNEL OPERATION

New2001

■Programming a call channel

Operating frequency, duplex information, subaudible tone in-

formation (tone encoder or tone squelch ON/OFF and its fre-

quency) can be programmed into the call channel.

qSet the desired frequency in VFO mode.

➥Push [V/MHz•SCAN] to select VFO mode.

➥Set the frequency using [DIAL].

➥Set other data as desired.

wPush [S.MW•MW] momentarily.

eRotate [DIAL] to select the desired call channel.

•“!” indicator and “C1” or “C2” blink.

rPush [S.MW•MW] for 1 sec. to program.

•3 beeps sound and the unit returns to VFO mode automatically.

zSet the desired frequency in VFO mode.

➥Push [VFO/LOCK] to select VFO mode.

➥Set the frequency.

➥Set other data as desired.

xPush [FUNC], then [

CLR

A(MW)] momentarily.

cSelect the call channel via [Y] or [Z] .

vPush [FUNC] then [

CLR

A(MW)] for 1 sec. to

program.

•3 beeps sound and the unit returns to VFO mode

automatically.

MR/CALL

[Y]/[Z]

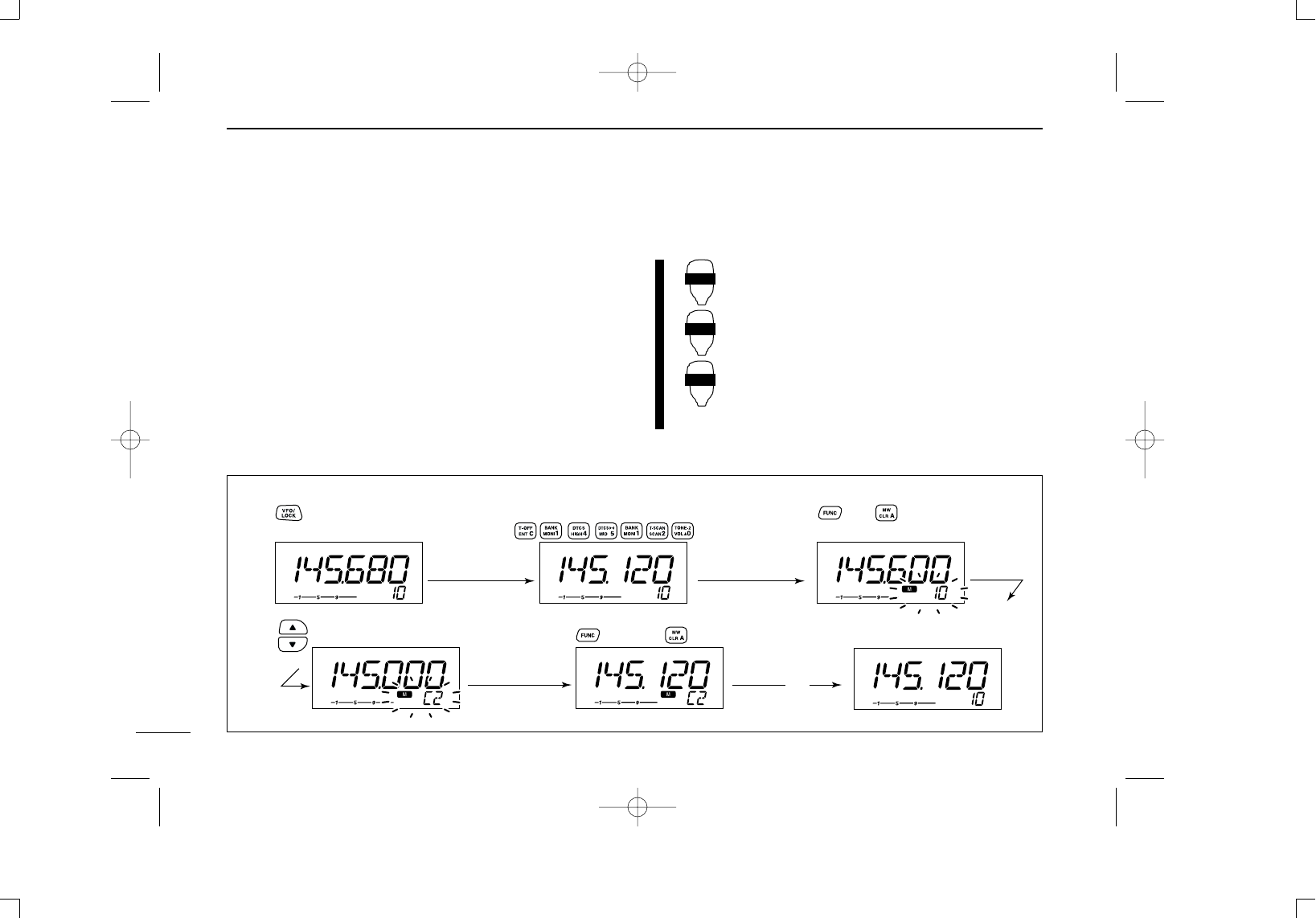

[EXAMPLE]: Programming 145.120 MHz into the call channel 2 via the microphone.

Set the frequency.

Push to select VFO mode. Push , then .

Push , then push for 1 sec.

➠

Push until “C2” appears.

Beep

“

IC-208H.qxd 03.2.26 20:00 Page 39 (1,1)

SCAN OPERATION

■Scan types

Scanning searches for signals automatically and makes it

easier to locate new stations for contact or listening purposes.

There are 3 scan types and 4 resume conditions to suit your

operating needs.

BAND SCAN (p. ??) Repeatedly scans all frequen-

cies over the entire band.

Used as the simplest scan

without any preliminary set-

tings necessary.

Band

edge

Band

edge

Scan

Jump

PROGRAMMED SCAN

(p. ??)

Repeatedly scans between

two user-programmed fre-

quencies. Used for checking

for frequencies within a speci-

fied range such as repeater

output frequencies, etc.

5 pairs of scan edges are

available and scans 1A–1B

(P1), 2A–2B (P2), 3A–3B (P3),

4A–4B (P4), 5A–5B (P5).

Band

edge

Band

edge

Scan edges

Scan

Jump

Start End

MEMORY SCAN (p. ??) Repeatedly scans memory

channels except those set as

skip channels. Used for often-

called channels and for by-

passing normally busy

channels such as repeater

frequencies.

SKIP

M 0 M 4

M 1 M 2 M 3

M 5

M 199

M 6

SCAN RESUME

CONDITION (p. ??)

4 resume conditions are avail-

able: 3 timer scans and pause

scan. When receiving a sig-

nal, pause scan pauses until

the signal disappears; timer

scans pause for 5, 10 or

15 sec.

Pause

scan

Receiving

a signal

Timer

scan

Pausing

2 sec.

IC-208H.qxd 03.2.26 20:00 Page 40 (1,1)

7SCAN OPERATION

New2001

■Scan start/stop

DPreparation

Scan resume condition (p. ??); program the scan edges

(pgs. ??, ??); program 2 or more memory channels (pgs. ??,

??); set skip settings, if desired (p. ??).

DOperation

qSelect VFO mode for full/programmed scan with

[V/MHz•SCAN]; or memory mode for memory scan with

[M/CALL•PRIO].

•Select the desired bank for bank scan.

wSet the squelch to the point where noise is just muted.

ePush [V/MHz•SCAN] for 1 sec. to start the scan.

•To change the scanning direction, rotate [DIAL].

•The memory channel readout blinks the scan type as follows:

rPush

[SET•LOCK]

to switch full and programmed scan

(P1, P2, P3, P4 and P5), if VFO is selected in step q.

tTo stop the scan, push [V/MHz•SCAN].

zPush [VFO/LOCK] to select VFO mode for

full/programmed scan; push [MR/CALL] to select

memory mode for memory scan.

•Push [FUNC] then [

MONI

1(BANK)] to select a bank

for bank scan.

xPush [

SQL

YD(MUTE)] or [

SQL

Z#(16KEY-L)] to

set the squelch to the point where noise is just

muted.

cPush [

SCAN

2(T-SCAN)] to start the scan.

•Push [Y] or [Z] for 1 sec. also starts the scan.

vPush [

SET

B(D-OFF)] to switch full and pro-

grammed scan (P1, P2, P3, P4 and P5), if VFO

is selected in step z.

bTo stop the scan push [

SCAN

2(T-SCAN)] or

[

CLR

A(MW)].

SCAN

SET

• During full scan • During programmed scan • During memory scan • During bank scan

Indicates scan edge channels.

¥ P1 stands for 1A/1B

¥ P1 to P5 are available when they

are programmed, and switches

with [SET/LOCK].

Indicates bank initial.Push [SET/LOCK] to select

ALL (full) or programmed

scan (P1, P2, P3, P4 and P5)

in sequence.

IC-208H.qxd 03.2.26 20:00 Page 41 (1,1)

SCAN OPERATION

New2001

■Scan edges programming

Scan edges can be programmed in the same manner as

memory channels. Scan edges are programmed into scan

edges, 1A/1B to 5A/5B, in memory channels.

qSet the edge frequency of the desired frequency range in

VFO mode:

➥Set the frequency using [DIAL].

➥Set other data (e.g. repeater settings, etc.) if desired.

wPush [S.MW•MW].

•“!” indicator and channel number blink.

eRotate [DIAL] to select one of scan edge channel, 1A, 2A,

3A, 4A or 5A.

rPush [S.MW•MW] for 1 sec. to program.

•3 beeps sound and VFO is automatically selected.

•Scan edge 1B, 2B, 3B, 4B or 5B is automatically selected when

continuing to push [S.MW•MW] after programming.

tTo program a frequency for the other pair of scan edges,

1B, 2B, 3B, 4B or 5B, repeat steps qand r.

•If the same frequency is programmed into a pair of scan edges,

programmed scan will not function.

[EXAMPLE]: Programming 145.300 MHz into scan edges 1A.

Push [S.MW/MW] for 1 sec.Rotate for setting frequency, etc. Rotate

Push for 1 sec. and continue to push

➠

Beep

“

Beep

“

IC-208H.qxd 03.2.26 20:00 Page 42 (1,1)

7SCAN OPERATION

New2001

DProgramming scan edges via microphone

zSet the desired frequency in VFO mode.

➥Push [VFO/LOCK] to select VFO mode.

➥Set the frequency via the keypad or [Y]/[Z].

xPush [FUNC] then [

CLR

A(MW)] momentarily.

cPush [Y] or [Z] to select scan edge channels,

1A, 2A, 3A, 4A or 5A.

vPush [FUNC], then push [

CLR

A(MW)] for 1 sec.

to program.

•3 beeps sound and VFO is automatically selected.

•Memory channel number advances to the next scan

edge channel, 1B, 2B, 3B, 4B or 5B when continuing

to push [

CLR

A(MW)] after programming.

bTo program a frequency for the other scan edge channels,

repeat steps zto v.

[EXAMPLE]: Programming 145.800 MHz into scan edge 1B.

Push Push Push then momentarily

Push Push then for 1 sec. and continue to push

➠

Beep

“

Beep

“

IC-208H.qxd 03.2.26 20:00 Page 43 (1,1)

SCAN OPERATION

New2001

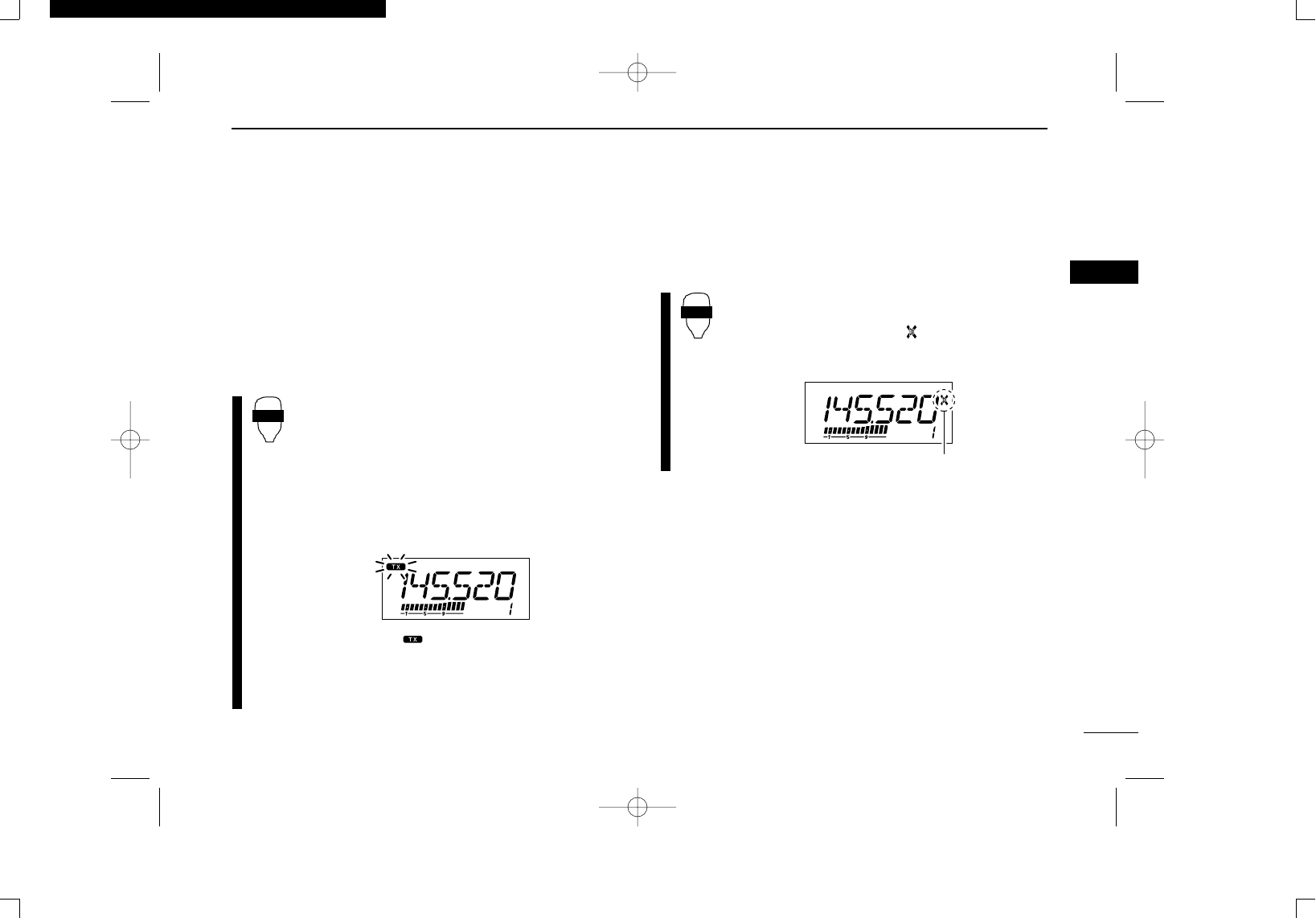

■Skip channel setting

[

The memory skip function speeds up scanning by checking

only those memory channels not set as skip channels. Set

skip channels as follows.

qSelect a memory channel:

➥Push [M/CALL•PRIO] to select memory mode.

➥Rotate [DIAL] to select the desired channel to be a skip

channel.

wPush

[SET•LOCK]

to enter set mode.

ePush

[SET•LOCK]

or [S.MW•MW] several times until

“CHS” appears as shown above.

rRotate [DIAL] to turn the skip function ON or OFF for the

selected channel.

•“~” appears : The channel is skipped during scan.

(CHS-ON)

•“P~” appears : The channel is skipped during scan and the

programmed frequency is skipped during VFO scan, such as

programmed scan.

(CHS-ON)

•“~” disappears : The channel is scanned during scan.

(CHS-OF)

tPush [MONI•DTMF] to exit set mode.

zSelect a memory channel.

➥Select memory mode by pushing [MR/CALL].

➥Push [Y] or [Z] to select the desired channel

to be a skip channel.

•Direct memory channel selection is also available.

xPush [

SET

B(D-OFF)] to enter set mode.

cPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “CHS” appears as shown at left.

vPush [Y] or [Z] to set or cancel the skip setting.

•See item rat left for skip indicator details.

bPush [

CLR

A(MW)] to exit set mode.

SET

The display shows that mem-

ory channel 1 is set as a skip

channel.

IC-208H.qxd 03.2.26 20:00 Page 44 (1,1)

7SCAN OPERATION

New2001

■Scan resume condition

[

The scan resume condition can be selected as timer or pause

scan. The selected resume condition is also used for priority

watch. (p. ??)

qPush

[SET•LOCK]

to enter set mode.

wPush

[SET•LOCK]

or [S.MW•MW] several times until

“SCT” or “SCP” appears as shown above.

•When “d” is displayed in place of the 100 MHz digit, cancel the

DTMF memory encoder in advance. (p. ??)

eRotate [DIAL] to set the desired timer:

•“SCT-15”: Scan pauses 15 sec. while receiving a signal.

•“SCT-10”: Scan pauses 10 sec. while receiving a signal.

•“SCT-5”: Scan pauses 5 sec. while receiving a signal.

•“SCP-2”: Scan pauses until the signal disappears and then

resumes 2 sec. later.

rPush [MONI•DTMF] to exit set mode.

zPush [BAND] to select the desired band.

xPush [

SET

B(D-OFF)] to enter set mode.

cPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] several

times until “SCT” or “SCP” appears as shown at

left.

vPush [Y] or [Z] to select the scan resume condi-

tion.

•See item rat left for scan resume condition details.

bPush [

CLR

A(MW)] to exit set mode.

SET

The display shows that the

scan will resume 15 sec. after it

stops.

IC-208H.qxd 03.2.26 20:00 Page 45 (1,1)

PRIORITY WATCH

■Priority watch types

Priority watch checks for signals on a VFO frequency every

5 sec. while operating in memory mode. The transceiver has

3 priority watch types to suit your needs. You can also trans-

mit on the VFO frequency while the priority watch operates.

The watch resumes according to the selected scan resume

condition. See previous page for details.

☞NOTES:

➧If the pocket beep function is activated, the transceiver

automatically selects the tone squelch function when pri-

ority watch starts.

MEMORY CHANNEL WATCH

While operating on a VFO fre-

quency, priority watch checks for

a signal on the selected memory

channel every 5 sec.

MEMORY SCAN WATCH

While operating on a VFO fre-

quency, priority watch checks for

signals on each memory chan-

nel in sequence.

•The memory skip function is useful

to speed up the scan.

CALL CHANNEL WATCH

While operating on a VFO fre-

quency, priority watch checks for

signals on the call channel every

5 sec.

VFO

frequency

50 msec.

Memory

channel

5 sec. 50 msec.

VFO

frequency

SKIP

Mch 1

Mch 2

Mch 3

Mch 199

5 sec.

VFO

frequency

50 msec.

Call

channel

IC-208H.qxd 03.2.26 20:00 Page 46 (1,1)

8PRIORITY WATCH

New2001

■Priority watch operation

qSelect VFO mode; then, set an operating frequency.

wSet the watching channel(s).

For memory channel watch:

Select the desired memory channel.

For memory scan watch:

Select memory mode; then, push [V/MHz•SCAN] for 1 sec.

to start memory scan.

For call channel watch:

Select the desired call channel by pushing [M/CALL•PRIO]

once or twice, then rotate [DIAL].

ePush [M/CALL•PRIO] for 1 sec. to start the watch.

•The transceiver checks the memory or call channel every 5 sec.

•The watch resumes according to the selected scan resume con-

dition. (p. ??)

•While the watch is pausing, pushing [M/CALL•PRIO] resumes

the watch manually.

rPush [M/CALL•PRIO] for 1 sec. to stop the watch.

zSelect VFO mode; then, set the desired fre-

quency.

xSet the watching channel(s).

For memory channel watch:

Push [MR/CALL] then [Y] or [Z] to select the de-

sired memory channel.

For memory scan watch:

Push [MR/CALL], then push [

SCAN

2] to start the

memory scan.

For call channel watch:

Push [MR/CALL] for 1 sec. then push [Y] or [Z]

to select the call channel.

cPush [

PRIO

3(PTT-M)] to start the watch.

•The transceiver checks the memory or call channel

every 5 sec.

•The watch resumes according to the selected scan re-

sume condition. (p. ??)

•To resume the watch manually when paused, push

[

PRIO

3(PTT-M)] or [

CLR

A(MW)].

vTo stop the watch, push [

CLR

A(MW)] once (or

twice while watch is paused).

PRIO

IC-208H.qxd 03.2.26 20:00 Page 47 (1,1)

DTMF MEMORY ENCODER

■Programming a DTMF code

DTMF tones are used for autopatching, controlling other

equipment, etc. The transceiver has 16 DTMF memory chan-

nels (D0–DF) for storage of often-used DTMF codes of up to

24 digits.

qPush [MONI•DTMF] for 1 sec. to turn the DTMF encoder

ON.

•“d” appears in place of 100 MHz digit.

wPush

[SET•LOCK]

to enter the DTMF memory program-

ming condition.

•The DTMF memory channel indication blinks.

eRotate [DIAL] to select the desired DTMF memory chan-

nel.

rPush

[SET•LOCK].

•The ﬁrst digit blinks.

tRotate [DIAL] to select the desired code.

yPush

[SET•LOCK] to select the next digit.

•Pushing [S.MW•MW] move the cursor backward.

uRepeat the steps tand yto set the desired DTMF tone

sequence.

•The S/RF indicator shows the digit group. The indication in-

creases every 6 digits.

iPush [MONI•DTMF]

to exit DTMF memory programming

condition.

•Return to the previous indication as in step q.

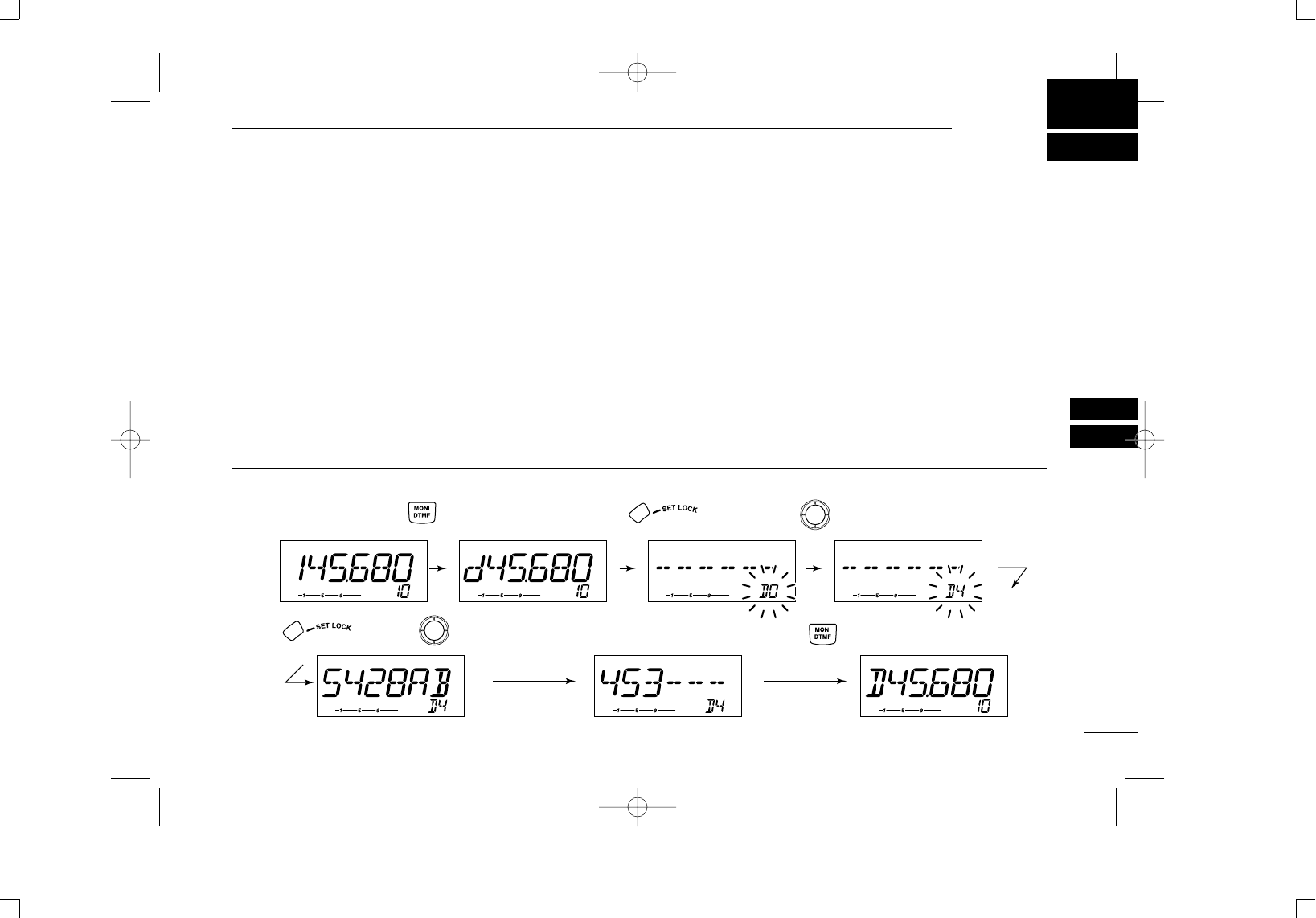

[EXAMPLE]: Programming “5428AB453” into DTMF memory channel “d4.”

Push

Push then rotate Repeat the previous step until

the desired code is entered. Push

RotatePush for 1 sec.

IC-208H.qxd 03.2.26 20:00 Page 48 (1,1)

9DTMF MEMORY ENCODER

New2001

Programming a DTMF code— via microphone

zPush [FUNC] then [

LOW

6(DTMF)] to turn the

DTMF encoder ON.

•

“d” appears in place of 100 MHz digit.

xPush [

SET

B(D-OFF)] to enter the DTMF memory

programming condition.

cPush [Y] or [Z] to select the desired DTMF

memory channel.

vPush the desired digit keys.

•When the ﬁrst digit is input, previous memory contents

are cleared automatically.

•“E” stands for “MM” and “F” stands for “# .”

•Push [Y]/[Z] and repeat this step if you make a mistake.

•The S/RF indicator shows the digit group. The indication

increases every 6 digits.

bPush [VFO/LOCK] to exit the programming condition.

•The [

CLR

A(MW)] key cannot be used to exit. If pushed, code “A”

is input. Reprogram in such a case.

DTMF

[EXAMPLE]: Programming “5428AB453” into DTMF memory channel “D4.”

Push

Push Push

Push

Push then .

IC-208H.qxd 03.2.26 20:00 Page 49 (1,1)

DTMF MEMORY ENCODER

New2001

■Transmitting a DTMF code

DAutomatic transmission (DTMF memory)

qPush [MONI•DTMF] for 1 sec. to turn the DTMF memory

encoder ON.

• “d” appears in place of 100 MHz digit.

wPush [SET•LOCK] to enter DTMF memory programming

condition.

eRotate [DIAL] to select the desired DTMF memory chan-

nel.

Push [PTT] to transmit the selected DTMF memory content.

tPush [MONI•DTMF] for 1 sec. to cancel the DTMF en-

coder.

•When the DTMF encoder is turned ON continuously, each push

of the PTT transmits the previously selected DTMF code.

zPush [FUNC] then [

LOW

6(DTMF)] to turn the

DTMF memory encoder ON.

•

“d” appears in place of 100 MHz digit.

xPush [

SET

B(D-OFF)] to enter the DTMF memory

programming condition.

cPush [Y] or [Z] to select the desired channel.

vPush [PTT] to transmit the selected memory.

•Exit the programming condition automatically.

•Each push of [PTT] transmits the DTMF code.

bPush [FUNC] then [

SET

B(D-OFF)] to cancel the

DTMF memory encoder.

•When the DTMF encoder is turned ON continuously,

each push of the PTT transmits the previously se-

lected DTMF code.

DTransmitting a DTMF memory directly

zPush [FUNC] then [

LOW

6(DTMF)] to turn the

DTMF memory encoder ON.

•

“d” appears in place of 100 MHz digit.

Push [DTMF-S] to turn the DTMF memory di-

rect selection ON.

•The function indicator (microphone) lights green.

cPush the desired DTMF channel.

•“0” to “9” and “A” to “D” are available for DTMF

memory channels.

•The selected DTMF code is automatically transmit-

ted without pushing PTT.

NOTE: When no DTMF code programmed

channel number is pushed, it transmits the rela-

tive DTMF code as the manual transmission de-

scribed in the next page.

vPush [DTMF-S] again to deactivate the DTMF

memory direct selection.

bPush [FUNC] then [

SET

B(D-OFF)] to cancel

the DTMF memory encoder.

DTMF-S

DTMF

IC-208H.qxd 03.2.26 20:00 Page 50 (1,1)

9DTMF MEMORY ENCODER

New2001

DManual transmission

zDeactivate the DTMF memory encoder by

pushing [FUNC] then [

SET

B(D-OFF)].

Push [DTMF-S] to turn the DTMF direct selec-

tion ON.

•The function indicator (microphone) lights green.

cPush one of “0” to “9” and “A” to “F” keys mo-

mentarily, then push the desired DTMF keys,

0–9 and A to F.

•A: [

CLR

A(MW)] B: [

SET

B(D-OFF)],

C: [

ENT

C(T-OFF)] D: [

SQL

YD(MUTE)],

E: [MM(TONE-1)] F: [

SQL

Z#(16KEY-L)]

•Automatically transmits without pushing PTT.

•The ﬁrst code, one of “A” to “F,” is not transmitted.

DTMF code transmission starts from the 2nd code.

vPush [DTMF-S] again to deactivate the DTMF

direct selection.

■DTMF speed

The rate at which DTMF memories send individual DTMF

characters can be set to accommodate operating needs.

qPush [PWR] for 1 sec. to turn power OFF.

wWhile pushing

[SET•LOCK],

push [PWR] for 1 sec. to turn

power ON and enter initial set mode.

ePush

[SET•LOCK]

or [S.MW•MW] several times until

“DTD” appears as shown above.

rRotate [DIAL] to select the desired speed as shown in the

table below.

tPush [PWR] to exit initial set mode.

cps=characters/sec

The display shows the fastest

DTMF speed is selected.

USING

INITIAL SET MODE

DTMF-S

IC-208H.qxd 03.2.26 20:00 Page 51 (1,1)

POCKET BEEP AND TONE SQUELCH

■Pocket beep operation

This function uses subaudible tones for calling and can be

used as a “common pager” to inform you that someone has

called while you were away from the transceiver.

DWaiting for a call from a speciﬁc station

qSet the operating frequency.

wPush

[SET•LOCK]

to enter set mode.

ePush

[SET•LOCK]

or [S.MW•MW] several times until “CT”

for tone squelch or “DT” for DTCS squelch appears.

rRotate [DIAL] to select the desired tone squelch frequency.

tWhen operating the pocket beep function with DTCS

squelch, push

[SET•LOCK] once then r

otate [DIAL] to se-

lect the DTCS polarity.

yPush [TONE•T-SCAN] to exit set mode.

uPush [TONE•T-SCAN] several times until “T SQLS” or

“SDTCS” are displayed to turn ON the pocket beep with

tone squelch or DTCS squelch, respectively.

iWhen a signal with the matched tone is received, the

transceiver emits beep tones and blinks “S”.

•Beep tones sound for 30 sec. and “S” blinks. To stop the

beeps and blinking manually, push any key. When the beep

tones are not stopped manually, “S” continues blinking until

[PTT] is pushed (see step o).

oPush [PTT] to answer.

•“S” disappears and cancels the pocket beep function auto-

matically.

!0 Push [TONE•T-SCAN] several times until “T SQL” or

“DTCS” disappears to cancel the tone squelch or DTCS

squelch function.

Push [TONE•T-SCAN] several times to select the pocket beep

function with tone squelch or DTCS squelch.

Appears when the pocket beep

with tone squelch is activated.

Appears when the pocket beep

with DTCS squelch is activated.

DTCS polarity setting

Tone squelch frequency setting DTCS code setting

IC-208H.qxd 03.2.26 20:00 Page 52 (1,1)

10 POCKET BEEP AND TONE SQUELCH

New2001

zSet the operating frequency.

xProgram the CTCSS tone frequency or DTCS

code in set mode.

➥Push [

SET

B(D-OFF)] to enter set mode.

➥Push [

SET

B(D-OFF)] or [

ENT

C(T-OFF)]

several times until “CT” for tone squelch or

“DT” for DTCS squelch appears.

•“T SQL” blinks when tone squelch (“CT”), or

“DTCS” blinks when DTCS squelch (“DT”) is

selected.

➥Push [Y]/[Z] to select the desired tone fre-

quency or DTCS code.

➥Push [

SET

B(D-OFF)] to select “DTP” then

push [Y]/[Z] to select the DTCS polarity.

➥Push [

CLR

A(MW)] to exit set mode.

cPush [FUNC] then push [

DUP

+ 8(TSQLS)]

or [

MID

5(DTCSS)] to turn ON the pocket

beep with tone squelch or DTCS squelch, re-

spectively.

vWhen a signal with the matched tone is re-

ceived, the transceiver emits beep tones for

30 sec. and blinks “S.”

bPush [PTT] to answer or push [

CLR

A(MW)] to

stop the beeps and blinking.

•“S” disappears and cancels the pocket beep

function automatically.

nTo cancel the tone squelch or DTCS squelch

function, push [FUNC] then [

ENT

C(T-OFF)].

•“T SQL” or “DTCS” disappears

DAvailable tone frequency list

NOTE: The transceiver has 50 tone frequencies and con-

sequently their spacing is narrow compared to units having

38 tones. Therefore, some tone frequencies may receive

interference from adjacent tone frequencies.

To prevent interference from adjacent tone frequencies,

using the frequencies as in the following table, is recom-

mended.

DCalling a waiting station using pocket beep

A subaudible tone matched with the station’s CTCSS tone fre-

quency or 3-digit DTCS code with polarity is necessary. Use

the tone squelch on the next page or a subaudible tone en-

coder (pgs. ??, ??).

67.0

69.3

71.9

74.4

88.5

91.5

94.8

97.4

114.8

118.8

123.0

127.3

151.4

156.7

162.2

167.9

203.5

210.7

218.1

225.7

77.0

79.7

82.5

85.4

100.0

103.5

107.2

110.9

131.8

136.5

141.3

146.2

173.8

179.9

186.2

192.8

233.6

241.8

250.3

• Recommended tone frequencies

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

TSQLS

DTCSS

IC-208H.qxd 03.2.26 20:00 Page 53 (1,1)

POCKET BEEP AND TONE SQUELCH

New2001

■Tone/DTCS squelch operation

The tone or DTCS squelch opens only when receiving a sig-

nal with the same pre-programmed subaudible tone or DTCS

code, respectively.

qSet the operating frequency.

wProgram the CTCSS tone frequency or DTCS code in set

mode.

•See p. ?? for programming details.

ePush [TONE•T-SCAN] several times until “T SQL” or

“DTCS” appears in the function display.

rWhen a signal with the matched tone is received, the

squelch opens and the signal can be heard.

•When the received signal includes an unmatched tone, the

squelch does not open. However, the S/RF indicator shows the

received signal strength.

•To open the squelch manually, push [MONI•DTMF].

tOperate the transceiver in the normal way (push [PTT] to

transmit; release [PTT] to receive).

yTo cancel the tone squelch, push [TONE•T-SCAN] several

times until “T SQL” or “DTCS” disappears.

zSet the operating frequency.

xProgram the CTCSS tone frequency or DTCS

code in set mode.

•See p. ?? for programming details.

Push [FUNC] then [

SIMP

9(TSQL)] or [

HIGH

4(DTCS)]

to turn the tone squelch or DTCS squelch ON.

vWhen a signal with the matched tone is re-

ceived, the squelch opens and the signal can be

heard.

•When the received signal includes an unmatched

tone, the squelch does not open. However, the S/RF

indicator shows the received signal strength.

•To open the squelch manually, push [

MONI

1(BANK)].

bOperate the transceiver in the normal way (push

[PTT] to transmit; release [PTT] to receive.

nTo cancel the tone squelch, push [FUNC] then

[

ENT

C(T-OFF)].

•“T SQL” or “DTCS” disappears

TSQL

DTCS

IC-208H.qxd 03.2.26 20:00 Page 54 (1,1)

10 POCKET BEEP AND TONE SQUELCH

New2001

■Tone scan

By monitoring a signal that is being operated with pocket

beep, tone or DTCS squelch function, you can determine the

tone frequency or DTCS code necessary to open a squelch.

qSet the desired operating frequency or memory channel to

be checked for a tone frequency or code.

wPush [TONE•T-SCAN] several times to select the tone

type, tone squelch or DTCS, to be scanned.

•Either “T SQL” or “DTCS” appears

ePush [TONE•T-SCAN] for 1 sec. to start the tone scan.

•To change the scanning direction, rotate [DIAL].

rWhen the CTCSS tone frequency or 3-digit DTCS code is

matched, the squelch opens and the tone frequency is

temporarily programmed into the selected condition such

as memory or call channel.

•The tone scan pauses when a CTCSS tone frequency or 3-digit

DTCS code is detected.

•The decoded CTCSS tone frequency or 3-digit DTCS code is

used for the tone encoder or tone encoder/decoder depending

on the selected tone condition or type in step w.

-“T SQL” : CTCSS tone encoder/decoder

-“DTCS” : DTCS tone encoder/decoder

tPush [TONE•T-SCAN] to stop the scan.

zSet the frequency or memory channel to be

checked for a tone frequency.

xSelects the tone type to be scanned.

•Push [FUNC] then push; [

SIMP

9(TSQL)] for tone

squelch; [

HIGH

4(DTCS)] for DTCS squelch.

cPush [FUNC] then [

SCAN

2(T-SCAN)] to start

the tone scan.

vWhen the tone frequency is matched, the

squelch opens and the tone frequency is pro-

grammed into the selected mode such as

memory or call channel.

bPush [

CLR

A(MW)] to stop the scan.

☞NOTE: The decoded tone frequency is programmed tem-

porarily when a memory or call channel is selected. How-

ever, this will be cleared when the memory/call channel is

re-selected.

T-SCAN

During CTCSS frequency scan During DTCS code scan

Push [TONE•T-SCAN] for 1 sec. to start tone scan.

IC-208H.qxd 03.2.26 20:00 Page 55 (1,1)

OTHER FUNCTIONS

■Set mode

•Set mode operation

qPush

[SET•LOCK]

to enter the set mode.

wPush

[SET•LOCK]

or [S.MW•MW] to select the desired

item.

eRotate [DIAL] to select the condition or value.

rPush

[MONI•DTMF]

to exit set mode.

•Set mode items

zPush [

SET

B(D-OFF)] to enter set mode.

xPush [

SET

B(D-OFF)] or [

ENT

C(T-OFF)] to select

the desired item.

cPush [Y] or [Z] to select the condition or value.

vPush [

CLR

A(MW)] to exit set mode.

SET

*Available for USA version only.

†Appears when accessing set mode from VFO mode only.

‡Appears when accessing set mode from memory mode only.

: Push (front panel); or (microphone)

• Weather alert*

• Display dimmer • Display color • Repeater tone

frequency

• Tone squelch

frequency • DTCS code • DTCS polarity

• Offset frequency

• Tuning step

• Scan resume timer

• Channel skip setting‡

• Bank link function‡

• Mic lock function

• Program skip†• Bank setting‡• Memory name‡

IC-208H.qxd 03.2.26 20:00 Page 56 (1,1)

11 OTHER FUNCTIONS

New2001

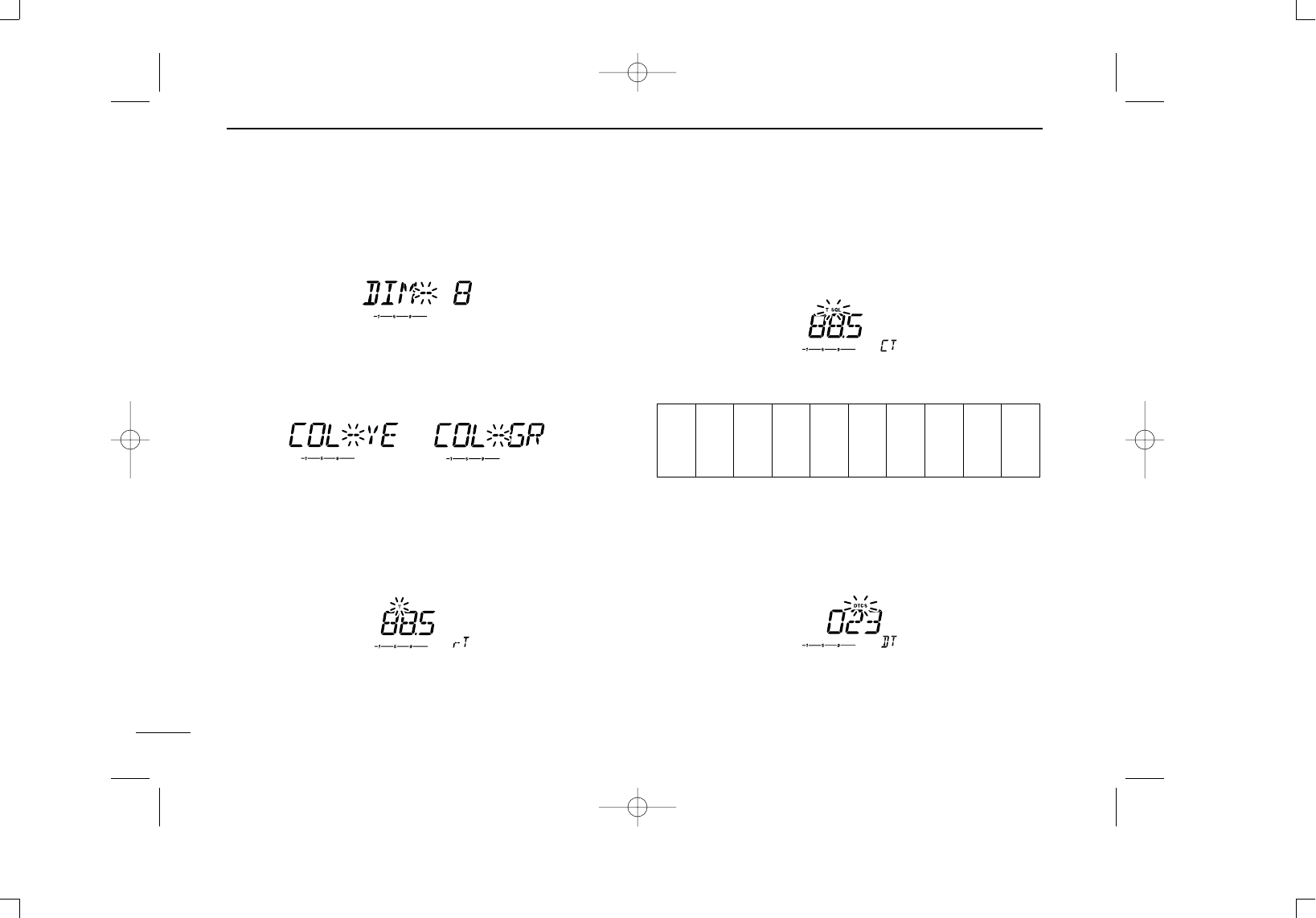

DDDisplay dimmer

Adjust to suit lighting conditions.

The levels 1 (dark) to 8 (bright: default) are available.

DDDisplay color

The display color can be set to amber (default), yellow or

green.

DDRepeater tone

Sets subaudible tone frequency (encoder only) for repeater

operation. Total of 50 tone frequencies (67.0–254.1 Hz) are

available. (default: 88.5 Hz)

DDTone squelch tone

Sets subaudible tone frequency (both encoder and decoder)

for tone squelch operation. Total of 50 tone frequencies

(67.0–254.1 Hz) are available. (default: 88.5 Hz)

•Available subaudible tone frequencies

DDDTCS code

Sets DTCS code (both encoder and decoder) for DTCS

squelch operation. Total of 104 codes are available.

(default: 023)

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

• Yellow setting • Green setting

IC-208H.qxd 03.2.26 20:00 Page 57 (1,1)

OTHER FUNCTIONS

New2001

DDDTCS polarity

Sets DTCS polarities for transmission and reception from

“NN,” “NR,” “RN” and “RR.”(default: NN)

DDOffset frequency

Sets the duplex offset frequency within 0 to 20 MHz range.

During duplex (repeater) operation, transmit frequency (or re-

ceive when reverse function is set to ON) shifts the set fre-

quency. (default value may differ depending on operating frequency

band and versions)

DDTuning step

Selects tuning step from 5, 10, 12.5, 15, 20, 25, 30. 50, 100

and 200 kHz for [DIAL] or [Y]/[Z] operation. (default value may

differ depending on operating frequency band and versions)

DDScan resume timer

Selects scan resume timer from SCT-15 (default), SCT-10,

SCT-5 and SCP-2.

•SCT-15/10/5 : Scan pauses for 15/10/5 sec., then re-

sumes.

•SCP-2 : Pause on a signal until signal disap-

pears, then resumes 2 sec. after the sig-

nal disappears.

• Transmit : normal

Receive : normal

(default)

• Transmit : normal

Receive : reverse

IC-208H.qxd 03.2.26 20:00 Page 58 (1,1)

11 OTHER FUNCTIONS

New2001

DDChannel skip setting

Sets channel skip setting from ON and OFF for memory skip

scan operation.

This item appears when set mode is accessed from memory

mode only.

DDMemory name setting

Sets memory name setting from ON (appear) and OFF (not

appear; default) for memory name appearance.

This item appears when set mode is accessed from memory

mode only.

DDMemory bank setting

Sets the desired memory bank (A to J and OFF) to assign the

regular memory channels.

This item appears when set mode is accessed from memory

mode only.

DDProgram scan skip setting

Sets the program scan skip setting from ON and OFF for

VFO scan operation, such as programmed scan.

This item appears when set mode is accessed from VFO

mode only.

• “~” or “P ~” appears

when set to “ON.”

• Default setting

IC-208H.qxd 03.2.26 20:00 Page 59 (1,1)

OTHER FUNCTIONS

New2001

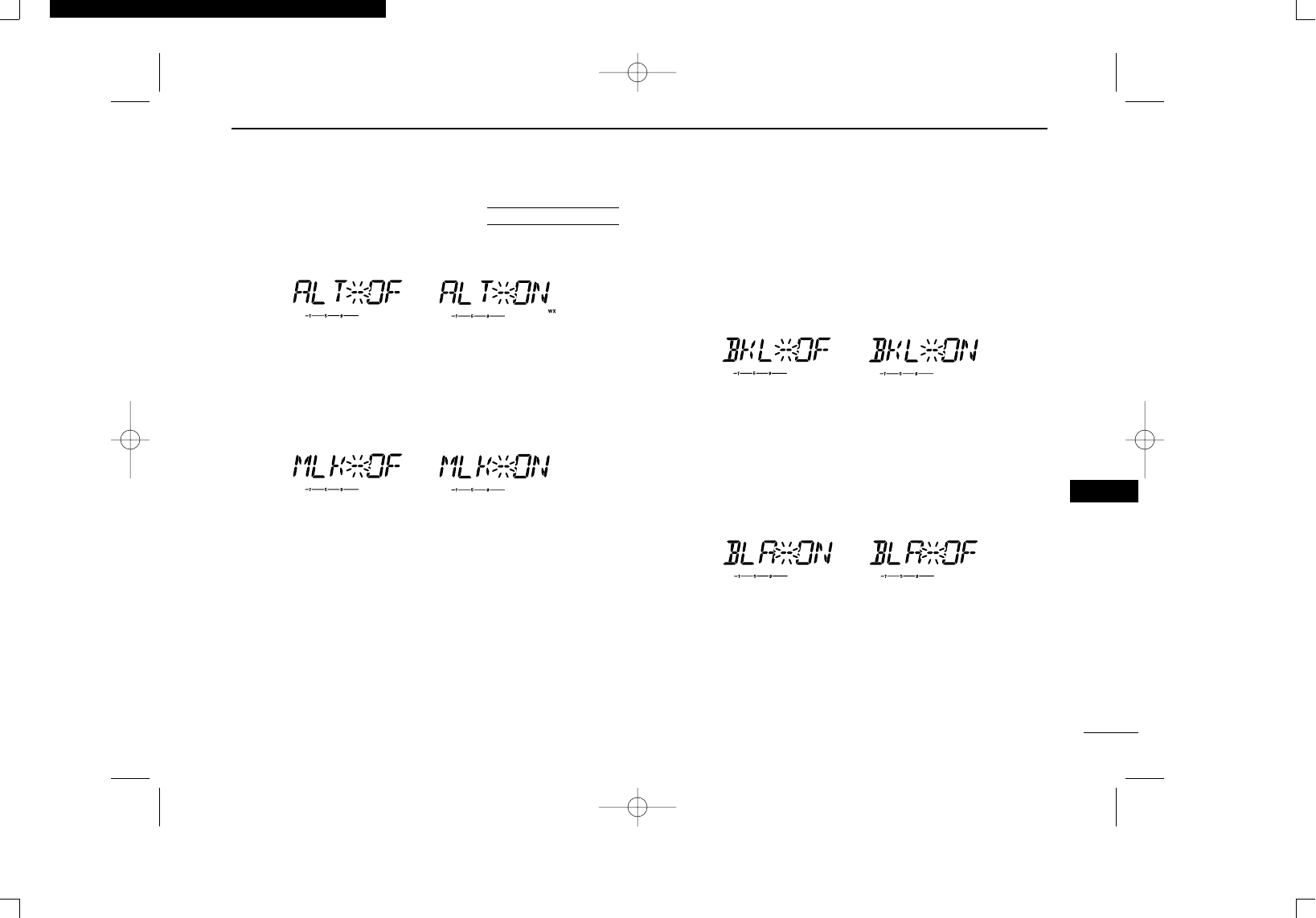

DDWeather alert function

Turns weather alert function ON and OFF.

DDMic lock function

Sets the supplied HM-133’s (optional for some versions) key

lock function from ON and OFF (default).

DDMemory bank link function

Sets the memory bank link function ON and OFF (default).

The link function provides continuous banks scan, that scans

all contents in the selected banks during bank scan.

This item appears when set mode is accessed from memory

mode only.

•Bank link setting

qRotate [DIAL] to select the memory bank link function ON.

wPush

[SET•LOCK]

or [S.MW•MW] to select the desired

bank to be linked.

•BLA: Bank A, BLB: Bank B, BLC: Bank C, BLD: Bank D,

BLE: Bank E, BLF: Bank F, BLG: Bank G, BLH: Bank H,

BLI: Bank I, BLC: Bank J, BLC: Bank J

eRotate [DIAL] to select “ON” to linking the bank.

rRepeat steps wand eto set the link condition.

U.S.A. version only

IC-208H.qxd 03.2.26 20:00 Page 60 (1,1)

11 OTHER FUNCTIONS

New2001

■Initial set mode

The initial set mode is accessed at power ON and al-

lows you to set seldom-changed settings. In this way,

you can “customize” transceiver operations to suit your

preference and operating style.

•Initial set mode items

DDEntering initial set mode

qWhile pushing

[SET•LOCK]

push [PWR] for 1 sec. to enter

initial set mode.

wPush

[SET•LOCK]

or [S.MW•MW] to select the desired

item.

eRotate [DIAL] to select the condition or value.

rPush

[PWR]

momentarily to exit initial set mode.

POWER ON

• Active band

• Key-touch beep • Time-out timer • Auto repeater*

• Squelch attenuator • Microphone sensitivity

• Auto power off

• DTMF speed

• Squelch delay

• Data speed

• Cooling fan

*Available in the USA version only.

• Narrow TX

: Push (front panel); or (microphone)

IC-208H.qxd 03.2.26 20:00 Page 61 (1,1)

OTHER FUNCTIONS

New2001

DDKey-touch beep

The key-touch beep can be turned OFF for silent operation.

DDTime-out timer

To prevent accidental prolonged transmission, etc., the trans-

ceiver has a time-out timer. This function cuts a transmission

OFF after 1–30 min. of continuous transmission. This timer

can be cancelled.

•TOT-OF : The time-out timer is turned OFF.

•TOT-3/5/15/30 : The transmission is cut OFF after the

set period elapses.

DDAuto repeater

The auto repeater function automatically turns ON or OFF the

duplex operation with a speciﬁed shift direction and tone en-

coder, when the operating frequency falls within or outside of

145.200–145.495, 146.610–146.995, 147.000–147.395,

442.000–444.995, and 447.000–449.995 MHz range. The off-

set and repeater tone frequencies are not changed by the

auto repeater function, reset these frequencies, if necessary.

•OF : The auto repeater function is turned OFF.

•R1 : Activates for duplex only.

•R2 : Activates for duplex and tone.

DDAuto power OFF

The transceiver can be set to automatically turn OFF after a

speciﬁed period with a beep when no key operations are per-

formed.

30 min., 1 hour, 2 hours and OFF can be speciﬁed. The spec-

ified period is retained even when the transceiver is turned

OFF by the auto power OFF function. To cancel the function,

select “OF” in this set mode.

U.S.A. version only

IC-208H.qxd 03.2.26 20:00 Page 62 (1,1)

11 OTHER FUNCTIONS

New2001

DDCooling fan control

Selects the cooling fan control condition from Auto and ON.

•Auto (AT) : The fan rotates during transmit and for 2 min.

after transmission.

•ON (ON) : The fan continuously rotates.

DDData transmission speed

Selects the data transmission speed for packet operation

from 1200 bps and 9600 bps.

DDSquelch delay

Selects squelch delay from short and long to prevent re-

peated opening and closing of the squelch during reception

of the same signal.

•S : Short squelch delay.

•L : Long squelch delay

DDMicrophone sensitivity

Selects the microphone sensitivity from high (H) and low (L)

to suits your preference.

DDSquelch attenuator

Turns the squelch attenuator function ON and OFF.

•ON : The squelch attenuator activates when [SQL]

control is set between 12 o’clock and fully

clockwise position.

•OF : The squelch attenuator does not function.

IC-208H.qxd 03.2.26 20:00 Page 63 (1,1)

OTHER FUNCTIONS

New2001

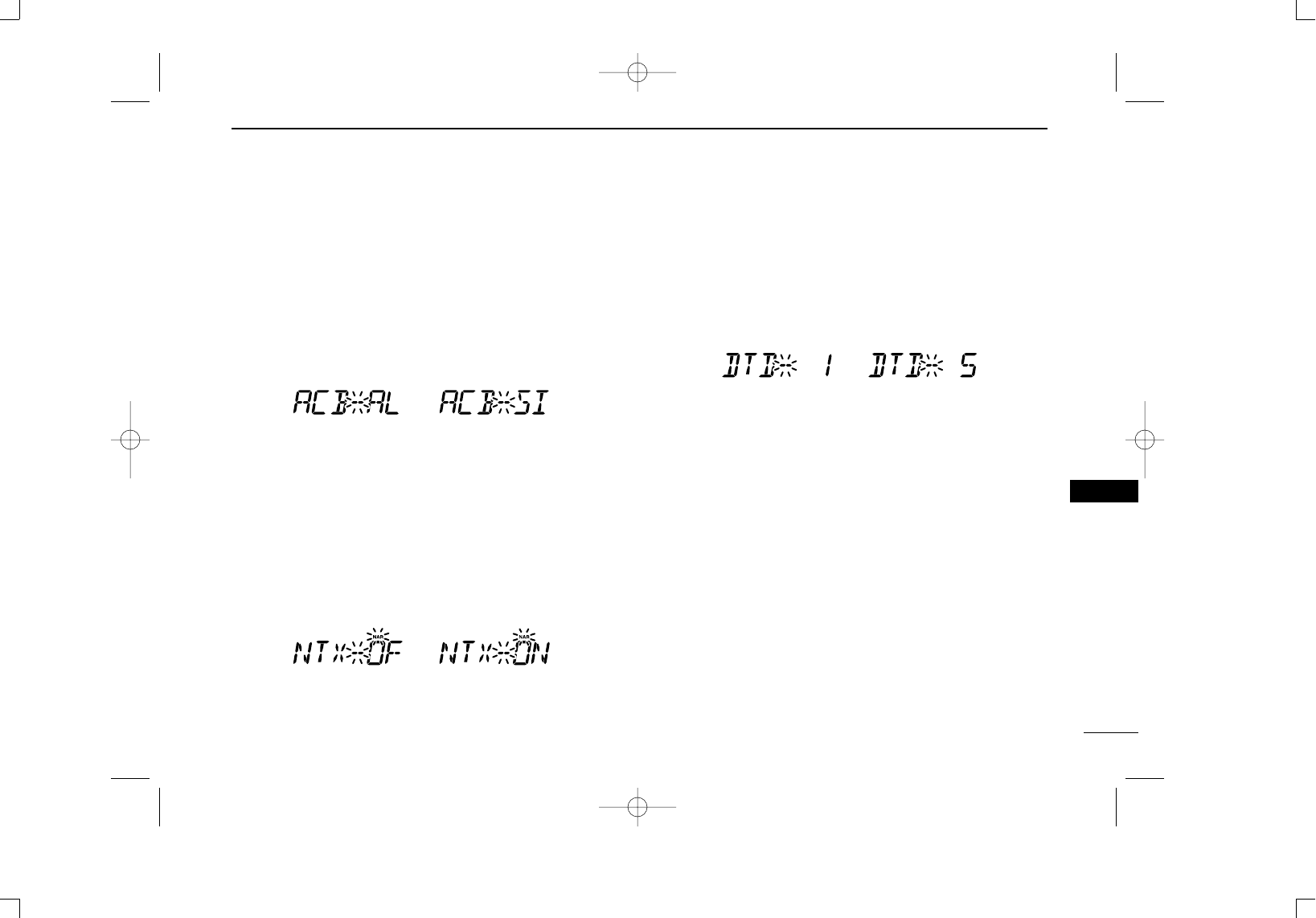

DDActive band

Selects the frequency selecting condition via [DIAL] or [Y]/[Z]

on the microphone from all (AL) and single (SI).

•All (AL) : The operating frequency can be selected

continuously.

•Single (SI) :

The operating frequency can be selected

within the current band. Pushing [BAND] for

1 sec. then tuning dial rotation is necessary

for frequency band selection.

DDNarrow TX function

Select the narrow TX function ON and OFF.

•ON : Enables the FM-narrow mode transmission. The

deviation (modulation level) becomes harf from

the regular FM transmission can be performed.

•OFF : Inhibits the FM-narrow mode transmission. The

regular FM deviation transmission is performed

(“NAR” indication disappears) even when FM-

narrow is selected.

DDDTMF speed

The rate at which DTMF memories send individual DTMF

characters can be set to accommodate operating needs.

•1 : 100 msec. interval; 5.0 cps speed

•2 : 200 msec. interval; 2.5 cps speed

•3 : 300 msec. interval; 1.6 cps speed

•5 : 500 msec. interval; 1.0 cps speed

IC-208H.qxd 03.2.26 20:00 Page 64 (1,1)

11 OTHER FUNCTIONS

New2001

■AM/FM narrow mode

The IC-208 has AM mode reception and FM narrow mode is

available. Typically, AM (narrow) mode is used for the air

band (118–135.995 MHz).

qSelect the desired frequency band in VFO mode, or the de-

sired memory channel.

wPush

[BAND] for 1 sec. to select AM/FM narrow mode as

desired.

•“NAR” (FM narrow), “AM” and “NAR AM” appears in sequence.

• No indication

stands for FM mode.

zPush [BAND] or [MR/CALL] to select the desired

frequency band or memory channel.

xPush

[BAND] for 1 sec. to select AM/FM narrow

mode as desired.

•“NAR”, “AM” and “NAR AM” appears in sequence.

• No indication

stands for FM mode.

SET

• When FM narrow mode

is selected

• When AM mode is selected

• When AM narrow mode is selected

IC-208H.qxd 03.2.26 20:00 Page 65 (1,1)

OTHER FUNCTIONS

New2001

■Weather channel operation

(USA version only)

DDWeather channel selection

qPush [M/CALL•PRIO] several times to select weather

channel group.

wRotate [DIAL] to select the desired weather channel.

ePush [M/CALL•PRIO] to select memory mode, or push

[V/MHz•SCAN] to select VFO mode.

DDWeather alert function

NOAA broadcast stations transmit weather alert tones before

important weather announcements. When the weather alert

function is turned ON, the selected weather channel is moni-

tored each 5 sec. for the announcement. When the alert sig-

nal is detected, the “AL.t” and the WX channel are displayed

alternately and sounds a beep tone until the transceiver is op-

erated. The previously selected (used) weather channel is

checked periodically during standby or while scanning.

qSelect the desired weather channel.

wTurn the weather alert function ON in set mode.

➥Push

[SET•LOCK]

to enter set mode.

➥Push

[SET•LOCK]

or [S.MW•MW] to select the weather

alert item, then rotate [DIAL] to set ON.

➥Push

[MONI•DTMF]

to exit set mode.

eSets the desired stand-by condition.

•Selects VFO, memory or call channel.

•Scan or priority watch operation can also be selected.

rWhen the alert is detected, a beep sounds and the follow-

ing indication will be displayed.

tTurn the weather alert function OFF in set mode.

☞NOTE: While receiving a signal (on a frequency other than

the weather alert ON frequency), the receiving signal or

audio will be interrupted momentarily every 5 sec. (approx.)

in case the alert function is turned ON. This symptom is

caused by the WX alert function. To cancel these symp-

toms, set the weather alert item OFF in set mode.

Shows above indications alternately.

Weather channel group indicaiton

[M/CALL•PRIO]

IC-208H.qxd 03.2.26 20:00 Page 66 (1,1)

11 OTHER FUNCTIONS

New2001

■Microphone keys

The supplied HM-133’s (optional for some versions) [F-1] and

[F-2] keys memorize the transceiver conditions.

The [UP]/[DN] keys of the standard or an optional microphone

(other than the HM-133) can be assigned functions like the

function keys on the transceiver’s front panel.

DD[UP]/[DN] keys on a microphones

(other than HM-133)

The following functions are assigned to [UP]/[DN] keys on the

other microphones (HM-118N/TAN, etc.) when ﬁrst applying

power.

•Default setting

[UP] : channel up; push and hold to start scan, push again

to stop scan.

[DN] : channel down; push and hold to start scan, push

again to stop scan.

➥Assigning a function

qTurn the power OFF.

wWhile pushing the desired switch on the transceiver and

one of either [UP]/[DN] keys on the microphone, turn the

power ON.

•The function is programmed into the key.

➥Clearing an assignment

qTurn the power OFF.

wWhile pushing the desired [UP] or [DN] key on the micro-

phone, turn the power ON.

DD[F-1]/[F-2] keys on HM-133

The following conditions can be memorized into [F-1] and [F-

2] keys, independently.

•Operating frequency

•Repeater setting (offset direction and frequency, tone ON/OFF

and frequency)

•Tone/DTCS squelch (ON/OFF, frequency/code and polarity)

•Transmit output power selection

•Tuning step

•Operating mode selection (FM/AM)

•Set mode settings*

•Initial set mode settings*

*Only when storing both bands conditions

➥Programming the band condition

Push [FUNC] then push [F-1]/[F-2] for 1 sec.

•3 beeps sound.

➥Recalling the band condition

Push [FUNC] then [F-1]/[F-2] momentarily.

[F-1]/[F-2]

POWER ON

IC-208H.qxd 03.2.26 20:00 Page 67 (1,1)

OTHER FUNCTIONS

New2001

■Partial reset

If you want to initialize the operating conditions (VFO fre-

quency, VFO settings, set mode contents) without clearing

the memory contents.

➥While pushing [V/MHz•SCAN] and [SET•LOCK], push

[PWR] for 1 sec. to partially reset.

■ALL reset

The function display may occasionally display erroneous in-

formation (e.g. when first applying power). This may be

caused externally by static electricity or by other factors.

If this problem occurs, turn power OFF. After waiting a few

seconds, turn power ON again. If the problem persists, per-

form the following procedure.

•Partial resetting is also available. See left for details.

IMPORTANT!:

Resetting the transceiver CLEARS all memory information

and initializes all values in the transceiver.

➥While pushing [S.MW•MW] and [SET•LOCK], push [PWR]

for 1 sec. to reset the CPU.

[S.MW•MW]

[SET•LOCK] [PWR]

POWER ON

[S.MW•MW]

[PWR]

[V/MHz•SCAN]

POWER ON

IC-208H.qxd 03.2.26 20:01 Page 68 (1,1)

11 OTHER FUNCTIONS

New2001

■Data cloning

Cloning allows you to quickly and easily transfer the pro-

grammed contents from one transceiver to another; or, data

from a personal computer to a transceiver using the optional

CS-208

CLONING SOFTWARE

DCloning between transceivers

qConnect the OPC-474 cloning cable to [SP] jack of the

master and sub-transceivers.

•The master transceiver is used to send data to the sub-trans-

ceiver.

wWhile pushing [M/CALL•PRIO], turn power ON to enter

cloning mode (master transceiver only— power on only for

sub-transceiver).

•“CLONE” appears and the transceivers enter the clone standby

condition.

ePush [SET•LOCK] on the master transceiver.

•“CL OUT” appears in the master transceiver’s display and the

S/RF indicators show that data is being transferred to the sub-

transceiver.

•“CL IN” appears automatically in the sub-transceiver’s display

and the S/RF indicators show that data is being received from

the master transceiver.

rWhen cloning is ﬁnished, turn power OFF, then ON to exit

cloning mode.

Pushing [SET•LOCK] start cloning.

While pushing [M/CALL•PRIO], turn power ON.

[PWR]

[M/CALL•PRIO]

To [SP] To [SP]

POWER ON

IC-208H.qxd 03.2.26 20:01 Page 69 (1,1)

OTHER FUNCTIONS

New2001

DCloning using a personal computer

Data can be cloned to and from a personal computer (Mi-

crosoft®Windows®98/2000/Me/XP) using the optional CS-208

CLONING SOFTWARE

and the optional cloning cable OPC-478U

(USB type) or OPC-478 (RS-232C type). Consult the CS-208

CLONING SOFTWARE

HELP ﬁle for details.

DCloning error

☞NOTE: DO NOT push any key on the sub-transceiver dur-

ing cloning. This will cause a cloning error.

When the display as below appears, a cloning error has oc-

curred.

In such a case, both transceivers automatically return to the

clone standby condition and cloning must be repeated.

IC-208H.qxd 03.2.26 20:01 Page 70 (1,1)

11 OTHER FUNCTIONS

New2001

■Packet operation

DData speed

For packet operation, the transceiver can be set to one of two

data speeds: 1200 bps or 9600 bps.

qWhile pushing

[SET•LOCK],

push [PWR] for 1 sec. to enter

initial set mode.

wPush

[SET•LOCK]

or [S.MW•MW] to select the ‘BPS’item.

eRotate [DIAL] to select the desired data speed.

rPush

[PWR]

to exit initial set mode.

For 1200 bps operation—

•Disconnect the microphone plug from the microphone

connector during data transmission, otherwise the data

signal and voice signal are simultaneously transmitted.

For 9600 bps operation—

•When the transceiver is set for 9600 bps data transmis-

sion in set mode, the microphone signal is automatically

cut. Therefore, it is not necessary to disconnect the mi-

crophone plug from the connector in this case.

•

When pushing [PTT] during data transmission, data trans-

mission is interrupted and voice signals have priority.

D1200 bps packet operation

qConnect the transceiver and a TNC as illustrated below.

wSet the TNC for transmit.

eSet transmit delay on the TNC to 30–50.

rAdjust the TNC frequency deviation if necessary.

•When using a deviation meter:

Adjust the output of the TNC so that frequency deviation

is in the range ± 3 to ±4 kHz.

•When NOT using a deviation meter:

A receiver or transceiver is needed to monitor the trans-

mission—compare the received audio output level when

receiving a TNC modulated signal with high level voice

signals using the microphone. Then adjust the TNC mod-

ulated signal to a lower level than the voice modulated

signal.

SQL

PTT

RX AUDIO

GND

TX AUDIO

TNC side

q DATA IN

w GND

e PTT P

t AF OUT

y P SQL

IC-208H.qxd 03.2.26 20:01 Page 71 (1,1)

OTHER FUNCTIONS

New2001

•Read the instructions supplied with your TNC carefully

before attempting packet operation with the transceiver.

•Pin tAF OUT is for 1200 bps operation only. This pin

cannot be used for 9600 bps operation.

•Over modulation may degrade signal quality. If you ﬁnd

that many transmissions are failing, re-adjust the modu-

lation level.

IC-208H.qxd 03.2.26 20:01 Page 72 (1,1)

11 OTHER FUNCTIONS

New2001

D9600 bps high speed packet operation

The transceiver supports 2 modes of 9600 bps packet opera-

tion: G3RUH and GMSK.

qConnect the transceiver and a TNC as illustrated below.

wG3RUH mode can handle 16 kinds of modulated wave

forms in order to maintain a communication link.

eSet transmit delay on the TNC to 30–50.

rAdjust the TNC frequency deviation if necessary (see page

at right).

•When using the PTT P terminal for packet operation, no

voice signals are transmitted from the microphone.

•When pushing [PTT] during data transmission, data

transmission is interrupted and the voice signal takes pri-

ority.

•Read the instructions supplied with your TNC carefully

before attempting packet operation with the transceiver.

•Pin rDATA OUT is for 9600 bps operation only. This pin

cannot be used for 1200 bps operation.

TNC side

SQL

PTT

RX AUDIO

GND

TX AUDIO

q DATA IN

w GND

e PTT P r DATA OUT

y P SQL

IC-208H.qxd 03.2.26 20:01 Page 73 (1,1)

OTHER FUNCTIONS

New2001

DAdjusting the transmit signal output from

the TNC

When setting data transmission speed to 9600 bps, the data

signal coming from the TNC is applied exclusively to the in-

ternal limiter circuitry to automatically maintain band width.

NEVER apply data levels from the TNC of over 0.6 V p-p, oth-

erwise the transceiver will not be able to maintain the band

width and may possibly interfere with other stations.

1. When using a level meter or synchroscope, adjust the

TX audio output level (DATA IN level) from the TNC as

follows.

0.4 V p-p (0.2 V rms) : recommended level

0.2 V p-p–0.5 V p-p (0.1–0.25 V rms) : acceptable level

2. When NOT using a measuring device.

qConnect the transceiver to a TNC.

wEnter a test mode (“CAL”, etc.) on the TNC, then trans-

mit some test data.

eWhen the transceiver fails to transmit the test data or

transmits sporadically (TX indicator doesn’t appear or

ﬂashes):

- Decrease the TNC output level until the transmit indi-

cator lights continuously.

When transmission is not successful even though the

TX indicator lights continuously:

- Increase the TNC output level.

IC-208H.qxd 03.2.26 20:01 Page 74 (1,1)

MAINTENANCE

New2001New2001

PROBLEM POSSIBLE CAUSE SOLUTION REF.

■Troubleshooting If your transceiver seems to be malfunctioning, please check

the following points before sending it to a service center.

Does not turn on.

No sound comes from the

speaker.

Sensitivity is low and only

strong signals are audible.

No contact possible with

another station.

Repeater cannot be ac-

cessed.

Frequency cannot be set.

Frequency cannot be set

via the microphone.

•Power connector has a poor contact.

•Polarity of the power connection is reversed.

•Blown fuse.

•Volume is too low.

•The audio mute function is activated.

•Squelch is set too high.

•A selective call or squelch function is activated

such as pocket beep or tone squelch.

•Antenna feedline or the antenna connector has a

poor contact or is short circuited.

•Squelch attenuator function is activated.

•The other station is using tone squelch.

•The transceiver is set to duplex.

•Wrong offset frequency is programmed.

•Wrong subaudible tone frequency is programmed.

•The frequency lock function is activated.

•Priority watch is paused on the watching frequency.

•The frequency lock function is activated.

•The microphone keypad lock function is activated.

•Priority watch is paused on the watching fre-

quency.

•Check the connector pins.

•Re-connect the power cable observing the proper

polarity. Replace the fuse if damaged.

•Check the cause, then replace the fuse.

•Rotate [VOL] clockwise.

•Push any switch or key to deactivate it.

•Set the squelch level to the threshold.

•Turn the appropriate function OFF.

•Check, and if necessary, replace the feedline or sol-

der the antenna connector again.

•Set [SQL] between 10–12 o’clock position.

•Turn the tone squelch function ON.

•Set to simplex.

•Correct the offset frequency.

•Correct the subaudible tone frequency.

•Turn the function OFF.

•

Push [M/CALL•PRIO] for 1 sec. to cancel the watch.

•Turn the function OFF

•Push [FUNC] then [

SQL

Z#(16KEY-L)] to deactivate

the microphone keypad lock function.

•

Push [M/CALL•PRIO] for 1 sec. to cancel the watch.

—

pgs. ??,

p. ??

p. 1??

pgs. ??,

??, ??

p. ??

IC-208H.qxd 03.2.26 20:01 Page 75 (1,1)

New2001

MAINTENANCE

■Fuse replacement

If the fuse blows or the transceiver stops functioning, ﬁnd the

source of the problem if possible, and replace the damaged

fuse with a new, rated one (FGB 20 A) as shown at right.

20 A

fuse

PROBLEM POSSIBLE CAUSE SOLUTION REF.

Some memory channels

cannot be selected via the

tuning dial.

Scan does not operate.

Transmission is automati-

cally cut off.

Transmission continues

even when the PTT is re-

leased.

The function display shows

erroneous information.

•The memory channel number has not yet been

programmed.

•The squelch is open.

•Only 1 memory channel is programmed or other

channels are set as skip channels.

•Priority watch is activated.

•Time-out timer is activated.

•One-touch PTT function is activated.

•The CPU is malfunctioning.

•Select the channel via the microphone keypad to

check whether the channel has been programmed

or not.

•Set the squelch to the threshold point.

•Program other memory channels or cancel the

memory skip function in the desired channels.

•Cancel the watch.

•Set the timer to OFF.

•Turn the function OFF.

•Reset the CPU.

—

p. ??

pgs. ??,

??, ??

p. ??

IC-208H.qxd 03.2.26 20:01 Page 76 (1,1)

SPECIFICATIONS AND OPTIONS

New2001New2001

■Speciﬁcations

DDGENERAL

•Frequency coverage :

USA Rx 118.000–173.995 MHz*1,

230.000–549.995 MHz*2,

810.000–999.990 MHz*4

Tx 144–148 MHz, 440–450 MHz

Australia, Asia Rx 118.000–173.995 MHz*1,

230.000–549.995 MHz*2,

810.000–999.990 MHz*4

Tx 144–148 MHz, 430–440 MHz

Korea Tx/Rx 144–146 MHz, 430–440 MHz

Taiwan Tx/Rx 144–146 MHz, 430–432 MHz

*1Guaranteed: 144–148 MHz range only.; *2Guaranteed: 440–450 MHz range for the USA,

430–440 MHz for the General version; *3Not guaranteed; *4824.005 to 848.995 and

869.005 to 893.995 MHz ranges are inhibited for USA version and not guaranteed.

•Type of emission : FM, AM (Receive only)

•Number of memory channels : 512 (incl. 10 scan edges and 2 calls)

•Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30, 50, 100,

200 kHz

•Operating temperature range : –10°C to +60°C; +14˚F to +140˚F

•Frequency stability : ±10 ppm (–10°C to +60°C)

•Power supply requirement : 13.8 V DC ±15%

•Current drain (at 13.8 V DC: approx.):

Transmit at 55 W 12 A

Receive standby 0.8 A

(simultaneous receive) max. audio 1.0 A

•Antenna connector : SO-239 (50 Ω)

•Dimensions (proj. not included) : 141(W) ×40(H) ×185.4(D) mm

59⁄16(W)×19⁄16(H)×75⁄16(D) in

•Weight (approx.) : 1.2 kg; 2 lb 10 oz

DDTRANSMITTER

•Modulation system : Variable reactance frequency modulation

•Output power : VHF 55/15/5 W* (approx.)

UHF 50/15/5 W* (approx.)

*50/15/2 W for Korean version and 25/15/5 W

only for the Taiwan version.

•Max. frequency deviation : ±5.0 kHz (wide)

±2.5 kHz (narrow: approx.)

•Spurious emissions : Less than –60 dB

•Microphone connector : 8-pin modular (600 Ω)

DDRECEIVER

•Receive system : Double-conversion superheterodyne

•Intermediate frequencies : 1st: 46.05 MHz, 2nd: 455 kHz

•Sensitivity (FM: at 12 dB SINAD/AM: at 10 dB S/N):

118.000–173.995 MHz 0.18 µV/0.45 µV

230.000–299.995 MHz 0.32 µV/0.79 µV

300.000–499.995 MHz 0.22 µV/0.63 µV

500.000–549.995 MHz 0.32 µV/Not speciﬁed

810.000–899.990 MHz 0.45 µV/Not speciﬁed

•Squelch sensitivity†(threshold) : Less than 0.18 µV

•Selectivity :

Wide More than 12 kHz/6 dB

Less than 30 kHz/60 dB

Narrow More than 6 kHz/6 dB

Less than 20 kHz/60 dB

•Spurious and image rejection : More than 60 dB

•

AF output power (at 13.8 V DC)

: More than 2.0 W at 10% distortion with an

8Ωload

•Ext. speaker connectors : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω

All stated speciﬁcations are subject to change without notice or obligation.

IC-208H.qxd 03.2.26 20:01 Page 77 (1,1)

New2001

SPECIFICATIONS AND OPTIONS

■Options

HM-133

REMOTE

CONTROL MICROPHONE

Wired remote control microphone with key backlight. Same as that

supplied with the transceiver.

HM-118TAN/TN

DTMF MICROPHONE

HM-118N

HAND MICROPHONE

HS-62

FLEXIBLE MOBILE MICROPHONE

+ HS-15SB

SWITCH BOX

+ OPC-589

ADAPTER CABLE

For all-round mobile operation.

OPC-600/OPC-601

SEPARATION CABLES

OPC-600: Same as that supplied with the transceiver. 3.5 m (11.5 ft)

OPC-601: For extended separate installation. 7.0 m (23.0

MB-84

REMOTE CONTROLLER BRACKET

Same as that supplied with the transceiver.

MB-85

COMBINATION BRACKET

Used for single-body installation. 20 cm (77⁄8in) remote control cable

is supplied.

MB-65

MOUNTING BASE

Mounts the remote controller on to variety of place in vehicle. MB-84

is required for mounting.

MB-17A

MOBILE MOUNTING BRACKET

One-touch bracket. Transceiver main unit easily attached or re-

moved.

OPC-440/OPC-647

MIC EXTENSION CABLES

OPC-440: 5.0 m (16.4 ft); OPC-647: 2.5 m (8.2 ft)

OPC-441

SPEAKER EXTENSION CABLE

5.0 m (16.4 ft)

SP-7/SP-10

EXTERNAL SPEAKERS

SP-7: For base station use. Cable length: 1.0 m; 3.3 ft

SP-10: For all-round mobile operation. Cable length: 1.5 m; 4.9 ft

OPC-347/1132

DC POWER CABLES

OPC-347: 7.0 m (23 ft)

OPC-1132: 3.0 m (9.8 ft) Same as that supplied with the transceiver.

CS-208

CLONING SOFTWARE

+OPC-478U

CLONING CABLE

Provides quick and easy programming items, such as memory chan-

nels, set mode contents for local repeater frequencies, via PC’s USB

terminal. RS-232C type cloning cable, OPC-478, also available.

OPC-474

CLONING CABLE

Used for data cloning between transceivers.

IC-208H.qxd 03.2.26 20:01 Page 78 (1,1)

MODE ARRANGEMENT

New2001New2001

IC-208H.qxd 03.2.26 20:01 Page 79 (1,1)

New2001

MODE ARRANGEMENT

IC-208H.qxd 03.2.26 20:01 Page 80 (1,1)

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan

A-6265?-1EX

Printed in Japan

New2001

IC-208H.qxd 03.2.26 20:01 Page 81 (1,1)

ICOM orporated 263300 VHF/UHF Amateur Transceiver User Manual

ICOM Incorporated VHF/UHF Amateur Transceiver Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
