INSTRUCTION MANUAL
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
condition that this device does not cause
harmful interference.
UHF TRANSCEIVER
iF60V
VHF TRANSCEIVER
iF50V
![](/img.php?id=840528&img=bg2.png)
iii
SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromagnetic energy
during transmit mode. This radio is designed for and clas-
sified as “Occupational Use Only”, meaning it must be
used only during the course of employment by individuals
aware of the hazards, and the ways to minimize such haz-
ards. This radio is NOT intended for use by the “General
Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF exposure lim-
its for “Occupational Use Only”. In addition, your Icom radio complies with
the following Standards and Guidelines with regard to RF energy and
electromagnetic energy levels and evaluation of such levels for exposure
to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Com-
pliance with FCC Guidelines for Human Exposure to Radio Fre-
quency Electromagnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard
for Safety Levels with Respect to Human Exposure to Radio Fre-
quency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recom-
mended Practice for the Measurement of Potentially Hazardous Elec-
tromagnetic Fields– RF and Microwave.
• The following accessories are authorized for use with this product.
Use of accessories other than those specified may result in RF ex-
posure levels exceeding the FCC requirements for wireless RF ex-
posure.; Belt Clip (MB-98), Rechargeable Li-Ion Battery Pack
(BP-227), Alkaline Battery Case (BP-226) and Speaker-microphone
(HM-168).
To ensure that your expose to RF electromagnetic
energy is within the FCC allowable limits for occupa-
tional use, always adhere to the following guidelines:
CAUTION
WARNING
• DO NOT operate the radio without a proper antenna attached, as this
may damaged the radio and may also cause you to exceed FCC RF
exposure limits. A proper antenna is the antenna supplied with this
radio by the manufacturer or antenna specifically authorized by the
manufacturer for use with this radio.
• DO NOT transmit for more than 50% of total radio use time (“50%
duty cycle”). Transmitting more than 50% of the time can cause FCC
RF exposure compliance requirements to be exceeded. The radio is
transmitting when the “TX indicator” lights red. You can cause the
radio to transmit by pressing the “PTT” switch.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the
body when transmitting and only use the Icom belt-clip which is listed
on page 38 when attaching the radio to your belt, etc., to ensure FCC
RF exposure compliance requirements are not exceeded. To provide
the recipients of your transmission the best sound quality, hold the
antenna at least 5 cm (2 inches) from your mouth, and slightly off to
one side.
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do to as-
sure that this radio operates with the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can pos-
sibly cause interference with other devices or systems. To avoid such in-
terference, turn off the radio in areas where signs are posted to do so.
DO NOT operate the transmitter in areas that are sensitive to electro-
magnetic radiation such as hospitals, aircraft, and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed
as consequence of their employment provided those persons are fully
aware of the potential for exposure and can exercise control over their
exposure.
![](/img.php?id=840528&img=bg3.png)
iviii
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely before
using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This instruction
manual contains important operating instructions for the IC-F50V
VHF TRANSCEIVER
and IC-F60V
UHF TRANSCEIVER
.
EXPLICIT DEFINITIONS
OPERATING NOTES
• When transmitting with a portable radio, hold the radio in a vertical po-
sition with its microphone 5 to 10 cm (2 to 4 inches) away from your
mouth. Keep the antenna at least 2.5 cm (1 inch) from your head and
body.
• If you wear a portable two-way radio on your body, ensure that the an-
tenna is at least 2.5 centimeters (1 inch) from your body when trans-
mitting.
WORD DEFINITION
RWARNING Personal injury, fire hazard or electric shock
may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
CAUTION Equipment damage may occur.
PRECAUTIONS
RWARNING! NEVER hold the transceiver so that the antenna
is very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if the
microphone is 5 to 10 cm (2 to 4 inches) away from the lips and the
transceiver is vertical.
RWARNING! NEVER operate the transceiver with a headset or
other audio accessories at high volume levels.
CAUTION! NEVER short the terminals of the battery pack.
NEVER connect the transceiver to a power source other than the BP-
226 or BP-227. Such a connection will ruin the transceiver.
DO NOT push the PTT when not actually desiring to transmit.
AVOID using or placing the transceiver in direct sunlight or in areas
with temperatures below –30°C (–22°F) or above +60°C (+140°F).
DO NOT modify the transceiver for any reason.
MAKE SURE the flexible antenna and battery pack are securely at-
tached to the transceiver, and that the antenna and battery pack are dry
before attachment. Exposing the inside of the transceiver to water will
result in serious damage to the transceiver.
BE CAREFUL! The IC-F50V/F60V series transceivers employ wa-
terproof construction, which corresponds to IPX7 of the international
standard IEC 60529 (2001), 1 m depth for 30 minutes. However, once
the transceiver has been dropped, waterproofing cannot be guaranteed
due to the fact that the transceiver may be cracked, or the waterproof
seal damaged, etc.
The use of non-Icom battery packs/chargers may impair transceiver
performance and invalidate the warranty.
FCC caution:
Changes or modifications to this device, not expressly approved by
Icom Inc., could void your authority to operate this transceiver under
FCC regulations.
Icom, Icom Inc. and the logo are registered trademarks of Icom Incorpo-
rated (Japan) in the United States, the United Kingdom, Germany, France, Spain,
Russia and/or other countries.
![](/img.php?id=840528&img=bg4.png)
1
1
ACCESSORIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TABLE OF CONTENTS
SAFETY TRAINING INFORMATION …………………………………………… i
IMPORTANT ……………………………………………………………………… iii
EXPLICIT DEFINITIONS ………………………………………………………… iii
OPERATING NOTES …………………………………………………………… iii
PRECAUTIONS ………………………………………………………………… iv
TABLE OF CONTENTS ………………………………………………………… v
1 ACCESSORIES ……………………………………………………………… 1–3
‘Supplied accessories ……………………………………………………… 1
‘Accessory attachments……………………………………………………… 2
2 PANEL DESCRIPTION …………………………………………………… 4–13
‘Front, top and side panels ………………………………………………… 4
‘Function display ……………………………………………………………… 6
‘Programmable function keys ……………………………………………… 8
3 BASIC OPERATION……………………………………………………… 14–23
‘Turning power ON ………………………………………………………… 14
‘Channel selection ………………………………………………………… 14
‘Call procedure ……………………………………………………………… 15
‘ Receiving and transmitting ……………………………………………… 16
‘ User set mode ……………………………………………………………… 20
‘ Emergency transmission ………………………………………………… 21
‘ Scrambler function ………………………………………………………… 21
‘ Stun function ……………………………………………………………… 21
‘ Recording function ………………………………………………………… 22
4 BATTERY CHARGING ………………………………………………… 24–31
‘Caution ……………………………………………………………………… 24
‘Optional battery chargers ………………………………………………… 27
5 BATTERY CASE ………………………………………………………… 32–33
‘Optional battery case (BP-226)…………………………………………… 32
6 SPEAKER-MICROPHONE ……………………………………………… 34–35
‘Optional HM-168 description ……………………………………………… 34
‘Attachment ………………………………………………………………… 35
7 SWIVEL BELTCLIP ……………………………………………………… 36–37
‘MB-86 contents …………………………………………………………… 36
‘Attaching …………………………………………………………………… 36
‘Detaching …………………………………………………………………… 37
8 OPTIONS ………………………………………………………………… 38–41
v

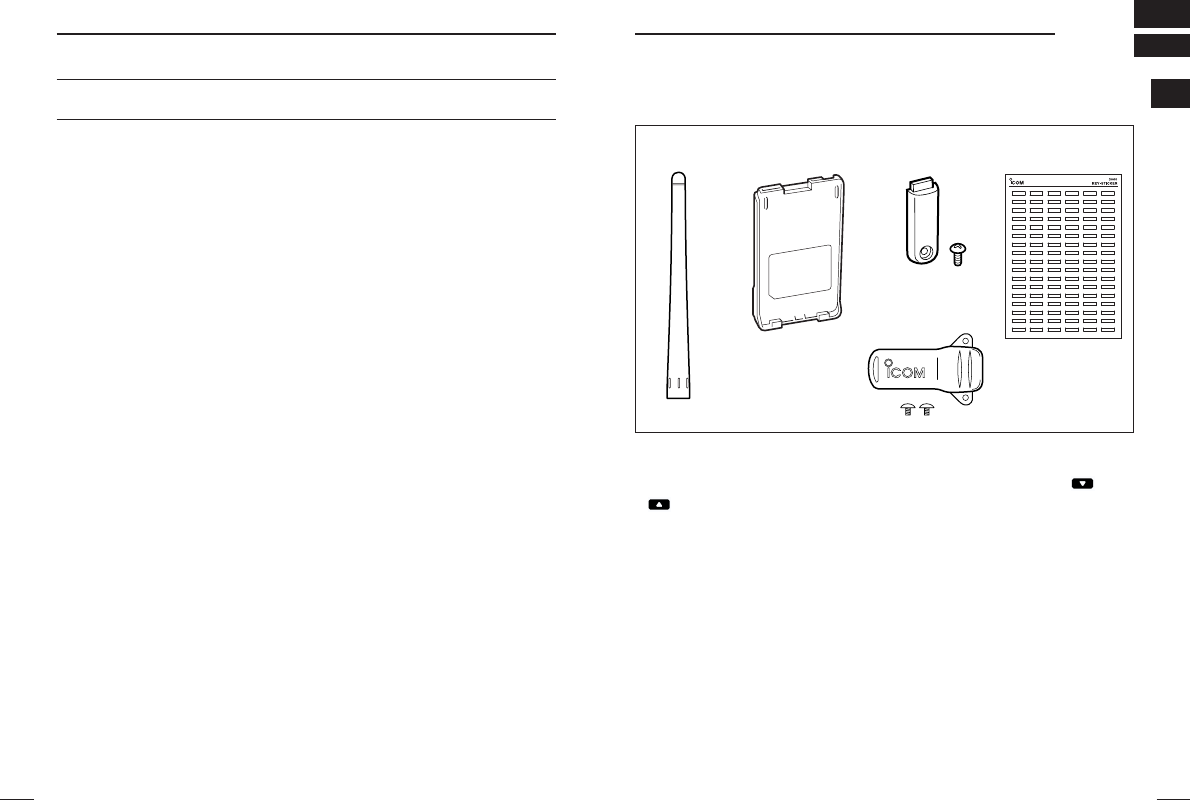

■Supplied accessories
*There are no names on the programmable function keys since the
functions can be freely assigned to [P0] to [P3], [Red], [ ] and
[ ] keys.
Attach the supplied function name stickers above the appropriate
keys for easy recognition of that key’s assigned function.
Battery packAntenna
Belt clip
Key sticker*Jack cover
![](/img.php?id=840528&img=bg5.png)
3
1
ACCESSORIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
1ACCESSORIES

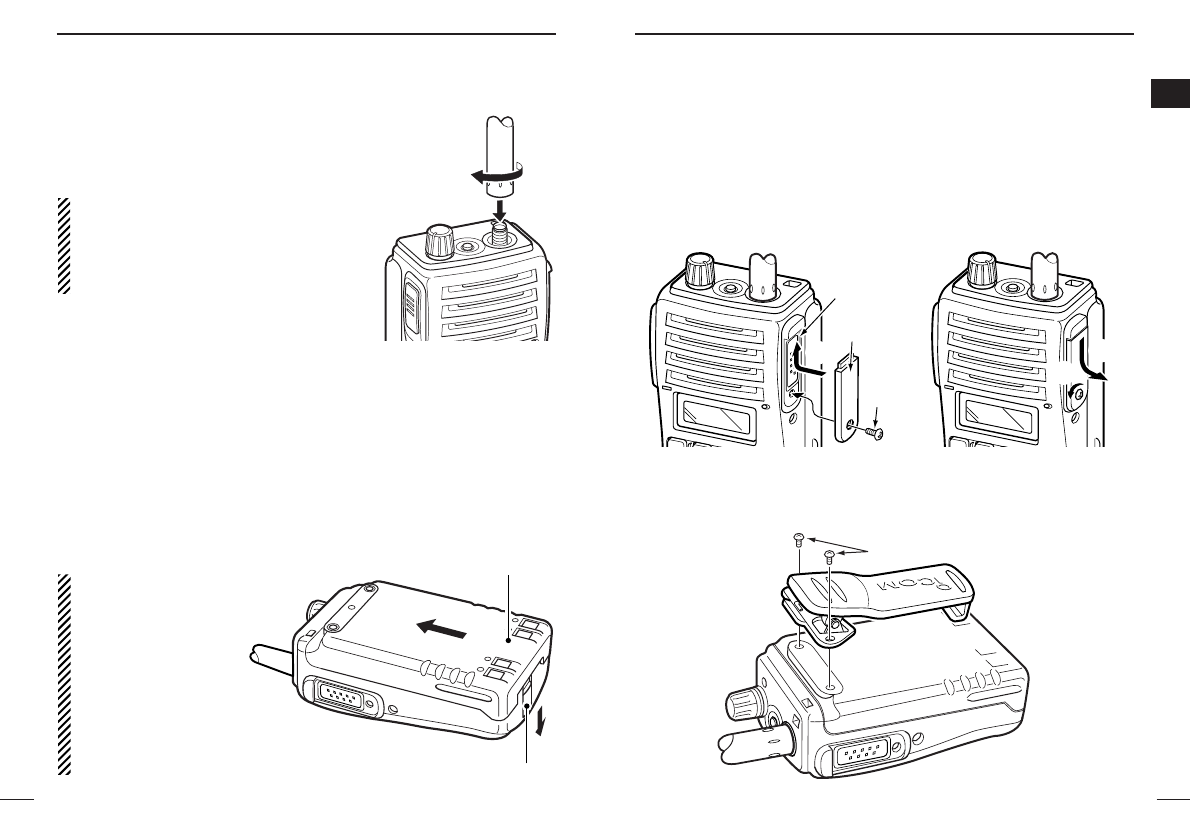

■Accessory attachments
DFlexible antenna
Connect the supplied flexible antenna
to the antenna connector.
CAUTION!
• NEVER HOLD the antenna when
carrying the transceiver.
•Transmitting without an antenna
may damage the transceiver.
ïBattery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direc-
tion of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a ‘click’
sound.
To release the battery pack:
Push the battery release button in the direction of the arrow (w) as
shown below. The battery pack is then released.
q
w
Battery pack
Battery release button
NEVER release or at-
tach the battery pack
when the transceiver
is wet or soiled. This
may result water or
dust getting into the
transceiver/battery
pack and may result
in the transceiver
being damaged.
ïJack cover
Attach the jack cover when the optional equipment is not used.
DBelt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.
Supplied screws
w
Jack cover
[SP MIC] jack
Screw
q
e
r
To attach the jack cover:
qInsert the jack cover into the
[SP MIC] jack.
wTighten the screw.
To detach the jack cover:
eUnscrew the screw using a
phillips screwdriver.
rDetach the jack cover for the
optional equipment connec-
tion.
![](/img.php?id=840528&img=bg6.png)
5
2
PANEL DESCRIPTION
2
4
2PANEL DESCRIPTION

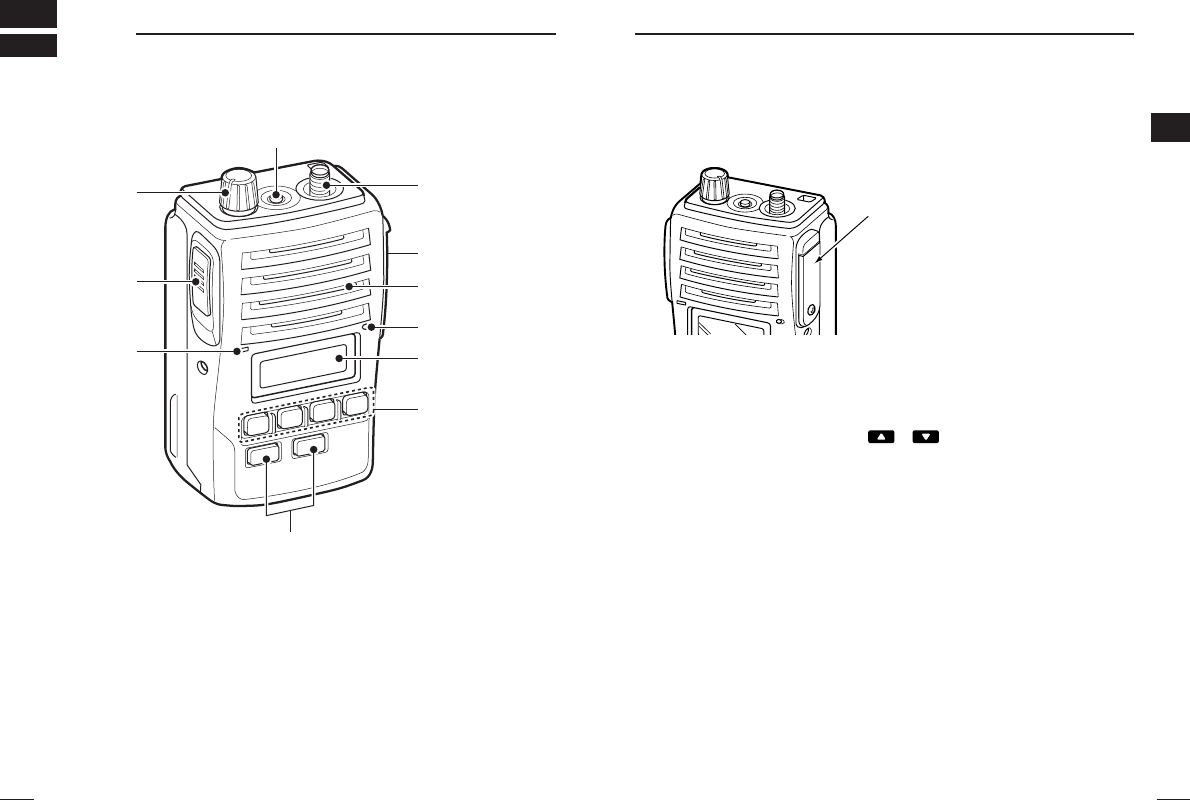

■Front, top and side panels
qVOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
wRED BUTTON
The desired function can be assigned by your dealer. (p. 8)
eANTENNA CONNECTOR
Connects the supplied antenna. (p. 2)
Microphone
Function display
(p. 6)
w
e
r
t
y
u
q
iSpeaker
rEXTERNAL SPEAKER-MICROPHONE JACK [SP MIC]
Connects the optional speaker-microphone, etc.
tDEALER-PROGRAMMABLE KEYS [P0] to [P3]
The desired functions can be assigned independently by your
dealer. (p. 8)
yCH UP AND DOWN KEYS [ ]/[ ]
Push to select an operating channel, etc.
*Desired functions can be assigned independently by your dealer.
(p. 8)
uTRANSMIT/BUSY INDICATOR
Lights red while transmitting; lights green while receiving a sig-
nal, or when the squelch is open.
iPTT SWITCH [PTT]
➥Push and hold to transmit; release to receive.
➥When the recording function is activated, TX voice message
can be recorded while pushing and holding [PTT]. (p. 22)
[SP MIC] jack cover
NOTE: KEEP the [SP MIC]
jack cover attached to the
transceiver when the optional
equipment is not used.
(See p. 3 for details)
![](/img.php?id=840528&img=bg7.png)
7
2
PANEL DESCRIPTION
2
6
2PANEL DESCRIPTION
■Function display
qRECORD INDICATOR
➥Appears when the unread message is in the memory.
➥Blinks while recording.
wLOW POWER INDICATOR
Appears when low output power is selected.
eAUDIBLE INDICATOR
➥Appears when the channel is in the ‘audible’(unmute) condition.
➥Appears when the specified 2/5-tone/BIIS*1/MDC*2code is re-
ceived.
rCOMPANDER INDICATOR
Appears when the compander function is activated.
tKEY LOCK INDICATOR
Appears when the key lock function is activated.
ySCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
uBELL INDICATOR
Appears/blinks when the specific 2/5-tone/BIIS*1/MDC*2code is
received, according to the pre-programming.
qtiuyrew
o
iBATTERY INDICATOR
Appears or blinks when the battery power decreases to a speci-
fied level.
oALPHANUMERIC DISPLAY
Displays an operating channel number, channel names, Set
mode contents, DTMF code, etc.
*1BIIS operation only
*2MDC operation only
![](/img.php?id=840528&img=bg8.png)
8
2PANEL DESCRIPTION
9
2
PANEL DESCRIPTION
2
SCAN B START/STOP KEY
➥Push to start and cancel scanning operation. Scan resumes
after a specified time period has passed when scan is cancelled
except for this key.
➥Push and hold this key for 1 sec. to indicate the scan group, then
select the desired group using [CH Up]/[CH Down].
SCAN ADD/DEL (TAG) KEY
➥Push to add or delete the selected channel to/from the scan
group.
1. Push to indicate the scan group, then push [CH Up] or [CH Down]
to select the desired group.
2. Push to add or delete the channel to/from the selected scan group.
3. Push and hold for 1 sec. to exit the scan group selection mode.
➥Push this key while scan is paused (a signal is detected) on a
channel (except for priority channel,) the channel is cleared from
the scan group.
Depending on the setting, the cleared channel is added to the
scan group again after the scan is cancelled. (Nuisance
Delete function)
PRIORITY CHANNEL KEYS
➥Push to select Priority A or Priority B channel.
➥Push and hold [Prio A (Rewrite)] or [Prio B (Rewrite)] to set the
operating channel as the Priority A or Priority B channel.
MR-CH 1/2/3/4 KEYS
Push to select the memory channel 1 to 4 directly.
LOCK KEY
Push and hold to toggle the key lock function ON and OFF.
• All programmable keys except the following are electronically locked
when the key lock function is activated: [PTT], [Light], [Surveillance],
[Call] (incl. Call A and Call B), [Moni(Audi)] and [Emergency].
■Programmable function keys
The following functions can be assigned to [P0], [P1], [P2], [P3],
[Red], []and []programmable function keys.
Consult your Icom dealer or system operator for details concerning
your transceivers programming.
If the programmable function names are bracketed in the following
explanations, the specific key is used to activate the function de-
pends on programming.
CH UP AND DOWN KEYS
➥Push to select an operating channel.
➥Push to select a transmit code channel after pushing [TX Code
CH Select].
➥Push to select a DTMF channel after pushing [DTMF Autodial].
➥Push to select a scan group after pushing and holding [Scan A
Start/Stop]/[Scan B Start/Stop].
ZONE SELECT KEY
Push this key, then select the desired zone using [CH Up]/[CH
Down].
What is “zone”?—The desired channels are assigned into a
zone according to the intended use for grouping. For example,
‘Staff A’and ‘Staff B’are assigned into a “Business” zone, and
‘John’and ‘Cindy’are assigned into a “Private” zone.
SCAN A START/STOP KEY
➥This key’s operation depends on the Power ON Scan setting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation.
When the power ON scan function is turned ON;
Push to pause scanning, then resumes scanning after a speci-
fied time period has passed.
➥Push and hold this key for 1 sec. to indicate the scan group, then
select the desired group using [CH Up]/[CH Down].
![](/img.php?id=840528&img=bg9.png)
11
2
PANEL DESCRIPTION
2
10
2PANEL DESCRIPTION
TALK AROUND KEY
Push to turn the talk around function ON and OFF.
•The talk around function equalizes the transmit frequency to the re-
ceive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY
Push to toggle the IF bandwidth between wide and narrow.
• The wide passband width can be selected from 25.0 or 20.0 kHz using
the CS-F50V
CLONING SOFTWARE
. (PMR operation only) Ask your
dealer for details.
DTMF AUTODIAL KEY
➥Push to enter the DTMF channel selection mode. Then select
the desired DTMF channel using [CH Up]/[CH Down].
➥After selecting the DTMF channel, push again to transmit the se-
lected DTMF code.
DTMF RE-DIAL KEY
Push to transmit the last-transmitted DTMF code.
• TX memories are cleared after turning the transceiver OFF.
CALL KEYS
Push to transmit a 2/5-tone/BIIS ID code.
•Call transmission is necessary before calling another station depend-
ing on your signalling system.
•[Call A] and/or [Call B] may be available when your system employs
selective ‘Individual/Group’calls. Ask your dealer which call is as-
signed to each key.
SURVEILLANCE KEY
Push to turn the surveillance function ON or OFF.
When this function is turned ON, the beep is not emitted and the
LCD backlight and the LED indicator do not light when a signal is
received or a key is pushed.
MONITOR KEY
➥Mute and release the CTCSS (DTCS) or 2-tone squelch mute.
Open any squelch/deactivate any mute while pushing and hold-
ing this key. (LMR operation only)
➥Activates one of (or two of) the following functions on each chan-
nel independently: (PMR operation only)
• Push and hold to un-mute the channel (audio is emitted; ‘Audible’
condition).
• Push to mute the channel (sets to ‘Inaudible’only).
• Push after the communication is finished to send a ‘reset code’.
(BIIS operation only)
NOTE: The un-mute condition (‘Audible’condition) may auto-
matically return to the mute condition (‘Inaudible‘ condition)
after a specified period.
LIGHT KEY
Push to turn the backlight ON for about 5 sec. even if the backlight
function is turned OFF in user set mode.
HIGH/LOW KEY
Push to select the transmit output power temporarily or perma-
nently, depending on the pre-setting.
•Ask your dealer for the output power level for each selection.
C.TONE CHANNEL ENTER KEY
Push to enter the continuous tone channel selection mode, and push
[CH Up]/[CH Down] to change the tone frequency/code setting. The
selected channel remains set as the continuous tone channel until
another channel is designated as such.
![](/img.php?id=840528&img=bga.png)
13
2
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
12
2PANEL DESCRIPTION
COMPANDER KEY
Push to turn the compander function ON and OFF.
The compander function reduces noise components from the trans-
mitting audio to provide clear communication.
USER SET MODE KEY
➥Push and hold to enter user set mode.
• During user set mode, push this key to select an item, and push
[CH Up]/[CH Down] to change the value or condition.
➥Push and hold this key again to exit user set mode.
•User set mode is also available via the ‘Power ON function’. Please
refer to p. 20 also.
PLAYBACK KEY (p. 23)
➥Push to playback the recorded messages in sequence from the
newest one.
• A short beep is emitted after playing back each message.
• A long beep is emitted after playing back all messages.
• An error beep is emitted when no message is in the memory.
➥While playing back the message, push and hold for 1 sec. to
delete the selected message.
PLAYBACK/REC KEY (pgs. 22, 23)
➥Push to playback the recorded messages in sequence from the
newest one.
• A short beep is emitted after playing back each message.
• A long beep is emitted after playing back all messages.
• “NO REC” is displayed when no message is in the memory.
➥Push and hold for 1 sec. to start recording. And then, push again
to stop recording.
➥While playing back the message, push and hold for 1 sec. to
delete the selected message.
EMERGENCY KEYS
Push and hold to transmit the emergency call.
• The emergency call is transmitted with beep emission and no display
changes.
• The transceiver can transmit the emergency call silently or with the
display changes depending on the pre-setting. Ask your dealer for de-
tails.
• If you want to cancel the emergency call, push and hold the key again
before transmitting the call.
• The emergency call is transmitted one time only or repeatedly until re-
ceiving a control code depending on the pre-setting.
TX CODE ENTER KEY (PMR operation only)
Push to enter the TX code edit mode. Then set the desired digit
using [CH Up]/[CH Down]. (p. 19)
TX CODE CHANNEL SELECT KEY
➥Push to enter the TX code channel selection mode. Then select
the desired channel using [CH Up]/[CH Down]. (p. 18)
➥While in the TX code channel selection mode, push and hold for
1 sec. to enter the TX code edit mode. Then set the desired digit
using [CH Up]/[CH Down]. (p. 19; PMR operation only)
TX CODE CHANNEL UP/DOWN KEYS
Push to select a TX code channel directly.
ID-MR SELECT KEY (PMR operation only)
➥Recalls detected ID codes.
•Push this key, then push [CH Up]/[CH Down] for selection.
•Up to 5 ID’s are memorized.
➥Push and hold to erase the selected memorized ID’s.
VOICE SCRAMBLER FUNCTION
Push to turn the voice scrambler function ON and OFF.
![](/img.php?id=840528&img=bgb.png)
15
3
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
14
3BASIC OPERATION
■Turning power ON
qRotate [VOL] to turn power ON.
• When the opening vibration function is turned ON, the transceiver
vibrates for 2 sec. Ask your dealer for details.
wIf the transceiver is programmed for a start up passcode, input
digit codes as directed by your dealer.
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore “01234” and “56789” are the same.
eWhen the “PASSWORD” indication does not clear after inputting
4 digits, the input code number may be incorrect. Turn the power
off and start over in this case.
■Channel selection
Several types of channel selections are available. Methods may dif-
fer according to your system set up.
NON-ZONE TYPE:
Push [CH Up]/[CH Down] to select the desired operating channel
in sequence; or, push one of [MR-CH 1] to [MR-CH 4] to select a
channel directly.
ZONE TYPE:
Push [Zone] then push [CH Up]/[CH Down] to select the desired zone.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning the
power ON, the transceiver automatically starts scanning. Scanning
stops when receiving a call.
KEY
NUMBER 0
5
4
9
3
8
2
7
1
6
or
■Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
qSelect the desired TX code channel or 2/5-tone code according
to your System Operator’s instructions.
• This may not be necessary depending on programming.
• Refer to pgs. 18, 19 for selection.
wPush [Call] (assigned to one of the dealer programmable keys).
eAfter transmitting, the remainder of your communication can be
carried out in the normal fashion.

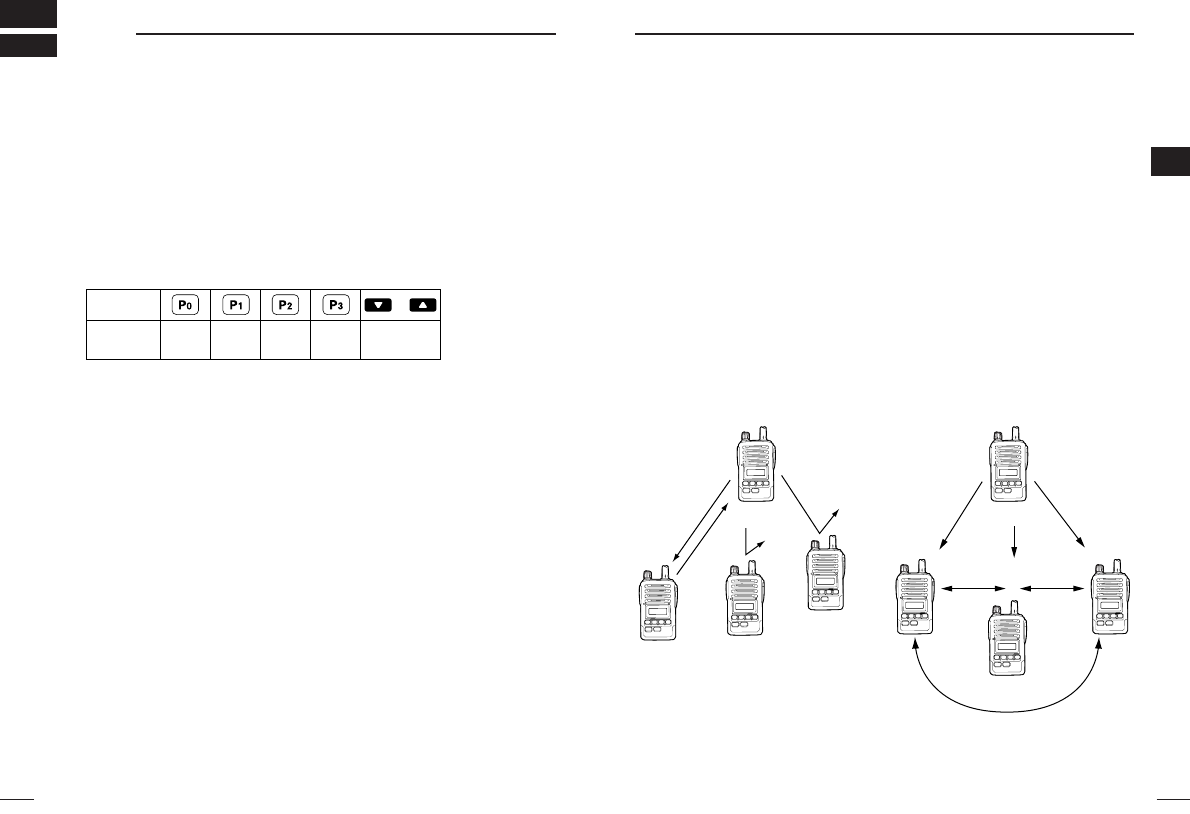

Selective calling Non-selective calling
![](/img.php?id=840528&img=bgc.png)
17
3
BASIC OPERATION
3
16
3BASIC OPERATION
■Receiving and transmitting
NOTE: Transmitting without an antenna may damage the trans-
ceiver. See p. 2 for antenna attachment.
Receiving:
qRotate [VOL] to turn power ON.
wPush [CH Up] or [CH Down] to select a channel.
eWhen receiving a call, adjust the audio output level to a comfort-
able listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
qWhile pushing and holding [PTT], speak into the microphone at a
normal voice level.
• When a tone signalling system is used, the call procedure de-
scribed at left may be necessary.
wRelease [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your
mouth, then speak into the microphone at a normal voice
level.
DReceiving note
• Vibration function (Depends on the version)
When the matched RX code signal is received, the transceiver may
vibrate for a specified time period depends on the pre-setting. Push
any key or [PTT] to stop the vibration.
NOTE:
• The transceiver cannot stop the vibration suddenly after push-
ing any key or [PTT].
• The vibration sound may be heared at the communication
party, or be recorded if the recording function is activated when
[PTT] is pushed to stop the vibration.
DTransmitting notes
• Transmit inhibit function
The transceiver has several inhibit functions which restrict trans-
mission under the following conditions:
- The channel is in mute condition (‘Inaudible’condition; “”
does not appear).
- The channel is busy.
- Un-matched (or matched) CTCSS is received. (Depending on
the pre-setting)
- The selected channel is a ‘receive only’channel.
• Time-out timer
After continuous transmission for the pre-programmed time period,
the time-out timer is activated, causing the transceiver to stop trans-
mitting.
• Penalty timer
Once the time-out timer is activated, transmission is further inhibited
for a period determined by the penalty timer.
![](/img.php?id=840528&img=bgd.png)
19
3
BASIC OPERATION
3
18
3BASIC OPERATION
DTX code channel selection
If the transceiver has [TX Code CH Select] assigned to it, the indi-
cation can be toggled between the operating channel number (or
name) and TX code channel number (or name). When the TX code
channel number (or name) is displayed, [CH Up] or [CH Down] se-
lects the TX code channel.
USING [TX CODE CH SELECT] KEY:
qPush [TX Code CH Select]— a TX code channel number (or
name) appears.
wPush [CH Up] or [CH Down] to select the desired TX code chan-
nel.
ePush [Call] to transmit the selected TX code.
USING [TX CODE CH UP]/[TX CODE CH DOWN] KEY:
If the transceiver has a [TX Code CH Up] or [TX Code CH Down]
key assignment, the programmed TX code channel can be selected
directly when pushed.
DTX code number edit (PMR operation only)
If the transceiver has [TX Code CH Select] or [TX Code Enter] as-
signed to it, TX code contents can be edited within the allowable digits.
USING [TX CODE CH SELECT] KEY:
qPush [TX Code CH Select] to enter the TX code channel selec-
tion mode.
• Select the desired operating channel before entering the TX code
channel selection mode if necessary.
wPush [TX Code CH Select] for 1 sec. to enter the TX code edit mode.
• The digit to be edited blinks.
ePush [TX Code CH Select] to select the desired digit to be edited.
rPush [CH Up]/[CH Down] to select the desired digit.
tPush [TX Code CH Select] to set. The digit to the right will blink
automatically.
yRepeat rand tto edit all allowable digits.
uAfter editing, push [TX Code CH Select] to set.
• Return to the stand by mode.
iPush [Call] to transmit.
USING [TX CODE ENTER] KEY:
qAfter pushing [TX Code CH Select], push [CH Up] or [CH Down],
or push [TX Code CH Up] or [TX Code CH Down] to select the
desired TX code channel.
wPush [TX Code Enter] to enter the TX code edit mode.
• The digit to be edited blinks.
ePush [TX Code Enter] to select the desired digit to be edited.
rPush [CH Up]/[CH Down] to select the desired digit.
tPush [TX Code Enter] to set. The digit to the right will blink auto-
matically.
yRepeat rand tto edit all allowable digits.
uAfter editing, push [TX Code Enter] to set.
• Return to the stand by mode.
iPush [Call] to transmit.
![](/img.php?id=840528&img=bge.png)
21
3
BASIC OPERATION
3
20
3BASIC OPERATION
DDTMF transmission
If the transceiver has [DTMF Autodial] assigned to it, the automatic
DTMF transmission function is available. Up to 8 DTMF channels
are available.
qPush [DTMF Autodial]— a DTMF channel appears.
wPush [CH Up] or [CH Down] to select the desired DTMF channel.
ePush [DTMF Autodial] to transmit the DTMF code to the selected
DTMF channel.
■User set mode
User set mode is accessed at power ON and allows you to set sel-
dom-changed settings. In this case you can “customize” the trans-
ceiver operation to suit your preferences and operating style.
Entering the user set mode:
qWhile pushing and holding [ ] and [ ], rotate [VOL] to power
ON.
• Turn power OFF in advance.
• “SET MODE” appears for 1 sec.
wPush and hold [P0] for 1 sec. to enter user set mode.
ePush [P0] momentarily to select the appropriate item.
Then push [ ] or [ ] to set the desired level/condition.
• Available set mode functions are Backlight, Beep, SQL Level,
Ringer Level, AF Min level, Mic Gain, VOX Gain*, VOX Delay*,
Battery Voltage, Signal Moni, Vibration and Lone Worker.
rPush and hold [P0] again to exit set mode.
* Appears when the optional headset is connected.
User set mode is also available using a programmable key. Please
refer to p. 13 [User Set Mode] section.
NOTE: [ ], [ ] and [P0] activate while in the user set mode
regardless of the assigned key functions.
■Emergency transmission
When [Emergency] is pushed, an emergency signal is automatically
transmitted for the specified time period.
When [Emergency] is pushed for the specified time period, the
DTMF emergency signal is transmitted once or repeatedly on the
emergency channel. However, when no emergency channel is
specified, the signal is transmitted on the previously selected chan-
nel.
If you want to cancel the emergency call, push and hold the key
again before transmitting the call.
■Scrambler function
The scrambler function provides a private communication between
stations with the same scrambler codes.
qPush [Scrambler] to turn the scrambler function ON.
• “” appears.
wPush [Scrambler] again to turn the scrambler function OFF.
■Stun function
When the specified ID, set as a killer ID, is received, the stun func-
tion is activated.
When the killer ID is received, the transceiver switches to the pass-
word required condition. Entering of the password via the keypad is
necessary to operate the transceiver again in this case.
![](/img.php?id=840528&img=bgf.png)
23
3
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
3BASIC OPERATION
■Recording function (Depends on the version)
The transceiver has a recording function that records the TX/RX
voice messages. When the specified ID is received, the automatic
recording function activates and records the voice message for a
specified time period.
Or, if the transceiver has [Playback/Rec] assigned to it, manual
recording is also available.
Automatic recording:
qWhen the specified ID is received, the recording function is au-
tomatically activated.
• “” blinks.
wWhile pushing and holding [PTT], speak into the microphone at a
normal voice level.
• The TX voice message is recorded.
eRelease [PTT] to receive.
• The RX voice message is recorded.
rThe recording operation automatically stops after the specified
time period has passed, exhausting the recording memory, op-
erating any key (except [PTT]), or transmitting a single tone.
• “” stops blinking.
• Pushing [Playback/Rec] (if assigned) also stops recording.
Manual recording:
qPush and hold [Playback/Rec] for 1 sec. to activate the recording
function.
• “” blinks.
wWhile pushing and holding [PTT], speak into the microphone at a
normal voice level.
• The TX voice message is recorded.
eRelease [PTT] to receive.
• The RX voice message is recorded.
rPush [Playback/Rec] again to stop recording.
• “” stops blinking.
• The recording operation stops at exhausting the recording memory,
operating any key (except [PTT]), or transmitting a single tone.
Playing back:
The recorded voice messages are played back with [Playback] or
[Playback/Rec].
• “” appears on the function display when the unplayed message is in
the recording memory.
➥Push [Playback] or [Playback/Rec] to playback the recorded
message in sequence from the newest one.
• Push [CH Up] or [CH Down] to select the desired message.
• A short beep is emitted after playing back each message.
• A long beep is emitted after playing back all messages.
• During playback mode, “” appears when the unplayed message
is played back, or “” disappears when the played message is
played back.
• “” disappears after playing back the unplayed message for the
specified time period.
NOTE: You can transmit the recording message with [PTT] while
playing back the message.
Deleting the message:
➥While playing back the message, push and hold [Playback] or
[Playback/Rec] for 1 sec. to delete the playing back message.
➥While pushing and holding [P0] and [CH Up], turn power ON to
delete all messages in the recording memory.
![](/img.php?id=840528&img=bg10.png)
25
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
24
4BATTERY CHARGING
■Caution
RDANGER! Use and charge only specified Icom battery packs
with Icom radios or Icom charger. Only Icom battery packs are
tested and approved for use and charge with Icom radios or Icom
charger. Using third-party or counterfeit battery packs or charger
may cause smoke, fire, or cause the battery to burst.
DDBattery caution
RDANGER! DO NOT hammer or otherwise impact the battery. Do
not use the battery if it has been severely impacted or dropped, or if
the battery has been subjected to heavy pressure. Battery damage
may not be visible on the outside of the case. Even if the surface of
the battery does not show cracks or any other damage, the cells in-
side the battery may rupture or catch fire.
RDANGER! NEVER use or leave battery packs in areas with tem-
peratures above +60˚C (+140˚F). High temperature buildup in the
battery, such as could occur near fires or stoves, inside a sun
heated car, or in direct sunlight may cause the battery to rupture or
catch fire. Excessive temperatures may also degrade battery per-
formance or shorten battery life.
RDANGER! DO NOT expose the battery to rain, snow, seawater,
or any other liquids. Do not charge or use a wet battery. If the bat-
tery gets wet, be sure to wipe it dry before using. The battery is not
waterproof.
Misuse of Lithium-Ion batteries may result in the following
hazards: smoke, fire, or the battery may rupture. Misuse can
also cause damage to the battery or degradation of battery
performance.
RDANGER! NEVER incinerate used battery packs since internal
battery gas may cause them to rupture, or may cause an explosion.
RDANGER! NEVER solder the battery terminals or NEVER mod-
ify the battery pack. This may cause heat generation, and the bat-
tery may rupture, emit smoke or catch fire.
RDANGER! Use the battery only with the transceiver for which it
is specified. Never use a battery with any other equipment, or for
any purpose that is not specified in this instruction manual.
RDANGER! If fluid from inside the battery gets in your eyes, blind-
ness can result. Rinse your eyes with clean water, without rubbing
them, and see a doctor immediately.
WARNING! Immediately stop using the battery if it emits an abnor-
mal odor, heats up, or is discolored or deformed. If any of these
conditions occur, contact your Icom dealer or distributor.
WARNING! Immediately wash, using clean water, any part of the
body that comes into contact with fluid from inside the battery.
WARNING! NEVER put the battery in a microwave oven, high-
pressure container, or in an induction heating cooker. This could
cause a fire, overheating, or cause the battery to rupture.
CAUTION! Always use the battery within the specified temperature
range for the transceiver (–30˚C to +60˚C; –22˚F to +140˚F) and
the battery itself (–10˚C to +60˚C; 14˚F to +140˚F). Using the bat-
tery out of its specified temperature range will reduce the battery’s
performance and battery life.
CAUTION! Shorter battery life could occur if the battery is left fully
charged, completely discharged, or in an excessive temperature
environment (above +45˚C; +113˚F) for an extended period of time.
If the battery must be left unused for a long time, it must be de-
tached from the radio after discharging. You may use the battery
until the remaining capacity is about half, then keep it safely in a
cool dry place with the temperature between –20˚C to +35˚C (–4˚F
to +95˚F).
![](/img.php?id=840528&img=bg11.png)
27
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
26
4BATTERY CHARGING
DDCharging caution
RDANGER! NEVER charge the battery pack in areas with ex-
tremely high temperatures, such as near fires or stoves, inside a
sun heated car, or in direct sunlight. In such environments, the
safety/protection circuit in the battery will activate, causing the bat-
tery to stop charging.
WARNING! DO NOT charge or leave the battery in the battery
charger beyond the specified time for charging. If the battery is not
completely charged by the specified time, stop charging and re-
move the battery from the battery charger. Continuing to charge the
battery beyond the specified time limit may cause a fire, overheat-
ing, or the battery may rupture.
WARNING! NEVER insert the transceiver (battery attached to the
transceiver) into the charger if it is wet or soiled. This could corrode
the battery charger terminals or damage the charger. The charger is
not waterproof.
CAUTION! DO NOT charge the battery outside of the specified
temperature range: 0˚C to +45˚C; +32˚F to +113˚F. Icom recom-
mends charging the battery at +20˚C (+68˚F). The battery may heat
up or rupture if charged out of the specified temperature range. Ad-
ditionally, battery performance or battery life may be reduced.
■Optional battery chargers

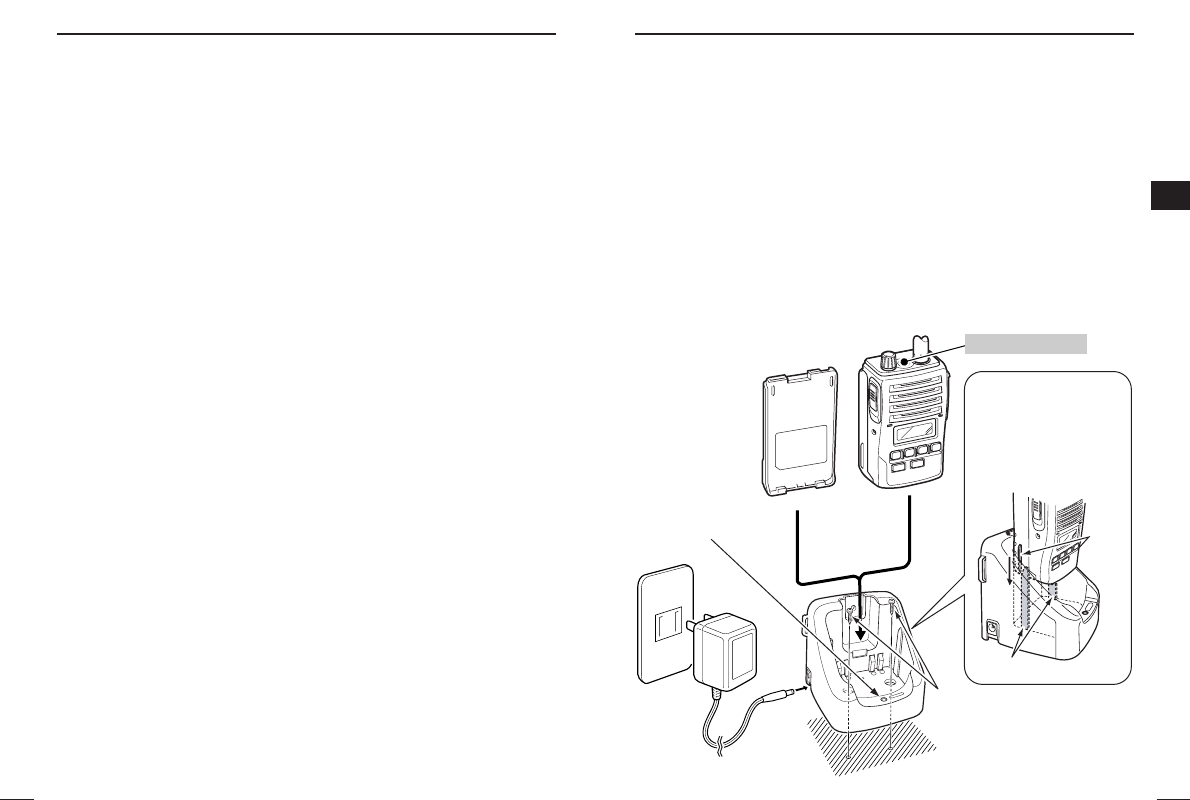

ïRegular charging with the BC-152
qAttach the BC-152 to a flat surface, such as a desk, if desired.
wConnect the AC adapter (BC-147) as shown below.
eInsert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
rCharge the battery pack approx. 9–10 hours, depending on the
remaining power condition.
• The charge indicator goes off when charging is complete.
Charge indica-
tor lights green
while charging.
AC adapter
BC-152
Supplied screws
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside of
the charger adapter.
Lobs
Guide rails
Turn power OFF
Battery pack
Transceiver
![](/img.php?id=840528&img=bg12.png)
29
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
28
4BATTERY CHARGING
DFor your convenience
Eyelet
USE a rubber band to
secure the transceiv-
er while charging, if
desired.

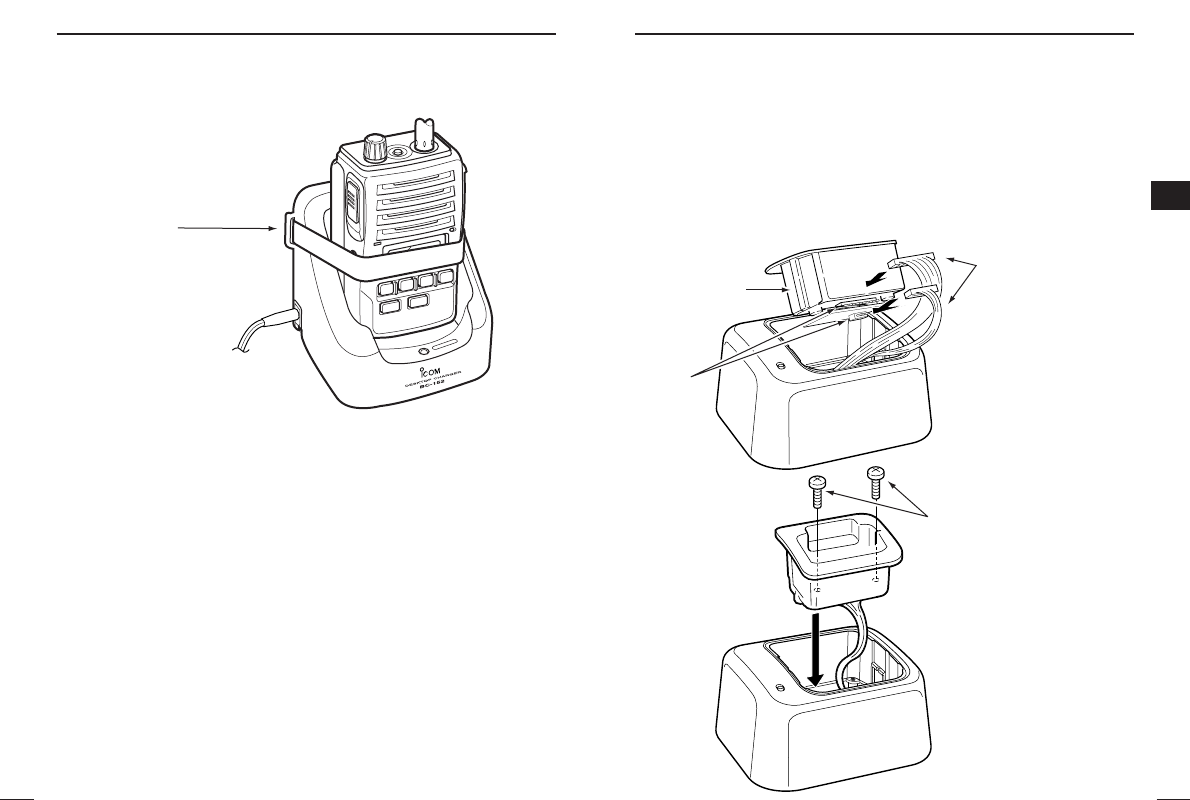

ïAD-100 installation
The AD-100
CHARGER ADAPTER
must be installed into the BC-119N
or BC-121N before battery charging.
➥Connect the AD-100
CHARGER ADAPTER
and the BC-119N/BC-
121N as below, then install the AD-100 into the holder space of
the BC-119N or BC-121N with the supplied screws.
AD-100
Connectors
Plugs
Screws supplied with
the charger adapter
* This illustration is described
with the BC-119N.
![](/img.php?id=840528&img=bg13.png)
31
4
BATTERY CHARGING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
30
4BATTERY CHARGING

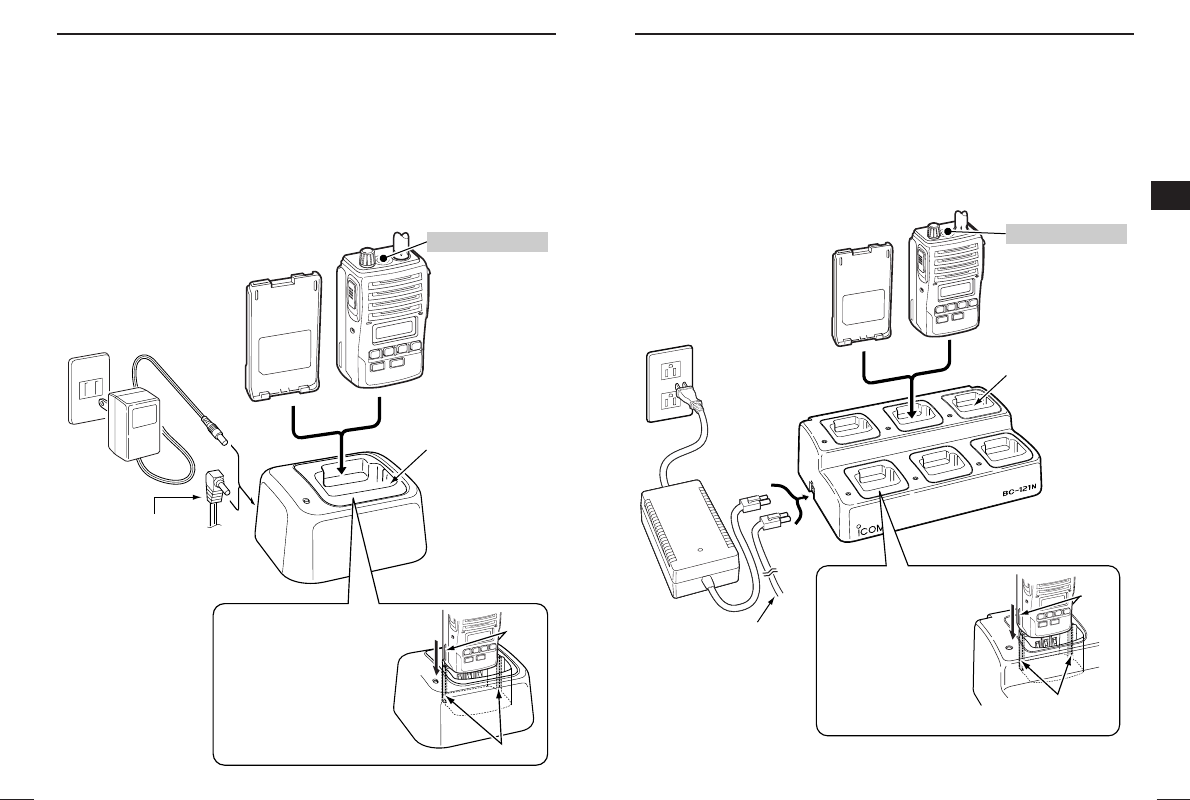

DRapid charging with the BC-119N+AD-100
The optional BC-119N provides rapid charging of optional Li-Ion
battery packs. The following items are additionally required:
• An AD-100 charger adapter
• An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-17L).
AC adapter
(Not supplied with
some versions.)
AD-100 charger
adapter is instal-
led in BC-119N.
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack Turn power OFF
Transceiver
*See the instruc-
tion manual for
details of the
charger LED in-
dication, opera-
tion, etc.
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside of
the charger adapter.
Guide rails
Lobs
DRapid charging with the BC-121N+AD-100
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following items are additionally required.
• Six AD-100 charger adapter
• An AC adapter (BC-157) or the DC power cable (OPC-656)
MULTI-CHARGER
AC adapter
(Purchase
separately.)
Battery pack
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
*See the instruction
manual for details of
the charger LED indi-
cation, operation, etc.
AD-100 charger
adapters are in-
stalled in each
slot.
IMPORTANT!:
Ensure the guide
lobs on the bat-
tery pack are cor-
rectly aligned with
the guide rails in-
side of the charg-
er adapter.
Guide rails
Lobs
Transceiver
Turn power OFF
![](/img.php?id=840528&img=bg14.png)
32
5BATTERY CASE
33
5
BATTERY CASE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

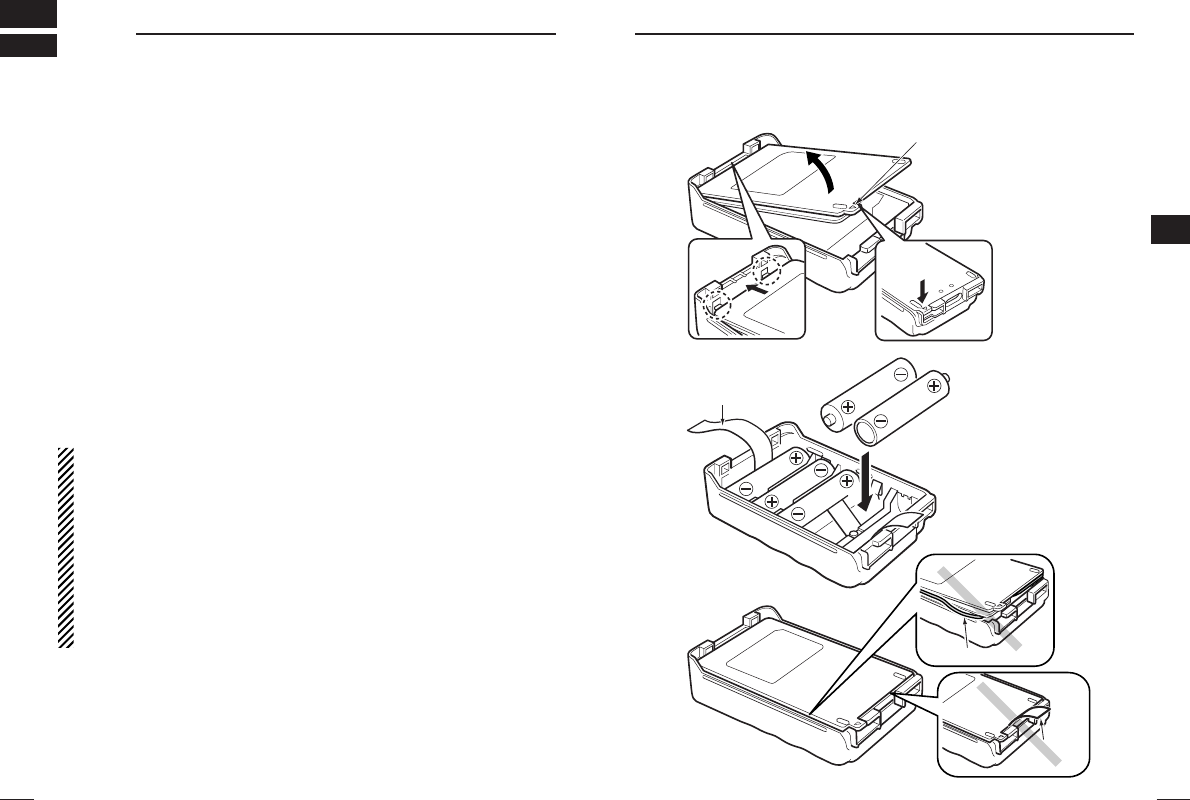

■Optional battery case (BP-226)
When using the optional battery case attached to the transceiver,
install 5 ×AA (LR6) size alkaline batteries as illustrated at right. The
BP-226 employs waterproof construction, which correspond to IPX4
of the international standard IEC 60529 (2001).
qHook your finger under the latch, and open the cover in the direc-
tion of the arrow (q). (Fig.1)
wThen, install 5 ×AA (LR6) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
eClose the cover by fitting in the direction of the arrow (w) first,
then check the latch is in place (e). (Fig.1)
• Be sure the gasket and the ribbon are set correctly, and do not pro-
trude from the battery case. (Fig.3)
CAUTION:
•When installing batteries, make sure they are all the same
brand, type and capacity. Also, do not mix new and old batter-
ies together.
•Keep battery contacts clean. It’s a good idea to clean battery
terminals once a week.
•Never incinerate used battery cells since internal battery gas
may cause them to rupture.
•Never expose a detached battery case to water. If the battery
case gets wet, be sure to wipe it dry before using it.
q
we
BP-226 Latch
Fig.1
Fig.2
Ribbon
Fig.3
Gasket
Ribbon
![](/img.php?id=840528&img=bg15.png)
35
6
SPEAKER-MICROPHONE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
34
6SPEAKER-MICROPHONE

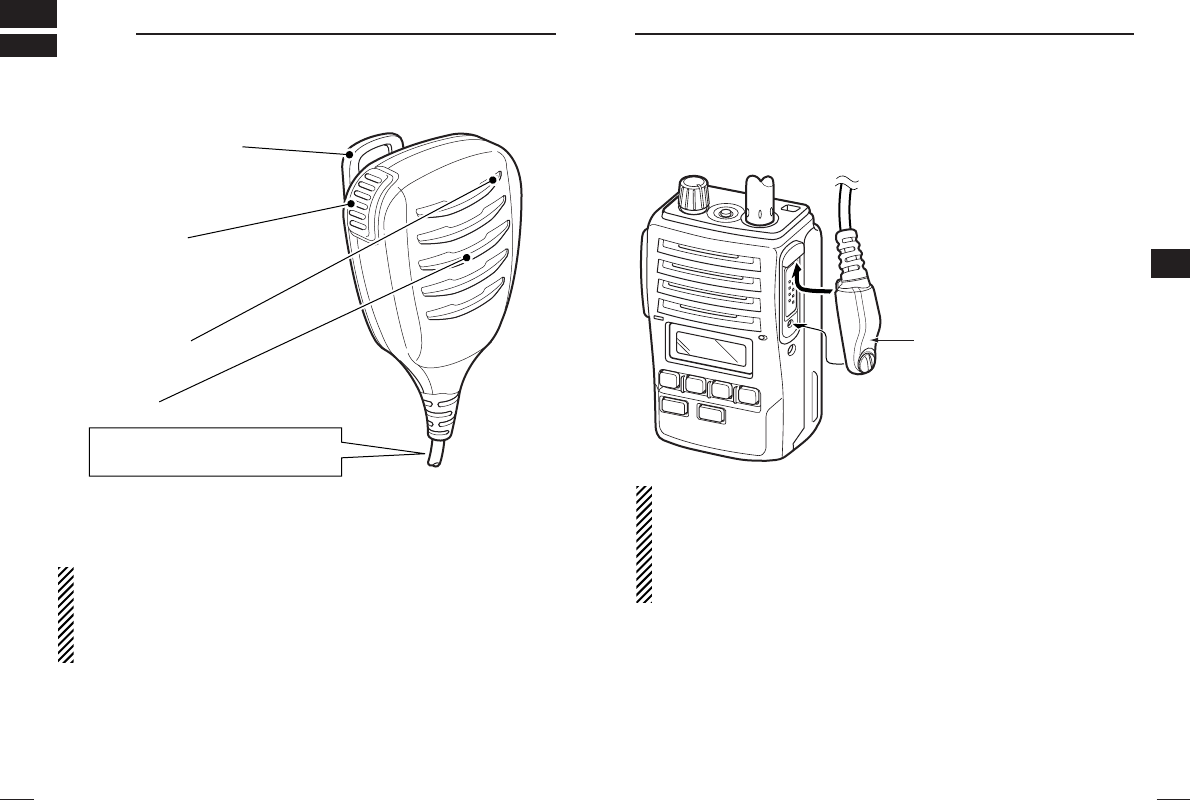

■Optional HM-168 description
NEVER immerse the connector in water. If the connector becomes
wet, be sure to dry it BEFORE attaching it to the transceiver.
NOTE: The microphone is located at the top of the speaker-mi-
crophone, as shown in the diagram above. To maximize the
readability of your transmitted signal (voice), hold the micro-
phone approx. 5 to 10 cm (2 to 4 inches) from your mouth, and
speak in a normal voice level.
Alligator type clip
To attach the speaker-mic.
to your shirt or collar, etc.
PTT switch
Transmits while pushed
Receives while released
Microphone
Speaker
Turn the transceiver power OFF
when connecting the HM-168.
■Attachment
Attach the connector of the speaker-microphone into the [SP MIC]
jack on the transceiver and tighten the screw.
IMPORTANT: KEEP the [SP MIC] jack cover attached to the
transceiver when the speaker-microphone is not in use. (p. 3)
Water will not get into the transceiver even if the cover is not at-
tached, however, the terminals (pins) will become rusty, or the
transceiver will function abnormally if the connector becomes
wet.
CAUTION: Attach the
[SP MIC] jack securely to
prevent accidental drop-
ping, or water intrusion in
the jack.
![](/img.php?id=840528&img=bg16.png)
37
7
SWIVEL BELT CLIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
36

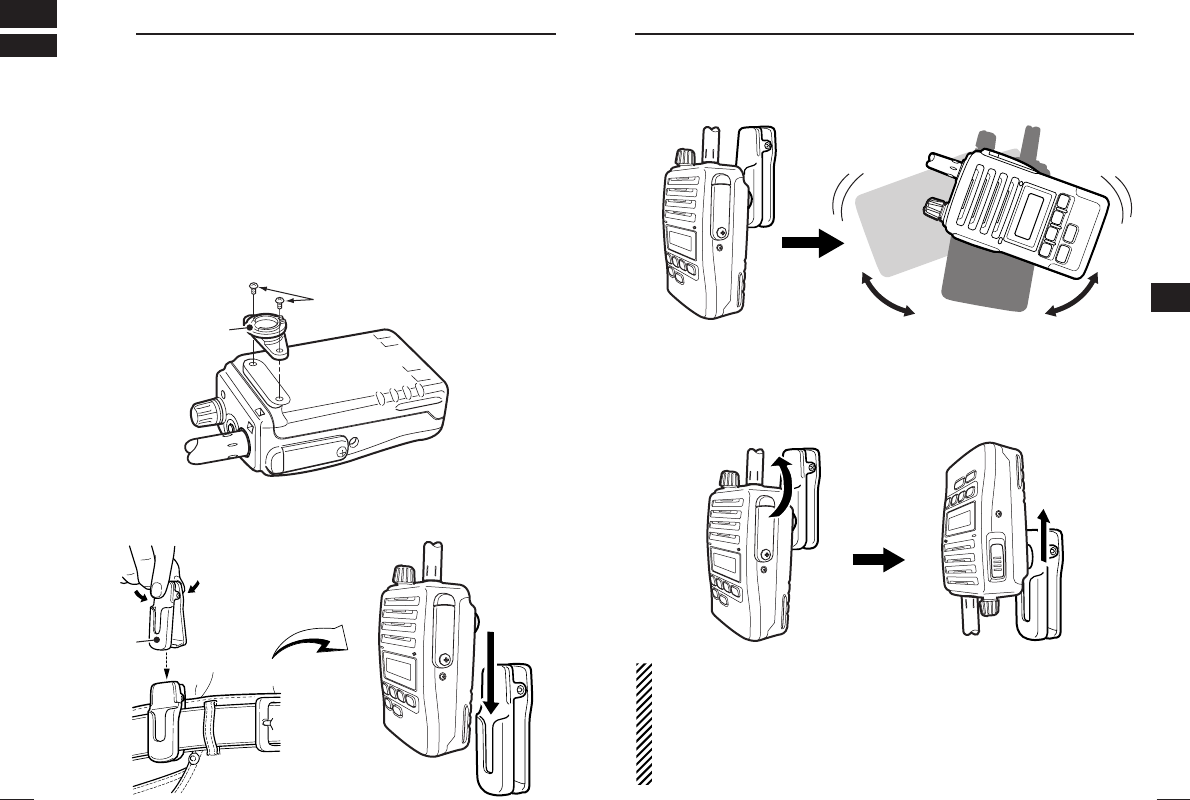

7SWIVEL BELT CLIP
■MB-86 contents
Qty.
qBelt clip ………………………………………………………………… 1
wBase clip ……………………………………………………………… 1
eScrews ………………………………………………………………… 2
■Attaching
qAttach the stopper to the back of the transceiver.
wClip the belt clip to a part of your belt and insert the stopper to
the belt clip.
Belt clip
Supplied screws
Base clip
eOnce the transceiver is locked in place, it will swivel 360 de-
grees.
■Detaching
Turn the transceiver upside down, and pull out from the belt clip.
Then detach the stopper from the back of the transceiver.
CAUTION!
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING OR
DETACHING THE TRANSCEIVER FROM THE BELT CLIP.
Otherwise the transceiver may not be attached to the holder or
swivel properly if the transceiver is accidentally dropped and the
base clip is scratched or damaged.
![](/img.php?id=840528&img=bg17.png)
39
8
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
38
8OPTIONS
DDBATTERY PACK/CASE
• BP-226
BATTERY CASE
Battery case for 5 ×AA (LR6) alkaline cells.
• BP-227
L
i-
I
on
BATTERY PACK
7.2 V/1700 mAh Li-Ion battery pack. The same as supplied with
the transceiver. BP-227 must be charged with the optional BC-
152/BC-119N/BC-121N.
DDCHARGERS
• BC-152
DESKTOP CHARGER
+ BC-147
AC ADAPTER
Used for regular charging of the battery pack. The AC adapter,
BC-147, must be purchased separately.
Charging time: approx. 9–10 hours when BP-227 is attached.
• BC-119N
DESKTOP CHARGER
+ AD-100
CHARGER ADAPTER
+ BC-145
AC ADAPTER
For rapid charging of battery packs. An AC adapter is not supplied
with some versions.
Charging time: approx. 2 to 2.5 hours when BP-227 is attached.
• BC-121N
MULTI
-
CHARGER
+ AD-100
CHARGER ADAPTER
(6 pcs.)
+ BC-157
AC ADAPTER
For rapid charging of up to 6 battery packs (six AD-100’s are re-
quired) simultaneously. An AC adapter should be purchased sep-
arately.
Charging time: approx. 2 to 2.5 hours when BP-227 is attached.
DDBELT CLIPS
• MB-86
SWIVEL BELT CLIP
• MB-98
BELT CLIP
Exclusive alligator-type belt clip. The same as supplied with the
transceiver.
• MB-96N/MB-96F
LEATHER BELT HANGERS
DDDC CABLES
• CP-17L
CIGARETTE LIGHTER CABLE
Allows charging of the battery pack through a 12 V cigarette lighter
socket. (For BC-152/BC-119N)
• OPC-515L/OPC-656
DC POWER CABLES
Allows charging of the battery pack using a 13.8 V power source
instead of the AC adapter.
OPC-515L : For BC-152/BC-119N
OPC-656 : For BC-121N
DDOTHER OPTIONS
• HM-138/HM-168
SPEAKER
-
MICROPHONES
Full-sized waterproof (IPX7 waterproof protection) speaker-micro-
phones including alligator type clip to attach to your shirt or collar, etc.
• HS-94/HS-95/HS-97
HEADSET
+ VS-1SC
VOX
/
PTT CASE
HS-94 : Ear-hook type
HS-95 : Neck-arm type
HS-97 : Throat microphone
VS-1SC : VOX/PTT switch box for hands-free operation, etc.
*These items are IPX4 waterproof protection. So, the transceiver’s wa-
terproofing meets IPX4 when it is connected.
• OPC-966U
INTERFACE CABLE
Provides advanced operation, such as printer, GPS connection for
position data transmission capabilities during BIIS operation.
• FA-S62VS/FA-S63VS/FA-S57US
STUBBY ANTENNAS
FA-S62VS: 150–162 MHz FA-S63VS: 160–174 MHz
FA-S57US: 450–490 MHz
• FA-S24V/FA-S59V/FA-S27U/FA-S56U/FA-S74U
ANTENNAS
FA-S24V: 136–150 MHz FA-S59V: 150–174 MHz
FA-S27U: 400–470 MHz FA-S56U: 450–520 MHz
FA-S74U: 490–520 MHz
Some options may not available in some countries. Please ask your
dealer for details.
![](/img.php?id=840528&img=bg18.png)
41
7
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
7OPTIONS

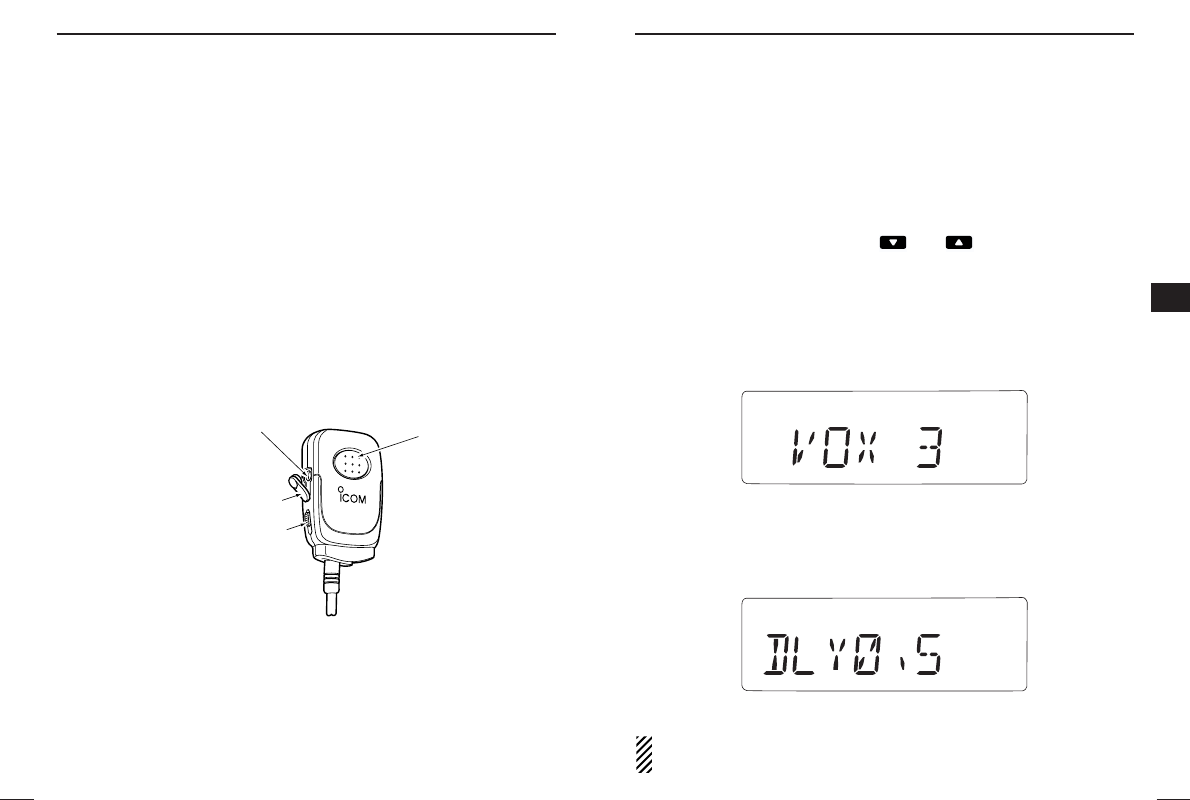

ïAbout VS-1SC
VOX
/
PTT CASE
The VS-1SC is a VOX/PTT unit for Icom handheld transceivers,
and allows you hands-free operation.
An optional headset (HS-94, etc.) is required for operation.
• The VOX (Voice Operated Transmission) function starts transmission
without pushing PTT switch when you speak into the microphone;
then, automatically returns to receive when you stop speaking.
Features
➥9-pin Spring-plug type head SP/MIC plug is equipped
➥Water resistant construction
➥Durable construction
➥Equipped with a PTT switch and revolving clip
VS-1SC
Water protection cover
PTT switch
MIC/VOX gain
adjusting pot
VOX/PTT select switch
VOX gain and delay adjustment
qAttach the connector of the VS-1SC into the [SP/MIC] con-
nector on the transceiver and tighten the screw.
• Toggle the toggle switch to [VOX].
wEnter user set mode. (pgs. 13, 20)
ePush [P0] several times to select the “VOX Gain” or “VOX
Delay” items. Then, push [ ] or [ ] to set the desired
level/condition.
rRotate [VOL] to turn the power OFF to exit set mode.
• VOX Gain
The VOX sensitivity level can be adjusted from OFF or 1 to 6
(more sensitive).
• VOX Delay
The VOX delay time can be set from 0.5 to 3.0 sec. (0.5 sec.
step) for a convenient interval before returning to receive.
NOTE: MIC/VOX gain can be adjusted via the Adjusting pot
using a thin screw driver.
VOX delay timer is 0.5 sec. (default)
VOX gain level is 3 (default)
![](/img.php?id=840528&img=bg19.png)
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
A-6604?-1EX
Printed in Japan
© 2007 Icom Inc.
Printed on recycled paper with soy ink.
