INSTRUCTION MANUAL
iA14
iA14S
VHF AIR BAND TRANSCEIVER
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition
that this device does not cause harmful inter-
ference.
YIC-A14 YIC-A14S
i
SAFETY TRAINING INFORMATION
W AR N IN G
Your Icom radio generates RF electromagnetic energy dur-
ing transmit mode. This radio is designed for and classified
as “Occupational Use Only”, meaning it must be used only
during the course of employment by individuals aware of the
hazards, and the ways to minimize such hazards. This radio
is NOT intended for use by the “General Population” in an
uncontrolled environment.
This radio has been evaluated for compliance at the distance of 2.5 cm with
the FCC RF exposure limits for “Occupational Use Only”. In addition, your
Icom radio complies with the following Standards and Guidelines with regard
to RF energy and electromagnetic energy levels and evaluation of such levels
for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Com-
pliance with FCC Guidelines for Human Exposure to Radio Frequency
Electromagnetic Fields.
• American National Standards Institute (C95.1-1992), IEEE Standard
for Safety Levels with Respect to Human Exposure to Radio Frequency
Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3-1992), IEEE Recom-
mended Practice for the Measurement of Potentially Hazardous Electro-
magnetic Fields– RF and Microwave.
• The following accessories are authorized for use with this product. Use
of accessories other than those specified may result in RF exposure lev-
els exceeding the FCC requirements for wireless RF exposure.; Belt
Clip (MB-94/96F) and Rechargeable Li-ion Battery Pack (BP-230N/
232N).
To ensure that your expose to RF electromagnetic en-
ergy is within the FCC allowable limits for occupational
use, always adhere to the following guidelines:
•
DO NOT operate the radio without a proper antenna attached, as this
may damage the radio and may also cause you to exceed FCC RF ex-
posure limits. A proper antenna is the antenna supplied with this radio
by the manufacturer or antenna specifically authorized by the manufac-
turer for use with this radio.
•
DO NOT transmit for more than 50% of total radio use time (“50% duty
cycle”). Transmitting more than 50% of the time can cause FCC RF ex-
posure compliance requirements to be exceeded. The radio is transmit-
ting when “ ” appears on the function display. You can cause the
radio to transmit by pressing the “PTT” switch.
•
ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body
when transmitting and only use the Icom belt-clips which are listed on
page 36 when attaching the radio to your belt, etc., to ensure FCC RF
exposure compliance requirements are not exceeded. To provide the re-
cipients of your transmission the best sound quality, hold the antenna at
least 5 cm (2 inches) from your mouth, and slightly off to one side.
The information listed above provides the user with the information needed
to make him or her aware of RF exposure, and what to do to assure that this
radio operates with the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that can possibly
cause interference with other devices or systems. To avoid such interference,
turn off the radio in areas where signs are posted to do so. DO NOT operate
the transmitter in areas that are sensitive to electromagnetic radiation such as
hospitals and blasting sites.
Occupational/Controlled Use
The radio transmitter is used in situations in which persons are exposed as
consequence of their employment provided those persons are fully aware of
the potential for exposure and can exercise control over their exposure.
C AU T IO N
ii
FOREWORD
Thank you for purchasing this Icom product. The IC-A14/S
VHF AIR BAND TRANSCEIVER is designed and built with
Icom’s state of the art technology and craftsmanship. With
proper care this product should provide you with years of
trouble-free operation.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This in-
struction manual contains important operating instructions
for the IC-A14/S.
EXPLICIT DEFINITIONS

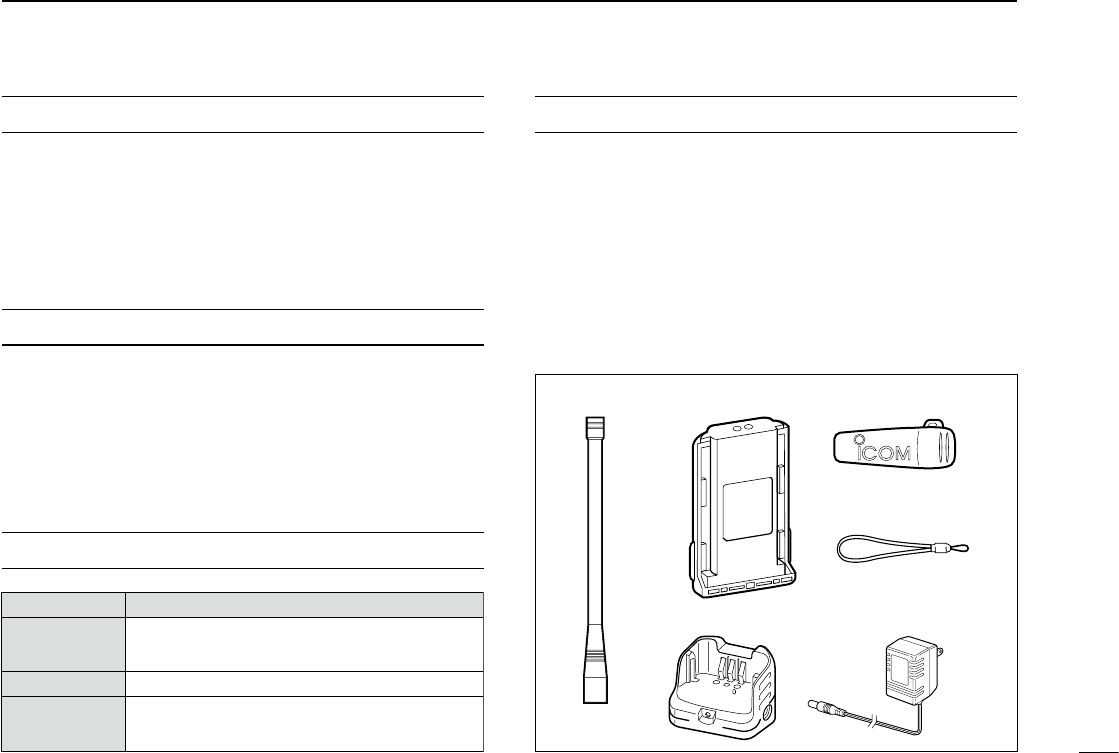

SUPPLIED ACCESSORIES
The following accessories are supplied with the transceiver.
Qty.
q Flexible antenna ............................................................. 1
w Battery pack ................................................................... 1
e Belt clip .......................................................................... 1
r Hand strap ..................................................................... 1
t Battery charger .............................................................. 1
y AC adapter ..................................................................... 1
WORD DEFINITION
RWARNING
CAUTION
NOTE
Personal injury, fire hazard or electric shock
may occur.
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
Equipment damage may occur.
q w
t y
e
r
R WARNING! NEVER hold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 5 to 10 cm
(231⁄32 to 315⁄16 inch) away from the lips and the transceiver is
vertical.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume op-
eration. If you experience a ringing in your ears, reduce the
volume level or discontinue use.
NEVER short the terminals of the battery pack. Also, cur-
rent may flow into nearby metal objects, such as a necklace,
etc. Therefore, be careful when carrying with, or placing
near metal objects, carrying in handbags, etc.
NEVER use of non-Icom battery packs/chargers to prevent
the loss of the transceiver’s good performance and warranty.
DO NOT allow children to play with any radio equipment
containing a transmitter.
DO NOT operate the transceiver near unshielded electri-
cal blasting caps or in an explosive atmosphere.
DO NOT using or placing the transceiver in direct sunlight
or in areas with temperatures below –10°C (+14°F) or above
+60°C (+140°F).
KEEP the transceiver away from the heavy rain, and
NEVER immerse it in the water. The transceiver construc-
tion is water resistant, not waterproof.
iii
PRECAUTION
Icom, Icom Inc. and the logo are registered trademarks of Icom Incor-
porated (Japan) in the United States, the United Kingdom, Germany, France,
Spain, Russia and/or other countries.
FCC caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations. (U.S.A. only)
iv
SAFETY TRAINING INFORMATION ������������ i
FOREWORD ����������������������� ii
IMPORTANT ����������������������� ii
EXPLICIT DEFINITIONS ����������������� ii
SUPPLIED ACCESSORIES ���������������� ii
PRECAUTION ���������������������� iii
TABLE OF CONTENTS ������������������ iii
1 PANEL DESCRIPTION ��������������� 1–5
n Panel description ������������������ 1
n Function display ������������������� 5
2 ACCESSORY ATTACHMENT ������������ 6–7
3 BASIC OPERATION ���������������� 8–11
n Setting a frequency ����������������� 8
n Setting a squelch level ���������������� 9
n Lock function �������������������� 9
n Receiving ���������������������10
n Transmitting ��������������������10
n Side tone function ������������������11
n LCD backlight ��������������������11
n Low battery indicator �����������������11
4 MEMORY OPERATION �������������� 12–17
n Memory channel selection ��������������12
n Memory bank selection (Available with the IC-A14 only) �12
n Programming a memory channel �����������13
n Memory names �������������������15
n Copying memory contents ��������������16
n
Clearing the memory contents (Available with the IC-A14 only)
�������������������������� 17
5 SCAN OPERATION ���������������� 18–20
n Scan types ���������������������18
n COM band scan �������������������18
n Memory scan ��������������������19
n Weather channel scan (Available with the IC-A14 only) ��19
n “TAG” channel setting ����������������20
6 OTHER FUNCTIONS ��������������� 21–26
n Home function �������������������21
n Accessing 121.5 MHz emergency frequency
(Available with the IC-A14 only) ������������21
n Key touch beep tone �����������������22
n ANL function ��������������������22
n Weather channel operation (Available with the IC-A14 only)
��������������������������23
n Duplex operation (Available with the IC-A14 only) ����24
n Set mode setting ������������������25
7 BATTERY PACKS ���������������� 27–31
n Battery charging �������������������27
n Charging the battery �����������������29
8 CLONING �������������������� 32–33
9 TROUBLESHOOTING �����������������34
10 SPECIFICATIONS �������������������35
11 OPTIONS ����������������������36
12 OPTIONAL HEADSET CONNECTION ����������37
13 FOR CLASS B UNINTENTIONAL RADIATORS �����38
TABLE OF CONTENTS
n Panel description

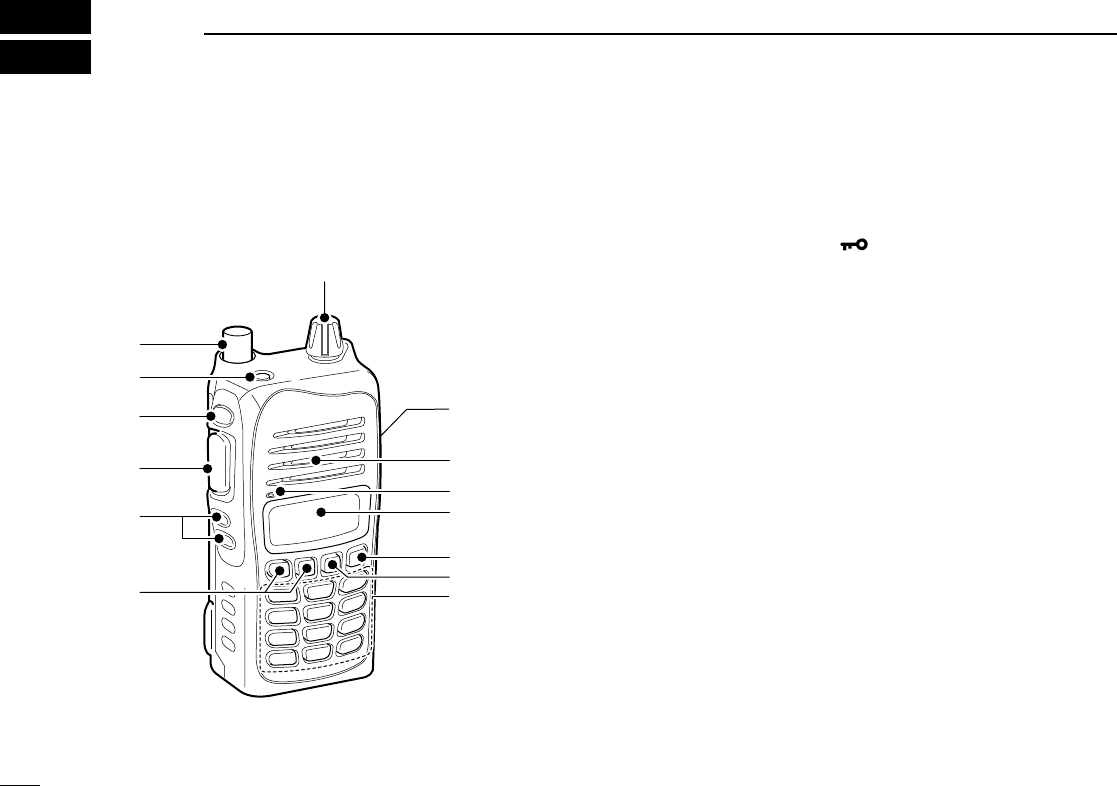

q ANTENNA CONNECTOR [ANT] (p. 6)
Connects the supplied antenna.
w KEY LOCK SWITCH [ ] (p. 9)
Push to turning the key lock function ON.
Push and hold for 2 sec. to turning the key lock func-
tion OFF.
e LIGHT SWITCH [LIGHT]
Push to toggles the LCD backlight ON and OFF. (p. 11)
For IC-A14S only
During memory mode, push and hold for 2 sec. to turn
the “TAG” setting ON and OFF. (p. 20)
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t SQUELCH UP/DOWN KEYS [SQLY]/ [SQLZ] (p. 9)
Push either key to select the squelch level.
• 10 squelch levels, 1–10, and squelch open, 0, are available.
y UP/DOWN KEYS [Y]/[Z]
Push to change or select the operating frequency,
memory channel, set mode setting, etc. (p. 8)
While scanning, push to change the scanning direc-
tion. (pgs. 18, 19)
For IC-A14S only
Push and hold for 1 sec. to start scanning. (pgs. 18, 19)
1
1PANEL DESCRIPTION

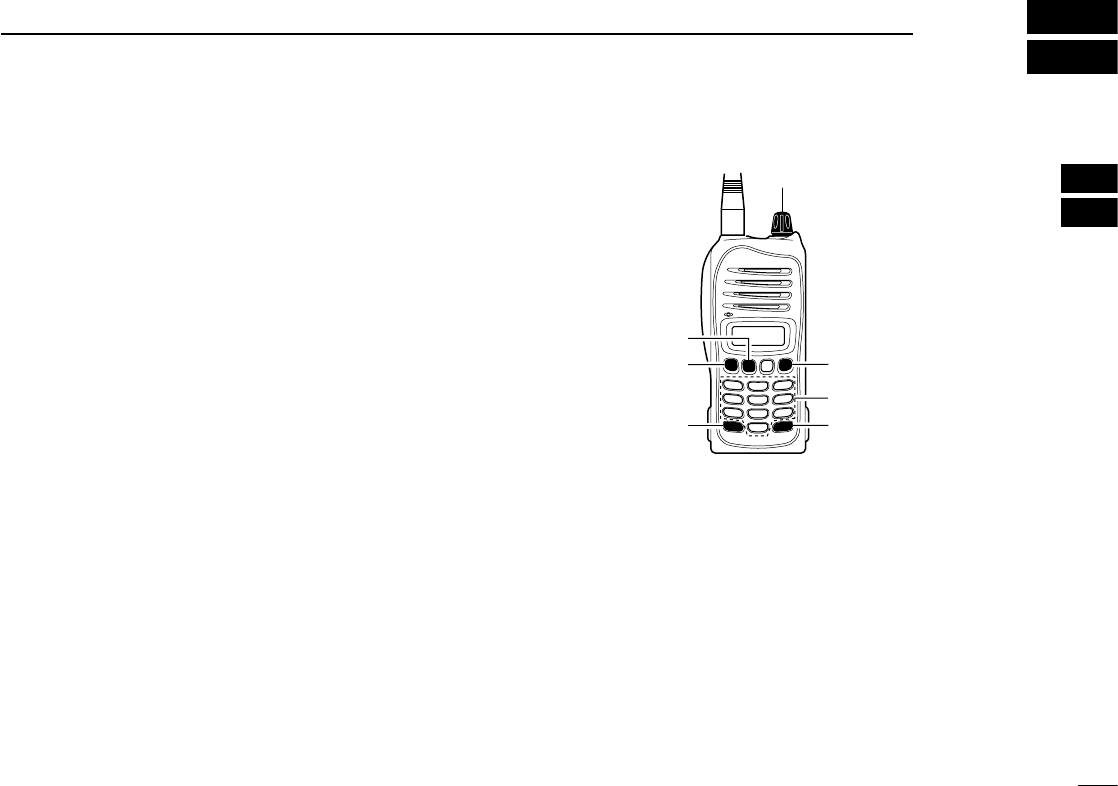

q
w
r
e!0
Function
display (p. 5)
o
i
u
Microphone
Speaker
!1
t
y
2
u KEYPAD (Available with the IC-A14 only; pgs. 3, 4)
i MEMORY MODE/MEMORY WRITE KEY [MR]/[MW]
Push to select memory mode. (p. 12)
For IC-A14
Push [FUNC] then push this key enters select memory
write mode. (p. 13)
During memory mode, push [FUNC] then push this
key to copy the memory content into frequency mode.
(p. 16)
For IC-A14S
Push and hold for 1 sec. to enter select memory write
mode. (p. 14)
During memory mode, push and hold for 1 sec. to
copy the memory content into frequency mode. (p. 16)
o CLEAR/HOME SWITCH [CLR]/[HOME]
Push to select frequency mode. (p. 8)
Push and hold for 2 sec. to resetting the transceiver
into the user-default condition without memory con-
tents (home function). (p. 21)
!0 EXTERNAL SPEAKER AND MICROPHONE JACKS
[MIC/SP] (p. 37)
Connects the optional speaker microphone or a headset
using with the optional OPC-499 HEADSET ADAPTER, if
desired.
NEVER connect an optional speaker-microphone,
headset adapter, etc. while the transceiver power is
ON.
!1 VOLUME CONTROL KNOB [VOL]
Rotate to turn the transceiver power ON/OFF and adjusts
the audio level.
1
PANEL DESCRIPTION

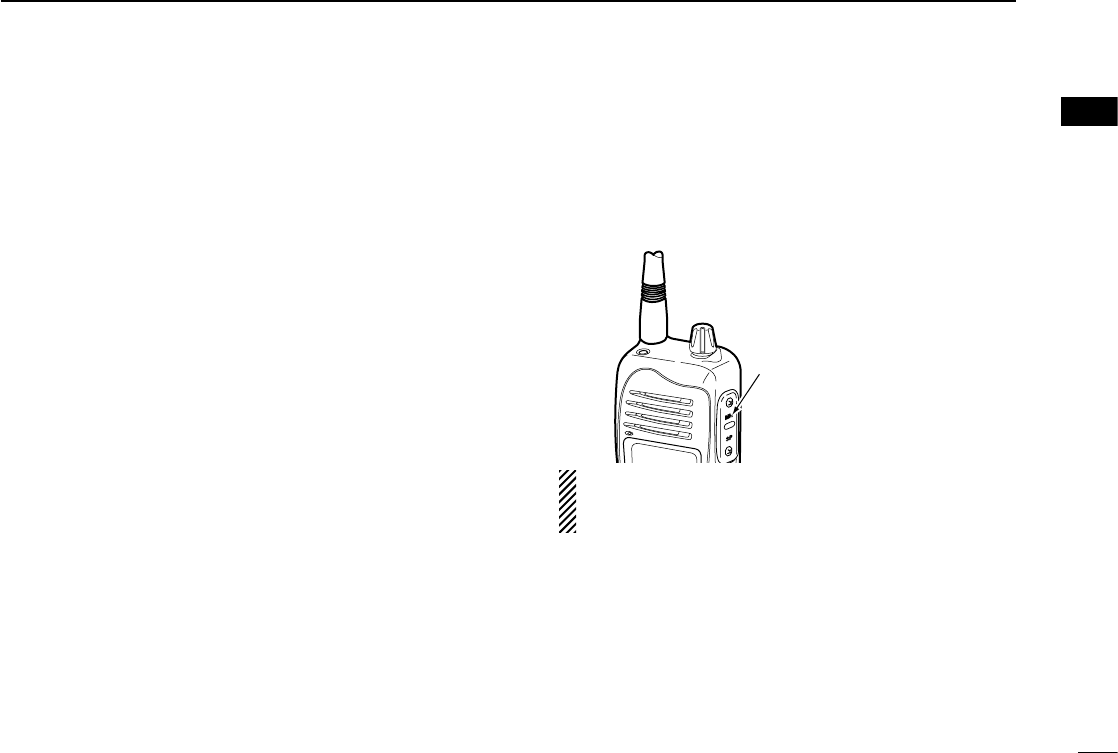

Jack cover
NOTE: Attach the jack
cover when the optional
equipment is not used.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
3
1PANEL DESCRIPTION

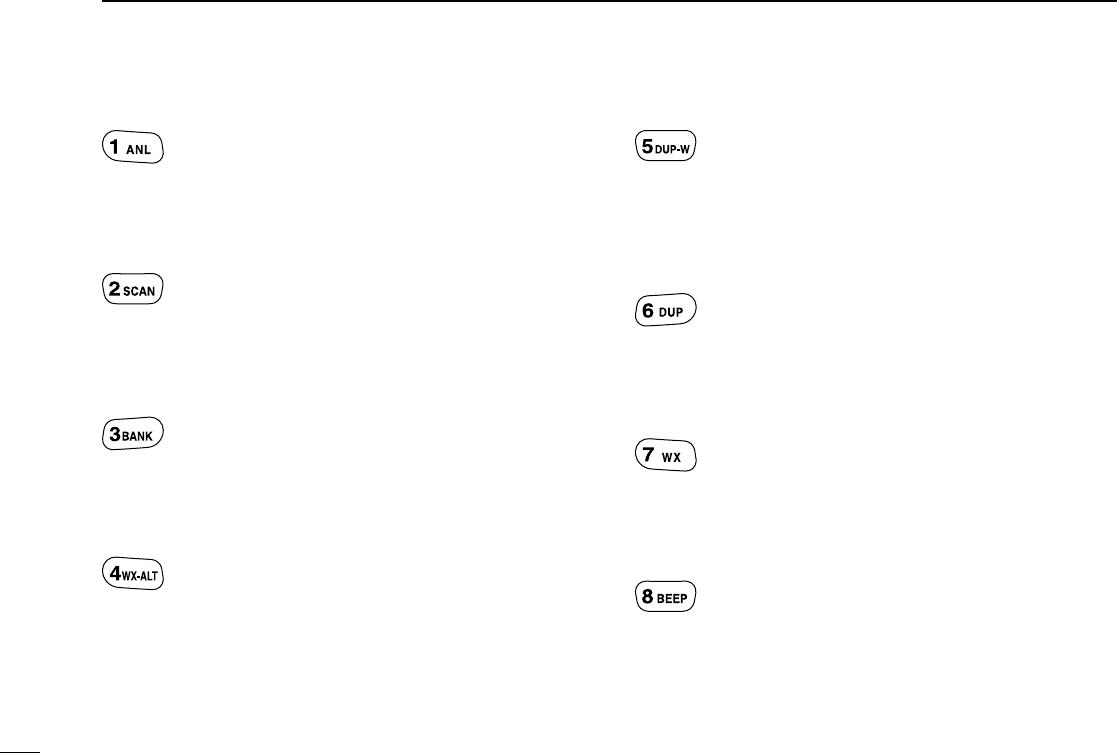

D KEYPAD (Available with IC-A14 only)
Inputs digit “1” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “1,” “Q,” or “Z” during memory name pro-
gramming.
(p. 15)
After pushing [FUNC], turns the ANL (Automatic
Noise Limiter) function ON and OFF. (p. 22)
Inputs digit “2” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “2,” “A,” “B,” or “C” during memory name
programming.
(p. 15)
After pushing [FUNC], starts the scan. (pgs. 18,
19)
Inputs digit “3” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “3,” “D,” “E,” or “F” during memory name
programming.
(p. 15)
After pushing [FUNC], selects memory bank
mode, during memory mode. (p. 12)
Inputs digit “4” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “4,” “G,” “H,” or “I” during memory name
programming.
(p. 15)
After pushing [FUNC], turns the weather alert
function ON and OFF. (p. 23)
Inputs digit “5” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “5,” “J,” “K,” or “L” during memory name
programming.
(p. 15)
After pushing [FUNC], enters duplex transmit
frequency programming condition, during NAVI
band operation. (p. 24)
Inputs digit “6” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “6,” “M,” “N,” or “O” during memory name
programming.
(p. 15)
After pushing [FUNC], selects duplex operation
during NAVI band operation. (p. 24)
Inputs digit “7” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “7,” “P,” “R,” or “S” during memory name
programming.
(p. 15)
After pushing [FUNC], selects weather channel
mode. (p. 23)
Inputs digit “8” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “8,” “T,” “U,” or “V” during memory name
programming.
(p. 15)
After pushing [FUNC], key touch beep output ON
and OFF. (p. 22)
4
1
PANEL DESCRIPTION

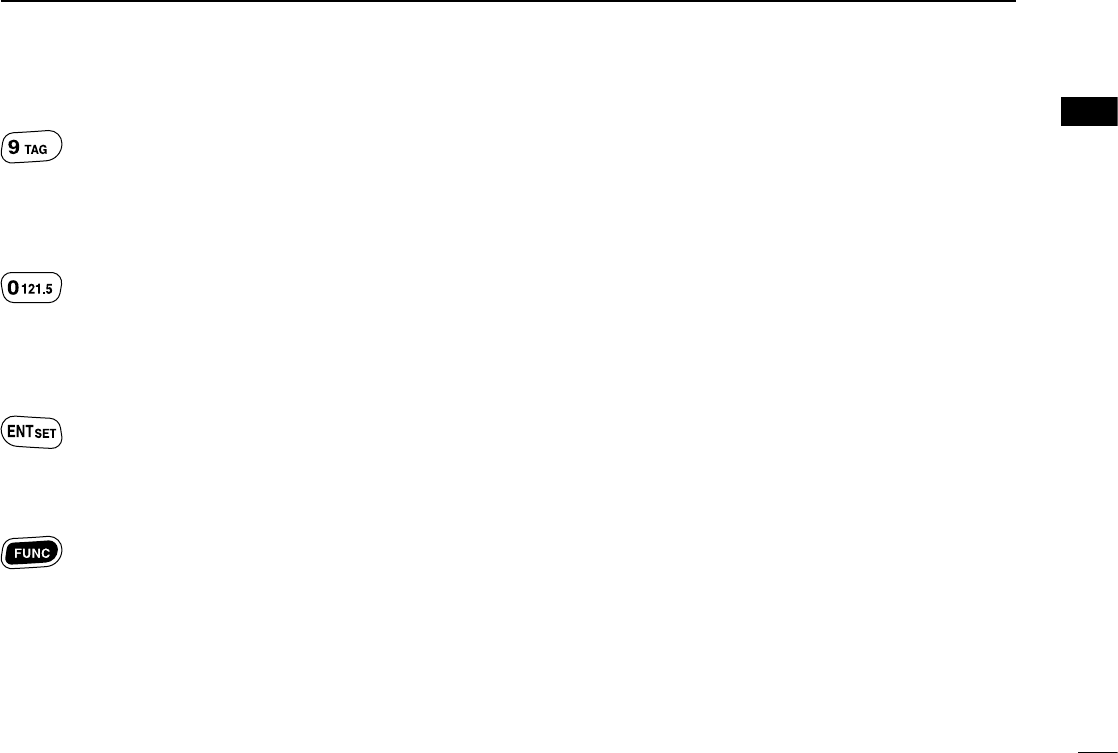

Inputs digit “9” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “9,” “W,” “X,” or “Y” during memory name
programming.
(p. 15)
After pushing [FUNC], toggles scan tag setting
ON and OFF. (p. 20)
Inputs digit “0” for frequency input or memory
channel selection, etc. (pgs. 8, 12)
Inputs “0,” “space” or “–” during memory name
programming. (p. 15)
After pushing [FUNC], selects the emergency
frequency, 121.500 MHz. (p. 21)
Completes the numeral input for frequency or
memory channel number, etc. Enters consecu-
tive zero into the following digits.
(pgs. 8, 12)
After pushing [FUNC], push and hold for 1 sec.
to entering into set mode.
(p. 25)
Push to call up the function indicator, “F”, then
push another key to access its secondary func-
tion.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
5
1PANEL DESCRIPTION

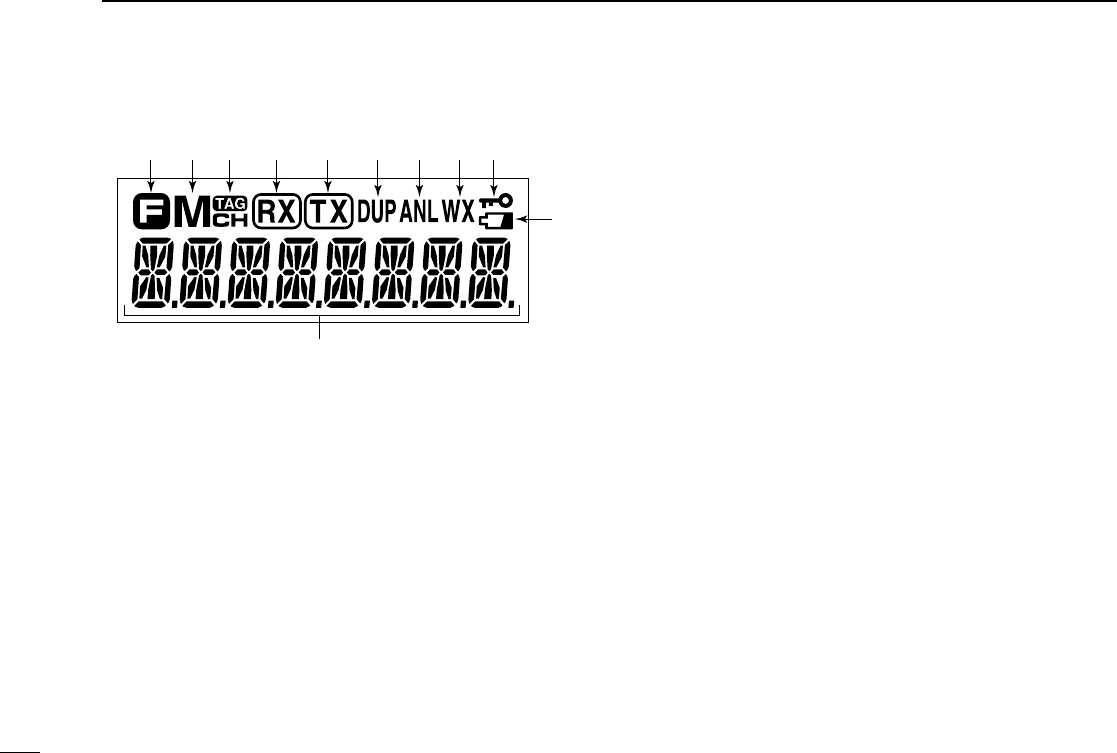

n Function display
q FUNCTION INDICATOR
Appears when [FUNC] is pushed.
w MEMORY INDICATOR (p. 12)
Appears when memory channel mode is selected.
e TAG INDICATOR (p. 20)
Appears when the selected memory channel is set as a
TAG channel.
r RX INDICATOR (p. 10)
Appears when receiving a signal or when the squelch
opens.
t TX INDICATOR (p. 10)
Appears while transmitting.
y DUPLEX INDICATOR (IC-A14 only) (p. 24)
Appears when the duplex function is activate.
Blinks while setting the duplex frequency.
u ANL INDICATOR (p. 22)
Appears when the ANL (Automatic Noise Limiter) func-
tion is in use.
i WEATHER ALERT INDICATOR (IC-A14 only) (p. 23)
Appears when the weather alert function is in use.
o LOCK INDICATOR (p. 9)
Appears when the lock function is in use.
!0 LOW BATTERY INDICATOR (p. 11)
Appears when the battery is nearing exhaustion. The
attached battery pack requires recharging when this
indicator ON.
Blinks when battery replacement is necessary.
!1 FREQUENCY READOUT
Shows the operating frequency, memory channel
number, memory name, set mode item, etc., depending
on the selected condition.
q w e r t y u i o
!1
!0
6
2
ACCESSORY ATTACHMENT

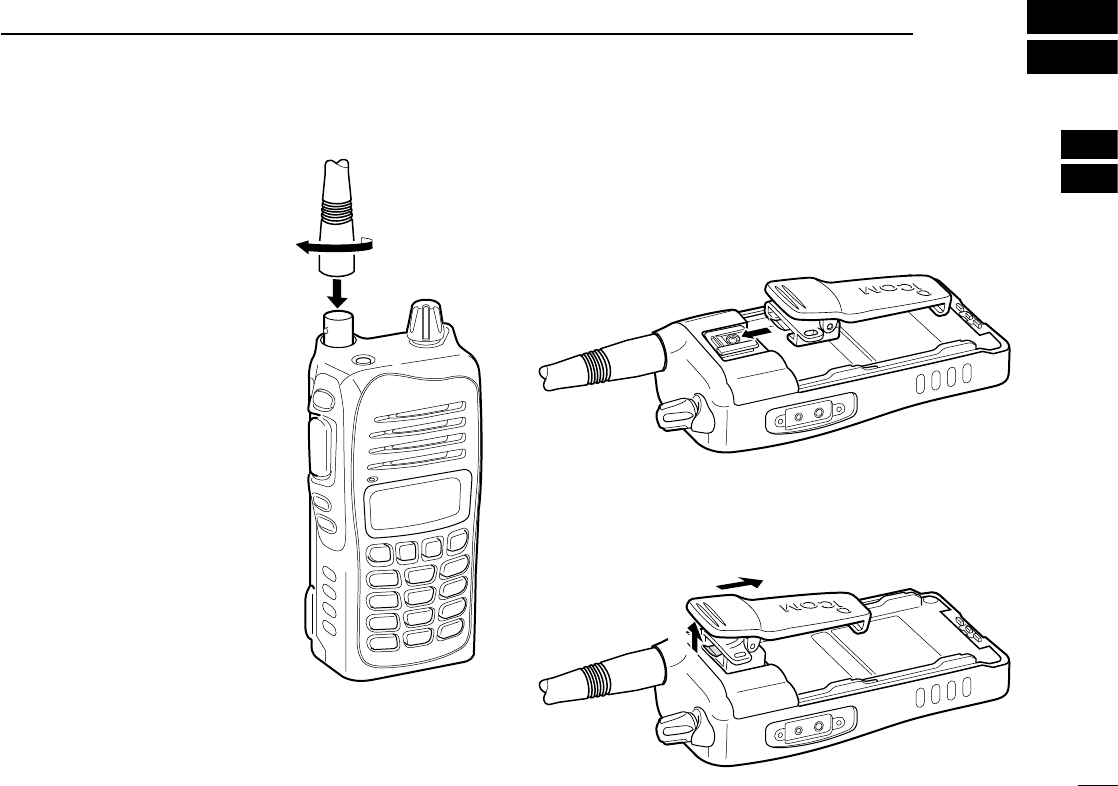

D Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at right.
CAUTION!
•
NEVER carry the transceiver by
the antenna.
•
DO NOT transmit without an
antenna. Otherwise the transceiv-
er may be damaged.
D Belt clip
Conveniently attaches to your belt.
Attach the belt clip as described below.
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
- When detaching the belt clip
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction
of the arrow (w).
q
w
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
7
D Battery pack attachment
Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.
• Slide the battery pack until the battery release button makes a
‘click’ sound.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown in the illustration at right. The battery pack is
then released.
NEVER release or attach the battery pack when the
transceiver is wet or soiled. This may result water or dust
getting into the transceiver/battery pack and may result in
the transceiver being damaged.
2ACCESSORY ATTACHMENT
q
w
Battery release button
Turn the transceiver power OFF with [VOL] before attach-
ing or detaching the battery pack.
For your information
If the transceiver power cannot be turned ON when replac-
ing with the fully charged battery pack, perform as follow.
Detach the battery pack and wait for a while (approx.
10 sec.), then attach the battery pack then turn power ON.
8
3
BASIC OPERATION
n Setting a frequency
D Using [Y]/[Z] keys
q Rotate [VOL] to turn power ON, then push [CLR] to se-
lect the frequency mode when memory CH number or
WX CH number appears on the function display.
w Push [Y]/[Z] to set the desired frequency.
- For IC-A14 only -
• 1 MHz tuning step is available with the IC-A14; push
[FUNC], then push [Y]/[Z]. Push [FUNC] again to re-
turn the normal tuning.
D Using keypad (IC-A14 only)
q Rotate [VOL] to turn power ON, then push [CLR] to se-
lect the frequency mode when memory CH number or
WX CH number appears on the function display.
w Push 5 appropriate digit keys to input the frequency.
• Push [1] as the 1st digit.
• When a wrong digit is input, push [CLR] to clear, then repeat
step w again.
• Push [ENT] to enter consecutive zero digits.
• Only [2], [5], [7] and [0] can be entered as the 5th and final
digit.
[EXAMPLE]
• 111.225 MHz: Push [1], [1], [1], [2], [2]
• 117.250 MHz: Push [1], [1], [7], [2], [5]
• 120.000 MHz: Push [1], [2], [ENT]
• 125.300 MHz: Push [1], [2], [5], [3], [ENT]
2
3
[VOL]
[FUNC]
[Z]
[ENT]
[CLR]
[Y]
Keypad
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

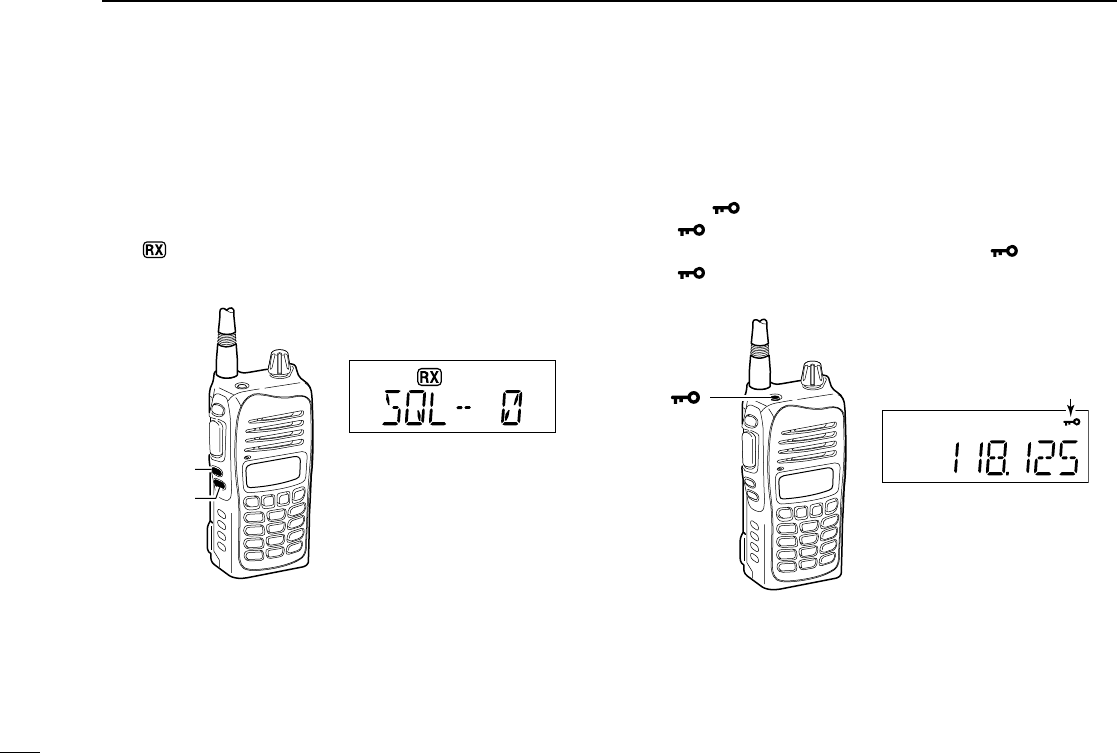

n Setting a squelch level
The transceiver has a noise squelch circuit to mute unde-
sired noise while receiving no signal.
q Push [SQLY] or [SQLZ] to select the squelch level.
• ‘SQL--0’ is open squelch and ‘SQL--10’ is tight squelch.
• “ ” indicator appears while the squelch is open.
w
Wait for 1 sec. to return to the previous indication.
n Lock function
The lock function prevents accidental frequency changes
and accidental function activation.
q Push [ ] to turn the lock function ON.
• “ ” indicator appears.
w To turn the function OFF, push and hold [ ] for 2 sec.
• “ ” indicator disappears.
9
3BASIC OPERATION
[SQLY]
“SQL-- 0”; Squelch open
[SQLZ]
[ ]
Appears while key lock
function is activated.
10
3
BASIC OPERATION
3

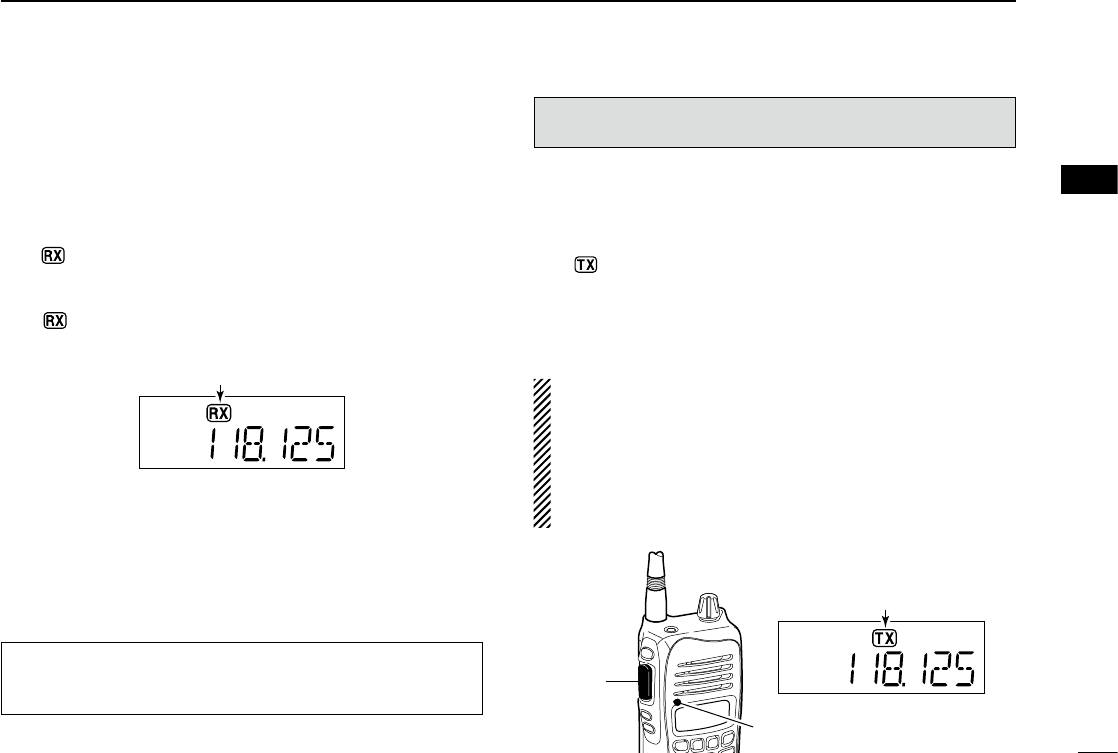

n Receiving
q Rotate [VOL] to turn the power ON.
w Push [SQLZ] several times to open the squelch.
• Select the squelch level 0.
e Rotate [VOL] to adjust the audio level.
r
Push [SQLY] several times until the noise is muted.
• “ ” indicator disappears.
t Set the desired frequency using [Y]/[Z] keys or keypad.
y When a signal is received on the set frequency:
• “ ” indicator appears.
• Squelch opens and audio is emitted from the speaker.
When squelch setting is too “tight” (large number setting),
squelch may not open for weak signals. To receive weaker
signals, loosen (small number setting) the squelch.
n Transmitting
q Set the desired frequency in COM band using [Y]/[Z] or
keypad (IC-A14 only).
• COM band frequency range: 118.00–136.975 MHz
w Push and hold [PTT] to transmit.
• “ ” indicator appears.
e Speak into the microphone at a normal voice level.
• DO NOT hold the transceiver too close to your mouth or speak
too loudly. This may distort the signal.
r Release [PTT] to return to receive.
NOTE: About Time-Out-Timer function
For the prevention of prolonged transmission, etc., ac-
cording to regulatory requirements, the IC-A14/S has a
Time-Out-Timer function. This timer cuts a transmission
OFF after the set time period of continuous transmission.
The time-out timer is specified in set mode. See page 26
for details.
CAUTION: Transmitting without an antenna may damage
the transceiver.
NOTE: To prevent interference, listen on the frequency
before transmitting. If the frequency is busy, wait until the
channel is clear.
[PTT]
Microphone
Appears while transmitting
Appears when receiving a signal.
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
11
3BASIC OPERATION
n Side tone function
When using a headset (other manufacture’s products), the
transceiver outputs your transmitted voice to the headset
for monitoring. Connect the optional headset with the trans-
ceiver when using this function (OPC-499 HEADSET ADAPTER
and headset are required). (p. 37)

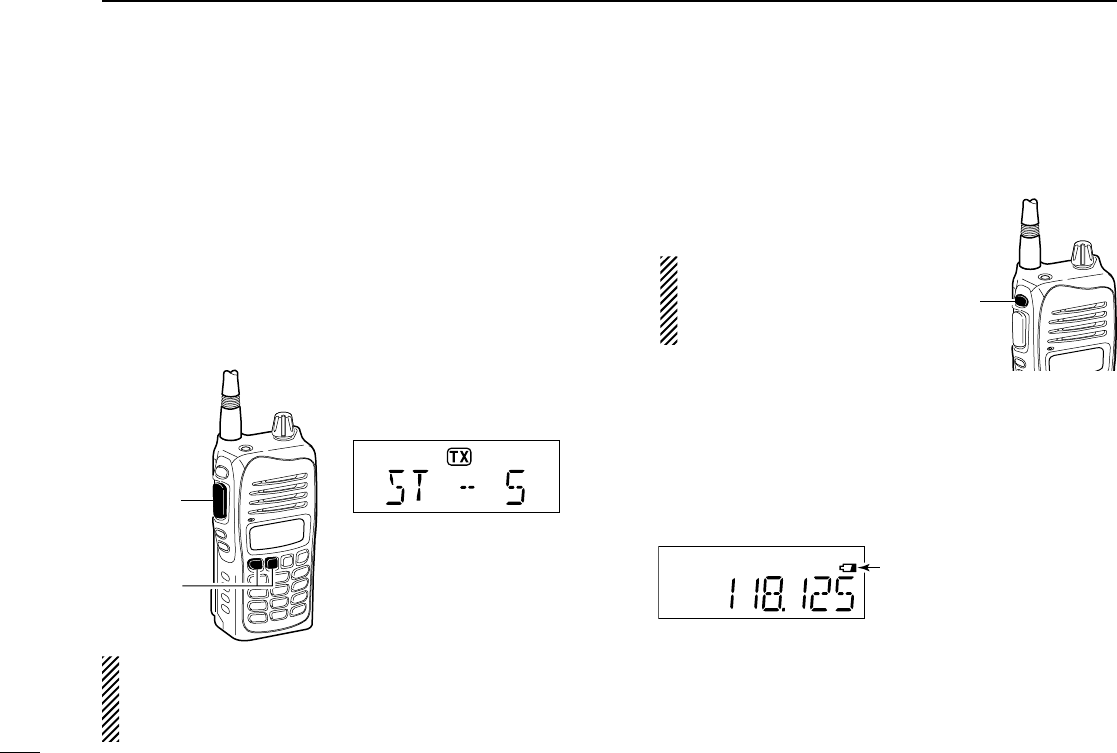

D Setting the side tone level
q Push [PTT] to turn the transmit mode ON.
w During transmit, push [Y]/[Z] to adjust the level.
• ‘ST--0’ is OFF and ‘ST--10’ is maximum level.
WARNING! NEVER operate the transceiver with a head-
set at high volume/monitor levels for long period. A ring-
ing in your ears may occur. If so, reduce the volume
/monitor level or discontinue use.
n LCD backlight
The IC-A14/S has LCD backlight for convenience during
night time operation.
Push [LIGHT] to turn the LCD
backlight ON and OFF.
IMPORTANT!
Light OFF the LCD back-
light when no backlight is
necessary.
n Low battery indicator
Low battery indicator appears or blinks when the battery
power has decreased to a specified level. The attached bat-
tery pack requires recharging.
If no battery charging is performed even the low battery in-
dicator blinks, emits a long beep then the transceiver power
turned OFF automatically.
[PTT]
[Z]/[Y]
Side tone level is indicated
IMPORTANT!
Select ‘ST--0’ when a speaker
microphone is connected, oth-
erwise your voice will be heard
from the speaker during trans-
mit.
[LIGHT]
Appears when the battery
is nearly exhausted.
Blinks when the battery
replacement is necessary.
12
4
MEMORY OPERATION
n Memory channel selection
IC-A14 has 200 memory channels (20 channels × 10 banks; de-
fault setting) and IC-A14S has 100 memory channels for stor-
age of often-used frequencies.
q Push [MR] to select memory mode.
• Memory indicator appears and memory channel number is dis-
played briefly.
• Memory bank number also displays with IC-A14.
Using [Y]/[Z]:
w Push [Y]/[Z] to select the desired memory CH number.
• Memory channel number is displayed briefly, then programmed
frequency (or memory name, if programmed) is displayed.
• If no memory CH is programmed, no memory CH selection is
available.
Using the Keypad— IC-A14 only:
w Push 2 appropriate digit key (00 to 99, depending on
bank setting condition) to select the desired memory CH
number, then push [ENT].
• Memory channel number is displayed briefly, then programmed
frequency (or memory name, if programmed) is displayed.
• If no memory CH is programmed in the selected BANK, no
memory CH selection is available.

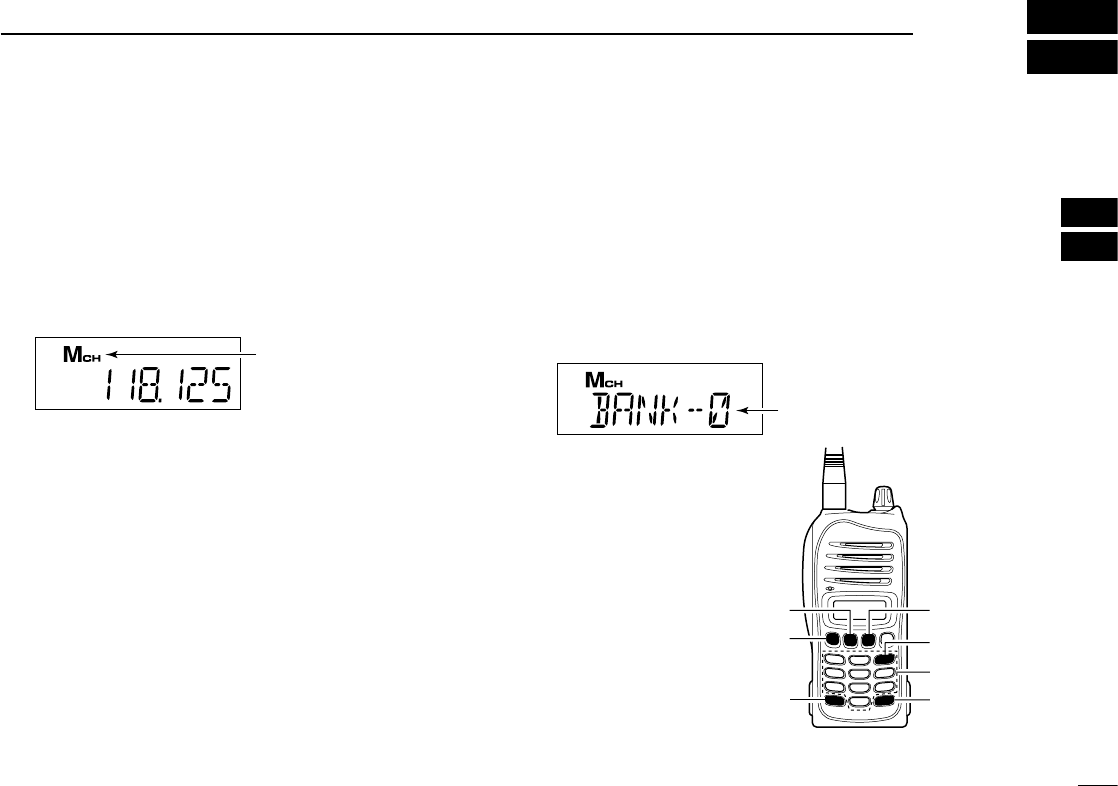

n Memory bank selection
(Available with the IC-A14 only)
A 200 of the IC-A14’s memory channels are divided into
bank (up to 10 banks are available depending on setting) for sim-
ple memory grouping.
q Push [MR] to select memory mode.
w Push [FUNC], and push [BANK](3) to enter bank selec-
tion mode.
e Push [Y]/[Z] or ap-
propriate digit key
([0] to [9]) to enter
the desired memory
BANK number, then
push [ENT].
r Push [Y]/[Z], or 2
appropriate digit key
and [ENT] to select
the desired memory
channel.
Appears when memory
mode is selected.
Appears when bank selec-
tion mode is selected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
n Programming a memory channel
Program often-used frequencies with the following instruc-
tions.
D For IC-A14
q Push [CLR] to select the frequency mode, if necessary.
w Set the desired frequency. (p. 8)
• Push [FUNC], then push [WX](7) to select a weather chan-
nel mode, and then select the desired weather channel using
[Y]/[Z] or keypad if desired. (p. 23)
e Push [FUNC] then push [MW](MR) to enter the select
memory write mode.
• Memory mode indicator blinks.
r Push [Y]/[Z] to select the desired memory channel
number.
• Push [FUNC], then push [BANK](3) to enter bank selection
mode, and push [Y]/[Z] or appropriate digit key ([0]–[9]), then
push [ENT] to select the BANK number if desired.
t Push [ENT] to program the set condition into the memory
channel and return to the frequency mode.
13
4MEMORY OPERATION

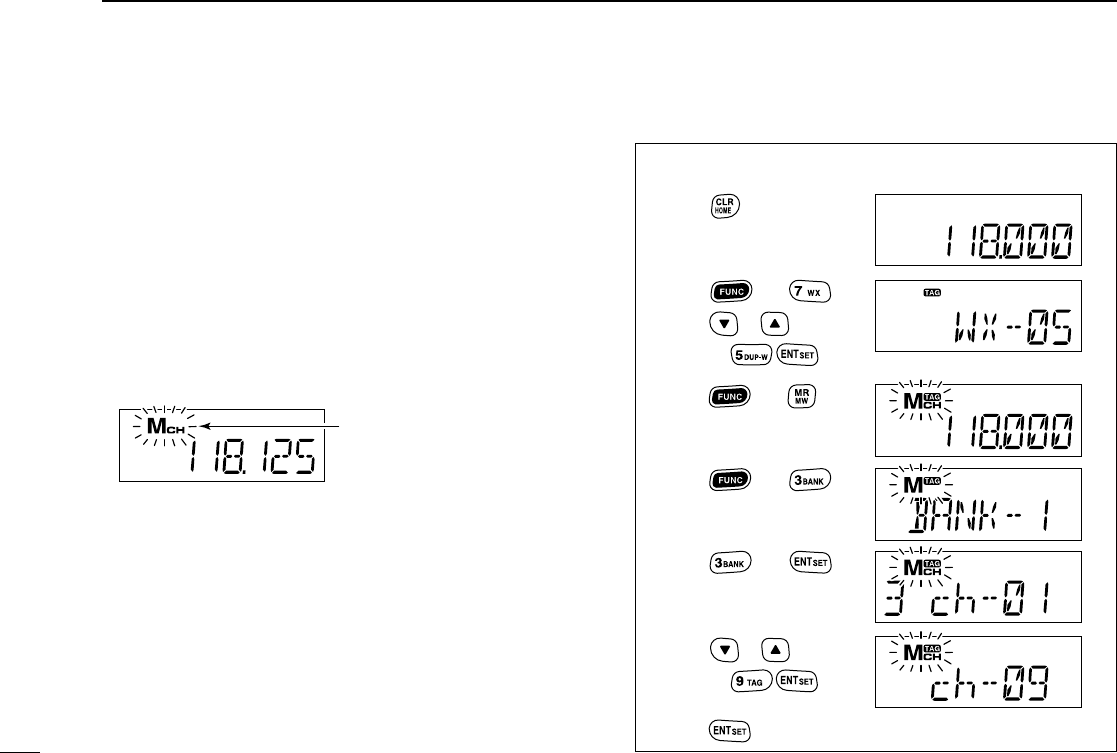

• EXAMPLE: Programming WX-05 into memory channel 9
in memory BANK 3.
Blinks when select memory
write mode is selected.
No frequency is displayed when a blank channel is
selected.
Push
Push then
Push then
Push then
Push or ,
or, push
Push or ,
or, push
Push then
*Shows briefly.
Push to complete the programmig.
*Shows briefly.
14
4
MEMORY OPERATION
D For IC-A14S
q Push [CLR] to select the frequency mode, if necessary.
w Set the desired frequency. (p. 8)
e Push and hold [MR] for 1 sec. to enter the select memory
write mode.
• Memory mode indicator blinks.
r Push [Y]/[Z] to select the desired memory channel
number.
t Push and hold [MR] for 1 sec. to program the set condi-
tion into the memory channel and return to the frequency
mode.
Blinks when select memory
write mode is selected.
No frequency is displayed when a blank channel is
selected.

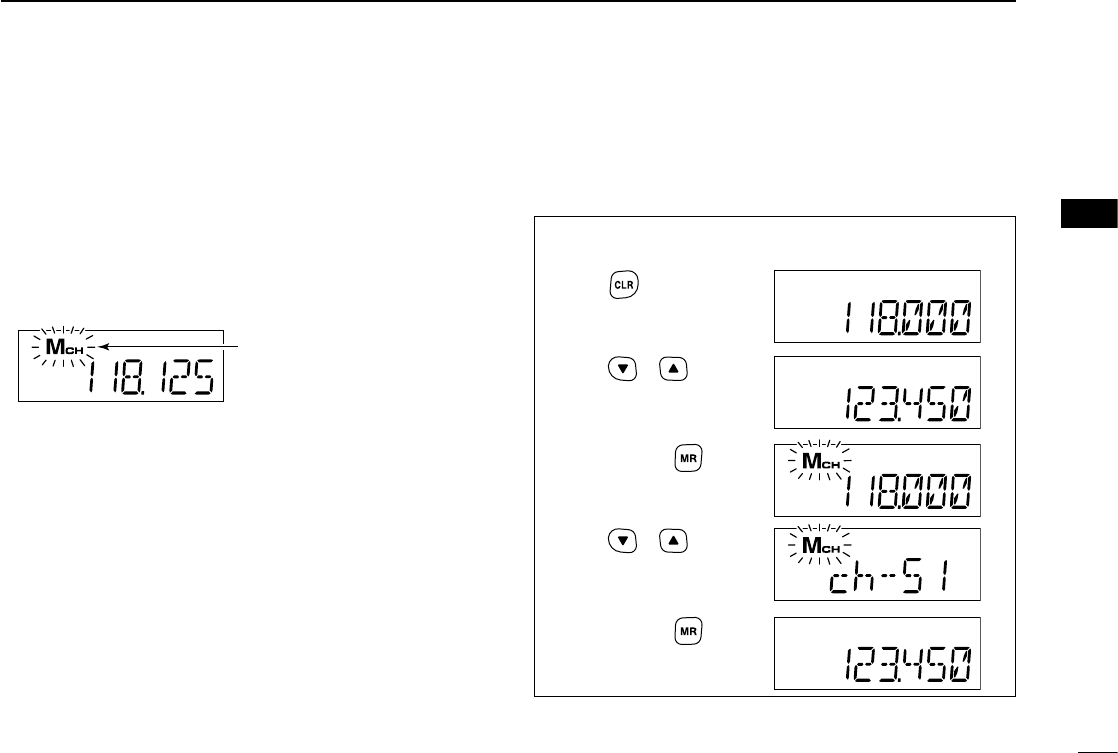

• EXAMPLE: Programming 123.450 MHz into memory
channel 51.
Push or
Push or
*Shows briefly.
Push and hold
for 1 sec.
Push and hold
for 1 sec.
Push
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
15
4MEMORY OPERATION
n Memory names
The memory channel can display an 8-character name in-
stead of the programmed frequency.

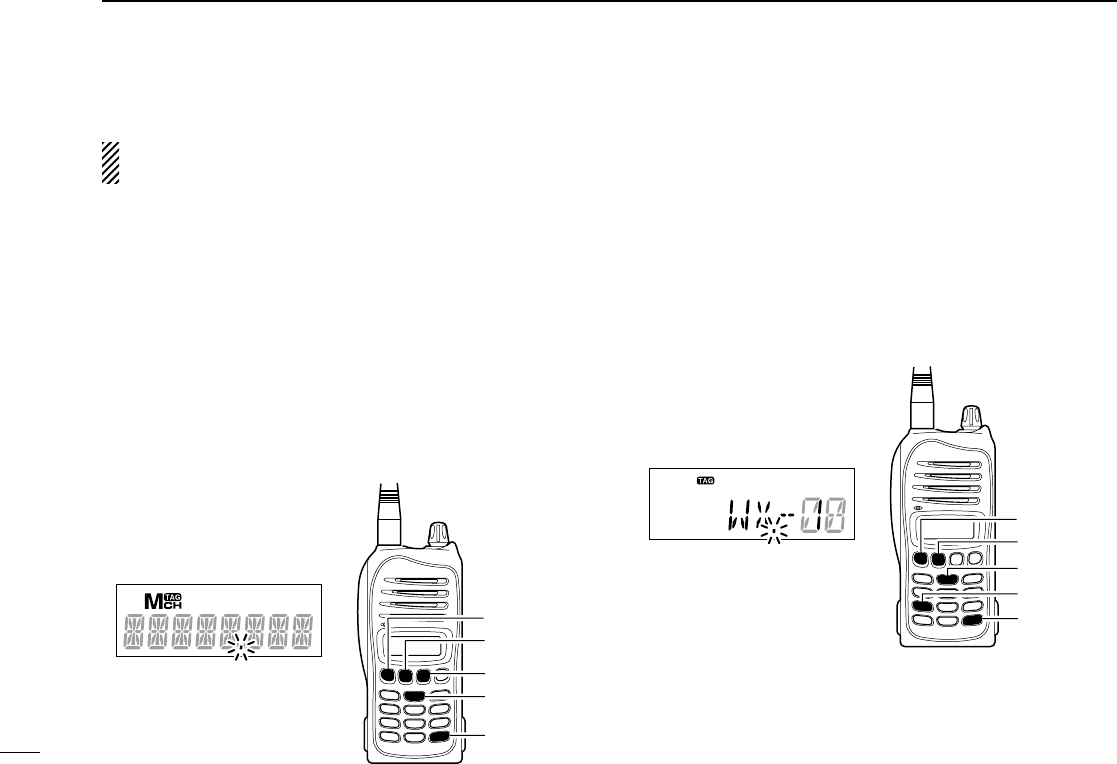

D Programming memory names
q Set the desired frequency in frequency mode. (p. 8)
w Enter the select memory write mode.
• For IC-A14; push [FUNC] then push [MW](MR).
• For IC-A14S; push and hold [MR] for 1 sec.
e Select the desired memory channel to be programmed
with [Y]/[Z] (or keypad and [ENT]; for IC-A14 only).
r Push [MR] momentarily to enter the memory name pro-
gramming mode.

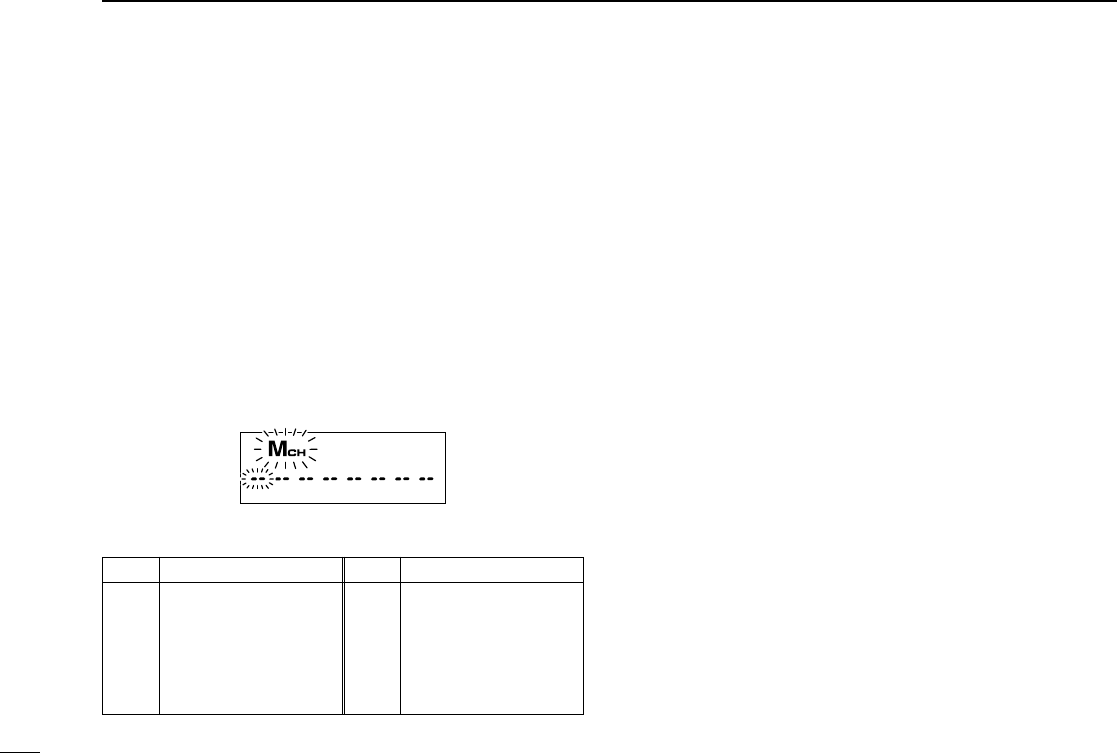

• “-- -- -- -- -- -- -- --” appears and 1st digit blinks.
• Available characters
For IC-A14
t Push the appropriate digit key several times to select the
desired character as listed at left.
• To move the cursor forwards or backwards, use [Y]/[Z].
• The cursor moves forwards automatically when a different key
is pushed.
• To erase a character, overwrite with a space (displayed as “_”).
y Push [ENT] to program the name and frequency at the
same time.
• Return to the frequency indication.
• When no name is programmed, the display shows the pro-
grammed frequency.
• To clear the entered memory names, push [CLR] before push-
ing [ENT].
For IC-A14S
t
Push [Y]/[Z] several times to select the desired character.
• To move the cursor forwards, use [MR].
• To erase a character, overwrite with a space (displayed as “_”).
y Push and hold [MR] for 1 sec. to program the name and
frequency at the same time.
• Return to the frequency indication.
• When no name is programmed, the display shows the pro-
grammed frequency.
• To clear the entered memory names, push [CLR] before push-
ing and holding [MR] for 1 sec.
KEY CHARACTER KEY CHARACTER
[1] 1, Q, Z [6] 6, M, N, O,
[2] 2, A, B, C [7] 7, P, R, S
[3] 3, D, E, F [8] 8, T, U, V
[4] 4, G, H, I [9] 9, W, X, Y
[5] 5, J, K, L [0] 0, _ (space), –
16
4
MEMORY OPERATION
NOTE: When programming a memory name to the pro-
grammed memory channel, operate as follow.
q Select the desired memory channel that requires a name.
(see p. 12).
For IC-A14
w Push [FUNC] then push [MW](MR).
• The selected memory contents copied into frequency mode
and frequency mode is selected automatically.
e Push [FUNC] then push [MW](MR) again.
r
Push [MR] momentarily to select memory name pro-
gramming mode.
t Perform the steps t and y described at left page in “For
IC-A14” to program the desired memory name.
For IC-A14S
w Push and hold [MR] for 1 sec.
• The selected memory contents copied into frequency mode
and frequency mode is selected automatically.
e Push and hold [MR] for 1 sec. again.
r
Push [MR] momentarily to select memory name pro-
gramming mode.
t Perform the steps t and y described at left page in “For
IC-A14S” to program the desired memory name.
n Copying memory contents
This function copies a memory channel’s contents into the
frequency mode. This is useful when searching for signals
around a memory channel’s frequency.
q Push [MR] to select memory mode.
w Select the desired memory channel to be copied using
[Y]/[Z] (or keypad and [ENT]; for IC-A14 only).
• Select the desired bank if desired.
For IC-A14
e Push [FUNC], then push [MW](MR) to copy the memory
channel’s contents into the frequency mode.
• Frequency mode is automatically selected.
For IC-A14S
e Push and hold [MR] for 1 sec. to copy the memory chan-
nel’s contents into the frequency mode.
• Frequency mode is automatically selected.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
17
4MEMORY OPERATION
n
Clearing the memory contents
(Available with the IC-A14 only)
Unwanted memory channels can be cleared.
q Select the desired memory channel to be cleared. (p. 12)
• Select the desired bank if desired. (p. 12)
w Push [FUNC] then push and hold [CLR] for 1 sec.
• “-- -- -- -- -- -- ” appears briefly, then the next selectable chan-
nel appears.
18
5
SCAN OPERATION
n Scan types
The IC-A14 has 3 scan types to suit your needs. IC-A14S
has 2 scan types.

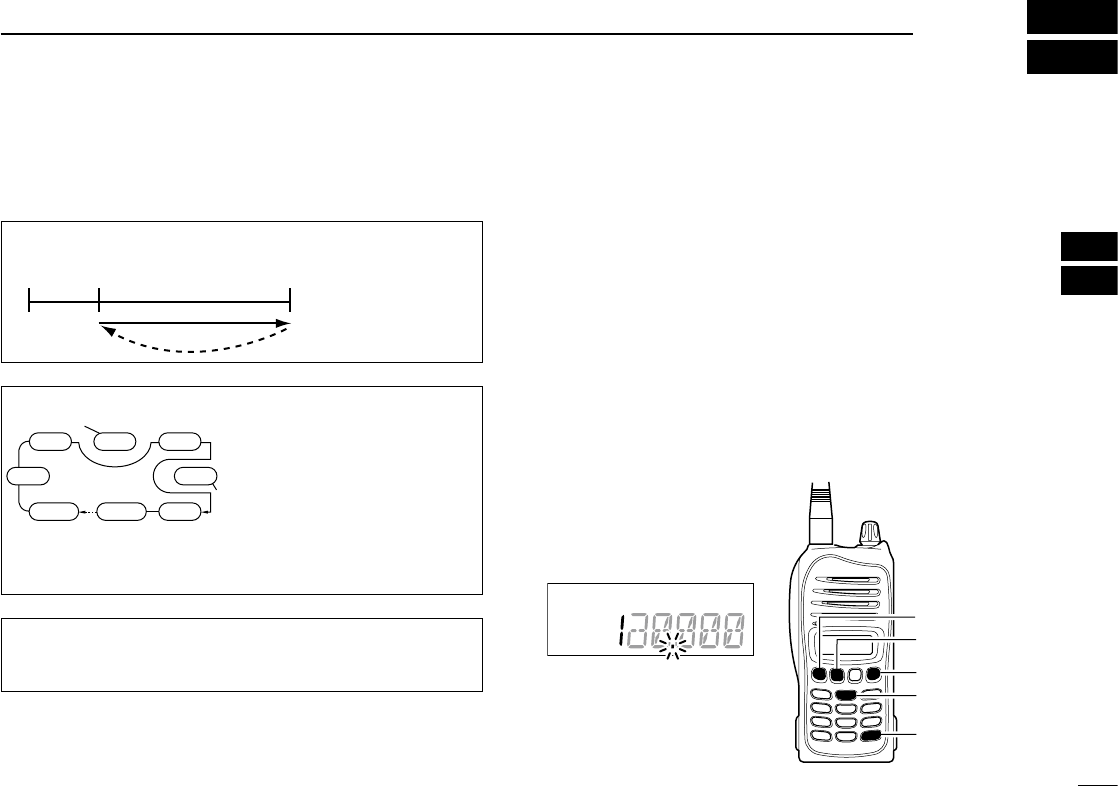

n COM band scan
q Push [CLR] to select the frequency mode.
w Push [SQLY]/[SQLZ] to set the squelch level to the
point where noise is just muted.
For IC-A14
e Push [FUNC], then push [SCAN](2) to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, push [Y]/[Z].
For IC-A14S
e Push and hold [Y]/[Z] for 1 sec. to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, push [Y]/[Z].
r To stop the scan, push [CLR].
WEATHER CHANNEL SCAN
Repeatedly scans all “TAG” weather channels. Weather
channels are available for the IC-A14 only.
COM BAND SCAN
Repeatedly scans
all frequencies
over the entire
COM band.
108.00
MHz
Scan
Jump
118.00
MHz
136.975
MHz
MEMORY SCAN
Repeatedly scans se-
lected memory bank’s
all “TAG” memory chan-
nels. Used for checking
often-used channels and
bypassing usually busy
channels such as control-
tower frequencies.
non-TAG
channel
non-TAG channel
Mch 2 Mch 4 Mch 6
Mch 7Mch 1
Mch 8Mch 10Mch 19
Decimal point blinks during
scan.
[FUNC]
[CLR]
[SCAN](2)
[Y]
[Z]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
n Weather channel scan
(Available with the IC-A14 only)
q Push [FUNC], then push [WX](7) to select a weather
channel mode.
w Set squelch to the point where noise is just muted with
[SQLY]/[SQLZ].
e Push [FUNC], then push [SACN(2) to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, push [Y]/[Z].
r To stop the scan, push [CLR].
n Memory scan
NOTE: Program 2 or more memory channels with “TAG”
setting to start memory scan.
q Push [MR] to select memory mode.
• For IC-A14, select the desired BANK if desired. (p. 12)
w Push [SQLY]/[SQLZ] to set the squelch level to the
point where noise is just muted.
For IC-A14
e Push [FUNC], then push [SCAN](2) to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, push [Y]/[Z].
For IC-A14S
e Push and hold [Y]/[Z] for 1 sec. to start the scan.
• When a signal is received, the scan pauses until it disappears.
• To change the scanning direction, push [Y]/[Z].
19
5SCAN OPERATION
Decimal point blinks during
scan.
[FUNC]
[SCAN](2)
[WX](7)
[Y]
[Z]
Decimal point blinks during
scan.
[FUNC]
[MR]
[SCAN](2)
[Y]
[Z]
r To stop the scan, push
[CLR].
20
5
SCAN OPERATION
5
n “TAG” channel setting
Memory and weather channels* can be specified to be
skipped for the memory and weather channel* scans re-
spectively. The “TAG” channel function is only available dur-
ing scan operation. *for IC-A14 only
For IC-A14
q Push [MR] to select memory mode; or, push [FUNC],
then push [WX](7) to select a weather channel.
• Select the desired BANK if desired.
w Select the desired memory/weather channel to be a
“TAG” channel.
• Select the desired BANK if desired.
e Push [FUNC], then push [TAG](9) to set a “TAG.”
• “TAG” appears.
• Non-“TAG” channels are skipped during scan.
r To cancel the “TAG” setting, repeat above steps.
For IC-A14S
q Push [MR] to select memory mode.
w Select the desired memory channel to be a “TAG” chan-
nel.
e Push and hold [LIGHT] for 2 sec. to set a “TAG.”
r To cancel the “TAG” setting, repeat the above steps.

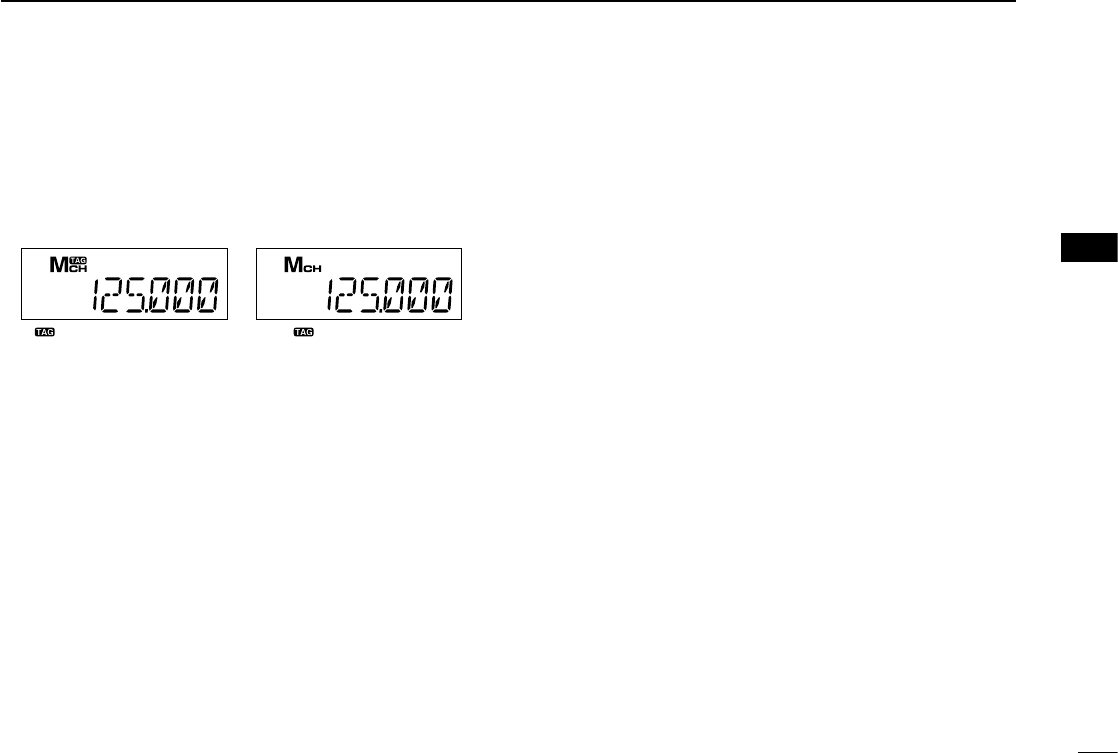

No “ ” indicator appears
with the skipped channel.
“ ” indicator appears with
the scanned channel.
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
6OTHER FUNCTIONS
n Home function
The home function is convenient if you want to return the
transceiver to default condition without memory channels.
The following transceiver’s settings will return to the default
value;
• Operating mode (Frequency, memory or weather* channel
mode with frequency or channel number, including bank*)
• Duplex setting • ANL setting • Key touch beep
• Squelch level • Side tone level • Microphone gain
• Internal microphone usage • Time-Out timer setting
The default condition can be modified to suits your prefer-
ence using with the optional cloning software, CS-A14.
Push and hold [CLR] for 2 sec.
to return the transceiver into the
default setting.
n Accessing 121.5 MHz emer-
gency frequency
(Available with the IC-A14 only)
The IC-A14 can set to the 121.5 MHz emergency frequency
quickly. This function can be activated even when the key
lock function is in use.
q Push [FUNC] then [121.5](0) to call the emergency fre-
quency.
w Push [CLR] to return to frequency mode.
[CLR]

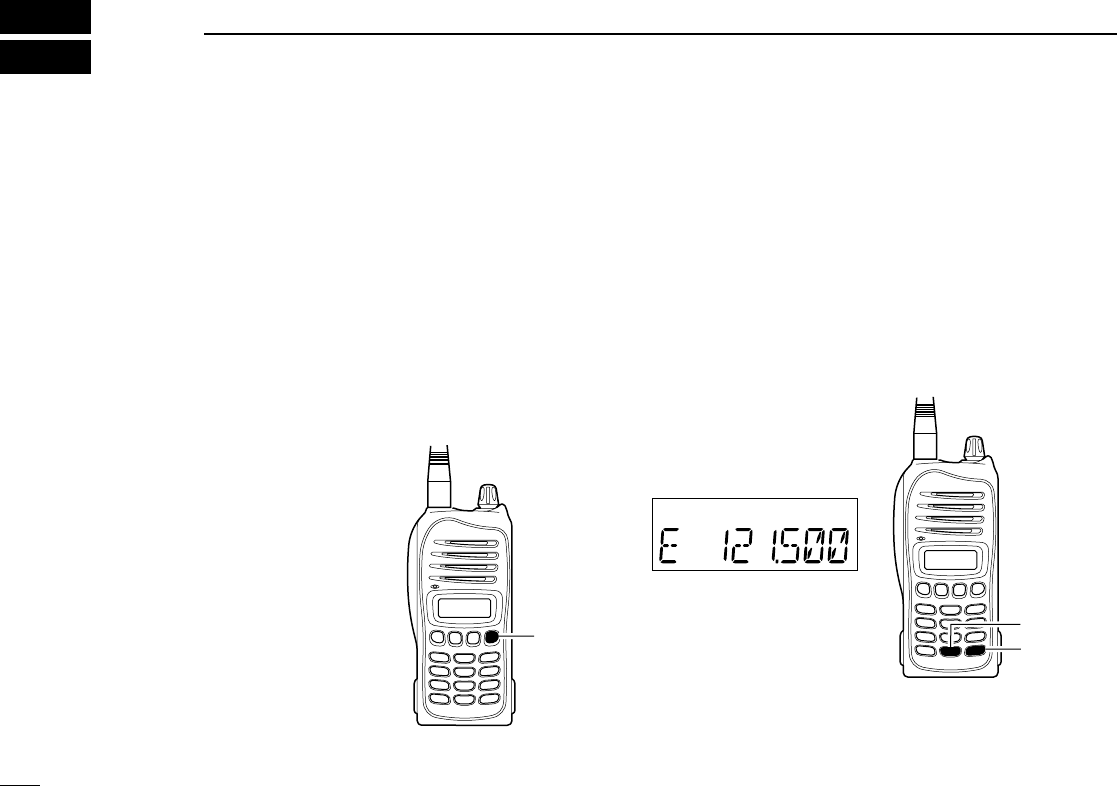

Emergency initial, “E,” ap-
pears with the frequency
[FUNC]
[121.5](0)
*for IC-A14 only
22
6
OTHER FUNCTIONS
n Key touch beep tone
The beep tone, which sounds at the push of a switch can be
set, if desired.
For IC-A14

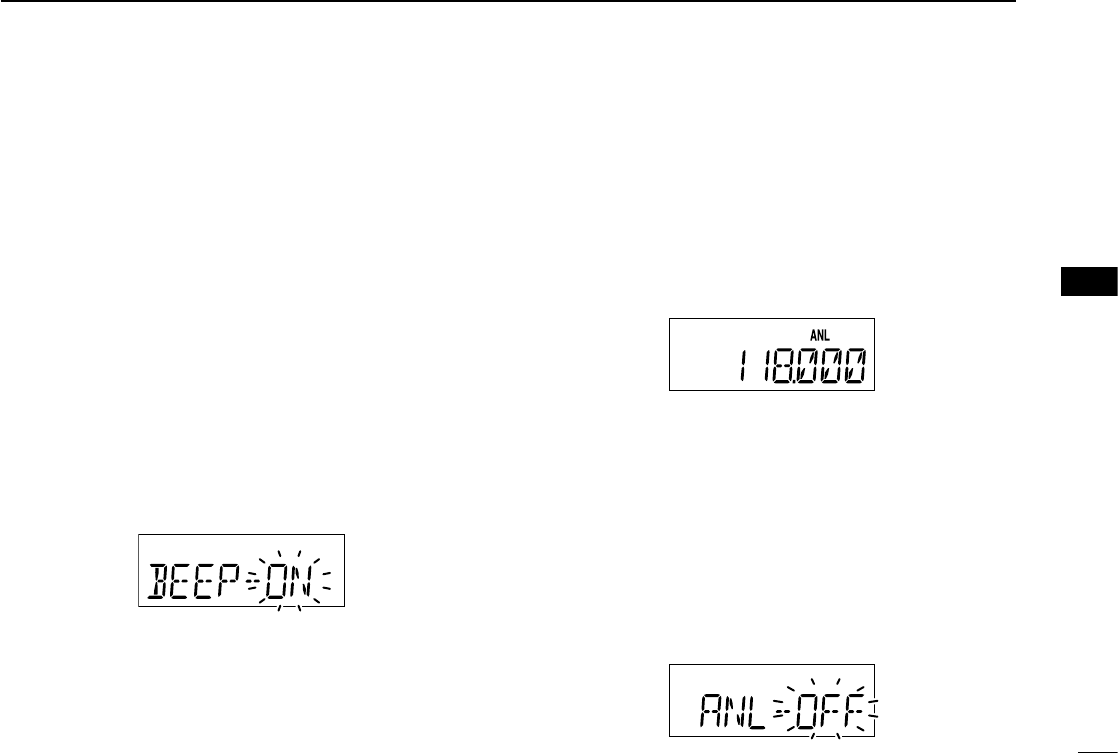

Push [FUNC] then push [BEEP](8) to turn the key touch
beep tone ON and OFF.
• Key touch beep setting is displayed briefly.
For IC-A14S
q Rotate [VOL] to turn the transceiver power OFF.
w
While pushing and holding [Y]/[Z], rotate [VOL] to enter
set mode.
e
Push [MR] several times to select the key touch beep
item, “BEEP.”
r Push [Y]/[Z] to select the desired condition from ON
and OFF.
t Push [CLR] to return to frequency mode.
n ANL function
The ANL (Automatic Noise Limiter) function reduces noise
components such as that caused by engine ignition systems
while receiving.
For IC-A14
Push [FUNC] then push [ANL](1) to turn the ANL func-
tion ON/OFF.
• “ANL” indicator appears when the ANL function is ON.
For IC-A14S
q Rotate [VOL] to turn the transceiver power OFF.
w
While pushing and holding [Y]/[Z], rotate [VOL] to enter
set mode.
e
Push [MR] several times to select the ANL item, “ANL.”
r Push [Y]/[Z] to select the desired condition from ON
and OFF.
• “ANL” indicator appears when the ANL function is ON.
t Push [CLR] to return to frequency mode.
“ANL” indicator appears when the ANL
function is in use.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
23
6OTHER FUNCTIONS
n Weather channel operation
(Available with the IC-A14 only)
The IC-A14 has VHF marine WX (weather) channel receiv-
ing capability for flight planning.

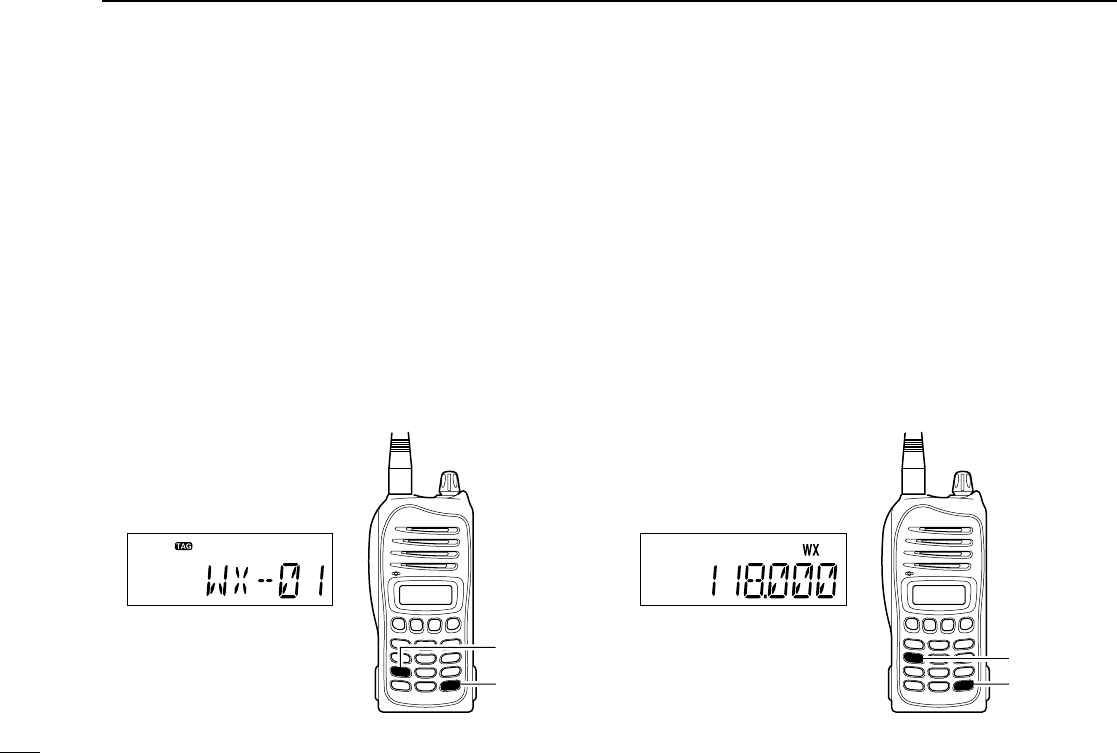

D Weather channel selection
q Push [FUNC], then push [WX](7) to select WX channel
mode.
• “WX--” and previously selected channel number appears.
w Push [Y]/[Z] to select the desired WX channel.
e Push [CLR] to exit the WX channel mode and return to
frequency mode.
D
Setting weather alert function
An NOAA broadcast station transmits a weather alert tone
before any important weather announcements. When the
weather alert function is turned ON, the transceiver detects
the alert, and sounds a beep tone until the transceiver is op-
erated. The previously selected (used) weather channel is
checked any time during standby, or while scanning.
Push [FUNC], then push [WX-ALT](4) to turns the
weather alert function ON and OFF.
• “WX” indicator appears when the weather alert function ON.
Weather channel appears
[FUNC]
[WX](7)
“WX” indicator appears when
the weather alert is set to ON
[FUNC]
[WX-ALT](4)
n Duplex operation (Available with the IC-A14 only)
The duplex function allows you to call a flight service station
while receiving a VOR station. The duplex function requires
frequency programming for the flight service station in ad-
vance.

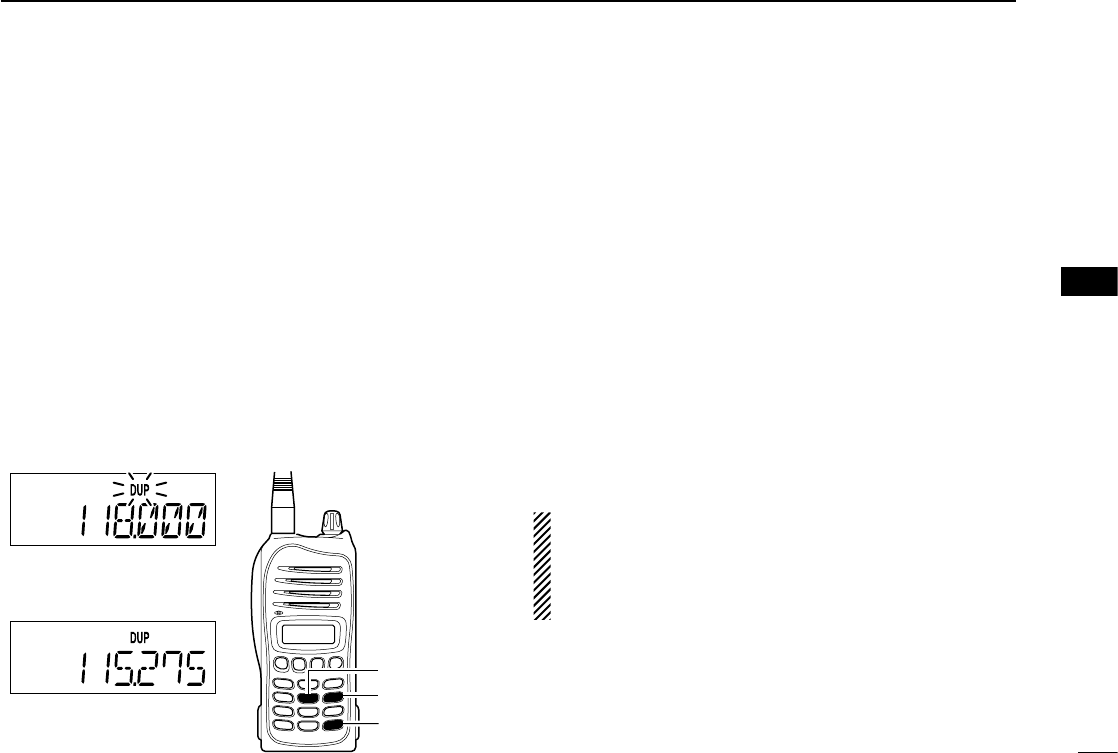

D Programming a duplex frequency
q Push [CLR] to select the frequency mode.
w Set a NAVI band frequency using [Y]/[Z] or keypad.
• NAVI band frequency range: 108.00–117.975 MHz
e Push [FUNC], then push [DUP-W](5).
• “DUP” blinks and transmit frequency appears.
r Set the desired flight service station frequency using
[Y]/[Z] or keypad, then push [ENT].
• The displayed frequency returns to the NAVI band frequency.
D Operating the duplex function
q Set the desired frequency in NAVI band.
• NAVI band frequency range: 108.00–117.975 MHz
w Push [FUNC], then push [DUP](6) to turn the duplex
function ON.
• “DUP” indicator appears.
e Push and hold [PTT] to transmit on the pre-programmed
transmit frequency.
r Release [PTT] to return to receive.
t Push [FUNC], then push [DUP](6) to cancel the function.
• “DUP” indicator disappears.
NOTE: A duplex frequency can be programmed into each
memory channel independently. Set a duplex frequency
before programming the memory channel, if desired. The
duplex ON/OFF setting can also be programmed into a
memory channel.
24
6
OTHER FUNCTIONS
“DUP” indicator blinks during
transmit frequency setting
[FUNC]
[DUP](6)
[DUP-W](5)
“DUP” appears during duplex
operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
25
6OTHER FUNCTIONS
n Set mode setting
Set mode is used for programming infrequently changed val-
ues or conditions of functions.
D Entering set mode
q Rotate [VOL] to turn the
transceiver power OFF.
w While pushing and holding
[Y] and [Z], turn [VOL] to
enter set mode.
e Push [MR] several times
to select the desired set
mode item.
r Push [Y]/ [Z] to select the
desired condition or value
for the item.
t Push [CLR] to return to
frequency mode.
For IC-A14 only
Push [FUNC] then push and hold [SET](ENT) for 1 sec. to
also enters into set mode.
For your information:
The default value of the set mode items can be changed
with the optional cloning software, CS-A14. And the de-
fault settings are re-called by the home function.
D Set mode items
• ANL— ANL function (available with IC-A14S only)
Sets the ANL (Automatic Noise Limiter) function that reduces
noise components such as that caused by engine ignition
systems while receiving.
• BEEP— Key touch beep (available with IC-A14S only)
The beep tone which sounds at the push of a switch can be
set, if desired.
• MIC— Microphone gain
The internal microphone gain can be selected to suits your
communicating style.
“H” (High gain), “M” (Middle gain) and “L” (Low gain) selections
are available.
[VOL]
[MR]
[Z][CLR]
[Y]
26
6
OTHER FUNCTIONS

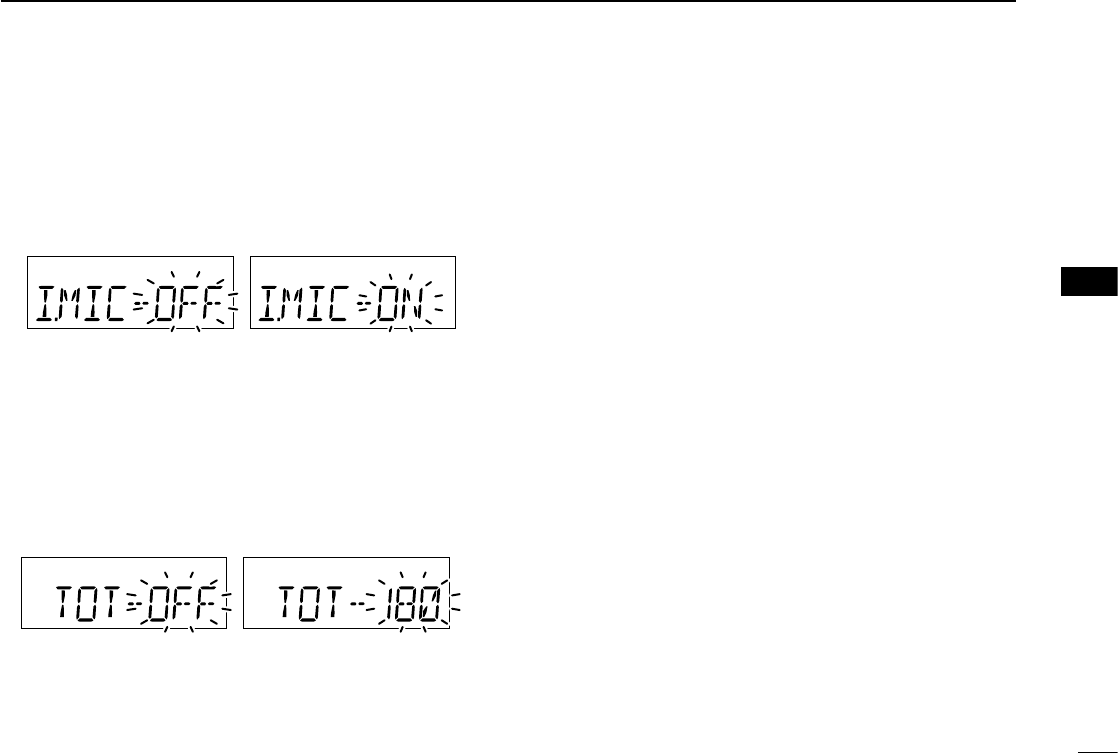

• I.MIC— Internal microphone usage
The internal microphone can be deactivated for headset op-
eration.
This setting prevents unwanted audio/noise transmission en-
tering from the internal microphone with [PTT] operation.
• TOT— Time-out timer
Sets the time-out timer period for the prevention of pro-
longed transmission, etc., according to regulatory require-
ments. This timer cuts a transmission OFF after the set time
period of continuous transmission.
Sets the timer within 20 to 180 (sec.) in 10 sec. steps and
OFF.
Ask your dealer for local regulation details.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
27
7BATTERY PACKS

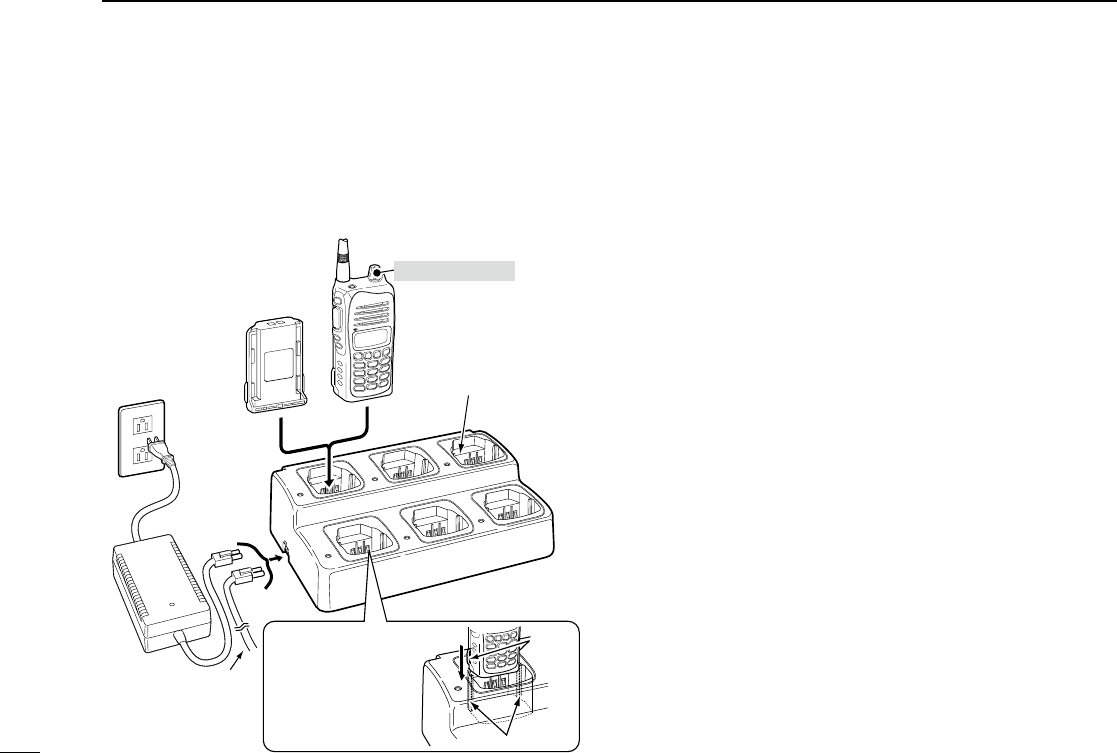

n Battery charging
R DANGER! Use and charge only specified Icom battery
packs with Icom radios or Icom charger. Only Icom battery
packs are tested and approved for use and charge with Icom
radios or Icom charger. Using third-party or counterfeit bat-
tery packs or charger may cause smoke, fire, or cause the
battery to burst.
D Battery caution
R DANGER! DO NOT hammer or otherwise impact the bat-
tery. Do not use the battery if it has been severely impacted
or dropped, or if the battery has been subjected to heavy
pressure. Battery damage may not be visible on the outside
of the case. Even if the surface of the battery does not show
cracks or any other damage, the cells inside the battery may
rupture or catch fire.
R DANGER! NEVER use or leave battery packs in areas
with temperatures above +60˚C (+140˚F). High tempera-
ture buildup in the battery, such as could occur near fires
or stoves, inside a sun heated car, or in direct sunlight may
cause the battery to rupture or catch fire. Excessive tem-
peratures may also degrade battery performance or shorten
battery life.
R DANGER! DO NOT expose the battery to rain, snow,
seawater, or any other liquids. Do not charge or use a wet
battery. If the battery gets wet, be sure to wipe it dry before
using. The battery is not waterproof.
R DANGER! NEVER incinerate used battery packs since
internal battery gas may cause them to rupture, or may
cause an explosion.
R DANGER! NEVER solder the battery terminals or NEVER
modify the battery pack. This may cause heat generation,
and the battery may rupture, emit smoke or catch fire.
R DANGER! Use the battery only with the transceiver for
which it is specified. Never use a battery with any other
equipment, or for any purpose that is not specified in this in-
struction manual.
R DANGER! If fluid from inside the battery gets in your
eyes, blindness can result. Rinse your eyes with clean
water, without rubbing them, and see a doctor immediately.
WARNING! Immediately stop using the battery if it emits an
abnormal odor, heats up, or is discolored or deformed. If any
of these conditions occur, contact your Icom dealer or dis-
tributor.
WARNING! Immediately wash, using clean water, any part
of the body that comes into contact with fluid from inside the
battery.
Misuse of Lithium-ion batteries may result in the follow-
ing hazards: smoke, fire, or the battery may rupture. Mis-
use can also cause damage to the battery or degradation
of battery performance.
28
7
BATTERY PACKS
7
WARNING! NEVER put the battery in a microwave oven,
high-pressure container, or in an induction heating cooker.
This could cause a fire, overheating, or cause the battery to
rupture.
CAUTION! Always use the battery within the specified tem-
perature range for the transceiver (–10˚C to +60˚C; +14˚F to
+140˚F) and the battery itself (–20˚C to +60˚C; –4˚F to +140˚F).
Using the battery out of its specified temperature range will
reduce the battery’s performance and battery life. Please
note that the specified temperature range of the battery may
exceed that of the transceiver. In such cases, the trans-
ceiver may not work properly because it is out of its operat-
ing temperature range.
CAUTION! Shorter battery life could occur if the battery is
left fully charged, completely discharged, or in an excessive
temperature environment (above +45˚C; +113˚F) for an ex-
tended period of time. If the battery must be left unused for a
long time, it must be detached from the radio after discharg-
ing. You may use the battery until the remaining capacity
is about half, then keep it safely in a cool dry place with the
temperature between –20˚C to +50˚C (−4˚F to +122˚F) for a
month storing, between –20˚C to +35˚C (–4˚F to +95˚F) for
three months storing and between –20˚C to +20˚C (−4˚F to
+68˚F) for a year storing.
D Charging caution
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves,
inside a sun heated car, or in direct sunlight. In such environ-
ments, the safety/protection circuit in the battery will activate,
causing the battery to stop charging.
WARNING! NEVER charge or leave the battery in the bat-
tery charger beyond the specified time for charging. If the
battery is not completely charged by the specified time, stop
charging and remove the battery from the battery charger.
Continuing to charge the battery beyond the specified time
limit may cause a fire, overheating, or the battery may rup-
ture.
WARNING! NEVER insert the transceiver (battery attached
to the transceiver) into the charger if it is wet or soiled. This
could corrode the battery charger terminals or damage the
charger. The charger is not waterproof.
CAUTION! DO NOT charge the battery outside of the specified
temperature range: BC-179 (0˚C to +40˚C; +32˚F to +104˚F).
Icom
recommends charging the battery at +20˚C (+68˚F). The bat-
tery may heat up or rupture if charged out of the specified
temperature range. Additionally, battery performance or bat-
tery life may be reduced.
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
29
7BATTERY PACKS
n Charging the battery
D Regular charging with the BC-179+BC-174
The BC-179 provides regular charging of battery packs. The
following are additionally required.
• An AC adapter (may be supplied with the transceiver depending
on versions) or the optional cigarette lighter cable (CP-22).
Be sure to turn the transceiver power OFF, when charg-
ing the battery pack with the transceiver.
• Charging period
Approx. 12 hrs. (with BP-232N)
• Charging indicator color information
Orange : During charge
Green : Charging is completed
Orange or green (blink)
: The inserted battery pack or the charger has
problem.
CAUTION!
• DO NOT modify the CP-22. A modification could cause a fire or
electric shock.
• BE CAREFUL not to cut or fray the CP-22’s power cable when
disconnecting/connecting the CP-22 from/to the cigarette lighter
socket.

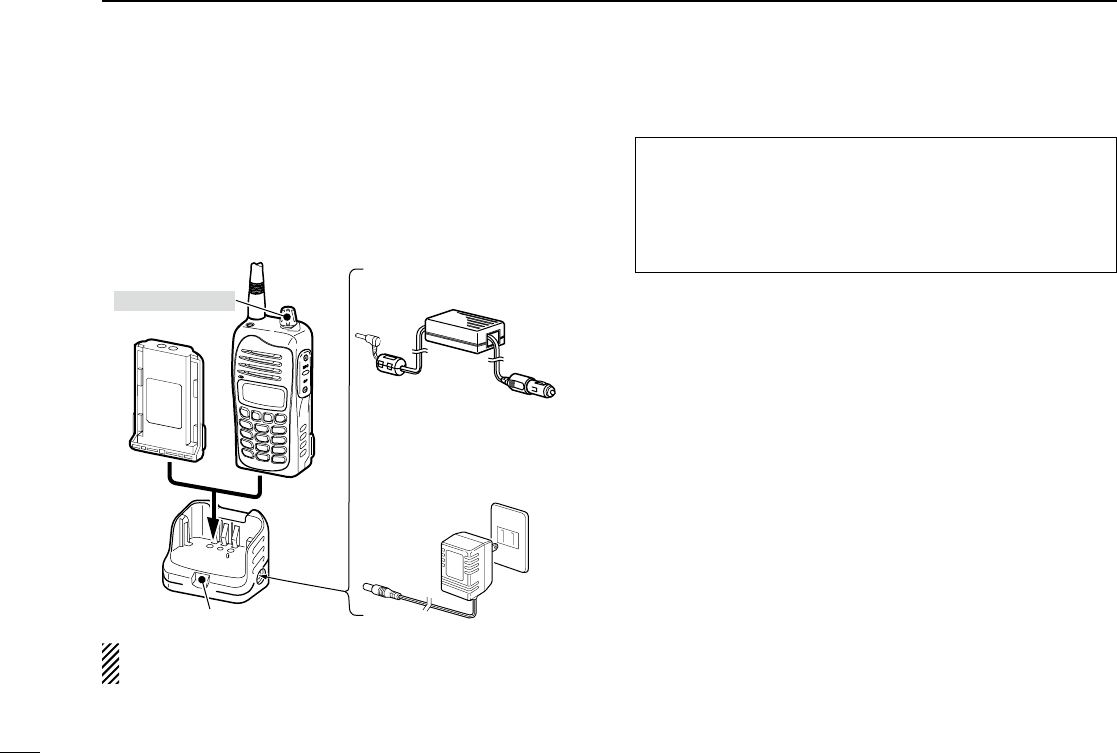

AC adapter
(Optional for
some versions)
CP-22 (for 12–24 V; optional)
To the cigarette
lighter socket
Turn power OFF
Charging indicator

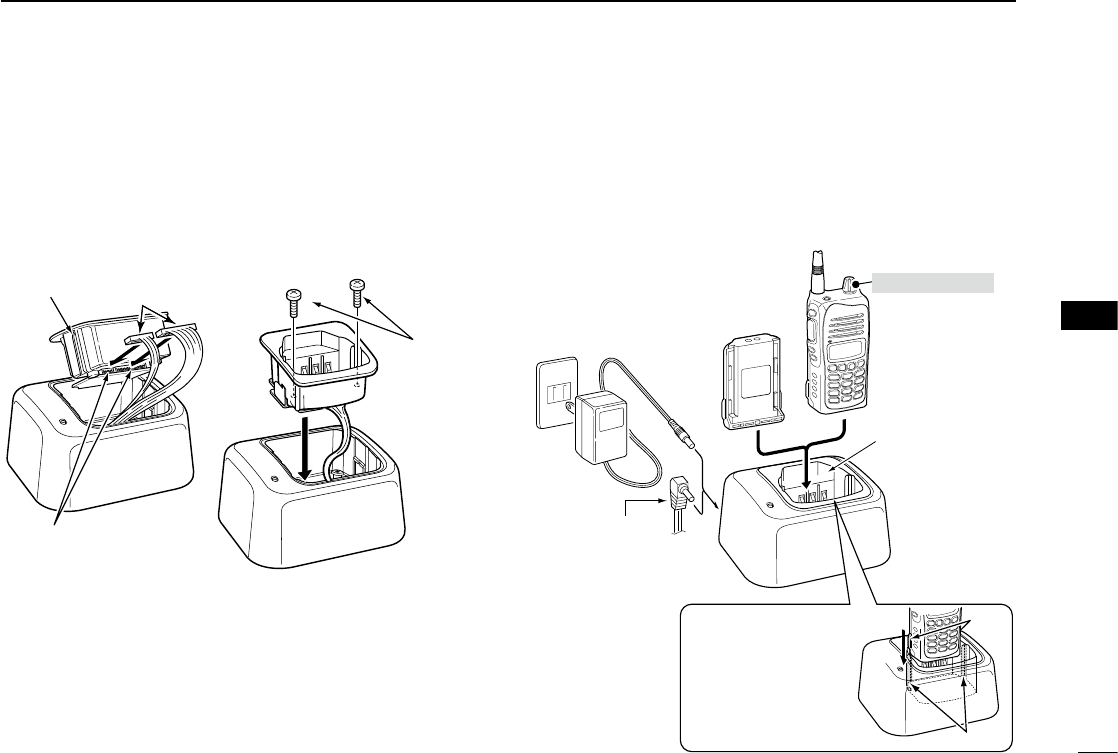

D AD-106 installation
Connect the BC-119N/BC-121N (q), then install the
AD-106 into the holder space of the BC-119N/BC-121N
with the supplied screws (w).
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following are additionally required.
• AD-106 charger adapter.
• An AC adapter (may be supplied with BC-119N depending on ver-
sions) or the DC power cable (OPC-515L).
30
7
BATTERY PACKS
Screws
(supplied with
AD-106)
AD-106 Connectors
Plugs
qw
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) can be used
instead of the AC
adapter.
Transceiver
Battery
pack
Turn power OFF
IMPORTANT!:
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Lobes
Guide rails
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
31
7BATTERY PACKS
D Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following are additionally re-
quired.
• Six AD-106 charger adapters.
• An AC adapter (BC-157) or the DC power cable (OPC-656).
Battery
pack
AD-106 charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
Transceiver
Turn power OFF
DC power cable
(OPC-656)
(Connect with the
DC power supply;
13.8 V/at least 7 A)
IMPORTANT!:
Ensure the guide lobes
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rails
Lobes
32
8
CLONING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Cloning allows you to quickly and easily transfer the pro-
grammed data from one transceiver to another transceiver,
or, data from PC to a transceiver using the optional CS-A14
cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474 CLONING CABLE to [MIC/SP] jack
of the master and sub transceivers.
• The master transceiver is used to send data to the sub trans-
ceiver.
w While pushing and holding [MR], rotate [VOL] to enter
cloning mode (for operating the master transceiver only).
• “CLONE” appears and the transceivers enter the clone standby
condition.
e Push [PTT] on the master transceiver.
• “CL.OUT” appears in the master transceiver’s display.
• “CL.IN” appears automatically in the sub transceiver’s display.
r When cloning is finished, turn power OFF, then ON again
to exit cloning mode.
NOTE: Transceiver to transceiver cloning between
IC-A14 and IC-A14S cannot be performed.

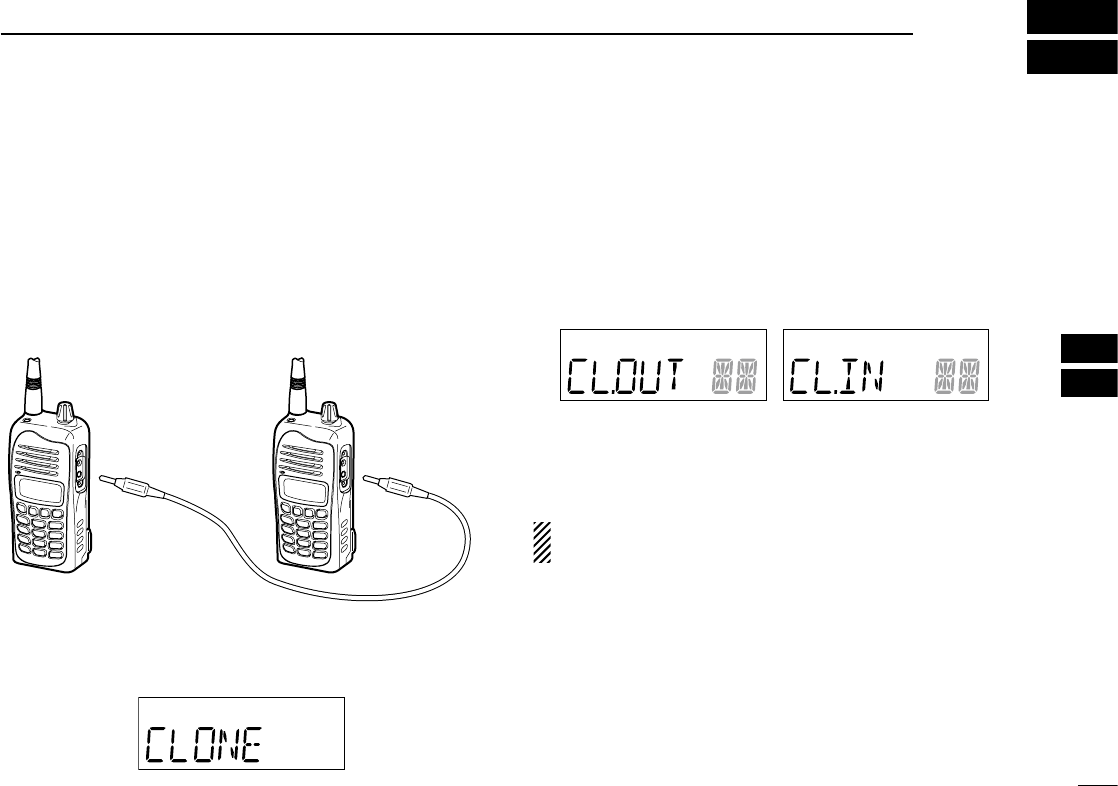

OPC-474
Master Sub
to the speaker
connector
to the speaker
connector
Master transceiver’s
indication during clone
Sub transceiver’s
indication during clone
D Cloning using PC
Data can be cloned to and from a PC (Microsoft® Windows®
2000/XP and Windows Vista™) using the optional CS-A14
CLONING SOFTWARE and the optional OPC-478 (RS-232C
type) or OPC-478UC (USB type) CLONING CABLE. Consult the
CS-A14 CLONING SOFTWARE HELP file for details.

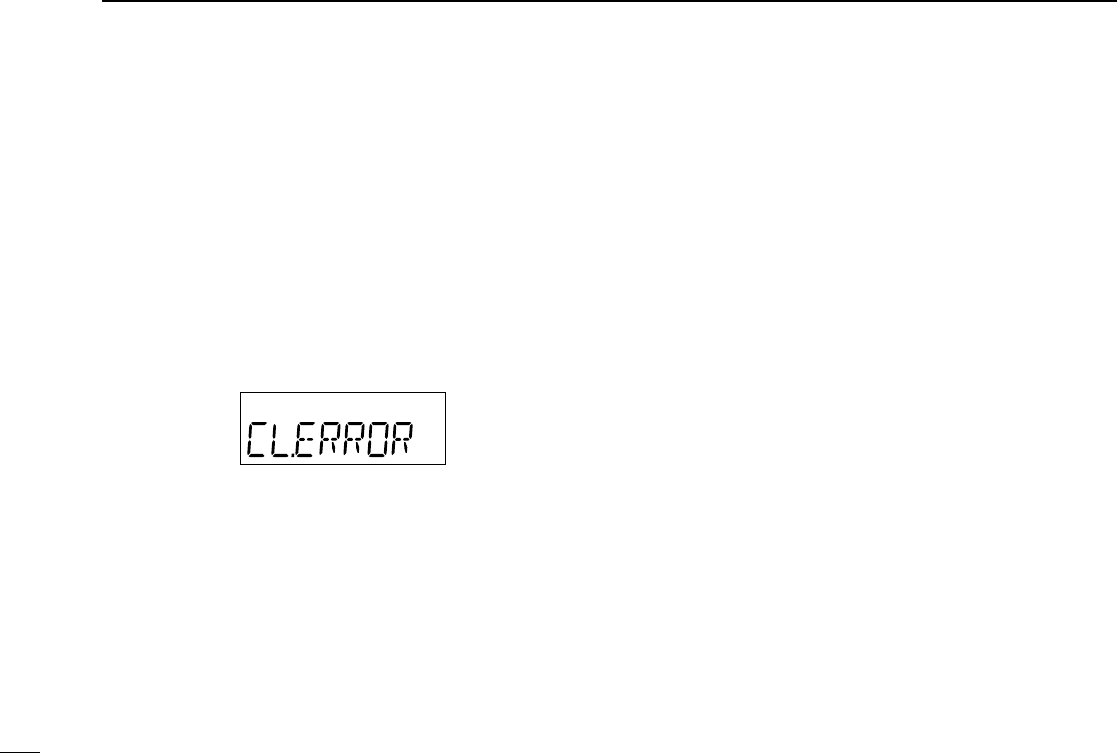

D Cloning error
When the display as below appears, a cloning error has oc-
curred.
In this case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
Microsoft, Windows and Windows Vista are registered trademarks
or trademarks of Microsoft Corporation in the U.S.A. and/or other
countries.
33
8CLONING
34
9
TROUBLESHOOTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
If your transceiver seems to be malfunctioning, please check the following points before sending it to a service center.
PROBLEM POSSIBLE CAUSE SOLUTION REF.
No power comes on. • The battery is exhausted. • Recharge the battery pack. pgs. 29–31
• Bad connection for the battery pack. • Check the connection to the transceiver. p. 7
No sound comes from the • Squelch level is too deep. • Set squelch to the threshold point. p. 9
speaker. • Volume level is too low. • Set [VOL] to a suitable level.
Transmitting impossible. • WX channels or NAVI band is selected. • Set COM band in frequency mode. p. 8
• The battery is exhausted. • Recharge the battery pack. pgs. 29–31
Operating frequency or • Lock function is activated. • Push and hold [ ] for 2 sec. to turn the lock p. 9
memory channel can not
function OFF.
be changed.
Scan does not start. • All memory channels in the selected bank are • Set the “TAG” settings of desired channels. p. 20
not programmed as “TAG” channels.
• Squelch is open. • Set the squelch level to tighten. p. 9
• There is not more than 2 memorized channels • Program 2 or more memory channels. pgs. 13, 14
No beep sounds. • Beep tones turned OFF. •
Turn the
beep tone ON;
IC-A14:
Push [FUNC], then push [BEEP](8).
p. 22
IC-A14S:
Turn the beep tone ON in set mode.
pgs. 22
, 25

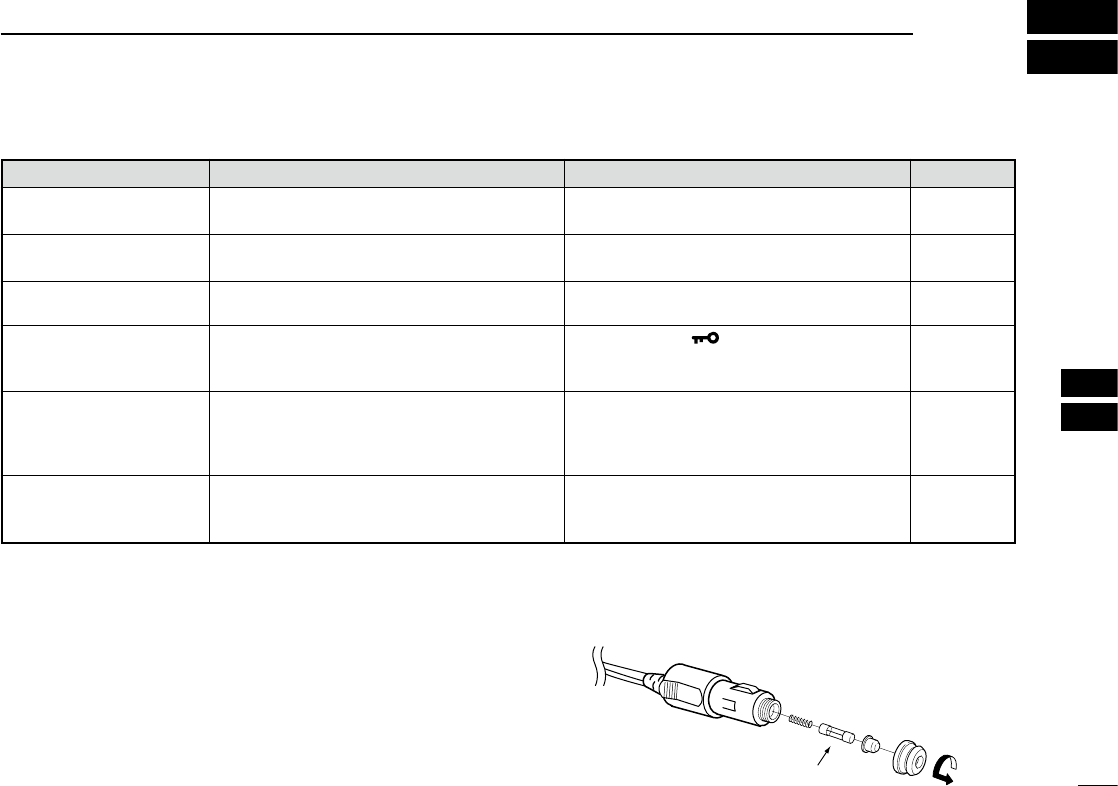

D CP-22 fuse replacement
If the fuse blows or the receiver stops functioning while oper-
ating with the optional CP-22 cigarette lighter cable, find
the source of the problem if possible, and replace the dam-
aged fuse with a new rated one (FGB 8 A) as shown right.
Fuse 8 A
35
10 SPECIFICATIONS
D General
• Frequency coverage :
IC-A14 TX 118.000 to 136.975 MHz
RX 108.000 to 136.975 MHz
WX (Rx only) 161.650 to 163.275 MHz
IC-A14S TX/RX 118.000 to 136.975 MHz
• Mode : 6K00A3E
16K0G3E (IC-A14/Rx only)
• Channel spacing : 25 kHz
• Number of memory channels :
IC-A14 200 (20 CH × 10 BANKS)
IC-A14S 100
• Power supply requirement : Specified Icom’s battery packs
7.4 V DC standard
• Usable temperature range : –10˚C to +60˚C (+14°F to +140°F)
• Current drain (at 7.4 V DC) :
Tx 1.5 A
Rx at stand by 50 mA typical
at AF max. 500 mA
• Antenna connector : BNC 50 Ω (nominal)
• Dimensions : 53(W) × 120(H) × 36.9(D) mm
(projections not included) 23⁄32(W) × 423⁄32(H) × 19⁄16(D) inch
• Weight : Approx. 180 g (6.35 oz)
(Without the battery pack and antenna.)
D Transmitter
• Output power : 5.0 W (PEP) typical
1.5 W (CW)
• Modulation : Low level modulation
• Modulation limiting : 70 to 100%
• Frequency stability : ±5 ppm
• Audio harmonic distortion : Less than 10% (at 60% mod.)
• Hum and noise ratio : More than 35 dB
• Spurious emissions : More than 46 dB (except operating
frequency ±62.5 kHz range)
• External MIC connector : 3-conductor 2.5(d) mm (1⁄10˝)/
150 Ω
D Receiver
• Receive system : Double conversion superhetero-
dyne
• Intermediate frequencies : 1st 46.35 MHz, 2nd 450 kHz
• Sensitivity :
COM band (6 dB S/N) –6 dBµ typical
NAVI band (6 dB S/N) –3 dBµ typical (IC-A14 only)
WX channels (12 dB SINAD) –13 dBµ typical (IC-A14 only)
• Squelch sensitivity (threshold) : AM Less than 0 dBµ
FM Less than –5 dBµ
(IC-A14 only)
• Selectivity : 6 dB (More than 7.5 kHz)
60 dB (Less than 25 kHz)
• Spurious response rejection : AM More than 60 dB
FM More than 30 dB
(IC-A14 only)
• Audio output power : More than 700 mW (internal SP)
( at 10% distortion with an 8 Ω More than 500 mW (external SP)
load, 30% mod.)
• Hum and noise : More than 35 dB at 30% mod.
• External SP connector : 3-conductor 3.5 (d) mm (1⁄8˝)/8 Ω
All stated specifications are subject to change without notice or obligation.
36
11
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
D BATTERY PACKS
• BP-230N Li-Ion battery pack
7.4 V/980 mAh Li-ion battery pack.
• BP-232N Li-Ion battery pack
7.4 V/2000 mAh Li-ion battery pack.
D CHARGERS
• BC-119N desktop charger + AD-106 charger adapter
+ BC-145 ac adapter
For rapid charging of battery packs. An AC adapter is supplied
with the charger depending on versions.
Charging time: approx. 3 hours when BP-232N is attached.
• BC-121N multi-charger + AD-106 charger adapter (6 pcs.)
+ BC-157 ac adapter
For rapid charging of up to 6 battery packs (six AD-106’s are re-
quired) simultaneously. An AC adapter should be purchased sepa-
rately. Charging time: approx. 3 hours when BP-232N is attached.
• BC-160 desktop charger + BC-145 ac adapter
For rapid charging of BP-230N and BP-232N (Li-ion).
• BC-171 desktop charger + BC-147 ac adapter
For regular charging of BP-230N and BP-232N (Li-ion).
• BC-179 desktop charger + BC-174 ac adapter
For regular charging of BP-230N and BP-232N (Li-ion).
D MICROPHONE
• HM-173 speaker microphone
Combination speaker and microphone.
D BELT CLIPS
• MB-94 belt clip
Alligator type belt clip.
• MB-96F leather belt hanger
Attaches with the supplied belt clip (Fixed type).
D DC CABLES
• CP-22 cigarette lighter cable
DC-DC converter is built-in. Charges the battery pack using 12/24 V
DC power source instead of the AC adapter for BC-171/179.
• OPC-515L dc power cable for BC-119N
Charges the battery pack using 13.8 V power source instead of the
AC adapter for BC-119N.
• OPC-656 dc power cable for BC-121N
Charges the battery pack using 13.8 V power source instead of the
AC adapter for BC-121N.
D OTHER OPTIONS
• CS-A14 cloning software + OPC-478/UC cloning cable
Provides quick and easy programming of items, such as memory
channels or set mode contents, from a PC using the cloning cable,
OPC-478 (RS-232C; DB-9 type) or OPC-478UC (USB type).
• OPC-499 headset adapter cable
When using an optional headset (3rd party products) via the adapter,
the transceiver outputs your transmitted voice to the headset for
monitoring.
• OPC-474 cloning cable
For data cloning between transceivers.
Available options may differ according to countries. Ask your au-
thorized dealer for details.
37
12 OPTIONAL HEADSET CONNECTION
D OPC-499 (HEADSET ADAPTER) connection
When using a headset (3rd party products) via the OPC-499 HEADSET ADAPTER, the transceiver outputs your transmitted voice
to the headset for monitoring. See “n Side tone function” (p. 11) when setting the side tone level.

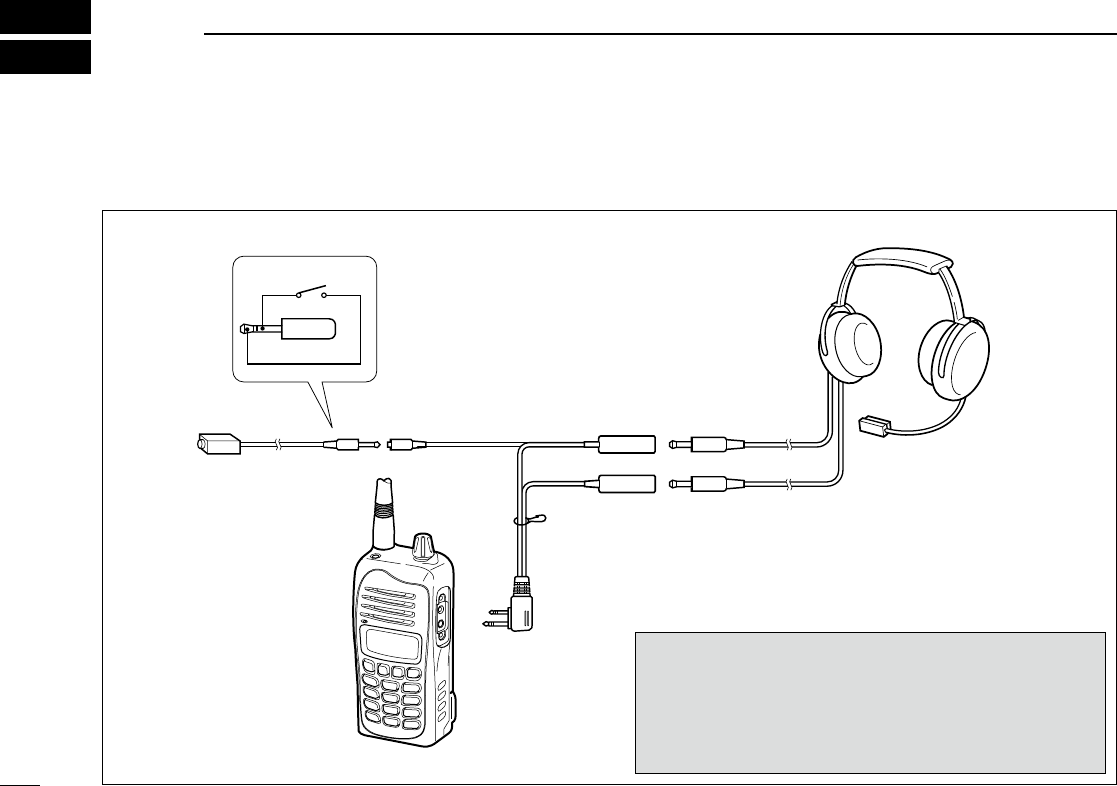

PTT
OPC-499
Transceiver
PTT switch
HEADSET
(Must be purchased
separately)
Use a PTT switch with a
3.5 mm (
1
⁄
8
˝) diameter
plug, if required.
NOTICE!
Some headsets do not work properly when used with the
IC-A14/S.
Therefore, ask your dealer for details about headsets
compatible for operation with the IC-A14/S with the head-
set.
38
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
This equipment has been tested and found to comply with
the limits for a Class B digital devices, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
installation. This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular in-
stallation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one of more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and re-
ceiver
• Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.
13
FOR CLASS B UNINTENTIONAL RADIATORS
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Printed on recycled paper with soy ink.
A-6631H-1EX-q
Printed in Japan
© 2007–2008 Icom Inc.

Navigation menu
