ICOM orporated 329600 HF TRANSCEIVER User Manual
ICOM Incorporated HF TRANSCEIVER
User Manual
2001 NEW
HF TRANSCEIVER
iF8100
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC
Rules. Operation is subject to the condition that
this device does not cause harmful interference.
i
2001 NEW 2001 NEW
FOREWORD
Thank you for purchasing this Icom product. The IC-
F8100 h f transceiver is designed and built with
Icom’s state of the art technology and craftsmanship.
With proper care, this product should provide you with
years of trouble-free operation.
We appreciate you making the IC-F8100 your radio of
choice, and hope you agree with Icom’s philosophy of
“technology first.”
Many hours of research and develop-
ment went into the design of your IC-F8100.
D FEATURES
❍ ALE (Automatic Link Establishment)/Sel-
call capability
❍ Digital Signal Processor (DSP) allows flex-
ible filter selection
❍ Full-dot matrix LCD for a variety of infor-
mation
IMPORTANT
READ THIS INSTRUCTION MANUAL
CAREFULLY before attempting to operate the
transceiver.
SAVE THIS INSTRUCTION MANUAL. This
manual contains important safety and operating in-
structions for the IC-F8100.
EXPLICIT DEFINITIONS
WORD DEFINITION
R DANGER! Personal death, serious injury or an
explosion may occur.
R WARNING! Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE Recommended for optimum use. No
risk of personal injury, fire or electric
shock.
Versions of the IC-F8100 which display
the “N33” symbol on the serial number
seal, comply with Standard Australia
Specification No. AS/NZS 4770: 2000.
FOREWORD .............................................................. i
IMPORTANT ............................................................... i
EXPLICIT DEFINITIONS ............................................ i
TABLE OF CONTENTS ............................................. i
PRECAUTIONS ......................................................... ii
FCC INFORMATION ................................................ iii
SAFETY TRAINING INFORMATION ....................... iii
INFORMATION EN MATIÈRE DE SÉCURITÉ ........iv
1 PANEL DESCRIPTION ..................................... 1–7

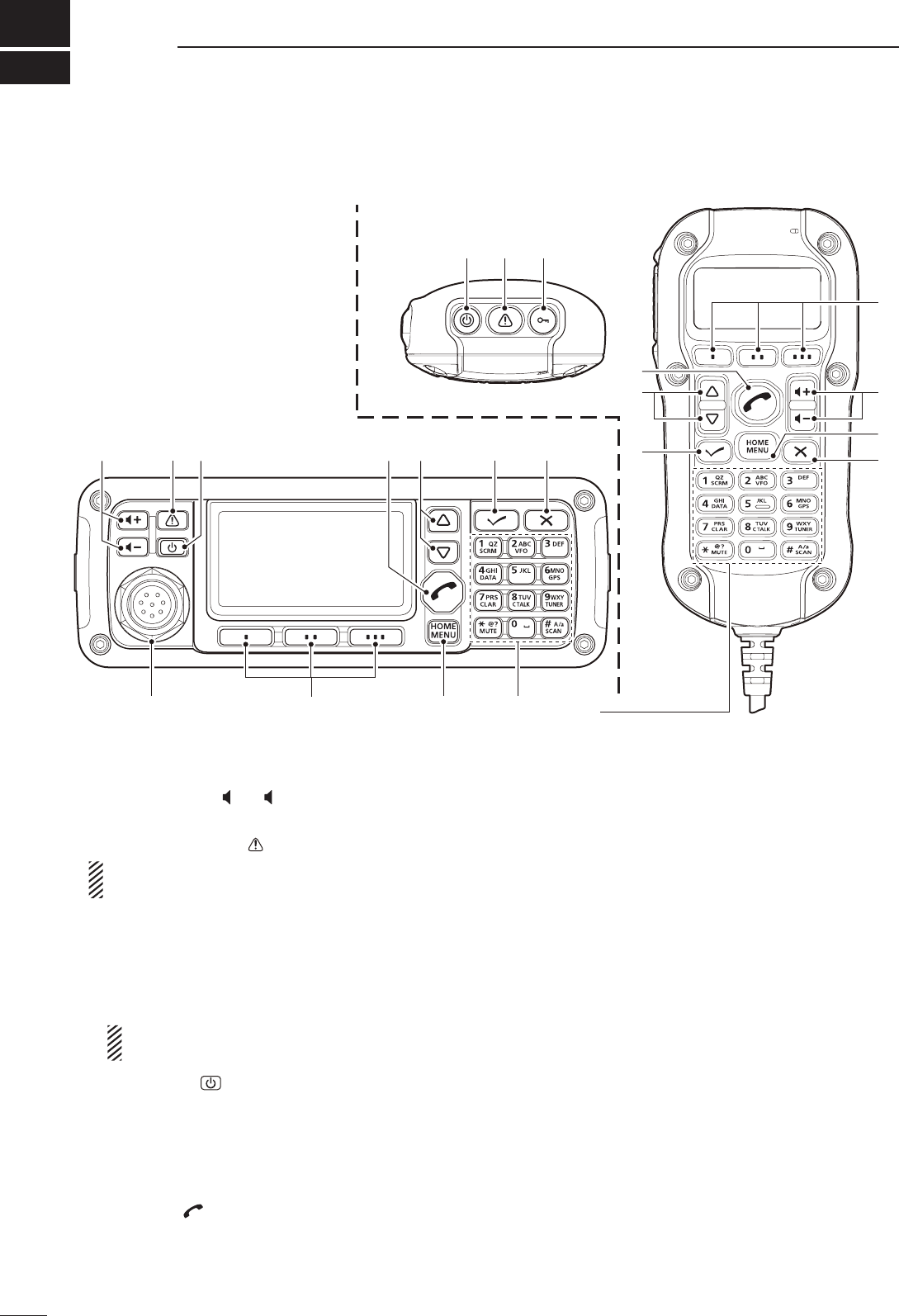

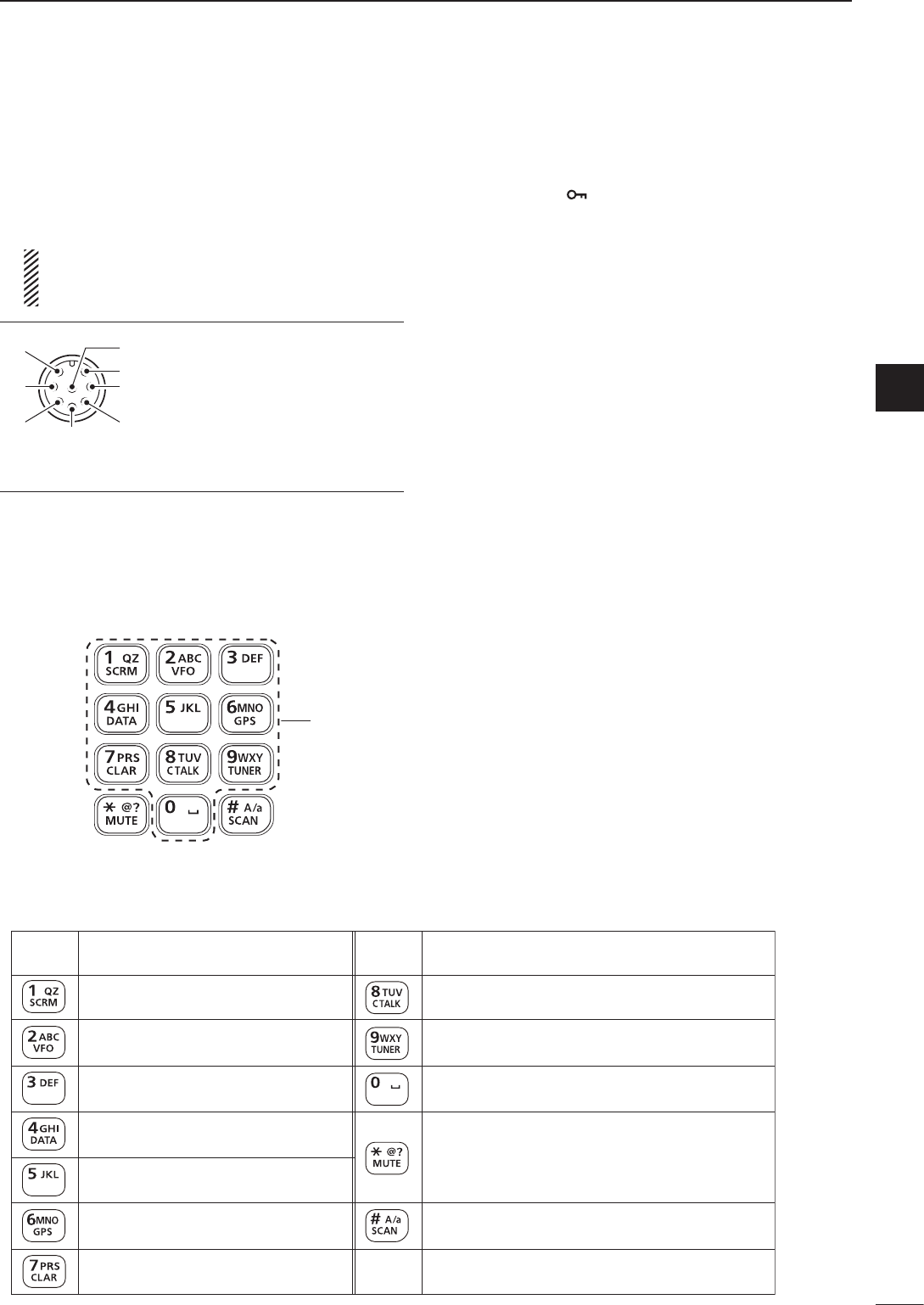

■ Controller (Front panel or HM-192) .................... 1

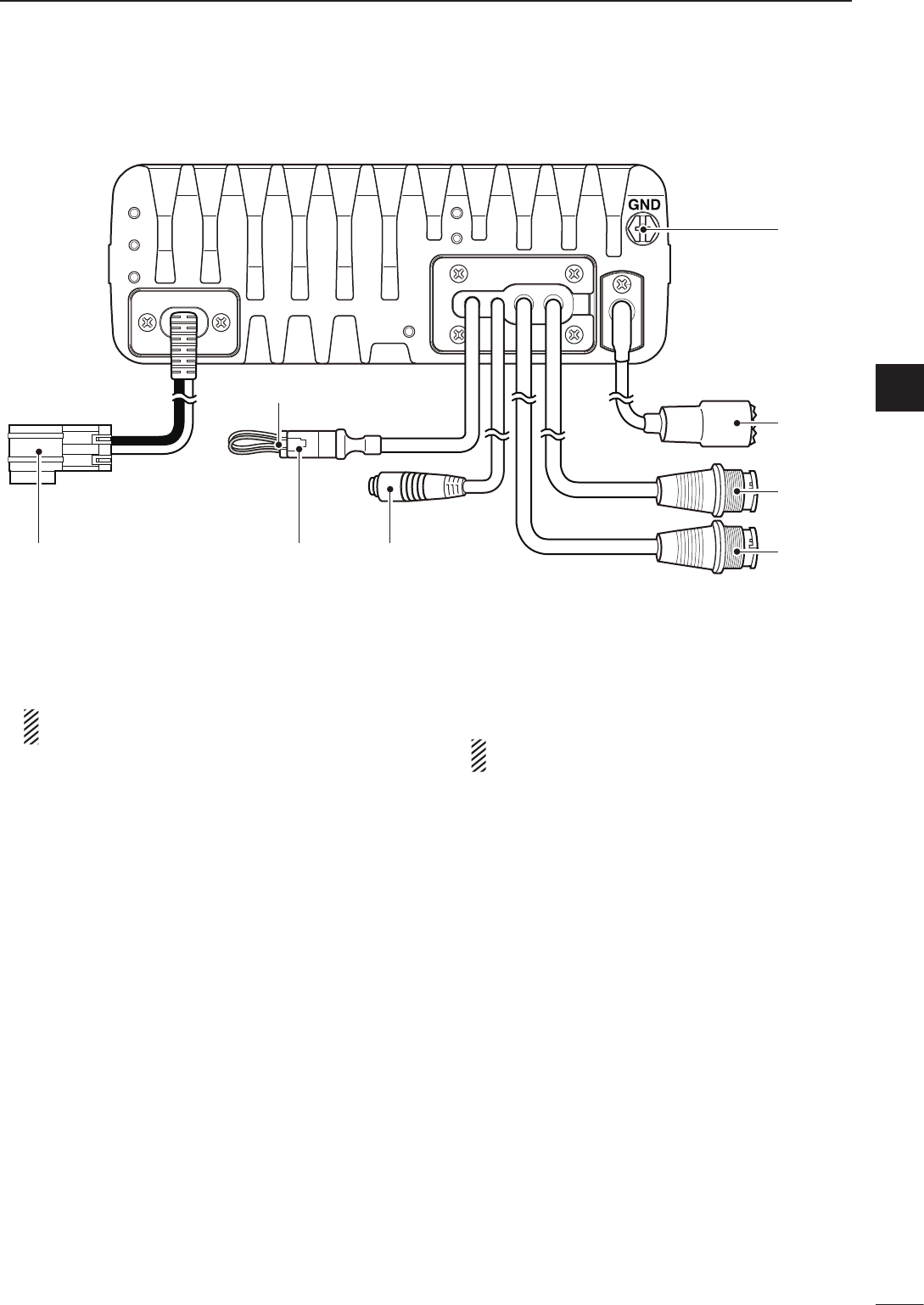

■ Rear panel ......................................................... 4

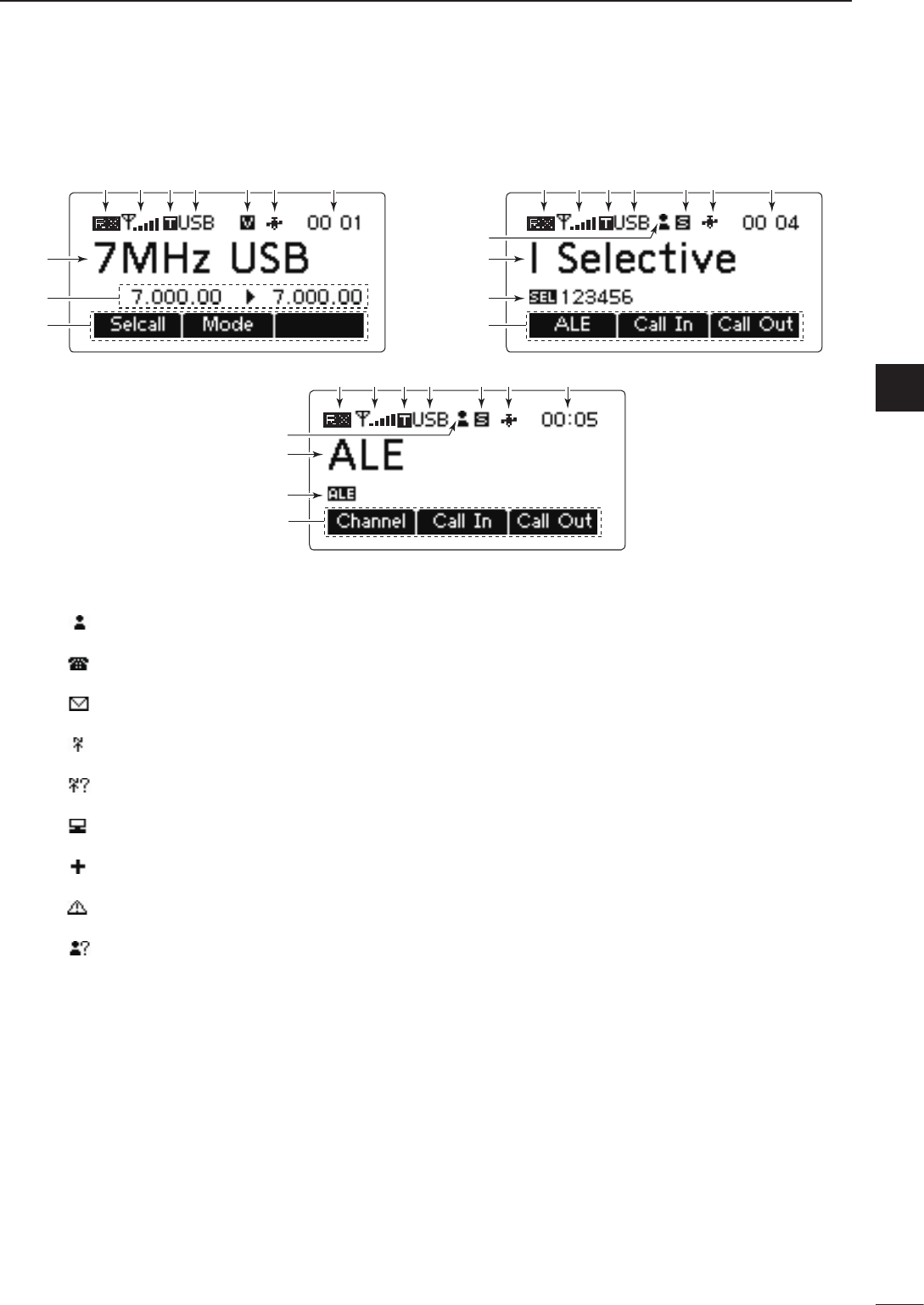

■ LCD screen ........................................................ 5
■ AD-119 Optional Junction Box ........................... 7

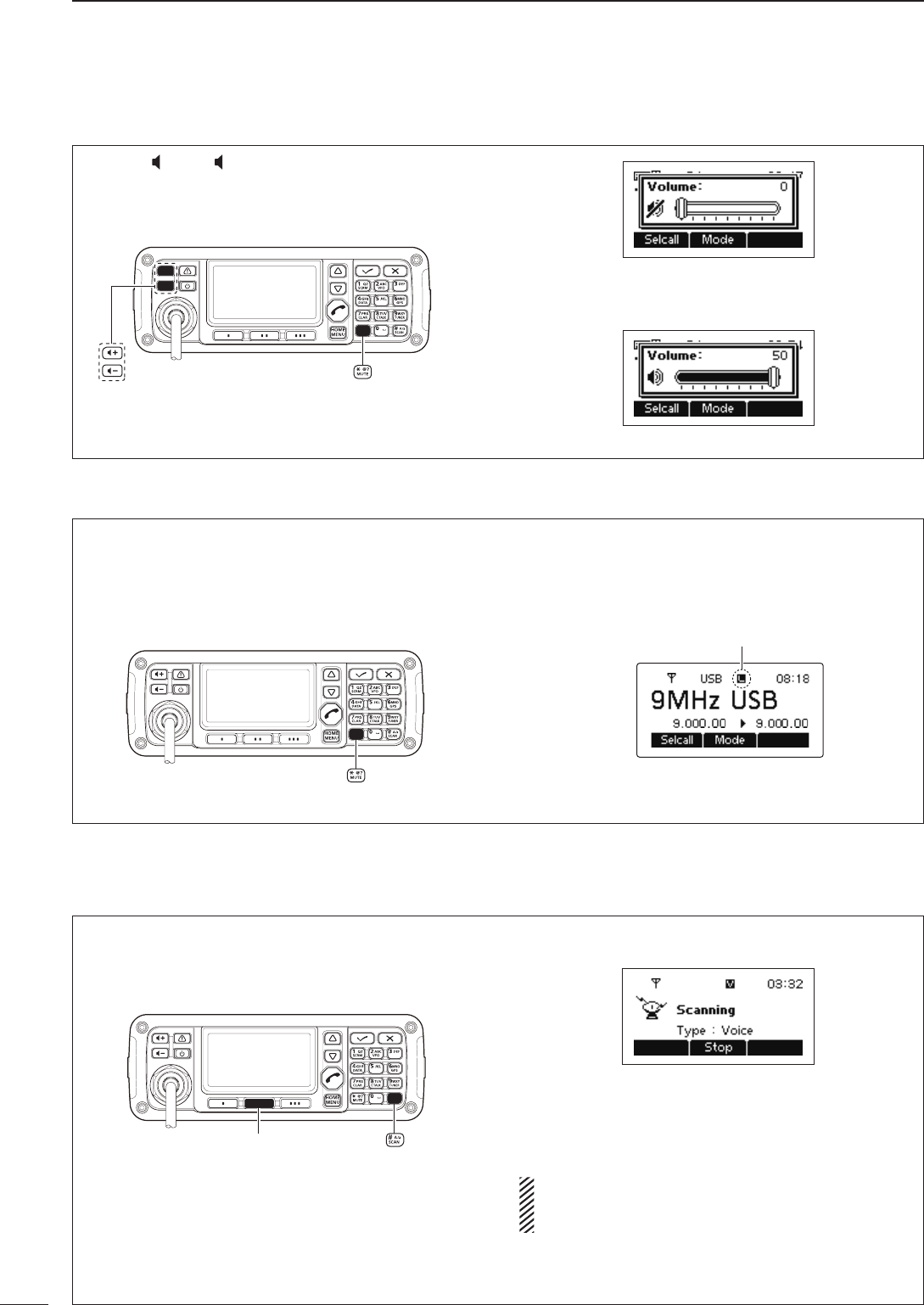

2 BASIC OPERATION ....................................... 8–11
■ Power ON .......................................................... 8
■ Selecting display mode ...................................... 8
■ Selecting a channel ........................................... 8
■ Setting audio volume ......................................... 9
■ Squelch function ................................................ 9
■ Scan function ..................................................... 9
■ Mode selection................................................. 10
■ Key Lock function ............................................. 10
■ VFO operation .................................................. 11
3 RECEIVE AND TRANSMIT ........................... 12–18
■ Basic voice transmit/receive ............................ 12
■ Functions for transmit ...................................... 13
■ Functions for receive........................................ 15

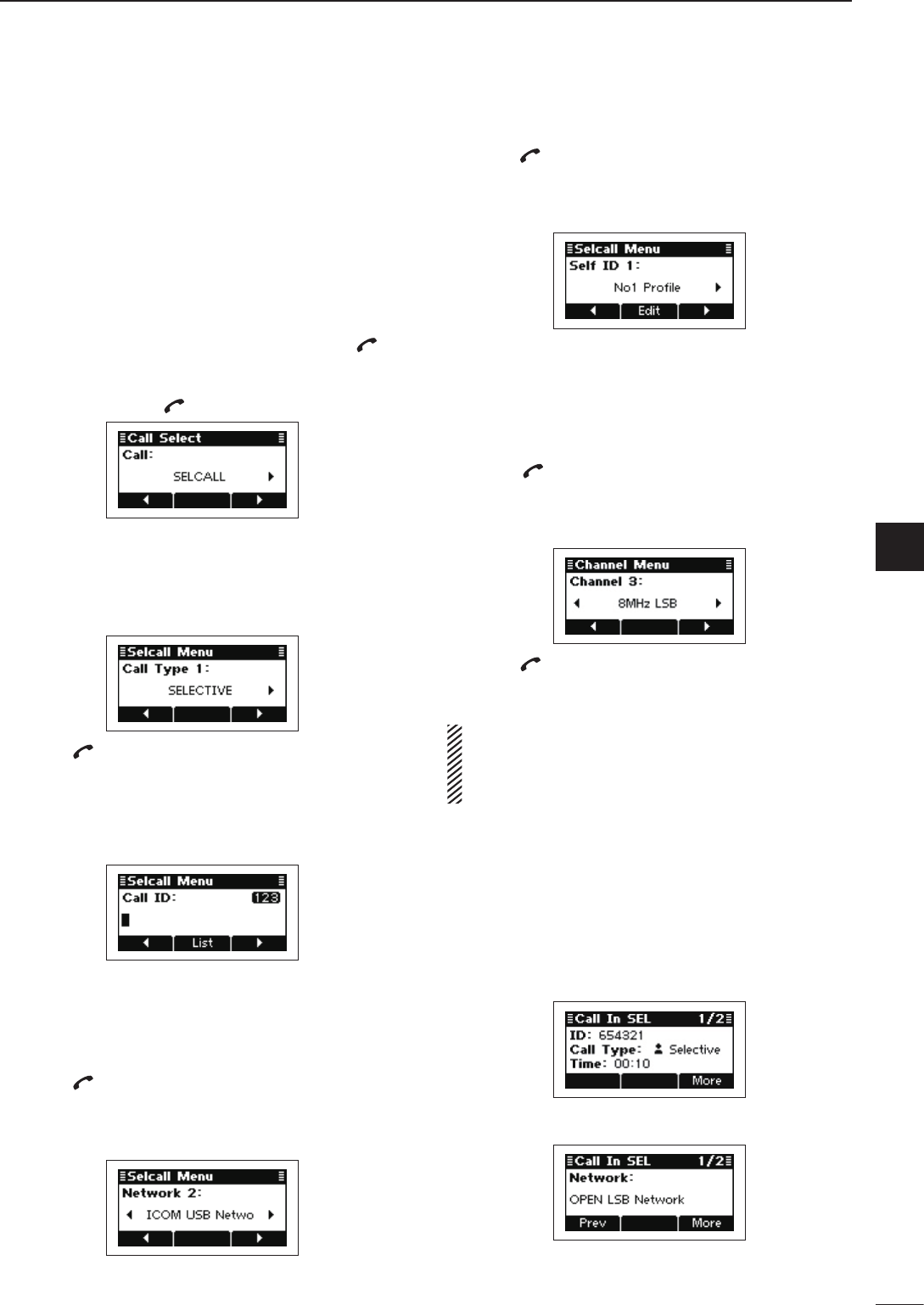

4 SELCALL/ALE OPERATION ........................ 19–33
■ Selcall/ALE ...................................................... 19

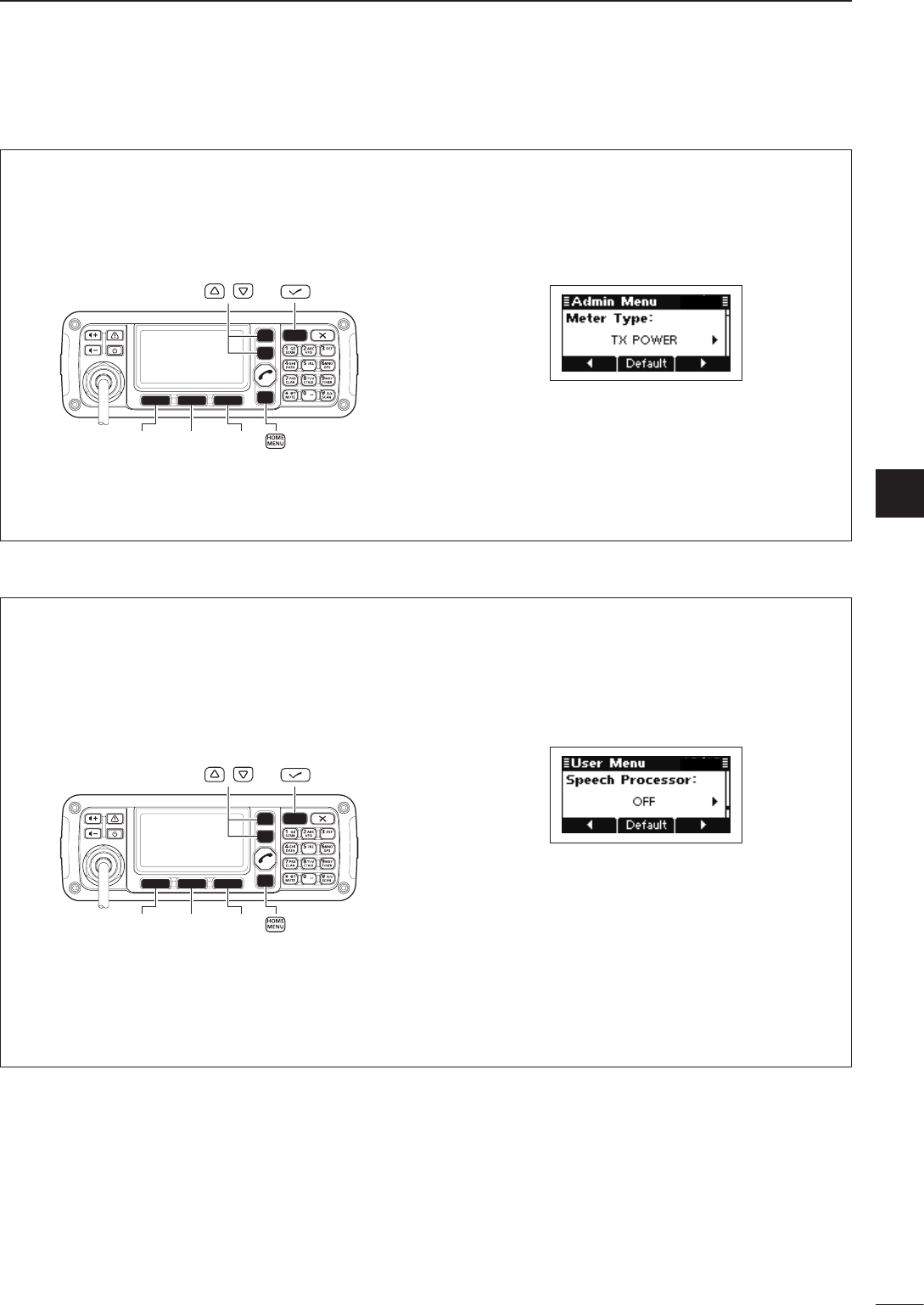

5 MENU SCREEN ............................................ 34–46
■ Edit Menu ......................................................... 34
■ User Menu ....................................................... 35
■ Admin Menu ..................................................... 38
■ CPU Reset ....................................................... 46
6 CONNECTION AND INSTALLATION ........... 47–60
■ Supplied accessories ....................................... 47
■ Connections ..................................................... 49
■ Ground connection .......................................... 51
■ Power source ................................................... 51
■ Antenna ........................................................... 52
■ CFU-F8100 (Optional Cooling Fan) ................. 52
■ RMK-6 (Optional Separation kit) ...................... 53
■ HM-192 (Optional Remote control microphone)
......................................................................... 55
■ Mounting .......................................................... 56
■ Fuse replacement ............................................ 58
■ Connector information for AD-119 ................... 59
7 SPECIFICATIONS ............................................... 61
8 OPTIONS ............................................................ 62
TABLE OF CONTENTS
Icom, Icom Inc. and the Icom logo are registered trademarks
of Icom Incorporated (Japan) in Japan, the United States,
the United Kingdom, Germany, France, Spain, Russia and/or
other countries.
All other products or brands are registered trademarks or
trademarks of their respective holders.
2001 NEW
ii
PRECAUTIONS
R DANGER HIGH RF VOLTAGE! NEVER attach
an antenna or internal antenna connector during trans-
mission. This may result in an electrical shock or burn.
R WARNING! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
Hearing experts advise against continuous high volume
operation. If you experience a ringing in your ears, reduce
the volume or discontinue use.
R WARNING! NEVER operate or touch the trans-
ceiver with wet hands. This may result in an electric
shock or damage to the transceiver.
R WARNING! NEVER apply AC power to the
[DC13.8V] socket on the transceiver rear panel. This
could cause a fire or damage the transceiver.
R
WARNING! NEVER apply more than 16 V DC to the
[DC13.8V] socket on the transceiver rear panel, or use reverse
polarity. This could cause a fire or damage the transceiver.
R WARNING!
NEVER let metal, wire or other objects
protrude into the transceiver or into connectors on the
rear panel. This may result in an electric shock.
R WARNING! ALWAYS use the supplied Black and
red cables with fuse holders. After connecting the fuse
holders,
NEVER
cut the DC power cable between the
DC plug and fuse holder. If an incorrect connection is
made after cutting, the transceiver might be damaged.
R WARNING! Immediately turn OFF the transceiver
power and remove the power cable if it emits an abnor-
mal odor, sound or smoke. Contact your Icom dealer or
distributor for advice.
CAUTION: NEVER change the internal settings of the
transceiver. This may reduce transceiver performance
and/or damage to the transceiver.
In particular, incorrect settings for transmitter circuits,
such as output power, idling current, and so on, might
damage the expensive final devices.
The transceiver warranty does not cover any problems
caused by unauthorized internal adjustment.
CAUTION:
NEVER install the transceiver in a place
without adequate ventilation. Heat dissipation may be
reduced, and the transceiver may be damaged.
DO NOT use or place the transceiver in direct sunlight
or in areas with temperatures below –30°C (+32°F) or
above +60°C (+122°F).
The basic operations, transmission and reception of the
transceiver are guaranteed within the specified operat-
ing temperature range. However, the LCD display may
not be operate correctly, or show an indication in the
case of long hours of operation, or after being placed in
extremely cold areas.
DO NOT use harsh solvents such as benzine or alco-
hol when cleaning, as they will damage the transceiver
surfaces.
DO NOT push the PTT switch when you don’t actually
desire to transmit.
DO NOT place the transceiver against walls or putting
anything on top of the transceiver. This may overheat
the transceiver.
Always place unit in a secure place to avoid inadvertent
use by children.
BE CAREFUL! If you use a linear amplifier, set the
transceiver’s RF output power to less than the linear
amplifier’s maximum input level, otherwise, the linear
amplifier will be damaged.
BE CAREFUL! The transceiver will become hot when
operating the transceiver continuously for long periods
of time.
USE only the specified microphone. Other manufactur-
ers’ microphones have different pin assignments, and
connection to the IC-F8100 may damage the transceiver
or microphone.
During mobile operation, NEVER place the transceiver
where air bag deployment may be obstructed.
During mobile operation, DO NOT place the transceiver
where hot or cold air blows directly onto it.
During mobile operation, DO NOT operate the trans-
ceiver without running the vehicle’s engine. When the
transceiver’s power is ON and your vehicle’s engine is
OFF, the vehicle’s battery will soon become exhausted.
Make sure the transceiver power is OFF before starting
the vehicle engine. This will avoid possible damage to the
transceiver by ignition voltage spikes.
During maritime mobile operation, keep the trans-
ceiver and microphone as far away as possible from the
magnetic navigation compass to prevent erroneous indi-
cations.
Turn OFF the transceiver’s power and/or disconnect the
DC power cable when you will not use the transceiver
for long period of time.
KEEP the transceiver away from the heavy rain, and
Never immerse it in the water. The transceiver meets
IP54* requirements for dust-protection and splash resis-
tance.
However, once the transceiver has been dropped, dust-
protection and splash resistance cannot be guaranteed
due to the fact that the transceiver may be cracked, or
the waterproof seal damaged, and so on.
* Only when the supplied microphone is attached.
1
2
3
4
5
6
7
8
iii
2001 NEW 2001 NEW
SAFETY TRAINING INFORMATION
WARNING
Your Icom radio generates RF electromag-
netic energy during transmit mode. This
radio is designed for and classified as “Oc-
cupational Use Only”, meaning it must be
used only during the course of employment
by individuals aware of the hazards, and the ways to
minimize such hazards. This radio is NOT intended for
use by the “General Population” in an uncontrolled en-
vironment.
• For compliance with FCC and Industry Canada RF
Exposure Requirements, the transmitter antenna in-
stallation shall comply with the following two condi-
tions:
1. The transmitter antenna gain shall not exceed
0 dBi.
2. The antenna is required to be located outside of
a vehicle and kept at a distance of 80 centime-
ters or more between the transmitting antenna of
this device and any persons during operation. For
small vehicle as worst case, the antenna shall be
located on the roof top at any place on the centre
line along the vehicle in order to achieve 80 cen-
timeters separation distance. In order to ensure
this distance is met, the installation of the antenna
must be mounted at least 80 centimeters away
from the nearest edge of the vehicle in order to
protect against exposure to bystanders.
3.
Transmit only when people outside the vehicle are
at least the recommended minimum distance of
160 centimeters away from the properly installed
antenna. This separation distance will ensure that
there is sufficient distance from a properly installed
externally-mounted antenna to satisfy the RF expo-
sure requirements in the applicable RF exposure
compliance standards.
CAUTION
To ensure that your exposure to RF
electromagnetic energy is within the
FCC allowable limits for occupational
use, always adhere to the following
guidelines:
• DO NOT operate the radio without a proper antenna
attached, as this may damage the radio and may
also cause you to exceed FCC RF exposure limits. A
proper antenna is the antenna supplied with this radio
by the manufacturer or an antenna specifically autho-
rized by the manufacturer for use with this radio.
• DO NOT transmit for more than 50% of total radio
use time (“50% duty cycle”). Transmitting more than
50% of the time can cause FCC RF exposure com-
pliance requirements to be exceeded. The radio is
transmitting when the TX/RX indicator lights red. You
can cause the radio to transmit by pressing the “PTT”
switch.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF
energy that can possibly cause interference with other
devices or systems. To avoid such interference, turn
OFF the radio in areas where signs are posted to do
so. DO NOT operate the transmitter in areas that are
sensitive to electromagnetic radiation such as hospi-
tals, aircraft, and blasting sites.
FCC INFORMATION
• FOR CLASS A UNINTENTIONAL RADIATORS:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
CAUTION: Changes or modifications to this trans-
ceiver, not expressly approved by Icom Inc., could
void your authority to operate this transceiver under
FCC regulations.
2001 NEW
iv
INFORMATION EN MATIÈRE DE SÉCURITÉ
AVERTISSEMENT
Votre radio Icom produit une énergie
électromagnétique de radiofréquen-
ces (RF), en mode de transmission.
Cette radio est conçue pour un
«usage professionnel seulement» et
classée comme tel, ce qui signifie qu’elle doit être
utilisée uniquement dans le cadre d’un travail par
des personnes conscientes des dangers et des
mesures visant à minimiser ces dangers. Elle
N’EST PAS conçue pour une «utilisation grand
public», dans un environnement non contrôlé.
• Afin de satisfaire aux exigences de la FCC et d’In-
dustrie Canada en matière d’exposition aux RF, il
est nécessaire que l’antenne soit installée confor-
mément aux trois conditions suivantes:
1. Le gain de l’antenne du radio émetteur ne doit
pas dépasser 0dBi.
2. Il faut que l’antenne émettrice de cet appareil
soit placée à l’extérieur d’un véhicule et tenue
éloignée d’au moins 80 centimètres de toute per-
sonne pendant le fonctionnement. Dans le pire
des cas, pour un petit véhicule, l’antenne doit être
placée sur le toit, n’importe où dans l’axe central
du véhicule, afin de respecter une distance de 80
cm du bord le plus rapproché du véhicule et ainsi
éviter que les personnes présentes soient expo-
sées.
3. Émettre uniquement lorsque les personnes à
l’extérieur du véhicule se trouvent à au moins la
distance minimale recommandée de 160 cm de
l’antenne correctement installée. Cette distance
de sécurité assurera que les personnes soient
placées suffisamment loin d’une antenne correcte-
ment fixée à l’extérieur pour satisfaire aux exigen-
ces en matière d’exposition aux RF, en vertu des
normes de conformité applicables.
MISE EN GARDE
Afin de vous assurer que votre expo-
sition à une énergie électromagnéti-
que de RF se situe dans les limites
permises par la FCC pour une utili-
sation grand public, veuillez en tout
temps respecter les directives sui-
vantes:
• NE PAS faire fonctionner la radio sans qu’une
antenne appropriée y soit fixée, car ceci risque
d’endommager la radio et causer une exposition
supérieure aux limites établies par la FCC. L’an-
tenne appropriée est celle qui est fournie avec
cette radio par le fabricant ou une antenne spécia-
lement autorisée par le fabricant pour être utilisée
avec cette radio.
• NE PAS émettre pendant plus de 50 % du temps
total d’utilisation de l’appareil («50 % du facteur
d’utilisation»). Émettre pendant plus de 50 % du
temps total d’utilisation peut causer une exposi-
tion aux RF supérieure aux limites établies par
la FCC. La radio est en train d’émettre lorsque
le témoin du mode de transmission s’affiche sur
l’écran ACL. La radio émettra si vous appuyez sur
le bouton du microphone.
Interférence électromagnétique et compatibilité
En mode de transmission, votre radio Icom produit de
l’énergie de RF qui peut provoquer des interférences
avec d’autres appareils ou systèmes. Pour éviter de
telles interférences, mettez la radio hors tension dans
les secteurs où une signalisation l’exige. NE PAS faire
fonctionner l’émetteur dans des secteurs sensibles
au rayonnement électromagnétique tels que les hôpi-
taux, les aéronefs et les sites de dynamitage.
2001 NEW2001 NEW
1
1
PANEL DESCRIPTION
2001 NEW
q VOLUME KEYS [ +]/[ –](p. 9)
Adjusts the audio output level.
w EMERGENCY KEY [ ]
NOTE: While in the VFO mode, the Emergency
key cannot be used.
➥ Push to enter the Emergency channel list.
• Push again to return to the normal operating screen.
➥ Hold down for 1 second to transmit the Selcall
and RFDS (Royal Flying Doctor Service) calls
to the specified Selcall addresses in sequential
order.
NOTE: RFDS calls are available in only the
AUS versions.
e POWER KEY [ ]
➥ When the transceiver’s power is OFF:
Push to turn ON the transceiver power.
• First, turn ON the DC power source.
➥ When the transceiver’s power is ON:
Hold down for 2 seconds to turn OFF the power.
r CALL KEY [ ]
Push to enter the Call menu.
• Push again to go to the next screen in the Call menu.
t UP/DOWN KEYS [r]/[s]
Selects the operating channel, the items in the
Menu mode, and so on.
y ENTER KEY [4]
Push to enter or exit the selected Menu in the Menu
screen.
u CLEAR KEY [8]
➥ Push to exit the Menu screen.
➥ Push to return to the previous screen in the Call
menu.
i HOME/MENU KEY [HOME] [MENU](HOME)
➥ Push to return to the home display.
➥ Hold down for 1 second to enter the Menu
screen.
o FUNCTION KEYS [§]/[§§]/[§§§]
Push to select the function that is displayed above
each key on the LCD display.
• The functions vary, depending on the selected menu and
the operating mode.
q w
w !1e
er
io!0
tyu
Keypad (p. 2)
q
o
u
y
t
r
i
• HM-192
• Front panel
■ Controller (Front panel or HM-192)
• Common
2001 NEW
2
1
PANEL DESCRIPTION
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
!0 MICROPHONE CONNECTOR [MIC]
Connects to only the microphone supplied with the
transceiver.
NOTE: NEVER connect the HM-192 or any other
microphone here. This could damage the trans-
ceiver and/or the microphone.
y
u
t
r
q
w
e
i
Front view
q MIC (microphone input)
w MIC SW1
e AF
r MIC SW2
t PTT
y GND
u GND (microphone ground)
i +8 V DC output (Max 10 mA)
!1 LOCK KEY [ ]
Hold down for 1 second to set the Key lock function
to ALL, NUMERIC KEY or OFF.
D Keypad
➥ Inputs numbers for the Clock Setting.
➥ Inputs numbers, characters or letters for the Sel-
call direct input.
10-key
• Front panel • HM-192
• Selectable characters
KEY INPUT INPUTKEY
(space)
Upper/Lower case letters/Numbers
1 Q Z q z
2 A B C a b c
3 D E F d e f
4 G H I g h i
5 J K L j k l
6 M N O m n o
7 P R S p r s
8 T U V t u v
9 W X Y w x y
0
, . ; ? : ” ` ’ / ! @ # $ % ^ &
* ( ) _ – + = | \ ~ < > { } [ ]
3
1PANEL DESCRIPTION
2001 NEW 2001 NEW
VFO KEY [VFO]
Push to turn the VFO mode ON or OFF.
NOTE: The VFO mode operation can be
inhibited in the Admin Menu. (p. 39)
GPS KEY [GPS]
When a GPS receiver is connected through
the optional AD-119 Junction Box or OPC-
2205 Shielded control cable, and valid data
is received, push to turn the GPS display ON
or OFF. The GPS information that can be se-
lected are Position, Direction and Elevation.
CLARIFIER KEY [CLAR]
Push to turn the Clarifier function ON or
OFF.
NOTE: This key cannot be used when the
“Clarifier” item in the User Menu is set to
“OFF.” (p. 36)
CLEAR TALK KEY [C TALK]
Push to turn the Clear Talk function ON or
OFF.
• The “C” icon appears when the function is ON.
TUNER KEY [TUNER]
Push to turn the Antenna tune mode to Auto,
Manual or OFF. (p. 12)
• The “Auto Tune” or “Manual Tune” screen ap-
pears when the antenna tune mode is ON.
• The SWR meter appears when the antenna tune
mode is ON.
MUTE KEY [MUTE]
Push to select the squelch type. Call squelch,
S-meter squelch (level 1 to 50), Voice squelch
or squelch OFF are selectable.
• The “S” icon appears when the Call squelch
function is ON.
• The “L” icon appears when the S-meter squelch
function is ON.
• The “V” icon appears when the Voice squelch
function is ON.
SCAN KEY [SCAN]
Push to start or stop a scan.
Keypad (Continued) D
2001 NEW
4
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
q DC POWER CONNECTOR [DC]
Accepts 13.8 V DC through a DC power cable.
w FAN CONNECTOR [FAN]
Connects to the optional CFU-F8100 Cooling Fan.
NOTE: Attach the protect plug when the optional
Cooling Fan is not used.
e SPEAKER JACK [SP]
Connects to an external speaker such as the sup-
plied SP-25.
r ACCESSORY CONNECTOR (10 PIN) [ACC1]
t ACCESSORY CONNECTOR (12 PIN) [ACC2]
Connects to the optional AD-119 junction b o x or
OPC-2205 s h i e l d e d c o n t r o l c a b l e .
Both connectors must be connected to use the AD-
119 or OPC-2205.
NOTE: Attach the connector caps when the op-
tional unit or cable is not used.
y ANTENNA CONNECTOR
Connects to a 50 Ω HF band antenna.
u GROUND TERMINAL
IMPORTANT! Connects to a solid ground point.
ACC2
ACC1
GND
ANT
y
t
r
u
DC
qFAN
Protect plug
wSP
e
■ Rear panel
5
1PANEL DESCRIPTION
2001 NEW 2001 NEW
q RECEIVE/TRANSMIT ICON
➥ “ RX” appears when signals are received or the
squelch is open.
➥ “ TX” appears during transmit.
w S-METER/TX METERS
➥ Displays the receive signal strength.
➥ Displays the transmit output power.
Mic gain can also be displayed when the “METER
TYPE” item in the Admin Menu is set to “MIC
LEVEL.”
e TUNE ICON
Appears after the automatic antenna tuner matches
the transceiver and antenna.
r OPERATING MODE INDICATOR
Displays the selected operating mode.
• “LSB,” “USB,” “CW,” “AM,” “D1,”* “D2”* or “D3”* appears,
depending on the operating mode.
* When the “Modem” setting in the Admin Menu is set to
“OFF,” “RTTY” appears instead. (p. 40)
The D1, D2 or D3 mode can be set in the “Data mode
1,” “Data mode 2” or “Data mode 3” settings in the
Admin Menu. (p. 40)
t MUTE ICON
➥ “S” appears when the Call squelch function is se-
lected.
➥ “L” appears when the S-meter squelch is se-
lected.
➥ “V” appears when the Voice squelch is selected.
y GPS ICON
Appears when valid position data is received from
a GPS receiver that is connected to the AD-119 or
OPC-2205.
u TIME DISPLAY
Displays time data.
i FUNCTION DISPLAY
Displays the function of the function keys ([§], [§§]
and [§§§]).
o SUB READOUTS
<Memory Channel display>
Shows the channel transmit and receive frequen-
cies. The receive frequency is displayed on the right
and the transmit frequency is displayed on the left.
NOTE: The transmit frequency is not displayed
when the selected channel is configured as “re-
ceive only.”
<Selcall Address display>
Shows the Selcall ID or phone number of the call.
<ALE ID display>
Displays the NET ID for ALE transmissions.
!0 MAIN READOUTS
<Memory Channel display>
Displays the channel name.
<Selcall Address display>
Shows the Selcall Address of the call.
<ALE ID display>
Shows the ALE ID for ALE transmission.
::
• Memory Channel Display • Selcall Address Display
• ALE ID Display
q w r t y u q w r t y u
q w r
e e
e t y u
o
!0
o
!0
!1
!1
o
!0
i i
i
■ LCD screen
2001 NEW
6
1
PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
!1 CALL ICON
Displays the Call type icons for Selcall.
• The “ ” icon appears when Selective call is selected
on the Selcall Address display.
• The “ ” icon appears when Phone call is selected on
the Selcall Address display.
• The “ ” icon appears when Message call is selected
on the Selcall Address display.
• The “ ” icon appears when GPS Send Position call is
selected on the Selcall Address display.
• The “ ” icon appears when GPS Get Position call is
selected on the Selcall Address display.
• The “ ” icon appears when Get Status call is selected
on the Selcall Address display.
• The “ ” icon appears when RFDS Emergency call is
selected on the Selcall Address display.
• The “ ” icon appears when Emergency call is selected
on the Selcall Address display.
• The “ ” icon appears when Channel Test call is se-
lected on the Selcall Address display.
::
• Memory Channel Display • Selcall Address Display
• ALE ID Display
q w r t y u q w r t y u
q w r
e e
e t y u
o
!0
o
!0
!1
!1
o
!0
i i
i
2001 NEW
7
1PANEL DESCRIPTION
2001 NEW
q DATA JACK [DATA]
Connects to a PC through an RS-232C cable (D-
sub 9-pin) for remote control in the RS-232C for-
mat.
w GPS CONNECTOR [GPS]
Connects to a GPS receiver to automatically set
your position and time data from data in NMEA0183
ver. 2.0 or 3.01 formats.
e GPIO CONNECTOR [GPIO]
Connects to the control cable of the optional AT-
140 Antenna Tuner or AT230 Automatic Tuning An-
tenna.
q USB CONNECTOR [USB]
Connects to a PC through an A-B type USB cable.
w ACCESSORY CONNECTOR 2 (12 PIN) [ACC2]
e ACCESSORY CONNECTOR 1 (10 PIN) [ACC1]
Connects to the IC-F8100’s Accessory connectors.
Both connectors must be connected to use this
Junction Box.
r
GROUND TERMINAL
IMPORTANT! Connects to a solid ground point.
t
EXTERNAL MODEM CONNECTOR [EXT. MODEM]
Connects to an external unit such as an HF email
modem or TNC (Terminal Node Controller).
NOTE: This connector may not be available, de-
pending on the AD-119’s version.
q w e
■ AD-119 Optional Junction Box
D Front Panel
q
t
w e r
D Rear Panel
2
8
BASIC OPERATION
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
➥ Push [ ] to turn ON the Power.
• Built-in Test is displayed.
The BIT display can be turned OFF in the Advance
Menu.
• Hold down [] for 2 seconds to turn OFF the power.
■ Power ON
q Push [§] one or more times to select the Memory
Channel display.
• The display sequentially selects “Channel” ➪“Selcall”
➪“ALE” ➪“Channel.”
w Push [r] or [s] to select a desired memory chan-
nel.
•
•
•
➥ Push [§] one or more times to select a desired dis-
play mode.
• The display sequentially selects “Channel” ➪“Selcall”
➪“ALE” ➪“Channel.”
Memory channel display
Selcall Address display
ALE ID display
■ Selecting a channel
■ Selecting display mode
9
2BASIC OPERATION
2001 NEW 2001 NEW
The squelch function detects signals with voice com-
ponents and squelches (mutes) unwanted signals.
This provides quiet stand-by.
When you need to receive weak signals, the squelch
can be turned OFF.
➥ Push [MUTE](M) one or more times to select a
squelch type. Selectable types are Call SQL, S-
meter SQL (level 1 to 50), Voice SQL and OFF.
• The S-meter squelch level can be adjusted in “Squelch
Level” in the User Menu
.
Mute icon
• The Mute icon, “S,” “L” or “V,” appears when the
squelch function is turned ON.
➥ Push [ +] or [ –] to adjust the audio level.
• If the squelch is closed, push [MUTE](M) one or more
times to open the squelch.
• The display shows the volume level while adjusting.
Minimum audio level
•
•
•
Maximum audio level
■ Squelch function
■ Setting audio volume
The scan function repeatedly scans programmed
channels. This function is convenient to wait for calls
on multiple channels.
[Stop]
q Push [SCAN](#) to start a scan.
• “Scanning” and the Scan type are displayed.
w When a signal is received, the scan pauses on
that channel.
e Push [Stop](§§) to cancel the scan.
• Pushing [SCAN](#) also cancels the scan.
NOTE: The scan resume setting (the action after
receiving a signal) can be changed in “Scan Re-
sume” in the Admin Menu. (p. 41)
■ Scan function
2001 NEW
10
2
BASIC OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
The following modes are selectable in the IC-F8100:
LSB, USB, CW, AM, D1,* D2* and D3.*
* When the “Modem” setting in the Admin Menu is set to
“OFF,” “RTTY” can be selected instead. (p. 40)
The D1, D2 or D3 mode can be set in the “Data mode
1,” “Data mode 2” or “Data mode 3” settings in the Admin
Menu. (p. 40)
[Mode]
q Push [§] one or more times to select the Memory
Channel display.
• The display sequentially selects “Channel” ➪“Selcall”
➪“ALE” ➪“Channel.”
w Push [Mode](§§) one or more times to select the
desired mode.
• The selected mode icon appears at the top of the display.
NOTE:
• The selected mode can be used only temporarily.
When the channel is changed, it returns to the
preprogrammed operating mode.
• Depending on the transceiver version or prepro-
gramming, some operating modes may not be
selectable or usable except receive.
To prevent accidental channel changes, or unneces-
sary function access, use the Key Lock function. The
transceiver has two types of Key Lock functions.
[Default] [][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Key Lock.”
r Push [t](§) or [u](§§§) to select the Key Lock
function, “ALL” or “NUMERIC KEY.”
• Hold down [Default](§§) for 1 second to return to the
default setting
.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
• To turn OFF the function
When you push the locked key, “Numeric Key Locked”
or “All Key Locked” appears, depending on the func-
tion. Then push [Unlock](§§) to turn OFF the func-
tion.
■ Mode selection
■ Key Lock function
2001 NEW2001 NEW
11
2BASIC OPERATION
2001 NEW
In the VFO mode, you can set a desired operating fre-
quency, operating mode or split frequency function.
NOTE:
• The VFO mode operation can be disabled in the
Admin Menu.
• While in the VFO mode, the Selcall, ALE features
or the Emergency key cannot be used.
• Entering the VFO mode
Push [VFO](2) to turn the VFO mode ON or OFF.
• Frequency setting
q Push [A/B](§) to select VFO A or VFO B.
w Push [4] to enter the frequency setting mode.
e Push [t](§) or [u](§§§) to move the cursor to se-
lect the desired digit to change.
• The cursor is displayed below the selected digit
.
r Push [r] or [s] to change the frequency.
t Push [4] to exit the frequency setting mode.
• Turning ON the split frequency function
q Push [A/B](§) to select VFO A or VFO B, and
separately set the receive and transmit frequen-
cies.
w Push [Split](§§§) to turn the split frequency func-
tion ON.
• The TX frequency appears below the RX frequency
.
• Pushing [A/B](§) changes the VFOs between trans-
mit and receive.
e To turn OFF the split frequency function, push
[Split](§§§) again.
[��][���][�]
/
■ VFO operation
2001 NEW
3
12
RECEIVE AND TRANSMIT
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
■ Basic voice transmit/receive
q First, check the following.
➥ The microphone and external speaker are con-
nected.
➥ No “S,” “L” or “V” mute icon appears.
• If “S,” “L” or “V” appears, push [MUTE](M) one or
more times to turn OFF the mute.
Mute icon
w Push
[
r
] or [
s
] to select the desired receive chan-
nel.
•
The S-meter shows signal strength when signal is re-
ceived.
e Push [ +] or [ –] to adjust a desired audio level
when receiving a signal.
• If the bass or treble of the receive audio is too strong,
set “Clarifier” to ON in the User Menu, and adjust to ob-
tain clear audio. (See page 15 for the Clarifier function
details.)
• If the audio is distorted, select the suitable operating
mode. (See page 10 for the Mode selection details.)
r Push [TUNER](9) once or twice to enter the an-
tenna tune mode.
• The “Auto Tune” or “Manual Tune” screen sequentially
appears.
When the transceiver is connected to an optional
antenna tuner and “Auto Tune” screen is selected,
push [4] to start auto tuning.
• The display shows the antenna SWR.
• If the antenna cannot be tuned after 20 seconds, the
tuning circuit is automatically bypassed.
• After tuning is finished, the auto tune automatically
stops transmitting.
• Push [8] to manually stop transmitting, if necessary.
• Push [Through](§§) to turn OFF the AT-140 (bypass).
When the transceiver is connected to another an-
tenna tuner, or directly connected to an antenna
and the “Manual Tune” screen is selected, push [4]
to start transmitting and tune the antenna.
• The display shows the antenna SWR.
• Push [8] to stop transmitting.
t After tuning is finished, push [TUNER](9) once or
twice to return to the normal operating screen.
y To transmit on the channel, hold down [PTT] on the
microphone, and speak at a normal voice level.
• The RF meter shows the output power.
u Release [PTT] to receive.
■ Functions for transmit
ï Transmit power selection
The transceiver has three output power levels, HIGH,
MID and LOW. High power provides longer distance
communications and low power reduces power con-
sumption.
[Default] [][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “RF Power.”
r Push [t](§) or [u](§§§) to select the desired out-
put power.
• Hold down [Default](§§) for 1 second to return to the
default setting
.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
ï Setting Microphone gain
The microphone gain must be properly adjusted so
that your signal is not distorted when transmitted.
[Default] [][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Mic Gain.”
r Push [t](§) or [u](§§§) to select the desired Mic
gain.
• Hold down [Default](§§) for 1 second to return to the
default setting
.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
13
3RECEIVE AND TRANSMIT
2001 NEW 2001 NEW
14
3
RECEIVE AND TRANSMIT
3
ï Checking the MIC level
The transceiver has a MIC level meter. You can check
the MIC level before or after adjusting the Microphone
gain.
[Default] [][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “Admin Menu,” and
then push [4].
e Push [r] or [s] to select “Meter Type.”
r Push [u](§§§) to select “MIC LEVEL.”
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
y Hold down [PTT] on the microphone, and speak at
a normal voice level.
u While speaking into the microphone, check the TX
meter reading.
ï Speech Processor
The IC-F8100 has a built-in, low distortion Speech
Processor circuit. This circuit increases your average
talk power in the SSB mode and is especially useful
when the receiving station is having difficulty hearing
your audio.
[Default] [][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Speech Processor.”
r Push [t](§) or [u](§§§) to turn the Speech proces-
sor function ON or OFF.
• Hold down [Default](§§) for 1 second to return to the
default setting
.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
y Push [Mode](§§) one or more times to select the
USB or LSB mode.
u Hold down [PTT] on the microphone, and speak at
a normal voice level.
2001 NEW
15
3RECEIVE AND TRANSMIT
2001 NEW 2001 NEW
■ Functions for receive
ï Clarifier function
The Clarifier function compensates for off-frequency
stations. The function shifts the receive frequency up
to ±200 Hz, without moving the transmit frequency.
• Setting
[�]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Clarifier.”
r Push [u](§§§) to turn ON the Clarifier function.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
• Operation
[��][���][�]
/
Upper shiftLower shift
q Push [CLAR](7) to turn ON the Clarifier function.
w Push [–](§) or [+](§§§) to tune the frequency shift.
• The transmit frequency is not shifted.
• Hold down [Clear](§§) for 1 second to return to the
center position, if desired.
When cancelling the Clarifier function, push
[CLAR](7) again.
3
16
RECEIVE AND TRANSMIT
3
2001 NEW
ï Preamp and Attenuator
The preamp amplifies received signals in the front
end circuit to improve the S/N ratio and sensitivity.
Turn ON this function to better receive weak signals.
The attenuator prevents strong undesired signals
near the desired frequency or near your location,
such as from a broadcast station, from causing dis-
tortion or spurious signals.
[][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Pre Amp.”
r Push [t](§) or [u](§§§) to turn ON the Preamp or
Attenuator function.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
ï Noise Blanker
The noise blanker reduces pulse-type noise such as
that generated by automobile ignition systems.
The noise blanker may distort reception of strong
signals. In such cases, the noise blanker should be
turned OFF.
[][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Noise Blanker.”
r Push [u](§§§) to turn ON the Noise Blanker func-
tion.
t Push [s] to select “Blanker Level.”
y Push [t](§) or [u](§§§) to adjust the noise blanker
level.
u Push [MENU](HOME) twice to return to the nor-
mal operating screen.
When using the noise blanker, received signals
may be distorted if they are excessively strong.
17
3RECEIVE AND TRANSMIT
2001 NEW 2001 NEW
■ Functions for receive (Continued)
D AGC function
The AGC (automatic gain control) controls receiver
gain to produce a constant audio output level, even
when the received signal strength varies by fading,
and so on.
The transceiver has two AGC characteristics; AUTO
and time constants FAST and SLOW.
[][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “AGC.”
r Push [t](§) or [u](§§§) to select the desired AGC
time constant, FAST, SLOW or AUTO.
When AUTO is selected, the AGC time constant
varies, depending on the operating mode.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
D AGC OFF function
When receiving weak signals with adjacent strong
signals or noise, the AGC function may reduce the
sensitivity. In this situation, the AGC function should
be turned OFF.
[�]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “Admin Menu,” and
then push [4].
e Push [r] or [s] to select “AGC.”
r Push [t](§) to turn OFF the AGC function.
t Push [MENU](HOME) twice to return to the nor-
mal operating screen.
2001 NEW
18
3
RECEIVE AND TRANSMIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
ï Clear Talk function
The Clear Talk function enhances desired signals in
the presence of noise by using the DSP circuit.
Clear Talk function OFF Clear Talk function ON
Desired
signal (CW)
Noise components
➥ Push [C TALK](8) to turn the Clear Talk function
ON or OFF.
• “C” appears when the Clear Talk function is ON.
Appears
ï IF Filter selection
The transceiver has three passband IF filter widths
for each mode.
[][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the “User Menu,” and
then push [4].
e Push [r] or [s] to select “Bandwidth”
y Push [t](§) or [u](§§§) to select the IF filter width,
NARROW, MID or WIDE.
u Push [MENU](HOME) twice to return to the nor-
mal operating screen.
4
19
SELCALL/ALE OPERATION
2001 NEW
■ Selcall or ALE
Selcall uses a 4 or 6-digit ID address and allows you to
make an individual or group call. The ALE (automatic
link establishment) is a system which automatically se-
lects an available frequency and establishes a commu-
nication link. The IC-F8100 ALE system compiles with
basic requirements of FED-STD-1045A.
The Selcall or ALE features may not be available,
depending on the preprogramming. Check the Sel-
call or ALE capabilities in the Admin Menu, and then
set the settings to the “RX&TX” option.
ï Available calls
• Selective call
Selective call allows you to make an individual or group
call using an individual ID (identification) assigned to
each transceiver.
• Phone call
Allows you to make a Phone call through a telephone
interconnect service provider.
• Message call
Allows you to exchange text messages of up to 64
characters* with the intended ID station.
* 64 characters for ICOM Selcall system; 32 character
sfor Open Selcall system.
• Send Position call
Allows you to send your own position information to
the intended ID station.
• Get Position call
The Get Position call allows you to request the in-
tended ID station to send its position information.
• Get Status call
Requests to send radio status information including
power supply voltage, signal strength, output power,
VSWR, and so on.
• RFDS emergency call
The RFDS (Royal Flying Doctor Service) emergency
call uses a 2-Tone signal for an emergency call.
• Emergency call
Allows you to broadcast an emergency signal with own
position information.
• The Phone call, Message call, Send Position call,
Get Position call, Get Status call and Emergency
call use Icom original commands. These calls may
not be compatible with other brands. (Icom Selcall
system)
• Depending on the preprogramming, you can select
the Open Selcall system* for these call, except the
Get Status call.
* Open Selcall system is compatible with other
transceiver brands. Ask your dealer for details.
• Channel Test call
The Channel Test call allows the user to determine the
signal quality between your transceiver and a specific
transceiver, before an individual or group call.
• ALE individual or net call
Automatically establishes a communication link by
using the ALE table.
• ALE sounding
Automatically sends a sounding signal at a set interval
(0.5–16 hours) to check the propagation, and stores
the data in a table. Manual soundings can also be
sent.
• ALE AMD (Automatic Message Display)
Automatically sends and receives text messages of up
to 90 characters.
20
4
SELCALL/ALE OPERATION
4
The Selcall function allows you to make individual or
group calls. Each transceiver is assigned an individual
ID (identification) and can be called using this ID.
• Preparation for Selective call
Send a Channel Test call on several Selcall channels,
and check the propagation on each one to select the
channel with the best signal quality. (p. 30)
• Sending Selective call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to “SE-
LECTIVE.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND POSITION,”
“GET POSITION,” “GET STATUS,” “EMERGENCY” and
“CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID list.
• Push [List](§§) to return to the list selection mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Selective call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Selective call when the Sel-
call Address is displayed. In this case, you can skip
steps q to t above, after selecting the Selective
call address.
• Receiving Selective calls
When a transceiver receives a Selective call with your
individual ID, it automatically responds by transmitting.
The received Selcall is stored in the Call In memory.
q After receiving a Selective call, and push any key
to enter the Call In memory screen.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
e Push [Home] to return to the normal operating
screen.
ï Selective call
21
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
Allows you to make Phone calls through a telephone
interconnect service provider.
• Preparation for Phone call
Send a Channel Test call on several Phone call chan-
nels, and check the propagation on each one to select
the channel with the best signal quality. (p. 30)
• Sending Phone call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to
“PHONE.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Phone number input
Push the numeric keys to enter the Phone num-
ber.
• Push [8] to delete the number.
• This Number is not stored in the Phone address list.
❍ Phone address selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Phone
address.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Phone Link selection
Push [t](§) or [u](§§§) to select the Network.
❍ Phone Link input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Phone
Link.
• Push [8] to delete the number.
• This Phone Link is not stored in the Phone Link
list.
• Push [List](§§) to return to the list selection
mode.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
u Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
ï Phone call
22
4
SELCALL/ALE OPERATION
4
2001 NEW
i Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to Selcall menu.
o Push [ ] to transmit the Phone call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Phone call when the Selcall
Address is displayed. In this case, you can skip
steps q to r above, after selecting the Phone call
address.
• After a Phone call
q When a Phone call is finished, push [] to enter
the Selcall menu.
• “TEL DISCONNECT” appears.
• If desired, push [HOME] to return to the previous
screen.
w Then, push [ ] to transmit the disconnect call.
• Until ‘TEL DISCONNECT’ is transmitted, the telephone
interconnect service provider continues counting the
time for toll charging.
23
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
The Message call allows you to exchange text mes-
sages of up to 64 characters,* with the intended ID
station, and also leave a message at the station.
* 64 characters for ICOM Selcall system; 32 charac-
ters for Open Selcall system.
• Preparation for Message call
Send a Channel Test call on several Phone call chan-
nels, and check the propagation on each one to select
the channel with the best signal quality. (p. 30)
• Sending Message call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to “MES-
SAGE.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Message selection
Push [t](§) or [u](§§§) to select the Message.
❍ Message input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Message.
• Push [A/a](#) to select the character group, ABC
(Upper case letters), abc (lower case letters) or
123 (numbers).
• Push [8] to delete the character.
• This Message is overwritten or stored in the Mes-
sage list.
• Push [List](§§) to return to the list selection
mode.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
u Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
i Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
o Push [ ] to transmit the Message call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Selective call when the Sel-
call Address is displayed. In this case, you can skip
steps q to y above, after selecting the Message
call address.
ï Message call
24
4
SELCALL/ALE OPERATION
4
2001 NEW
• Receiving Message call
When your transceiver receives a Message call with
your individual ID, it automatically responds by trans-
mitting. The received Message is stored in the Call In
memory.
q After receiving a Message call, and push any key
to enter the Call In memory.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
e Push [HOME] to return to the normal operating
screen.
25
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
The Send Position call allows you to send your own
position/time information to the intended ID station.
• Preparation for Send Position call
Send a Channel Test call on several Phone call chan-
nels, and check the propagation on each one to select
the channel with the best signal quality. (p. 30)
• Sending Send Position call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to
“SEND POSITION.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Send Position call. The
call is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Send Position call when the
Selcall Address is displayed. In this case, you can
skip steps q to t above, after selecting the Send
Position call address.
• Receiving a Send Position call
When a transceiver receives a Send Position call with
your individual ID, it automatically responds by trans-
mitting. The received Send Position call is stored in the
Call In memory.
q After receiving a Send Position call, and push any
key to enter the Call In memory.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
e Push [HOME] to return to normal operating
screen.
ï Send Position call
26
4
SELCALL/ALE OPERATION
4
2001 NEW
The Get Position call allows you to request an intended
ID station to send its position information.
• Preparation for Get Position call
Send a Channel Test call on several Phone call chan-
nels, and check the propagation on each one to select
the channel with the best signal quality. (p. 30)
• Sending Get Position call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to “GET
POSITION.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Get Position call. The call
is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Get Position call when the
Selcall Address is displayed. In this case, you can
skip steps q to t above, after selecting the Get
Position call address.
• Receiving a Get Position call acknowledgement
q After the call is transmitted, your called station
sends position/time information as an acknowledge-
ment. Push [] to enter the Call In memory.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
e Push [HOME] to return to the normal operating
screen.
• Receiving a Get Position call
When your transceiver receives a Get Position call that
includes your individual ID, it automatically responds
by transmitting.
ï Get Position call
27
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
The Get Status call requests sending radio status infor-
mation including power supply voltage, signal strength,
output power, VSWR, and so on.
• Preparation for Get Status call
Send a Channel Test call on several Phone call chan-
nels, and check the propagation on each one to select
the channel with the best signal quality. (p. 30)
• Sending Get Status call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to “GET
STATUS.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input
mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Get Status call. The call
is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Get Status call when the
Selcall Address is displayed. In this case, you can
skip steps q to t above, after selecting the Get
Status call address.
• Receiving a Get Status call acknowledgement
q After the call is transmitted, your called station
sends status information as an acknowledgement.
Push any key to enter the Call In memory.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
• Status information includes power supply voltage and
signal strength.
e Push [HOME] to return to the normal operating
screen.
• Receiving a Get Status call
When a transceiver receives a Get Status call that in-
cludes your individual ID, it automatically responds by
transmitting.
ï Get Status call
28
4
SELCALL/ALE OPERATION
4
2001 NEW
The RFDS (Royal Flying Doctor Service) emergency
call uses a 2-Tone signal for an emergency call.
• Sending RFDS emergency call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to
“RFDS EMERGENCY.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY,” “CHANNEL TEST” and “RFDS EMERGENCY”
are selectable.
r Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
t Push [ ] to transmit the RFDS emergency call.
The call is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit an RFDS emergency call
when the Selcall Address is displayed. In this case,
you can skip steps q to e above, after selecting
the RFDS emergency call address.
ï RFDS emergency call (only AUS versions)
29
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
The Emergency call allows you to broadcast an emer-
gency signal with your own position information.
• Sending Emergency call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to
“EMERGENCY.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND PO-
SITION,” “GET POSITION,” “GET STATUS,” “EMER-
GENCY” and “CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection
mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input
mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Emergency call. The call
is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit an Emergency call when the
Selcall Address is displayed. In this case, you can
skip steps q to t above, after selecting the Emer-
gency call address.
• Receiving an Emergency Call
When your transceiver receives an Emergency Call
with your individual ID, it automatically responds by
transmitting. The received Emergency Call is stored in
the Call In memory.
q After receiving a Emergency call, and push any key
to enter the Call In memory.
w Push [More](§§§) or [Prev](§) to select the informa-
tion.
e Push [HOME] to return to normal operating
screen.
ï Emergency selcall
30
4
SELCALL/ALE OPERATION
4
2001 NEW
The Channel Test call allows the user determine the
signal quality between your transceiver and a spe-
cific transceiver before an individual or group call. The
Channel Test call is also used for checking the channel
before sending a Phone call.
• Sending Channel Test call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “SEL-
CALL,” then push [ ] to enter the Selcall menu.
e Push [t](§) or [u](§§§) to set the Call type to
“CHANNEL TEST.”
• “SELECTIVE,” “PHONE,” “MESSAGE,” “SEND POSITION,”
“GET POSITION,” “GET STATUS,” “EMERGENCY” and
“CHANNEL TEST” are selectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Call ID input
Push the numeric keys to enter the Call ID.
• Push [8] to delete the number.
• This Call ID is not stored in the Call ID list.
❍ Call ID selection
➥ Push [List](§§) to enter the list selection mode.
➥ Push [t](§) or [u](§§§) to select the Call ID.
• Push [Edit](§§) to return to the direct input mode.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Network selection
Push [t](§) or [u](§§§) to select the Network.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
❍ Self ID input
➥ Push [Edit](§§) to enter the direct input mode.
➥ Push the numeric keys to enter the Self ID.
• Push [8] to delete the number.
• This Self ID is overwritten or stored in the Self ID
list.
• Push [List](§§) to return to the list selection
mode.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the Selcall menu.
i Push [ ] to transmit the Channel Test call. The
call is stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Channel test call when the
Selcall Address is displayed. In this case, you can
skip steps q to t above, after selecting the Chan-
nel Test call address.
ï Channel Test call
31
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW
Automatically establish a communication link by using
the ALE table.
• Sending an Individual call
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “ALE,” then
push [ ] to enter the ALE menu.
e Push [t](§) or [u](§§§) to set the ALE type to “IN-
DIVIDUAL.”
• “INDIVIDUAL,” “NET,” “SOUNDING” and “AMD” are se-
lectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ ALE ID selection
Push [t](§) or [u](§§§) to select the ALE ID.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select Self ID.
y Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the ALE Menu.
• When <Auto> is selected, the transceiver automatically
selects the best quality channel in sequential order,
using the LQA table.
u Push [ ] to transmit an Individual call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit an Individual call when the
ALE ID is displayed. In this case, you can skip the
Call selection.
• After an ALE call
q After an ALE call is finished, push any key to enter
the ALE menu.
• While linking the ALE call, “TERMINATION” appears.
w Push [ ] to transmit a disconnect call.
• Until ‘TERMINATION’ is transmitted, the channel cannot
be changed.
• Sending Net call
q Set the Call to “ALE,” the same operation as Send-
ing Individual call’s steps q and w, to the left.
w Push [t](§) or [u](§§§) to set the ALE type to
“NET.”
• “INDIVIDUAL,” “NET,” “SOUNDING” and “AMD” are se-
lectable.
e Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ ALE ID selection
Push [t](§) or [u](§§§) to select an ALE ID for a
Net call.
r Select the Self ID and Operating channel, the same
operation as Sending Individual call’s in steps t
and y to the left.
t Push [ ] to transmit the Net call. The call is stored
in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit a Net call when the ALE ID is
displayed. In this case, you can skip the Call selec-
tion.
ï ALE call
2001 NEW
32
4
SELCALL/ALE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
ï ALE sounding
Automatically sends a sounding signal at a certain
interval (0.5–16 hours) to check the propagation and
stores the data in a table. Manual soundings can also
be made.
• Manual sounding
q With the Memory Channel displayed, push [] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “ALE,” then
push [ ] to enter the ALE menu.
e Push [t](§) or [u](§§§) to set the ALE type to
“SOUNDING.”
• “INDIVIDUAL,” “NET,” “SOUNDING” and “AMD” are se-
lectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select Self ID.
t Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the ALE Menu.
y Push [ ] to transmit the ALE sounding.
• While calling, push [PTT] to cancel the call.
You can also transmit an ALE sounding when the
ALE ID is displayed. In this case, you can skip the
Call selection.
33
4SELCALL/ALE OPERATION
2001 NEW 2001 NEW2001 NEW
ï ALE AMD
The ALE AMD (Automatic Message Display) sends
and receives test messages of up to 90 characters.
q With the Memory Channel displayed, push [ ] to
enter the Call select menu.
w Push [t](§) or [u](§§§) to set the Call to “ALE,” then
push [ ] to enter the ALE menu.
e Push [t](§) or [u](§§§) to set the ALE type to
“AMD.”
• “INDIVIDUAL,” “NET,” “SOUNDING” and “AMD” are se-
lectable.
r Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ ALE ID selection
Push [t](§) or [u](§§§) to select the ALE ID.
t Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ Self ID selection
Push [t](§) or [u](§§§) to select the Self ID.
y Push [ ] to go to the next screen.
• Push [HOME] to return to the previous screen.
❍ ALE Message selection
Push [t](§) or [u](§§§) to select the ALE Mes-
sage.
u Push [ ] to enter the Channel Menu, and then
push [t](§) or [u](§§§) to select the desired operat-
ing channel.
• Push [HOME] to return to the ALE Menu.
• When <Auto> is selected, the transceiver automatically
selects the best quality channel in sequential order,
using the LQA table.
i Push [ ] to transmit an ALE AMD call. The call is
stored in the Call Out memory.
• While calling, push [PTT] to cancel the call.
You can also transmit an ALE AMD when the ALE
ID is displayed. In this case, you can skip the Call
selection.
• Disconnecting an ALE call
q After an ALE call is finished, push [] to enter the
ALE menu.
• While linking the ALE call, “TERMINATION” appears.
w Push [ ] to transmit and disconnect the call.
• Until ‘TERMINATION’ is transmitted, the channel cannot
be changed.
2001 NEW
5
34
MENU SCREEN
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
D Editing the UTC Offset Setting
■ Edit Menu
D Editing the Clock Setting
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] one or more times to select the Edit
Menu, and then push [4].
e Push [r] once to select the Clock Setting, and
then push [4] again.
r Push the numeric keys, 0 to 9 to edit the time.
• Push [t](§) or [u](§§§) to move the cursor.
t Push [4] to save the time.
y Push [MENU](HOME) twice to return to the normal
operating screen.
[][]
/
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] one or more times to select the Edit
Menu, and then push [4].
e Push [s] once to select the UTC Offset Setting,
and then push [4] again.
r Push [t](§) or [u](§§§) to adjust the offset time.
• Hold down [Clear](§§) for 1 second to clear the offset
time
.
t Push [4] to save the offset.
y Push [MENU](HOME) twice to return to the normal
operating screen.
[Clear] [][]
/
35
5MENU SCREEN
2001 NEW 2001 NEW
LCD Contrast
Adjust the contrast of the LCD between 0 and 10 in 1
digit steps. (Default: 6)
D User Menu items
LCD Dimmer
Adjusts the backlight brightness of the LCD between
0 (dark) and 10 (bright) in 1 digit steps. (Default: 5)
1 to 10 : Lights while transceiver power is ON.
0 : Turns OFF the backlight.
Backlight
Set the LCD backlight timer to OFF, Continuous, 5
seconds to 90 seconds in 5 second steps.
(Default: CONT)
CONT : Lights continuously while transceiver
power is ON.
5sec to 90sec : Lights when some operation is per-
formed, goes out after specified time
period.
OFF : Never lights.
BEEP Level
Adjust the confirmation beep level between 0 (OFF)
and 50 (Maximum) in 1 digit steps. (Default: 30)
* When the Advanced User Menu in the Admin Menu is set to OFF, these items are not displayed. In this case, only the LCD
Contrast, LCD Dimmer, Backlight, BEEP Level, Squelch Level, Noise Blanker, RF Power and Mic Gain values can be adjust-
ed, or the settings selected.
■ User Menu
D Entering the User Menu
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the User Menu, and then
push [4].
e Push [r] or [s] to select the desired item.
r Push [t](§) or [u](§§§) to adjust or set the value or
setting.
• Hold down [Default](§§) for 1 second to set the default
value or setting
.
t Push [MENU](HOME) twice to return to the normal
operating screen.
[Default] [][]
/
2001 NEW
36
5
MENU SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
Squelch Level
Adjust the squelch threshold level between 0 and 50,
in 1 digit steps. (Default: 10)
When the S-meter squelch is activated, only signals
stronger than this set level are received.
Noise Blanker
Turns the noise blanker function ON or OFF.
(Default: OFF)
The Noise Blanker function eliminates pulse-type
noise such as that from car ignitions.
Blanker Level*
This item appears when the “Advanced User Menu”
in the Admin Menu is set to ON.
Adjust the Noise blanker level between 0 and 15 in 1
digit steps. (Default: 10)
The set level is effective when the Noise Blanker is
activated.
AGC*
This item appears when the “Advanced User Menu”
in the Admin Menu is set to ON.
Set the Automatic gain control settings to FAST,
SLOW or AUTO. (Default: AUTO)
Bandwidth*
This item appears when the “Advanced User Menu”
in the Admin Menu is set to ON.
Set the IF filter passband width to NARROW, MID or
WIDE. (Default: WIDE)
Clarifier*
This item appears when the “Advanced User Menu”
in the Admin Menu is set to ON.
Set the Clarifier function capability ON or OFF.
(Default: OFF)
When this setting is ON, push [CLAR](7) to turn ON the
Clarifier function in the VFO/Memory Channel display.
Pre Amp*
This item appears when the “Advanced User Menu”
in the Admin Menu is set to ON.
Turn the receiver Preamplifier function ON or OFF.
(Default: ON)
When receiving a week signal, turn ON this item.
* When the Advanced User Menu in the Admin Menu is set to OFF, these items are not displayed. In this case, only the LCD
Contrast, LCD Dimmer, Backlight, BEEP Level, Squelch Level, Noise Blanker, RF Power and Mic Gain values can be adjust-
ed, or the settings selected.
37
5MENU SCREEN
2001 NEW 2001 NEW
RF Power
Set the transmit output power to LOW, MID or HIGH.
(Default: HIGH)
Speech Processor*
This item appears when “Advanced User Menu” in the
Admin Menu is set to ON.
Turns the Speech Processor function ON or OFF.
(Default: OFF)
Processor Level*
This item appears when “Advanced User Menu” in the
Admin Menu is set to ON.
Adjust the Speech Processor Level to between 0
(Minimum) and 10 (Maximum) in 1 digit steps.
(Default: 6)
The set level is effective only when the Speech Pro-
cessor is turned ON.
Mic Gain
Adjust the Microphone gain to between 0 (Minimum)
and 10 (Maximum) in 1 digit steps. (Default: 6)
Key Lock*
This item appears when “Advanced User Menu” in the
Admin Menu is set to ON.
Turn the Lock function ON or OFF. You can select
the two types of Lock functions, “ALL” or “NUMERIC
KEY.”
(Default: OFF)
Side Tone Level*
This item appears when “Advanced User Menu” in the
Admin Menu is set to ON.
Adjust the CW side tone level from 0 (OFF) to 50 in 1
digit steps. (Default: 30)
* When the Advanced User Menu in the Admin Menu is set to OFF, these items are not displayed. In this case, only the LCD
Contrast, LCD Dimmer, Backlight, BEEP Level, Squelch Level, Noise Blanker, RF Power and Mic Gain values can be adjust-
ed, or the settings selected.
D User Menu items (Continued)
38
5
MENU SCREEN
5
2001 NEW
■ Admin Menu
The Admin Menu is used for programming infrequently
changed values, settings or functions.
D Entering the Administrator mode
When first entering the Administrator mode, a login
password may be required, depending on the prepro-
gramming.
q Turn OFF the transceiver power, if it is ON.
w While holding down [], [ ] and [8], push [ ]
to turn ON the transceiver power and enter the Ad-
ministrator mode.
• The “Login” display appears, depending on the prepro-
gramming.
e Push the keypad keys to enter your password, and
then push [4] to enter the Administrator mode.
• Repeatedly push [A/a](#) to select the character group,
ABC (upper case letters), abc (lower case letters) or
123 (numbers).
• Push [8] to delete a character.
• Push [t](§) or [u](§§§) to move the cursor.
[][]Keypad
D Return to User mode
q Turn OFF the transceiver power, if the transceiver
is powered ON.
w While holding down [HOME], push [ ] to turn ON
the transceiver power to return to the User mode.
D Entering Admin Menu
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [s] to select the Admin Menu, and then push
[4].
e Push [r] or [s] to select the desired item.
r Push [t](§) or [u](§§§) to adjust or set the value or
setting.
• Hold down [Default](§§) for 1 second to set the default
value or setting
.
t Push [MENU](HOME) twice to return to the normal
operating screen.
[Default] [][]
/
39
5MENU SCREEN
2001 NEW 2001 NEW
D Admin Menu items
Tuner type
Select the connected Icom antenna tuner from AT-140
or AT230 antenna tuner or OFF. (Default: OFF)
TX Timeout
Set the Time-Out Timer function time to 1, 3, 5 or 10
minutes, or OFF. If a continuous transmission exceeds
the selected time period, transmitting will be cut off.
(Default: 3min)
CW Break-In
The CW Break-In function toggles transmit and re-
ceive with your CW keying. This allows you to mute
receiving the time delay ends after you stop keying.
Turn ON the CW Break-In function and sets the delay
to 0.5, 1, 2 or 3 seconds, or OFF. (Default: 2.0sec)
AGC
Turn the Automatic gain control function ON or OFF.
(Default: ON)
Clear Talk Level
The Clear Talk function adjusts signals in the pres-
ence of noise using the DSP circuit. This item adjusts
the Clear Talk Level from 1 (Minimum) to 15 (Maxi-
mum). (Default: 10)
Meter Type
This item sets the transmit meter type to TX POWER
or MIC LEVEL. (Default: TX POWER)
VFO Mode
Select the activation of the VFO mode ON or OFF.
(Default: ON)
2001 NEW
40
5
MENU SCREEN
5
FSK shift
Several shift frequencies are used for FSK operation.
Select an FSK shift frequency for almost any FSK sys-
tem, of 170 Hz, 200 Hz, 425 Hz or 850 Hz.
(Default: 170 Hz)
FSK Polarity
Normal and reverse FSK polarities are selectable.
Select either NORMAL or REVERSE.
(Default: NORMAL)
Modem
Set the Modem for the Data mode to INTERNAL, EX-
TERNAL or OFF. (Default: OFF)
Data Mode 1
Set Data Mode 1 to S4539, M188-110B, S4285,
S4529, S4415, M188-110A or FSK.
(Default: S4539)
Data Mode 2
Set Data Mode 2 to S4539, M188-110B, S4285,
S4529, S4415, M188-110A or FSK.
(Default: M188-110B)
Data Mode 3
Set Data Mode 3 to S4539, M188-110B, S4285,
S4529, S4415, M188-110A or FSK. (Default: FSK)
FSK Tone
Several mark frequencies are used for FSK operation.
Select an FSK mark frequency for almost any FSK
system, of 1200 Hz, 1275 Hz, 1487.5 Hz, 1615 Hz,
1700 Hz, 2100 Hz or 2125 Hz.
(Default: 1615 Hz)
41
5MENU SCREEN
2001 NEW 2001 NEW
Shift Frequency
Set the frequency shift for the Data mode to 1800Hz
USB, 1500Hz USB, 1800 Hz LSB or 1500Hz LSB.
(Default: 1800Hz USB)
Scan
Set the scan type to ALE, SELCALL, VOICE, CALL,
ALL MEMORY or OFF. (Default: OFF)
Scan Resume
Set the scan resume function to ON or OFF.
(Default: OFF)
When this setting is ON, a scan pauses for 10 sec-
onds, then resumes, or resumes 2 seconds after the
signal disappears.
Selcall Silent
Set the automatic answer back function for the Selcall
to ON or OFF. (Default: OFF)
When OFF is selected, the transceiver automatically
answers back if your station ID is called.
Selcall Time Out
If you are calling a specific station, but no answer is
received, then transceiver cancels waiting for an an-
swer back after this time period.
Set the waiting time for the Selcall answer back while
calling. (Default: 60 sec)
D Admin Menu items (Continued)
Scan Auto Start
Sets the scan resume timer to between 1 minute and
10 minutes or OFF, for all scan types. (Default: OFF)
When this setting is ON, the scan pauses for the
set time period after your last transmission, then re-
sumes.
Scan Speed
Set the scan speed for the All Memory scan to HIGH,
MID or LOW. (Default: HIGH)
42
5
MENU SCREEN
5
2001 NEW
Get Status Mode
Set the activation of Status request call to both recep-
tion and transmission, reception only, transmission
only or disable. (Default: RX&TX)
Message Mode
Set the activation of Message Call to both reception
and transmission, reception only, transmission only or
disable. (Default: RX&TX)
Get Position Mode
Set the activation of Position request call to both re-
ception and transmission, reception only, transmis-
sion only or disable. (Default: RX&TX)
Phone Mode
Set the activation of Phone call to both reception and
transmission, reception only, transmission only or dis-
able. (Default: RX&TX)
Channel Test Mode
Set the activation of Channel Test call to both recep-
tion and transmission, reception only, transmission
only or disable. (Default: RX&TX)
Send Position Mode
Set the activation of Position transmitting call to both
reception and transmission, reception only, transmis-
sion only or disable.
(Default: RX&TX)
Selective Mode
Set the activation of Selcall to both reception and
transmission, reception only, transmission only or dis-
able. (Default: RX&TX)
43
5MENU SCREEN
2001 NEW 2001 NEW
Emergency Mode
Select the activation of Emergency call to both recep-
tion and transmission, reception only, transmission
only or disable. (Default: RX&TX)
ALE Mode
Select the activation of ALE to both reception and
transmission, reception only, transmission only or dis-
able. (Default: RX&TX)
D Admin Menu items (Continued)
ALE Scan Group
Set the ALE scanning group to between 1 and 100.
(Default: 1)
ALE Auto Sounding
The Auto Sounding function allows users to deter-
mine the signal quality.
Set the Auto Sounding interval to 30 minutes, 45 min-
utes, 1 hour, 2 hours, 3 hours, 4 hours, 8 hours, 16
hours or OFF.
(Default: OFF)
ALE Scan Speed
Set the scan speed for the ALE and Call scans to
HIGH, MID or LOW. (Default: HIGH)
ALE Auto Sounding Group
Set the ALE Auto Sounding group to between 1 and
100.
(Default: 1)
ALE Auto Sounding Self ID
Set the Self ID for the Auto Sounding function to be-
tween 1 and 20. (Default: 1)
2001 NEW
44
5
MENU SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
ALE BER Threshold
Set the Bit Error Ratio (BER) threshold level to be-
tween 0 and 48 bits for ALE communication quality.
(Default: 12)
One unit consists of 48 bits of data.
ALE Golay Threshold
Set the Golay threshold level to between 0 and 3 bits
for ALE communication quality. (Default: 3)
The Golay consists of 12 bits of original data and 12
bits of correction data.
ALE Silent
Set the ALE Silent mode ON or OFF.
(Default: OFF)
When set to OFF, the transceiver automatically an-
swers back if your station ID is called. When set to
ON, the transceiver ignores the call.
ALE Error Threshold
Set the Error threshold level to between 0 and 4 for
ALE communication quality.
(Default: 0)
When errors detected by BER threshold or Golay
threshold are over this setting, communication is not
possible.
ALE Call Retry
Set the retry times to between 0 (OFF) and 99 when
the called station does not answer back. (Default: 0)
ALE Decay Time
Set the decay time for the Auto Sounding function to
between 1 and 8 hours. (Default: 1 hour)
ALE Sounding Length
Set the signal length to between 5 words and 100
words, in 1 word steps. (Default: 5 words)
The transceiver repeats to call a calling ID during this
setting length.
45
5MENU SCREEN
2001 NEW 2001 NEW
ALE LQA Average
Set the adopting number of LQA data for averaging to
between 1 and 8. (Default: 8)
ALE LQA Request
Set the LQA request function to ON or OFF.
(Default: ON)
When set to ON, the transceiver requests the called
station to send LQA data with an ALE answer back
call.
D Admin Menu items (Continued)
ALE Scan Call Time
Set the registration of the scan channel number for
your group to set the ALE calling times. Selectable
number are 1–100 in 1 digit steps, or AUTO.
(Default: AUTO)
AUTO: The same setting as your scan channels.
Emer Link Interval
Set the interval time period of the Emergency Link
function to between 10 and 300 seconds in 10 sec-
onds steps. (Default: 120sec)
The transceiver will sequentially send a Selcall to the
specified stations.
RFDS TX Time
Set the time period of the RFDS call emission length
to between 10 and 60 seconds in 1 second steps.
(Default: 30sec)
Advanced User Menu
Set the Advanced User Menu to ON or OFF.
(Default: OFF)
When set to ON, additional set items, Blanker Level,
AGC, Bandwidth, Clarifier, Pre Amp, Speech Proces-
sor, Processor Level, Key Lock and Side Tone Level
appear in the User Menu.
2001 NEW
46
5
MENU SCREEN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
CI-V Baudrate
Set the data transfer rate to 300, 1200, 4800, 9600,
19200 bps or AUTO. (Default: AUTO)
AF Line Select
When the optional AD-119 is connected, select the
input for the modulation signals from an external unit,
such as an HF email modem or TNC (Terminal Node
Controller). (Default: USB)
When MODEM is selected, the input for the modula-
tion signals is from an internal or external modem.
BIT Display
Set the activation of Built-in Test display to ON or
OFF. (Default: ON)
When set to ON, the transceiver displays the device
check screen after turning ON the power.
CI-V Address
To distinguish equipment, each CI-V transceiver has
its own Icom standard address in hexadecimal code.
The IC-F8100’s address is 82h. (Default: 82h)
If you want to initialize the operating settings in the
User Menu and Admin Menu without clearing mem-
ory channel contents or ID contents, do the following
steps.
q Turn OFF the transceiver power, if the transceiver
is powered ON.
w While holding down [r] and [s], push [] to turn
ON the transceiver power to reset the CPU.
/
■ CPU Reset
6
47
CONNECTION AND INSTALLATION
2001 NEW 2001 NEW2001 NEW
■ Supplied accessories
er
ty
qw
ui
o
!0
er
ty
qw
ui
D One package type
The following accessories are supplied with IC-F8100
One package type.
q Microphone (HM-193) ........................................... 1
w External speaker (SP-25) ...................................... 1
e DC power cable (OPC-2140) ................................ 1
r Rubber feet ........................................................... 4
t Black and red cables with fuse holders ........... 1 set
y Spare fuses (ATC 30 A) ........................................ 2
u Microphone hanger kit .................................... 1 set
i Crimp terminals ..................................................... 2
D Separated Type
The following accessories are supplied with IC-F8100
Separated type.
q Microphone (HM-193) ........................................... 1
w External speaker (SP-25) ...................................... 1
e DC power cable (OPC-2140) ................................ 1
r Rubber feet ........................................................... 4
t Black and red cables with fuse holders ........... 1 set
y Spare fuses (ATC 30 A) ........................................ 2
u Microphone hanger kit .................................... 1 set
i Crimp terminals ..................................................... 2
o Remote controller with mounting bracket .............. 1
!0 Separation kit* ................................................. 1 set
* The separation cable is not supplied, and must be pur-
chased separately according to the cable length.
2001 NEW
48
6
CONNECTION AND INSTALLATION
2001 NEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
er
t
o
y
qw
ui
D Remote control microphone Type
The following accessories are supplied with IC-F8100
Remote control microphone type.
q Remote control microphone (HM-192) .................. 1
w External speaker (SP-25) ...................................... 1
e DC power cable (OPC-2140) ................................ 1
r Rubber feet ........................................................... 4
t Black and red cables with fuse holders ........... 1 set
y Spare fuses (ATC 30 A) ........................................ 2
u Microphone hanger kit .................................... 1 set
i Crimp terminals ..................................................... 2
o Extension MIC connector ...................................... 1
* The separation cable is not supplied, and must be pur-
chased separately according to the cable length.
49
6CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
■ Connections
PC
to
[ACC1]
to
[ACC2]
to [USB]
to a USB port
to a 13.8 V DC power source
to [ACC1]
to [ACC2]
OPC-2126OPC-2127
Transceiver
USB cable
(purchase separately)
AD-119
SP-25
+ red
_ black
12V
Battery
12V
Battery
Crimp
terminal
R WARNING! NEVER remove
the fuse holders from the black
and red cables.
Crimp
R WARNING! NEVER connect to a 24 V battery.
This will damage the transceiver.
2001 NEW
50
6
CONNECTION AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
AT-140
OPC-2205
Ground
IC-F8100 main unit
to a 13.8 V
DC power source
to a
GPS receiver to [ACC2]
to [ACC1]
OPC-2142 (10 m): 4 pin
Ground
(see page 51)
AT-140
AT230
Ground
(see page 51)
Ground
(see page 51)
IC-F8100 main unit
OPC-2142 (10 m): 4 pin
OPC-2143 (5 m)
to a 13.8 V
DC power source
to
[ACC2]
to
[ACC1]
AD-119
DO NOT stretch the Ground
wire. This may cause a
ground wire disconnection
and/or damage.
DO NOT pull the antenna and control cable re-
ceptacles. This may cause a cable disconnection
(in the tuner unit), inside connector damage or a
bad connection.
Wrap both the antenna and the control cable con-
nectors with rubber vulcanizing tape, and then
wrap electrical tape over the rubber vulcanizing
tape to help in waterproofing.
CAUTION: DO NOT transmit continuously while
using an AT230, otherwise the AT230 will be dam-
aged.
51
6CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
■ Ground connection
The transceiver and antenna tuner MUST have an
adequate RF ground connection. Otherwise, the
overall efficiency of the transceiver and antenna
tuner installation will be reduced. Electrolysis, electri-
cal shocks and interference from other equipment
could also occur.
For best results, use a 50 or 75 mm (2 or 3 inches)
wide copper strap and make the connection as short
as possible. Ground the transceiver and antenna
tuner to the same ground point, otherwise the volt-
age difference (at the RF level) between 2 ground
points may cause electrolysis.
RWARNING! When grounding to a metal hull
Use Zinc anodes to protect the hull from electroly-
sis.
Ask your dealer, technical installer or refer to a
technical book, and so on, for RF grounding de-
tails.
Ground system example
Best ground points
• External ground plate
• Copper screen
• Copper foil
Unusable ground points
( These connections may cause an explosion or electrical
shock)
• Gas or electrical pipe
• Fuel tank or oil-catch pan
Copper pipe Metal object Copper screen
■ Power source
The transceiver requires regulated DC power of 13.8
V and at least 28 A. There are two ways to supply
power:
• Direct connection to a 12 V battery in your vehicle
through the supplied DC power cable.
• Use a DC power supply connected to an AC outlet.
DC power cable connection
NOTE: Use terminals for the cable connection.
12 V
battery Supplied
DC power cable
+ red
_ black Crimp
Solder
2001 NEW
52
6
CONNECTION AND INSTALLATION
6
■ Antenna
Most stations operate with a whip or long wire (insu-
lated back stay) antenna. However, these antennas
cannot be connected directly to the transceiver since
their impedance may not match with the transceiver
antenna connector.
RDANGER HIGH VOLTAGE!
NEVER touch the antenna element/wire while tun-
ing or transmitting.
q Attach the Cooling fan to the transceiver’s heat-
sink, and tighten the 4 supplied M3 × 8 screws.
w Secure the connector and cables using the sup-
plied cable tie.
D AT-140 a u t o m a t i c a n t e n n a t u n e r
See page 50.
D Non-Icom tuner
Some non-Icom tuners may be used with the IC-
F8100. Please consult your dealer if you wish to use
one.
■ CFU-F8100 (Optional Cooling Fan)
For Users in California (U.S.A.)
This CR-1632 Lithium Battery contains Perchlorate
Material—special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate
53
6CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
The RMK-6 allows you to install the IC-F8100’s Front
panel separately from the Main unit for added installa-
tion convenience and operation. Use either the optional
OPC-607, OPC-608, OPC-609 or OPC726
s e pa r at i o n
c a b l e
with the RMK-6.
The RMK-6 is the same as the separation kit for the
Separated type transceiver.
D Supplied Accessories
Flat washers
(M5)
RMK-6 with Mounting
bracket
Spring washers
(M5)
Mounting screws
(M5 × 12) Cable clamps
(Screws M2.6 × 5)
Self-tapping screws
(M5 × 16)
Screws
(M3 × 8)
Hex socket screws
Nuts
(M5)
D Separation
The optional OPC-607 (3 m), OPC-608 (8 m), OPC-
609 (1.9 m) or OPC-726 (5 m) separation cable is
required for separately installing the transceiver front
panel and Main unit.
q First, make sure the transceiver’s power is OFF,
then disconnect the DC power cable.
w Remove the knob bolts and mounting bracket from
the RMK-6.
e Unscrew the 4 hex socket screws using an allen
wrench, then remove the front panel from the trans-
ceiver in the direction of the arrow.
• Separate the RMK-6’s front panel attachment and Main
unit attachment in the same way.
RMK-6
Transceiver
r Disconnect the connection cable from the front
panel.
Front panel
Connection cable
Connection cable
Main unit
Front panel
■ RMK-6 (Optional Separation kit)
2001 NEW
54
6
CONNECTION AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
t Unscrew the 4 rear plate screws, then remove the
rear plates from both the front panel and Main unit
attachments.
Rear plate *This illustration
shows the descrip-
tion for the Main
unit attachment.
Main unit attachment
y Connect either the OPC-607, OPC-608, OPC-609
or OPC-726 separation cable to the Main unit at-
tachment, as shown below.
After the connecting the cable, replace the rear
plate and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves on the back of the attachment.
Use the supplied
screw (M3 × 8).
Rear plate
Main unit attachment
Cable groove
Separation cable
u Connect the connection cable coming from the
RMK-6, as shown below.
Then tighten the 4 hex socket screws.
i Connect the other end of the Separation cable to
the front panel attachment, as shown below.
After the cable connection, replace the removed
rear plate and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves on the back of the attachment.
Rear plate
Front panel attachment
Cable groove
Separation cable
Use the supplied
screw (M3 × 8).
o Connect the connection cable coming from the
RMK-6, as shown below.
Then tighten the 4 hex socket screws.
55
6CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
The HM-192 allows you to remotely control the trans-
ceiver by using the microphone. Use either the optional
OPC-607, OPC-608, OPC-609 or OPC-726
separa
-
t i o n
c a b l e
.
The HM-192 is the same as the one supplied in the
Remote control microphone type transceiver.
D Mounting
The optional OPC-607 (3 m), OPC-608 (8 m), OPC-
609 (1.9 m) or OPC-726 (5 m) separation cable is
required to install the transceiver’s Main unit and Re-
mote control microphone.
q Unscrew the 4 rear plate screws, then remove the
rear plates from both the Extension MIC connector
and the Main unit attachment.
Rear plate *This illustration
shows the descrip-
tion for the Main
unit attachment.
Main unit attachment
w Connect either the OPC-607, OPC-608, OPC-609
or OPC-726 separation cable to the Main unit at-
tachment, as shown below.
After the connecting the cable, replace the rear
plate and the 4 screws.
• The separation cable can be inserted into either the left or
right grooves on the back of the attachment.
Rear plate
Main unit attachment
Cable groove
Separation cable
Use the supplied
M3 × 8 screw.
e
Connect the other side of the Separation cable to the
Extension MIC connector, as described in step w.
After the cable is connected, replace the rear plate
and the 4 screws.
r Attach the Extension MIC connector to the desired
place, then tighten the 2 supplied screws (M4 ×
20).
t Attach the holder base to the desired place near the
Extension MIC connector, then tighten the 2 sup-
plied screws (M4 × 20).
y Adjust the MIC holder angle, then tighten the one
supplied M4 × 14 screw.
u Connect the HM-192 to the Extension MIC connec-
tor.
■ HM-192 (Optional Remote control microphone)
2001 NEW
56
6
CONNECTION AND INSTALLATION
6
■ Mounting
D Mounting location
Select a location which can support the weight of the
transceiver and does not interfere with driving.
NEVER place the main unit or remote controller
where normal operation of the vehicle may be hin-
dered or where it could cause bodily injury.
NEVER place the main unit or remote controller
where air bag deployment may be obstructed.
DO NOT place the main unit or remote controller
where hot or cold air blows directly onto it.
DO NOT place the main unit or remote controller in
direct sunlight.
D Mounting the controller or speaker
Check the installation angle; the display may not be
easy to read at some angles.
These screws are shown as
mounting examples only.
57
6CONNECTION AND INSTALLATION
2001 NEW 2001 NEW
q Attach the mounting plates, and tighten the 2 sup-
plied M5 × 8 screws on each side.
w Put the mounting bracket on the board, and then
tighten the 4 supplied screws (M5 × 20).
e Attach the Main unit to the mounting bracket, as
shown below.
Not supplied by Icom
r The completed mounting should look like this.
• Mounting on the board
RWARNING! Mount the mounting bracket with
4 supplied screws to surface that is more than 40
mm thick and can support more than 10 kg. The
unit must be mounted on only a flat hard surface.
D Mounting the transceiver
A supplied mounting bracket is used to mount the
transceiver or transceiver’s Main unit to a flat surface.
58
6
CONNECTION AND INSTALLATION
2001 NEW
6
■ Fuse replacement
If a fuse blows, or the transceiver stops functioning,
find the source of the problem, and repair it. Then re-
place the damaged fuse with a new, adequately rated
fuse.
RWARNING! Turn OFF the power and discon-
nect the DC power cable from the transceiver before
performing any work on the transceiver. Otherwise,
there is a danger of electric shock, equipment dam-
age and/or fire or injury.
The IC-F8100 has two fuse types installed for trans-
ceiver protection.
• DC power cable ........................................ ATC 30 A
• Circuitry fuse .............................................. ATC 5 A
D Internal fuse replacement
q Turn the transceiver upside down.
w Unscrew 4 screws from the bottom cover, then lift
up the cover.
e Replace the circuitry fuse as shown in the diagram
below.
• Use the supplied ATC 5 A fuse.
r Reattach the bottom cover in its original position.
D DC power cable fuse replacement
Refer the figure described below for the DC power
cable fuse replacement.
ATC 30 A fuse
59
6CONNECTION AND INSTALLATION
2001 NEW
■Connector information for AD-119
DATA Pin Pin name Description
15
69
1 NC No connection.
2 TXD Outputs transmit data.
3 RXD Input terminal for receive data.
4 DTR Outputs data terminal ready signal.
5 GND Connect to ground.
6 NC No connection.
7 CTS Input terminal for clear-to-send data.
8 RTS Outputs request-to-send data.
9 NC No connection.
GPS Pin Pin name Description
15
69
1 3V DC 3 V output (200 mA maximum ).
2 RXD Input terminal for receive data.
3 – —
4 NC No connection.
5 GND Connect to ground.
6 – —
7 – —
8 – —
9 ALCV —
GPIO Pin Pin name Description Specification
1 13.8V 13.8 V output for Antenna tuner.
2 SCAN Outputs Antenna tuner control signal.
3 KEY Key signal input. –0.5 to 0.8 V while tuning
4 RL1 Goes to ground when transmitting.
5 TUM4 Stepping motor control signal output for AT230.
6 TUM3 Stepping motor control signal output for AT230.
7 TUM2 Stepping motor control signal output for AT230.
8 TUM1 Stepping motor control signal output for AT230.
9 NC No connection.
10 NC No connection.
11 START Start/bypass signal output.
12 CWKEY CW and FSK keying input. Input level :
Less than 0.6 V for
transmit
13 ALC ALC voltage input. Control voltage : –4 to 0 V
Input impedance : More than 10 kΩ
14 GND Connect to ground.
15 TUMB Band control signal output for AT230.
18
915
60
6
CONNECTION AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
EXT. MODEM Pin Pin name Description Specification
18
1 TXD Output terminal for receive data. RS-232C
2 RXD Input terminal for transmit data. RS-232C
3 GND Connect to ground. —
4 PTT PTT input terminal. When grounded, transmits. 0 V: transmit, 5 V: receive
5 AF GND Ground line for the AF signal.
6AF OUT Output terminal for the AF signal.
Output impedance
: 1 kΩ
Output level :
200 to 400 mVrms
7AF IN Input terminal for the AF signal. Input impedance : 1 kΩ
Input level : 56 to 824 mVrms
8 NC No connection. —
7
61
SPECIFICATIONS
2001 NEW
D General
• Frequency coverage : (Unit: MHz)
Receive 0.5–29.9999
Transmit 1.6–29.9999
• Type of emission :
AUS versions
J3E (USB), A3E (AM) RX only
Other versions J3E (USB/LSB), A1A (CW),
A3E (AM), F1B (FSK)
• No. of memory Ch. : 500 channels (maximum)
• Usable temp. range : –30˚C to +60˚C
• Frequency stability : ±0.3 ppm (–30˚C to +60˚C)
• Power supply : 13.8 V DC (negative ground)
AUS versions 10.8–15.6 V DC
Other versions 11.73–15.87 V DC
• Current drain :
Transmit Less than 28 A
(at maximum power)
Receive Less than 3.0 A
(at maximum audio)
• Dimensions : (projections are not included)
Main/Front package
62(W)×174(H)×259(D) mm
• Weight
: (approximately)
Main/Front package
3.8 kg
D Transceiver
• Output power : (typical)
AUS versions
J3E HIGH 100 W p-p
MID 50 W p-p
LOW 10 W p-p
Other versions
J3E/A1A HIGH 125 W p-p
MID 50 W p-p
LOW 10 W p-p
A3E HIGH 30 W Carrier
MID 12.5 W Carrier
LOW 3 W Carrier
F1B HIGH 75 W p-p
MID 50 W p-p
LOW 10 W p-p
• Spurious emission : Less than –64 dB
below peak output power
• Carrier suppression : 50 dB
below peak output power
• Unwanted sideband suppression :
400 Hz 55 dB
below peak output power
1 kHz 65 dB
below peak output power
D Receiver
• Sensitivity :
J3E (Pre Amp ON)
(0.5–1.5999 MHz) 14 dBµV (10 dB S/N)
(1.6–29.9999 MHz) –14 dBµV (10 dB S/N)
A3E
(0.5–1.5999 MHz) 22 dBµV (10 dB S/N)
(1.6–29.9999 MHz) 6 dBµV (10 dB S/N)
• Spurious response rejection ratio:
More than 70 dB
• AF output power : (at 13.8 V DC)
More than 4.0 W at 10%
distortion with a 4 Ω load
•
Clarifier range
: ±200 Hz
All stated specifications are typical and subject to change without notice or obligation.
8
62
OPTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Quick Reference
AT-140 a u t o m a t i c a n t e n n a t u n e r
Antenna and control cable receptacles
for easy installation and a tuner bypass
function is available.
OPC-2142 s h i e l d e d c o n t r o l c a b l e
The shielded control cable protects the
transceiver from RF feedback and ex-
tends the separation between the AT-140
and the transceiver up to 10 meters.
OPC-2142: 4 pin
OPC-2143 s h i e l d e d c o n t r o l c a b l e
The shielded control cable protects the
transceiver from RF feedback and ex-
tends the separation between the AT230
and the transceiver up to 5 meters.
OPC-2205 s h i e l d e d c o n t r o l c a b l e
The shielded control cable protects the
transceiver from RF feedback and con-
nects the AT-140 or a GPS receiver to the
transceiver.
AD-119 j u n c t i o n b o x
Allows you to connect the AT-140, AT230,
an external modem or PC to the trans-
ceiver.
MB-126 m o u n t i n g b r a c k e t
CFU-F8100 c o o l i n g f a n
RMK-6 s e pa r at i o n k i t
The same as that supplied with the IC-
F8100 Separated Type.
Allows you to install the transceiver front
panel separate from the Main unit for op-
erating convenience. The RMK-6 requires
either the OPC-607, OPC-608, OPC-609
or OPC-726 separation cable.
OPC-607/OPC-608/OPC-609/OPC-726
s e pa r at i o n c a b l e
OPC-607 : 3 m
OPC-608 : 8 m
OPC-609 : 1.9 m
OPC-726 : 5 m
Recommended Automatic tuning antenna, AT230 from Moonraker Australia Pty. Limited
The AT230 is a 2.6 m length mobile whip antenna with an automatic tuning function. The antenna
matches 2–30 MHz continuously. Use the optional OPC-2143 cable for use with the IC-F8100.
Ask your dealer for details.
SP-10 e x t e r n a l s p e a k e r
SP-25 e x t e r n a l s p e a k e r
SP-30 e x t e r n a l s p e a k e r
The SP-25 is the same as that supplied
with the IC-F8100. A mounting bracket is
supplied with the speaker.
Maximum AF input/impedance: 6 W/4 Ω
HM-193 h a n d m i c r o p h o n e
The same as that supplied with the IC-
F8100 One package type or Separated
Type.
HM-192 r e m o t e c o n t r o l m i c r o p h o n e
The same as that supplied with the IC-
F8100 Remote control microphone type.
Allows you to remotely control the trans-
ceiver with the microphone. The HM-193
requires either the OPC-607, OPC-608,
OPC-609 or OPC-726 separation cable.
63
