INSTRUCTION MANUAL

iM423

VHF MARINE TRANSCEIVER

iM424

This device complies with Part 15 of the FCC

Rules. Operation is subject to the condition that

this device does not cause harmful interference.

FOREWORD

Thank you for purchasing this Icom product. The IC-M423/

IC-M424 v h f m a r i n e t r a n s c e i v e r is designed and built with

Icom’s state of the art technology and craftsmanship. With

proper care, this product should provide you with years of

trouble-free operation.

We appreciate you making the IC-M423/IC-M424 your ra-

dio of choice, and hope you agree with Icom’s philosophy of

“technology ﬁrst.” Many hours of research and development

went into the de sign of your IC-M423/IC-M424.

FEATURES D

❍ Simple operation with large keys

❍ Easy to hear speaker

❍ Built-in DSC meets ITU Class D requirement

❍ Rugged waterproof construction

❍ Optional COMMANDMIC

™ (HM-195)

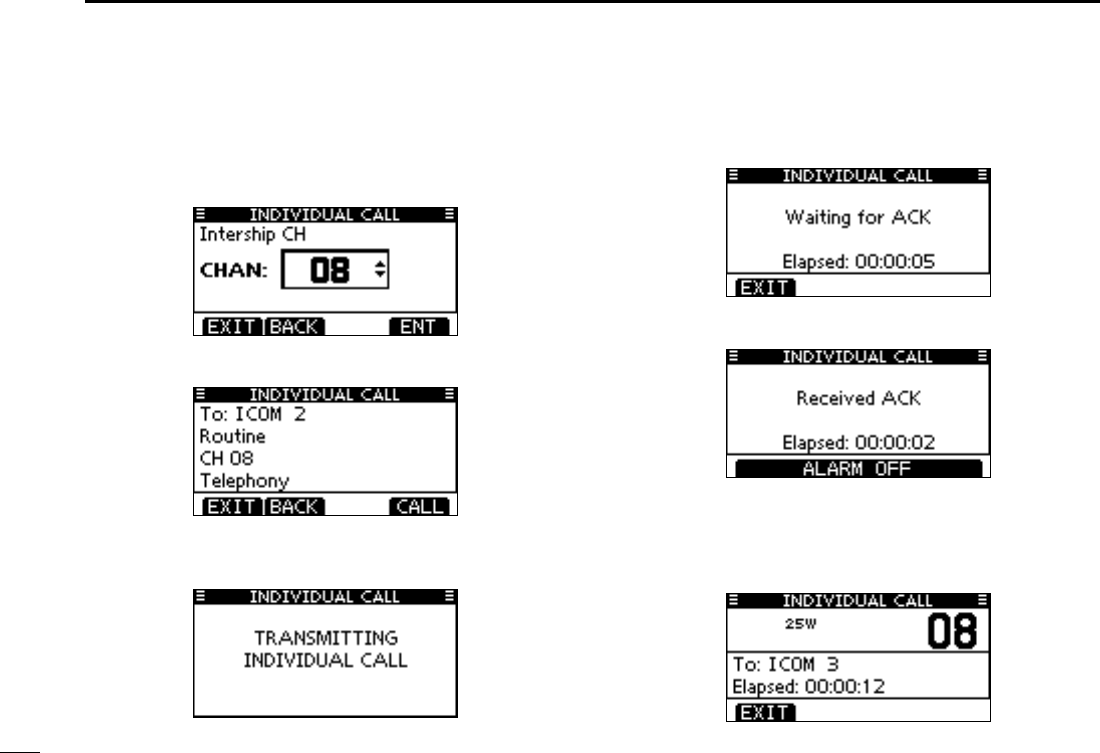

❍ Easy to make an individual DSC calls using the

optional MA-500TR Class B AIS Transponder

IMPORTANT

READ ALL INSTRUCTIONS carefully and completely

before using the transceiver.

SAVE THIS INSTRUCTION MANUAL — This in-

struction manual contains important operating instructions

for the IC-M423/IC-M424.

EXPLICIT DEFINITIONS

WORD DEFINITION

RWARNING! Personal injury, fire hazard or electric

shock may occur.

CAUTION Equipment damage may occur.

NOTE

If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

CLEAN THE TRANSCEIVER AND MICROPHONE THOR-

OUGHLY WITH FRESH WATER after exposure to water

including salt, otherwise, the keys and switch may become

inoperable due to salt crystallization.

For Canada:

This device complies with RSS-310 of Industry Canada. Op-

eration is subject to the condition that this device does not

cause harmful interference.

Cet appareil est conforme au CNR-310 d’Industrie Canada.

Son exploitation est autorisee sous reserve que l’appareil ne

cause pas de brouillage prejudiciable.

If your vessel requires assistance, contact other vessels and

the Coast Guard by sending a Distress call on Channel 16. Or, transmit your Distress call using digital selective calling

on Channel 70.

USING CHANNEL 16

DISTRESS CALL PROCEDURE

1. “MAYDAY MAYDAY MAYDAY.”

2. “THIS IS ...............” (name of vessel).

3. Say your call sign or other description of the vessel

(AND 9 digit DSC ID if you have one).

4. “LOCATED AT ...............” (your position).

5. State the nature of the distress and assistance re-

quired.

6. Give any other information which might facilitate

the rescue.

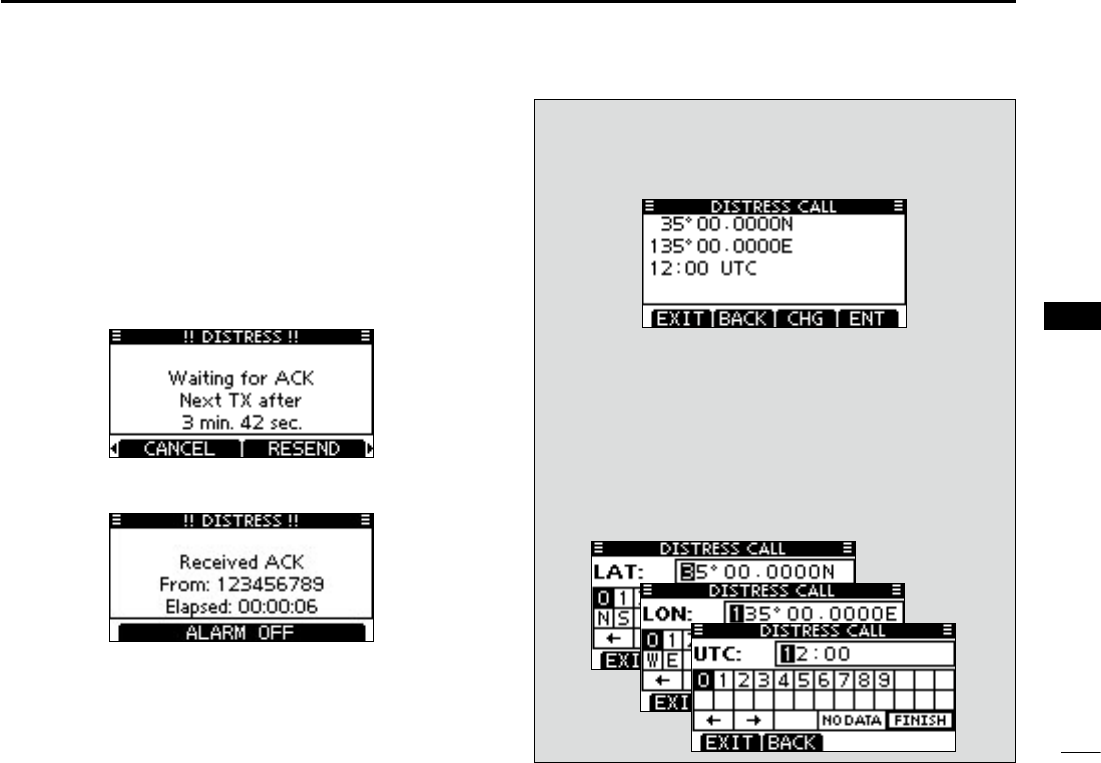

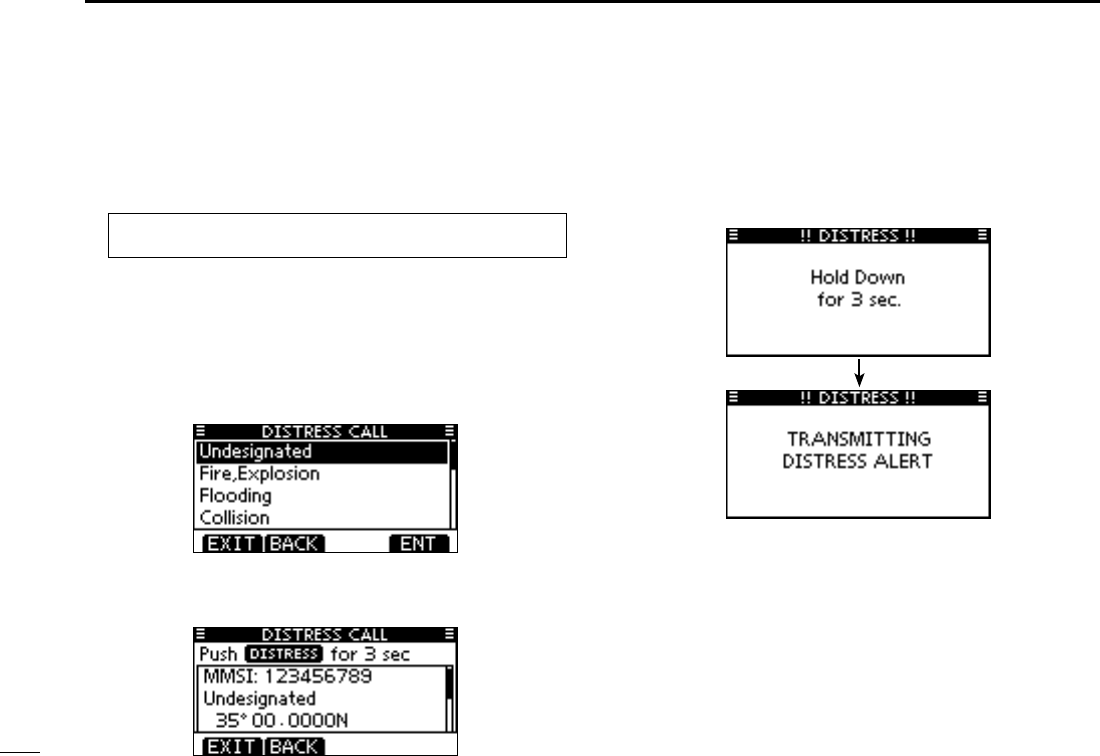

USING DIGITAL SELECTIVE CALLING (Ch 70)

DISTRESS CALL PROCEDURE

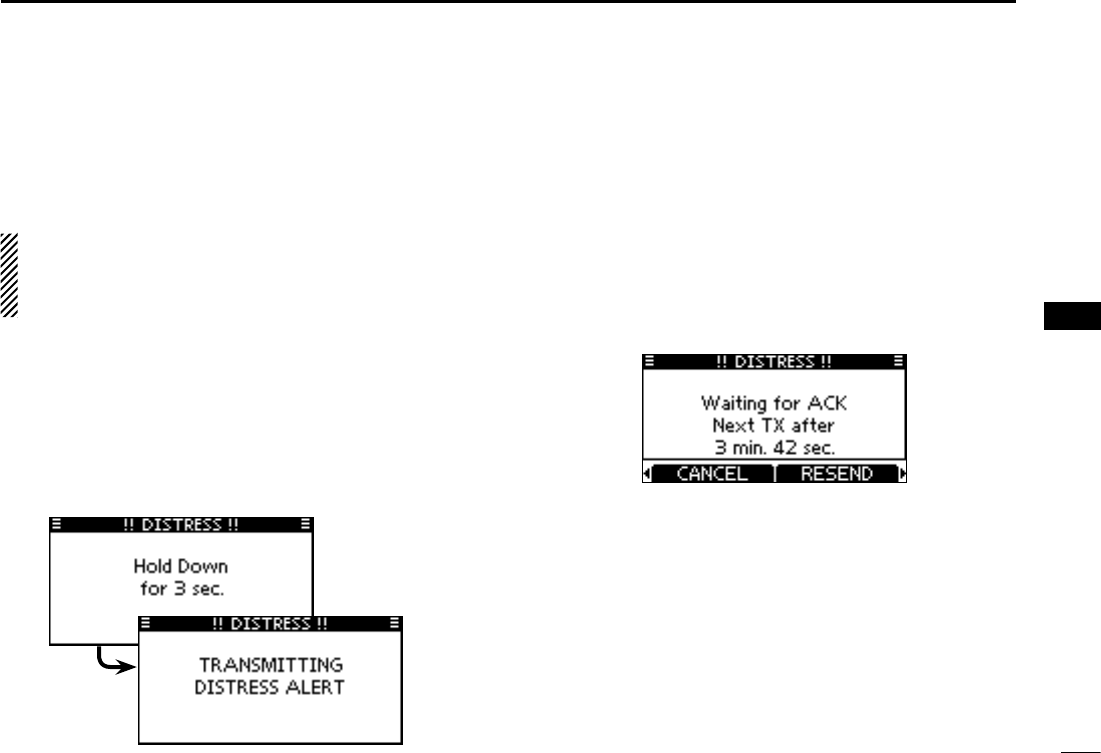

1. While lifting up the key cover, hold down [DIS-

TRESS] for 3 seconds until you hear 3 short beeps

and then one long beep.

2. Wait for an acknowledgment on Channel 70 from a

coast station.

 •Aftertheacknowledgementisreceived,Channel16is

automatically selected.

3. Hold down [PTT], then transmit the appropriate in-

formation as listed above.

IN CASE OF EMERGENCY

iii

RADIO OPERATOR WARNING

WARNING

Icom requires the radio operator to meet the

FCC Requirements for Radio Frequency Expo-

sure. An omnidirectional antenna with gain not

greater than 9 dBi must be mounted a mini-

mum of 5 meters (measured from the lowest

point of the antenna) vertically above the main

deck and all possible personnel. This is the minimum safe

separation distance estimated to meet all RF exposure com-

pliance requirements. This 5 meter distance is based on the

FCC Safe Maximum Permissible Exposure (MPE) distance

of 3 meters added to the height of an adult (2 meters) and is

appropriate for all vessels.

For watercraft without suitable structures, the antenna must

be mounted so as to maintain a minimum of 1 meter verti-

cally between the antenna, (measured from the lowest point

of the antenna), to the heads of all persons AND all persons

must stay outside of the 3 meter MPE radius.

Do not transmit with radio and antenna when persons are

within the MPE radius of the antenna, unless such persons

(such as driver or radio operator) are shielded from antenna

ﬁeld by a grounded metallic barrier. The MPE Radius is the

minimum distance from the antenna axis that person should

maintain in order to avoid RF exposure higher than the al-

lowable MPE level set by FCC.

FAILURE TO OBSERVE THESE LIMITS MAY ALLOW

THOSE WITHIN THE MPE RADIUS TO EXPERIENCE RF

RADIATION ABSORPTION WHICH EXCEEDS THE FCC

MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT.

IT IS THE RESPONSIBILITY OF THE RADIO OPERATOR

TO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-

SURE LIMITS ARE OBSERVED AT ALL TIMES DURING

RADIO TRANSMISSION. THE RADIO OPERATOR IS TO

ENSURE THAT NO BYSTANDERS COME WITHIN THE

RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE

LIMITS.

Determining MPE Radius

THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-

DIUS HAS BEEN ESTIMATED TO BE A RADIUS OF

ABOUT 3M PER OET BULLETIN 65 OF THE FCC.

THIS ESTIMATE IS MADE ASSUMING THE MAXIMUM

POWER OF THE RADIO AND ANTENNAS WITH A MAXI-

MUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTED

SYSTEM.

AVERTISSEMENT POUR LES OPÉRATEURS RADIO

Icom exige que l'opérateur radio se conforme aux

exigences de la FCC en matière d'exposition aux

radiofréquences. Une antenne omnidirectionnelle

dont le gain ne dépasse pas 9dBi doit être ﬁxée

à une distance minimale de 5 mètres (mesurée

depuis le point le plus bas de l'antenne) verticale-

ment au-dessus du pont principal et de tout le personnel qui peut

s'y trouver. Il s'agit de la distance de sécurité minimale prévue pour

satisfaire aux exigences de conformité en matière d'exposition aux

RF. Cette distance de 5 mètres est établie en fonction de l'exposition

maximale admissible sécuritaire de 3 mètres établie par la FCC, à

laquelle on ajoute la hauteur d'un adulte (2 mètres); cette distance

convient pour tous les navires.

Dans le cas des embarcations sans structure convenable, l'antenne

doit être ﬁxée de façon à maintenir une distance minimale de 1 mètre

verticalement entre cette antenne (mesurée depuis son point le plus

bas) et la tête de toute personne présente; toutes les personnes

présentes doivent se tenir à l'extérieur d'un rayon d'exposition maxi-

male admissible de 3 mètres.

Ne pas émettre à l'aide de la radio et de l'antenne lorsque des

personnes se trouvent à l'intérieur du rayon d'exposition maximale

admissible de cette antenne, à moins que ces personnes (comme

le conducteur ou l'opérateur radio) ne soient protégées du champ

de l'antenne par un écran métallique relié à la masse. Le rayon

d'exposition maximale admissible équivaut à la distance minimale

que cette personne doit maintenir entre elle et l'axe de l'antenne pour

éviter une exposition aux RF supérieure au niveau d'exposition maxi-

male admissible ﬁxé par la FCC.

LE NON-RESPECT DE CES LIMITES PEUT CAUSER, POUR LES

PERSONNES SITUÉES DANS LE RAYON D'EXPOSITION MAXI-

MALE ADMISSIBLE, UNE ABSORPTION DE RAYONNEMENT DE

RF SUPÉRIEURE À L'EXPOSITION MAXIMALE ADMISSIBLE

FIXÉE PAR LA FCC.

L'OPÉRATEUR RADIO EST RESPONSABLE D'ASSURER QUE

LES LIMITES D'EXPOSITION MAXIMALE ADMISSIBLE SOIENT

RESPECTÉES EN TOUT TEMPS PENDANT LA TRANSMISSION

RADIO. L'OPÉRATEUR RADIO DOIT S'ASSURER QU'AUCUNE

PERSONNE PRÉSENTE NE SE SITUE À L'INTÉRIEUR DU RAY-

ON D'EXPOSITION MAXIMALE ADMISSIBLE.

Établir le rayon d'exposition maximale admissible

ON ESTIME QUE LE RAYON D'EXPOSITION MAXIMALE ADMIS-

SIBLE EST D'ENVIRON 3 M, TEL QUE STIPULÉ DANS LE BUL-

LETIN OET 65 DE LA FCC. CETTE DISTANCE ESTIMÉE TIENT

COMPTE D'UN SYSTÈME INSTALLÉ SUR UN NAVIRE UTILISANT

LA PUISSANCE MAXIMALE DE LA RADIO ET DES ANTENNES

DONT LE GAIN MAXIMAL EST DE 9dBi.

AVERTISSEMENT

New2001

FCC INFORMATION

• FOR CLASS A UNINTENTIONAL RADIATORS:

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment

is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio com-

munications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be re-

quired to correct the interference at his own expense.

NOTE

A WARNING STICKER is supplied with the transceiver.

To comply with FCC regulations, this sticker must be afﬁxed in

such a location as to be readily seen from the operating con-

trols of the radio as in the diagram below. Make sure the chosen

location is clean and dry before applying the sticker.

EXAMPLE

WARNING.

New2001

PRECAUTIONS

RWARNING! NEVER

connect the transceiver to an AC

outlet. This may pose a ﬁre hazard or result in an electric shock.

RWARNING! NEVER connect the transceiver to a pow-

er source of more than 16 V DC or use reverse polarity. This

will ruin the transceiver.

RWARNING! NEVER cut the DC power cable between

the DC plug at the back of the transceiver and fuse holder. If

an incorrect connection is made after cutting, the transceiver

may be damaged.

CAUTION: NEVER

place the transceiver where normal

operation of the vessel may be hindered or where it could

cause bodily injury.

KEEP the transceiver and microphone at least 1 m away

from the vessel’s magnetic navigation compass.

DO NOT use or place the transceiver in areas with tem-

peratures below –20°C (–4°F) or above +60°C (+140°F) or, in

areas subject to direct sunlight, such as the dashboard.

DO NOT use harsh solvents such as benzine or alcohol to

clean the transceiver, as they will damage the transceiver’s

surfaces. If the transceiver becomes dusty or dirty, wipe it

clean with a soft, dry cloth.

DO NOT disassemble or modify the transceiver for any rea-

son.

BE CAREFUL! The transceiver rear panel will become

hot when operating continuously for long periods of time.

Place the transceiver in a secure place to avoid inadvertent

use by children.

BE CAREFUL! The transceiver and the optional HM-195

c o m m a n d m i c IV™ meet IPX7 requirements for waterproof

protection. However, once the transceiver has been dropped,

waterproof protection cannot be guaranteed because of pos-

sible damage to the transceiver’s case or the waterproof

seal.

* Except for the DC power connector, NMEA In/Out leads and AF

Out leads.

For U.S.A. only

CAUTION: Changes or modiﬁcations to this device, not ex-

pressly approved by Icom Inc., could void your authority to

operate this device under FCC regulations.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-

porated (Japan) in Japan, the United States, the United Kingdom, Germany,

France, Spain, Russia and/or other countries.

COMMANDMIC is a registered trademark of Icom Incorporated (Japan) in Ja-

pan and the United States.

vii

TABLE OF CONTENTS

FOREWORD .........................................................................i

IMPORTANT ..........................................................................i

EXPLICIT DEFINITIONS .......................................................i

IN CASE OF EMERGENCY ................................................. ii

RADIO OPERATOR WARNING .......................................... iii

AVERTISSEMENT POUR LES OPÉRATEURS RADIO ...... iv

FCC INFORMATION ............................................................v

NOTE ....................................................................................v

PRECAUTIONS ................................................................... vi

TABLE OF CONTENTS ...................................................... vii

1 OPERATING RULES .......................................................1

2 PANEL DESCRIPTION ................................................2−7

Front panel ■ ...................................................................2

Function display ■ ...........................................................5

Speaker Microphone ■ ....................................................7

Softkey function ■ ............................................................7

3 PREPARATION................................................................8

MMSI code programming ■ .............................................8

4 BASIC OPERATION ..................................................9−16

Channel selection ■ ........................................................9

Receiving and transmitting ■ .........................................11

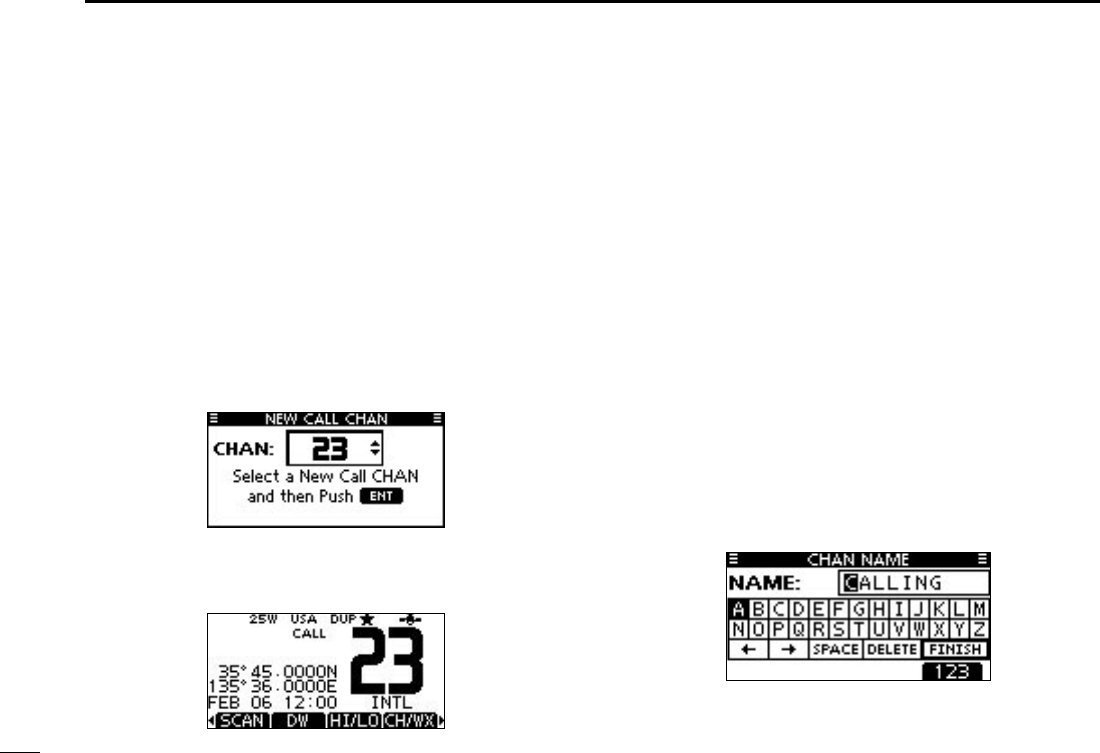

Call channel programming ■ .........................................13

Channel name programming ■......................................13

Microphone Lock function ■ ..........................................14

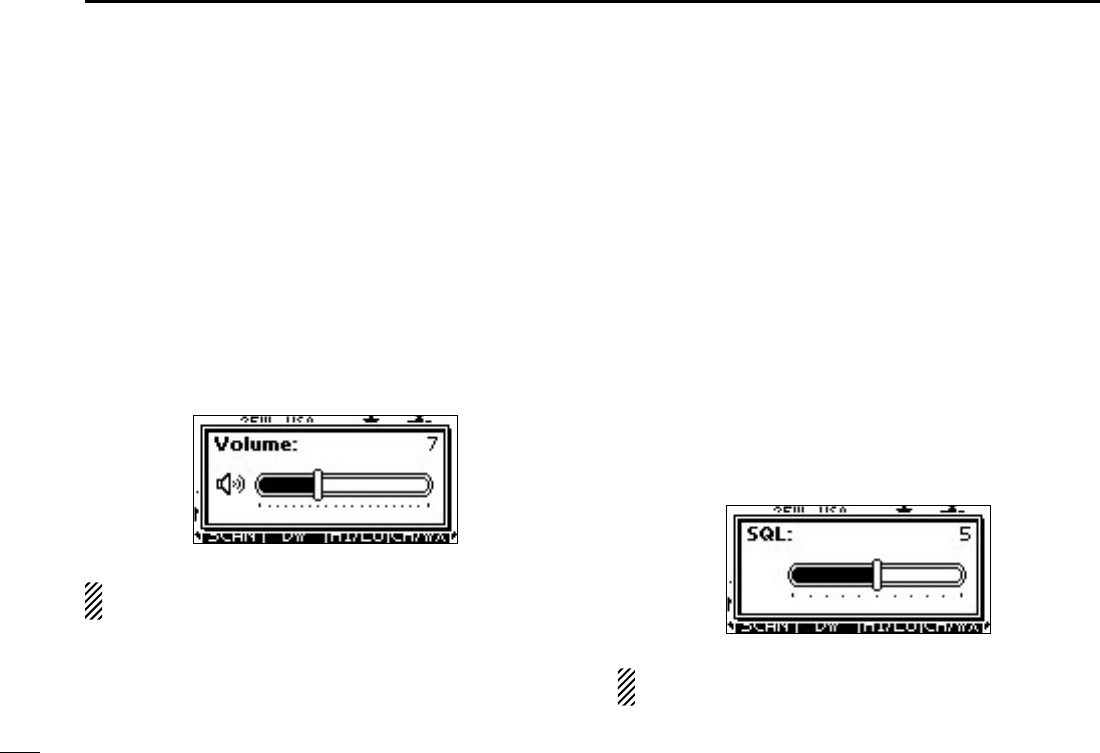

Adjusting the volume level ■ ..........................................15

Adjusting the squelch level ■ .........................................15

Adjusting the displaybacklight level ■ ............................16

AquaQuake water draining function ■ ...........................16

5 SCAN OPERATION .................................................17−18

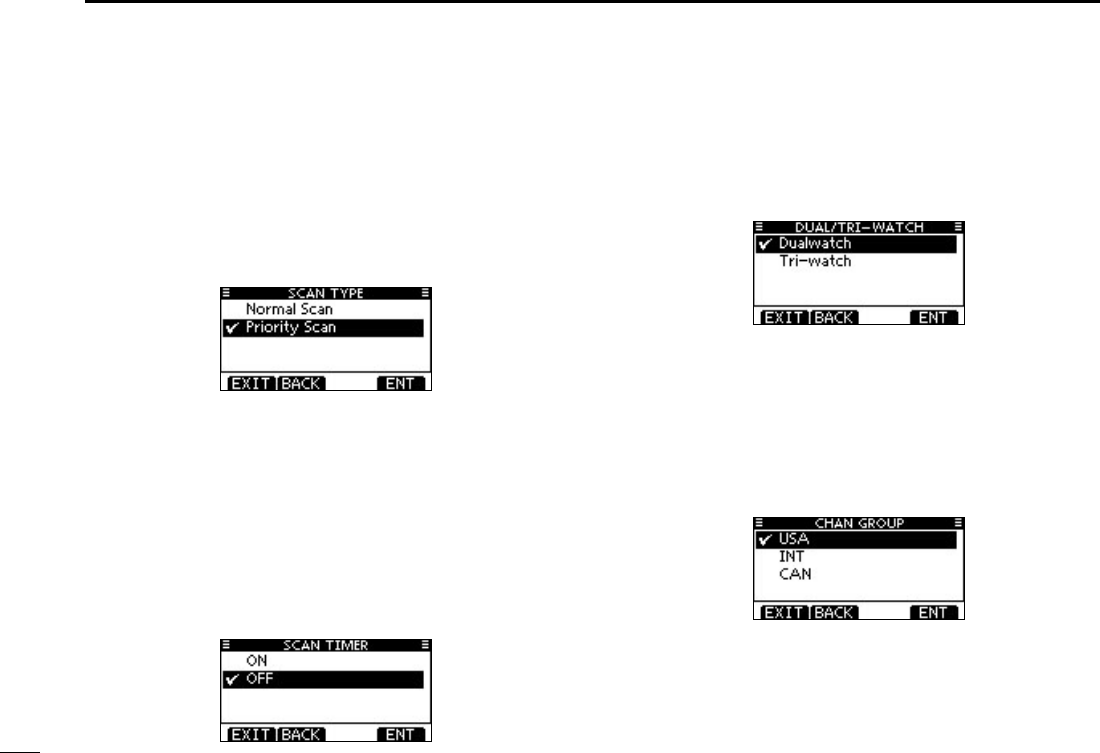

Scan types ■ .................................................................17

Setting TAG channels ■ .................................................18

Starting a scan ■ ...........................................................18

6 DUALWATCH/TRI-WATCH ............................................19

Description ■ .................................................................19

Operation ■ ...................................................................19

7 DSC OPERATION ...................................................20−71

DSC address ID ■ ........................................................20

Position and time programming ■..................................23

Distress call ■ ................................................................24

Transmitting DSC calls ■ ...............................................28

Receiving DSC calls ■ ..................................................51

Received Call log ■ .......................................................63

Transmitted Call log ■....................................................65

DSC Settings ■ .............................................................66

Making an Individual call using an AIS transponder ■ ..70

8 OTHER FUNCTIONS ...............................................72−74

Intercom operation ■ .....................................................72

RX Speaker function ■ ..................................................73

viii

New2001

TABLE OF CONTENTS 1

PA (Public Address) function ■ ......................................73

Horn function ■ ..............................................................74

9 MENU SCREEN OPERATION ................................75−82

Menu screen operation ■ ..............................................75

Menu screen items ■ .....................................................76

Radio Setting items ■ ....................................................77

Conﬁguration items ■ ....................................................78

10 CONNECTIONS AND MAINTENANCE ..................83−89

Connections ■ ...............................................................83

Antenna ■ ......................................................................85

Fuse replacement ■ ......................................................85

Cleaning ■ .....................................................................85

Supplied accessories ■ .................................................85

Mounting the transceiver ■ ............................................86

MB-69 installation ■ ......................................................87

Microphone installation ■ ..............................................88

11 SPECIFICATIONS AND OPTIONS .........................90−91

Speciﬁcations ■ .............................................................90

Options ■ .......................................................................91

12 CHANNEL LIST .............................................................92

13 TROUBLESHOOTING ...................................................93

14 TEMPLATE ....................................................................94

New2001

OPERATING RULES

Priorities D

•Read allrules and regulationspertainingtocall priorities,

and keep an up-to-date copy handy. Safety and distress

calls take priority over all others.

•YoumustmonitorChannel16whenyouarenotoperating

on another channel.

•Falseorfraudulentdistresscallsareprohibitedunderlaw.

Privacy D

•Informationoverheard,butnotintendedforyou,cannotlaw-

fully be used in any way.

•Indecentorprofanelanguageisprohibited.

Radio licenses D

(1) SHIP STATION LICENSE

You may require a current radio station license before using

the transceiver. It is unlawful to operate a ship station which is

not licensed, but required to be.

If required, contact your dealer or the appropriate govern-

ment agency for a Ship-Radiotelephone license application.

This government-issued license states the call sign which is

your craft’s identiﬁcation for radio purposes.

(2) OPERATOR’S LICENSE

A Restricted Radiotelephone Operator Permit is the license

most often held by small vessel radio operators when a radio

is not required for safety purposes.

If required, the Restricted Radiotelephone Operator Permit

must be posted or kept with the operator. If required, only a

licensed radio operator may operate a transceiver.

However, non-licensed individuals may talk over a transceiver

if a licensed operator starts, supervises, ends the call and

makes the necessary log entries.

A current copy of the applicable government rules and regu-

lations is only required to be on hand for vessels in which

a radio telephone is compulsory. However, even if you are

not required to have these on hand it is your responsibility to

be thoroughly acquainted with all pertinent rules and regula-

tions.

NOTE: Even though the transceiver is capable of opera-

tion on VHF marine channels 3, 21, 23, 61, 64, 81, 82 and

83, according to FCC regulations these simplex channels

cannot be lawfully used by the general population in USA

waters.

PANEL DESCRIPTION

Front panel ■

qFunction display (p. 5)Speaker

q DISTRESS KEY [DISTRESS] (pp. 24, 25)

Hold down for 3 seconds to transmit a Distress call.

w ENTER KEY [ENT] (pp. 8, 10, 75)

Push to set the input data, selected item, and so on.

e LEFT AND RIGHT KEYS [Ω]/[≈]

Push to switch to the previous or next key function that ➥

is assigned to the softkeys. (p. 7)

Push to select the desired character or number in the ➥

table while in the channel name, position, MMSI code

programming mode, and so on. (pp. 8, 13, 23)

UP AND DOWN/CHANNEL SELECT KEYS [∫•CH]/[√•CH]

Push to select the operating channels, Menu items, ➥

Menu settings, and so on. (pp. 11, 75)

➥

Push to check TAG channels, change the scanning di-

rection or manually resume a scan. (p.

)

t CLEAR KEY [CLEAR]

(pp.

)

Push to cancel the entered data, or to exit the Menu

screen.

y MENU KEY [MENU]

(p.

)

Push to enter or exit the Menu screen.

u VOLUME AND SQUELCH SWITCH/POWER SWITCH

[VOL/SQL•PWR]

When the power is OFF, hold down for 1 second to turn ➥

ON power. (p. 11)

Hold down for 1 second to turn OFF power. ➥

When the power is ON, push to enter the volume level ➥

adjustment mode.* (p. 15)

  •Eachpushofthisswitchtogglesthemodebetweenthevol-

ume level adjustment, squelch threshold level adjustment,

operating channel selection and the LCD and key backlight

brightness adjustment, if assigned.

Rotate to adjust the volume level.* (p. 15) ➥

*The desired function can be assigned in the Menu screen.

2PANEL DESCRIPTION

New2001 New2001

qFunction display (p. 5)Speaker

i CHANNEL 16/CALL CHANNEL KEY [16/C]

Push to select Channel 16. (p. 9) ➥

Hold down for 1 second to select the Call channel. (p. ➥

)

  •“CALL”appearswhentheCallchannelisselected.

➥

When the Call channel is selected, hold down for 3 sec-

onds to enter Call channel programming mode. (p.

)

o SOFTKEYS

Desired functions as described below can be assigned in

the Menu screen.

Scan [ ] (p. 18)

Push to start or stop a Normal or Priority scan.

Dualwatch/Tri-watch [ ] (p. 19)

Push to start a Dualwatch or Tri-watch scan. ➥

Push to stop a Dualwatch or Tri-watch scan when either ➥

is activated.

High/Low [ ] (p. 11)

Push to set the power to high or low.

 •Somechannelsaresettoonlylowpower.

Channel/Weather channel [ ]* (pp. 9, 11)

Push to selects and toggles the regular channel and

Weather channel.

*Only U.S.A. and Australian version transceivers.

Channel [ ]* (p. 9)

Push to select a regular channel.

*Only Chinese version transceiver.

Public address [ ] (p. 73)

Push to enter the PA (Public Address) mode.

RX Speaker [ ] (p. 73)

Push to turn the RX Speaker mode ON or OFF.

Horn [ ] (p. 74)

Push to enter the Horn mode.

Intercom [ ] (p. 72)

Push to enter the Intercom mode.

New2001

PANEL DESCRIPTION

New2001

AquaQuake [ ] (p. 16)

While holding down, the AquaQuake function is activated

to clear water away from the speaker grill.

Favorite channel [ ] (p. 18)

Push to set or clear the displayed channel as a Favorite ➥

(Tag) channel.

Hold down for 3 seconds to clear or set all Favorite ➥

channels in the selected channel group.

Name [ ] (p. 13)

Push to enter the channel name programming mode.

Backlight [ ] (p. 16)

Push to enter the LCD and key backlight brightness ad-

justment mode.

 •While in the adjustment mode, push [∫]/[√] or rotate Dial to

adjust the brightness of the LCD and key backlight.

LO/DX [ ]* (p. 11)

Push to turn the Attenuator function ON or OFF.

 •“LOCAL”appearswhentheAttenuatorfunctionisON.

*Only U.S.A. and Australian version transceivers.

Log [ ] (p. 63)

Push to enter “RCVD CALL LOG” in the DSC CALLS menu.

2PANEL DESCRIPTION

New2001

Function display ■

q BUSY/TRANSMIT ICON (p. 11)

“ ➥” appears when receiving a signal or when the

squelch is open.

“ ➥” appears while transmitting.

w POWER ICON (p. 11)

“25W” appears when high power is selected. ➥

“1W” appears when low power is selected. ➥

e RX SPEAKER ICON (p. 73)

Appears while in the RX Speaker mode.

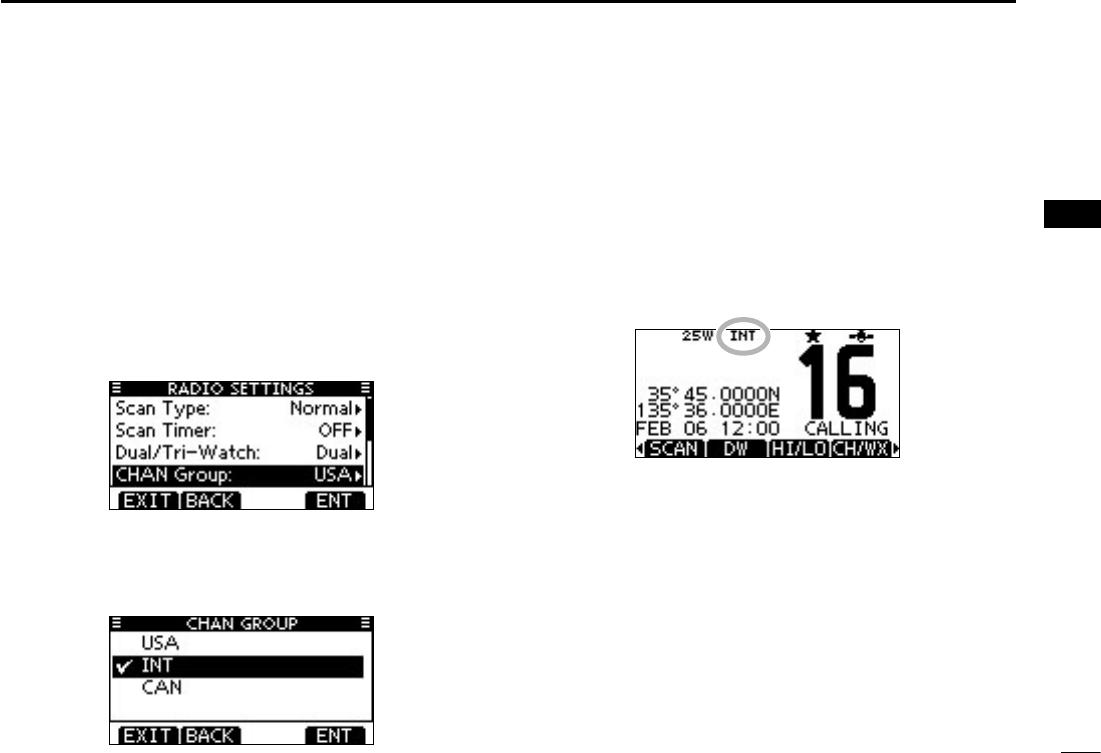

r CHANNEL GROUP ICON (p. 10)

A selected channel group icon, U.S.A. “USA,” Interna- ➥

tional “INT” or Canadian “CAN” appears, depending on

the transceiver version.

“WX” appears when the weather channel is selected.* ➥

*Only U.S.A. and Australian version transceivers.

t CALL CHANNEL ICON (p. 9)

Appears when the Call channel is selected.

y DUPLEX ICON (p. 10)

Appears when a duplex channel is selected.

u TAG CHANNEL ICON (p. 18)

Appears when a TAG (favorite) channel is selected.

i MAIL ICON (p. 63)

Blinks when there is an unread message.

o GPS ICON

Stays ON when the GPS receiver is activated and valid ➥

position data is received.

Blinks when invalid position data is being received. ➥

!0 SWITCH ICON (p. 67)

Appears when the “CH 16 SWITCH” in DSC Settings is set

to ‘OFF.’

!1 LOW BATTERY ICON

Blinks when the battery voltage drops to approximately

10 V DC or less.

!2 CHANNEL NUMBER READOUT

Shows the selected operating channel number.

 •Whenasimplexchannelisselected,“A”appears.

!3 CHANNEL NAME FIELD

The channel name appears, if programmed. (p. 13)

qw ietr!0you

PANEL DESCRIPTION

New2001

!4 KEY ICON (p. 7)

Shows the programmed function of the softkeys on the

front panel.

!5 TIME ZONE INDICATOR

Shows the current time when a GPS receiver is con- ➥

nected, or the time is manually programmed.

  •When the GPS current time is invalid, “??” will blink every

2 seconds instead of the current time. After 23.5 hours has

passed, “NO TIME” will appear.

  •“??”

will

blink every 2 seconds instead of the current time,

after 4 hours have passed from when the time was manually

programmed. The manually programmed time is held for only

23.5 hours, and after that, “NO TIME” will appear.

“LOCAL” appears when the offset time is set. ➥

“MNL” appears when ➥

the time is manually programmed

“UTC” appears when ➥

the GGA, GLL or GNS GPS sen-

tence format is included in the GPS signal.

The date information appears when ➥

the RMC GPS sen-

tence format is included in the GPS signal.

“NO TIME” appears when no GPS receiver is connect- ➥

ed, and no time is manually input.

!6 POSITION INDICATOR

➥ Shows the current position when a GPS receiver is

connected, or the position is manually programmed.

  •WhentheGPSpositionisinvalid,“??”mayblinkevery2sec-

onds instead of position. The last position is held for only

23.5 hours, and after that, “NO POSITION” will appear.

  •

“??”willblinkevery2secondsinsteadofposition,after4hours

have passed from when the position is manually programmed.

The manually programmed position is held for only 23.5 hours,

and after that, “NO POSITION” will appear.

➥ “NO POSITION” appears when no GPS receiver is

connected, and no position is manually input.

!7 SCAN INDICATOR

“SCAN 16” appears during a Priority scan; “SCAN” ap- ➥

pears during a Normal scan. (p. 18)

“DUAL 16” appears during Dualwatch; “TRI 16” appears ➥

during Tri-watch. (p. 19)

!8 LOCAL ICON (p. 11)

Appears when the Attenuator function is turned ON.

*Only U.S.A. and Australian version transceivers.

New2001

2PANEL DESCRIPTION

Speaker Microphone ■

Microphone

Speaker

q PTT SWITCH [PTT]

Hold down to transmit, release to receive. (p. 11)

w CHANNEL UP/DOWN KEYS [Y]/[Z]

Push either key to check TAG channels, Set mode set- ➥

tings, and so on. (pp. 11, 75)

Push either key to change scanning direction or manu- ➥

ally resumes a scan. (p. 18)

e TRANSMIT POWER KEY [HI/LO]

Push to toggle the power high or low. (p. 11) ➥

  •Somechannelsaresettoonlylowpower.

While holding down [HI/LO], turn ON the power to turn ➥

the Microphone Lock function ON or OFF. (p. 14)

Softkey function ■

Various functions can be assigned to the softkeys. When a key

function is assigned, the key icon is displayed above the soft-

key, as shown below. Consult your Icom dealer for details con-

cerning which functions are preprogrammed into the keys.

Softkey function selection D

When “ ➥Ω” or “≈” is displayed beside the key icon, push-

ing [Ω] or [≈] sequentially shows the previous or next key

function that is assigned to the softkey.

Push Push

*Push this key to start

and stop scan.

The order of the key icons may differ, depending on the

preprogramming.

For Chinese version transceiver:

•[ ] appears instead of [ ].

•[ ] does not appear.

PREPARATION

New2001

MMSI code programming ■

The 9 digit MMSI (Maritime Mobile Service Identity: DSC self

ID) code can be programmed at power ON.

This initial code setting can be performed only once.

After being set, it can be changed by only your dealer

or distributor. If your MMSI code has already been pro-

grammed, this programming is not necessary.

Hold down [PWR](Dial) to turn ON the power. q

 •Threeshortbeepssound,and“NODSCMMSI”isdisplayed.

Push [ENT] to start the MMSI code programming. w

 •Push[CLEAR]twicetocanceltheprogramming,andgotothe

normal operating screen. In this case, the transceiver cannot

make a DSC call. To program the MMSI code, turn OFF the

power, then turn it ON again.

Enter your MMSI code in the following manner: e

 •SelectadesirednumberusingDial,or[∫]/[√]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

Repeat step r e to enter all 9 digits.

After entering the 9 digit code, “FINISH” is automatically t

selected, and then push [ENT] or Dial to set it.

The “MMSI CONFIRMATION” screen is displayed. y

Enter your MMSI code again for confirmation. u

 •Enterinthesamemannerasstepse through t.

When your MMSI code programming is successfully com- i

pleted, the screen as shown below is brieﬂy displayed.

 •Afterthat,thenormaloperatingscreenisdisplayed.

The programmed MMSI code can be checked in the MENU

screen. (p. 76)

New2001

BASIC OPERATION

Channel selection ■

Channel 16 D

Channel 16 is the distress and safety channel. It is used for

establishing initial contact with a station and for emergency

communications. Channel 16 is monitored during both Du-

alwatch and Tri-watch. While standing by, you must monitor

Channel 16.

Push [16/C] to select Channel 16. ➥

Push [CH/WX]* to return to the screen displayed before you ➥

selected Channel 16, or push [∫](CH) or [√](CH) to select

an operating channel.

* [CHAN] appears only for Chinese version transceiver.

Call channel D

Each regular channel group has a separate leisure use Call

channel. The Call channel is monitored during Tri-watch. The

Call channels can be programmed, and are used to store

your most often used channel in each channel group, for

quick recall. (p. 13)

Hold down [16/C] for 1 second to select the Call channel of ➥

the selected channel group.

 •“CALL”andtheCallchannelnumberappear.

 •Eachchannelgrouphasanindependentcallchannelafterpro-

gramming. (p. 13)

Push [CH/WX]* to return to the screen displayed before you ➥

selected Call channel, or push [∫](CH) or [√](CH) to select

an operating channel.

* [CHAN] appears only for Chinese version transceiver.

New2001

BASIC OPERATION

New2001

Channel group selection D

There are preprogrammed U.S.A. channels, International

channels and Canadian channels. These channel groups

may be speciﬁed for the operating area.

Push [MENU]. q

Rotate Dial or push [ w∫]/[√] to select “Radio Settings,” and

then push [ENT].

Rotate Dial or push [ e∫]/[√] to select “CHAN Group,” and

then push [ENT].

Rotate Dial or push [ r∫]/[√] to select the desired channel

group, and then push [ENT].

 •U.S.A.(USA),International(INT)andCanadian(CAN)channel

groups can be selected.

Push [EXIT] to exit the Menu screen. t

Push [ y∫](CH) or [√](CH) to select a channel.

 •Pushing[Y]/[Z] on the microphone selects only TAG channels.

 •“DUP”appearswhenaduplexchannelisselected.

 •“A”appearswhenasimplexchannelisselected.

When the International

channel group is selected.

Channel group icon appears

4BASIC OPERATION

New2001

Weather channels D

(U.S.A. and Australian version transceiver only)

The transceiver has 10 weather channels. These are used for

monitoring broadcasts from NOAA (National Oceanographic

and Atmospheric Administration.)

The transceiver can automatically detect a weather alert tone

on the selected weather channel or while scanning. (p. 17)

Push [CH/WX] once or twice to select a weather channel. q

 •“WX”appearswhenaweatherchannelisselected.

 •“WX ” appears when the Weather Alert function is in turned

ON. (p. 78)

Push [ w∫•CH]or[√•CH]toselectachannel.

 •Pushing[Y]/[Z] on the microphone also selects a channel.

When weather alert is OFF.

When weather alert is ON.

Receiving and transmitting ■

CAUTION: Transmitting without an antenna will damage

the transceiver.

Hold down [PWR](Dial) to turn ON the power. q

Set the audio and squelch levels. (p. 15) w

First, open the squelch. Then, adjust the audio output ➥

level. After that, adjust the squelch level until the noise

just disappears.

Change the channel group. (p. 10) e

Push [ r∫](CH) or [√](CH) to select a channel. (pp. 9, 10)

 •Pushing[Y]/[Z] on the microphone also selects a channel.

 •Whenreceivingasignal,“ ” appears and audio is heard.

 •Furtheradjustmentofthevolumelevelmaybenecessary.

Push [LO/DX] to turn the receive Attenuator function ON t

or OFF, if necessary.

 •OnlyU.S.A.andAustralianversiontransceivers.

 •“LOCAL”appearswhenthereceiveAttenuatorfunctionisON.

Push [HI/LO] to select the output power, if necessary. y

 •“25W”appearswhenhighpowerisselected,and“1W”appears

when low power is selected.

 •Chooselowpowerforshortrangecommunications,choosehigh

power for longer distance communications.

 •Somechannelsareforonlylowpower.

Hold down [PTT] to transmit, then speak at your normal u

voice level.

 •“ ” appears.

 •Channel70cannotbeusedfortransmissionotherthanDSC.

Release [PTT] to receive. i

BASIC OPERATION

New2001

Information ✓

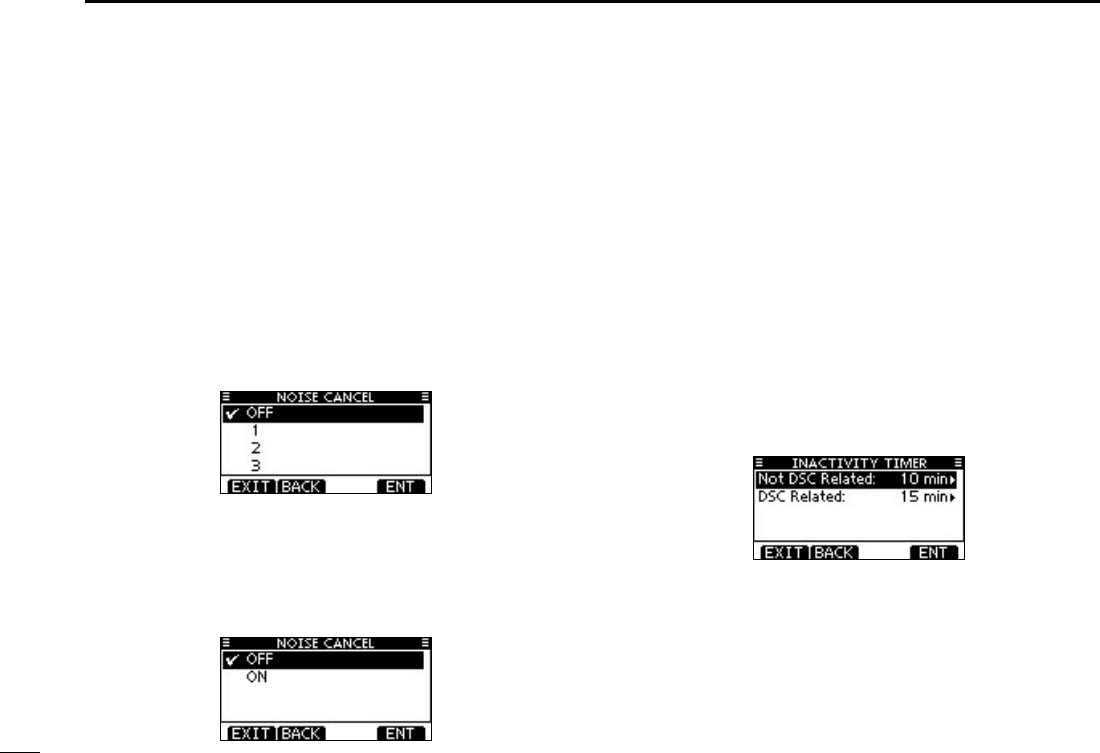

The Noise Cancel function reduces random noise components

in the transmit and/or receive signal. See page

for details.

Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT

be lawfully used by the general public in U.S.A. waters.

IMPORTANT: To maximize the readability of your transmit-

ted signal, pause a few seconds after pushing [PTT], hold

the microphone 5 to 10 cm (2 to 4 inches) from your mouth

and speak at a normal voice level.

NOTE for the TOT (Time-out Timer) function ✓

The TOT function inhibits continuous transmission beyond a

preset time period after the transmission starts.

10 seconds before transmission is cutoff, a beep sounds to

indicate the transmission will be shut down and “TOT” appears

in the channel name ﬁeld. Transmission is not possible for 10

seconds after this shut down.

Microphone

t y qw

4BASIC OPERATION

Call channel programming ■

You can program the Call channel with your most often-used

channel in each channel group for quick recall.

Select the desired channel group (INT, USA or CAN) to be q

programmed. (p. 10)

Hold down [16/C] for 1 second to select the Call channel of w

the selected channel group.

 •“CALL”andtheCallchannelnumberappear.

Hold down [16/C] again for 3 seconds (until a long beep e

changes to 2 short beeps) to enter the Call channel pro-

gramming mode.

Rotate Dial or push [ r∫](CH)/[√](CH) to select a channel.

Push [ENT] to program the displayed channel as the Call t

channel.

 •Push[CLEAR]tocancel.

Channel name programming ■

Each channel can be assigned a unique alphanumeric ID of

up to 10 characters.

Capital letters, 0 to 9, some symbols (! " # $ % & ' ( ) * + , – .

/[\]^_:;<=>?)andaspacecanbeinput.

Push [ q∫](CH) or [√](CH) to select a channel.

 •First, cancel the Dualwatch,Tri-watchorScanfunction,if acti-

vated.

Push [NAME] to open the channel name programming w

screen.

 •Ablackboxisdisplayedontherstcharacter.

Enter the desired channel name in the following manner: e

 •SelectadesiredcharacterusingDial,or[∫]/[√]/[Ω]/[≈].

 •Push[ENT]tosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT].

 •Select“SPACE,”thenpush[ENT]toinputaspace.

 •Select“DELETE,”thenpush[ENT]todeleteacharacter.

 •Push[CLEAR]tocancelandreturntothepreviousscreen.

BASIC OPERATION

Repeat step r e to input all characters.

Push [ tΩ], [≈], [∫] or [√] to select “FINISH,” then push

[ENT] to set the name and return to the previous screen.

Microphone Lock function ■

The Microphone Lock function electrically locks [∫], [√] and

the [HI/LO] keys on the supplied microphone. This prevents

accidental channel changes and function access.

While holding down [HI/LO] on the microphone, hold down ➥

[PWR](Dial) to turn ON the transceiver and turn the Micro-

phone Lock function ON or OFF.

[HI/LO]

[Y]/[Z]

4BASIC OPERATION

Adjusting the volume level ■

The volume level can be adjusted with [VOL/SQL](Dial).

Rotate [VOL/SQL](Dial), or push [VOL/SQL](Dial) one or q

more times to display the volume adjustment screen.

Rotate [VOL/SQL](Dial) to adjust the volume level. w

 •Thetransceiverhas20volumelevelsandOFF.

 •Ifnokeyoperationisperformedforabout5seconds,thetrans-

ceiver sets the selected volume level, and returns to the normal

mode.

Push [ENT] to set the level, and exit the volume adjust- e

ment mode.

 •Push[CLEAR]tocancel.

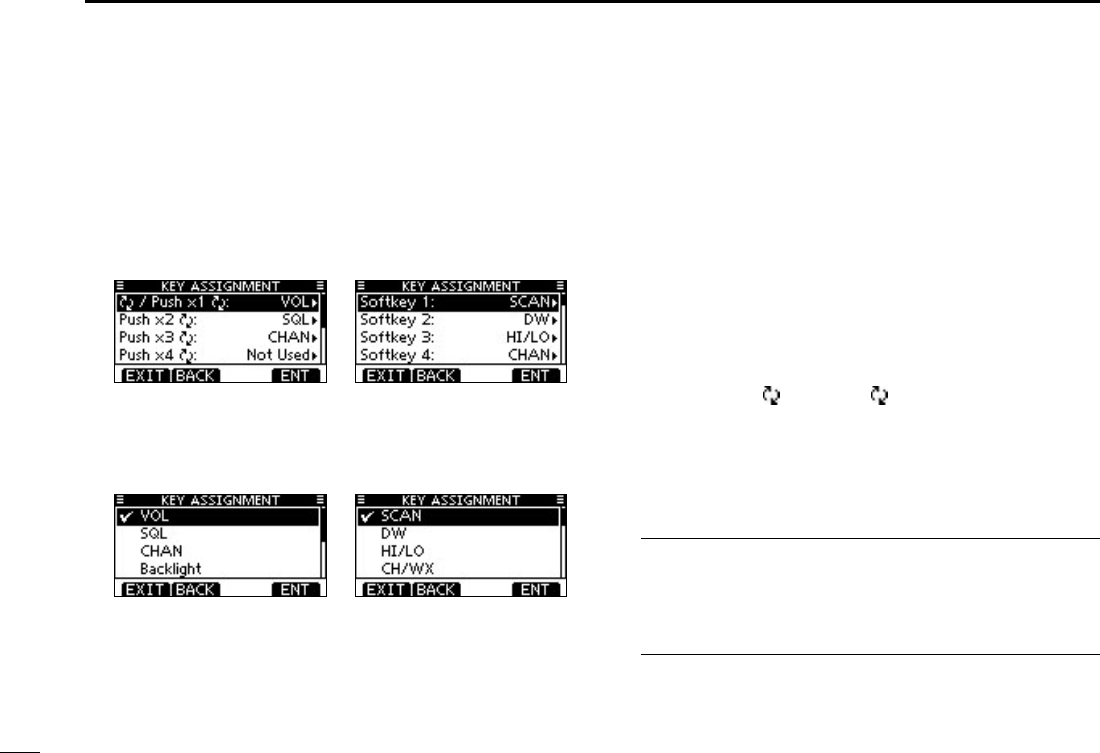

The desired function can be assigned to Dial. See page 79

for details.

Adjusting the squelch level ■

The squelch level can be adjusted with [VOL/SQL](Dial).

In order to receive signals properly, as well as for the scan

to function effectively, the squelch must be adjusted to the

proper level.

Push [VOL/SQL](Dial) one or more times to display the q

squelch adjustment screen.

Rotate [VOL/SQL](Dial) to adjust the squelch level. w

 •The transceiver has 11 squelch levels: OPEN is completely

open; 10 is tight squelch; 1 is loose squelch.

 •Ifnokeyoperationisperformedforabout5seconds,thetrans-

ceiver sets the selected squelch level, and returns to the normal

mode.

Push [ENT] to set the level, and exit the squelch adjust- e

ment mode.

 •Push[CLEAR]tocancel.

The desired function can be assigned to Dial. See page 79

for details.

BASIC OPERATION

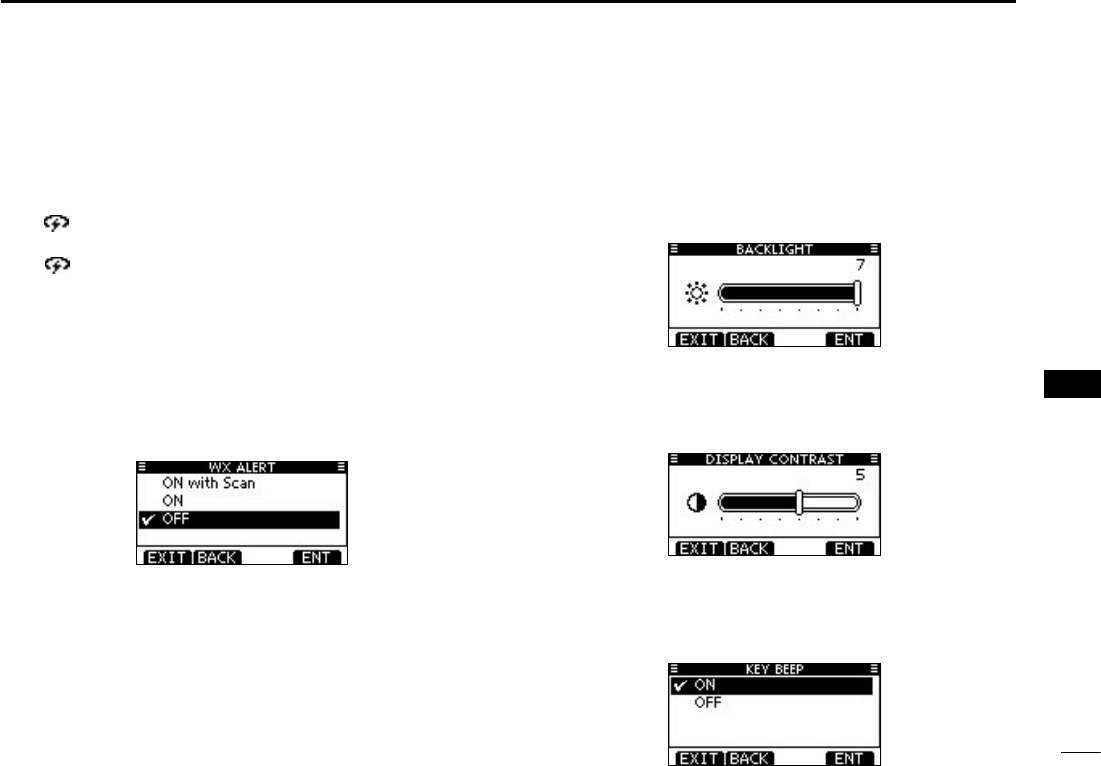

Adjusting the display ■

backlight level

The function display and keys can be backlit for better visibil-

ity under low light conditions.

The backlight is adjustable in 7 levels and OFF.

Depending on the preprogramming, the adjustment method

differs, as described below.

Push [BKLT] to show the backlight adjustment screen. Ro- ➥

tate Dial to adjust the brightness of the LCD and key back-

light, and then, push [ENT].

 •Ifnokeyoperationisperformedforabout5seconds,thetransceiver

sets the selected backlight level, and returns to the normal mode.

When the Backlight function is assigned to the [VOL/

SQL](Dial):

Push [VOL/SQL](Dial) one or more times to display the q

backlight adjustment screen.

Rotate [VOL/SQL](Dial) to adjust the brightness of the w

LCD and key backlight, and then, push [ENT].

The desired function can be assigned to Dial. See page 79

for details.

AquaQuake water draining ■

function

The AquaQuake water draining function clears water away

from the speaker grill. Without this function, water may mufﬂe

the sound coming from the speaker. A buzzing sound is heard

when this function is activated.

While holding down [AQUA], the AquaQuake function is ➥

activated to clear water away from the speaker grill.

 •Whileholdingdown[AQUA],alowbuzzingsoundstodrainwa-

ter, regardless of the volume level setting.

 •The transceiver keys, except [DISTRESS], are disabled while

the AquaQuake function is activated.

When the AquaQuake function is activated.

SCAN OPERATION

Scan types ■

Scanning is an efﬁcient way to locate signals quickly over a

wide frequency range. The transceiver has a Priority scan

and a Normal scan.

When the Weather Alert function is turned ON, the weather

channel is also checked while scanning. (p. 78)

Set the TAG channels (scanned channel) before scanning.

Clear the TAG channels which inconveniently stop scanning,

such as those for digital communication use. (Refer to the

next page for details.)

Choose Priority or Normal scan in the Menu screen. (p.

)

PRIORITY SCAN

The Priority scan sequentially searches through all TAG

channels while monitoring Channel 16. When a signal is

detected on Channel 16, the scan pauses until the signal

disappears. When a signal is detected on a channel other

than Channel 16, the scan becomes a Dualwatch until the

signal disappears.

NORMAL SCAN

The Normal scan, like the Priority scan, sequentially

searches through all TAG channels. However, unlike the

Priority scan, Channel 16 is not checked unless it is set as

a TAG channel.

WX*

CH 01

CH 16

CH 02

CH 05 CH 04

CH 03

*When the weather alert function is activated.

CH 01 CH 02

WX*

CH 05 CH 04

CH 03

*When the weather alert function is activated.

SCAN OPERATION

Setting TAG channels ■

For more efﬁcient scanning, add desired channels as TAG

channels, or clear the TAG on unwanted channels.

Channels that are not tagged will be skipped while scanning.

TAG channels can be independently assigned to each chan-

nel group (INT, USA, or CAN).

Select the desired channel group. (p. q

)

Select the desired channel to be set as a TAG channel. w

Push [ e] to set the displayed channel as a TAG channel.

 •“” appears on the display.

To cancel the TAG channel setting, repeat step r e.

 •“” disappears.

Clearing (or setting) all tagged channels ✓

Hold down [] for 3 seconds (until a long beep changes to 2

short beeps) to clear all TAG channel settings in the selected

channel group.

•RepeataboveproceduretosetallchannelsasTAGchannels.

Starting a scan ■

First, set the scan type (Priority or Normal scan) and scan

resume timer in the Menu screen. (p. 77)

Select the desired channel group. (p. q

)

Set the TAG channels, as described to the left. w

Make sure the squelch is closed to start a scan. e

Push [SCAN] to start a Priority or Normal scan. r

 •“SCAN16”appearsduringaPriorityscan;“SCAN”appearsdur-

ing a Normal scan.

 •Whenasignalisdetected,thescanpausesuntilthesignaldis-

appears, or resumes after pausing 5 seconds, depending on the

Set mode setting. (Channel 16 is still monitored during a Priority

scan.)

 •Push[Y]/[Z] on either transceiver or microphone, to check the

scanning TAG channels, change the scanning direction or man-

ually resume the scan.

 •Abeeptonesoundsand“16”blinkswhenasignalisreceivedon

Channel 16 during a Priority scan.

To stop the scan, push [CLEAR] or repeat step t r.

Scan starts. When a signal is received.

Push

[SCAN]

[Example]: Starting a Normal scan.

New2001

DUALWATCH/TRI-WATCH

Description ■

Dualwatch monitors Channel 16 while you are receiving

on another channel; Tri-watch monitors Channel 16 and the

Call channel while receiving another channel. Dualwatch and

Tri-watch are convenient for monitoring Channel 16 when you

are operating on another channel.

Operation ■

Select Dualwatch or Tri-watch in the Menu screen. (p. 77) q

Push [ wY](CH) or [Z](CH) to select the desired operating

channel.

Push [DW] to start a Dualwatch or Tri-watch scan. e

 •“DUAL16”appearsduringDualwatch;“TRI16”appearsduring

Tri-watch.

 •AbeeptonesoundswhenasignalisreceivedonChannel16.

To cancel Dualwatch or Tri-watch, push [DW] again. r

DUALWATCH/TRI-WATCH SIMULATION

Dualwatch Tri-watch

Call channel

Ch 88

Ch 16 Ch 88 Ch 16 Ch 88 Ch 9

•IfasignalisreceivedonChannel16,DualwatchandTri-

watch pause on Channel 16 until the signal disappears.

•IfasignalisreceivedontheCallchannelduringTri-watch,

Tri-watch becomes Dualwatch until the signal disap-

pears.

•TotransmitontheselectedchannelduringaDualwatchor

Tri-watch scan, hold down [PTT].

[Example]: Operating Tri-watch on INT Channel 25.

Tri-watch starts. Signal is received on

Call channel.

Tri-watch resumes after the

signal disappears.

Signal received on Channel

16 takes priority.

DSC OPERATION

DSC address ID ■

Programming Individual ID D

A total of 100 DSC address IDs can be programmed and as-

signed a name of up to 10 characters.

Enter “INDIVIDUAL ID” in the DSC SETTINGS menu. q

Push [ADD]. w

 •The“INDIVIDUALID”programscreenisdisplayed.

Enter a desired individual ID in the following way: e

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

The ﬁrst digit is speciﬁed as ‘0’ for a Group ID.

The ﬁrst two digits are ‘0’ for any Coast station ID.

Repeat step r e to enter all 9 digits.

After entering the 9 digit code, push [ENT] or Dial to set it. t

 •TheIDnameprogrammingscreenisdisplayed.

Enter a desired 10 digit ID name in the following way: y

 •SelectadesiredcharacterusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •Push[123]then[!$?]then[ABC]toselectacharactergroup.

After entering the ID name, select “FINISH” using Dial, or u

[Y]/[Z]/[Ω]/[≈], then push [ENT] or Dial to program it.

 •The“INDIVIDUALID”listscreenisdisplayed.

Push [MENU] to exit the MENU screen. i

MENU ➪ DSC Settings  ➪ 

Individual ID



(Push [MENU])

(Rotate Dial, then push [ENT].)

7DSC OPERATION

Programming Group ID D

Enter “GROUP ID” in the DSC SETTINGS menu. q

Push [ADD]. w

 •The“GROUPID”programscreenisdisplayed.

Enter a desired group ID in the following way: e

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

The ﬁrst digit is ﬁxed as ‘0’ for a Group ID.

The ﬁrst two digits are ‘0’ for any Coast station ID.

Repeat step r e to input the speciﬁc 9 digits group code.

After entering the 9 digit code, push [ENT] or Dial to set it. t

 •TheGroupIDnameprogrammingscreenisdisplayed.

Enter a desired 10 digit ID name in the following way: y

 •SelectadesiredcharacterusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •Push[123],[!$?]or[ABC]toselectacharactergroup.

After entering the ID name, select “FINISH” using Dial, or u

[Y]/[Z]/[Ω]/[≈], then push [ENT] or Dial to program it.

 •The“GROUPID”listscreenisdisplayed.

Push [MENU] to exit the MENU screen. i

MENU ➪ DSC Settings ➪ 

Group ID



(Push [MENU])

(Rotate Dial, then push [ENT].)

DSC OPERATION

Deleting Individual/Group ID D

Enter “INDIVIDUAL ID” or “GROUP ID” in the DSC SET- q

TINGS menu.

 •WhennoaddressIDisprogrammed,“NoID”isdisplayed.Inthis

case, push [MENU] to exit the MENU screen.

Rotate Dial or push [ wY]/[Z] to select a desired ID name,

then push [DEL].

Push [OK] to delete the ID, and return to the “INDIVIDUAL e

ID” or “GROUP ID” list screen.

 •Push[CANCEL]tocancelit.

Push [MENU] to exit the MENU screen. r

MENU ➪ DSC Settings ➪ 

Individual ID

/

Group ID



(Push [MENU])

(Rotate Dial, then push [ENT].)

7DSC OPERATION

A Distress call should include the ship’s position and time. If

no GPS is connected, your position and UTC (Universal Time

Coordinated) time should be manually input. They are auto-

matically included when a GPS receiver compatible with the

NMEA0183 ver. 2.0 or 3.01 format is connected.

•ManualprogrammingisdisabledwhenaGPSreceiveris

connected.

•Manuallyprogrammedpositionandtimewillbeheldfor

only 23.5 hours.

Enter “POSITION INPUT” in the DSC SETTINGS menu. q

Edit your latitude and longitude position using Dial, or [ wY]/

[Z]/[Ω]/[≈].

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •SelectN(Northlatitude)orS(Southlatitude)whenthecursoris

on the ‘N’ or ‘S’ position.

 •SelectW(Westlongitude)orE(Eastlongitude)whenthecursor

is on the ‘W’ or ‘E’ position.

After entering the position, push [ENT] to program it. e

The UTC time programming screen is displayed, enter the r

UTC time in the following way:

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

Push [ENT] or Dial to program your position and time. t

 •Returntothe“DSCSETTING”screen.

Position and time programming ■

MENU ➪ DSC Settings ➪ Position Input

(Push [MENU])

(Rotate Dial, then push [ENT].)

DSC OPERATION

Distress call ■

A Distress call should be transmitted if, in the opinion of the

Master, the ship or a person is in distress and requires im-

mediate assistance.

NEVER MAKE A DISTRESS CALL IF YOUR SHIP OR A

PERSON IS NOT IN AN EMERGENCY. A DISTRESS

CALL SHOULD BE MADE ONLY WHEN IMMEDIATE

HELP IS NEEDED.

Simple call D

Conﬁrm no Distress call is being received. q

While lifting up the key cover, hold down [DISTRESS] for 3 w

seconds to transmit the Distress call.

 •Whileholdingdown[DISTRESS],countdownbeepssoundand

both the key and display backlighting blink.

 •DSC channel (Channel 70) is automatically selected and the

Distress call is transmitted.

After transmitting the call, the transceiver waits for an ac- e

knowledgment call.

 •The Distress call is automatically transmitted every 3.5 to 4.5

minutes, until an acknowledgement is received (‘Call repeat’

mode), or DSC Cancel call is made. (p. 27)

 •Push[RESEND]tomanuallytransmittheDistressrepeatcall.

 •Push [Ω]/[≈] then push [INFO] to display the transmitted Dis-

tress call information.

 •Push[Ω]/[≈] then push [PAUSE] to pause the ‘Call repeat’ mode,

push [RESUME] to resume it.

After receiving the acknowledgment, push [ALARM OFF] r

then reply using the microphone.

A distress alert default contains: ➥

 •Natureofdistress :Undesignateddistress

 •Positioninformation:The latest GPS or manual input position

is held for 23.5 hours, or until the power is

turned OFF.

7DSC OPERATION

Regular call D

The nature of the Distress call should be included in the Dis-

tress call.

Enter “DISTRESS CALL” in the DSC CALLS menu. q

Select the nature of the distress using Dial or [ wY]/[Z], then

push Dial or [ENT].

 •‘Undesignated,’‘Fire,Explosion,’‘Flooding,’‘Collision,’‘Grounding,’

‘Capsizing,’ ‘Sinking,’ ‘Adrift,’ ‘Abandoning ship,’ ‘Piracy’ or ‘Man

Overboard’ is selectable.

 •Thenatureofthedistressisstoredfor10minutesafteraselec-

tion is made.

The Distress call conﬁrmation screen is displayed. e

 •RotateDialorpush[Y]/[Z] to see the hidden lines.

Hold down [DISTRESS] for 3 seconds to transmit the Dis- r

tress call.

 •Whileholdingdown[DISTRESS],countdownbeepssoundand

both the key and display backlighting blink.

 •Theselectednatureofthedistressisstoredfor10minutes.

MENU ➪ DSC Calls ➪ Distress Call

(Push [MENU])

(Rotate Dial, then push [ENT].)

DSC OPERATION

After transmitting the call, the transceiver waits for an ac- t

knowledgment call.

 •The Distress call is automatically transmitted every 3.5 to 4.5

minutes, until an acknowledgement is received (‘Call repeat’

mode), or DSC cancel call is made. (p. 27)

 •Push[RESEND]tomanuallytransmittheDistressrepeatcall.

 •Push [Ω]/[≈] then push [INFO] to display the transmitted Dis-

tress call information.

 •Push[Ω]/[≈] then push [PAUSE] to pause the ‘Call repeat’ mode,

push [RESUME] to resume it.

After receiving an acknowledgment call, push [ALARM y

OFF] then reply using the microphone.

A distress alert contains: ➥

 •Natureofdistress :Selectedinstepw.

 •Positioninformation:The latest GPS or manual input position

is held for 23.5 hours, or until the power is

turned OFF.

When no GPS receiver is connected, and both position

and time have been manually programmed, the screen as

shown below appears. Edit your latitude and longitude po-

sition and UTC time as follows:

Push [CHG], then edit your latitude and longitude posi- ➥

tion and UTC time.

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •SelectN(Northlatitude)orS(Southlatitude)whenthecursor

is on the ‘N’ or ‘S’ position.

 •SelectW(Westlongitude)orE(Eastlongitude)whenthecur-

sor is on the ‘W’ or ‘E’ position.

7DSC OPERATION

Distress cancel call D

While waiting for an acknowledgment call, push [CAN- q

CEL].

Push [CONTINUE]. w

 •Push[BACK]toreturntowaitingforanacknowledgementcall.

Push [FINISH]. e

 •Push[EXIT]toreturntowaitingforanacknowledgementcall.

The Distress cancel call is transmitted. r

Channel 16 is automatically selected. t

 •Reportyoursituationusingthemicrophone.

 •Afterthereport, push[EXIT]toreturn tothenormaloperating

mode.

DSC OPERATION

Transmitting DSC calls ■

To ensure correct operation of the DSC function, make

sure you correctly set the CH70 SQL LEVEL. (p. 69)

Transmitting an individual call D

The Individual call function allows you to transmit a DSC sig-

nal to only a speciﬁc station.

Enter “INDIVIDUAL CALL” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Individual Call

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select the desired preprogrammed individual address, or w

“Manual Input,” using Dial or [Y]/[Z], then push Dial or

[ENT].

 •TheIDcodefortheIndividualcallcanbesetrst.(p.20)

 •When“ManualInput”isselected,setadesired9digitMMSIID

code for the individual you wish to call.

About Manual Inputting:

Enter a desired individual ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis

entered, an error beep sounds after pushing [FINISH].

•Thersttwodigitsare‘0’foranycoaststationID.

Select Routine, Safety or Urgency as the desired call type e

using Dial or [Y]/[Z], then push [ENT].

NOTE: When a coast station is selected in step w, the

voice channel is automatically speciﬁed by the coast sta-

tion. Therefore, skip step r and go directly to step t.

+ Continued on the next page.

7DSC OPERATION

Transmitting an Individual call (continued) D

Select a desired intership channel using Dial or [ rY](CH)/

[Z](CH), then push [ENT].

 •Intershipchannelsarealreadypresetintothetransceiverinthe

recommended order.

A conﬁrmation screen appears. t

 •Conrmthecallcontents.

Push [CALL] to transmit the Individual call. y

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

Standby on Channel 70 until an acknowledgement is re- u

ceived.

When the acknowledgement ‘Able to comply’ is received, i

beeps sound and the screen below is displayed.

Push [ALARM OFF] to stop the beeps and then select the

intership channel speciﬁed in step r.

 •Adifferentintership channel willbeselected if thestationyou

called cannot use the channel.

 •Replyusingthemicrophone.Andgotostepo.

DSC OPERATION

Or, when the acknowledgement ‘Unable to comply’ is re-

ceived, beeps sound and the screen below is displayed.

Push [ALARM OFF] to stop the beeps. Then push [EXIT]

to return to the operating channel (before you entered the

MENU screen).

After communicating, push [EXIT] to return to the normal o

operating mode.

Convenient! ✓

When the optional MA-500TR

c l a s s b a i s t r a n s p o n d e r

connected to your transceiver, you can transmit individual

DSC calls to selected AIS targets on the transponder without

needing to enter the target’s MMSI code.

See pages

and

for more details.

Transmitting an Individual Acknowledgement D

When receiving an Individual call, you can transmit an ac-

knowledgement (‘Able to Comply,’ ‘Propose New Channel’ or

‘Unable to Comply’) by using the on-screen prompts (Quick

ACK.) Also, you can send an acknowledgement through the

MENU system (Man ual ACK.)

Quick ACK:

When an Individual call is received, beeps sound and the q

screen below is displayed.

Push [ALARM OFF] to stop the beeps.

Push [ACK]. w

+ Continued on the next page.

7DSC OPERATION

Transmitting an Individual Acknowledgement (continued) D

Select one of three options, then push [ENT]. e

 •AbletoComply :Makeanacknowledgmentcallwithout

any changes.

 •UnabletoComply :Youcannotmakeacommunication.

The Acknowledgement call (‘Unable to

Comply’) can be automatically trans-

mitted, if set. See page 66 for details.

 •ProposeNewChannel :You can make an acknowledgement

call, but you specify the intership chan-

nel. Select a desired intership channel,

using Dial, or [Y](CH)/[Z](CH), then

push [ENT].

The Individual ACK conﬁrmation screen is displayed. r

Push [CALL] to transmit an acknowledgement call.

The screens shown below are displayed. t

Reply to the call using the microphone. y

Push [EXIT] to return to the normal operating mode. u

DSC OPERATION

Manual ACK:

Enter “INDIVIDUAL ACK” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Individual ACK

(Push [MENU])

(Rotate Dial, then push [ENT].)

 •WhennoIndividualcallhasbeenreceived,“IndividualACK”item

will not be displayed.

Select a desired individual address or ID code to reply to, w

using Dial or [Y]/[Z], then push [ENT].

Perform steps e e to u, as described in “Quick ACK:,” be-

ginning on the previous page.

Transmitting a Group call D

The Group call function allows you to transmit a DSC signal

to only a speciﬁc group.

Enter “GROUP CALL” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Group Call

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select the desired preprogrammed group address or “Man- w

ual Input,” using Dial or [Y]/[Z], then push Dial or [ENT].

 •TheIDcodefortheGroupcallcanbesetrst.(p.21)

 •When“ManualInput”isselected,setthe8digitIDcodeforthe

group you wish to call.

Select a desired intership channel using Dial or [ eY](CH)/

[Z](CH), then push [ENT].

 •Intershipchannelsarealreadypresetintothetransceiverinthe

recommended order.

+ Continued on the next page.

7DSC OPERATION

Transmitting a Group call (continued) D

About Manual Inputting:

Enter a desired group ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.

•Thersttwodigitsare‘0’foranyCoaststationID.

A conﬁrmation screen appears. r

 •Conrmthecallcontents.

Push [CALL] to transmit the Group call. t

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

After the Group call has been transmitted, the following y

screen is displayed.

Announce the information using the microphone. u

After the announcement, push [EXIT] to return to the nor- i

mal operating mode.

DSC OPERATION

Transmitting an All Ships call D

All ships, that have DSC transceiver, use Channel 70 as their

‘listening channel.’ When you want to announce a message to

these ships within range, use the ‘All Ships Call’ function.

Enter “ALL SHIPS CALL” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ All Ships Call

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select a desired category, using Dial or [ wY]/[Z], then push

Dial or [ENT].

 •The selectable category may differ, depending on the pro-

grammed setting. Ask your dealer for the selectable categories.

Select a desired trafﬁc channel, using Dial or [ eY]/[Z], then

push Dial or [ENT].

 •Theselectedchannelisdisplayed.

A conﬁrmation screen appears. r

 •Conrmthecallcontents.

Push [CALL] to transmit the All Ships call. t

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

After the All Ships call has been transmitted, the following y

screen is displayed.

Announce the message using the microphone. u

After the announcement, push [EXIT] to return to the nor- i

mal operating mode.

7DSC OPERATION

Transmitting a Position Request Call D

(U.S.A. and Australian version transceiver only)

Transmit a Position Request Call when you want to know a

speciﬁc ship’s current position, etc.

Enter “POSITION REQUEST” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Position Request

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select the desired preprogrammed individual address, or w

“Manual Input,” using Dial or [Y]/[Z], then push Dial or

[ENT].

 •TheIDcodeforthePositionRequestCallcanbesetrst.(p.20)

 •When“ManualInput”isselected,setadesired9digitMMSIID

code for the individual you wish to call.

About Manual Inputting:

Enter a desired individual ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis

entered, an error beep sounds after pushing [FINISH].

•Thersttwodigitsare‘0’foranycoaststationID.

A conﬁrmation screen appears. e

 •Conrmthecallcontents.

DSC OPERATION

Push [CALL] to transmit the Position Request Call. r

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

After the Position Request Call has been transmitted, the t

following screen is displayed.

When the acknowledgement call is received, beeps sound y

and the following screen is displayed.

Push [ALARM OFF] to stop the beeps, and then the screen u

as shown below is displayed.

Push [EXIT] to return to the normal operating mode. i

7DSC OPERATION

Transmitting a Position Report Call D

(U.S.A. and Australian version transceiver only)

Transmit a Position Report Call when you want to announce

your own position to a speciﬁc ship and receive an answer

back.

Enter “POSITION REPORT” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Position Report

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select the desired preprogrammed individual address, or w

“Manual Input,” using Dial or [Y]/[Z], then push Dial or

[ENT].

 •TheIDcodefortheIndividualcallcanbesetrst.(p.20)

 •When“ManualInput”isselected,setadesired9digitMMSIID

code for the individual you wish to call.

About Manual Inputting:

Enter a desired individual ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis

entered, an error beep sounds after pushing [FINISH].

•Thersttwodigitsare‘0’foranycoaststationID.

A conﬁrmation screen appears. e

 •Conrmthecallcontents.

DSC OPERATION

Push [CALL] to transmit the Position Report Call. r

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

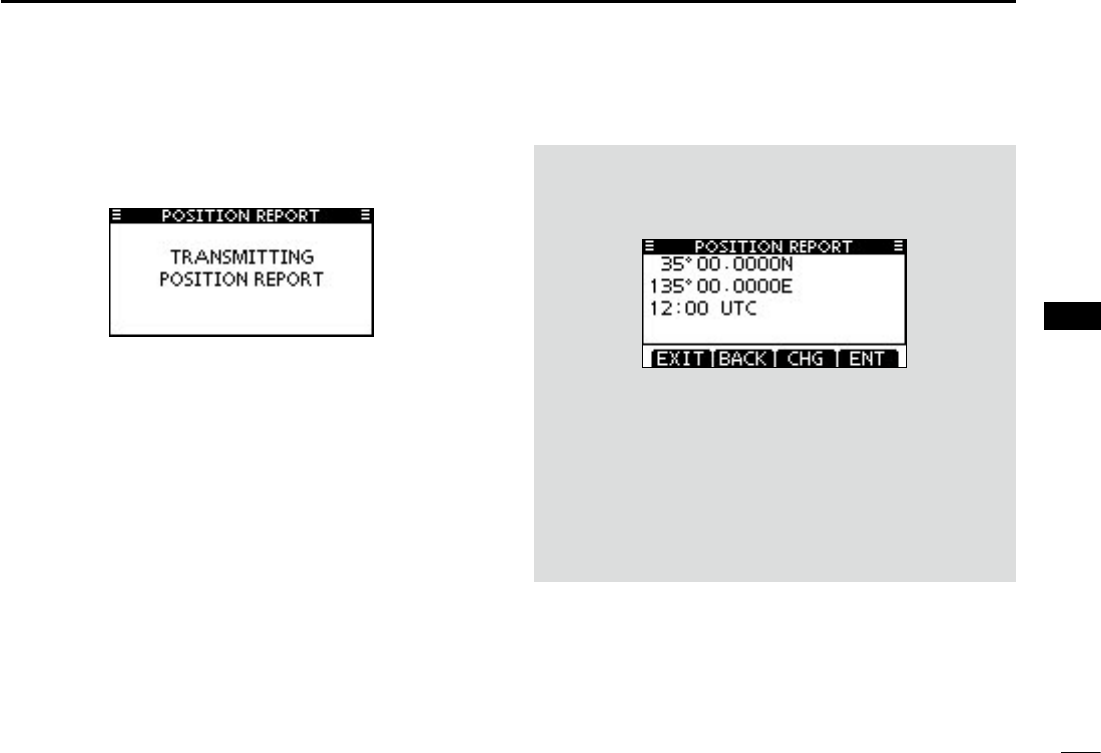

After the Position Report Call has been transmitted, the t

transceiver automatically returns to the normal operating

mode.

When no GPS receiver is connected, and both position and

time have been manually programmed, the screen shown

below appears. Edit your latitude and longitude position and

UTC time as follows:

Push [CHG], then edit your latitude and longitude position ➥

and UTC time.

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •SelectN(Northlatitude)orS(Southlatitude)whenthecursor

is on the ‘N’ or ‘S’ position.

 •SelectW(Westlongitude)orE(Eastlongitude)whenthecur-

sor is on the ‘W’ or ‘E’ position.

7DSC OPERATION

Transmitting a Polling Request Call D

(U.S.A. and Australian version transceiver only)

Transmit a Polling Request Call when you want to know a

speciﬁc vessel is in the communication area, or not.

Enter “POLLING REQUEST” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Polling Request

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select the desired preprogrammed individual address, or w

“Manual Input,” using Dial or [Y]/[Z], then push Dial or

[ENT].

 •TheIDcodefortheIndividualcallcanbesetrst.(p.20)

 •When“ManualInput”isselected,setadesired9digitMMSIID

code for the individual you wish to call.

About Manual Inputting:

Enter a desired individual ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis

entered, an error beep sounds after pushing [FINISH].

•Thersttwodigitsare‘0’foranycoaststationID.

A conﬁrmation screen appears. e

 •Conrmthecallcontents.

DSC OPERATION

Push [CALL] to transmit the Polling Request Call. r

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

After the Polling Request Call has been transmitted, the t

following screen is displayed.

When the acknowledgement call is received, beeps sound y

and the following screen is displayed.

Push [ALARM OFF] to stop the beeps, and then the screen u

as shown below is displayed.

Push [EXIT] to return to the normal operating mode. i

7DSC OPERATION

Transmitting a Test call D

Testing on the exclusive DSC distress and safety calling chan-

nels should be avoided as much as possible. When testing on

a distress/safety channel is unavoidable, you should indicate

that these are test transmissions.

Normally the test call would require no further communica-

tions between the two stations involved.

Enter “TEST CALL” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Test Call

(Push [MENU])

(Rotate Dial, then push [ENT].)

Select a desired preprogrammed individual address, or w

“Manual Input,” then push Dial or [ENT].

 •TheIDcodefortheIndividualcallcanbesetrst.(p.20)

 •When“ManualInput”isselected,setthe9digitMMSIIDcodefor

the individual you wish to call.

About Manual Inputting:

Enter a desired address ID in the following way:

•SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

•Push[ENT]orDialtosetit.

•Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

•Therstdigitisspeciedas‘0’foraGroupID.IfaGroupIDis

entered, an error beep sounds after pushing [FINISH].

•Thersttwodigitsare‘0’foranyCoaststationID.

A conﬁrmation screen appears. e

 •Conrmthecallcontents.

DSC OPERATION

Push [CALL] to transmit the Test call. r

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

After the Test call has been transmitted, the following t

screen is displayed.

When the acknowledgement call is received, beeps sound y

and the following screen is displayed.

Push [ALARM OFF] to stop the beeps, and then the screen u

as shown below is displayed.

Push [EXIT] to return to the normal operating mode. i

7DSC OPERATION

New2001

Transmitting a Test Acknowledgement call D

When the “TEST ACK” in DSC settings is set to ‘Auto TX’

(p. 66), the transceiver automatically transmits a reply call

when receiving a Test call.

Quick ACK:

When a Test call is received, beeps sound and the screen q

shown below is displayed.

Push [ALARM OFF] to stop the beeps.

Push [ACK]. w

 •Push[INFO]todisplaytheTestcallinformation.

Push [BACK] to return to the previous screen, or push [ACK].

The Test ACK conﬁrmation screen is displayed. e

Push [CALL] to transmit the acknowledgement call.

While transmitting the acknowledgement call, the screen r

shown below is displayed, and then returns to the normal

operating mode.

DSC OPERATION

New2001

Manual ACK:

Enter “TEST ACK” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Test ACK

(Push [MENU])

(Rotate Dial, then push [ENT].)

 •IfnoTestcallhasbeenreceived,the“TESTACK”itemwillnot

be displayed.

Select a desired Test call to reply to, using Dial or [ wY]/[Z],

then push Dial or [ENT].

The Test ACK conﬁrmation screen is displayed. e

Push [CALL] to transmit the acknowledgement call.

While transmitting the acknowledgement call, the screen r

shown below is displayed, and then returns to the normal

operating mode.

7DSC OPERATION

New2001

Transmitting a Position Reply call D

Transmit a Position Reply call when a Position Request call

is received.

When the “POSITION ACK” in DSC Settings is set to ‘Auto

TX’ (p. 66), the transceiver automatically transmits a reply call

when receiving a Position Request call.

Quick Reply:

When a Position Request call is received, beeps sound q

and the screen shown below is displayed.

Push [ALARM OFF] to stop the beeps.

Push [ACK]. w

•Push[INFO]todisplaythePositionRequestcallinformation.

Push [BACK] to return to the previous screen, or push [ACK].

The Position Reply conﬁrmation screen is displayed. e

Push [CALL] to transmit the reply call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

DSC OPERATION

New2001

Manual Reply:

Enter “POSITION REPLY” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Position Reply

(Push [MENU])

(Rotate Dial, then push [ENT].)

 •IfnoPositionRequestcallhasbeenreceived,the“POSITION

REPLY” item will not be displayed.

Select a desired Position Request call to reply to, using w

Dial or [Y]/[Z], then push Dial or [ENT].

The Position Reply call conﬁrmation screen is displayed. e

Push [CALL] to transmit the acknowledgement call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

When no GPS receiver is connected, and both position and

time have been manually programmed, the screen shown

below appears. Edit your latitude and longitude position and

UTC time as follows:

Push [CHG], then edit your latitude and longitude position ➥

and UTC time.

 •SelectadesirednumberusingDial,or[Y]/[Z]/[Ω]/[≈].

 •Push[ENT]orDialtosetit.

 •Tomovethecursor,selecteitherarrow,“←” or “→,” then push

[ENT] or Dial.

 •SelectN(Northlatitude)orS(Southlatitude)whenthecursor

is on the ‘N’ or ‘S’ position.

 •SelectW(Westlongitude)orE(Eastlongitude)whenthecur-

sor is on the ‘W’ or ‘E’ position.

7DSC OPERATION

New2001

Transmitting a Position Report Reply call D

Transmit a Position Report Reply call when a Position Report

Request call is received.

Quick Reply:

When a Position Report Request call is received, beeps q

sound and the screen as shown below is displayed.

Push [ALARM OFF] to stop the beeps.

Push [ACK]. w

•Push[INFO]todisplaythePositionReportRequestcallinforma-

tion.

Push [BACK] to return to the previous screen, or push [ACK].

The Position Report Reply conﬁrmation screen is dis- e

played.

Push [CALL] to transmit the reply call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

DSC OPERATION

New2001

Manual Reply:

Enter “POSITION REPORT REPLY” in the DSC CALLS q

menu.

MENU ➪ DSC Calls ➪ Position Report Reply

(Push [MENU])

(Rotate Dial, then push [ENT].)

 •IfnoPositionReportRequestcallhasbeenreceived,the“POSI-

TION REPORT REPLY” item will not be displayed.

Select a desired Position Report Request call to reply to, w

using Dial or [Y]/[Z], then push Dial or [ENT].

The Position Report Reply call conﬁrmation screen is dis- e

played.

Push [CALL] to transmit the acknowledgement call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

7DSC OPERATION

New2001

Transmitting a Polling Reply call D

Transmit a Polling Reply call when a Polling Request call is

received.

When the “POSITION ACK” in DSC Settings is set to ‘Auto

TX’ (p. 66), the transceiver automatically transmits a reply call

when receiving a Polling Request call.

Quick Reply:

When a Polling Request call is received, beeps sound and q

the screen as shown below is displayed.

Push [ALARM OFF] to stop the beeps.

Push [ACK]. w

•Push[INFO]todisplaythePollingRequestcallinformation.

Push [BACK] to return to the previous screen, or push [ACK].

The Polling Reply conﬁrmation screen is displayed. e

Push [CALL] to transmit the reply call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

DSC OPERATION

New2001

Manual Reply:

Enter “POLLING REPLY” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Polling Reply

(Push [MENU])

(Rotate Dial, then push [ENT].)

 •IfnoPollingRequestcallhasbeenreceived,the“POLLINGRE-

PLY” item will not be displayed.

Select a desired Polling Request call to be replied, using w

Dial or [Y]/[Z], then push Dial or [ENT].

The Polling Reply call conﬁrmation screen is displayed.

Push [CALL] to transmit the acknowledgement call.

While transmitting the reply call, the screen shown below r

is displayed, and then returns to the normal operating

mode.

7DSC OPERATION

New2001 New2001

Receiving DSC calls ■

Receiving a Distress Call D

When a Distress Call is received:

The emergency alarm sounds. ➥

“RCVD DISTRESS” pops up and the LCD backlight ➥

blinks.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

Push a softkey to select your desired action. w

[IGN]

➥Push to return to the normal operating mode.

  •ThetransceiverexitstheDSCmode.

  •Bypushing[PTT],thetransceiveralsoexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 64)

[ACPT]

Push to accept the call. ➥

And then, push [CH 16] to switch the operating channel

to Channel 16, and then monitor it, as a coast station

may require assistance.

  •Ifyouhaven’tpushed[CH16]within10seconds,theoperat-

ing channel automatically switches to Channel 16. (p. 67)

Push

New2001

DSC OPERATION

New2001

Receiving a Distress Acknowledgement D

When a Distress Acknowledgement sent to another ship is

received:

➥ The emergency alarm sounds.

➥ “RCVD DISTRESS ACK” pops up and the LCD backlight

blinks.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

Push a softkey to select your desired action. w

[IGN]

➥Push to return to the normal operating mode.

  •ThetransceiverexitstheDSCmode.

  •Bypushing[PTT],thetransceiveralsoexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 64)

[ACPT]

Push to accept the call. ➥

And then, push [CH 16] to switch the operating channel

to Channel 16, and then monitor it, as a coast station

may require assistance.

  •Ifyouhaven’tpushed[CH16]within10seconds,theoperat-

ing channel automatically switches to Channel 16. (p. 67)

Push

7DSC OPERATION

Receiving D a Distress Relay Call

When a Distress Relay call is received:

➥ The emergency alarm sounds.

➥ “RCVD DISTRESS RELAY” pops up and the LCD back-

light blinks.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

Push a softkey to select your desired action. w

[IGN]

➥Push to return to the normal operating mode.

  •ThetransceiverexitstheDSCmode.

  •Bypushing[PTT],thetransceiveralsoexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 64)

[ACPT]

Push to accept the call. ➥

And then, push [CH 16] to switch the operating channel

to Channel 16, and then monitor it, as a coast station

may require assistance.

  •Ifyouhaven’tpushed[CH16]within10seconds,theoperat-

ing channel automatically switches to Channel 16. (p. 67)

Push

DSC OPERATION

Receiving D a Distress Relay Acknowledgement

When a Distress Relay Acknowledgement is received:

➥ The emergency alarm sounds.

➥ “RCVD DIST RELAY ACK” pops up and the LCD backlight

blinks.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

Push a softkey to select your desired action. w

[IGN]

➥Push to return to the normal operating mode.

  •ThetransceiverexitstheDSCmode.

  •Bypushing[PTT],thetransceiveralsoexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 64)

[ACPT]

Push to accept the call. ➥

And then, push [CH 16] to switch the operating channel

to Channel 16, and then monitor it, as a coast station

may require assistance.

  •Ifyouhaven’tpushed[CH16]within10seconds,theoperat-

ing channel automatically switches to Channel 16. (p. 67)

Push

7DSC OPERATION

Receiving an Individual Call D

When an Individual Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD INDIVIDUAL CALL” pops up. The LCD backlight

may blink for 2 minutes, depending on the received Cat-

egory.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥

Push to ignore the Call and return to the normal operating

mode.

  •ThetransceiverexitstheDSCmode.

  •TheCallisstoredintheReceivedCallLog.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACK]

➥ Push to display the “INDIVIDUAL ACK” screen to re-

ply to the Call, and select the channel speciﬁed by the

calling station for voice communication, depending on

your situation. See page 30 for details of the Individual

Acknowledgement procedure.

When “INDIVIDUAL ACK” is set to “Auto ACK (Unable),”

the transceiver automatically replies to the Call. In that

case, both the TX and RX calls are stored in the Transmit-

ted and Received Call Logs.

DSC OPERATION

Receiving a Group Call D

When a Group Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD GROUP CALL” pops up. The LCD backlight may

blink for 2 minutes, depending on the received Category.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACPT]

➥ Push to monitor the channel speciﬁed by the calling sta-

tion (Example: 08) for an announcement from the call-

ing station.

7DSC OPERATION

Receiving an All Ships Call D

When an All Ships Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD ALL SHIPS CALL” pops up. The LCD backlight may

blink for 2 minutes, depending on the received Category.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACPT]

➥ Push to monitor the channel speciﬁed by the calling sta-

tion (Example: 16) for an announcement from the call-

ing station.

DSC OPERATION

Receiving a Geographical Area Call D

When a Geographical Area Call (for the area you are in) is

received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD GEOGRAPHICAL CALL” pops up. The LCD back-

light may blink for 2 minutes, depending on the received

Category.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACPT]

➥ Push to monitor the channel speciﬁed by the calling sta-

tion (Example: 08) for an announcement from the call-

ing station.

When no GPS receiver is connected or if there is a prob-

lem with the connected receiver, all Geographical Area

Calls are received, regardless of your position.

7DSC OPERATION

Receiving a Position Request Call D

When a Position Request Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD POS REQUEST” pops up. The LCD backlight

blinks for 2 minutes.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACK]

➥ Push to display the “POSITION REPLY” screen and

send a reply to the Call. (p. 45)

When “POSITION ACK” is set to “Auto TX,” the transceiver

automatically replies to the Call. In that case, both the TX

and RX calls are stored in the Transmitted and Received

Call Logs.

DSC OPERATION

Receiving a Position Report Call D

When a Position Report Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD POSITION REPORT” pops up. The LCD backlight

blinks for 2 minutes.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[EXIT]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

7DSC OPERATION

D Receiving a Polling Request call

When a Polling Request call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD POLLING REQUEST” pops up. The LCD backlight

blinks for 2 minutes.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACK]

➥ Push to display the “POLLING REPLY” screen to reply

to the Call. (p. 49)

When “POSITION ACK” is set to “Auto TX,” the transceiver

automatically replies to the Call. In that case, both the TX

and RX calls are stored in the Transmitted and Received

Call Logs.

DSC OPERATION

D Receiving a Test Call

When a Test Call is received:

➥ The alarm sounds for 2 minutes.

➥ “RCVD TEST CALL” pops up. The LCD backlight blinks for

2 minutes.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[IGN]

➥Push to ignore the Call and return to the normal operat-

ing mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

[INFO]

➥Push to display the Received call information. (p. 65)

[ACK]

➥ Push to display the “TEST ACK” screen to reply to the

Call. (p. 43)

When “TEST ACK” is set to “Auto TX,” the transceiver au-

tomatically replies to the Call. In that case, both the TX and

RX calls are stored in the Transmitted and Received Call

Logs.

7DSC OPERATION

Receiving a Test Acknowledgement Call D

When a Test Acknowledgement Call is received:

The alarm sounds for 2 minutes. ➥

“RCVD TEST ACK” pops up. The LCD backlight blinks for ➥

2 minutes.

Push [ALARM OFF] to stop the alarm and the blinking q

backlight.

 •If[ALARMOFF]isnotpushedwithin2minutes,thenextscreen

may appear, depending on the received Category.

Push a softkey to select your desired action. w

[EXIT]

➥ Push to return to the normal operating mode.

  •ThetransceiverexitstheDSCmode.

  •“ ” continues to blink and the Call is stored in the Received

Call Log.

Received Call log ■

The transceiver automatically stores up to 50 distress mes-

sages and 50 other messages, and they can be used as a

supplement to your logbook.

•Whileinthenormaloperatingmode,“ ” blinks in the upper right

corner of the LCD when there is an unread message.

Distress message D

Push [LOG] to enter “RCVD CALL LOG” in the DSC CALLS q

menu, or you can enter it through the Menu screen.

MENU ➪ DSC Calls ➪ Received Call Log

(Push [MENU])

(Rotate Dial, then push [ENT].)

Push [ wp] or [q] to select “Distress,” then push [ENT].

 •TheDistressmessagesarestoredin“Distress.”

 •“ ” appears when there are unread messages.

 •“ ” appears when there are no unread messages.

 •Noiconappearswhentherearenomessages.

DSC OPERATION

Push [ ep] or [q] to select the desired item, then push

[ENT].

 •Themessageintheunopenedlehasnotbeenread.

Rotate Dial to scroll the message contents. r

Rotate

To delete the displayed message, push [DEL]. t

 •Theconrmationscreenappears,thenpush[OK]todelete.

Push [EXIT] to return to the normal operating mode. y

Other messages D

Push [LOG] to enter “RCVD CALL LOG” in the DSC CALLS q

menu, or you can enter it through the Menu screen.

MENU ➪ DSC Calls ➪ Received Call Log

(Push [MENU])

(Rotate Dial, then push [ENT].)

Push [ wp] or [q] to select “Others,” then push [ENT].

 •ThemessagesotherthantheDistressarestoredin“Others.”

 •“ ” appears when there are unread messages.

 •“ ” appears when there are no unread messages.

 •Noiconappearswhentherearenomessages.

Push [ ep] or [q] to select the desired item, then push

[ENT].

 •Themessageintheunopenedlehasnotbeenread.

+ Continued on the next page

7DSC OPERATION

Received Call log (Continued) ■

Rotate Dial to scroll the message contents. r

 •Thestoredmessagehasvariousinformation,dependingonthe

DSC call type.

Rotate

To delete the displayed message, push [DEL]. t

 •Theconrmationscreenappears,thenpush[OK]todelete.

Push [EXIT] to return to the normal operating mode. y

Transmitted Call log ■

The transceiver automatically stores up to 50 transmitted

calls, and the logs can be used as a supplement to your log-

book.

Enter “TX CALL LOG” in the DSC CALLS menu. q

MENU ➪ DSC Calls ➪ Transmitted Call Log

(Push [MENU])

(Rotate Dial, then push [ENT].)

Push [ wp] or [q] to select the desired item, then push

[ENT].

Rotate Dial to scroll the message contents. e

Rotate

To delete the displayed message, push [DEL]. r

 •Theconrmationscreenappears,thenpush[OK]todelete.

Push [EXIT] to return to the normal operating mode. t

DSC OPERATION

DSC Settings ■

D Position Input (See page 23)

D Add Individual ID/Group ID (See pages 20, 21)

D Delete Individual ID/Group ID (See page 22)

D Automatic Acknowledgement

These items set the Automatic Acknowledgement function to

“Auto TX” or “Manual TX.”

When an Individual, Position Request, Polling Request or

Test Call is received, the transceiver automatically transmits

an Individual Acknowledgement, Position Reply, Polling Re-

ply or Test Acknowledgement Call, respectively.

When “INDIVIDUAL ACK” is set to “Auto TX,” the trans-

ceiver automatically transmits the Acknowledgment call

including “Unable to Comply” (No Reason Given) after re-

ceivng the Individual call.

Enter either “INDIVIDUAL ACK,” “POSITION ACK” or “TEST

ACK” in the DSC Settings menu.

MENU ➪ DSC Settings ➪ 

Individual ACK



(Push [MENU])

(Rotate Dial, then push [ENT].)

MENU ➪ DSC Settings ➪ 

Position ACK



MENU ➪ DSC Settings ➪ 

Test ACK



Rotate Dial w

to select “Auto TX” or “Manual TX,” then push

[ENT].

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

(default)

Push [EXIT] to return to the normal operating mode. e

7DSC OPERATION

New2001

D Channel 16 Switch function

By regulation, after receiving a Distress call, the transceiv-

er switches the operating channel to Channel 16. However,

when this setting is set to “OFF,” the function enables the

transceiver to remain on the operating channel, even after

receiving a Distress call.

q Enter “CH 16 SWITCH”

in the DSC Settings menu

MENU ➪ DSC Settings ➪ CH 16 Switch

(Push [MENU])

(Rotate Dial, then push [ENT].)

w Rotate Dial to set the Channel 16 Switch function to “Auto

(No Delay),” “10 Second Delay” or “OFF

,” then push [ENT].

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

(default)

Auto (No Delay) : After receiving a Distress call, and

[ACPT] is pushed on the confirmation

screen, the transceiver immediately

switches to Channel 16.

10 Second Delay : After receiving a Distress call, and

[ACPT] is pushed on the confirma-

tion screen, the transceiver remains

on the current operating channel for

10 seconds. After that, the transceiver

automatically switches to Channel 16.

(default)

OFF : Even after receiving a Distress call,

the transceiver remains on the operat-

ing channel.

  •“ ” appears.

Push [EXIT] to return to the normal operating mode. e

DSC OPERATION

New2001

D DSC Data Output

Select an option for the DSC Data Output function.

When receiving a DSC call, this function makes the trans-

ceiver send the DSC data from its NMEA Output port to a

connected device.

q Enter “DSC DATA OUTPUT”

in the DSC Settings menu

MENU ➪ DSC Settings ➪ DSC Data Output

(Push [MENU])

(Rotate Dial, then push [ENT].)

w Rotate Dial to set the DSC Data Output function to “All Sta-

tion,” “List Station” or “OFF

,” then push [ENT].

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

(default)

All Station : Outputs the call from any vessel from the

NMEA Output port.

List Station : Outputs the call from any vessels listed on the

Individual ID screen.

OFF : Does not

output any call to the external equip-

ment.

Push [EXIT] to return to the normal operating mode. e

D Alarm

Set the Alarm function ON or OFF, depending on the Cat-

egory or Status.

q Enter “ALARM”

in the DSC Settings menu

MENU ➪ DSC Settings ➪ Alarm

(Push [MENU])

(Rotate Dial, then push [ENT].)

w Rotate Dial to select

the status, then push [ENT].

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

 •“Safety,”“Routine,”“Warning,”“Self-Terminate”and“Discrete”are

selectable. (default: ON)

Rotate Dial to set the Alarm setting to “ON” or “OFF.” e

Push [EXIT] to return to the normal operating mode. r

7DSC OPERATION

New2001

D Channel 70 Squelch level

Set the squelch level on Channel 70.

The transceiver has 11 squelch levels between 1 (loose

squelch) and 10 (tight squelch) and OPEN.

OPEN is completely open.

q Enter “CH 70 SQL LEVEL”

in the DSC Settings menu

MENU ➪ DSC Settings ➪ CH 70 SQL Level

(Push [MENU])

(Rotate Dial, then push [ENT].)

w Rotate Dial to adjust the squelch level until the noise just

disappears, then push [ENT].

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

(default)

Push [EXIT] to return to the normal operating mode. e

D DSC Loop Test

The DSC loop test function sends transmit DSC signals to

the receive AF circuit to compare and check the TX and RX

signals at the AF level.

q Enter “DSC LOOP TEST”

in the DSC Settings menu

MENU ➪ DSC Settings ➪ DSC Loop Test

(Push [MENU])

(Rotate Dial, then push [ENT].)

w Push [ENT] to start the DSC loop test.

 •Push[BACK]tocancelandreturntotheDSCSettingsmenu.

 •WhenthetransmitDSCandreceiveDSCsignalsarematched,

“OK” appears.

Push [EXIT] to return to the normal operating mode. e

If “NG” appears in step w, either or both TX and RX DSC

circuits has a problem. In that case, you will have to send

the transceiver to your nearest dealer for repair.

DSC OPERATION

New2001

When the optional MA-500TR CLASS B AIS TRANSPONDER is

connected to your transceiver, an individual DSC call can be

transmitted to a selected AIS target, without needing to enter

the target’s MMSI code. In this case, the call type is automati-

cally set to Routine.

See page 84 for connecting instructions.

To ensure correct operation of the DSC function, make

sure you correctly set the CH70 SQL LEVEL. (p. 69)

Step 1: Transponder’s operation

Select a desired AIS target on the plotter, target list or dan- q

ger list display.

 •Youcanalsogotothenextstepwheneverthedetailscreenof

the AIS target is displayed.

 •Makesurethetransceiverisinthenormaloperatingmode.Oth-

erwise, you cannot make an individual DSC call using the tran-

sponder.

Push [DSC] to display the voice channel selection screen, w

and then push [Y] or [Z] to select a desired voice chan-

nel*.

 •Voicechannelsarealreadypresetintothetransponderinrecom-

mended order.

* When a coast station is selected in step q, a voice channel will

be speciﬁed by the coast station, therefore you cannot change

the channel. The transponder will display “Voice Channel is

speciﬁed by the Base station,” in this case.

Push [DSC] to transmit an individual DSC call to the AIS e

target.

 •IfChannel70isbusy,thetransceiverstandsbyuntilthechannel

becomes clear.

 •Ifthetransceivercannotmakethecall,thetransponderwilldis-

play “DSC Transmission FAILED.”

Making an Individual call using an AIS transponder ■

Transponder’s display Transceiver’s display

7DSC OPERATION

New2001

After making the individual DSC call, the transponder will r

display “DSC Transmission COMPLETED.”

 •Push[CLEAR]toreturntothescreendisplayedbeforeyouen-

tered the voice channel selection screen in step w.

 •ThetransceiverstandsbyonChannel70untilanacknowledge-

ment is received.

Step 2: Transceiver’s operation

When the acknowledgement is received, beeps sound. t

If the acknowledgement ‘Able to comply’ is received, ➥

push [ALARM OFF] to stop the beeps, and then select

the intership channel speciﬁed in step w.

  •Adifferentintershipchannelwillbeselectedifthestationyou

called cannot use the channel.

  •Toreply,push[PTT]andspeakatanormalvoicelevel.

  •YoucanchecktheMMSIcodeorthename,ifprogrammed,

of the AIS target on the display.

If the acknowledgement ‘Unable to comply’ is received, ➥

push [ALARM OFF] to stop the beeps, and then return

to the operating channel before you entered the MENU

screen.

After the communication is ﬁnished, push [EXIT] to return

to the normal operating mode.

Transponder’s display Transceiver’s display

[DSC]

[CLEAR]

[Z]

[Y]

TRANSPONDER

‘Able to comply’ is received

‘Unable to comply’ is received

New2001

OTHER FUNCTIONS

Intercom operation ■

The optional Intercom function allows you to talk between the

deck and the cabin. The optional HM-195 c o m m a n d m i c r o -

p h o n e is required for Intercom operation.

Connect the HM-195 c o m m a n d m i c r o p h o n e as described on

page 88.

•Transmittingisdisabledwhileusingtheintercom.

•Thereceivedsignalismutedwhileusingtheintercom.

Hold down [PWR](Dial) to turn ON the power. q

 •The command microphone power is automatically turned ON,

even if the power is OFF.

Push [INCM] to enter the Intercom mode. w

Hold down [INCM CALL] to sound the intercom beeps. e

 •The transceiver and the command microphone sound beeps

while holding down [INCM CALL].

 •“CALL”appears.

After releasing [INCM CALL], hold down [PTT] and speak r

into the microphone at a normal voice level.

 •“TALK”appearsonthecaller’sdisplay,or“LSTN”appearsonthe

listener’s display.

 •

To adjust the transceiver’s intercom volume level, rotate Dial.

 •ToadjusttheHM-195’sintercomvolumelevel,rotate[VOL/SQL]

(Dial) on the HM-195.

After releasing [PTT], you can hear the response through t

the speaker.

To return to the normal operating mode, push [EXIT].

While in the Intercom mode, the transmit and receive func-

tions are disabled. When the transceiver is transmitting,

the Intercom function is disabled.

On the caller’s display

On the listener’s display

8OTHER FUNCTIONS

RX Speaker function ■

The RX Speaker function enables you to hear the received

audio on the deck or bridge through a PA speaker.

Connect a PA speaker as described on page 83.

Push q

[RX ]

to enter the RX Speaker mode.

 •TheRXSpeakervolumeleveladjustmentscreenisdisplayed.

Rotate Dial or push [ wY]/[Z]/[Ω]/[≈] to adjust the RX Speak-

er volume level, and then push [ENT].

 •“RX

” appears.

To return to normal operating mode,

push

[RX ].

 •“RX ” disappears.

To adjust the audio output level in the RX Speaker mode,

hold down

[RX ] for 1 second to display

the RX Speaker

volume level adjustment screen, and then rotate Dial. After

adjusting, push [ENT] to set it.

PA (Public Address) function ■

The transceiver has a PA function to make announcements

through a PA speaker.

Connect a PA speaker rated at

more than 10 W at 10% distor-

tion with a 4 ˘ load,

as described on page 83.

•TransmittingisdisabledwhileinthePAmode.

Push [PA] to enter the Public Address mode. q

Hold down [PTT] and speak at a normal voice level. w

 •Whileholdingdown[PTT],thescreenbelowisdisplayed.

 •ToadjustthePAvolumelevel,rotateDial.

Push [EXIT] to return to normal operating screen. e

While in the PA mode, the transmit and receive functions

are disabled. When the transceiver is transmitting, the PA

function is disabled.

Appears

OTHER FUNCTIONS

New2001

Horn function ■

The Horn function sounds a horn.

Connect a PA speaker as described on page 83.

Push [HORN] to enter the Horn mode. q

Hold down [HORN] to sound a horn. w

 •Whileholdingdown[HORN],thehornsounds,andthescreen

below is displayed.

 •Toadjustthehornvolumelevel,rotateDial.

Push [EXIT] to return to the normal operating screen. e

While in the Horn mode, the transmit and receive functions

are disabled. When the transceiver is transmitting, the

Horn function is disabled.

New2001

MENU SCREEN OPERATION

■Menu screen operation

The Menu screen is used for programming infrequently

changed values, function settings or sending DSC calls.

In addition to this page, see pages 76 through 82 for details.

DEntering the Menu screen and operation

Example: Set the channel group to “INT.”

Push [MENU]. q

Rotate Dial or push [ w∫]/[√] to select

the root item (Radio Setting), and

then push [ENT].

 •If[∫] or [√] is continuously held down,

the items are sequentially highlighted.

Rotate Dial or push [ e∫]/[√] to se-

lect “CHAN Group,” and then push

[ENT].

Rotate Dial or push [ r∫]/[√] to select

“USA,” and then push [ENT] to set it.

 •“✔” is displayed next to “INT.”

Push [EXIT] to exit the Menu screen.

 •Push [CLEAR] or [BACK] to return to

the previous screen.

[ENT][Y]/[Z]

[CLEAR][EXIT] [ENT][BACK] Dial

[MENU]

Menu lists

New2001

MENU SCREEN OPERATION

New2001

Menu screen items ■

The Menu screen contains the following items.

DSC Calls D

Item Ref. Item Ref.

•IndividualCall p. 28 •

Transmitted Call Log

p. 65

•IndividualACK*1p. 30

•PositionRequestCall

*2p. 35

•GroupCall p. 32

•

Position Report Call*2p. 37

•AllShipsCall p. 34 •PollingRequestCall*2p. 39

•DistressCall p. 25 •TestCall p. 41

•ReceivedCallLog p. 63 •TestACK*1p. 44

DSC Settings D

Item Ref. Item Ref.

•PositionInput*3p. 23 •CH16Switch p. 67

•IndividualID p. 20 •DSCDataOutput p. 68

•GroupID p. 21 •Alarm p. 68

•IndividualACK p. 66 •CH70SQLLevel p. 69

•PositionACK p. 66 •DSCLoopTest p. 69

•TestACK p. 66

*1 Appears only after receiving a corresponding call.

*2 Only U.S.A. and Australian version transceivers.

*3 Appears only when no GPS information is received.

*4 Appears only when the optional HM-195 is connected.

*5 Appears only when a GPS receiver compatible with NMEA0183

ver. 2.0 or 3.01 is connected.

Radio Settings D

Item Ref. Item Ref.

•ScanType p. 77 •ChannelGroup p. 77

•ScanTimer p. 77 •WXAlert*2p. 78

•Dual/Tri-Watch p. 77

Conﬁguration D

Item Ref. Item Ref.

•Backlight p. 78 •NoiseCancel p. 80

•DisplayContrast p. 78 •InactivityTimer p. 81

•KeyBeep p. 78 •RemoteID p. 81

•KeyAssignment p. 79 •COMMANDMICSP*4p. 82

•UTCOffset p. 80

MMSI/GPS Information D

The transceiver shows the programmed MMSI code and GPS

information*5.

If the code is not programmed, “NO DSC MMSI” is displayed.

9MENU SCREEN OPERATION

New2001

Radio Setting items ■

Scan type D

The transceiver has two scan types; Normal scan and Prior-

ity scan. A Normal scan searches all TAG channels in the

selected channel group. A Priority scan sequentially searches

all TAG channels, while monitoring Channel 16.

(Default: Priority Scan)

Scan resume timer D

The scan resume timer can be selected as a pause (OFF)

or timer scan (ON). When OFF is selected, the scan pauses

until the signal disappears. (Default: OFF)

• Priority scan

When ON is selected, the scan pauses for 5 sec-

onds and then resumes, even if a signal has been

received on any channel other than Channel 16.

• Normal scan When ON is selected, the scan pauses for 5

seconds and then resumes, even if a signal has

been received on any channel.

Dual/Tri-watch D

This item can be selected as Dualwatch or Tri-watch. (p. 19)

(Default: Dualwatch)

Channel Group D

Except for the Europe version, a channel group suitable for

your operating area can be selected. Depending on the trans-

ceiver version, INT, USA or CAN may be selectable.

(Default: USA)

See page 10 for details.

•ThescreenbelowshowstheU.S.A.version.

MENU SCREEN OPERATION

New2001

Weather alert D

A NOAA broadcast station transmits a weather alert tone be-

fore important weather information.

“WX ” blinks until the transceiver is operated after the

transceiver detects the alert.

•“WX ” appears instead of “WX” when the function is set ON.

(Default: OFF)

ON with Scan : The preprogrammed weather channels are

sequentially checked while scanning.

ON : The previously selected (last used) weather

channel is checked while scanning.

OFF : The transceiver does not detect a weather

alert tone.

Conﬁguration items ■

Backlight D

The function display and keys can be backlit for better visibil-

ity under low light conditions.

The backlight can be set to 7 levels and OFF. (Default: 7)

Display contrast D

This item adjusts the contrast of the LCD in 8 steps.

Level 1 is the lowest contrast, and level 8 is the highest con-

trast. (Default: 5)

Key Beep D

You can turn OFF beep tones for silent operation, or you can

turn ON the tones to have conﬁrmation beeps sound when a

key is pushed. (Default: ON)

9MENU SCREEN OPERATION

New2001

Key Assignment D

Desired functions can be assigned to Dial and the softkeys.

When the “KEY ASSIGNMENT” screen is displayed, rotate q

Dial or push [∫]/[√] to select “Dial” or “Softkeys,” and then

push [ENT].

Rotate Dial or push [ w∫]/[√] to select the desired position,

and then push [ENT].

 •Toreturntothedefault,select“Setdefault”andpush[ENT].

For “Dial” assignment For “Softkeys” assignment

Rotate Dial or push [ e∫]/[√] to select the option, and then

push [ENT] to set it.

 •“✔” is displayed next to the selected option.

For “Dial” assignment For “Softkeys” assignment*

* [CHAN] appears instead of [CH/WX] only for Chinese version

transceiver.

Push [EXIT] to exit the Menu screen. r

 •Push[CLEAR]or[BACK]toreturntothepreviousscreen.

• Dial assignment

The audio volume (VOL), squelch (SQL), channel selection

(CHAN) and LCD backlight level (Backlight) functions can be

assigned to any one of 4 positions. After the functions have

been assigned, pushing Dial sequentially selects the desired

function, and then rotating Dial adjusts the level or selects a

value or number.

To quickly select the function assigned to only the 1st se-

quential position ([ / Push × 1 ]), simply rotate Dial to dis-

play the function screen. Then, rotate Dial again to adjust the

level or select a value or number.

To select the 2nd, 3rd or 4th functions, push Dial the required

number of times.

VOL (Volume) (p. 15)

Push Dial one or more times, or rotate Dial to display the

volume adjustment screen, and then rotate Dial to adjust

the volume level.

SQL (Squelch) (p. 15)

Push Dial one or more times, or rotate Dial to display the

squelch adjustment screen, and then rotate Dial to adjust

the squelch level.

MENU SCREEN OPERATION

New2001

CHAN (Channel)

Push Dial one or more times, or rotate Dial to display the

operating channel selection screen, and then rotate Dial to

select the operating channel.

Backlight (p. 16)

Push Dial one or more times, or rotate Dial to display the

backlight adjustment screen, and then rotate Dial to adjust

the brightness of the LCD and key backlight level.

Not Used

No function

NOTE: If you assign “Not Used,” assign it in [Push × 4

]. If it is assigned to other position, the required num-

ber of times for pushing Dial will be changed.

Example:

When “Not Used” is assigned to [Push × 2 ], and

“SQL” is assigned to [Push × 3 ], pushing Dial two

time displays the squelch adjustment screen.

• Softkeys assignment

The desired function can be assigned as the softkey func-

tion. The assigned function can be used when its key icon is

displayed.

See page 3 for details of the assignable key functions.

UTC Offset D

Set the offset time between the UTC (Universal Time Coordi-

nated) and your local time to between –14:00 and +14:00 (in

1 minute steps). (Default: 00:00)

Noise Cancel D

Set the Noise Cancel function for both receive and transmit.

When the “NOISE CANCEL” screen is displayed, rotate Dial

or push [∫]/[√] to select “RX” or “TX,” and then push [ENT].

Rotate Dial or push [ w∫]/[√] to select the option, and then

push [ENT] to set it.

 •“✔” is displayed next to the selected option.

Push [EXIT] to exit the Menu screen. e

 •Push[CLEAR]or[BACK]toreturntothepreviousscreen.

9MENU SCREEN OPERATION

New2001

• RX

Turn the receive Noise Cancel function ON or OFF.

OFF : Turns OFF the function. (Default)

1 : The Noise Cancel function reduces random noise com-

ponents in the received signal to approximately one

half.

2 : The Noise Cancel function reduces random noise com-

ponents in the received signal to approximately one

third.

3 : The Noise Cancel function reduces random noise com-

ponents in the received signal to approximately one

tenth.

• TX

Turn the transmit Noise Cancel function ON or OFF.

OFF : Turns OFF the function. (Default)

ON : The Noise Cancel function reduces random noise com-

ponents in the transmitted signal to one tenth.

Inactivity Timer D

Set the inactivity timer to between 1 and 10 minutes (in 1 min-

ute steps) or OFF for the “Not DSC Related” and “DSC Re-

lated” item, and set to between 1 and 15 minutes (in 1 minute

steps) or OFF for the “DSC Related” item. The count down

alarm sounds 10 seconds before the Inactive timer returns

the current screen to the normal operating screen.

When the “INACTIVITY TIMER” screen is displayed, rotate q

Dial or push [∫]/[√] to select “Not DSC Related” or “DSC

Related,” and then push [ENT].

Rotate Dial or push [ w∫]/[√] to select the option, and then

push [ENT] to set it.

 •“✔” is displayed next to the selected option.

Push [EXIT] to exit the Menu screen. e

 •Push[CLEAR]or[BACK]toreturntothepreviousscreen.

MENU SCREEN OPERATION

New2001

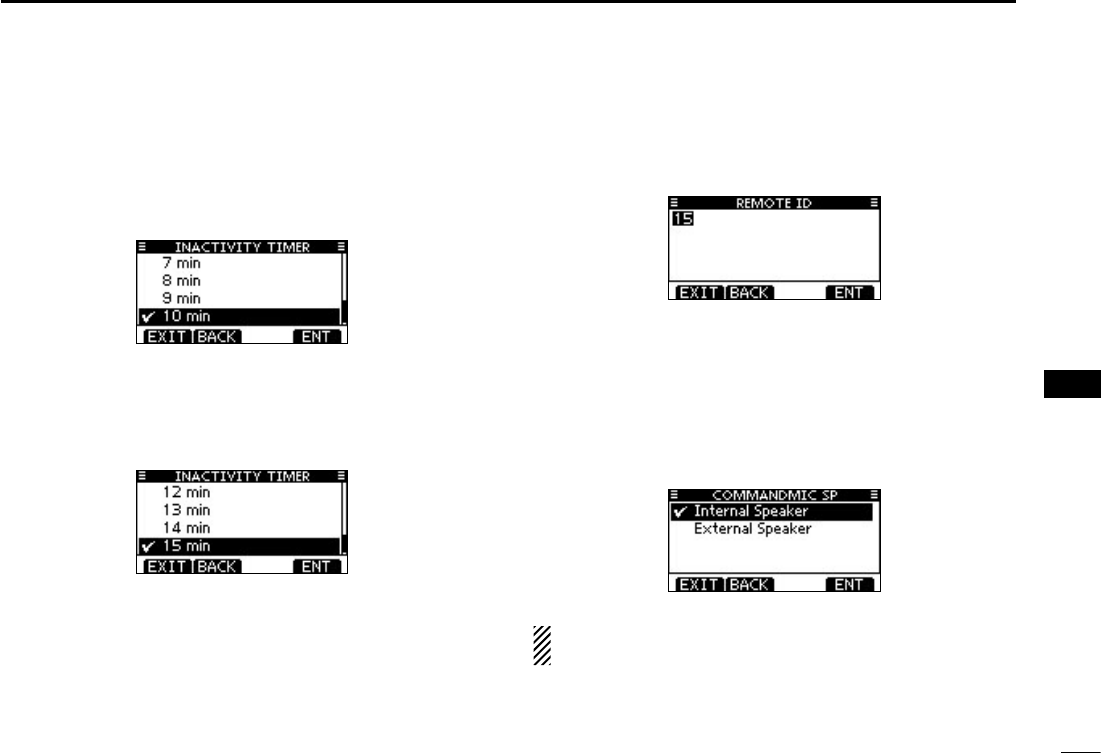

• Not DSC Related

When the LCD displays a screen other than the normal opera-

tion screen, or one not related to the DSC, and no key opera-

tion occurs for this set period, the transceiver automatically

returns to the normal operating screen.

(Default: 10 min)

• DSC Related

When the LCD displays the screen related to the DSC, and no

key operation occurs for this set period, the transceiver automati-

cally returns to the normal operating screen.

(Default: 15 min)

Remote ID D

Set a Remote ID number to between 1 and 69. (Default: 15)

The Remote ID is included in the sentence of the Icom origi-

nal NMEA format.

COMMANDMIC Speaker D

(Appears only when the optional HM-195 is connected.)

The HM-195’s external speaker can be used instead of the

internal speaker.

Internal Speaker : Turns ON the internal speaker. (Default)

External Speaker : Turns ON the external speaker.

Regardless of this setting, the supplied microphone’s

speaker is ON.

CONNECTIONS AND MAINTENANCE

Connections ■

q ANTENNA CONNECTOR

Connects to a marine VHF antenna cable’s PL-259 con-

nector.

CAUTION: Transmitting without an antenna may dam-

age the transceiver.

w NMEA IN/OUT LEADS

Brown: Talker B (Data-L)

Connects to an NMEA In Negative line of a PC or

NMEA0183 ver. 3.01 sentence format DSC, DSE compat-

ible navigation equipment, to receive position data from

other ships.

White: Talker A (Data-H)

Connects to an NMEA In Positive line of a PC or NMEA0183

ver. 3.01 sentence format DSC, DSE compatible naviga-

tion equipment, to receive position data from other ships.

Green: Listener B (Data-L)

Connects to an NMEA Out Negative line of a GPS receiver

for position data.

 •ANMEA0183ver.2.0or3.01RMC,GGA,GNS,GLLandVTG

sentence format compatible GPS receiver is required. Ask your

dealer about suitable GPS receivers.

Yellow: Listener A (Data-H)

Connects to an NMEA Out Positive line of a GPS receiver

for position data.

 •ANMEA0183ver.2.0or3.01RMC,GGA,GNS,GLLandVTG

sentence format compatible GPS receiver is required. Ask your

dealer about suitable GPS receivers.

e AF OUT LEADS

Blue: External Speaker (+)

Black: External Speaker (–)

Connects to an external speaker.

Orange: Public Address Speaker (+)

Gray: Public Address Speaker (–)

Connects to a PA speaker.

 •PAoutputpower:Morethan10Wat10%distortionwitha4˘ load

NOTE for NMEA In/Out and AF Out leads:

The connectors are attached to keep the leads together.

Before connecting to a piece of equipment, you should cut

the leads to remove the connector.

CONNECTIONS AND MAINTENANCE

r DC POWER CONNECTOR

Connects to a 13.8 V DC power source.

CAUTION: After connecting the DC power cable, NMEA

leads, external speaker leads and PA speaker leads, cover

the connector and leads with an adhesive tape, as shown

below, to prevent water seeping into the connection.

Rubber vulcanizing

tape

t GROUND TERMINAL

Connects to a vessel ground to prevent electrical shocks

and interference from other equipment occurring. Use a

PH M3 × 6 screw (not supplied).

y COMMAND MICROPHONE JACK

Connects to the optional Command microphone. (p. 88)

Connect to the MA-500TR D

Connect the transceiver to the high-density D-Sub 15-pin

connector of the MA-500TR using the OPC-2014* cable. Af-

ter connecting, an Individual DSC call can be made to the

AIS target using the transponder without entering the target’s

MMSI code.

* The OPC-2014 is supplied with the MA-500TR

• Listener A (Data-H) lead (Yellow):

Connects to lead 3 of the OPC-2014.

• Listener B (Data-L) lead (Green):

Connects to lead 2 of the OPC-2014.

• Talker A (Data-H) lead (White):

Connects to lead 5 of the OPC-2014.

• Talker B (Data-L) lead (Brown):

Connects to lead 4 of the OPC-2014.

10 CONNECTIONS AND MAINTENANCE

New2001

Antenna ■

A key element in the performance of any communication sys-

tem is the antenna. Ask your dealer about antennas and the

best place to mount them.

Fuse replacement ■

One fuse is installed in the supplied DC power cable. If the

fuse blows or the transceiver stops functioning, track down

the source of the problem, repair it, and replace the damaged

fuse with a new one of the proper rating.

Fuse rating: 10 A

Cleaning ■

If the transceiver becomes dusty or dirty, wipe it clean with a

soft, dry cloth.

DO NOT use harsh solvents such as benzine or

alcohol, as they will damage transceiver surfaces.

Supplied accessories ■

Mounting bracketFor mounting bracket

DC power cable

(OPC-891A)

Microphone hanger

and screws (3×16 mm)

Knob bolts

Screws (5×20 mm)

Flat washers (M5)

Spring washers (M5)

CONNECTIONS AND MAINTENANCE

New2001

Mounting the transceiver ■

Using the supplied mounting bracket D

The universal mounting bracket supplied with your transceiv-

er allows overhead or dashboard mounting.

Mount the bracket securely to a surface which is more than q

10 mm thick and can support more than 5 kg using the 2

supplied screws (5 × 20 mm).

w Attach the transceiver to the bracket so that the face of the

transceiver is at 90° to your line of sight when operating it.

KEEP the transceiver and microphone at least 1 meter

away from the vessel’s magnetic navigation compass.

NOTE: Check the installation angle; the function display

may not be easy-to-read at some angles.

• OVERHEAD MOUNTING

• MOUNTING ON THE BOARD

These bolts are shown a

mounting example only.

Not supplied with accesso-

ries.

10 CONNECTIONS AND MAINTENANCE

MB-69 installation ■

An optional MB-69 f l u s h m o u n t is available for mounting the

transceiver to a ﬂat surface, such as an instrument panel.

KEEP the transceiver and microphone at least 1 meter

away from your vessel’s magnetic navigation compass.

Using the template on page 94, carefully cut a hole into q

the instrument panel, or wherever you plan to mount the

transceiver.

Slide the transceiver through the hole, as shown below. w

Attach the clamps on either side of the transceiver with 2 e

M5 × 8 mm supplied bolts.

 •Makesurethattheclampsalignparalleltothetransceiverbody.

Tighten the end bolts on the clamps (clockwise) so that the r

clamps press ﬁrmly against the inside of the instrument

control panel.

Tighten the locking nuts (counterclockwise) so that the trans- t

ceiver is securely mounted in position, as shown below.

Connect the antenna and power cable, then return the in- y

strument control panel to its original place.

CONNECTIONS AND MAINTENANCE

Microphone installation ■

The optional HM-195 should be connected to the transceiver

using the supplied OPC-1540 connection cable.

The cable is used to operate from a longer distance. The

cable connector can also be installed as a built-in plug on a

cabinet or wall.

To operate from even longer distances, the optional 6 meter

long OPC-1541 extension cable can be used between the

transceiver and the OPC-1540. Up to two OPC-1541 can be

added.

Installation D

Insert the OPC-1540 cable connector into the command q

microphone jack, and tighten the nut.

To use the cable connector as a wall socket, install it as w

described to the right.

Using the mounting base as a template, carefully mark the e

holes where the cable and three screws will be fastened.

Drill holes at these marks. r

Install the mounting base using the supplied screws, as t

shown below.

Gasket

Cap

Mounting base Nut

Screw holes

(approx. 2 (d) mm; 3⁄32˝)

The completed installation should look like this. y

10 CONNECTIONS AND MAINTENANCE

Gasket

Mounting base

Cap

Nut

SPECIFICATIONS AND OPTIONS

Speciﬁcations ■

General D

•Frequencycoverage

USA and AUS versions : Tx 156.025–157.425 MHz

Rx 156.050–163.275 MHz

CHN version : Tx 156.025–157.425 MHz

Rx 156.050–162.025 MHz

•Mode :

FM (16K0G3E),

DSC (16K0G2B)

•Channelspacing :25kHz

•Operatingtemp.range :–20°Cto+60°C

•Currentdrain(at13.8V) :TXhigh 5.5Amaximum

Max. audio 5.0 A maximum

•Powersupplyrequirement :13.8V DC nominal

(negative ground)

•Frequencystability :±1.5kHz(–20°Cto+60°C)

•Antennaimpedance :50˘ nominal

•Dimensions(approximately) :180(W)× 82(H) × 135(D) mm

(Projections not included)

•Weight(approximately) :1.2kg

Transmitter D

•Outputpower :25W/1W

•Modulationsystem :Variablereactancefrequency

modulation

•Max.frequencydeviation :±5.0kHz

•Spuriousemissions :Lessthan–70dBc(high)

Less than –56 dBc (low)

Receiver D

•Receivesystem :Doubleconversion

superheterodyne

•Sensitivity(12dBSINAD) :–13dBµ(typical)

•Squelchsensitivity :Lessthan–10dBµ

•Intermodulationrejectionratio :Morethan70dB

•

Spurious response rejection ratio

: More than 70 dB

•Adjacentchannelselectivity :Morethan70dB

•Audiooutputpower :Morethan10Wat10%distor-

tion with a 4 ˘ load

All stated speciﬁcations are subject to change without notice or obligation.

New2001

11 SPECIFICATIONS AND OPTIONS

New2001

Dimensions D

82 (3.23) 119.9 (4.72)

164.1 (6.46)

25.3

(1) 109.7 (4.32)

61.4 (2.42)

Unit: mm (inch)

180 (7.09)

Options ■

•MB-69 f l u s h m o u n t k i t

To mount the transceiver to a panel.

•HM-195 c o m m a n d m i c IV™

External microphone-type controller. Provides optional in-

tercom operation. 6 m (20 ft) microphone cable and mount-

ing base included. Black and white colors are available.

•HM-196 h a n d m i c r o p h o n e

Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and [PTT]

keys, a speaker and microphone.

•OPC-1541 m i c r o p h o n e e x t e n s i o n c a b l e

6 m (20 feet) microphone extension cable for optional HM-

195 c o m m a n d m i c IV™. Up to two OPC-1541 can be con-

nected. Usable length is 18 m (60 ft) maximum.

•MA-500TR c l a s s b a i s t r a n s p o n d e r

To transmit individual DSC calls to a selected AIS targets.

Approved Icom optional equipment is designed for optimal perfor-

mance when used with an Icom transceiver.

Icom is not responsible for the destruction or damage to an Icom

transceiver in the event the Icom transceiver is used with equipment

that is not manufactured or approved by Icom.

CHANNEL LIST

New2001

NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT

be lawfully used by the general public in U.S.A. waters.

*1 Low power only. *2 Momentary high power. *3 DSC operation only.

Channel number Frequency (MHz)

03 156.150 160.75003

03A 156.150 156.150

156.200 160.80004

02 156.100 160.70002

04A 156.200 156.200

156.250 160.85005

05A 05A 156.250 156.250

06 06 156.300 156.30006

156.350 160.95007

07A 07A 156.350 156.350

08 08 156.400 156.40008

09 09 156.450 156.45009

10 10 156.500 156.50010

11 11 156.550 156.55011

12 12 156.600 156.60012

13*213*1

156.650 156.650

14 14

156.700 156.700

15*215*1

156.750 156.750

15*1

16 16

156.800 156.800

17*117*1

156.850 156.850

156.900 161.500

18A 18A

156.900 156.900

156.950 161.550

19A 19A 156.950 156.950

20 20*1157.000 161.60020

20A 157.000 157.000

01A 156.050 156.050

USA

156.050 160.65001

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

157.100 161.70022

22A 22A 157.100 157.100

23 157.150 161.75023

21b Rx only 161.650

23A 157.150 157.150

24 24 157.200 161.80024

25 25 157.250 161.85025

25b Rx only 161.850

26 26 157.300 161.90026

27 27 157.350 161.95027

28 28 157.400 162.00028

28b Rx only 162.000

60 156.025 160.62560

156.075 160.67561

61A 61A 156.075 156.075

156.125 160.72562

62A 156.125 156.125

156.175 160.77563

63A 156.175 156.175

64 156.225 160.82564

64A 64A 156.225 156.225

156.275 160.87565

65A 65A 156.275 156.27565A

156.325 160.92566

66A 66A*1156.325 156.32566A

67*267 156.375 156.37567

21A 21A 157.050 157.050

USA

21 157.050 161.65021

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

71 71 156.575 156.57571

72 72 156.625 156.62572

73 73 156.675 156.67573

70*370*3156.525 156.52570*3

74 74 156.725 156.72574

75*175*1156.775 156.77575*1

76*176*1156.825 156.82576*1

77*177*1156.875 156.87577

156.925 161.52578

78A 78A 156.925 156.925

156.975 161.57579

79A 79A 156.975 156.975

157.025 161.62580

80A 80A 157.025 157.025

157.075 161.67581

81A 81A 157.075 157.075

157.125 161.72582

82A 82A 157.125 157.125

83 157.175 161.77583

83A 83A 157.175 157.175

83b Rx only 161.775

84 84 157.225 161.82584

84A 157.225 157.225

85 85 157.275 161.87585

85A 157.275 157.275

86 86 157.325 161.92586

69 69 156.475 156.47569

USA

68 156.425 156.42568

CAN

Transmit Receive

INT

Channel number Frequency (MHz)

88 88 157.425 162.02588

88A 157.425 157.425

87A 157.375 157.375

87 87 157.375 161.97587

86A

USA

157.325 157.325

CAN

Transmit Receive

INT

Frequency (MHz)

RX only 162.425

RX only 162.450

RX only 162.500

RX only 162.475

RX only 162.525

RX only 161.650

RX only 161.775

RX only 163.275

RX only 162.400

RX only 162.550

Transmit Receive

WX channel

New2001

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION REF.

The transceiver does

not turn ON.

•Badconnectiontothepowersupply. •Checktheconnectiontothetransceiverand

power supply. p. 83

Little or no sound comes

from the speaker.

•Squelchlevelissettoohigh.

•Volumelevelissettoolow.

•Speakerhasbeenexposedtowater.

•Setthesquelchtothethresholdpoint.

•Setthevolumetoasuitablelevel.

•RemovethewaterwiththeAquaQuakefunc-

tion.

p. 15

p. 16

Transmitting is impossi-

ble, or high power can-

not be selected

•Some channels are programmed for low

power or receive only by regulations.

•Theoutputpowerissettolow.

•Changechannels.

•Push[HI/LO]toselecthighpower.

pp. 9,

10, 11

p. 11

Scan does not start. •TAGchannelsarenotprogrammed. •SetthedesiredchannelsasTAGchannels. p. 18

No beep sounds. •BeeptonesareturnedOFF. •TurnthebeeptonesONintheCONFIGURA-

TION menu. p. 78

Distress calls cannot be

transmitted.

•MMSI (DSC self ID) code is not pro-

grammed.

•ProgramtheMMSI(DSCselfID)code. p. 8

Cut here

Unit: mm (inch)

R12 (Max.)

29.5 to 31.5 (d)

(1 5⁄32 to 1 1⁄4)

180 (7 3⁄32)

82 (3 7⁄32)

165.1 (6 1⁄2)

62.4 (2 15⁄32)

MB-69

HM-195

2 (3⁄32)

TEMPLATE

MEMO

New2001

MEMO

New2001

MEMO

New2001

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan

A-7011D-1EX-pa

Printed in Japan

Printed on recycled paper with soy ink.

ICOM orporated 333800 VHF Marine Transceiver User Manual

ICOM Incorporated VHF Marine Transceiver

User Manual

Navigation menu

Namespaces

Views

Navigation
