INSTRUCTION MANUAL
i706MK™G
HF/VHF/UHF ALL MODE TRANSCEIVER
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1)This device may not cause
harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.
EXPLICIT DEFINITIONS
PRECAUTIONS
IMPORTANT
Read this instruction manual carefully
before attempting to operate the transceiver. Save this instruction manual. This instruction
manual contains important safety and operating
instructions for the IC-706MKIIG.
RWARNING HIGH VOLTAGE! NEVER
attach an antenna or internal antenna connector dur-
ing transmission. This may result in an electrical shock
or burn.
RNEVER apply AC to the [DC13.8V] socket on the
transceiver rear panel. This could cause a fire or ruin
the transceiver.
RNEVER apply more than 16 V DC, such as a 24 V
battery, to the [DC13.8V] socket on the transceiver
rear panel. This could cause a fire or ruin the trans-
ceiver.
RNEVER let metal, wire or other objects touch any
internal part or connectors on the rear panel of the
transceiver. This will cause electric shock.
RNEVER expose the transceiver to rain, snow or
any liquids.
NEVER allow children to play with the transceiver.
AVOID using or placing the transceiver in areas with
temperatures below –10°C (+14°F) or above +60°C
(+140°F). Be aware that temperatures on a vehicle’s
dashboard can exceed 80°C, resulting in permanent
damage to the transceiver’s front panel if left there for
extended periods.
AVOID placing the transceiver in excessively dusty
environments or in direct sunlight.
AVOID placing the transceiver against walls or putting
anything on top of the transceiver. This will obstruct
heat dissipation.
During mobile operation, DO NOT operate the trans-
ceiver without running the vehicle’s engine. When
transceiver power is ON and your vehicle’s engine is
OFF, the vehicle’s battery will soon become exhausted.
Make sure the transceiver power is OFF before start-
ing the vehicle. This will avoid possible damage to the
transceiver by ignition voltage spikes.
During maritime mobile operation, keep the transceiv-
er and microphone as far away as possible from the
magnetic navigation compass to prevent erroneous
indications.
BE CAREFUL!
The heatsink will become hot when
operating the transceiver continuously for long periods.
BE CAREFUL! If a linear amplifier is connected, set
the transceiver’s RF output power to less than the lin-
ear amplifier’s maximum input level, otherwise, the lin-
ear amplifier will be damaged.
Use Icom microphones only (supplied or optional).
Other manufacturer’s microphones have different pin
assignments and connection to the IC-706MKIIG may
damage the transceiver.
Beat signals may be heard on some frequencies.
These will occur as a result of circuit construction.
For U.S.A. only
Caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your author-
ity to operate this transceiver under FCC regulations.
The explicit definitions described below apply to this
instruction manual.
The IC-706MKIIG Europe version complies with
essential requirements of the 89/336/EEC direc-
tive for Electromagnetic Compatibility under the
conditions listed below. This compliance is based on confor-
mity with the European harmonized standard ETS300 684
Jan. 1997 (EMC product standard for Commercially Available
Amateur Radio Equipment).
Condition:
• In combination with PS-85
•When connected to a power supply via OPC-639
WORD DEFINITION
RWARNING Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
TABLE OF CONTENTS
IMPORTANT............................................................. i
PRECAUTIONS........................................................ i
EXPLICIT DEFINITIONS.......................................... i
TABLE OF CONTENTS............................................ ii
UNPACKING............................................................. ii
1 PANEL DESCRIPTION .....................................1–8
■Front panel ............................................................... 1
■Function switches ..................................................... 3
■Rear and side panels ............................................... 5
■Function display ....................................................... 7
■Microphone (HM-103)............................................... 8
2INSTALLATION AND CONNECTIONS ..........9–14
■Unpacking................................................................. 9
■Grounding................................................................. 9
■Antenna .................................................................... 9
■Installation ................................................................ 10
■Required connections............................................... 11
■Advanced connections ............................................. 12
■Power supply connections........................................ 13
■External antenna tuners and linear amplifier............ 14
3FREQUENCY SETTING................................15–19
■When first applying power (CPU resetting).............. 15
■Initial settings............................................................ 15
■VFO description........................................................ 16
■Frequency setting ..................................................... 17
■Mode selection ......................................................... 19
4 RECEIVE AND TRANSMIT ..........................20–37
■Functions for receive ................................................ 20
■Functions for transmit............................................... 24
■Split frequency operation.......................................... 28
■Tone squelch operation ............................................ 30
■Tone scan operation ................................................. 30
■One-touch repeater .................................................. 31
■Auto repeater function .............................................. 31
■Functions for CW...................................................... 32
■Functions for RTTY .................................................. 34
■Packet operation ...................................................... 36
■SWR ......................................................................... 37
5 MEMORY AND SCAN OPERATION ............38–43
■Memory channels ..................................................... 38
■Memory channel selection........................................ 38
■Memory clearing....................................................... 38
■Memory/call programming........................................ 39
■Frequency transferring ............................................. 40
■Memory names......................................................... 40
■Memo pads............................................................... 41
■Scan types................................................................ 42
■Preparation .............................................................. 42
■Programmed scan operation.................................... 43
■Memory scan operation............................................ 43
■Select memory scan operation................................. 43
■Priority watch............................................................ 43
6 REMOTE JACK (CI-V) INFORMATION ........44–45
7SET MODE ....................................................46–54
■General..................................................................... 46
■Quick set mode items............................................... 47
■Initial set mode items ............................................... 49
8MAINTENANCE...................................................55
■Fuse replacement..................................................... 55
■Memory backup........................................................ 55
■Cleaning ................................................................... 55
9 TROUBLESHOOTING ..................................56–57
10 OPTIONAL INSTALLATIONS/SETTINGS..58–61
■Opening the transceiver case................................... 58
■UT-102
VOICE SYNTHESIZER UNIT
............................... 58
■CR-502
HIGH
-
STABILITY CRYSTAL UNIT
........................ 59
■IF filters..................................................................... 59
■UT-106
DSP RECEIVER UNIT
....................................... 60
■MB-72
CARRYING HANDLE
.......................................... 60
■AT-180 internal switch description............................ 61
11 INTERNAL VIEWS.............................................62
12 OPTIONS ....................................................63– 64
13 SPECIFICATIONS .............................................65
14 MENU GUIDE ..............................................66–67
15 NOTES ...............................................................68
ii
UNPACKING

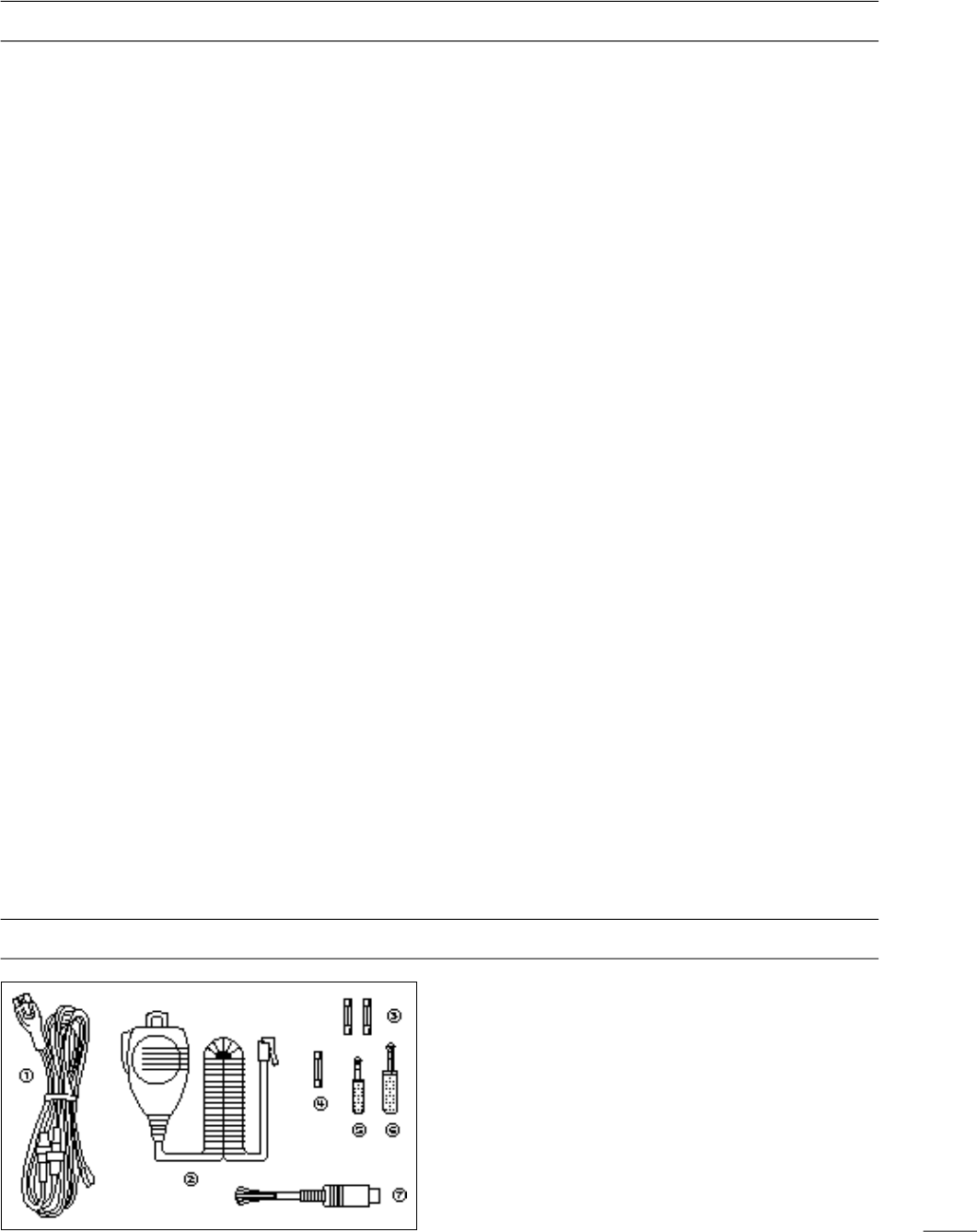

Accessories included with the IC-706MKIIG: Qty.
➀DC power cable* ....................................................1
➁Hand microphone (HM-103)...................................1
➂Spare fuse (30 A)...................................................2
➃Spare fuse (4 A).....................................................1
➄RTTY key plug........................................................1
➅Electronic keyer plug..............................................1
➆ACC cable..............................................................1
*OPC-639 for Europe versions (differs from the diagram at
left), OPC-025D for other versions.

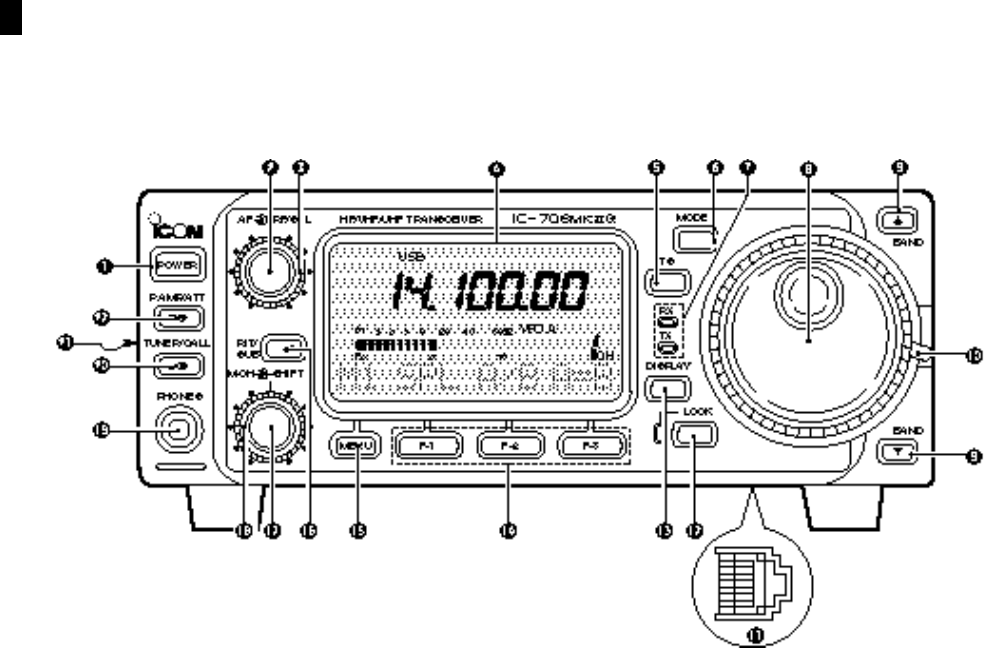

■Front panel

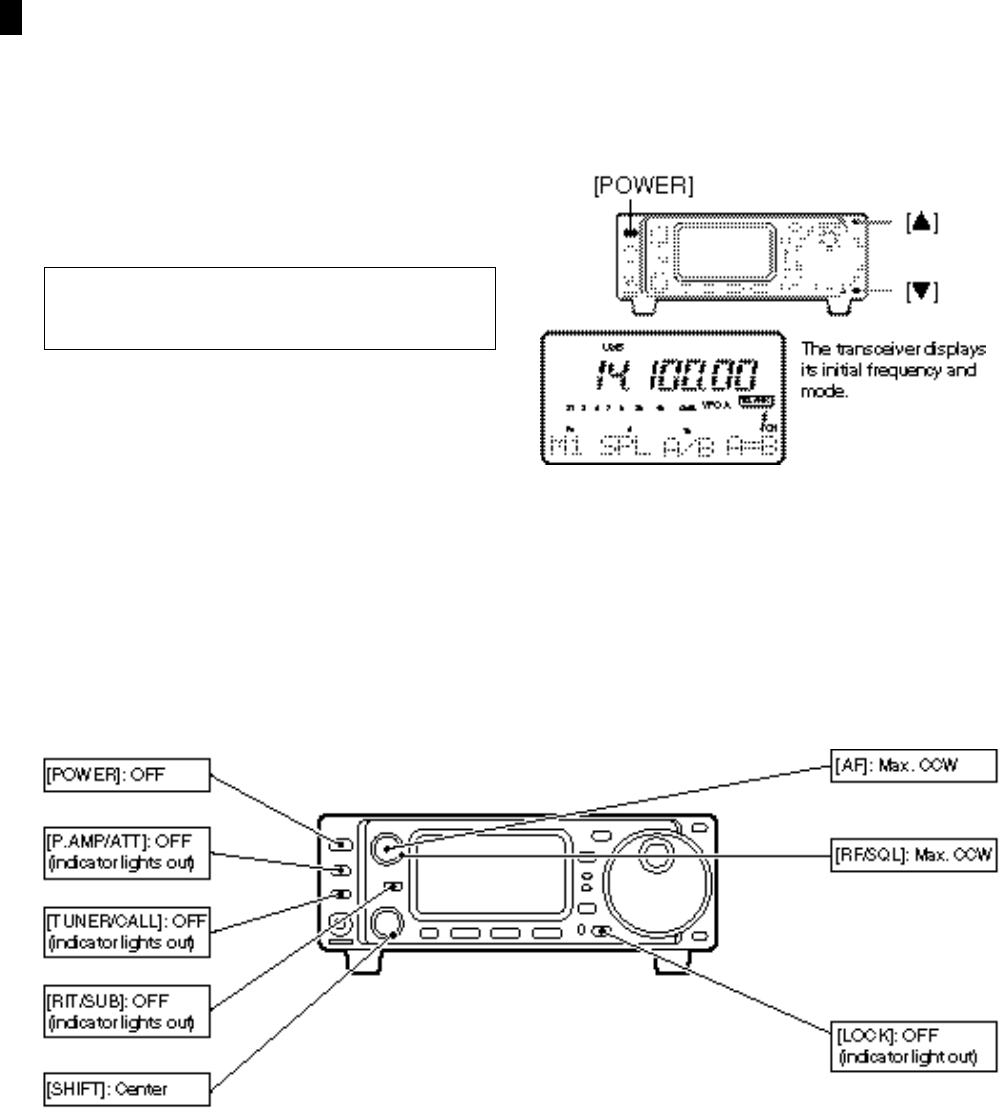

qPOWER SWITCH [POWER] (p. 15)
Turns power ON and OFF.
•Push momentarily to turn power ON.
• Push for 2 sec. to turn power OFF.
wAF GAIN CONTROL [AF] (inner control; p. 15)
Rotate clockwise to increase the audio output from
the speaker; rotate counterclockwise to decrease
the audio output from the speaker.
eRF GAIN CONTROL/SQUELCH CONTROL
[RF/SQL] (outer control; p. 22)
➥Adjusts the squelch threshold level (to mute noise
when receiving no signal) in all modes.
➥This control can be used for RF gain control to
adjust receiver gain manually.
•RF gain selection can be set in initial set mode (p. 50).
•RF gain is usable in SSB/CW/RTTY modes only.
rFUNCTION DISPLAY
Shows the operating frequency, dot matrix indica-
tions, selected memory channel, etc. See p. 7 for
details.
tTUNING STEP SWITCH [TS] (pgs. 17, 18)
➥Push momentarily to cycle between 1 Hz/10 Hz,
programmable and 1 MHz tuning steps.
•1 and 10 Hz steps are only available in SSB, CW and
RTTY modes; 1 MHz steps are only available in FM,
WFM and AM modes.
➥Push for 2 sec. to toggle between 1 and 10 Hz
steps, or; when the programmable tuning steps is
indicated, push for 2 sec. to enter programmable
tuning step mode.
yMODE SWITCH [MODE] (p. 19)
➥Push momentarily to cycle through the operating
modes:
USB/LSB ➧CW/CWå➧RTTY/åRTTY ➧
➧FM/WFM/AM
➥Push and hold for 2 sec. to toggle between the
following operating modes:
USB ↔LSB
CW ↔CWå
RTTY↔åRTTY
FM →WFM →AM →FM, etc.
u
RECEIVE/TRANSMIT INDICATORS [RX]/[TX]
[RX] lights green while receiving (and squelch
opens); [TX] lights red while transmitting.
iMAIN DIAL
Changes the displayed frequency, selects initial set
mode items, etc.
oUP/DOWN (BAND) SWITCHES [Y/Z(BAND)]
➥Push to select a band.
•Can also be used to advance quick set mode items,
initial set mode items, etc.
➥Push and hold to scroll through the bands contin-
uously.
!0 MAIN DIAL TENSION LATCH
Selects the main dial tension.
•2 positions are available.

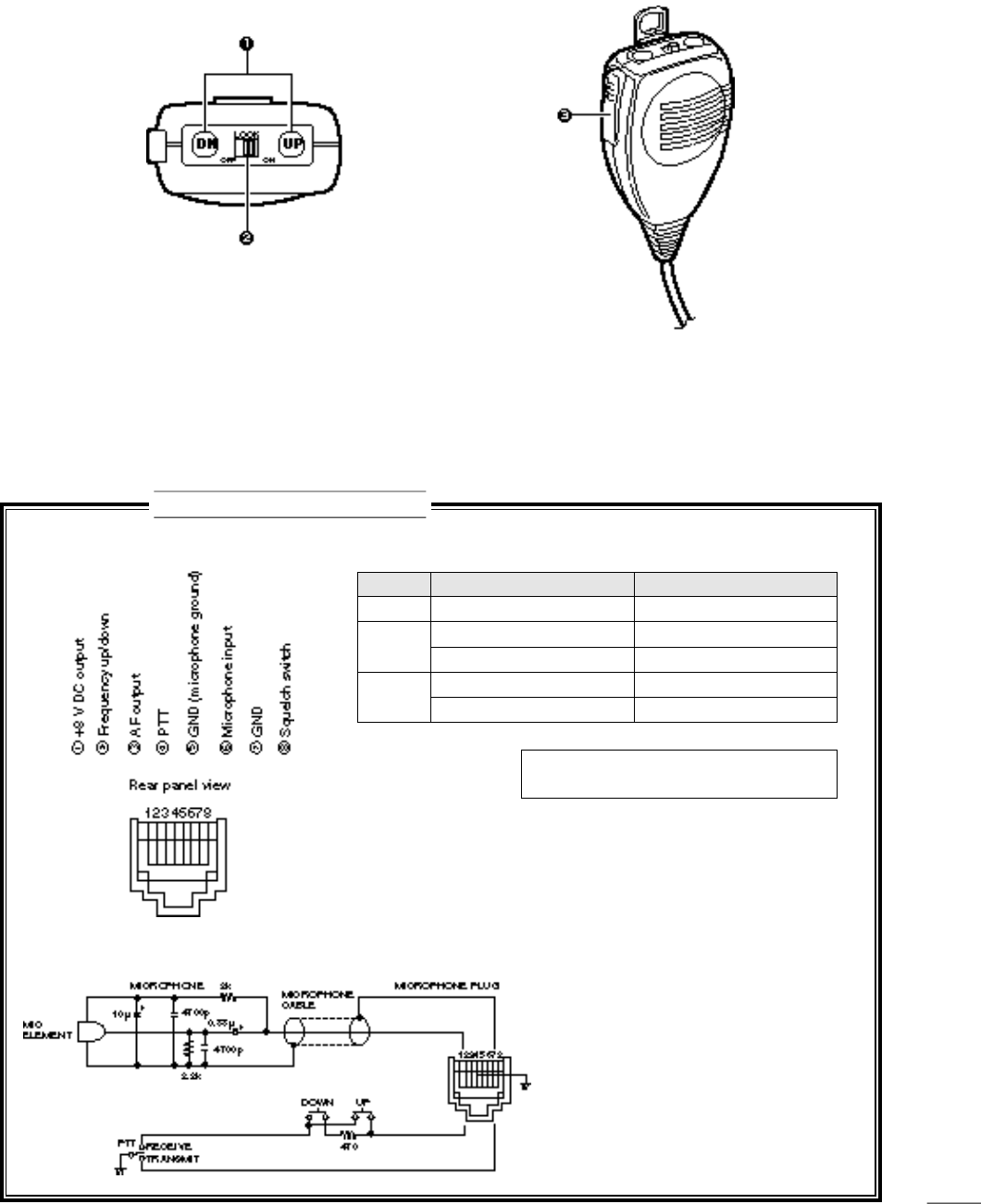

!1 MICROPHONE CONNECTOR (p. 8)
Modular-type microphone connector—connects the
supplied microphone (HM-103).
•The optional OPC-589 can be used to connect an 8-pin
microphone such as the SM-8 or SM-20, if desired.
•A microphone connector is also available on the rear
1PANEL DESCRIPTION
2
1PANEL DESCRIPTION
panel. DO NOT connect 2 microphones simultaneously.

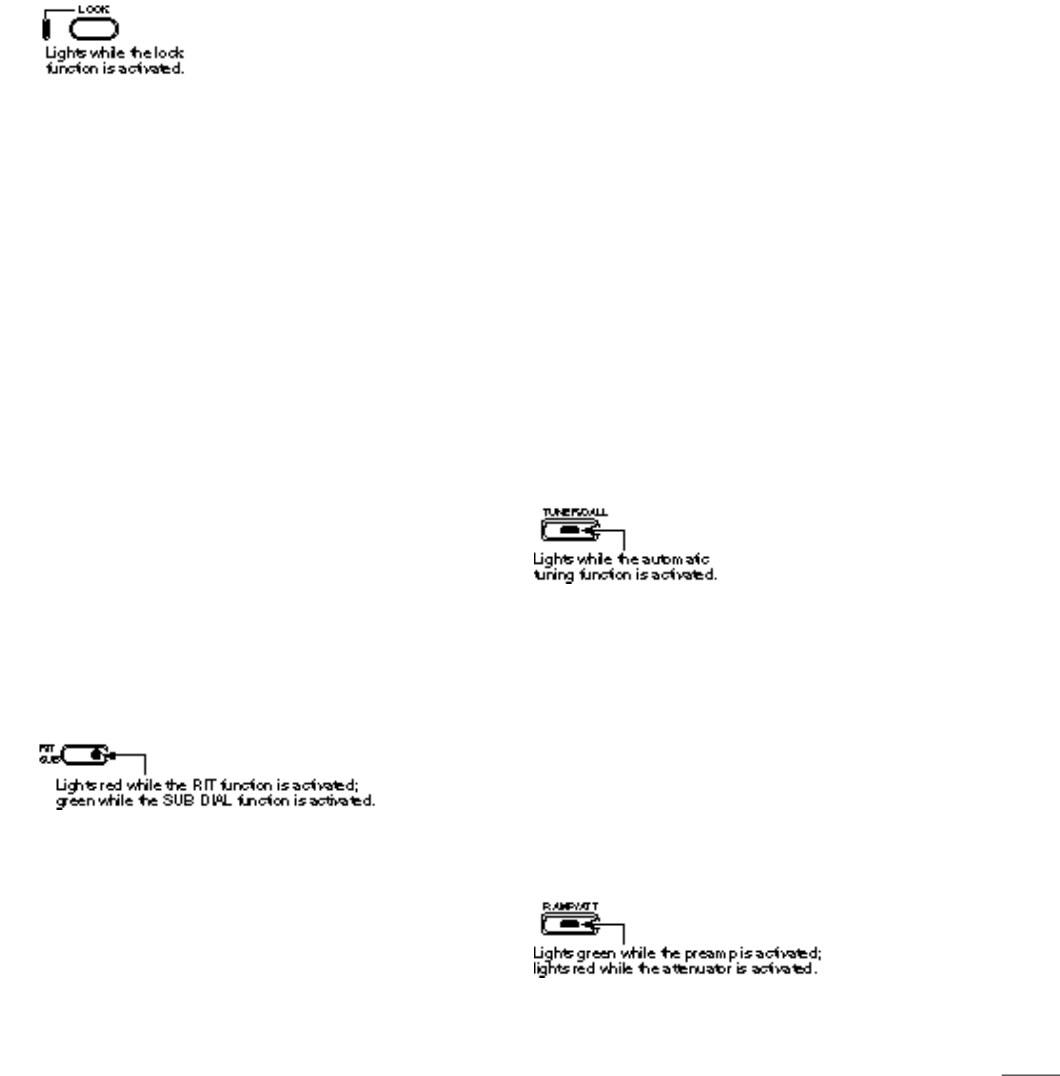

!2 LOCK SWITCH [LOCK]
➥Push momentarily to turn the dial lock function
ON and OFF.
•The dial lock function electronically locks the main
dial.
➥When the optional UT-102
VOICE SYNTHESIZER
UNIT
is installed (p. 52), push for 2 sec. to have
the frequency, etc. announced.
•UT-102 operation can be adjusted in initial set mode
(pgs. 53, 54).
!3 DISPLAY SWITCH [DISP] (p. 67)

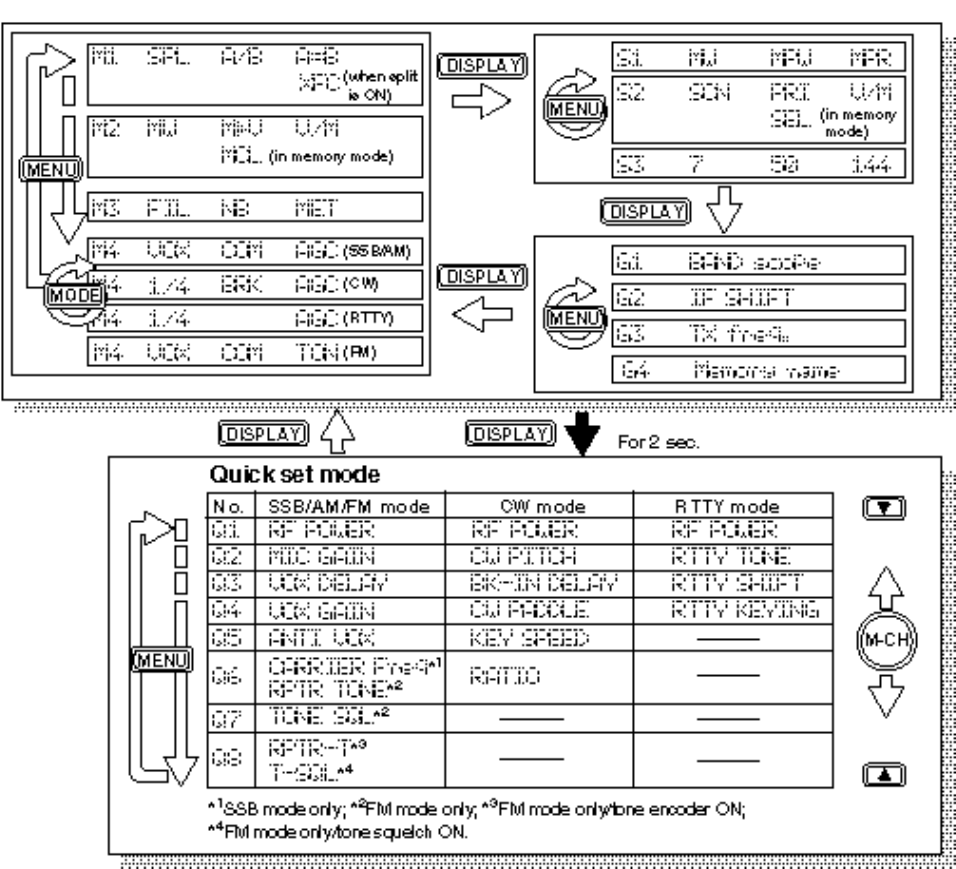

➥Push momentarily to select one of the three menu
sets: M1 to M4,S1 to S3 and G1 to G4.
➥Push for 2 sec. to select quick set mode.
!4 FUNCTION SWITCHES [F1]/[F2]/[F3] (pgs. 3, 4, 67)
Push to select the function indicated in the dot
matrix display above these switches.
•Functions vary depending on the menu set selected.
!5 MENU SWITCH [MENU] (p. 67)
➥
P
ush this switch one or more times to select
menus within a menu set (M,Sor G), or push to
advance through the quick set mode and initial
set mode displays.
➥Push and hold to jump between two different
function menu sets.
!6RIT/SUB DIAL SWITCH [RIT/SUB] (p. 20)
➥Push to toggle the RIT or SUB DIAL function ON
and OFF—initial set mode is used to select the
desired action*.
•Lights green when the SUB DIAL function is ON;
lights red when the RIT function is ON.
•Use the [M-CH] control to vary the RIT frequency or
SUB DIAL frequency (see above).
➥When the RIT function is ON, push for 2 sec. to
add or subtract the shifted frequency to the oper-
ating frequency.
*Even if RIT is selected in initial set mode, RIT cannot be
selected when operating AM, FM or WFM modes.

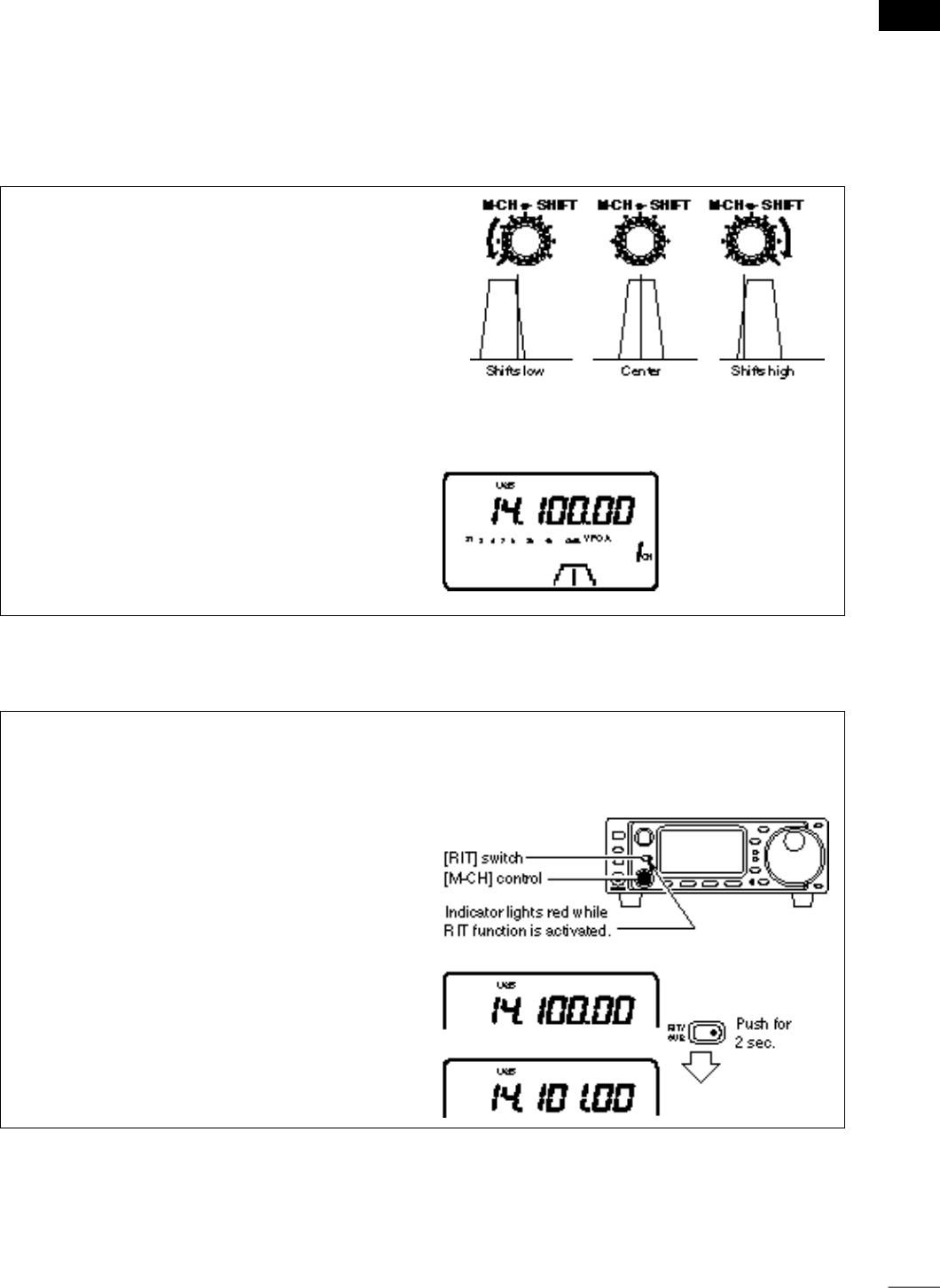

!7 SHIFT CONTROL [SHIFT] (outer control; p. 20)
Shifts the center frequency of the receiver’s IF pass-
band.
•Rotate the control clockwise to shift the center frequen-
cy higher, or rotate the control counterclockwise to shift
the center frequency lower.

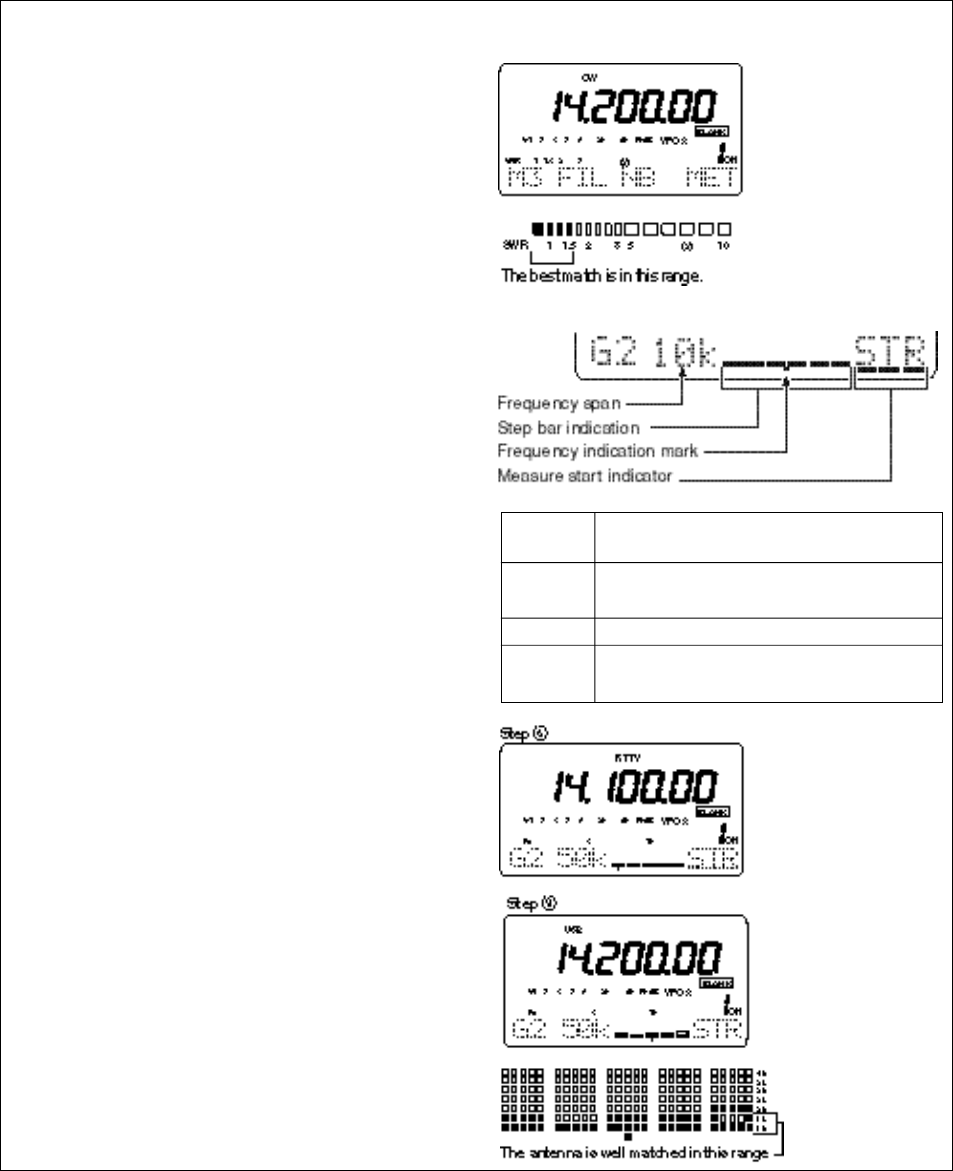

•When the graphic menu display (G2) is selected, the IF
passband is graphically displayed and changes in accor-
dance with the [SHIFT] control (see p. 20).
!8 M-CH CONTROL [M-CH] (inner control)
➥
When the RIT or SUBDIAL functions are OFF,
rotate to select a memory channel number (p. 35).
➥Shifts the receive frequency while the RIT func-
tion is ON in SSB, CW and RTTY modes (see
below and p. 20).
•RIT variable range is ± 9.99 kHz
➥Changes the operating frequency in the selected
tuning steps while the SUB DIAL function is ON
(p. 18).
!9 HEADPHONE JACK [PHONES] (p. 12)
Accepts headphones with 4–16 Ω impedance.
•When headphones are connected, no receive audio
comes from the speaker.
•When the PHONES/SPEAKER switch on the back of the
front panel is set to the [SPEAKER] position, an external
speaker can be connected. This is convenient for mobile
or outdoor operation.
@0 TUNER/CALL SWITCH [TUNER/CALL]
(pgs. 26, 27)

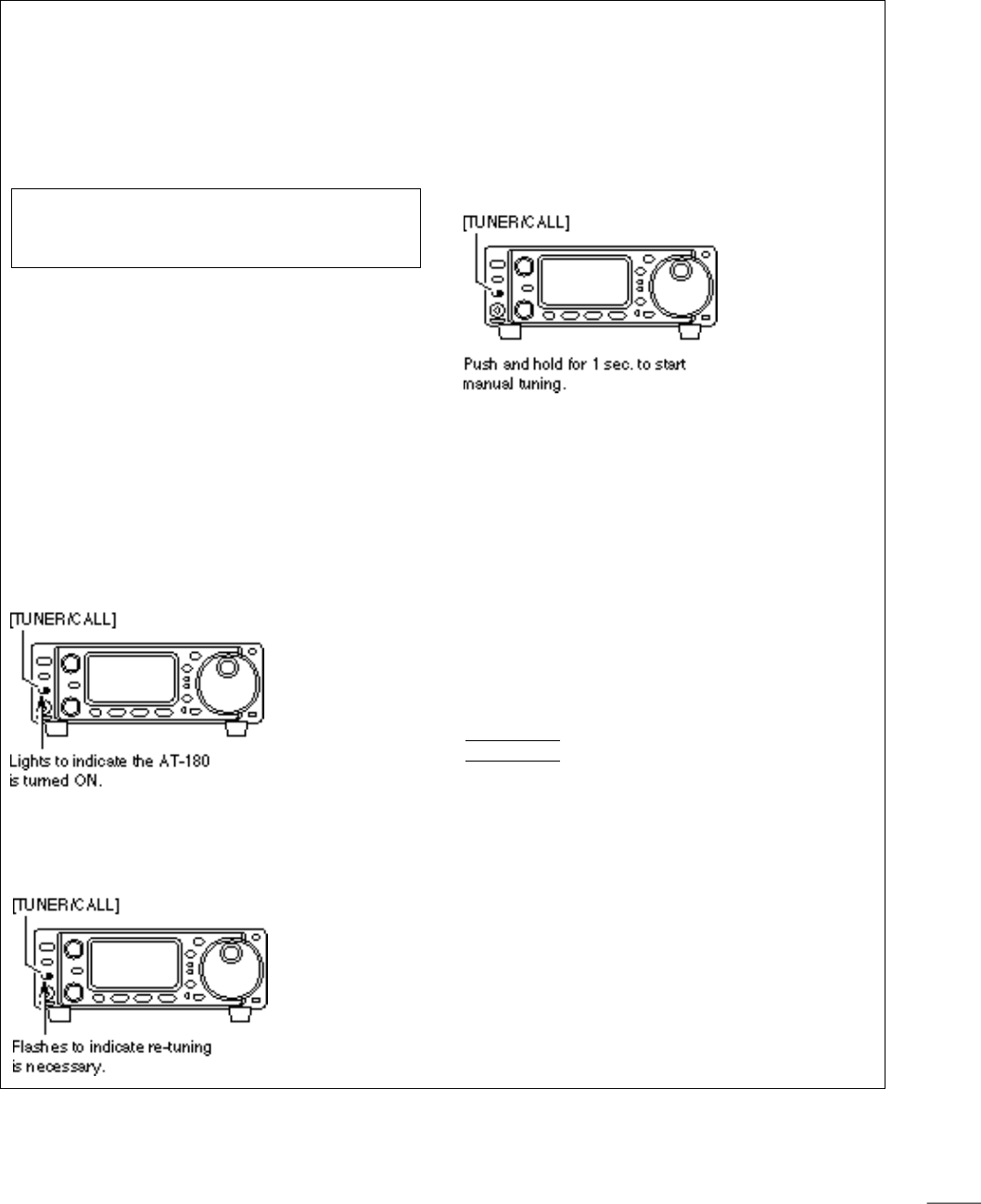

➥During HF/50 MHz operation, push this switch
momentarily to toggle the automatic antenna
tuner function ON/OFF.
•An optional antenna tuner must be connected.
➥During HF/50 MHz operation, push this switch for
2 sec. to manually tune the antenna.
•An optional antenna tuner must be connected.
➥During 144/430 MHz operation, push this switch
momentarily to select the call channel (or the pre-
vious channel/frequency when the call channel is
already selected). (p. 38)
•“C1” is the 144 MHz call channel and “C2” is the 430
MHz call channel.
@1
FRONT PANEL LATCH (p. 10)
Pull away from the transceiver (towards yourself
when looking at the front of the transceiver) to
detach the front panel from the main body of the
transceiver.
@2 P
REAMP/ATTENUATOR SWITCH [P.AMP/ATT]
(p. 21)
➥Push momentarily to turn the preamp ON or OFF.
➥Push and hold to turn the 20 dB attenuator ON;
push momentarily to turn the attenuator OFF.
•Lights green when the preamp is ON; lights red when
the 20 dB attenuator is ON.

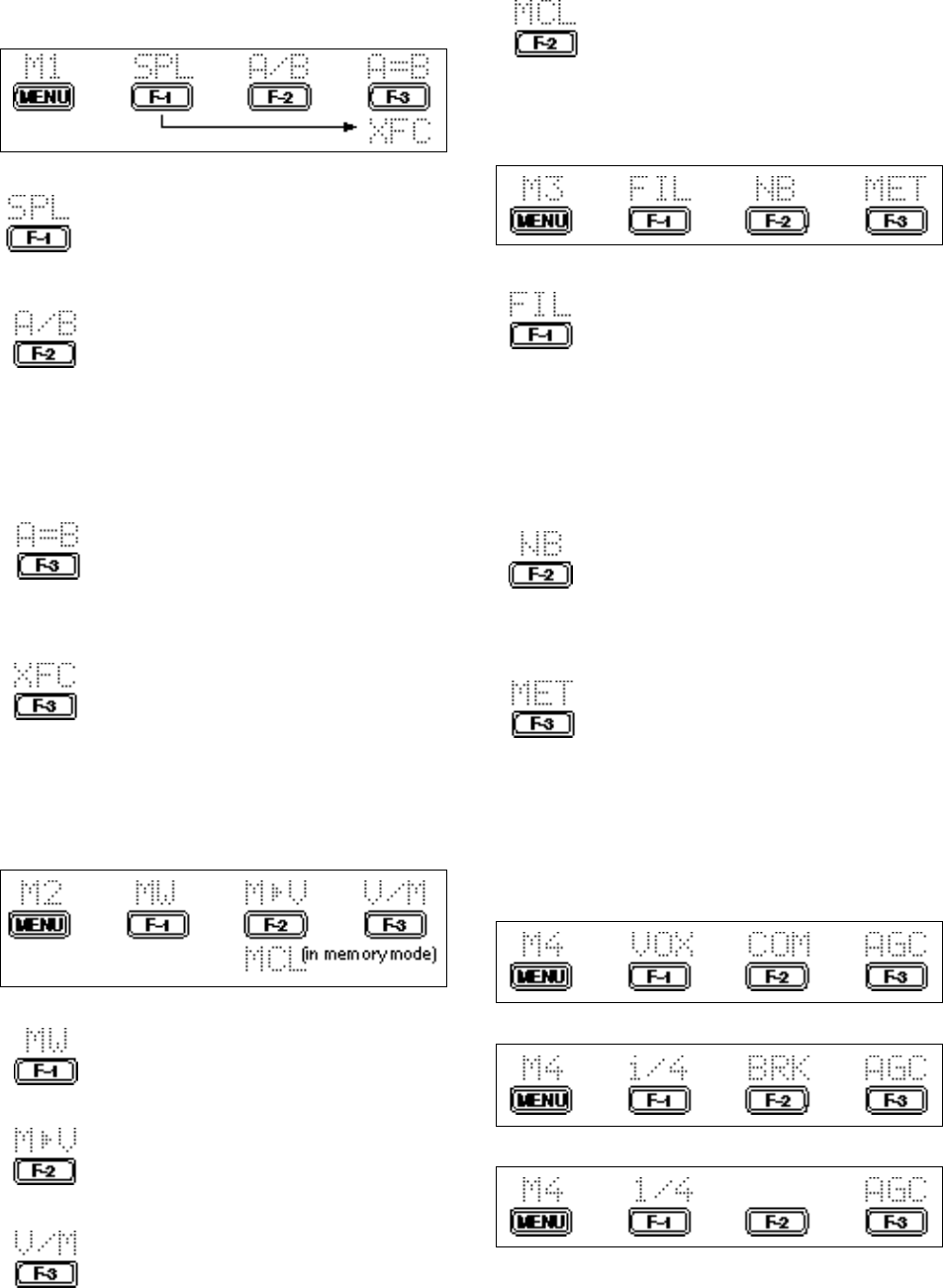

■Function switches
DM1 FUNCTIONS
SPLIT OPERATION (p. 28)
Toggles the split function ON and OFF.
•“ä”appears when the split function is ON.
•The function of [F-3] changes to XFC when the
split function is ON.
VFO A/B SELECTION (p. 16)
➥Toggles between VFO A and VFO B in
VFO mode.
➥Toggles between transmission VFO and
reception VFO during split operation.
➥Toggles between the transmit and
receive frequencies (and modes) of
memory channels when the split func-
tion is turned ON.
VFO EQUALIZATION (p. 16)
Equalizes the frequency and operating
mode of the two VFO’s.
•The rear (undisplayed) frequency and operat-
ing mode are equalized to the front (displayed)
VFO frequency and operating mode.
TRANSMIT FREQUENCY CHECK (p. 28)
Appears when the split function is turned
ON—monitors the transmit frequency
when pushed and held.
•While pushed, the transmit frequency can be
changed with the main dial.
DM2 FUNCTIONS

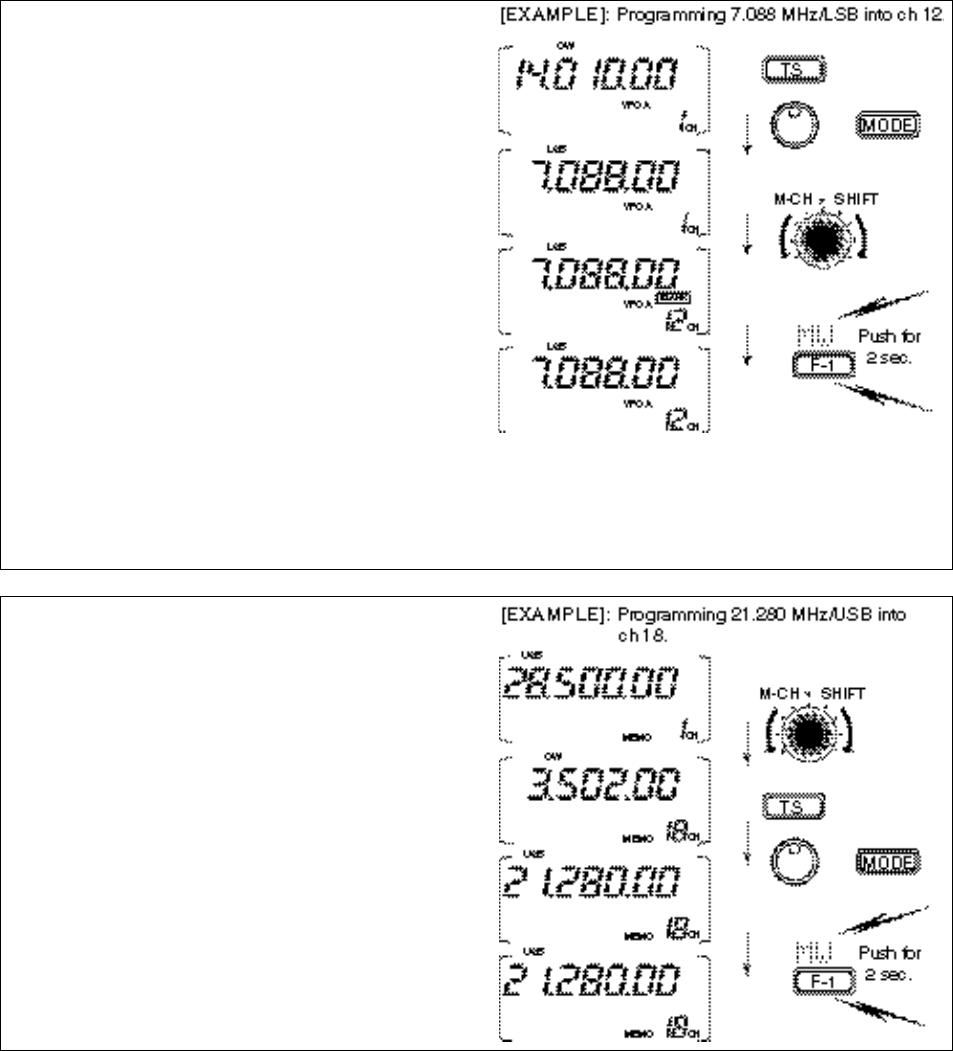

MEMORY WRITE (p. 39)
Stores the displayed frequency and oper-
ating mode into the displayed memory
channel.
MEMORY TRANSFER (p. 40)
Transfers the frequency and operating
mode in the selected memory channel to a
VFO.
VFO/MEMORY (p. 38)
Toggles between VFO and memory
modes.
MEMORY CLEAR (p. 38)
Clears the selected memory channel’s
contents.
•“}” appears.
DM3 FUNCTIONS
NARROW FILTER (p. 23)
Toggles the narrow filter (or wide filter—
push for 2 sec.) ON and OFF.
•“ã”appears when the narrow filter is ON; “ç”
appears when the wide filter is ON.
•An optional narrow filter and presetting in initial
set mode (p. 50) is necessary to use the fol-
lowing:
CW/RTTY narrow: FL-100, FL-101 or FL-232
SSB narrow: FL-223
SSB wide: FL-103

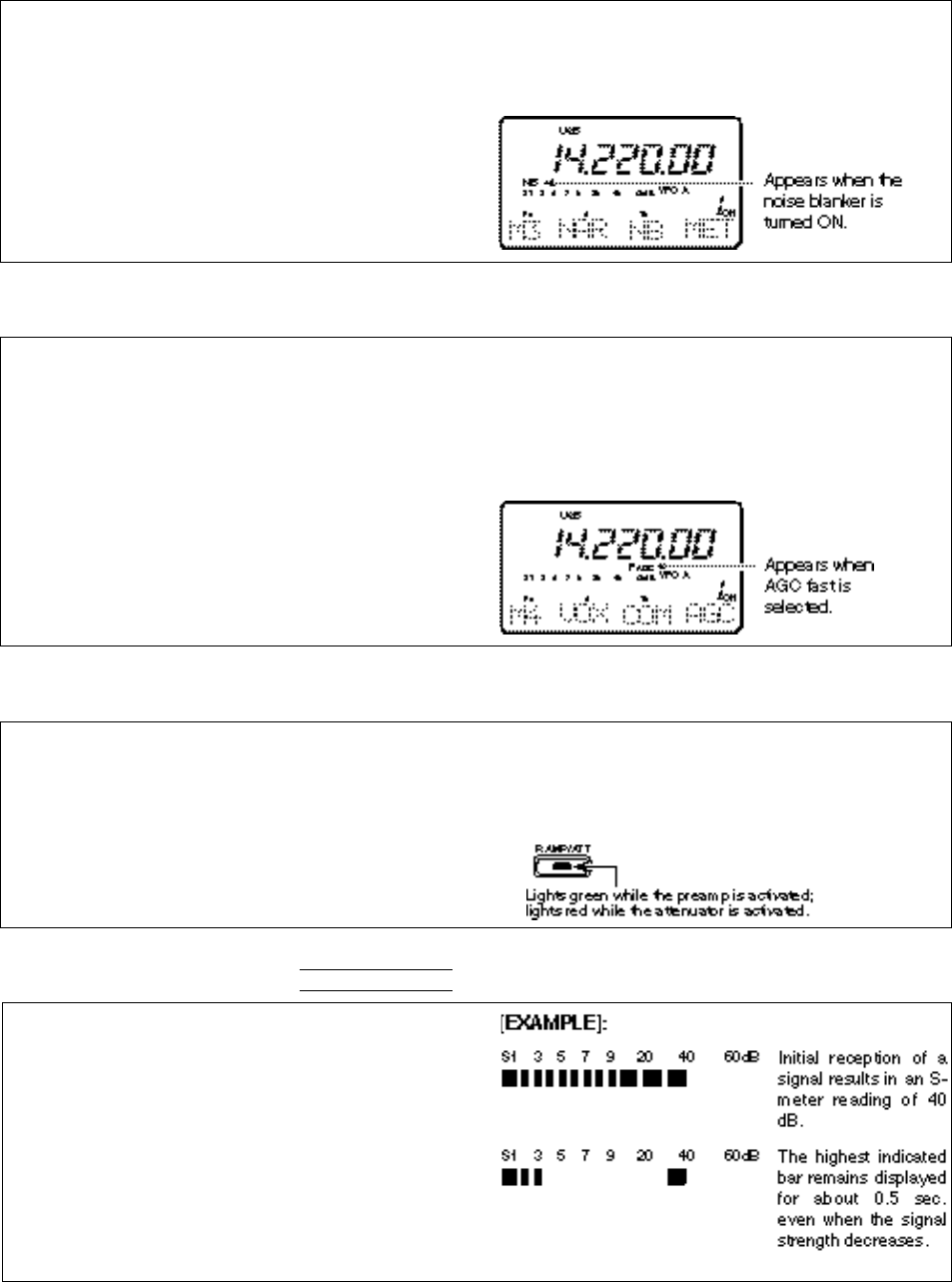

NOISE BLANKER (p. 21)
Turns the noise blanker ON and OFF.
•The noise blanker does not function in FM and
WFM modes; the “AM Noise blanker” item in
initial set mode must be set to ON for the noise
blanker to work in AM mode (p. 52).
METER SELECTION (p. 24)
Selects the type of meter displayed (during
transmit) in the function display.
•Power, ALC or SWR metering can be select-
ed.
•Only an S-meter is available for receive.
DM4 FUNCTIONS
DURING SSB/AM OPERATION:
DURING CW OPERATION:
DURING RTTY OPERATION:
1PANEL DESCRIPTION
4
1PANEL DESCRIPTION
DURING FM OPERATION:

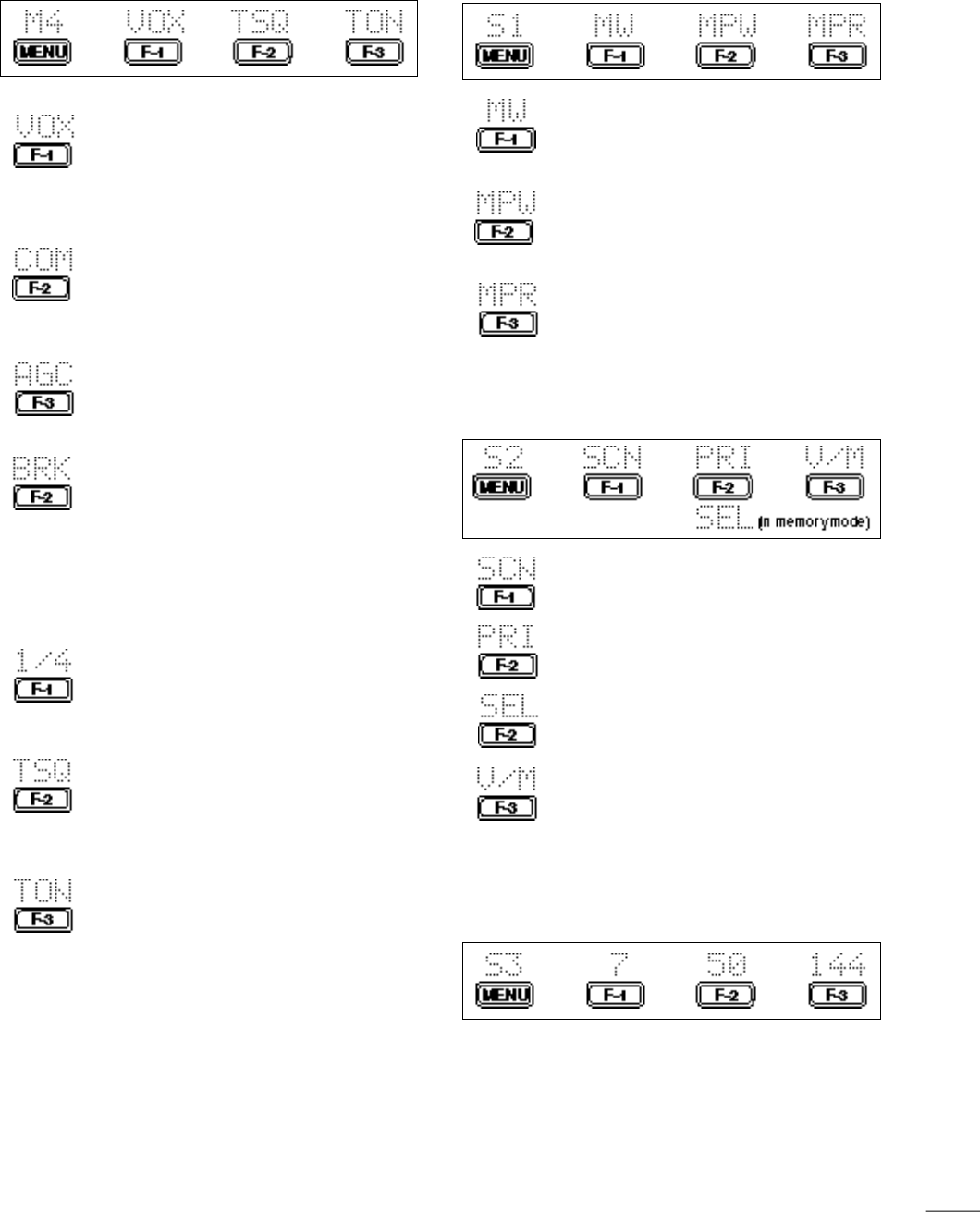

VOX FUNCTION (p. 25)
Toggles the VOX function ON and OFF.
•The [VOX GAIN] and [ANTI VOX] are avail-
able on the side panel.
•VOX delay can be set in quick set mode
(p. 47).
SPEECH COMPRESSOR (p. 25)
Toggles the speech compressor ON and
OFF.
•The [COMP GAIN] control is available on the
side panel.
AGC (p. 21)
Changes the time constant of the AGC cir-
cuit.

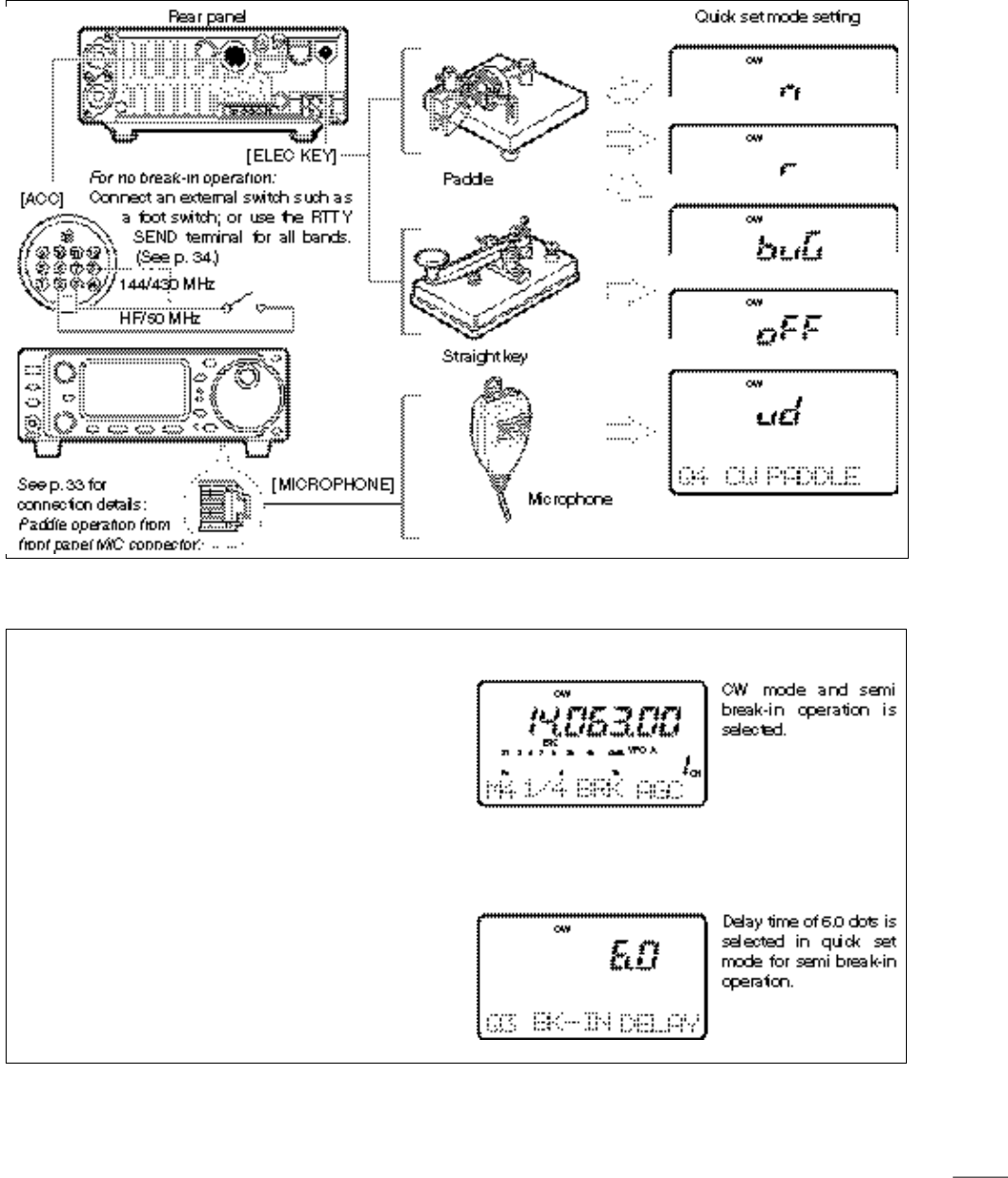

BREAK-IN (p. 32)
Selects semi break-in, full break-in (QSK)
and break-in OFF
•“BK” or “F-BK” appears when selecting semi
break-in or full break-in, respectively.
•An external switch, such as a foot switch, is
necessary to connect to the ACC socket (pin 3,
pin 7 or RTTY SEND—see p. 34) to use no
break-in operation.
1/4 FUNCTION (p. 35)
Toggles the 1/4 function ON and OFF.
•When the 1⁄4function is ON, a bar appears
under the 1⁄4indication and fine tuning can be
used.

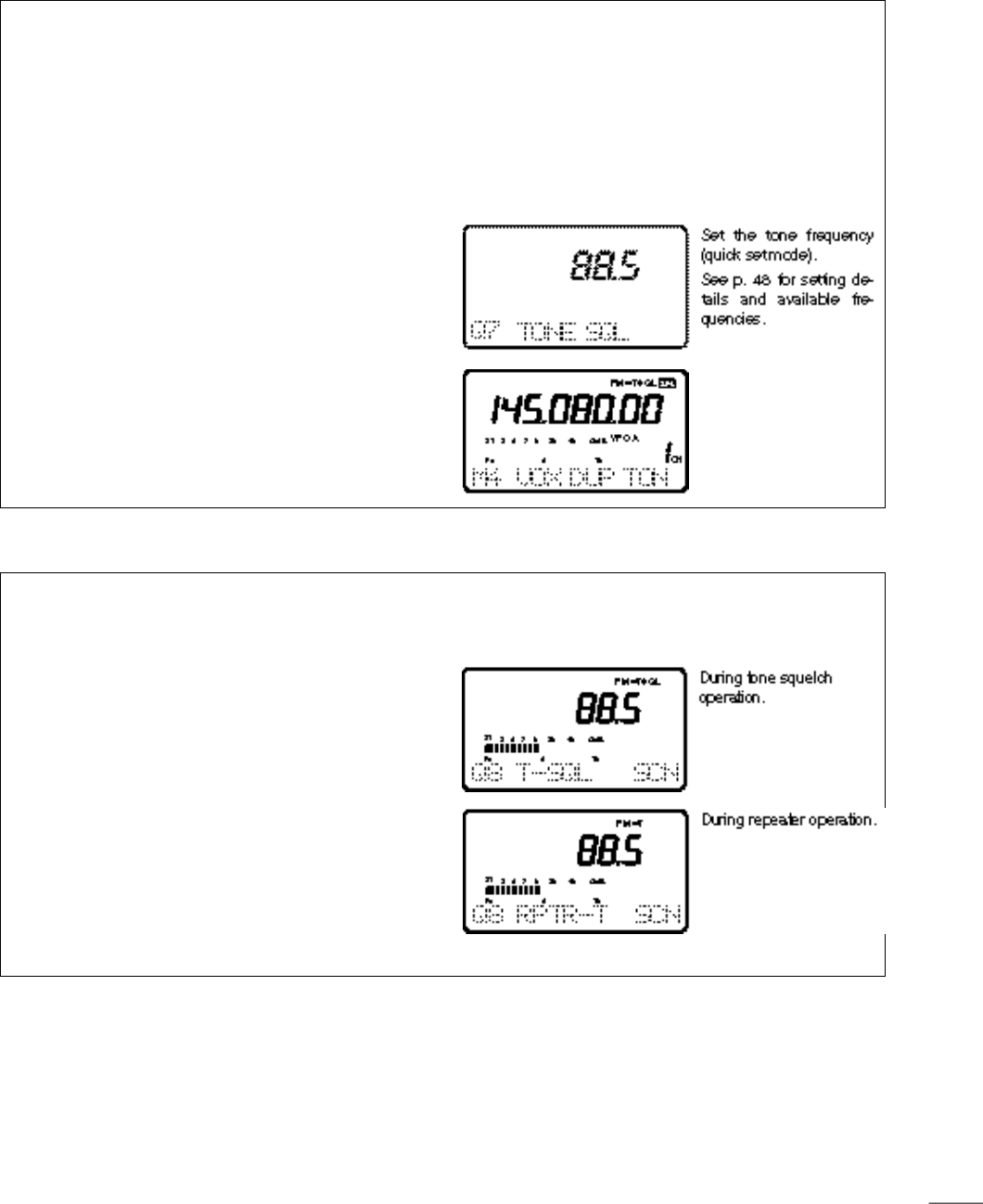

TONE SQUELCH (p. 30)
Toggles the tone squelch function ON and
OFF (a tone squelch frequency must be
selected in Quick Set mode).
•“FM-TSQL” appears when the function is ON.
REPEATER TONE OPERATION (p. 29)
➥Toggles the subaudible tone encoder for
repeater use ON and OFF.
•“FM-T” appears when the function is ON.
➥Transmits a 1750 Hz tone burst when
pushed and held during transmission.
•Tone frequencies or tone burst can be set in
initial set mode (p. 48).
DS1 FUNCTIONS
MEMORY WRITE (p. 39)
Stores the displayed frequency and oper-
ating mode into the displayed memory
channel.

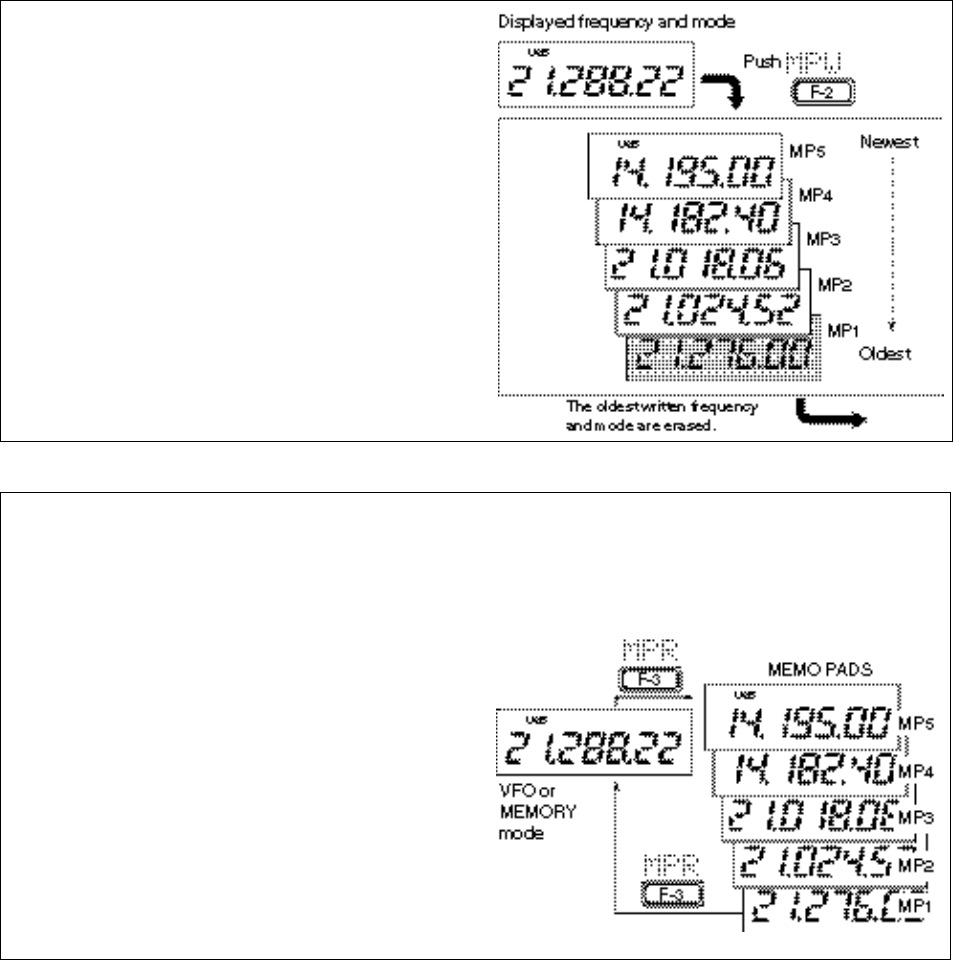

MEMO PAD WRITE (p. 41)
Stores the displayed frequency and oper-
ating mode into a memo pad.
MEMO PAD READ (p. 41)
Calls up a memo pad.
DS2 FUNCTIONS

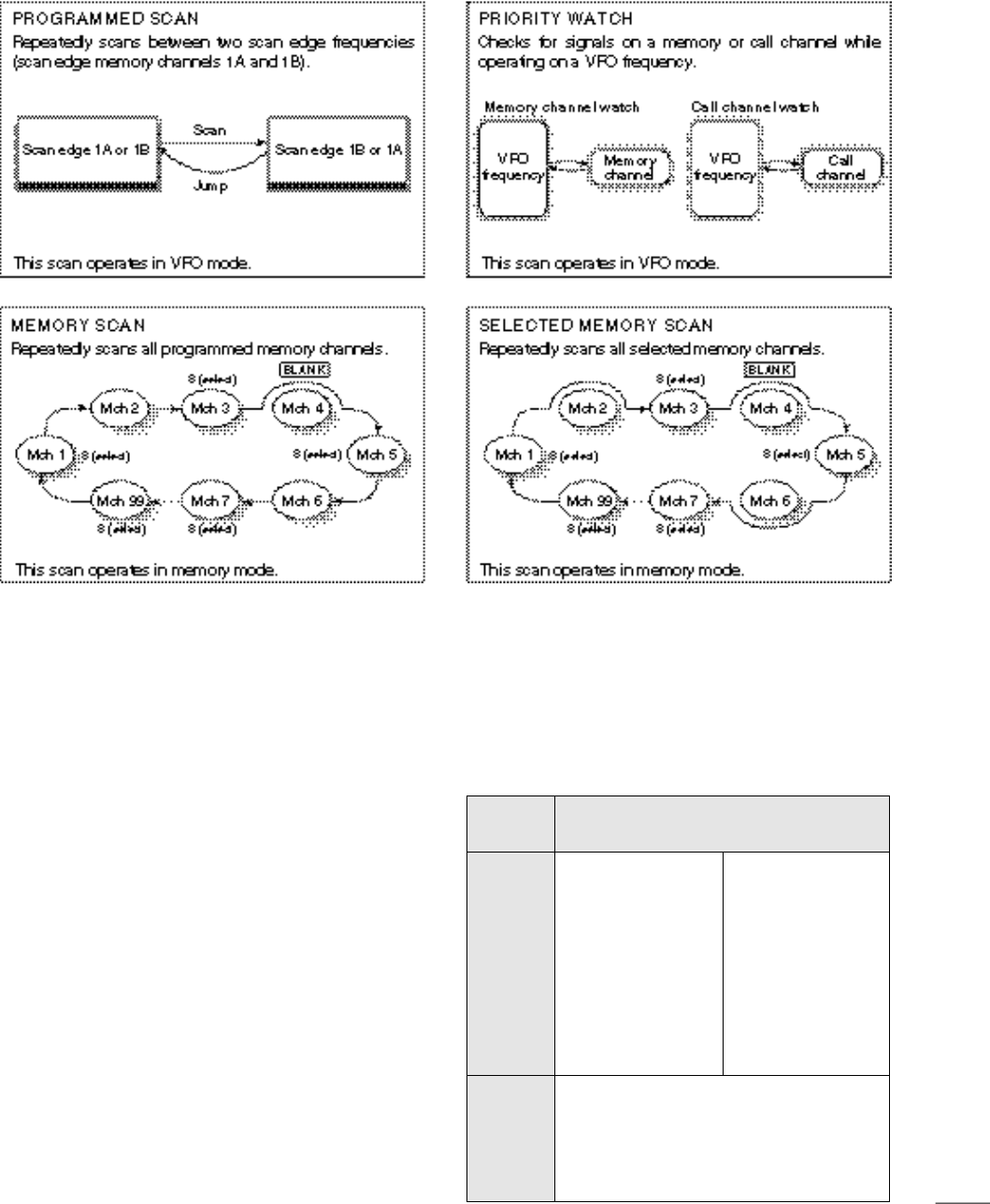

SCAN (p. 43)
Starts and stops the scan function.
PRIORITY WATCH (p. 43)
Starts and stops priority watch.
SELECT SCAN (p. 43)
Toggles the select setting ON and OFF for
the selected memory channel.
VFO/MEMORY (p. 43)
Toggles between VFO and memory
modes.
DS3 FUNCTIONS
QUICK BAND CHANGE FUNCTION (p. 19)
This item provides access to the band stacking regis-
ter. By default the 7, 50 and 144 MHz bands are dis-
played. Push [F-1] to [F-3] for 2 sec. to select a new
band if desired.
•A mode is memorized along with the frequency for each
band.
1PANEL DESCRIPTION
■Rear and side panels

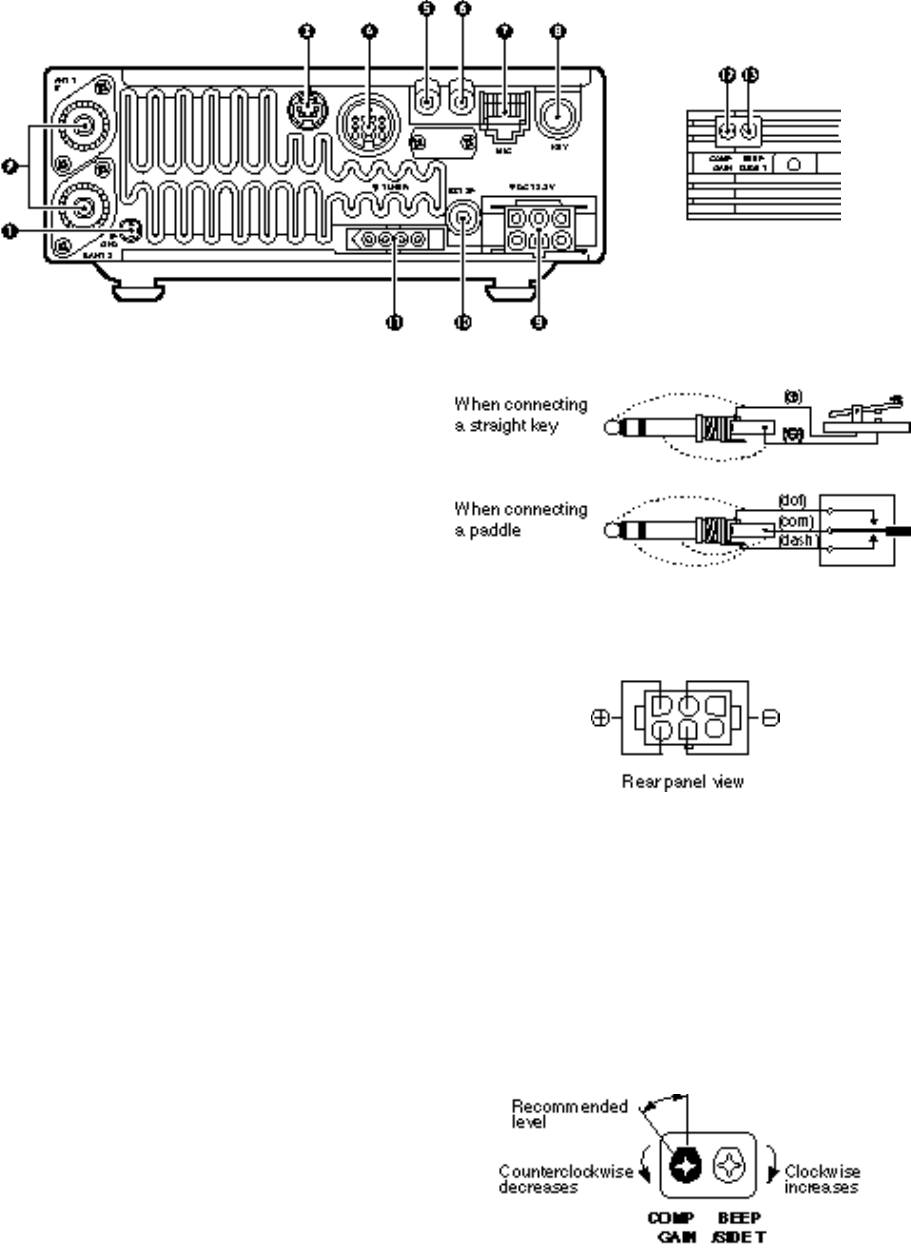

qGROUND TERMINAL [GND] (p. 9)
Connect this terminal to a ground to prevent electri-
cal shocks, TVI, BCI and other problems.
w
ANTENNA CONNECTORS [ANT 1], [ANT 2] (p. 11)
Accept a 50 Ω antenna with an PL-259 type plug.
•[ANT 1] is for connection to an HF/50 MHz antenna.
•[ANT 2] is for connection to 144 MHz antenna.
•These connectors are switched above or below 60 MHz.
e
DATA JACK [DATA] (p. 12)
6-pin min DIN jack to connect a TNC, etc. for pack-
et operation.
r

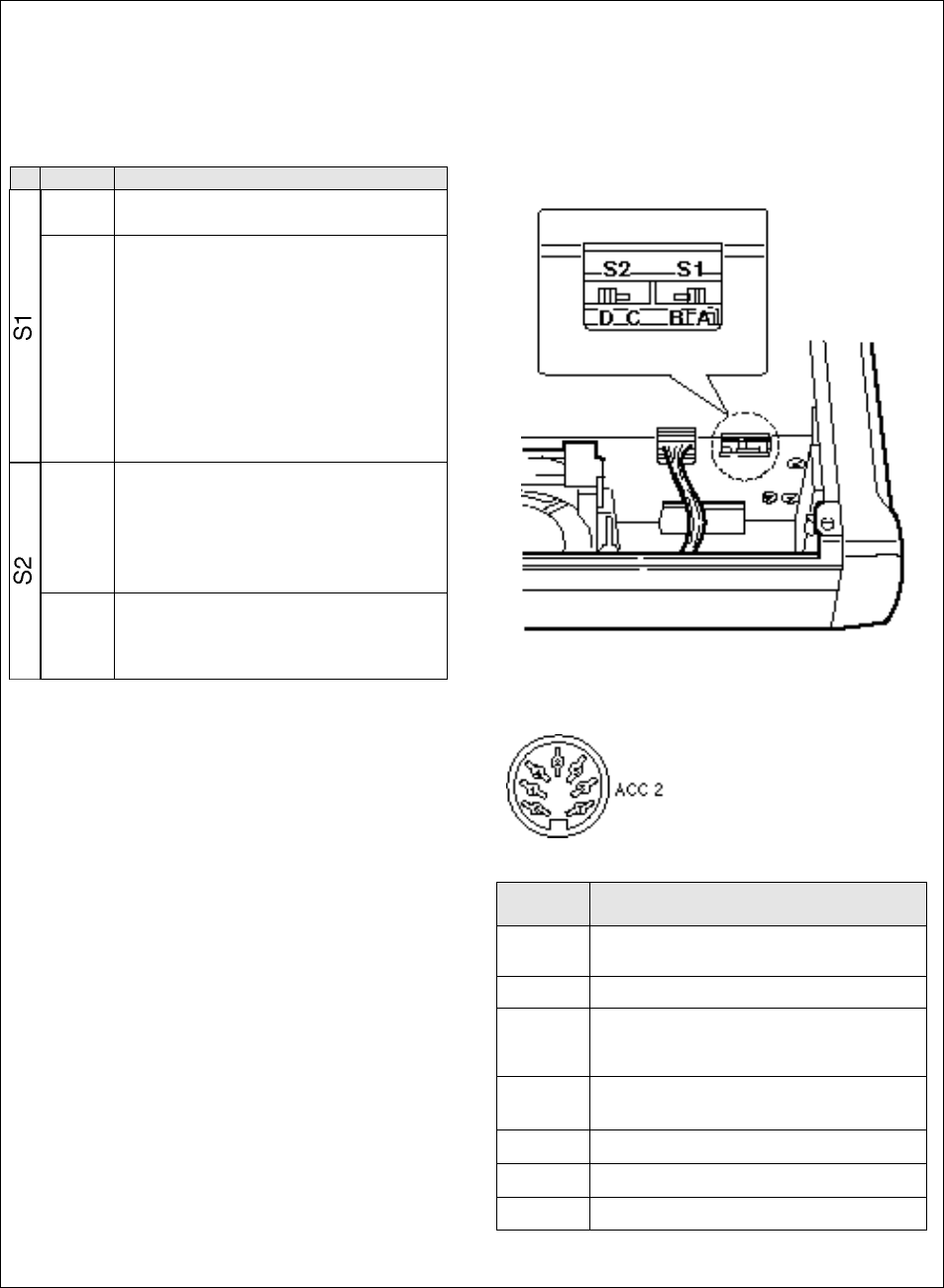

ACCESSORY SOCKET [ACC] (p. 6)
Enables connection to external equipment such as
a TNC for data communications, a linear amplifier or
an automatic antenna selector/tuner, etc.
•See page at right for socket information.
t
RTTY JACK [RTTY] (p. 34)
Connects an external terminal unit for RTTY (FSK)
operation.
•The keying polarity and mark/shift frequencies can be
selected in quick set mode (p. 47).

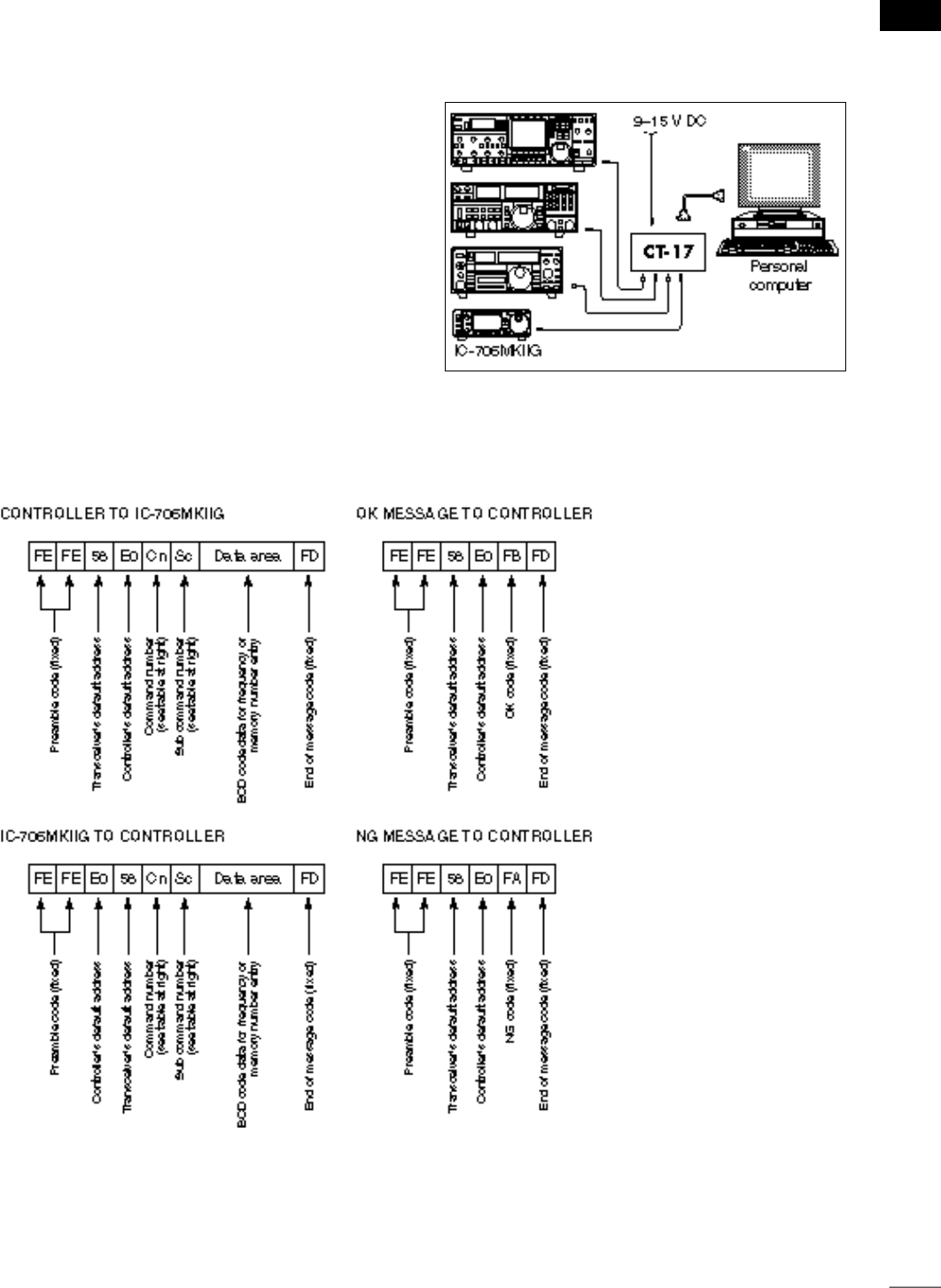

yCI-V REMOTE CONTROL JACK [REMOTE]
(p. 44)
Designed for use with a personal computer for
remote operation of transceiver functions.
uMICROPHONE CONNECTOR [MIC] (p. 11)
Accepts the supplied microphone (connected in par-
allel with the front panel’s [MIC] connector).
•See pgs. 1 and 2 for microphone notes.
•See p. 8 for microphone connector information.
iELECTRONIC KEYER JACK [KEY] (p. 32)
Accepts a paddle to activate the internal electronic
keyer.
•Selection between the internal electronic keyer and
straight key operation can be made in quick set mode.
(p. 48)
oDC POWER SOCKET [DC13.8V] (p. 13)
Accepts 13.8 V DC through the supplied DC power
cable.
!0 EXTERNAL SPEAKER JACK [EXT SP] (p. 12)
Accepts a 4–16 Ω speaker.
!1 TUNER CONTROL SOCKET [TUNER] (p. 12)
Accepts the control cable from an optional AH-3
HF
AUTOMATIC ANTENNA TUNER
.
!2 SPEECH COMPRESSION LEVEL CONTROL
[COMP GAIN] (p. 25)
Adjusts the compression level.
•This control is available only when the speech compres-
sor is ON.
•ACC SOCKET
•When connecting the ACC conversion cable (OPC-599)
6
1PANEL DESCRIPTION
!3 BEEP/SIDETONE CONTROL [BEEP/SIDETONE]
Adjusts the beep tone and CW side tone audio lev-
els.
TECHNICAL INFORMATION

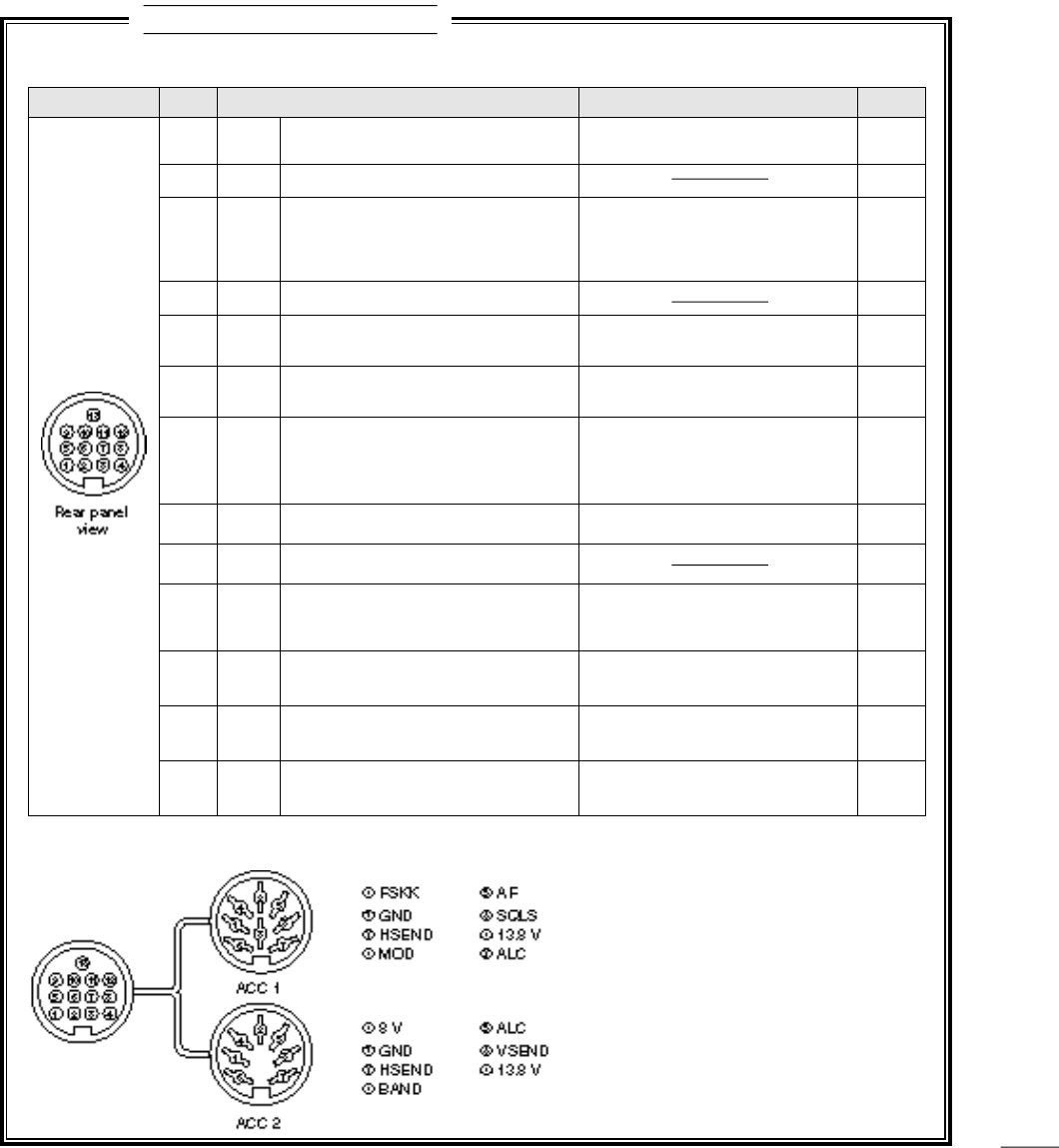

ACC PIN # NAME DESCRIPTION SPECIFICATIONS COLOR
1 8 V Regulated 8 V output. Output voltage : 8 V ±0.3 V
Output current : Less than 10 mA brown
2 GND Connects to ground. red
3 HSEND
Input/output pin (HF/50 MHz).
Goes to ground when transmitting.
When grounded, transmits (connected to 8V
line thru 2.2 kΩ resistance/144 MHz operation).
Ground level : –0.5 V to 0.8 V
Input current : Less than 20 mA
(HF/50 MHz bands) orange
4 BDT Data line for the optional AT-180. yellow
5 BAND Band voltage output.
(Varies with amateur band) Output voltage : 0 to 8.0 V green
6 ALC ALC voltage input. Control voltage : –4 to 0 V
Input impedance : More than 10 kΩblue
7 VSEND
Input/output pin (144 MHz).
Goes to ground when transmitting.
When grounded, transmits
(connected to 8V
line thru 2.2 kΩ resistance/HF•50 MHz operation)
.
Ground level : –0.5 V to 0.8 V
Input current : Less than 20 mA
(144 MHz band) purple
8 13.8 V 13.8 V output when power is ON. Output current : Max. 1 A gray
9 TKEY Key line for the AT-180. white
10 FSKK RTTY keying input.
Connected in parallel to the [RTTY] jack. Ground level :–0.5 to 0.8 V
Input current : Less than 10 mA black
11 MOD Modulator input. Input impedance :10 kΩ
Input level :Approx. 100 mV
rms pink
12 AF AF detector output.
Fixed, regardless of [AF] position. Output impedance :4.7 kΩ
Output level : 100 to 350 mV rms light
blue
13 SQLS Squelch output.
Goes to ground when squelch opens. SQL open :Less than 0.3 V/5 mA
SQL closed :More than 6.0 V/100 µA light
green
Color refers to the
cable strands of the
supplied cable.
1PANEL DESCRIPTION

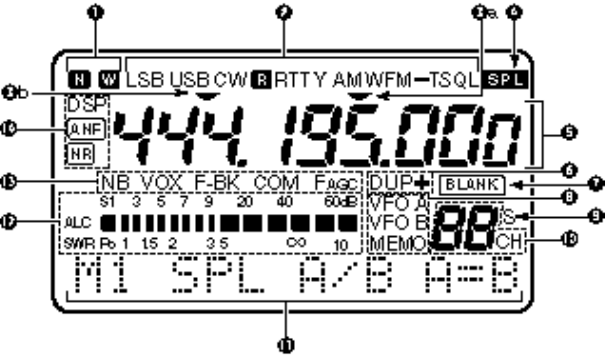

■Function display
qNARROW/WIDE FILTER INDICATORS
➥“ã” appears when selecting AM narrow or FM
narrow modes.
➥When installing an optional narrow filter, narrow
mode can be selected in CW, RTTY and SSB
modes.
•When the SSB wide filter is installed, “ç” appears
during wide mode selection.
wMODE INDICATORS
Show the operating mode.
ePROGRAMMABLE/1 MHz TUNING STEP
INDICATORS
➥ ➌a appears when the programmable tuning step
is selected.
➥ ➌b appears when the 1 MHz tuning step is
selected.
rSPLIT INDICATOR
Shows that the split frequency function is activated.
tFREQUENCY READOUT
Shows the operating frequency.
•“C” appears in place of the 1 Hz digit when the call chan-
nel is selected.
yDUPLEX INDICATORS
➥“DUP+” appears during plus duplex operation.
➥“DUP–” appears during minus duplex operation.
uBLANK INDICATOR
Shows that the displayed memory channel is not
programmed.
•This indicator appears both in VFO and memory modes.
iVFO/MEMORY INDICATORS
VFO A or B appears when VFO mode is selected;
MEMO appears when memory mode is selected.
oSELECT INDICATOR
Shows that the displayed memory channel is desig-
nated as a select memory channel.
!0 MEMORY CHANNEL NUMBER READOUT
Shows the selected memory channel number.
!1 DOT MATRIX INDICATORS
These alphanumeric readouts show a variety of
information such as current functions of the “F” keys
[F1] to [F3], memory channel names, set mode
items, etc. See p. 67 for an overview of these indi-
cators.
!2 METER READOUTS
➥Functions as an S-meter while receiving.
➥Functions as a power, ALC or SWR meter while
transmitting.
Note:The SWR meter does not function in the 144
MHz band.
!3 FUNCTION INDICATORS
➥“NB” appears when the noise blanker is activat-
ed.
➥“VOX” appears when the VOX function is select-
ed.
➥“F-BK” appears when full break-in operation is
selected and only “BK” appears when semi
break-in operation is selected.
➥“COM” appears when the speech compressor is
activated.
➥“FAGC” appears when the fast AGC function is
selected.
!4DSP INDICATORS
Appear when the optional DSP unit is installed and
activated.
•MICROPHONE CONNECTOR
8
1PANEL DESCRIPTION
■Microphone (HM-103)
➊UP/DOWN SWITCHES [UP]/[DN]
Change the operating frequency.
•Push and hold to change the frequency continuously.
•Tuning step is 50 Hz when no TS indicator appears.
➋LOCK SWITCH [LOCK]
Locks the [UP]/[DN] switches.
➌PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
TECHNICAL INFORMATION
PIN NO. FUNCTION DESCRIPTION
1 +8 V DC output Max. 10 mA
2Frequency up Ground
Frequency down Ground through 470 Ω
8Squelch open “LOW” level
Squelch closed “HIGH” level
•HM-103 SCHEMATIC DIAGRAM
Caution:DO NOT short pin 1 to ground as
this can damage the internal 8 V regulator.

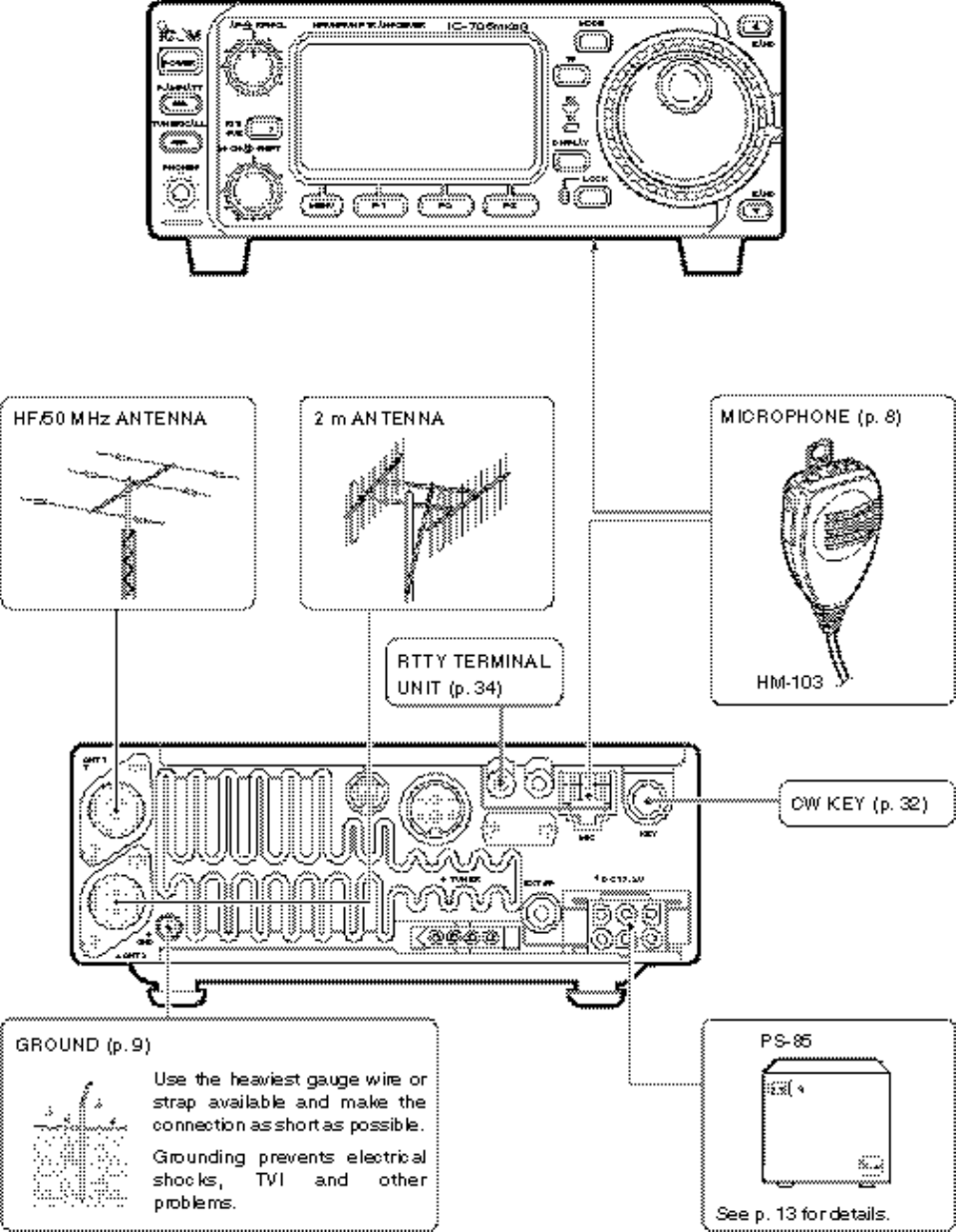

2INSTALLATION AND CONNECTIONS
■Unpacking
After unpacking, immediately report any damage to
the delivering carrier or dealer. Keep the shipping car-
tons.
For a description and a diagram of accessory equip-
ment included with the IC-706MKIIG, see UNPACK-
ING on p. ii of this manual.
■Grounding
To prevent electrical shock, television interference
(TVI), broadcast interference (BCI) and other prob-
lems, ground the transceiver through the GROUND
terminal on the rear panel.
For best results, connect a heavy gauge wire or strap
to a long earth-sunk copper rod. Make the distance
between the GROUND terminal and ground as short
as possible.

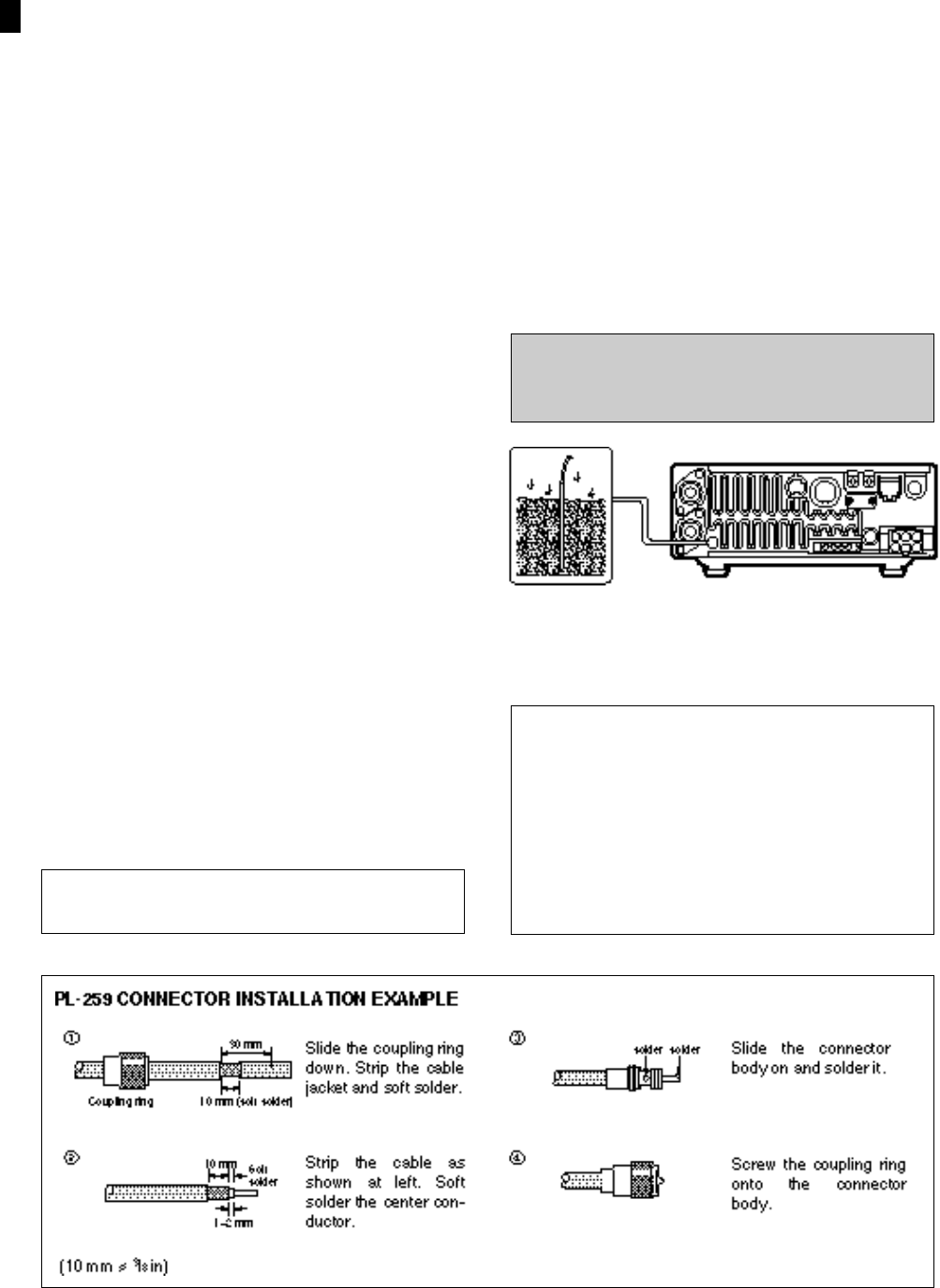

■Antenna
Select antenna(s), such as a well-matched 50 Ω
antenna, and feedline. The transmission line should
be a coaxial cable. 1.5 : 1 or better of Vo l t a g e
Standing Wave Ratio (VSWR) is recommended for
your required band. Of course, the transmission line
should be a coaxial cable.
CAUTION: Protect your transceiver from lightning
using a lightning arrestor.
RWARNING:NEVER connect the [GND] ter-
minal to a gas or electric pipe, since the connection
could cause an explosion or electric shock.
ANTENNA SWR
Each antenna is tuned for a specified frequency
range and SWR may be increased out-of-range.
When the SWR is higher than approx. 2.0:1, the
transceiver’s power drops to protect the final transis-
tors. In this case, an optional antenna tuner is useful
to match the transceiver and antenna. Low SWR
allows full power for transmitting even when using
the antenna tuner. The IC-706MKIIG has an SWR
meter to monitor the antenna SWR continuously.

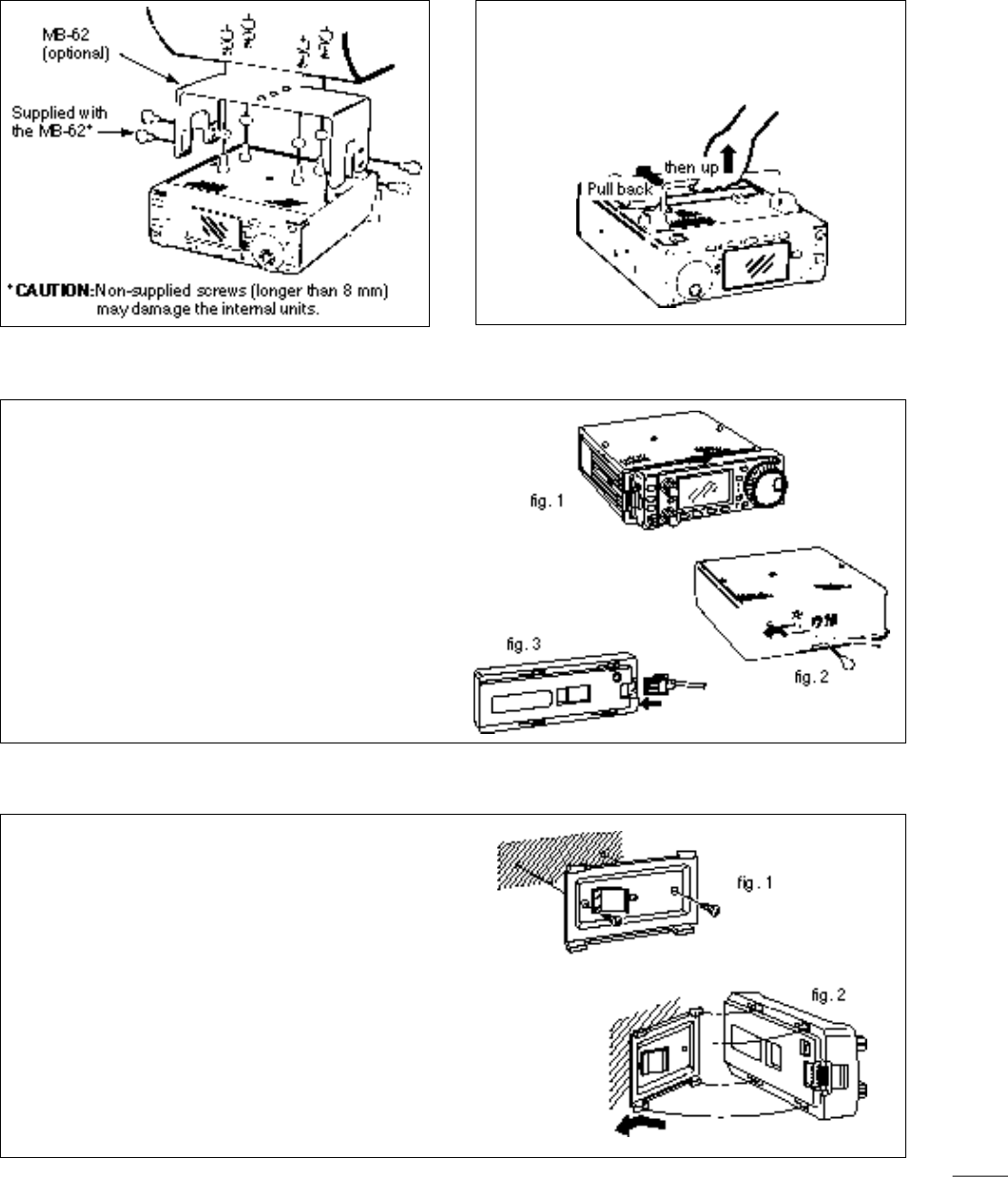

To raise the stand:
With the transceiver upside down, pull the stand
towards the rear panel and then upwards, as illus-
trated below.
10
2INSTALLATION AND CONNECTIONS
■Installation
DSingle body mounting DStand
DFront panel separation
DFront panel mounting
➀While pulling the panel release button towards you,
slide the front panel to the right (fig. 1).
➁Attach the optional OPC-581 to the main body and
tighten the supplied screw as in fig. 2.
➂Attach the other end of the OPC-581 to the
detached front panel as in fig. 3.
➀Attach the MB-63 to a flat surface using the two
supplied screws (fig. 1).
➁Fix the detached front panel to the MB-63 as illus-
trated in fig. 2.
Be careful of the orientation of the MB-63, other-
wise, the front panel may become attached in the
opposite direction.
2INSTALLATION AND CONNECTIONS
■Required connections
12
2INSTALLATION AND CONNECTIONS

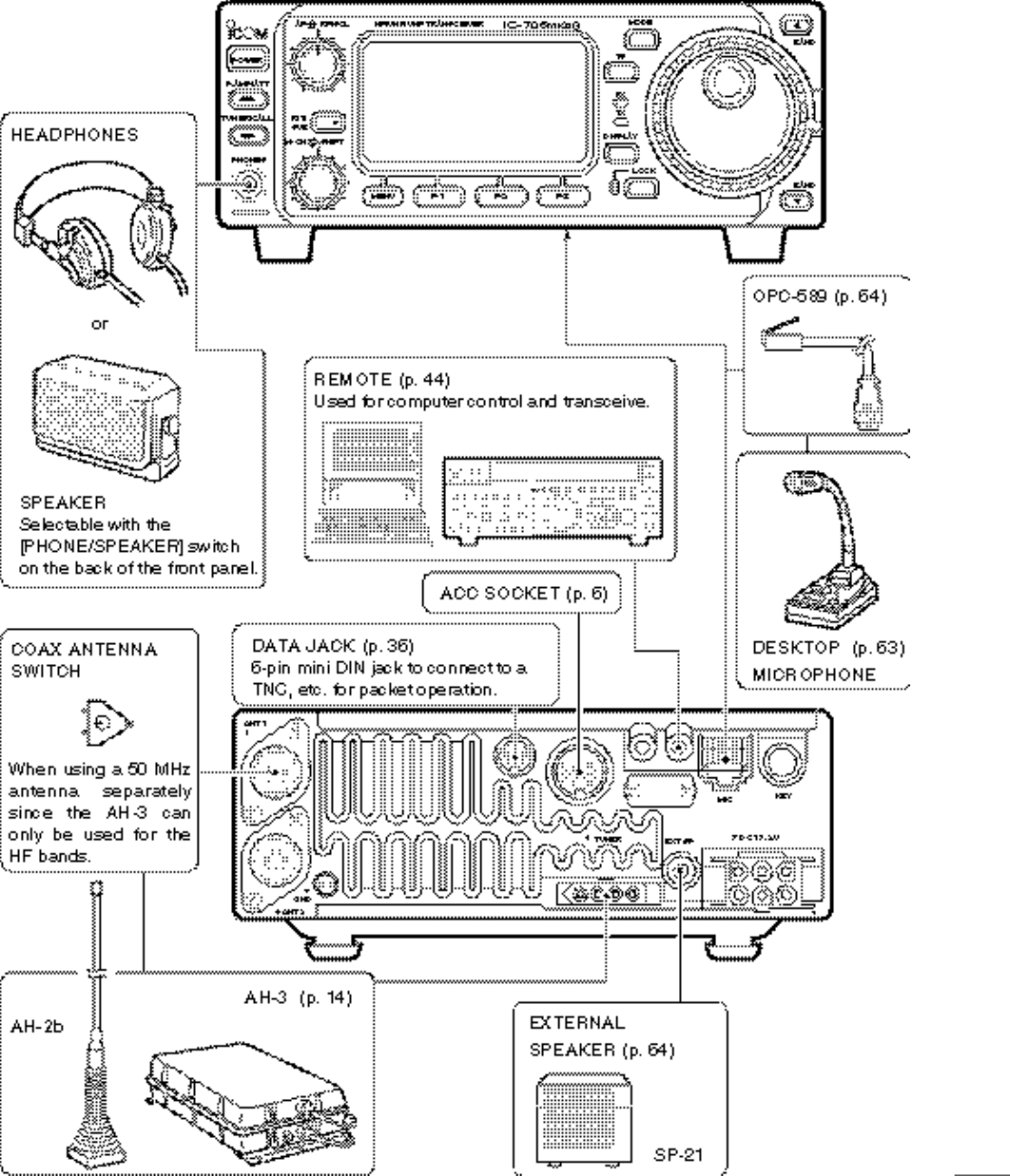

■Advanced connections
2INSTALLATION AND CONNECTIONS
■Power supply connections
Use the optional PS-85
DC POWER SUPPLY
when oper-

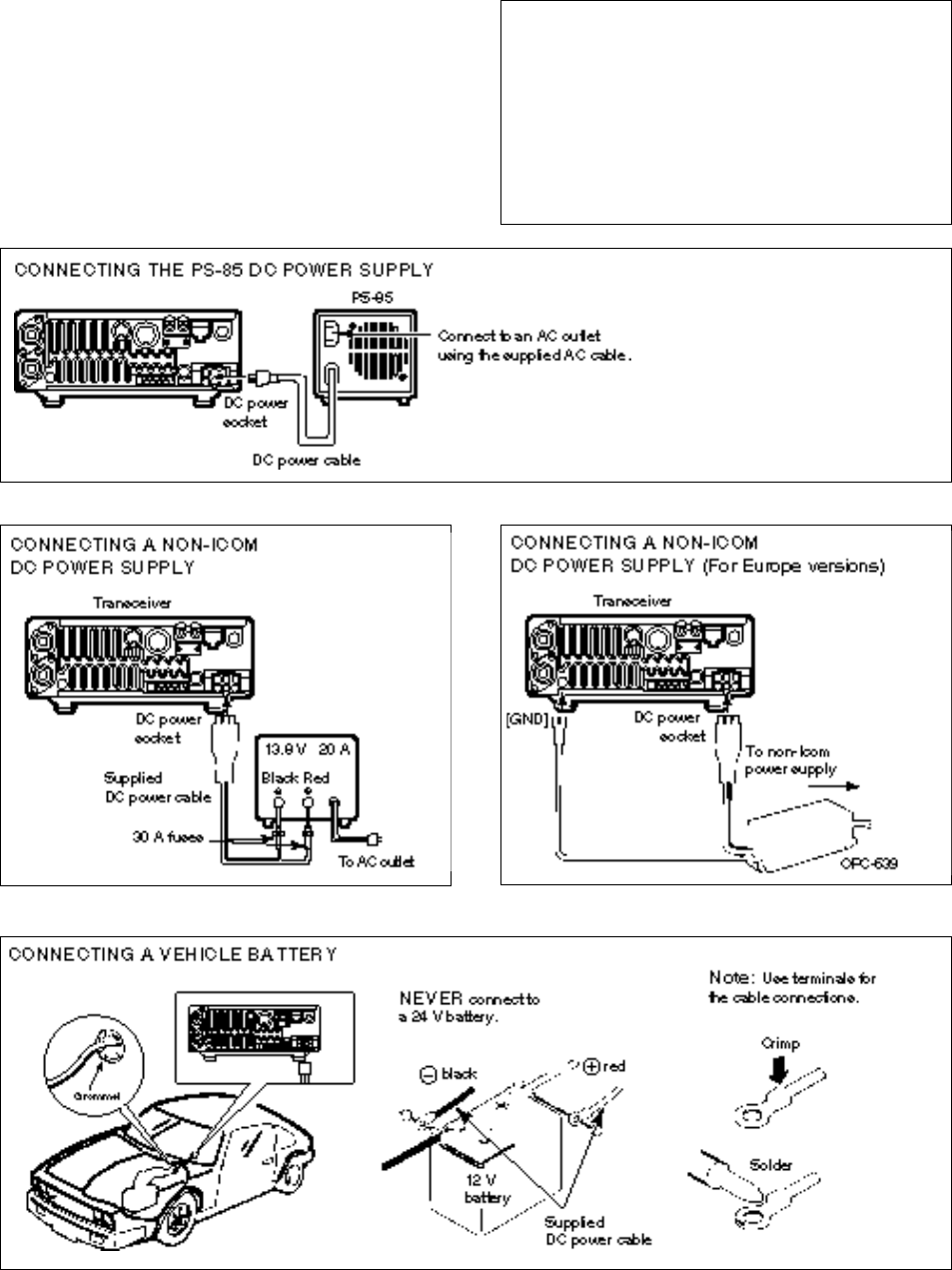

ating the IC-706MKIIG with AC power. Refer to the
diagram below for connection.
C A U T I O N : Before connecting the DC power
cable, check the following important items. Make
sure:
•The [POWER] switch is OFF.
•Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
•DC power cable polarity is correct.
Red : positive (+) terminal
Black : negative (–) terminal
Note:When using the PS-85, the IC-
706MKIIG Europe version complies with
EMC directives even if the OPC-639 is
not used.
14
2INSTALLATION AND CONNECTIONS

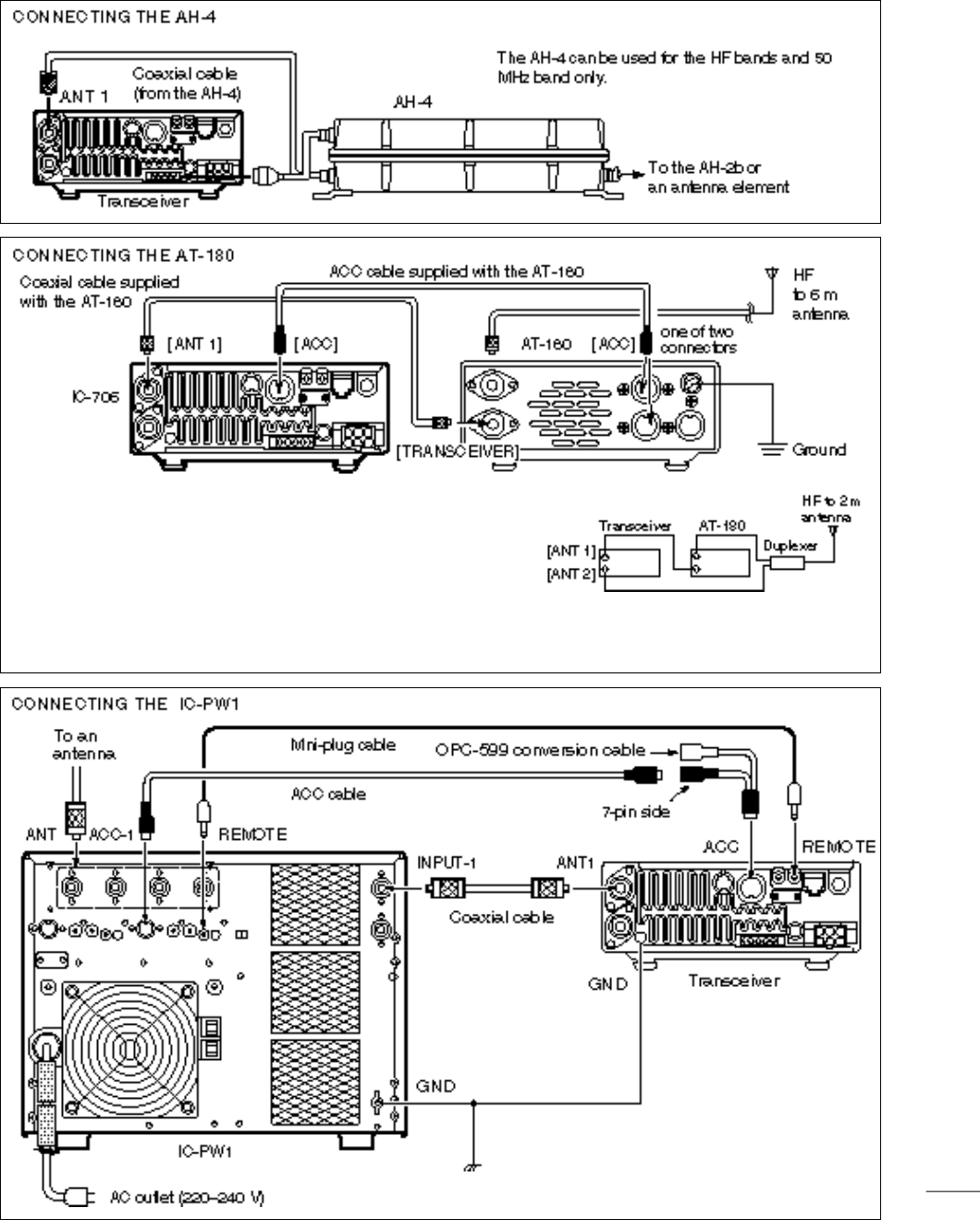

■External antenna tuners and linear amplifier
Note:
•Turn the IC-706MKIIG’s power
OFF when connecting the AT-
180, otherwise, the CPU may
malfunction and the AT-180
may not function properly.
•The OPC-742 is required when
using both the AT-180 and a 2
m linear amplifier.
Do not connect [ANT 2] to the
AT-180. When using an HF to 2 m
wide antenna, use a duplexer
between the AT-180 and antenna
since 2 m signals do not pass
through the AT-180.
3FREQUENCY SETTING
■When first applying power (CPU resetting)
Before first applying power, make sure all connections
required for your system are complete by referring to
section 2. Then, reset the transceiver using the fol-
lowing procedure.
➀Make sure the transceiver power is OFF.
➁While pushing [Y] and [Z], push [POWER] to turn
power ON.
•The internal CPU is reset.
•The transceiver displays as shown at right when reset-
ting is complete.
DM1 display selection
If you can’t figure out how to return to the M1 display:
While pushing [MENU], turn power ON.
■Initial settings
After resetting the transceiver, set controls and switch-
es as shown in the diagram below.
Note:Resetting clears all programmed contents in
memory channels and returns all initial set mode and
quick set mode contents to their default values.
CCW: counterclockwise
Turn power ON, then check the display. If any of the
following indicators appear, turn them OFF as follows:
•Tuning step indicators,
Z
, (SSB, CW or RTTY):
Push [TS].
•MHz tuning step indicator,
Z
, (FM, WFM or AM):
Push [TS].
•1 Hz frequency readout (SSB, CW or RTTY):
Push and hold [TS].
•Memory mode indicator, MEMO:
Use [(F-3)V/M] in the M2 display (p. 67).
•Split indicator, ä:
Use [(F-1)SPL] in the M1 display (p. 67).
16
3FREQUENCY SETTING
■VFO description
VFO is an abbreviation of Variable Frequency
Oscillator, and traditionally refers to an oscillator. The
IC-706MKIIG’s VFO can store a frequency and an
operating mode.
You can call up a desired frequency to a VFO with the
memo pad-read switch (p. 41) or with the memory
transfer switch (p. 41). You can also change the fre-
quency with the main dial and select an operating
mode with the [MODE] switch or call up previously
accessed frequency and modes with the band stack-
ing register (p. 19).
The IC-706MKIIG has two VFOs, specially suited for
split frequency operation. The VFOs are called VFO A
and VFO B. You can use the desired VFO to call up a
frequency and operating mode for operation.

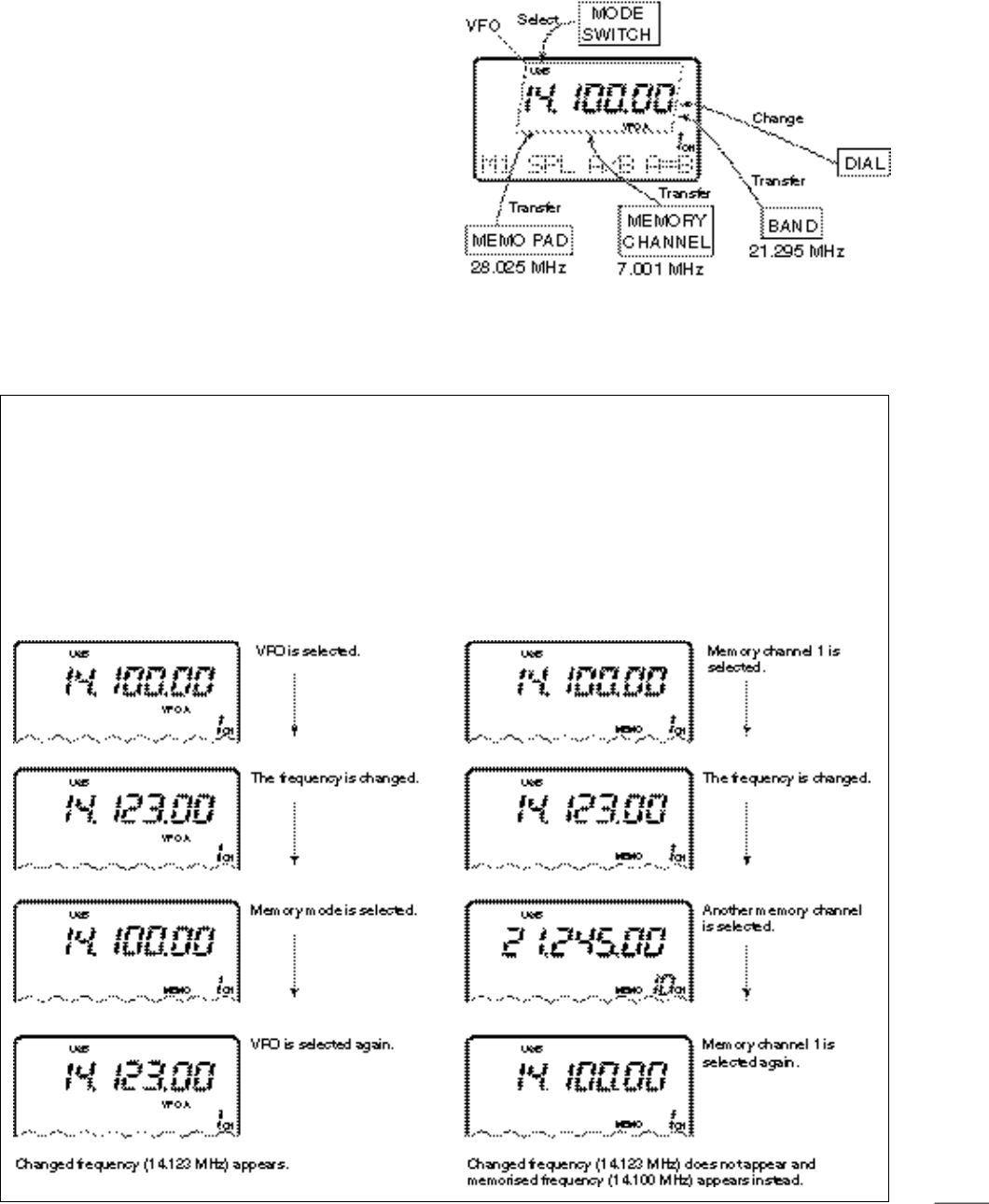

•The differences between VFO and memory mode
VFO MODE
Each VFO shows a frequency and operating mode. If
the frequency or operating mode is changed, the
VFO automatically memorizes the new frequency or
operating mode.
When the VFO is selected from another VFO or
memory mode, the last-used frequency and operat-
ing mode for that VFO appear.
[EXAMPLE]
MEMORY MODE (pgs. 38–41)
Each memory channel shows a frequency and oper-
ating mode like a VFO. Even if the frequency or
mode is changed, the memory channel does not
memorize the new frequency or memory mode.
When a memory channel is selected from another
memory channel or VFO mode, the memorized fre-
quency and operating mode appear.
[EXAMPLE]
3FREQUENCY SETTING

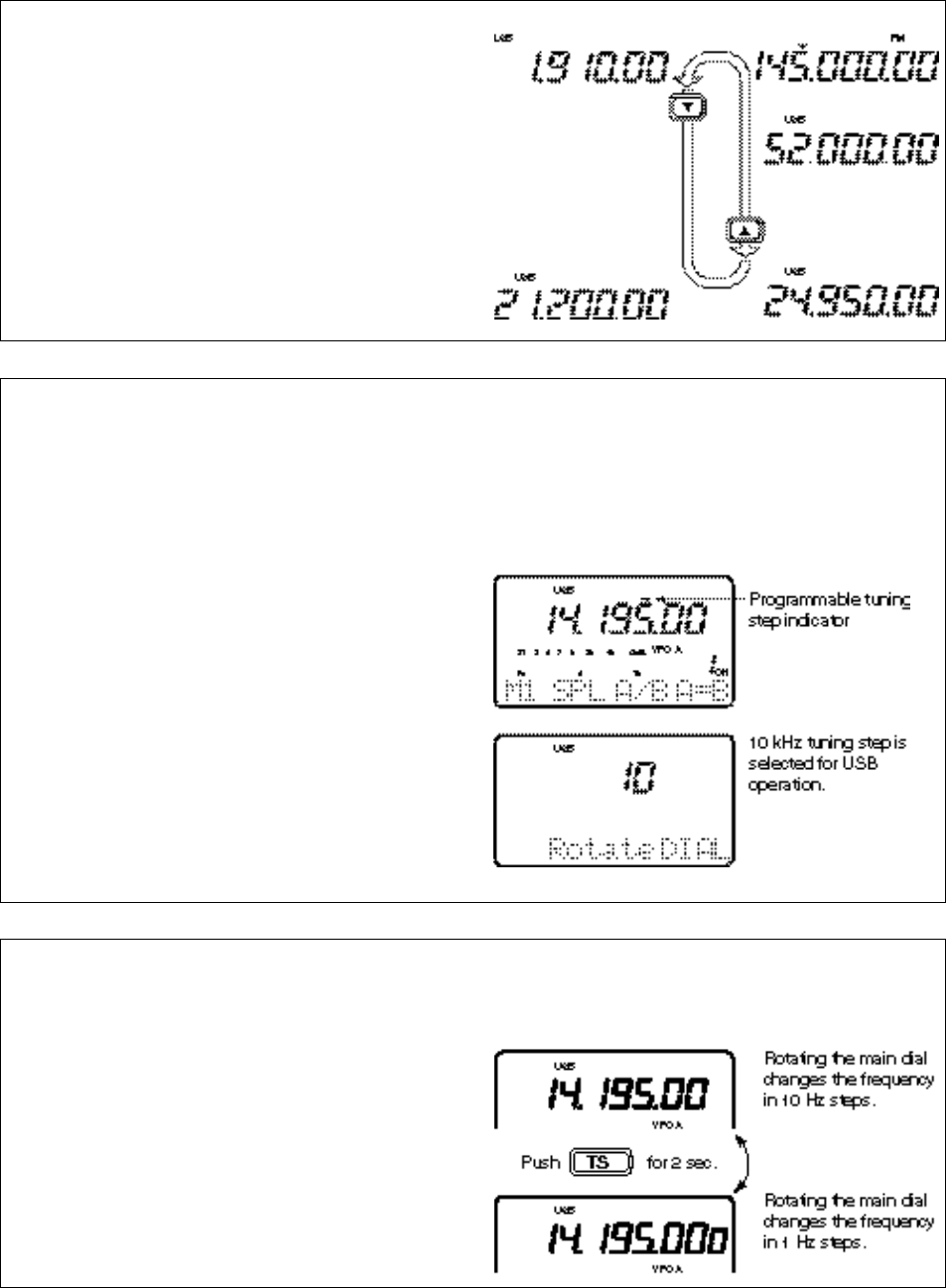

•Programmable tuning steps
Programmable tuning steps are available to suit your
operating requirements.
These tuning steps are:
•Independently selectable for each mode
•Selectable from 0.01 (FM/WFM/AM only), 0.1, 1, 5,
9, 10, 12.5, 15, 20 and 100 kHz
➀Push [TS] one or more times until the programma-
ble tuning step indicator, “
Z
,” appears above the
1 kHz digit.
•Rotating the main dial changes the frequency according
to the set tuning step.
➁Push [TS] for 2 sec. while the programmable tun-
ing step indicator appears to enter the tuning step
selection mode.
•Rotate DIAL appears.
➂Rotate the main dial to set the desired tuning step.
•Change the mode and select tuning steps for other
modes, if desired.
➃Push [TS] to exit the tuning step selection mode.
➄Rotate the main dial to change the frequency
according to the set tuning step.
•Band selection
All HF ham bands, the 50 MHz band, the 144 MHz
band and a general coverage receiver band are
included in the IC-706MKIIG.
Push [(Y)BAND]/[(Z)BAND] to select the desired
band.
•Pushing [(Y)B A N D ] / [(Z)BAND] continuously scrolls
through the available bands.
Note:The band stacking register can also be used to
select bands. Refer to p. 19.
■Frequency setting
•1 Hz and 10 Hz tuning steps
When neither the quick tuning step or programmable
tuning step, “
Z
,” appear, rotating the main dial
changes the frequency in increments of 1 or 10 Hz.
These tuning steps are only available in SSB, CW
and RTTY modes.
➀Select SSB, CW or RTTY mode if necessary.
➁Push [TS] for 2 sec. to toggle between the 1 and
10 Hz step settings.
•When the 1 Hz step is selected, the 1 Hz digit appears
in the frequency indication; when the 10 Hz step is
selected, the 1 Hz digit disappears from the frequency
indication.
18
3FREQUENCY SETTING

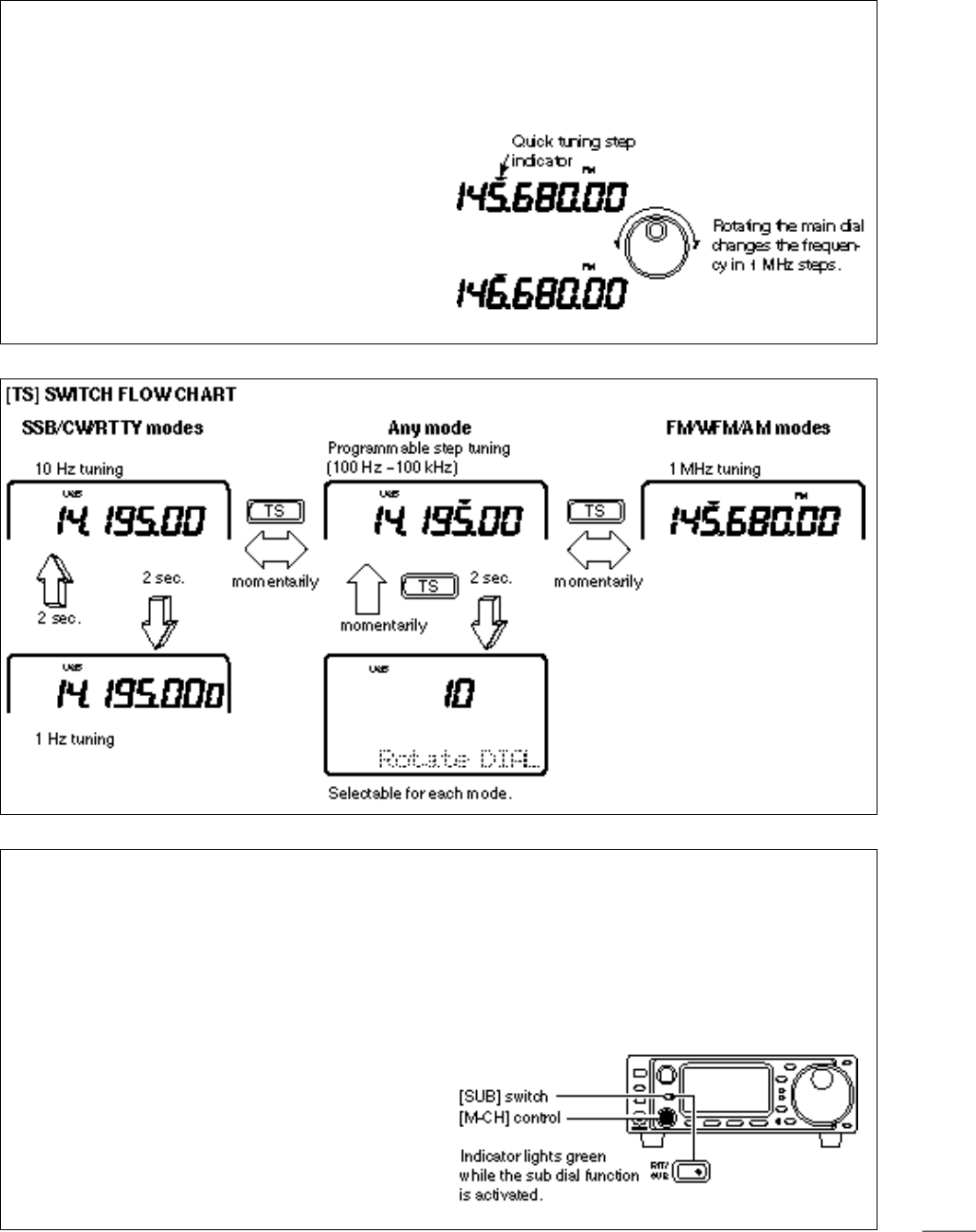

•1 MHz quick tuning step
The quick tuning step function allows you to change
the frequency in 1 MHz steps when rotating the main
dial. This function is only available in FM, WFM and
AM modes.
➀Select FM, WFM or AM mode if necessary.
➁Push [TS] momentarily to toggle between the 1
MHz tuning step and the programmable tuning
step.
•“
Z
” appears above the 1 MHz indicator when the 1
MHz tuning step is selected.
•When the 1 MHz tuning step is selected, slow rotation
of the main dial changes the frequency in 1 MHz steps
and fast rotation of the main dial changes the frequen-
cy in 5 MHz steps.
•Sub dial function
The sub dial function allows you to change the oper-
ating frequency using the [M-CH] control. This gives
you more control in tuning since the [M-CH] knob is
detented—each click changes the frequency accord-
ing to the set tuning step. This function is always
available in FM, WFM and AM modes. However, in
SSB, CW and RTTY modes, the set mode item “Sub
dial function,” must be set to “FrEq.”
➀Push [RIT/SUB] to turn the sub dial function ON.
•The [SUB] indicator lights green; if it lights red, the RIT
function is activated—sub dial function must be set in
initial set mode in this case.
➁Rotate [M-CH] to change the operating frequency
according to the set tuning steps.
➂Push [RIT/SUB] again to turn the function OFF.
•The [SUB] indicator turns off.
3FREQUENCY SETTING

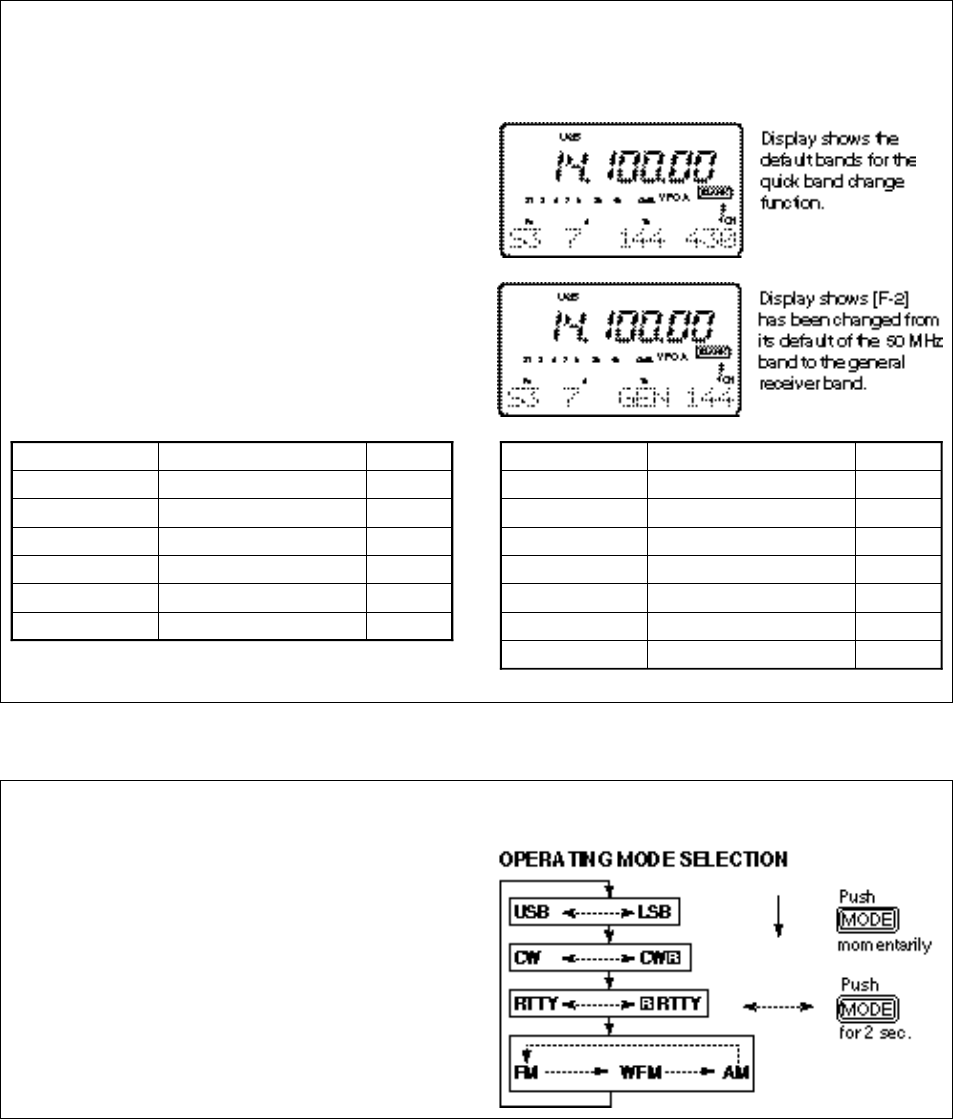

•Quick band change function
The quick band change function automatically stores
the last frequency and mode used for each band in a
band stacking register. This is convenient for contest
operation, etc. The tables below show the quick band
change default settings for each band.
➀Select S3.
•Push [DISPLAY] when M or G is displayed.
•Push [MENU] twice to select S3.
➁Push [F-1]–[F-3] to select a band stacking register.
•The default settings for [F-1]–[F-3] are 7, 144 and 430
MHz bands, respectively.
➂To change the settings for [F-1]–[F-3] from their
defaults, push [F-1]–[F-3] for 1 sec. one or more
times to until the desired band appears in the dis-
play above the corresponding switch.
•The last-used frequency and mode for the selected
band are displayed.
*General refers to the general coverage receiver (GEN in
the display) and the range varies according to version.
■Mode selection
The following modes are available in the IC-
706MKIIG:
SSB (LSB/USB), CW, CW-å(CW reverse), FM,
WFM (receive only), AM, RTTY and åRTTY (RTTY
reverse).
To select the desired mode of operation push
[MODE] one or more times, then push [MODE] for 2
sec., if necessary. See the diagram at right for the
order of selection.
•The selected mode is indicated in the function display.
Note:If a desired mode cannot be selected, it may be
hidden using Initial Set mode (p. 49).
BAND FREQUENCY MODE
18 MHz 18.15000 MHz USB
21 MHz 21.30000 MHz USB
24 MHz 24.95000 MHz USB
28 MHz 28.60000 MHz USB
50 MHz 50.10000 MHz USB
144 MHz 145.00000 MHz FM
BAND FREQUENCY MODE
1.9 MHz 1.91000 MHz CW
3.5 MHz 3.56000 MHz LSB
7 MHz 7.06000 MHz LSB
10 MHz 10.13000 MHz CW
14 MHz 14.10000 MHz USB
General* 15.10000 MHz USB
430 MHz 433.00000 MHz FM
20
4RECEIVE AND TRANSMIT
The IF shift function electronically changes the pass-
band frequency of the IF (intermediate frequency)
and cuts out higher or lower frequency components
of the IF to reject interference. The function shifts the
IF frequency up to ±1.2 kHz in 15 Hz steps in
SSB/CW/RTTY modes and up to ±250 Hz in 3 Hz
steps in CW-ã/RTTY-ãmodes. The IF shift is not
available in FM and AM modes.
➀Adjust the [SHIFT] control for a minimum interfer-
ence signal level.
•The audio tone may be changed while the IF shift is in
use.
➁Set the shift control to its center position when
there is no interference.
•Graphic display
The IF shift is displayed graphically (for about 1 sec.)
each time the shift control is rotated.
DRIT function
The RIT (Receive Incremental Tuning) function com-
pensates for off-frequencies of communicating sta-
tions. The function shifts the receive frequency up to
±9.99 kHz in 10 Hz steps without moving the transmit
frequency. The [SUB/RIT] switch in Initial Set Mode
must be set to RIT mode in advance (p. 50).
➀Push [RIT].
•The [RIT] indicator lights red.
➁Rotate the [M-CH] control to cancel the off-fre-
quencies.
•The transmit frequency is not shifted.
➂To cancel the RIT function, push [RIT] again.
•The [RIT] switch indicator goes out.
•Calculate function
The shift frequency of the RIT function can be
added/subtracted to the displayed frequency.
While the RIT indicator is lit, push and hold [RIT] for
2 sec.
Note:The RIT function is not available in FM, WFM
or AM modes regardless of the Initial Set mode set-
ting (p. 50).
DIF shift function
■Functions for receive
4RECEIVE AND TRANSMIT
DNoise blanker
The noise blanker reduces pulse-type noise such as
that generated by automobile ignition systems. This
function is not effective for FM modes or for non pulse-
type noise. If you don’t want to use the noise blanker
for AM communications, the “AM noise blanker” item
in Initial Set mode must be turned OFF (ON is the
default setting—p. 52).
➀Select M3.
•Push [DISPLAY] 1 or 2 times when Sor Gis displayed.
•Push [MENU] one or more times to select M3.
➁Push [(F-2)NB] to toggle the noise blanker ON and
OFF.
•“NB” appears when the noise blanker is turned ON.
DAGC time constant
The AGC (Automatic Gain Control) controls receiver
gain to produce a constant audio output level even
when the received signal strength is varied by fading,
etc. Use AGC slow for normal phone operation; AGC
fast for receiving data and searching for signals.
AGC time constant cannot be changed in FM mode.
➀Select M4.
•Push [DISPLAY] 1 or 2 times when Sor Gis displayed.
•Push [MENU] one or more times to select M4.
➁Push [(F-3)AGC] to toggle the AGC time constant
between fast and slow.
•“FAGC” appears when the fast time constant is selected.
DPreamp and attenuator
The preamp amplifies received signals in the front
end circuit to improve the S/N ratio and sensitivity.
Turn this function ON when receiving weak signals.
The attenuator prevents desired signals from distort-
ing when very strong signals are near the desired fre-
quency or when very strong electric fields, such as
from broadcasting stations, are near your location.
Push [P.AMP/ATT] momentarily to turn the preamp
ON and OFF; push and hold to turn the attenuator ON.
•Lights green when the preamp is ON; lights red when
the 20 dB attenuator is ON.
• Only one of these functions can be activated at a time.
DPeak meter hold
The peak meter hold function freezes the highest dis-
played bar segment in any meter function for about
0.5 sec. so that you can more easily read the meter.
This function can be turned ON and OFF in initial set
mode (see p. 50).
INITIAL SET MODE
22
4RECEIVE AND TRANSMIT

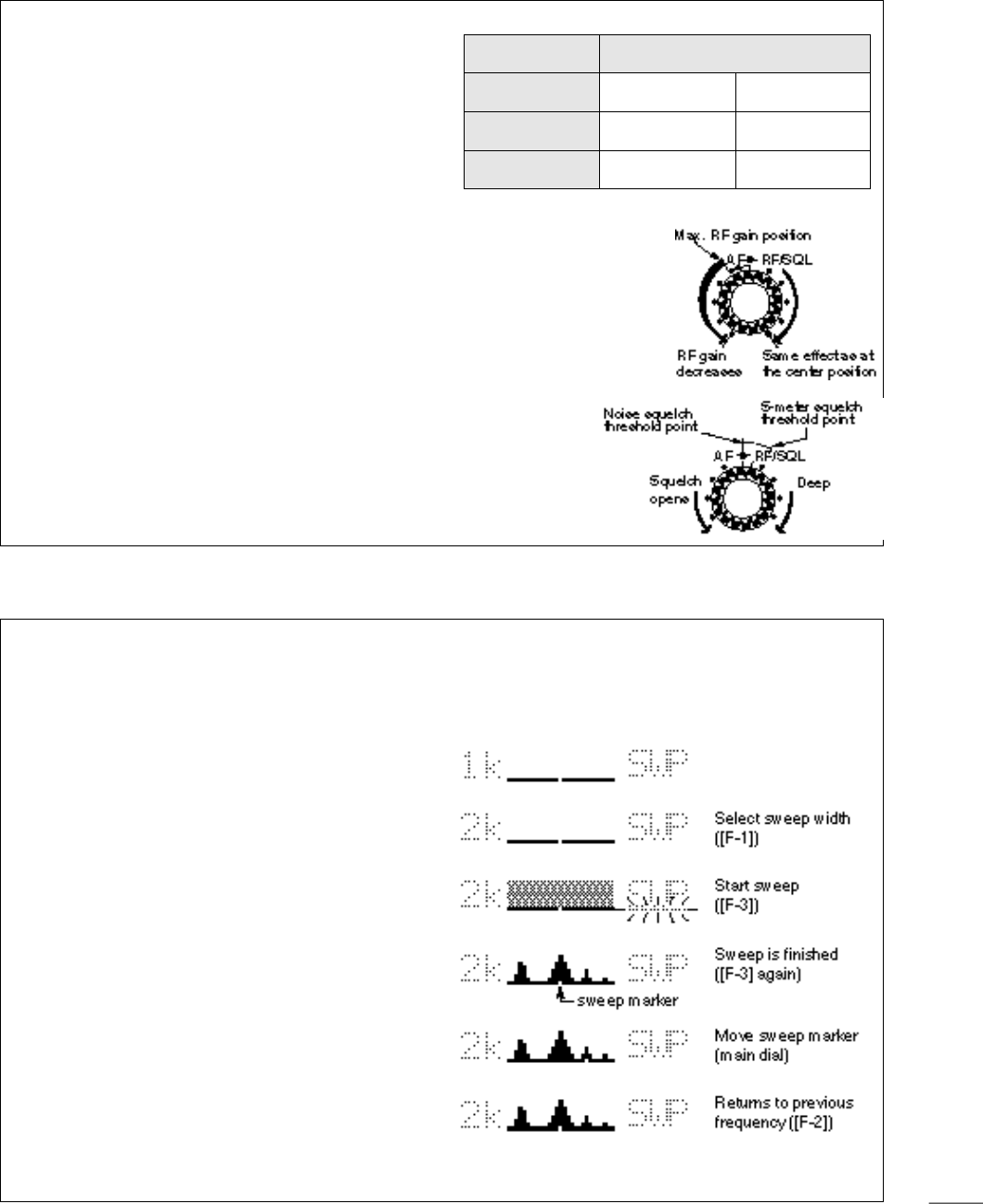

DRF gain and squelch
DSimple band scope
The IC-706MKIIG uses the same control, [RF/SQL],
to adjust one of either the RF gain or the squelch.
[RF/SQL] adjusts either the RF gain or the squelch
depending on the operating mode selected and the
condition of the RF gain item in initial set mode (p.
50; also see the table at right).
The RF (Radio Frequency) gain is used to adjust the
receiver gain.
•This control should be set to the 11 o’clock position for
normal use.
•Shallow rotation moves the S-meter to the right indicating
the signal strength which can be received.
The S Q U E L C H removes noise output from the
speaker (closed condition) when no signal is
received. The squelch is particularly effective for FM.
It is also available for the other modes.
•When operating in FM, first rotate the control fully coun-
terclockwise. Then, rotate the control clockwise to the
point where the noise just disappears. This is the best
position. The squelch does not open for weak signals
when it is set too deep.
•A segment appears in the S-meter to indicate the S-meter
squelch level.
•[RF/SQL] control priority
This function allows you to visually “sweep” an area
surrounding the set frequency for other signals.
Detected signals are indicated graphically in the dot
matrix section of the display.
➀Set a mode and frequency.
➁Select G1.
•Push [DISPLAY] 1 or 2 times if Mor Sappears.
•Push [MENU] one or more times to select G1.
➂Push [F-1] one or more times to select the desired
steps.
•Each dot corresponds to a step for the indicated fre-
quency.
•0.5, 1, 2, 5, 10, 20 and 100 kHz can be set for the scope
step.
➃Push [F-3] to start the sweep.
•“___” (below SWP) flashes while sweeping.
•The receive audio is muted while sweeping.
➄Rotate the main dial if you want to monitor the dis-
played signals.
•The sweep marker indicates the location of the dis-
played frequency in the sweep readout.
•If the displayed frequency is outside of the sweep read-
out (determined by the sweep width), the sweep mark-
er flashes.
➅Push [F-2] to return the frequency to the start of a
sweep.
•The sweep marker moves back to the center position.
N o t e : The recommended
position for RF gain is the
11 o’clock position since
this sets RF gain to the
max.
When set to AUTO, SQL is
active in FM/WFM/AM; RF
is active in
Note: Use the attenuator or turn OFF the preamp when
using the band scope on a band containing a lot of noise.
Initial set mode
setting USB, LSB,
CW, RTTY AM, FM, WFM
SQL*1SQL SQL
AUTO RF GAIN SQL
RF •SQL*2RF/SQL RF/SQL
*1Default; *2Default for USA version.
Filter variations
*Optional filter.
Optional filter installation and selection tables
SSB
4RECEIVE AND TRANSMIT
DOptional filter selection
Two optional filters can be installed in the IC-
706MKIIG.
Narrow filters help reject interference from adjacent
signals and obtain good selectivity.
Wide filters provide improved audio for SSB opera-
tion when no interfering signals are present.
Consult the table below to select a filter most suitable
for your operating needs.
Narrow filters for AM/FM modes are standard.
FILTER PRESETTING:
After you install a filter (see p. 59 for installation), you
must specify the installed filter in initial set mode
(item 19 “OPT. FIL 1” or item 20 “OPT. FIL 2”; see
p. 50).
FILTER ON/OFF:
➀Select M3.
• Push [DISPLAY] 1 or 2 times if Gor Sappears.
•Push [MENU] one or more times to select M3.
➁Push [(F-1)FIL] momentarily to select the narrow
filter; for 2 sec. to select the wide filter.
•ãappears when the narrow filter is selected; ç
appears when the wide filter is selected.

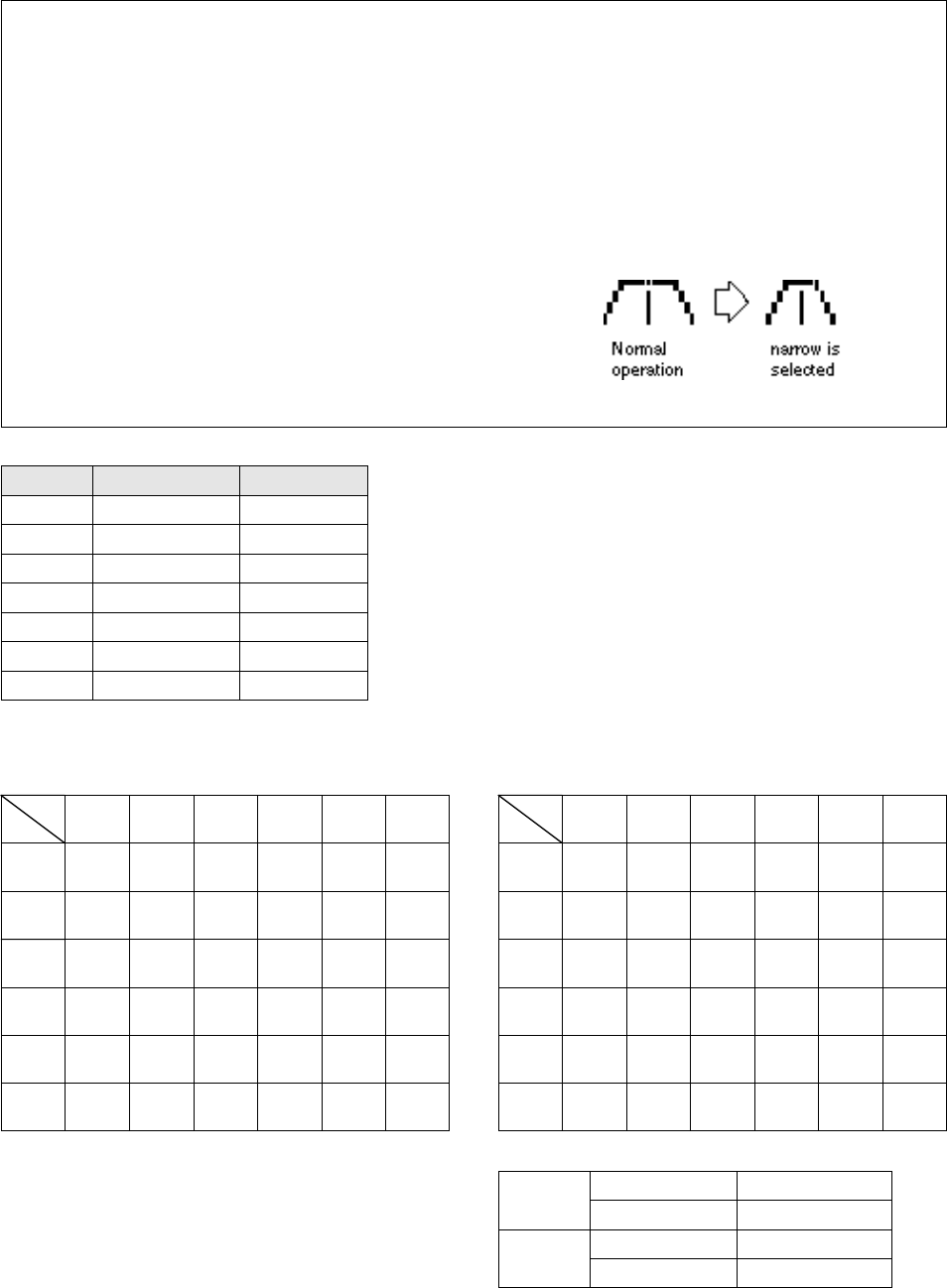

Note:When selecting the narrow filter, the graphic
passband is narrowed (see diagram below).
FL-101* CW, RTTY 250 Hz/–6 dB
CW, RTTY 350 Hz/–6 dB
CW, RTTY 500 Hz/–6 dB
SSB, CW, RTTY 2.8 kHz/–6 dB
FL-223* SSB, CW, RTTY 1.9 kHz/–6 dB
SSB, CW, RTTY 2.4 kHz/–6 dB
AM, FM 8 kHz/–6 dB
Mode Band widthName
FIL 1
FIL 2
No
optional
filter FL-100 FL-101 FL-103 FL-223 FL-232
No
optional
filter
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:– ––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:–––
FL-100 W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:– ––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:–––
FL-101 W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:– ––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:–––
FL-103 W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:FL-223
W:FL-103
M:FL-272
N:–––
FL-223 W:–––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:FL-223
W:FL-103
M:FL-272
N:FL-223
W:– ––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:FL-223
FL-232 W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:–––
W:FL-103
M:FL-272
N:–––
W:–––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:–––
FIL 1
FIL 2
No
optional
filter FL-100 FL-101 FL-103 FL-223 FL-232
No
optional
filter
W:–––
M:FL-272
N:–––
W:–––
M:FL-272
N:FL-100
W:–––
M:FL-272
N:FL-101
W:FL-103
M:FL-272
N:–––
W:– ––
M:FL-272
N:FL-223
W:–––
M:FL-272
N:FL-232
FL-100 W:–––
M:FL-272
N:FL-100
W:–––
M:FL-272
N:FL-100
W:FL-272
M:FL-100
N:FL-101
W:FL-103
M:FL-272
N:FL-100
W:FL-272
M:FL-223
N:FL-100
W:FL-272
M:FL-100
N:FL-232
FL-101 W:–––
M:FL-272
N:FL-101
W:FL-272
M:FL-100
N:FL-101
W:–––
M:FL-272
N:FL-101
W:FL-103
M:FL-272
N:FL-101
W:FL-272
M:FL-223
N:FL-101
W:FL-272
M:FL-232
N:FL-101
FL-103 W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:FL-100
W:FL-103
M:FL-272
N:FL-101
W:FL-103
M:FL-272
N:–––
W:FL-103
M:FL-272
N:FL-223
W:FL-103
M:FL-272
N:FL-223
FL-223 W:–––
M:FL-272
N:FL-223
W:FL-272
M:FL-223
N:FL-100
W:FL-272
M:FL-223
N:FL-101
W:FL-103
M:FL-272
N:FL-223
W:–––
M:FL-272
N:FL-223
W:FL-272
M:FL-223
N:FL-232
FL-232 W:–––
M:FL-272
N:FL-232
W:FL-272
M:FL-100
N:FL-232
W:FL-272
M:FL-232
N:FL-101
W:FL-103
M:FL-272
N:FL-232
W:FL-272
M:FL-223
N:FL-232
W:–––
M:FL-272
N:FL-232
FL-100*
FL-232*
FL-94
FL-103*
FL-272
FM Normal FL-23+SFPC455E
Narrow FL-94
AM Normal FL-94
Narrow FL-272
CW, RTTY
Table key:
W—wide position
M—medium (normal) position
N—Narrow position
24
4RECEIVE AND TRANSMIT

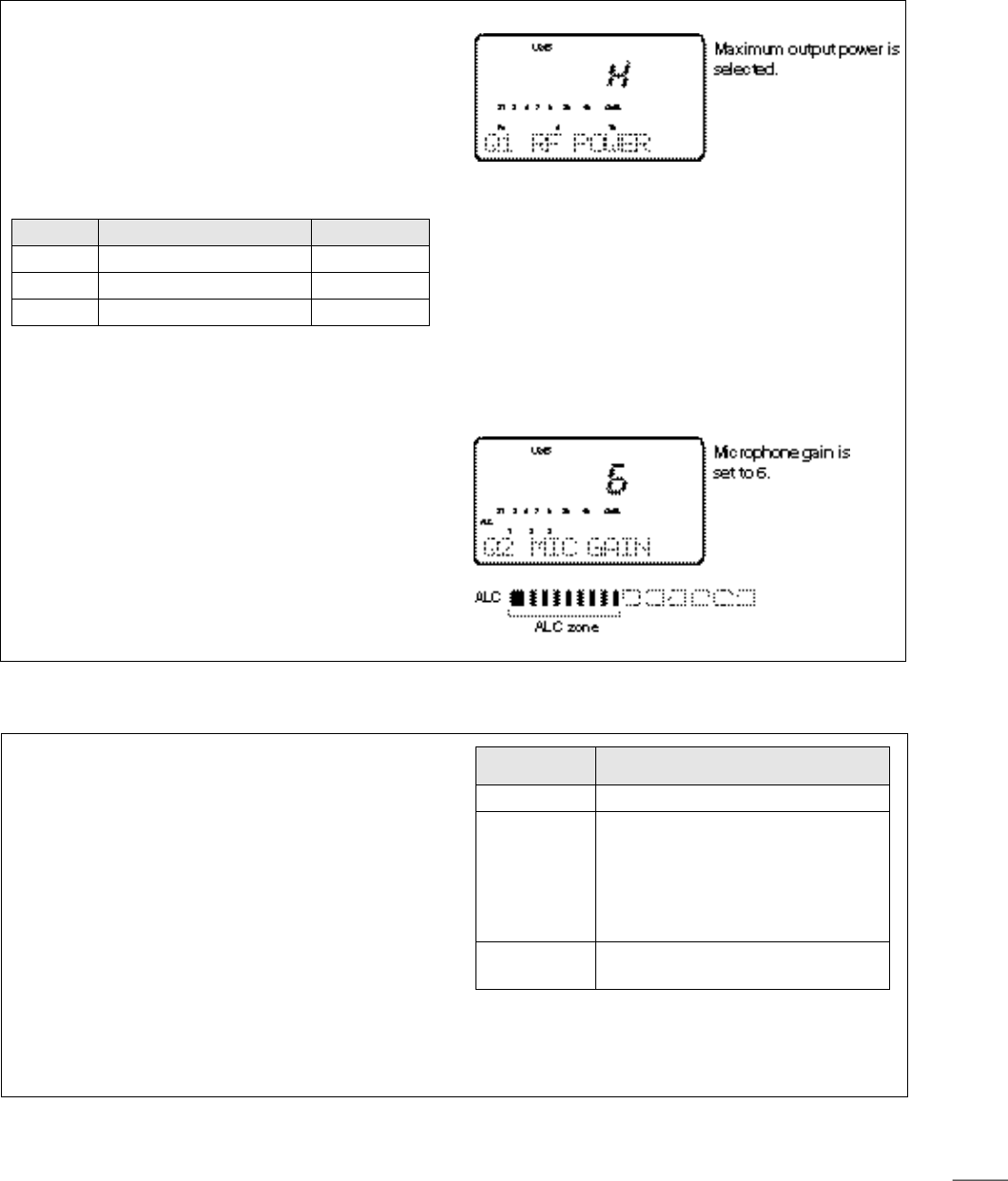

•Setting output power
➀
Push [DISPLAY] for 2 sec. to select quick set mode.
➁Push [MENU] one or more times to select Q1 RF
POWER.
➂Rotate the main dial to select the desired output.
•Output power is displayed in 11 steps (L, 1–9 and H)
but is continuously selectable.
➃Push [DISPLAY] to exit quick set mode.
•Available power
*Carrier power
•Setting microphone gain
Microphone gain must be adjusted properly so that
your signal does not distort when transmitted.
➀Select SSB or another phone mode.
➁
Push [DISPLAY] for 2 sec. to select quick set mode.
➂Push [MENU] one or more times to select Q2 MIC
GAIN.
•The ALC meter is selected automatically when operat-
ing in SSB mode.
➃While speaking into the microphone adjust the mic
gain so that the ALC meter does not peak past the
ALC zone.
➄Push [DISPLAY] to exit quick set mode.
DMeter function
The bar meter in the function display acts as an
S-meter (for relative signal strength, except in WFM
mode) during receive and can be selected for one of
three types during transmit.
➀Select M3.
•Push [DISPLAY] 1 or 2 times when Sor Gappears.
•Push [MENU] one or more times to select M3.
➁Push [(F-3)MET] one or more times to select the
desired meter function.
•The display indication changes as in the table at right.
DOutput power and mic gain
■Functions for transmit
Note:The SWR meter cannot be used for the 144/430
MHz bands since the meter activates for the [ANT 1] con-
nector only.
BAND SSB/CW/RTTY/FM AM*
HF 5–100 W 4–40 W
50 MHz 5–100 W 4–40 W
144 MHz 2–20 W 2–8 W
DISPLAY
INDICATION MEASUREMENT
Po Indicates the relative RF output power.
ALC
Indicates the ALC level. When the
meter movement shows the input signal
level exceeds the allowable level, the
ALC limits the RF power. In such cases,
reduce the microphone gain (see
above).
SWR Indicates the SWR over the transmis-
sion line.
4RECEIVE AND TRANSMIT

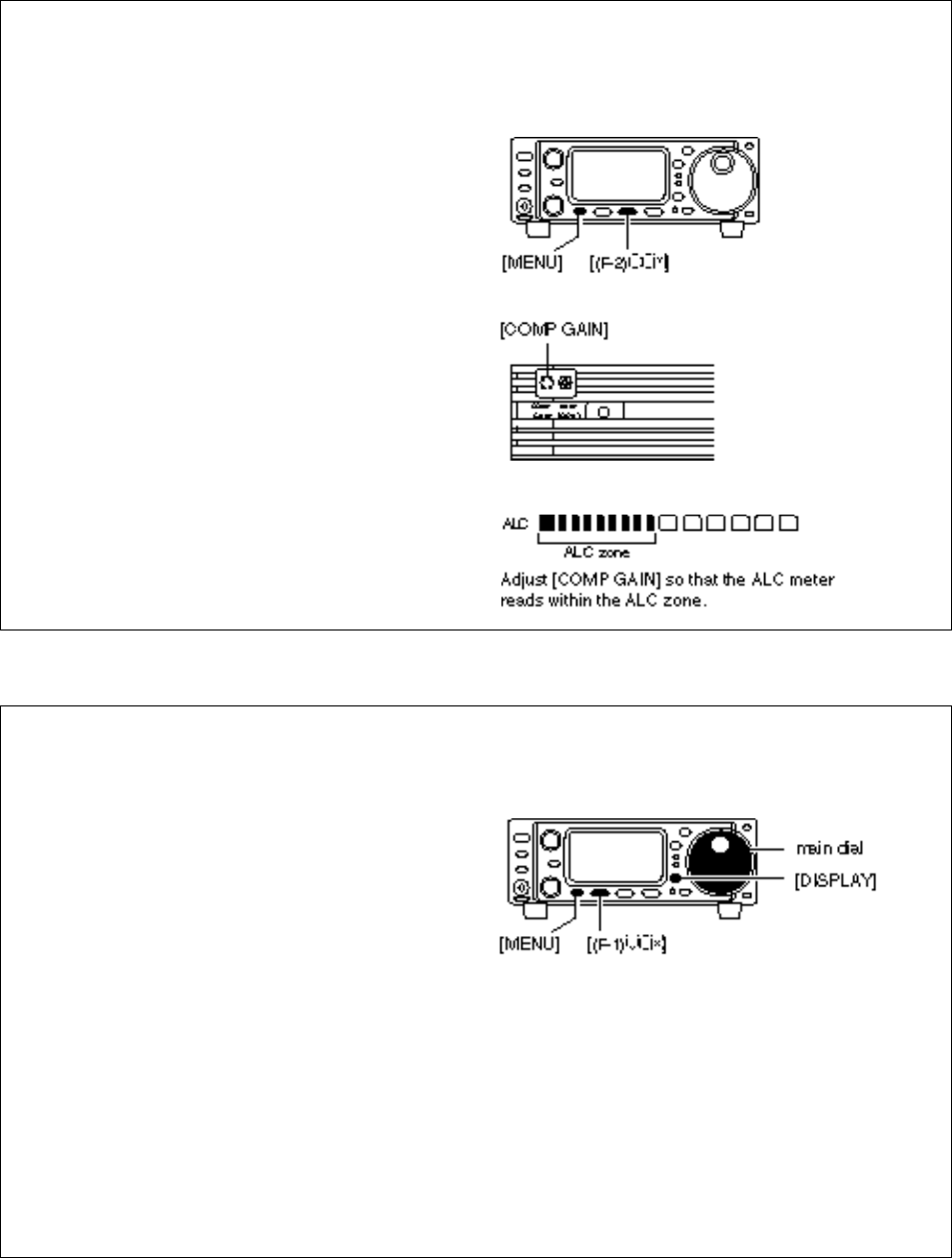

DSpeech compressor
The IC-706MKIIG has a built-in, low distortion
speech compressor circuit. This circuit increases
your average talk power in SSB mode and is espe-
cially useful for DX’ing when the receiving station is
having difficulty copying your signal.
➀Select USB or LSB mode.
➁Select the ALC meter.
•Push [DISPLAY] 1 or 2 times to select M, if necessary.
•Push [MENU] one or more times to select M3, then
push [(F-3)MET] one or more times to select “ALC.”
➂Select the mic gain display in quick set mode.
•Push [DISPLAY] for 2 sec.
•Push [MENU] one or more times to select Q2 MIC
GAIN.
➃Adjust the mic gain.
•While transmitting at your normal voice level, the ALC
meter should read at about the middle of the ALC zone.
•Be sure the mic gain is in the range of 2 to 5.
➄Select M4.
•Push [DISPLAY] 1 or 2 times to select M, if necessary.
•Push [MENU] one or more times to select M4.
➅Push [(F-2)COM], then adjust [COMP GAIN] so that
the ALC meter reads within the ALC zone whether
you speak softly or loudly.
Note:When the ALC meter peaks above the ALC
zone, your transmitted voice may be distorted.
DVOX operation
The VOX (Voice-operated Transmission) function
toggles between transmit and receive with your
voice. This function provides an opportunity to input
log entries into your computer, etc., while operating.
➀Select M4, then turn the VOX function ON.
•Push [DISPLAY] 1 or 2 times when Sor Gappears.
•Push [MENU] one or more times to select M4.
•Push [(F-1)VOX] to turn the function ON.
➁Select VOX GAIN in quick set mode.
•Push [DISPLAY] for 2 sec. then push [MENU] one or
more times to select Q4.
➂While speaking into the microphone, adjust [VOX
GAIN] until the transceiver is transmitting.
➃Select VOX DELAY in quick set mode.
•Push [MENU] one or more times to select Q3.
➄While speaking into the microphone, adjust [VOX
DELAY] as desired.
➅Select ANTI VOX in quick set mode.
•Push [MENU] one or more times to select Q5.
➆If the receive audio from the speaker toggles the
transceiver to transmit during receive, adjust the
[ANTI-VOX] to the point where it has no effect.
➇Push [DISPLAY] to exit quick set mode.
26
4RECEIVE AND TRANSMIT
The AT-180 automatic antenna tuner matches the IC-
706MKIIG to the connected antenna automatically.
Once the tuner matches an antenna, the variable
capacitor angles are memorized as a preset point for
each frequency range (100 kHz steps). Therefore,
when you change the frequency range, the variable
capacitors are automatically preset to the memorized
point.
Note:
•The AT-180 cannot be used for the 144/430 MHz
band.
•When operating on the 144/430 MHz band, pushing
the tuner switch selects the call channel (p. 38).
•The AT-180 can match both HF and 50 MHz bands.
However, operation is different for the HF and 50
MHz bands.
TUNER OPERATION
•For the HF band:
Push [TUNER] to turn the tuner ON. The antenna is
tuned automatically during transmission when the
antenna SWR is higher than 1.5:1.
•When the tuner is OFF, the [TUNER] light goes out.
•For the 50 MHz band:
Push and hold [TUNER] to tune the antenna. If the
[TUNER] light flashes slowly while transmitting, push
and hold [TUNER] again to re-tune the antenna.
MANUAL TUNING
During SSB operation on HF bands at low voice lev-
els, the AT-180 may not be tuned correctly. In such
cases, manual tuning is helpful.
Push and hold [TUNER] for 1 sec. to start manual
tuning.
•CW mode is selected, a side tone is emitted, and the
[TUNER] light flashes; then, the previous mode is select-
ed.
If the tuner cannot reduce the SWR to less than 1.5:1
after 20 sec. of tuning, the [TUNER] light goes out. In
this case, check the following:
•the antenna connection and feedline
•the antenna SWR (p. 25; meter function)
Through inhibit (HF bands only)
The AT-180 has a through inhibit condition. When
selecting this condition, the tuner can be used at poor
SWR’s. In this case, automatic tuning in the HF
bands activates only when exceeding SWR 3:1.
Therefore, manual tuning is necessary each time you
change the frequency. Although termed “through
inhibit,” the tuner will be “through” if the SWR is high-
er than 3:1 after tuning.
•Tuner sensitive condition (HF bands only)
If you require critical tuning at any time during trans-
mission, select the tuner sensitive condition. See
p. 55 for selection.
•Automatic tuner start (HF bands only)
If you want to turn OFF the tuner under conditions of
VSWR 1.5:1 or less, use “automatic tuner on” and
turn the tuner OFF. See p. 53 for turning the function
ON and OFF.
DOptional AT-180
AUTOMATIC ANTENNA TUNER
operation
CAUTION: NEVER transmit with the tuner ON
when no antenna is connected. This will damage
both the transceiver and the antenna tuner.
CONVENIENT
4RECEIVE AND TRANSMIT

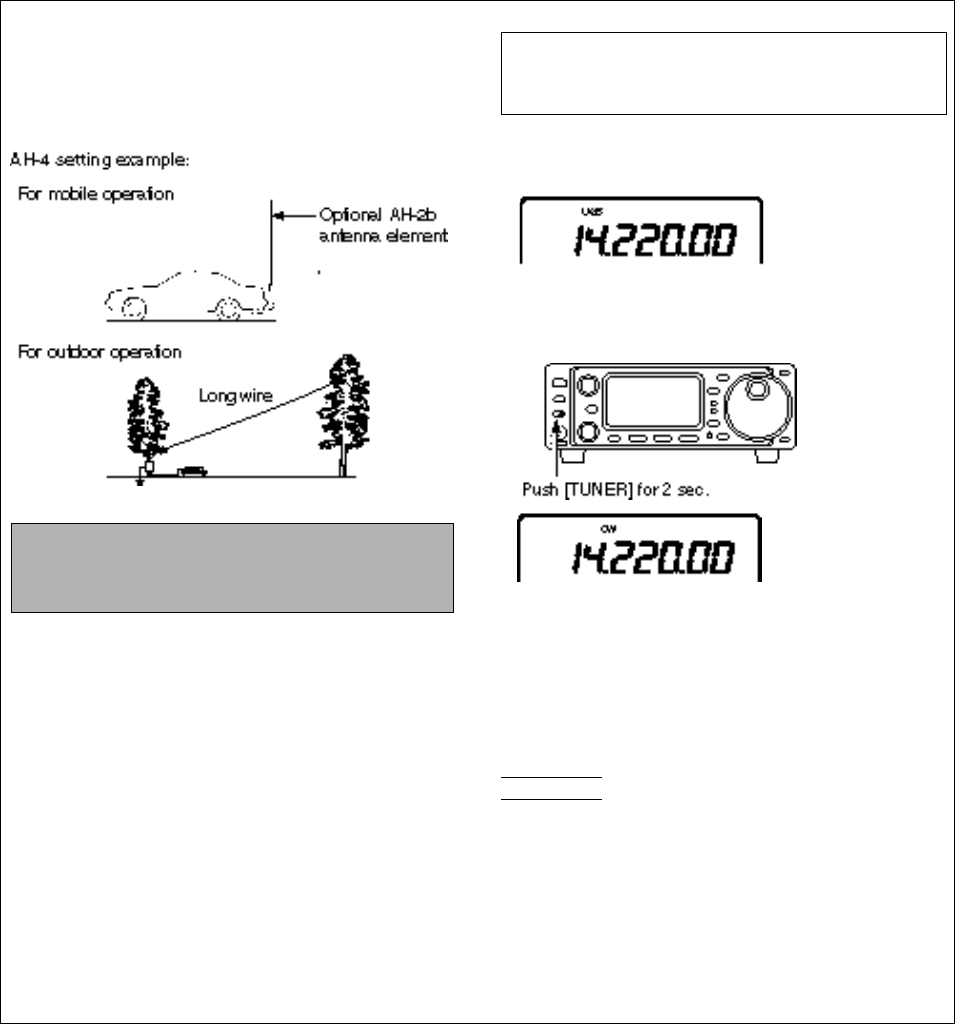

The AH-4 matches the IC-706MKIIG to a long wire
antenna more than 7 m / 2 3 ft long (3.5 MHz and
above).
•See p. 14 for connection.
•See the AH-4 instruction manual for AH-4 installation and
antenna connection details.
NEVER operate the AH-4 without an antenna wire.
The tuner and transceiver will be damaged.
NEVER operate the AH-4 when it is ungrounded.
Transmitting before tuning may damage the trans-
ceiver. Note that the AH-4 cannot tune when using a
1⁄2λlong wire or multiple of the operating frequency.
Note: The AH-4 can be used for HF bands and the
50 MHz band only.
AH-4 operation
➀Set the desired frequency in an HF band.
•The AH-4 will not operate on frequencies outside of
ham bands.
➁Push and hold [TUNER] for 2 sec.
•The [TUNER] light flashes and “CW” appears while tun-
ing.
➂The [TUNER] light lights constantly when tuning is
complete.
•When the connected wire cannot be tuned, the
[TUNER] light goes out, the AH-4 is bypassed and the
antenna wire is connected to the antenna connector on
the transceiver directly.
➃To bypass the AH-4 manually, push [TUNER].
•PTT tune function
The AH-4 is always tuned when the PTT is pushed
after the frequency is changed (more than 1%). This
function removes the “push and hold [TUNER]” oper-
ation and activates first transmission on the new fre-
quency. This function is turned ON in initial set mode,
item 13 (p. 53).
DOptional AH-4
AUTOMATIC ANTENNA TUNER
operation
RWARNING: HIGH VOLTAGE!
NEVER touch the antenna element while tuning or
transmitting.
Tuning is required for each frequency. Be sure to
re-tune the antenna before transmitting when you
change the frequency—even slightly.
CONVENIENT
28
4RECEIVE AND TRANSMIT

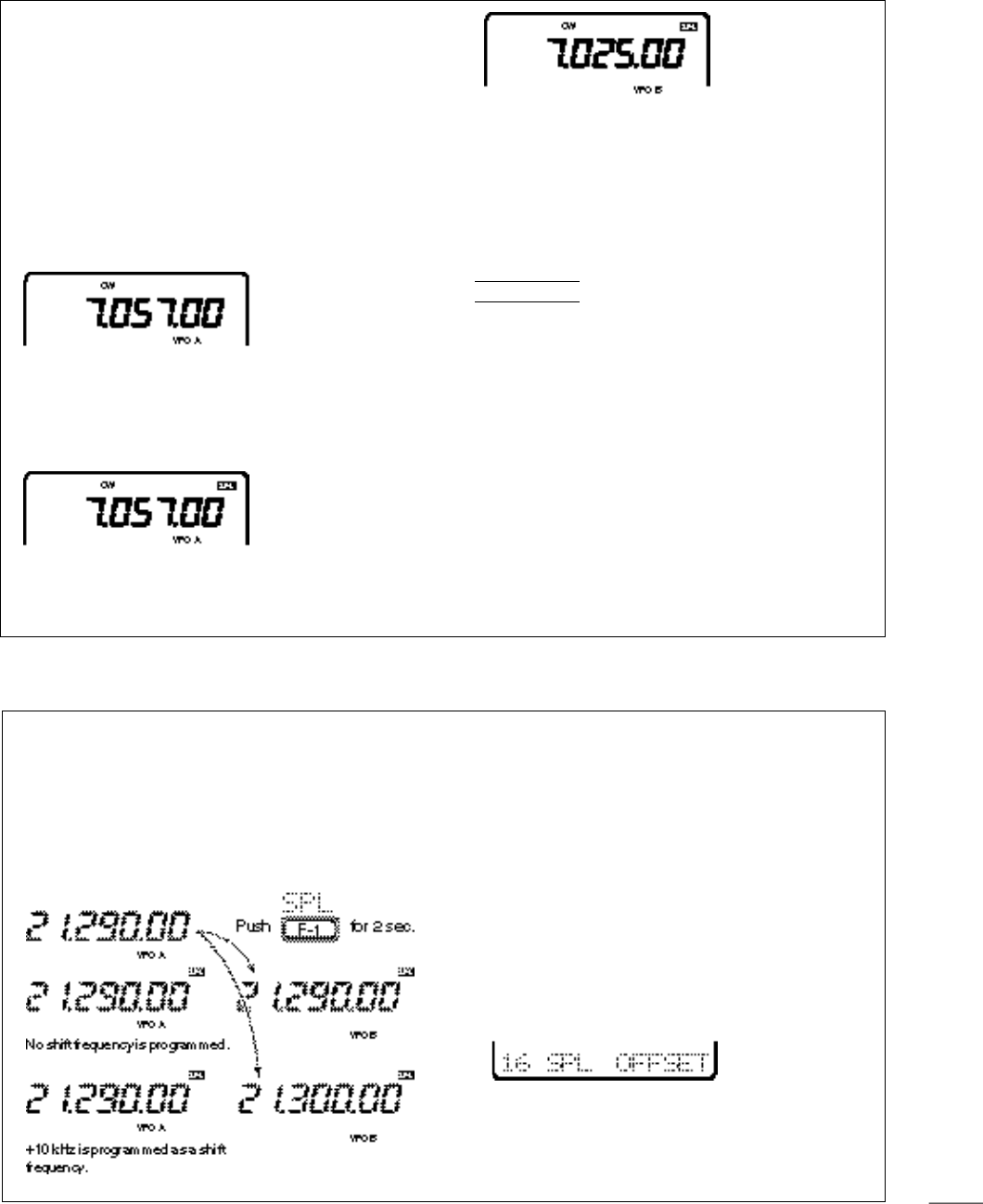

Split frequency operation allows you to transmit and
receive on two different frequencies. Split frequency
operation uses 2 frequencies, one in VFO A and the
other in VFO B.
Following is an example of setting 7.057 MHz, CW
mode in VFO A (for receive) and 7.025 MHz, CW
mode in VFO B (for transmit).
➀Select VFO A and set the frequency to 7.057
MHz/CW.
•[(F-2)A/B] is available when M1 appears.
•[(F-3)V/M] is available when M2 appears.
➁Push or push and hold [(F-1)SPL] in the M1 dis-
play.
➥Push [SPL]: activates split only.
➥Push and hold [SPL]: activates the quick split
below.
➂To change the receive frequency, rotate the main
dial; to change the transmit frequency, rotate the
main dial while pushing [(F-3)XFC].
•The transmit frequency can be monitored while pushing
[(F-3)XFC].
•Split operation is now set for receive on 7.057 MHz/CW
and transmit on 7.025 MHz/CW.
To exchange the transmit and receive frequencies,
push [(F-2)A/B] in M1.
CONVENIENT
The G3 display conveniently shows the transmit fre-
quency during split frequency operation and [(F-3)Ñ]
allows you to change the transmit frequency.
•Split lock function
The split lock function is convenient for changing only
the transmit frequency. Otherwise, accidentally
releasing the [(F-3)XFC] switch while rotating the
main dial changes the receive frequency. The split
lock’s effectiveness can be selected in initial set
mode (item 12) for both receive and transmit fre-
quencies; or only the receive frequency. (p. 51)
DQuick split function
In M1, when you push [(F-1)SPL] for 2 sec., split fre-
quency operation is turned ON and VFO B is auto-
matically changed according to the plus/minus pre-
programmed shift frequency set in initial set mode (or
equalized when 0 kHz is programmed as the split
shift frequency). This shortens the time needed to
start split frequency operation—great for DX’ing.
The quick split function is ON by default. If desired, it
can be turned OFF in initial set mode (p. 51). In this
case, pushing [(F-1)SPL] for 2 sec. has the same
effect as pushing [(F-1)SPL] momentarily as in nor-
mal split operation.
PROGRAMMING SPLIT SHIFT FREQUENCY
➀Push [POWER] to turn power OFF.
➁While pushing [LOCK], push [POWER] to turn
power ON and enter initial set mode.
➂Select “SPL OFFSET” using [MENU], [M-CH] or
the [Y]/[Z] keys, then rotate the main dial to select
the desired split offset.
•The split offset can be selected from –4000 kHz to
+4000 kHz.
Note: This setting is not valid for FM operation. This
is because FM operation uses the duplex setting for
repeater operation (next page).
■Split frequency operation
4RECEIVE AND TRANSMIT

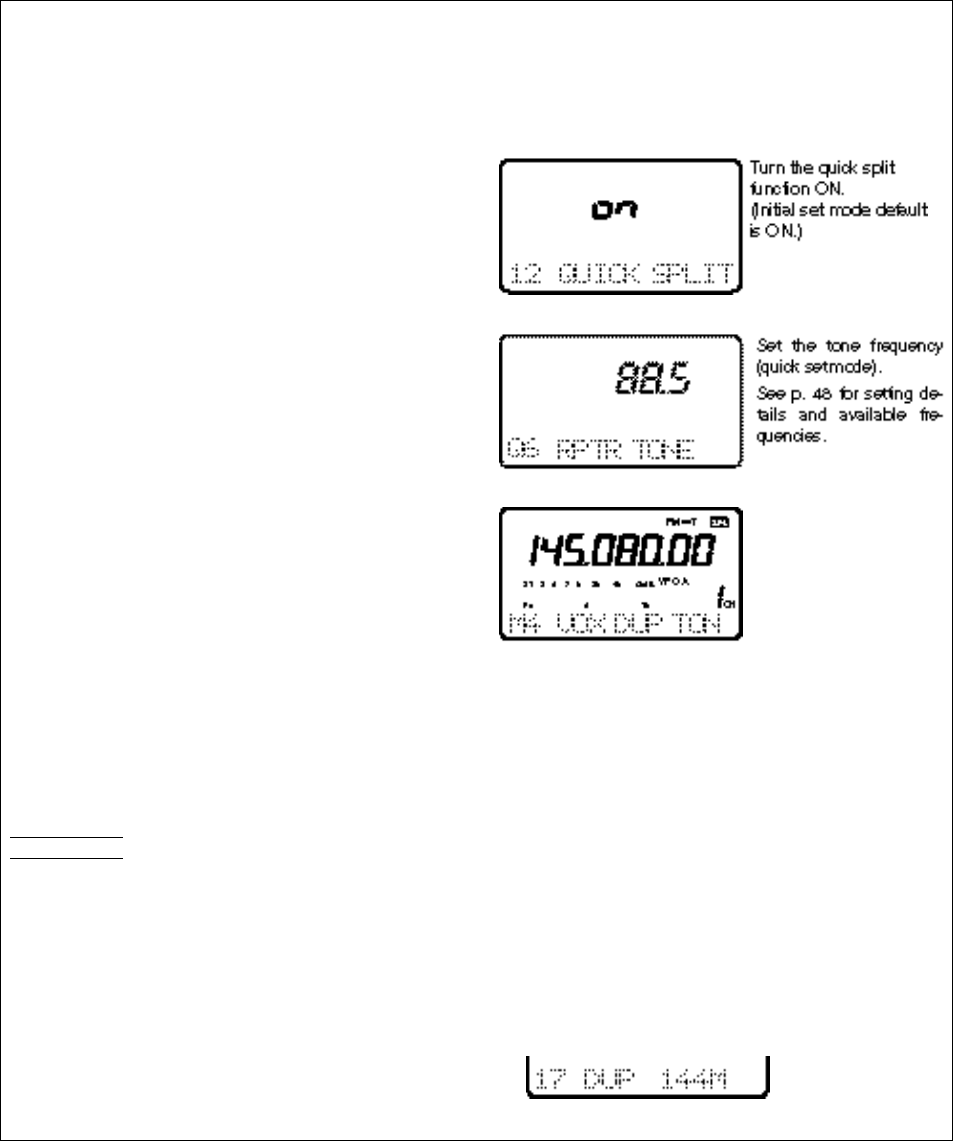

DRepeater operation
A repeater amplifies received signals and retransmits
them at a different frequency. When using a repeater,
the transmit frequency is shifted from the receive fre-
quency by an offset frequency. A repeater can be
accessed using split frequency operation with the
shift frequency set to the repeater’s offset frequency.
➀Set the offset frequency and turn ON the quick split
function in initial set mode in advance (p. 51).
•If the quick split function is turned OFF, both transmit
and receive must be set separately.
➁Push [MODE] one or more times to select FM
mode, then set the receive frequency.
➂Select a suitable tone frequency or the 1750 Hz
tone burst in quick set mode.
➥Push [DISPLAY] for 2 sec., then push [MENU]
one or more times to select “Q4 RPTR TONE.”
•If FM mode has not been selected, this item does
not appear.
➥Rotate the main dial to set a subaudible tone fre-
quency or the 1750 Hz tone burst function.
➥Push [DISPLAY] to exit quick set mode.
➃Push [(F-1)SPL] for 2 sec. (in the M1 display) to
activate the split frequency function (duplex func-
tion) with the pre-selected offset.
•When a subaudible tone frequency (excepting 1750 Hz)
is selected in ➂, “FM-T” is selected simultaneously.
➄Push and hold [PTT] to transmit; release [PTT] to
receive.
•When a 1750 Hz tone burst is selected, push and hold
[(F-3)TON] in the M4 display while pushing [PTT] to
send the 1750 Hz tone burst.
➅To check the repeater input frequency (direct sig-
nal from the other station), push and hold
[(F-3)XFC]in the M1 display.
➆To return to simplex operation, push [(F-1)SPL].
Each memory channel can store a tone frequency
(subaudible tones or a tone burst) and an offset fre-
quency, as well as the operating frequency. Store
repeater information into memory channels for quick
and easy access to repeaters.
PROGRAMMING DUPLEX SHIFT FREQUENCY
➀Push [POWER] to turn power OFF.
➁While pushing [LOCK], push [POWER] to turn
power ON and enter initial set mode.
➂Select “DUP 144M” using [MENU] or the
[UP]/[DN] keys, then rotate the main dial to select
the desired duplex offset.
•The duplex offset can be selected from –4000 kHz to
+4000 kHz.
CONVENIENT
30
4RECEIVE AND TRANSMIT
Tone squelch operation is a method of communica-
tions using selective calling. Only received signals
having a matching tone will open the squelch. Before
communicating using tone squelch, all members of
your party must agree on the tone squelch frequency
to use.
➀Push [MODE] one or more times to select FM
mode.
➁Push and hold [DISPLAY] to enter Quick Set mode.
➂Push [MENU] one or more times to select item Q7
TONE SQL.
•[Y]/[Z] or [M-CH] can also be used.
➃Rotate the main dial to select the desired subaudi-
ble tone frequency.
•Available tone frequencies are the same as for repeater
tone operation (see previous page).
➄Select M4 and turn the tone squelch function ON.
➥Push [(F-3)TON] to toggle tone squelch opera-
tion ON and OFF.
•When tone squelch is turned ON, “TSQL” appears in
the display.
➅Communicate in the usual manner.
•Push [PTT] to transmit; release to receive.
By monitoring a signal that is being transmitted on a
repeater input frequency, you can determine the tone
frequency necessary to open a repeater.
➀During tone squelch or repeater operation, push
and hold [DISPLAY] to enter Quick Set mode.
➁Push [MENU] one or more times to select item Q8
T-SQL SCN during tone squelch operation, or
Q8 RPTR-T SCN during repeater operation.
•[Y]/[Z] or [M-CH] can also be used.
➂Push [(F-3)SCN] to toggle tone scan operation ON
and OFF.
•While scanning tone frequencies are displayed instead
of the operating frequency.
•When a matched tone is detected, tone scan automati-
cally stops, the matched tone is displayed and the
repeater tone (or tone squelch tone) setting is automat-
ically adjusted accordingly.
➃Push [DISPLAY] to return to the main menu.
■Tone squelch operation
■Tone scan operation
4RECEIVE AND TRANSMIT

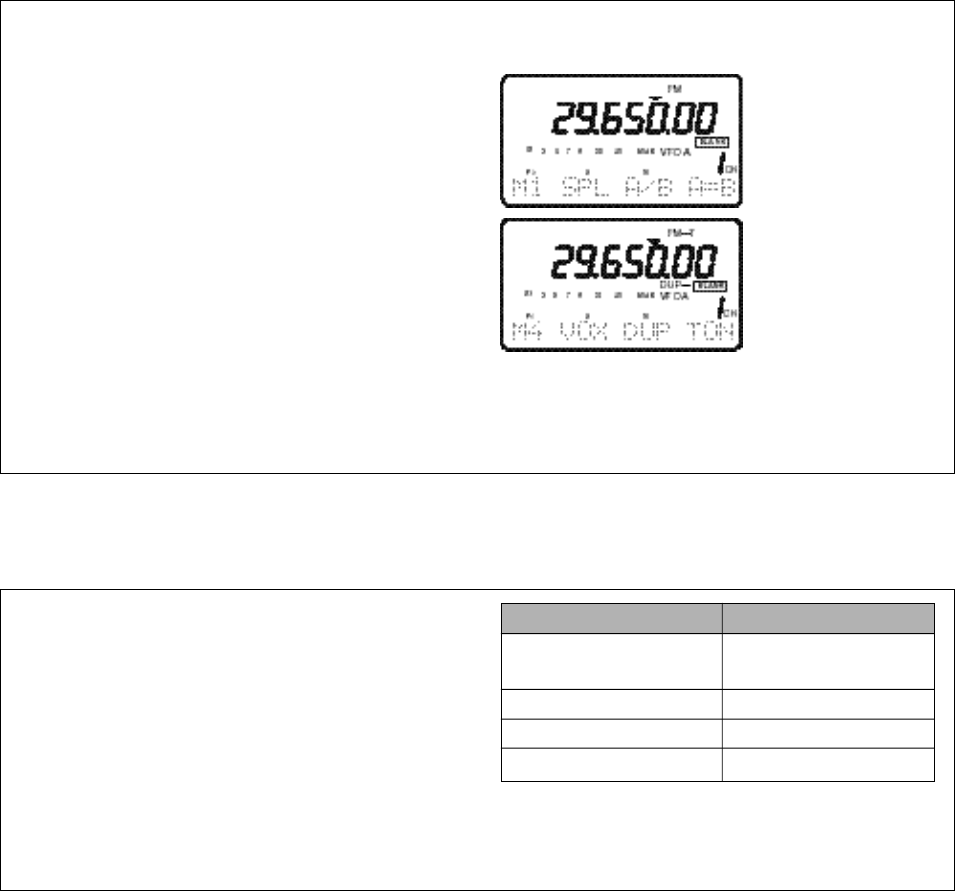

This function allows you to set repeater operation
with the push of one switch.
➀Push [(Y)BAND]/[(Z)BAND] to select the 28 MHz
band.
➁Rotate [DIAL] to select the operating frequency.
➂Push [MODE] one or more times to select FM.
➃Select M4 and turn the one-touch repeater function
ON.
➥Push and hold [(F-2)DUP] to toggle the one-
touch repeater function ON and OFF.
•When the one-touch repeater function is turned ON,
“DUP” (duplex indicator) and “T” (tone frequency
indicator) appear in the display.
•Be sure to set the duplex direction and offset in ini-
tial set mode in advance (p. 51).
•Push [(F-2)DUP] to toggle the duplex direction.
☞NOTE:When you want to transmit a 1750 Hz tone,
while pushing [PTT], push [(F-3)TON] in the M4
display during repeater operation.
■One-touch repeater function
This function automatically activates the repeater set-
tings (DUP+ or DUP– and tone encoder ON/OFF)
when the operating frequency falls within the general
output frequency range and deactivates them when
outside of the range.
Set the auto repeater function ON or OFF in initial set
mode in advance (p. 52). When set ON, repeater set-
tings are automatically activated according to the
table at right.
☞NOTE:This function is available for the USA ver-
sion only.
■Auto repeater function
FREQUENCY DUPLEX DIRECTION
145.200–145.495 MHz “DUP–” appears
146.610–146.995 MHz
147.000–147.395 MHz “DUP+” appears
442.000–444.995 MHz “DUP+” appears
447.000–449.995 MHz “DUP–” appears
32
4RECEIVE AND TRANSMIT

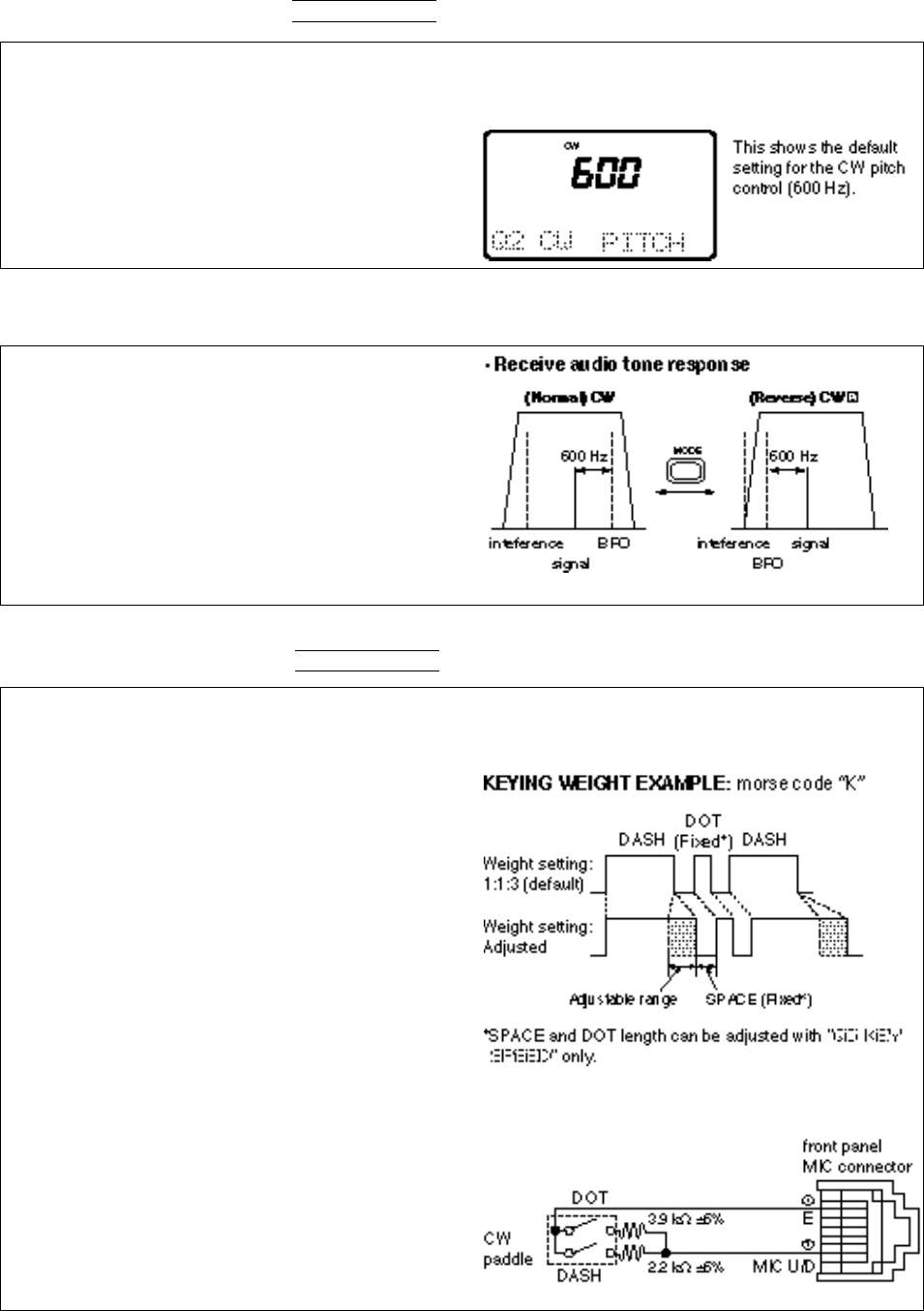

DConnections for CW
DCW operation
➀Connect a paddle or straight key as above.
➁Select CW (or CWå) mode with [MODE].
➂Set CW break-in operation as semi break-in, full
break-in or OFF.
•
Push [DISPLAY] one or two times to select M, if necessary.
•Push [MENU] one or more times to select M4.
•Push [(F-2)BRK] one or more times to select the desired
condition:
➧“F-BK”: full break-in
➧“BK”: semi break-in
➧No indicator: no break-in (ACC socket connection is
necessary as above.)
➃Set the CW delay time when semi break-in opera-
tion is selected.
➥Push [DISPLAY] for 2 sec. to select quick set
mode; push [MENU] one or more times to select
Q3 BK-IN DELAY; then rotate the main dial
to set the desired delay time (see p. 43 for
details).
■Functions for CW
4RECEIVE AND TRANSMIT
DCW pitch control
The received CW audio pitch and monitored CW
audio pitch can be adjusted to suit your preferences
(300 to 900 Hz) without changing the operating fre-
quency.
➀Push [MODE] one or more times to select CW
mode.
➁Select CW PITCH in quick set mode.
•Push [DISP] for 2 sec. then push [MENU] one or more
times.
➂Rotate the main dial to set the desired pitch.
➃Push [DISPLAY] to exit quick set mode.
QUICK SET MODE
DCW reverse mode
The CWå(CW Reverse) mode receives CW signals
with a reverse side CW carrier point like that of LSB
and USB modes. Use this mode when interference
signals are near the desired signal and you want to
change the interference tone.
➀Push [MODE] one or more times to select CW
mode.
➁Push and hold to toggle between CW and CWå
modes.
•Check the interference tone.
DElectronic CW keyer
The IC-706MKIIG has an electronic keyer. Both key-
ing speed and weight (the ratio of dot:space: dash)
can be set in quick set mode.
•Setting the electronic keyer
➀Select CW mode with [MODE].
➁Push [DISPLAY] for 2 sec. to enter quick set mode.
➂Push [MENU] one or more times to select item Q4
CW PADDLE, then rotate the main dial to select
the paddle type.
•When “ud” is selected, the up/down switches on the
microphone can be used as a paddle.
➃Push [MENU] two more times to select item Q6
RATIO, then rotate the main dial to select the
desired weight.
•Key weight can be selected from 2.8 to 4.5.
•Check the selected ratio with the side tone function in
CW mode.
➄
Push [DISPLAY] momentarily to exit quick set mode.
Paddle operation from front panel MIC connector
Connect a CW paddle as at right to operate an elec-
tronic keyer from the front panel MIC connector.
•This function is available from the front panel mic
connector only.
•Be sure to select item “n,” “r,” “buG” or “oFF” in Q4
CW PADDLE in quick set mode. (p. 48)
•Connect straight key to “DOT” side.
QUICK SET MODE
34
4RECEIVE AND TRANSMIT

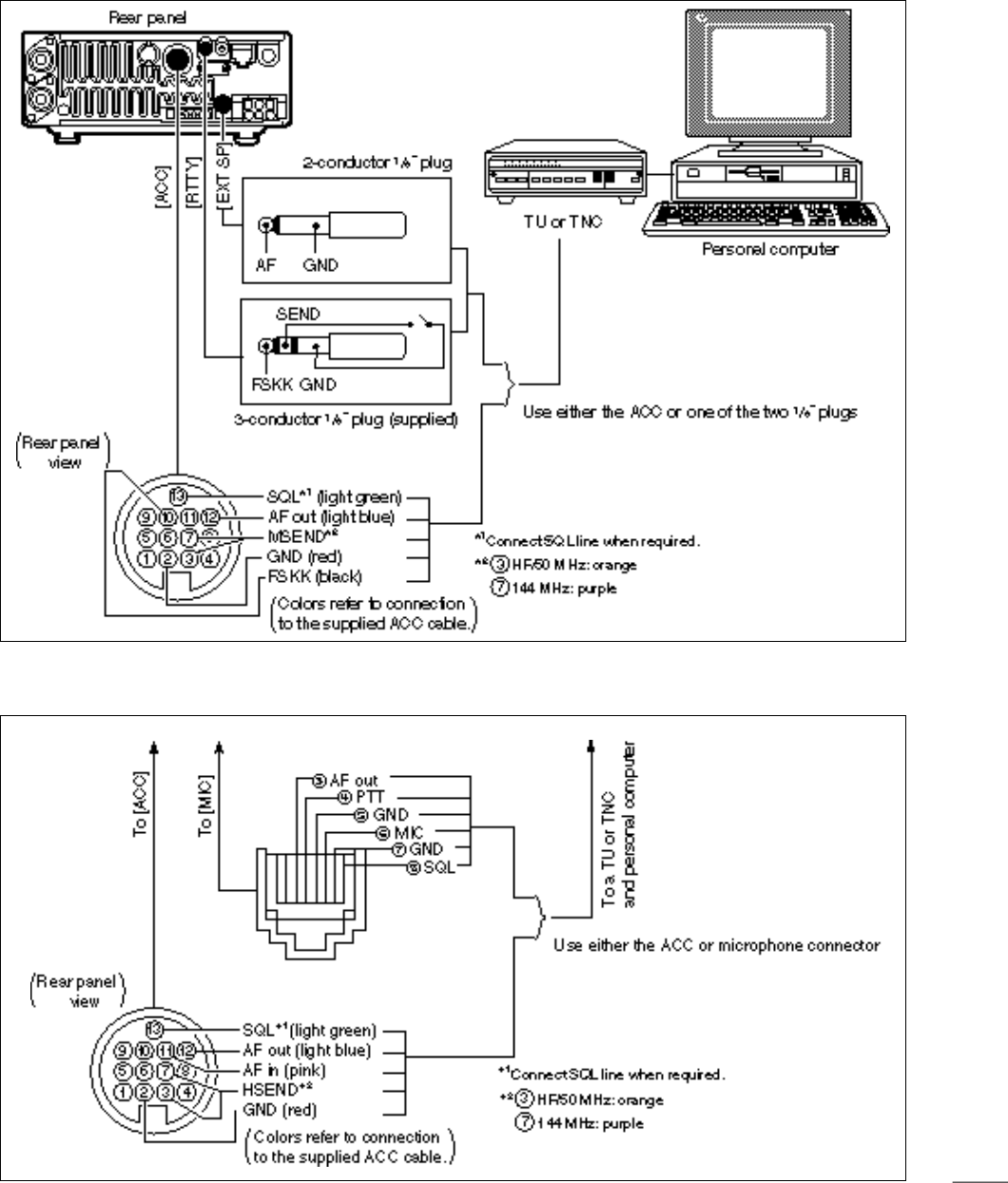

DConnections for RTTY (FSK)
DConnections for AFSK

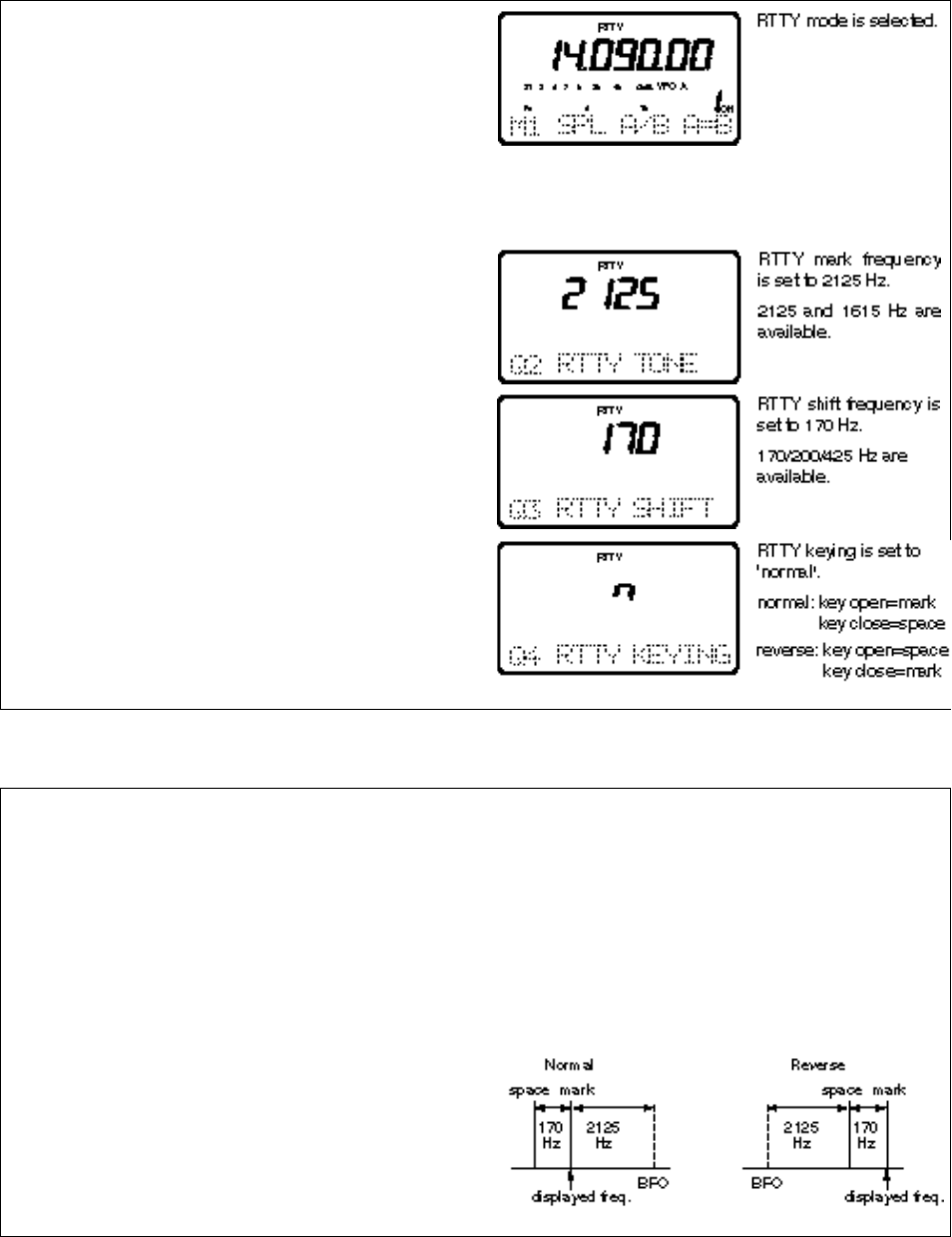

■Functions for RTTY
4RECEIVE AND TRANSMIT
DRTTY (FSK) operation
➀Connect a terminal unit as at left.
➁Select RTTY (or åRTTY—see bottom of page)
mode with [MODE].
➂Select the desired FSK tone/shift frequencies and
keying polarity as below.
➃Set the desired frequency with the main dial.
•Use [(F-1)1/4] in the M4 display when critical setting is
required.
➄Operate the connected PC or TNC (TU).
PRESETTING FOR RTTY
Tone frequency
➀
Push [DISPLAY] for 2 sec. to select quick set mode.
➁Push [MENU] one or more times to select Q2
RTTY TONE; then rotate the main dial to select
the desired tone frequency (p. 47).
Shift frequency
➀
Push [DISPLAY] for 2 sec. to select quick set mode.
➁Push [MENU] one or more times to select Q3
RTTY SHIFT; then rotate the main dial to select
the desired shift frequency (p. 47).
RTTY keying
➀
Push [DISPLAY] for 2 sec. to select quick set mode.
➁Push [MENU] one or more times to select Q4
RTTY KEYING; then rotate the main dial to
select the desired keying polarity (p. 47).
➀Connect a terminal unit as at left.
➁Select SSB (LSB) mode with [MODE].
•Generally, LSB is used on the HF bands and FM is
used for the VHF band.
➂Select the desired FSK tone/shift frequencies and
keying polarity as below.
➃Set the desired frequency with the main dial.
•Use [(F-1)1/4] in the M4 display when critical setting is
required.
➄Operate the connected PC or TNC (TU).
PRESETTING FOR RTTY
Tone frequency
Same as above.
Shift frequency
Same as above.
RTTY keying
Same as above.
RTTY reverse mode
Received characters are occasionally garbled when
the receive signal is reversed between MARK and
SPACE. This reversal can be caused by incorrect
TNC connections, settings, commands, etc.
To receive a reversed RTTY signal correctly, select
åRTTY (RTTY reverse) mode.
➥Push [MODE] for 1 sec. (while RTTY is selected)
to select åRTTY mode.
•Check the receive signal.
DRTTY (AFSK) operation
36
4RECEIVE AND TRANSMIT
■Packet operation

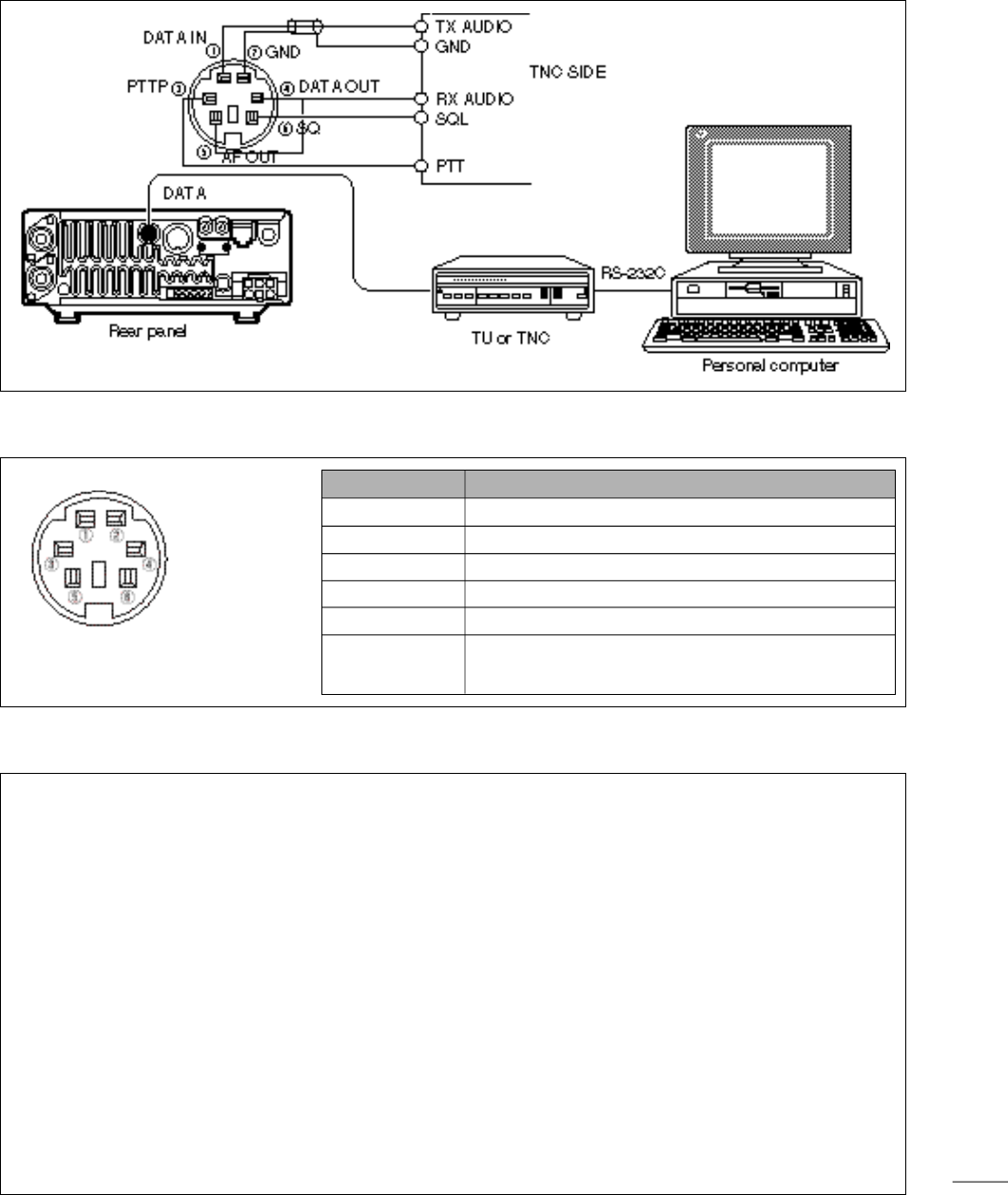

DConnections for packet
PIN #/NAME DESCRIPTION
qDATA IN Communication data input.
wGND Ground for DATA IN, DATA OUT and AF OUT.
ePTTP Transmits when grounded.
rDATA OUT Outputs 9600 bps receive data.
tAF OUT Outputs 1200 bps receive data.
ySQ Squelch output.
Goes to ground when squelch opens.
Rear panel view
DAdjusting the transmit signal output from the TNC
☞NOTE: For packet operation the transceiver can
be set to one of two data speeds: 1200 bps or
9600 bps. Data speed is set in initial set mode
(see p. 53 item 29 9600 MODE).
Data speed is set in initial set mode (see p. 53 item
29 9600 MODE).When setting data transmission
speed to 9600 bps, the
DATA
signal coming from the
TNC is applied exclusively to the internal limiter cir-
cuitry to automatically maintain bandwidth.
NEVER apply data levels from the TNC of over 0.6
Vp-p, otherwise the transceiver will not be able to
maintain the band width and may possibly interfere
with other stations.
☞NOTE: Read the instructions supplied with your
TNC carefully before attempting packet operation
with the IC-706MKIIG.
1.When using a level meter or synchroscope, adjust
the TX audio level (
DATA IN
level) from the TNC as
follows.
0.4 Vp-p (0.2 Vrms): recommended level
0.2 Vp-p–0.5 Vp-p (0.1 Vrms–0.25 Vrms):
acceptable level
2.When not using a measuring device.
➀Connect the IC-706MKIIG to a TNC.
➁Enter a test mode (“CAL”, etc.) on the TNC, then
transmit some test data.
➂When the transceiver fails to transmit test data or
transmits sporadically (TX indicator doesn’t appear
or flashes):
Decrease the TNC output level until the transmit
indicator lights continuously.
When transmission is not successful even though
the TX indictor lights continuously:
Increase the TNC output level.
DData socket
4RECEIVE AND TRANSMIT
The IC-706MKIIG can measure SWR in 2 ways:
(A) Spot measurement; or (B) Plot measurement.
(A) Spot measurement
➀Confirm that the output power is over 30 W.
➁Push [MENU] one or more times to select M3.
➂Push [(F3)MET] to select the SWR meter.
➃Push [MODE] one or more times to select CW or
RTTY operation.
•Key down or push [PTT] to transmit; then read the actu-
al SWR from the meter:
➠≤1.5 well matched antenna
➠>1.5 check antenna or cable connection, etc.
(B) Plot measurement
Plot measurement allows you to measure the SWR
over an entire band.
qConfirm that the output power is over 30 W.
wPush [DISPLAY] twice to select G1.
ePush [MENU] to select G2.
rSet the center frequency for the SWR to be mea-
sured.
tPush and hold [(F1)10k] one or more times to
select the desired frequency pitch.
yPush and hold [(F2)] one or more times to select
the desired step.
uAfter selecting the desired pitch and step, push
[(F3)STR] to measure the SWR.
iPush and hold [PTT] to display the SWR in a bar
graph readout.
oWhen [PTT] is released, the frequency marker and
frequency indication move to the next frequency to
be measured.
!0 Repeat steps i.and oto measure SWR over the
entire frequency range.
!1 When the measured SWR is less than 1.5, the
antenna is well matched.
■SWR
The IC-706MKIIG has a built-in circuit for measuring
antenna SWR while in SSB mode—no external equip-
ment or special adjustments are necessary.
☞NOTE: The SWR of ANT1 only can be read since
ANT2 has no measuring circuit.
DMeasuring SWR
Span Push [F-1] for 1 sec. to change the
selected span.
Step bar Push [F-2] for 1 sec. to change the step
bar (3, 5, 7 or 9 steps are available.
Marker Indicates the currently active step bar.
Start Flashes while the SWR is being mea-
sured.
38
5MEMORY AND SCAN OPERATION
■Memory channels
The transceiver has 105 memory channels (plus 2 call
channels). Memory mode is useful for quickly chang-
ing to often-used frequencies.
All 105 memory channels are tuneable which means
the programmed frequency can be tuned temporarily
with the main dial, etc., in memory mode.
➀Select M2 functions.
•Push [DISPLAY] 1 or 2 times to select M.
•Push [MENU] one or more times to select M2.
➁Push [(F-3)V/M] to select memory mode.
➂Rotate [M-CH] to select the desired memory chan-
nel.
•All memory channels including blank channels can be
selected.
•[UP]/[DN] on the microphone changes the frequency.
➃To return to VFO mode, push [(F-3)V/M] again.
Any unnecessary memory channels can be cleared.
The cleared memory channels become blank chan-
nels.
➀Push [(F-3)V/M] in the M2 display to select mem-
ory mode.
➁Rotate [M-CH] to select a memory channel to be
cleared.
➂Push [MCL(F-2)] for 2 sec. to clear the contents.
•The programmed frequency and operating mode disap-
pear and “}” appears.
➃To return to VFO mode, push [(F-3)V/M] again.

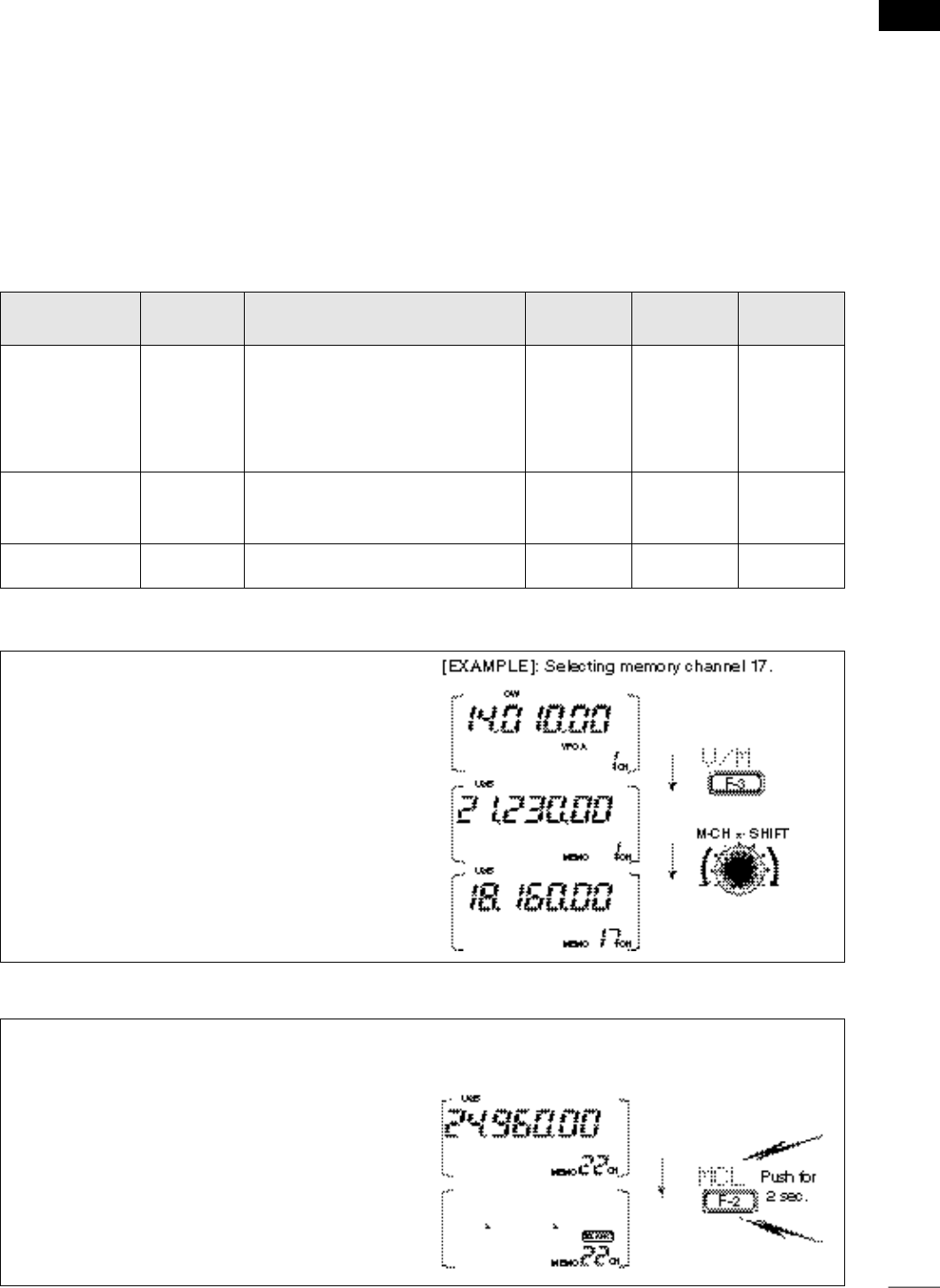

■Memory channel selection
■Memory clearing
Note: During split frequency operation, programmed
memory contents can be called up to the SUB readout
(dot matrix portion of the display).
MEMORY
CHANNEL
MEMORY
CHANNEL
NUMBER CAPABILITY TRANSFER
TO VFO OVER-
WRITING CLEAR
Regular
(split memory) 1–99
Independent transmit and receive
frequencies and one mode in each
memory channel.
In addition, tone frequencies (or
1750 Hz tone burst) can also be
stored for repeater use.
Yes Yes Yes
Scan edges 1A–3B
(3 pair)
One frequency and one mode in
each memory channel as scan
edges for programmed scan. Yes Yes No
Call channel
(split memory) C1 (144 MHz)
C2 (430 MHz) Same as regular, but only 144/430
MHz band can be programmed. Yes Yes No
5MEMORY AND SCAN OPERATION
•Programming in VFO mode
➀Select M2 functions.
•Push [DISPLAY] 1 or 2 times to select M.
•Push [MENU] one or more times to select the M2 func-
tions.
➁Set the desired frequency and operating mode in
VFO mode.
•If you want to program the split frequency function, pro-
gram both receive and transmit frequencies into VFO A
and B, then turn ON the split function.
•If you want to program a repeater function, set a tone
frequency (p. 48) in addition to the receive/transmit fre-
quencies.
➂Rotate [M-CH] to select the desired memory chan-
nel, or the call channel (144/430 MHz bands only).
•
Select memory mode to confirm the contents, if desired.
• “}” appears if the selected memory channel is a
blank channel (and does not have contents).
➃Push [(F-1)MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
To check the programmed contents, push [(F-3)V/M]
to select memory mode; or, push [CALL] to select the
call channel.
■Memory/call programming
•Programming in memory mode
➀Set the desired frequency and operating mode.
➁Select memory mode, then select the desired
memory channel with [M-CH].
•Push [Y]/[Z] when you want to program blank chan-
nels.
➂Push [(F-1)MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
40
5MEMORY AND SCAN OPERATION
■Frequency transferring
The frequency and operating mode can be transferred
from memory mode to VFO mode.
➀Select VFO mode with [(F-3)V/M] in the M2 dis-
play.
➁Select a memory channel with [M-CH].
•Select memory mode to confirm the memory channel’s
contents, if desired; then return to VFO mode.
•“}” appears if the selected memory channel is a
blank channel (and does not have contents). In this
case transferring is not possible.
➂Push [(F-2)MÜV] for 2 sec. to transfer the frequen-
cy and operating mode.
•Transferred frequency and operating mode appear in
the display.
•“MÜV” does not appear in memory mode.
■Memory names
All memory channels (including scan edges and the
call channel) can be tagged with alphanumeric names
of up to 9 characters each.
All common keyboard characters (ASCII characters
33 to 126) can be used, including numerals and punc-
tuation marks.
•Calling up memory names
➀Select the G4 display.
➥Push [DISPLAY] 1 or 2 times to select G.
➥Push [MENU] one or more times to select the
G4 display.
➁Select a memory channel with [M-CH].
•Editing (programming) memory names
➀Call up the desired memory (channel) name as
above.
➁Push [(F-3)É] to enter memory name edit mode.
•“name edit” appears briefly, then a flashing cursor
appears under the first character position.
➂Rotate the main dial to select the desired charac-
ter, then advance the cursor position.
•[(F-3)Ç] increments the cursor position; [(F-1)Å] decre-
ments the cursor position.
•[(F-2)] overwrites the character with a space.
➃Repeat this procedure until all desired characters
have been selected.
➄Push [(MENU)Ä] to exit memory name edit mode.
•The G4 display reappears and the programmed mem-
ory name is displayed.
5MEMORY AND SCAN OPERATION
•Calling up a frequency from a memo pad
You can simply call up the desired frequency and
operating mode of a memo pad by pushing
[(F-3)MPR] in the S1 display.
•Make sure S1 is selected in advance.
•Both VFO and memory modes can be use.
•The frequency and operating mode are called up, starting
from the most recently written.
When you call up a frequency and an operating
mode from memo pads with [(F-3)MPR], the previ-
ously displayed frequency and operating mode are
automatically stored in a temporary pad. The fre-
quency and operating mode in the temporary pad
can be recalled by pushing [(F-3)MPR] one or more
times.
Note:If you change the frequency or operating mode
called up from a memo pad, the frequency and oper-
ating mode in the temporary pad are erased.
■Memo pads
The transceiver has a memo pad function to store fre-
quency and operating mode for easy write and recall.
The memo pads are separate from memory channels.
The default number of memo pads is 5, however, this
can be increased to 10 in initial set mode if desired
(p. 52).
Memo pads are convenient when you want to memo-
rize a frequency and operating mode temporarily, such
as when you find a DX station in a pile-up or when a
station is busy for a long time and you want to tem-
porarily search for other stations.
Use the transceiver’s memo pads instead of relying on
hastily scribbled notes that are easily misplaced.
•Writing frequencies and operating modes
into memo pads
➀Select the S1 display.
•Push [DISPLAY] 1 or 2 times to select S.
•Push [MENU] one or more times to select S1.
➁Push [(F-2)MPW] to program the frequency into a
memo pad.
When you write a 6th frequency and operating mode,
the oldest written frequency and operating mode are
automatically erased to make room for the new set-
tings.
Note: Each memo pad must have its own unique
combination of frequency and operating mode;
memo pads having identical settings cannot be writ-
ten.
42
5MEMORY AND SCAN OPERATION
■Scan types
■Preparation
•Channels
For programmed scan:Program scan edge frequen-
cies into scan edge memory channels 1A and 1B
(p. 33).
For memory scan:Program 2 or more memory chan-
nels except scan edge memory channels.
For memory select scan: Designate 2 or more memo-
ry channels as select memory channels—select a
memory channel, then push [(F-2)SEL] in the S2 dis-
play (memory mode) to designate the channel as a
select memory channel.
For priority watch: Program 1 memory channel to be
watched.
•Scan resume ON/OFF
You can select the scan to resume or cancel when
detecting a signal, in initial set mode, item 21. Scan
resume ON/OFF must be set before operating a scan.
See p. 52 for ON/OFF setting and scan resume con-
dition details.
•Scan speed
Scan speed can be selected from 2 levels, high or low,
in initial set mode. See p. 46 for details.
•Squelch condition
SCAN
STARTS
WITH
PROGRAMMED
SCAN MEMORY SCANS
PRIORITY WATCH
SQUELCH
OPEN
The scan continues
until it is stopped
manually, and does
not pause even if it
detects signals.
This is not applicable
when the scan
resume is OFF and a
programmable step
(more than 1 kHz) is
selected.
Scan pauses on each
channel when the
scan resume is ON;
not applicable when
OFF.
SQUELCH
CLOSED
Scan stops when detecting a signal.
If you set scan resume ON in initial set mode,
the scan pauses for 10 sec. when detecting a
signal, then resumes. When a signal disap-
pears while scan is paused, scan resumes 2
sec. later.

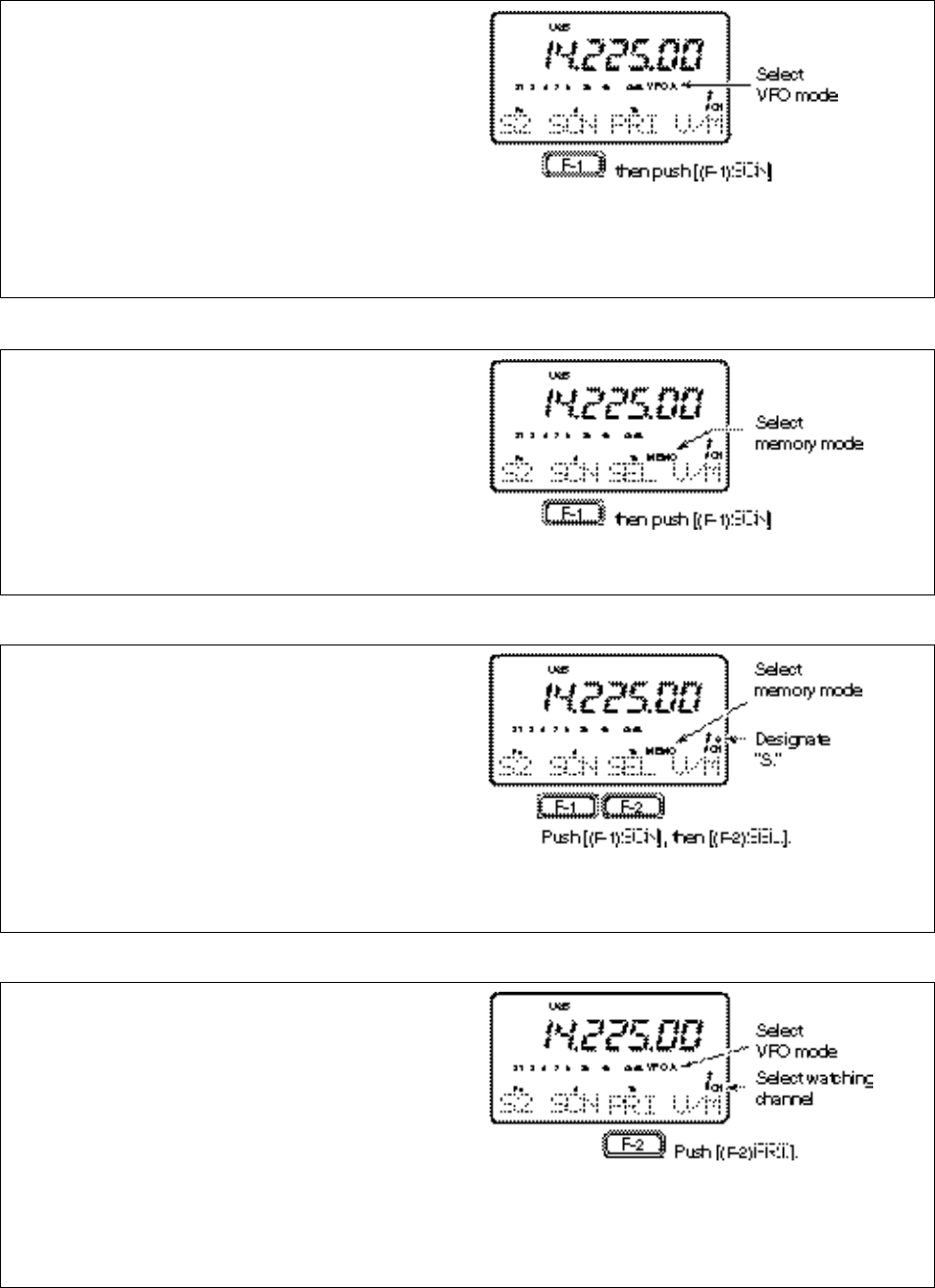

5MEMORY AND SCAN OPERATION
➀Select VFO mode, then set a frequency.
➁Close the squelch with [SQL].
➂Set the desired memory channel as the watching
channel.
➃Select S2, then push [(F-2)PRI] to start the watch.
•Decimal point blinks while scanning.
➄When the scan detects a signal, the scan pauses
for 10 sec. or until the signal disappears, depend-
ing on the resume setting.
➅To cancel the scan push [(F-2)PRI]. Note: The paused condition when detecting a signal
differs depending on the scan resume condition.
resume on: pauses for 10 sec.
resume off: pauses until the signal disappears.
➀Select memory mode.
➁Close the squelch with [SQL].
➂Select S2, then push [(F-1)SCN] to start the mem-
ory scan.
•Decimal point blinks while scanning.
➃Push [(F-2)SEL] to change the memory scan to
select memory scan.
•Push [(F-2)SEL] for 2 sec. to clear all select memory
channels.
➄When the scan detects a signal, the scan stops or
pauses depending on the resume setting.
➅To cancel the scan push [(F-1)SCN].
Note: Two or more memory channels must be desig-
nated as select memory channels for select memory
scan to start.
➀Select memory mode.
➁Close the squelch with [SQL].
➂Select S2, then push [(F-1)SCN] to start the scan.
•Decimal point blinks while scanning.
➃When the scan detects a signal, the scan stops or
pauses depending on the resume setting.
➄To cancel the scan push [(F-1)SCN].
Note: Two or more memory channels must be pro-
grammed for memory scan to start.
➀Select VFO mode.
➁Select the desired operating mode.
•The operating mode can also be changed while scan-
ning.
➂Set [SQL] open or closed.
•See page a left for squelch condition.
➃Select S2, then push [(F-1)SCN] to start the scan.
•Decimal point blinks while scanning.
➄When the scan detects a signal, the scan turns
O F F, pauses or ignores it depending on the
resume setting and the squelch condition.
•During scan [TS] can be used only when resume is ON.
➅To cancel the scan push [(F-1)SCN].
Note: If the same frequencies are programmed into
the scan edge memory channels 1A and 1B, pro-
grammed scan does not start.
■Programmed scan operation
■Memory scan operation
■Select memory scan operation
■Priority watch
44
6REMOTE JACK (CI-V) INFORMATION
DCI-V connection example
The transceiver can be connected through an option-
al CT-17
CI
-
V LEVEL CONVERTER
to a personal comput-
er equipped with an RS-232C port. The Icom
Communication interface-V (CI-V) controls the follow-
ing functions of the transceiver.
Up to four Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 54 for setting the CI-V condition
using initial set mode.
DData format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area is added for some com-
mands.
6REMOTE JACK (CI-V) INFORMATION
*
1
When wide or normal operation is available, add “00” for wide oper-
ation or “01” for normal operation; when normal or narrow operation
is available, add “00” for normal operation or “01” for narrow opera-
tion; when wide, normal and narrow operation is available, add “00”
for wide operation, “01” for normal operation and “02” for narrow
operation.
*2Memory channel number 1A=0100/1b=0101, 2A=0102/2b=0103,
3A=0104/3b=0105, C1=0106, C2=0107.
COMMAND TABLE
Cn Sc Description
00 — Send frequency data
01 xx Send mode data
02 — Read band edge frequencies
03 — Read display frequency
04 — Read display mode
05 — Set frequency data
00*1Set LSB
01*1Set USB
02*1Set AM
06 03*1Set CW
04*1Set RTTY
05*1Set FM
06*1Set WFM
— Set to VFO
00 Set to VFO A
07 01 Set to VFO B
A0 VFO A=B
B0 Switch VFO A and B
08 — Set to memory mode
mc*2Mch
09 — Memory write
0A — Memory to VFO
0B — Memory clear
0C — Read duplex offset frequency
0D — Set duplex offset frequency
Cn Sc Description
0E 00 Scan stop
01 Scan start
00 Split OFF
01 Split ON
0F 10 Simplex mode
11 Duplex mode
12 Duplex + mode
00 10 Hz TS
01 100 Hz TS
02 1 kHz TS
03 5 kHz TS
04 9 kHz TS
10 05 10 kHz TS
06 12.5 kHz TS
07 20 kHz TS
08 25 kHz TS
09 100 kHz TS
11 xx ATT ON/OFF; 00=OFF; 20=ON
15 01 Read squelch condition
02 Read S-meter level
02 Preamp setting
12 AGC setting
16 22 NB setting
42 TONE setting
43 TSQL setting
44 COMP setting
46 VOX setting
47 BK-IN setting
19 00 Read transceiver ID code
46
SET MODE
7

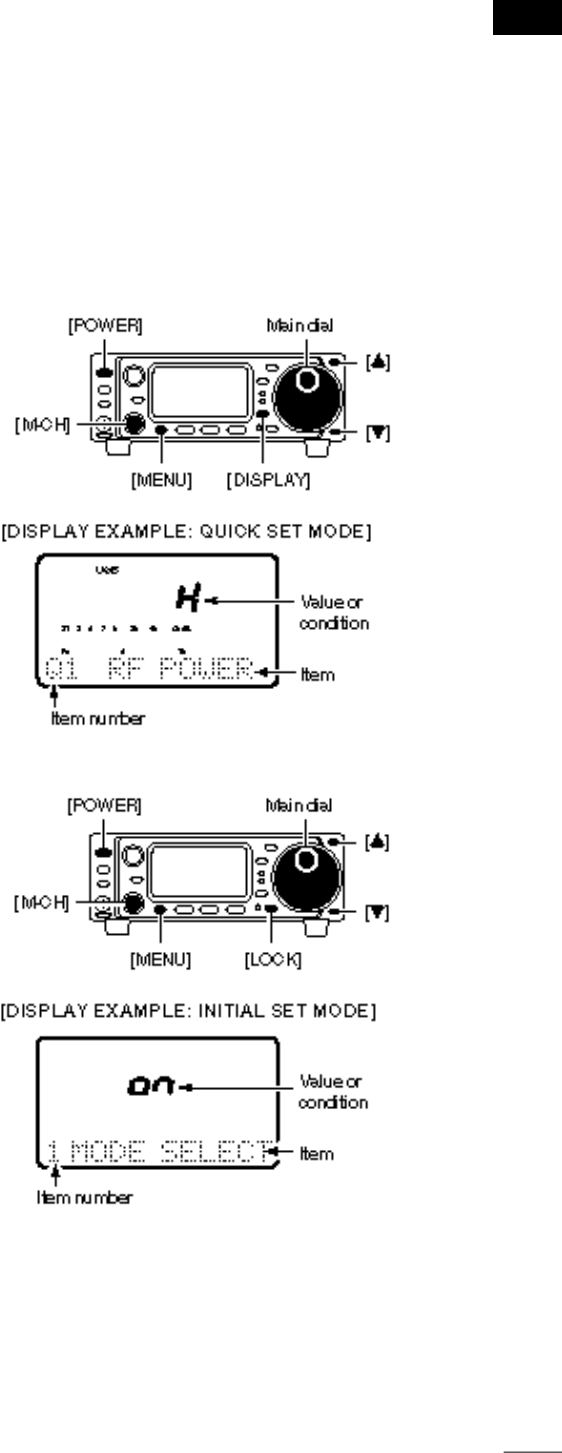

■General
Set mode is used for programming infrequently
changed values or conditions of functions. The IC-
706MKIIG has 2 separate set modes: quick set mode
and initial set mode.
DQuick set mode operation
➀While power is ON, push [DISPLAY] for 2 sec.
•Quick set mode is selected and one of its items appears.
•Quick set mode items vary depending on the operating
mode (SSB, FM, etc.) selected.
➁Push [MENU] one or more times to select the
desired item.
•[M-CH] or [Y]/[Z] can also be used.
➂Rotate the main dial to set the values or conditions
for the selected item.
➃Repeat steps ➁and ➂to set other items.
➄To exit quick set mode, push [DISPLAY] momentar-
ily.

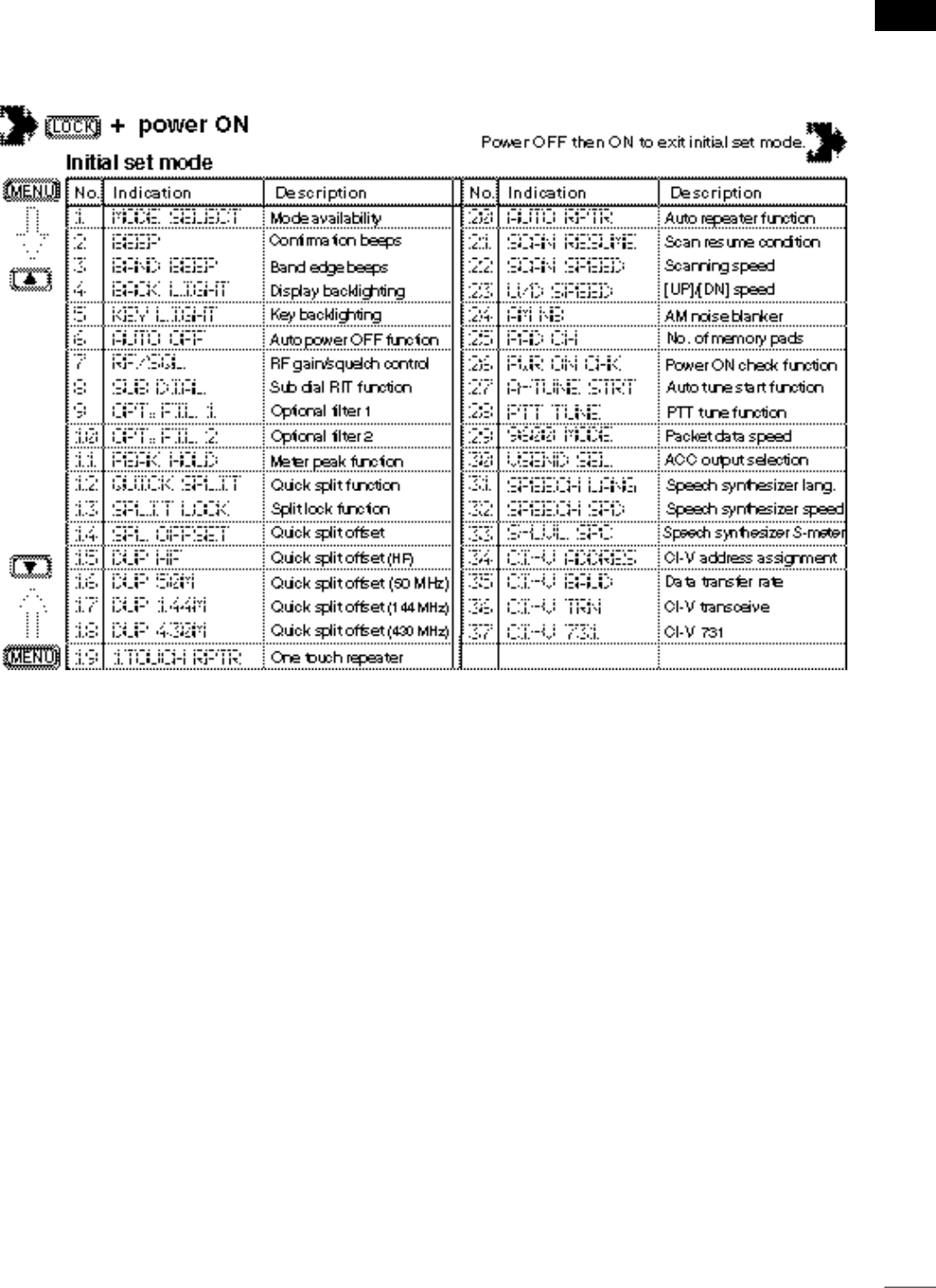

DInitial set mode operation
➀Push [POWER] for 2 sec. to turn power OFF.
➁While pushing [LOCK] push [POWER] to turn power
ON.
•Initial set mode is selected and one of its items appears.
➂Push [MENU] one or more times to select the
desired item.
• [M-CH] or [Y]/[Z] can also be used.
➃Rotate the main dial to set the values or conditions
for the selected item.
➄Repeat steps ➂and ➃to set other items.
➅To exit initial set mode, push [POWER] for 2 sec. to
turn power OFF.
➆Push [POWER] to turn power ON again.
•The conditions selected in initial set mode are now effec-
tive.
SET MODE
7
Q4 RTTY KEYING (RTTY only)
This item adjusts the RTTY keying. Normal or
reverse keying can be selected.
■Quick set mode items

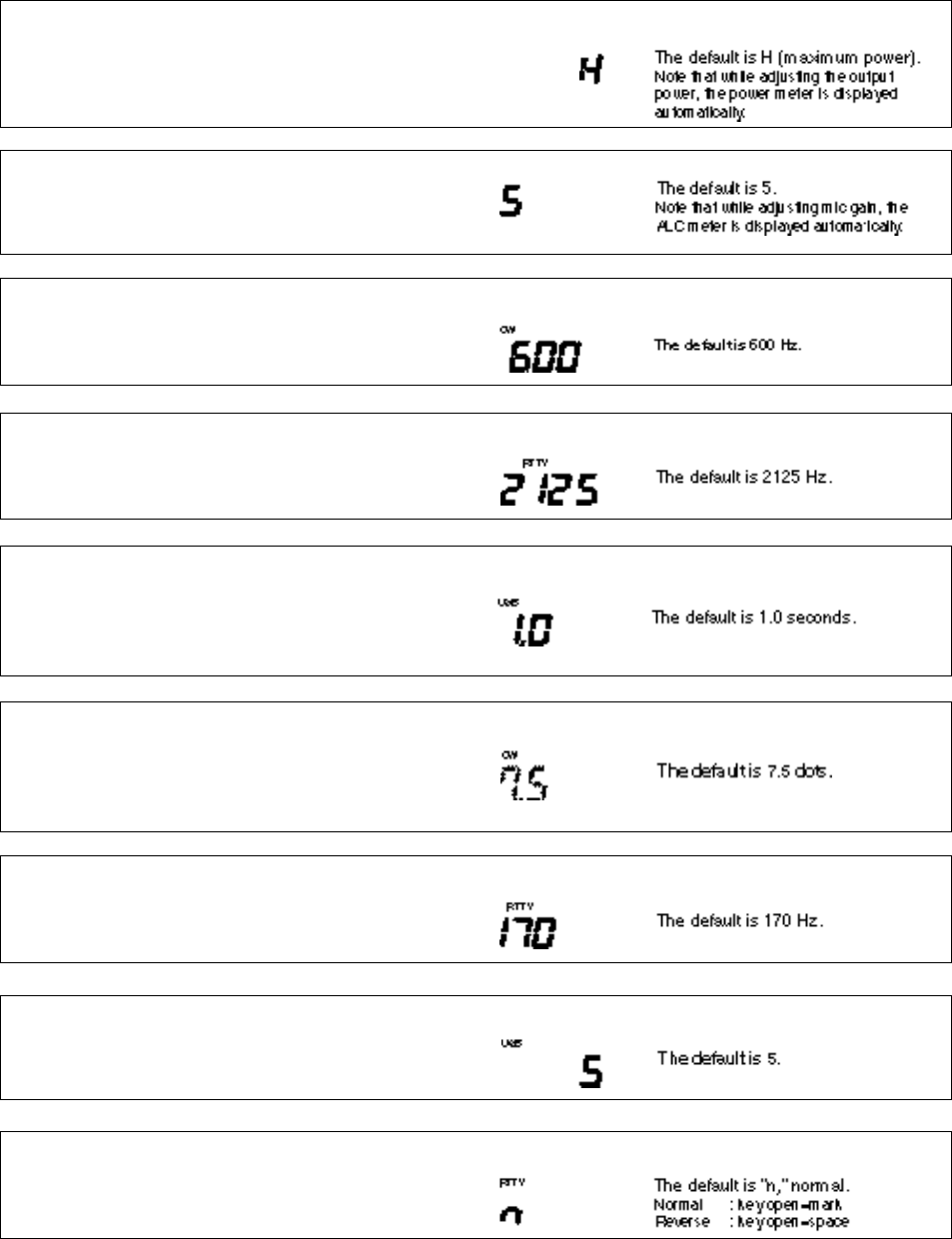

Q1 RF POWER (all modes)
This item adjusts the RF output power. The RF out-
put power can be adjusted from L, 1 to 9 and H for
indication, however, it can be adjusted continuously.
Q2 MIC GAIN (SSB/AM/FM only)
This item adjusts microphone gain from 1 to 10 for
indication, however, it can be adjusted continuously.
Q2 CW PITCH (CW only)
This item adjusts the CW pitch. CW pitch is
adjustable from 300 to 900 Hz in 10 Hz steps.
Q2 RTTY TONE (RTTY only)
This item selects the RTTY tone. RTTY tone is tog-
gled between 1275, 1615 and 2125 Hz.
Q3 VOX DELAY (SSB/AM/FM only)
This item adjusts the VOX (Voice-activated Transmit)
delay time. The delay time can be adjusted from 0 to
2 sec. in 0.1 sec. units.
Q3 BK-IN DELAY (CW only)
This item adjusts break-in delay time for CW semi
break-in operation. The delay time is selectable from
2.0 to 13.0 (dots).
Q3 RTTY SHIFT (RTTY only)
This item adjusts the RTTY shift. There are 3 selec-
table values: 170, 200 and 425 Hz.
Q4 VOX GAIN (SSB/AM/FM only)
This item adjusts the VOX gain for the VOX (voice
activated transmit) function.
48
7SET MODE
Q6 CARRIER Frq (SSB only)
This item adjusts the carrier frequency (BFO frequen-
cy), allowing you to change the audio characteristics.
Selectable values are –200 to +200 Hz in 10 Hz steps.

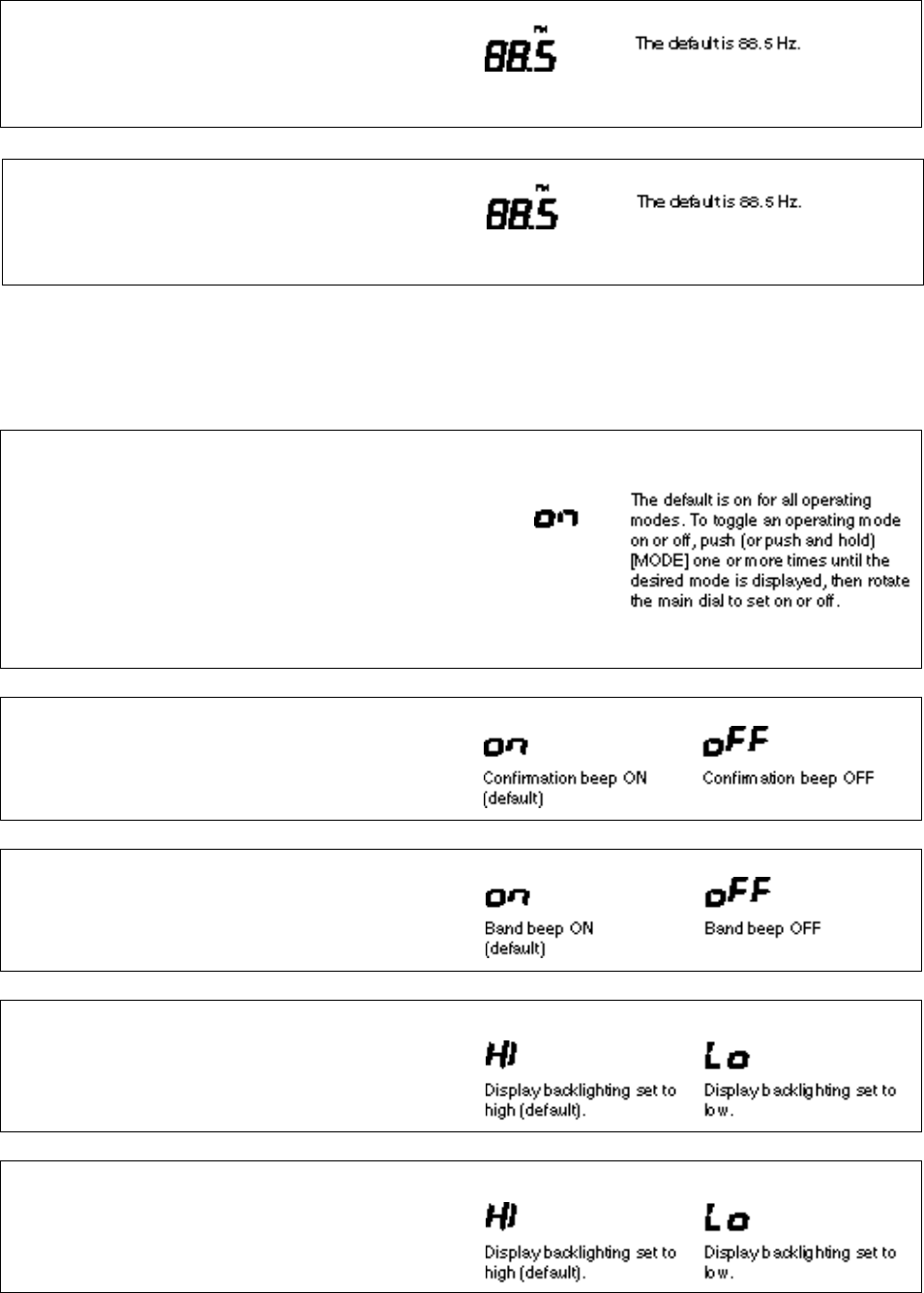

Q6 RPTR TONE (FM only)
This item selects a subaudible tone for FM-T mode
operation to access a repeater. There are 50 tones
available from 67.0 Hz to 254.1 Hz (see table at
right).
•Available subaudible tones Unit: Hz

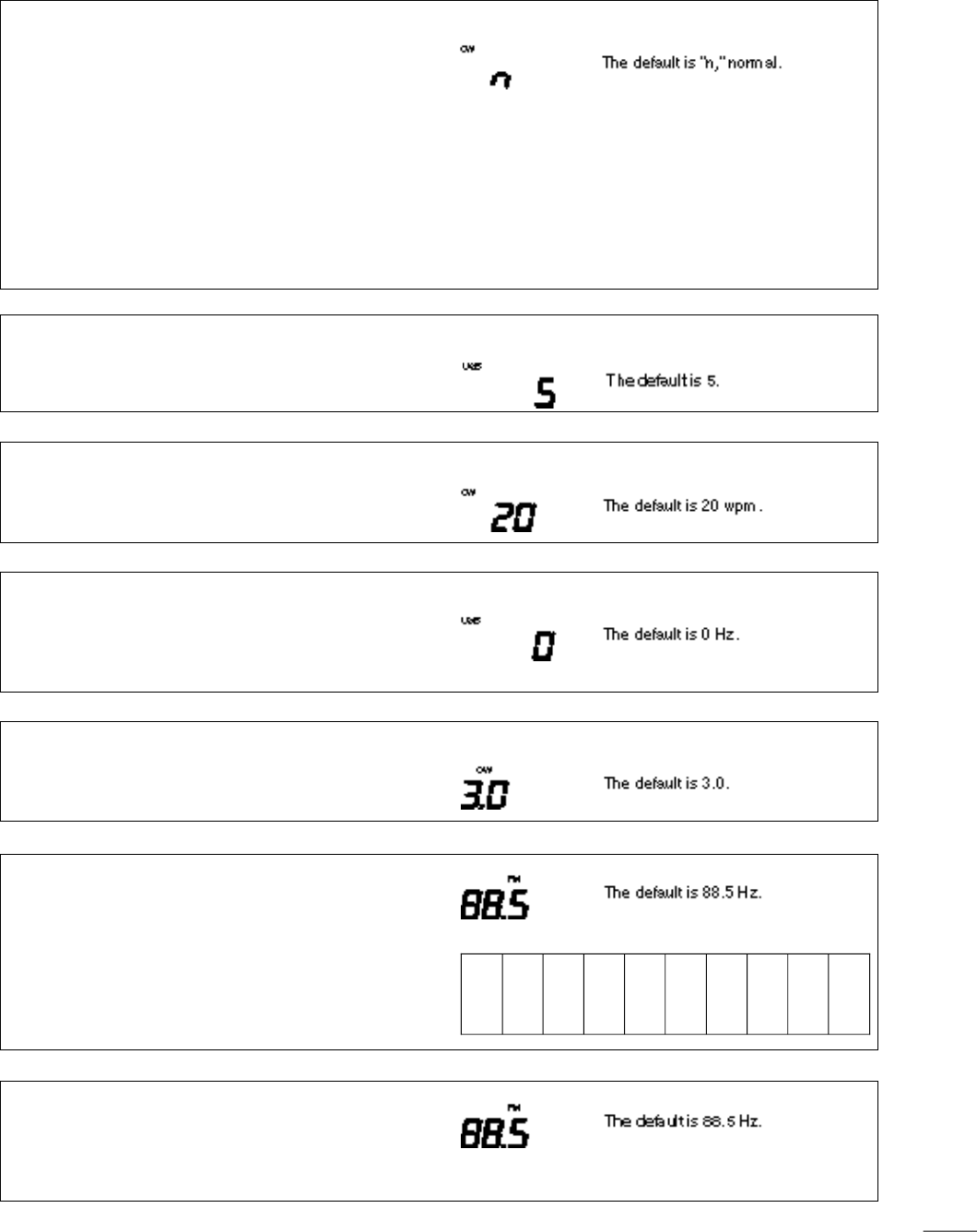

Q4 CW PADDLE (CW only)
This item adjusts the CW paddle type. Four selec-
tions are available.
•n : normal (for electronic keyer use)
•r : reverse (for electronic keyer use)
•buG : When using the electronic key, key down
produces a “dash,” releasing the key auto-
matically produces a “dot(s).”
•oFF : Turns OFF the electronic keyer (for
straight key use)
•ud : For using the microphone’s [UP]/[DN]
keys instead of the CW paddle.
Q5 KEY SPEED (CW only)
This item adjusts the CW key speed. The key speed
can be selected from 6 to 60 wpm.
Q6 RATIO (CW only)
This item adjusts the CW key ratio (or weight). The
ratio can be selected from 2.8 to 4.5.
Q7 TONE SQL (FM only)
This item adjusts sets a subaudible tone for tone
squelch use. (the same subaudible tone frequencies
as for repeater operation are available—see above).
67.0 79.9 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1
Q5 ANTI VOX (SSB/AM/FM only)
This item adjusts the ANTI-VOX gain for the VOX
(voice activated transmit) function.
SET MODE
7
4 BACK LIGHT (display backlighting)
The function display backlighting can be set to high,
low or OFF to suit ambient lighting.
5 KEY LIGHT (key/switch backlighting)
The key/switch backlighting can be set to high, low or
OFF to suit ambient lighting.
■Initial set mode items
2 BEEP (confirmation beep)
A beep sounds each time a switch is pushed to con-
firm it. This function can be turned OFF for silent
operation.
3 BAND BEEP (band beep)
A beep sounds when an operating frequency enters
or exits a transmit frequency range. This functions
independent of the confirmation beep setting (above).
1 MODE SELECT (all modes)
This item is available in all modes, and allows you to
simplify operation by inhibiting the selection of
unneeded operating modes during normal operation.
For example if you are operating mobile and only
plan on using FM and AM modes, use “MODE
SELECT” to inhibit access to all other modes (SSB,
CW, RTTY, WFM), thereby making selection of AM or
FM quick and easy.
Q8 RPTR-T SCN (repeater tone scan)
During repeater operation, you can detect the tone
frequency necessary to open a repeater (see p. ??).
Q8 T-SQL SCN
(tone squelch tone scan)
During tone squelch operation, you can detect the
tone frequency necessary to communicate using
tone squelch (see p. 30).
50

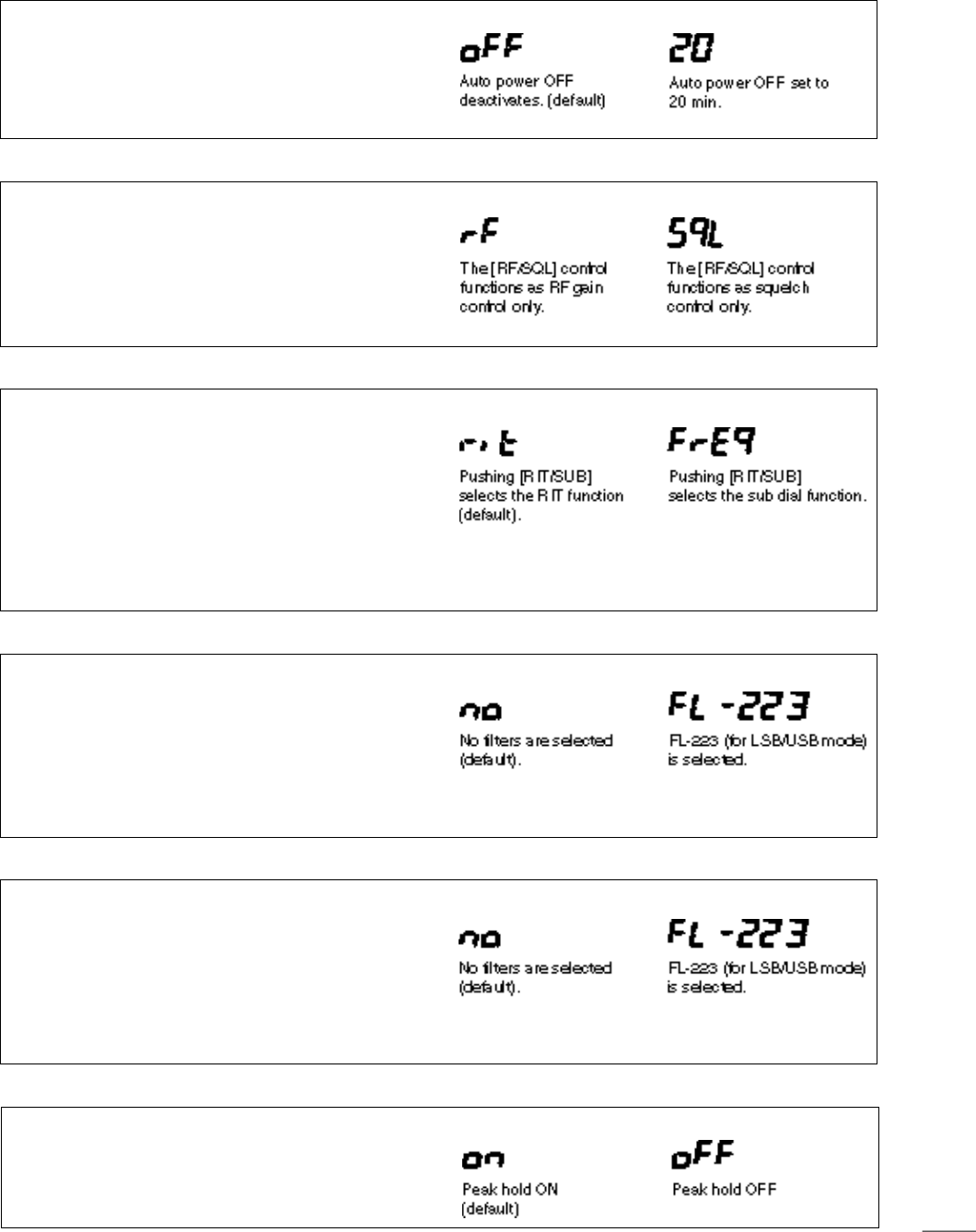

7SET MODE
11 PEAK HOLD (peak hold)
When the peak hold function is ON, the highest acti-
vated segment of the meter remains visible for 0.5
sec.; when OFF, the meter functions normally.
6 AUTO OFF (auto power OFF)
The auto power OFF function can be used to auto-
matically turn the transceiver OFF after a specified
time of operation. This item can be set to 30 min., 60
min., 90 min., 120 min., or OFF.
7 RF/SQL (SQL/AUTO/RF•SQL)
The [RF/SQL] control can be set as the squelch con-
trol (default), the RF/squelch control (USA version
default) or automatic (acts as squelch in
FM/WFM/AM modes; as RF in SSB/CW/RT T Y
modes). (See p. 22)
8 SUBDIAL (Subdial function)
When this item is set to “rit,” pushing [RIT/SUB]
turns the RIT function ON (lights red)—rotating [M-
CH] changes the RIT frequency; when this item is set
to “Freq,” pushing [RIT/SUB] turns the sub dial func-
tion ON (lights green)—rotating [M-CH] changes the
operating frequency. Note that in FM, WFM and AM
modes, pushing [RIT/SUB] always selects the sub
dial function (lights green), regardless of this setting.
9 OPT. FIL 1 (optional filter)
When an optional filter is installed, this selection is
necessary, otherwise the filters cannot be selected.
Selections available are FL-100, FL-101, FL-103,
FL-223, FL-232 and none (default). See p. 22 for
usable filters for each mode and see p. 50 for filter
installation.
10 OPT. FIL 2 (optional filter)
When an optional filter is installed, this selection is
necessary, otherwise the filters cannot be selected.
Selections available are FL-100, FL-101, FL-103,
FL-223, FL-232 and none (default). See p. 22 for
usable filters for each mode and see p. 50 for filter
installation.

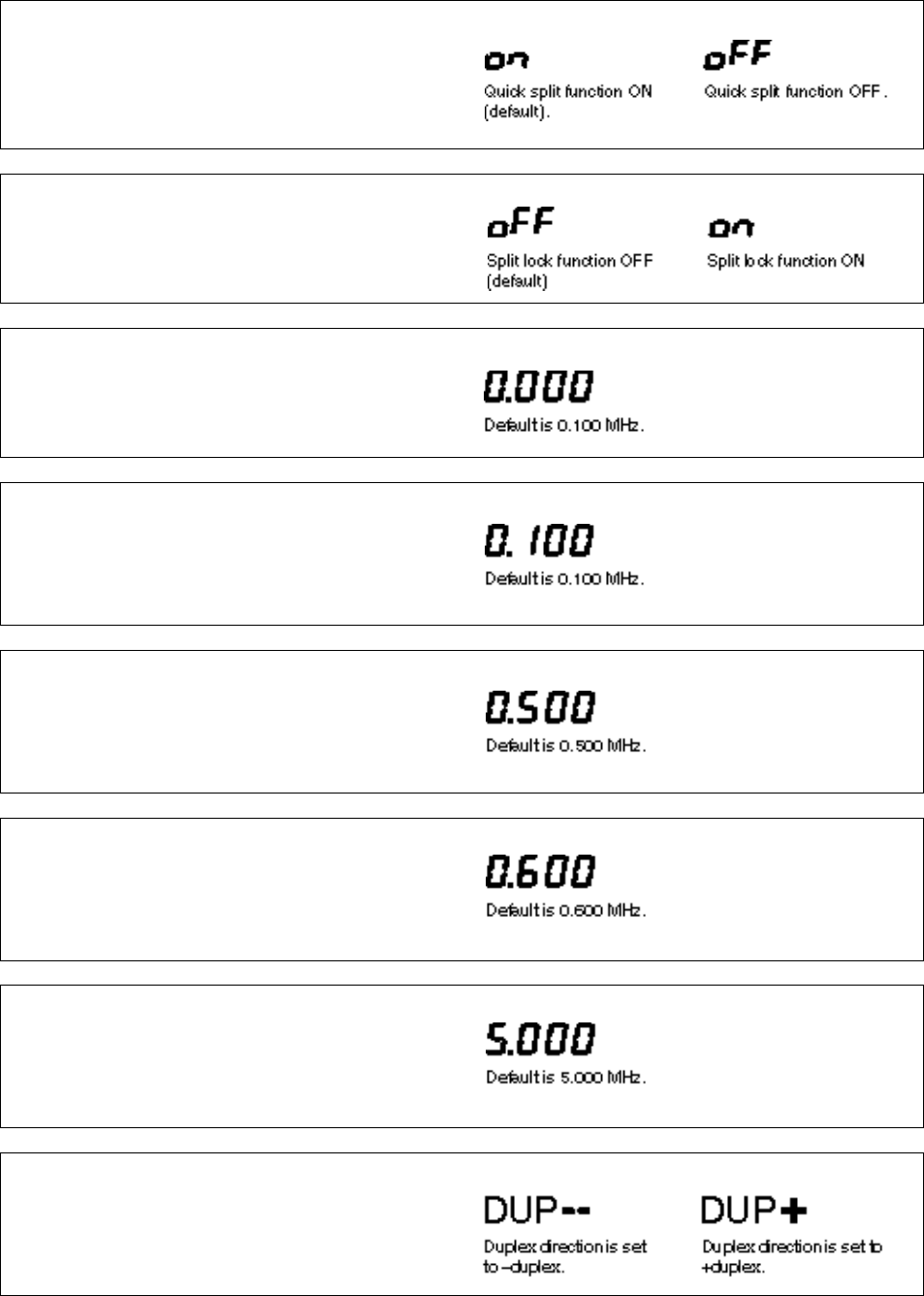

SET MODE
7
15 DUP HF (duplex offset)
This item sets the offset for the duplex function when
operating on the HF bands.
16 DUP 50M (duplex offset)
This item sets the offset for the duplex function when
operating on the 50 MHz band.
17 DUP 144M (duplex offset)
This item sets the offset for the duplex function when
operating on the 144 MHz band.
18 DUP 430M (duplex offset)
This item sets the offset for the duplex function when
operating on the 430 MHz band.
19 1TOUCH RPTR
(one touch repeater)
This item sets the offset direction when using the
one-touch repeater function. +duplex or –duplex can
be selected.
14 SPL OFFSET (split offset)
This item sets the offset (difference between transmit
and receive frequencies) for the quick split function.
Note that this setting is not valid in FM/WFM modes.
13 SPLIT LOCK (split lock)
When this item is ON the main dial can be used to
adjust the transmit frequency (XFC) even while the
lock function is activated.
12 QUICK SPLIT
(quick split function
)
When this item is set to ON, pushing [SPL] for 2 sec.
sets the undisplayed VFO frequency to the displayed
VFO frequency plus the split offset or duplex offset,
and activates split operation.
52

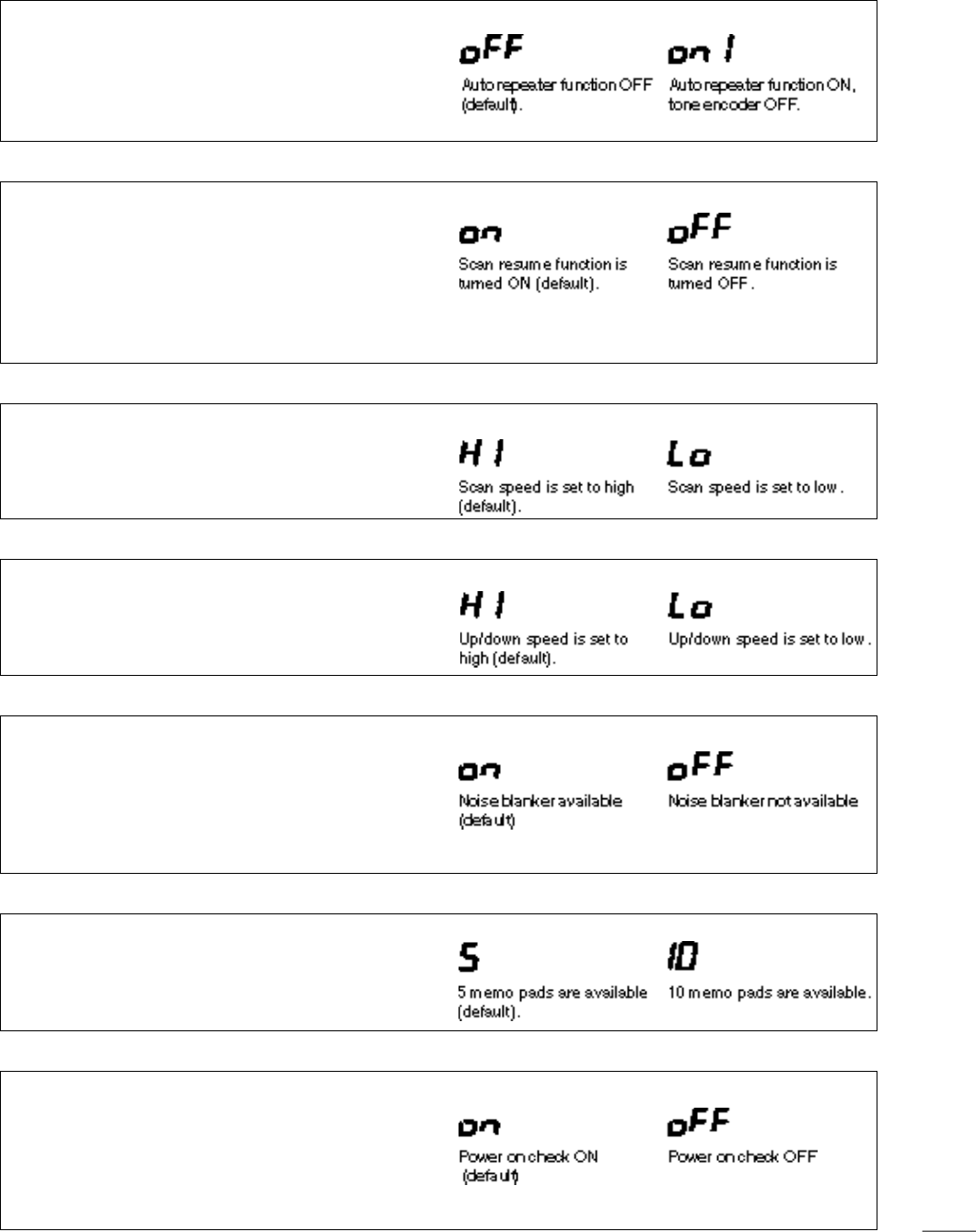

7SET MODE
26 PWR ON CHK (Power on check)
When this item is set to “on,” the set output power is
briefly displayed when turning power ON (RIT and
auto power off settings are also displayed if activat-
ed); when turned “oFF,” the display goes directly to
frequency indication at power ON.
24 AM NB (Noise blanker in AM mode)
When this item is set to ON, the noise blanker func-
tion is available in AM mode. This is useful when
communicating in AM mode (the noise blanker func-
tion should not be used when listening to regular AM
broadcasts as it may degrade the received audio).
20 AUTO RPTR
(auto repeater
)
When this item is set to “on 1”, the tone encoder is
not set when the auto repeater is activated; when set
to “on 2” the auto repeater function also sets the tone
encoder on.
22 SCAN SPEED (scan speed)
This item sets the rate at which channels or frequen-
cies are scanned during scan operations. High or low
can be selected.
23 U/D SPEED (up/down speed)
This item sets the rate at which frequencies are
scanned through when the [UP]/[DN] switches are
pushed and held. High or low can be selected.
21 SCAN RESUME (scan resume)
This item sets the scan resume function ON or OFF.
ON: scan resumes 10 sec. after stopping on a signal
(or 2 sec. after a signal disappears); OFF: scan does
not resume after stopping on a signal. For the priori-
ty watch, setting to OFF pauses the watch until sig-
nal disappears and scan resumes.
25 PAD CH (available memo pads)
This item sets the number of memo pad channels
available. 5 or 10 memo pads can be set.

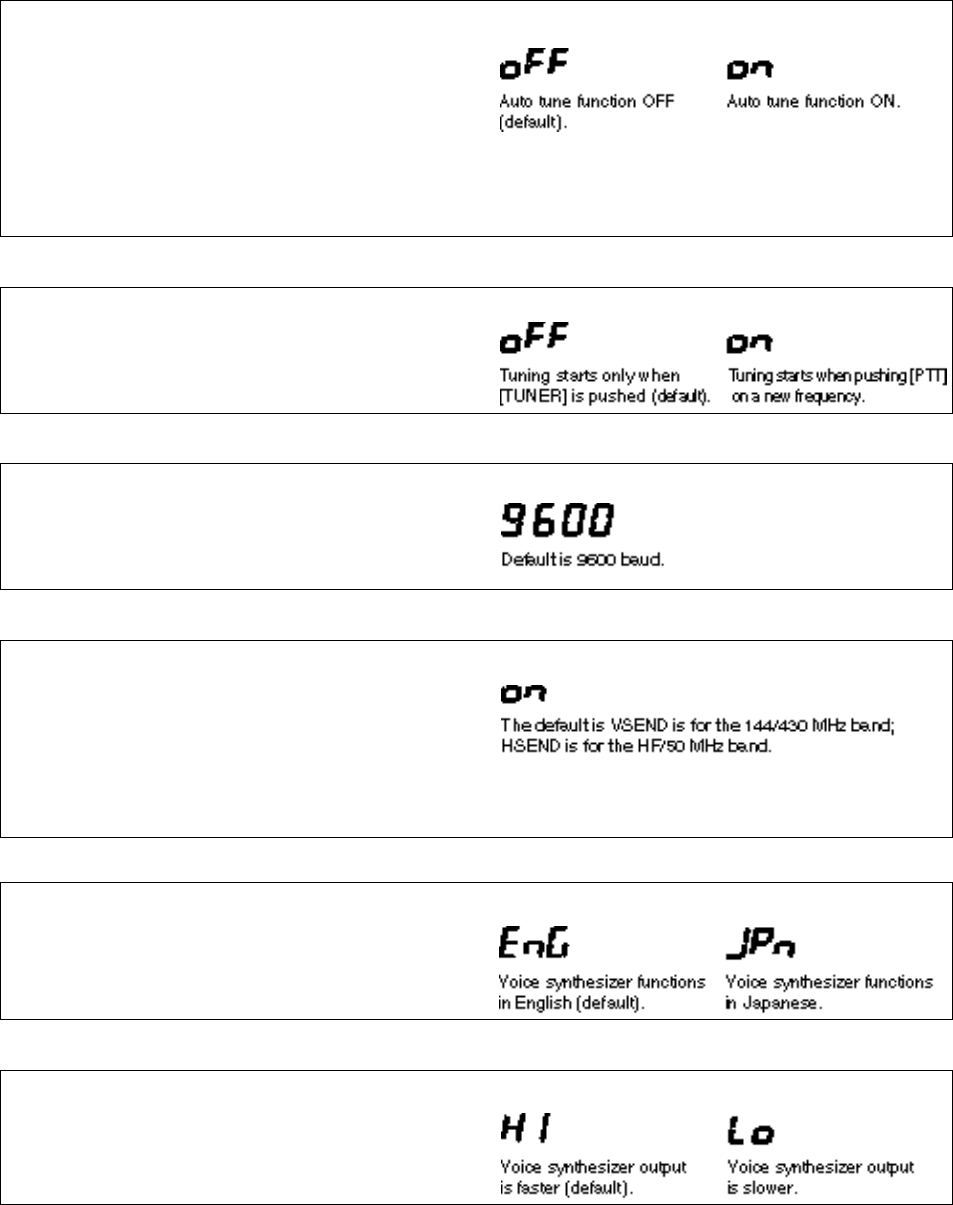

SET MODE
7
29 9600 MODE
(Data socket speed)
This is used to change the communications speed
packet operation. The data socket can be set to 1200
or 9600 baud.
30 VSEND SEL
(ACC socket output)
“on”: VSEND is for 144/430 MHz; HSEND is for
the HF/50 MHz
“U only”: VSEND is for 430 MHz; HSEND is for
HF/50/144 MHz
“oFF”: VSEND is not used; HSEND is for all
bands.
31 SPEECH LANG
When the optional UT-102
VOICE SYNTHESIZER UNIT
is
installed, you can select between English and
Japanese as the language.
32 SPEECH SPD
When the optional UT-102
VOICE SYNTHESIZER UNIT
is
installed, you can select between faster or slower
synthesizer output.
(voice synthesizer language)
(voice synthesizer speed)
28 PTT TUNE
(PTT tune function)
When an optional AH-4
ANTENNA TUNER
is connect-
ed, tuning can be started automatically at the
moment the PTT is pushed.
27 A-TUNE STRT
(auto tuner start)
The optional AT-180
ANTENNA TUNER
has an auto-
matic start capability which starts tuning if the SWR
is higher than 1.5–3.
When “oFF” is selected, the tuner remains OFF even
when the SWR is poor (1.5–3).
When “on” is selected, automatic tune starts even
when the tuner is turned OFF.
Note: Even when “on” is selected, automatic tune
does not start for the 50 MHz band.
7SET MODE
54

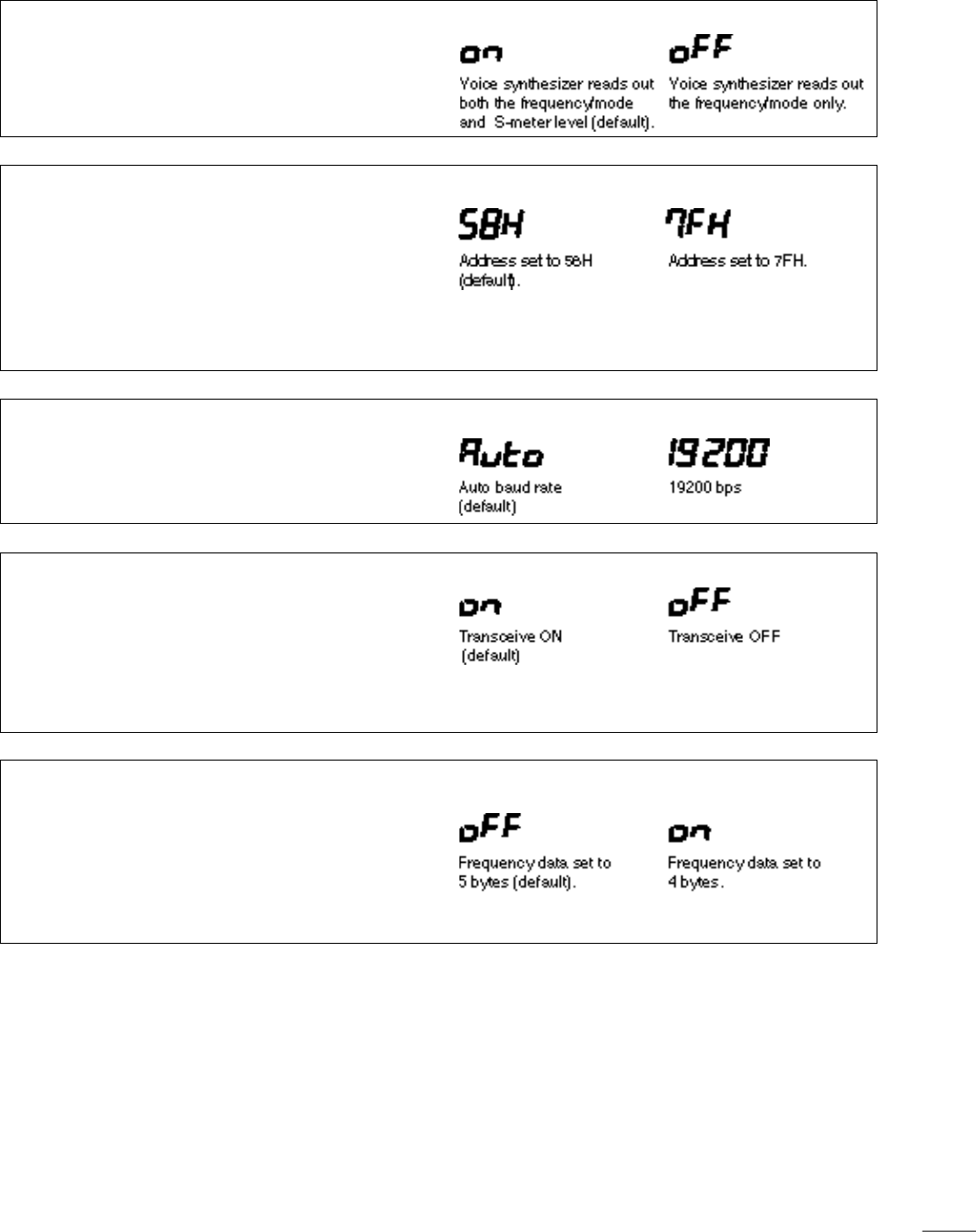

33 S-LVL SPCH (S-level speech)
When an optional UT-102
SPEECH SYNTHESIZER UNIT
is installed, the synthesizer can be set to read out the
frequency/mode only, or both the frequency/mode
and S-meter level.
37 CI-V 731 (CI-V operating fre-
quency data length)
When connecting the IC-706MKIIG to the IC-735 for
transceive operation, you must change the operating
frequency data length to 4 bytes.
•This item
MUST
be set to “on” only when operating trans-
ceiver with the IC-735.
36 CI-V TRN (CI-V transceive)
Transceive operation is possible with the IC-
706MKIIG connected to other Icom HF transceivers
or receivers. When “on” is selected, changing the
frequency, operating mode, etc. on the IC-706MKIIG
automatically changes those of connected trans-
ceivers (or receivers) and vice versa.
34 CI-V ADDRES (CI-V address)
To distinguish equipment, each CI-V transceiver has
its own Icom standard address in hexadecimal code.
The IC-706MKIIG’s address is 4EH.
When 2 or more IC-706MKIIG’s are connected to an
optional CT-17
CI
-
V LEVEL CONVERTER
, rotate the
main dial to select a different address for each IC-
706MKIIG in the range 01H to 7FH.
35 CI-V BAUD (CI-V data rate)
This item sets the data transfer rate. When “Auto” is
selected, the baud rate is automatically set according
to the connected controller or remote controller.
MAINTENANCE
8
If the transceiver becomes dusty or dirty,
wipe it clean with a dry, soft cloth. AVOID the use of strong chemical solvents
such as thinner, benzine or alcohol to clean
the transceiver. These may damage the
transceiver’s surfaces.

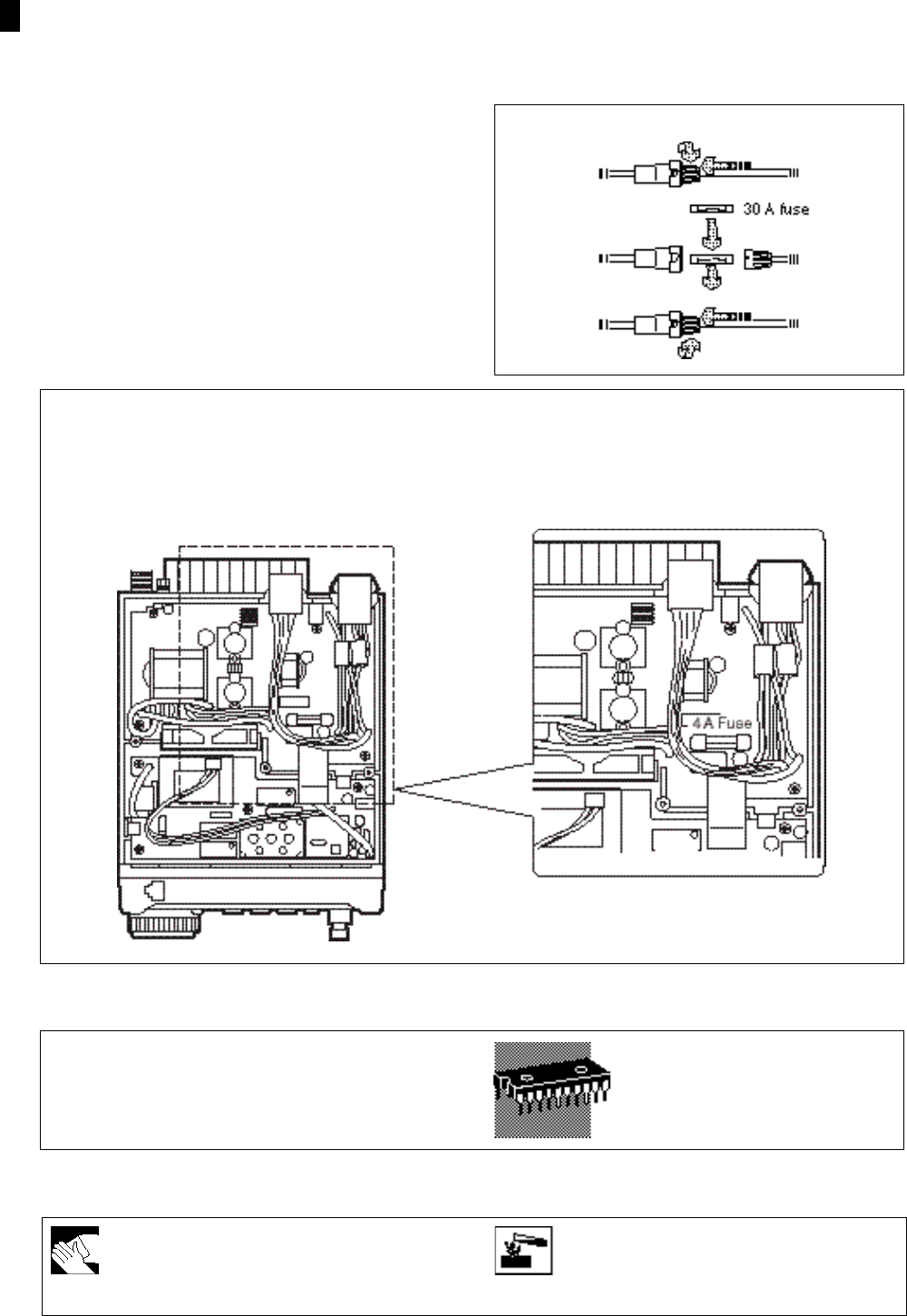

■Fuse replacement
If a fuse blows or the transceiver stops functioning, try
to find the source of the problem, and replace the
damaged fuse with a new, rated fuse.
Caution: Disconnect the DC power cable from the
transceiver when changing a fuse.
The IC-706MKIIG has 2 types of fuses installed for
transceiver protection.
•DC power cable fuses ...................................... 30 A
•Circuitry fuse ............................. F.G.M.B. 125 V 4 A
DC POWER CABLE FUSE REPLACEMENT
CIRCUITRY FUSE REPLACEMENT
The 13.8 V DC from the DC power cable is applied to
all units in the IC-706MKIIG, except for the power
amplifier, through the circuitry fuse. This fuse is
installed in the PA unit.
■Memory backup
All of the CPU’s memory is backed up by an EEP-
ROM (Electronically-Erasable Programmable Read-
Only Memory). All data you set, such as VFO, mem-
ory, set mode contents, etc. is stored in this EEP-
ROM. There is no internal lithium battery.
■Cleaning
56

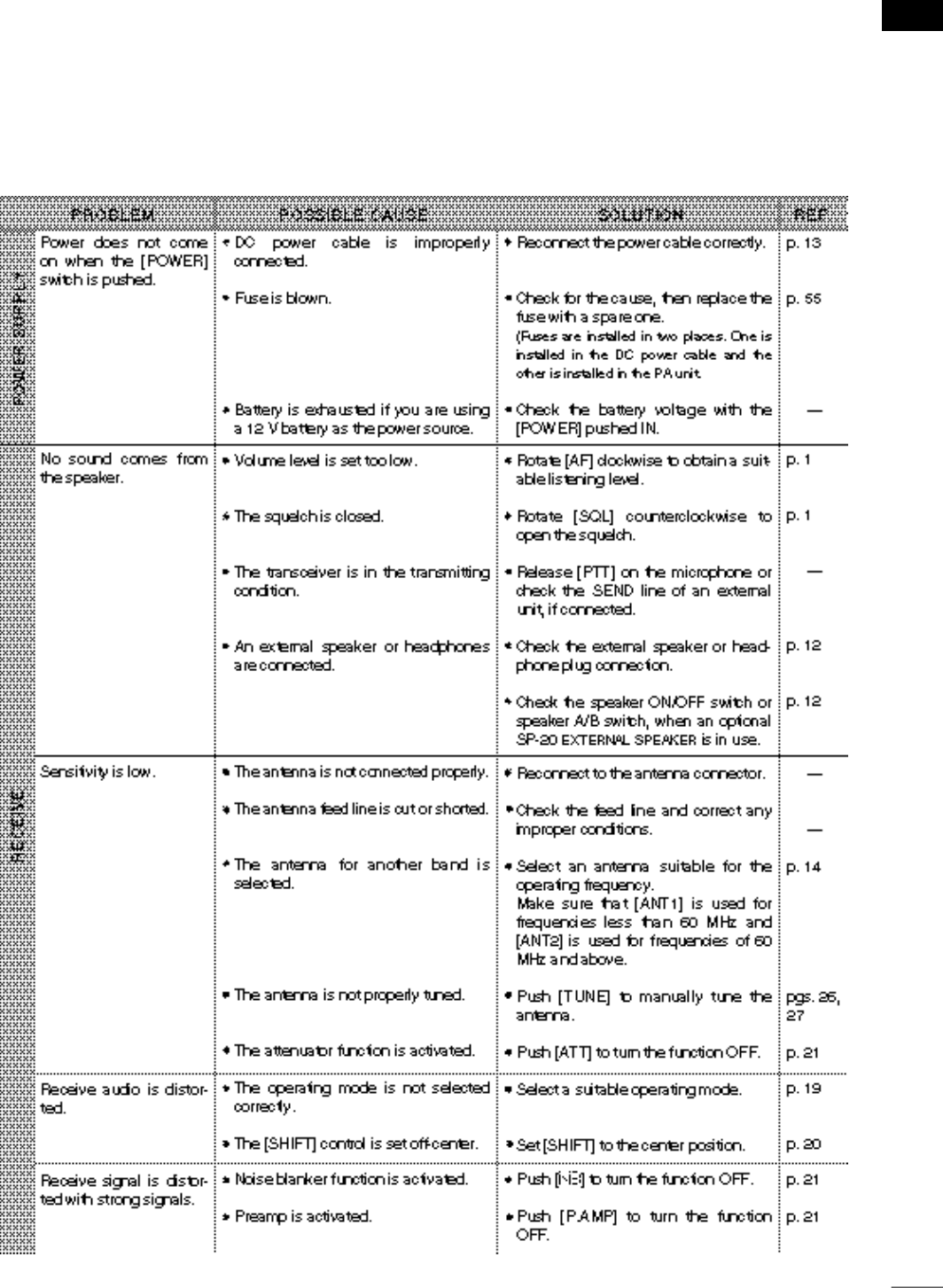

9TROUBLESHOOTING
The following chart is designed to help you correct
problems which are not equipment malfunctions. If you are unable to locate the cause of a problem or
solve it through the use of this chart, contact your
nearest Icom Dealer or Service Center.

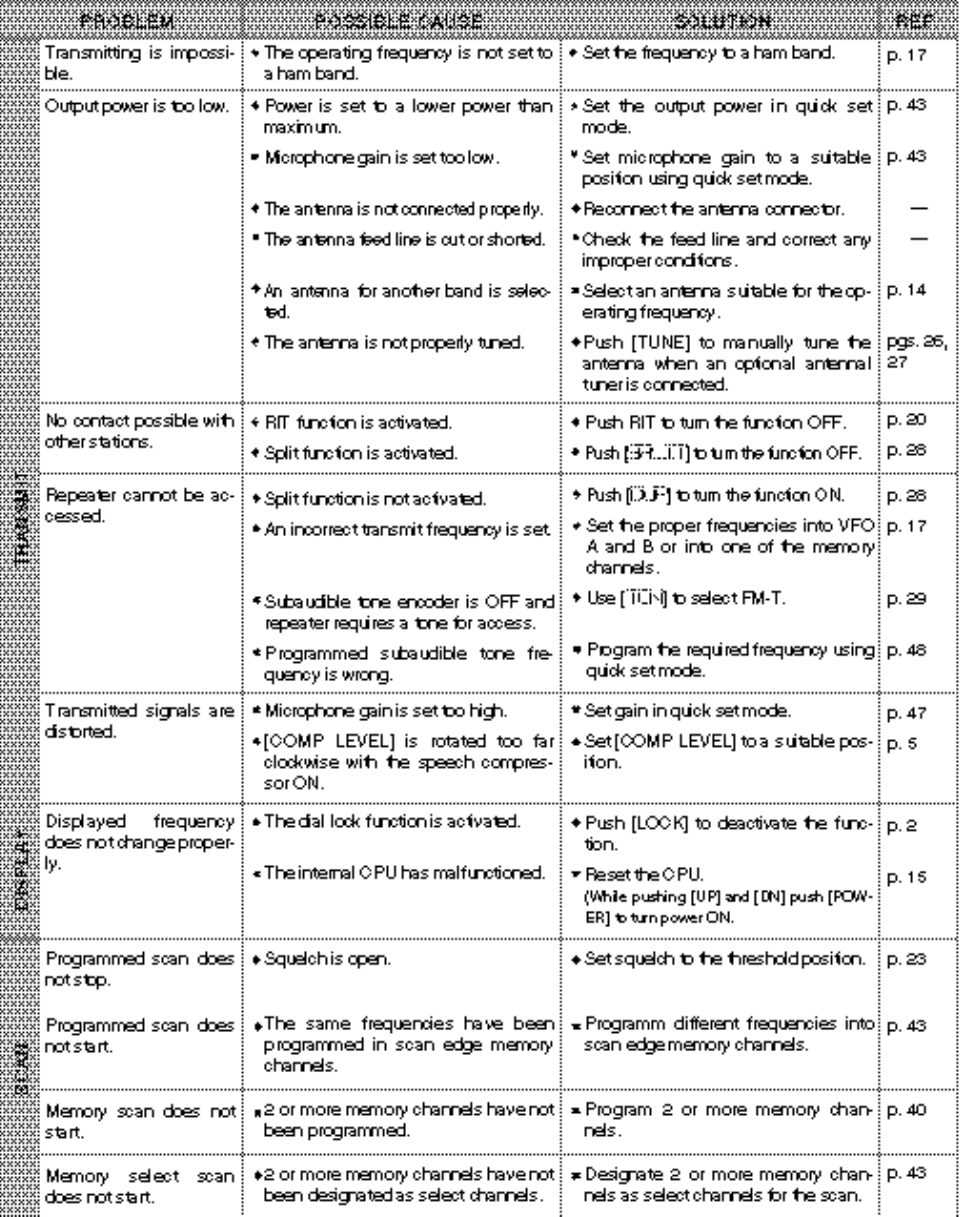

TROUBLESHOOTING
9
58

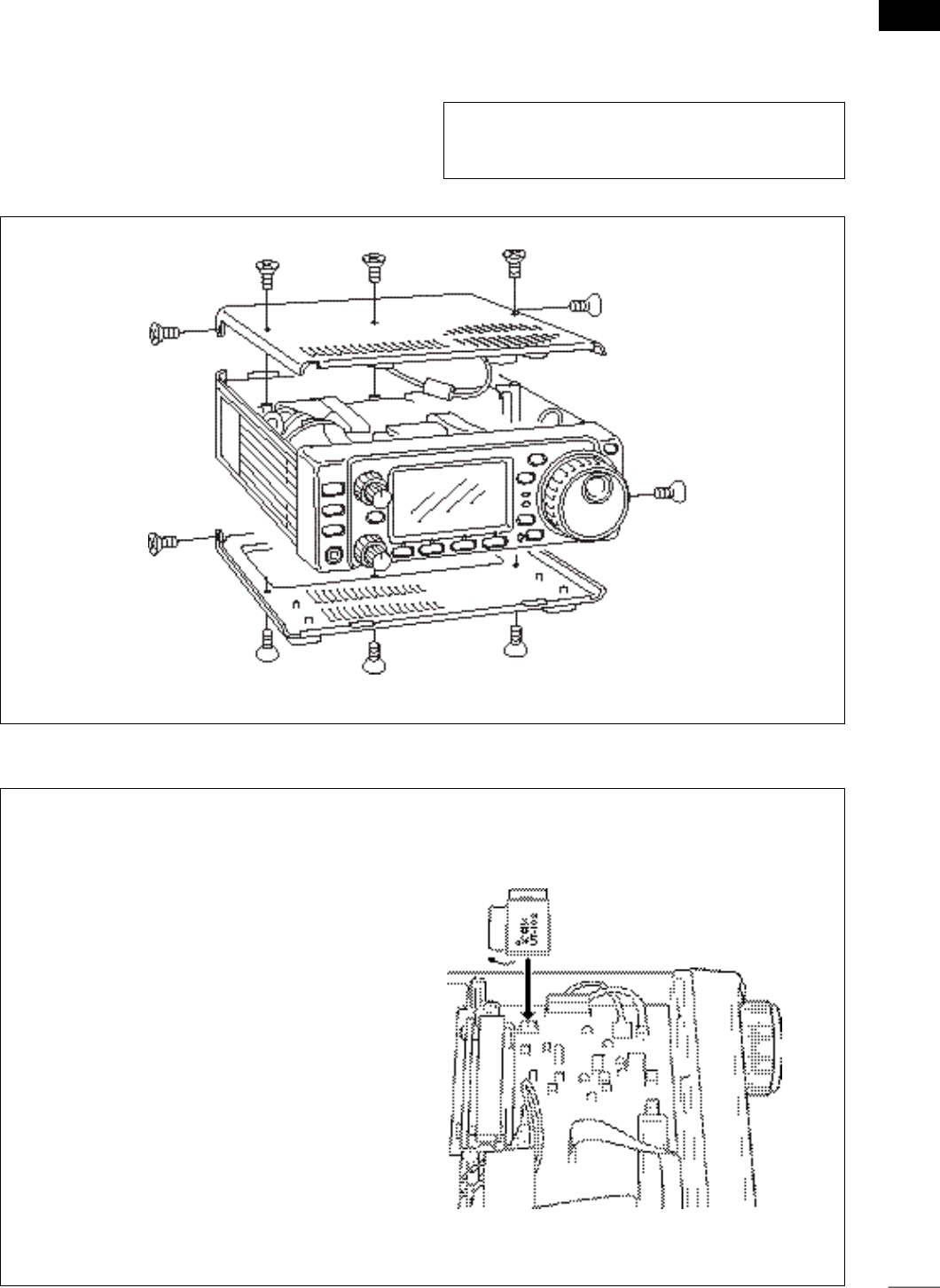

10OPTIONAL INSTALLATIONS/SETTINGS
■Opening the transceiver case
To remove the transceiver case unscrew the 10
screws (5 in the top panel and 5 in the bottom panel)
as shown in the diagram below.
■UT-102
VOICE SYNTHESIZER UNIT
The UT-102 announces the accessed band’s fre-
q u e n c y, mode, etc. (S-meter level can also be
announced—p. 54) in a clear, electronically generat-
ed voice, in English (or Japanese).
➀Remove the top cover as shown above.
➁Connect the UT-102 as shown in the diagram at
right (label side up).
➂Replace the top cover.
Caution: Disconnect the DC power cable from
the transceiver before performing any work on the
transceiver.
OPTIONAL INSTALLATIONS/SETTINGS
10

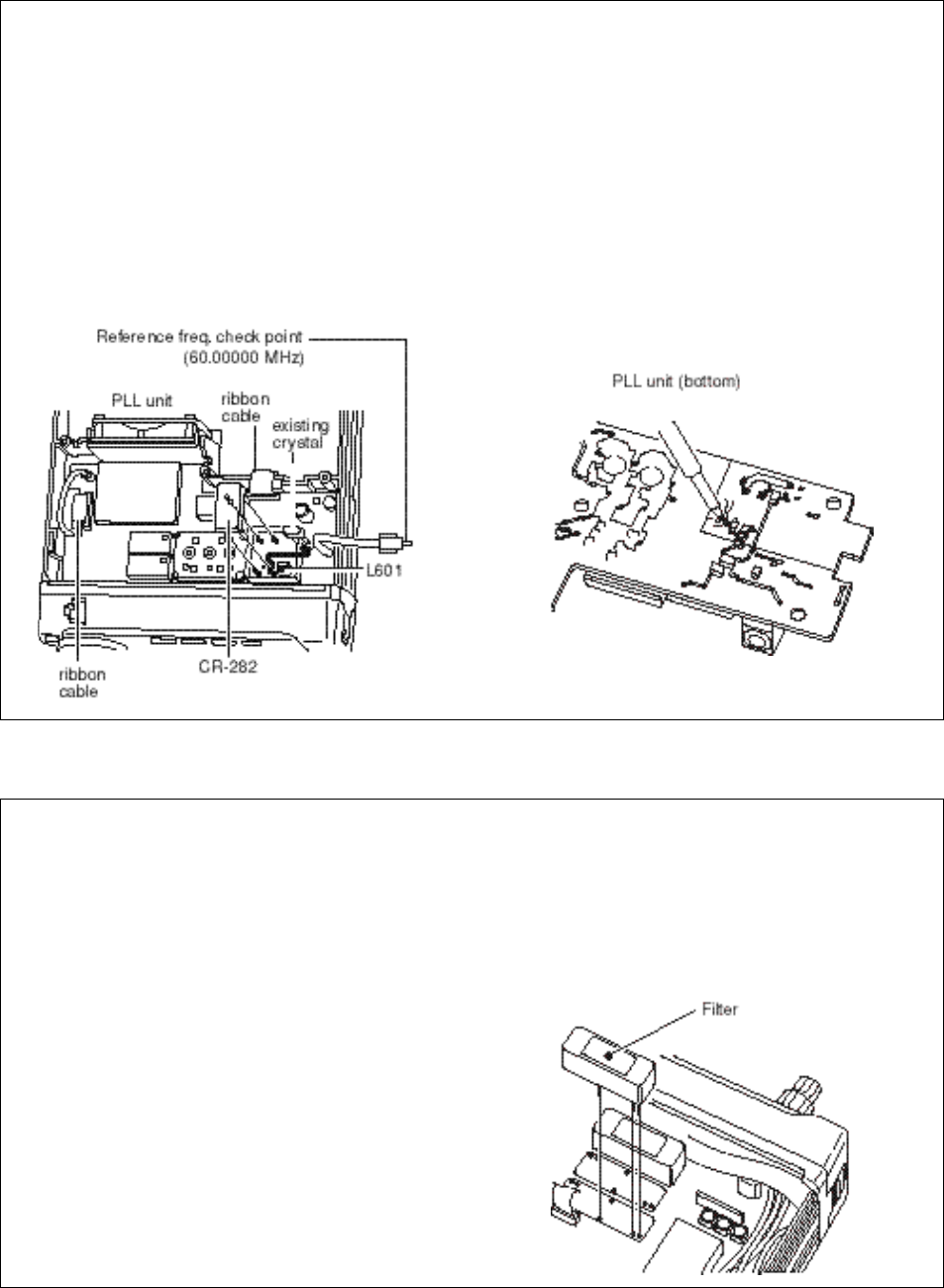

■CR-282
HIGH
-
STABILITY CRYSTAL UNIT
By installing the CR-282, the total frequency stability
of the transceiver will be improved.
➀Remove the bottom cover as shown on the oppo-
site page.
➁Remove the 5 screws and 2 flat cables holding the
PLL unit in place.
➂Remove the existing crystal unit.
➃Put the CR-282 in the space available as shown in
the diagram.
➄Adjust the reference frequency at L601 using a fre-
quency counter (60.00000 MHz).
➅Return the shield case and bottom cover to their
original positions.
CR-282 frequency stability: ±0.5 ppm
(–30°C to +60°C;
–22°F to +140°F)
■IF filters
Several IF filters are available for the IC-706MKIIG.
Choose a filter most appropriate to your operating
needs.
Note: After filter installation, specify the installed filter
using initial set mode (items 9, 10). Otherwise, the
installed filter will not function properly.
FL-100
CW NARROW FILTER
500 Hz/–6 dB
FL-101
CW NARROW FILTER
250 Hz/–6 dB
FL-103
SSB WIDE FILTER
2.8 kHz/–6 dB
FL-223
SSB NARROW FILTER
1.9 kHz/–6 dB
FL-232
CW
/
RTTY NARROW FILTER
350 Hz/–6 dB
➀Remove the top cover as shown on the previous
page.
➁Install the desired filter as shown in the diagram
below.
•These filters can be installed in either direction.
➂Replace the top cover.
60
10OPTIONAL INSTALLATIONS/SETTINGS

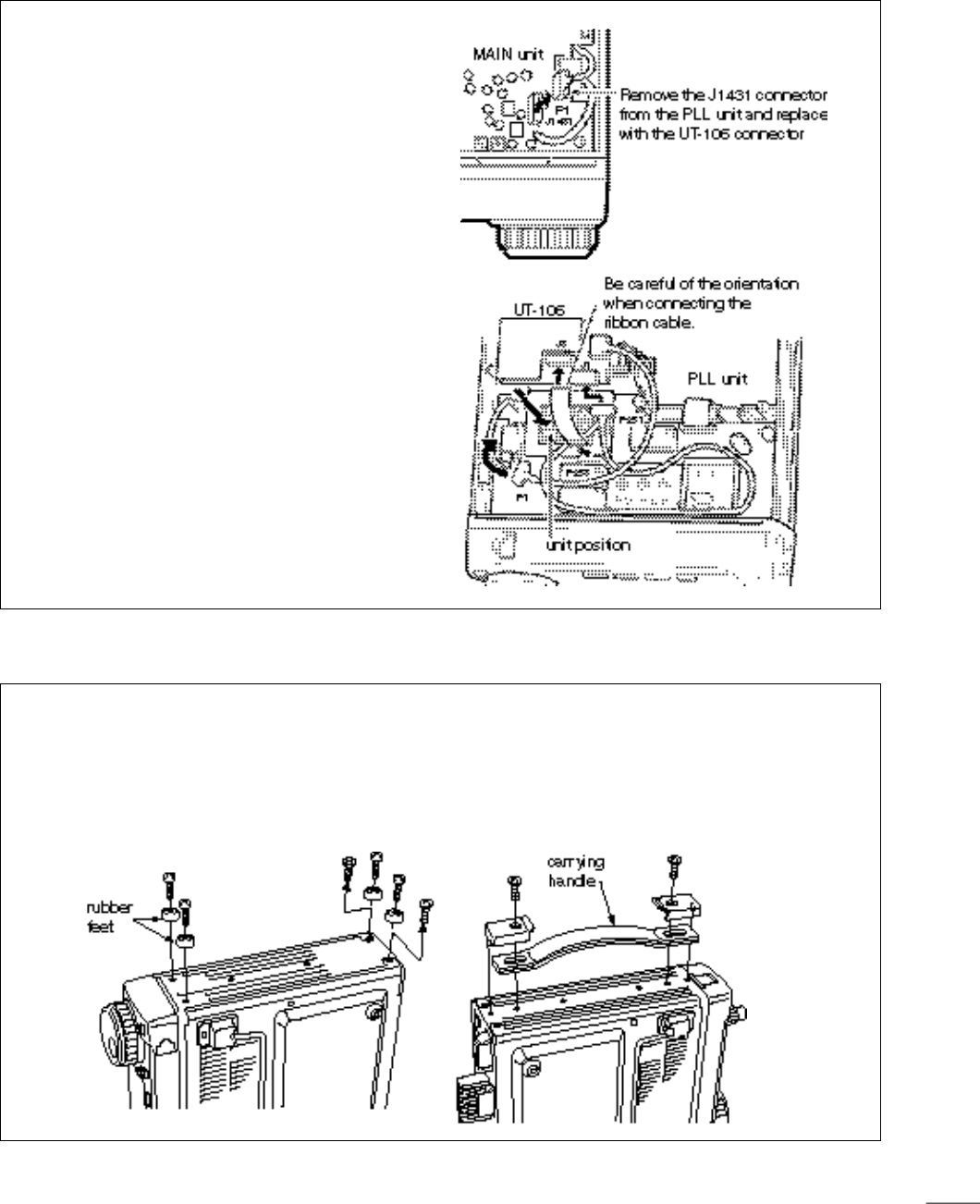

■UT-106
DSP RECEIVER UNIT
DInstallation
➀Open the transceiver case as shown on p. 58.
➁Remove the 4-pin connector (P251) from J1413 on
the MAIN unit (top side) and plug it into J1 of the
UT-106 on the PLL unit (bottom side).
➂Plug the 4-pin connector (P1) from the UT-106 into
J1413 on the MAIN unit.
➃Plug the supplied ribbon cable into J3 on the UT-
106 and J253 on the PLL unit.
•Be careful of the orientation of the ribbon cable.
➄Attach the UT-106 to the PLL unit, using the exist-
ing guide for alignment, as illustrated at right.
➅Reassemble the transceiver.
DOperation
Refer to the instructions supplied with the UT-106 for
operating details.
■MB-72
CARRYING HANDLE
The optional MB-72
CARRYING HANDLE
is convenient
when carrying the transceiver for DX’peditions, field
operation, etc.
➀Remove the 2 screws from the right side of the
transceiver as shown below.
➁Replace those with 2 supplied screws plus rubber
feet and additionally attach 2 more supplied
screws (including rubber feet) as shown below.
•When replacing the 2 screws at the rear, be sure to
squeeze the top and bottom covers together to ensure
proper alignment.
➂Attach the MB-72 to the left side of the transceiver
as shown below.
OPTIONAL INSTALLATIONS/SETTINGS
10
■AT-180 internal switch description
The optional AT-180 has 3 operating conditions for
HF band operation. Select a suitable condition
according to your antenna system.
➀Remove the top cover of the AT-180.
➁Set the tuner switches to the desired positions
according to the table below.
•Specifications for the AT-180
•Frequency coverage : 1.9–54 MHz
•Input impedance : 50 Ω
•Maximum input : 120 W
power
•Minimum tuning : 8 W
power
•Matching impedance : 16.7–150 Ω (HF band)
range 20–125 Ω (50 MHz band)
•Tuning accuracy : Less than SWR 1.5:1
•Insertion loss : Less than 1.0 dB
(after tuning)
•Power supply : 13.8 V DC/1 A (supplied from
requirements the transceiver’s ACC socket)
•Dimensions (mm/in) : 167(W)×58.6(H)×225(D)
69⁄16(W)×25⁄17(H)×87⁄8(D)
•Weight : 2.4 kg; 5 lb 4 oz
•Supplied accessories : coaxial cable (1 m),
ACC cable (DIN 13 pins)
•AT-180 inside top cover
•Connector information for ACC(2) socket
PIN NO./
NAME DESCRIPTION
➀8 V Regulated 8 V output.
(10 mA max.)
➁GND Connects to ground.
➂SEND Input/output pin.
Goes to ground when transmitting (20 mA
max). When grounded, transmits.
➃BAND Band voltage output.
(Varies with amateur band; 0 to 8.0 V).
➄ALC ALC output voltage (–4 to 0 V).
➅NC No connection.
➆13.8V
13.8 V output when power is ON (1 A max).
SW Position Operation
A
(default) The tuner operating condition is set by S2
described below.
B
THROUGH INHIBIT
The tuner tunes the antenna even when
the antenna has poor SWR (up to VSWR
3:1 after tuning). In this case, manual tun-
ing is necessary each time you change the
frequency although the tuner automatically
starts tuning when the VSWR is higher
than 3:1. This setting is called “through
i n h i b i t ,” however, the tuner is set to
“through” if the VSWR is higher than 3:1
after tuning.
C
TUNER SENSITIVE CONDITION
The tuner tunes each time you transmit
(except SSB mode). Therefore, the lowest
SWR is obtained at any given time.
For SSB mode, the same condition as the
“D” position.
D
(default)
NORMAL CONDITION
The tuner tunes when the SWR is higher
than 1.5:1. Therefore, the tuner activates
only when tuning is necessary.

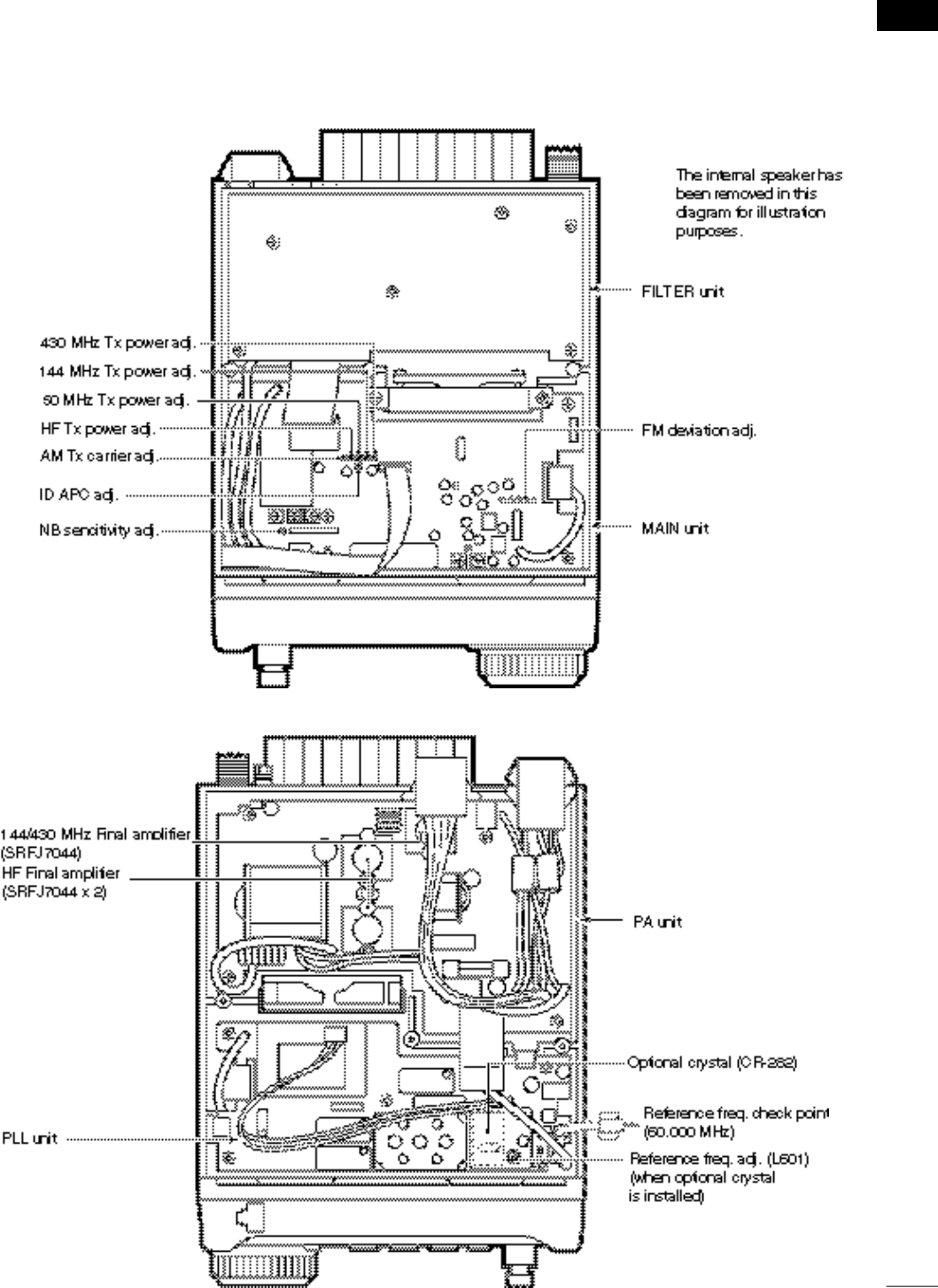

11INTERNAL VIEWS
62
DTop view
DBottom view
Caution:
The transceiver has been
thoroughly tested and
adjusted at the factory
before being shipped. The
transceiver warranty does
not cover any problems
caused by unauthorized
internal adjustment.
OPTIONS
12
IC-PW1 HF + 50 MHz 1 kW LINEAR AMPLIFIER
Full-duty 1 kW linear amplifier including an automatic antenna tuner. Has automatic tuning
and band selection capability. Full break-in (QSK) operation is possible. The amplifier/power
supply unit and the remote control unit are separated. The OPC-599 is necessary to con-
nect the IC-706MKIIG to the IC-PW1.
AT-180 HF/50 MHz AUTOMATIC
ANTENNA TUNER
Fully automatic antenna tuner with preset
memories for each 100 kHz. Unique “auto-
matic tuner on” function is available. See
p. 55 for AT-180 specifications.
EX-627 AUTOMATIC ANTENNA
SELECTOR
Automatically selects the antenna for the
selected HF ham band. Manual selection
is possible for the 50 MHz band.
•Max. input power:100 W PEP
SM-20 DESKTOP MICROPHONE
Includes [UP]/[DOWN] switches and a low
cut function. The OPC-589 is necessary to
use this microphone.
MB-65 MOUNTING BASE
Allows you to conveniently vehicle-mount
the front panel of the IC-706MKIIG. An
MB-63 must be used in combination with
the MB-65.
AH-2b ANTENNA ELEMENT
A 2.5 m long antenna
element for mobile
operation with the
AH-3.
• Frequency
coverage
3.5–28 MHz band
with the AH-3
SM-8 DESKTOP MICROPHONE
Including 2 connection cables for simulta-
neous connection of 2 transceivers. Has
[UP]/[DOWN] switches. The OPC-589 is
necessary to use this microphone.
MB-63 MOUNTING BRACKET
Metal plate for attaching the front panel to
a wall or other such flat surface.
AH-4 HF AUTOMATIC ANTENNA
TUNER
Specially designed to tune a long wire
antenna for portable or mobile HF/50 MHz
operation. The “PTT tune” function pro-
vides simple operation.
• Input power rating: 150 W
PS-85 DC POWER SUPPLY
Light weight switching regulator system
power supply.
• Output voltage: 13.8 V DC
•Max. current drain: 20 A
MB-62 MOBILE MOUNTING
BRACKET
Mounts the transceiver main body, with or
without the front panel, inside a vehicle.
64
12OPTIONS
CR-282 HIGH-STABILITY CRYSTAL UNIT
Contains a temperature-compensating oven heater and crystal unit
for frequency stability.
•Frequency stability:±0.5 ppm (–30°C to +60°C; –22°F to +140°F)
FL-100 CW NARROW FILTER (500 Hz/–6 dB)
FL-101 CW NARROW FILTER (250 Hz/–6 dB)
FL-103 SSB WIDE FILTER (2.8 kHz/–6 dB)
FL-223 SSB NARROW FILTER (1.9 kHz/–6 dB)
FL-232 CW/RTTY NARROW FILTER (350 Hz/–6 dB)
Two of the above 5 filters can be installed at one time.
HM-103 HAND MICROPHONE
Standard hand microphone.
OPC-599 ADAPTER CABLE
13-pin, ACC connector to 7-pin + 8-pin ACC connector.
OPC-742 ACC 13-PIN CABLE
Required when using both the AT-180 and a 2 m linear
amplifier.
MB-72 CARRYING HANDLE
Convenient when carrying the transceiver.
UT-102 VOICE SYNTHESIZER UNIT
UT-106 DSP RECEIVE UNIT
SP-21 EXTERNAL SPEAKER
External speaker designed for base station
operation.
•Input impedance:8 Ω
•Max. input power:5 W
OPC-581 SEPARATION CABLE
OPC-587 SEPARATION CABLE
Provide front panel detached operation for
mobile installations or compact transceiver
operation.
• OPC-581: 3.5 m (11.5 ft)
• OPC-587: 5 m (16.4 ft)
SP-10 EXTERNAL SPEAKER
SP-12 EXTERNAL SPEAKER
External speakers suitable for mobile oper-
ation.
SP-12:Slim-type; 8 Ω/3 W
SP-10:Compact-type; 4 Ω/5 W
CT-17 CI-V LEVEL CONVERTER
UNIT
For remote transceiver control using a per-
sonal computer equipped with an RS-232C
port. You can change frequencies, operat-
ing mode, memory channels, etc., via your
computer.
SP-7 EXTERNAL SPEAKER
Compact speaker for base station opera-
tion. Height can be adjusted for your con-
venience.
•Input impedance:8 Ω
•Max. input power:5 W
CT-16 SATELLITE INTERFACE
UNIT
Easy tuning when connecting another Icom
VHF transceiver for instant satellite com-
munications.
OPC-589 MICROPHONE
ADAPTER CABLE
Conversion between 8-pin modular and 8-
pin metal connector for using a desktop
microphone with the IC-706MKIIG.
SP-20 EXTERNAL SPEAKER
Equipped with 4 types of audio filters, a
headphone jack and can be connected to 2
transceivers.
•Input impedance:8 Ω
•Max. input power:5 W
SP-12 SP-10
SPECIFICATIONS
13
■GENERAL
•Frequency coverage : Receive
30 kHz– 199.999999 MHz*
400–470.000 MHz*
Transmit
1.800– 1.99999 MHz*
3.500– 3.9999 MHz*
7.000– 7.300 MHz*
10.100– 10.150 MHz
14.000– 14.350 MHz
18.068– 18.168 MHz
21.000– 21.450 MHz
24.890– 24.990 MHz
28.000– 29.700 MHz
50.000– 54.000 MHz*
144.000– 148.000 MHz*
430.000– 450.000 MHz*
*Depending on version.
• Mode : SSB, CW, AM, FM, WFM, RTTY
(WFM is for receive only)
•Number of memory : 107 (split memory: 99; scan edges: 6;
channels call channels: 2)
•Antenna connector : SO-239×2 (for HF/50 MHz and
144/430 MHz)/50 Ω
• Usable temperature : –10°C to +60°C (+14°F to +140°F)
range
•Frequency stability : Less than ±7 ppm from 1 min. to
60 min. after power ON. After that,
rate of stability change is less than
±1 ppm/hr. at +25°C (+77°F).
Temperature fluctuations (0°C to
+50°C; +32°F to +122°F) less than
± 5 ppm.
•Power supply : 13.8 V DC ±15% (negative ground)
requirement
•Current drain : Transmit 20 A
(at 13.8 V DC) Receive squelched 1.8 A
max. audio 2.0 A
•Dimensions : 167(W)×58(H)×200(D) mm
69⁄16(W) ×25⁄16(H)×77⁄8(D) in
(projections not included)
•Weight : 2.45 kg (5 lb 6 oz)
•CI-V connector : 2-conductor 3.5 (d) mm (1⁄8˝)/8 Ω
•ACC connector : 13-pin
■TRANSMITTER
•Output power :
SSB, CW, FM, RTTY 5–100 W (1.8–50 MHz bands)
2.5–50 W (144 MHz band)
2–20 W (430 band)
AM 2–40 W (1.8–50 MHz bands)
1–20 W (144 MHz band)
2–8 (430 band)
• Modulation system :
SSB Balanced modulation
AM Low level modulation
FM Variable reactance modulation
•Spurious emissions : Less than –60 dB*
*spurious freq.: below 47.5 MHz: –50 dB; 47.5–50 MHz: –50 to
–60 dB; above 50 MHz: –60 dB.
•Carrier suppression : More than 40 dB
•Unwanted sideband : More than 50 dB
•Microphone : 8-pin modular jack (600 Ω)
connector
•KEY connector : 3-conductor 6.35 (d) mm (1⁄4")
•RTTY connector : 3-conductor 3.5 (d) mm (1⁄8")
■RECEIVER
•Receive system :
SSB, CW, AM, RTTY Double-conversion superheterodyne
WFM
FM Triple-conversion superheterodyne
•Intermediate frequencies:
•Sensitivity (pre-amp ON):
•Squelch sensitivity (threshold) :
SSB Less than 5.6 µV
FM Less than 0.3 µV
• Selectivity* :
SSB, CW, RTTY More than 3.0 kHz/–6 dB
Less than 4.8 kHz/–60 dB
AM/FM-N More than 8.0 kHz/–6 dB
Less than 30.0 kHz/–40 dB
FM More than 12.0 kHz/–6 dB
Less than 30.0 kHz/–60 dB
*Without optional filter and with
mid band selected.
•Spurious and image rejection ratio:
SSB, CW, AM More than 70 dB*
FM HF/50 MHz More than 70 dB*
144/430 MHz More than 60 dB
*Except IF through 50 MHz band.
•Audio output power : More than 2.0 W at 10% distortion
with an 8 Ω load
• RIT variable range : ±9.99 kHz max.
•PHONES connector : 3-conductor 3.5 (d) mm (1⁄8˝)/8 Ω
• EXT SP connector : 2-conductor 3.5 (d) mm (1⁄8˝)/8 Ω
MODE 1st 2nd 3rd
SSB 69.0115 MHz 9.0115 MHz —
AM 69.0100 MHz 9.0100 MHz —
AM-N 69.0115 MHz 9.0115 MHz —
RTTY 69.0105 MHz 9.0105 MHz —
FM 69.0115 MHz 9.0115 MHz 455 kHz
FM-N 69.0100 MHz 9.0100 MHz 455 kHz
WFM 70.7000 MHz 10.7000 MHz —
CW 69.0106 MHz 9.0106 MHz —
Frequency
range SSB/CW
10 dB S/N
AM
10 dB S/N
FM
12 dB SINAD
WFM
12 dB SINAD
0.5–1.8 MHz — 13 µV — —
1.8–28 MHz 0.15 µV 2.0 µV — —
28–29.7 MHz 0.5 µV —
50 MHz band 0.12 µV 1.0 µV 0.25 µV —
76–108 MHz — — — 10.0 µV
144/430 MHz
bands 0.11 µV 1.0 µV 0.18 µV —
66
14MENU GUIDE
14 MENU GUIDE
68
15NOTES
A-5564H-1EX
Printed in Japan
Copyright©1998 by Icom Inc. 6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Count on us!
