ICOM orporated IC-F4G-1 Non-Broadcast Transmitter Held to Face User Manual IC F3GT A6 1111
ICOM Incorporated Non-Broadcast Transmitter Held to Face IC F3GT A6 1111
Contents
Users Manual
6-9-16 Kamihigashi, Hirano-ku, Osaka 547-0002 Japan
A-5621? -1EX
Printed in Japan
© 1999 Icom Inc.
Count on us!
IC-F3GS
INSTRUCTION MANUAL
UHF TRANSCEIVER
iF4GT/GS
This device complies with Part 15 of the FCC rules. Oper-
ation is subject to the following two conditions: (1) This de-
vice may not cause harmful interference, and (2) this
device must sccept any interference received, including in-
terference that may cause undesired operation.
iF3GT/GS
VHF TRANSCEIVER
2
3
45
6
789
0
1
P0P1P2P3
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 32 (1,1)
iii
FOREWORD
Thank you for purchasing the IC-F3GT/GS,IC-F4GT/GS FM trans-
ceiver.
READ ALL INSTRUCTIONS carefully and completely before using
the transceiver.
SAVE THIS INSTRUCTION MANUAL–This instruction manual con-
tains important operating instructions for the transceiver.
IMPORTANT
RCAUTION! NEVER hold the transceiver so that the antenna is
very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if
the microphone is 2 to 4 in. (5 to 10 cm) away from the lips and the
transceiver is vertical.
RCAUTION! NEVER operate the transceiver with a headset or
other audio accessories at high volume levels.
RCAUTION! NEVER short terminals of the battery pack.
DO NOT push the PTT when not actually desiring to transmit.
AVOID using or placing the transceiver in direct sunlight or in areas
with temperatures below +14°F (–10°C) or above +122°F (+50°C).
DO NOT modify the transceiver for any reason.
KEEP the transceiver from the heavy rain or Never immerse it in
the water. Non water proof construction, it’s only a water resis-
tance construction.
The use of non-Icom battery packs/chargers may impair transceiver
performance and invalidate the warranty.
FCC caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to op-
erate this transceiver under FCC regulations.
TABLE OF CONTENTS
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ii
1 PANEL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1–3
‘Switches, controls, keys and connectors . . . . . . . . . . . . . . .1–2
‘Function display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 BATTERY PACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–10
‘Battery pack replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
‘Battery cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
‘Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
‘ Charging NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
‘ Battery case (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
44 PPRROOGGRRAAMMMMAABBLLEE FFUUNNCCTTIIOONNSS .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..11-15
‘Receiving and transmitting . . . . . . . . . . . . . . . . . . . . . . . . . .11
5 CONVENTIONAL OPERATION . . . . . . . . . . . . . . . . . . . . . .16-18
‘Call procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
‘Tx code channel selection . . . . . . . . . . . . . . . . . . . . . . . . . . .18
‘Manual 5-tone codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
‘Transmitting notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 SMARTRUNK IITM OPERATION . . . . . . . . . . . . . . . . . . . . . .19-21
‘Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7 OTHER FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
‘DTMF pager/Code squelch . . . . . . . . . . . . . . . . . . . . . . . . . .22
8 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
‘ Optional UT-105/UT-108/UT-109 and UT-110 installation . .23
9 OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-28
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 2 (1,1)
1 2
1
PANEL DESCRIPTION
PANEL DESCRIPTION
1
qVOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
wDEALER-PROGRAMMABLE KEY [S1 (Red)]
ePTT SWITCH [PTT]
Push and hold to transmit; release to receive.
rDEALER-PROGRAMMABLE KEY [S2(Black)]
tUP/DOWN KEYS [YY]/[ZZ]
• Push to select the operating channel.
• Can be programmed as [ M]/[ # ]. (SmarTrunk mode only)
yDEALER-PROGRAMMABLE KEYS [P0]/[P1]/[P2]/[P3]
Can each be programmed for one of several functions by your
Icom Dealer.
u10 KEYPAD (IC-F3GT/IC-F4GT only)
Used to enter DTMF codes, the operating channel, etc.
iANTENNA CONNECTOR
Connects the supplied antenna.
o[SP]/[MIC] JACK
Connect optional speaker-microphone.
!0 FUNCTION DISPLAY
Displays the following the information:
• CH number.
• 5-tone indication.
• Low-battery indication.
• DTMF numbers.
• Low-power indication.
• Skip-ch indication.
• Audible indication.
NOTE: Above functions depend on pre-setting.

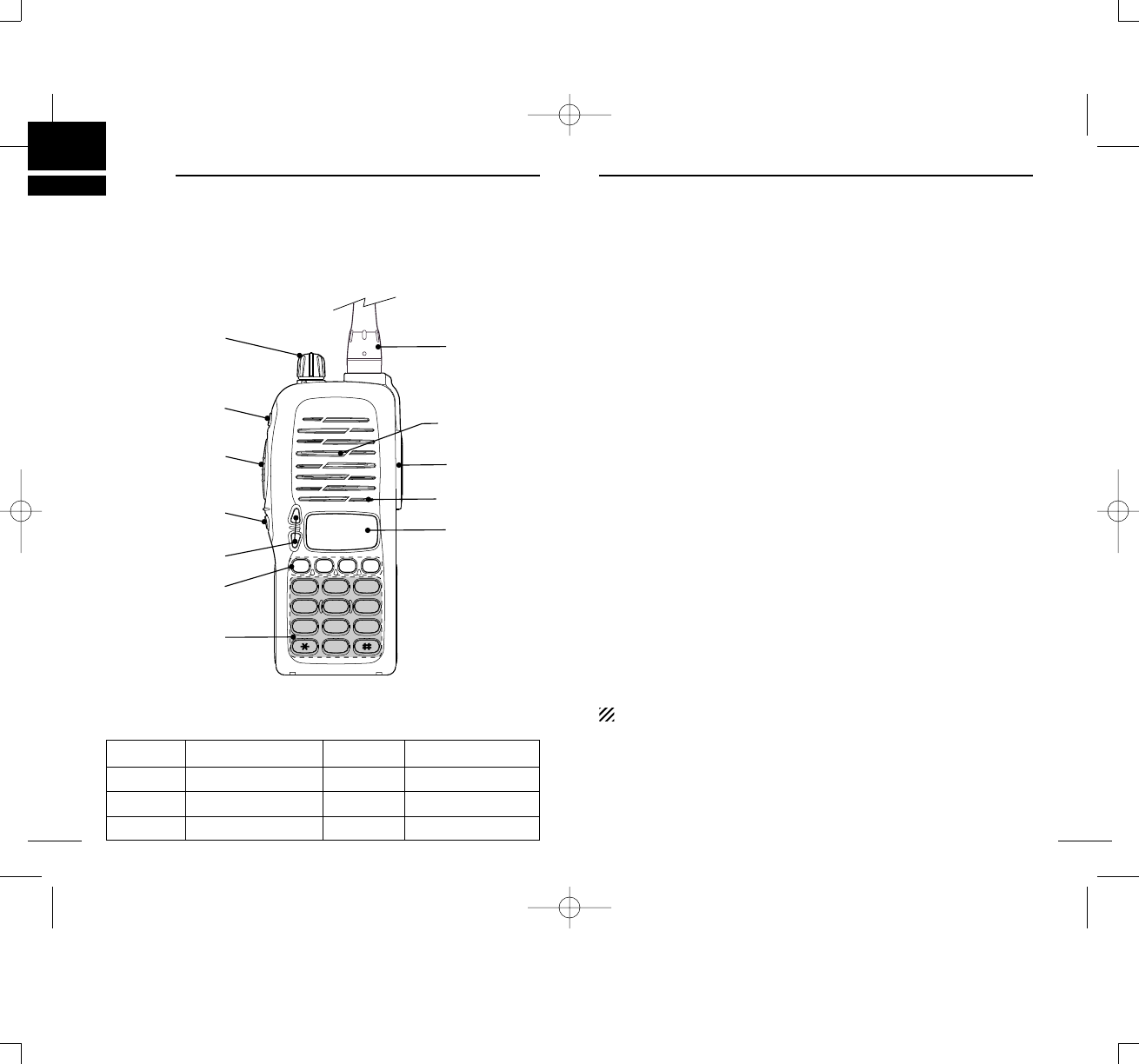

‘‘Switches, controls, keys and connectors
2
3
45
6
789
0
1
P0P1P2P3
q
w
e
r
t
y
u
!0
i
o
Speaker
Mic
S1 (Red)
S2 (Black)
YY
ZZ
P0
P1
P2
P3
DDaikomuProgrammable key reference
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 4 (1,1)
2
ACCESSORIES
PANEL DESCRIPTION
1
3 4

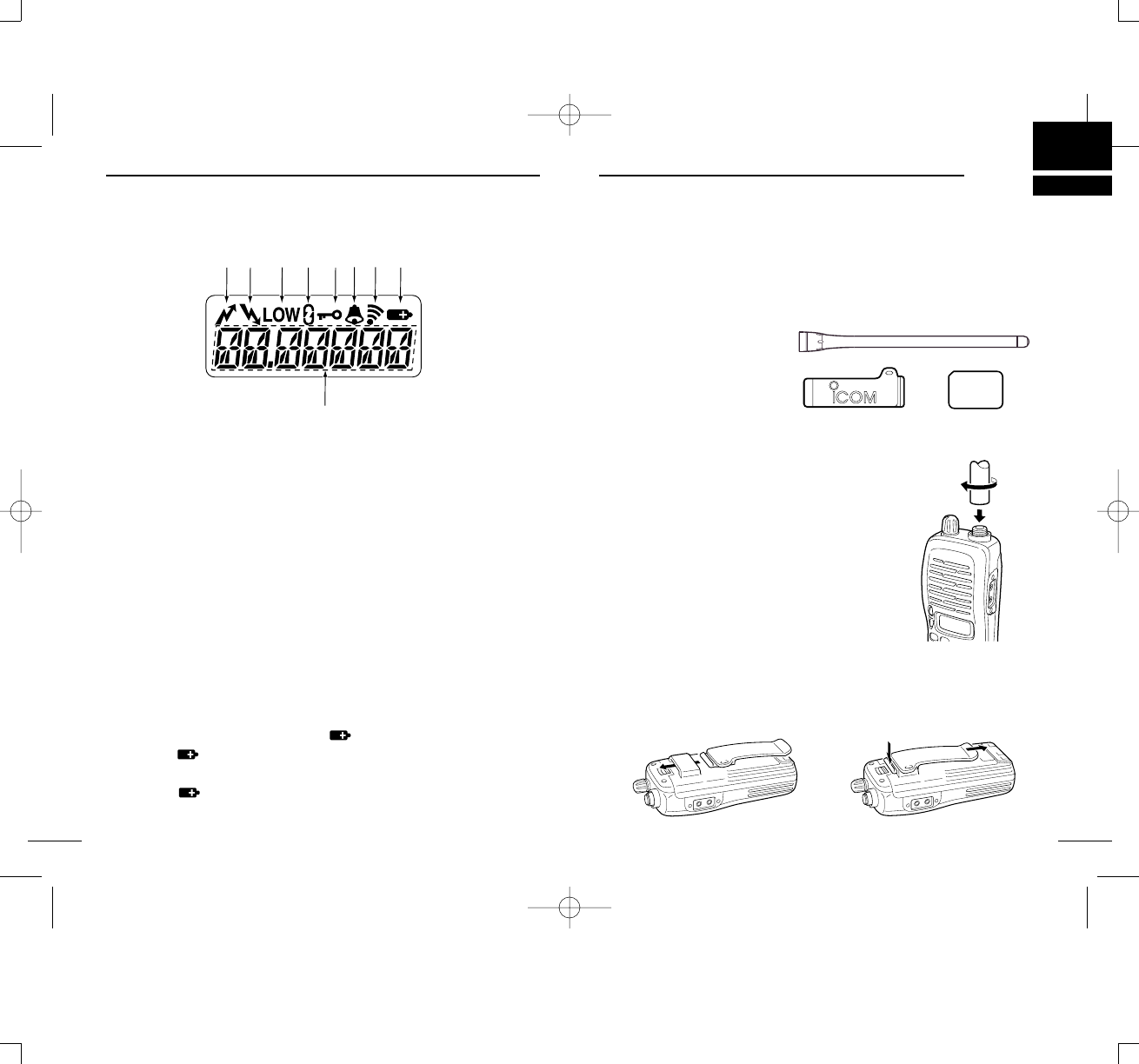

‘‘Accessory attachment
DSupplied accessories
The transceiver comes supplied with the following accessories.
qFlexible antenna
wBelt clip
e2251 OPT sheet
(See p. 26)
DAntenna
The antenna screws onto the transceiver as
illustrated right.
Keep the jack cover attached when jacks are
not in use to avoid bad contacts.
DBelt clip
Attach the belt clip to the transceiver as illustrated below.
q
we
‘‘Function display
qTRANSMIT INDICATOR
Appears during PTT on.
wBUSY INDICATOR
Appears while receiving a signal or when the squelch is open.
eLOW POWER INDICATOR (p. 12)
Appears when low output power is selected.
rSCRAMBLER INDICATOR
Appears while the scrambler function is operating.
tKEY LOCK INDICATOR (p. 12)
Appears during key lock function ON.
yBELL INDICATION
Appears or bkinks when the optional 2/5Tone call is received.
uAUDIBLE INDICATOR
Appears when monitor function is turned ON. (CTCSS and DTCS
mutes are released.)
iLOW BATTERY INDICATOR [ ]
-When appears, battery
capacity is becoming low and transmitting is impossible.
- When flashes, battery capacity is nearly exhausted.
oALPHANUMERIC INDICATOR
o
qw e r tyu i
Attach the belt-clip Release the belt-clip
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 6 (1,1)
65
3
BATTERY PACKS
3BATTERY PACKS
‘‘Battery cautions
• CAUTION! NEVER short terminals of the battery pack (or charg-
ing terminals of the transceiver). Also, current may flow into nearby
metal objects such as necklace. So be careful when placing bat-
tery packs (or the transceiver) in handbags, etc.
Simply carrying with or placing near metal objects such as neck-
lace, etc. causes shorting. This will damage not only the battery
pack but also the transceiver.
• NEVER incinerate used battery packs. Internal battery gas may
cause an explosion.
• NEVER immerse the battery pack in water. If the battery pack be-
comes wet, be sure to wipe it dry BEFORE attaching it to the
transceiver.
• Clean the battery terminals to avoid the rust or miss contact.
• Keep battery contacts clean. It’s a good idea to clean battery ter-
minals once a week.
If your battery pack seems to have no capacity even after being
charged, completely discharge it by leaving the power ON
overnight. Then, fully charge the battery pack again. If the battery
pack still does not retain a charge (or very little), a new battery pack
must be purchased.
DDRecycling information (U.S.A. only)
The product that you have purchased contains a
rechargeable battery. The battery is recyclable. At
the end of its life, under various state and local laws,
it may be illegal to dispose of this battery into the
municipal waste stream. Call 1-800-822-8837 for
battery recycling options in your area or contact your dealer.

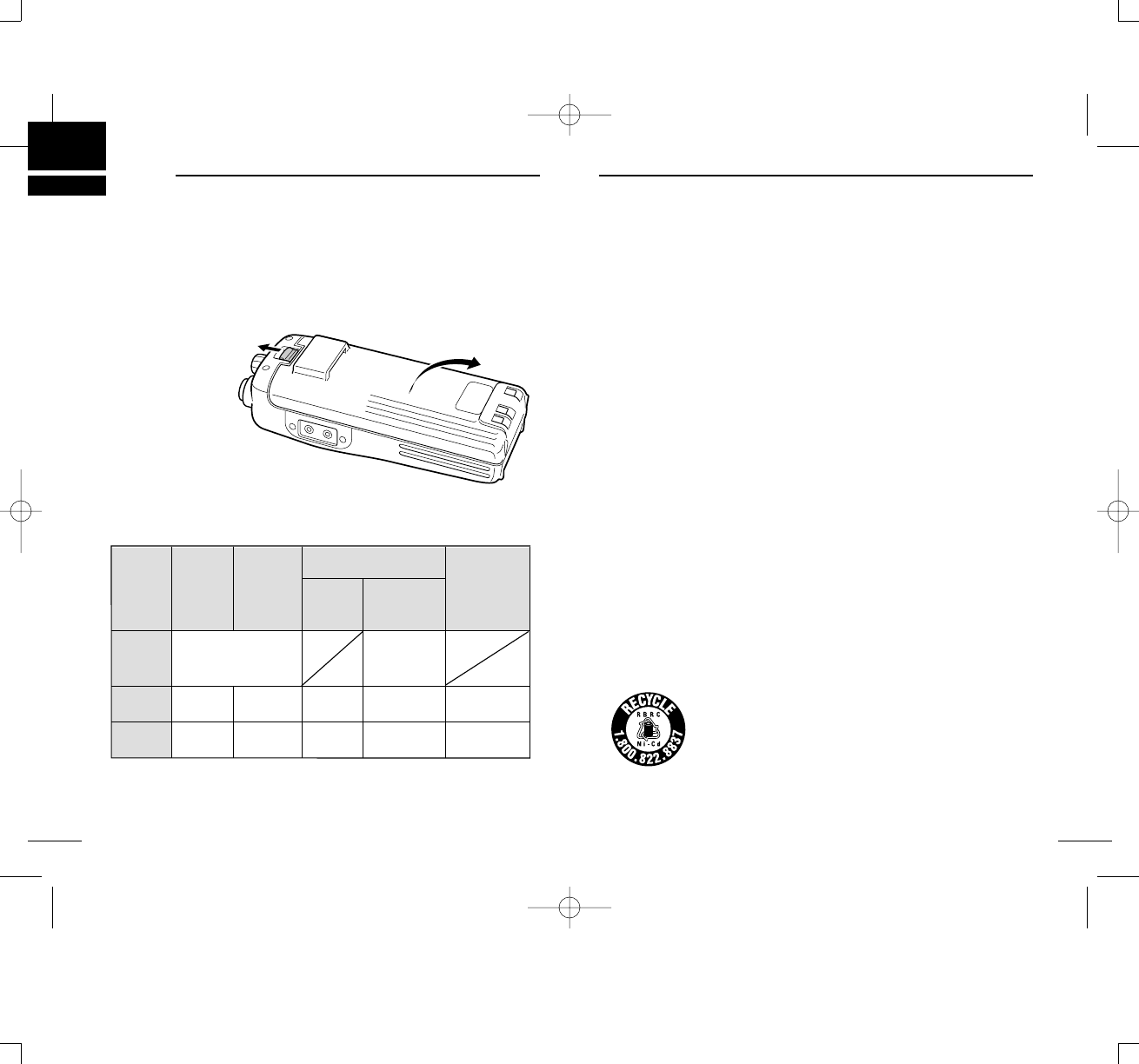

‘‘Battery pack replacement
Before replacing the battery pack, the volume control MUST be ro-
tated fully counterclockwise, until a click is heard, to turn the power
OFF.
• Pull the battery
release forward,
then pull the bat-
tery pack upward
with the trans-
ceiver facing
you.
DDBATTERY PACKS
*1Operating periods are calculated under the following conditions;
Tx : Rx : standby =5 : 5 : 90
* Operating period depends on alkaline cells used.
yrettaB kcap egatloV yticapaC
doirepgnigrahC gnitarepO *doirep
1
BC-137
ro911-CB 121-CB 49-DAhtiw
802-PB AArofesacyretta
B)6R( ×enilakla6 A/N
902-PB V2.7
1100
srh51srh5.1srh8
012-PB V2.7 0561 hAm srh51srh0.2srh11
1100
mAh
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 8 (1,1)
8
3
BATTERY PACKS
7
3BATTERY PACKS
‘‘Battery charging
Prior to using the transceiver for the first time, the battery pack must
be fully charged for optimum life and operation.
• Recommended temperature range for charging:
+10°C to +40°C (50°F to 140°F).
• Use the supplied charger or optional charger (BC-119/BC-121 for
rapid charging) only. NEVER use other manufacturers’ chargers.

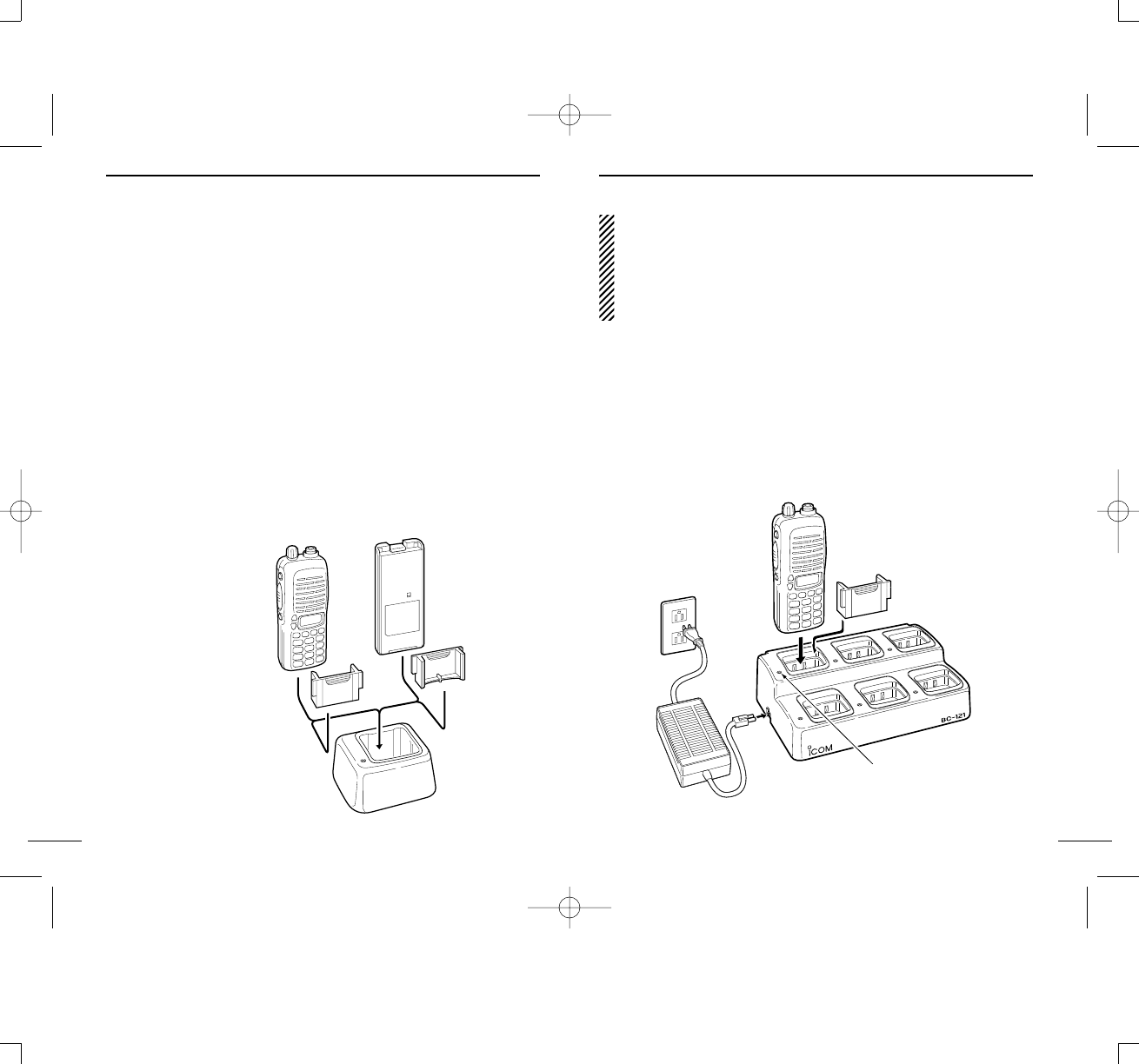

DRapid charging with the BC-119+AD-94
The optional BC-119 provides rapid charging of optional battery
packs.
The following are additionally
required:
• One AD-94.
• An AC adapter
(may be supplied
with the BC-119
depending on ver-
sion).
When using the BC-119 in the vehicle: If the charge indica-
tor flashes orange, the vehicle battery voltage is low and
charging may not be performed. Check the vehicle battery
voltage in this case. If the charge indicator flashes red, there
may be a problem with the battery pack (or charger). Re-in-
sert the battery pack or contact your dealer.
The optional BC-121 allows up to 6 battery packs to be charged
simultaneously. The following are additionally required.
• Six AD-94s.
• An AC adapter (may be supplied with the BC-121 depending
on version).
BC-119+
AD-94
Check orientation
for correct charg-
ing. (Packed to-
gether as the
AD-94.)
Turn power
OFF.
MULTI-CHARGER
AC adapter
(not supplied with some versions)
Charge indicator
(each indicator functions
independently)
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 10 (1,1)
10
3
BATTERY PACKS
9
3BATTERY PACKS
‘‘Charging NOTE
The optional BP-209 or BP-210 battery packs include rechargeable
Ni-Cd(Ni-MH: BP-210) batteries and can be charged approx. 300
times. Charge the battery pack before first operating the transceiver
or when the battery pack becomes exhausted.
If you want to charge the battery pack more than 300 times, the fol-
lowing points should be observed:
• Avoid over charging. The charging period should be less than 48
hours.
• Use the battery until it becomes almost completely exhausted
under normal conditions. We recommend battery charging after
transmitting becomes impossible.
DDBattery pack life
When the operating period becomes extremely short even after
charging the battery pack fully, a new battery pack is needed.

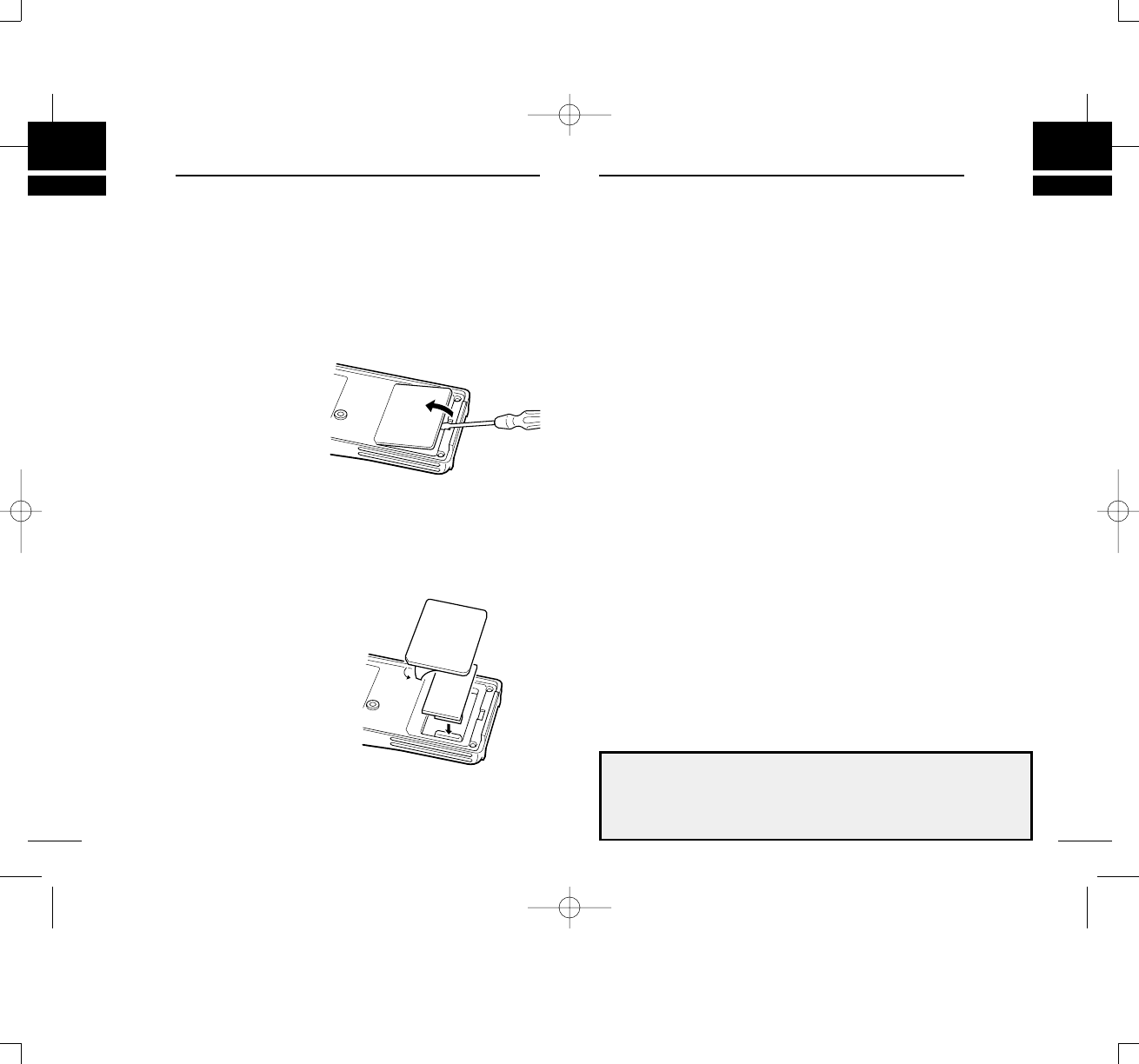

‘‘Battery case (Option)
When using a BP-208 OPTIONAL BATTERY CASE attached to the
transceiver, install 6 AA (R6) size alkaline batteries as illustrated
below.
DDCAUTIONS
• Use ALKALINE batteries only.
• Make sure all battery cells are the same brand, type and ca-
pacity.
• Never mix old and new batteries.
Either of the above may cause a fire hazard or damage the
transceiver.
• Never incinerate used battery cells since internal battery gas
may cause them to rupture.
• Never expose a detached battery case to water.
If the battery case gets wet, be sure to wipe it dry before using.
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 12 (1,1)
12
4
PROGRAMMABLE FUNCTIONS
11
4PROGRAMMABLE FUNCTIONS
‘‘General
In the following explanations, programmable function names are
bracketed, the specific switch used to activate the function depends
on programming.
DDKEYPAD LOCK FUNCTION
This function locks access to all programmable switches (except the
switch assigned the lock function).
:
Push and hold the [LOCK] switch for 1 sec. to toggle the lock func-
tion ON and OFF.
• “ ”appears while the lock function is ON.
• This function may be inhibited on some channels.
DDPRIORITY CHANNEL
This function is used to select a pre-programmed channel at the
push of a switch.
Push the [PRIORITY] switch to select the priority channel.
• “PRIO” appears briefly, then the priority channel is automatically
selected.
DDSCAN FUNCTION
The scan function allows you to search a pre-programmed group
of channels for signals.
Push the [SCAN] switch to start/stop scan.
• Scan pauses on a channel when receiving a signal.
• Depending on programming, a message may appear while scan-
ning.
• “Lockout SCAN” (pre-programmed list SCAN) or “Priority SCAN”
can be pre-programmed.
• When the “Power-save function” is activated, the transceiver
checks all pre-programmed channels then returns to the “Power-
save function” again.
DDHIGH/LOW POWER OUTPUT
This function selects high or low power for a channel.
Push the [HIGH/LOW] switch to toggle between high and low
power.
• “LOW” appears when low output power is selected.
DDSCRAMBLER FUNCTION (optional UT-109 #01* or UT-110 #01*
is required.)
This function provides higher communication security.
UT-109: Non-rolling type. 32 code numbers are available.
UT-110: Rolling type. 1020 (4 group ×255) code numbers are avail-
able.
Push the [SCRM] switch to toggle the function ON and OFF.
NOTE: NEVER use #02 High AF level version, as they are not
compatible
DDBEEP FUNCTION
This function provides confirmation beep tones when pushing
switches.
Push the [BEEP] switch to toggle the function ON and OFF.
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 14 (1,1)
14
4
PROGRAMMABLE FUNCTIONS
13
4PROGRAMMABLE FUNCTIONS
DDMONITOR AUDIBLE FUNCTION
The monitor function allows you to open the transceiver’s squelch
manually to check whether a channel is busy or not.The transceiver
has 2 conditions for receive standby:
Audible condition:
This condition mutes audio ONLY when
no carrier is present. You can receive (or
monitor) any signals on a channel.
• Push and hold the [MONI/AUDI], switch
to select the audible condition.
Any audio mute functions are cancelled
while pushing the [MONI/AUDI] switch.
Inaudible condition:
This condition mutes ALL signals except
those directed to you. Therefore you
should check a channel’s condition (busy
or not) with the monitor function before
transmitting.
• Push the [MONI/AUDI] switch momen-
tarily to select the inaudible condition.

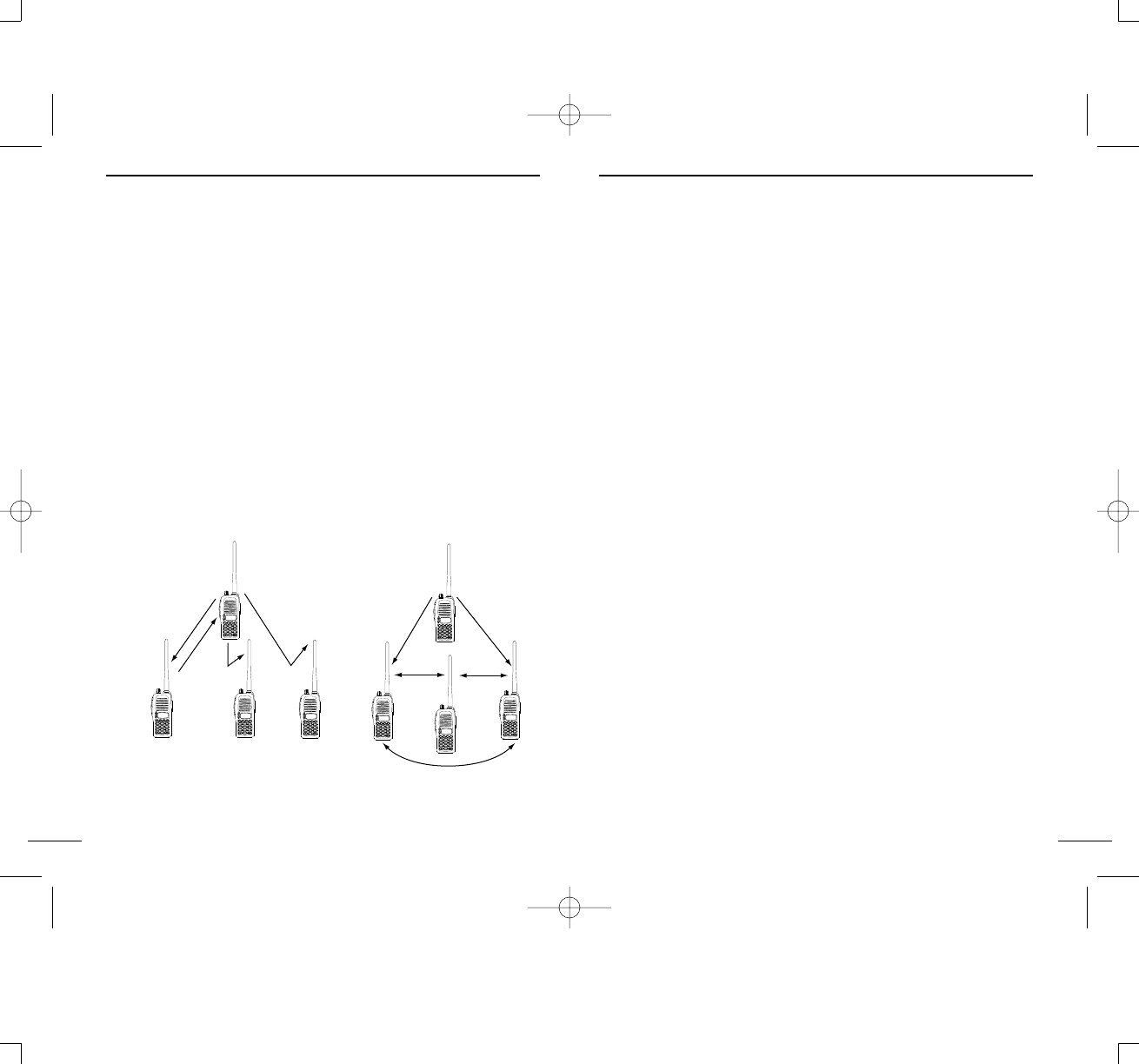

DDTALK AROUND
The talk around function changes duplex channels to simplex chan-
nels.
• Duplex allows you to contact your base station, repeaters, etc.
• Simplex allows you to contact other portable transceivers directly
(portable-to-portable contact).
Push the [TALK AROUND] switch one or more times to toggle the
function ON and OFF.
DDDTMF TRANSMISSION
This function allows you to send a pre-programmed DTMF code to
control a repeater, open another transceiver’s squelch, etc.
Manual transmission:
Push desired digit keys in sequence while pushing [PTT].
• Pushing [PTT] may not be necessary depending on programming.
Automatic pre-programmed transmission:
qPush the [DTMF] switch to select DTMF autodial mode then
push [Y] or [Z] to select the desired channel.
wPush the [DTMF] switch once more to send a DTMF code.
DD DTMF RE-DIAL FUNCTION
This function allows you to transmit the last-used DTMF code at the
push of a key.
Push the [DTMF RE-DIAL] switch momentarily to activate the func-
tion.
• The previously transmitted DTMF code is automatically transmit-
ted.
• If no code has been transmitted since turning the power ON, this
function does not activate.
DDEMERGENCY FUNCTION
The emergency function allows you to send your ID quickly and
easily to your Base Station, etc. in case of emergency.
Push and hold the [EMERGENCY] switch for 1 sec. to activate the
emergency function.
• The transceiver selects a pre-programmed channel, then sends
an emergency signal to your Base Station.
• The pre-programmed channel remains selected until a control sig-
nal is received from the Base Station or power is turned OFF.
All signals are
received
2
3
45
6
789
0
1
P0P1P2P3
Only signals
containing
the proper
tone are
received
2
3
45
6
789
0
1
P0P1P2P3
IC-F3GT(A6)1111 99.11.12 9:44 AM Page 16 (1,1)
16
5
CONVENTIONAL OPERATION
15
4PROGRAMMABLE FUNCTIONS
• The emergency call is repeatedly transmitted at pre-programmed
intervals.
DDDISPLAY LIGHTING
The function display has 3 backlight conditions.
OFF : No backlight is available.
AUTO : When any key is pushed, the backlight turns ON for 5
sec. automatically.
CONTINUOUS : Backlight turns ON continuously.
DDSmarTrunk II™functions
This transceiver provides SmarTrunk II™ functions.
(Optional UT-105 SmarTrunk II™ Logic Board is required.)
The optional UT-105 allows communication over conventional chan-
nels or SmarTrunk II™ channels. Select a channel bank for
SmarTrunk II™ before trunking operation.
To toggle SmarTrunk II™ channels and conventional channels.
Push the [Bank Up] switch one or more times.
• Scanning starts when a channel bank for SmarTrunk II™ is se-
lected.
• Contact your dealer for channel bank details.
(See p.21 for more detailed operation.)
‘‘Receiving and transmitting
NOTE: Transmitting without an antenna may damage the trans-
ceiver. See p.1 for antenna attachment.
Turn power ON as described on p. 1.
Receiving:
qPush [YY]/[ZZ]to select a channel.
wListen for a transmission and adjust [VOL] to a comfortable lis-
tening level.
• When no transmission is heard, push and hold monitor while
adjusting [VOL] (your transceiver may not be programmed with
the monitor function).
The transceiver is now set to receive desired calls on the selected
channel.
Transmitting:
Wait for the channel to become clear to avoid interference.
eWhile pushing and holding [PTT], speak into the microphone at a
normal voice level.
• When a tone signalling system is used, the call procedure de-
scribed at right may be necessary.
rRelease [PTT] to return to receive.
IMPORTANT: To maximize the readability of your transmitted sig-
nal, pause a few secs. after pushing [PTT], hold the microphone 10
to 15 cm from your mouth and speak at a normal voice level.
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 18 (1,1)
17
5CONVENTIONAL OPERATION
18
5
CONVENTIONAL OPERATION
‘‘Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
qSelect the desired Tx code channel or 5-tone code according to
your System Operator’s instructions.
• This may not be necessary depending on programming.
• Refer to the next page for selection.
wPush the call switch (assigned to one of the dealer programma-
ble switches: [P0], [P1], [P2], [P3], [S1] and [S2]).
eAfter transmitting a 5-tone code, the remainder of your commu-
nication can be carried out in the normal fashion.
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
2
3
45
6
789
0
1
P0P1P2P3
Non-selective calling
Selective calling
‘‘Tx code channel selection
Your radio may be programmed for Tx code channel selection. In
this case, you can choose a Tx code channel to be transmitted
when using the call function (p. 7).
Push the Tx code channel switch (assigned to one of the dealer-
programmable switches) to activate the function, then enter digits
via the keypad to select the desired Tx code channel.
• The selected code channel (containing a pre-programmed 5-tone
code) is transmitted when using the call function.
‘‘Manual 5-tone codes
Depending on programming, you may be able to send 5-tone codes
manually.
Push the Tx code switch to activate the function, then enter the de-
sired transmit code (up to 7 digits) using the keypad.
• Activate the call function to transmit the 5-tone code.
• Blinking indicates keypad entry is acceptable.
‘‘Transmitting notes
DDTIME-OUT TIMER
After continuous transmission for a pre-programmed period, the
time-out timer is activated, causing the transceiver to stop transmit-
ting and automatically select receive.
DDPENALTY TIMER
Once the time-out timer is activated, transmission is further inhibited
for a period determined by the penalty timer.
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 20 (1,1)
SmarTrunk IITM OPERATION
20
6
SmarTrunk IITM OPERATION
19
6
‘‘Basic operation
These features are enabled by your Dealer or System operator and
may not be available in your system. Contact your Dealer for de-
tails.
Push the [Bank Up] switch one or more times to select a channel
bank for conventional channels or SmarTrunk II™ channels.
• Scanning starts when a channel bank for SmarTrunk II™ is se-
lected.
DDPTT dispatch operation *1
qPush [PTT] once (without dialing) to initiate a dispatch call.
wBegin talking after you hear three beeps (one short, high-
pitched, two very-short, low-pitched).
eReceiving a dispatch call is indicated by the same three-beep
sequence.
• It is not necessary to push [M] to answer a dispatch call.
DDSystem busy indication
If all channels are busy, three low beeps sound after you initiate a
call. Try the call again later.
DDReceiving a subscriber-to-subscriber call *1
When you hear ringing, push [M] to answer.
• For a group call, you hear a short ring followed by two short
beeps.You do not have to answer a group call to hear it over the
air.
DDReceiving a landline-to-subscriber call*1
When you hear ringing, push [M] to answer.
• For a group call, you hear a short ring followed by two short
beeps.You do not have to answer a group call to hear it over the
air.
DDTerminating a call *1
After completing a call, push [#] to disconnect (hang up).
IMPORTANT: If one person in the conversation terminates a call,
all participants will be cut off.
DDLast number redial *1
Push [M], [M] to automatically redial the last number called.
• A high-pitched beep indicates that the number is accepted.
*1: This function is available to for the IC-F3GS/IC-F4GS when the
[Y]/[Z] keys are assigned the [M]/[ # ] key functions.
DDTurbo SpeeDial
To automatically dial a commonly used number with one push:
• Push one of the turbo SpeeDial.
DDProgramming memory speed dial
qPush and hold [M] until you hear a high-pitched beep.
wEnter the memory location (0–9, A, B, C, D), the telephone or
subscriber number, then [1], [M] (or [3], [M] if for another system
subscriber).
• A high-pitched beep indicates successful programming.
• Memories [A]–[D] are used for the Turbo SpeeDial.
NOTE: This function is available for the IC-F3GT/IC-F4GT only.
DDMemory speed-dialing *2
To automatically dial a commonly used number from memory:
• Push [M] followed by the memory location (0–9).
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 22 (1,1)
22
7
OTHER FUNCTION
21
6SmarTrunk IITM OPERATION
DDClear channel alerting *1
If all channels are busy, the transceiver automatically begins
searching for an open channel and beeps every ten seconds.When
two short beeps (low-pitched, then high-pitched) are heard, a chan-
nel is available. Push [M], [M] immediately to redial the last number.
DDEmergency call *2
Push [0], [M] to initiate an emergency call.
• Contact your Dealer for details.
DDPlacing a telephone call *2
Enter the phone number followed by [1], [M].
• A high-pitched beep indicates that the number is accepted.
• When the called party answers, push the [PTT] switch to talk, and
release it to listen.
DDCalling another local system subscriber *2
Enter the subscriber number followed by [3], [M].
• A high-pitched beep indicates that the number is accepted.
• You hear ringing, then two short beeps when the subscriber an-
swers.
• If the other subscriber is on another call or out of range, you hear
a fast busy signal and the call terminates automatically.
*1: This function is available for the IC-F3GS/IC-F4GS when the
[Y]/[Z] keys are assigned the [M]/[ # ] key functions.
*2:This function is available for the IC-F3GT/GS,IC-F4GT/GS
only.
Use the Turbo SpeeDial function instead.
For additional operating instructions, contact your Dealer or
System Operator.
‘‘DTMF PAGER/CODE SQUELCH
When you install optional UT-108 DTMF DECODER UNIT into the
transceiver, DTMF pager function or code squelch function will be
available.
DDDTMF pager
This function uses DTMF tones for calling and can be used as a
“common pager” to inform you that one of your group has called
even if the operator is temporarily away from the transceiver.
• When the connection code is received, a beep sounds, then “ ”
flashes and shows the called stations code number.
• Called stations code number memorised automatically, and easy
to re-call with “ID-MR select function”.
DDCode squelch
This conveniently eliminates unwanted audio and is useful in group
activities or security related activities where unwanted output can
be problem.The function similar to a CTCSS tone squelch.
In order to use above functions, cloning is necessary via a PC using
the optional CS-F3G cloning software. Using this software, the
transceiver’s model, individual RX code CH, TX code CH, Special
Tone Link2 (must be ‘E’) on 5Tone screen, 5Tone signaling Form
on Memory-CH screen, Log, RX C-No, Key&Display, Common Au-
toReset TimerB, and other settings related to operation can be set.
Refer to the HELP file that comes with the CS-F3G CLONING
SOFTWARE for available settings.
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 24 (1,1)
MAINTENANCE
24
9
CLONING
23
8
‘‘Optional UT-96/UT-105/UT-108/UT-109 and
UT-110 and UT-111 installation
You can install one of the OPTIONAL signaling unit from UT-96
2Tone/5Tone unit, UT-105 SmarTrunk(TM) logic board, UT-108
DTMF decoder unit or UT-109/UT-110 Scrambler unit.
qTake off the optional connecter access cover (named 2251 OPT
sheet).
•Put the screwdriver into the
hollow of the chassis, then lift
and take away the cover. (The
cover will not use later.)
wAttach the desired optional unit. Insert the connector tightly to
avoid bad contact.
eRemove the paper backing of 2251 OPT sheet supplied as ac-
cessory.
rPut the new 2251 OPT sheet on to the service window.
tProgram the necessary infor-
mations with the cloning soft-
ware before operation. Please
ask your dealer or system op-
erator for detail.
w
e
r
q
‘‘Cloning
Cloning allows you to quickly and easily transfer the programmed
contents from one transceiver to another transceiver; or data from
PC to a transceiver using the optional CS-F3G CLONING SOFT-
WARE.
DDTransceiver-to-transceiver cloning
qConnect the optional OPC-474 CLONING CABLE with adapter
plugs to the [SP] jack of the master and slave transceivers.
• The master transceiver is used to send data to the slave trans-
ceiver.
wWhile pushing [P3], push [YY] to enter cloning mode(master
transceiver only–power on only for slave transceiver).
•“CLONE” appears and the transceiver enter the clone standby con-
dition.
ePush [PTT] on master transceiver.
•“CLOUT” appears in the master transceiver’s display.
•“CL IN” appears automatically in the slave transceiver’s display.
•When cloning is finished, “CLONE” appears in the master trans-
ceiver’s display.
NOTE: DO NOT push the [PTT] on the slave transceiver during
cloning, This will cause a cloning error.
rWhen cloning is finished, turn power off, then on again to return
to normal operation.
DDPC-to-transceiver cloning
Please refer to the HELP file that comes with the CS-F3G
CLONING SOFTWARE.
CAUTION: Imprudent cloning operation cause a cloning error.
In such a case, memory contents may lose. Cloning must then
be repeated.
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 26 (1,1)
25
9OPTIONS
26
9
OPTIONS
DDOTHER OPTIONS
• UT-96 2/5TONE UNIT
Provides 2/5Tone capabilities.
• UT-105 SmarTrunkII(TM) Logic Board
Provides SmarTrunkII(TM) capabilities.
• UT-108 DTMF DECODER UNIT
Provides ANI operation.
• UT-109/UT-110 SCRAMBLER UNIT
Non-rolling type(UT-109)/ Rolling type voice scrambler unit pro-
vides higher communication security.
• UT-111 TRUNKING BOARD
Provides trunking operation.
• HM-46L/HM-75 SPEAKER-MICROPHONES
Combination speaker-microphone that provides convenient oper-
ation while hanging the transceiver from your belt clip.
• HS-51 HEAD SET
Allows you hands-free operation. Includes VOX, PTT and TOT.
• SP-13 EARPHONE
Provides clear receive audio in noisy enviroments.
• MB-74 BELT CLIP
Exclusive belt clip for IC-F**G series.
• CS-F3G CLONING SOFTWARE
Allows you to clone the memory contents of an IC-F**G series be-
tween transceivers or to a PC editing.
• OPC-474 CLONING CABLE
Cloning cable for transceiver to transceiver
• OPC-478 CLONING CABLE
Cloning cable for PC to transceiver.
ALL stated specificationa are subject to change without notice
or obligation.
‘‘Options
DDBATTERY PACKS
• BP-208* BATTERY CASE
Allows a set of Alkaline batteries to operate the handheld when
charging rechargeable battery or in emergencies, etc. 6 AA (R6)
cells are required.
• BP-209* Ni-Cd BATTERY PACK
7.2 V/1100 mAh Ni-Cd battery pack, allows more than 8 hours*
operation.
• BP-210* Ni-MH BATTERY PACK
7.2 V/1650 mAh Ni-MH battery pack, allows approx. 11 hours* op-
eration.
• BP-211* Li-Ion BATTERY PACK
Lithium Ion battery pack (will be available later)
DDCHARGER
• BC-119 DESKTOP CHARGER
For rapid charging of battery packs. An AC adapter is supplied
with the charger. Charging time: 1.5 to 2 hrs.
• BC-121 MULTI-CHARGER
For rapid charging up to 6 battery packs simultaneously. An AC
adapter may be supplied depending on version. Six AD-94’s are
necessary. Charging time: 1.5 to 2 hrs.
•AD-94 CHARGER ADAPTOR
• BC-137 DESKTOP CHARGER
For regular charging to BP-209 (Ni-Cd) and BP-210 (Ni-MH).
• BC-138* BATTERY CHARGER
Regularly charges a battery pack, BP-213, with/without trans-
ceiver.
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 28 (1,1)
27
10MEMO
28
10
MEMO
IC-F3GT(A6)1111 99.11.12 9:45 AM Page 30 (1,1)
