INSTRUCTION MANUAL
iM602
VHF MARINE TRANSCEIVER
This device complies with Part 15 of the FCC rules. Operation is sub-
ject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FOREWORD
Thank you for purchasing this Icom product. The IC-
M602 V
HF MARINE TRANSCEIVER
is designed and built
with Icom’s superior technology and craftsmanship.
With proper care, this product should provide you with
years of trouble-free operation.
We want to take a couple of moments of your time to
thank you for making the IC-M602 your radio of choice,
and hope you agree with Icom’s philosophy of “tech-
nology first.” Many hours of research and development
went into the design of your IC-M602.
D
FEATURES
❍Standard 4
×
8
″
flush mount design
❍Built-in DSC meets ITU Class D requirement
❍Rugged waterproof construction
❍Large LCD with dot matrix characters
❍Superior receiver performance
❍Optional COMMANDMICTM
(2 systems are connectable)
Icom, Icom Inc. and the logo are registered trademarks
of Icom Incorporated (Japan) in the United states, the United
Kingdom, Germany, France, Spain, Russia and/or other coun-
tries.
IMPORTANT
READ THIS INSTRUCTION MANUAL
CAREFULLY before attempting to operate the trans-
ceiver.
SAVE THIS INSTRUCTION MANUAL. This
manual contains important safety and operating in-
structions for the IC-M602.
CLEAN THE TRANSCEIVER AND MICROPHONE
THOROUGHLY WITH FRESH WATER after exposure to
water including solt water, otherwise, the keys and
switches may become inoperable due to salt crystallization.
i
ii
IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels and
the Coast Guard by sending a distress call on Ch 16.
Or, transmit your distress call using digital selective calling on
Ch 70.
USING CHANNEL 16
DISTRESS CALL PROCEDURE
1. “MAYDAY MAYDAY MAYDAY.”
2. “THIS IS ...............” (name of vessel)
3. Your call sign or other indication of the vessel (AND 9-
digit DSC ID if you have one).
4. “LOCATED AT ...............” (your position)
5. The nature of the distress and assistance required.
6. Any other information which might facilitate the rescue.
USING DIGITAL SELECTIVE CALLING (Ch 70)
DISTRESS CALL PROCEDURE
1. While lifting up the switch cover, push and hold
[DISTRESS] for 5 sec. until you hear 5 short beeps
change to one long beep.
2. Wait for an acknowledgment from a coast station.

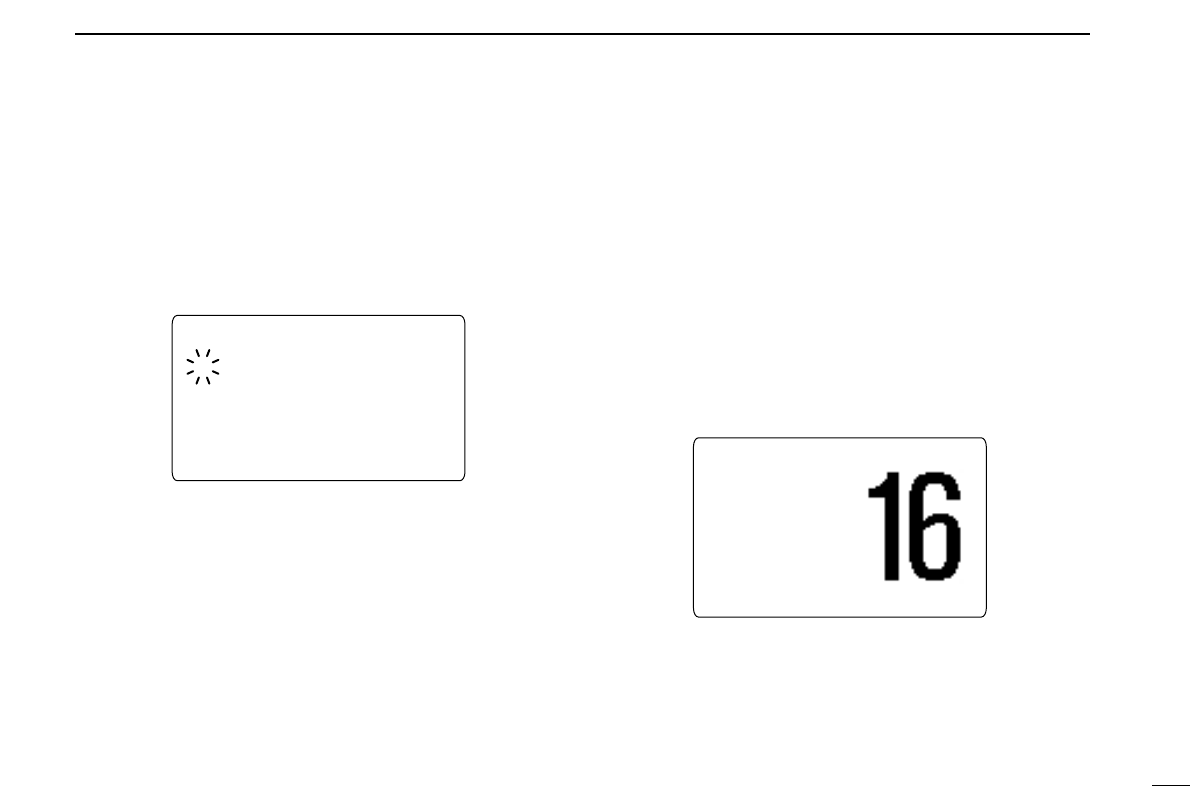

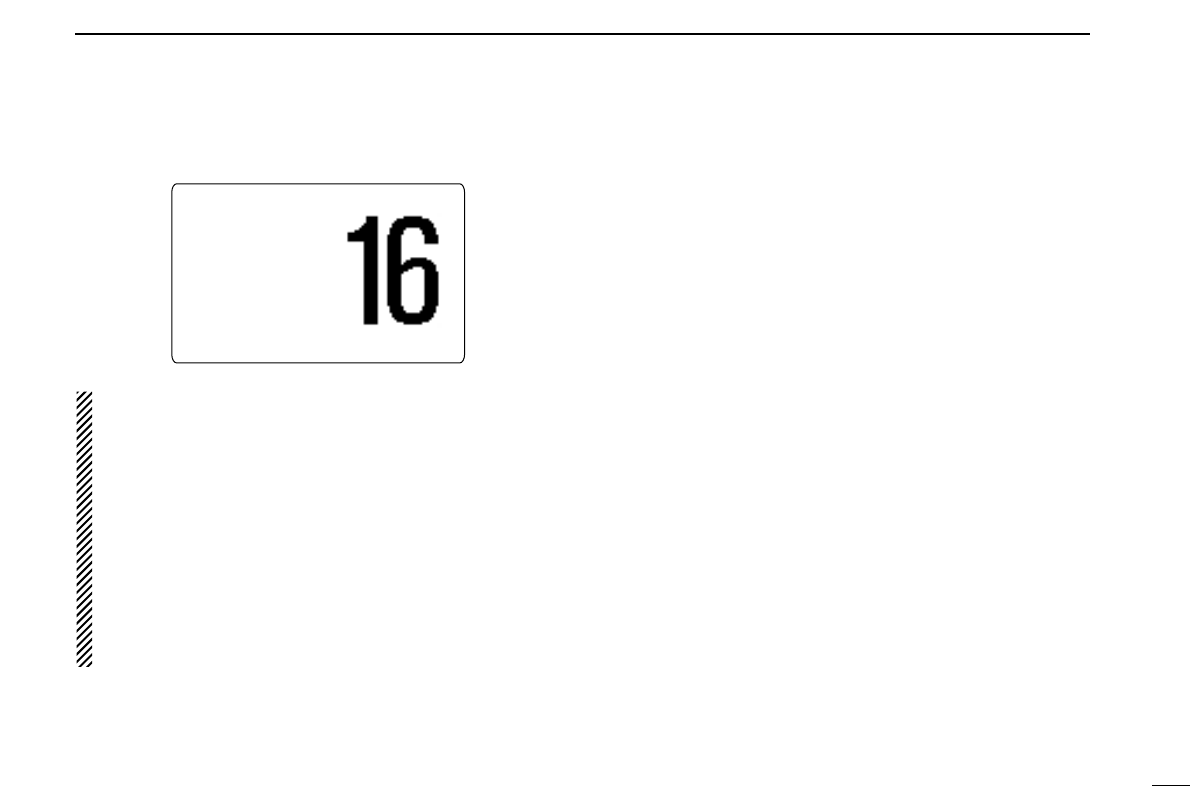

• Channel 16 is automatically selected.
3. Push and hold [PTT], then transmit the appropriate
information as at above.
WARNING
STICKER
NOTE

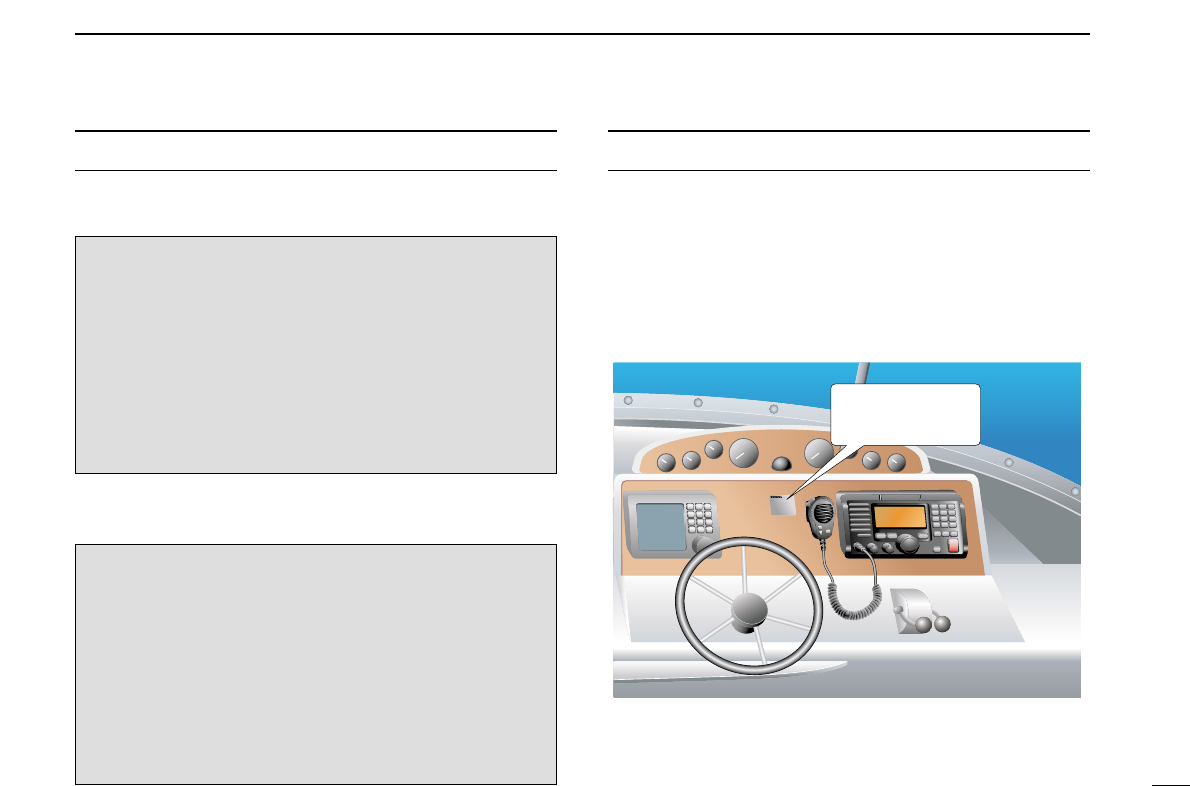

A WARNING STICKER is supplied with the transceiver.
To comply with FCC regulations, this sticker must be affixed in
such a location as to be readily seen from the operating con-
trols of the radio like as follows. Make sure the chosen loca-
tion is clean and dry before applying the sticker. (p. 46)
EXAMPLE
iii
Icom requires the radio operator to meet the
FCC Requirements for Radio Frequency Expo-
sure. An omnidirectional antenna with gain not
greater than 9 dBi must be mounted a minimum
of 5 meters (measured from the lowest point of
the antenna) vertically above the main deck and all possible
personnel. This is the minimum safe separation distance esti-
mated to meet all RF exposure compliance requirements. This
5 meter distance is based on the FCC Safe Maximum Per-
missible Exposure (MPE) distance of 3 meters added to the
height of an adult (2 meters) and is appropriate for all vessels.
For watercraft without suitable structures, the antenna must
be mounted so as to maintain a minimum of 1 meter vertically
between the antenna, (measured from the lowest point of the
antenna), to the heads of all persons AND all persons must
stay outside of the 3 meter MPE radius.
Do not transmit with radio and antenna when persons are
within the MPE radius of the antenna, unless such persons
(such as driver or radio operator) are shielded from antenna
field by a grounded metallic barrier. The MPE Radius is the
minimum distance from the antenna axis that person should
maintain in order to avoid RF exposure higher than the allow-
able MPE level set by FCC.
FAILURE TO OBSERVE THESE LIMITS MAY ALLOW
THOSE WITHIN THE MPE RADIUS TO EXPERIENCE RF
RADIATION ABSORPTION WHICH EXCEEDS THE FCC
MAXIMUM PERMISSIBLE EXPOSURE (MPE) LIMIT.
IT IS THE RESPONSIBILITY OF THE RADIO OPERATOR
TO ENSURE THAT THE MAXIMUM PERMISSIBLE EXPO-
SURE LIMITS ARE OBSERVED AT ALL TIMES DURING
RADIO TRANSMISSION. THE RADIO OPERATOR IS TO
ENSURE THAT NO BYSTANDERS COME WITHIN THE
RADIUS OF THE MAXIMUM PERMISSIBLE EXPOSURE
LIMITS.
Determining MPE Radius
THE MAXIMUM PERMISSIBLE EXPOSURE (MPE) RA-
DIUS HAS BEEN ESTIMATED TO BE A RADIUS OF
ABOUT 3M PER OET BULLETIN 65 OF THE FCC.
THIS ESTIMATE IS MADE ASSUMING THE MAXIMUM
POWER OF THE RADIO AND ANTENNAS WITH A MAXI-
MUM GAIN OF 9dBi ARE USED FOR A SHIP MOUNTED
SYSTEM.
RADIO OPERATOR WARNING
WARNING
FOREWORD ...............................................i
IMPORTANT .............................................. i
IN CASE OF EMERGENCY ...................... ii
NOTE ..........................................................ii
RADIO OPERATOR WARNING.................iii
TABLE OF CONTENTS ........................... iv
PRECAUTION .......................................... v
1 OPERATING RULES .................. 1

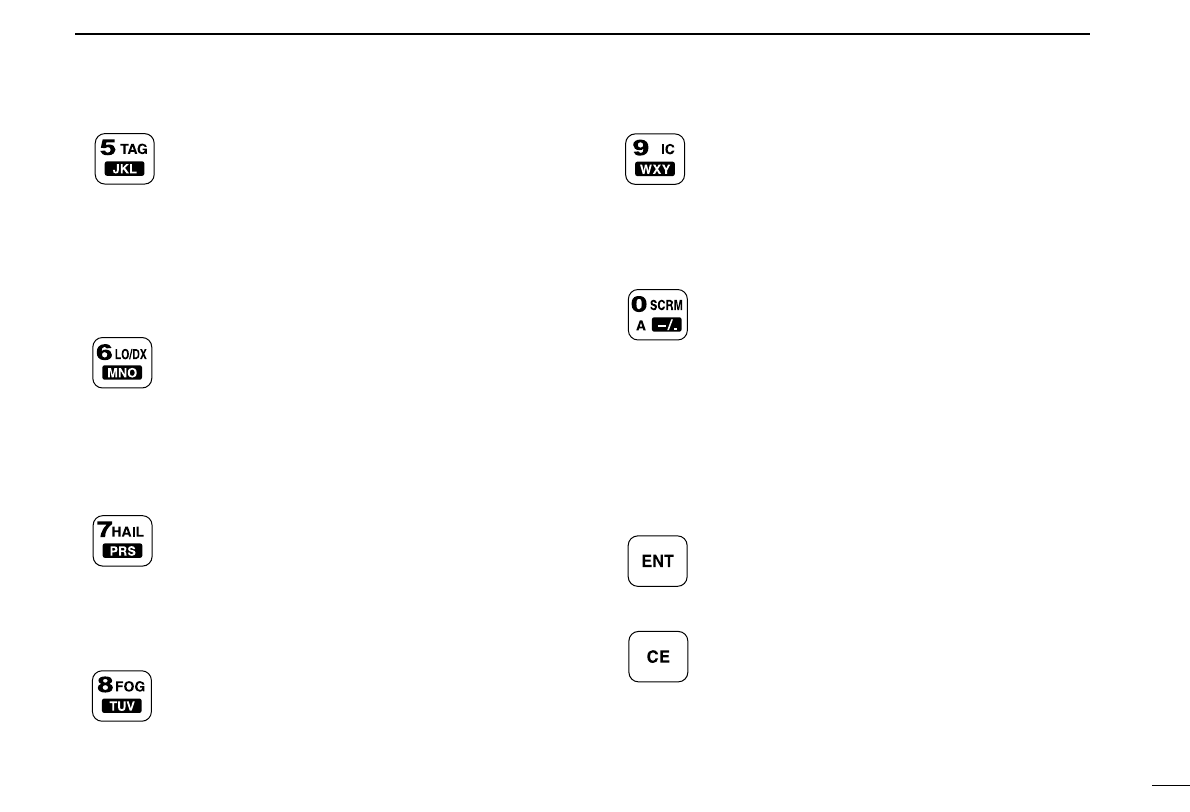

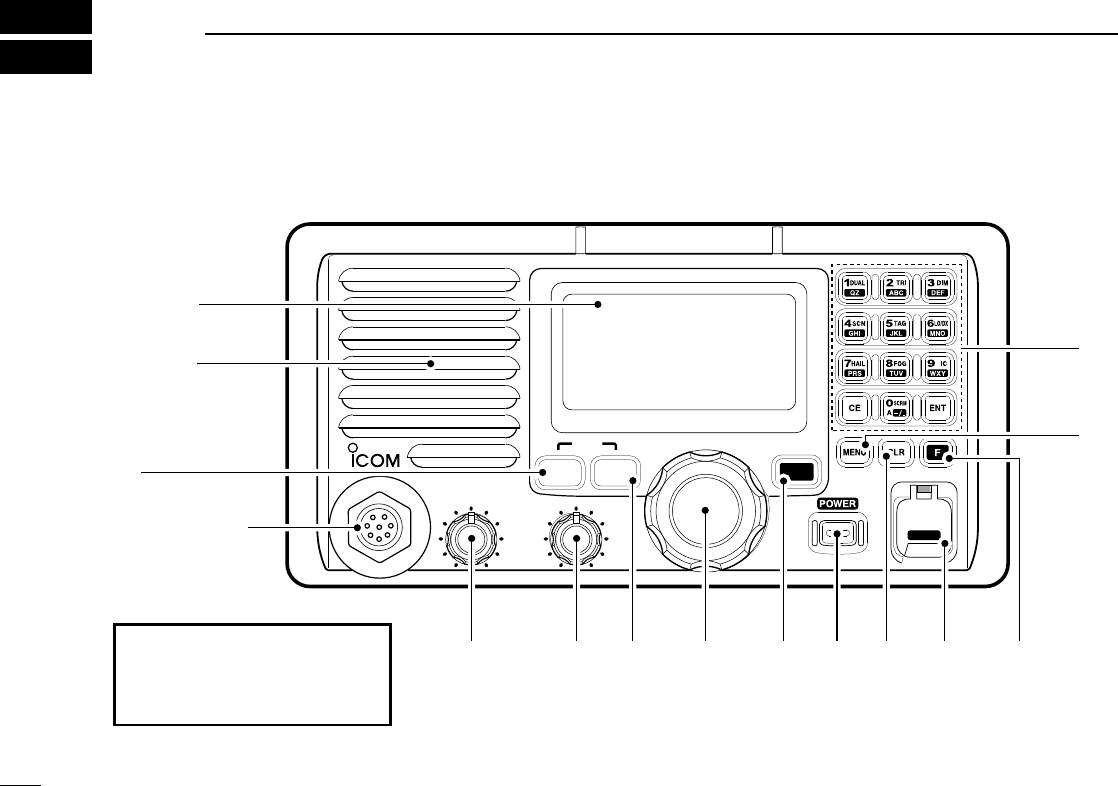

2 PANEL DESCRIPTION .......... 2– 7
■Panel description ............................ 2

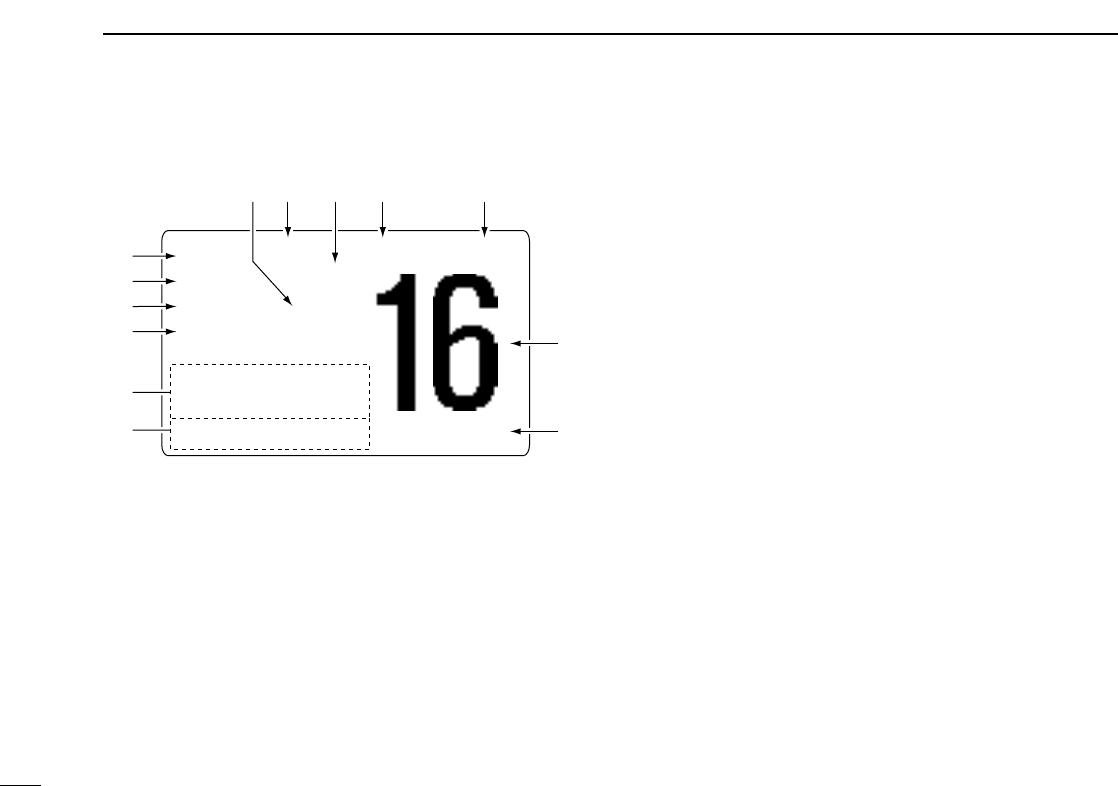

■Function display .............................. 6

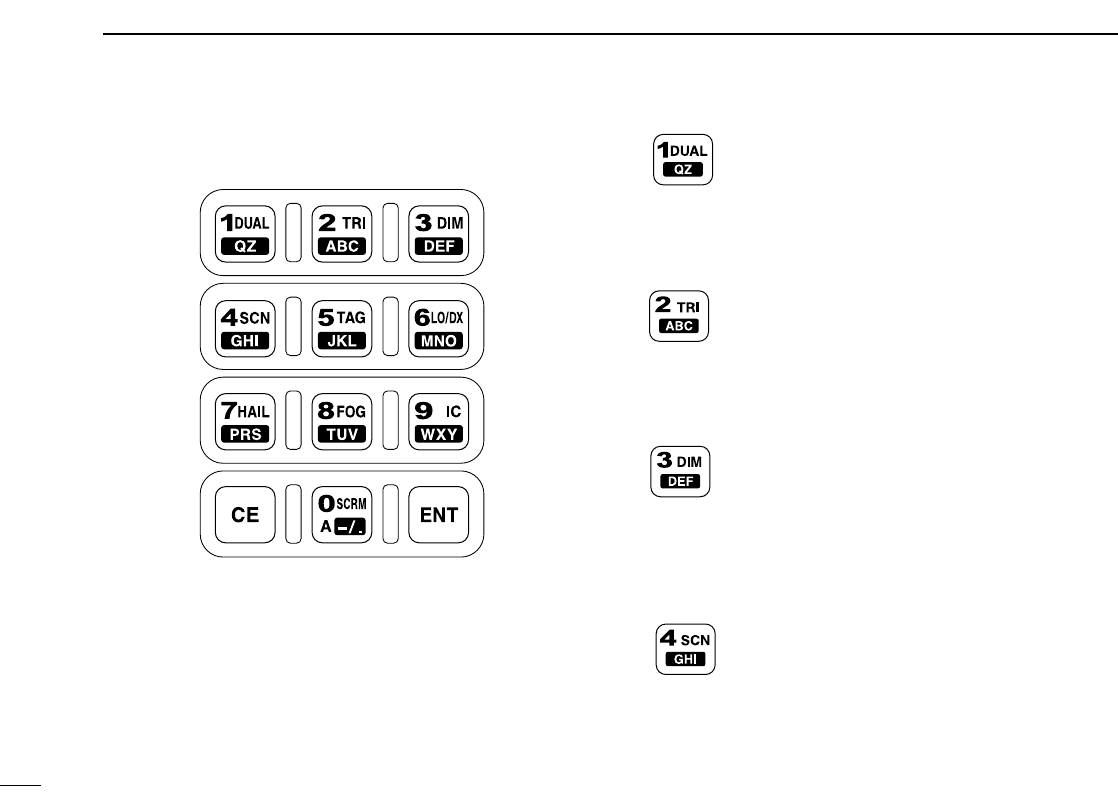

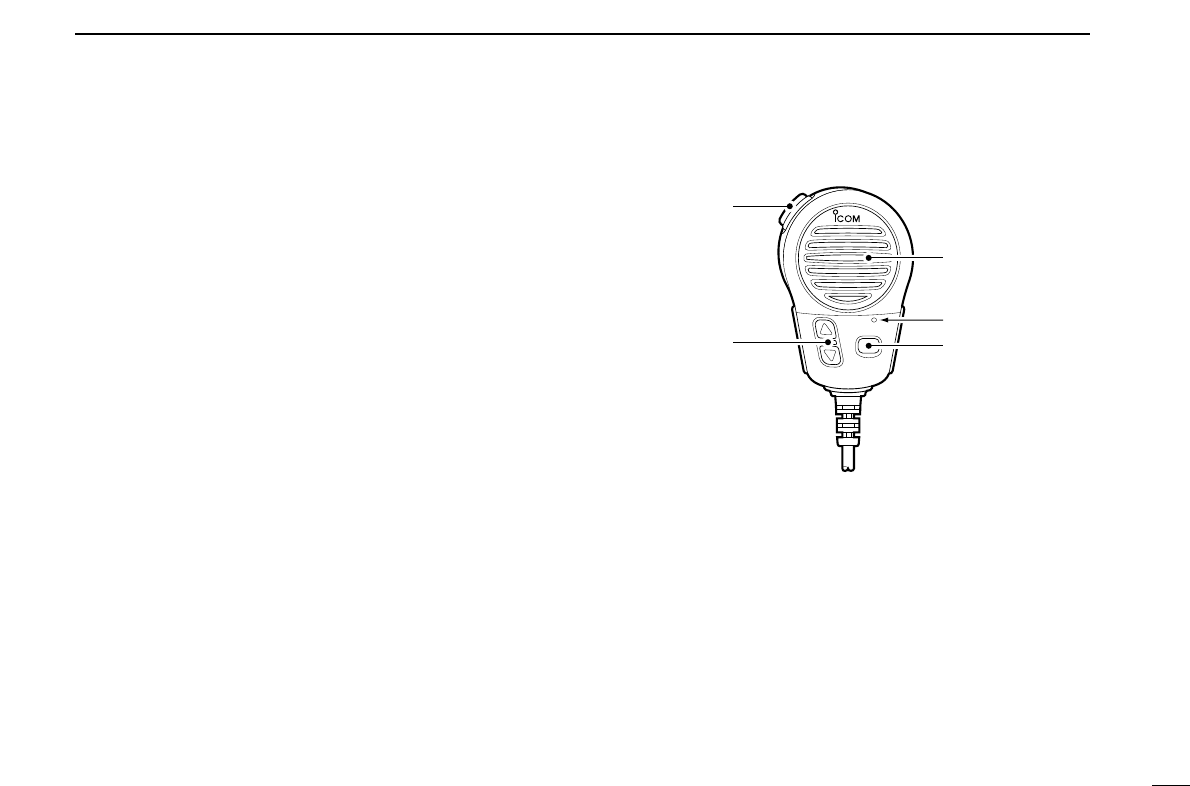

■Microphone ..................................... 7
3 BASIC OPERATION ............ 8 – 12

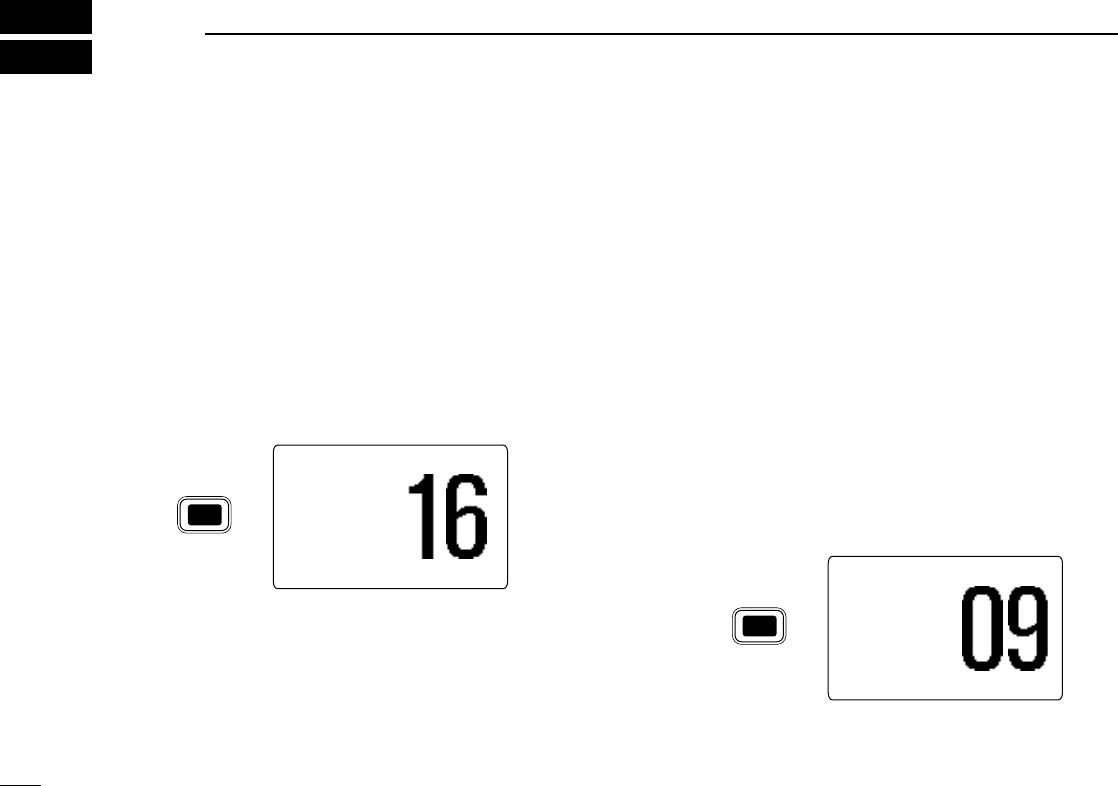

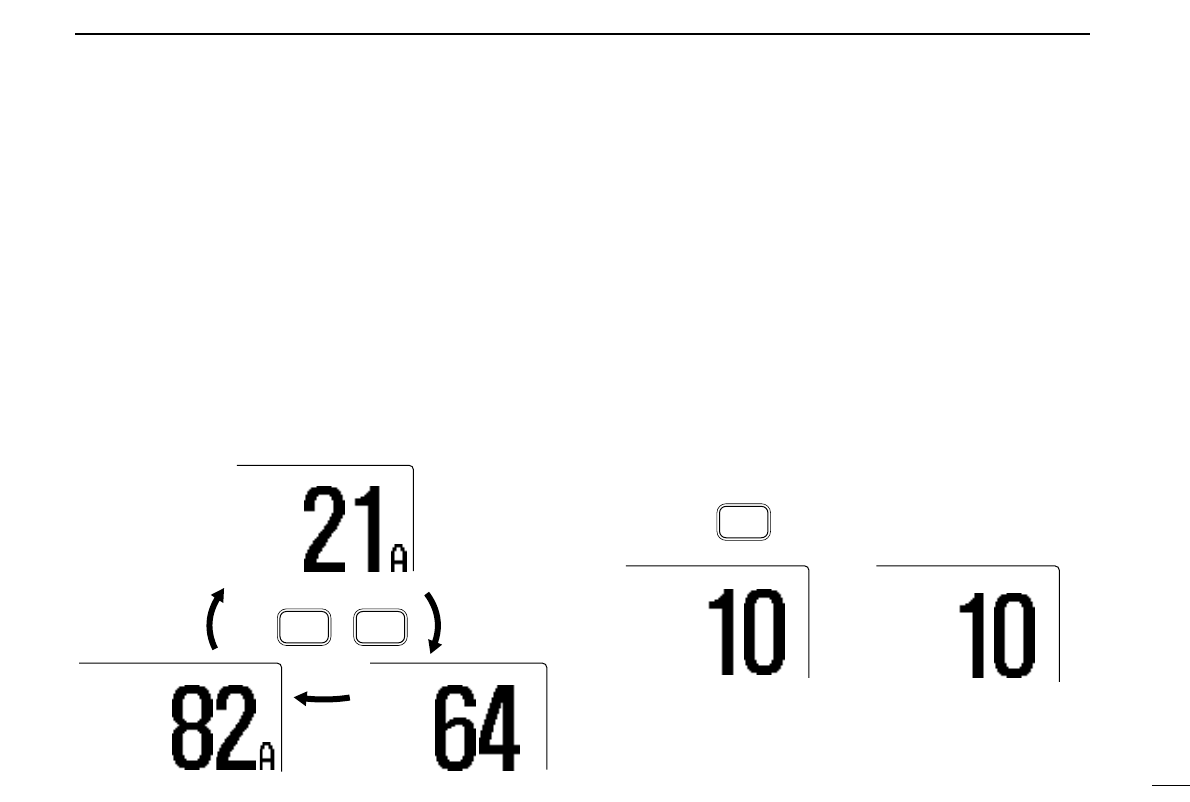

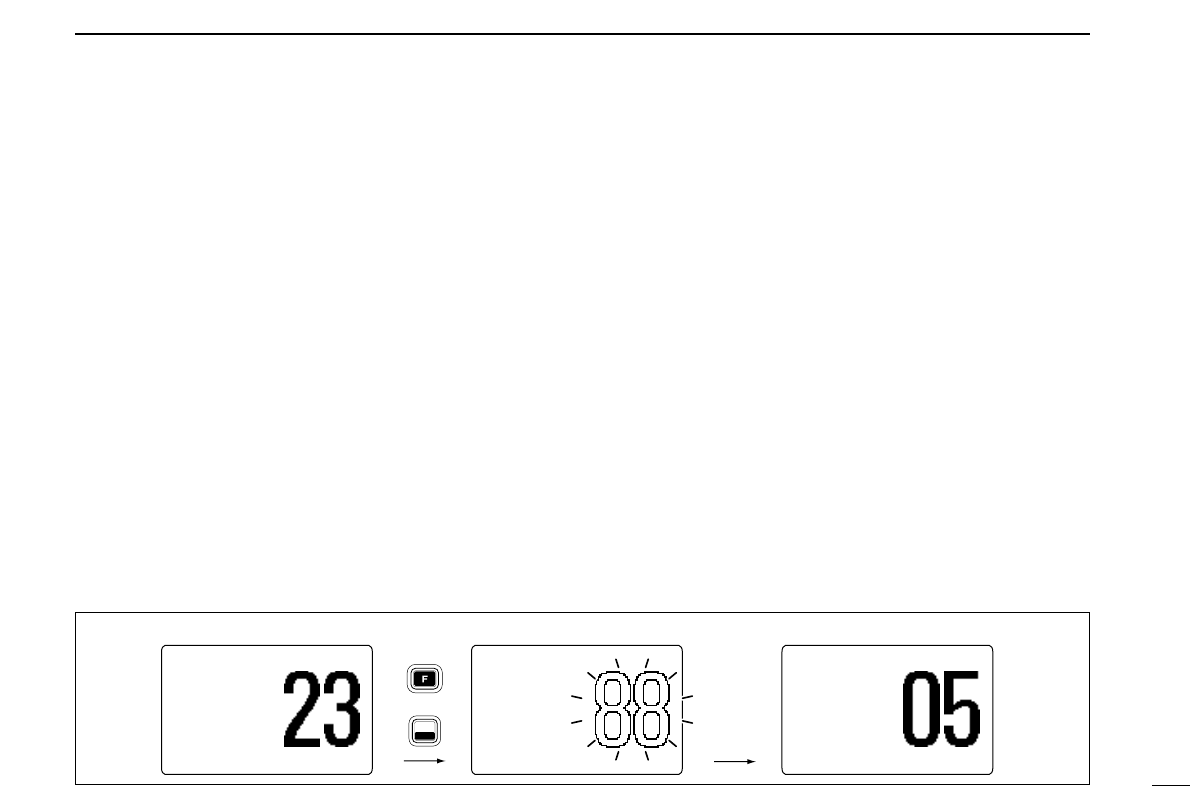

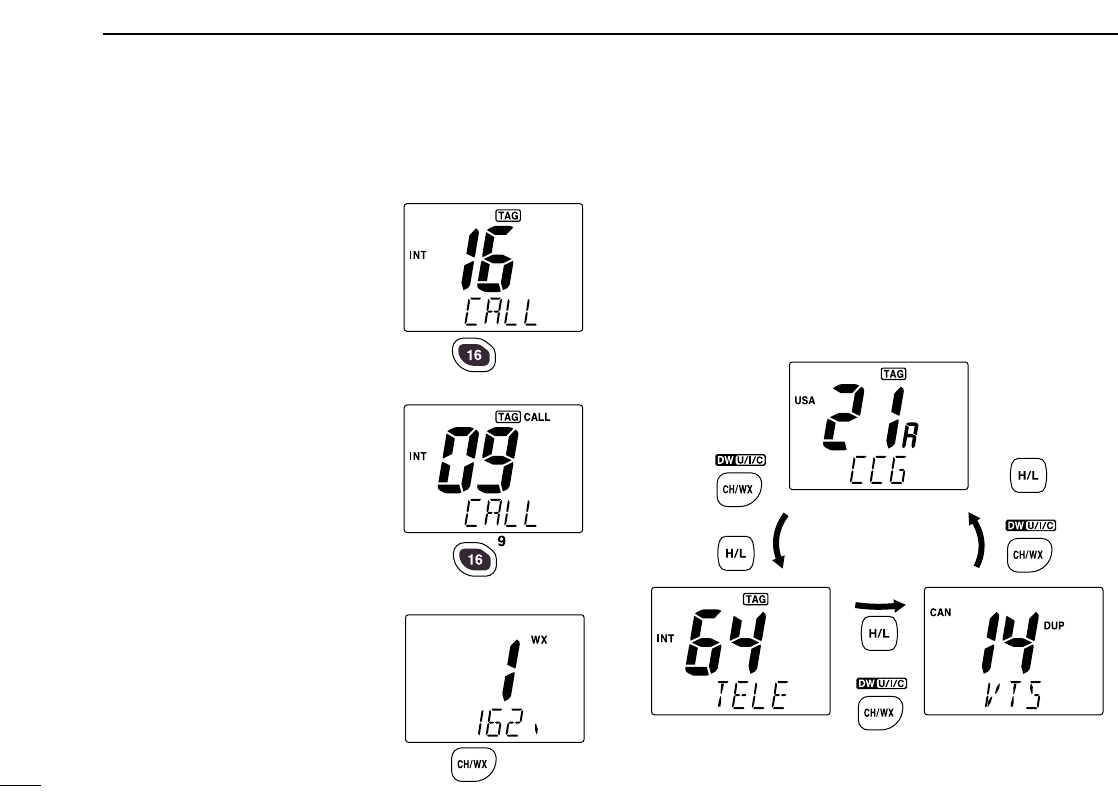

■Channel selection ........................... 8
■Receiving and transmitting ........... 10
■Call channel programming ............ 11

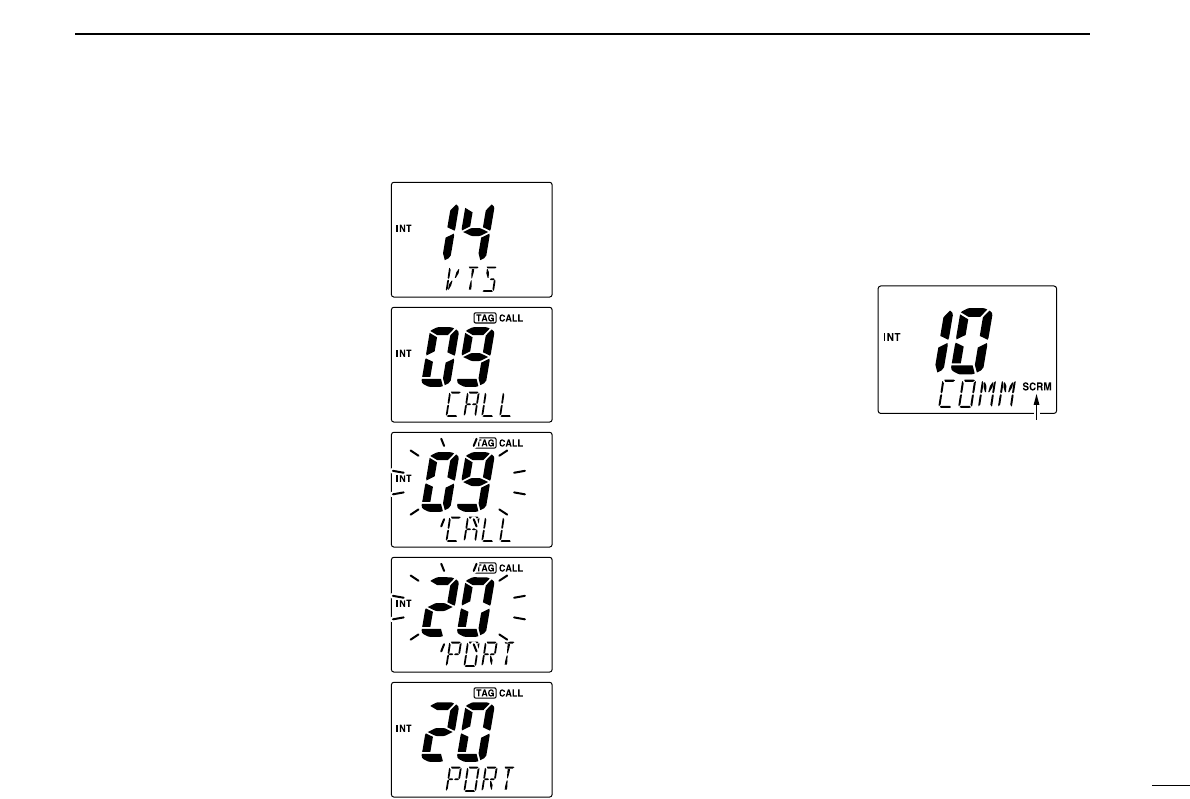

■Channel names ............................. 11
■Optional voice scrambler
operation ....................................... 12
4 DUALWATCH/TRI-WATCH ....... 13
■Description .................................... 13
■Operation ...................................... 13
5 SCAN OPERATIONS ......... 14 – 15
■Scan types .................................... 14
■Setting tag channels ..................... 15
■Starting a scan .............................. 15
6 DSC OPERATION .............. 16 – 37
■MMSI code programming ............. 16
■Position and time programming .... 16
■Position indication ......................... 17
■Distress call .................................. 18
■Transmitting DSC calls ................. 20
■Setting the distress information .... 28
■DSC individual ID ......................... 29
■Receiving DSC calls ..................... 32
■DSC set mode .............................. 34
■Receive messages ....................... 36
7 OTHER FUNCTIONS ................ 38
■Intercom operation ........................ 38

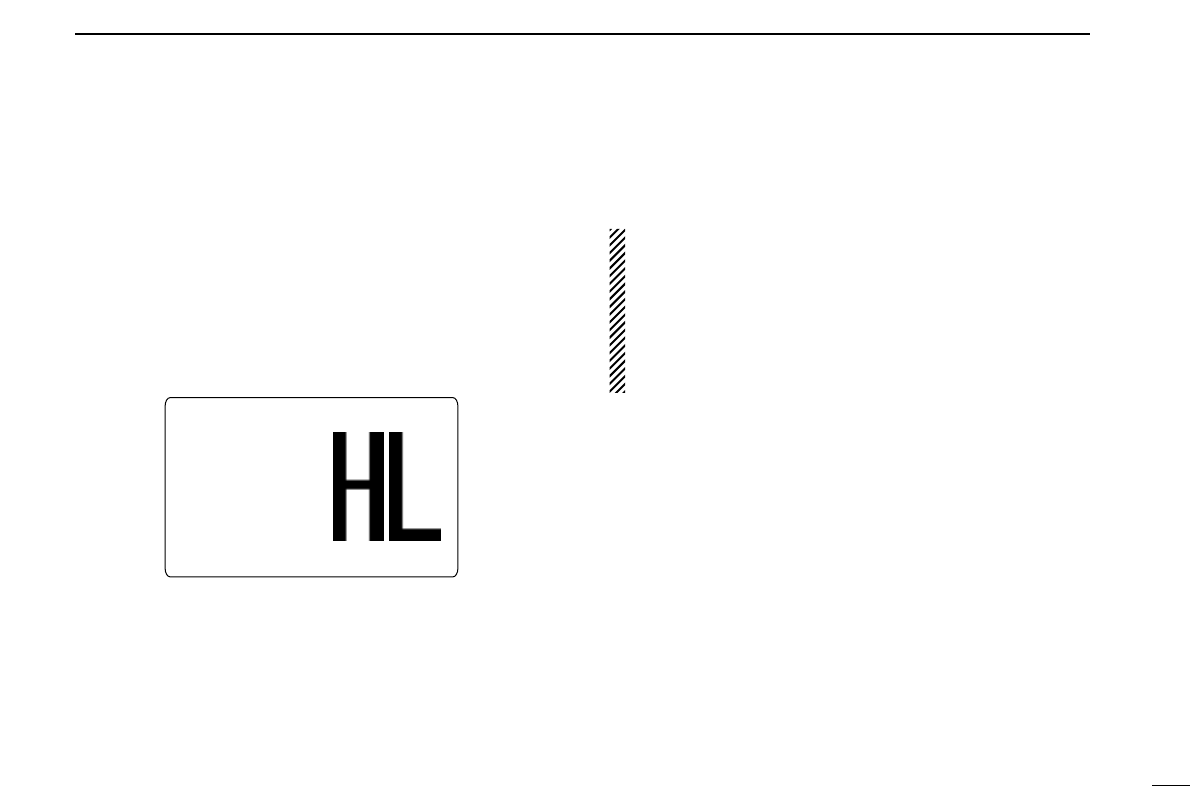

■Hailer operation ............................ 39
■Automatic fog horn ........................ 40
■Microphone lock function .............. 40
8 SET MODE ........................ 42 – 45

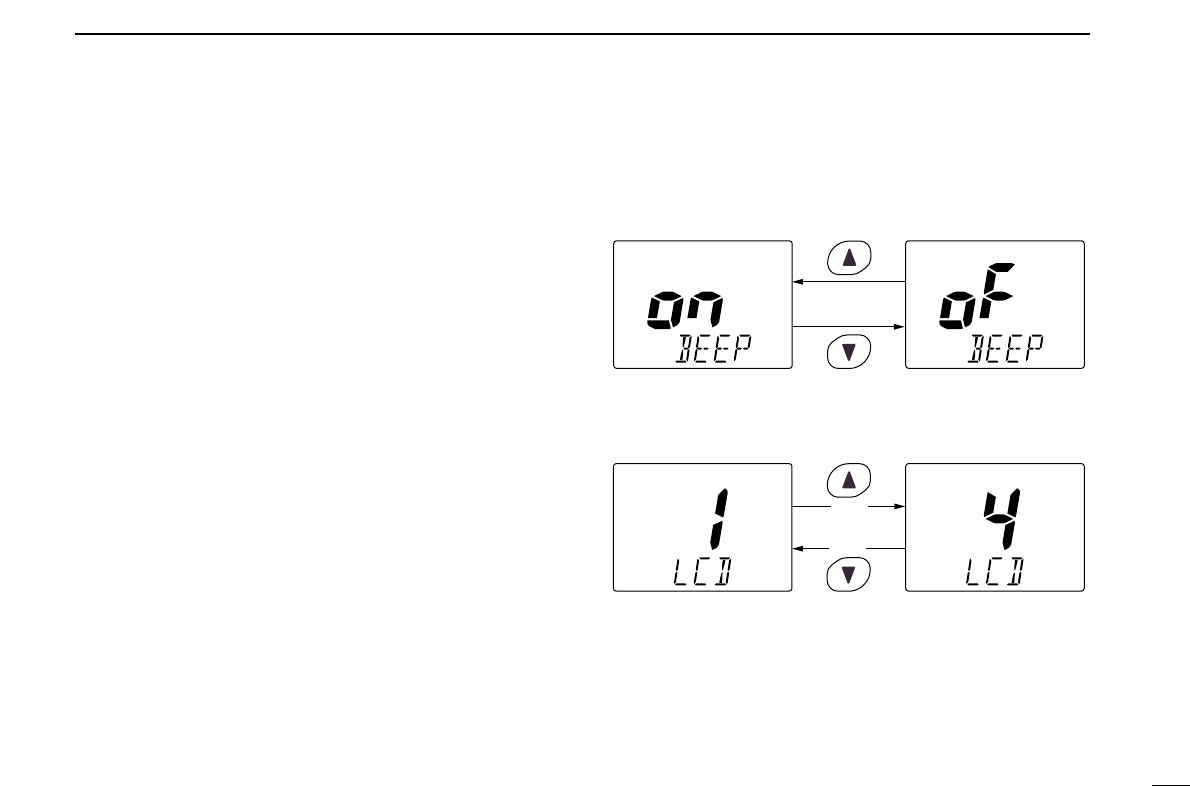

■Set mode programming ................ 42
■Set mode items ............................. 43
9 CONNECTIONS AND
MAINTENANCE ................. 46– 51
■Supplied accessories .................... 46
■Antenna ........................................ 46
■Fuse replacement ......................... 46
■Cleaning ....................................... 46
■Connections .................................. 47

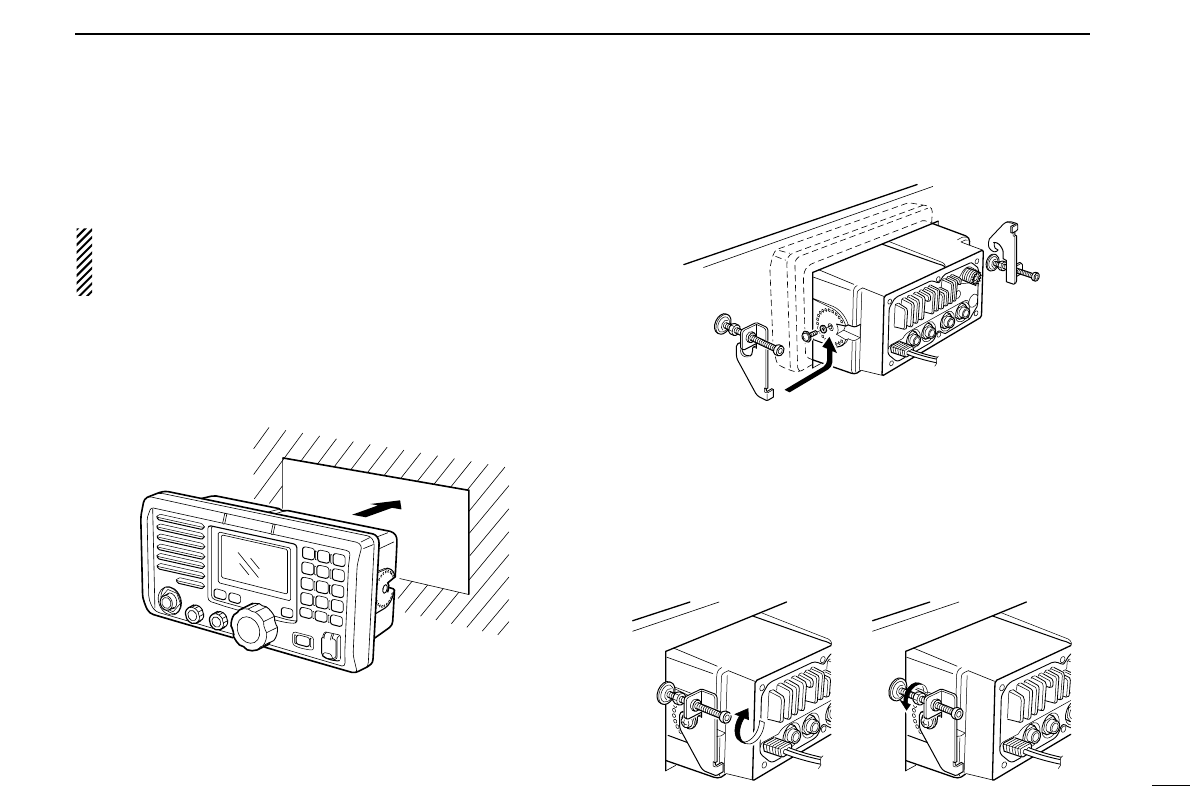

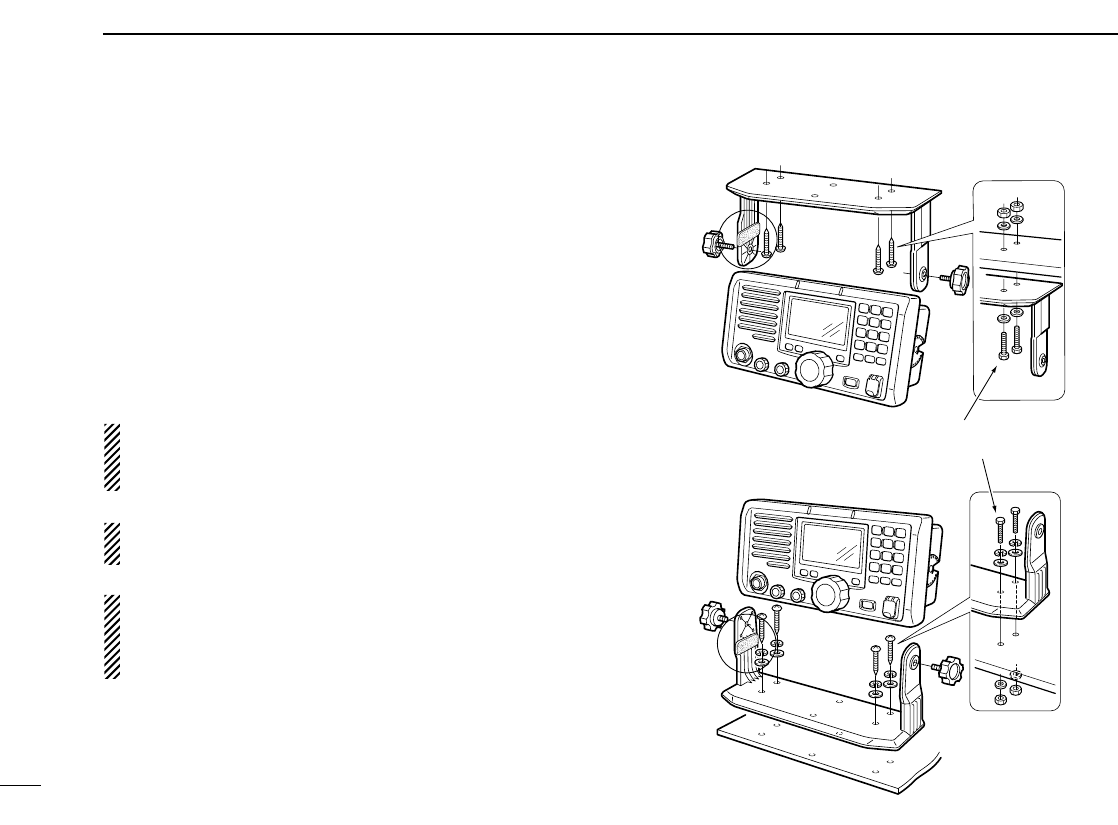

■Mounting the transceiver .............. 48
■Optional unit installation ............... 50

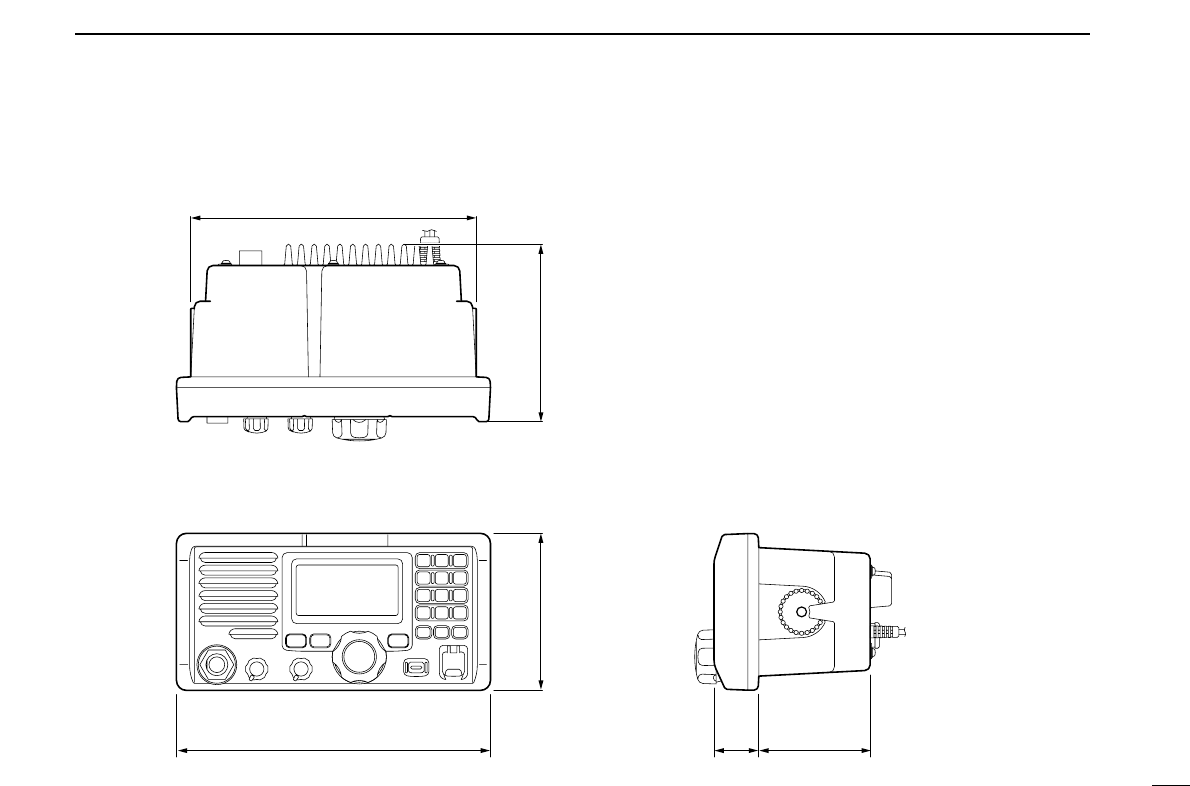

■Dimensions.................................... 51
10 TROUBLESHOOTING .............. 52
11 CHANNEL LIST ........................ 53
12 SPECIFICATIONS AND
OPTIONS ........................... 54– 55
■Specifications ............................... 54
■Options ......................................... 55

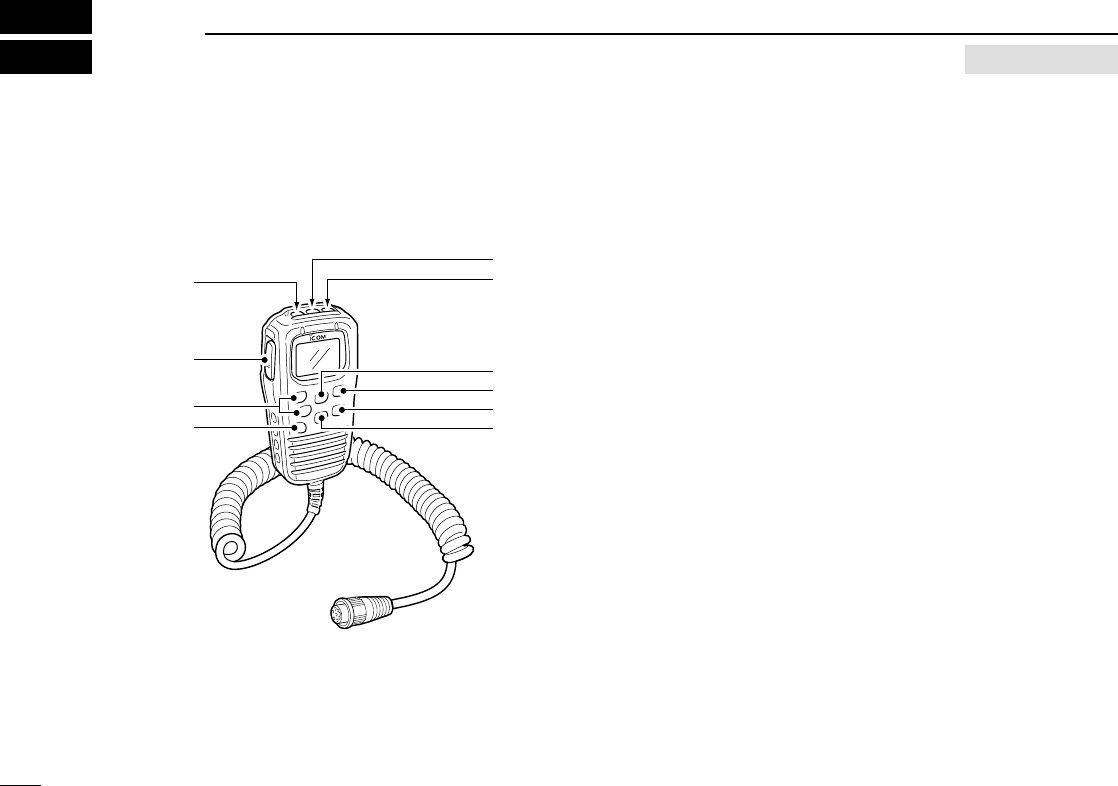

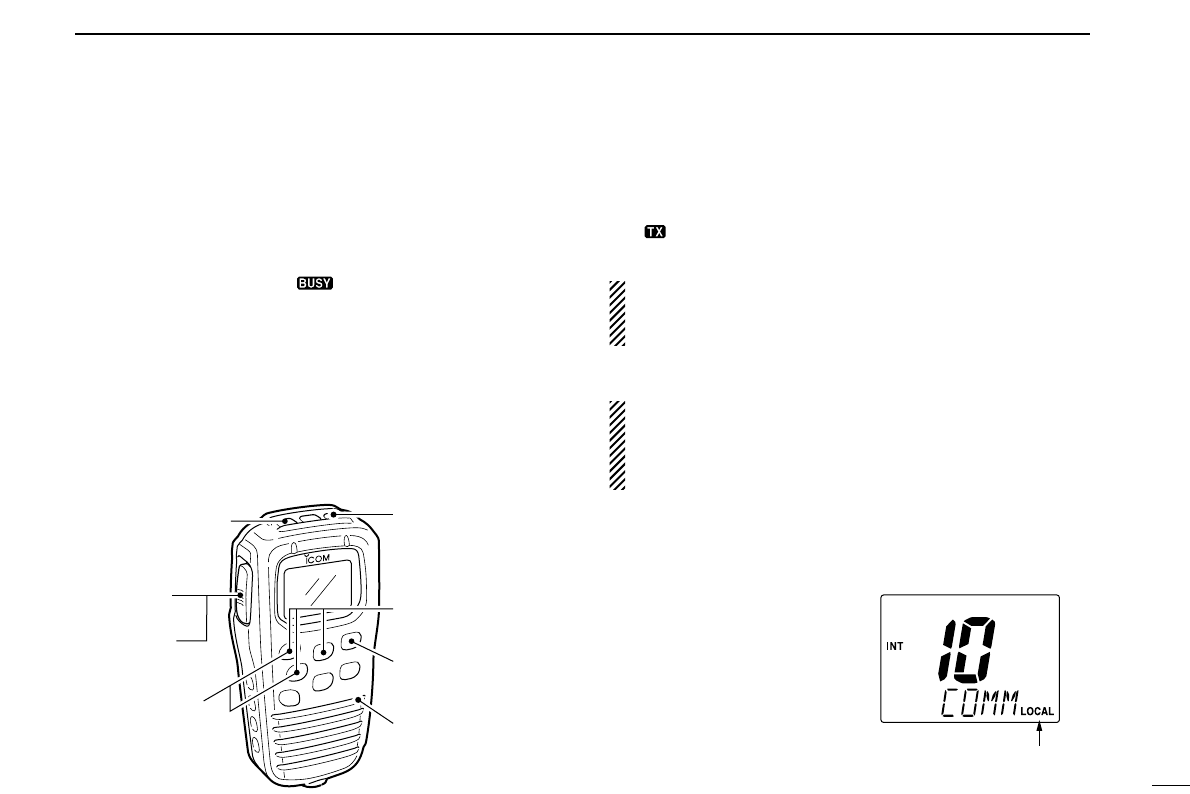

13 HM-127 REMOTE-CONTROL
MICROPHONE ................... 56 – 68
■Panel description .......................... 56
■Function display ............................ 58
■HM-127 supplied accessories ...... 59
■Installation .................................... 60
■Channel selection ......................... 62
■Receiving and transmitting ........... 63
■RF attenuator function .................. 63
■Lock functions ............................... 64
■Display backlighting ...................... 64
■Monitor function ............................ 64
■Call channel programming ............ 65
■Optional voice scrambler
operation ....................................... 65
■Starting a scan .............................. 66
■Setting tag channels ..................... 66
■Dualwatch/Tri-watch operation ..... 66
■Set mode programming ................ 67
■Intercom operation ........................ 68
■Channel names ............................ 68
TEMPLATE
iv
TABLE OF CONTENTS
v
RWARNING! NEVER connect the transceiver to an AC
outlet. This may pose a fire hazard or result in an electric
shock.
CAUTION: Changes or modifications to this device, not ex-
pressly approved by Icom Inc., could void your authority to
operate this device under FCC regulations.
NEVER connect the transceiver to a power source of more
than 16 V DC or use reverse polarity. This will ruin the trans-
ceiver.
NEVER cut the DC power cable between the DC plug and
fuse holder. If an incorrect connection is made after cutting,
the transceiver may be damaged.
NEVER place the transceiver where normal operation of the
vehicle may be hindered or where it could cause bodily injury.
KEEP the transceiver at least 3.3 ft (1 m) away from the
ship’s navigation compass.
DO NOT use or place the transceiver in areas with temper-
atures below –4°F (–20°C) or above +140°F (+60°C) or, in
areas subject to direct sunlight, such as the dashboard.
AVOID the use of chemical agents such as benzine or al-
cohol when cleaning, as they may damage the transceiver
surfaces.
BE CAREFUL! The transceiver rear panel will become
hot when operating continuously for long periods.
Place the transceiver in a secure place to avoid inadvertent
use by children.
BE CAREFUL! The transceiver and optional HM-127 em-
ploy waterproof construction, which corresponds to JIS wa-
terproof specification, grade 7 (1 m/30 min.). However, once
the transceiver or microphone has been dropped, water-
proofing cannot be guaranteed due to the fact that the case
may be cracked, or the waterproof seal damaged, etc.
EXPLICIT DEFINITIONS
WORD DEFINITION
RRWARNING Personal injury, fire hazard or electric
shock may occur.
CAUTION Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No
risk or personal injury, fire or electric
shock.
PRECAUTION
1
1
OPERATING RULES
◊PRIORITIES
•Read all rules and regulations pertaining to priorities and
keep an up-to-date copy handy. Safety and distress calls
take priority over all others.
• You must monitor channel 16 when you are not operating on
another channel.
• False or fraudulent distress signals are prohibited and pun-
ishable by law.
◊PRIVACY
• Information overheard but not intended for you cannot law-
fully be used in any way.
• Indecent or profane language is prohibited.
◊RADIO LICENSES
(1) SHIP STATION LICENSE
You must have a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed.
Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license application. This
government-issued license states the call sign which is your
craft’s identification for radio purposes.
(2) OPERATOR’S LICENSE
A Restricted Radiotelephone Operator Permit is the license
most often held by small vessel radio operators when a radio
is not required for safety purposes.
The Restricted Radiotelephone Operator Permit must be
posted or kept with the operator. Only a licensed radio opera-
tor may operate a transceiver.
However, non-licensed individuals may talk over a transceiver
if a licensed operator starts, supervises, ends the call and
makes the necessary log entries.
Keep a copy of the current government rules and regulations
handy.
Radio license for boaters (U.S.A. only)
The Telecommunications Act of 1996 permits recreational
boaters to have and use a VHF marine radio, EPIRB, and
marine radar without having an FCC ship station license.
Boaters traveling on international voyages, having an HF
single sideband radiotelephone or marine satellite terminal,
or required to carry a marine radio under any other regula-
tion must still carry an FCC ship station license. For further
information, see the FCC Ship Radio Stations Fact Sheet.
PANEL DESCRIPTION
2
2
■Panel description
WATERPROOF
VOL
iM602
VHF MARINE
MIC
U/I/C 9
H/L
CH/WX
16
SQL
DISTRESS
Speaker

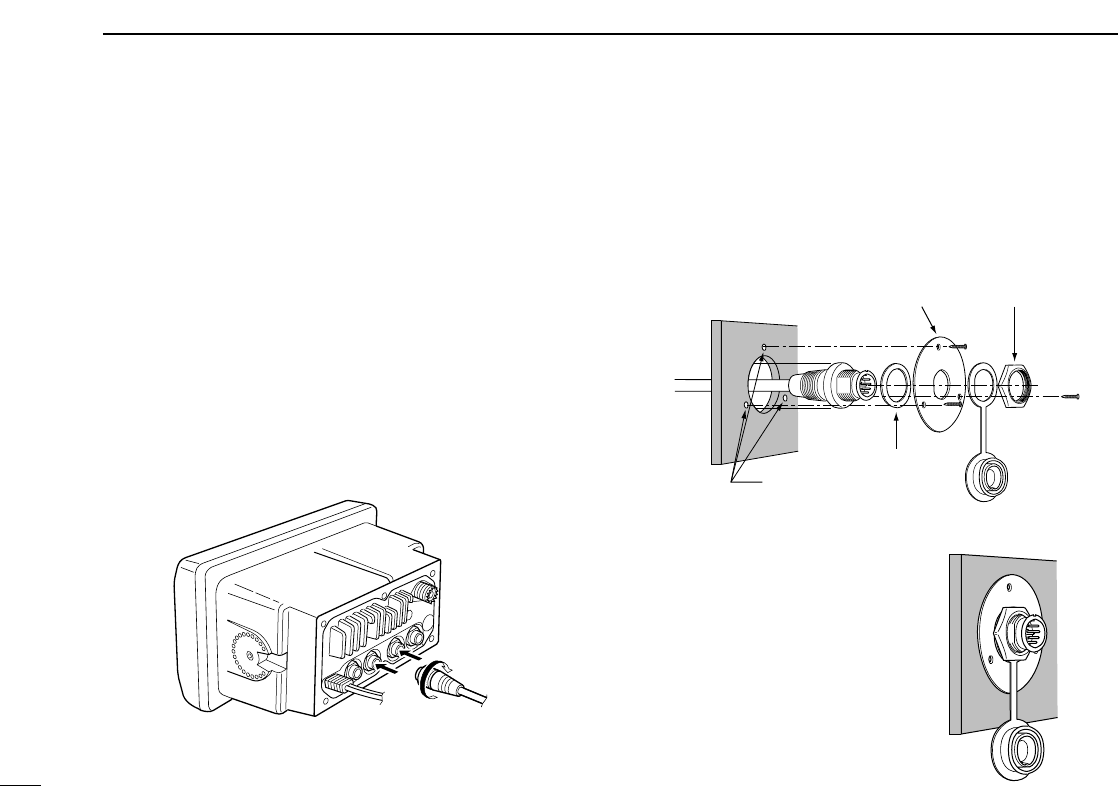

MIC connector
Function
display
q
wertyu oi!0
!1
!2
(Connect to
HM-136 ONLY)
CAUTION: NEVER connect
other microphone, such as the
optional HM-127, may cause
damage the transceiver.
qTRANSMIT POWER SWITCH [H/L]
➥Toggles high or low power when pushed. (p. 10)
• Some channels are set to low power only.
➥While pushing this switch, some switches perform sec-
ondary functions.
wVOLUME CONTROL [VOL] (P. 10)
Adjusts the audio level.
eSQUELCH CONTROL [SQL] (P. 10)
Sets the squelch threshold level.
rCHANNEL SWITCH [CH/WX•U/I/C] (pgs. 8, 9)
➥Selects and toggles the regular channels or weather
channel when pushed momentarily.
➥While pushing [H/L], push to select one of 3 regular
channels in sequence.
•International, U.S.A. and Canadian channels are available for
regular channels.
tCHANNEL SELECTOR [CHANNEL] (p. 10)
Rotate [CHANNEL] to select the operating channels, set
mode contents, etc.
yCHANNEL 16/CALL CHANNEL SWITCH [16•9]
➥Selects channel 16 when pushed. (p. 8)
➥Selects call channel when pushed for 1 sec. (p. 8)
•“CALL” appears when call channel is selected.
➥Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (p. 11)
➥While pushing [H/L], enters memory name programming
condition. (p. 11)
➥While turning power ON, enters set mode when pushed
and held. (p. 42)
uPOWER SWITCH [POWER]
Push to toggle the transceiver power ON or OFF.
iCLEAR SWITCH [CLR]
Push to cancel the entered function.
oDISTRESS SWITCH [DISTRESS] (p. 18)
Transmits distress call when pushed for 5 sec.
!0 FUNCTION SWITCH [F]
After pushing, activates the secondary functions.
•“F” appears when a secondary function can be accessed.
!1 DSC MENU SWITCH [MENU] (P. 16)
➥Toggles the DSC menu ON or OFF when pushed.
PANEL DESCRIPTION
3
2
4
2PANEL DESCRIPTION
!2 KEYPAD ➥Inputs numeral “1” for channel number input,
etc.
➥Inputs “1,” “Q,” “Z,” “q,” “z” or space for chan-
nel comment input.
➥After pushing [F], turns the dualwatch function
ON and OFF. (p. 13)
➥Inputs numeral “2” for channel number input,
etc.
➥Inputs “2,” “A,” “B,” “C” “a,” “b” or “c” for chan-
nel comment input.
➥After pushing [F], turns the tri-watch function
ON and OFF. (p. 13)
➥Inputs numeral “3” for channel number input,
etc.
➥Inputs “3,” “D,” “E,” “F,” “d,” “e” or “f” for chan-
nel comment input.
➥After pushing [F], push this switch and rotate
[CHANNEL] to adjust the brightness of the
LCD and switch backlight.
➥Inputs numeral “4” for channel number input,
etc.
➥Inputs “4,” “G,” “H,” “I,” “g,” “h” or “i” for channel
comment input.
➥After pushing [F], starts and stops the scan
function. (p. 15)
5
2
PANEL DESCRIPTION
➥Inputs numeral “5” for channel number input,
etc.
➥Inputs “5,” “J,” “K,” “L,” “j,” “k” or “l” for channel
comment input.
➥After pushing [F], sets the displayed channel
as a tag (scanned) channel.
➥While pushing [H/L], push for 3 sec. to clear all
tag channels.
➥Inputs numeral “6” for channel number input,
etc.
➥Inputs “6,” “M,” “N,” “O,” “m,” “n” or “o” for chan-
nel comment input.
➥After pushing [F], turns the attenuator function
ON and OFF. (p. 10)
•“LOCAL” appears when the attenuator is in use.
➥Inputs numeral “7” for channel number input,
etc.
➥Inputs “7,” “P,” “R,” “S,” “p,” “r” or “s” for chan-
nel comment input.
➥After pushing [F], turns the hailer function ON
and OFF. (p. 39)
➥Inputs numeral “8” for channel number input,
etc.
➥Inputs “8,” “T,” “U,” “V,” “t,” “u” or “v” for channel
comment input.
➥After pushing [F], turns the auto fog horn func-
tion ON and OFF. (p. 40)
➥Inputs numeral “9” for channel number input,
etc.
➥Inputs “9,” “W,” “X,” “Y,” “w,” “x” or “y” for chan-
nel comment input.
➥After pushing [F], turns the intercom function
ON and OFF. (p. 38)
➥Inputs numeral “0” for channel number input,
etc.
➥Push for 1 sec. to edit “A” channel for channel
number input.
➥Inputs “0” and symbols (-/.,()*+<=
>@) for channel comment input.
➥After pushing [F], activates an optional voice
scrambler function. (p. 12)
•The optional voice scrambler function cannot be
used on channel 16 and 70.
➥Fixes input of channel number and channel
comment, etc.
➥Clears entered digits and retrieves the previ-
ous frequency, channel or channel names dur-
ing setting.

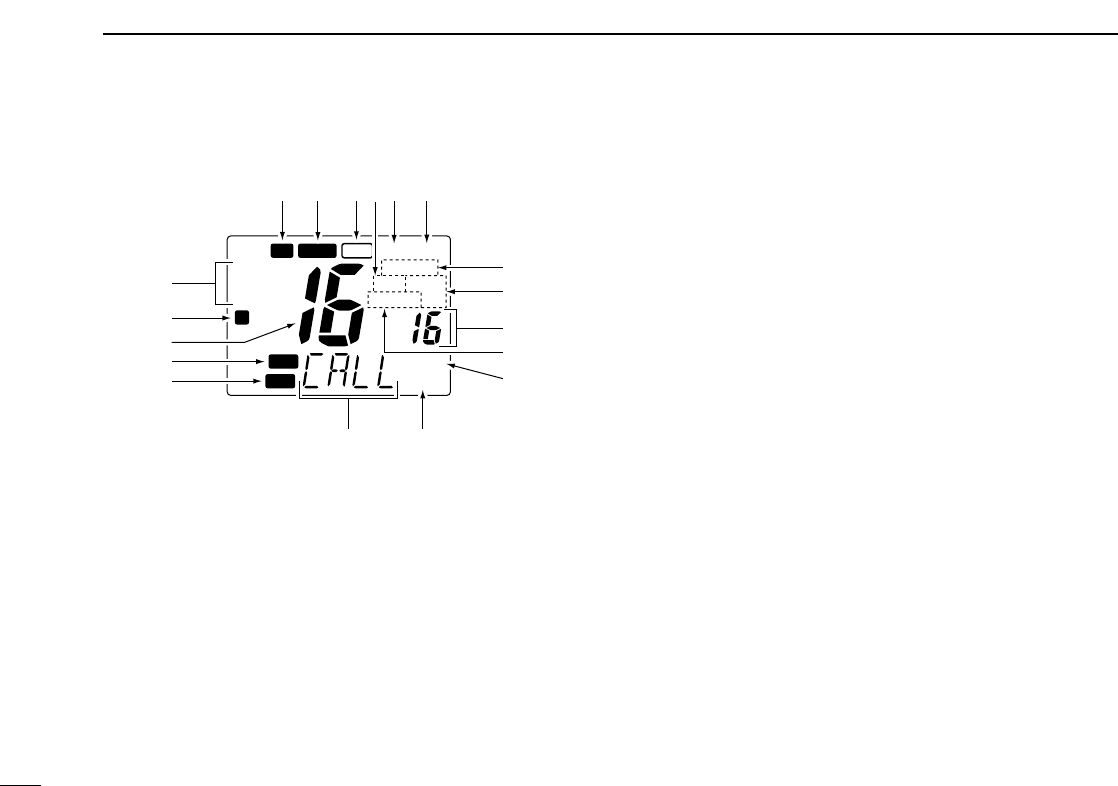

■Function display
qBUSY/TRANSMIT INDICATOR (p. 10)
➥“BUSY” appears when receiving a signal or when the
squelch opens.
➥“TX” appears while transmitting.
wRECEIVER ATTENUATOR INDICATOR (p. 10)
“LOCAL” appears when the receiver attenuator is in use.
eSCRAMBLER INDICATOR (p. 12)
“SCRAM” appears when an optional voice scrambler is ac-
tivated.
rSCAN INDICATOR
➥Either “NORMAL SCAN” or “PRI-SCAN 16” scan
type appears while scanning. (p. 15)
➥“DUAL 16” appears during dualwatch; “TRI 16”
appears during tri-watch. (p. 13)
tPOSITION INDICATOR
➥Shows the GPS position data.
•“??” may blink every 2 sec. instead of position data,
when the GPS position data is invalid. In such a case, the
last position data is held for up to 23.5 hours.
•“??” may blink every 2 sec. instead of position data, 4
hours after the position data is input manually up until
23.5 hours have past.
➥“No Position” appears when no GPS receiver is con-
nected and no position data is input manually.
yTIME ZONE INDICATOR
➥“Local” appears when the offset time data on the ‘Set
up’ menu is entered. (p. 34)
➥“No Time” appears when no GPS receiver is con-
nected and no time data is input manually.
uCHANNEL NAME INDICATOR
➥Channel comment appears if programmed. (p. 11)
➥“Low Batt” flashes when the battery voltage drops to
approx. 10 V DC or below.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.506N
123"23.236W
Local--1:10--CALLING
w
q
e
t
y
r
!2!3 !1 !0 o
i
u
PANEL DESCRIPTION
6
2
7
2
PANEL DESCRIPTION
■Microphone (HM-136)
qPTT SWITCH [PTT] (p. 10)
Push and hold to transmit; release to receive.
wCHANNEL UP/DOWN SWITCHES [YY]/[ZZ](P. 10)
Push either switch to change the operating channel, set
mode contents, etc.
eCHANNEL 16/CALL CHANNEL SWITCH [16/9]
➥Push to select channel 16; push for 1 sec. to channel 9.
(p. 8)
➥
While pushing [16/9], turn power ON to toggle the lock
function ON and OFF. (p. 9)
Speaker
Microphone
w
q
e
16/9
iCHANNEL NUMBER READOUT
➥Indicates the selected operating channel number.
“A” appears when a simplex channel is selected. (p. 9)
“b” appears when a receive only channel for a Canadian
channel group is selected.
➥“F” appears when [F] switch is pushed.
oCALL CHANNEL INDICATOR (p. 8)
“CALL” appears when the call channel is selected.
!0 CHANNEL GROUP INDICATOR (pgs. 8, 9)
Indicates whether an International “INT”, U.S.A. “USA”,
Canadian “CAN” or weather “WX” channel is selected.
!1 DUPLEX INDICATOR (p. 9)
Appears when a duplex channel is selected.
!2 POWER INDICATOR (p. 10)
➥“25W” appears when high power is selected.
➥“1W” appears when low power is selected.
!3 TAG CHANNEL INDICATOR (p. 15)
Appears when a tag channel is selected.
8
3BASIC OPERATION
■Channel selection

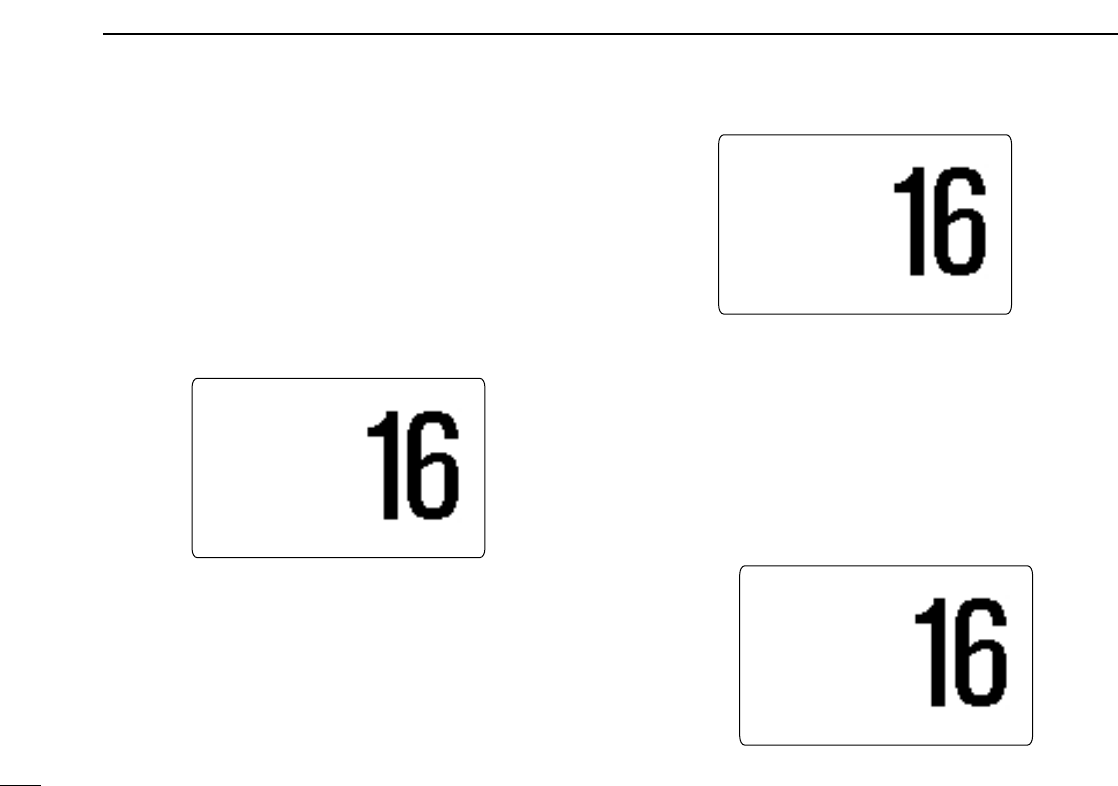

◊Channel 16
Channel 16 is the distress and safety channel. It is used for
establishing initial contact with another station and for emer-
gency communications. Channel 16 is monitored during both
dualwatch and tri-watch. While standing by, you must monitor
channel 16.
➥Push [16•9] momentarily to select channel 16.
➥Push [CH/WX•U/I/C] to return to the condition before se-
lecting channel 16, or rotate [CHANNEL] to select operat-
ing channel.
◊Channel 9 (Call channel)
Each regular channel group has a separate leisure-use call
channel. The call channel is monitored during tri-watch. The
call channels can be programmed (p. 11) and are used to
store your most often used channels in each channel group
for quick recall.
➥Push [16•9] for 1 sec. to select the call channel of the se-
lected channel group.
•“CALL” and call channel number appear.
• Each channel group may have an independent call channel after
changing a call channel.
➥Push [CH/WX•U/I/C] to return to the condition before se-
lecting call channel,or rotate [CHANNEL] to select operat-
ing channel.
Push for
1 sec.
9
16
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10--CALLING
Push
9
16
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10--CALLING
3
BASIC OPERATION
9
◊U.S.A., Canadian and International channels
There are 57 U.S.A., 61 Canadian and 57 International chan-
nels. These channel groups may be specified for the operat-
ing area.
qPush [CH/WX•U/I/C] to select a regular channel.
• If a weather channel appears, push [CH/WX•U/I/C] again.
wWhile pushing [H/L], push [CH/WX•U/I/C] to change the
channel group, if necessary.
•U.S.A., International (INT) and Canadian channels can be se-
lected in sequence.
eRotate the channel selector to select a channel.
•“DUP” appears for duplex channels.
• “A” appears for simplex channels.
◊Weather channels
There are 10 weather channels. Used for monitoring weather
channels from the NOAA (National Oceanographic and At-
mospheric Administration) broadcasts.
The transceiver can detect a weather alert tone on the se-
lected weather channel while receiving the channel, during
standby on a regular channel or while scanning. See
“Weather alert” on p. 43.
qPush [CH/WX•U/I/C] once or twice to select a weather
channel.
•“WX” appears when a weather channel is selected.
• “WX ALERT” appears when the weather alert function is in use.
(p. 43)
wRotate the channel selector to select a channel.
Push once
or twice
When weather alert is OFF. When weather alert is ON.
WXALERT
WX
CH/WX
Push +
U.S.A. channels
H/L CH/WX
Canadian channels
CAN
International channels
INT
DUP
USA

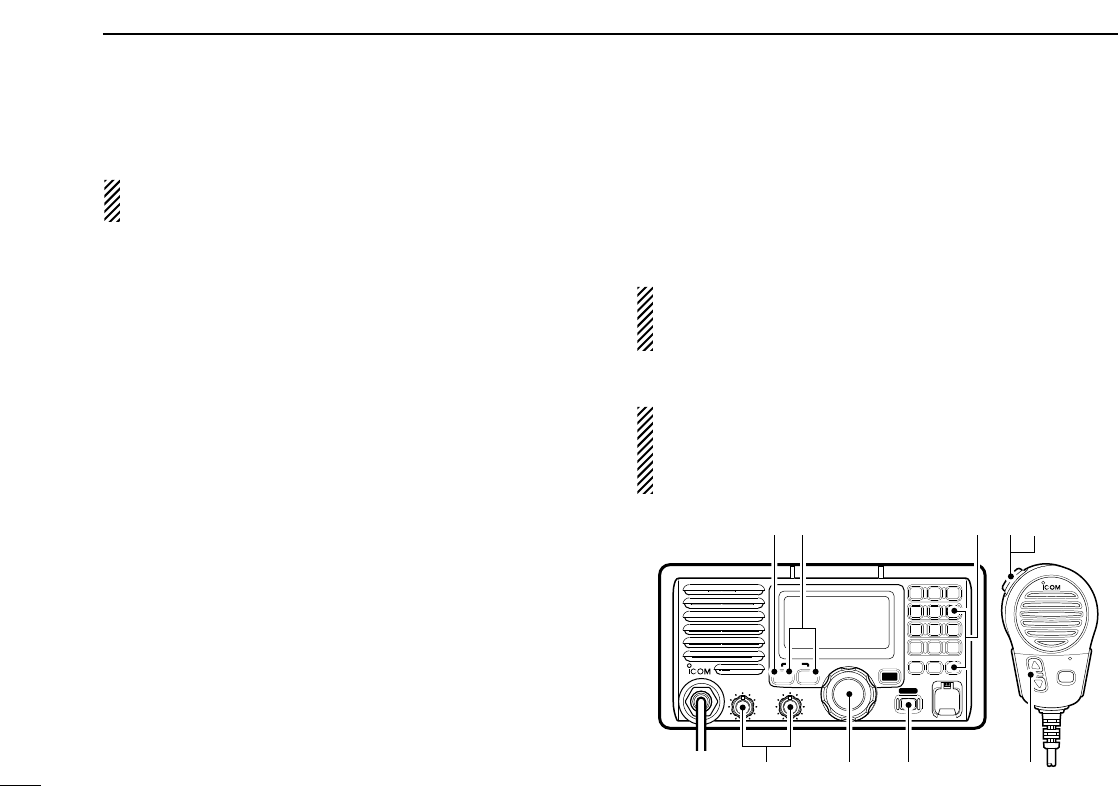

■Receiving and transmitting
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
qPush [POWER] to turn power ON.
wSet the audio and squelch levels.
➥Rotate [SQL] fully counterclockwise in advance.
➥Rotate [VOL] to adjust the audio output level.
➥Rotate [SQL] clockwise until the noise disappears.
eTo change the channel group, push [CH/WX•U/I/C] while
pushing [H/L]. (pgs. 8, 9)
rRotate the channel selector or push [Y]/[Z] on the micro-
phone to select the desired channel.
• When receiving a signal, “BUSY” appears and audio is emitted
from the speaker.
• Further adjustment of [VOL] may be necessary at this point.
• Use the optional voice scrambler function for privacy. (p. 12)
tPush [F], then push [6 LO/DX] to turn the receive attenu-
ator ON or OFF if necessary.
•“LOCAL” appears when the receive attenuator is in use.
yPush [H/L] to select the output power if necessary.
•“25W” or “1W” appears when high or low power is selected, re-
spectively.
•Choose low power to conserve power, choose high power for
longer distance communications.
• Some channels are for low power only.
uPush and hold [PTT] to transmit, then speak into the mi-
crophone.
•“TX” appears.
• Channel 70 cannot be used for transmission.
Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CAN-
NOT be lawfully used by the general public in U.S.A. wa-
ters.
iRelease [PTT] to receive.
IMPORTANT: To maximize the readability of your trans-
mitted signal, pause a few sec. after pushing [PTT], hold
the microphone 1 to 2 inches (2.5 to 5 cm) from your
mouth and speak at a normal voice level.
WATERPROOF
VOL
iM602
VHF MARINE
MIC
U/I/C 9
SQL
16/9
w
et
qrr
yui
3BASIC OPERATION
10
3
BASIC OPERATION
11

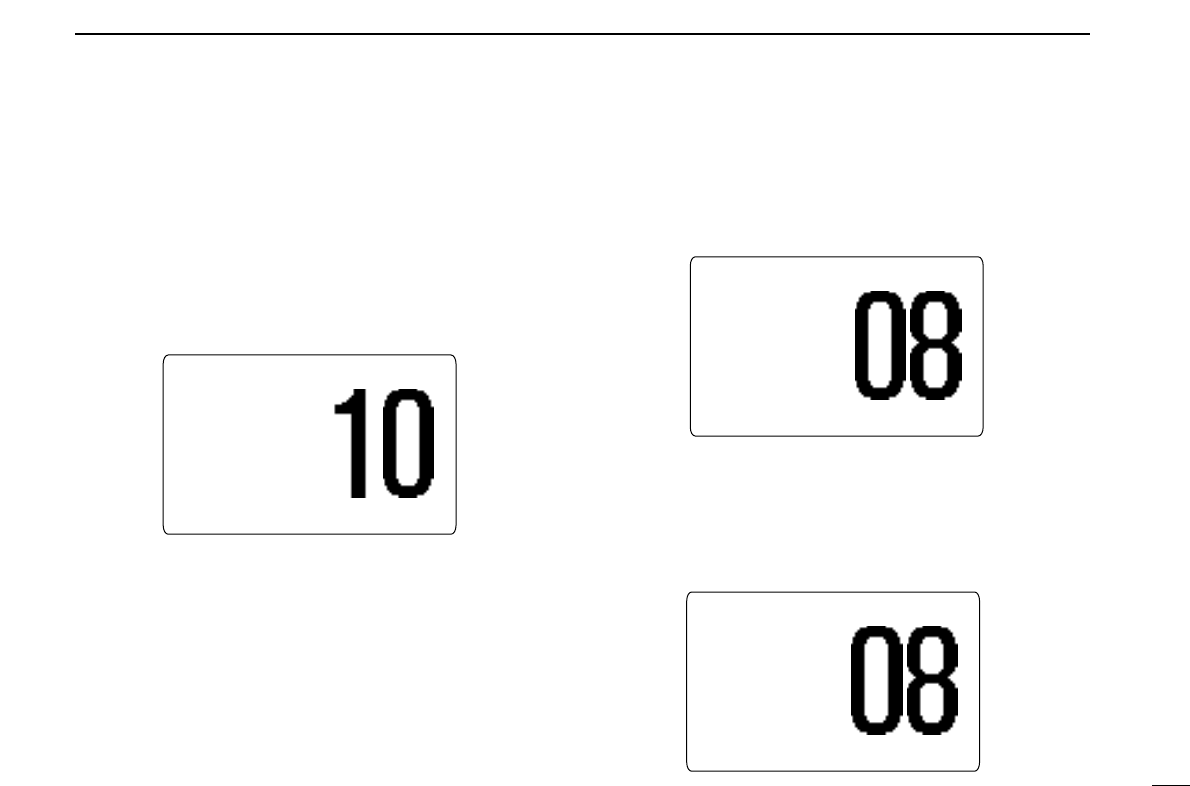

■Call channel programming
The call channel is used to select channel 9, however, you
can program your most often-used channels in each channel
group for quick recall.
qWhile pushing [H/L], push [CH/WX•U/I/C] once or more
times to select the desired channel group (U.S.A., Interna-
tional, Canada) to be programmed.
wPush [16•9] for 1 sec. to select the call channel of the se-
lected channel group.
•“CALL” and call channel number appear.

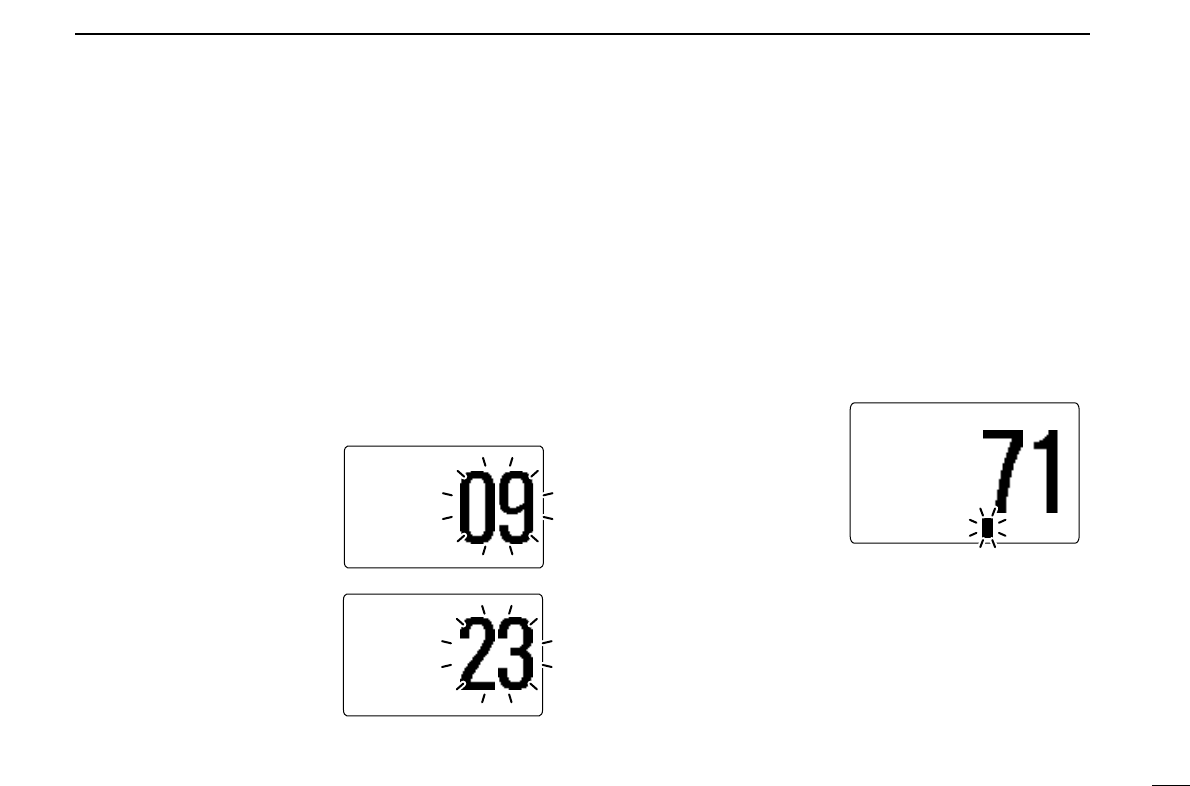

ePush [16•9] again for 3 sec. (until long beep changes to 2
short beeps) to enter call
channel programming con-
dition.
•Channel number starts blink-
ing.
rRotate the [CHANNEL] to
select the desired channel.
tPush [16•9] to program the
displayed channel as the
call channel.
•Push [CH/WX•U/I/C] to can-
cel.
•The channel number stops
blinking.

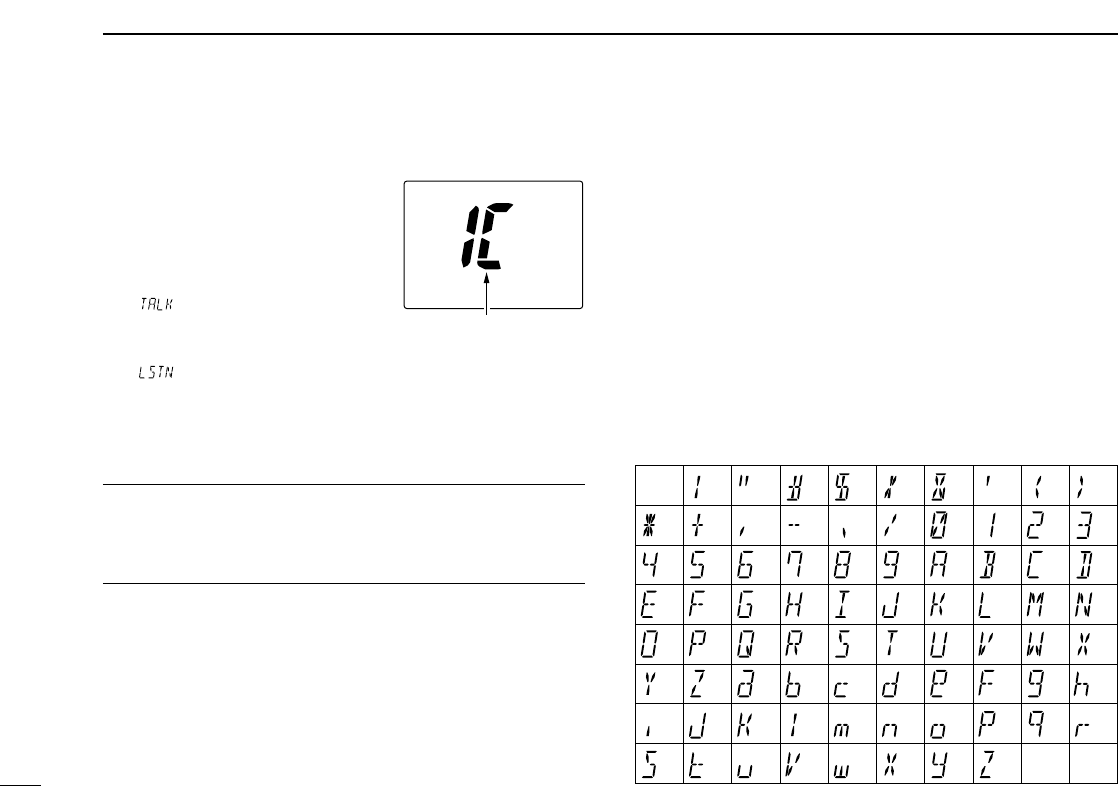

■Channel names
Memory channels can be tagged with alphanumeric names
of up to 10 characters each.
Capital letters, small letters, numerals, some symbols (! "
# $ % & ' ( ) * + ,- ./) and spaces can be used.
qSelect the desired memory channel.
• Cancel dual watch, tri-watch or scan in advance.
wWhile pushing [H/L], push [16•9] to edit memory channel
name.
•A cursor appears and blinks.
ePush keypad several times to enter the desired character.
• Rotate [CHANNEL] or push [Y]/[Z] on the microphone for cursor
movement.
rPush [ENT] to input and set the name.
• Push [CLR] to cancel.
• The cursor disappears.
tRepeat steps qto rto program other memory channel
names, if desired.
BUSYBUSY-25W25W------INTINT------CALLCALL
LOCAL--DUPLOCAL--DUP
SCRAMSCRAM----TAGTAG
NORMAL-SCANNORMAL-SCAN
-34"34.206N34"34.206N
123"23.236W123"23.236W
----UTCUTC-10:1010:10----CALLINGCALLING
BUSYBUSY-25W25W------INTINT------CALLCALL
LOCAL--LOCAL--DUPDUP
SCRAMSCRAM----TAGTAG
NORMAL-SCANNORMAL-SCAN
-34"34.206N34"34.206N
123"23.236W123"23.236W
----UTCUTC-10:1010:10------INTLINTL
BUSY-BUSY-25W25W------INTINT------CALLCALL
LOCAL--LOCAL--DUPDUP
SCRAMSCRAM----TAGTAG
NORMAL-SCANNORMAL-SCAN
-34"34.206N34"34.206N
123"23.236W123"23.236W
----UTCUTC-10:1010:10-PLEASURELEASURE
3BASIC OPERATION
12
■Optional voice scrambler operation
◊Activating the scrambler
The optional voice scrambler provides private communica-
tions. In order to receive or send scrambled transmissions
you must first activate the scrambler function. To activate the
function, an optional UT-112 is necessary. See p. 45 for set-
ting the scrambler unit. Ask your dealer for details.
The scrambler function automatically turns OFF when
channel 16 or 70 is selected.
qSelect an operating channel other than channel 16 and 70.
wPush [F] then [0 SCRM] to toggle an optional scrambler
function ON or OFF.
• “SCRAM” appears.
eTo turn the scrambler function OFF, repeat step w.
• “SCRAM” disappears.

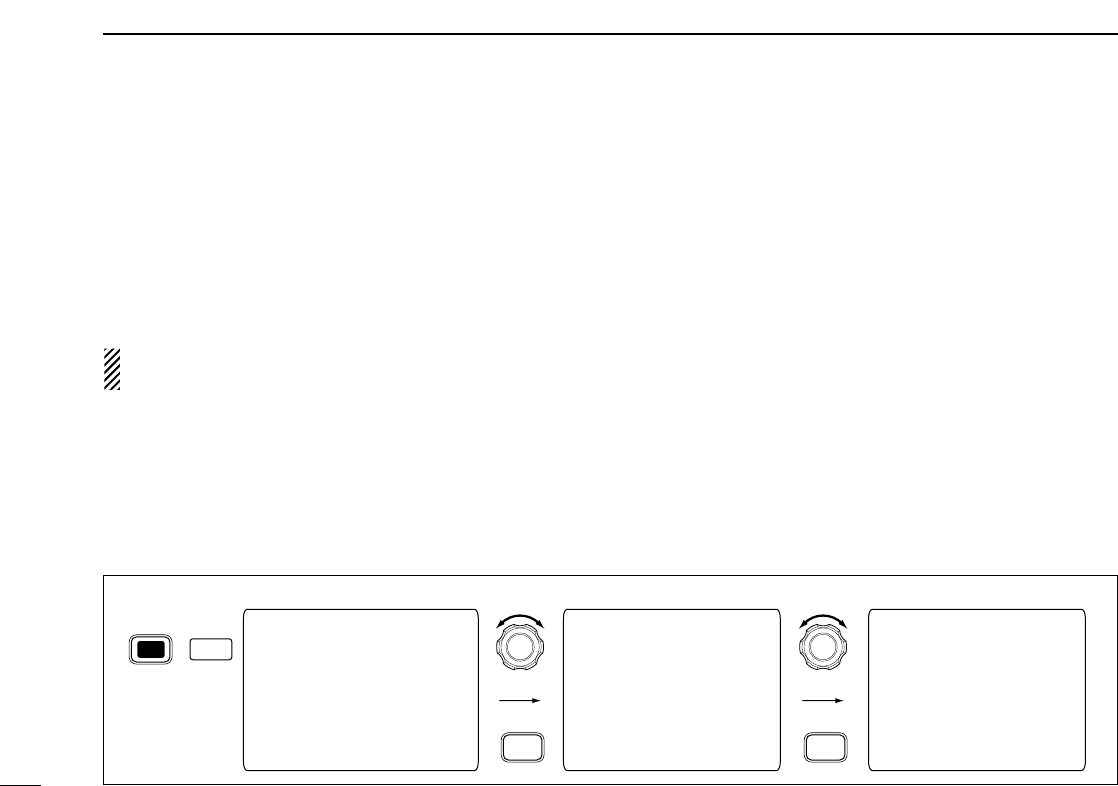

◊Programming scrambler codes
There are 32 codes (1 to 32) available for programming when
the optional UT-112 is installed. In order to understand one
another, all transceivers in your group must have the same
scramble code. This function may not be available depend-
ing on dealer setting.
qTurn power OFF.
wWhile pushing [16•9], turn power ON to enter set mode.
eAfter the display appears, release [16•9].
rRotate [CHANNEL] to select the “Scrambler Code,”
push [ENT].
tRotate [CHANNEL] to select desired scrambler code.
yPush [ENT] to set and exit the scrambler code item.
uRotare [CANNEL] to select “Exit,” then push [ENT] to
exit set mode.
Enter set mode
POWER
+
9
16
ENT ENT
Select item
then push
Select code
then push
Scrambler Code
˘9
˘7
--Set Mode--
˘5
˘6
˘8
˘<ENT˘OK>
˘Scan Type
˘Scan Timer
--Set Mode--
˘Internal Speaker
˘Contrast
˘Beep
˘Dual/Tri COMMANDMIC
˘WX Alert
˘Internal Speaker
˘Contrast
--Set Mode--
˘Scrambler Code
˘Exit
˘Scrambler Type
˘Foghorn Frequency
˘RF Attenuator

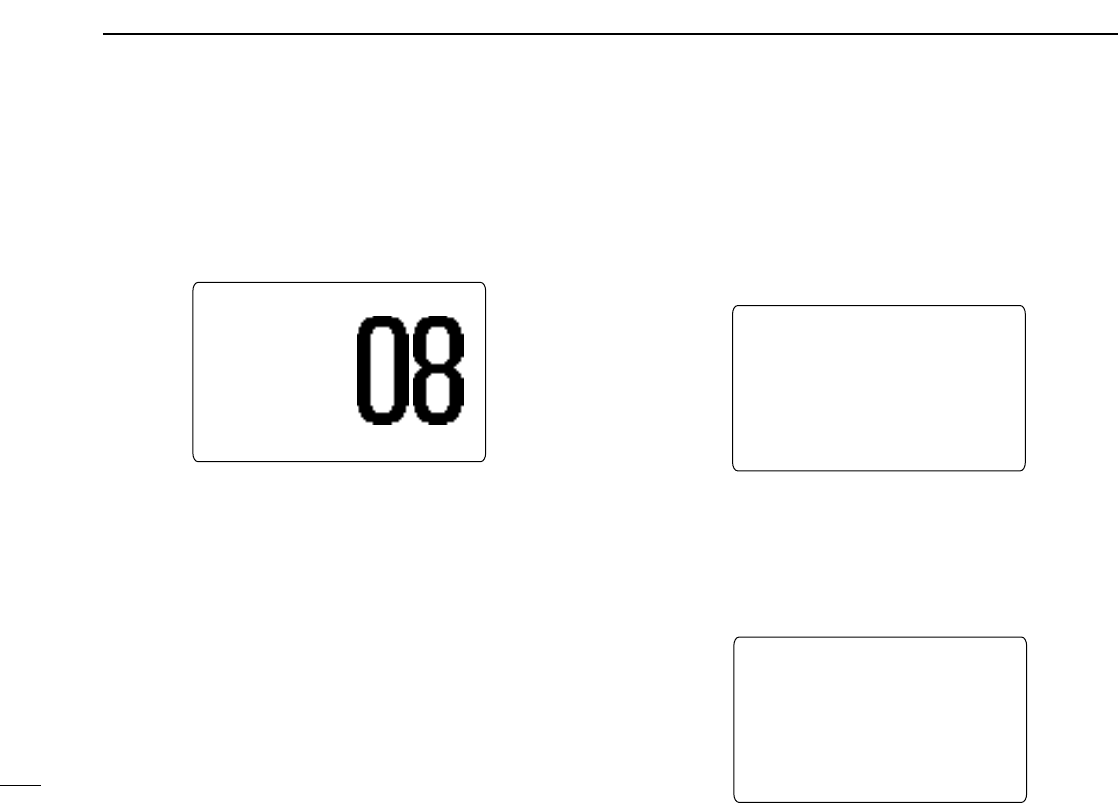

[Example]: Programming scrambler code 8.
■Description
Dualwatch monitors channel 16 while you are receiving an-
other channel; tri-watch monitors channel 16 and the call
channel while receiving another channel.
■Operation
qSelect the desired operating channel.
wPush [F] then [1 DUAL] to start dualwatch or [2 TRI] to
start tri-watch.
•“DUAL” appears during dualwatch; “TRI” appears during tri-
watch.
• Beep tone sounds when a signal is received on channel 16.
eTo cancel dualwatch/tri-watch, push [CLR].
[Example]: Operating tri-watch on INT channel 25.

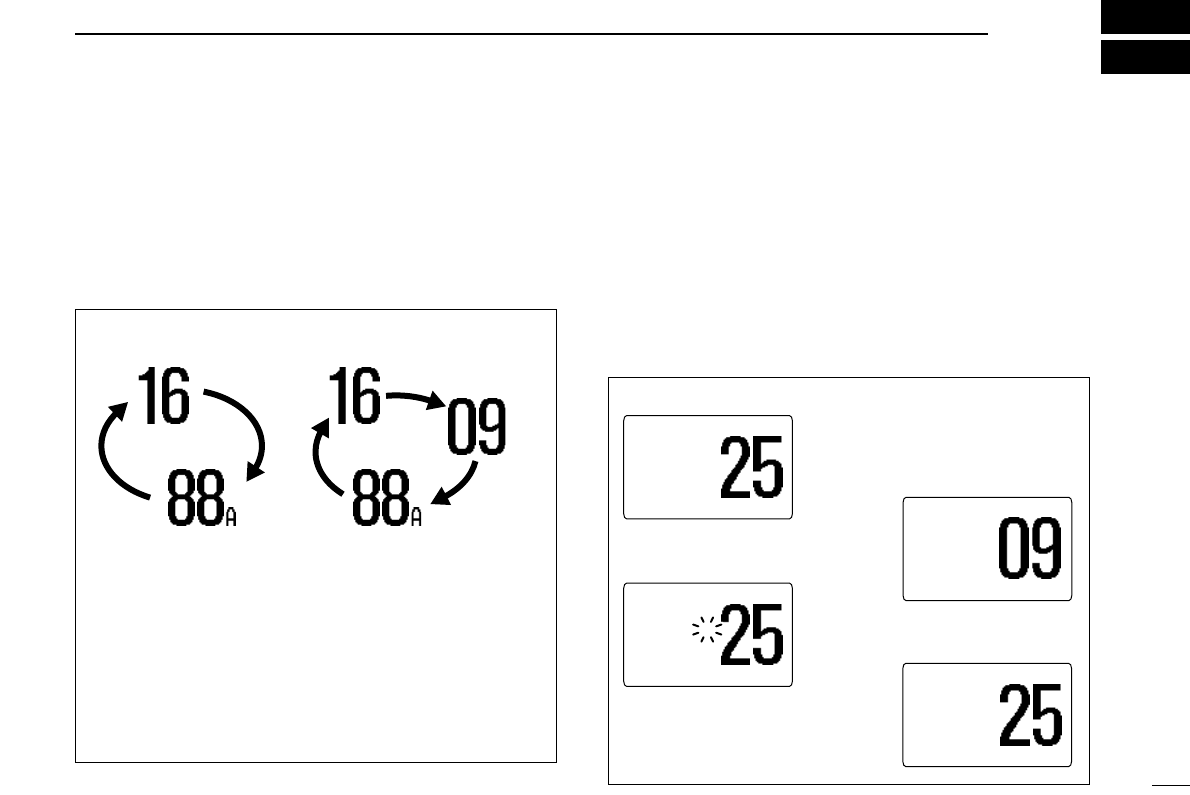

DUALWATCH/TRI-WATCH SIMULATION
•If a signal is received on channel 16, dualwatch/tri-watch pauses
on channel 16 until the signal disappears.
•If a signal is received on the call channel during tri-watch, tri-
watch becomes dualwatch until the signal disappears.
•To transmit on the selected channel during dualwatch/tri-watch,
push and hold [PTT].
Call channel
Dualwatch Tri-watch
DUAL WATCH/TRI-WATCH 4
13
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
TRIMAL-SC16
-34"34.206N
123"23.236W
--UTC-10:10-TELEPHONE
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
TRIMAL-SC16
-34"34.206N
123"23.236W
--UTC-10:10-TELEPHONE
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
TRIMAL-SC16
-34"34.206N
123"23.236W
--UTC-10:10-TELEPHONE
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
TRIMAL-SC16
-34"34.206N
123"23.236W
--UTC-10:10--CALLING
Tri-watch starts.
Signal is received
on call channel.
Signal received on
channel 16 takes
priority.
Tri-watch resumes
after the signal
disappears.
■Scan types
Scanning is an efficient way to locate signals quickly over a
wide frequency range. The transceiver has priority scan and
normal scan.
When the weather alert function is in use, the selected
weather channel is checked while scanning. (p. 43)
Set the tag channels (scanned channel) before scanning.
Clear the tag channels which inconveniently stop scanning,
such as digital communication use.
Choose priority or normal scan in set mode. (p. 43)

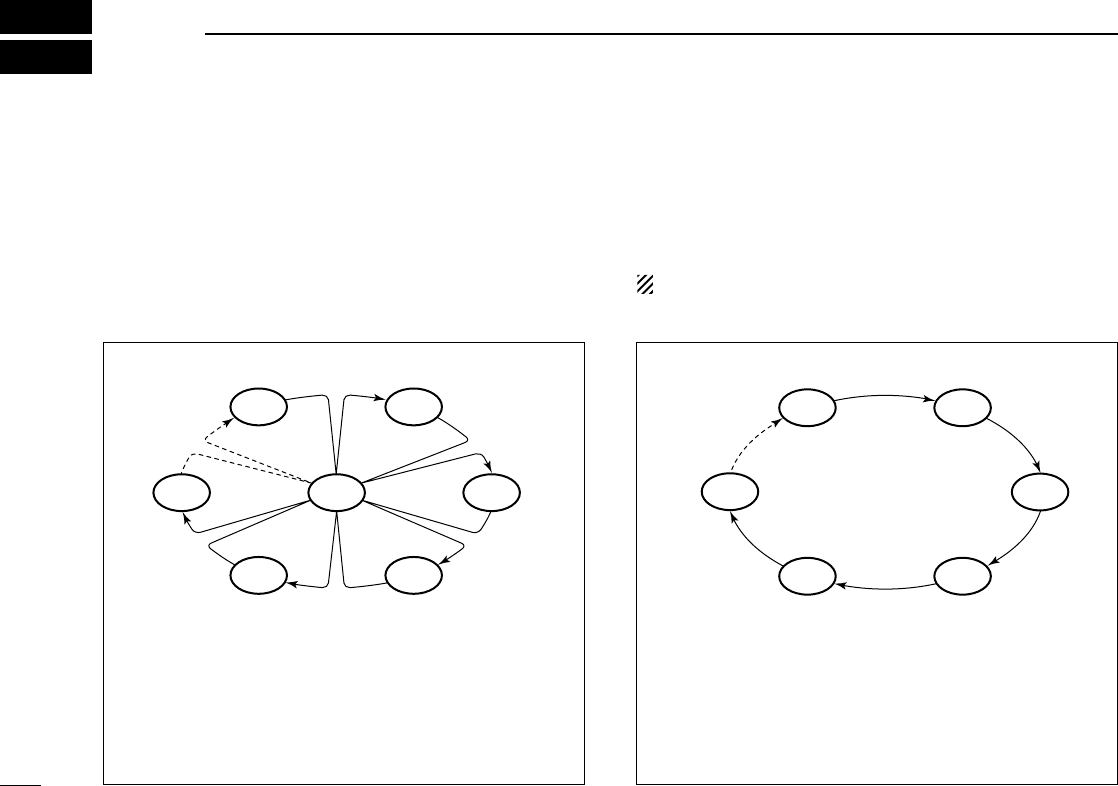

NORMAL SCAN
Normal scan, like priority scan, searches through all tag
channels in sequence. However, unlike priority scan, chan-
nel 16 is not checked unless channel 16 is set as a tag
channel.
CH 01 CH 02
CH 06
CH 05 CH 04
CH 03
5SCAN OPERATIONS
14
PRIORITY SCAN
Priority scan searches through all tag channels in se-
quence while monitoring channel 16. When a signal is de-
tected on channel 16, scan pauses until the signal disap-
pears; when a signal is detected on a channel other than
channel 16, scan becomes dualwatch until the signal dis-
appears.
CH 06
CH 01
CH 16
CH 02
CH 05 CH 04
CH 03
5
SCAN OPERATION
15
Push
SCN
GHI
then
Scan starts. When a signal is received
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
4
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.206N
123"23.236W
--UTC-10:10---INTL-
[Example]: Starting a normal scan.
■Setting tag channels
For more efficient scanning, add desired channels as tag
channels or clear tag channels for unwanted channels. Chan-
nels set as non-tag channels will be skipped during scanning.
Tag channels can be assigned to each channel group
(U.S.A., International, Canada) independently.
qWhile pushing [H/L], push [CH/WX•U/I/C] once or more
times to select the desired channel group, if desired.
wSelect the desired channel to set as a tag channel.
ePush [F] then [5 TAG] to set the displayed channel as a
tag channel.
•“TAG” appears in the function display.
rTo cancel the tag channel setting, repeat e.
•“TAG” disappears.
•Clearing all tag channels in the selected channel group
➥While pushing [H/L], push [5 TAG] for 3 sec. to clear all tag
channels in the channel group.
■Starting a scan
Set scan type (priority or normal scan) and scan resume timer
in advance using set mode. (p. 43)
qSet tag channels as described at left.
wMake sure the squelch is closed to start a scan.
eWhile pushing [H/L], push [CH/WX•U/I/C] once or more
times to select the desired channel group, if desired.
rPush [F] then [4 SCN] to start priority or normal scan.
•“PRI-SCAN 16” or “NORMAL SCAN” appears in the function
display.
•When a signal is detected, scan pauses until the signal disap-
pears or resumes after pausing 5 sec. according to set mode set-
ting. (Channel 16 is still monitored during priority scan.)
• Rotate the [CHANNEL] to check the scanning tag channels, to
change the scanning direction or resume the scan manually.
• “16” blinks and a beep tone sounds when a signal is received on
channel 16 during priority scan.
tTo stop the scan, push [CLR].
16
6DSC OPERATION
■MMSI code programming
The 9-digit MMSI (Maritime Mobile Service Identity: DSC self
ID) code can be programmed at power ON.
This code programming can be performed only twice.
qTurn power OFF.
wWhile pushing [MENU], turn power ON to enter MMSI
code programming condition.
eAfter the display appears, release [MENU].
rPush [MENU] to enter the DSC menu.
tRotate [CHANNEL] to select “Set up,” push [ENT].
y
Rotate [CHANNEL] to select “MMSI check,” push [ENT].
uEdit the specific MMSI code directly with keypad.
• Rotate [CHANNEL] to move the cursor backward or advance.
iInput 9 digit code, then push [ENT] to set the code.
• Return to DSC set up menu.
oRotate [CHANNEL] to select “Exit,” push [ENT].
• Return to DSC menu.
• Repeat again to return the normal operation condition.
■
Position and time programming
A distress call should include the ship’s position and time. If
no GPS is connected, your position and UTC (Universal Time
Coordinated) time should be input. They are included auto-
matically when a GPS receiver (NMEA0183 ver. 2.0) is con-
nected.
This manual programing is not available when a GPS re-
ceiver (NMEA0183 ver. 2.0) is connected.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Position Input,” push
[ENT].
eEdit the digit of your latitude data directly with keypad.
• Push [6•MNO] to edit N; north latitude or [7•PRS] to edit S; south
latitude.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the position data.
Input Position
Latitude
Longitude
--DSC Menu--
<CE˘Null Data>
___°__.___W˘˘˘˘˘˘˘˘Null
˘_°__.___N˘˘˘˘˘˘˘˘Null
<CLR˘Exit / ENT˘OK>
MMSI Check
˘
ä________
________
--DSC Menu--
<CLR˘Exit / ENT˘OK>
17
6
DSC OPERATION
rEdit the digit of your longitude data directly with keypad.
• Push [3•DEF] to edit E; east longitude or [9•WXY] to edit W; west
longitude.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the position data.
5t Push [ENT] to set the position and advance to time setting
condition.
• Push [CLR] to abandon the setting and exit the condition.
yEdit the digit of current UTC time directly with keypad.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the time.
uPush [ENT] to set the time.
• Push [CLR] to abandon the setting and exit the condition.
■Position indication
When a GPS receiver (NMEA0183 ver. 2.0) is connected, the
transceiver displays the current position and time. When no
GPS receiver is connected, the transceiver displays the man-
ually entered position and time.
A GPS receiver appropriate for the IC-M602 is not supplied
from Icom. An NMEA0183 ver. 2.0 is required for position in-
dication. Ask your dealer about the GPS receiver.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
-34"34.506N
123"23.236W
--UTC-19:10--CALLING
Input UTC time
˘__:__˘˘˘˘˘˘˘˘˘˘˘˘Null
--DSC Menu--
<CE˘Null Data>
<CLR˘Exit / ENT˘OK>
18
6DSC OPERATION
■Distress call
A distress call should be transmitted, if in the opinion of the
Master, the ship or a person is in distress and requires imme-
diate assistance.
NEVER USE THE DISTRESS CALL WHEN
YOUR SHIP IS NOT IN AN EMERGENCY. A
DISTRESS CALL CAN BE USED ONLY WHEN
IMMEDIATE HELP IS NEEDED.
qConfirm any distress call is not being received.
wWhile lifting up the switch cover, push the [DISTRESS] for
5 sec. to transmit the distress call.
• An emergency channel (Ch 70) is automatically selected and the
distress call is transmitted.
• When no GPS is connected, input your position and UTC time, if
possible.
eAfter transmitting the call, the transceiver waits for an ac-
knowledgment call on Ch70.
•The distress call is automatically transmitted every 3.5 to 4.5
minutes.
rAfter 5 sec. the every ditress call, the transceiver is set to
the phone frequency (ch 16) automatically.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
Wait ACK
-34"34.506N
<CLR˘
Cancel ACK---CALLING
Distress Call
TX Compleate
Now Wating for ACK
<CLR˘Cancel ACK>
Distress Call
Push for 5 sec.
19
6
DSC OPERATION
tWhen receiving the acknowledgment, reply to the con-
nected station via the microphone.
➥Distress alert contains (default);
• Kinds of distress : Undesignated distress
• Position data : GPS or manual input position data held for
23.5 hrs.
➥The distress call is repeated every 3.5–4.5 min., until re-
ceiving an ‘acknowledgement.’
➥Push [DISTRESS] to transmit a renewed distress call, if
desired.
➥Push [CLR] to cancel the ‘Call repeat’ mode.
➥“??” may blink instead of position and time indications,
when the GPS data is invalid, or 4 hours after the time
data is input manually.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
DistressACK
<Osaka Bay
>Chuck3
-<CLR˘Exit>--CALLING
20
6DSC OPERATION
■Transmitting DSC calls
◊Transmitting individual call
The individual call function allows you to transmit a DSC sig-
nal to a specific ship only.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Individual Call,”
push [ENT].
eRotate [CHANNEL] to select the desired pre-programmed
individual address or “Manual Input,” push [ENT].
• The ID code for the individual call can be set in advance. (p. 29)
• When “Manual Input” is selected, set the 9-digit ID code for
the individual you wish to call with keypad.
rRotate [CHANNEL] to select a desired intership channel
or “Manual Input,” push [ENT].
• When “Manual Input” is selected, rotate [CHANNEL] to se-
lect desired channel other than channel 70.
Select Intership CH
<CLR˘Exit / ENT˘OK>
˘08
˘77
--DSC Menu--
˘
˘06
˘69
Select Address
<CLR˘Exit / ENT˘OK>
˘Manual Input
˘Margurite
--DSC Menu--
˘Ricky
˘John
Select item
˘Received Calls
˘Individual Call
˘All Ships Call
--DSC Menu--
˘Polling Request
˘Position Request
˘Group Call
21
6
DSC OPERATION
tPush [ENT] to transmit the individual call.
• If channel 70 is busy, the transceiver is standby until the channel
becomes clear.
yStandby on channel 70 until an acknowledgement is re-
ceived.
uWhen the acknowledgement is received, the display
changes to the previously selected channel with beeps.
iPush and hold [PTT] to communicate your message to the
responding ship.
◊Transmitting individual acknowledgement
Transmit an acknowledgement (‘able to comply’ or ‘unable to
comply’) when an individual call for you is received.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Individual ACK,” push
[ENT].
•“Individual ACK” item appears after an individual call is
received.
eRotate [CHANNEL] to select the desired individual address
or ID code, push [ENT].
Select Address
<CLR˘Exit / ENT˘OK>
˘Manual Input
˘Margurite
--DSC Menu--
˘Ricky
˘John
Select item
˘Polling Request
˘Individual Call
˘Group Call
--DSC Menu--
˘Position Request
˘All Ships Call
˘Individual ACK
Individual Call
<CLR˘Exit>
TX Complete
Now Waiting for ACK
--DSC Menu--
˘
˘Ricky
˘Icom
Individual Call Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Individual Call
CH70 BUSY
<CLR˘Exit>
--DSC Menu--
Push [ENT] to transmit DSC call. When Ch70 is busy.
22
6DSC OPERATION
rRotate [CHANNEL] to select an acknowledgement “Able
to Comply” or “Unable to Comply,” push [ENT].
tIf you select “Unable to Comply,” select the reason
by rotating [CHANNEL], push [ENT].
• ‘No reason given,’ ‘Congestion,’ ‘Busy,’ ‘Queue indication,’ ‘Sta-
tion Barred,’ ‘No operator,’ ‘Operator Unavailable,’ ‘Equipment
Disable,’ ‘Channel Unable’ and ‘Mode Unable’ are available.
yPush [ENT] to transmit the acknowledgement to the se-
lected station.
uAfter the individual acknowledgement has been transmit-
ted, the following indication is displayed.
iThen the display change to the channel specified by the
calling station automatically.
Individual ACK
TX Complete
--DSC Menu--
Individual ACK Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Select Reason
˘No Reason Given
˘Busy
--DSC Menu--
˘
˘Queue Indication
˘Station Barred
˘Channel Unable
˘No Operator
˘Operator Unavailable
˘Equipment Disable
<CLR˘Exit / ENT˘OK>
˘Mode Unable
˘Equipment Disable
˘Congestion
Select Action
<CLR˘Exit / ENT˘OK>
˘Able to Comply
˘77
--DSC Menu--
˘
˘06
˘Unable to Comply
23
6
DSC OPERATION
◊Transmitting group call
The Group call function allows you to transmit a DSC signal
to a specific group only.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Group Call,” push
[ENT].
eRotate [CHANNEL] to select the desired pre-programmed
group address or “Manual Input,” push [ENT].
• The ID code for the group call can be set in advance. (p. 31)
• When “Manual Input” is selected, set the 8-digit ID code for
the group you wish to call with keypad.
rRotate [CHANNEL] to select a desired intership channel
or “Manual Input,” push [ENT].
• When “Manual Input” is selected, rotate [CHANNEL] to se-
lect desired channel other than channel 70.
tPush [ENT] to transmit the group call.
• If channel 70 is busy, the transceiver stands by until the channel
becomes clear.
yAfter the group call has been transmitted, the following in-
dication is displayed.
uPush [CLR] to exit the condition.
Group Call
TX Complete
<CLR˘Exit>
--DSC Menu--
Group Call ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Select Address
<CLR˘Exit / ENT˘OK>
˘Manual Input
˘Osaka
--DSC Menu--
˘
˘Tokyo
˘I-com
Select item
˘Received Calls
˘Individual Call
˘All Ships Call
--DSC Menu--
˘Polling Request
˘Position Request
˘Group Call
24
6DSC OPERATION
◊Transmitting all ships call
Large ships use channel 70 as their ‘listening channel.’ When
you want to announce a message to these ships, use the ‘all
ships call’ function.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “All Ships Call,” push
[ENT].
eRotate [CHANNEL] to select the desired category, push
[ENT].
• Output power of ‘Routine’ category is 1 W (low power) only.
rPush [ENT] to transmit the all ships call.
• Channel 70 is selected and the all ships call is transmitted.
tAfter the all ships call has been transmitted, the following
indication is displayed.
yPush [CLR] to exit the condition.
All Ships Call
TX Complete
<CLR˘Exit>
--DSC Menu--
All Ships Call Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Select Category
˘Received Calls
˘Routine
˘Urgency
--DSC Menu--
˘Polling Request
˘Position Request
˘Safety
Select item
˘Received Calls
˘Individual Call
˘All Ships Call
--DSC Menu--
˘Polling Request
˘Position Request
˘Group Call
25
6
DSC OPERATION
◊Transmitting position request call
Transmit a position request call when you want to know spe-
cific ship’s current position, etc.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Position Request,”
push [ENT].
eRotate [CHANNEL] to select the desired pre-programmed
individual address or “Manual Input,” push [ENT].
• The ID code for the individual call can be set in advance. (p. 29)
• When “Manual Input” is selected, set the 9-digit ID code for
the individual you wish to call with keypad.
rPush [ENT] to transmit the position request call.
tAfter the position request call has been transmitted, the fol-
lowing indication is displayed.
yPush [CLR] to exit the condition.
•Even [CLR] hasn’t been pushed, the display automatically re-
turns to the original indication after 5 sec. inactivity.
Position Request
TX Complete
--DSC Menu--
˘<CLR˘Exit>
Now Waiting for ACK
Position Request Ready
<CLR˘Exit / ENT˘OK>
--DSC Menu--
Select Address
<CLR˘Exit / ENT˘OK>
˘Manual Input
˘Margurite
--DSC Menu--
˘Ricky
˘John
Select item
˘Received Calls
˘Individual Call
˘All Ships Call
--DSC Menu--
˘Polling Request
˘Position Request
˘Group Call
26
6DSC OPERATION
◊Transmitting position reply call
Transmit a position reply call when a position request call is
received.
qWhen a position request call is received, the following in-
dication is displayed.
wPush [ENT] to reply the position request call; push [CLR] to
ignore the position request call.
◊Transmitting polling request call
Transmit a polling request call when you want to know spe-
cific ship is in communicable area, etc.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Polling Request,”
push [ENT].
eRotate [CHANNEL] to select the desired pre-pro-
grammed individual address or “Manual Input,”
push [ENT].
• The ID code for the individual call can be set in advance. (p. 29)
• When “Manual Input” is selected, set the 9-digit ID code for
the individual you wish to call with keypad.
Select Address
<CLR˘Exit / ENT˘OK>
˘Manual Input
˘Margurite
--DSC Menu--
˘Ricky
˘John
Select item
˘Received Calls
˘Individual Call
˘All Ships Call
--DSC Menu--
˘Polling Request
˘Position Request
˘Group Call
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POS REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
27
6
DSC OPERATION
rPush [ENT] to transmit the polling request call.
tAfter the polling request call has been transmitted, the fol-
lowing indication is displayed
yPush [CLR] to exit the condition.
•Even [CLR] hasn’t been pushed, the display automatically re-
turns to the original indication after 5 sec. inactivity.
◊Transmitting polling reply call
Transmit a polling reply call when a polling request call is re-
ceived.
qWhen a polling request call is received, the following indi-
cation is displayed.
wPush [ENT] to reply the polling request call; push [CLR] to
ignore the polling request call.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POLL REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
˘
Polling Request
TX Complete
--DSC Menu--
<CLR˘Exit>
Now Waiting for ACK
Poslling Request Ready
˘<CLR˘Exit / ENT˘OK>
--DSC Menu--
28
6DSC OPERATION
■
Setting the distress information
The nature of the distress call should be included in the dis-
tress call.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Distress Setting,”
push [ENT].
eRotate [CHANNEL] to select the nature of the distress,
push [ENT].
•‘Undesigned,’ ‘Explosion,’ ‘Flooding,’ ‘Collision,’ ‘Grounding,’
‘Capsizing,’ ‘Sinking,’ ‘Adrift (Disable adrift),’ ‘Abandoning (Aban-
doning ship),’ ‘Piracy (Piracy attack),’ ‘MOB (Man overboard)’ and
‘EPIRB (EPIRB emission)’ are available.
rThe position information appears. Set the current position,
then push [ENT].
• Edit the digit of your position data directly with keypad.
• Push [6•MNO] to edit N; north latitude or [7•PRS] to edit S; south
latitude.
• Push [3•DEF] to edit E; east longitude or [9•WXY] to edit W; west
longitude.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the position data.
Select Nature
˘Undesignated
˘Flooding
--DSC Menu--
˘
˘Collision
˘Grounding
˘Abandoning
˘Capsizing
˘Sinking
˘Adrift
<CLR˘Exit / ENT˘OK>
˘Piracy
˘EPIRB
˘MOB
˘-----
˘Explosion
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
29
6
DSC OPERATION
tThe time information appears. Set the current UTC time,
push [ENT].
• Edit the digit of current UTC time directly with keypad.
• Push [CLR] to abandon the setting and exit the condition.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the time.
yPush [ENT] to set the time.
• Push [CLR] to abandon the setting and exit the condition.
• The selected nature of the distress is stored for 10 minutes.
uPush [DISTRESS] for 5 sec. to transmit the distress call.
■DSC individual ID
A total of 100 DSC address IDs can be programmed and
named with up to 10 characters.
◊Programming address ID
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate the channel selector to select “Add: INDV ID,”
push [ENT].
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
Input UTC time
˘__:__˘˘˘˘˘˘˘˘˘˘˘˘Null
--DSC Menu--
<CE˘Null Data>
<CLR˘Exit / ENT˘OK>
Input Position
Latitude
Longitude
--DSC Menu--
<CE˘Null Data>
___°__.___W˘˘˘˘˘˘˘˘Null
˘_°__.___N˘˘˘˘˘˘˘˘Null
<CLR˘Exit / ENT˘OK>
30
6DSC OPERATION
rSet the individual ID and ID name.
• Edit the 9-digits of distress ID directly with keypad.
• Push keypad several times to edit the character.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the ID and name.
• Push [CLR] to cancel and exit the condition.
tPush [ENT] to program and exit the condition.
◊Deleting address ID
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate [CHANNEL] to select “DEL: INDV ID,” push
[ENT].
•When no address ID is programmed, the transceiver exits the
condition automatically.
rRotate [CHANNEL] to select the desired ID name for delet-
ing.
tPush [ENT] to delete the address ID and exit the condition.
Select ID
<CLR˘Exit / ENT˘OK>
˘Turtle
˘Margurite
--DSC Menu--
˘
˘Ricky
˘John
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Add:Individual ID
Input 9 digits
Input name
--DSC Menu--
˘
_________
_________
˘
ä________
________
31
6
DSC OPERATION
◊Programming group ID
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate the channel selector to select “Add: Group
ID,” push [ENT].
rSet the group ID and ID name.
• Edit the 8-digits of group ID directly with keypad.
• Push keypad several times to edit the character.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the ID and name.
• Push [CLR] to cancel and exit the condition.
tPush [ENT] to program and exit the condition.
◊Deleting group ID
qPush [MENU] to select the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate [CHANNEL] to select ‘DEL: Group ID,’ push [ENT].
• When no group ID is programmed, the transceiver exits the con-
dition automatically.
rRotate [CHANNEL] to select the desired ID name for delet-
ing.
tPush [ENT] to delete the group ID and exit the condition.
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Add:Individual ID
Input 8 digits
Input name
--DSC Menu--
˘
_________
_________
˘0
ä_______
_______
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
32
6DSC OPERATION
■Receiving DSC calls
◊Receiving a distress call
While monitoring channel 70 and a distress call is received:
➥Emergency alarm sounds for 2 minutes.
• Push any switch to stop the alarm.
➥“Received Distress” appears in the display; then
channel 16 is automatically selected.
➥Continue monitoring channel 16 as a coast station may re-
quire assistance.
◊Receiving a distress acknowledgement
While monitoring channel 70 and a distress acknowledge-
ment to other ship is received:
➥Emergency alarm sounds for 2 minutes.
• Push any switch to stop the alarm.
➥“Received Distress ACK” appears in the display;
then channel 16 is automatically selected.
◊Receiving an all ships call
While monitoring channel 70 and an all ships call is received:
➥Emergency alarm sounds when the category is ‘Distress’
or ‘Urgency’; 3 beeps sound for other categories.
➥“Received All ships” appears in the display; then
channel 16 is automatically selected for voice communica-
tion.
➥Monitor the selected channel for an announcement from
the calling vessel.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
All Ships
<Chuck3
><CLR˘Exit>
-<CLR˘OK> --CALLING
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
DistressACK
<Osaka Bay
>Chuck3
-<CLR˘Exit>--CALLING
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
Distress
<Chuck3
-<CLR˘Exit>--CALLING
33
6
DSC OPERATION
◊Receiving an individual call
While monitoring channel 70 and an individual call is re-
ceived:
➥Emergency alarm or beeps sound depending on the re-
ceived category.
➥“Received Individual” appears in the display.
➥Push [ENT] to change to the channel specified by the call-
ing station for voice communication; push [CLR] to ignore
the individual call.
◊Receiving a position request call
While monitoring channel 70 and a position request call is re-
ceived:
➥“Received POS REQ” appears in the display.
➥Push [ENT] to reply to the call.
◊Receiving a polling request call
While monitoring channel 70 and a polling request call is re-
ceived:
➥“Received POLL REQ” appears in the display.
➥Push [ENT] to reply to the call.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POLL REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
POS REQ
<Chuck3
<CLR˘Exit>
<ENT˘Reply>COMMERCIAL
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
Individual
<Chuck3
<CLR˘Exit>
<ENT˘OK> COMMERCIAL
34
6DSC OPERATION
■DSC set mode
◊Offset time
This item sets the offset time from the UTC (Universal Time
Coordinated) time.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate [CHANNEL] to select “Offset time,” push
[ENT].
rSet the offset time from the UTC (Universal Time Coordi-
nated) time.
• Edit the digit of offset time directly with keypad
• Push [0•–/.] to edit or delete “-”, when the cursor is on the first
digit.
• Rotate [CHANNEL] to move the cursor backward or advance.
• Push [CE] to clear the time data.
• Push [CLR] to cancel and exit the condition.
tPush [ENT] to program and to exit the condition.
Input Offset Time
--DSC Menu--
No offset time (default) –12 hours
_0:__
Input Offset Time
--DSC Menu--
-12:00
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
35
6
DSC OPERATION
◊MMSI code check
The programmed 9-digit MMSI (DSC self ID) code can be
checked in DSC set mode.
qPush [MENU] to enter the DSC menu.
wRotate [CHANNEL] to select “Set up,” push [ENT].
eRotate [CHANNEL] to select “MMSI check,” push
[ENT].
rCheck the 9-digit MMSI (DSC self ID) code.
tPush [CLR] or [ENT] to exit the condition.
MMSI Check
˘123456789
--DSC Menu--
<CLR˘Exit>
Set up
˘MMSI Check
˘Add:INDV ID
˘DEL:INDV ID
--DSC Menu--
˘Offset time
˘DEL:Group ID
˘Add:Group ID
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
36
6DSC OPERATION
■Receive messages
The transceiver automatically stores up to 20 distress mes-
sages and 20 other messages. The messages can be used
as an assistance to the logbook.
qPush [MENU] to select the DSC menu.
wRotate [CHANNEL] to select “Received calls,” push
[ENT].
◊Distress message
qRotate [CHANNEL] to select “Distress,” push [ENT].
wRotate [CHANNEL] to scroll the desired message, push
[ENT].
•When some messages are blinking, the messages have not
been read yet.
eRotate [CHANNEL] to scroll the message.
rPush [CLR] to exit the condition or push [CE] to clear the
displayed message.
Distress
<Chuck3
LAT: 23"45.234N
--DSC Menu--
LON:123"45.456W
MOB
<CLR˘Exit / CE˘Del>
Distress
--DSC Menu--
UTC: 8:00
LAT: 23"45.234N
LON:123"45.456W
MOB
<CLR˘Exit / CE˘Del>
--DSC Menu--
<CLR˘Exit / ENT˘OK>
Select Item
˘16:00 Ricky
˘14:56 Chuck3
˘12:34 Smith
--DSC Menu--
<CLR˘Exit / ENT˘OK>
Select Message
˘Distress
˘Other
Select item
˘Exit
˘Position Request
˘Received Calls
--DSC Menu--
˘Set up
˘Distress Setting
˘Polling Request
37
6
DSC OPERATION
◊Other message
qRotate [CHANNEL] to select “Other,” push [ENT].
wRotate [CHANNEL] to scroll the desired message, push
[ENT].
•When some messages are blinking, the messages have not
been read yet.
eRotate [CHANNEL] to scroll the message.
• The stored message has several information and depends on the
distress call types.
rPush [CLR] to exit the condition or push [CE] to clear the
displayed message.
Group Call
<Chuck3
>OSAKA-1
--DSC Menu--
F3E simplex
Routine
<CLR˘Exit / CE˘Del>
Group Call
--DSC Menu--
CH10
>OSAKA-1
F3E simplex
Routine
<CLR˘Exit / CE˘Del>
--DSC Menu--
<CLR˘Exit / ENT˘OK>
Select Message
˘Position Request
˘Individual Call
˘Group Call
˘Individual Call
--DSC Menu--
<CLR˘Exit / ENT˘OK>
Select Message
˘Distress
˘Other
38
7OTHER FUNCTIONS

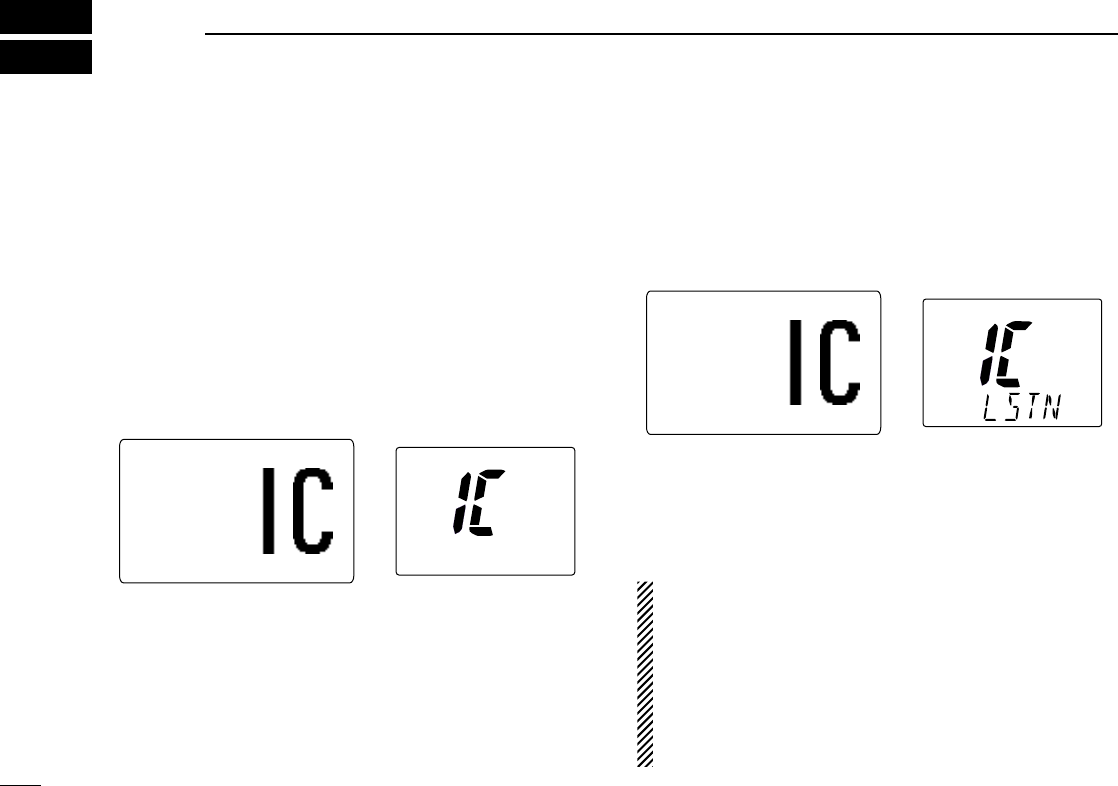

■Intercom operation
The optional intercom function allows you to talk to the deck
from the cabin. The optional HM-127 REMOTE-CONTROL MI-
CROPHONE is required for intercom operation.
Connect an optional HM-127 as described on p. 60.
• Transmitting is impossible during intercom operation.
• The received signal is muted during intercom operation.
qPush [F], then push [9 IC] to enter intercom mode.
• The HM-127 power is automatically turned ON, even if the power
is OFF.
wPush and hold [9 IC] again to call up.
• The transceiver and microphone emit call beeps.
ePush and hold [PTT] and speak at a normal voice level into
the microphone.
• “TALK” or “LISTEN” appears on the caller or listener function dis-
play, respectively.
• To adjust the IC-M602’s speaker output level, rotate [VOL].
• To adjust the HM-127’s speaker output level, push [Y]/[Z] after
pushing [VOL].
rAfter releasing the PTT switch you can hear the response
through the speaker.
t
To return to normal operation, push [CLR] or repeat step q.
•While in the intercom mode, the transceiver functions
(transmit and receive) are interrupted. If the transceiver is
in transmit condition, the intercom function is not avail-
able.
•When a DSC call is received, the intercom function is in-
terrupted and automatically return to the transceiver
mode. The transceiver’s display indicate “Receiving DSC
calls.” (p 32)
INT
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
INTERCOM
-34"34.206N
TALK123"23.236W
--UTC-10:10COMMERCIAL
IC-M602 (caller) HM-127 (listener)
INT
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
INTERCOM
-34"34.206N
123"23.236W
--UTC-10:10COMMERCIAL
IC-M602 HM-127
39
7
OTHER FUNCTIONS
■Hailer operation
The IC-M602 has a 2-way hailer function for voice amplifica-
tion and reception over the loudspeaker, making it unneces-
sary to leave the bridge to hear a hailing party.
Connect an external hailer speaker as described on p. 47.
• Transmitting is impossible during hailer operation.
• The received signal is muted during hailer operation.
qPush [F], then push [7 HAIL] to enter hailer mode.
wPush and hold the PTT switch and speak at a normal voice
level into the microphone.
• “TALK” or “LISTEN” appears on the caller or listener function dis-
play, respectively.
• While pushing [PTT], rotate [CHANNEL] to adjust the hailer level.
eAfter releasing [PTT] you can hear the response through
the speaker.
r
To return to normal operation, push [CLR] or repeat step q.
• While in the hailer mode, the transceiver functions (trans-
mit and receive) are interrupted. If the transceiver is in
transmit condition, the hailer function is not available.
•When a DSC call is received, the hailer function is inter-
rupted and automatically return to the transceiver mode.
The transceiver’s display indicate “Receiving DSC calls.”
(p 32)
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
NORMAL-SCAN
HAILER
-34"34.506N
LISTEN.236W
___cal--1:10--CALLING
__
__
40
7OTHER FUNCTIONS
■Automatic fog horn
The automatic fog horn function sounds a horn repeatedly
until the function is turned OFF. Four patterns are available
for varying conditions.
The fog horn outputs from the hailer speaker. To use this
function, the hailer speaker must be connected to the trans-
ceiver. See p.47 for connection details.
TYPE PATTERN USAGE
UNDERWAY
STOP
SAIL
TOW
One 5-second blasts every 120 seconds.
Two 5-second blasts (separated by 2 sec-
onds) every 120 seconds.
One 5-second blast followed by two 1-second
blasts (each separated by 2 seconds) every
120 seconds.
One 5-second blast followed by three 1-sec-
ond blasts (each separated by 2-seconds)
every 120 seconds.
Motor vessel underway and making way.
Motor vessel underway but stopped (not making way).
Sailing vessel underway, fishing vessel (underway or
anchored), vessel not under command, a vessel restricted
in her ability to maneuver (underway or at anchor), or a
vessel towing or pushing another ahead.
Vessel under tow (manned).
The audio frequency of the fog horn is selectable. See
p.45 for details on selecting the audio frequency.
41
7
OTHER FUNCTIONS
qPush [F], then push [8 FOG] to enter auto fog horn mode.
wRotate [CHANNEL] to select the desired fog horn pattern,
push [ENT].
• ‘UNDERWAY,’ ‘STOP,’ ‘SAIL,’ ‘TOW’ are available. (p.40)
•Even [ENT] hasn’t been pushed, the display automatically
changes to the next step after 5 sec. inactivity.
eRotate [CHANNEL] to adjust the fog horn level, push
[ENT].
• The fog horn level is adjustable in 7 steps.
•Even [ENT] hasn’t been pushed, the display automatically
changes to the next step after 5 sec. inactivity.
r
To return to normal operation, repeat step q.
When a DSC call is received, the automatic fog horn func-
tion is interrupted and automatically return to the trans-
ceiver mode. The transceiver’s display indicate
“Receiving DSC calls.” (p 32)
■Microphone lock function
The microphone lock function electrically locks the [Y]/[Z]
and [16/9] switches on the supplied microphone. This pre-
vents accidental channel changes and accidental function ac-
cess.
➥While pushing [16/9] on the HM-136, turn power ON to tog-
gle the lock function ON and OFF.
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
FOG HORN
OUTPUT
UNDERWAY
E<ENT˘OK> COMMERCIAL
__
__
___
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
FOG HORN
OUTPUT
<CLR˘Exit>
E<ENT˘OK> COMMERCIAL
__
__
___
BUSY-25W---INT---CALL
LOCAL--DUP
SCRAM--TAG
ReceivedCAN
˘UNDERWAY
<STOP
<CLR˘Exit>
<ENT˘OK> COMMERCIAL
8SET MODE
42
Beep tone
Beep
Scan type
Scan type
Weather alert
WX Alert
Scan resume timer
Scan timer
Automatic fog horn frequency
Foghorn
Frequency
Attenuation level
RF
Attenuator
Internal speaker
Internal
speaker
Scrambler code
Scrambler
code
Scrambler type
Scrambler
type
Dual/tri-watch of COMMANDMIC
Dual/Tri COMMANDMIC
LCD contrast
Contrast
Rotate or
[CHANNEL]
Push when using HM-127
These items are not select
using HM-127
■Set mode programming
Set mode is used to change the conditions of the trans-
ceiver’s functions: scan type (normal or priority), scan resume
timer, weather alert, dual/tri-watch of COMMAND MIC, trans-
ceiver’s beep tone, internal speaker, LCD contrast, RF atten-
uation level, automatic fog horn frequency, scrambler type
and scrambler code.
Available functions may differ depending on dealer setting.
qTurn power OFF.
wWhile pushing [16•9], turn power ON to enter set mode.
eAfter the display appears, release [16•9].
rRotate [CHANNEL] to select the desired item, push [ENT].
Or push [16•9] to select the item using an optional HM-
127.
tRotate the [CHANNEL] to select the desired condition of
the item. Use [Y]/[Z] when using an optional HM-127.
yTurn power OFF, then ON again to exit set mode.
•SET MODE CONSTRUCTION
8
SET MODE
43
■Set mode items
◊Scan type
The transceiver has 2 scan types: normal scan and priority
scan. Normal scan searches all tag channels in the selected
channel group. Priority scan searches all tag channels in se-
quence while monitoring channel 16.
◊Scan resume timer
The scan resume timer can be selected as a pause (OFF) or
timer scan (ON). When OFF is selected, the scan pauses
until the signal disappears. When ON is selected, the scan
pauses 5 sec. and resumes even if a signal has been re-
ceived on channels except for channel 16.
◊Weather alert
An NOAA broadcast station transmits a weather alert tone be-
fore important weather information. When the weather alert
function is turned ON, the transceiver detects the alert, then
flashes the “WX ALERT” indicator until the transceiver is op-
erated. The previously selected (used) weather channel is
checked any time during standby or while scanning.
•“WX ALERT” appears instead of “WX” indication when the function
is set ON.
◊Dual/Tri-watch of COMMANDMIC
(Appears when connecting HM-127)
This item sets the HM-127’s [CH/WX•DW] switch function as
dual watch or tri-watch.
Dual/Tri COMMANDMIC
˘Tri-watch
˘OFF
--Set Mode--
˘Polling Request
˘Position Request
˘Dualwatch
˘<ENT˘OK>
WX Alert
˘ON
˘OFF
--Set Mode--
˘Polling Request
˘Position Request
˘ON with WX SCAN
<ENT˘OK>
Scan Timer
˘ON
˘All Ships Call
--Set Mode--
˘Polling Request
˘Position Request
˘OFF
<ENT˘OK>
Scan Type
˘Priority
˘All Ships Call
--Set Mode--
˘Polling Request
˘Position Request
˘Normal
<ENT˘OK>
44
8SET MODE
◊Beep tone
You can select silent operation by turning beep tones OFF, or
you can have confirmation beeps sound at the push of a
switch by turning beep tones ON.
The optional HM-127 has it’s own setting for the beep tone.
◊Internal speaker
When an optional external speaker is connected and the
transceiver’s internal speaker is not required, the speaker on
the transceiver and microphone can be deactivated.
◊LCD contrast
This item adjusts the contrast of the LCD in 8 steps.
The optional HM-127 has it’s own setting for the LCD con-
trast.
◊Attenuation level
This item sets the receive attenuation level for the attenuator
function from 3 levels.
RF Attenuator
˘Max
˘Min
--Set Mode--
˘1
˘2
˘Mid
˘<ENT˘OK>
Contrast
˘5
˘3
--Set Mode--
˘1
˘2
˘4
˘<ENT˘OK>
Internal Speaker
˘ON
˘OFF
--Set Mode--
˘Polling Request
˘Position Request
˘OFF
˘<ENT˘OK>
Beep
˘ON
˘OFF
--Set Mode--
˘Polling Request
˘Position Request
˘OFF
˘<ENT˘OK>
45
8
SET MODE
◊Automatic fog horn frequency
The audio frequency of the automatic fog horn can be ad-
justed to suit your preference. While this item is selected,
pushing [PTT] outputs the fog horn—experiment with the fre-
quencies available until you find one you like.
•Available frequency range is 200 Hz to 850Hz in 50 Hz step.
◊Scrambler type
(Appears when UT-112 is installed)
When an optional scrambler unit is installed, the scrambler
type can be selected in set mode depending on dealer set-
ting.
◊Scrambler code
(Appears when UT-112 is installed)
When an optional scrambler unit is installed, the scrambler
code can be set depending on dealer setting.
When the UT-112 is installed, 32 codes (1 to 32) can be se-
lected.
Scrambler Code
˘5
˘300
--Set Mode--
˘100
˘250
˘4
˘<ENT˘OK>
Scrambler Type
˘UT-98
˘300
--Set Mode--
˘200
˘250
˘UT-112
˘<ENT˘OK>
Foghorn Frequency
˘400
˘300
--Set Mode--
˘200
˘250
˘350
˘<ENT˘OK>
■Supplied accessories
The following accessories are supplied
Qty.
qMicrophone (HM-136) 1
wDC power cable (OPC-1174) .......................................... 1
eMicrophone hanger ........................................................ 1
rMic hanger screws (3 ×16) ............................................ 2
tMounting bracket ............................................................ 1
yKnob bolts for mounting bracket...................................... 2
uMounting screws (5 ×20) ............................................... 4
iSpring washers (M5) ...................................................... 4
oFlat washers (M5) ........................................................... 4
!0 Accessory connectors (3 pin, 6 pin) ...................... 1 each
!1 Sponges .......................................................................... 2
!2 Warning sticker ............................................................... 1
■Antenna
A key element in the performance of any communication sys-
tem is an antenna. Ask your dealer about antennas and the
best places to mount them.
■Fuse replacement
One fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem, if possible, and replace the damaged
fuse with a new, rated one.
■Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage transceiver surfaces.
Fuse rating: 10 A
WARNING
qwe
r
t
y
u
!1
!0
!2 i
o
46
9CONNECTIONS AND MAINTENANCE
47
9
CONNECTIONS AND MAINTENANCE

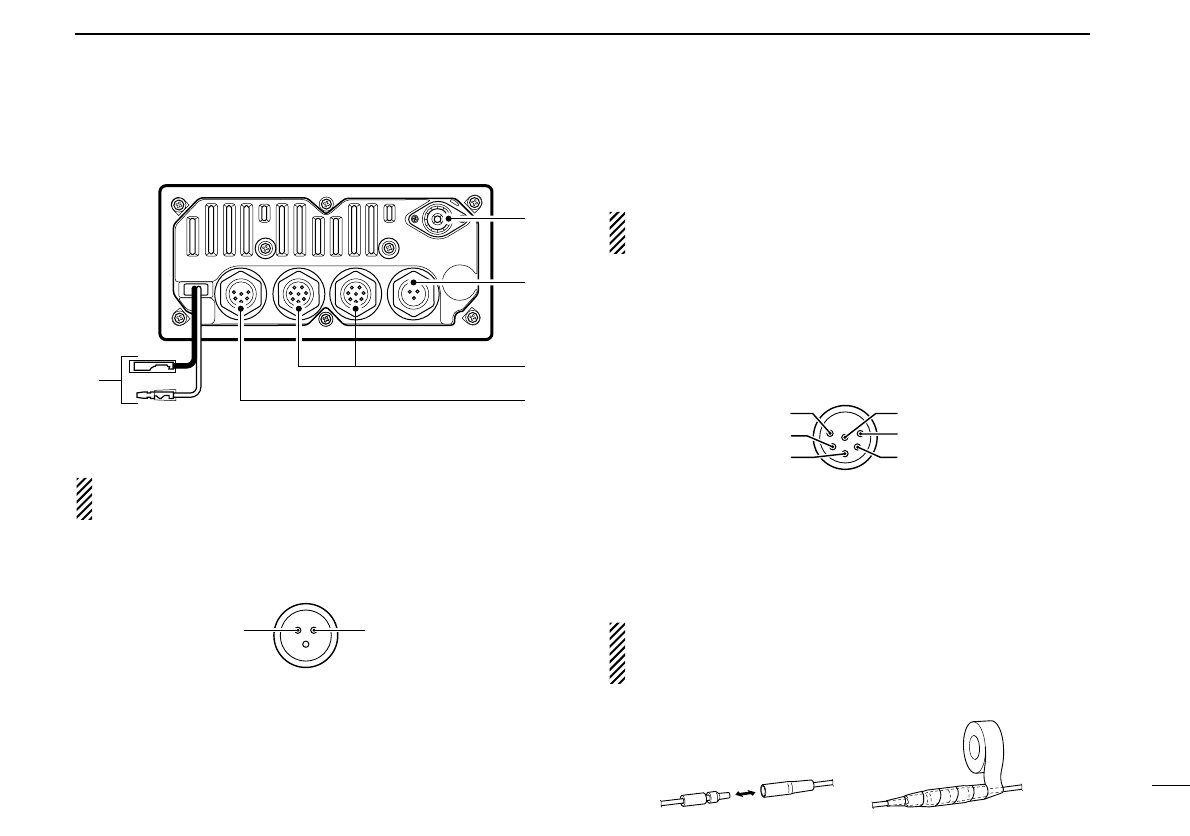

■Connections
qANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connector.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
wHAILER/FOG HORN CONNECTOR
Connects to a hailer speaker.
eEXTERNAL MICROPHONE JACKS
Connects to optional HM-127 REMOTE-CONTROL MICRO-
PHONE.
CAUTION: NEVER connect other microphone, such
as the HM-136, may cause damage the transceiver.
rGPS RECEIVER/EXTERNAL SPEAKER JACK
Connects to a GPS receiver for position and time indica-
tions.
•An NMEA0183 ver. 2.0 is required. Ask your dealer about the
GPS receiver.
Connects to an external speaker.
tDC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 13.8 V DC power source.
CAUTION: After connecting the DC power cable, cover
the connectors with a rubber vulcanising tape as shown
below to prevent water seeping into the transceiver.
NMEAOUT (+)
NMEAOUT (–)
NMEAIN (+)NMEAIN (–)
SP (+)
SP (–)
HAIL (+) HAIL (–)
t
q
e
r
w
Rubber vulcanizing
tape
48
9CONNECTIONS AND MAINTENANCE
■Mounting the transceiver
◊Using the supplied mounting bracket
The universal mounting bracket supplied with your transceiver
allows overhead or onboard mounting.
•Mount the transceiver securely with the 4 supplied screws
(M5 ×20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is at
90° to your line of sight when operating it.
CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
NOTE: When mount the transceiver on the place that
come with strong vibration, use supplied sponges between
the transceiver and mounting bracket for falling effect of
the vibration.
These screws are just mounting sample only,
not supplied with accsesories.
• OVERHEAD MOUNTING
• MOUNTING ON THE BOARD
49
9
CONNECTIONS AND MAINTENANCE
◊Using the optional MB-75
An optional MB-75 FLUSH MOUNT is available for mounting
the transceiver to a flat surface such as an instrument panel.
CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic navigation
compass.
qUsing the attached template, carefully cut a hole into the
instrument panel (or wherever you plan to mount the trans-
ceiver).
wSlide the transceiver through the hole as shown below.
eAttach the 2 supplied bolts (M5 ×8 mm) on either side of
the IC-M602.
rAttach the clamps on either side of the IC-M602.
• Make sure that the clamps align parallel to the IC-M602’s body.
tTighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in-
strument control panel.
yTighten the locking nuts (rotate counterclockwise) so that
the IC-M602 is securely mounted in position as below.
uConnect the antenna and control cable, then return the in-
strument control panel to its original place.
50
9CONNECTIONS AND MAINTENANCE
■Optional unit installation
CAUTION: DISCONNECT the DC power cable from the
transceiver before performing any work on the transceiver.
Otherwise, there is danger of electric shock and/or equip-
ment damage.
Follow the case opening procedure shown here when you
want to install an optional unit, etc.
qRemove the 12 screws as shown below and open the
transceiver.
wPlug an optional unit to J3 on the AF unit as shown below.
eAssemble the units to their original positions.
CAUTION: When assemble the units and tighten the
screws, you must keep the specified conclusion torque
(0.7 N.m). Unless otherwise the transceiver may be dam-
aged (conclusion torque too high) or lose the waterproof
efficient (conclusion torque too low).
Conclusion torque (0.7 N.m)
51
9
CONNECTIONS AND MAINTENANCE
■Dimensions
220.0 (8 21⁄32˝)
31.4
(1 1⁄4˝)
78.0
(3 1⁄16˝)
110.0 (4 11⁄32˝)109.4 (4 29⁄32˝)
200.0 (7 7⁄8˝)
Unit: mm (inch)
10 TROUBLESHOOTING
52
PROBLEM POSSIBLE CAUSE SOLUTION REF.
No power comes ON. •Bad connection to the power supply. •Check the connection to the transceiver. p. 47
No sound comes from
the speaker.
•Squelch level is too deep.
•Volume level is too low.
•Speaker has been exposed to water.
•Internal speaker is turned OFF.
•Set squelch to the threshold point.
•Set [VOL] to a suitable level.
•Drain water from the speaker.
•Turn the internal speaker ON in set mode.
p. 10
p. 10
—
p. 44
Transmitting is impossi-
ble, or high power can-
not be selected.
•Some channels are for low power or re-
ceive only.
•The output power is set to low.
•Change channels.
•Push [H/L] to select high power.
pgs.
8, 53
p. 10
Scan does not start. •“TAG ” channel is not programmed. •Set the desired channels as “TAG” chan-
nels.
p. 15
No beep sounds. •Beep tone is turned OFF.
•The squelch is open.
•Turn the beep tone ON in set mode.
•Set squelch to the threshold point.
p. 44
p. 10
Receive signal cannot
be understood.
•Optional voice scrambler is turned OFF.
•Scramble code is not set correctly.
•Turn the optional voice scrambler ON.
•Reset the scramble code.
p. 12
p. 45
Sensitivity is low. •The attenuator is activated. •
Push [F], then [6 LO/DX] to turn the function OFF.
p. 10
Distress call cannot be
transmitted.
•MMSI (DSC self ID) code is not pro-
grammed.
•Program the MMSI (DSC self ID) code. p. 16
11
CHANNEL LIST
53
Channel number
USA CAN
Transmit
Receive
01 156.050 160.650
01A 156.050 156.050
02 156.100 160.700
03 156.150 160.750
03A 156.150 156.150
156.200 160.800
04A 156.200 156.200
156.250 160.850
05A 05A 156.250 156.250
06 06 156.300 156.300
156.350 160.950
07A 07A 156.350 156.350
08 08 156.400 156.400
09 09 156.450 156.450
10 10 156.500 156.500
11 11 156.550 156.550
12 12 156.600 156.600
13†13†156.650 156.650
14 14 156.700 156.700
15†15†156.750 156.750
16 16 156.800 156.800
17†17†156.850 156.850
156.900 161.500
18A 18A 156.900 156.900
Frequency (MHz)
INT
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15†
16
17
18
Channel number Frequency (MHz)
USA CAN
Transmit
Receive
19A 19A 156.950 156.950
20 20†157.000 161.600
21 157.050 161.650
21A 21A 157.050 157.050
157.100 161.700
22A 22A 157.100 157.100
23 157.150 161.750
23A 157.150 157.150
24 24 157.200 161.800
25 25 157.250 161.850
26 26 157.300 161.900
27 27 157.350 161.950
28 28 157.400 162.000
60 156.025 160.625
156.075 160.675
61A 61A 156.075 156.075
156.125 160.725
62A 156.125 156.125
156.175 160.775
63A 156.175 156.175
64 156.225 160.825
INT
20
21
22
23
24
25
26
27
28
60
61
62
63
64
20A 157.000 157.000
Channel number
66A
Frequency (MHz)
66A†
USA CAN
Transmit
Receive
64A 64A 156.225 156.225
65A 65A 156.275 156.275
156.325 160.925
67†67 156.375 156.375
68 68 156.425 156.425
69 69 156.475 156.475
70‡70‡156.525 156.525
71 71 156.575 156.575
72 72 156.625 156.625
73 73 156.675 156.675
74 74 156.725 156.725
77†77†156.875 156.875
156.925 161.525
78A 78A 156.925 156.925
156.975 161.575
79A 79A 156.975 156.975
157.025 161.625
80A 80A 157.025 157.025
157.075 161.675
81A 81A 157.075 157.075
157.125 161.725
82A 82A 157.125 157.125
INT
65A
66
67
68
69
70‡
71
72
73
74
77
78
79
80
81
82
156.325 156.32566A
Channel number
84A
Frequency (MHz)
USA CAN
Transmit
Receive
83A 83A 157.175 157.175
84 84 157.225 161.825
85 85 157.275 161.875
85A 157.275 157.275
86 86 157.325 161.925
86A 157.325 157.325
87 87 157.375 161.975
87A 157.375 157.375
88 88 157.425 162.025
88A 157.425 157.425
INT
84
85
86
87
88
157.225 157.225
WX channel
4
Frequency (MHz)
Transmit Receive
1 RX only 162.550
2 RX only 162.400
3 RX only 162.475
5 RX only 162.450
6 RX only 162.500
7 RX only 162.525
8 RX only 161.650
9 RX only 161.775
10 RX only 163.275
RX only 162.425
†Low power only. ‡Receive only.
156.950 161.55019
21b Rx only 161.650
25b Rx only 161.850
156.275 160.87565
28b Rx only 162.000
83 157.175 161.77583
83b Rx only 161.775
NOTE: Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CANNOT
be lawfully used by the general public in U.S.A. waters.
54
12 SPECIFICATIONS AND OPTIONS
■Specifications
◊General
• Frequency coverage :
Transmit 156.025–157.425 MHz
Receive 156.050–163.275 MHz
• Mode : FM (16K0G3E)
DSC (16K0G2B)
• Current drain (at 13.8 V) : TX high (25 W) 5.2 A typical
Max. audio 1.2 A typical
• Power supply requirement: 13.8 V DC ±15%
(negative ground)
• Frequency stability : ±300 Hz
(–20°C to +60°C;
–4°F to +140°F)
• Antenna impedance : 50 Ωnominal
• Input impedance (MIC) : 2 kΩ
• Output impedance (audio): 4 Ω
• Intermediate frequencies : 1st; 31.05 MHz, 2nd; 450 kHz
(CH70 receiver) 1st; 21.7 MHz, 2nd; 450 kHz
• Dimensions : 220(W) ×110(H) ×109.4(D) mm
(Projection not included) 8 21⁄32(W) ×411⁄32(H) ×45⁄16(D) in
• Weight : 1350 g; 2 lb 16 oz
◊Transmitter
• RF output power : 25 W and 1 W
• Modulation system : Variable reactance frequency
modulation
• Max. frequency deviation : ±5.0 kHz
• Spurious emissions : Less than –70 dBc
• Adjacent channel power : More than 70 dB
• Audio harmonic distortion : Less than 10%
(at 1 kHz, 60% deviation)
• Residual modulation : More than 40 dB
• Audio frequency response: +1 to –3 dB of 6 dB/octave
range from 300 Hz to 3000 Hz
◊Receiver
• Receive system :
Double conversion superheterodyne
• Sensitivity (12 dB SINAD) : Less than 0.32 µV
Less than 0.32 µV
(CH70 receiver)
• Squelch sensitivity : Less than 0.32 µV
• Spurious response : More than 80 dB
• Intermodulation : More than 80 dB
•
Adjacent channel selectivity
: More than 80 dB
• Hum and noise : More than 40 dB
• Audio output power : 5 W typical at 10% distortion
with a 4 Ωload
All stated specifications are subject to change without
notice or obligation.
55
12
SPECIFICATION AND OPTIONS
■Options
•MB-75 FLUSH MOUNT (p. 49)
For mounting the transceiver to a panel.
•UT-112 VOICE SCRAMBLER UNIT (pgs. 12, 45)
Ensures private communications. 32 codes are available. Not
available in some countries.
•HM-127 REMOTE-CONTROL MICROPHONE (p. 56)
External microphone-type controller. Provides optional inter-
com operation. 6 m (20 feet) microphone cable and mount-
ing base included. Black and white colors are available.
•HM-136 SMART-SPEAKER-MICROPHONE (p. 7)
Same as supplied. Black and white colors are available.
•OPC-999 MICROPHONE EXTENSION CABLE
6 m (20 feet) microphone extension cable for optional
HM-127. Up to 2 OPC-999 can be connected. (18 m; 60 feet
maximum)
56
13 HM-127 REMOTE-CONTROL MICROPHONE OPTIONAL
■Panel description
The optional HM-127 remotely controls the IC-M602 and pro-
vides an optional intercom function.
qPOWER SWITCH [PWR] (pgs. 10, 63)
Push for 2 sec. to turn the HM-127 power ON or OFF
when the IC-M602 power is turned ON.
wPTT SWITCH [PTT] (pgs. 10, 63)
Push and hold to transmit; release to receive.
eCHANNEL UP/DOWN SWITCHES [YY]/[ZZ]
➥Push either switch to change the operating channel, set
mode contents, etc. (pgs. 10, 63)
➥Push either switch to adjust audio level or noise squelch
level after [VOL] or [SQL] is pushed, respectively. (pgs.
10, 63)
➥
Push either switch to adjust the brightness of the LCD and
switch backlight after [VOL] is pushed for 1 sec. (p. 64)
➥In set mode, changes setting of the selected item. (pgs.
42, 67)
➥Checks tag channels or changes scanning direction dur-
ing scan. (pgs. 15, 66)
rCHANNEL 16/CALL CHANNEL SWITCH [16•9]
➥Selects channel 16 when pushed. (pgs. 8, 62)
➥Selects call channel when pushed for 1 sec. (pgs. 8, 62)
•“CALL” appears when call channel is selected.
➥Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (pgs. 11, 65)
➥While pushing [H/L], enters memory name programming
condition. (pgs. 11, 68)
➥Enters set mode when pushed while turning power ON.
(pgs. 42, 67)
tCHANNEL/DUALWATCH/TRI-WATCH SWITCH
[CH/WX•DW•U/I/C]
➥Selects and toggles the regular channels and weather
channel when pushed momentarily. (pgs. 8, 9, 62)
q
w
r
eu
y
t
i
o
!0
57
13
HM-127 REMOTE-CONTROL MICROPHONE
➥While pushing [H/L], selects one of 3 regular channels
in sequence when pushed. (pgs. 8, 9, 62)
•International, U.S.A. and Canadian channels are available for
regular channels.
➥Starts dualwatch or tri-watch when pushed for 1 sec.
(pgs. 13, 66)
➥Stops dualwatch or tri-watch when either is activated.
yATTENUATOR/INTERCOM/SCRAMBLER SWITCH
[LO/DX•IC•SCR]
➥Toggles the attenuator function ON or OFF when
pushed momentarily. (pgs. 10, 63)
•“LOCAL” appears when the attenuator is in use.
➥Activates the intercom function when pushed for 1 sec.
(pgs. 38, 68)
➥Calls the IC-M602 when pushed and held while in inter-
com mode. (pgs. 38, 68)
➥While pushing [H/L], activates an optional voice scram-
bler function. (pgs. 12, 65)
•The optional voice scrambler function cannot be used on
channel 16 and 70.
uSQUELCH/MONITOR/LOCK SWITCH [SQL•MONI•L]
➥[Y]/[Z] sets the squelch threshold level after pushing
[SQL]. (p. 63)
➥Push [SQL•MONI] for 1 sec. to turn the monitor function
ON. (p. 64)
➥While pushing [H/L], push [SQL•MONI•L] to toggle the
microphone key lock function ON or OFF. (p. 64)
•“ T” appears while key lock function is in use.
•[PWR], [PTT], [VOL], [SQL] and [H/L] still function when the
microphone key lock function is turned ON.
➥Advance the cursor while in memory name program-
ming condition. (pgs. 11, 68)
iVOLUME/DIMMER SWITCH [VOL•DIM]
➥[Y]/[Z] adjusts the audio level after pushing [VOL].
➥Push [VOL•DIM] for 1 sec. to adjust the brightness of
the LCD and switch backlight. (p. 64)
➥Move the cursor backward while in memory name pro-
gramming condition. (pgs. 11, 68)
oTRANSMIT POWER SWITCH [H/L]
➥Toggles high and low power when pushed. (pgs. 10, 63)
• Some channels are set to low power only.
➥While pushing this switch, other switches perform sec-
ondary functions.
➥Toggles the all key lock function ON or OFF when
pushed while turning power ON. (p. 64)
•“ T” flashes while the all key lock function is in use.
•Only [PWR] and [PTT] function when the all key lock function
is in use.
!0 SCAN SWITCH [SCN•TAG] (pgs. 15, 66)
➥Starts and stops normal or priority scan when tag chan-
nels are programmed.
➥Push [SCN•TAG] for 1 sec. to set the displayed channel
as a tag (scanned) channel.
➥While pushing [H/L], push for 3 sec. to clear all tag chan-
nels.
58
13 HM-127 REMOTE-CONTROL MICROPHONE
■Function display
qCHANNEL GROUP INDICATOR (pgs. 8, 9, 62)
Indicates whether an International (INT), U.S.A. (USA) or
Canadian (CAN) channel is selected.
wKEY LOCK INDICATOR (p. 64)
➥Appears while the key lock function is in use.
➥Flashes while the all key lock function is in use.
eCHANNEL NUMBER READOUT
➥Indicates the selected operating channel number. “A”
appears when a simplex channel is selected. “b” ap-
pears when a receive only channel for a canadian chan-
nel group is selected. (pgs. 8, 9, 62)
➥In set mode, indicates the selected condition. (pgs. 42,
67)
➥“IC” appears during intercom mode. (pgs. 38, 68)
rVOLUME INDICATOR (p. 63)
Appears while audio output level is adjusted.
tSQUELCH INDICATOR (p. 63)
Appears while noise squelch level is adjusted.
yCHANNEL NAME INDICATOR
➥Channel comment appears (and scrolls) if programmed.
(pgs. 11, 68)
➥In set mode, indicates or scrolls the selected set mode
item. (pgs. 42, 67)
uATTENUATOR INDICATOR (pgs. 10, 63)
Appears when the RF attenuator is in use.
iSCRAMBLER INDICATOR (pgs. 12, 65)
Appears when an optional voice scrambler is activated.
oSCAN INDICATOR (pgs. 15, 66)
➥“SCAN” appears during normal scan.
➥“P SCAN” appears during priority scan.
!0 PRIORITY CHANNEL INDICATOR
➥Indicates a priority channel during priority scan or
dual/tri-watch. (pgs. 13, 15, 66)
CALL
WX ALT
DUP
P SCAN
SCRM
LOCAL
TRI
DUAL
LOW
TAG
CAN
USA
INT
L
TX BUSY
VOL
SQL
q
w
r
t
e
!8 !7 !4!5 !3
!2
!1
!0
o
i
uy
!6
59
13
HM-127 REMOTE-CONTROL MICROPHONE
!1 DUAL/TRI WATCH INDICATOR (pgs. 13, 66)
“DUAL” appears during dualwatch; “TRI” during tri-watch.
!2 WEATHER CHANNEL INDICATOR (pgs. 9, 62)
➥“WX” appears when a weather channel is selected.
➥“ALT” appears when the weather alert function is in use;
flashes when an alert tone is received.
!3 LOW POWER INDICATOR (pgs. 10, 63)
Appears when low power is selected.
!4 CALL CHANNEL INDICATOR (pgs. 8, 62)
Appears when the call channel is selected.
!5 DUPLEX INDICATOR (pgs. 8, 62)
Appears when a duplex channel is selected.
!6 TAG CHANNEL INDICATOR (pgs. 15, 66)
Appears when a tag channel is selected.
!7 BUSY INDICATOR (pgs. 10, 63, 64)
Appears when receiving a signal or when the squelch
opens.
!8 TRANSMIT INDICATOR (pgs. 10, 63)
Appears while transmitting.
■HM-127 supplied accessories
Accessories included with the HM-127: Qty.
qConnection cable (OPC-1000: 6 m; 20 ft) ...................... 1
wMounting base ................................................................ 1
eMicrophone hanger ........................................................ 1
rScrews (M3 ×16; tapping) ............................................. 5
q
we
r
60
13 HM-127 REMOTE-CONTROL MICROPHONE
■Installation
The optional HM-127 can be connected to the transceiver di-
rectly, as well as via the supplied connection cable for longer
distance remote operation. The connector of the connection
cable can be installed into a cabinet, wall, etc., as a built-in
plug.
For longer distance remote operation, the optional extension
cable, OPC-999 (6 m; 20 ft/Connecting between transceiver
and the connection cable.), is available, and up to 2 OPC-999
can be added.
qInsert the supplied cable into the external microphone jack
and tighten the cable nut as shown below.
wTo use the supplied cable as a wall socket, follow the fol-
lowing steps.
eUsing the mounting base, carefully mark off the 2 spots
where the cable and screws will be fastened.
rDrill holes at these marks.
tInstall the mounting base using screws as shown below.
yThe installation is finished
when it is completed.
Gasket
Cap
Mounting base Nut
Screw holes
(approx. 2 (d) mm; 3⁄32″)
61
13
HM-127 REMOTE-CONTROL MICROPHONE
50 (d) mm; 131⁄32˝
23 (d) mm; 29⁄32˝
24 to 27 (d) mm
(15⁄16 to 11⁄16˝)
5 mm; 3⁄16˝
Gasket
Mounting base
Cap
Nut
2 mm; 3⁄32˝
62
13 HM-127 REMOTE-CONTROL MICROPHONE
■Channel selection
◊Channel 16
qPush [16] to select channel 16.
wPush [CH/WX] to return to the
condition before selecting chan-
nel 16, or push [Y] or [Z] to se-
lect operating channel.
◊Call channel
qPush [16•9] for 1 sec. to select
call channel.
wPush [CH/WX] to return to the
condition before selecting call
channel, or push [Y] or [Z] to se-
lect operating channel.
◊Weather channels
qPush [CH/WX] once or twice to
select weather channel group.
wPush [Y] or [Z] to select weather
channel.
ePush [CH/WX] to return to the
condition before selecting the
weather channel group.
◊U.S.A., International and Canadian channels
qPush [CH/WX] to select regular channel.
• Push [CH/WX] again, if weather channel appears.
wPush [CH/WX•U/I/C], while pushing [H/L], to select chan-
nel group.
• U.S.A., International and Canadian channels can be selected in
sequence.
Push
Push for 1 sec.
Push
Push
while pushing
U.S.A. channels
Canadian channelsInternational channels
+
+
63
13
HM-127 REMOTE-CONTROL MICROPHONE
■Receiving and transmitting
qPush [PWR] to turn power ON.
wPush [VOL], then [Y]/[Z] to adjust audio output level.
• Push [SQL], then [Y]/[Z] to mute any audio noise, if necessary.
ePush [Y]/[Z] to select the desired channel.
•When receiving a signal, “ ” appears and audio is emitted
from the speaker.
• Further adjustment of audio level may be necessary at this point.
• Use the optional voice scrambler function for privacy. (pgs. 12, 65)
rPush [H/L] to select the output power, if necessary.
• “LOW” appears when low power is selected.
•Choose low power for shorter, high power for longer distance
communications.
• Some channels are low power only.
tPush and hold [PTT] to transmit, then speak into the mi-
crophone.
• “ ” appears.
• Channel 70 cannot be used for transmission (for GMDSS use).
Simplex channels, 3, 21, 23, 61, 64, 81, 82 and 83 CAN-
NOT be lawfully used by the general public in U.S.A. wa-
ters.
yRelease [PTT] to receive.
IMPORTANT: To maximize the readability of your trans-
mitted signal (voice), pause a few sec. after pushing [PTT],
hold the microphone 1 to 2 inches (2.5 to 5 cm) from your
mouth and speak at a normal voice level.
■RF attenuator function
➥Push [LO/DX] to turn the RF
attenuator function ON and
OFF.
w Set volume
w Set squelch,
if required
r Set output power
t Speak into
microphone
q Turn power ON
e Set channel
t Push to
transmit
y Release
to receive
Appears when the RF
attenuator function is in use
64
13 HM-127 REMOTE-CONTROL MICROPHONE

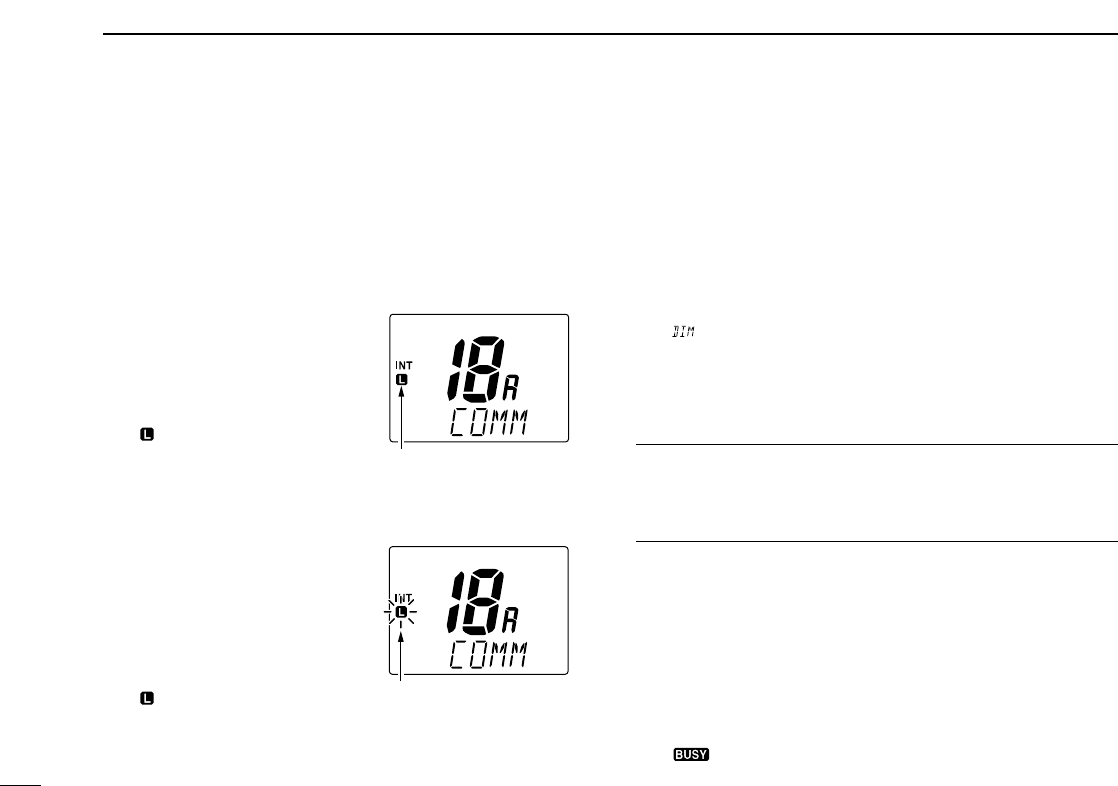

■Lock functions
The lock function electronically locks keys and switches to
prevent accidental changes and function access from the mi-
crophone.
• All keys, switches and controllers on the transceiver are functional.
◊Activating the lock
function
➥Push [SQL] while pushing
[H/L] to turn the lock function
ON or OFF.
• “ ” appears.
•Only [PWR], [PTT], [H/L],
[SQL•MONI], [VOL]+[Y]/[Z] and
[SQL]+[Y]/[Z] are functional.
◊Activating the all key
lock function
➥Turn the power ON by pushing
[PWR] while pushing [H/L] to
turn the all key lock function
ON or OFF.
• “ ” flashes.
• Only [PWR] and [PTT] are func-
tional.
■Display backlighting
The function display and switches can be backlight for better
visibility under low light conditions. And the backlighting con-
dition can be adjusted independently from the transceiver.
qPush [VOL•DIM] for 1 sec. to enter backlight adjusting
mode.
• “ ” with number of backlight level appears in the channel name
indicator.
wPush [Y]/[Z] to adjust the backlight level.
•The backlight level is adjustable between 0 (lights OFF) and 7
(brightest).
For your reference:
Pushing [Y]/[Z], while [H/L] is pushed, also adjusts backlight
level.
• No backlight level indication is available.
■Monitor function
The monitor function releases the noise squelch mute of the
microphone only. (An independent noise squelch system is
employed.)
➥Push [SQL•MONI] for 1 sec. to activate the monitor func-
tion.
• “ ” flashes and audio is emitted.
• Any key cancels the monitor function.
Appears when the lock
function is in use.
Flashes when the all lock
function is in use.
65
13
HM-127 REMOTE-CONTROL MICROPHONE
■Call channel programming
qPush [CH/WX•U/I/C] several times
while pushing [H/L] to select the
desired channel group (USA, INT,
CAN) to be programmed.
wPush [16•9] for 1 sec. to select the
call channel of the selected chan-
nel group.
•“CALL” and call channel number ap-
pear.
ePush [16•9] again for 3 sec. (until
long beep changes to 2 short
beeps) to enter call channel pro-
gramming condition.
•Call channel number and channel
group to be programmed flashes.
rPush [Y]/[Z] to select the desired
channel.
tPush [16•9] to program the dis-
played channel as the call channel.
• The call channel number and channel
group stop flashing.
■Optional voice scrambler
operation
◊Activating the scrambler
qSelect an operating channel, except channel 16, channel
70 or weather channels.
wPush [LO/DX•IC•SCR] while
pushing [H/L] to turn the
voice scrambler function ON.
• “SCRM” appears.
eTo turn the scrambler func-
tion OFF, repeat step w.
• “SCRM” disappears.
◊Programming scramble codes
There are 32 codes (01 to 32) available with the UT-112 for
programming. In order to understand one another, all trans-
ceivers in your group must have the same scrambler code.
The scrambler code is programmed in set mode. See pgs.
12, 45 for details.
Appears when the voice
scrambler function is in use.
66
13 HM-127 REMOTE-CONTROL MICROPHONE
■Starting a scan
qPush [CH/WX•U/I/C] several times
while pushing [H/L] to select the
channel group (USA, INT, CAN), if
desired.
•When the weather alert function is in
use, select the desired weather channel
with [CH/WX] and [Y]/[Z].
wPush [SCN] to start priority or normal
scan.
• “SCAN” appears during normal scan.
•The priority channel readout indicates
“16”, and “P” and “SCAN” indicators ap-
pear during priority scan.
• When a signal is received, scan pauses
until the signal disappears or resumes
after pausing 5 sec. according to set
mode setting (Channel 16 is still moni-
tored during priority scan).
• Push [Y]/[Z] to check the scanning tag
channels, to change the scanning direc-
tion or resume the scan manually.
eTo stop the scan, push [SCN].
• “SCAN” disappears.
•Pushing [PTT], [16•9] or [CH/WX] also
stops the scan.
■Setting tag
channels
qPush [CH/WX•U/I/C] several times
while pushing [H/L] to select the
channel group (USA, INT, CAN), if
desired.
wPush [Y]/[Z] to select the desired
channel to set as a tag channel.
ePush [SCN•TAG] for 1 sec. to set the
displayed channel as a tag channel.
• “ ” appears.
rTo cancel the tag channel setting,
push [SCN•TAG] for 1 sec.
• “ ” disappears.
•Clearing all tag channels in the
selected channel group
➥Push [SCN•TAG] while pushing [H/L]
for 3 sec. (until long beep changes to
2 short beeps).
■Dualwatch/Tri-
watch operation
qPush [Y]/[Z] to select the desired
channel.
• Push [CH/WX•U/I/C] several times while
pushing [H/L] to select the channel
group (USA, INT, CAN), if desired.
wPush [CH/WX•DW] for 1 sec. to start
dualwatch or tri-watch.
• “DUAL” appears during dualwatch; “TRI”
appears during tri-watch.
•Beep tone sounds when a signal is re-
ceived on channel 16.
• Tri-watch becomes dualwatch when re-
ceiving a signal on the call channel.
• Dualwatch or tri-watch can be selected
on the transceiver’s set mode.
eTo cancel dualwatch/tri-watch, push
[CH/WX•DW] again.
67
13
HM-127 REMOTE-CONTROL MICROPHONE
■Set mode programming
Set mode is used to change the condition of the transceiver’s
functions and the microphone’s own functions:
Transceiver’s functions—
scan type (normal or priority), scan resume timer, weather
alert, dualwatch/tri-watch of COMMANDMIC, transceiver’s
beep tone, internal speaker (transceiver), LCD contrast
(transceiver), RF attenuation level, foghorn frequency, scram-
bler type and scrambler code.
Microphone’s own functions—
beep tone function (microphone) and LCD contrast (micro-
phone).
In this section, instructions are for the microphone’s own func-
tions only. Refer pgs. 42–45 for the setting of the other func-
tions. (Some functions may not be selected from the micro-
phone.)
◊Entering set mode
qTurn power OFF.
wWhile pushing [16•9], turn power ON.
• After beep emission, a set mode item (in the channel name indi-
cator and condition in the channel number readout) is displayed.
ePush [16•9] to select the desired item, if necessary.
rPush [Y]/[Z] to select the desired condition of the item.
tTurn power OFF, then ON to exit set mode.
•Beep tone “BEEP”
➥Push [Y] to turn ON, [Z] to turn OFF the beep output.
•LCD contrast “LCD CONTRAST”
➥Push [Y]/[Z] to adjust to a suitable LCD contrast.
Push
• •
• •
Push
68
13 HM-127 REMOTE-CONTROL MICROPHONE
■Intercom operation
qPush [LO/DX•IC] for 1 sec. to ac-
tivate the intercom function.
• “IC” appears in the channel readout.
• The channel name disappears.
wPush [PTT] to talk.
•“ ” appears in the channel
name indicator.
eRelease [PTT] to listen.
•“ ” appears in the channel name indicator when the trans-
ceiver is in talking.
rPush [LO/DX•IC] to cancel the intercom function.
• Pushing [16], [SCN•TAG] or [CH/WX] also cancels the intercom
function.
For your reference:
In case the intercom mode is selected with the transceiver
during microphone power OFF, the microphone power is au-
tomatically turned ON and the intercom mode is selected.
◊Intercom beep function
➥Push [LO/DX•IC] for more than 1 sec.
• Emits intercom beep while holding.
■Channel names
q
Push [Y]/[Z] to select a channel to program the channel name.
• Push [CH/WX•U/I/C] several times while pushing [H/L] to select
the channel group (USA, INT, CAN), if desired.
wWhile pushing [H/L], push [16•9].
• The 1st character of the currently programmed comment flashes.
ePush [Y]/[Z] to select a character.
rPush [SQL] to move to right; then push [Y]/[Z] to select a
character.
• Push [VOL] to move to left.
tContinue until the desired characters have been selected,
then push [16•9] to return to normal operation.
•Available characters
(r)
(s) (t) (u) (v) (w) (x) (y) (z)
(q)
(3)
(D)
(N)
(X)
(h)
(+)
(4)
(E)
(O)
(Y)
(i)
(–)
(5)
(F)
(P)
(Z)
(j)
(✱)
(6)
(G)
(Q)
(a)
(k)
(/)
(7)
(H)
(R)
(b)
(l)
(,)
(8)
(I)
(S)
(c)
(m)
(space)
(9)
(T)
(d)
(n)
(0)
(A)
(U)
(e)
(o)
(1)
(B)
(V)
(f)
(p)
(2)
(C)
(J) (K) (L)
(M)
(W)
(g)
(.)
(
))((
)(’)(&)(
%
)($)(#)(")(!)
Appears when the inter-
com function is in use.
TEMPLATE
Unit: mm (inch)
24 to 27 (d) mm
(15⁄16 to 11⁄16˝)
2 mm; 3⁄32˝
HM-127
HM-127 TEMPLATE
Cut here
Count on us!
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
A-6217H-1EX
Printed in Japan
© 2002 Icom Inc.
