parc scientifique Einstein – avenue Albert Einstein 11i – B-1348 Louvain-la-Neuvetél. : 32-(0)10-45 41 02 – fax : 32-(0)10-45 04 61 – e-mail : info@icomscommunications.beTM60The TM60 microwave radar is designed to detect moving vehicles, for call orextension of a signal phase. Compact and light, it is easy to install and doesn’trequire civil works nor disruption to traffic.Comfort>Environmental insensitivity : dust, heat, intensecold, humidity, … have no influence on theradar’s performances>Cable connector at the rear>No maintenance>Delivered ready to install, i.e. including cable, fixing support, screws and boltsSafety>Settings adjustable without dismantling >Aluminium IP68 housing>Operating temperature from - 40°C to + 75°CTM60

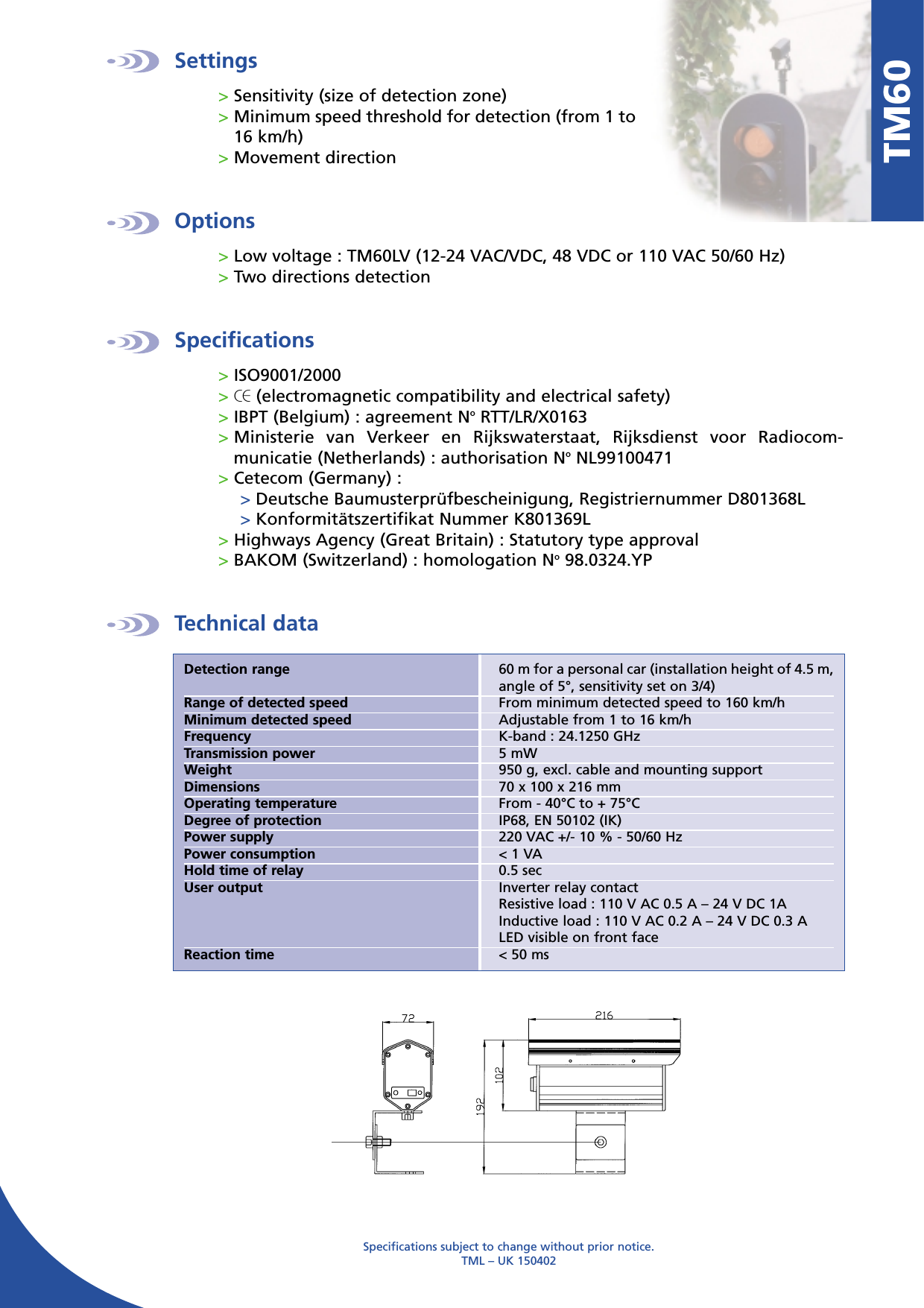

Settings>Sensitivity (size of detection zone)>Minimum speed threshold for detection (from 1 to16 km/h)>Movement directionOptions>Low voltage : TM60LV (12-24 VAC/VDC, 48 VDC or 110 VAC 50/60 Hz)>Two directions detectionSpecifications>ISO9001/2000>CE (electromagnetic compatibility and electrical safety)>IBPT (Belgium) : agreement NoRTT/LR/X0163>Ministerie van Verkeer en Rijkswaterstaat, Rijksdienst voor Radiocom-municatie (Netherlands) : authorisation NoNL99100471>Cetecom (Germany) :>Deutsche Baumusterprüfbescheinigung, Registriernummer D801368L>Konformitätszertifikat Nummer K801369L>Highways Agency (Great Britain) : Statutory type approval >BAKOM (Switzerland) : homologation No98.0324.YPTechnical dataTM60Specifications subject to change without prior notice.TML – UK 150402Detection range 60 m for a personal car (installation height of 4.5 m,angle of 5°, sensitivity set on 3/4)Range of detected speed From minimum detected speed to 160 km/hMinimum detected speed Adjustable from 1 to 16 km/hFrequency K-band : 24.1250 GHzTransmission power 5 mWWeight 950 g, excl. cable and mounting supportDimensions 70 x 100 x 216 mmOperating temperature From - 40°C to + 75°CDegree of protection IP68, EN 50102 (IK)Power supply 220 VAC +/- 10 % - 50/60 HzPower consumption < 1 VAHold time of relay 0.5 secUser output Inverter relay contactResistive load : 110 V AC 0.5 A – 24 V DC 1AInductive load : 110 V AC 0.2 A – 24 V DC 0.3 ALED visible on front faceReaction time < 50 ms
